Sold

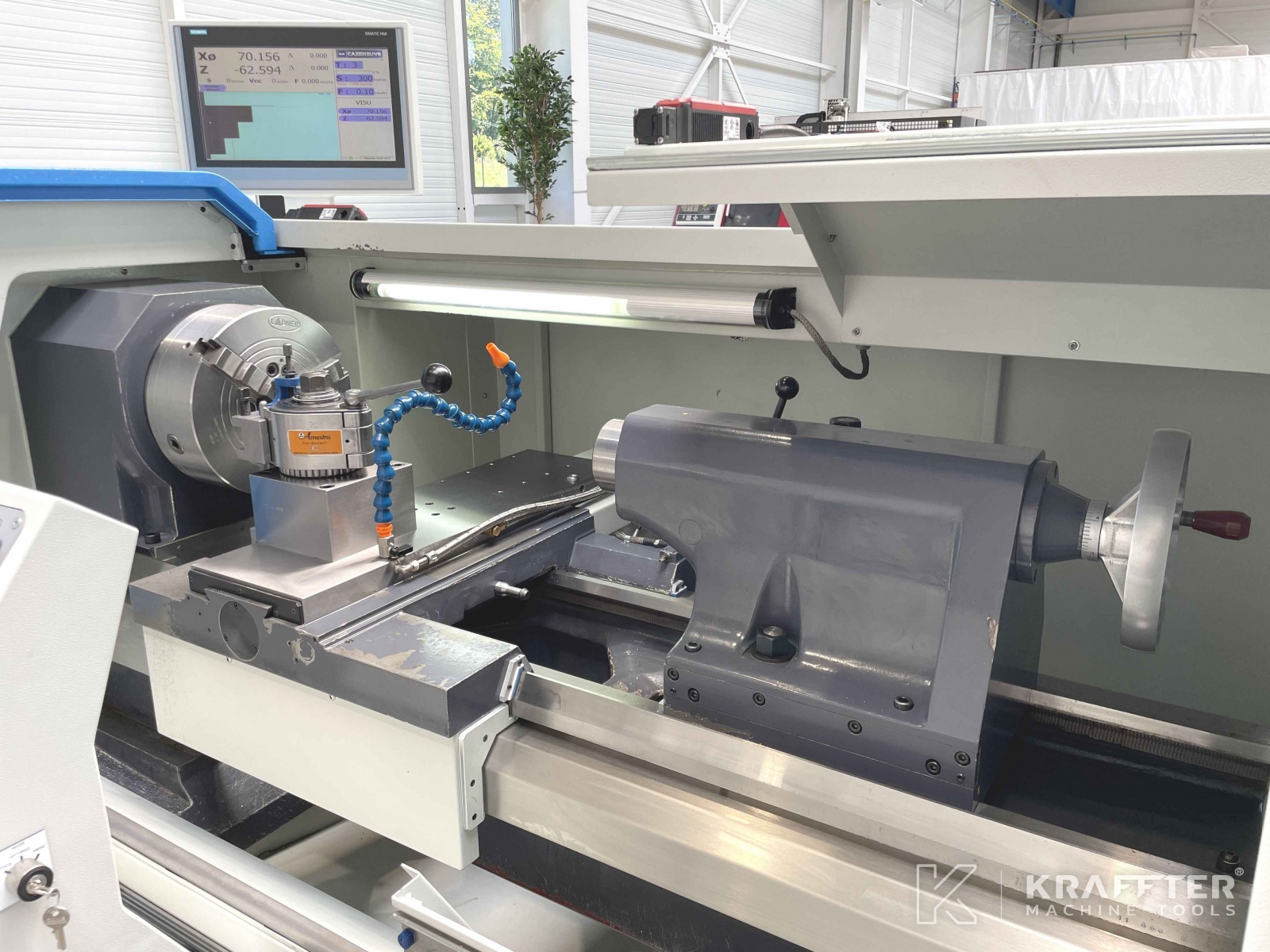

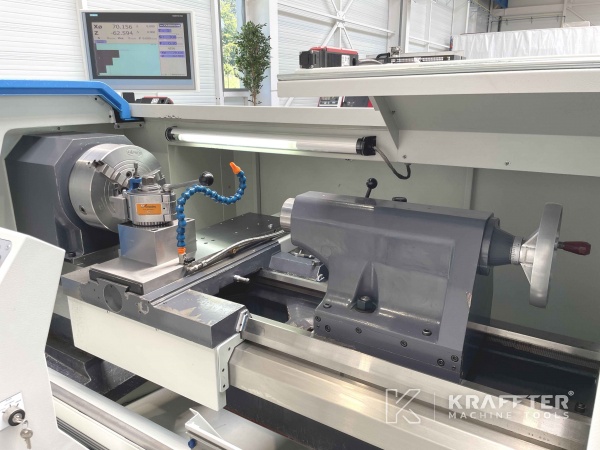

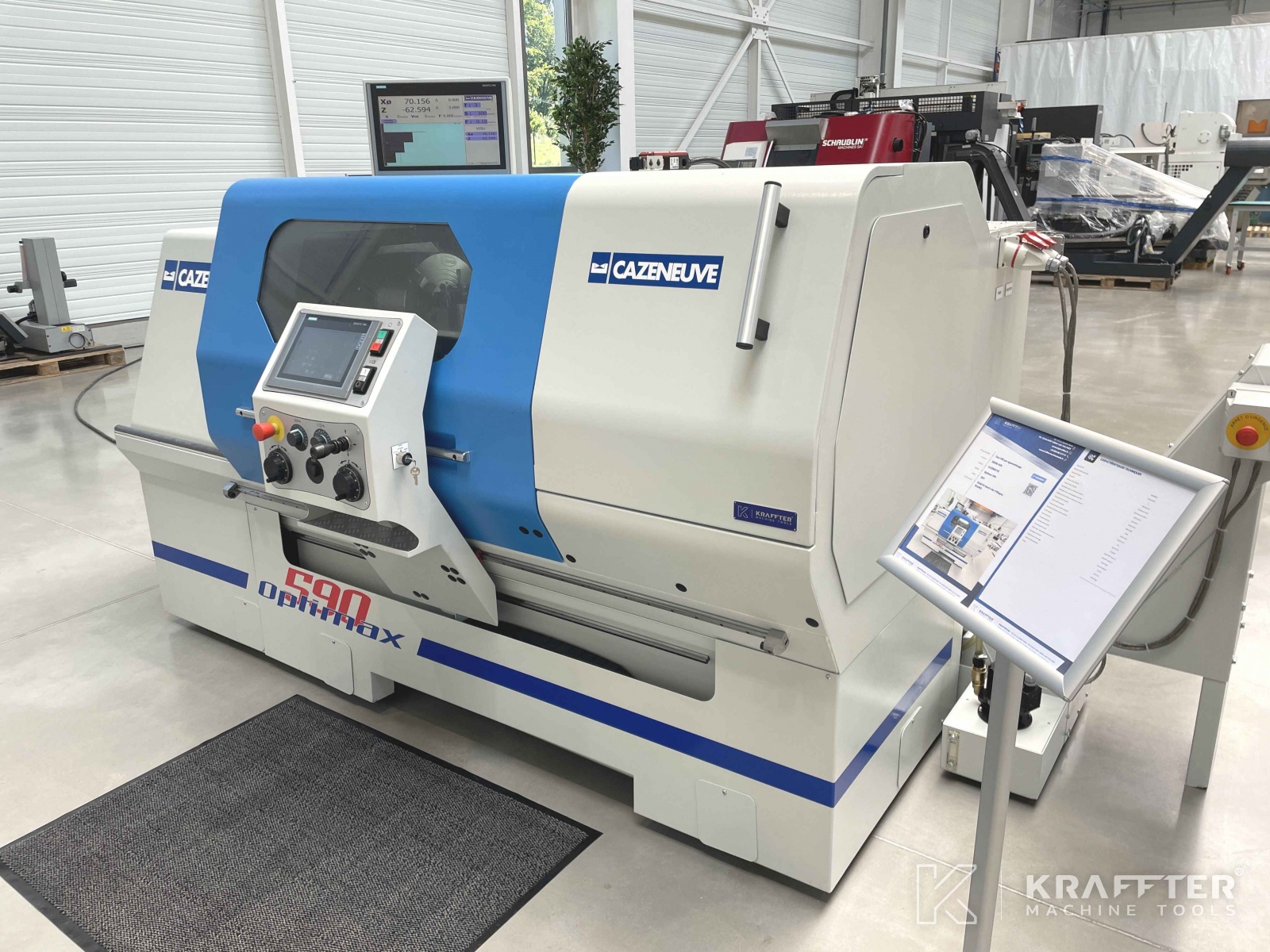

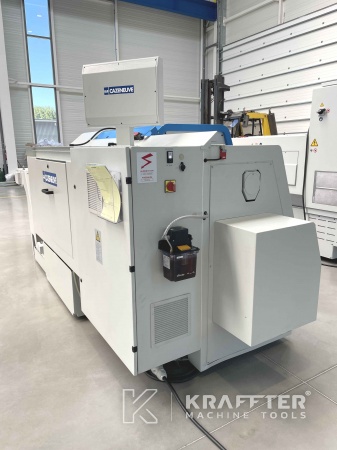

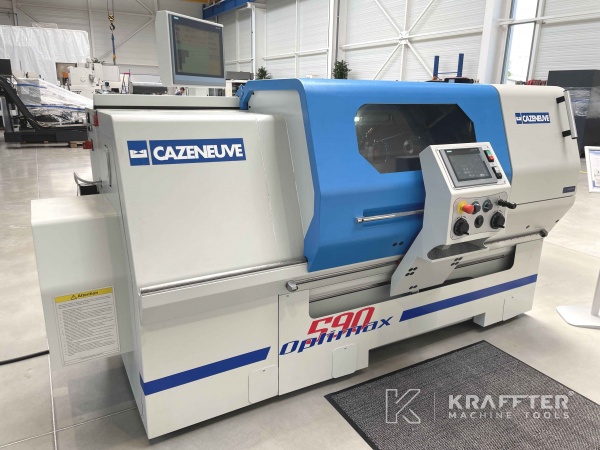

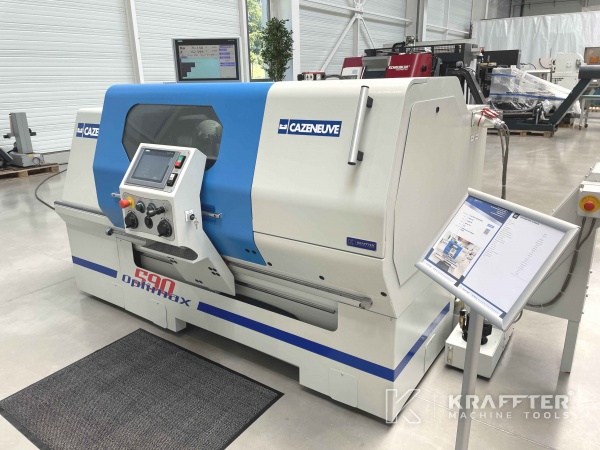

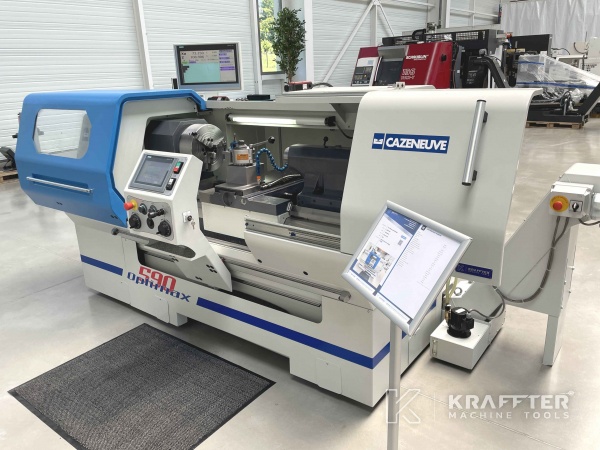

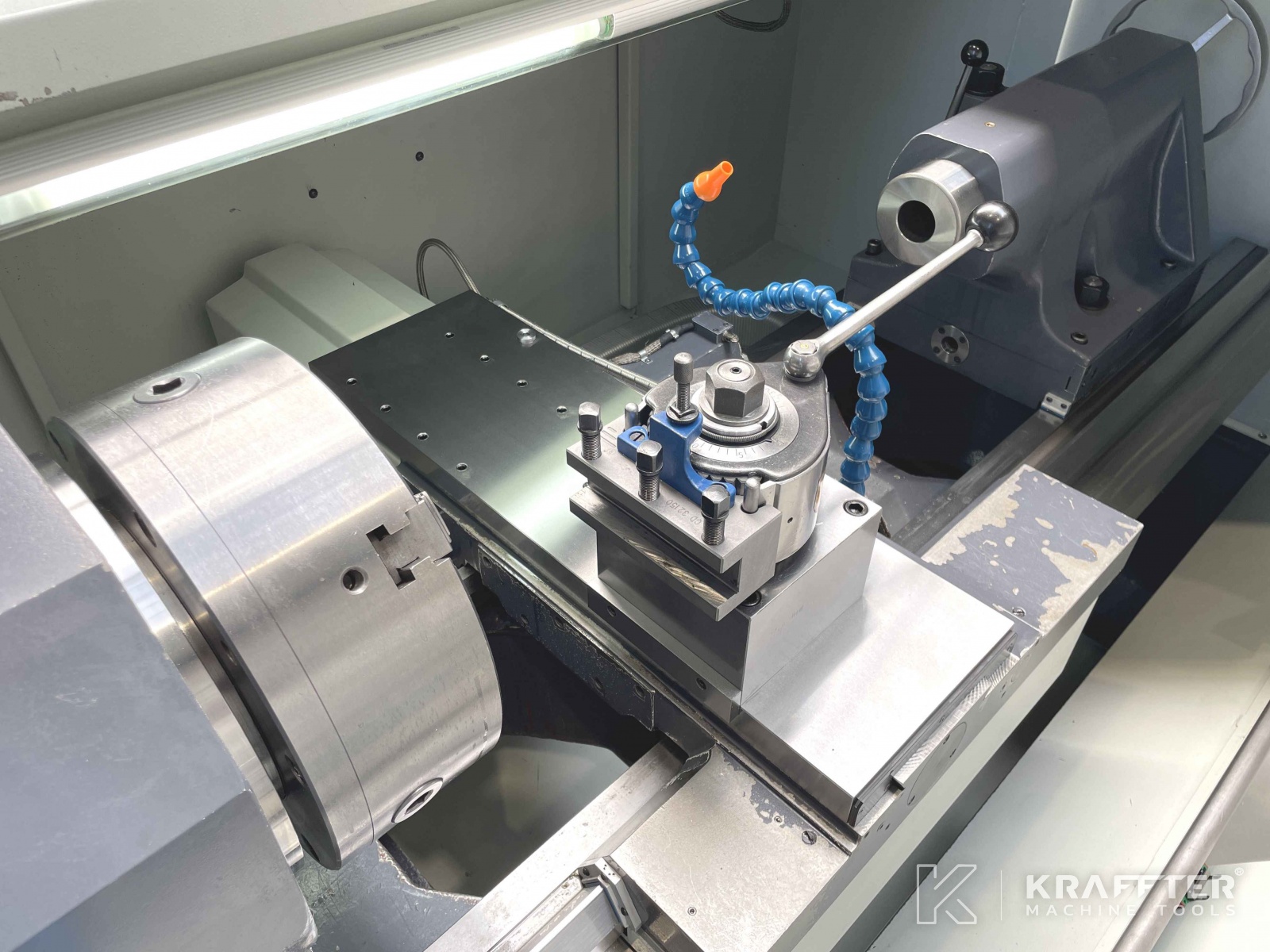

Type of machine : CNC teach-in lathe
Brand : CAZENEUVE
N° de stock: 20690-020

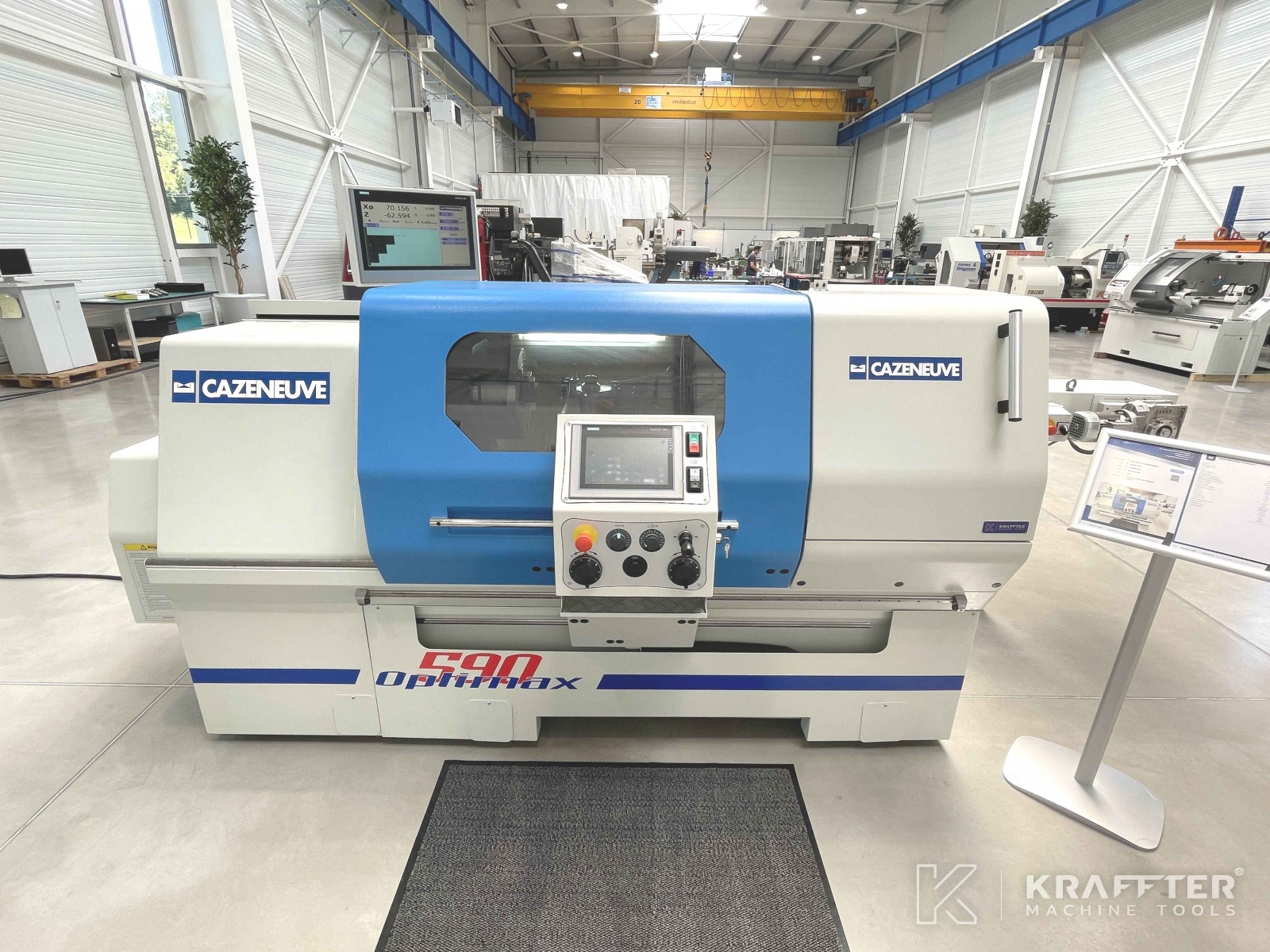

Model : Optimax 590
Year : 2017
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

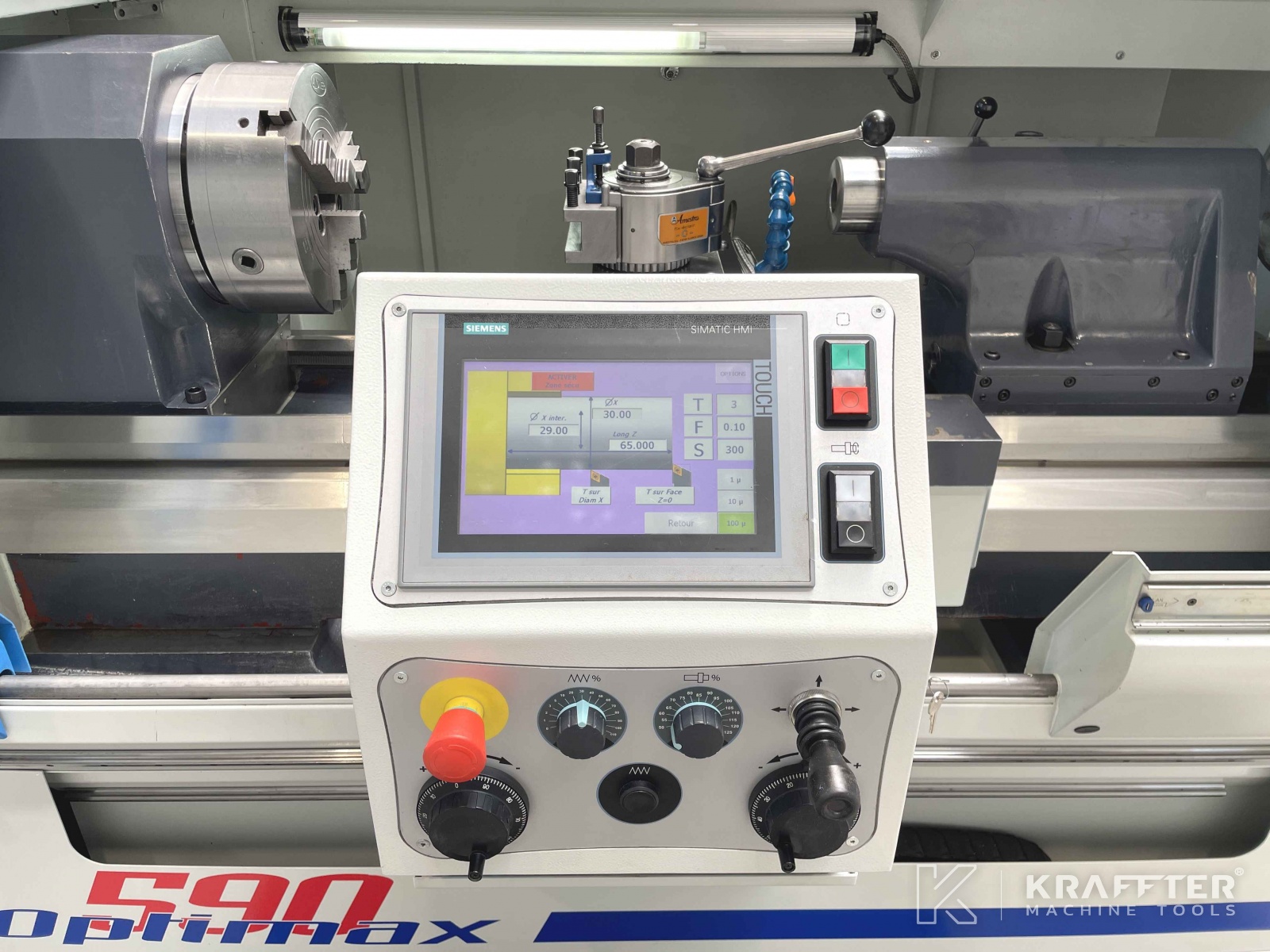

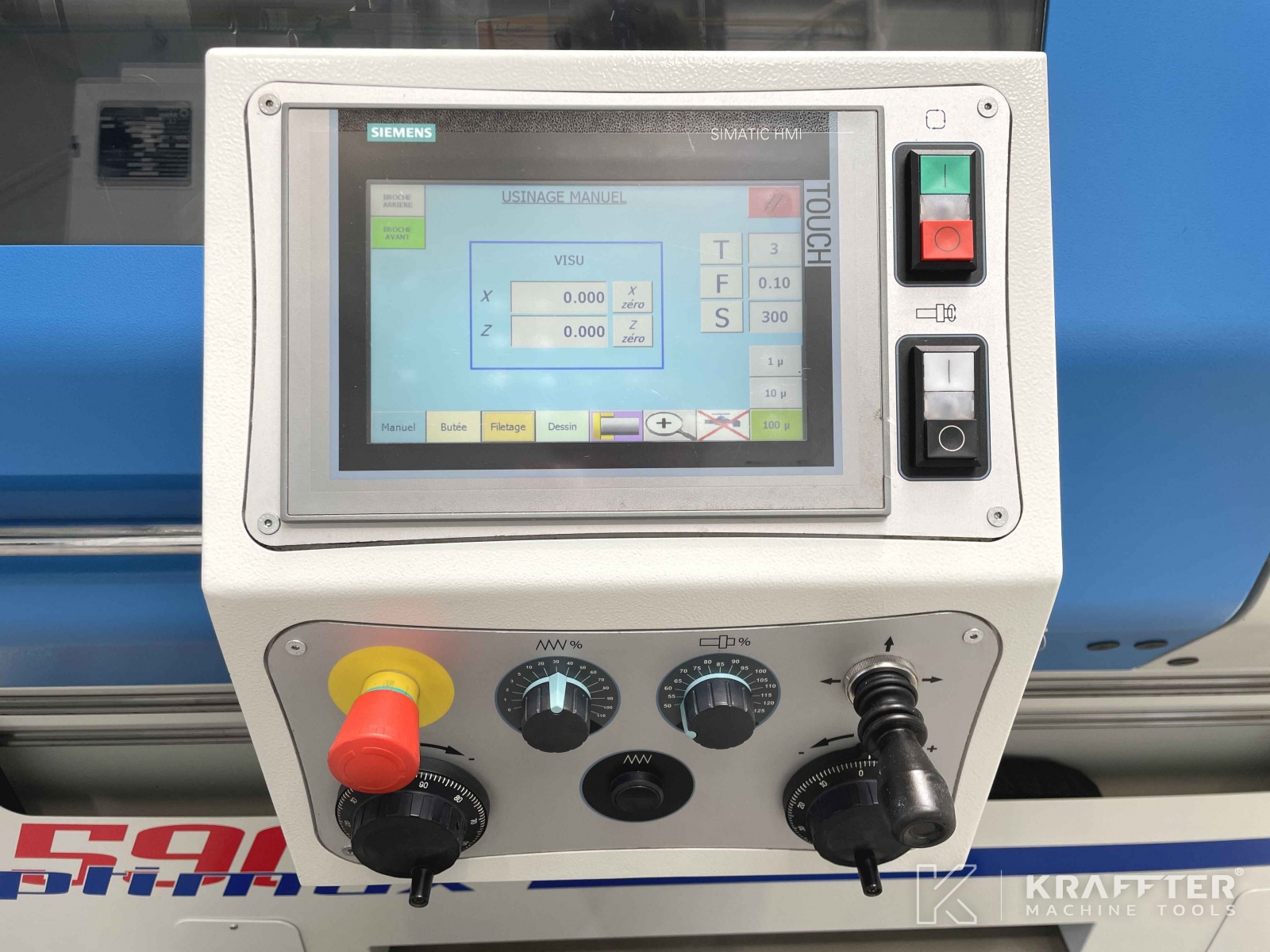

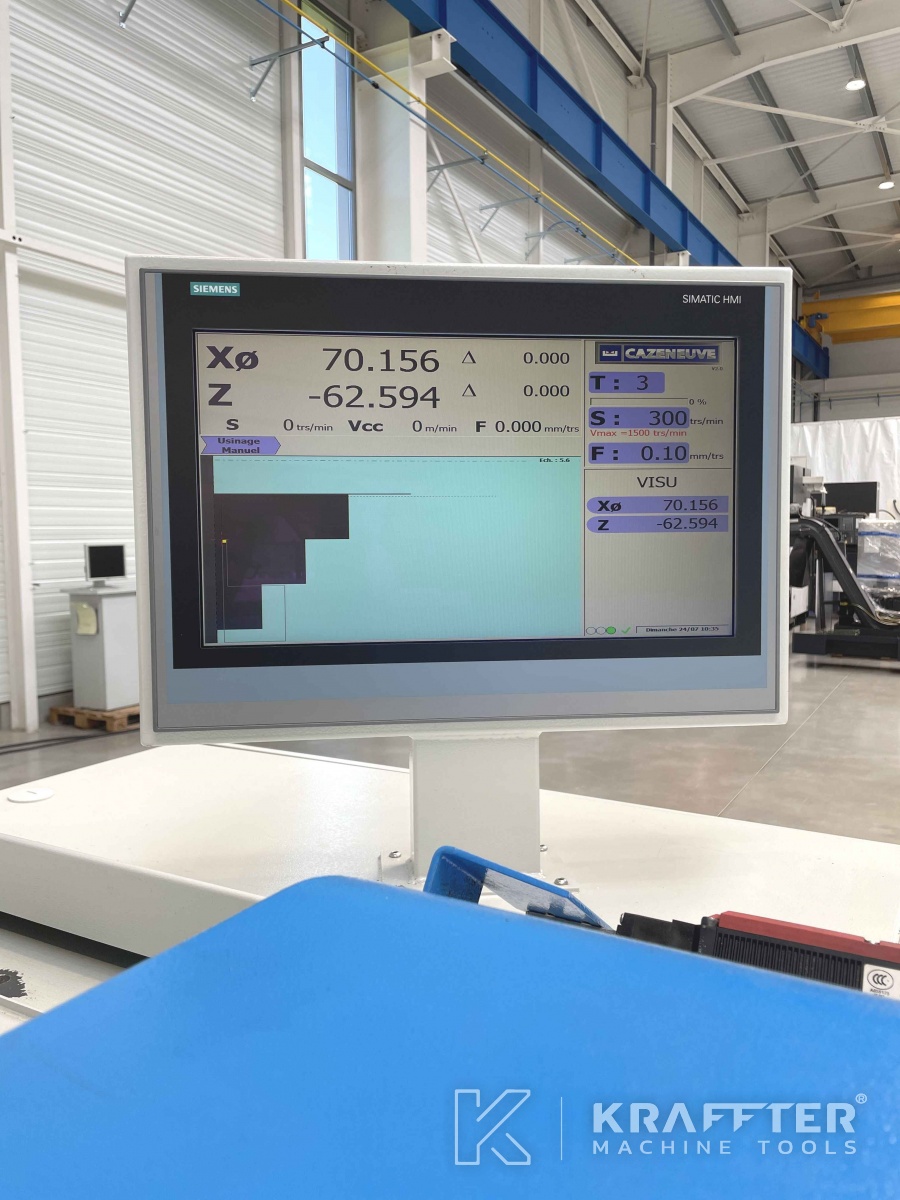

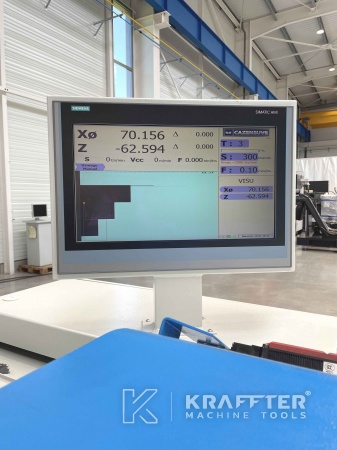

CNC control
SIEMENS
Number of axes
2
Distance between centers
1100 [mm]
Height of centers over cariage
300 [mm]
Max. swing over bed
583 [mm]
Stroke Z axis
950 [mm]
Spindle nose
ISO A1-8"
Spindle throughbore
82 [mm]
Min. spindle speed
10 [rpm]
Max. spindle speed
2500 [rpm]
Type of attachment tailstock
CM6

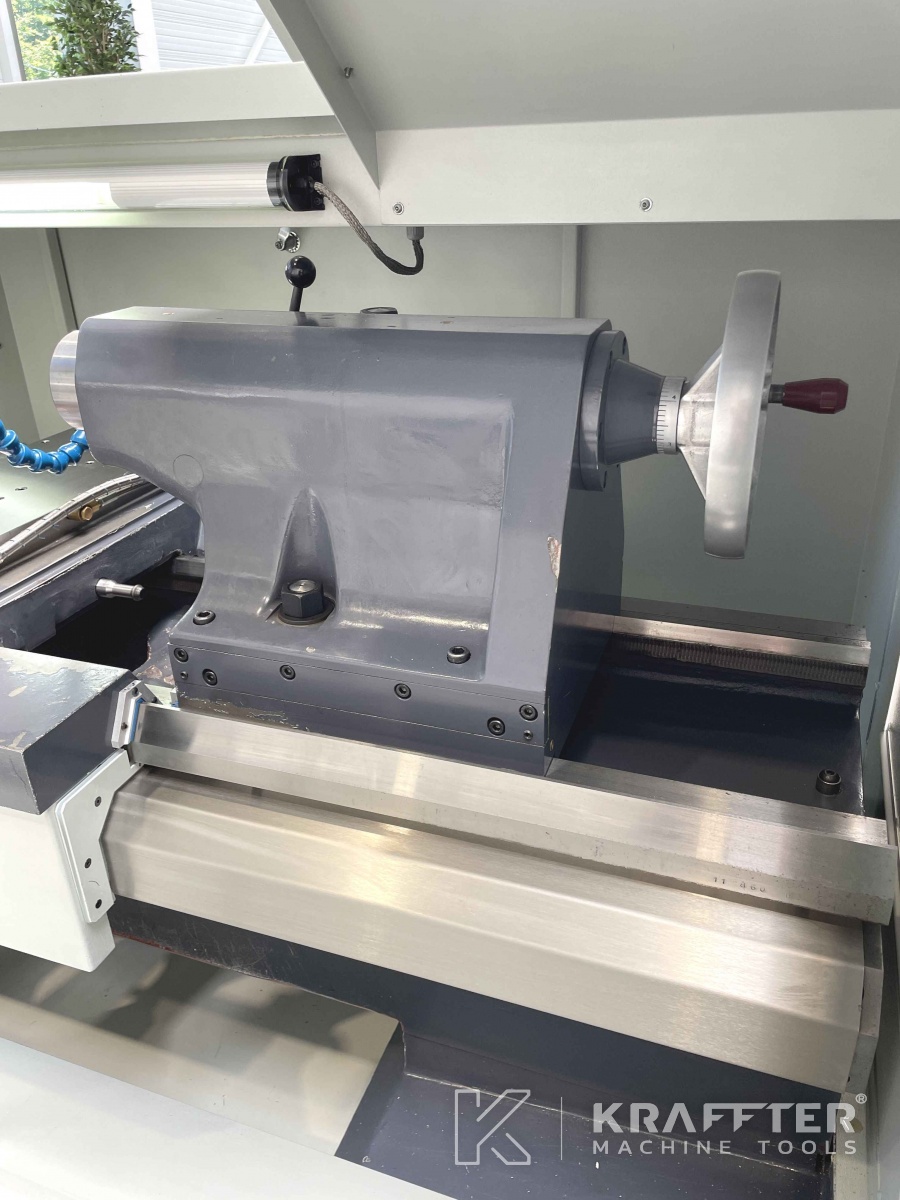

Tailstock quill stroke
235 [mm]
Tailstock quill diameter
100 [mm]
Touchscreen
Yes
Turret
AMESTRA type C
Type of tool holders
AMESTRA type C
Max. load between centers
900 [Kg]

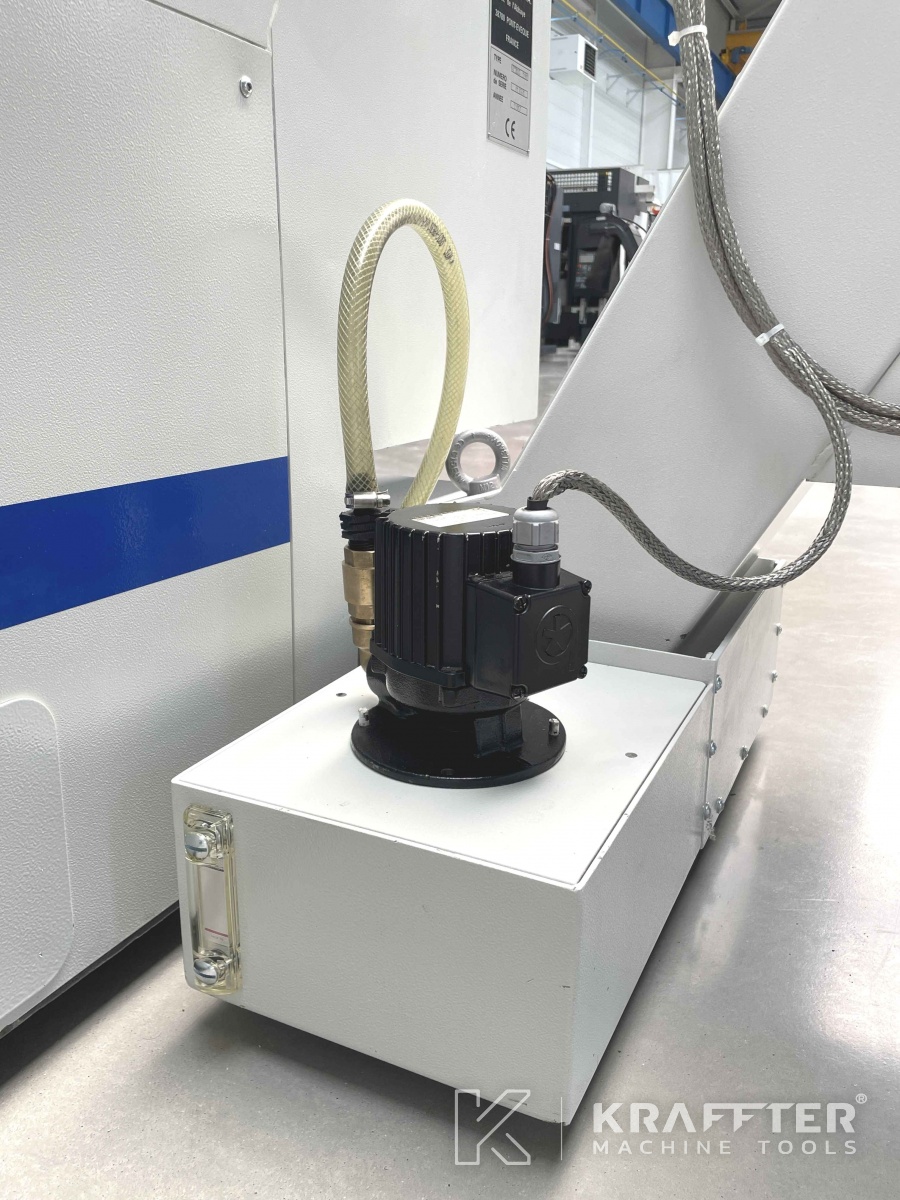

Centralized lubrication
Auto.
Lubrication tank capacity
120 [l]
Supply voltage
400 [V]
Number of running hours
924 [h]
Weight
2500 [Kg]
Additional information

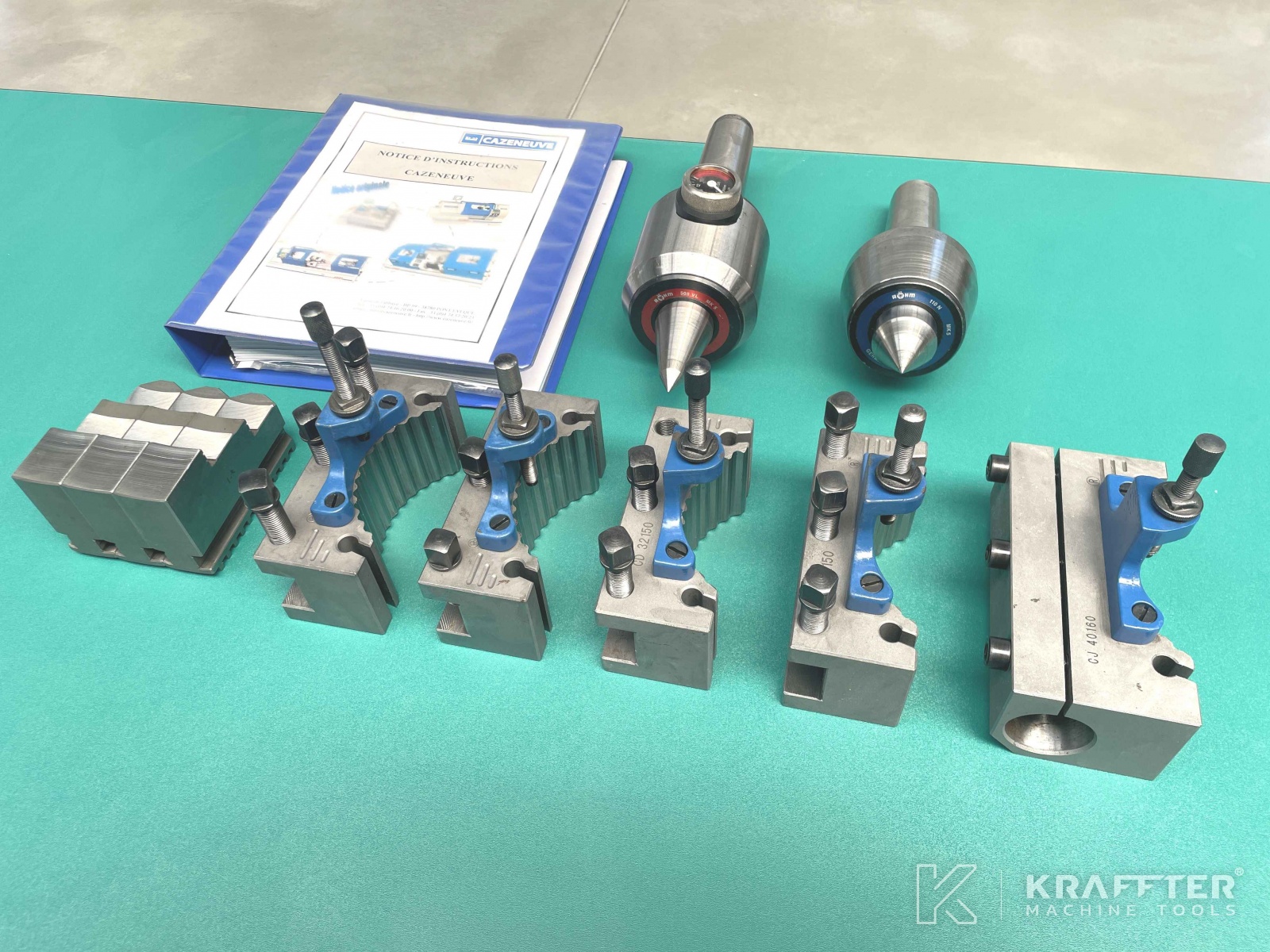

EQUIPMENT incluDED:
x1 set of NEW guideway scrappers on both X and Z axes

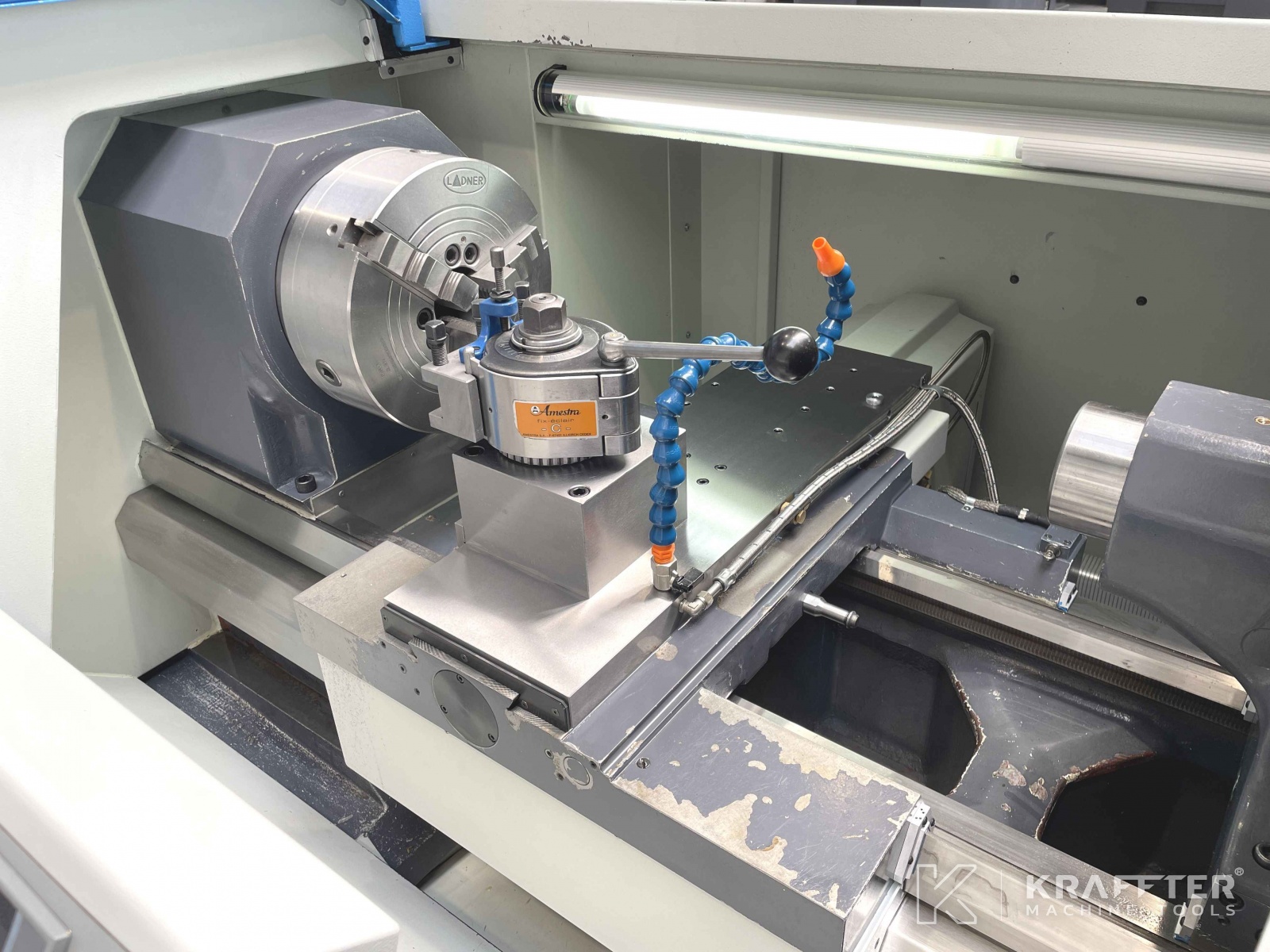

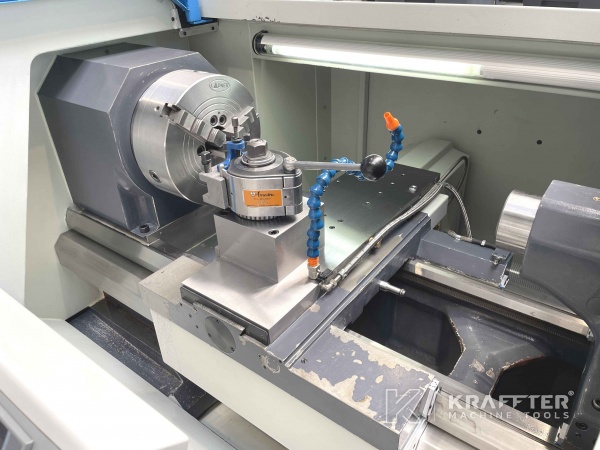

x1 toolspost AMESTRA - type C
x5 tools holders AMESTRA - type C
x1 set of external chuck jaws
x1 set of internal chuck jaws

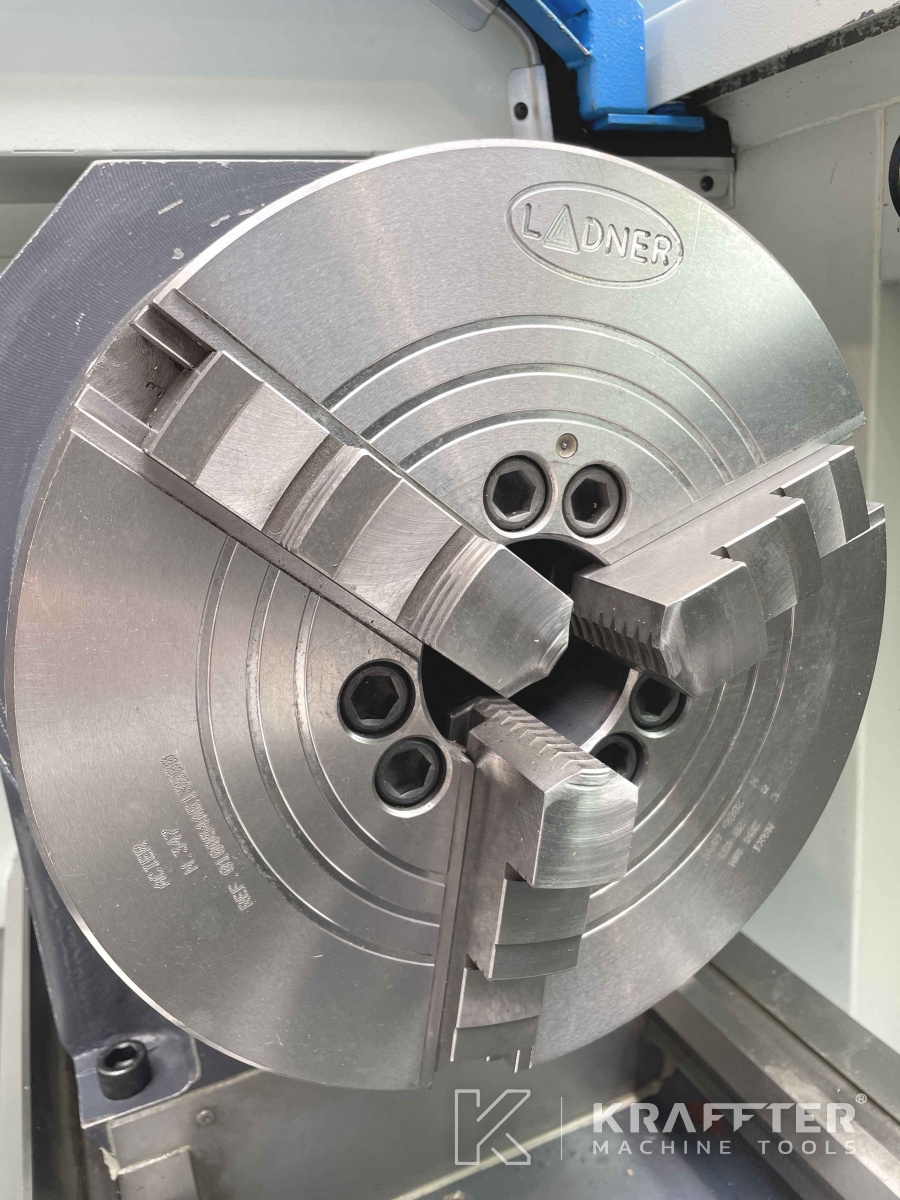

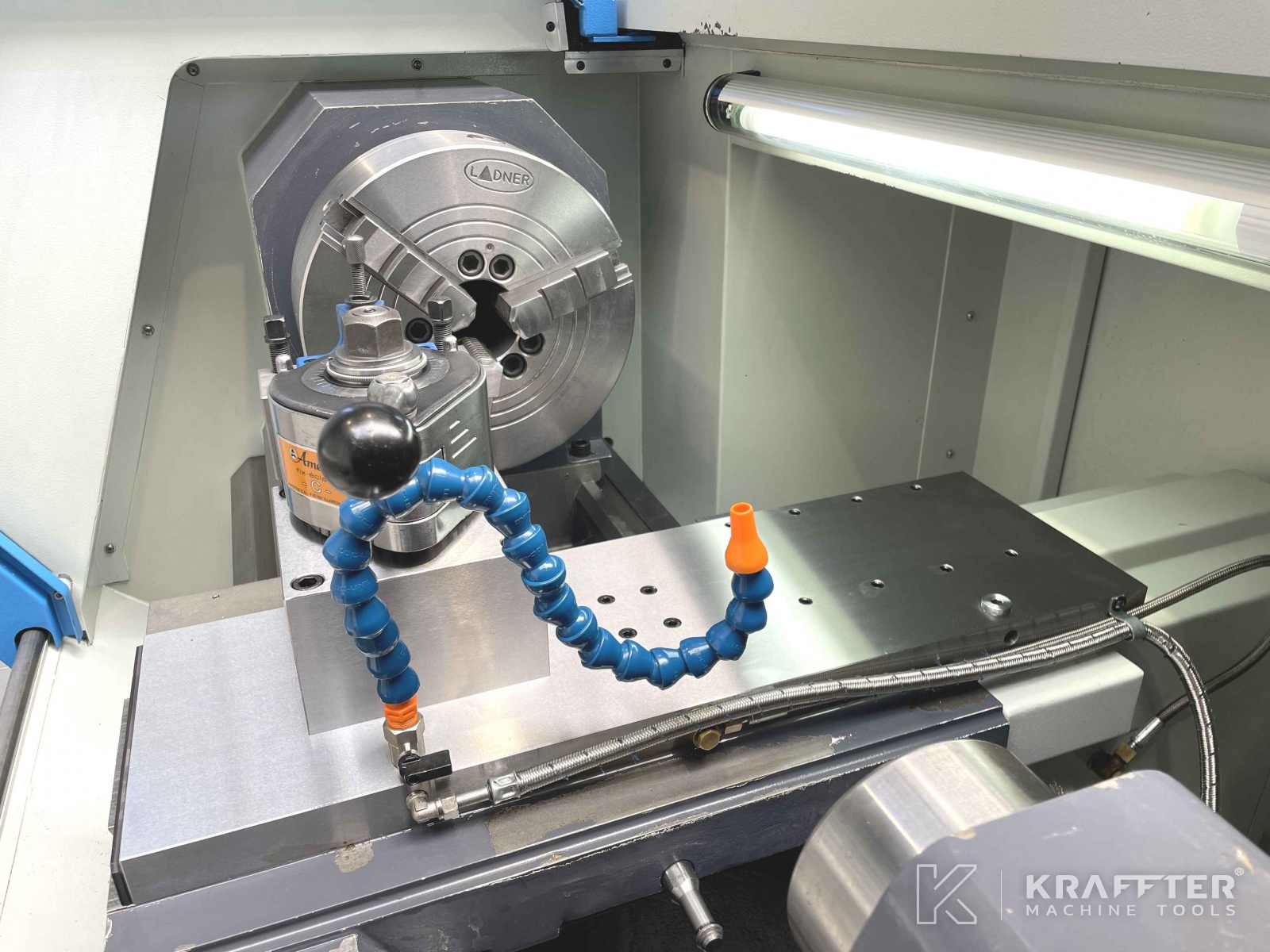

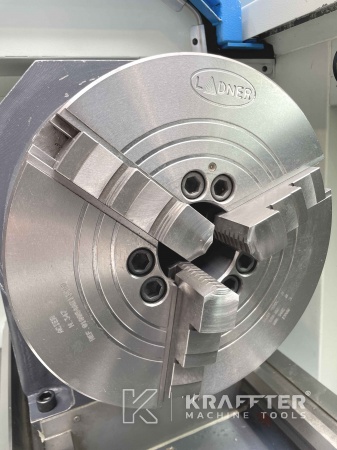

x1 3 jaw steel chuck (concentric) LADNER Ø315 [mm]
x1 live center RÖHM 505 VL with pressure indicator (MK5)
x1 live center RÖHM 110N (MK5)

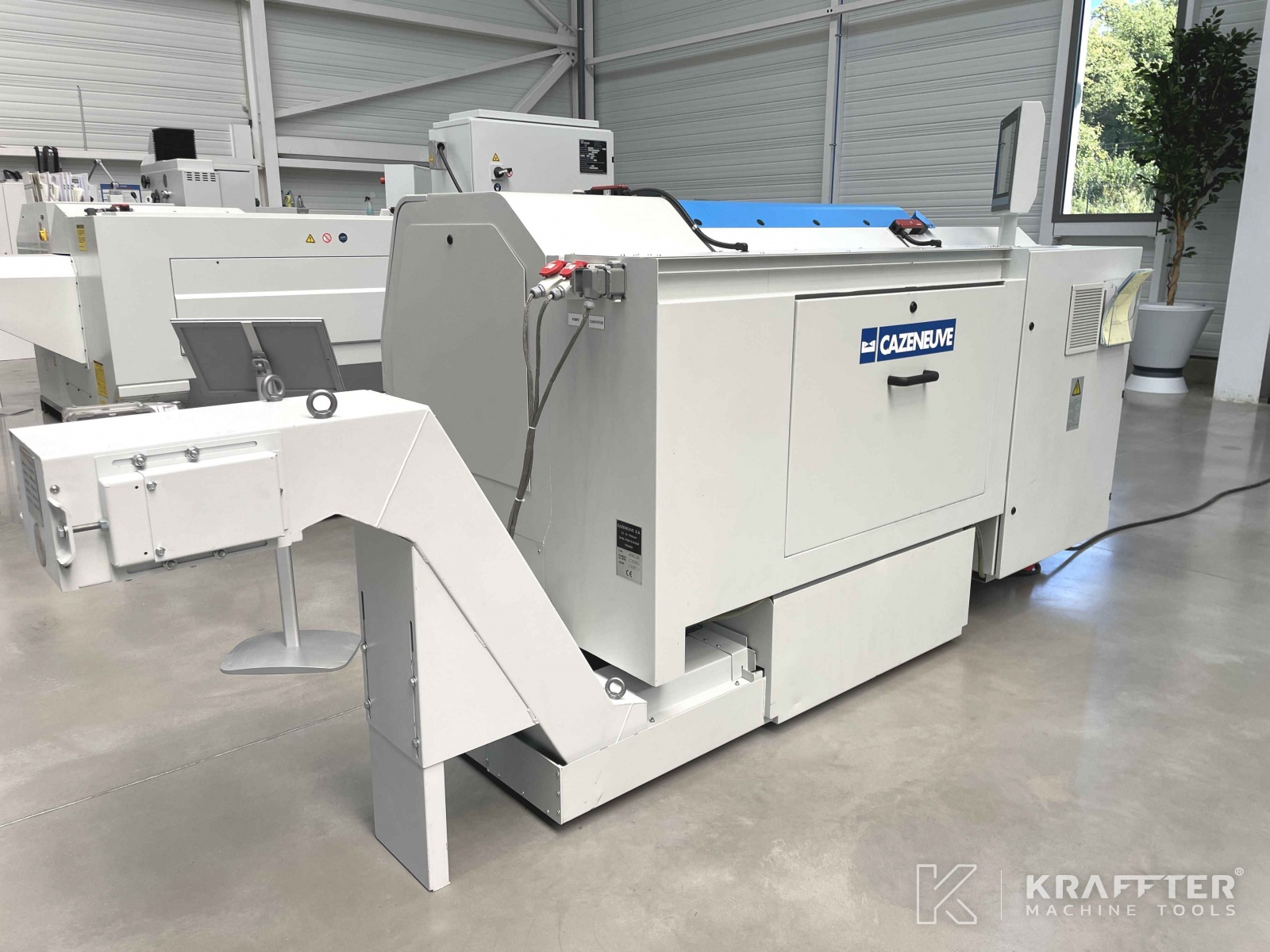

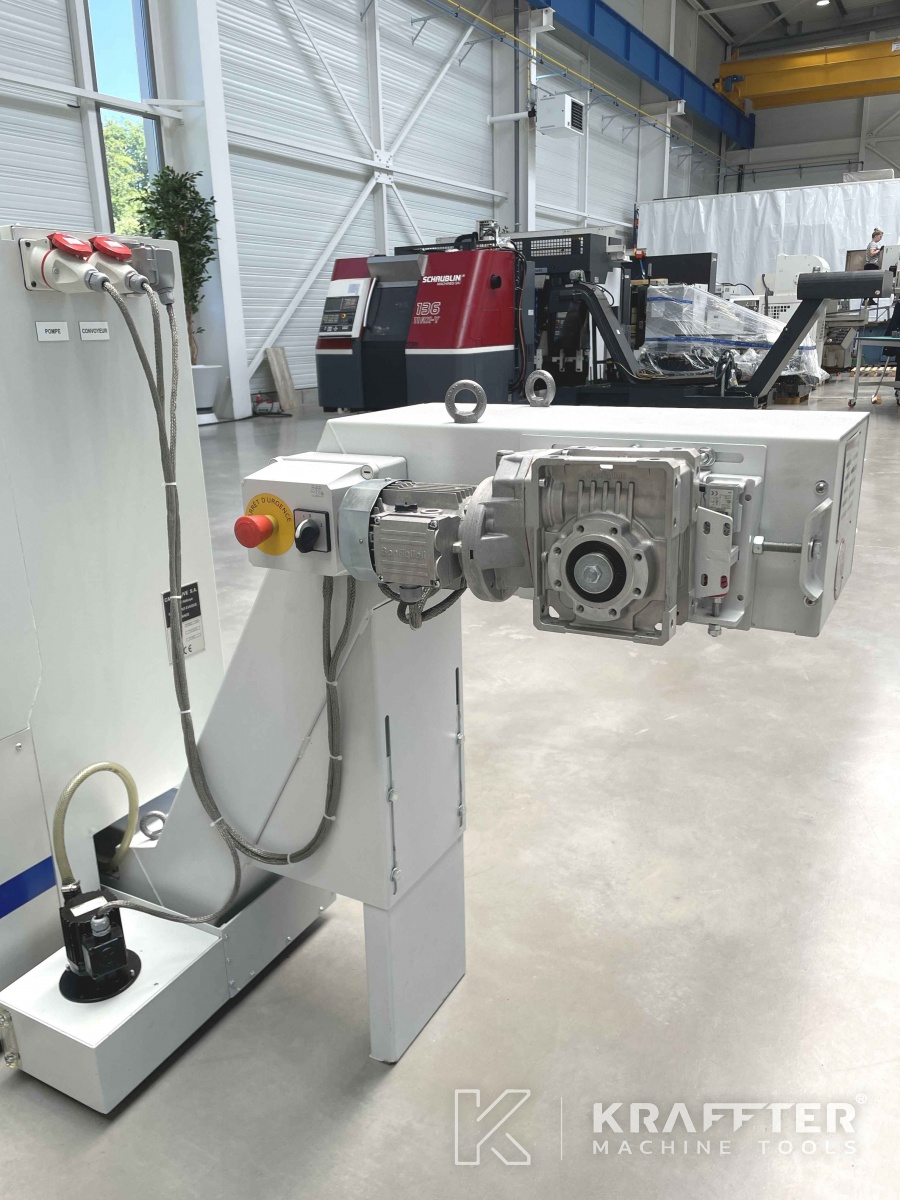

x1 chip conveyor HENNIG type 630S (year of manufacturing 2017)
x1 instruction notice in French language
