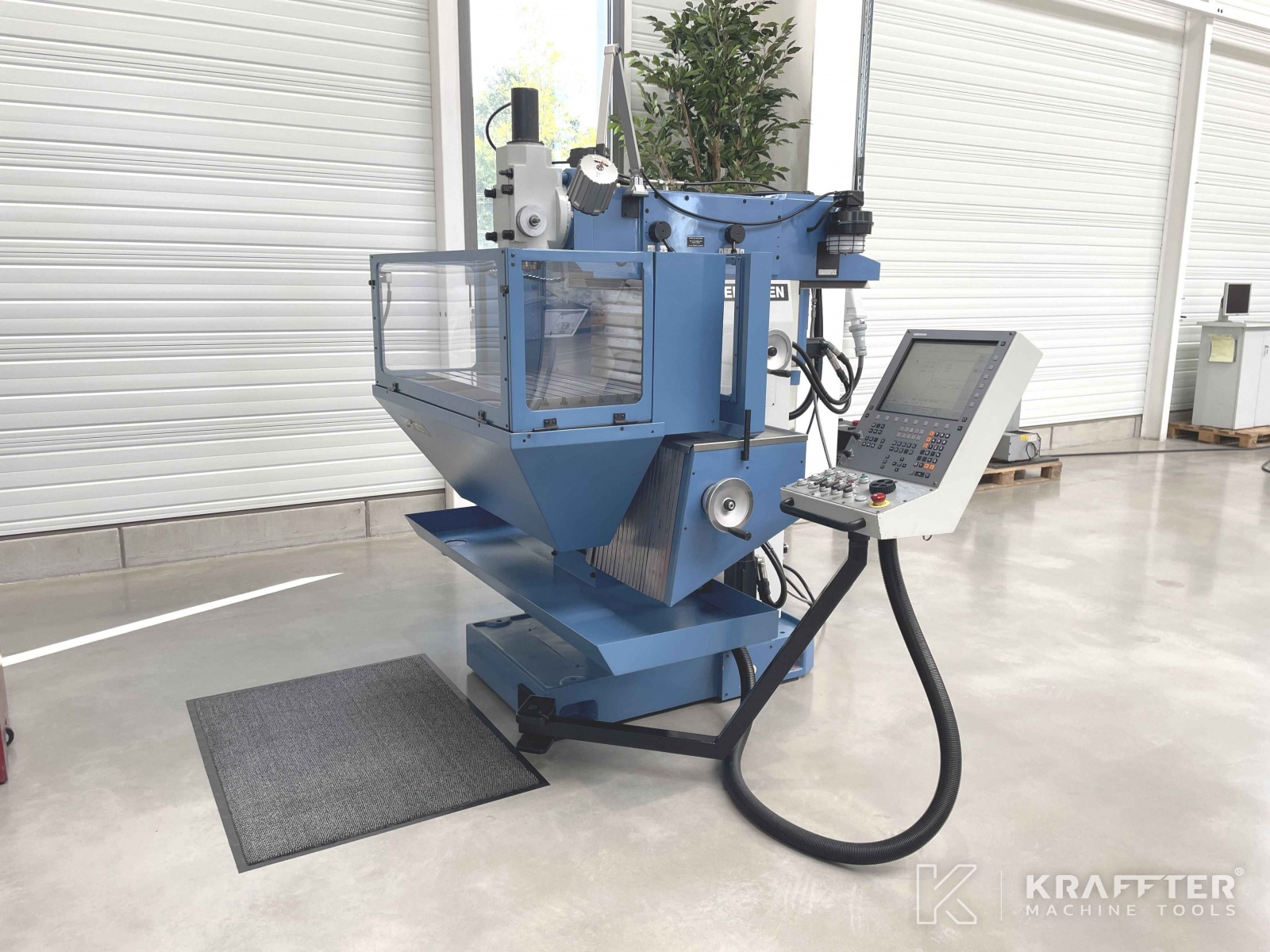

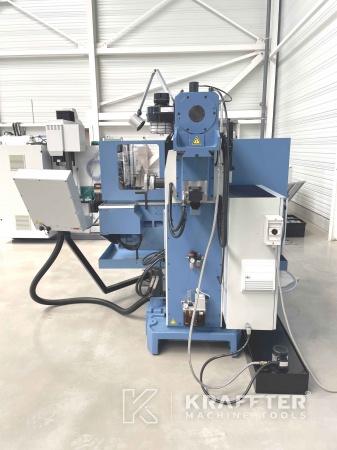

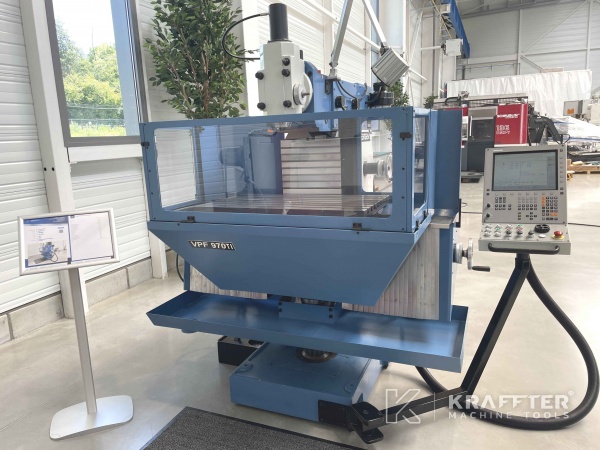

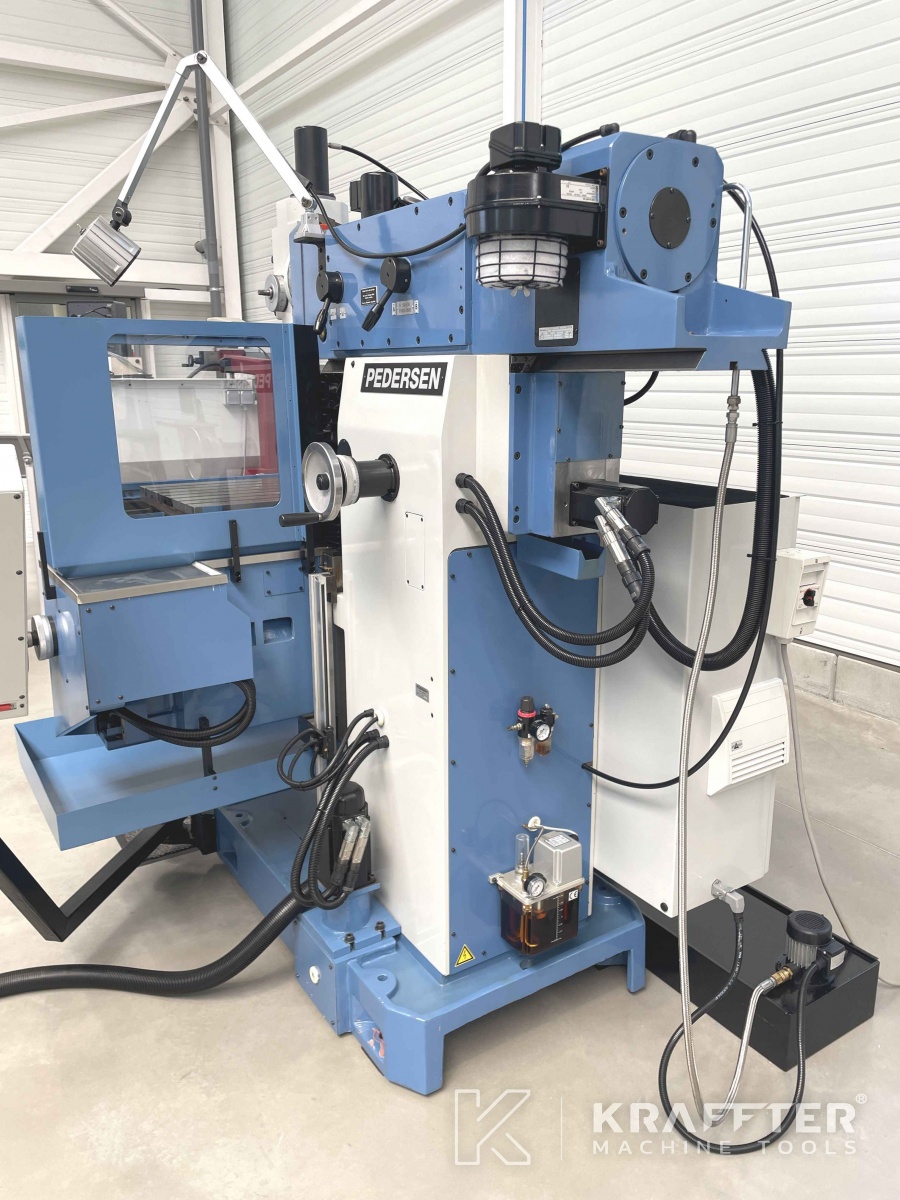

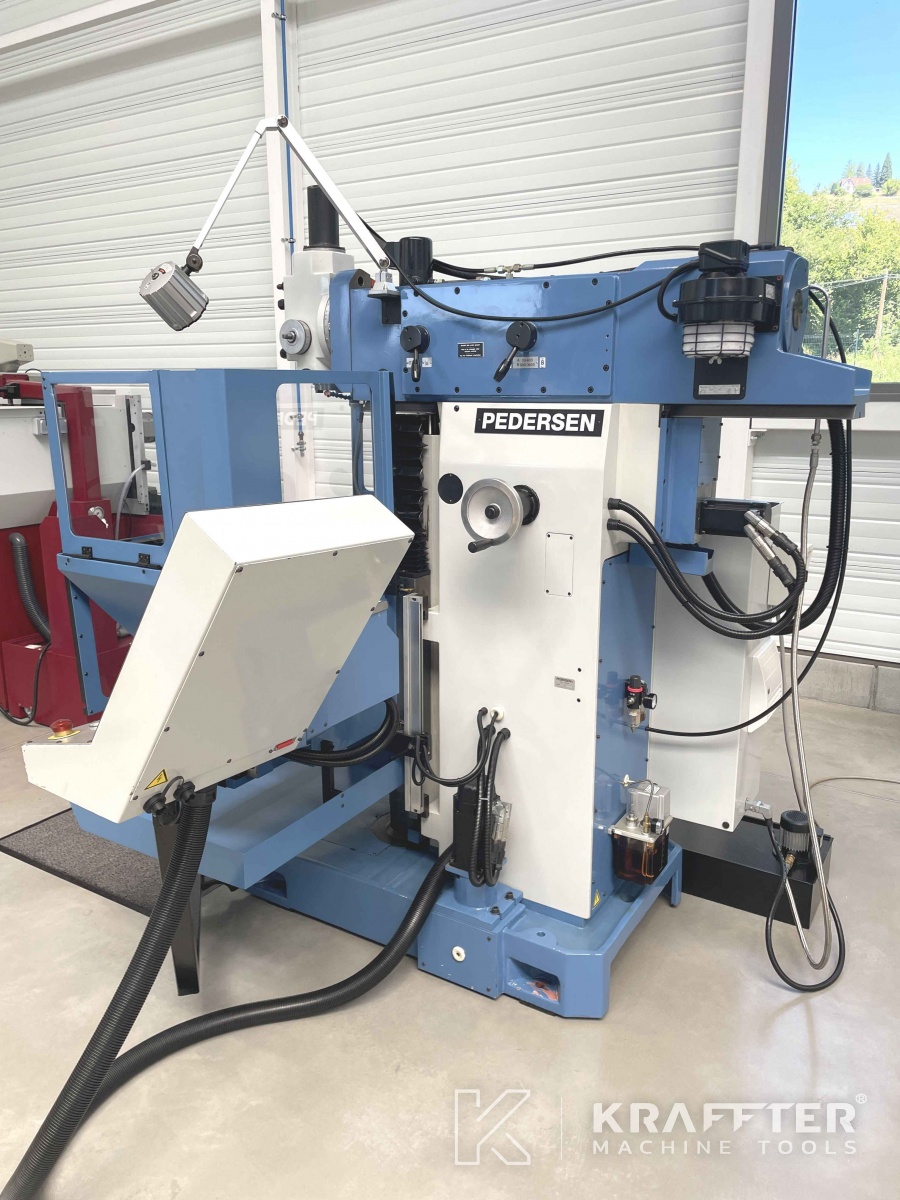

Type of machine : CNC milling machine
Brand : PEDERSEN
Stock N° : 20689-997
Model : VPF-970TI
Serial N° : 9196
Year : 2007
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

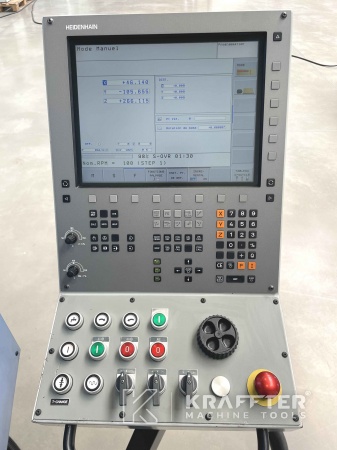

CNC control
HEIDENHAIN TNC 320T
Number of axes
3
Stroke X axis
670 [mm]
Stroke Y axis
500 [mm]
Stroke Z axis
475 [mm]
Traversing feeds X, Y
4000 [mm/min]
Rapid feed Z
1500 [mm/min]
Quill stroke
75 [mm]
Min. distance spindle nose / table
1 [mm]
Max. distance spindle nose / table
479 [mm]

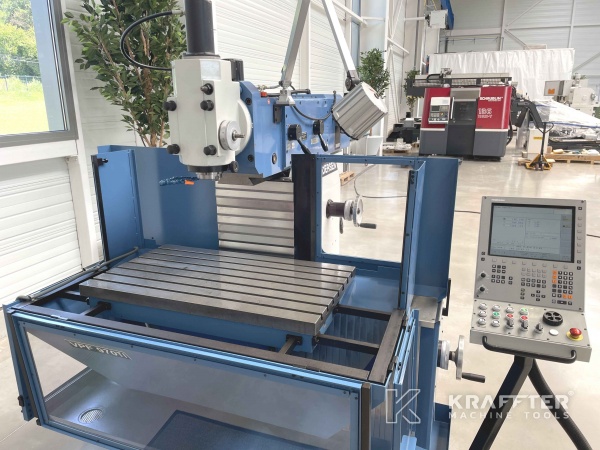

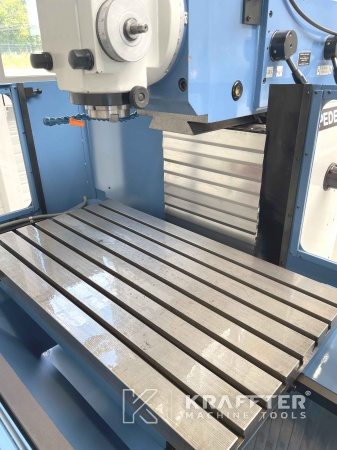

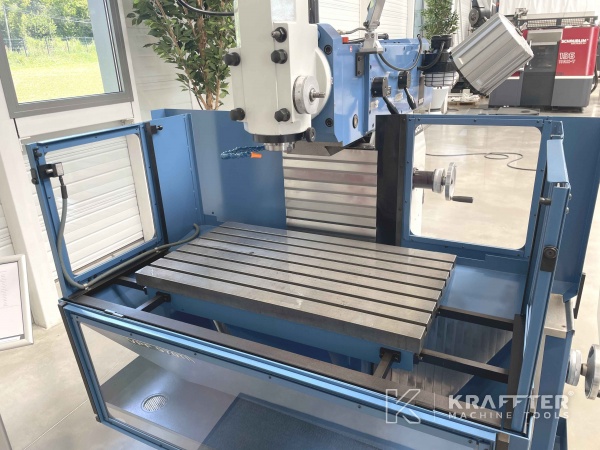

Table length
900 [mm]
Table width
500 [mm]
Max. load on table
450 [Kg]

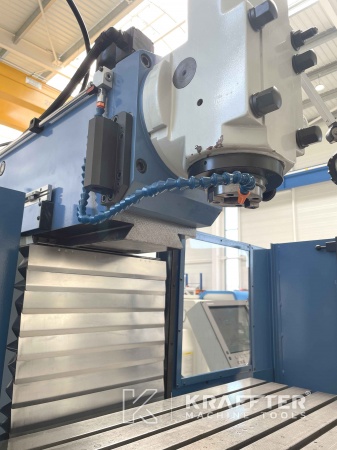

Vertical spindle type
ISO 40

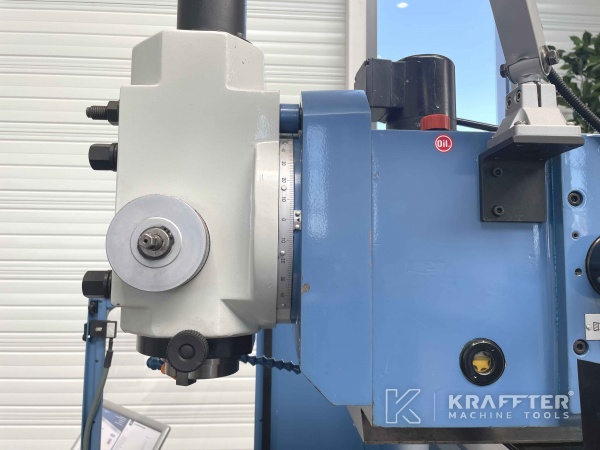

Vertical milling head orientable
-60° / 0° / +60°
Horizontal spindle type
ISO 40
Min. spindle speed
50 [rpm]

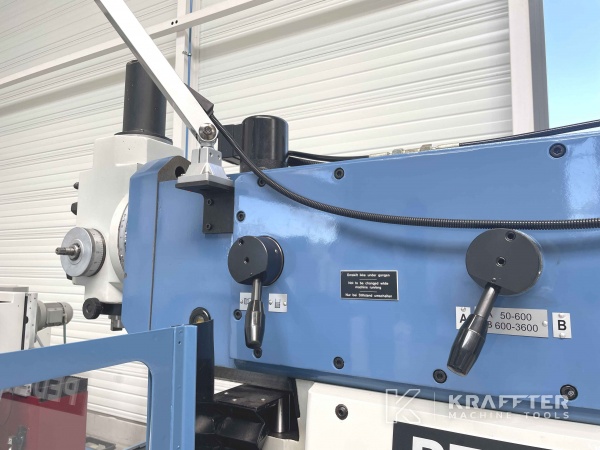

Max. spindle speed
3600 [rpm]
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Weight
2800 [Kg]
-Interpolation of axes : HEIDENHAIN TNC 320T control
-Ballscrews on all X, Y and Z axes

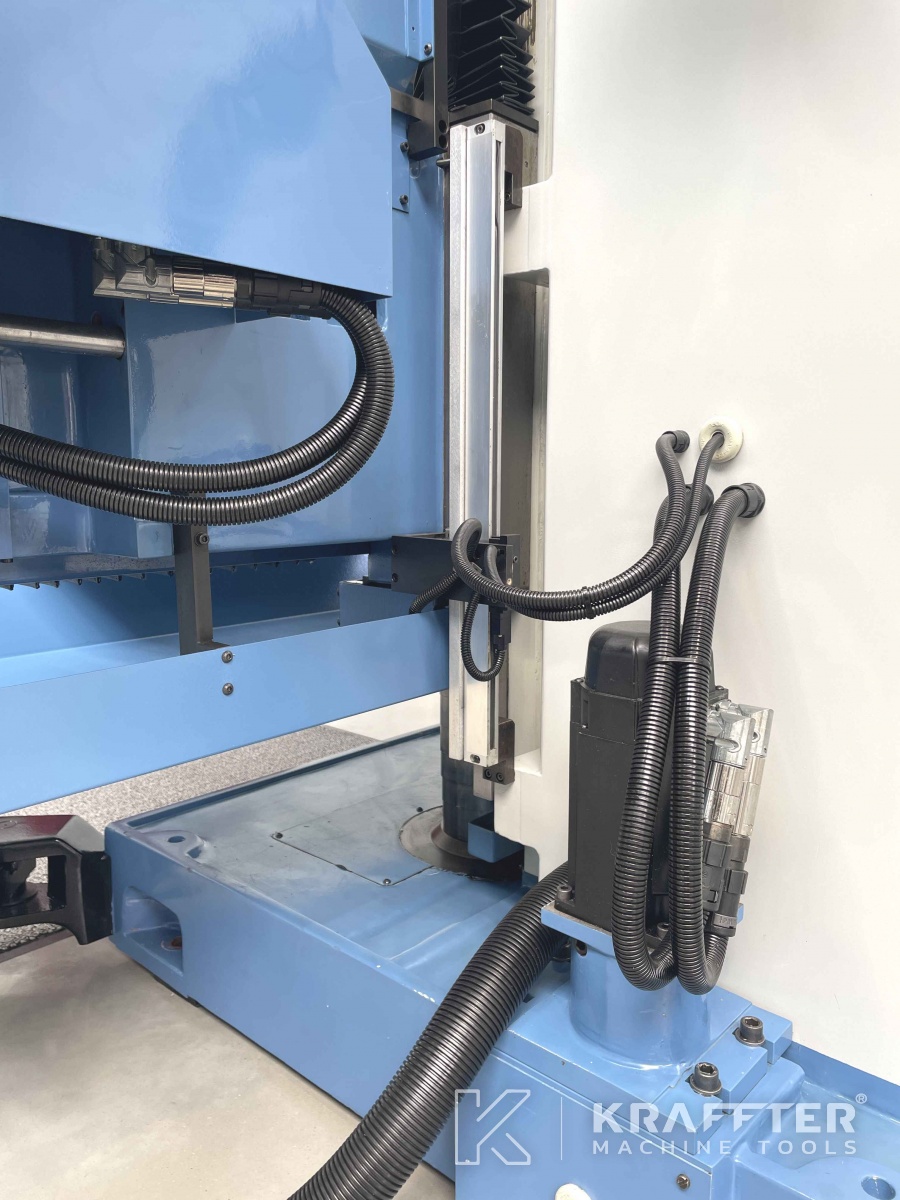

-HEIDENHAIN glass scales on all X, Y et Z axes

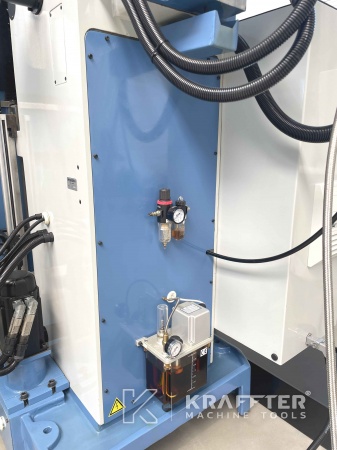

-Automatic centralized lubrication unit
-Sensitive drilling head (option)

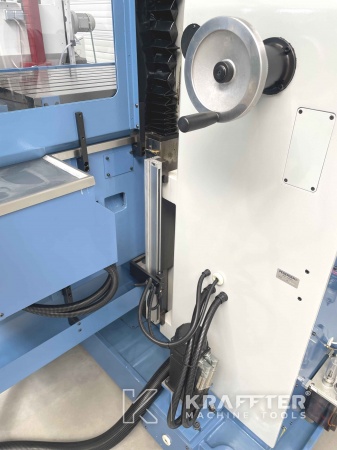

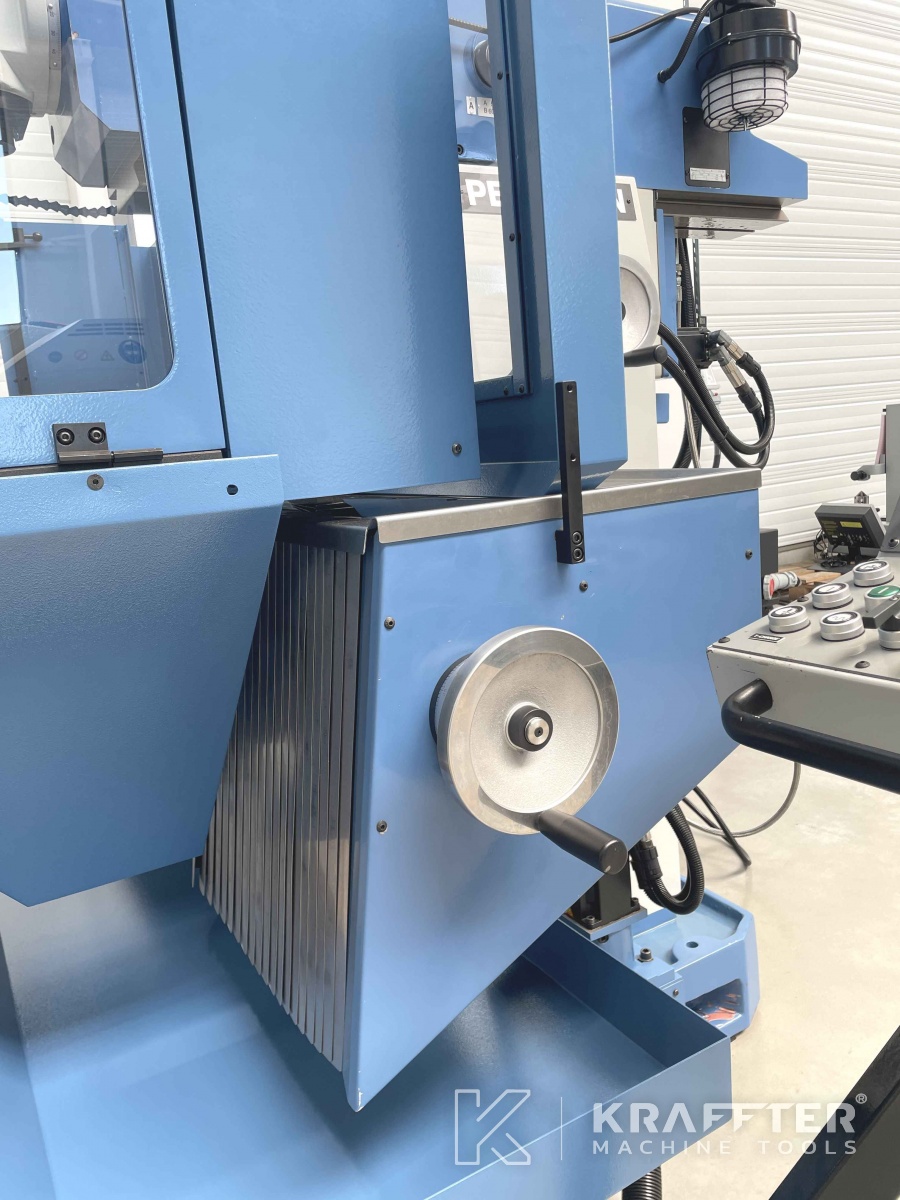

-Mechanical hand wheels on X and Y axes (as a conventionnal milling machine)
-Air driven tool clamping
-Halogen work lamp 24V

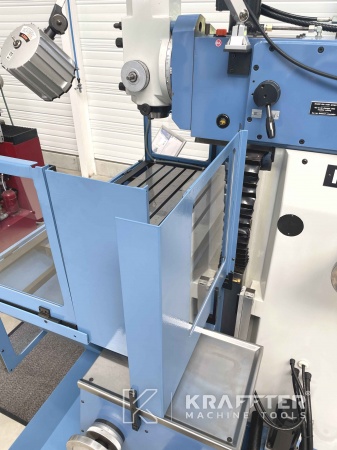

-Complete work area protection covers
