Sold

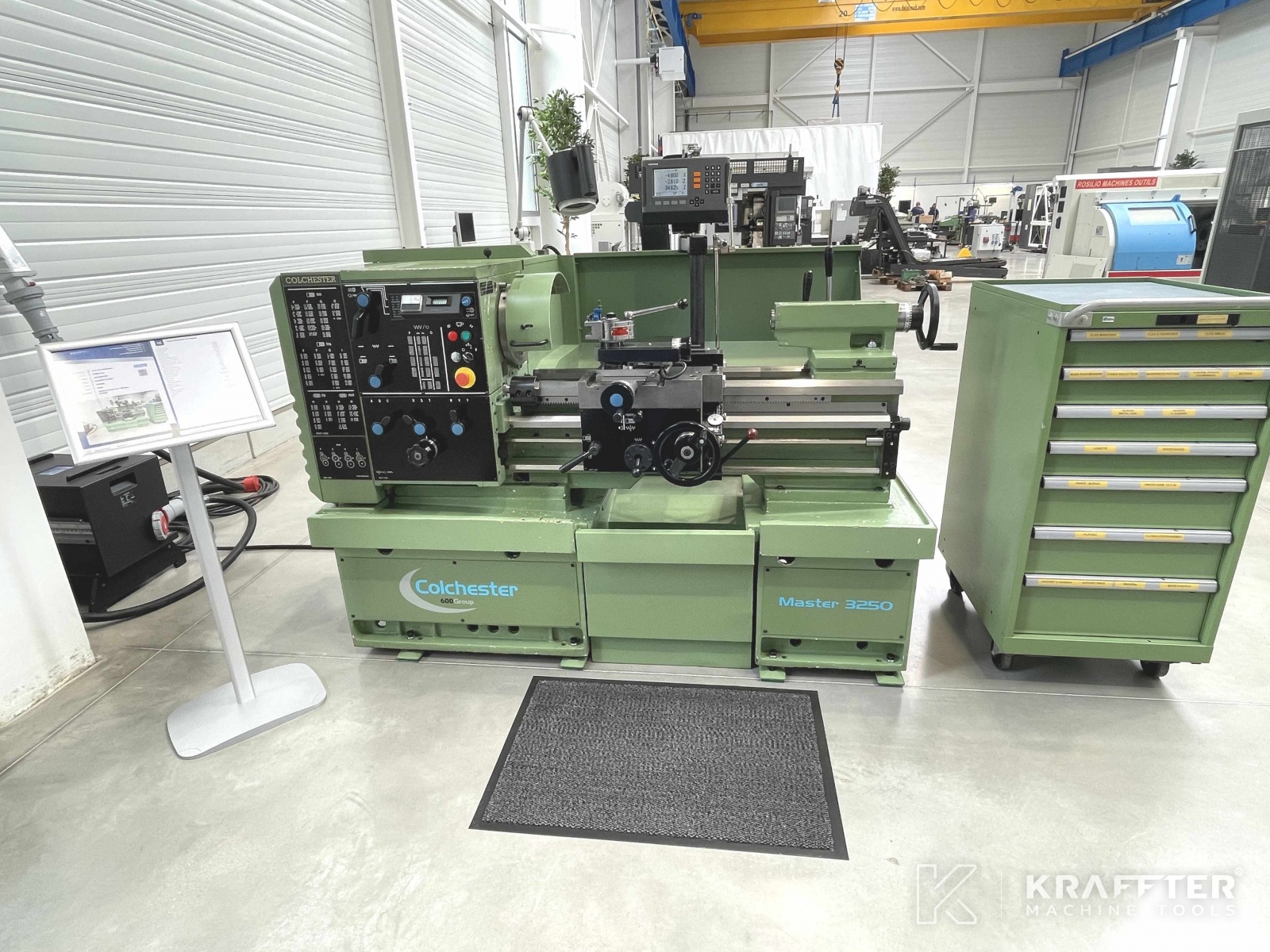

Type of machine : Manual lathe
Brand : COLCHESTER
Stock N° : 20690-022
Model : MASTER VS 3250
Serial N° : VM1005
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Distance between centers
650 [mm]
Height of centers
170 [mm]
Height of centers over cariage
196 [mm]
Max. swing over bed
350 [mm]
Max. swing through bed gap
535 [mm]
Spindle nose
D1-4" Camlock
Spindle throughbore
42 [mm]
Min. spindle speed
15 [rpm]
Max. spindle speed
3250 [rpm]
Type of attachment tailstock
CM4
Tailstock quill stroke
140 [mm]
Tailstock quill diameter
63 [mm]

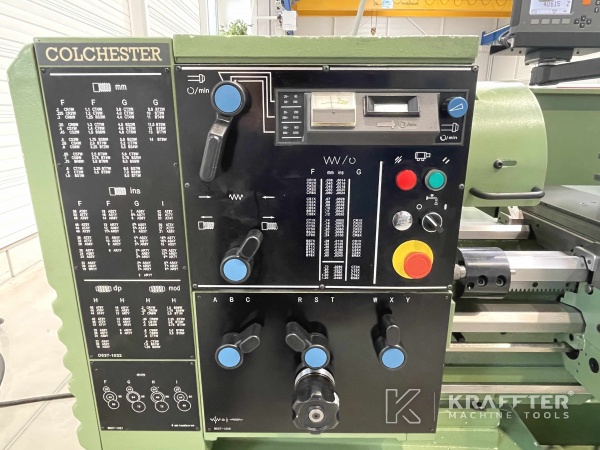

Universal threading gear box
Yes
Metric pitches
0.2 - 14 [mm]
Imperial T.P.I.
2 - 56 TPI
Module pitches
0.2 - 3.5

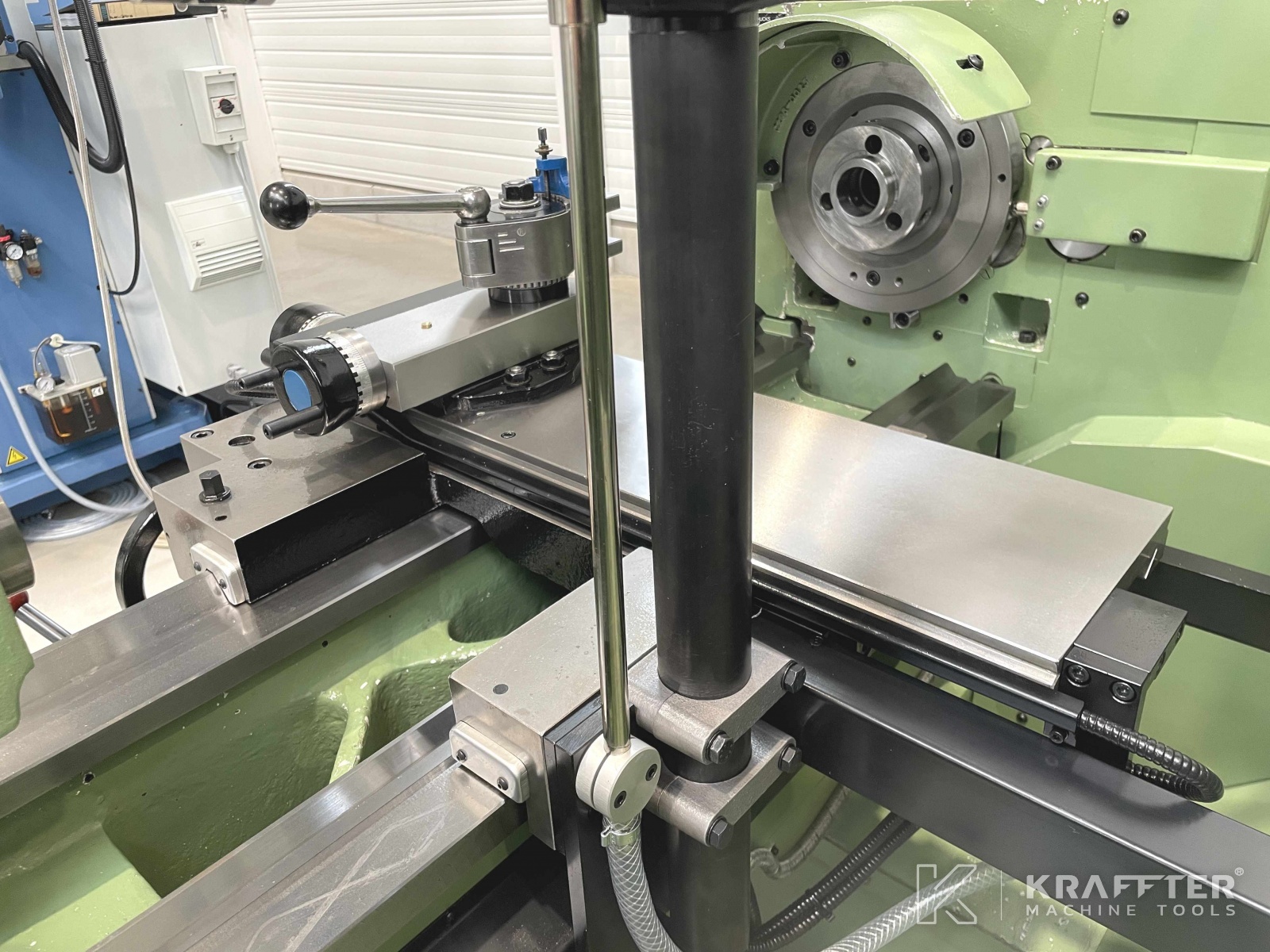

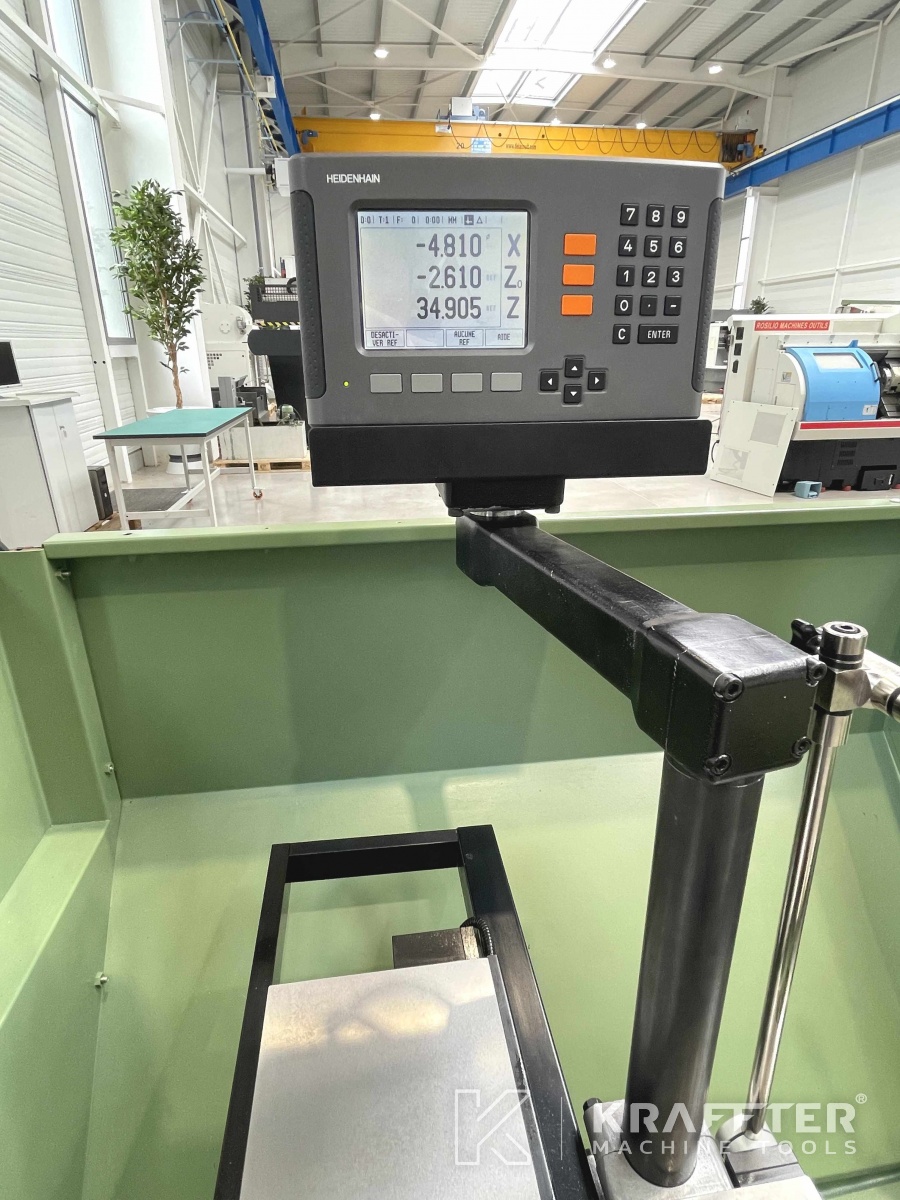

Digital read out
HEIDENHAIN ND 780
Number of axes Digital Read Out
3
Electrospindle brake
Yes
Turret
Multifix type E
Lubrication tank with pump
Yes
Supply voltage
400 [V]
Dimensions
1900 x 1100 x 1300 [mm]
Weight
1450 [Kg]

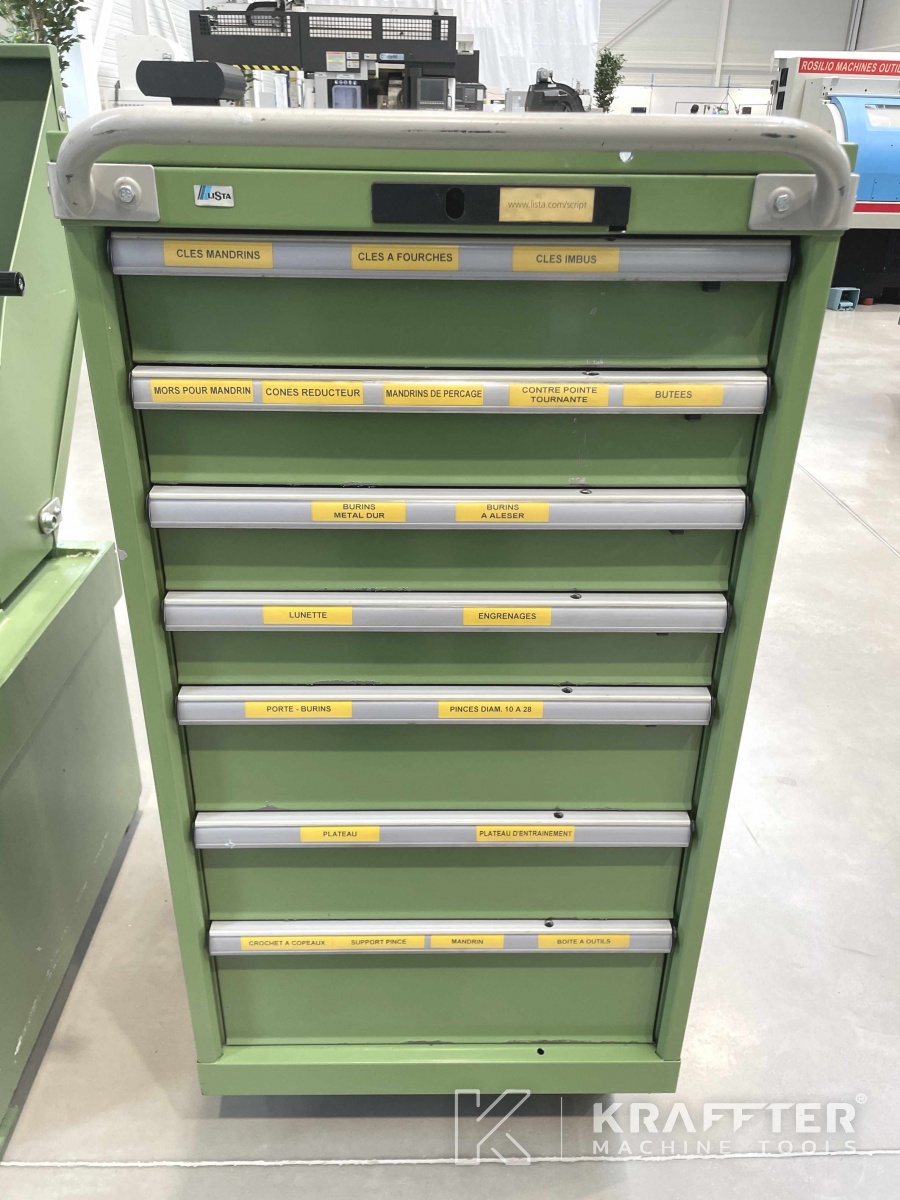

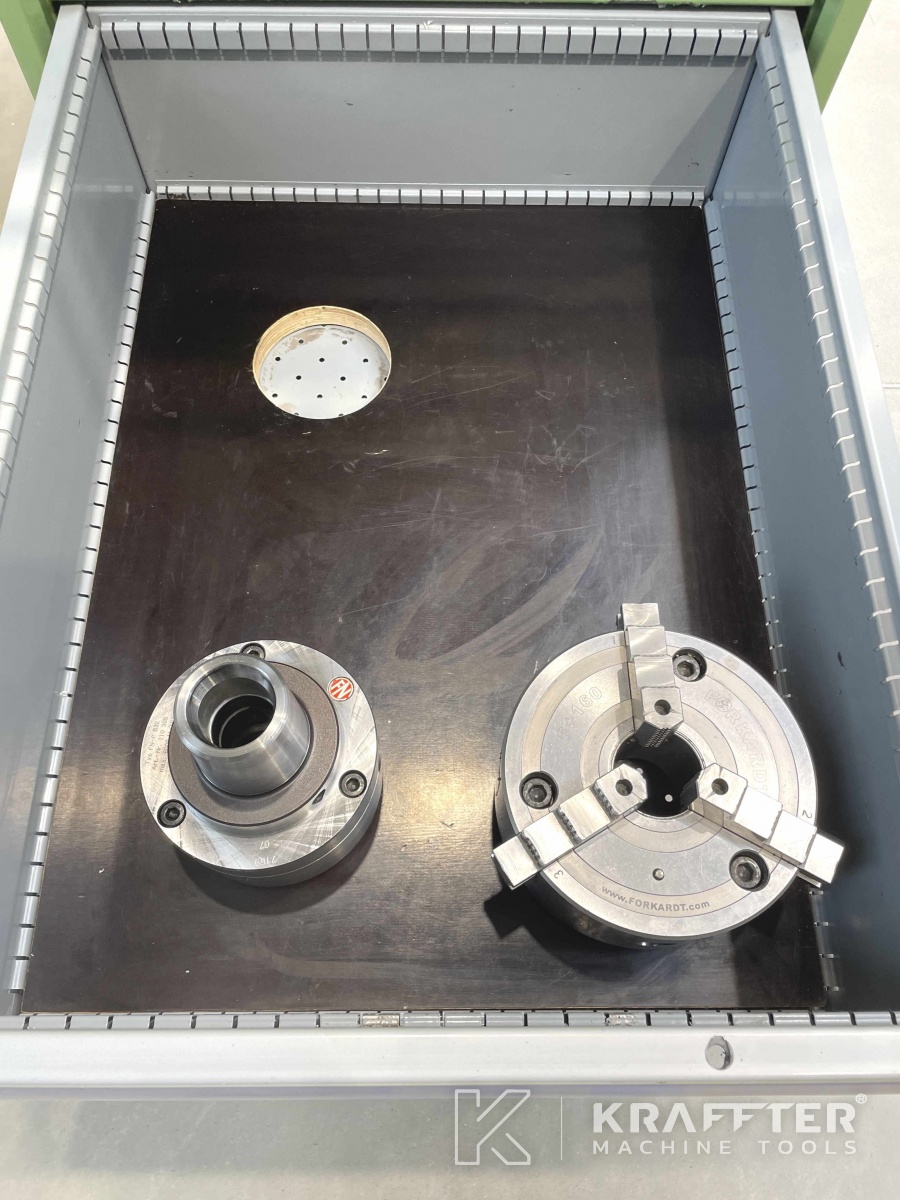

x1 LISTA heavy-duty cabinet (7 drawers)

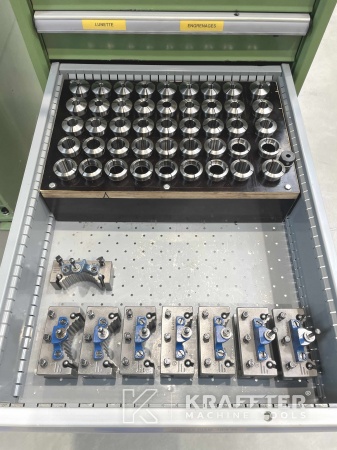

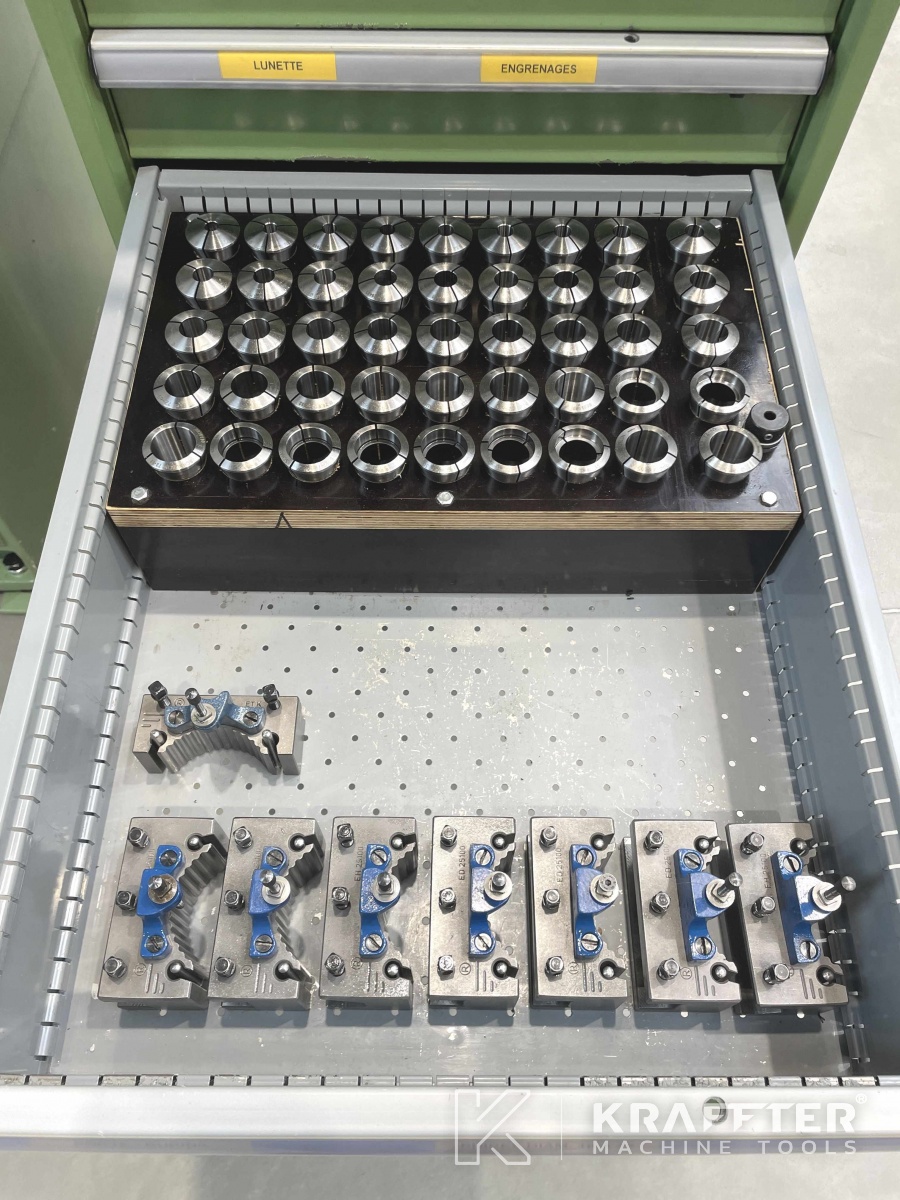

x45 SCHAUBLIN collets type B32 72-65

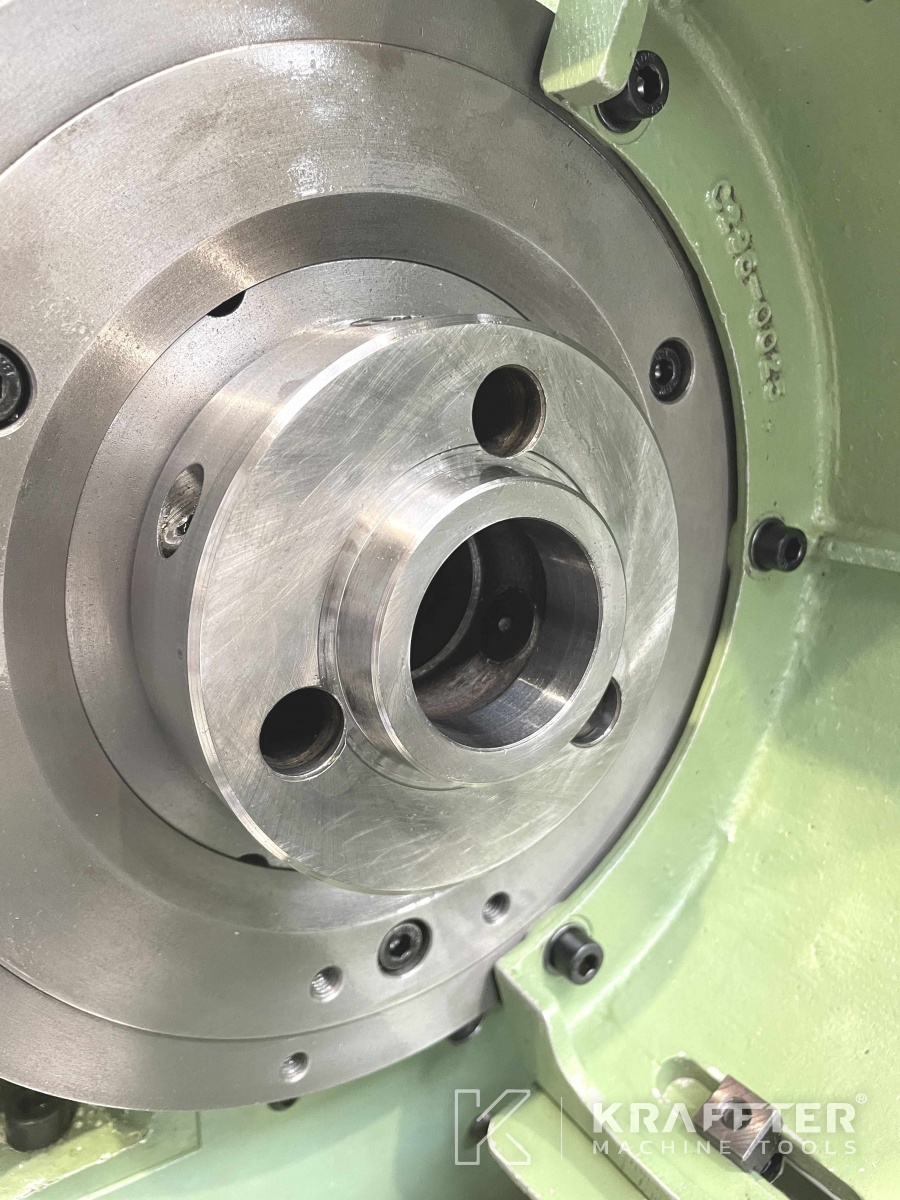

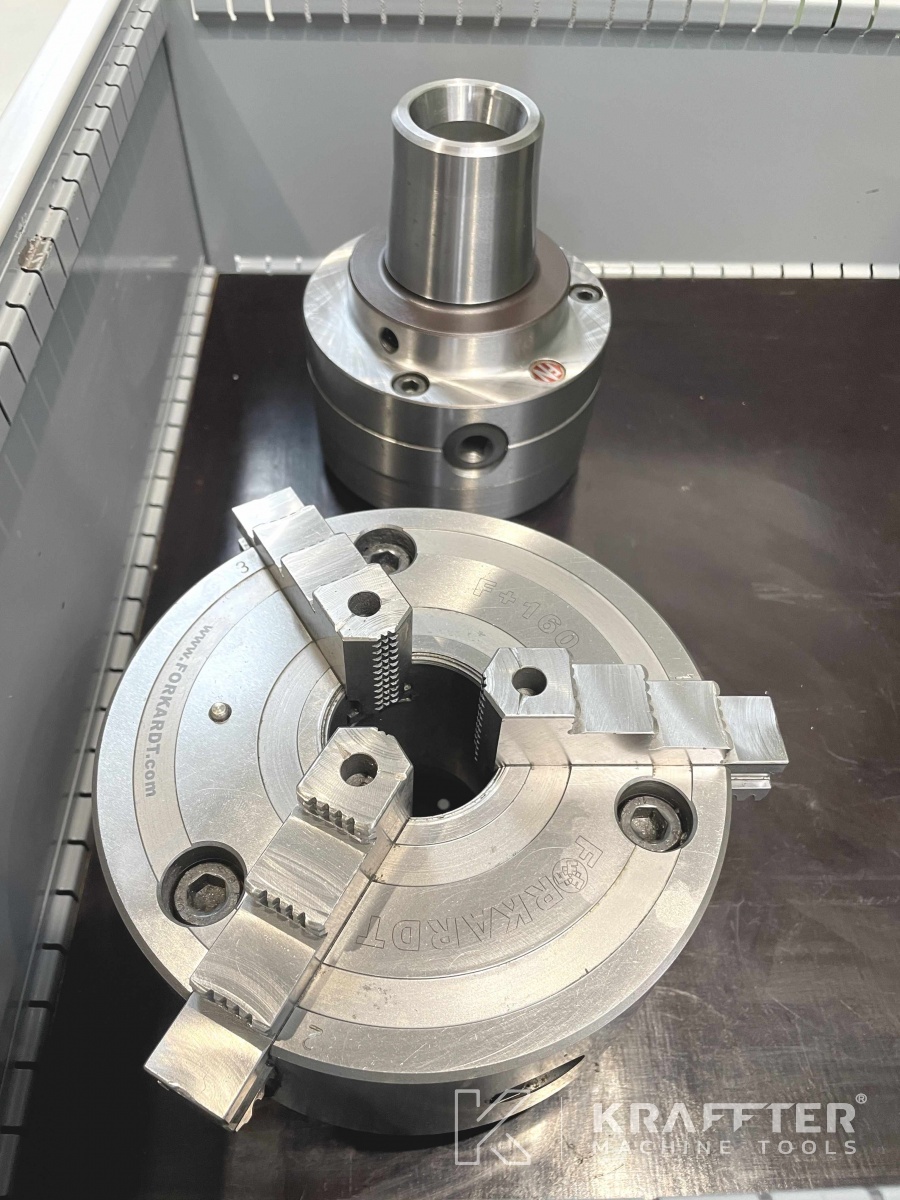

x1 FN D1-4" to B32 collet chuck
x1 3 jaw chuck Ø160 [mm] FORKARDT type F+160
x2 sets of FORKARDT jaw soles
x1 set of 3 hard jaws
x1 set of 3 soft jaws

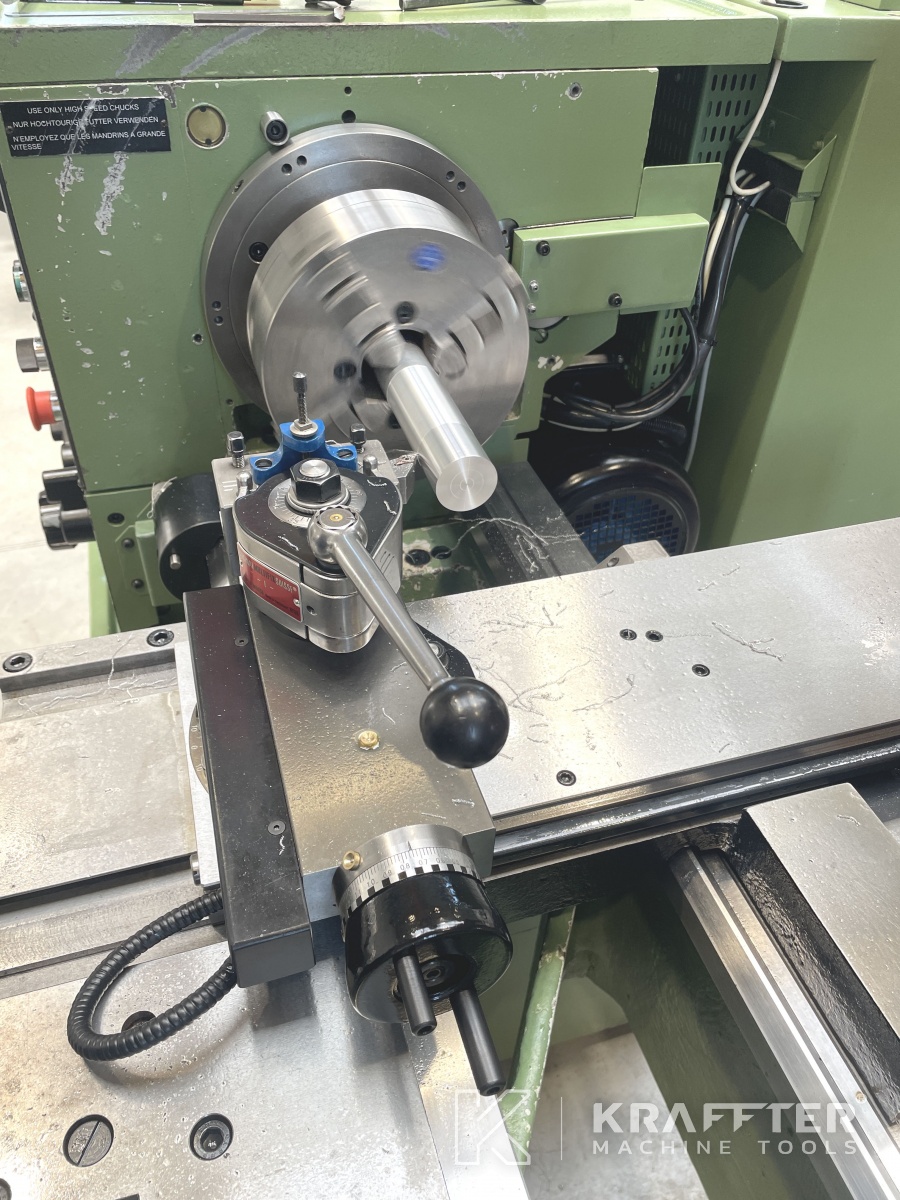

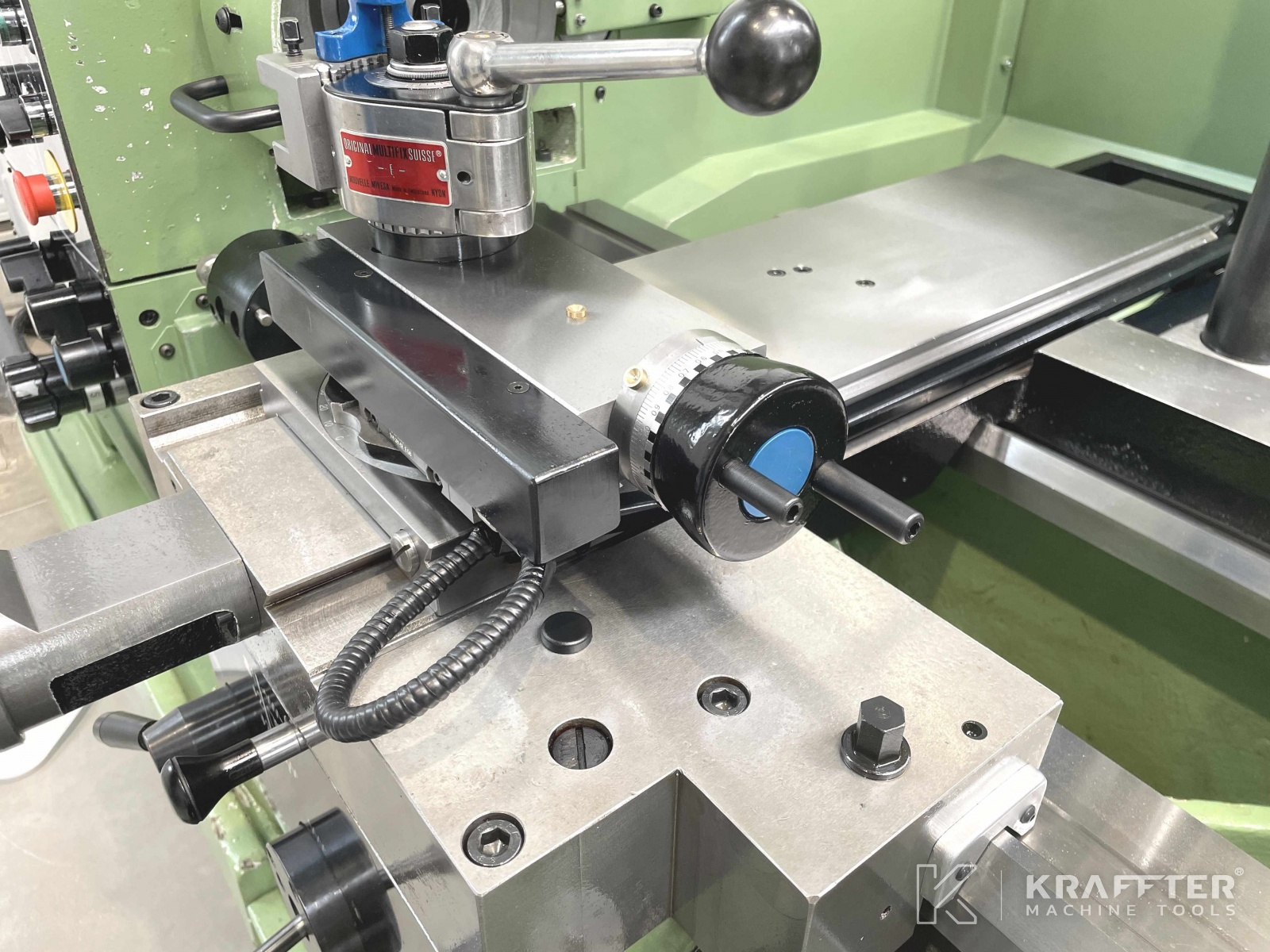

x1 MULTIFIX Original type E toolpost
x8 MULTIFIX Original type E tool holders

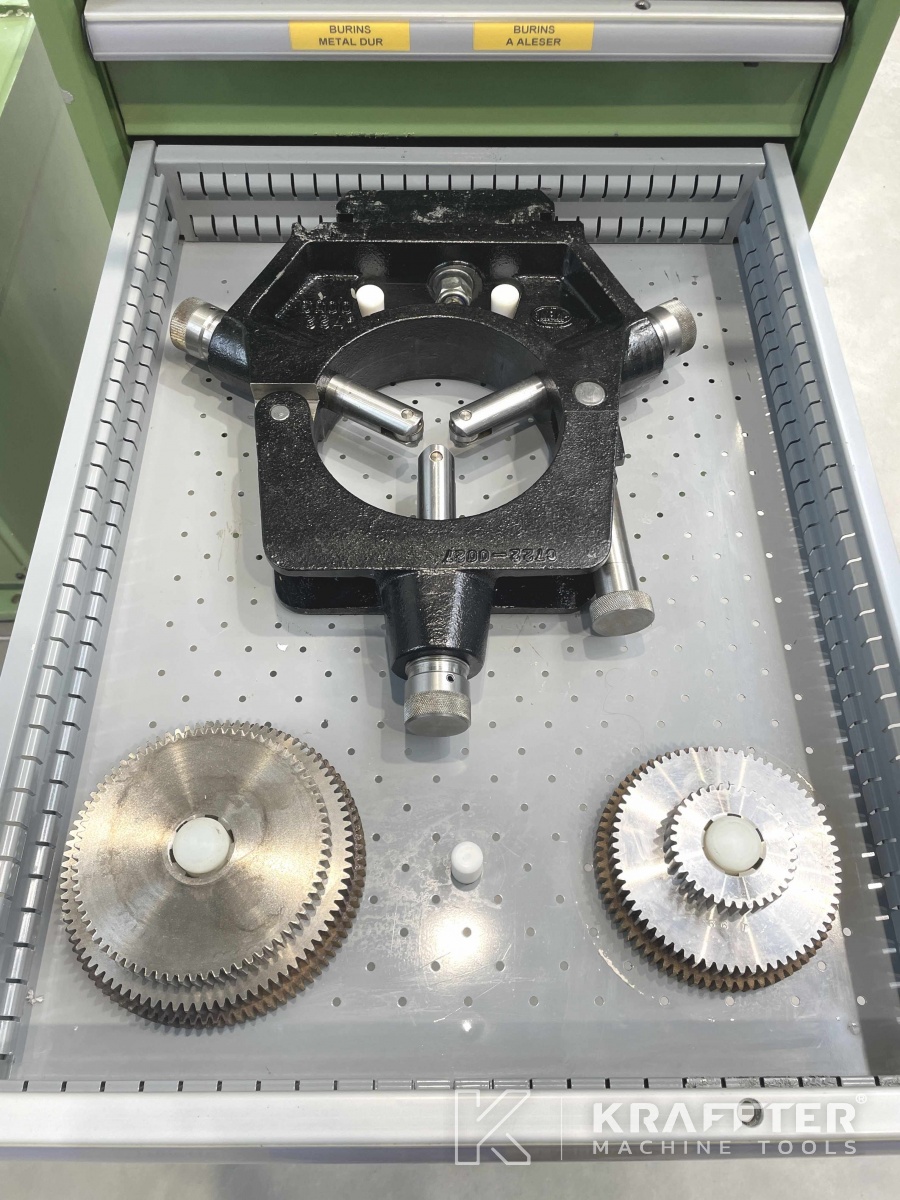

x1 steady rest
x1 follow rest
x1 set of 5 pinions for threading applications

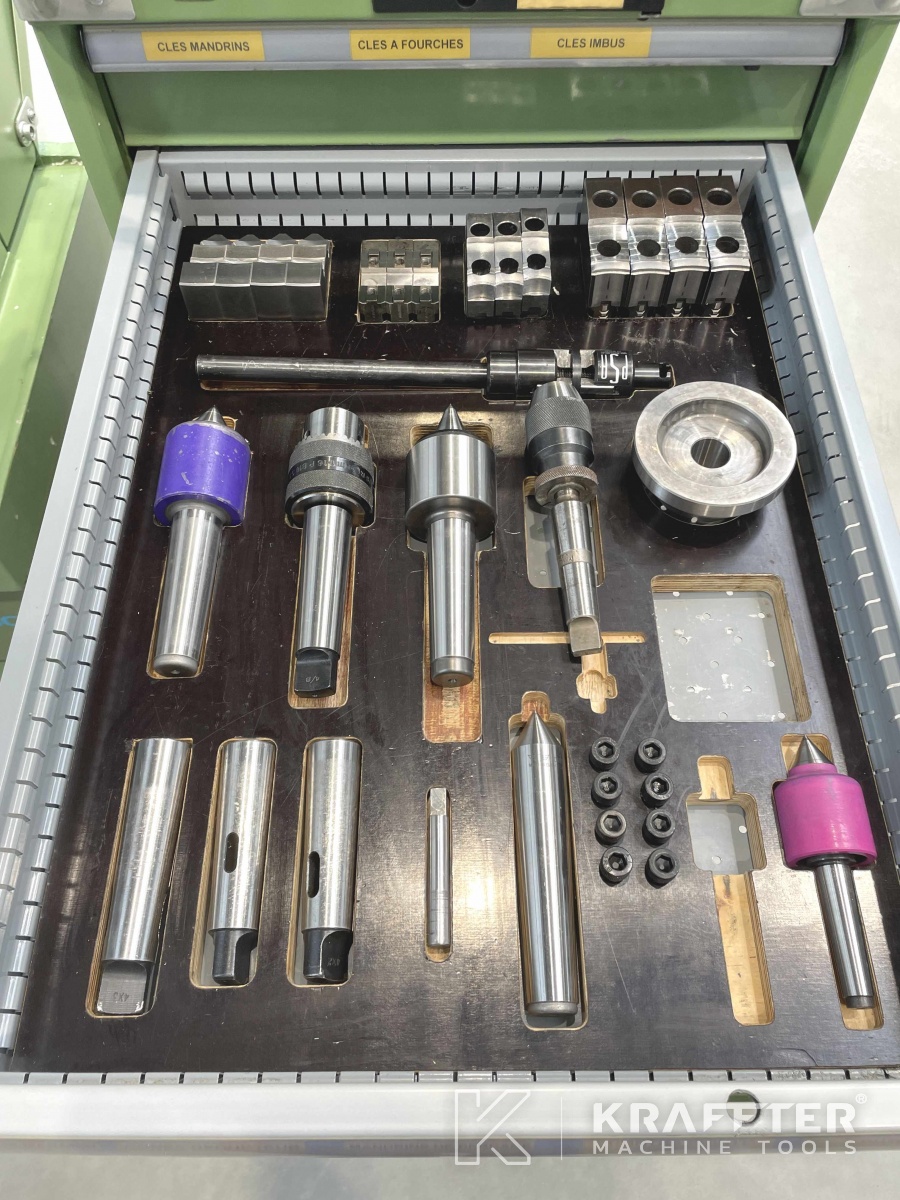

x1 MT3 live center
x1 MT3 drilling chuck Ø1 - 13 [mm]
x1 MT3 dead center
x1 bull nose
x1 face plate D1-4" Ø305 [mm]
x1 drive plate D1-4" Ø180 [mm]

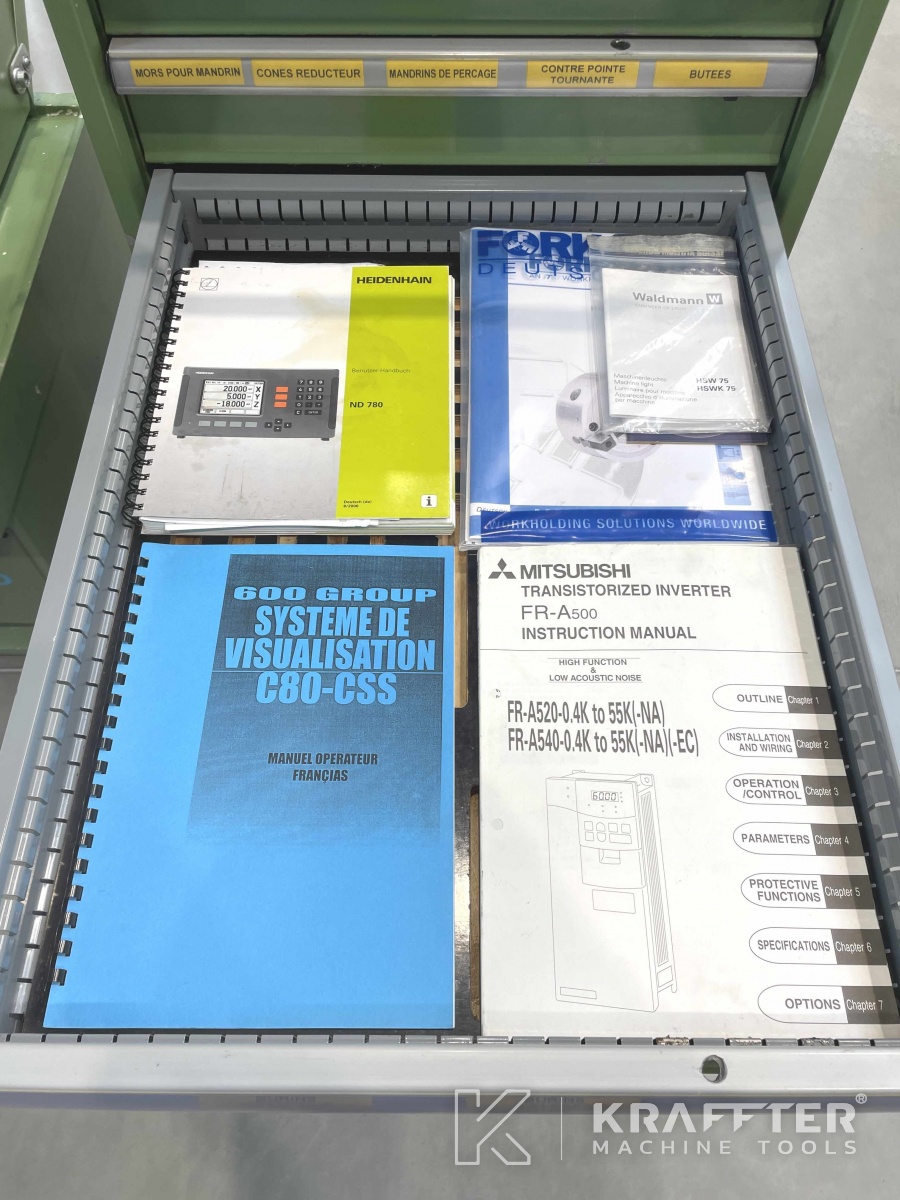

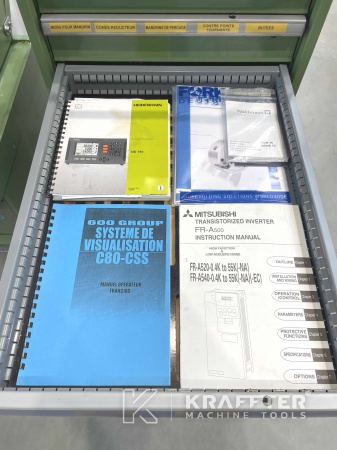

x1 operators guide (in French & English)
x1 spare parts manual
x1 HEIDENHAIN ND780 manual
