Sold

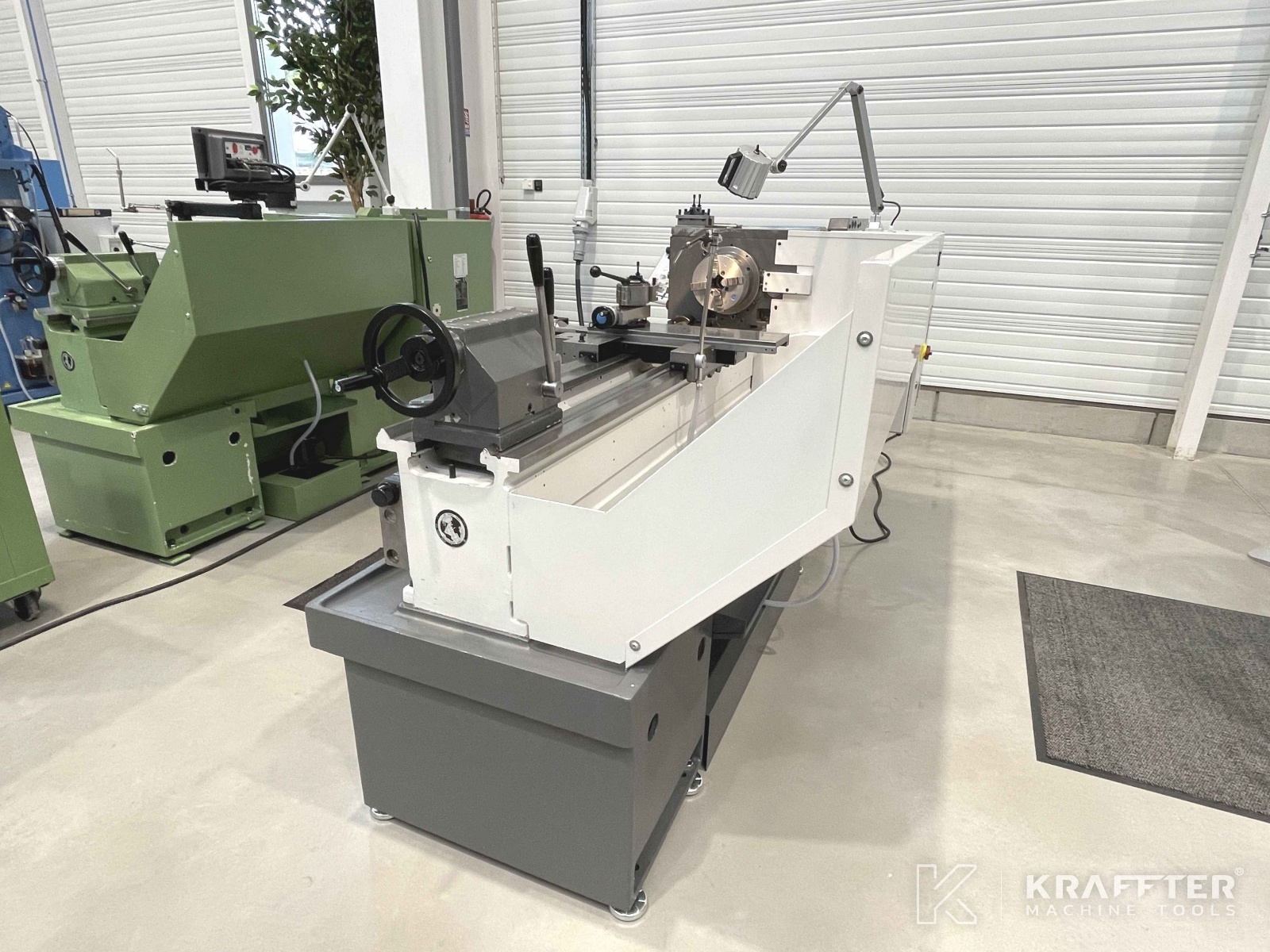

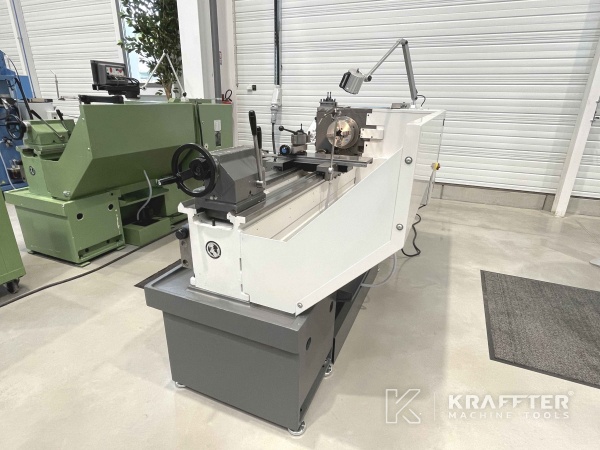

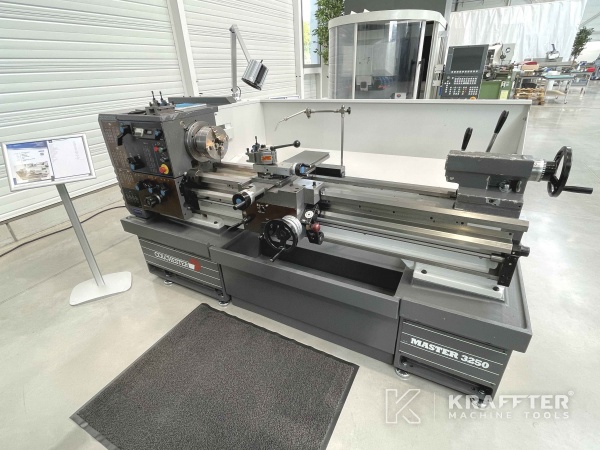

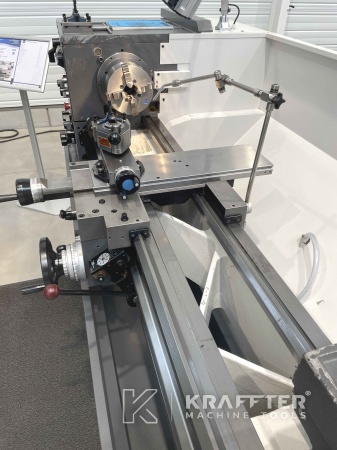

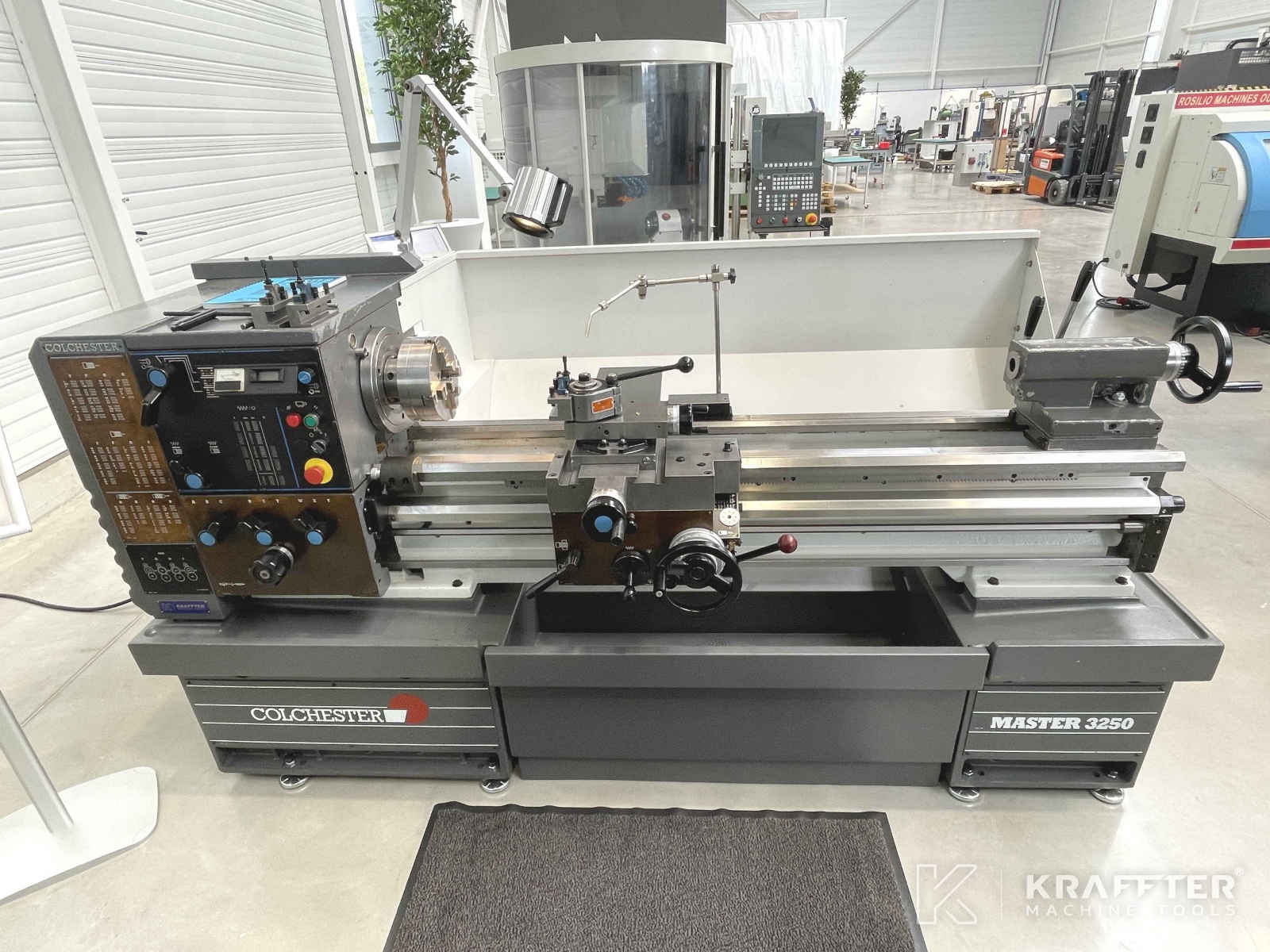

Type of machine : Manual lathe
Brand : COLCHESTER
Stock N° : 20690-006
Model : MASTER VS 3250
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Distance between centers
1250 [mm]
Height of centers
170 [mm]
Height of centers over cariage
196 [mm]
Max. swing over bed
350 [mm]

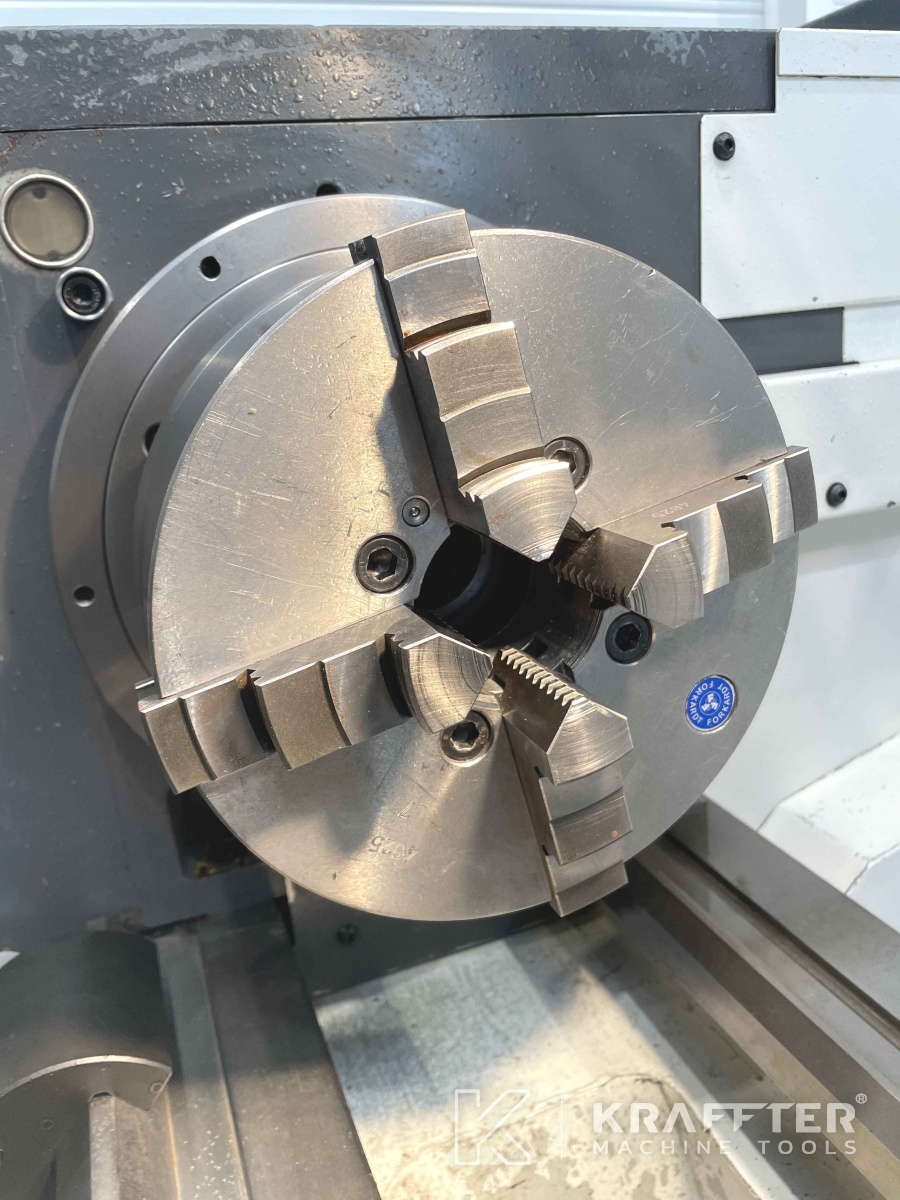

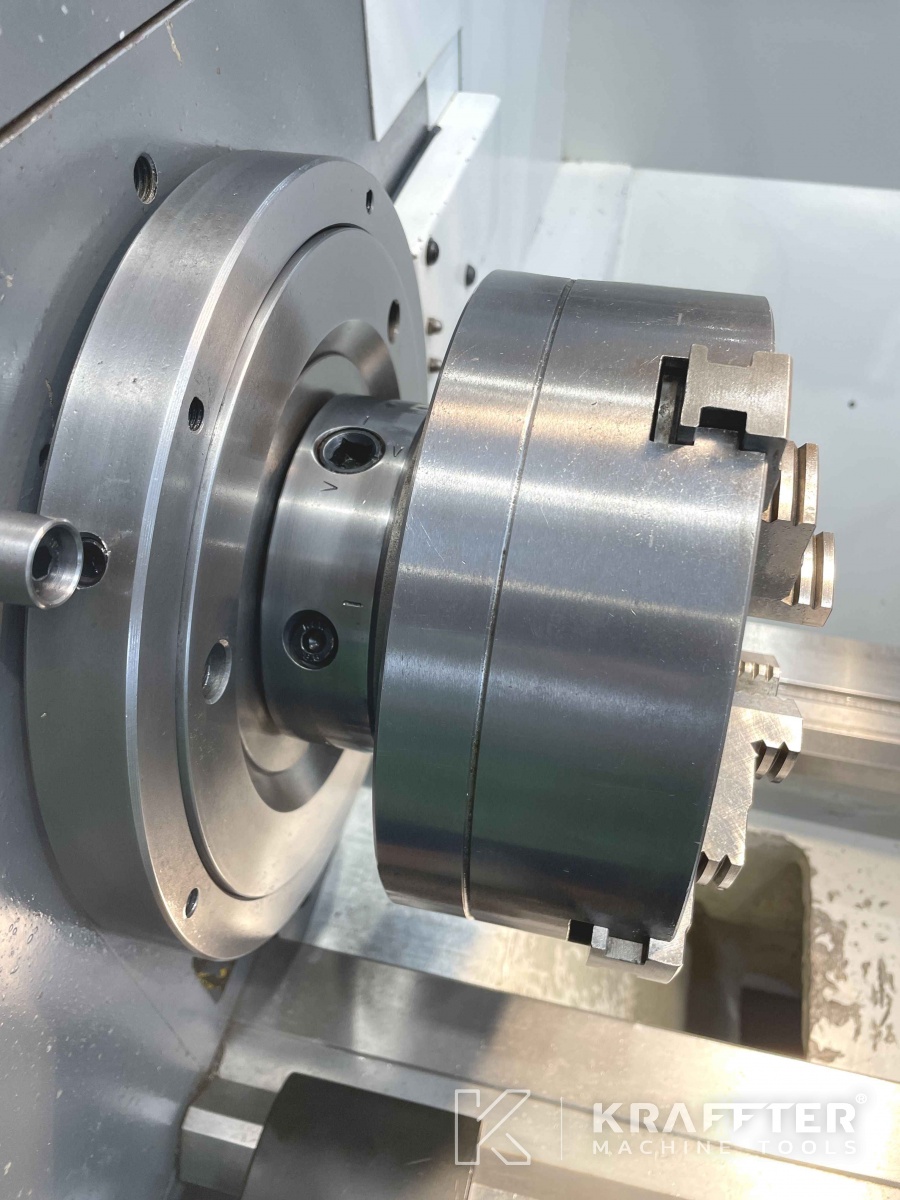

Spindle nose
D1-4" Camlock
Spindle throughbore
42 [mm]
Min. spindle speed
15 [rpm]
Max. spindle speed
3250 [rpm]

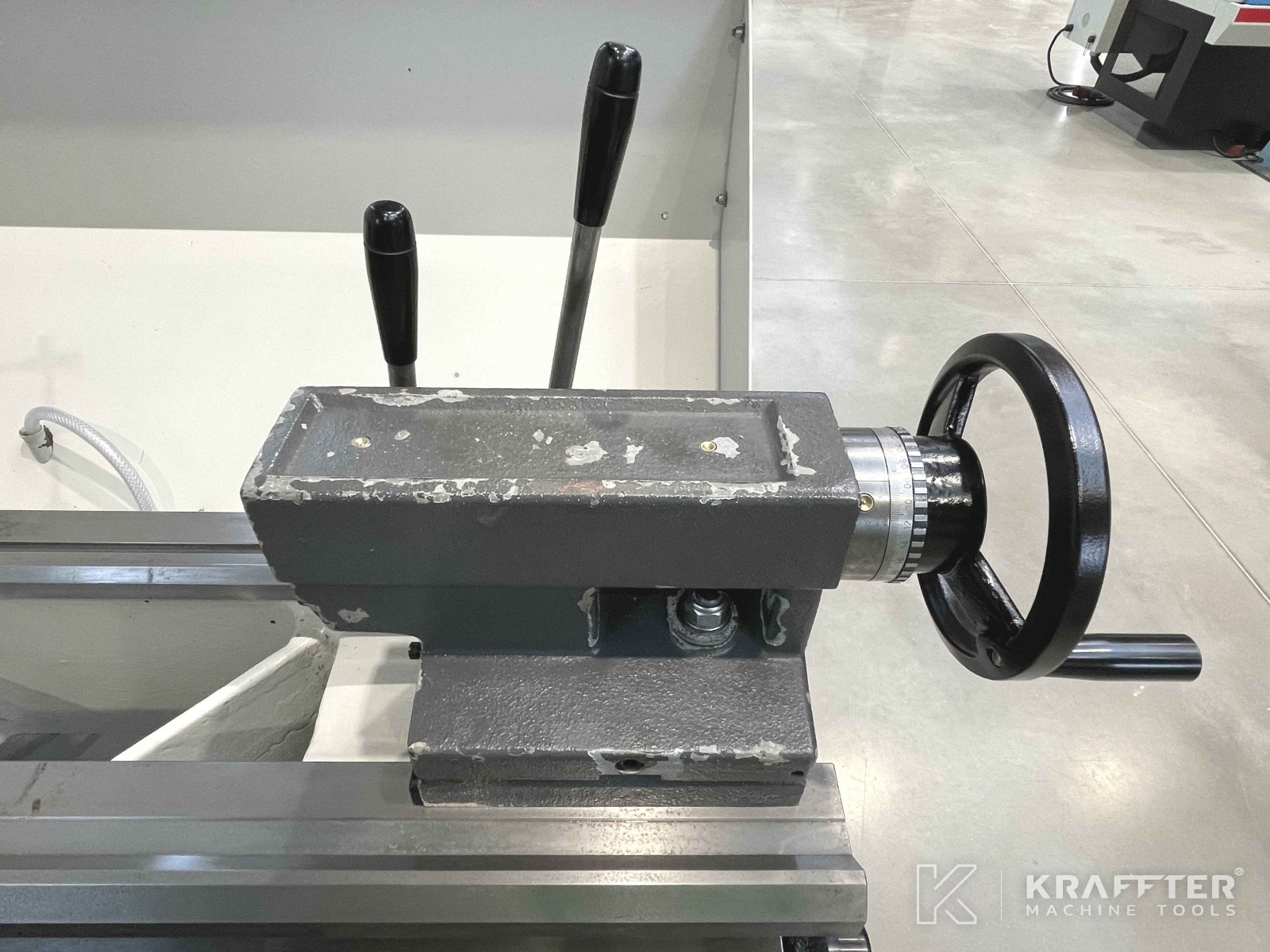

Type of attachment tailstock
CM4
Tailstock quill stroke
140 [mm]
Tailstock quill diameter
63 [mm]

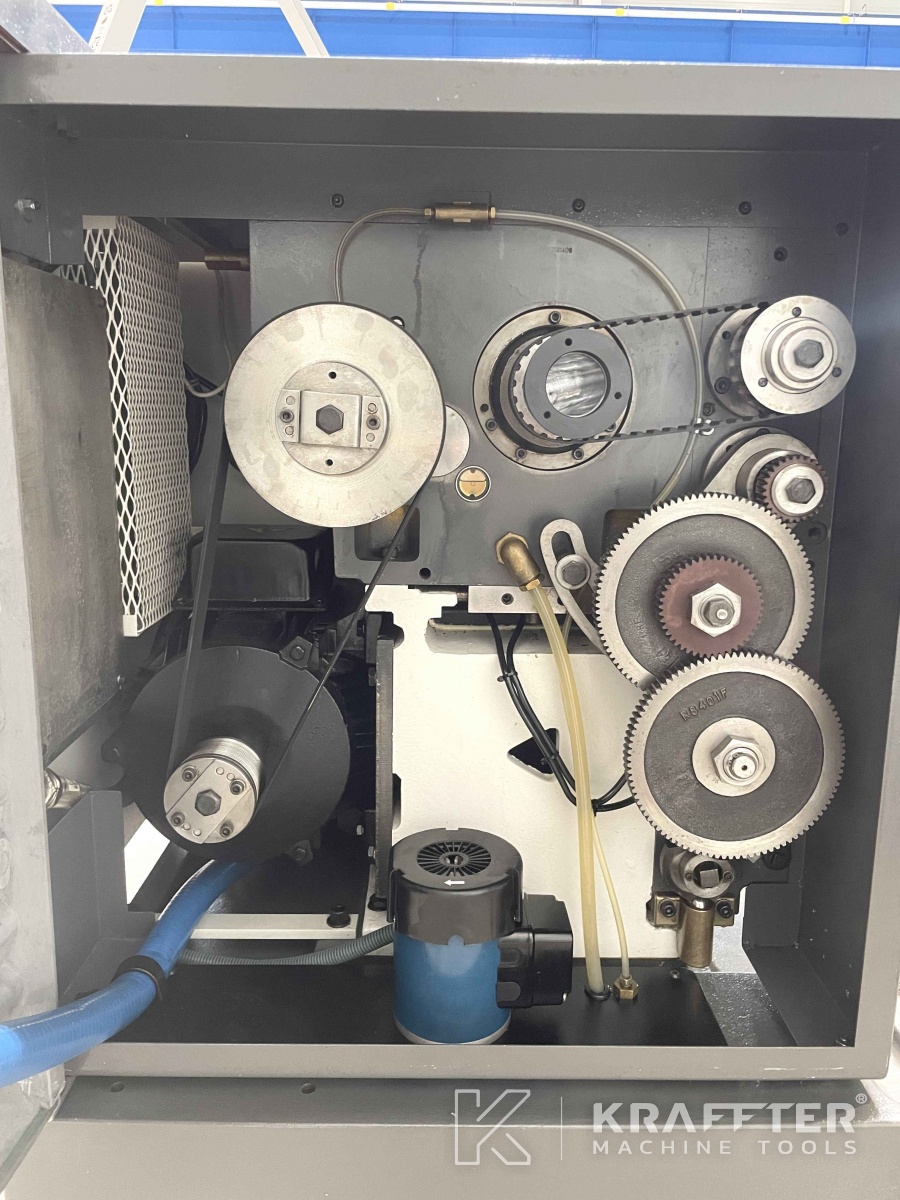

Universal threading gear box
Yes
Metric pitches
0.2 - 14 [mm]
Imperial T.P.I.
2 - 56 [filets/pouce]
Module pitches
0.2 - 3.5
Electrospindle brake
Yes
Turret
AMESTRA type E

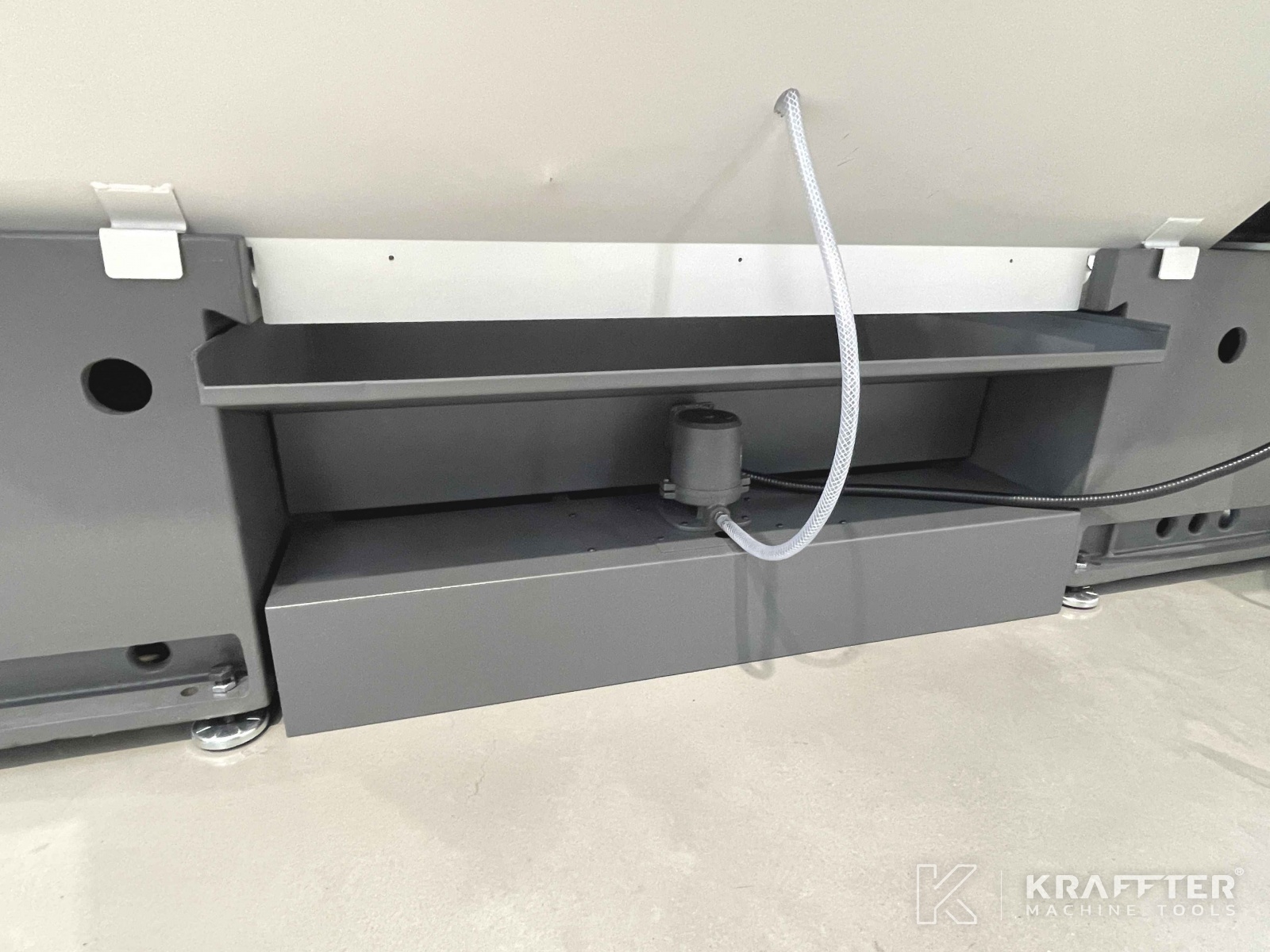

Lubrication tank with pump
Yes
Supply voltage
400 [V]

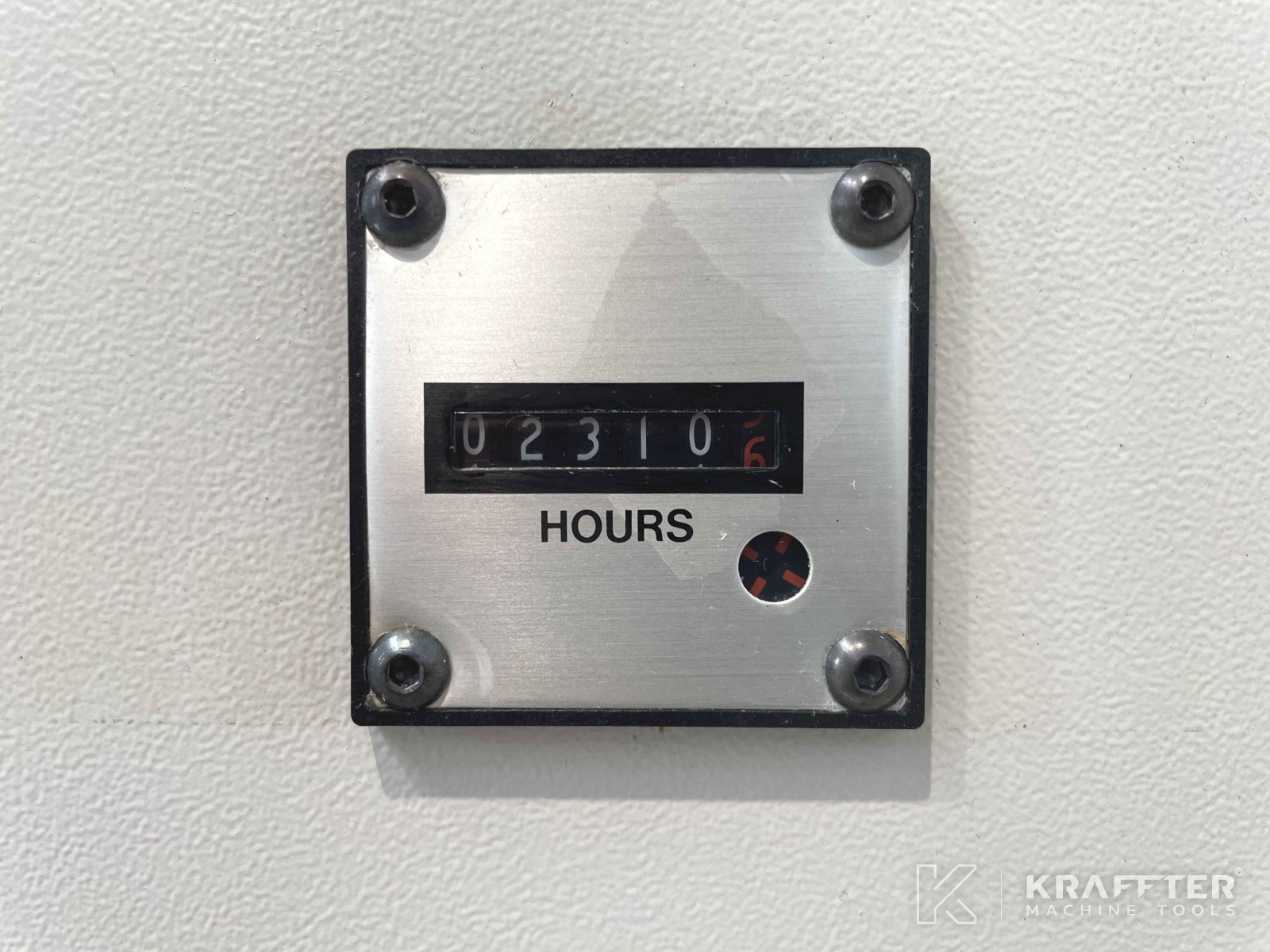

Spindle running hours
2310 [h]
Dimensions
2500 x 1100 x 1300 [mm]
Weight
1550 [Kg]
