Sold

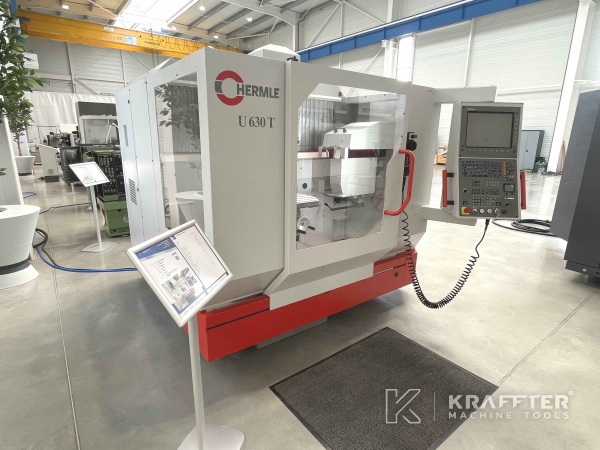

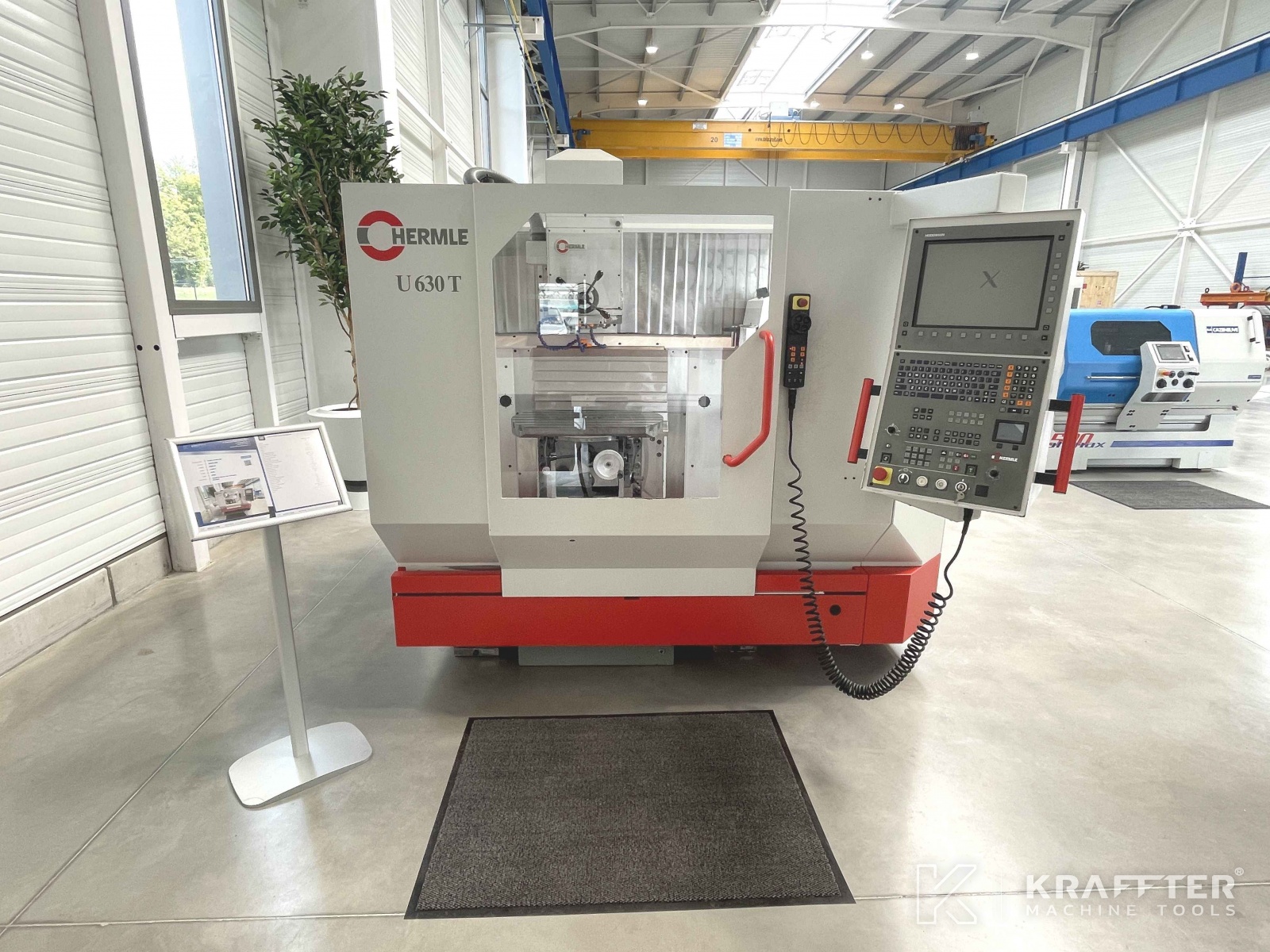

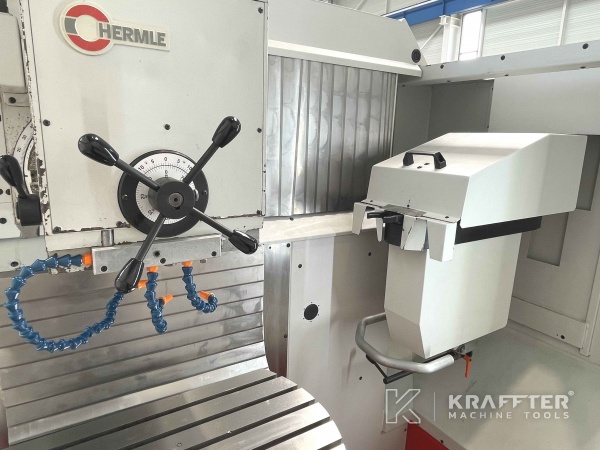

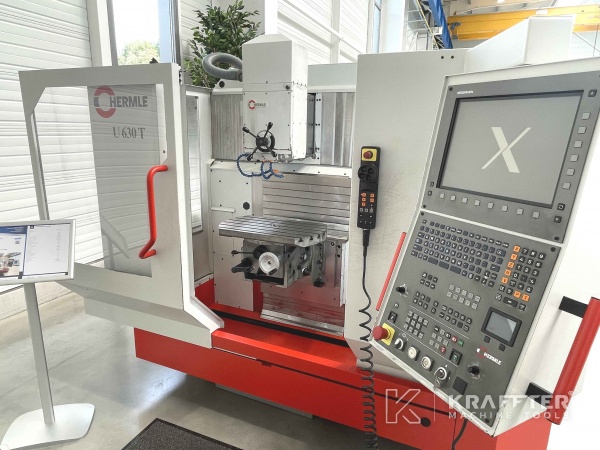

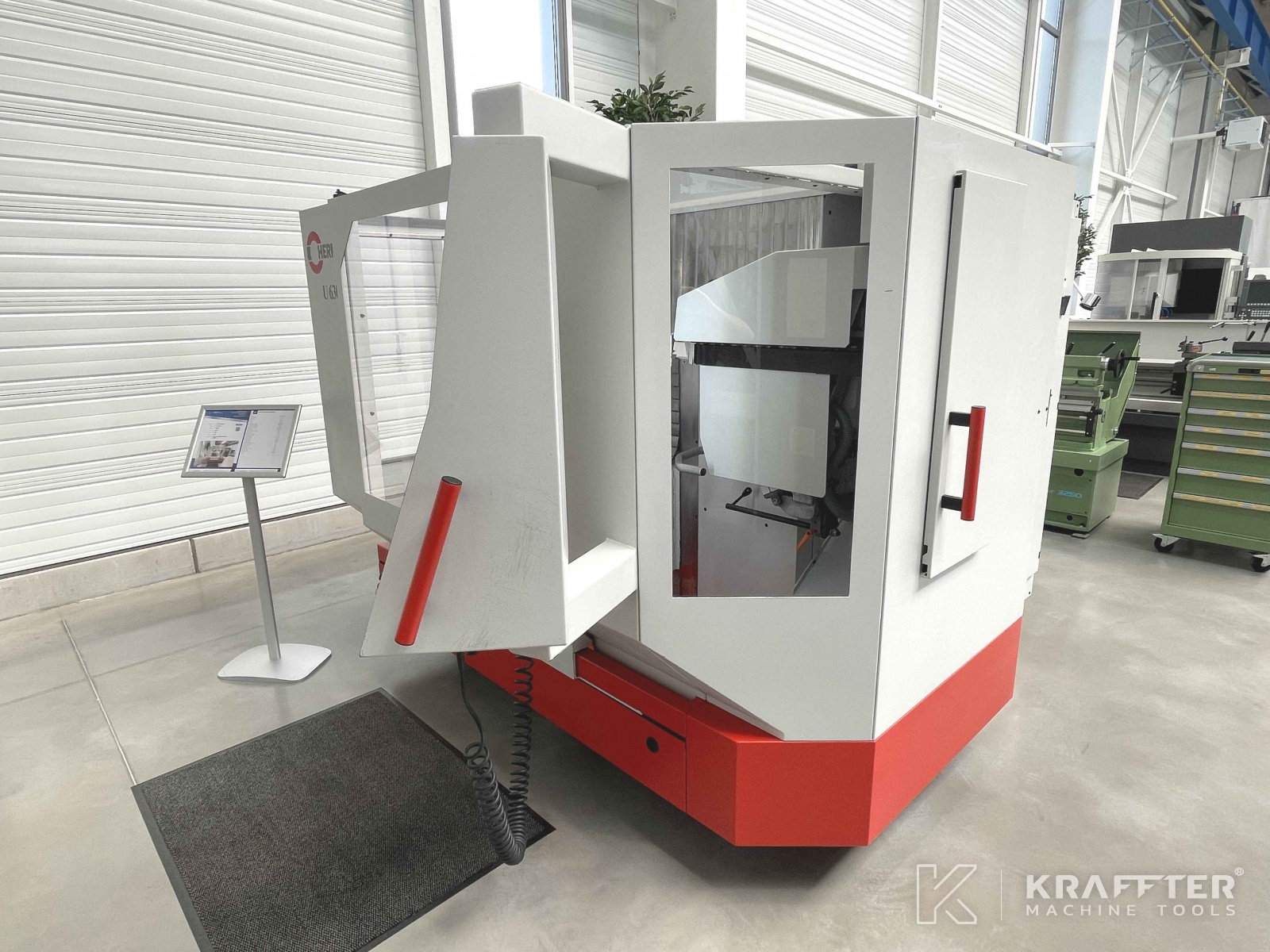

Type of machine : CNC machining centre
Brand : HERMLE
N° de stock: 20689-999
Model : U 630 T
Year : 2003
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

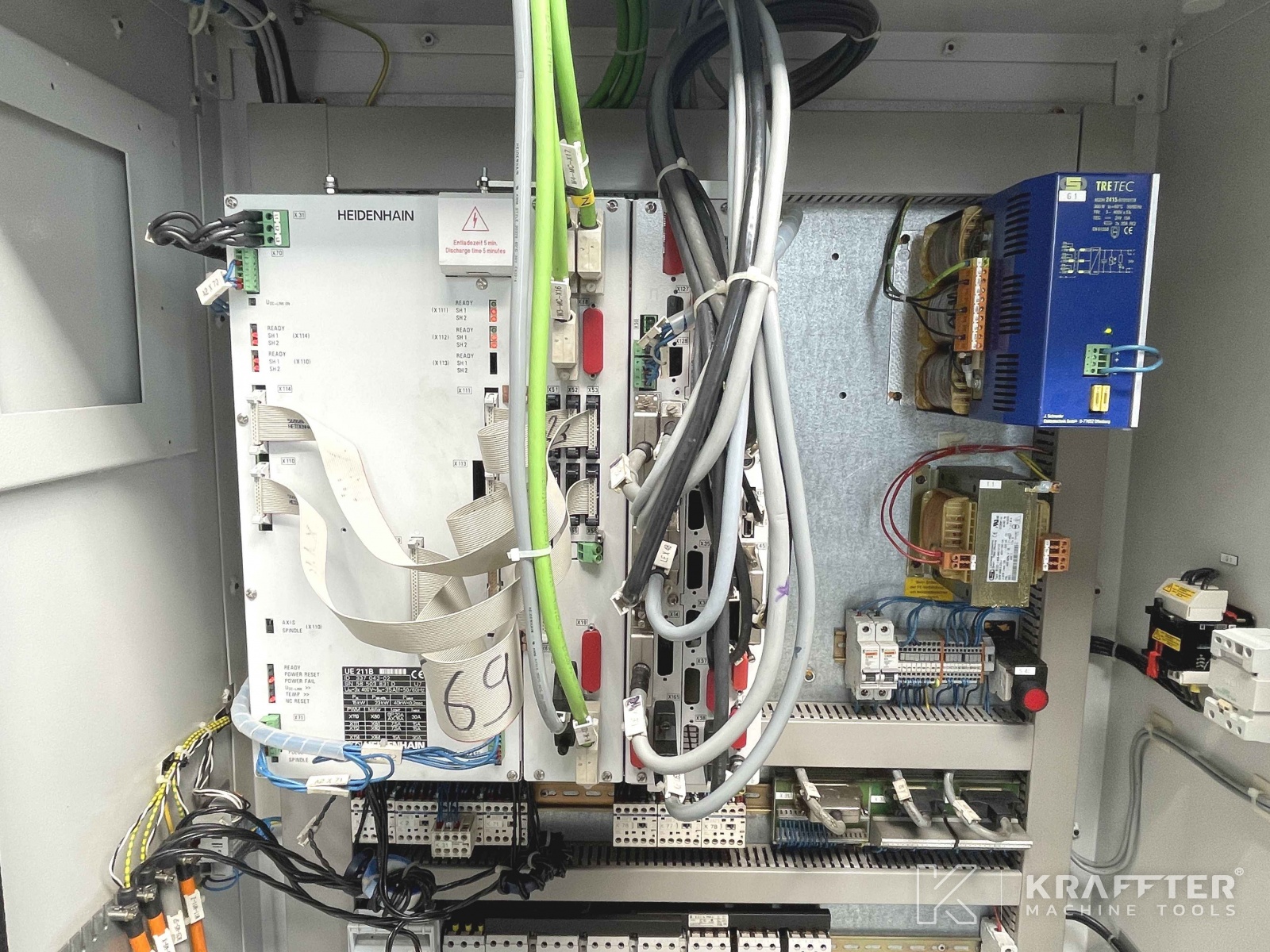

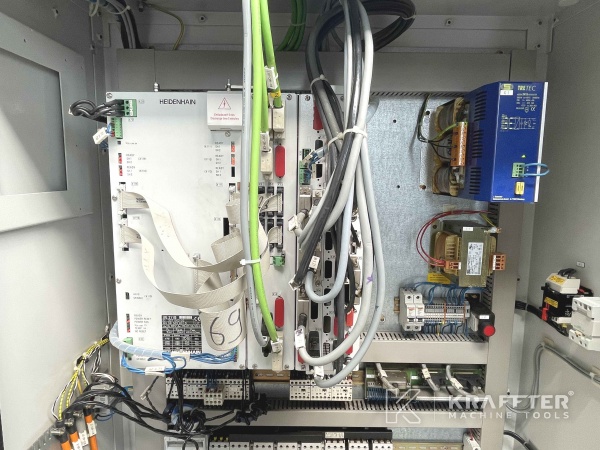

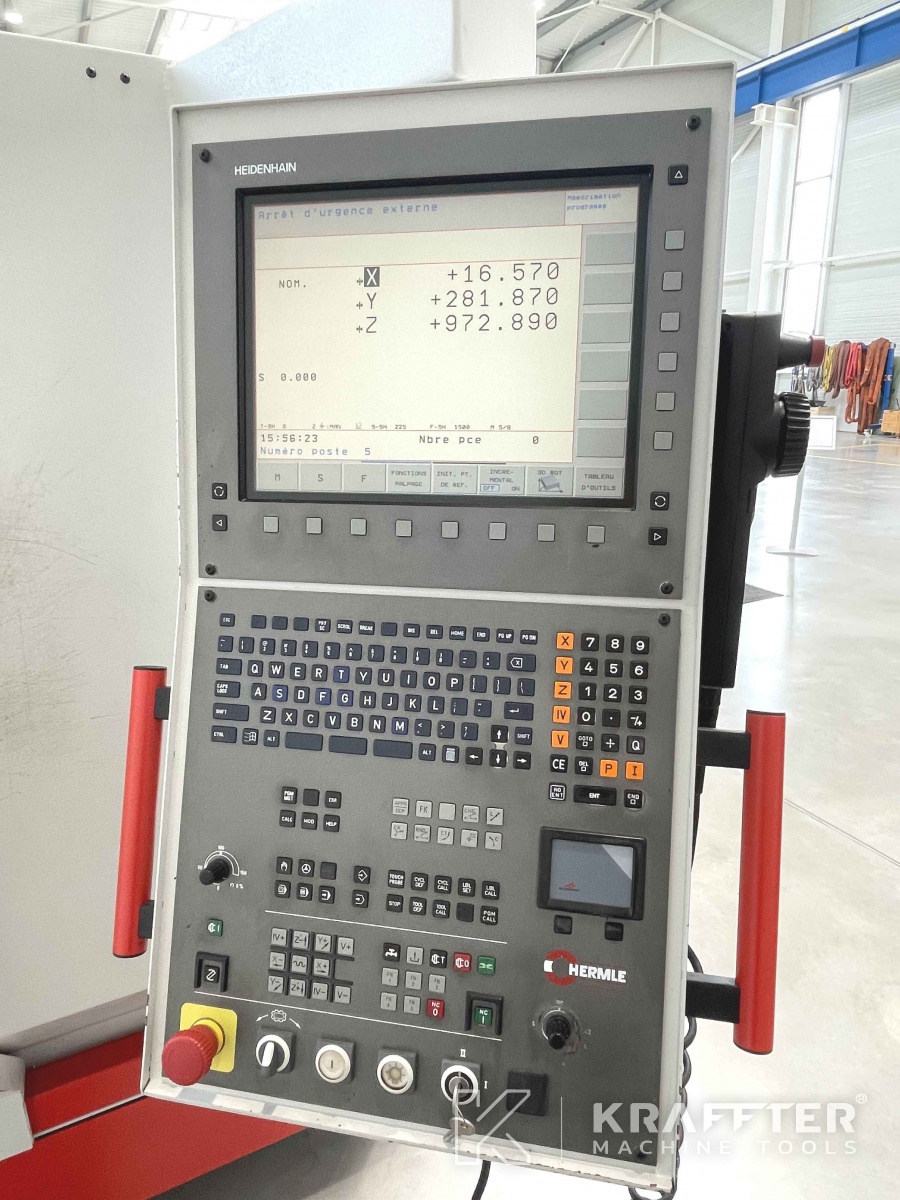

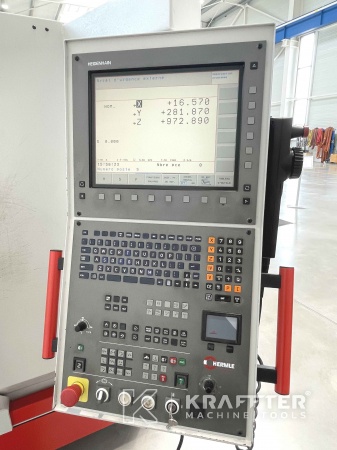

CNC control
HEIDENHAIN iTNC 530

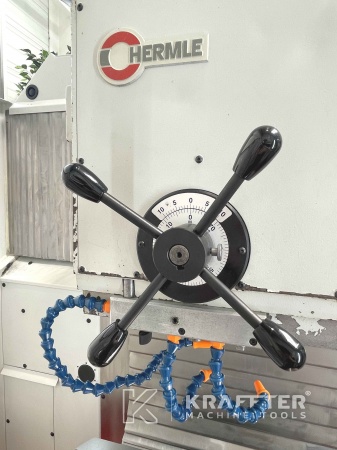

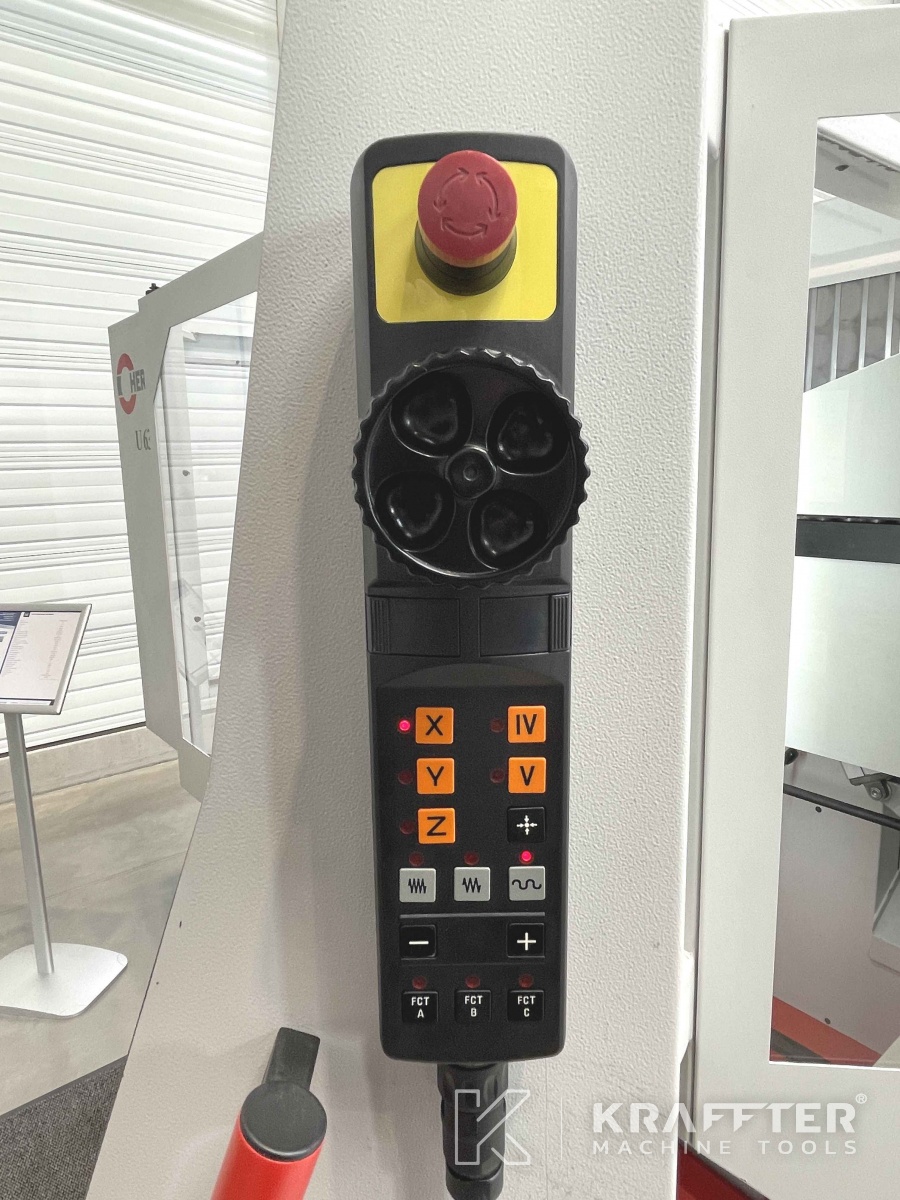

Manual jog wheel
Yes
Number of axes
3 + 2
Stroke X axis
630 [mm]
Stroke Y axis
500 [mm]
Stroke Z axis
500 [mm]
Traversing feeds X, Y
15000 [mm/min]
Rapid feed Z
15000 [mm/min]
Drilling head stroke
75 [mm]

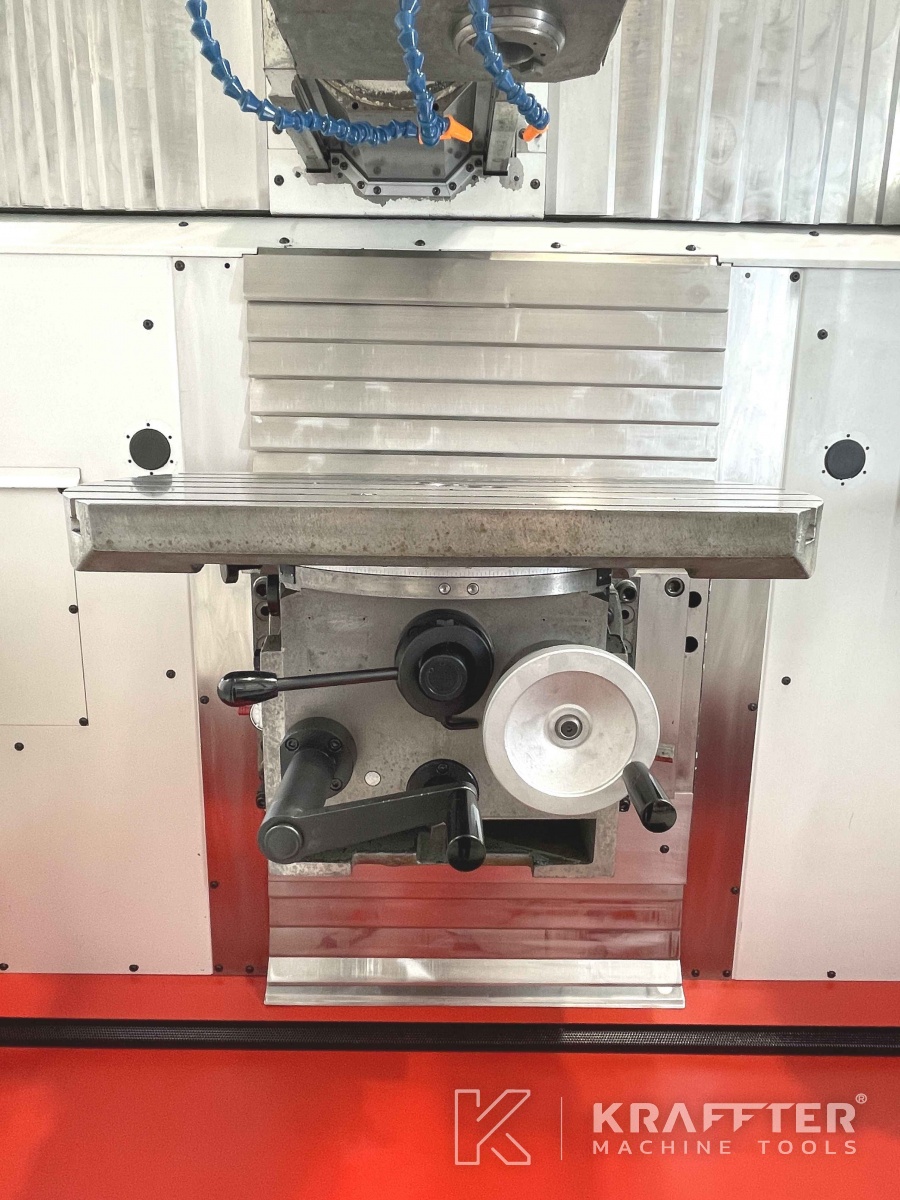

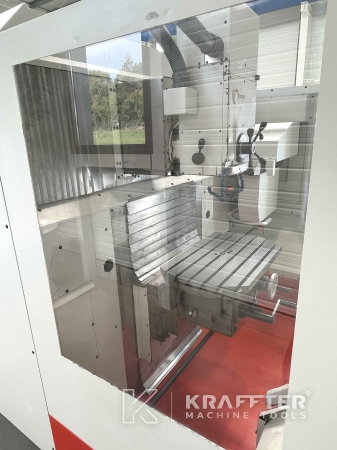

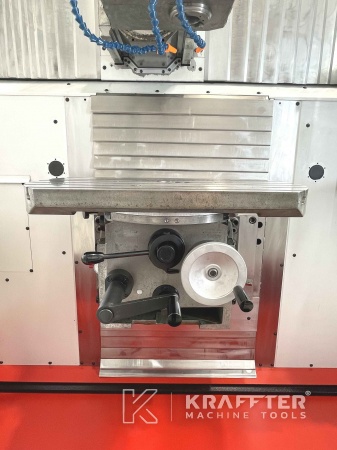

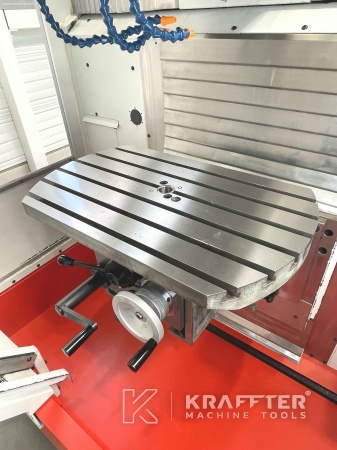

Table dimensions
Ø 650 x 395 [mm]
Max. load on table
180 [Kg]
Stroke C axis : table revolution
360 [°]

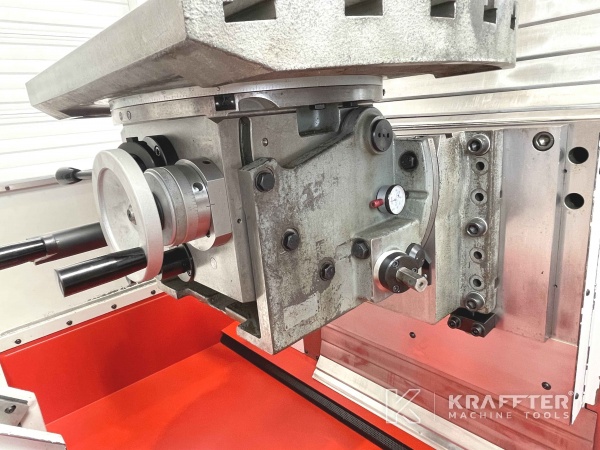

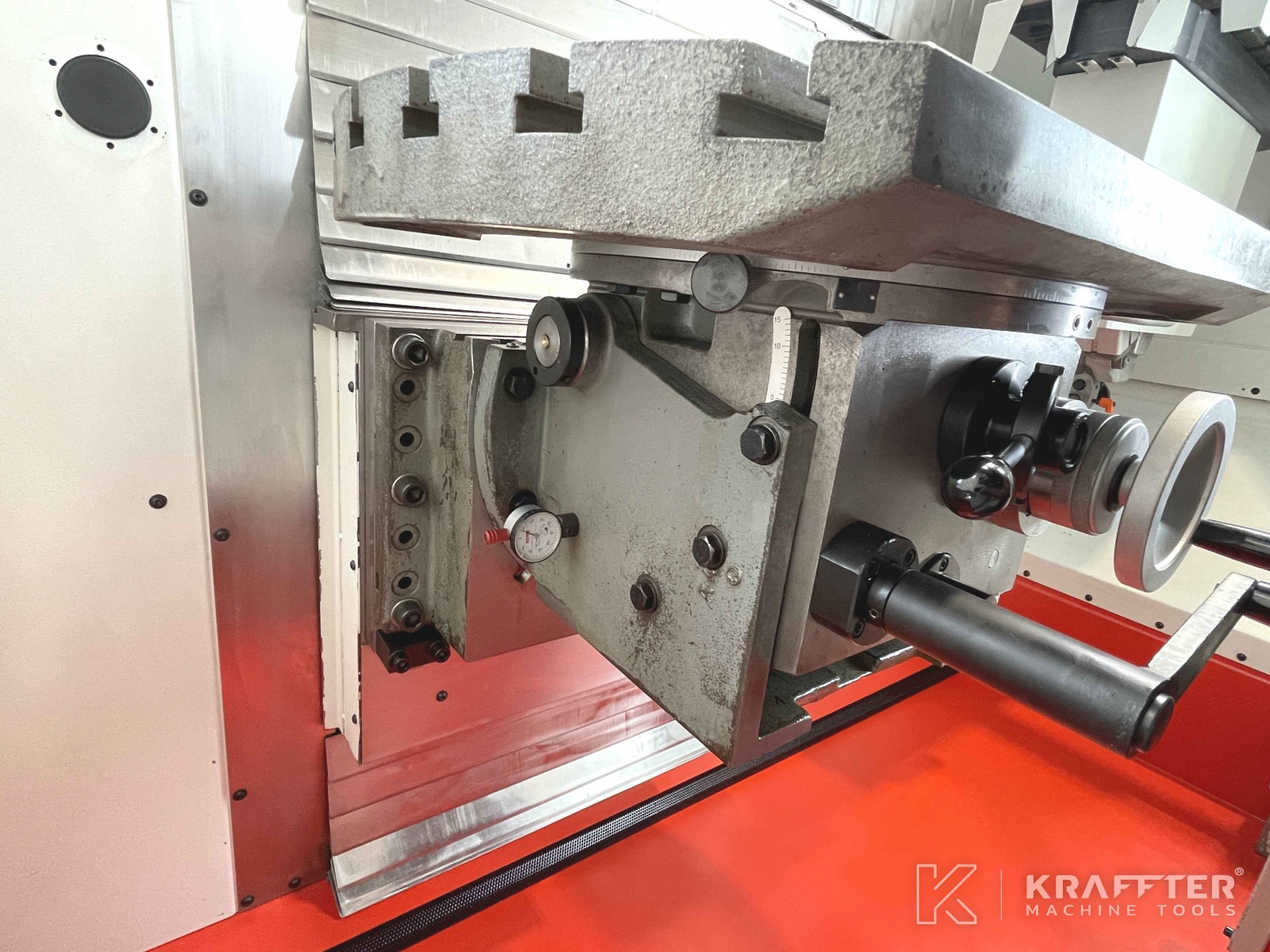

Tilting table
+/- 30 [°]
Tilting table towards operator
15 [°]
Tilting table towards machine
45 [°]
Spindle type
ISO 40 (DIN 2079)
Vertical milling head orientable
0 / +90 [°]
Min. spindle speed
20 [rpm]
Max. spindle speed
7000 [rpm]
Tool changer magazin number of stations
16
Glass scales on all 3 axes
HEIDENAIN (0.1 µm)

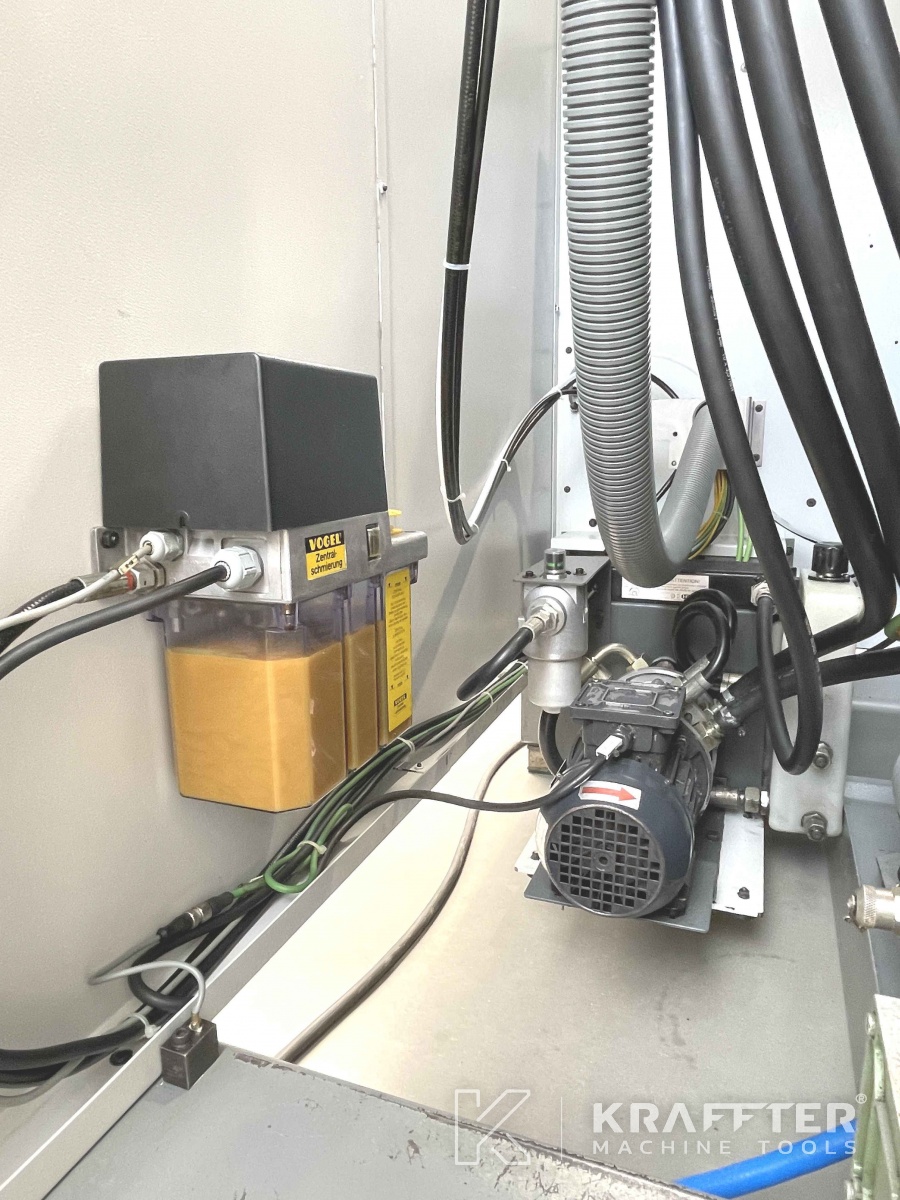

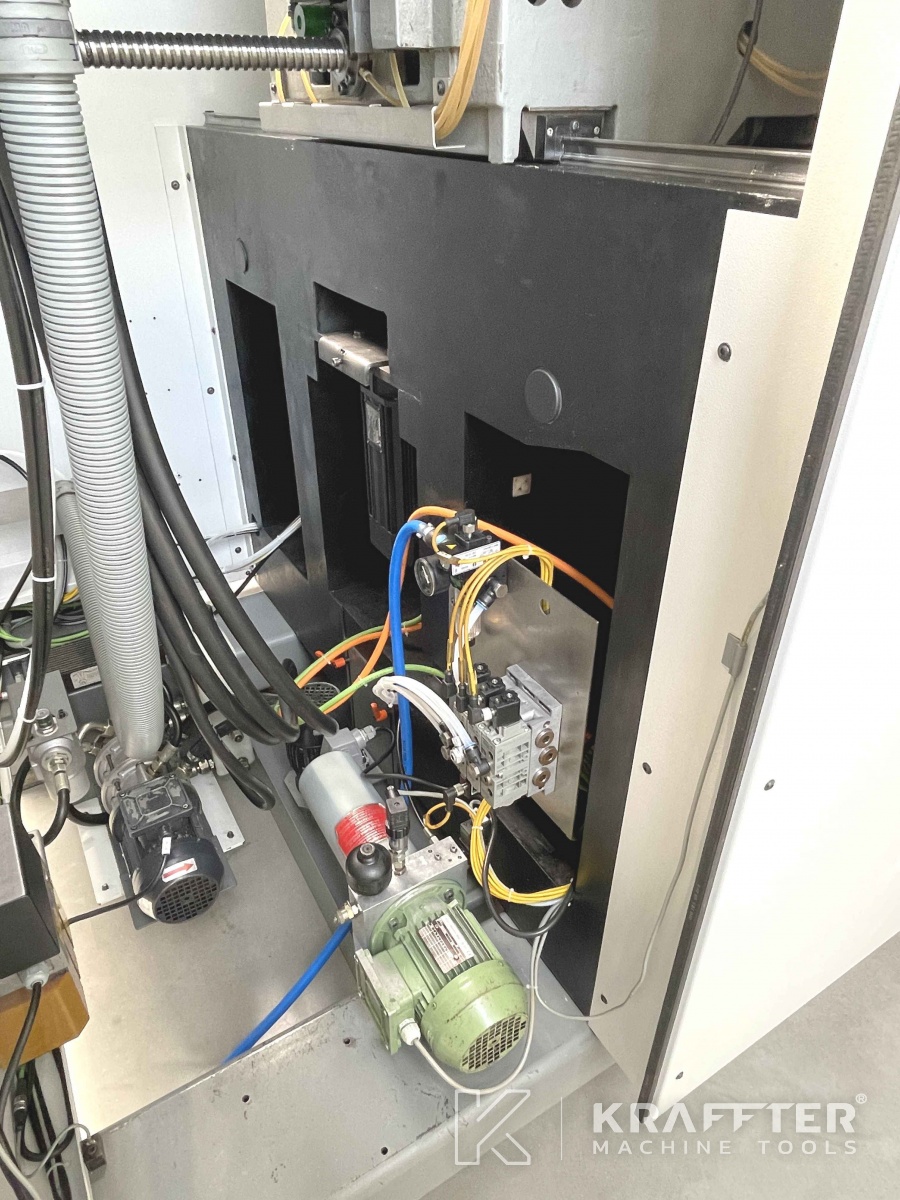

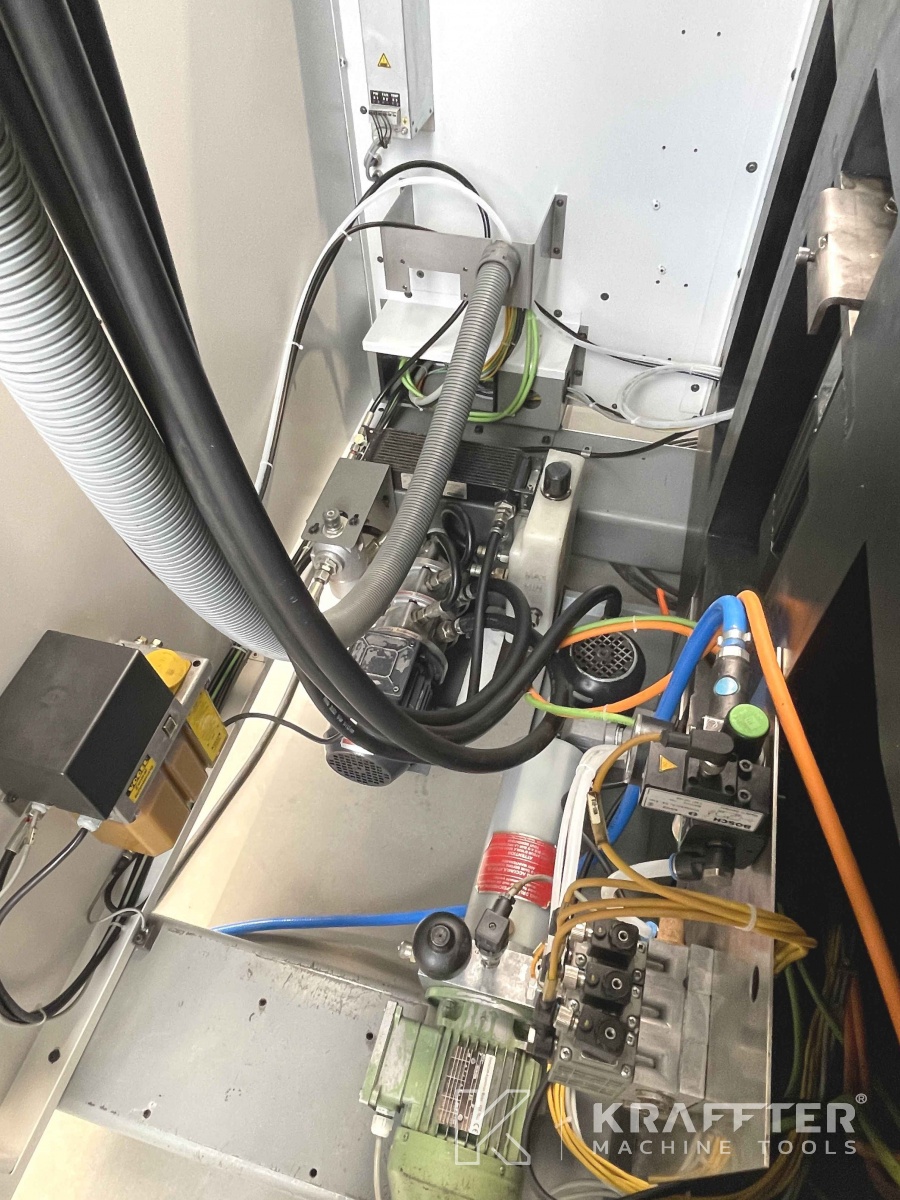

Lubrication tank with pump
Yes
Lubrication tank capacity
120 [l]
Centralized lubrication
Auto
Automatic tool clamping
Yes
Total power required
14 [kVA]
Supply voltage
400 [V]
Spindle running hours
7818 [h]

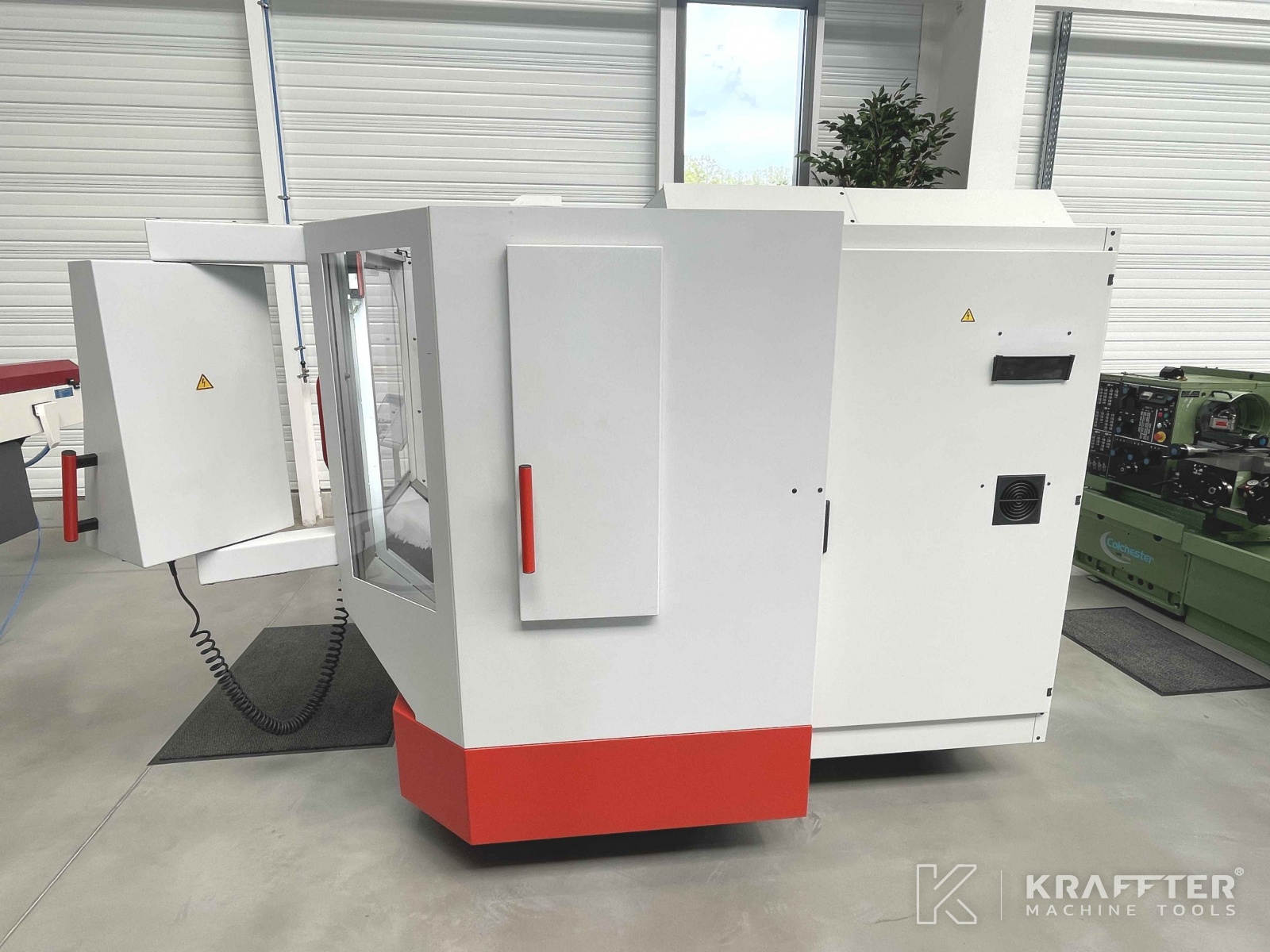

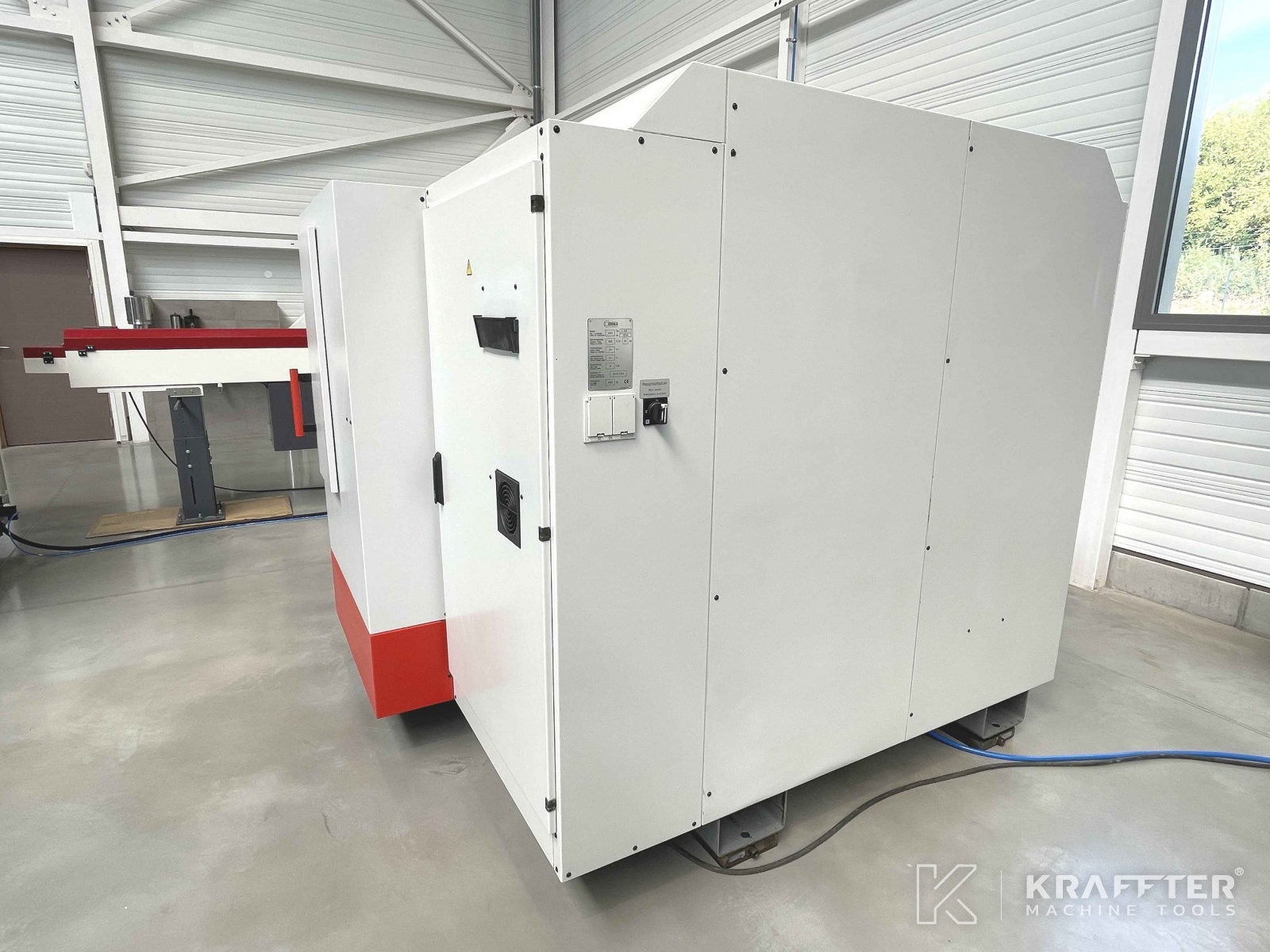

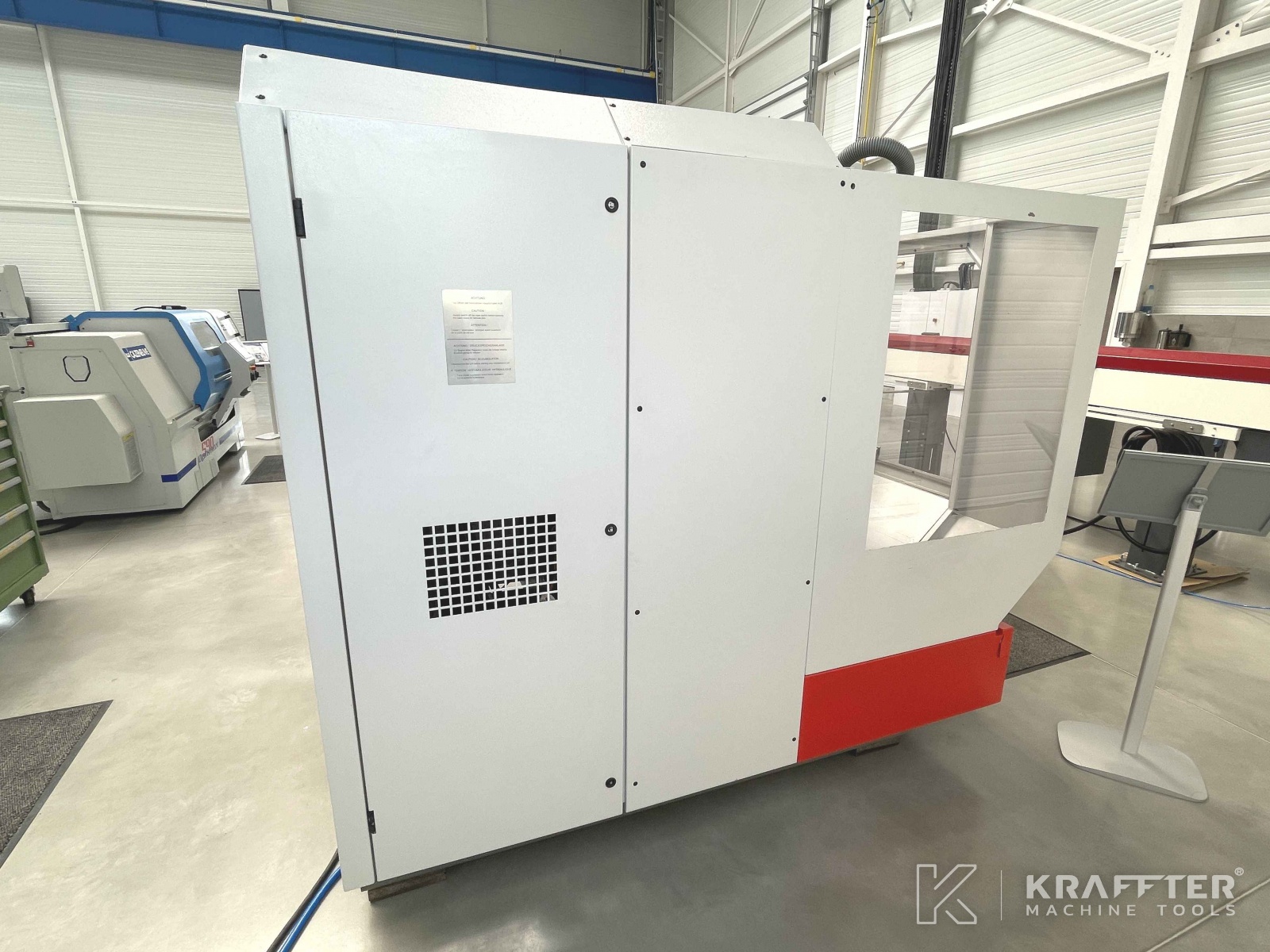

Dimensions
2390 x 1030 x 2110 [mm]
Weight
4400 [Kg]
Technical specifications are provided for indicative purposes only. The description may have been automatically translated.
Additional information
x1 instruction manual (in French)
x1 operators manual for the iTNC 530 (in French)
x1 parameter back up on floppy disk
