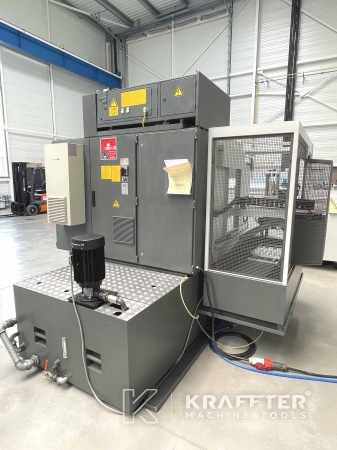

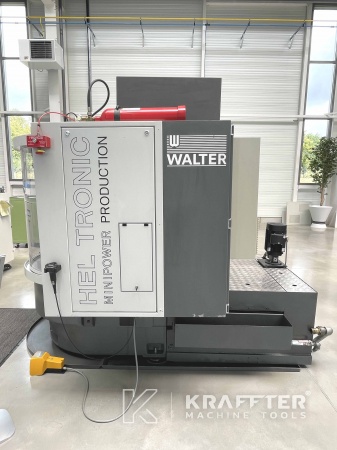

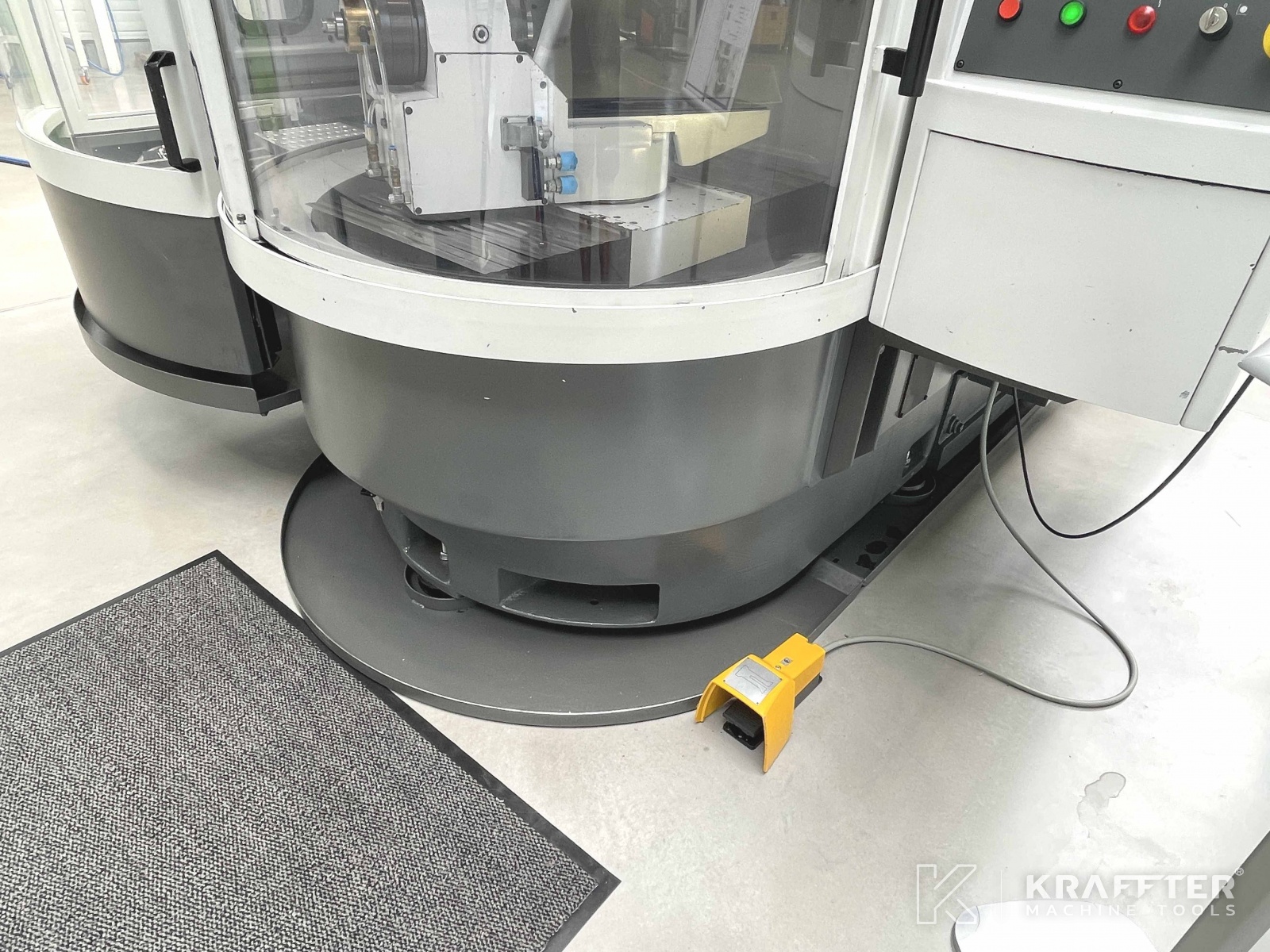

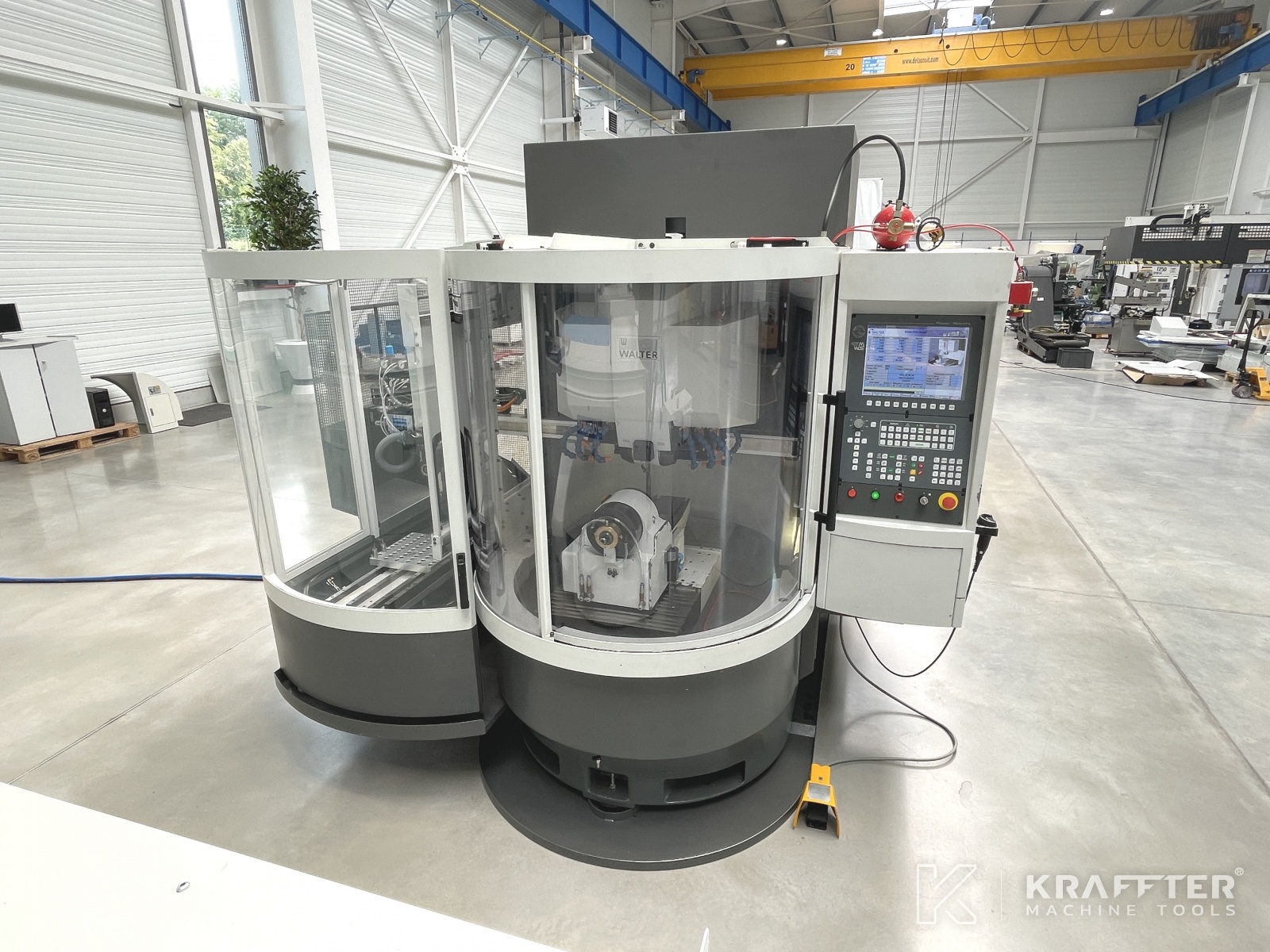

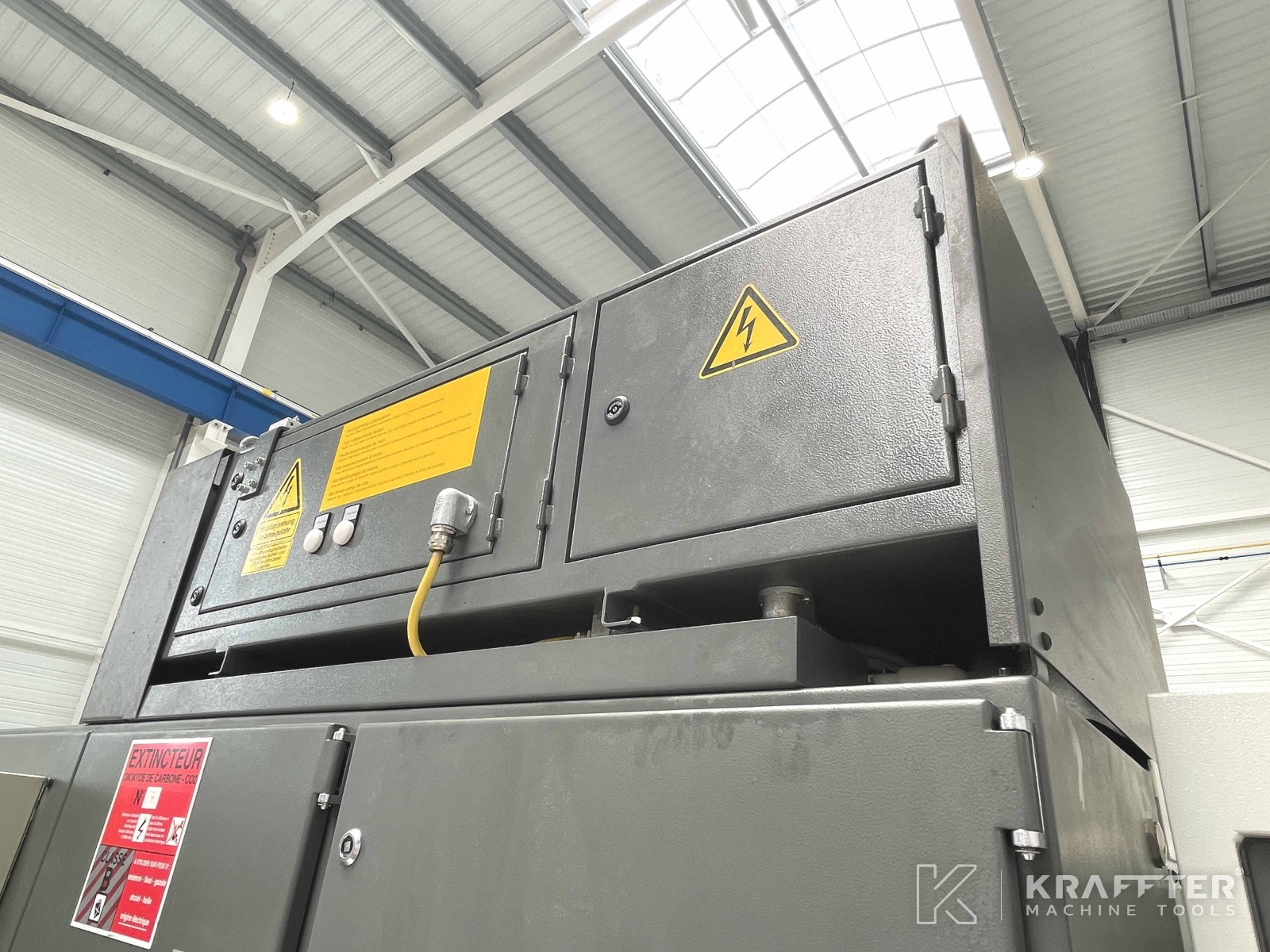

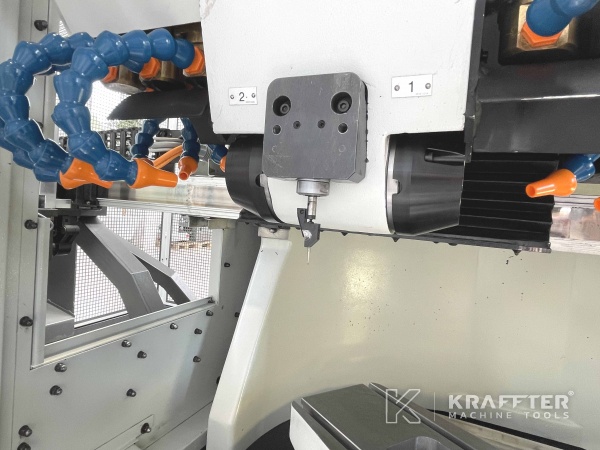

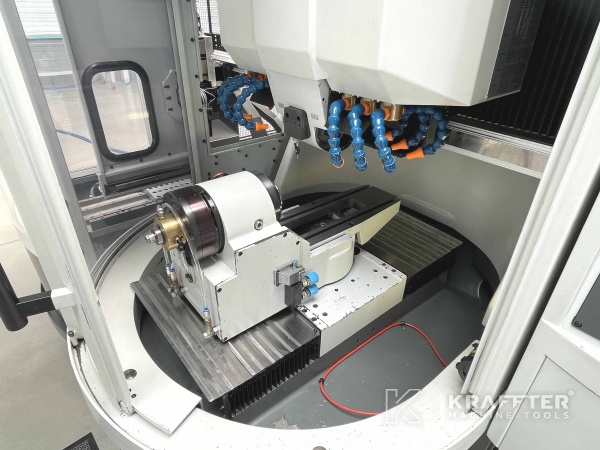

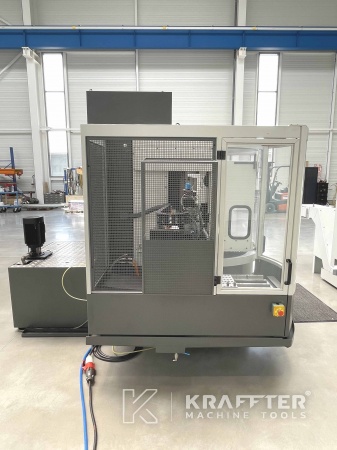

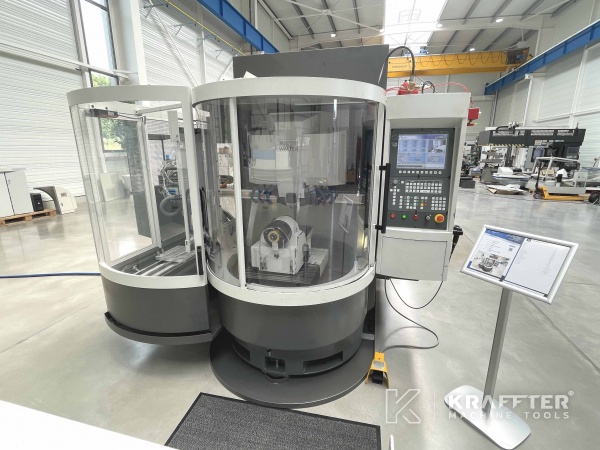

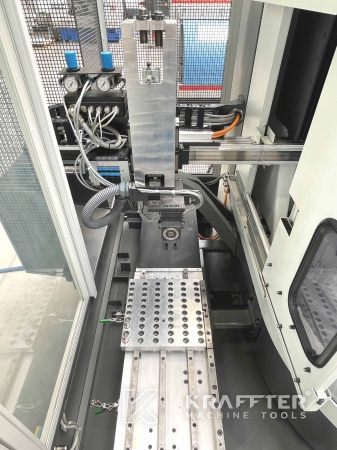

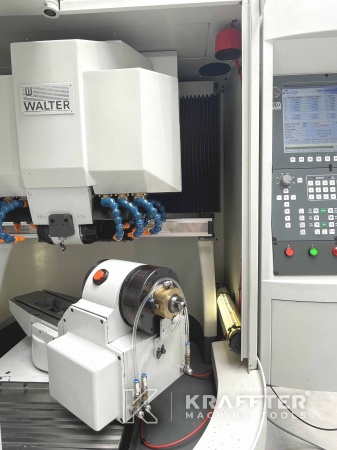

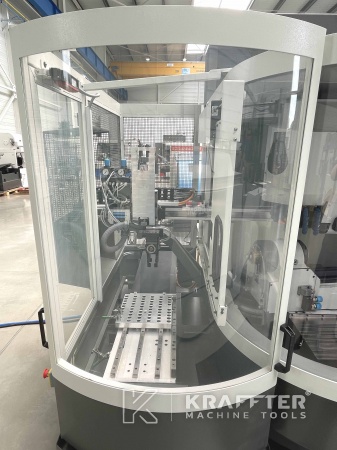

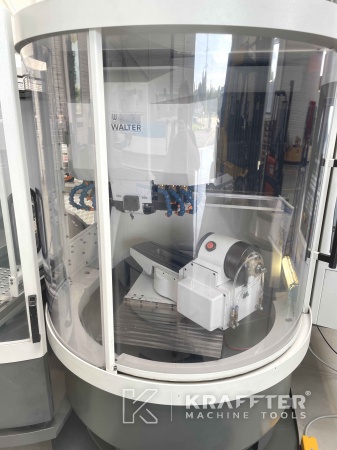

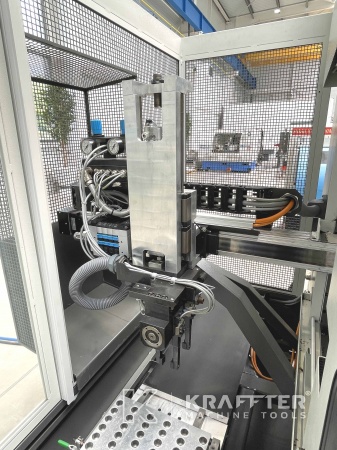

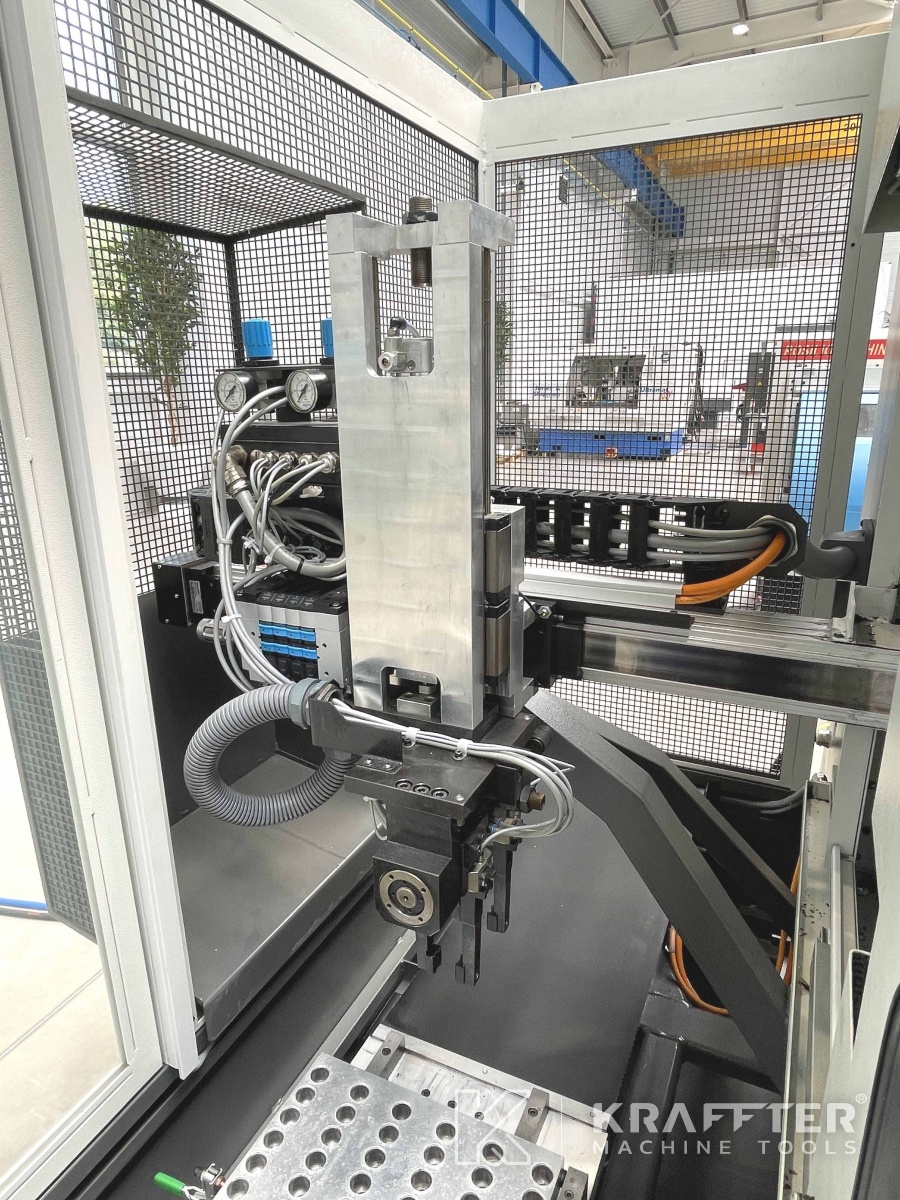

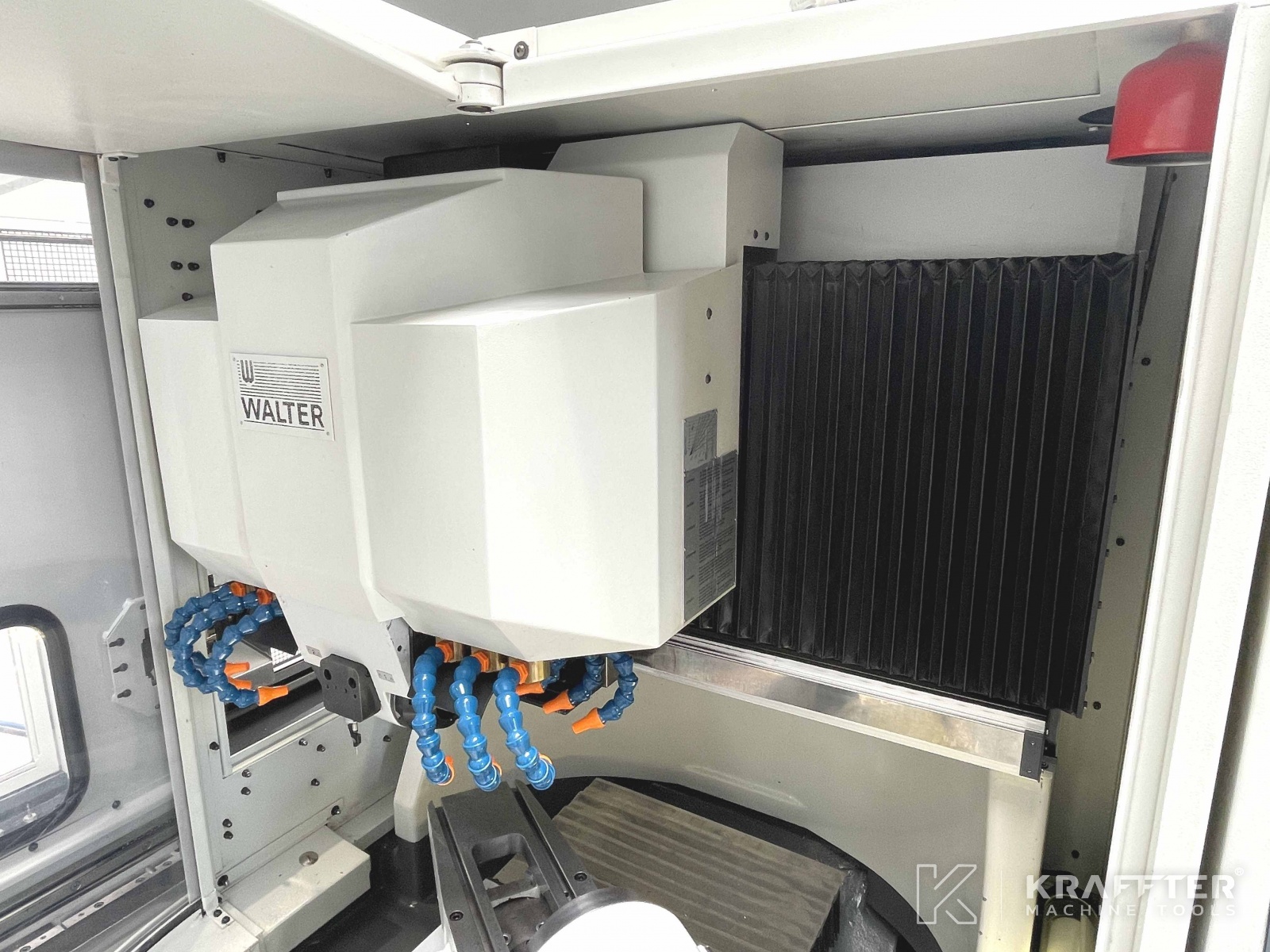

Type of machine : CNC tool grinding machine
Brand : WALTER
Stock N° : 20690-003
Model : MiniPower Production
Serial N° : 660135
Year : 2001
Location : 73240 St-Genix-les-Villages, FRANCE
Videos :
Technical characteristics
Additional information
Request a quotation

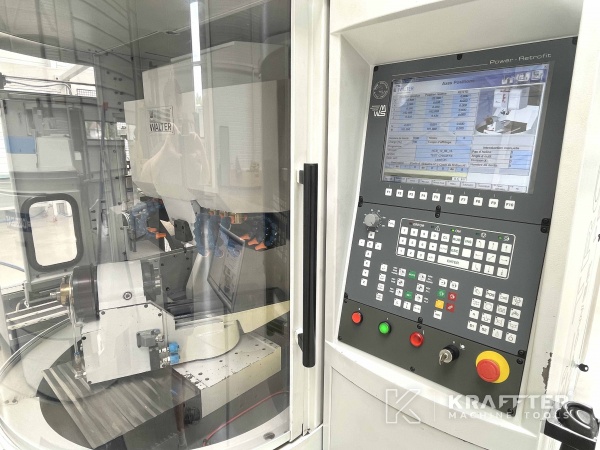

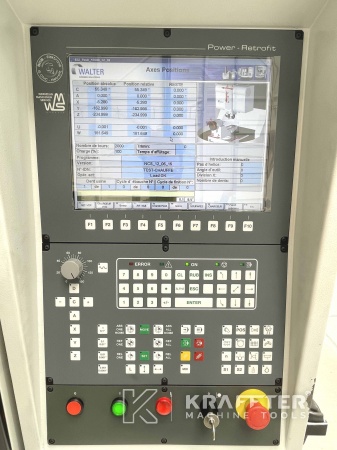

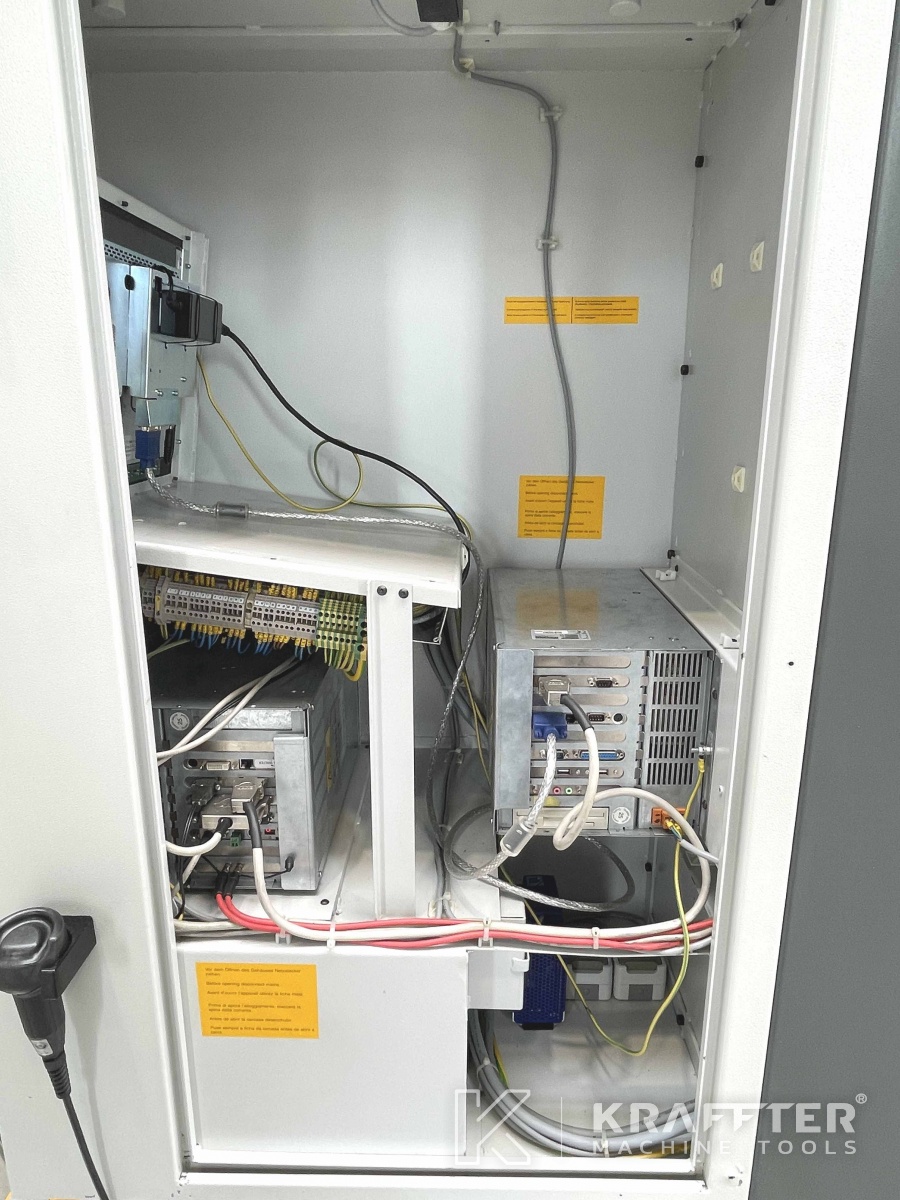

CNC control
HMC 500 XP
Number of axes
5
Height of centers
160 [mm]
Stroke X axis
350 [mm]
Stroke Y axis
200 [mm]
Stroke Z axis
470 [mm]

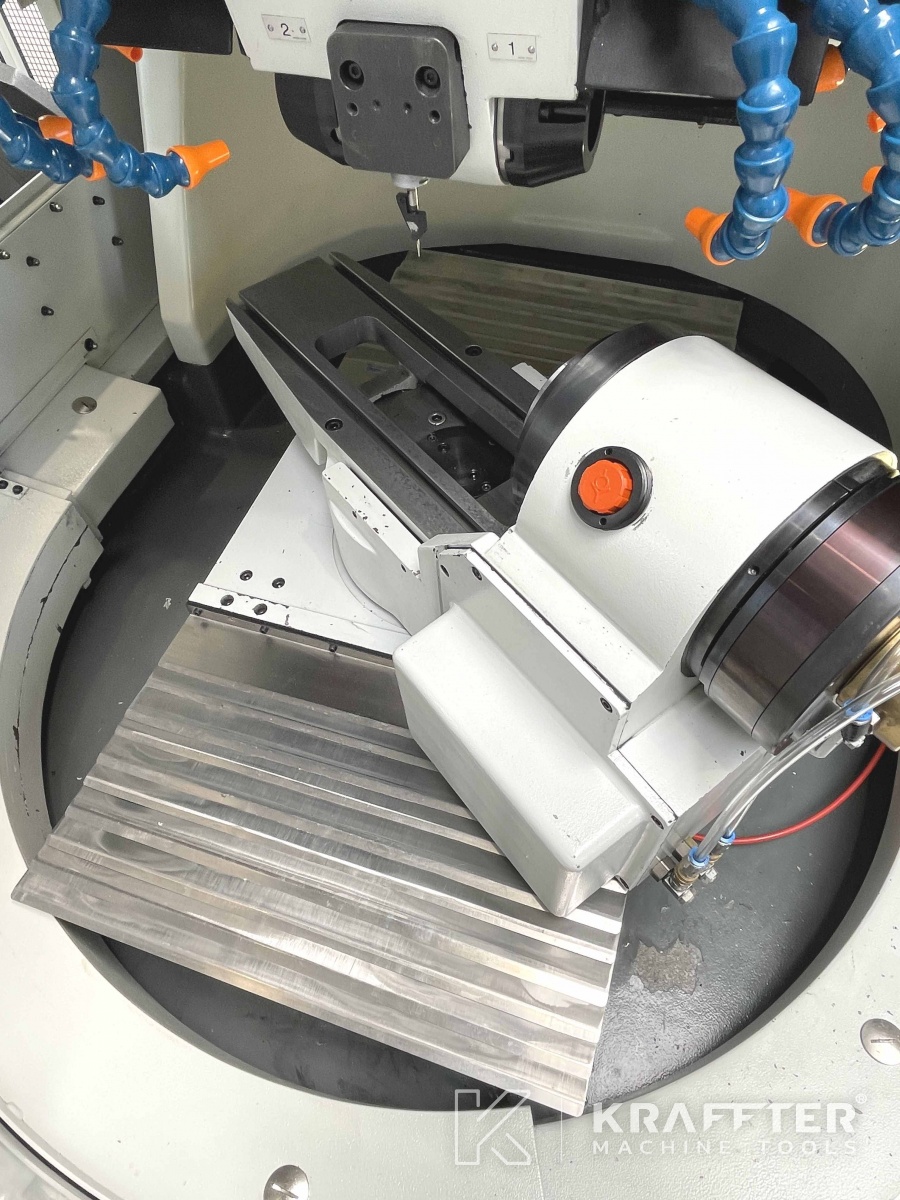

A axis
infini [°]
Max. grinding lenght
270 [mm]
Max. grinding diameter
100 [mm]

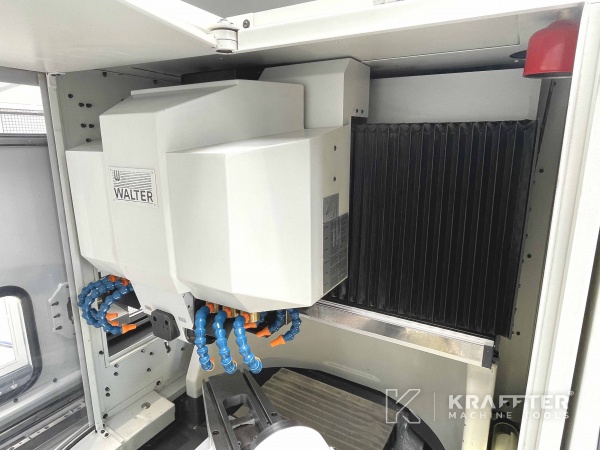

Grinding wheel speed
9500 [rpm]
Grinding spindle motor power
9 [kW]
Max. diameter grinding wheel
150 [mm]

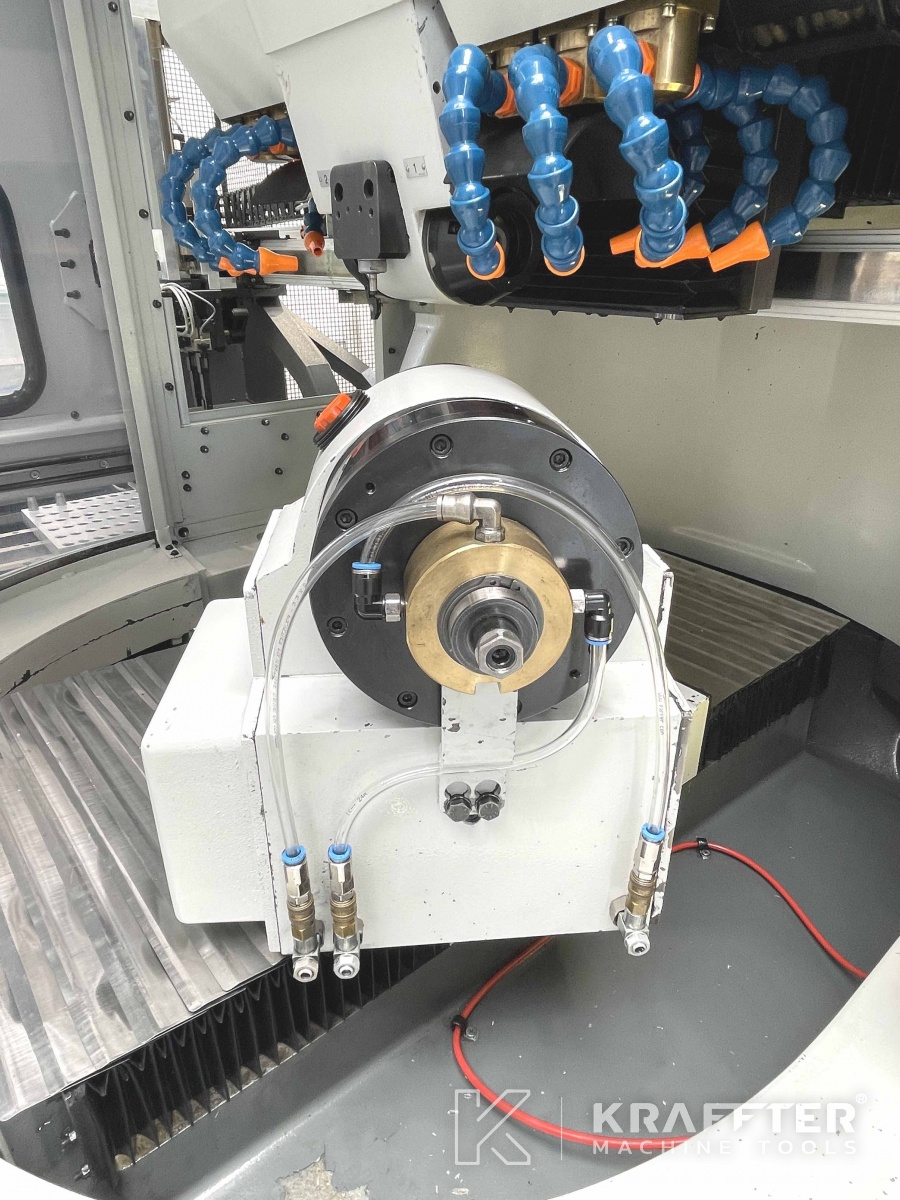

Workpiece spindle nose
ISO 50

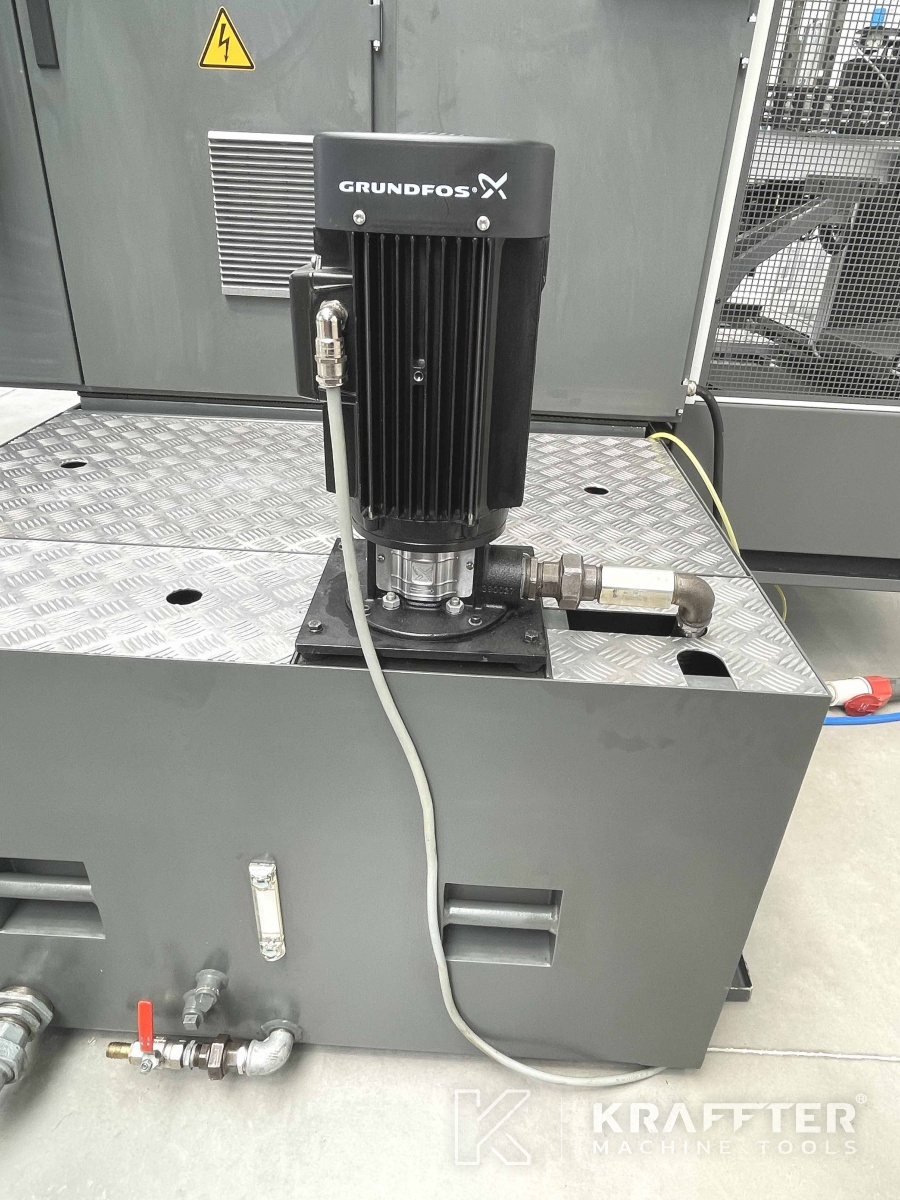

Coolant pump pressure
6 [bars]
Collant pump flow rate
120 [l/min]
Lubrication tank capacity
350 [l]
Paper filtration unit
Yes
Mist extractor
DSL type AES - SIGMA
Centralized lubrication
Auto.
Supply voltage
400 [V]
Total power required
25 [kVA]
Dimensions
2600 x 2550 x 1970 [mm]
Weight
3900 [Kg]

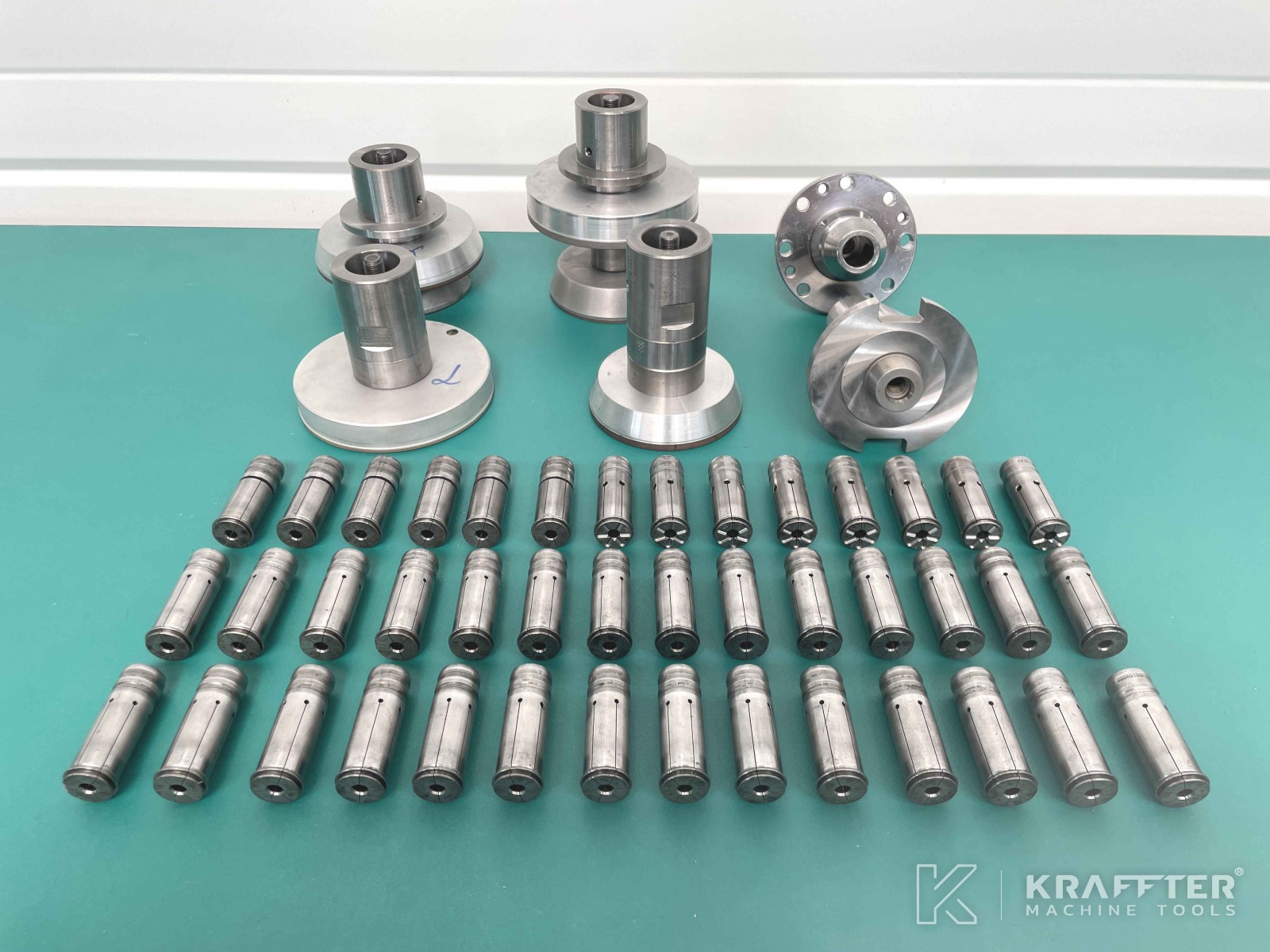

equipment included:
x4 wheel flanges
x1 collet holder SCHUNK
x42 collets
x1 instruction manual in French
