Sold

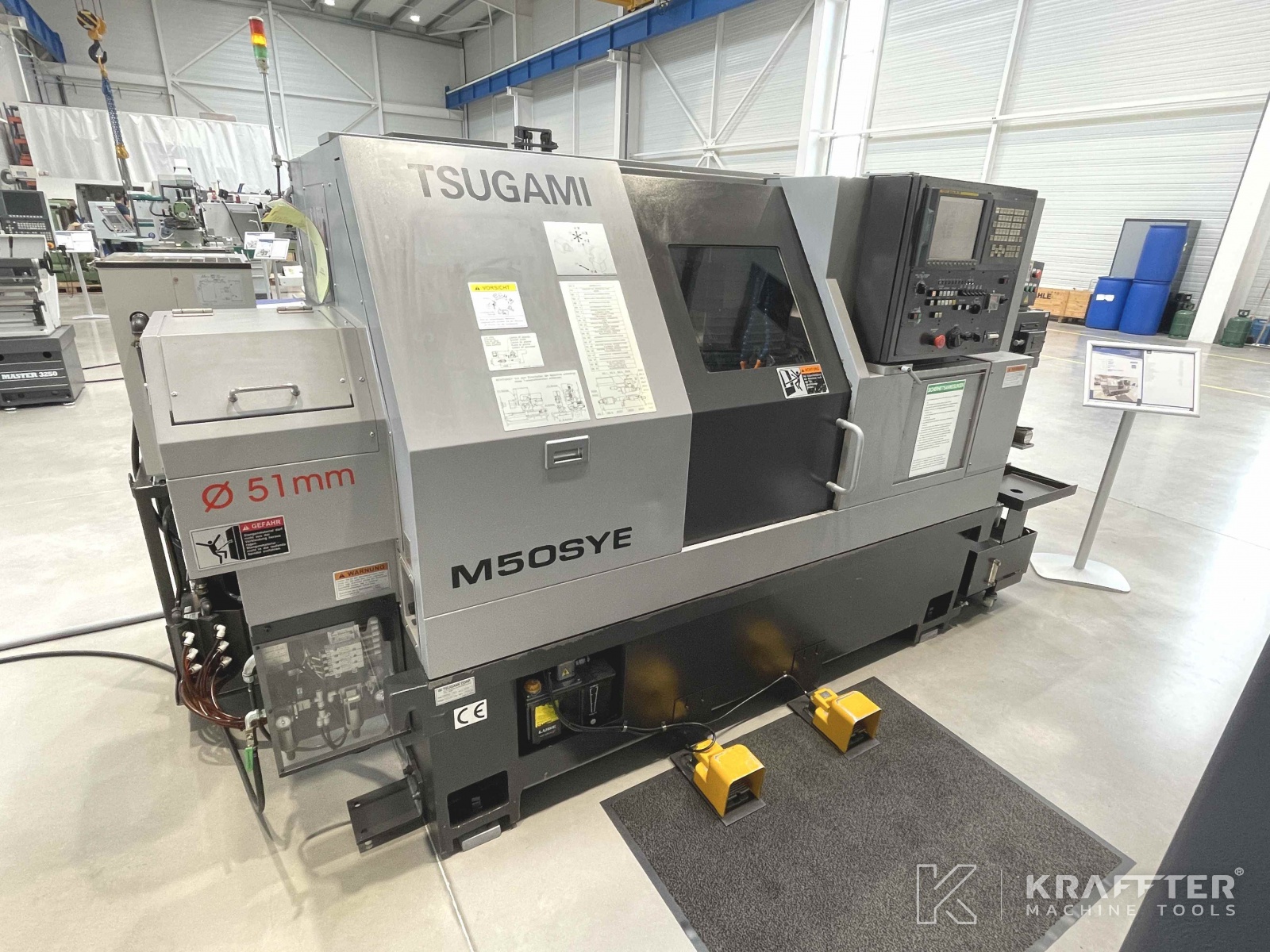

Type of machine : CNC lathe
Brand : TSUGAMI
Stock N° : 20690-031
Model : M 50 SYE-III
Year : 2010
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

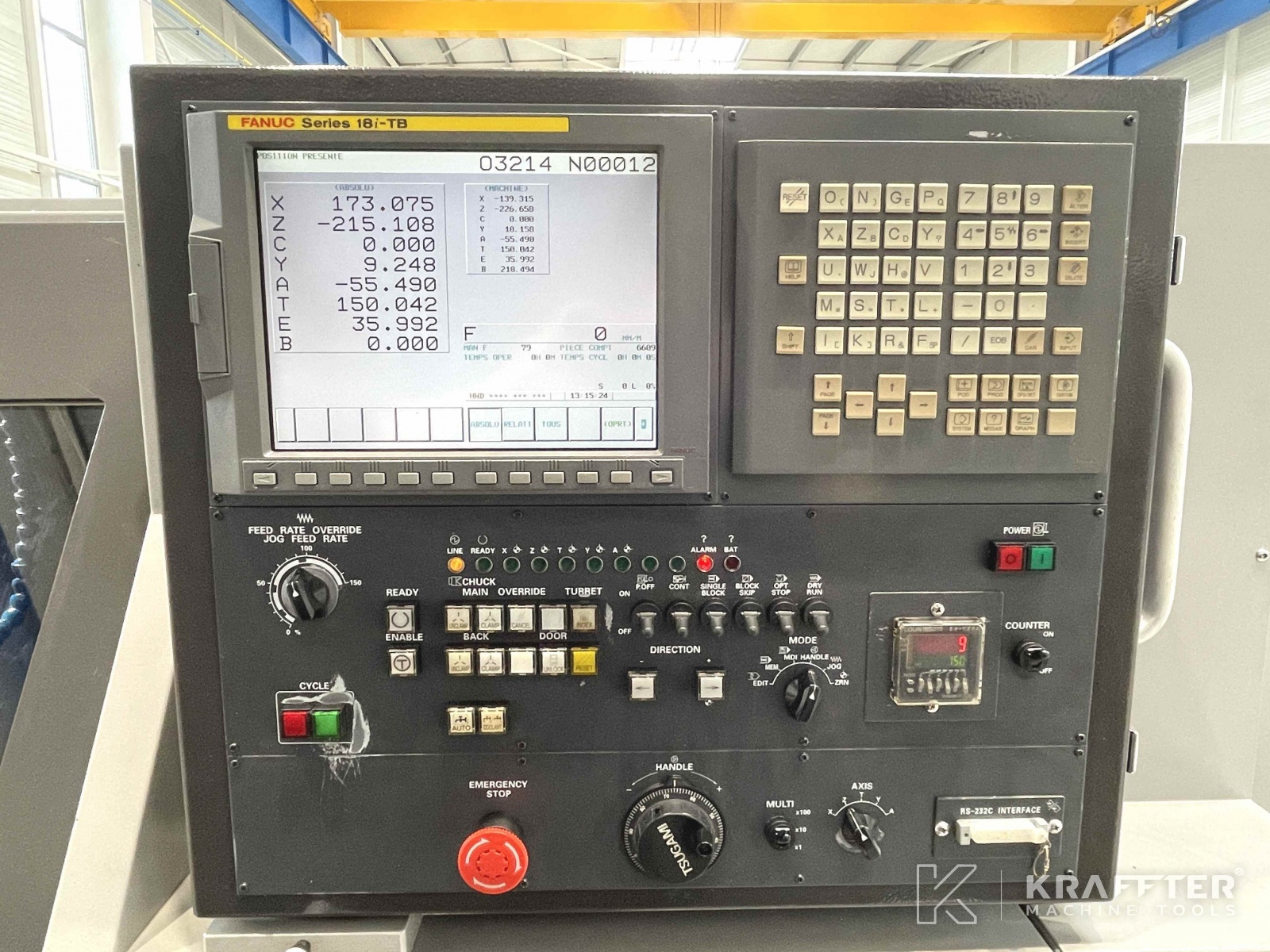

CNC control
FANUC 18i-TB
Number of axes
4
Stroke X axis
170 [mm]
Stroke Z axis
400 [mm]
Stroke A axis
520 [mm]
Spindle throughbore
51 [mm]
Max. spindle speed
6000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
7.5 / 11 [kW]
Min. counter spindle spindle speed
60 [rpm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
7.5 / 11 [kW] [kW]

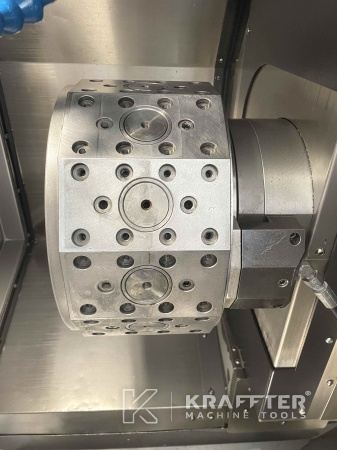

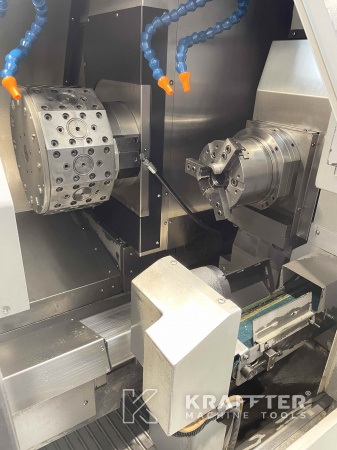

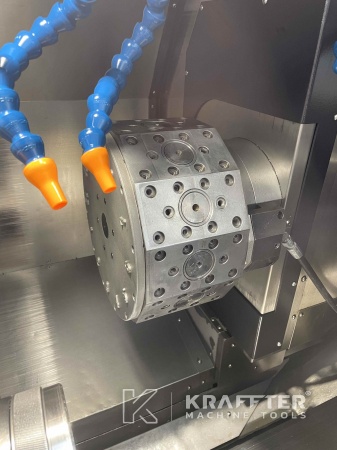

Number of tool stations
12
Turret indexing time
0.3 [s/pos]
Number of tool stations driven
12
Max. speed driven tools
5000 [rpm]
Total power required
39 [kVA]
Supply voltage
400 [V]
Number of hours under power
23769 [h]
Number of running hours
8385 [h]
Weight
6300 [Kg]

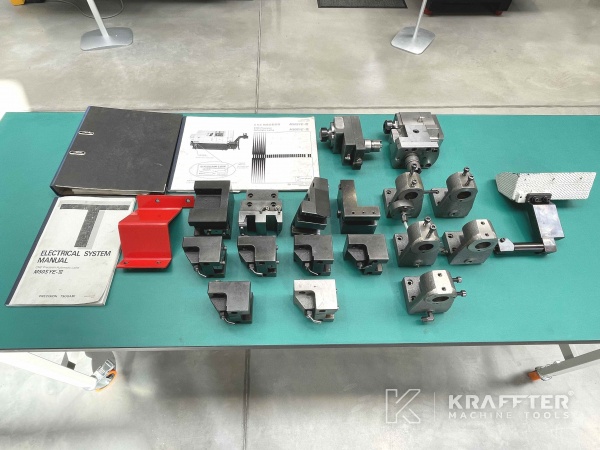

Equipement included :

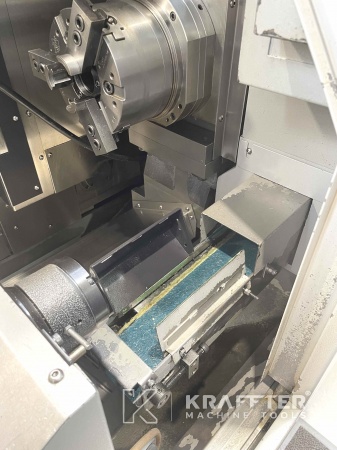

x1 part catcher

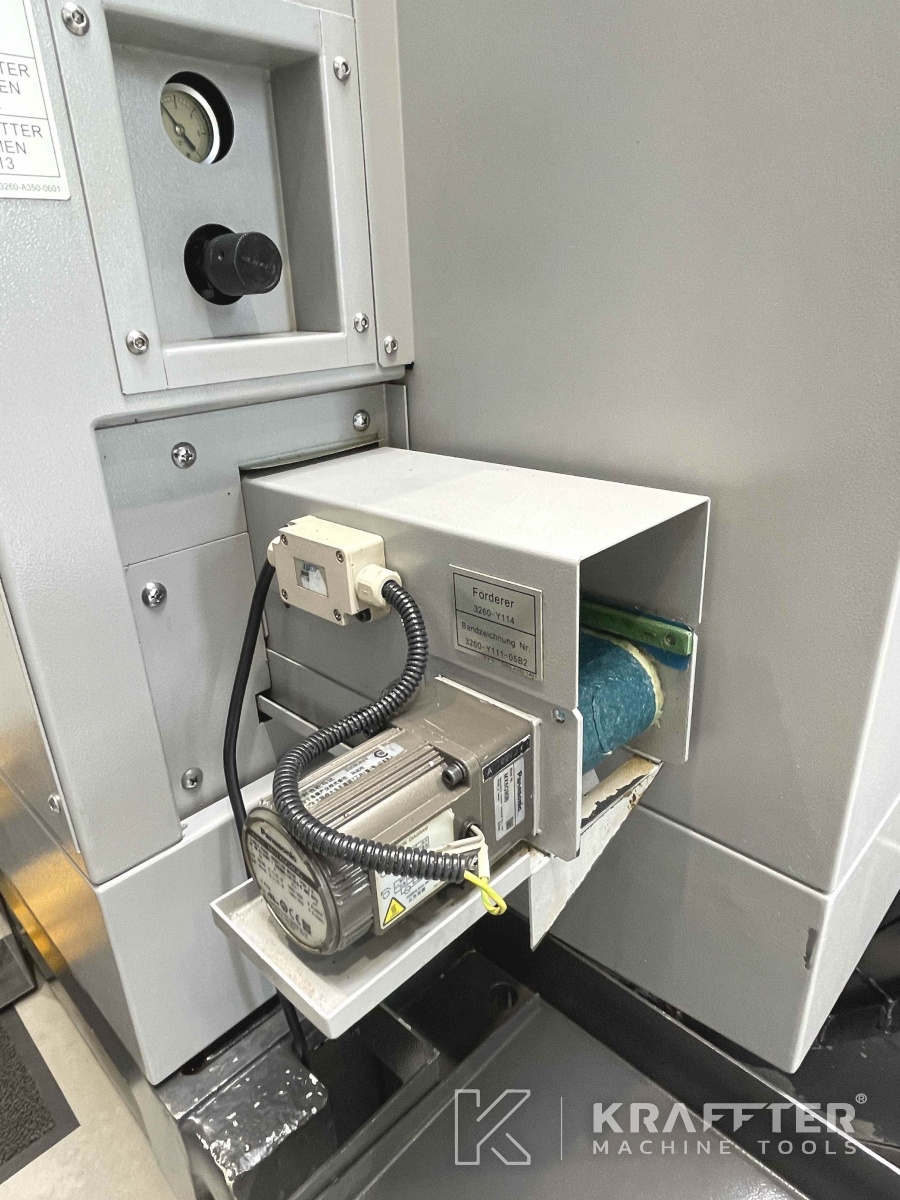

x1 part conveying strip band

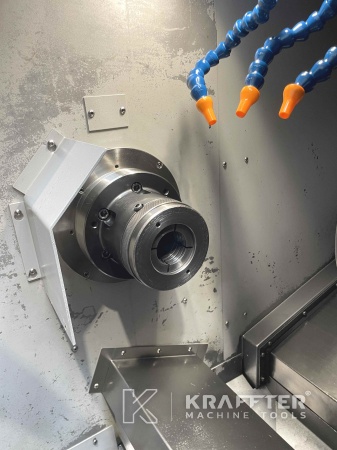

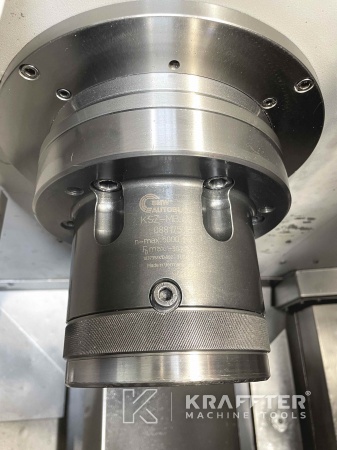

x1 collet holder SMW AUTOBLOK type KSZ-MB60 (for F66 collets)

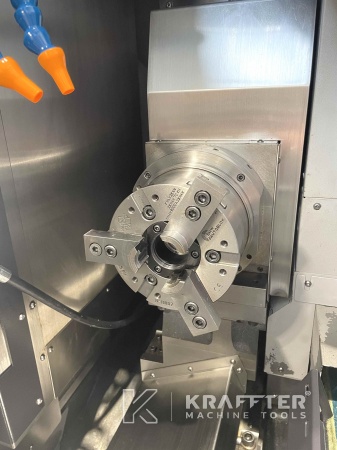

x1 3 jaw chuck Ø160 [mm] SMW AUTOBLOK type 165-BH
x1 triple color status lamp
x1 chip conveyor

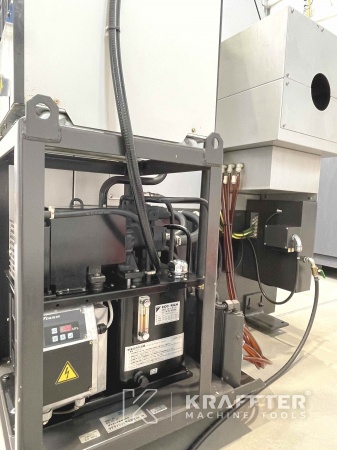

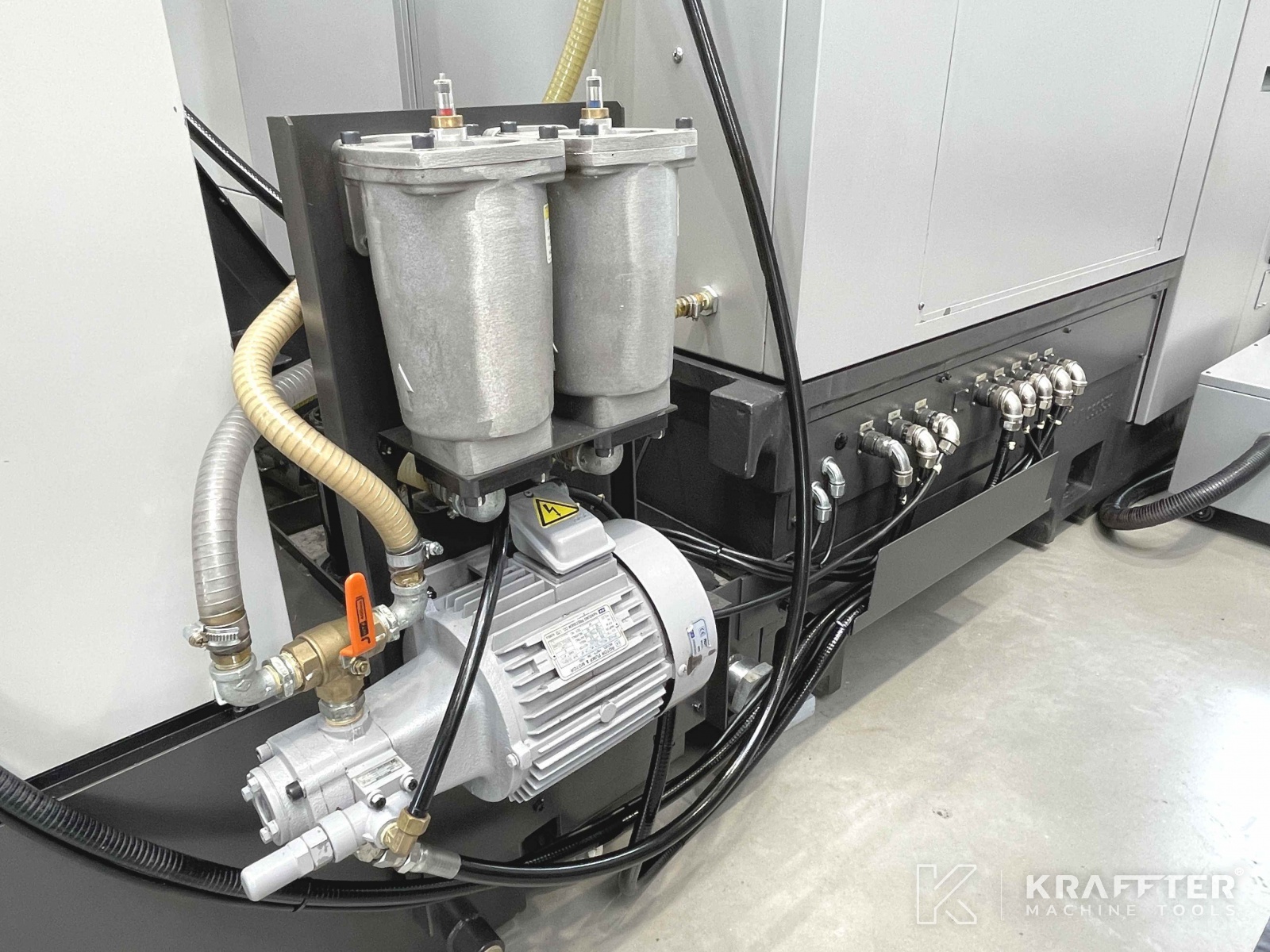

x1 coolant tank
x1 predisposition for barfeeder
x1 axial turning tool holder
x1 radial turning tool holder
