Sold

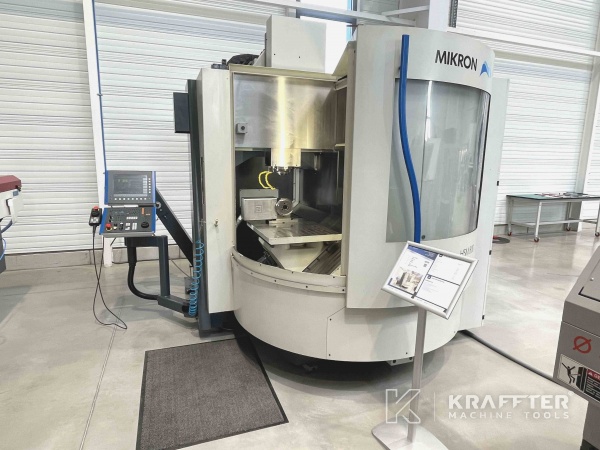

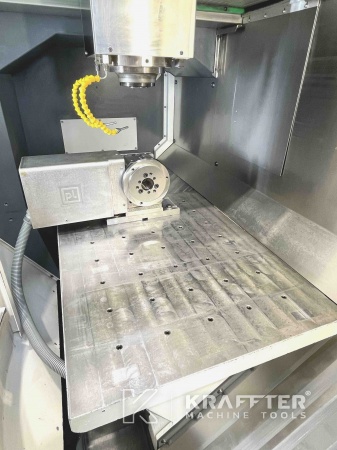

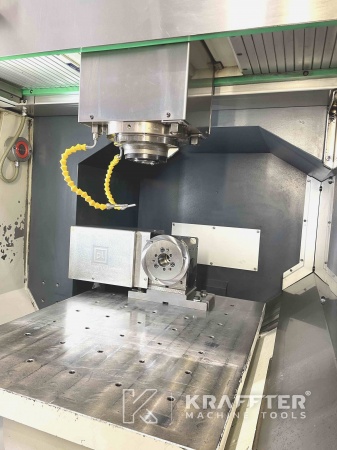

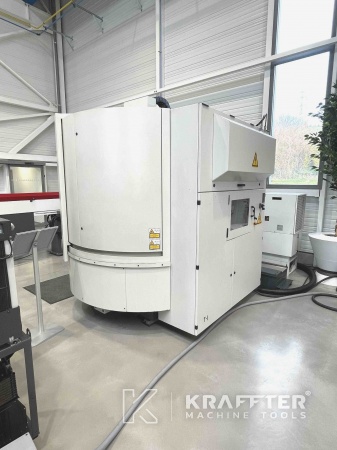

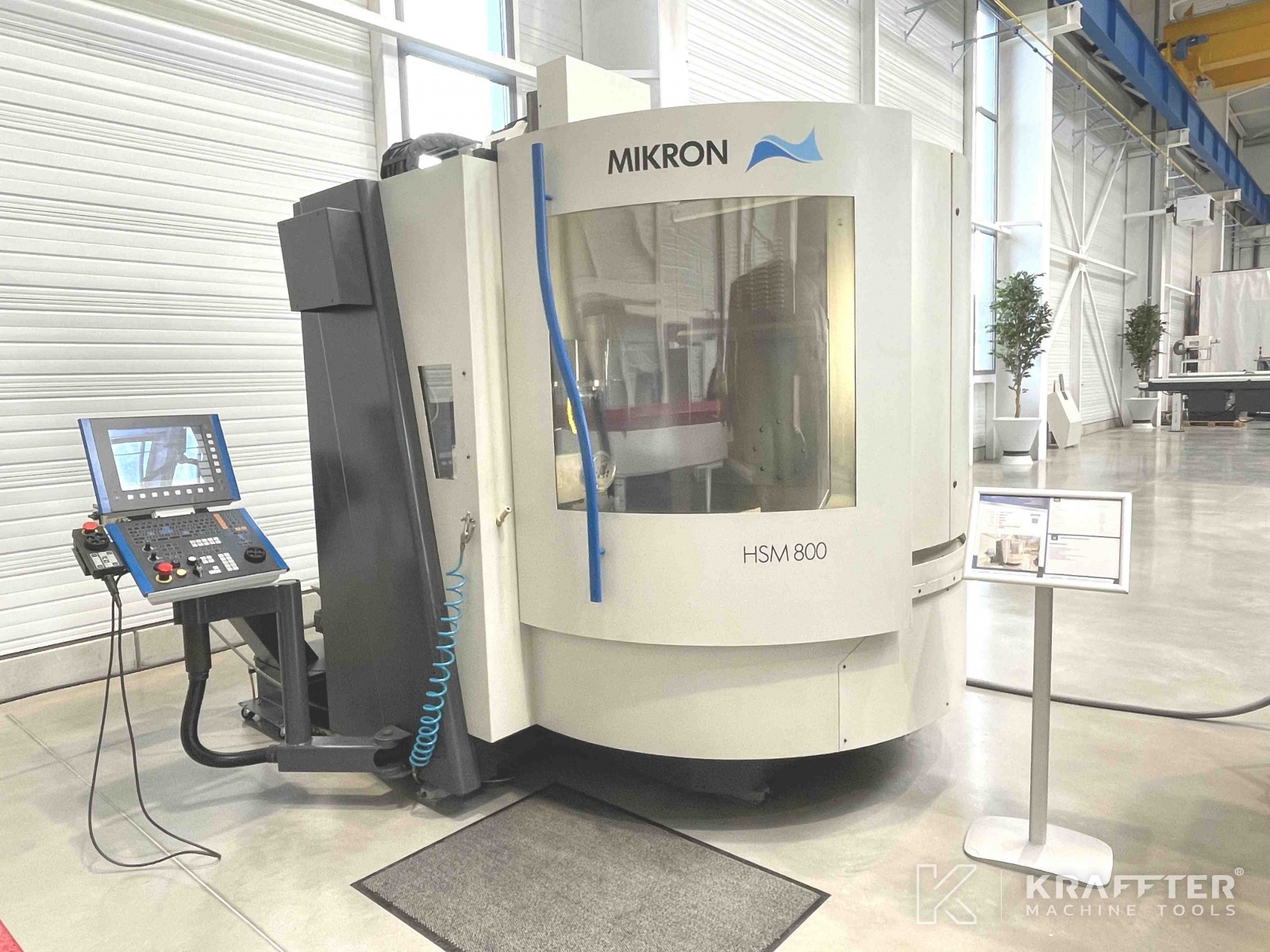

Type of machine : Vertical machining center
Brand : MIKRON
Stock N° : 20690-041
Model : HSM 800
Year : 2002
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

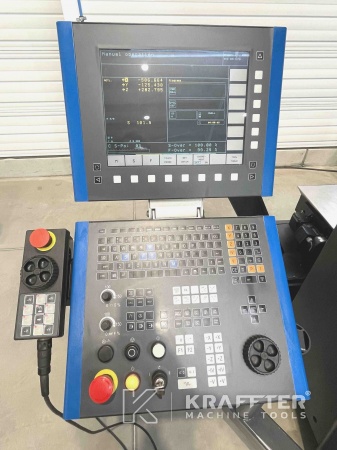

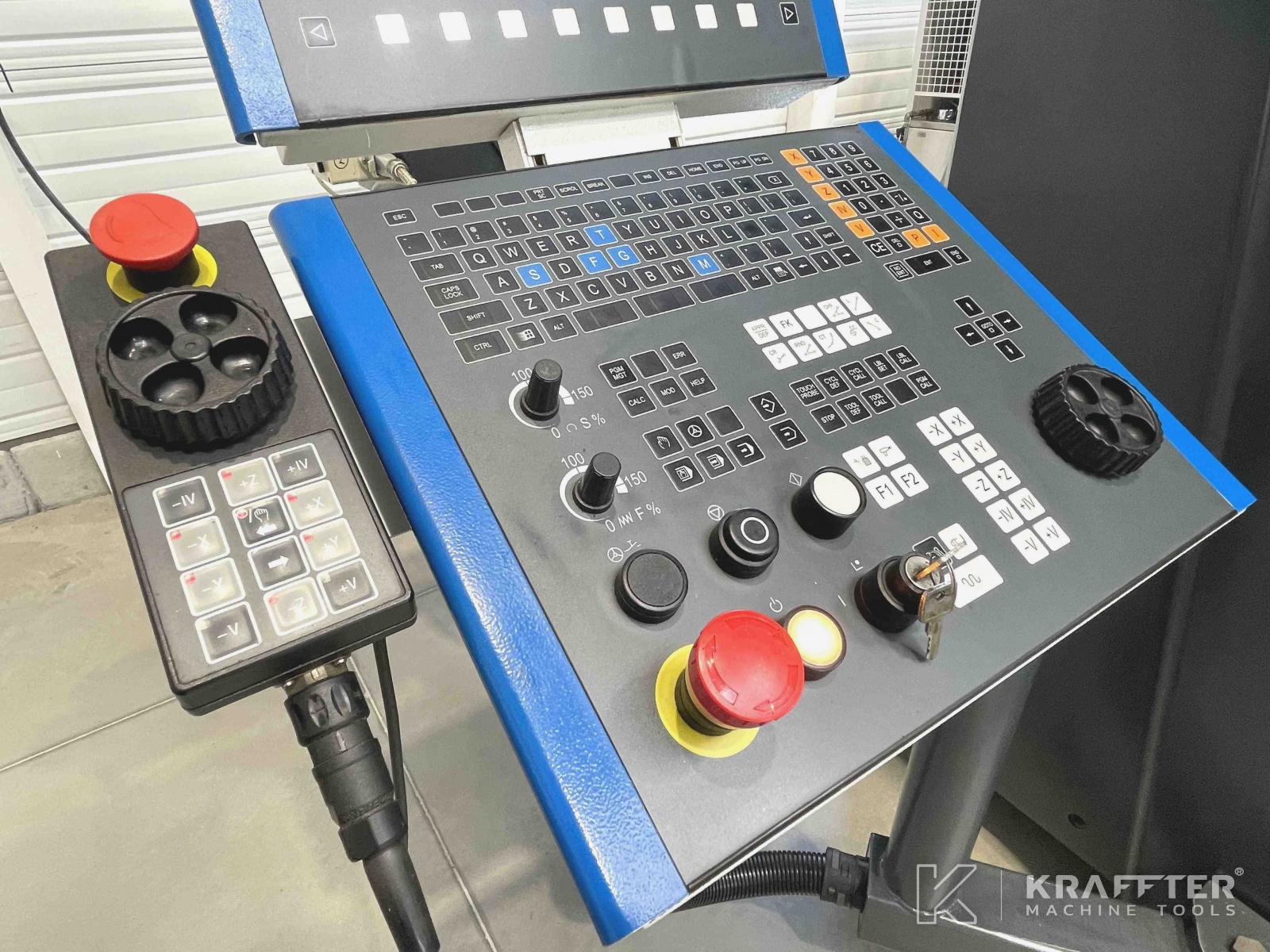

CNC control

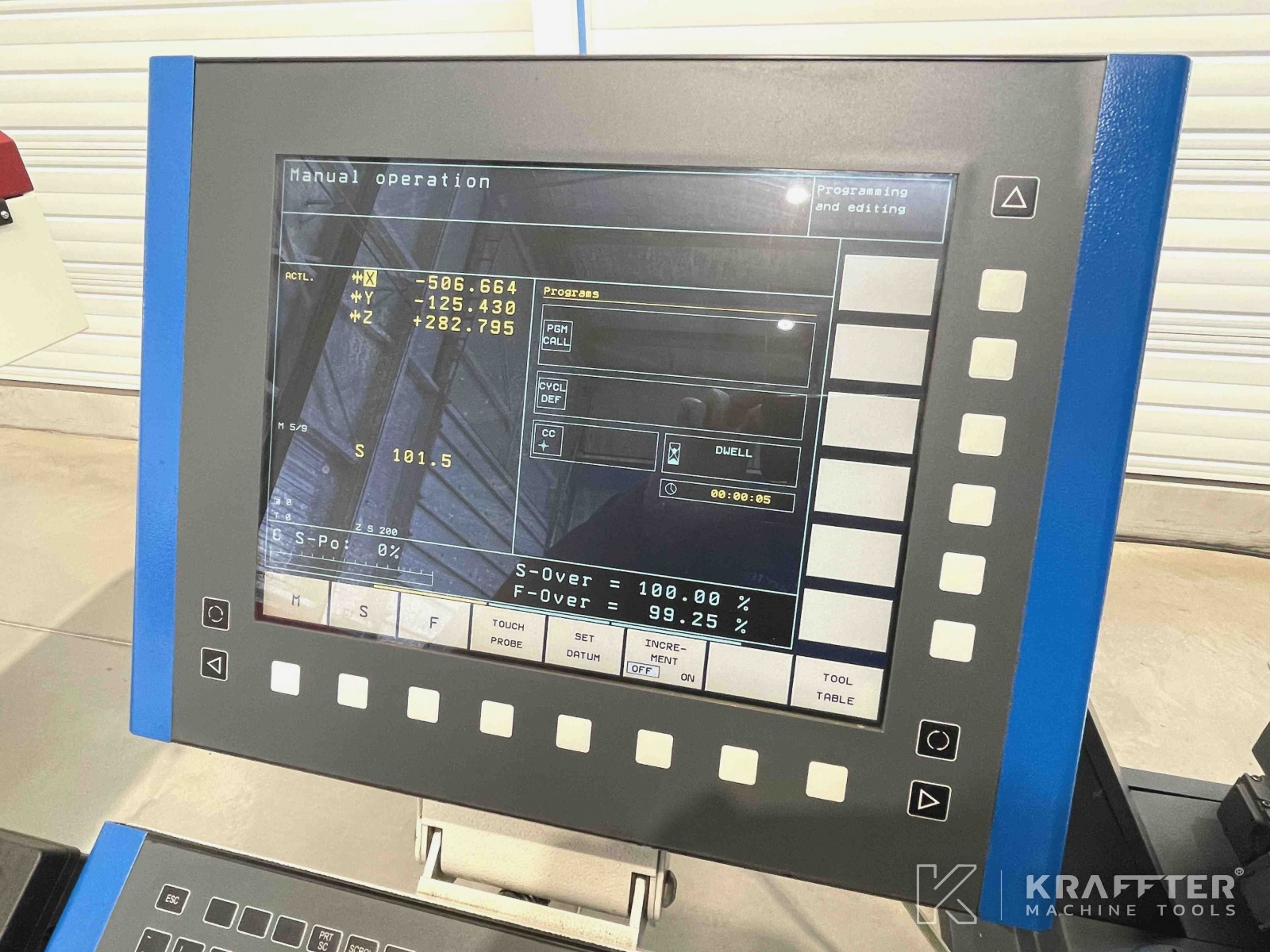

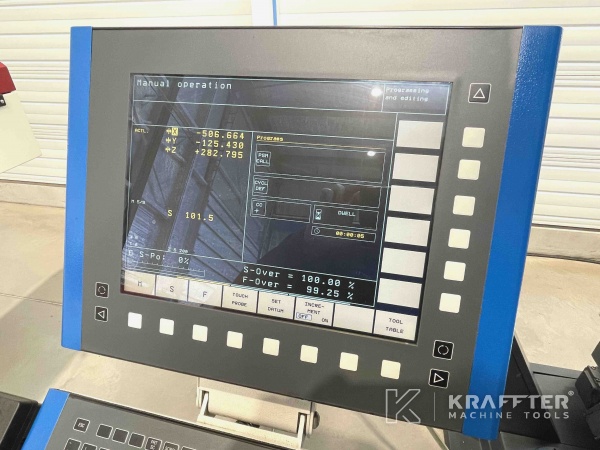

HEIDENHAIN iTNC 530
Number of axes
3
Stroke X axis
800 [mm]
Stroke Y axis
600 [mm]
Stroke Z axis
500 [mm]
Feed rate on X, Y and Z axes
40000 [mm/min]
Axes acceleration
1 g
Table length
800 [mm]
Table width
600 [mm]
Max. load on table
1000 [Kg]
Spindle type
HSK-E 50
Min. spindle speed
100 [rpm]
Max. spindle speed
36000 [rpm]
Spindle power
24 [kW]

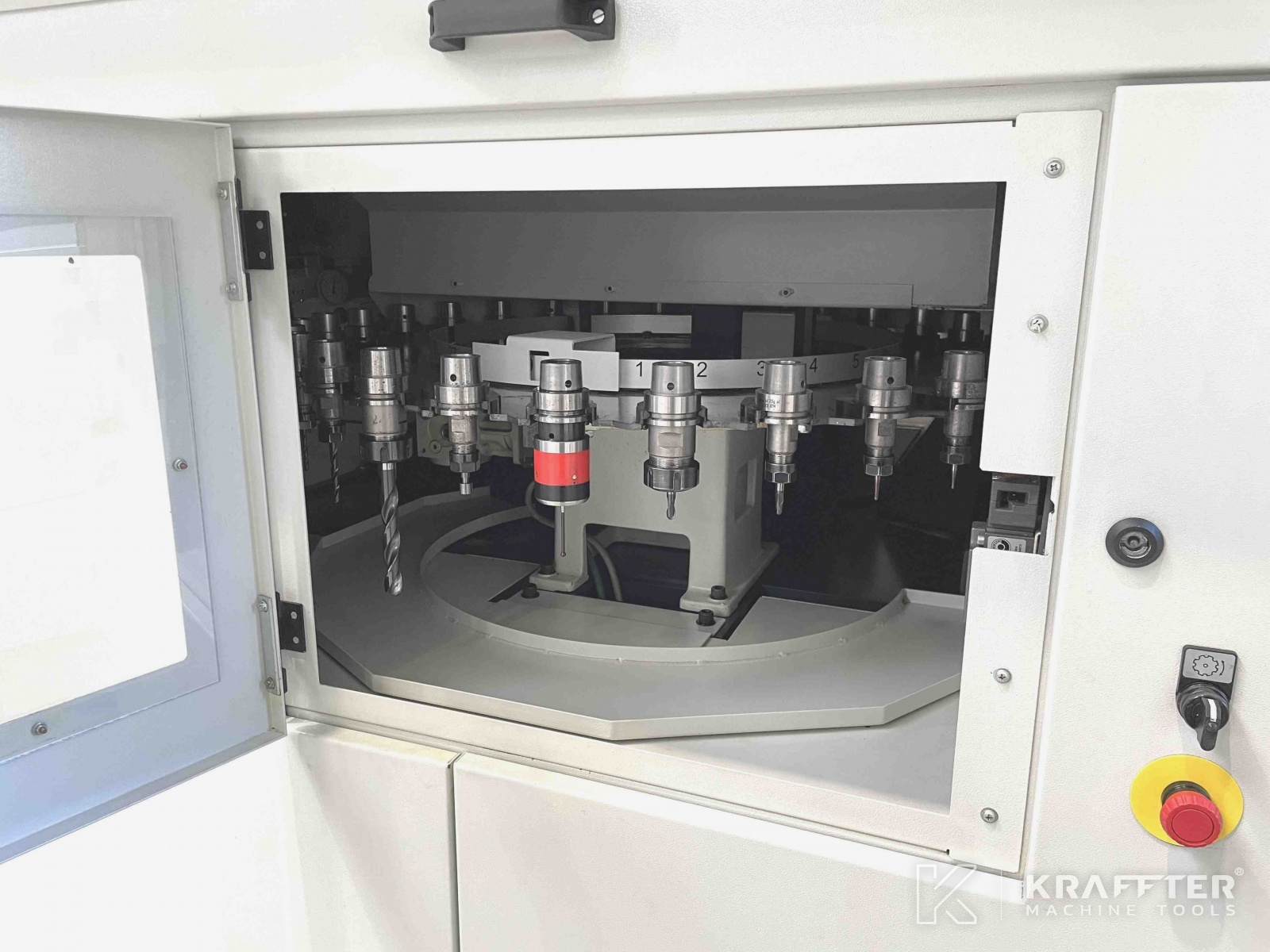

Tool changer magazin number of stations
30
Collant pump flow rate
5 [l/min]
Total power required
19 [kVA]
Supply voltage
400 [V]
Number of running hours
12835 [h]
Dimensions
3100 x 3500 x 2680 [mm]
Weight
9500 [Kg]

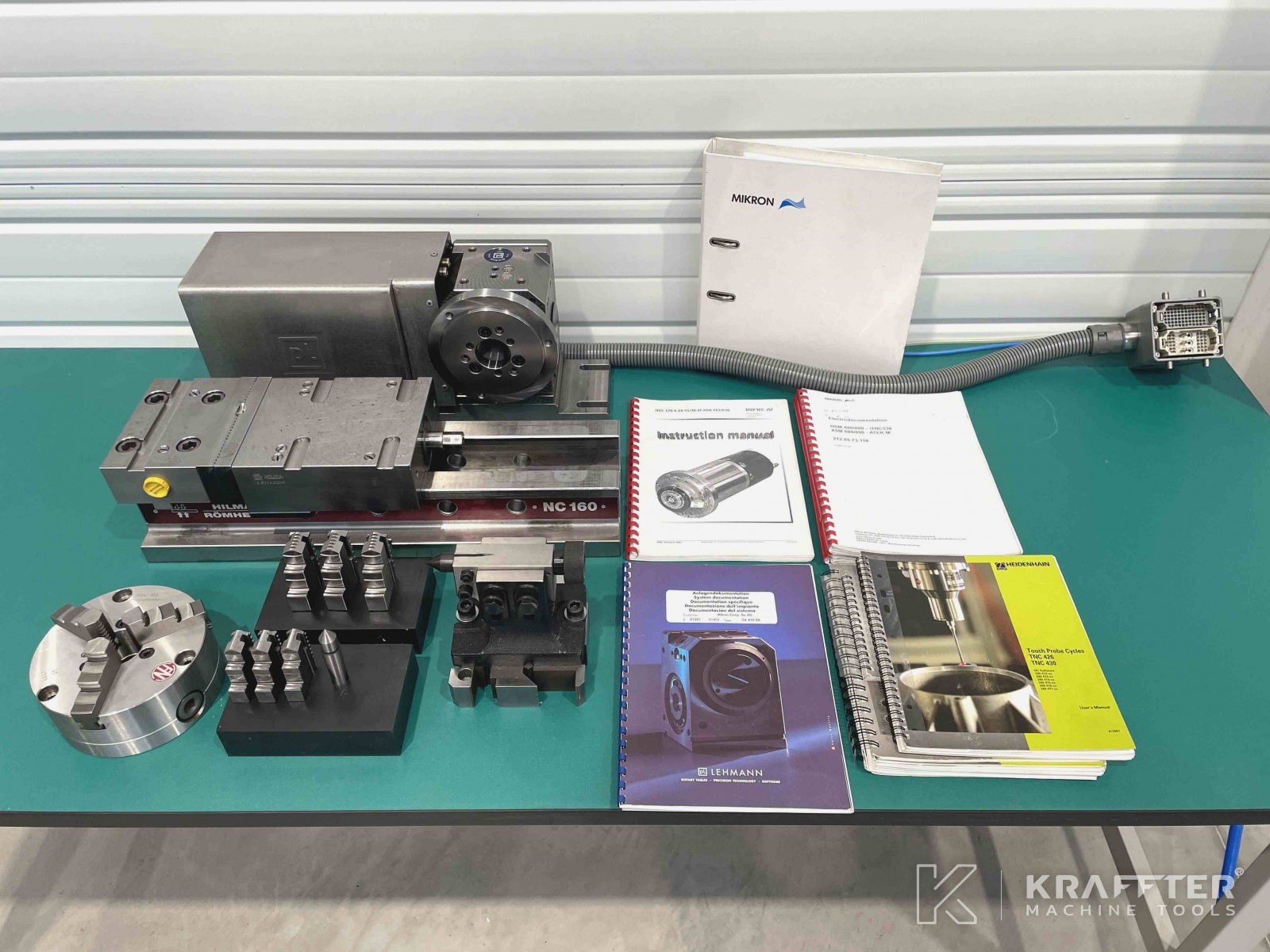

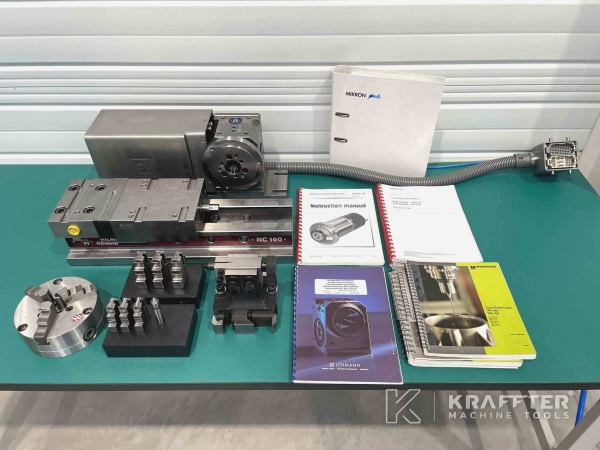

Equipment included :

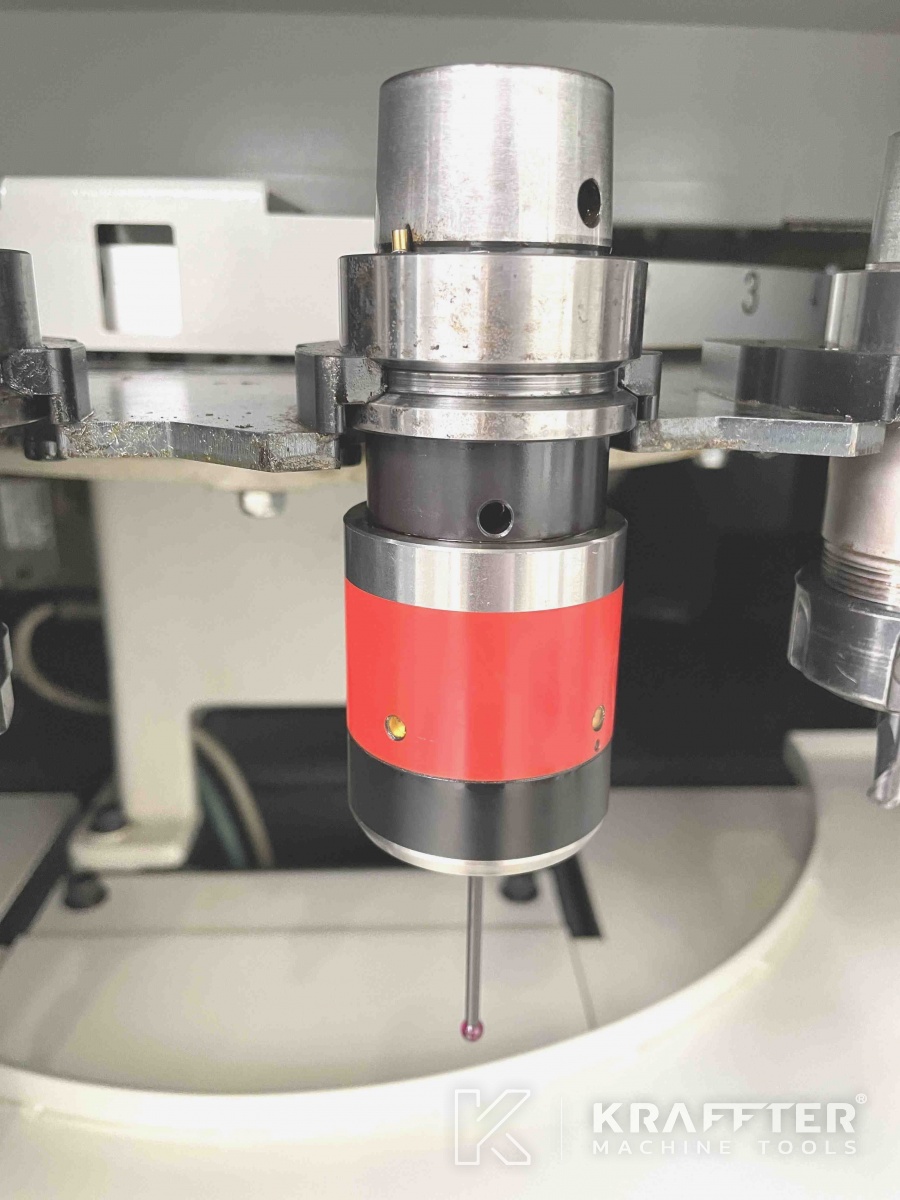

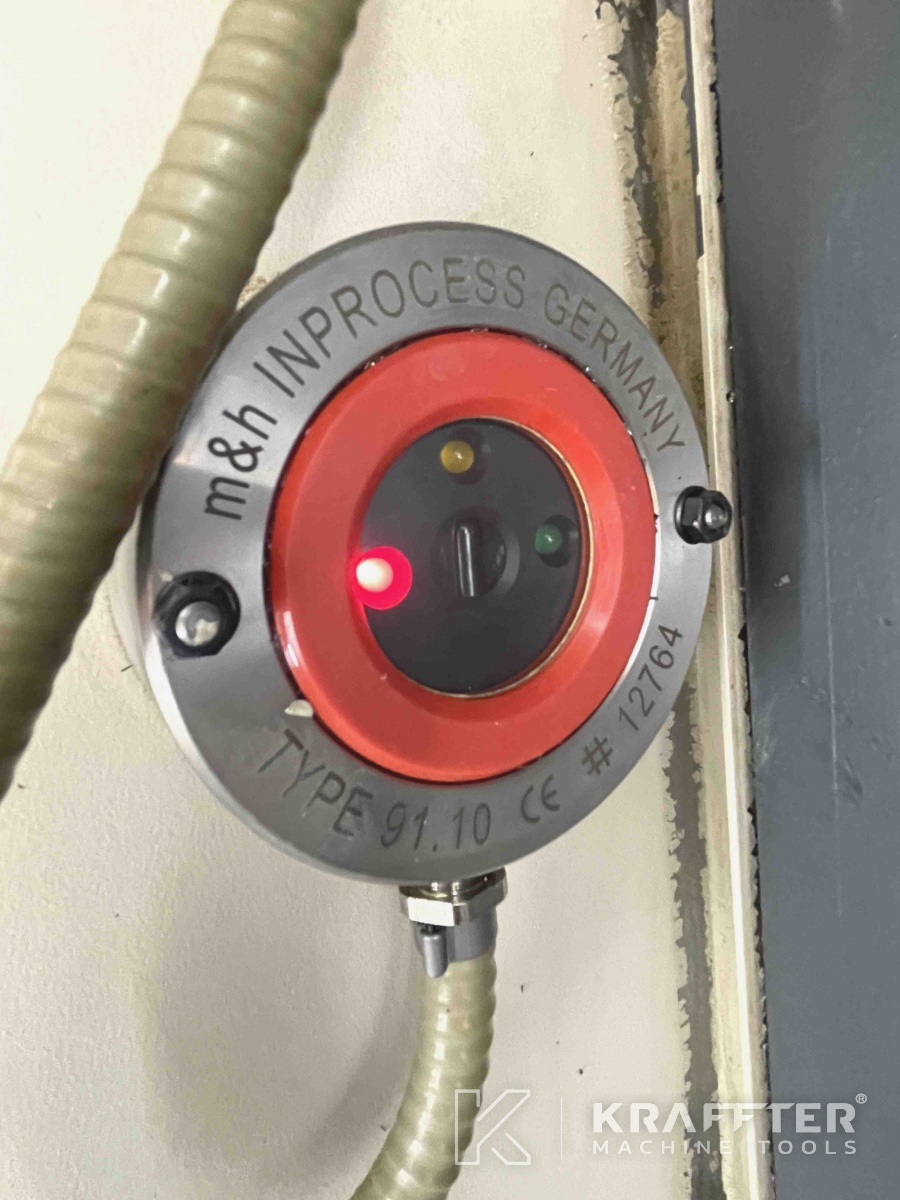

x1 touch probe m&h INPROCESS GERMANY type 91.10 including infrared reciever

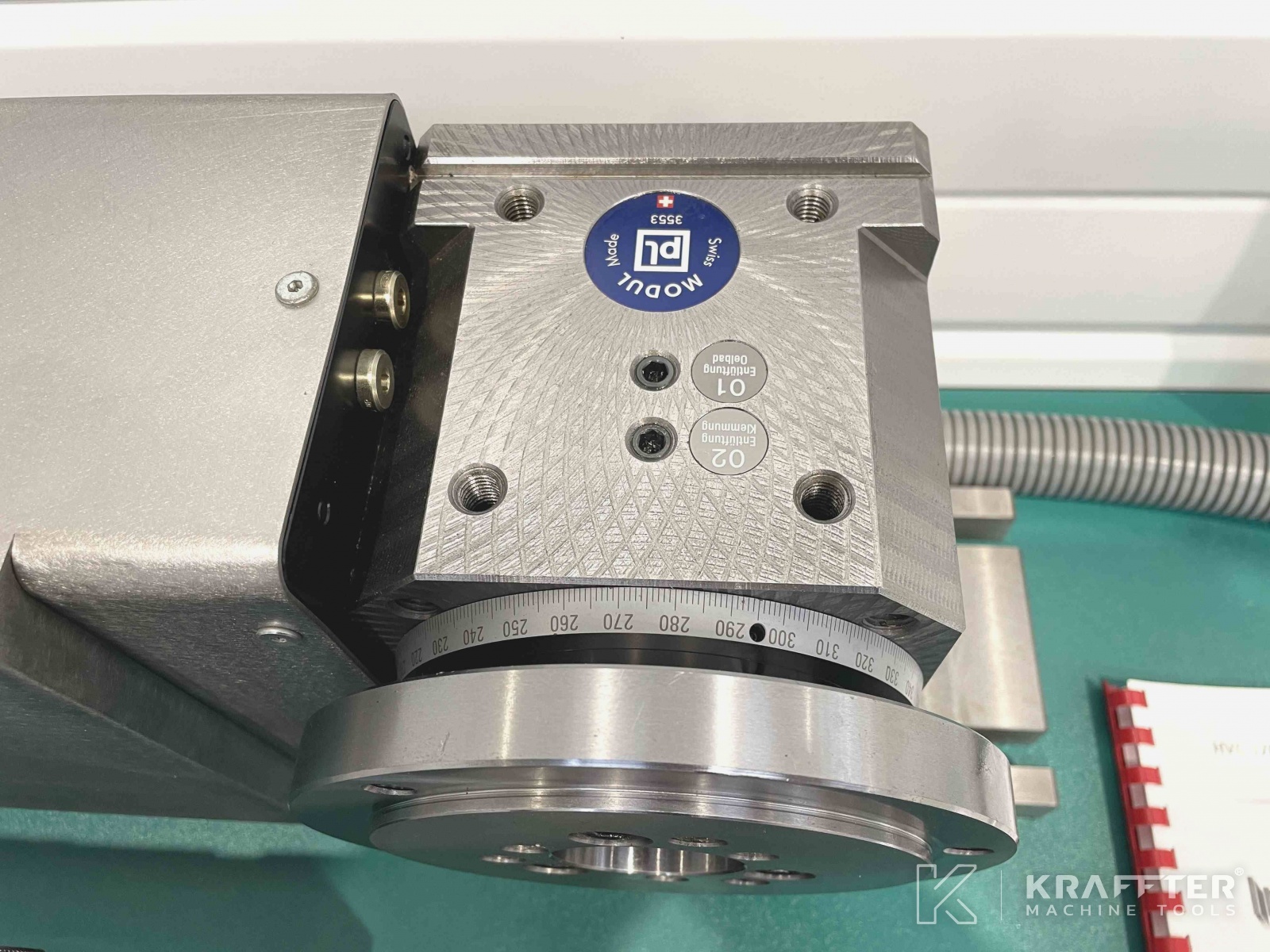

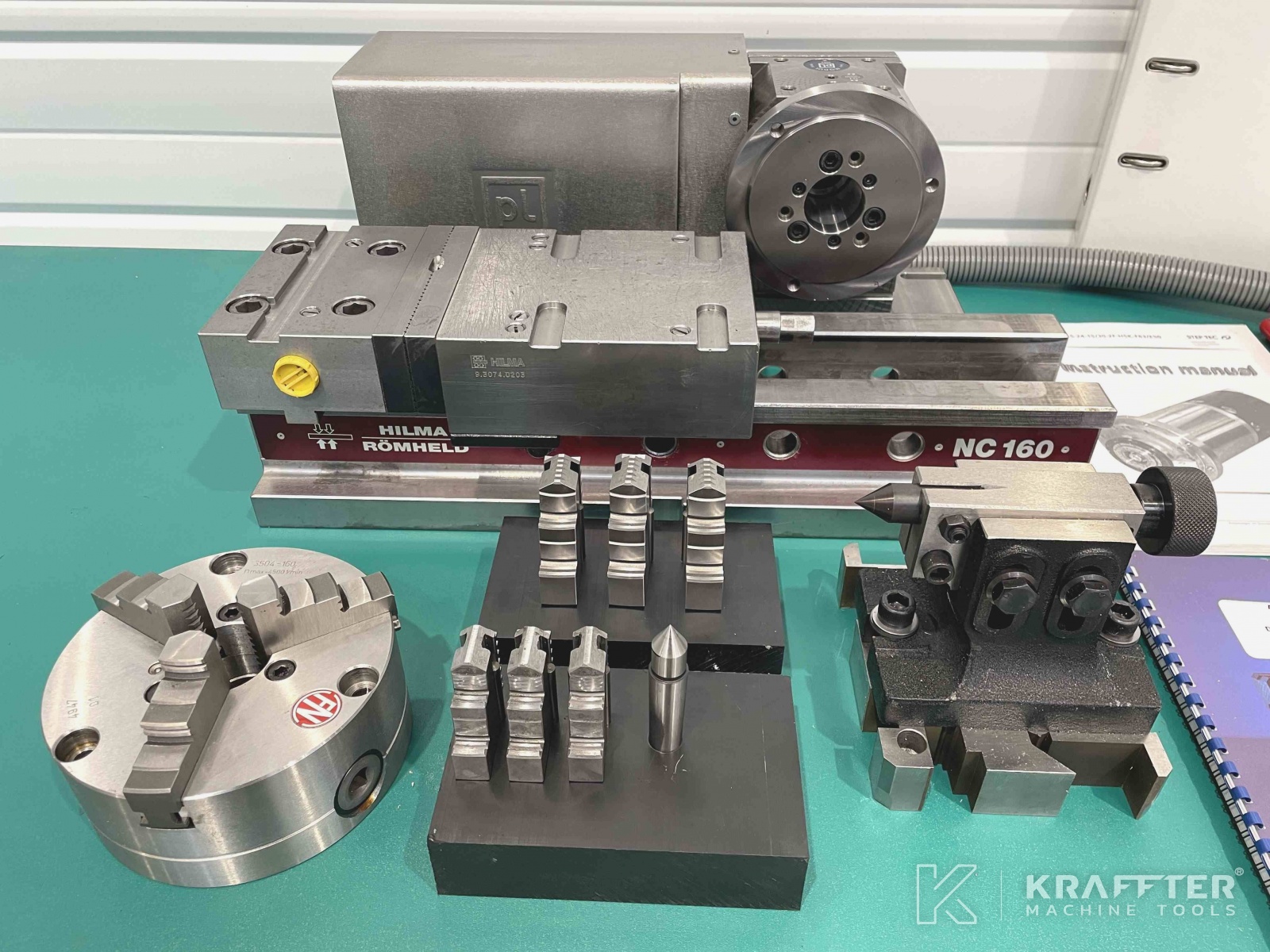

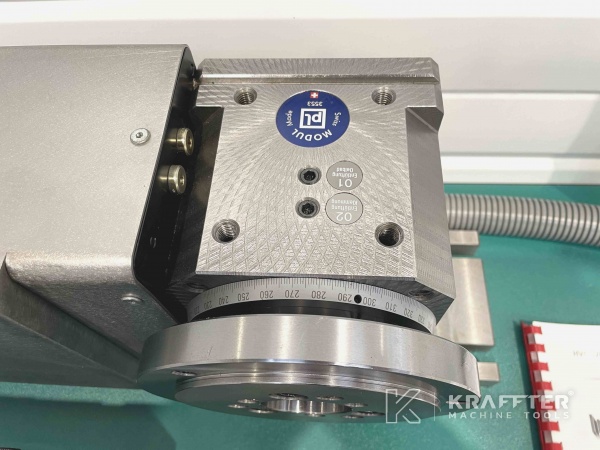

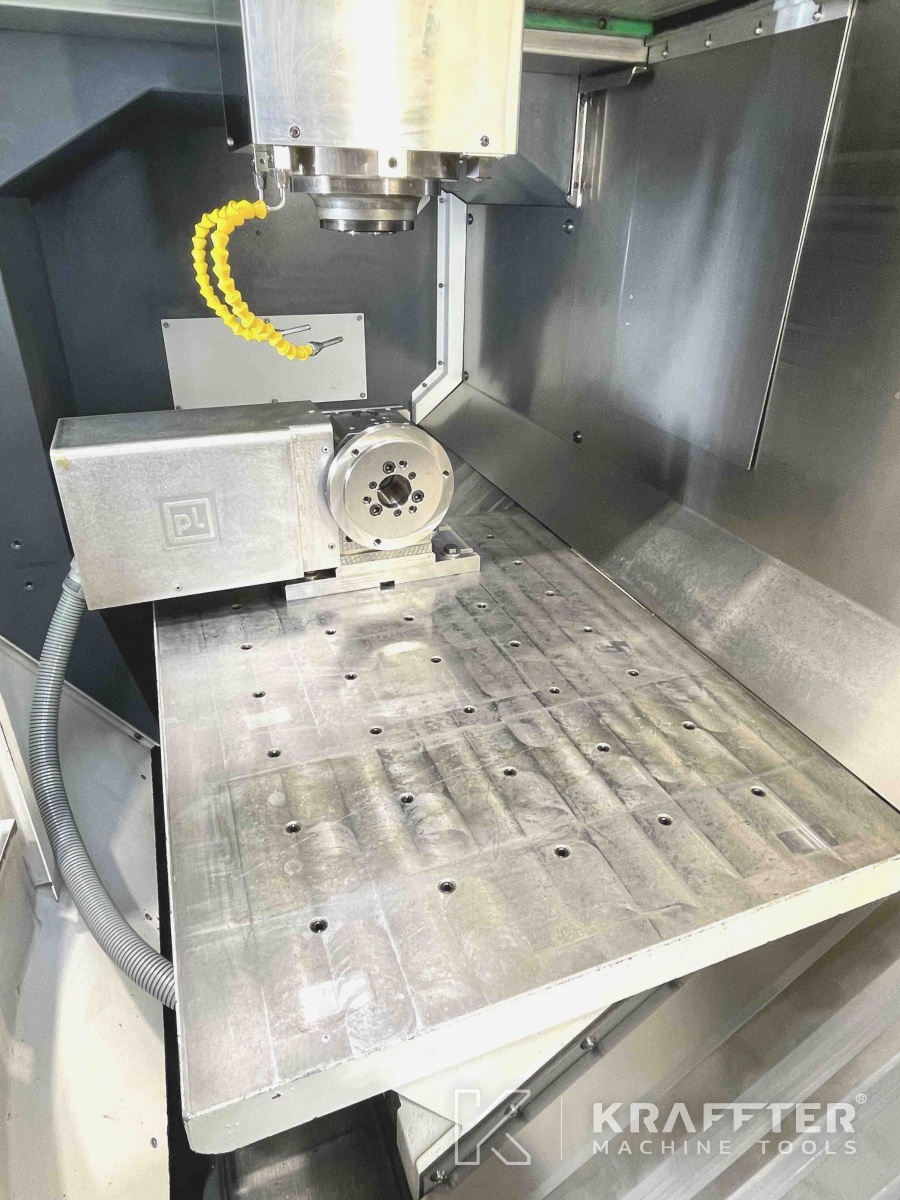

x1 4th axis device LEHMANN type EA-410.2A including its tailstock
x1 3 jaw chuck Ø160 [mm] FN type 3504-160
x3 sets of hard jaws
x1 precision clamping vise HILMA RÖMHELD type NC160

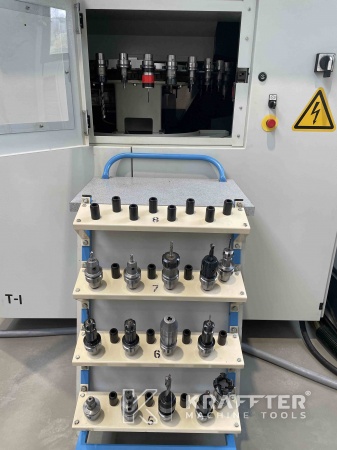

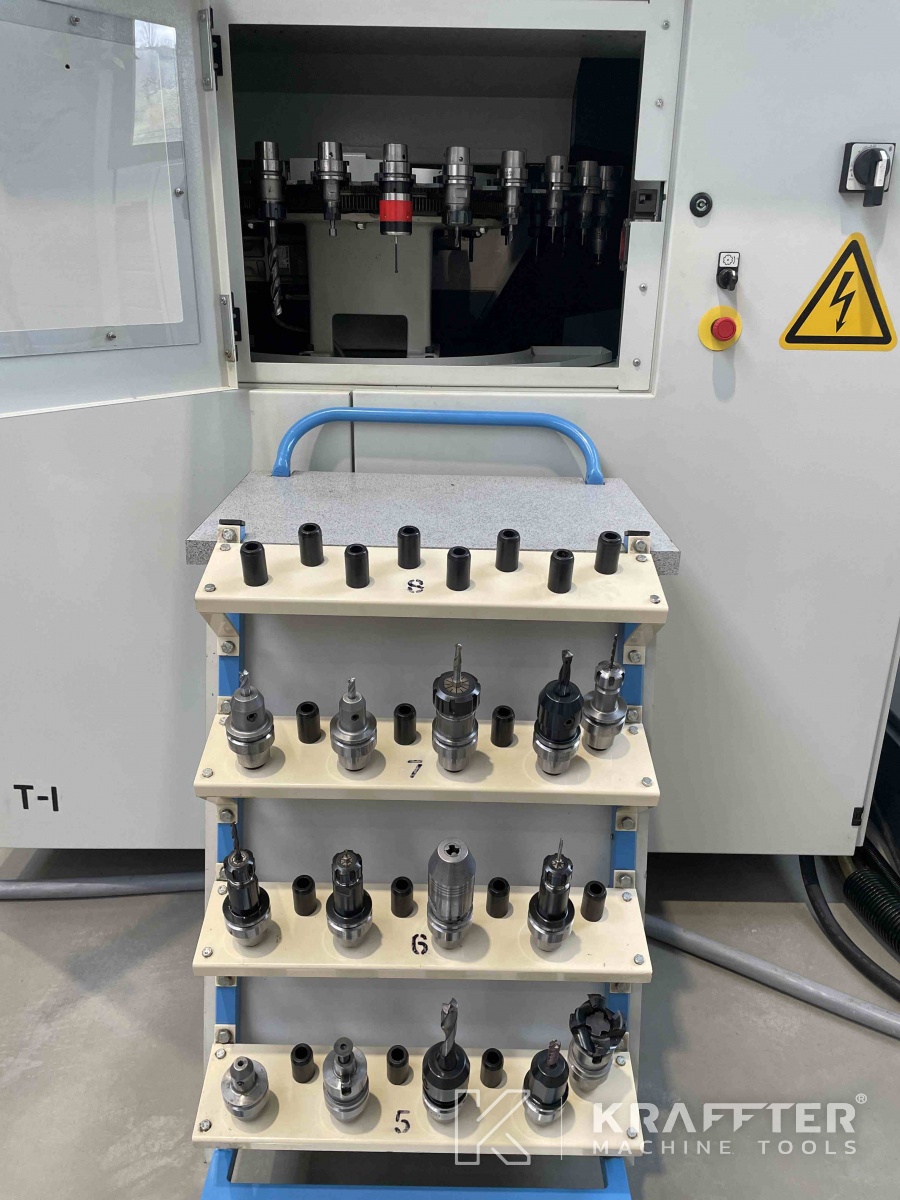

x43 various HSK-E 50 attachments

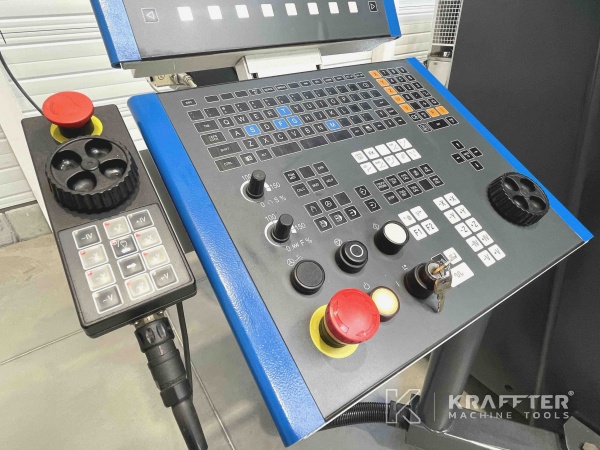

x1 mobile handwheel (jog wheel)

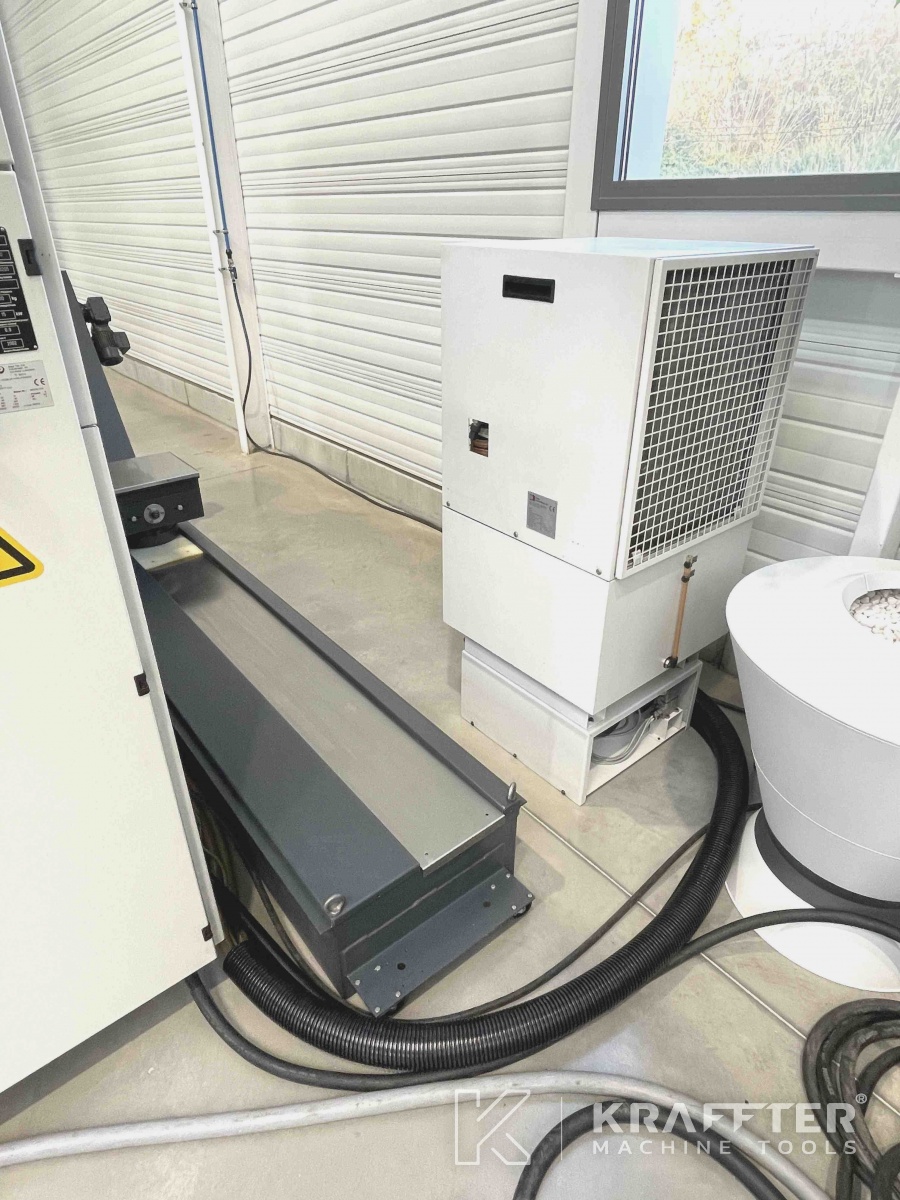

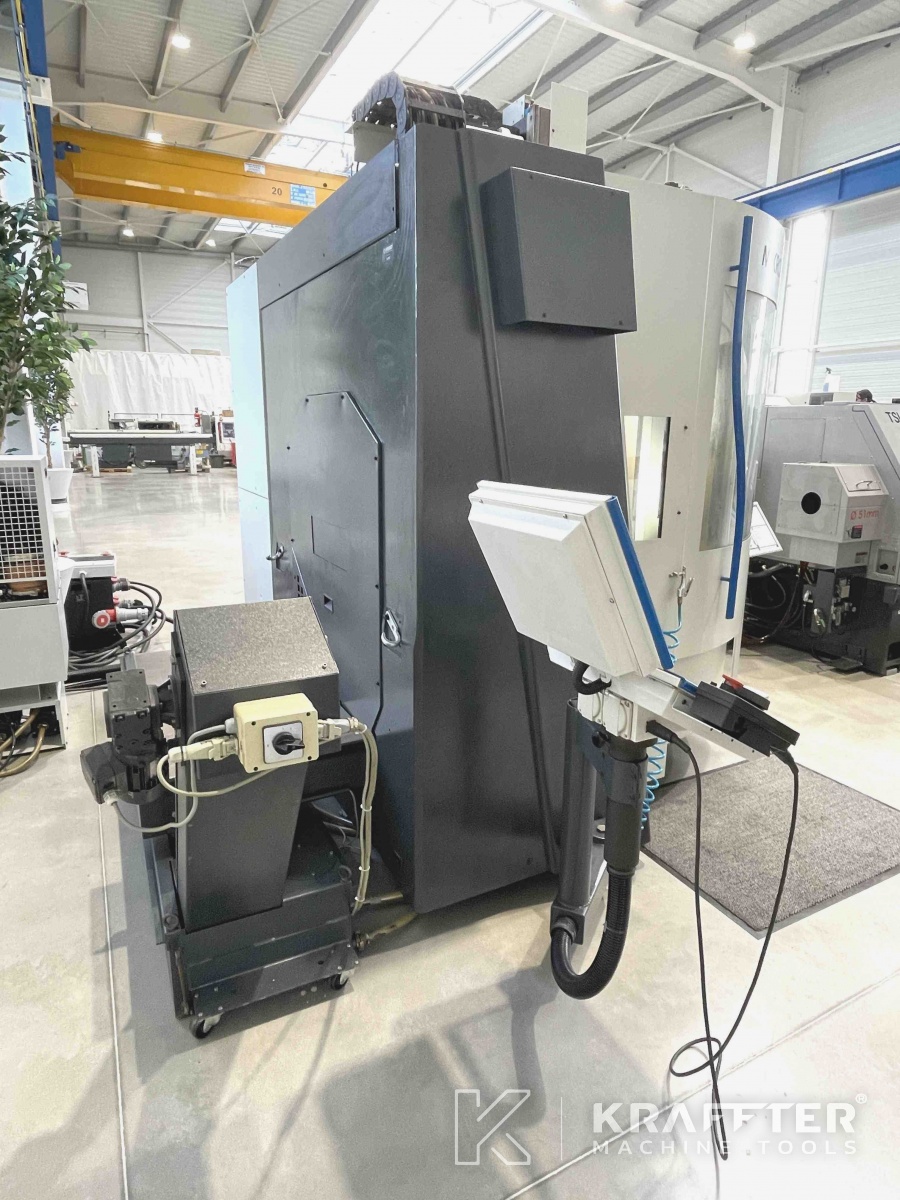

x1 chip conveyor including coolant lubrication device

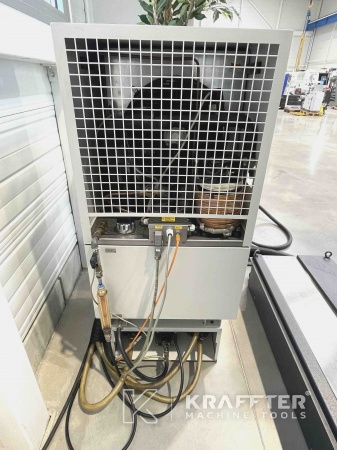

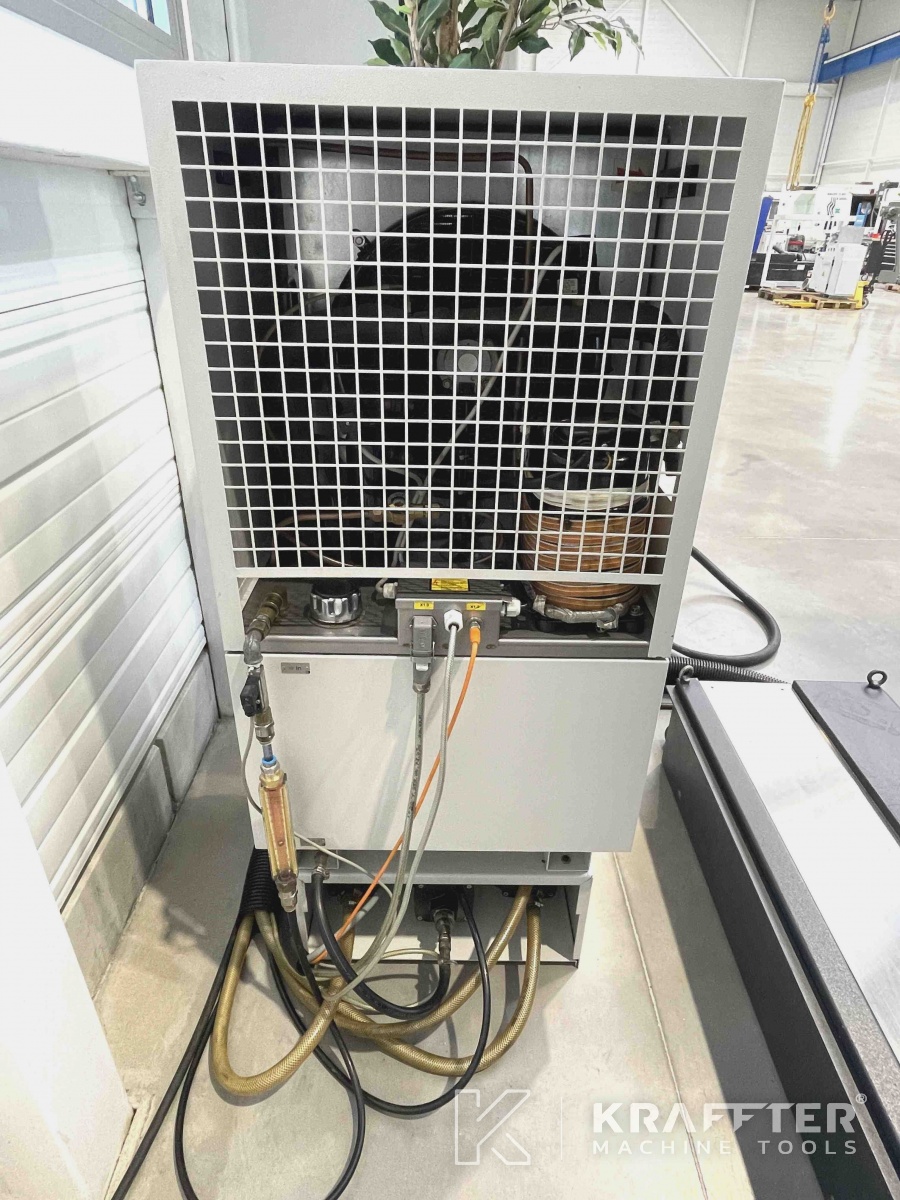

x1 liquid coolant spindle unit BURN ENGINEERING AG type WK 5802
x1 oil mist extraction unit
x1 operating manual MIKRON HSM 800

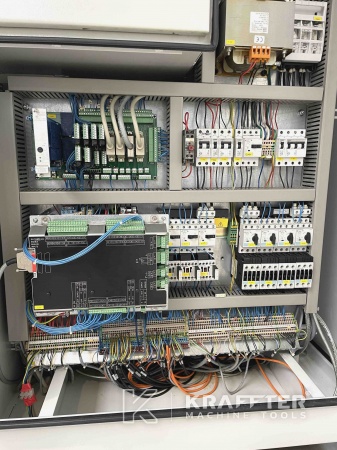

x1 electrical diagram manual MIKRON HSM 800
x1 system documentation LEHMANN EA-410.2A
