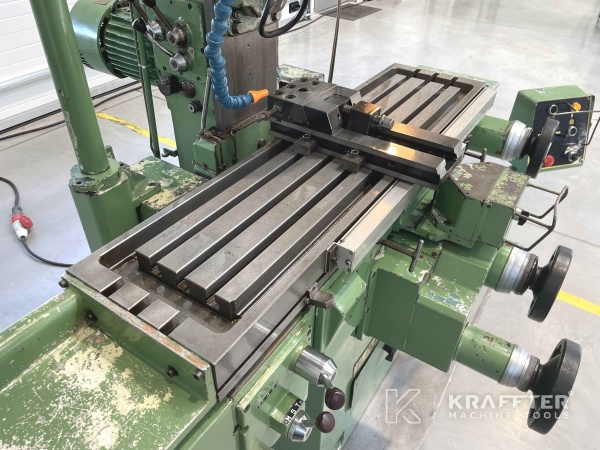

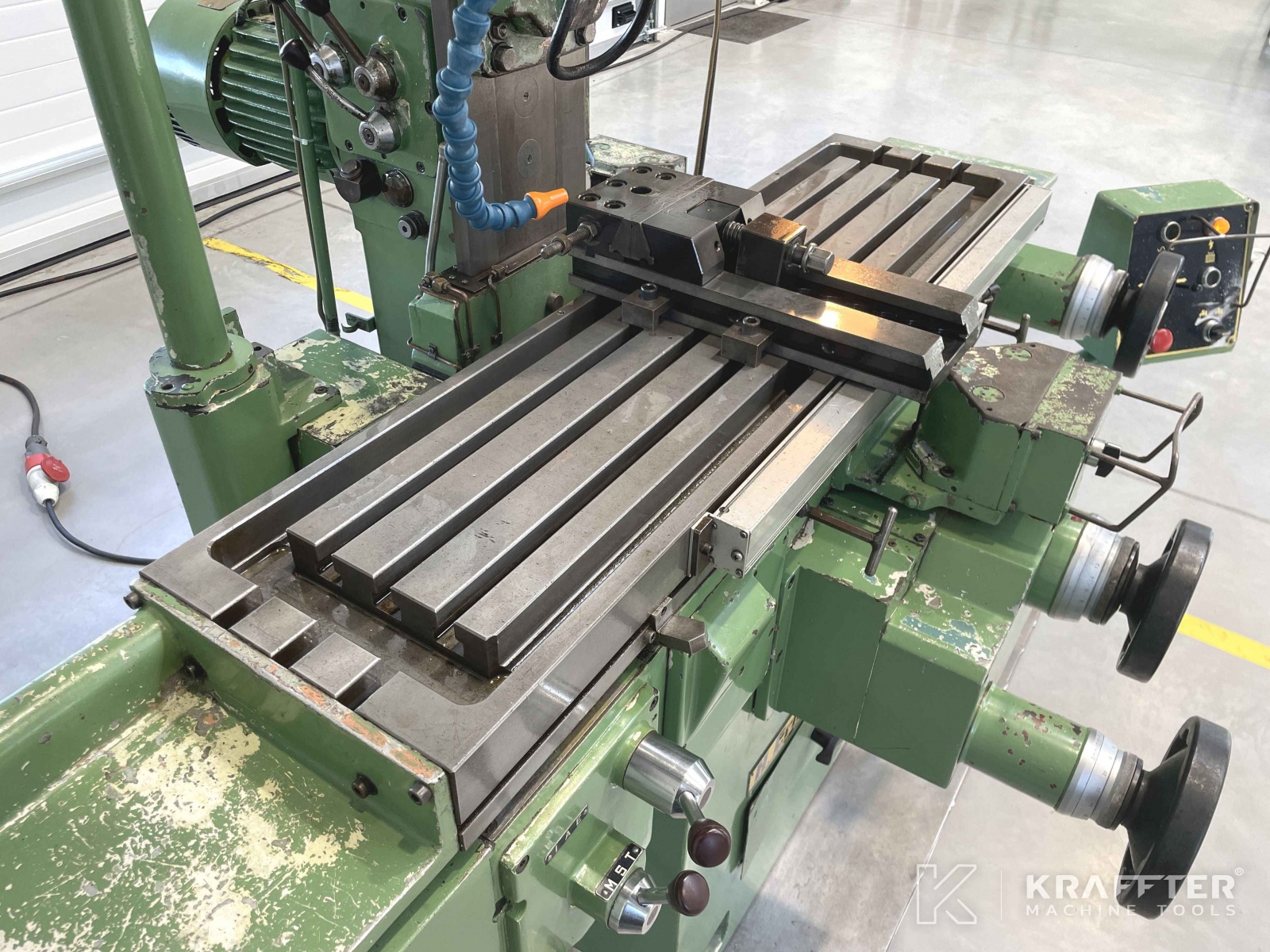

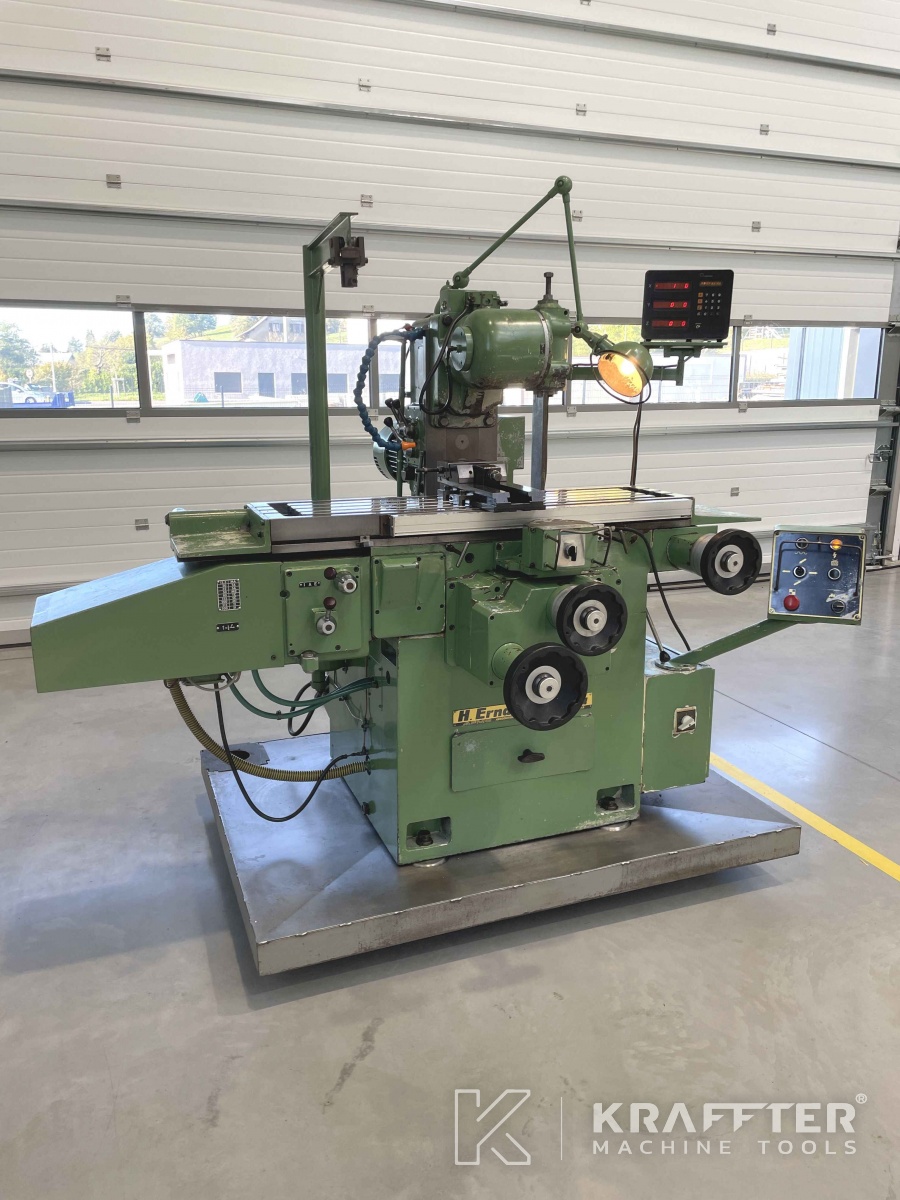

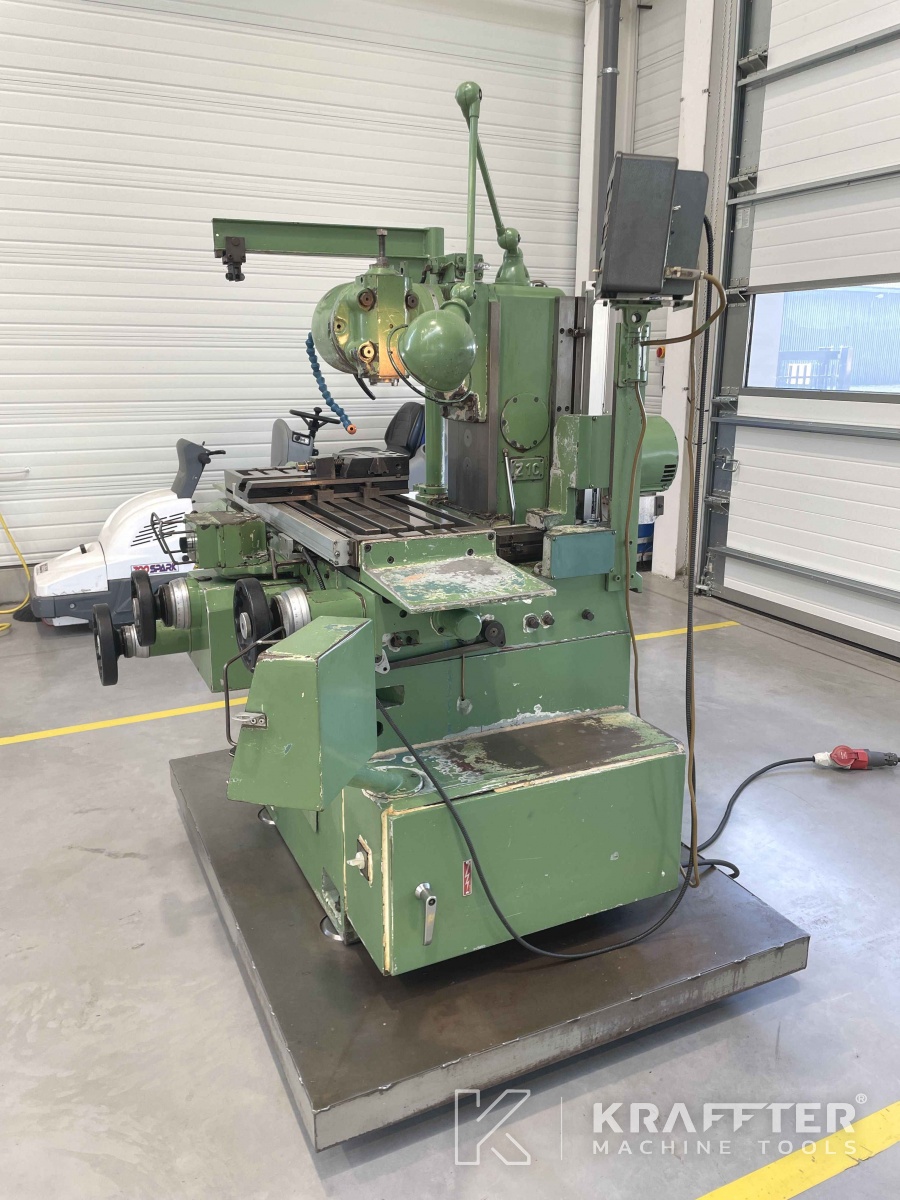

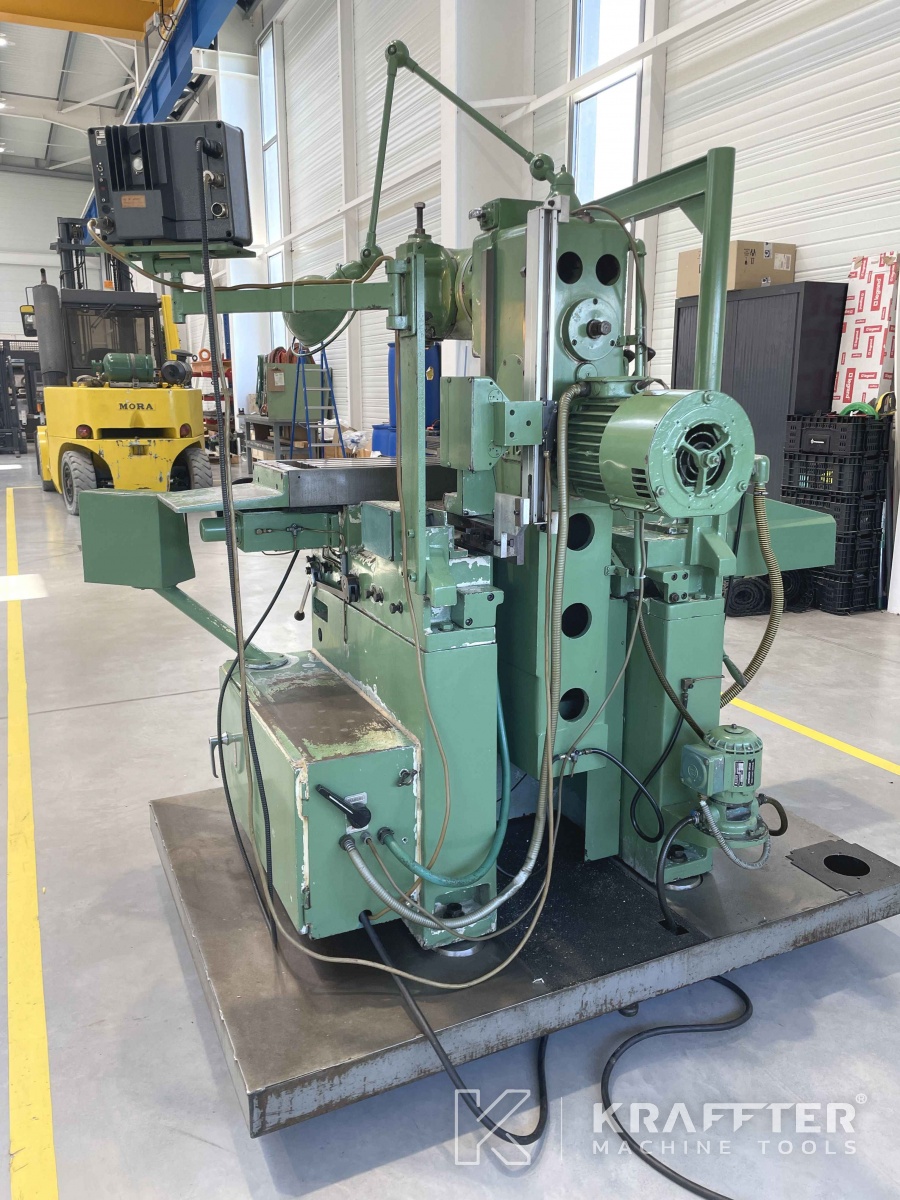

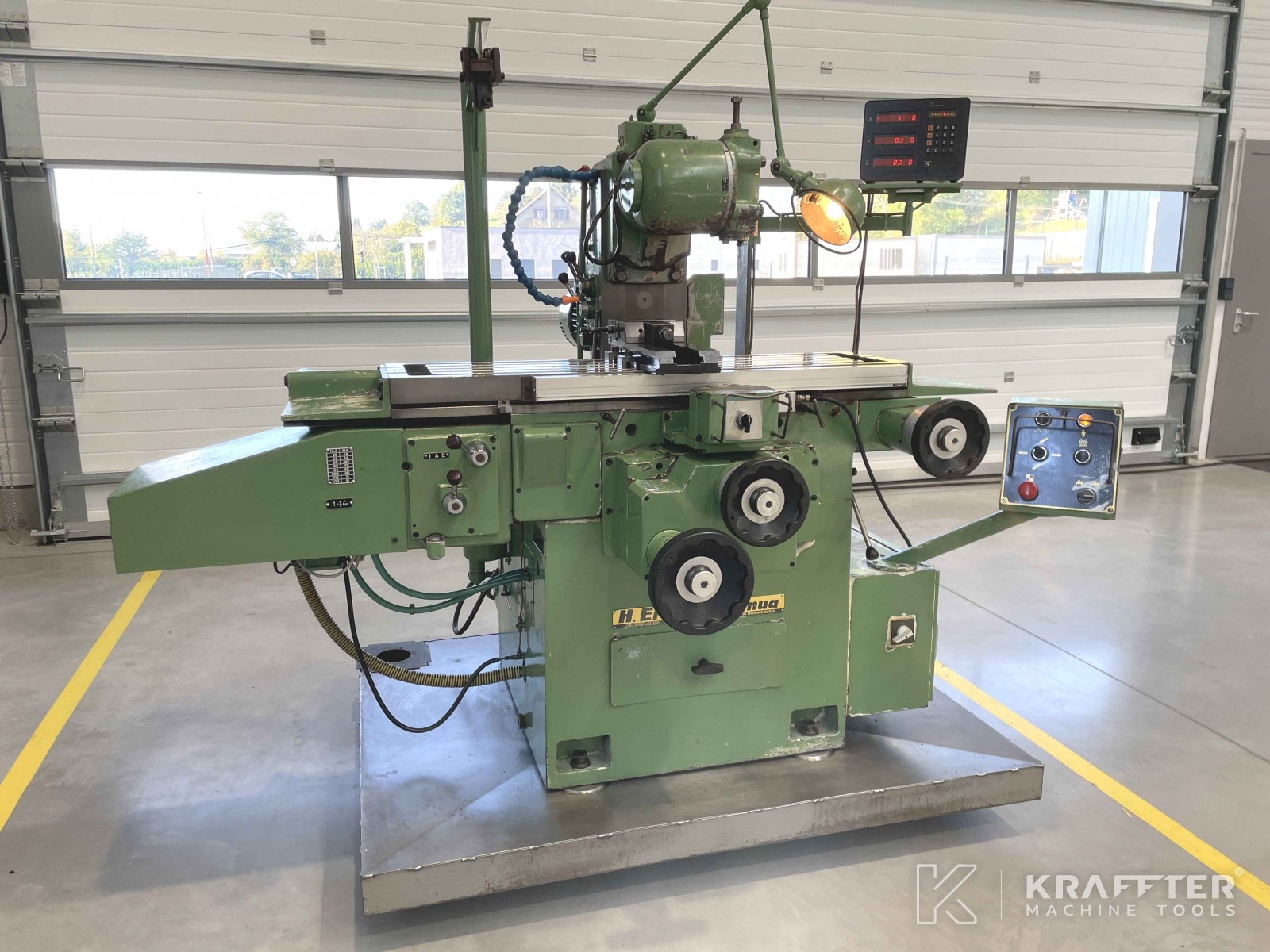

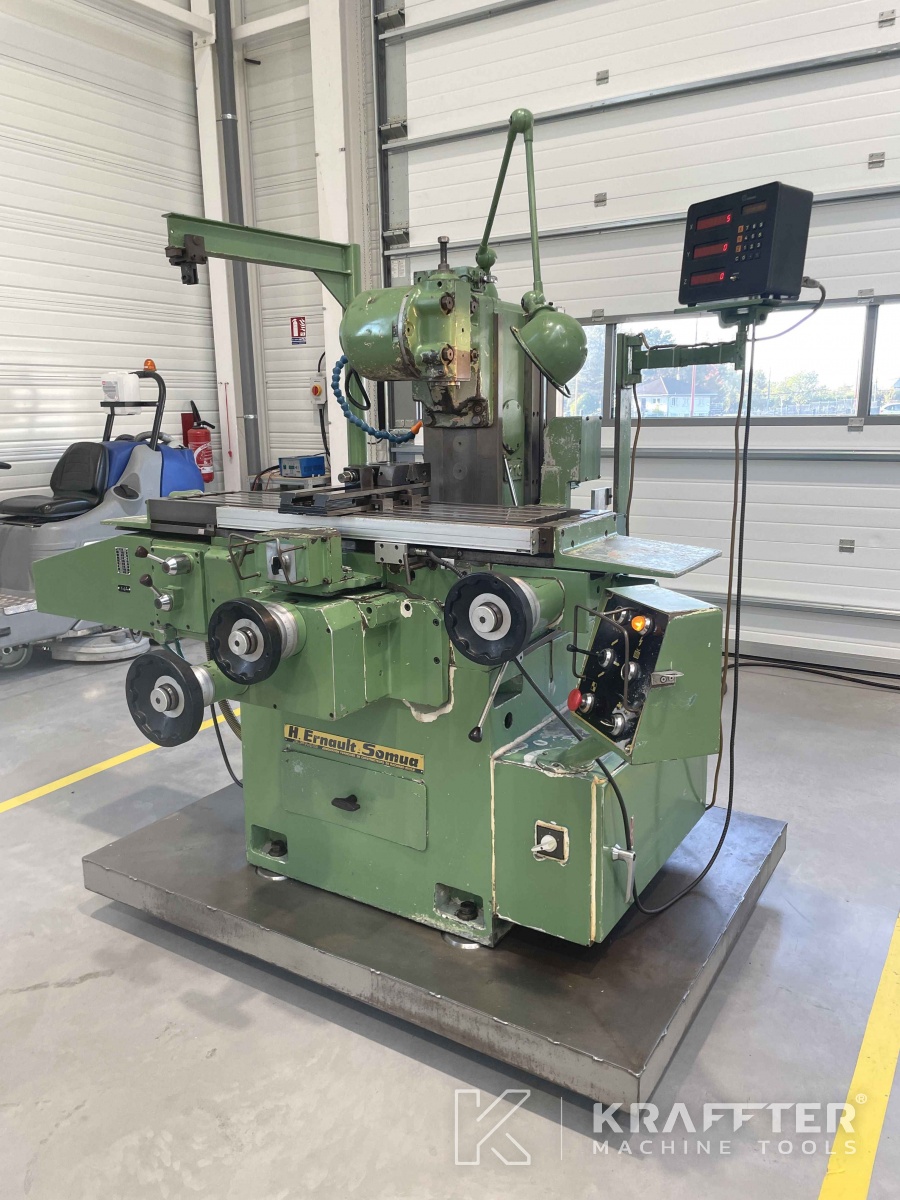

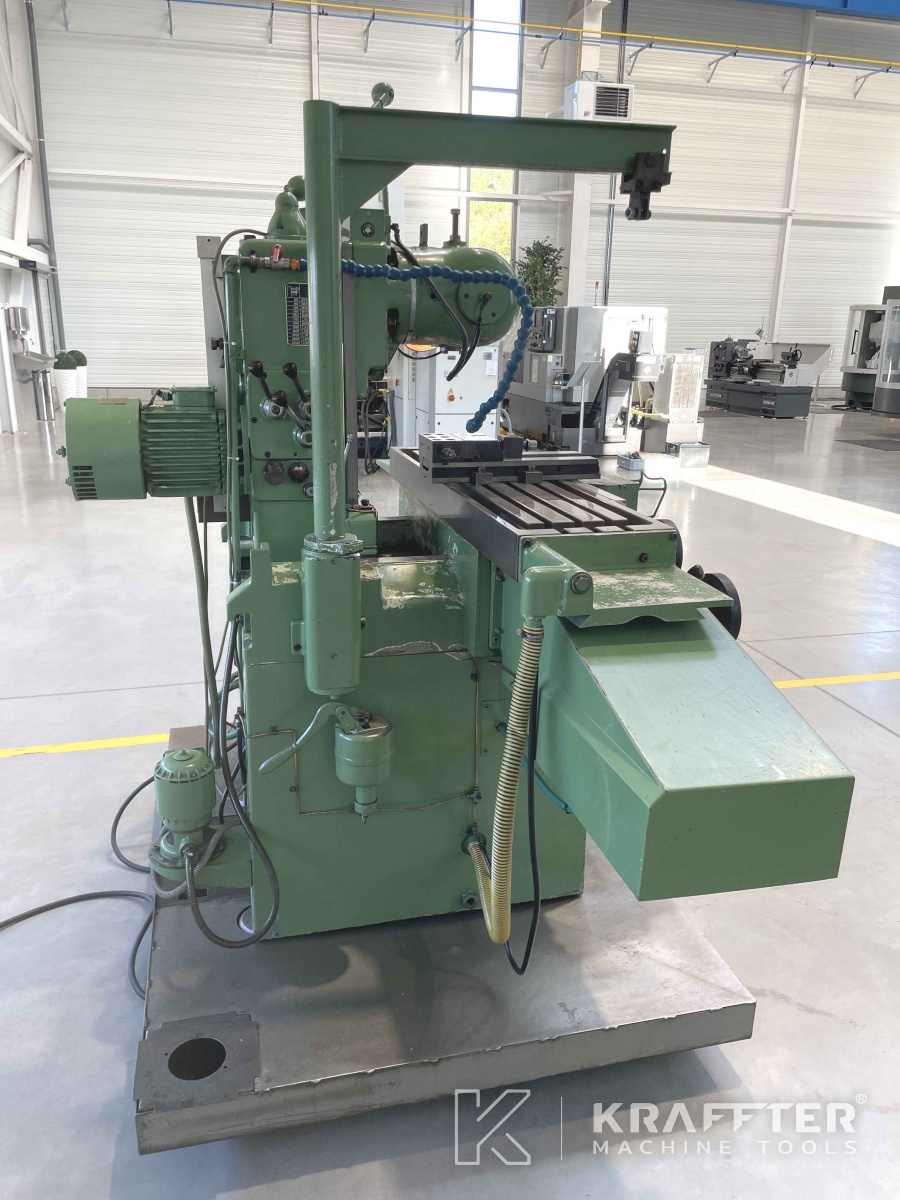

Type of machine : Manual milling machine
Brand : ERNAULT SOMUA
Stock N° : 20690-010
Model : Z 1 C
Location : 73240 St-Genix-les-Villages, FRANCE
Technical characteristics
Additional information
Request a quotation
Number of axes
3
Stroke X axis
710 [mm]
Stroke Y axis
250 [mm]
Stroke Z axis
400 [mm]
Traversing feeds X, Y
3000 [mm/min]
Rapid feed Z
1500 [mm/min]
Max. distance spindle nose / table
430 [mm]
Table length
1200 [mm]
Table width
300 [mm]
Spindle type
ISO 40
Vertical milling head orientable
universelle (bi-rotative)
Min. spindle speed
40 [rpm]
Max. spindle speed
2000 [rpm]
Spindle power
2.2 [kW]

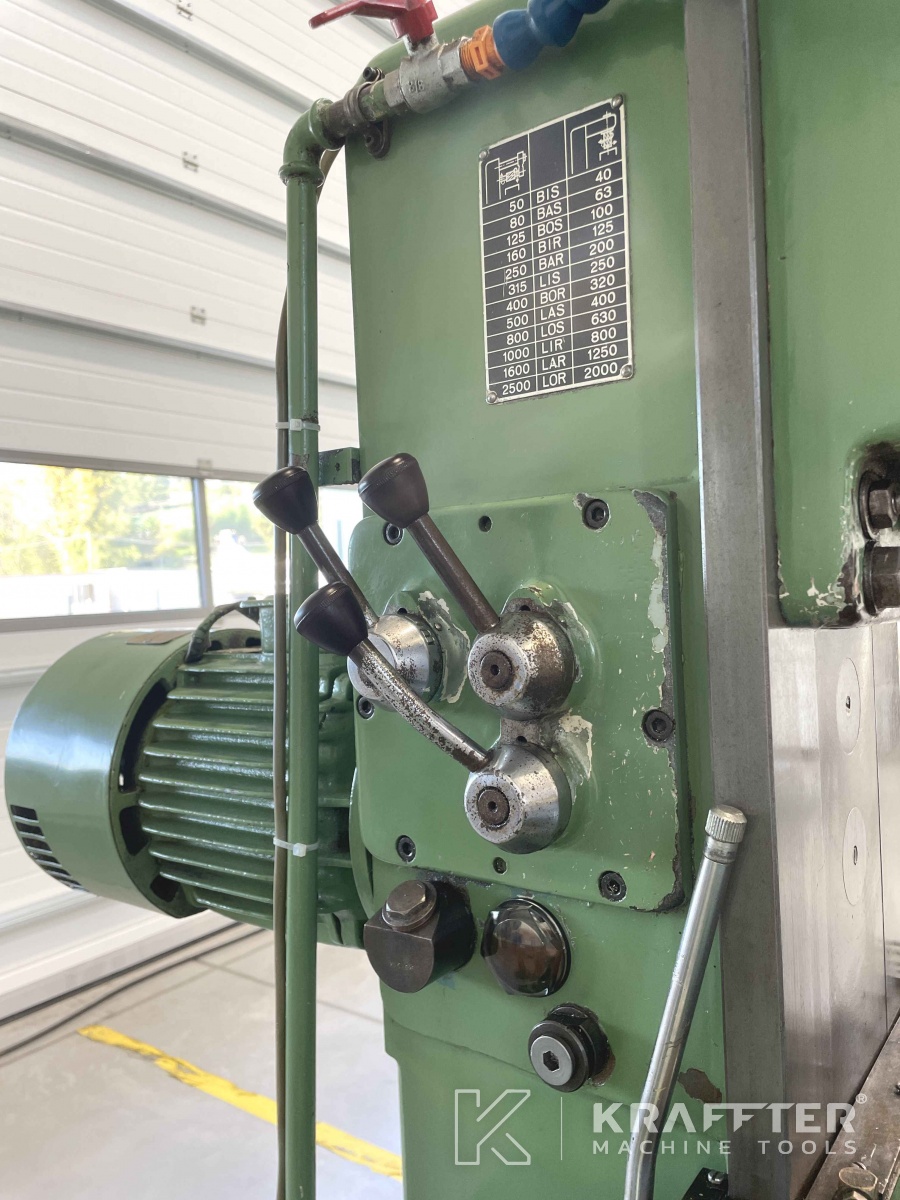

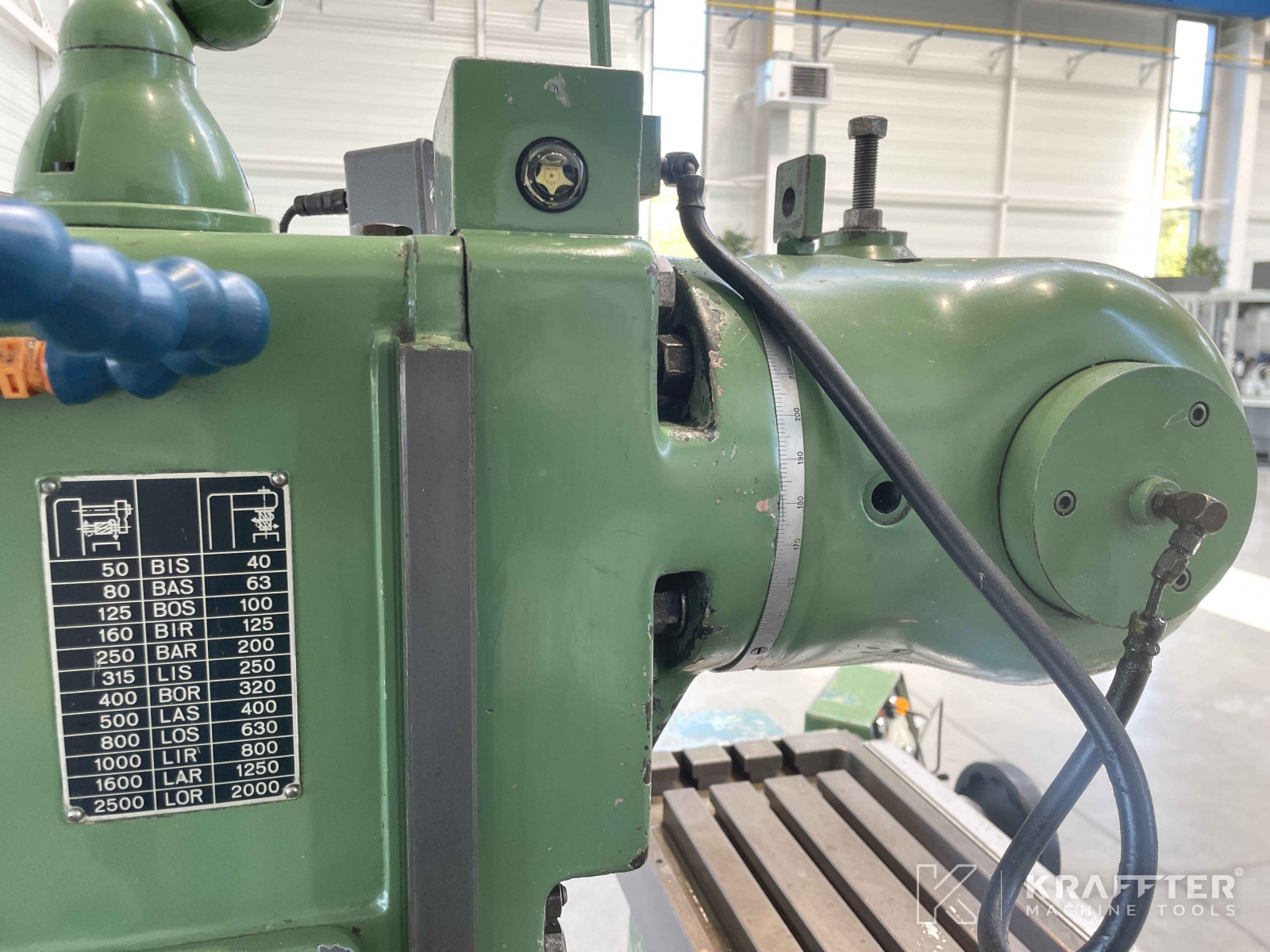

Number of spindle speeds
12
Number of cutting speeds
9
Digital read out
HEIDENHAIN
Centralized lubrication
manuel
Electrospindle brake
Yes
Supply voltage
380 [V]
Weight
1350 [Kg]
Équipements inclus:

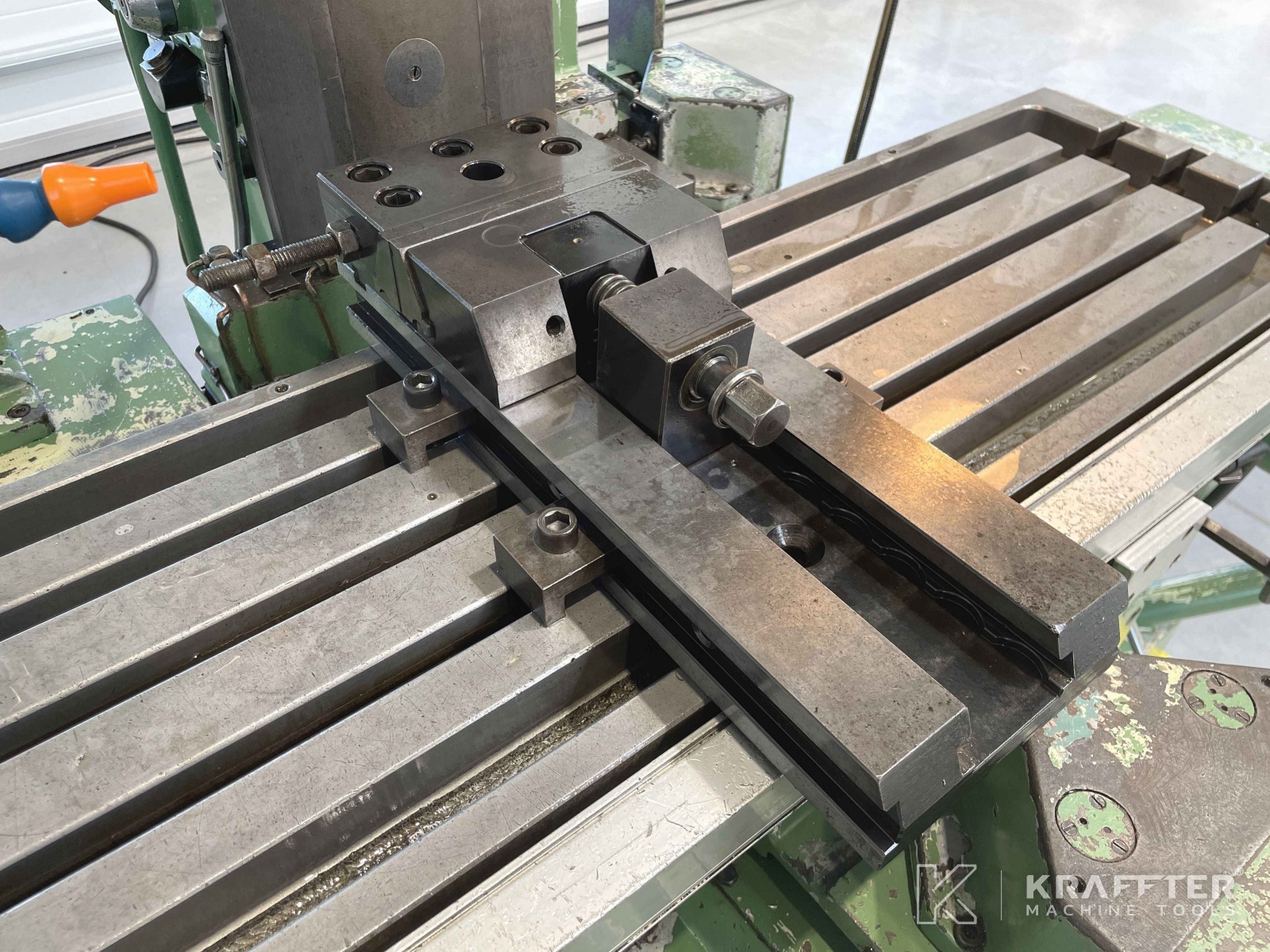

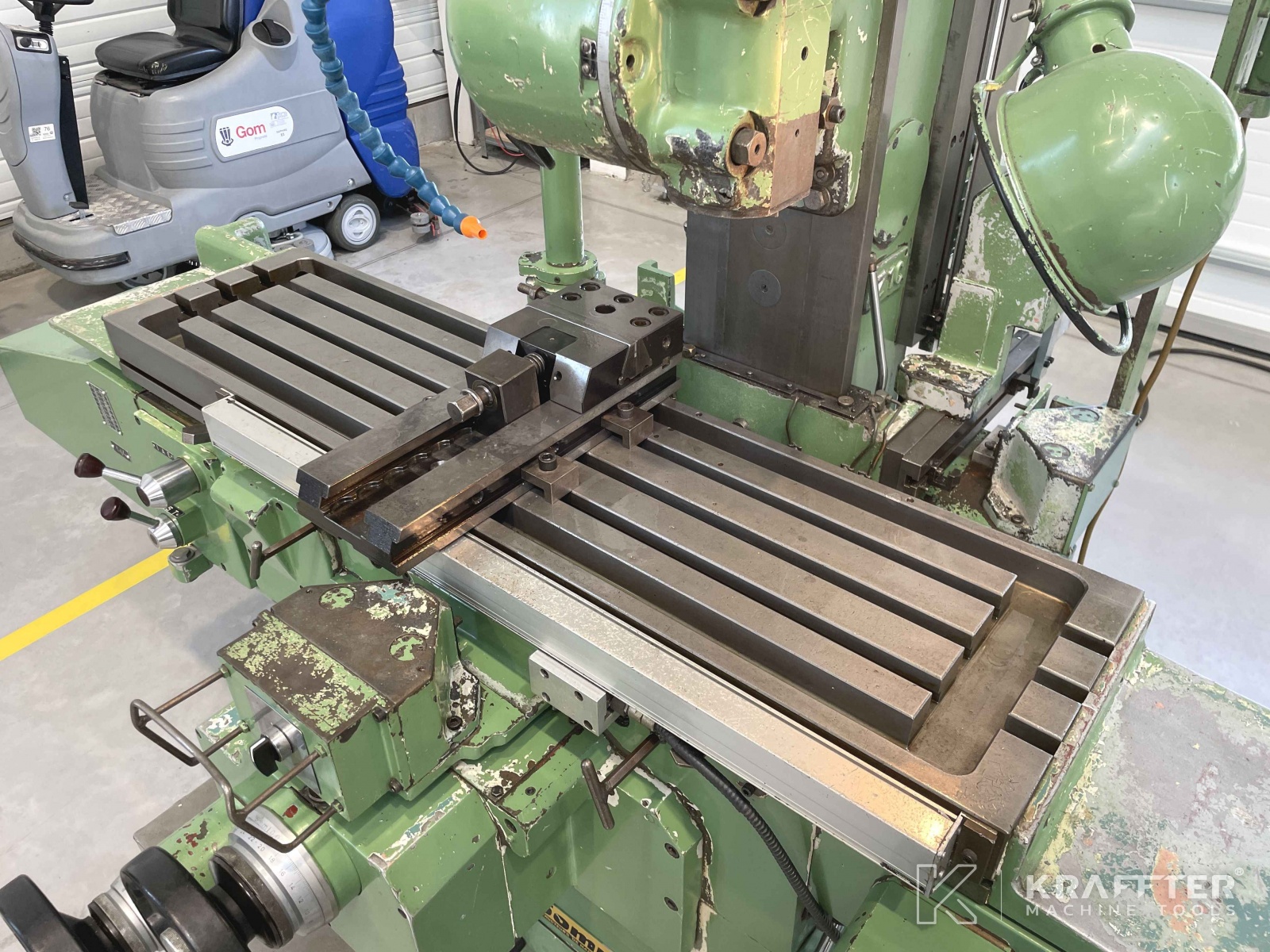

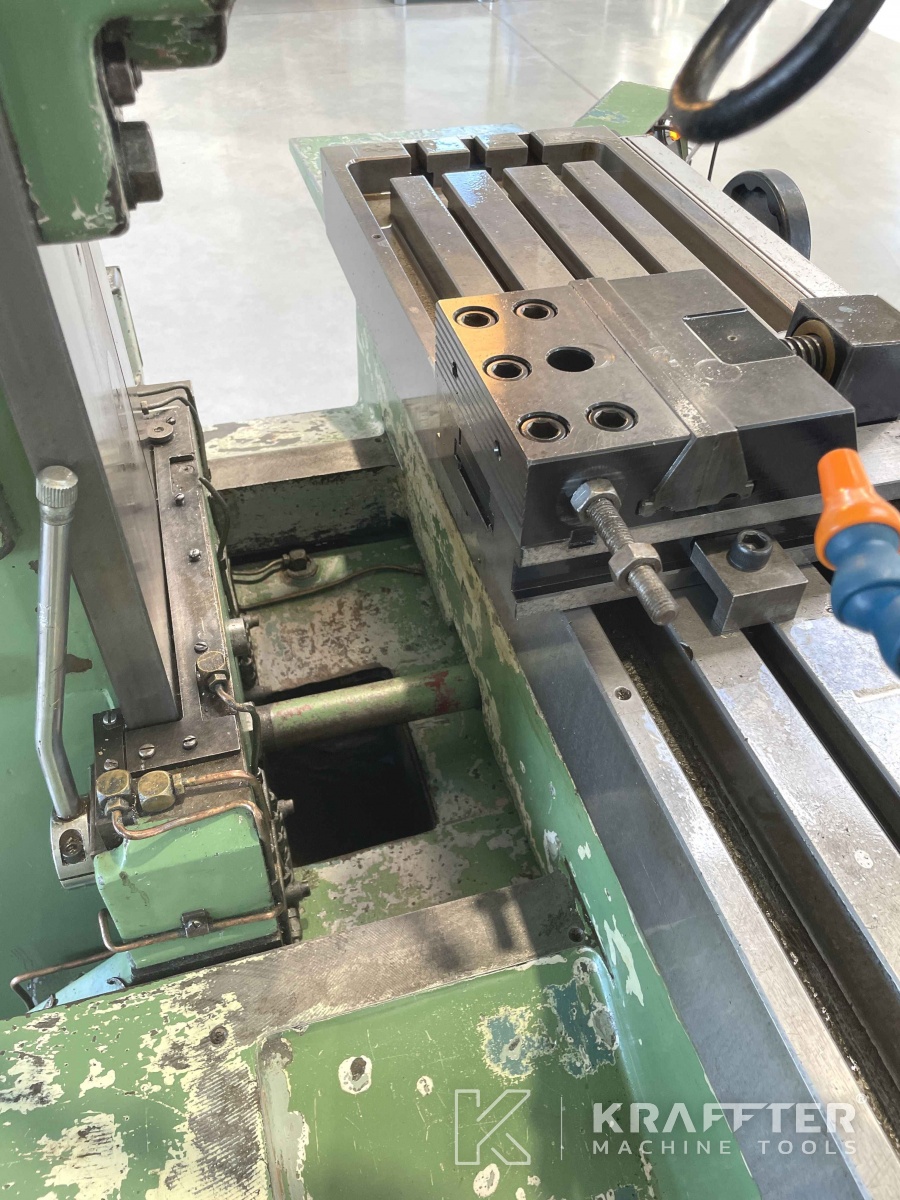

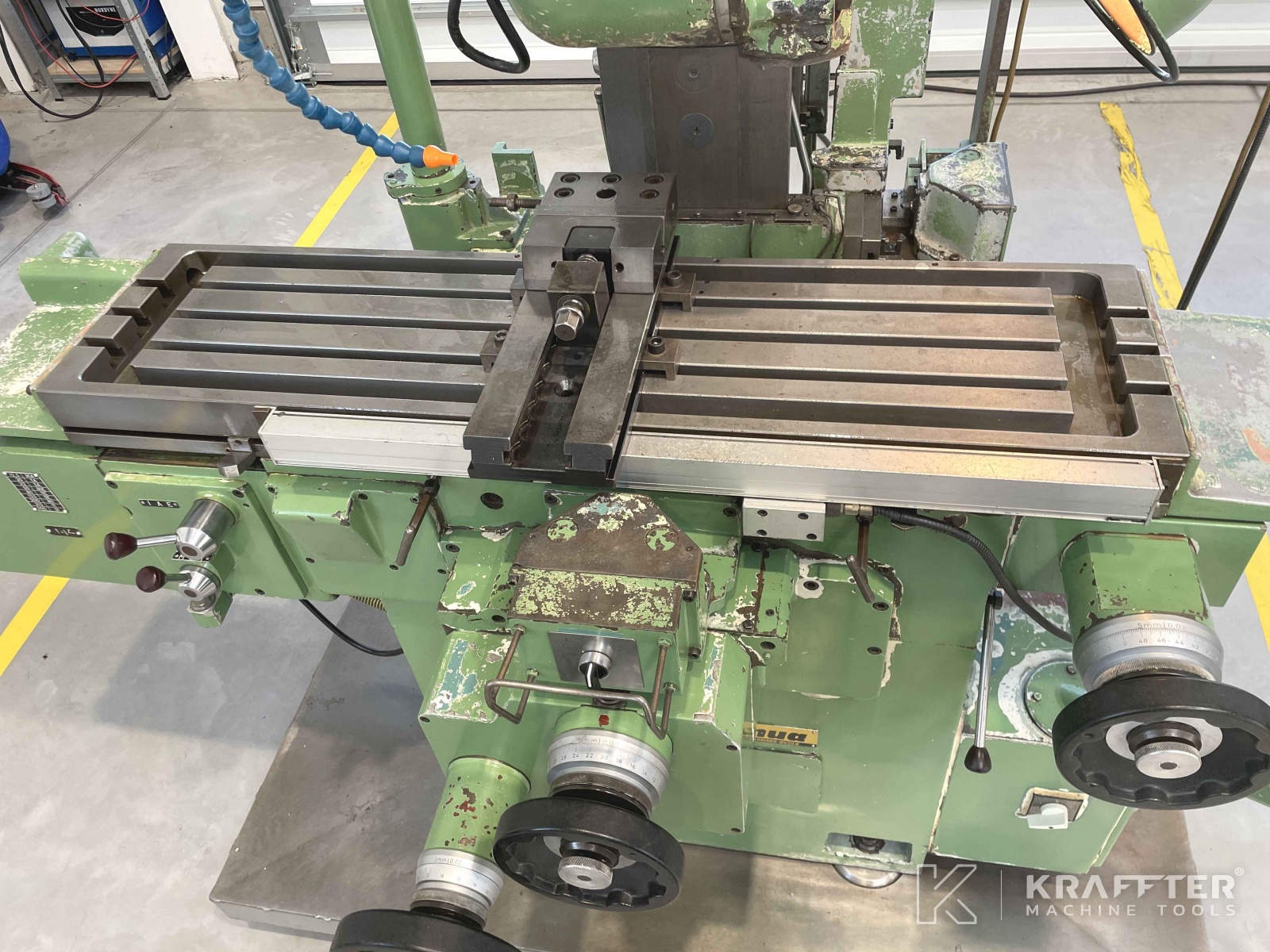

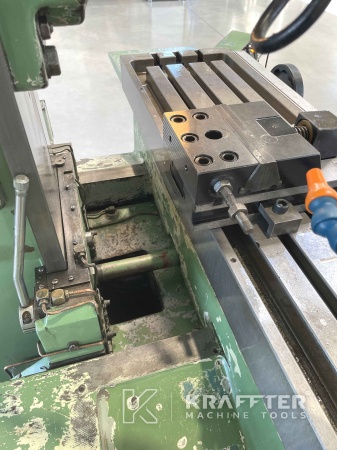

x1 étau de fraisage trempé rectifié (idem SAGOP) largeur des mors 150 [mm]
x1 jeu d'éléments de bridage pour étau

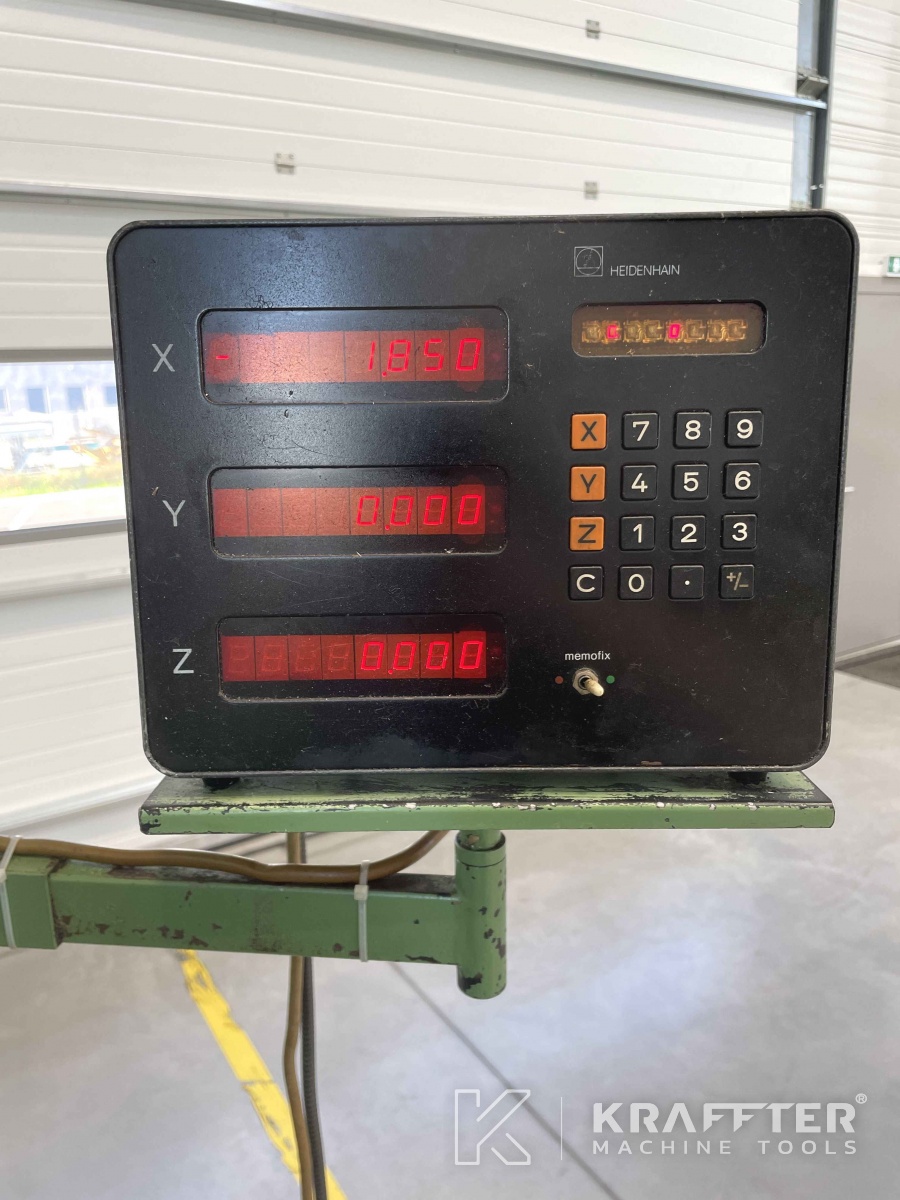

x1 visualisation HEIDENHAIN (seul l'axe X est visualisé)
x1 lampe JIELDE (non vendue séparément)
x1 notice d'entretien en Français
