Sold

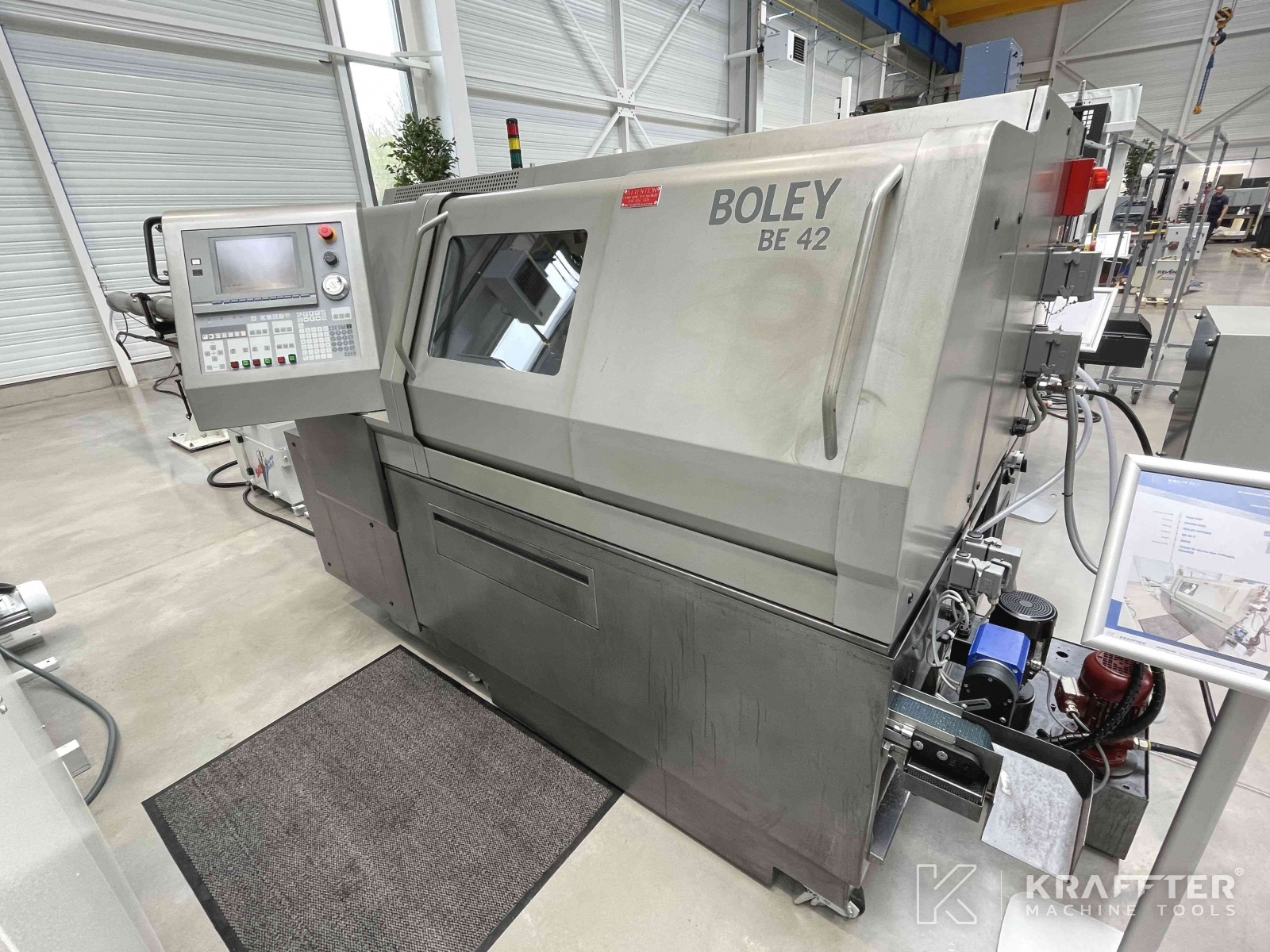

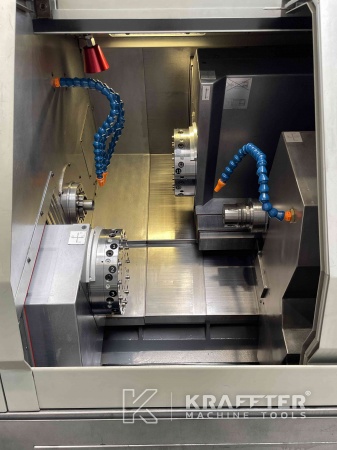

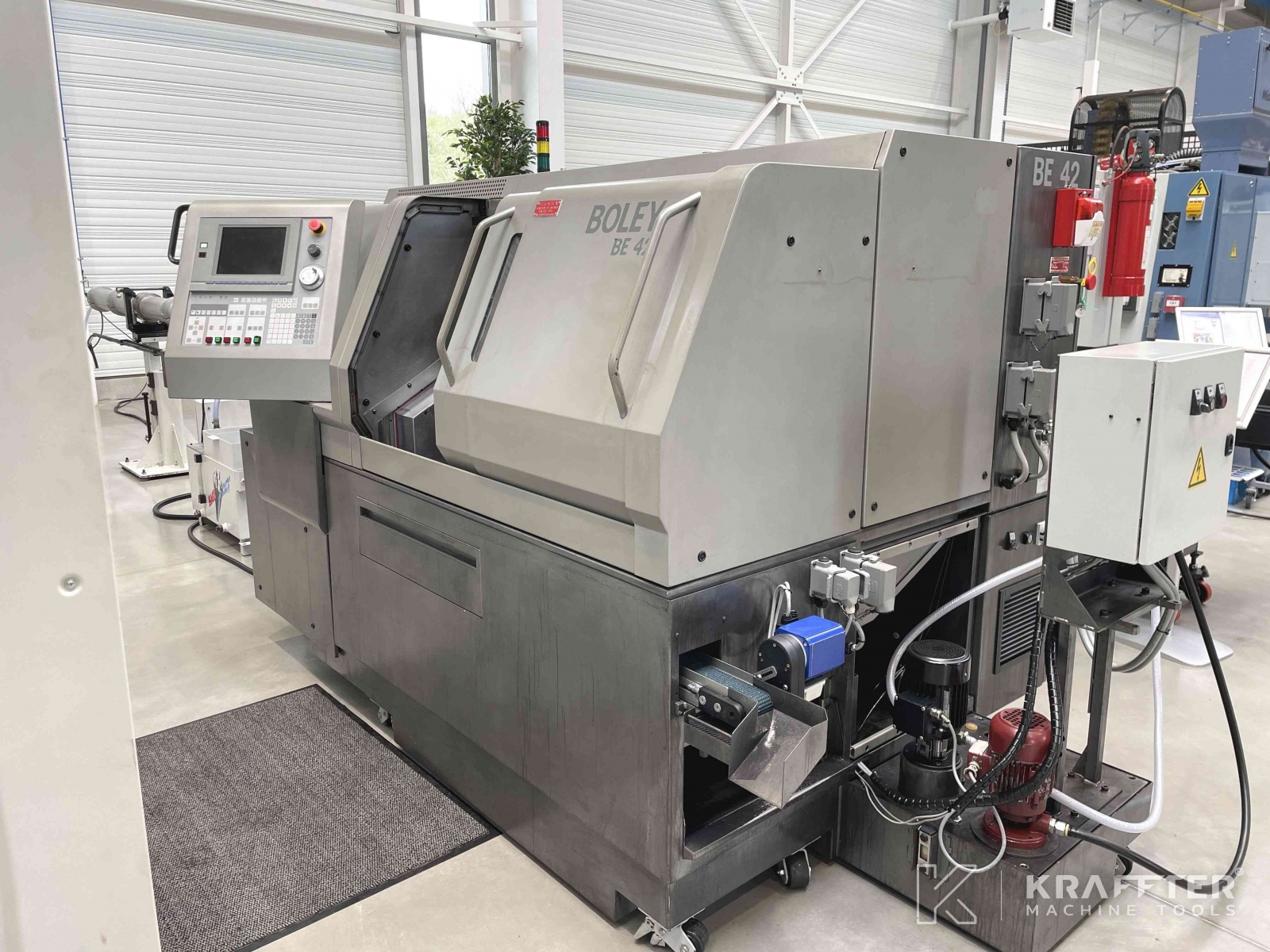

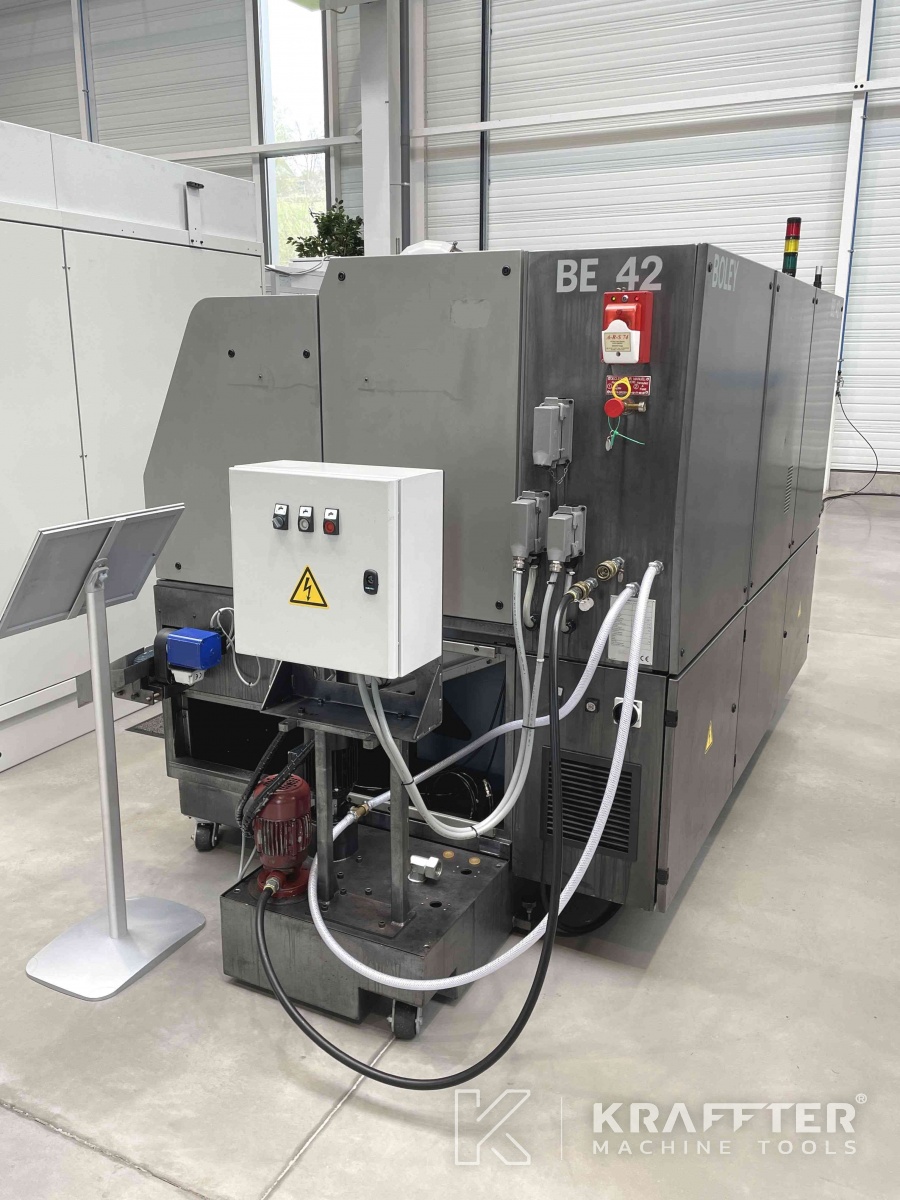

Type of machine : CNC lathe
Brand : BOLEY CITIZEN
Stock N° : 90079
Model : BE 42 Y
Serial N° : 88095
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

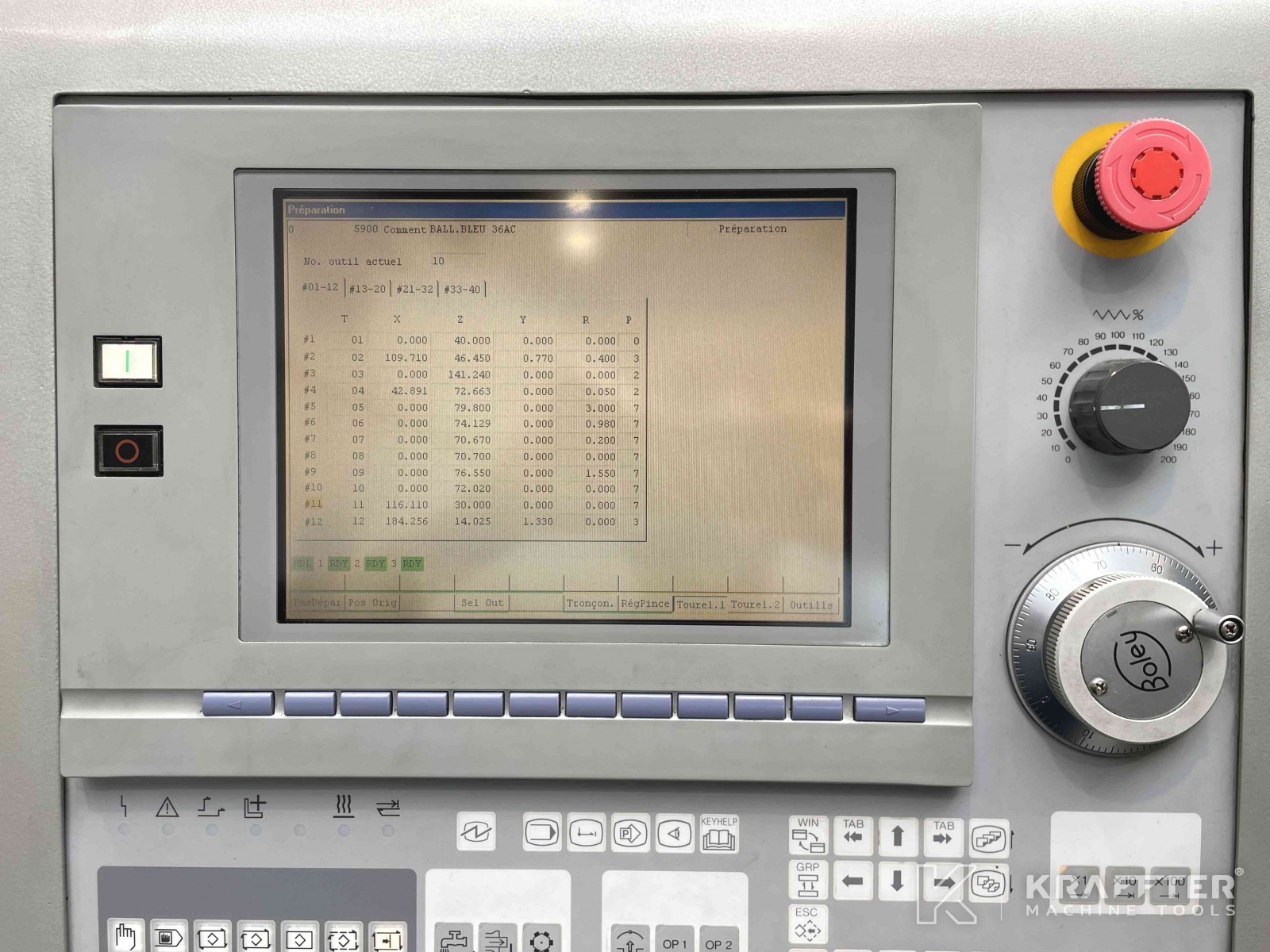

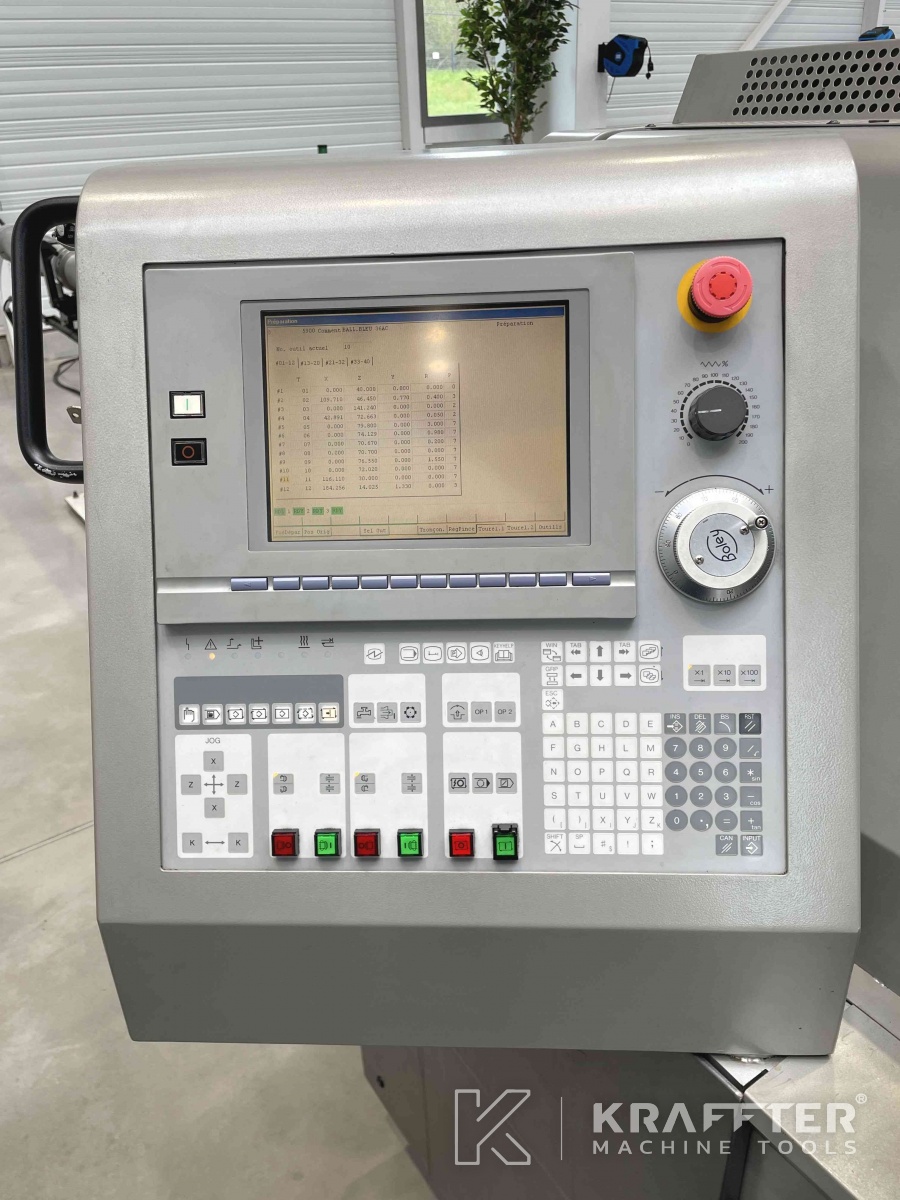

CNC control
MITSUBISHI Meldas 635LCC
Max. turning diameter
140 [mm]
Stroke Y axis
-/+ 40 [mm]
Stroke Z1 axis
200 [mm]
Stroke X1 axis
170 [mm]
Stroke Z2 axis
395 [mm]
Stroke X2 axis
110 [mm]
Stroke Z3 axis
170 [mm]
Stroke X3 axis
110 [mm]
Spindle for collets
Taille 48 DIN 6343
Spindle throughbore
42 [mm]
Min. spindle speed
80 [rpm]
Max. spindle speed
8000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
7.5 [kW]

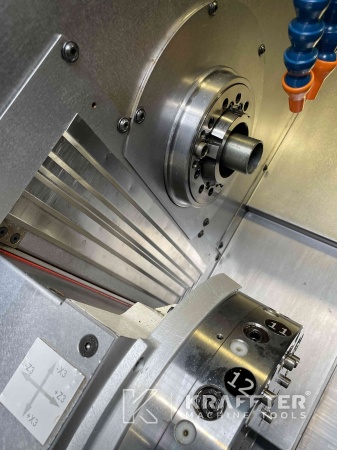

Counter spindle throughbore
42 [mm]
Min. counter spindle spindle speed
60 [rpm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
2.2 [kW]
Type of tool holders
DIN 69880 - 20x40

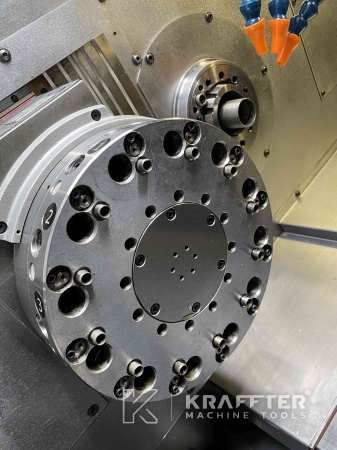

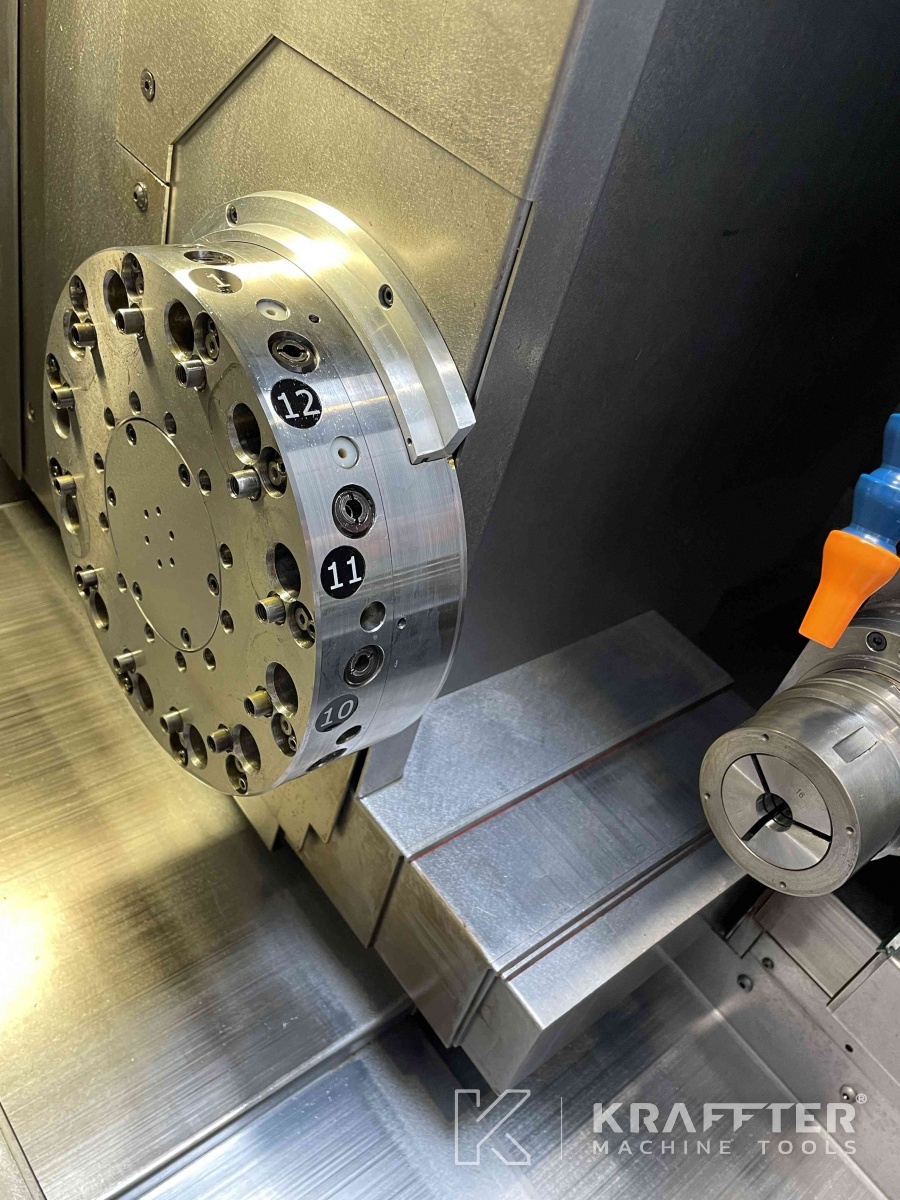

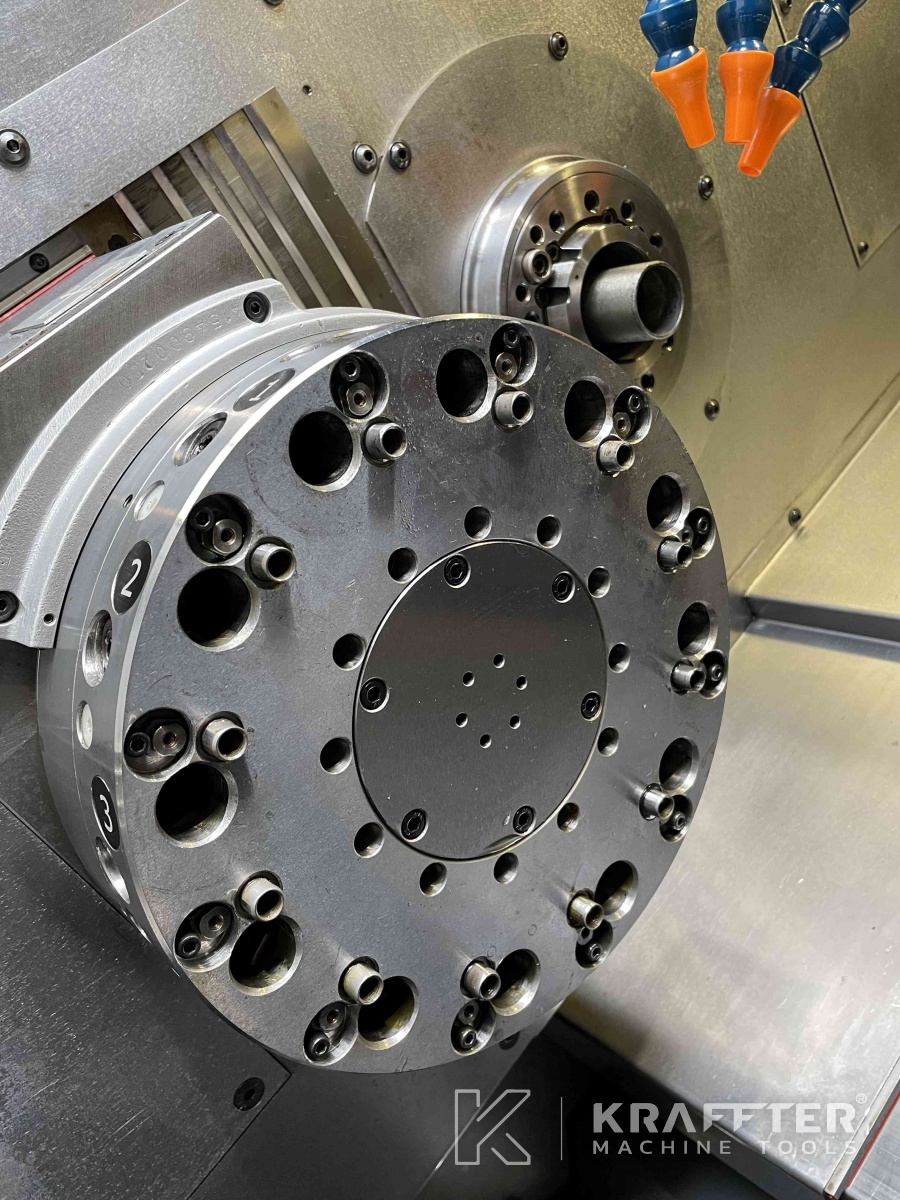

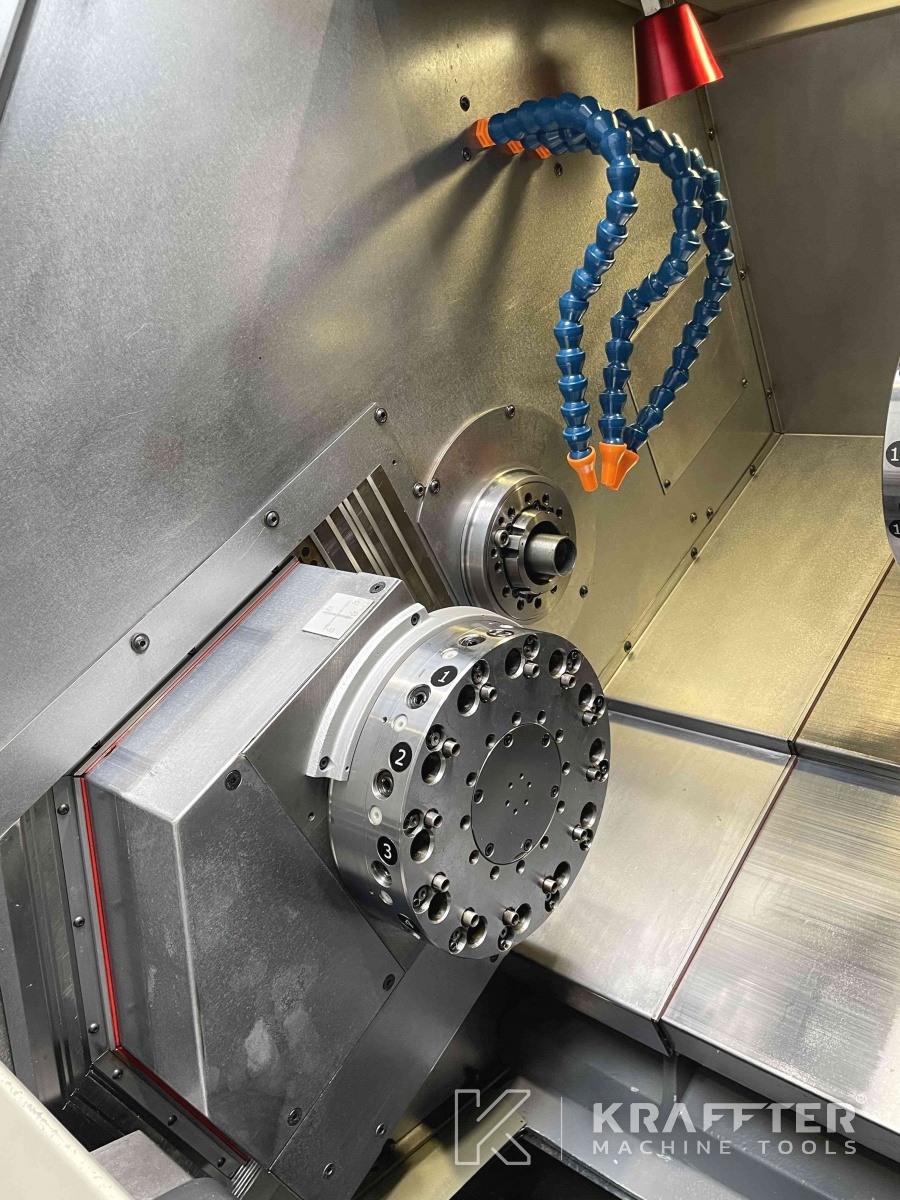

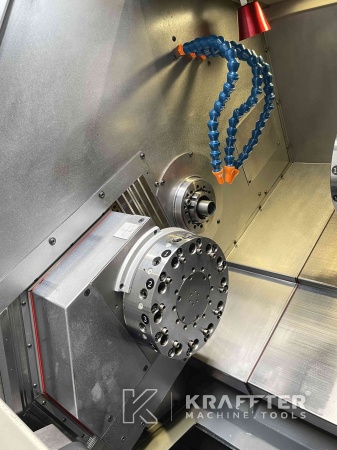

Number of tool stations - Turret 1
12
Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
4500 [rpm]
Number of tool stations - Turret 2
12
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 2
4500 [rpm]

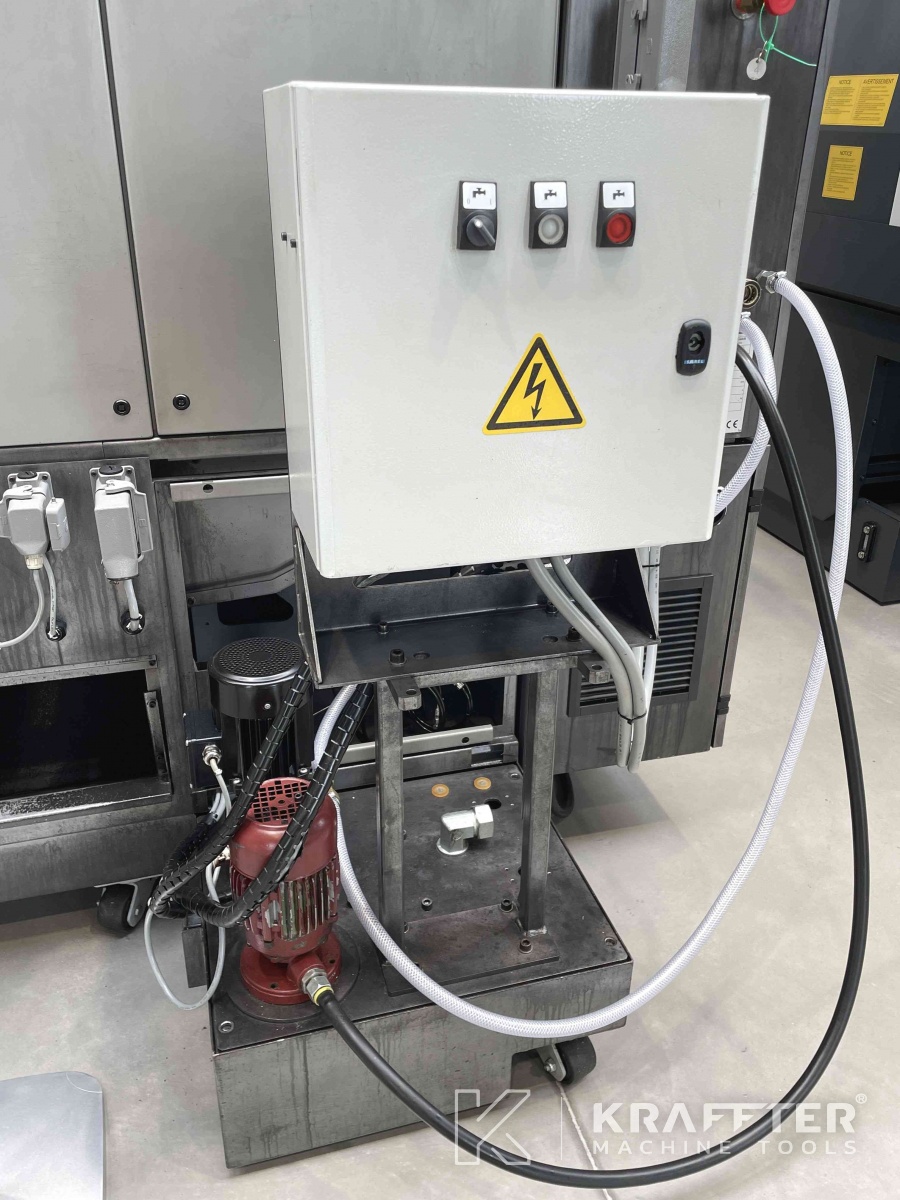

Lubrication tank capacity
210 [l]
Total power required
14 [kVA]
Rated current
20 [A]
Supply voltage
400 [V]
Dimensions
2350 x 1590 x 1730 [mm]
Weight
3300 [Kg]

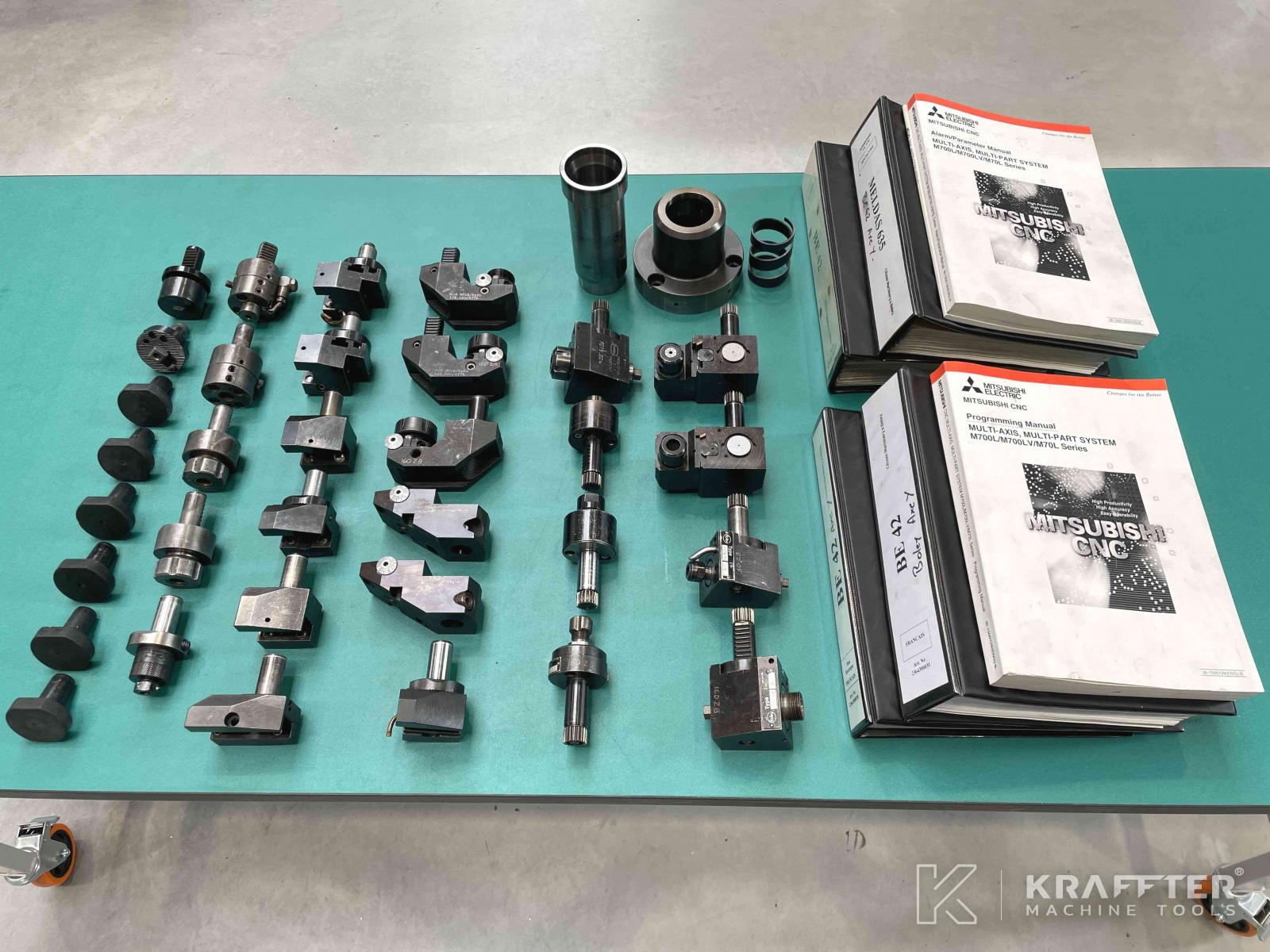

Equipment included :

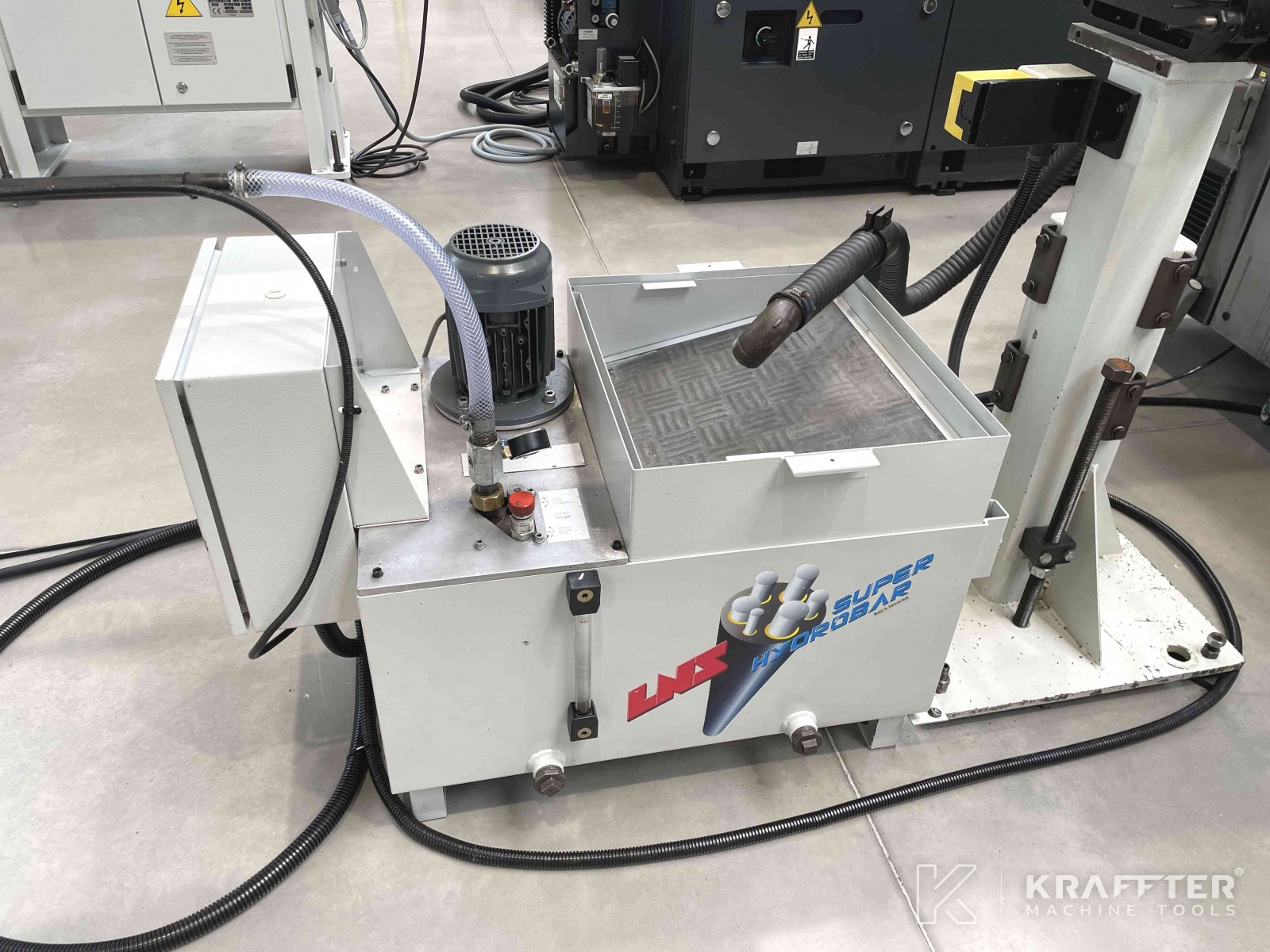

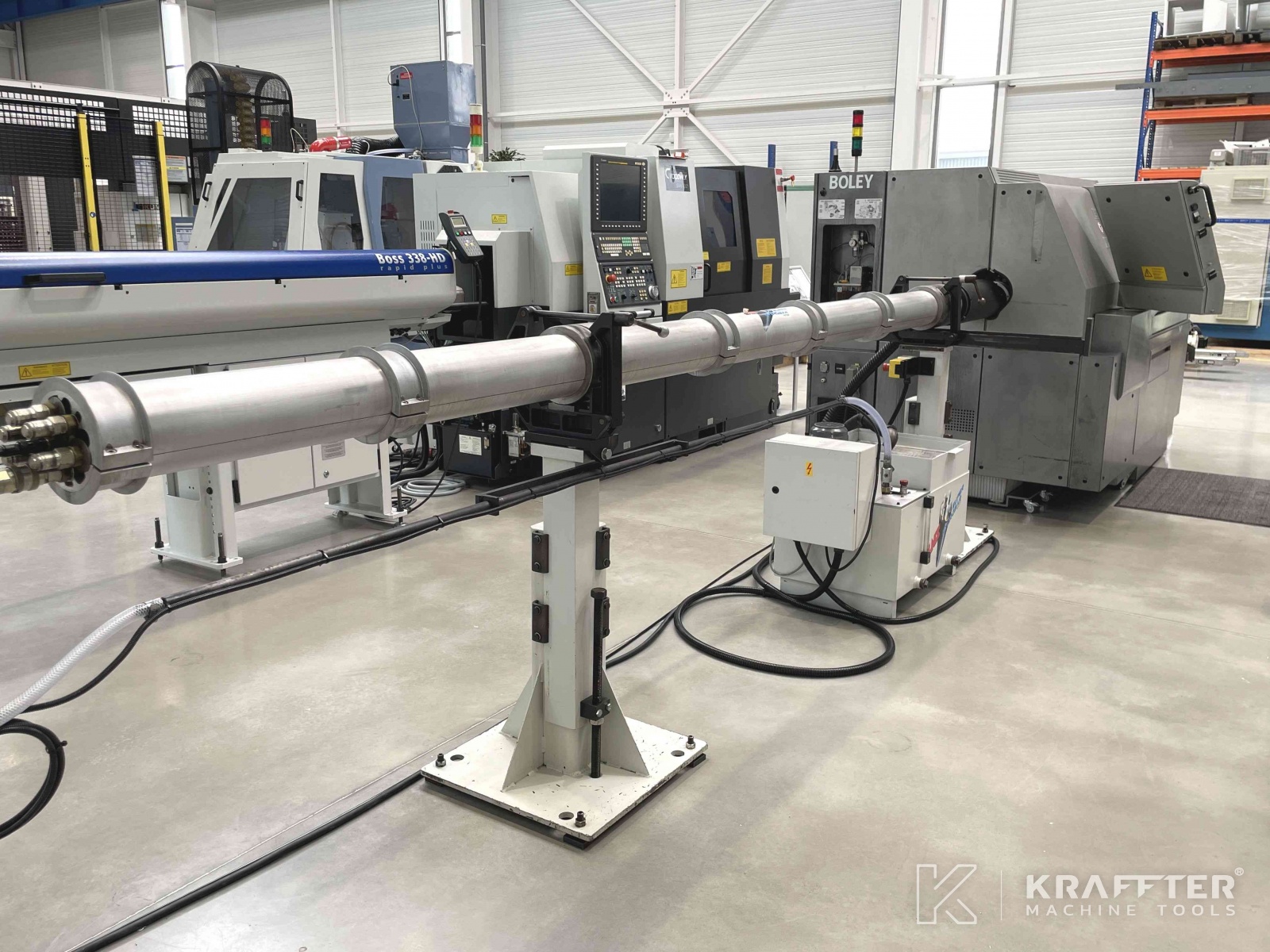

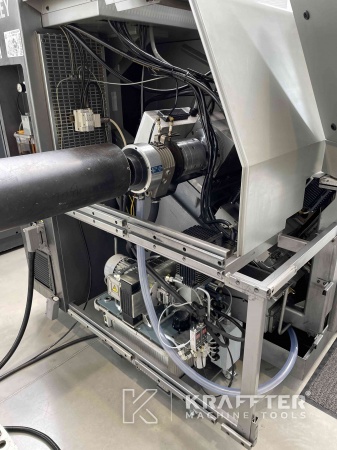

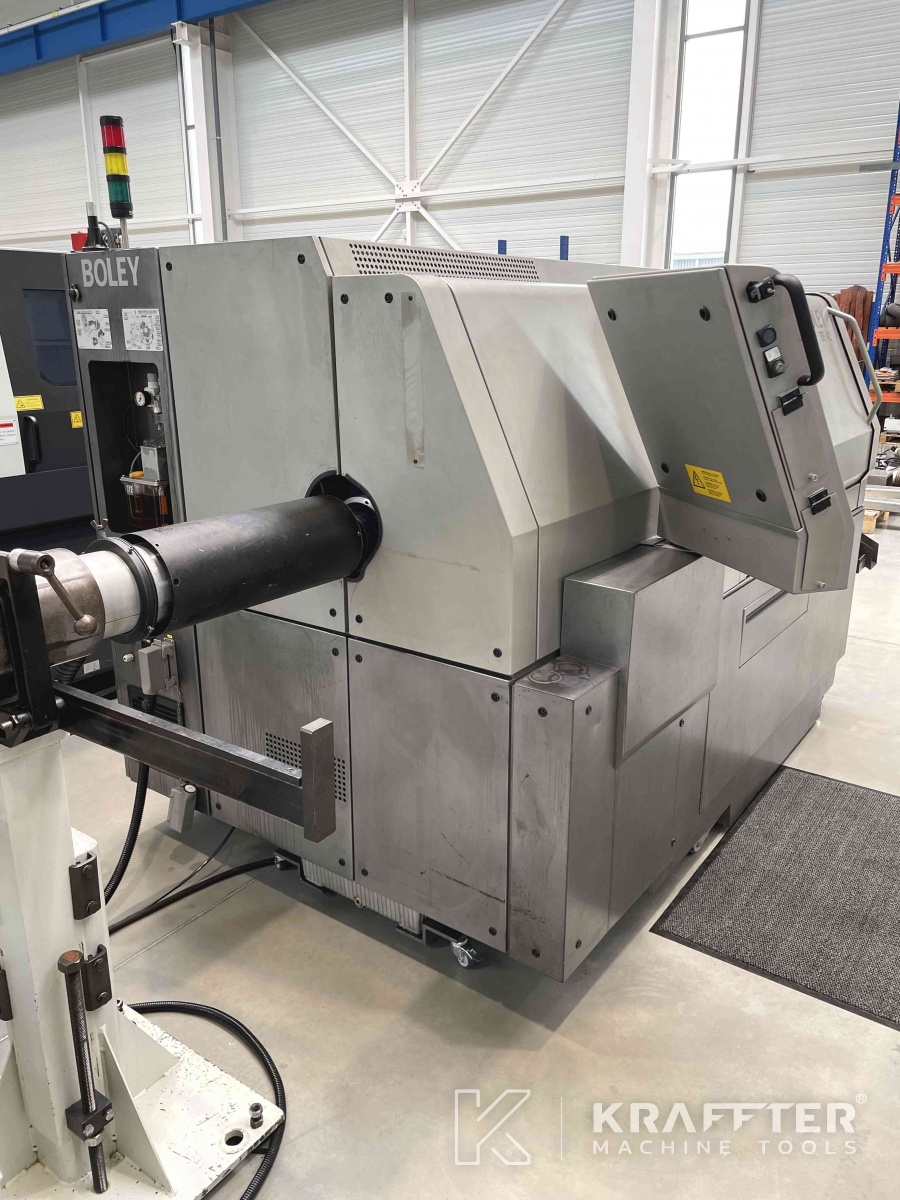

x1 hydraulic barfeeder LNS Super Hydrobar (3 meter)

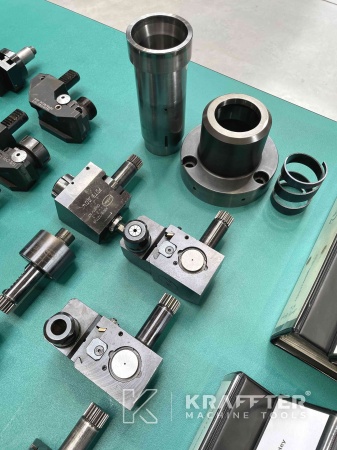

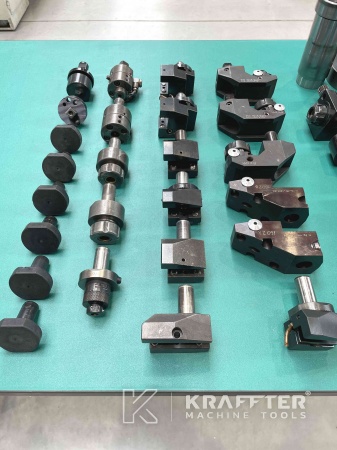

x3 axial live turning tool holders
x4 radial live turning tool holders
x17 steady tool holders
x2 collet chuck holders (for both S1 and S2 spindle noses)
x1 users manual (in French)
x1 service manuel (in French)
x1 electrical wiring diagram manual
