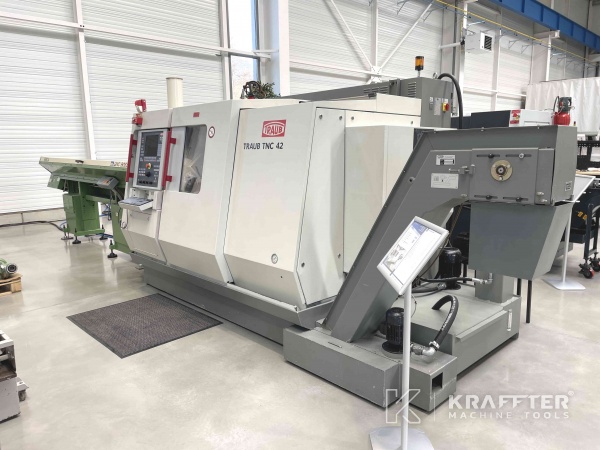

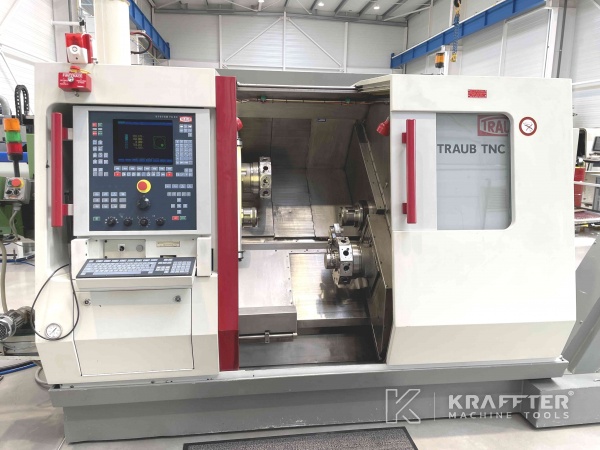

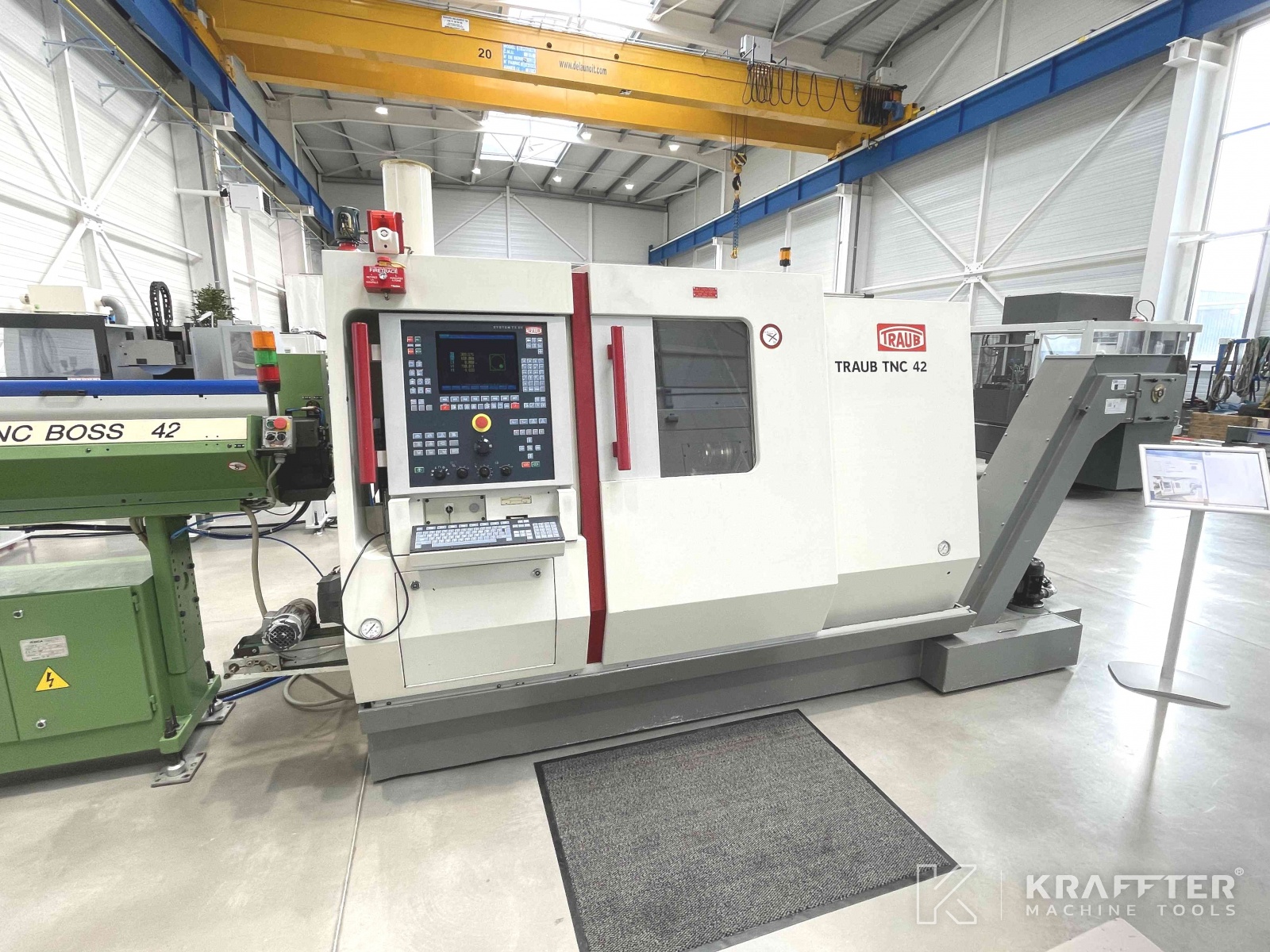

Type of machine : CNC lathe
Brand : TRAUB
Stock N° : 20690-037
Model : TNC 42 / 65
Year : 1999
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

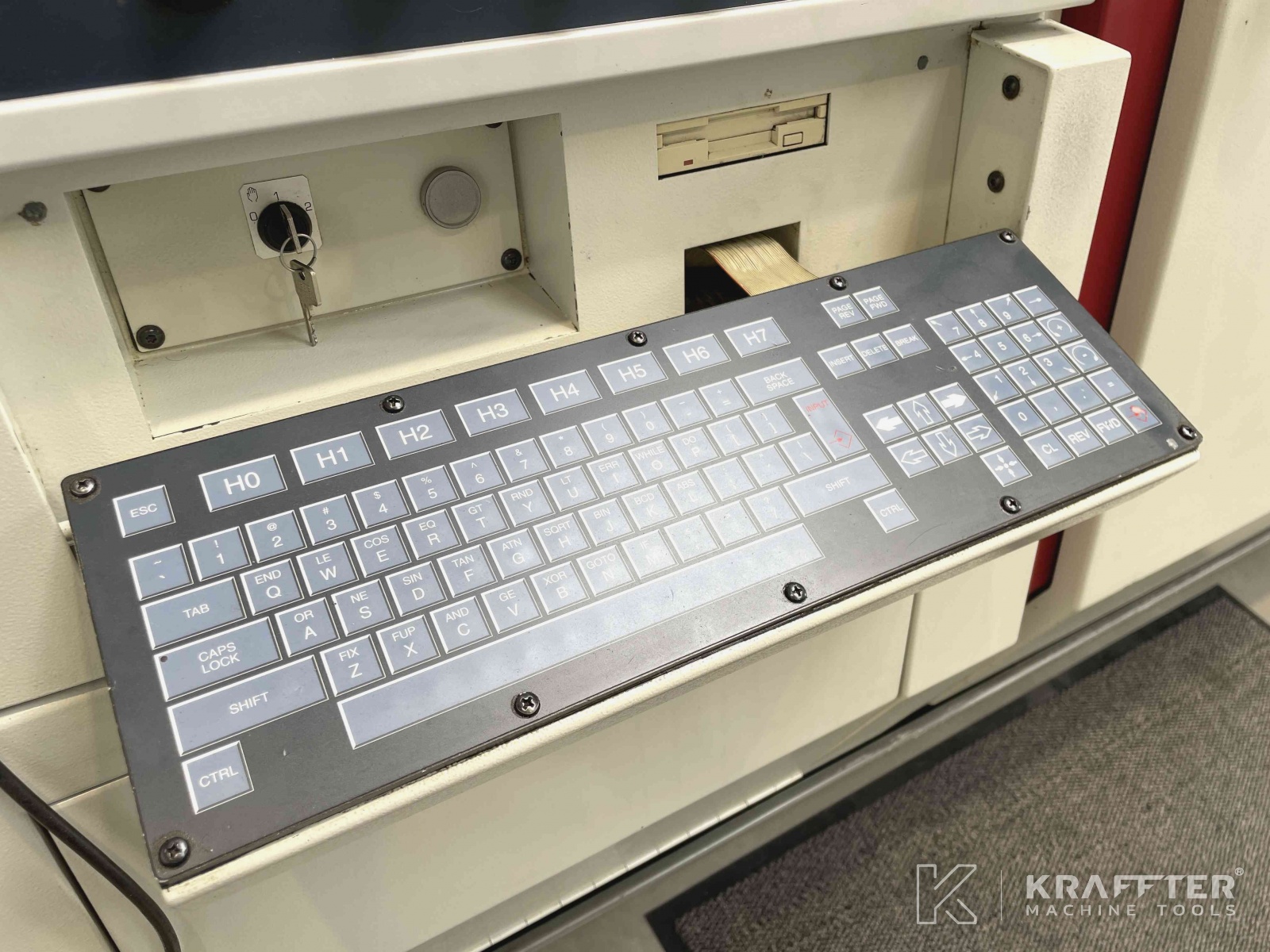

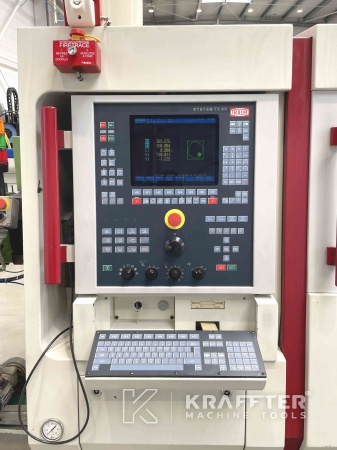

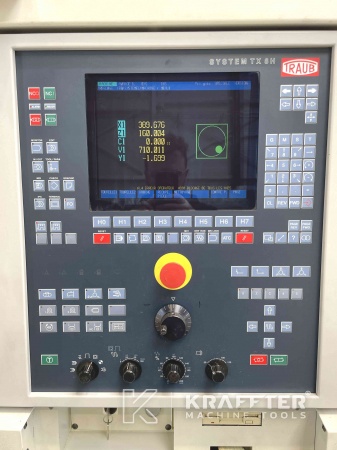

CNC control
TRAUB TX8i
Number of axes
8
Stroke Y axis
+/- 35 [mm]
Stroke Z1 axis
450 [mm]
Stroke X1 axis
140 [mm]
Stroke Z2 axis
520 [mm]
Stroke X2 axis
140 [mm]
Stroke E axis
450 [mm]
Spindle throughbore
42 [mm]
Max. spindle speed
5600 [rpm]
Increment C-axis
0.001 [°]
Spindle power
18.5 [kW]
Counter spindle throughbore
42 [mm]
Max. counter spindle speed
5600 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
11 [kW]
Type of tool holders
VDI 30
Number of tool stations - Turret 1
14
Number of tool stations driven - Turret 1
14
Max. speed driven tools - Turret 1
4000 [rpm]
Number of tool stations - Turret 2
14
Number of tool stations driven - Turret 2
14
Max. speed driven tools - Turret 2
4000 [rpm]
Total power required
107 [kVA]
Rated current
85 [A]
Supply voltage
400 [V]
Weight
5600 [Kg]

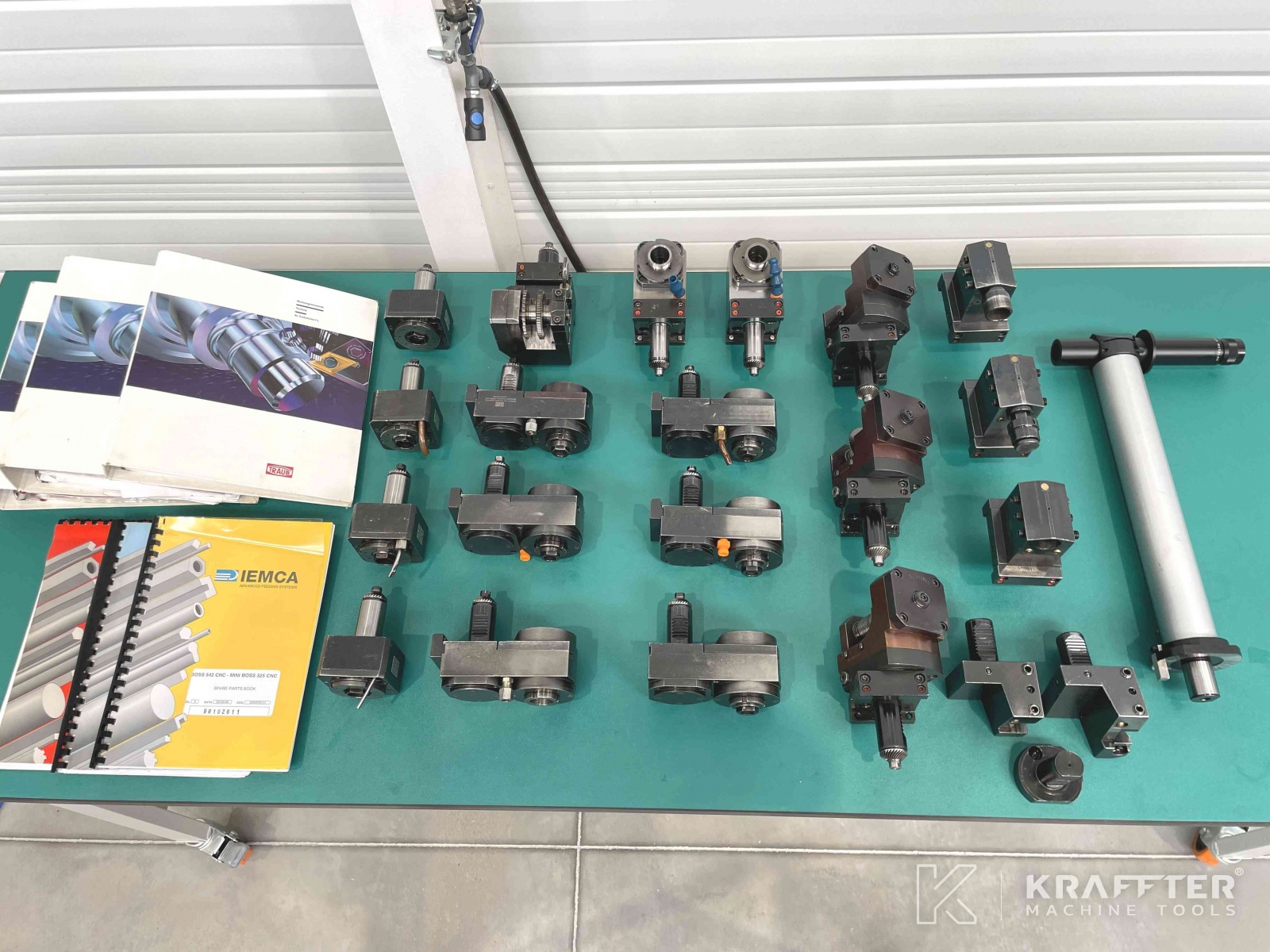

Equipment incluDED:

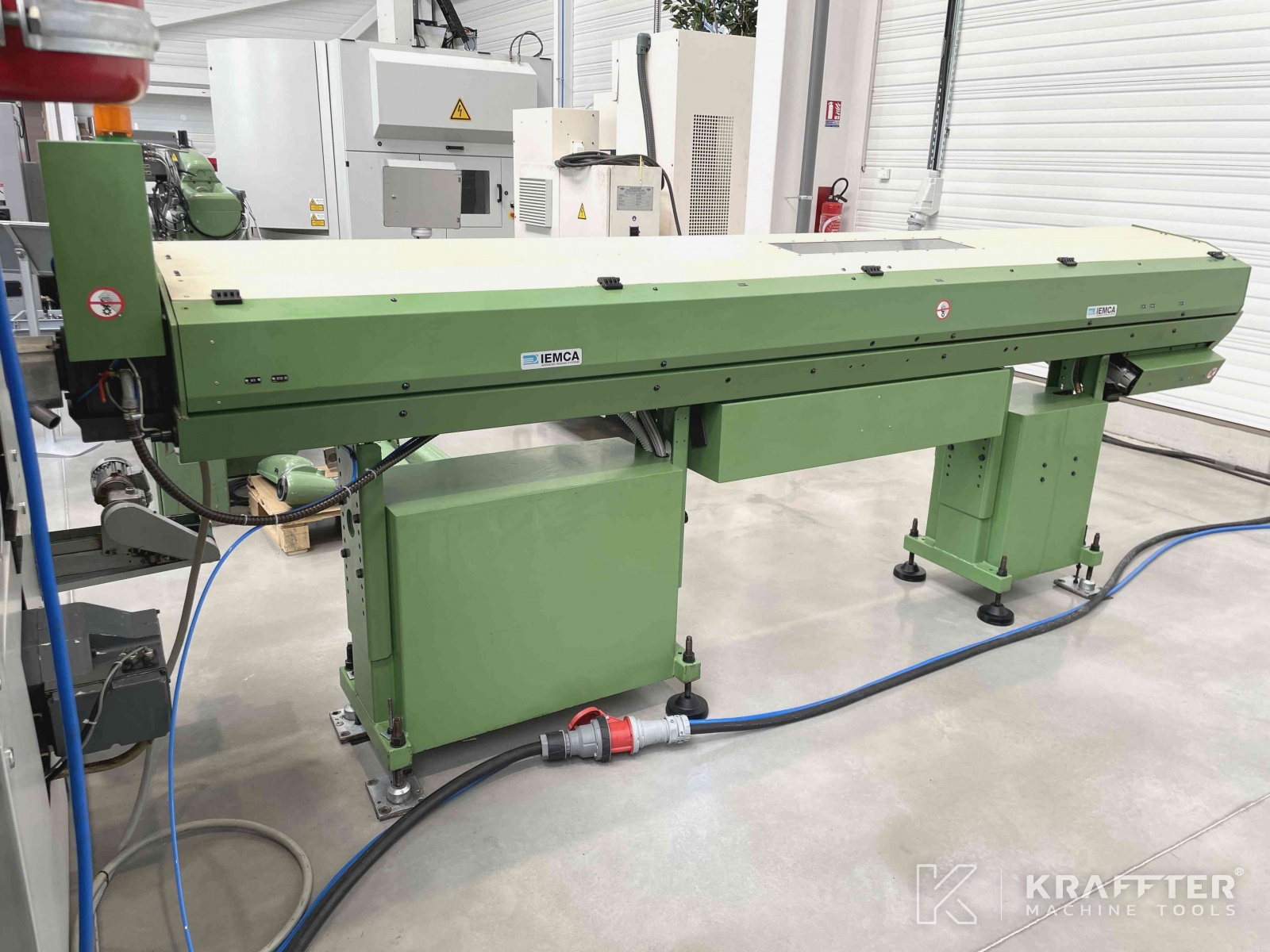

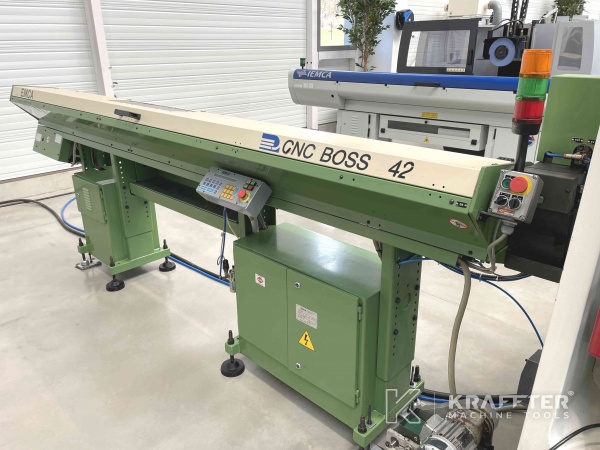

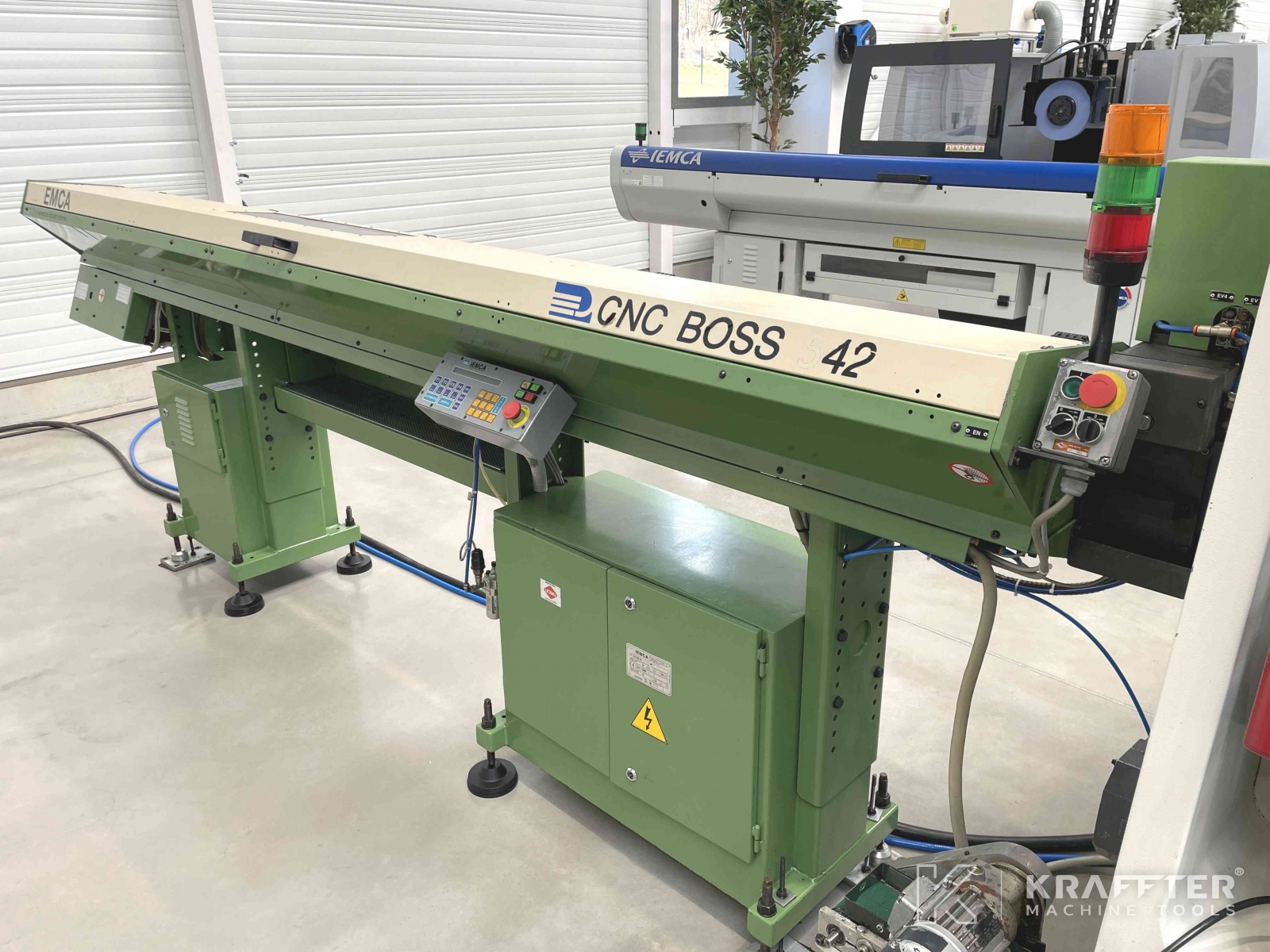

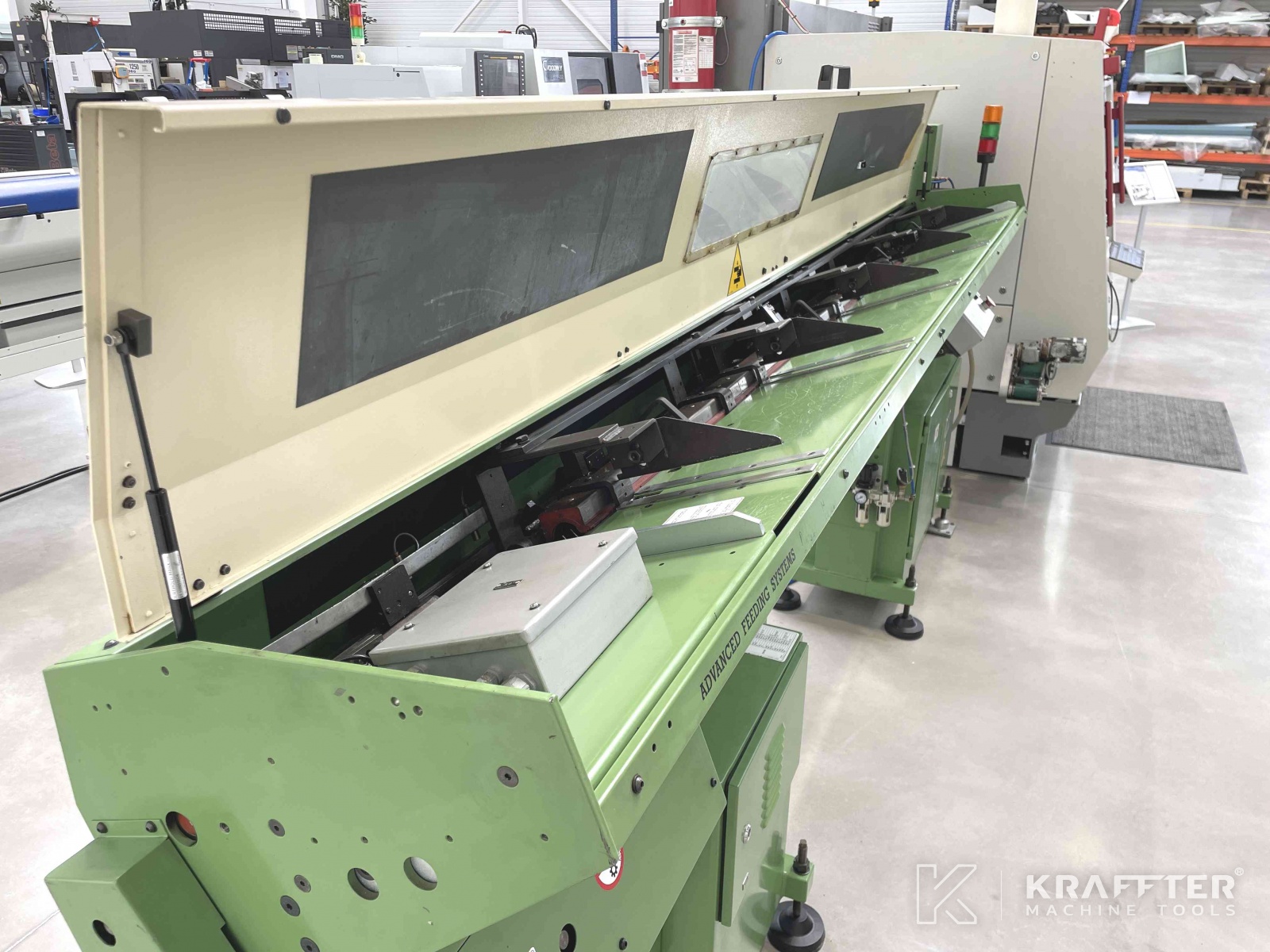

x1 barfeeder IEMCA CNC BOSS 542 / 32
x2 axial live tool holders
x10 radial live tool holders
x3 swiveling live tool holders
x1 live tool holder (non swiveling)
x5 static tool holders
x1 centering microscope VDI SAHM WETZLAR
x1 wiring diagram manual
x1 parts list manual
x1 location manual in French
x1 users manual in French
x1 service/maintenance manual in French
x1 parts list manual IEMCA BOSS 542 CNC
x1 wiring diagram manual IEMCA BOSS 542 CNC
x1 users and service manual IEMCA BOSS 542 CNC in French
