Sold

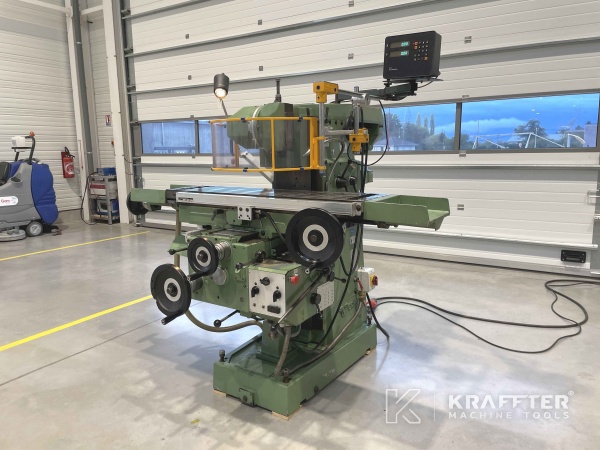

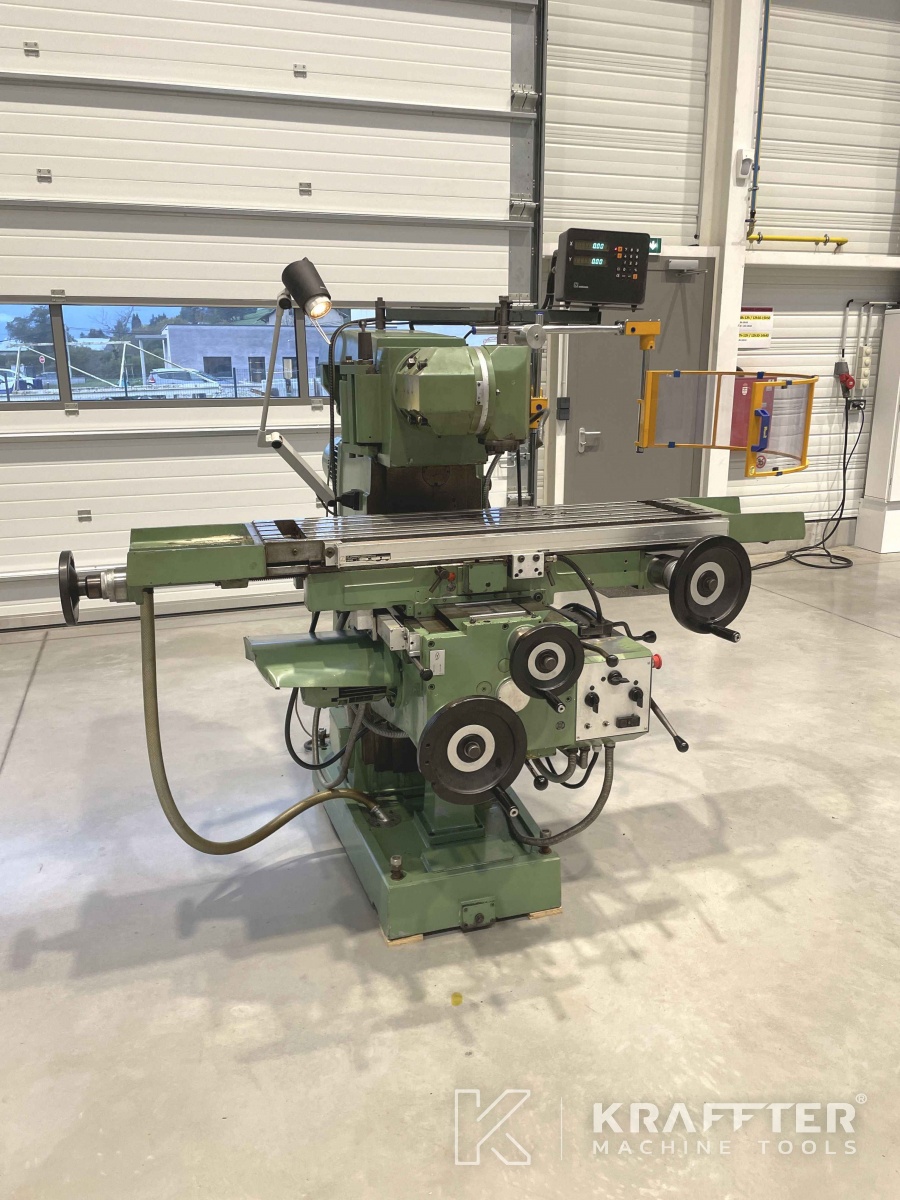

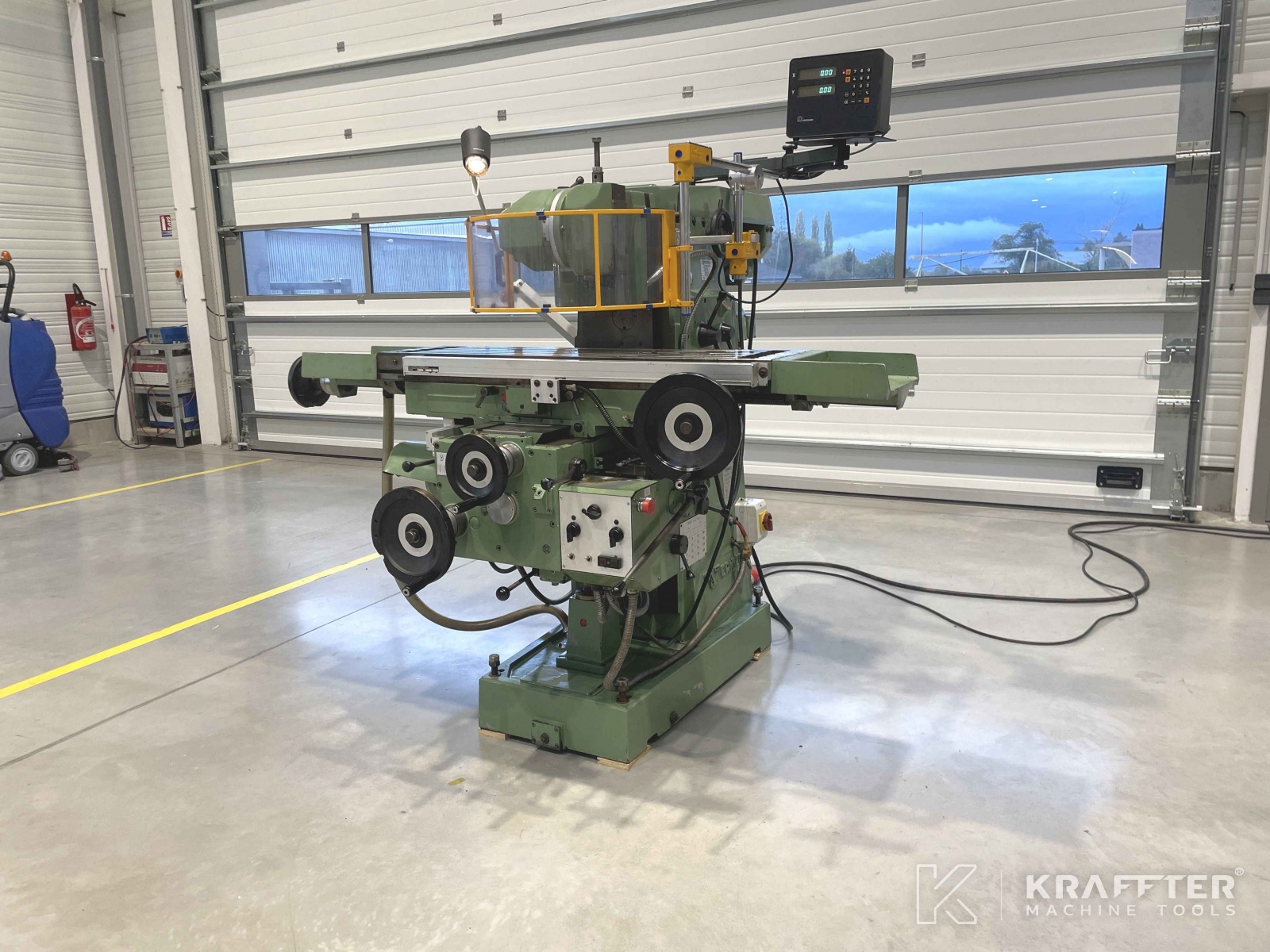

Type of machine : Manual milling machine
Brand : VERNIER
Stock N° : 20690-011
Model : FV300E
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
3
Stroke X axis
880 [mm]
Stroke Y axis
290 [mm]
Stroke Z axis
470 [mm]
Traversing feeds X, Y
3000 [mm/min]
Rapid feed Z
600 [mm/min]
Max. distance spindle nose / table
420 [mm]

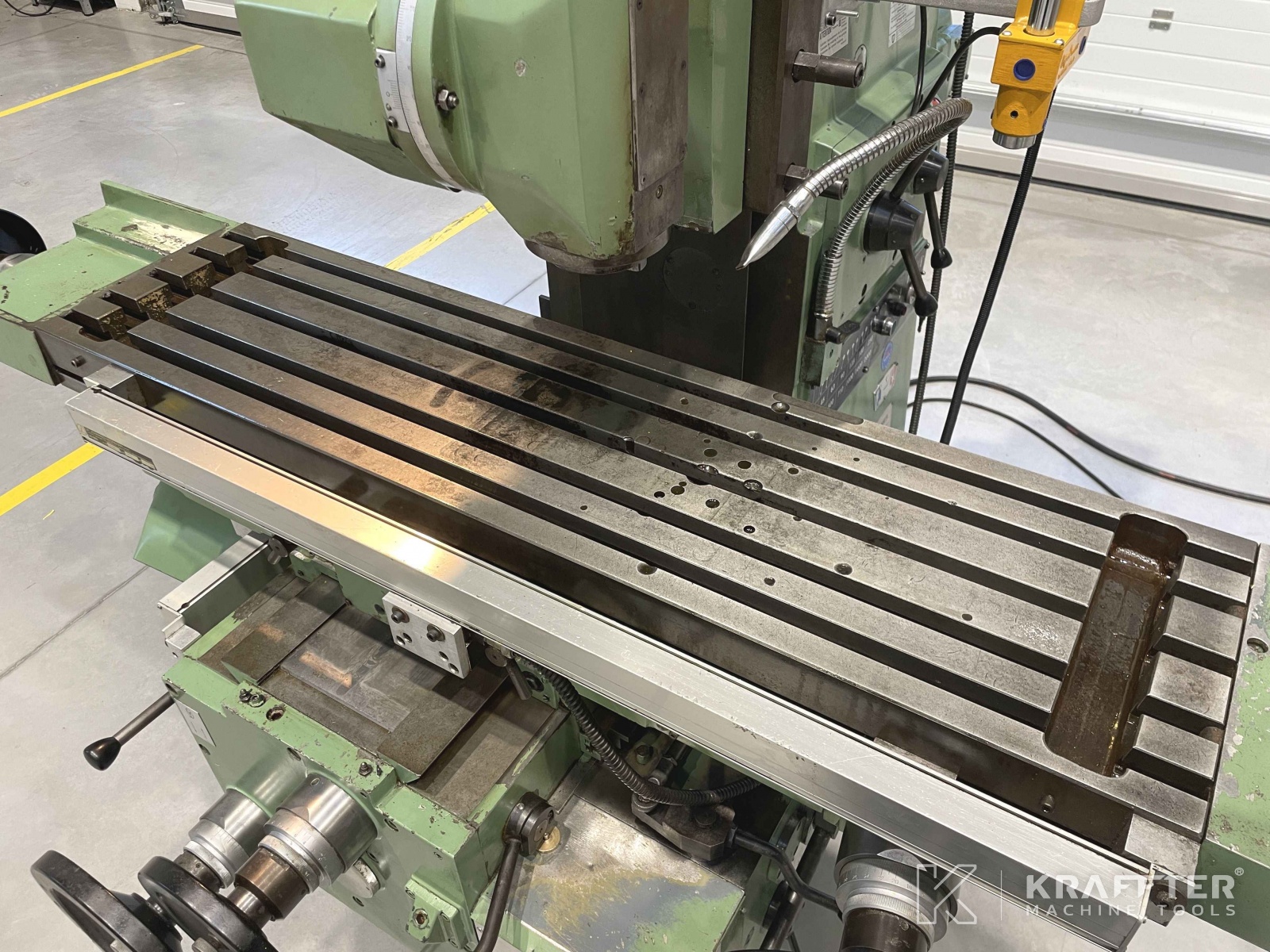

Table length
1200 [mm]
Table width
300 [mm]

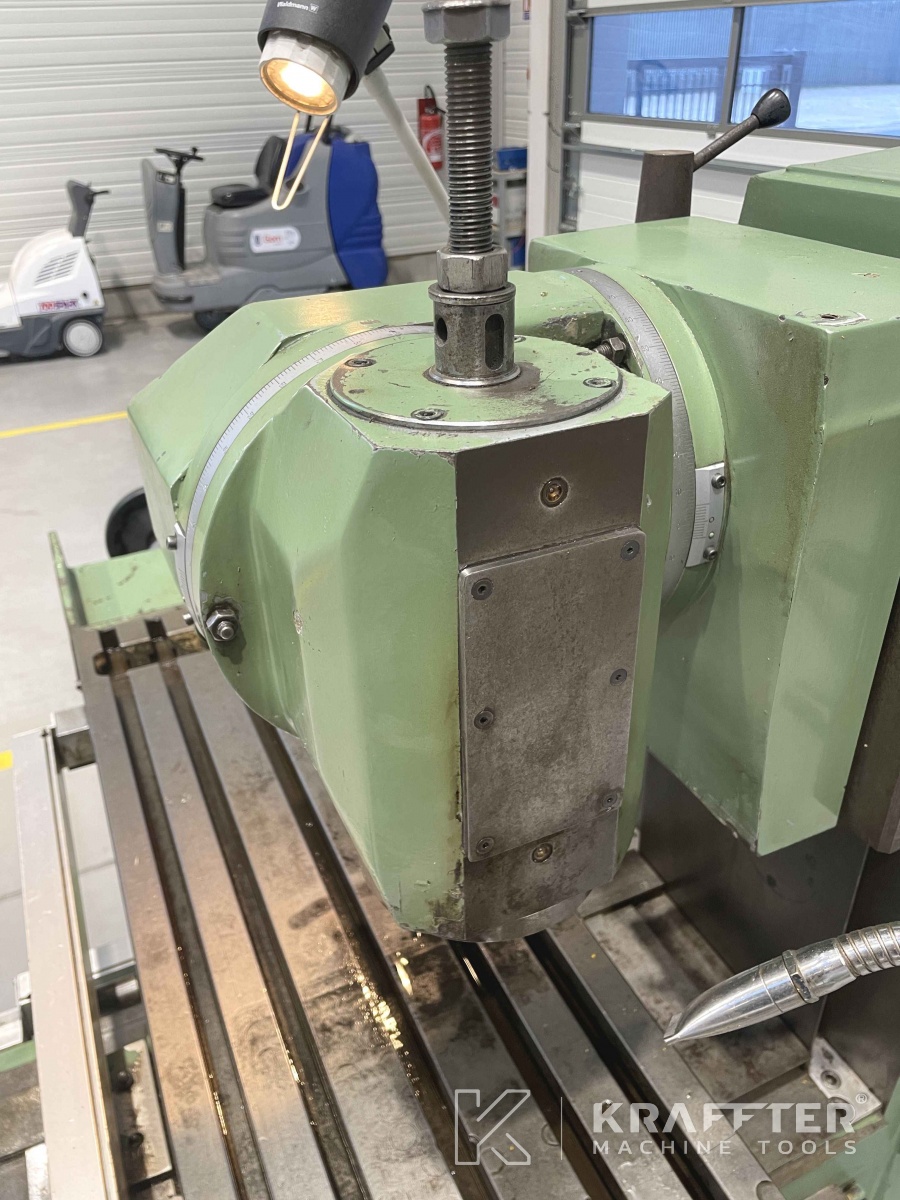

Vertical spindle type
SA 40
Horizontal spindle type
SA 40
Min. spindle speed
38 [rpm]
Max. spindle speed
2000 [rpm]

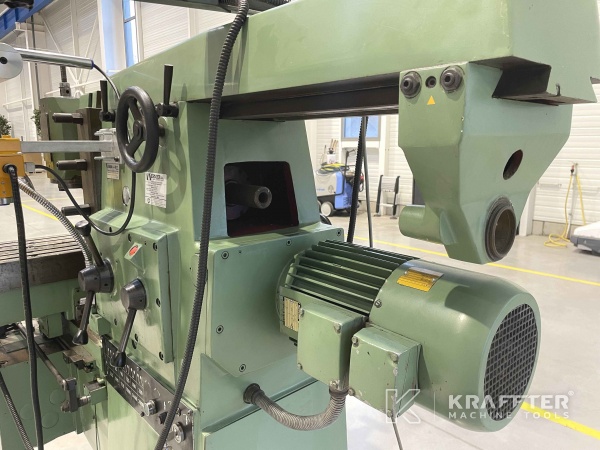

Spindle power
4.5 [kW]
Number of spindle speeds
24
Number of cutting speeds
16

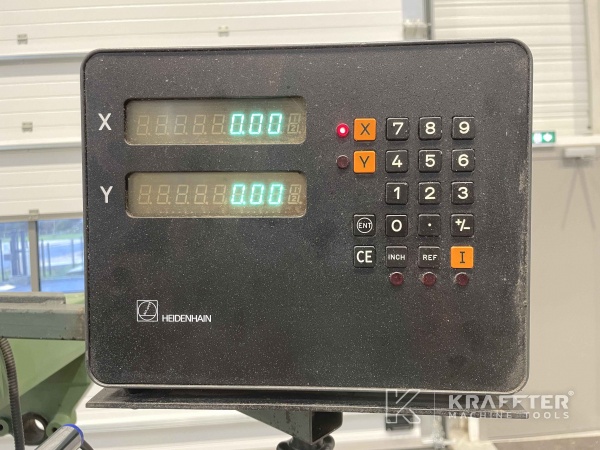

Digital read out
HEIDENHAIN
Electrospindle brake
Yes
Supply voltage
380 [V]
Dimensions
1890 x 1795 x 1614 [mm]
Weight
1920 [Kg]
HEIDNEHAIN linear scale on the Y axis not functional
