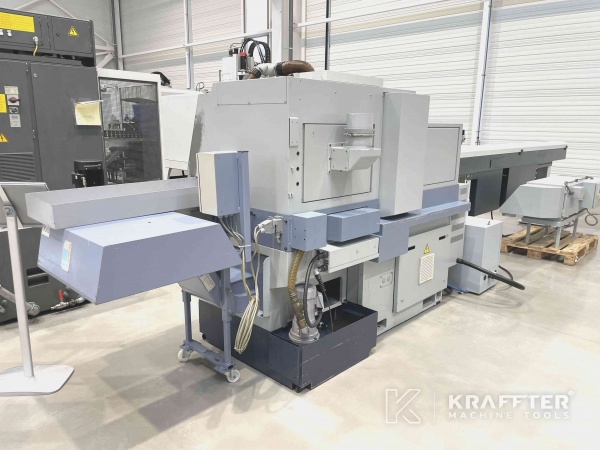

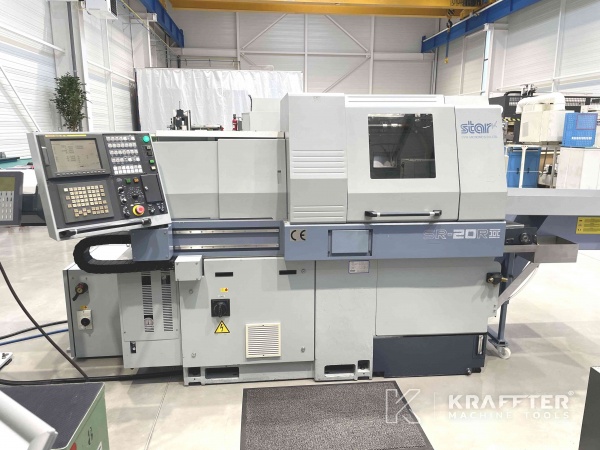

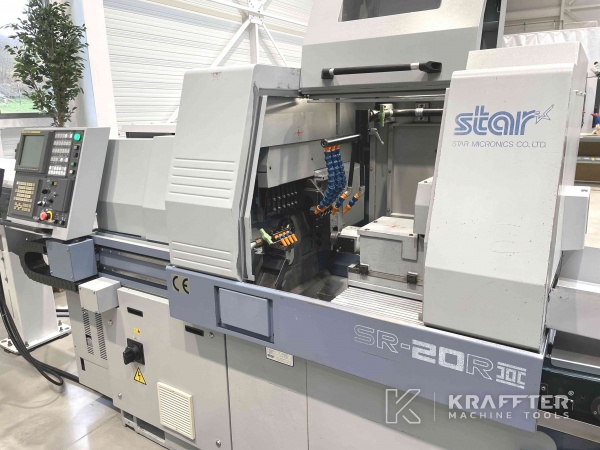

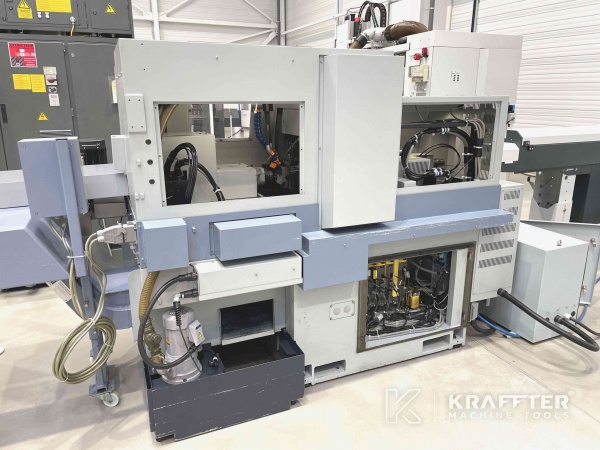

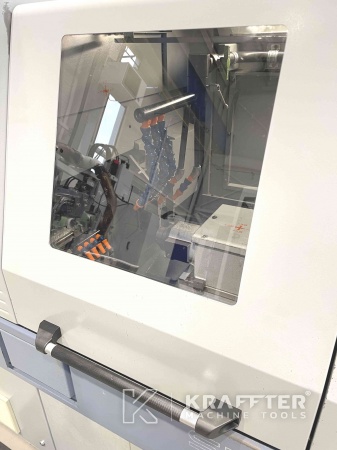

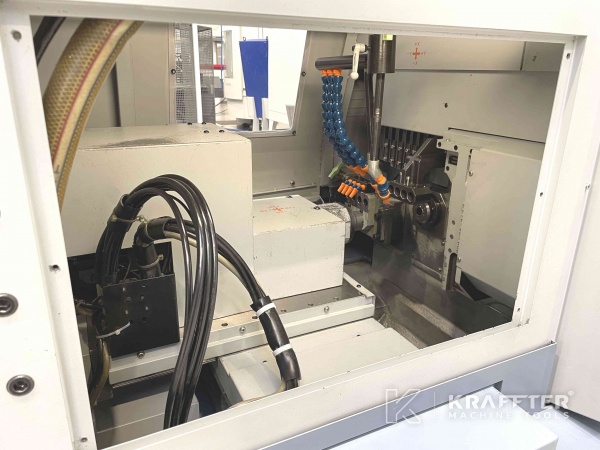

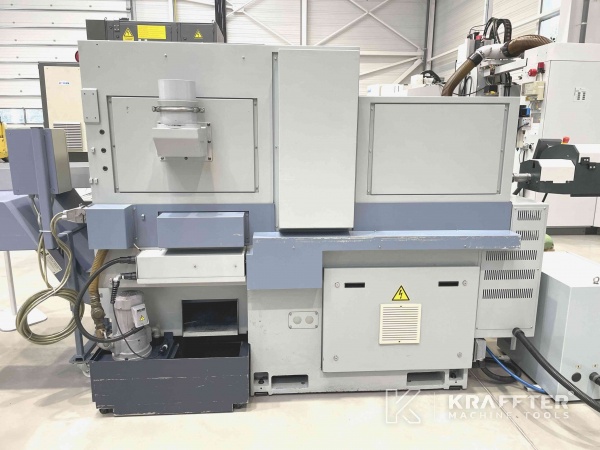

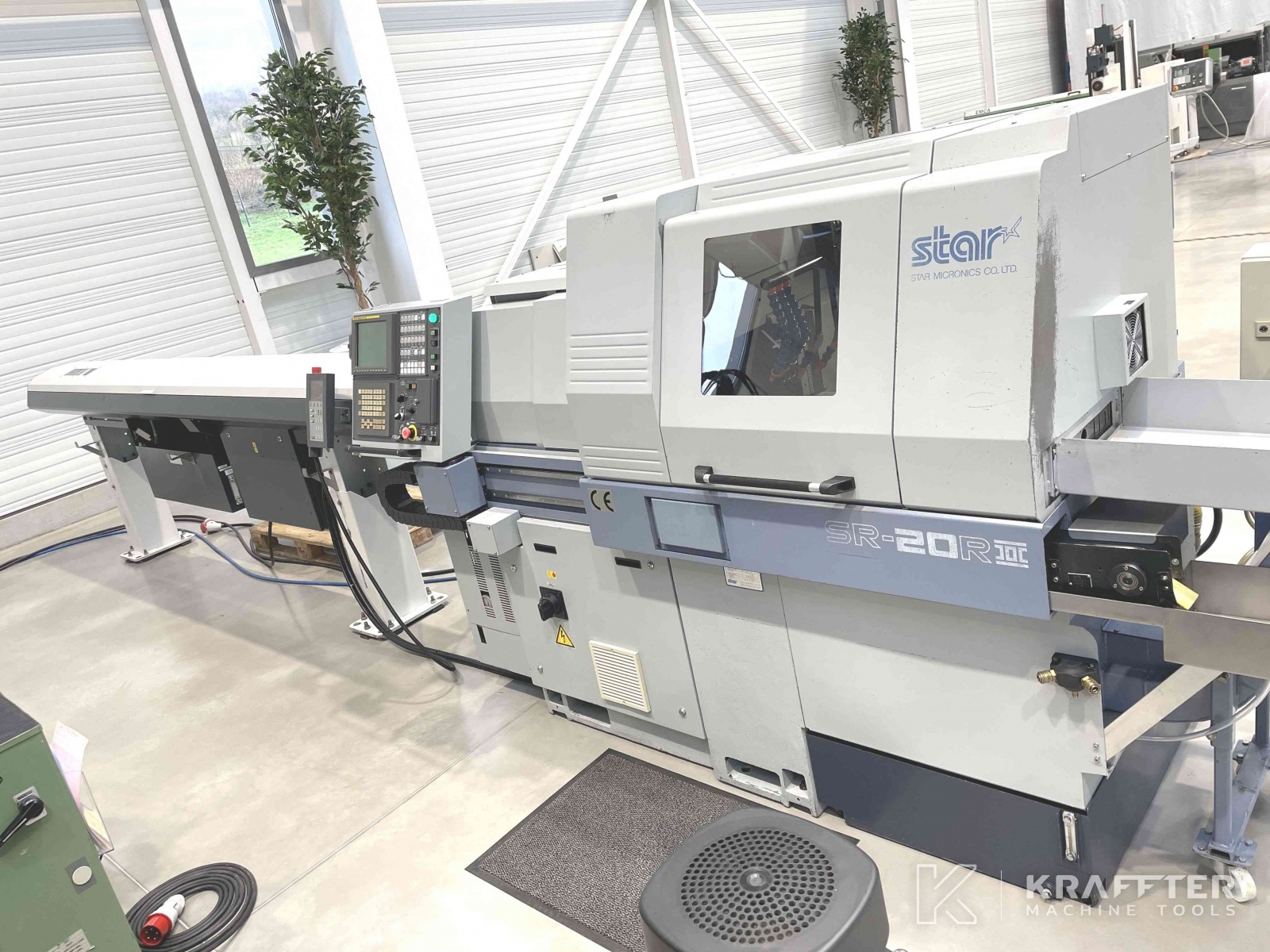

Type of machine : Swiss-type CNC lathe
Brand : STAR
Stock N° : 20690-032
Model : SR-20R II
Year : 2004
Location : 73240 St-Genix-les-Villages, FRANCE
Technical characteristics
Additional information
Request a quotation

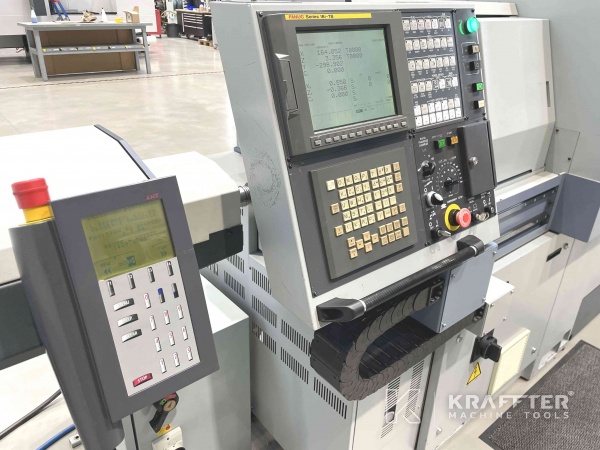

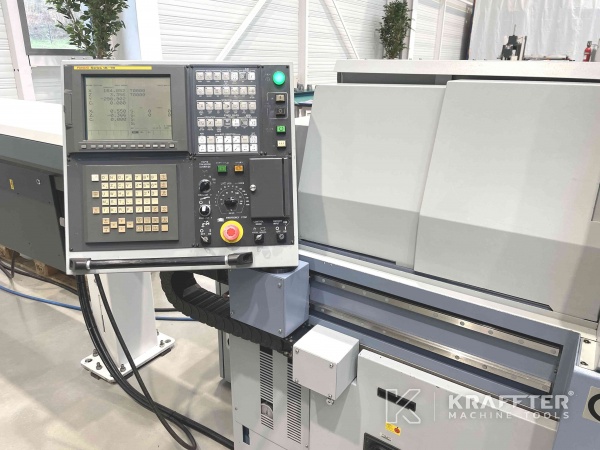

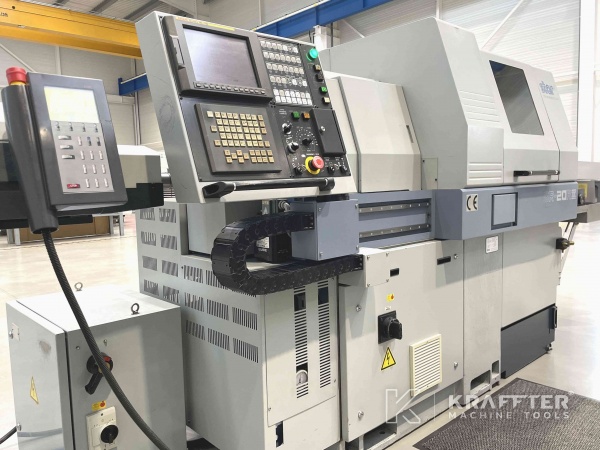

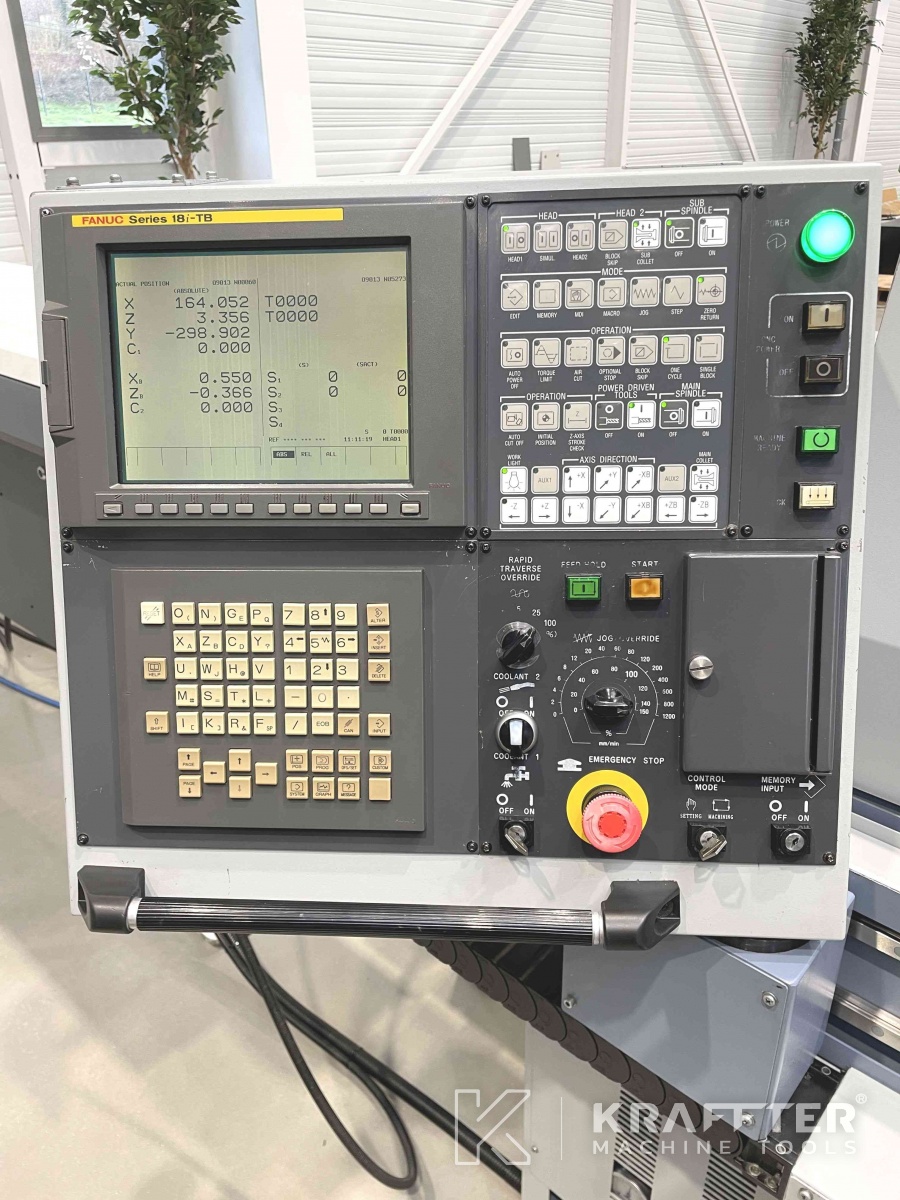

CNC control
FANUC 18i-TB
Number of axes
7
Max. turning lenght
205 [mm]
Max. bar diameter in turning spindle
20 [mm]
Min. spindle speed
500 [rpm]
Max. spindle speed
10000 [rpm]
Increment C-axis
0.01 [°]
Spindle power
2.2 [kW]
Max. bar diameter counter spindle
20 [mm]
Max. counter spindle speed
8000 [rpm]
Counter spindle increment C-axis
1 [°]
Counter spindle power
2.2 [kW]
Number of positions end attachment
8

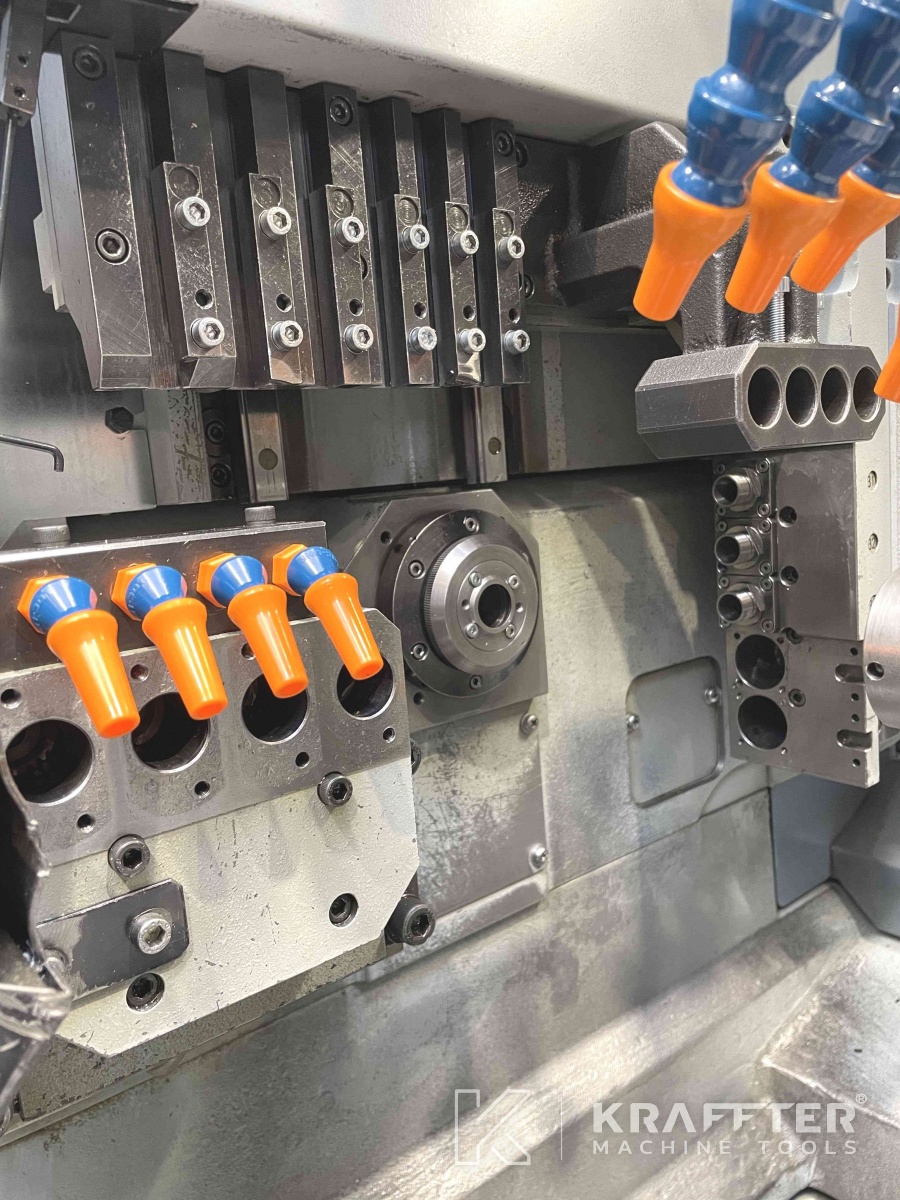

Number of positions guide bush holder 1
6
Number of motorized positions guide bush holder 1
4
Live tools speed guide bush holder 1
8000 [rpm]
Number of positions secondary operation
5
Lubrication tank capacity
155 [l]
Total power required
7 [kVA]
Supply voltage
400 [V]
Layout dimensions
2200 x 1200 [mm]
Weight
2200 [Kg]
EQUIPMENT INCLUDED:

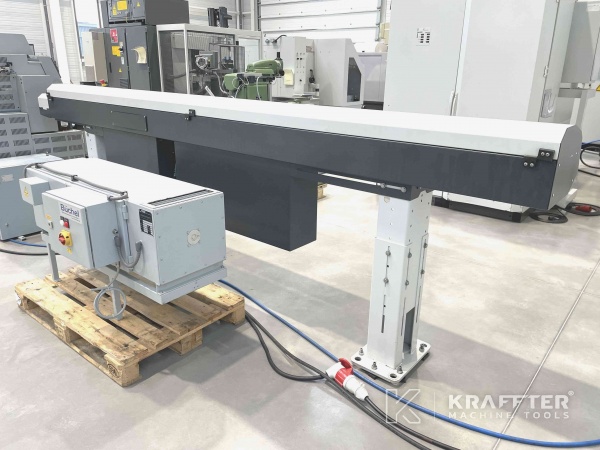

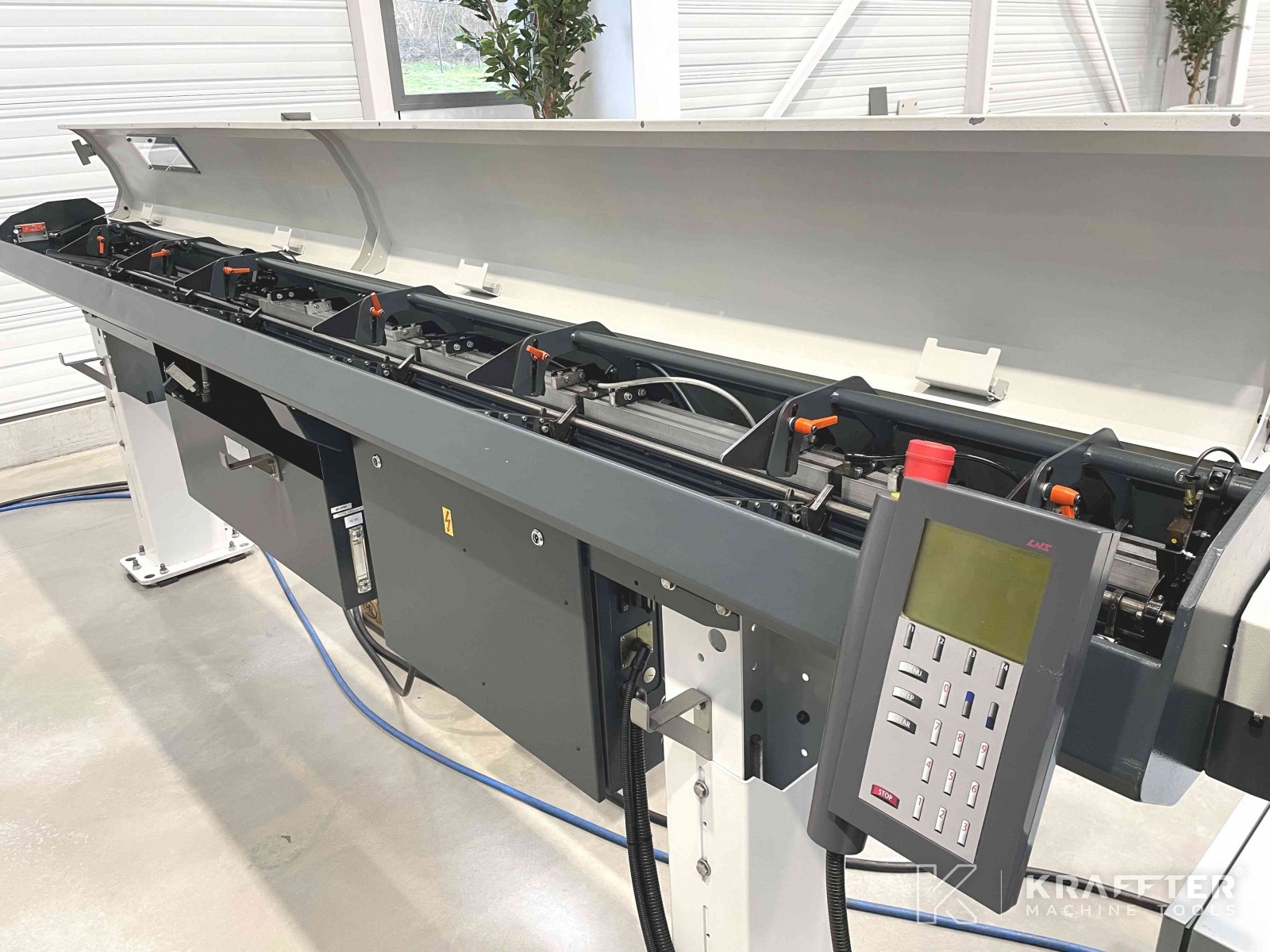

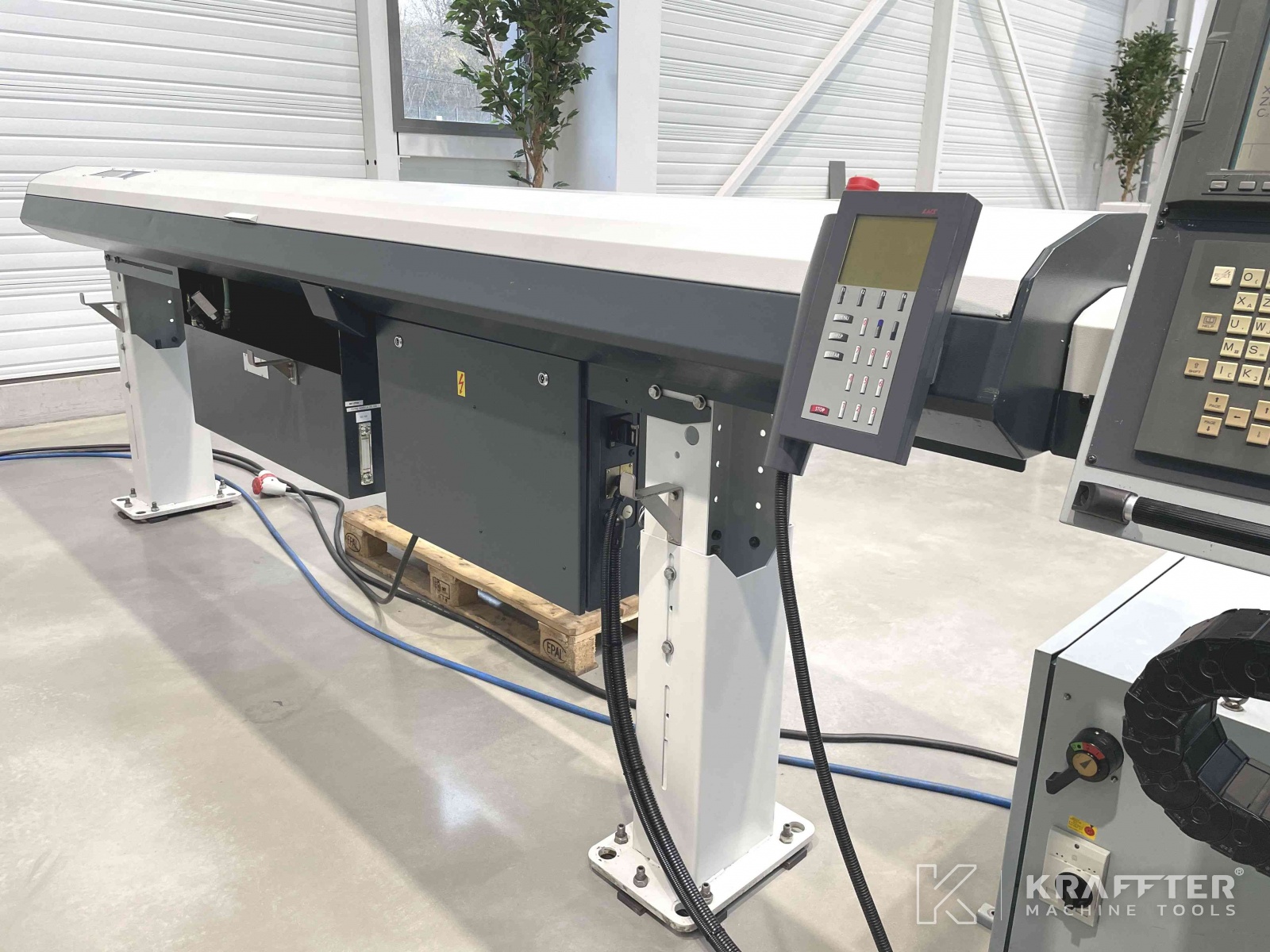

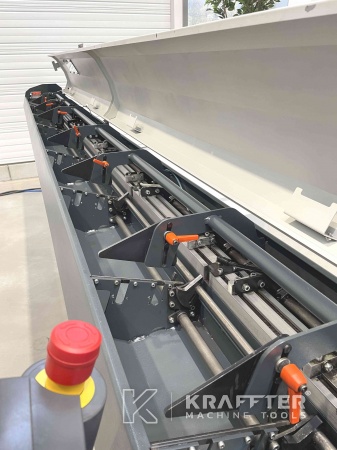

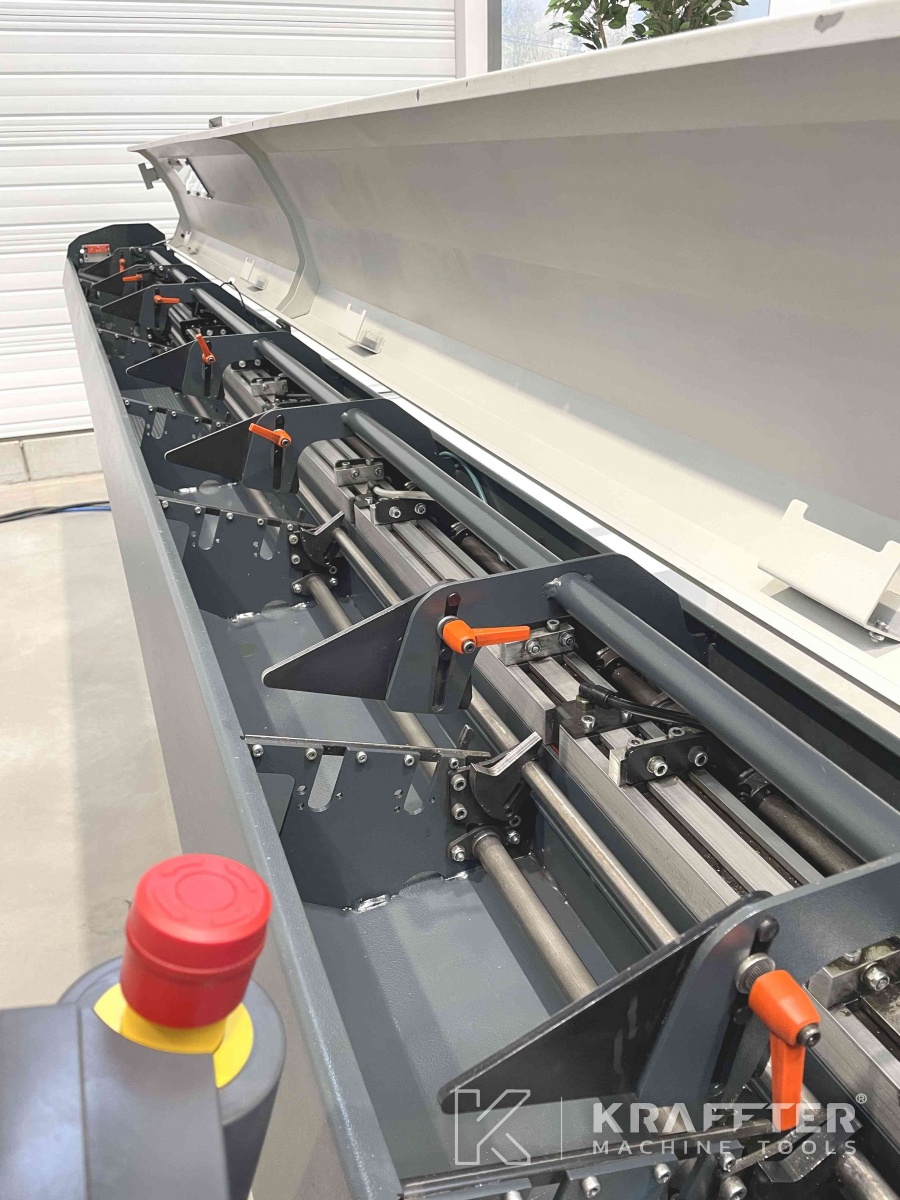

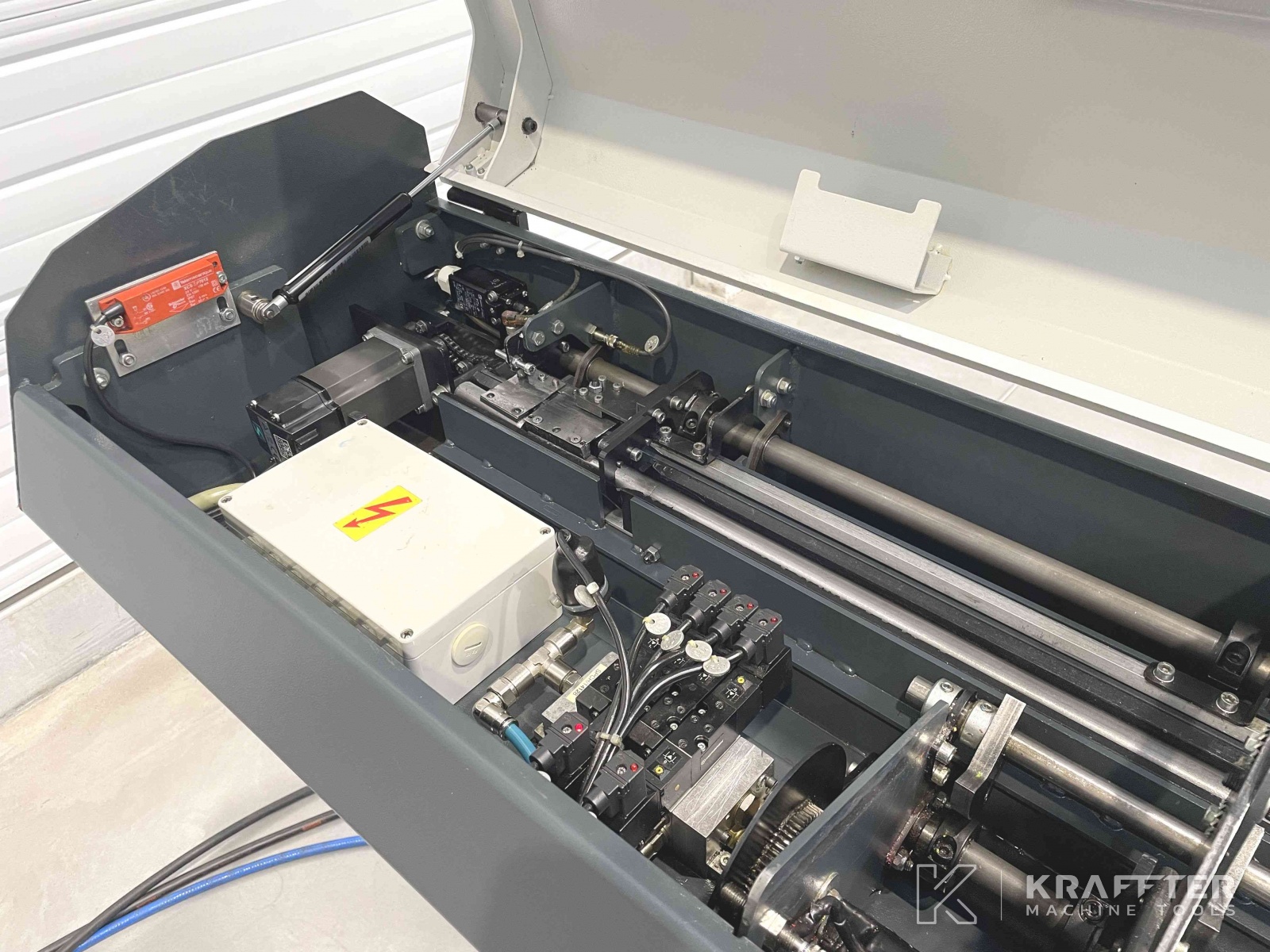

-Bar loader LNS EXPRESS 220
-Oil mist extraction unit LAS SMOG HOG type SH-05-PE/T
-Parts conveying strip
-Rotating guide bush
-Ejection of workpice

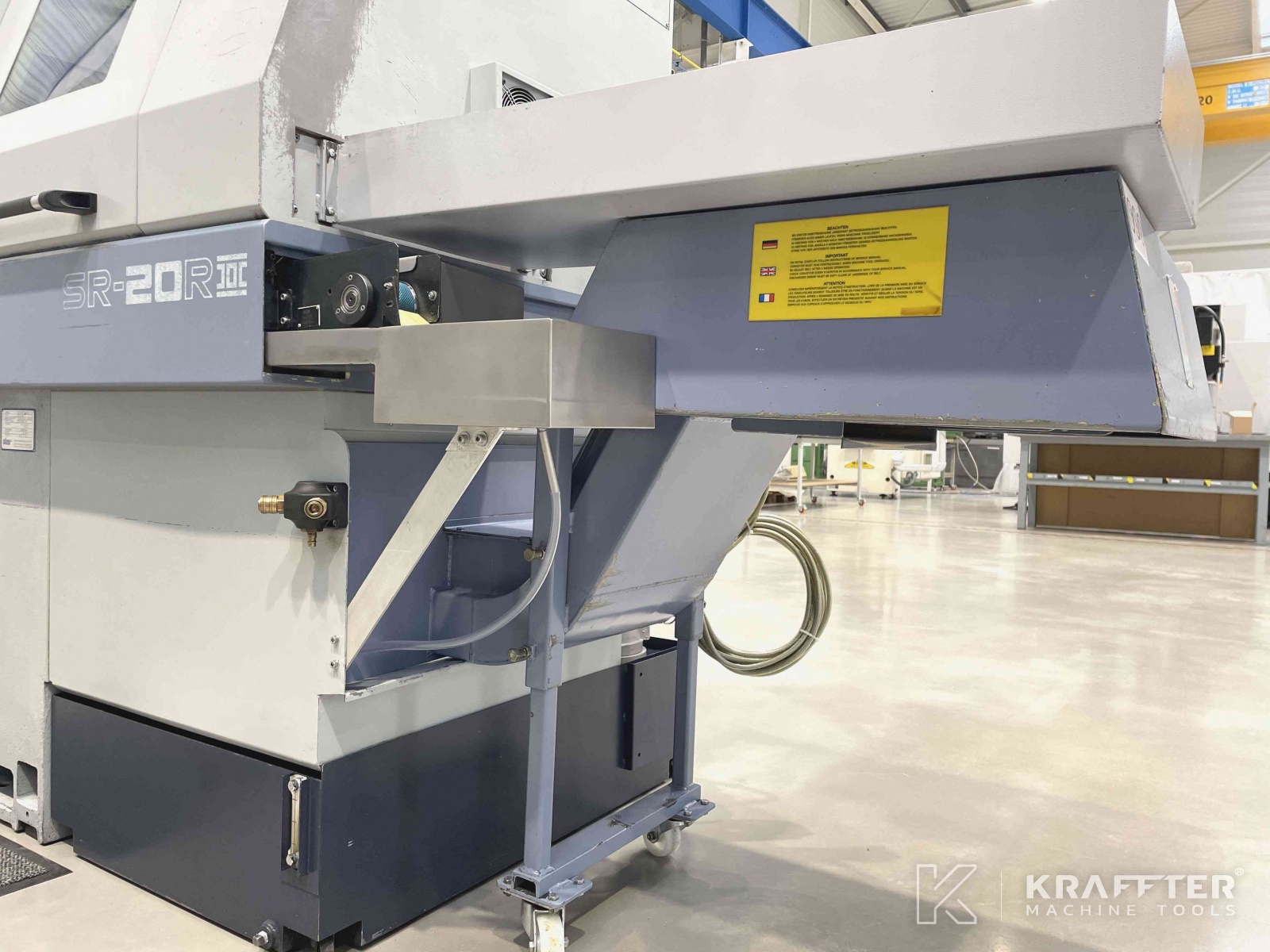

-Chip conveyor
-Coolant tank
