Sold

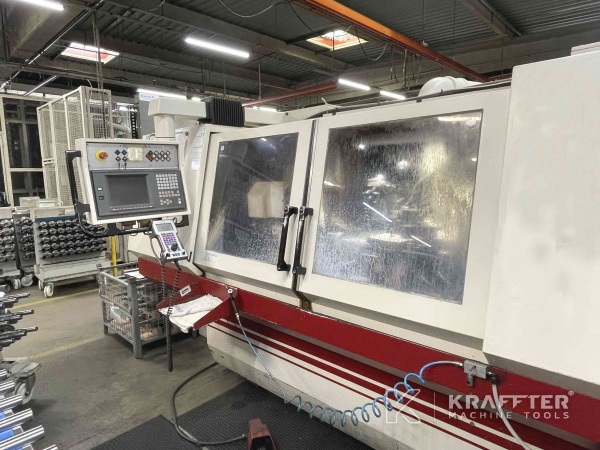

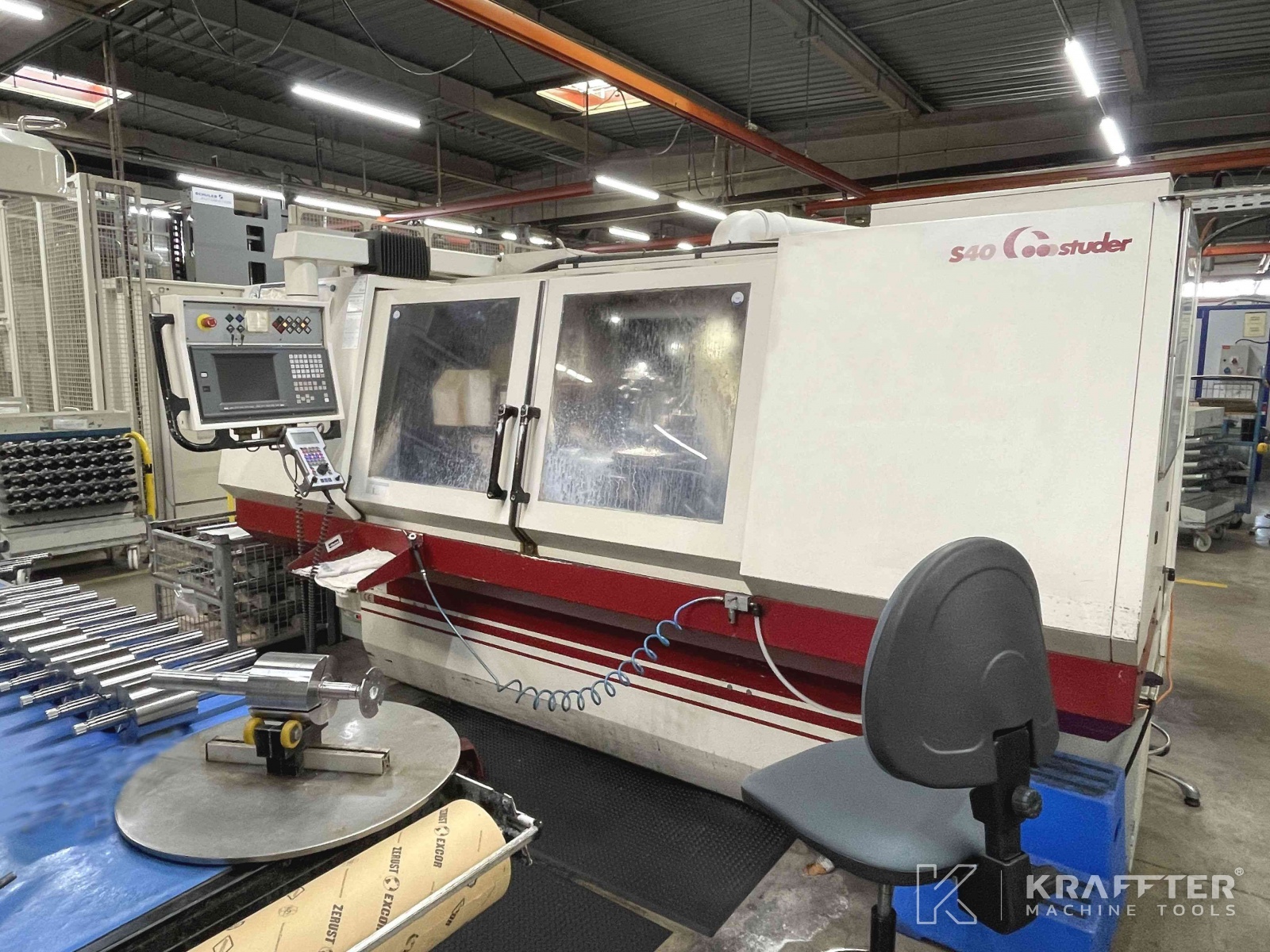

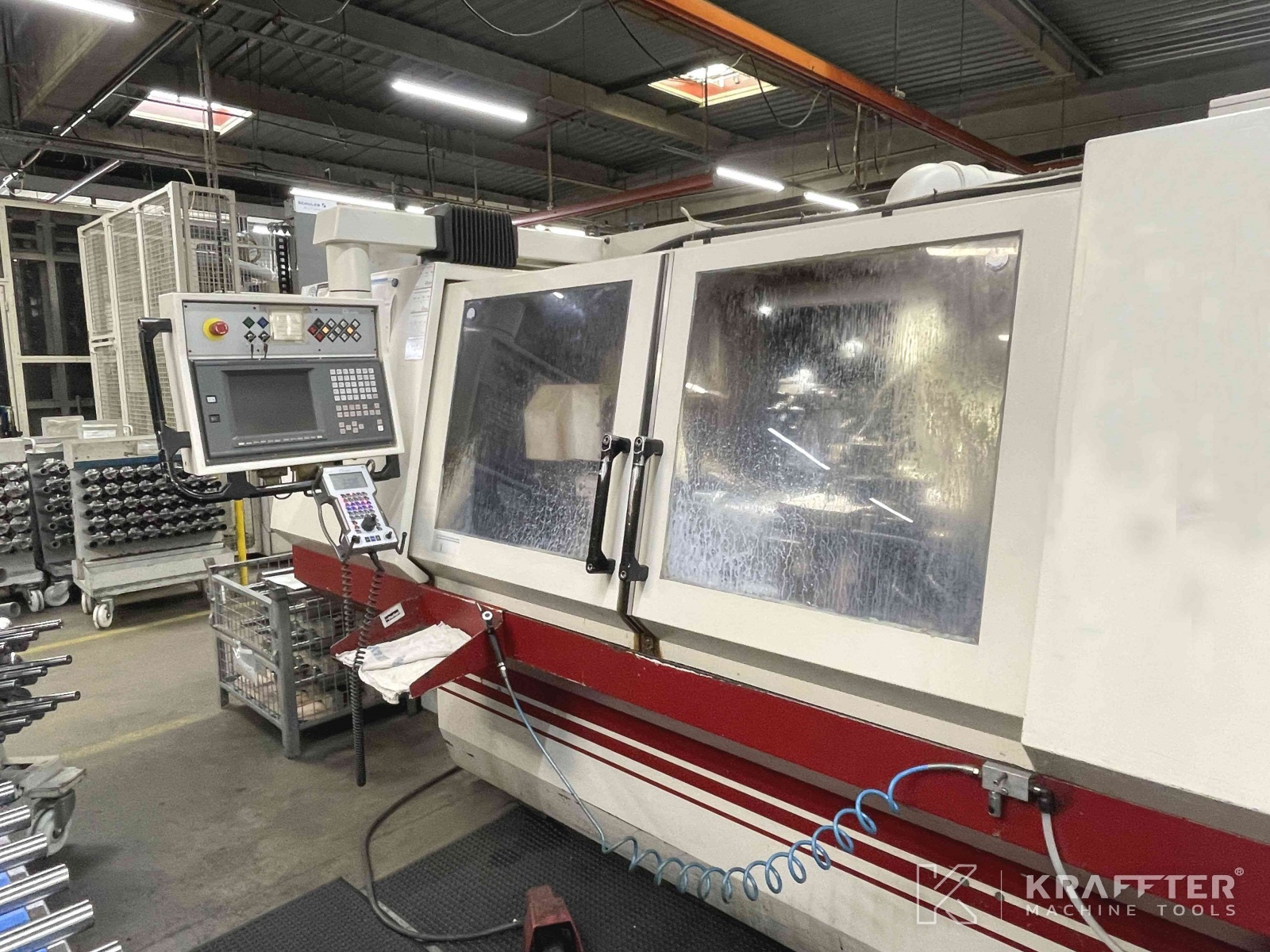

Type of machine : CNC cylindrical grinder
Brand : STUDER
Stock N° : 20690-035
Model : S 40
Year : 1998
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation

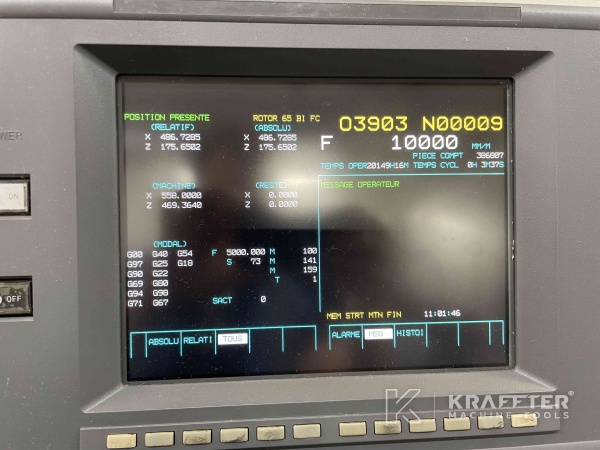

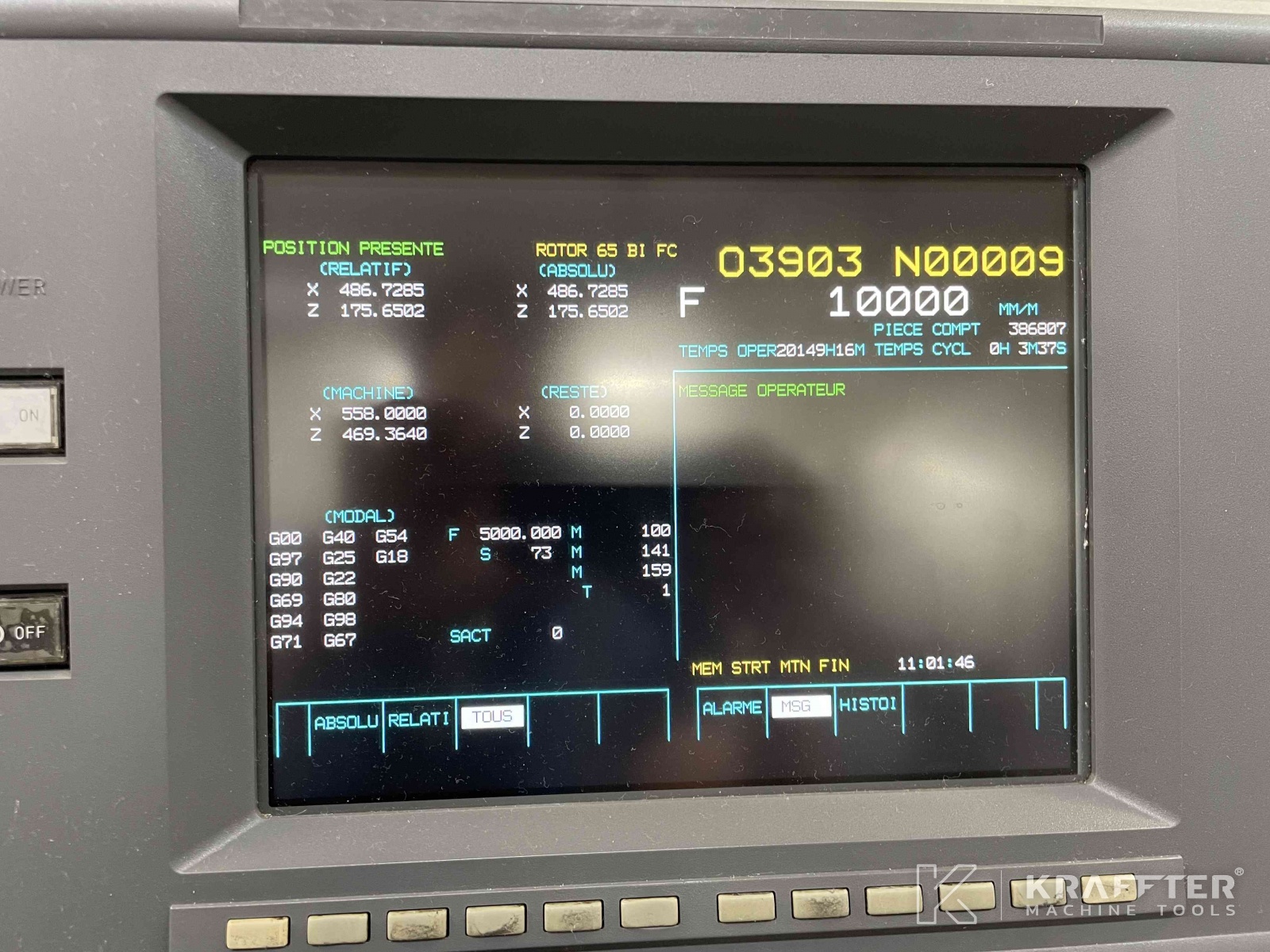

CNC control
FANUC 16-TB
Number of axes
4
Height of centers
175 [mm]
Stroke X axis
275 [mm]
Stroke Z axis
1050 [mm]
Grinding spindle motor power
7.5 [kW]
B axis swivelling stroke
-15° / +225° [°]
B axis indexing precision
0.001 [°]
Workpiece spindle nose
ISO 50
Workpiece spindle max. speed
1000 [rpm]
Increment C-axis
0.001 [°]
Workpiece spindle power
4 [kW]
Type of attachment tailstock
Morse 3
Tailstock quill stroke
35 [mm]
Orientable table
Yes
Max. load between centers
130 [Kg]
Supply voltage
400 [V]
Weight
7000 [Kg]
EQuipment included:
x1 touchprobe

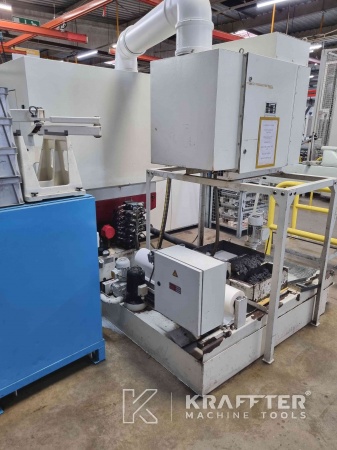

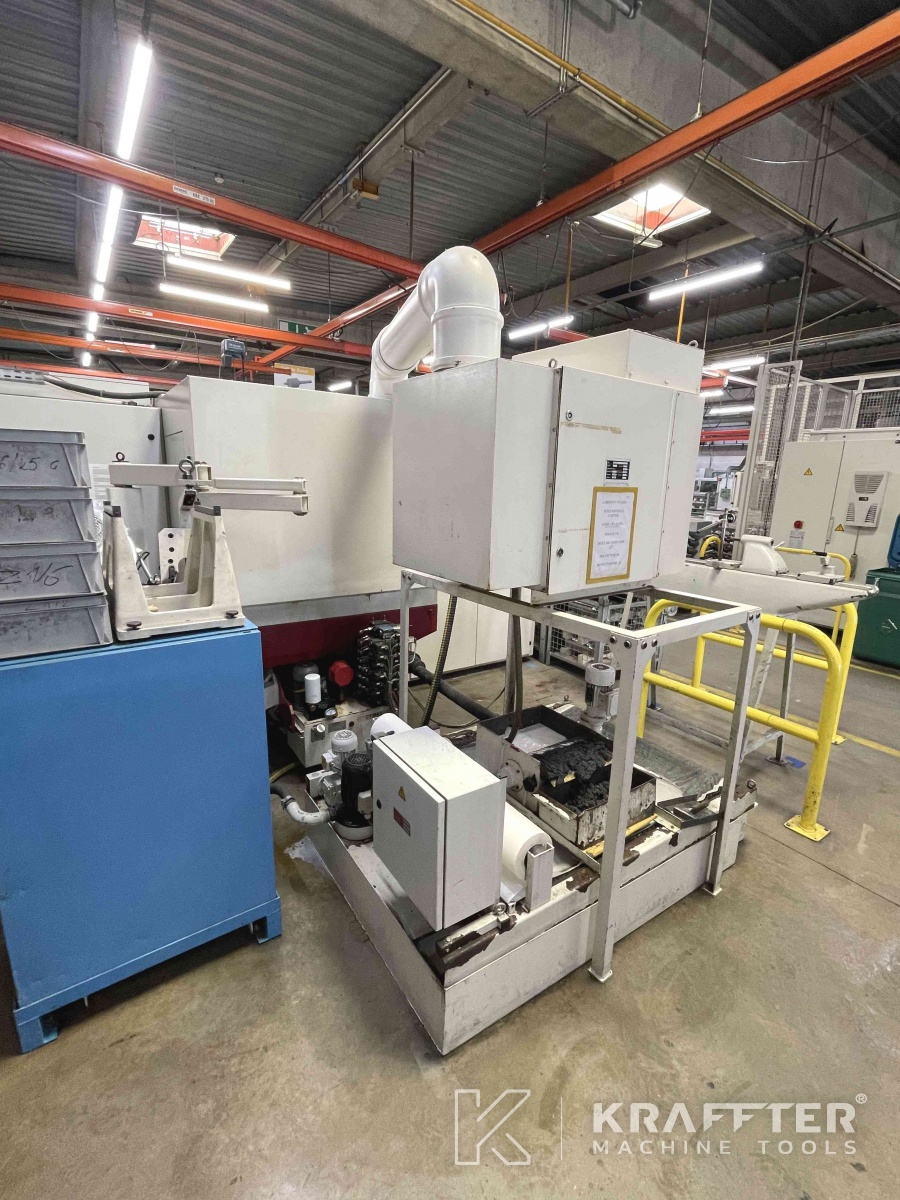

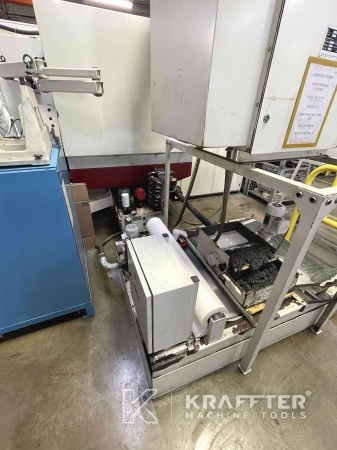

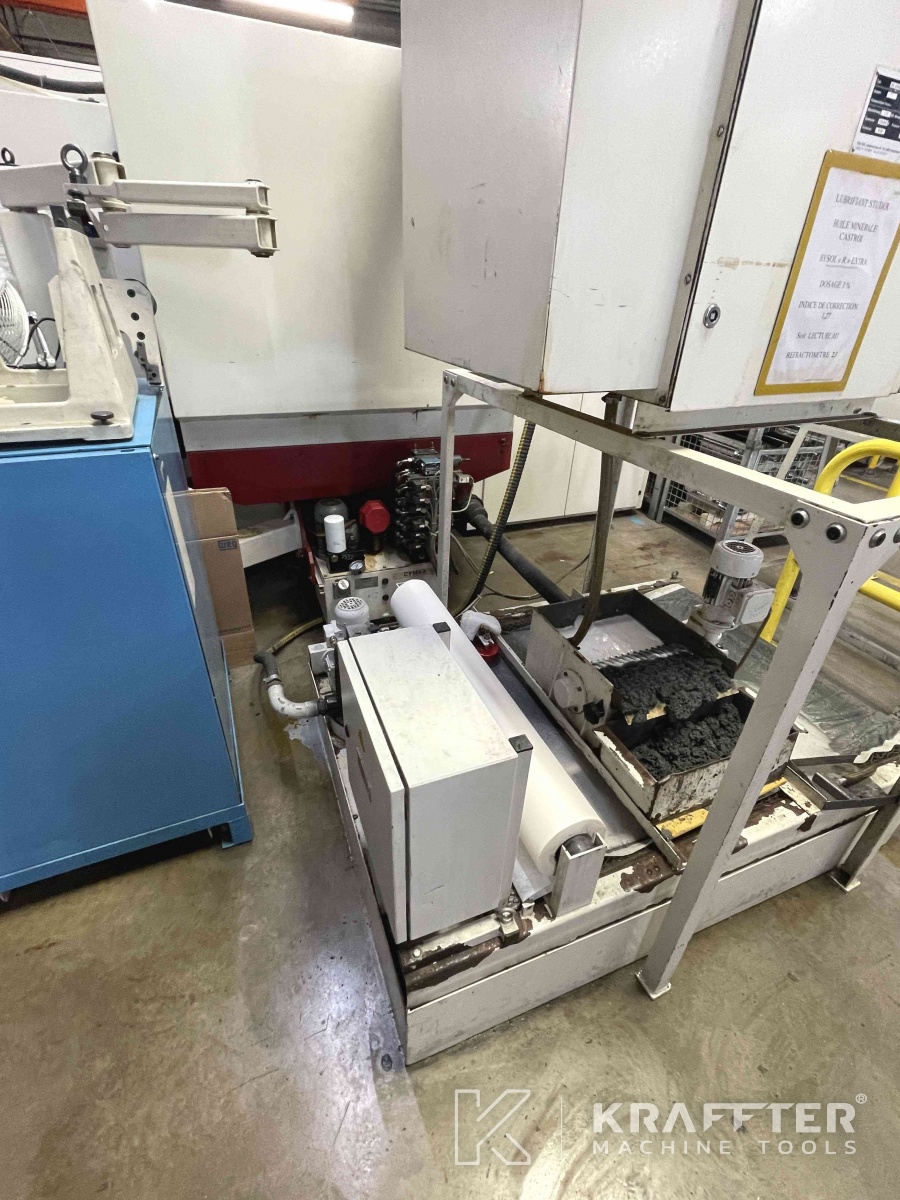

x1 paperband filtration unit
x1 mist extraction unit ERNI AG type SC-610/D

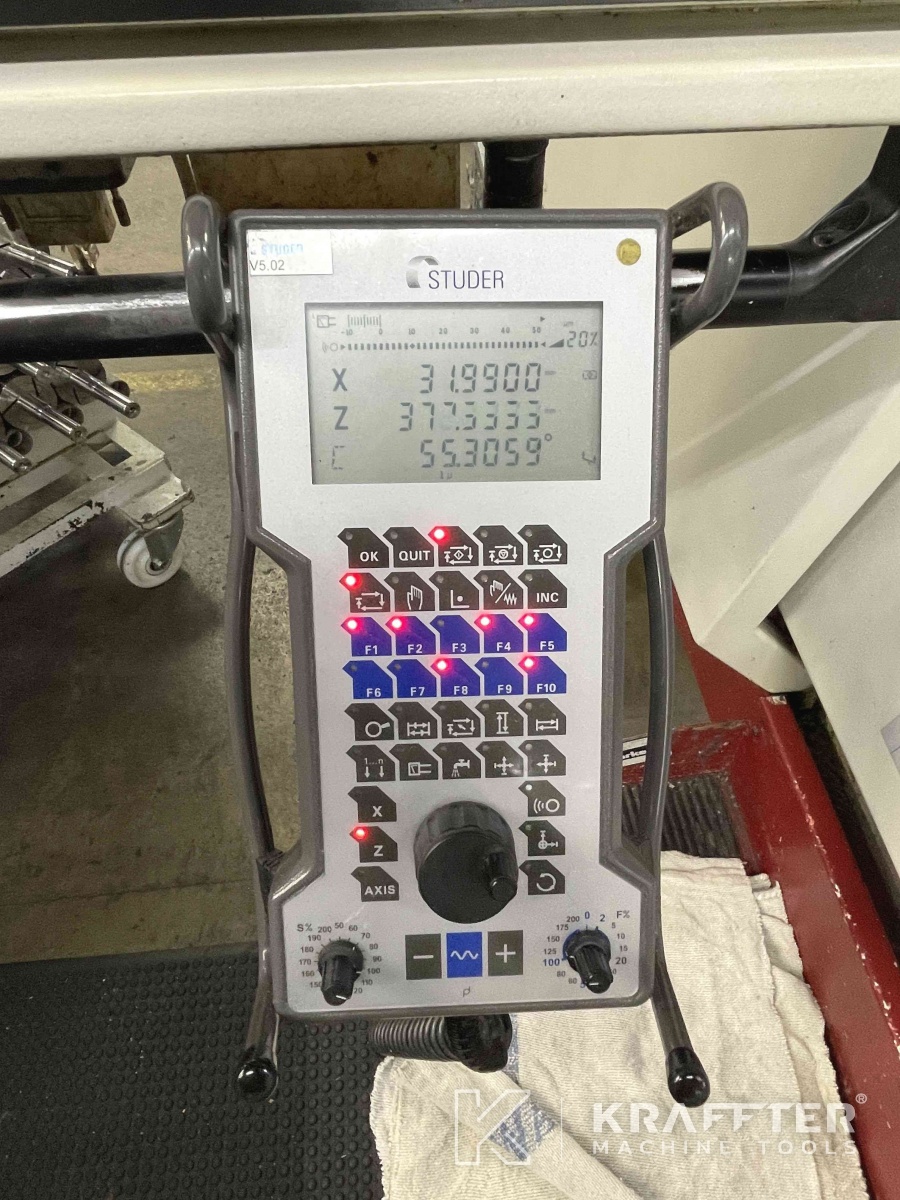

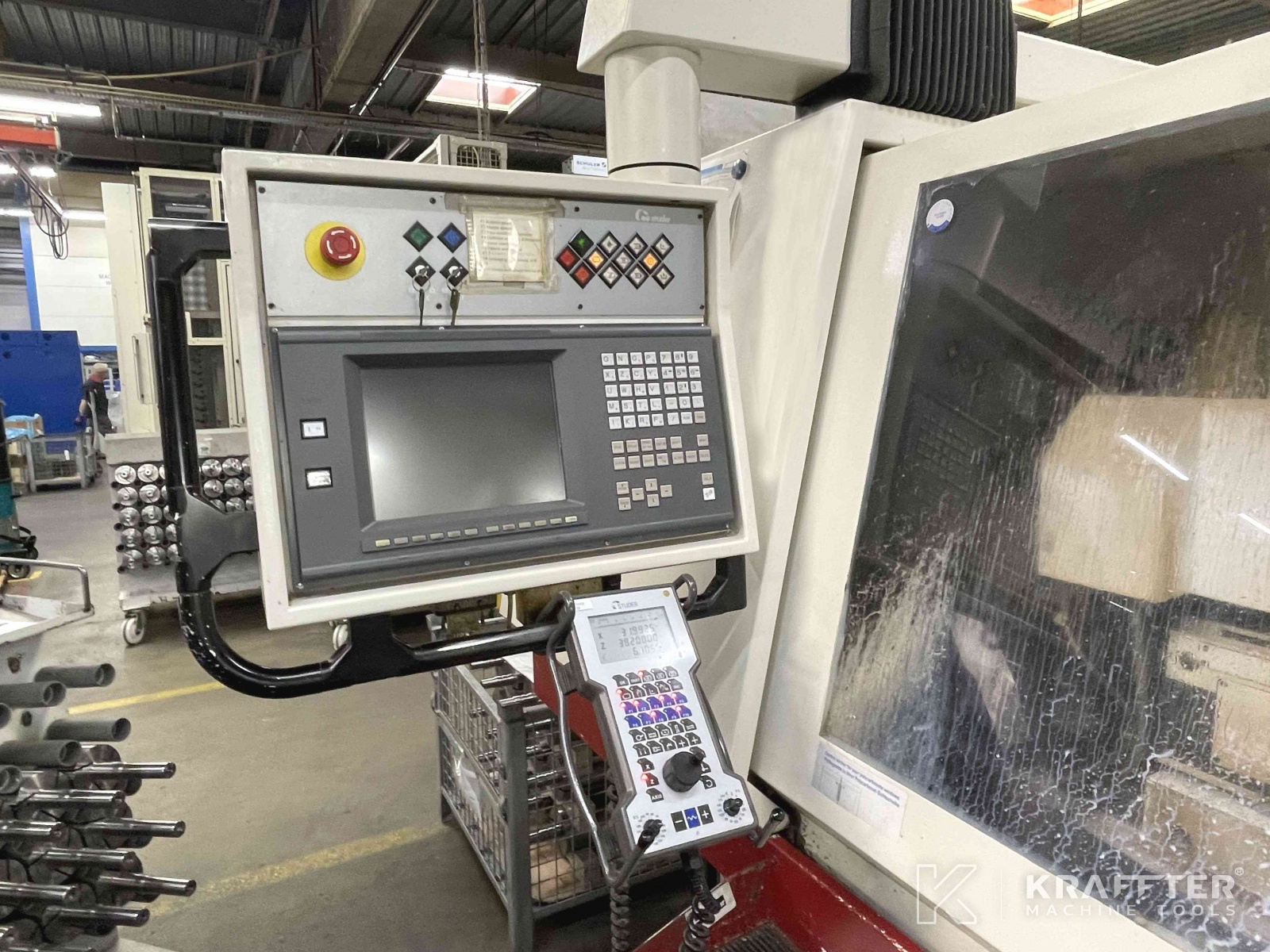

x1 electronic deported handwheel
x1 set of grinding wheels
----------------------------------
SERVICE DONE RECENTLY TO THE MACHINE:
In 2020:
-Ballscrews on the Z and X axes remplaced by FRITZ STUDER AG : 17'531.00€
-Workpiece spindle + tailstock completely serviced by FRITZ STUDER AG : 30'540.00€
In 2021:
-Telescopic steel covers remplaced on the X axis (front and rear) : 6'181.00€
-New HEIDENAIN linear scale on the X axis : 2'307.00€
-New oil filters : 68.00€

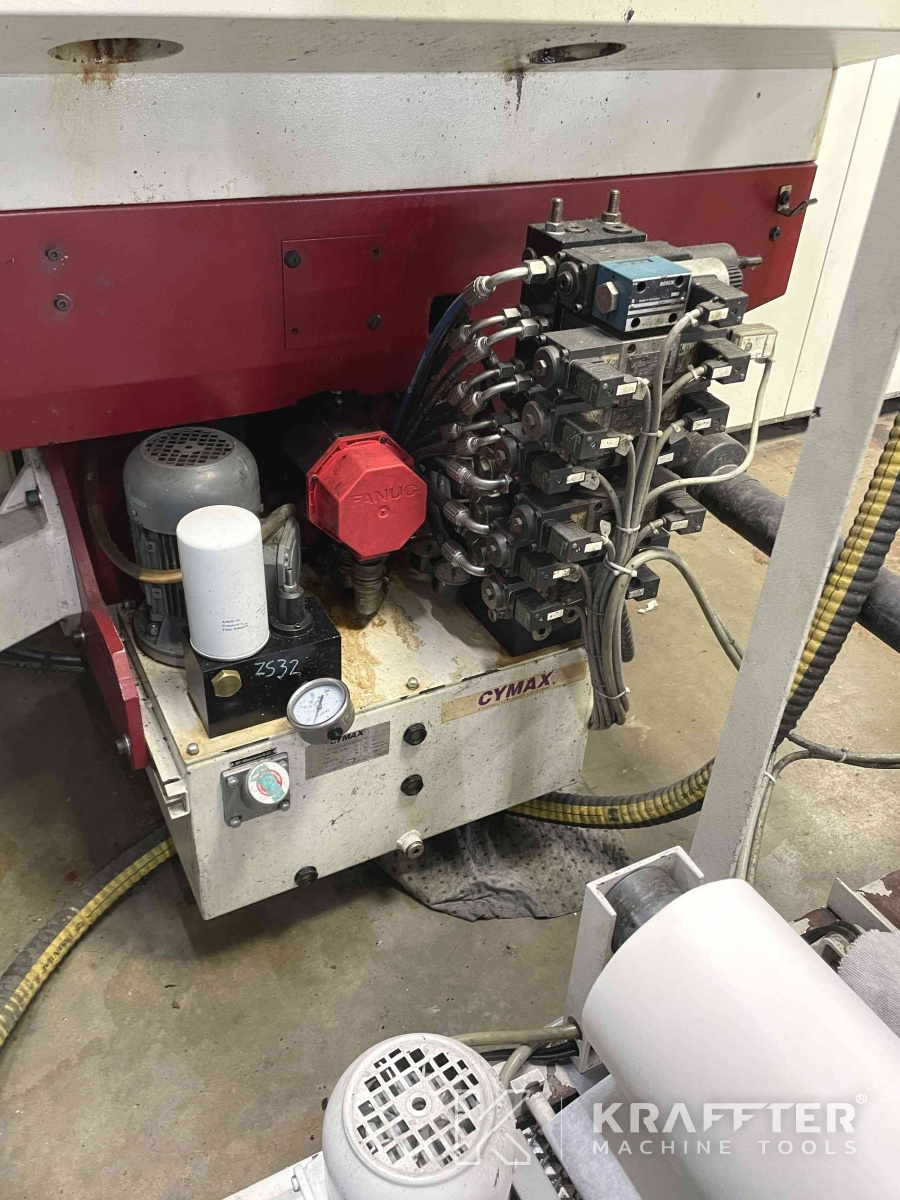

-New cylinder for the hydraulic B axis : 4'288.00€
In 2022:
-Grinding spindle serviced by FRITZ STUDER AG : 11'731.00€
To resume, 72'646.00€ of parts and workforce have been spent on the machine in the last 3 years.
