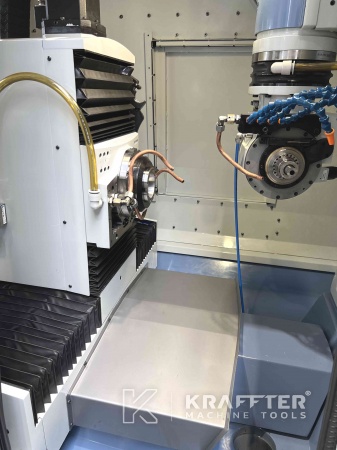

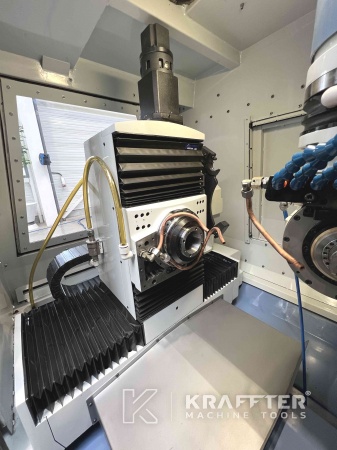

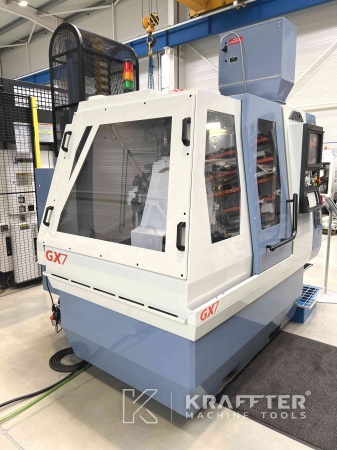

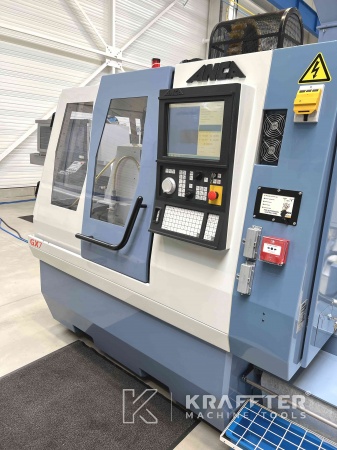

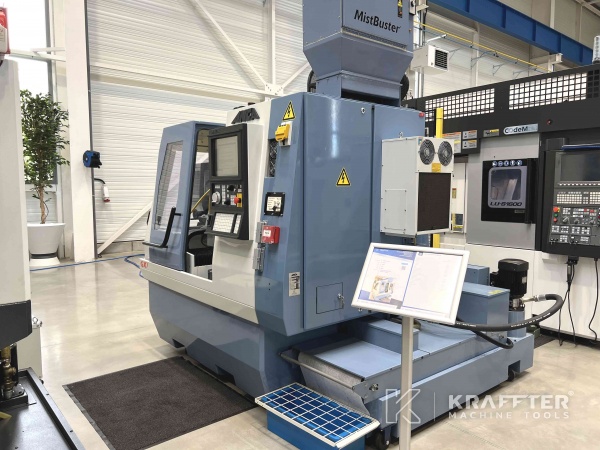

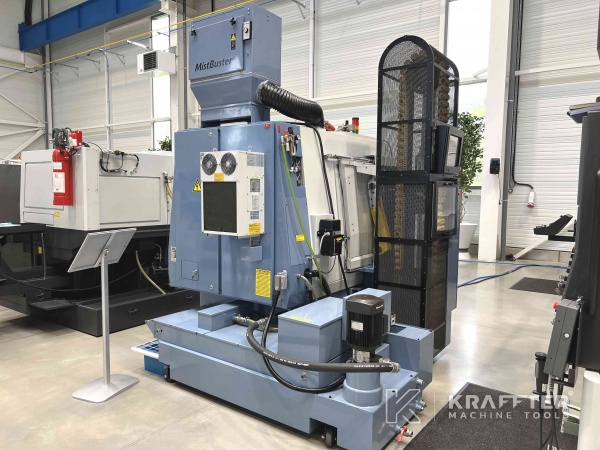

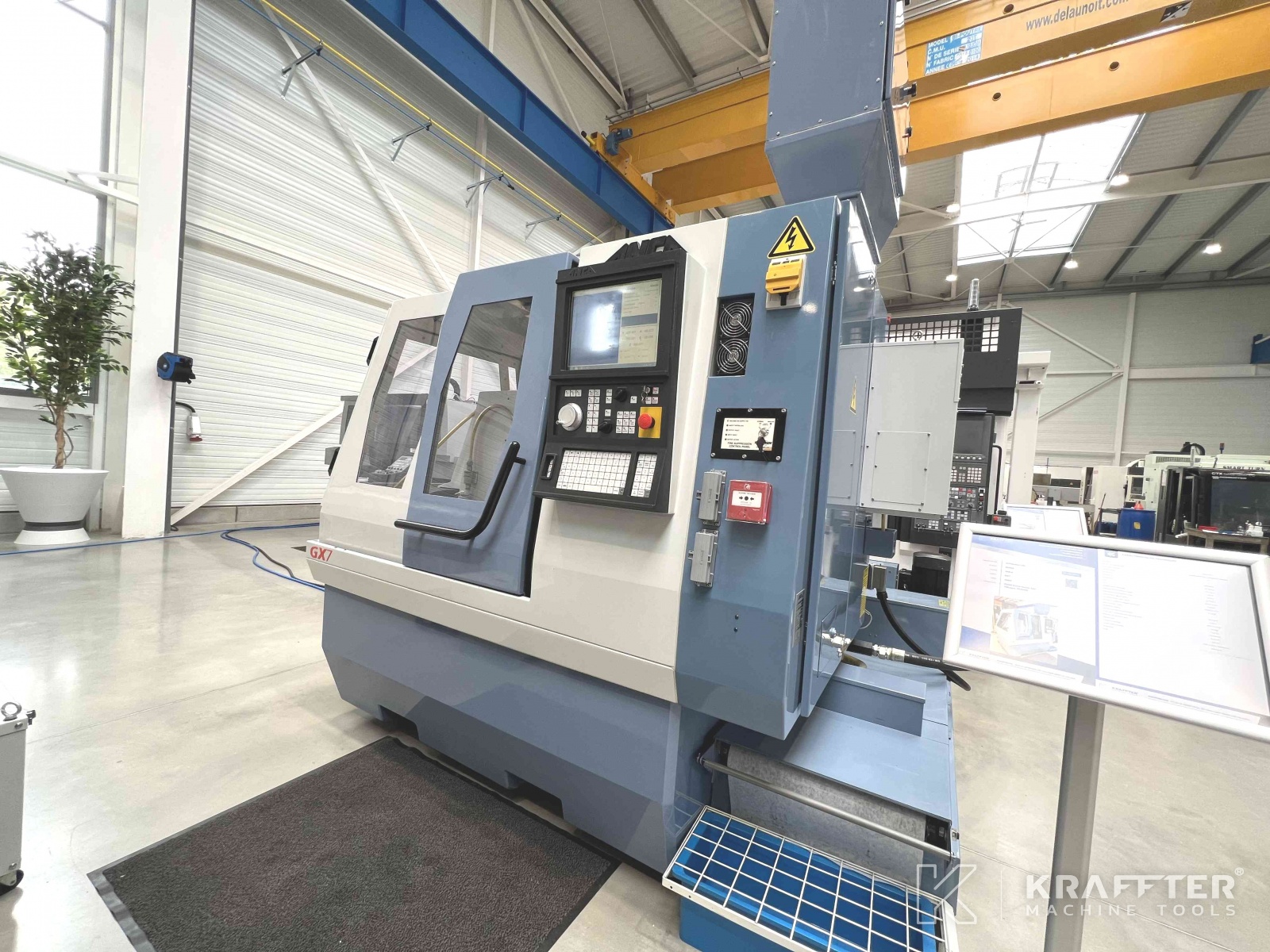

Type of machine : CNC tool grinding machine
Brand : ANCA
Stock N° : 90052
Model : GX7
Year : 2009
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
CNC control

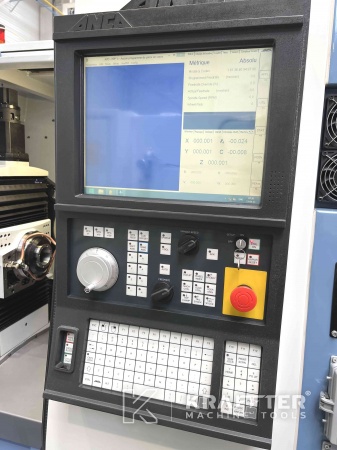

ANCA 5DX
Software installed
ToolRoom RN 34.1 (installation: 10/2019)
Colour touchscreen
Yes
Number of axes
5
Stroke X axis
435 [mm]
Stroke Y axis
457 [mm]
Stroke Z axis
275 [mm]
A axis
360 [°]
Max. grinding diameter
220 [mm]

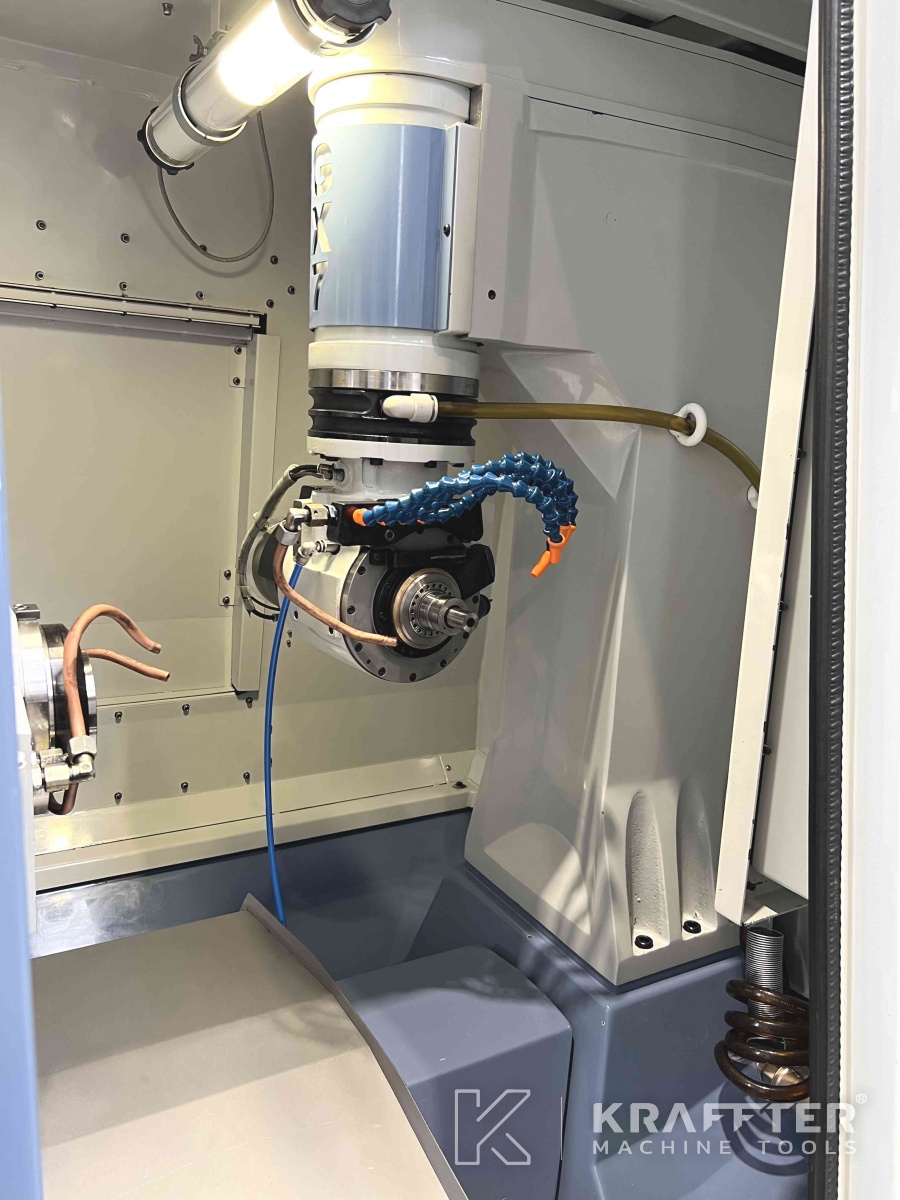

Grinding spindle drive
direct drive

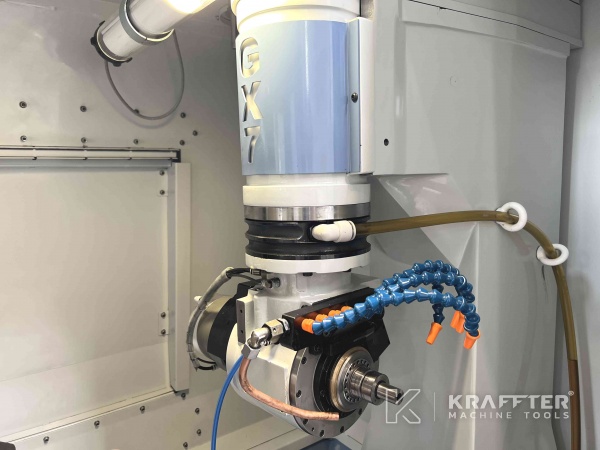

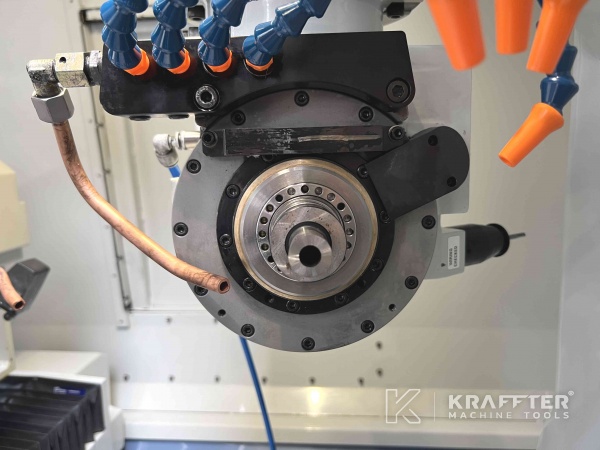

Grinding spindle attachment
HSK40F
Grinding wheel speed
10000 [rpm]
Grinding spindle motor power
9.7 [kW]
Number of positions wheel loader
7
Max. diameter grinding wheel
150 [mm]

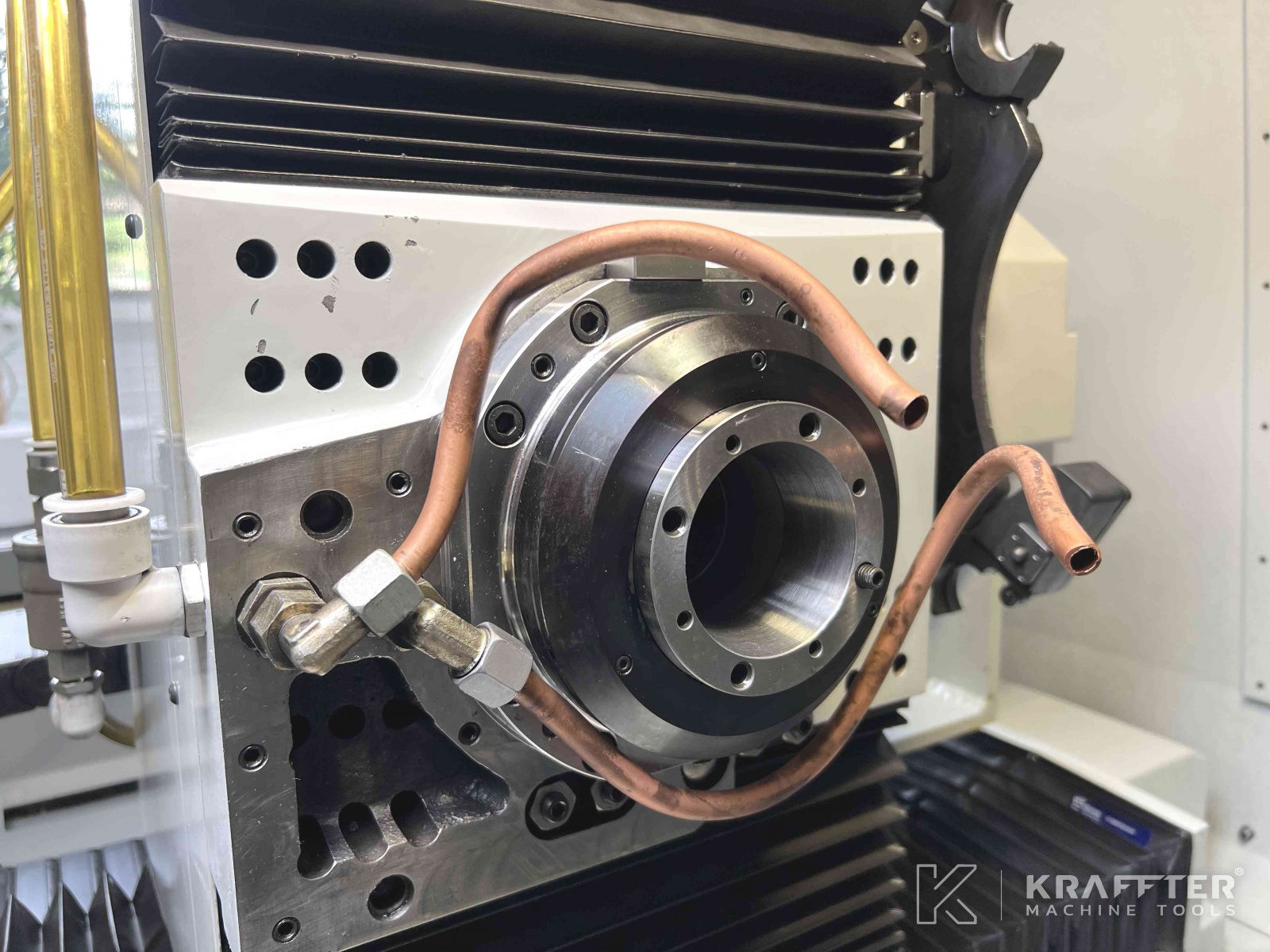

Workpiece spindle nose
ISO 50
Workpiece spindle max. speed
600 [rpm]
Max. part weight in part holder headstock
20 [Kg]
Increment C-axis
0.001 [°]
Part probe
RENISHAW
Supply voltage
400 [V]
Total power required
20 [kVA]
Dimensions
2510 x 2010 x 2600 [mm]
Weight
4900 [Kg]
SOFTWARE OPTIONS :
- Stepped tool software
- Oil hole probing
- Profile software - Ref: PO946-0-04-0017
- SECO drill tip software - Ref: PO946-0-04-0020
- Software for Delta drill tip - Ref : PO946-0-04-0016
- Software for Hertel drill tip
- Software for Hertel SE drill tip - Ref : PO946-0-04-0013
- Software for Hertel TF drill tip - Ref : PO946-0-04-0014
- Software for the following drill tips: Sumitomo, Mitsubishi and Guhring - Ref: PO946-0-04-0015
- 3D CIMulator (software only) - Ref: PO929-0-01-1024
- iGrind update and license - Ref : PO963-0-00-0021
- Machine recalibration software - Ref: PO946-0-04-0100
TOOL CLAMPING OPTIONS AND ACCESSORIES :
- Hydraulic tool clamp (mandatory for GLX loader) - Ref: RK906-0-80-1000
AUTOMATION OPTION :

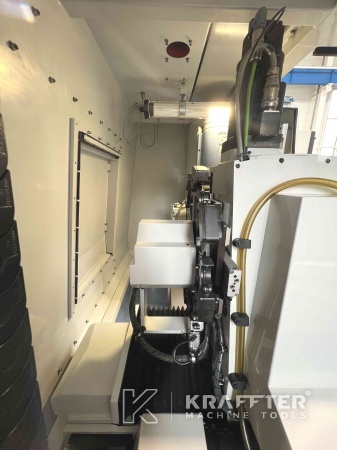

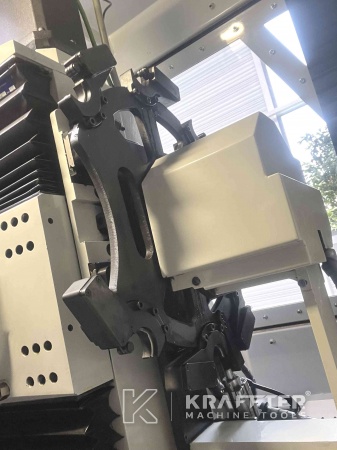

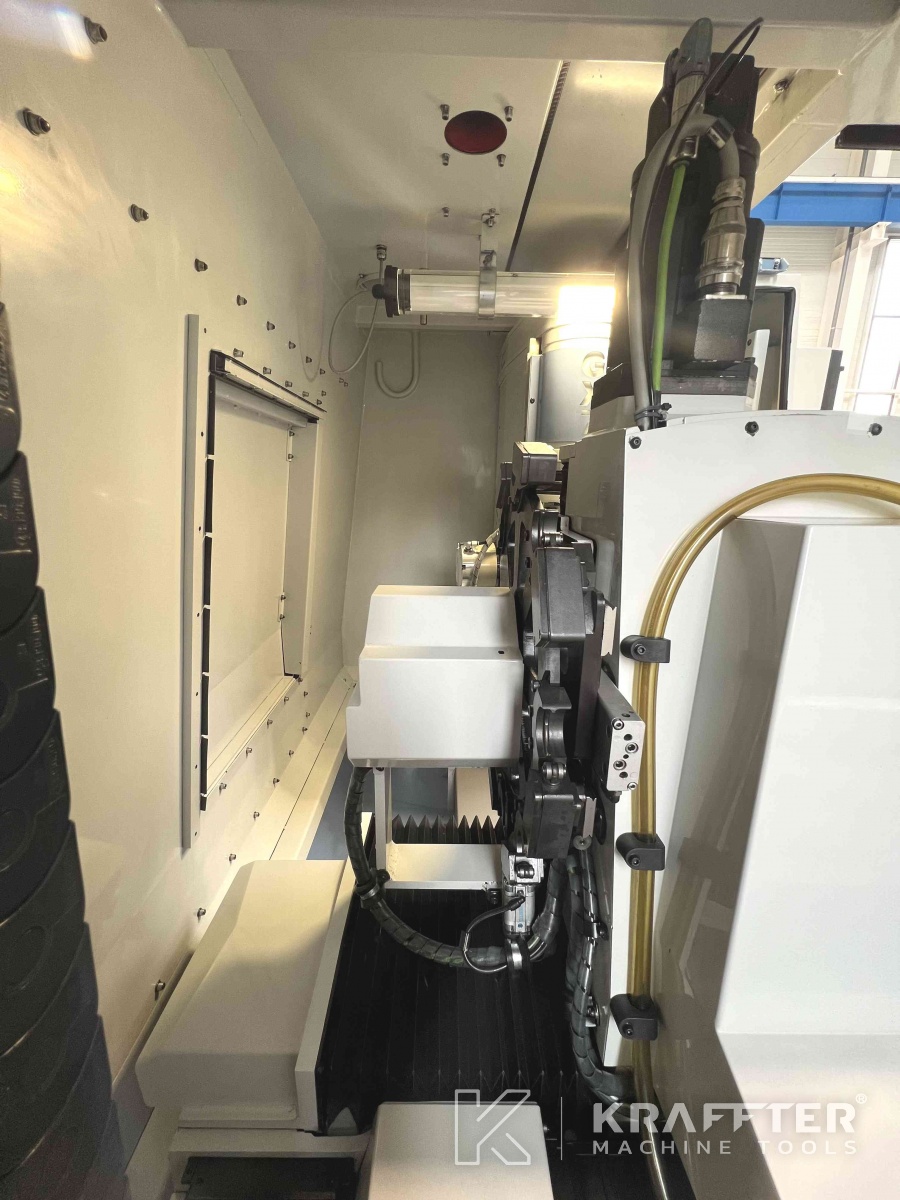

- 7 Position wheel changer

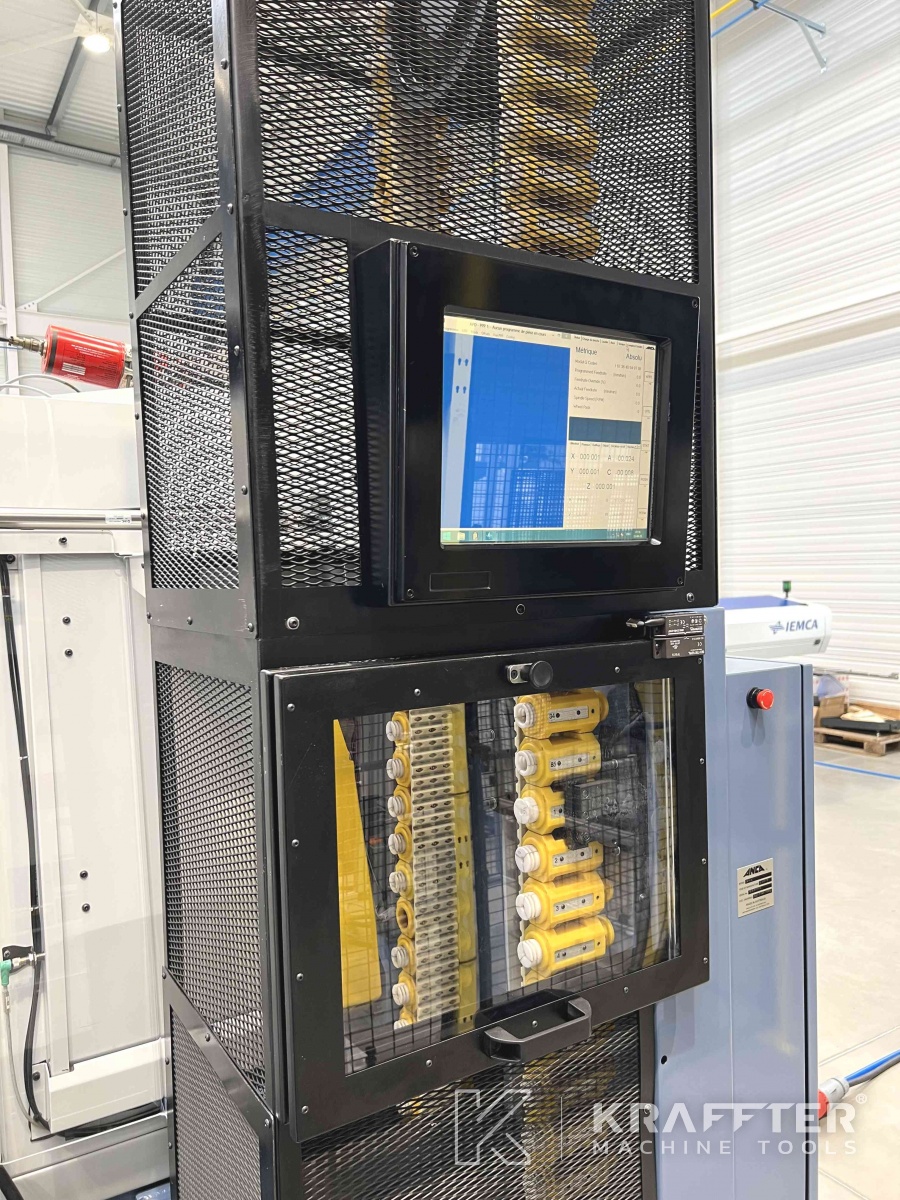

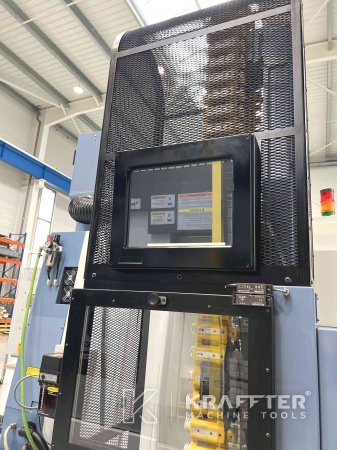

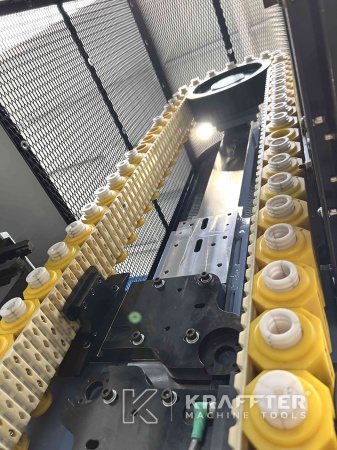

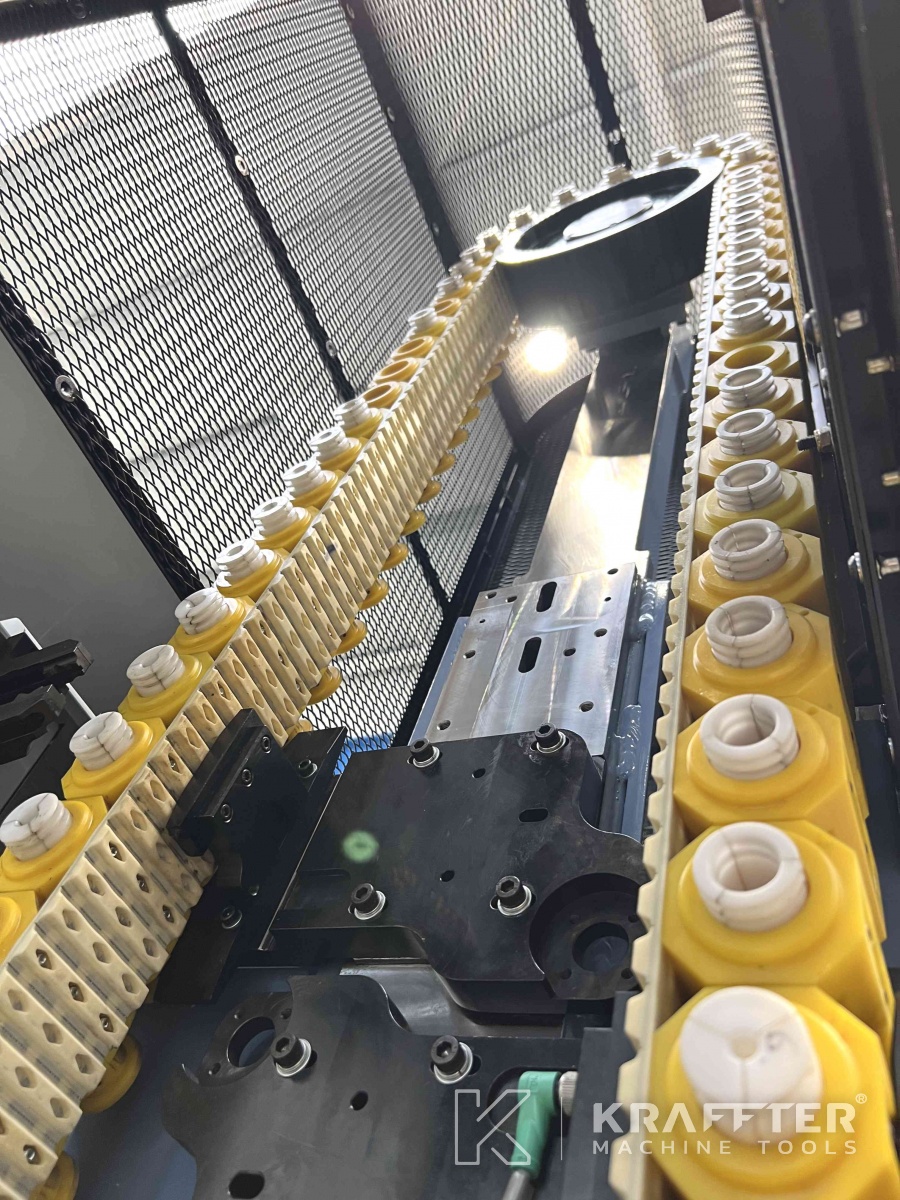

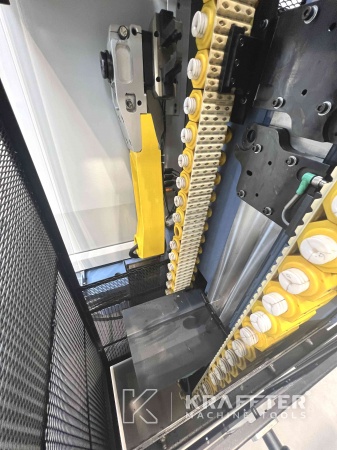

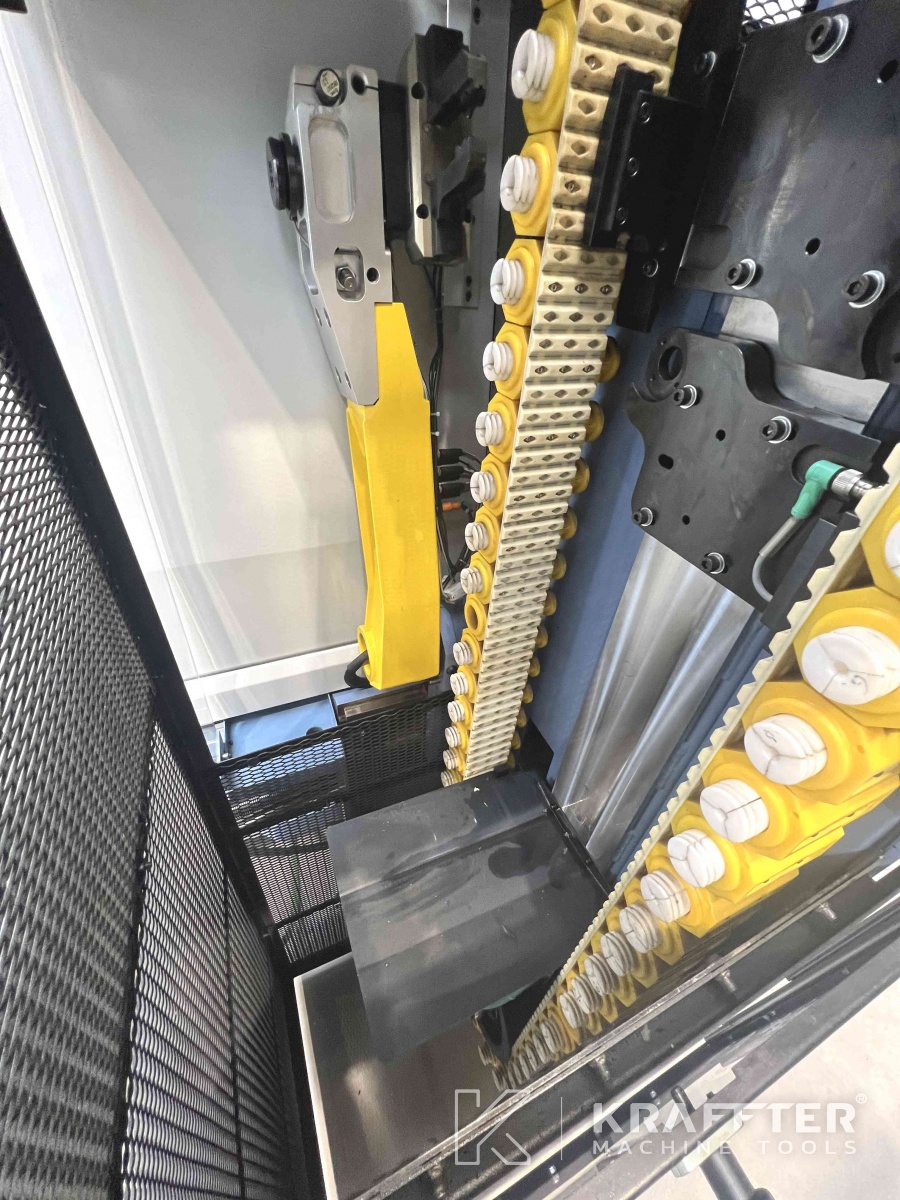

- GLX compact loader - 84 positions - Ref : 985-0-00-0000
WATERING AND FILTRATION :
- Additional coolant blocks (1) - Ref: 986-0-00-1026

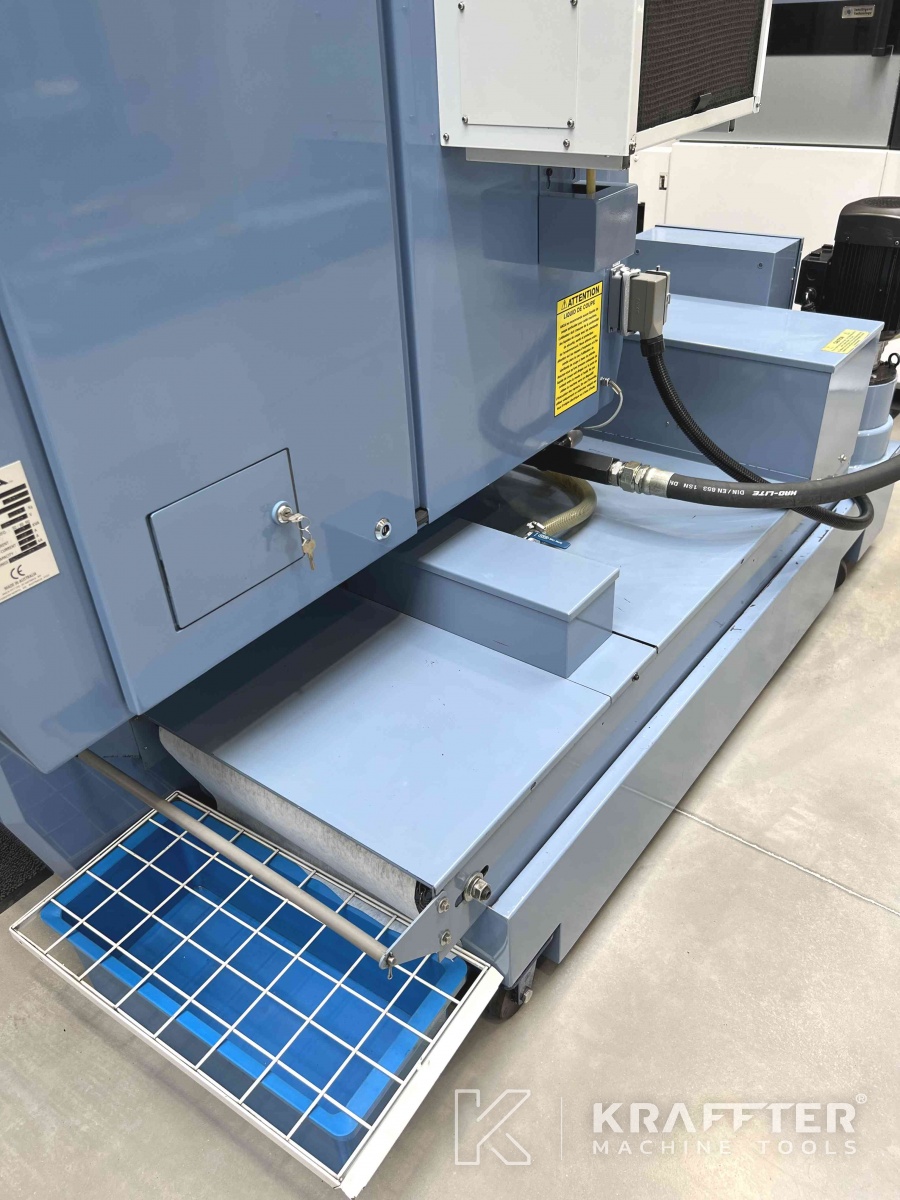

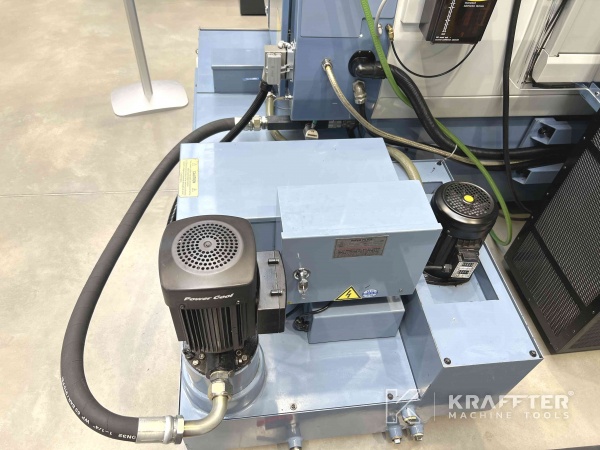

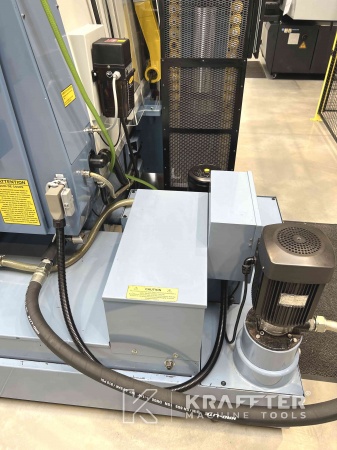

- Complete cooling system with automatic paper advance filter
- Coolant flow sensor - Ref: RK965-0-00-0101
OTHER EQUIPMENT:

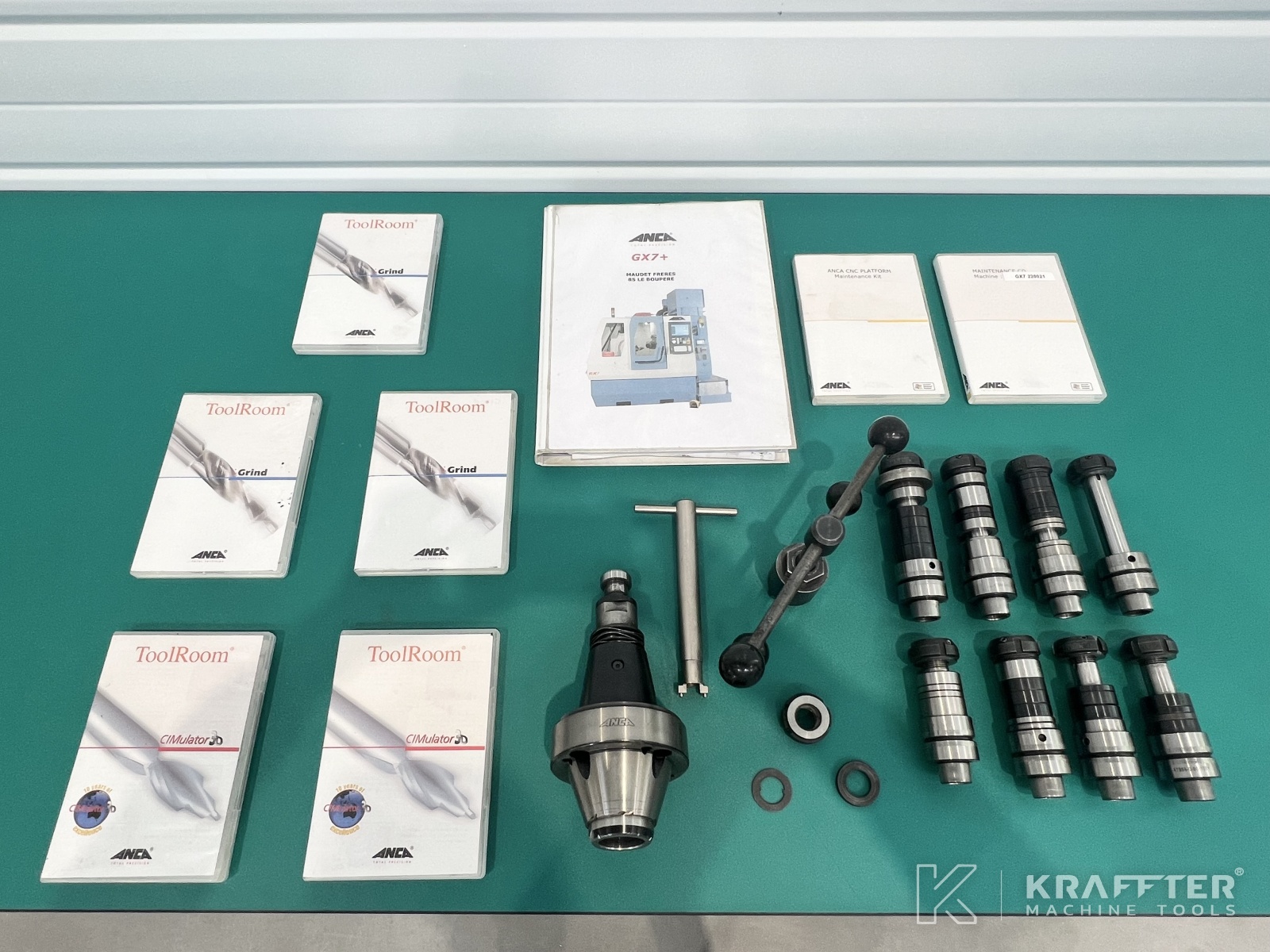

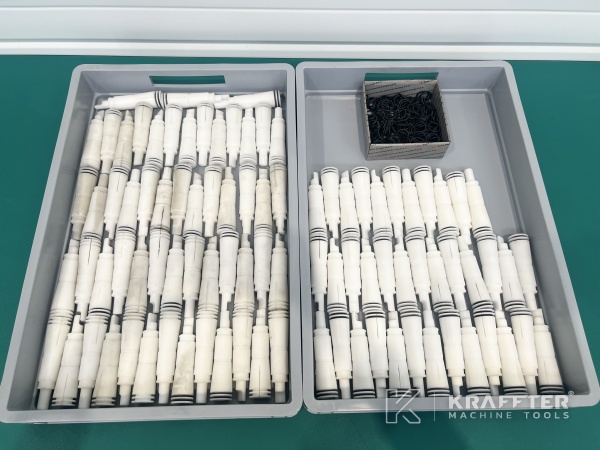

- HSK40F Grinding wheel shaft 38 mm, Hub 20 mm (1) - Ref: AT988-0-00-1070
- HSK40F Grinding wheel shaft 55 mm, Hub 20 mm (4) - Ref : AT988-0-00-1080
- HSK40F Grinding wheel shaft 78 mm, Hub 20 mm (4) - Ref : AT988-0-00-1090

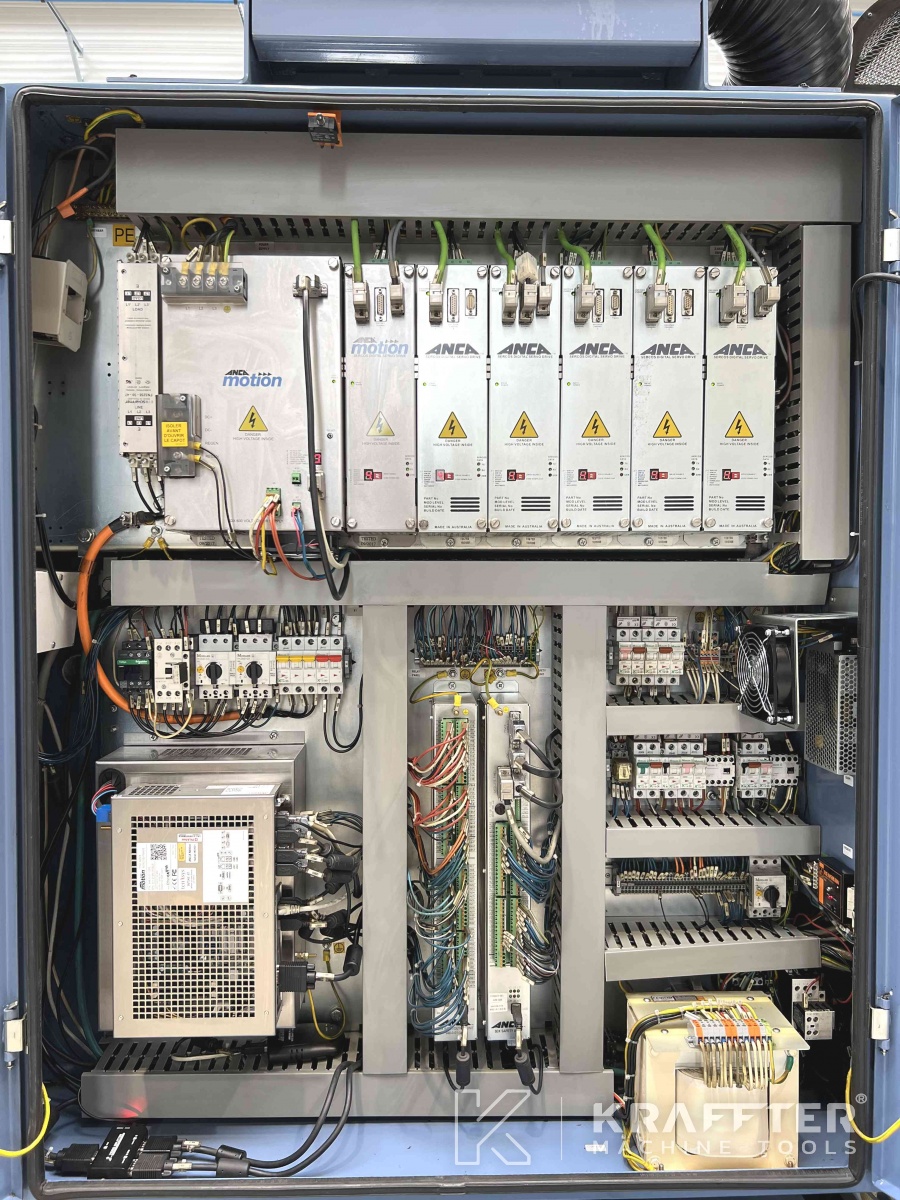

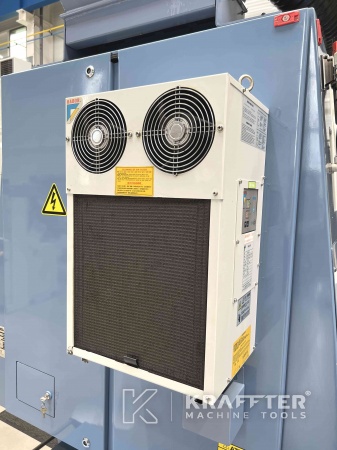

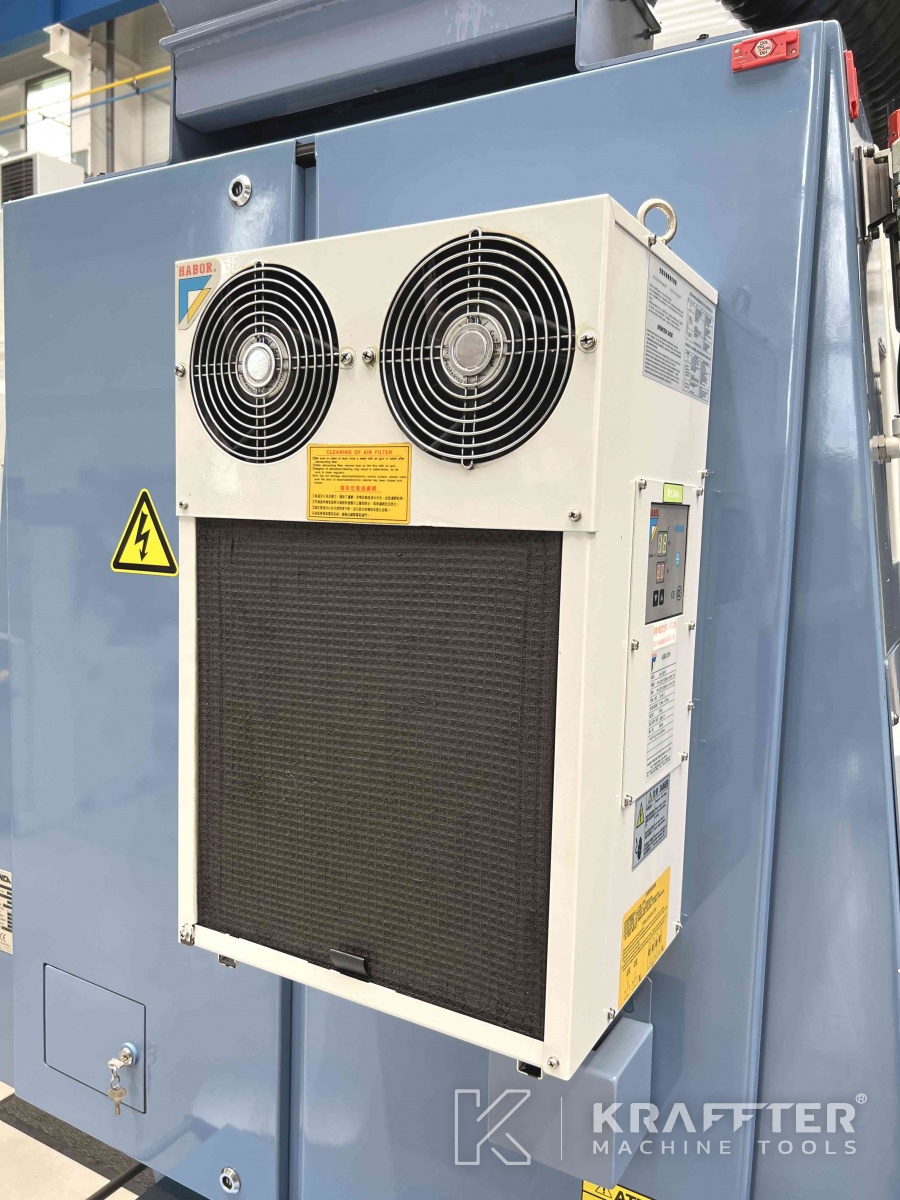

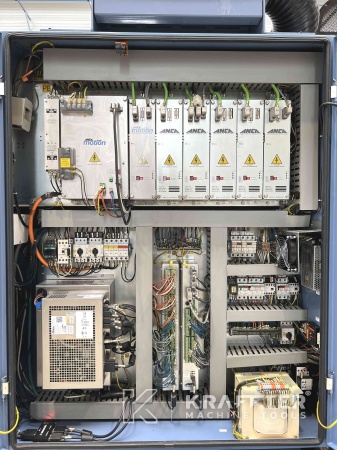

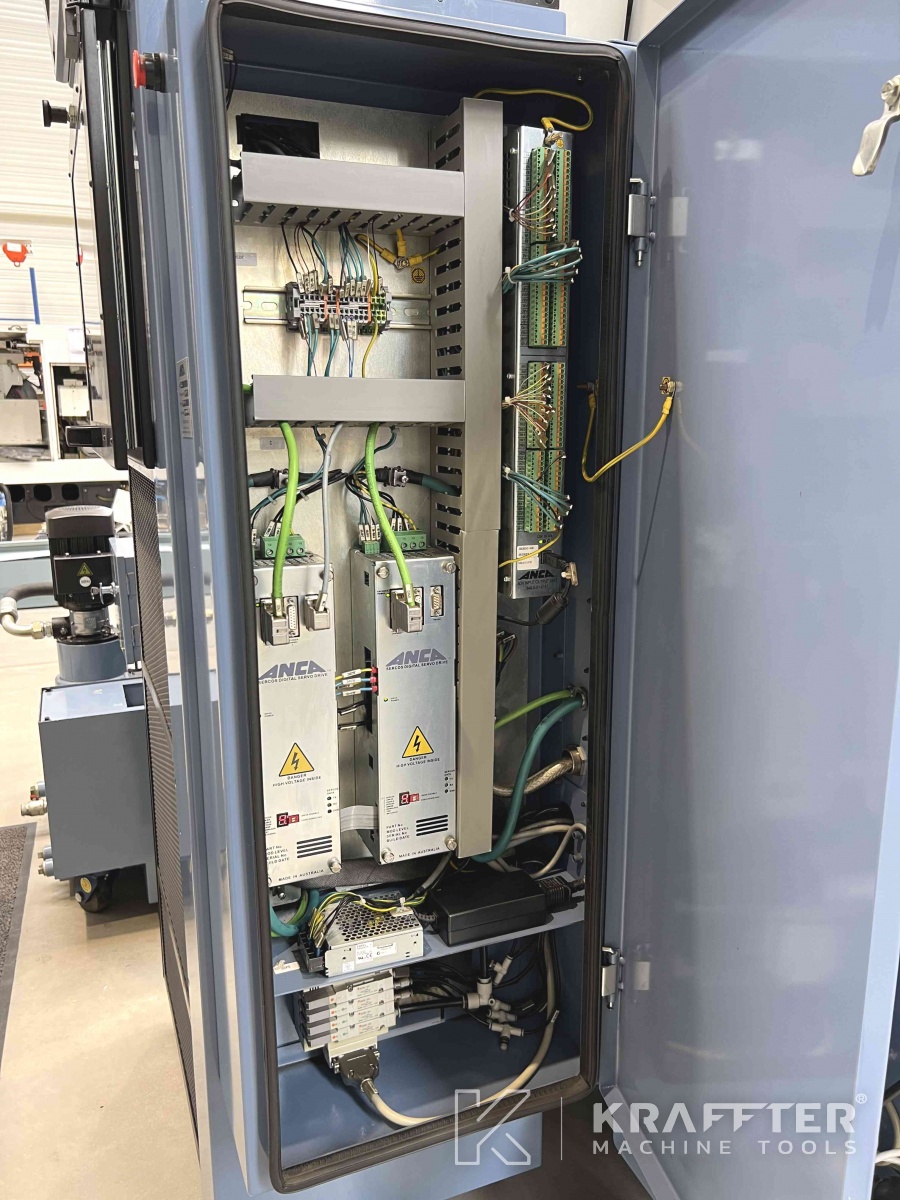

- Air conditioning for electrical cabinet - Ref : 965-0-01-0290

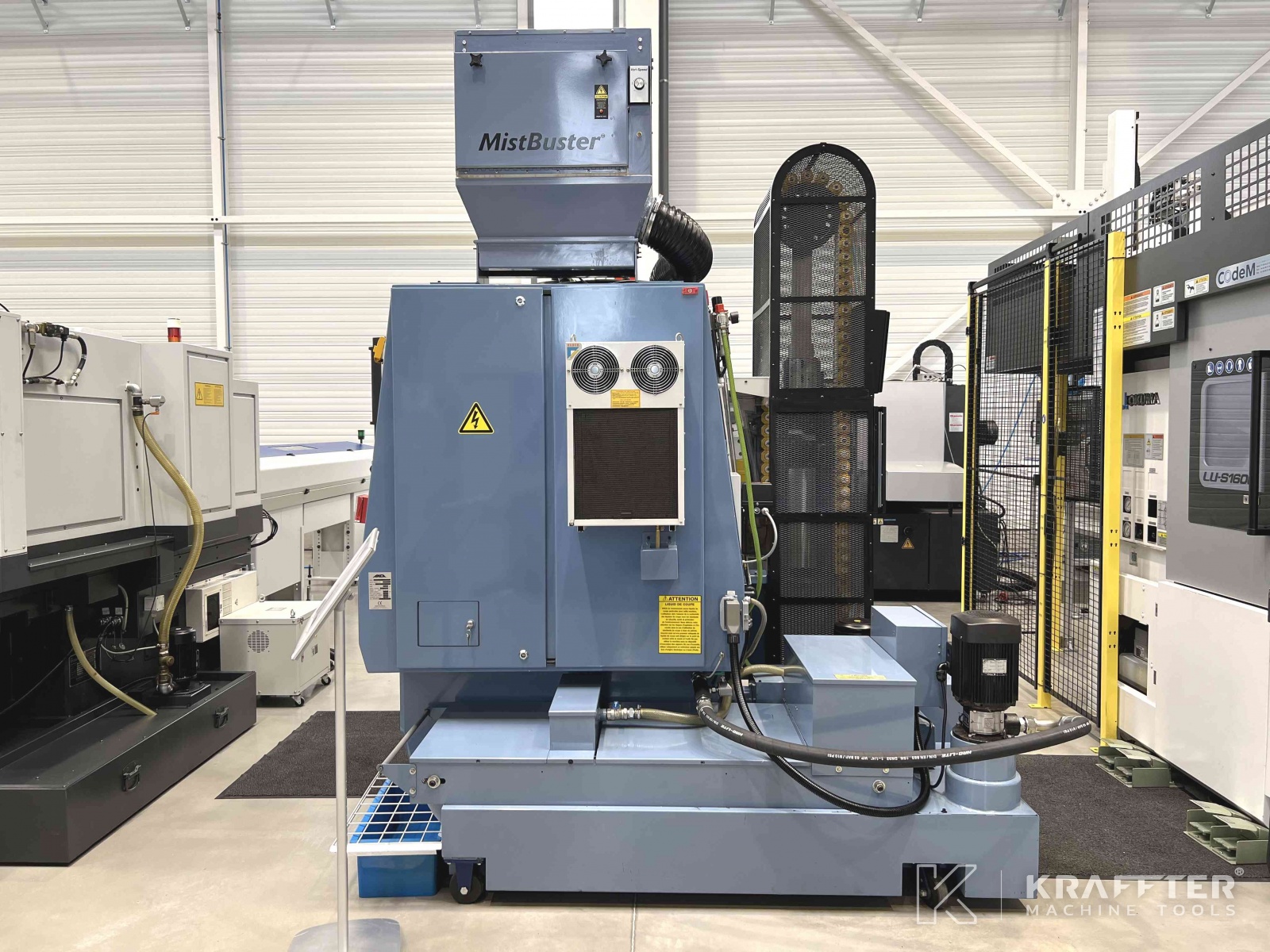

- Oil mist hoover - Ref : 952-0-02-0250
- Automatic fire extinguisher (pyrogen) - Ref : 952-0-00-9300

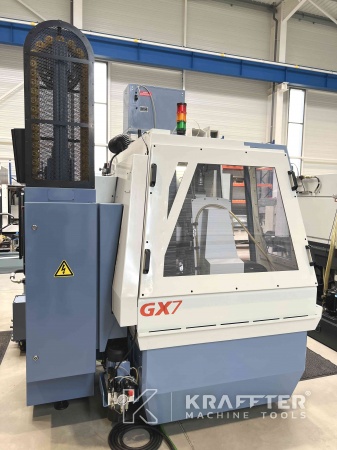

- 3 colours signal lamp - Ref : 945-0-00-9990
- Spare probe tip - Ref : 923-0-12-4002
- USB port
- Internal pre-wiring for iView camera
