Sold

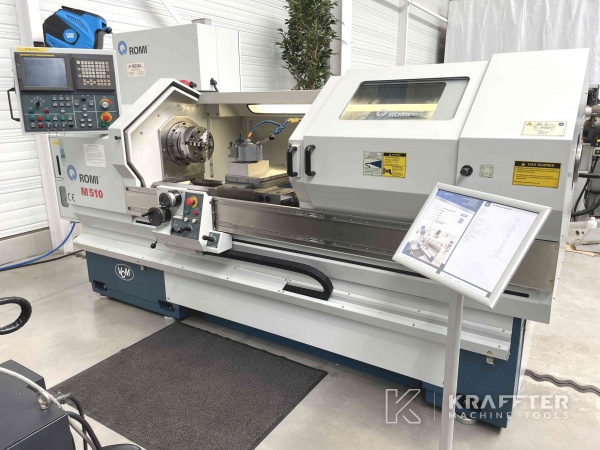

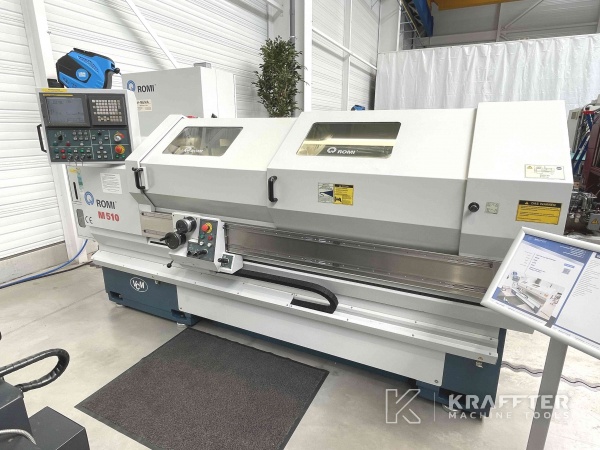

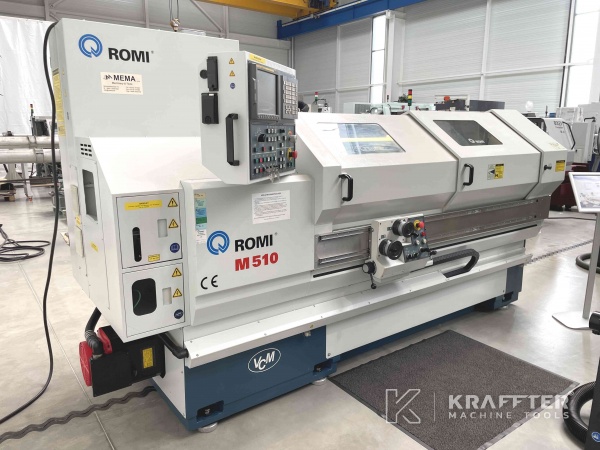

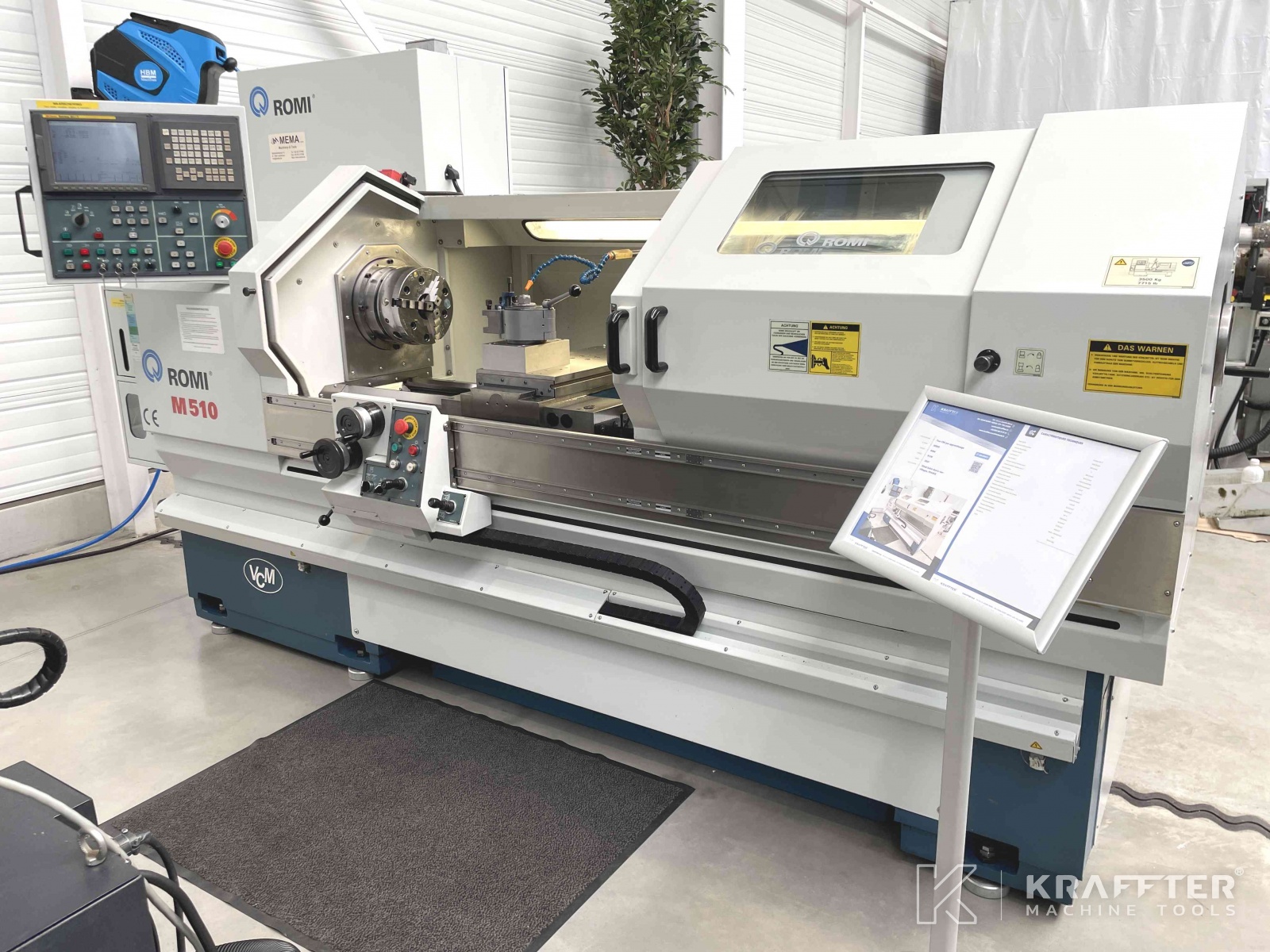

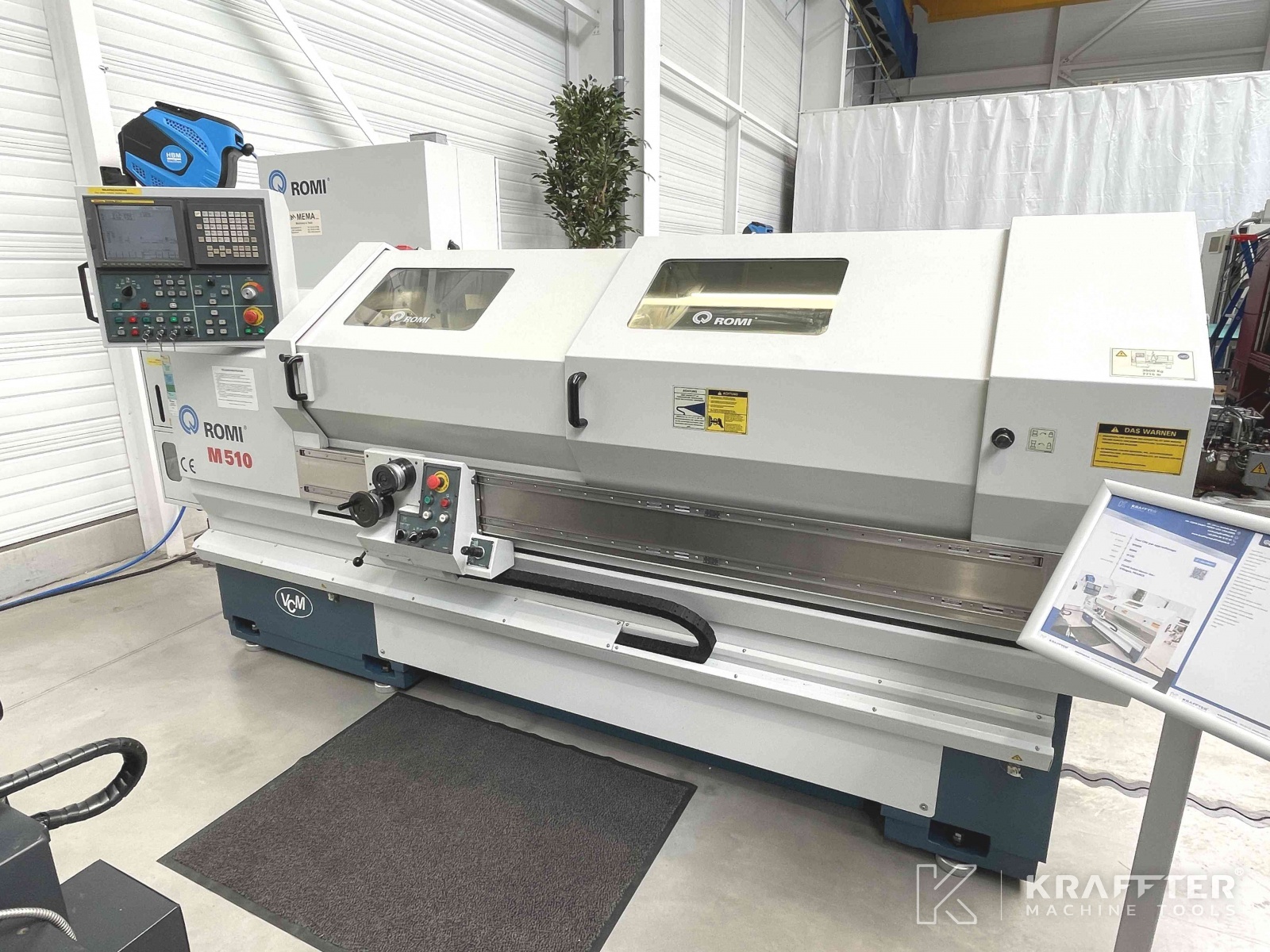

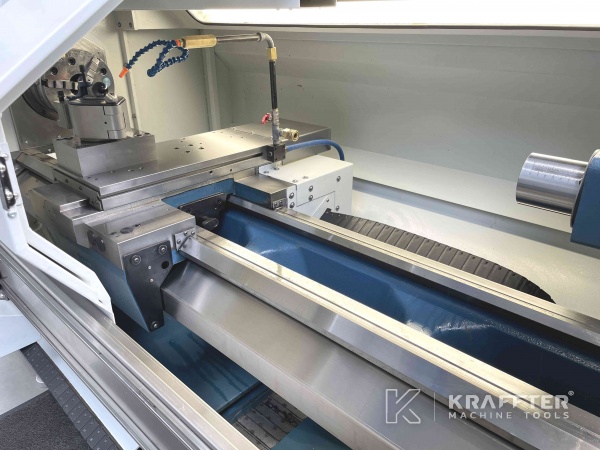

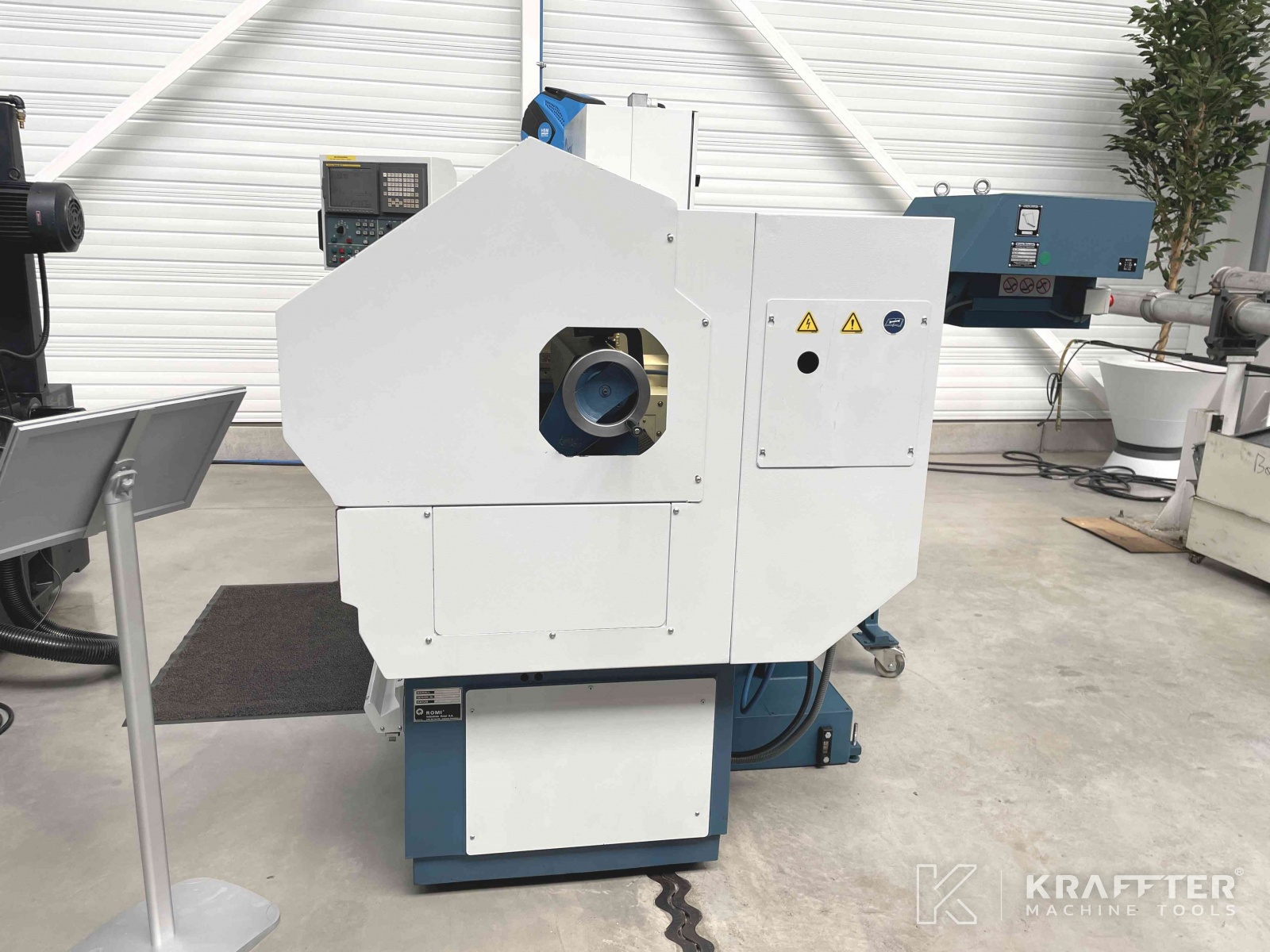

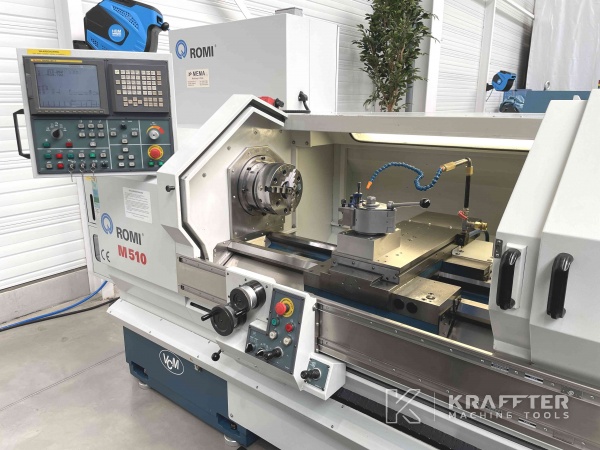

Type of machine : CNC teach-in lathe

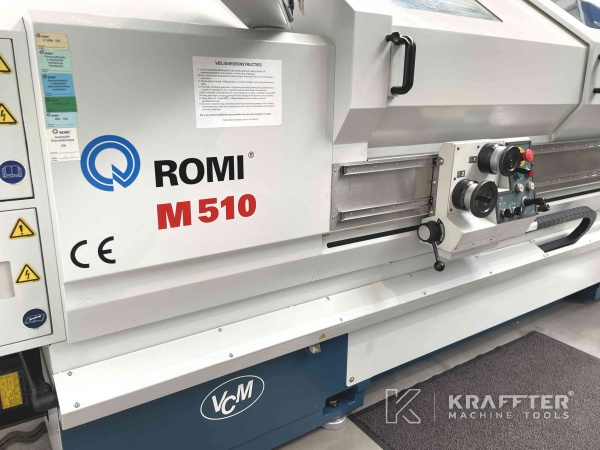

Brand : ROMI
Stock N° : 90065
Model : M 510
Year : 2007
Location : 73240 Saint-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

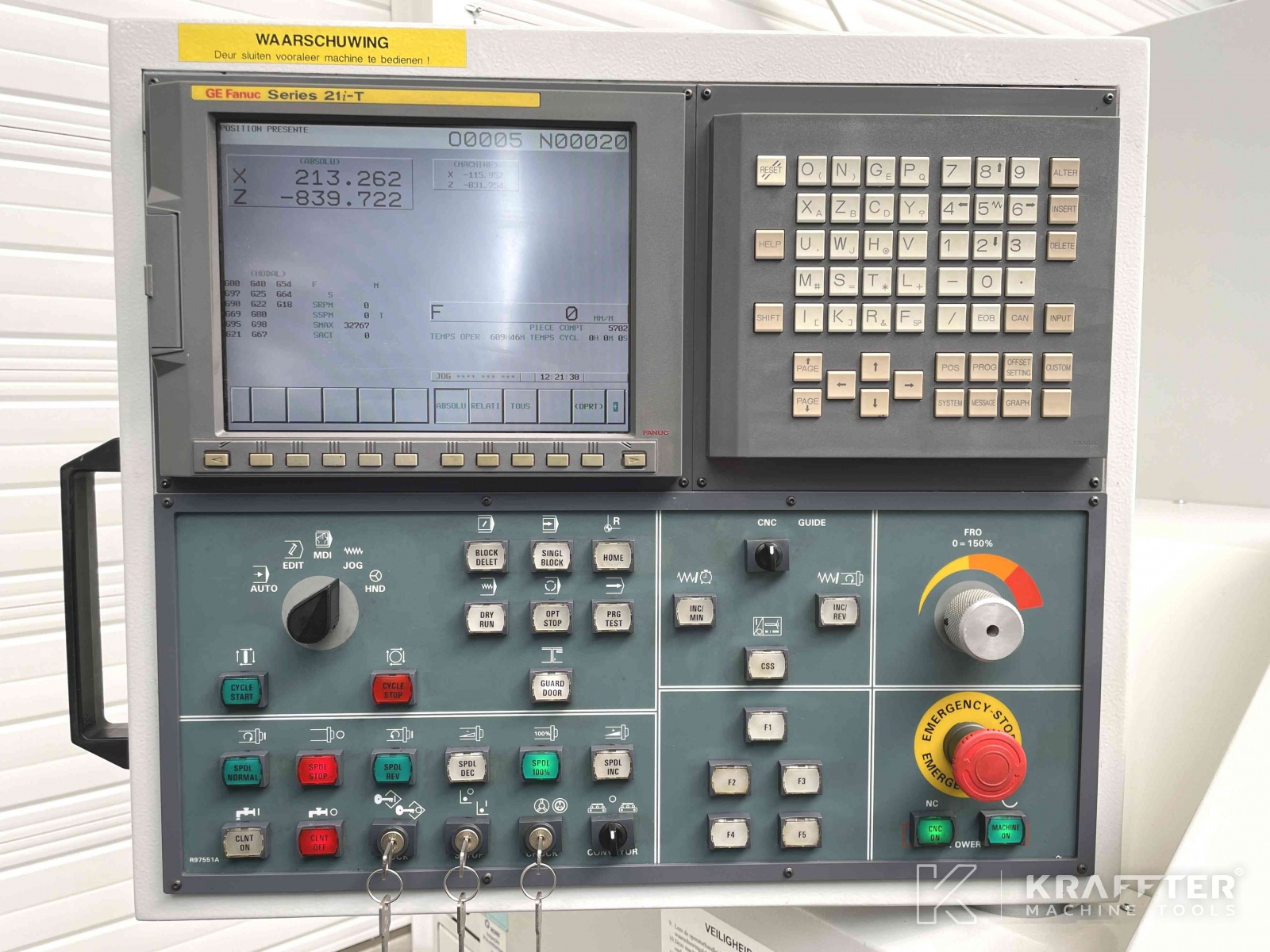

CNC control
FANUC 21i-T
Number of axes
2
Distance between centers
1500 [mm]
Height of centers
255 [mm]
Height of centers over cariage
260 [mm]
Max. swing over bed
520 [mm]
Stroke X axis
280 [mm]
Stroke Z axis
1500 [mm]
Rapid traverse rate X axis
7500 [mm/min]
Rapid traverse rate Z axis
10000 [mm/min]
Spindle nose
A2-6"
Spindle throughbore
65 [mm]
Min. spindle speed
3 [rpm]
Max. spindle speed
3000 [rpm]
Spindle power
11 [kW]
Type of attachment tailstock
MT 4
Tailstock quill stroke
130 [mm]
Tailstock quill diameter
80 [mm]
Total power required
20 [kVA]
Supply voltage
400 [V]

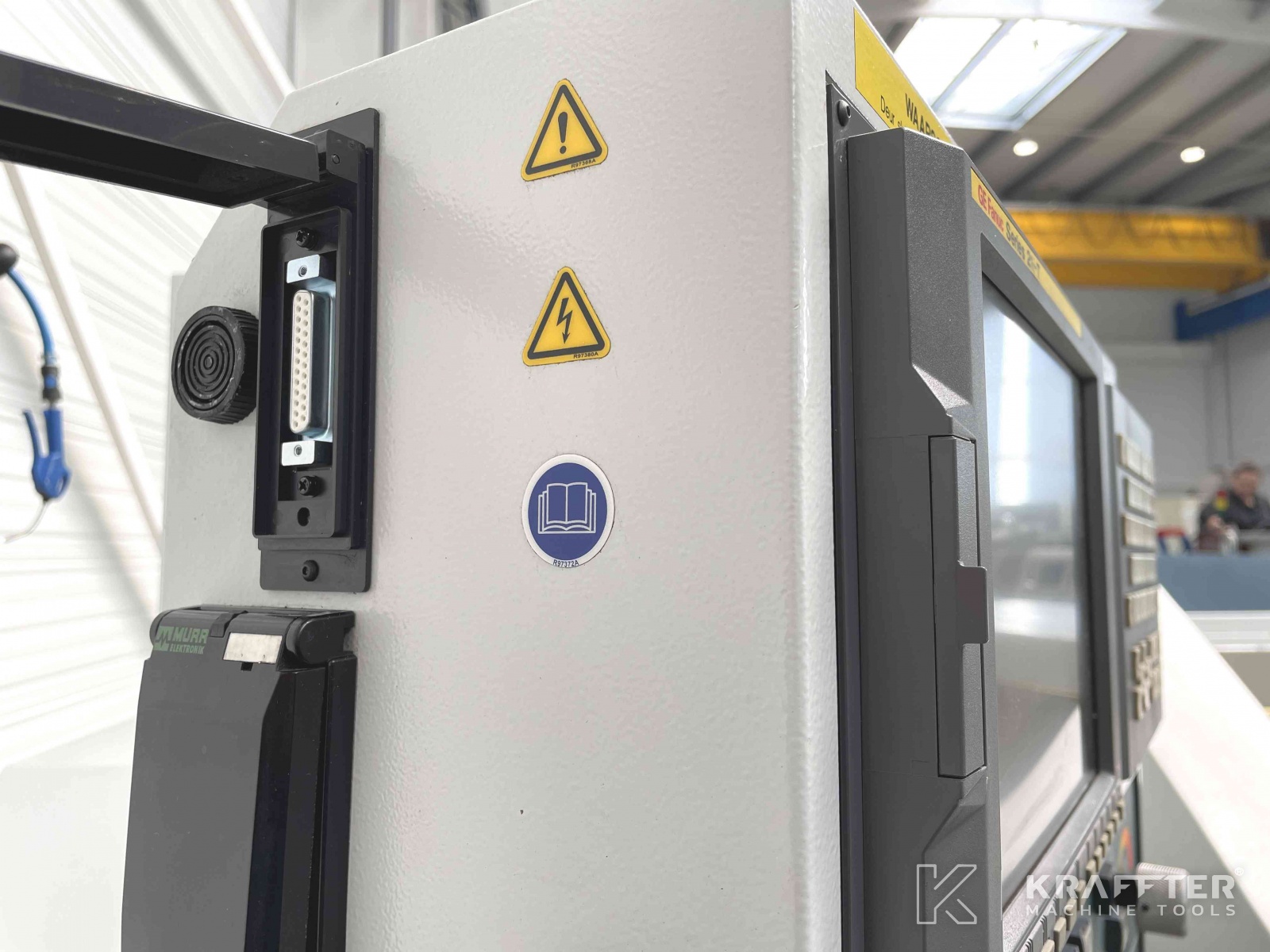

RS232 Interface
Yes
Number of hours under power
4063 [h]
Number of running hours
610 [h]
Machine dimensions
3650 x 1650 [mm]
Weight
3500 [Kg]
EQUIPMENT INCLUDED:

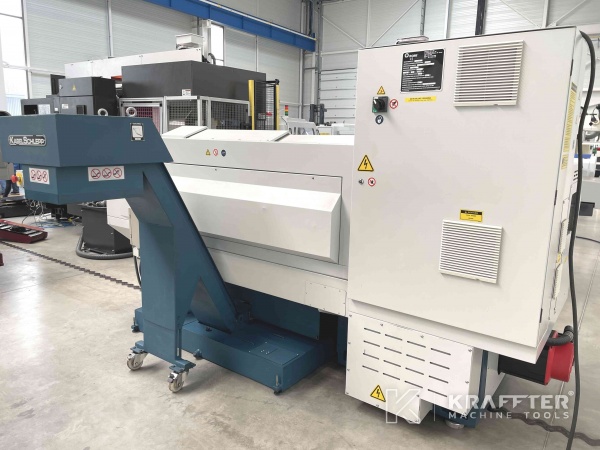

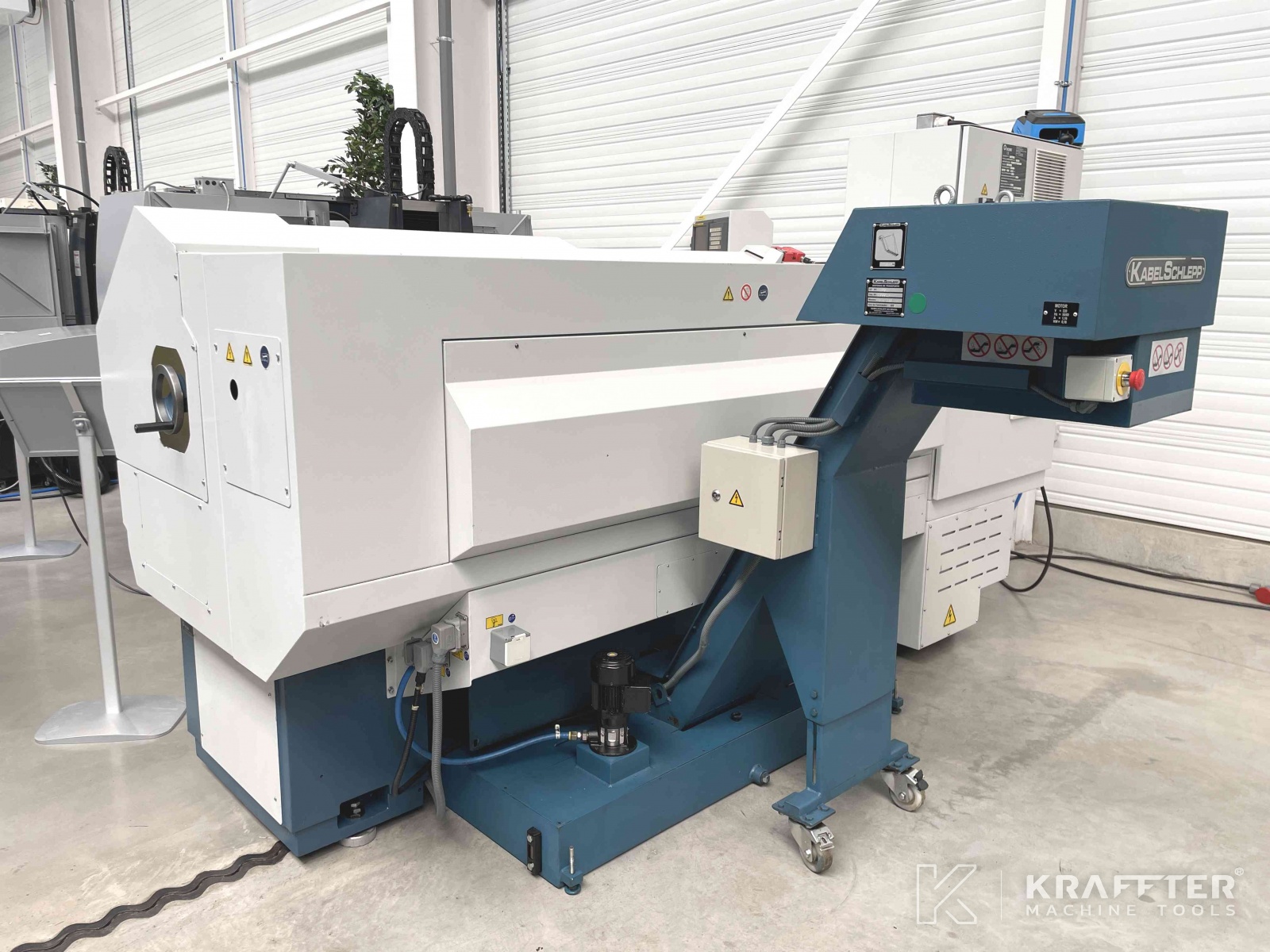

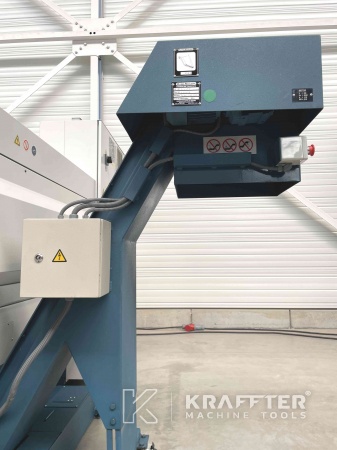

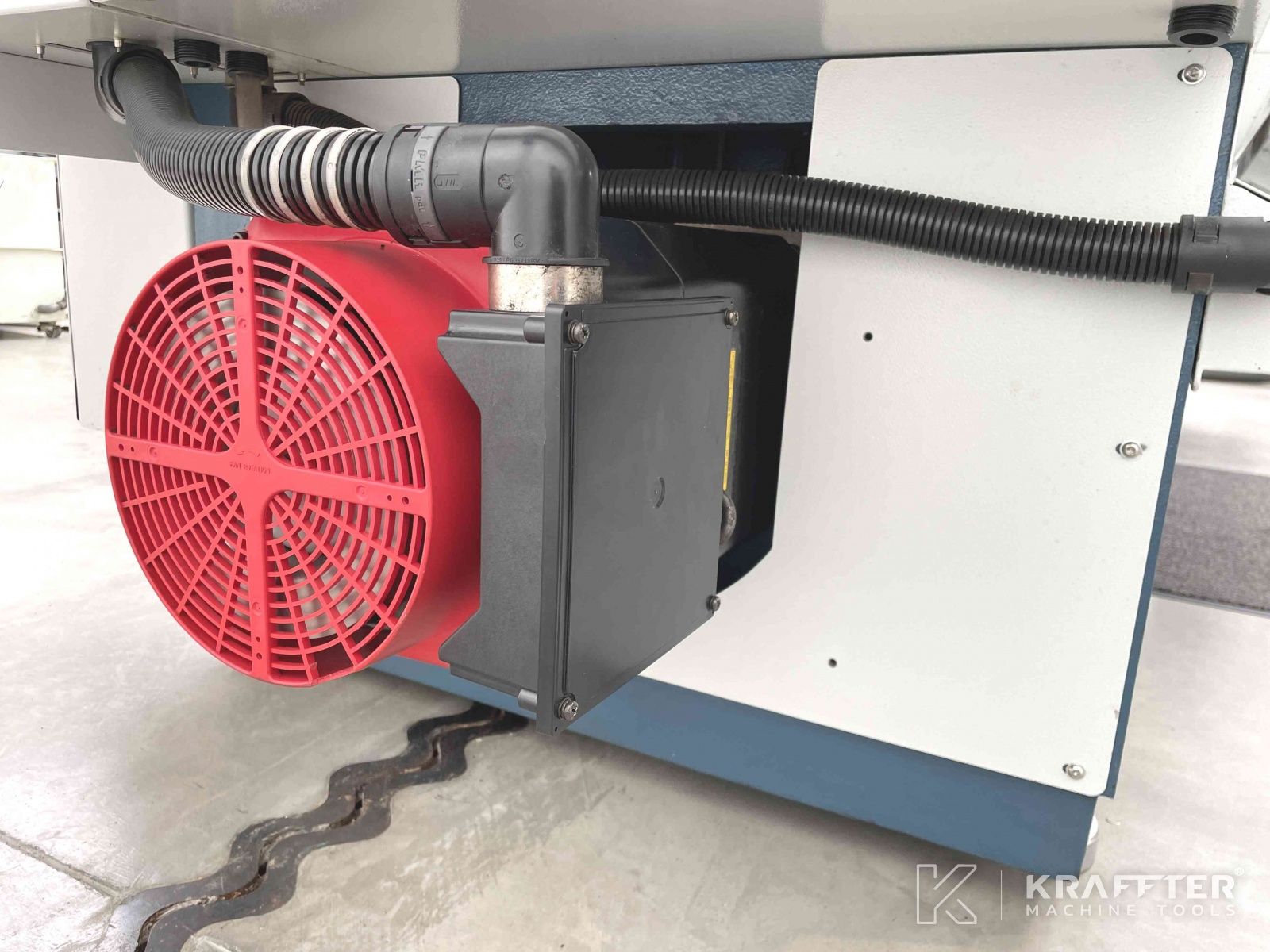

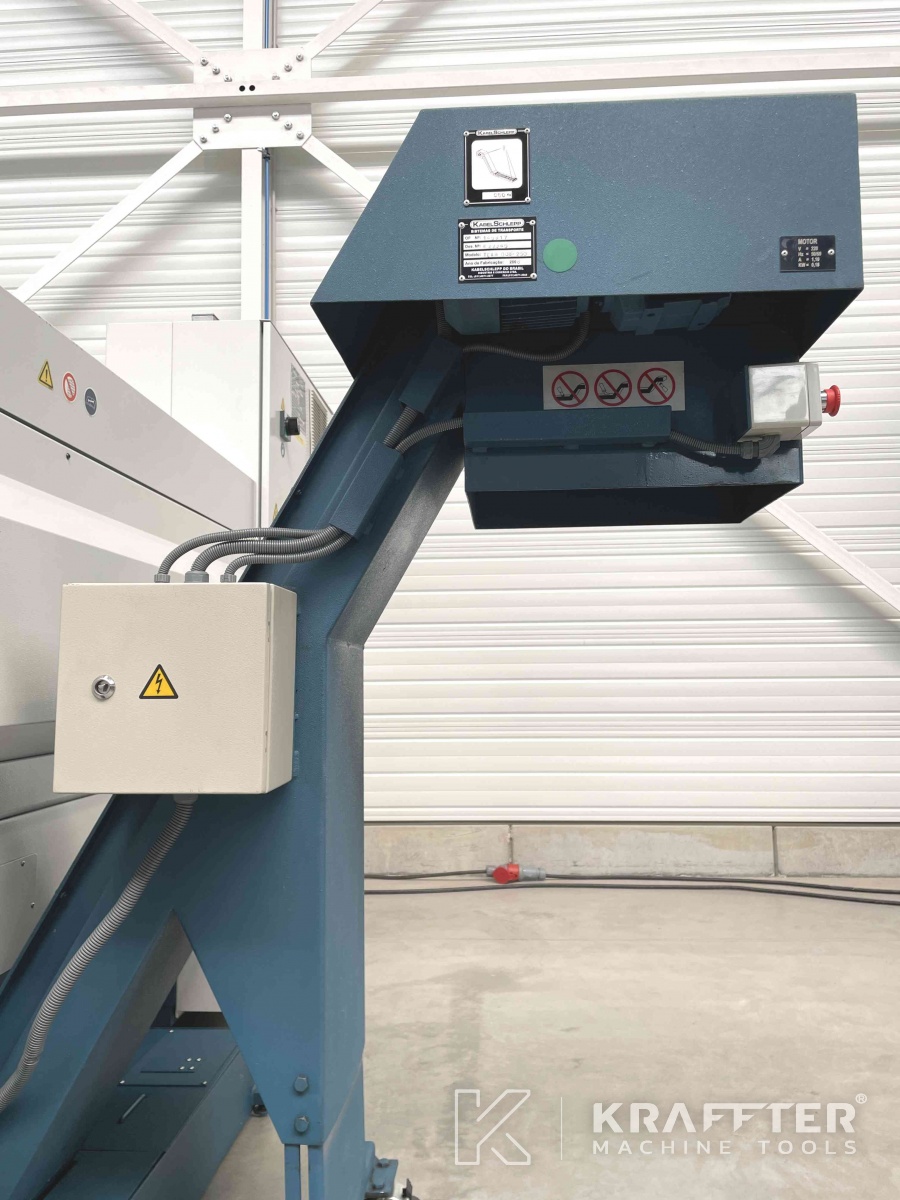

x1 chip conveyor

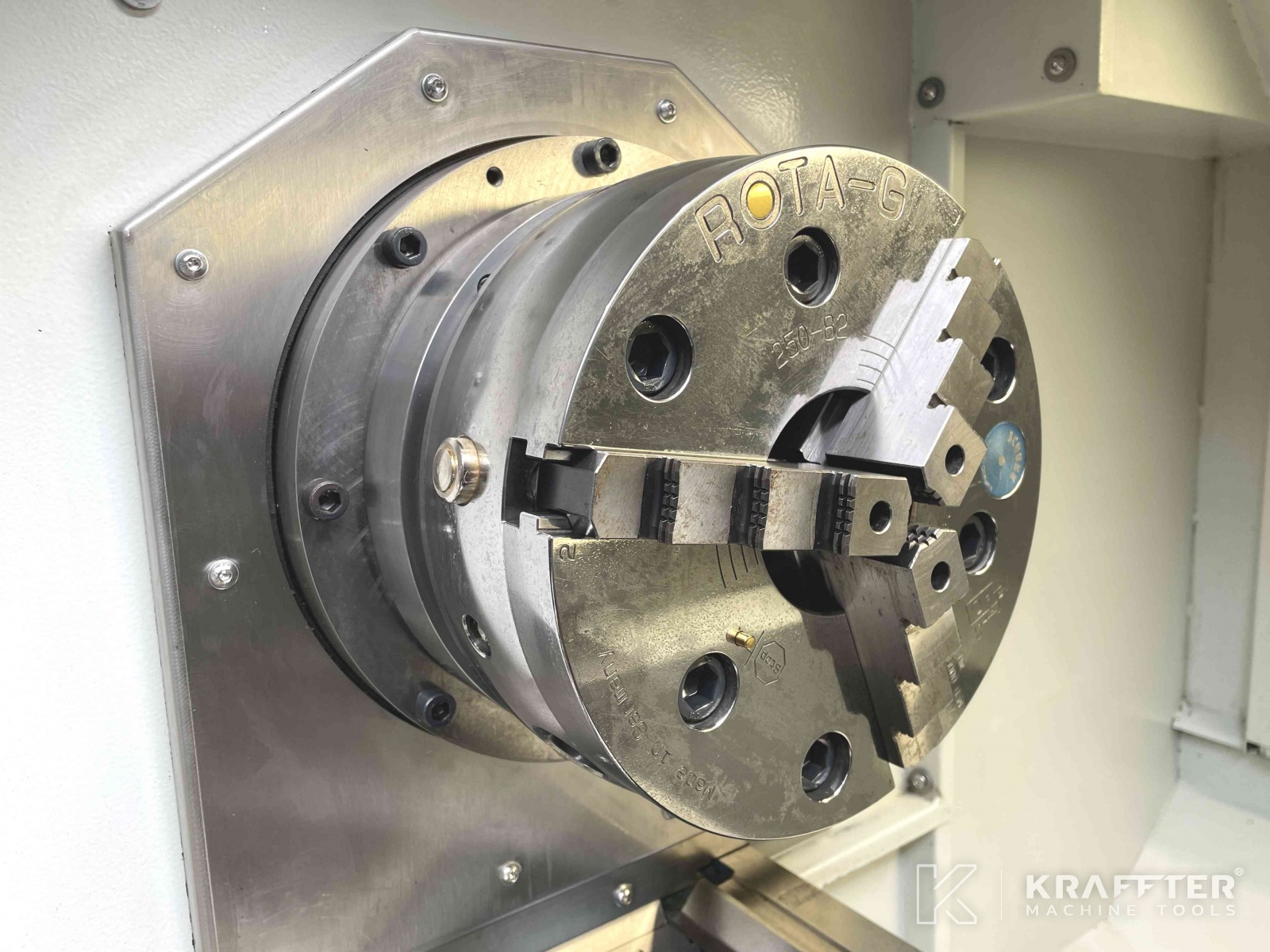

x1 chuck 3 jaw Ø250 [mm] ROTA-G

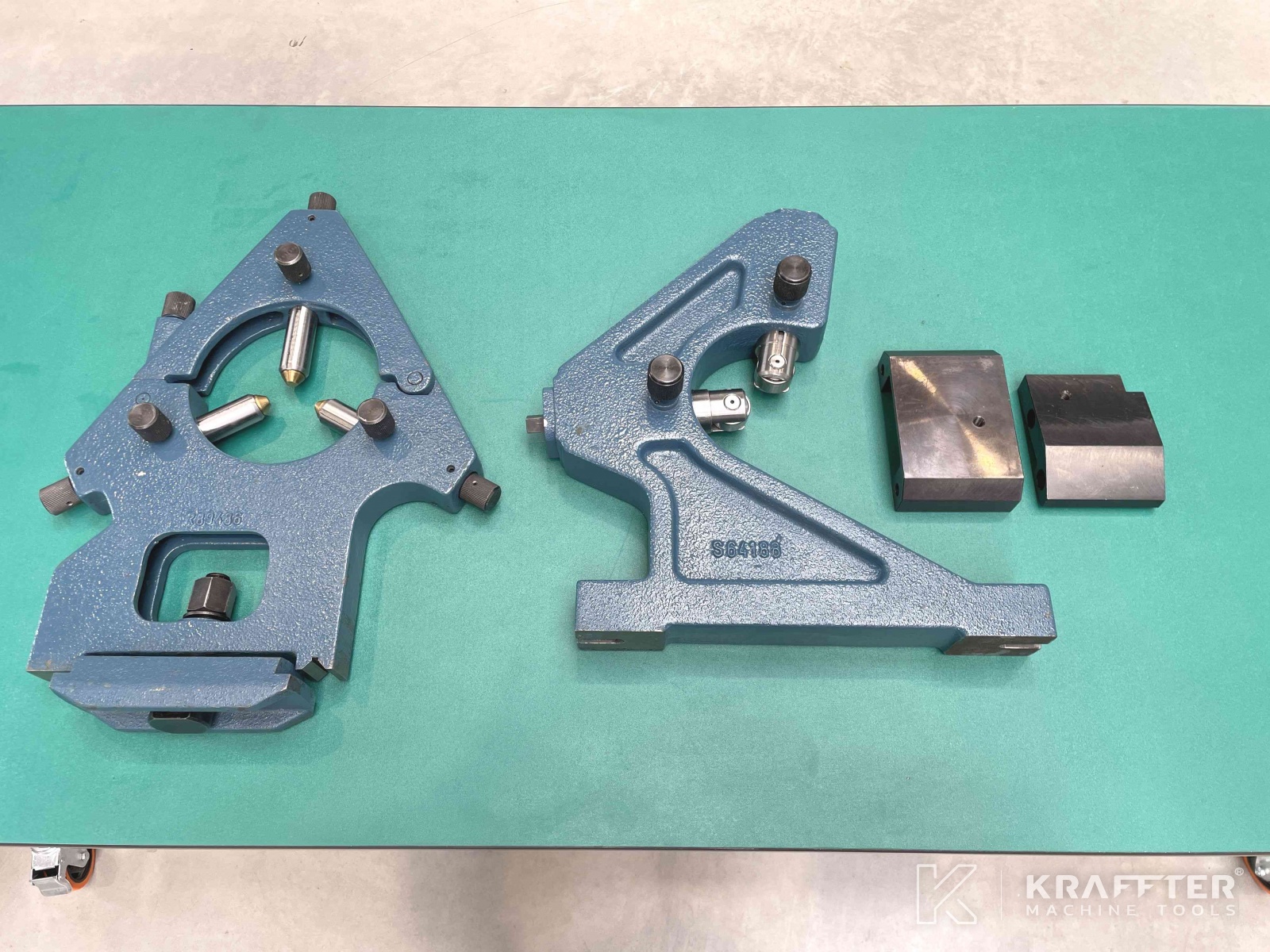

x1 steady rest
x1 follow rest

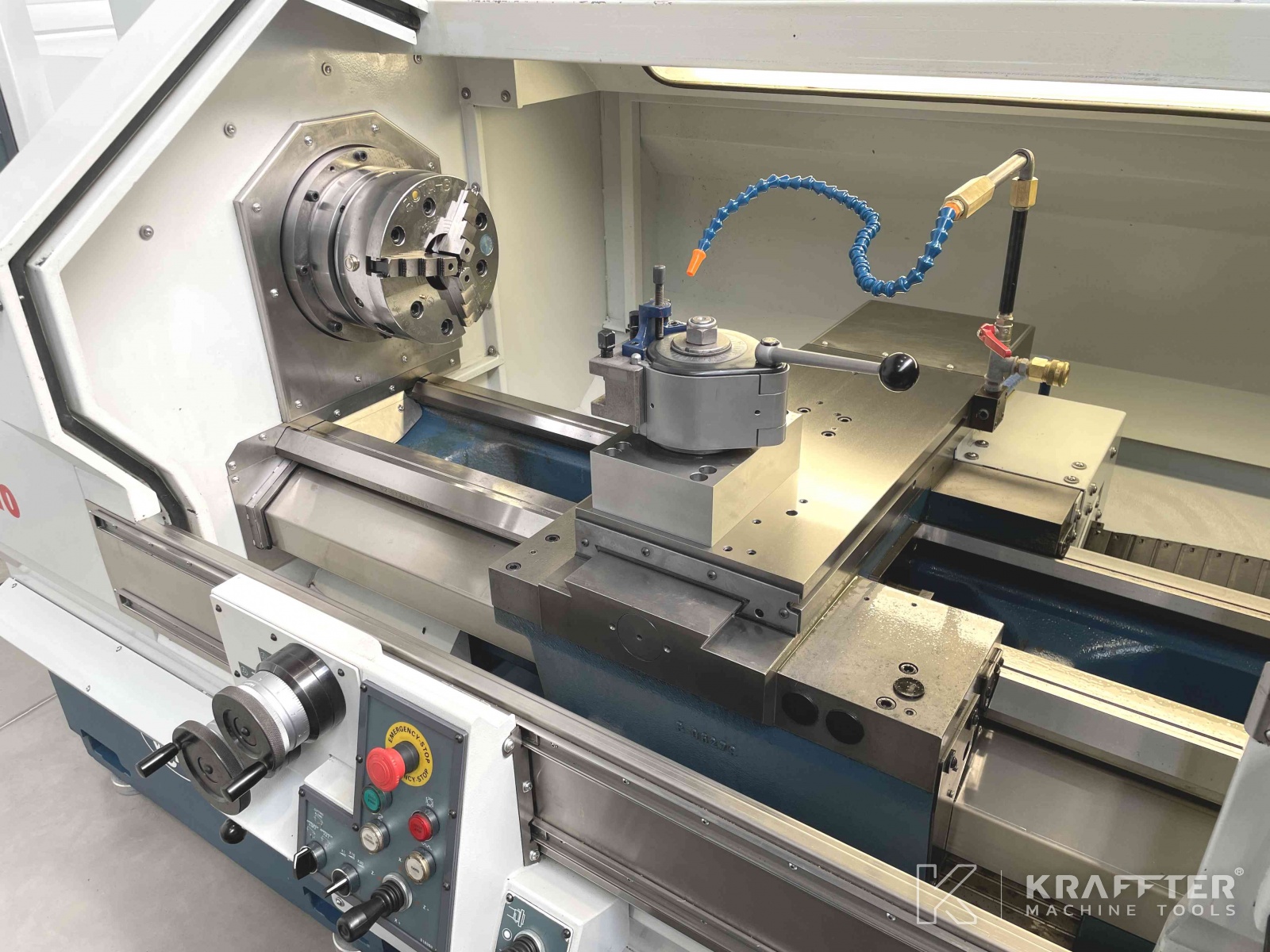

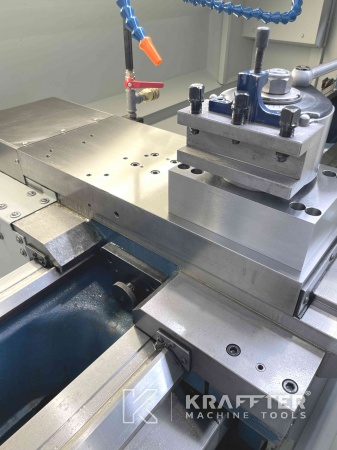

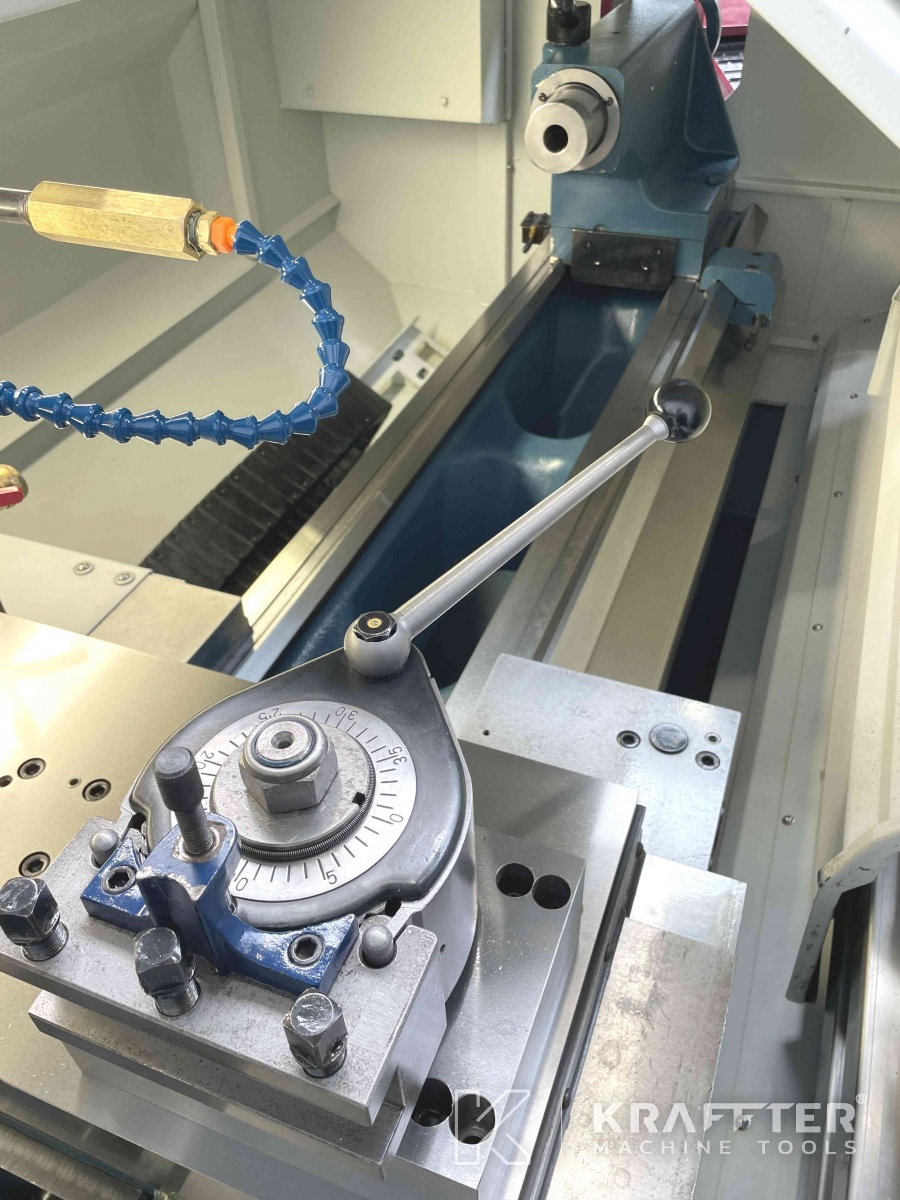

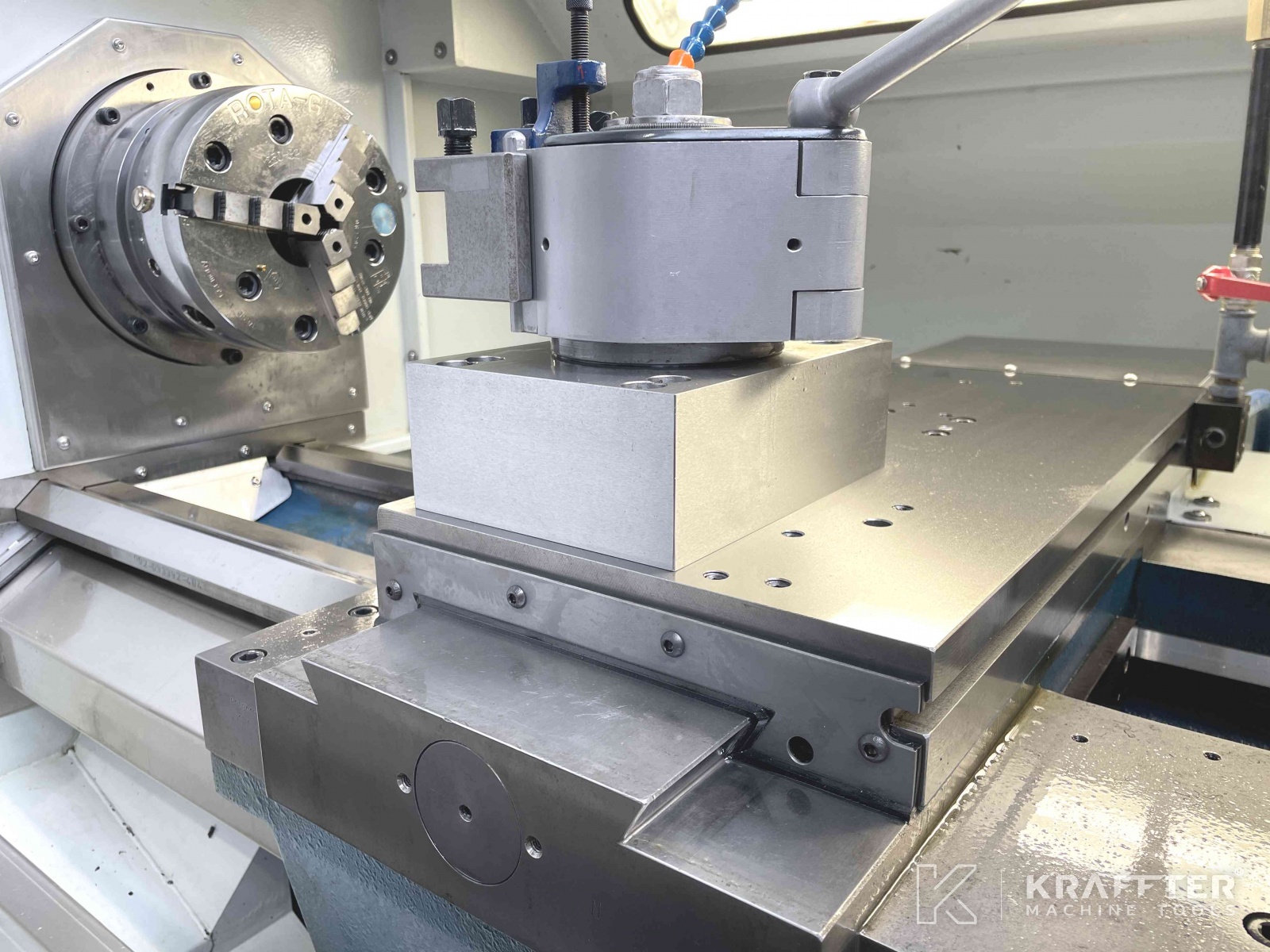

x1 quick clamping tool post type MULTIFIX

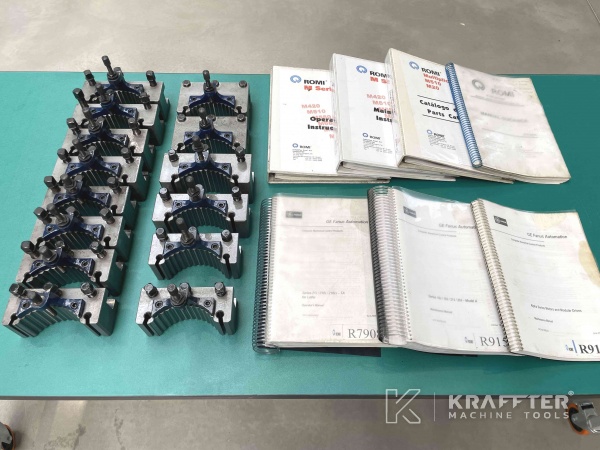

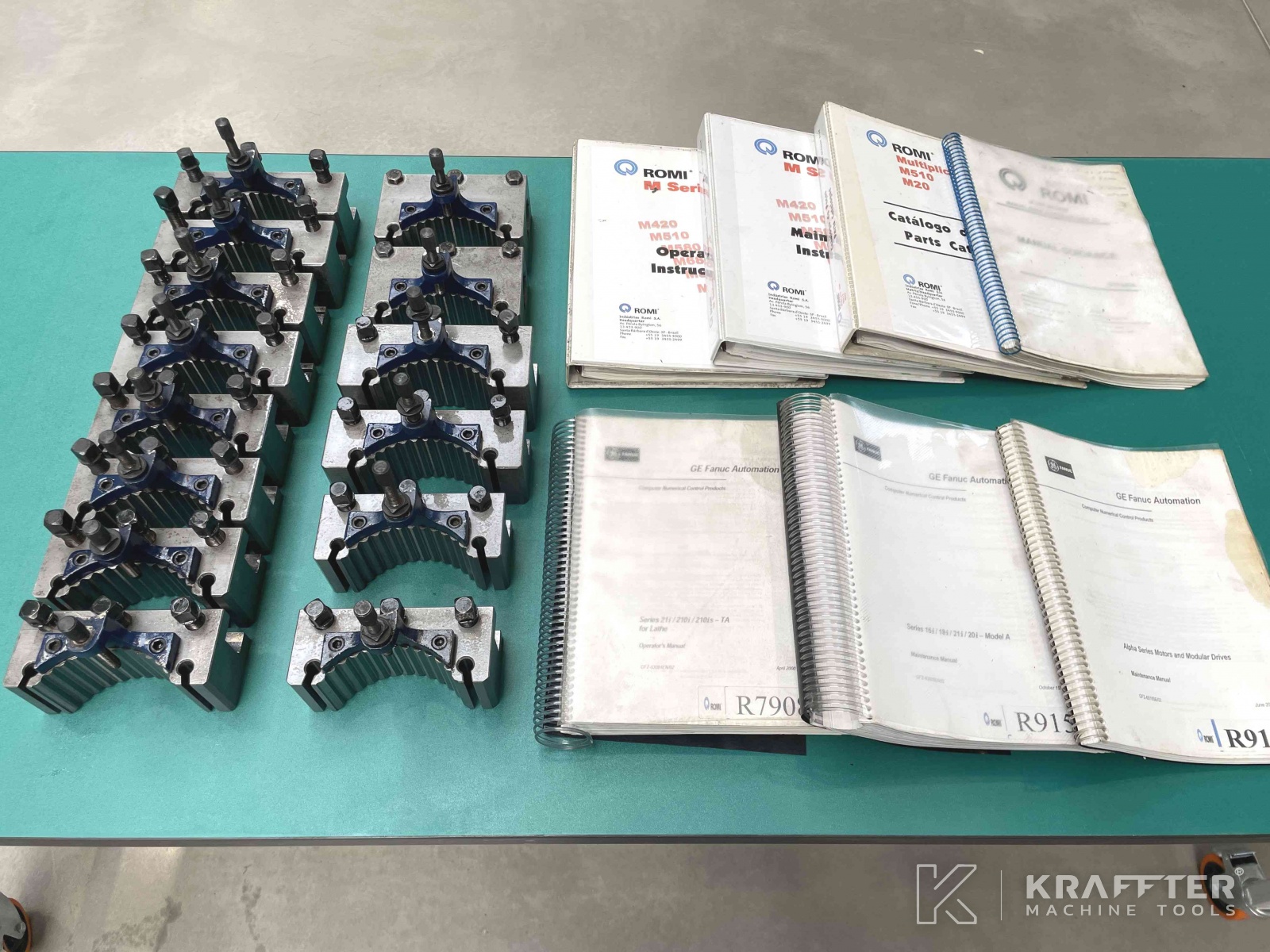

x14 tool holders type MULTIFIX
x1 Operation / instruction manual in English
x1 Maintenance / Instructions manual in English
x1 Spare Parts catalogue
