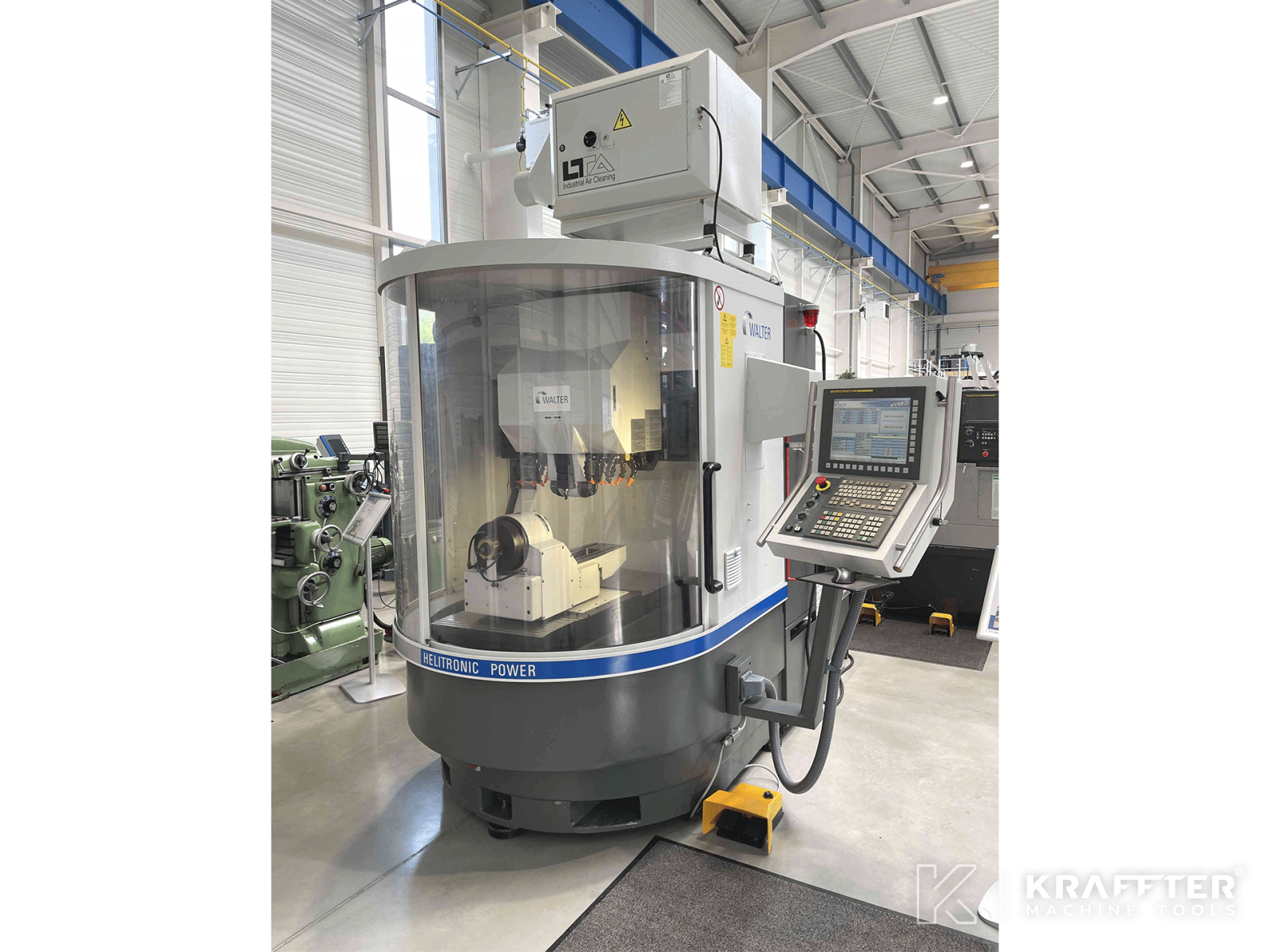

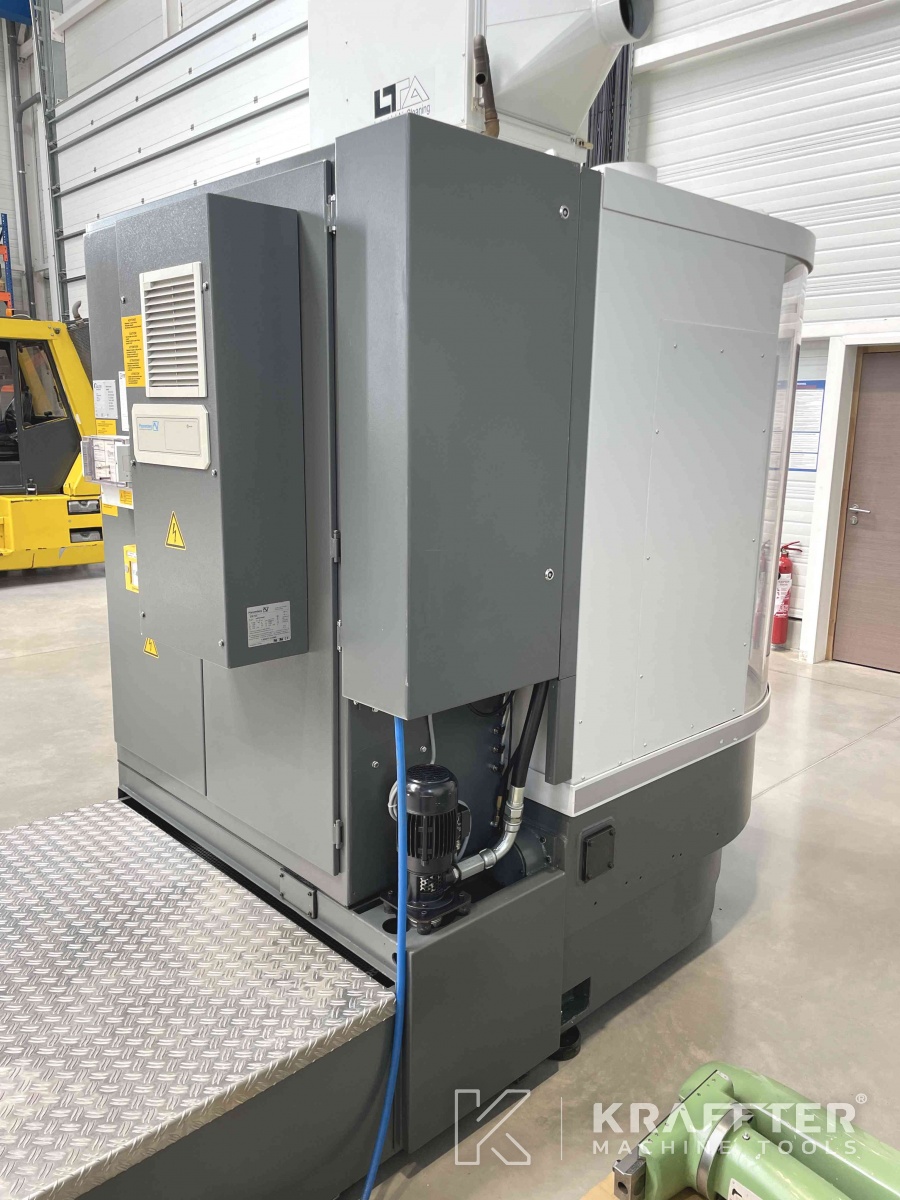

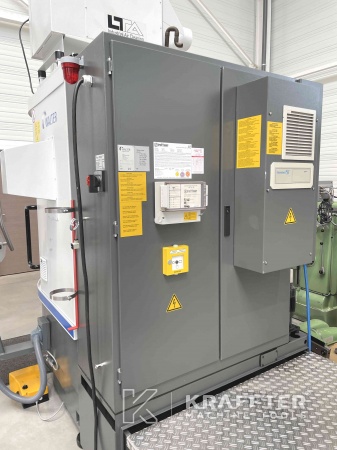

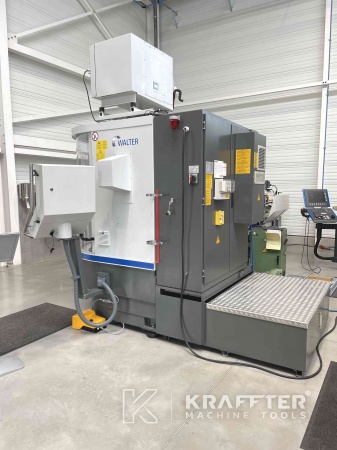

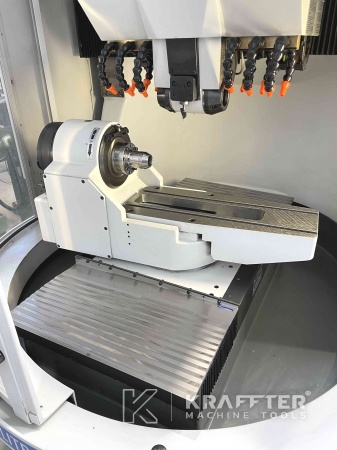

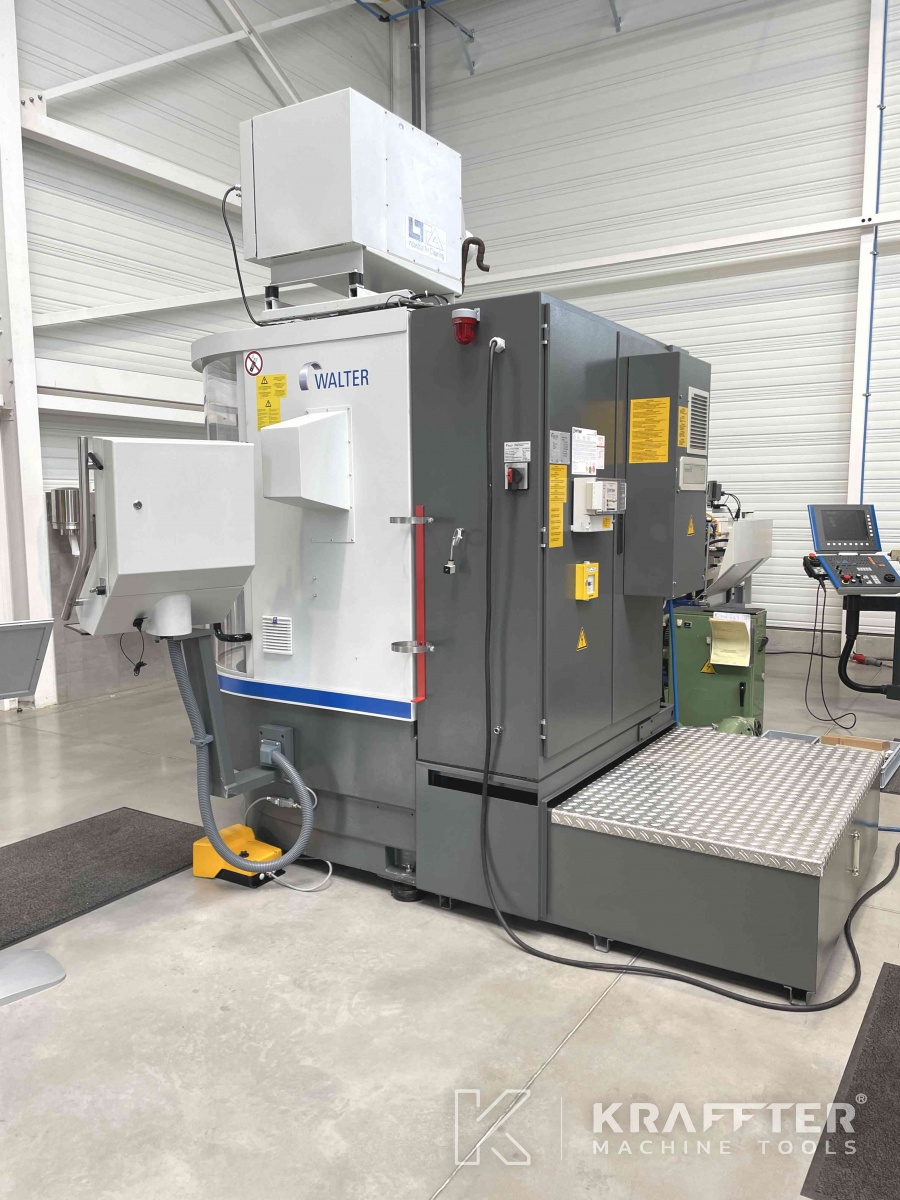

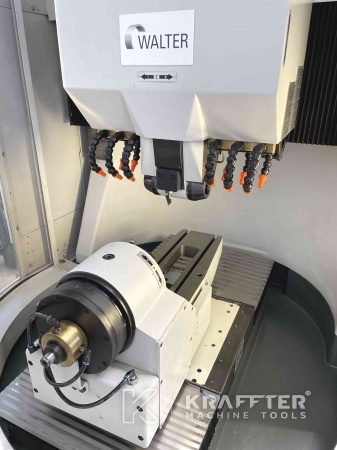

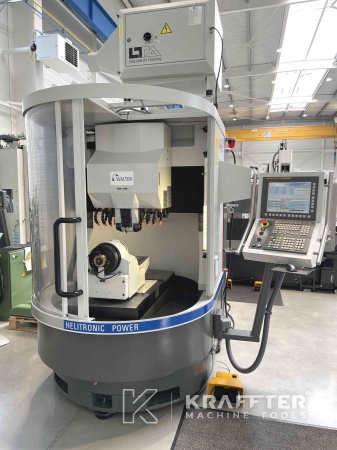

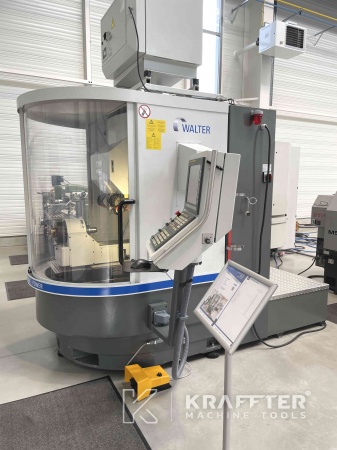

Type of machine : CNC tool grinding machine
Brand : WALTER
Stock N° : 90076
Model : Helitronic Power
Year : 2014
Location : 73240 St-Genix-les-Villages, FRANCE
Videos :
Technical characteristics
Additional information
Request a quotation

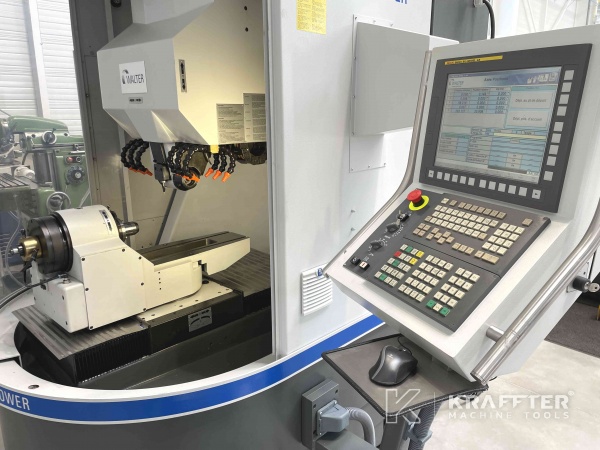

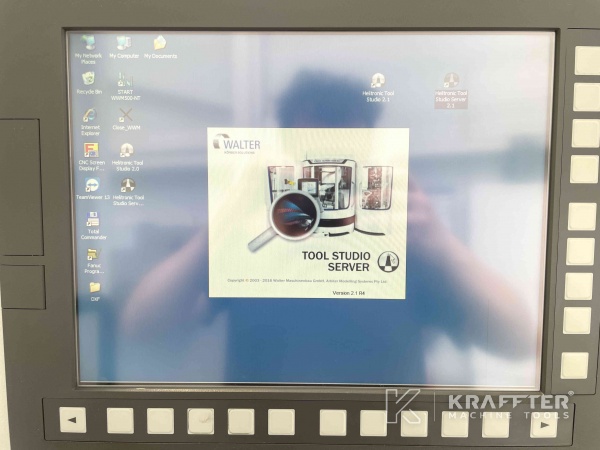

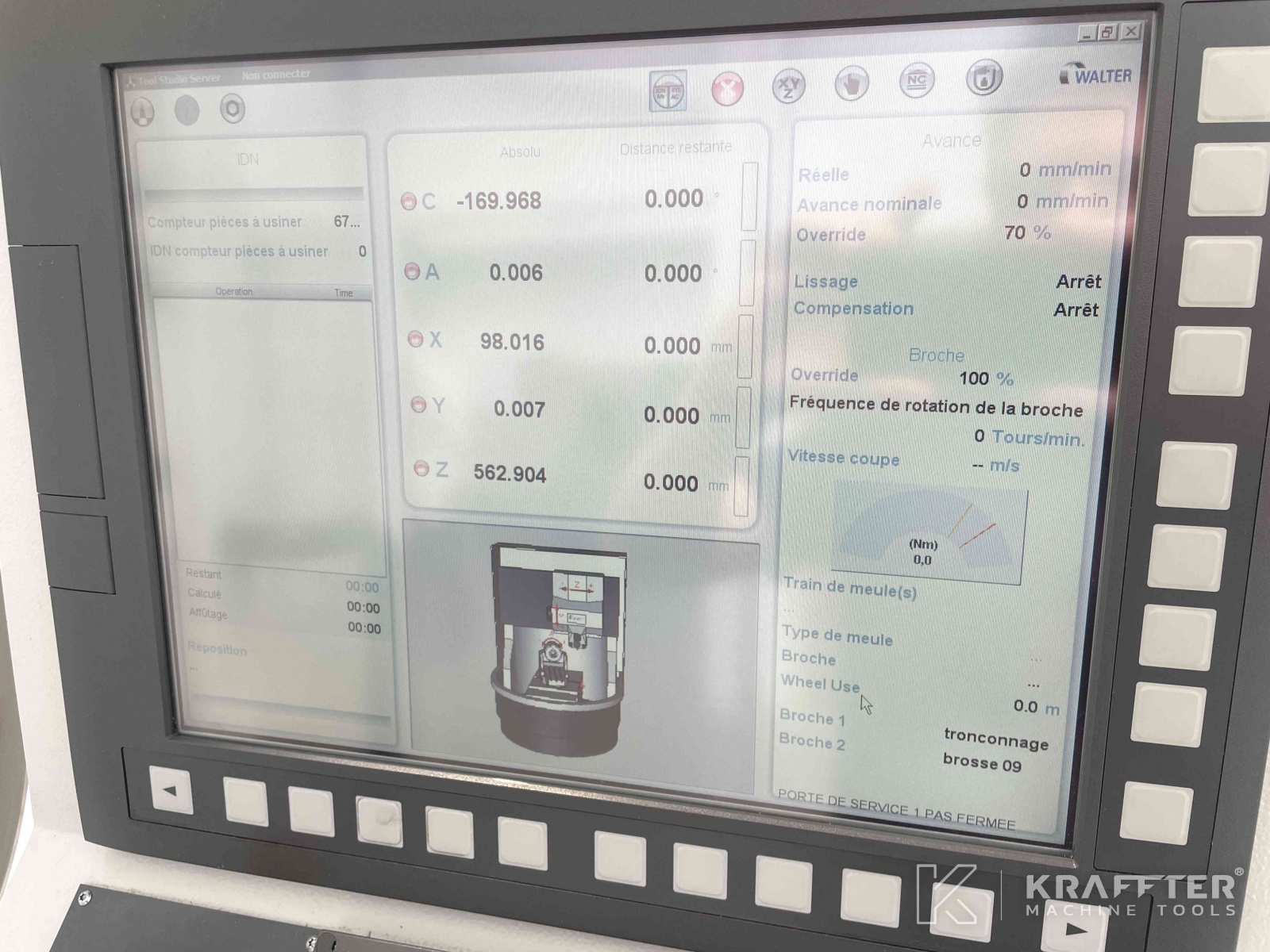

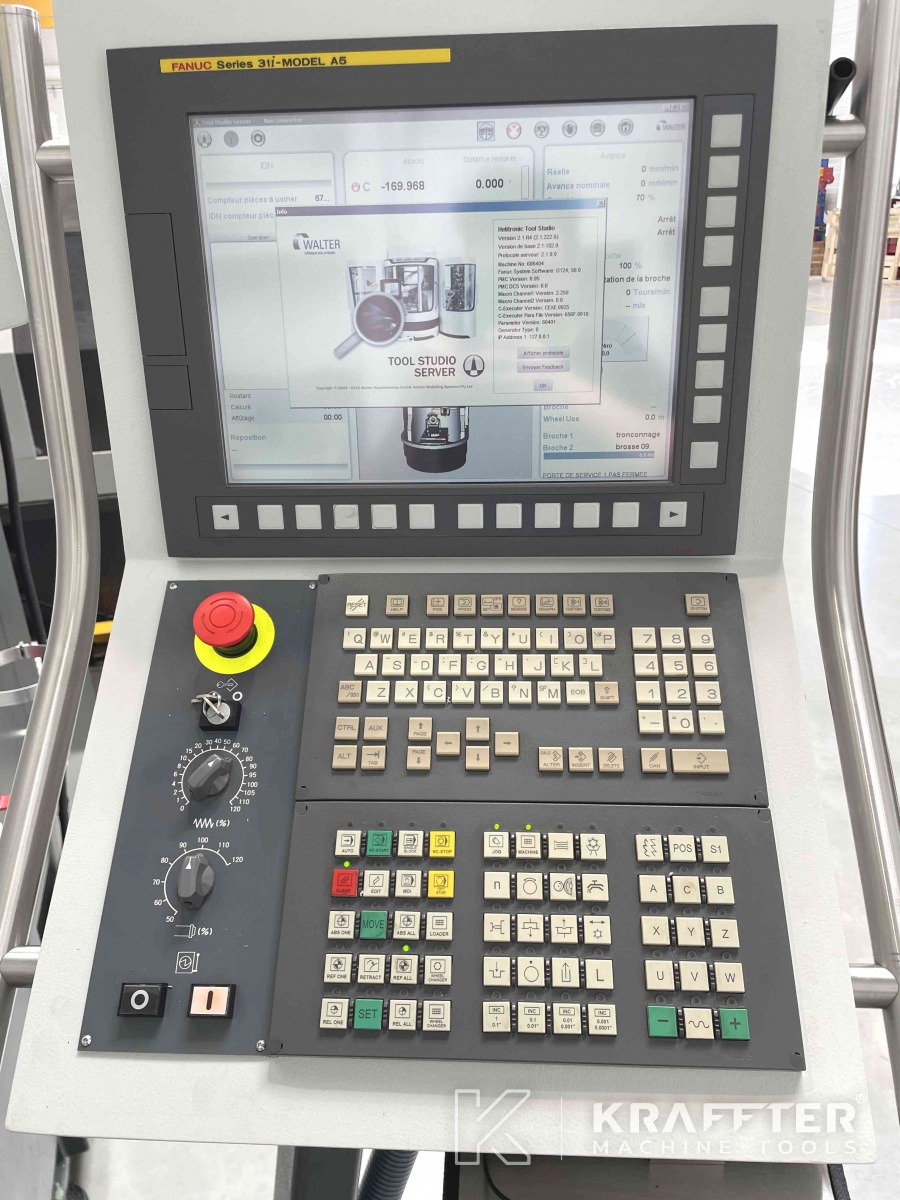

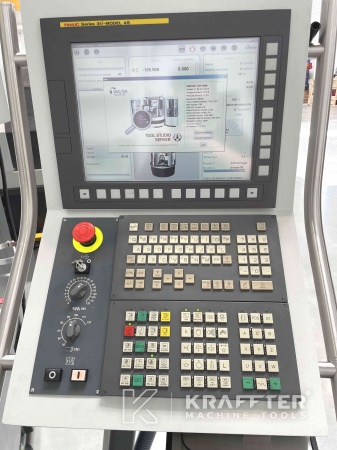

CNC control
FANUC 31i - MODEL A5

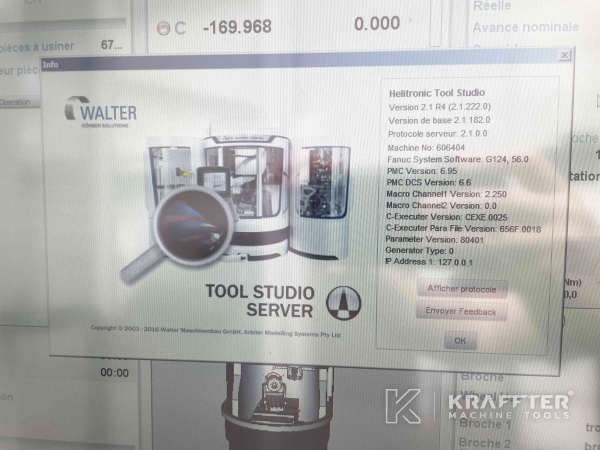

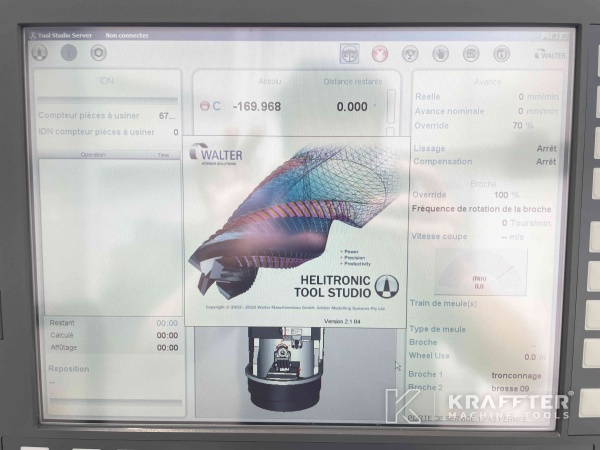

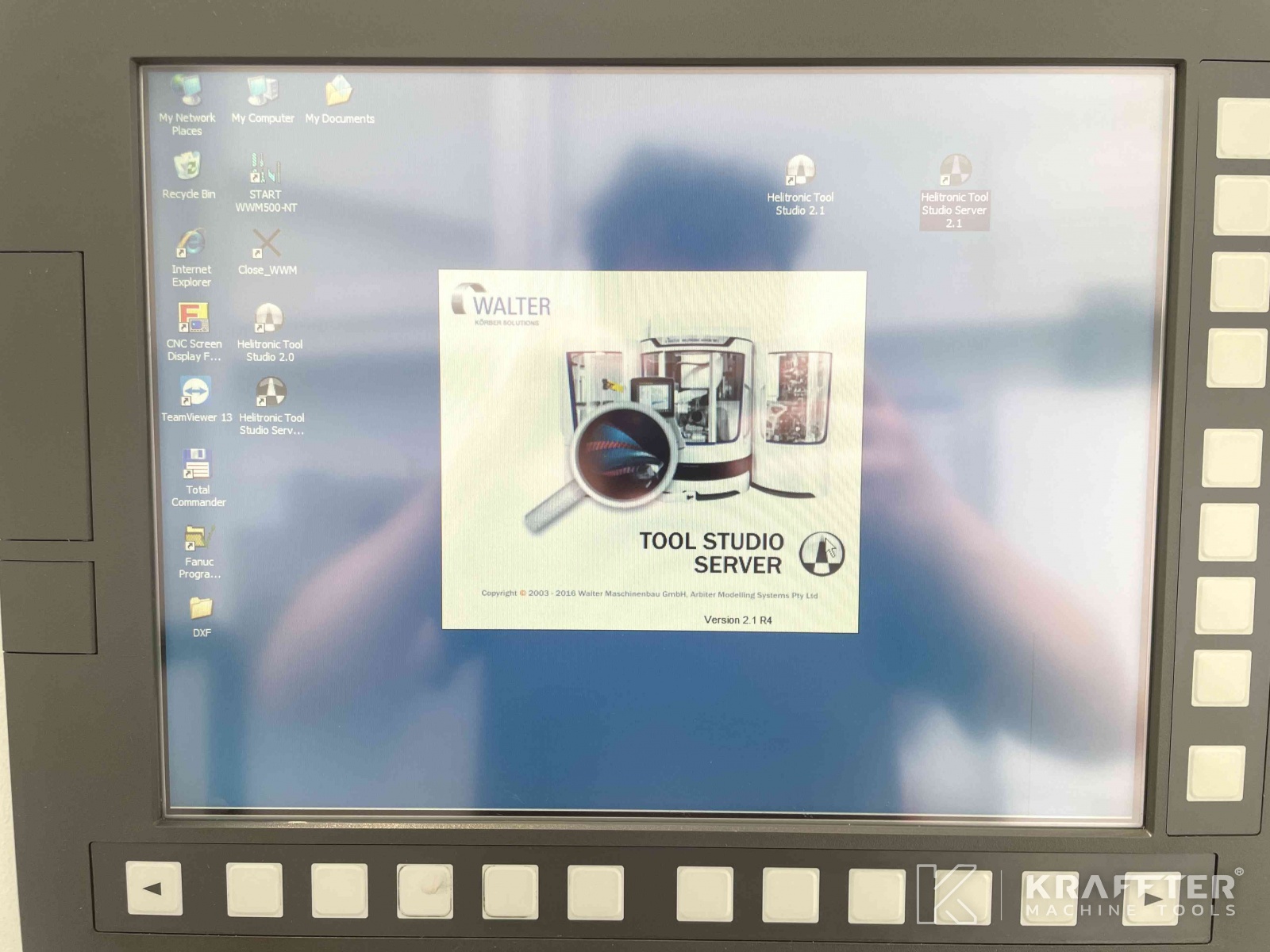

Software installed
Helitronic Tool Studio 2.1 R4 (2.1.222.0)
Colour touchscreen
Yes
Number of axes
5
Height of centers
130 [mm]
Stroke X axis
400 [mm]
Stroke Y axis
280 [mm]
Stroke Z axis
580 [mm]
A axis
360 [°]
Max. grinding diameter
190 [mm]
Grinding wheel speed
3000 / 6000 [rpm]
Grinding spindle motor power
4.2 [kW]
Max. diameter grinding wheel
200 [mm]

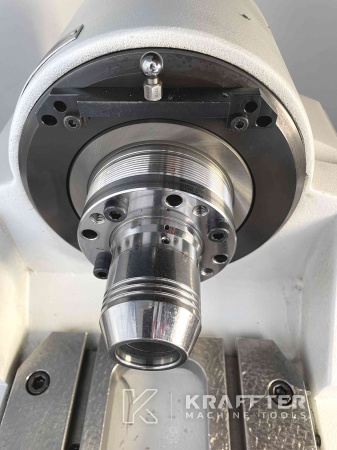

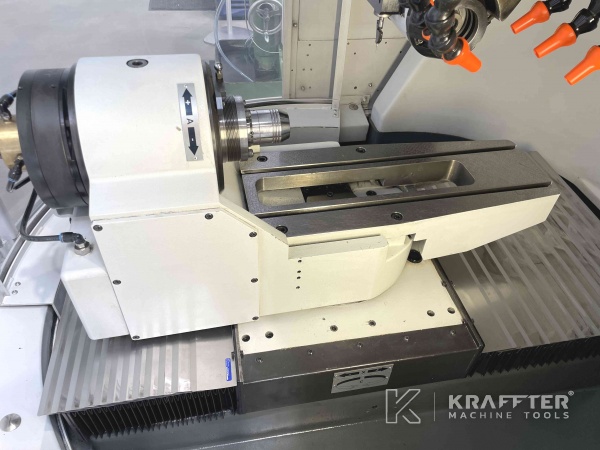

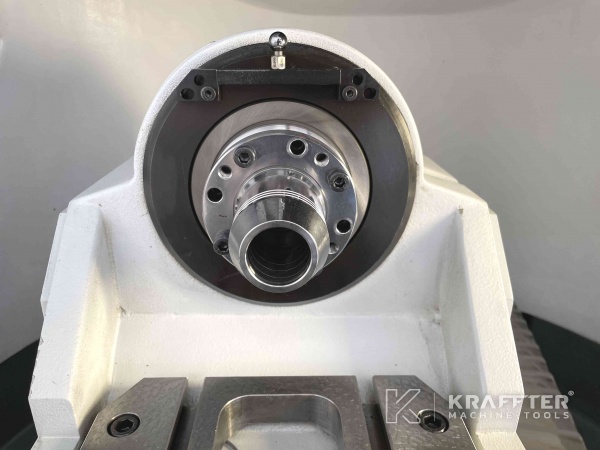

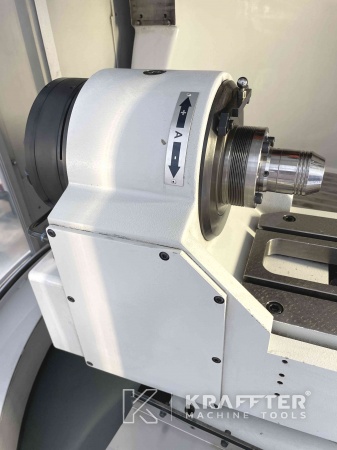

Workpiece spindle nose
ISO 50
Coolant pump pressure
3 [bars]
Collant pump flow rate
60 [l/min]

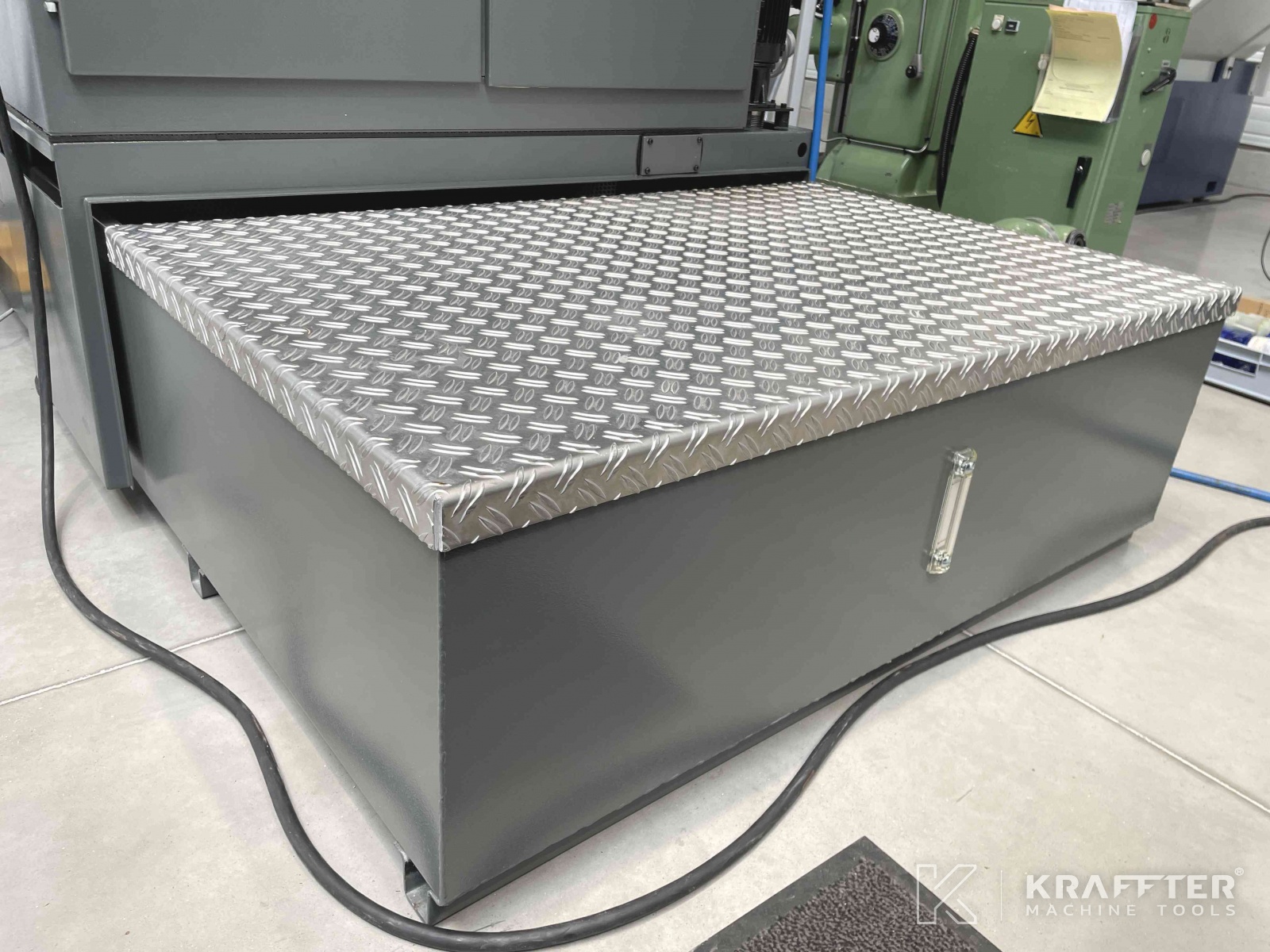

Lubrication tank capacity
180 [l]

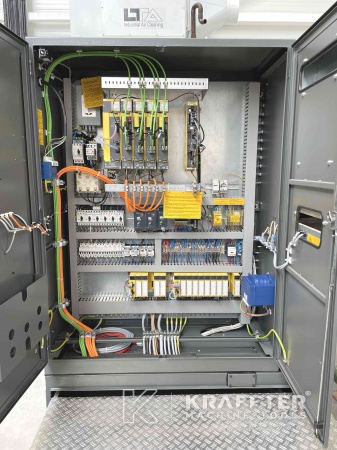

Supply voltage
400 [V]
Total power required
15 [kVA]
Weight
3100 [Kg]

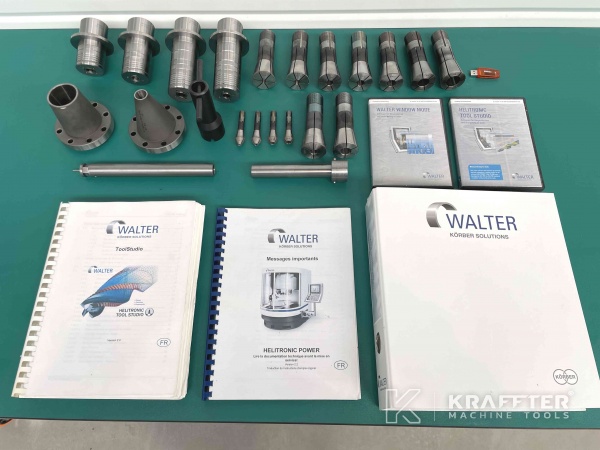

EQUIPMENT INCLUded:
x1 SCHUNK collet holder
x2 collet holders
x1 set of NANN collets Ø 8 - 10 - 12 - 14 - 16 - 20 - 25 [mm]
x1 set of NANN collets Ø 1/2" - 3/4"
x1 wheel flange short 92108271
x1 wheel flange medium 92108272
x2 wheel flanges long 92108273
x1installation CD - WALTER WINDOW MODE
x1 installation CD - TOOL STUDIO 2.0
x1 Instructions book
x1 TOOL STUDIO manual
