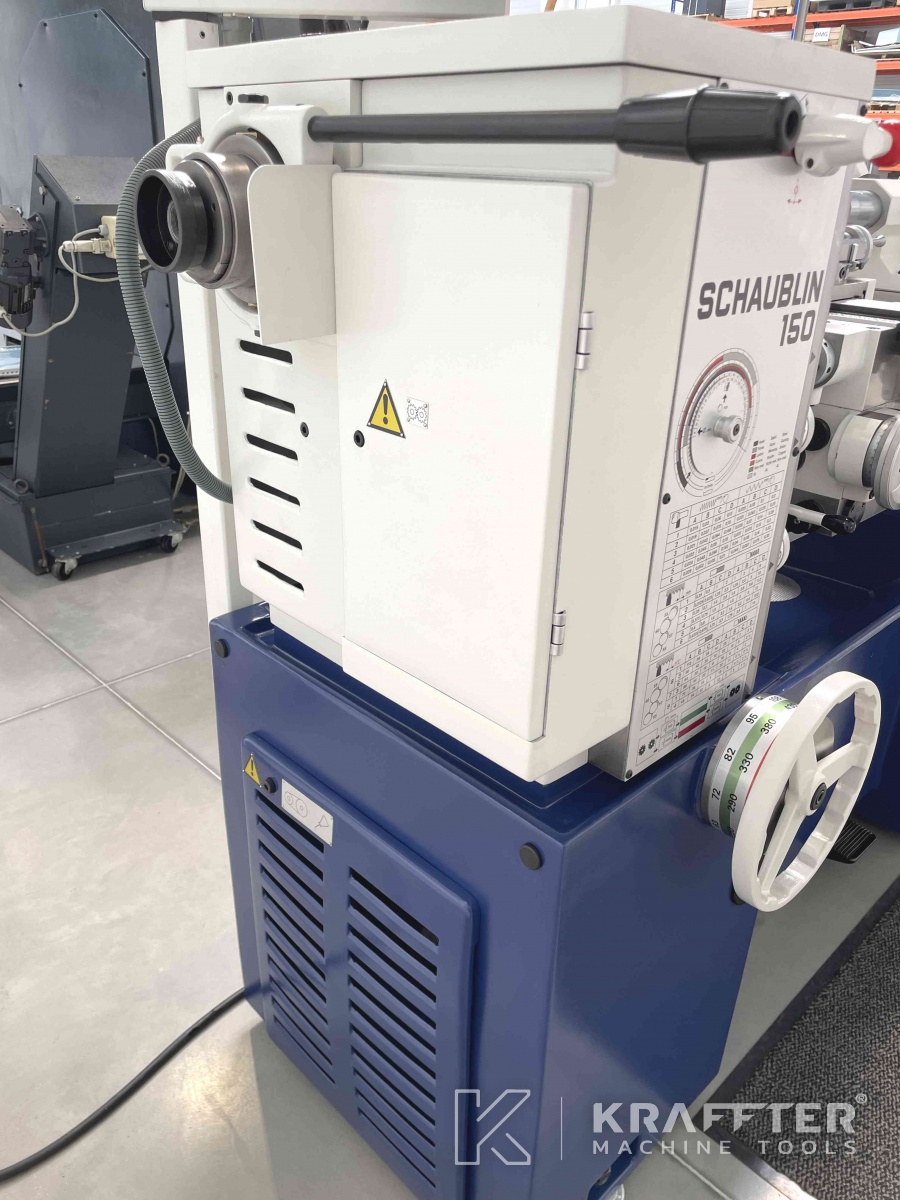

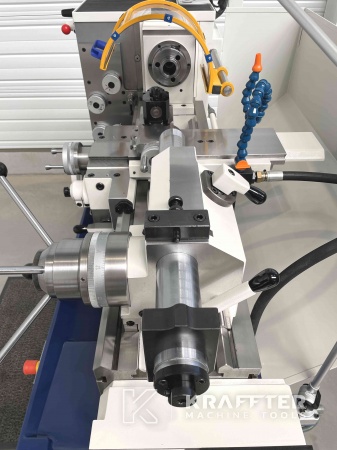

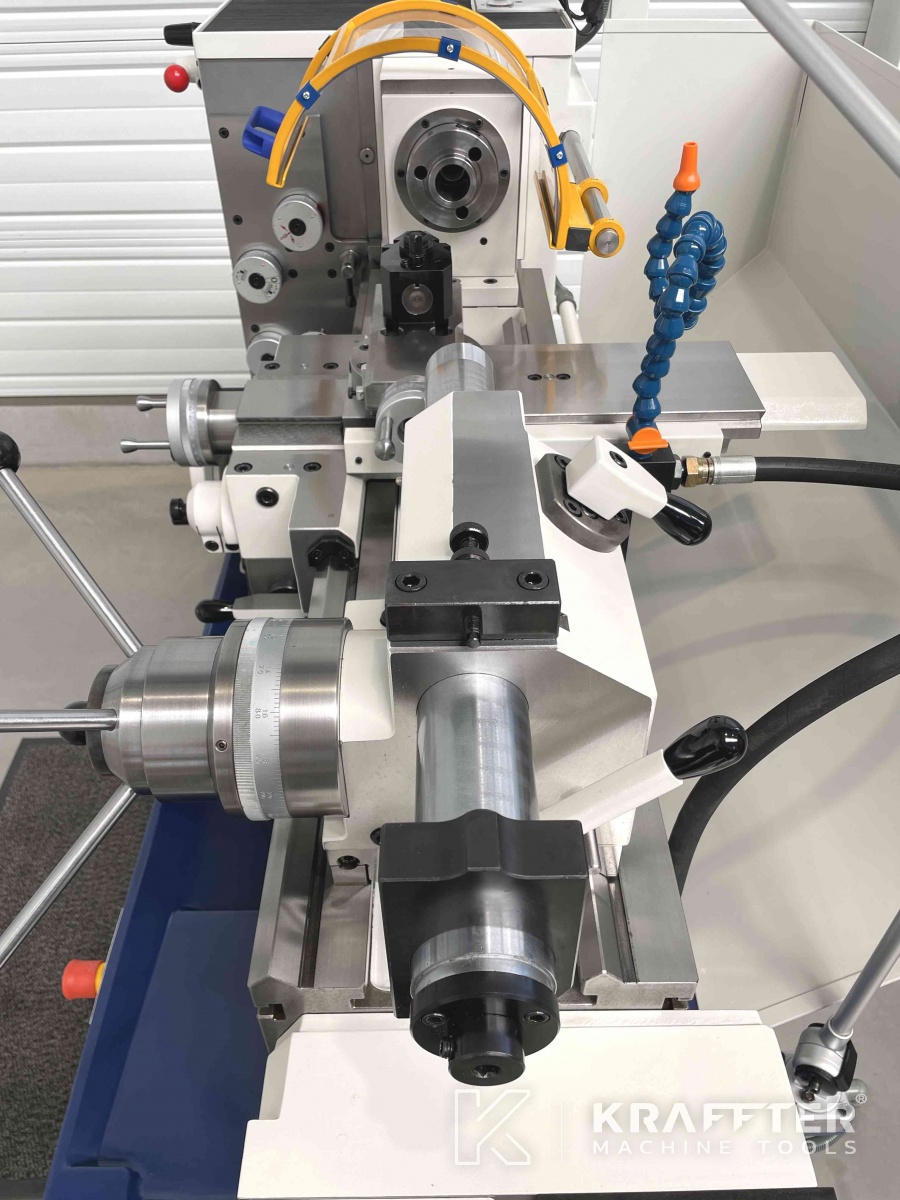

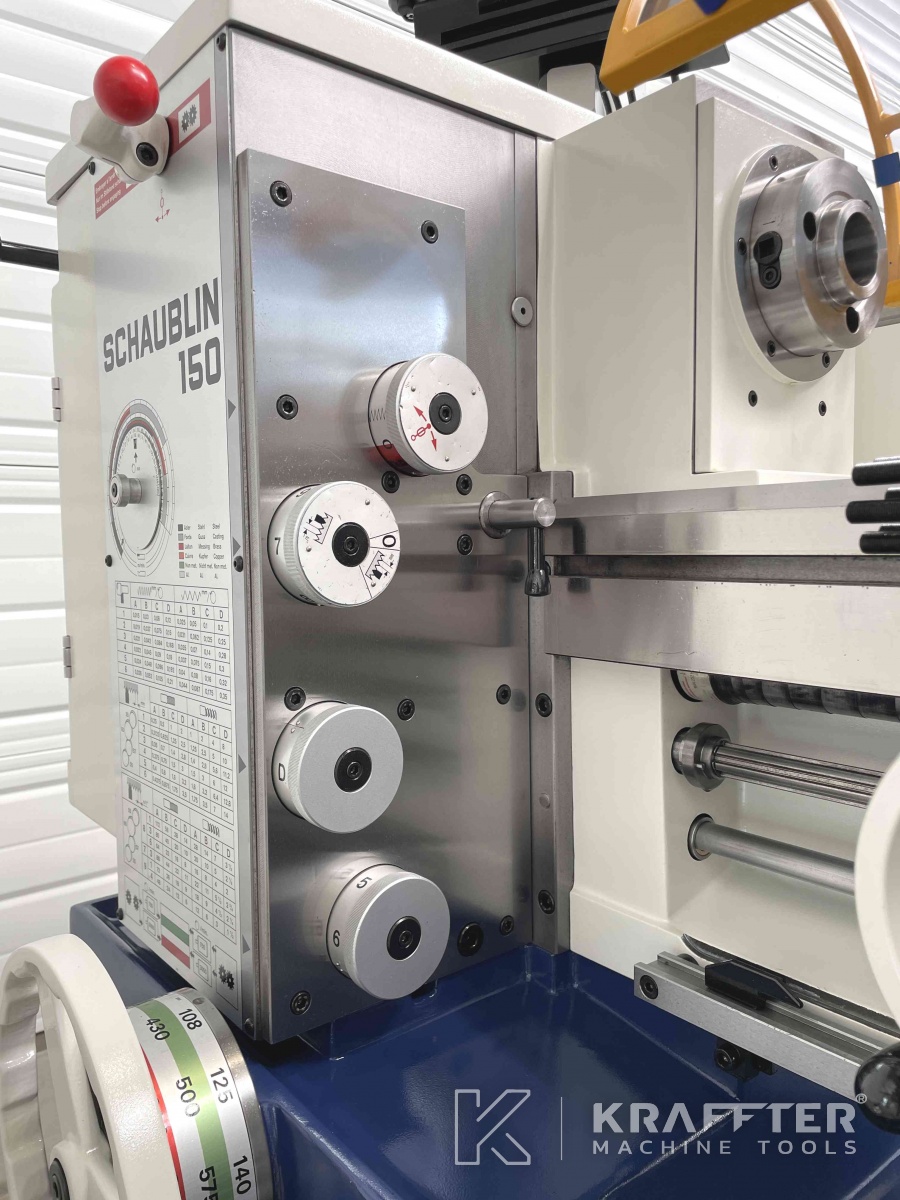

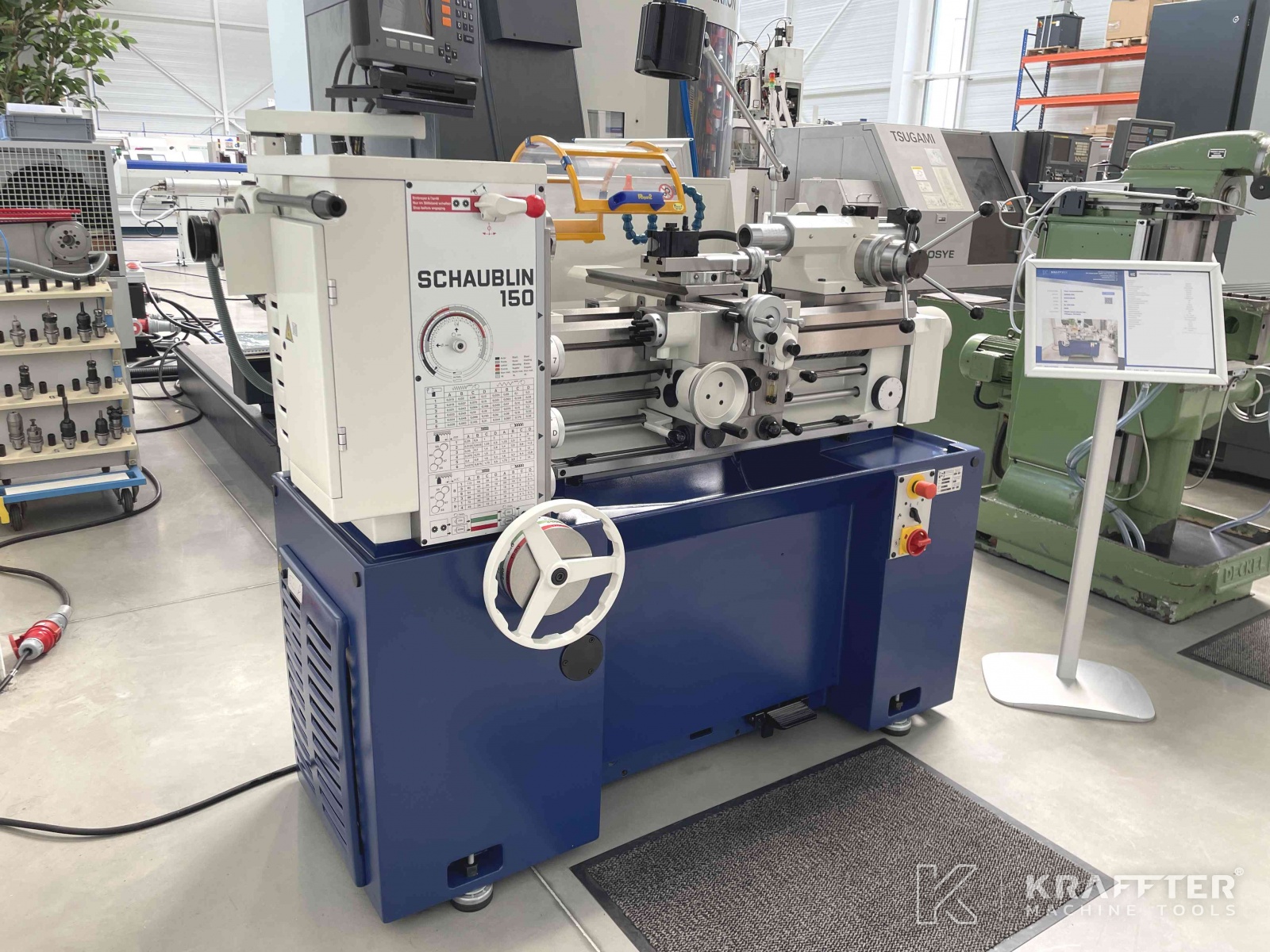

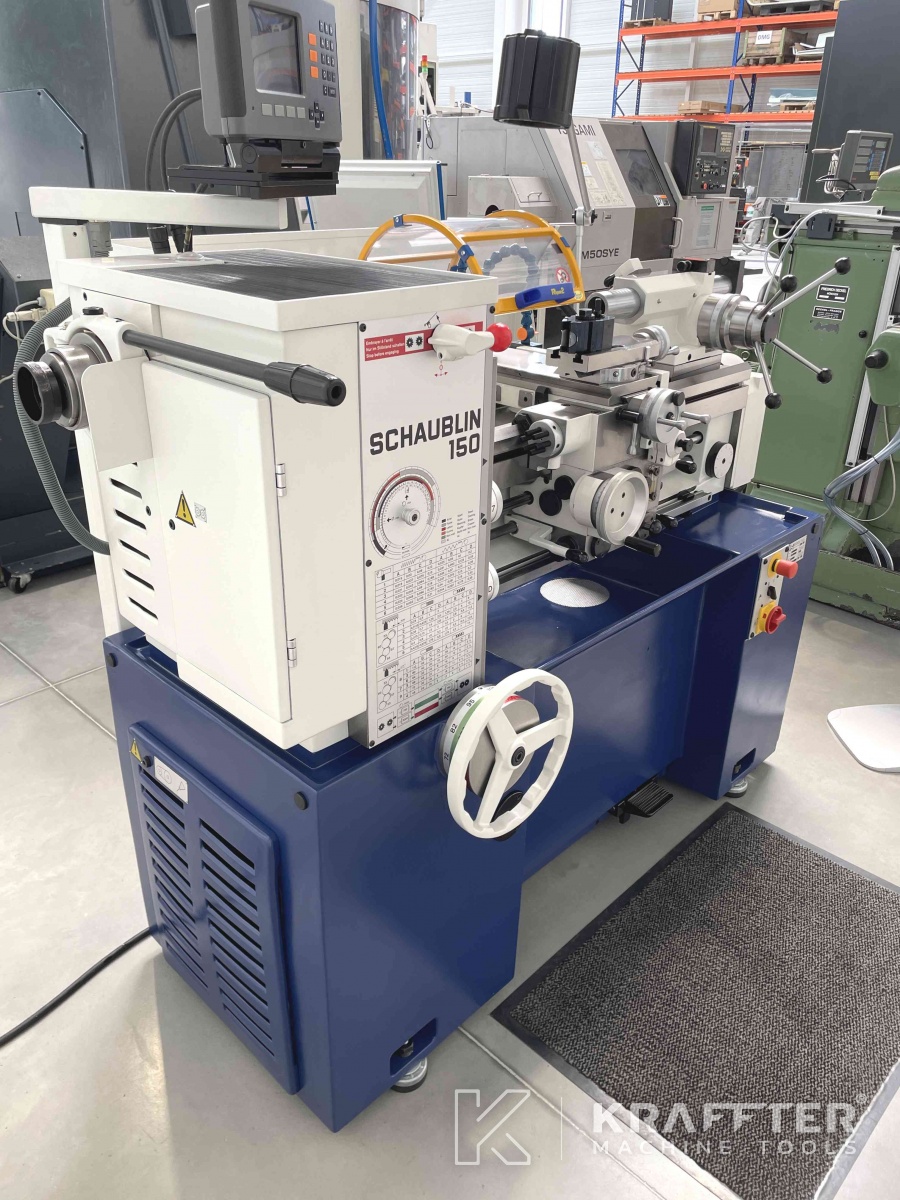

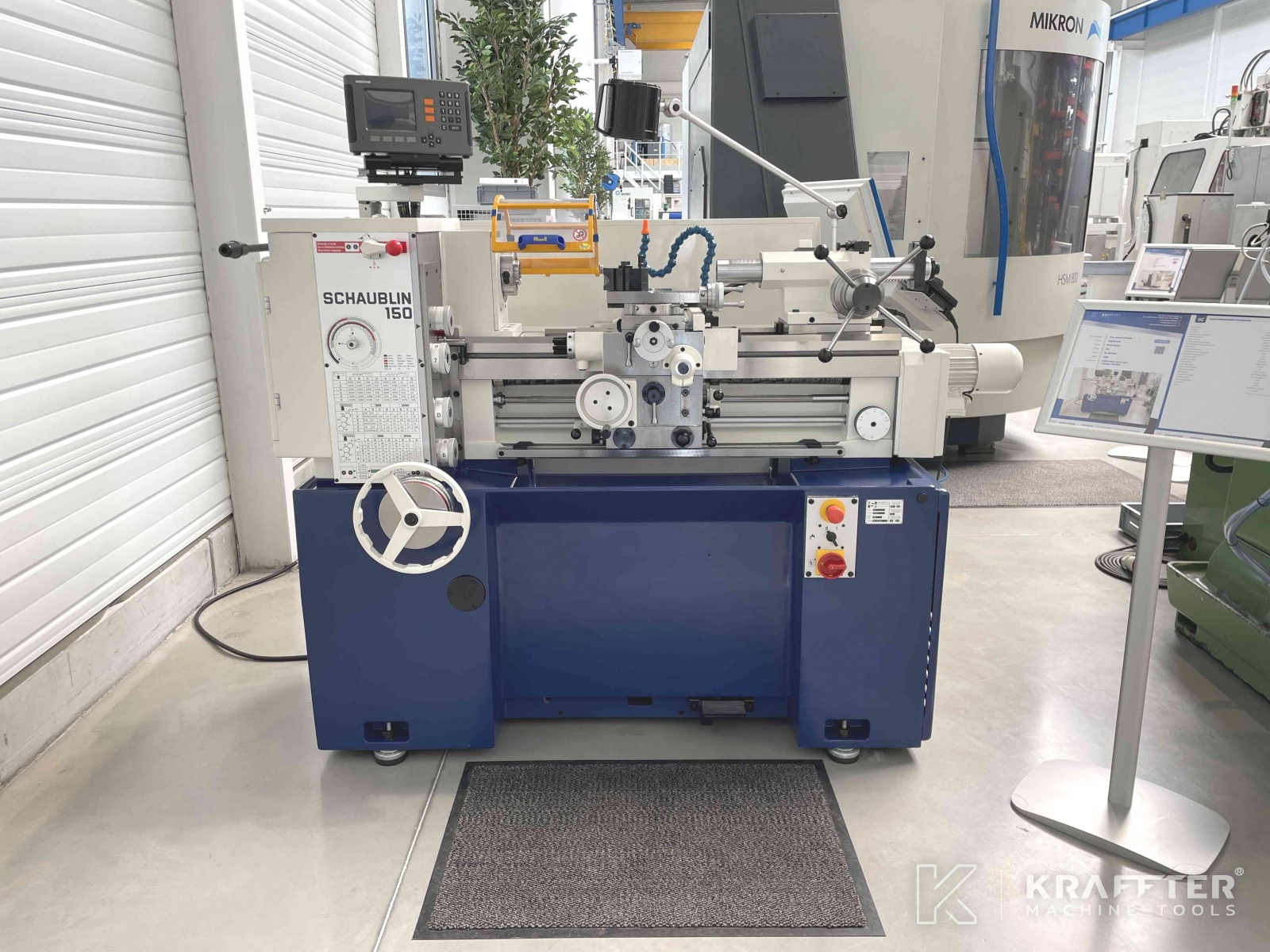

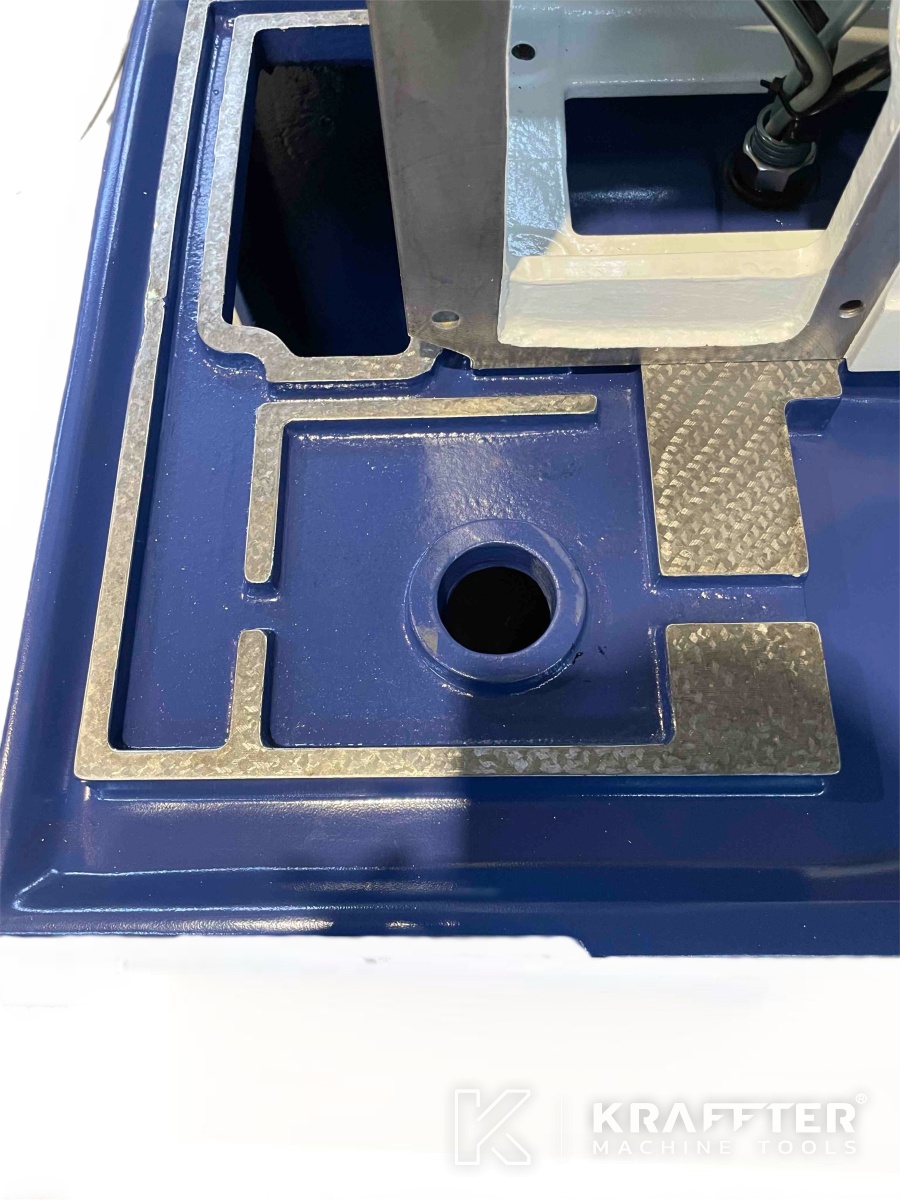

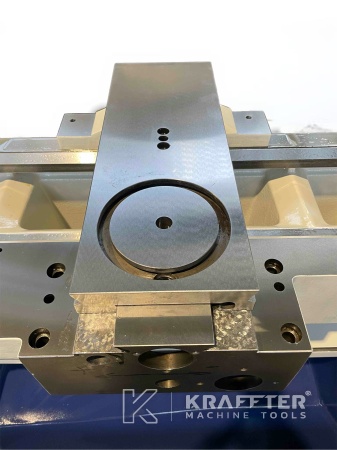

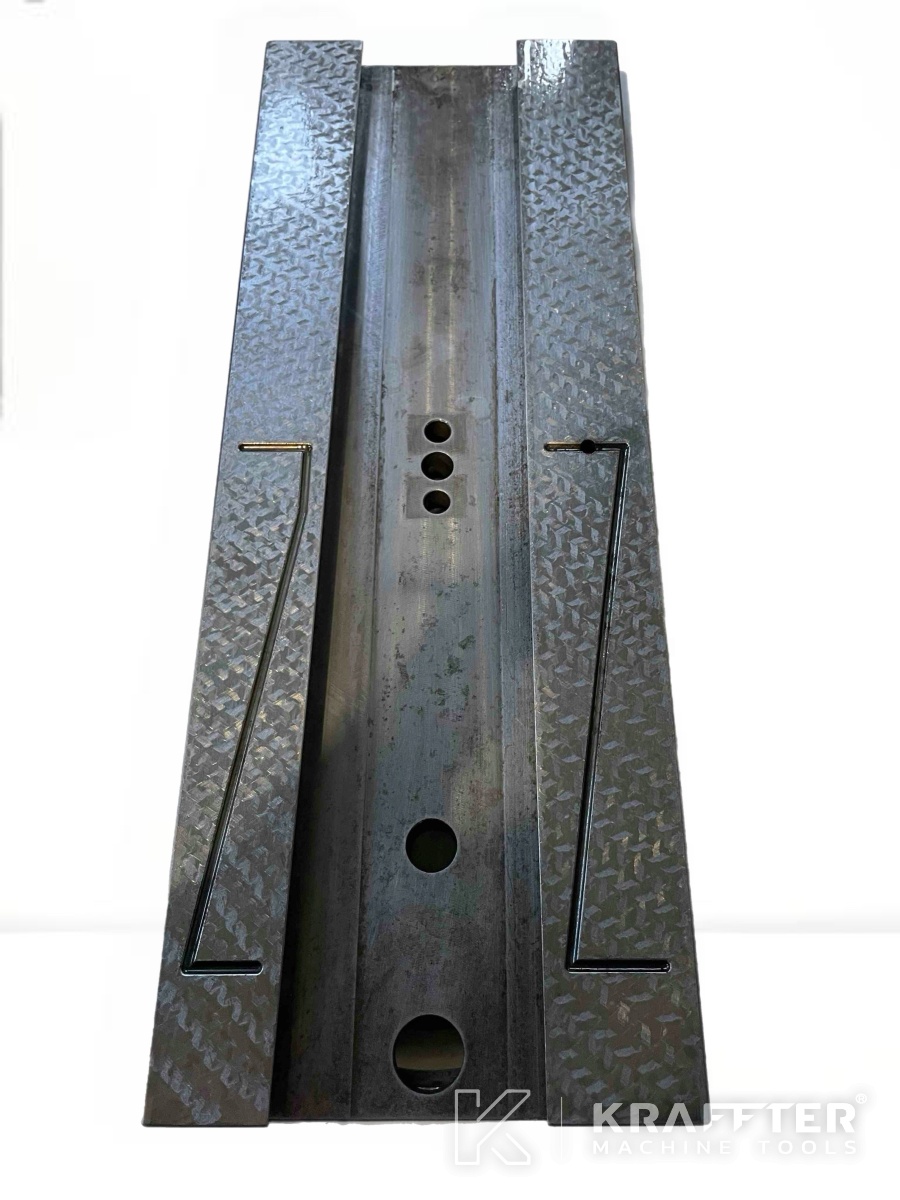

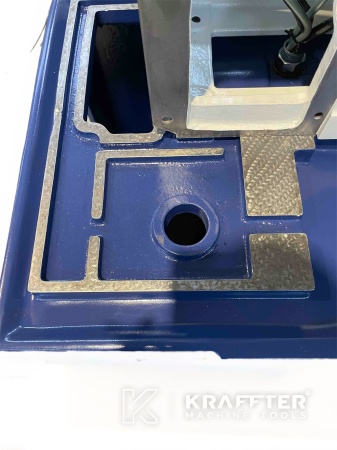

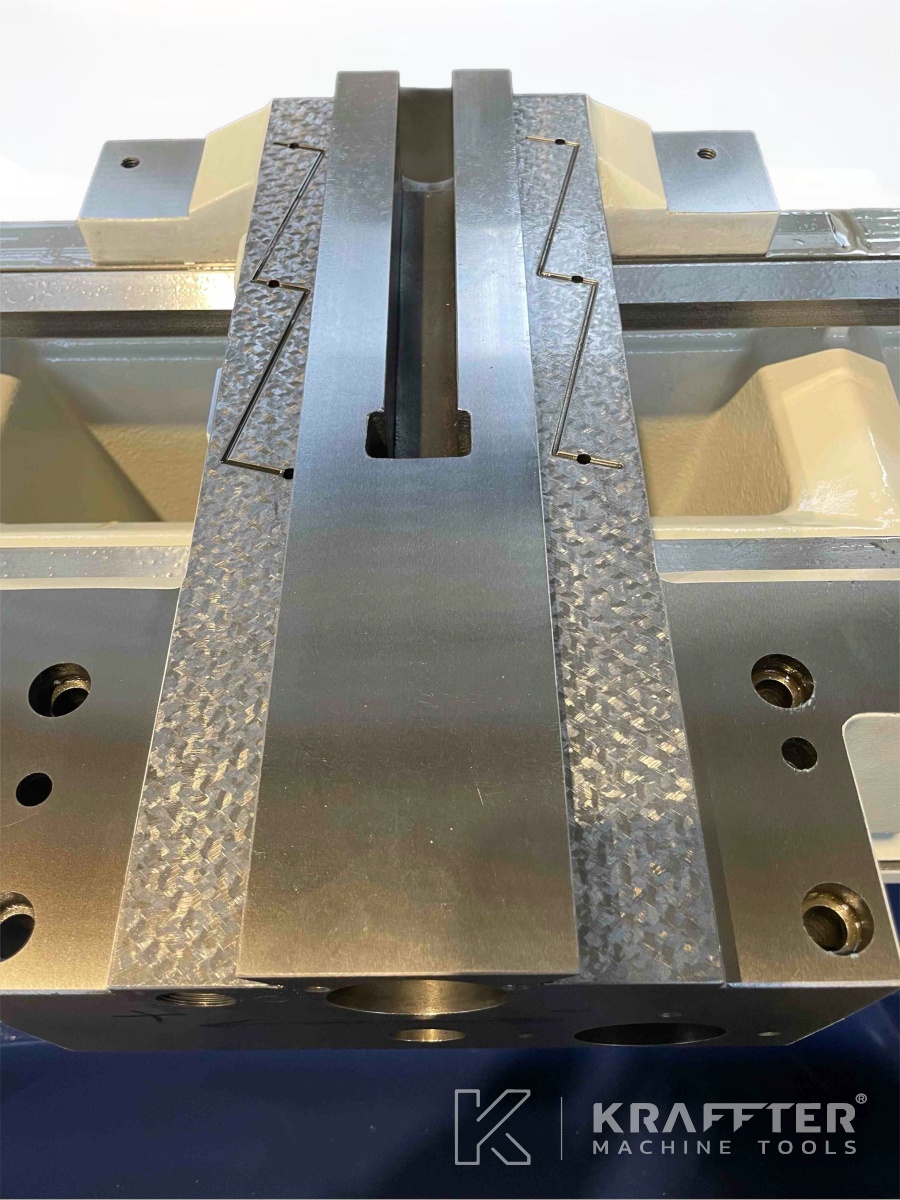

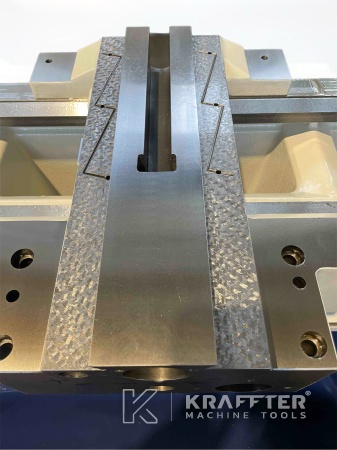

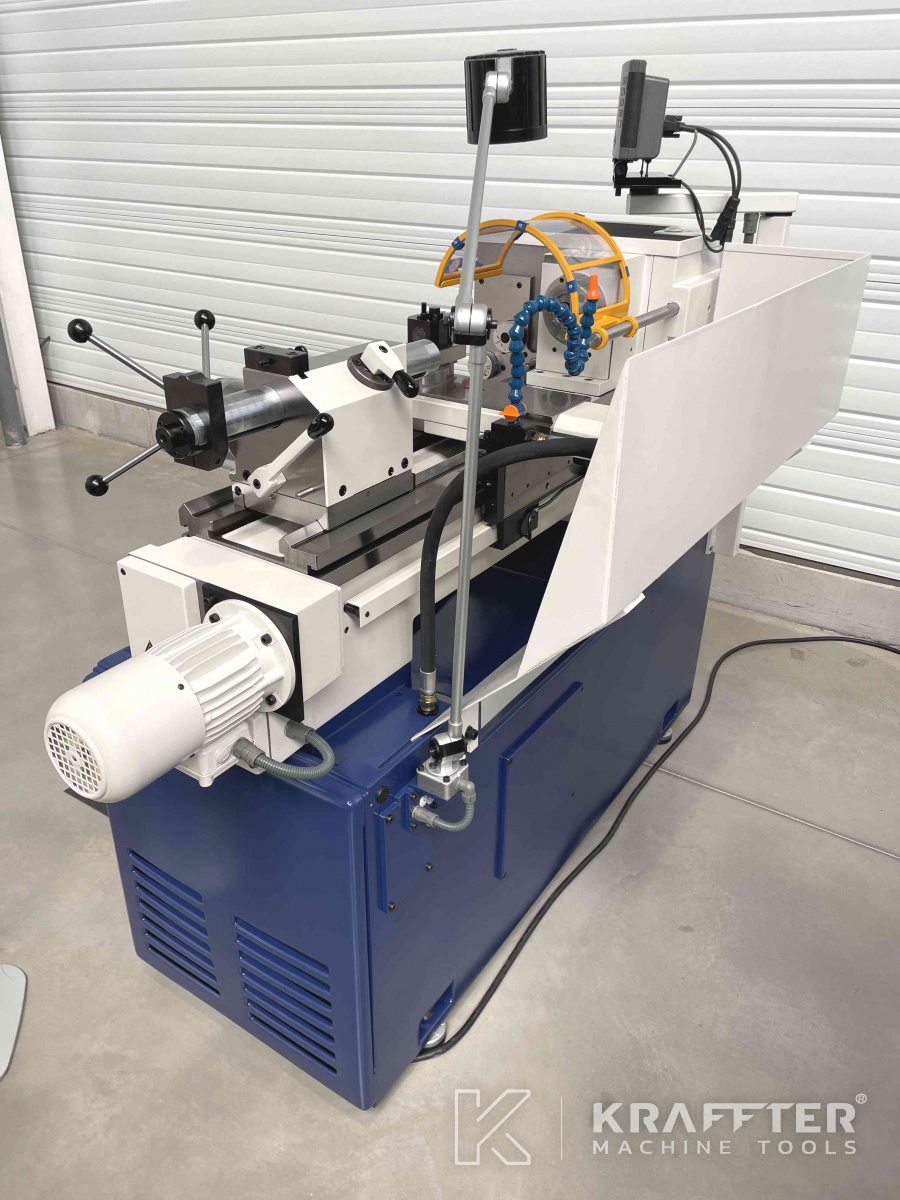

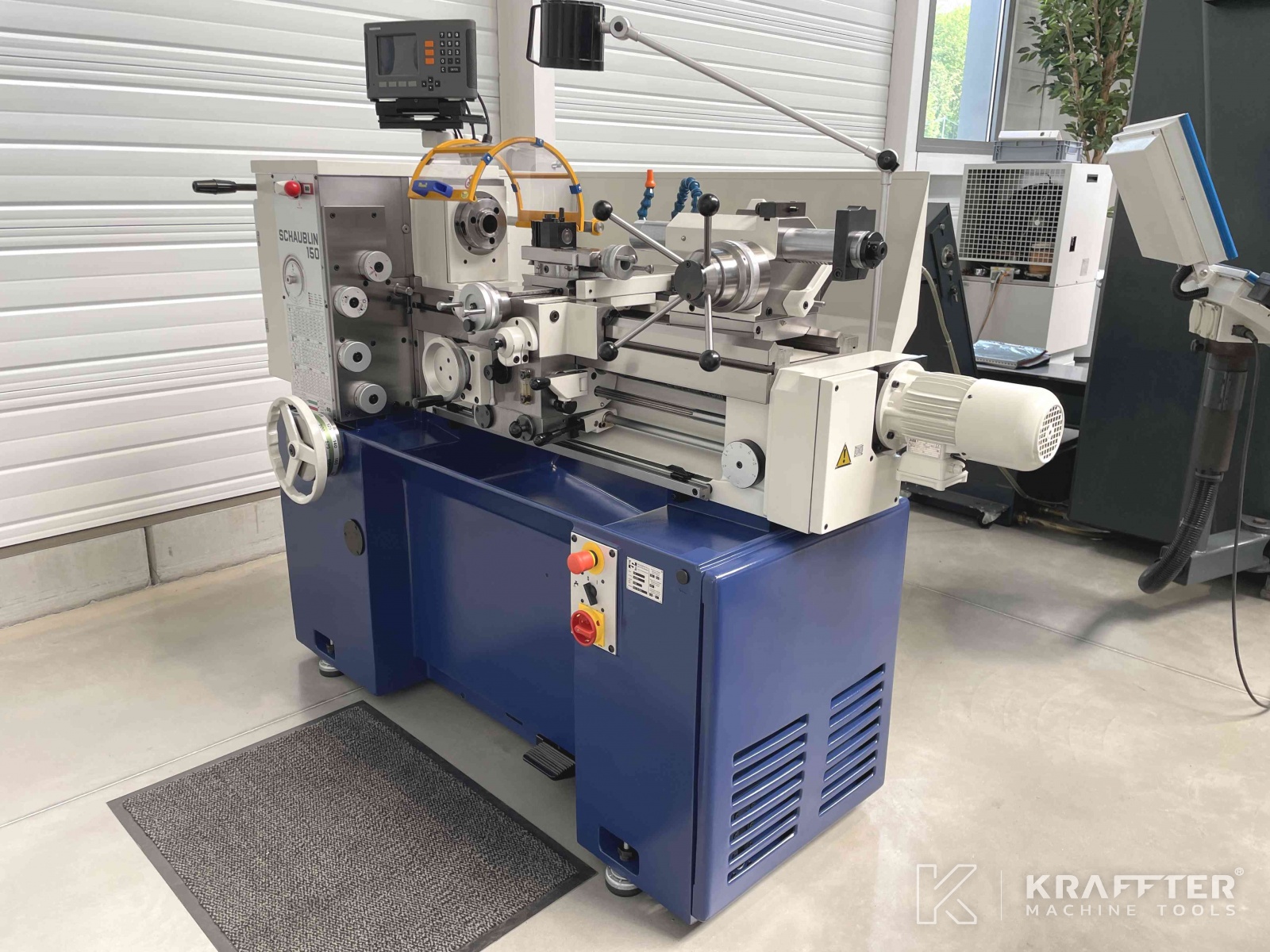

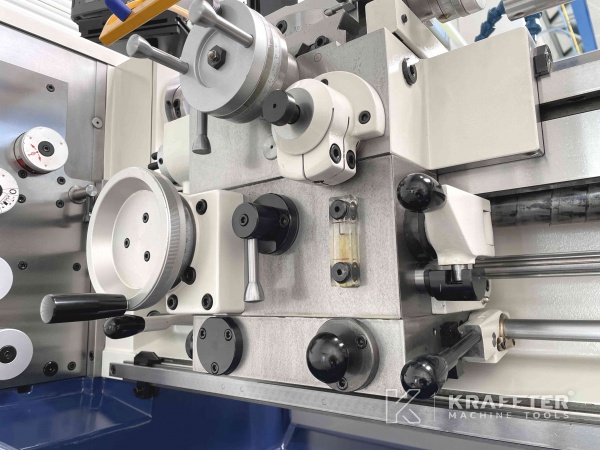

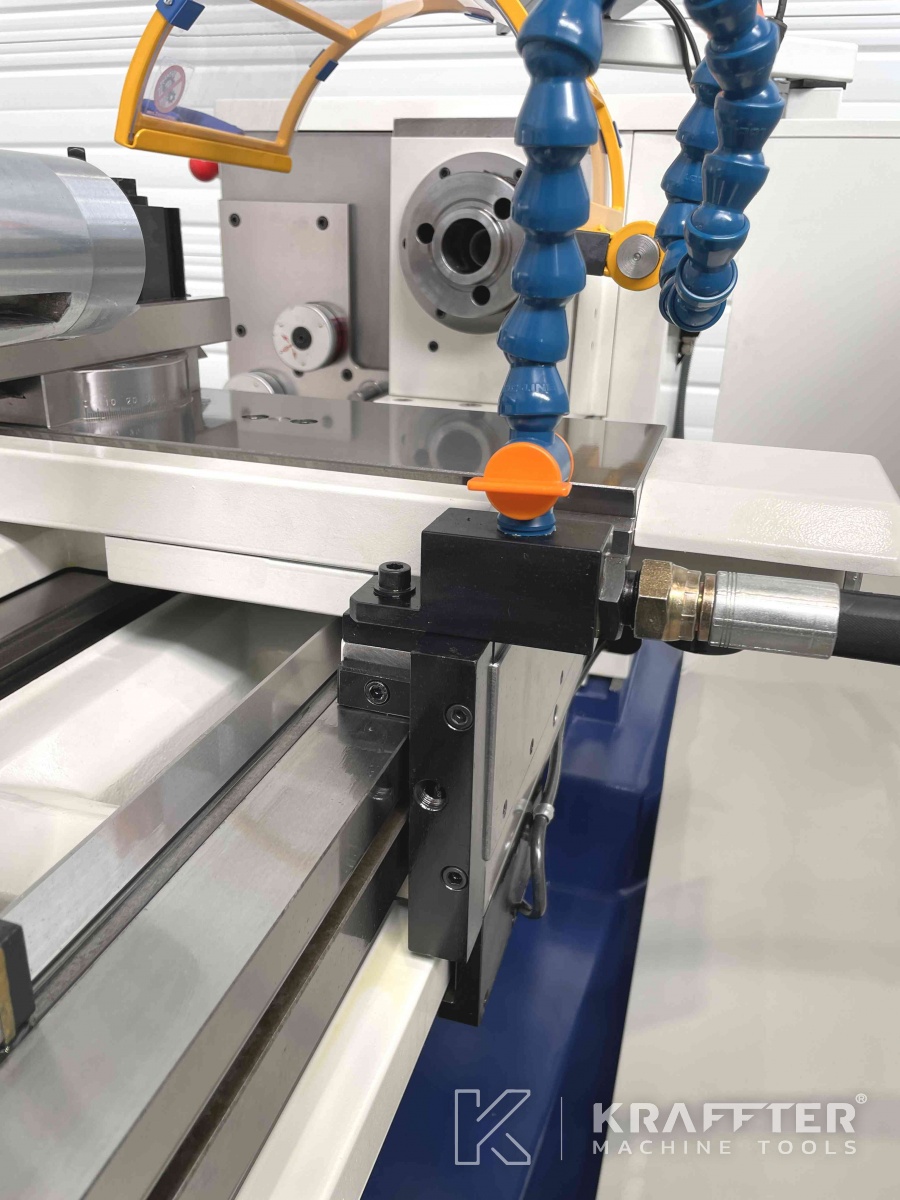

Type of machine : Manual lathe
Brand : SCHAUBLIN
Stock N° : 20690-019
Model : 150
Serial N° : BL 340 010
Year : 1998
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment... Technical characteristics
Additional information
Request a quotation
Number of axes
2

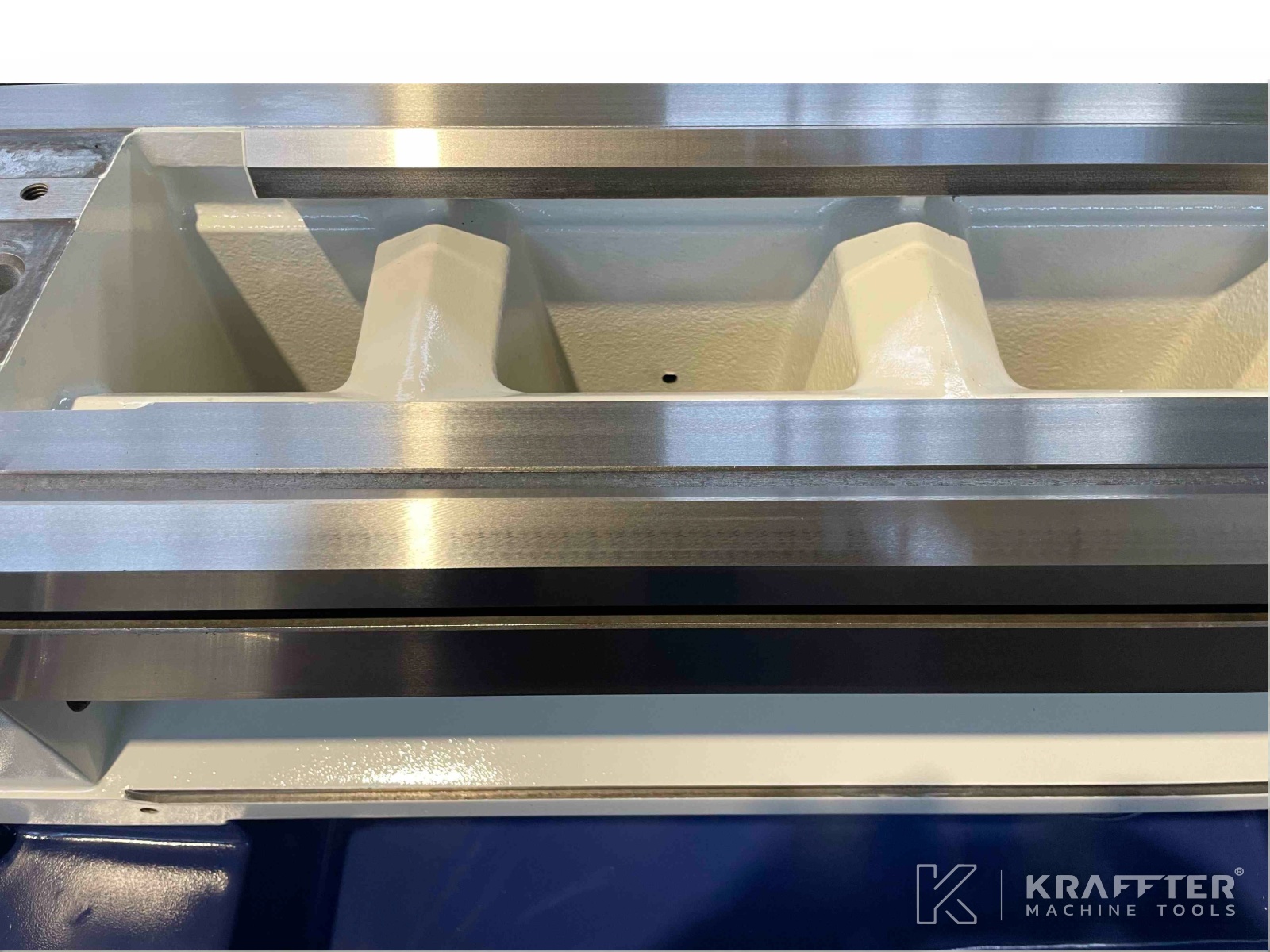

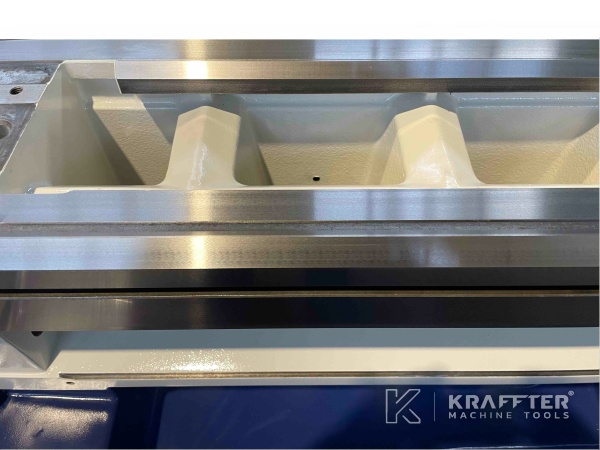

Distance between centers
600 [mm]
Height of centers
150 [mm]
Height of centers over cariage
177 [mm]
Max. swing over bed
340 [mm]

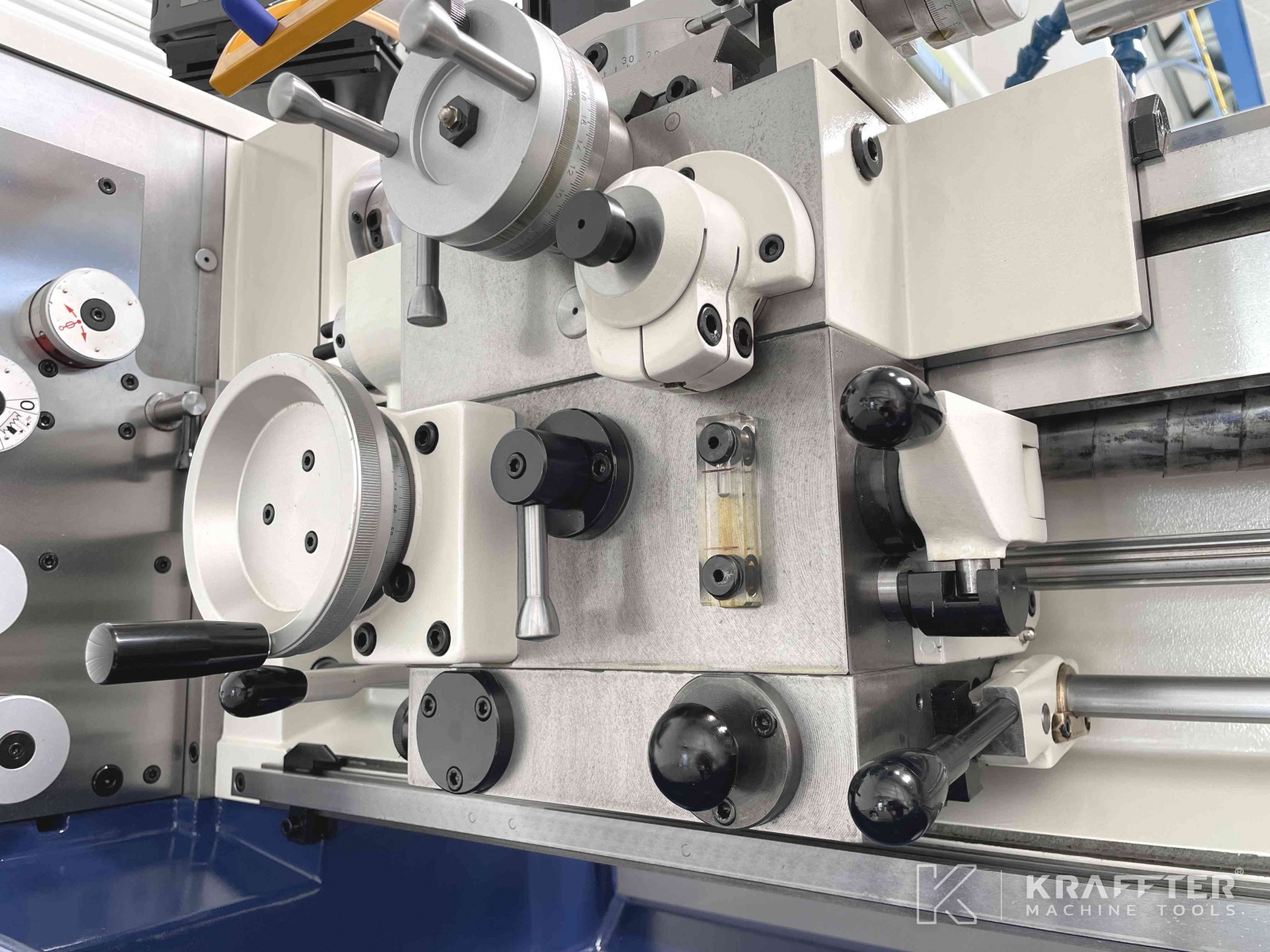

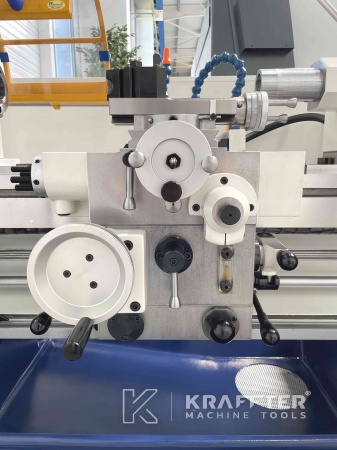

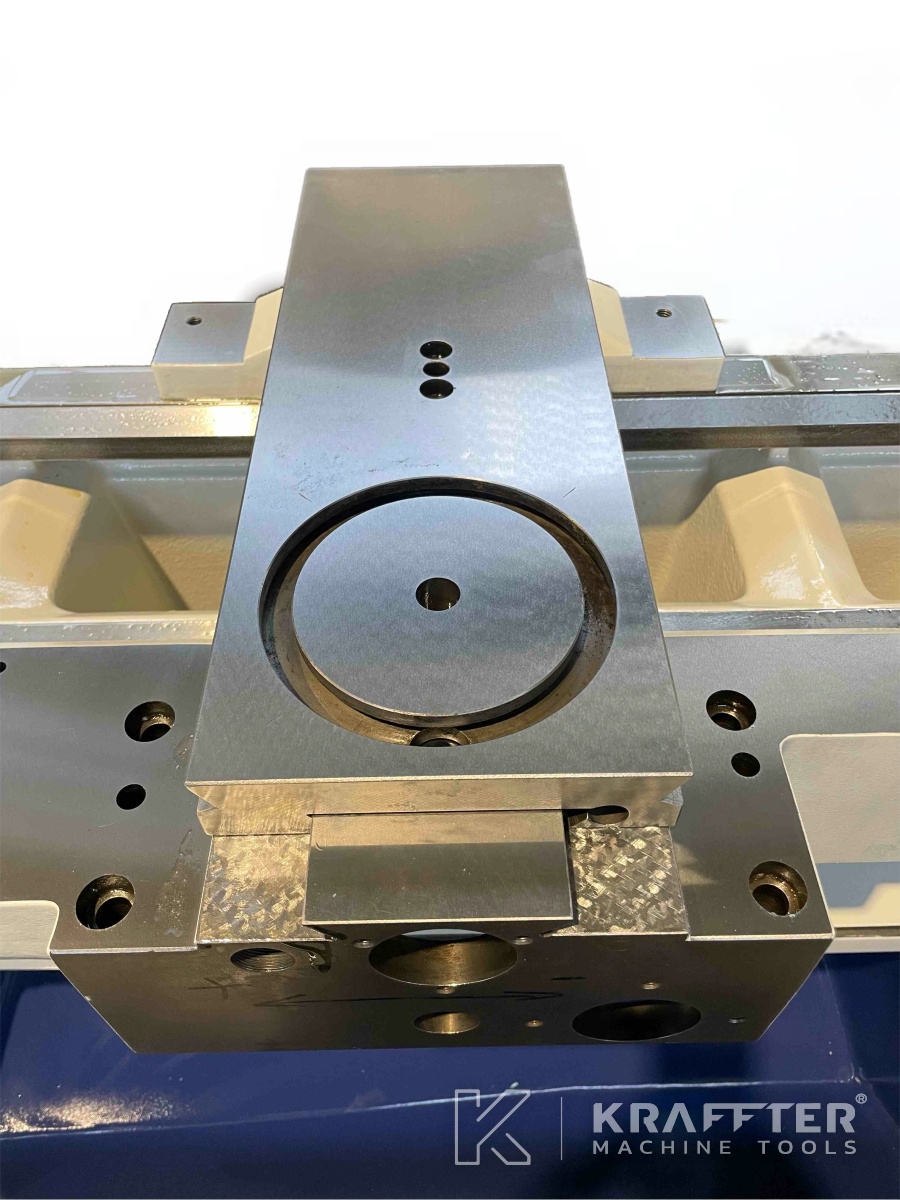

Stroke X axis
180 [mm]
Stroke Z axis
600 [mm]
Rapid traverse rate Z axis
4000 [mm/min]

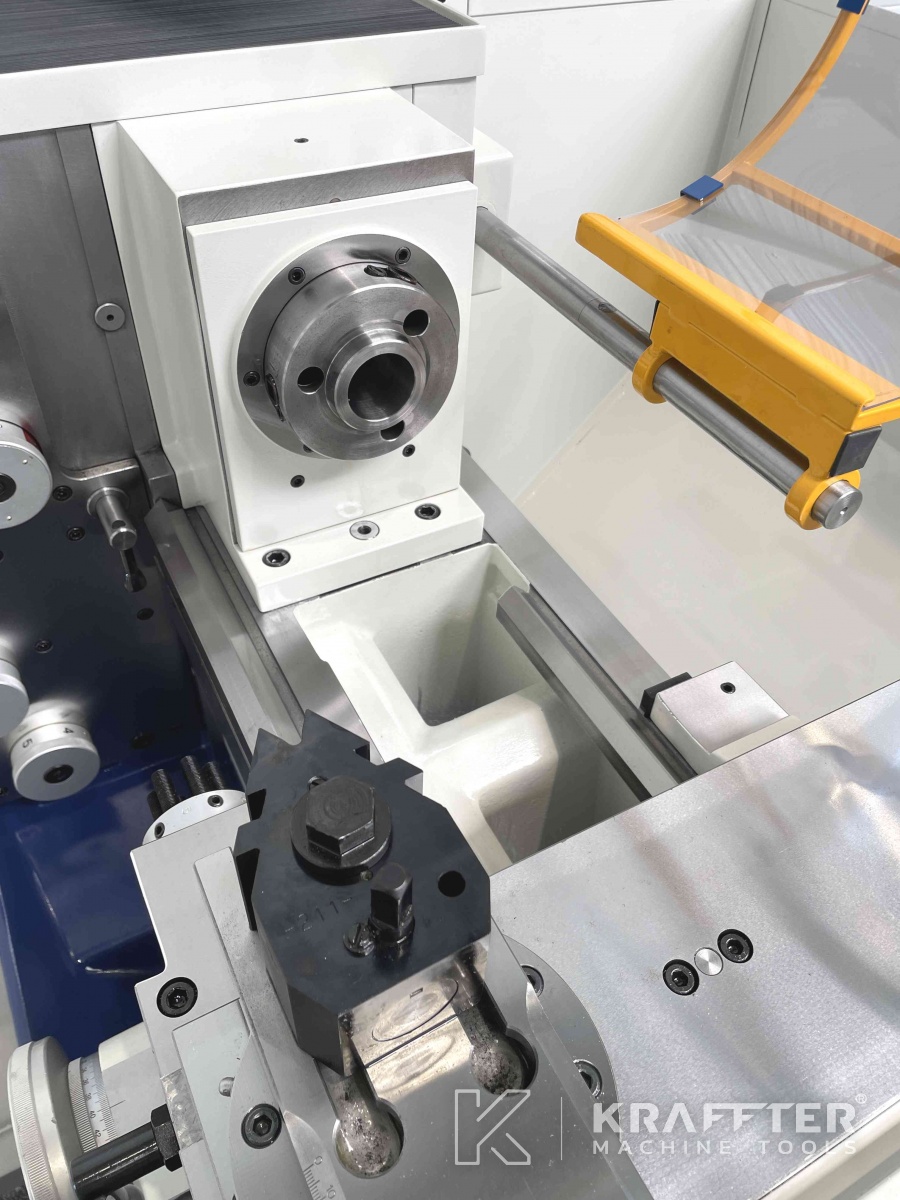

Spindle nose
CAMLOCK D 1-4’’
Internal spindle nose
CM5
Spindle for collets
B32
Spindle throughbore
40 [mm]
Min. spindle speed
55 [rpm]
Max. spindle speed
3000 [rpm]

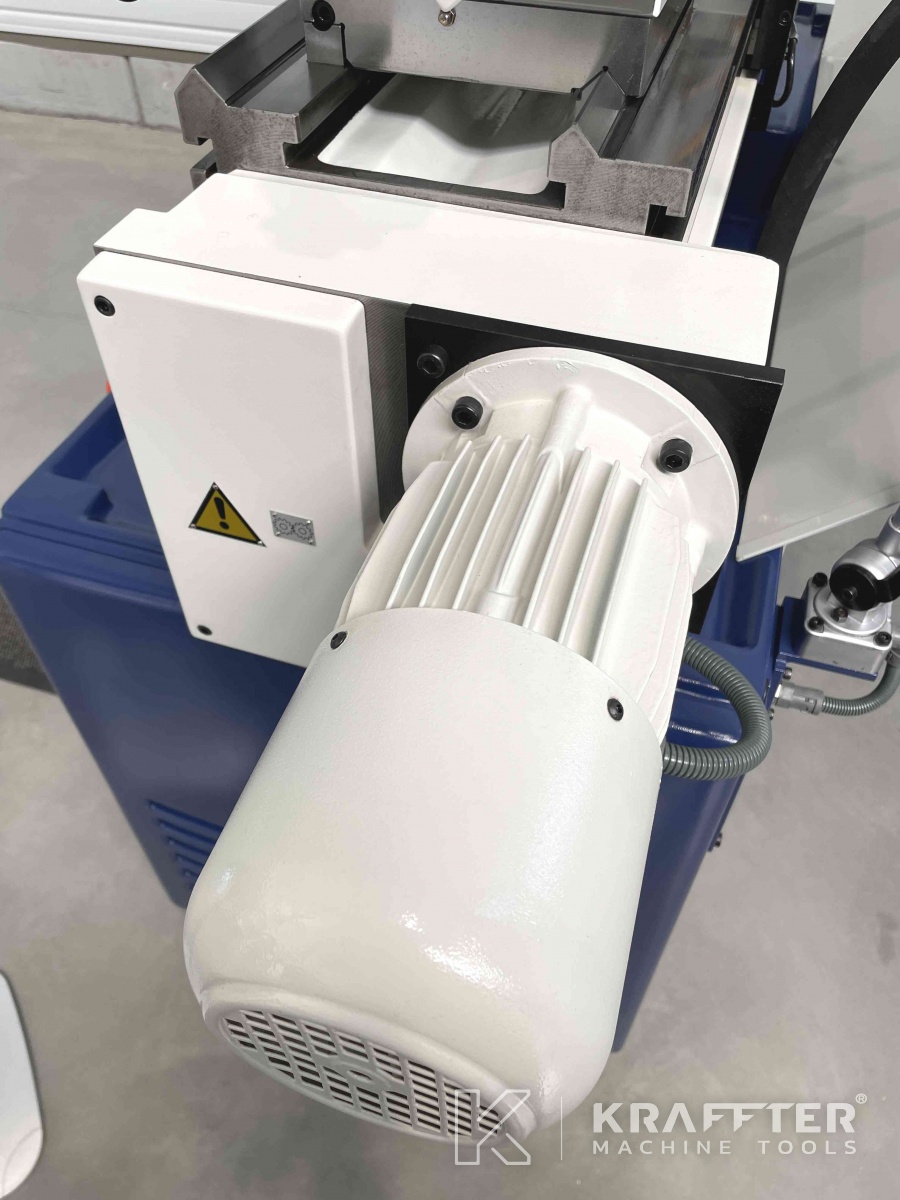

Spindle power
4 [kW]

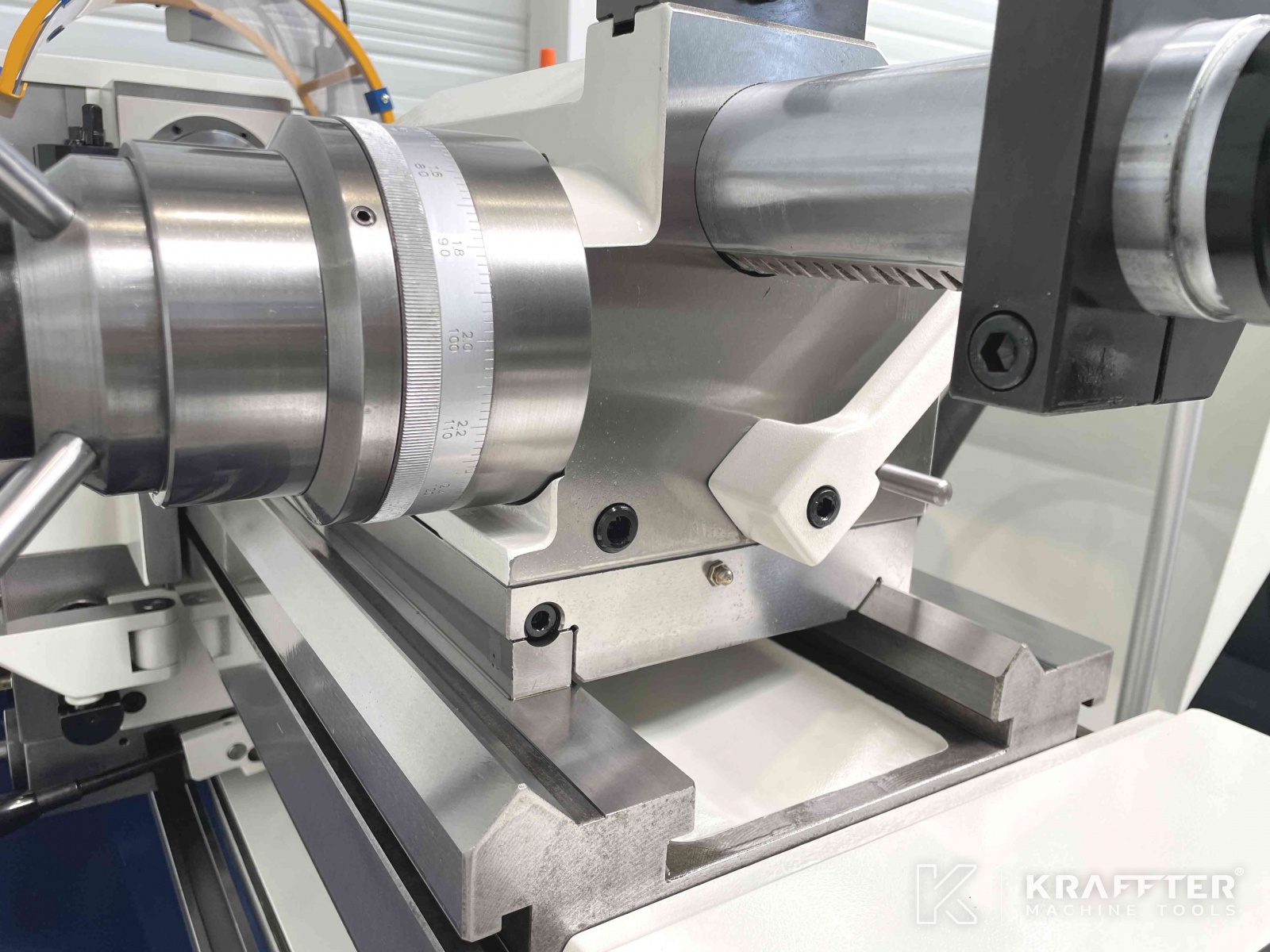

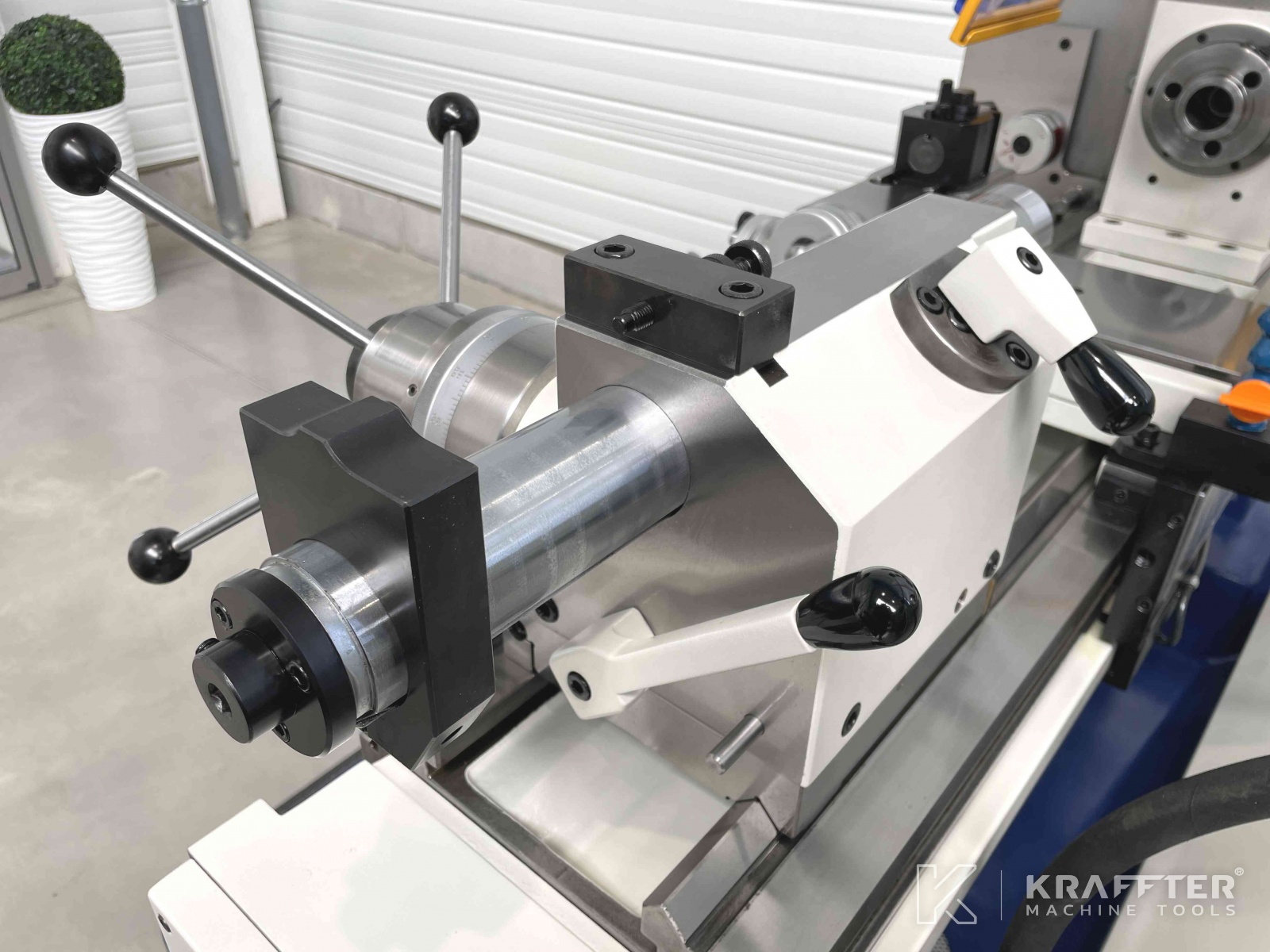

Type of attachment tailstock
CM5

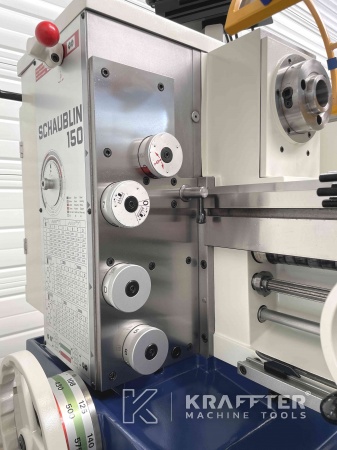

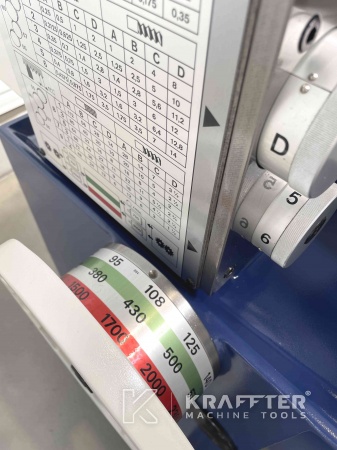

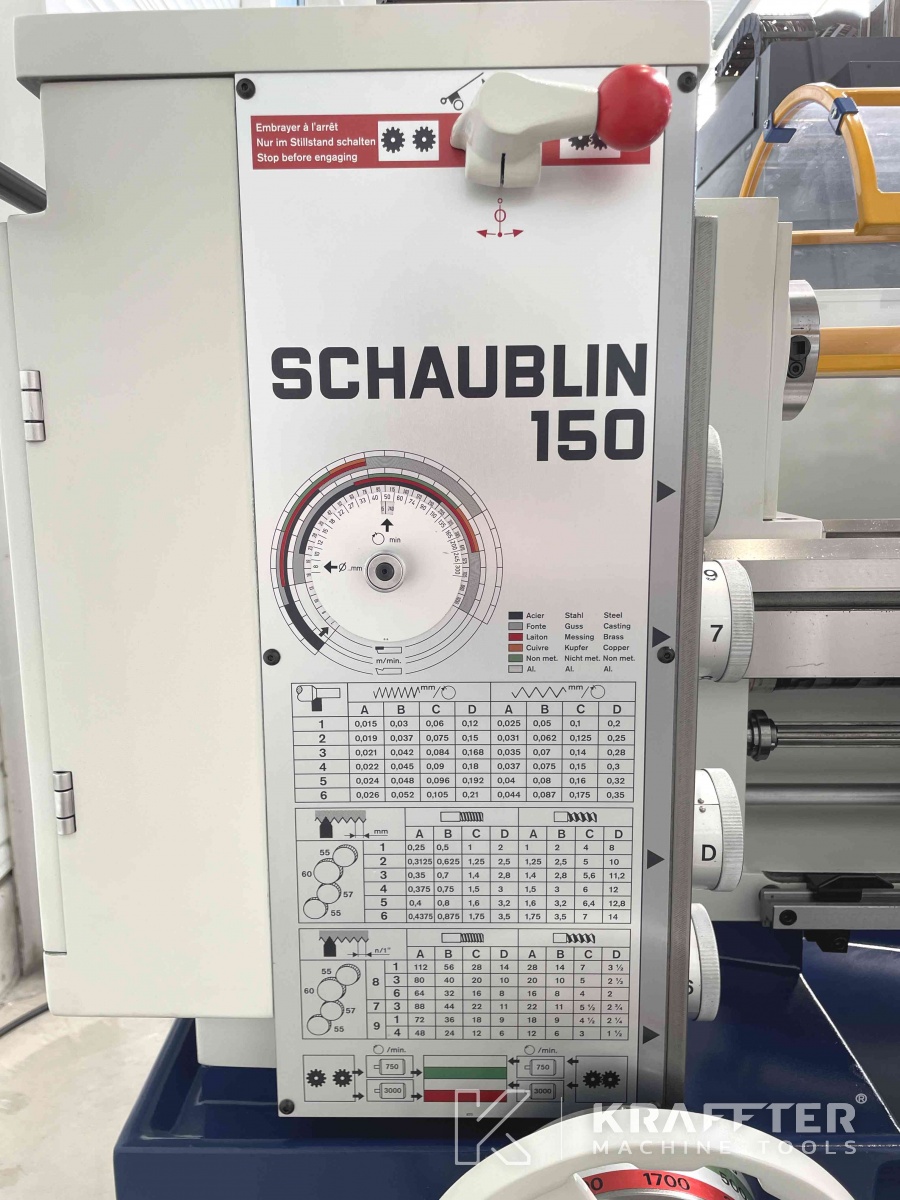

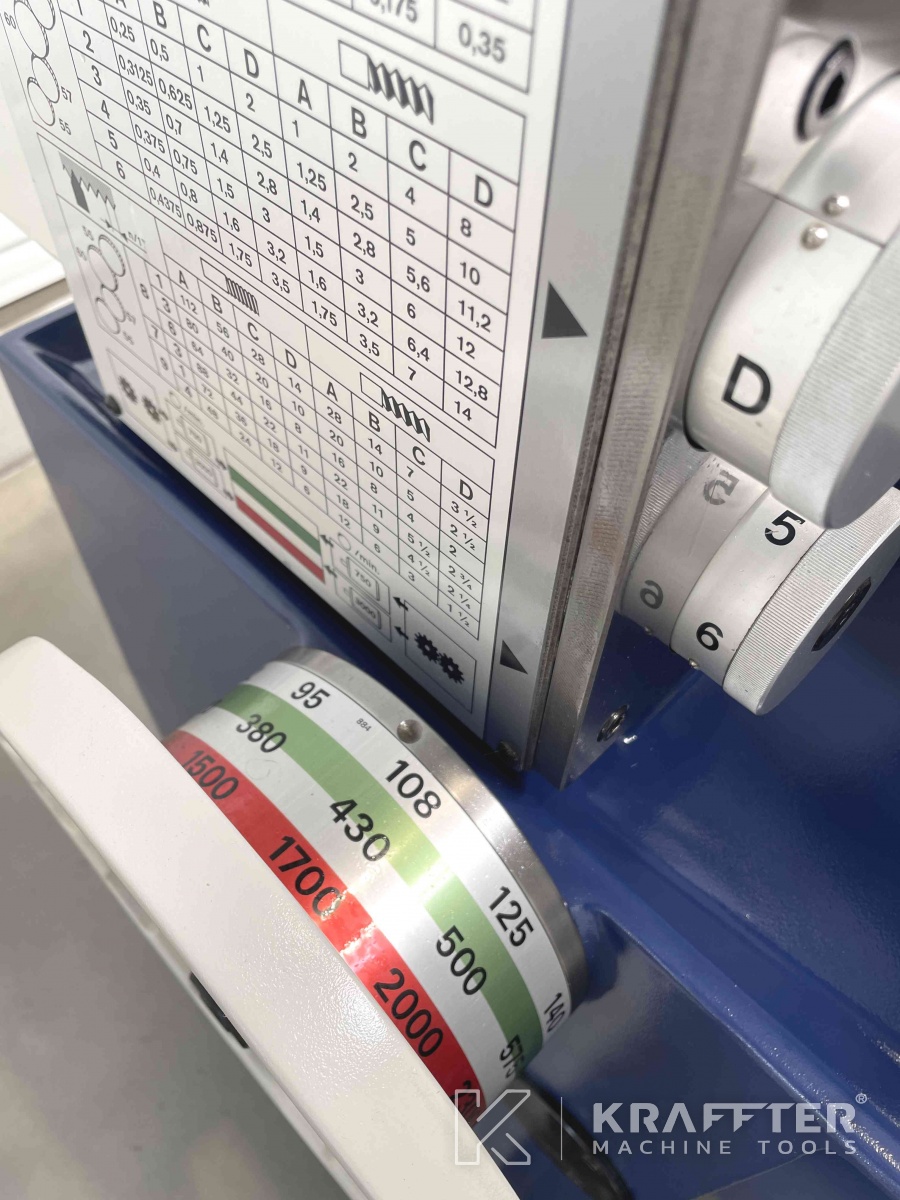

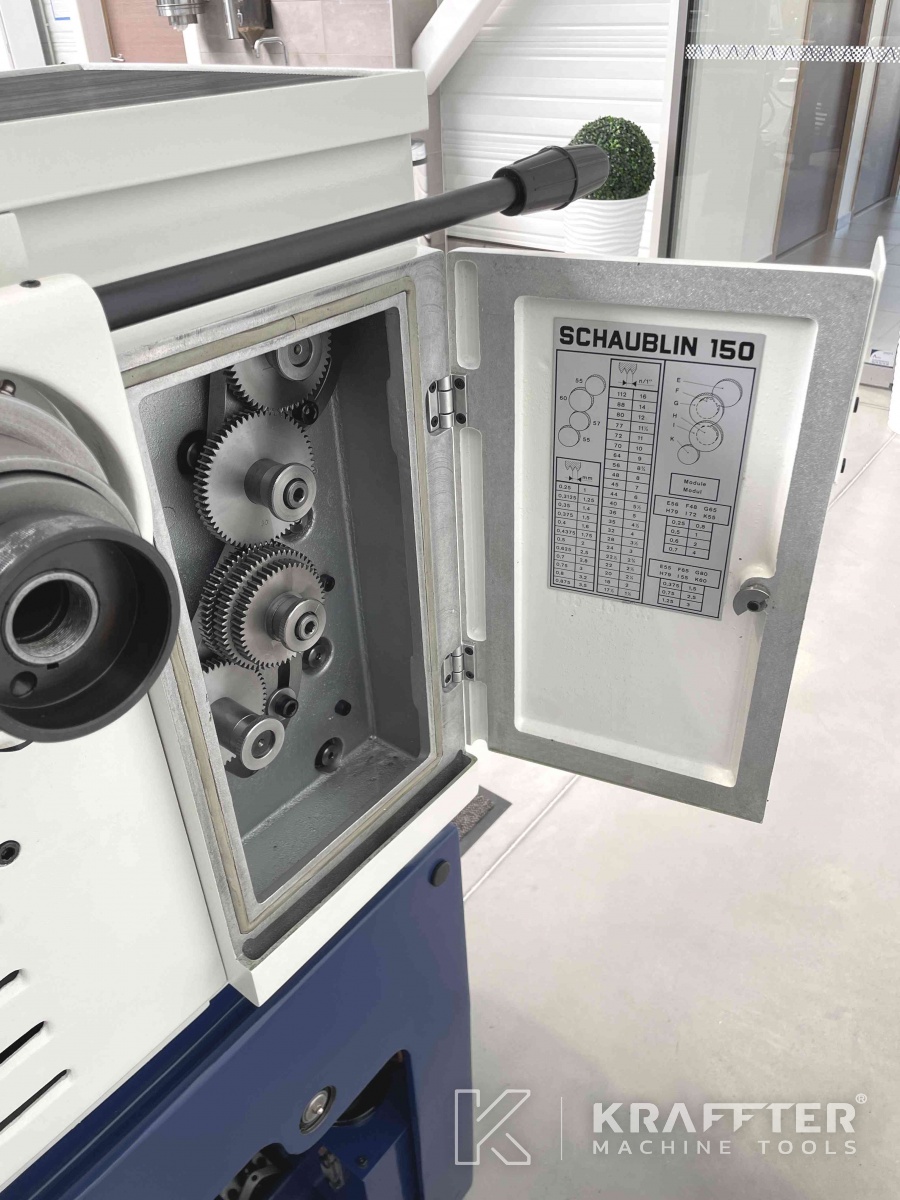

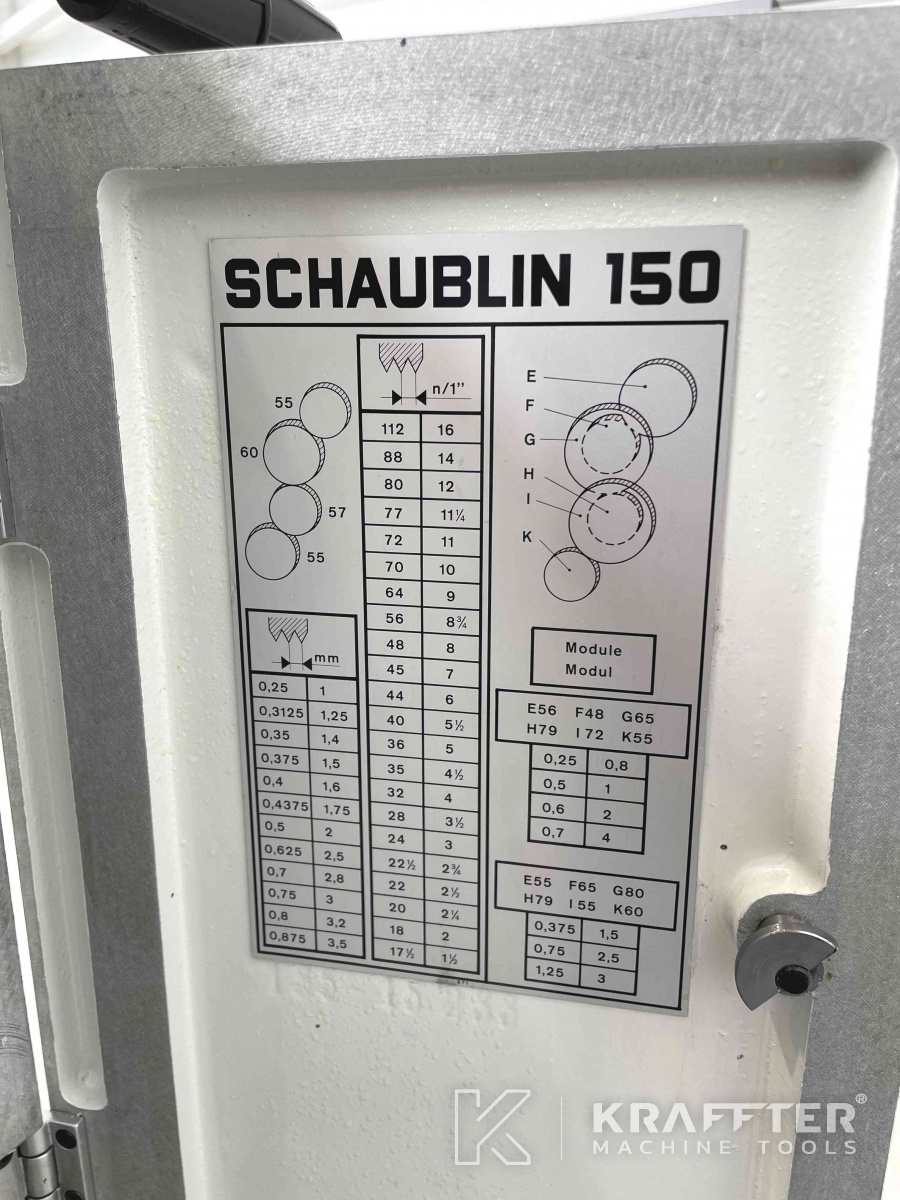

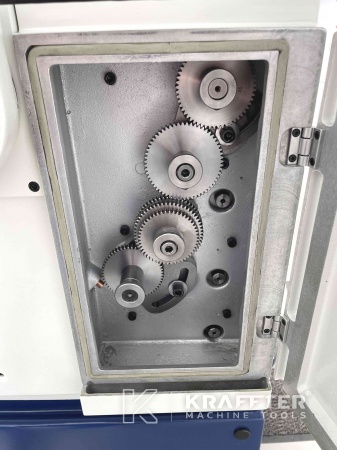

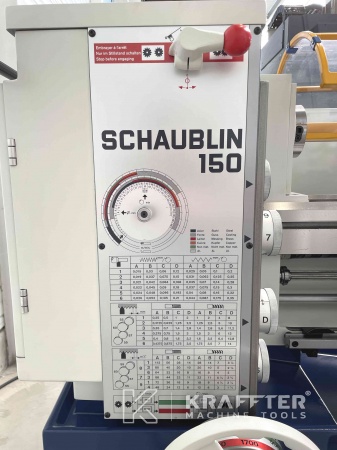

Metric pitches
0.25 - 14 [mm]
Imperial T.P.I.
112 - 1/2" [filets/pouce]
Module pitches
0.12 - 7.5 [modules]

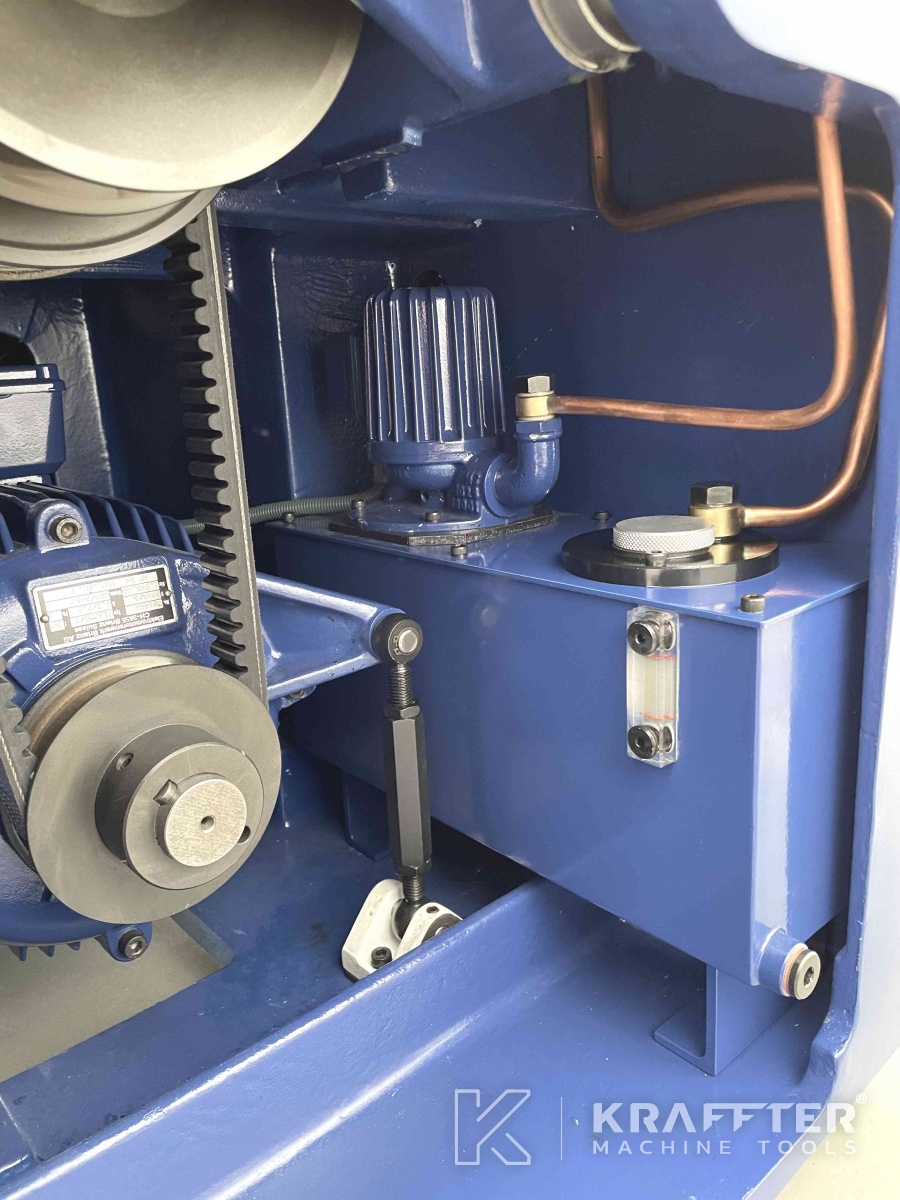

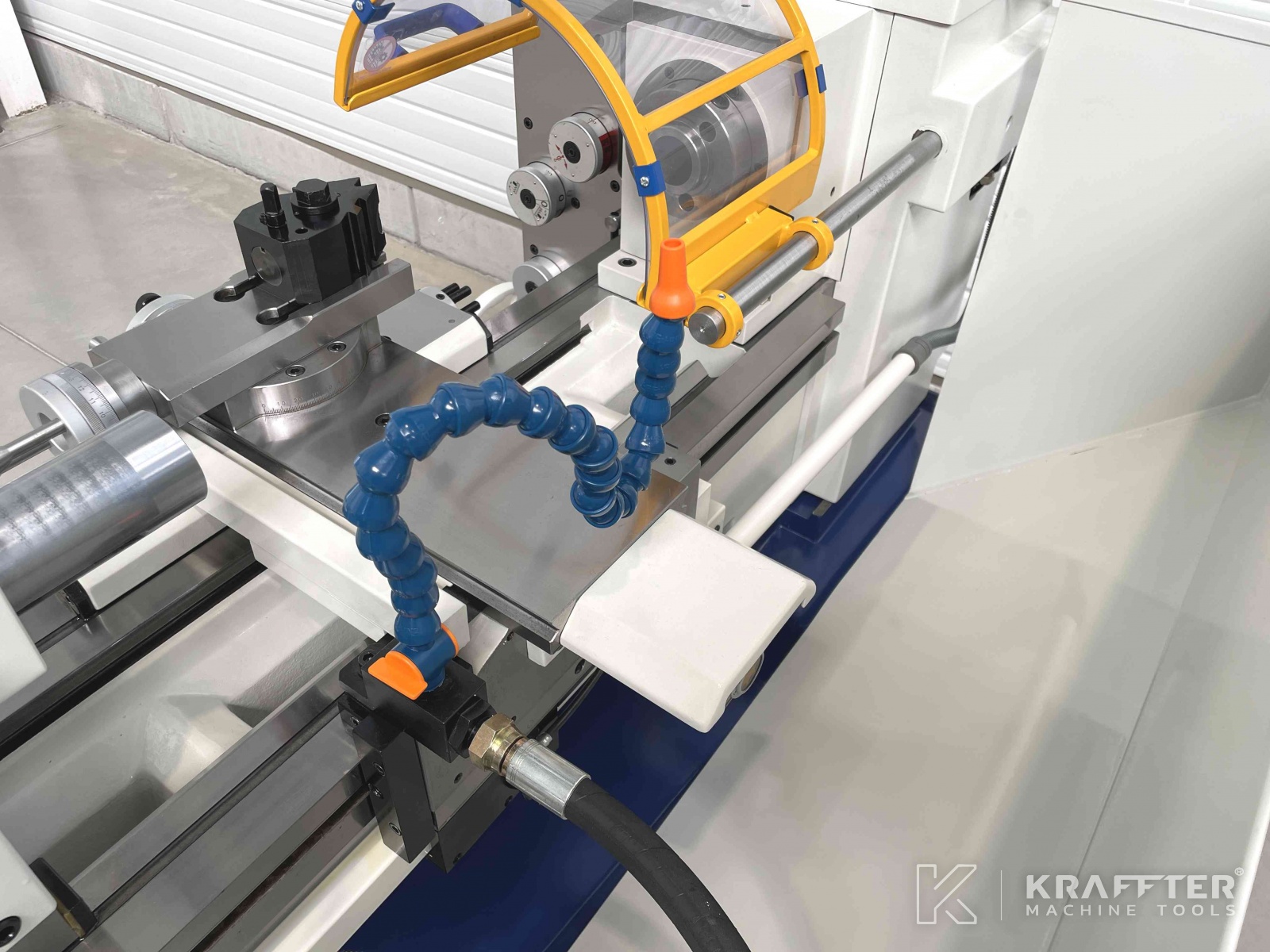

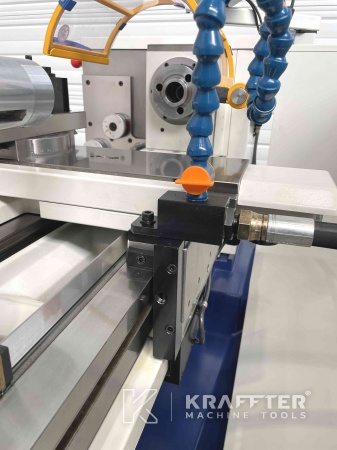

Lubrication tank capacity
29 [l]

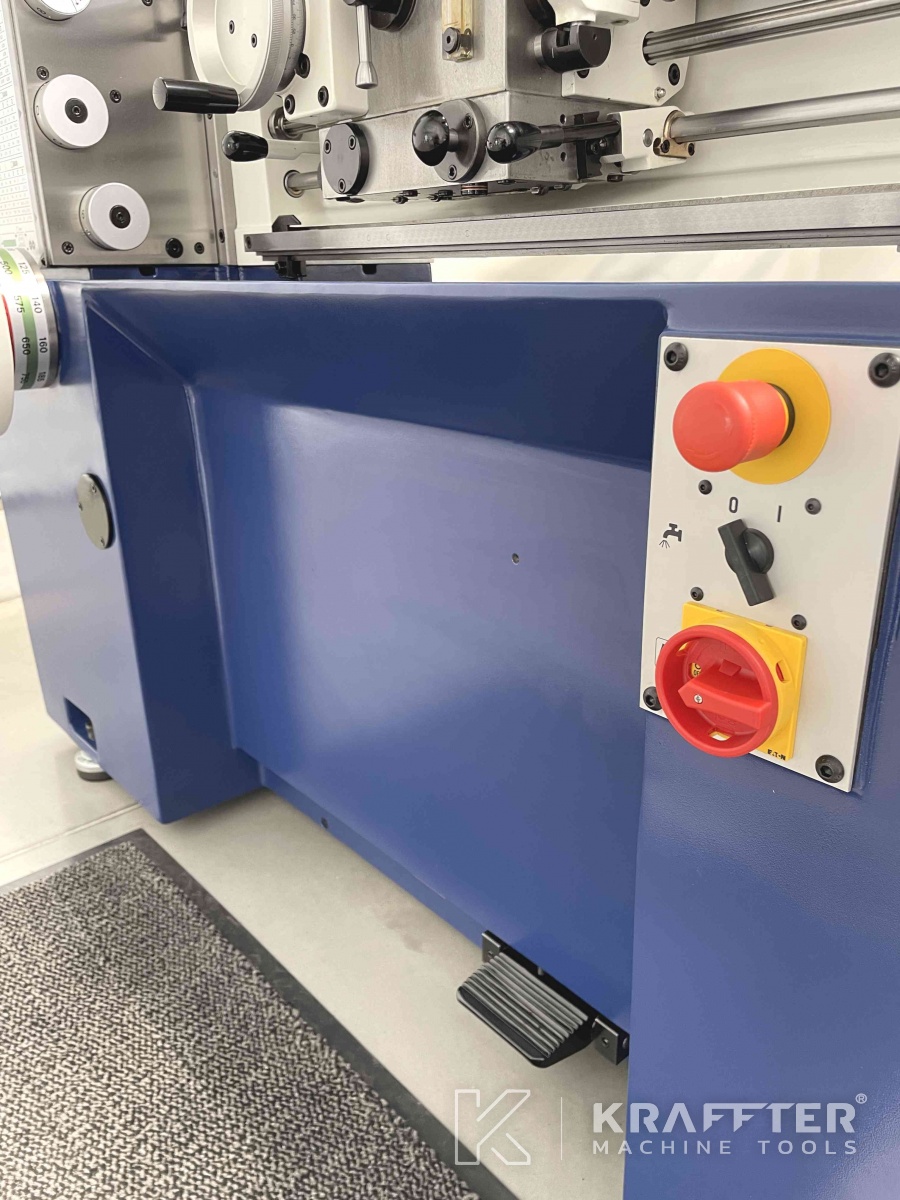

Total power required
6 [kVA]
Supply voltage
400 [V]

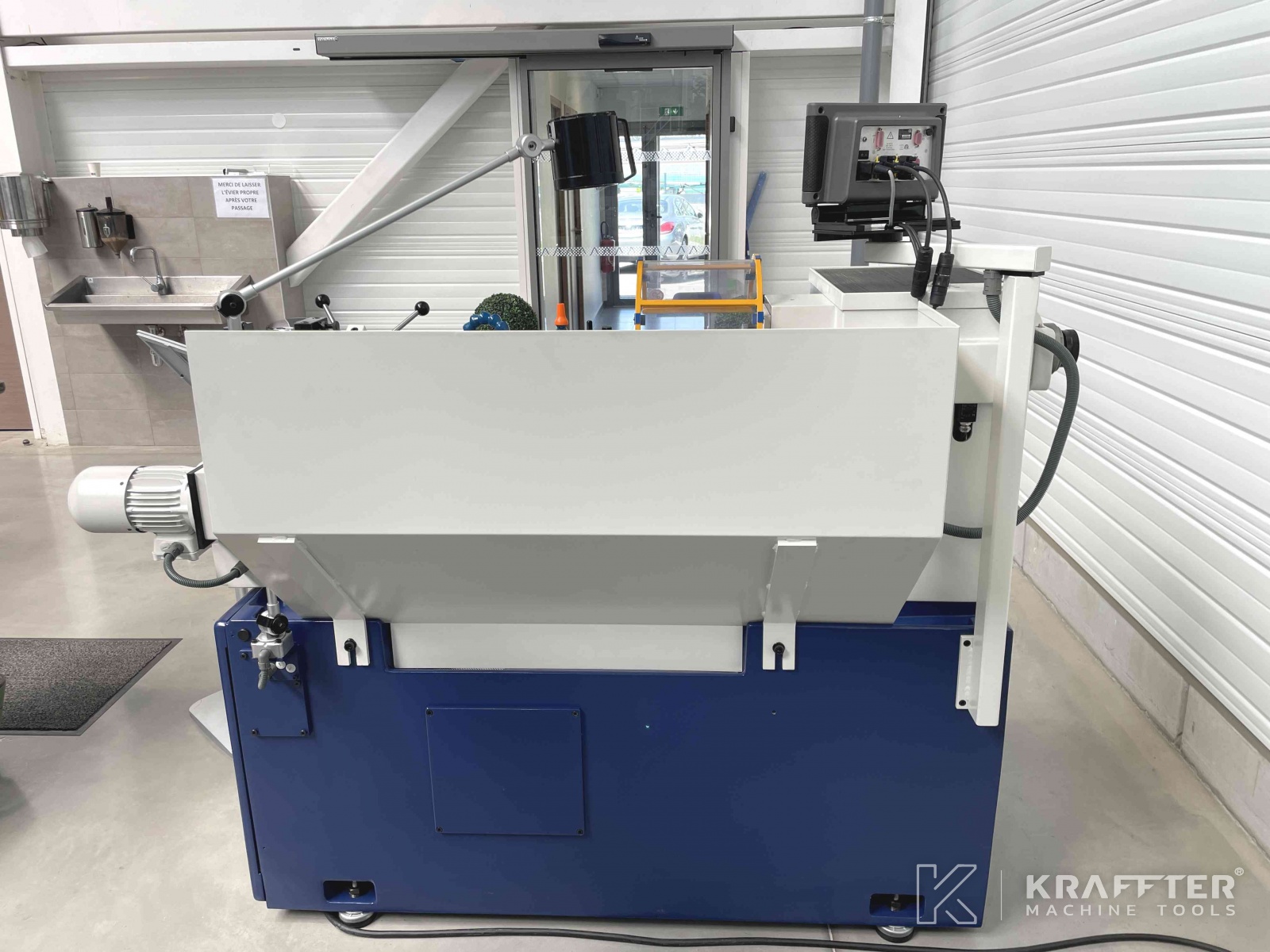

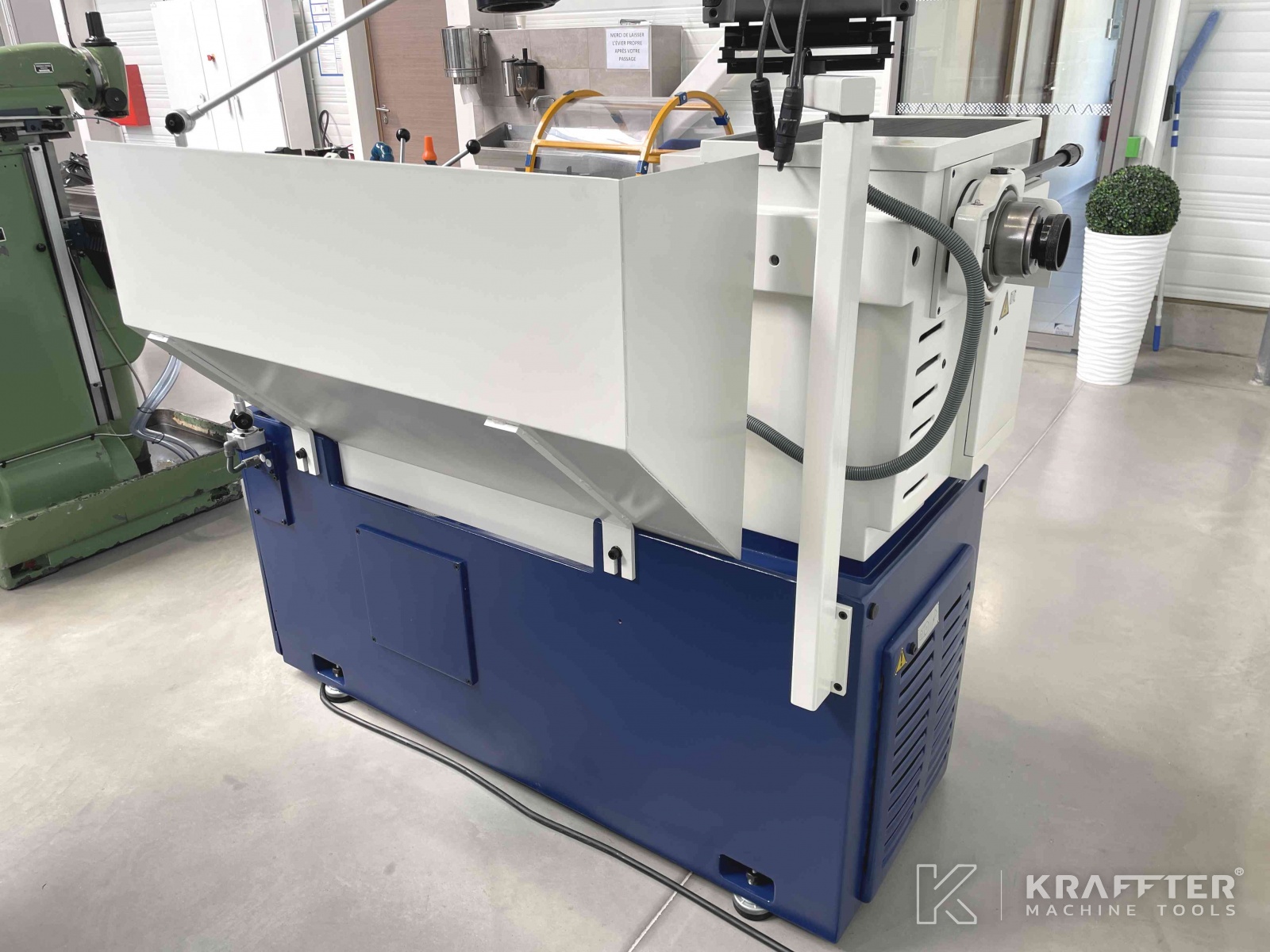

Dimensions
1730 x 970 x 1300 [mm]
Weight
1250 [Kg]

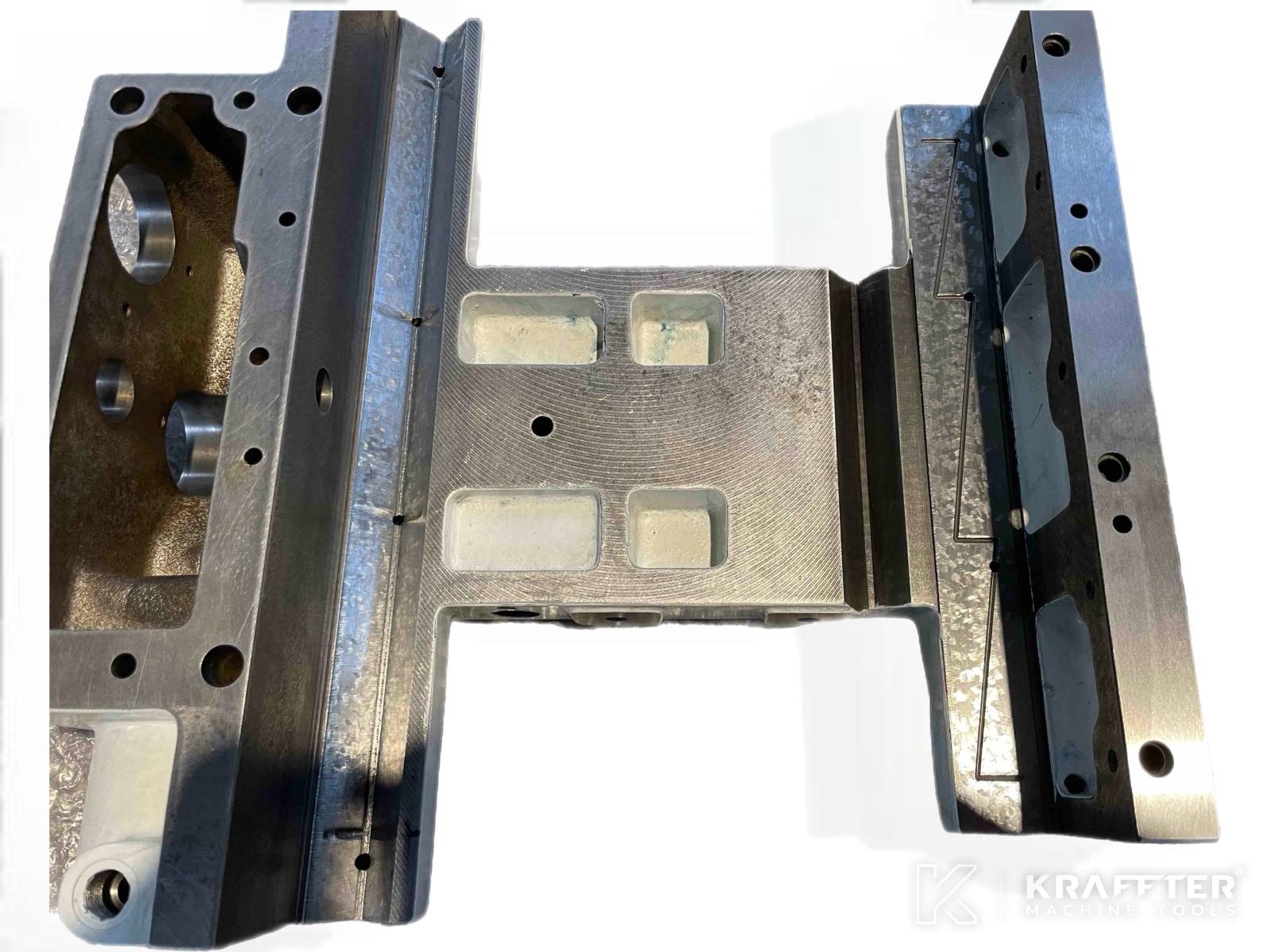

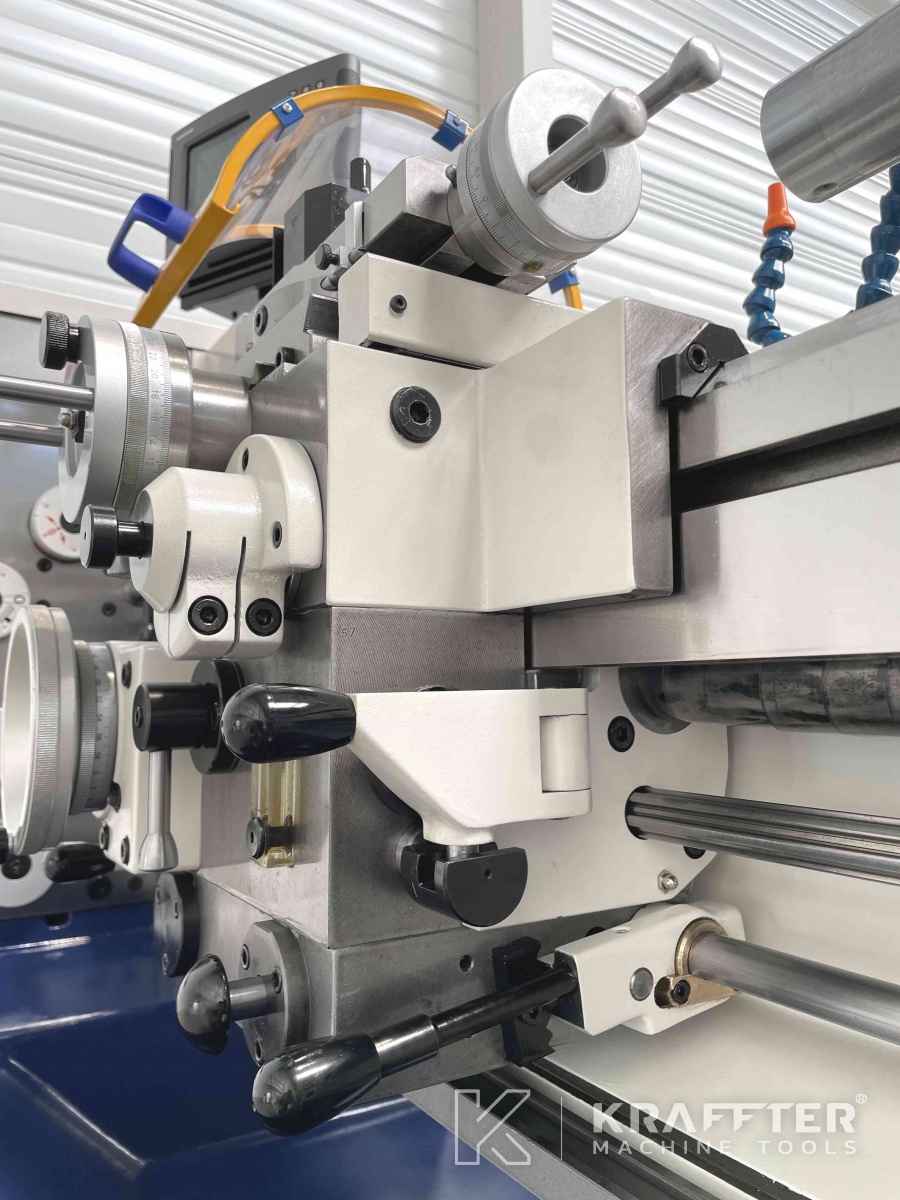

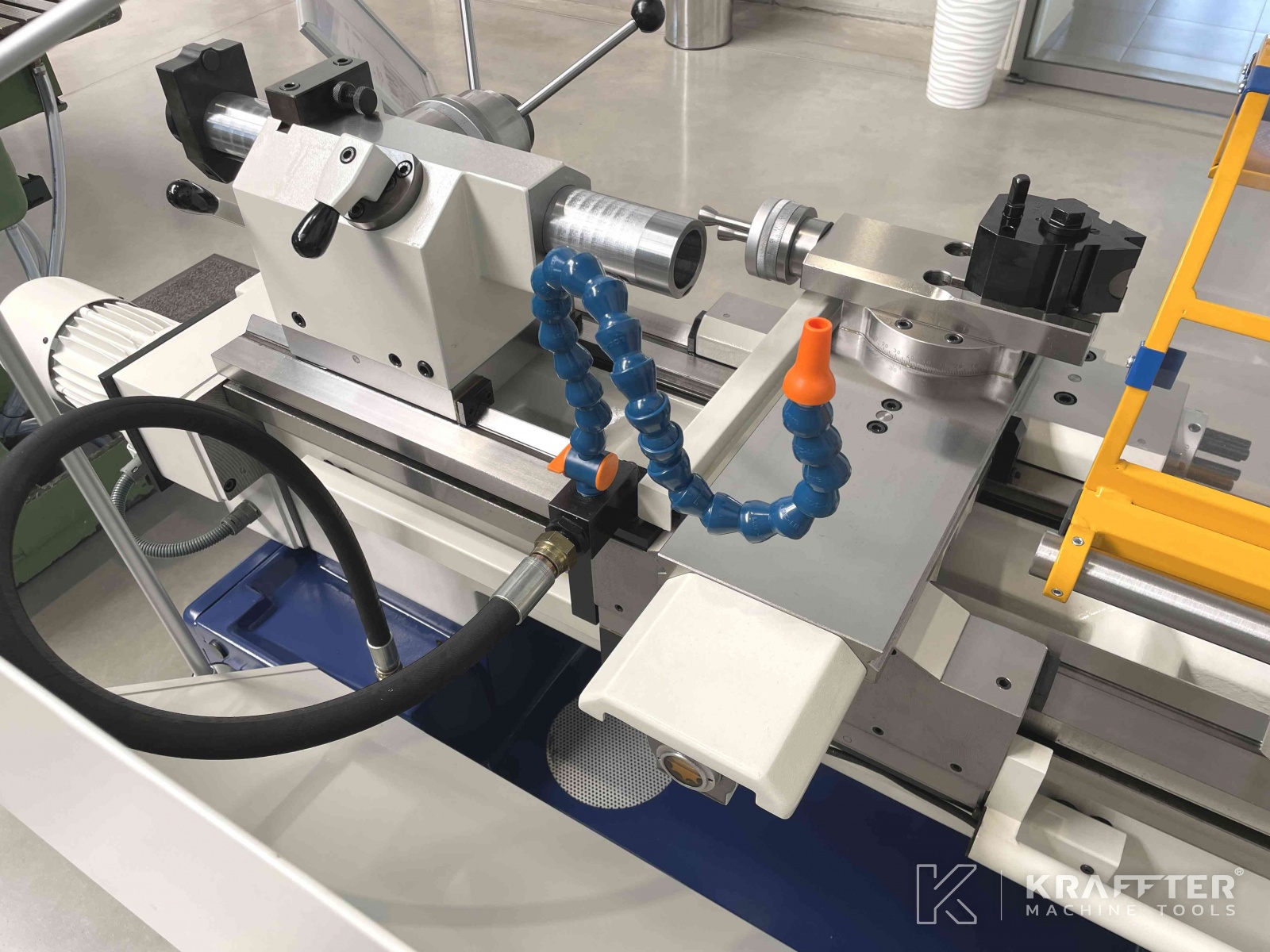

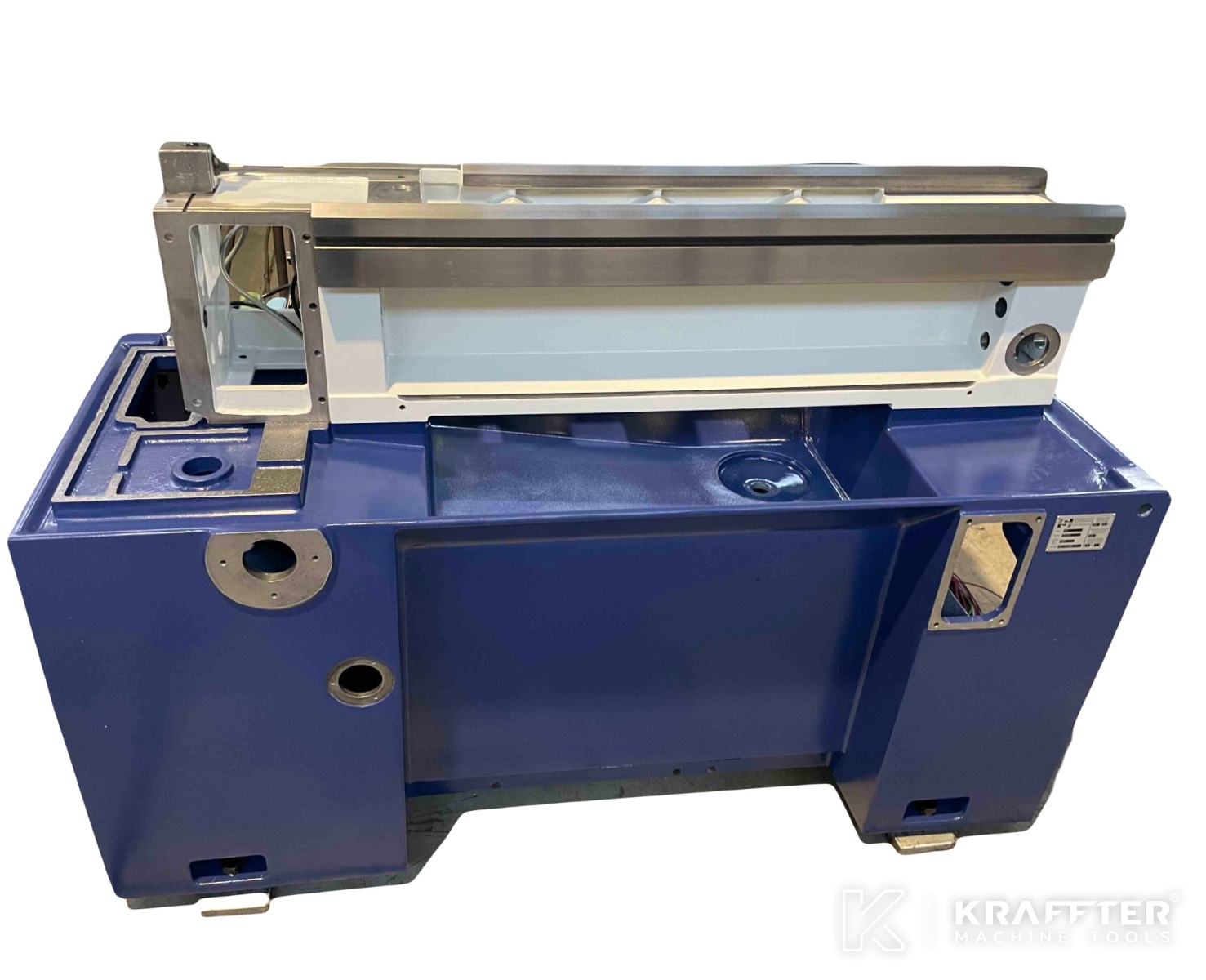

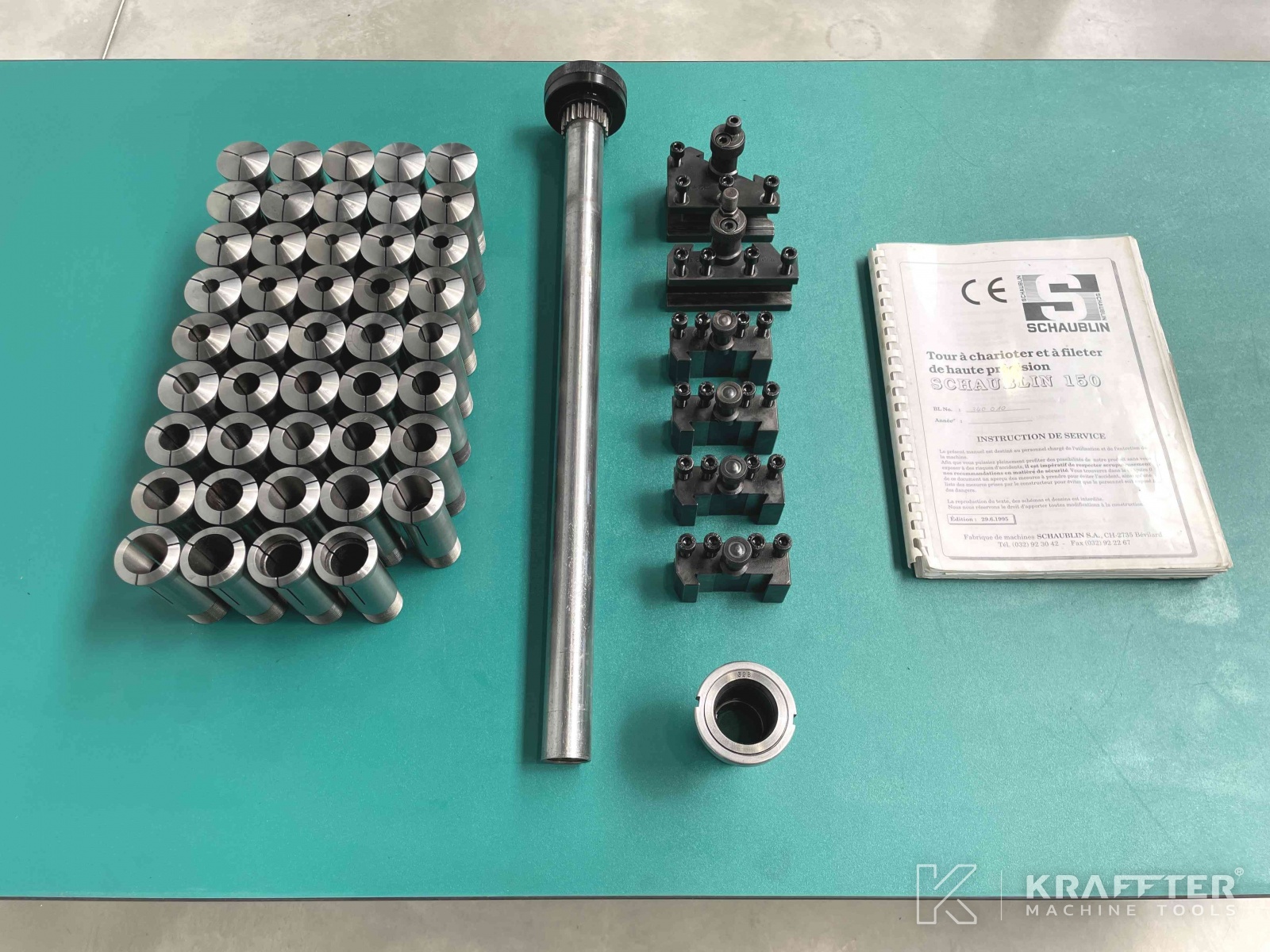

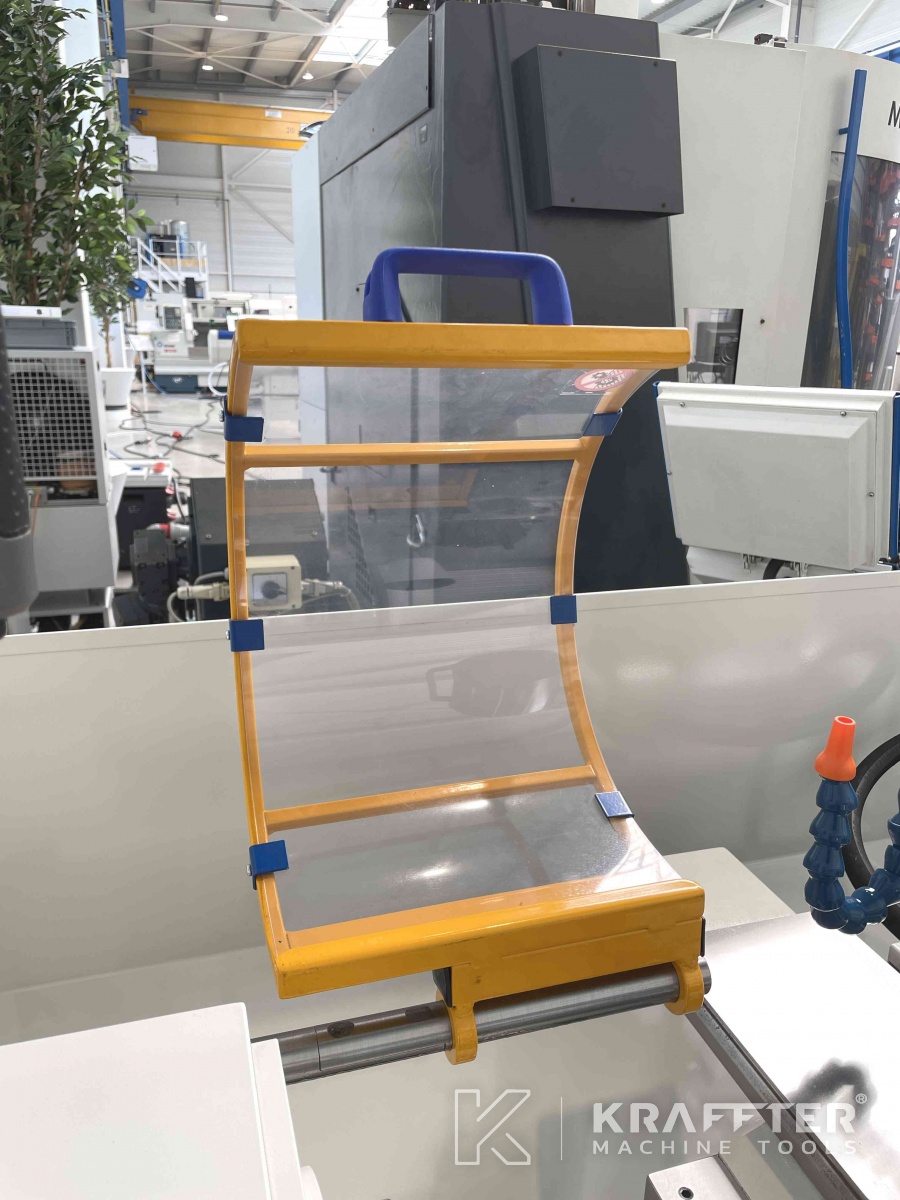

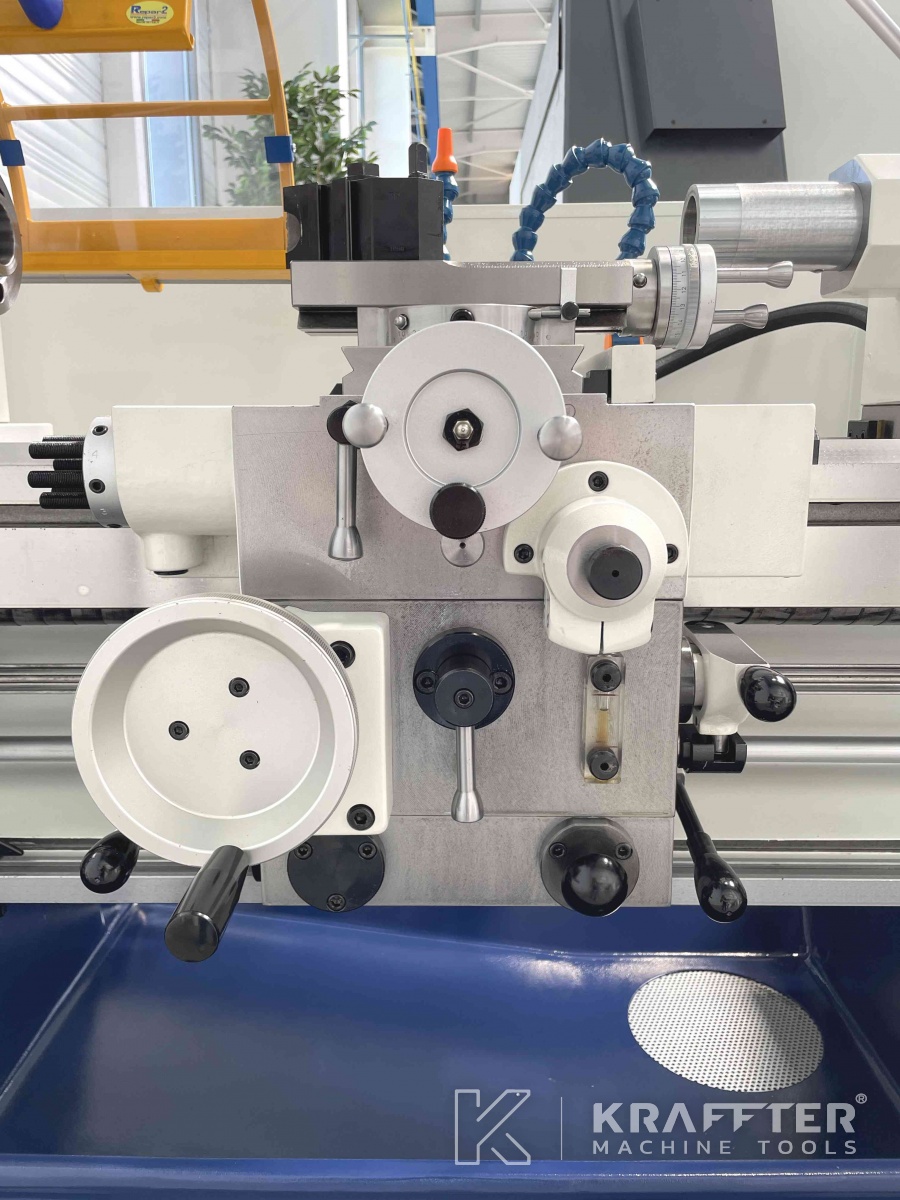

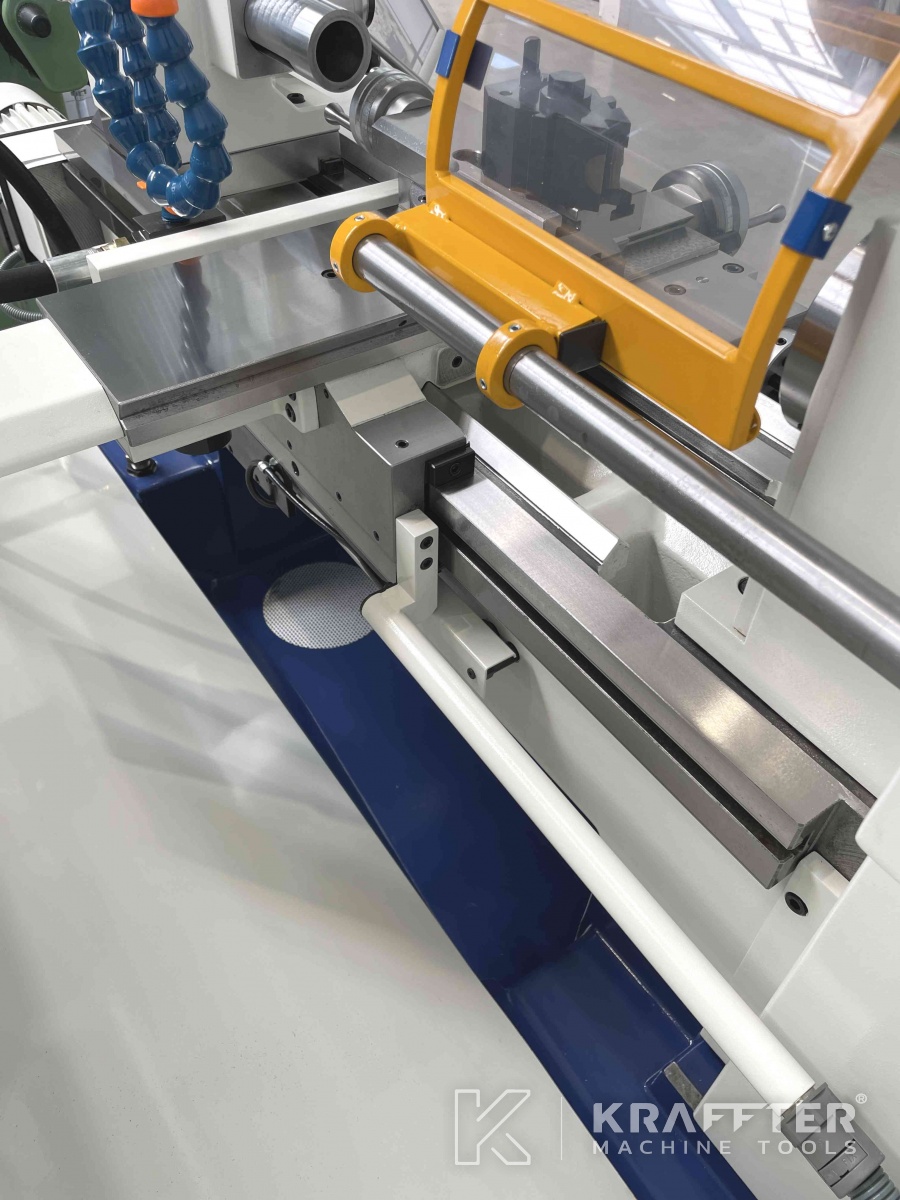

EQUIPMENT INCLUDED:

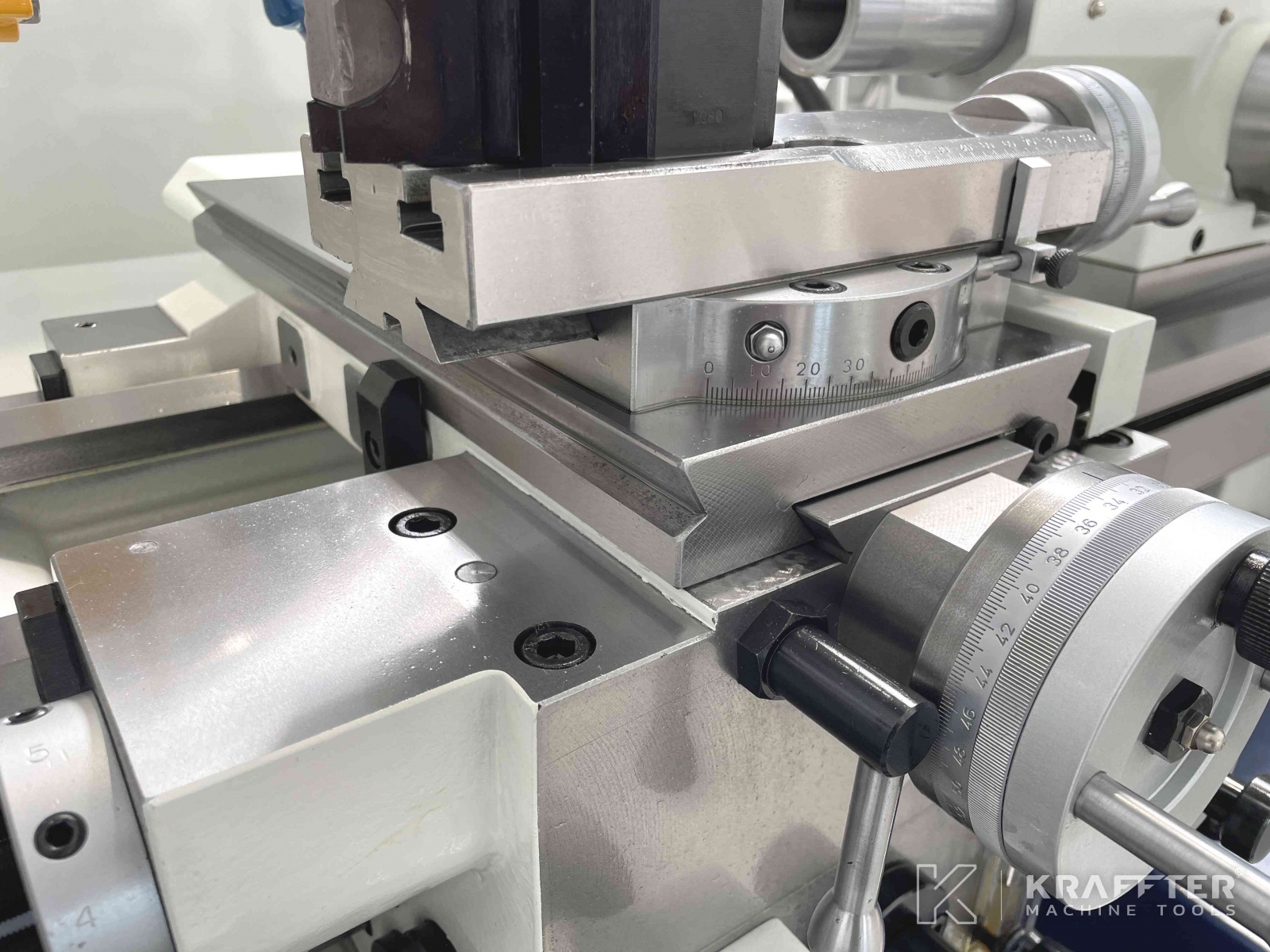

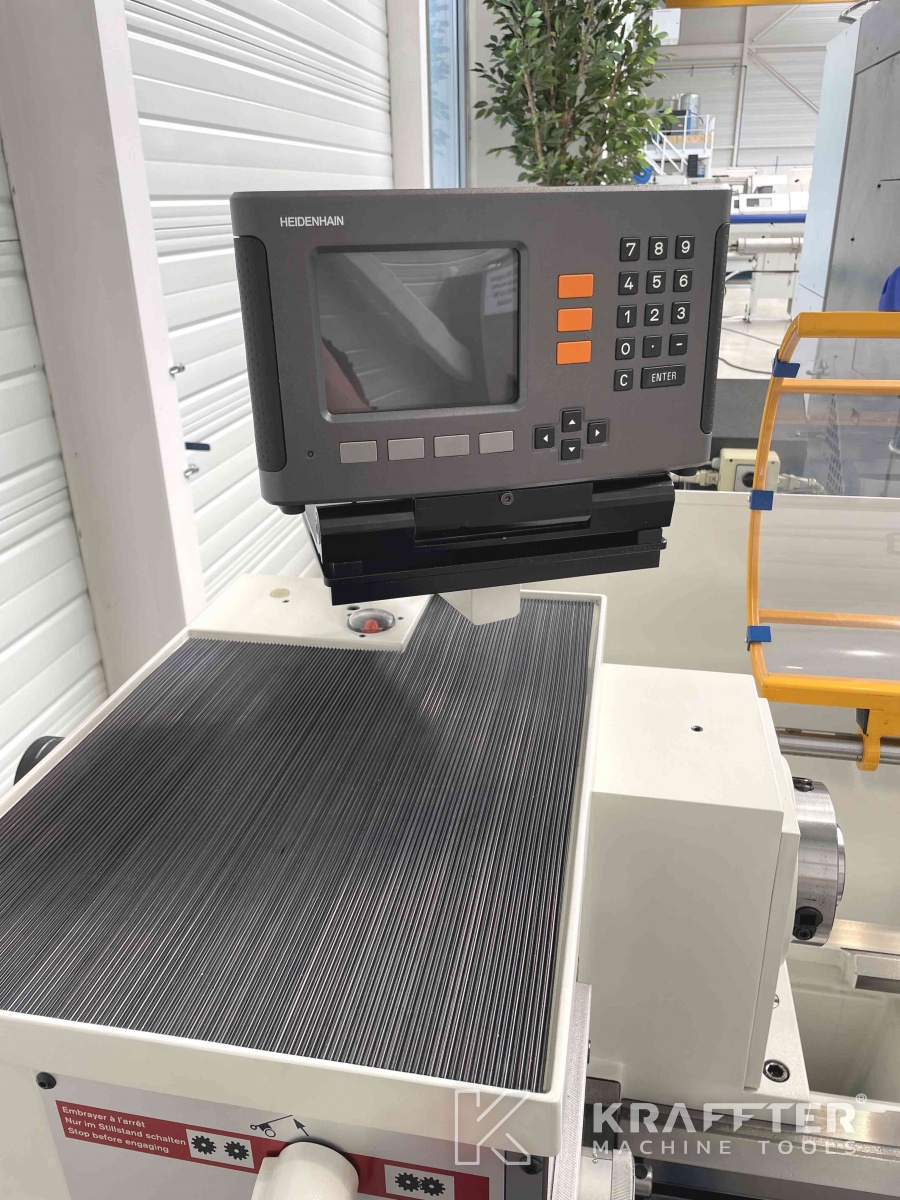

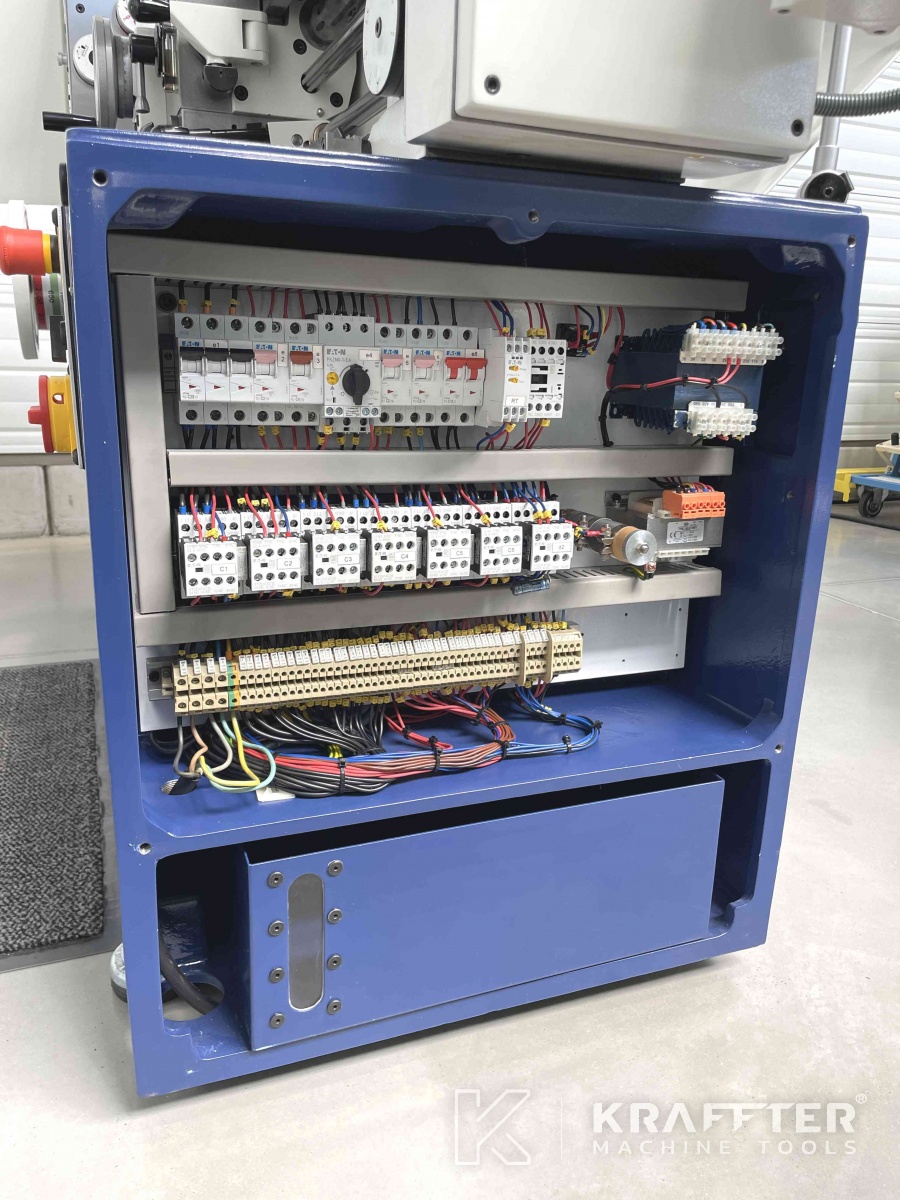

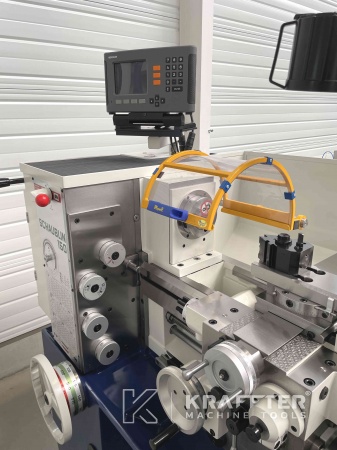

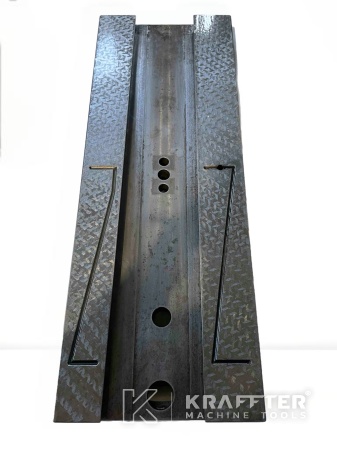

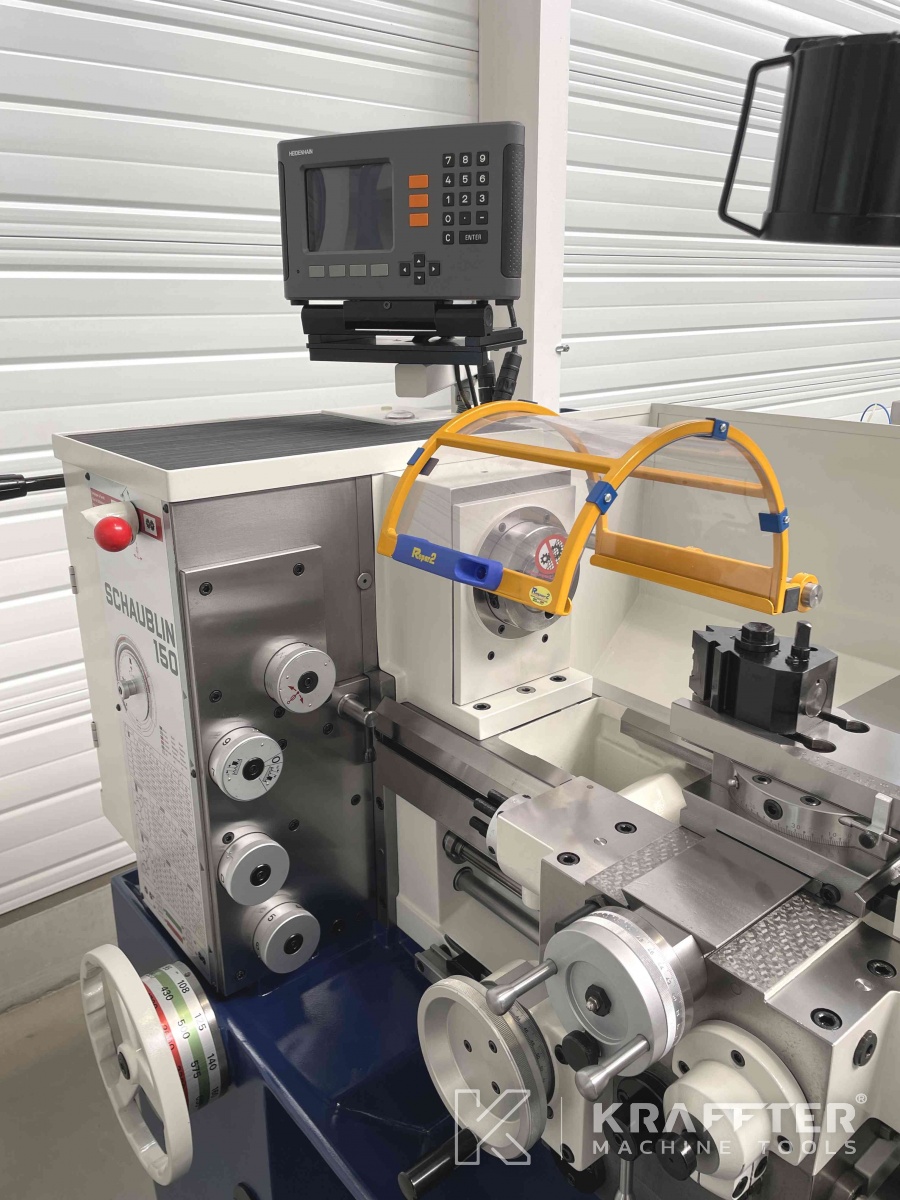

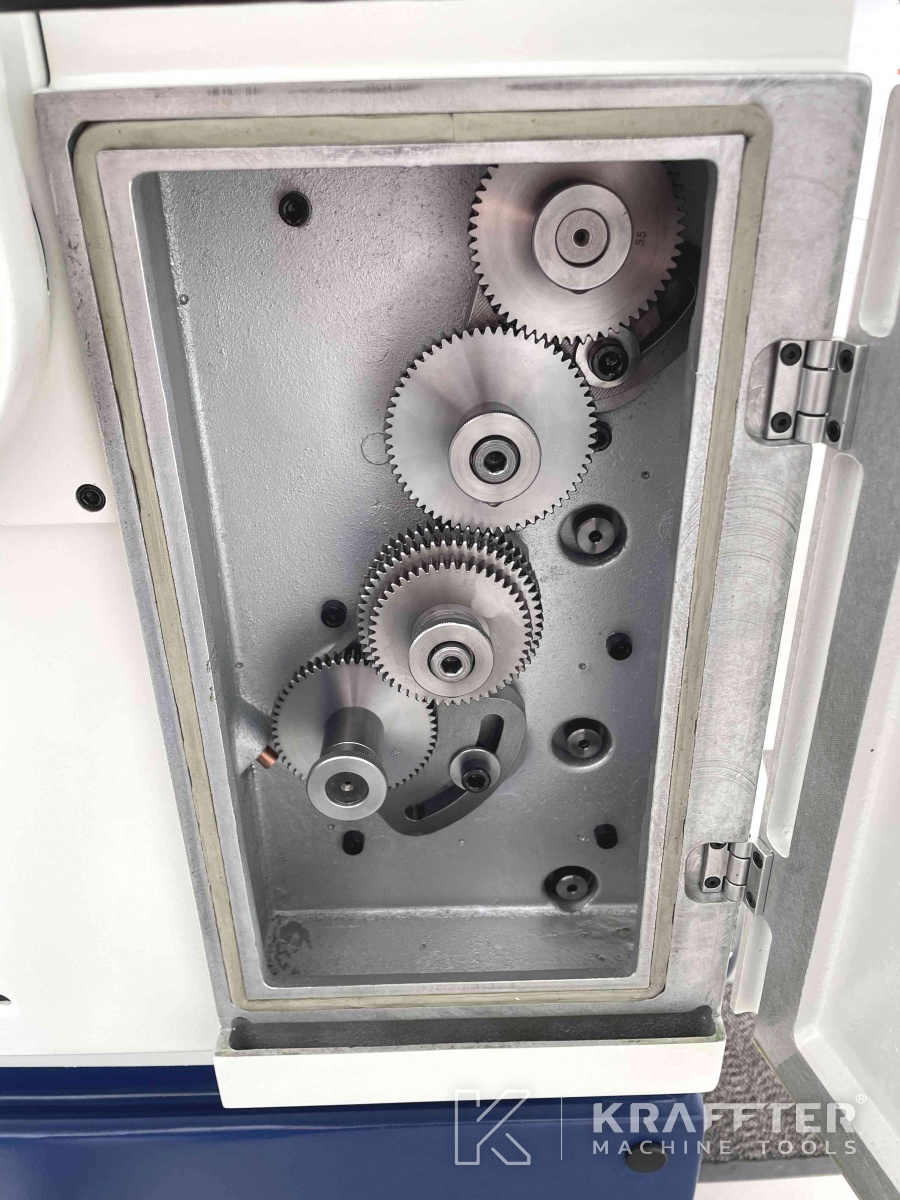

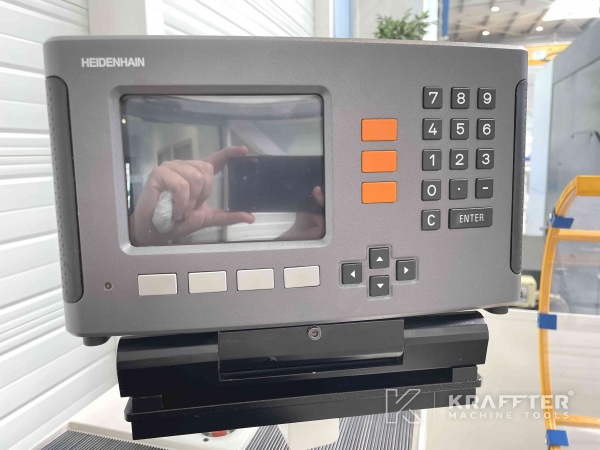

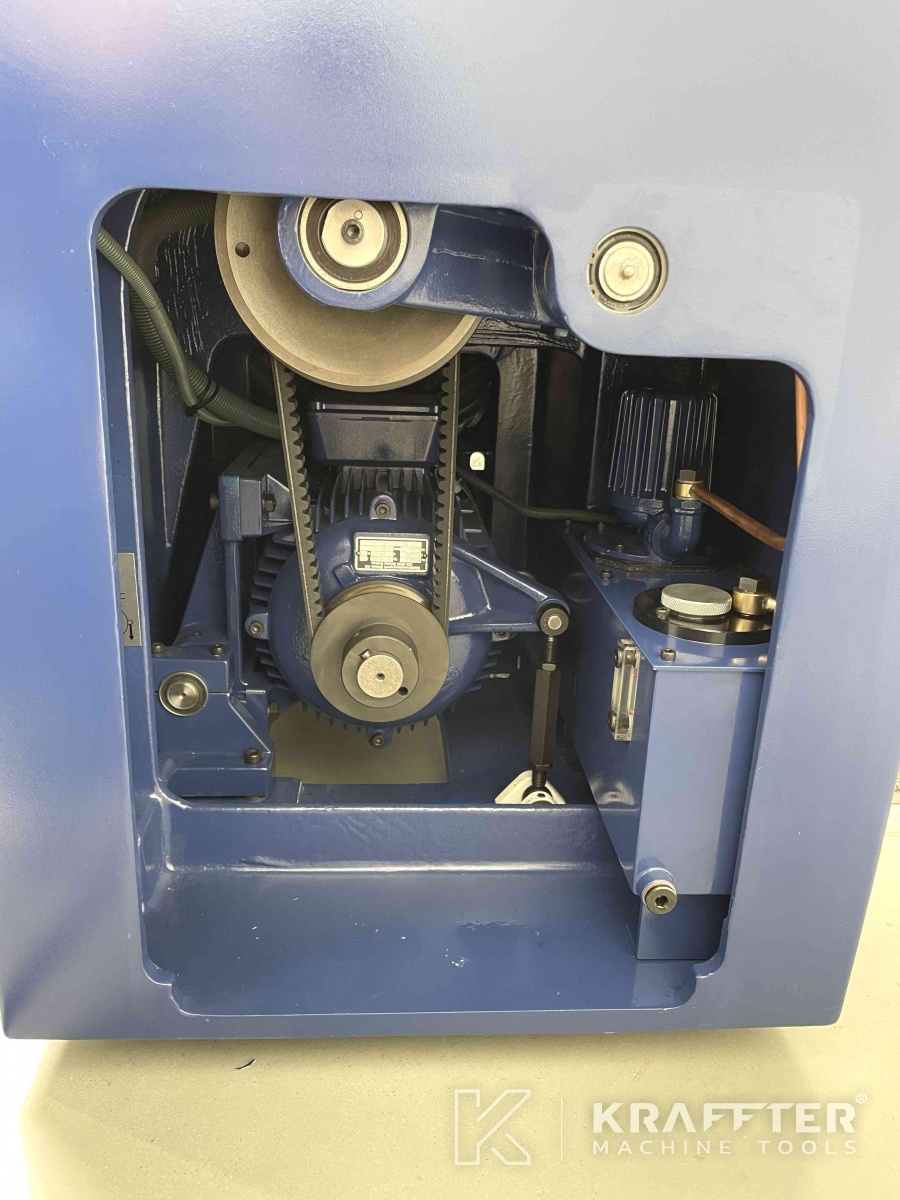

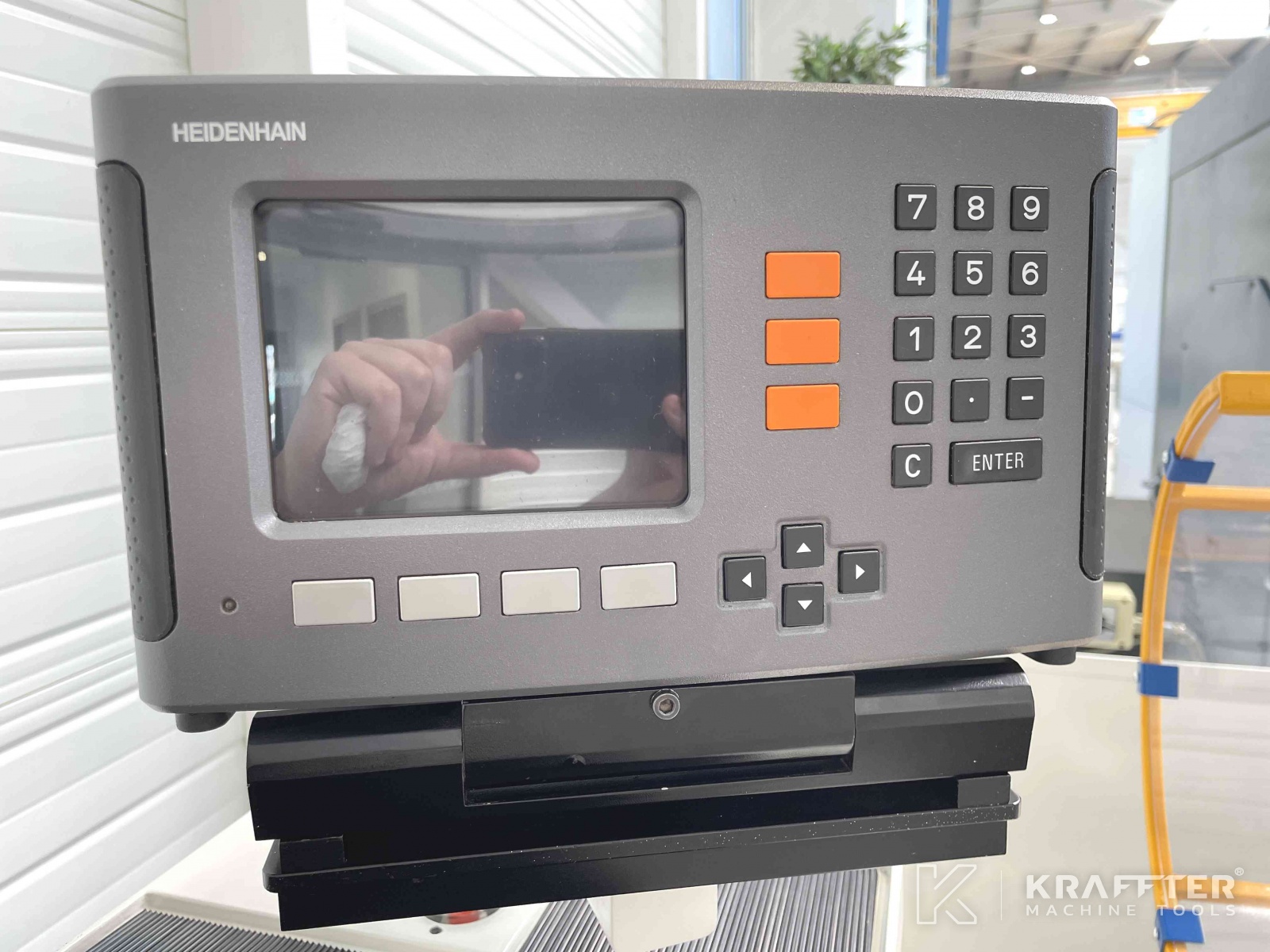

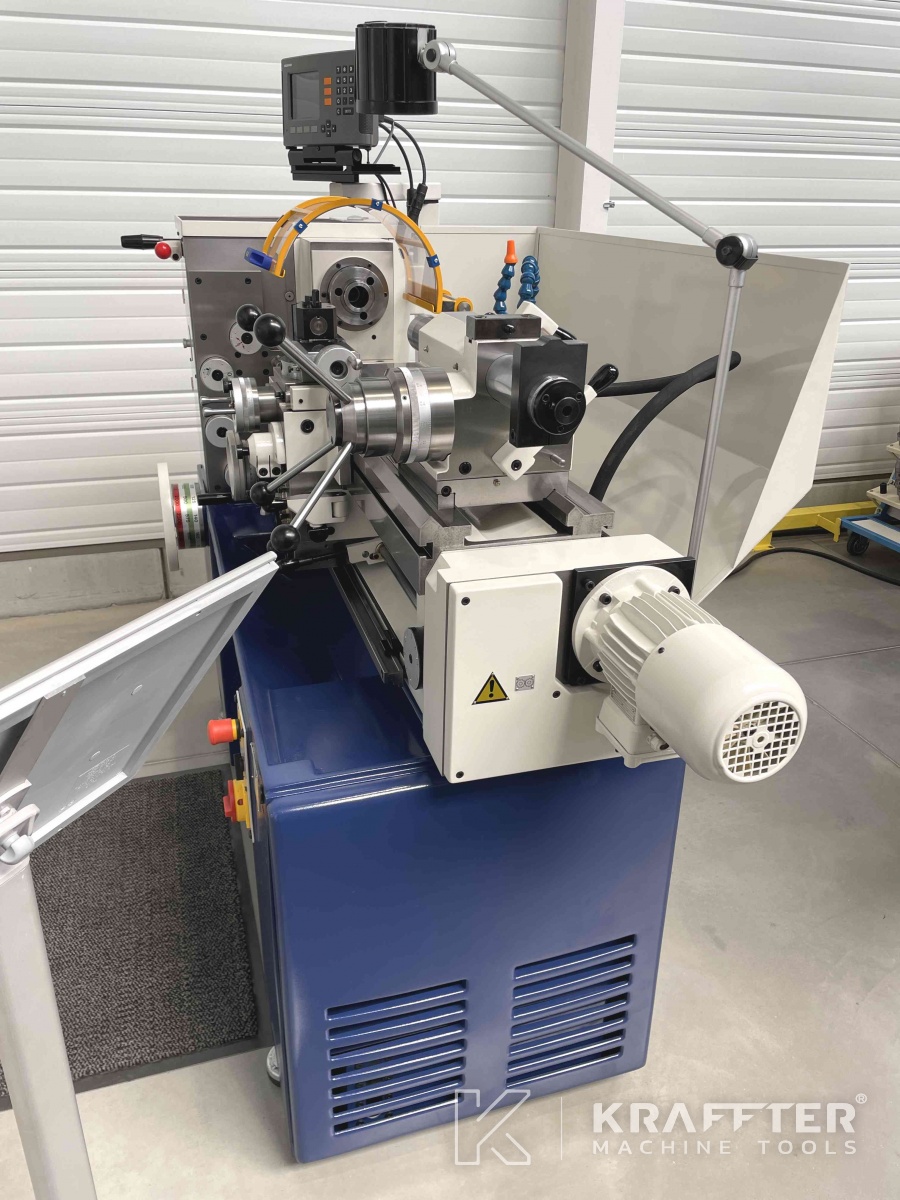

x1 HEIDENHAIN type ND780 Digital Read Out device (2 axes)
x44 SCHAUBLIN type B32 collets

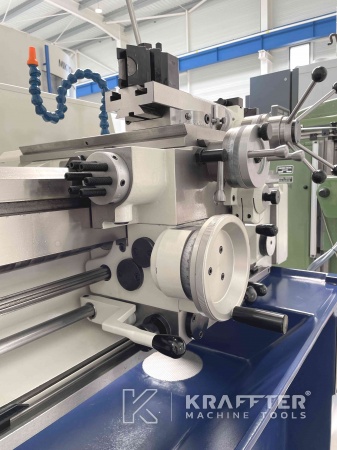

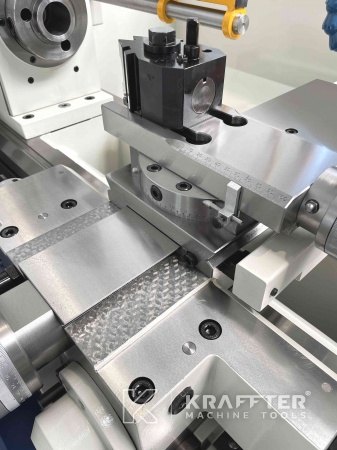

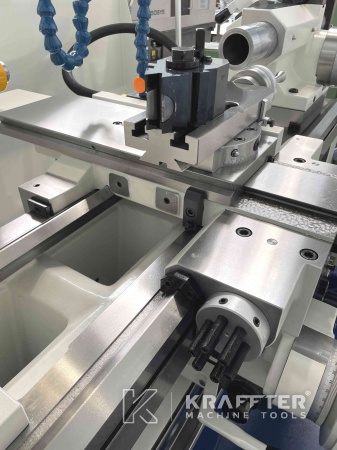

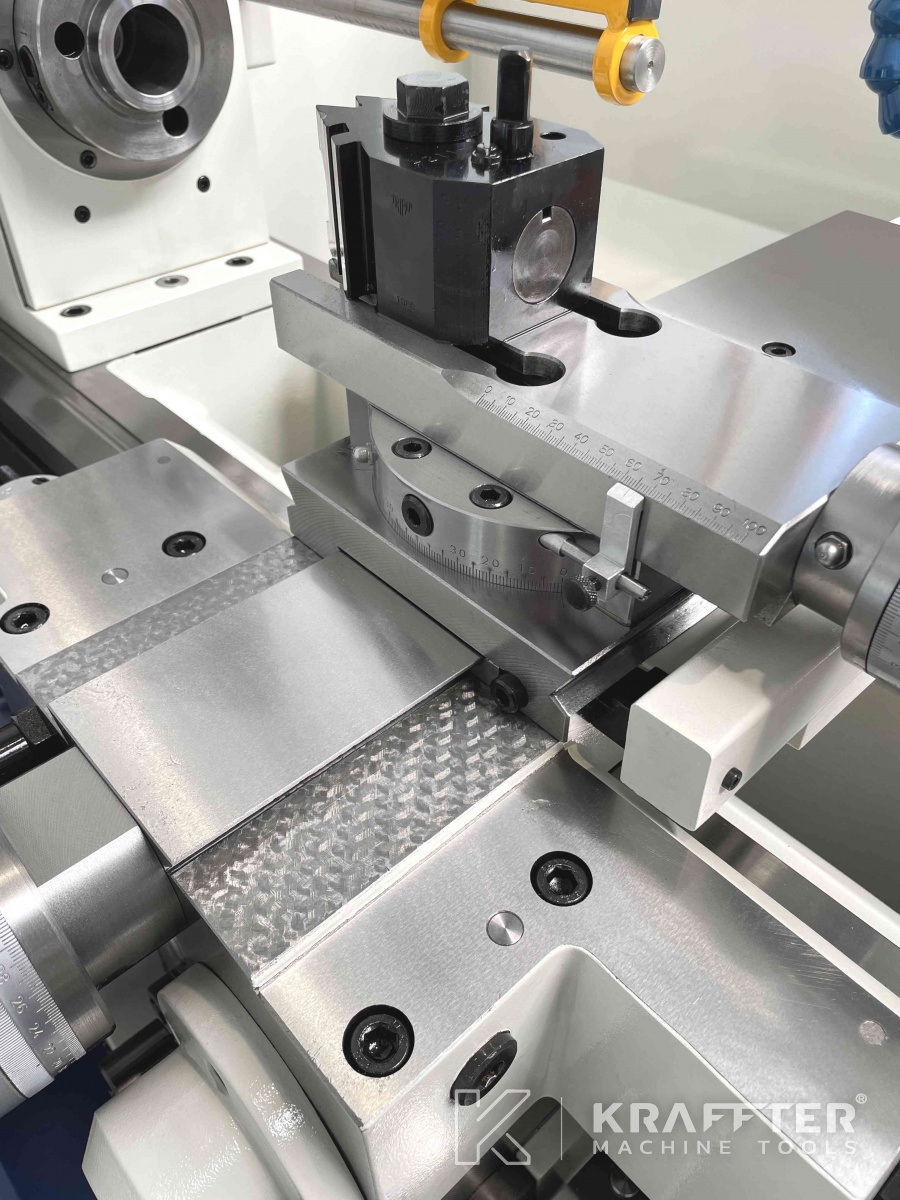

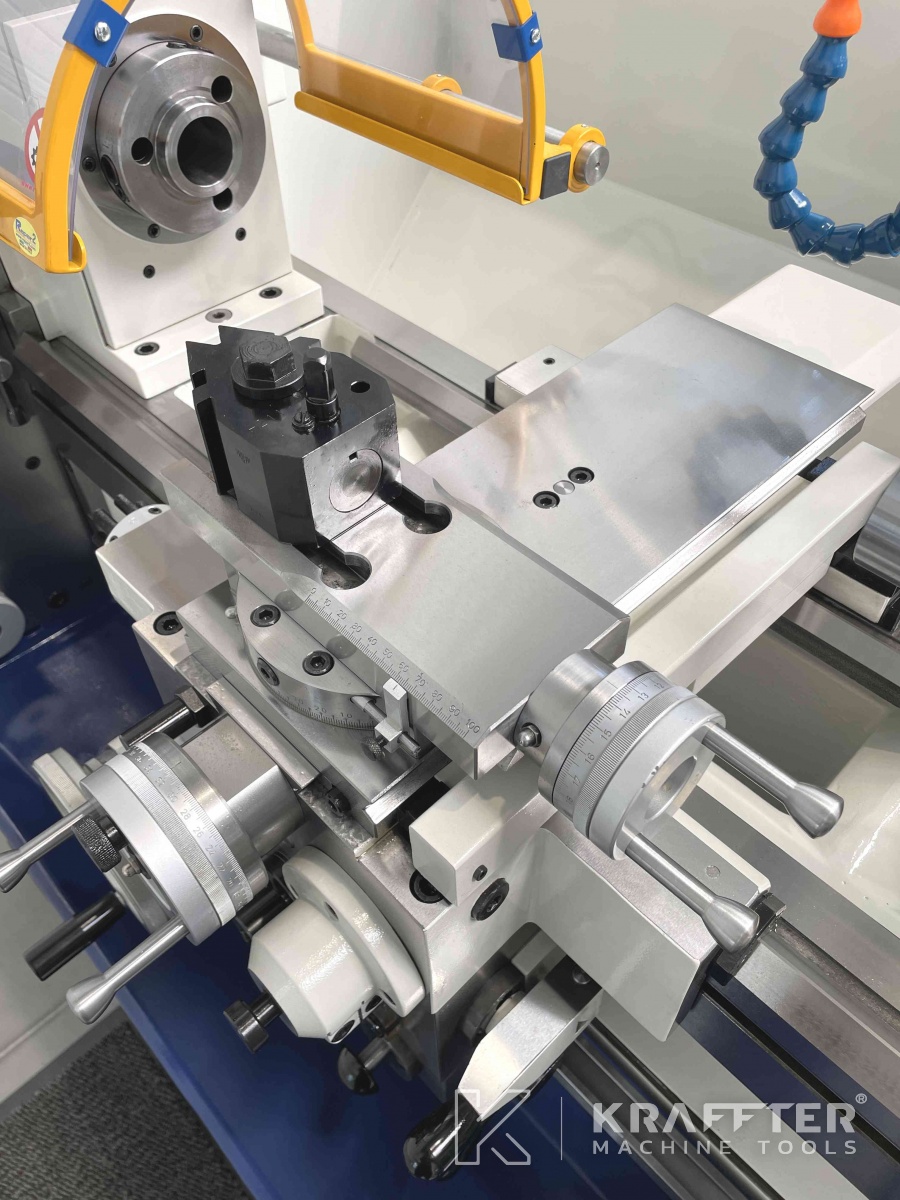

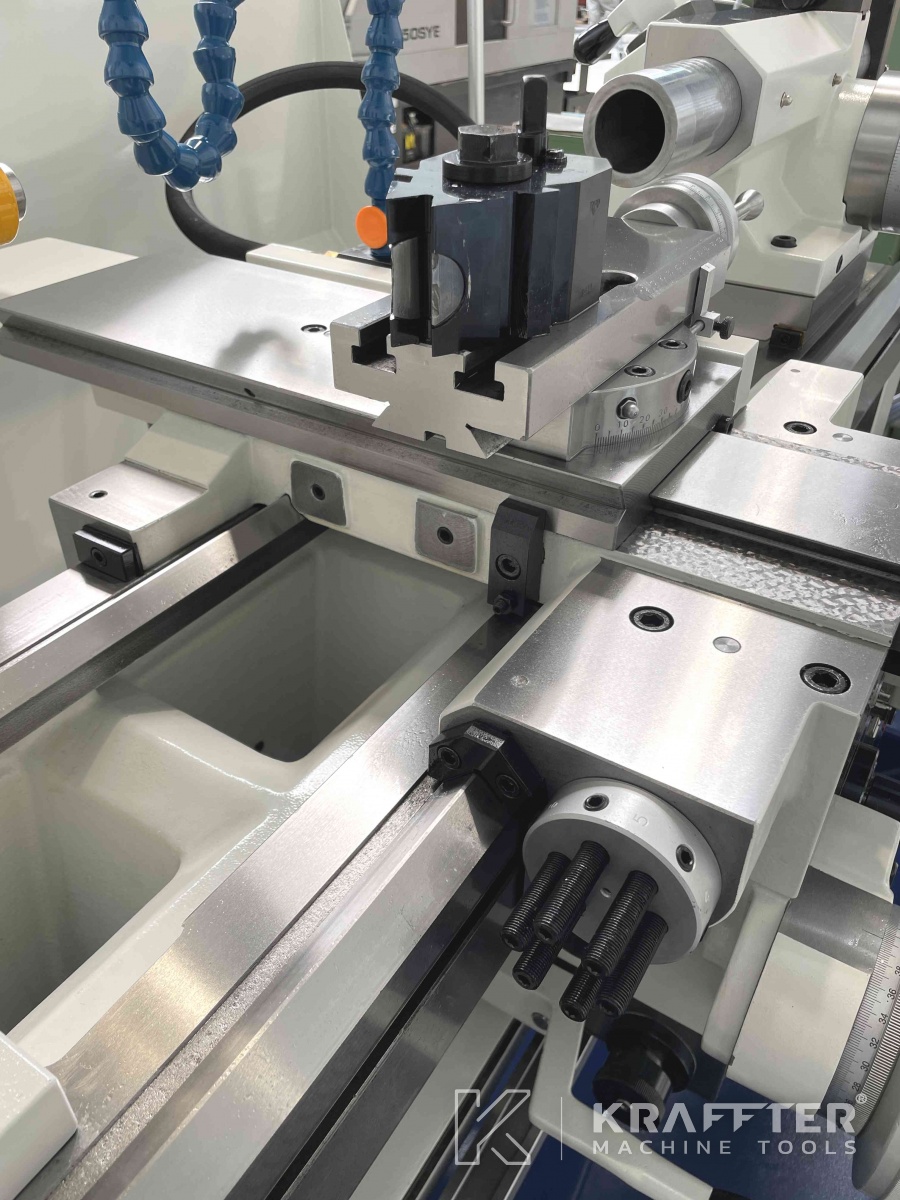

x1 TRIPAN SWITZERLAND tool post
x6 TRIPAN SWITZERLAND tool holders
x1 users manual in French
An original SCHAUBLIN steady rest can be included in option
