Type of machine : CNC lathe
Brand : BOLEY
Stock N° : 90063
Model : BE 42
Serial N° : 88009
Year : 2003
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

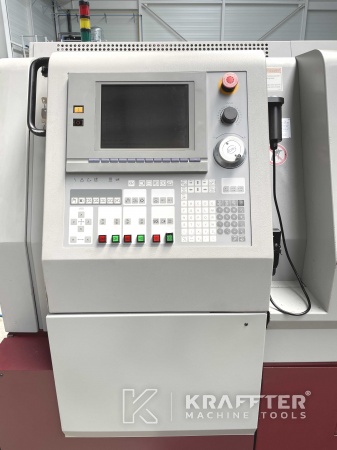

CNC control

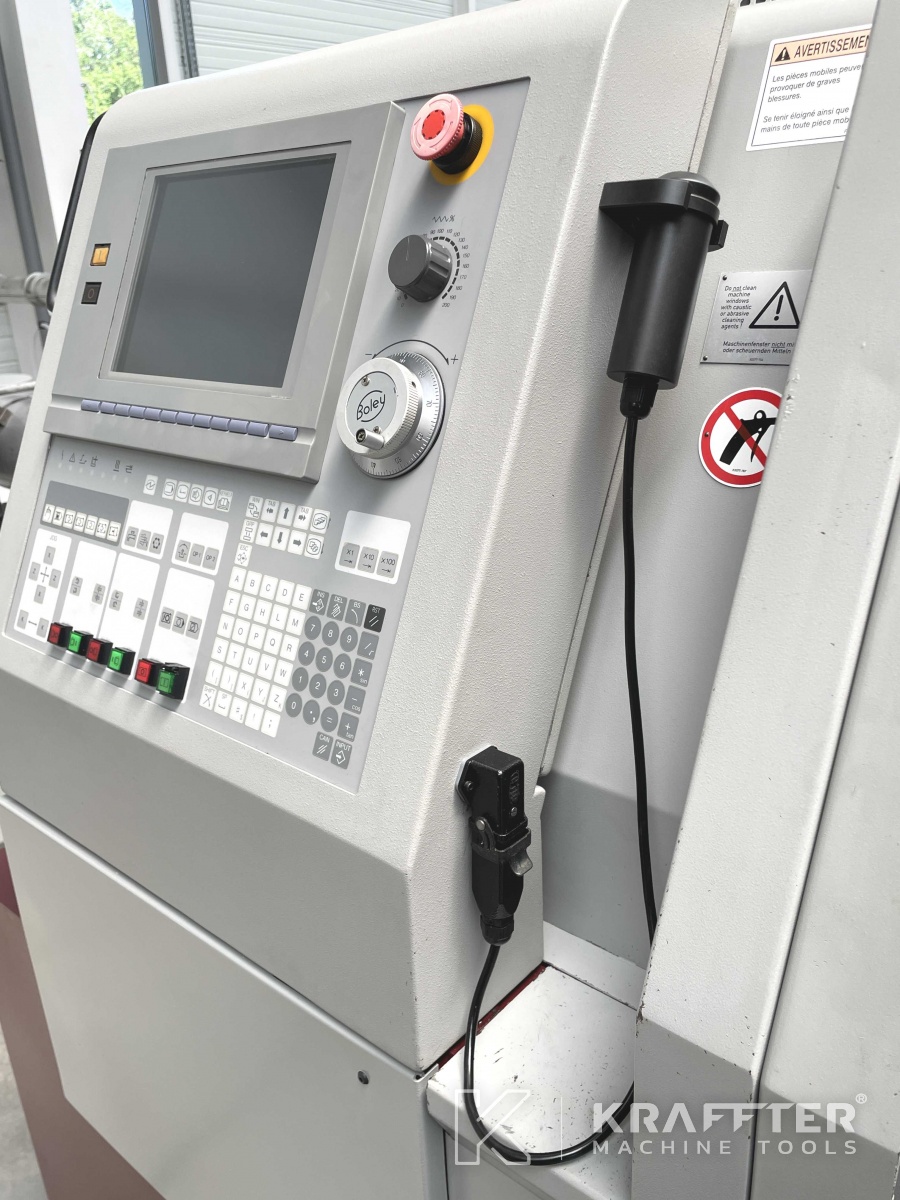

MITSUBISHI Meldas 635LCC
Max. turning diameter
140 [mm]
Stroke Z1 axis
200 [mm]
Stroke X1 axis
170 [mm]
Stroke Z2 axis
395 [mm]
Stroke X2 axis
110 [mm]
Stroke Z3 axis
170 [mm]
Stroke X3 axis
110 [mm]
Spindle for collets
Taille 48 DIN 6343
Spindle throughbore
42 [mm]
Min. spindle speed
80 [rpm]
Max. spindle speed
8000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
7.5 [kW]
Counter spindle throughbore
42 [mm]
Min. counter spindle spindle speed
60 [rpm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
2.2 [kW]
Type of tool holders
VDI 20
Number of tool stations - Upper turret
12
Number of tool stations driven - Upper turret
12
Max. speed driven tools - Upper turret
4500 [rpm]
Number of tool stations - Lower turret
12
Number of tool stations driven - Lower turret
12
Max. speed driven tools - Lower turret
4500 [rpm]
Lubrication tank capacity
210 [l]
Total power required
14 [kVA]
Rated current
20 [A]
Supply voltage
400 [V]
RS232 Interface
Yes
Dimensions
2350 x 1590 x 1730 [mm]
Weight
3300 [Kg]

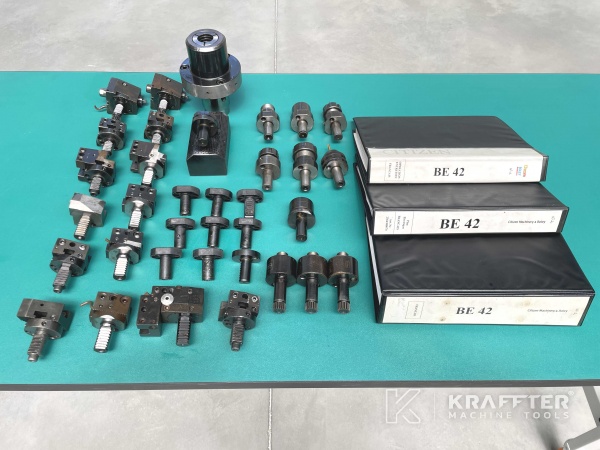

EQUIPMENT INCLUded:

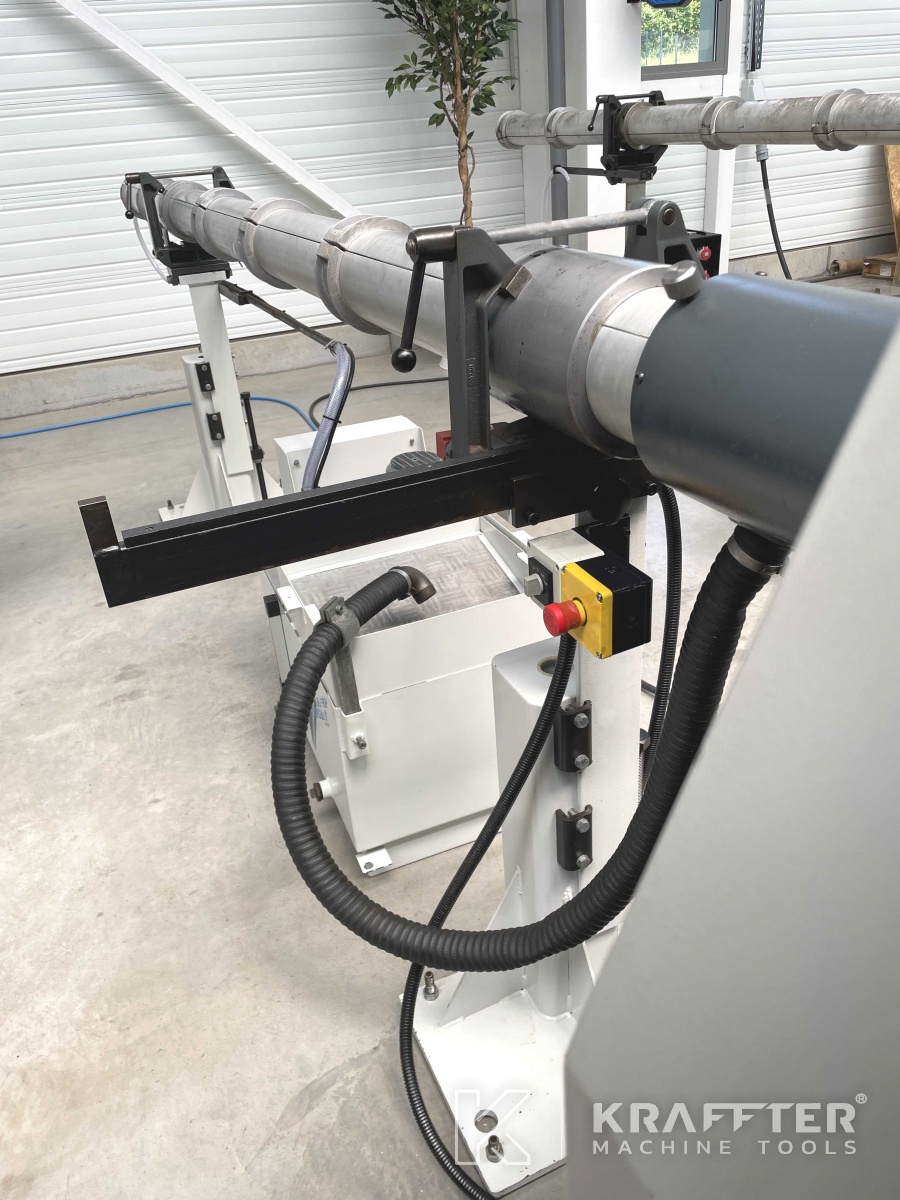

x1 bar feeder LNS Hydrobar

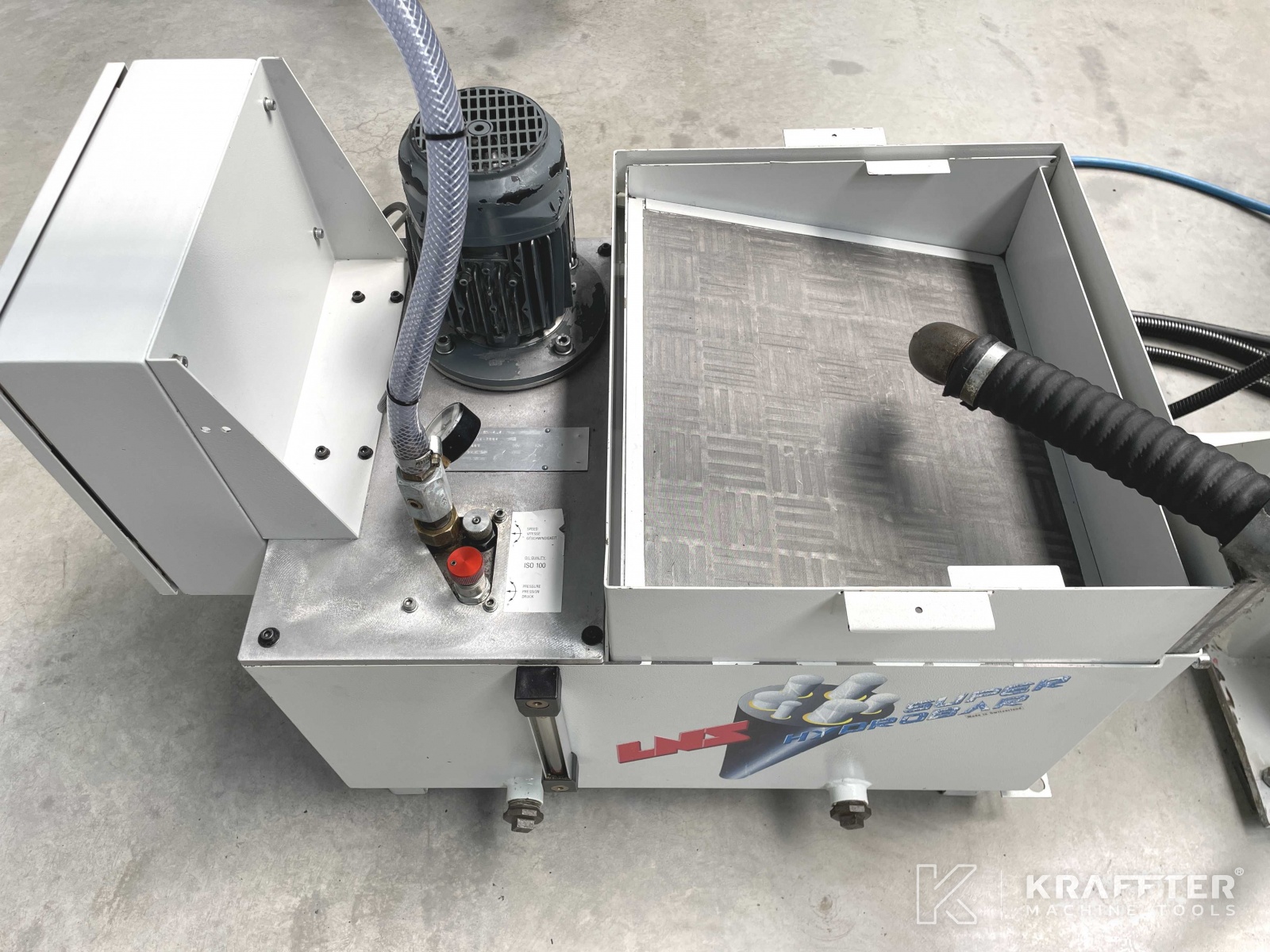

x1 collant tank
x1 parts conveying strip
x1 parts catcher
3 colors status lamp
x2 radial live turning tool holders VDI 20
x3 axial live turning tool holders VDI 20
x19 steady tool holders VDI 20
x9 obturators VDI 20
x2 collet chuck holders (for both S1 and S2 spindle noses)
x1 electrical wiring diagram manual
x1 service manuel (in French)
x1 users manual (in French)

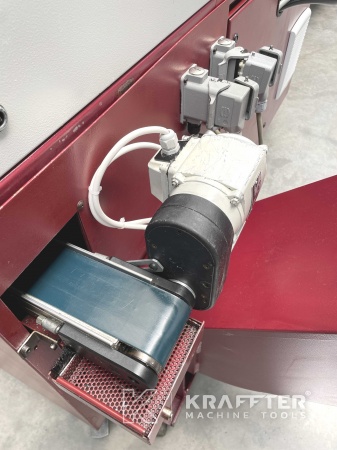

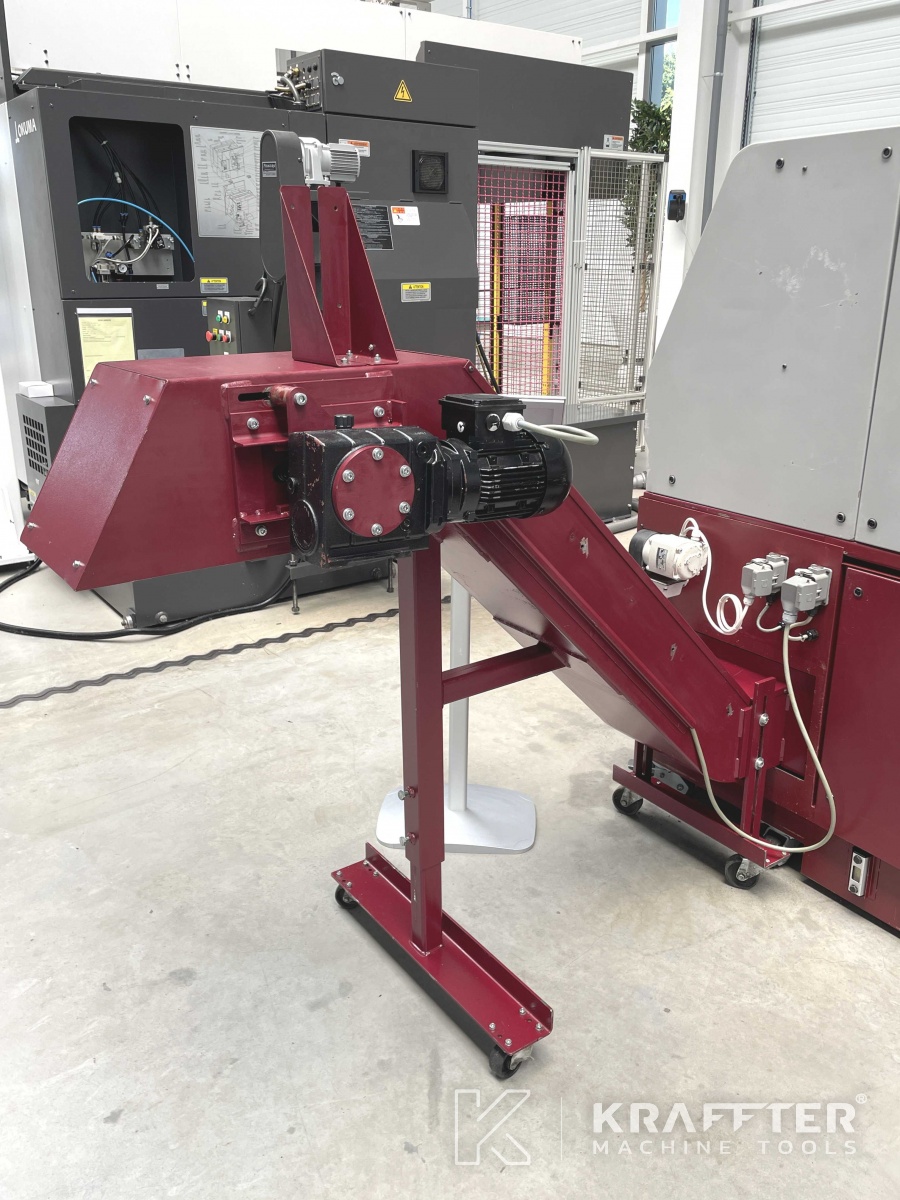

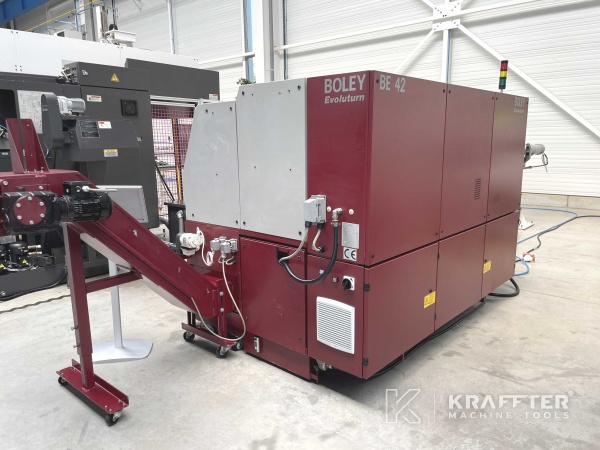

*Chip conveyor visible in the photos not included with the machine
