Sold

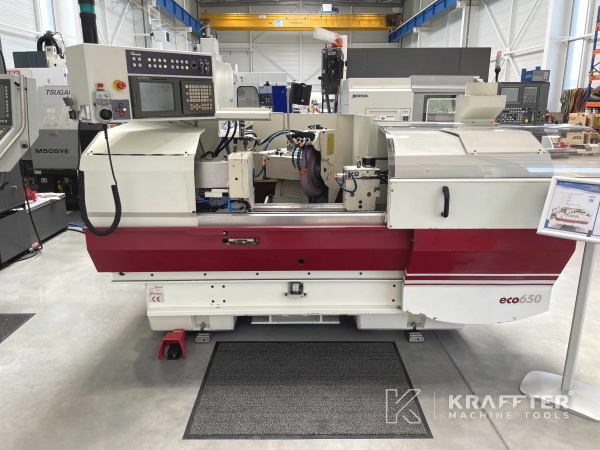

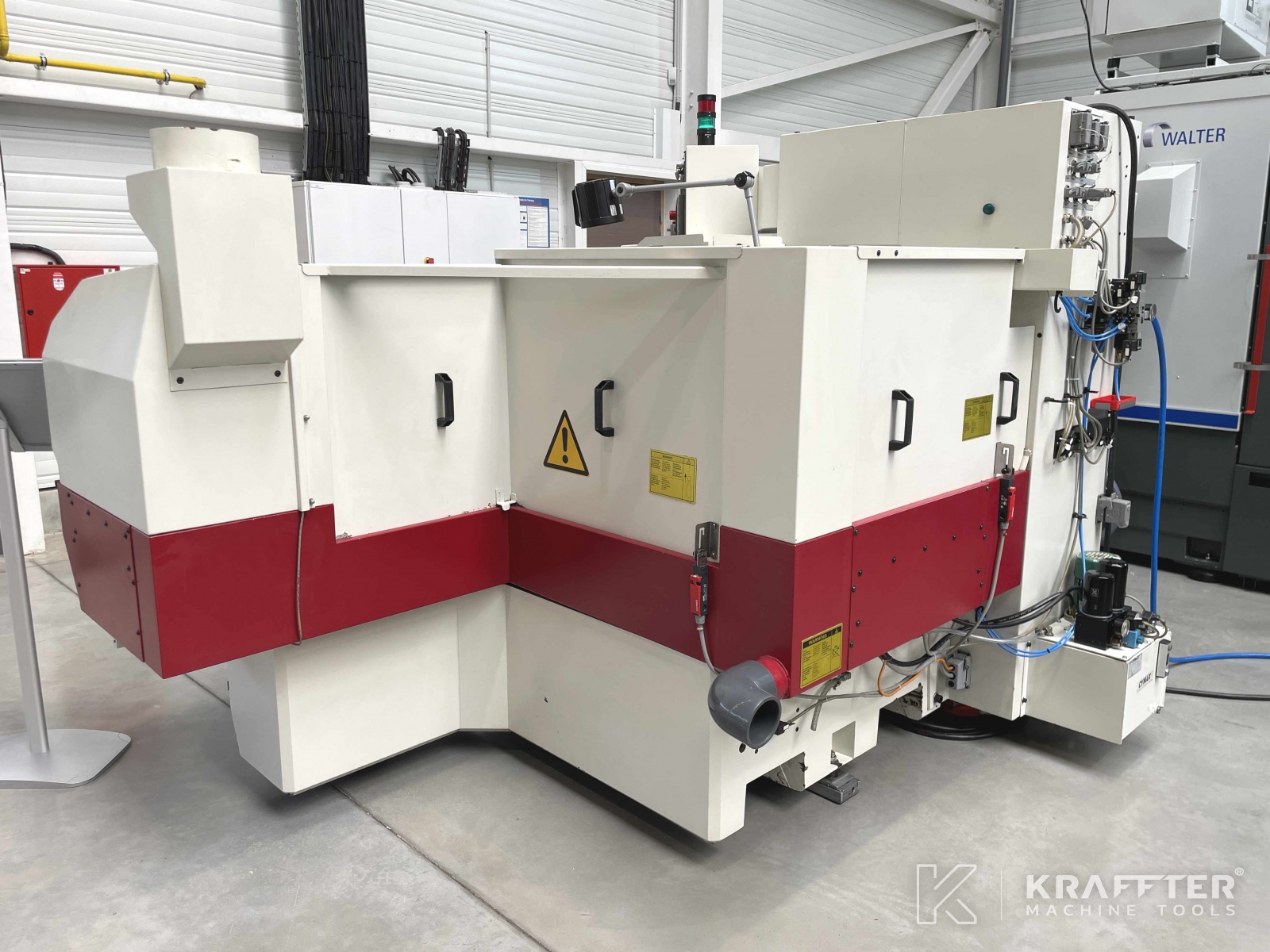

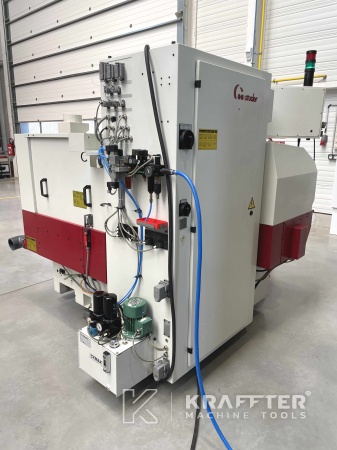

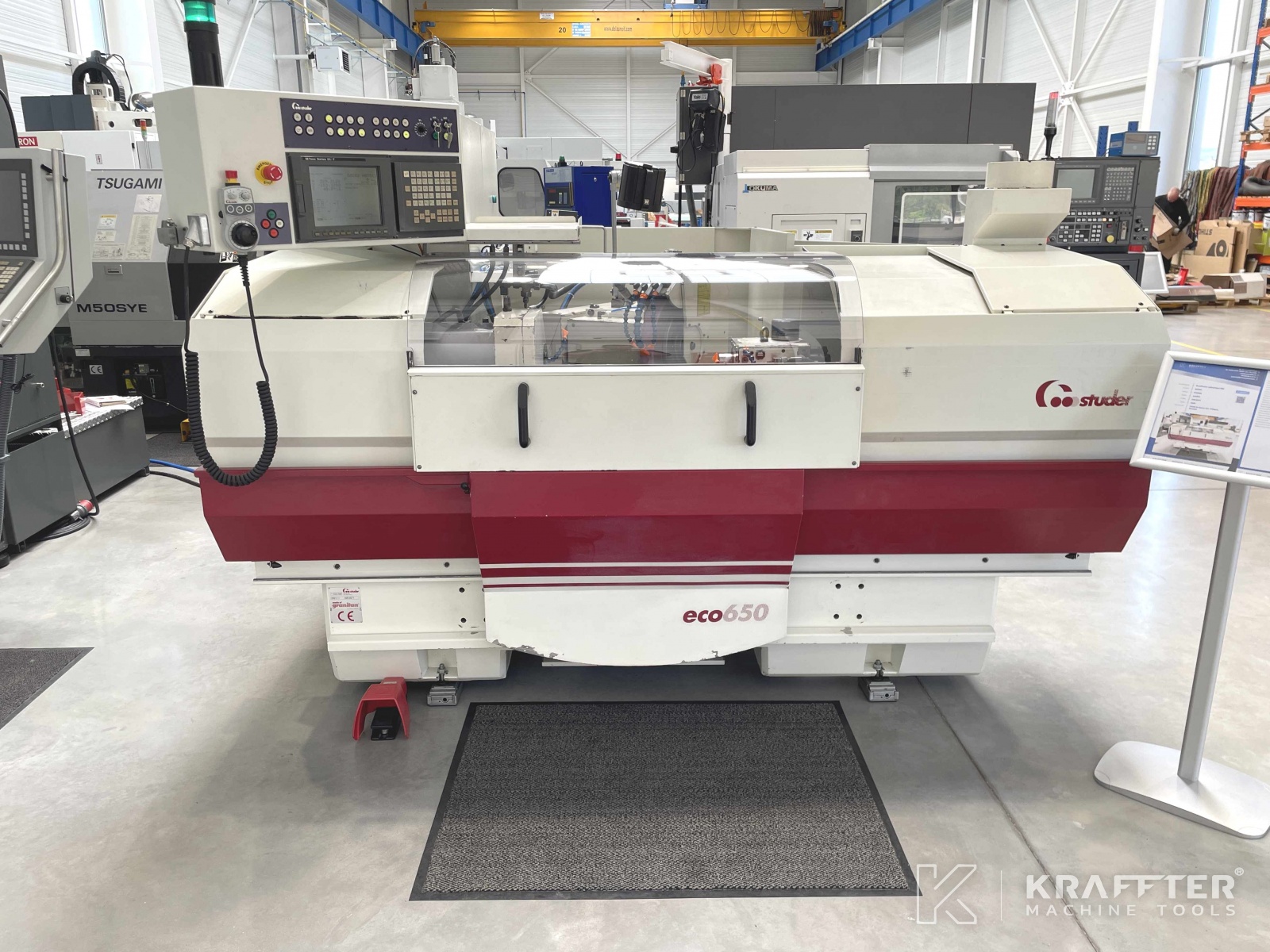

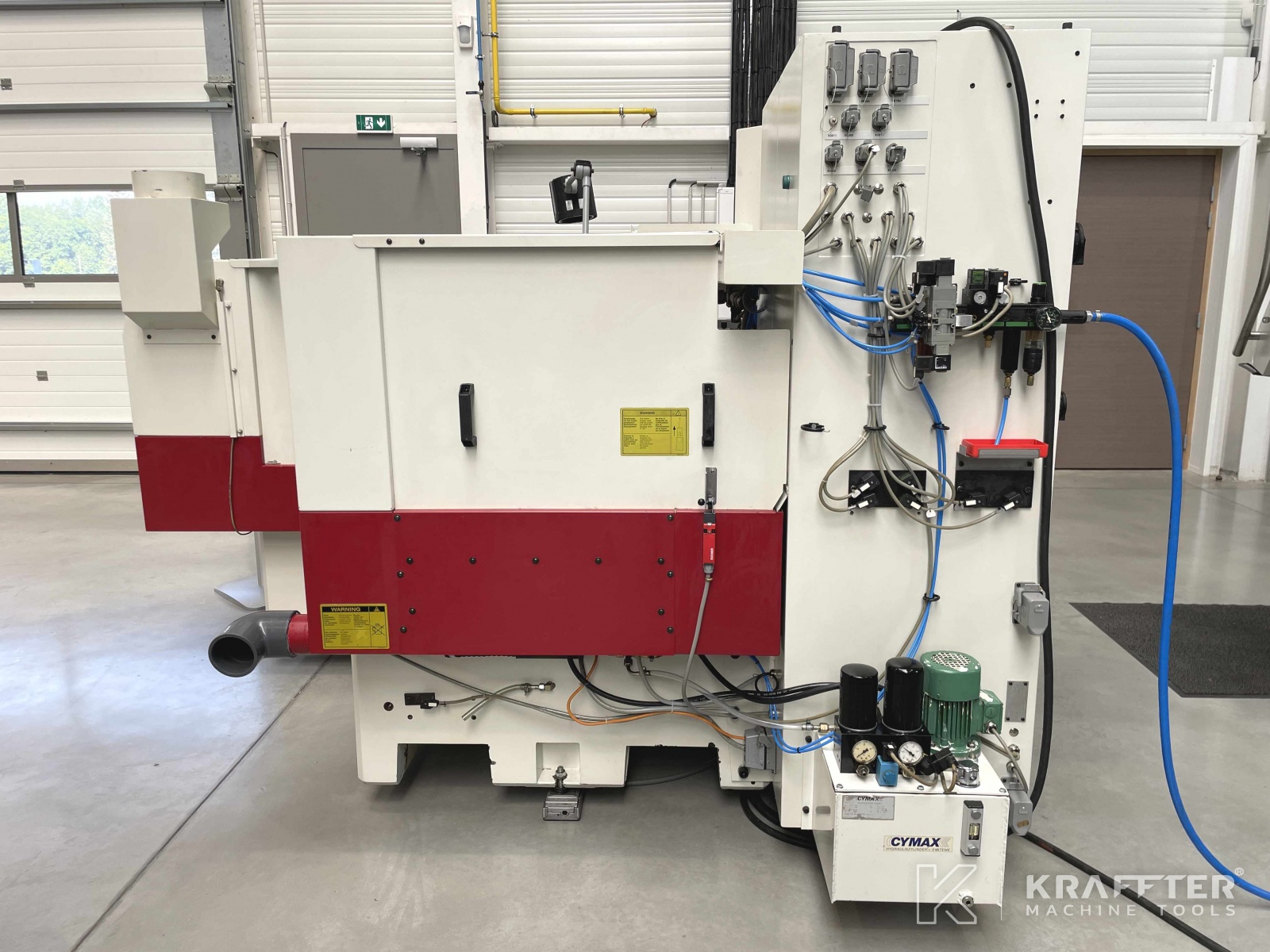

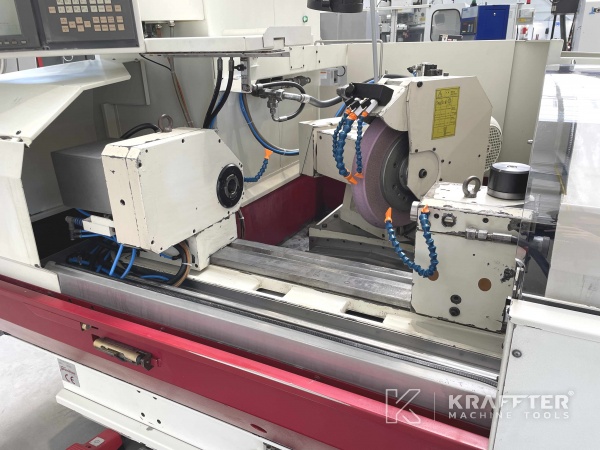

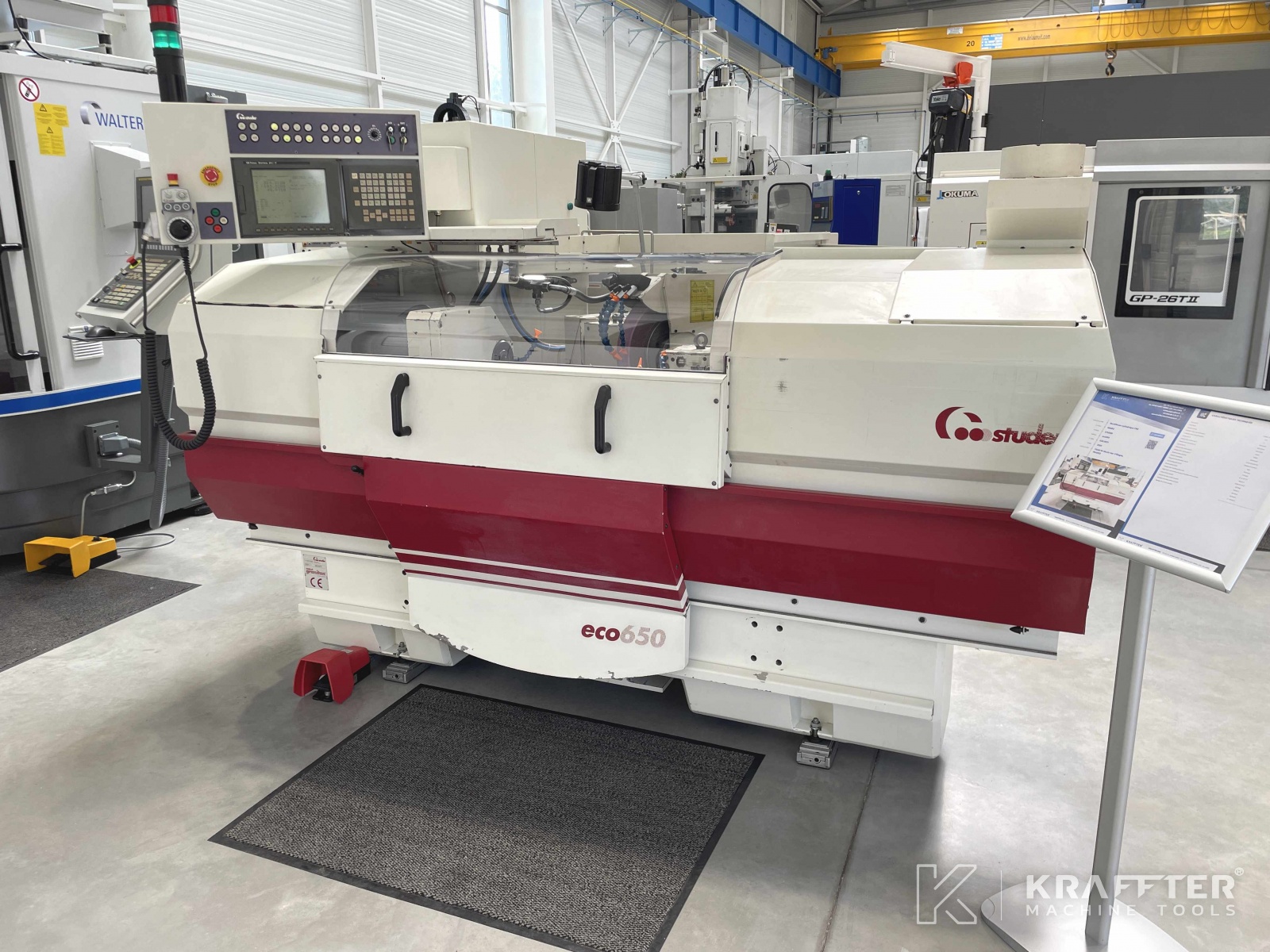

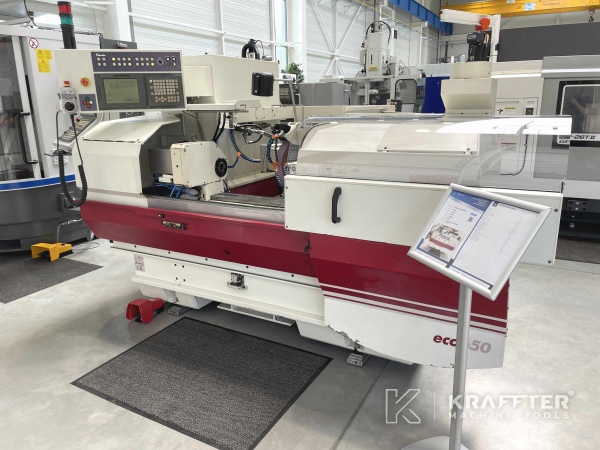

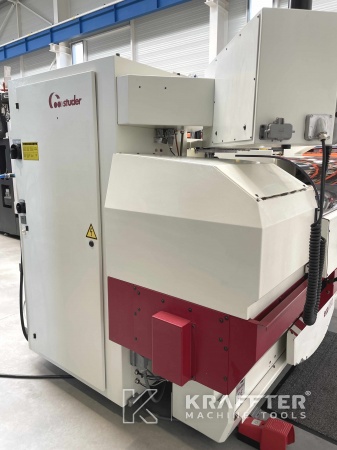

Type of machine : CNC cylindrical grinder
Brand : STUDER
Stock N° : 90080
Model : eco650
Serial N° : 026.0071
Year : 2001
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

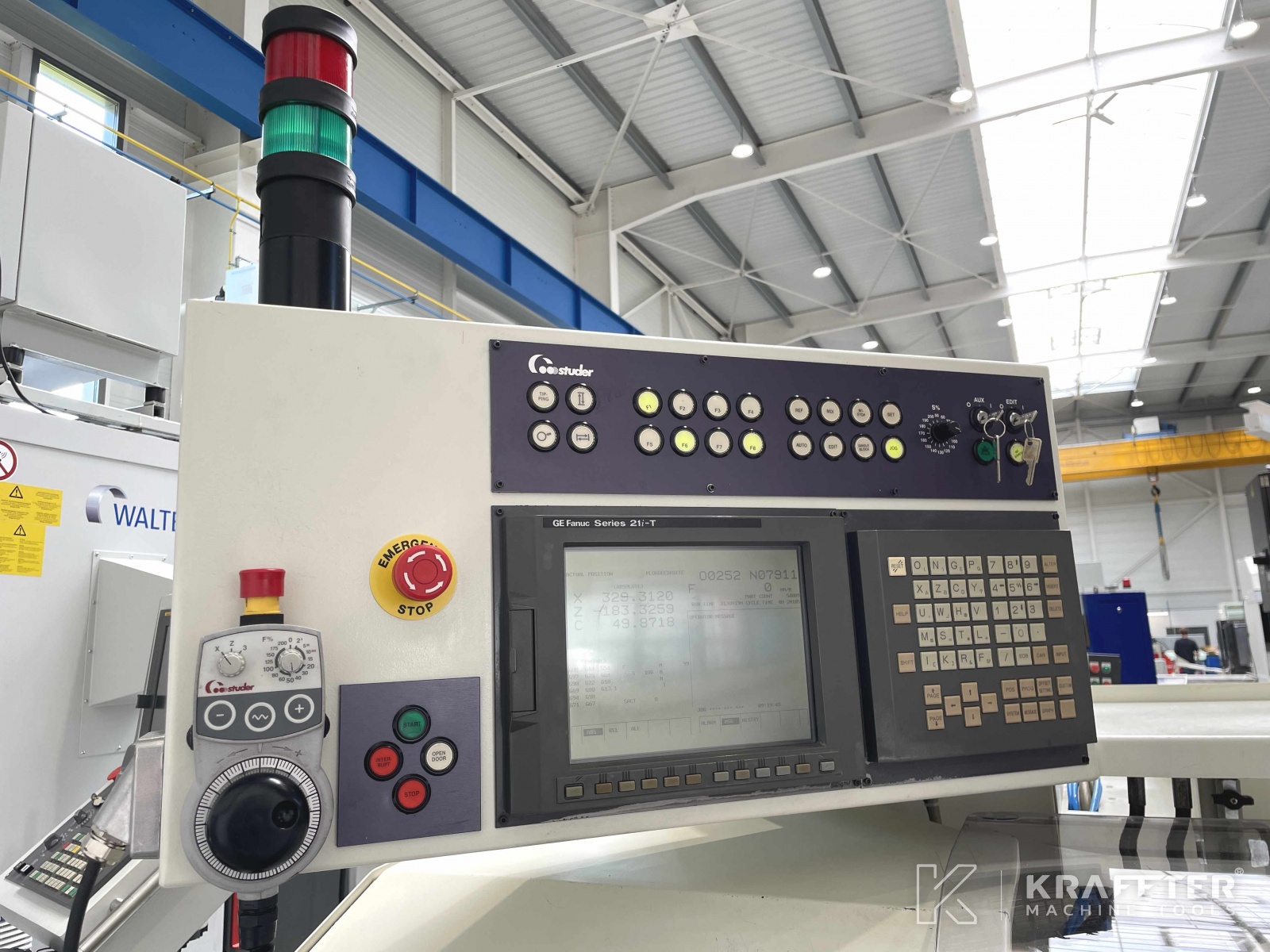

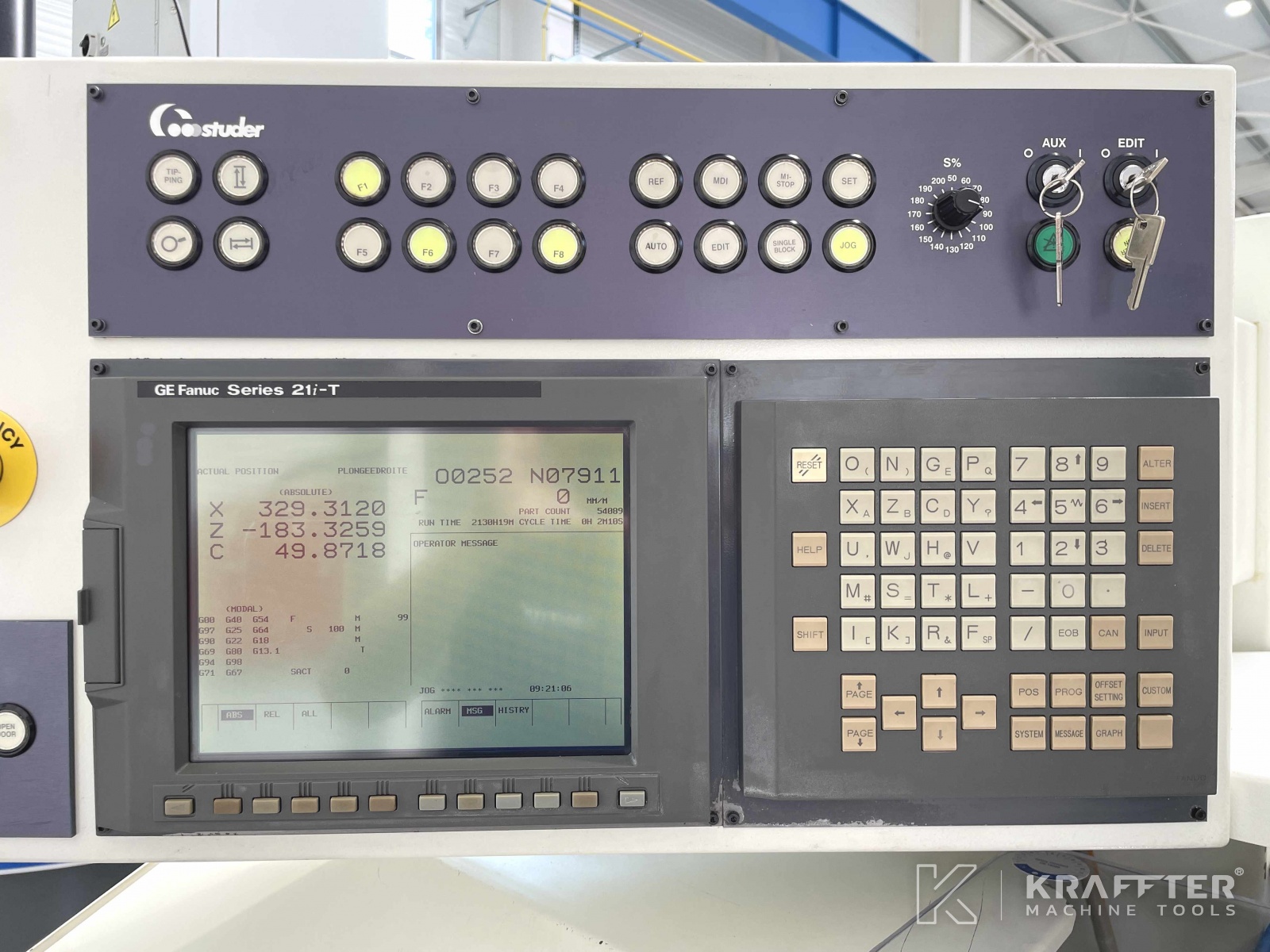

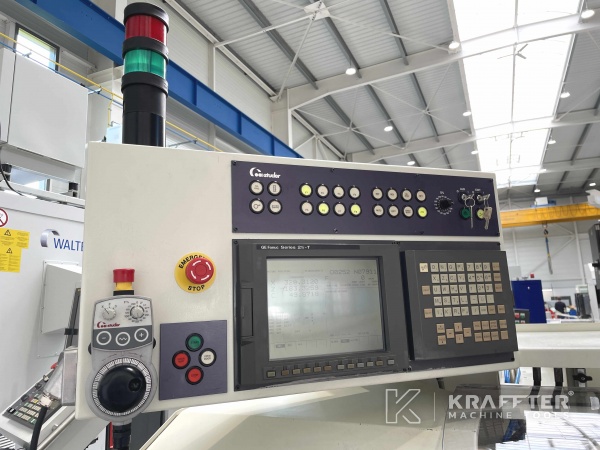

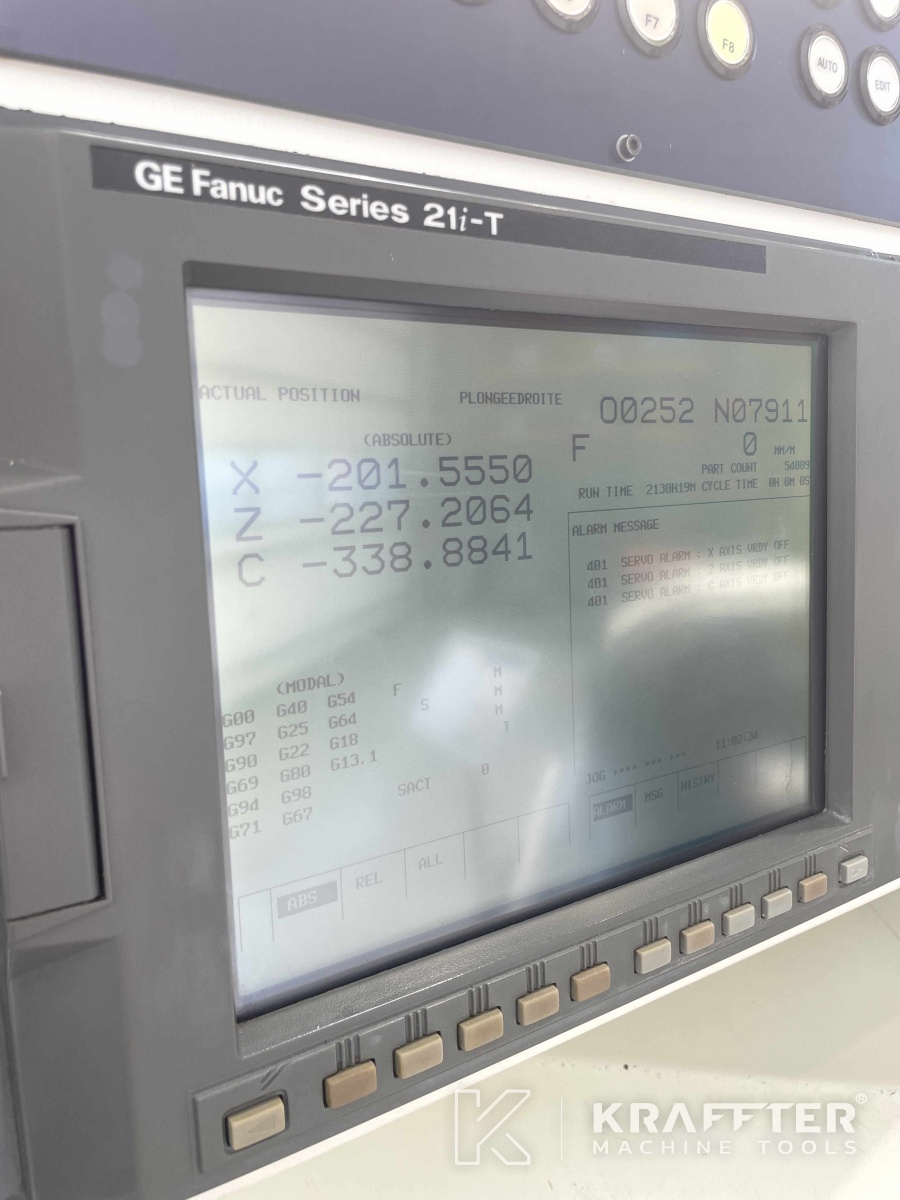

CNC control
FANUC 21i-T

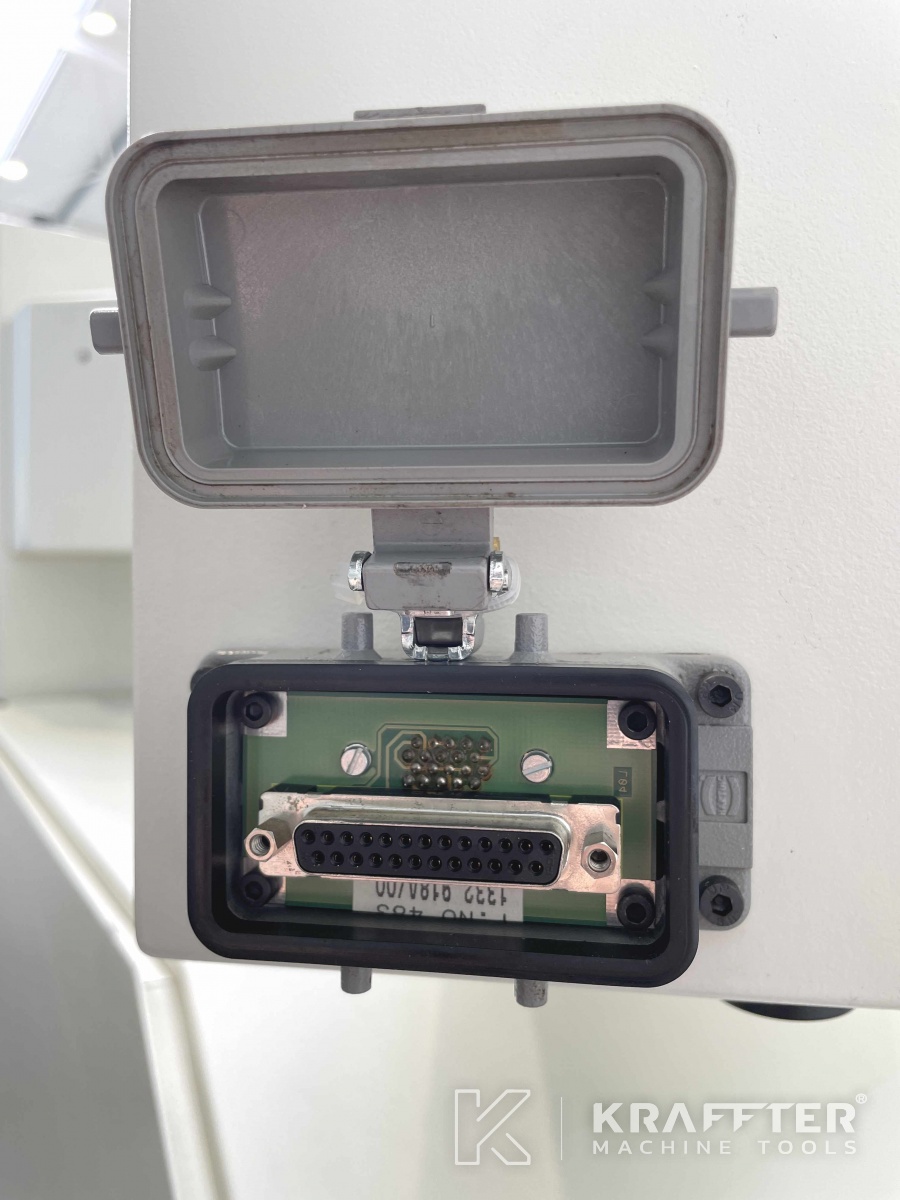

RS232 Interface
Yes
Number of axes
3
Centre distance
650 [mm]
Height of centers
175 [mm]
Max. grinding diameter
150 [mm]
Max. grinding lenght
650 [mm]
Stroke X axis
285 [mm]
Min. Stroke speed X axis
0.001 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Stroke Z axis
800 [mm]
Min. Stroke speed Z axis
0.001 [mm/min]
Max. Stroke speed Z axis
10000 [mm/min]

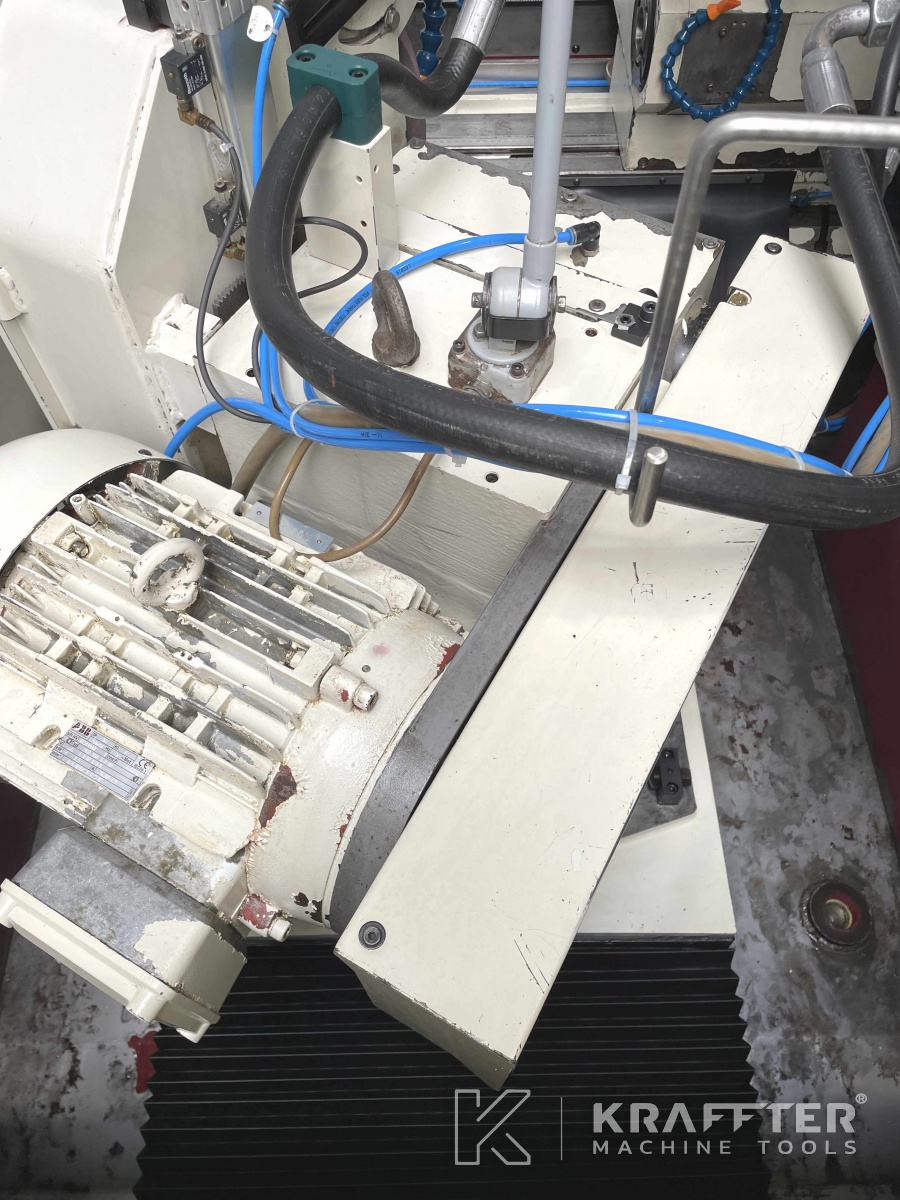

Grinding spindle motor power
7.5 [kW]
B axis swivelling stroke
0° or 30° [°]

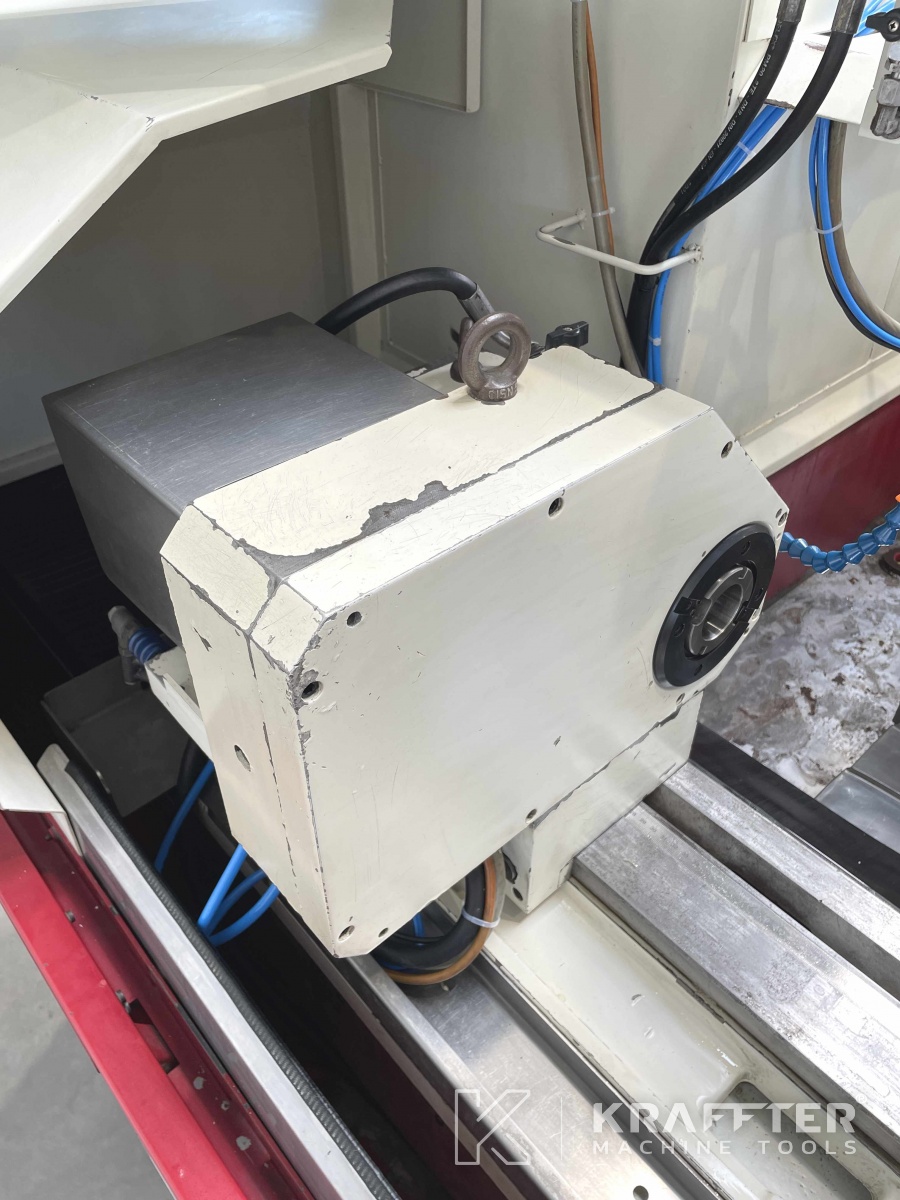

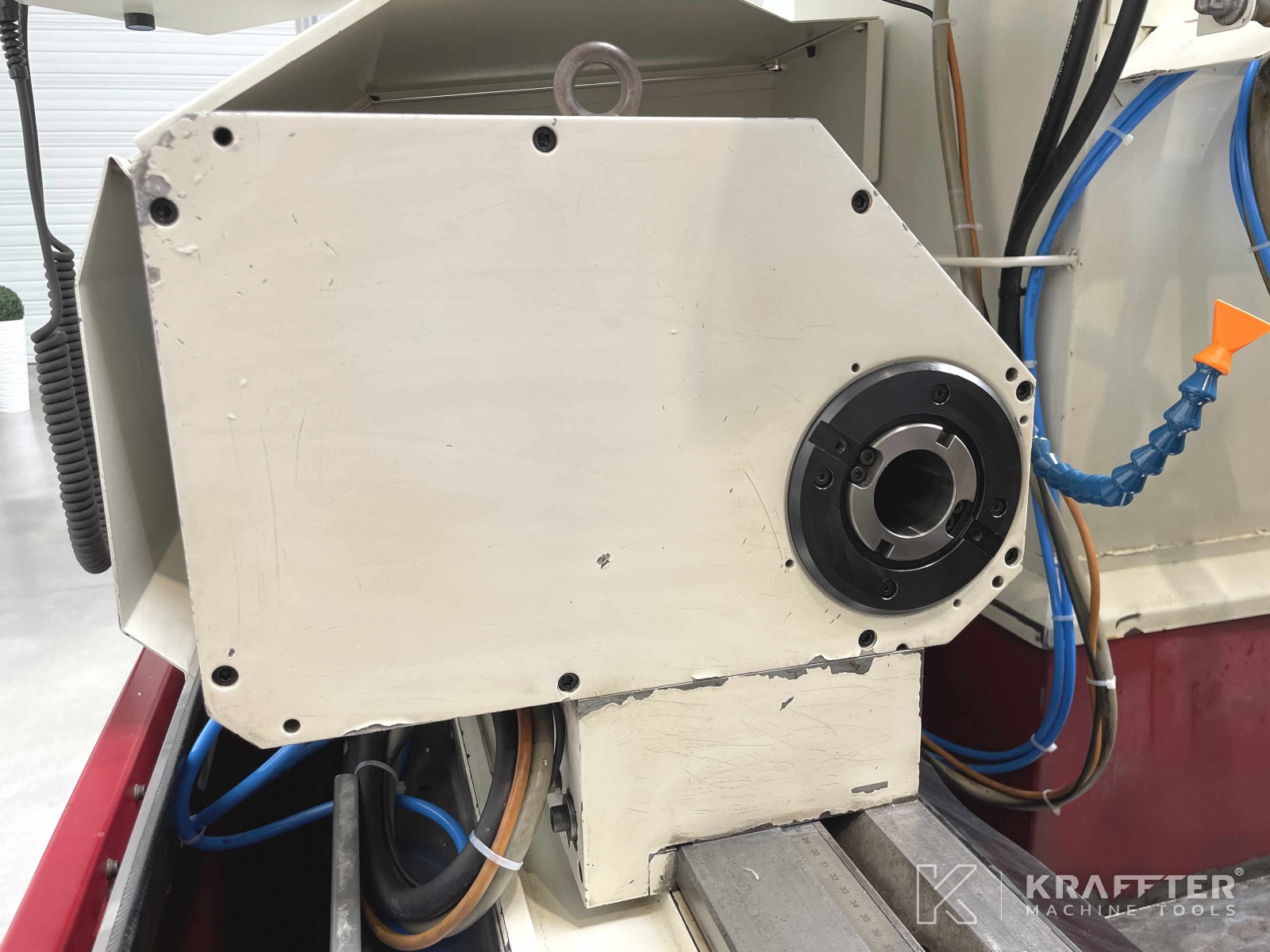

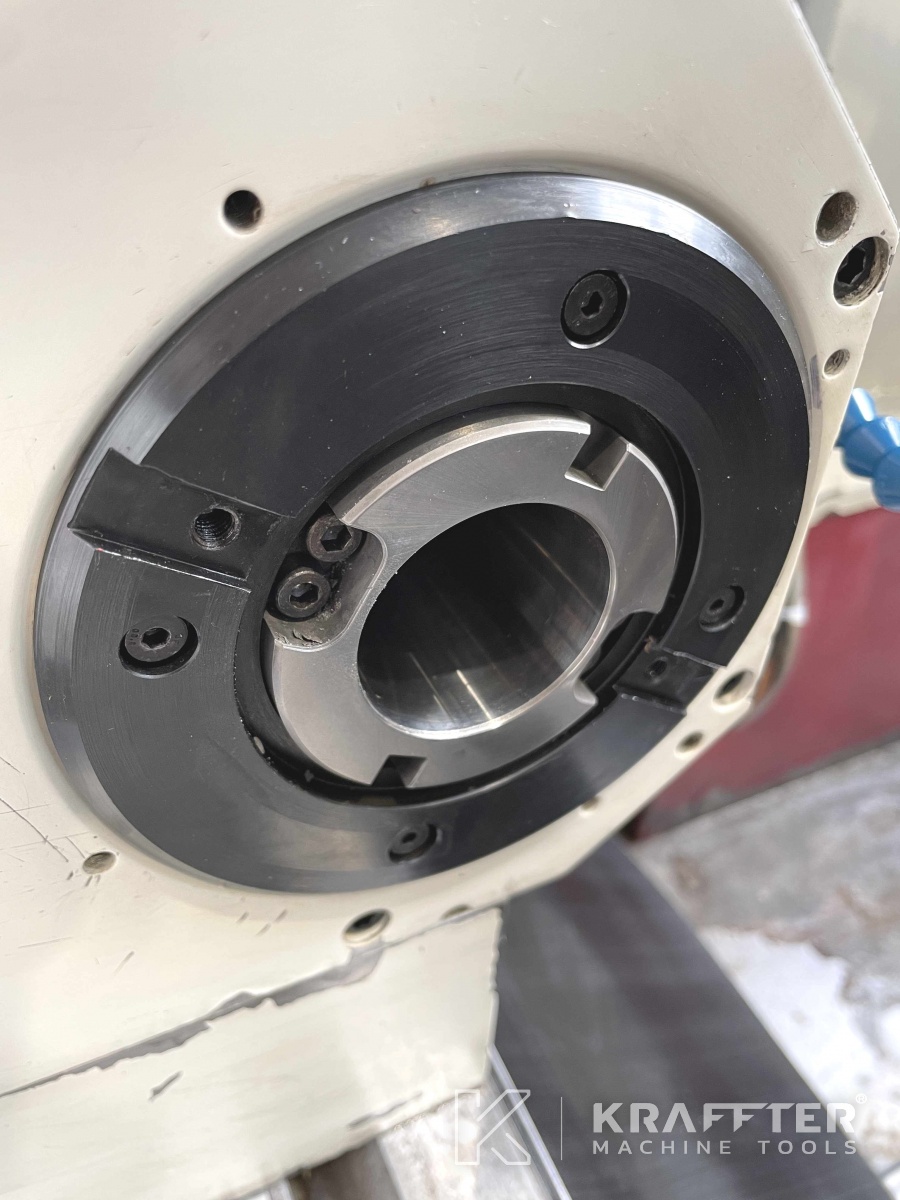

Workpiece spindle nose
Morse 5
Workpiece spindle max. speed
1000 [rpm]
Max. part weight in part holder headstock between centres
80 [Kg]

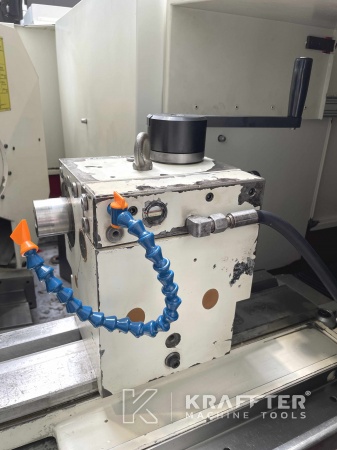

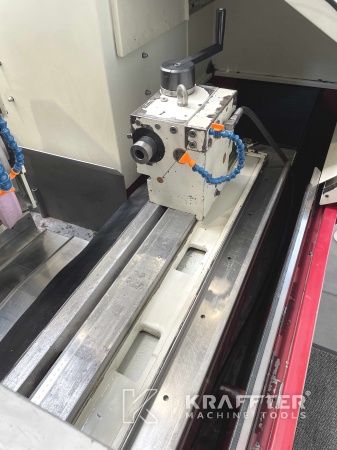

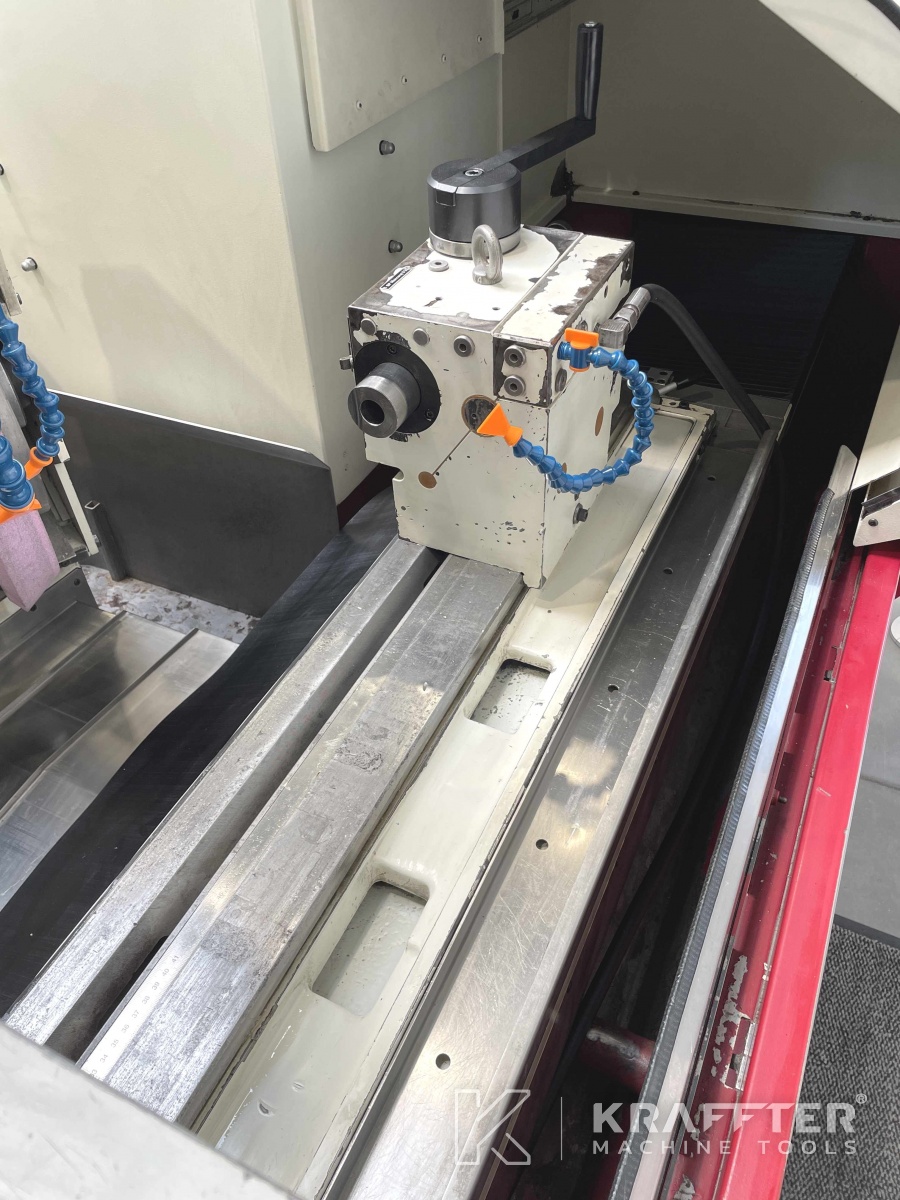

Type of attachment tailstock
Morse 3
Tailstock quill stroke
35 [mm]
Tailstock quill diameter
50 [mm]
Tailstock fine adjustment
+/- 40 [µm]
MAIN FEATURES:

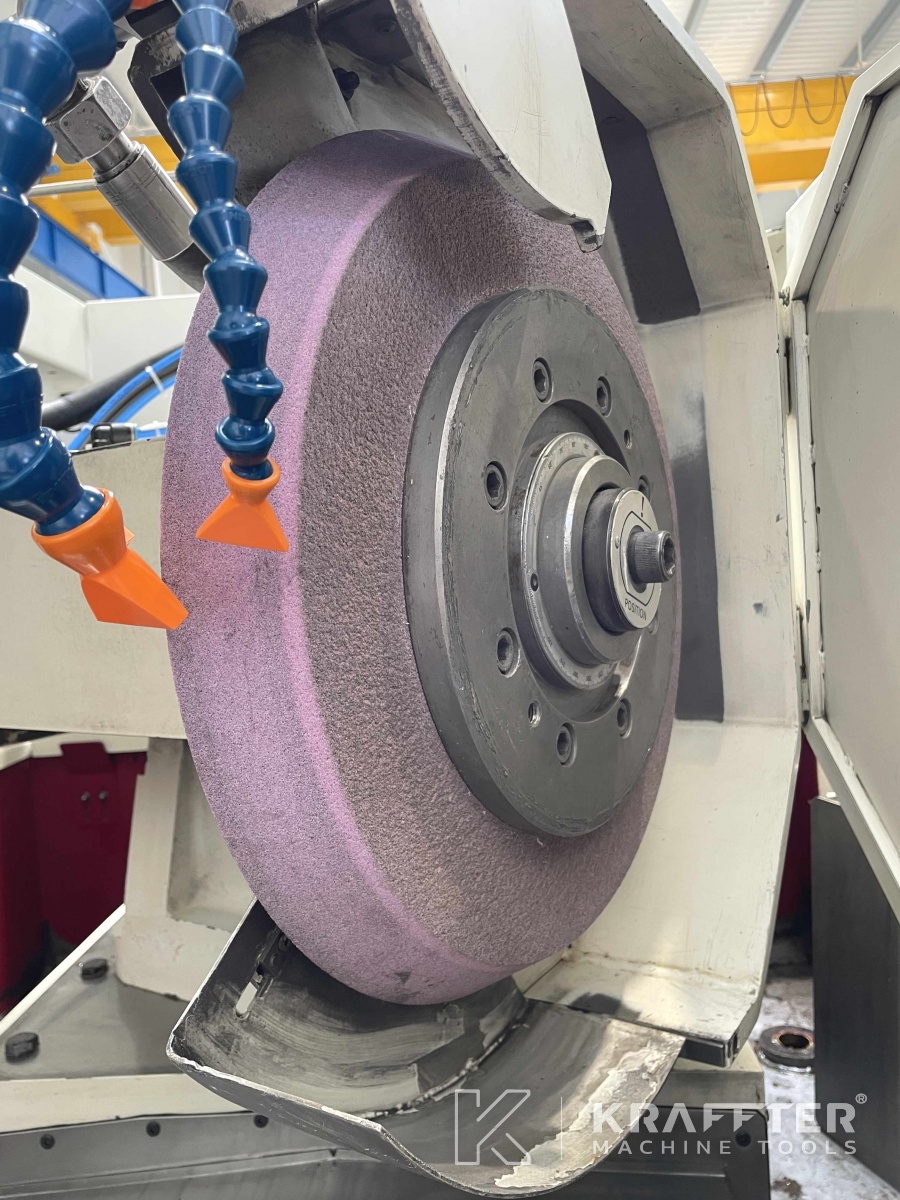

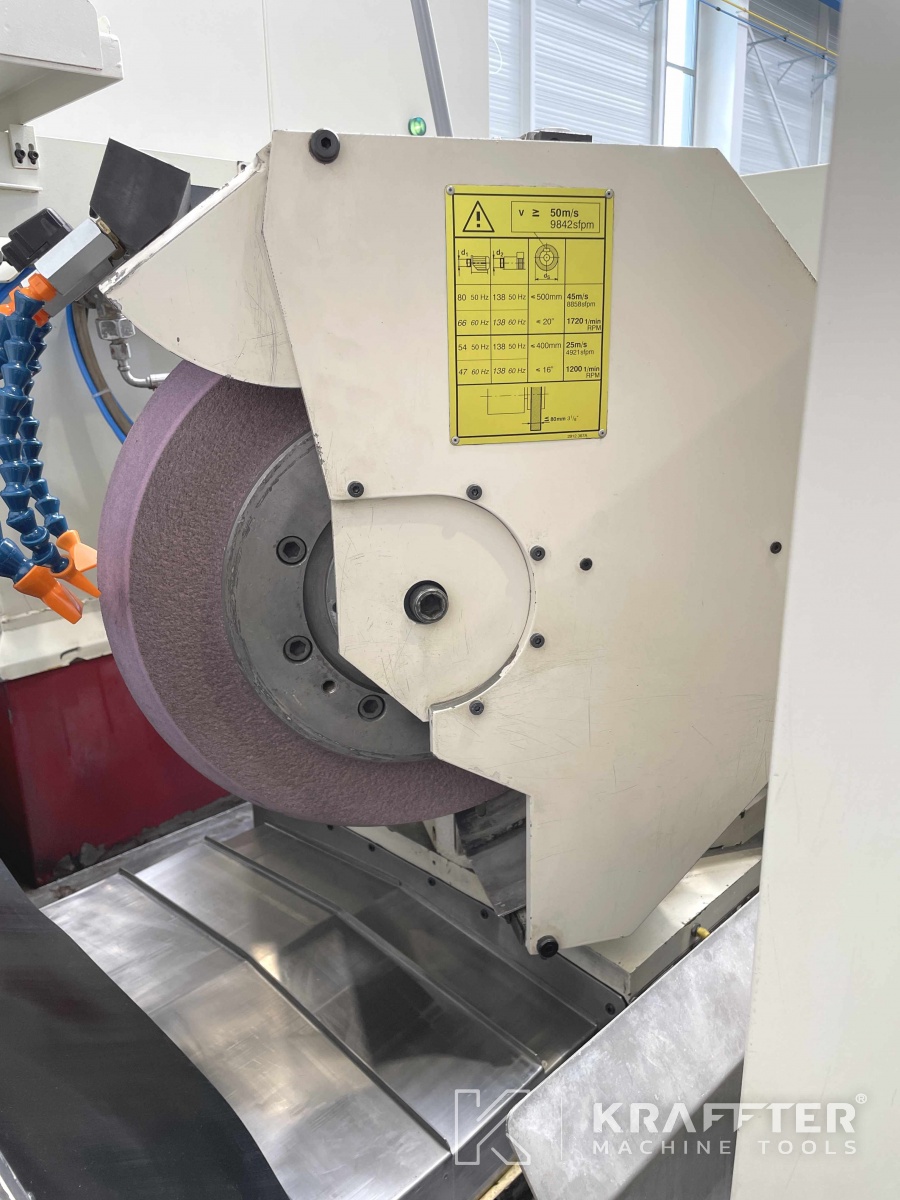

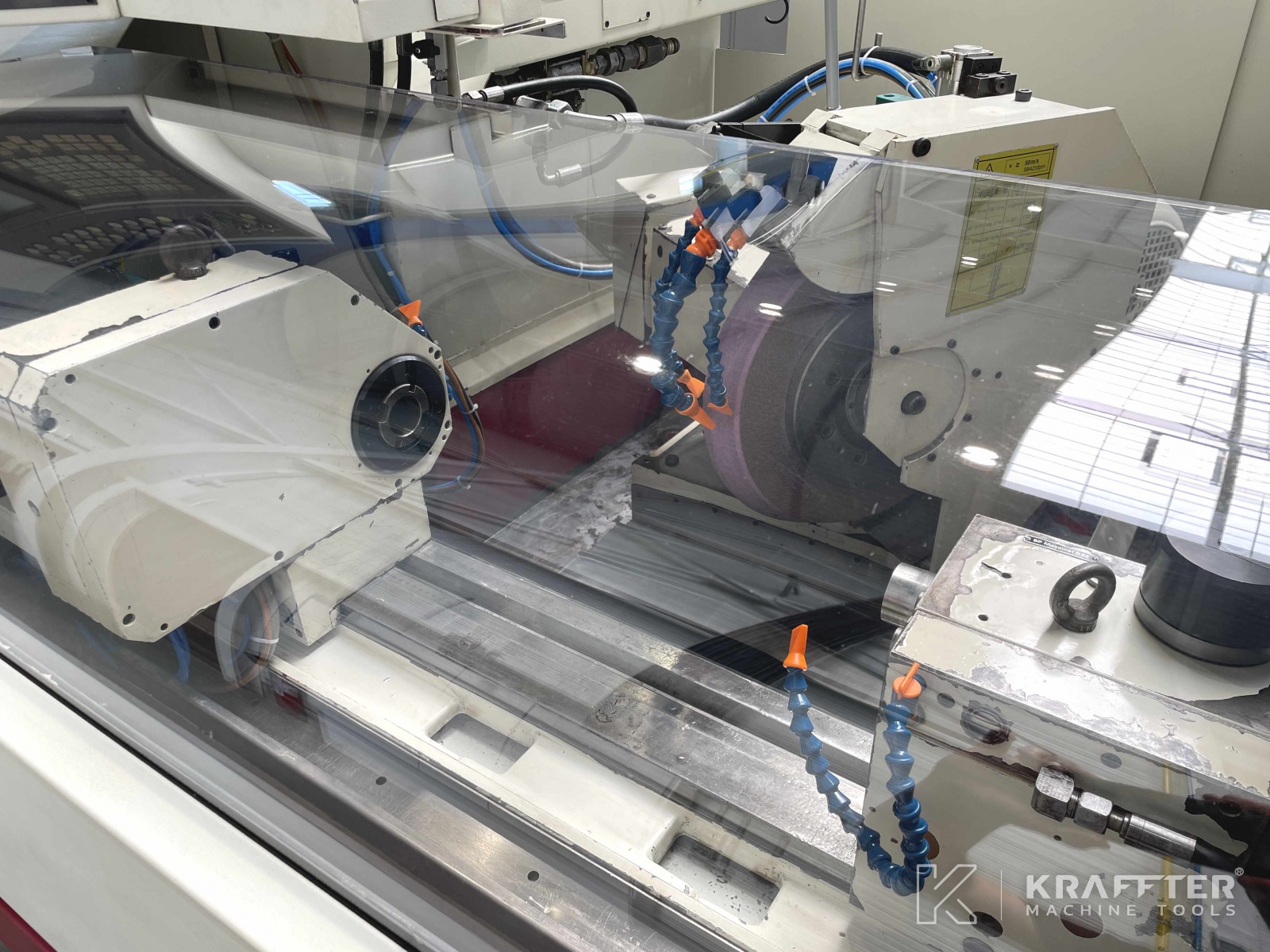

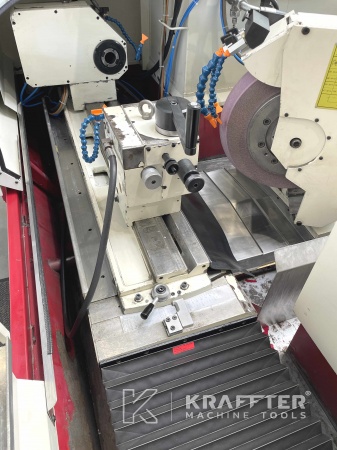

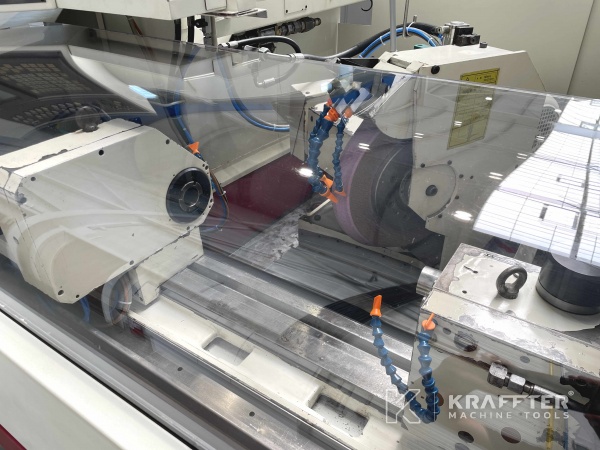

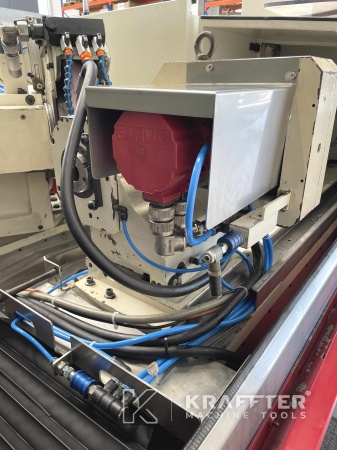

- Wheelhead for external and surface grinding
- Grinding wheel on the right, two positions 0° and 30°
- Longitudinal slide rotary tilt table up to 8.5°
- Machine bed in Granitan mineral cast S103 with 3 - point support
- Extremely simple programming thanks to the Studer pictogramming
- Software package "Studer - NC" to establish grinding and dressing programmes on PC
EQUIPMENT INCLUDED:

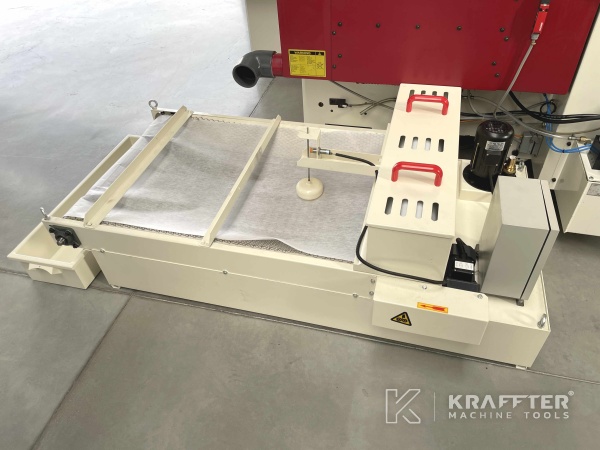

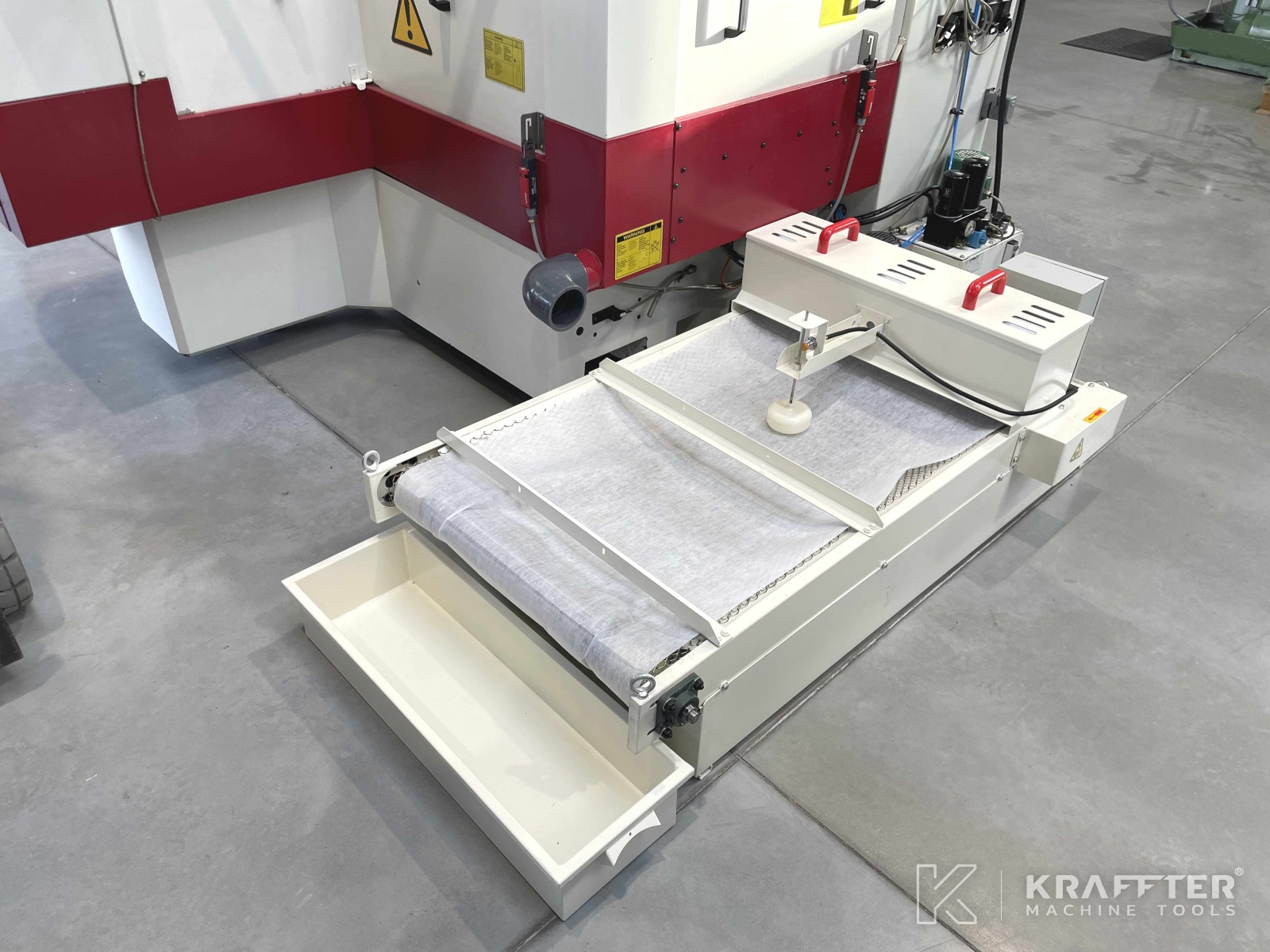

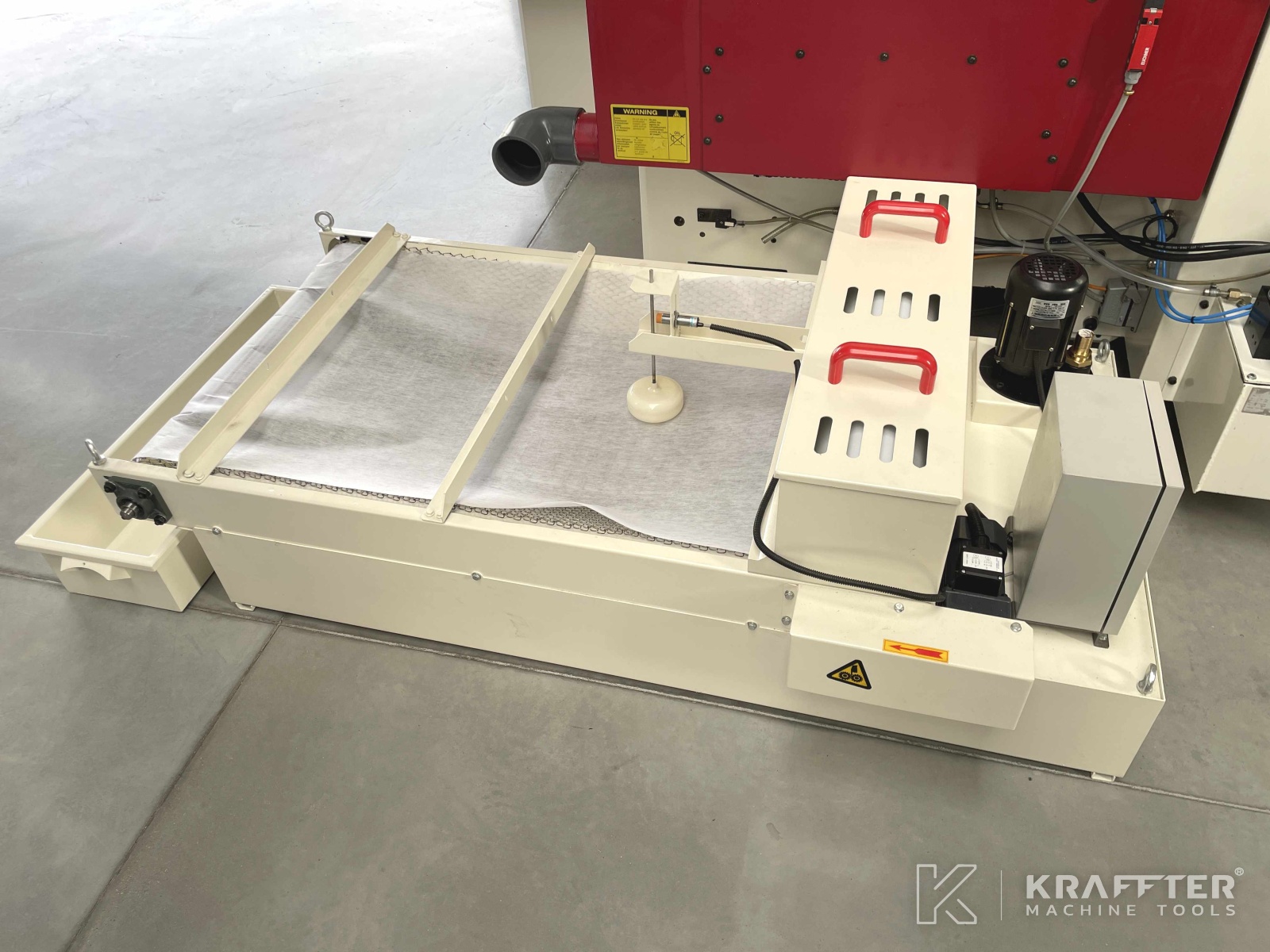

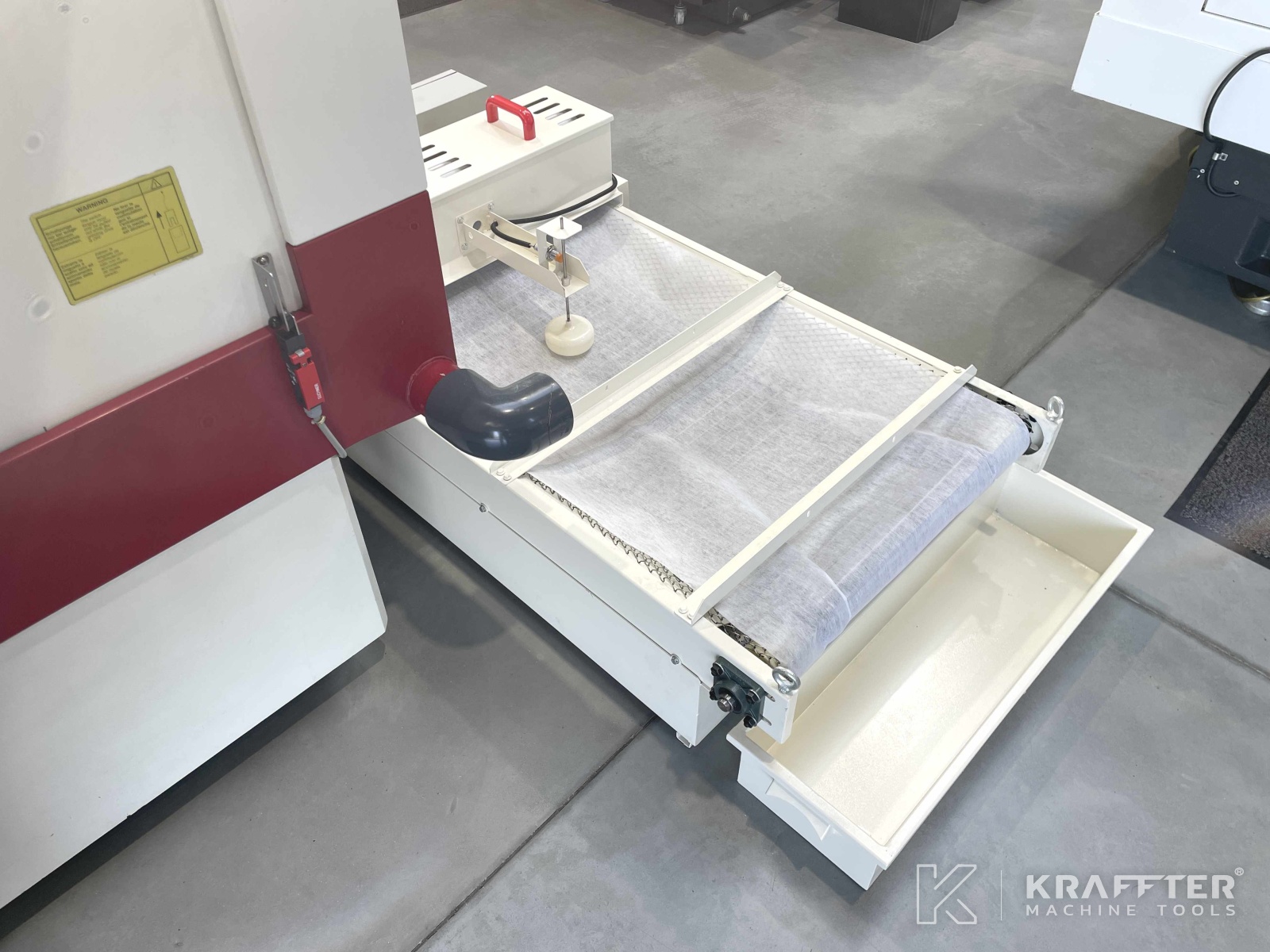

x1 paper filtration unit
x1 coolant tank

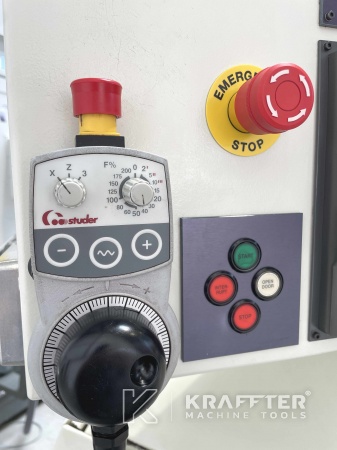

x1 jog wheel
x1 grinding wheel flange
x1 WALDMANN lamp
x1 set of STUDER technical manuals
