Sold

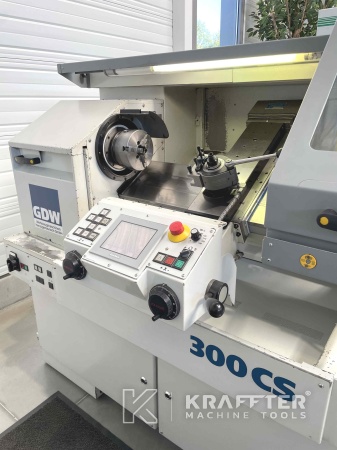

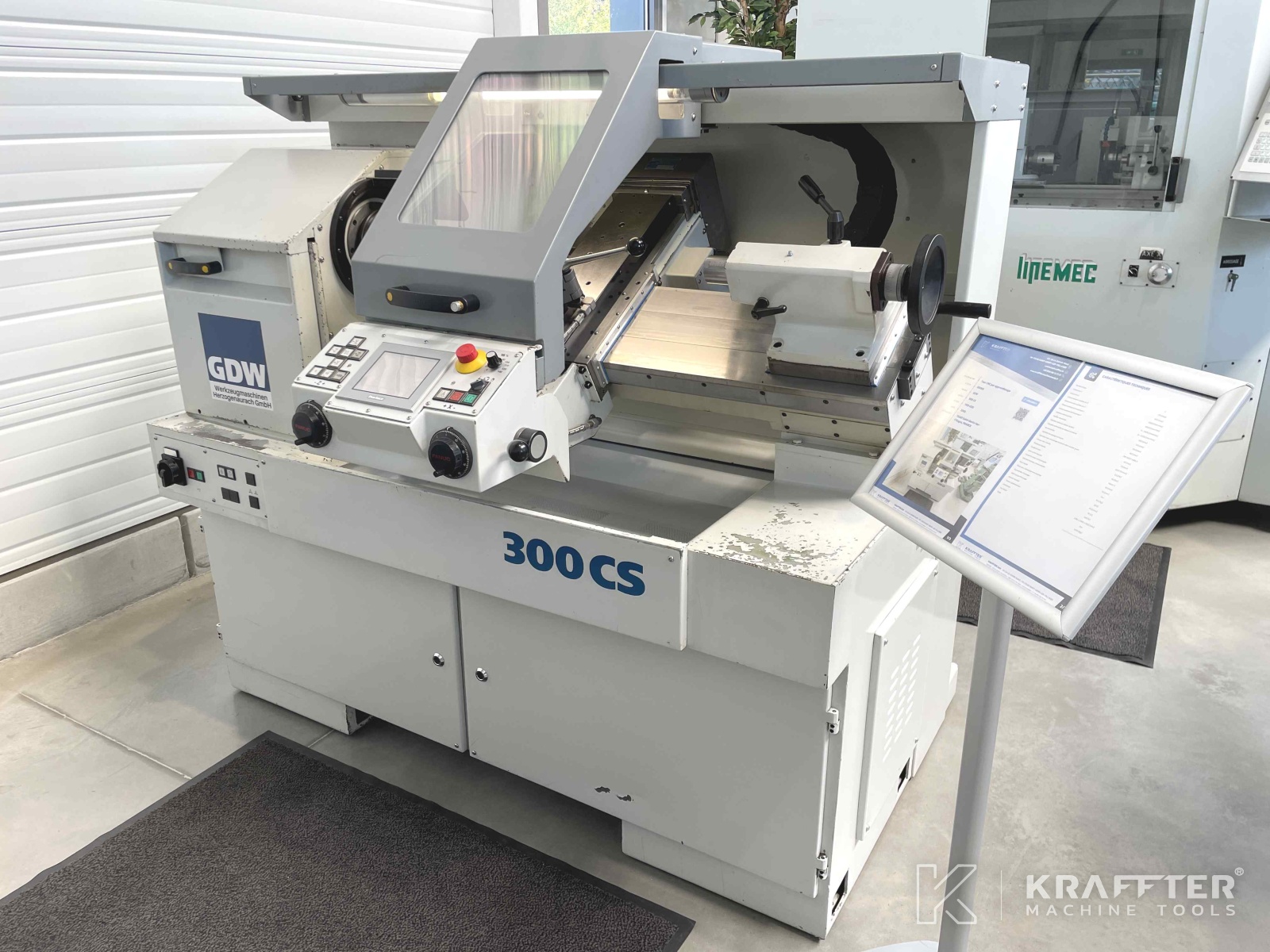

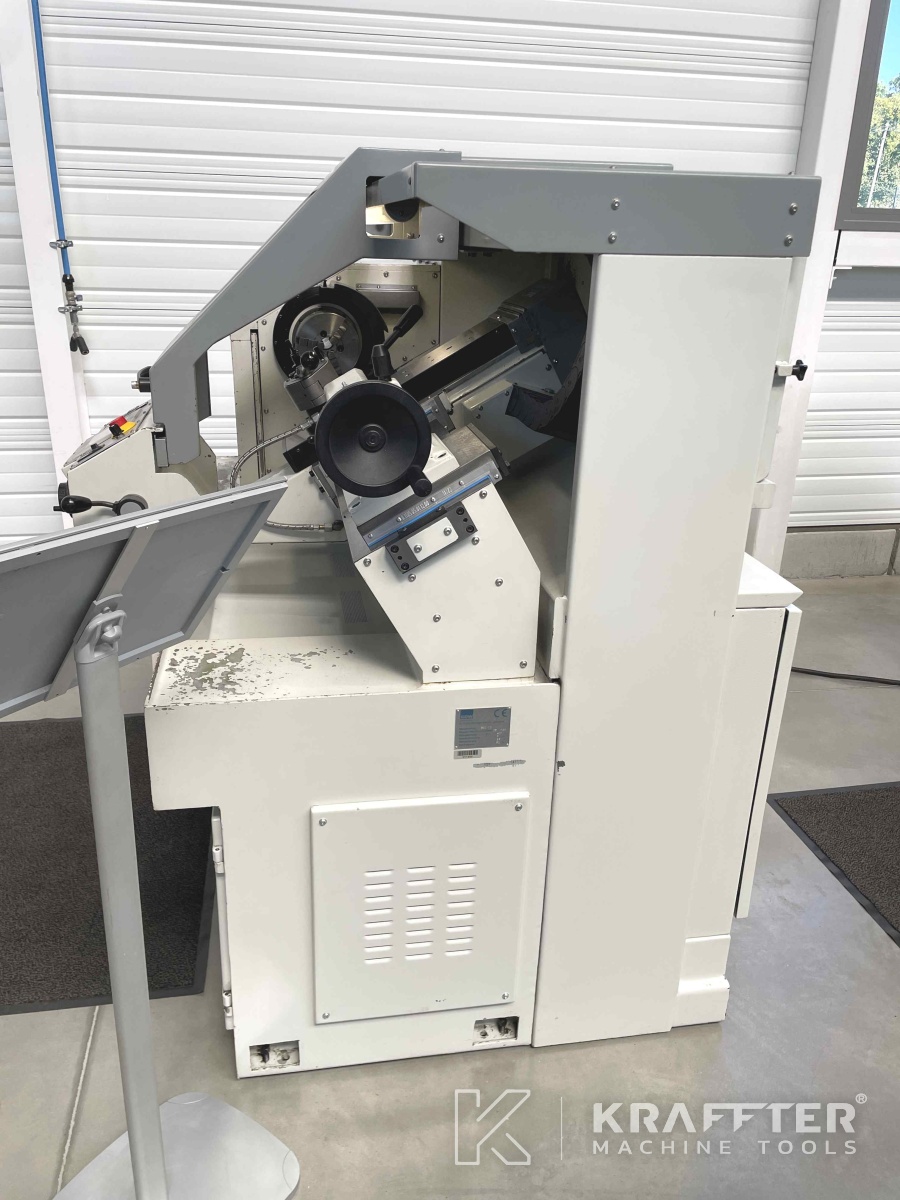

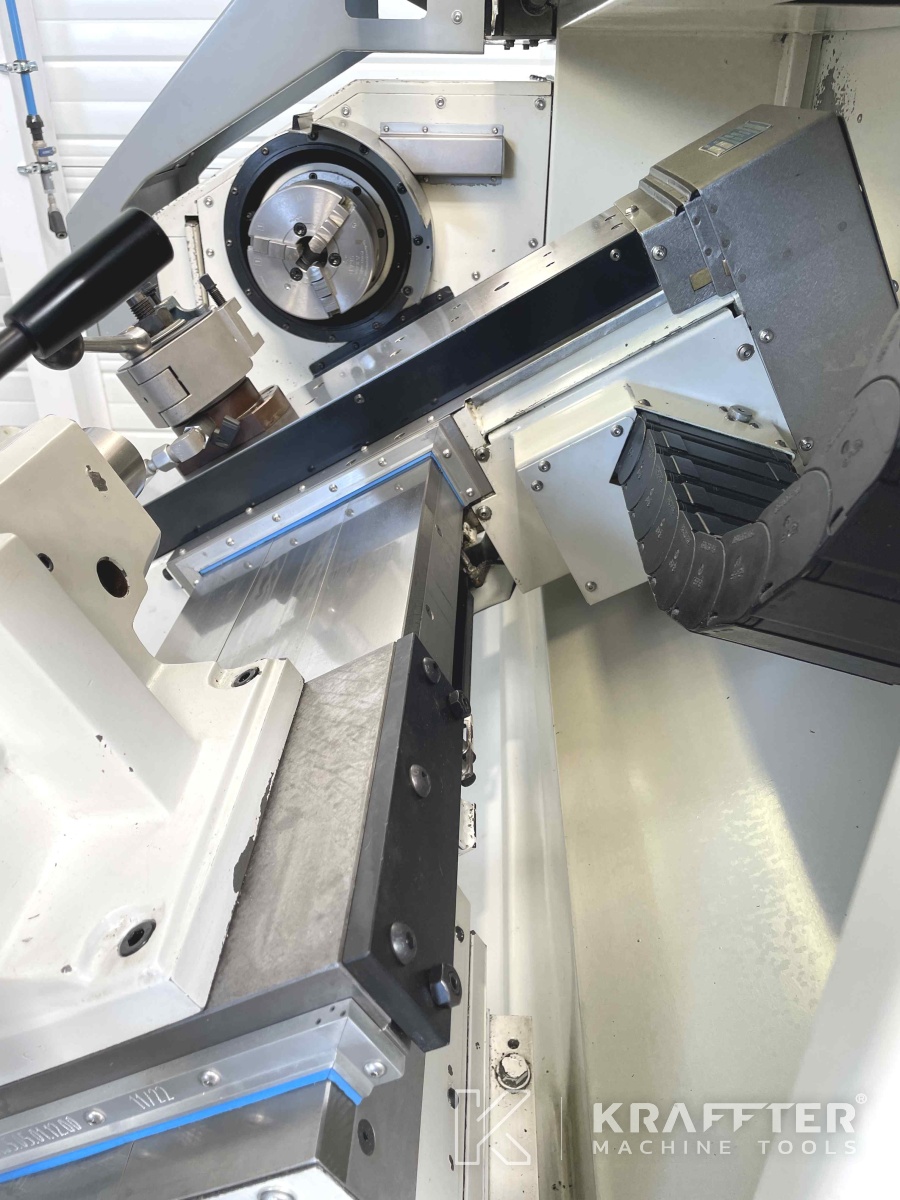

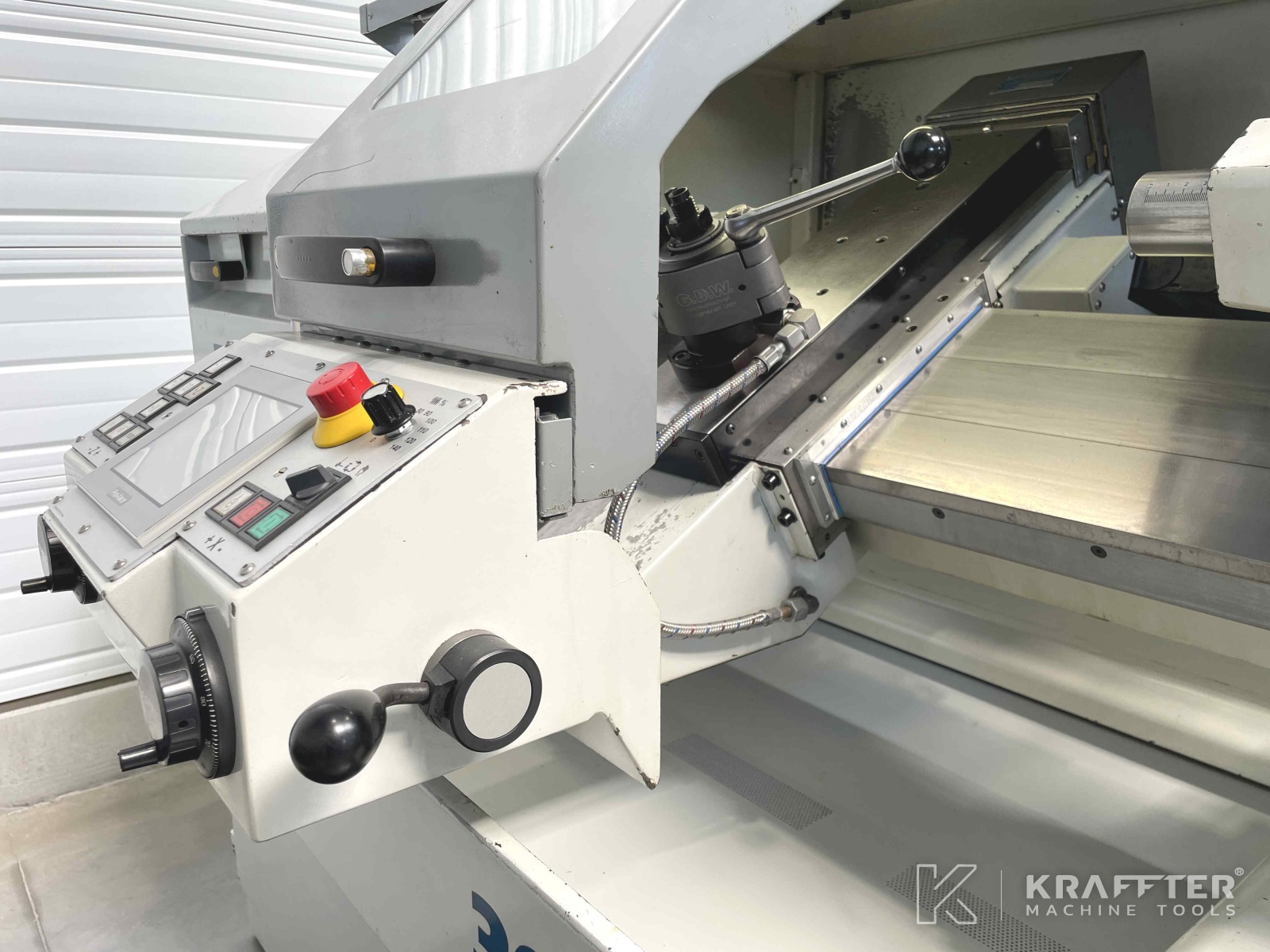

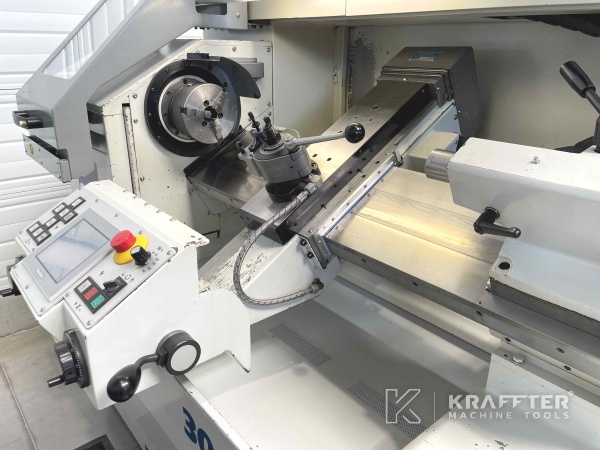

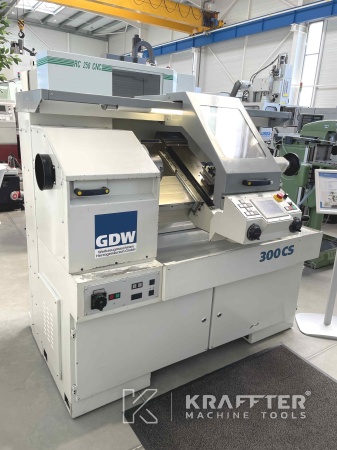

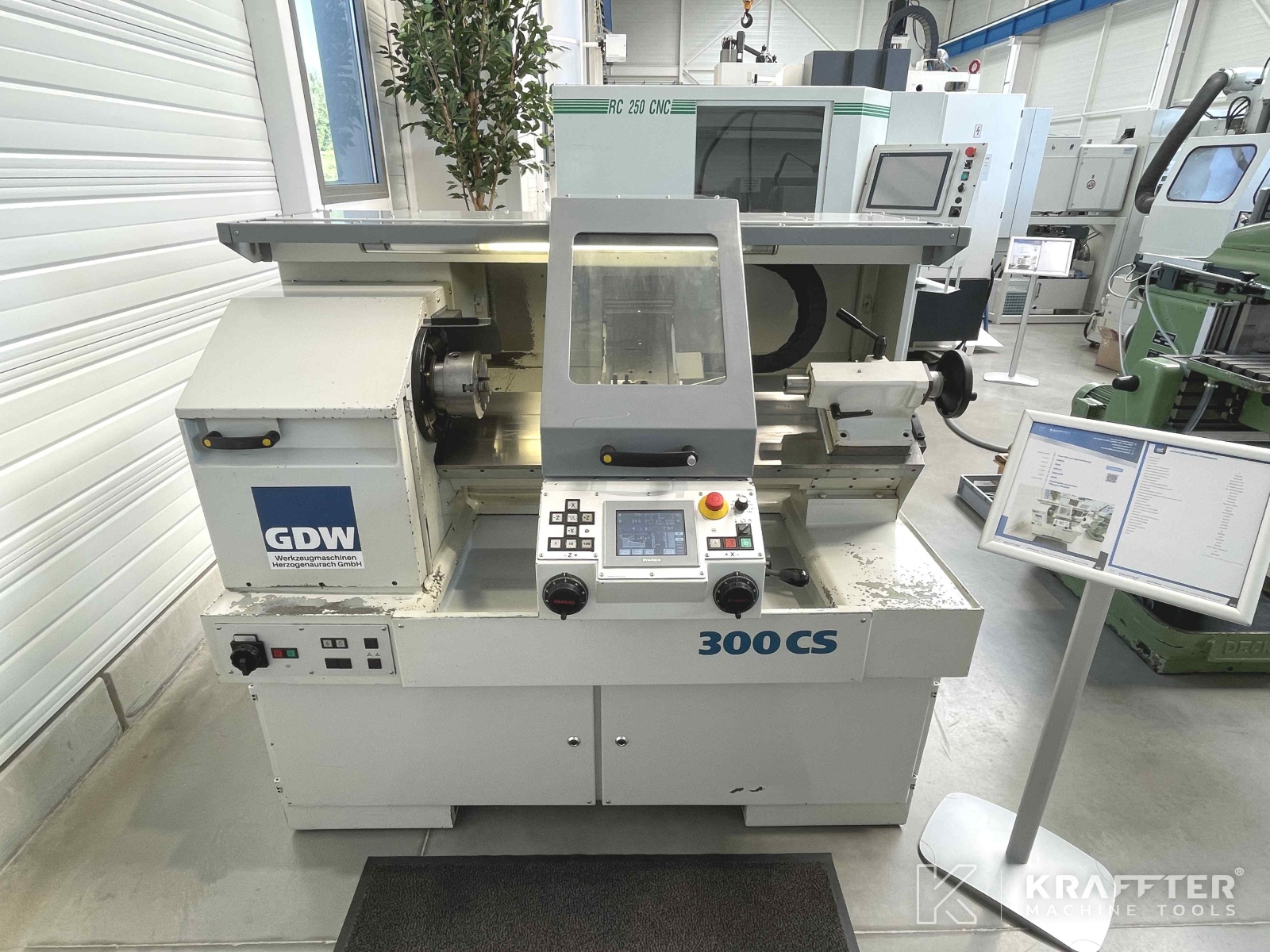

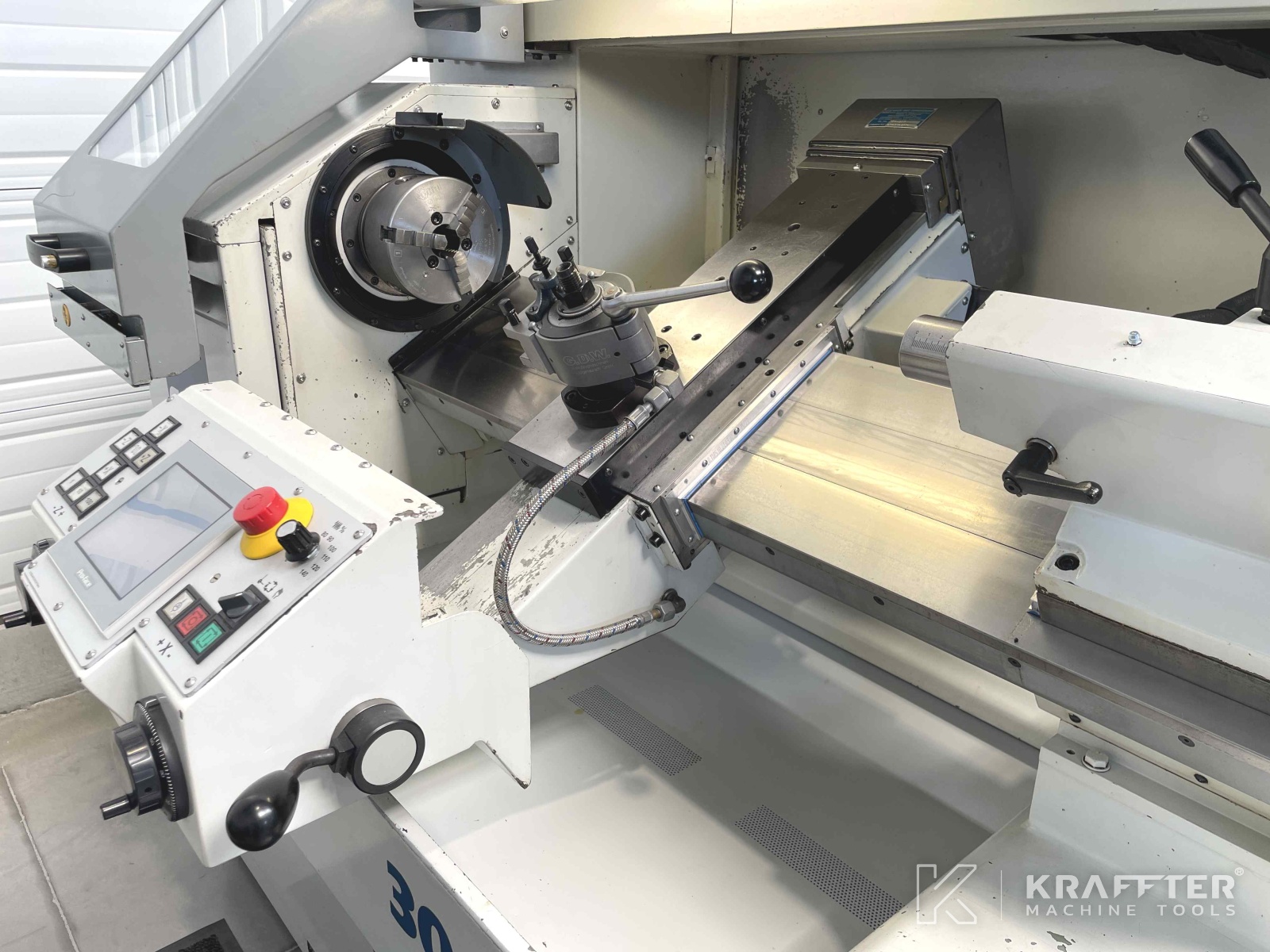

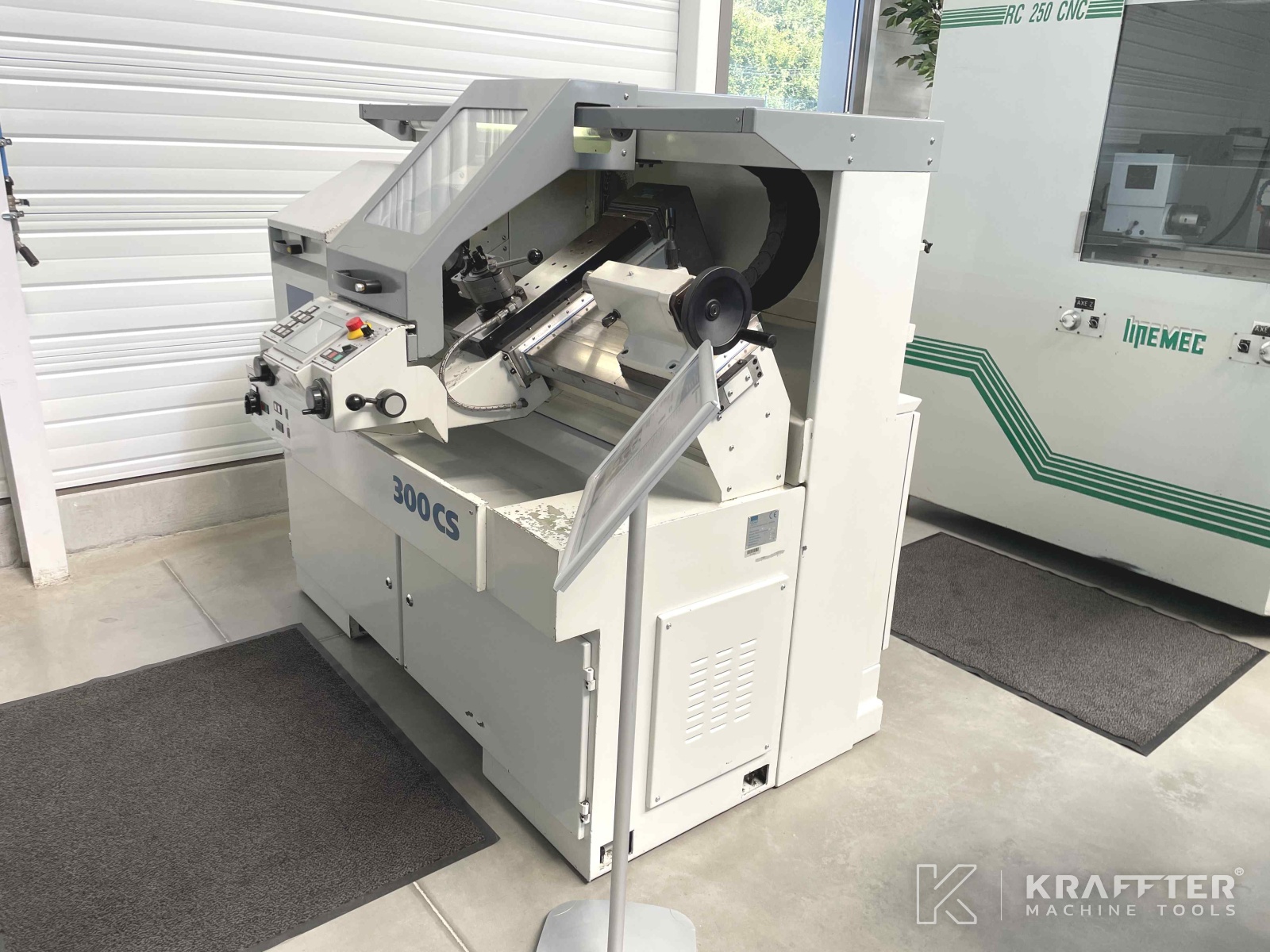

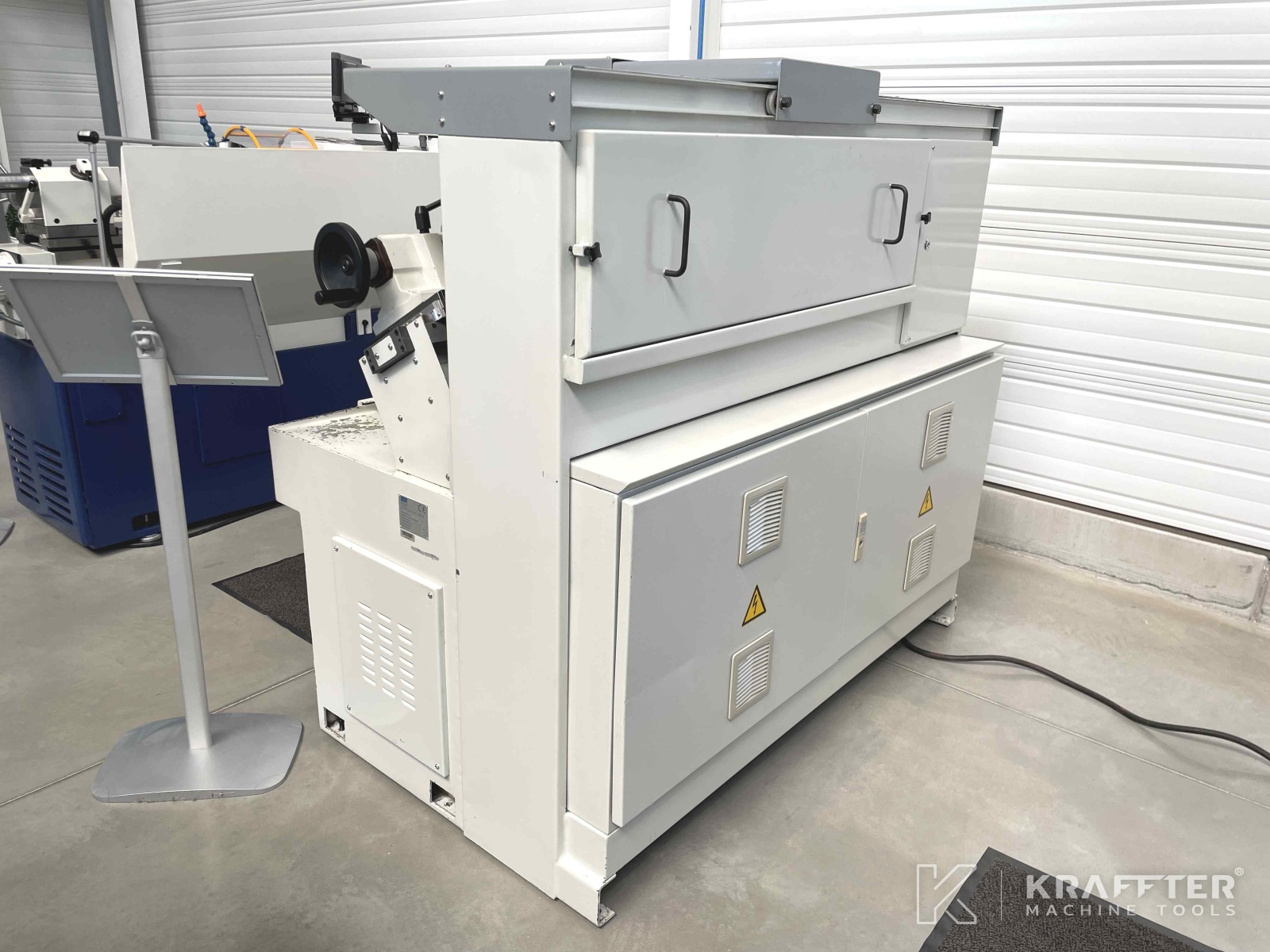

Type of machine : CNC teach-in lathe
Brand : GDW
Stock N° : 90069
Model : 300 CS
Serial N° : 1105-020
Year : 2005
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation
Number of axes
2
Distance between centers
650 [mm]
Height of centers
150 [mm]
Height of centers over cariage
160 [mm]
Max. swing over bed
300 [mm]
Stroke X axis
170 [mm]
Stroke Z axis
650 [mm]
Rapid traverse rate X axis
6000 [mm/min]
Rapid traverse rate Z axis
6000 [mm/min]
Working feed X axis
0 - 5000 [mm/min]
Working feed Z axis
0 - 5000 [mm/min]
Spindle nose
DIN 55027 taille 5
Spindle throughbore
43 [mm]
Spindle throughbore at the front bearing
70 [mm]
Max. spindle speed
4500 [rpm]
Spindle power
5.5 [kW]
Spindle torque
58 [Nm]

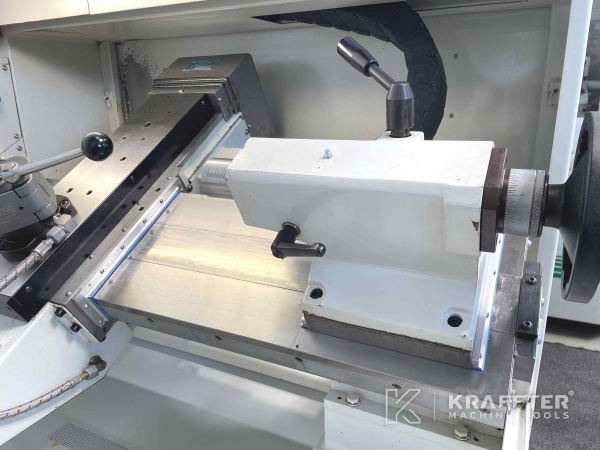

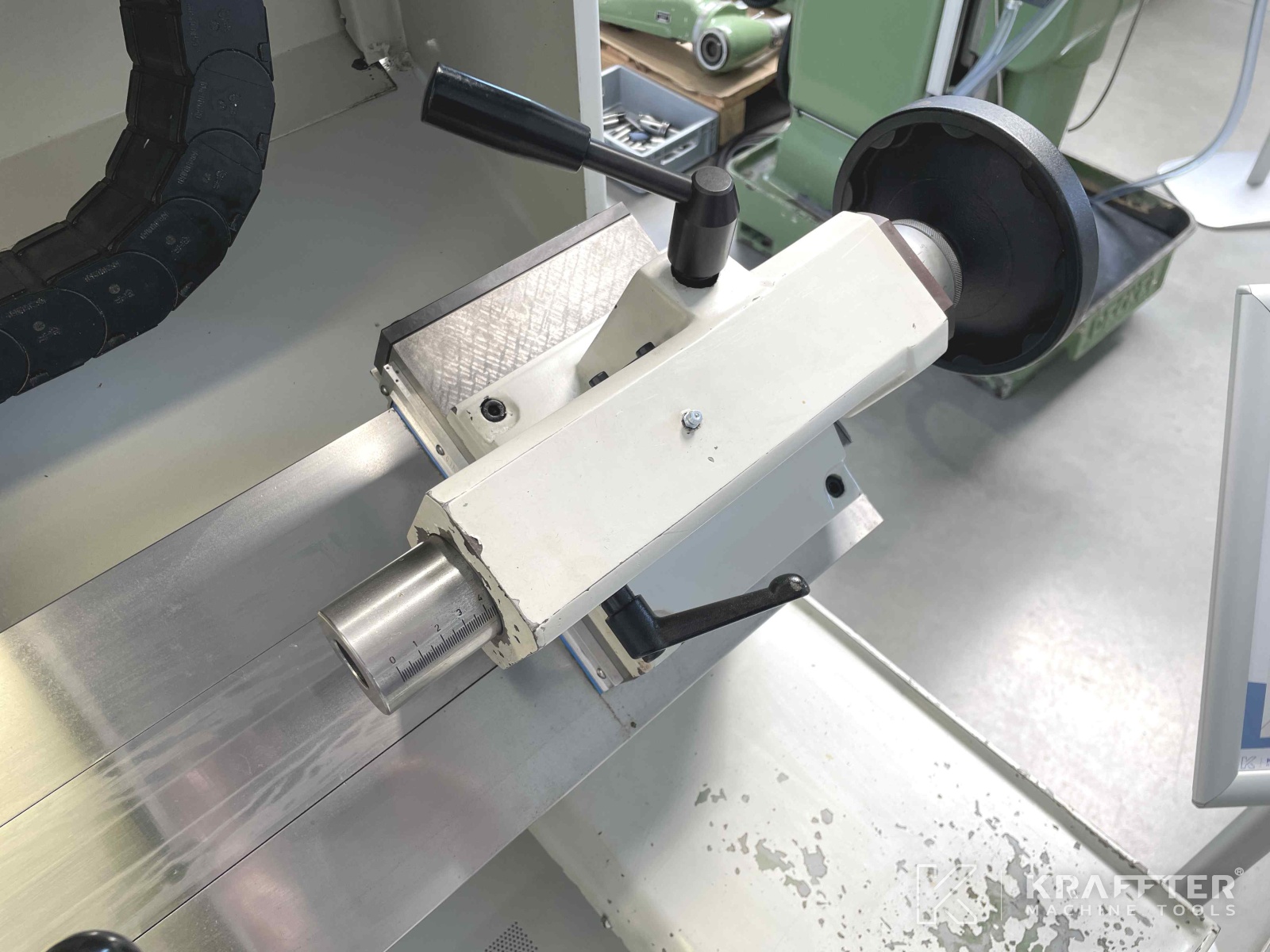

Type of attachment tailstock
Morse 3
Tailstock quill stroke
110 [mm]
Tailstock quill diameter
50 [mm]

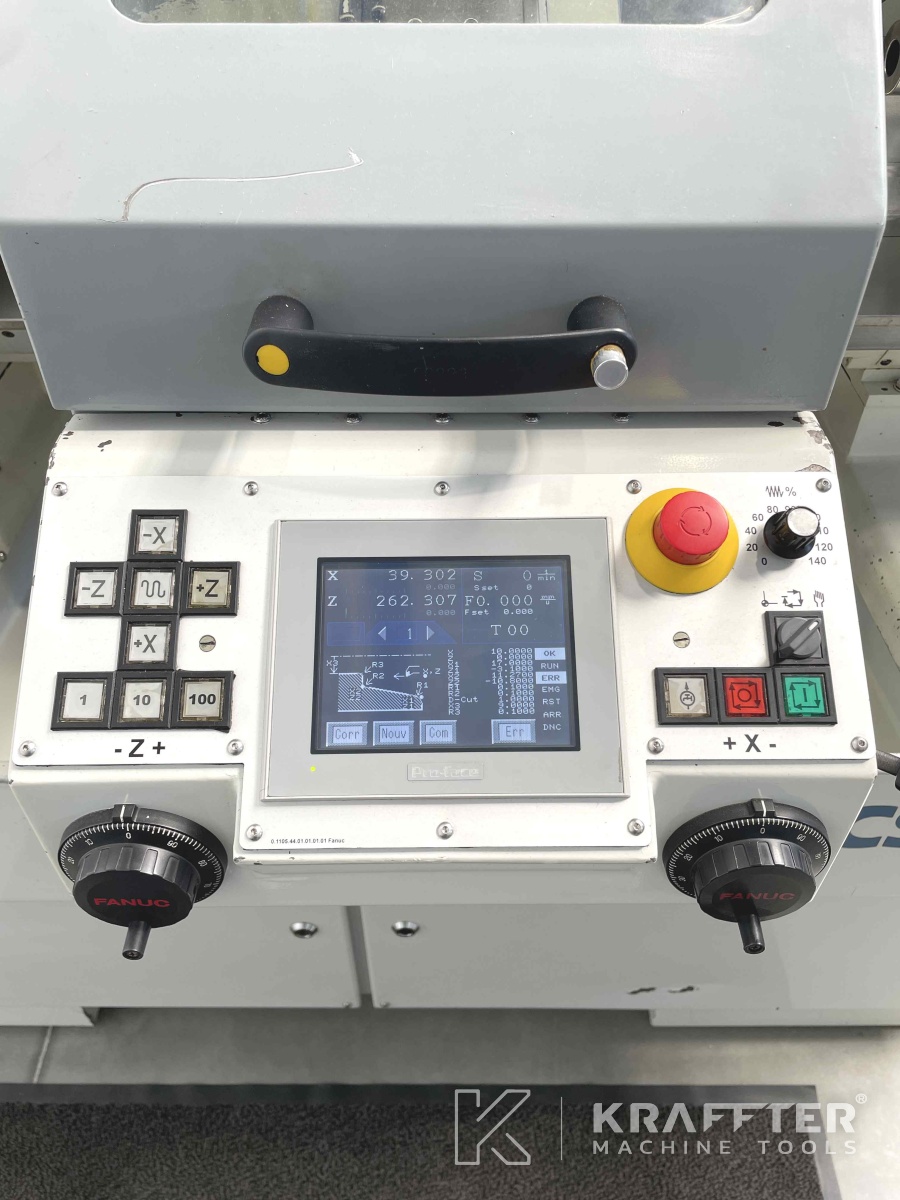

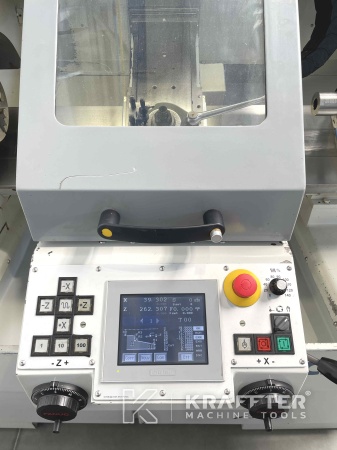

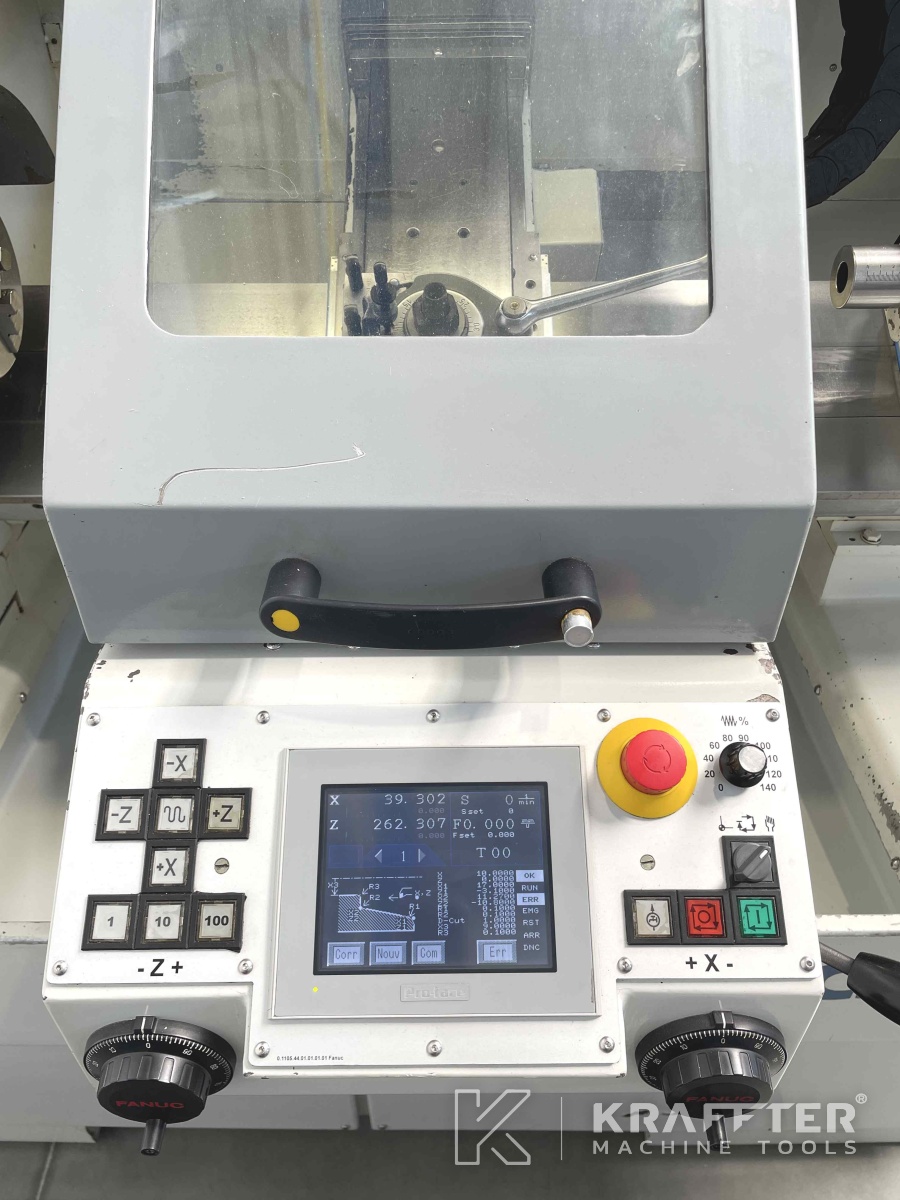

Touchscreen
Yes
Max. load between centers
100 [Kg]
Lubrication tank capacity
20 [l]
Collant pump flow rate
30 [l/min]
Rated current
35 [A]
Supply voltage
400 [V]
RS232 Interface
Yes
Dimensions
2280 x 1080 x 1500 [mm]
Weight
1000 [Kg]
EQUIPMENT INCLUDED:

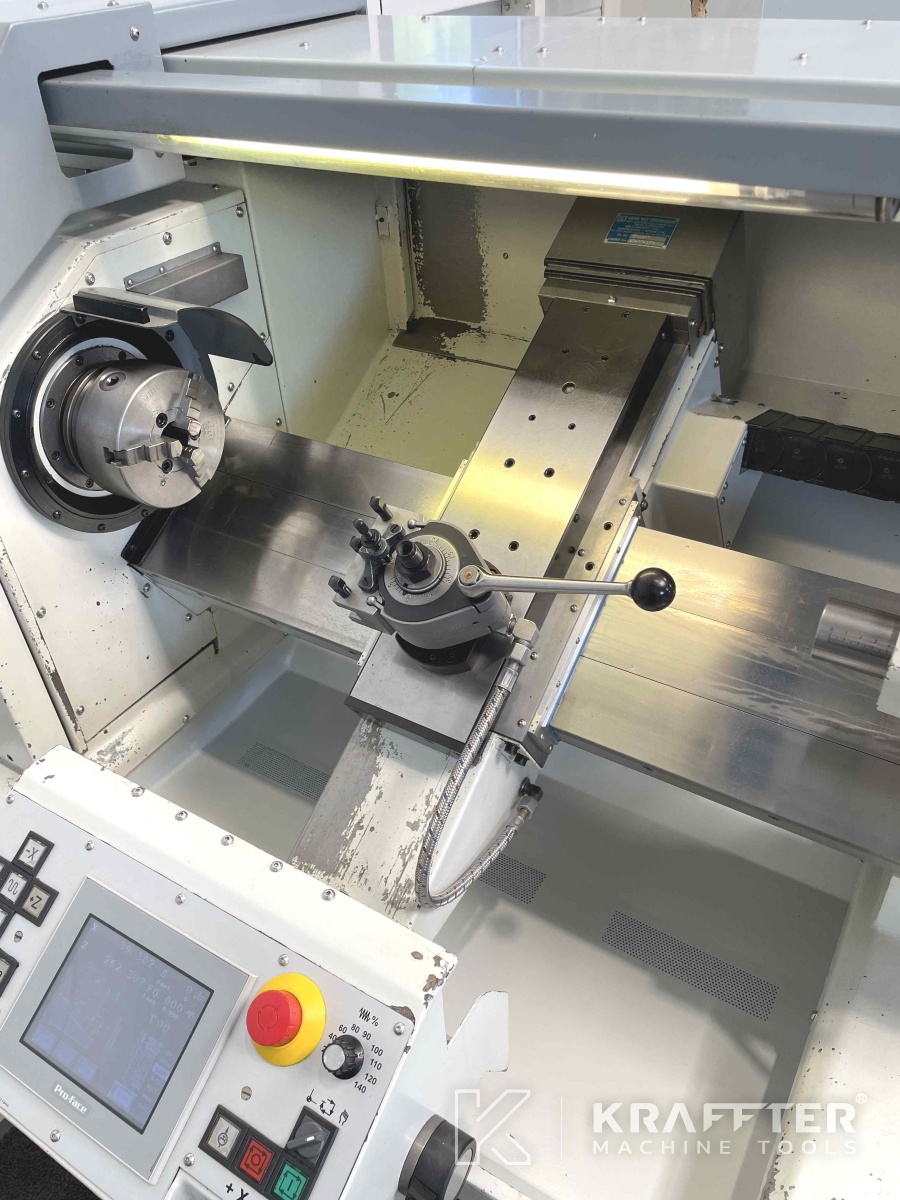

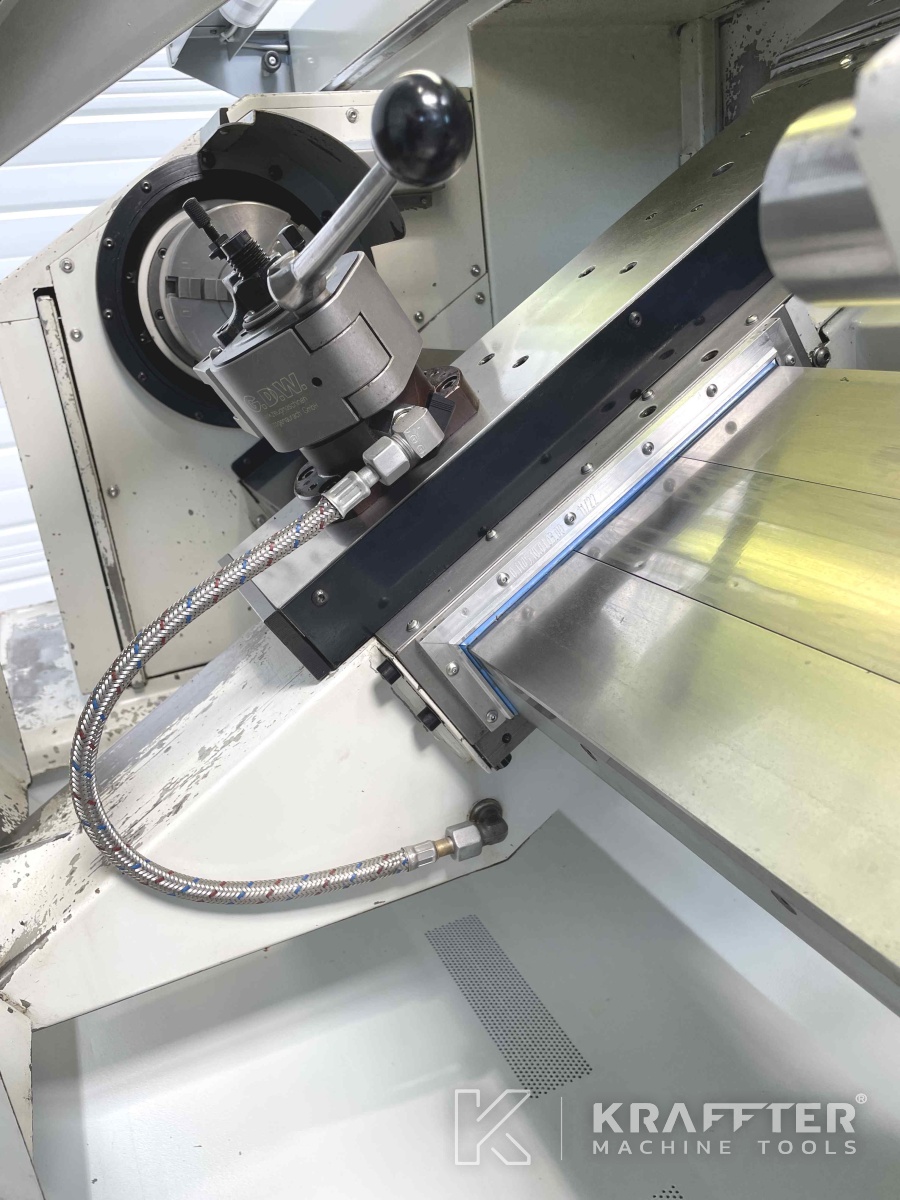

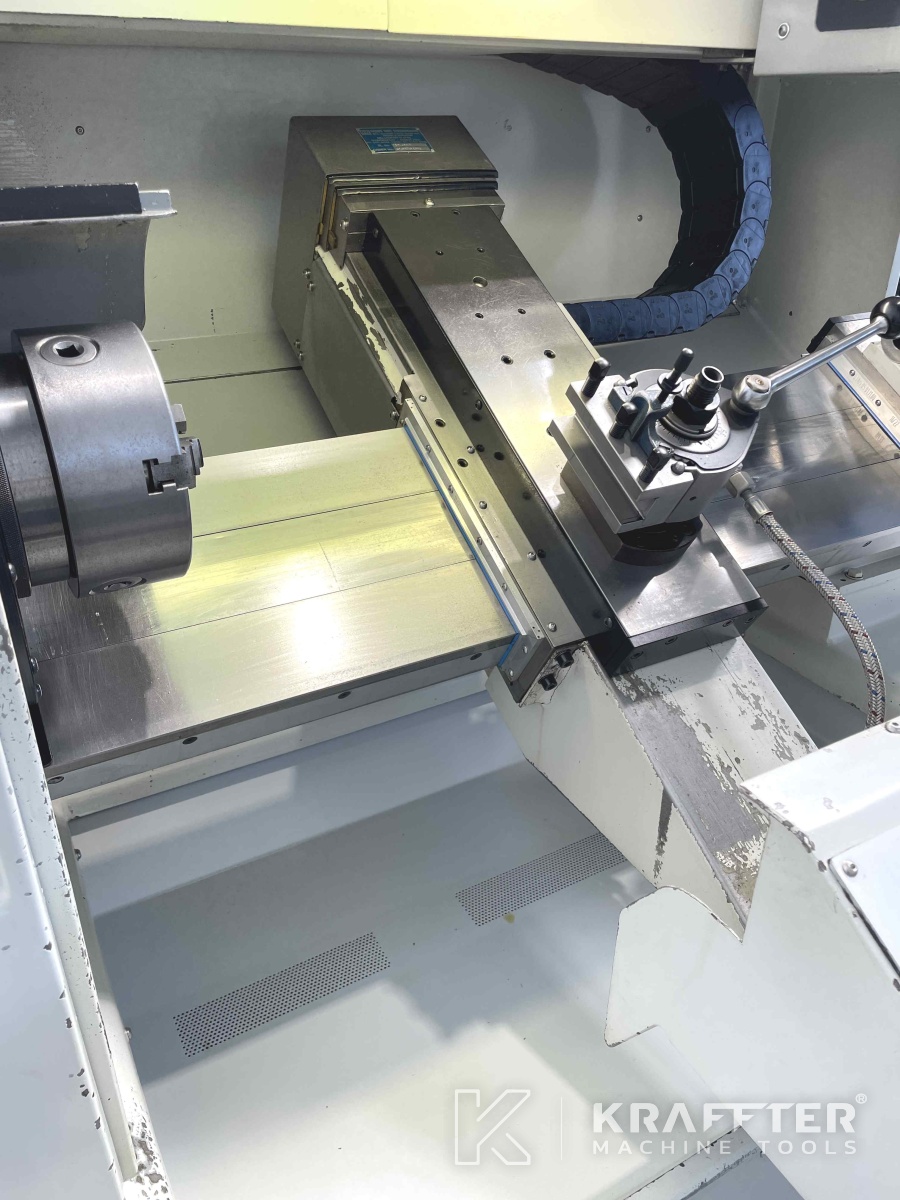

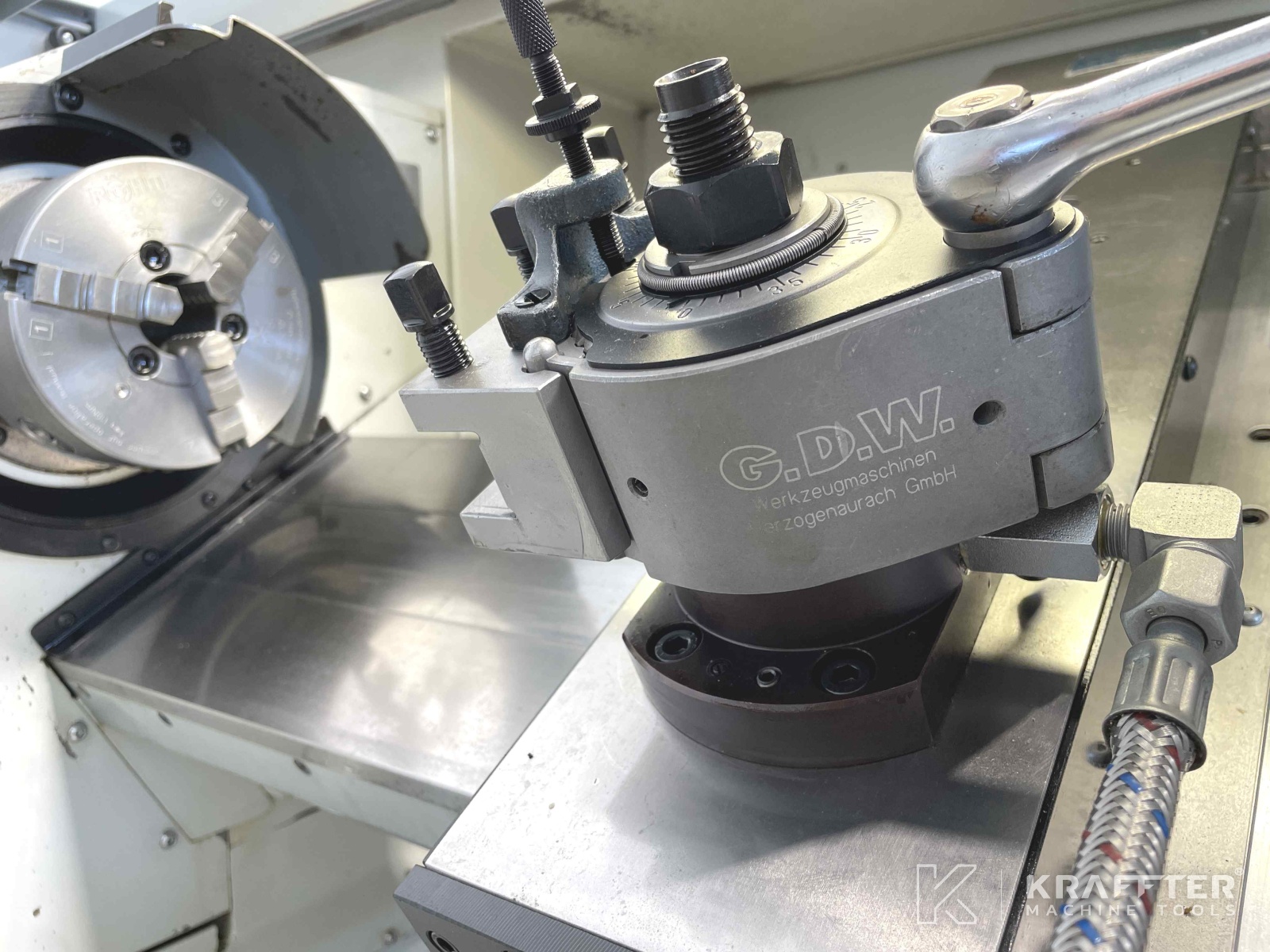

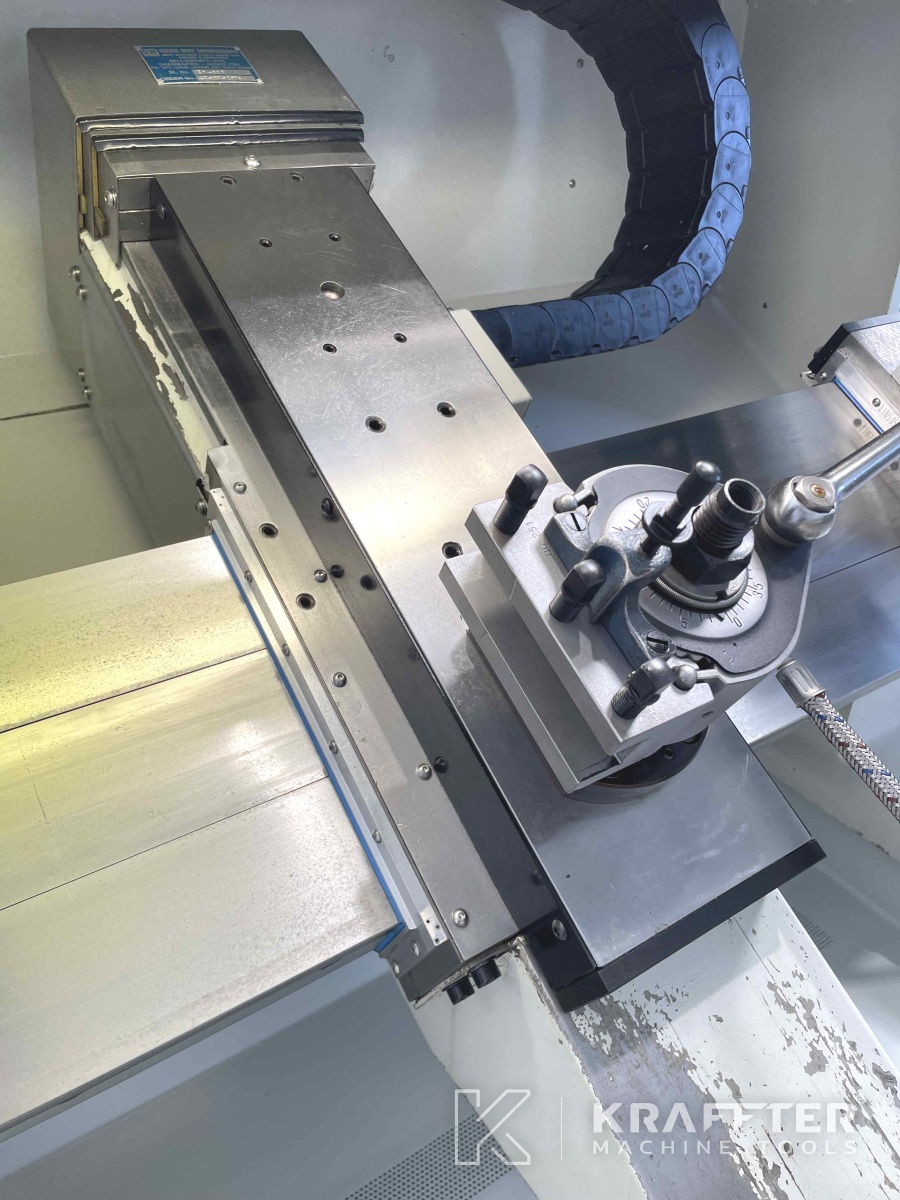

x1 toolpost GDW (Multifix type)
x1 tool holder

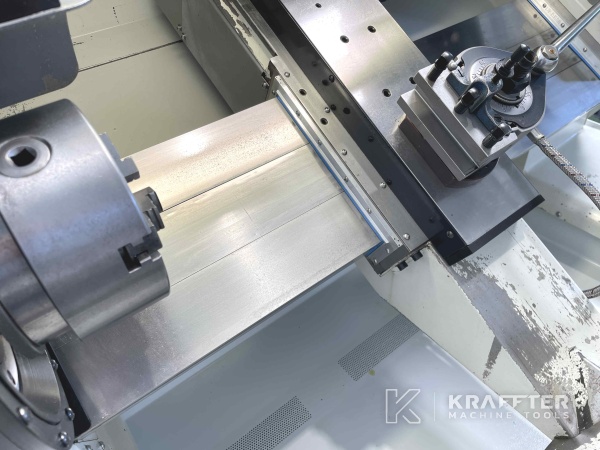

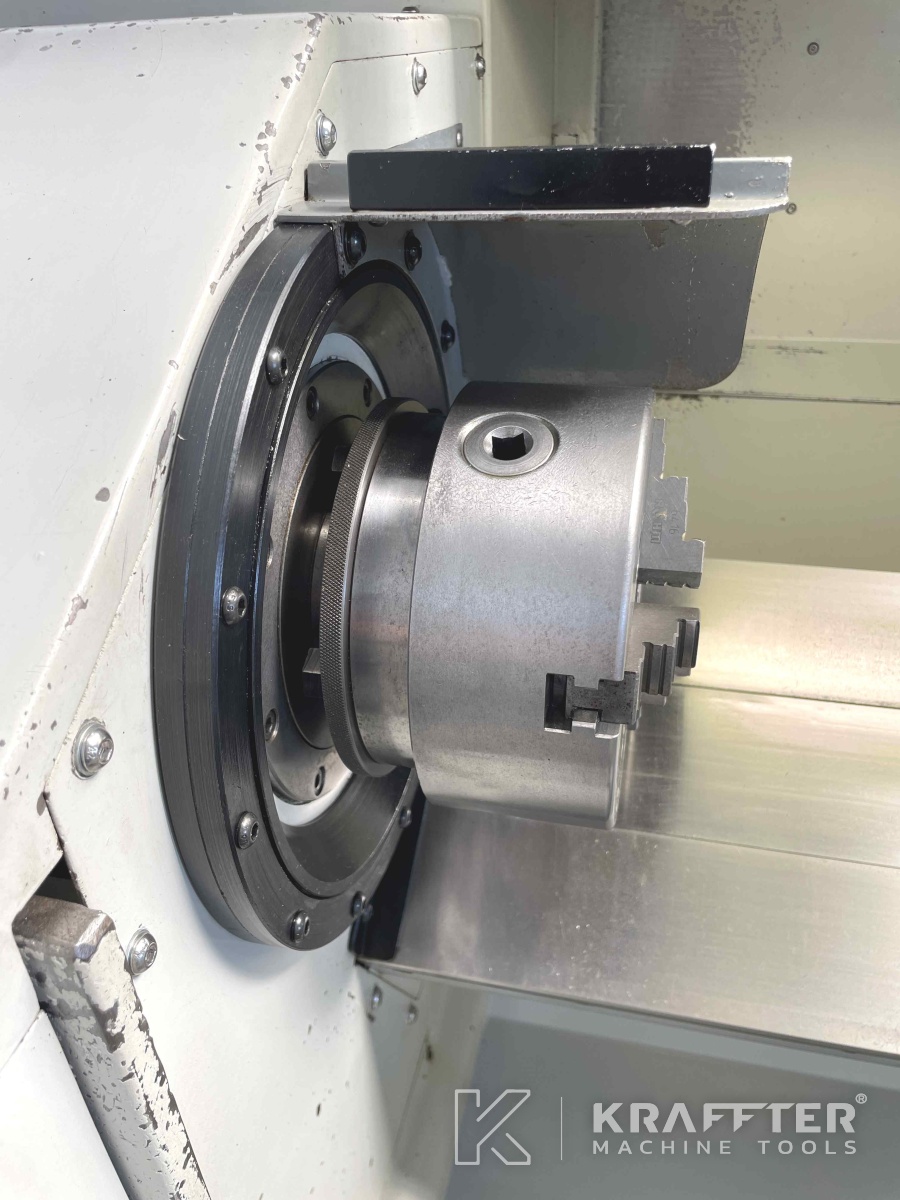

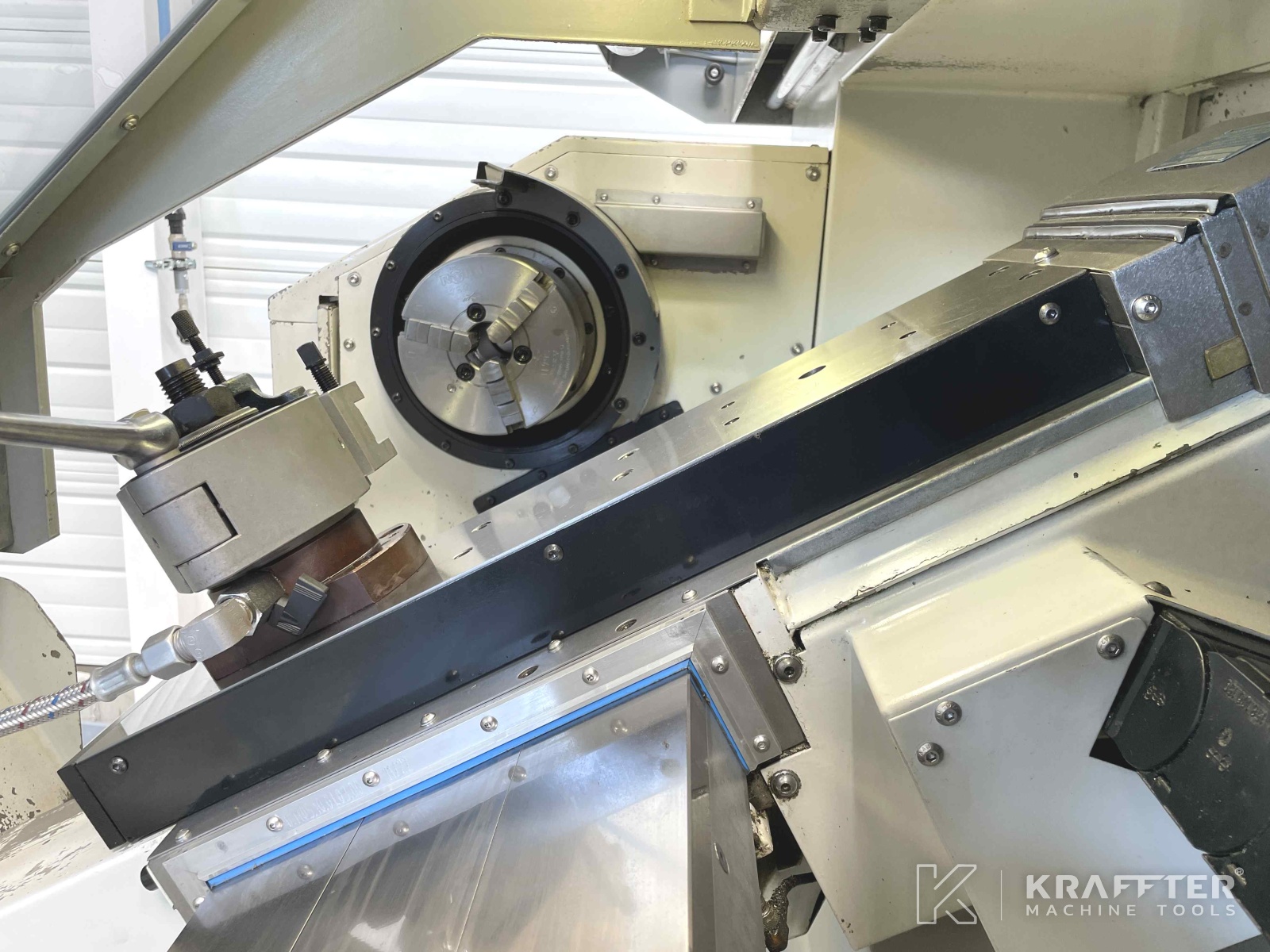

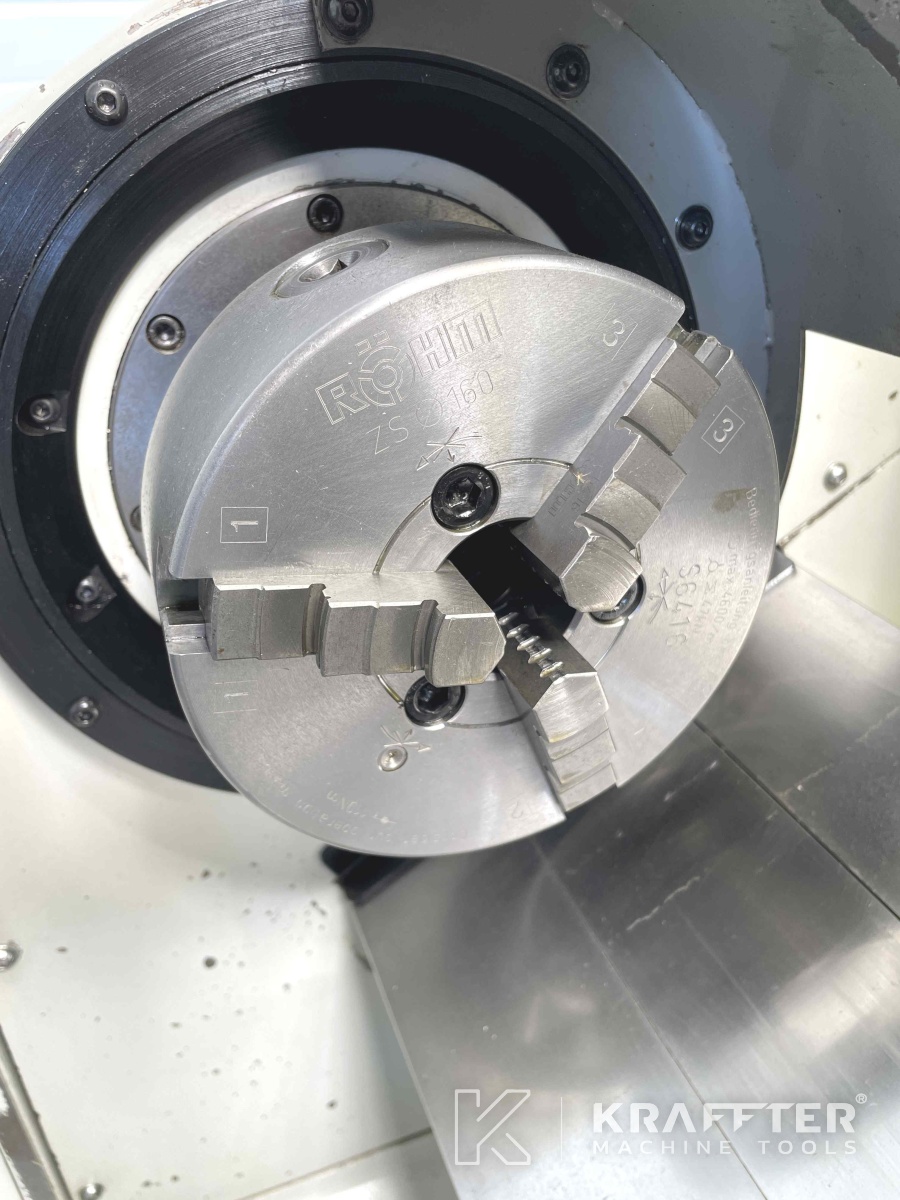

x1 3 jaw chuck ROHM type ZS160 - Ø160 [mm]
x1 coolant tank + pump
x1 operators manual in French

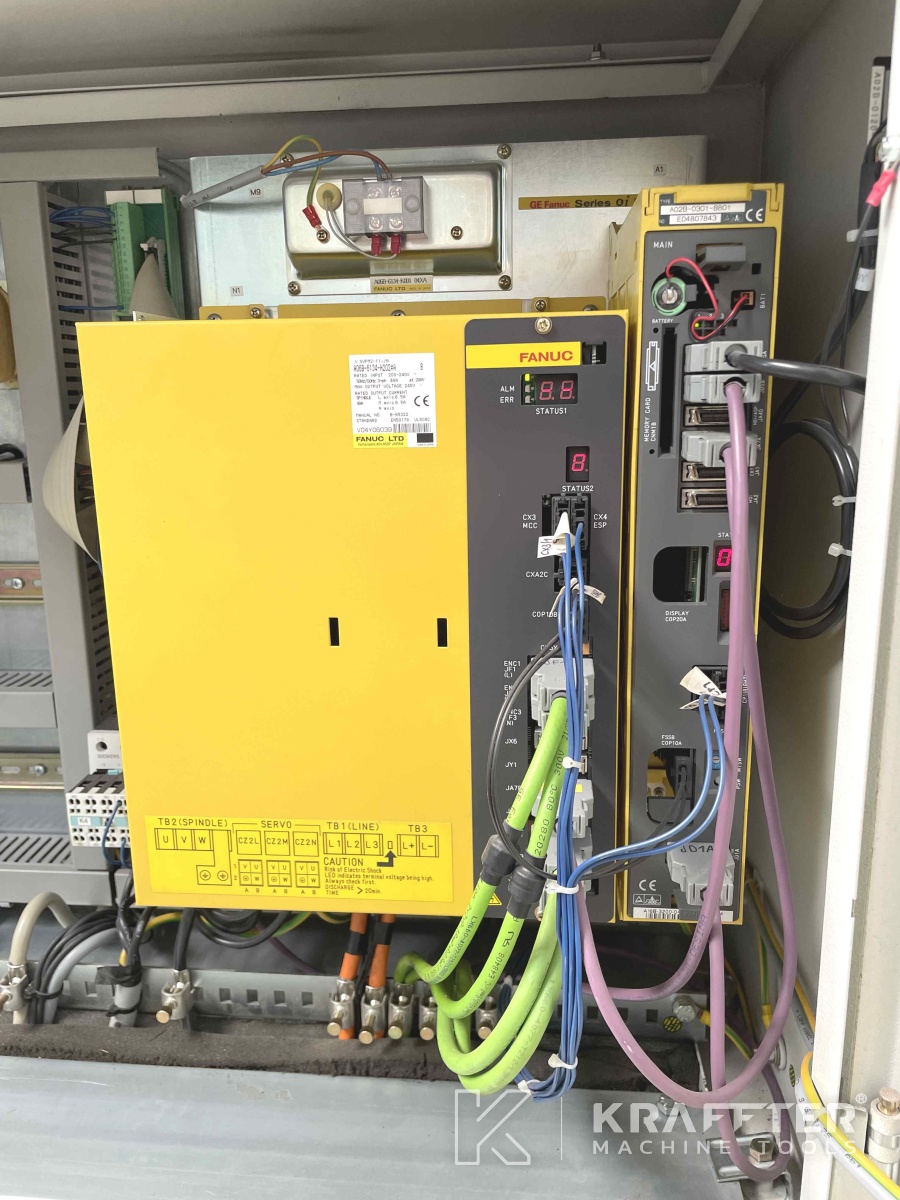

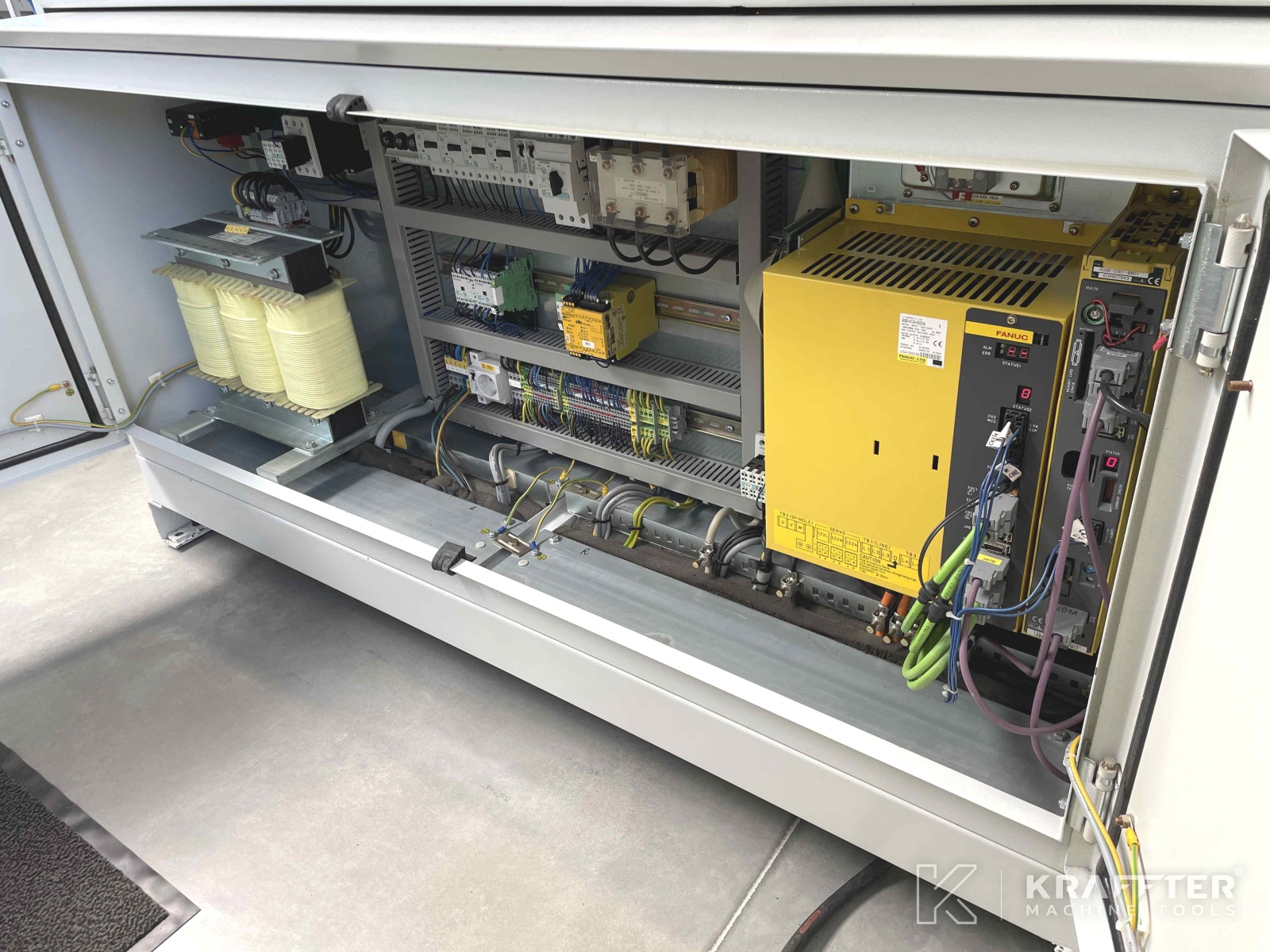

x1 electrical diagramm manual
