Sold

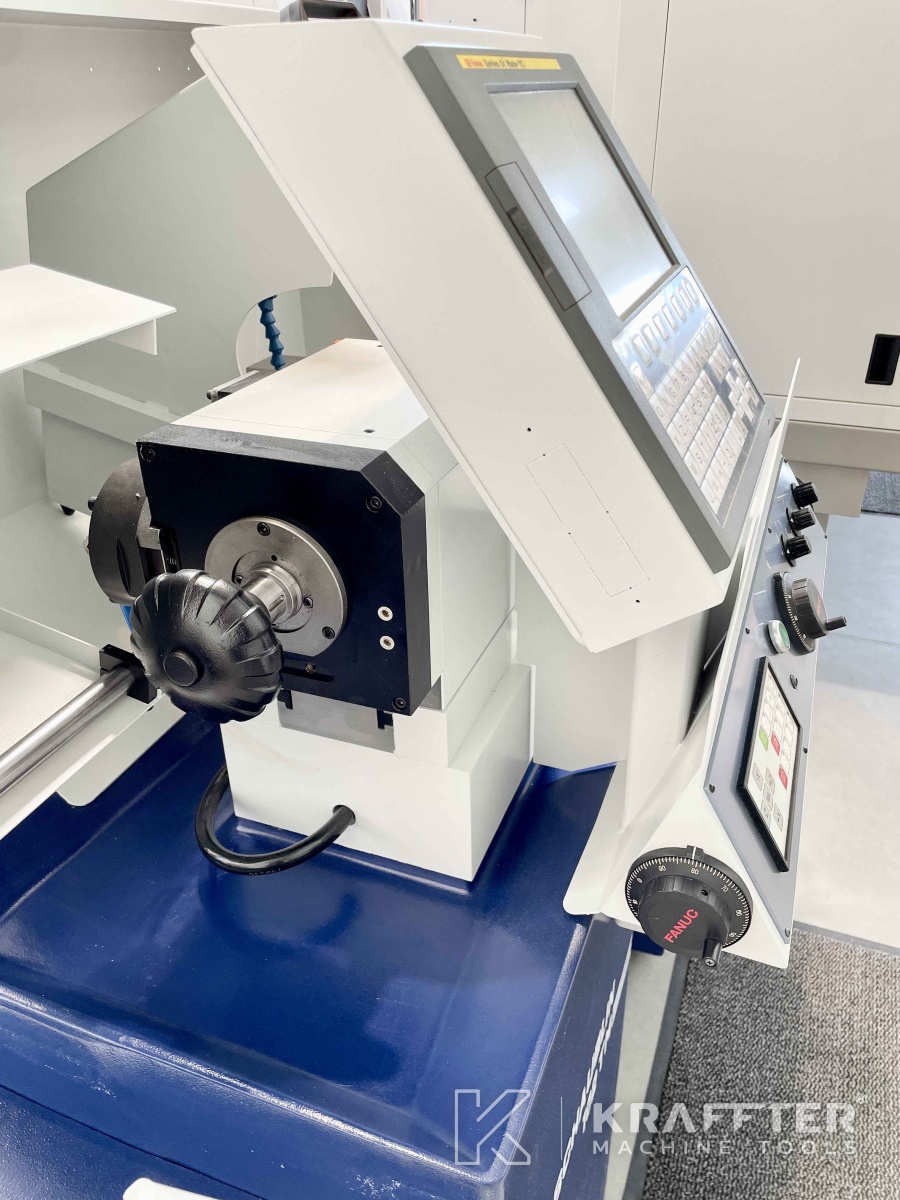

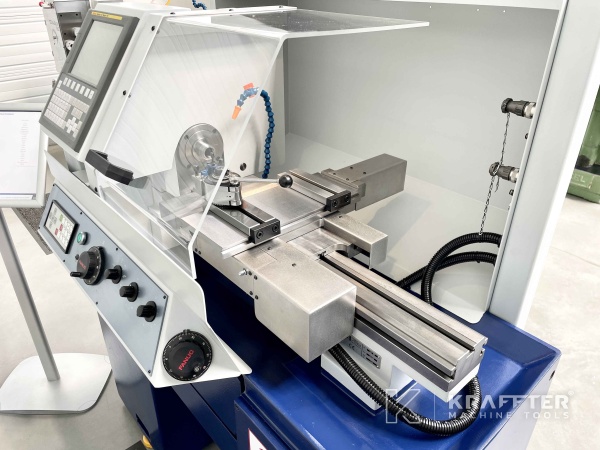

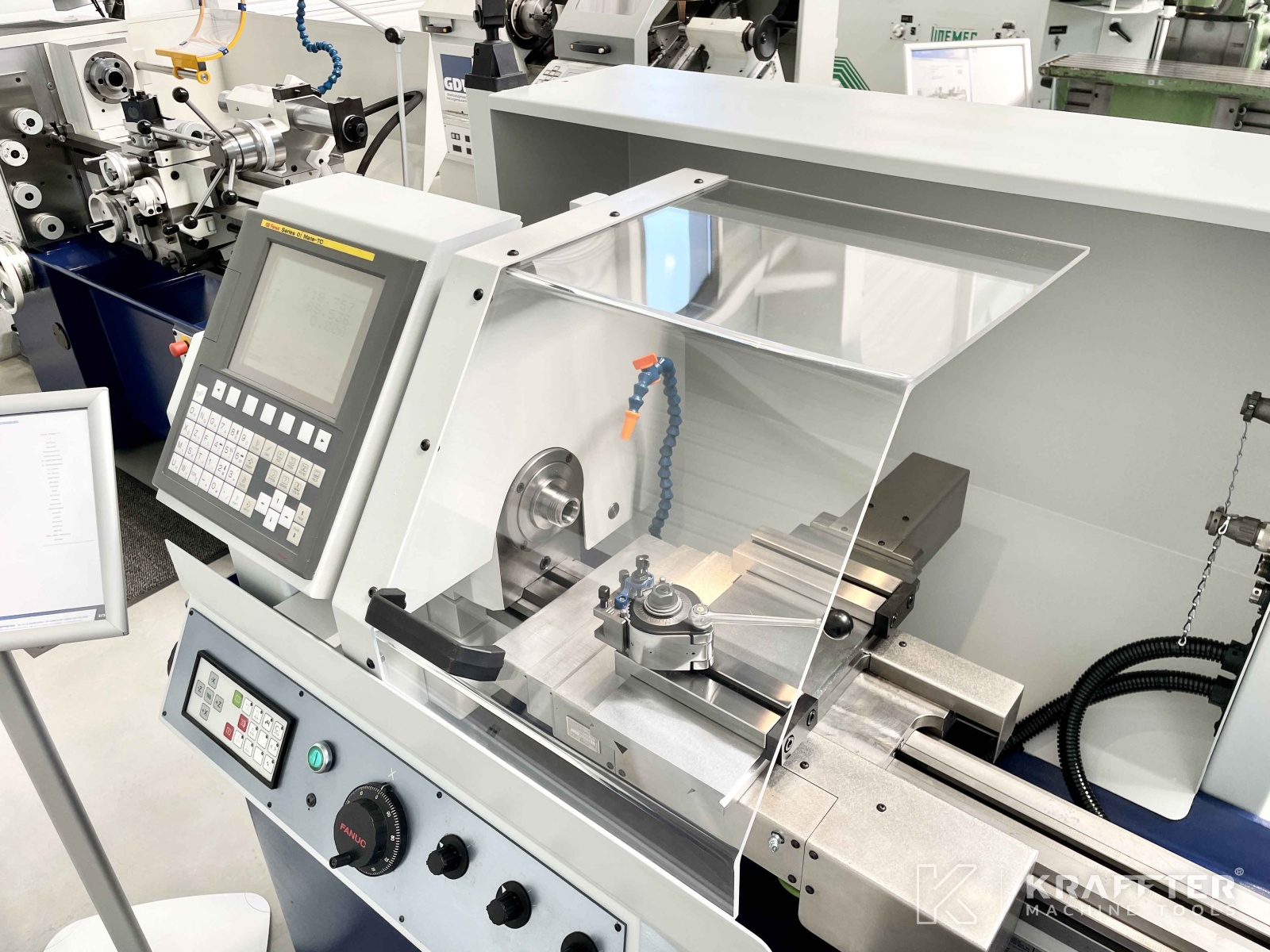

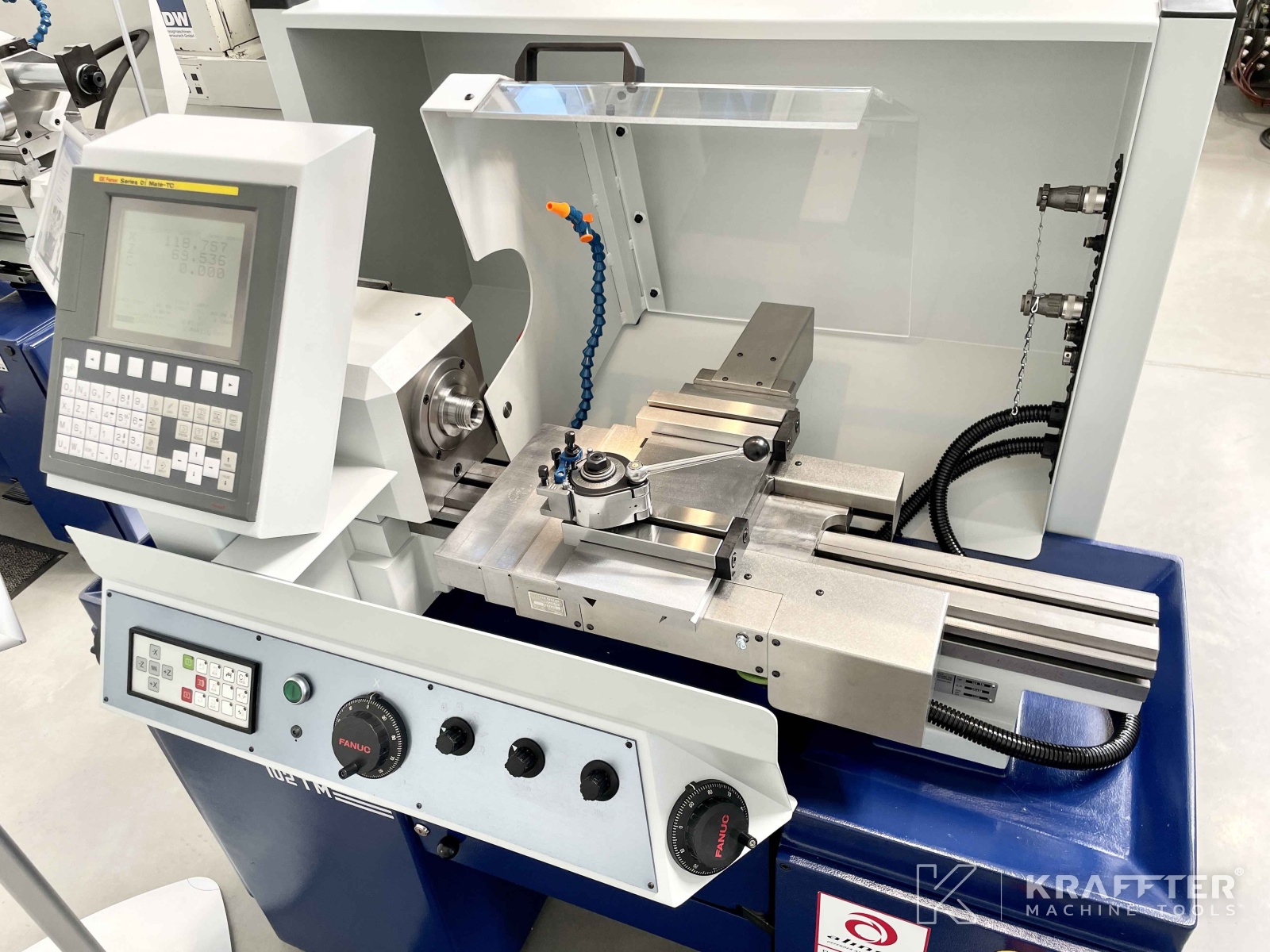

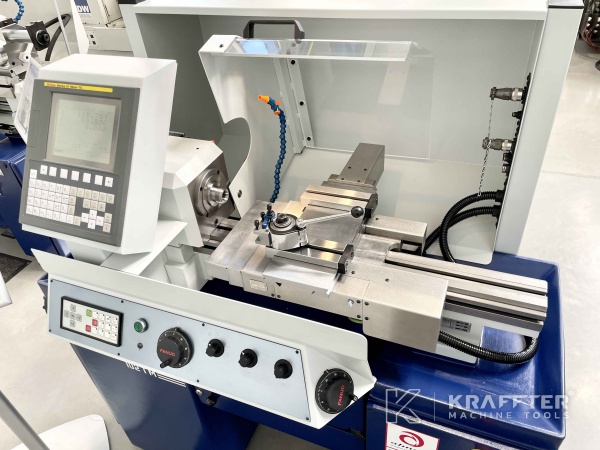

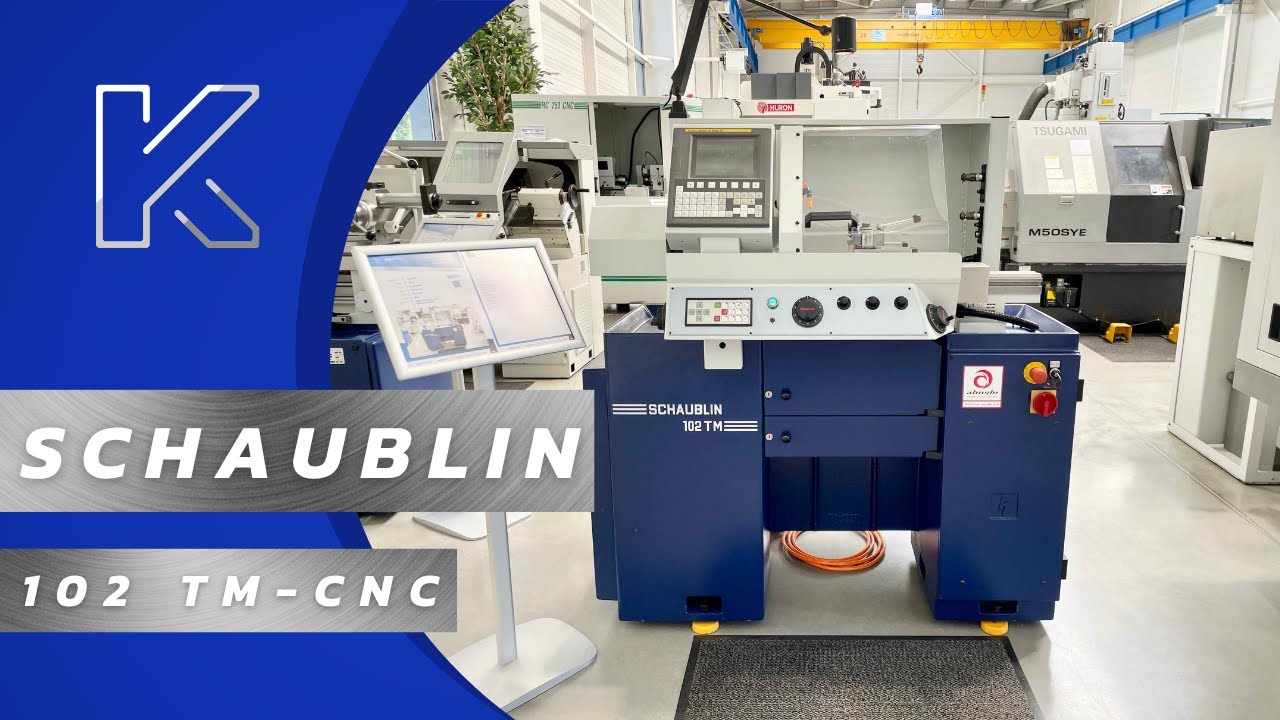

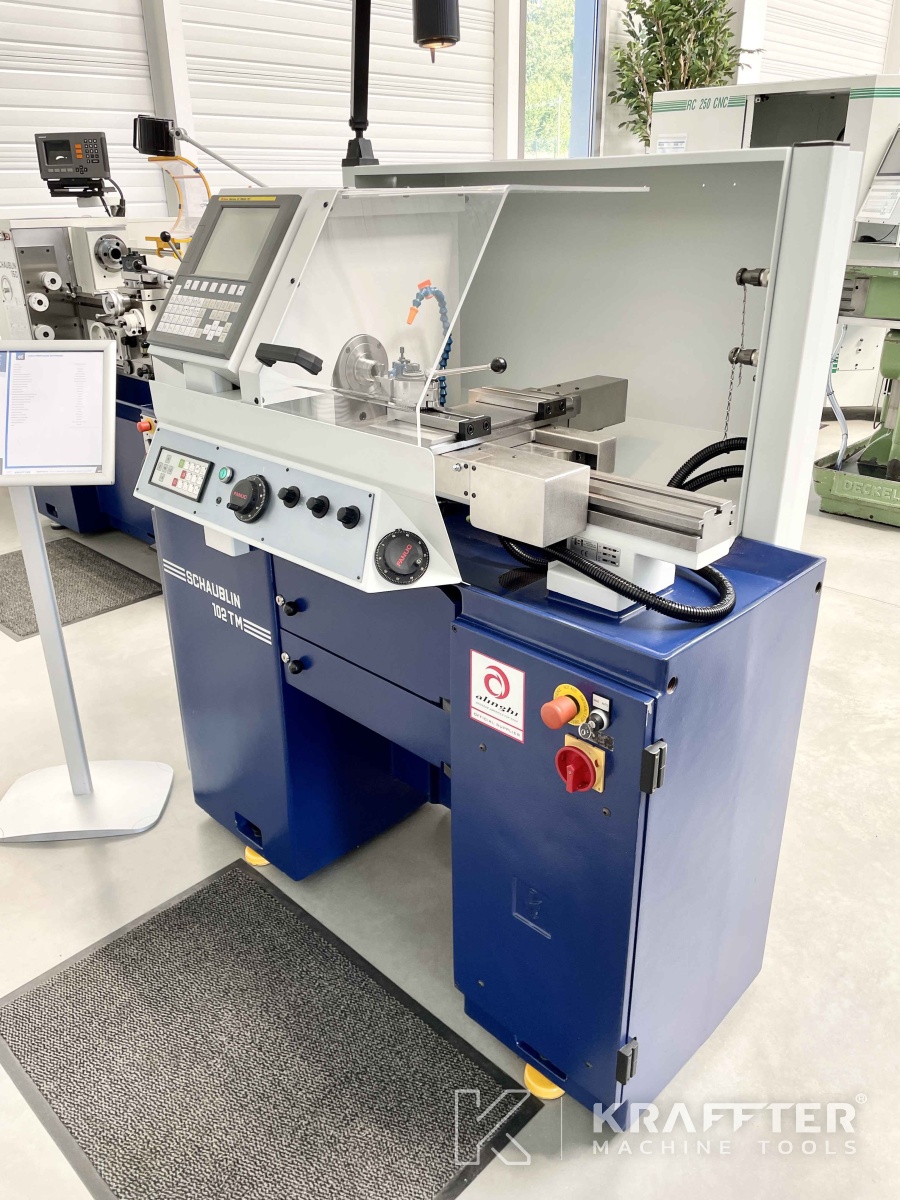

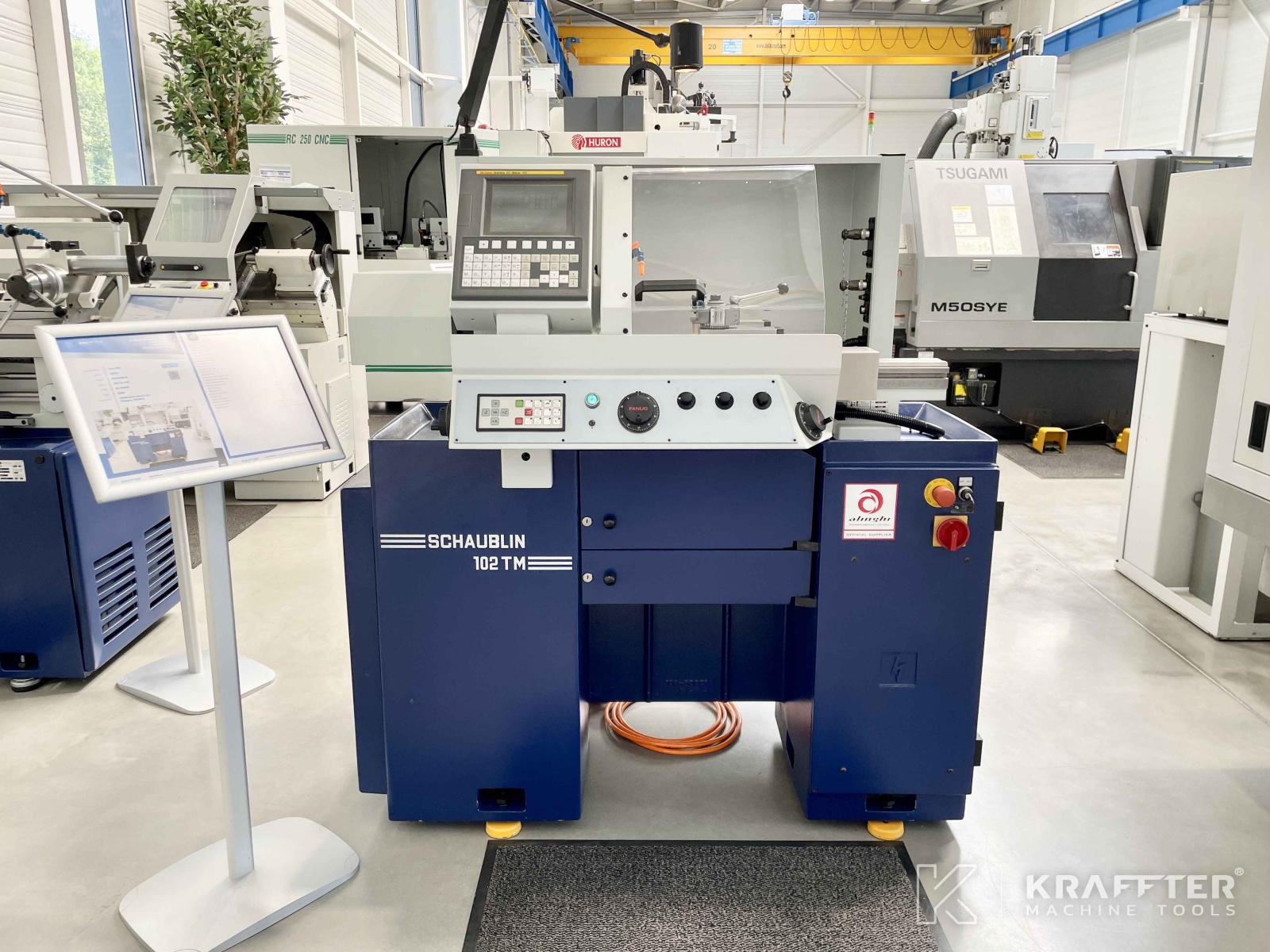

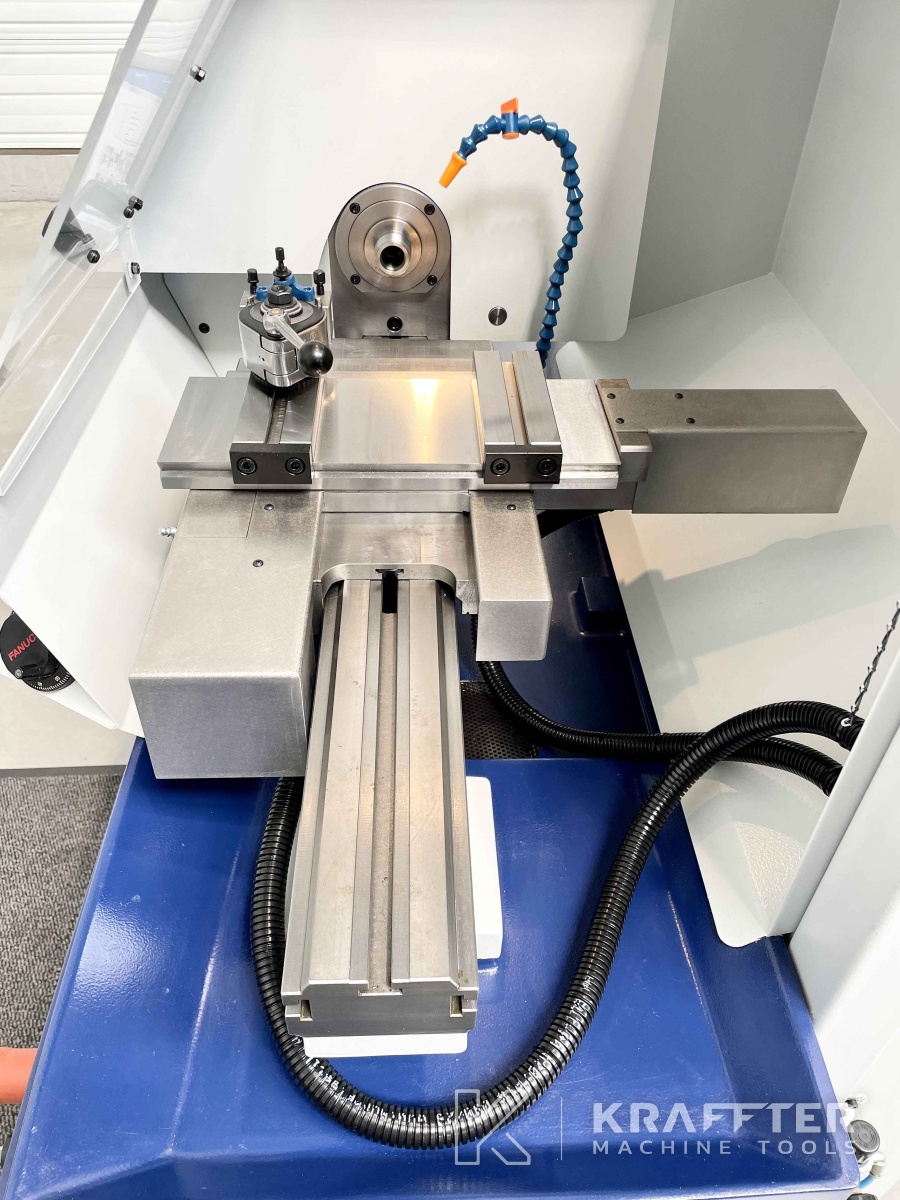

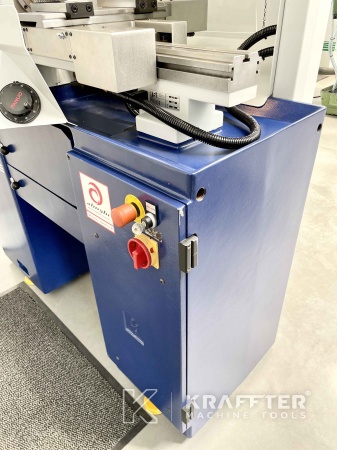

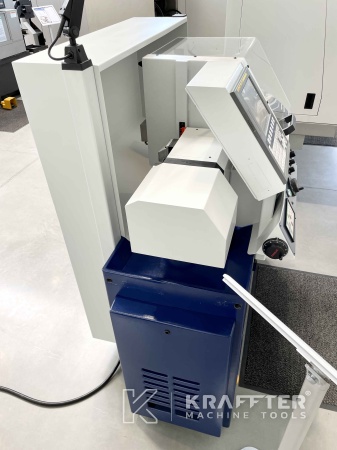

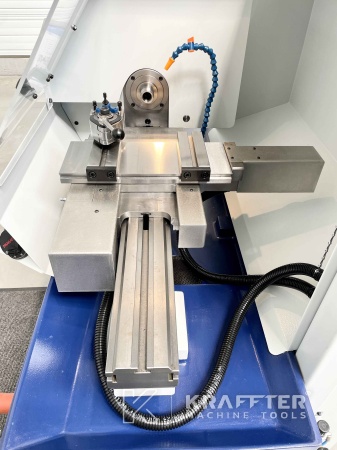

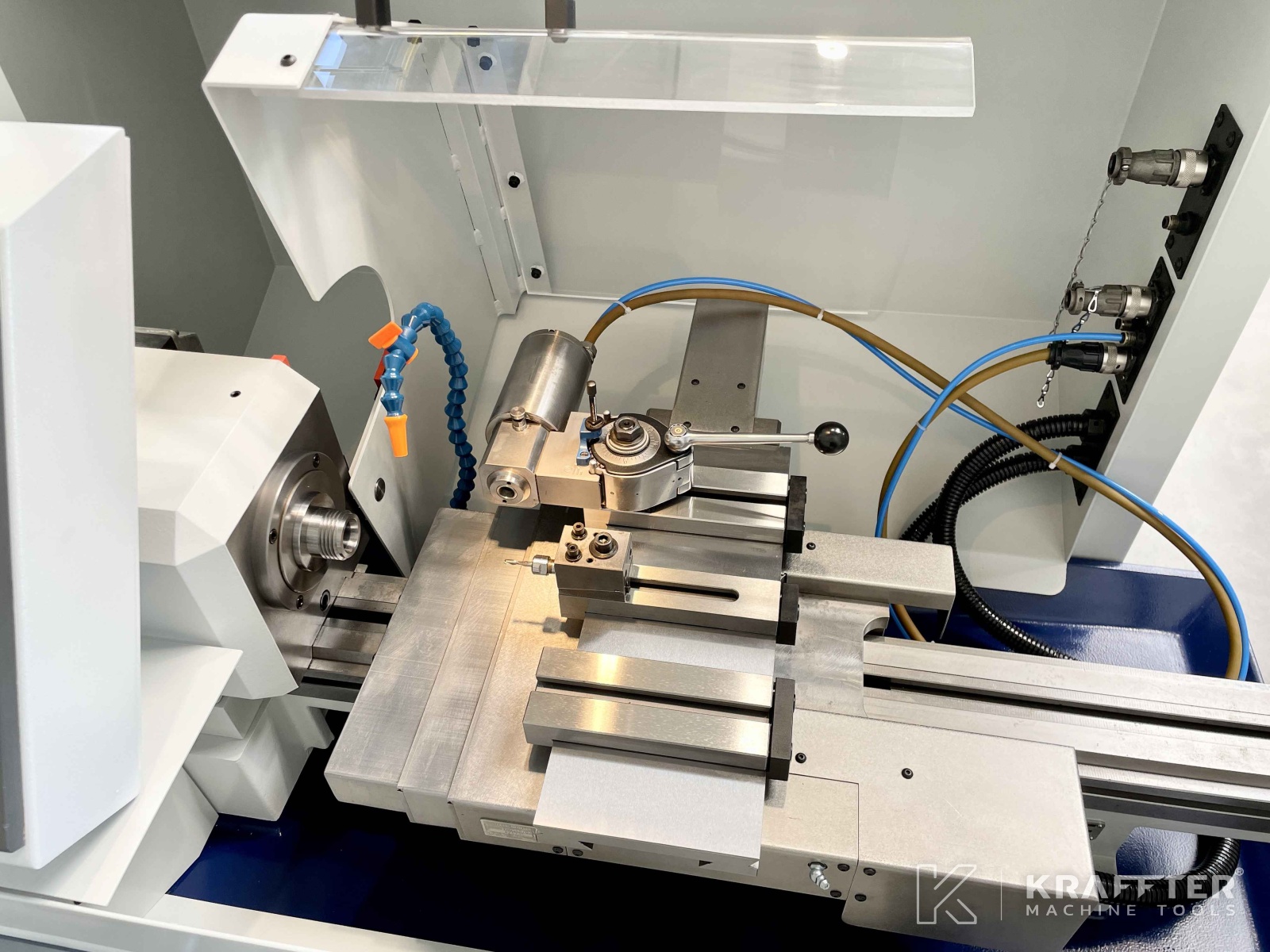

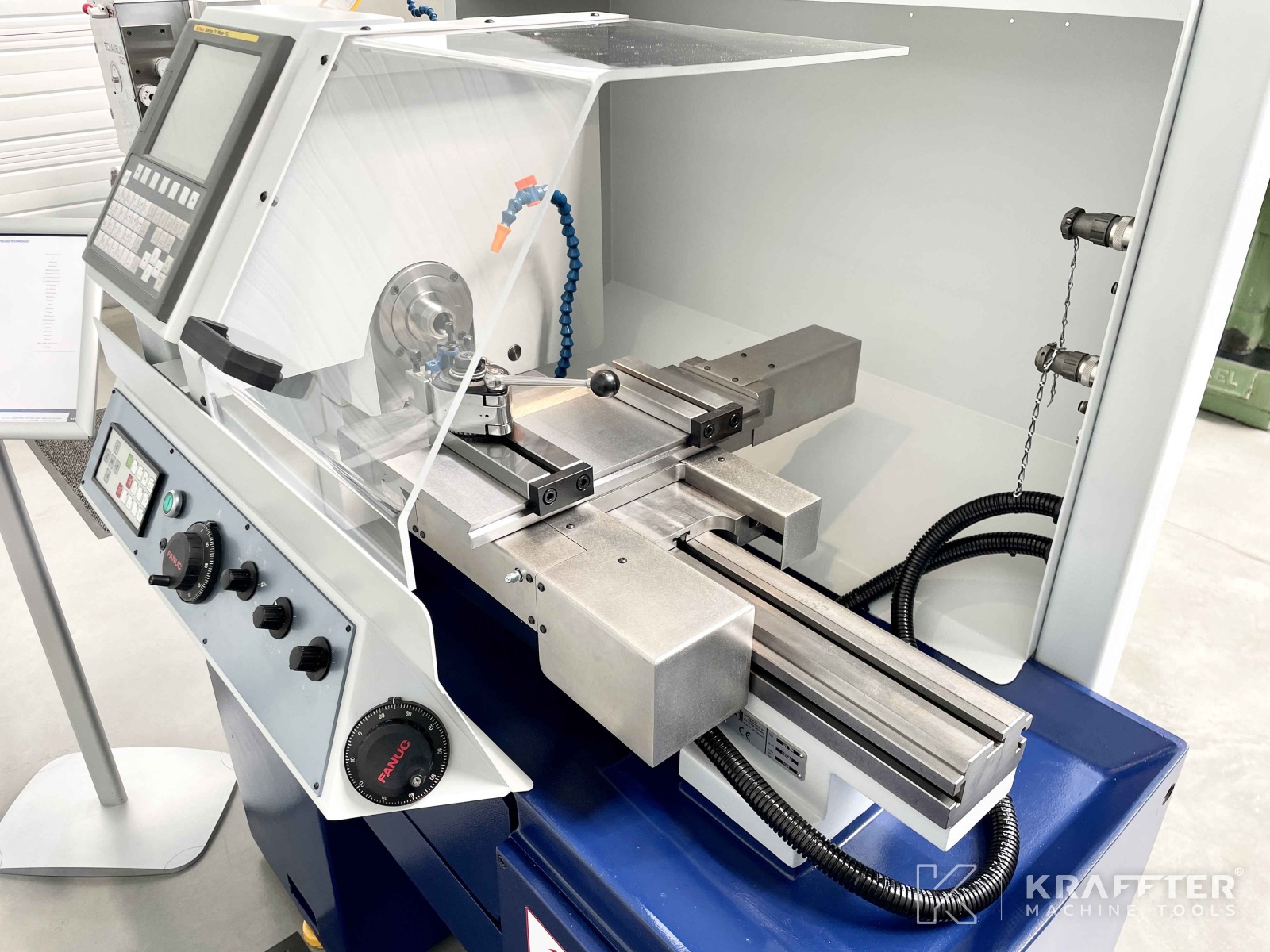

Type of machine : CNC lathe
Brand : SCHAUBLIN
Stock N° : 90075
Model : 102 TM-CNC
Serial N° : BL 351438
Year : 2006
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

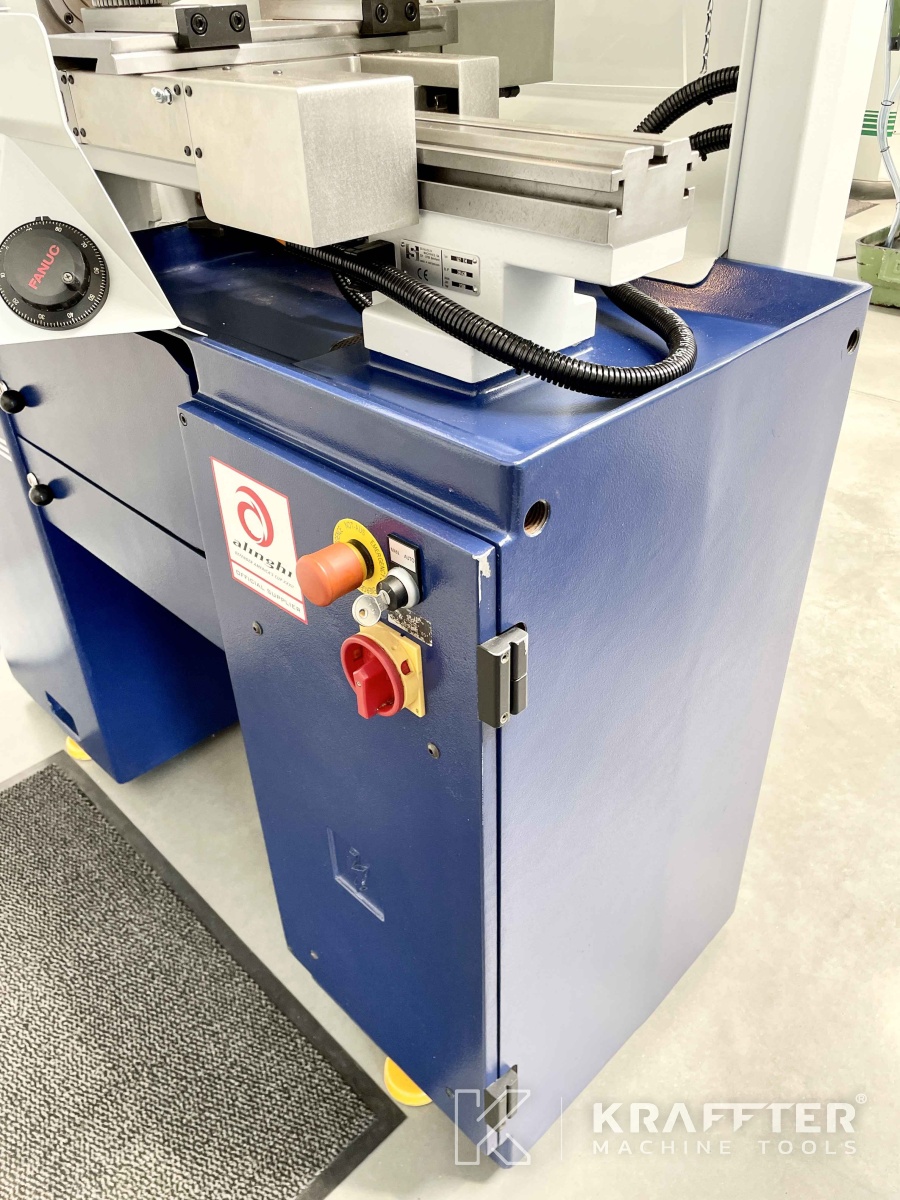

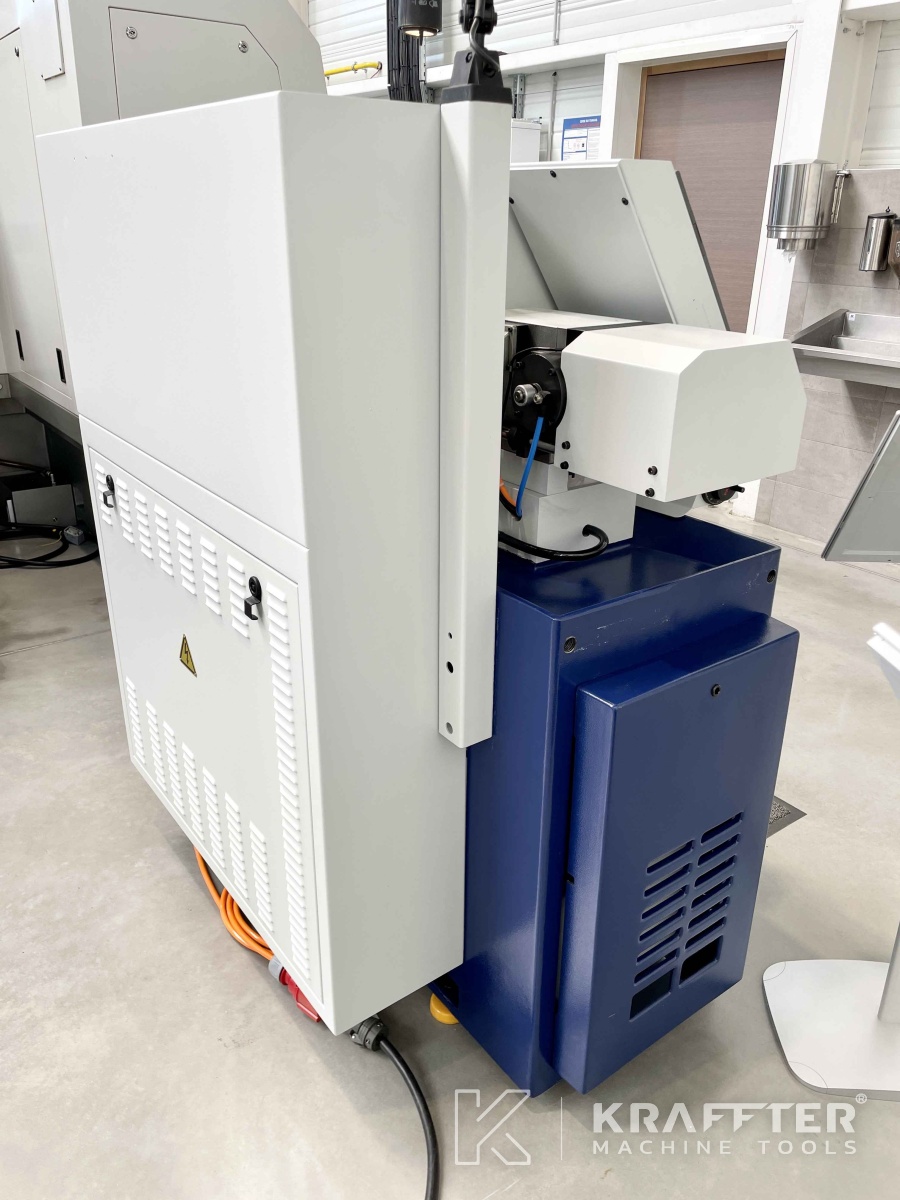

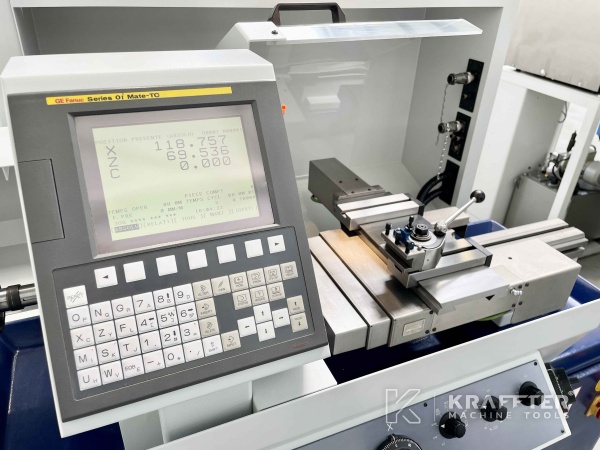

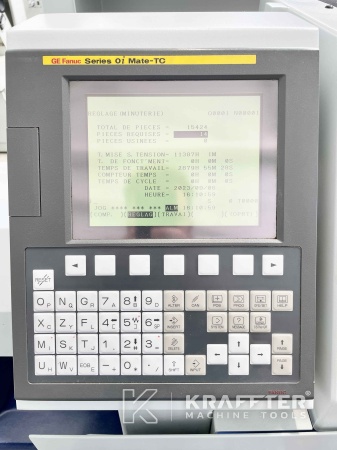

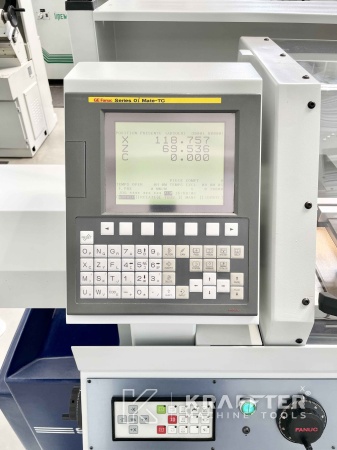

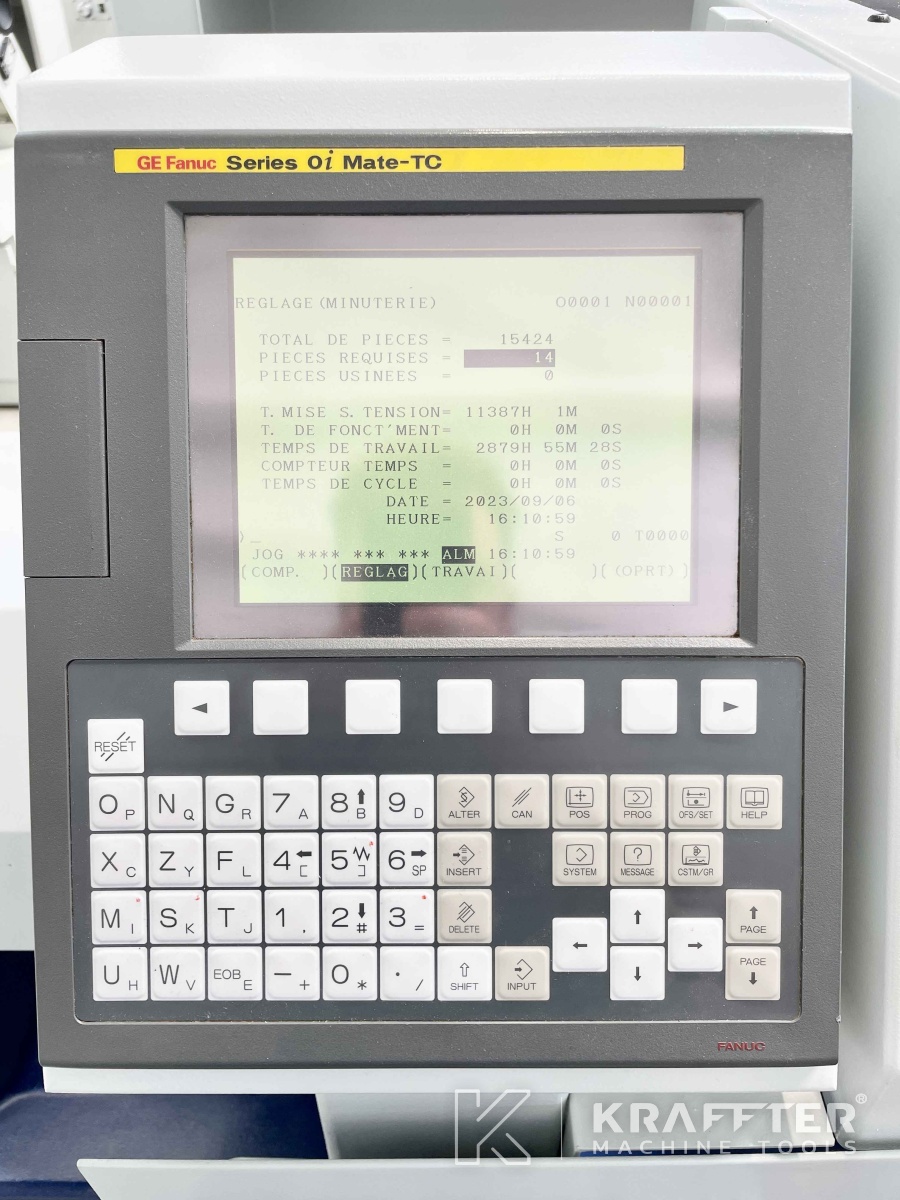

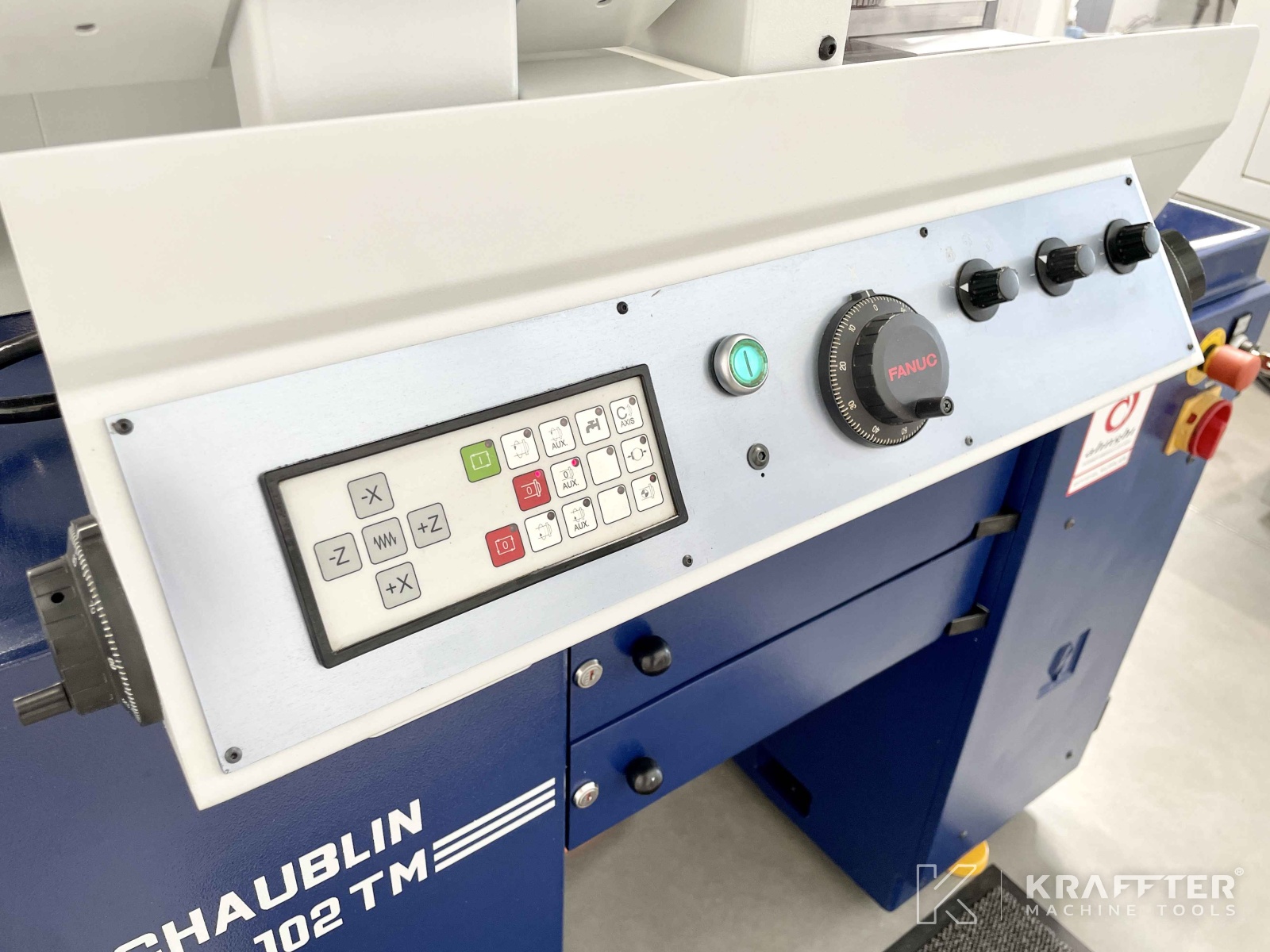

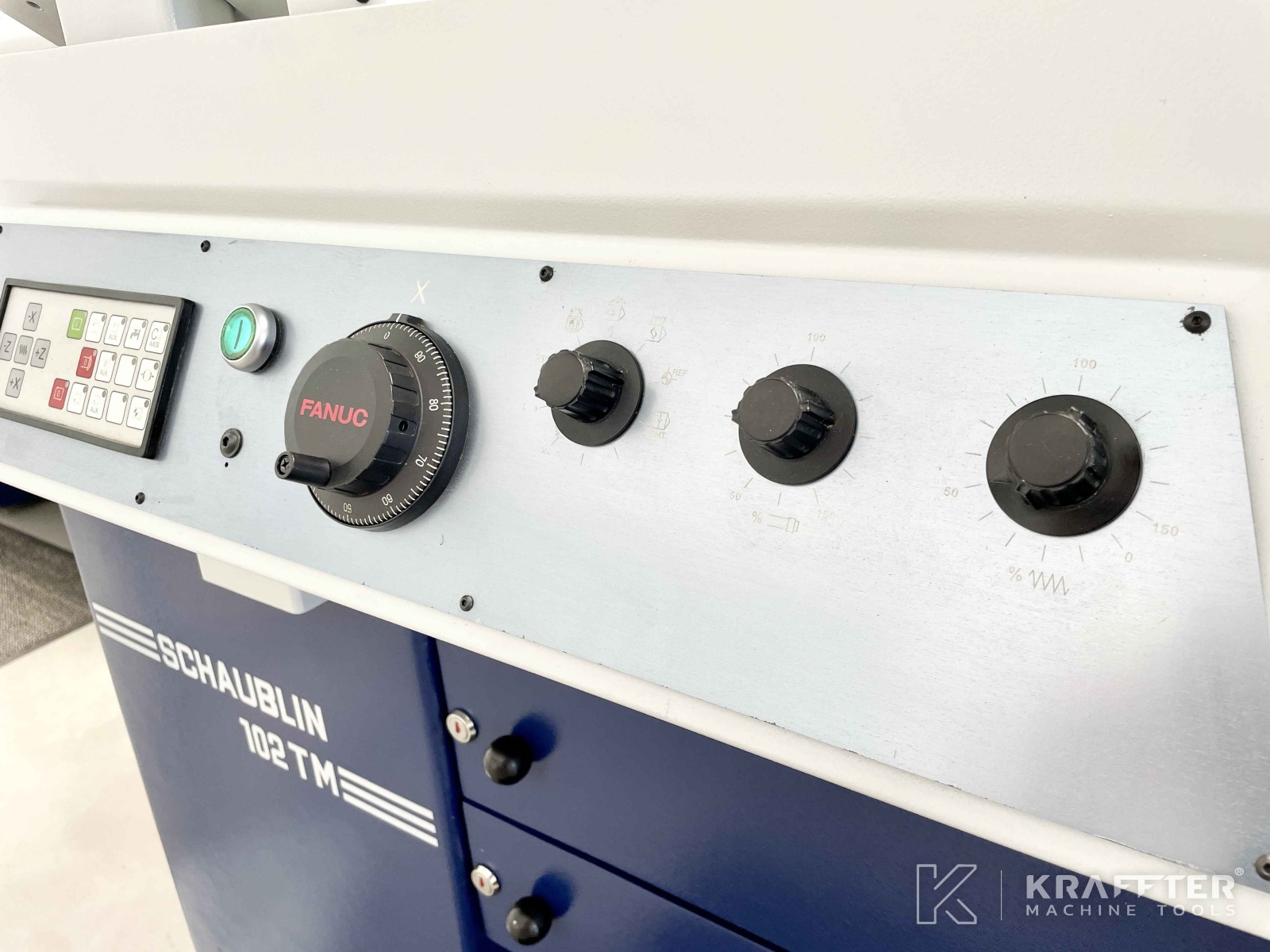

CNC control
FANUC Oi Mate-TD
Number of axes
3
Height of centers
102 [mm]
Max. cutting diameter
200 [mm]
Height of centers over cariage
75 [mm]
Max. turning lenght
100 [mm]

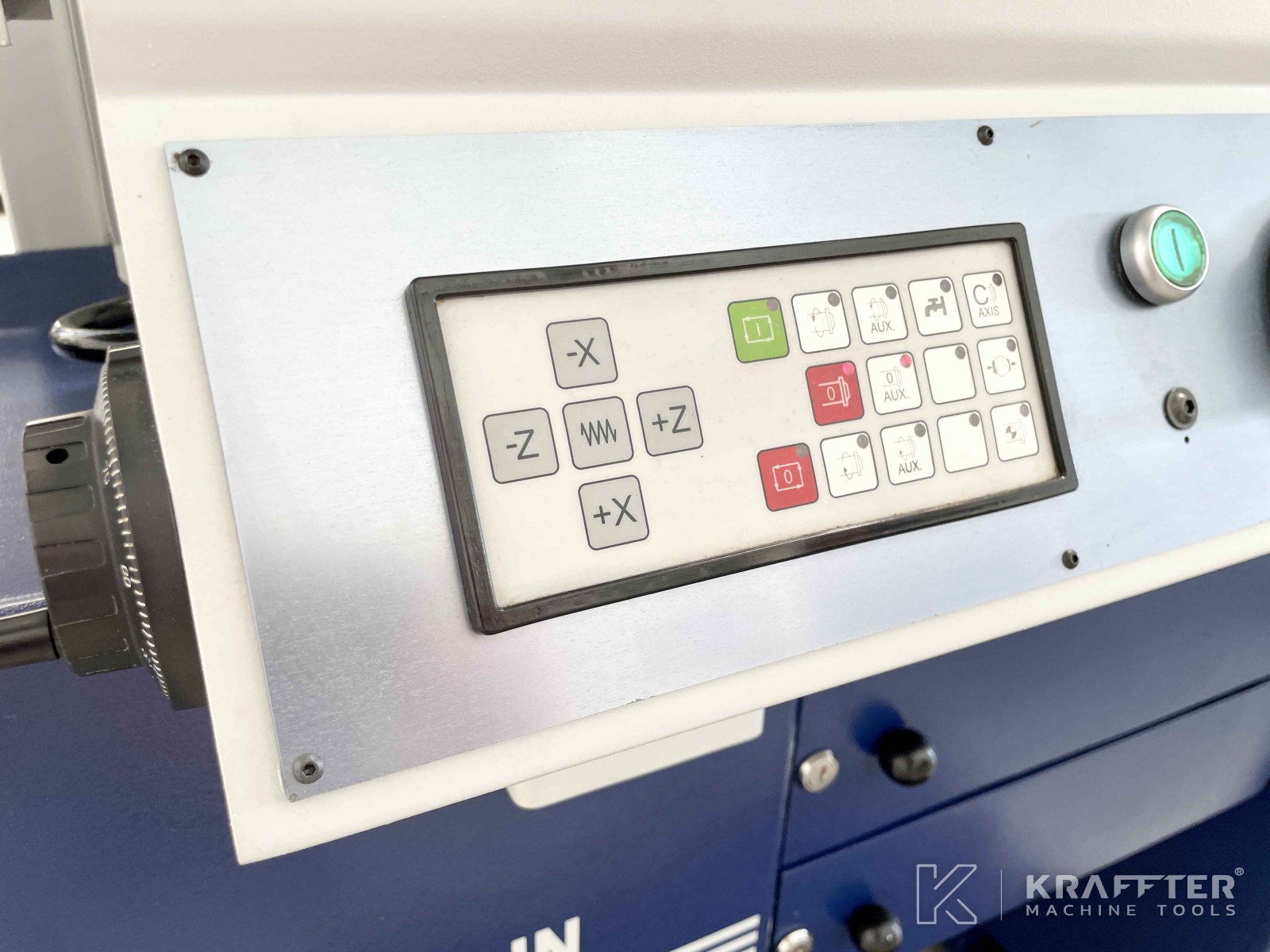

Stroke X axis
120 [mm]
Stroke Z axis
100 [mm]
Rapid traverse rate X axis
7000 [mm/min]
Rapid traverse rate Z axis
7000 [mm/min]
Working feed X axis
0 - 5000 [mm/min]
Working feed Z axis
0 - 5000 [mm/min]
X axis ball screw, Ø x pitch
12 x 3 [mm]
Z axis ball screw, Ø x pitch
12 x 3 [mm]
Resolution Z axis
0.001 [mm]

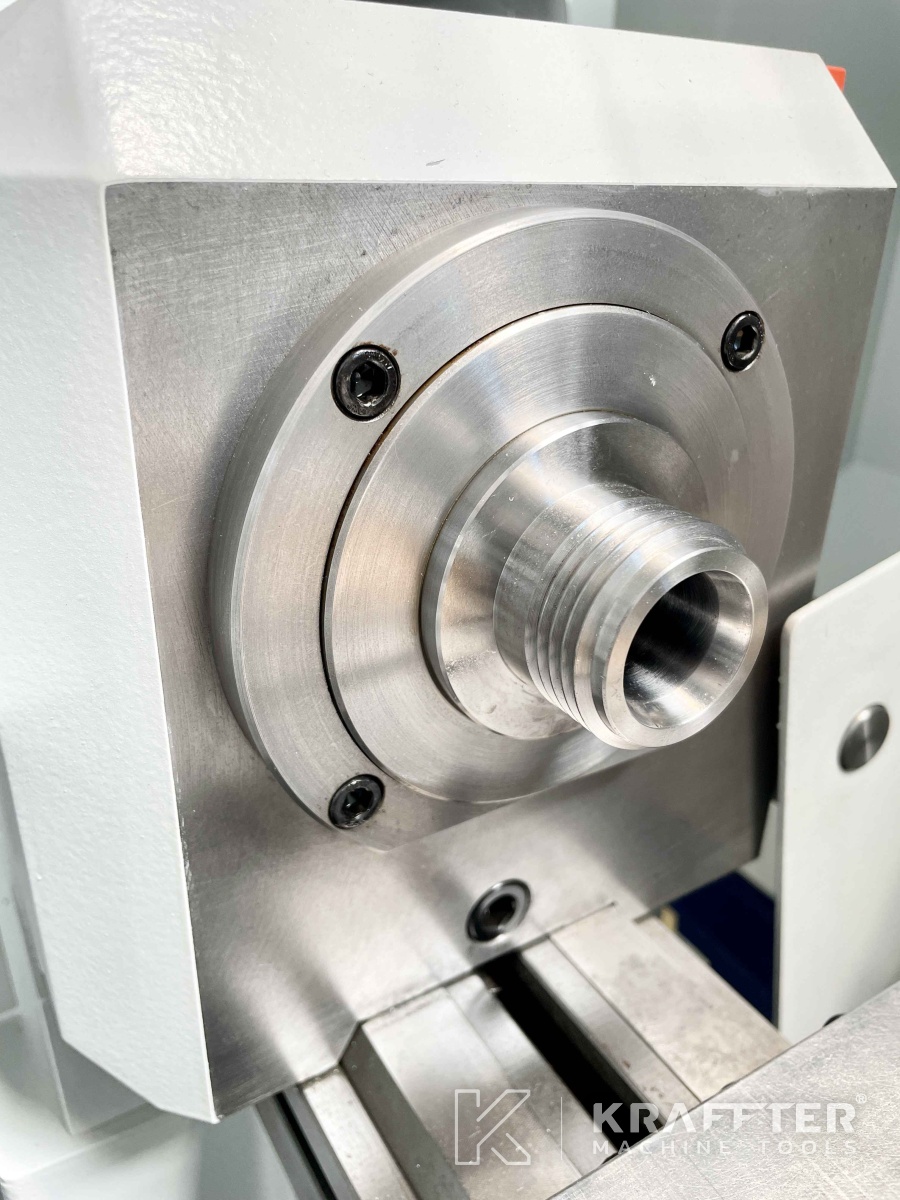

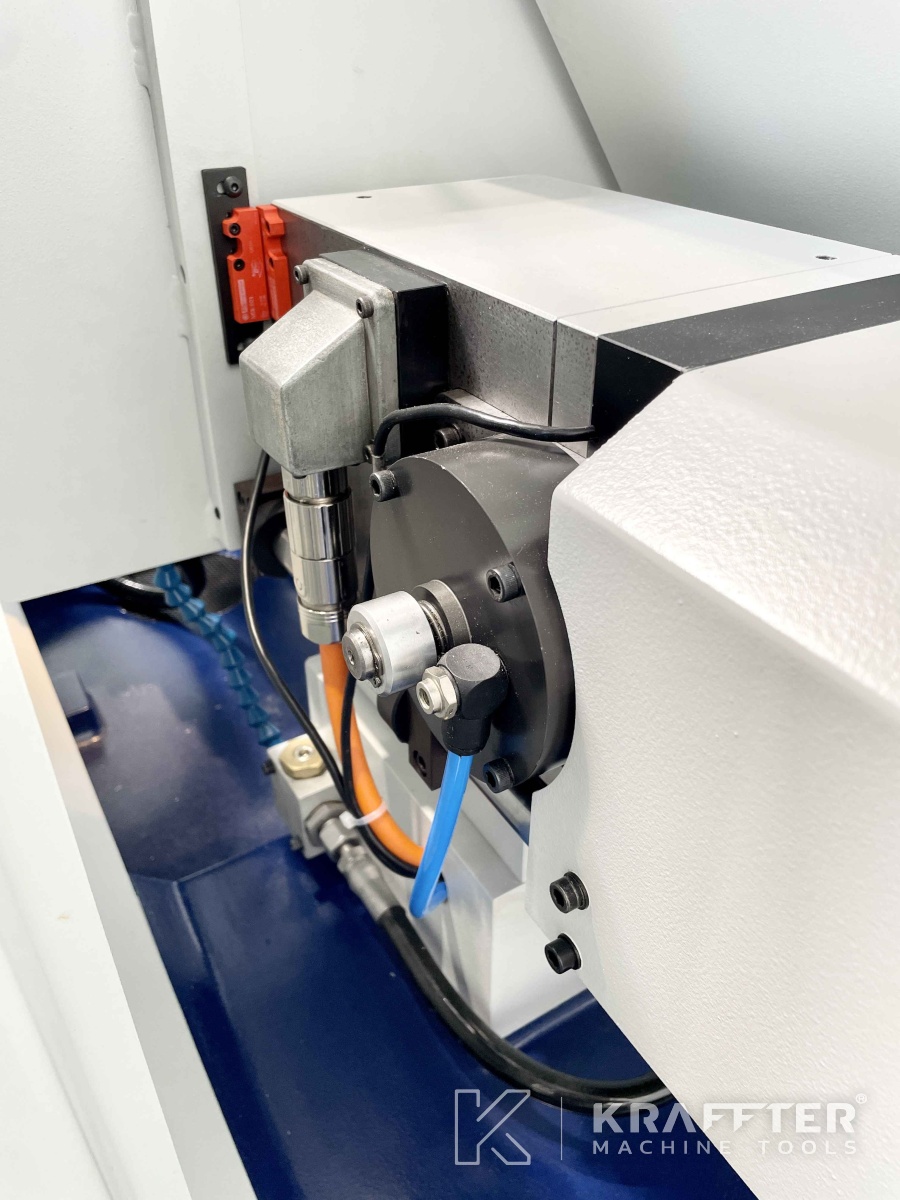

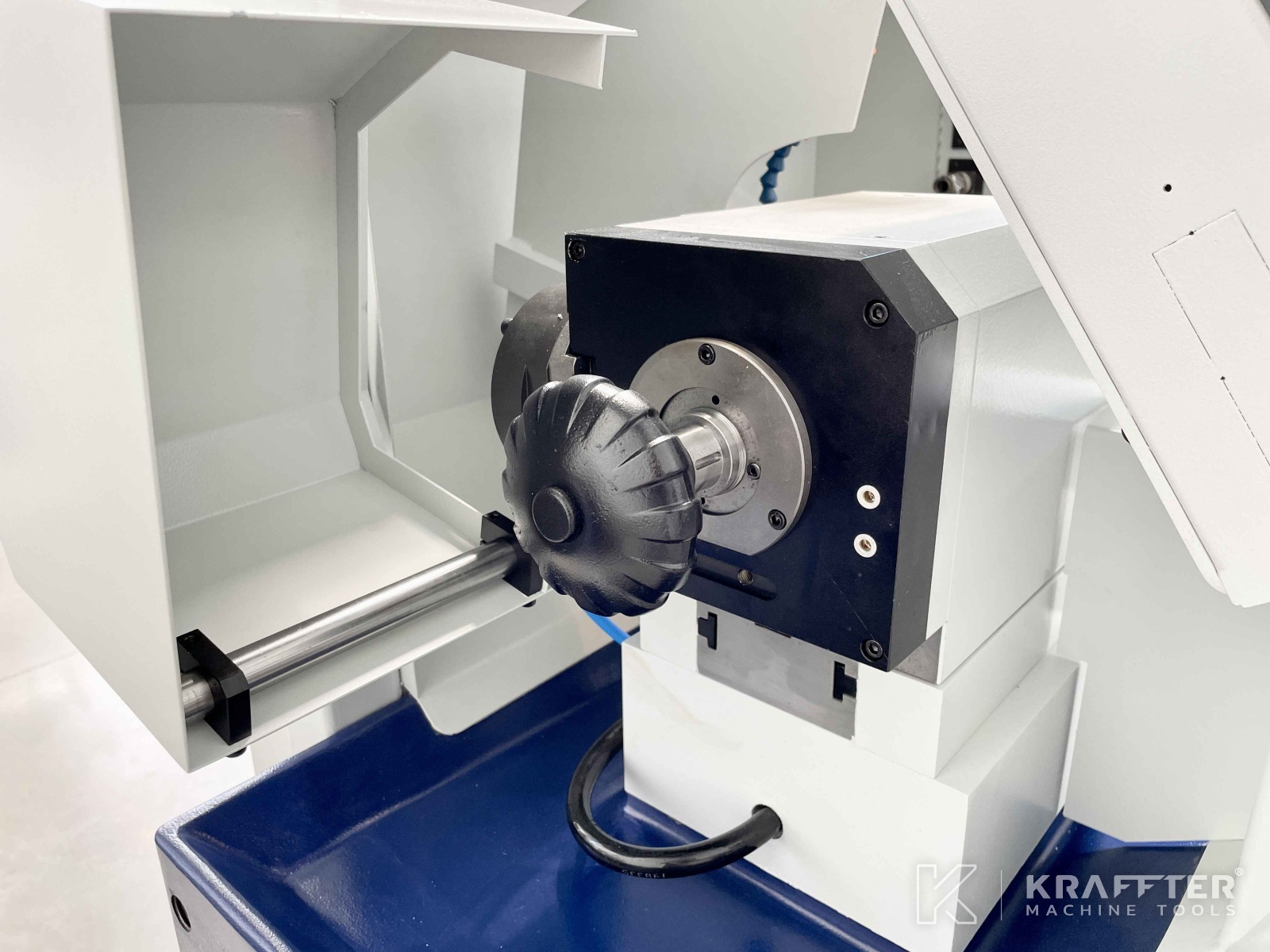

Spindle for collets
W20
Max. throughbore with collet
14.5 [mm]
Spindle throughbore
17 [mm]
Min. spindle speed
50 [rpm]
Max. spindle speed
8000 [rpm]

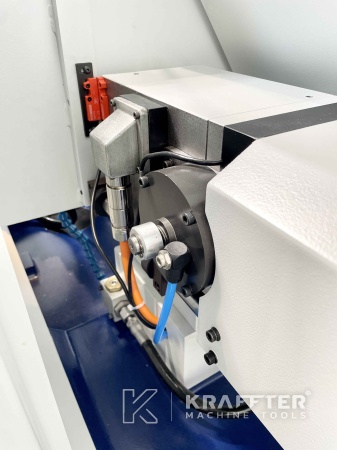

Increment C-axis
0.001 [°]
Spindle power
1.5 [kW]

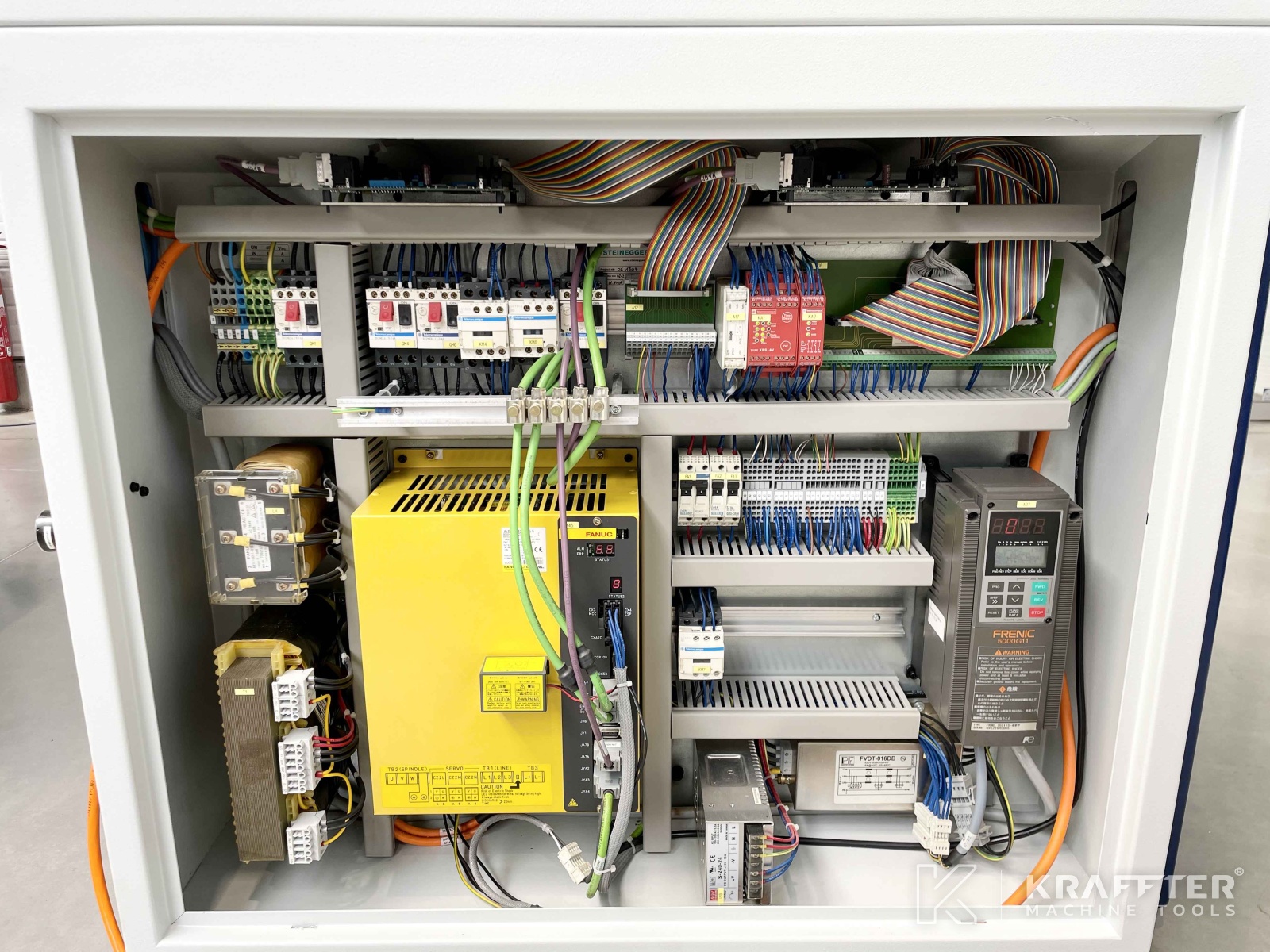

Supply voltage
400 [V]

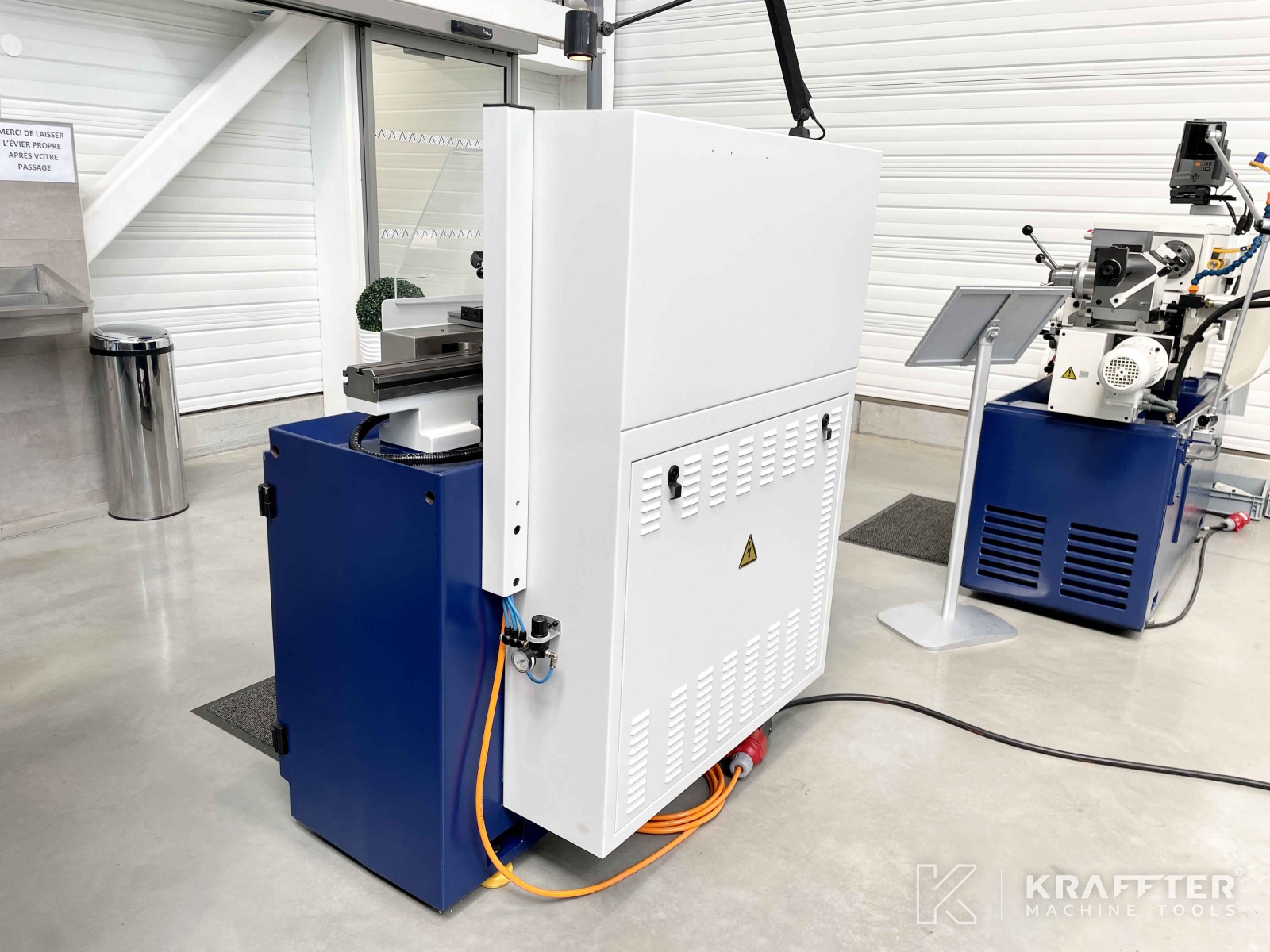

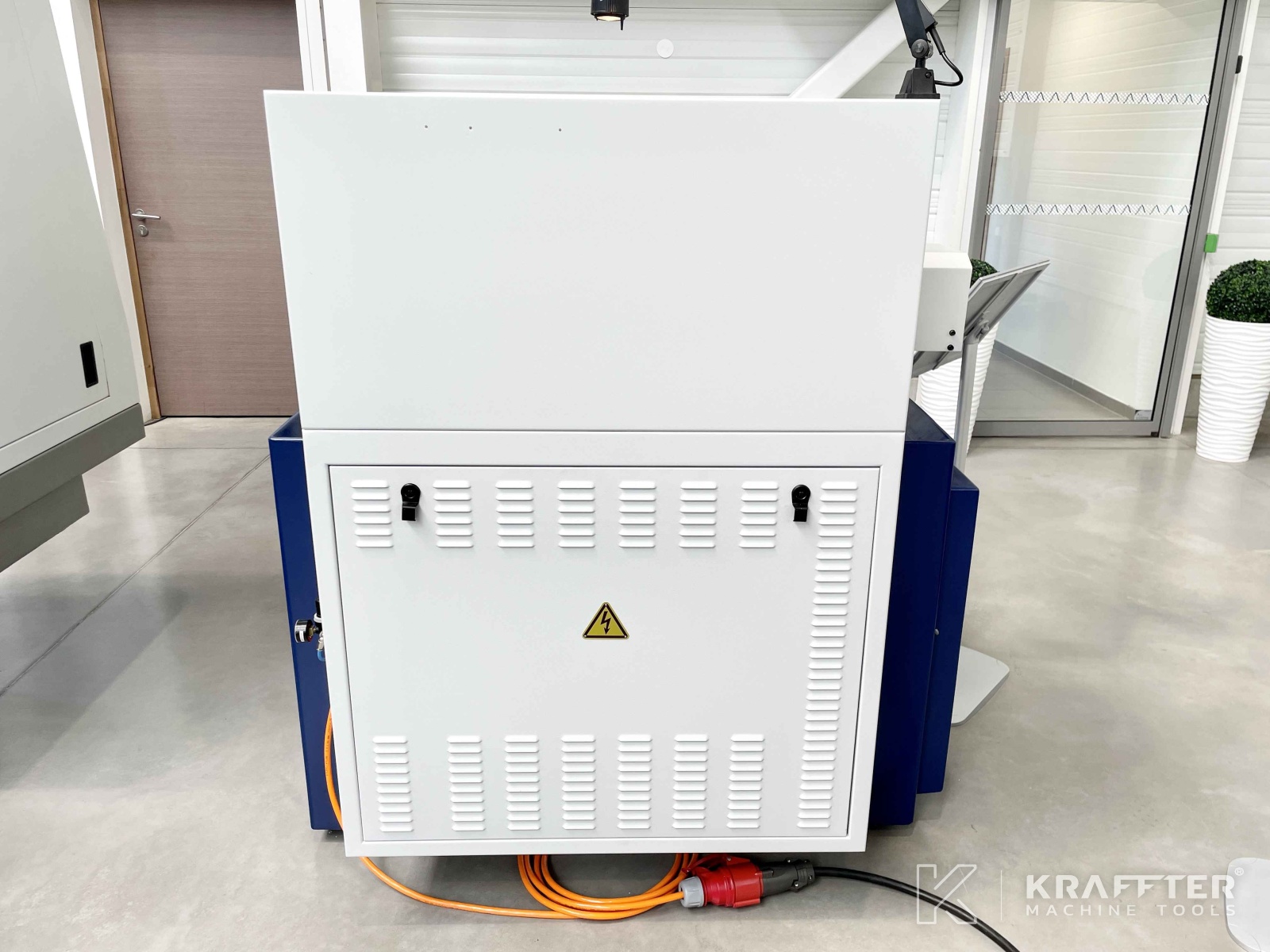

Machine dimensions
1400 x 880 x 1470 [mm]
Weight
700 [Kg]

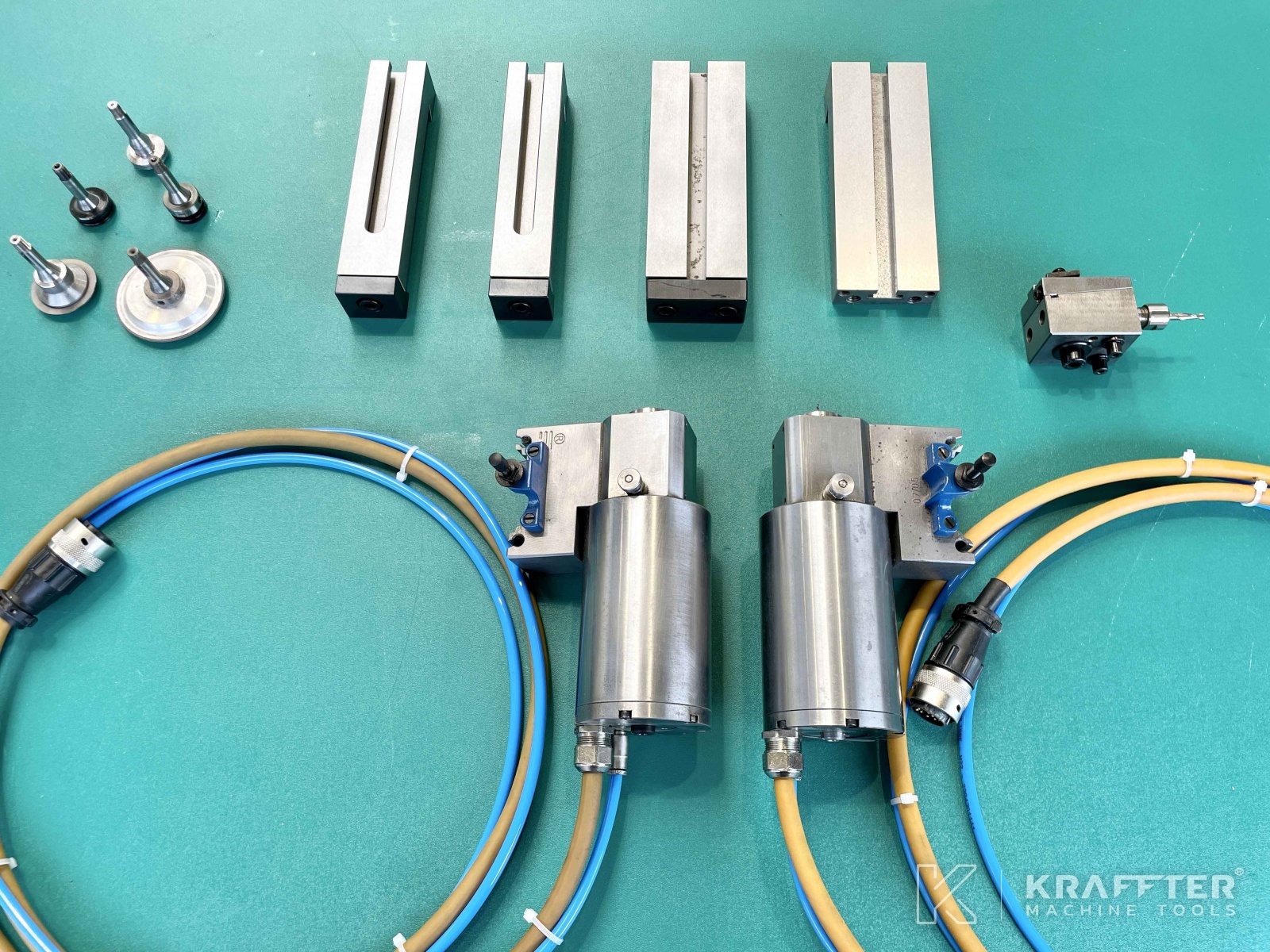

EQUIPMENT INCLUDED:

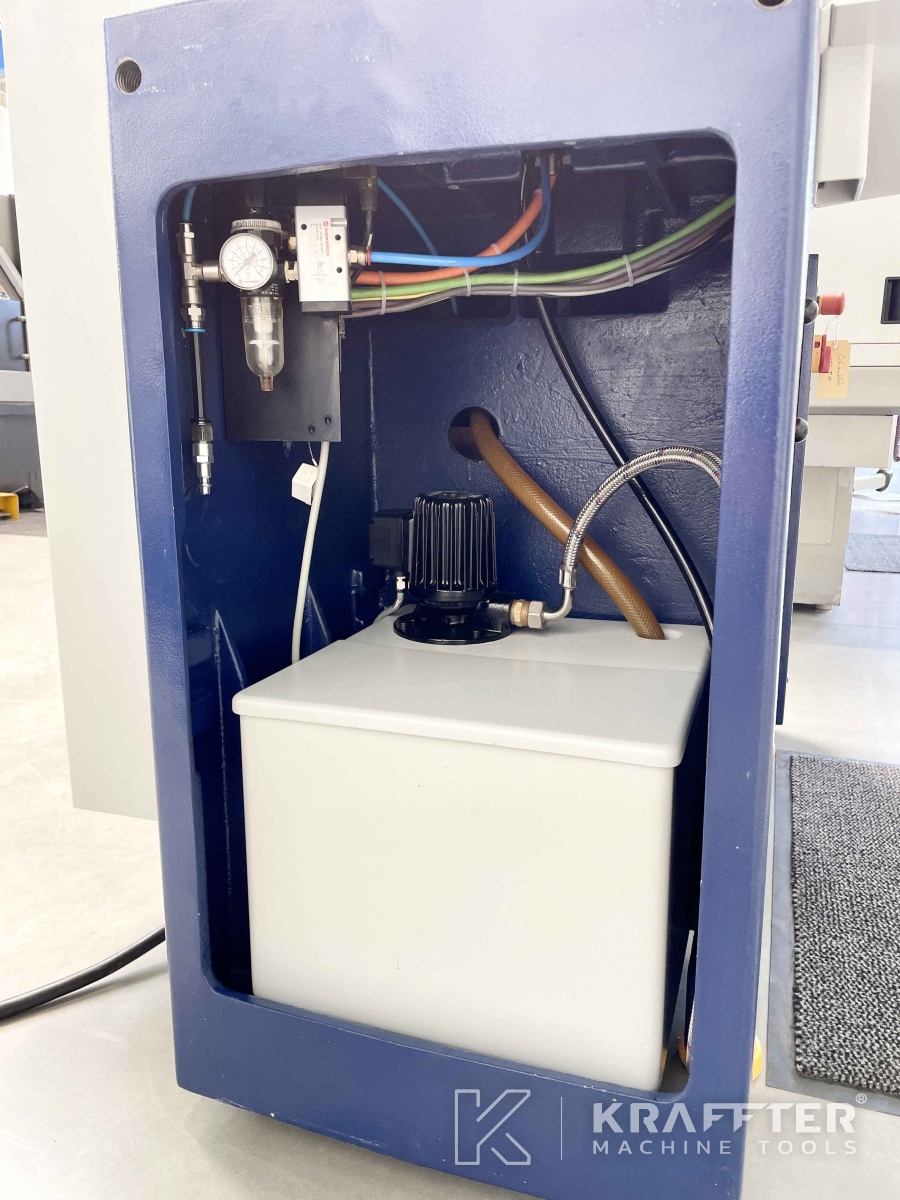

x1 coolant system - 0202-80600-000

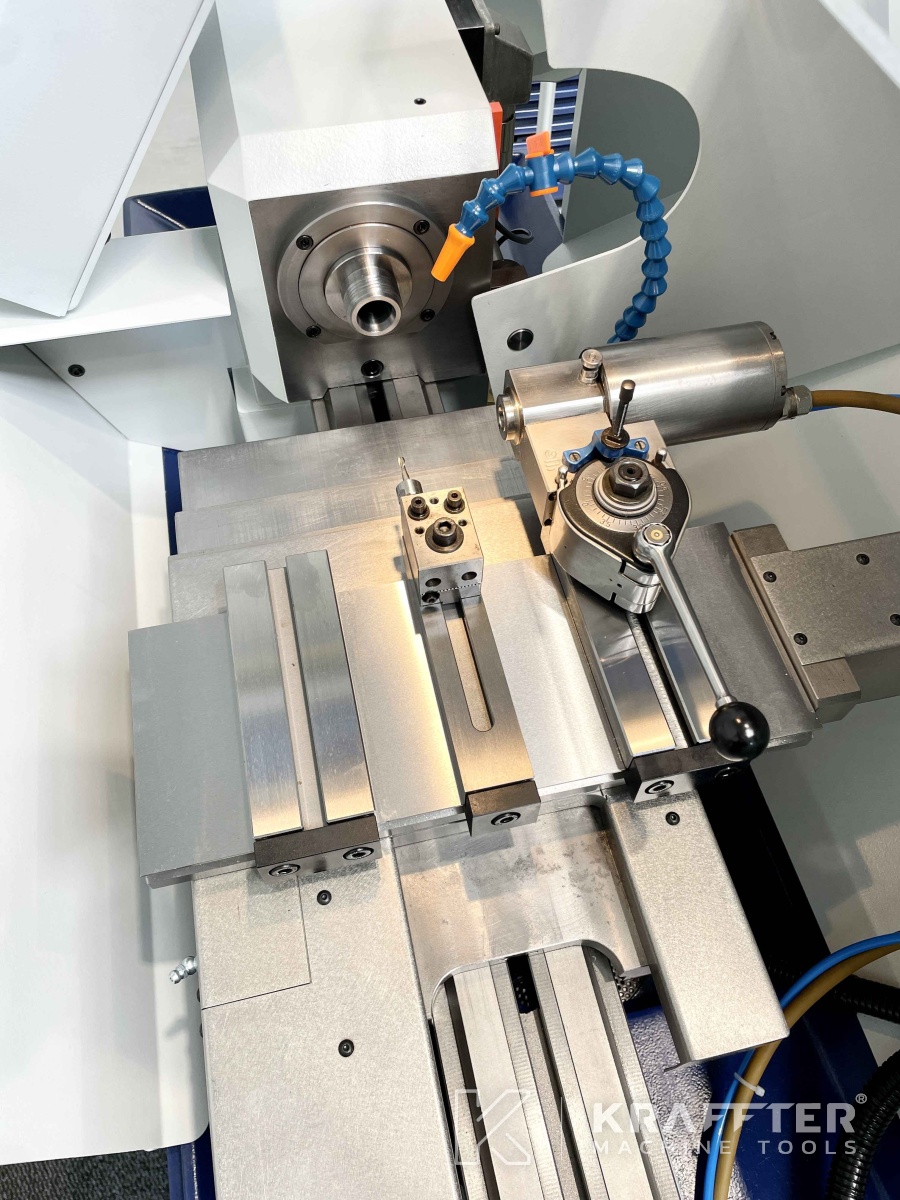

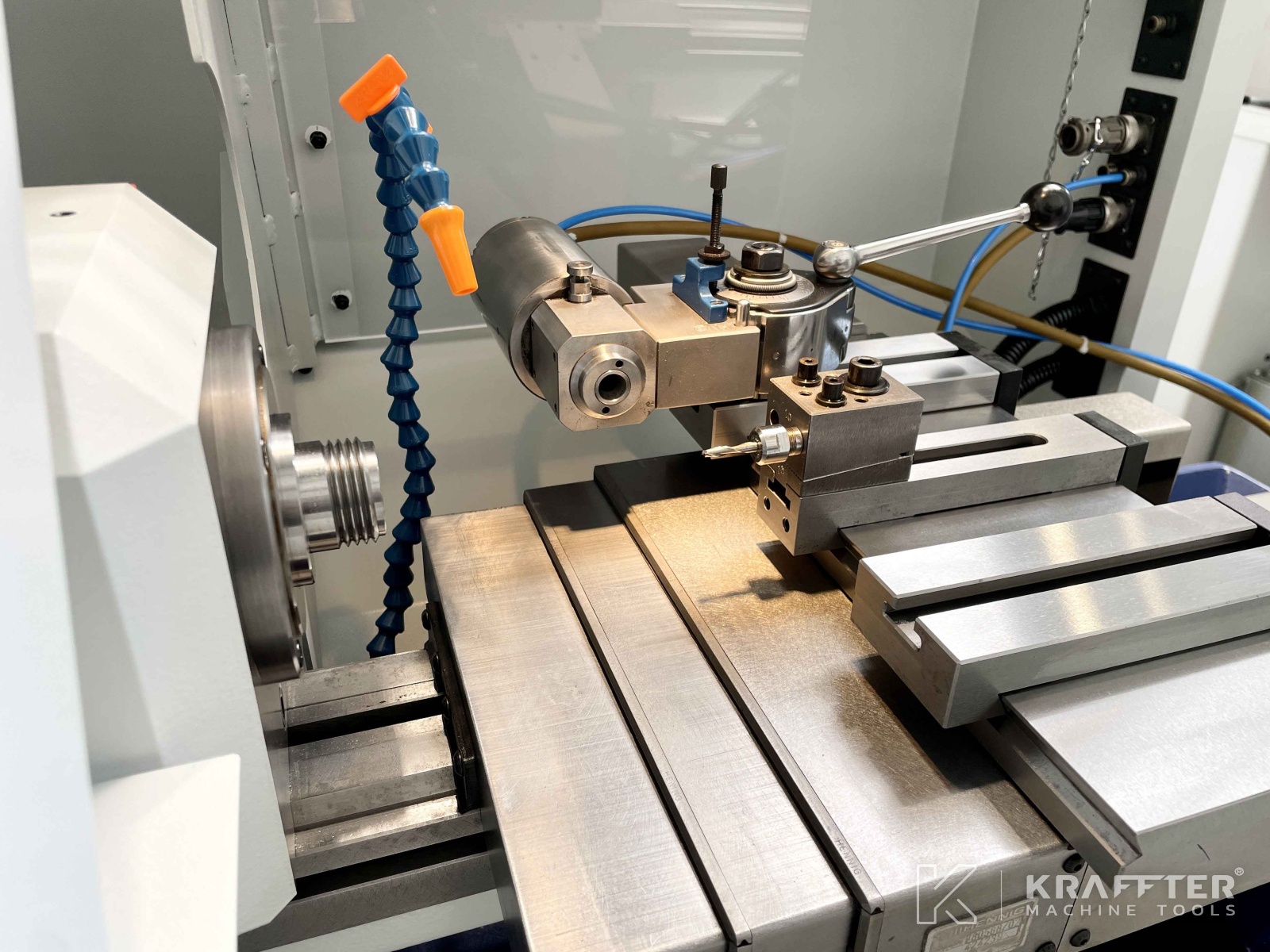

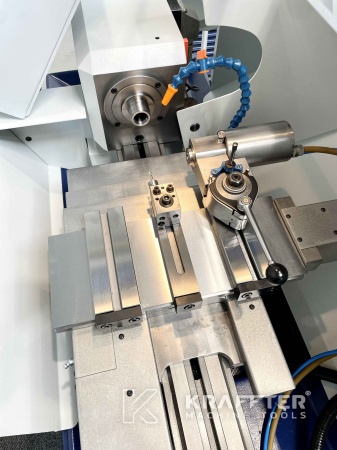

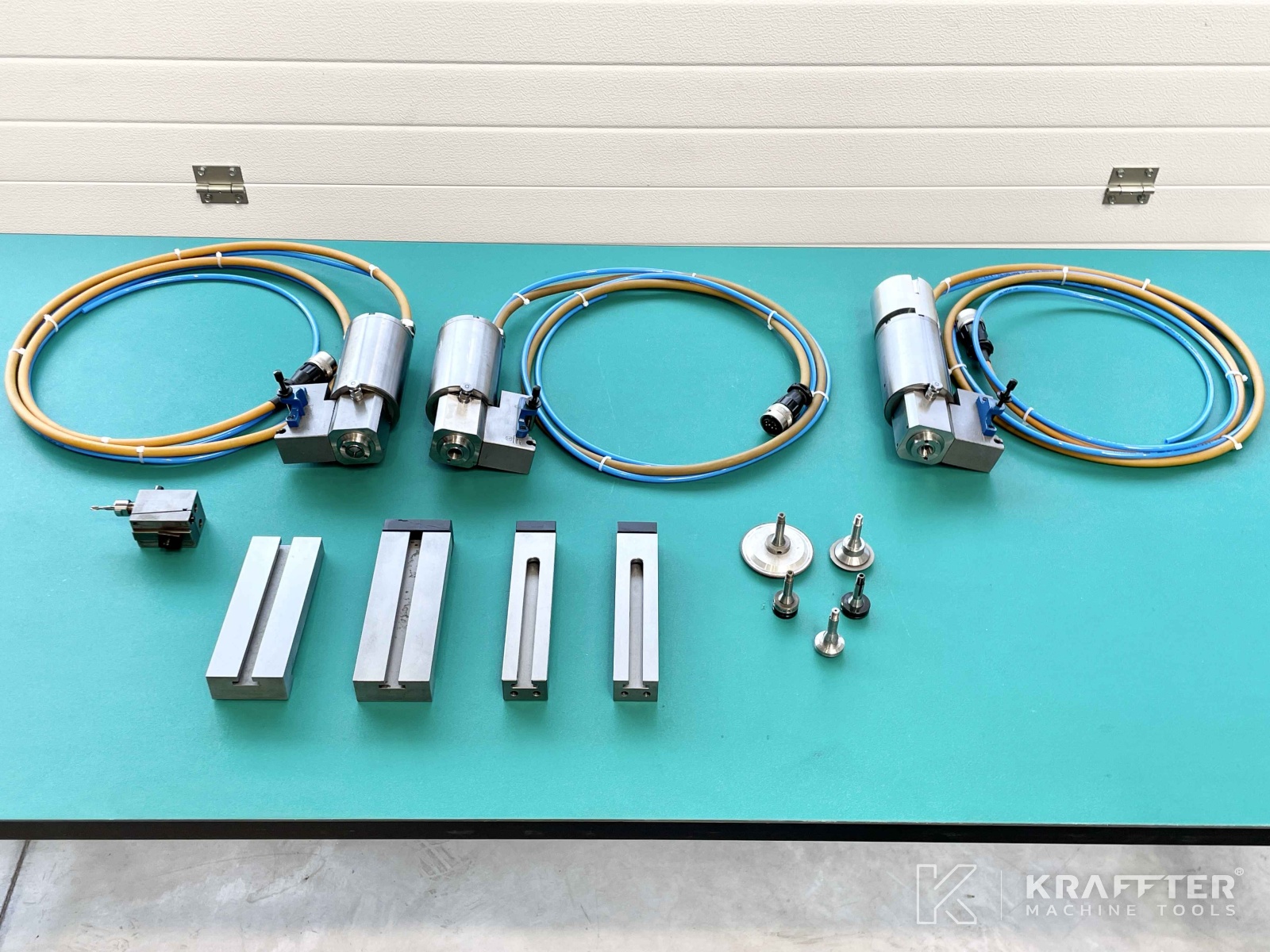

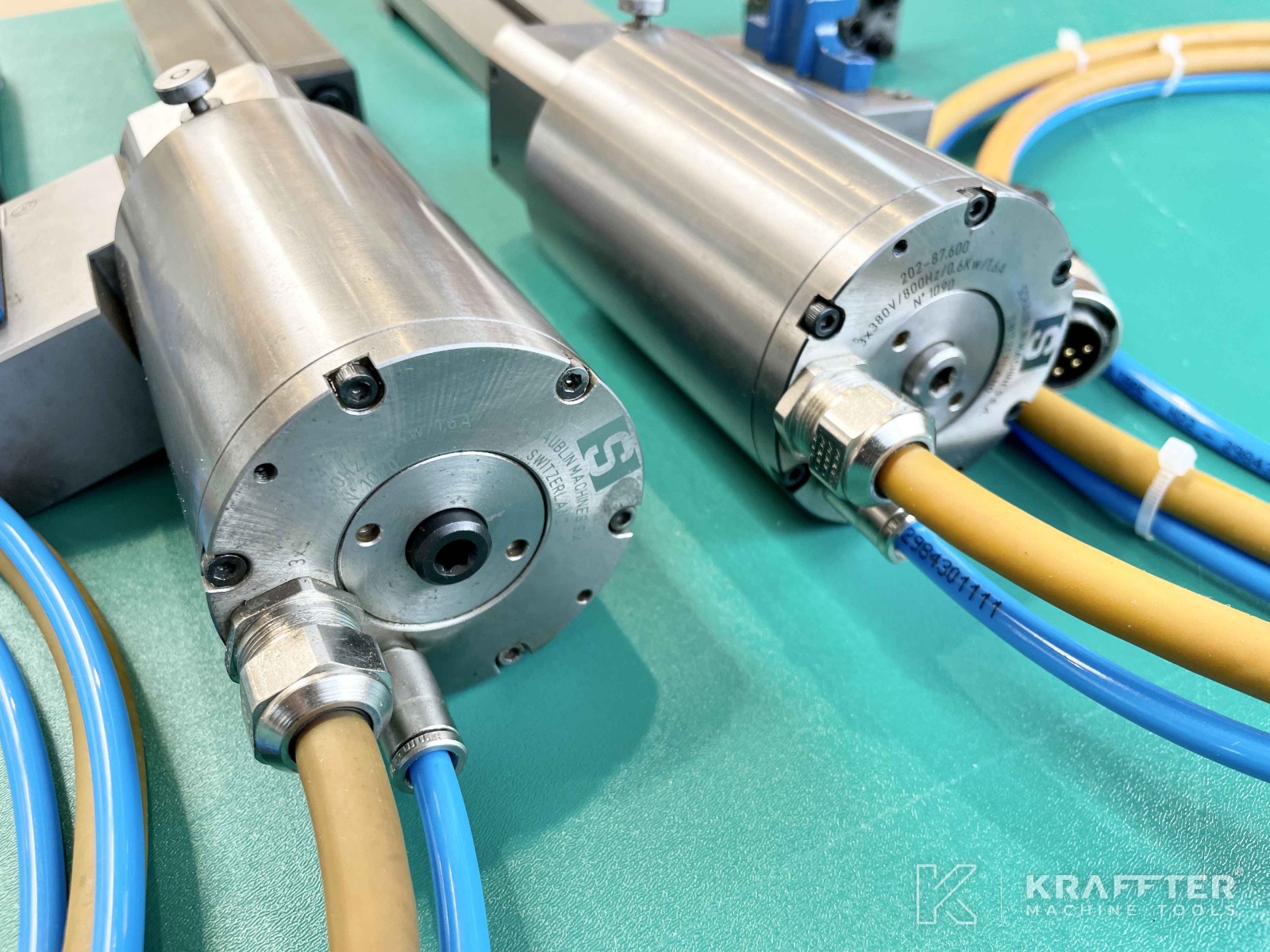

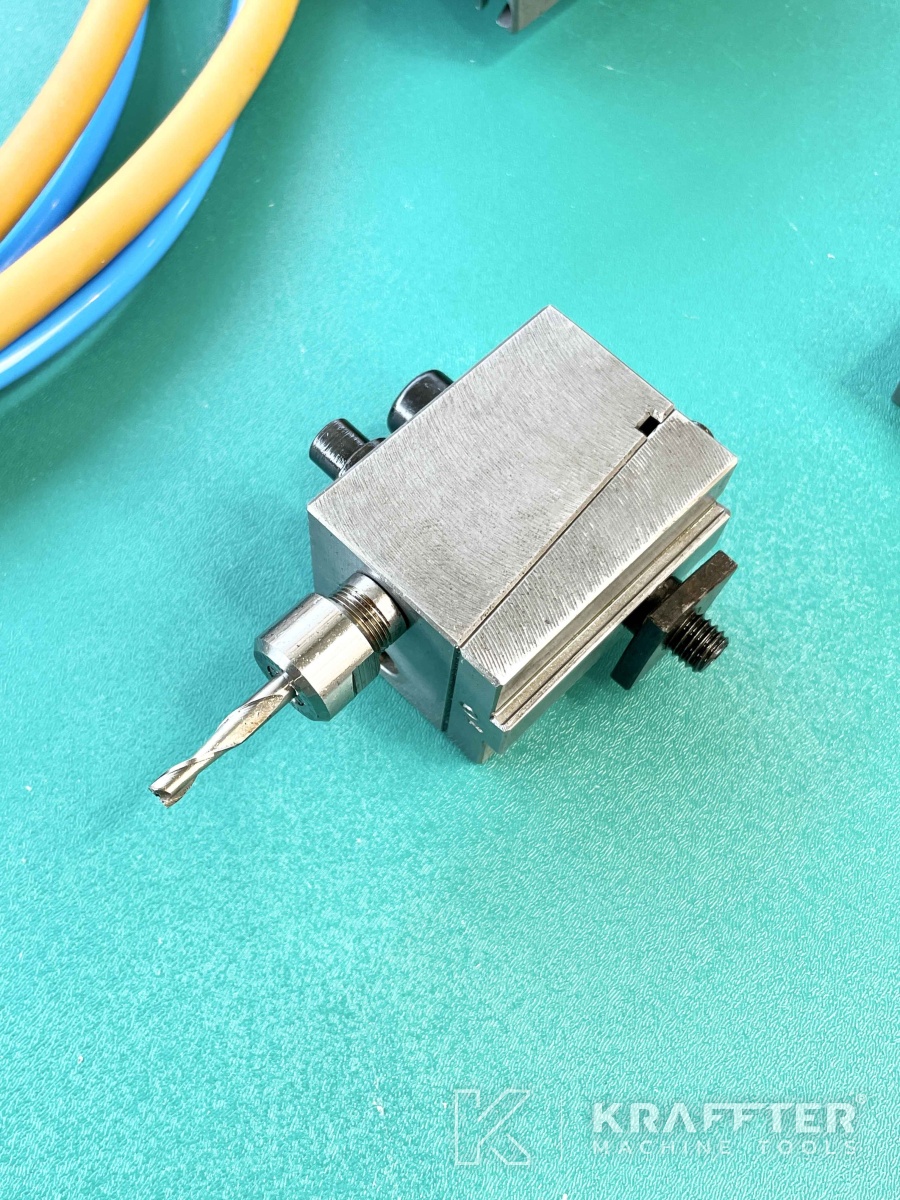

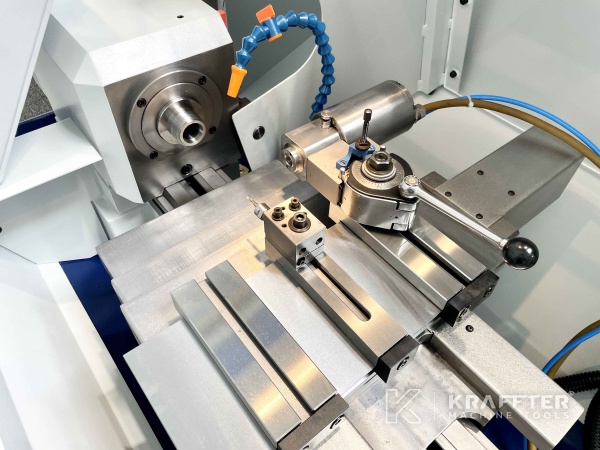

x3 grinding attachments with integrated motors - 0202-87600-000

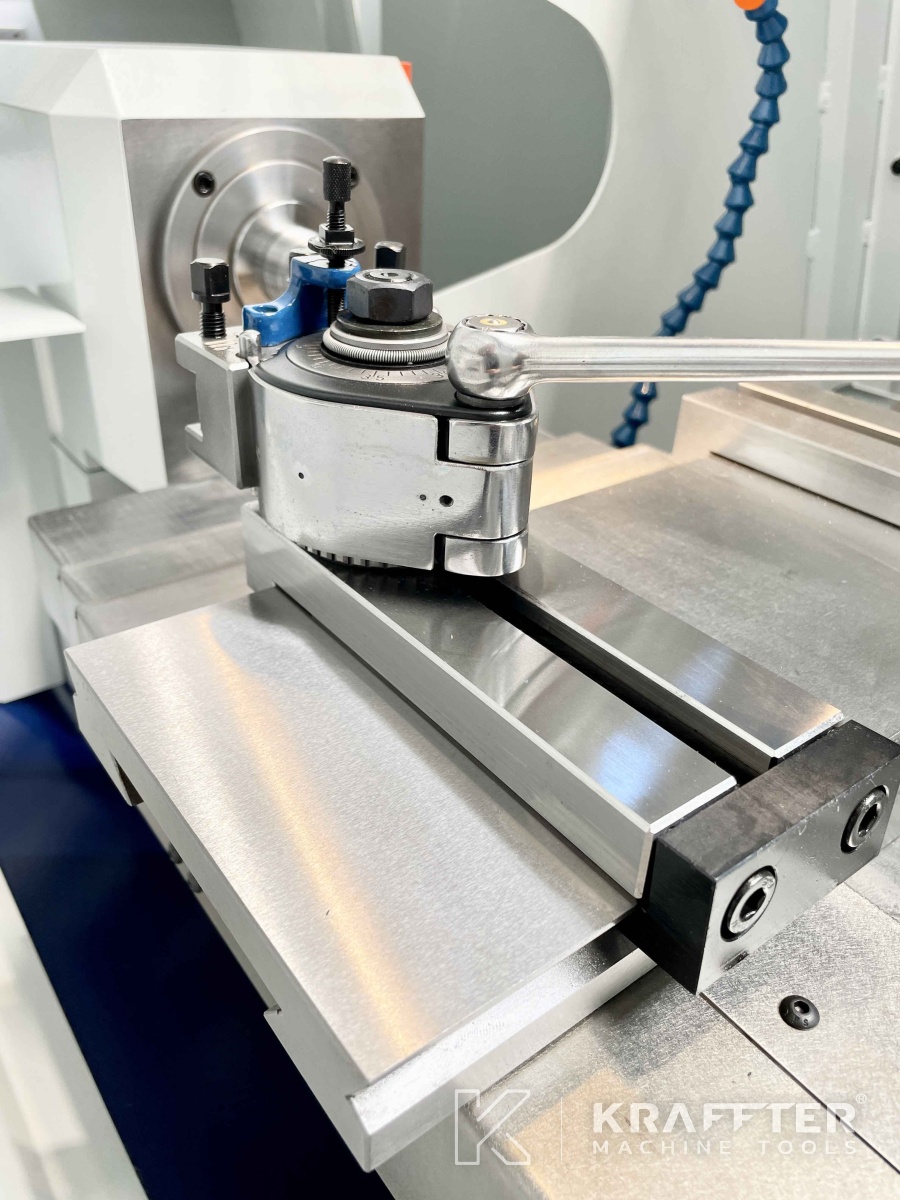

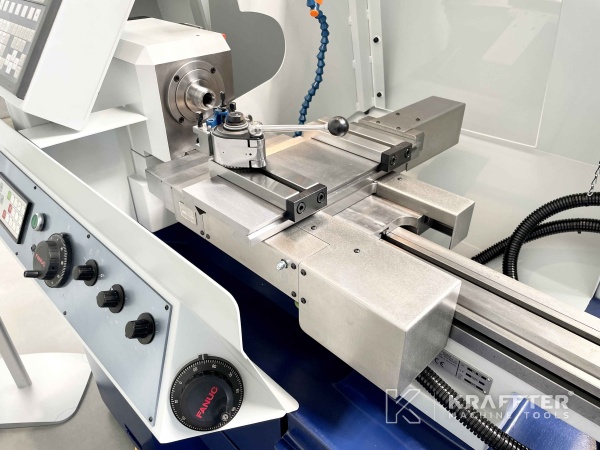

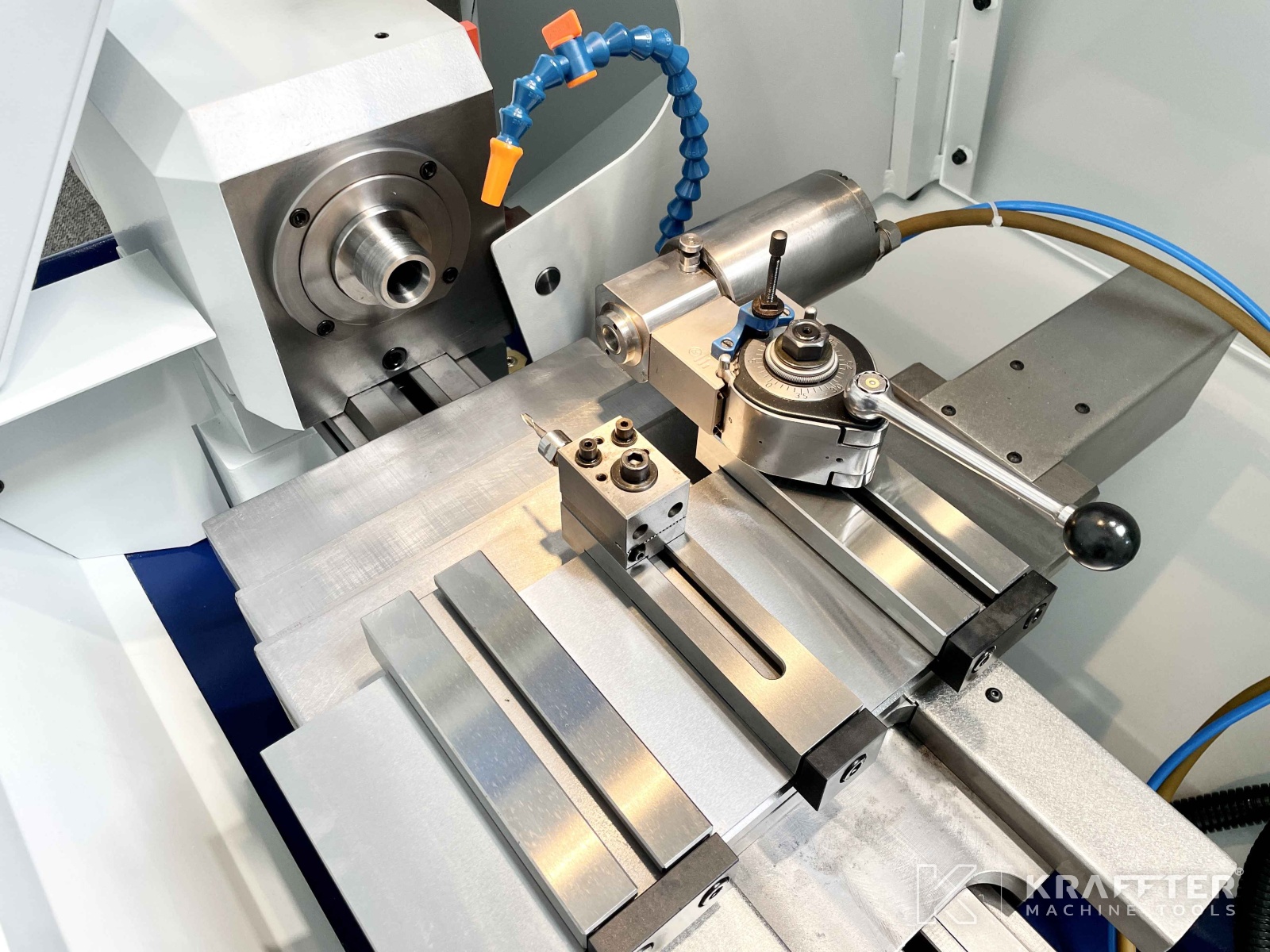

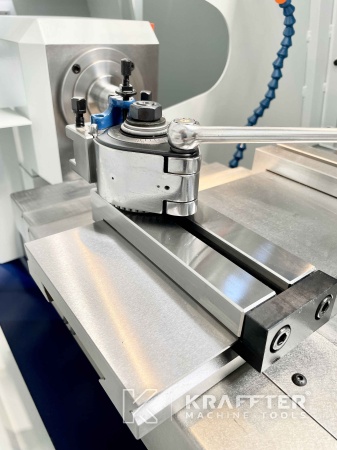

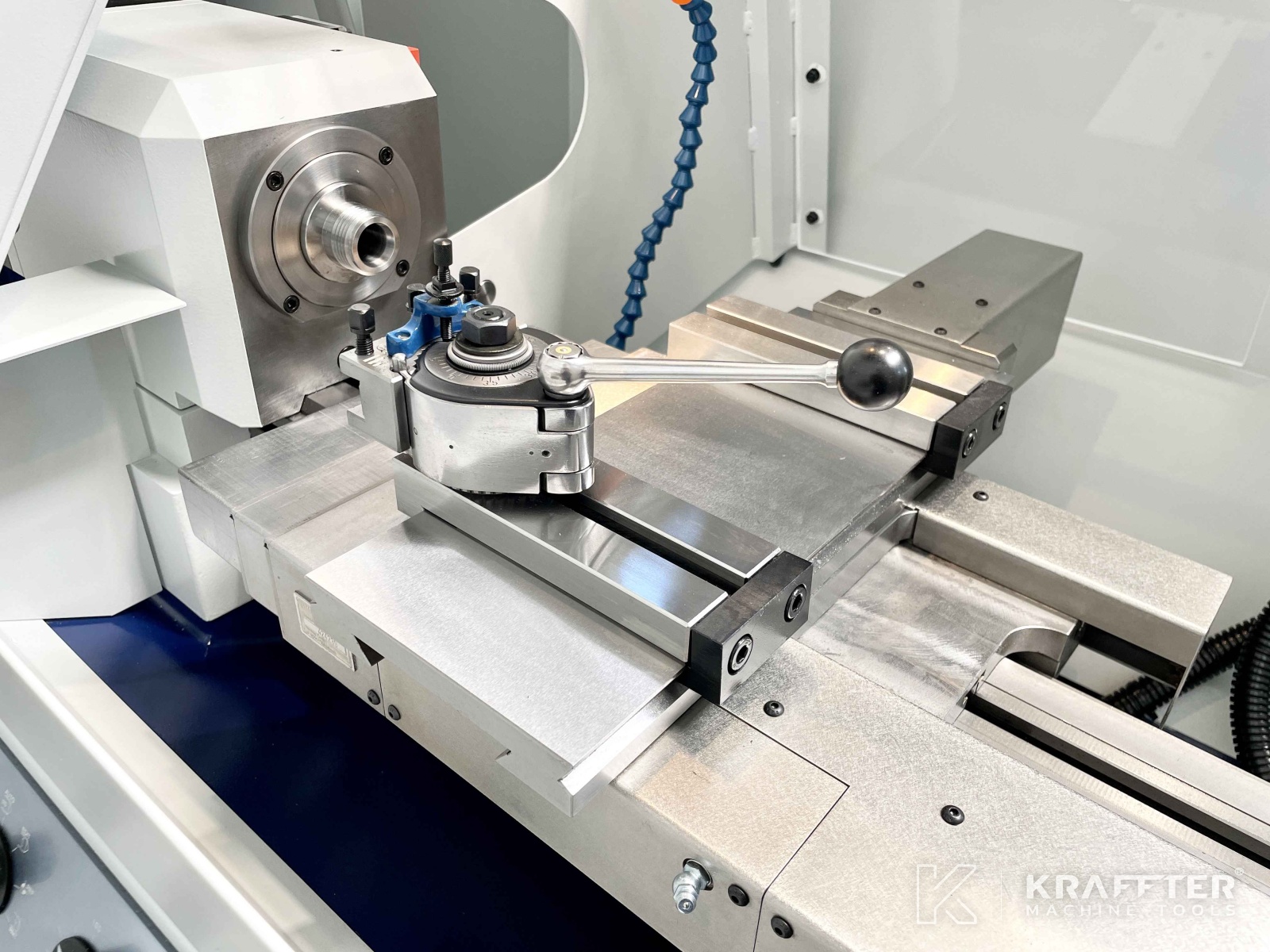

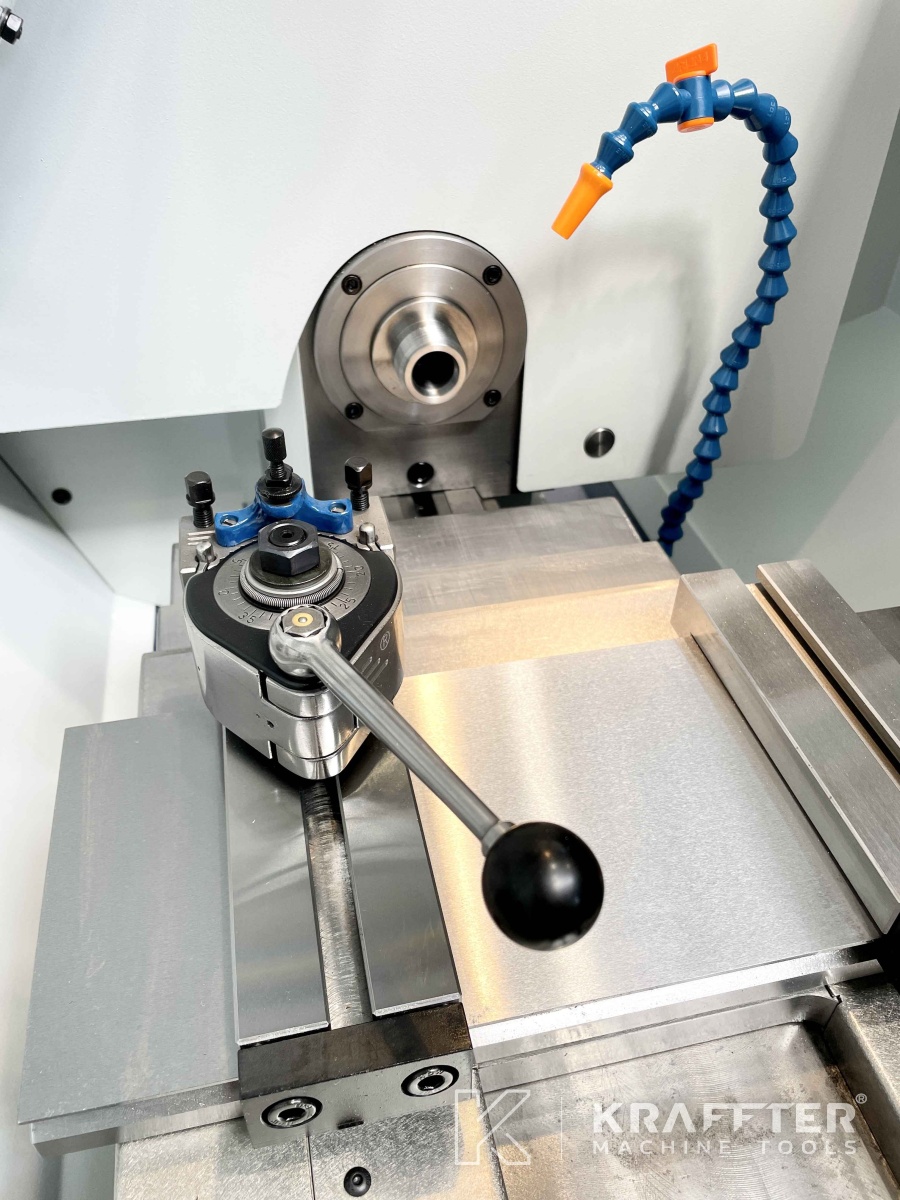

x1 quick-change toolholder turret MULTIFIX type A - 0102-46200-000
x1 tool holder for tool max. 16x16 [mm] - 0102-46220-000

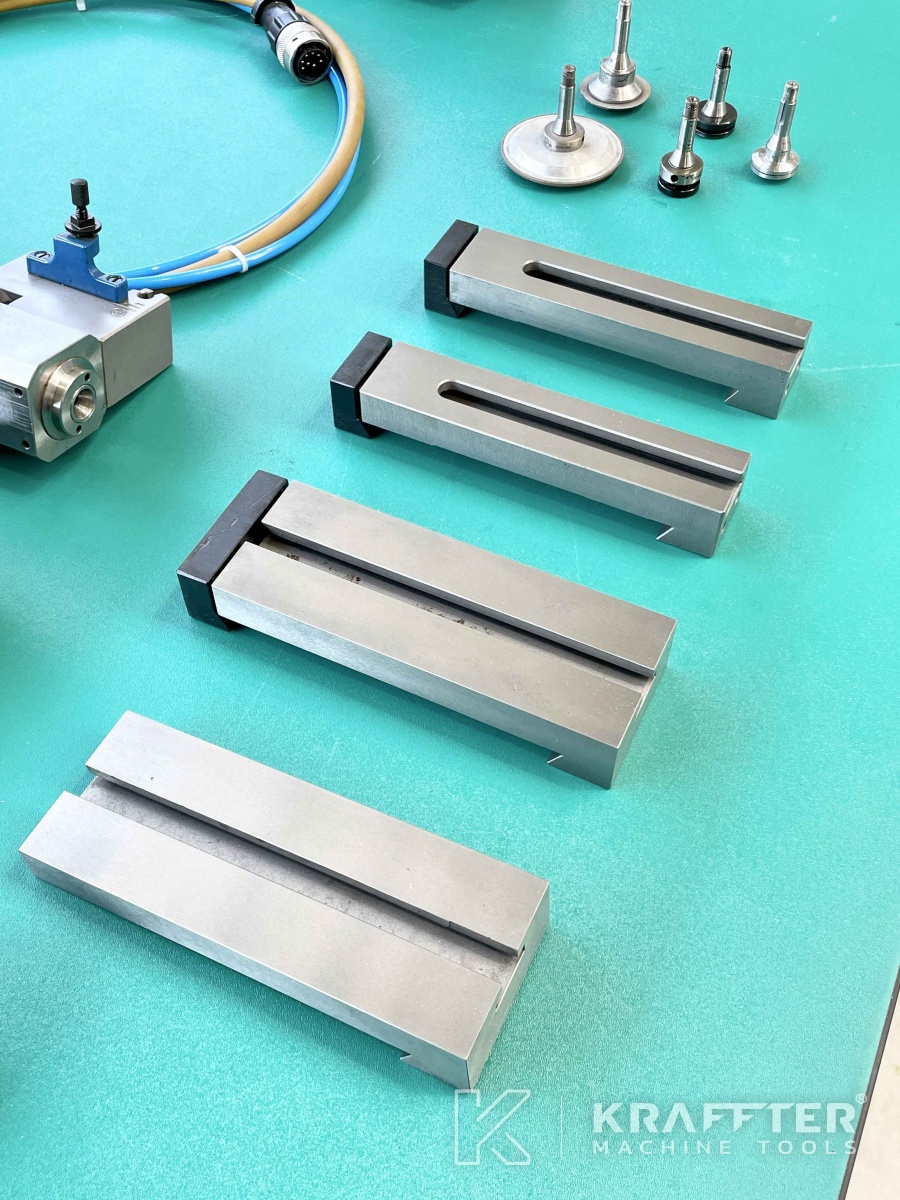

x4 saddles for radial or frontal tool holders 60 [mm], T-slot - 0104-46130-000
x2 saddles for toolholders, width 36 [mm], with dovetail - 0104-46210-000
x1 Adjustable holder for 2 toolholders, with vertical adjustment / Between axis = 20mm - 0104-46080-000

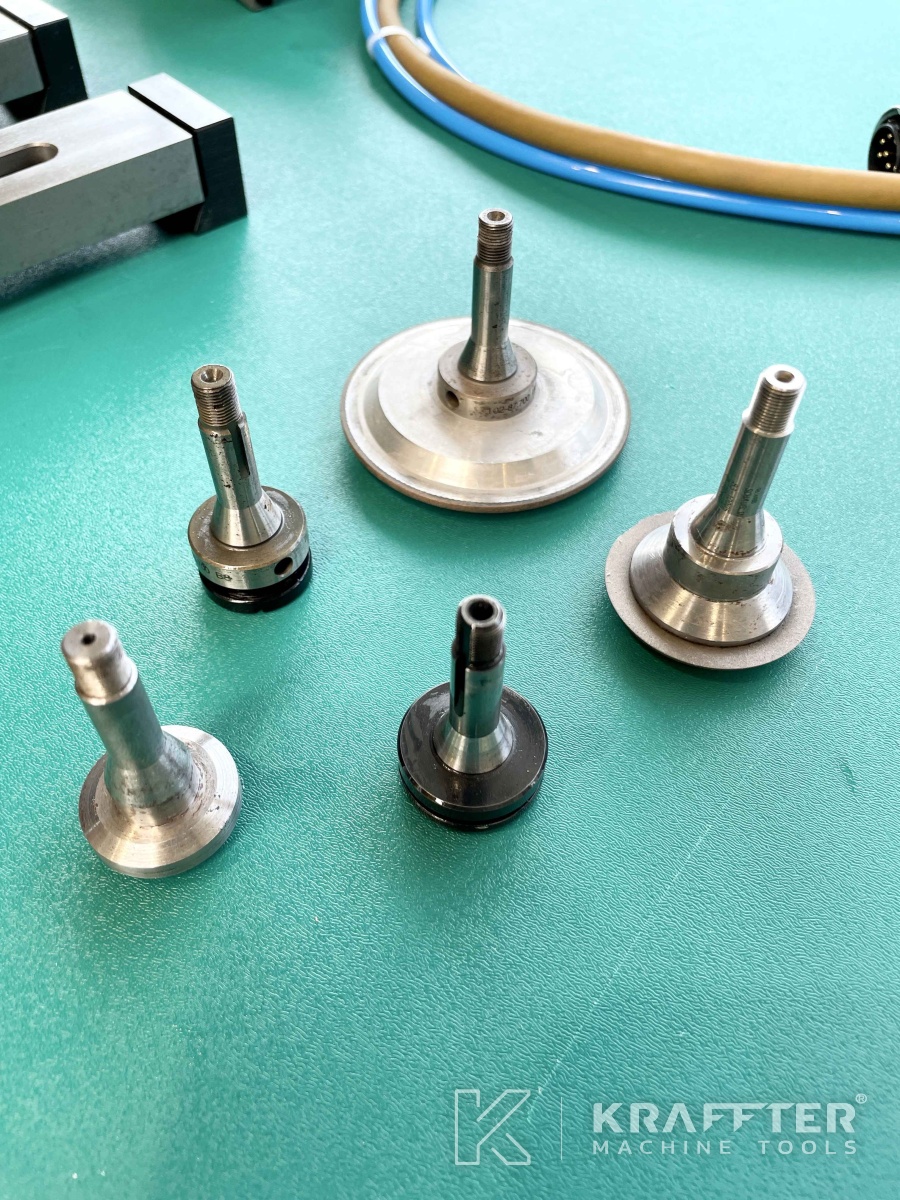

x5 wheel arbors B8 Ø10 [mm] - 0102-87700-000

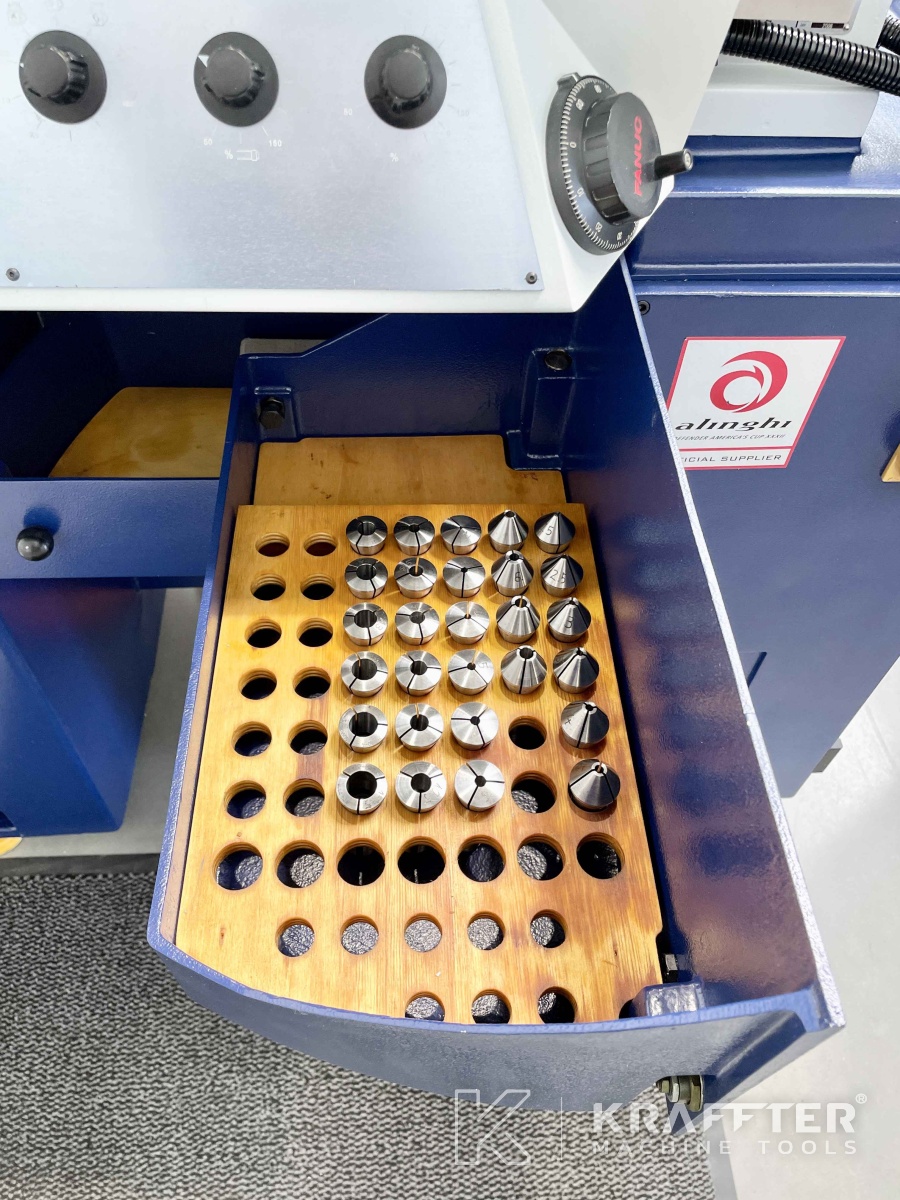

x18 W20 collets
x10 W20 extended nose collets

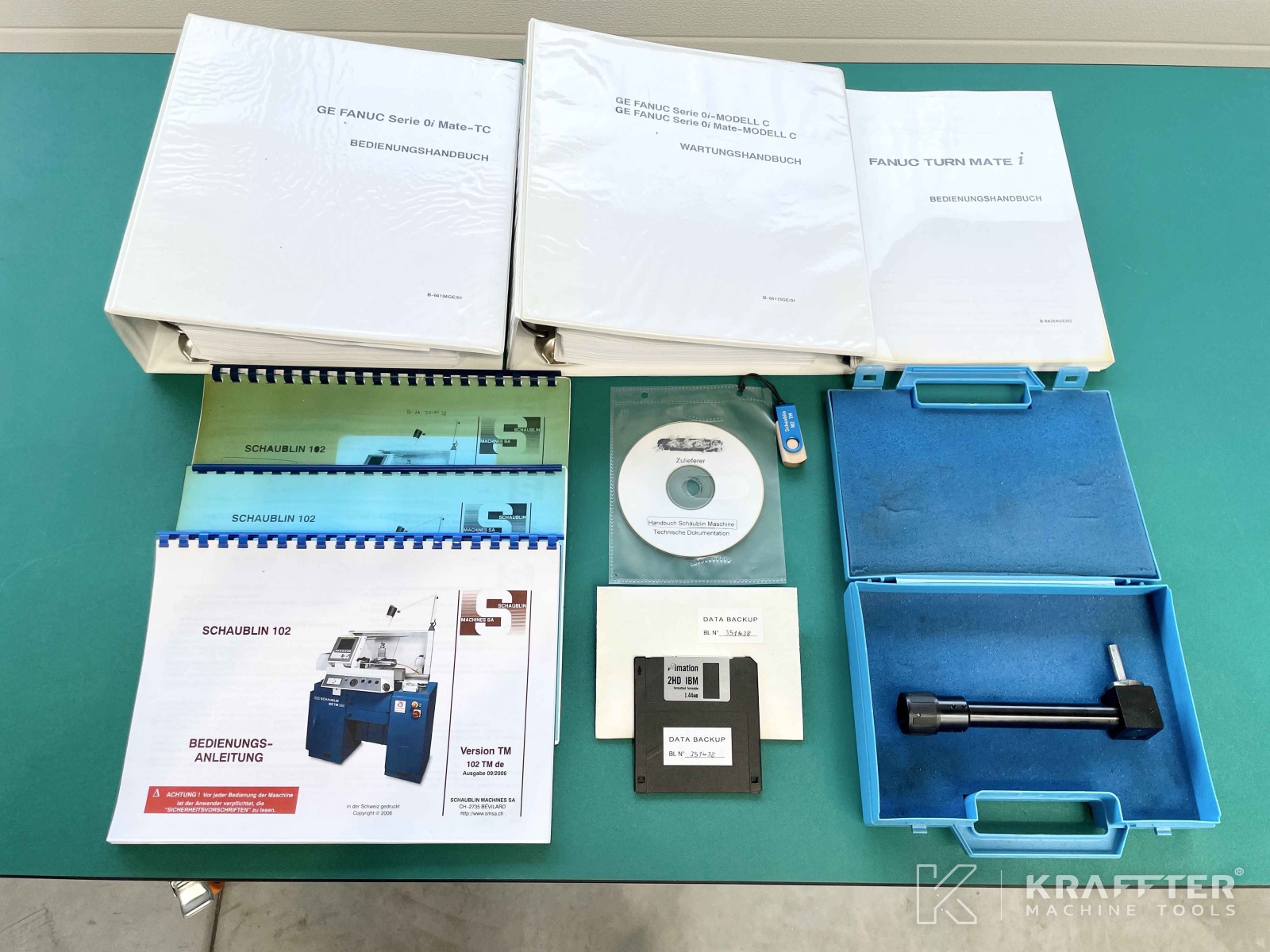

x1 centering microscope MARCEL AUBERT
x1 parameter backup
x1 electrical diagram manual
x1 accessories catalog
Various machine documentation (SCHAUBLIN, FANUC...)
