Sold

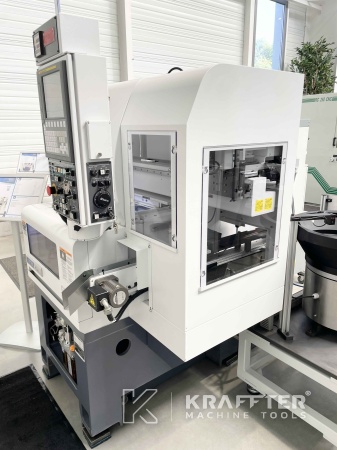

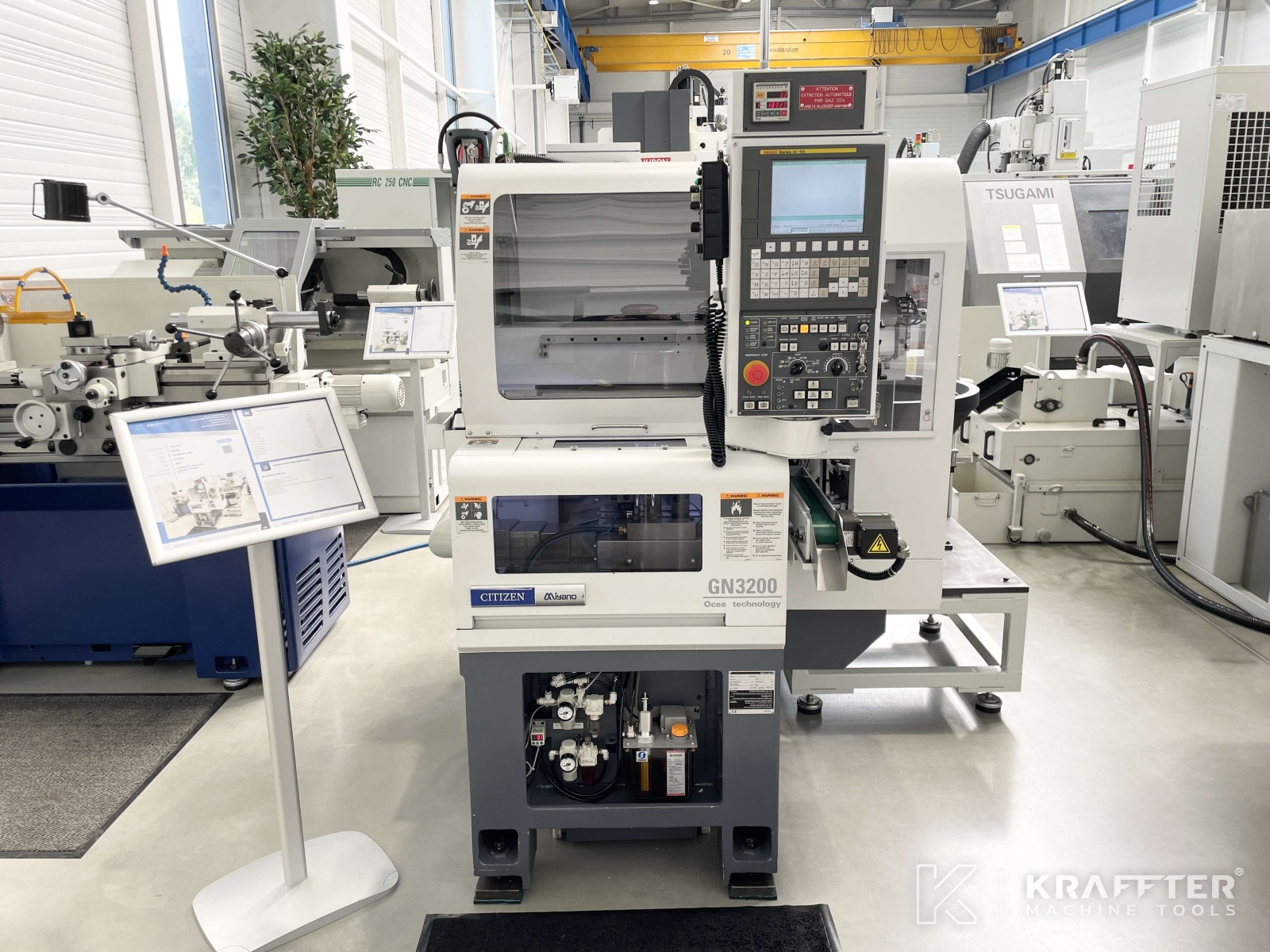

Type of machine : CNC lathe
Brand : CITIZEN MIYANO
Stock N° : 90098
Model : GN 3200
Year : 2016
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

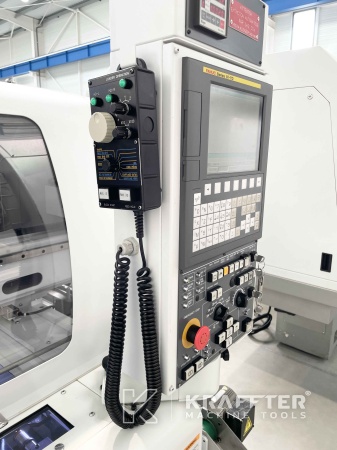

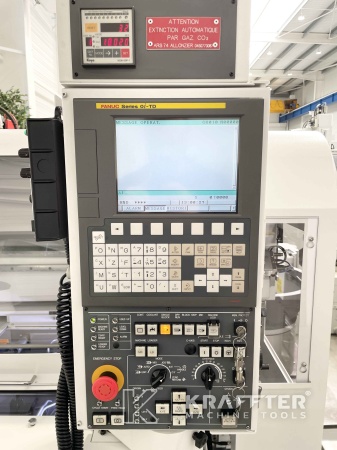

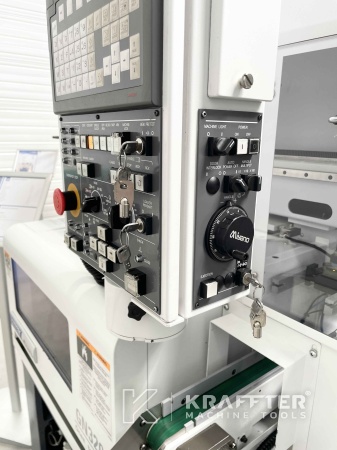

CNC control
FANUC Oi-TD
Number of axes
2
Max. turning diameter
45 [mm]
Max. turning lenght
50 [mm]
Stroke X axis
180 [mm]
Stroke Z axis
200 [mm]
Rapid traverse rate X axis
15000 [mm/min]
Rapid traverse rate Z axis
15000 [mm/min]
Resolution Z axis
0.0001 [mm]
Max. spindle speed
8000 [rpm]
Spindle power
2.2 [kW]
Lubrication tank capacity
90 [l]
Total power required
7.2 [kVA]
Supply voltage
400 [V]
Spindle running hours
2438 [h]
Machine dimensions
1600 x 700 [mm]
Weight
1500 [Kg]
EQUIPMENT INCLUded:

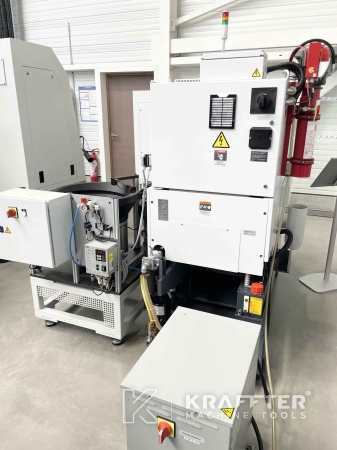

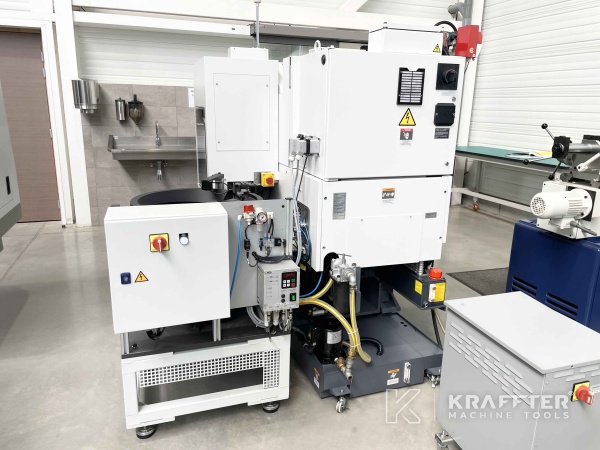

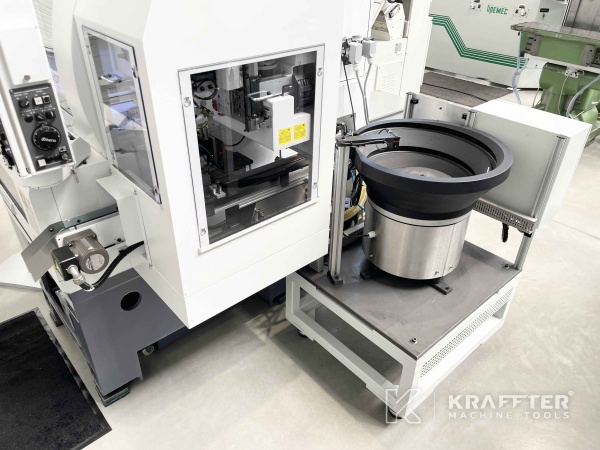

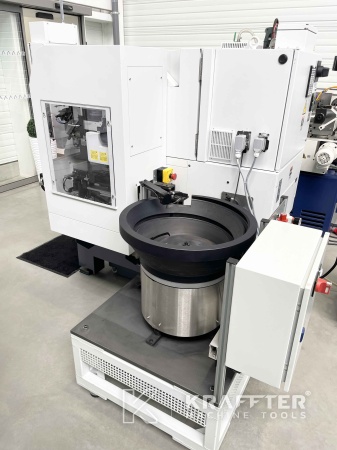

x1 vibratory bowl feeder VIBRATECH

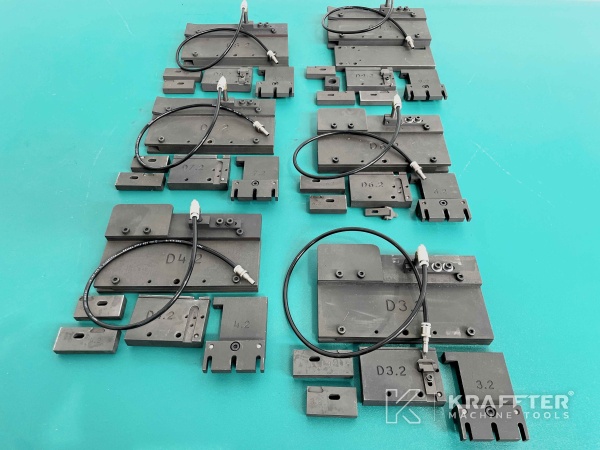

x1 outlet sector Ø3.2 [mm] for vibratory bowl
x1 outlet sector Ø4.2 [mm] for vibrating bowl
x1 outlet sector Ø3.2 [mm] for vibratory bowl
x1 outlet sector Ø6.2 [mm] for vibratory bowl
x1 outlet sector Ø7.2 [mm] for vibratory bowl
x1 outlet sector Ø8.2 [mm] for vibratory bowl
x1 output sector Ø9.2 [mm] for vibratory bowl

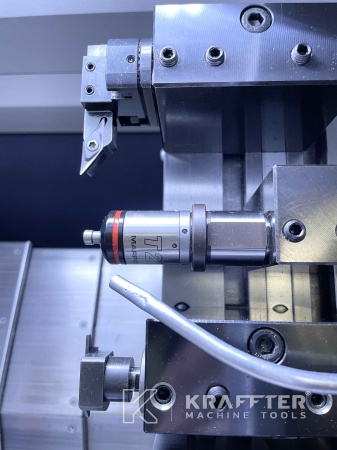

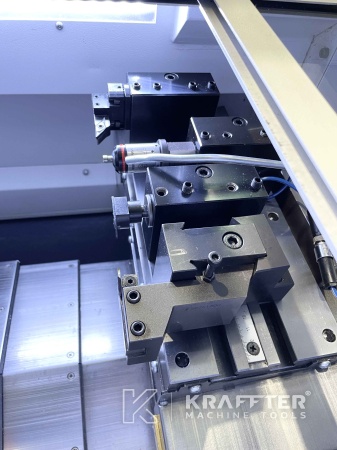

x1 part probe MARPOSS T25

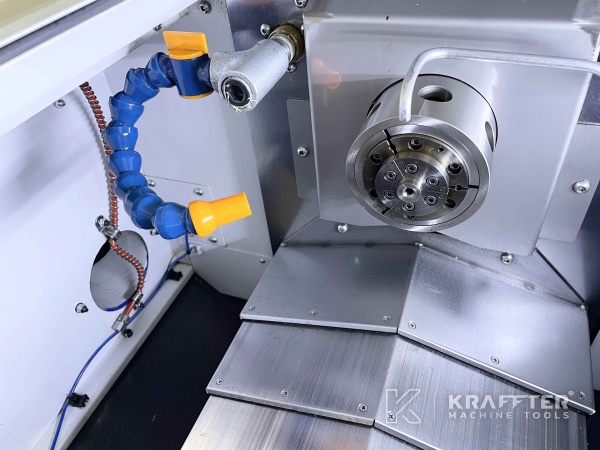

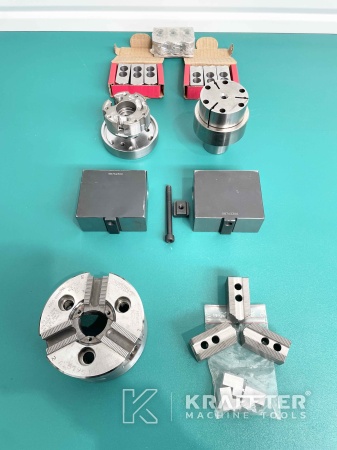

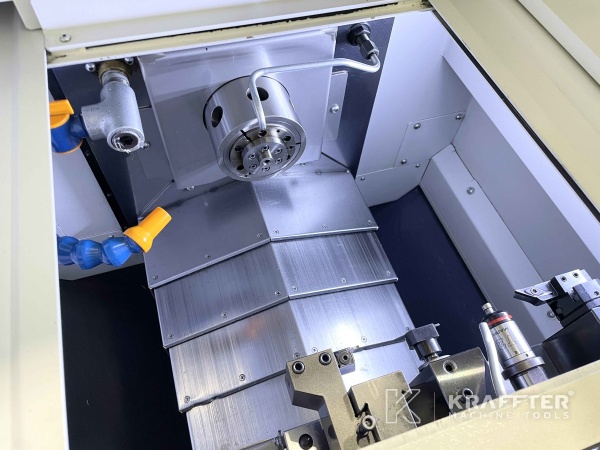

x1 KITAGAWA B-204 Ø110 [mm] 3-jaw chuck
x4 sets of soft jaws for 3-jaw chuck
x6 tool holders
x1 remote electronic handwheel for robot control
x1 part conveyor belt

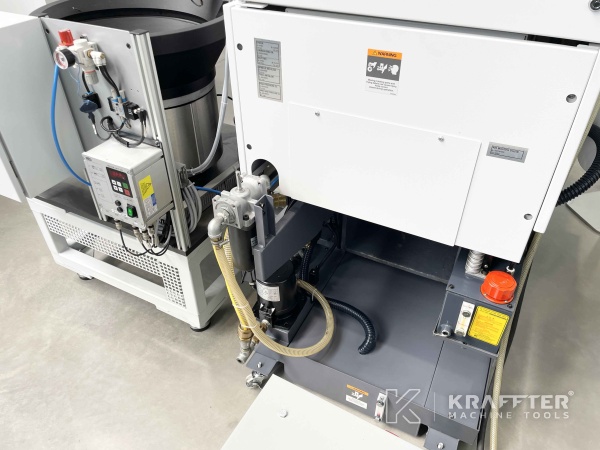

x1 coolant tank + pump

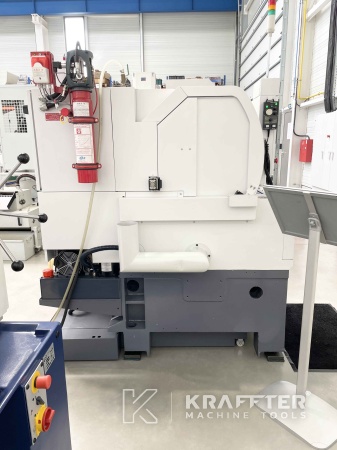

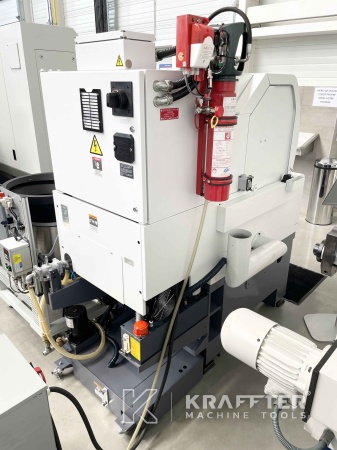

x1 fire extinguishing system (to be inspected by the purchaser and approved by a competent body)
x1 3-colour status lamp
x1 230/400 [V] transformer

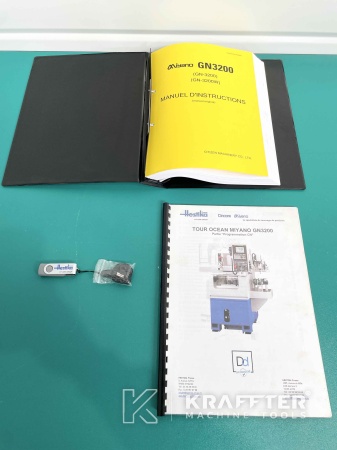

x1 instruction manual (in French)
x1 electrical diagrams manual
Various accessories (collets etc...)
