Sold

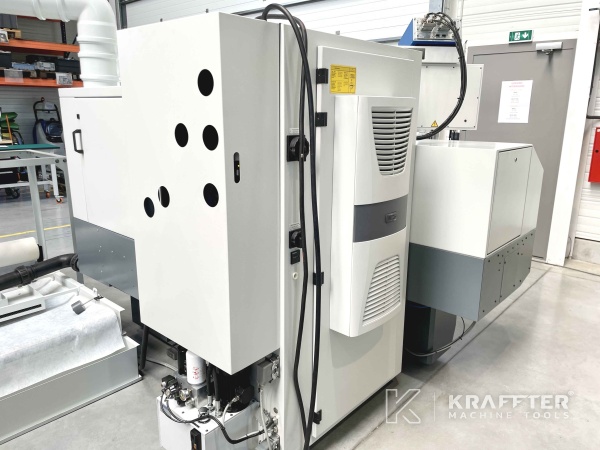

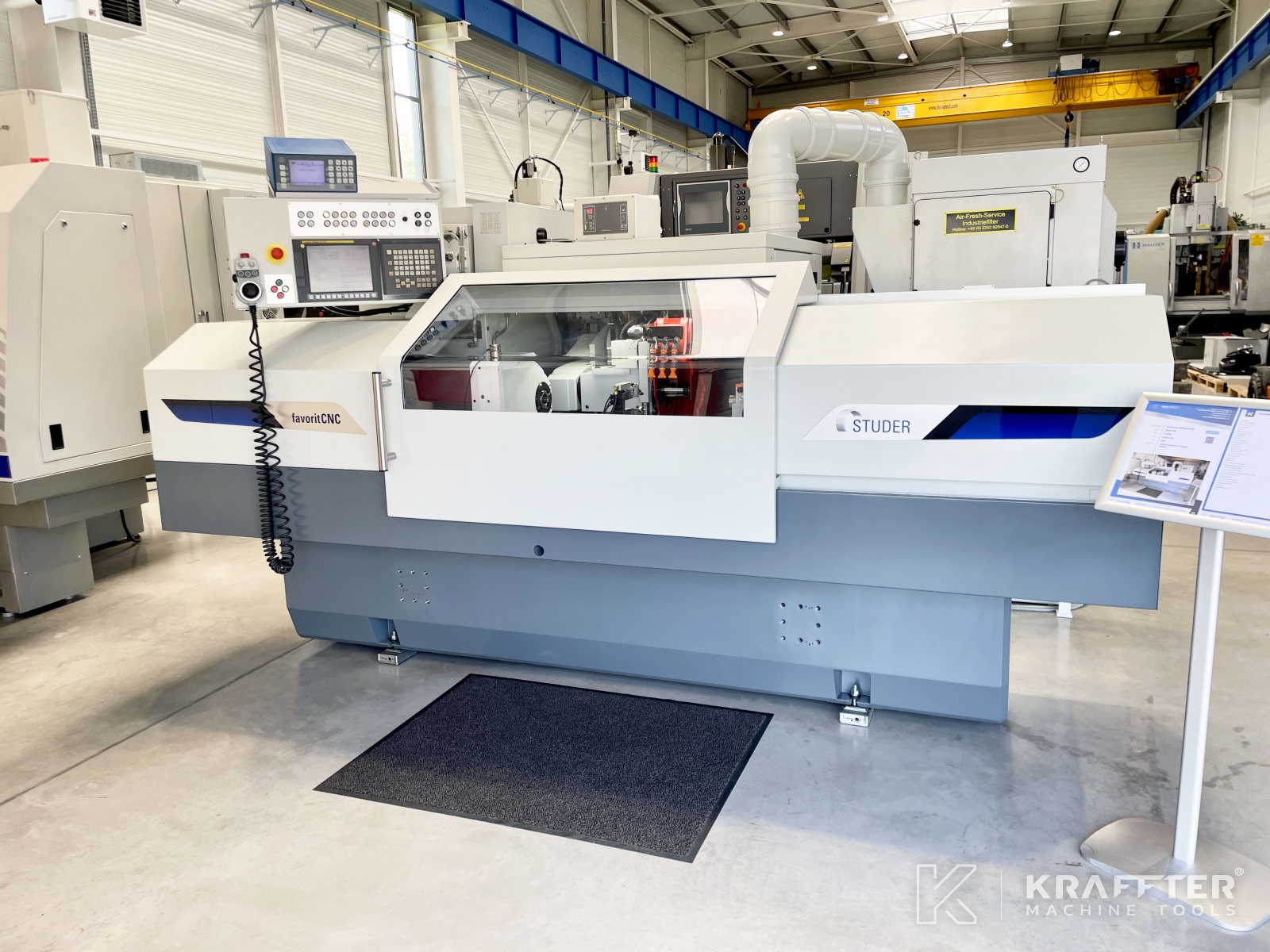

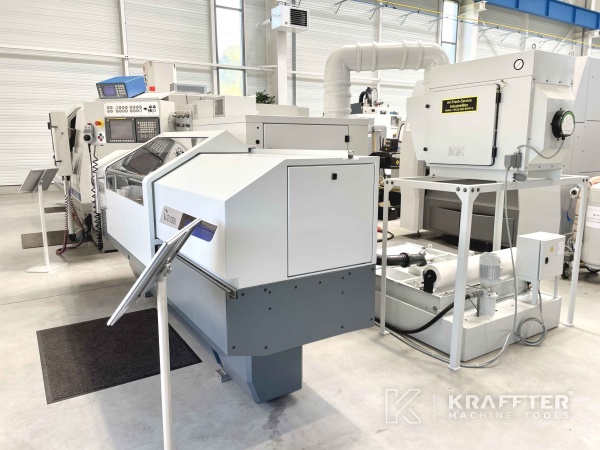

Type of machine : CNC cylindrical grinder
Brand : STUDER
Stock N° : 20690-016

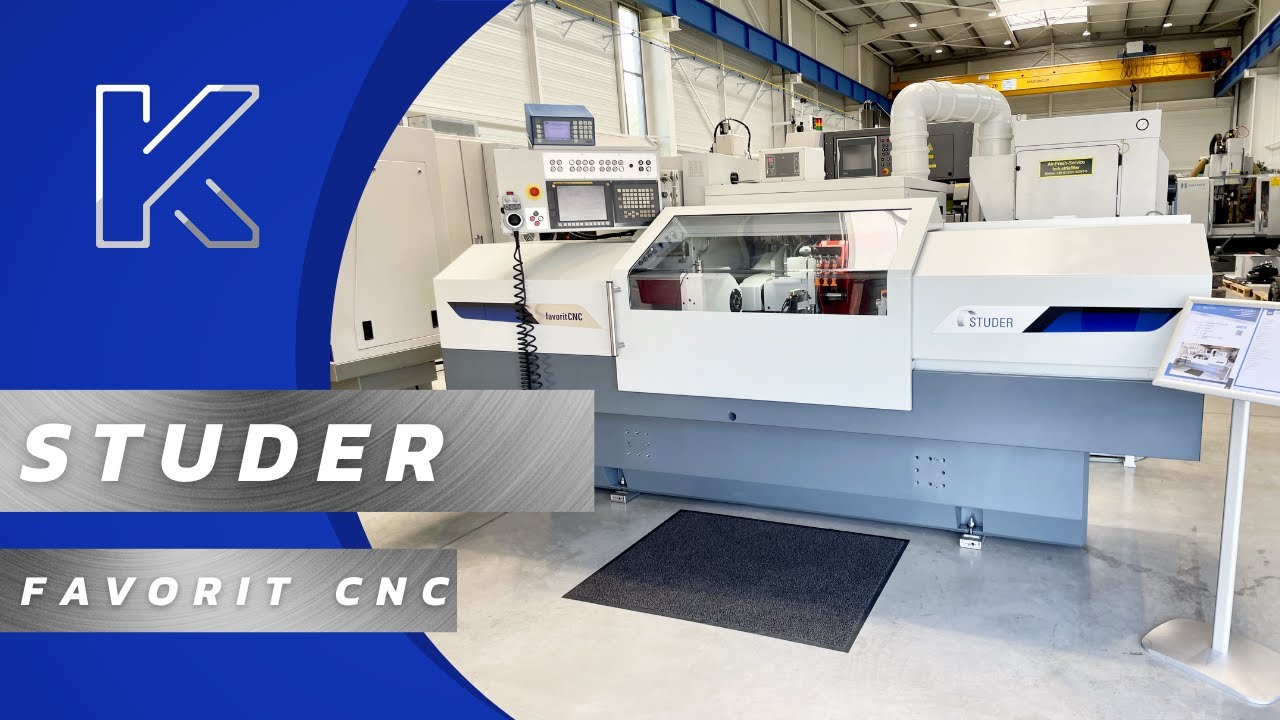

Model : Favorit CNC
Year : 2013
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

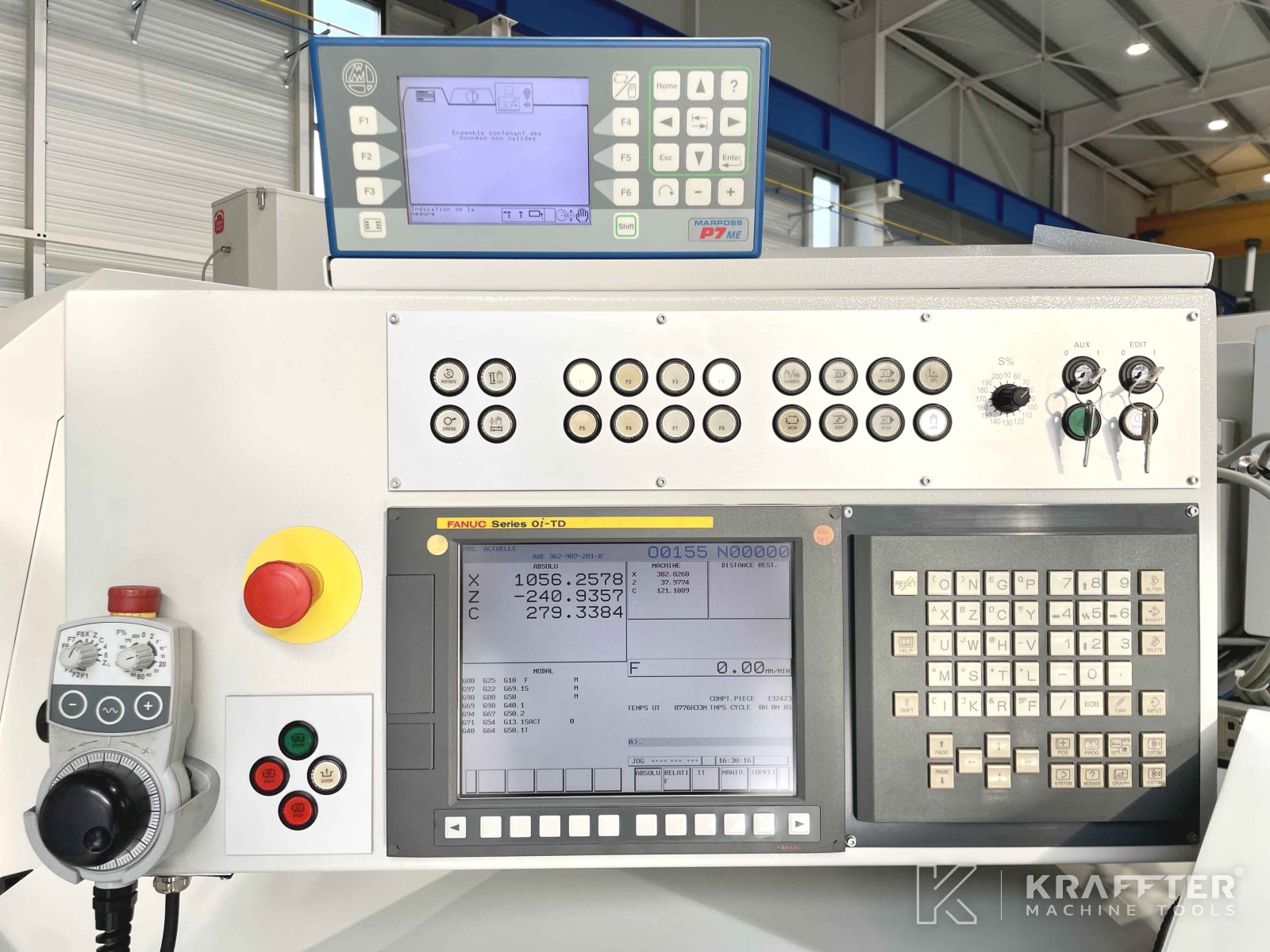

CNC control
FANUC Oi-TD
Software installed
StuderPictogramming
Centre distance
1000 [mm]
Height of centers
175 [mm]
Stroke X axis
285 [mm]
Min. Stroke speed X axis
0.001 [mm/min]
Max. Stroke speed X axis
10000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Min. Stroke speed Z axis
0.001 [mm/min]
Max. Stroke speed Z axis
20000 [mm/min]
Resolution Z axis
0.0001 [mm]
Orientation of table
8.5 [°]
Grinding spindle motor power
9 [kW]

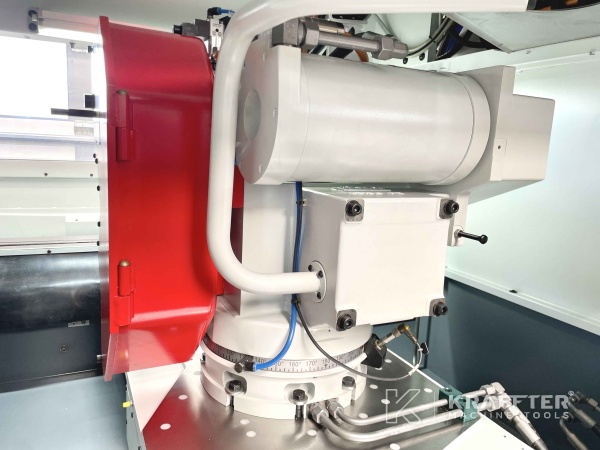

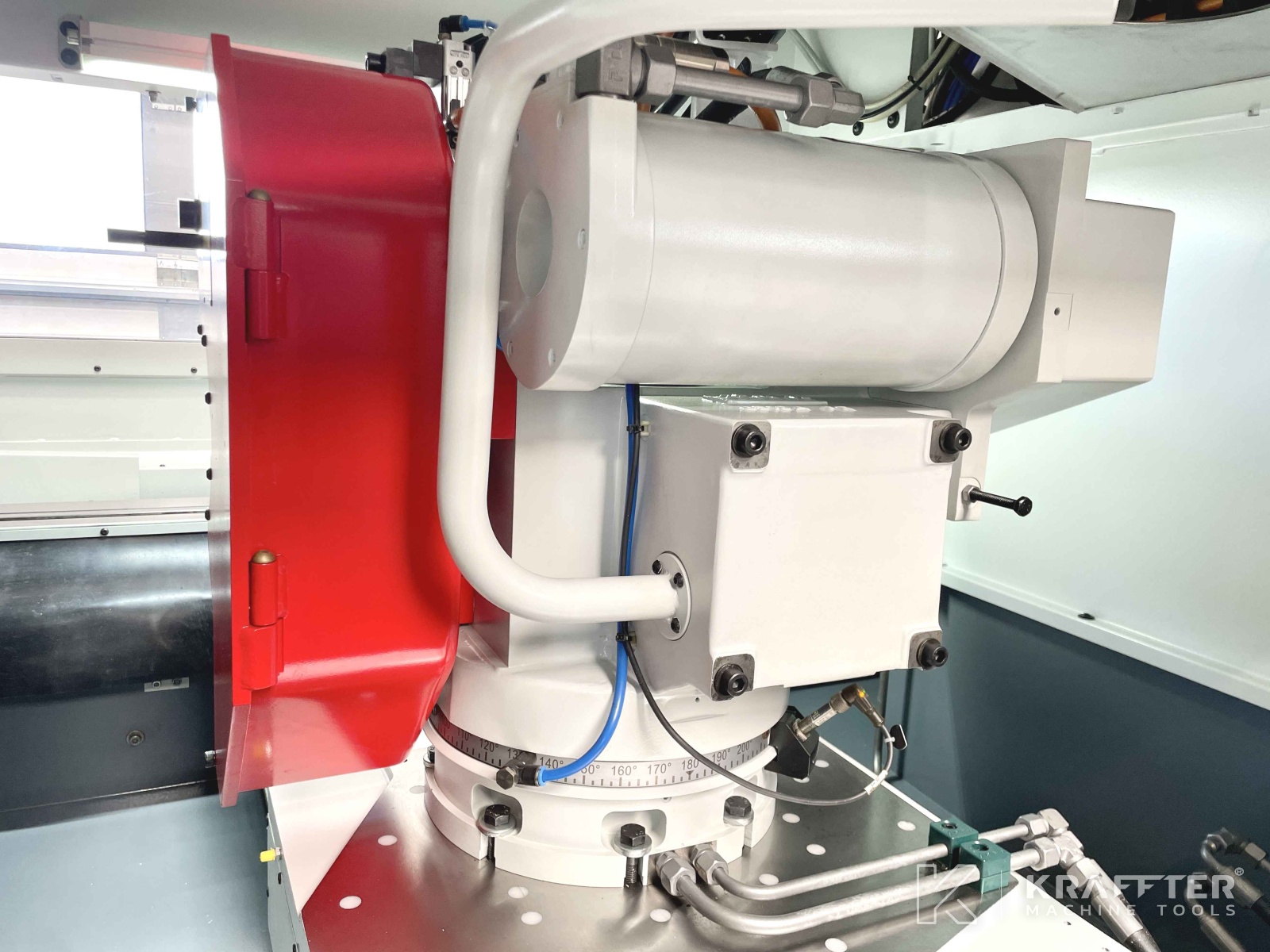

B axis swivelling stroke
-15 [°] / +195 [°] [°]
B axis indexing precision
2.5 [°]
Max. diameter grinding wheel
500 [mm]
Grinding wheel width
63 [mm]
Grinding wheel bore
203 [mm]
Internal workpiece spindle nose
MT5
Bar capacity in part holder headstock
30 [mm]
Workpiece spindle min. speed
1 [rpm]
Workpiece spindle max. speed
1500 [rpm]
Max. part weight in part holder headstock between centres
120 [Kg]
Workpiece spindle power
1.8 [kW]

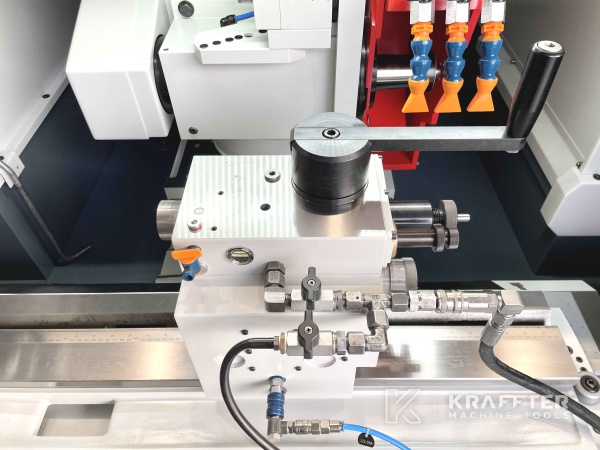

Type of attachment tailstock
MT4
Tailstock quill stroke
35 [mm]
Tailstock quill diameter
50 [mm]
Tailstock fine adjustment
+/- 40 [µm]

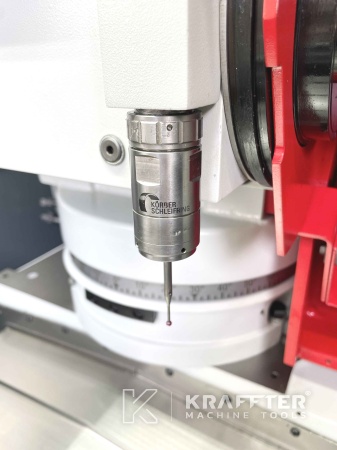

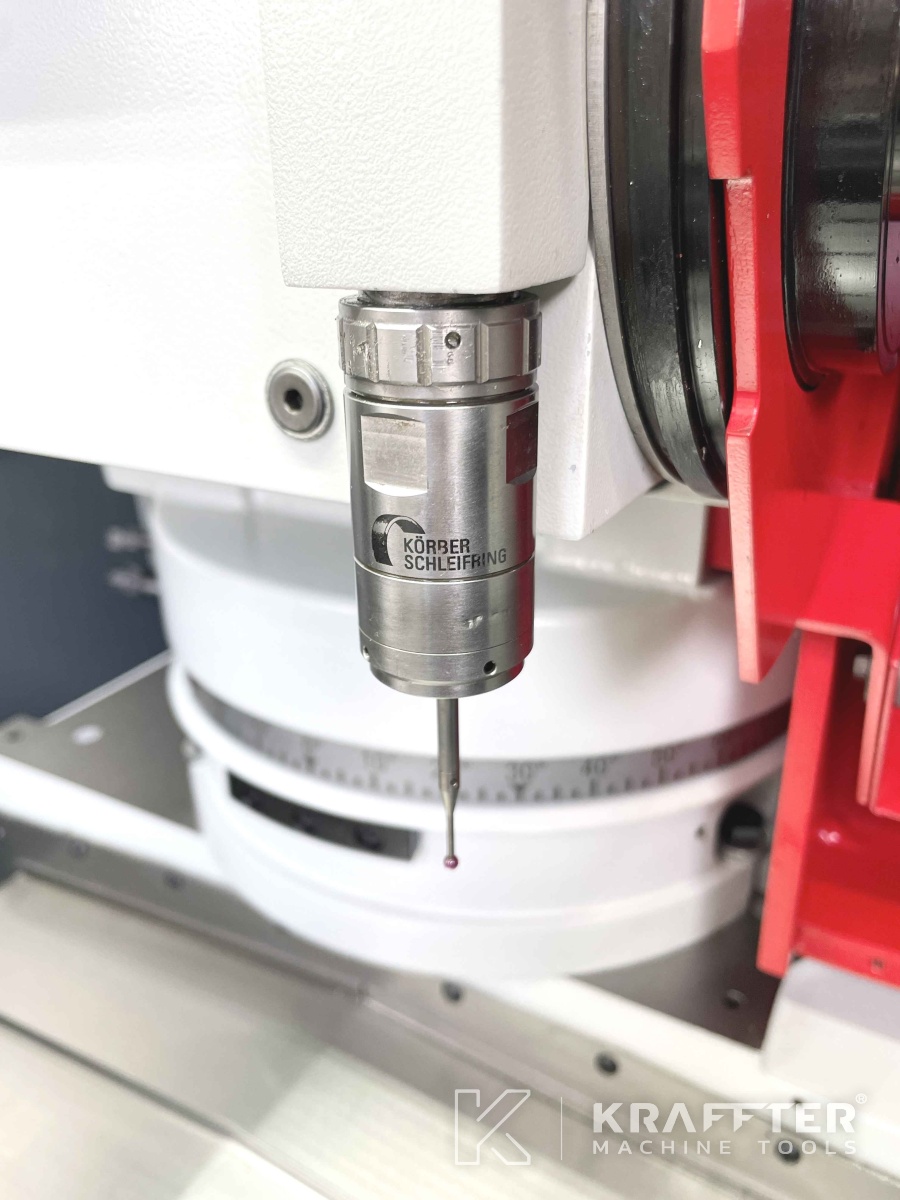

Part probe
RENISHAW
Supply voltage
400 [V]
Weight
5300 [Kg]
EQUIPMENT INCLUDED:

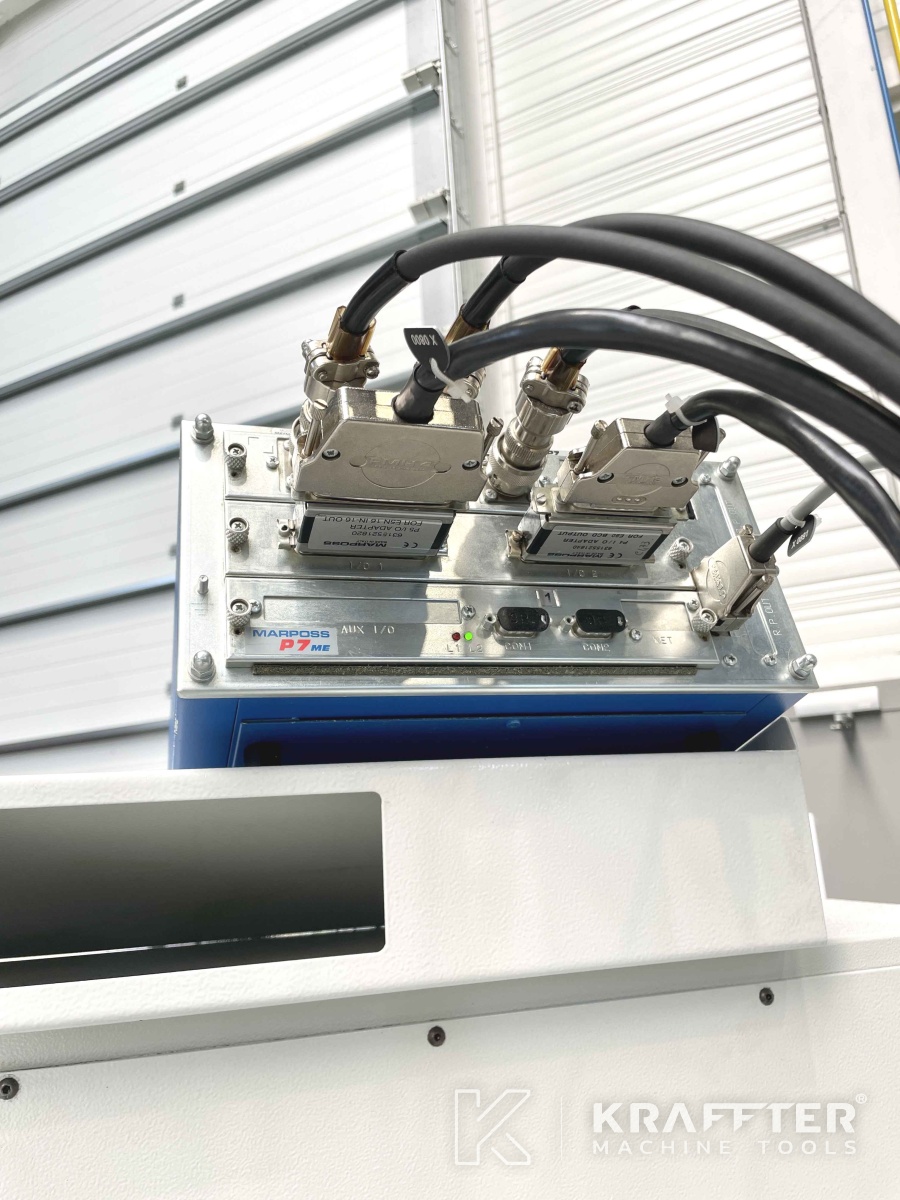

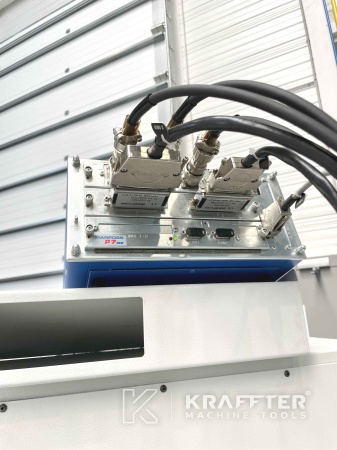

x1 MARPOSS Unimar S26 diameter measuring device

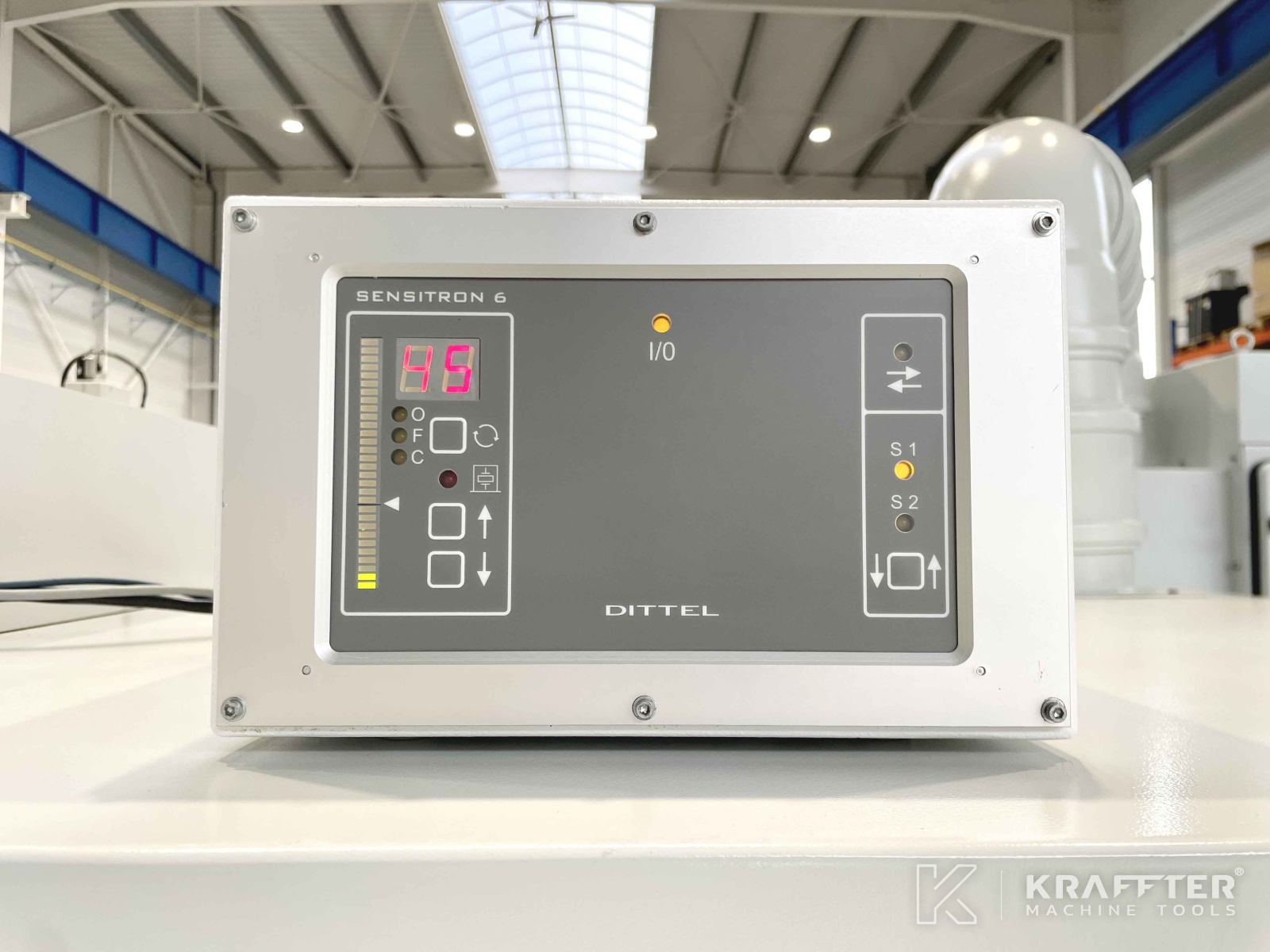

x1 SENSITRON 6 acoustic monitoring system
x1 electronic handwheel
x1 lubricant tank

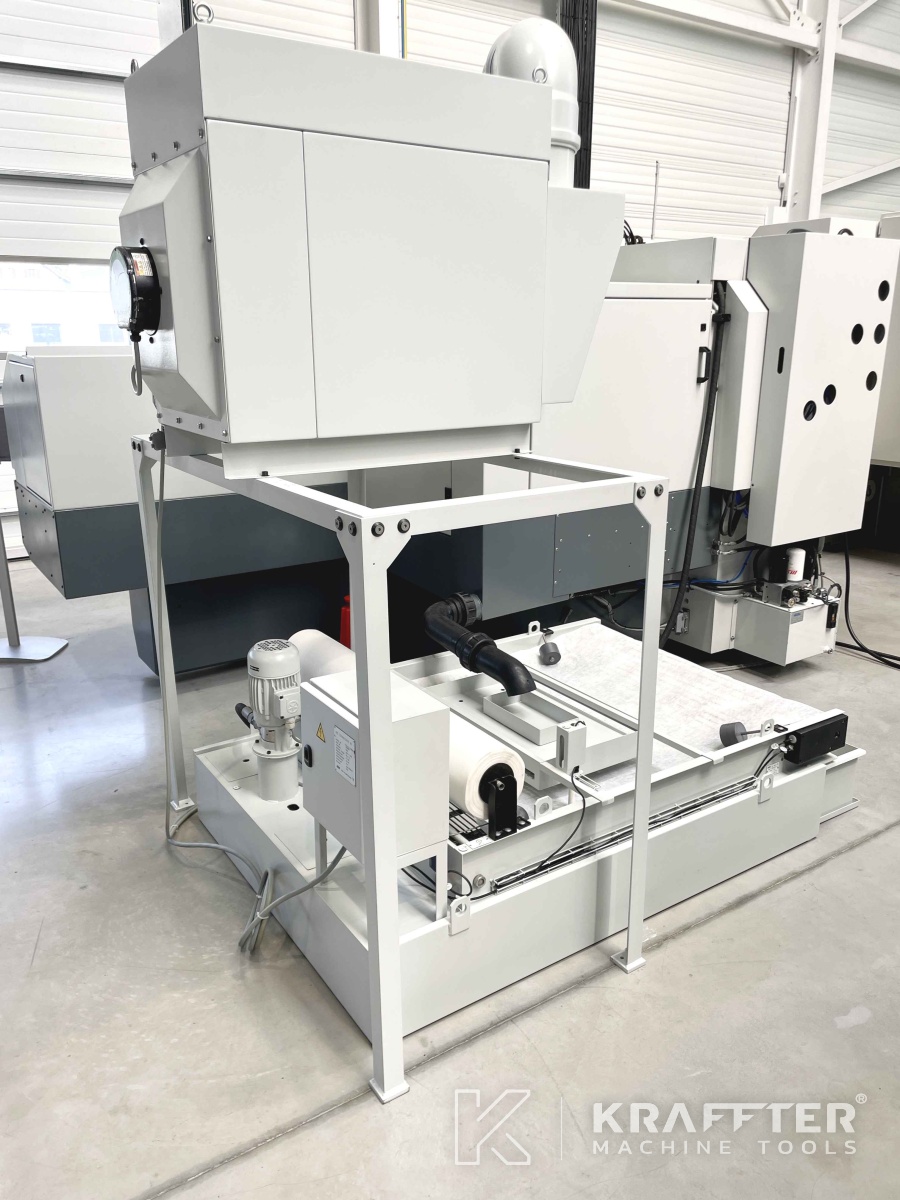

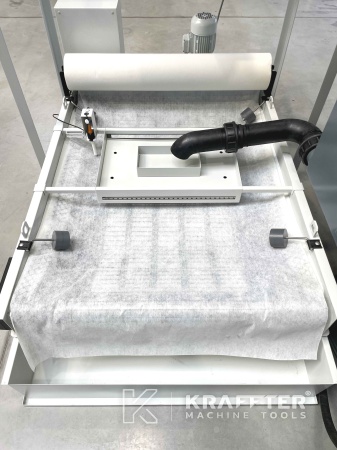

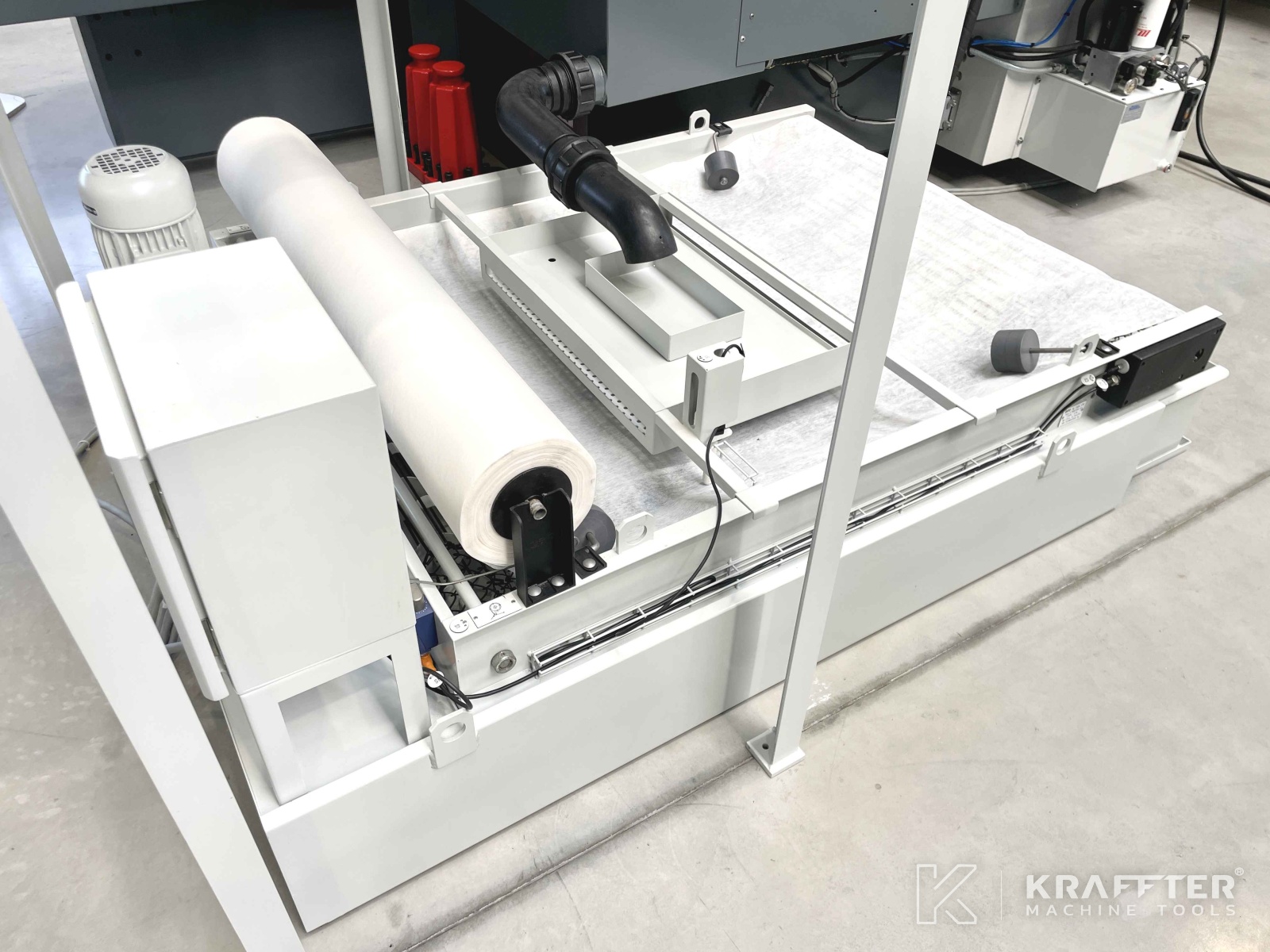

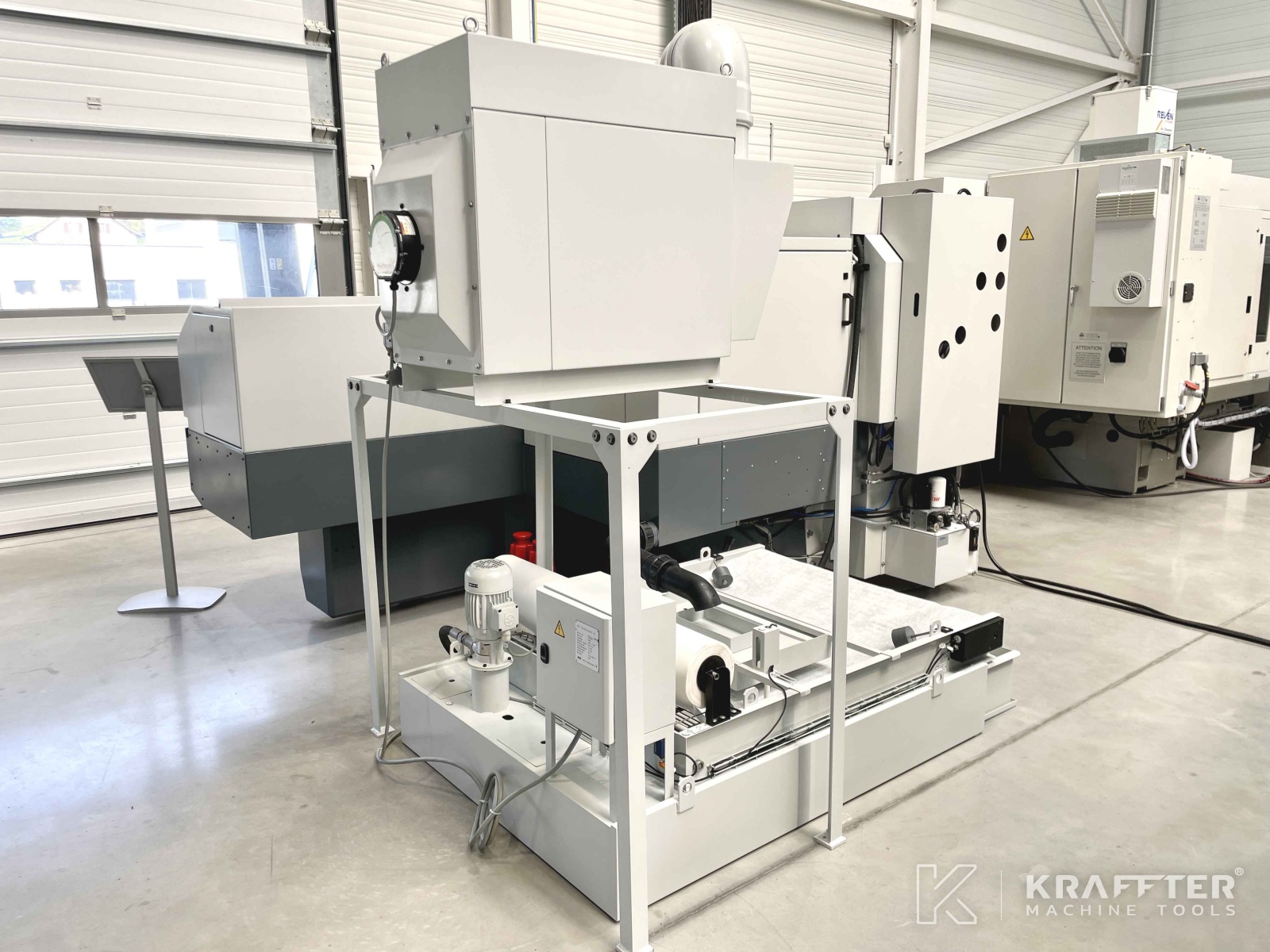

x1 paper tape filtration device
x1 oil mist extractor Air-Fresh-Service Industriefilter GmbH type FMN-V12 BLUE
x1 set of service / users manuals in French language
