Sold

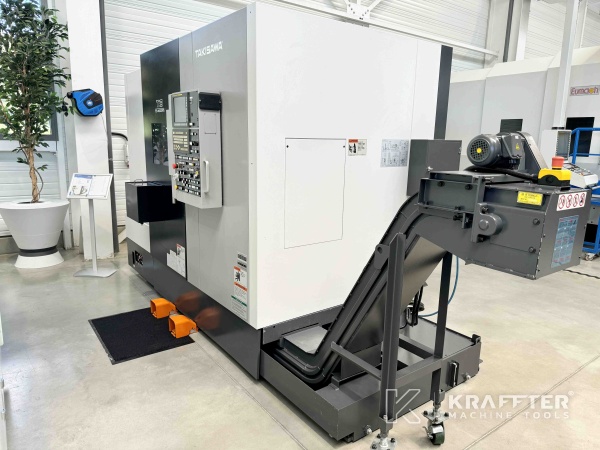

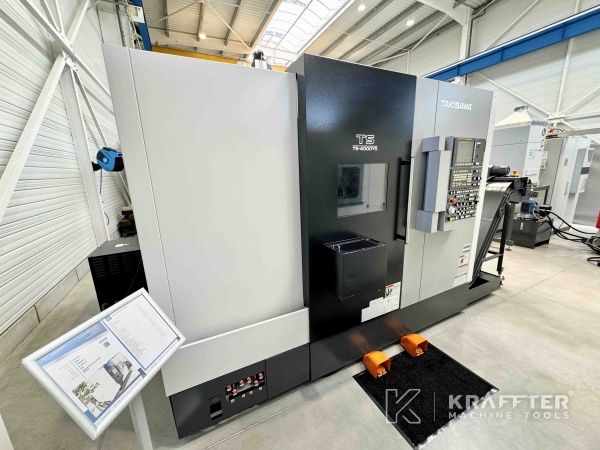

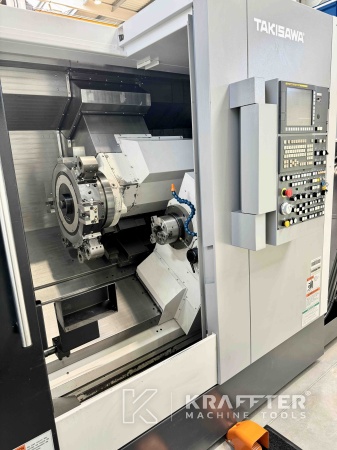

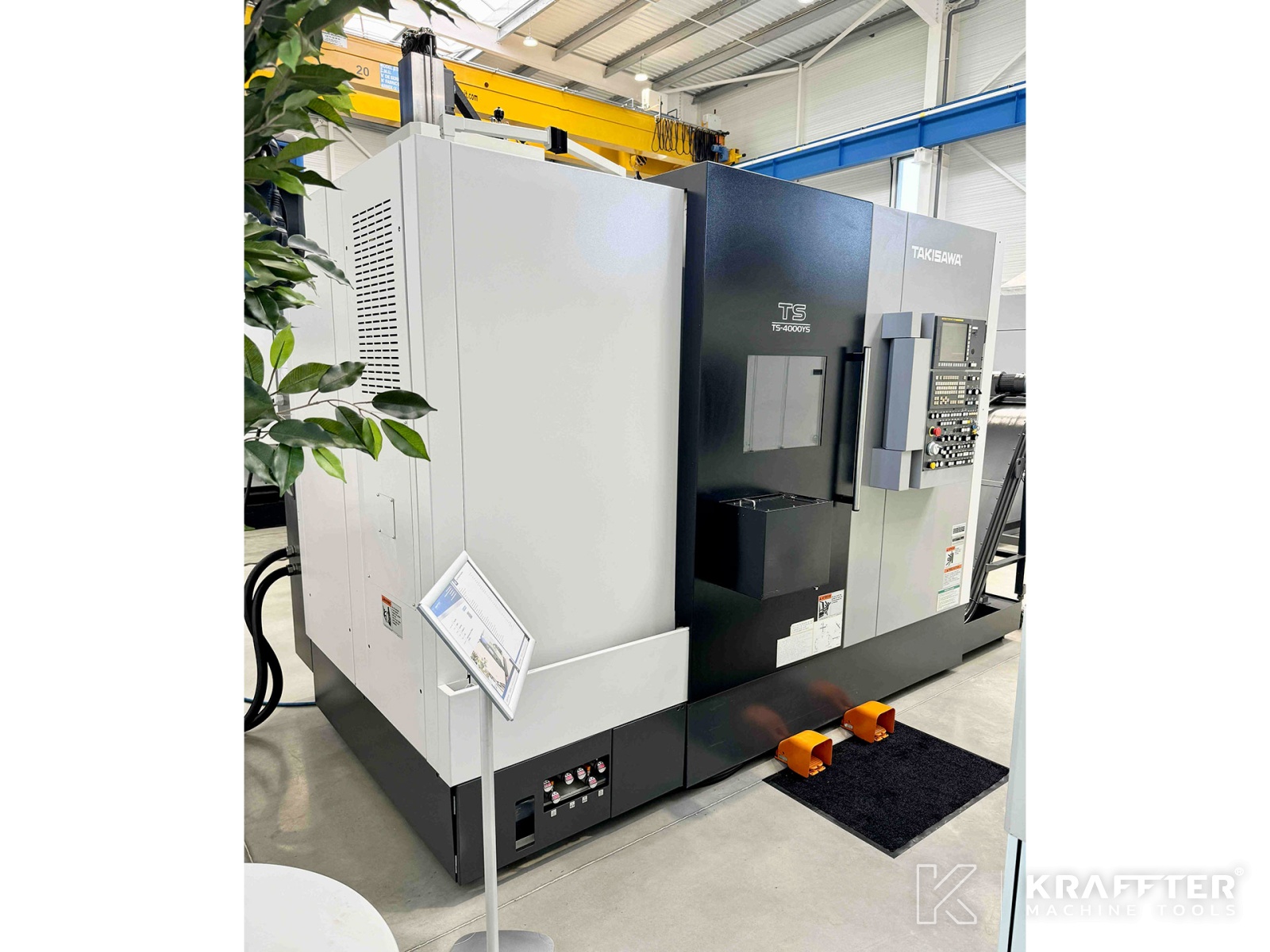

Type of machine : CNC lathe
Brand : TAKISAWA
N° de stock: 90081
Model : TS-4000 YS
Year : 2015
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

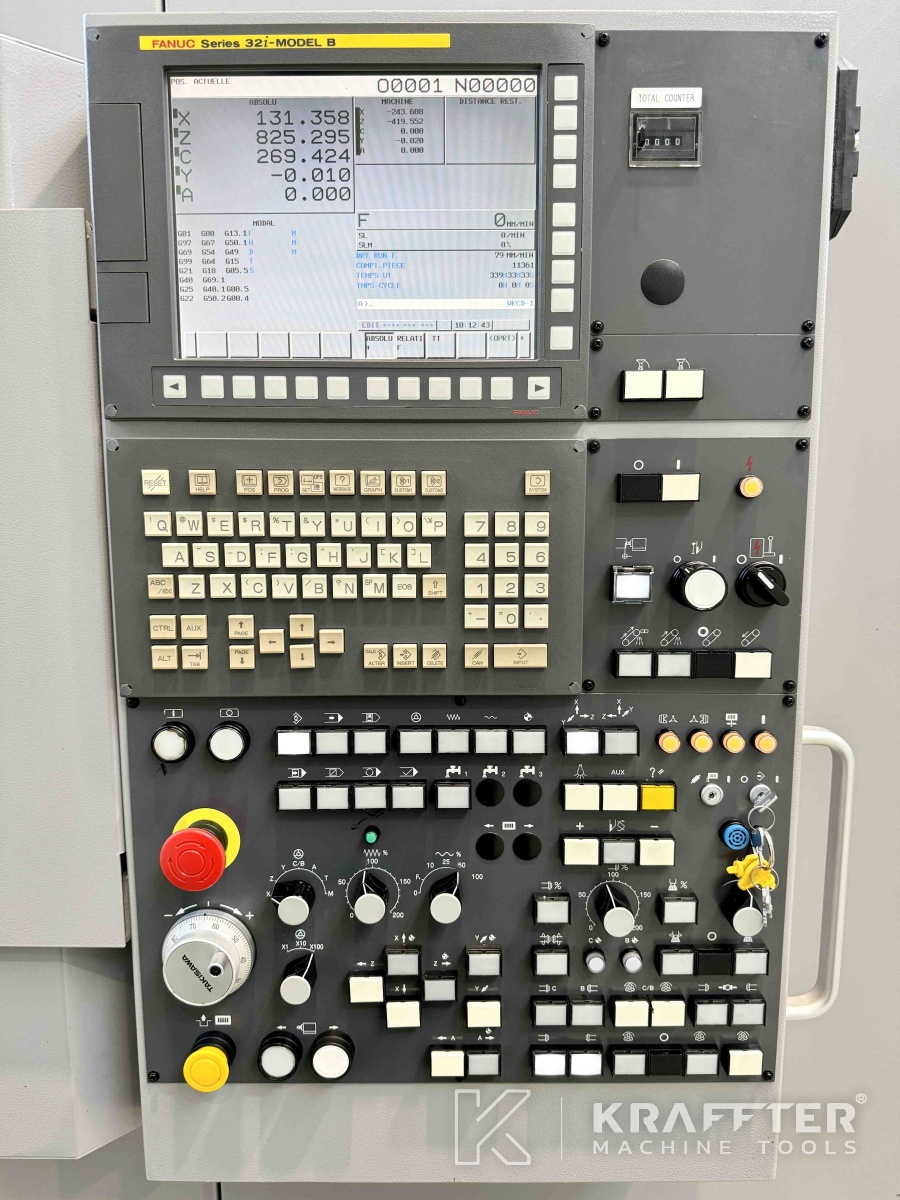

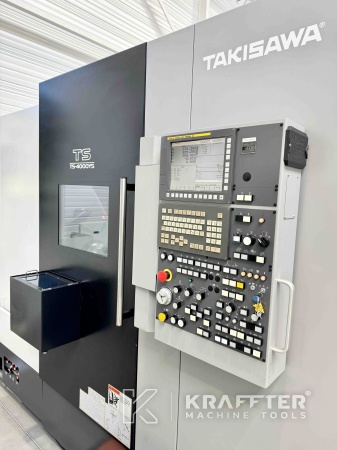

CNC control
FANUC 32i-MODEL B
Max. turning diameter
315 [mm]
Max. swing over bed
600 [mm]
Max. turning lenght
735 [mm]
Stroke X axis
267 [mm]
Stroke Y axis
-50 [mm] / +70 [mm]
Stroke Z axis
840 [mm]
Stroke A axis
780 [mm]
Rapid traverse rate X axis
30000 [mm/min]
Rapid traverse rate Z axis
30000 [mm/min]
Rapid traverse rate Y axis
10000 [mm/min]
Rapid traverse rate A axis
30000 [mm/min]
Spindle nose
A2-8"
Max. bar diameter
82 [mm]
Spindle throughbore
94 [mm]
Max. spindle speed
4200 [rpm]
Spindle power
22 [kW]

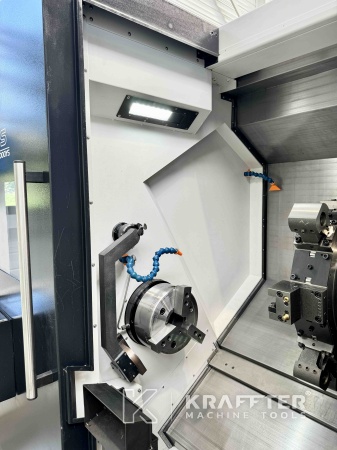

Counter spindle nose
F140
Counter spindle throughbore
53 [mm]
Max. counter spindle speed
6000 [rpm]
Counter spindle power
11 [kW]
Max. tool holder cross-section
25 [mm]

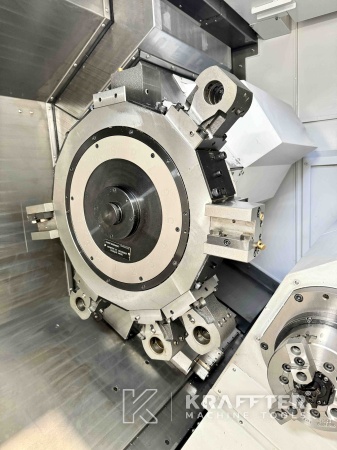

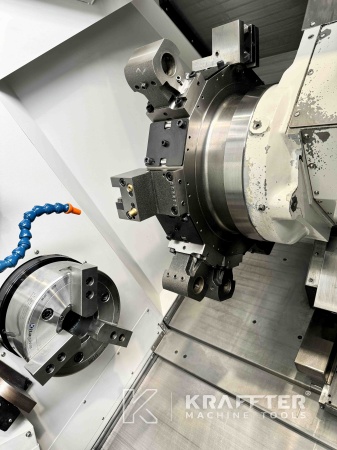

Number of tool stations
15
Number of tool stations driven
15
Max. speed driven tools
6000 [rpm]
Lubrication tank capacity
370 [l]
Total power required
37 [kVA]
Supply voltage
400 [V]
Number of hours under power
15403 [h]
Number of running hours
6109 [h]
Machine dimensions
3000 x 2140 x 2300 [mm]
Weight
6700 [Kg]
Additional information
EQUIPMENT INCLUDED:

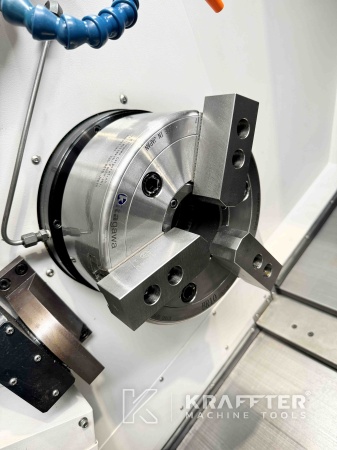

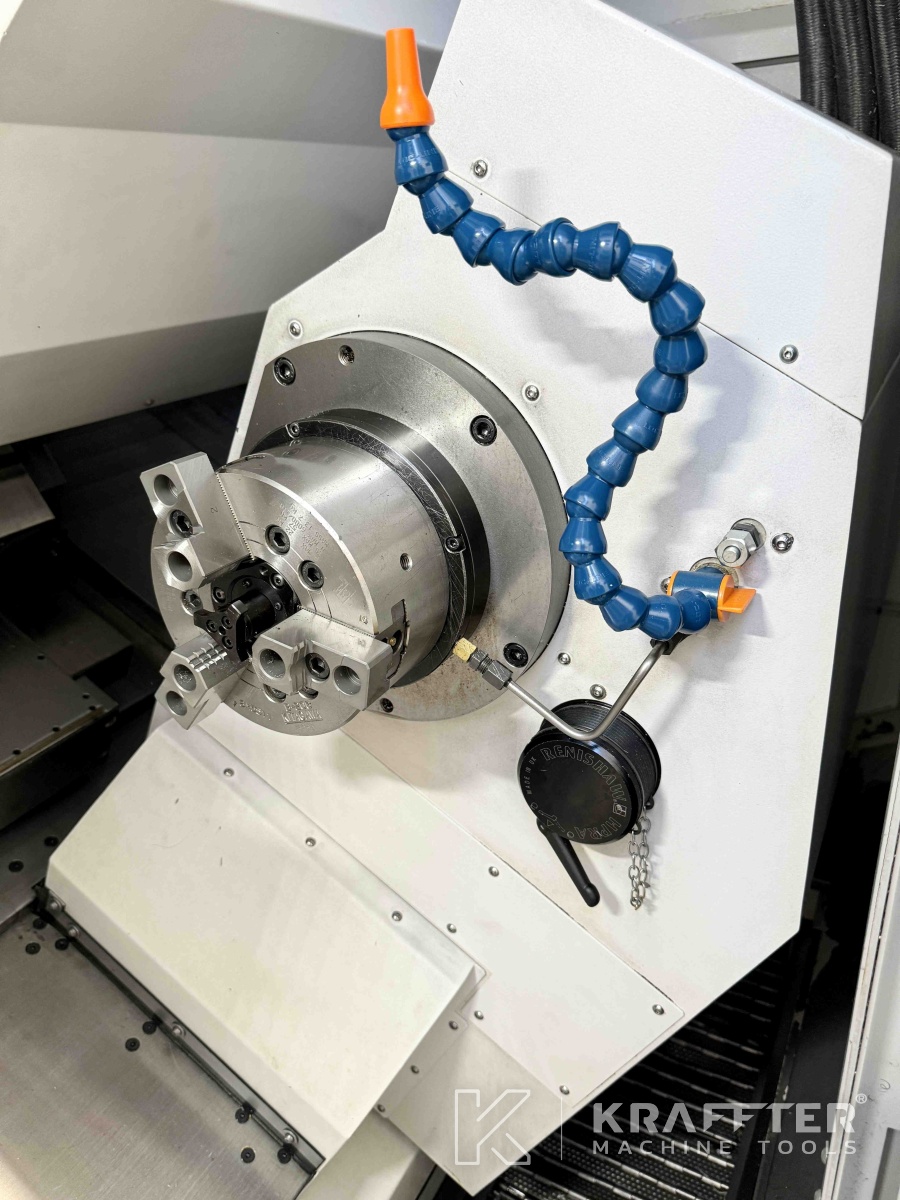

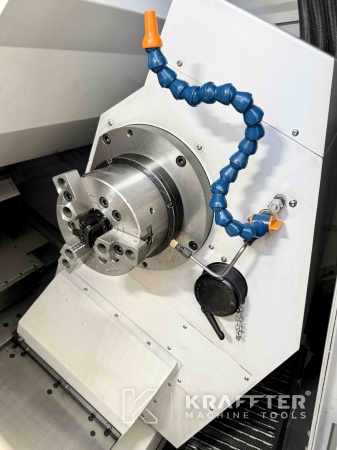

x1 KITAGAWA BR10 3-jaw chuck Ø250 [mm]
x1 KITAGAWA B-206 3-jaw chuck Ø160 [mm]
x1 set of soft jaws
x1 set of hard jaws
x6 static tool holders
x1 tool probe for main spindle

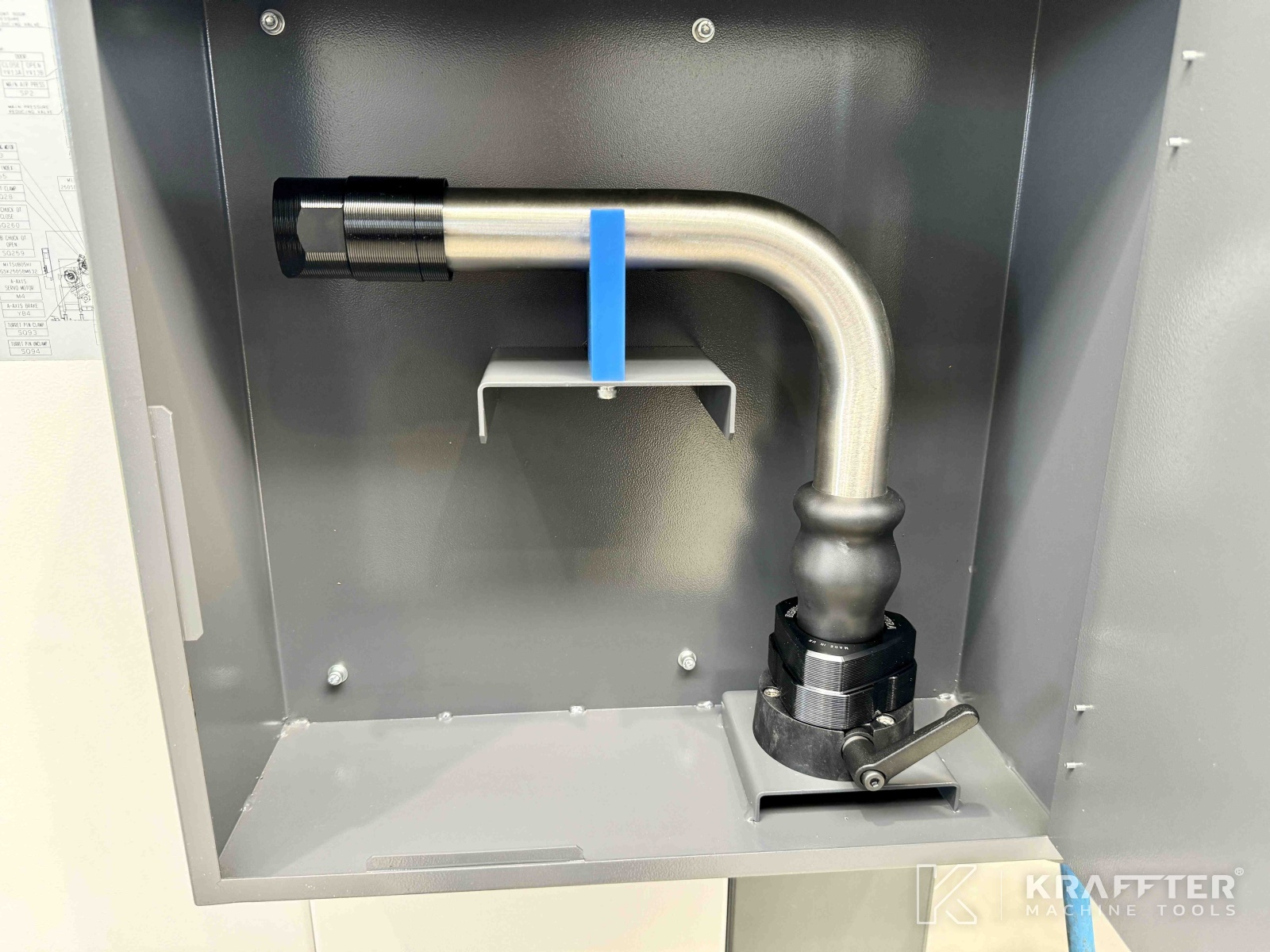

x1 RENISHAW HPRA tool probe arm for counter-spindle

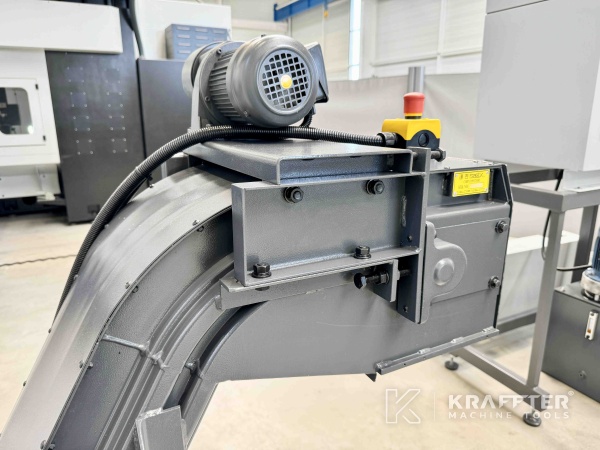

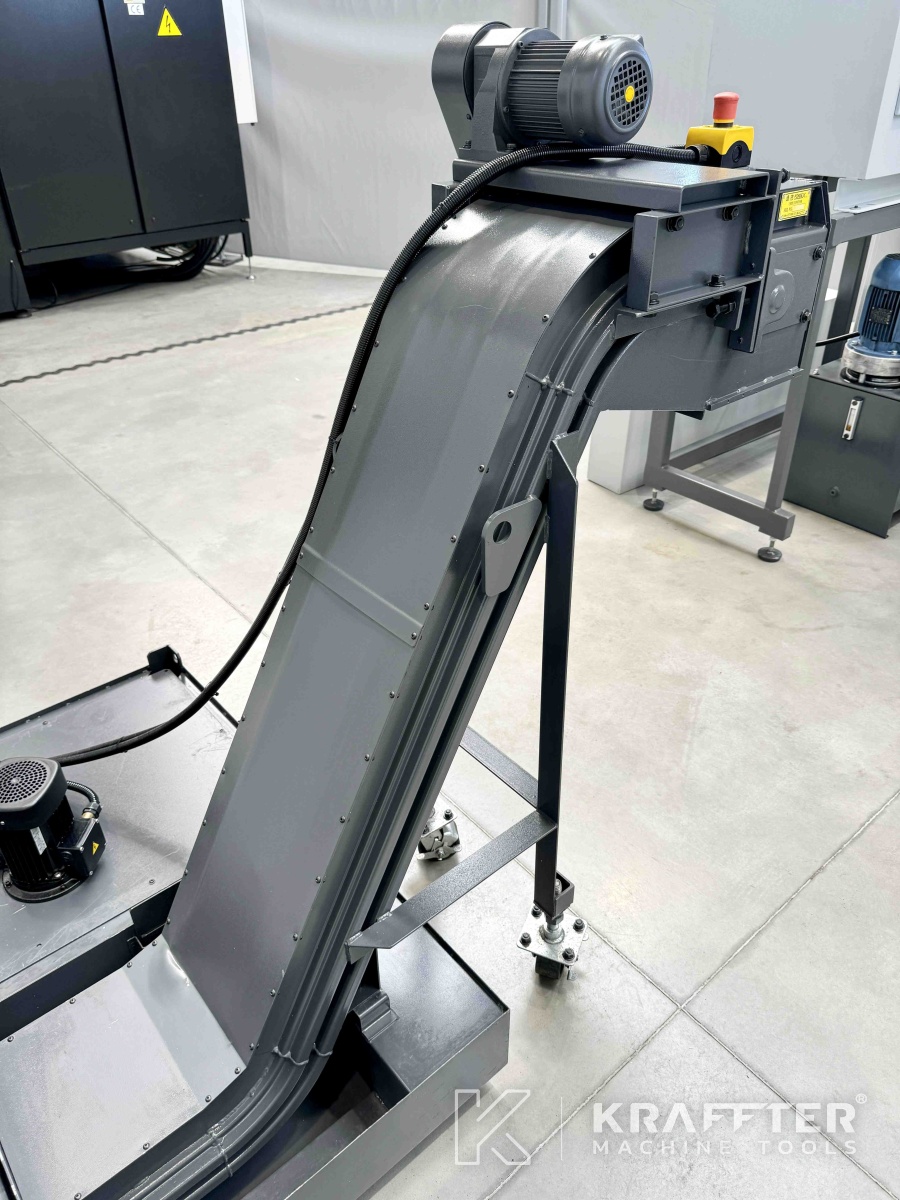

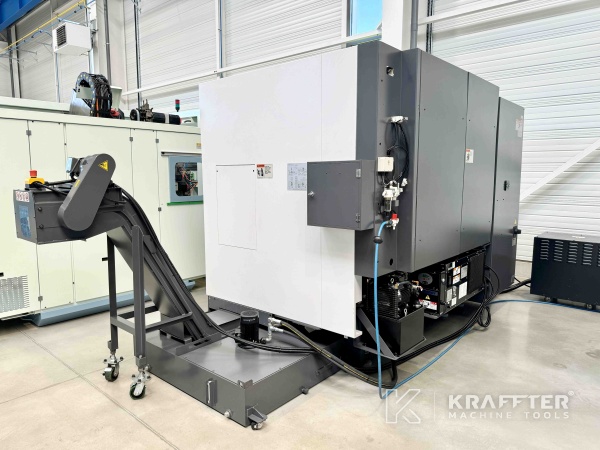

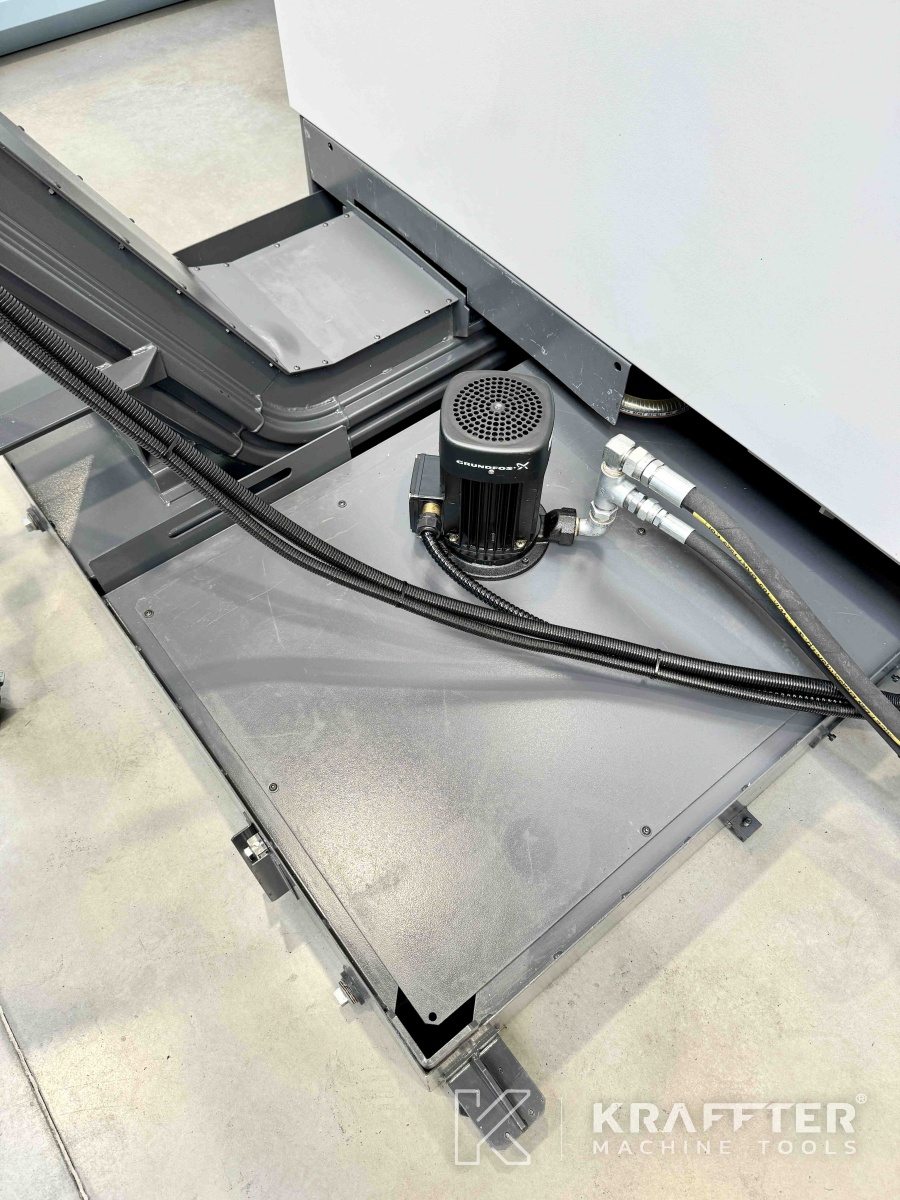

x1 chip conveyor
x1 bar feeder interface
x1 INSTRUCTION MANUAL in English
