Sold

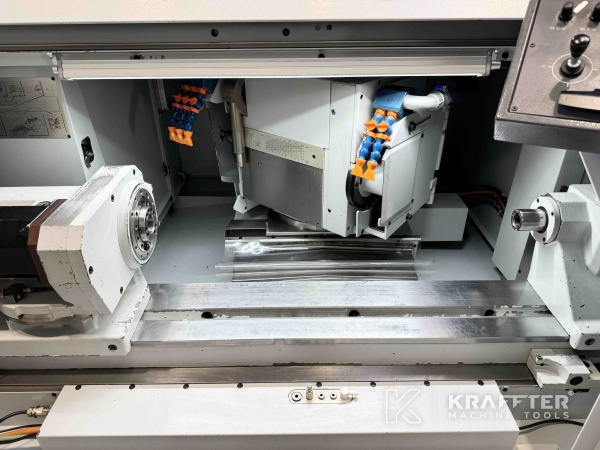

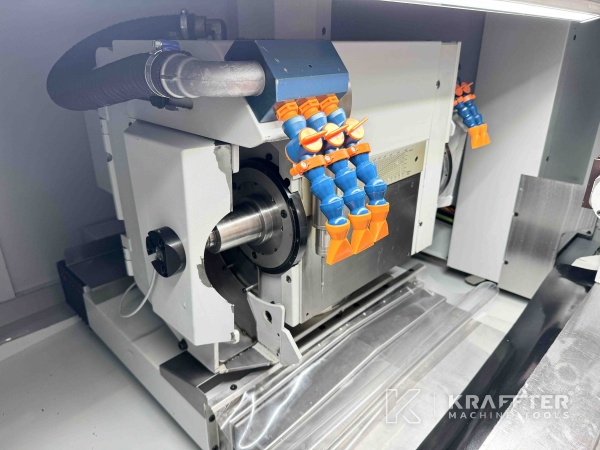

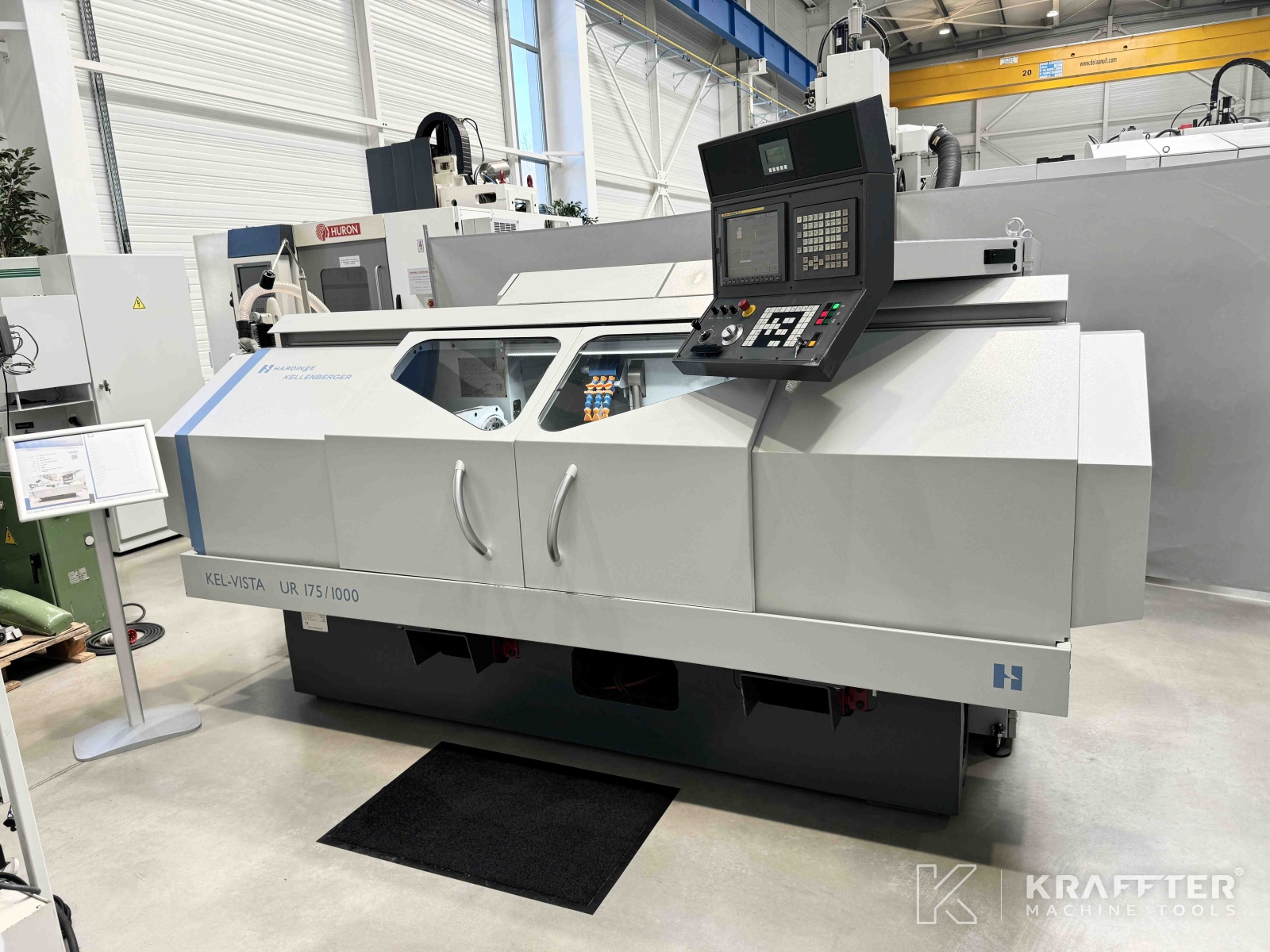

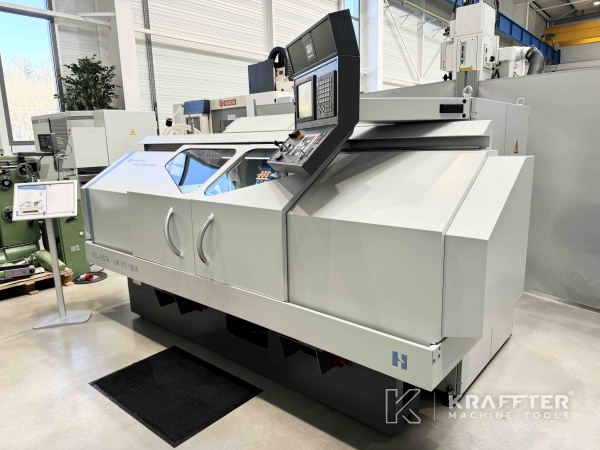

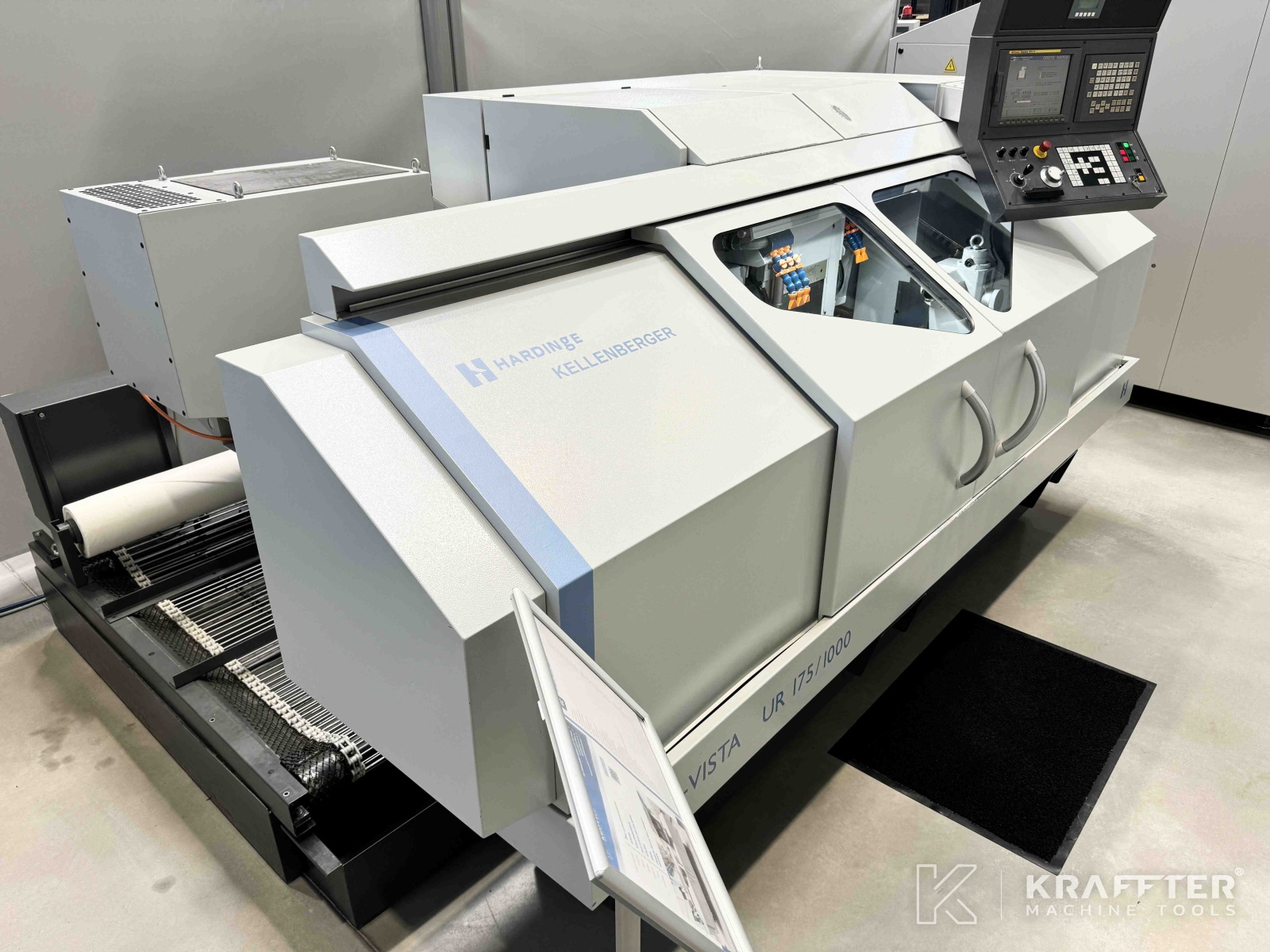

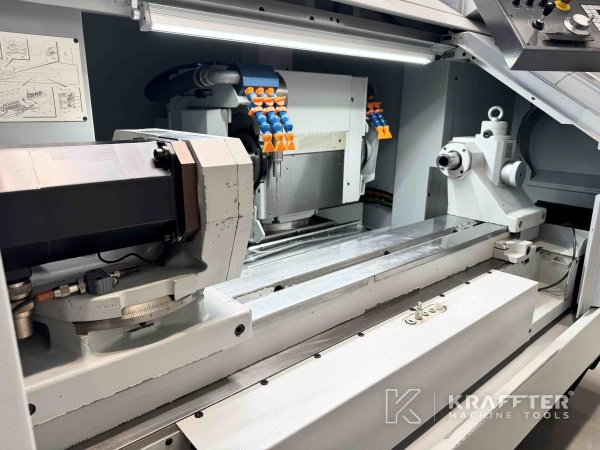

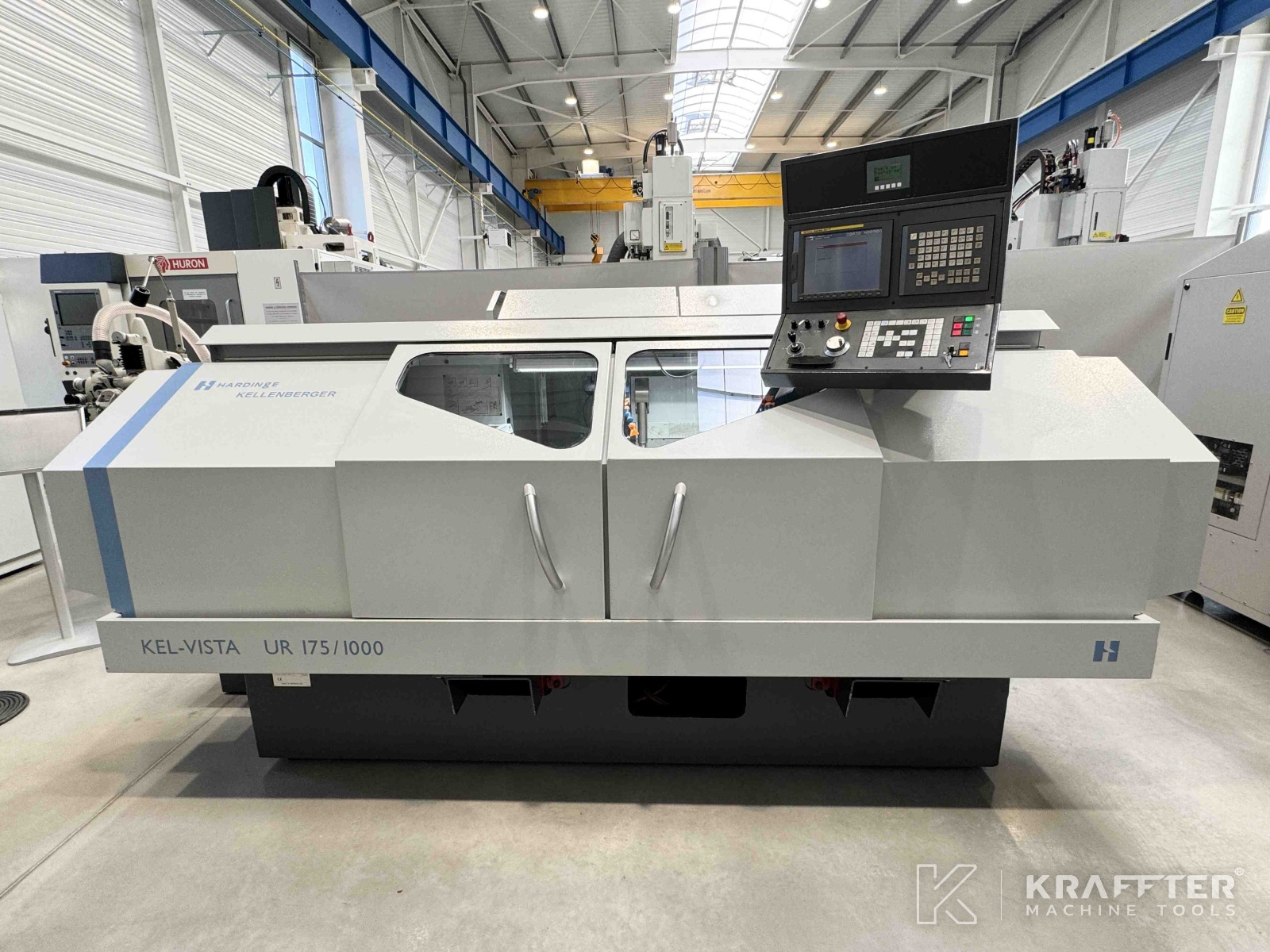

Type of machine : CNC cylindrical grinder
Brand : KELLENBERGER
Stock N° : 90099

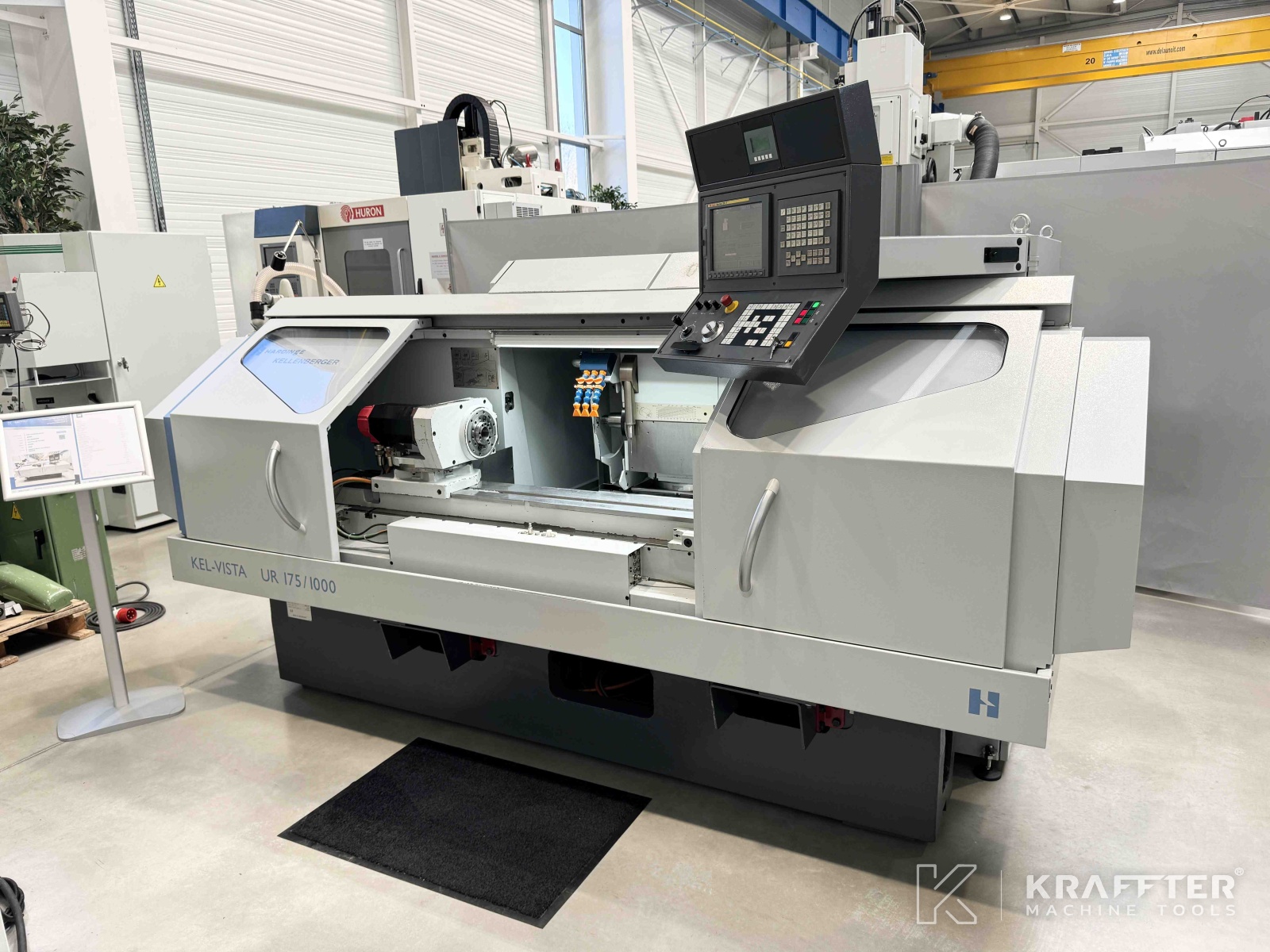

Model : Kel-Vista UR 175/1000
Serial N° : 675269
Year : 2006
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

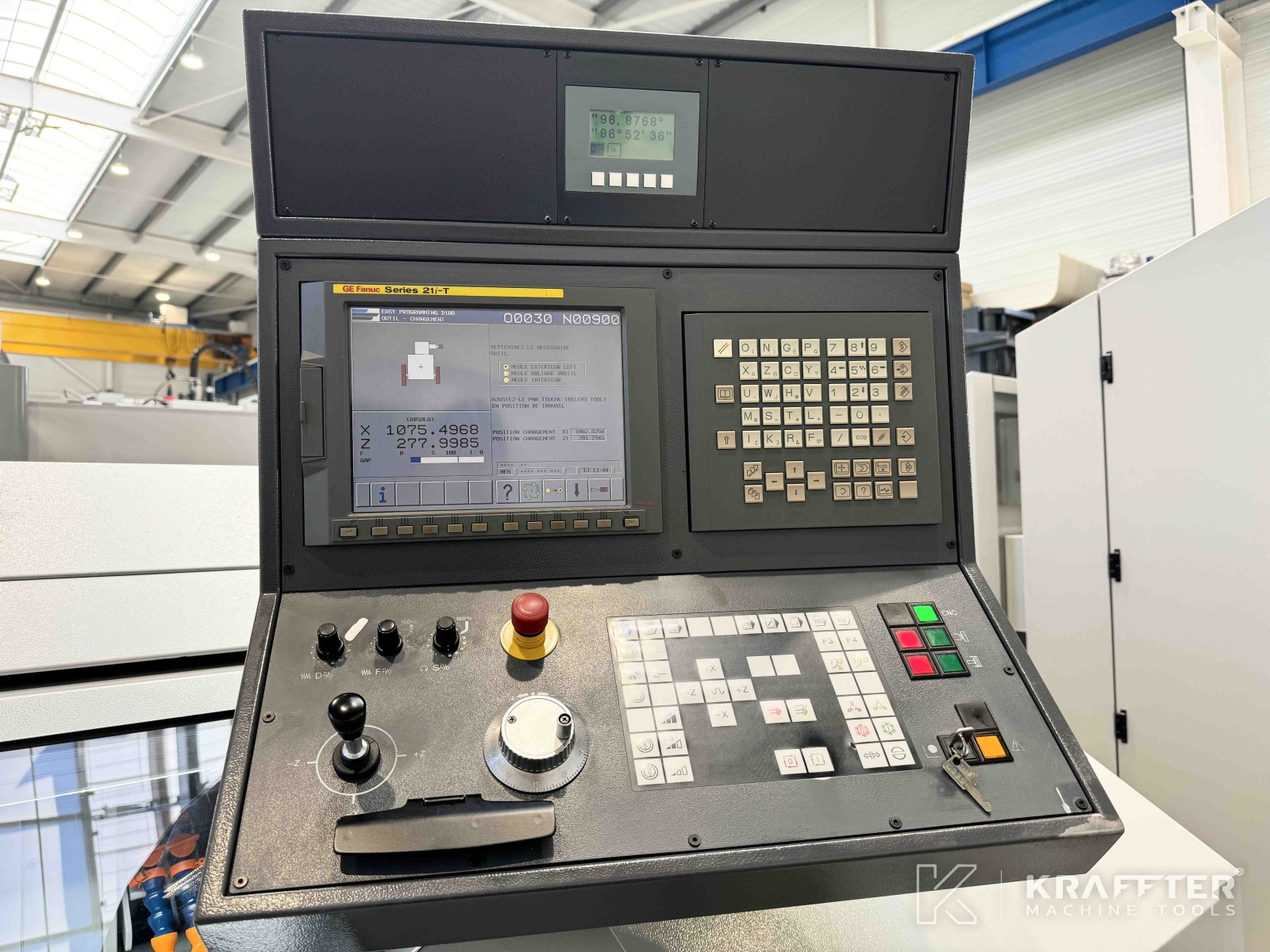

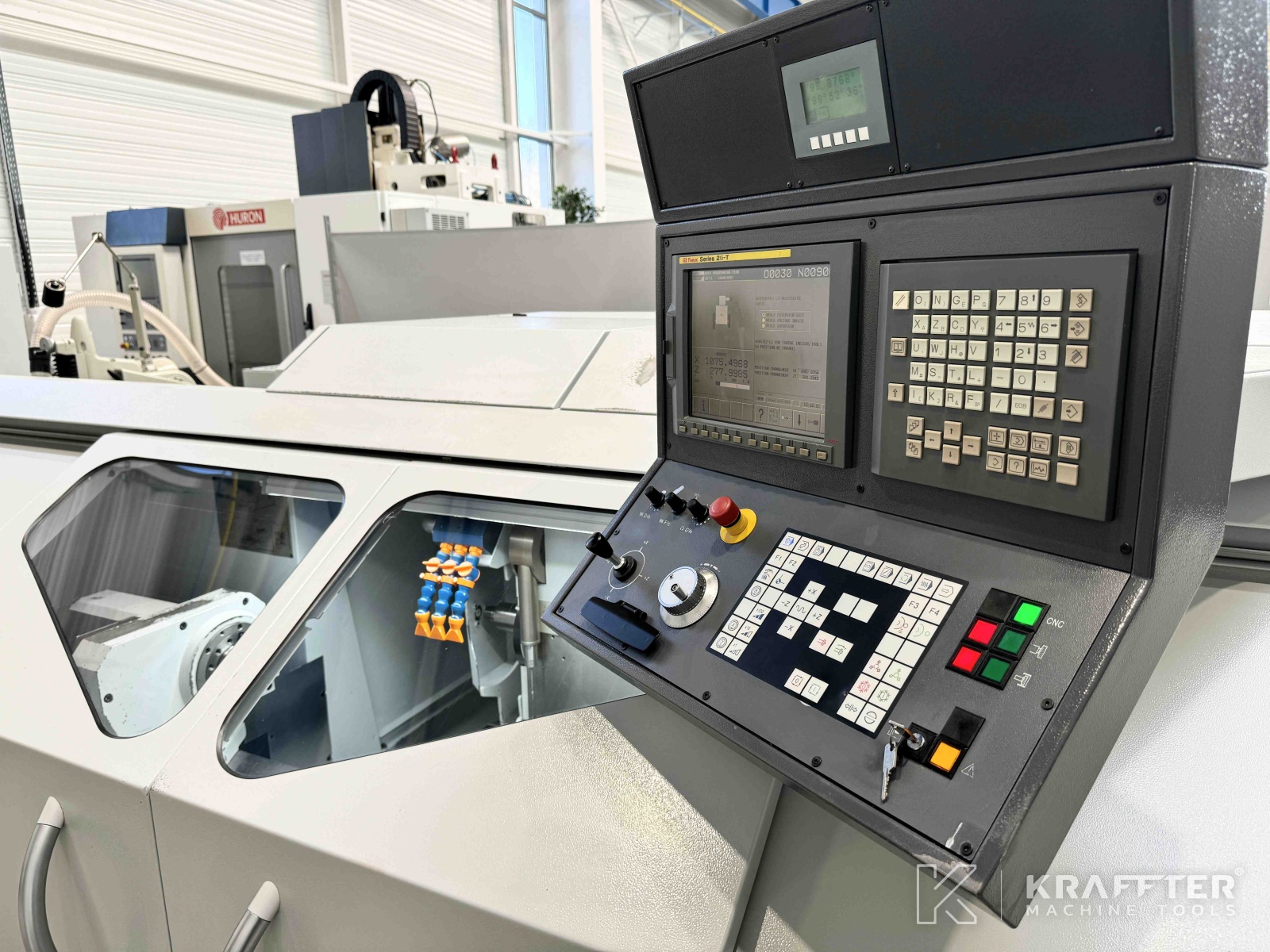

CNC control
FANUC 21i-T
Centre distance
1000 [mm]
Height of centers
175 [mm]
Max. grinding diameter
349 [mm]
Max. grinding lenght
1000 [mm]
Stroke X axis
350 [mm]
Max. Stroke speed X axis
6000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Max. Stroke speed Z axis
12000 [mm/min]
Resolution Z axis
0.0001 [mm]
Orientation of table
0 - 9 [°]
Grinding wheel min. speed
800 [rpm]
Grinding wheel max. speed
1900 [rpm]
Grinding spindle motor power
6 [kW]
B axis swivelling stroke
-210 / +10 [°]
B axis indexing precision
1 [°]
Automatic B axis
Yes

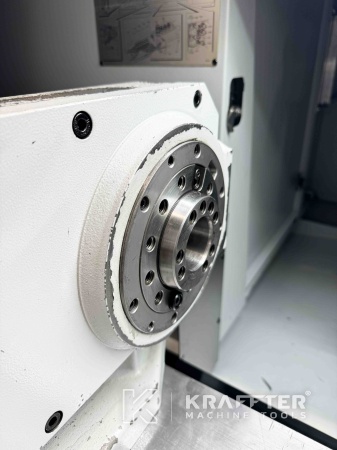

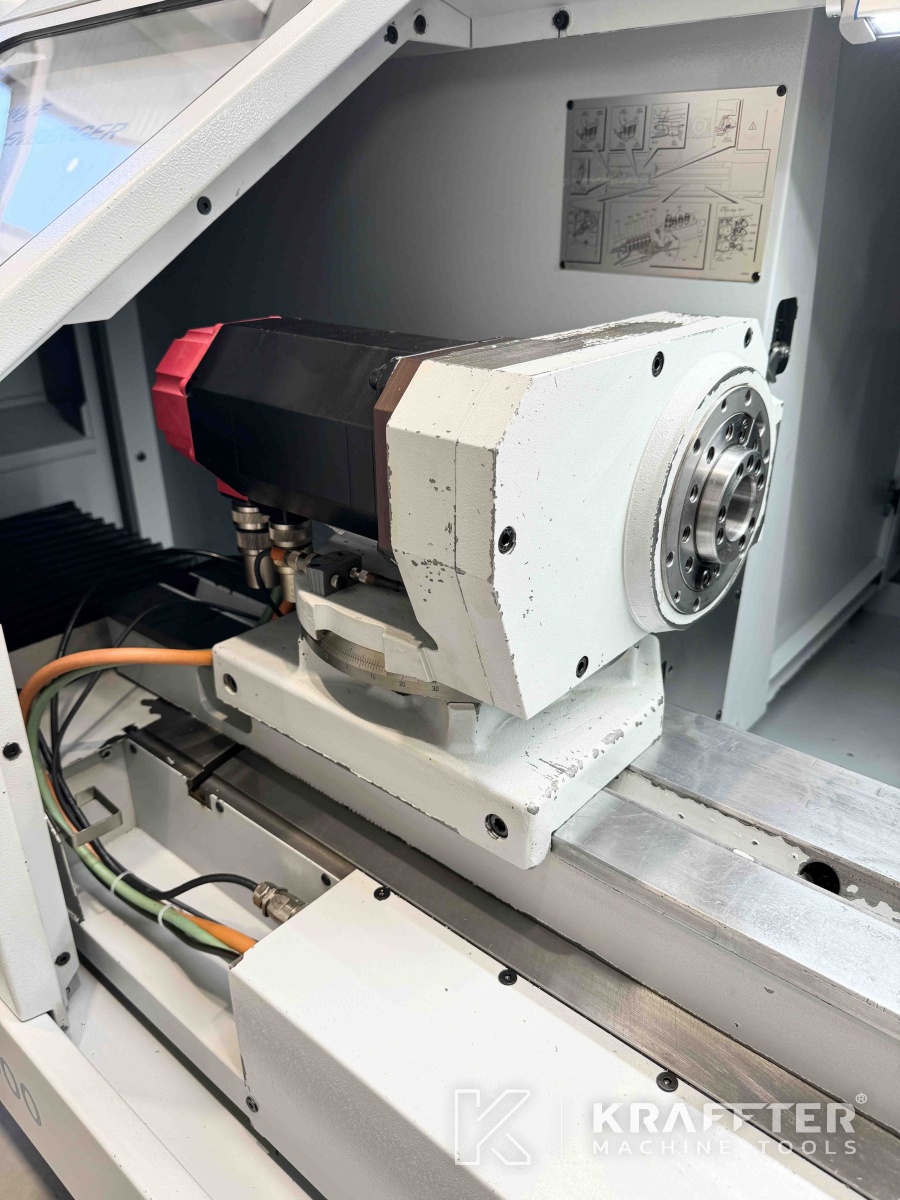

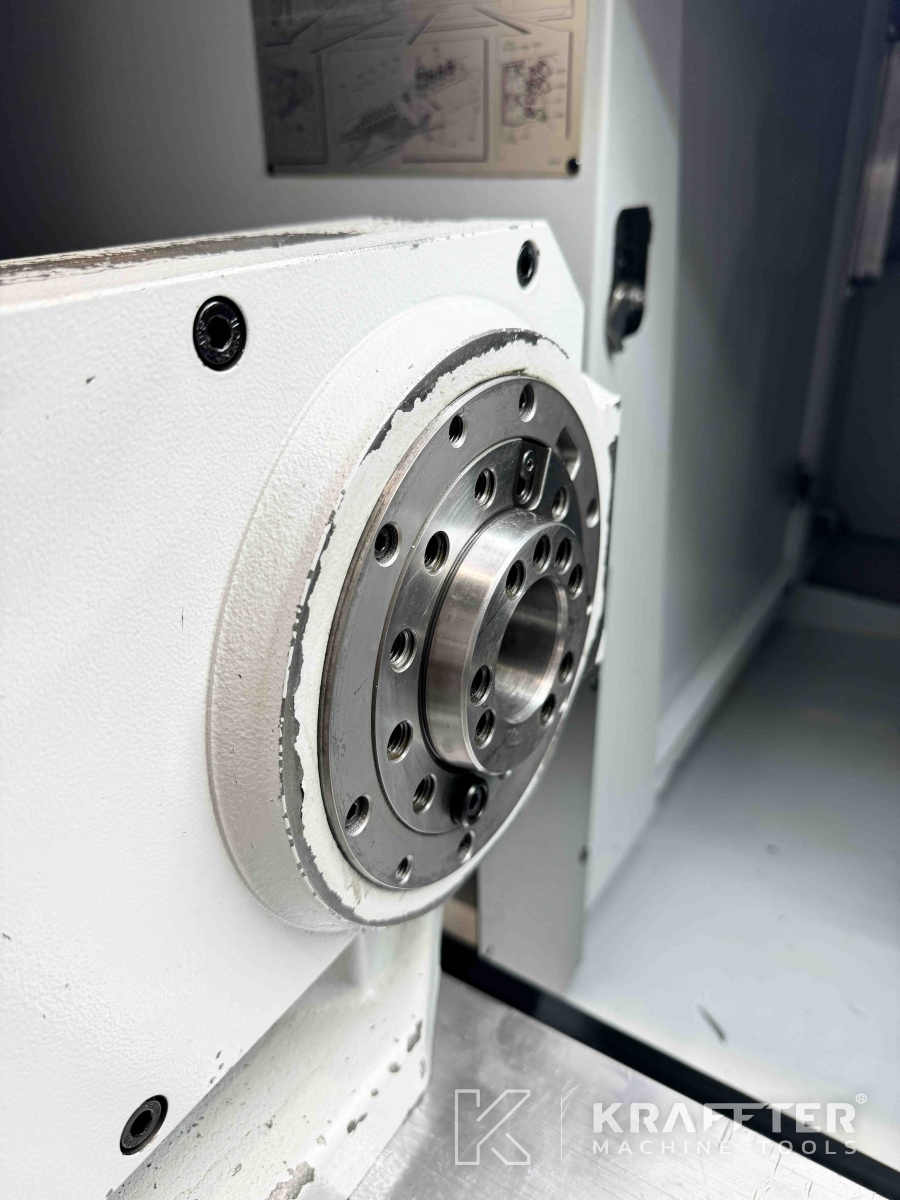

Workpiece spindle nose
DIN 55026 N° 5
Internal workpiece spindle nose
Morse 5
Workpiece spindle min. speed
8 [rpm]
Workpiece spindle max. speed
800 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
-10 / +100 [°]
Workpiece spindle power
1 [kW]
Type of attachment tailstock
Morse 4
Tailstock fine adjustment
+/- 60 [µm]
Number of running hours
8530 [h]
Collant pump flow rate
160 [l/min]
Machine dimensions
3000 x 1700 [mm]
Supply voltage
400 [V]
Rated current
18.5 [A]
Weight
3500 [Kg]
EQUIPEMENT INCLUded:

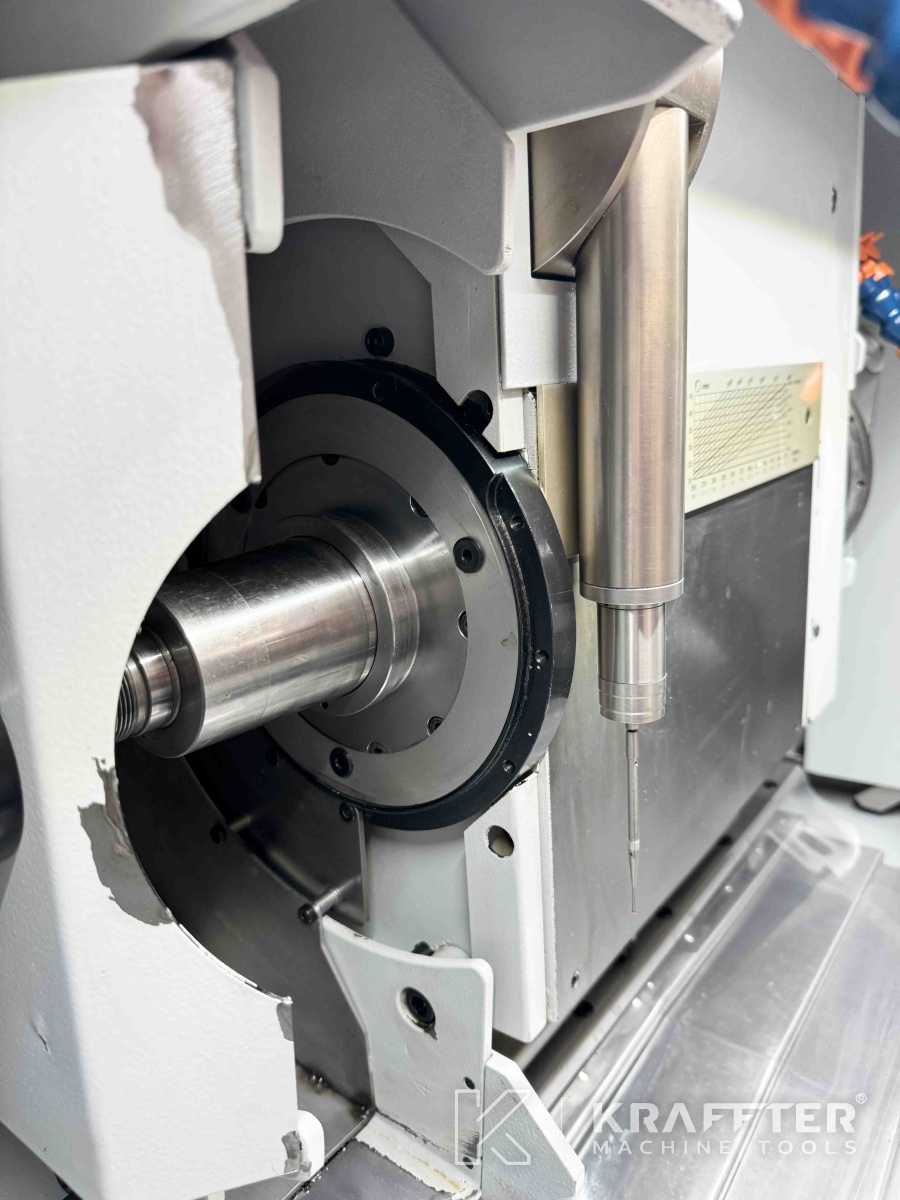

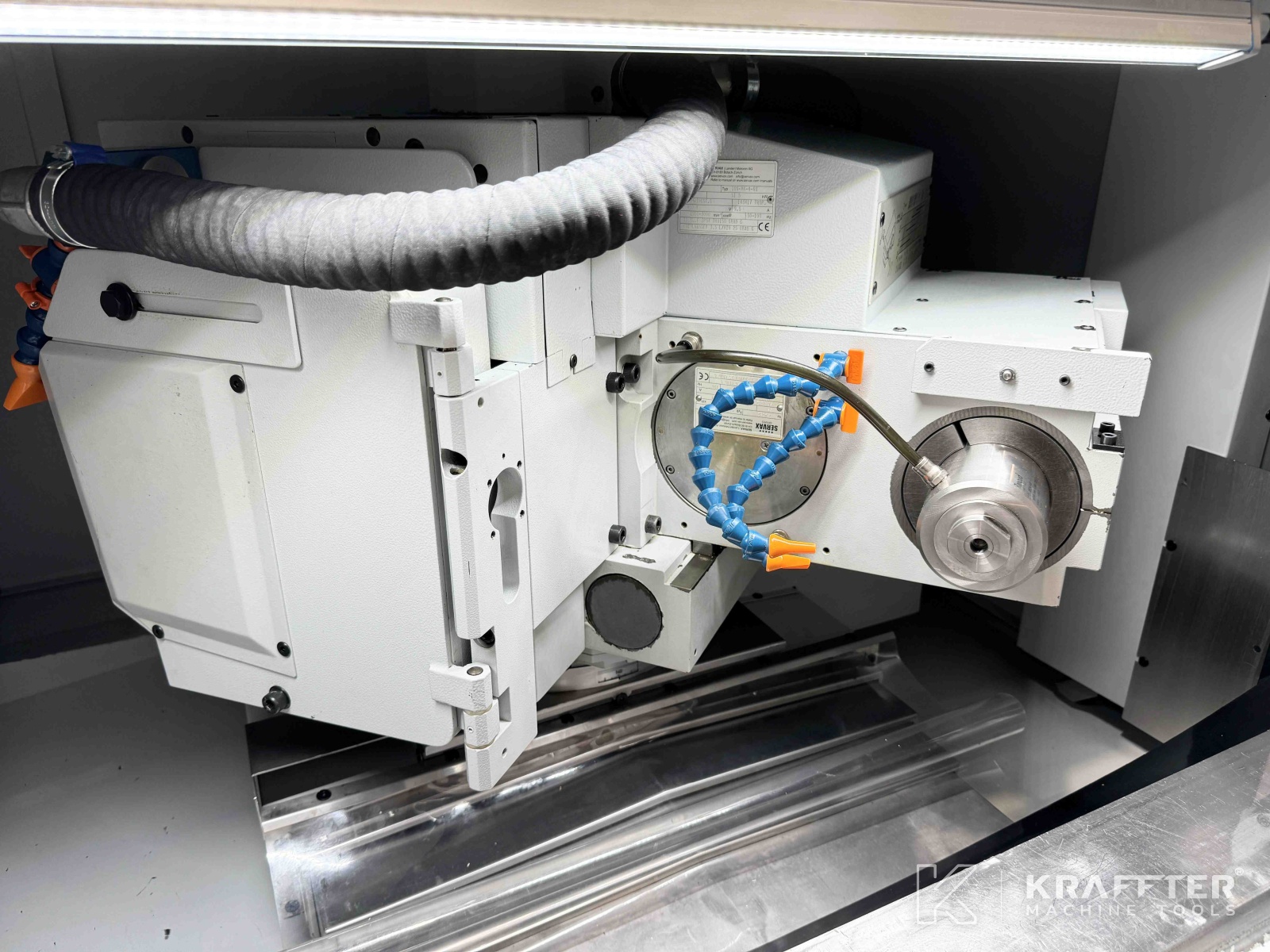

x1 inernal grinding device

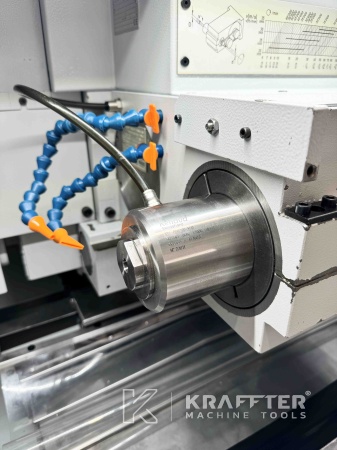

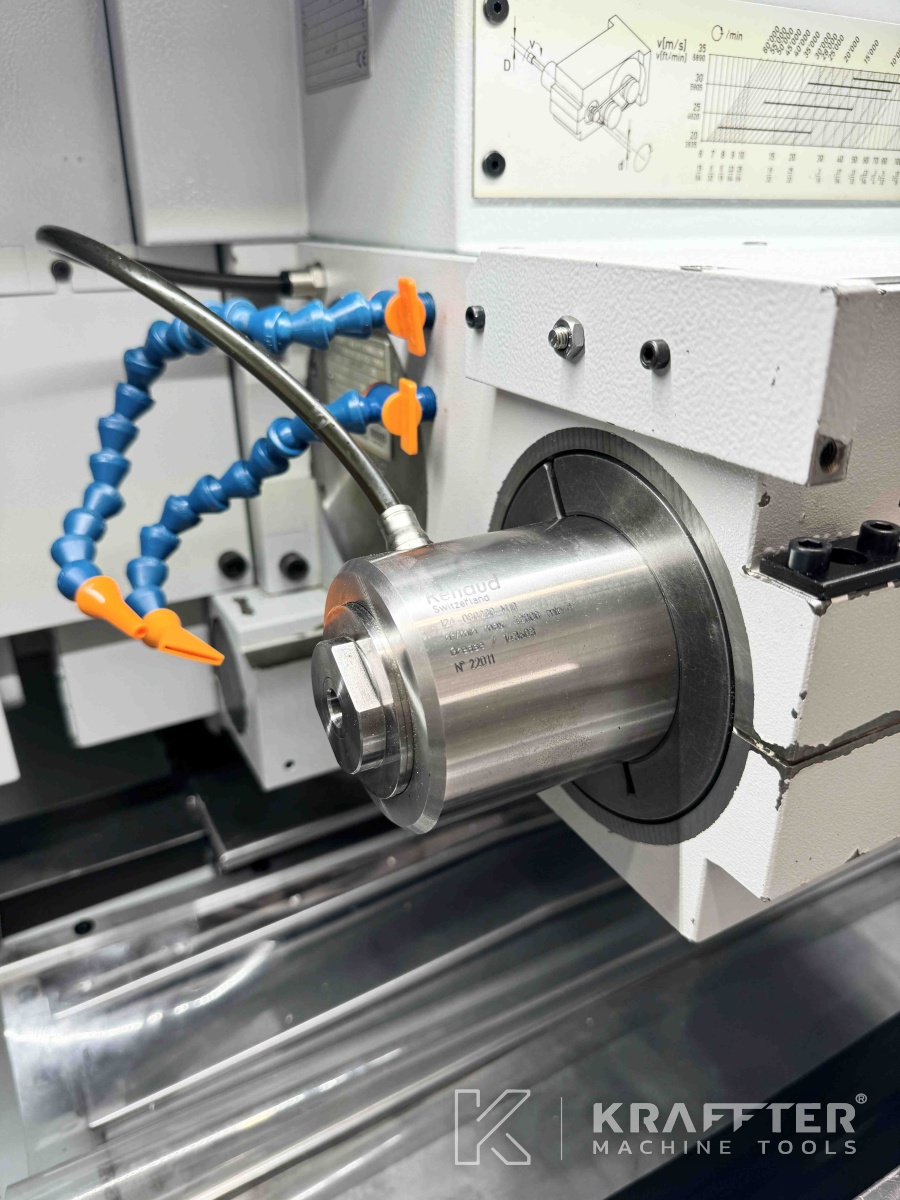

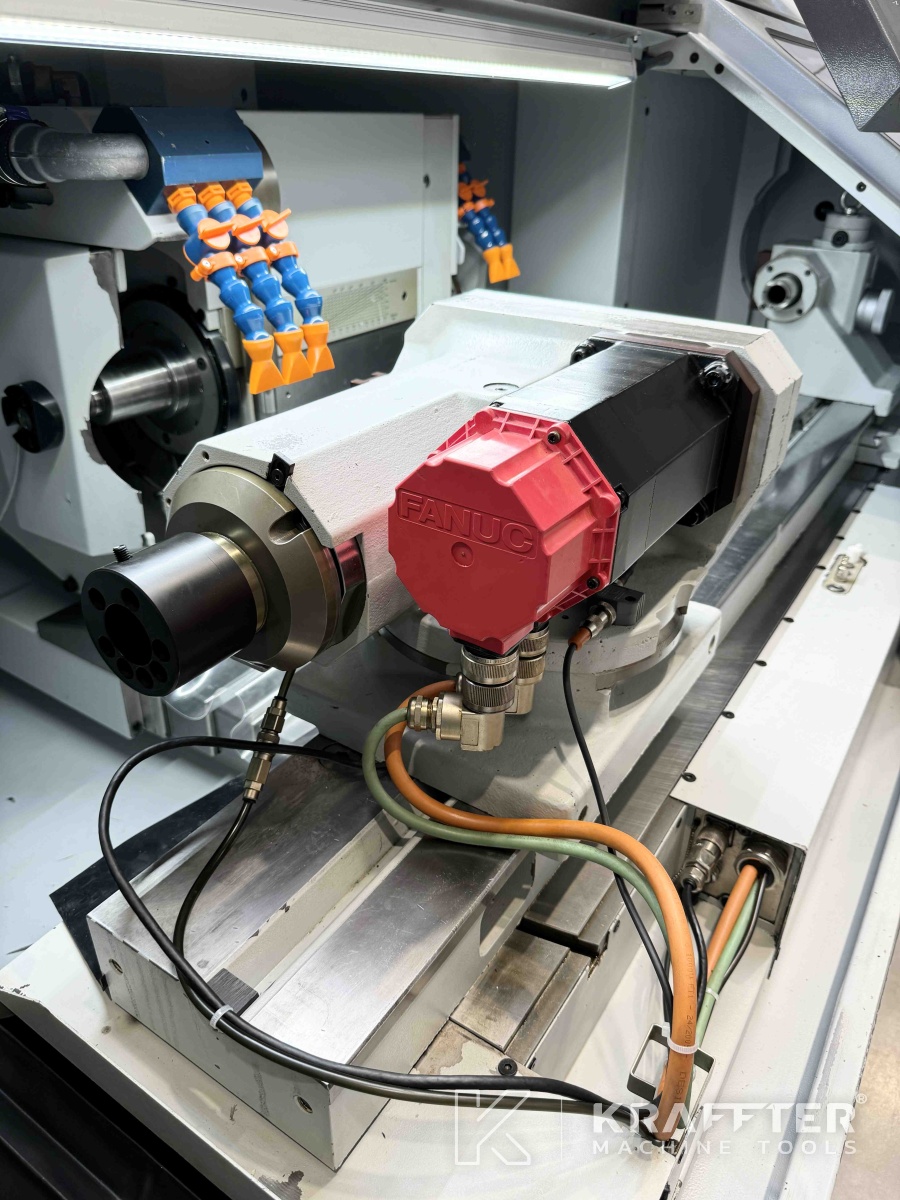

x1 internal grinding spindle RENAUD Switzerland 124-080230-M10 (42'000 min-1)

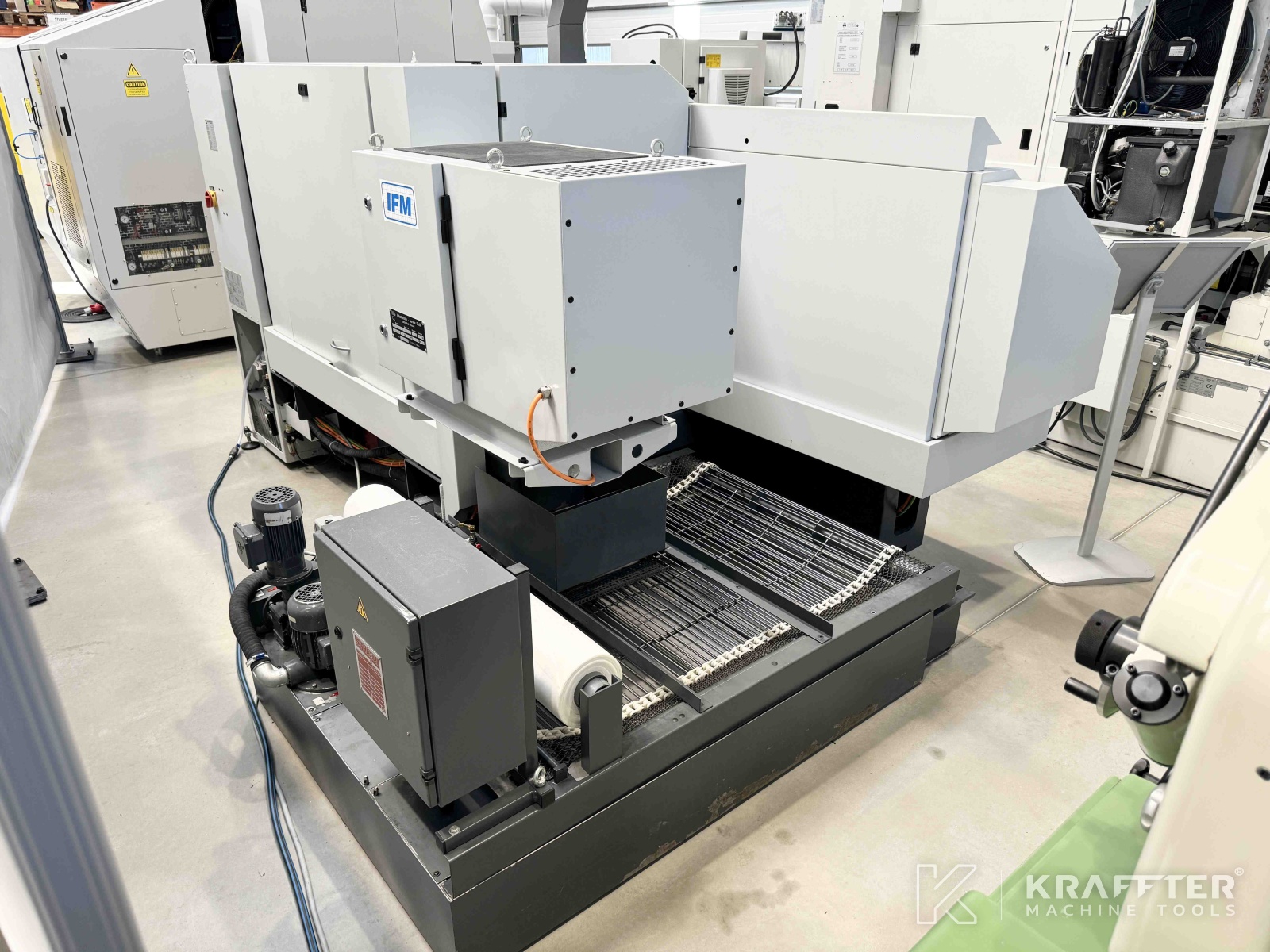

x1 IFM type IFMC 1800 oil mist extraction unit

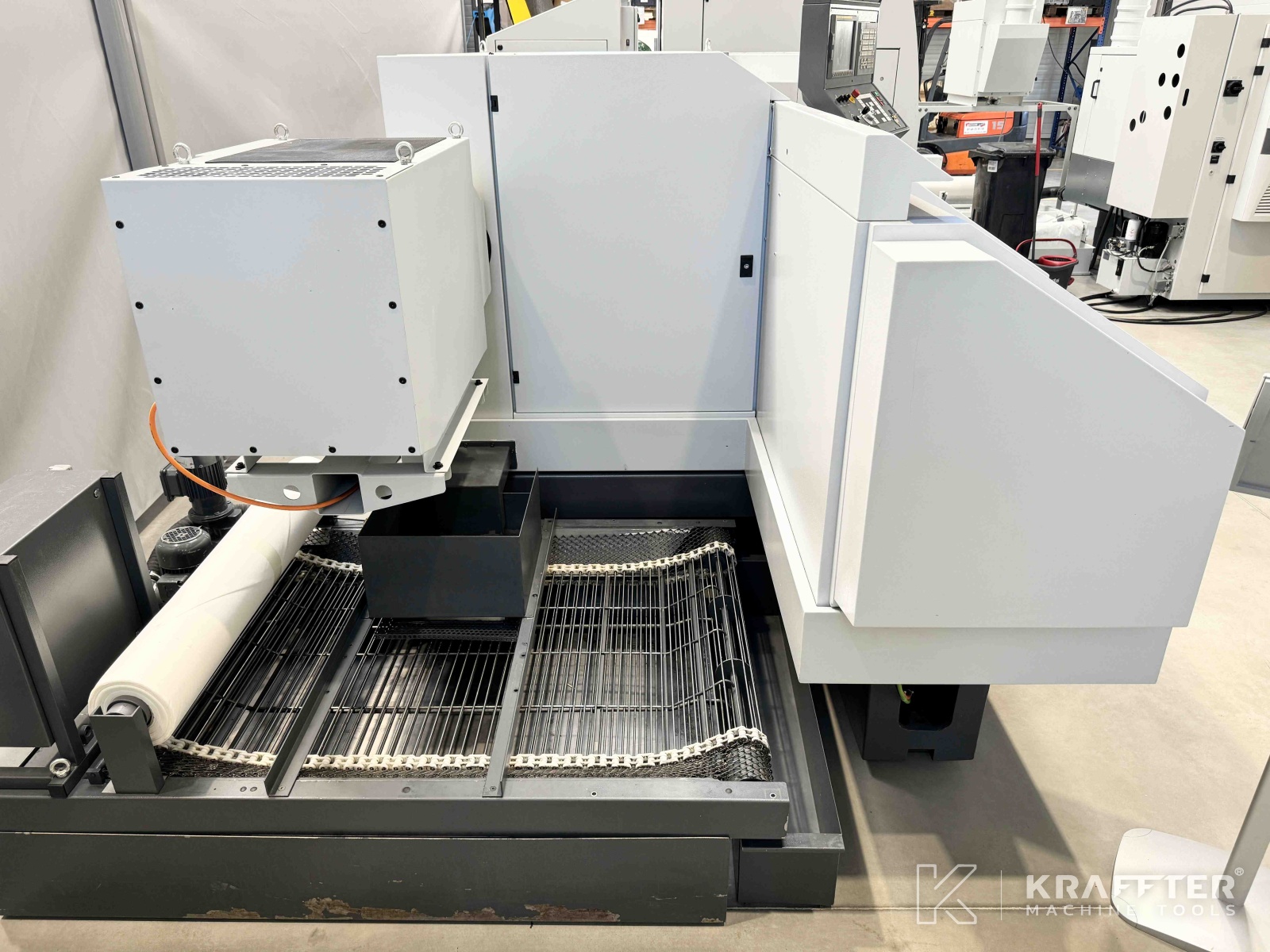

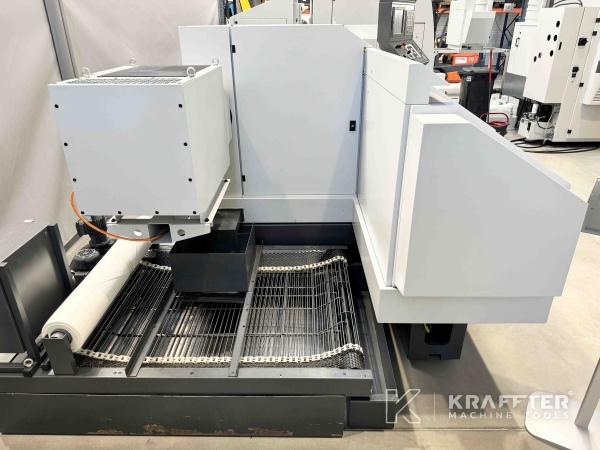

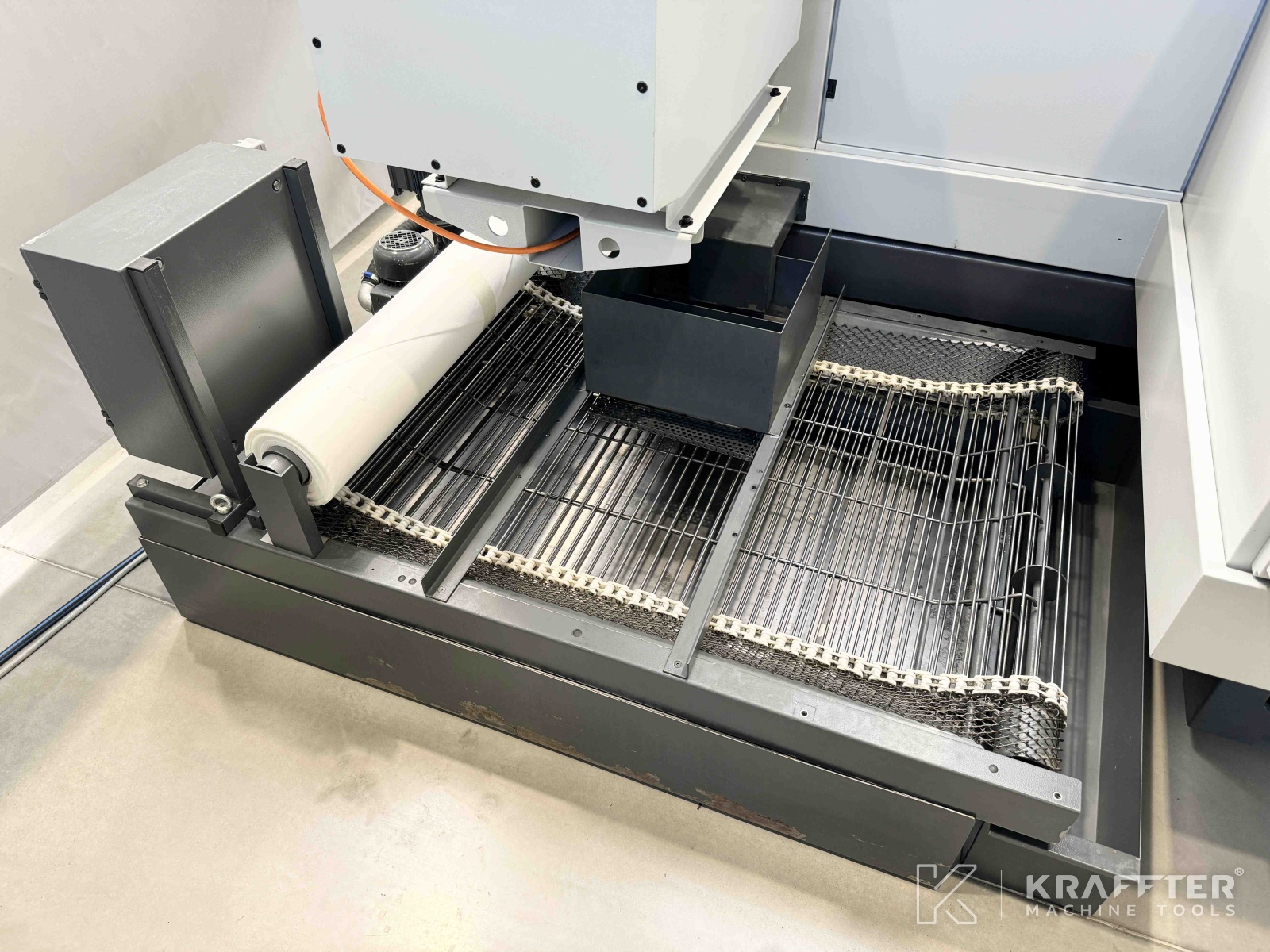

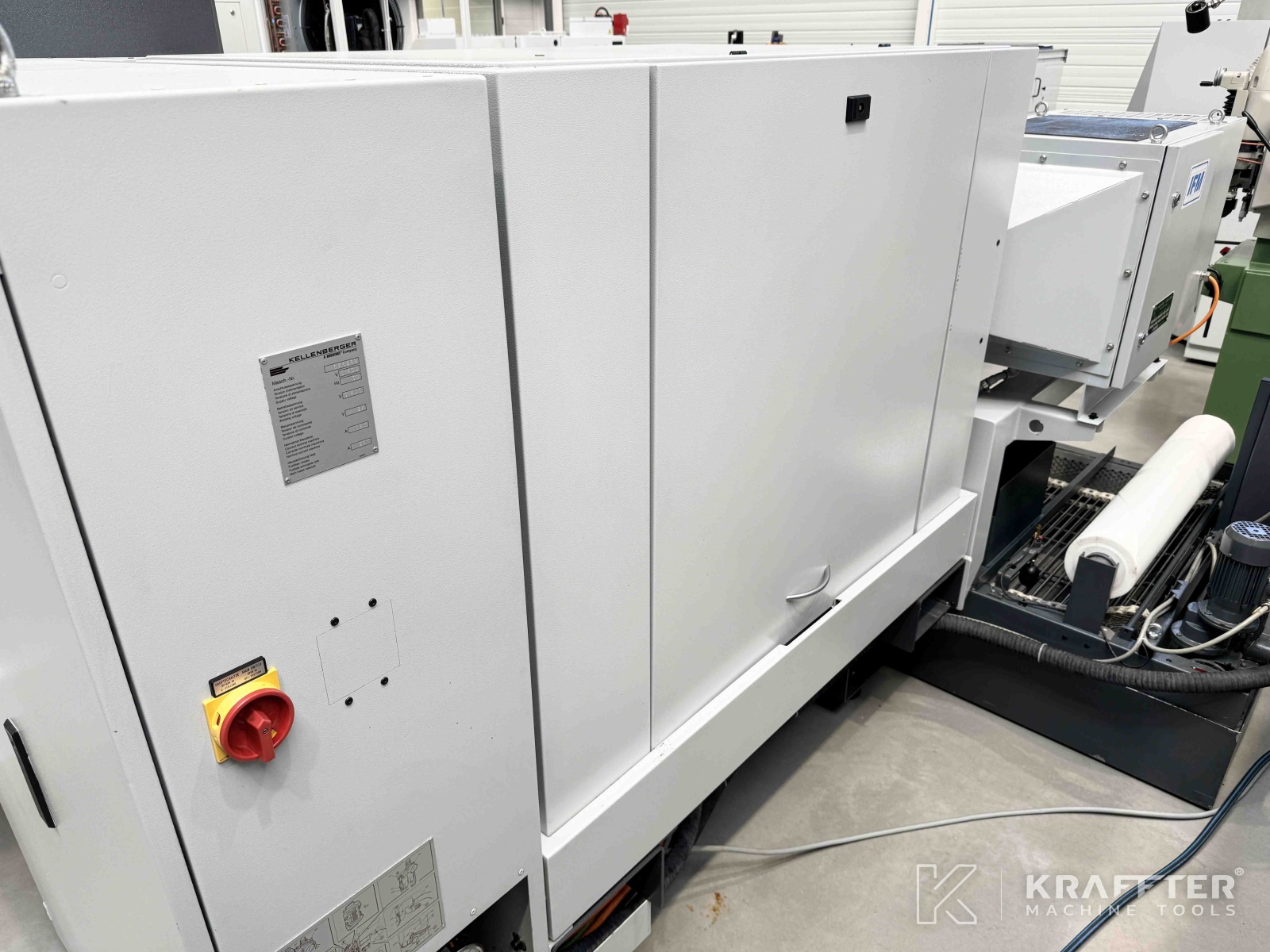

x1 paper tape filtering device including coolant tank
x1 MOVOMATIC type C25 part probe

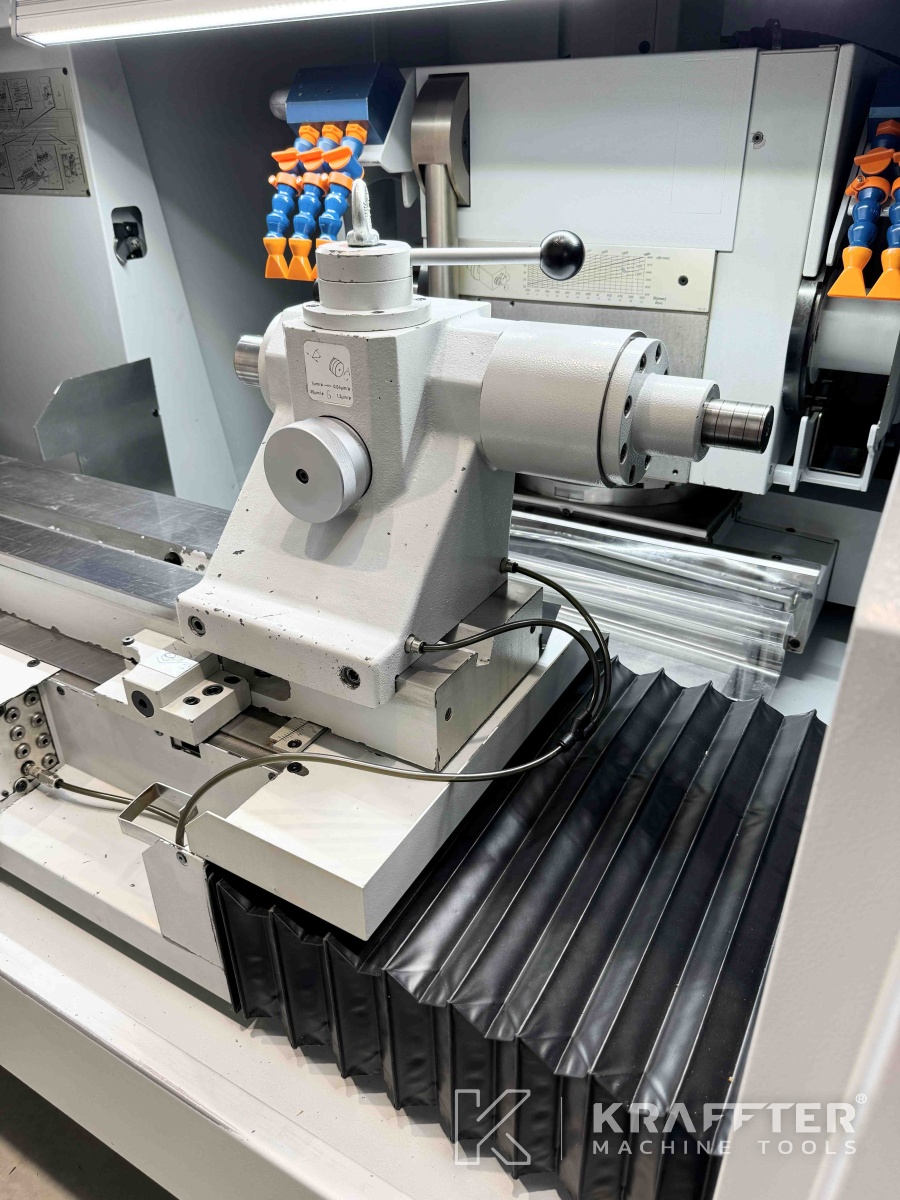

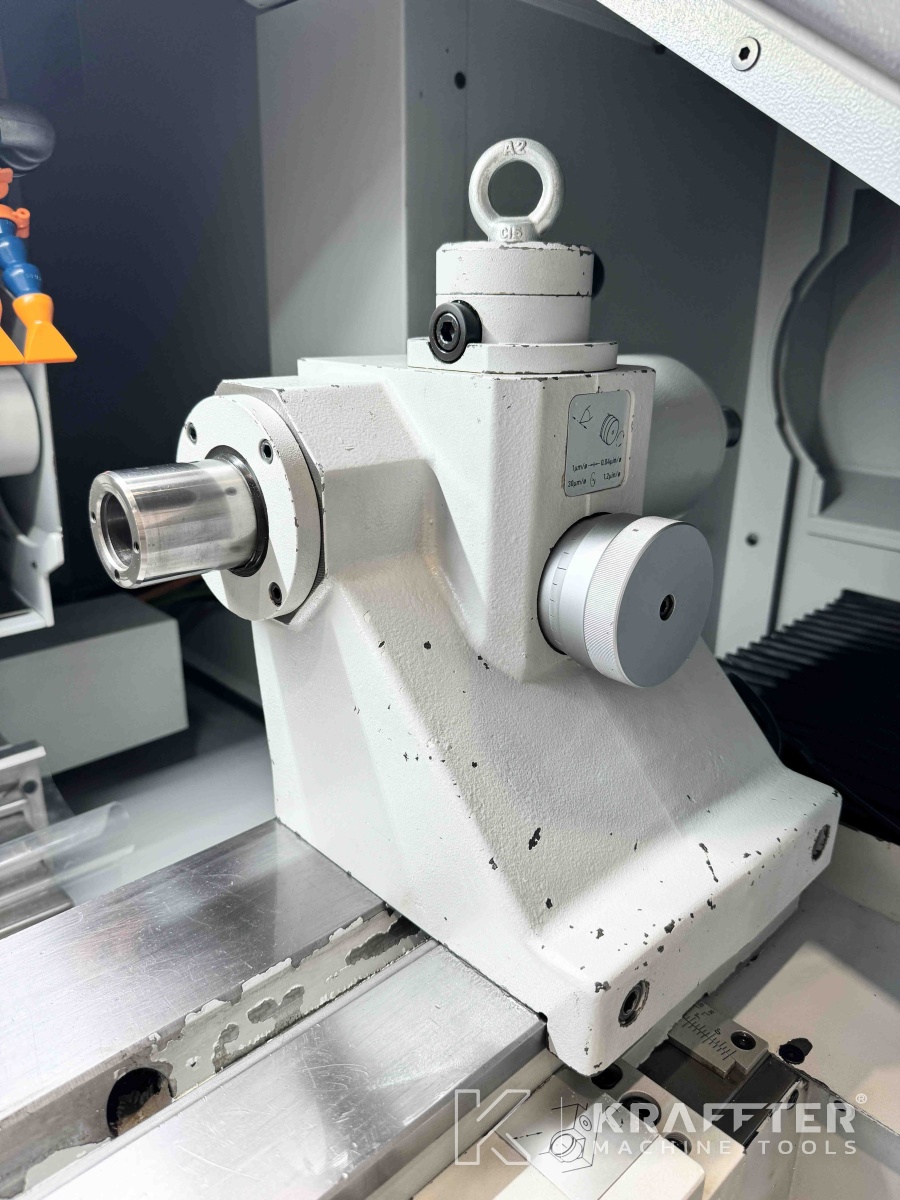

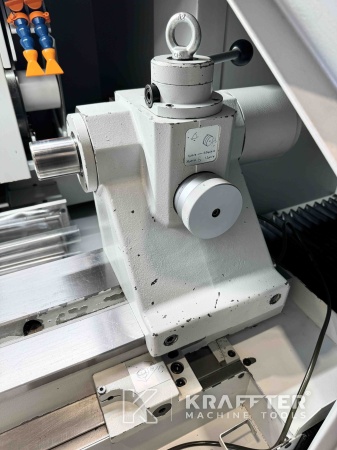

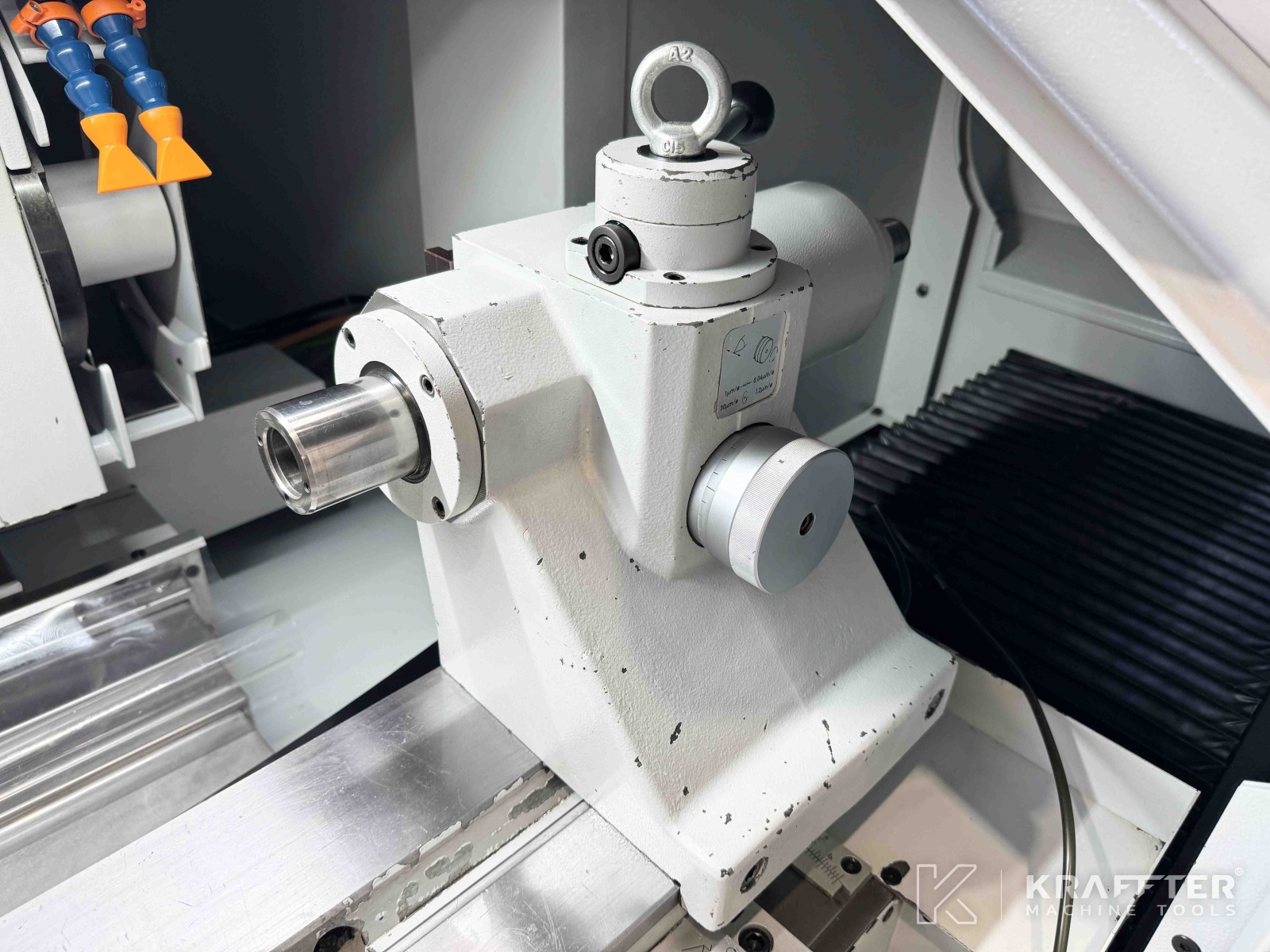

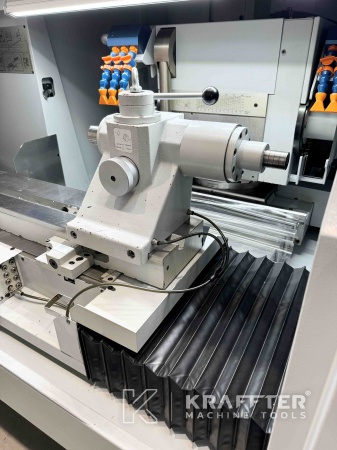

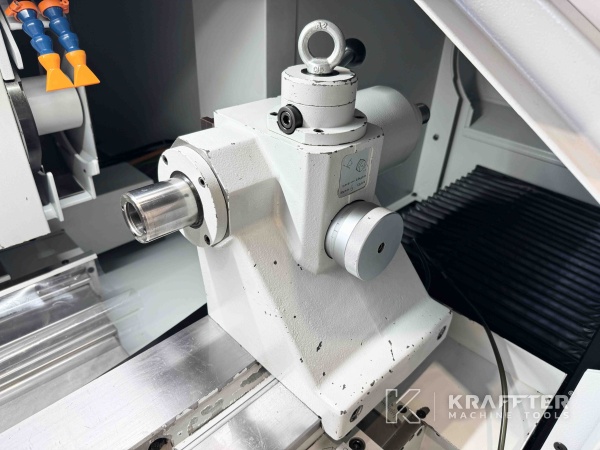

x1 tailstock with fine taper adjustment
x1 dressing device
x1 service key

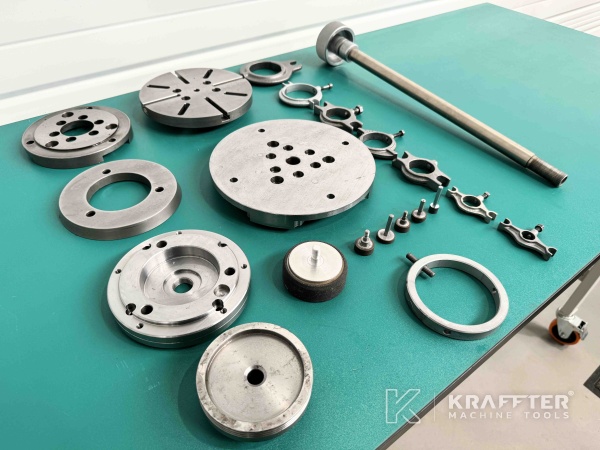

x1 faceplate Ø195 [mm]
x1 faceplate Ø240 [mm]

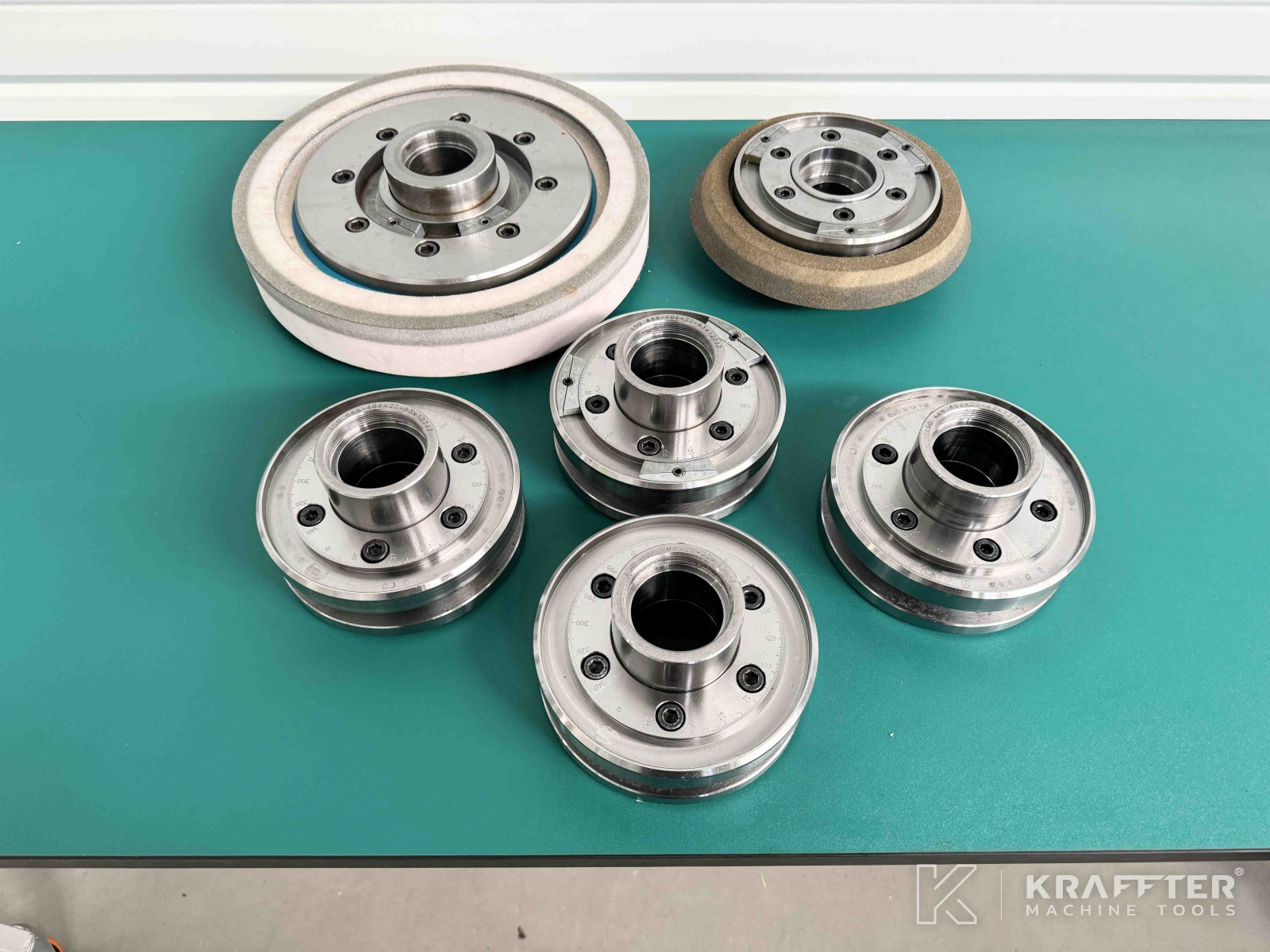

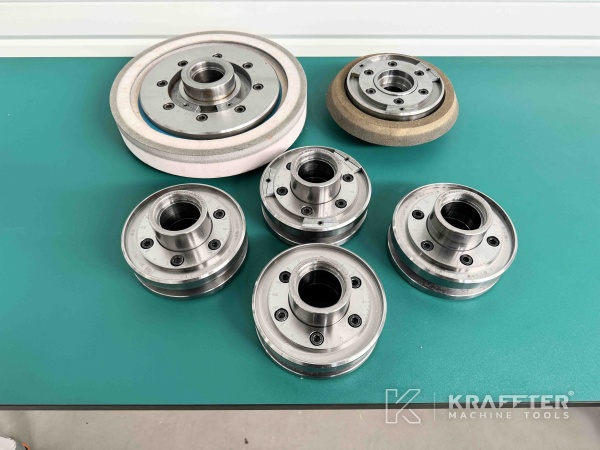

x6 wheel flanges
x1 set of service, instructions and spare parts manuals in English

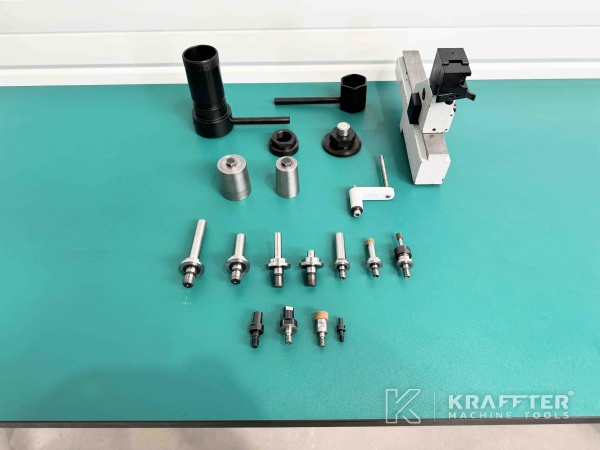

Various miscellaneous equipments (internal wheel flanges, etc...)
