Sold

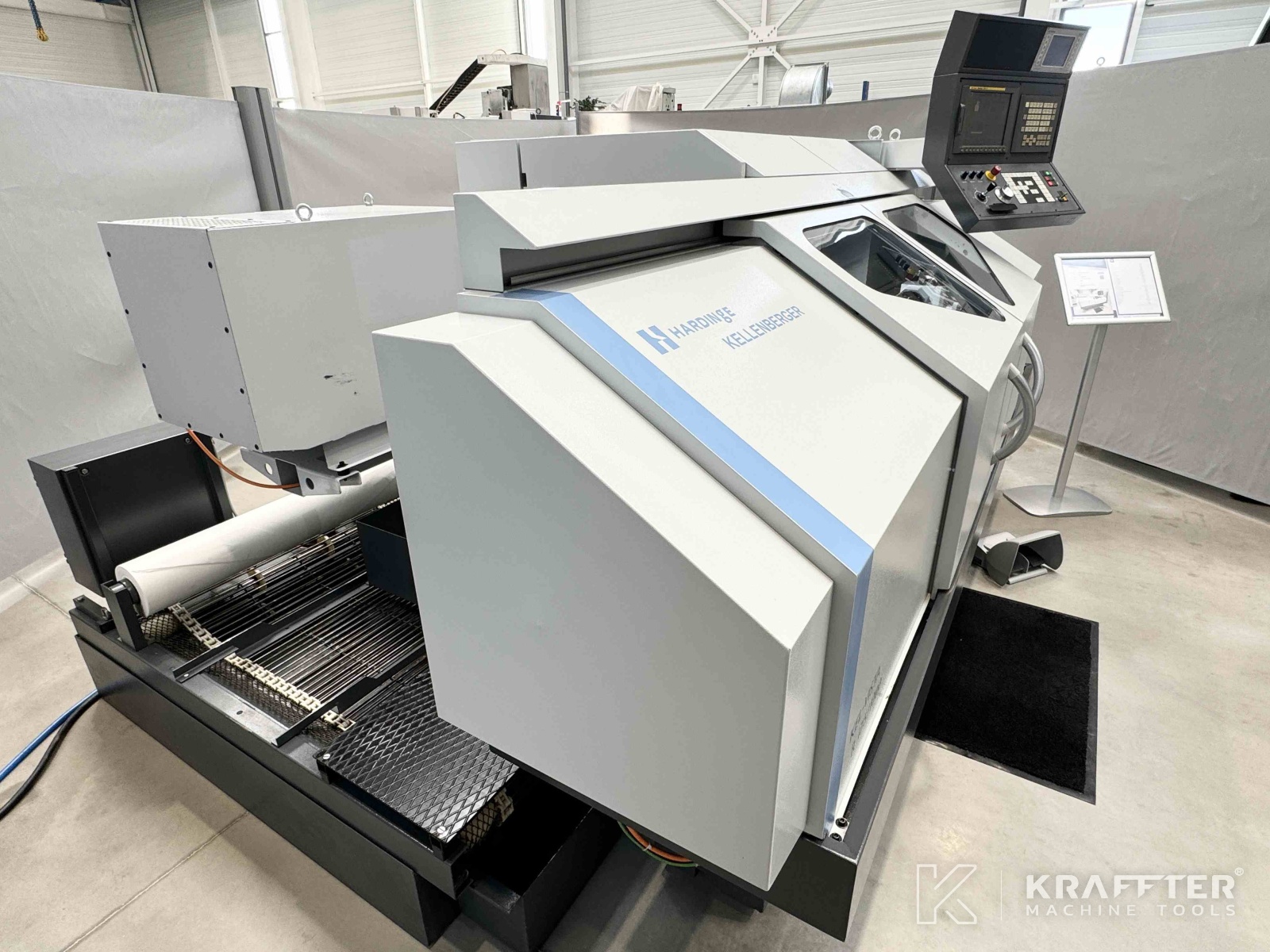

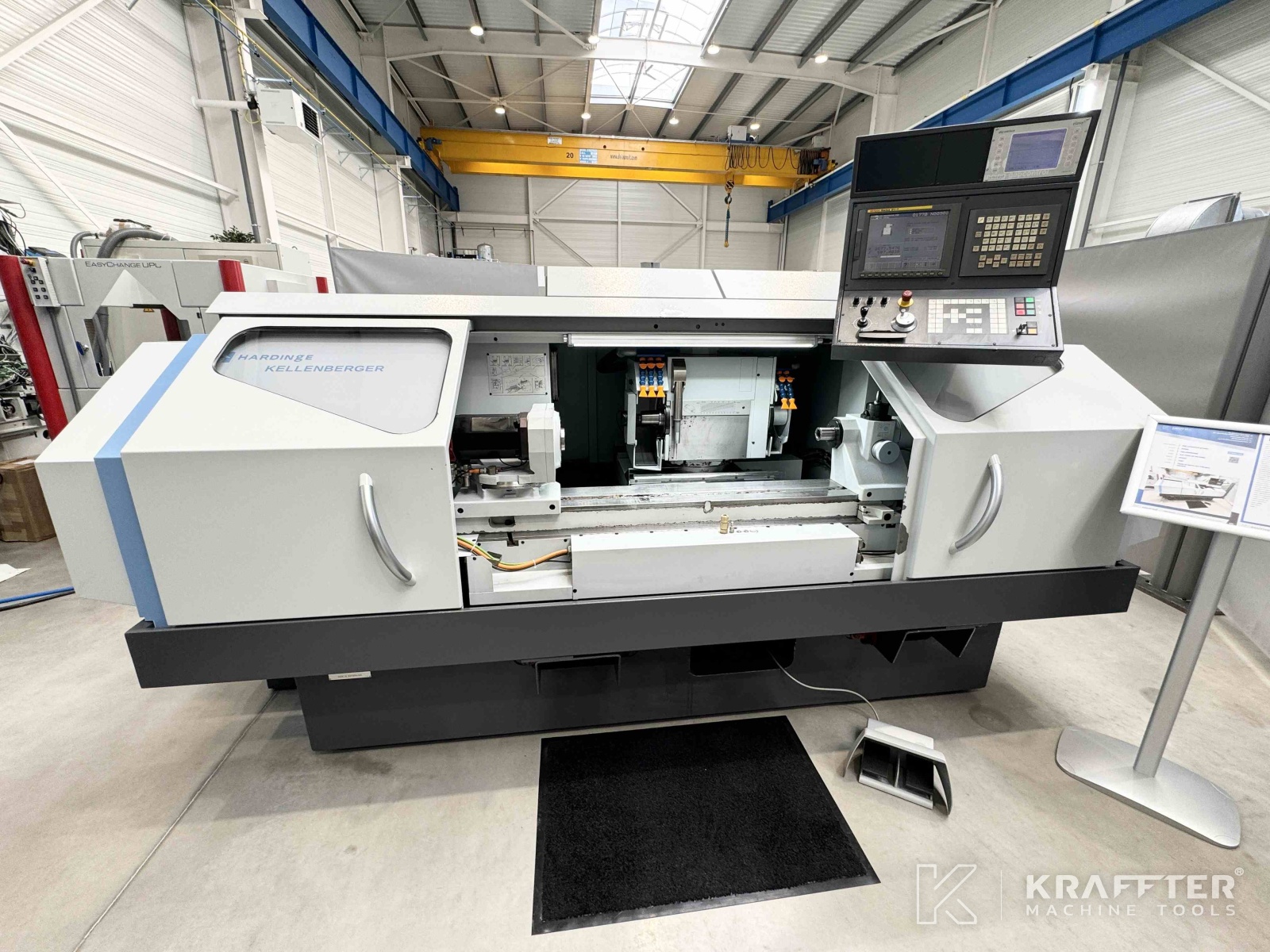

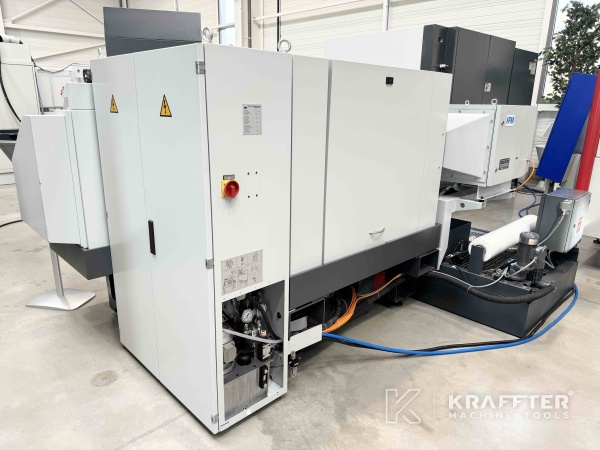

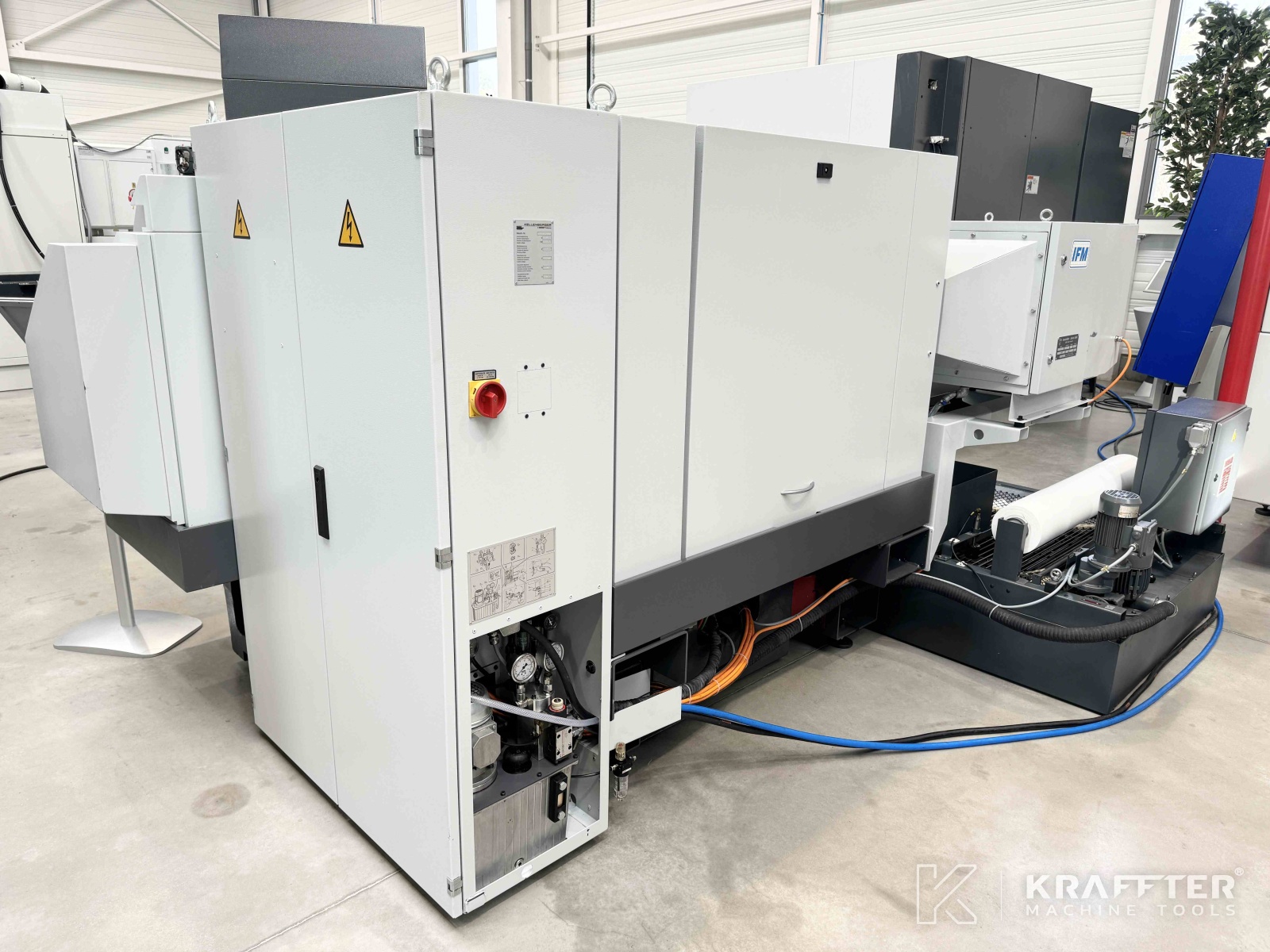

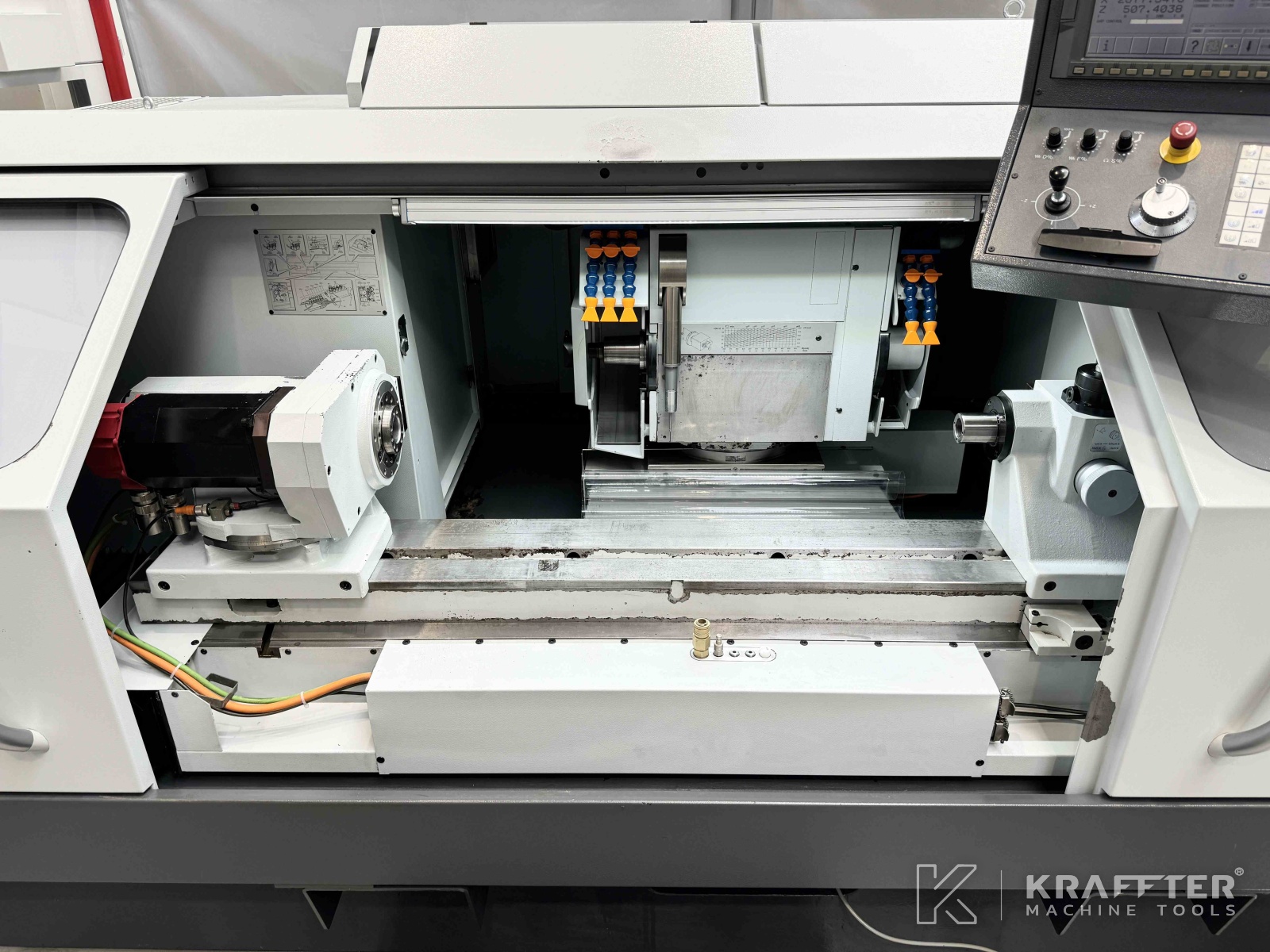

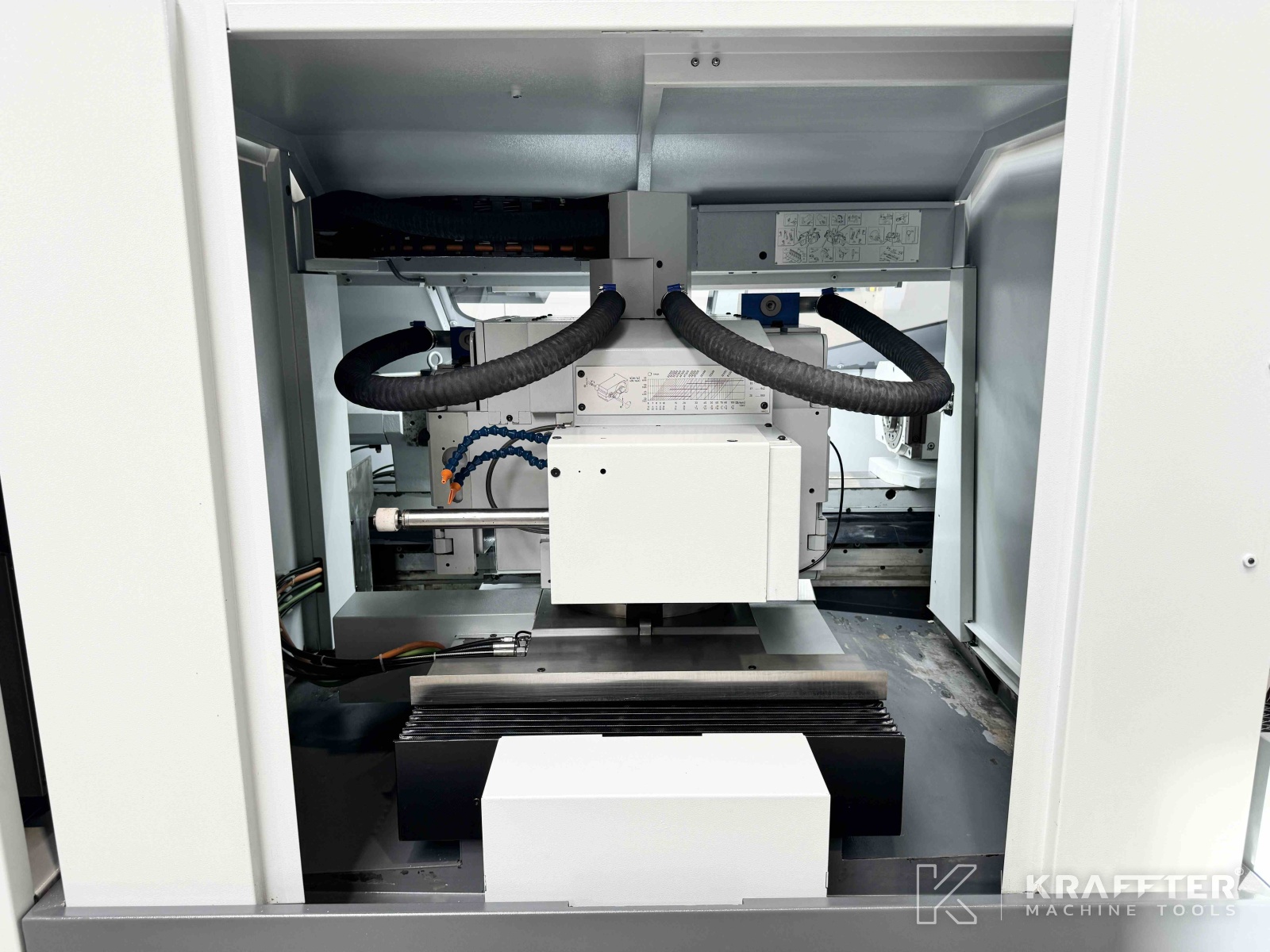

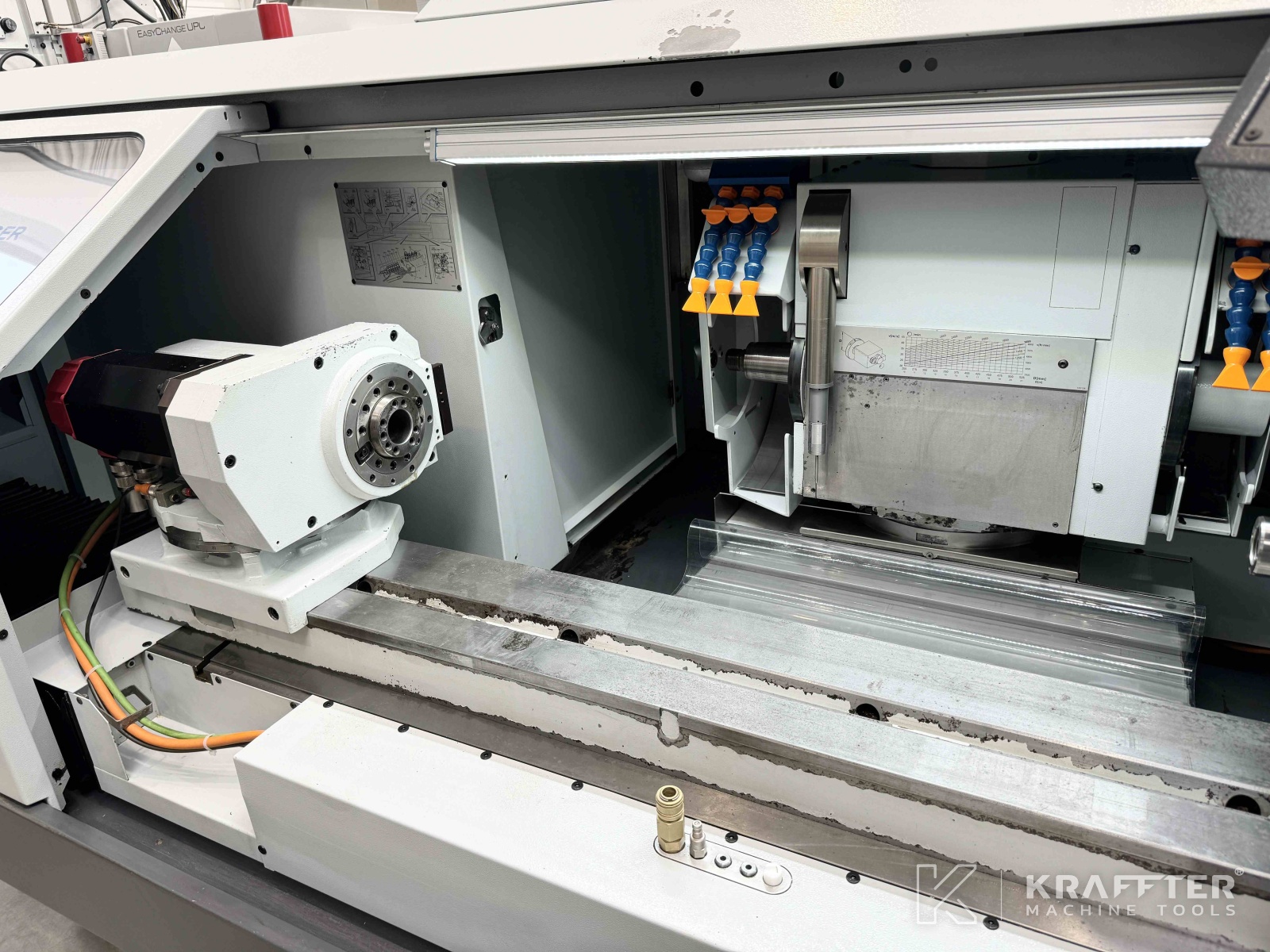

Type of machine : CNC cylindrical grinder
Brand : KELLENBERGER
Stock N° : 90100

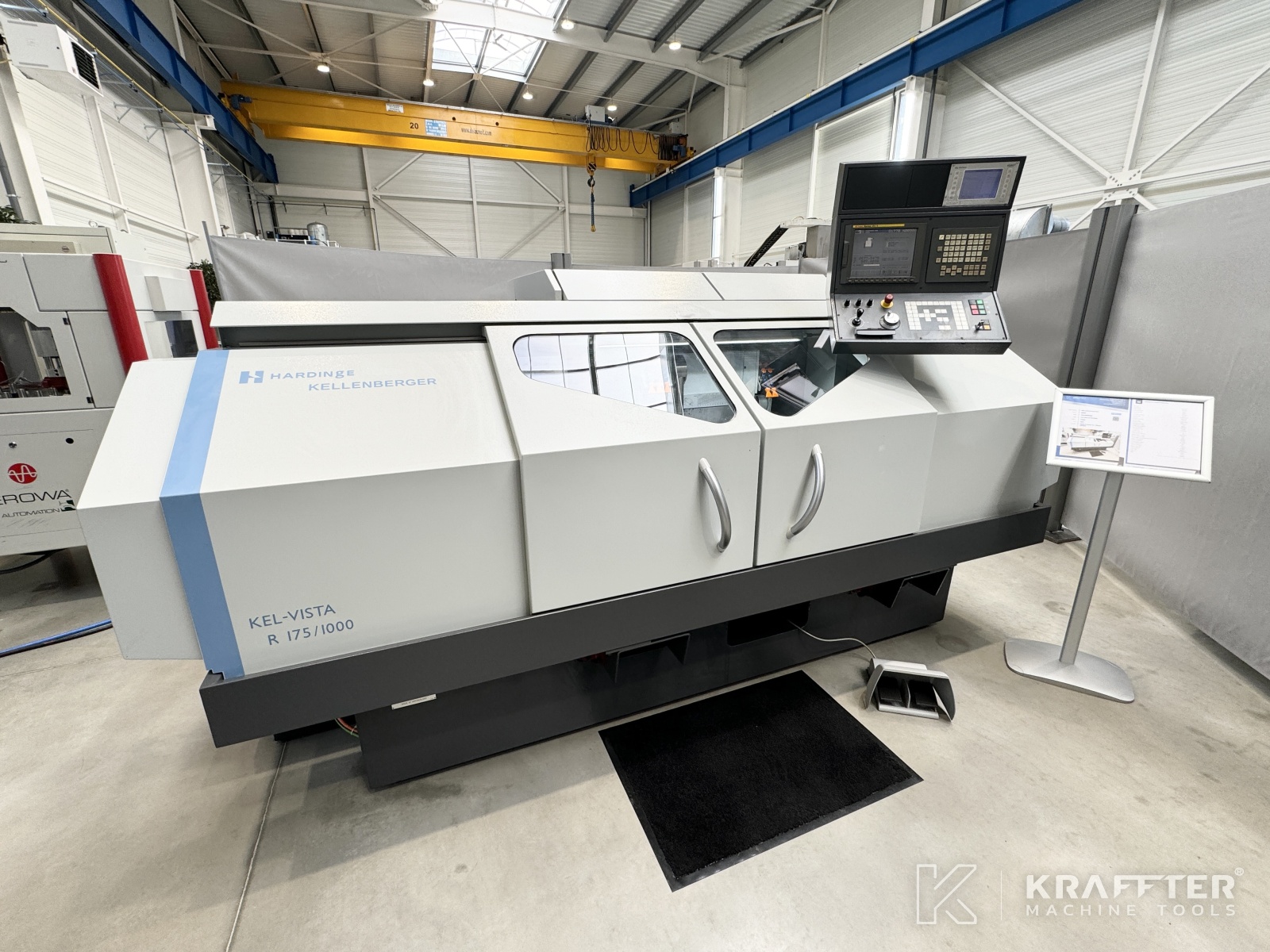

Model : Kel-Vista UR 175/1000
Serial N° : 675327
Year : 2007
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

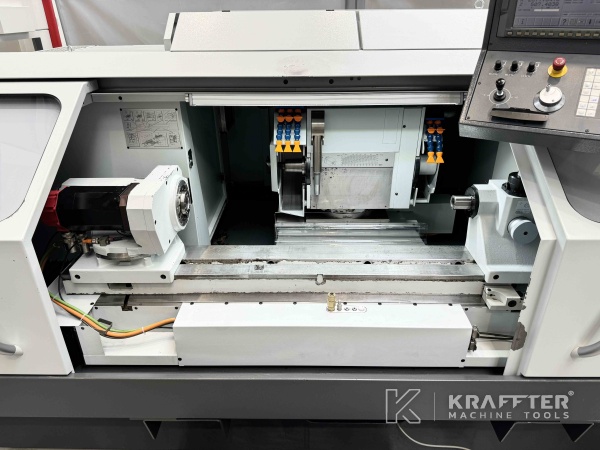

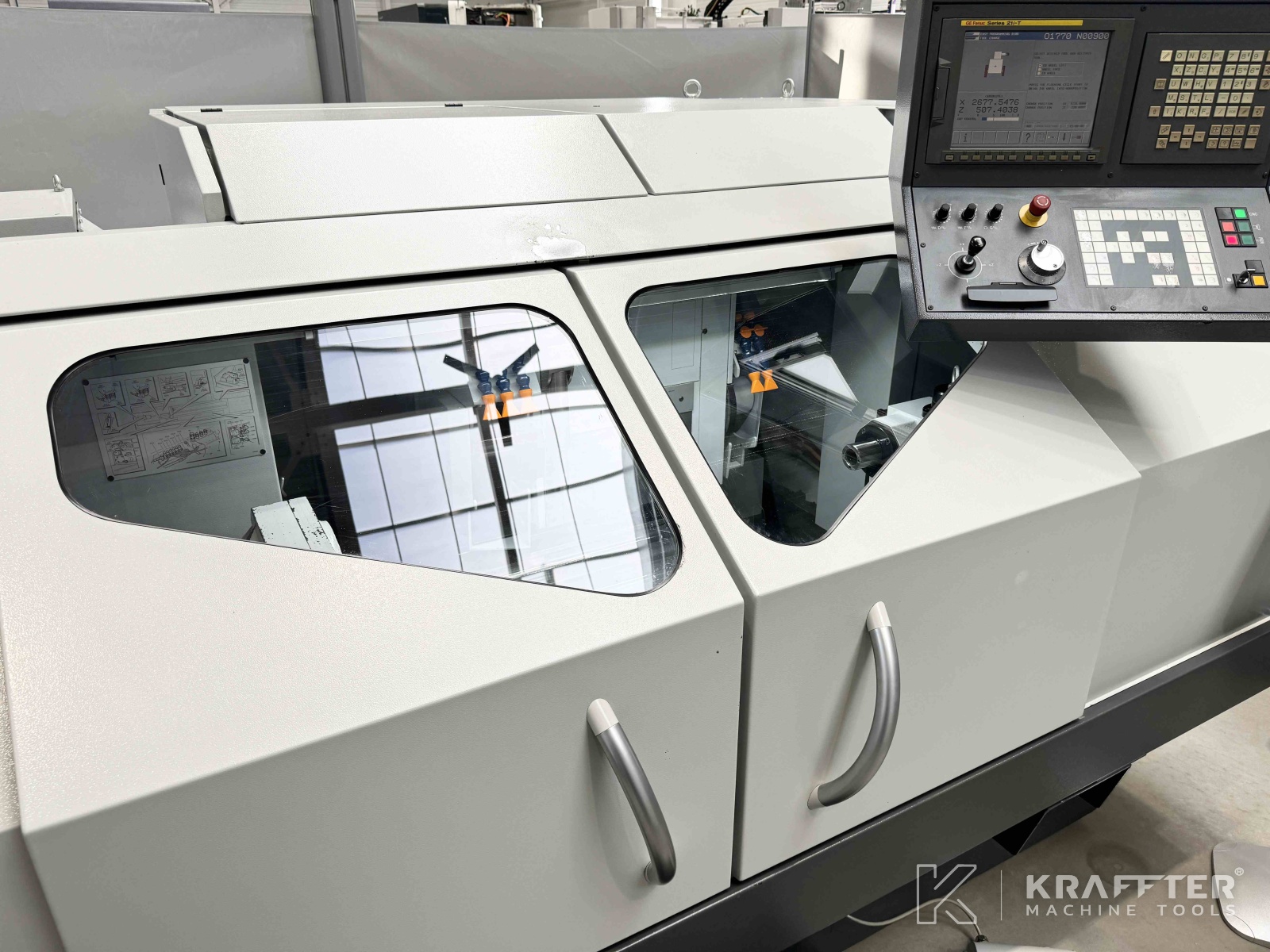

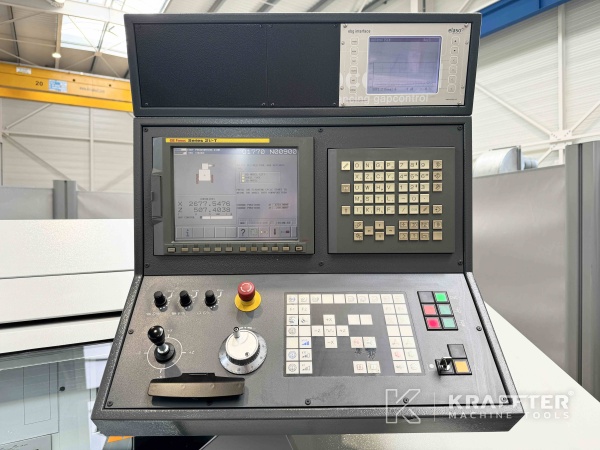

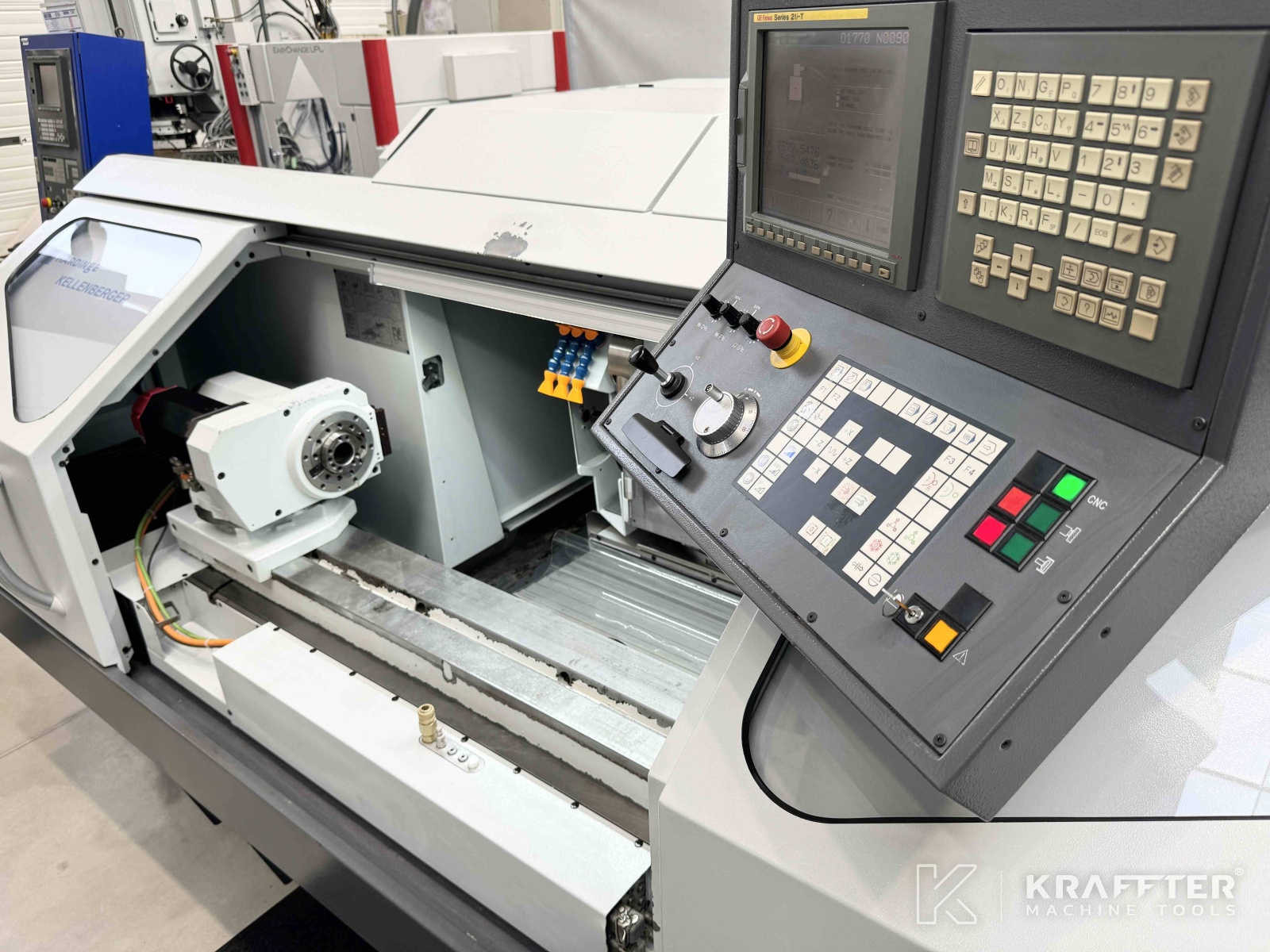

CNC control
FANUC 21i-T
Centre distance
1000 [mm]
Height of centers
175 [mm]
Max. grinding diameter
349 [mm]
Max. grinding lenght
1000 [mm]
Stroke X axis
350 [mm]
Max. Stroke speed X axis
6000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Max. Stroke speed Z axis
12000 [mm/min]
Resolution Z axis
0.0001 [mm]
Orientation of table
0 - 9 [°]
Grinding wheel min. speed
800 [rpm]
Grinding wheel max. speed
1900 [rpm]
Grinding spindle motor power
6 [kW]
B axis swivelling stroke
-210 / +10 [°]
B axis indexing precision
1 [°]
Automatic B axis
Yes

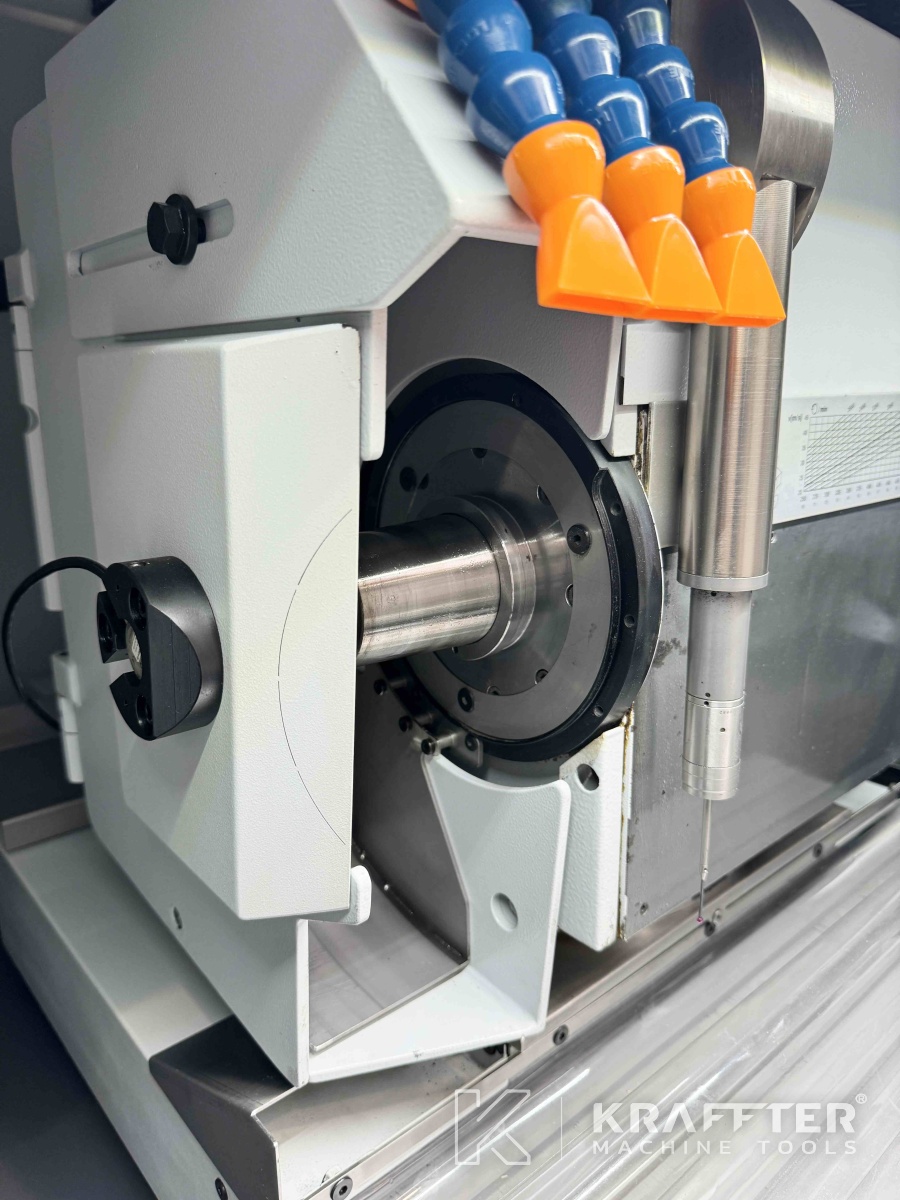

Workpiece spindle nose
DIN 55026 N° 5
Internal workpiece spindle nose
Morse 5
Workpiece spindle min. speed
8 [rpm]
Workpiece spindle max. speed
800 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
-10 / +100 [°]
Workpiece spindle power
1 [kW]
Type of attachment tailstock
Morse 4
Tailstock fine adjustment
+/- 60 [µm]
Number of running hours
12076 [h]
Collant pump flow rate
160 [l/min]
Machine dimensions
3000 x 1700 [mm]
Supply voltage
400 [V]
Rated current
18.5 [A]
Weight
3500 [Kg]

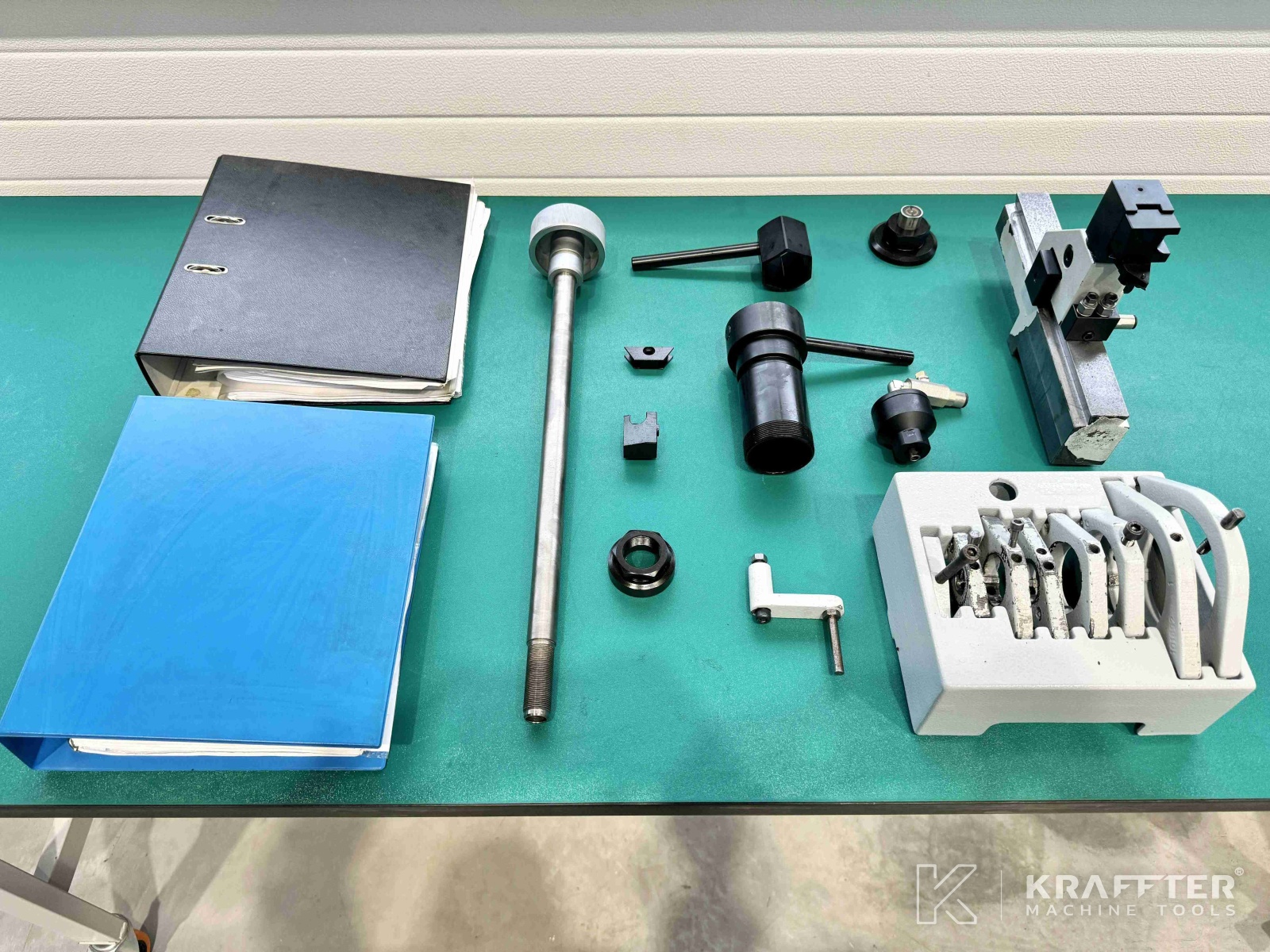

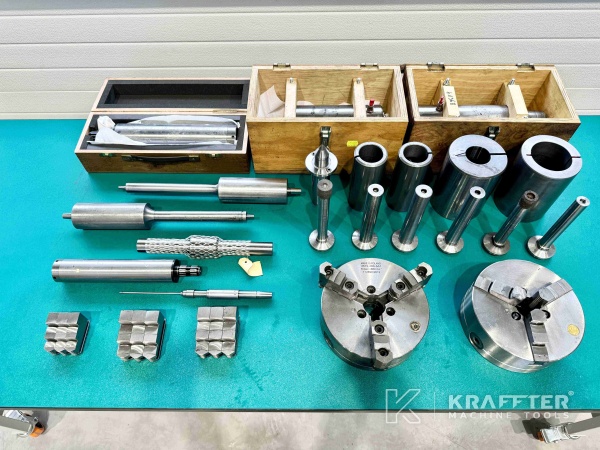

EQUIPMENT INCLUDED:

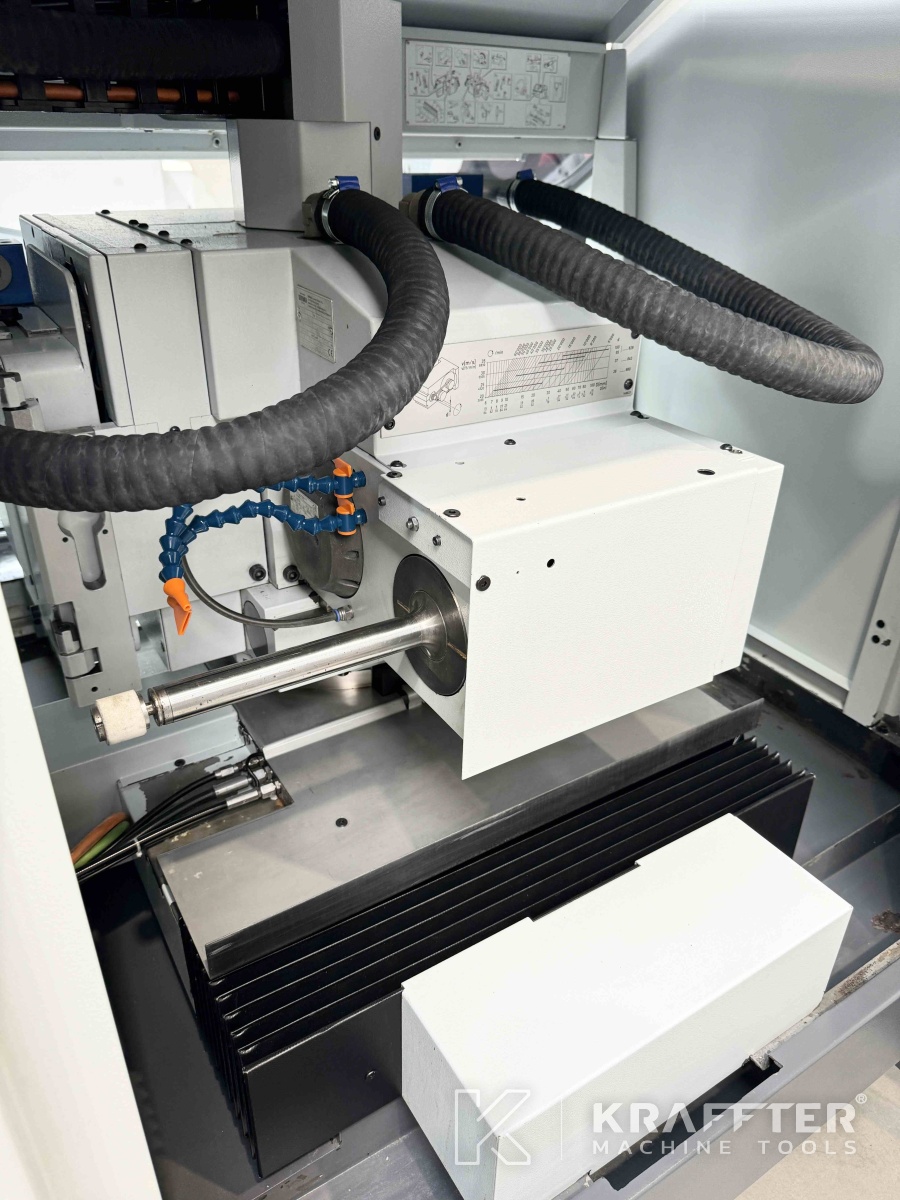

x1 inernal grinding device

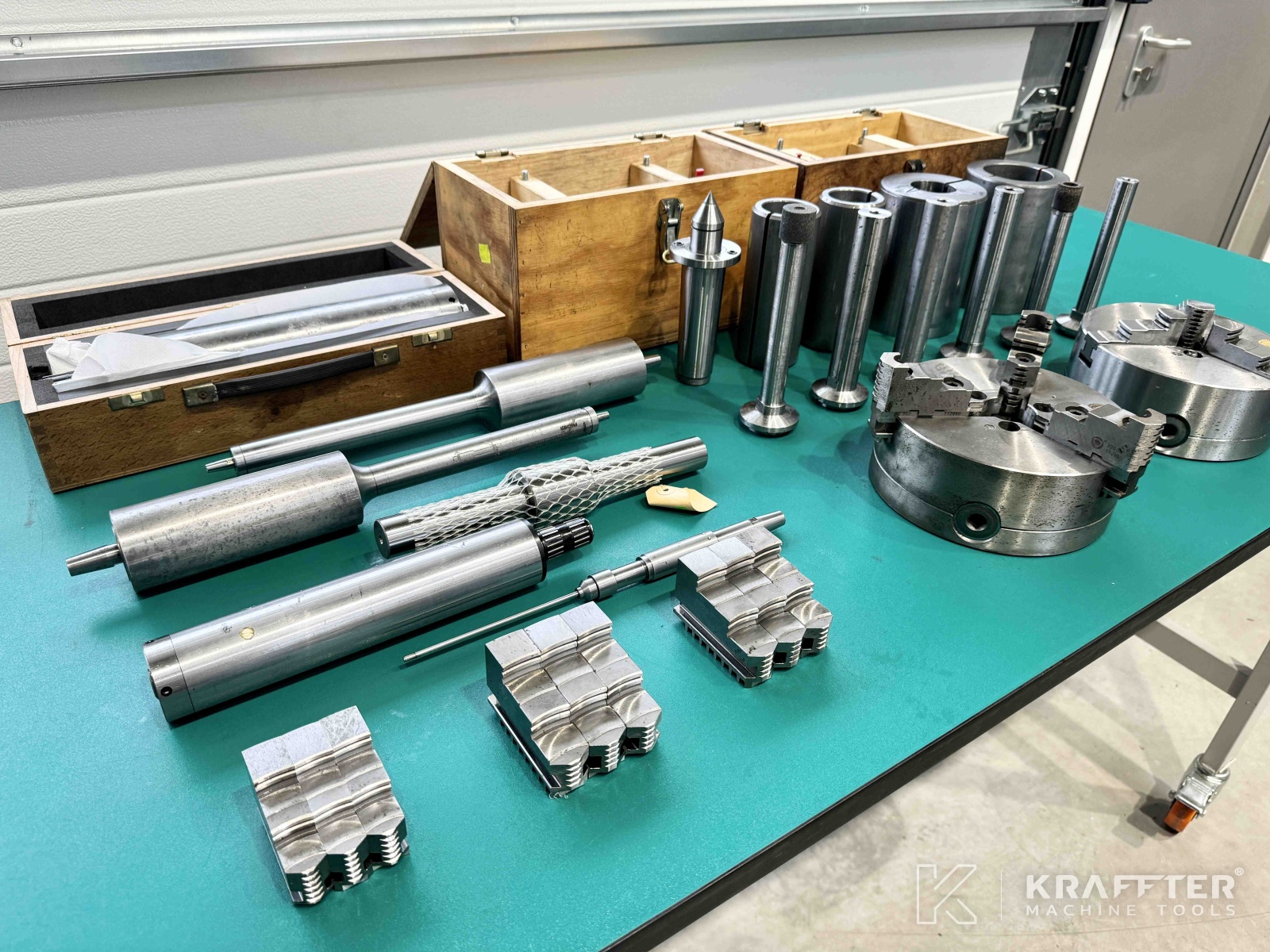

x1 internal spindle SLF type SFAA60x160-25x220-1132A (25000 rpm)
x1 internal spindle FISCHER type FAV25.60R380.22 (26000 rpm)
x1 internal spindle SFJ type UJ50
x1 internal spindle FISCHER type UJ-70x300 (14000 rpm)
x1 internal spindle RENAUD Switzerland type 124-080230-M10 (42000 rpm)
x1 internal spindle RENAUD Switzerland type 124-080240-M16R (28000 rpm)
x2 concentric 3 jaw chucks Ø200 [mm]
x3 sets of hardened jaws

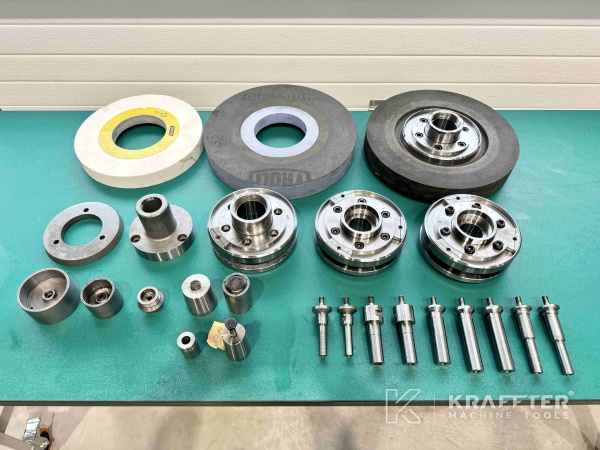

x1 arbor for wheel balacing operations
x1 wheel flanges
x15 internal grinding arbors (various lengths)
x1 dressing device
x1 service key

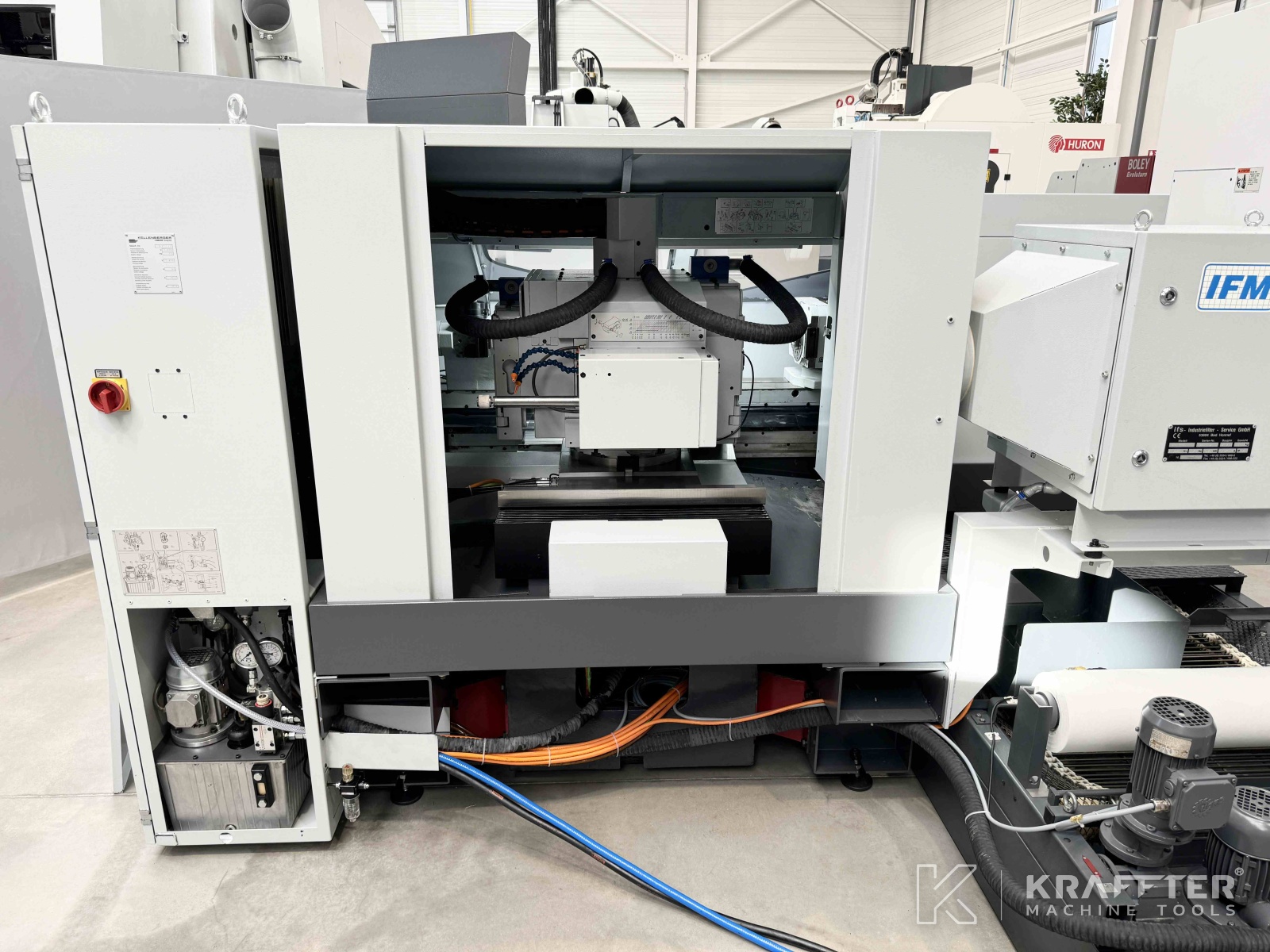

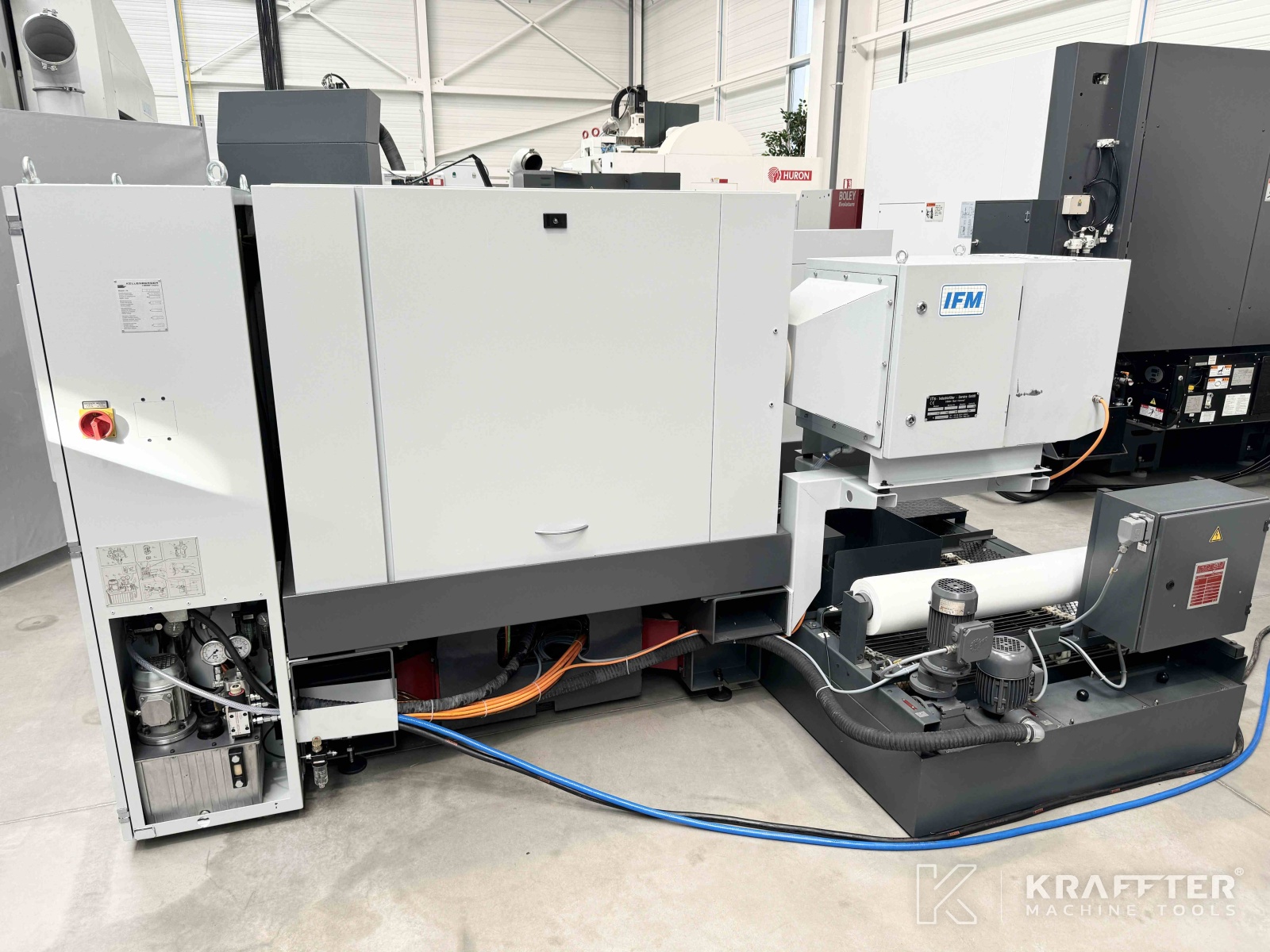

x1 IFM type IFMC 1800 oil mist extraction unit

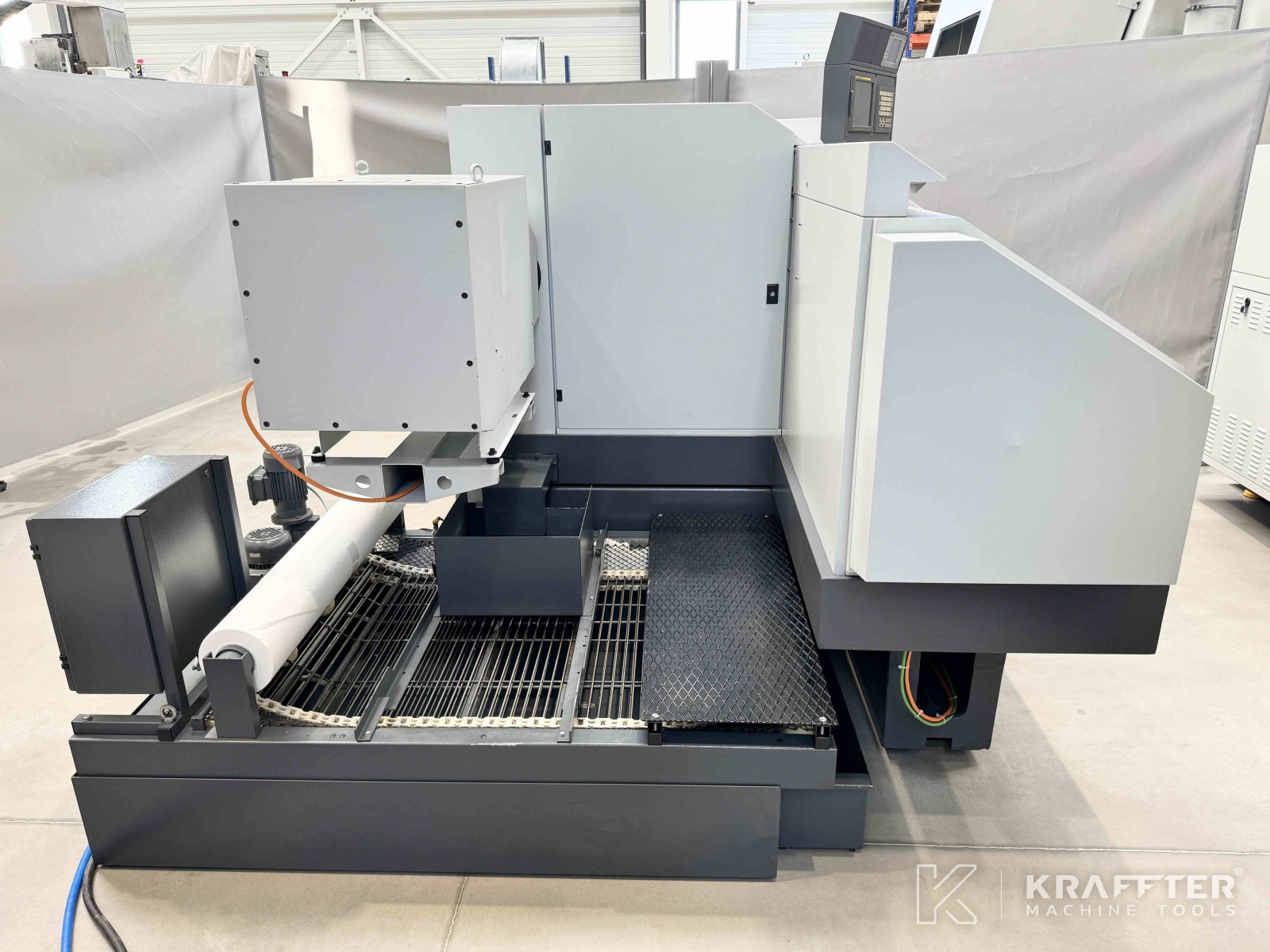

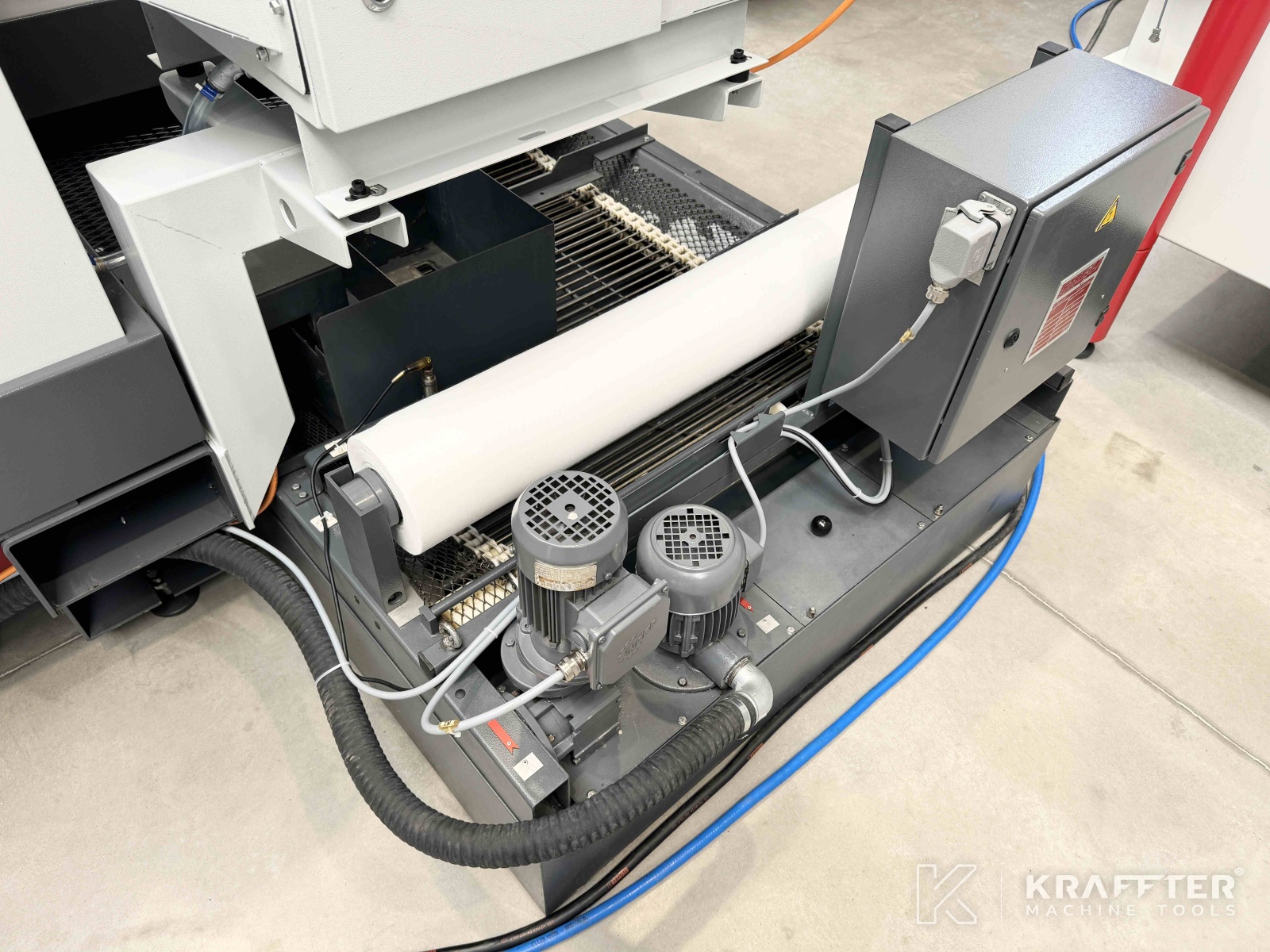

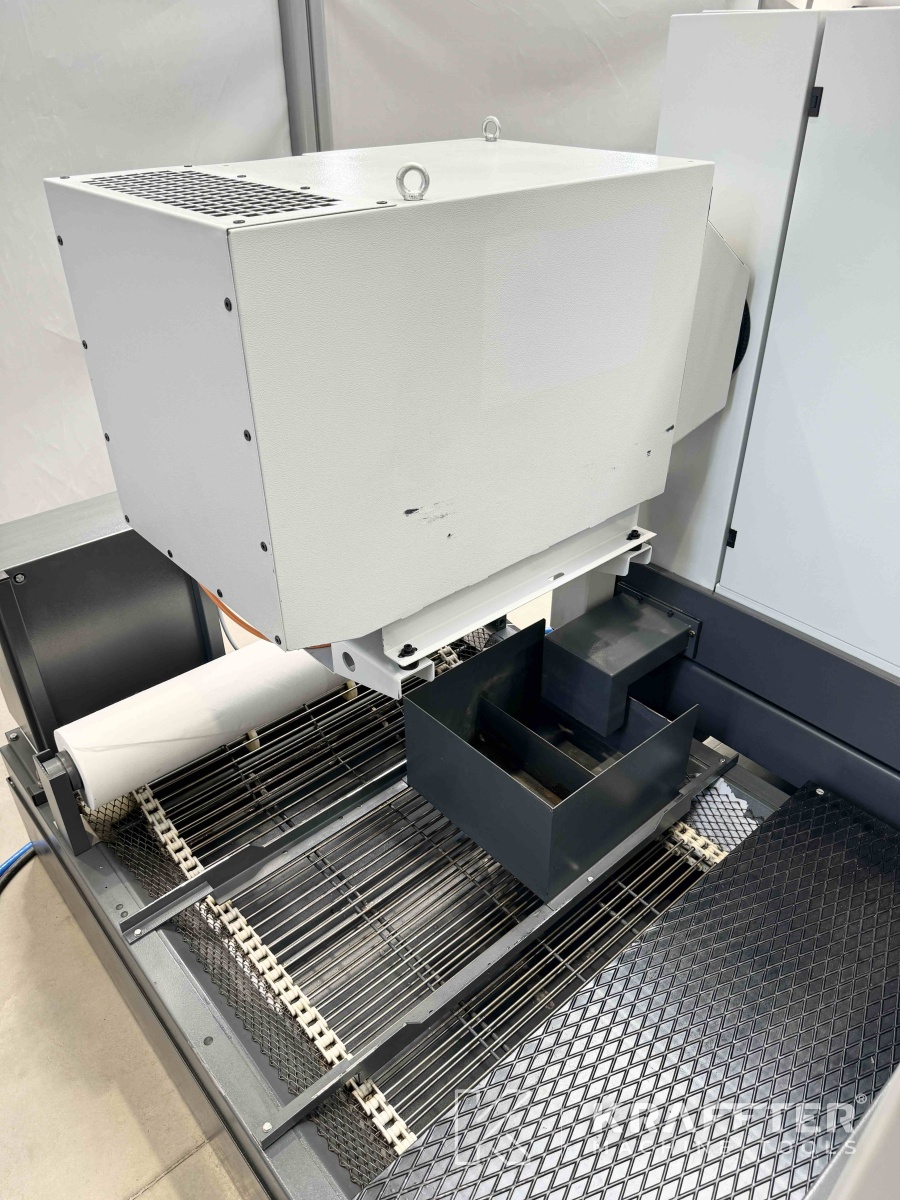

x1 paper tape filtration device including coolant tank
x1 MOVOMATIC type C25 part probe
x1 KEL-BALANCE (ELASO BALANCING GAP CONTROL) semi-automatic wheel balancing device

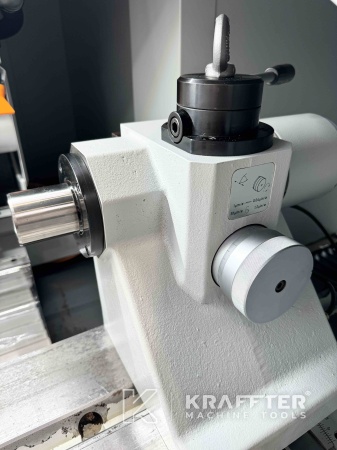

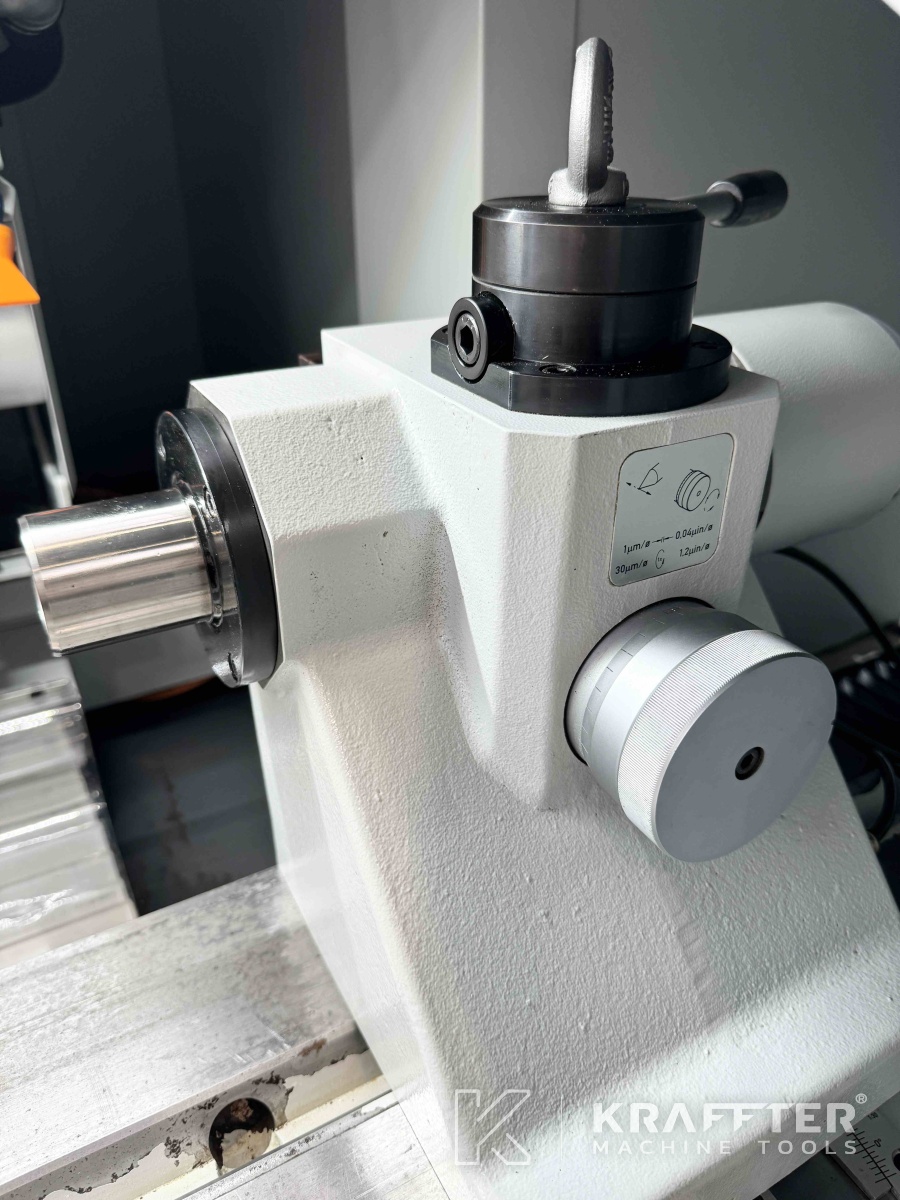

x1 tailstock with fine taper adjustment
x1 set of service, instructions and spare parts manuals in English
Various miscellaneous equipments
