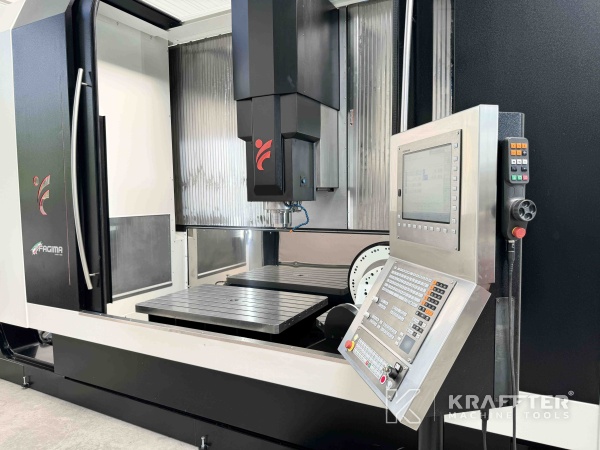

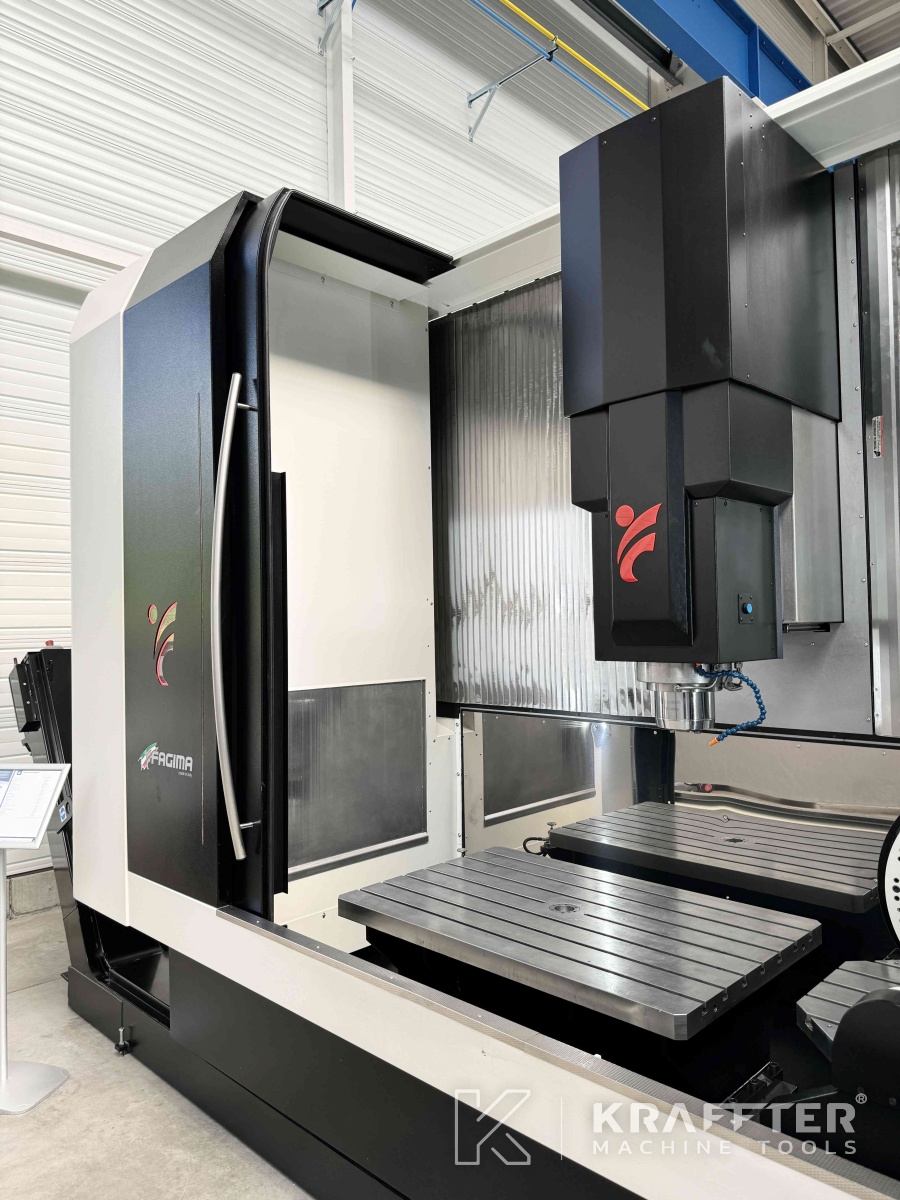

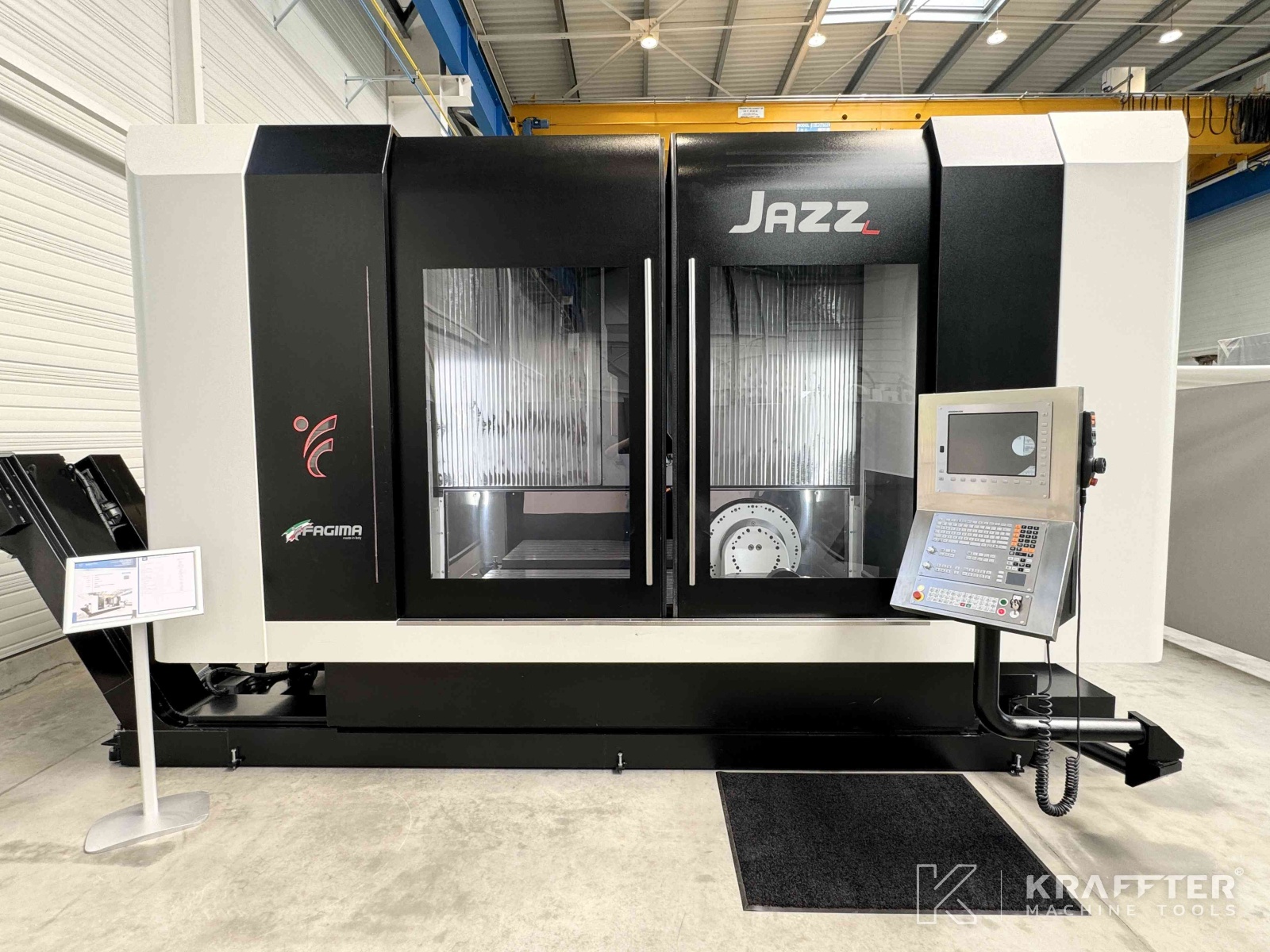

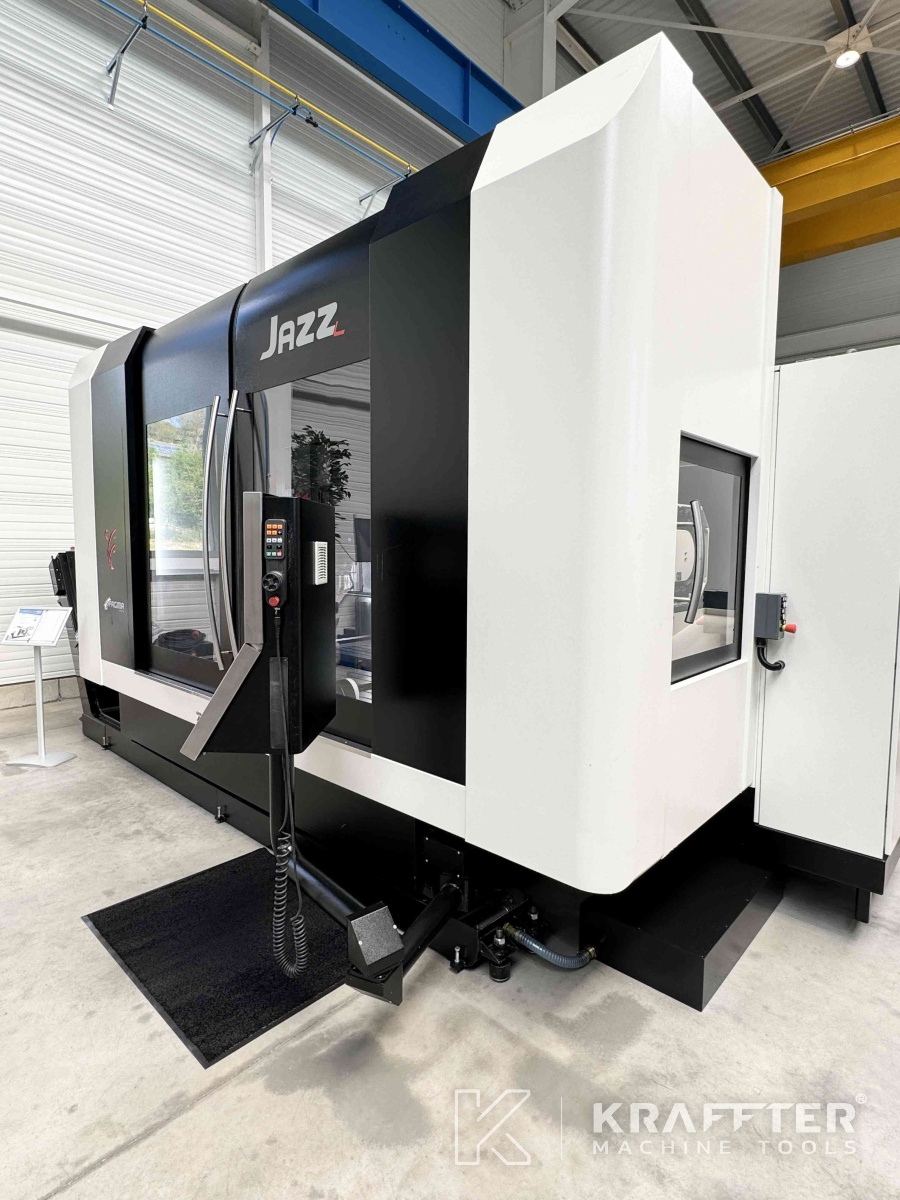

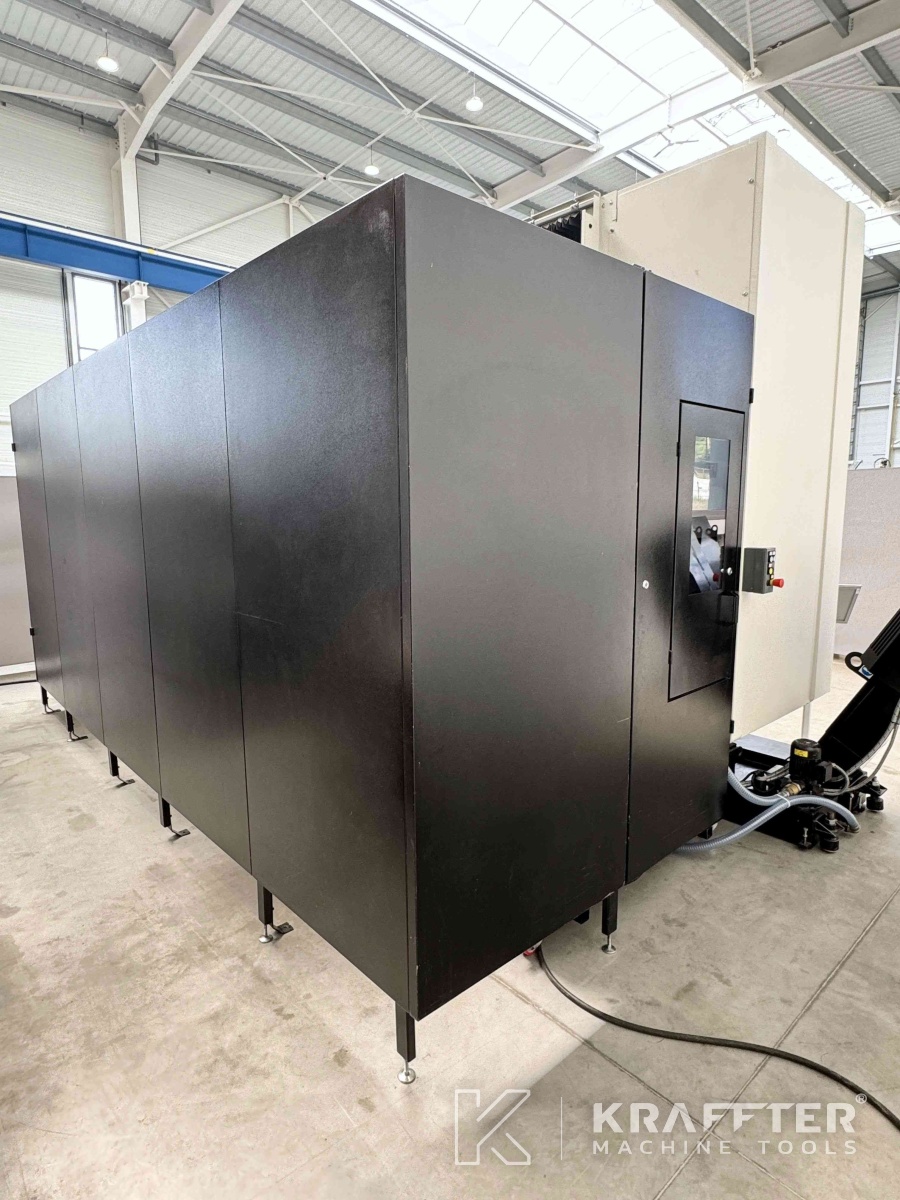

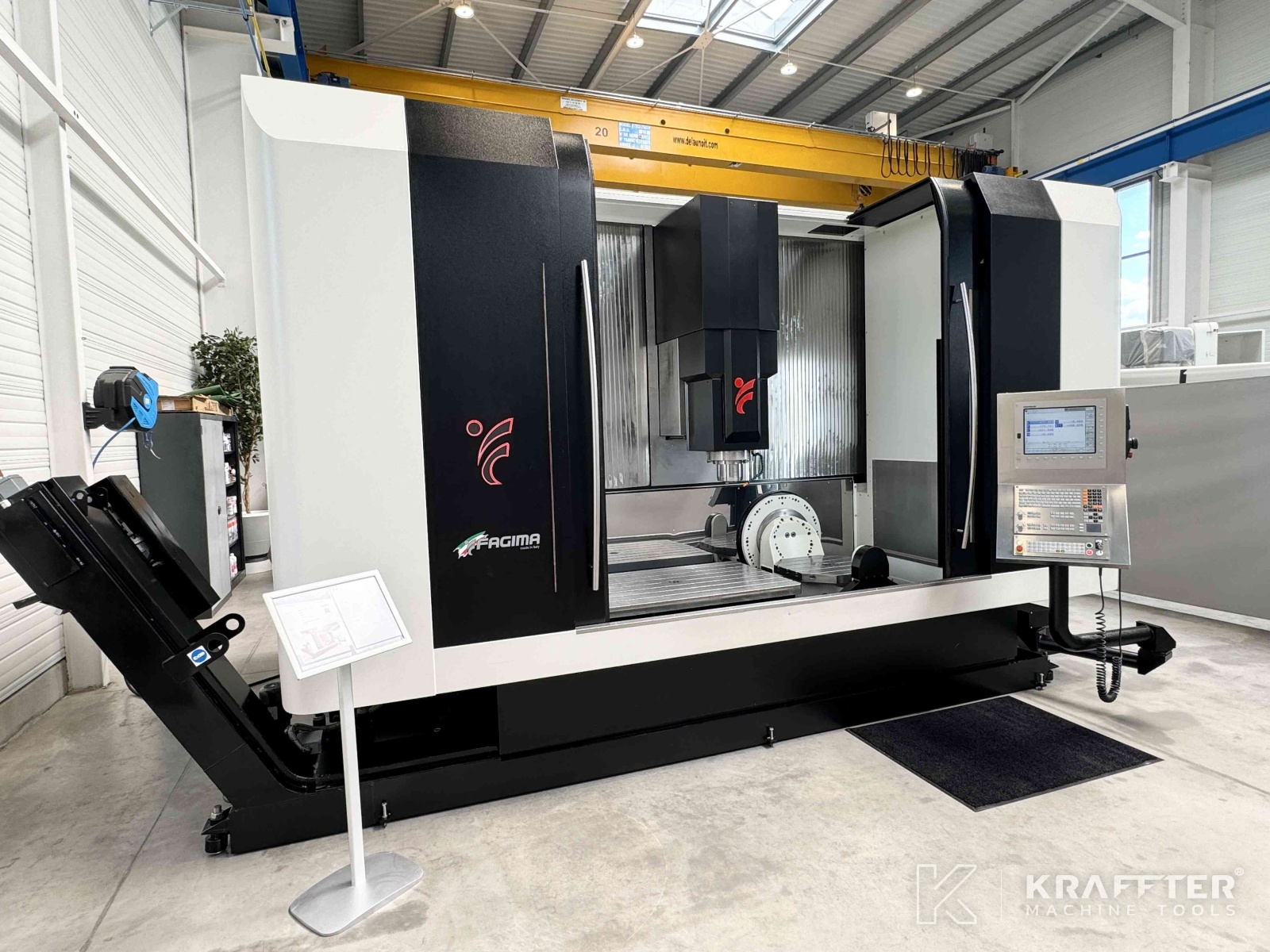

Type of machine : Vertical machining center
Brand : FAGIMA
Stock N° : 90102
Model : Jazz L5 AX
Year : 2018
Location : 73240 St-Genix-les-Villages, FRANCE
Download the Datasheet
Please wait a moment...Videos :
Technical characteristics
Additional information
Request a quotation

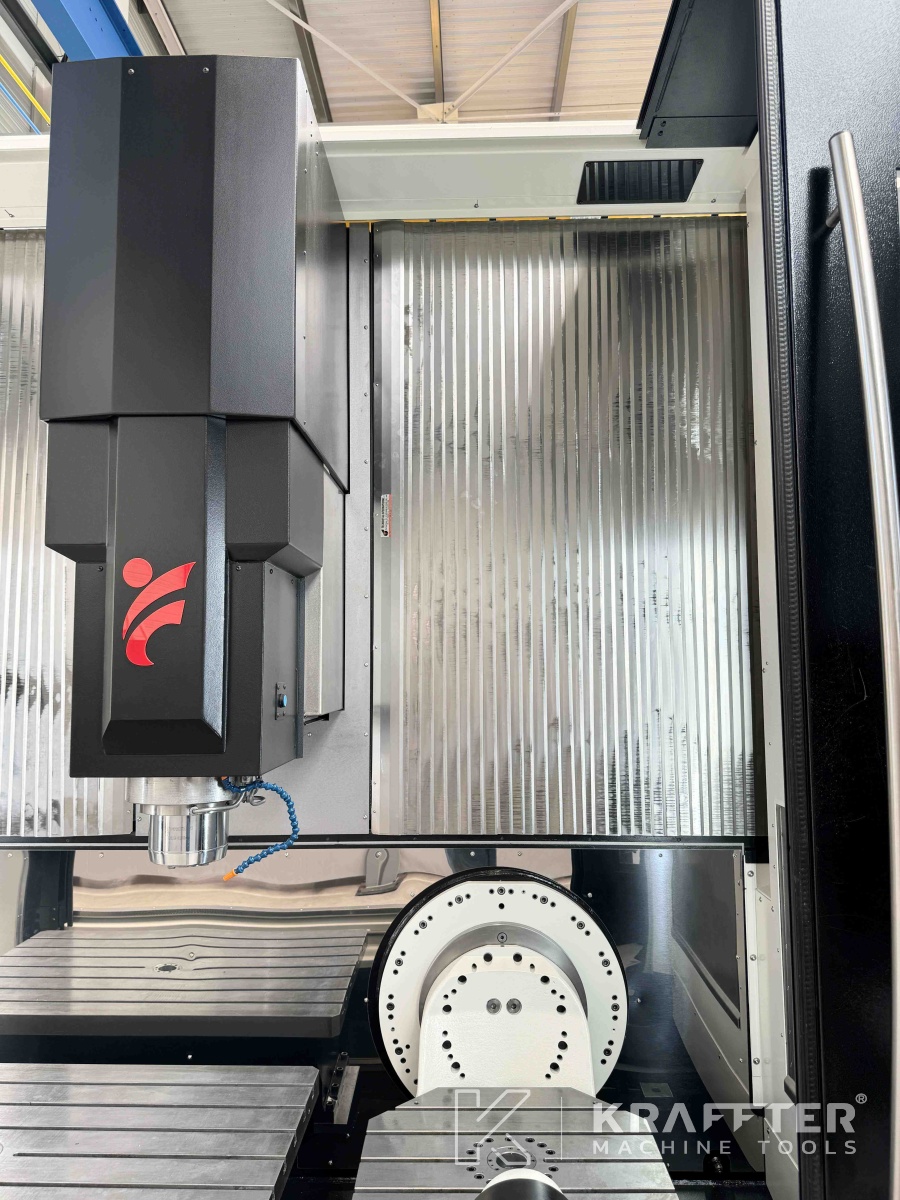

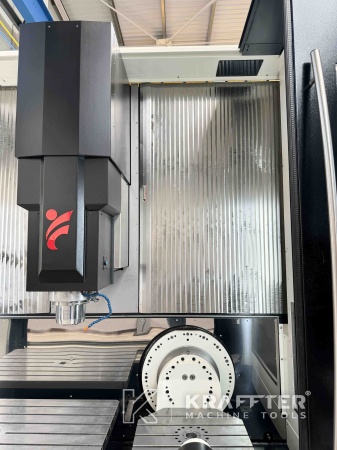

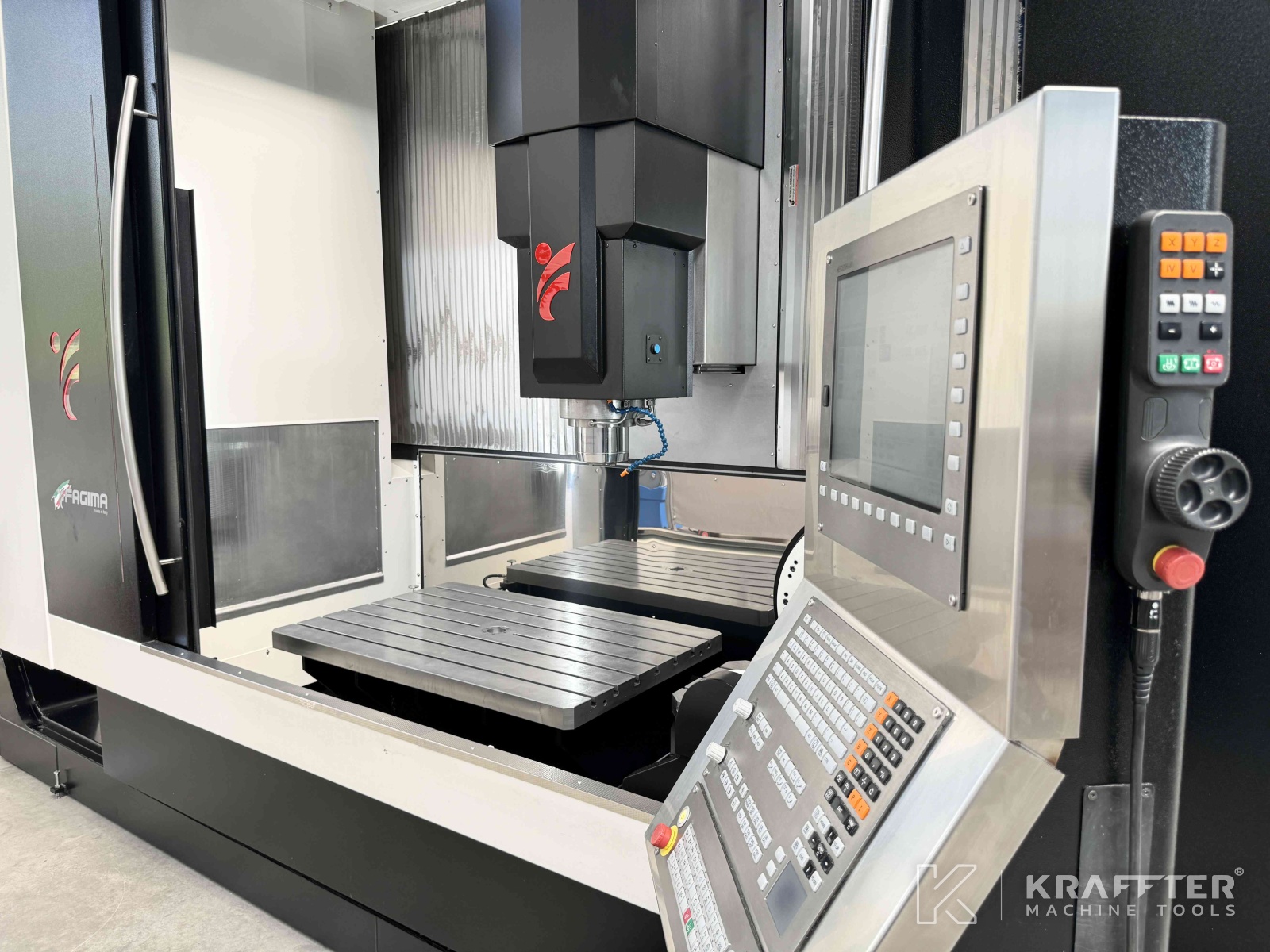

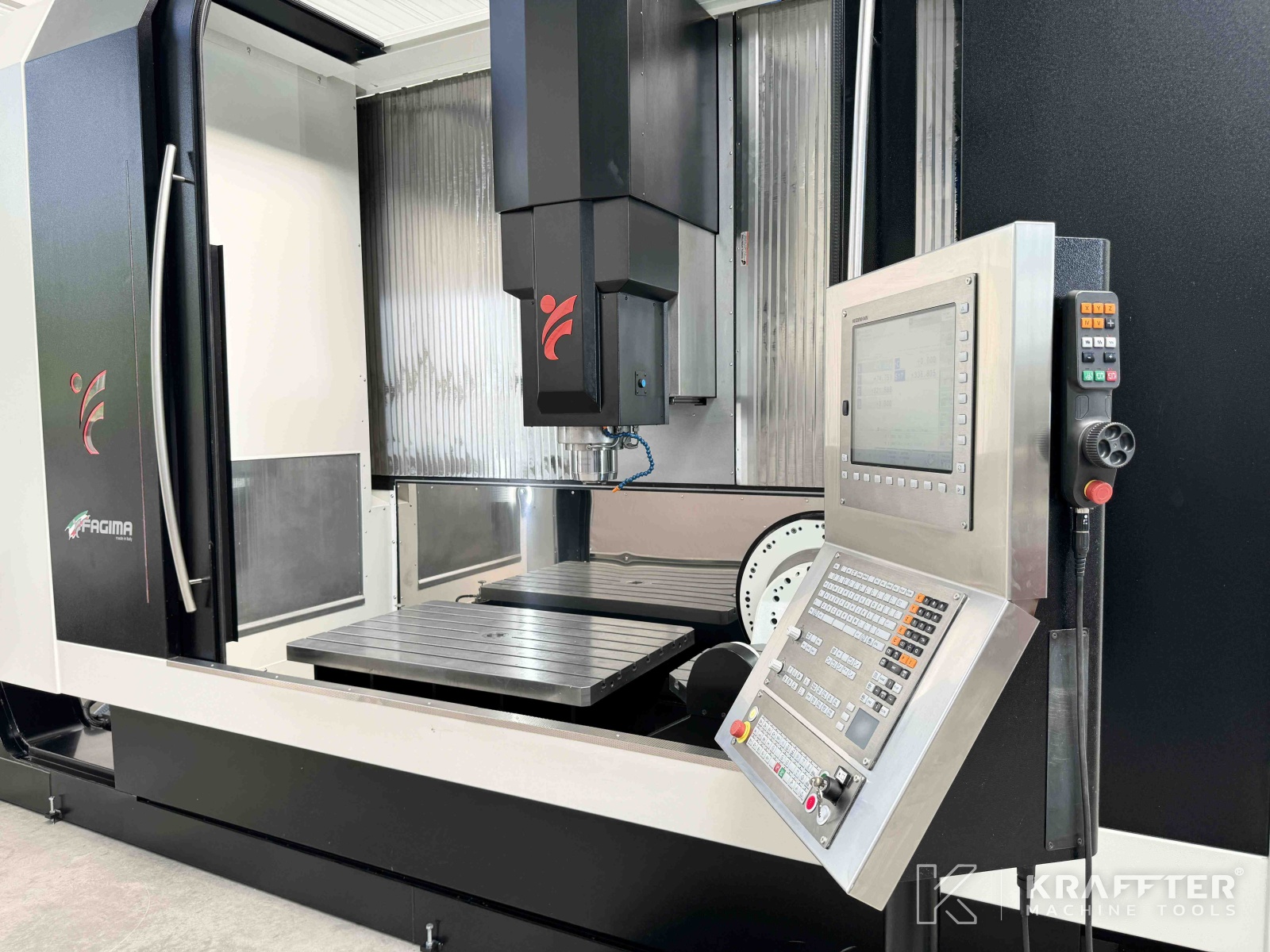

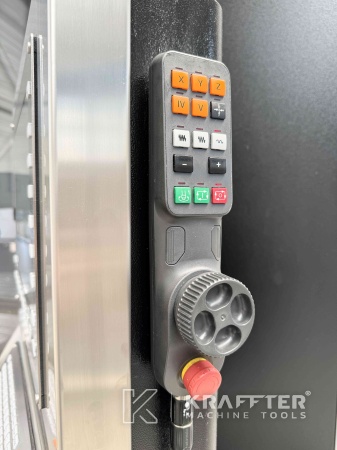

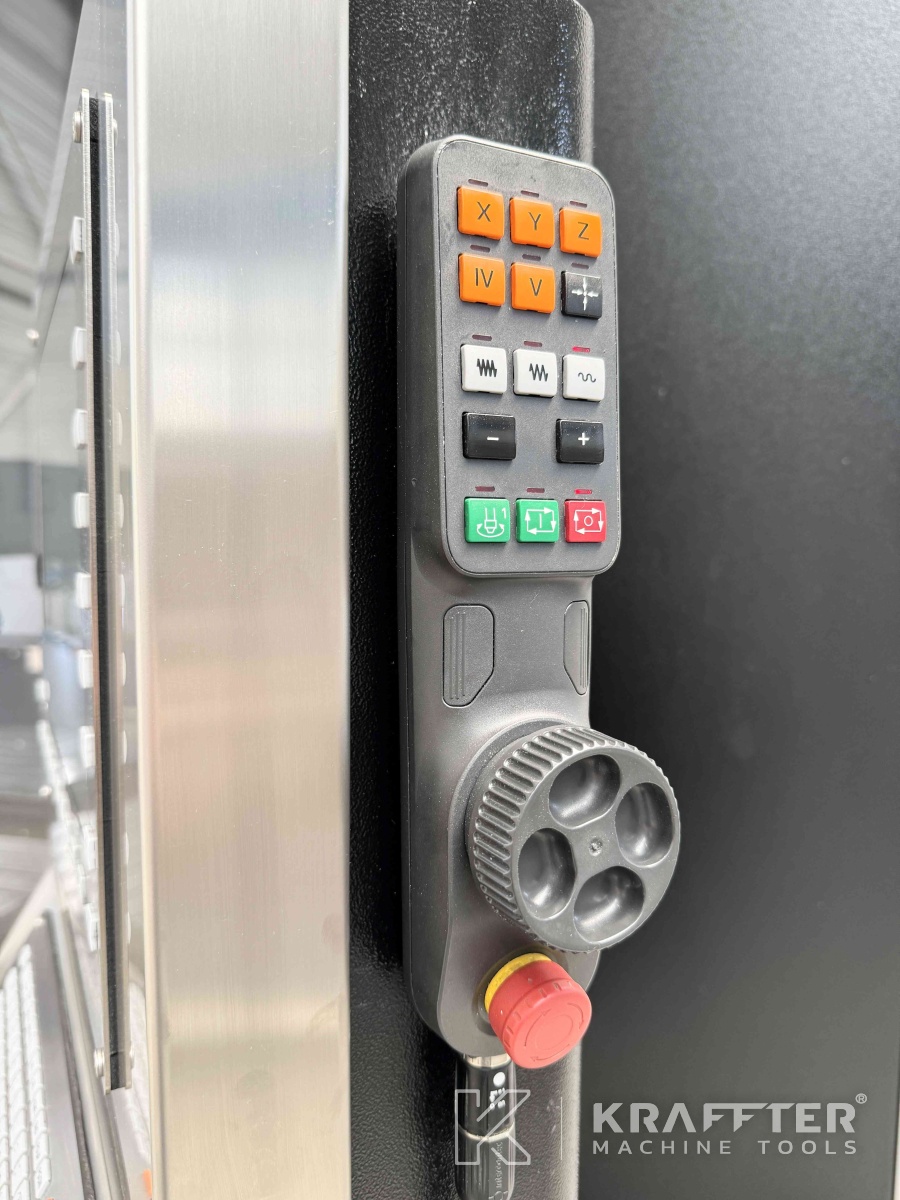

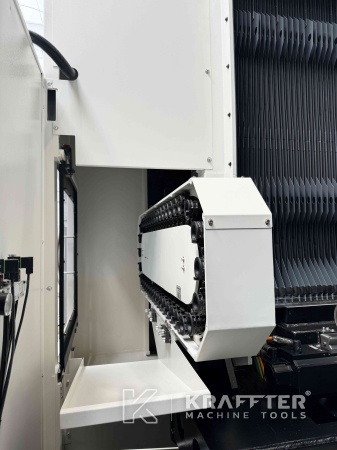

CNC control

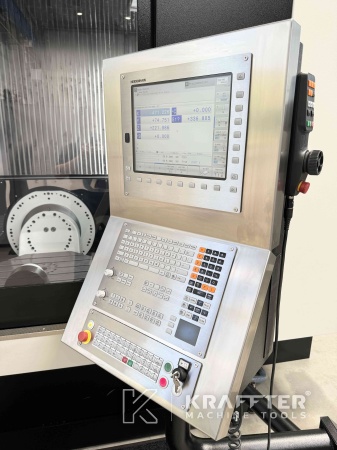

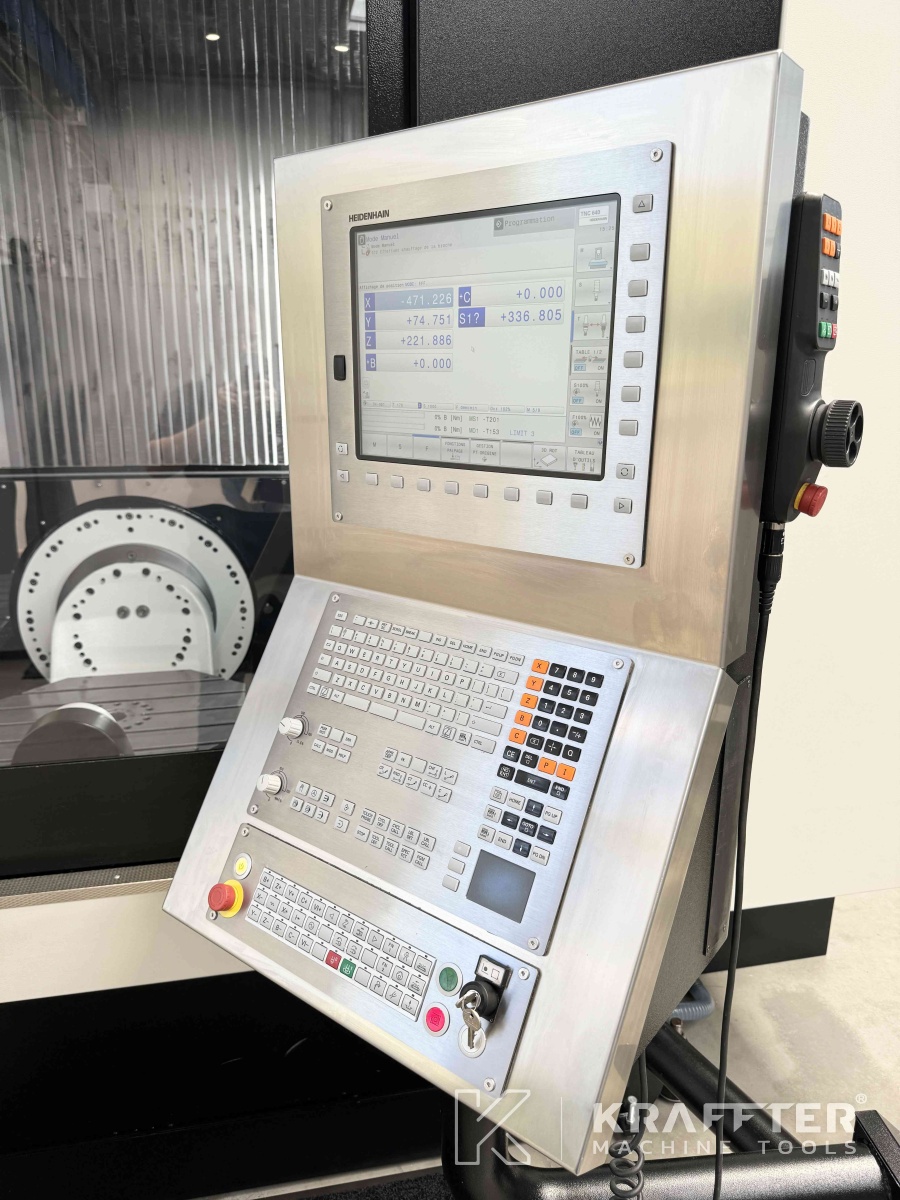

HEIDENHAIN iTNC 640
Number of simultaneous axes
5

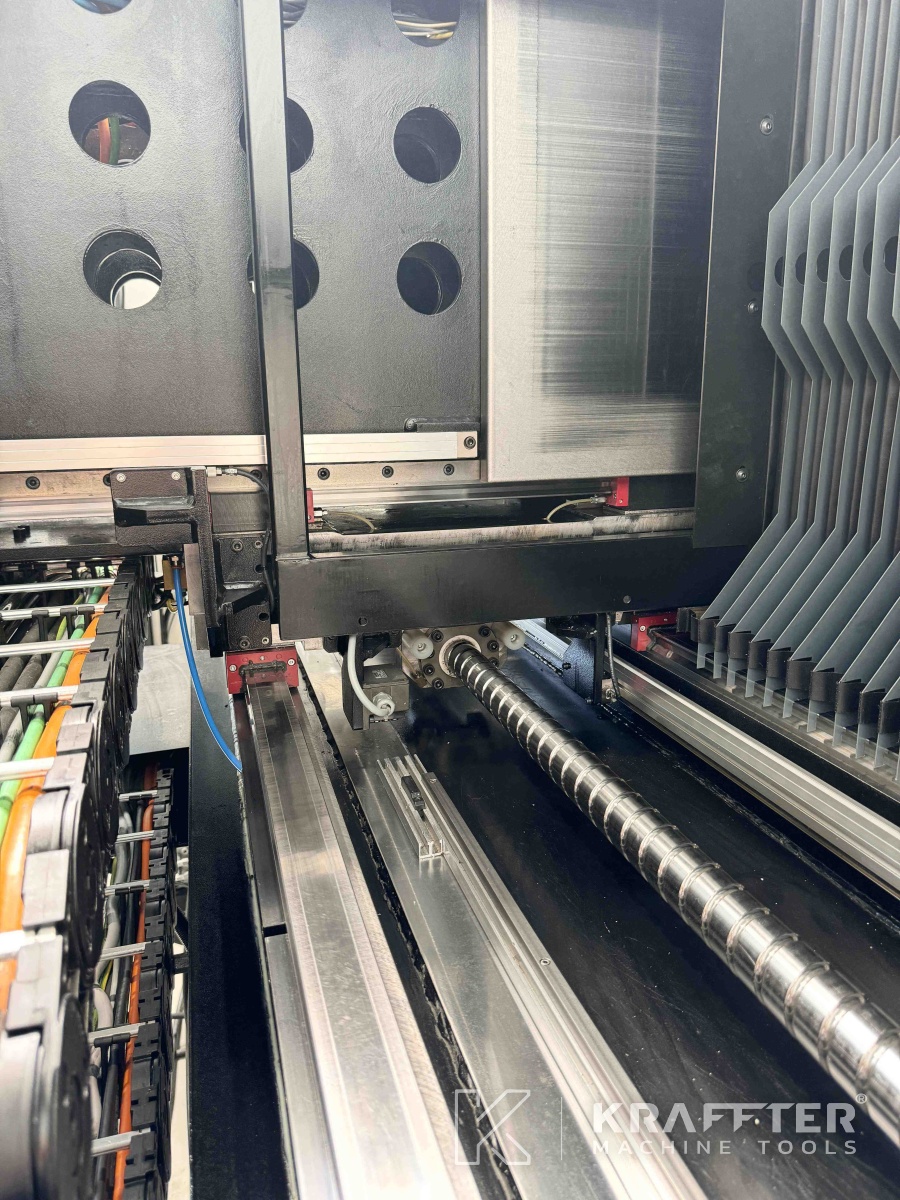

Stroke X axis
2000 [mm]
Stroke Y axis
600 [mm]
Stroke Z axis
550 [mm]
Feed rate on X, Y and Z axes
20000 [mm/min]
Traversing feeds X, Y and Z axes
40000 [mm/min]
Axes acceleration
2.5 [mm/sec²]
Min. distance spindle nose / table
30 [mm]

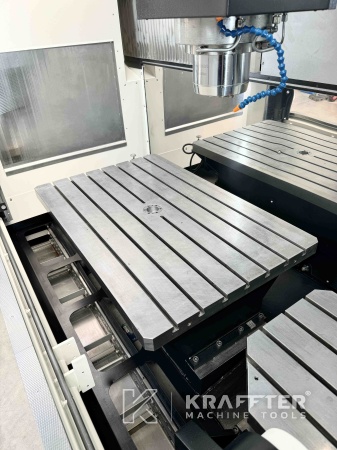

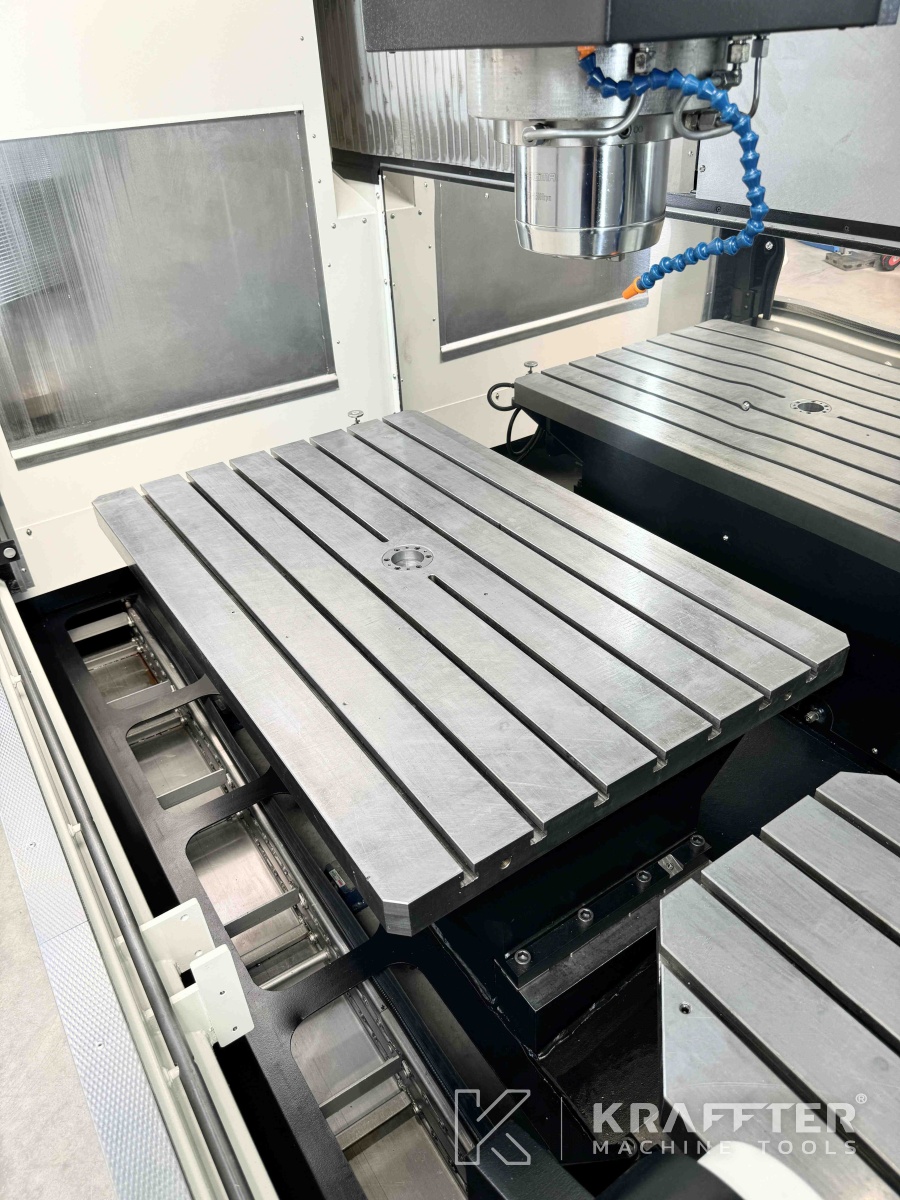

Table length
1250 [mm]
Table width
800 [mm]
Max. load on table
500 [Kg]

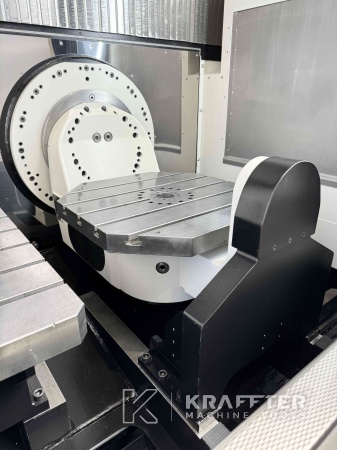

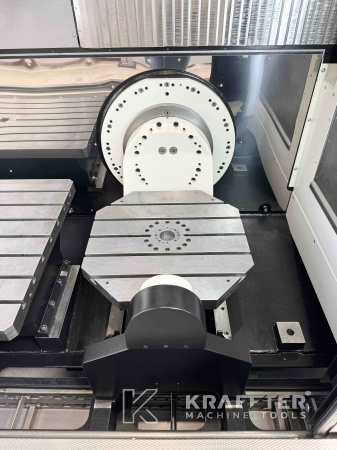

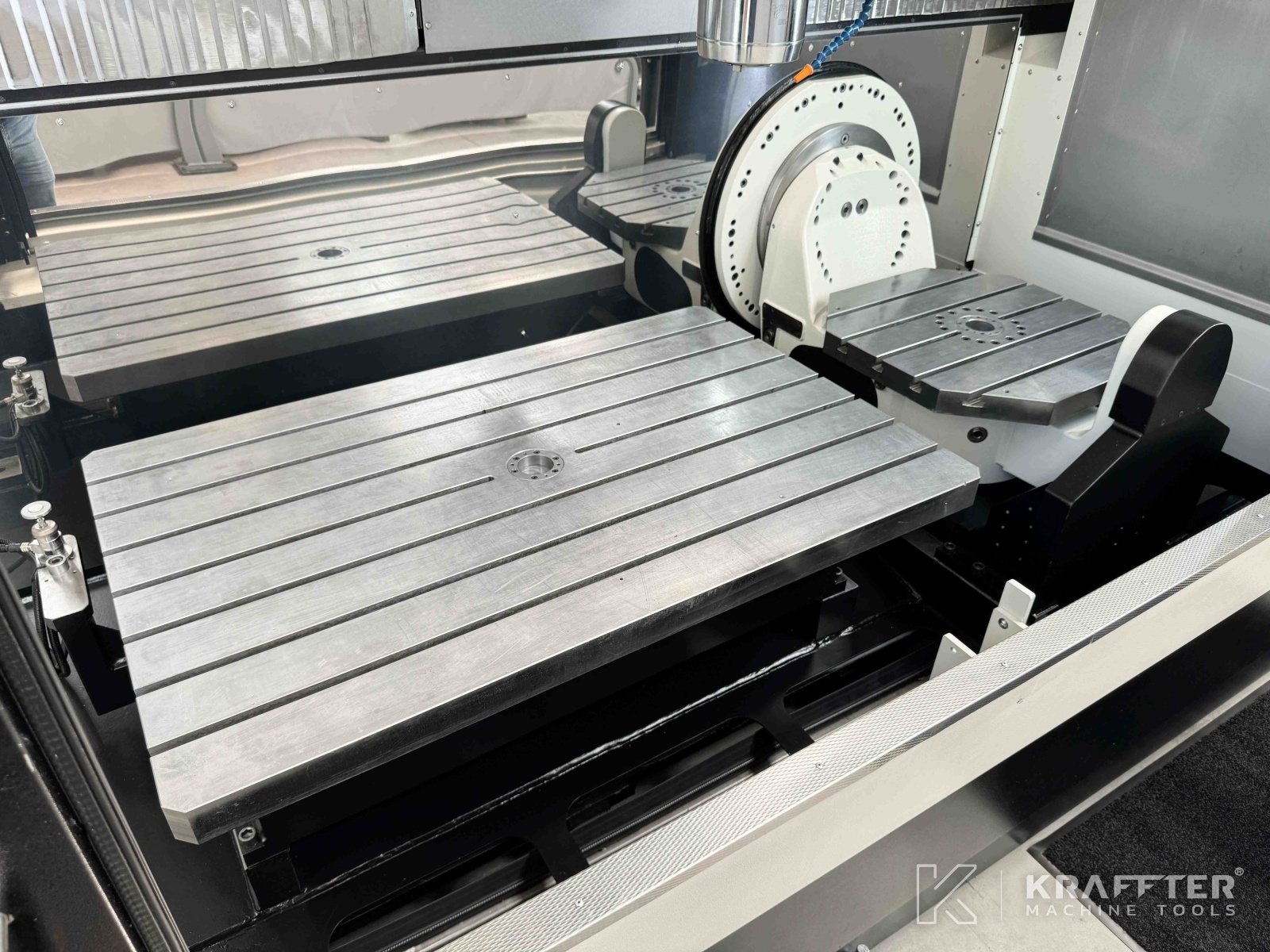

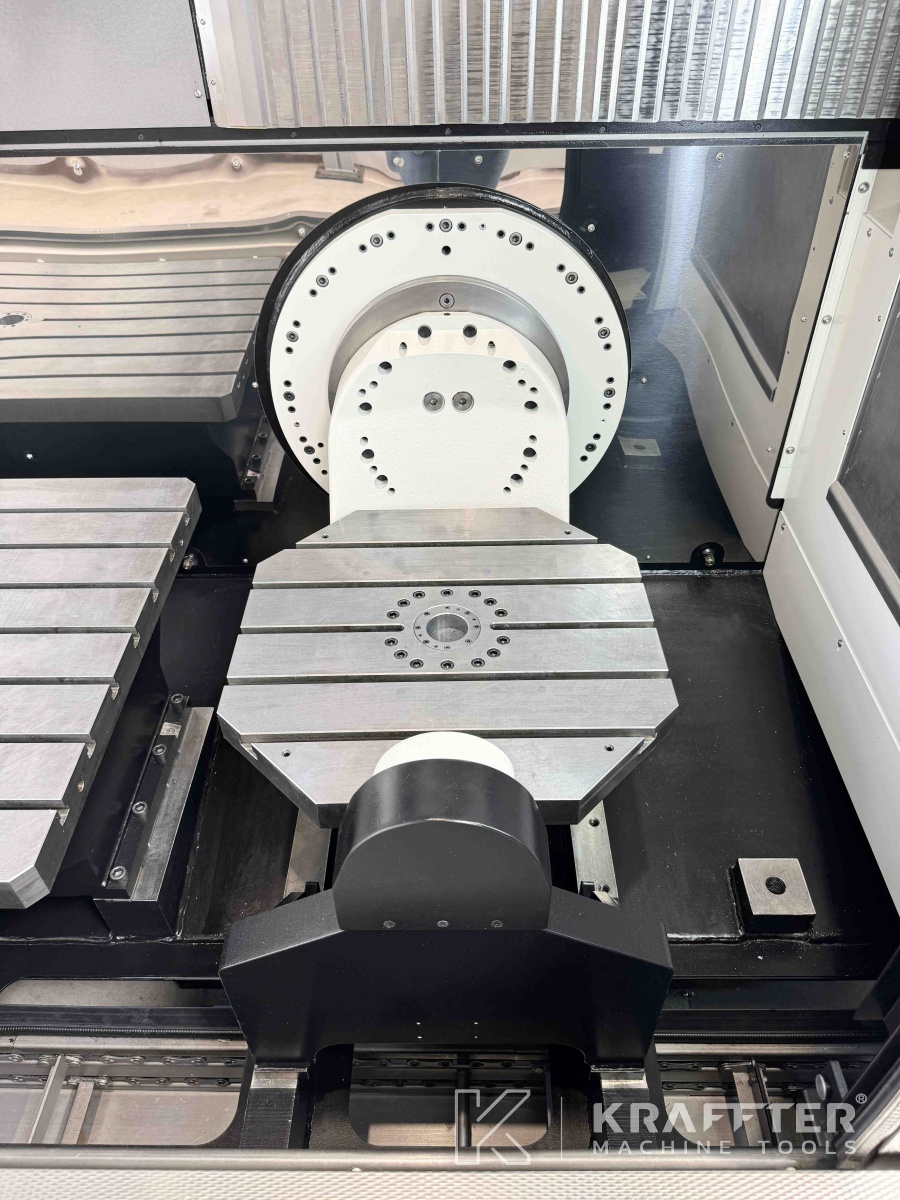

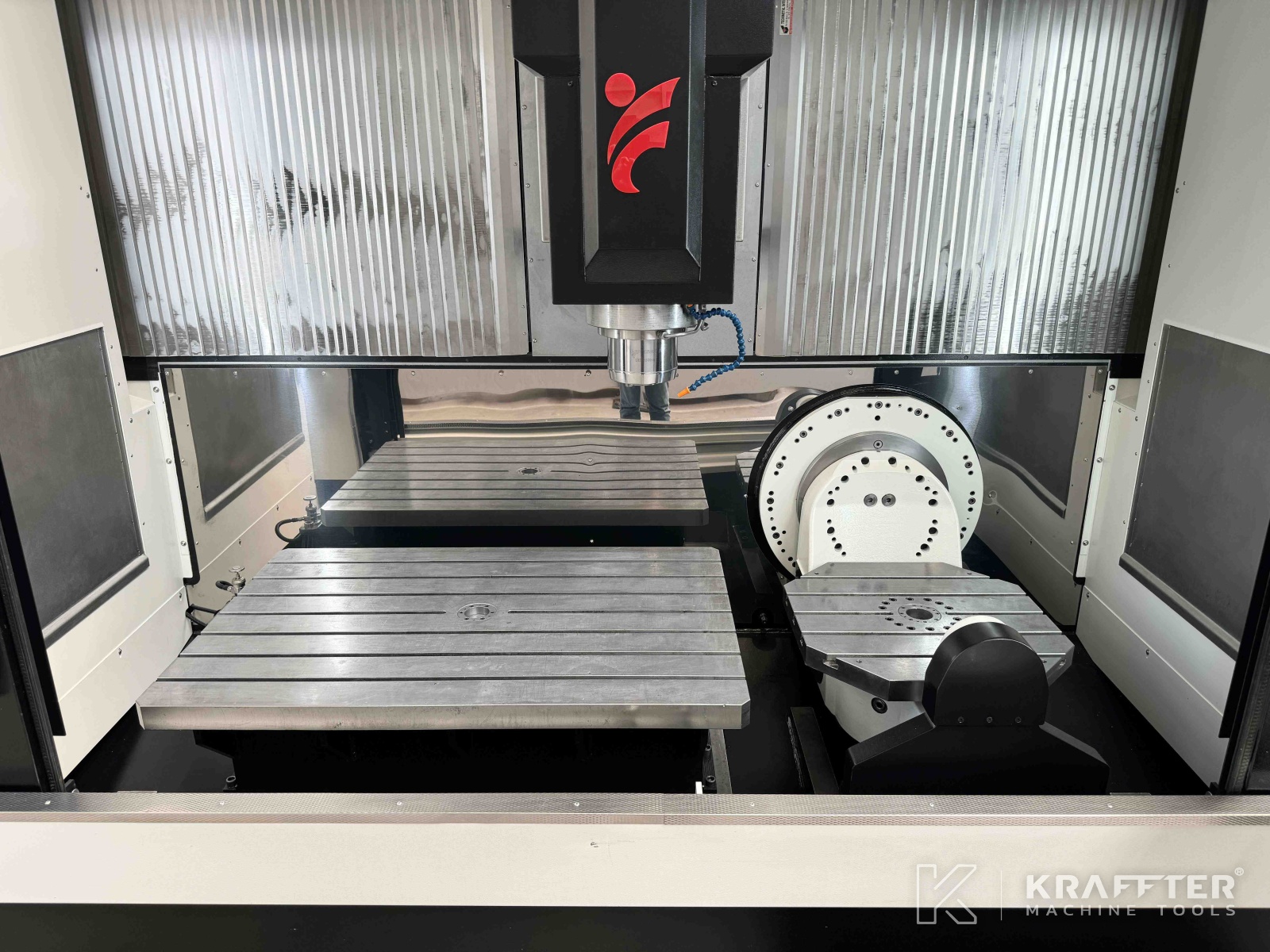

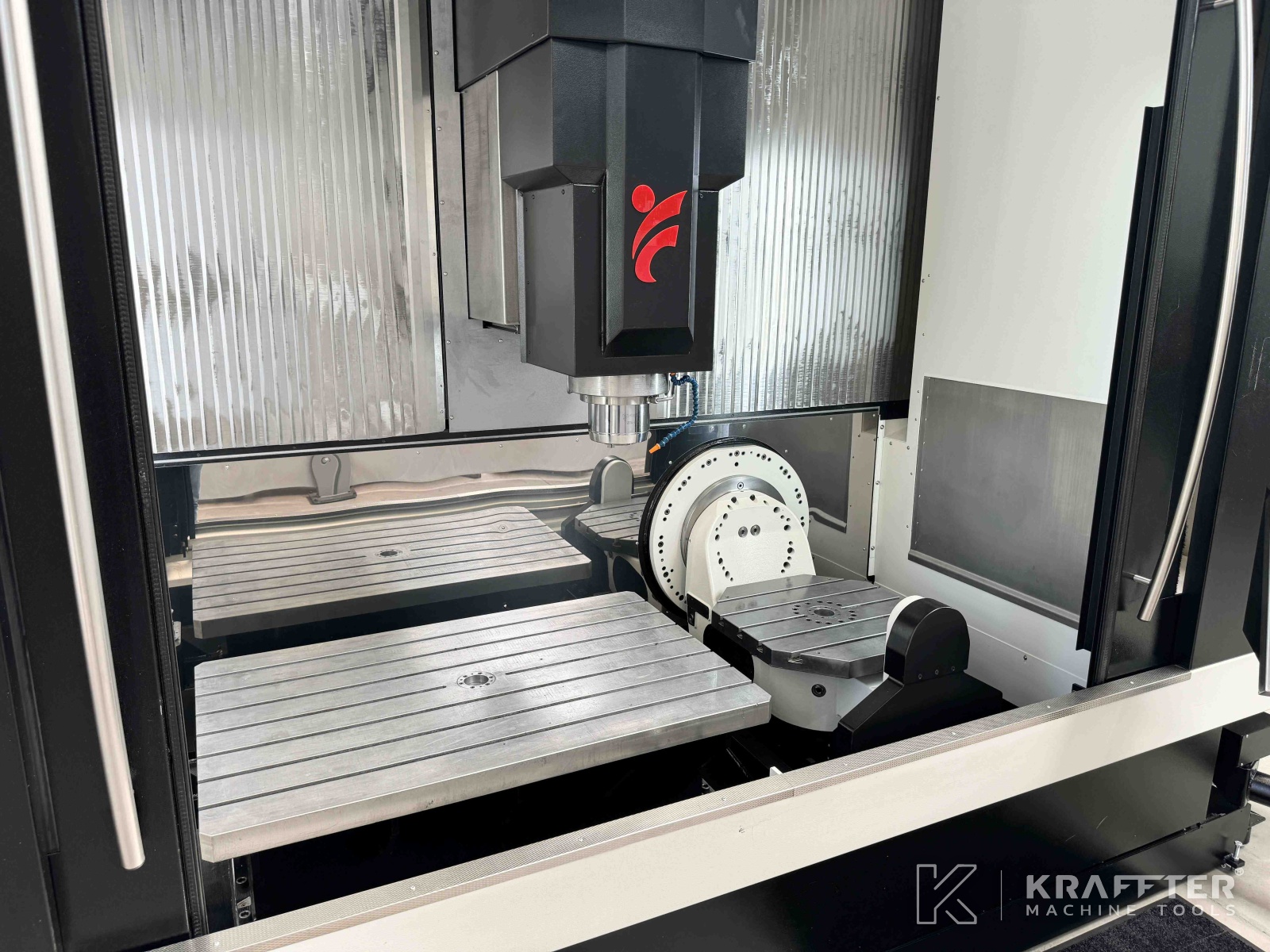

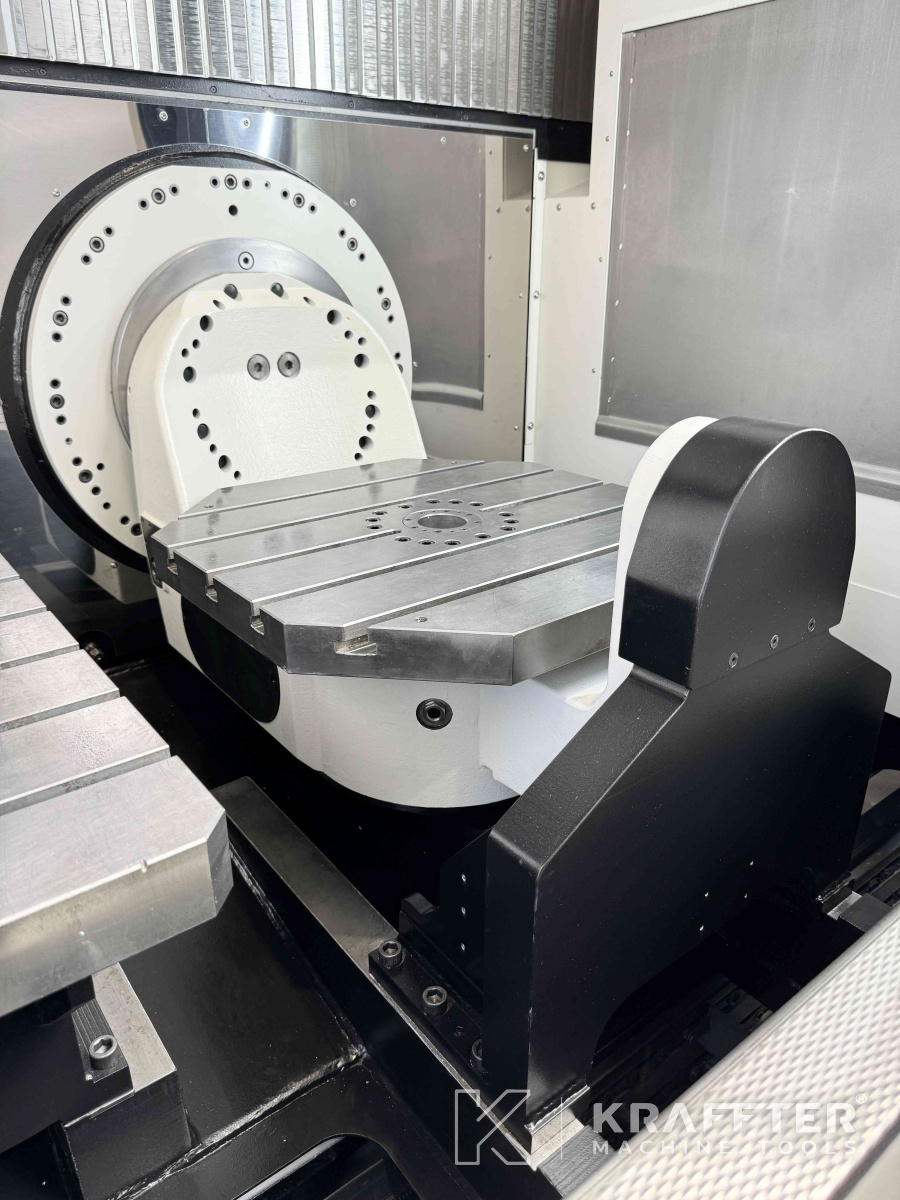

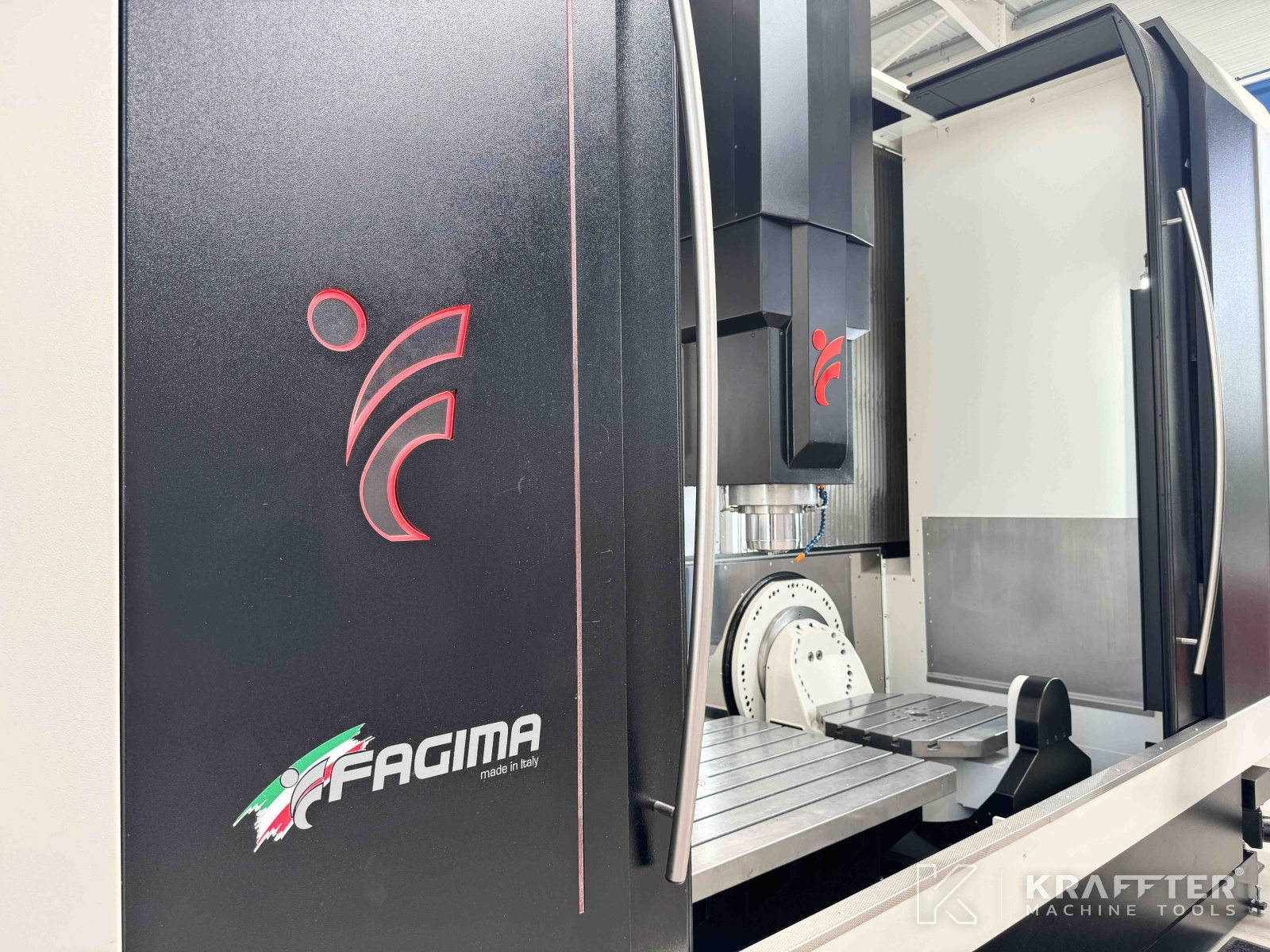

Rotary tilting table surface
600 x 600 [mm]
Stroke C axis : table revolution
360 [°]
Max. speed C axis
25 [rpm]
B axis swivelling stroke
-110 / +110 [°]

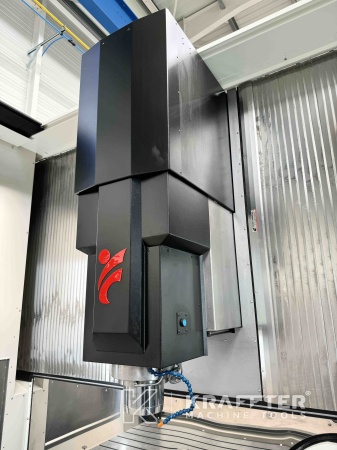

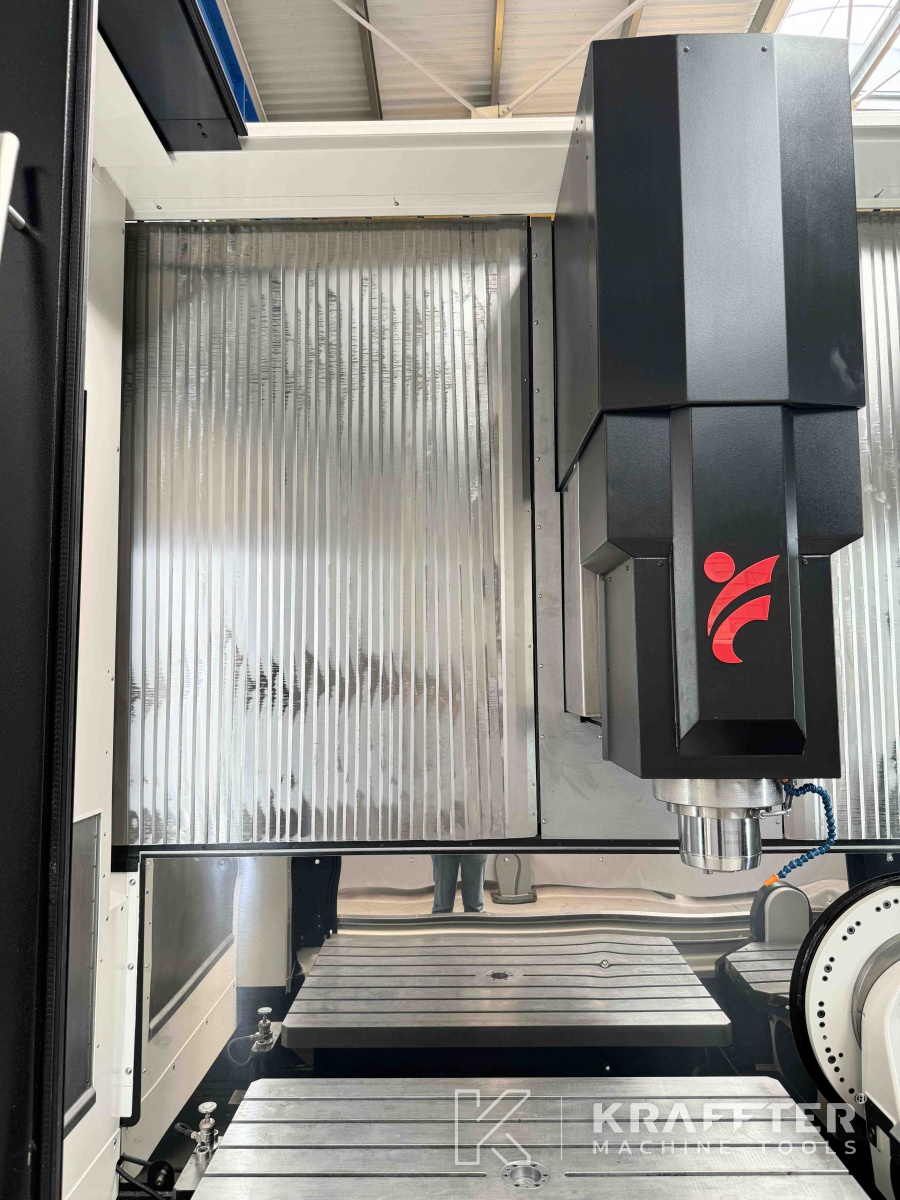

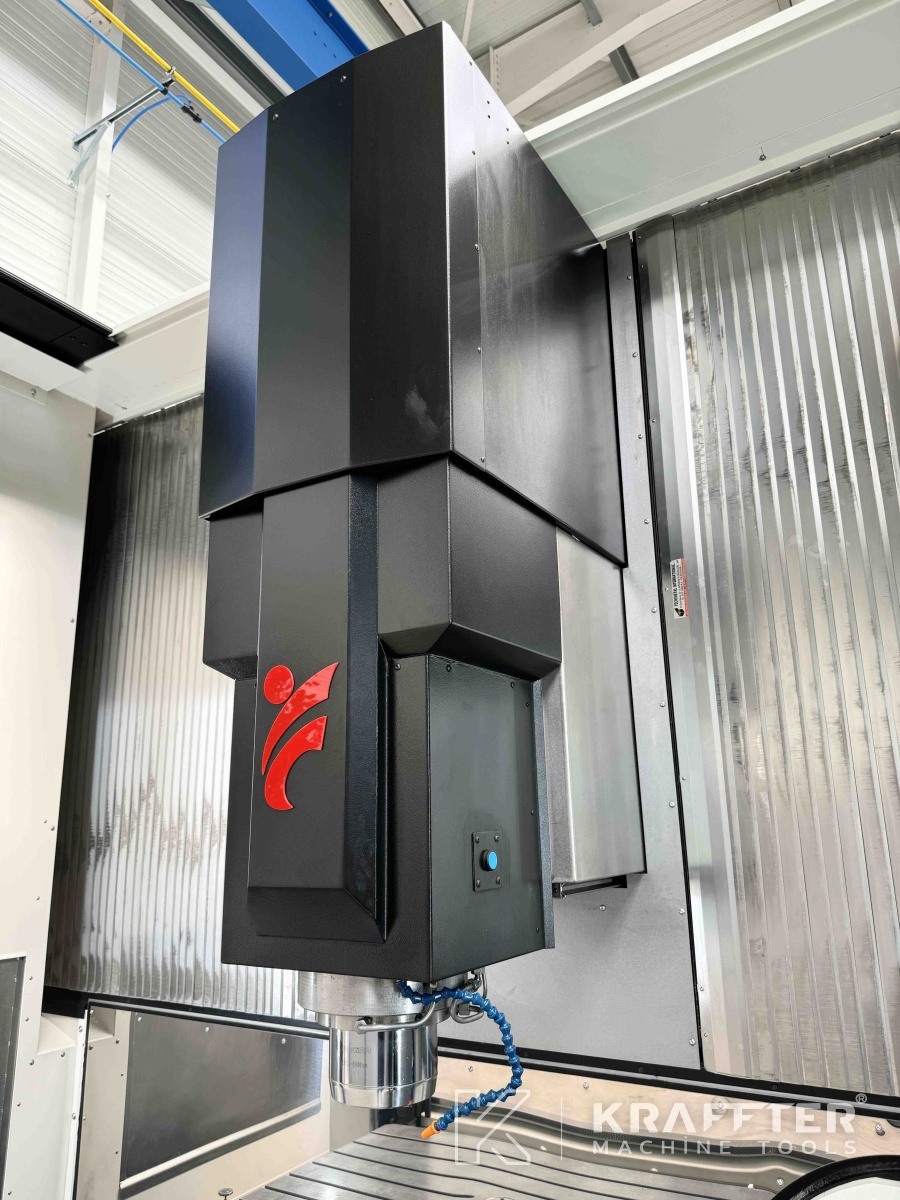

Spindle type
ISO 40
Max. spindle speed

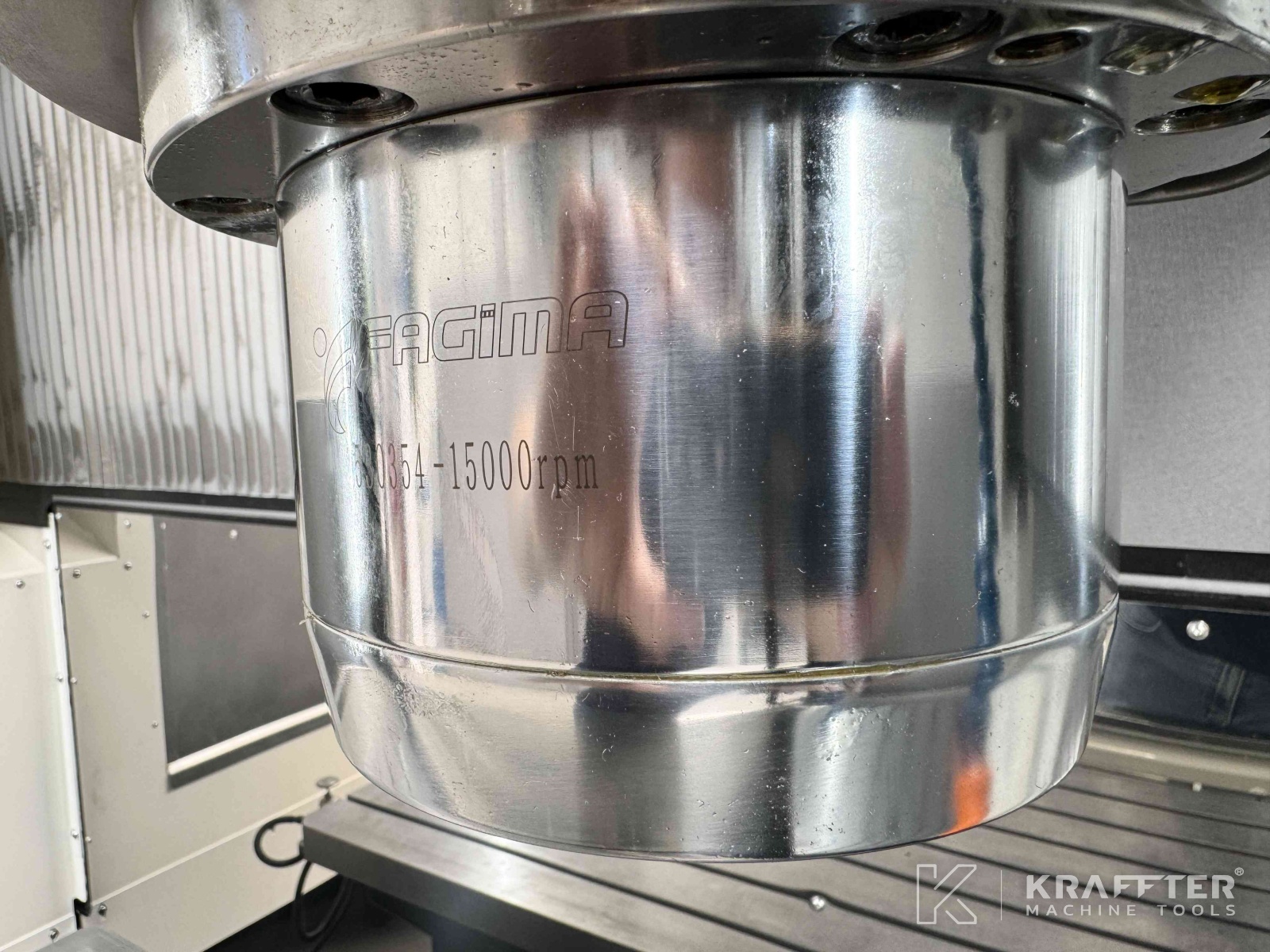

15000 [rpm]
Spindle power
17 [kW]

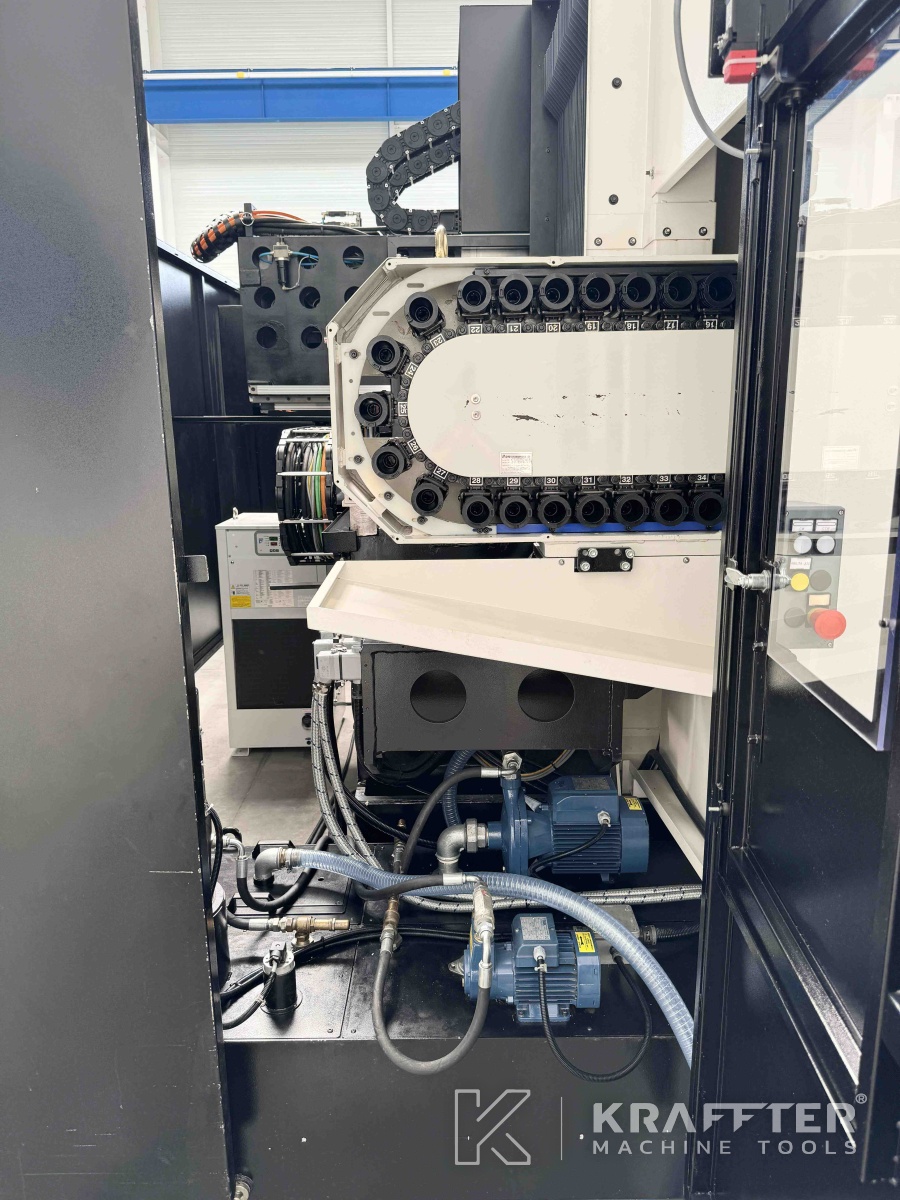

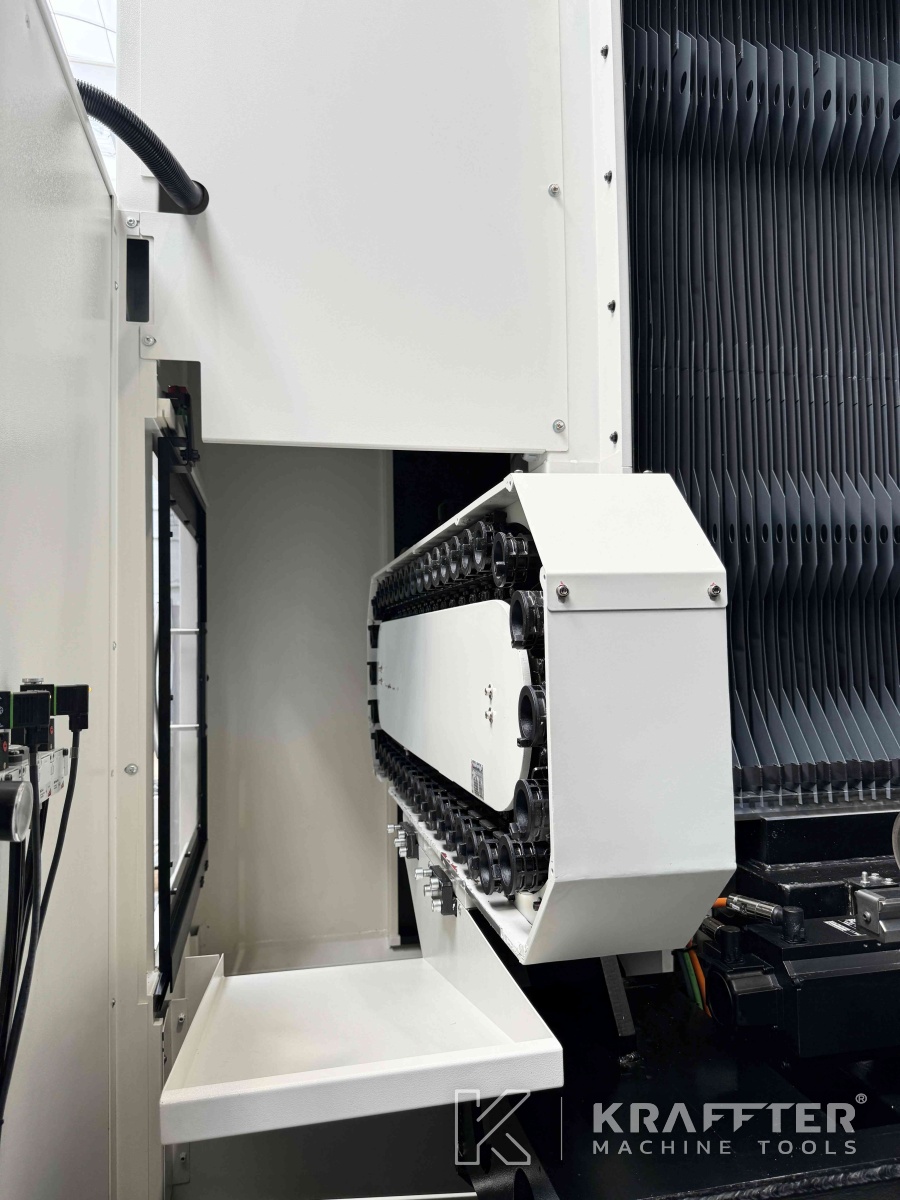

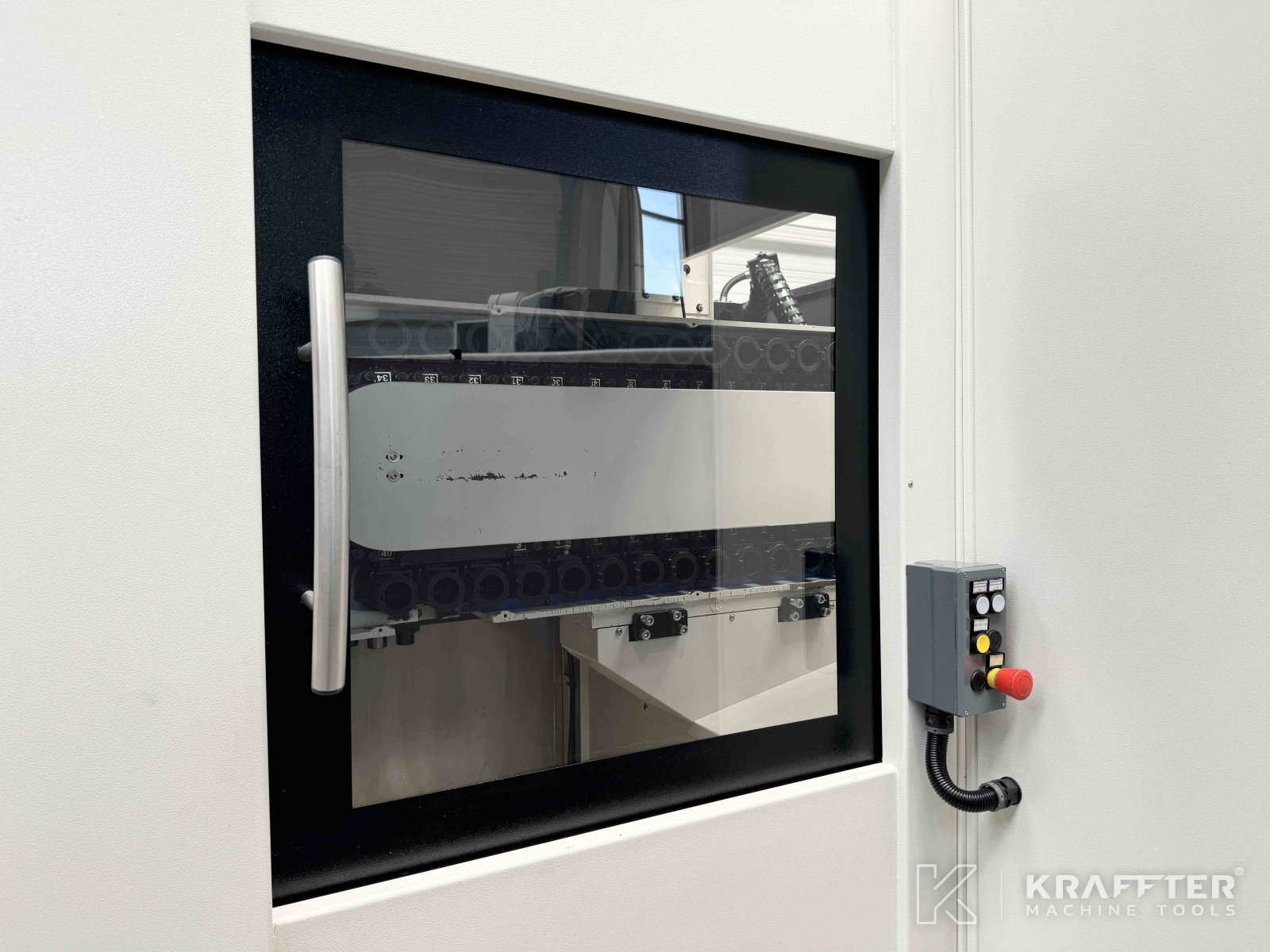

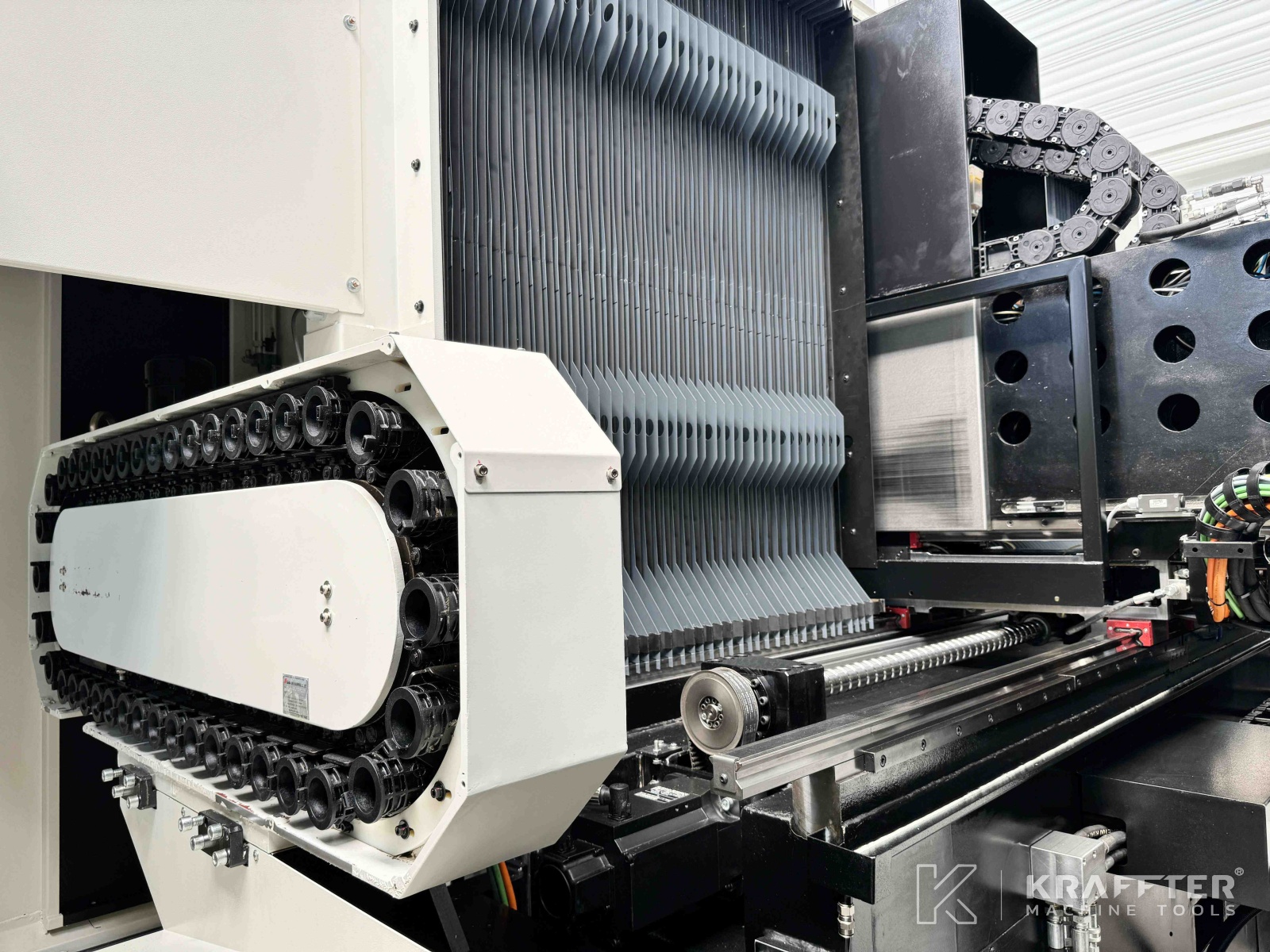

Tool changer magazin number of stations
80
Max. tool lenght
300 [mm]
Max. weight of single tool
7 [Kg]
Total max. weight in tool changer magazin
400 [Kg]
Total power required
57 [kVA]
Supply voltage
400 [V]
Number of hours under power
17840 [h]
Weight
15000 [Kg]

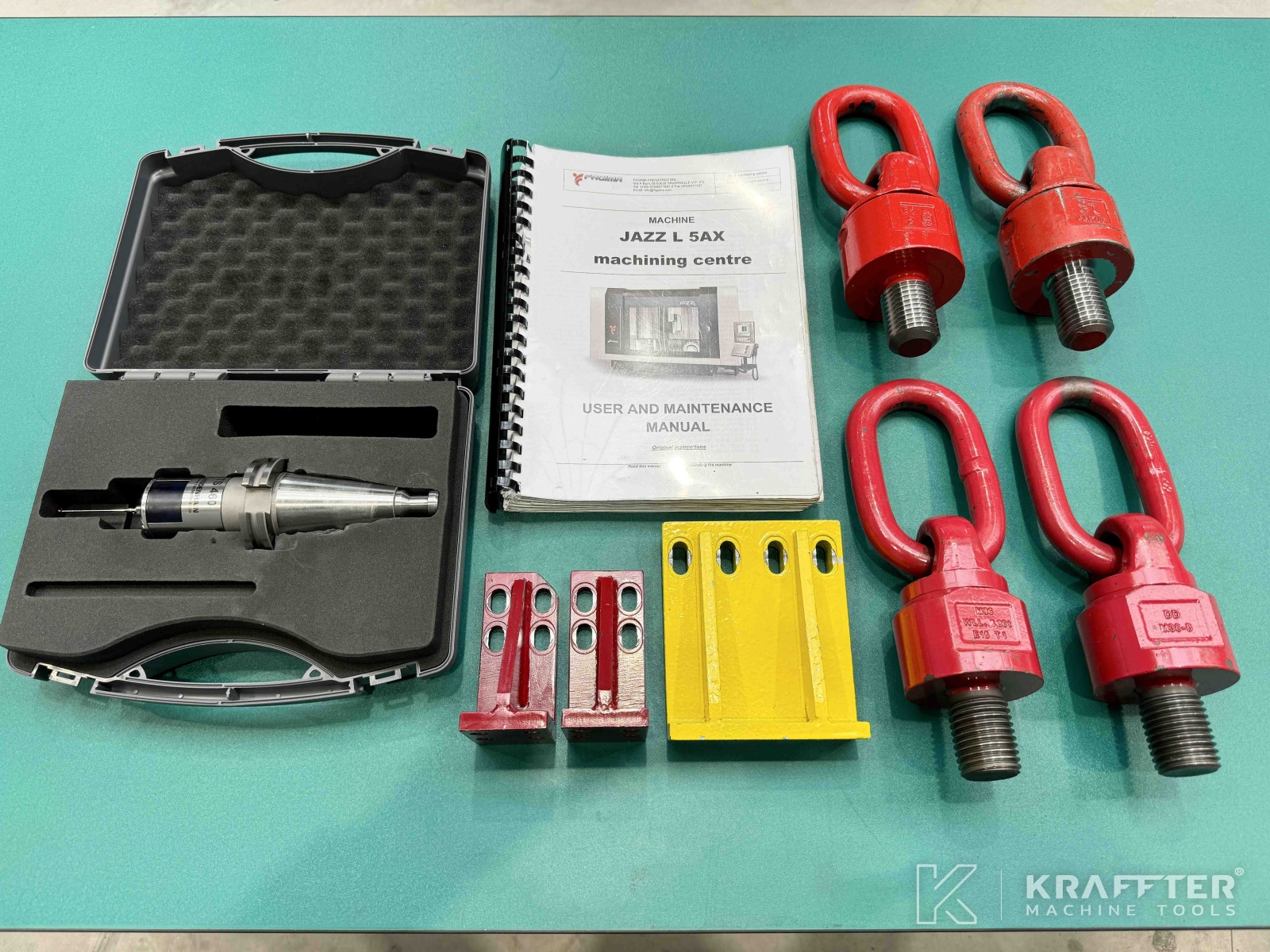

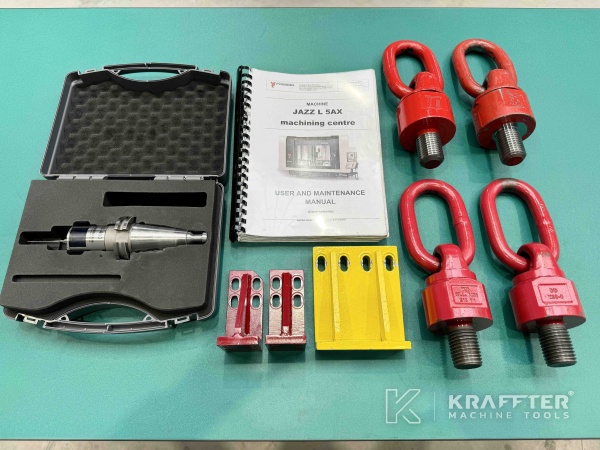

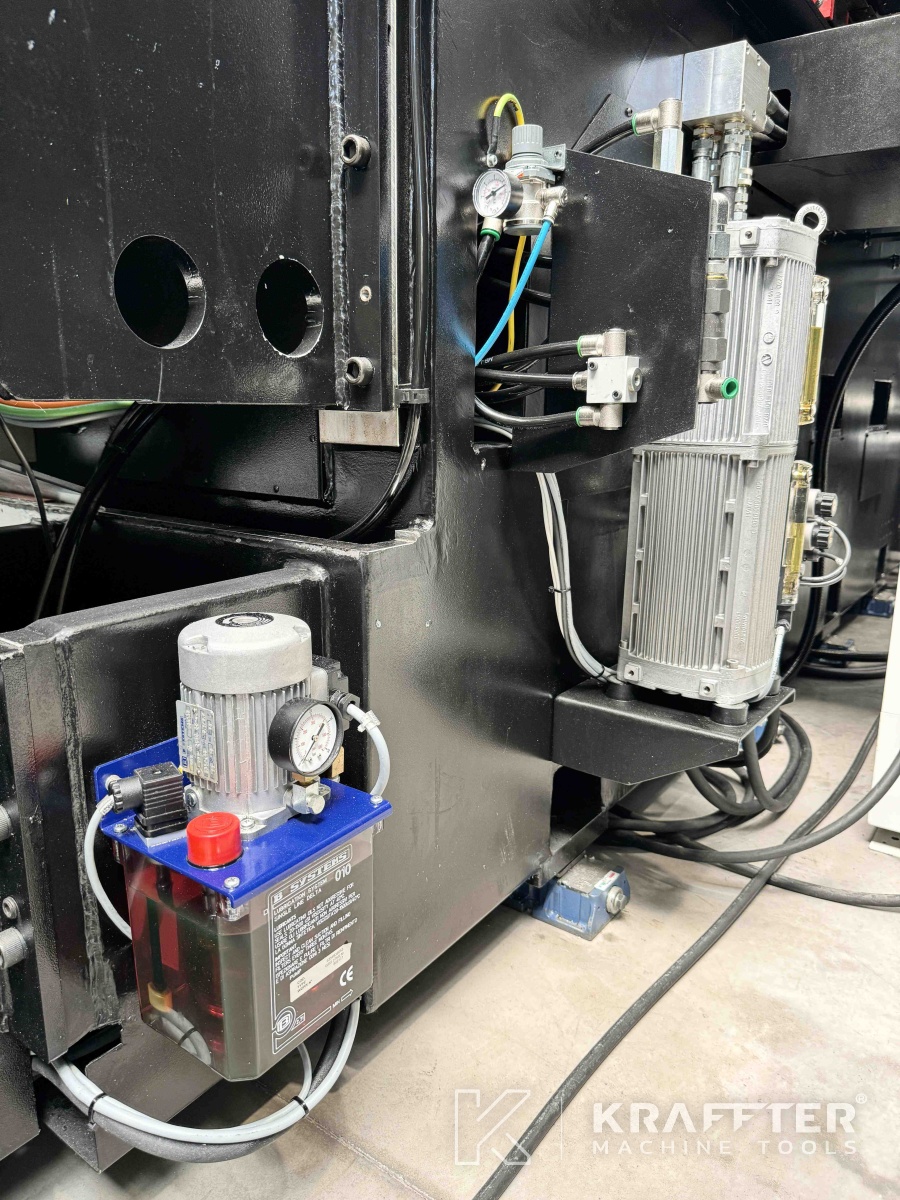

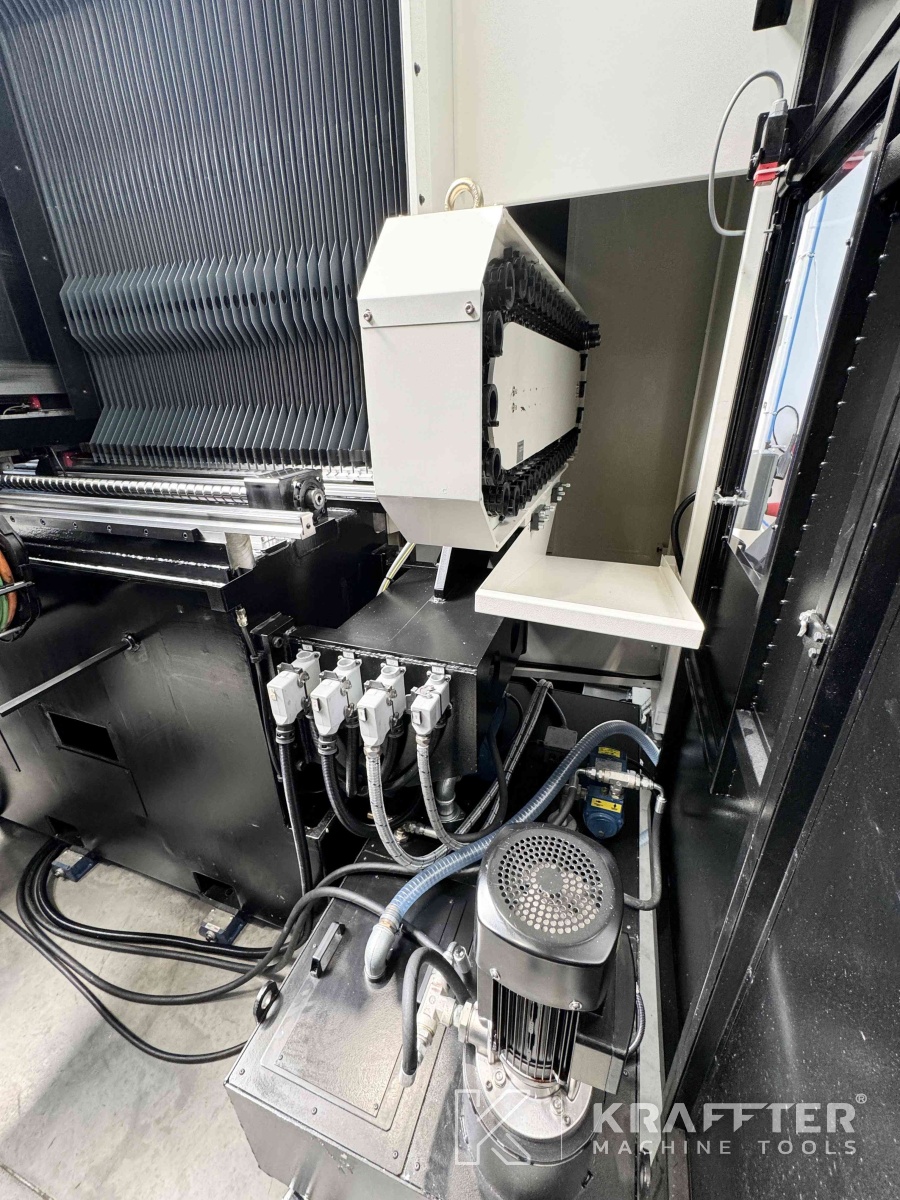

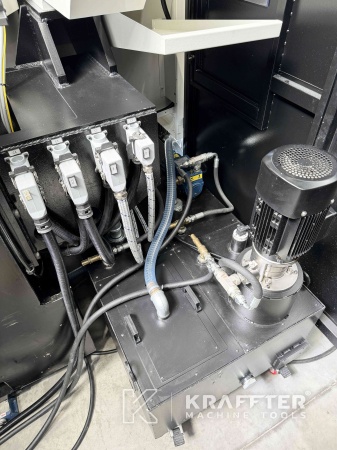

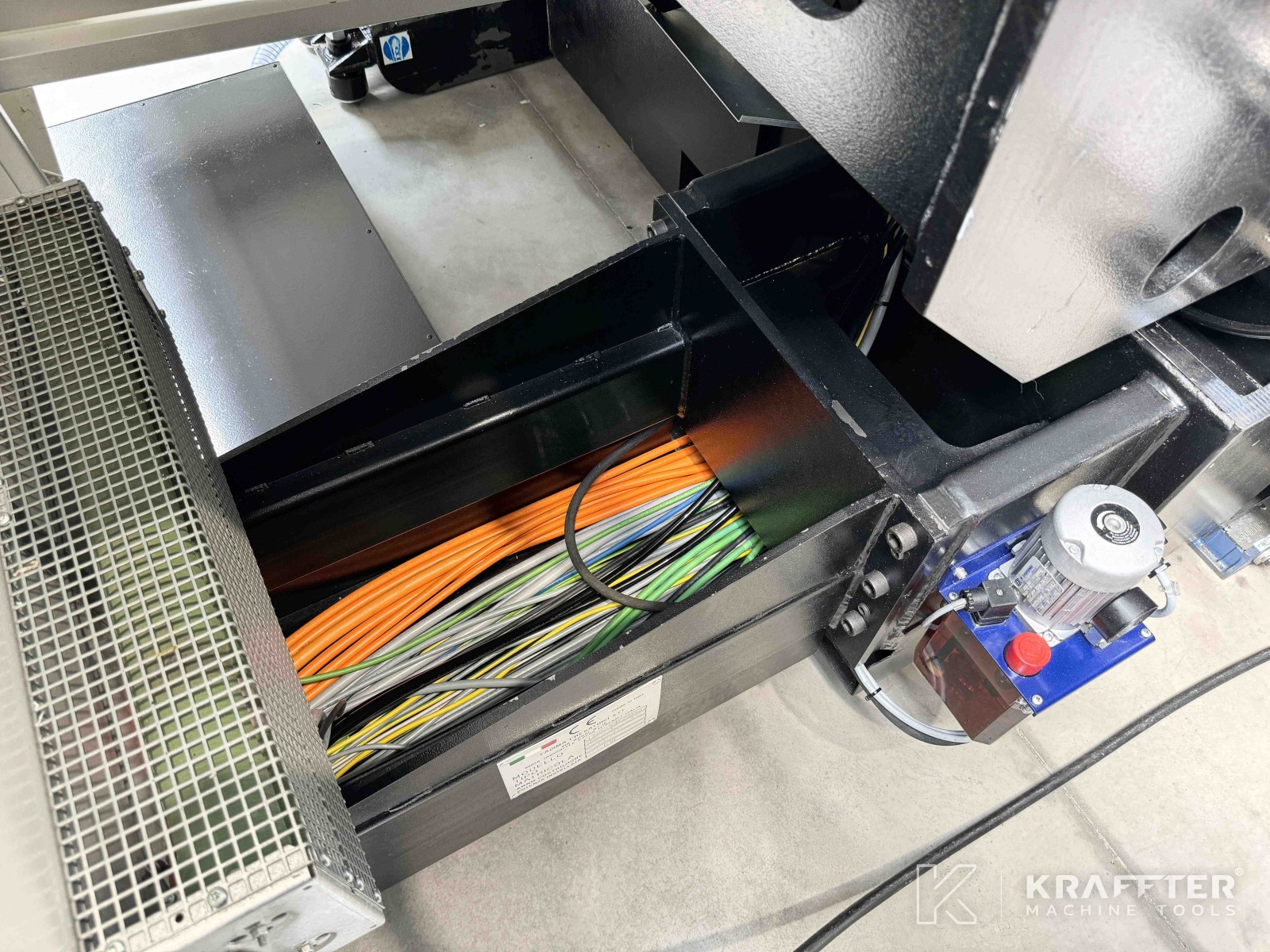

EQUIPMENT INCLUDED:

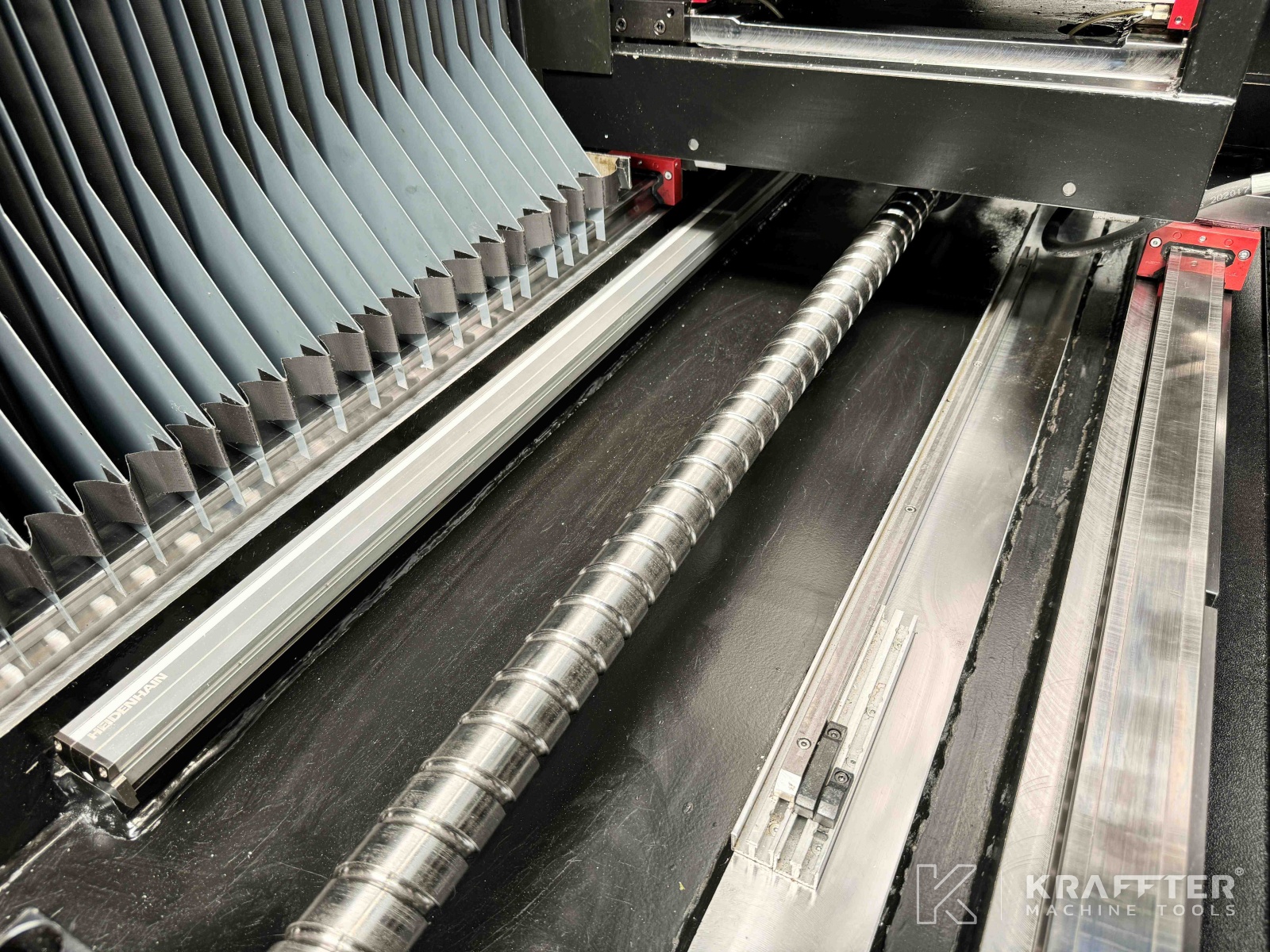

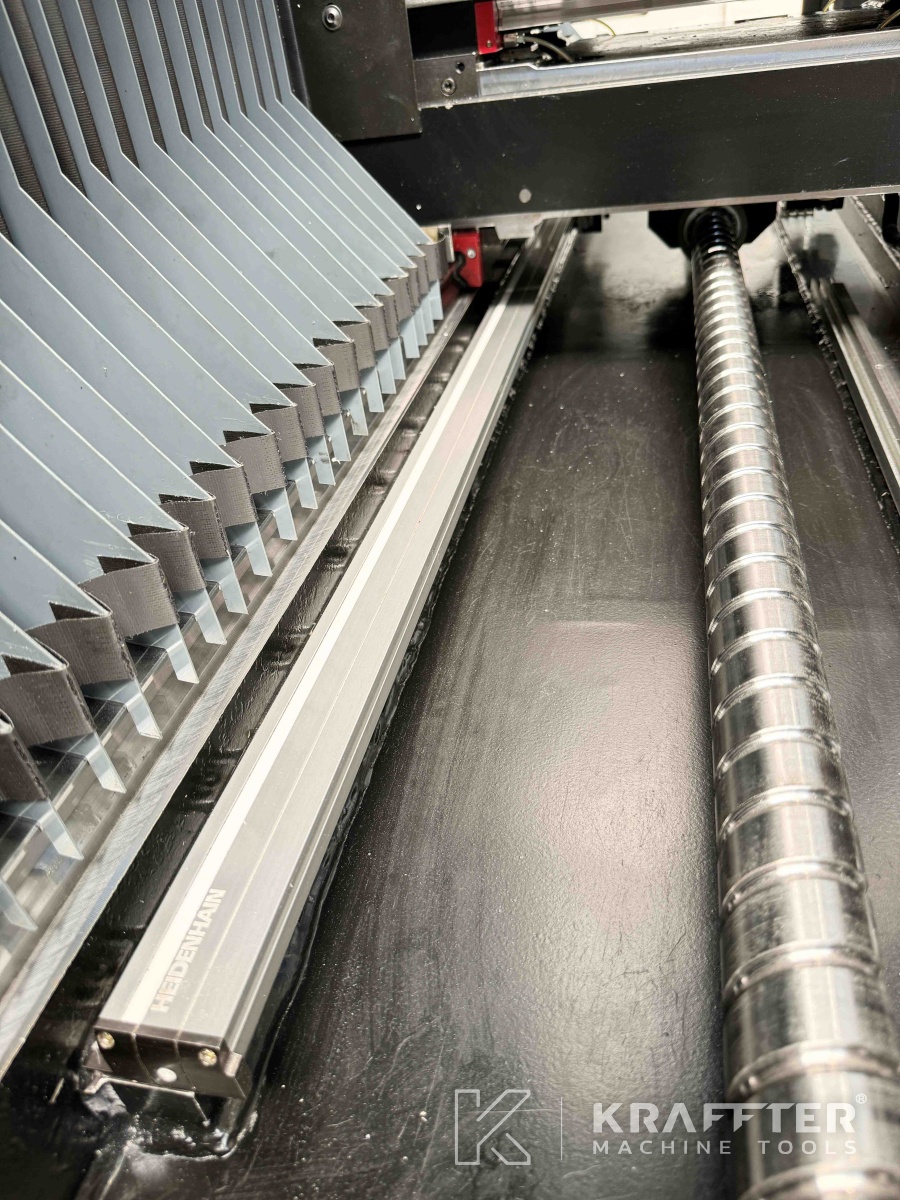

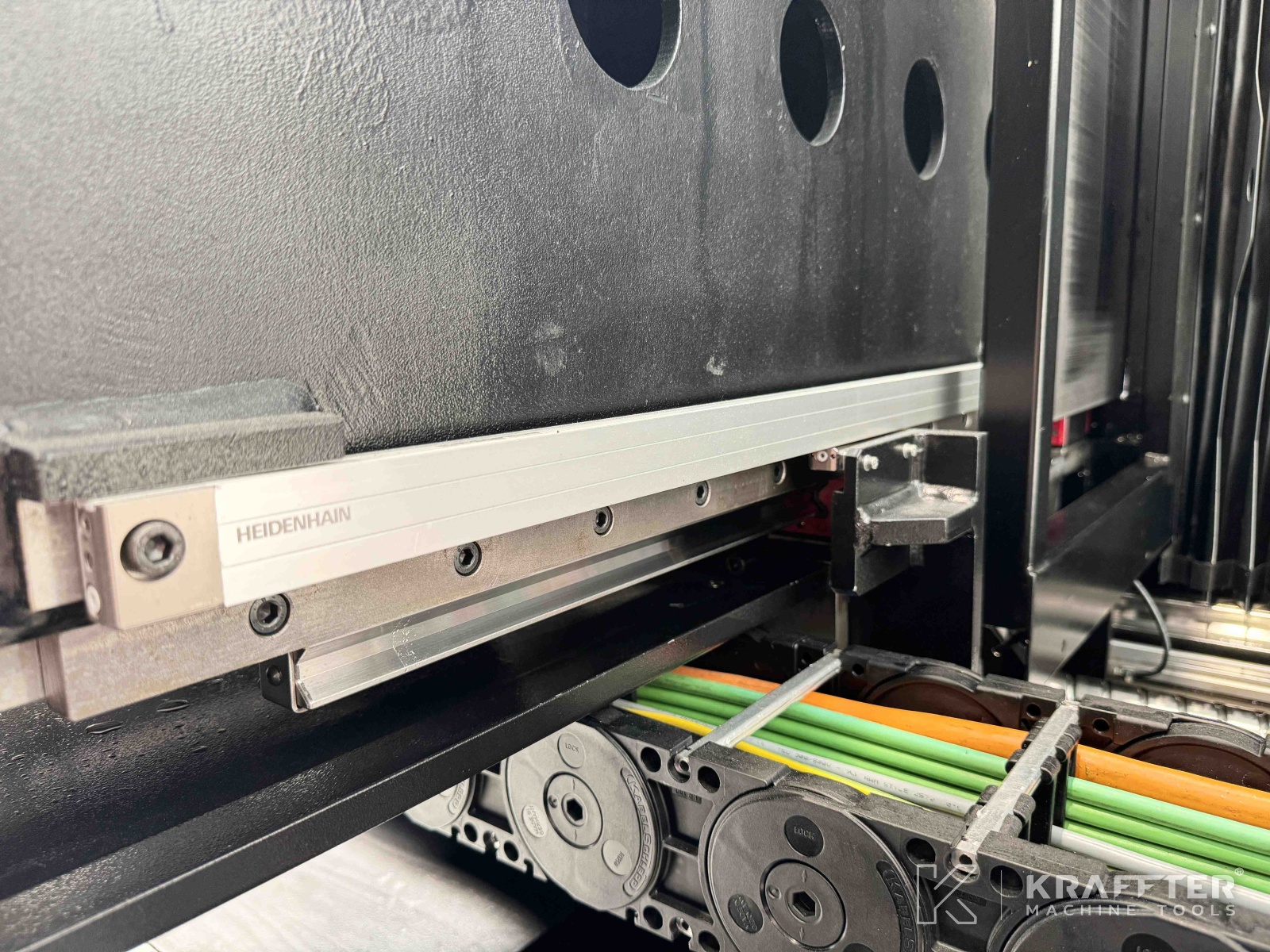

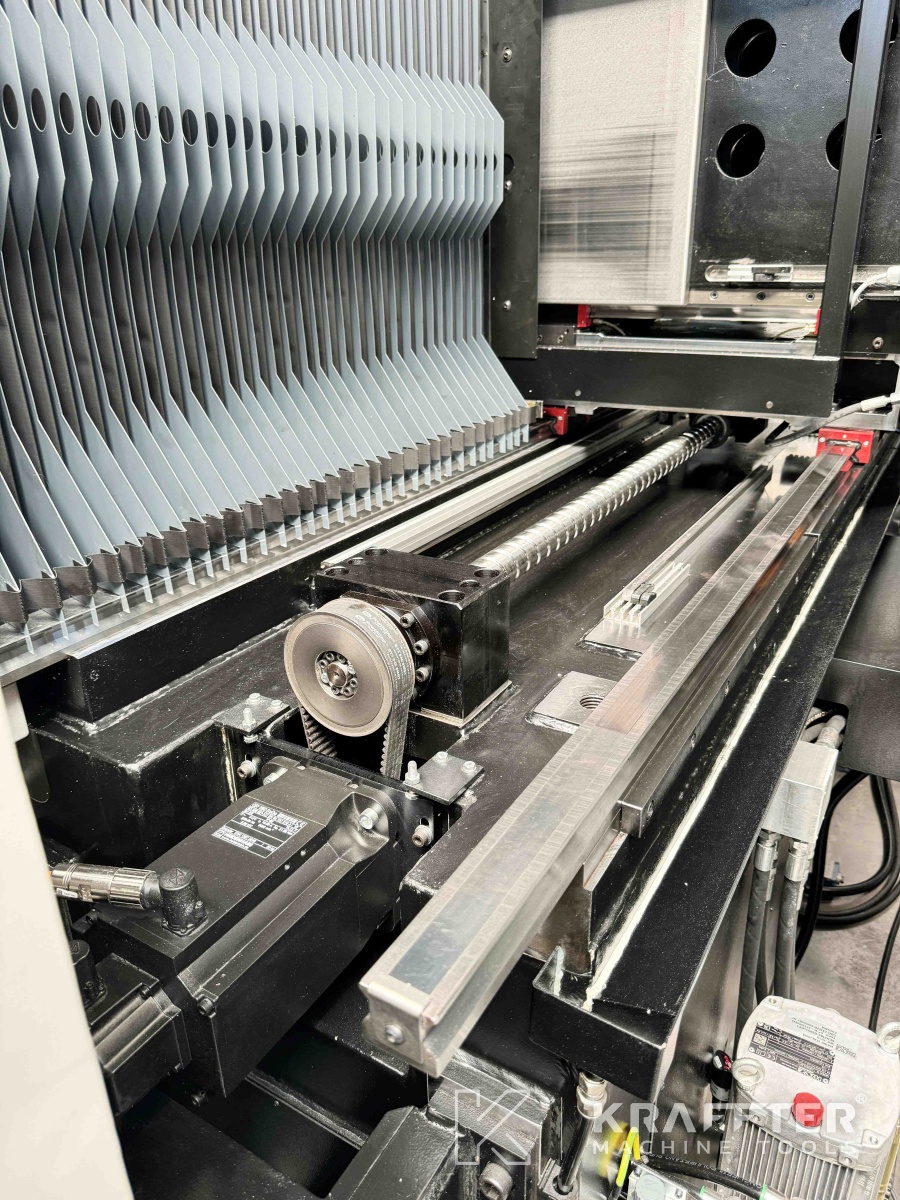

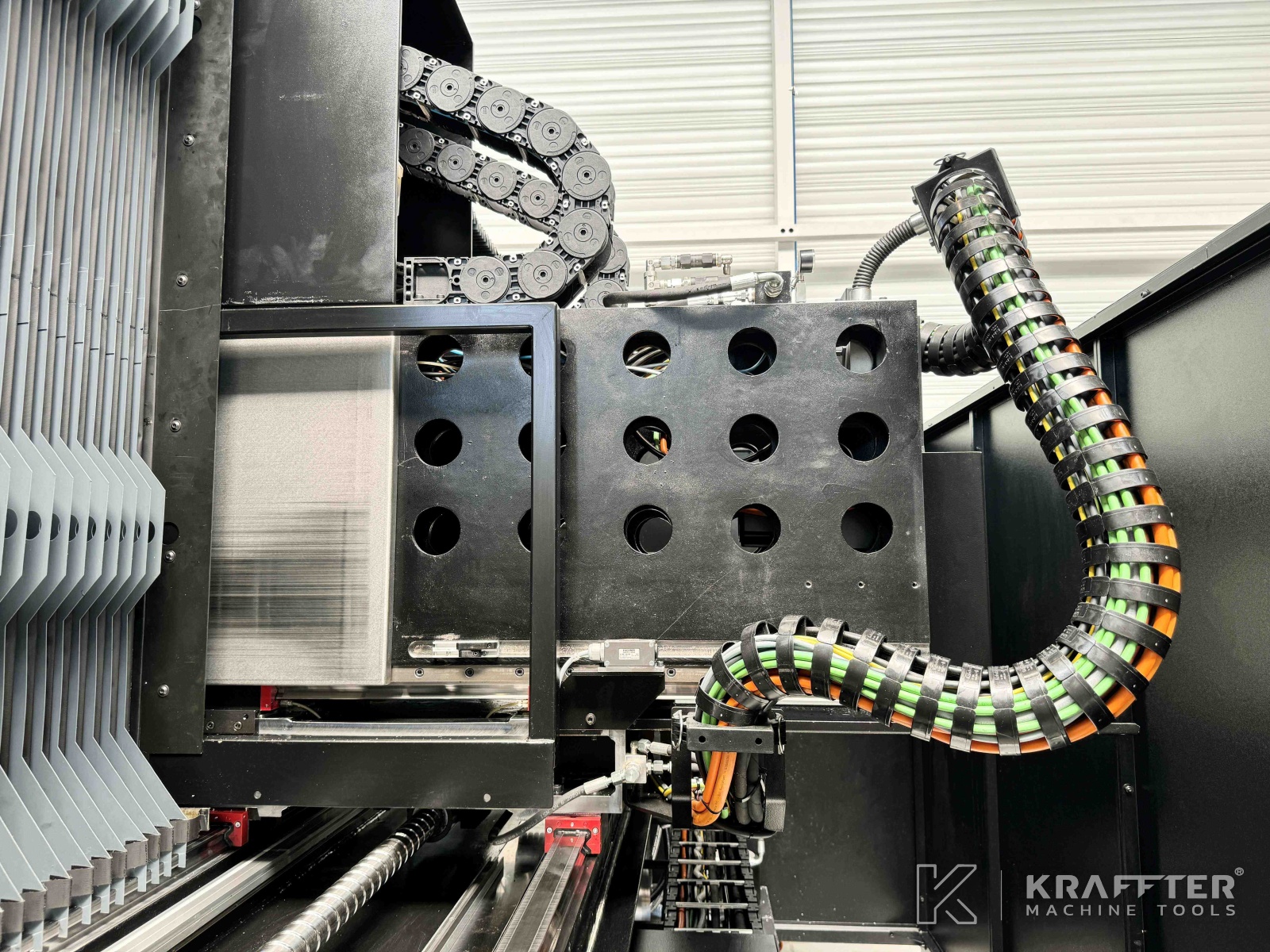

-HEIDENHAIN glass scales on all 3 axes

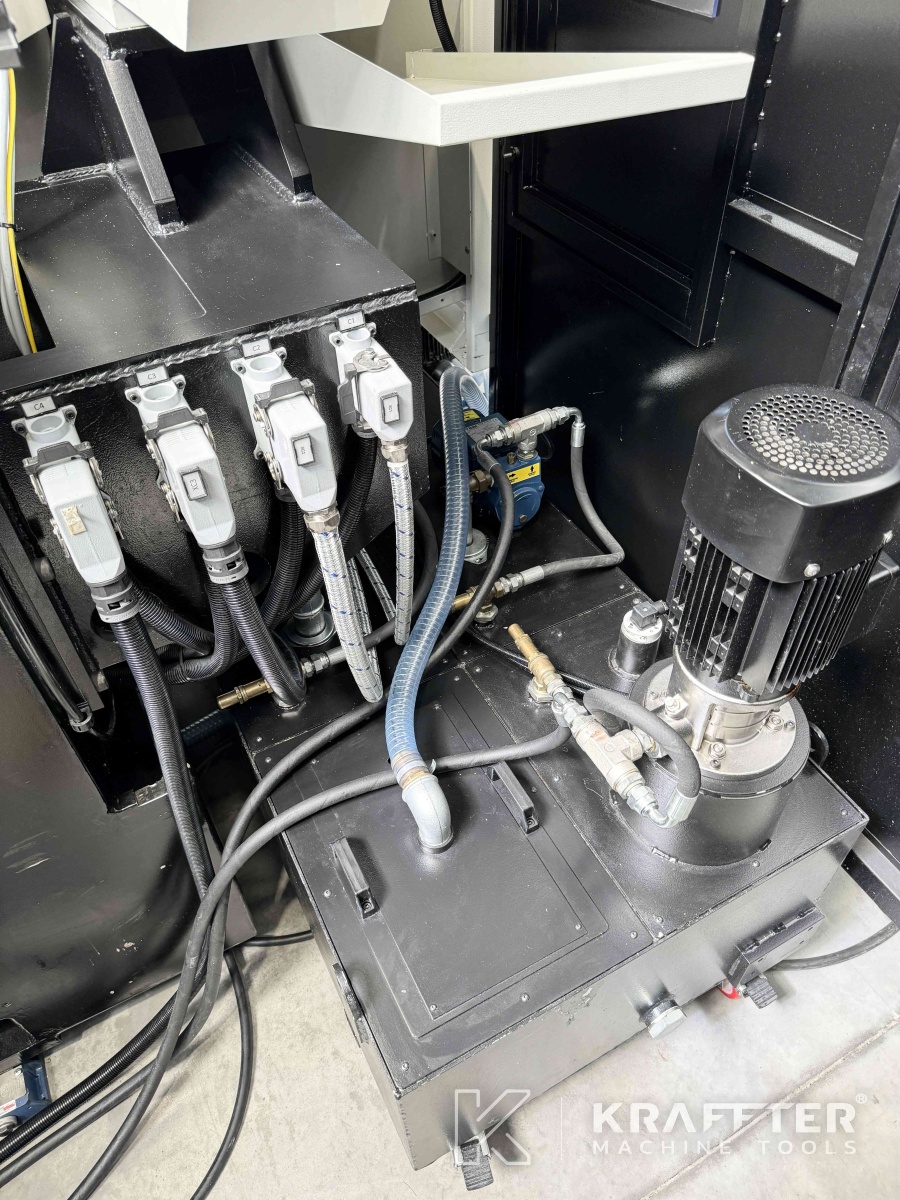

-Coolant through spindle (20 bars)

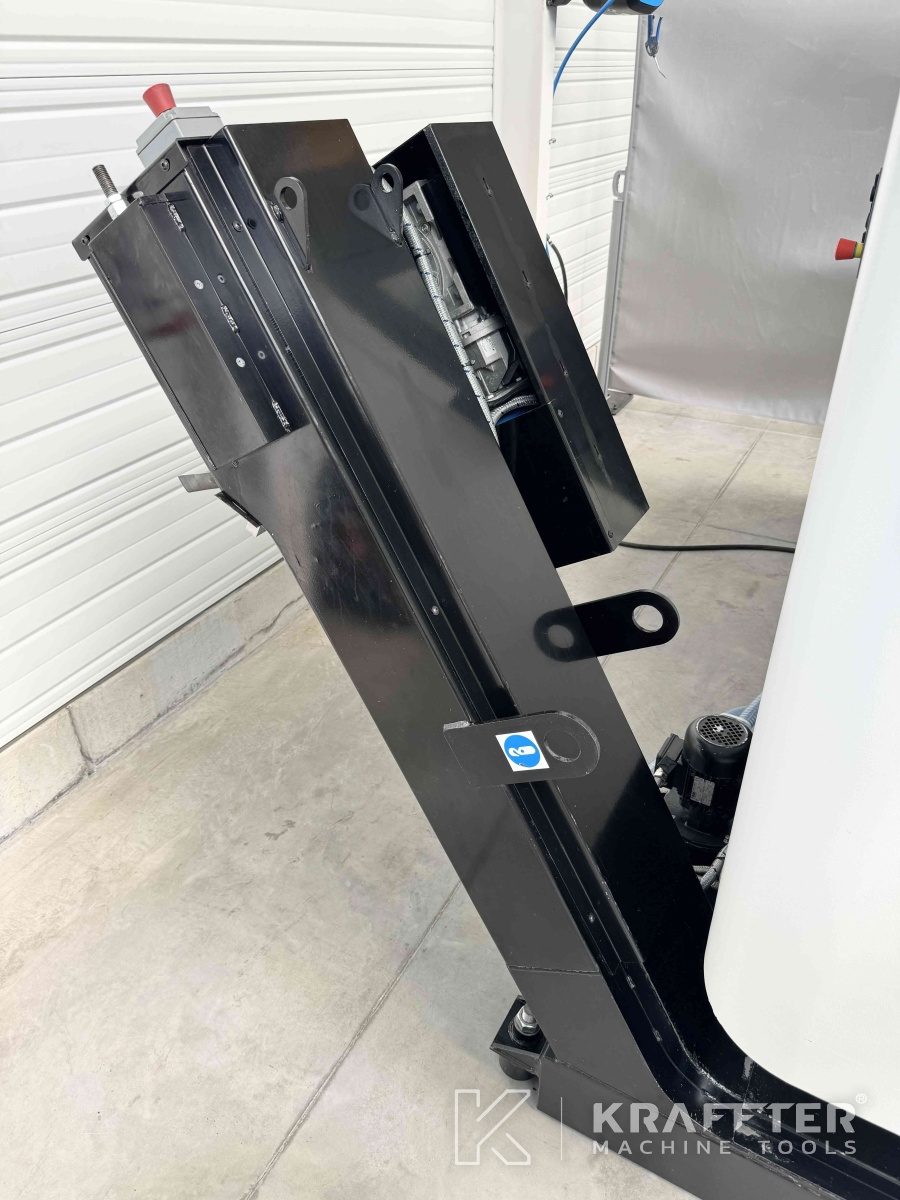

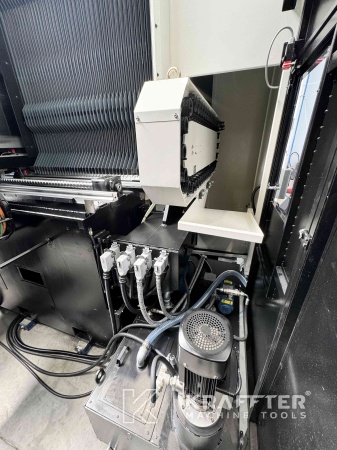

-Chip conveyor

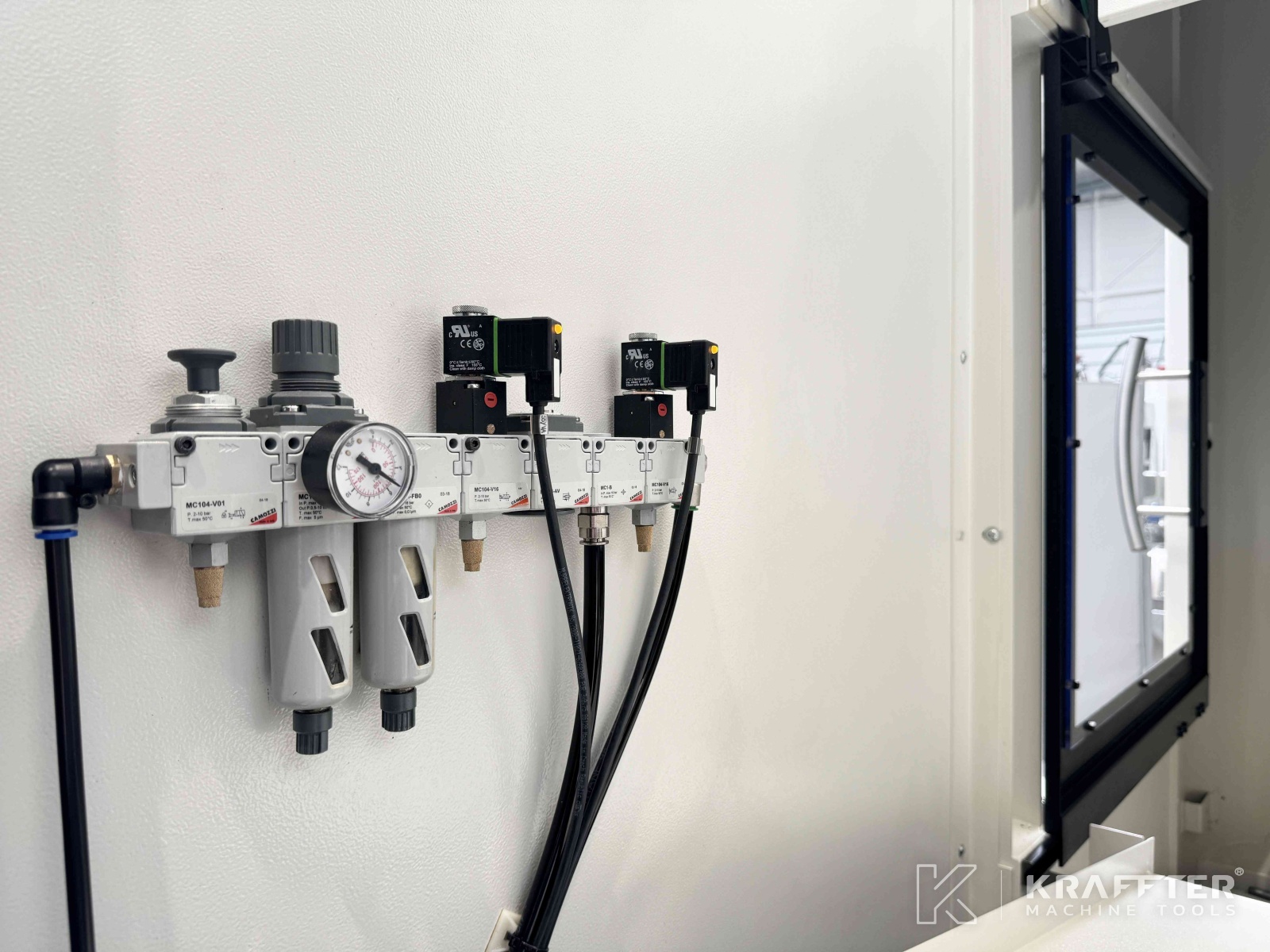

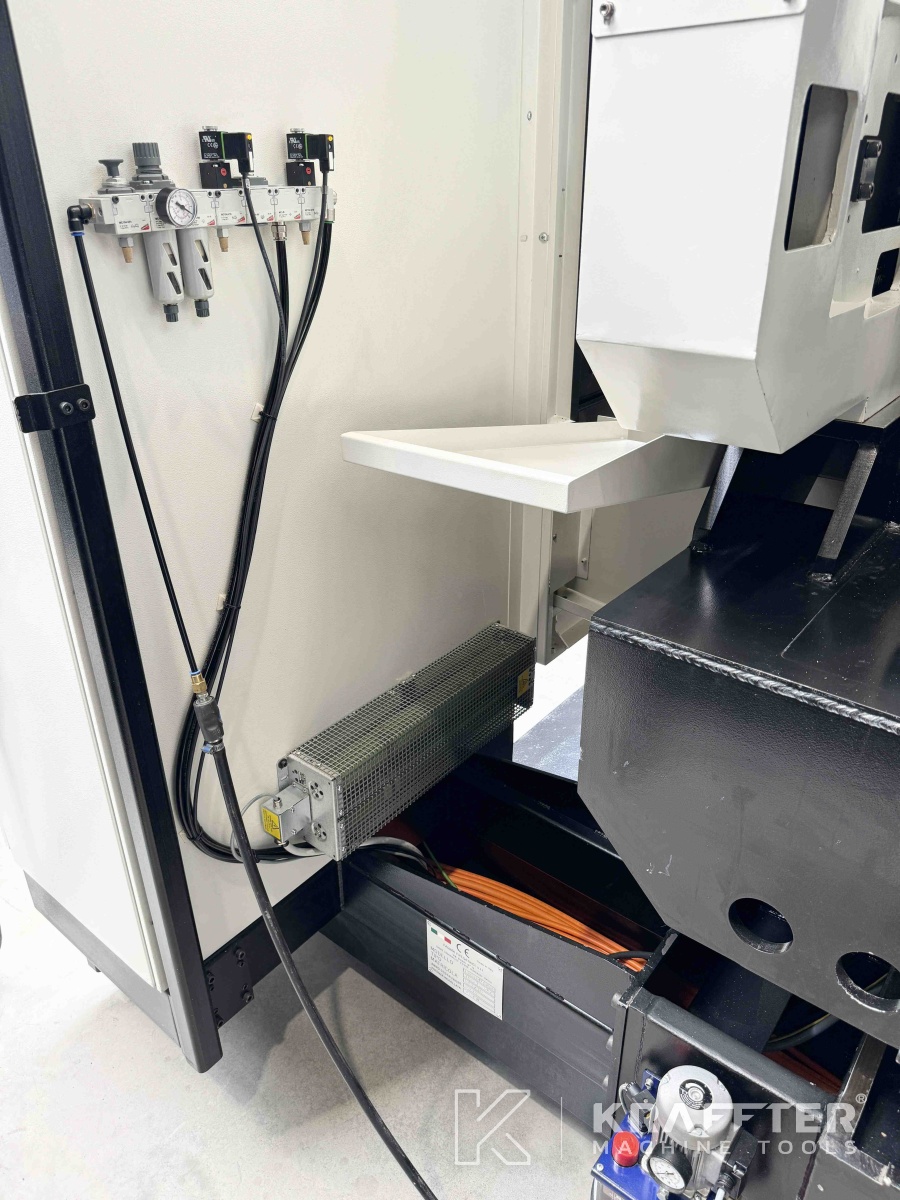

-Blowing inside + outside spindle
-Collision monitoring
-Simultaneous 5-axis software

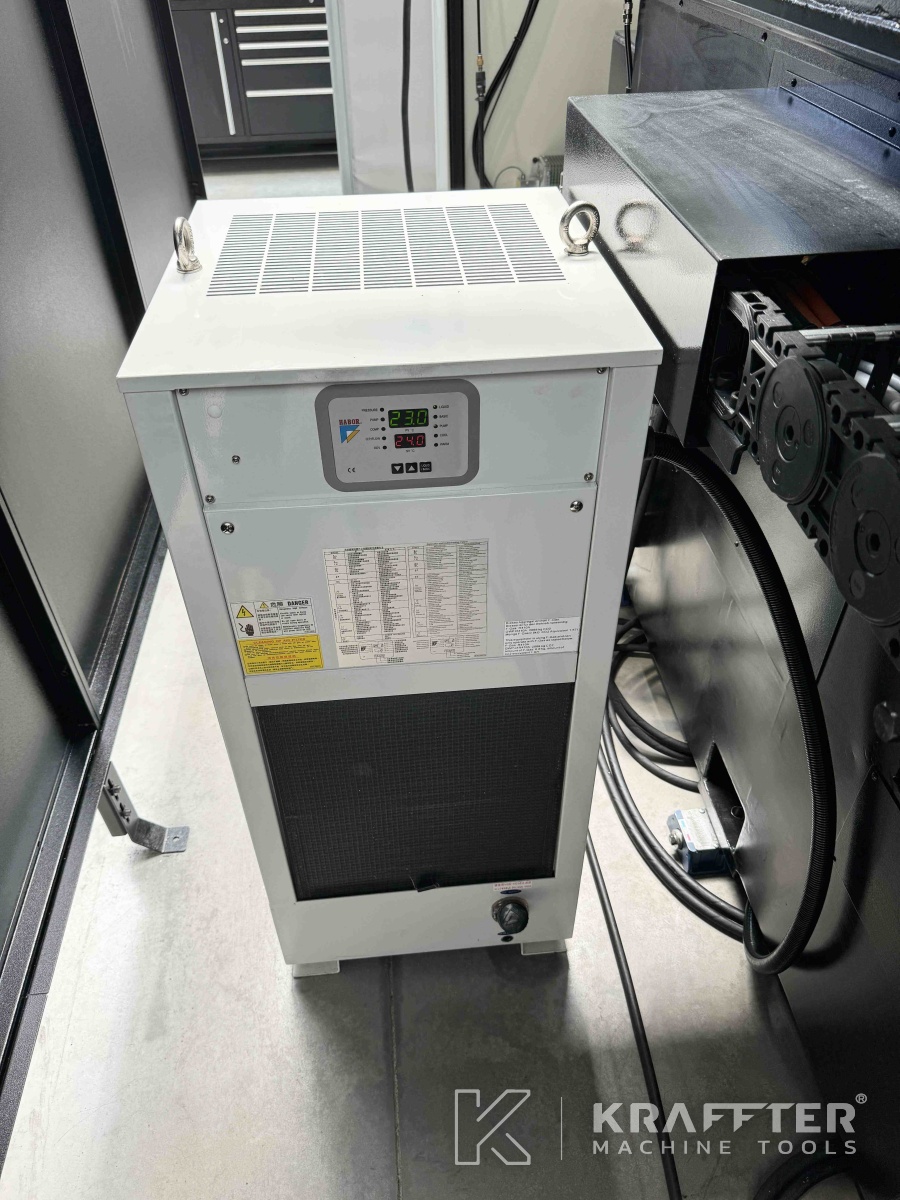

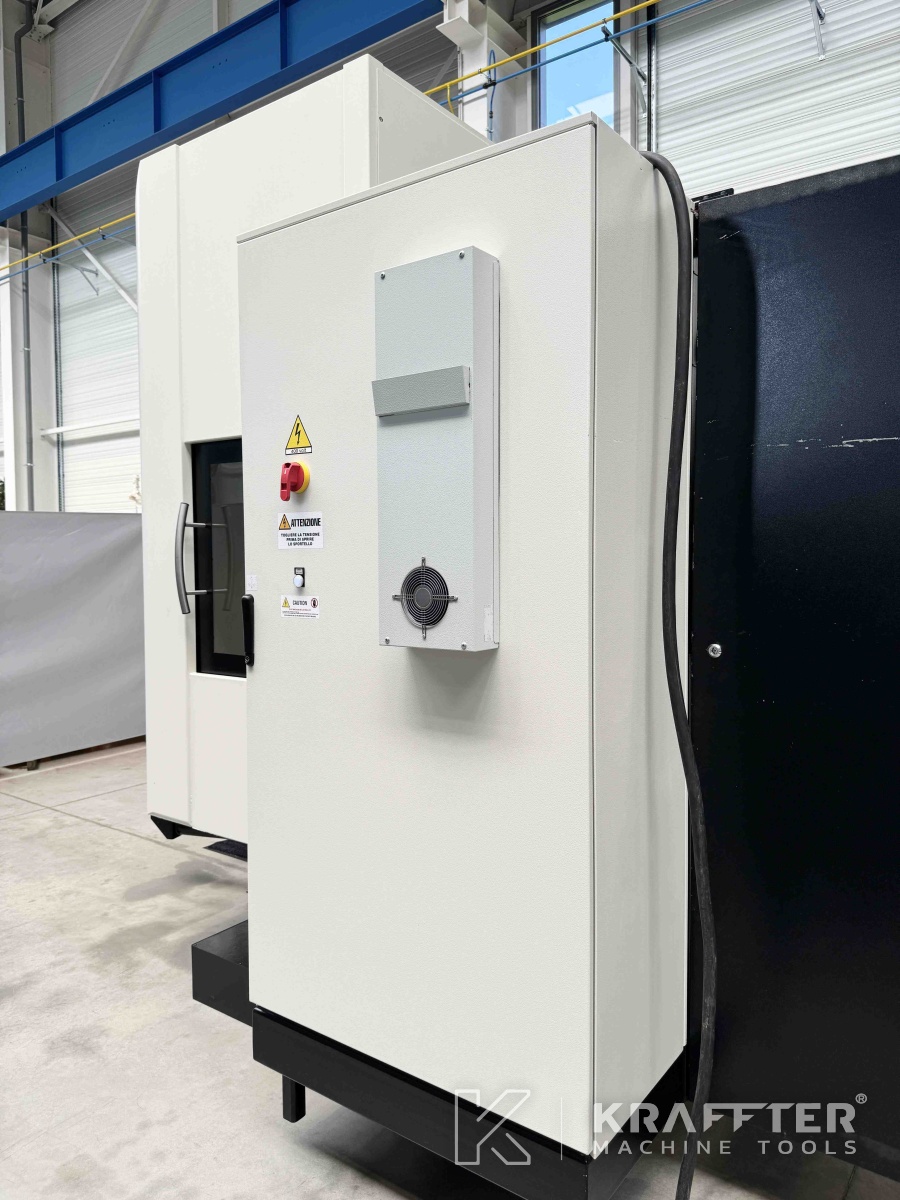

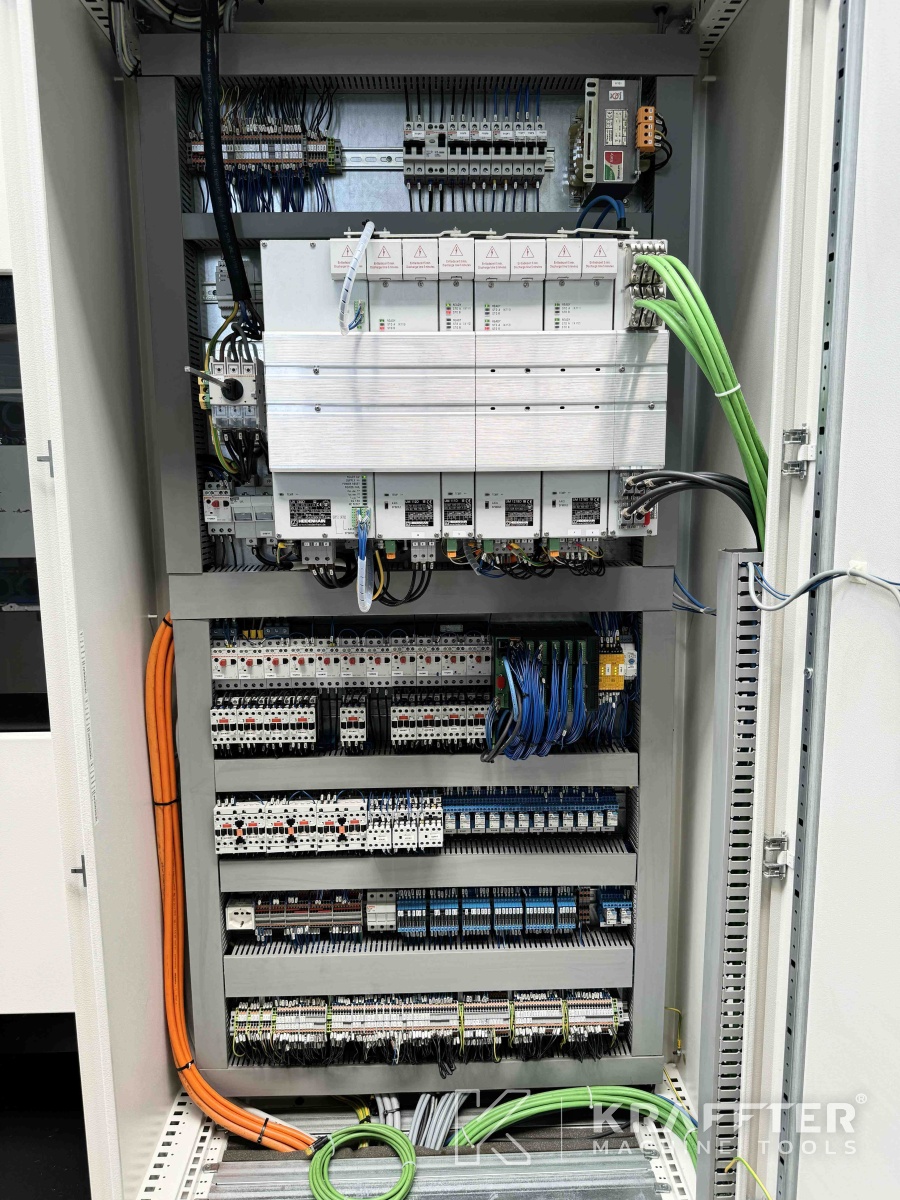

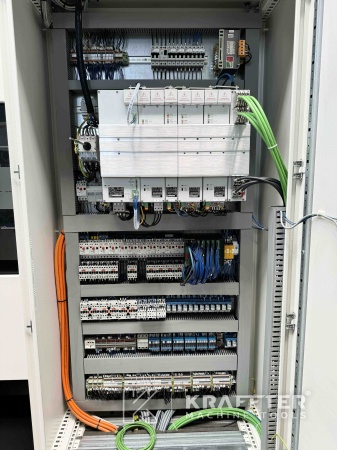

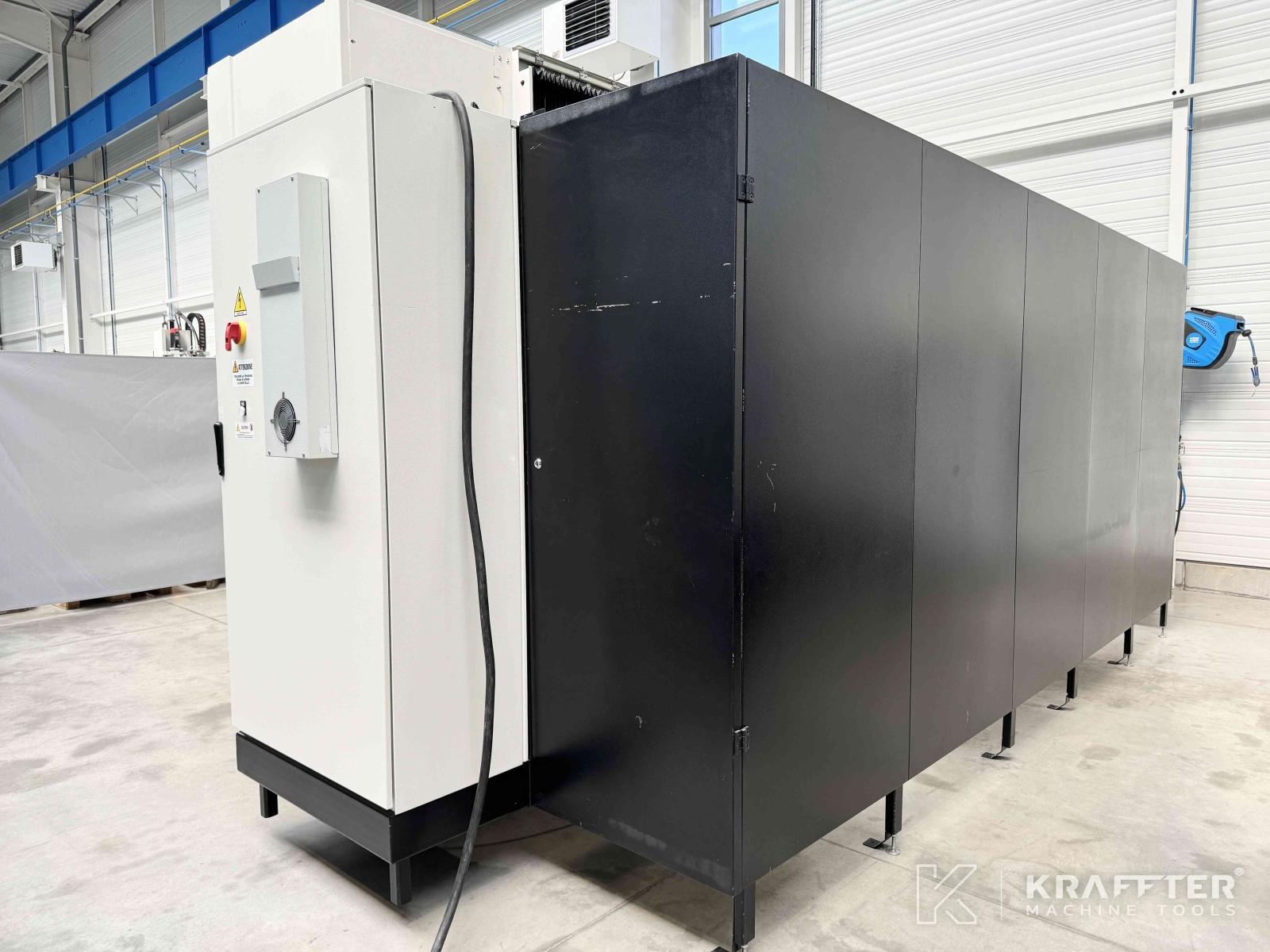

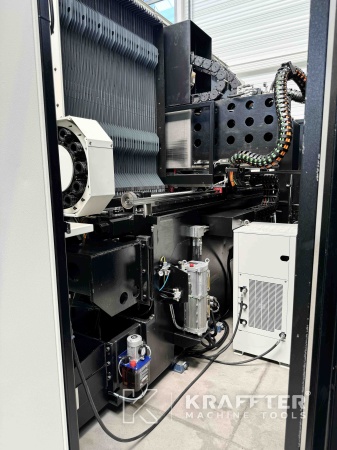

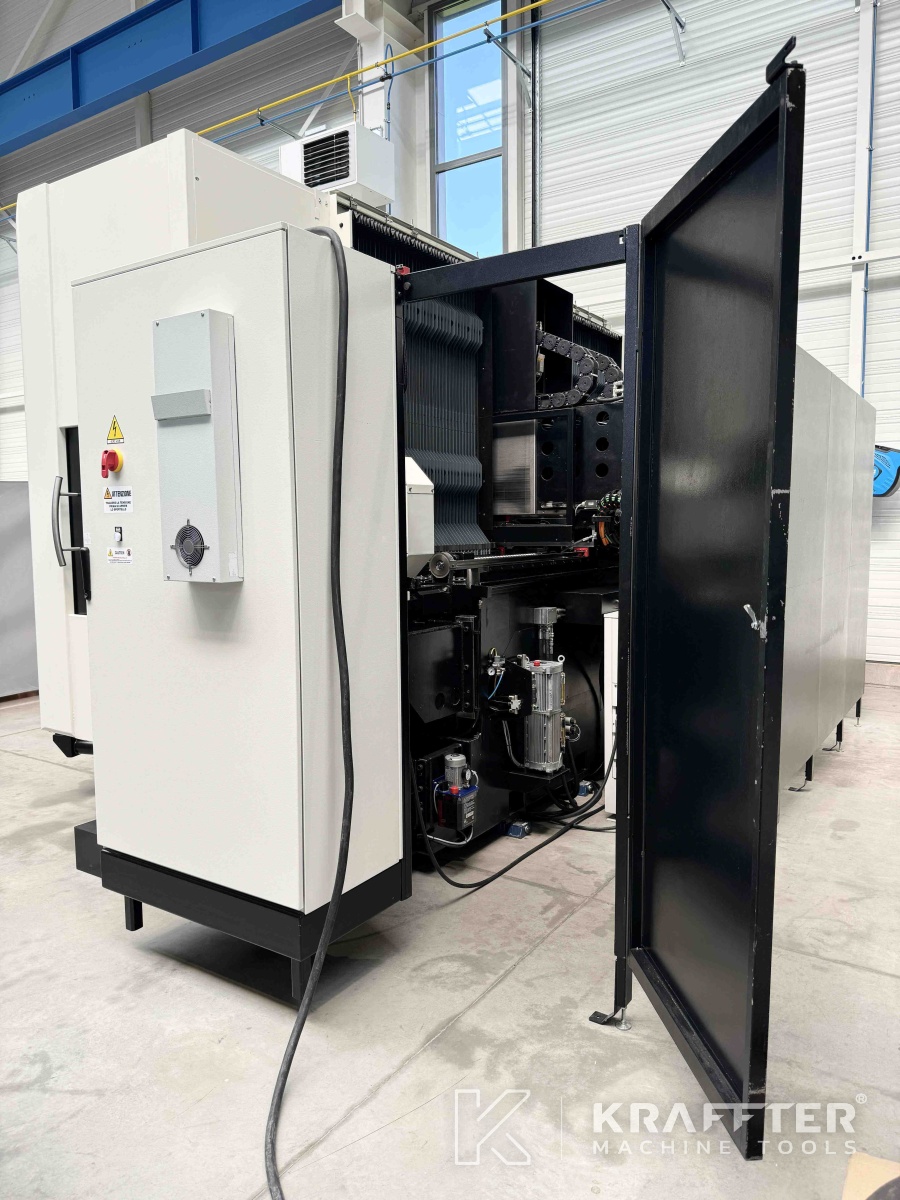

-Electrical cabinet chiller

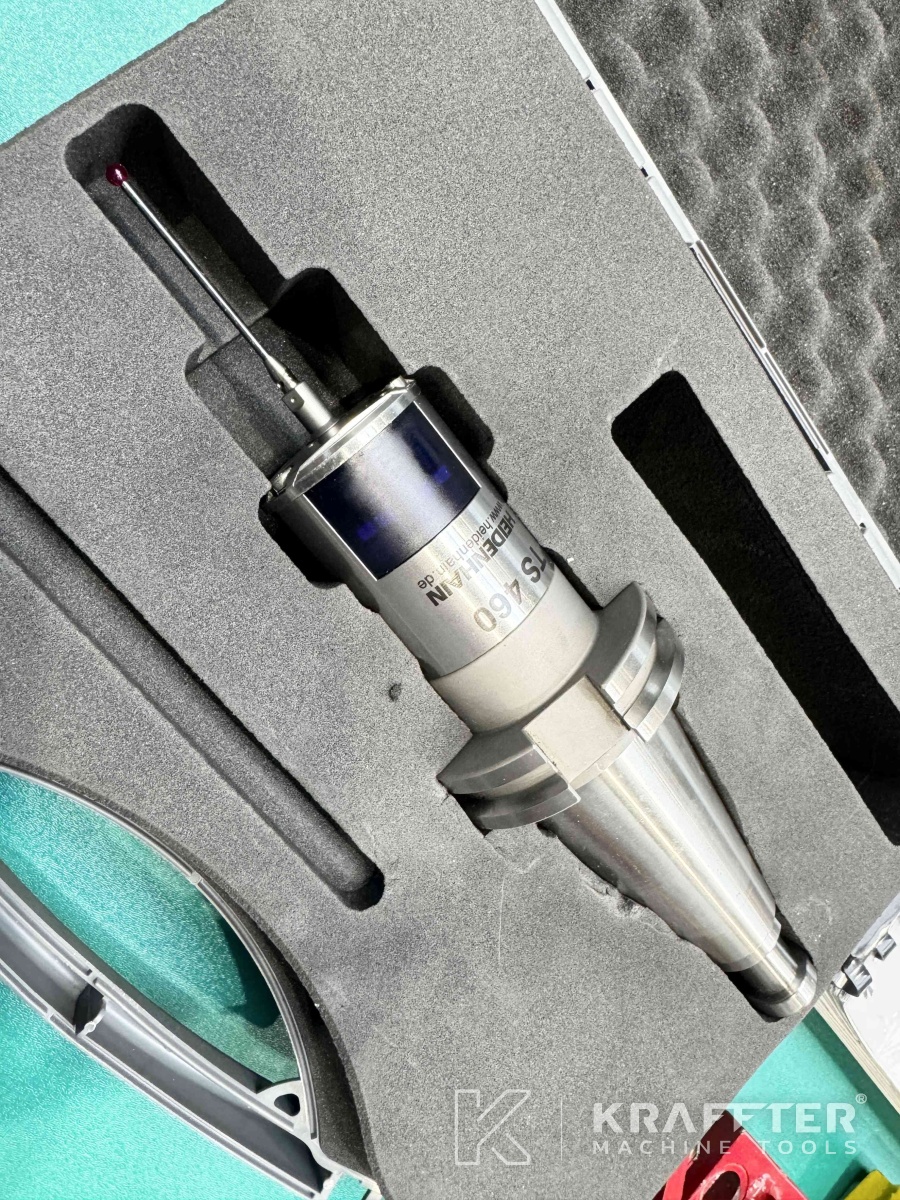

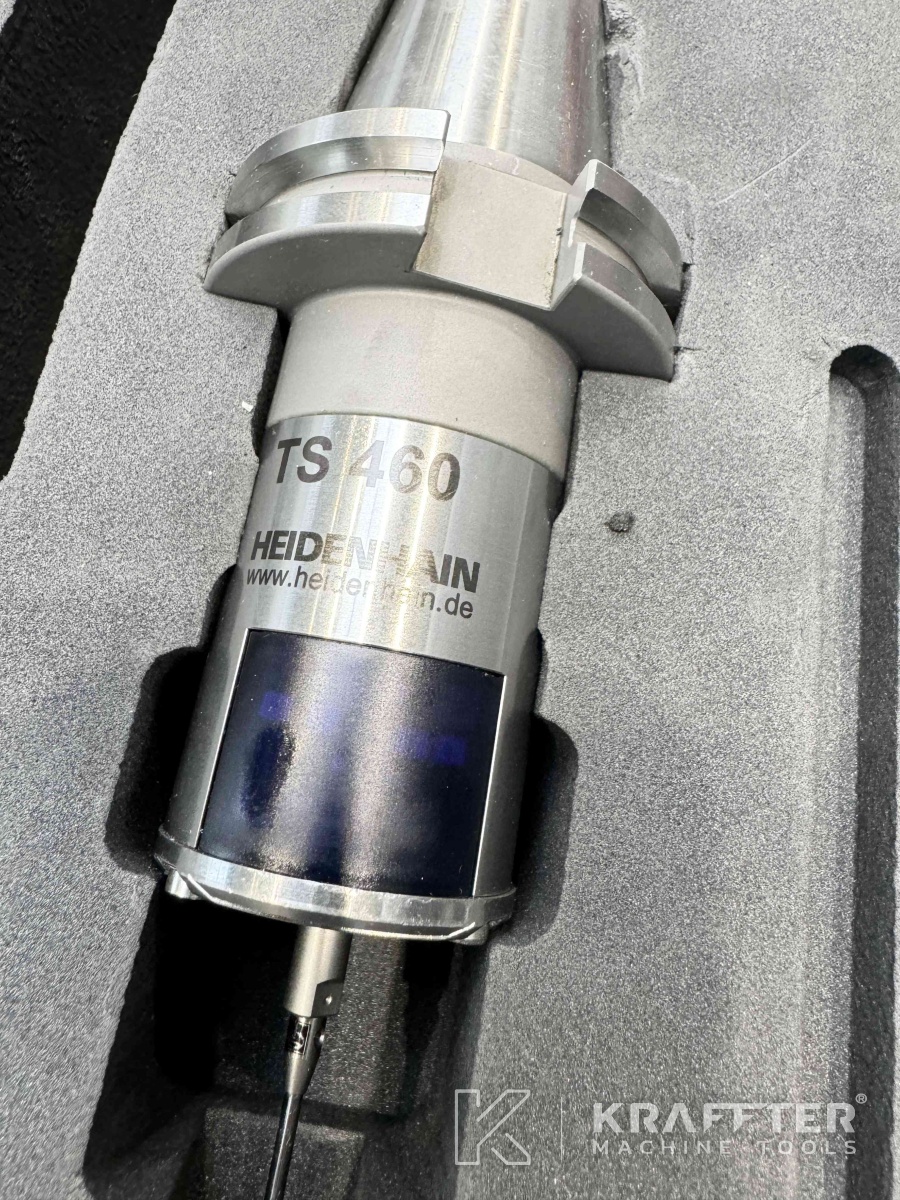

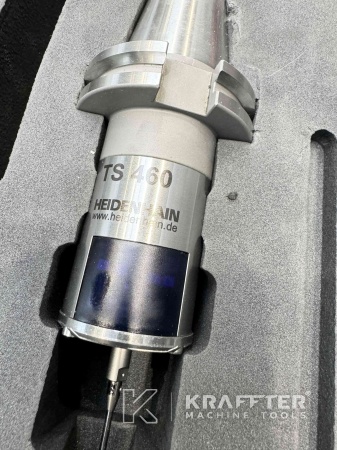

-HEIDENHAIN part probe

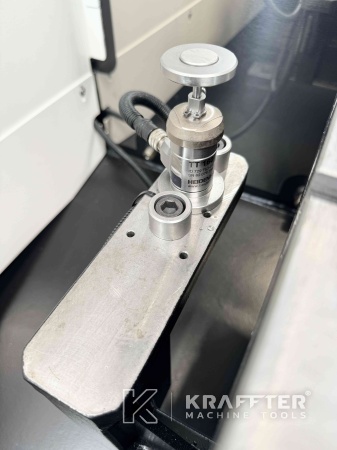

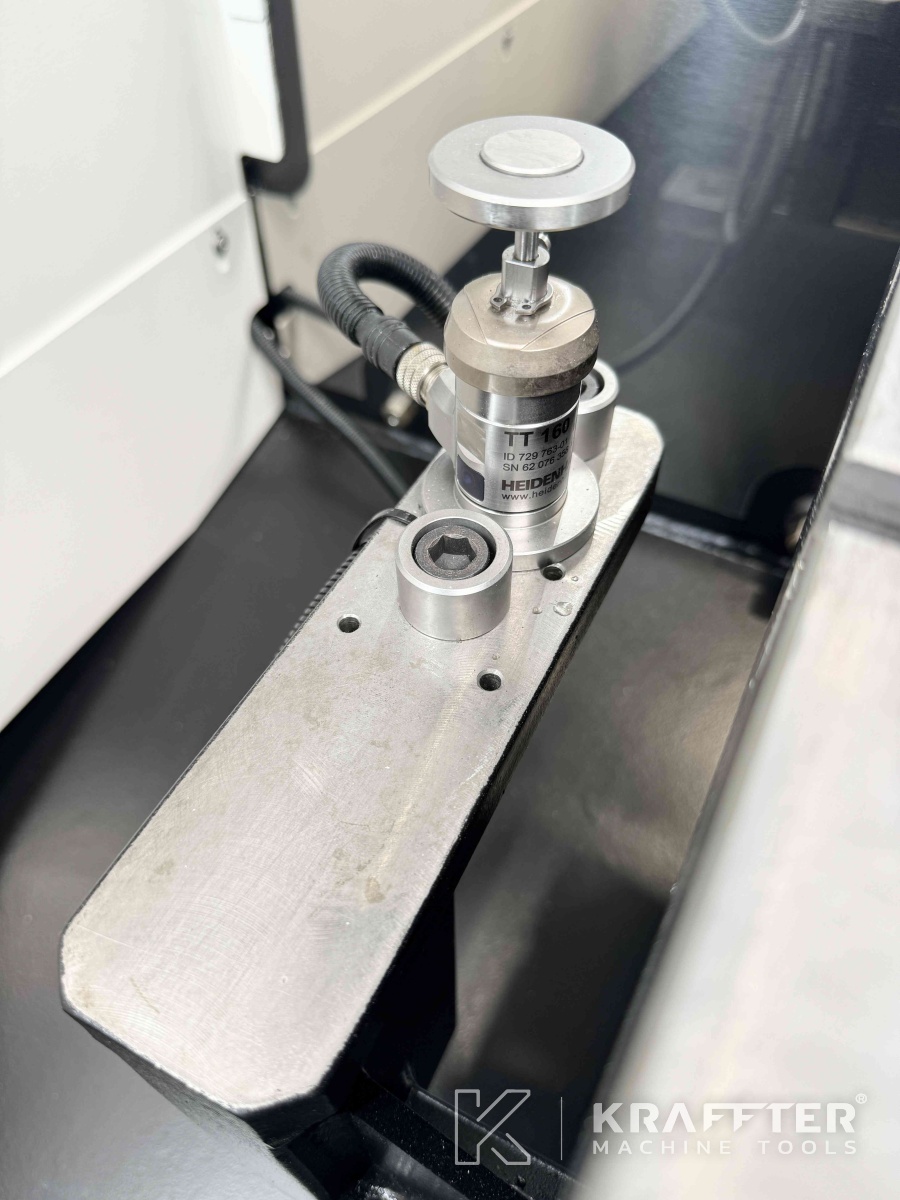

-HEIDENHAIN tool probe
