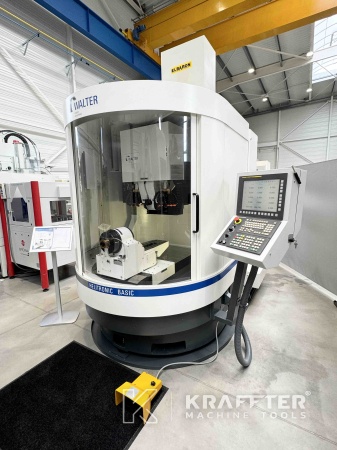

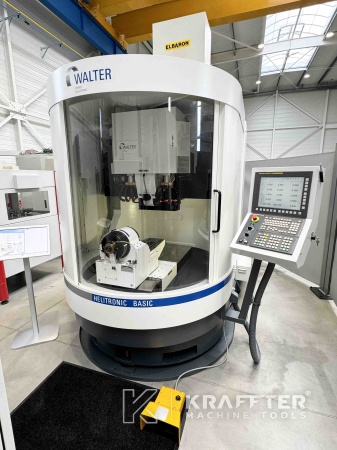

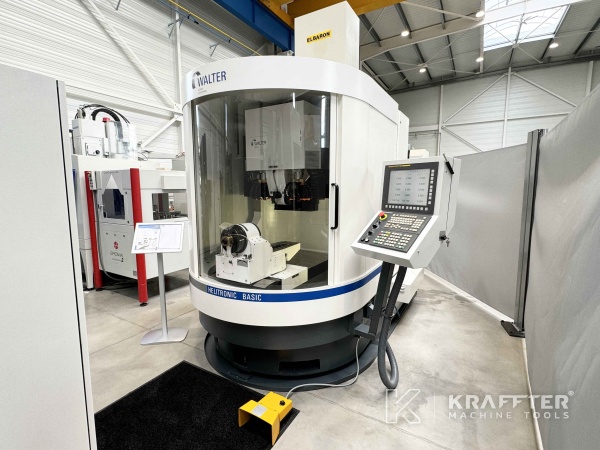

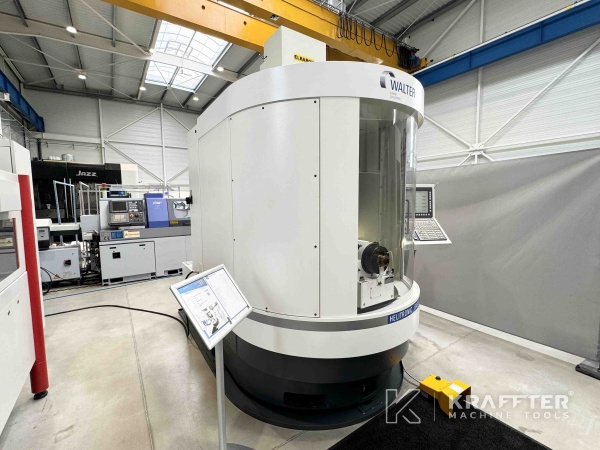

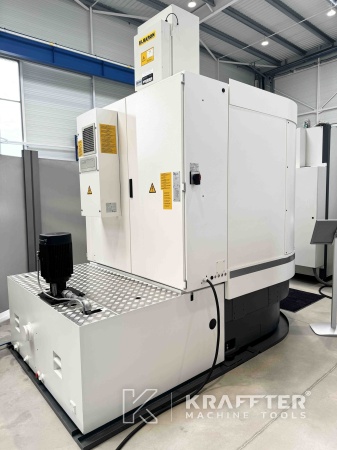

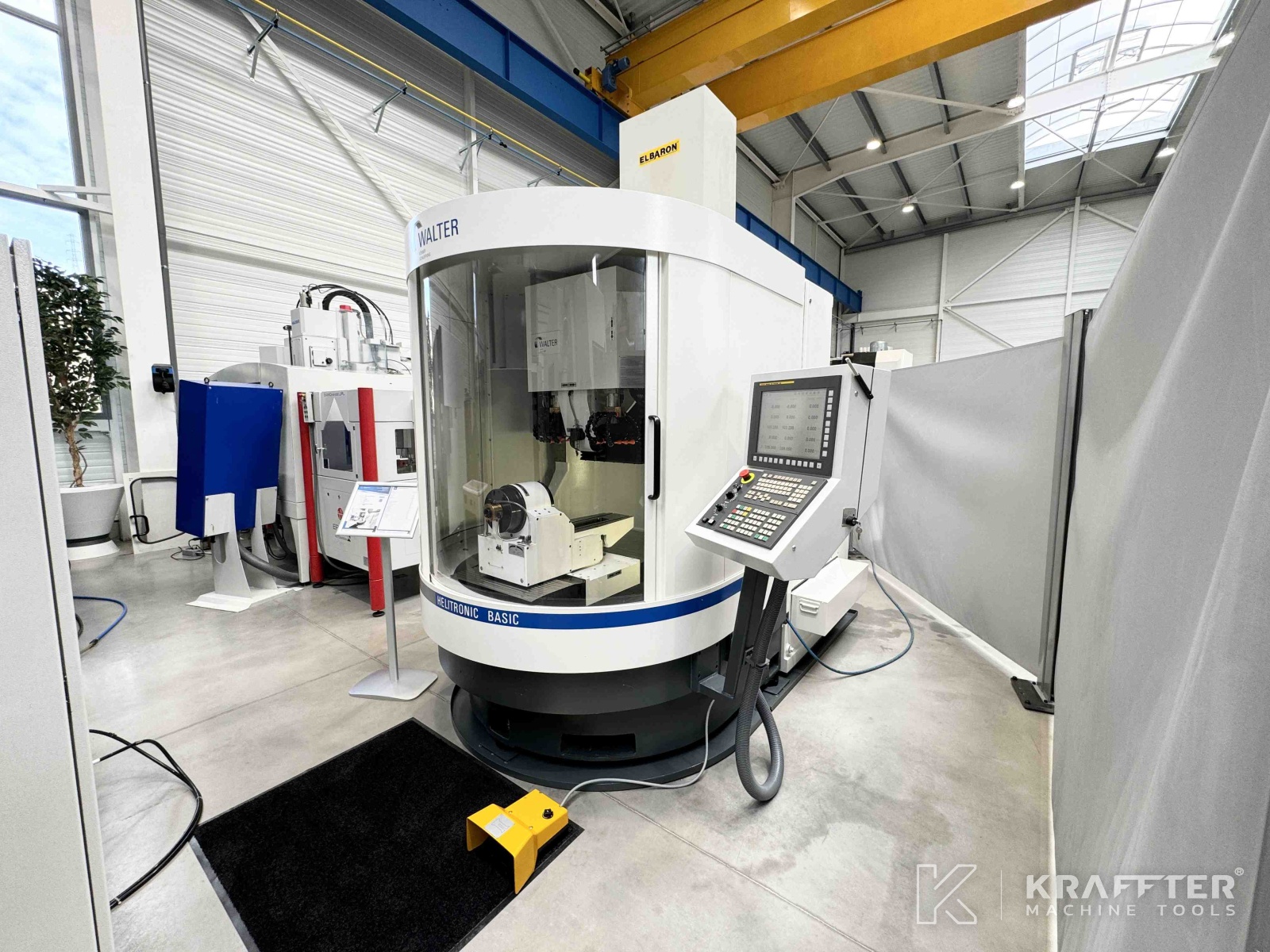

Type of machine : CNC tool grinding machine
Brand : WALTER
N° de stock: 90112
Model : Helitronic Basic
Year : 2013
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:

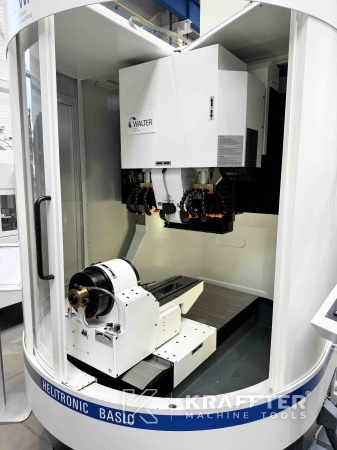

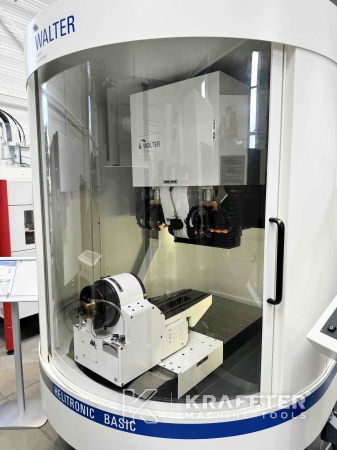

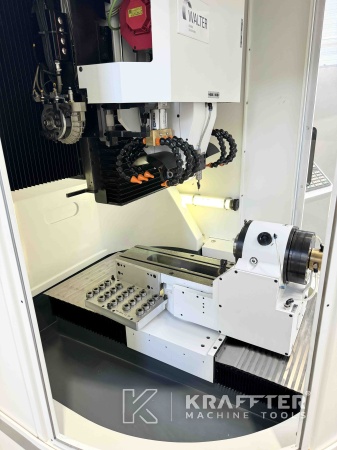

Technical characteristics

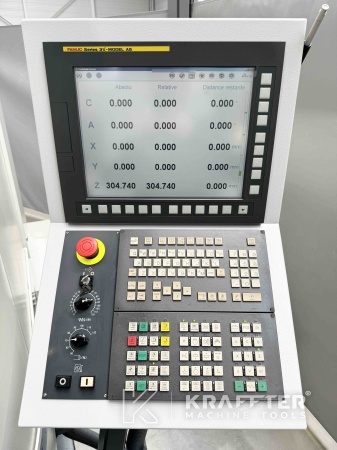

CNC control
FANUC 31i - MODEL A5
Software installed
Tool Studio Version 2.0. 158.0
Colour touchscreen
Yes

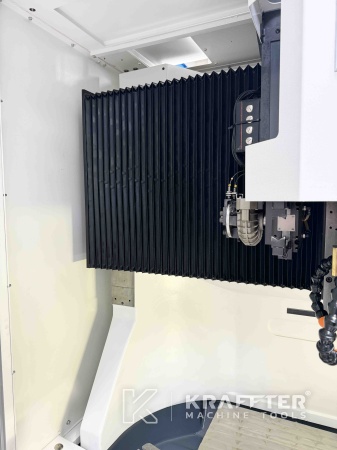

Number of axes
5

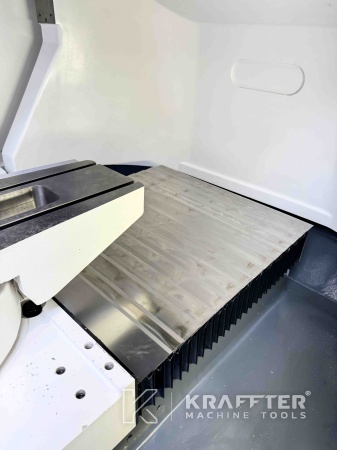

Stroke X axis
470 [mm]
Stroke Y axis
330 [mm]
Stroke Z axis
640 [mm]
Traversing feeds X, Y and Z axes
15000 [mm/min]
Stroke A axis
360 [°]
Stroke C axis
+/- 200 [°]
Max. workpiece lenght : complete processing
255 [mm]
Max. workpiece lenght : peripheral grinding
350 [mm]
Max. workpiece lenght : end face grinding
280 [mm]
Max. grinding diameter
320 [mm]
Max. grinding diameter with automated work table
290 [mm]

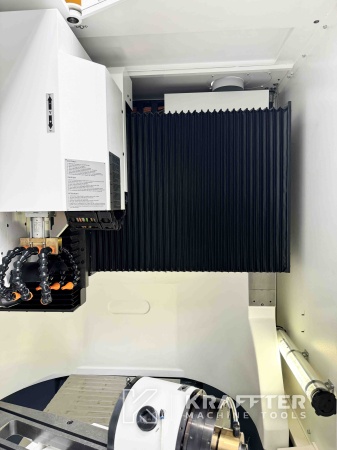

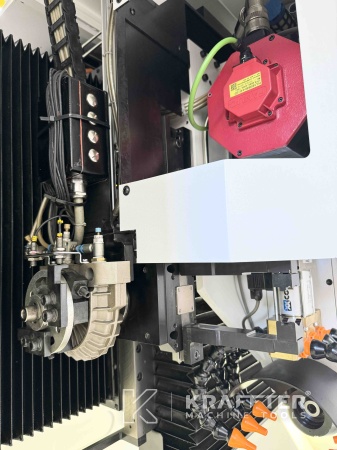

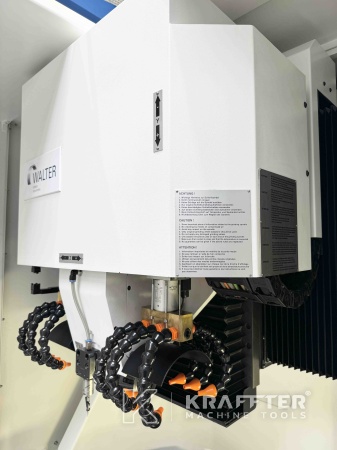

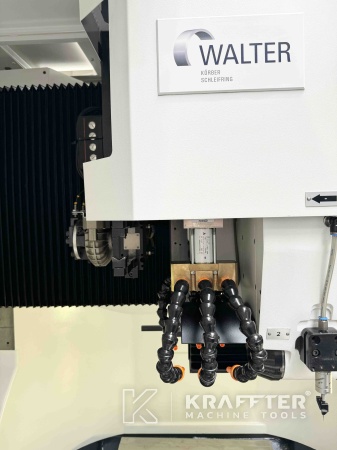

Grinding spindle attachment
NCT
Grinding spindle diameter
70 [mm]
Grinding wheel speed
10500 [rpm]
Grinding spindle motor power
7 [kW]
Max. diameter grinding wheel
150 [mm]

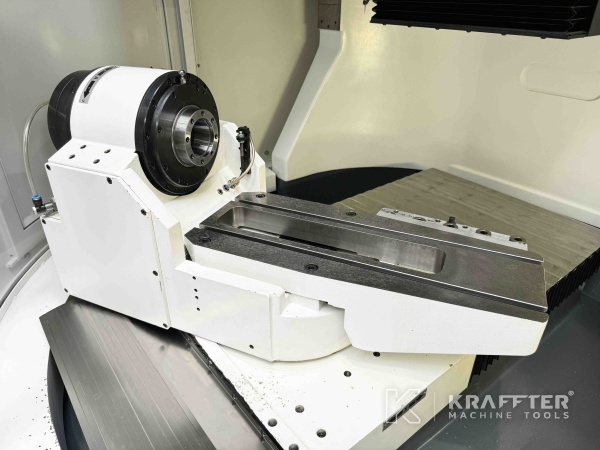

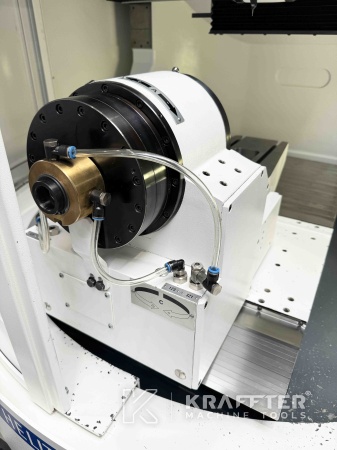

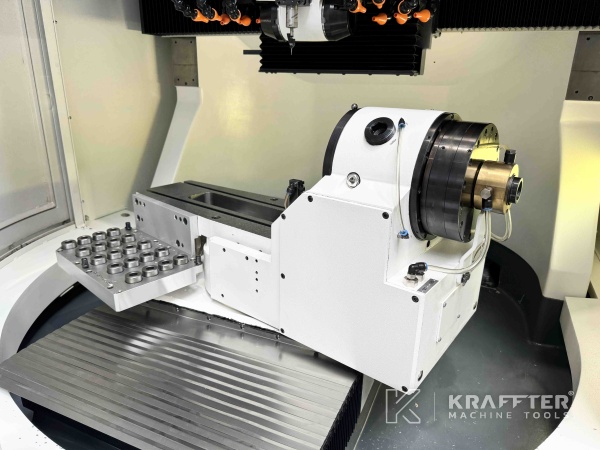

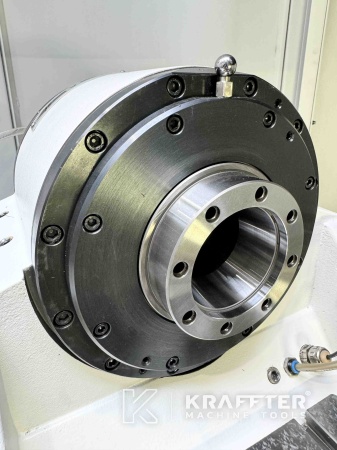

Workpiece spindle nose
ISO 50
Workpiece spindle max. speed
750 [rpm]

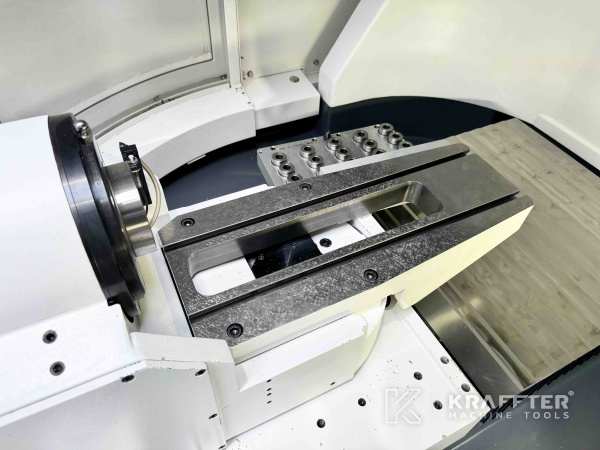

Max. part weight in part holder headstock
20 [Kg]
Number of running hours
8464 [h]

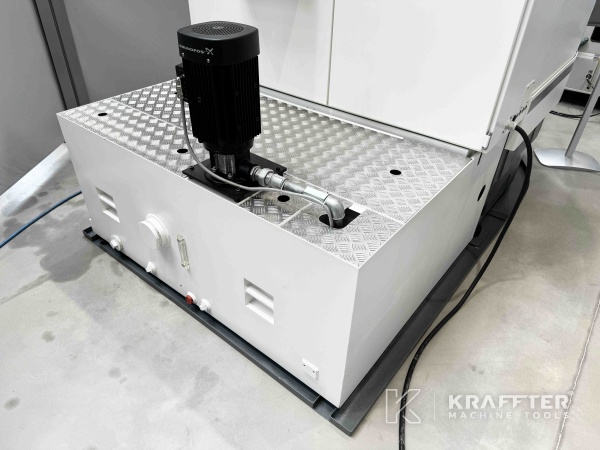

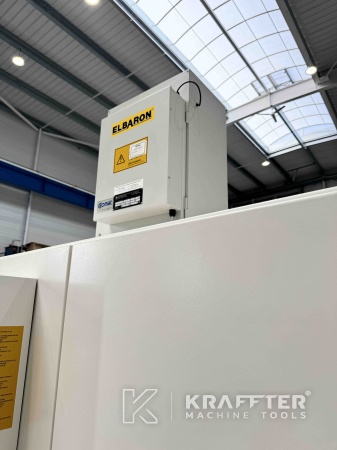

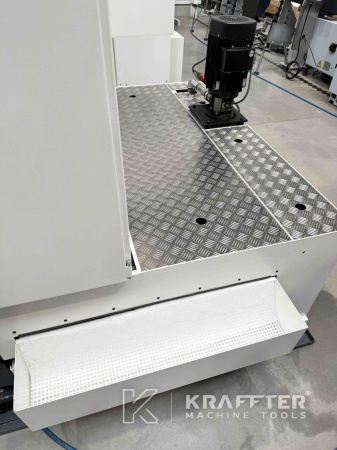

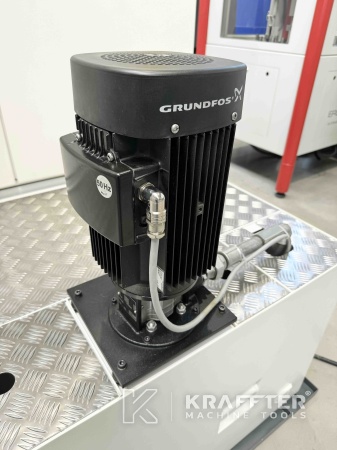

Coolant pump pressure
7 [bar]
Collant pump flow rate
80 [l/min]
Lubrication tank capacity
350 [l]

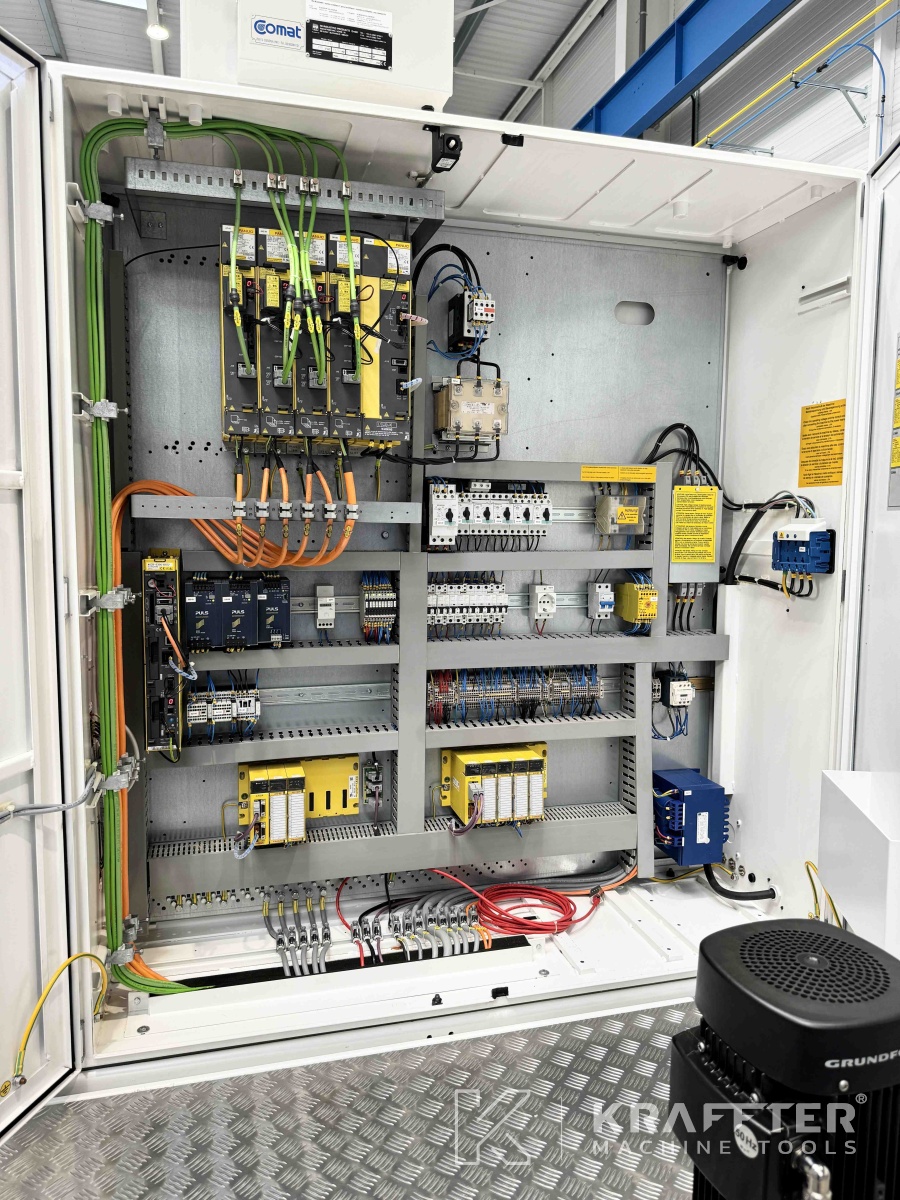

Supply voltage
400 [V]
Total power required
20 [kVA]

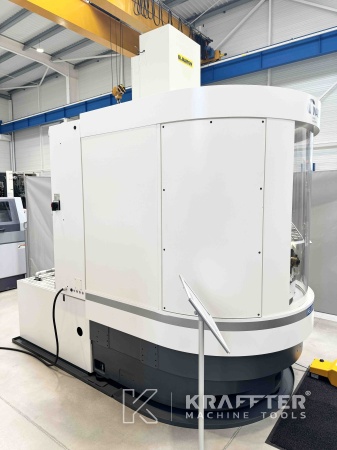

Weight
4500 [Kg]

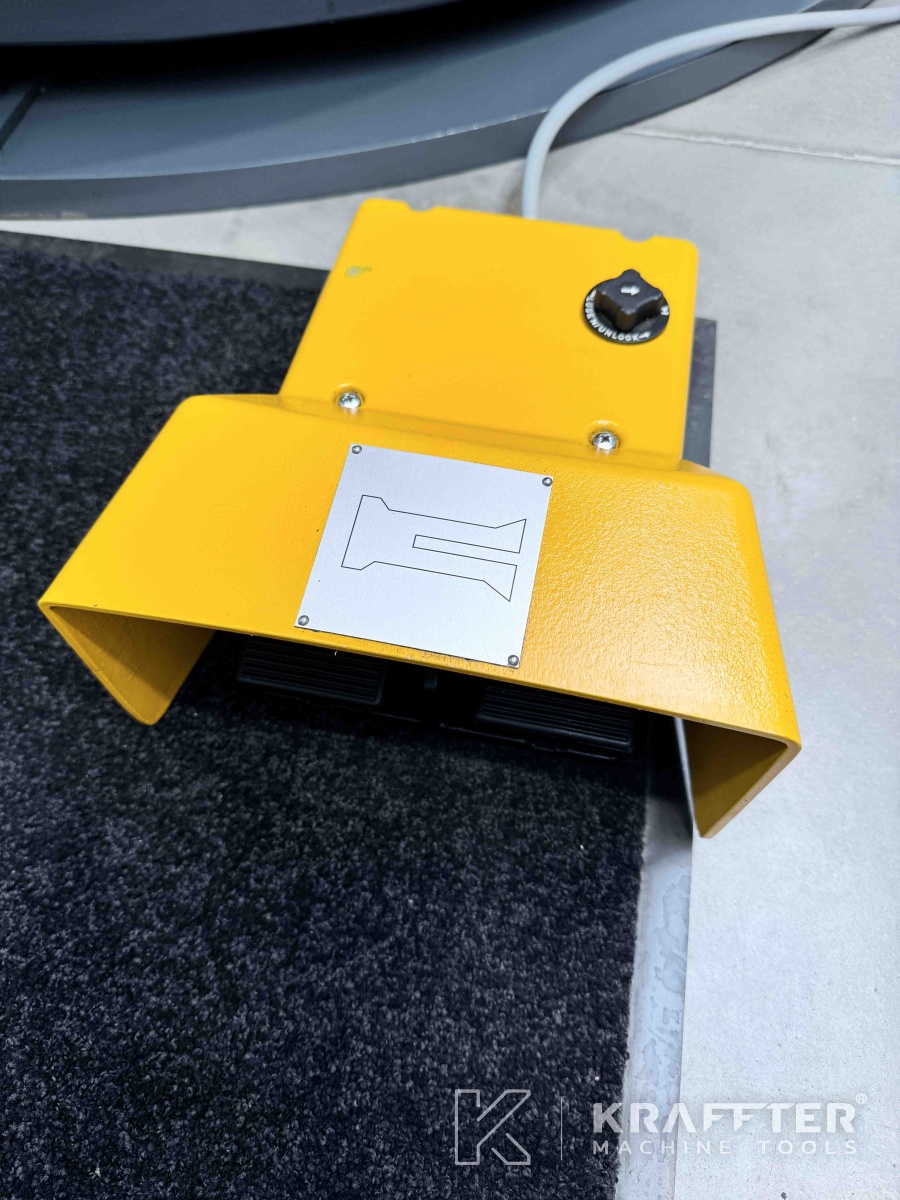

Additional information

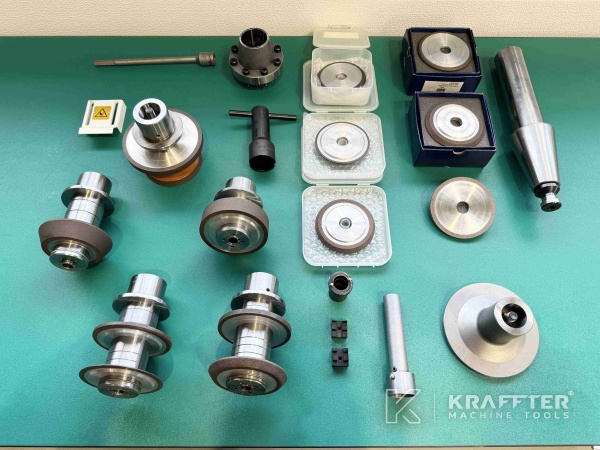

EQUIPMENT INCLUDED:

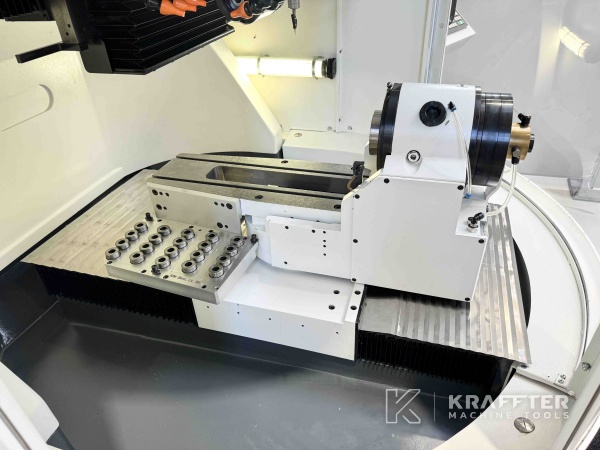

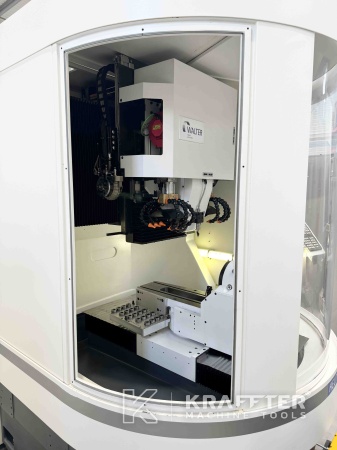

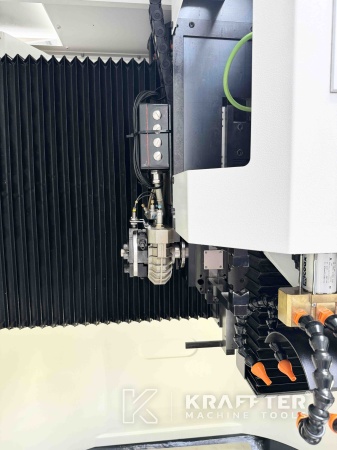

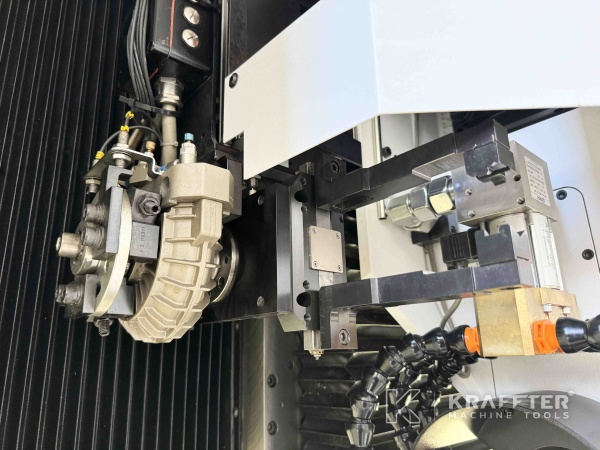

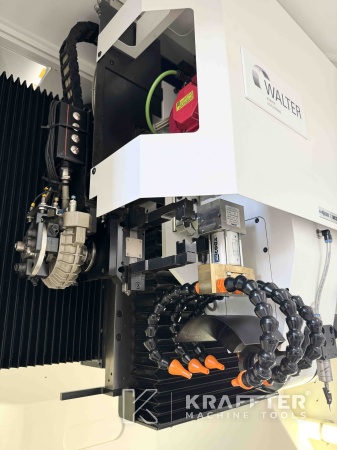

x1 ECO LOADER automation tool loader

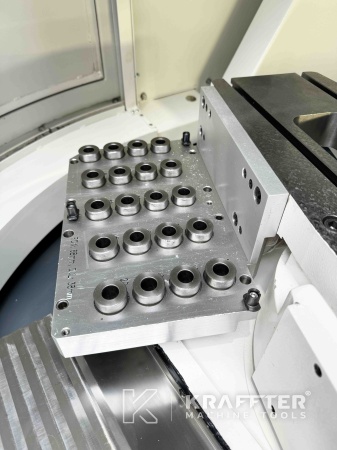

x1 20 tool palett
x5 grinding wheel holders

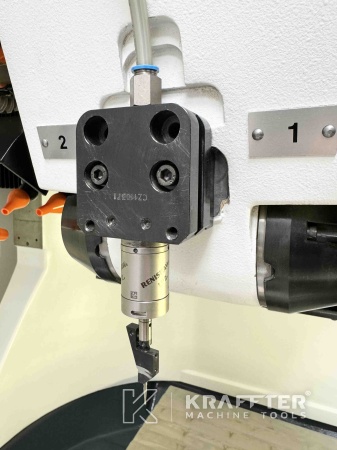

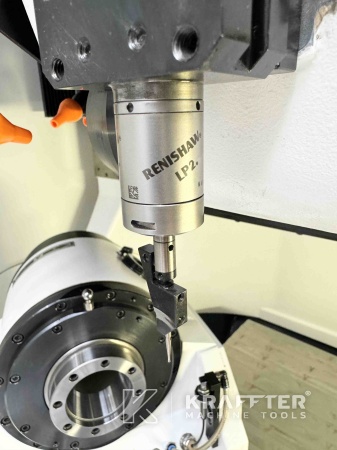

x1 "calibration" option (ball + software)
x1 WALTER ISO50 test mandrel
x1 WALTER control disc
x14 grinding wheels
Various service keys
Various manuals
Wiring diagrams
