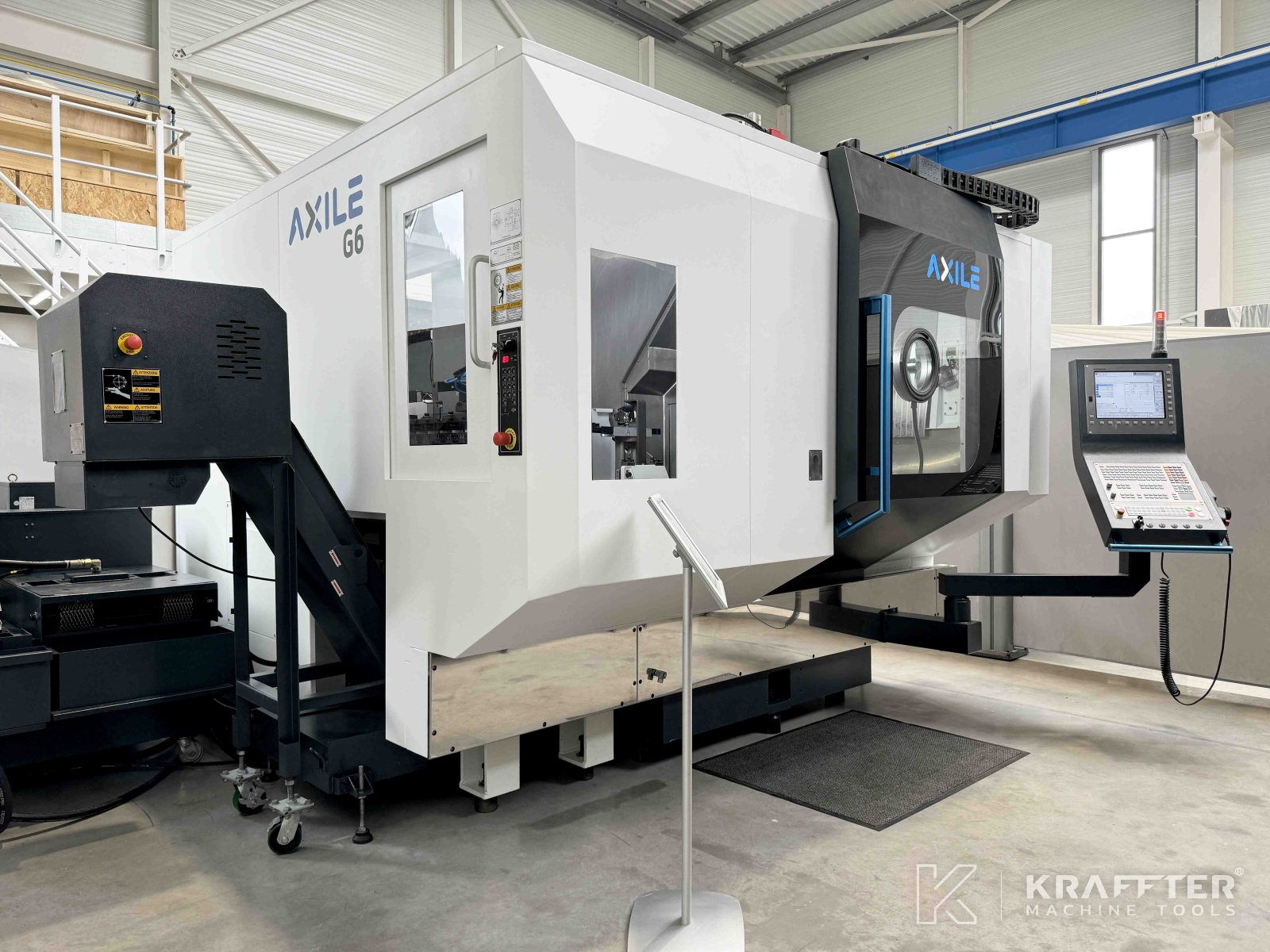

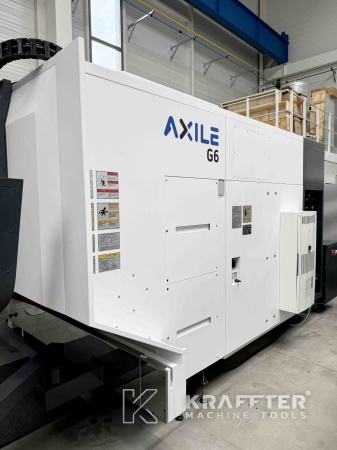

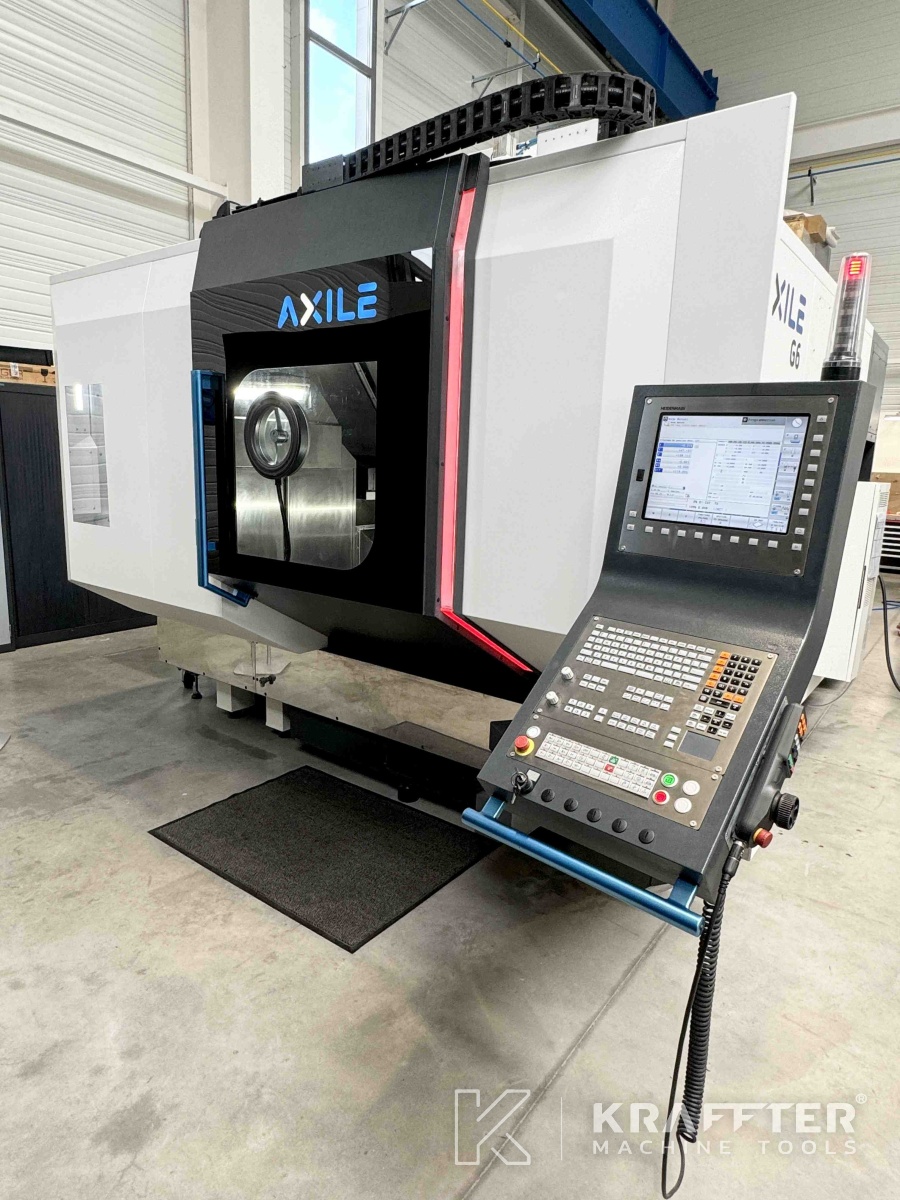

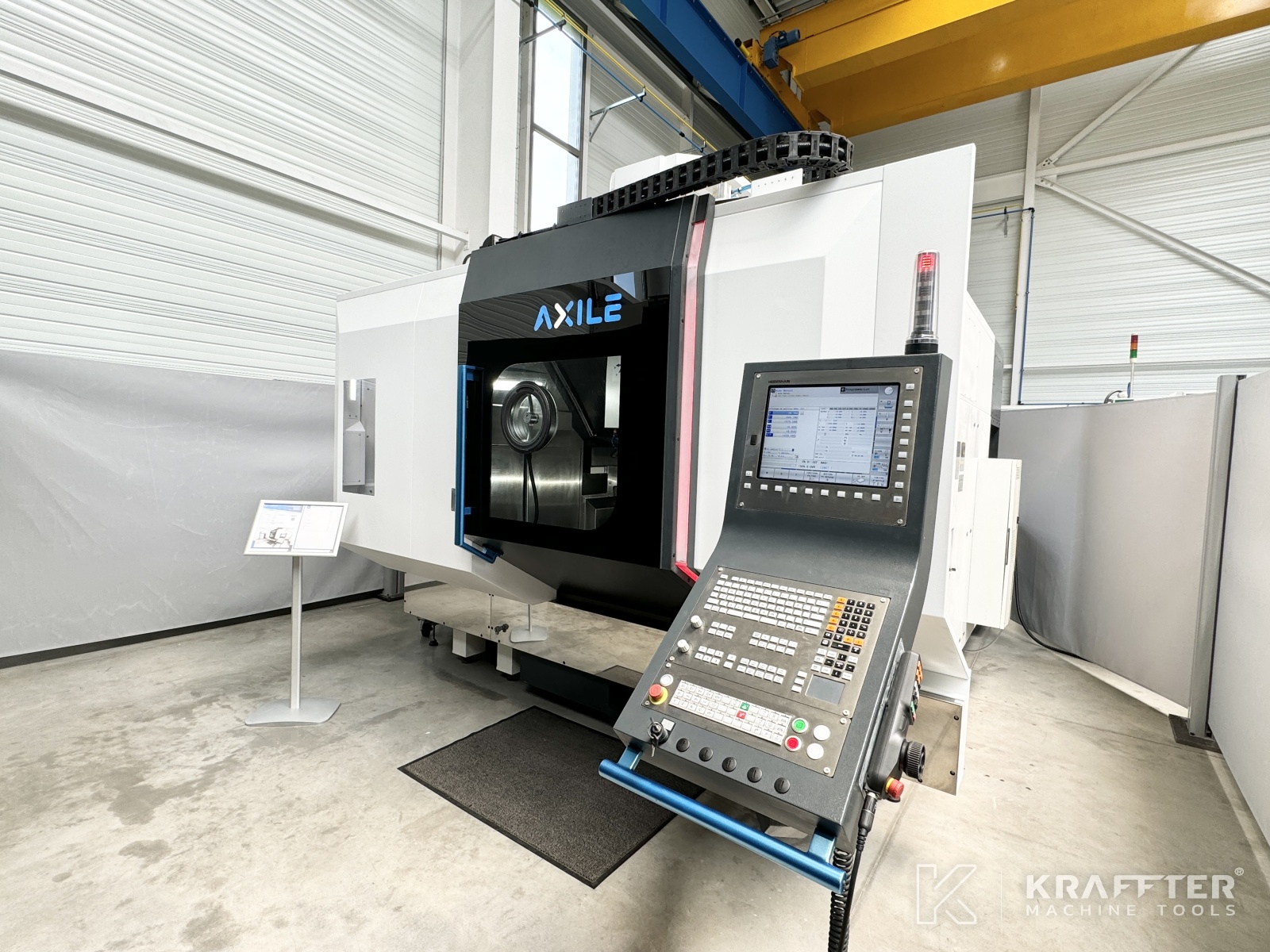

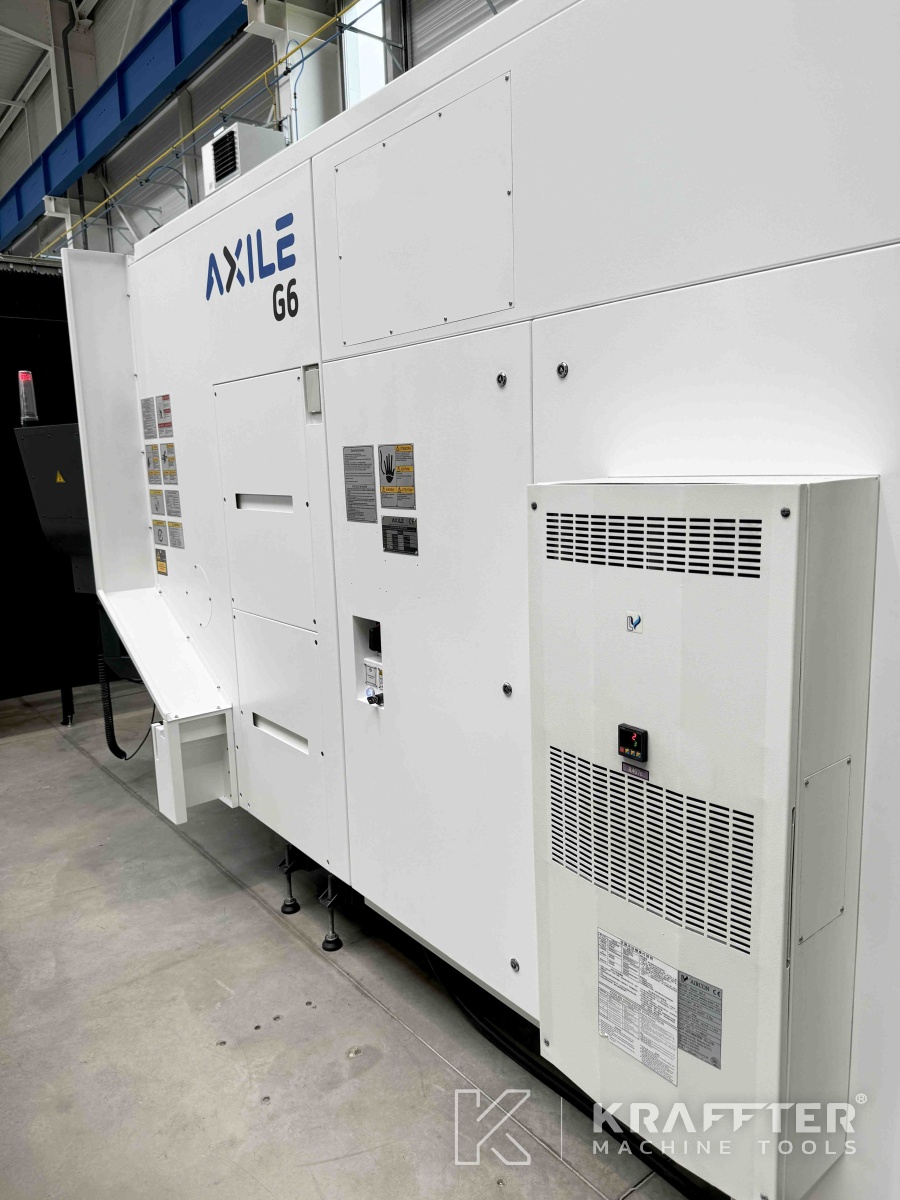

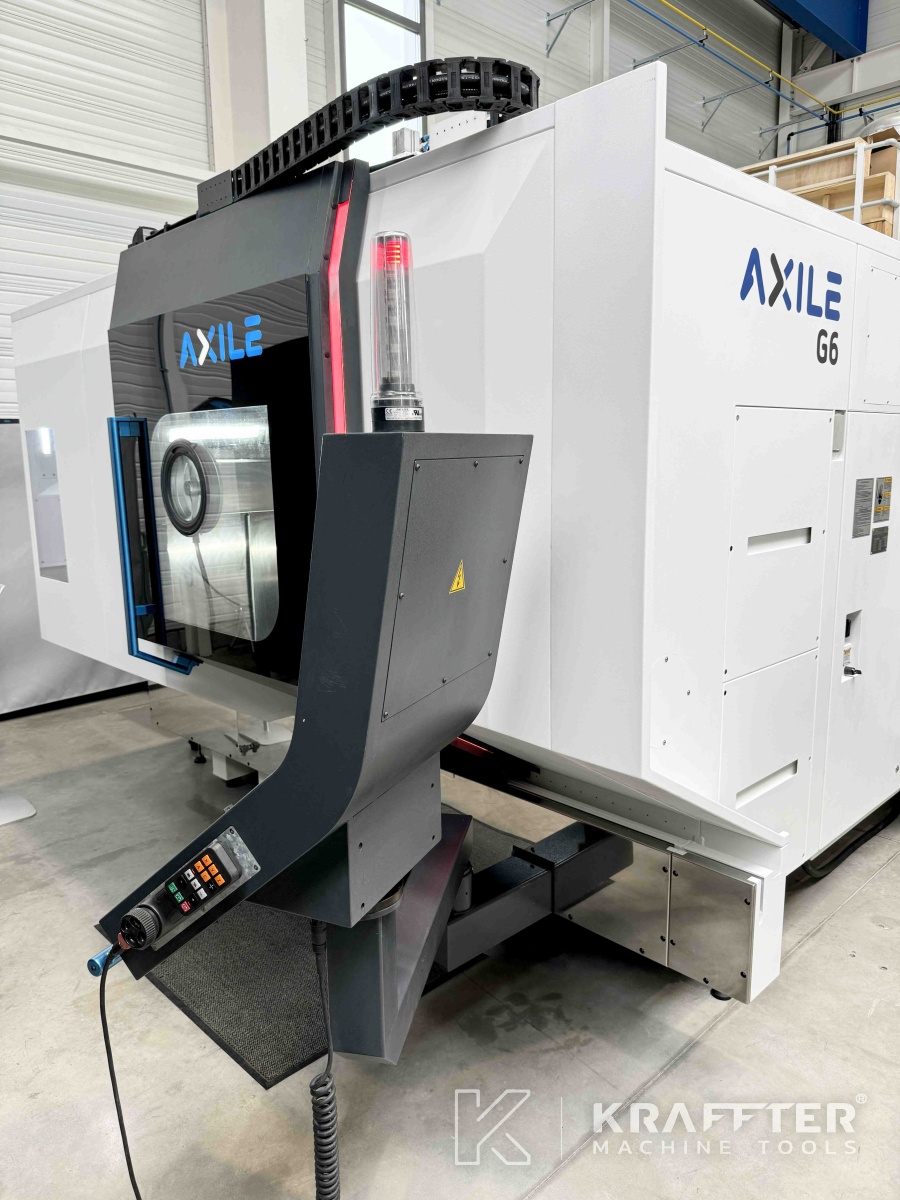

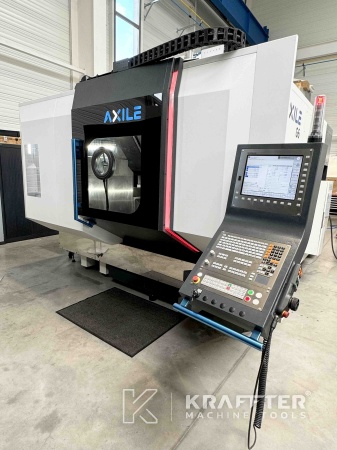

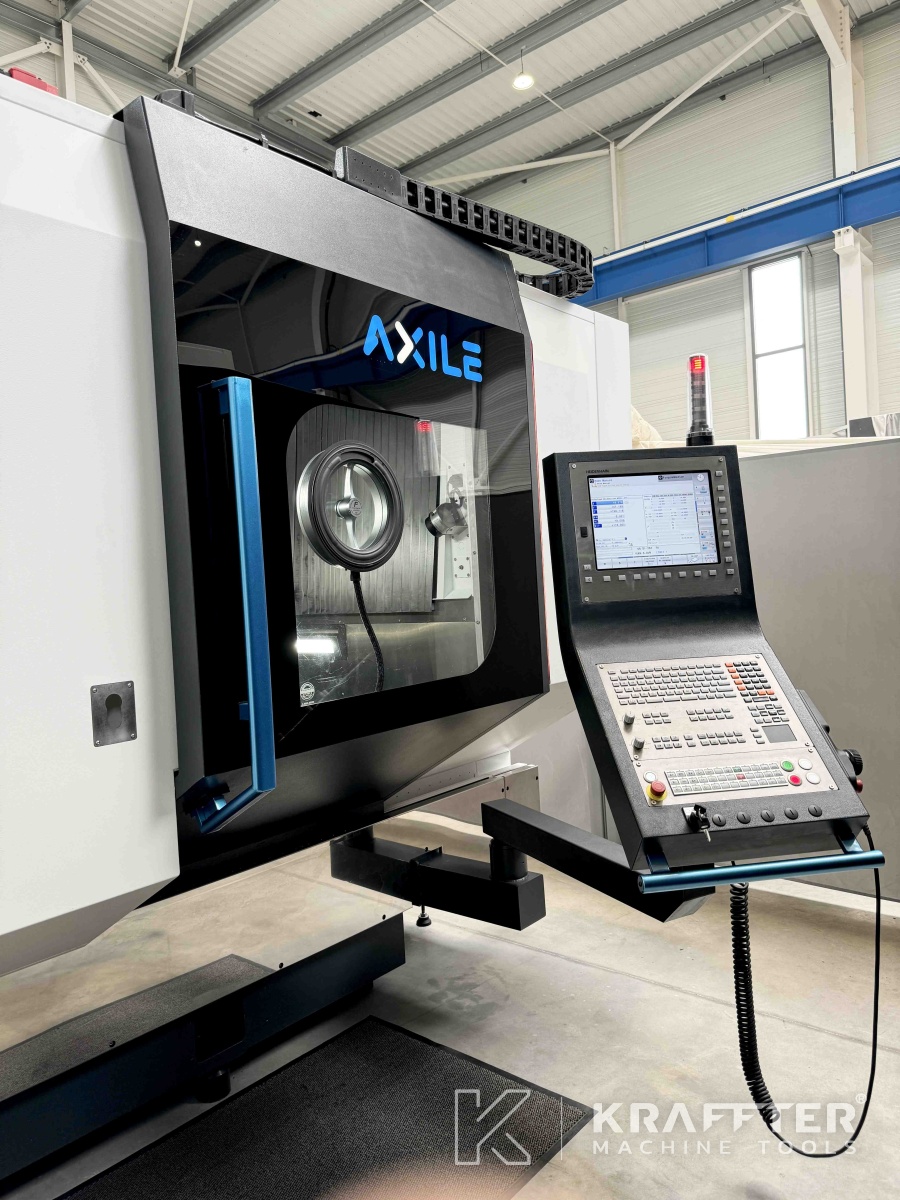

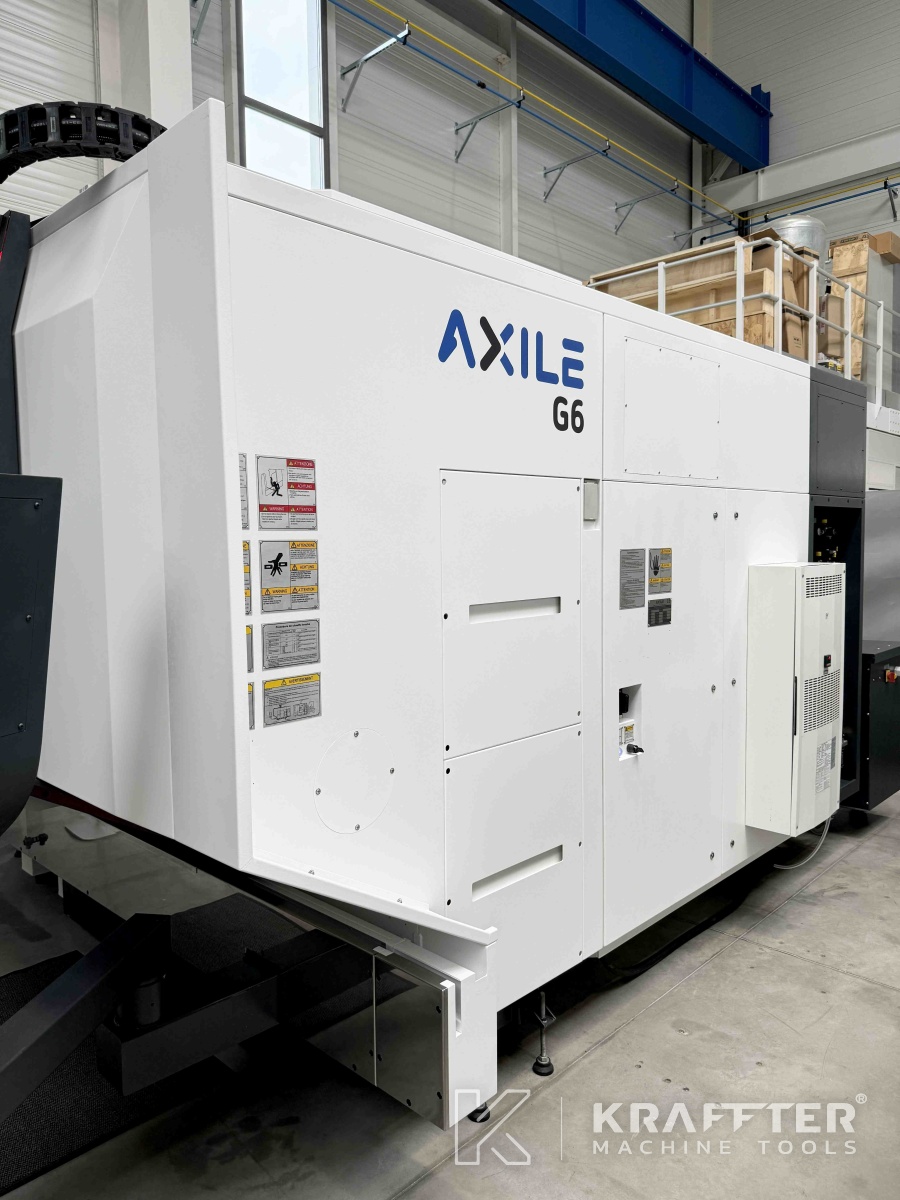

Type of machine : CNC machining centre
Brand : AXILE
N° de stock: 90104
Model : G6
Year : 2020
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

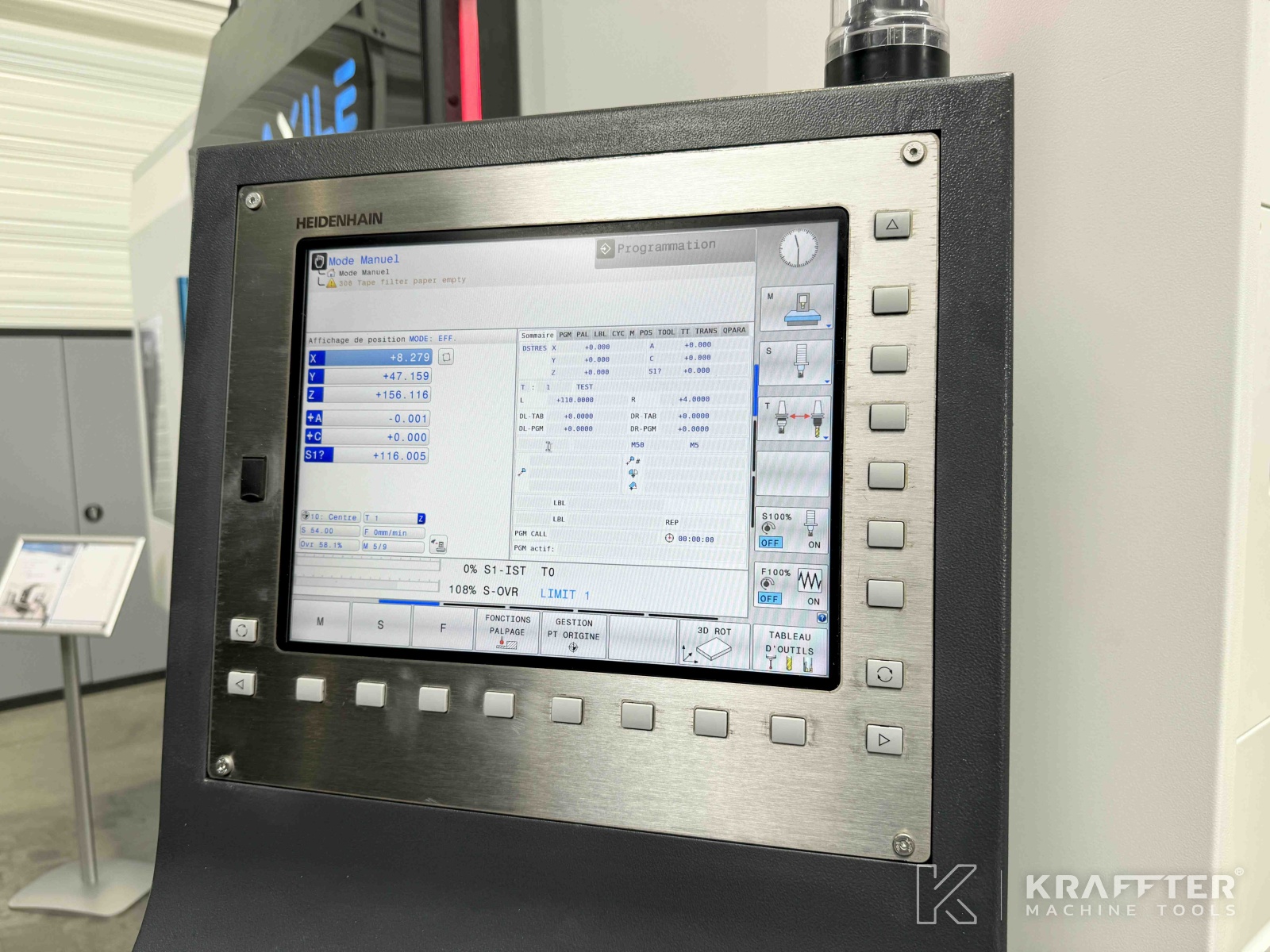

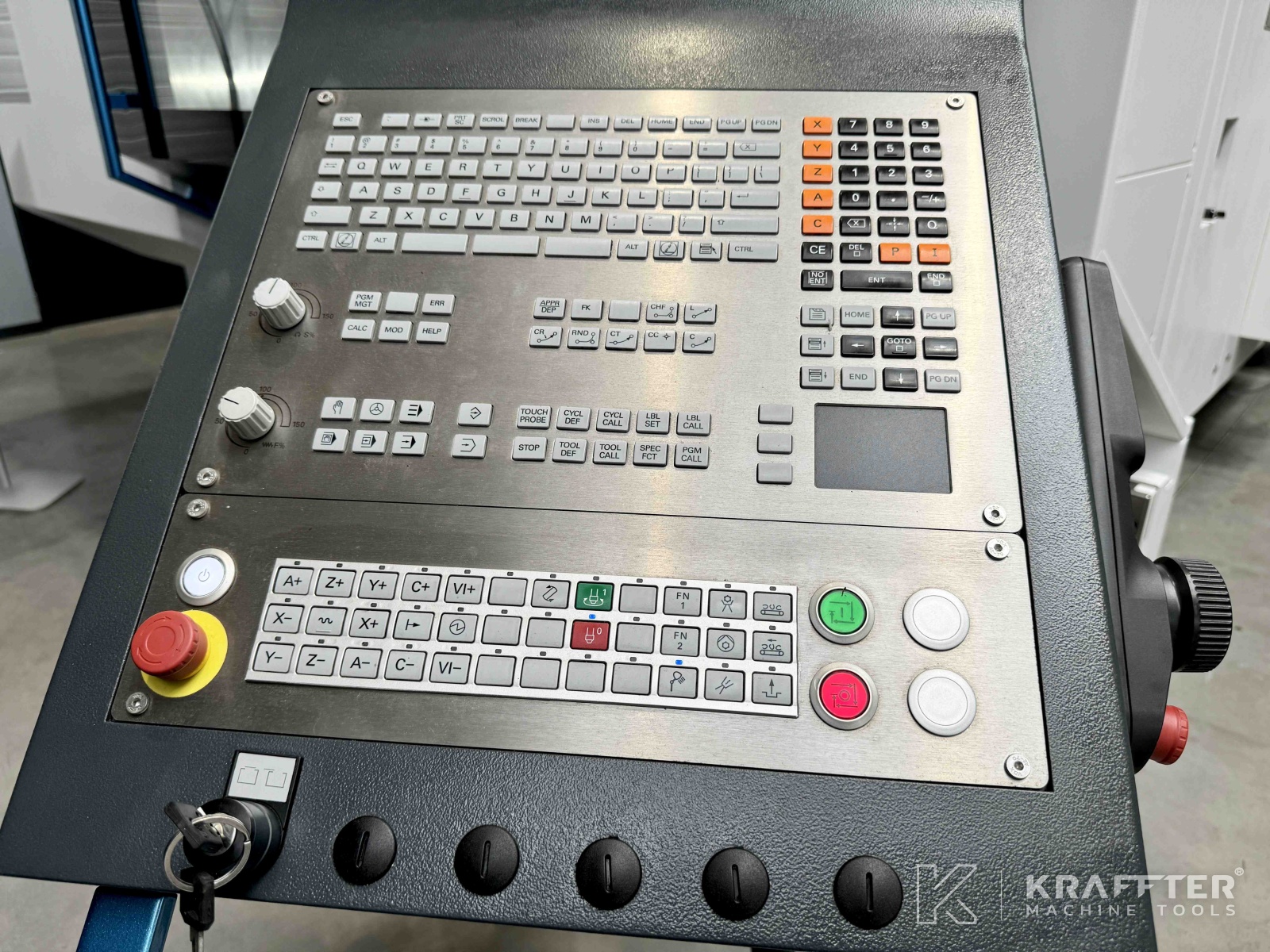

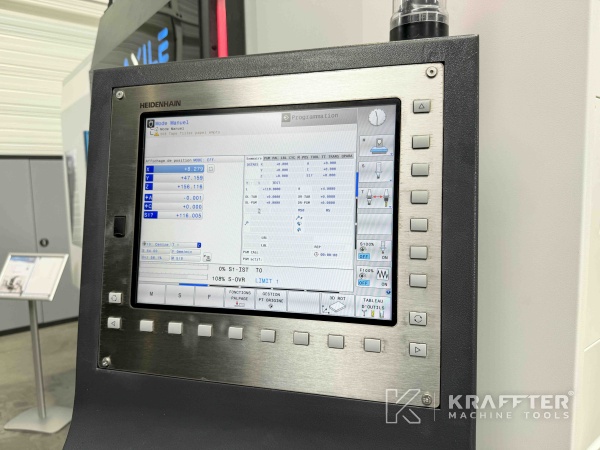

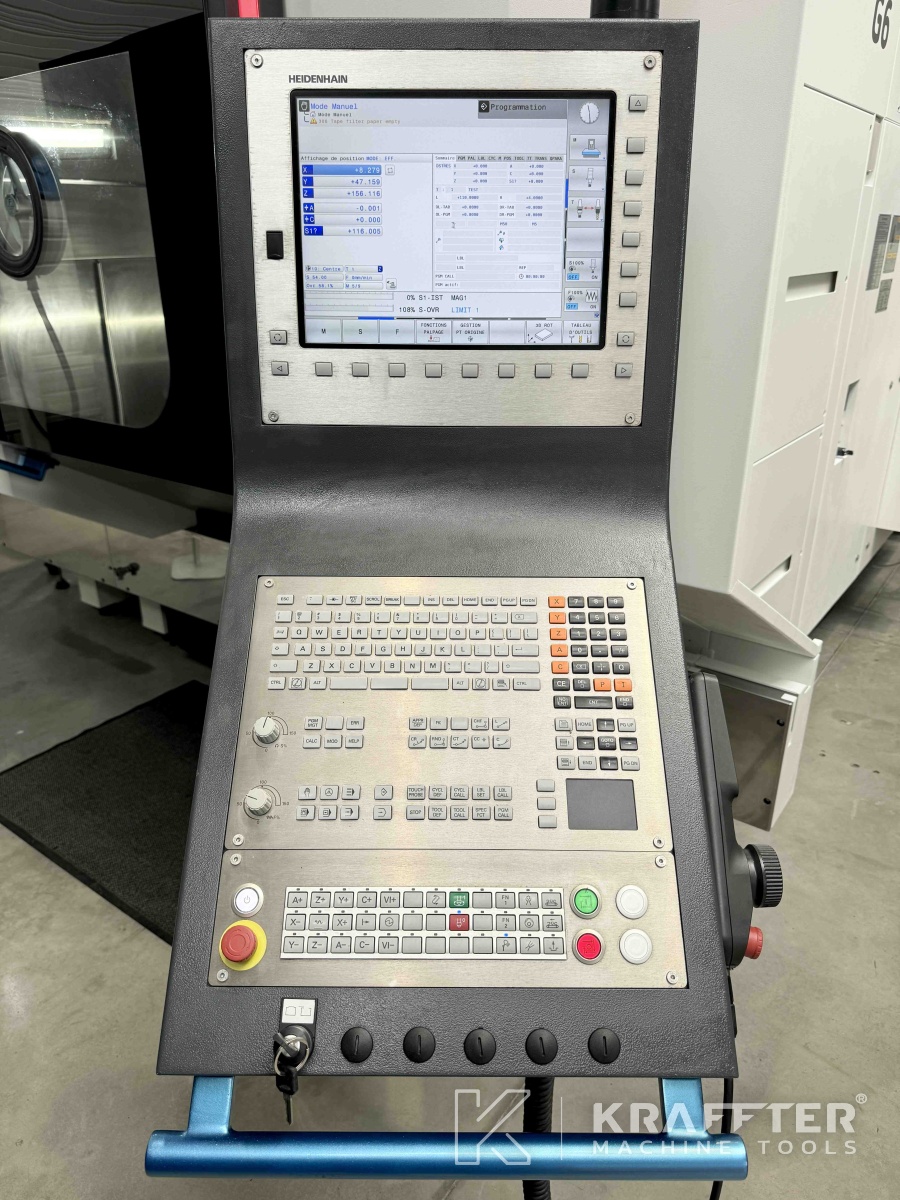

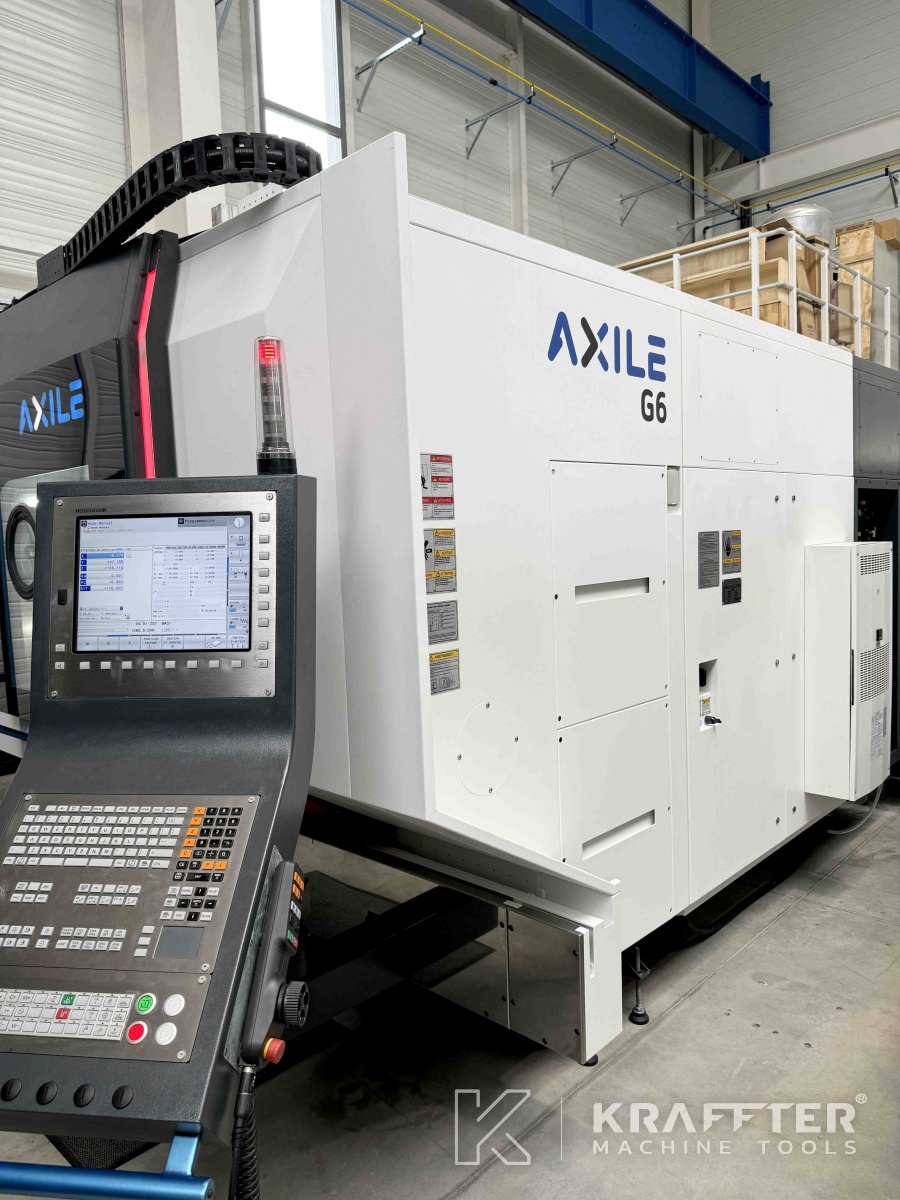

CNC control
HEIDENHAIN TNC 640
Number of simultaneous axes
5
Stroke X axis
650 [mm]
Stroke Y axis
850 [mm]
Stroke Z axis
500 [mm]
Traversing feeds X, Y and Z axes
36000 [mm/min]
X axis ball screw, Ø x pitch
40 x 12 [mm]
Y axis ball screw, Ø x pitch
40 x 12 [mm]
Z axis ball screw, Ø x pitch
40 x 12 [mm]
Angular A axis stroke
+/- 120 [°]
Angular C axis stroke
360 [°]
Min. distance spindle nose / table
150 [mm]
Max. distance spindle nose / table
650 [mm]

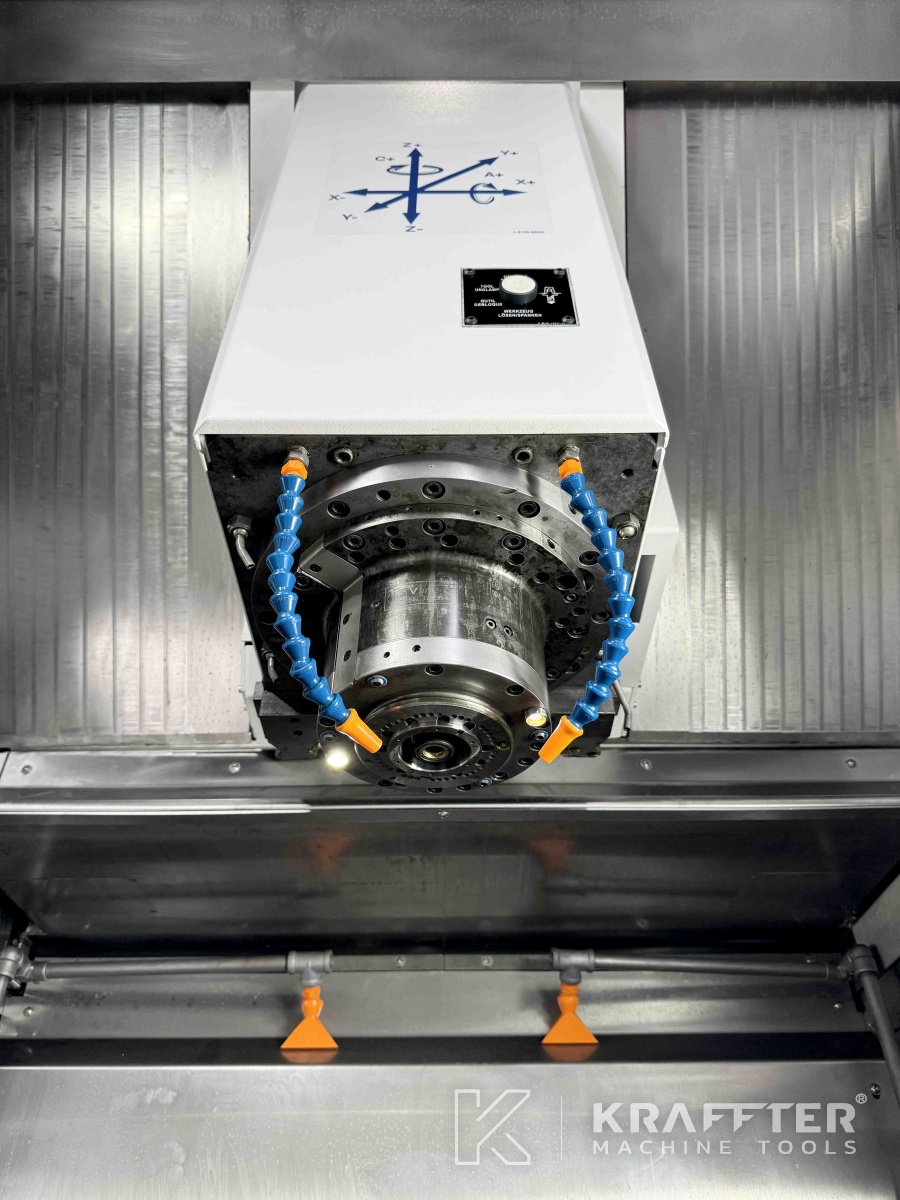

Spindle type
HSK-A 63
Max. spindle speed
20000 [rpm]

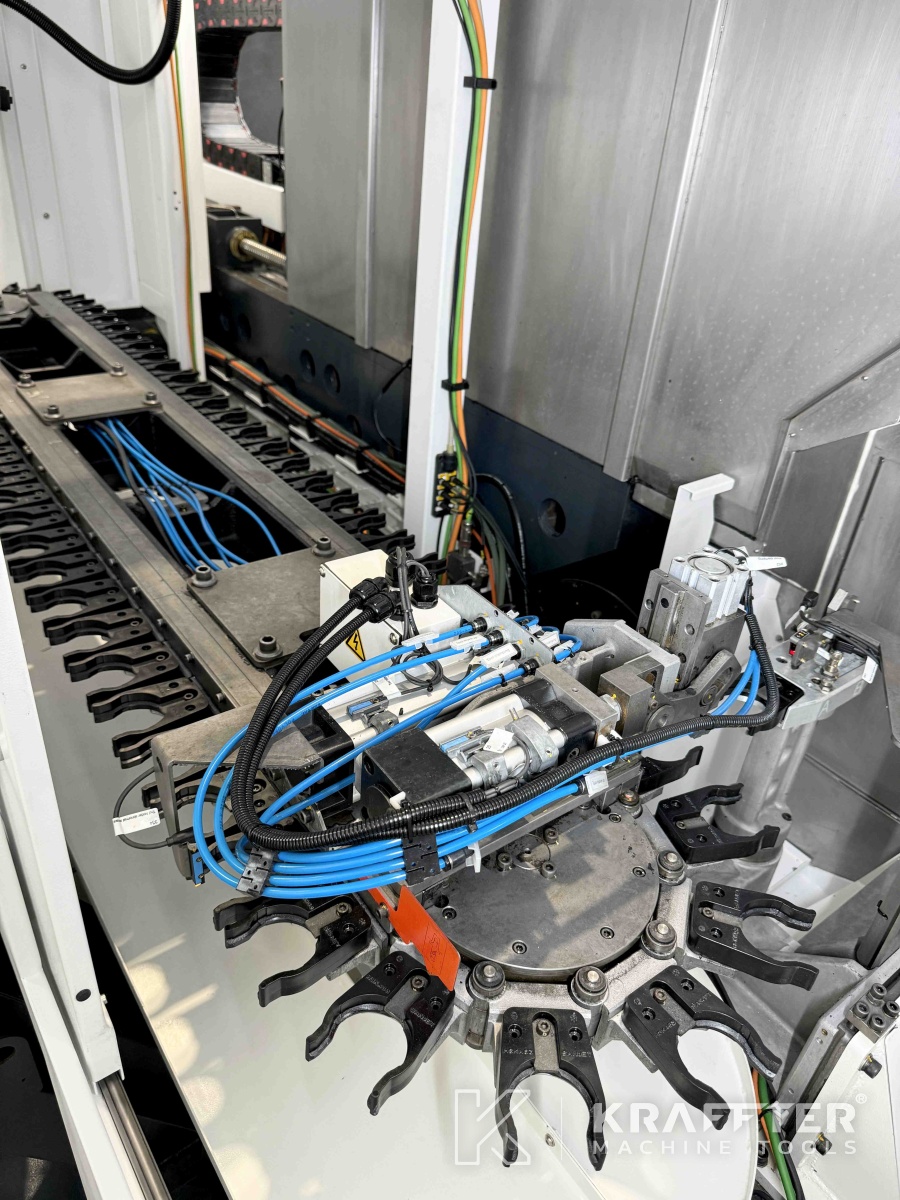

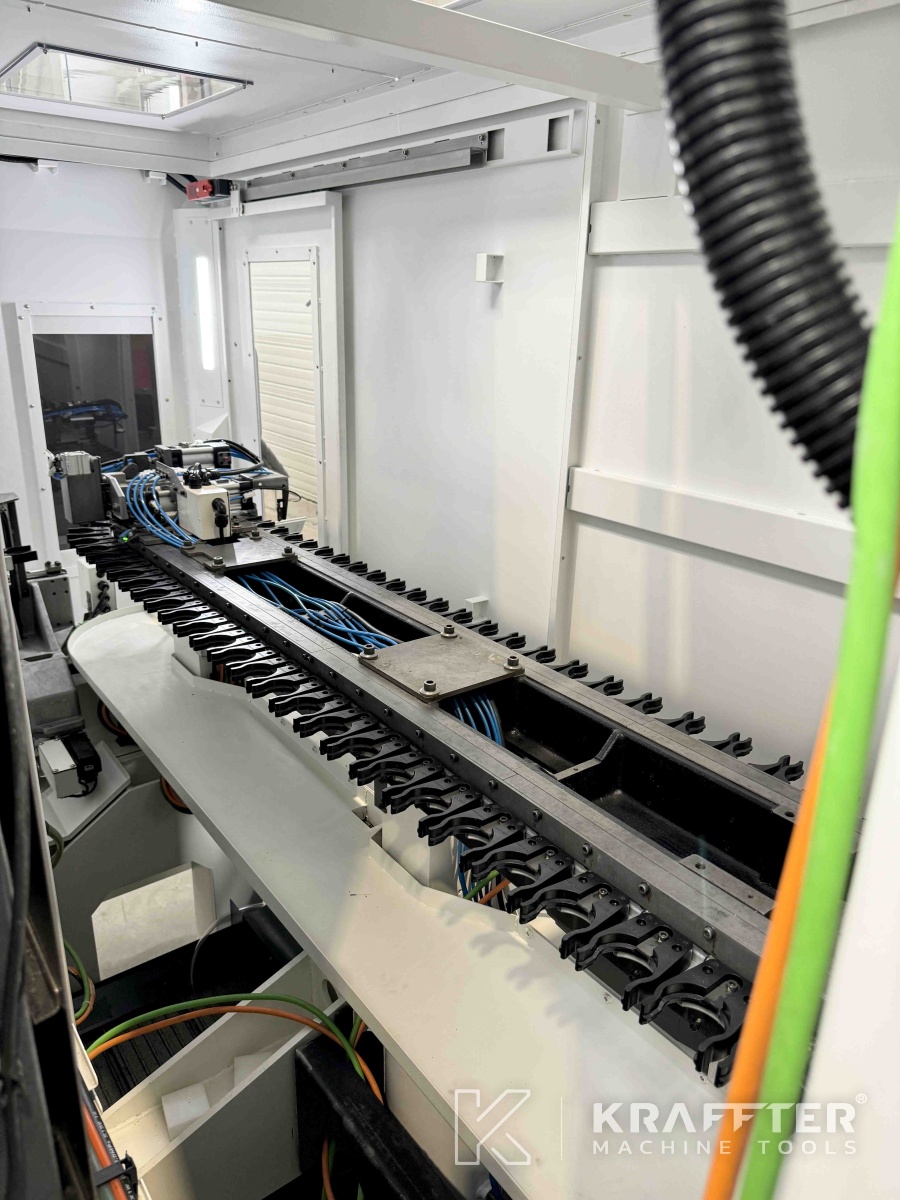

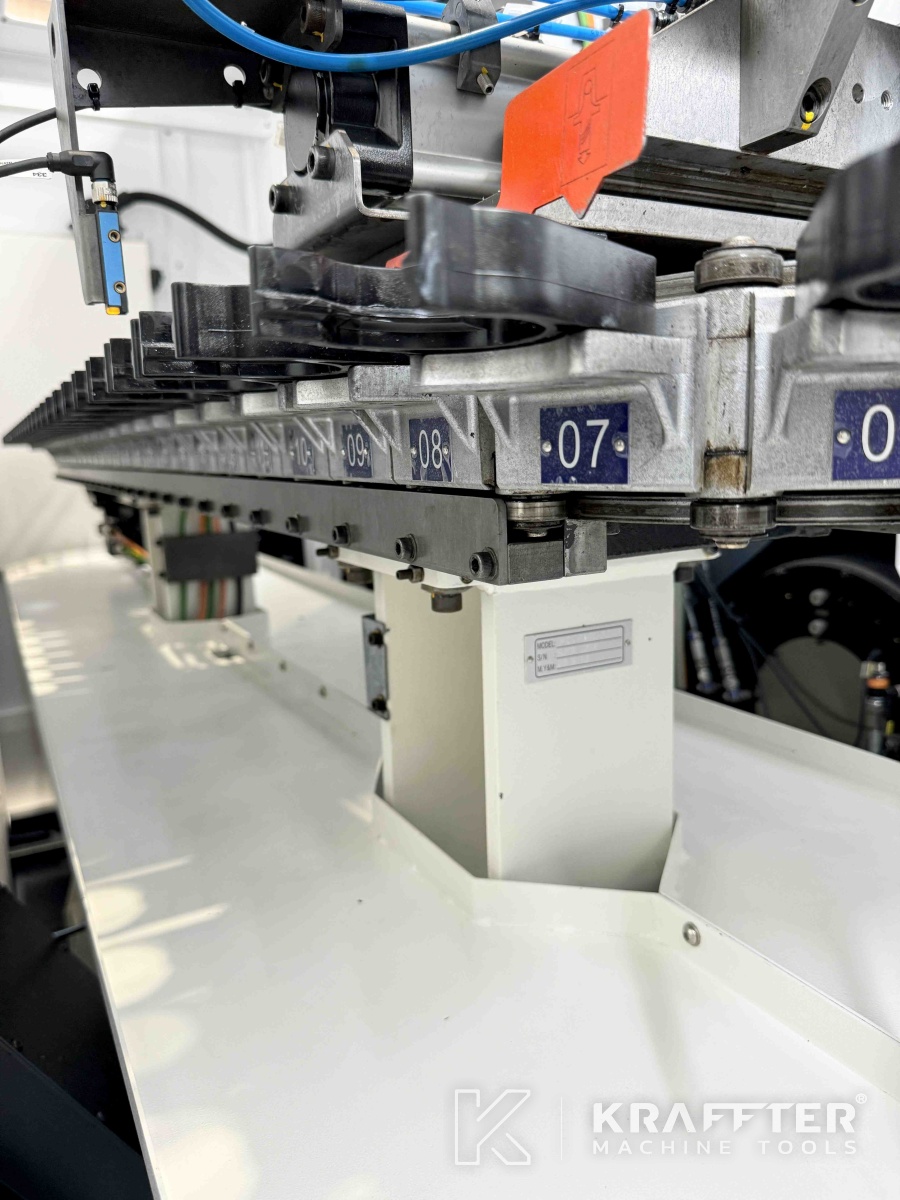

Tool changer magazin number of stations
60
Max. tool lenght
300 [mm]
Max. weight of single tool
8 [Kg]
Total max. weight in tool changer magazin
480 [Kg]
Max. tool diameter
125 [mm]
Total power required
60 [kVA]
Number of hours under power
5683 [h]
Number of running hours
3183 [h]
Machine dimensions
3390 x 3940 x 2970 [mm]
Machine weight
12000 [Kg]
Additional information

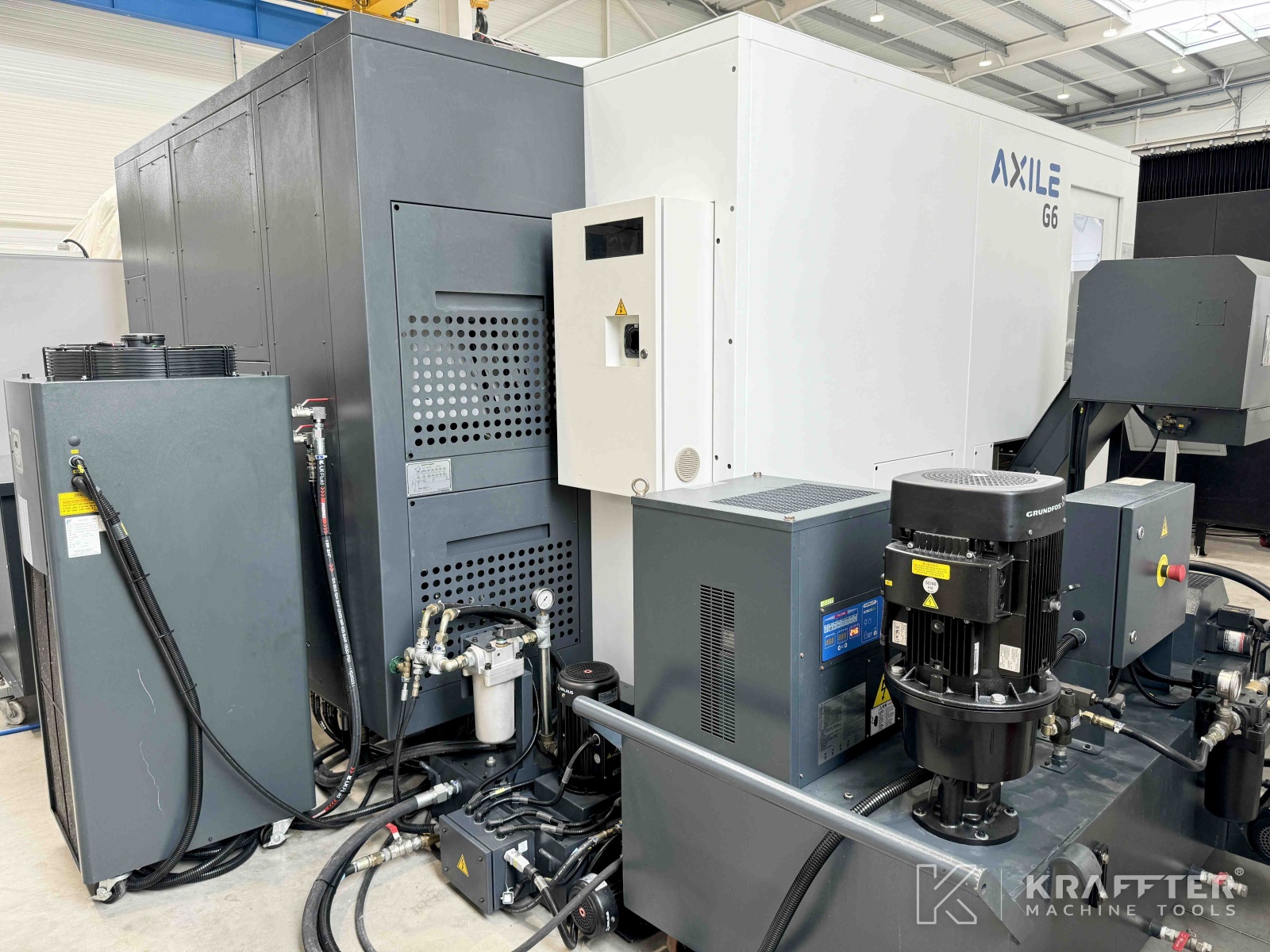

EQUIPMENT INCLUDED:

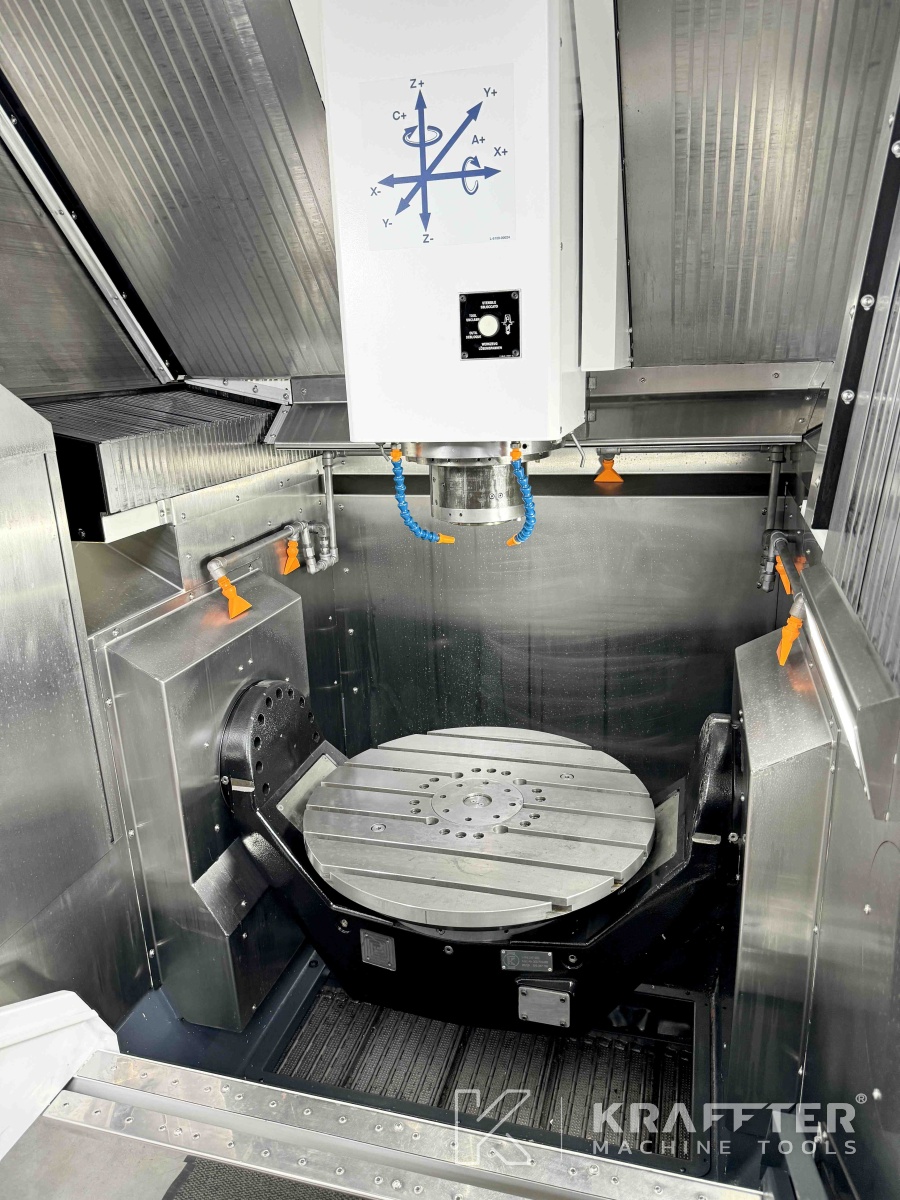

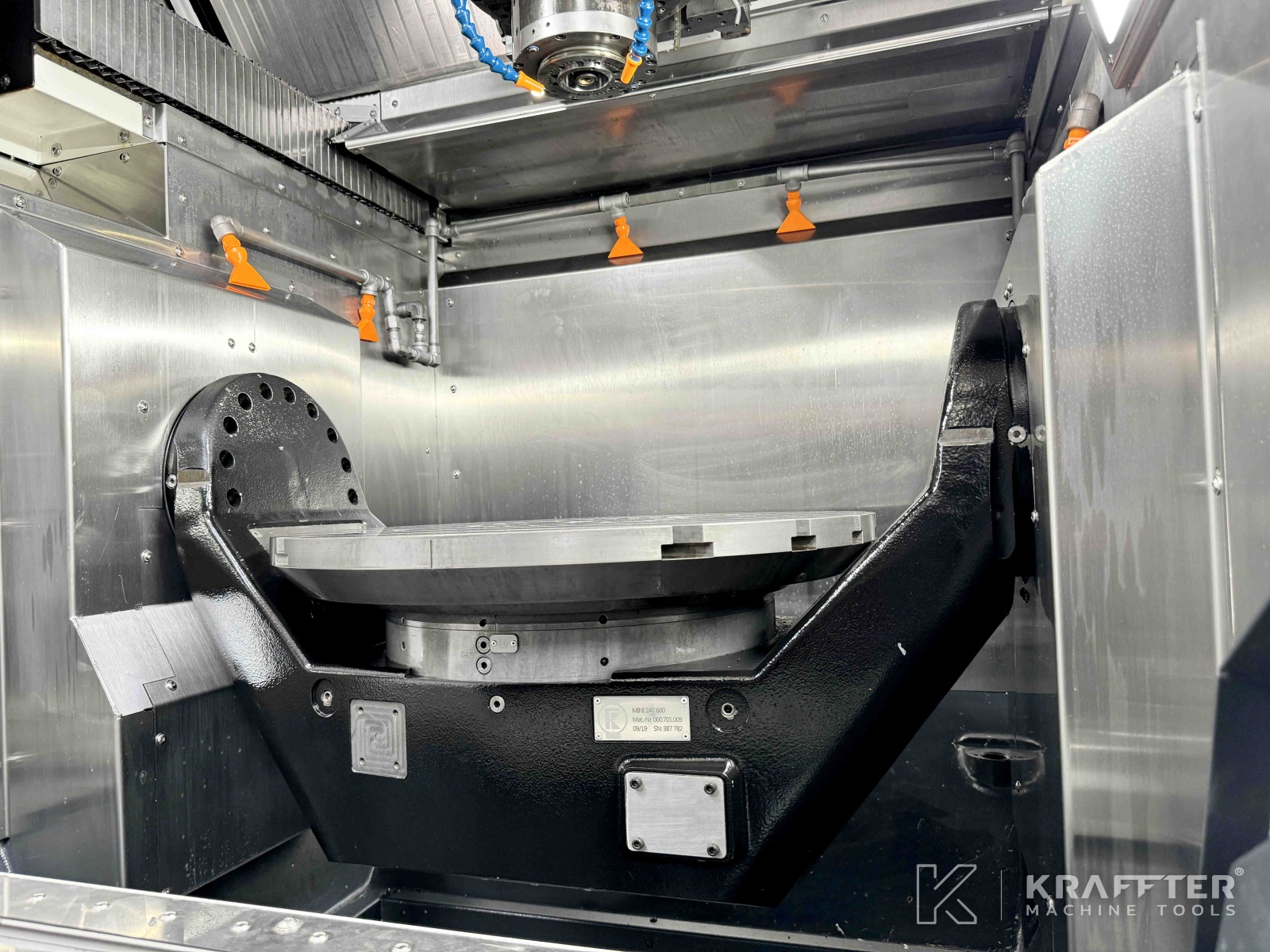

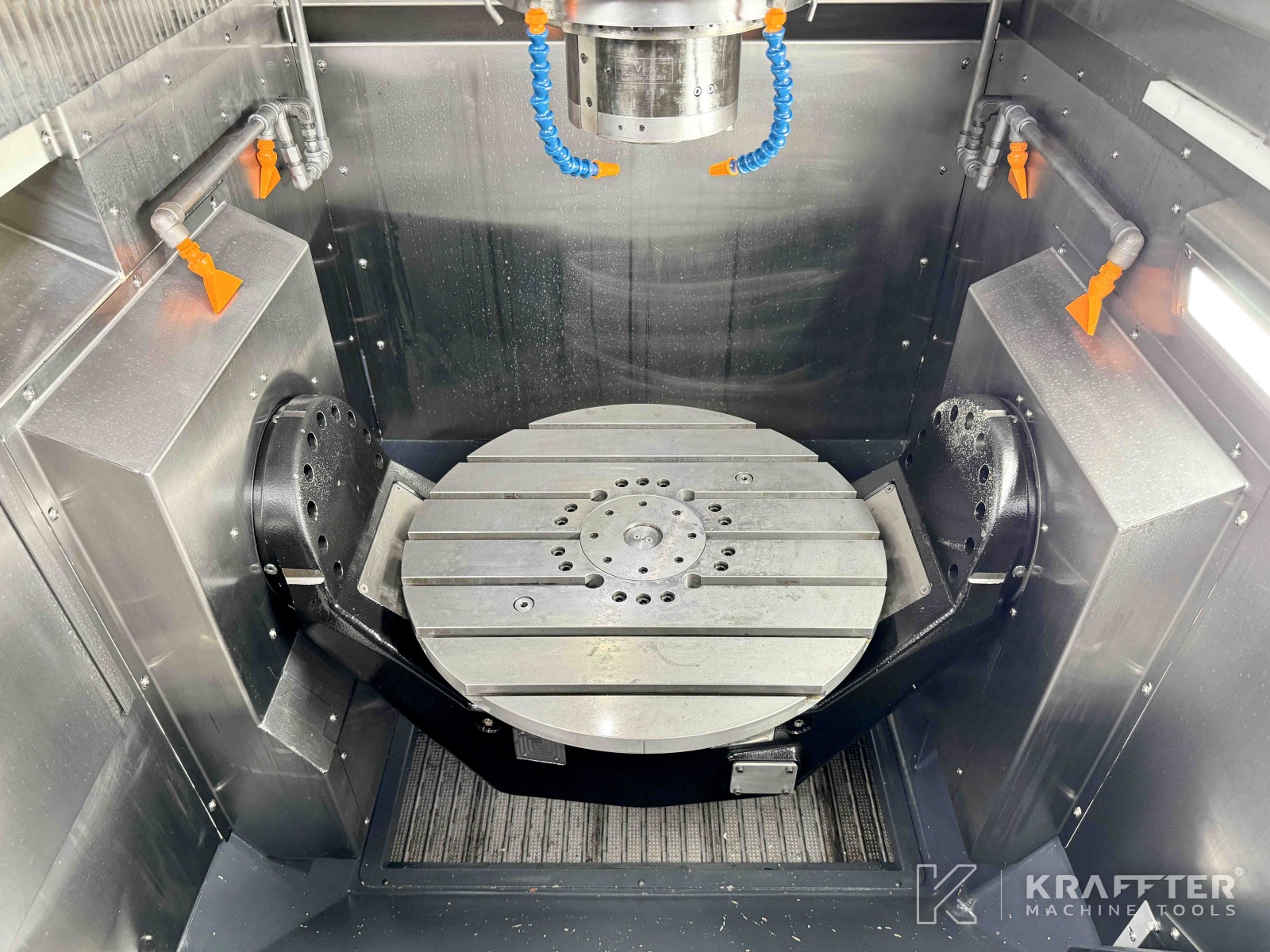

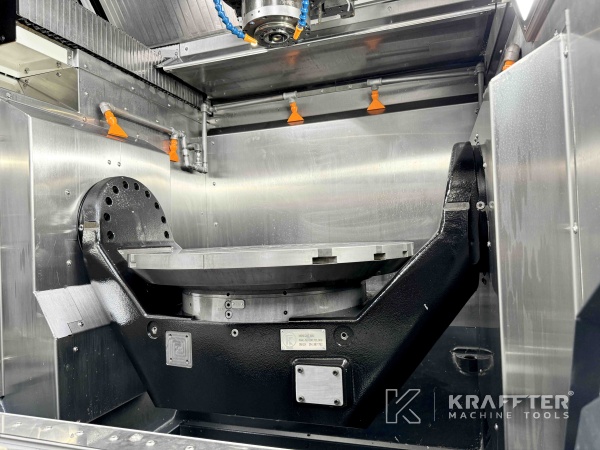

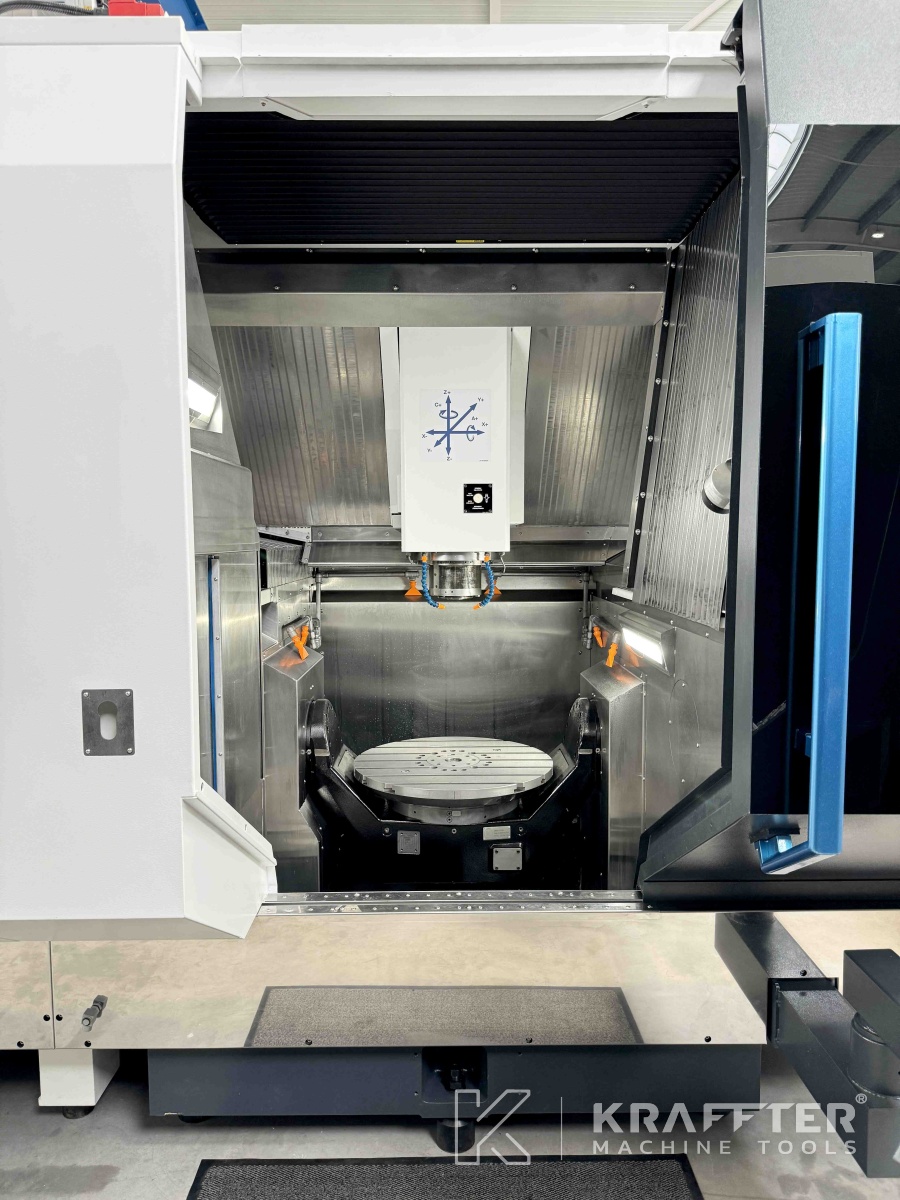

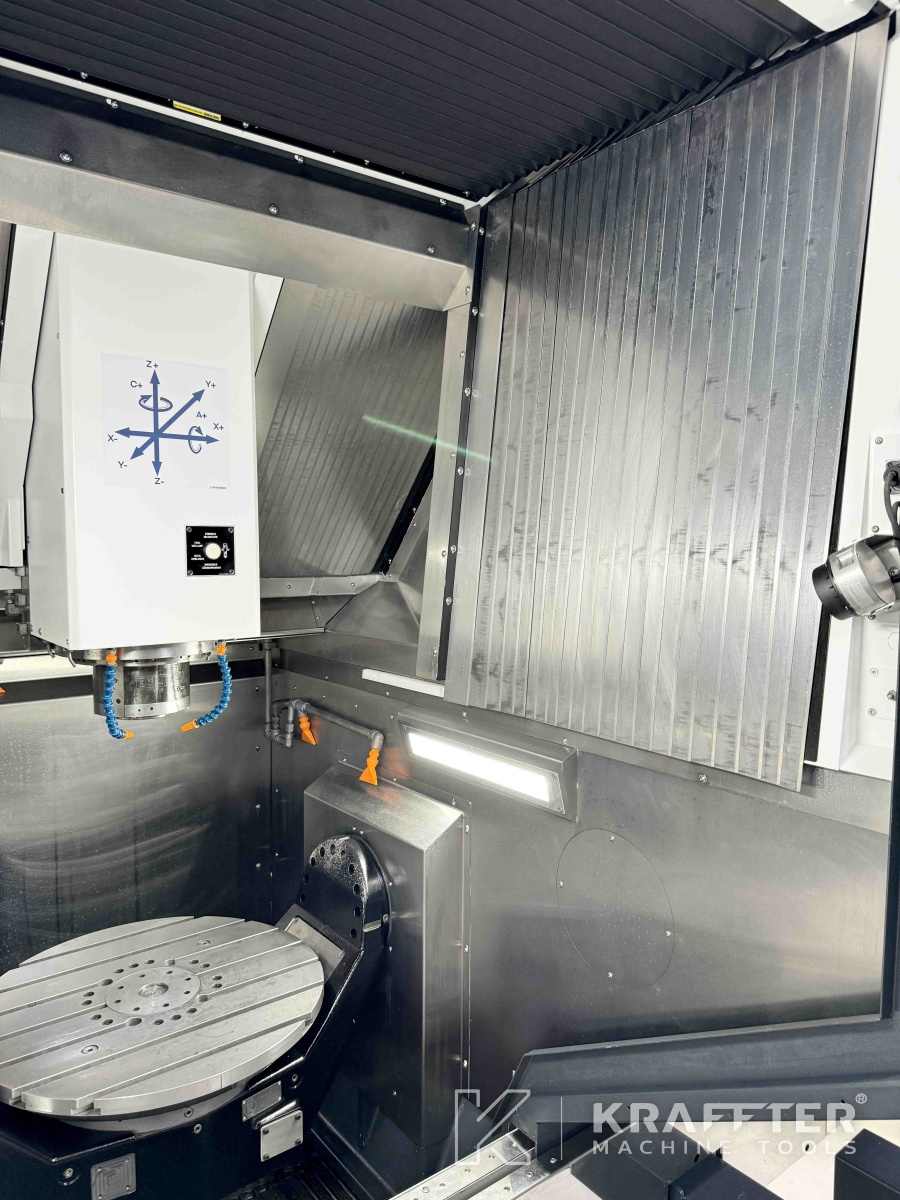

x1 swiveling table Ø600 [mm]

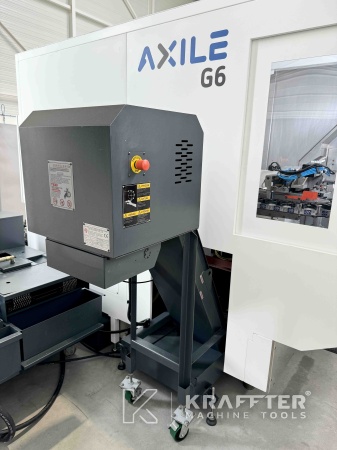

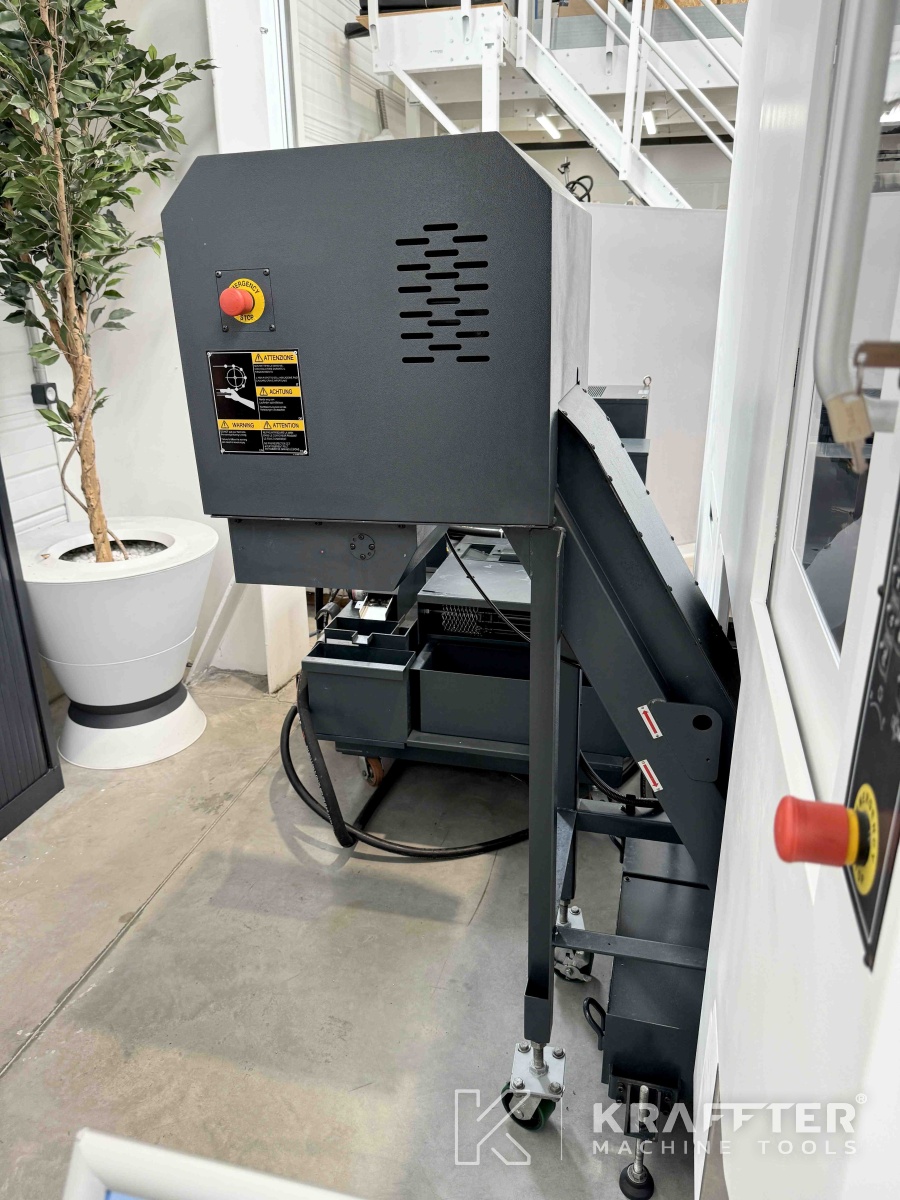

x1 chip conveyor

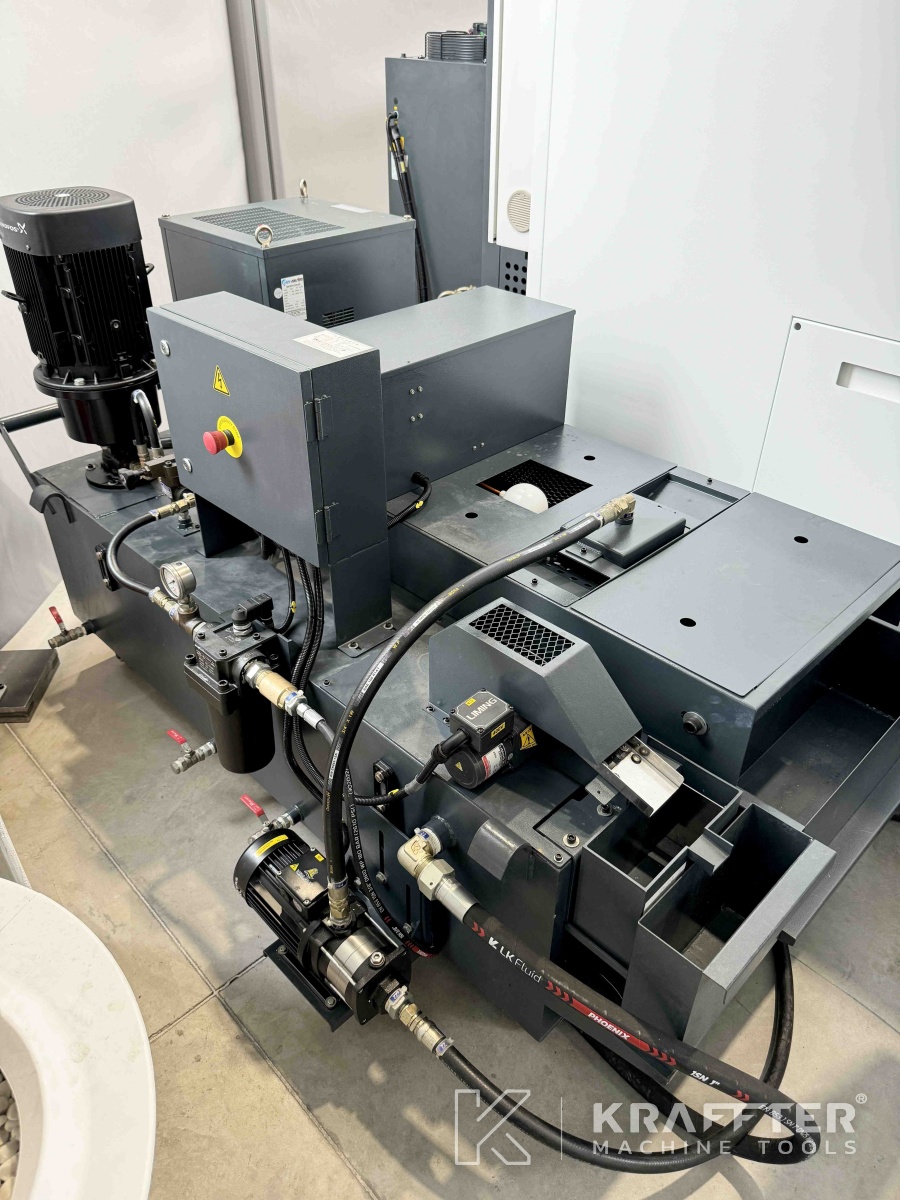

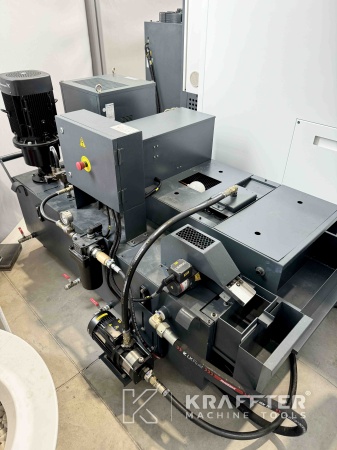

x1 paper tape filtration unit

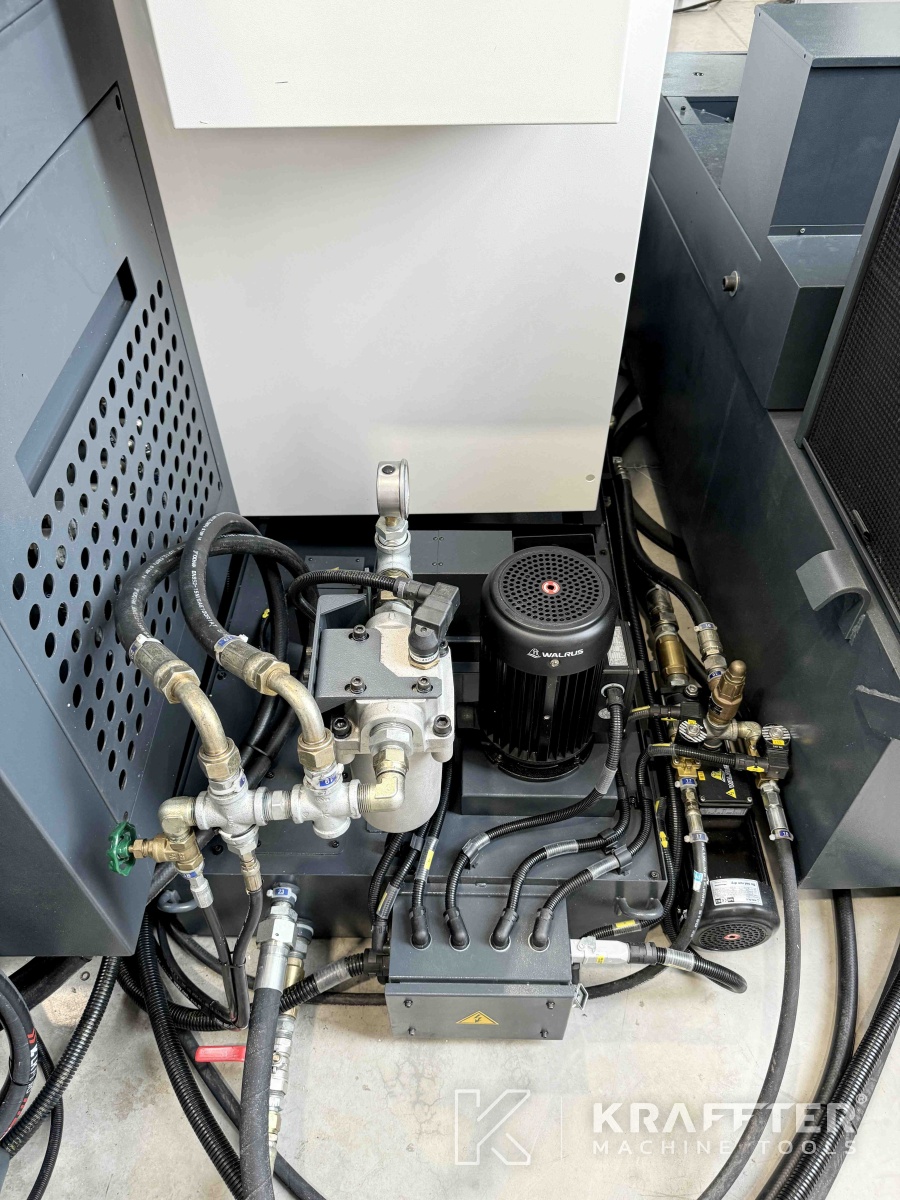

x1 high pressure pump (70 bars)
x1 cone blowing device

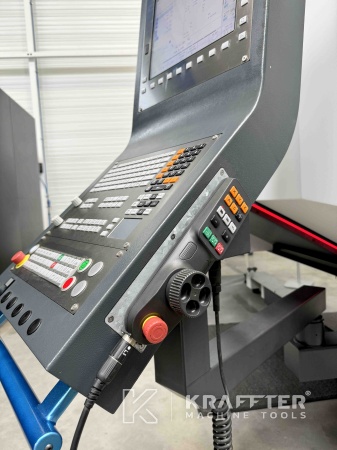

x1 HEIDENHAIN iTNC remote electronic handwheel

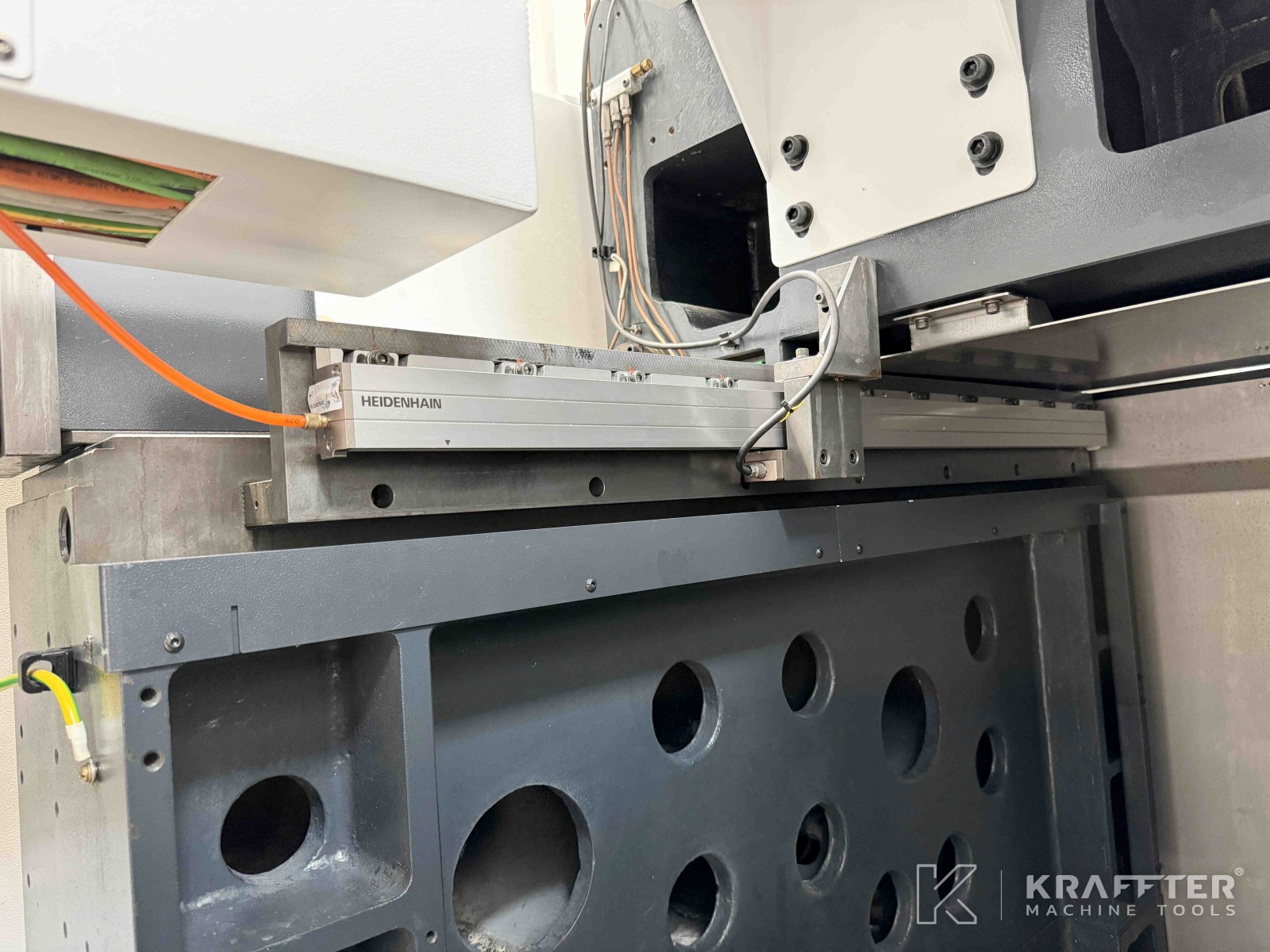

x1 pressurisation for HEIDENHAIN glass scales on X, Y and Z axes
x1 coolant tank

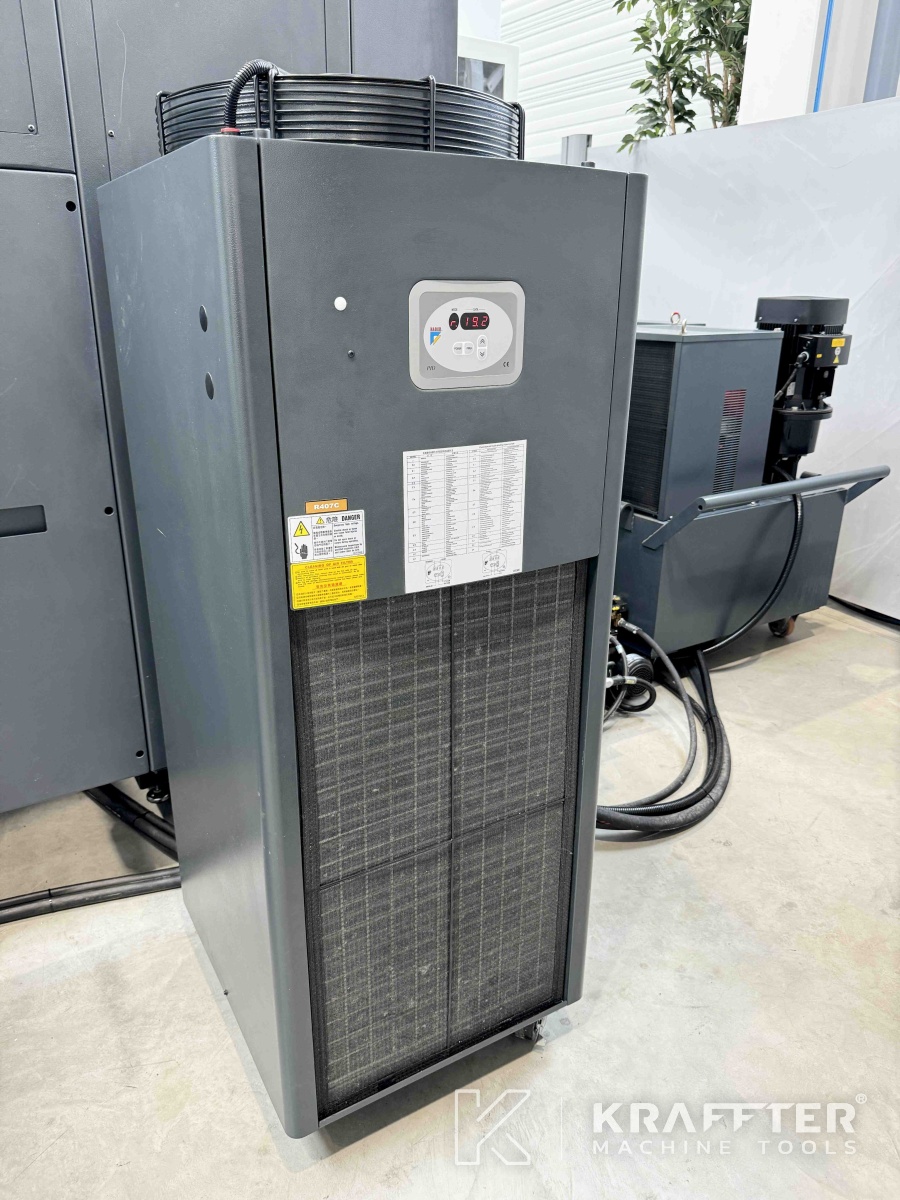

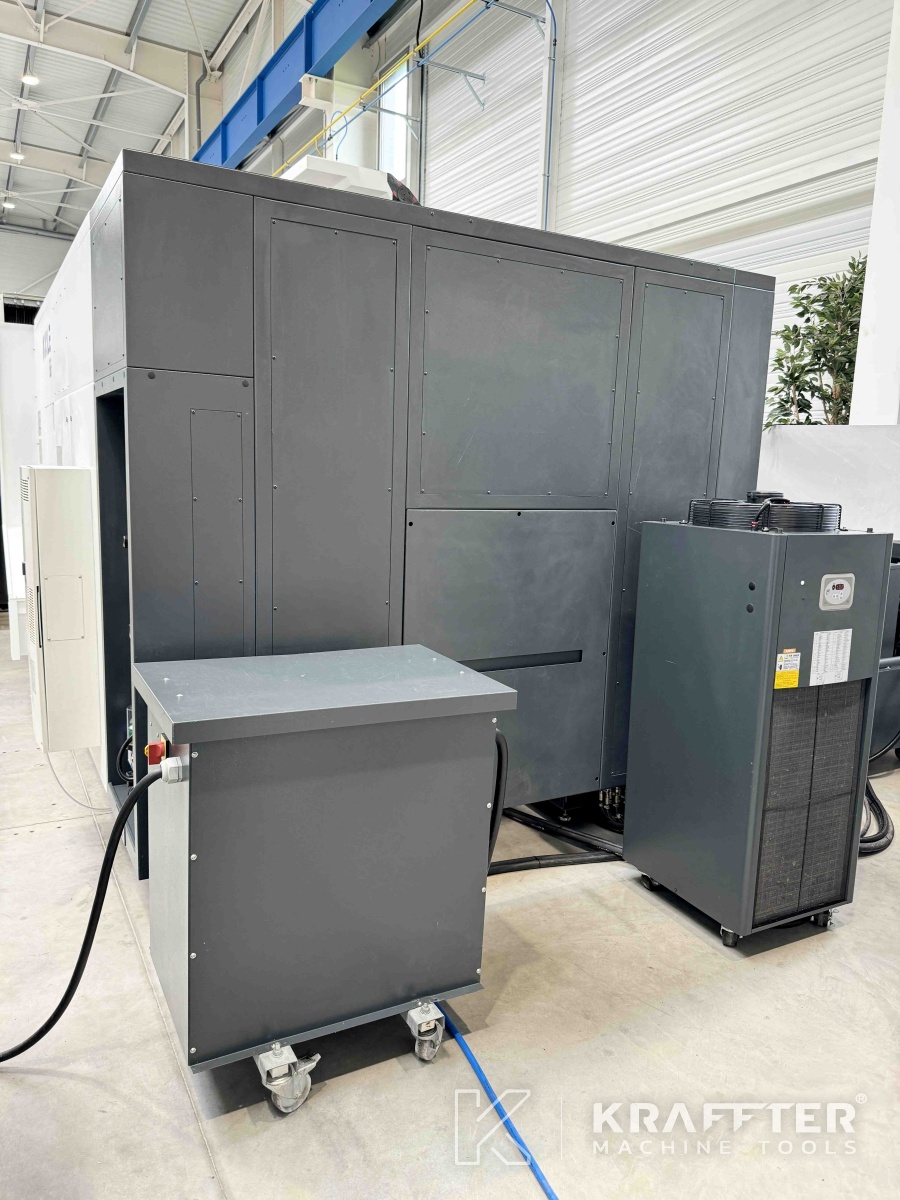

x1 spindle chiller

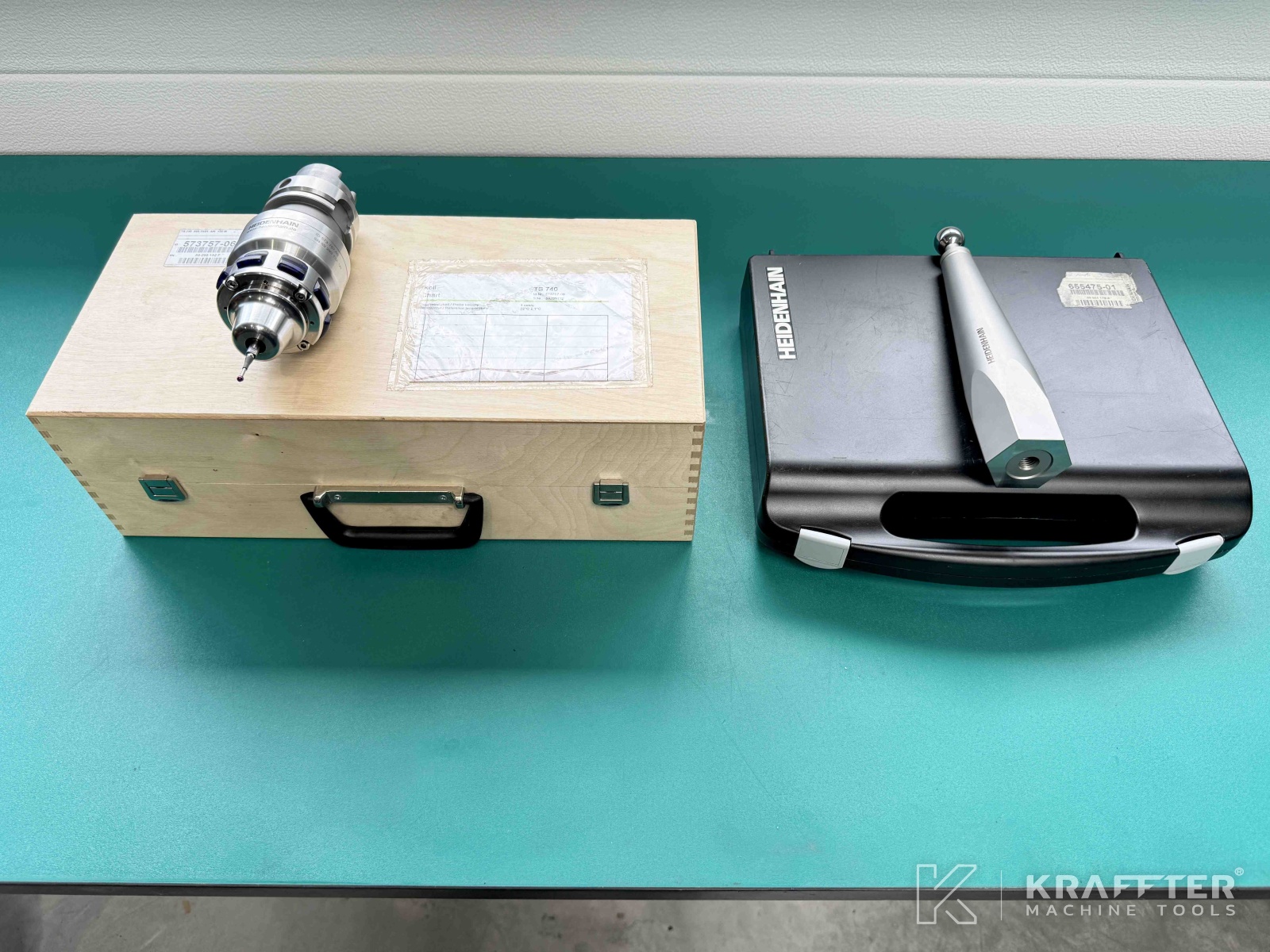

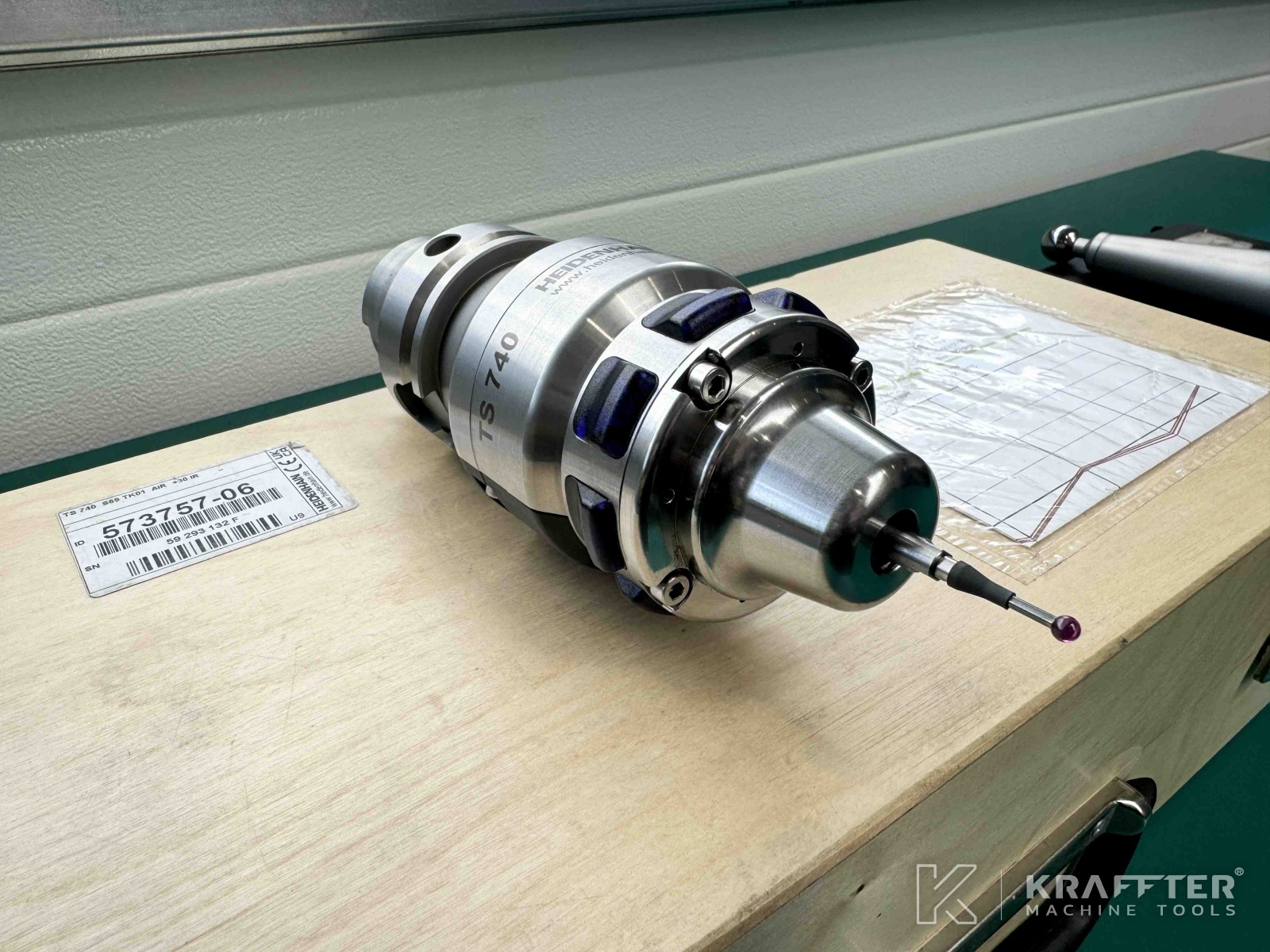

x1 HEIDENHAIN TS 740 workpiece probe

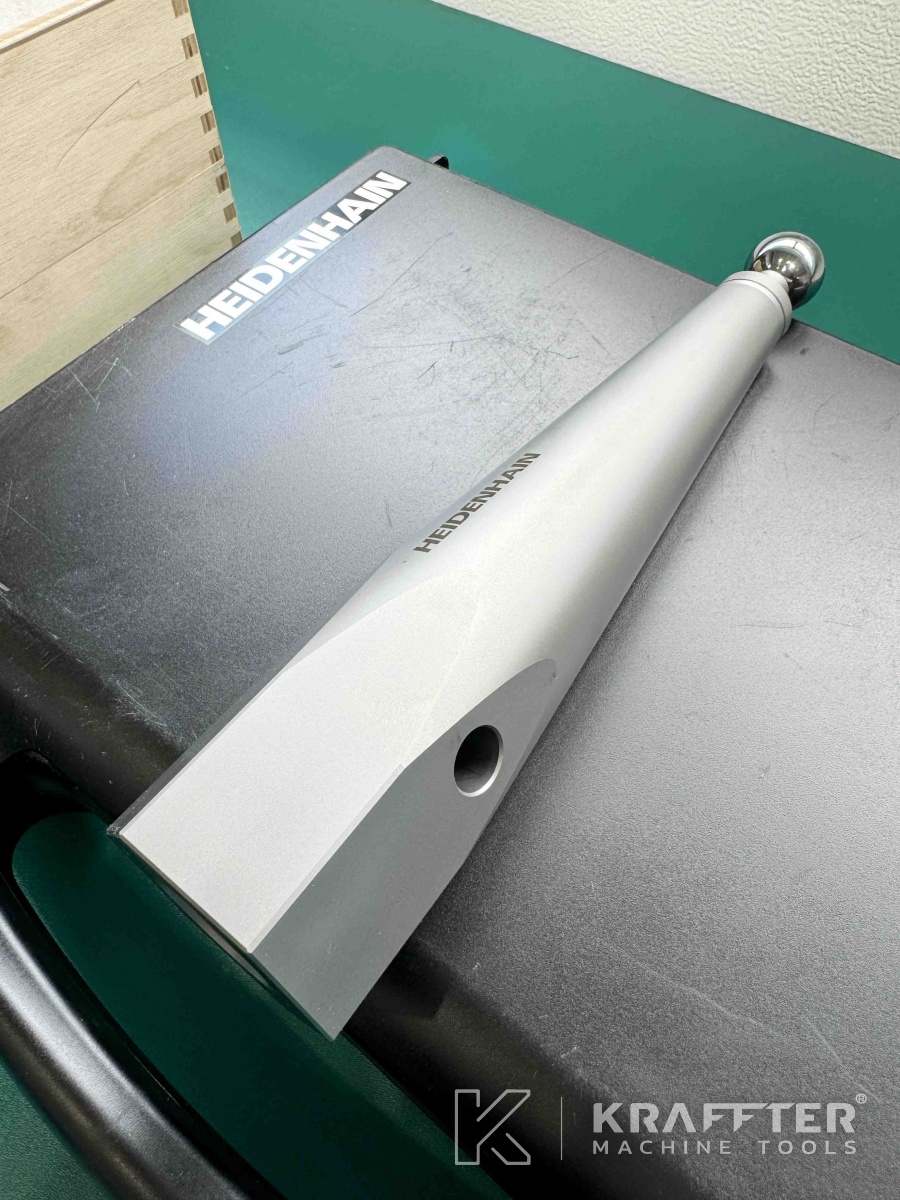

x1 HEIDENHAIN calibration sphere case

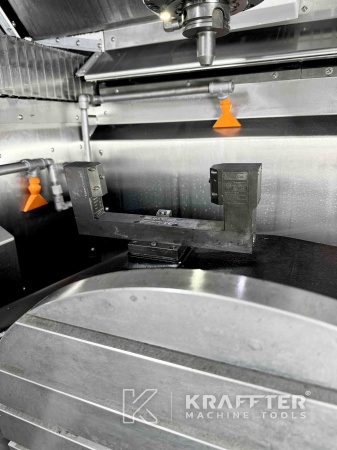

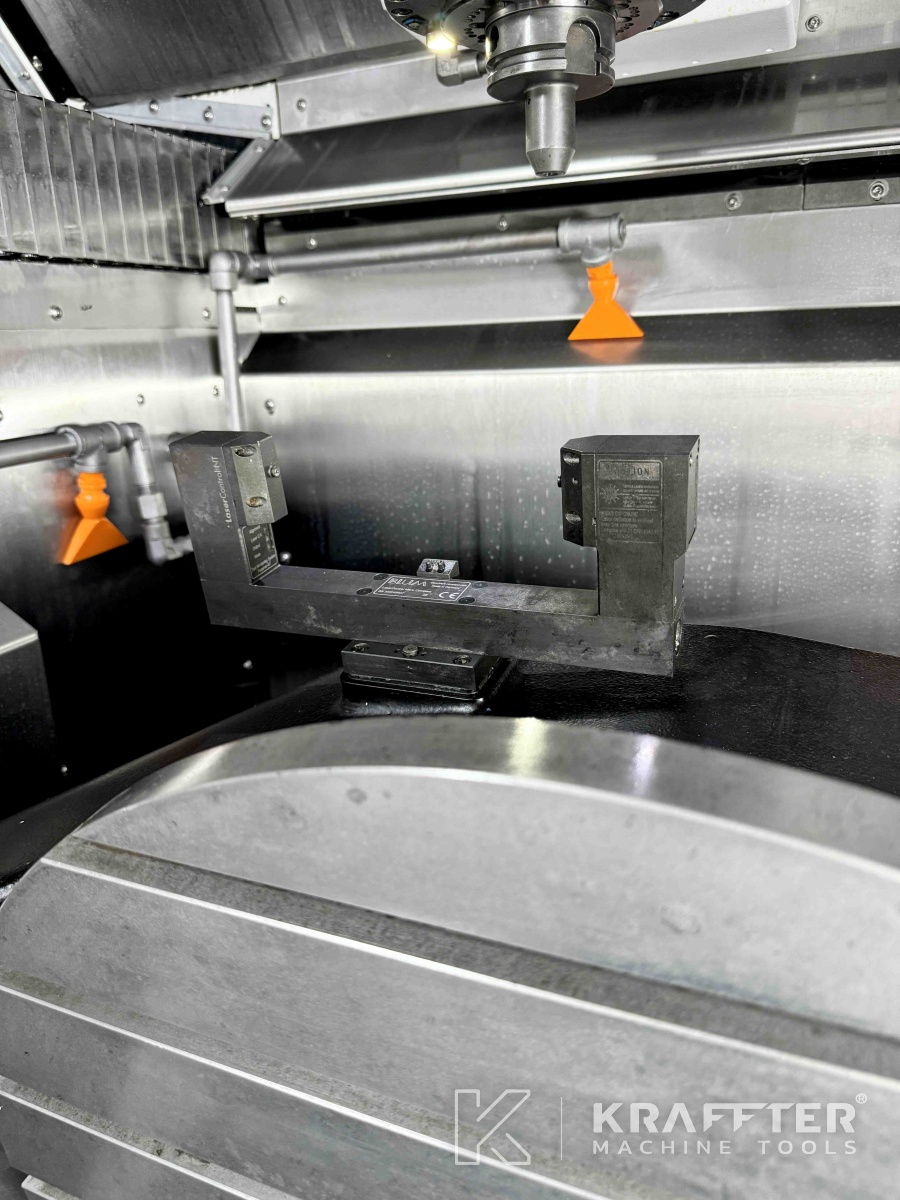

x1 BLUM LaserControl Micro Compact laser system for tool setting and tool breakage detection
x1 3-colour status lamp
