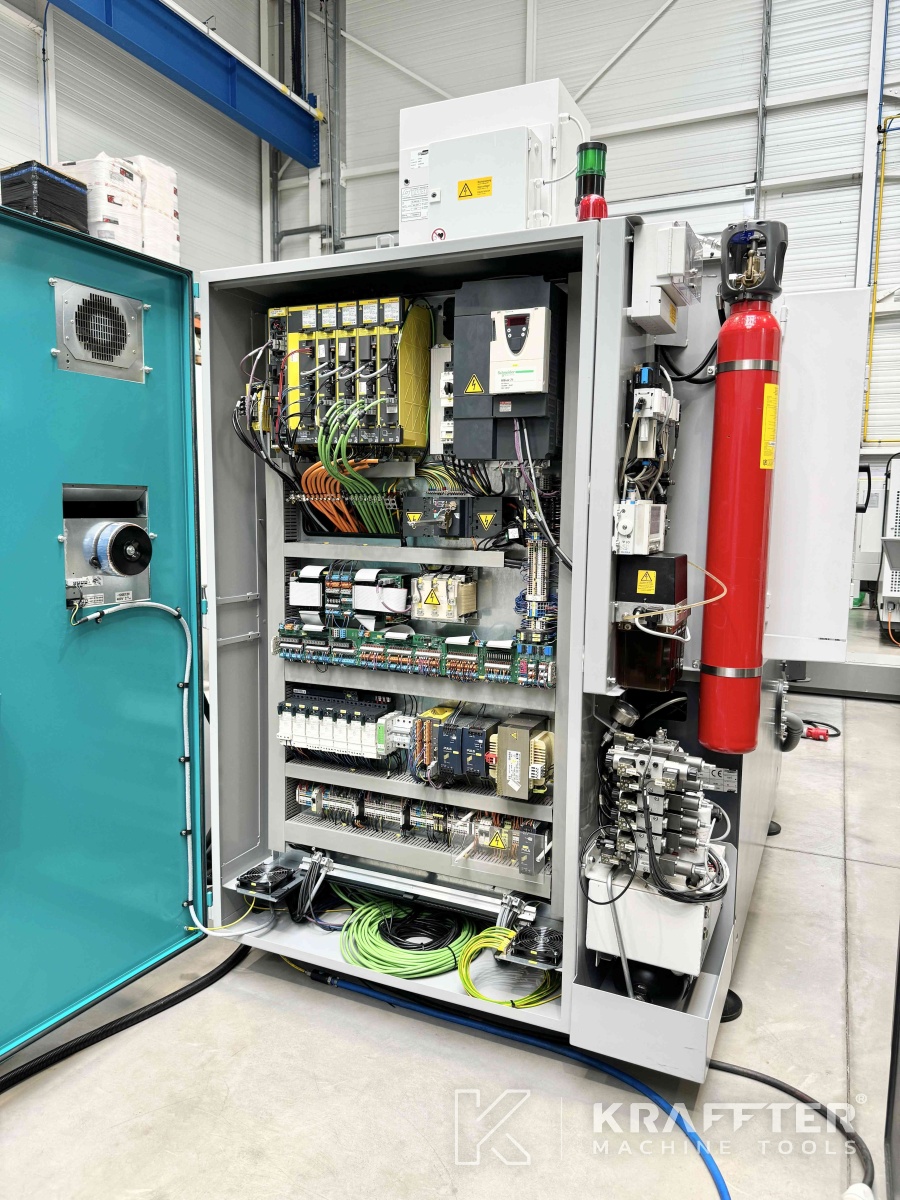

Industrial electrical cabinet on SCHNEEBERGER Norma NGC 90111
Electrical cabinet for industrial machines SCHNEEBERGER Norma NGC 90111
Industrial machines for CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Precision mechanics CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 , Used machinery
Precision Manufacturing CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Metal CNC tool grinding machine for precision machining SCHNEEBERGER Norma NGC 90111
SCHNEEBERGER Norma NGC 90111 Second hand Machine Tools at Kraffter
Metal CNC tool grinding machine SCHNEEBERGER Norma NGC 5 axes 90111 - dealer of used machinery
Metal CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Numerically assisted CNC tool grinding machine SCHNEEBERGER Norma NGC 90111

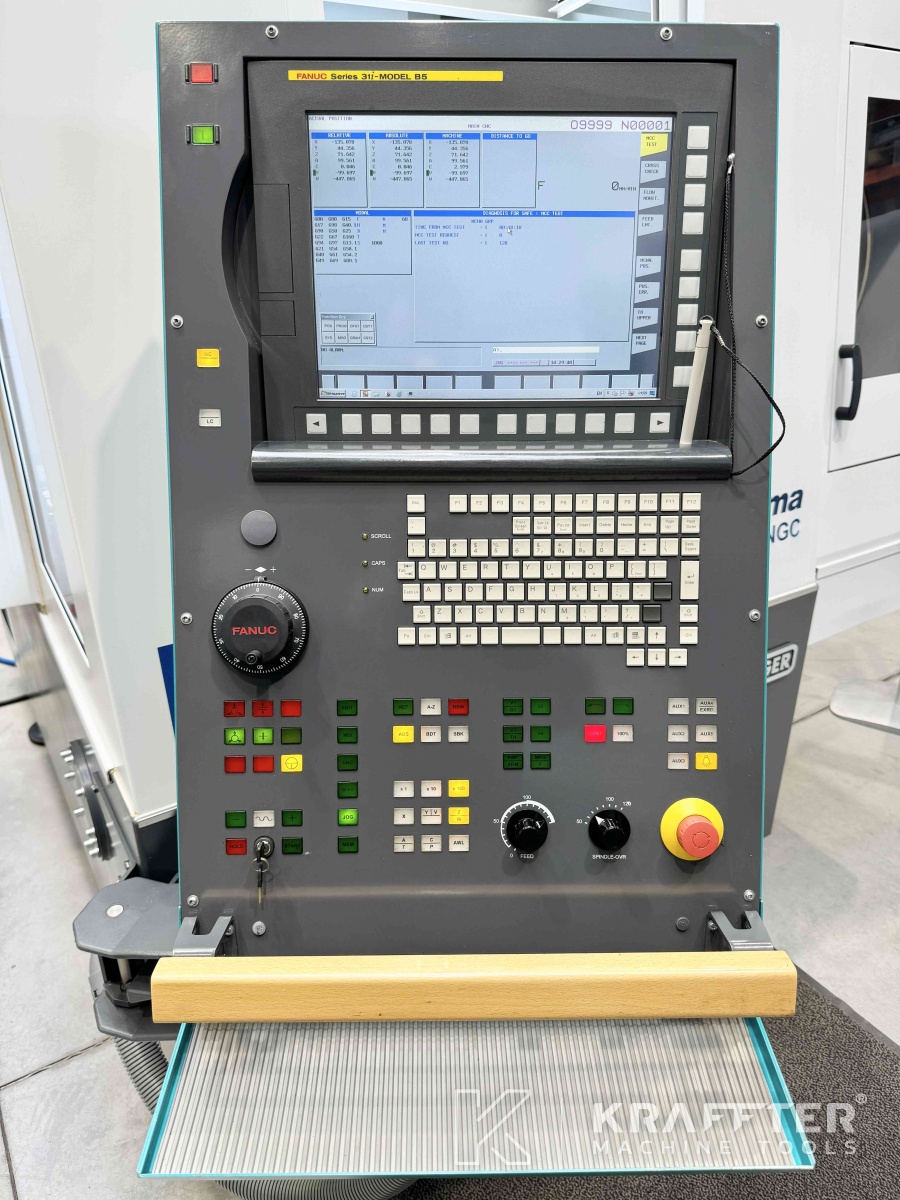

FANUC 31i numerical control (cnc et cn) SCHNEEBERGER Norma NGC 90111
FANUC 31i numerical control on machine tools SCHNEEBERGER Norma NGC 90111
Precision CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 - Second hand Machine Tools
Numerically Controlled CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Power-assisted CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Second hand CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 for sale
Numerical CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 at KRAFFTER your dealer of used machinery
Used precision CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 KRAFFTER Machine tools reseller
Worldwide purchase and resale of CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 - KRAFFTER Machine tools reseller
SCHNEEBERGER Norma NGC 90111 available at Kraffter Machine Tools dealer
Machine tools for CNC tool grinding machine SCHNEEBERGER Norma NGC 5 axes 90111
CNC tool grinding machine for sale SCHNEEBERGER Norma NGC 90111 , Second hand Machine Tools
Sale of CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 - Dealer of used machinery
SCHNEEBERGER Norma NGC 90111 reselling and worldwide shipping at Kraffter Machine Tools
Machine Tools for sale 5 axis SCHNEEBERGER Norma NGC 90111 , Used machinery at Kraffter
Accessories for CNC tool grinding machine SCHNEEBERGER Norma NGC 90111
Equipment for CNC tool grinding machine SCHNEEBERGER Norma NGC 90111 - Used machinery
Accessories, equipment and tooling CNC tool grinding machine SCHNEEBERGER Norma NGC 90111

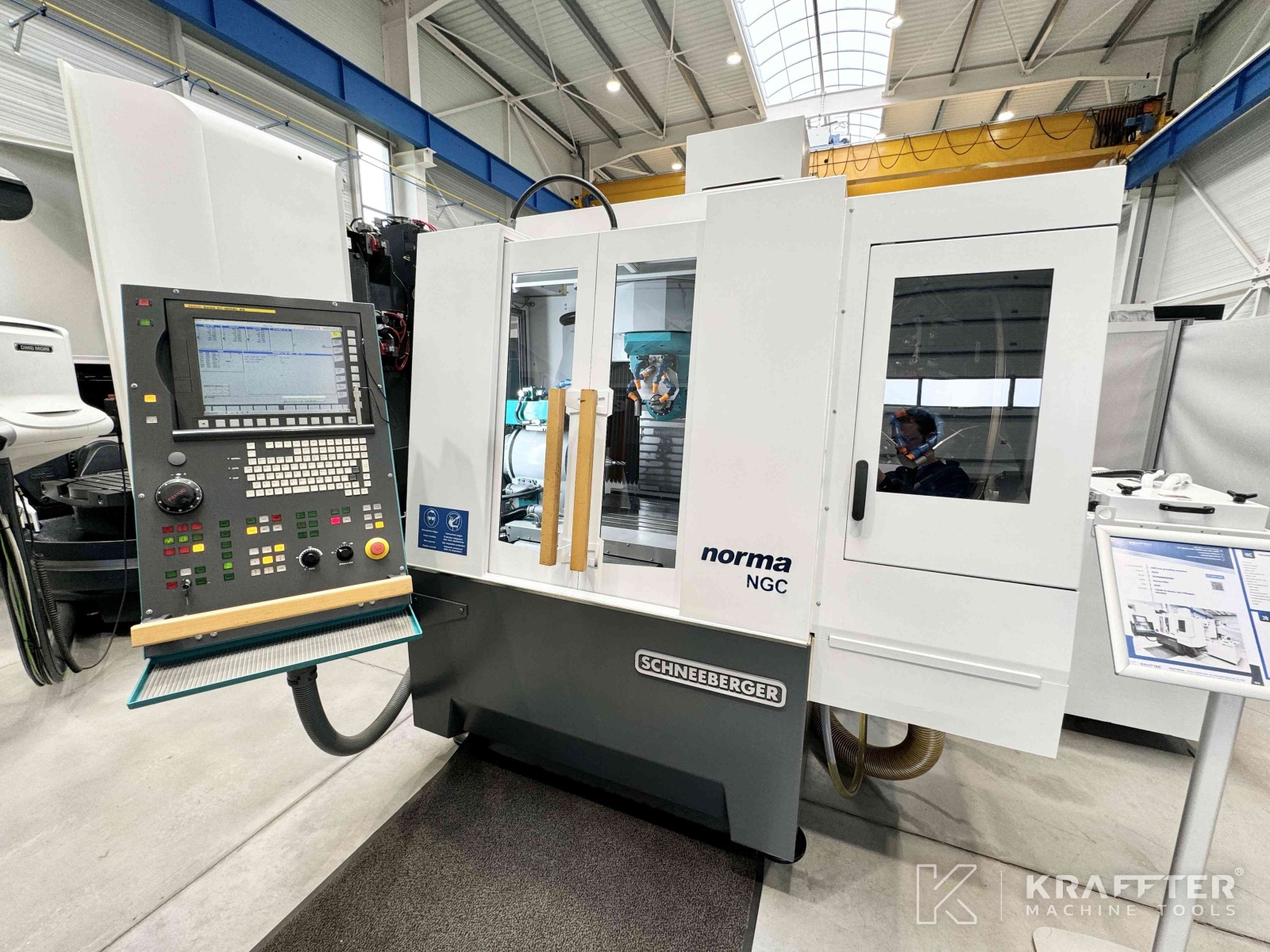

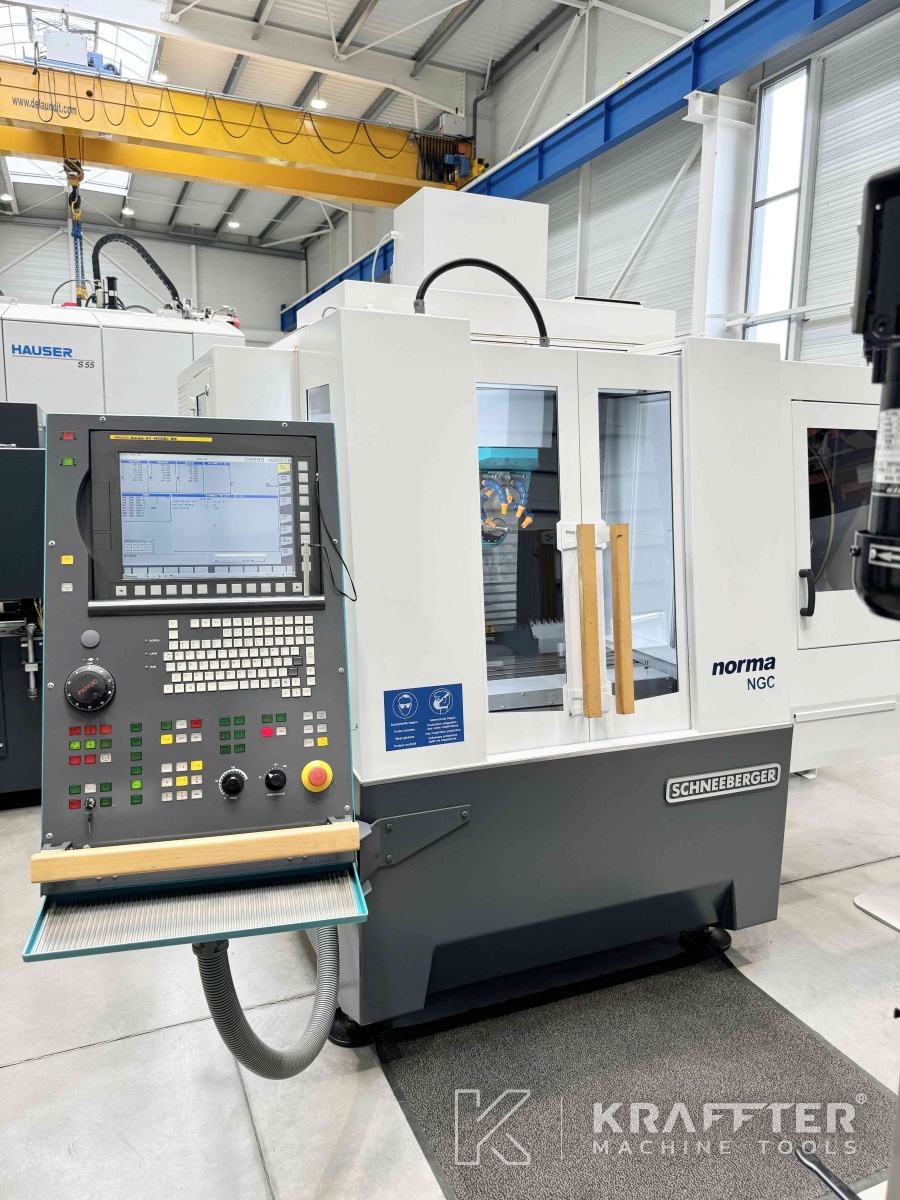

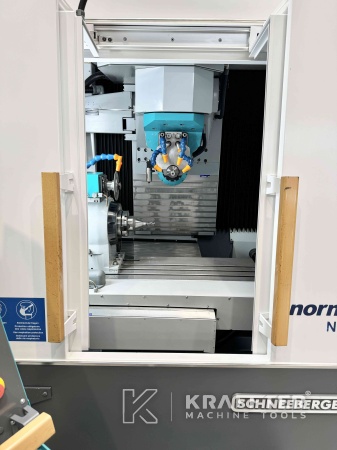

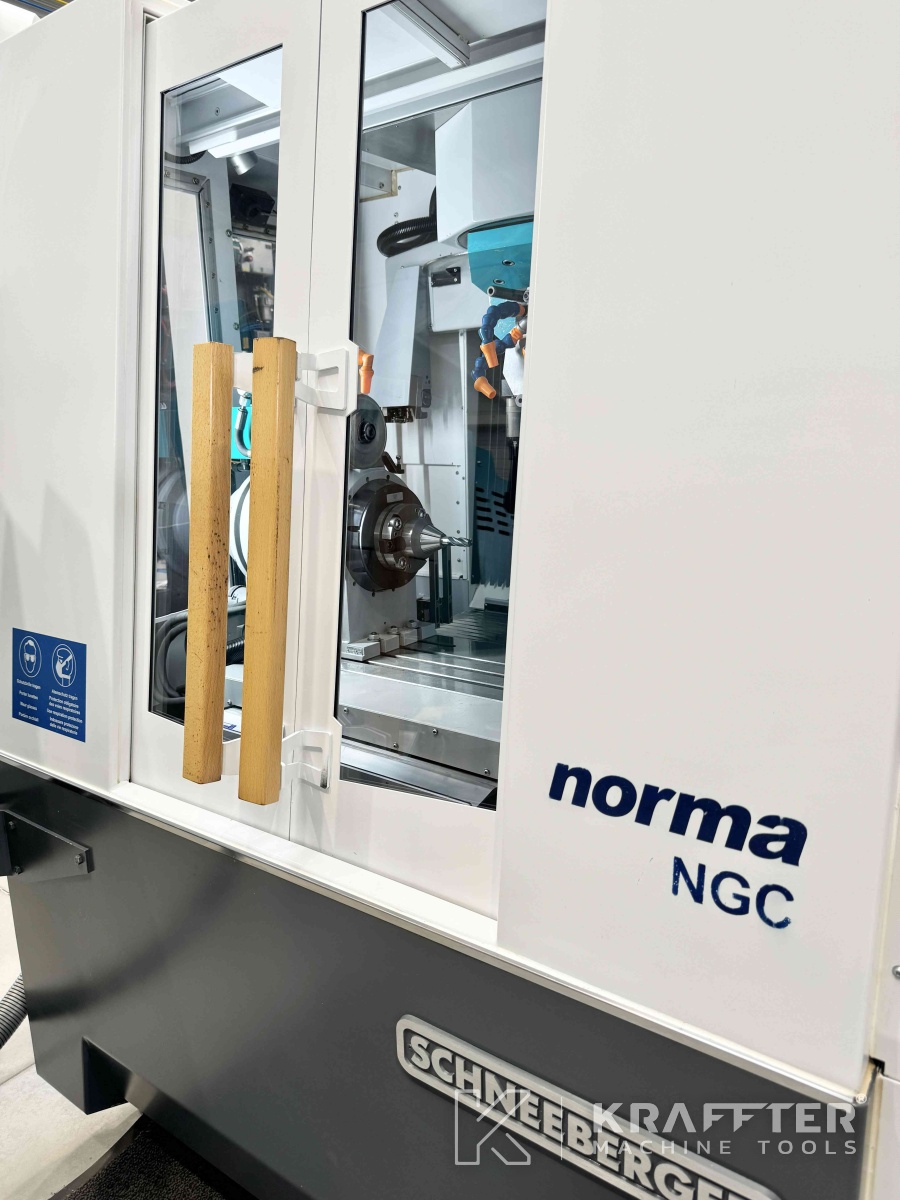

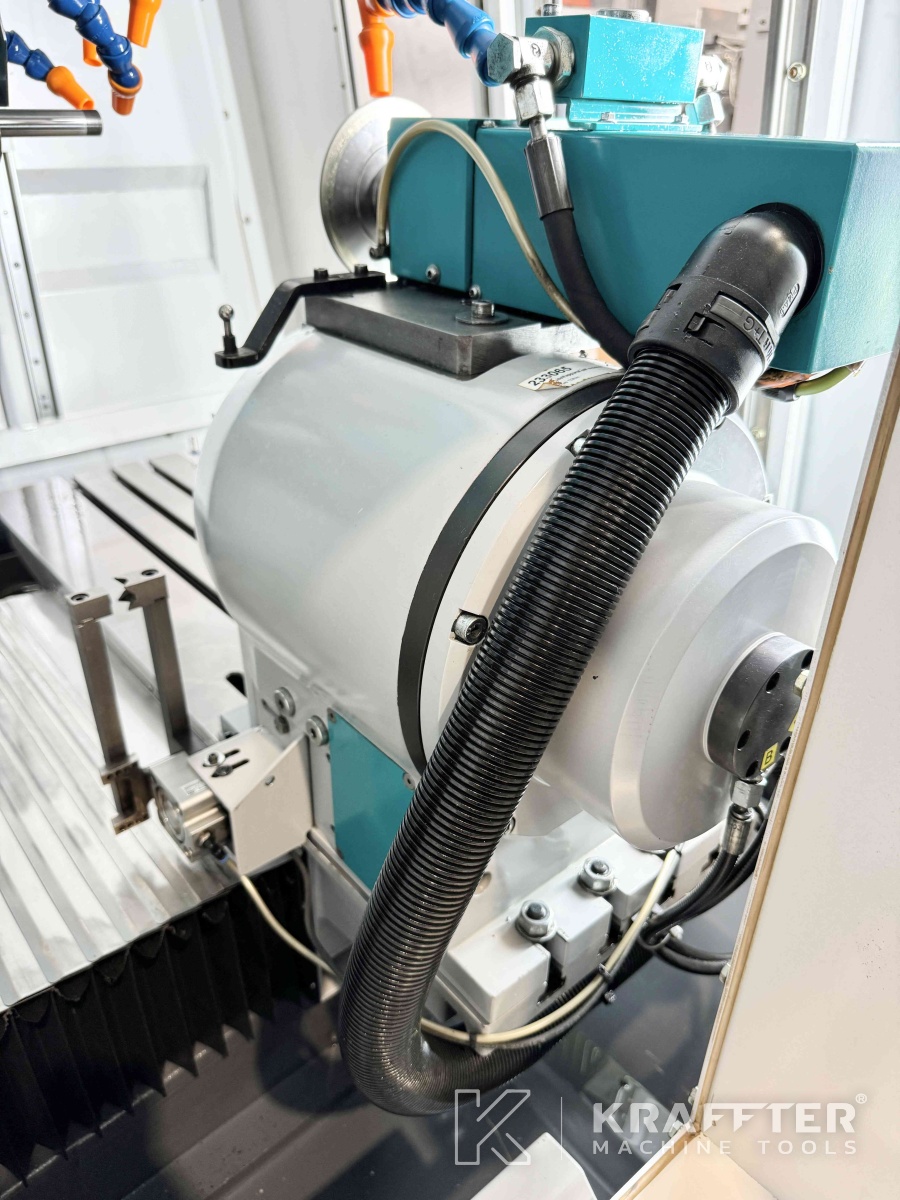

Type of machine : CNC tool grinding machine

Brand : SCHNEEBERGER

N° de stock: 90111

Model : Norma NGC

Year : 2016

Location : 73240 St-Genix-les-Villages, FRANCE

MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
In accordance with articles 39 and following the French law n°78-17 of January 6, 1978 modified in 2004 relating to data processing, files and freedoms, any person can obtain communication and, if necessary, rectification or deletion of information concerning him, by addressing a letter to Kraffter Machine Tools®. - 137, ZA Le Jasmin Nord – 73240 SAINT-GENIX-LES-VILLAGES
Review our privacy policy for full details

Technical characteristics

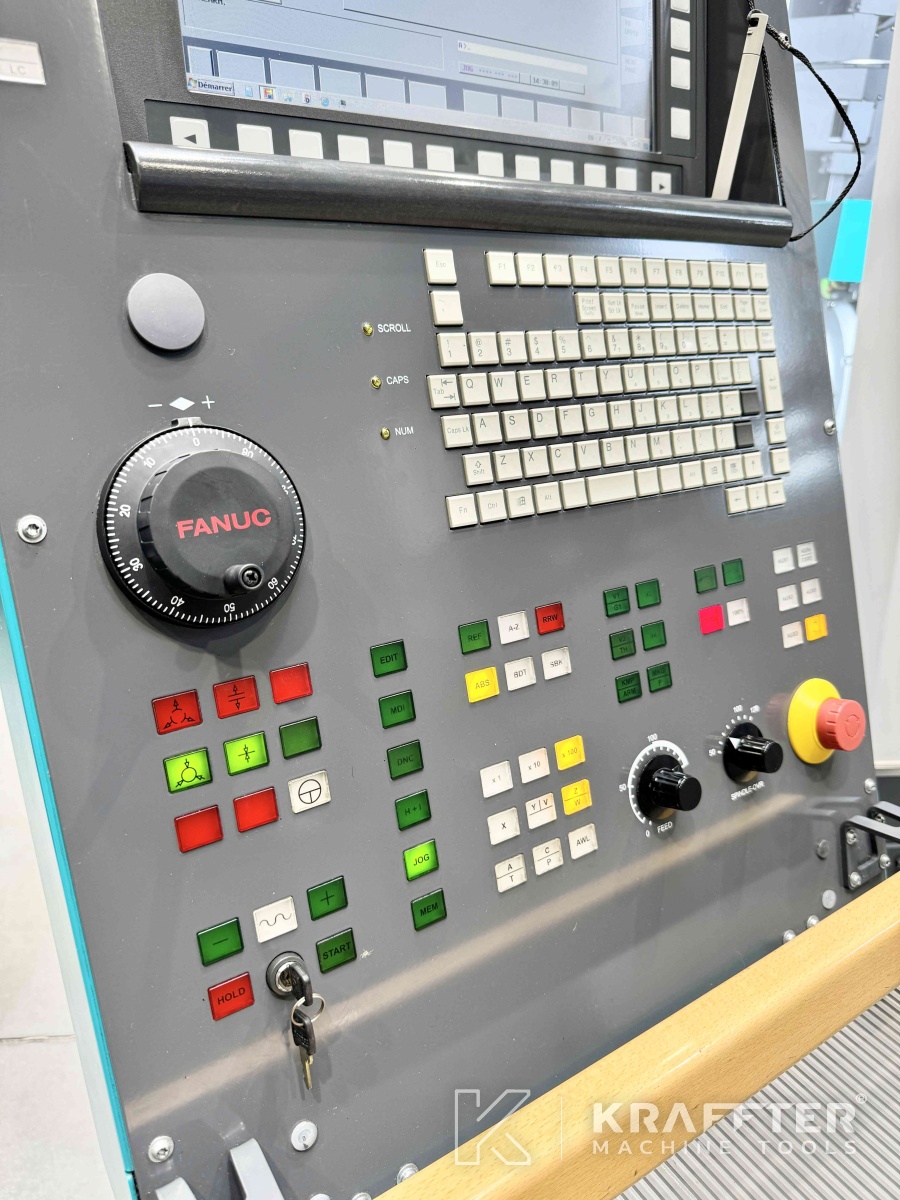

CNC control
FANUC 31i

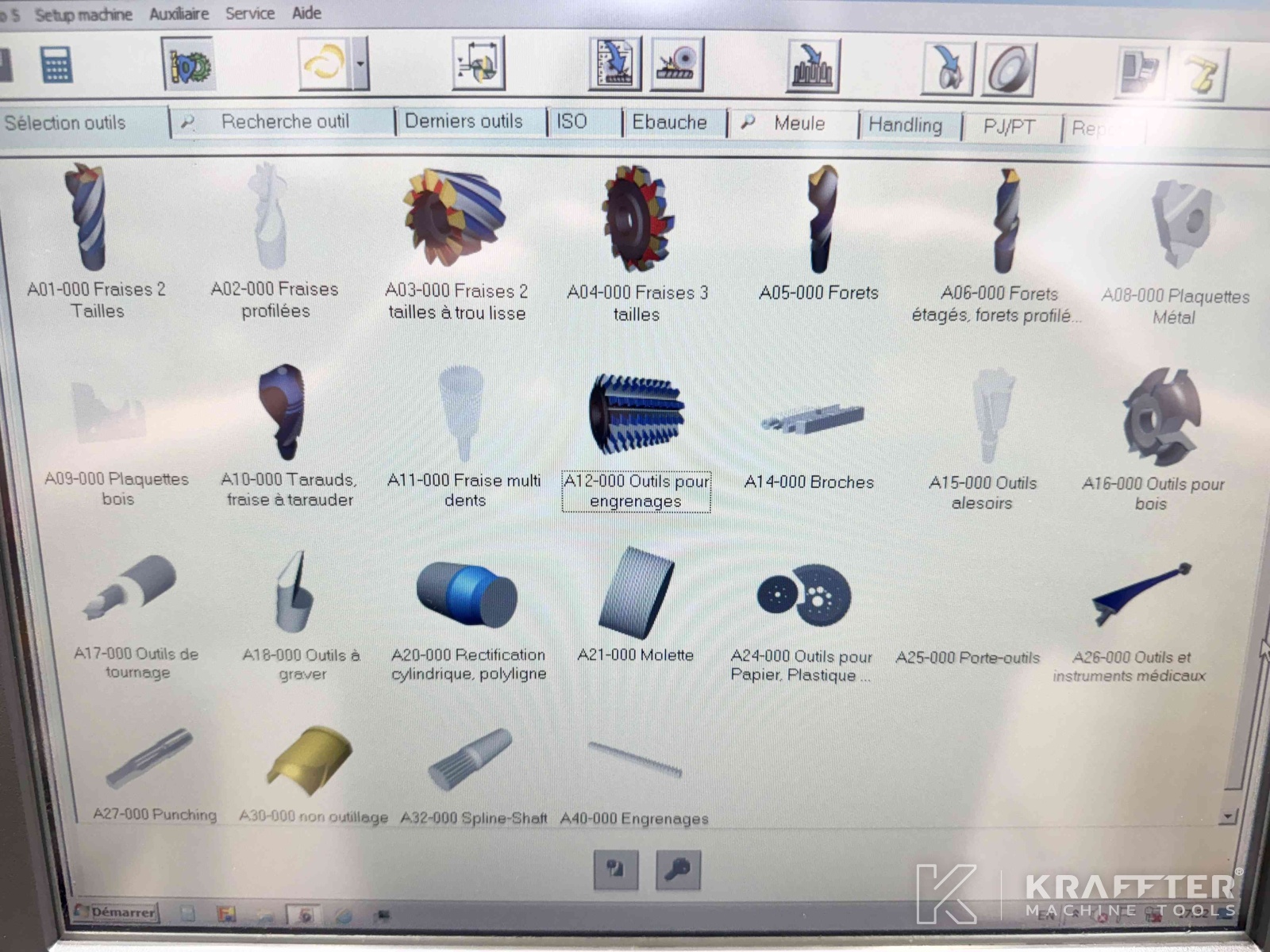

Software installed

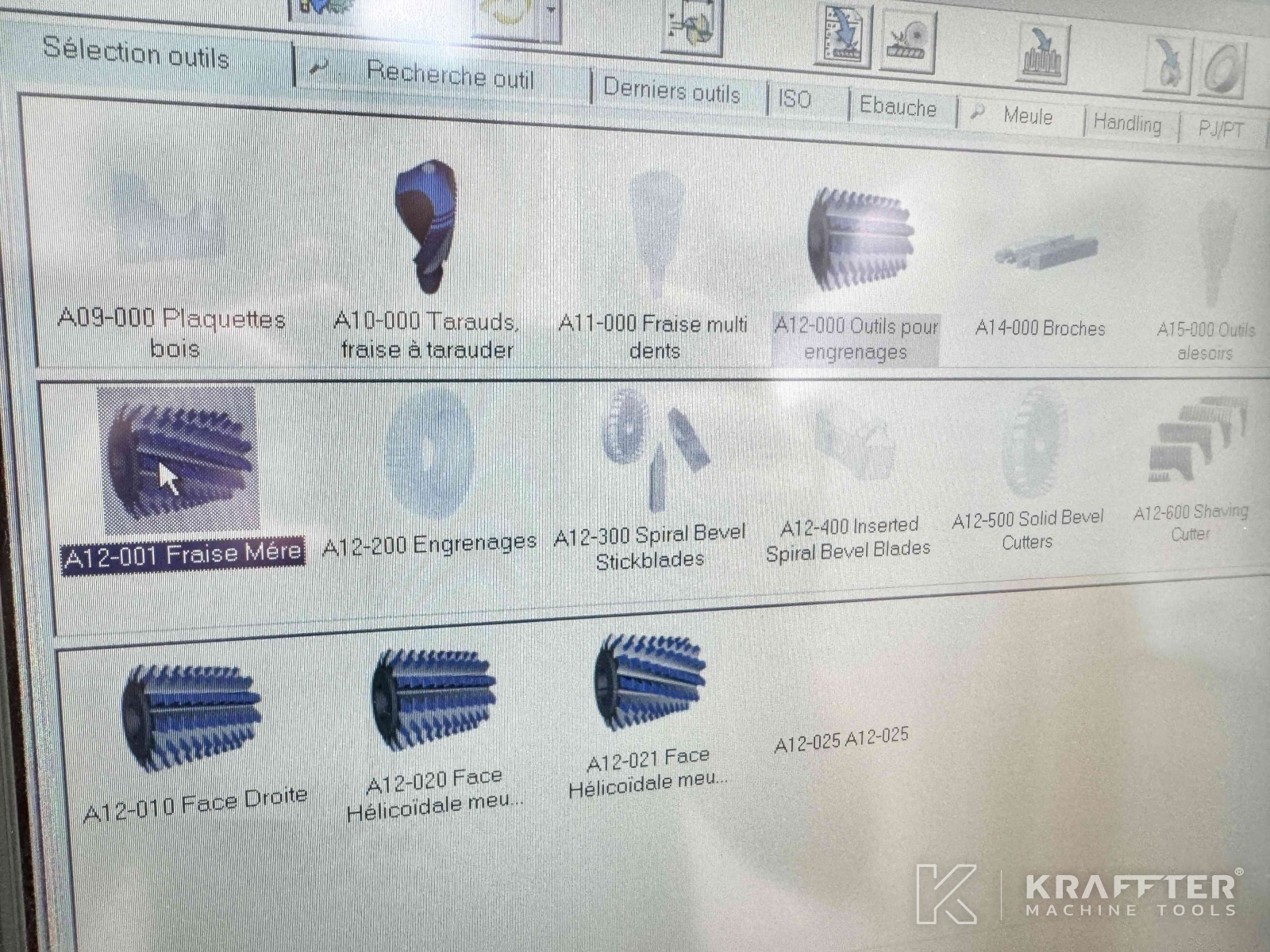

Quinto 5.4.6
Colour touchscreen
Yes
Number of axes
5
Height of centers
210
Stroke X axis
470 [mm]
Max. Stroke speed X axis
20000 [mm/min]
Resolution X axis
0.000025 [mm]
Stroke Y axis
390 [mm]
Max. Stroke speed Y axis
20000 [mm/min]
Resolution Y axis
0.000025 [mm]
Stroke Z axis
325 [mm]
Max. Stroke speed Z axis
10000 [mm/min]
Resolution Z axis
0.000025 [mm]
Table length
1000 [mm]
Table width
275 [mm]
Grinding spindle attachment
HSK 50
Min. grinding wheel speed
1000 [rpm]
Max. grinding wheel speed
12000 [rpm]
Grinding spindle motor power
10 [kW]
Max. diameter grinding wheel
250 [mm]
Min. diameter grinding wheel
40 [mm]

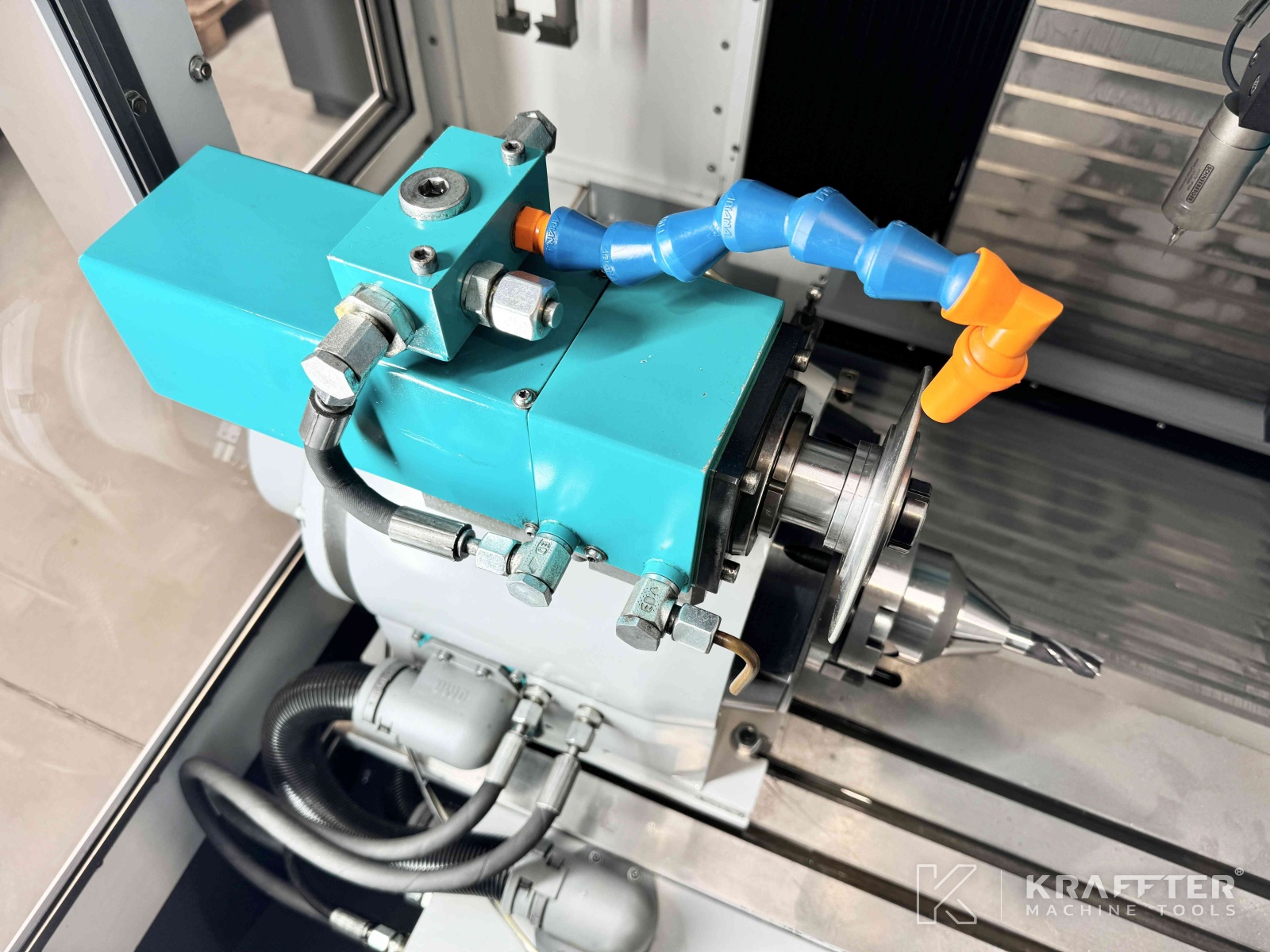

Internal workpiece spindle nose
ISO 50
Number of running hours
7957 [h]
Supply voltage
400 [V]
Rated current
63 [A]
Dimensions
2600 x 3500 x 2600 [mm]
Weight
4800 [Kg]

Additional information

EQUIPMENT INCLUDED:

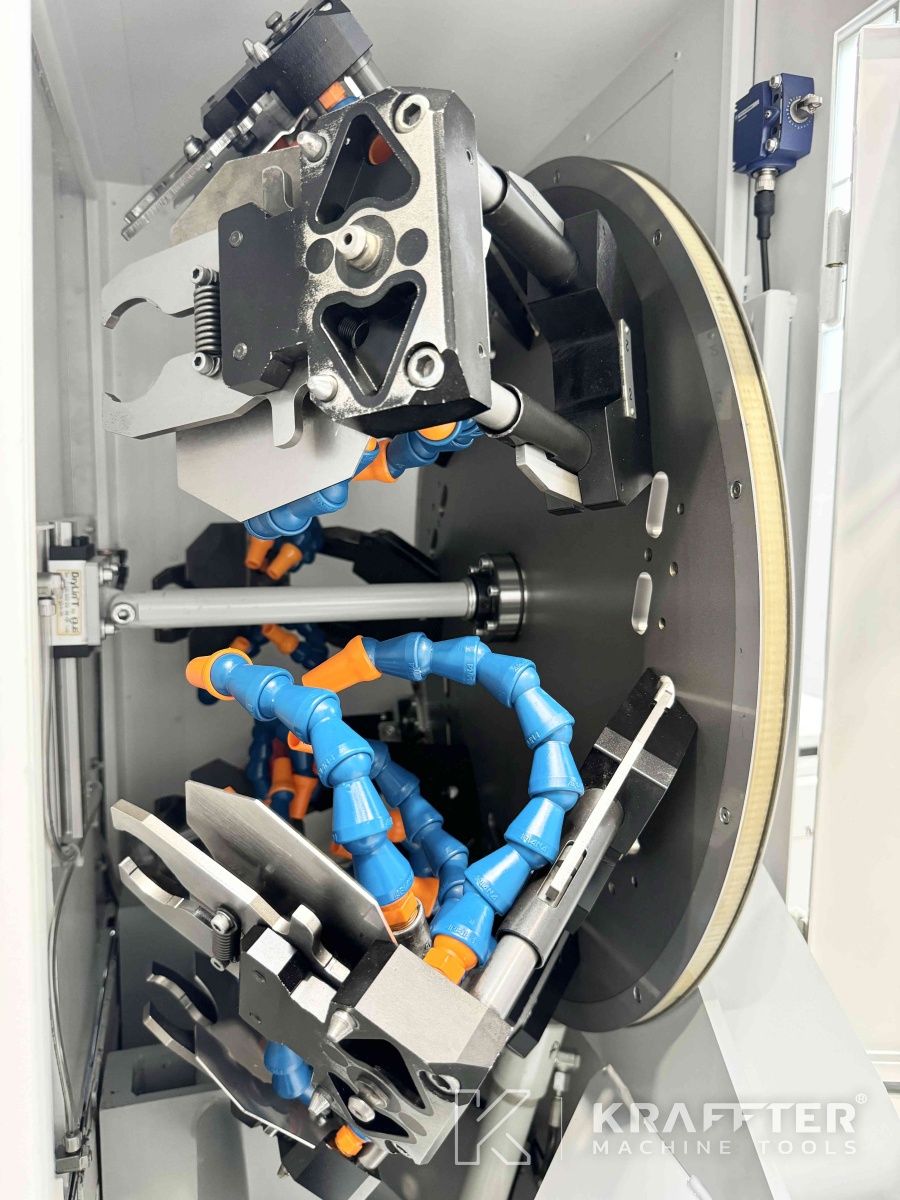

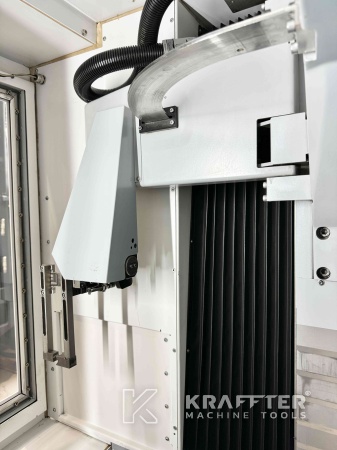

-Workpiece loader
-7-station grinding wheel pack loader
-Measurement glass scales on all linear axes

-Hydraulic workpiece clamping

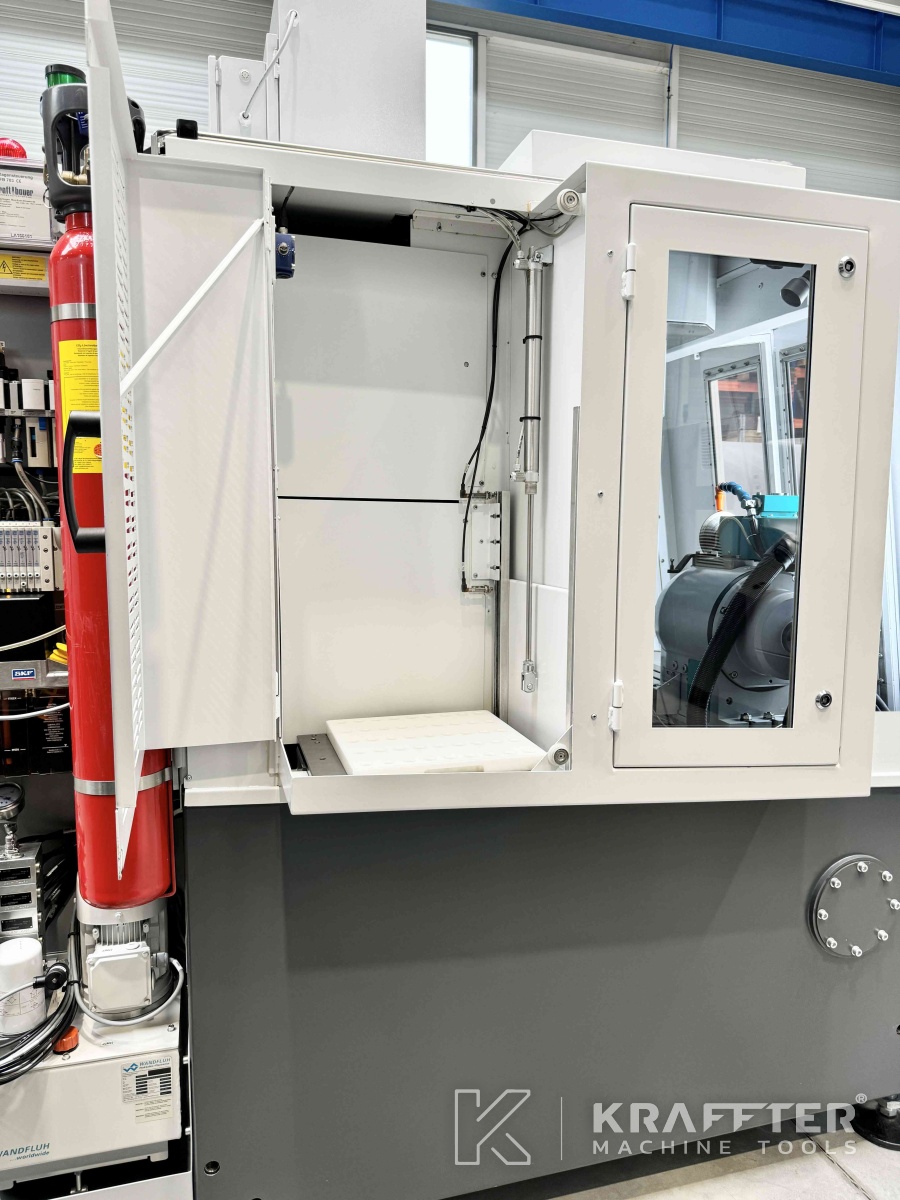

-Automatic CO2 fire extinguishing system (to be checked by the purchaser with a competent body)
-Automatic centralised lubrication
-Remote maintenance software

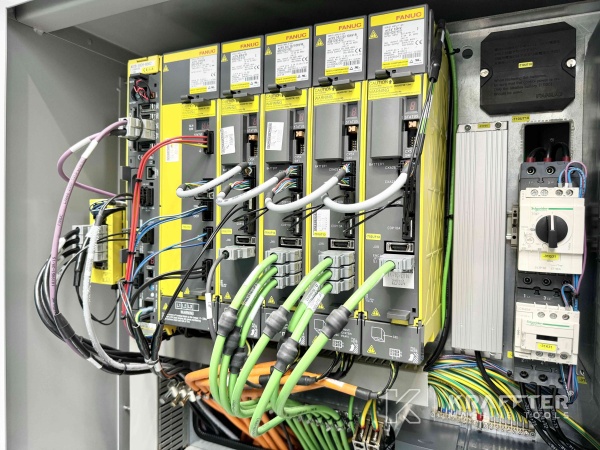

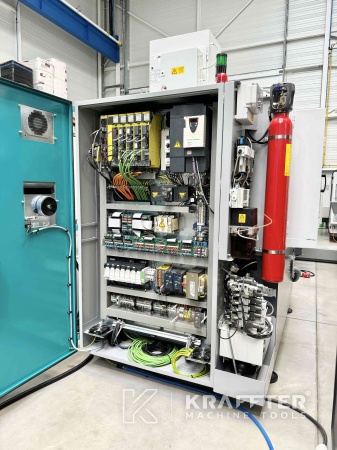

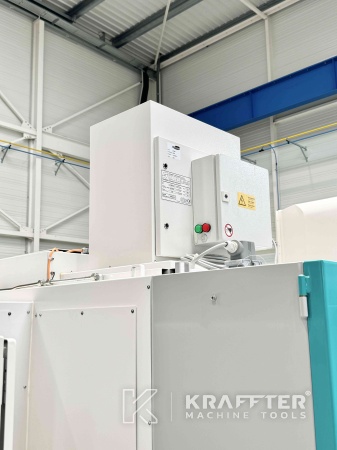

-Air-conditioning unit electrical cabinet

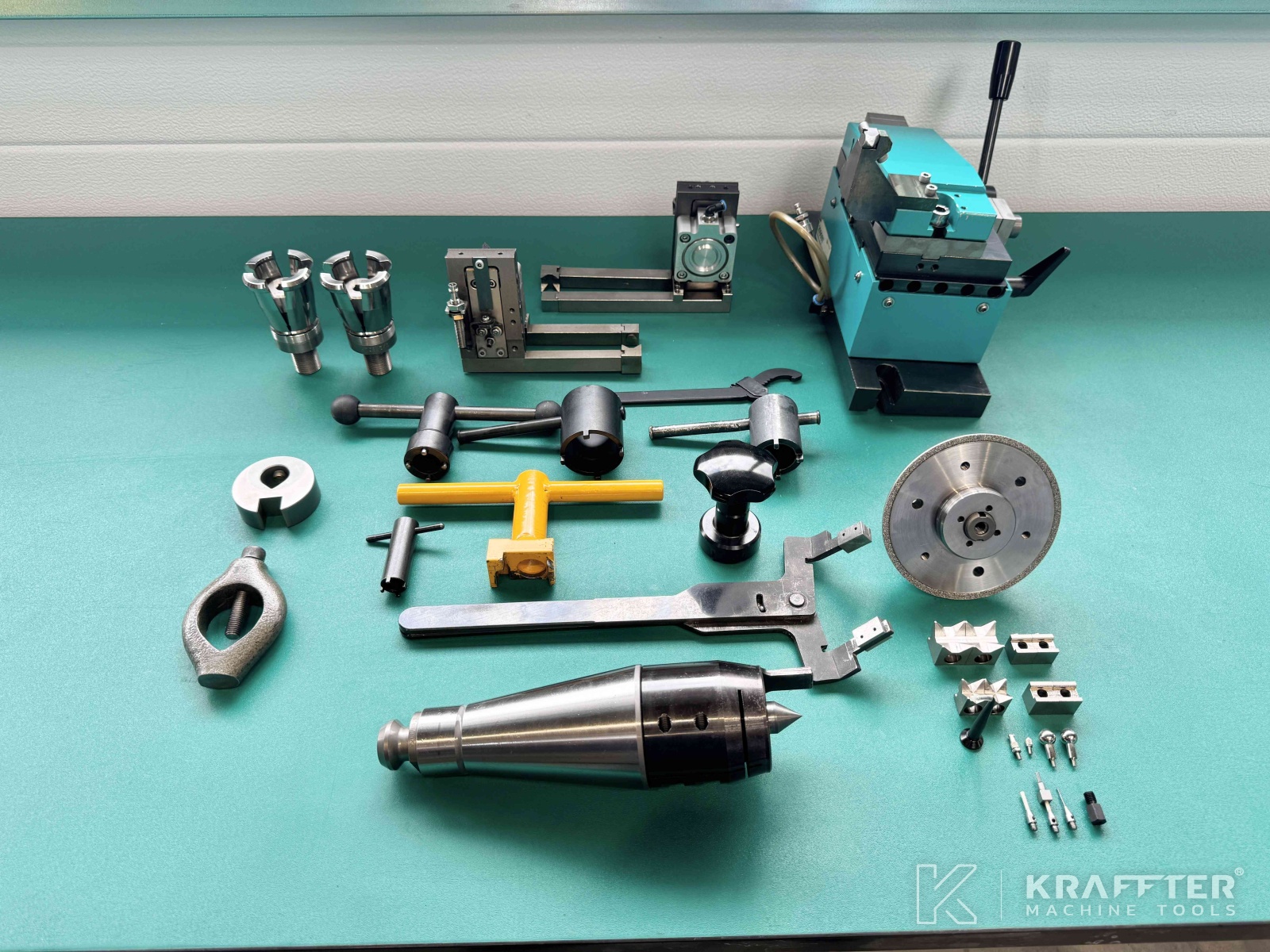

SCHNEEBERGER ACCESSORIES:

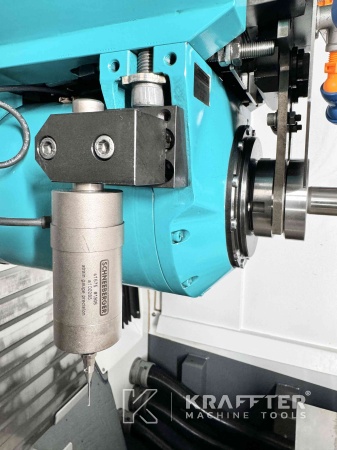

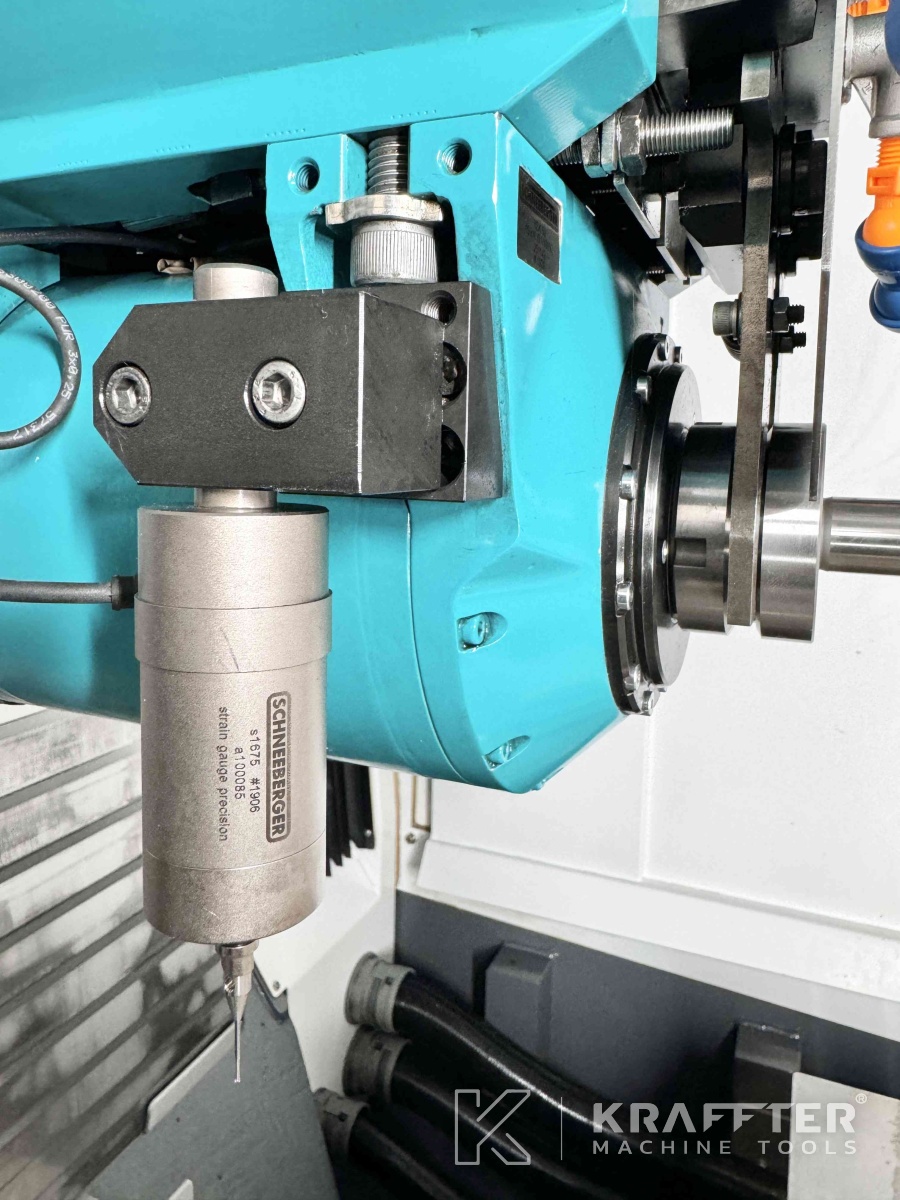

x1 SCHNEEBERGER 3D probe type SMG 118

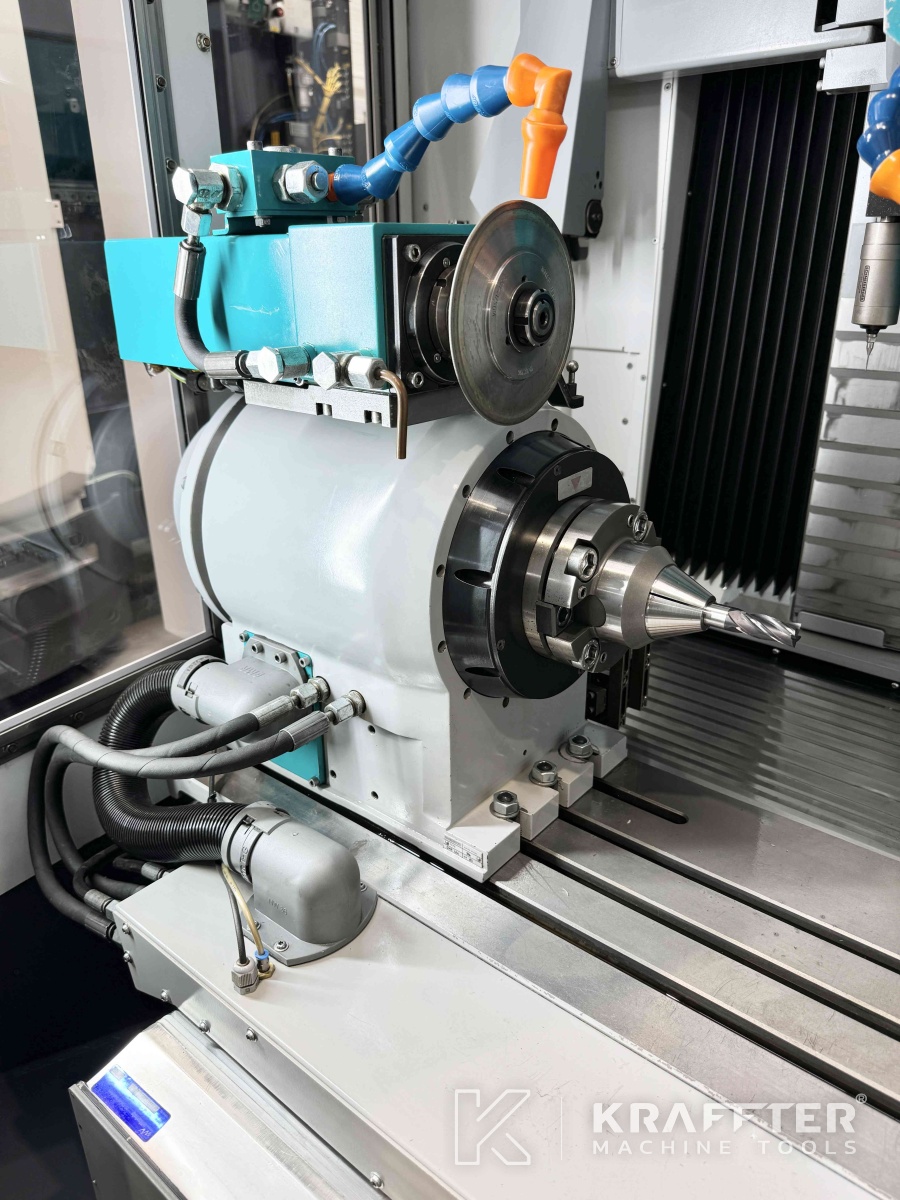

x1 high-precision collet chuck for UP40 collets with automatic clamping - reference: M-530 890 324

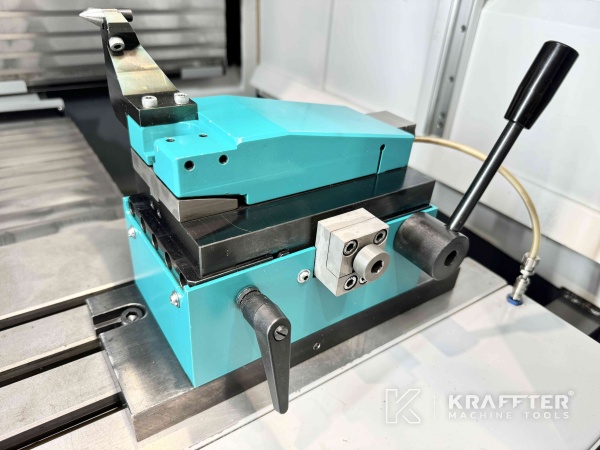

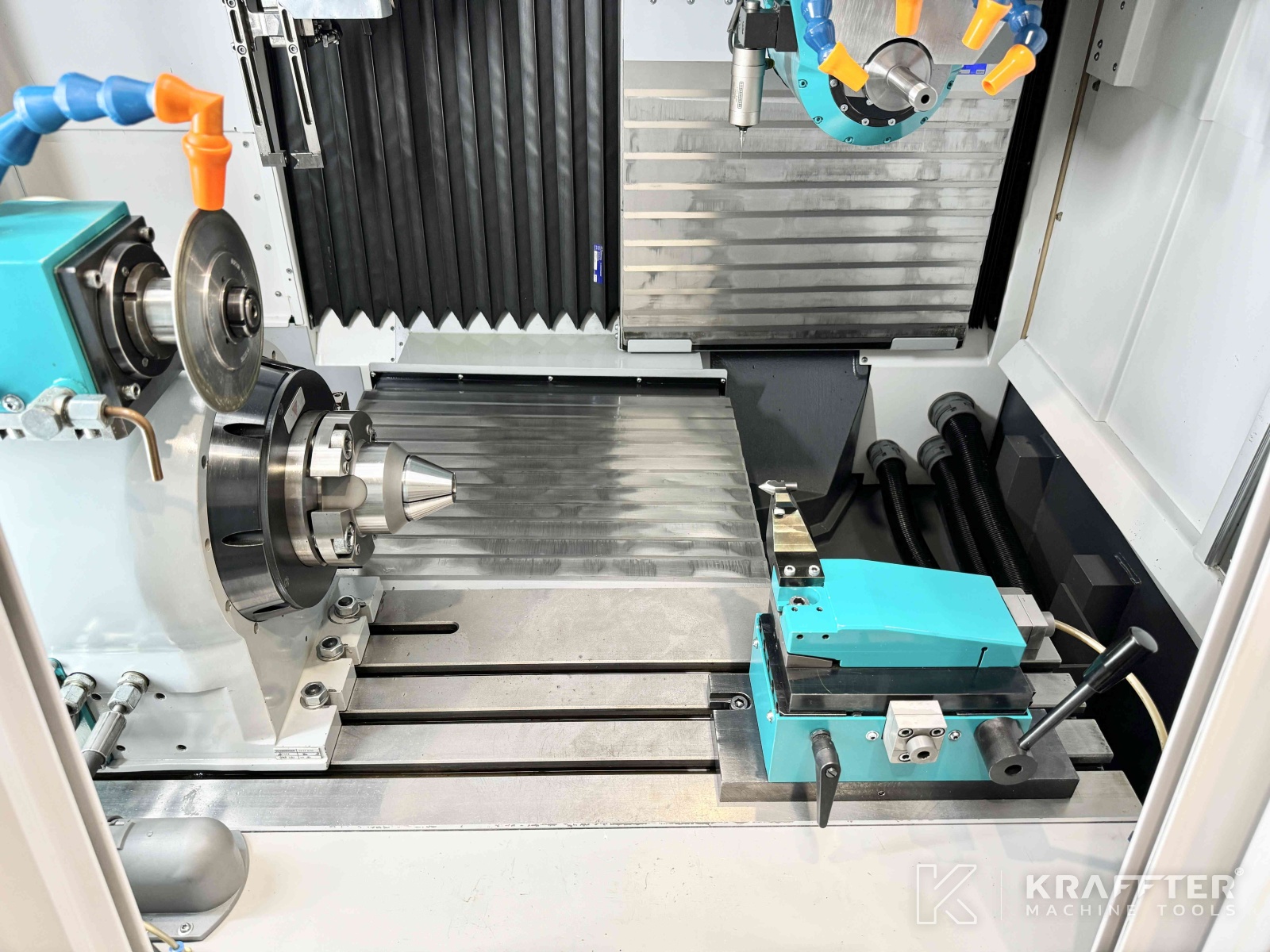

x1 MRG150 manual tailstock: X stroke: 23mm / height of tips: 210 mm - reference: M-50019-0150

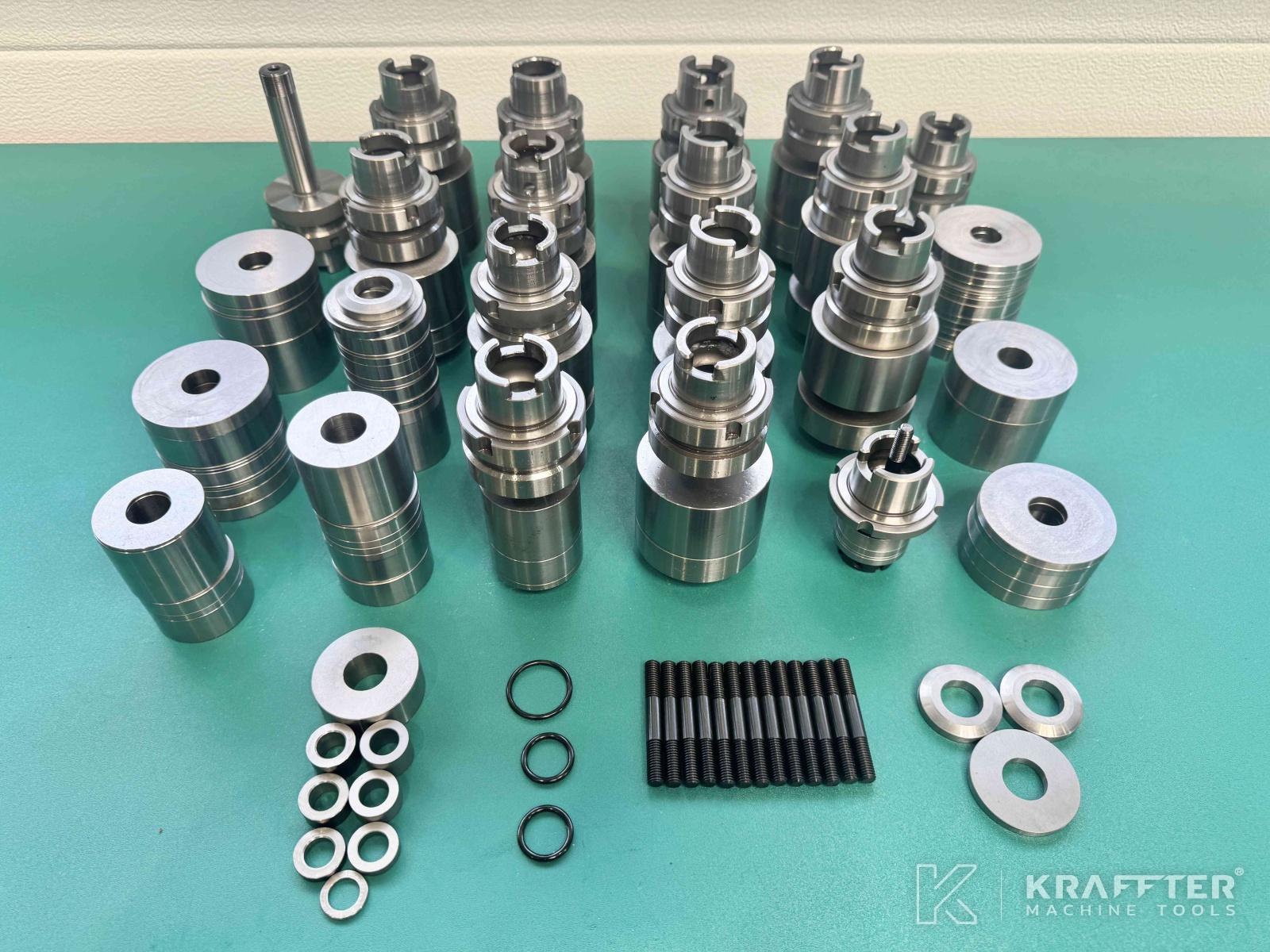

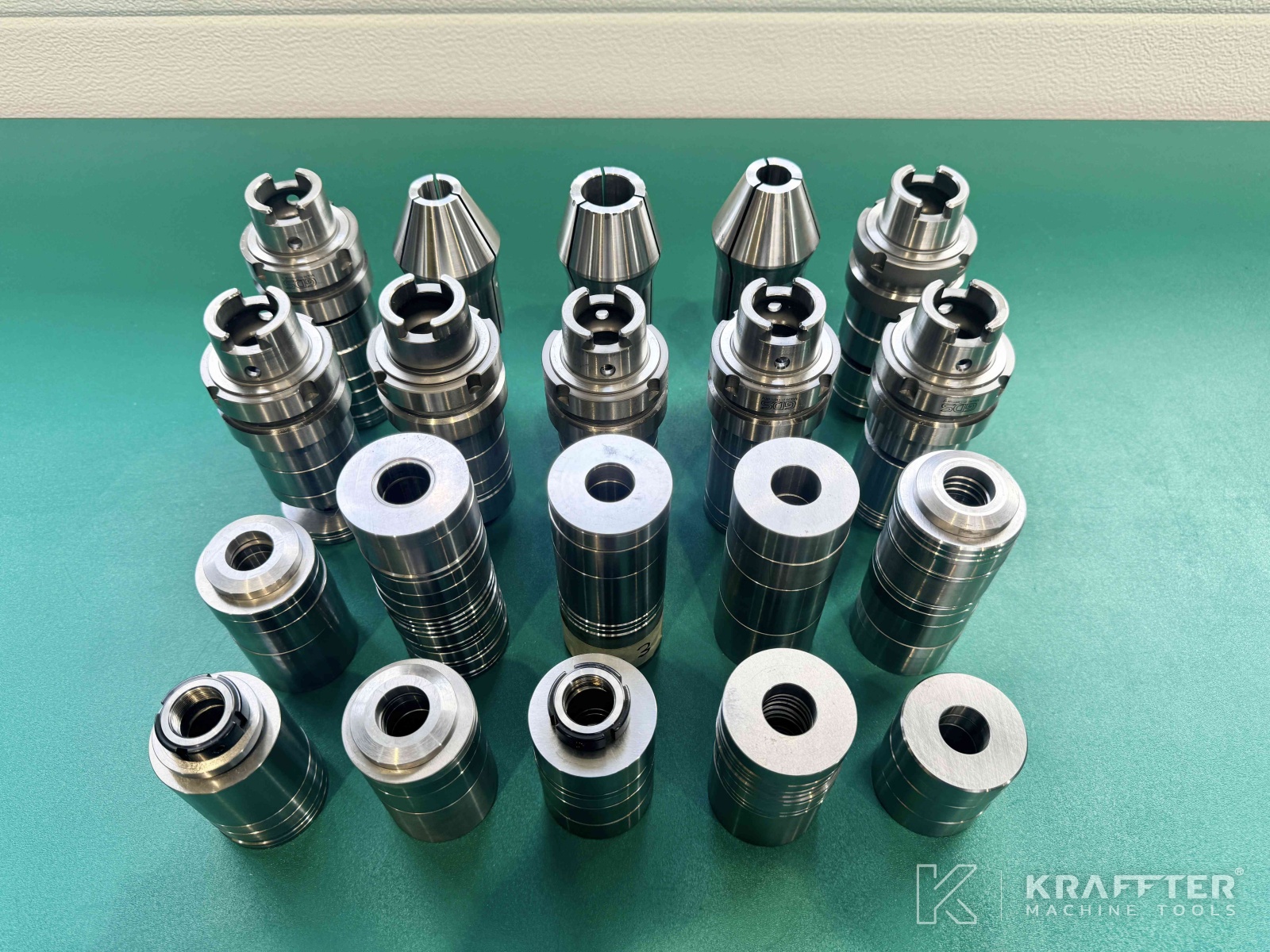

x22 HSK50 wheel cleats

x3 UP40 collets

x1 diamond dressing wheel (Ø125 mm) - reference: M-50000-0053

x1 320*320*25 mm pallet for Ø16 mm tools

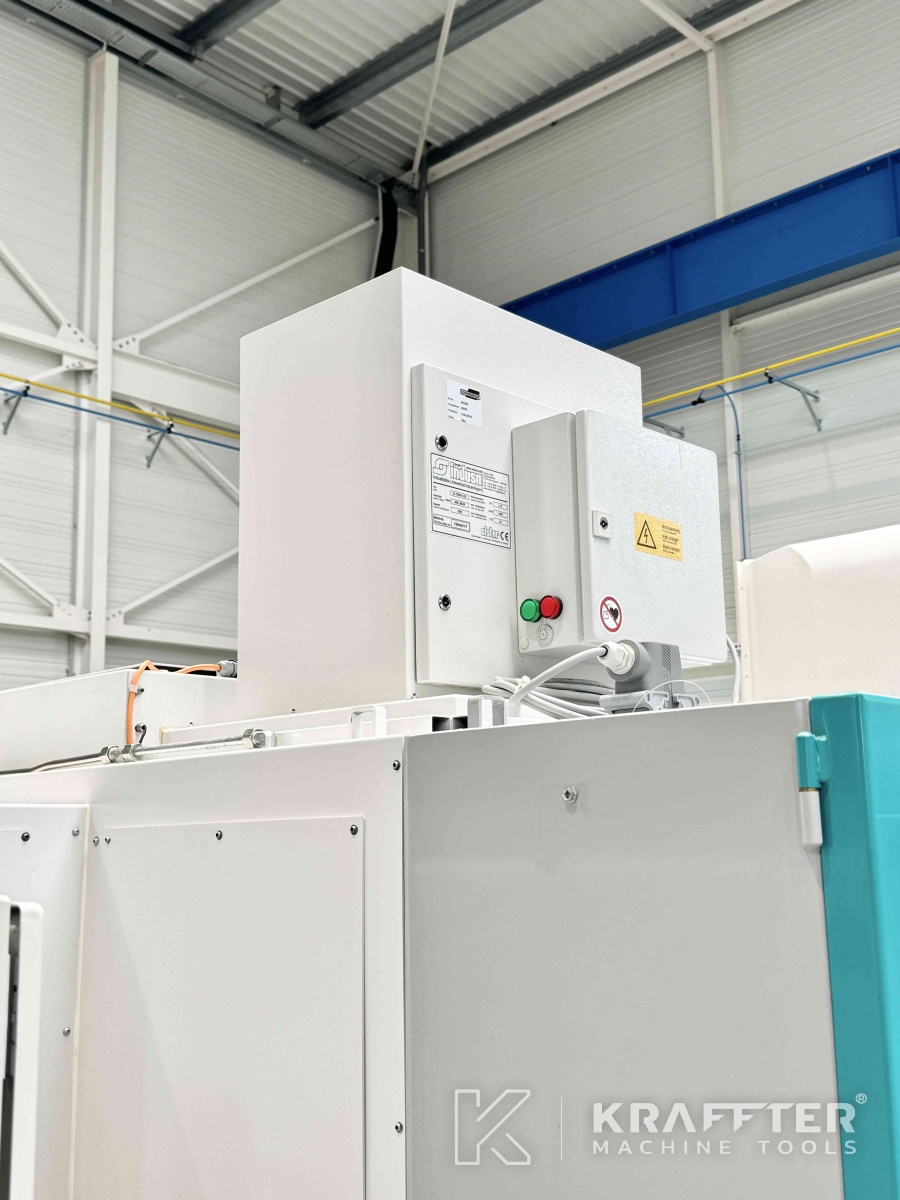

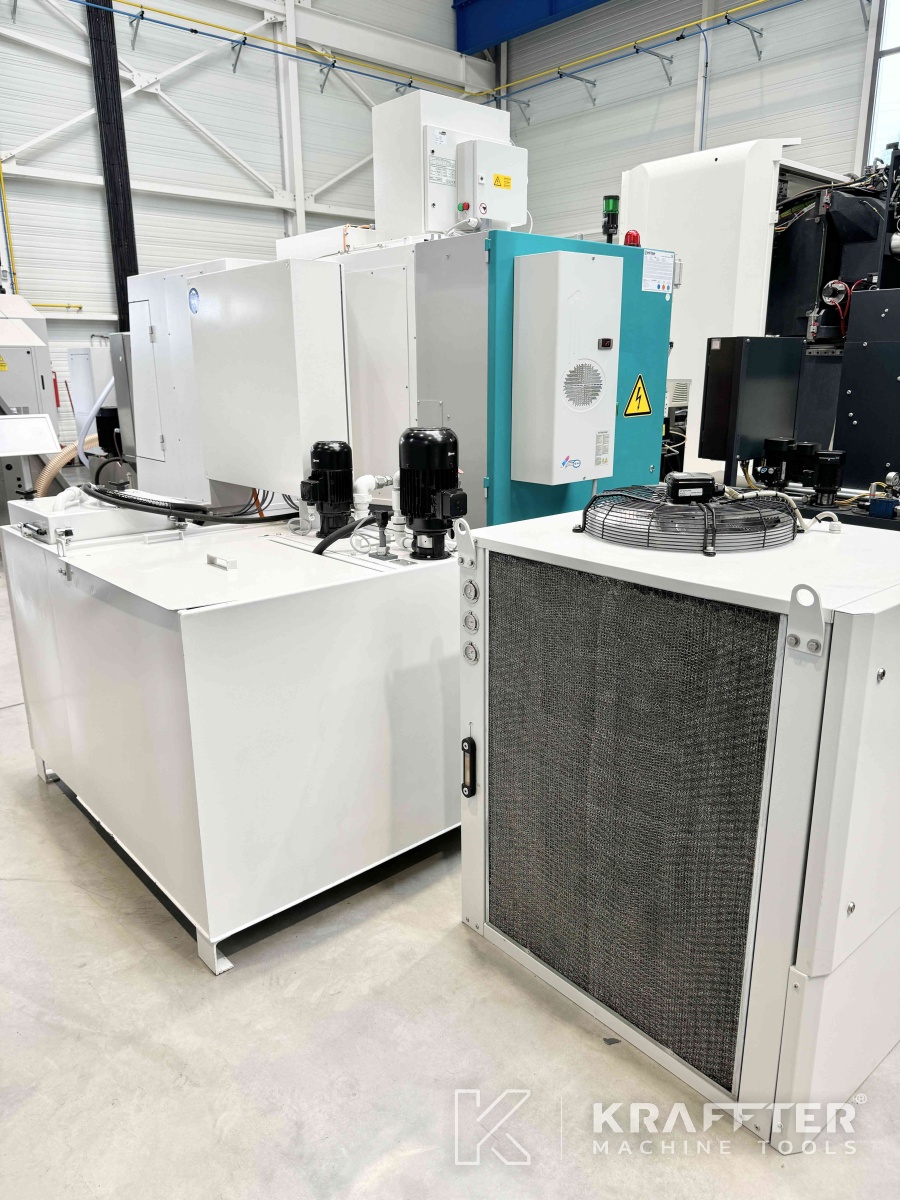

x1 ELSTAR type EL 1000 N EC electrostatic oil mist extractor (1000 m³/h) - reference: 237593

x1 TURBO SEPARATOR centrifuge unit - reference: 232960

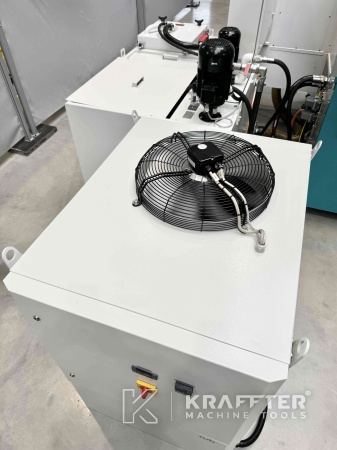

x1 RPS COOLING oil cooler (spindle + cutter) - reference: 241710

Various spacers for grinding discs

All technical manuals in English and German
