Type of machine : CNC lathe
Brand : CMZ
N° de stock: 90113

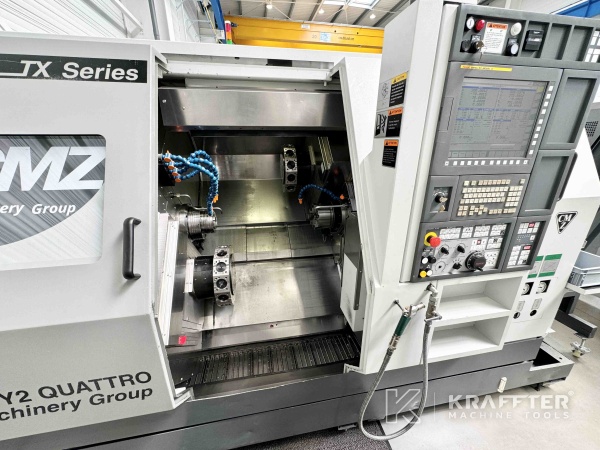

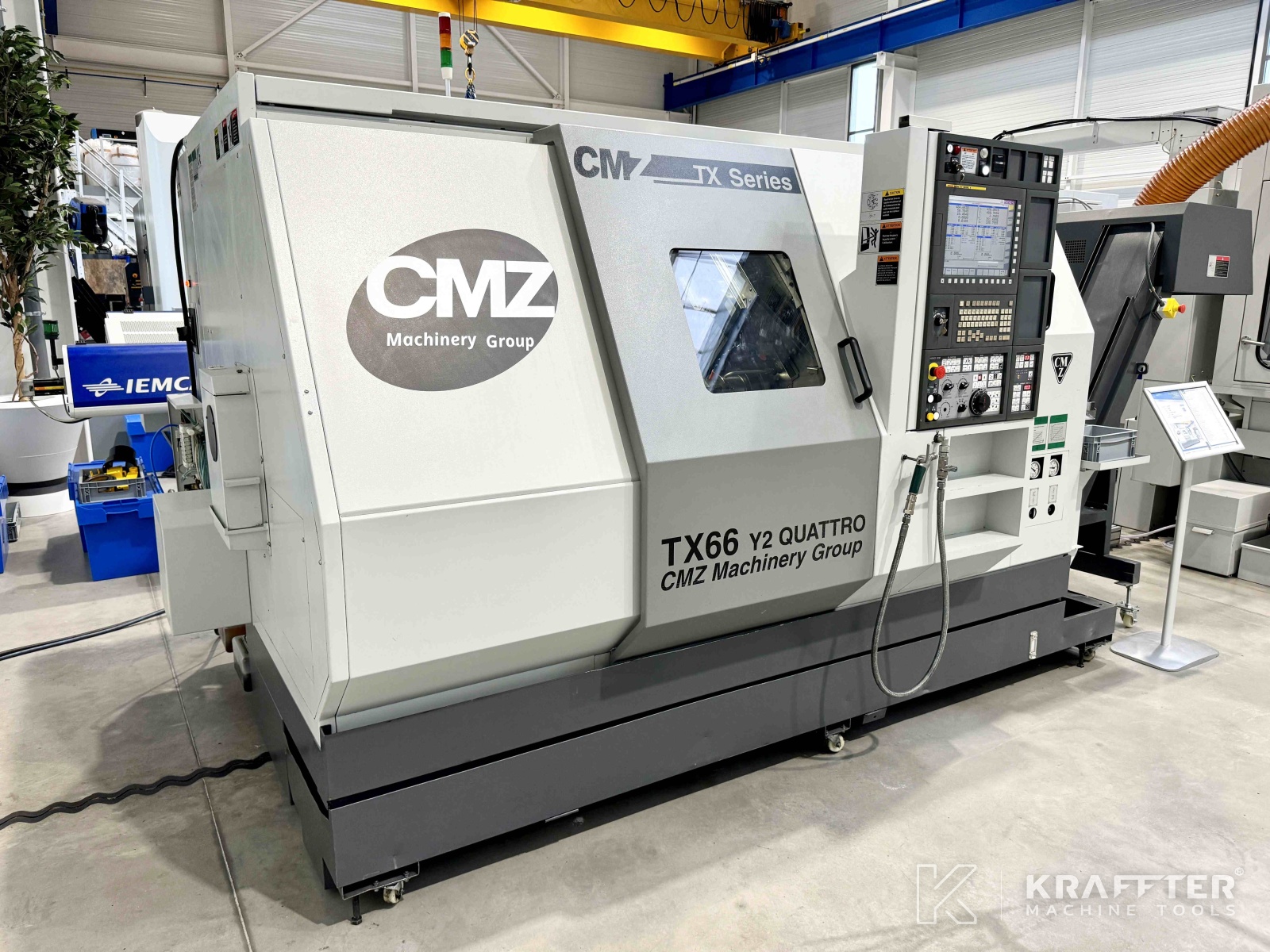

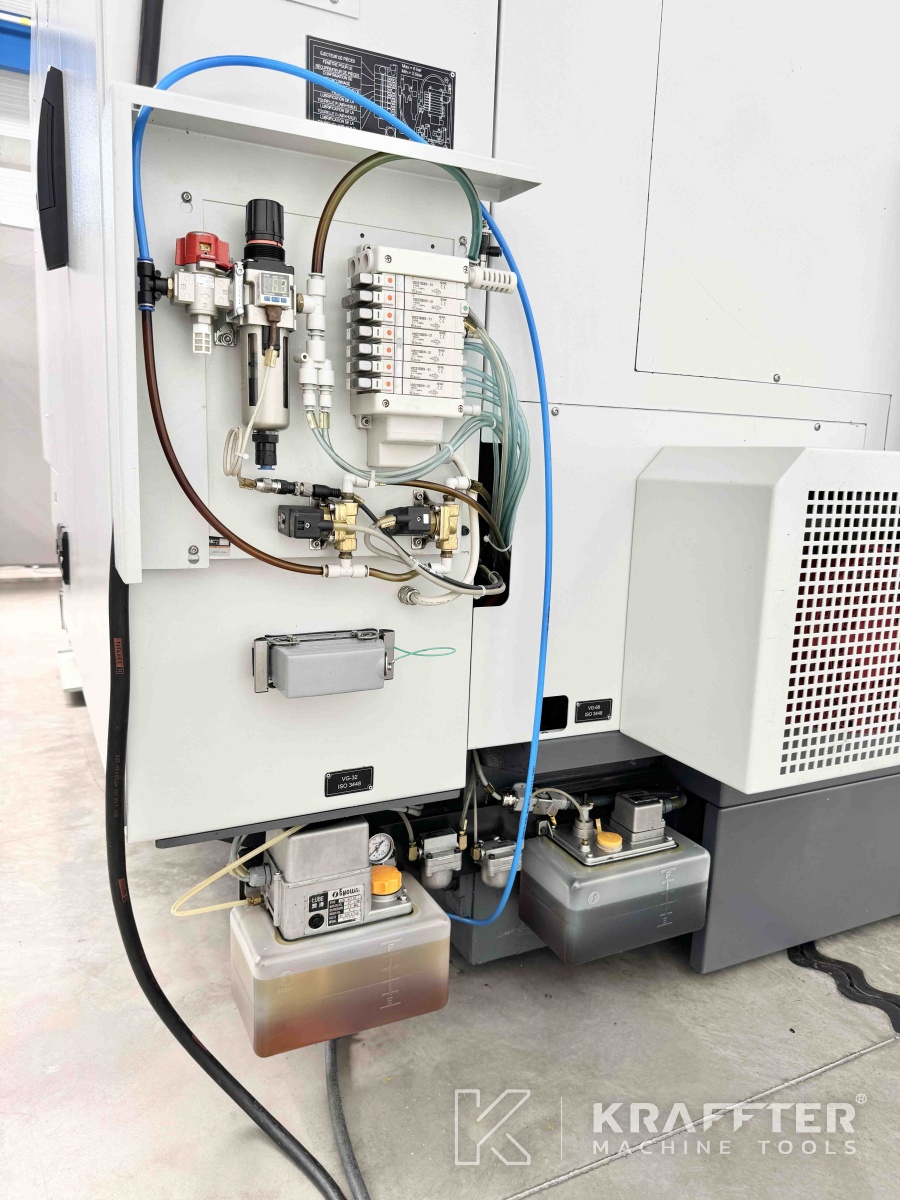

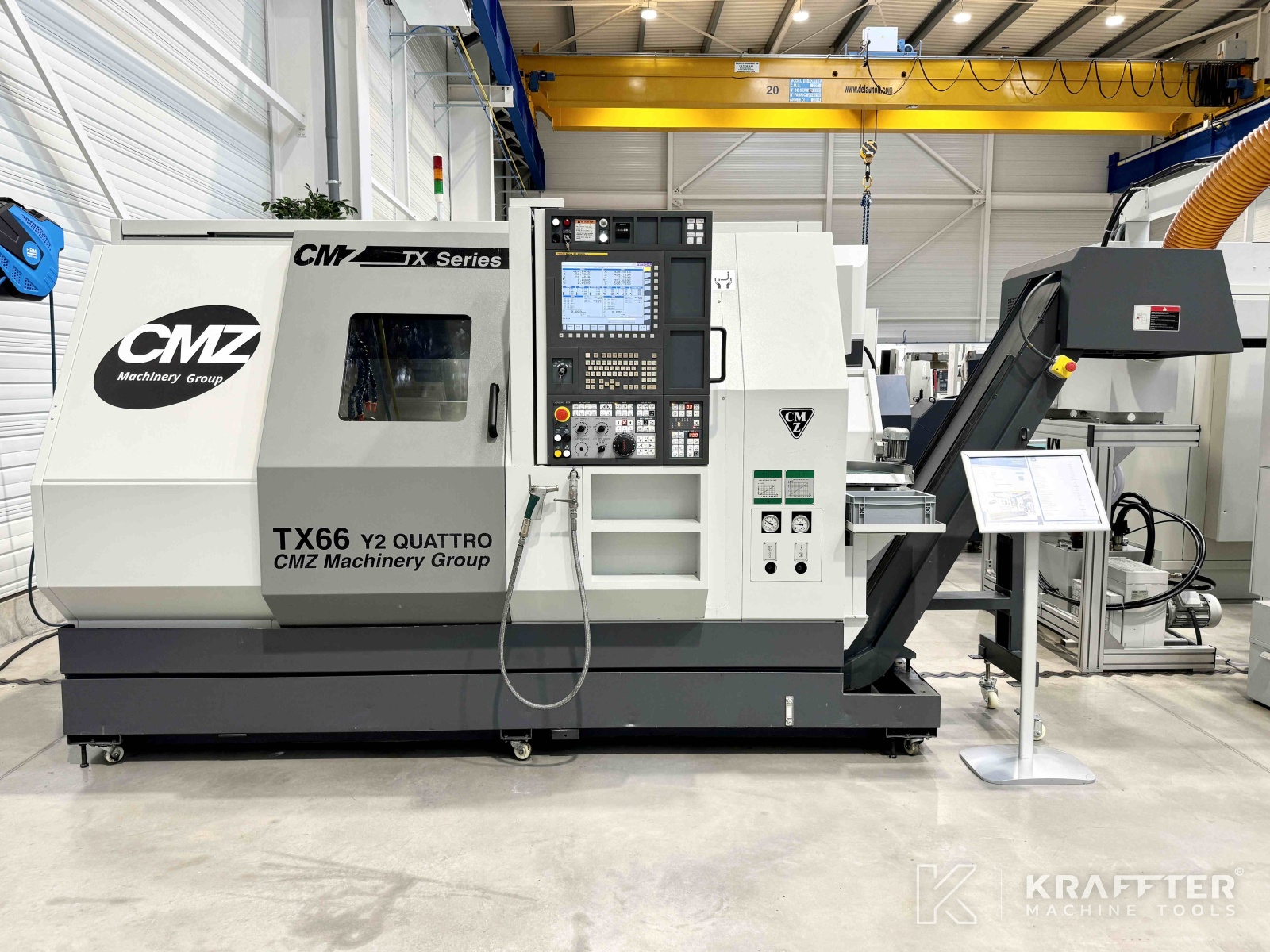

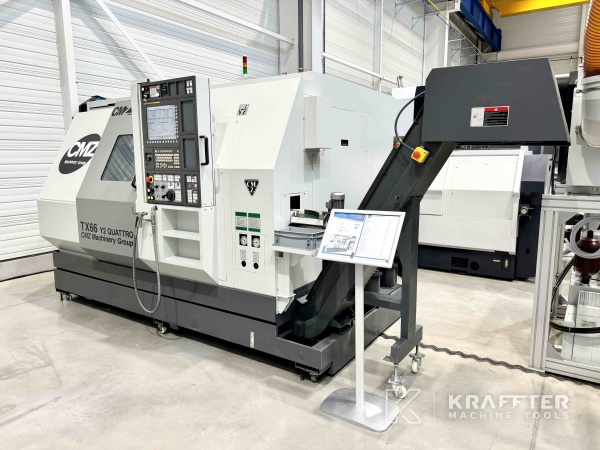

Model : TX66 Y2 Quattro
Year : 2012
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

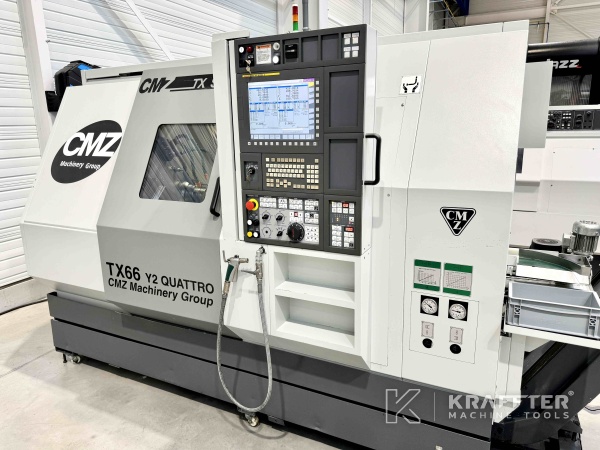

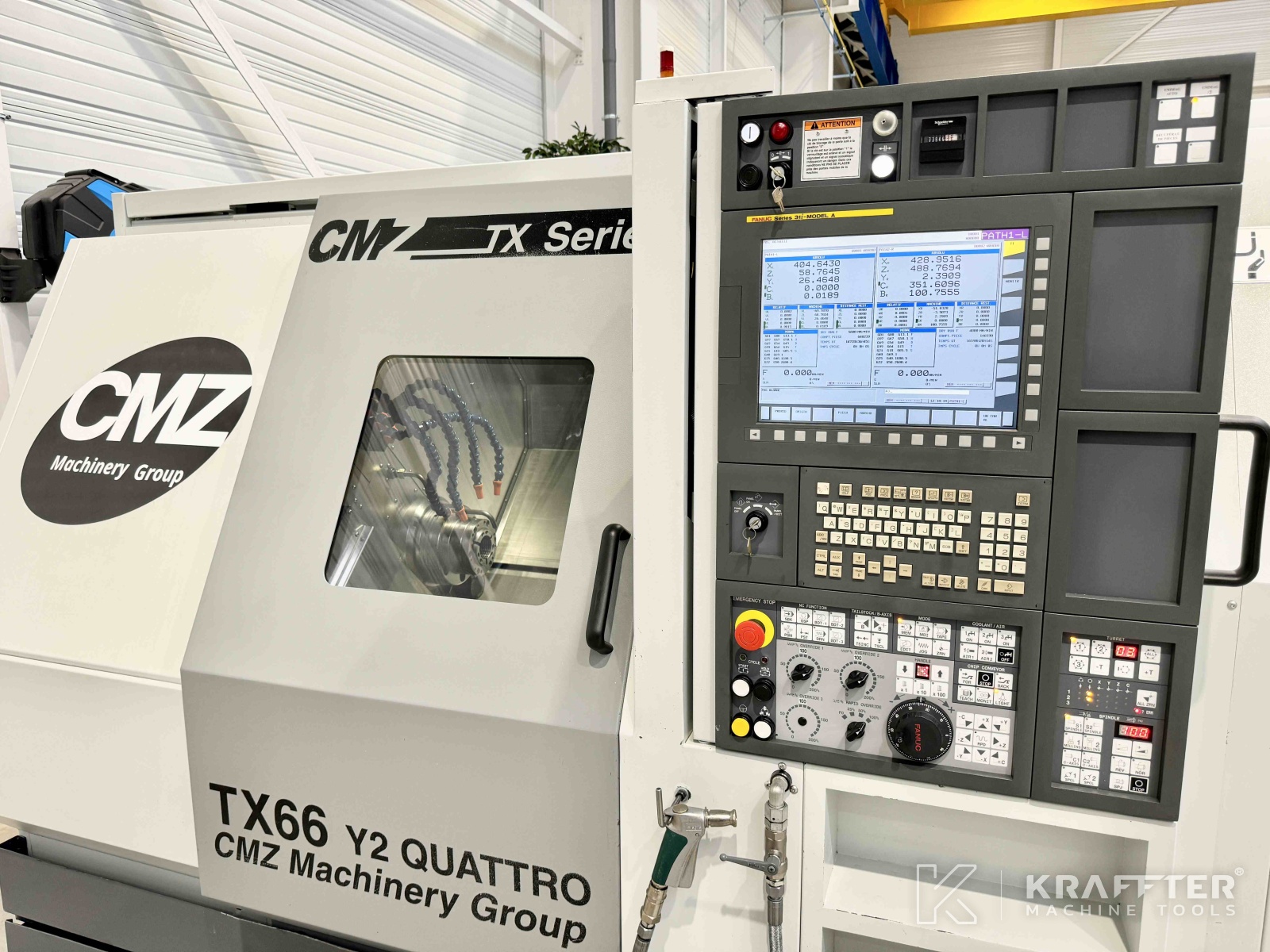

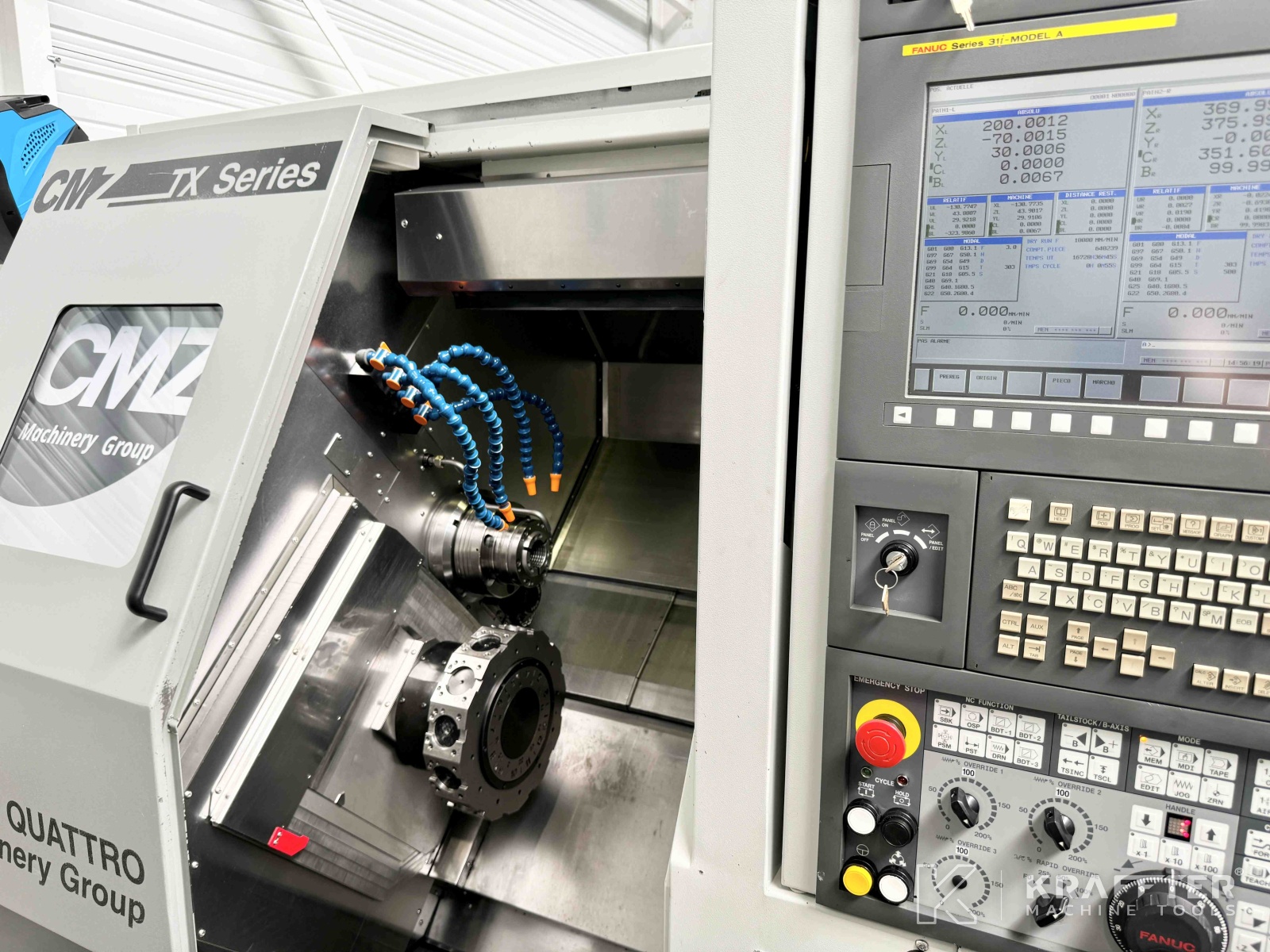

CNC control

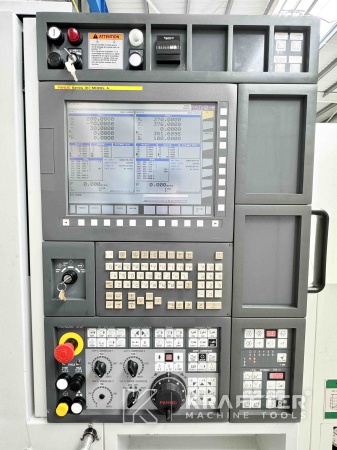

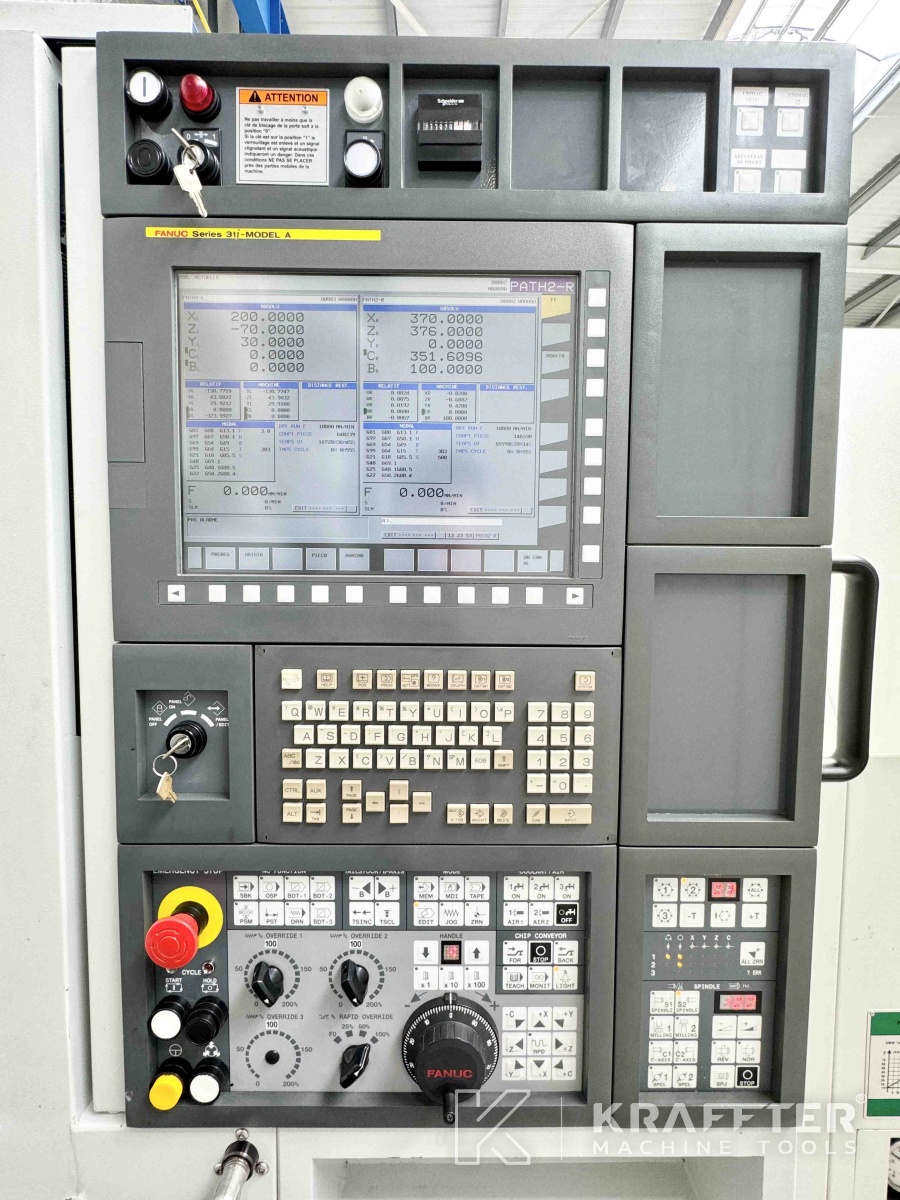

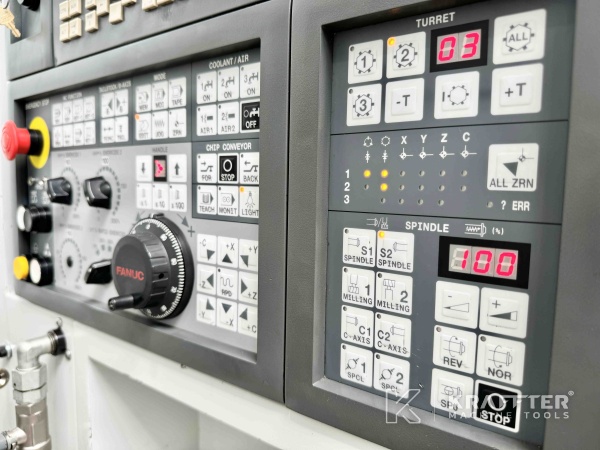

FANUC 31i - MODEL A
Distance between chucks
639 [mm]
Max. turning diameter
255 [mm]
Height of centers over cariage
270 [mm]
Stroke Z1 axis
500 [mm]
Stroke X1 axis
190 [mm]

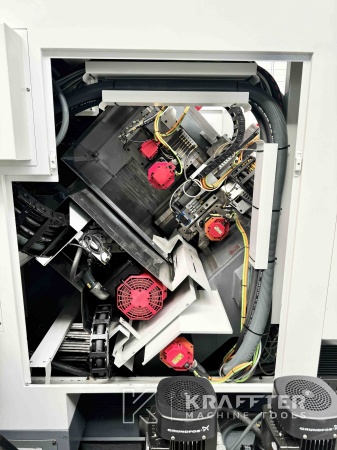

Stroke Y1 axis
+/- 40 [mm]
Stroke Z2 axis
500 [mm]
Stroke X2 axis
190 [mm]
Stroke Y2 axis
+/- 40 [mm]
Rapid traverse rate X axis
16000 [mm/min]
Rapid traverse rate Z axis
20000 [mm/min]
Rapid traverse rate Y axis
12000 [mm/min]
Axes acceleration
1g
Spindle nose
ASA 8" A2
Max. bar diameter
66 [mm]
Spindle throughbore
77 [mm]
Max. spindle speed
4000 [rpm]
Spindle power
15 [kW]
Spindle torque
136 [Nm]

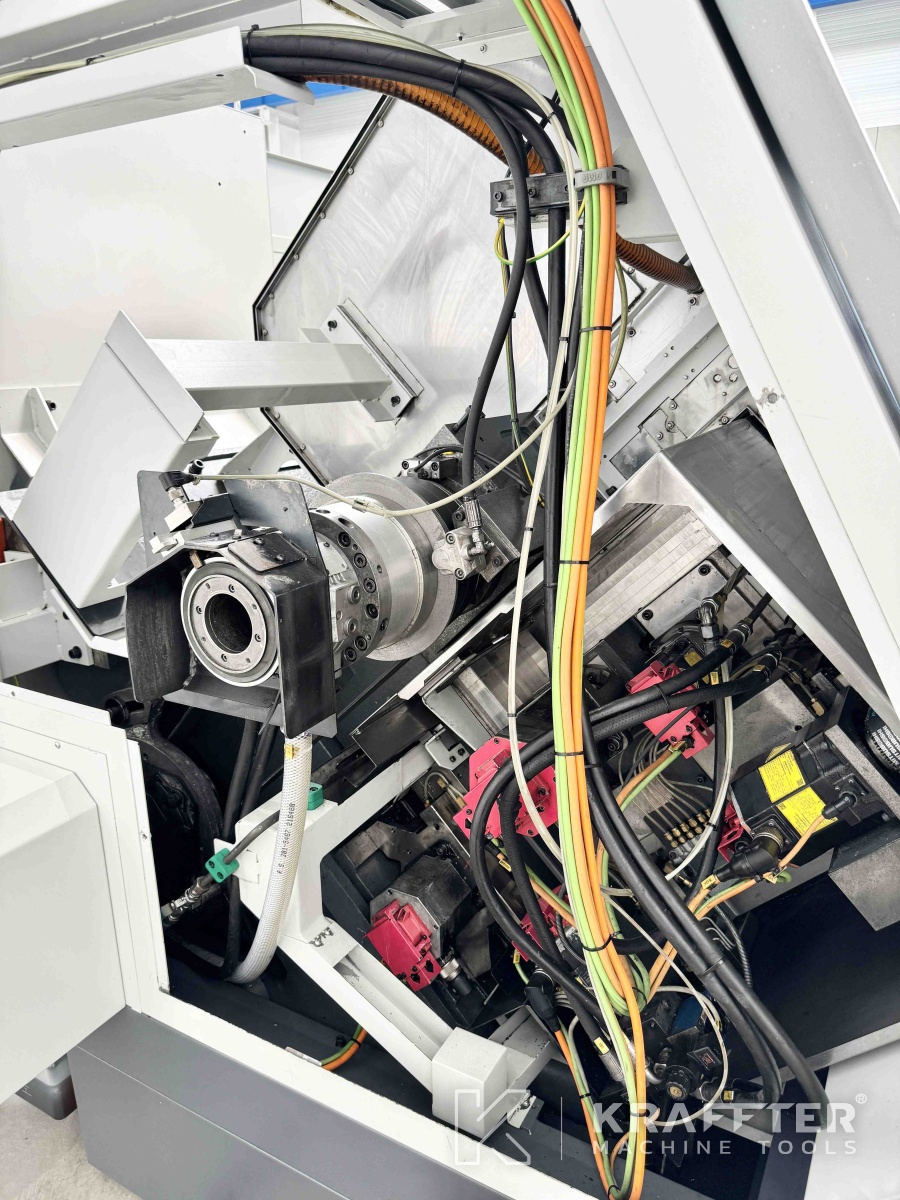

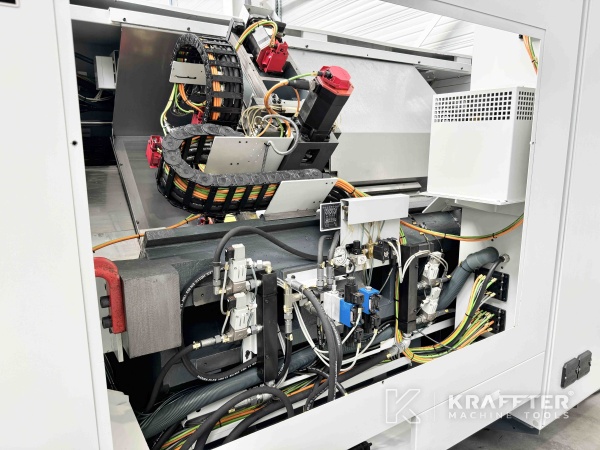

Counter spindle nose
ASA 6" A2
Max. bar diameter counter spindle
52 [mm]
Counter spindle throughbore
61 [mm]
Counter spindle stroke
635 [mm]
Max. counter spindle speed
5000 [rpm]
Counter spindle power
7.5 [kW]
Counter spindle torque
68 [Nm]

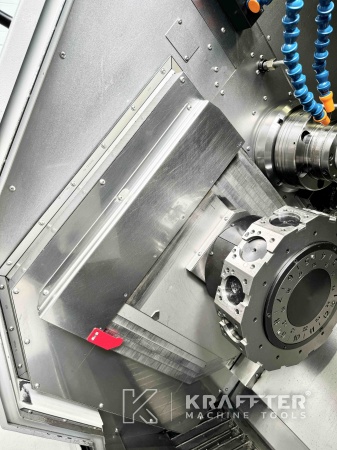

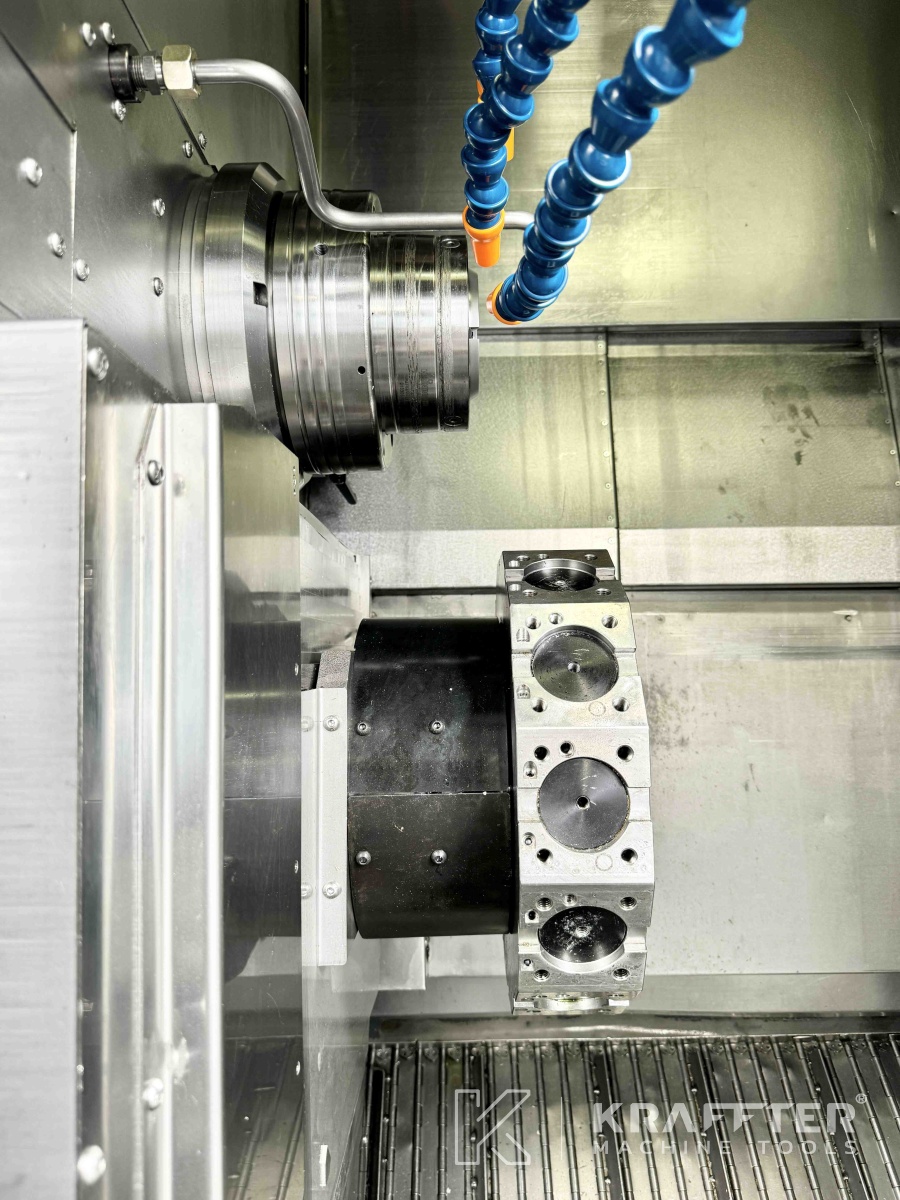

Turret indexing time
0.1 [s/pos]

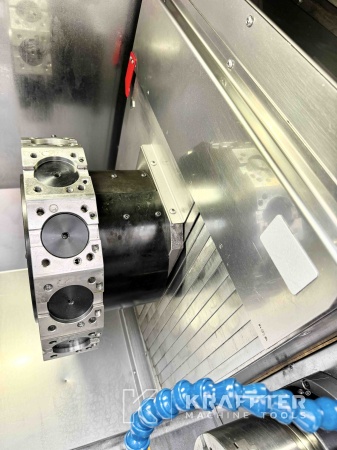

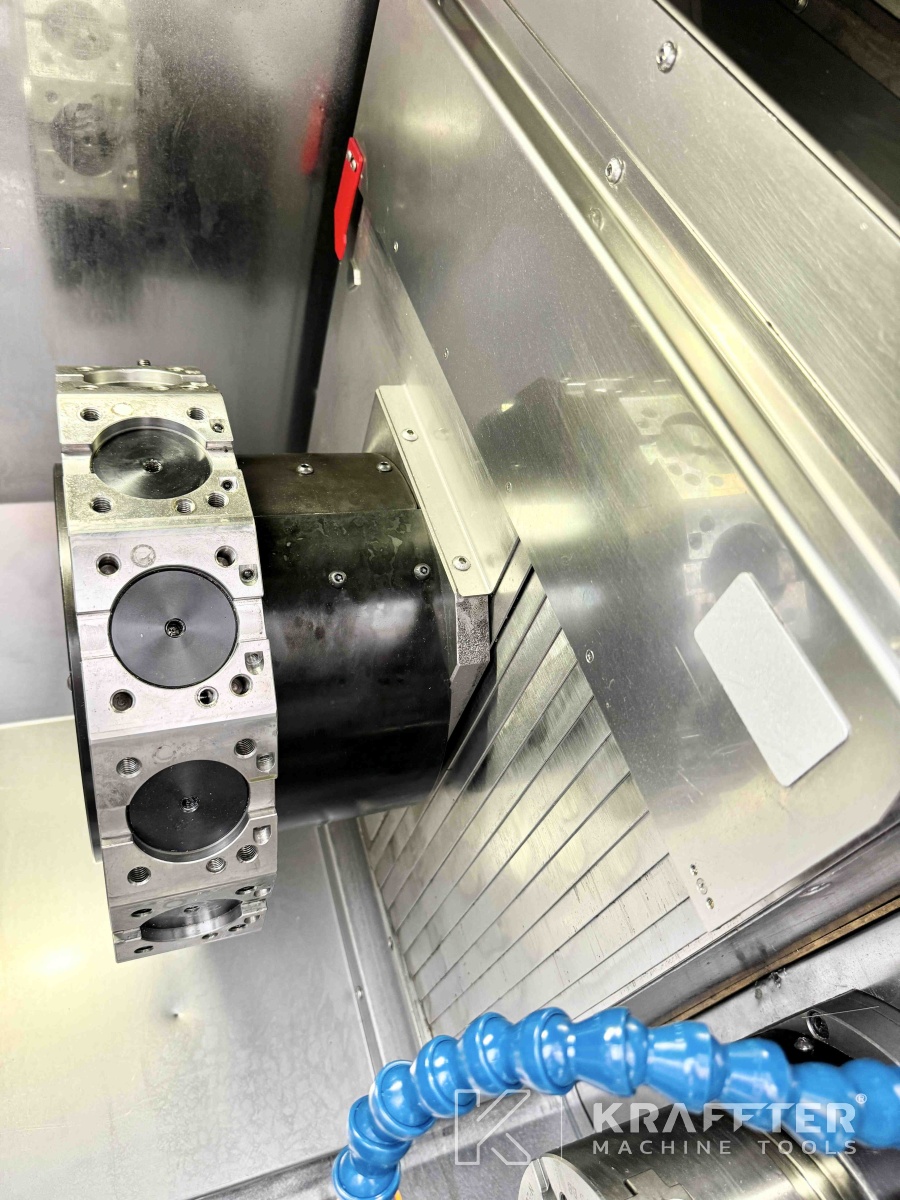

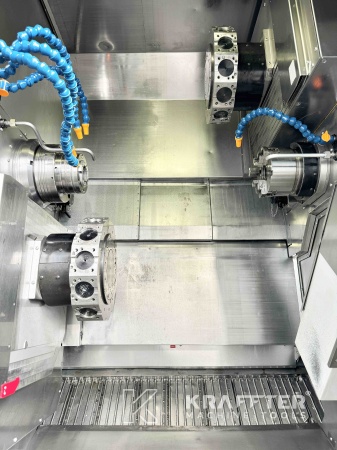

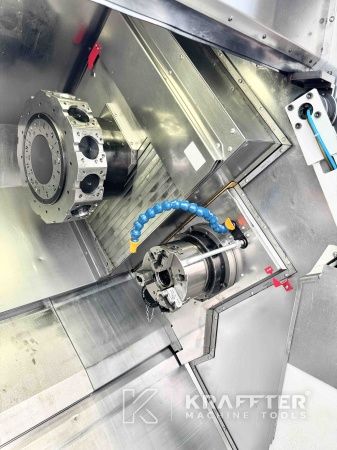

Number of tool stations - Turret 1
12
Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
6000 [rpm]
Number of tool stations - Turret 2
12
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 2
6000 [rpm]
Live tools power
18 [kW]

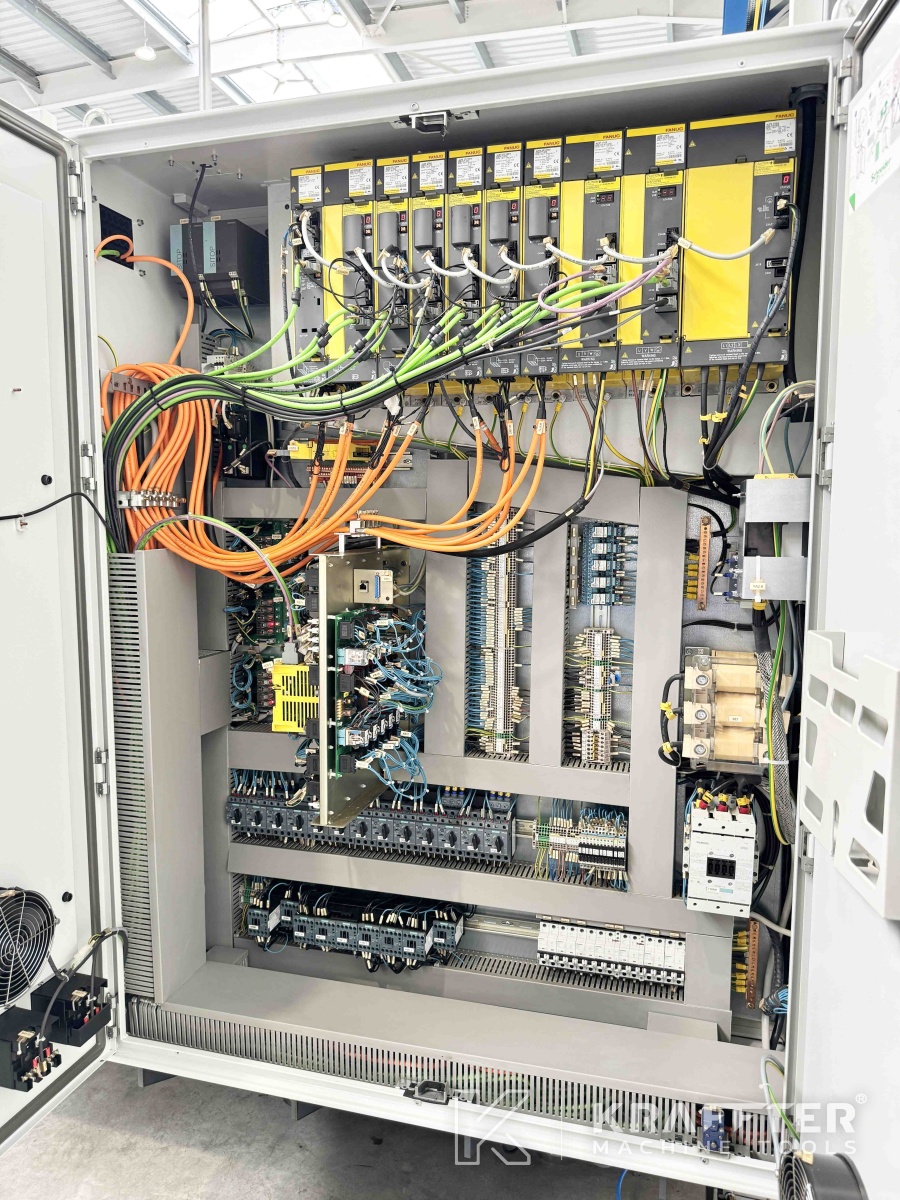

Total power required
65 [kVA]
Supply voltage
400 [V]
Weight
9600 [Kg]
Additional information
EQUIPMENT INCLUDED:

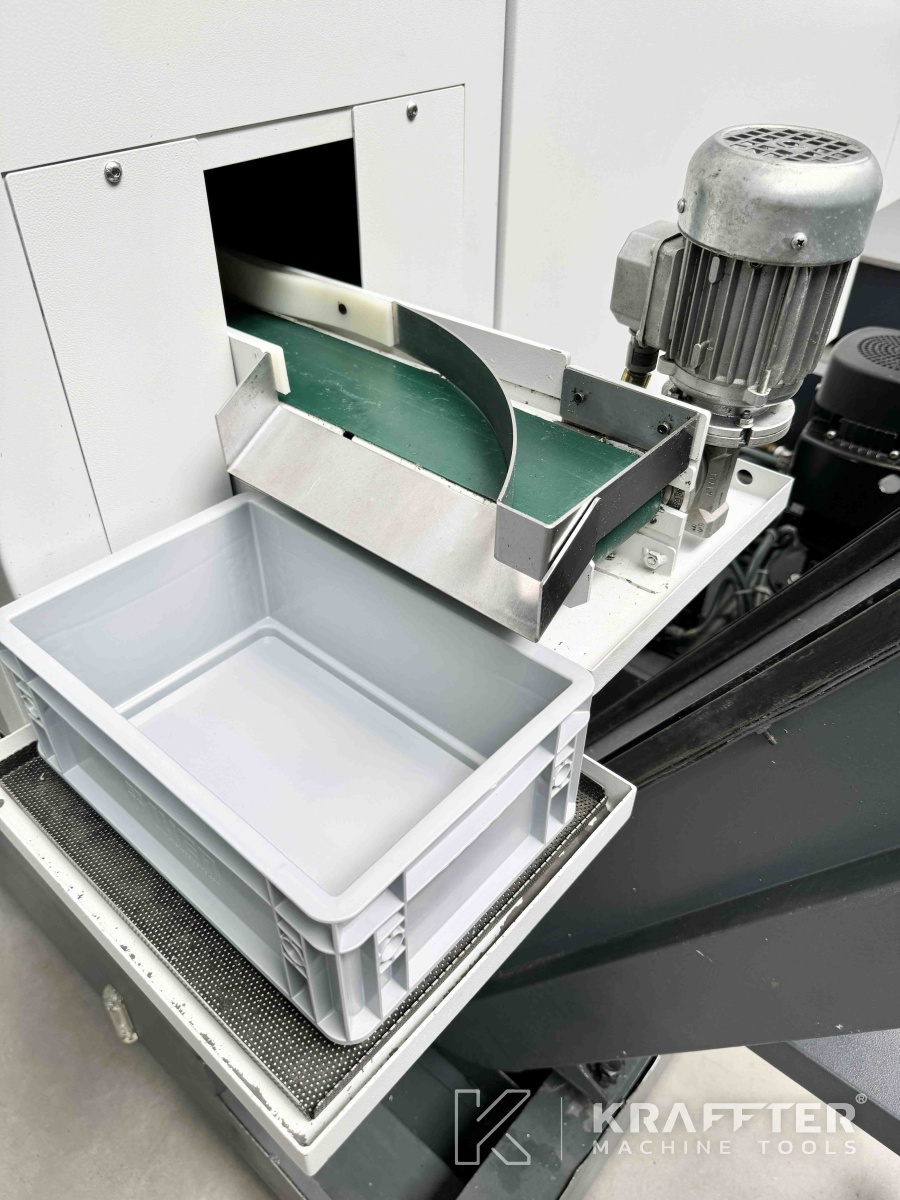

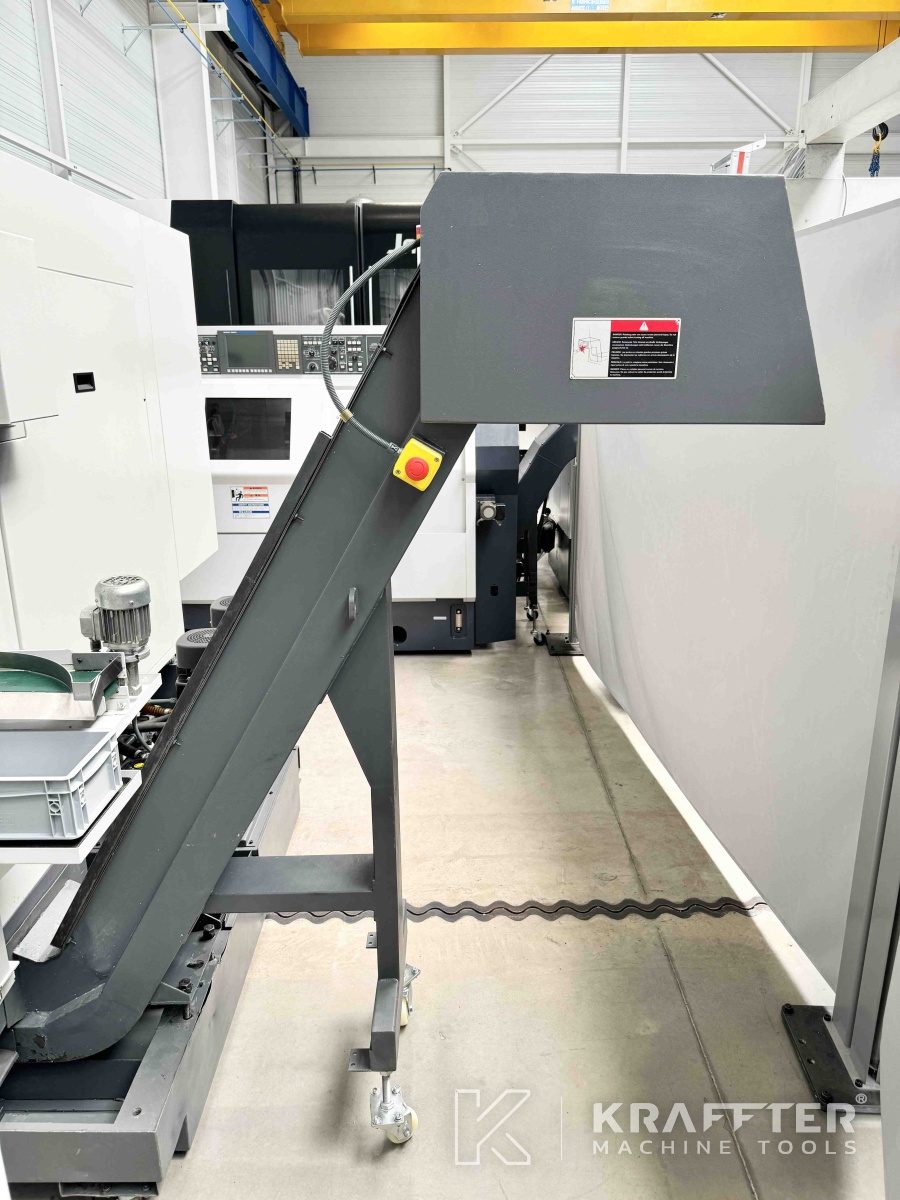

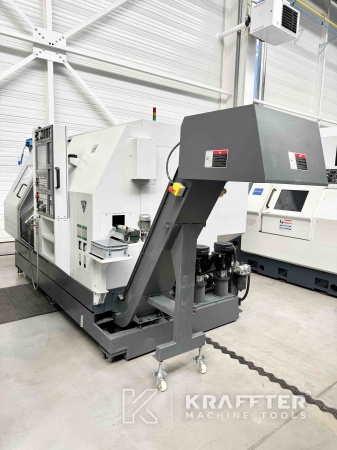

- Chip conveyor
- Bar feeder interface

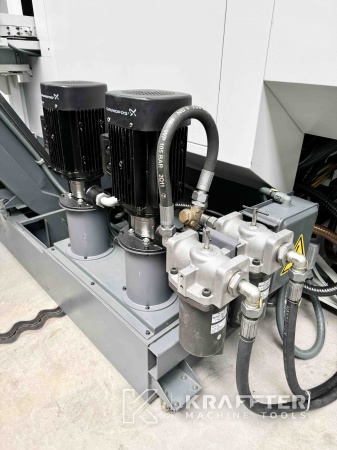

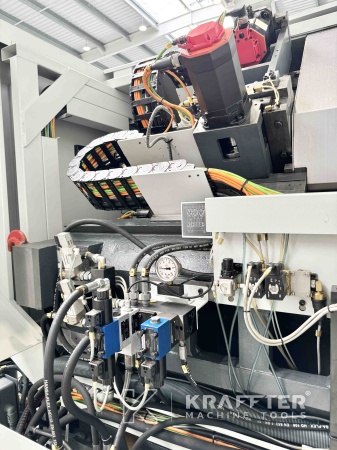

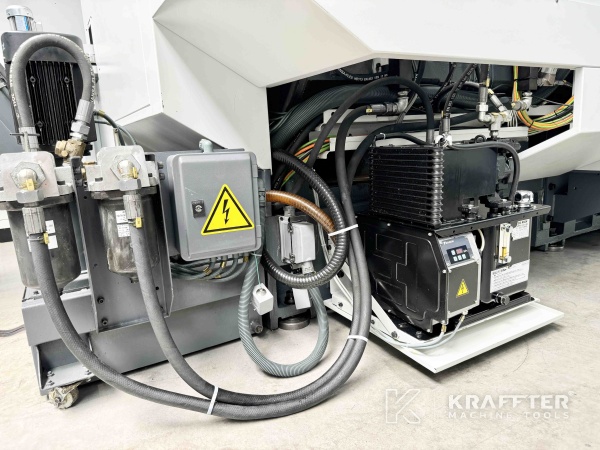

- High pressure pump

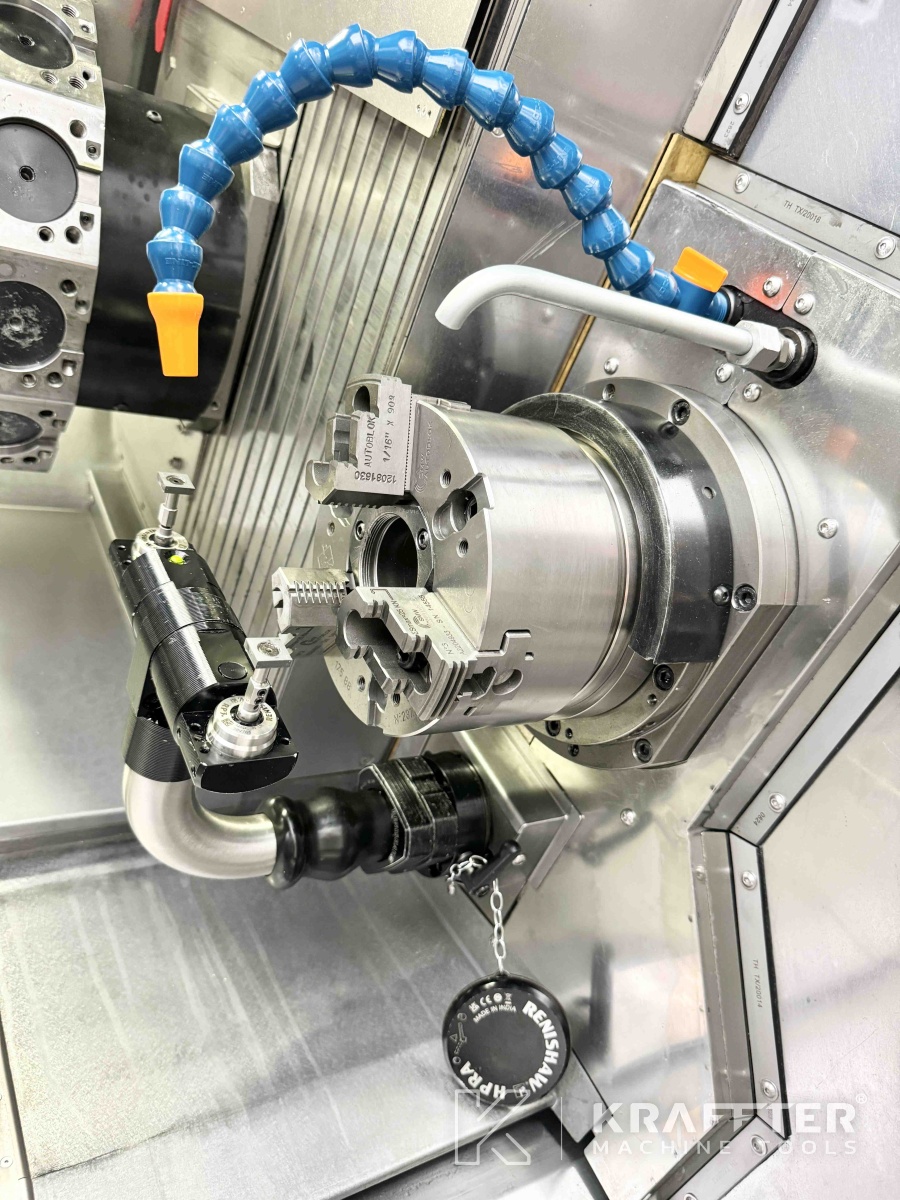

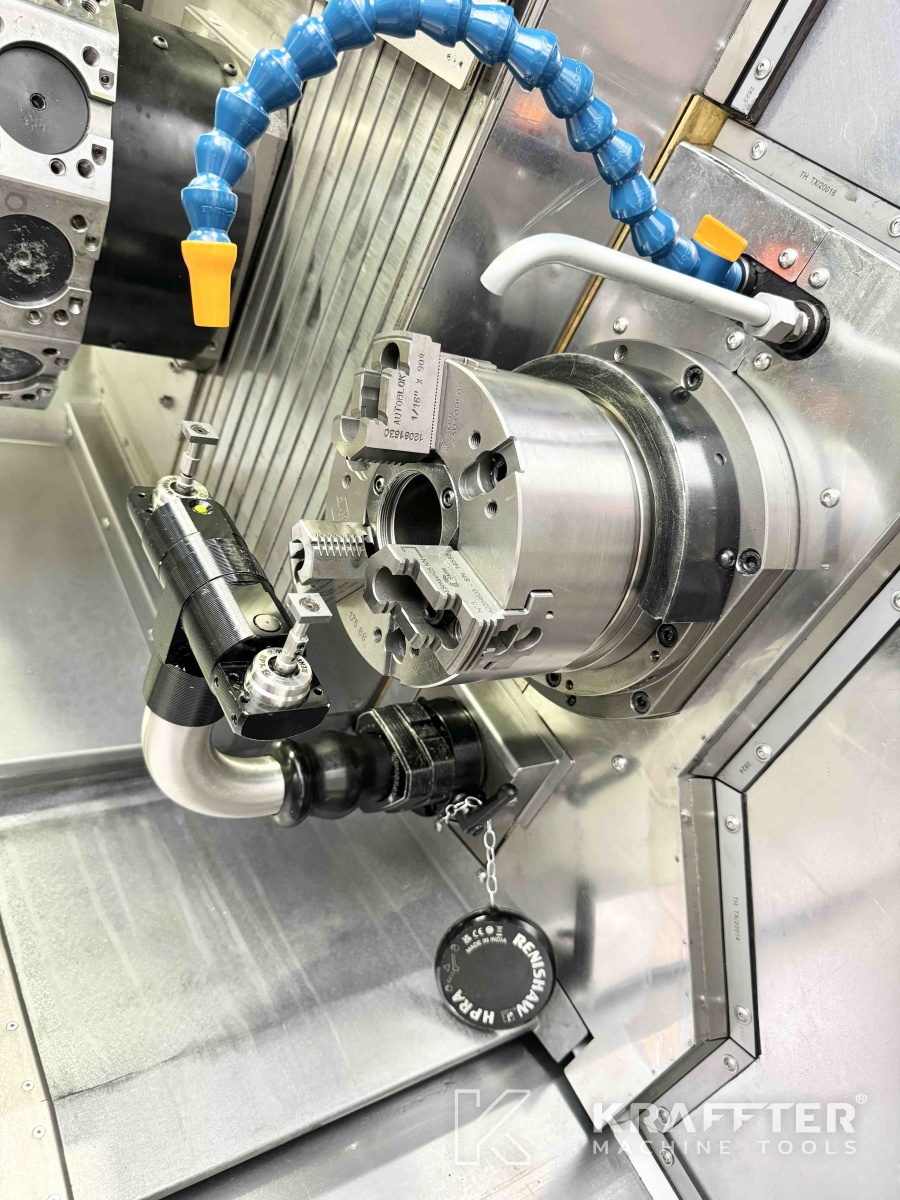

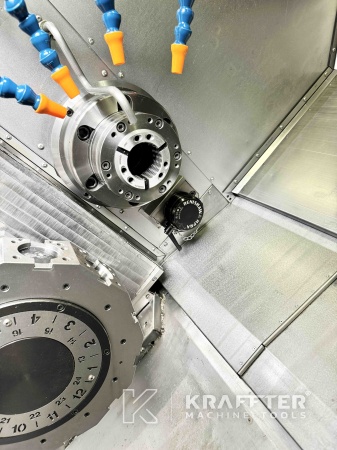

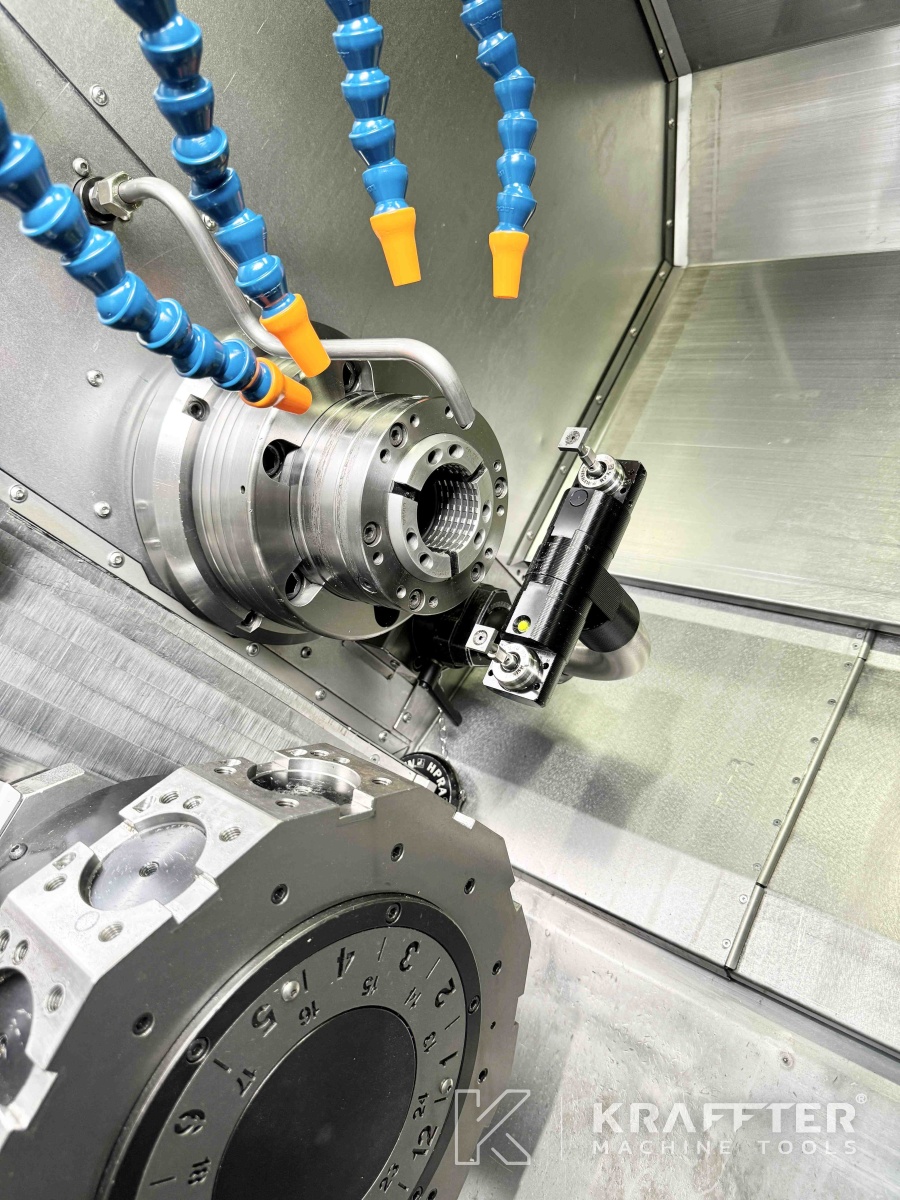

- RENISHAW RP3 tool probe
- Servo type programmable parts recuperator
- Pneumatic parts ejector

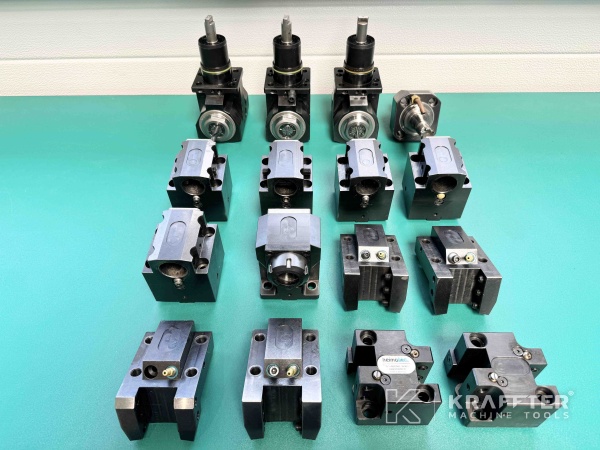

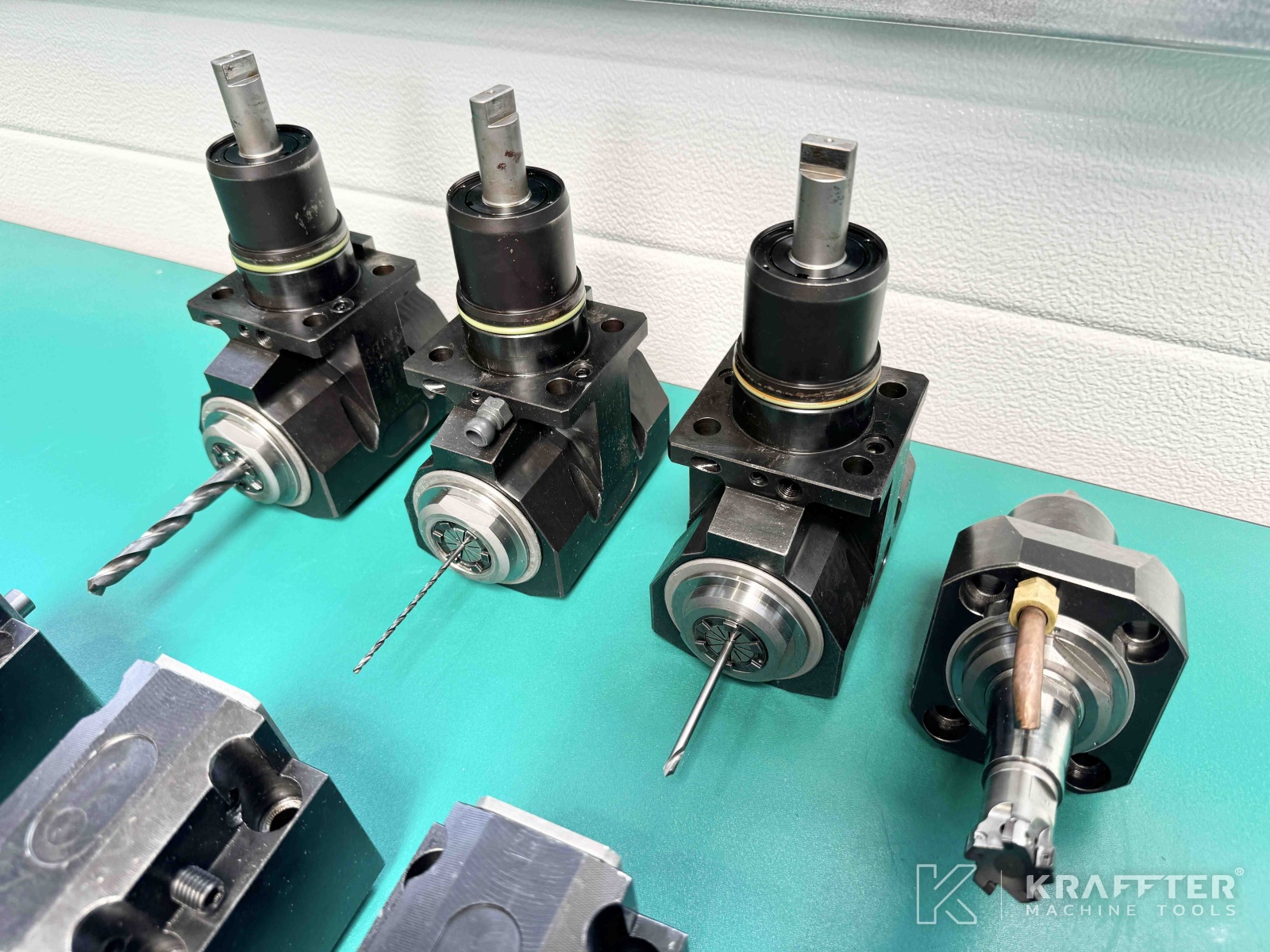

- 3 axial live tool holders
- 1 radial live tool holder
- 12 fixed tool holders
- HAINBUCH collet chuck (for SK65BZI collets)

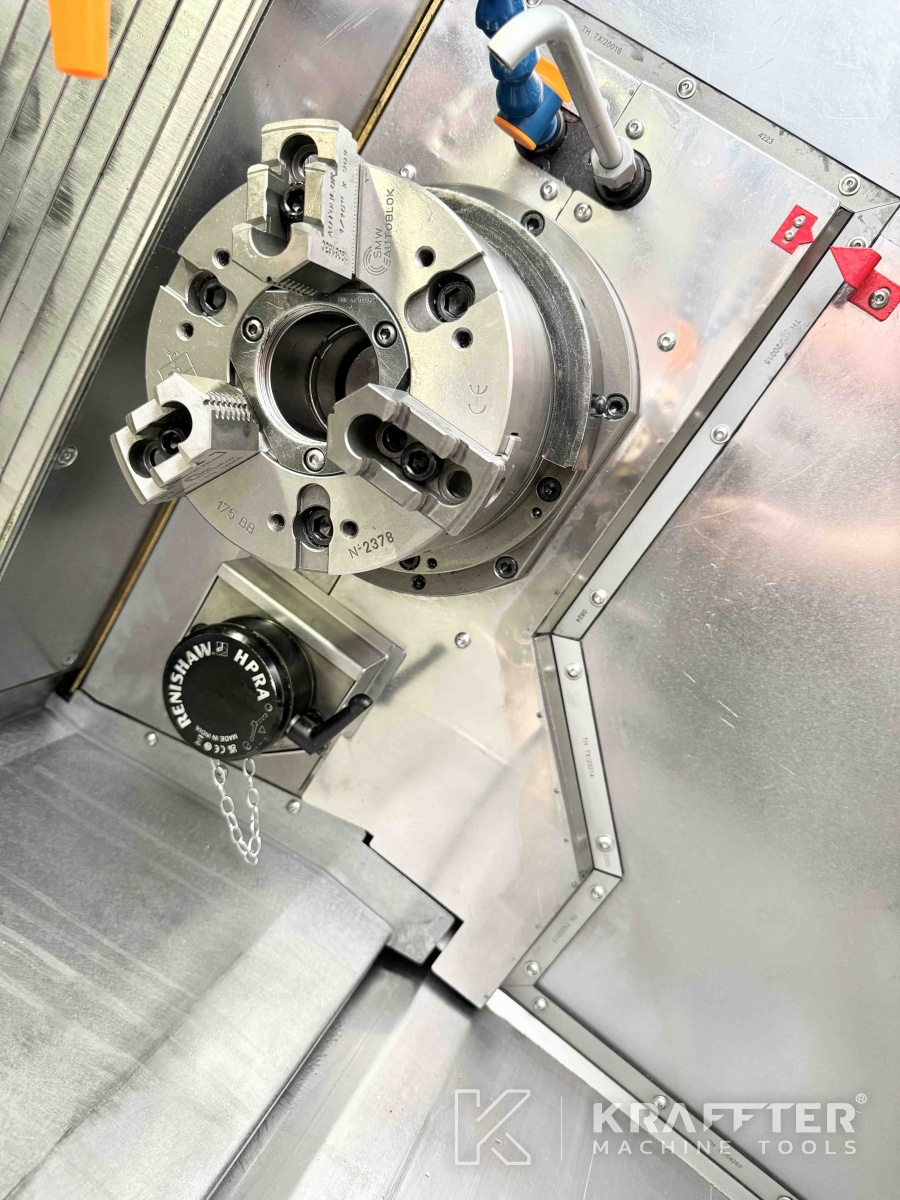

- SMW AUTOBLOK 175 BB 3-jaw concentric chuck

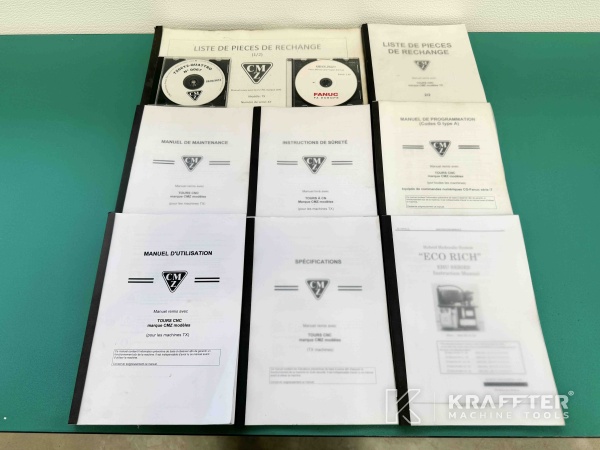

- Technical documentation CMZ
