Sold

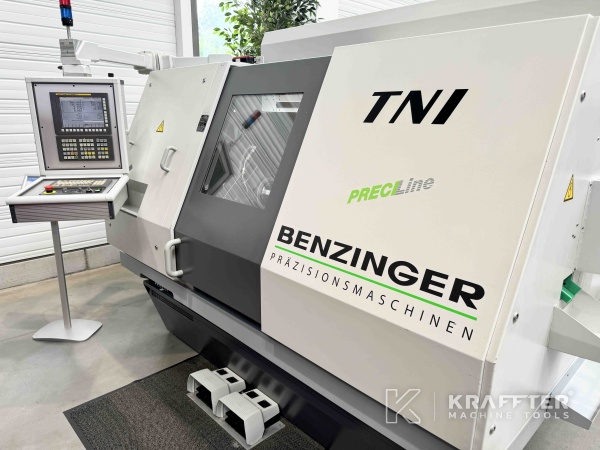

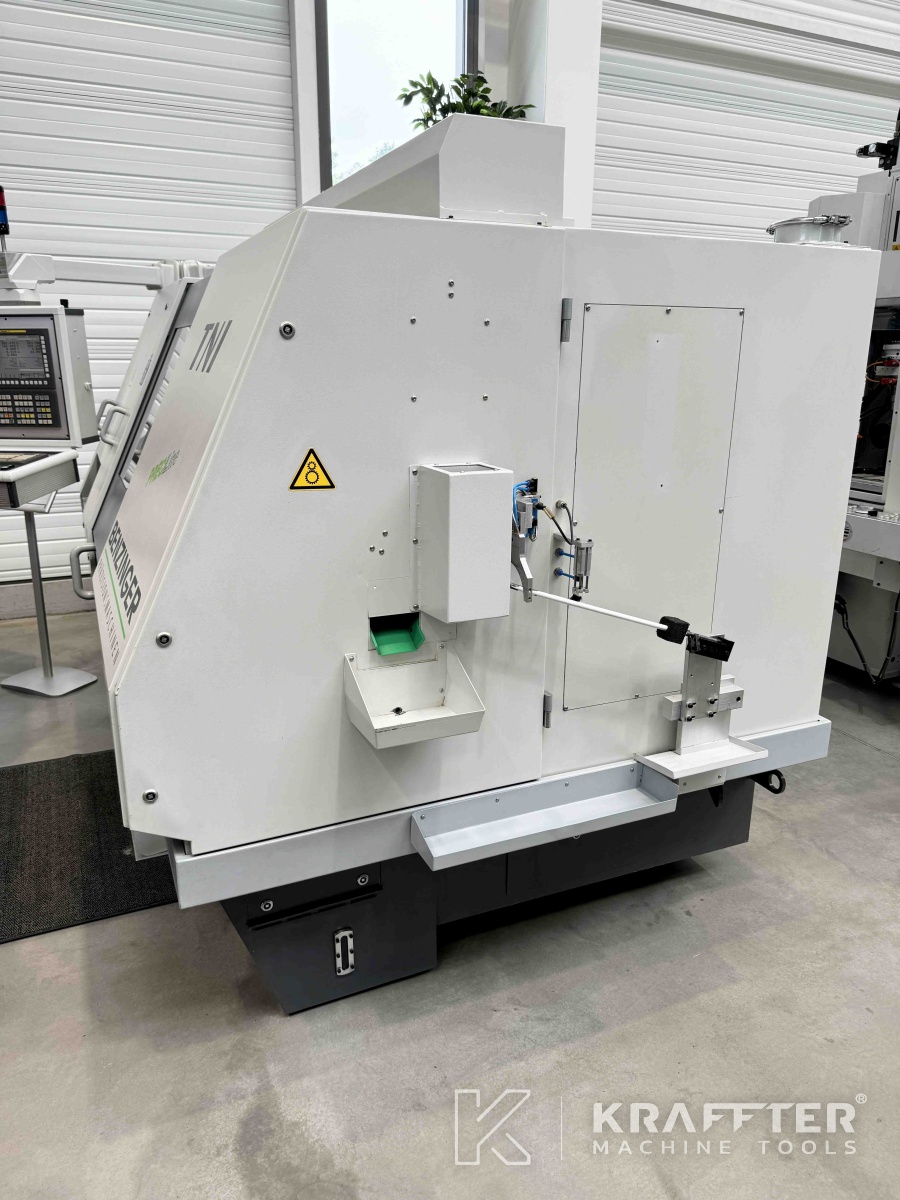

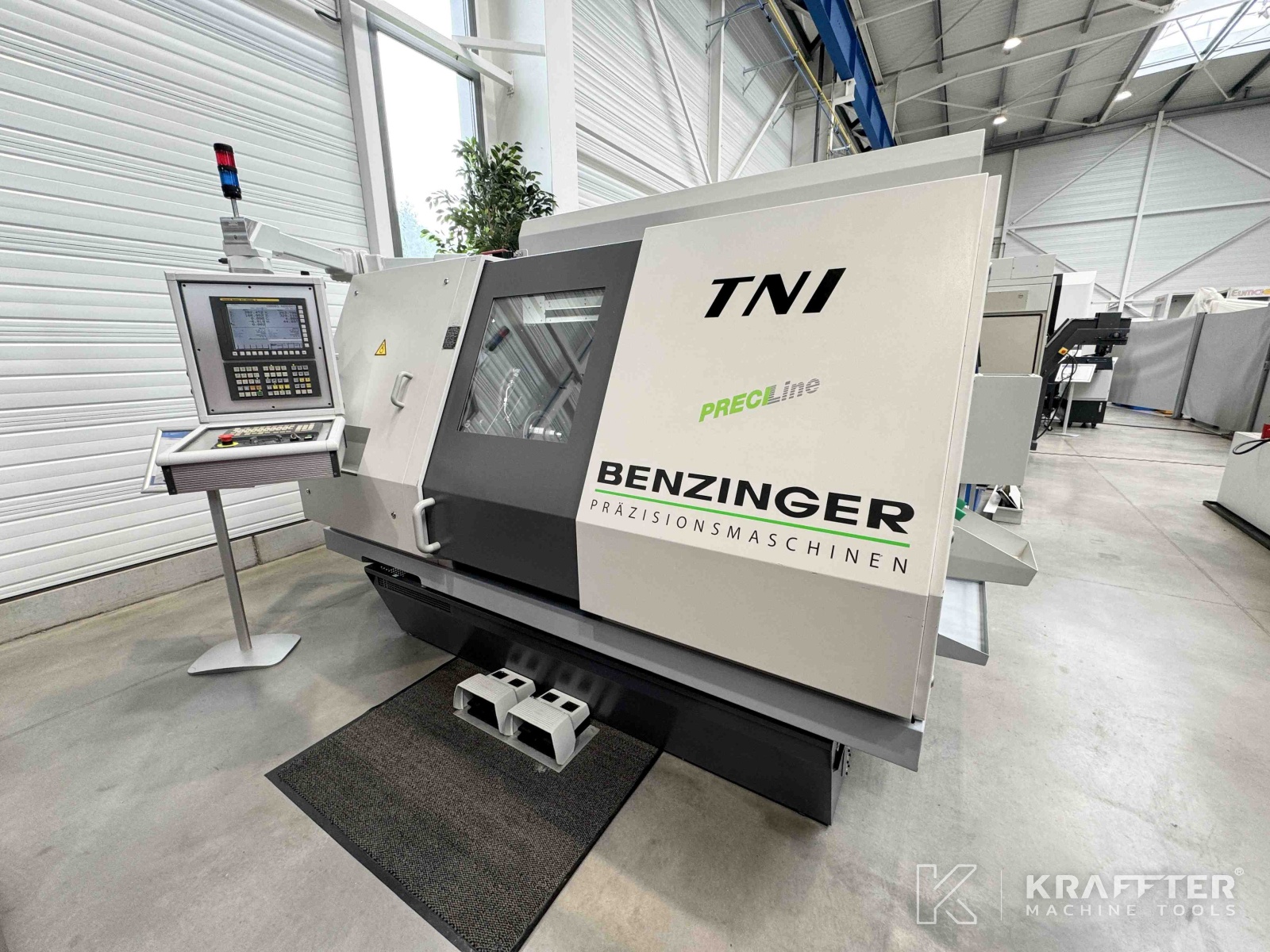

Type of machine : CNC lathe
Brand : BENZINGER
N° de stock: 90116
Model : TNI B6
Year : 2012
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

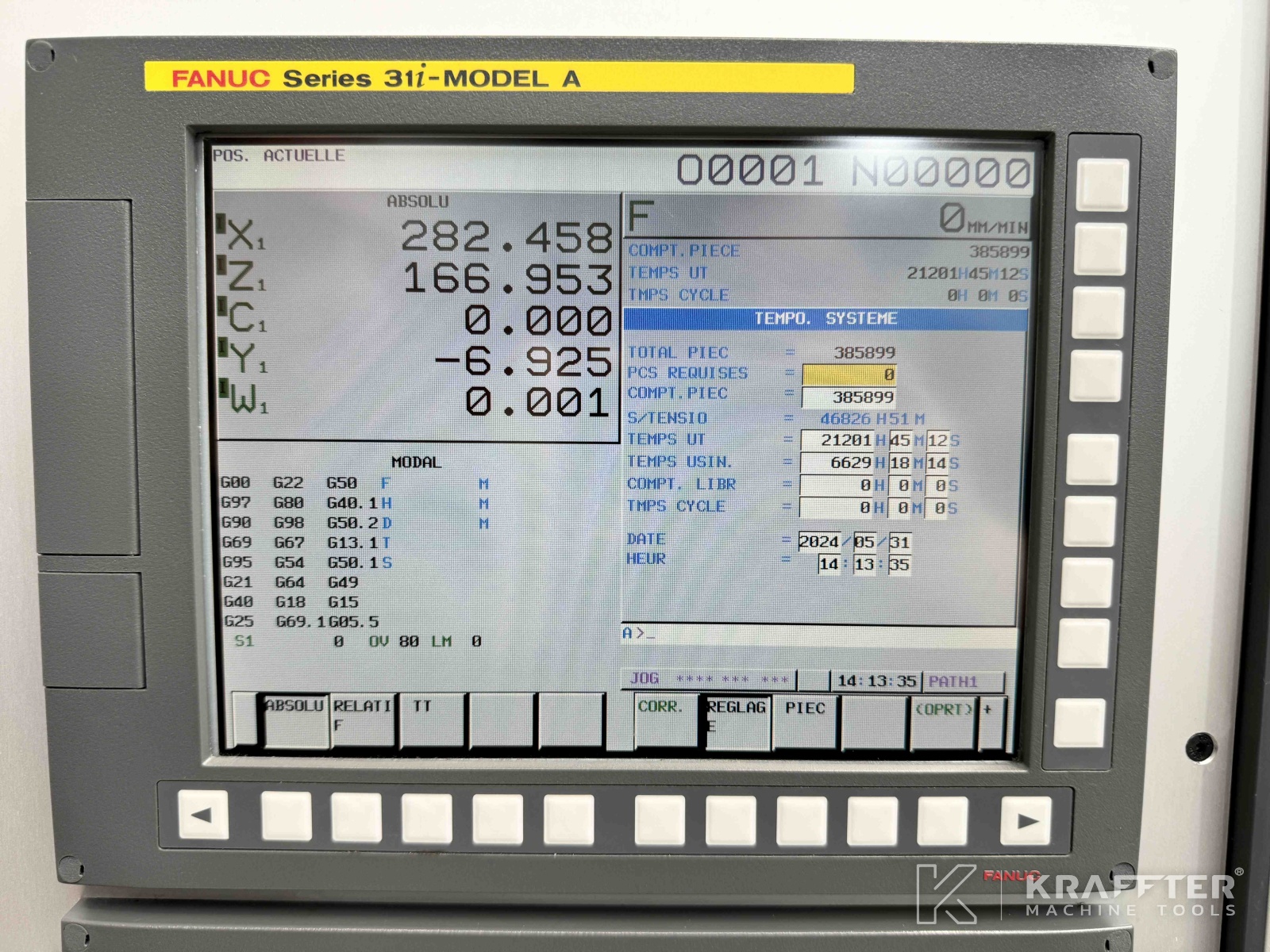

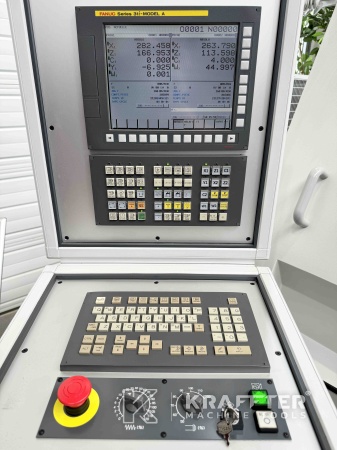

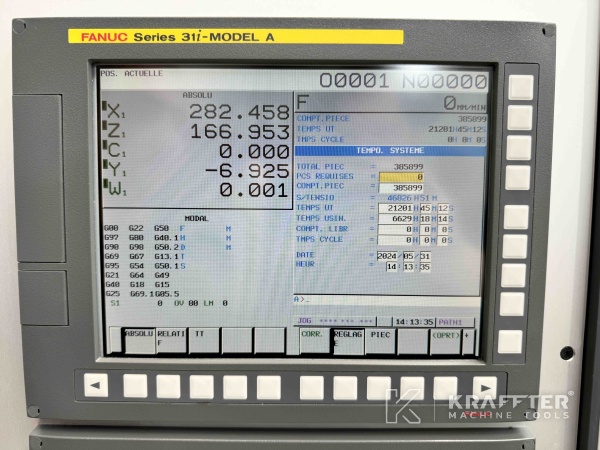

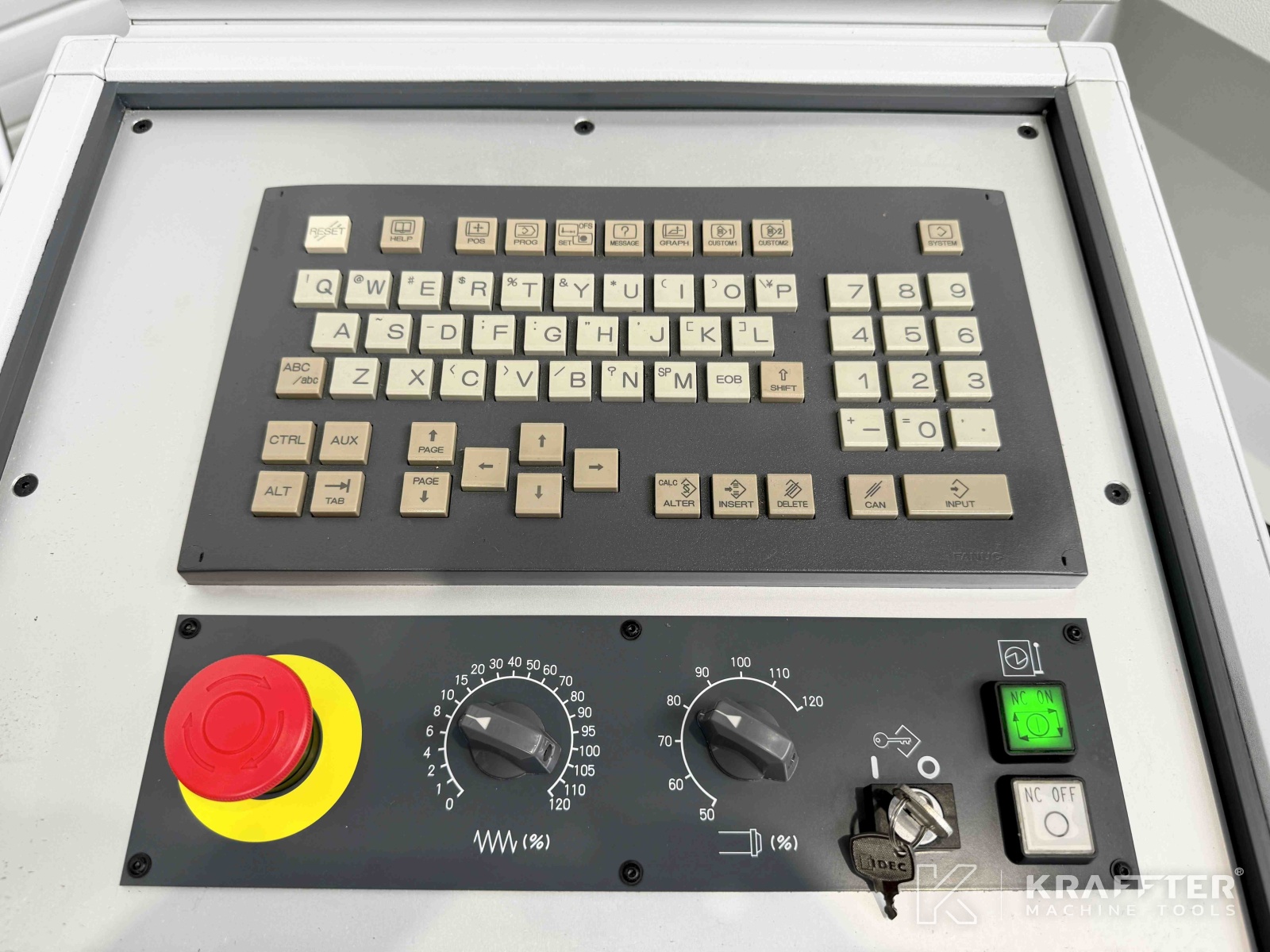

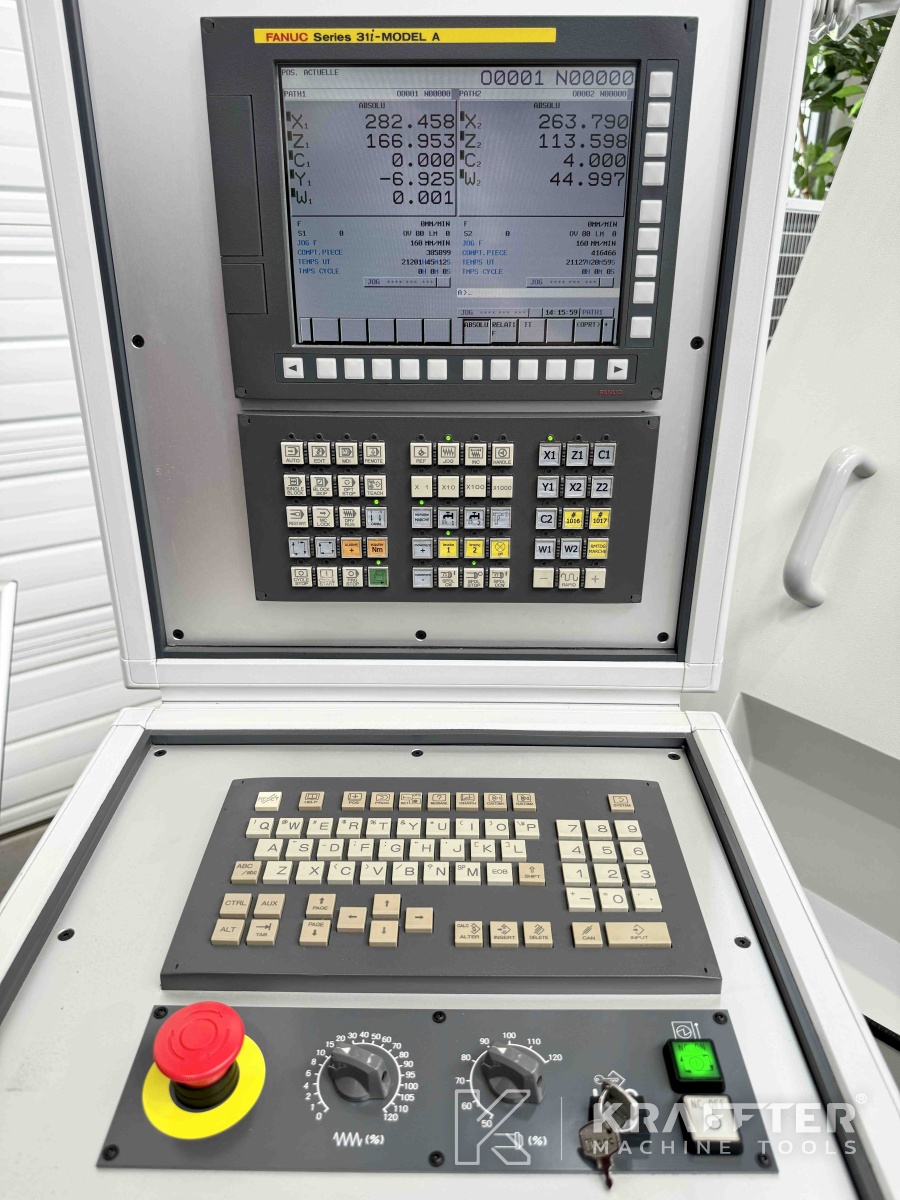

CNC control
FANUC 31i
Number of axes
7
Stroke Y axis
-/+ 40 [mm]
Stroke Z1 axis
340 [mm]
Stroke X1 axis
180 [mm]
Stroke Z2 axis
440 [mm]
Stroke X2 axis
195 [mm]
Rapid traverse rate X axis
30000 [mm/min]
Rapid traverse rate Z axis
30000 [mm/min]
Rapid traverse rate Y axis
10000 [mm/min]
Spindle nose
DIN 55026 A size 4
Spindle throughbore
42 [mm]
Max. spindle speed
7000 [rpm]
Spindle power
7 [kW]
Counter spindle nose
DIN 55026 A size 4
Counter spindle throughbore
26 [mm]
Max. counter spindle speed
6000 [rpm]
Counter spindle power
3.8 [kW]
Type of tool holders
VDI 25
Turret indexing time
0.4 [s/pos]

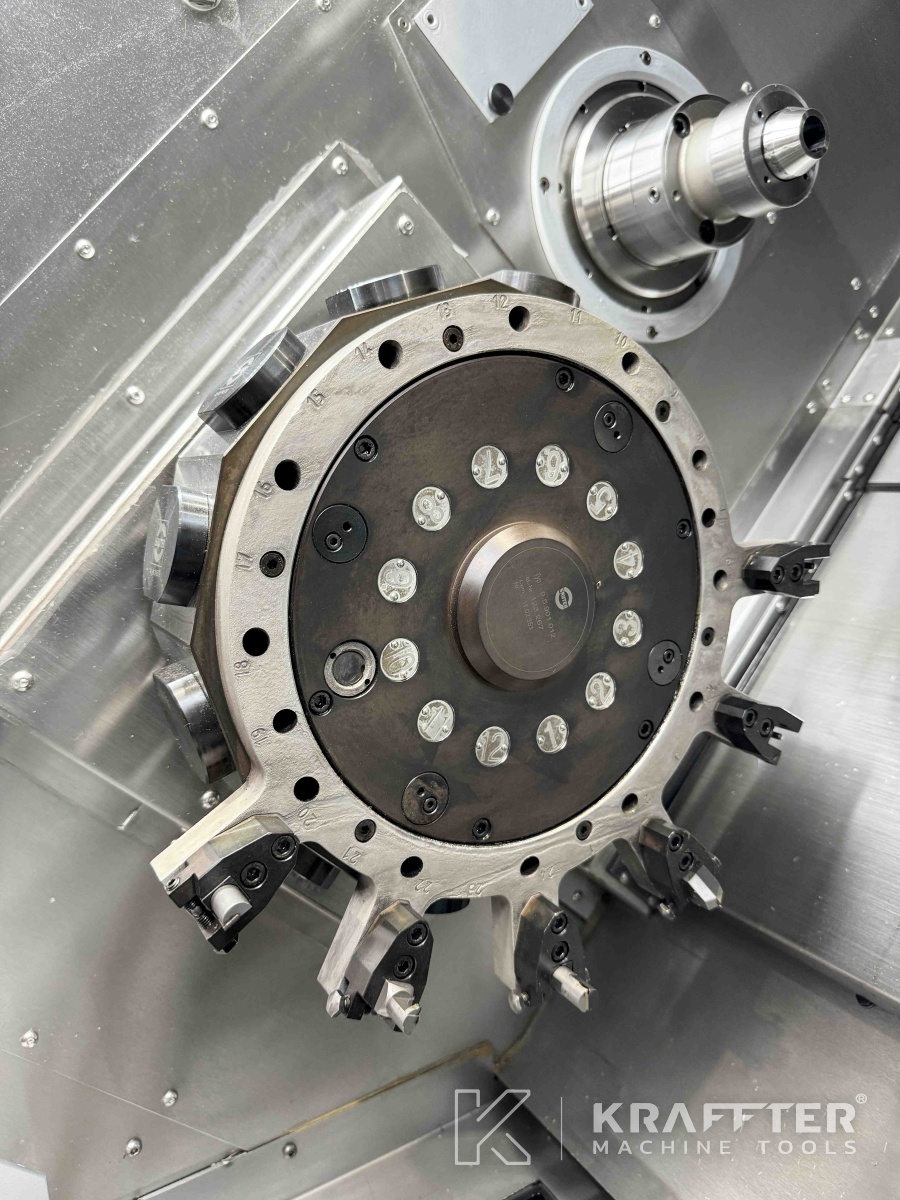

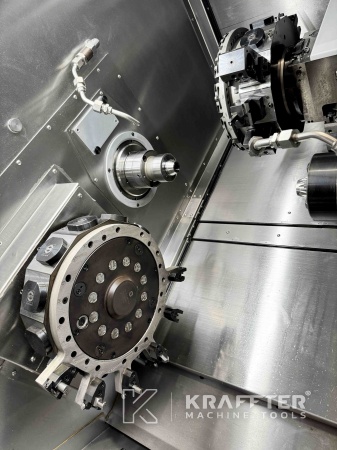

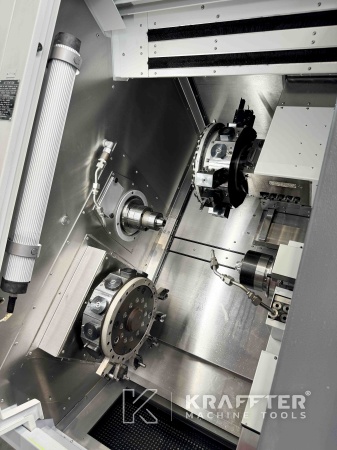

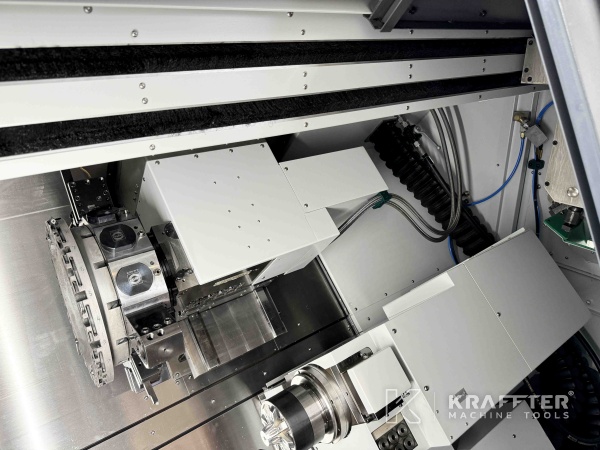

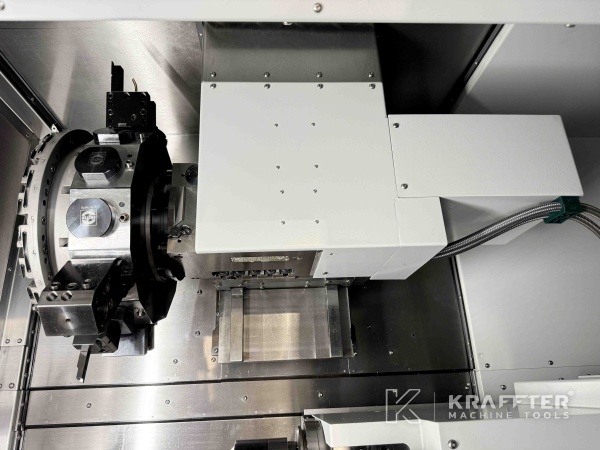

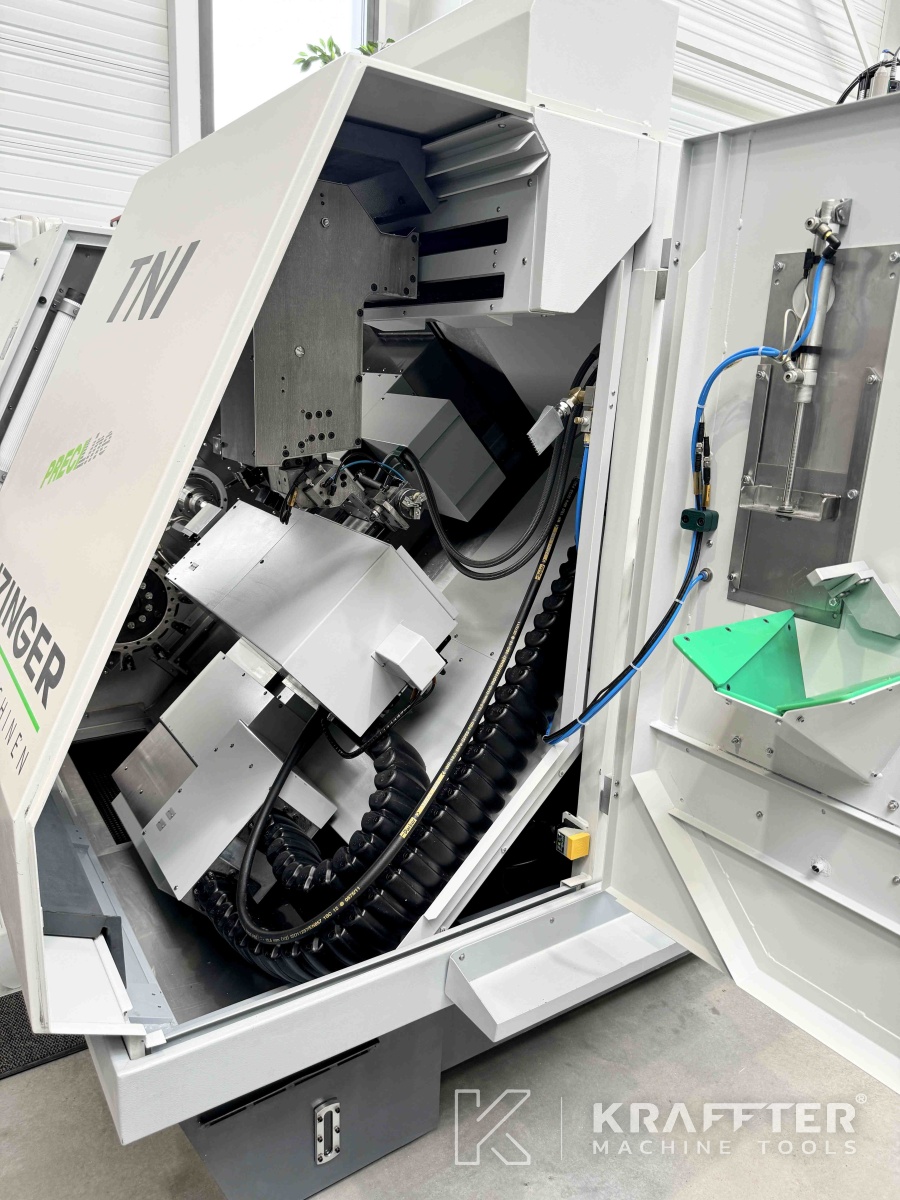

Turret 1
SAUTER
Number of tool stations - Turret 1
12
Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
6000 [rpm]
Turret 2
SAUTER
Number of tool stations - Turret 2
12
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 3
6000 [rpm]
Live tools power
2 [kW]
Lubrication tank capacity
160 [l]
Total power required
26 [kVA]
Supply voltage
400 [V]
Spindle running hours
6629 [h]
Dimensions
2950 x 1900 x 2050 [mm]
Weight
4000 [Kg]
Conform with CE regulations
Yes
Additional information
EQUIPMENT INCLUDED:

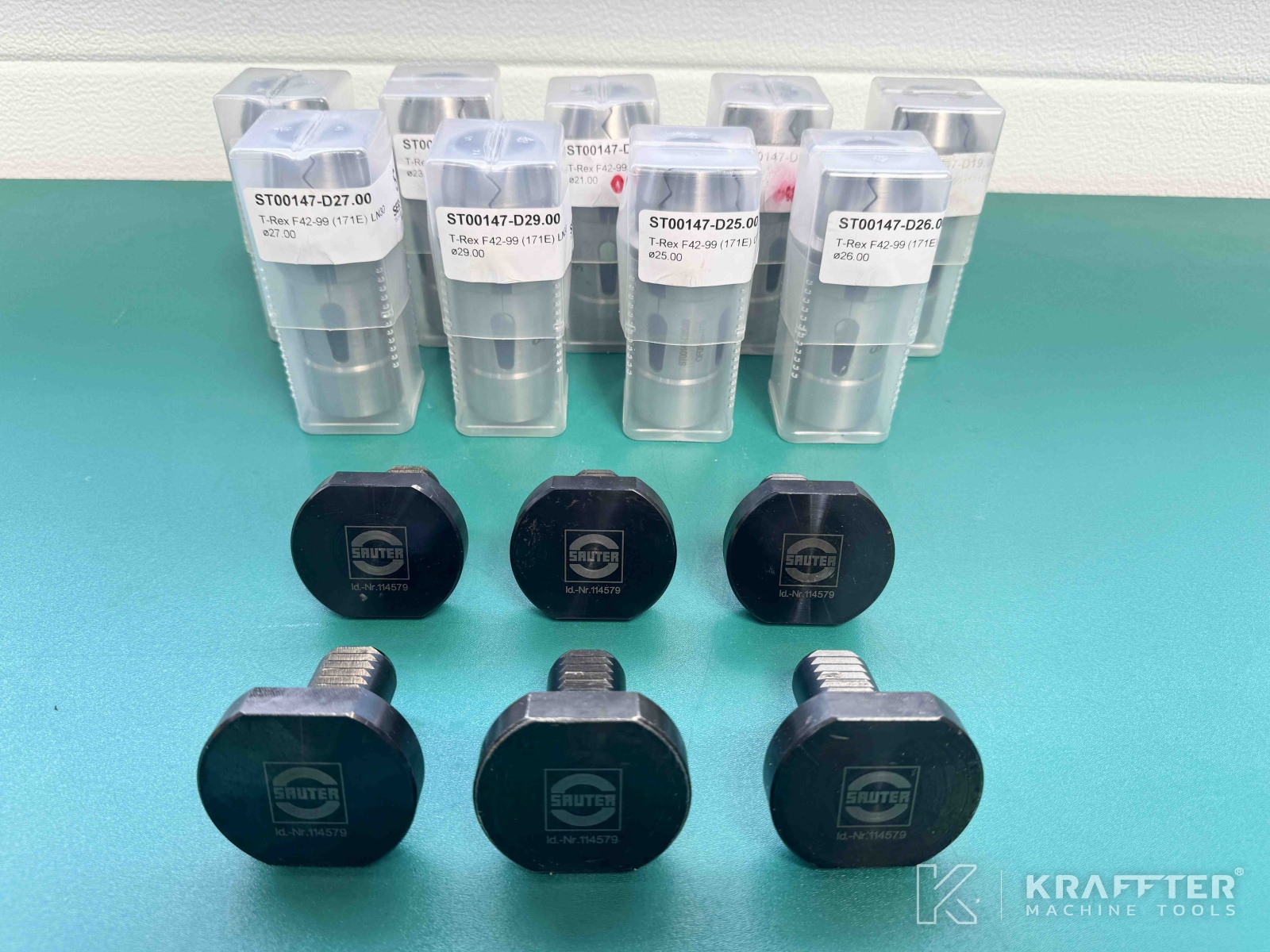

x9 collets DIN 173E
x1 axial live tool holder
x1 radial live tool holder
x4 steady tool holders
x24 blanking plugs for SAUTER turrets

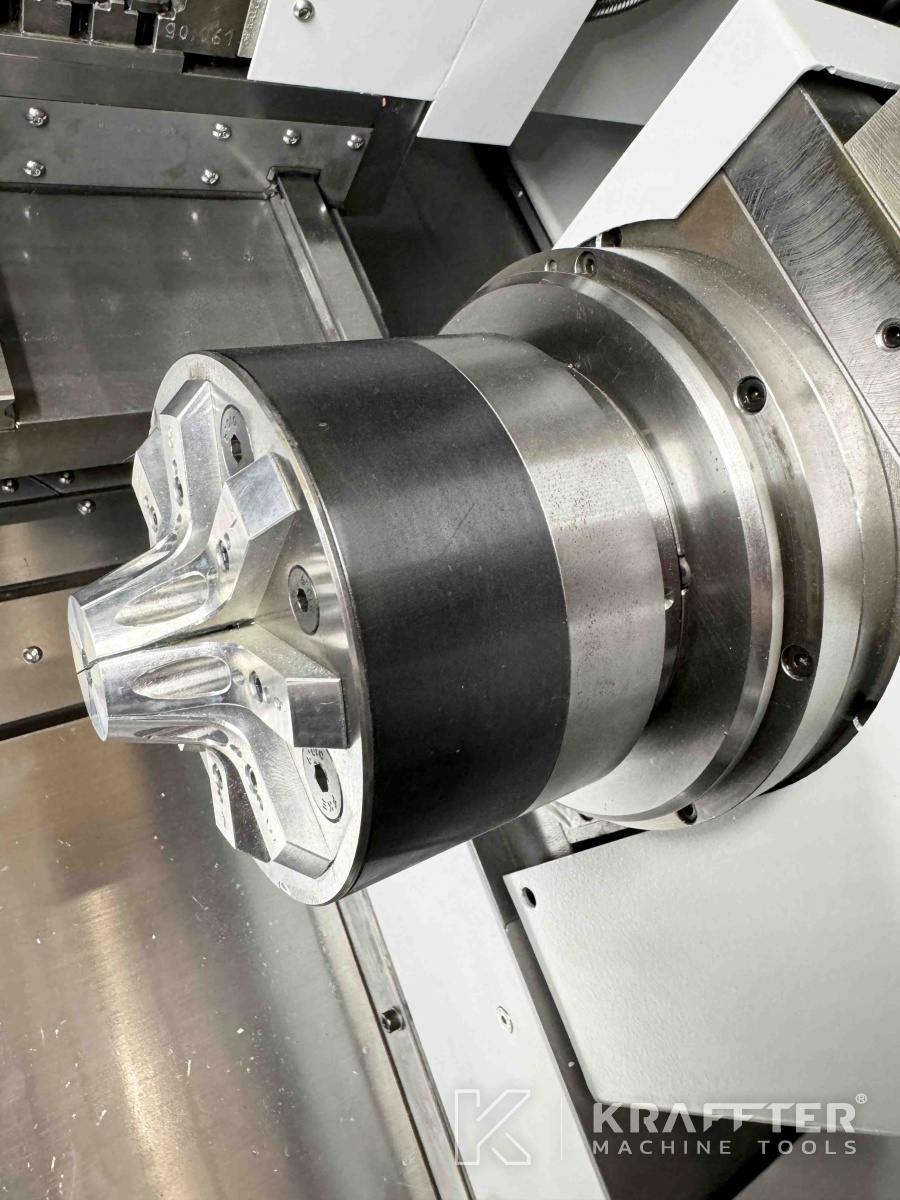

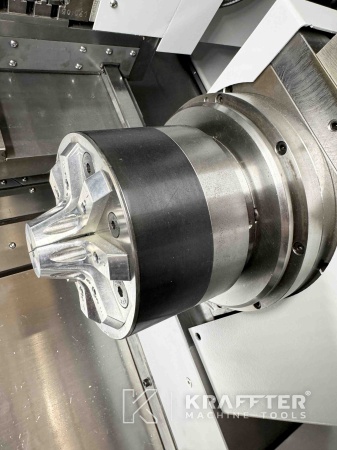

x1 collet chuck
x1 chuck with 8 concentric jaws
x1 HEIDENHAIN glass scale on the Y-axis (BENZINGER option)

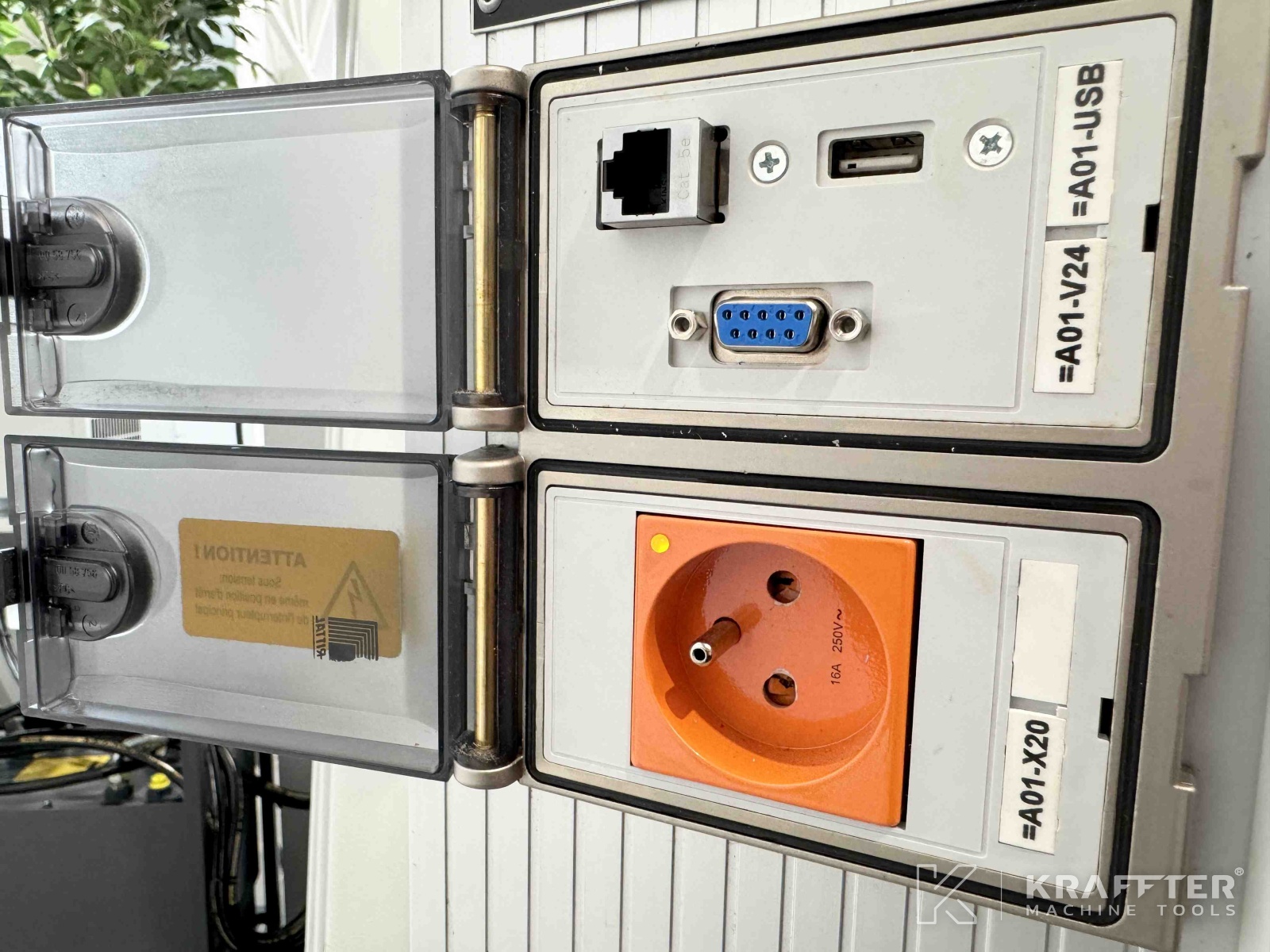

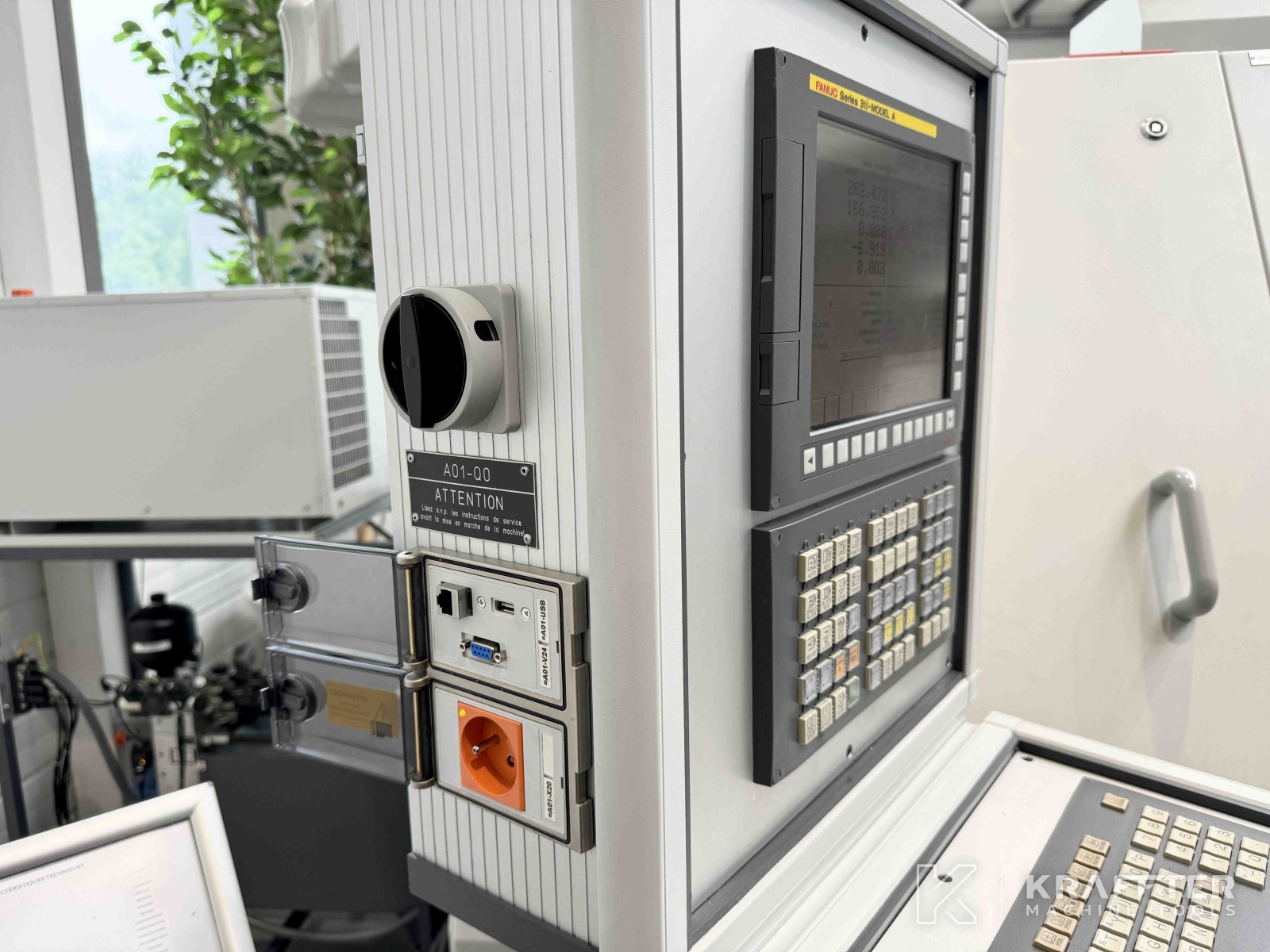

x1 interface: Ethernet / RS232 / USB
x1 2-colour status lamp
x1 parts catcher

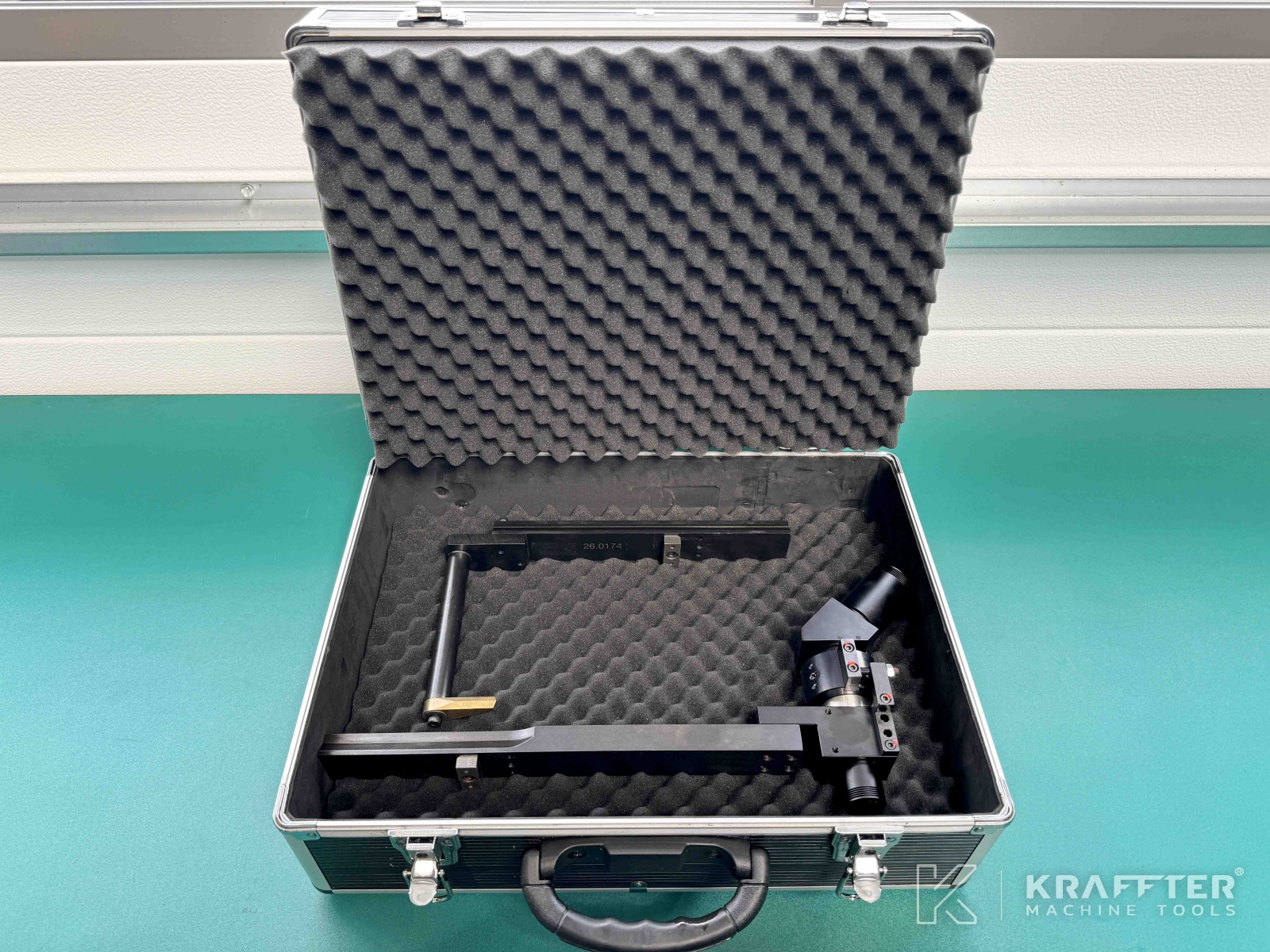

x1 centring microscope including protective case
x1 WALDMANN LED lamp
x1 coolant tank

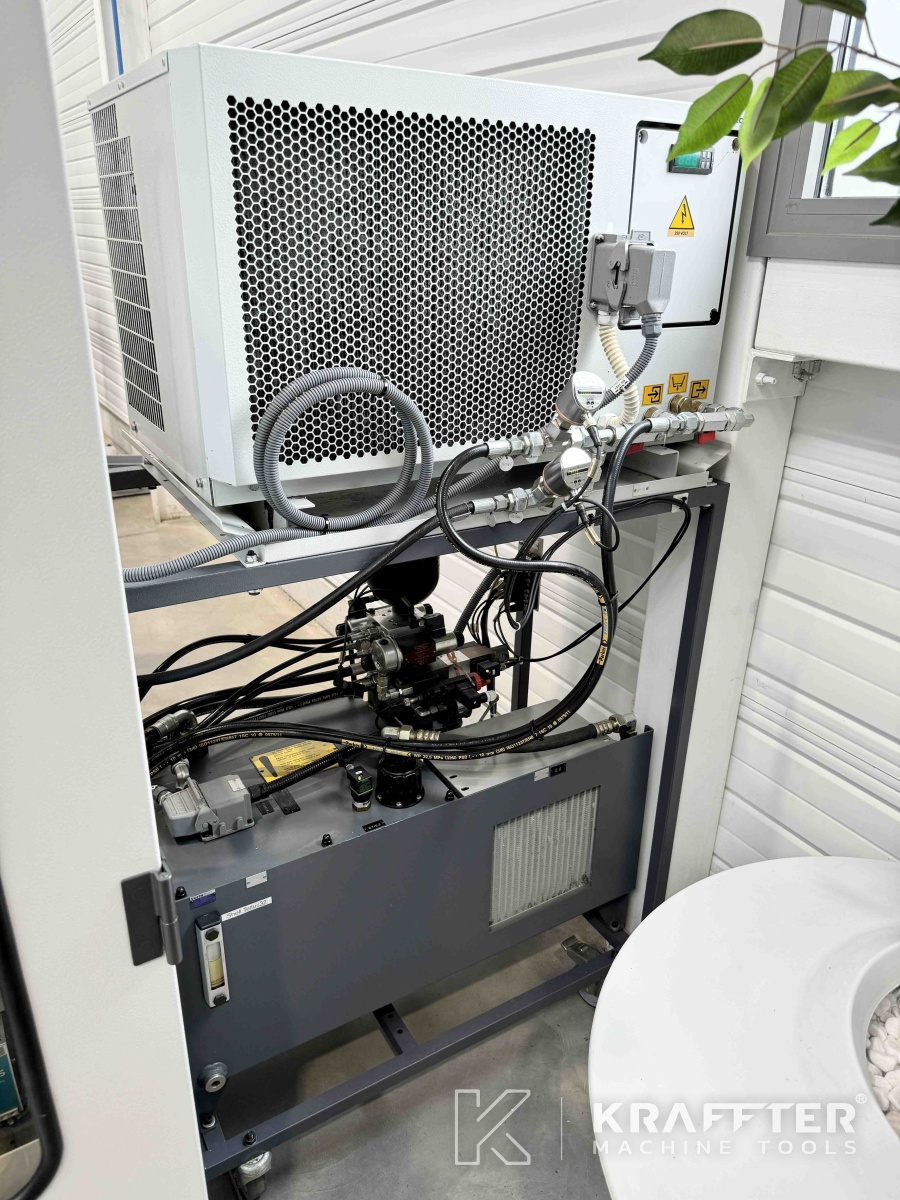

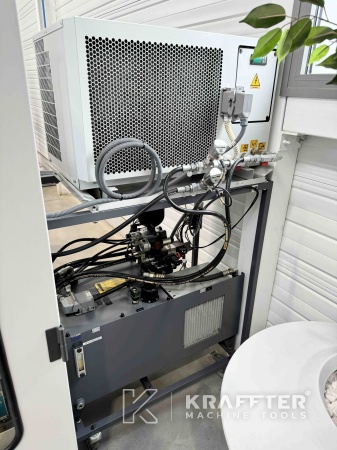

x1 spindle chiller
x1 technical manual (in French language)
