Sold

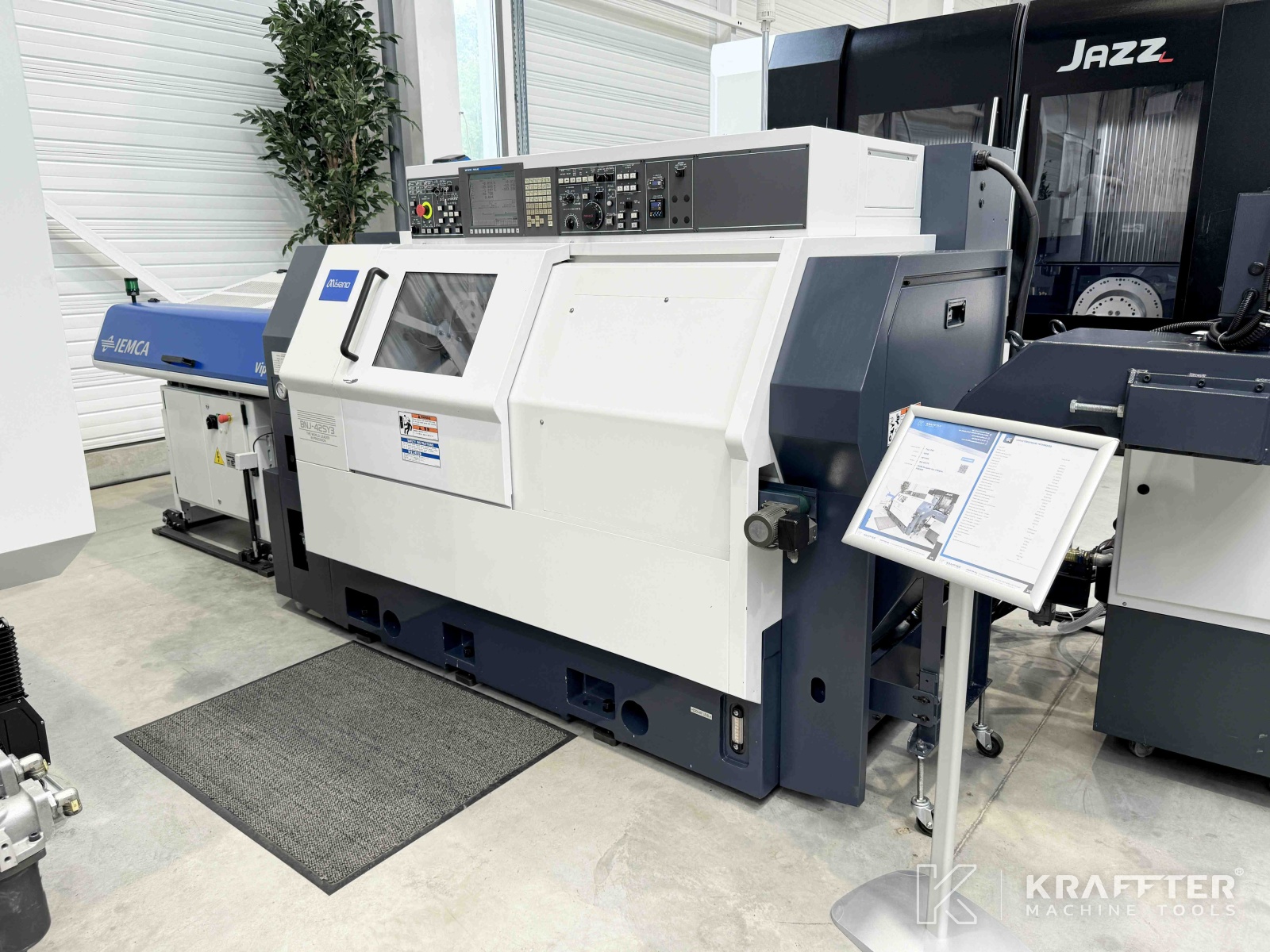

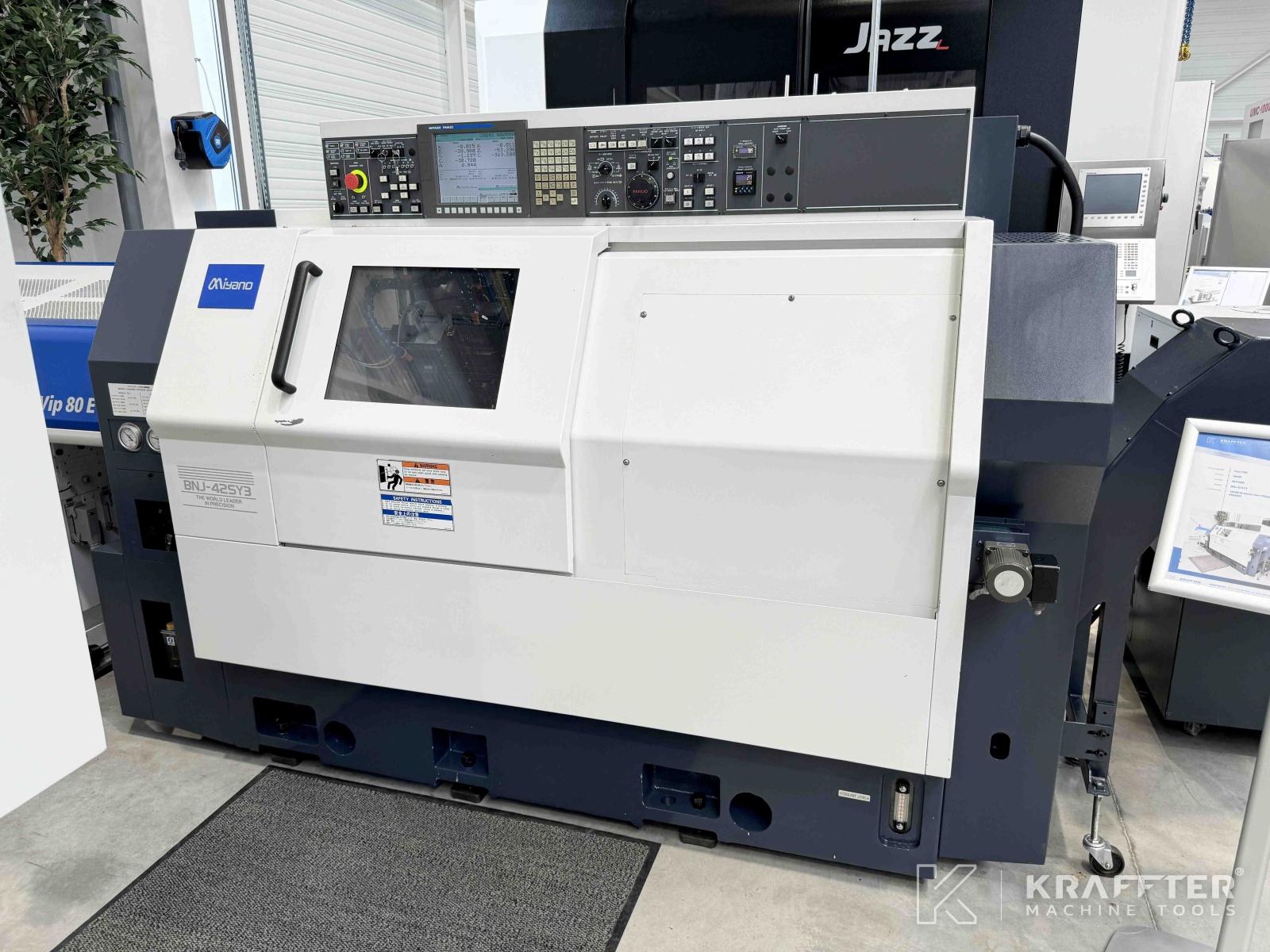

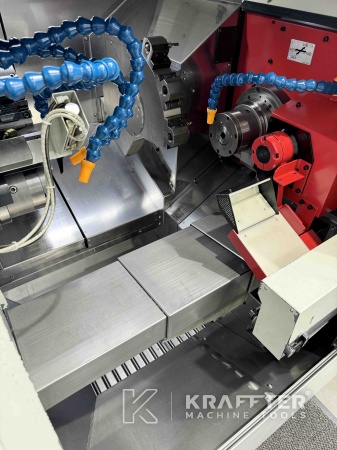

Type of machine : CNC lathe
Brand : MIYANO
N° de stock: 90118
Model : BNJ 42 SY3
Year : 2010
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Serial N°
CJ4Y0029

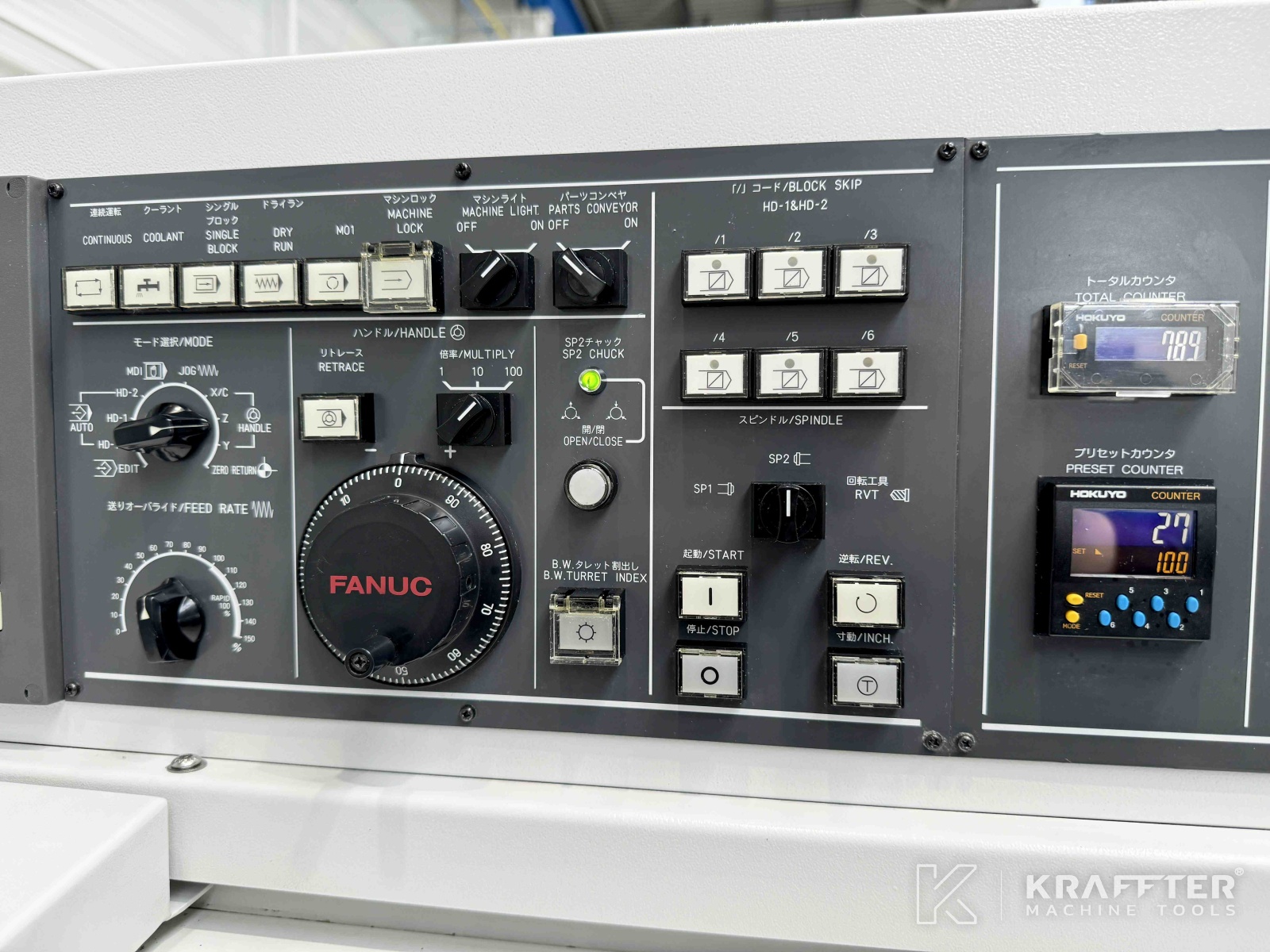

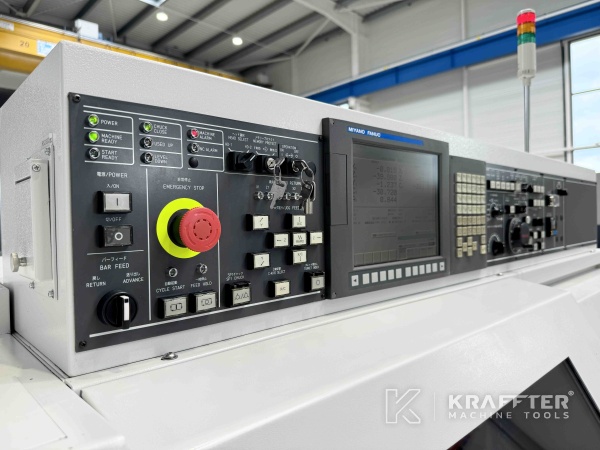

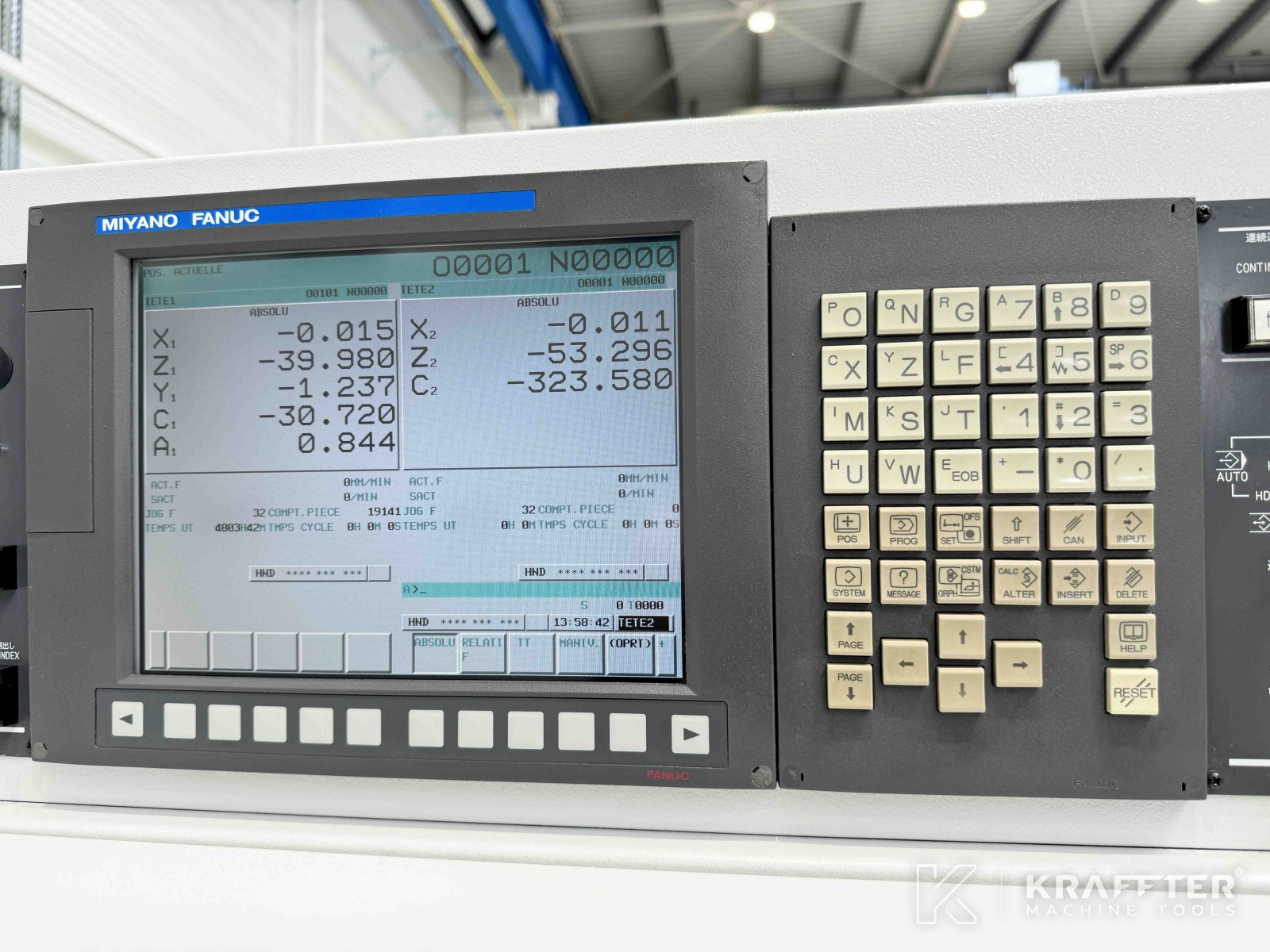

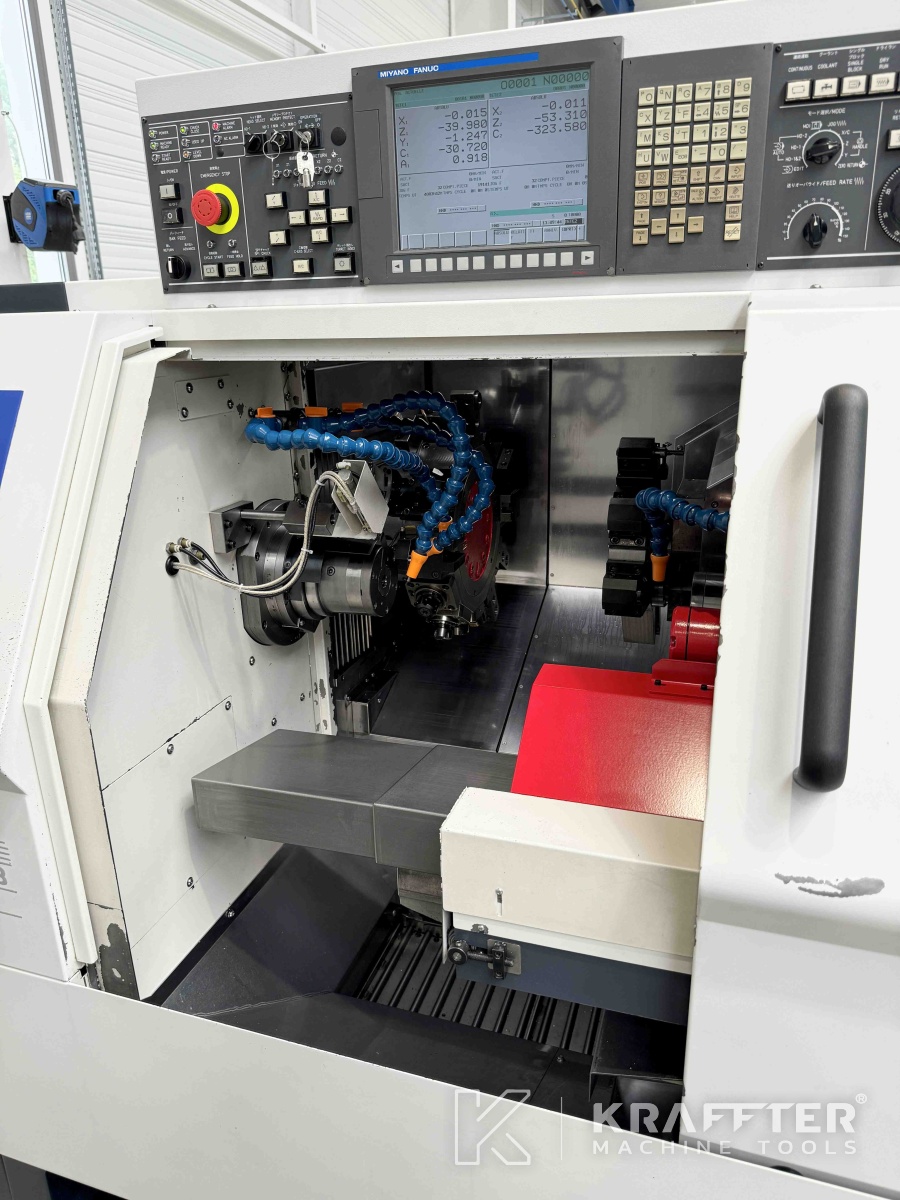

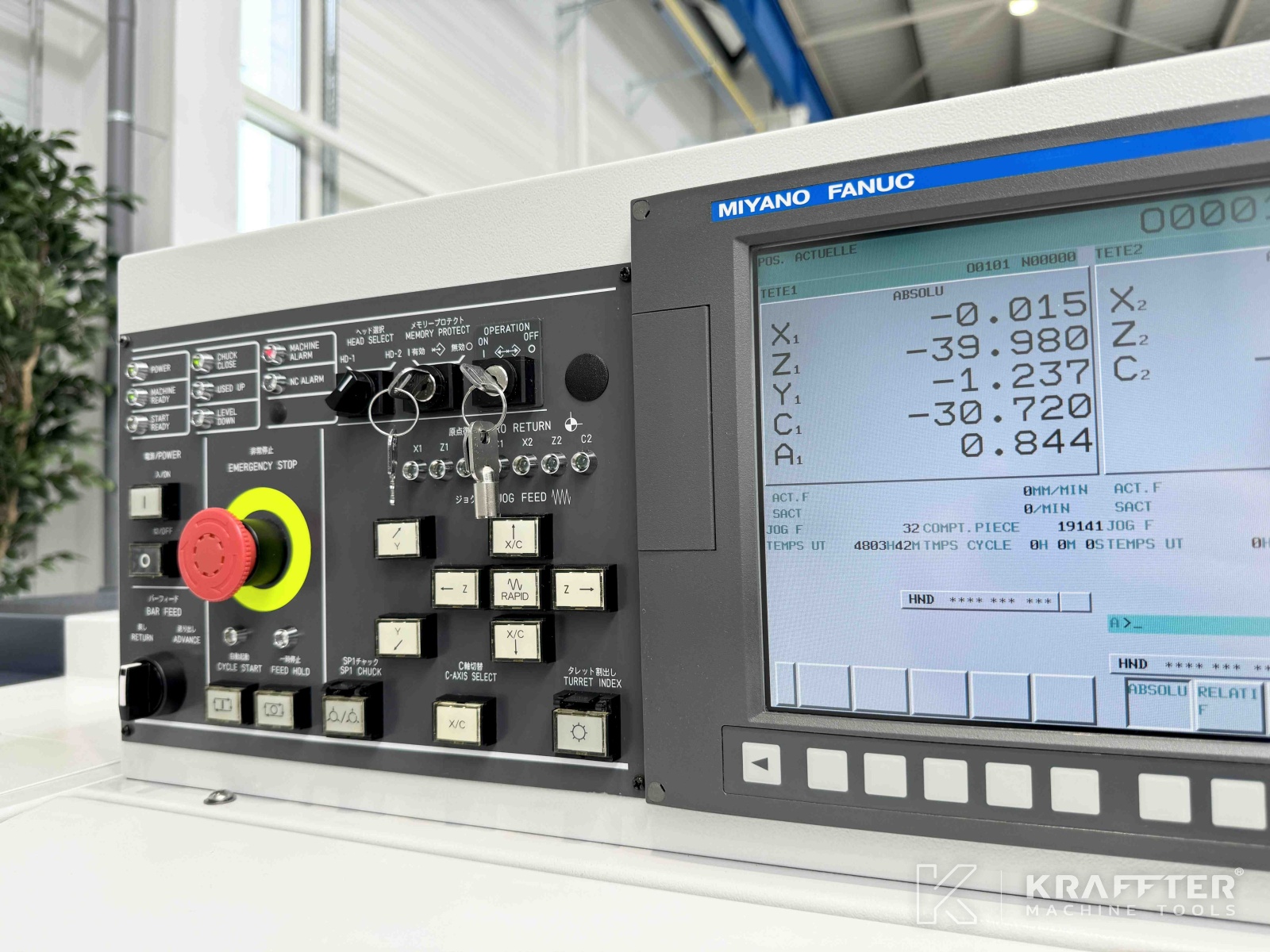

CNC control
Fanuc 0i-TB
Number of axes
7
Max. cutting diameter
42 [mm]
Max. turning lenght
100 [mm]
Stroke Z1 axis
246 [mm]
Stroke X1 axis
165 [mm]
Stroke Y1 axis
+/- 40 [mm]
Stroke Z2 axis
525 [mm]
Stroke X2 axis
70 [mm]
Rapid traverse rate X axis
18000 [mm/min]
Rapid traverse rate Z axis
20000 [mm/min]
Rapid traverse rate Y axis
12000 [mm/min]
Spindle throughbore
43 [mm]
Min. spindle speed
60 [rpm]
Max. spindle speed
6000 [rpm]
Increment C-axis
0.02 [°]
Spindle power
11 [kW]

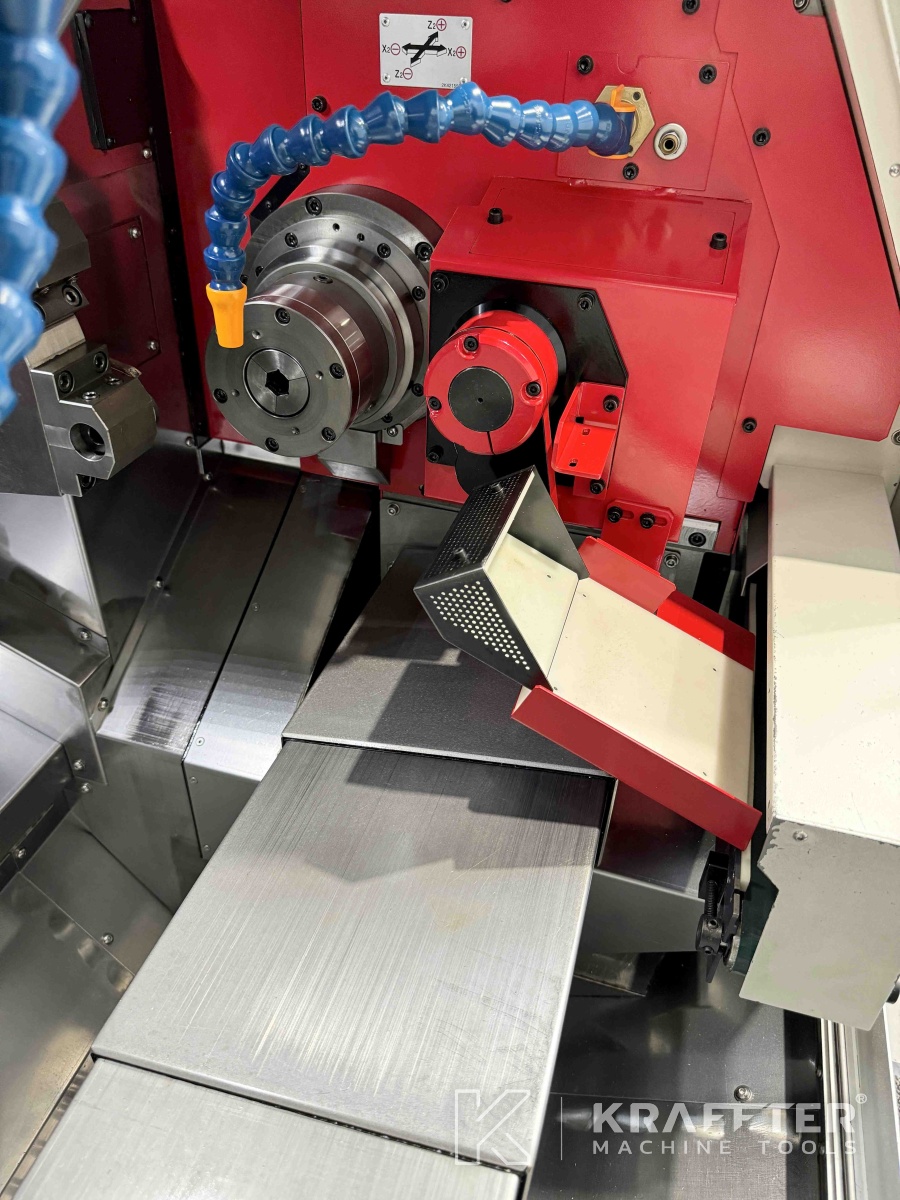

Counter spindle throughbore
36 [mm]
Min. counter spindle spindle speed
67 [rpm]
Max. counter spindle speed
7000 [rpm]
Counter spindle increment C-axis
0.02 [°]
Counter spindle power
5.5 [kW]
Max. tool holder cross-section
20 [mm]

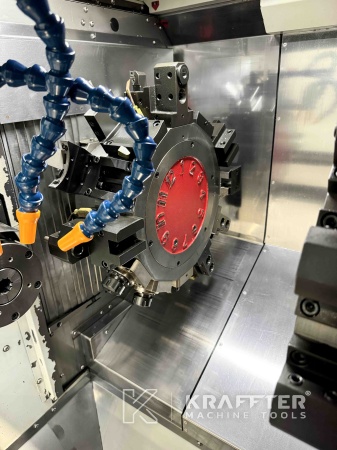

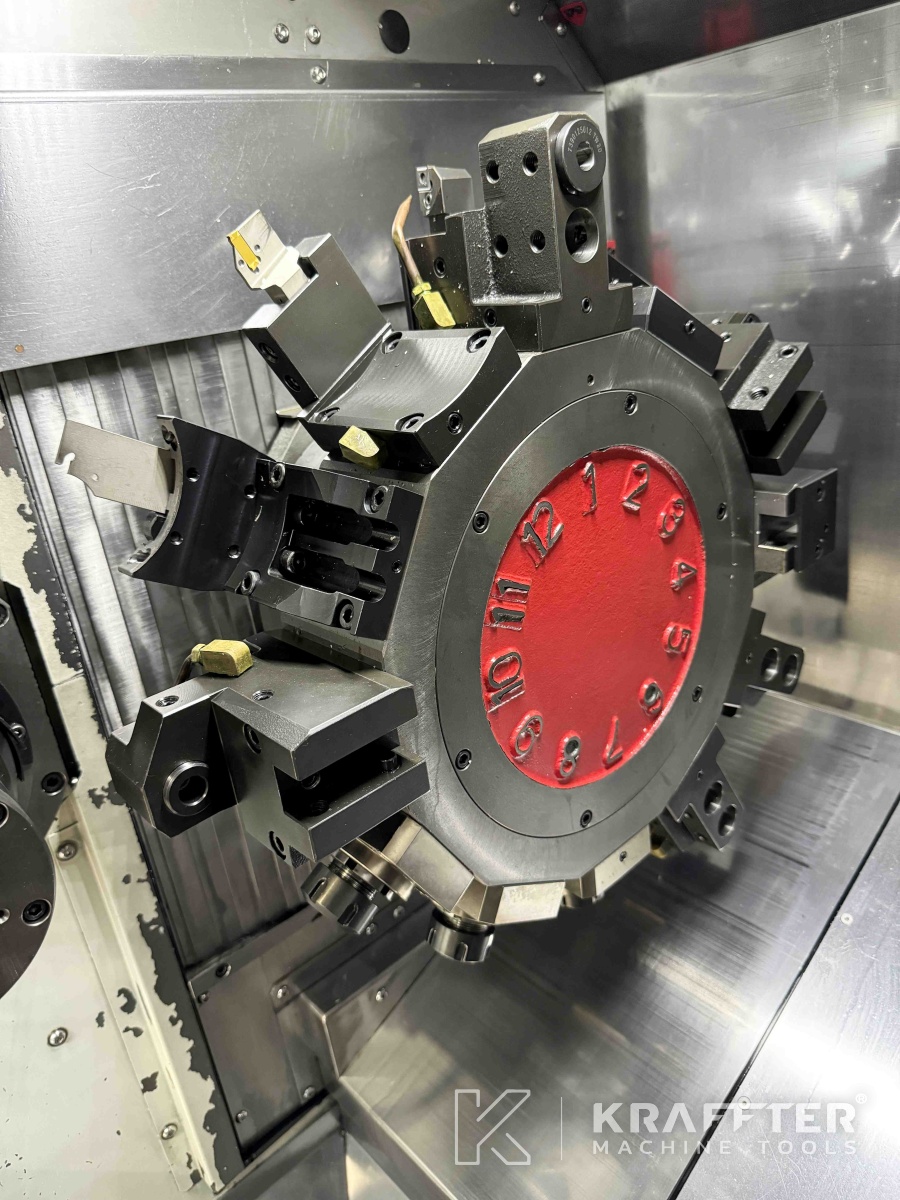

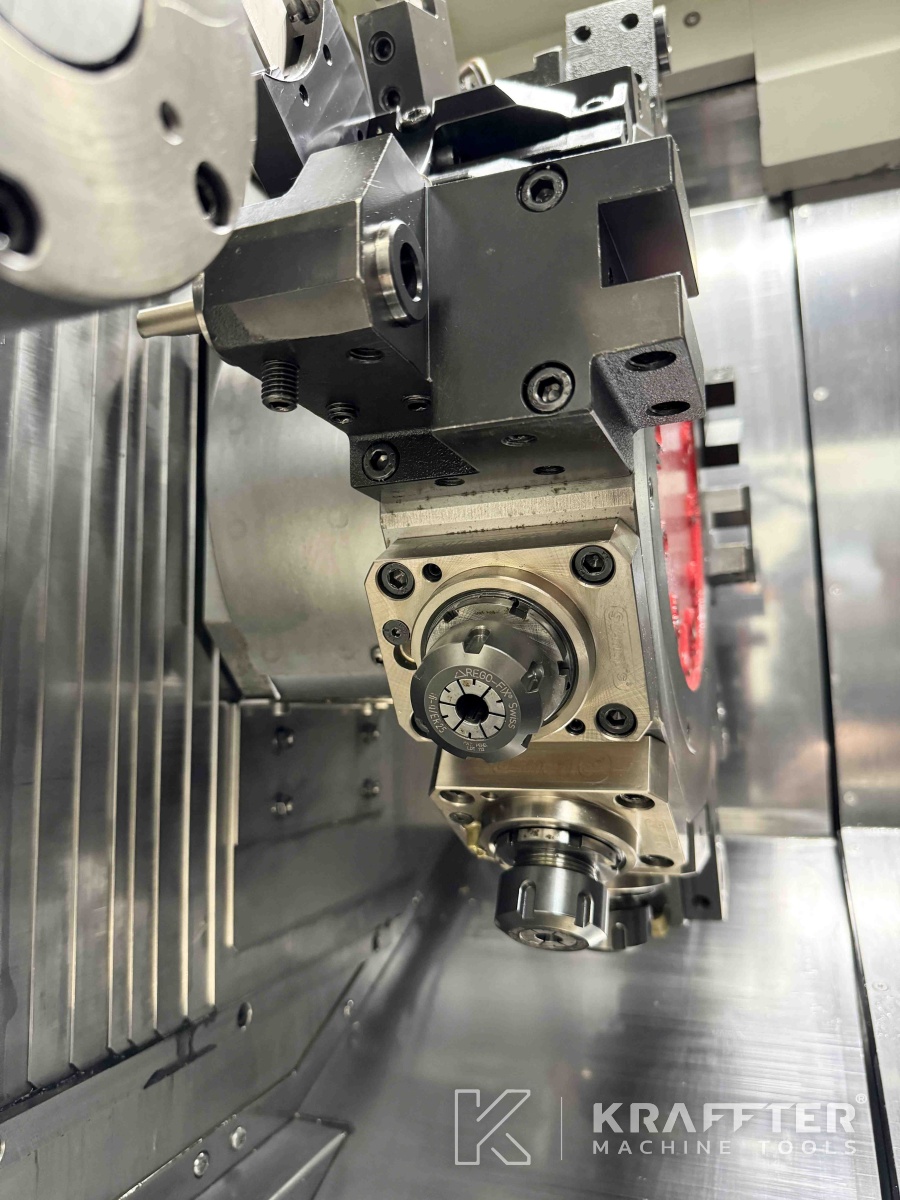

Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
4000 [rpm]
Indexing time - Turret 1
0.25 [s/pos]

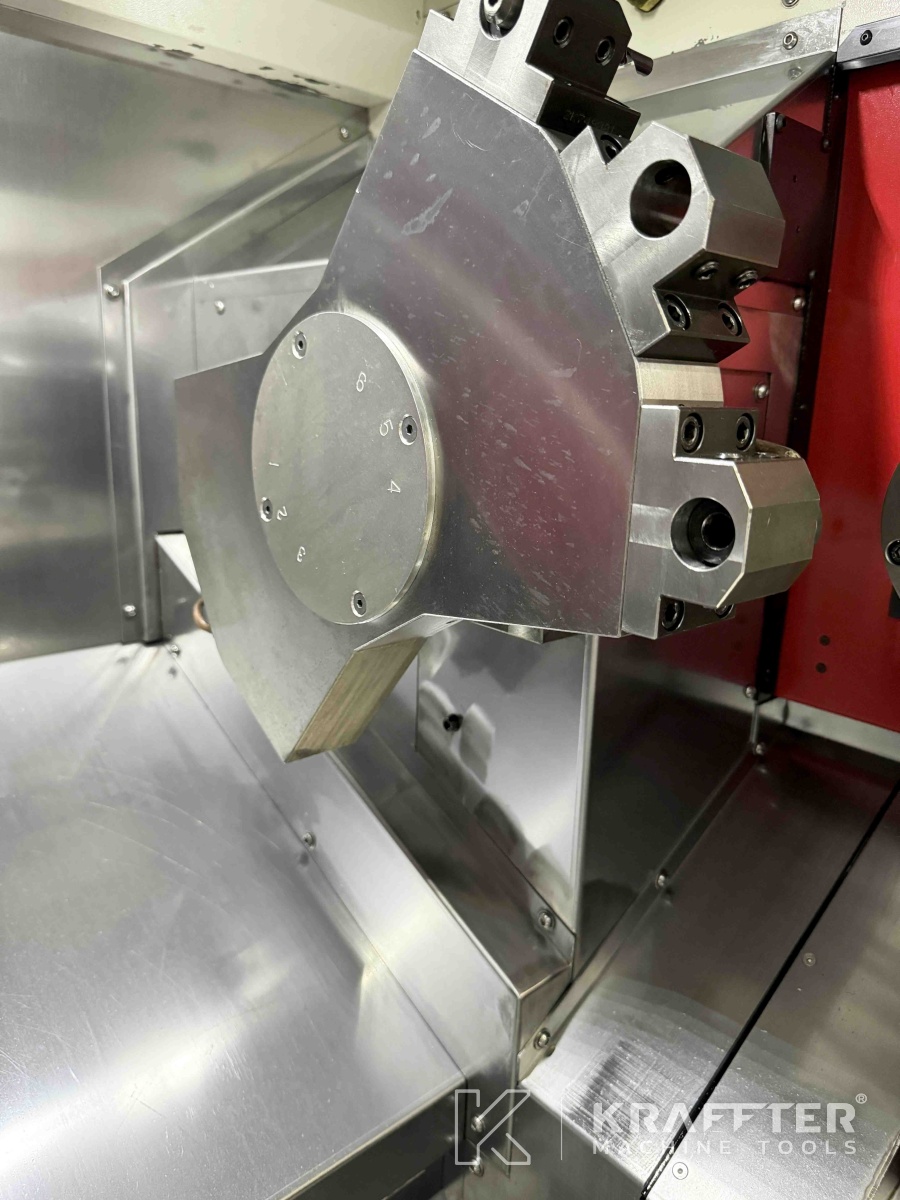

Number of tool stations - Turret 2
6
Indexing time - Turret 2
0.20 [s/pos]
Live tools power
2.5 [kW]
Lubrication tank capacity
300 [l]
Total power required
31 [kVA]
Supply voltage
400 [V]
RS232 Interface
Yes
Number of hours under power
19802 [h]
Weight
5500 [Kg]
Conform with CE regulations
Yes
Additional information
Cutting capacity (upper turret rotating tools):
Drilling: Ø13 [mm]
Tapping: M8 x 1.25
Milling: Ø12 [mm]

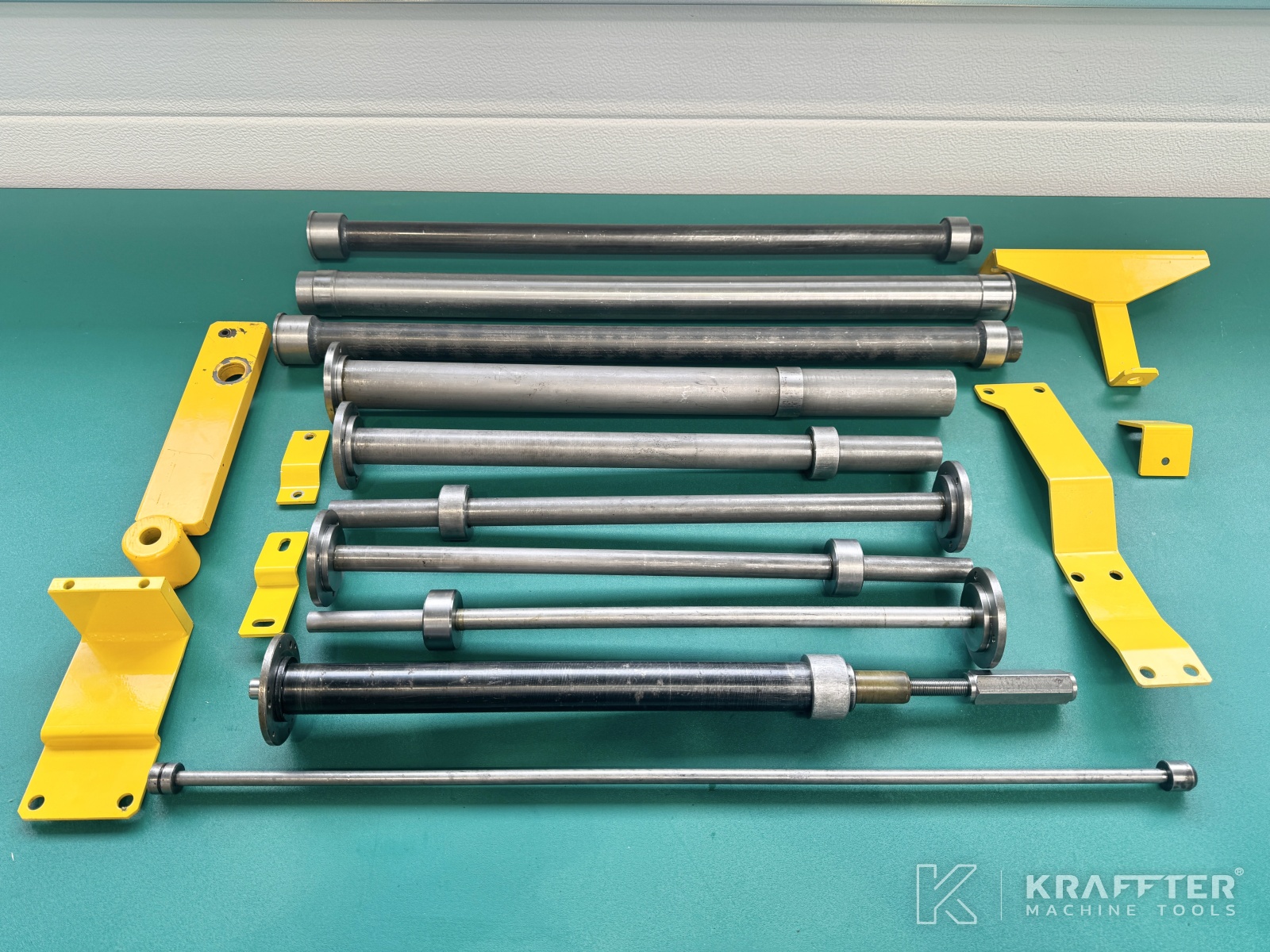

EQUIPMENT INCLUDED:

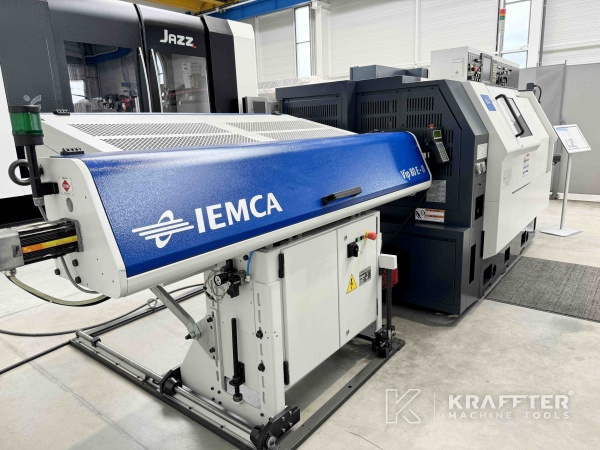

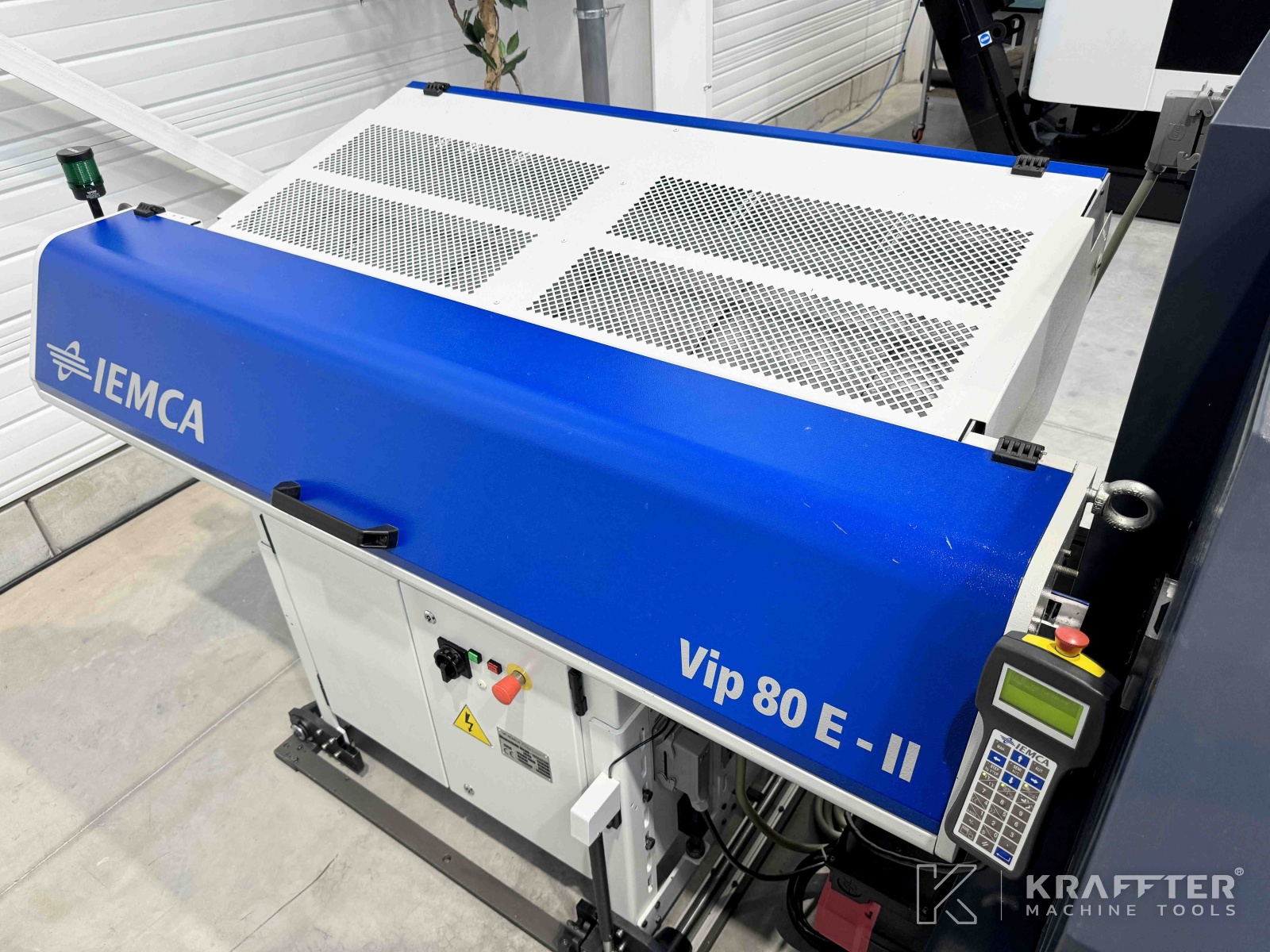

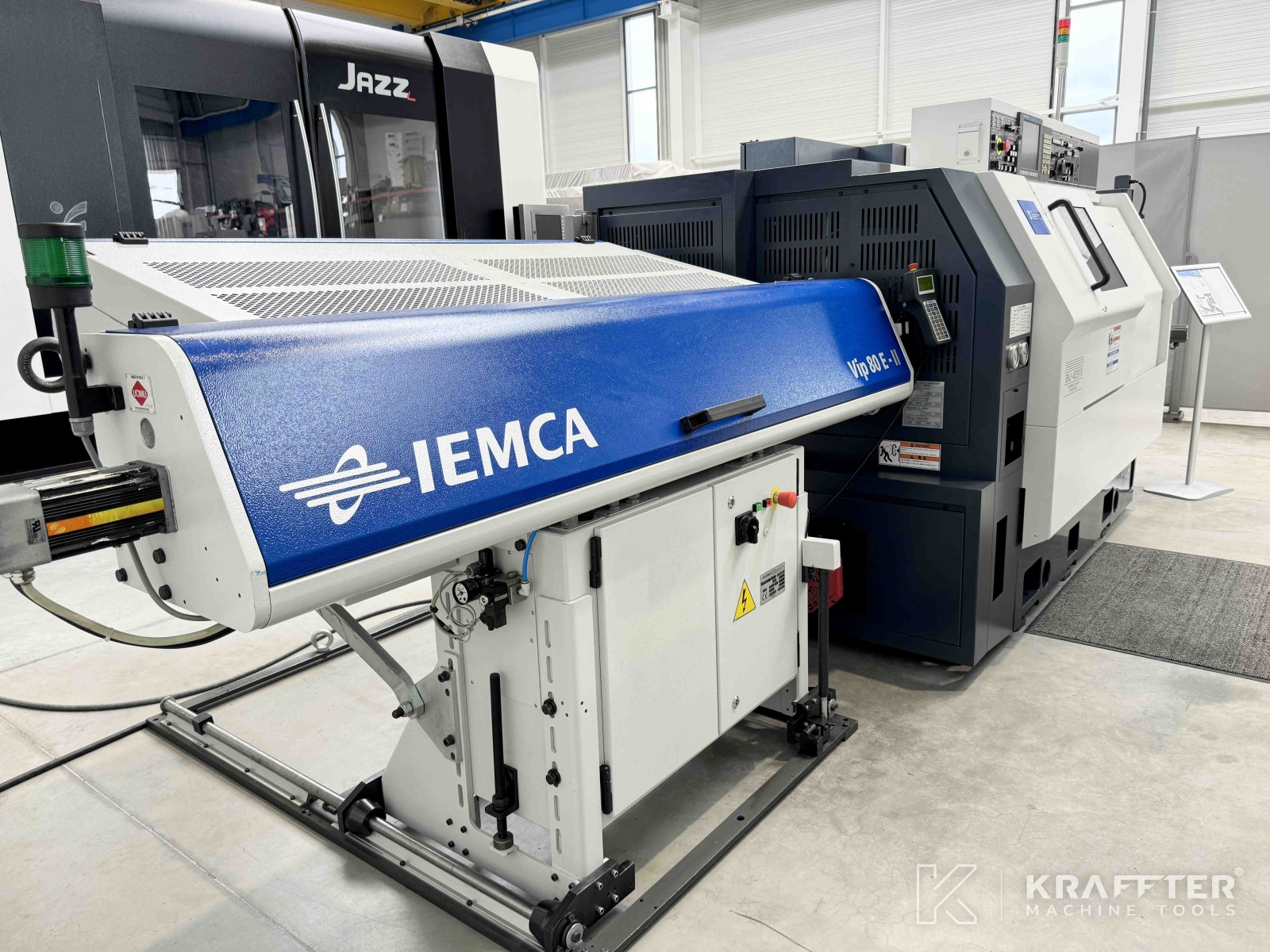

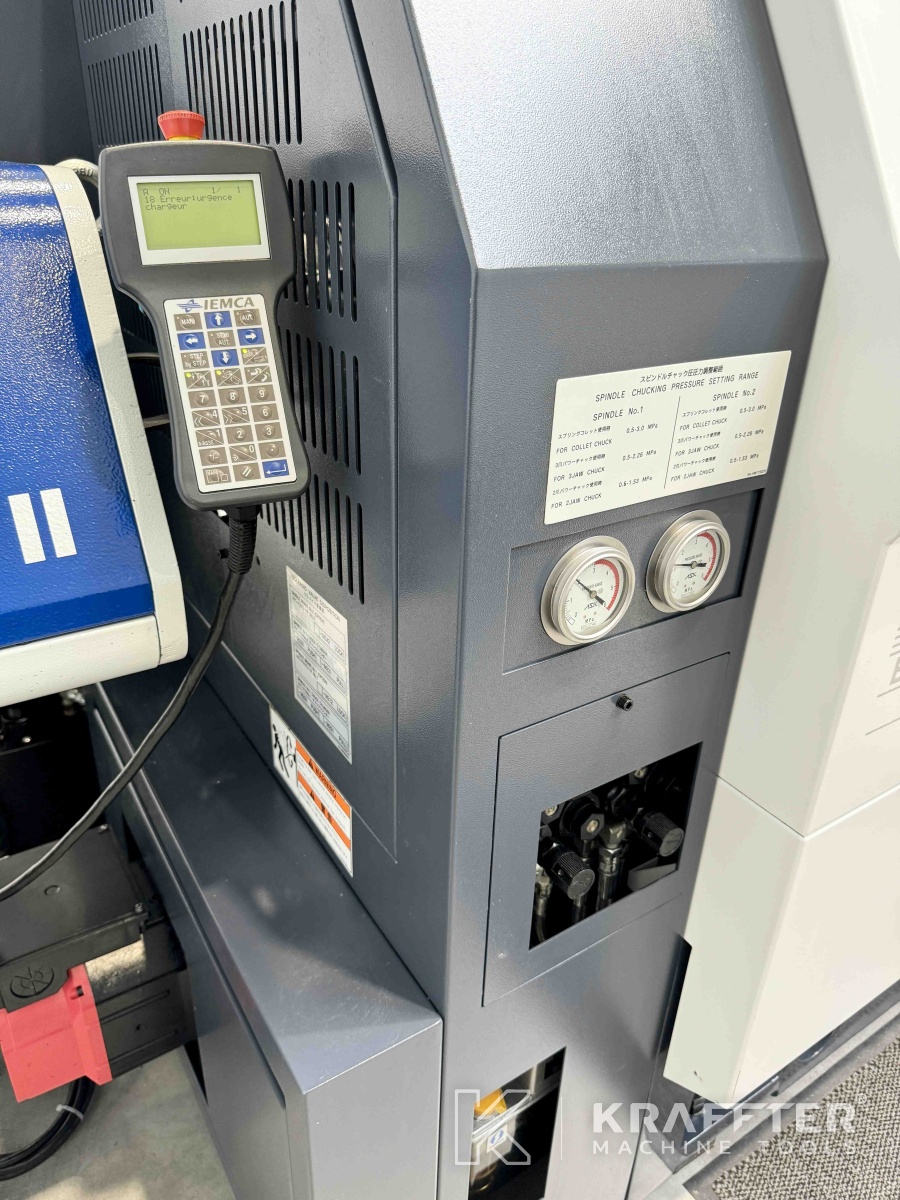

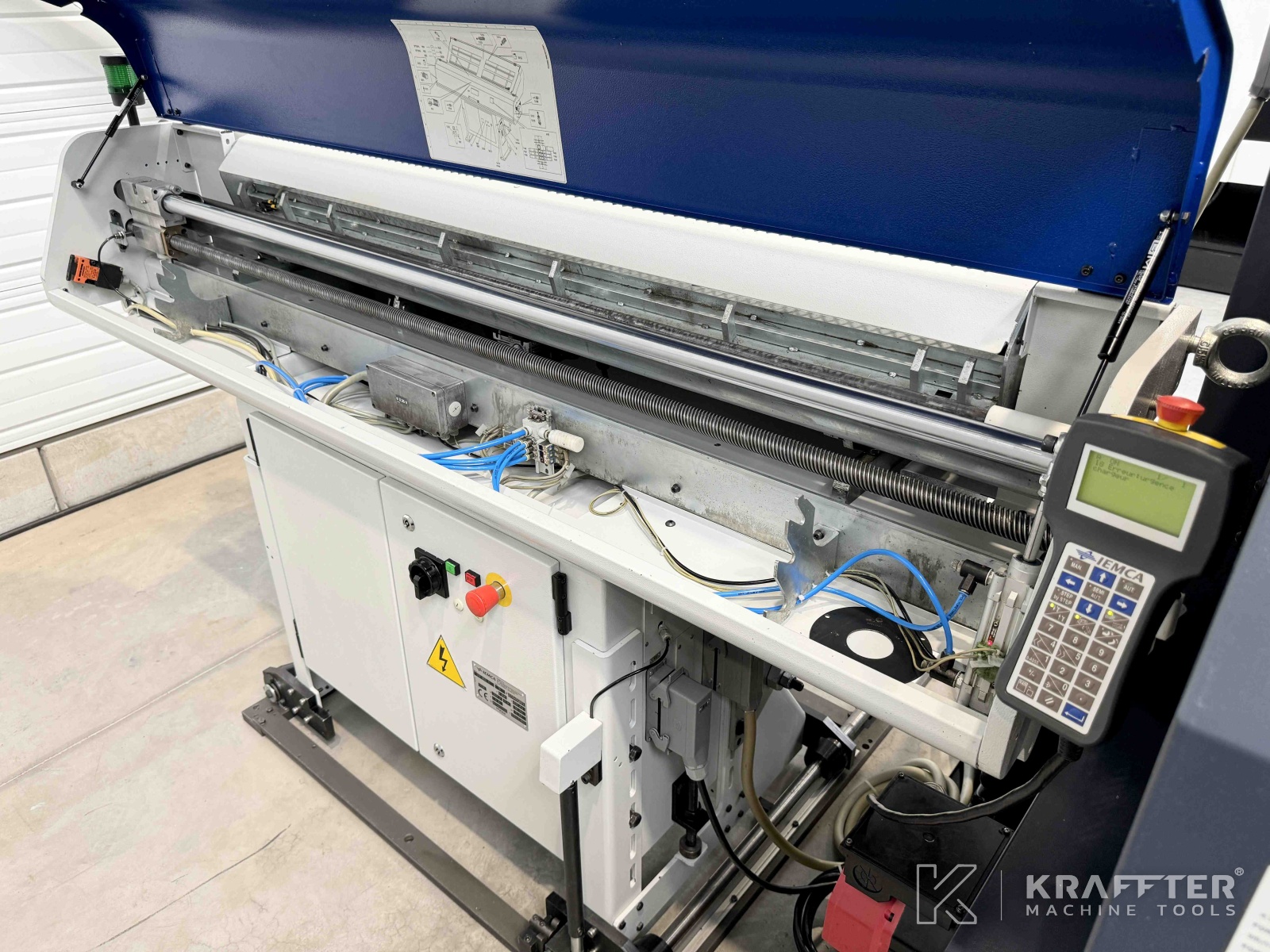

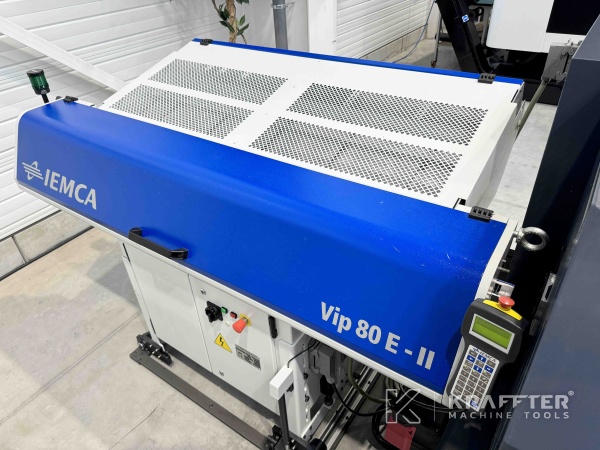

- IEMCA VIP 80E II type 16 bar feeder

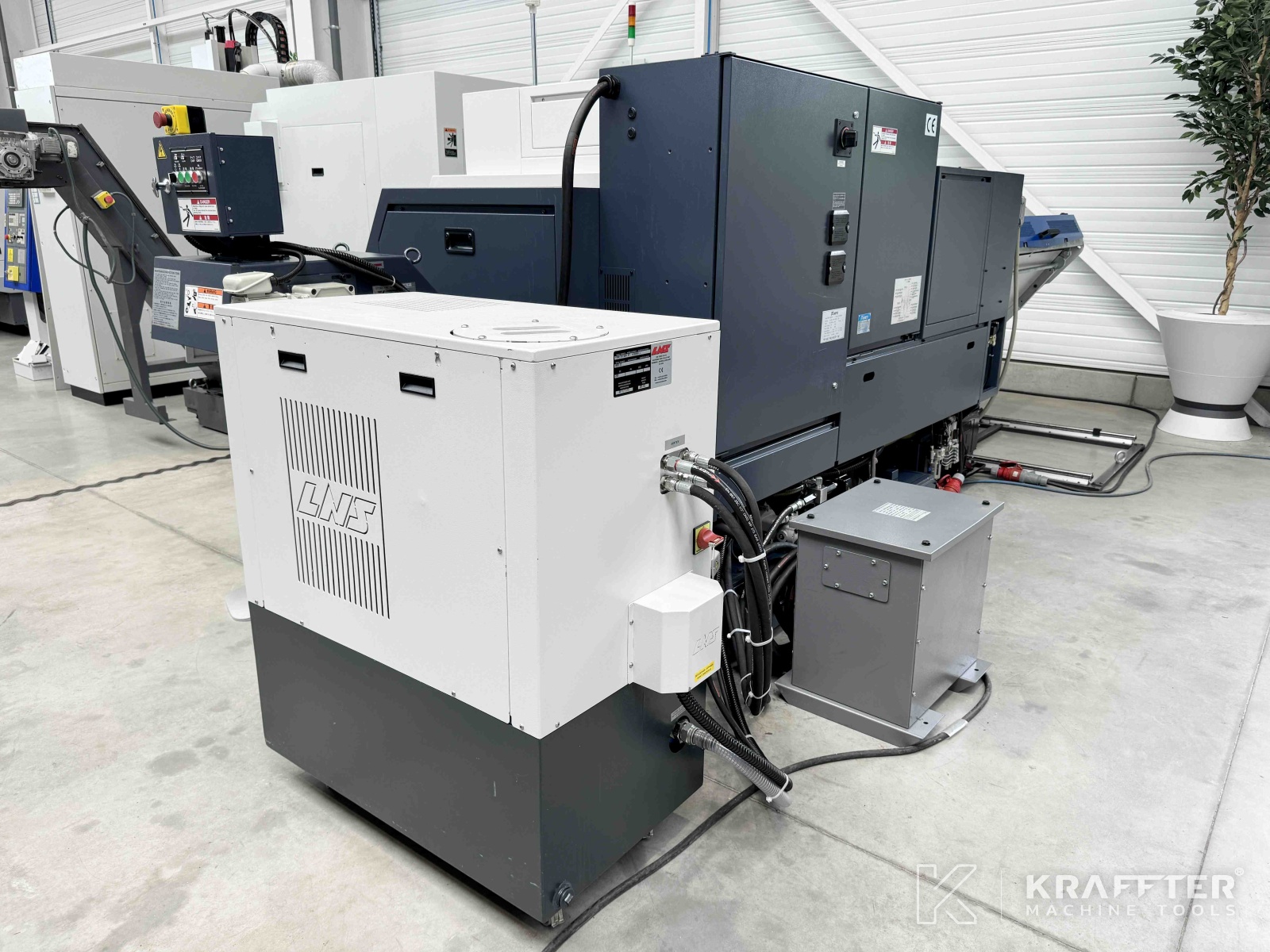

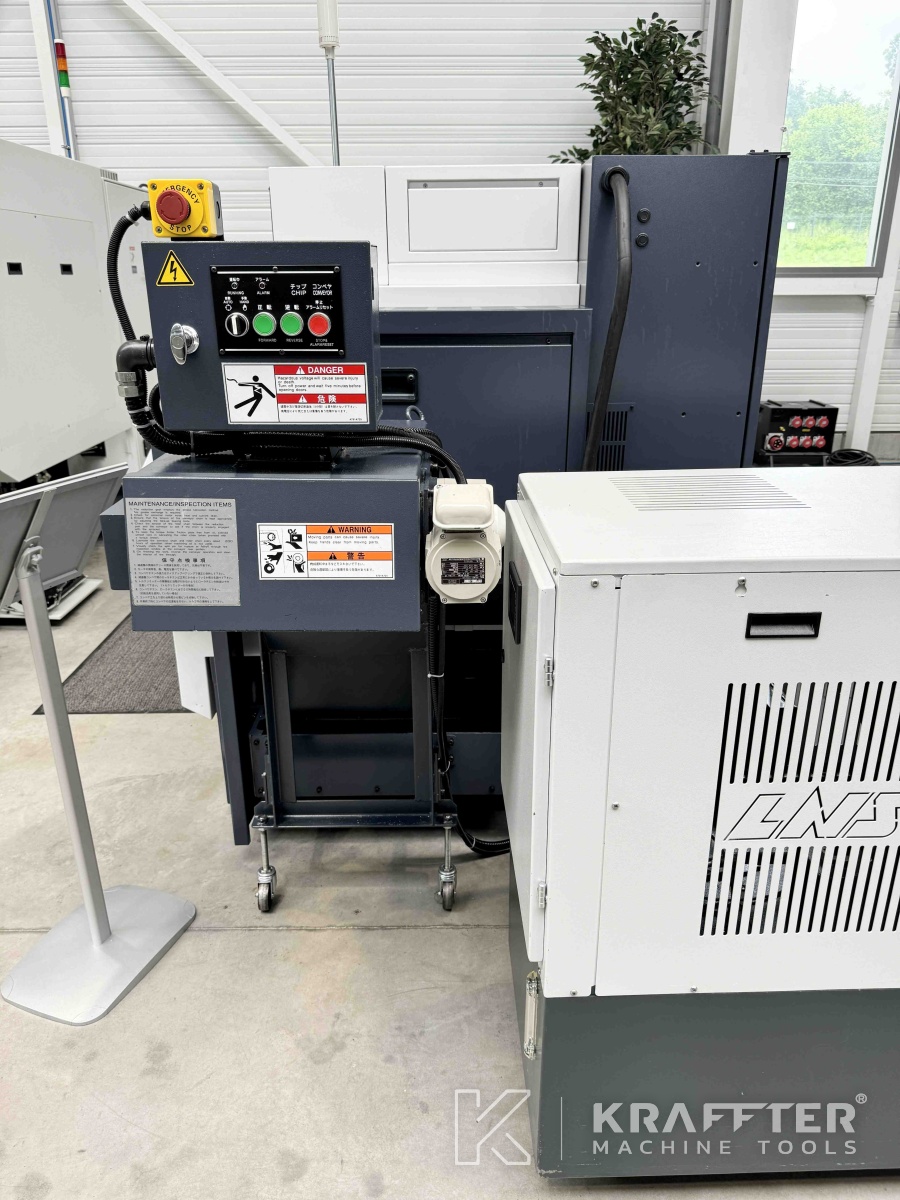

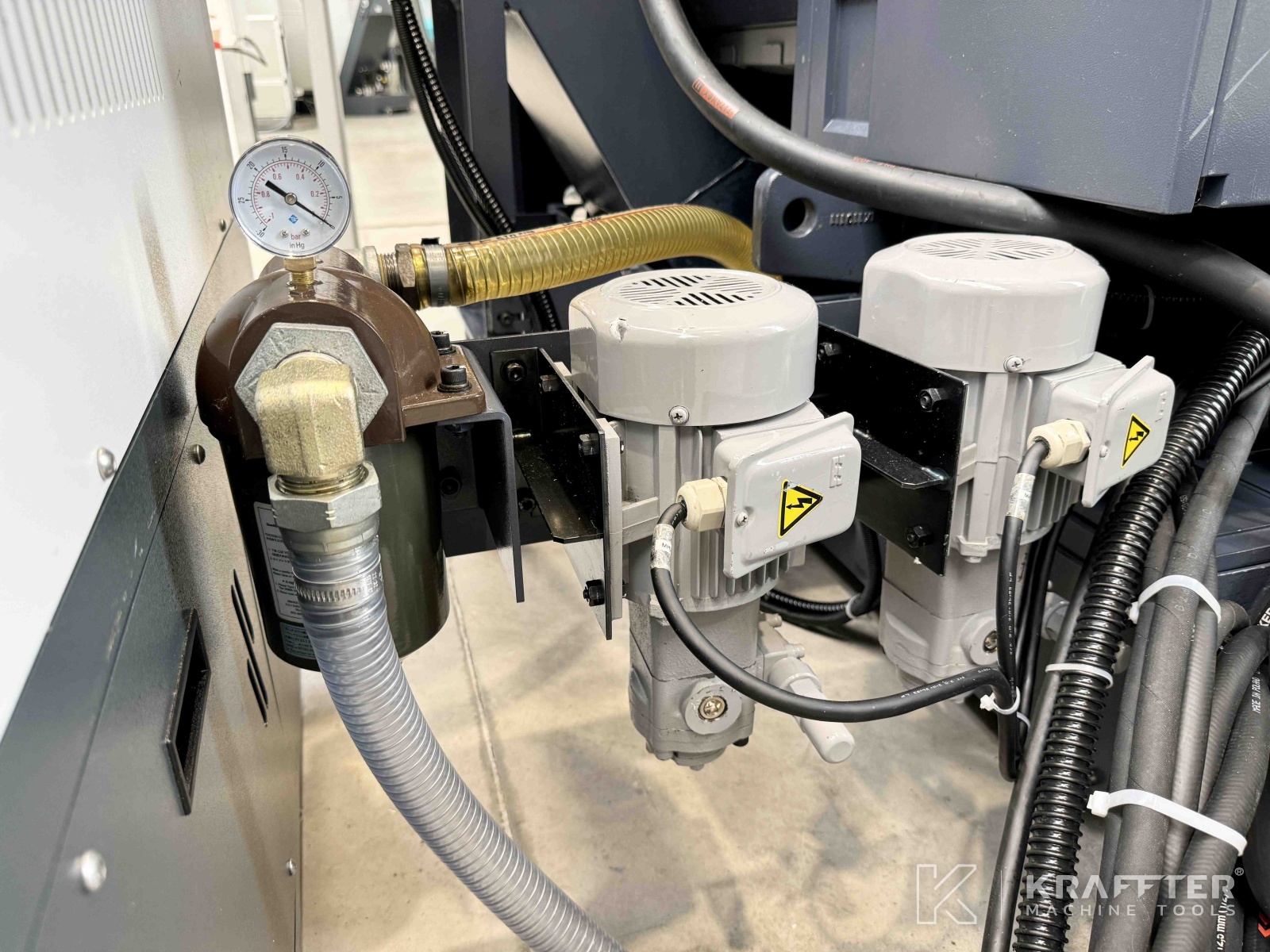

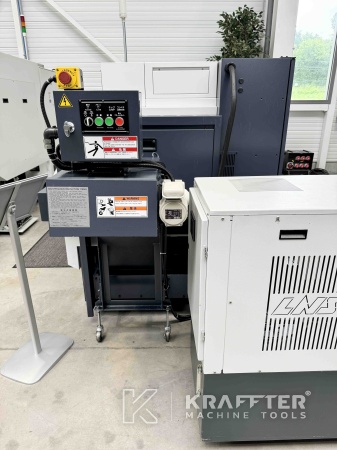

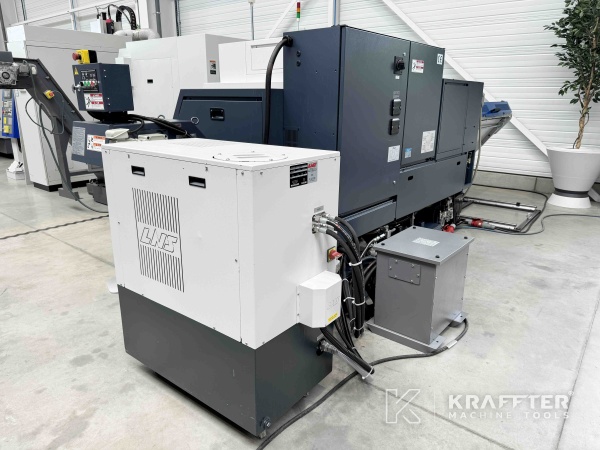

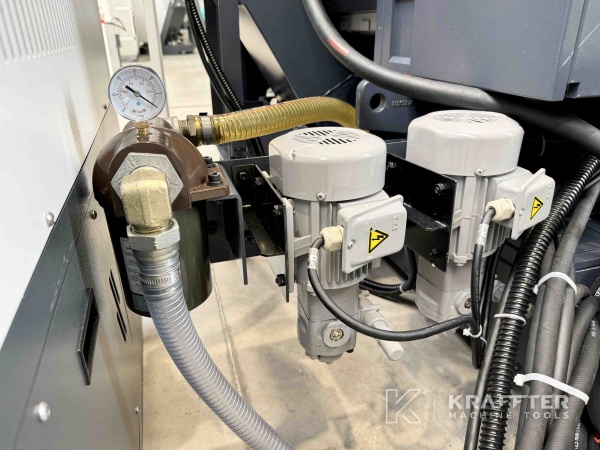

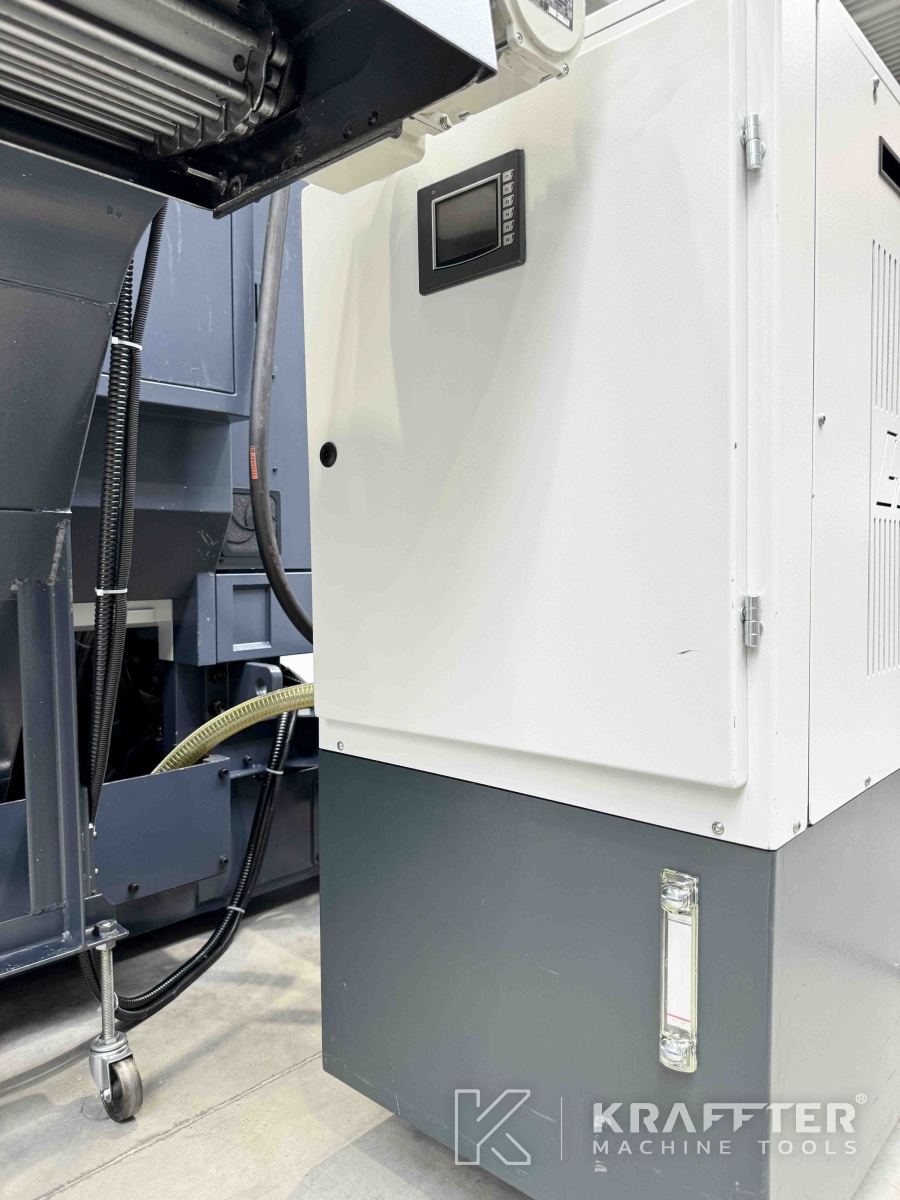

- LNS High Pressure pump type Powerstream VP (40 bars)

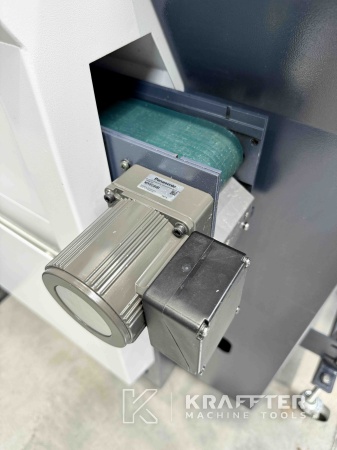

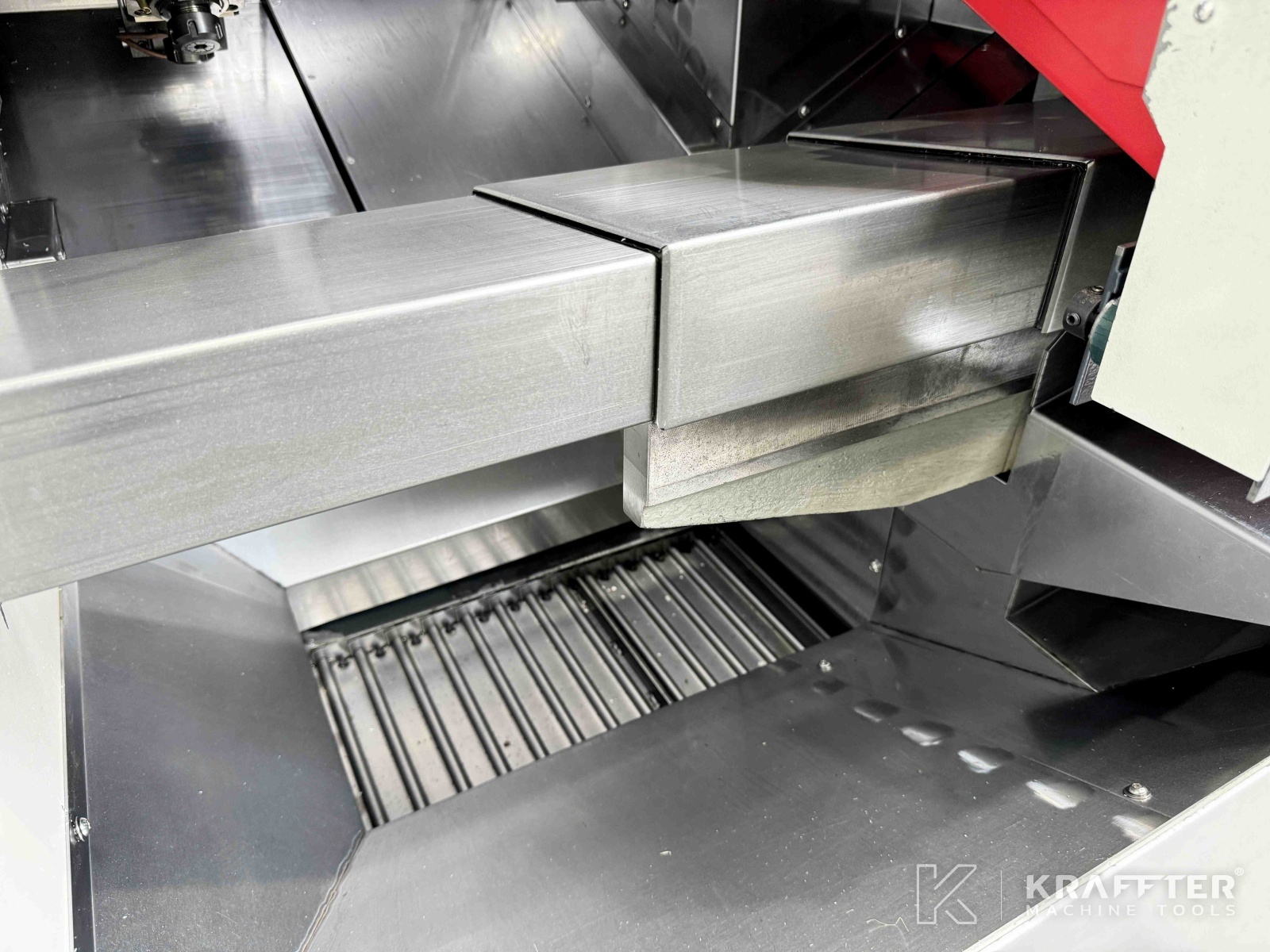

- Chip conveyor
- Parts recuperator

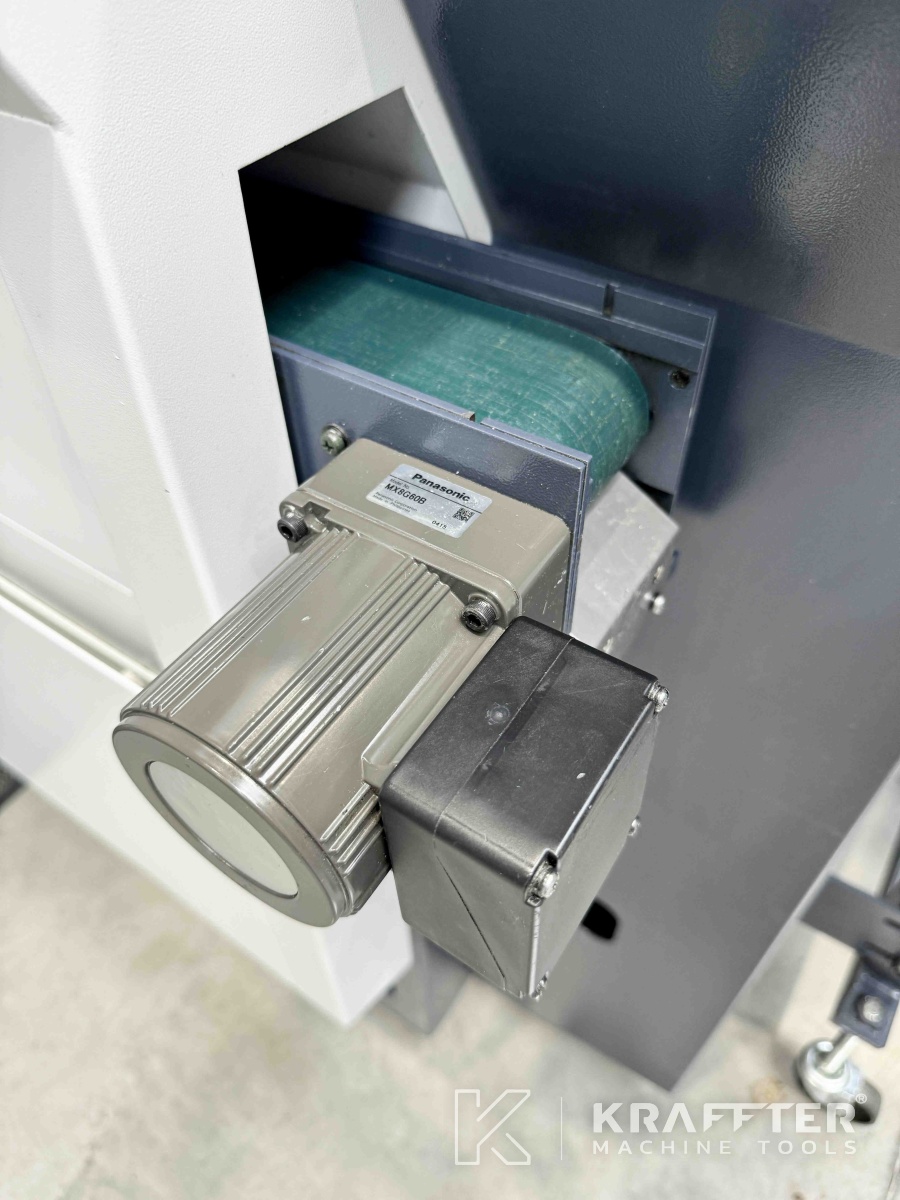

- Parts conveyor belt
- Brake: on spindle and counter-spindle
- Electrical transformer: 400 / 200 [V]
- Part ejection: in counter-spindle

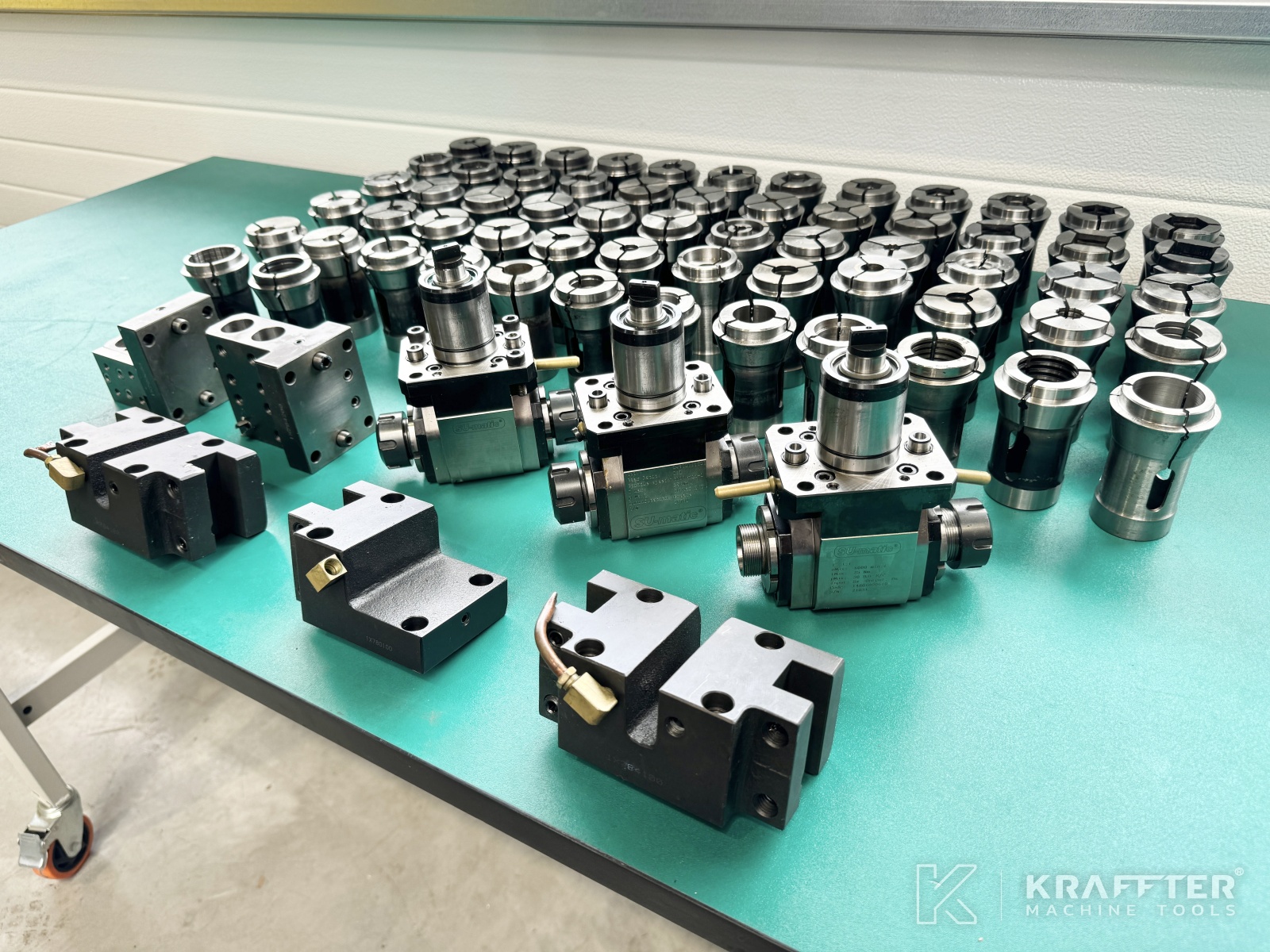

- Number of axial live tool holders: 3
- Number of radial live tool holders: 3
- Number of steady tool holders (turret 1) : 14
- Number of steady tool holders (turret 2) : 3
- Number of collets DIN173E: 60
- Number of DIN173E collet chucks: 2
