Sold

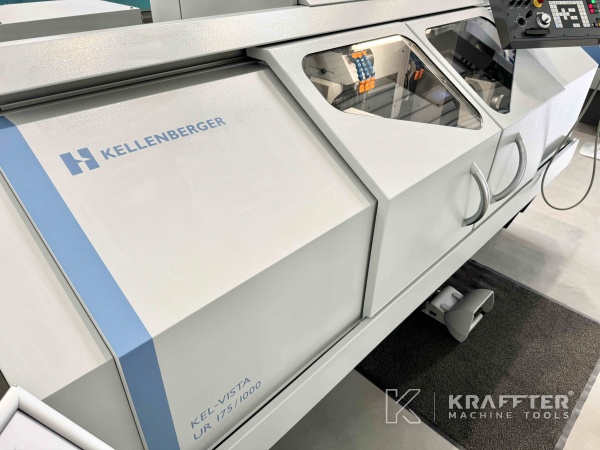

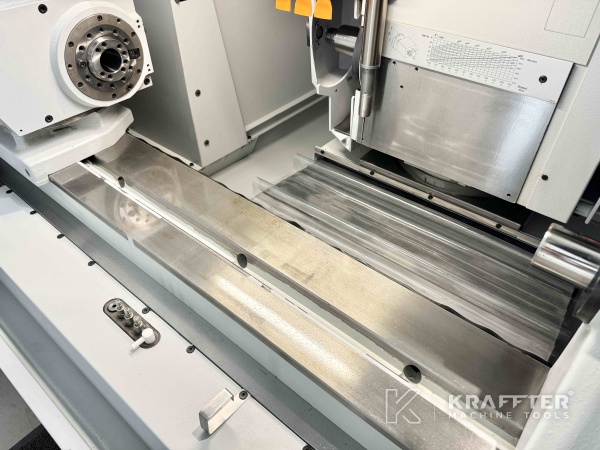

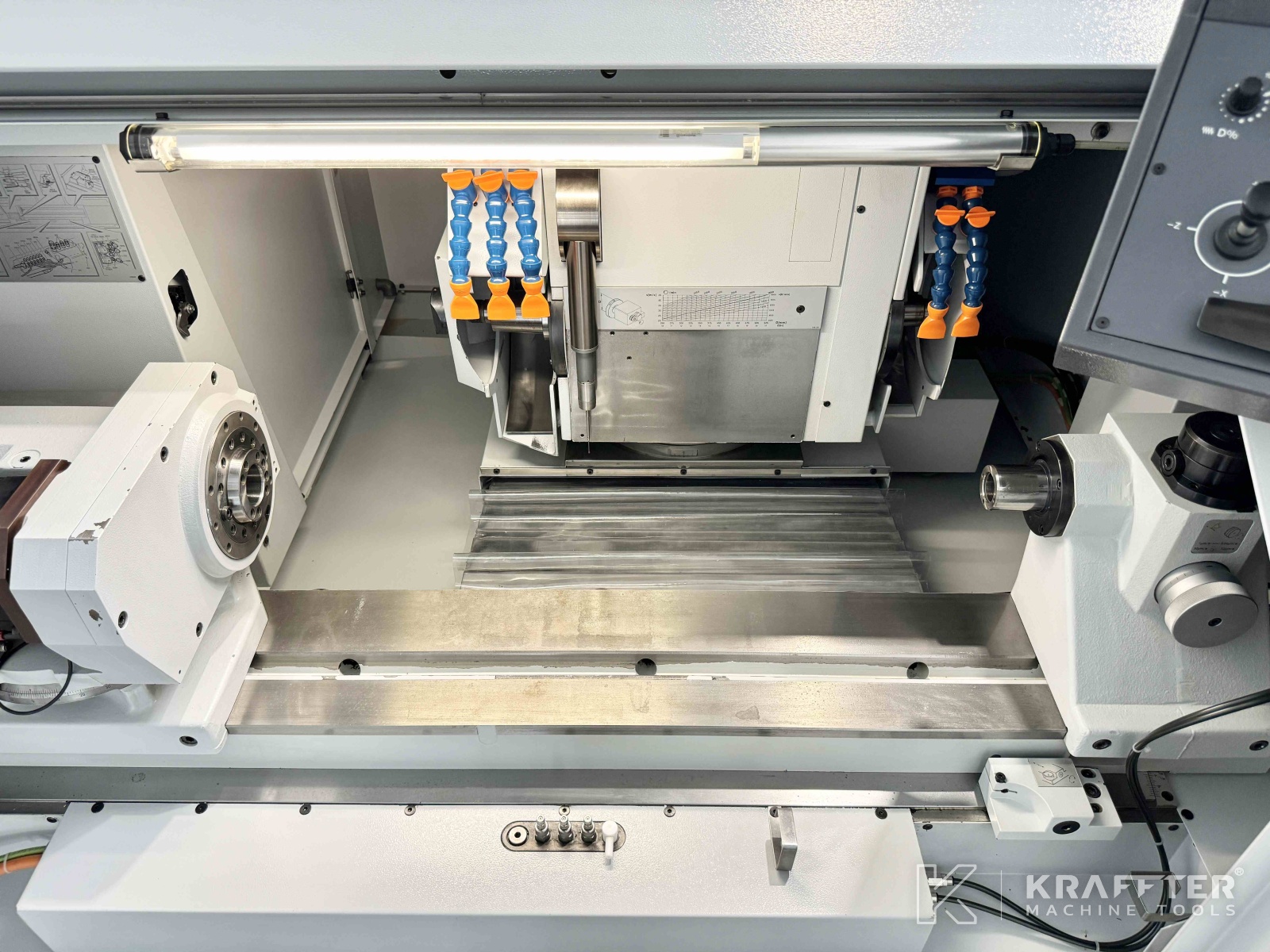

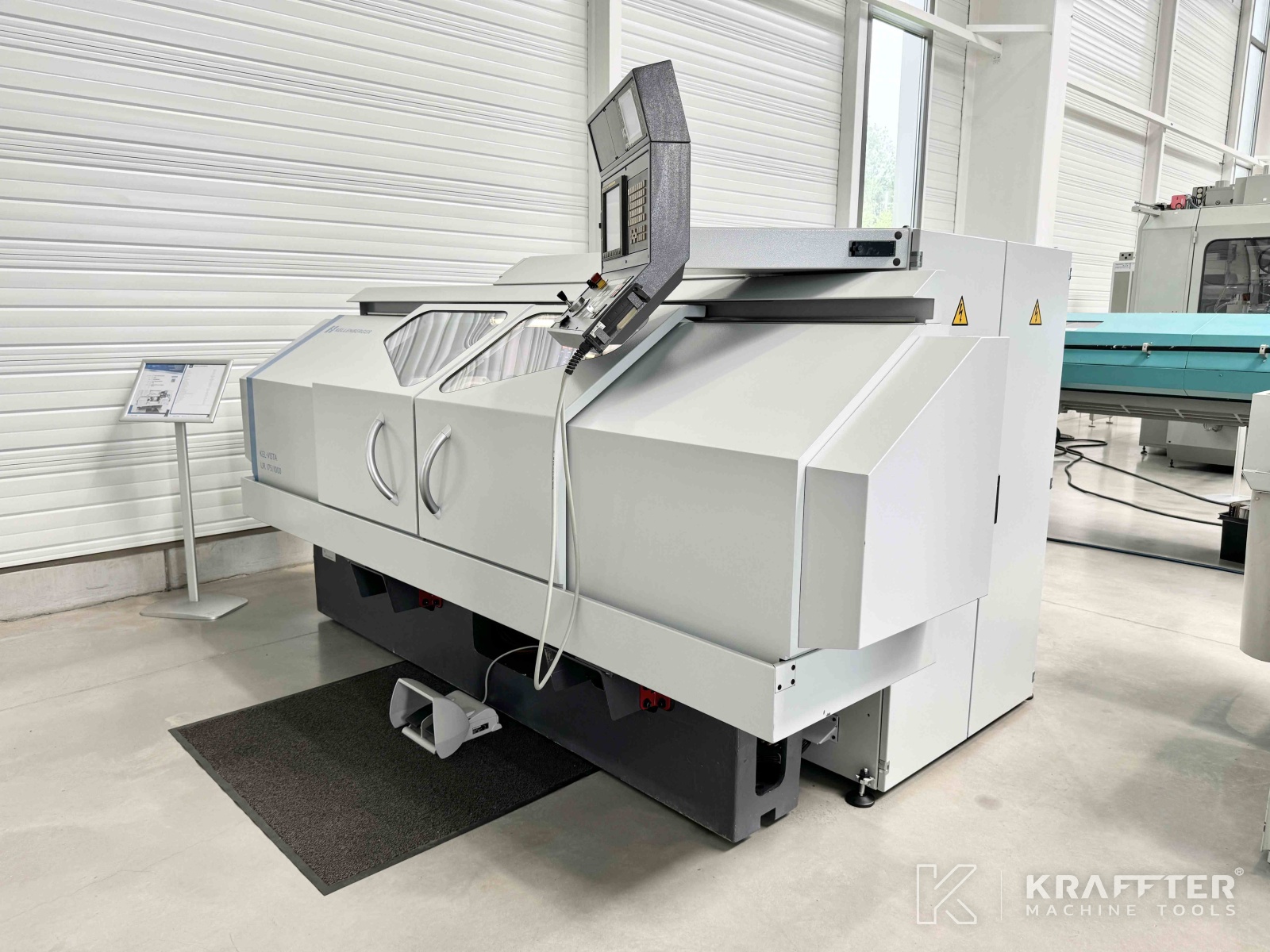

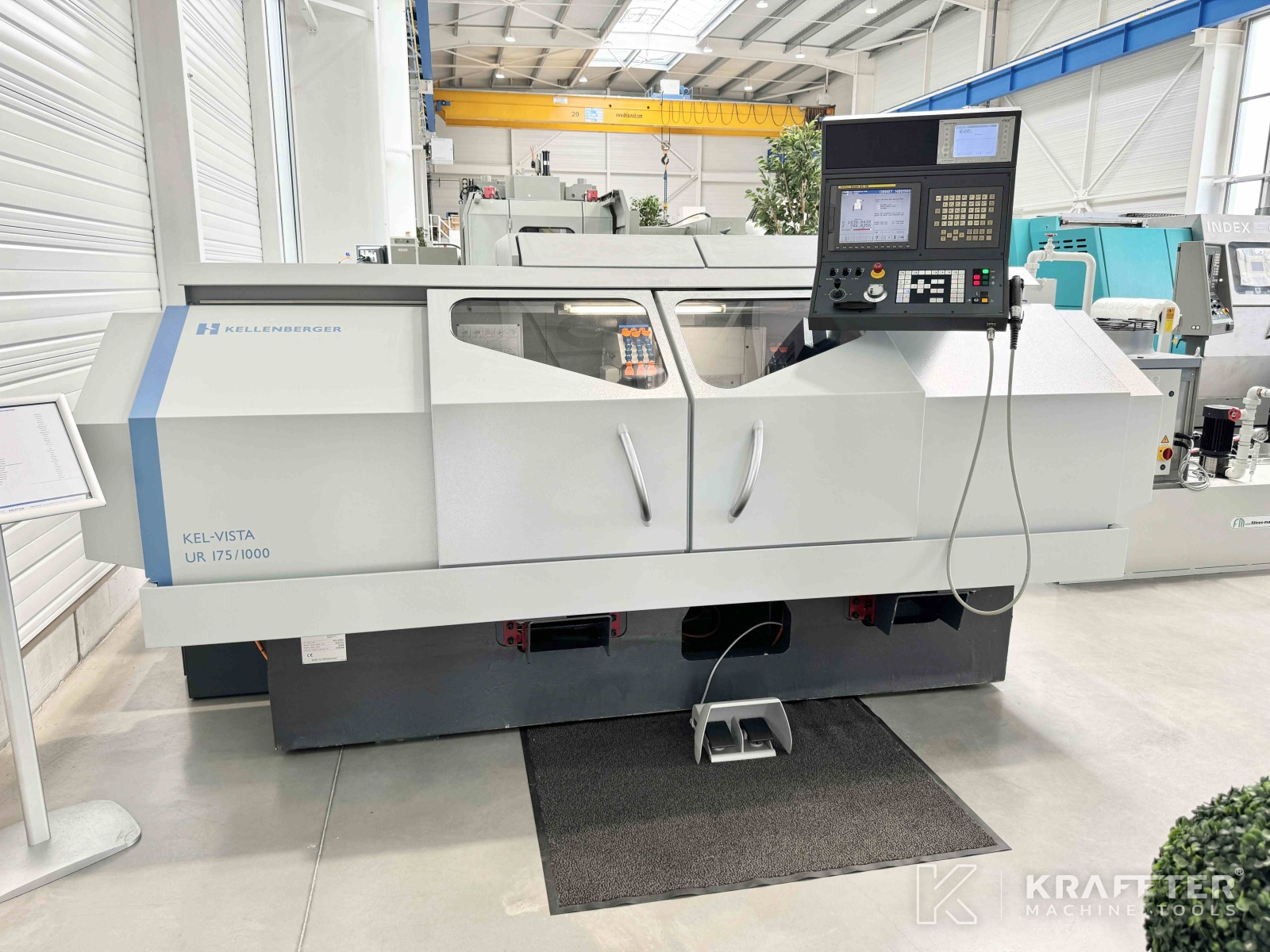

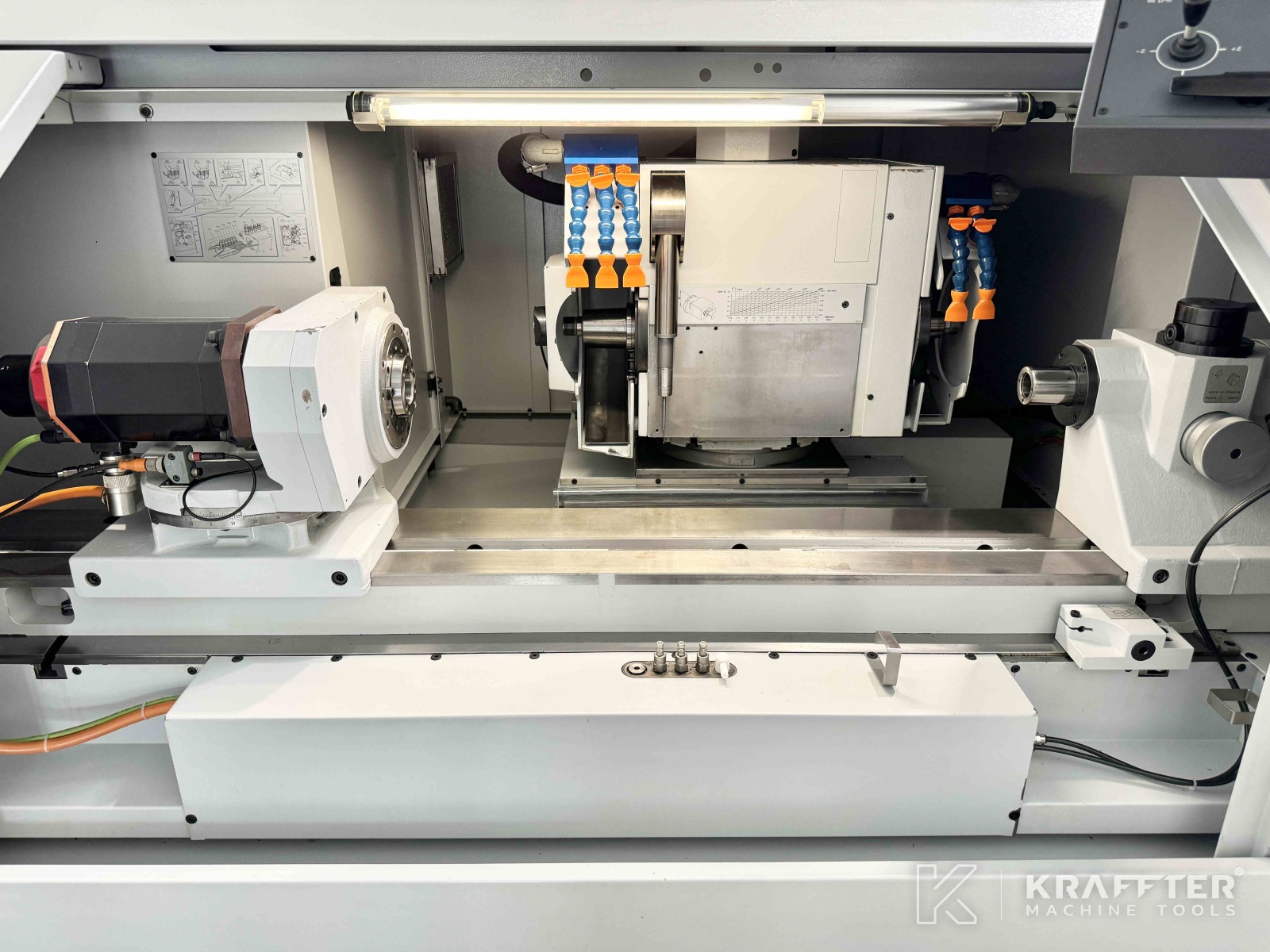

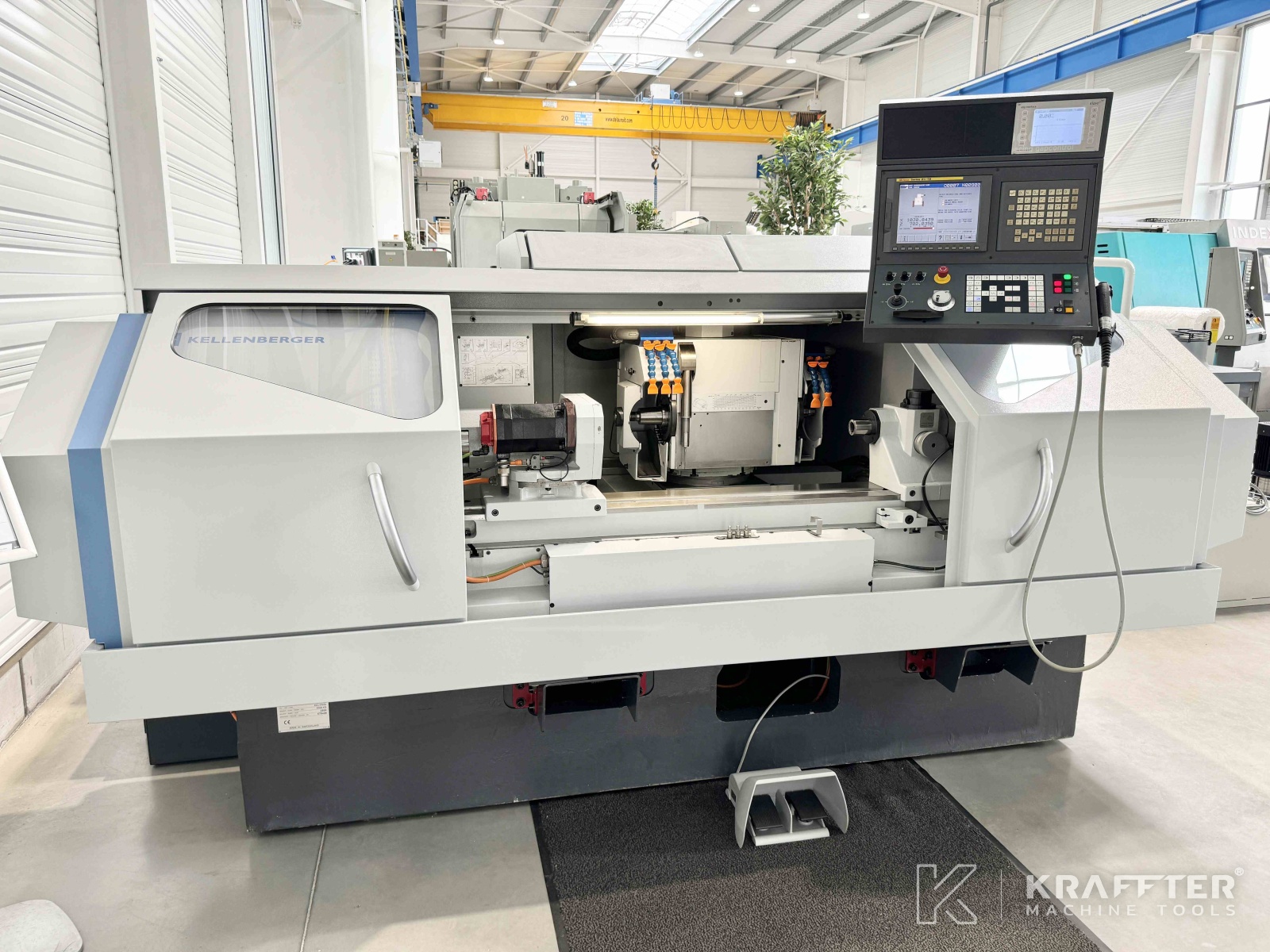

Type of machine : CNC cylindrical grinder
Brand : KELLENBERGER
N° de stock: 90126
Model : Kel-Vista UR 175/1000
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

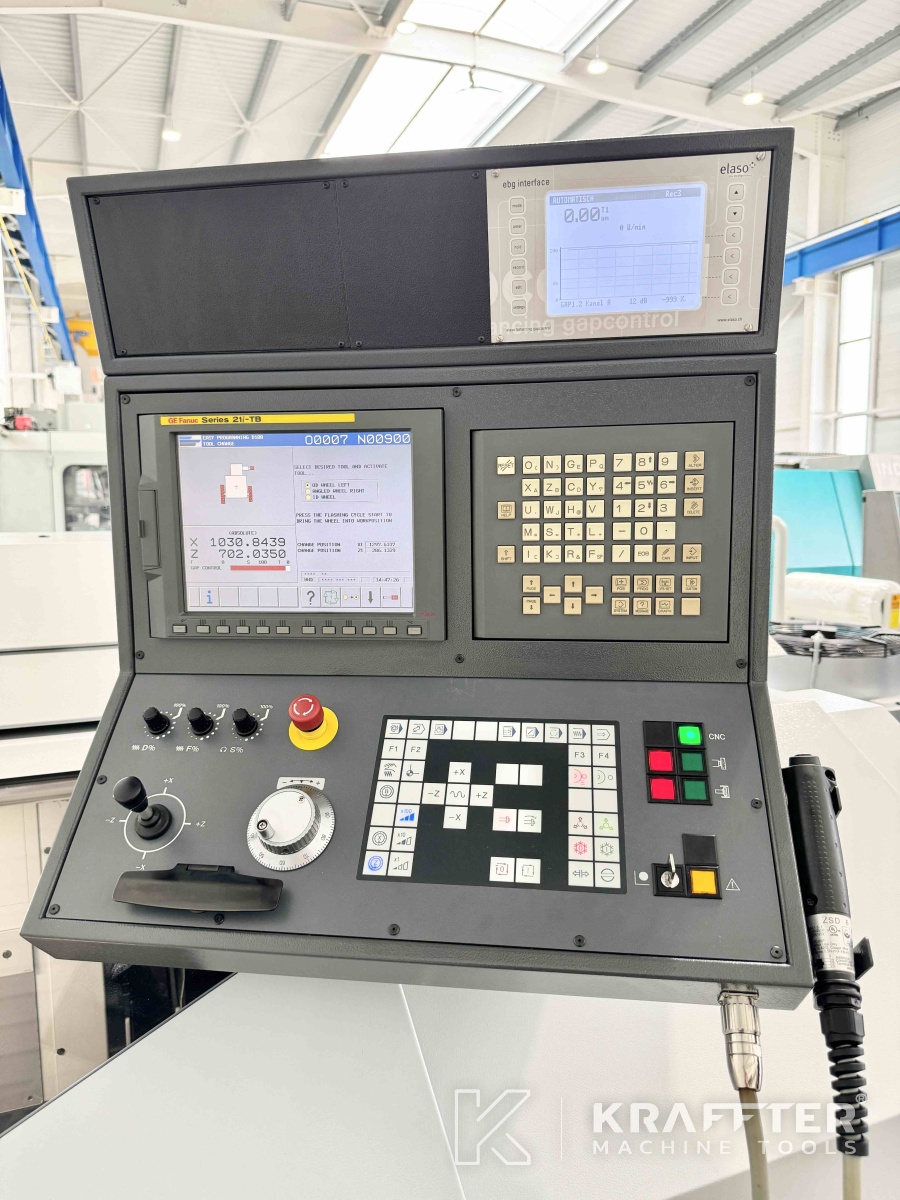

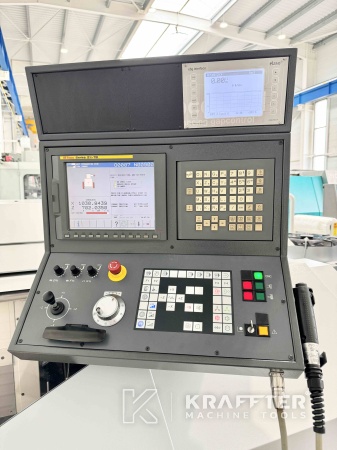

CNC control
FANUC 21i-T
Centre distance
1000 [mm]
Height of centers
175
Max. grinding diameter
349 [mm]
Max. grinding lenght
1000 [mm]
Stroke X axis
350 [mm]
Max. Stroke speed X axis
6000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Max. Stroke speed Z axis
12000 [mm/min]
Resolution Z axis
0.0001 [mm]
Orientation of table
0 - 9 [°]
Min. grinding wheel speed
800 [rpm]
Max. grinding wheel speed
1900 [rpm]
Grinding spindle motor power
6 [kW]
B axis swivelling stroke
-210 / +10 [°]
B axis indexing precision
1 [°]
Automatic B axis
Yes
Max. diameter grinding wheel
400 [mm]

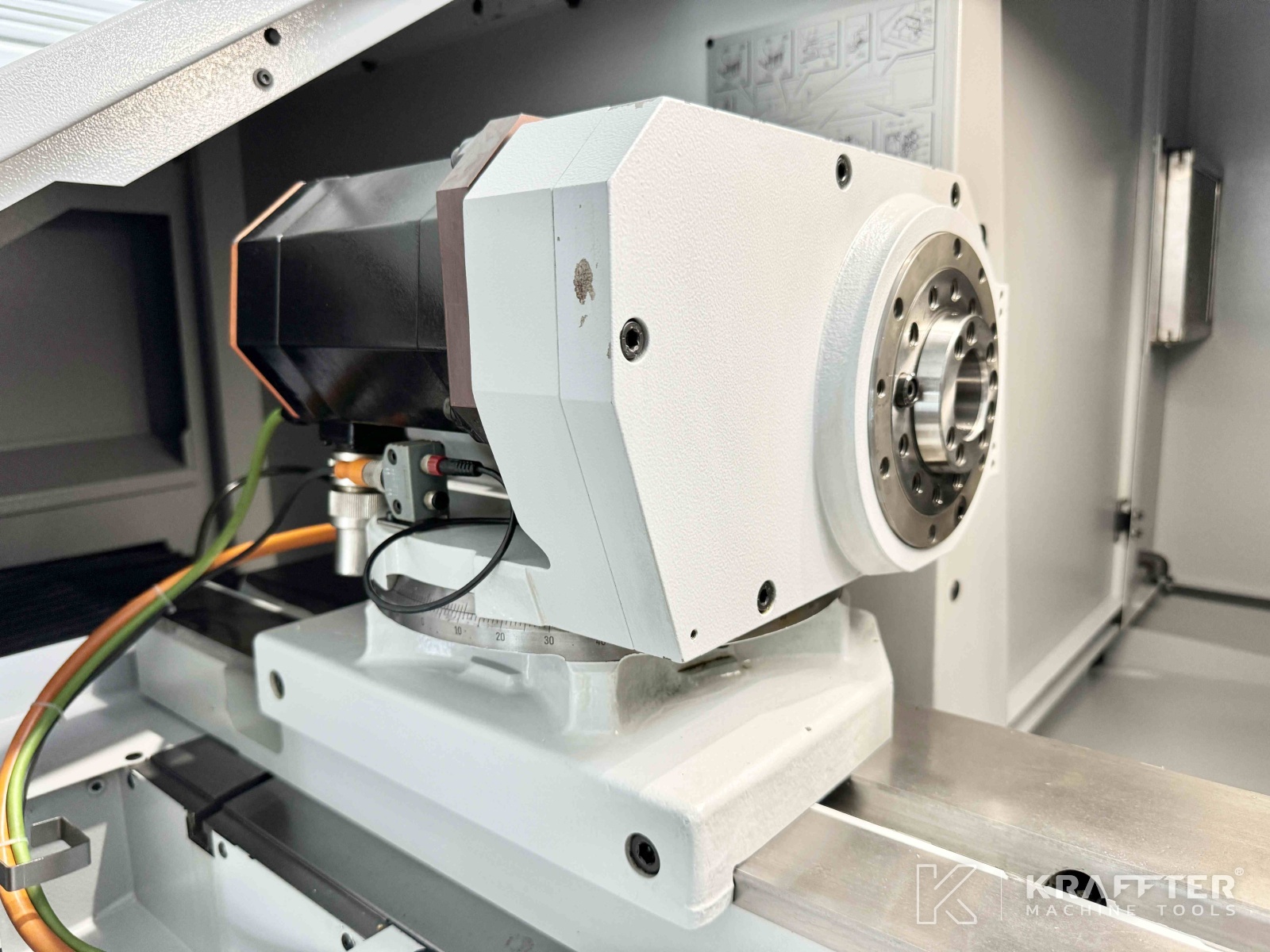

Workpiece spindle nose
DIN 55026 N° 5
Internal workpiece spindle nose
Morse 5
Workpiece spindle min. speed
8 [rpm]
Workpiece spindle max. speed
800 [rpm]
Max. part weight in part holder headstock between centres
100 [Kg]
Workpiece swiveling range
-10 / +100 [°]
Workpiece spindle power
1 [kW]
Type of attachment tailstock
Morse 4
Tailstock fine adjustment
+/- 60 [µm]
Number of running hours
500 [h]
Collant pump flow rate
160 [l/min]
Lubrication tank capacity
375 [l]
Supply voltage
400 [V]
Rated current
18.5 [A]
Weight
3500 [Kg]
Additional information
EQUIPMENT INCLUded:

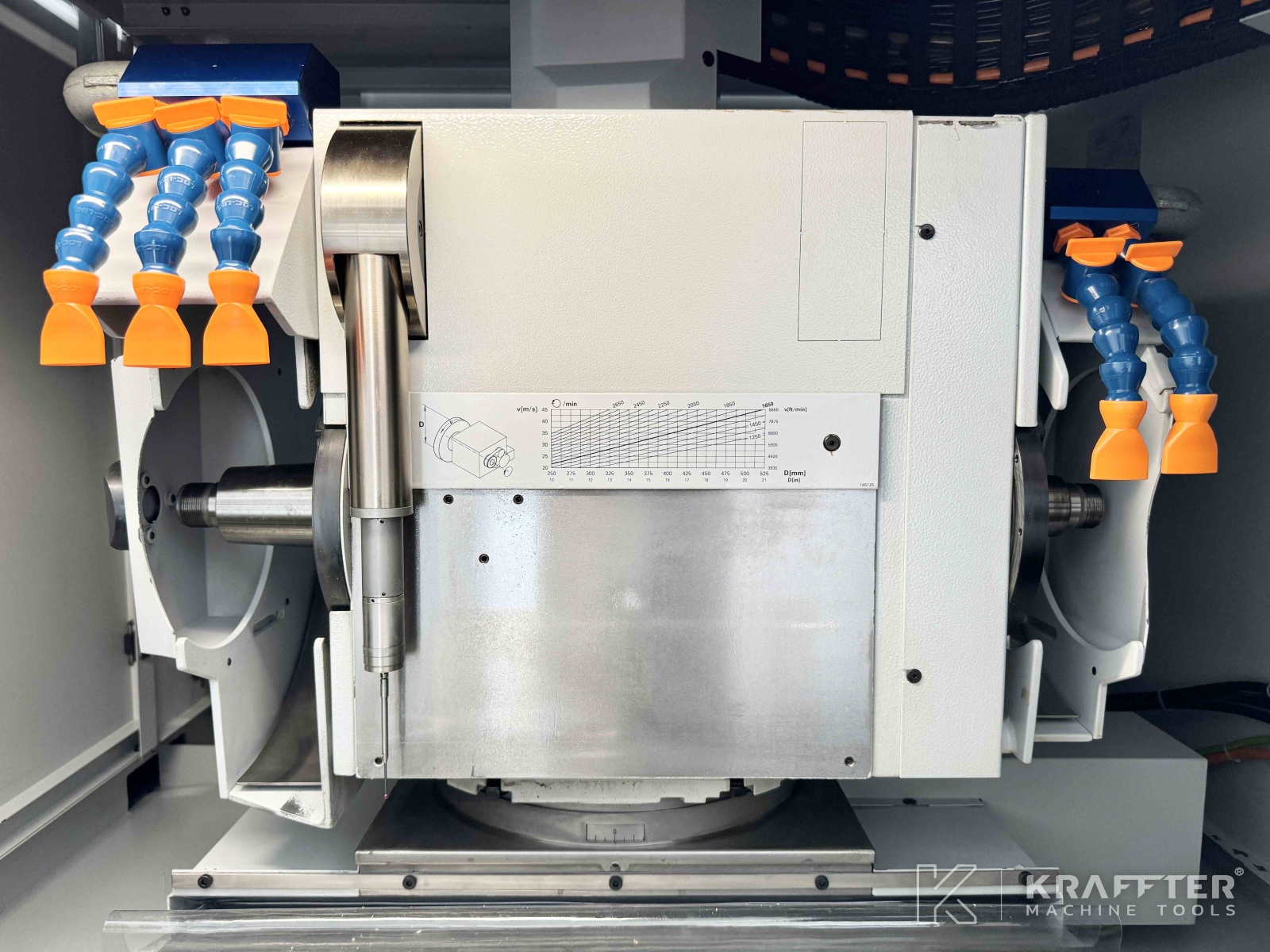

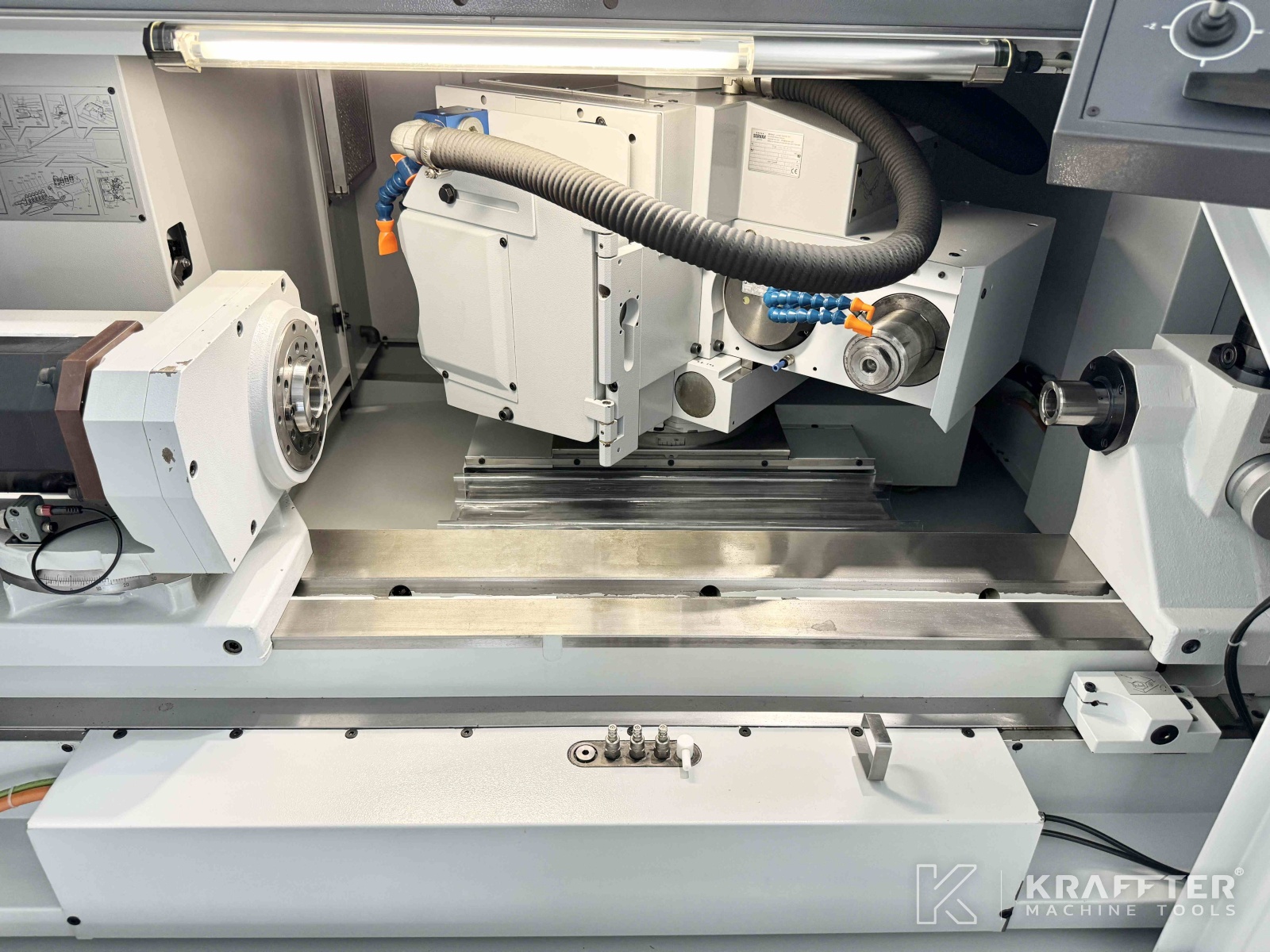

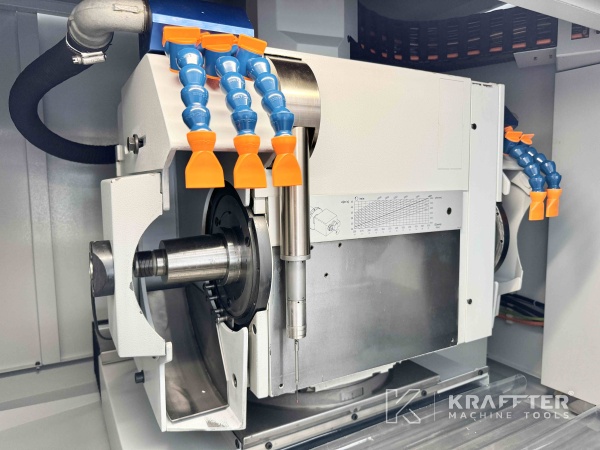

x1 automatic B axis UR 1-2-3 exteral/internal/face (Hirth 1°)
x1 KEL-BALANCE (ELASO BALANCING GAP CONTROL) semi-automatic wheel balancing device
x1 internal grinding spindle RENAUD Switzerland 124-080240-M16R (28'000 min-1) - KELLENBERGER item N°: 4013.01

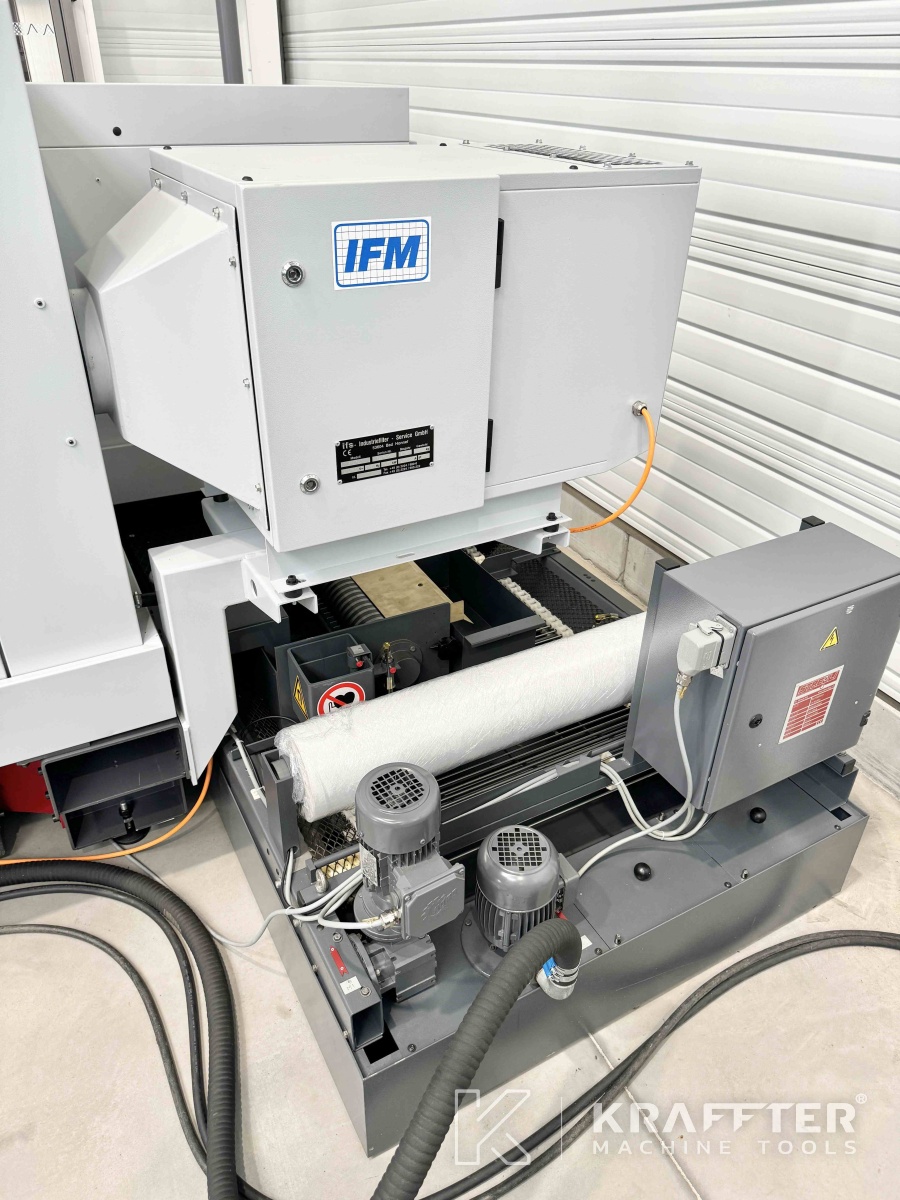

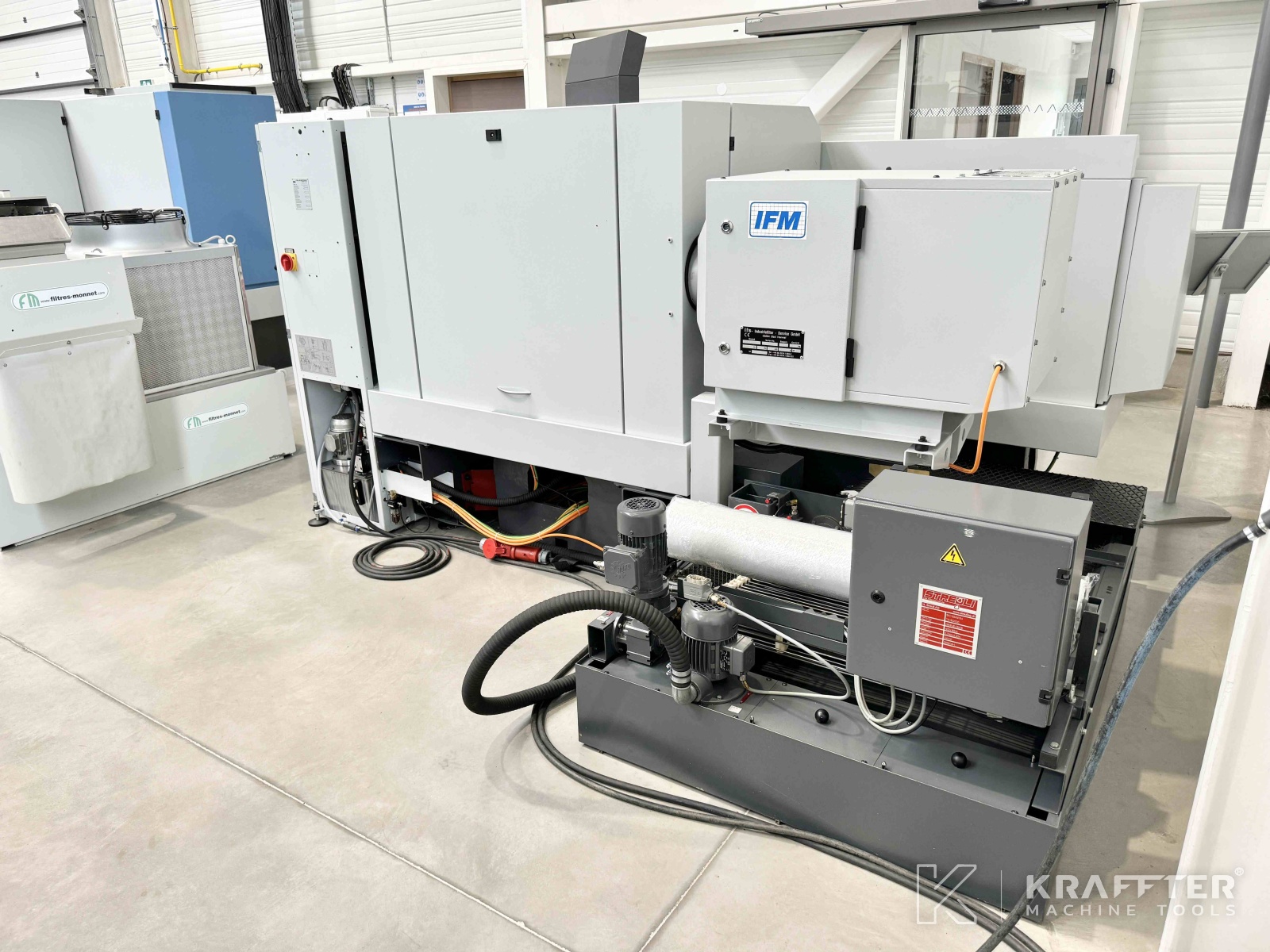

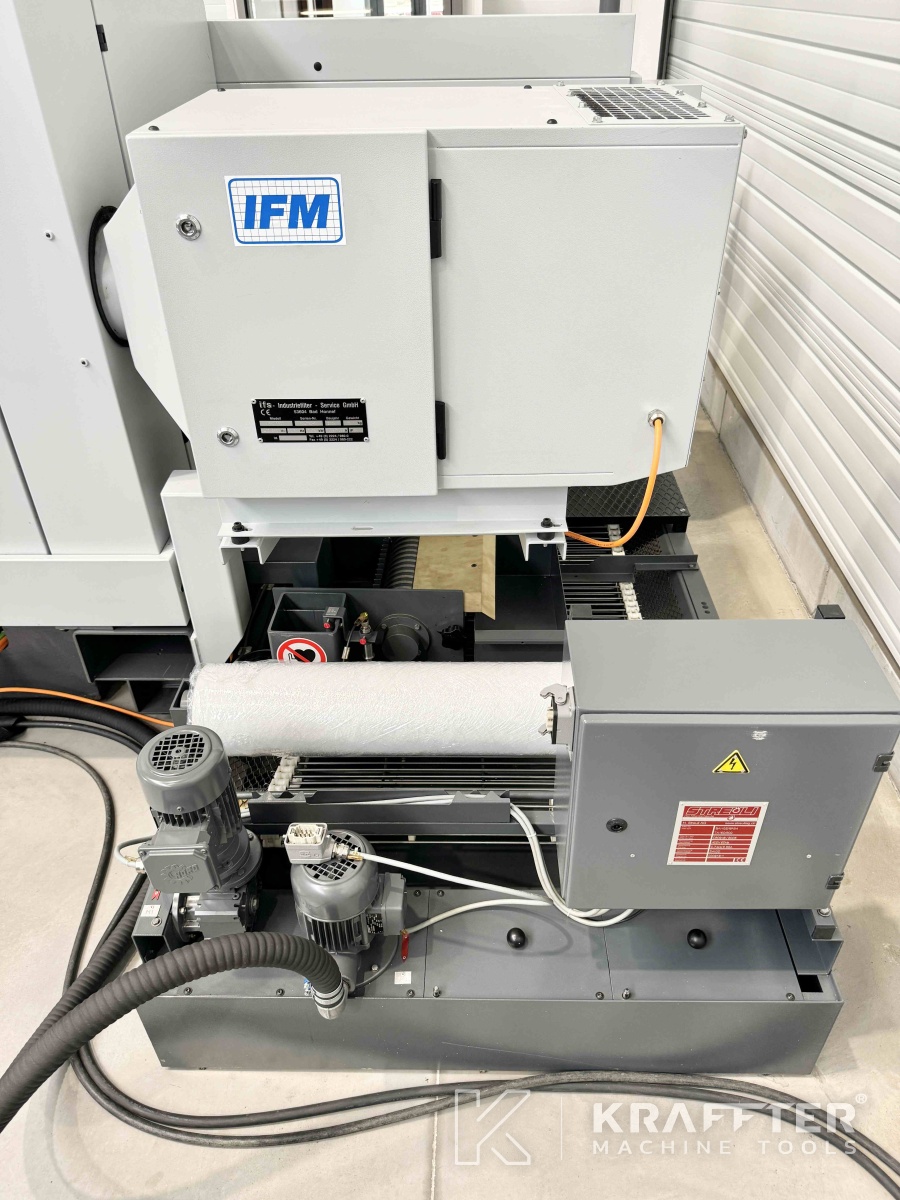

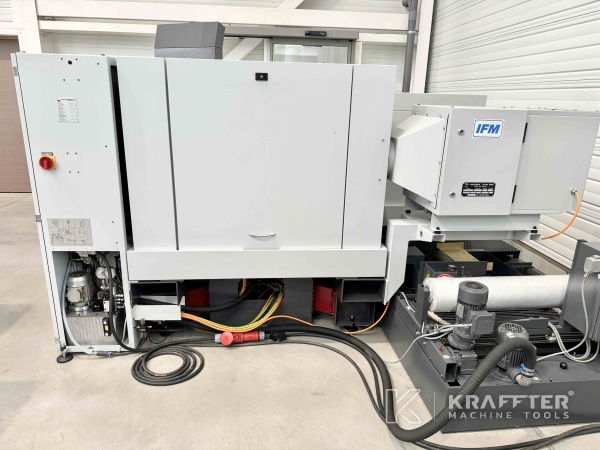

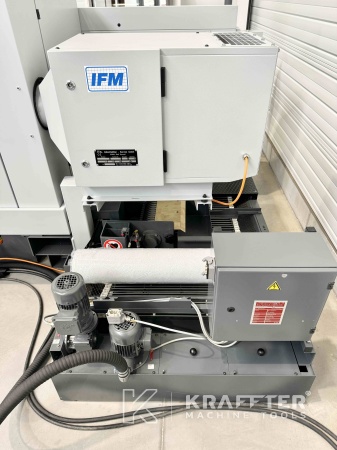

x1 IFM type IFMC 1800 oil mist extraction unit

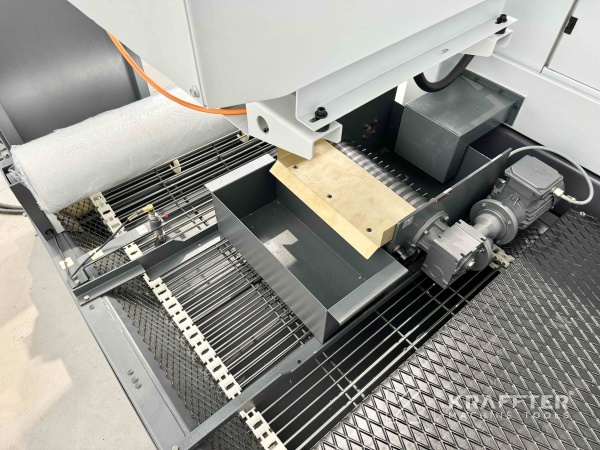

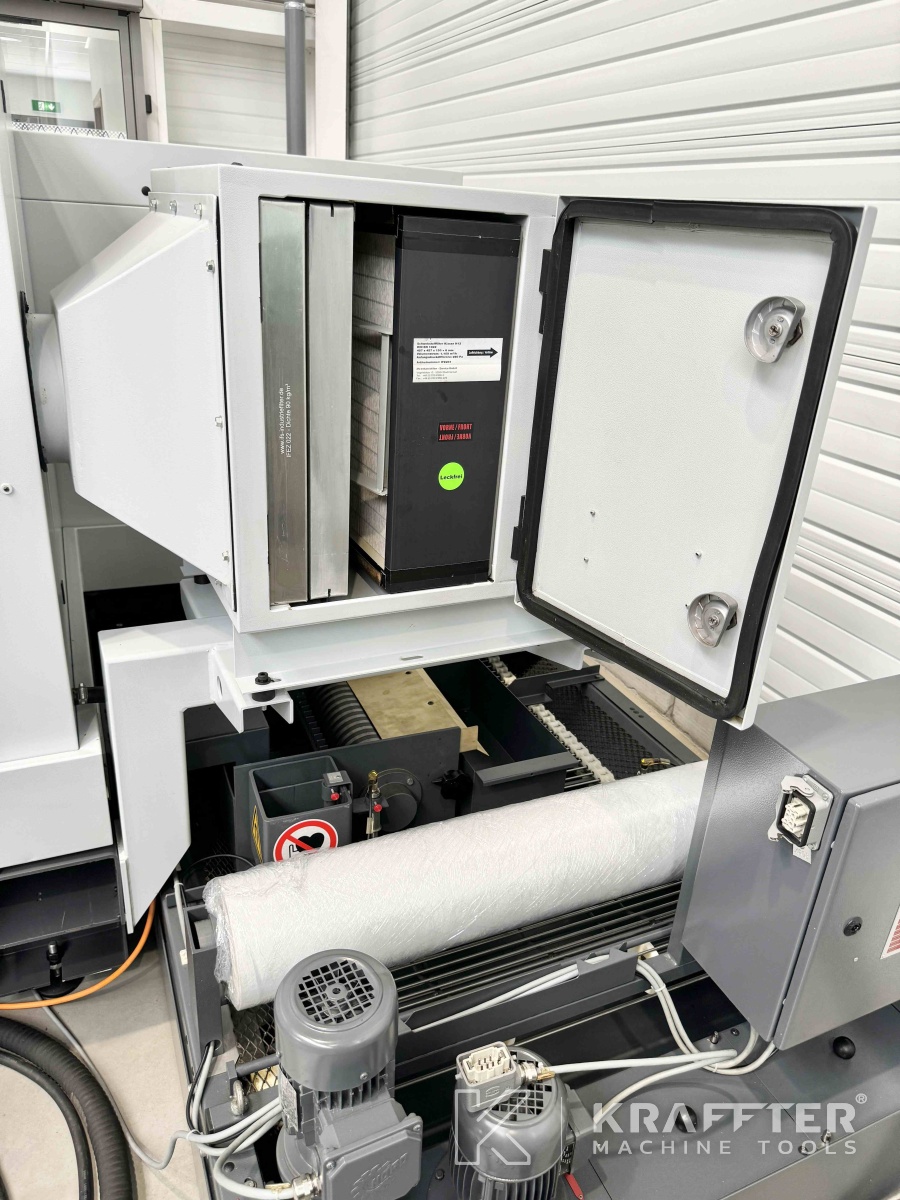

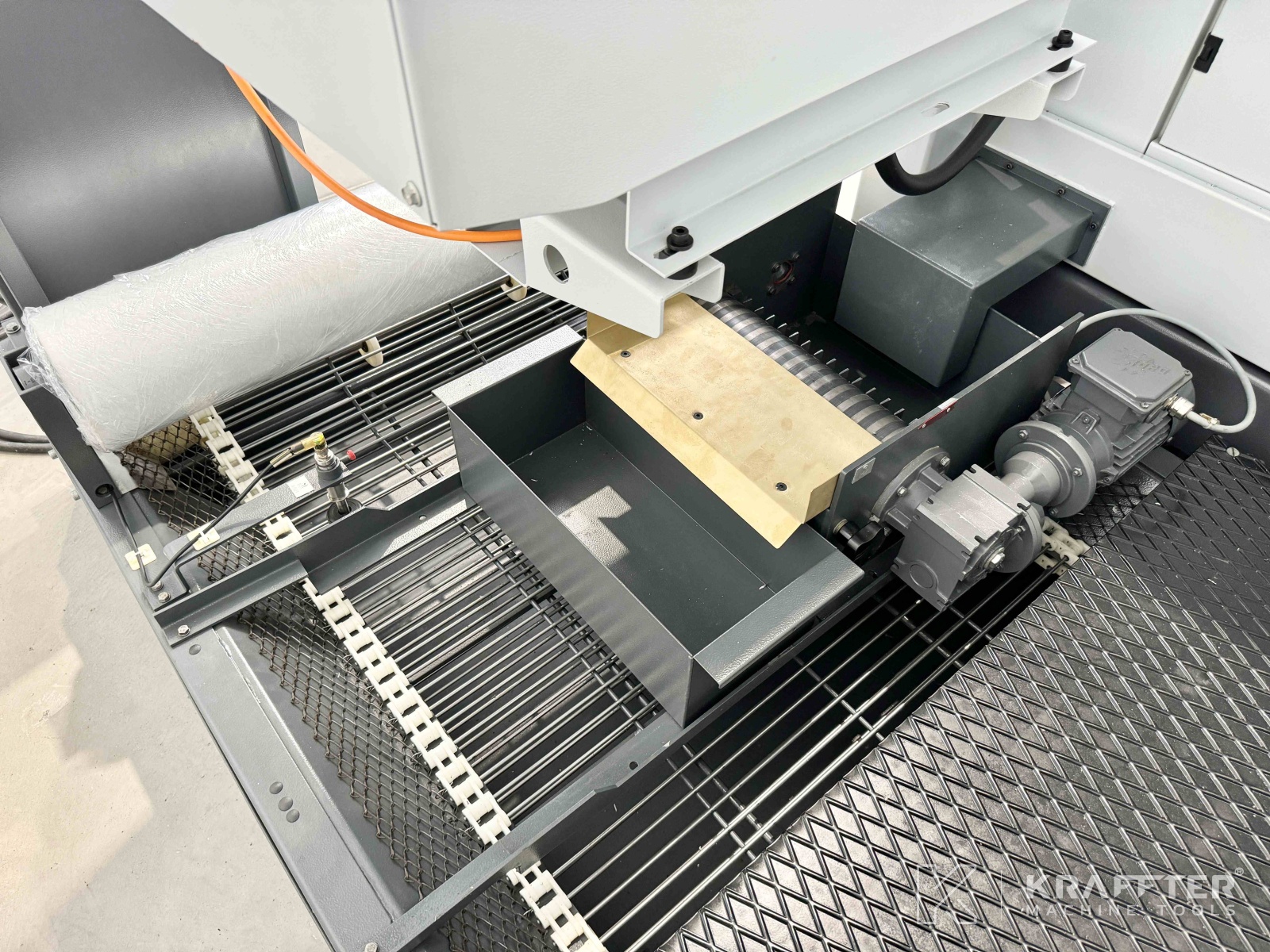

x1 magnetic swarf-/paperband filter unit (375 litres) SPB3-SAMG4 (KELLENBERGER item N°: 4071.01)
x1 MOVOMATIC type C25 part probe
x1 top table fine adjustment

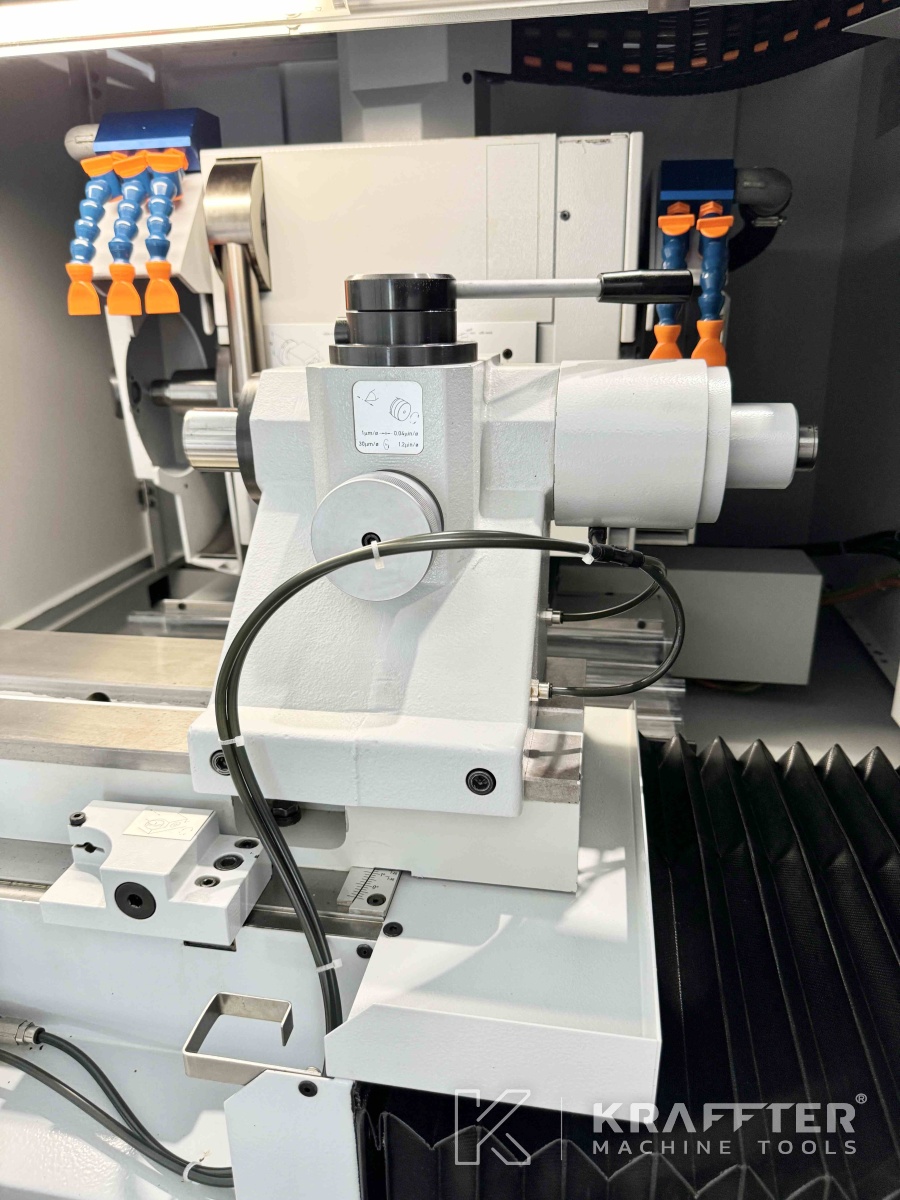

x1 tailstock with fine taper adjustment
x1 air-cushioning for easy tailstock repositioning - KELLENBERGER item N°: 4030.05

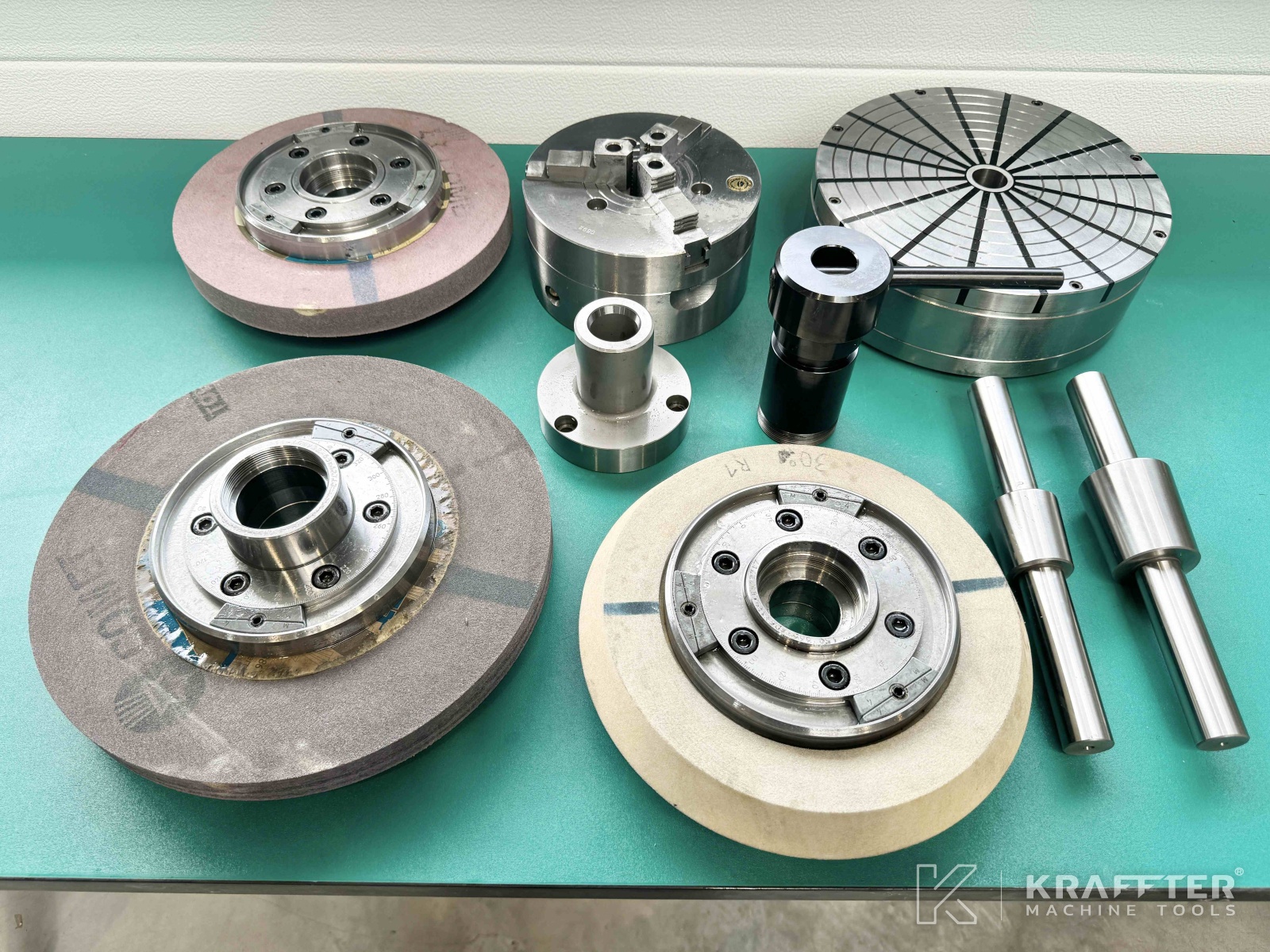

x5 grinding wheel flanges Ø127 [mm]
x10 internal grinding quills

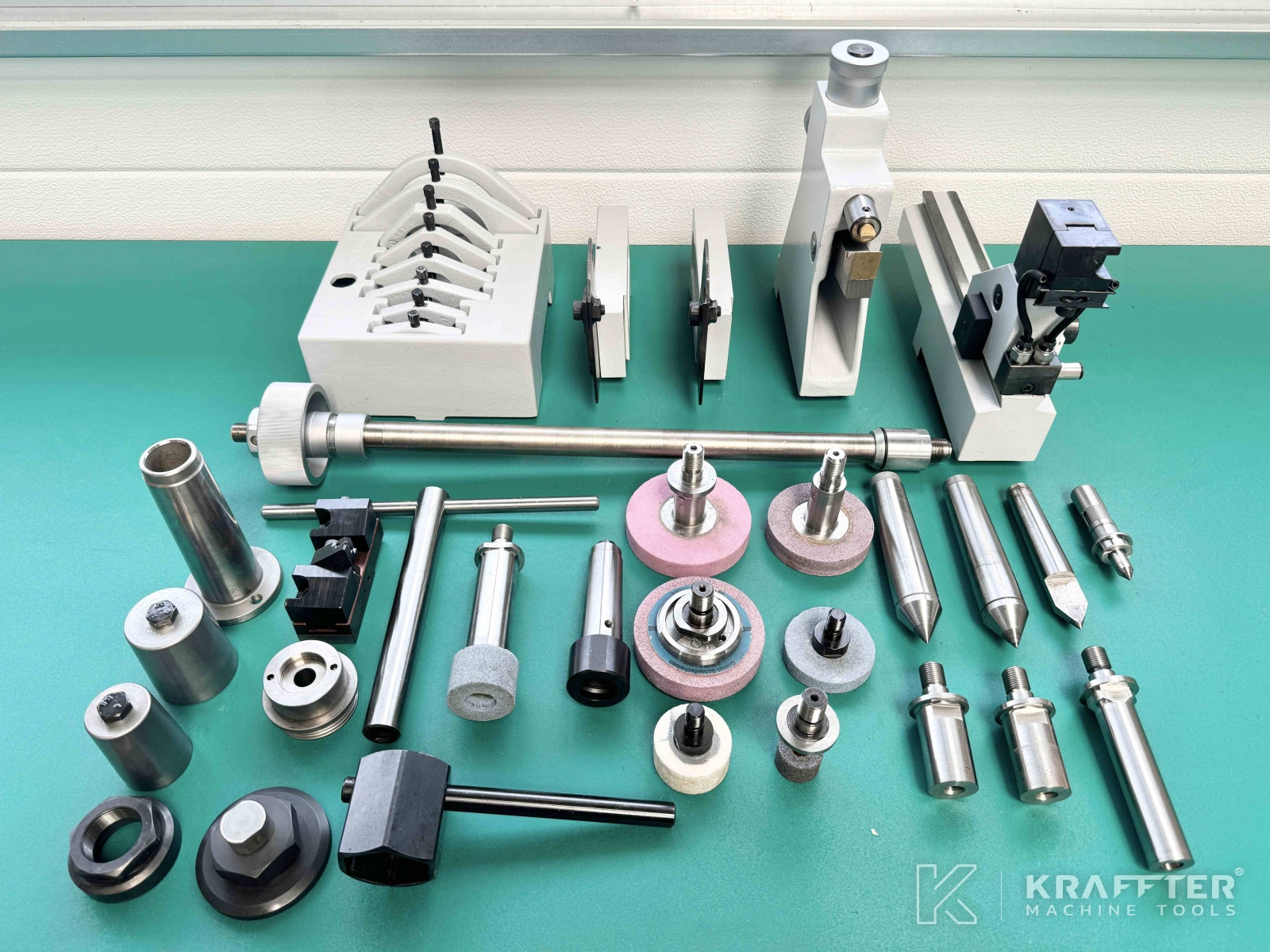

x4 fixed center points
x1 three-jaw chuck Ø205 [mm]
x1 permanent magnetic chuck Ø300 [mm] - KELLENBERGER item N°: 11010.04
x1 spring collet adaptator for SCHAUBLIN B32 - KELLENBERGER item N°: 11030.00

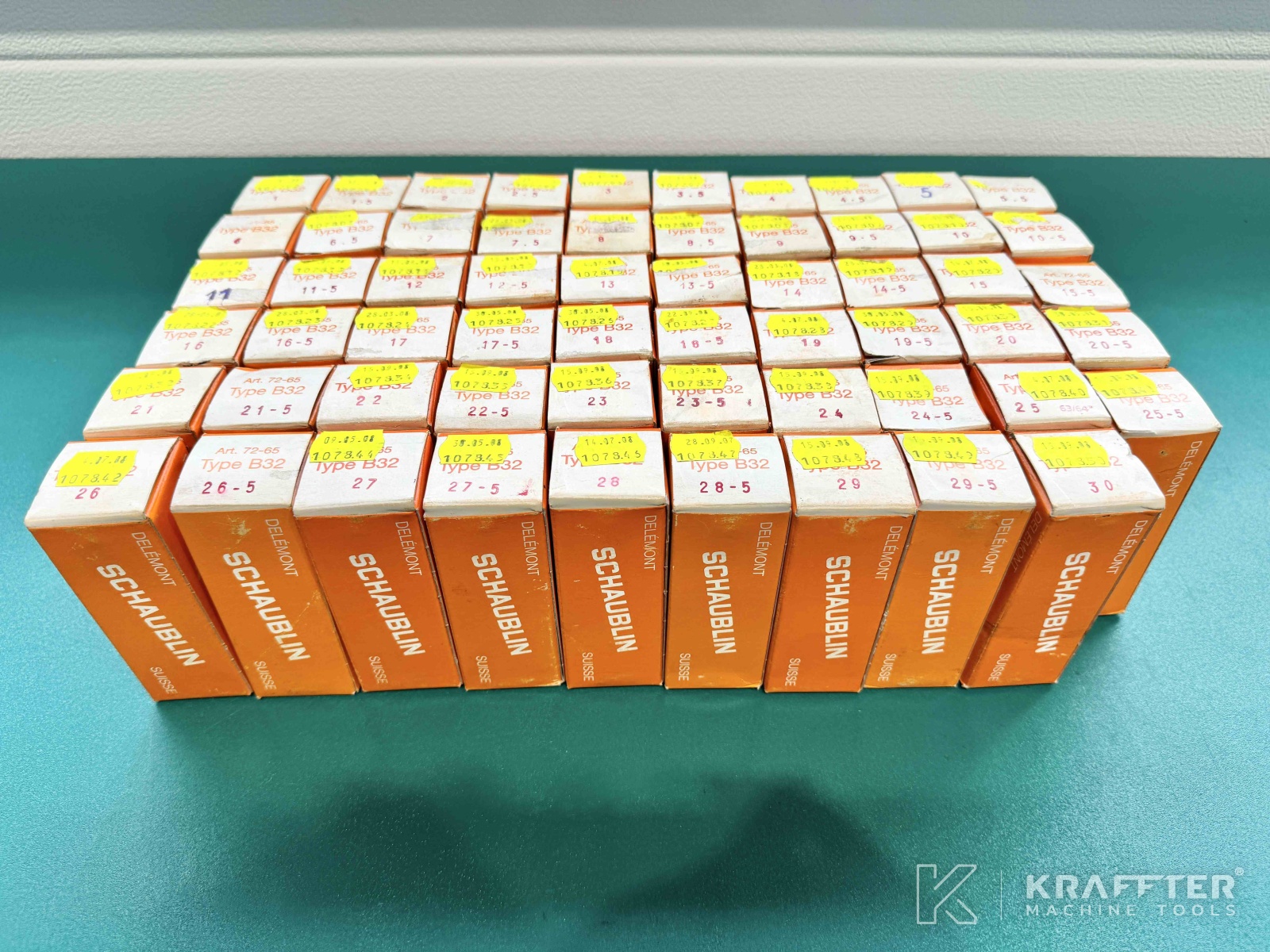

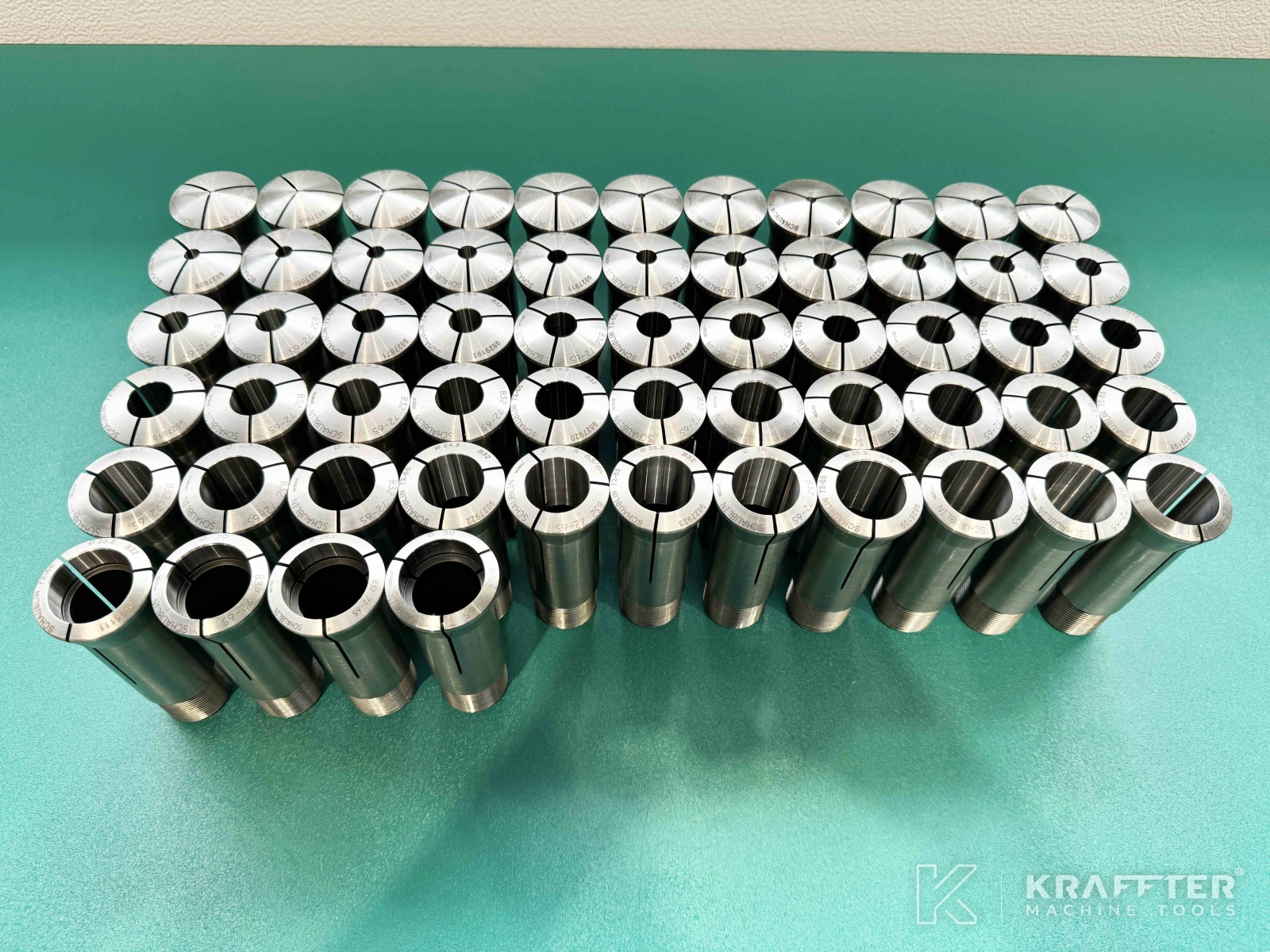

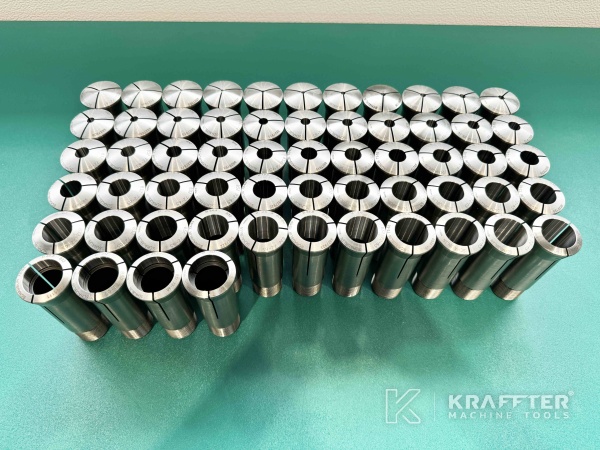

x1 set of 59 spring collet SCHAUBLIN B32 - KELLENBERGER item N°: 11030.20
x1 mobil hand panel - KELLENBERGER item N°: 10880.00
x1 set of 8 work drivers - KELLENBERGER item N°: 11040.00

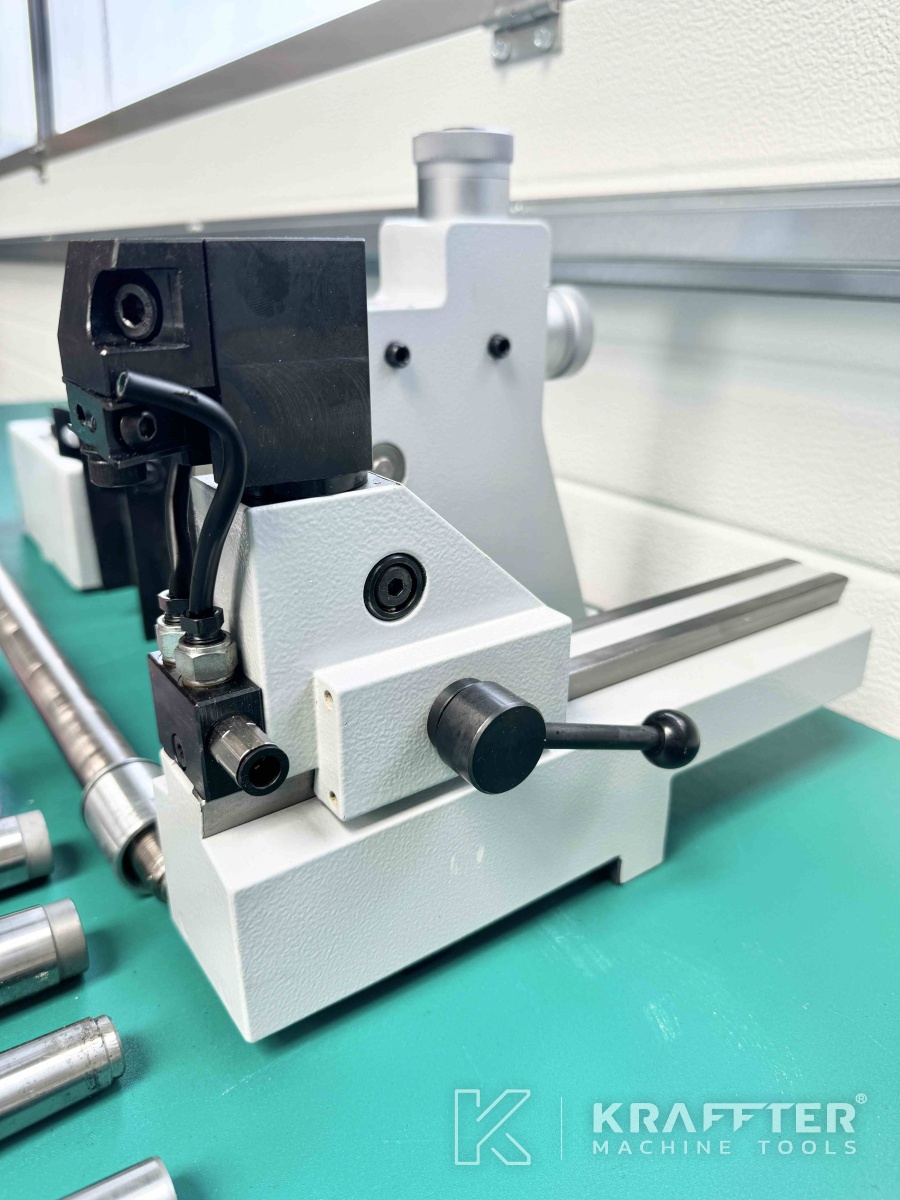

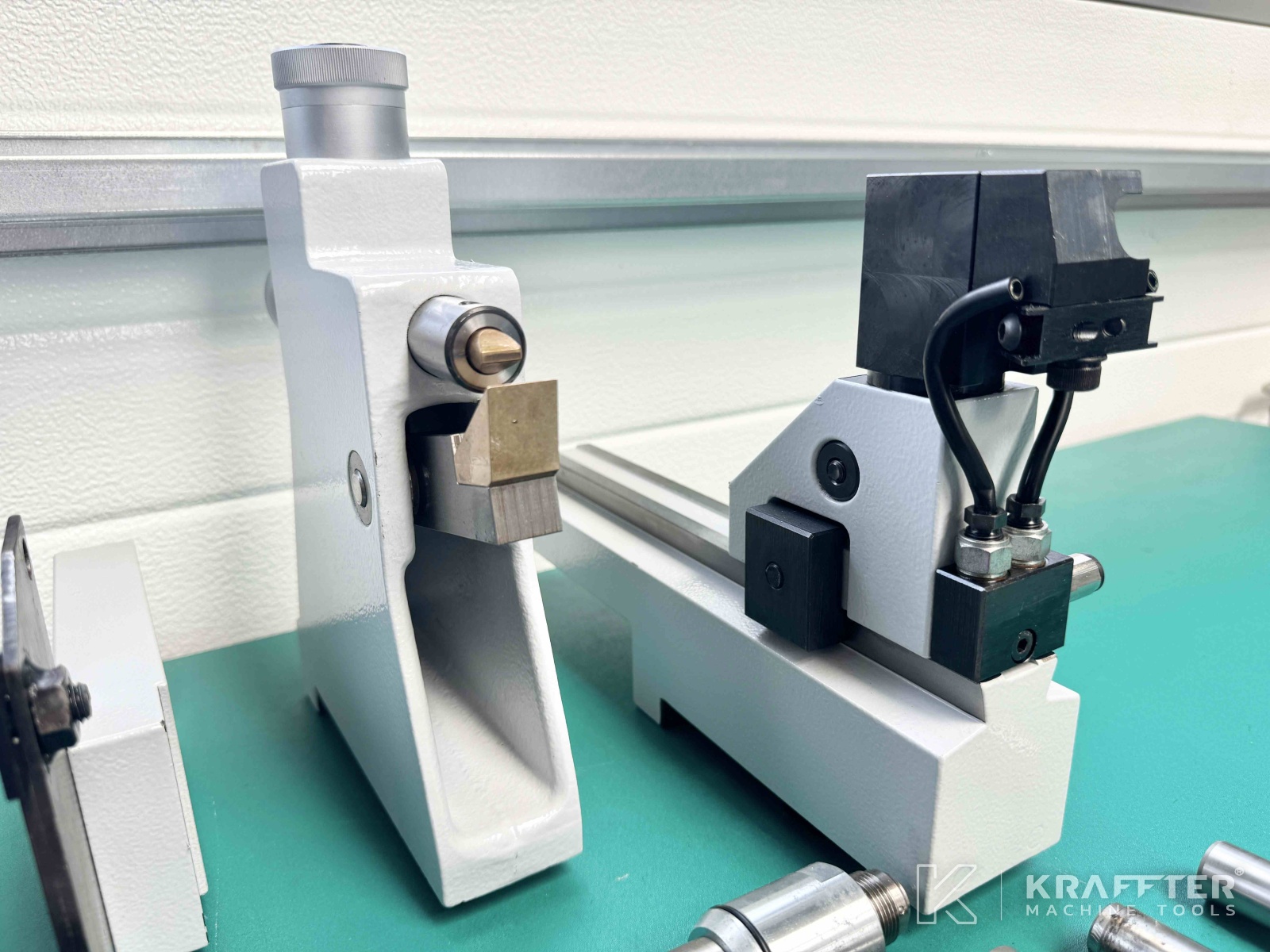

x1 two-jaw steady rest Ø 5 to 80 [mm] - KELLENBERGER item N°: 11200.00
x1 set of 2 workpiece supports - KELLENBERGER item N°: 11270.00
x1 dressing device on upper table - KELLENBERGER item N°: 11310.00
x2 arbors for wheel balacing operations

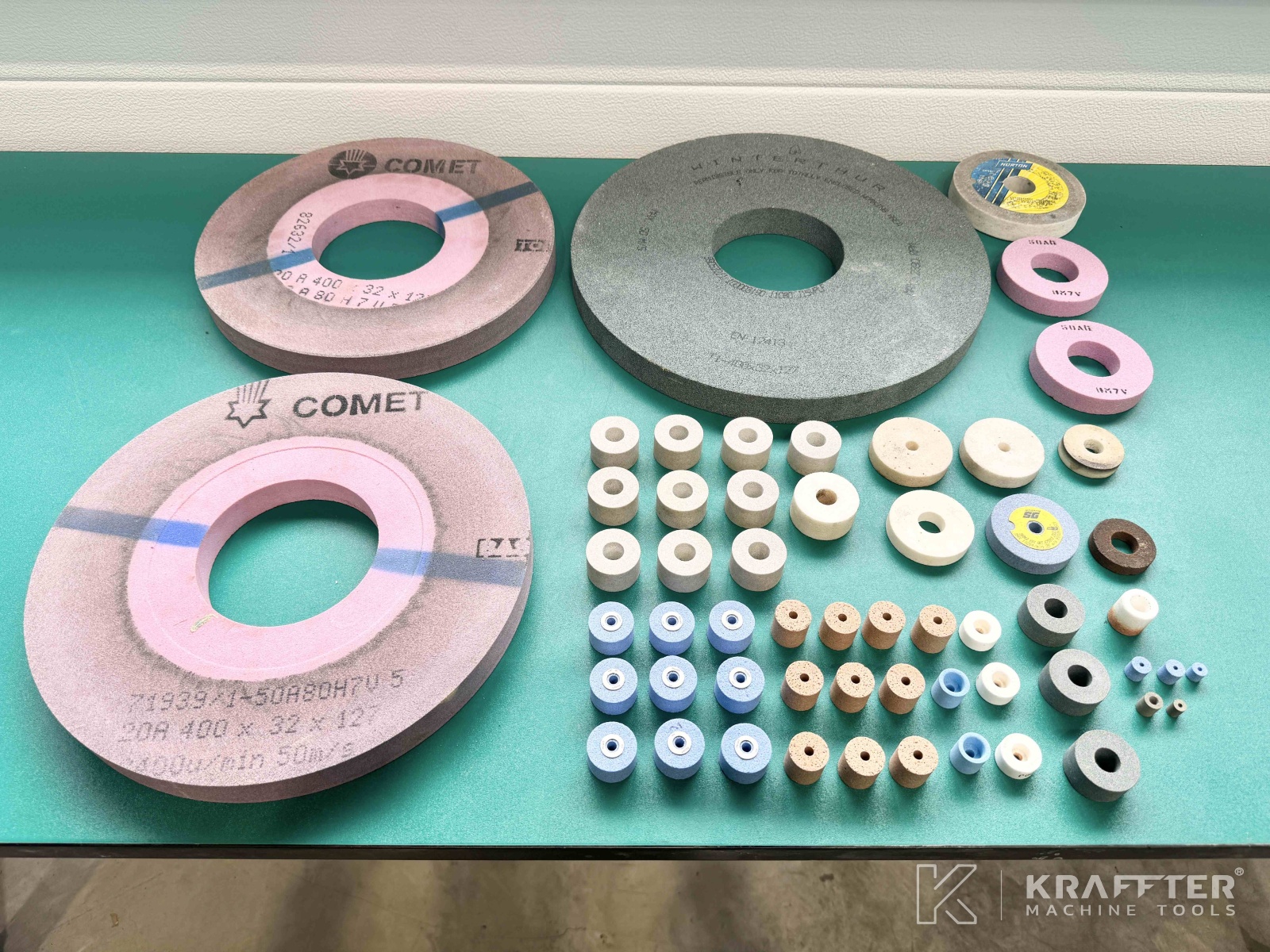

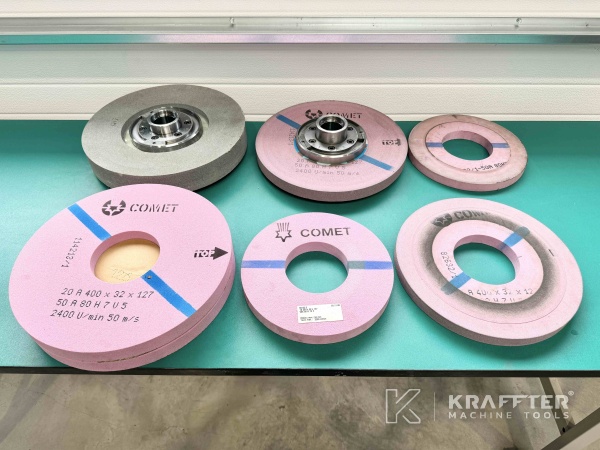

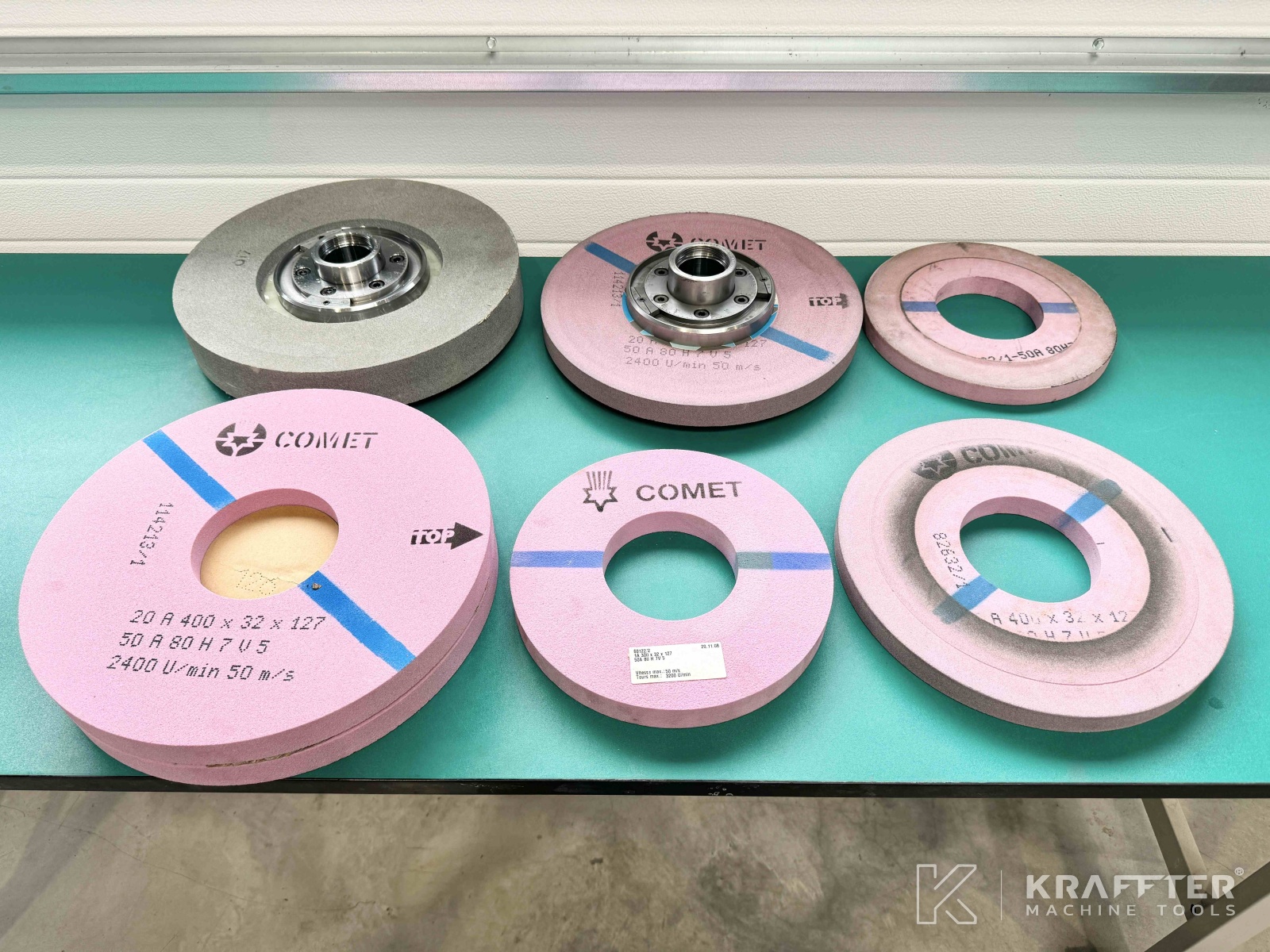

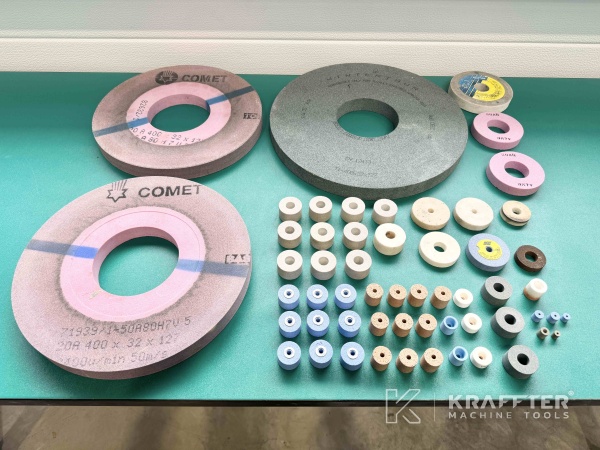

x1 set of grinding wheels

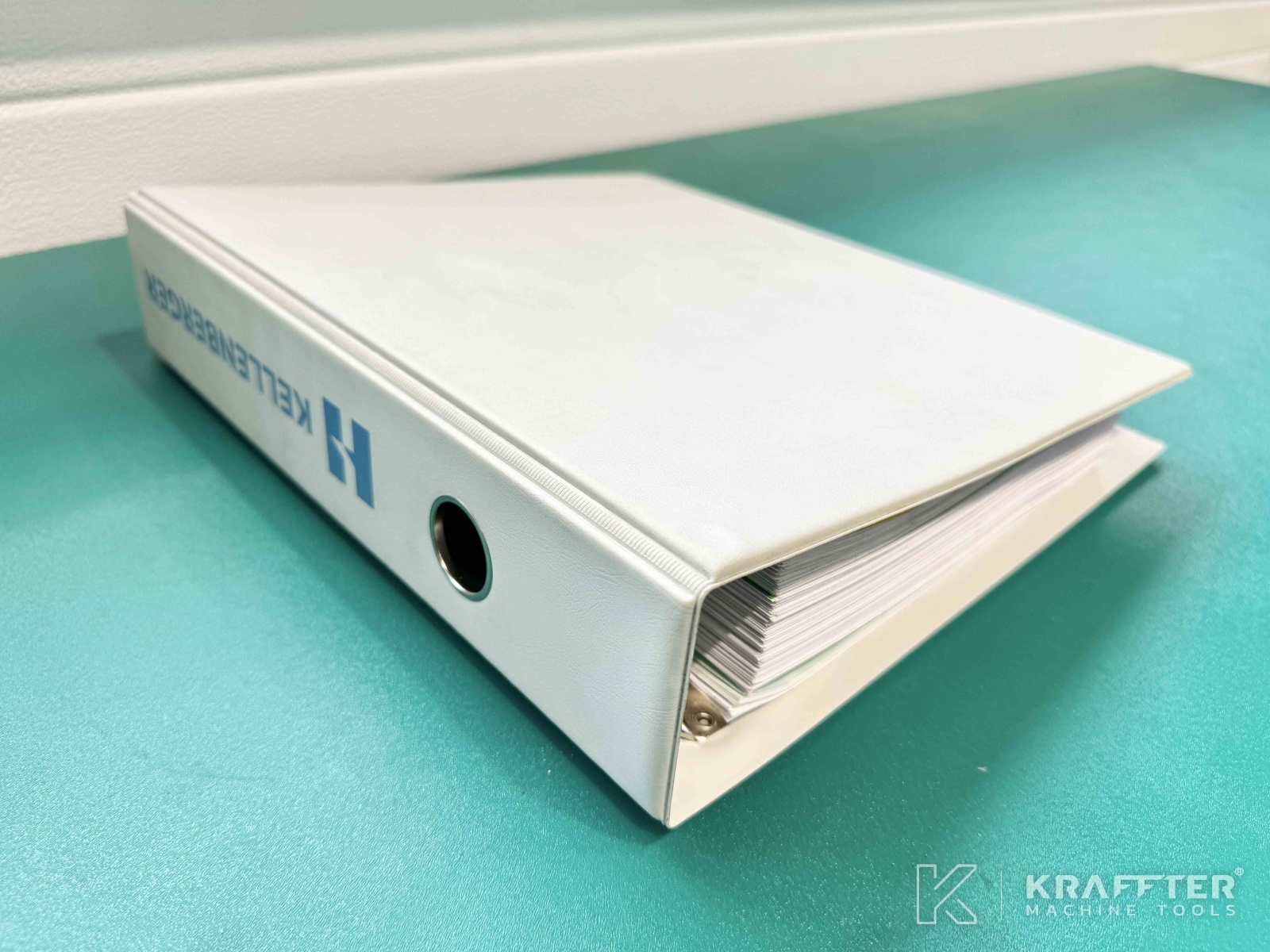

x1 users manual
