Sold

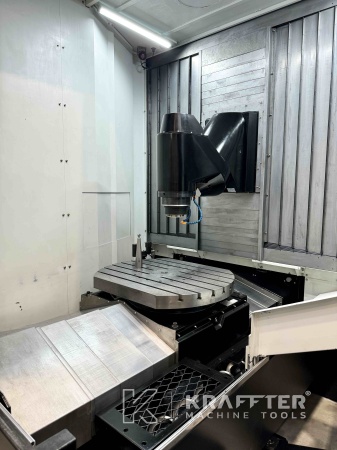

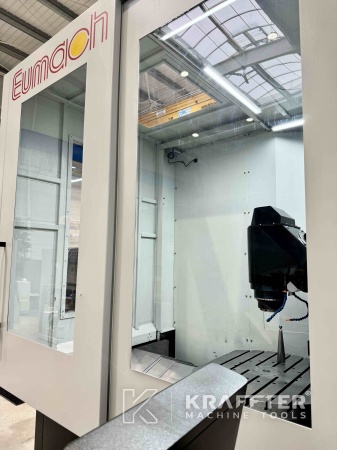

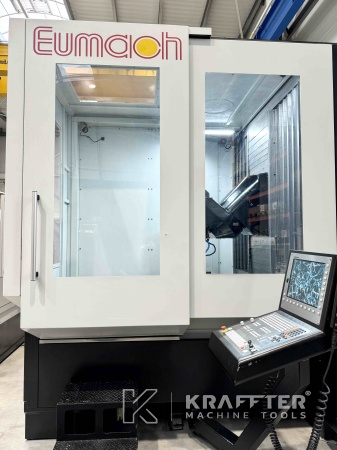

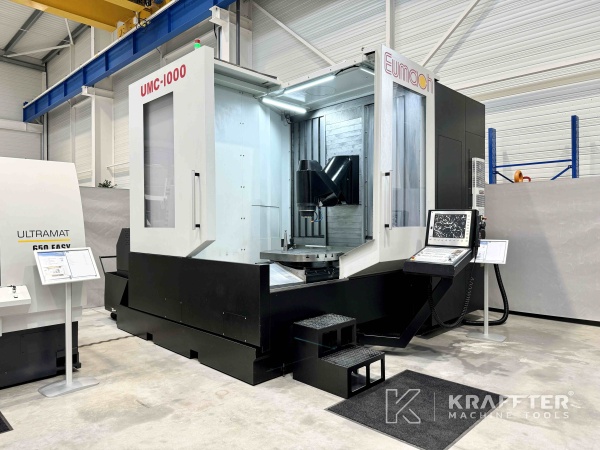

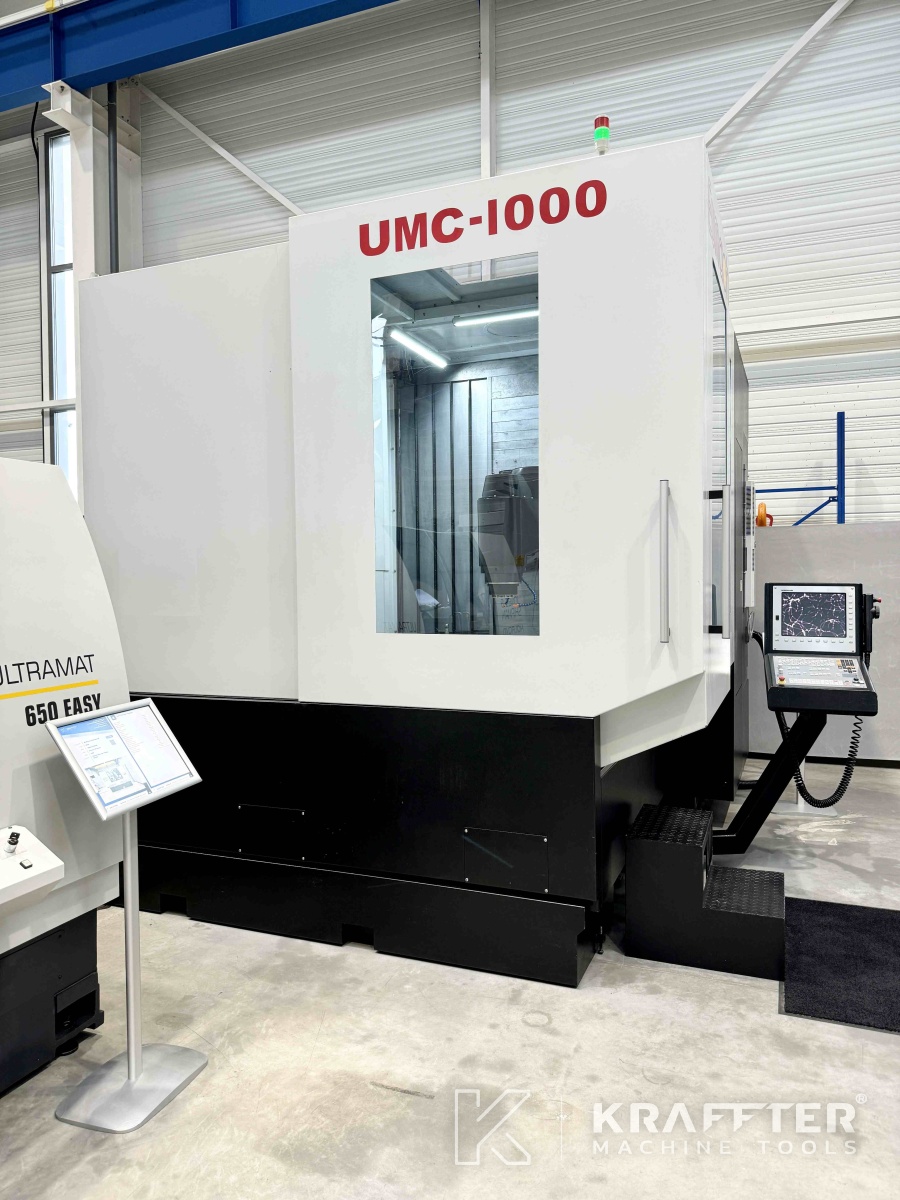

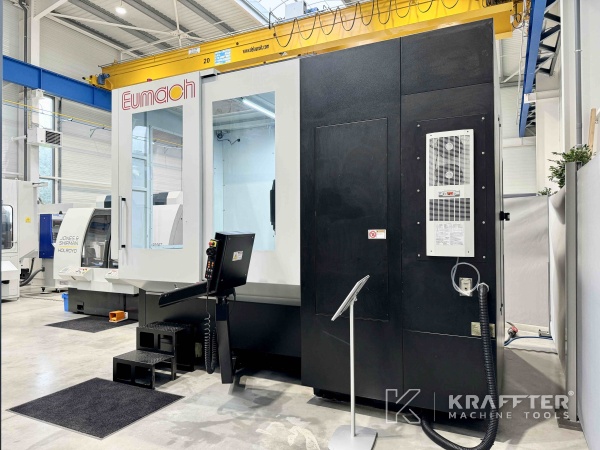

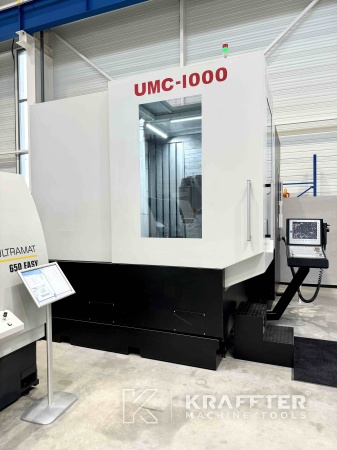

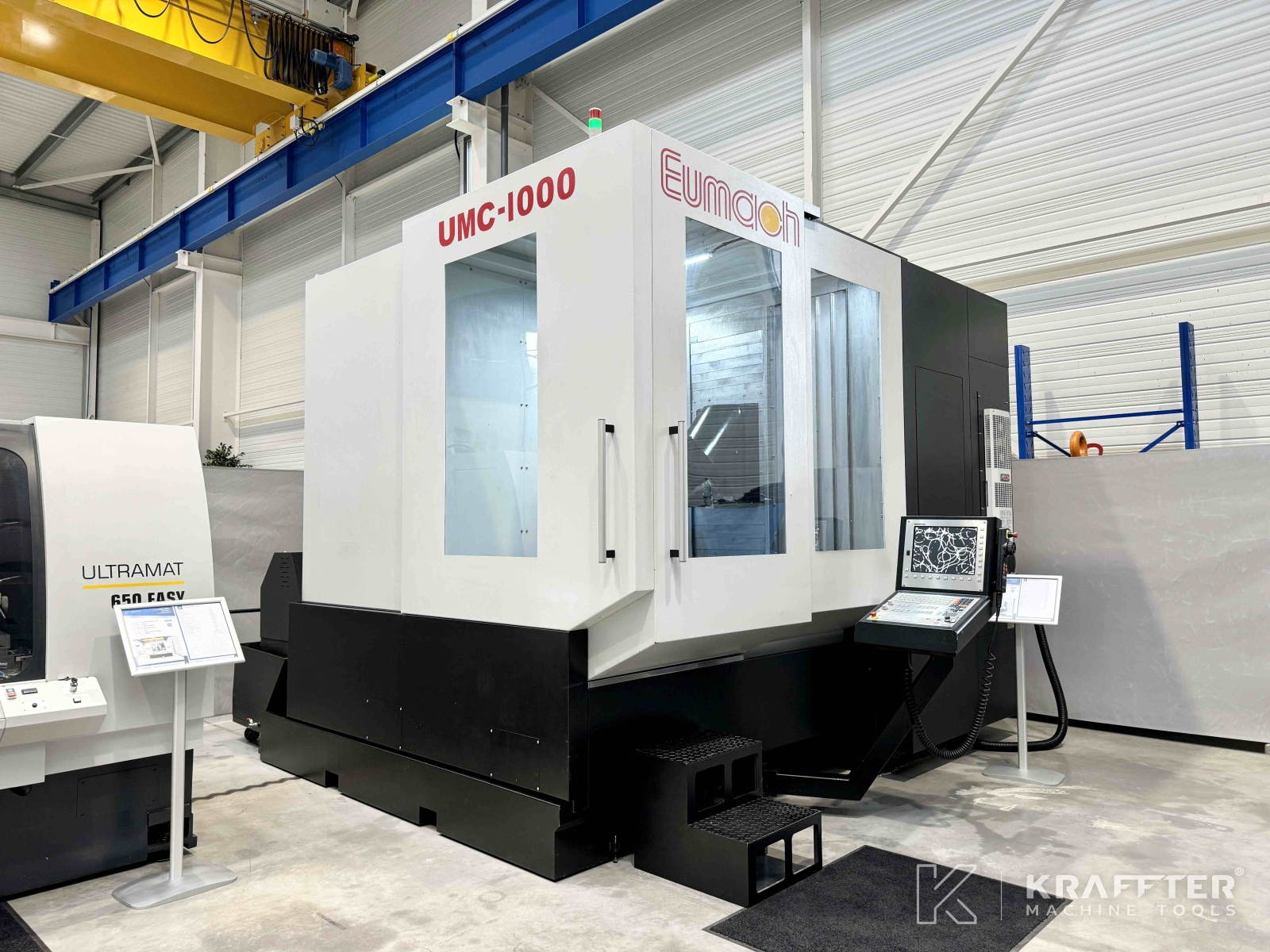

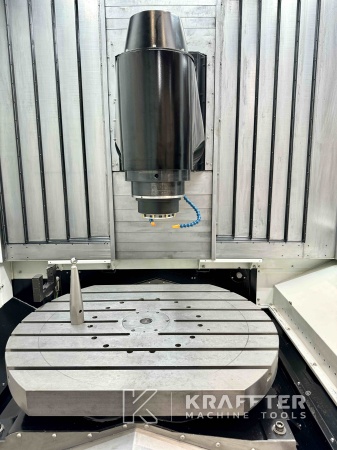

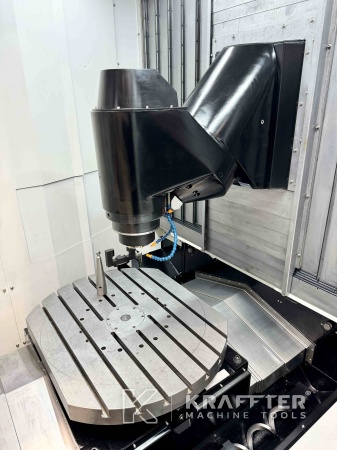

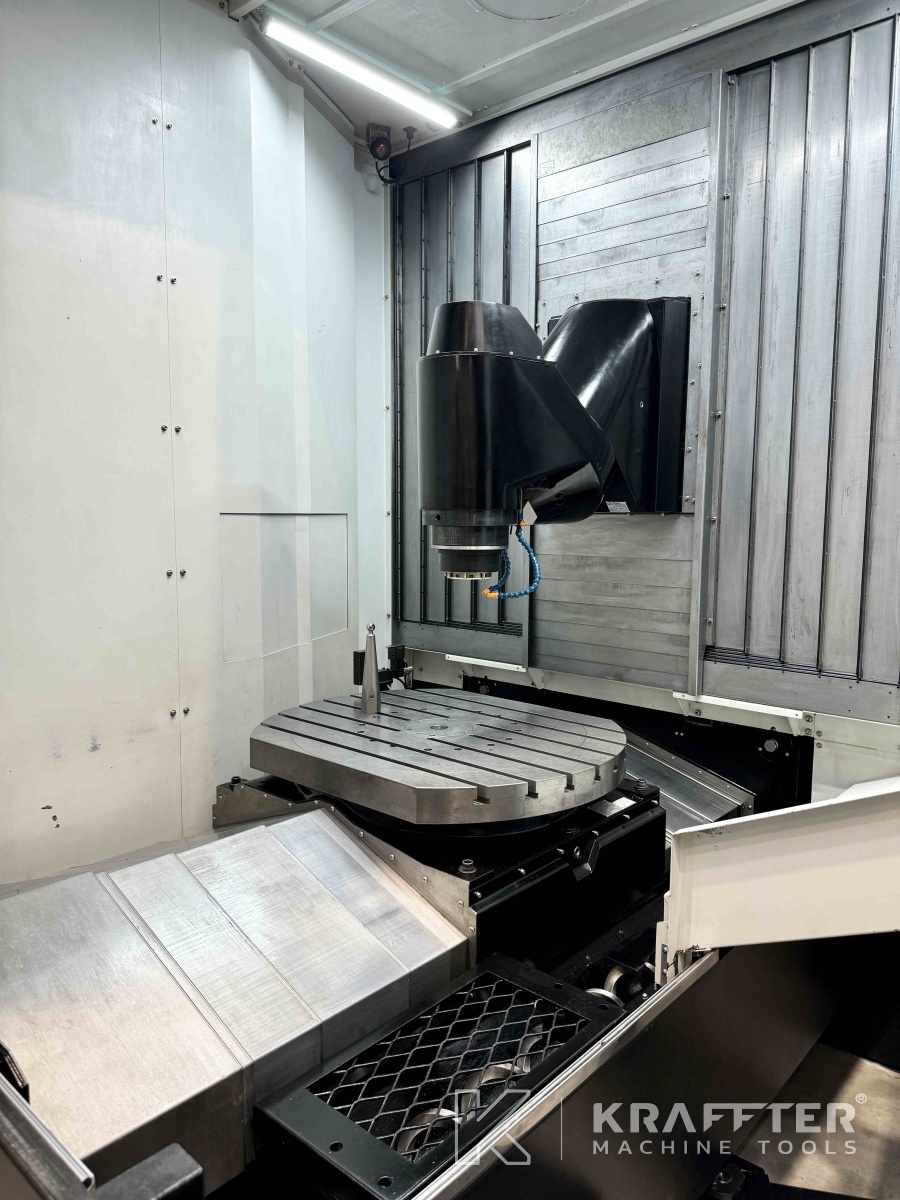

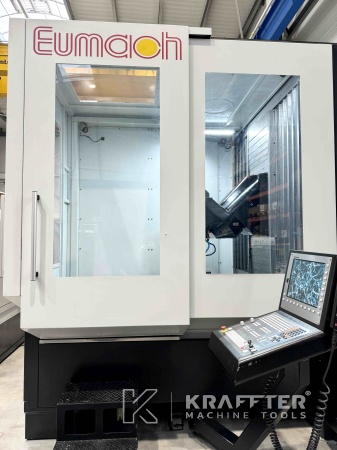

Type of machine : CNC machining centre
Brand : EUMACH
N° de stock: 90122
Model : UMC1000
Year : 2014
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

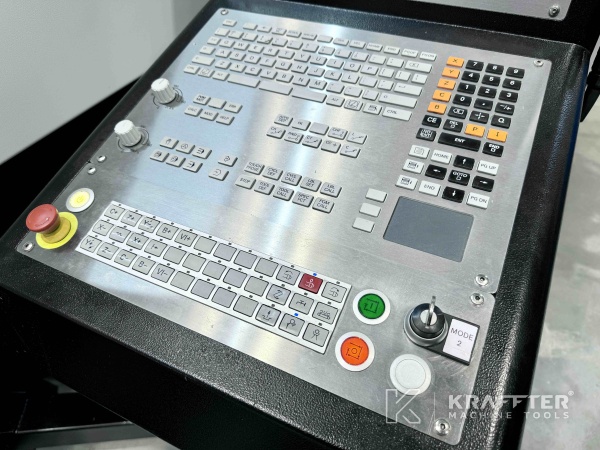

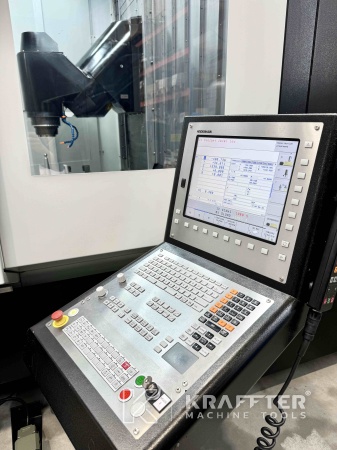

CNC control

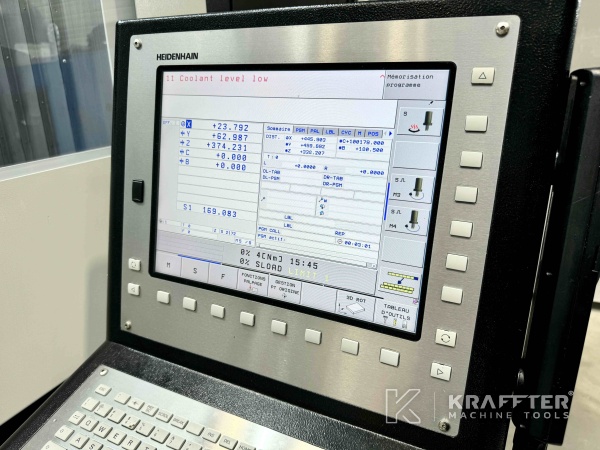

HEIDENHAIN iTNC 530 HSCI
Number of simultaneous axes
5
Stroke X axis
1000 [mm]
Stroke Y axis
800 [mm]
Stroke Z axis
700 [mm]
Feed rate on X, Y and Z axes
10000 [mm/min]
Traversing feeds X, Y and Z axes
24000 [mm/min]

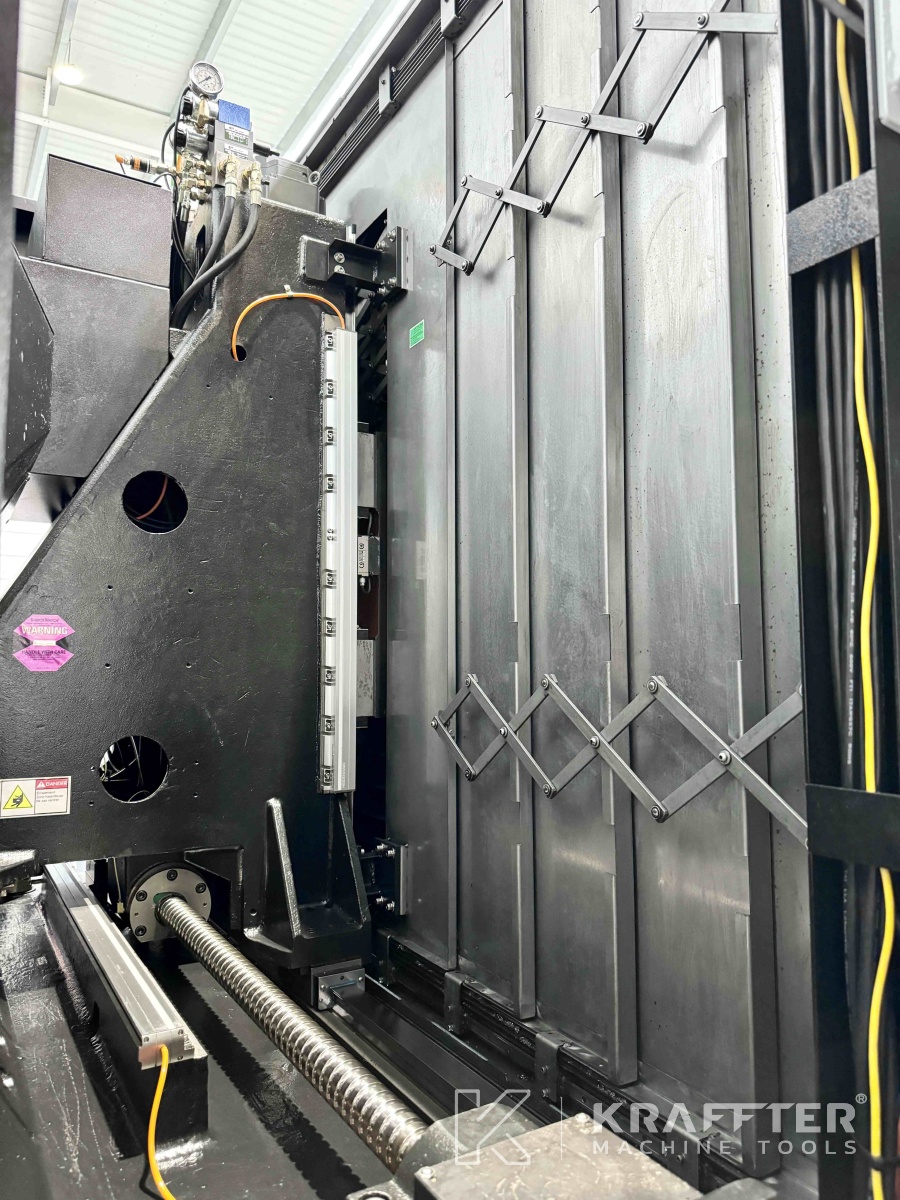

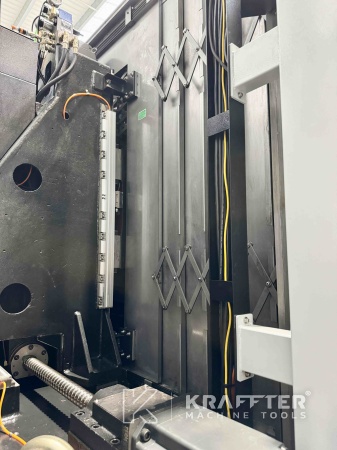

X axis ball screw, Ø x pitch
50 x 12 [mm]
Y axis ball screw, Ø x pitch
50 x 12 [mm]
Z axis ball screw, Ø x pitch
50 x 12 [mm]
Min. distance spindle nose / table
150 [mm]
Max. distance spindle nose / table
850 [mm]

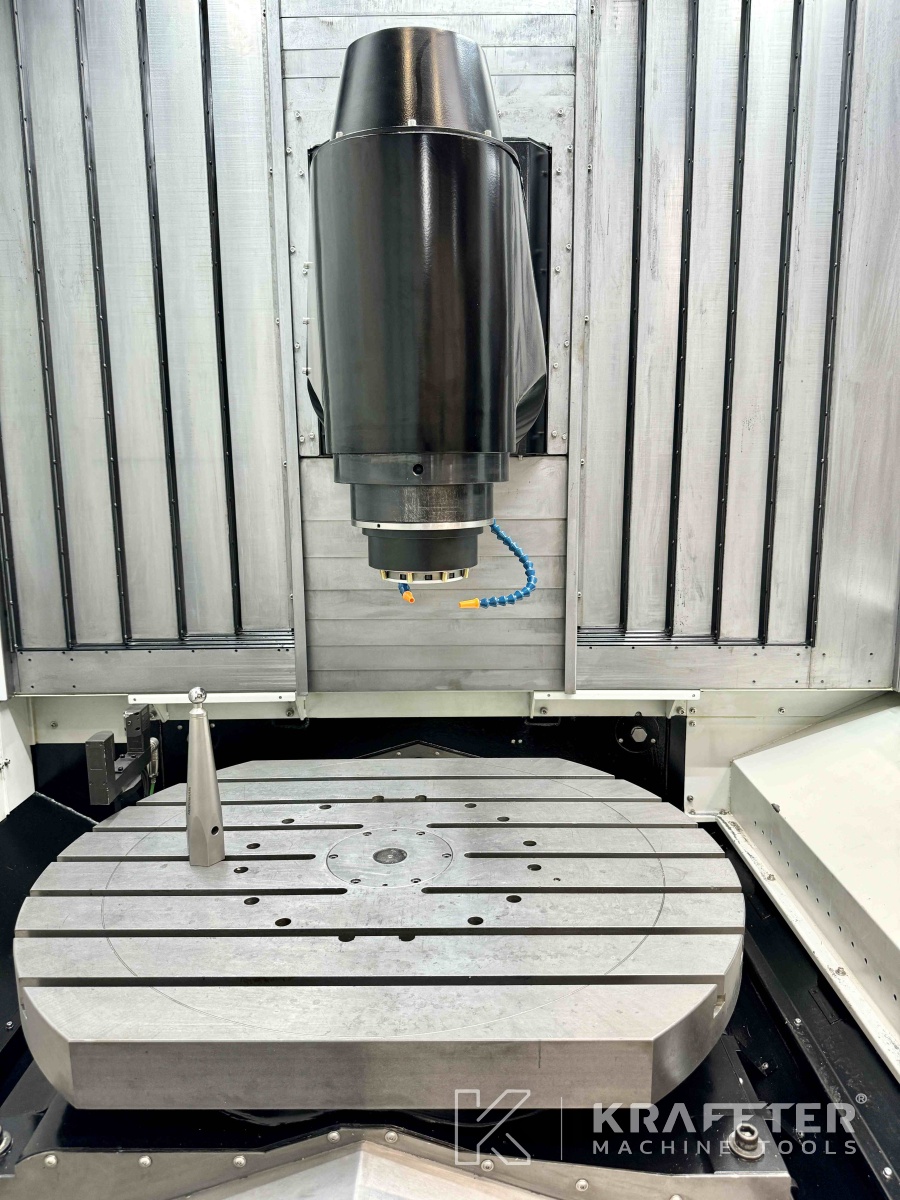

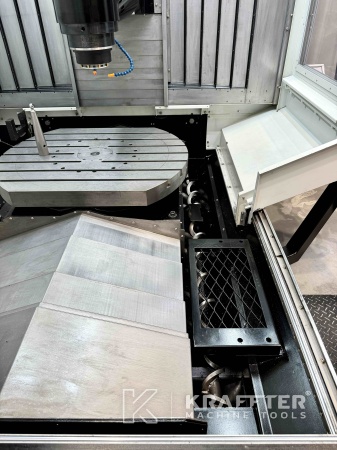

Table length
1000 [mm]
Table width
800 [mm]
Max. load on table
1500 [Kg]

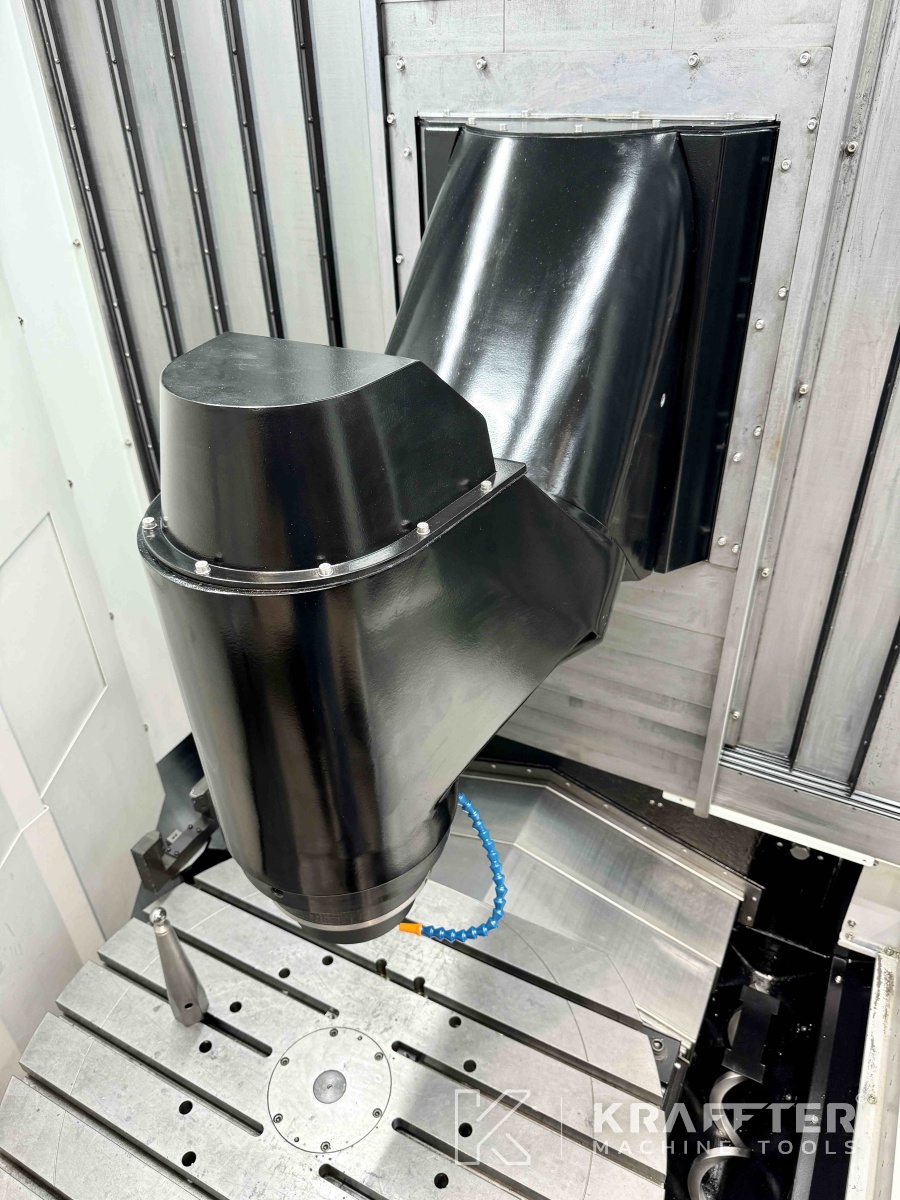

B axis swivelling stroke
180 [°]
Stroke C axis : table revolution
360 [°]
Tilting table
0.001 [°]
B axis indexing precision
0.001 [°]

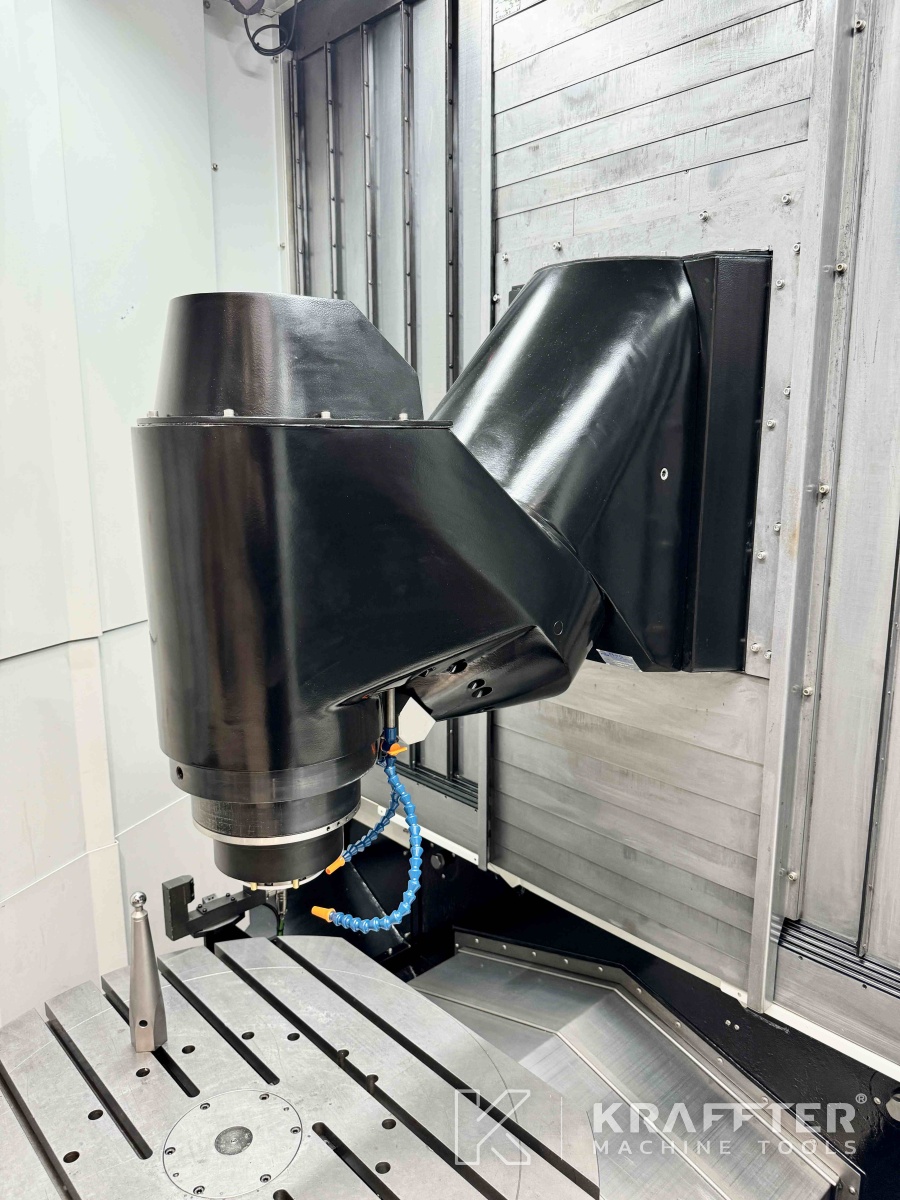

Spindle type
HSK-A 63
Max. spindle speed
18000 [rpm]
Spindle power
26 [kW]
Tool changer magazin number of stations
40
Max. tool lenght
300 [mm]
Max. weight of single tool
7 [Kg]
Max. tool diameter
120 [mm]
Lubrication tank capacity
700 [l]
Supply voltage
400 [V]
Weight
15000 [Kg]
Additional information

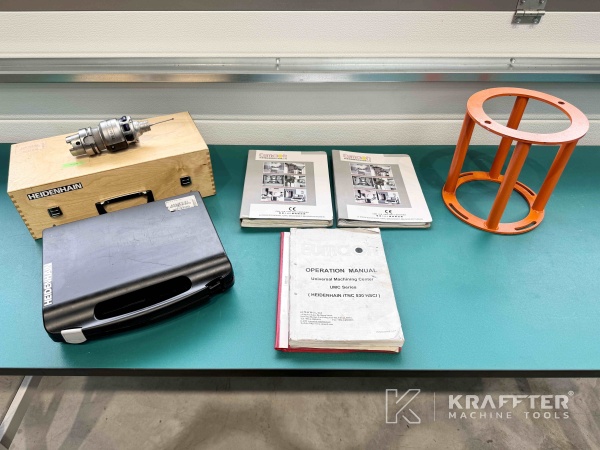

STANDARD EQUIPMENT:

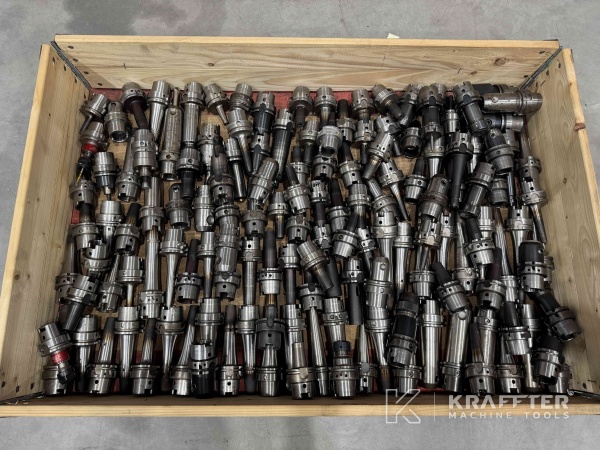

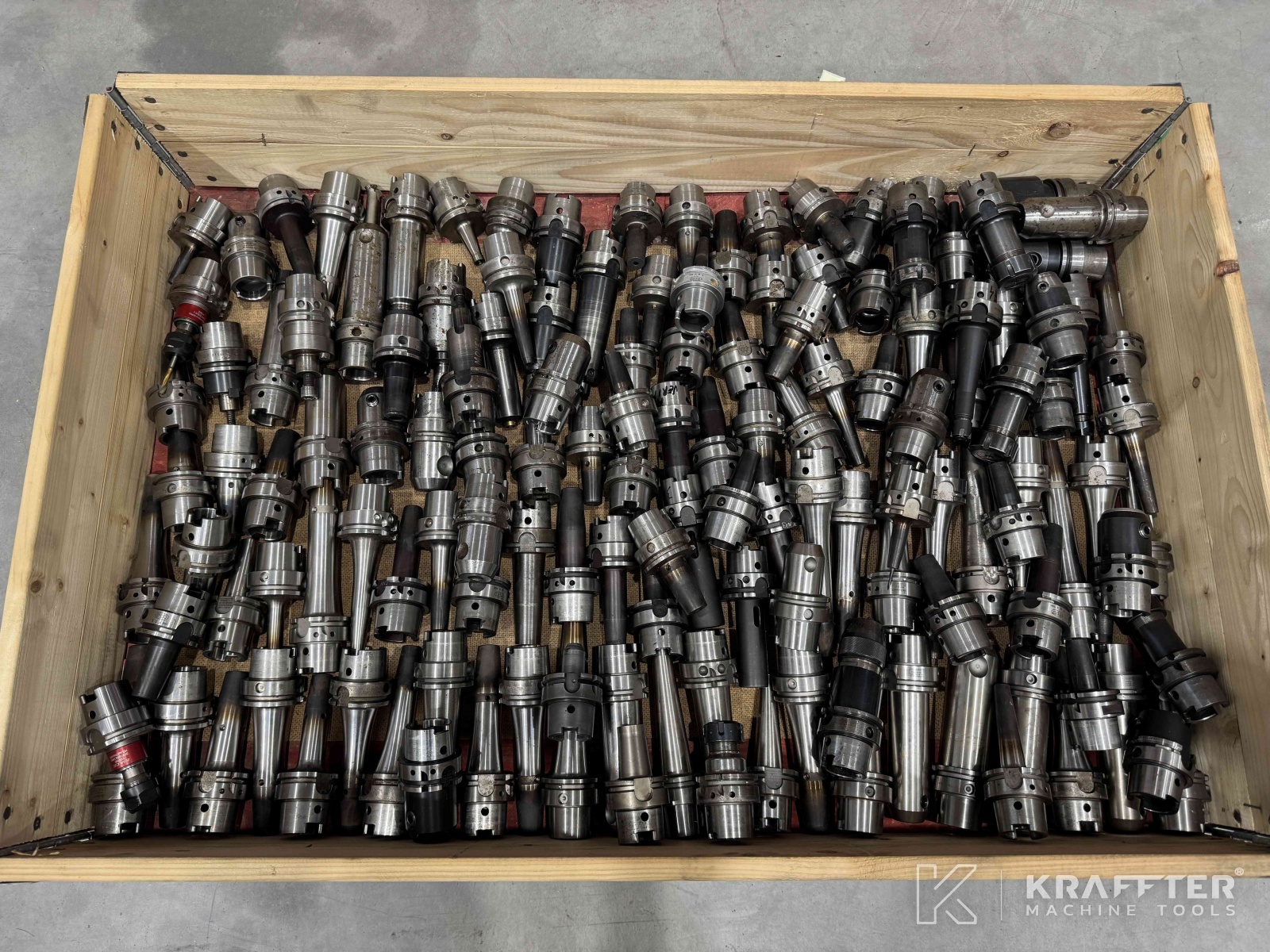

-139 tool holders HSK-A 63

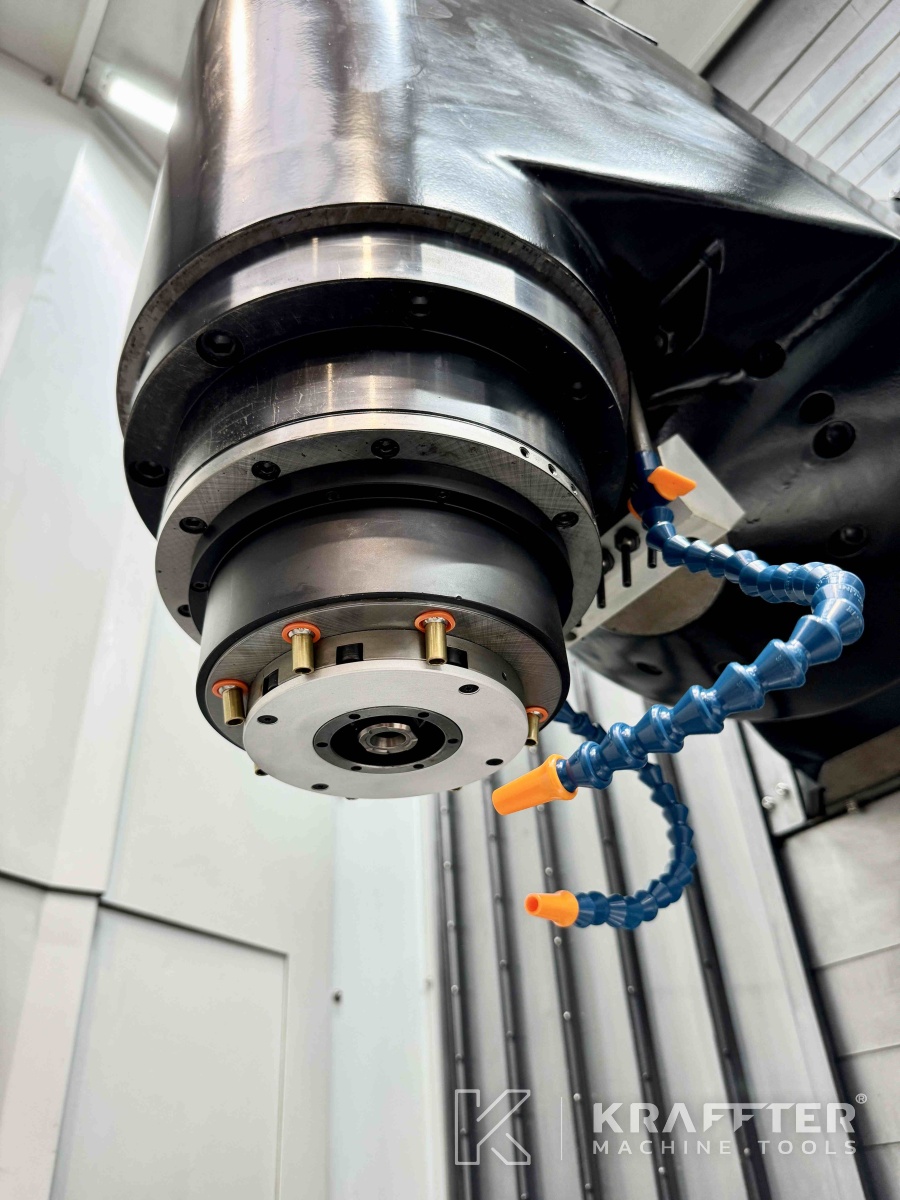

- Cooled spindle 18 000 rpm / 35kW / 160 Nm

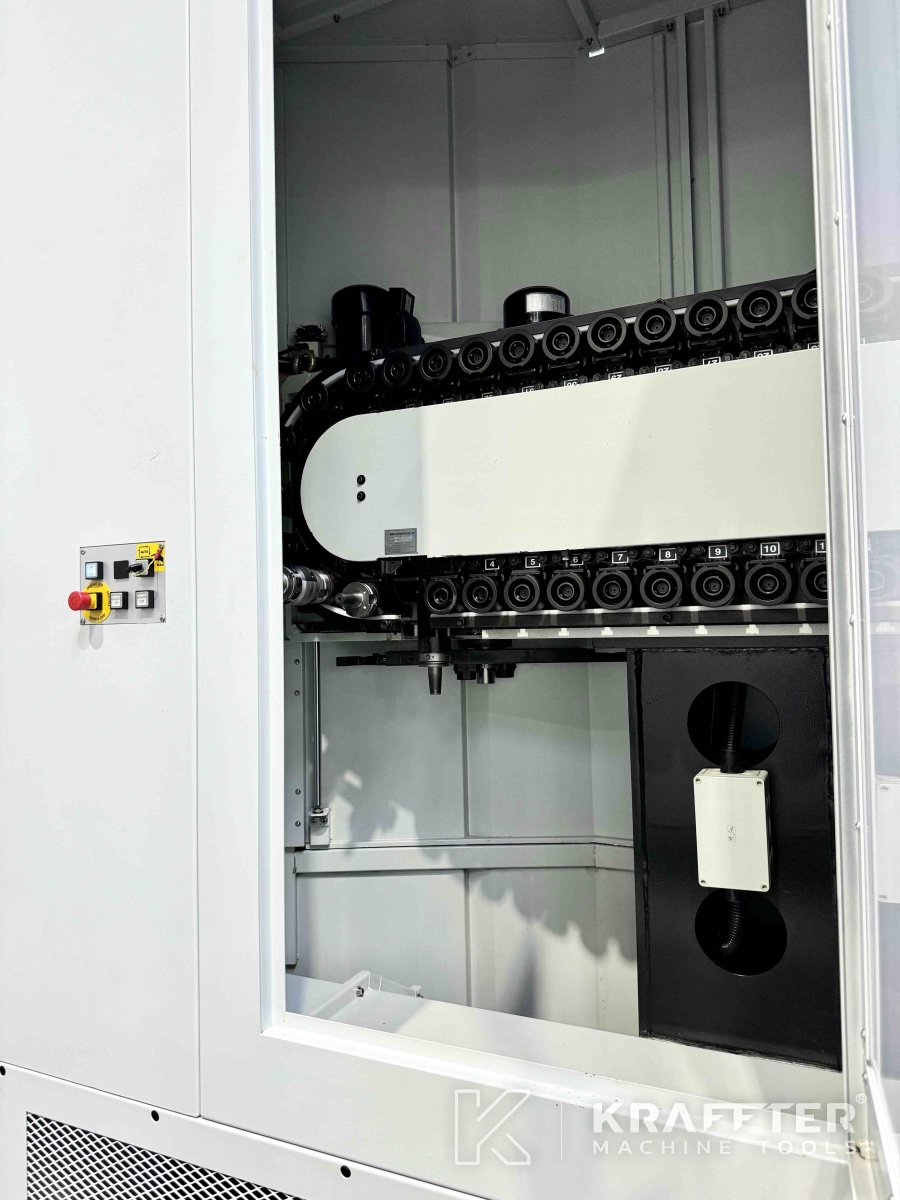

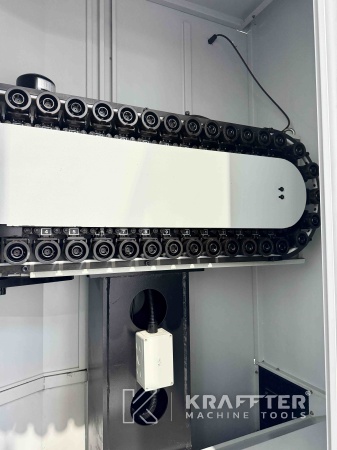

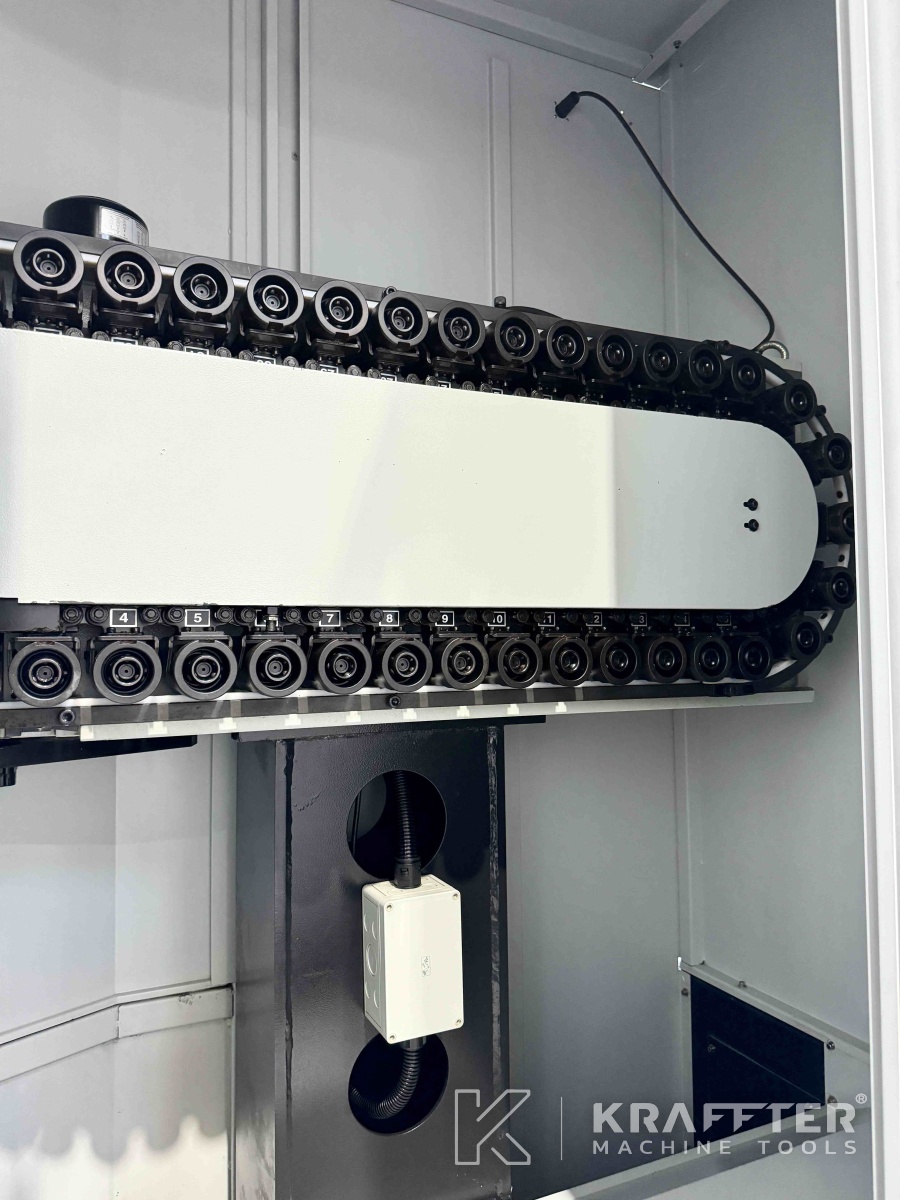

- Double-arm automatic tool changer with 40-station magazine
- Programmable coolant system

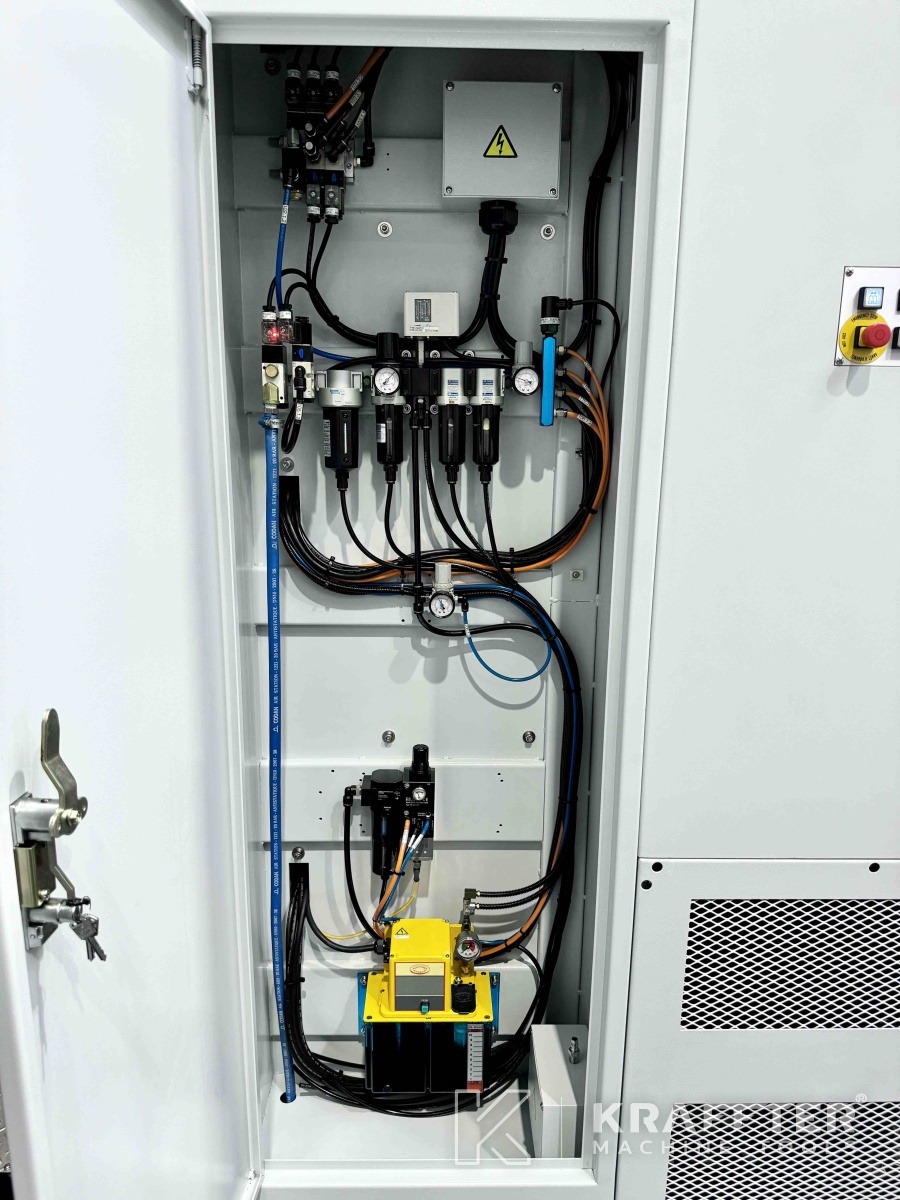

- Centralised automatic lubrication system
- Air blower through spindle
- Chain-type chip conveyor

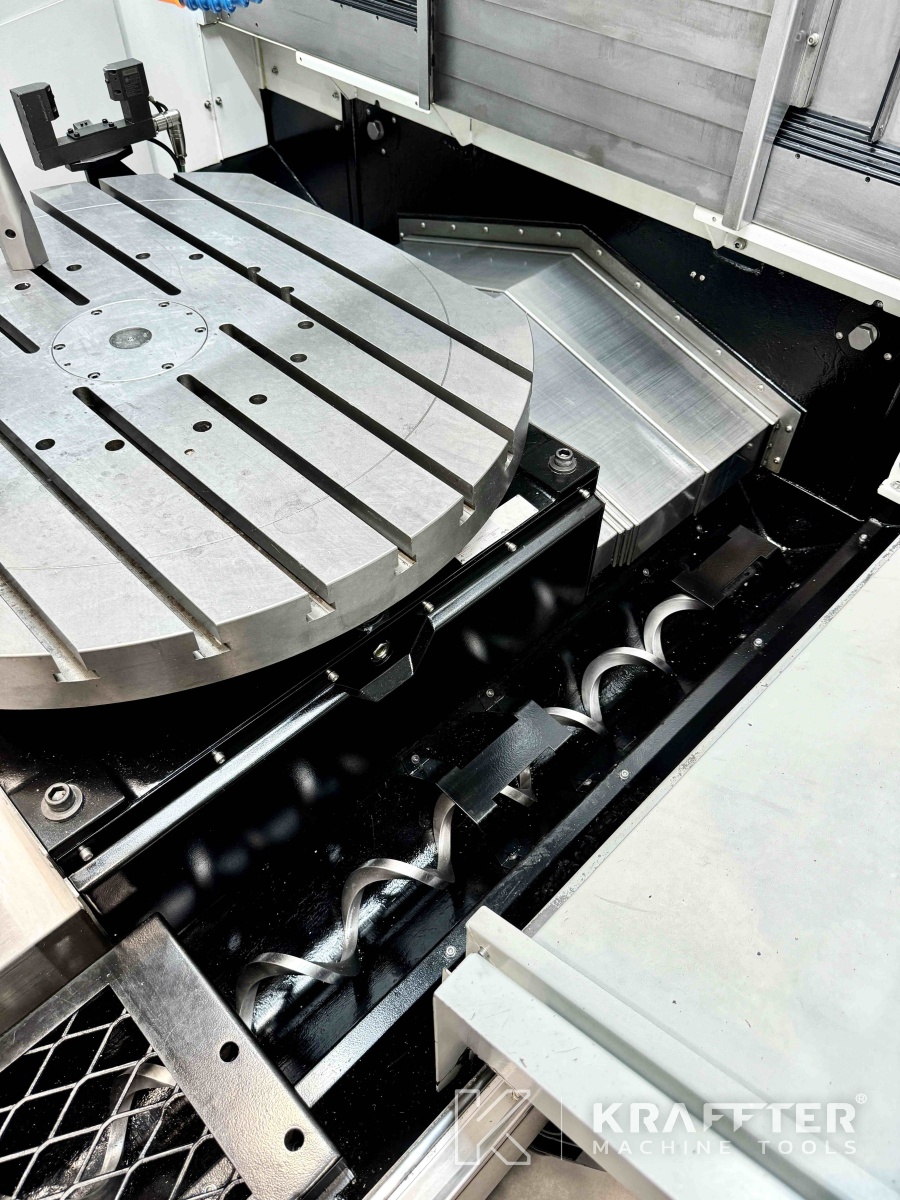

- Internal screw chip conveyors (Qty 2)
- HEIDENHAIN glass scales on 3 XYZ axes with air supply
- Precision encoders on the 2 B and C axes
- HEIDENHAIN electronic handwheel
- Warning light

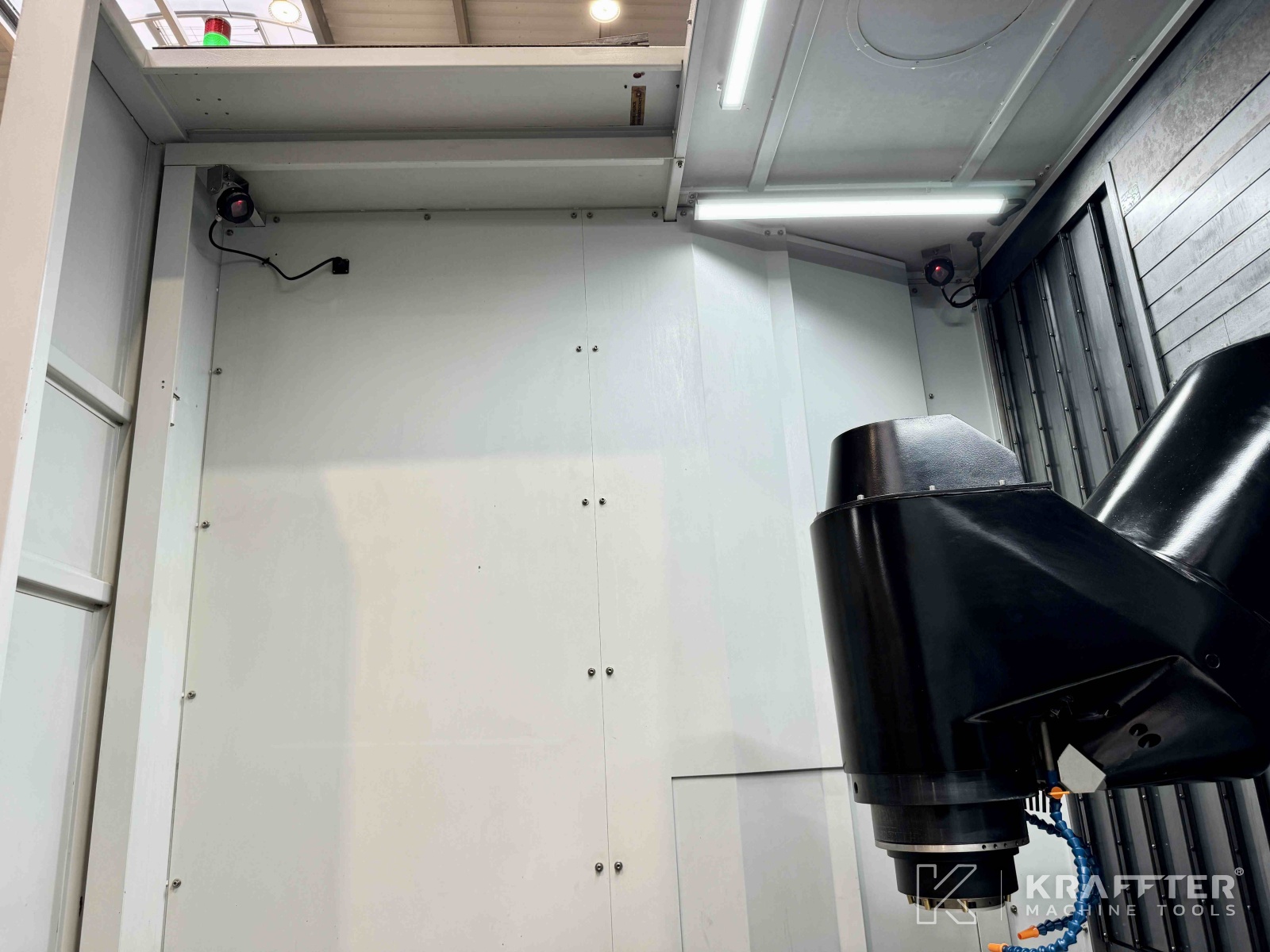

- Work area lighting
- Levelling feet pads
ADDITIONAL EQUIPMENT :
- High-pressure through-spindle coolant 20 bar

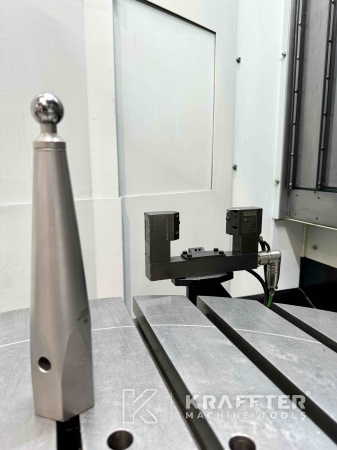

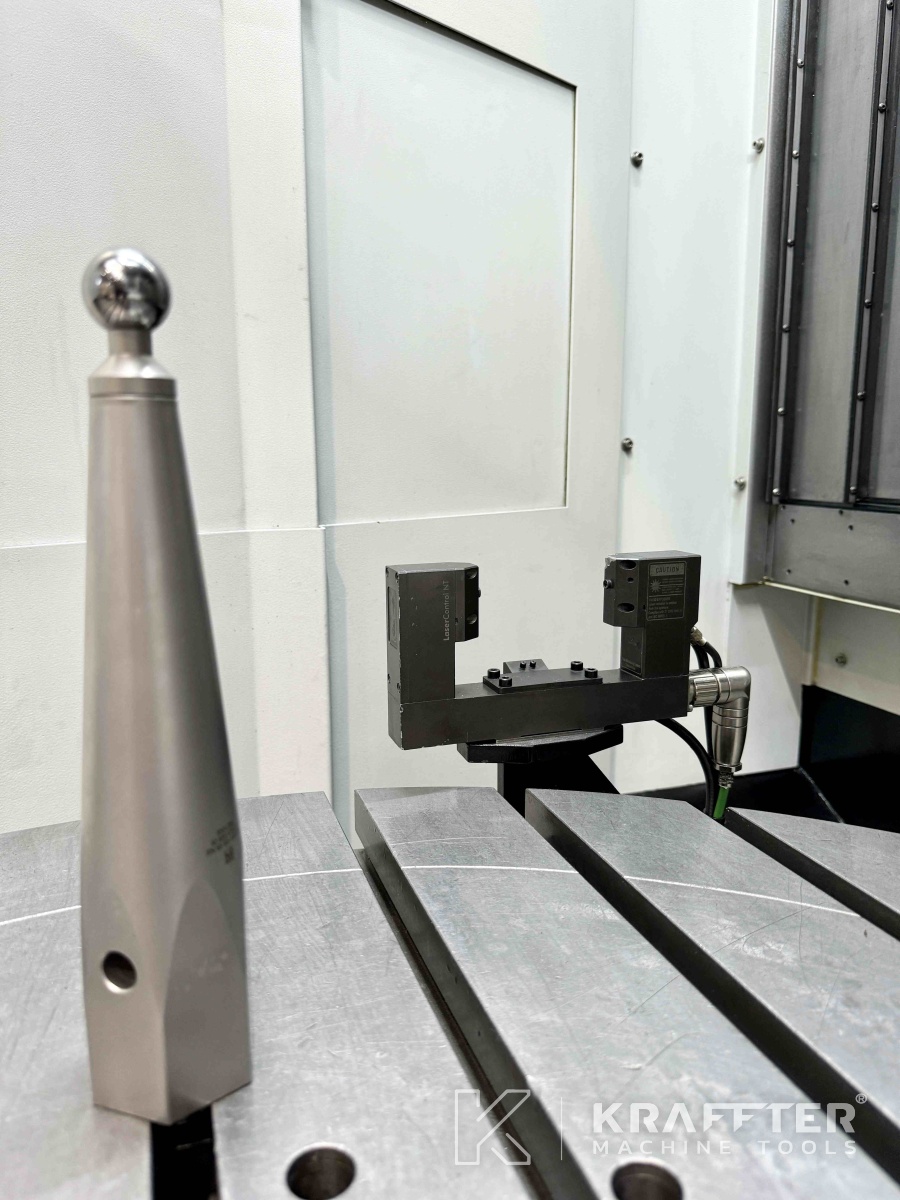

- BLUM laser system for tool setting and tool breakage detection

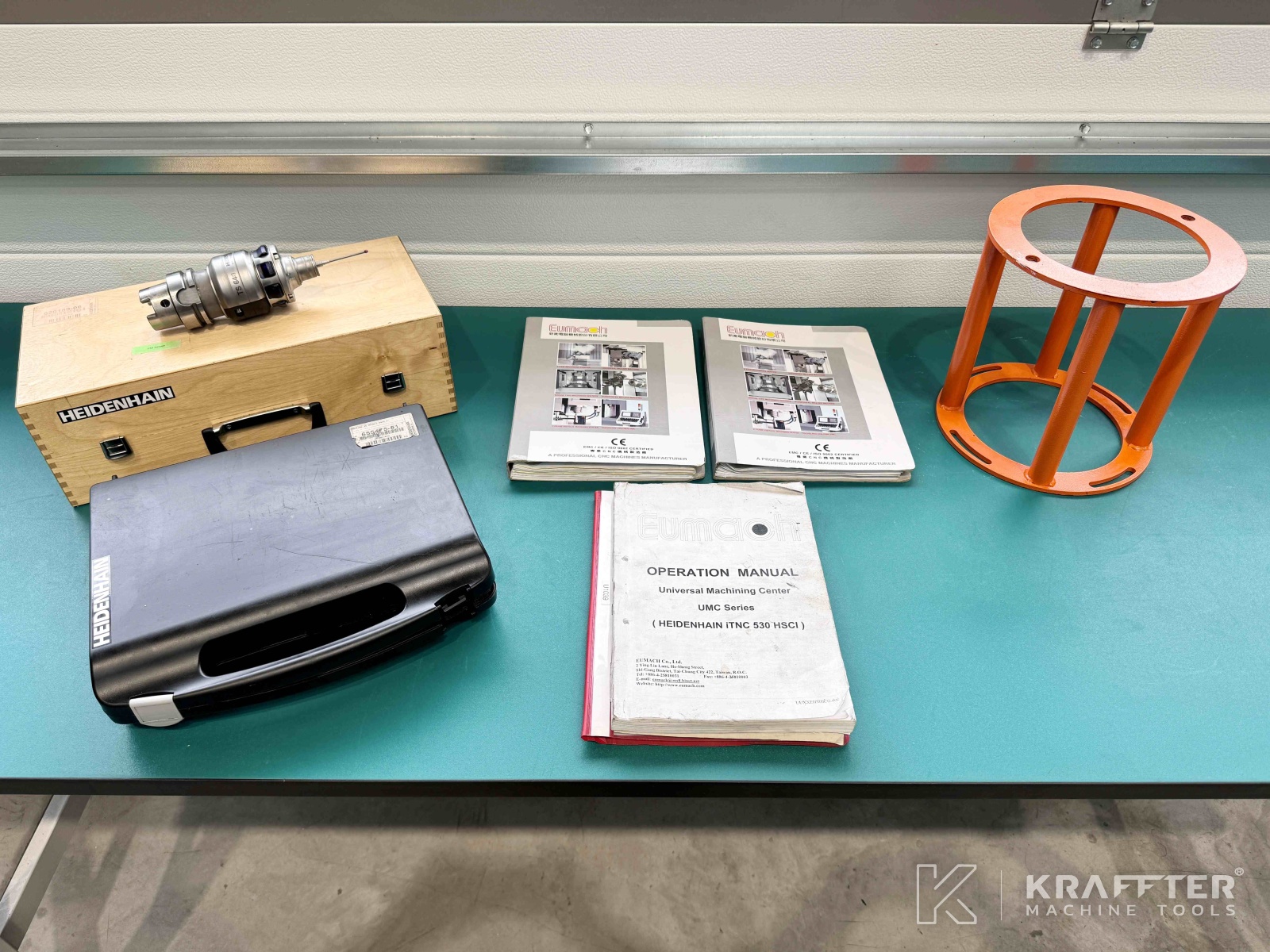

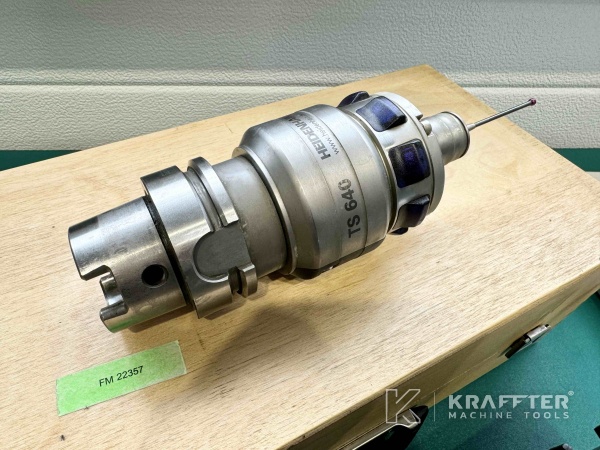

- HEIDENHAIN TS-640 part probe
- HEIDENHAIN KINEMATICS option + calibration interface
- Option HEIDENHAIN DCM (anti-collision)
- Option HEIDENHAIN AFC (Adaptive Feed Control)
