Sold

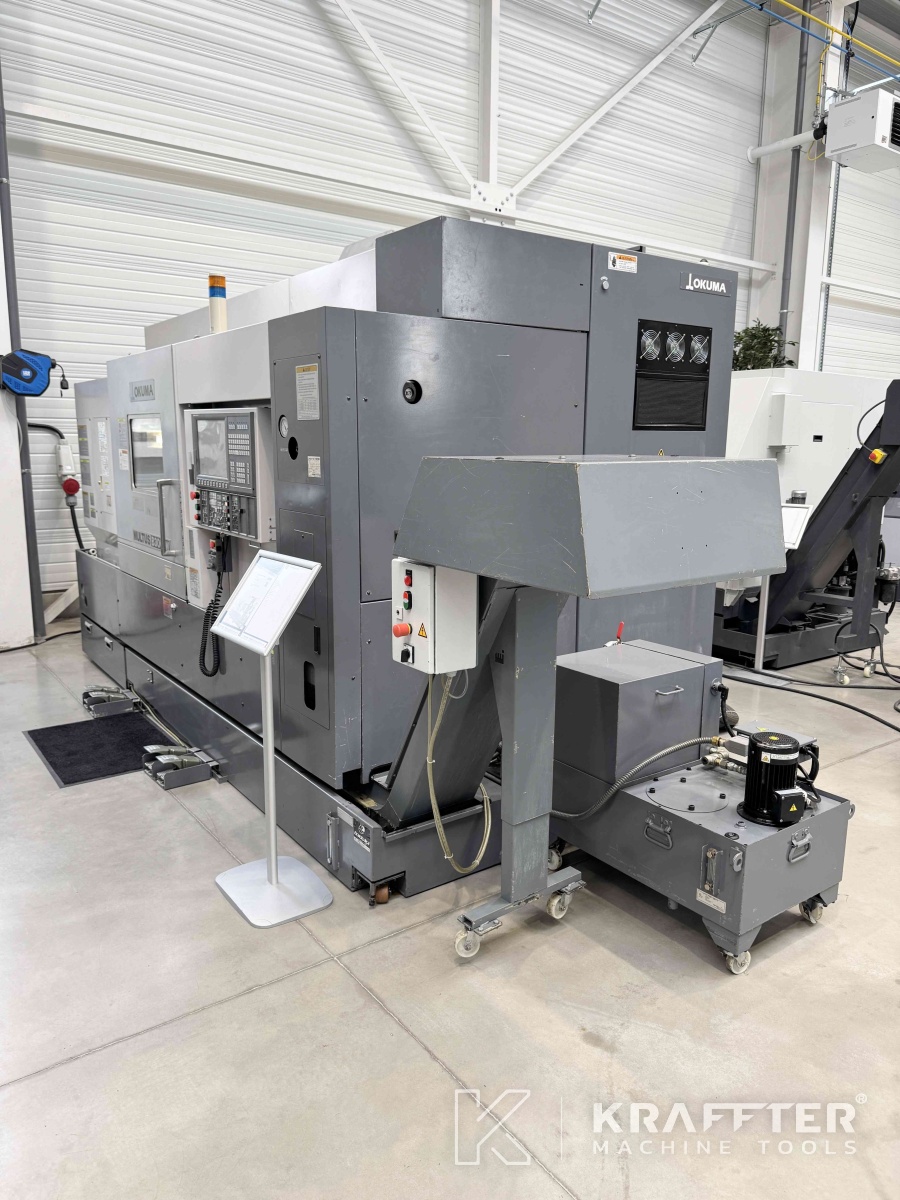

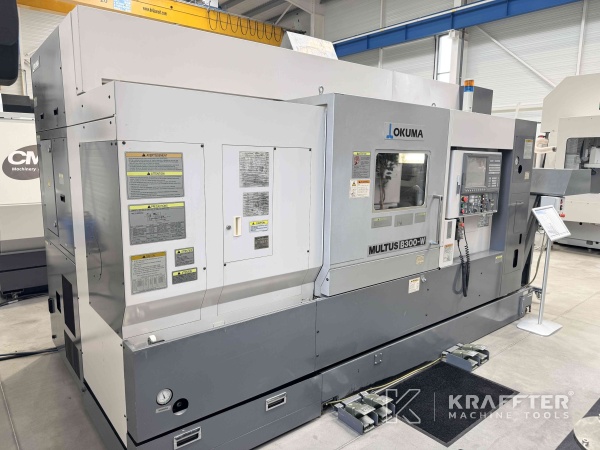

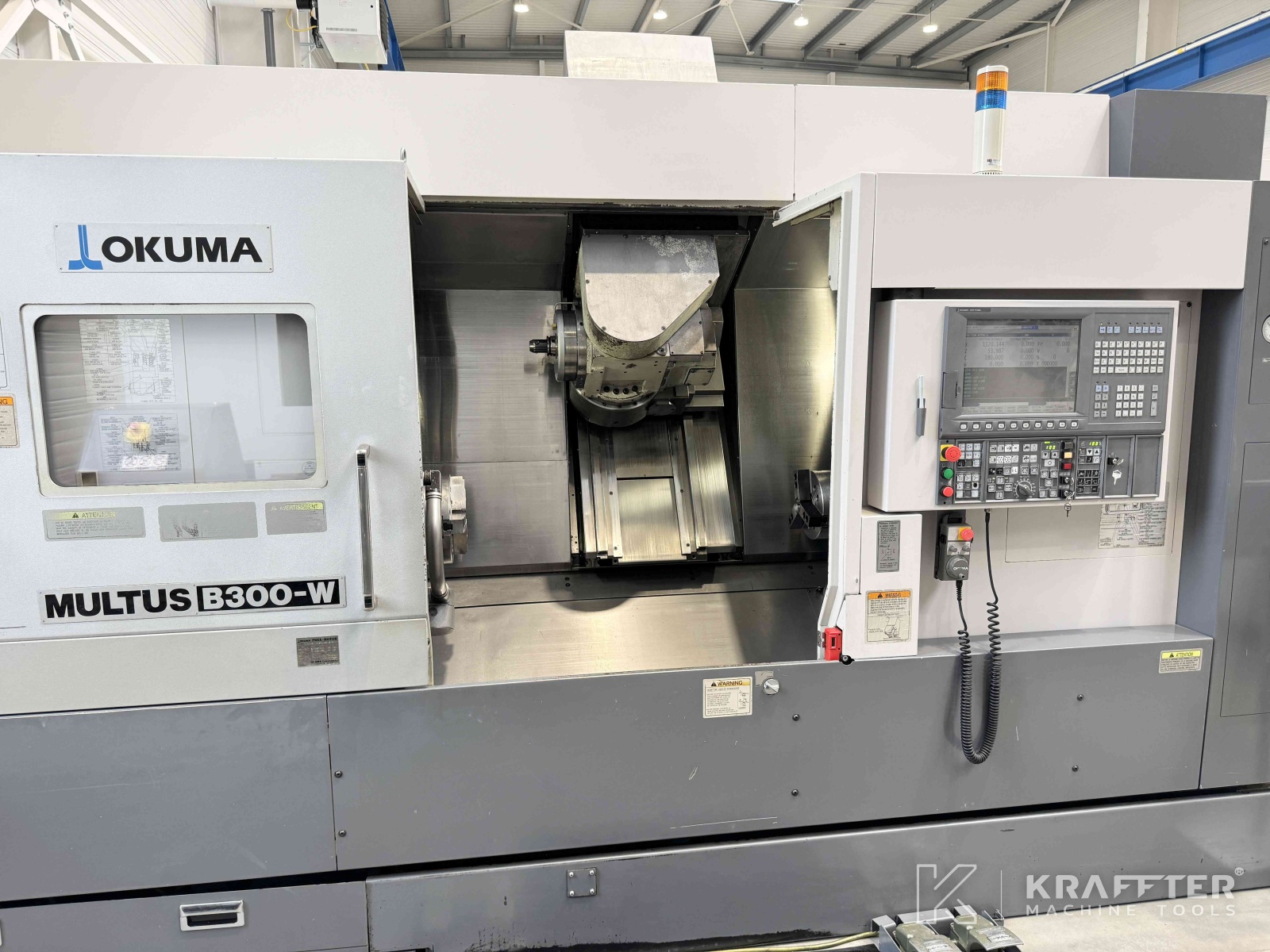

Type of machine : Turn-mill center
Brand : OKUMA
N° de stock: 90117

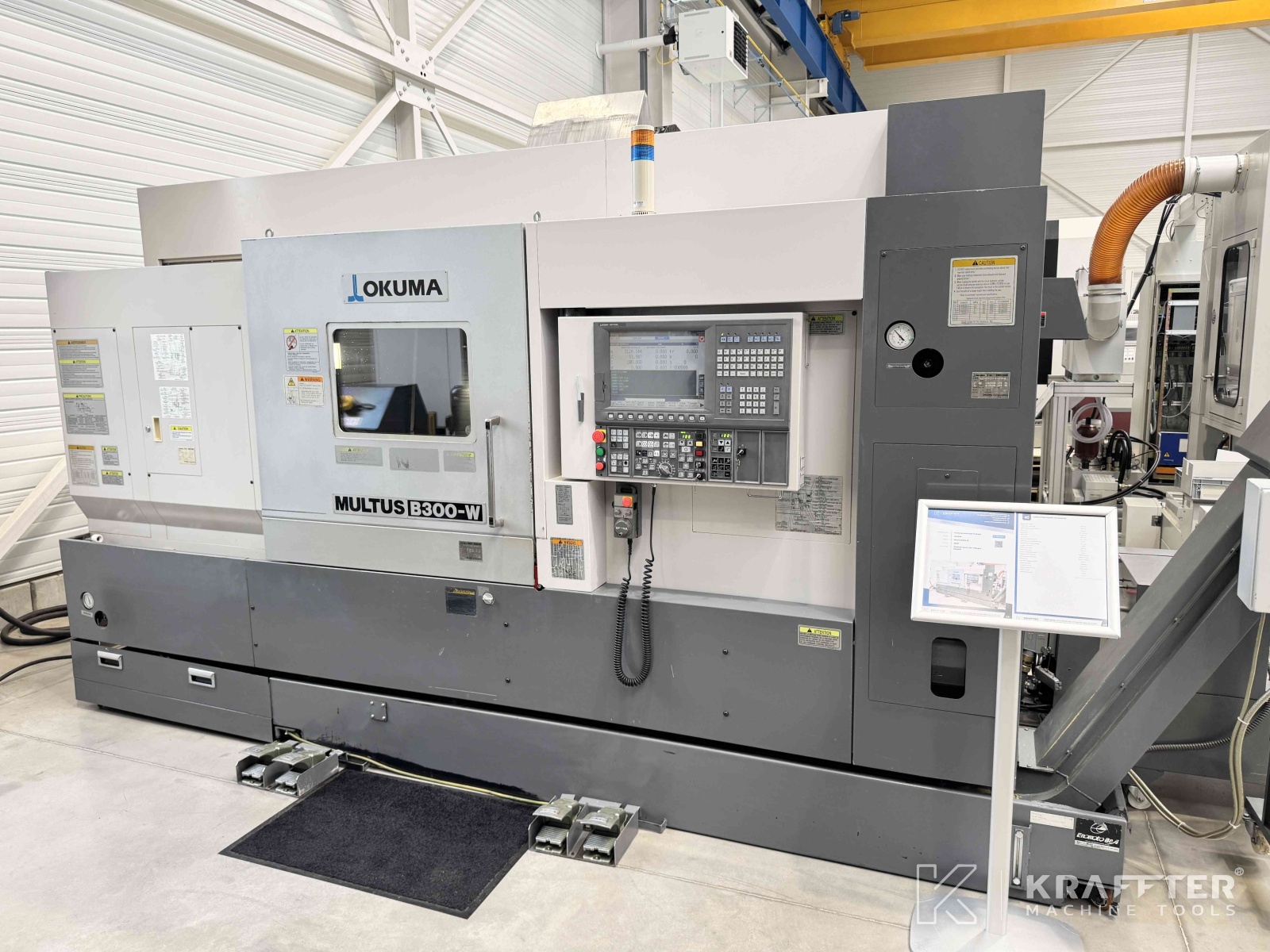

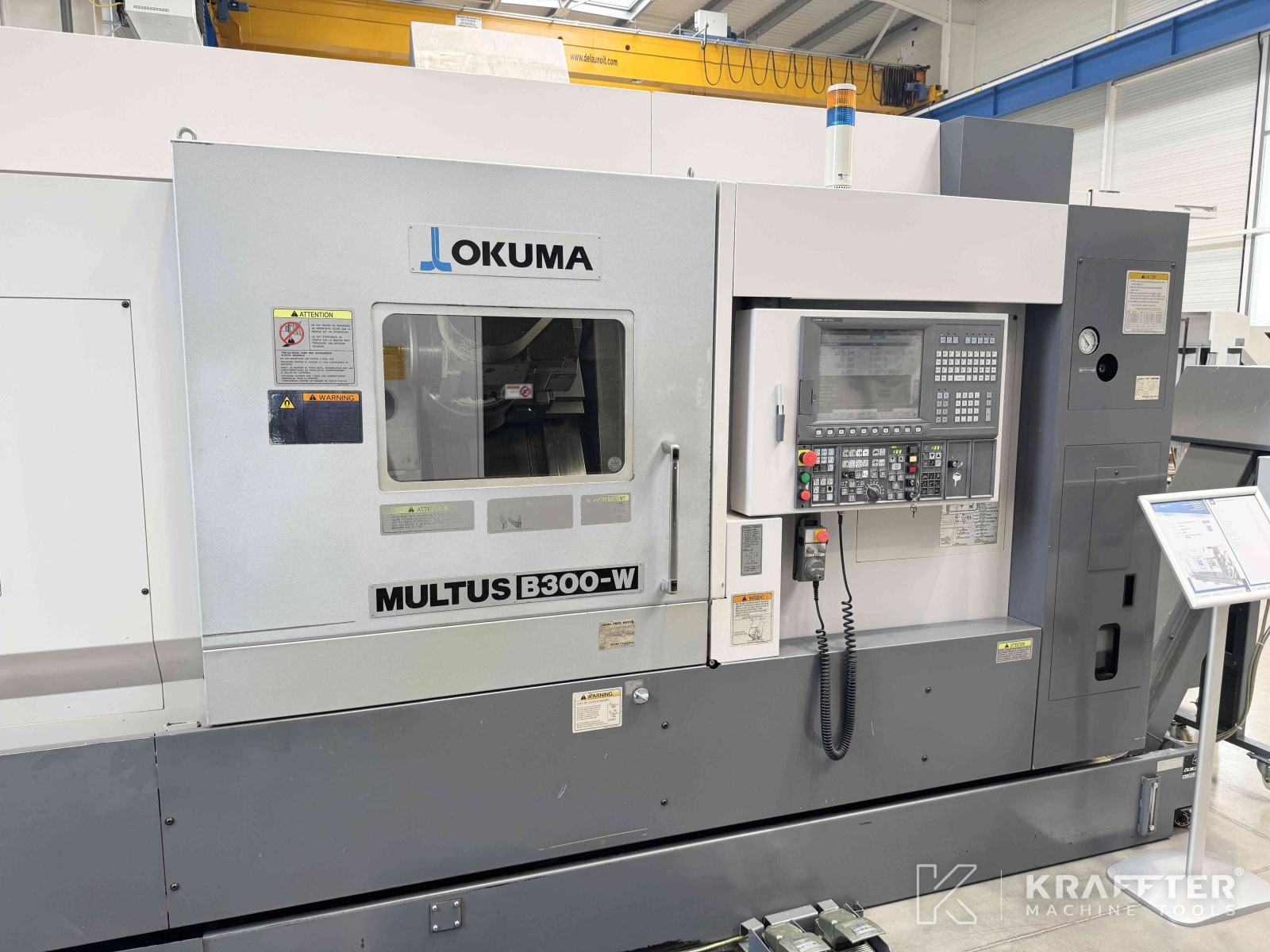

Model : Multus B300-W
Year : 2007
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

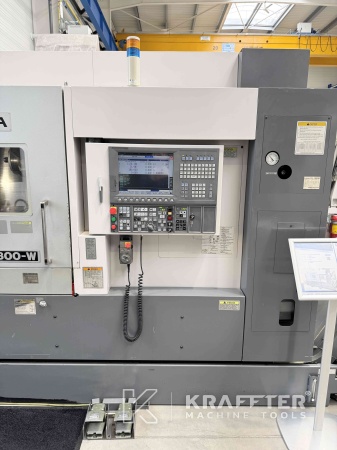

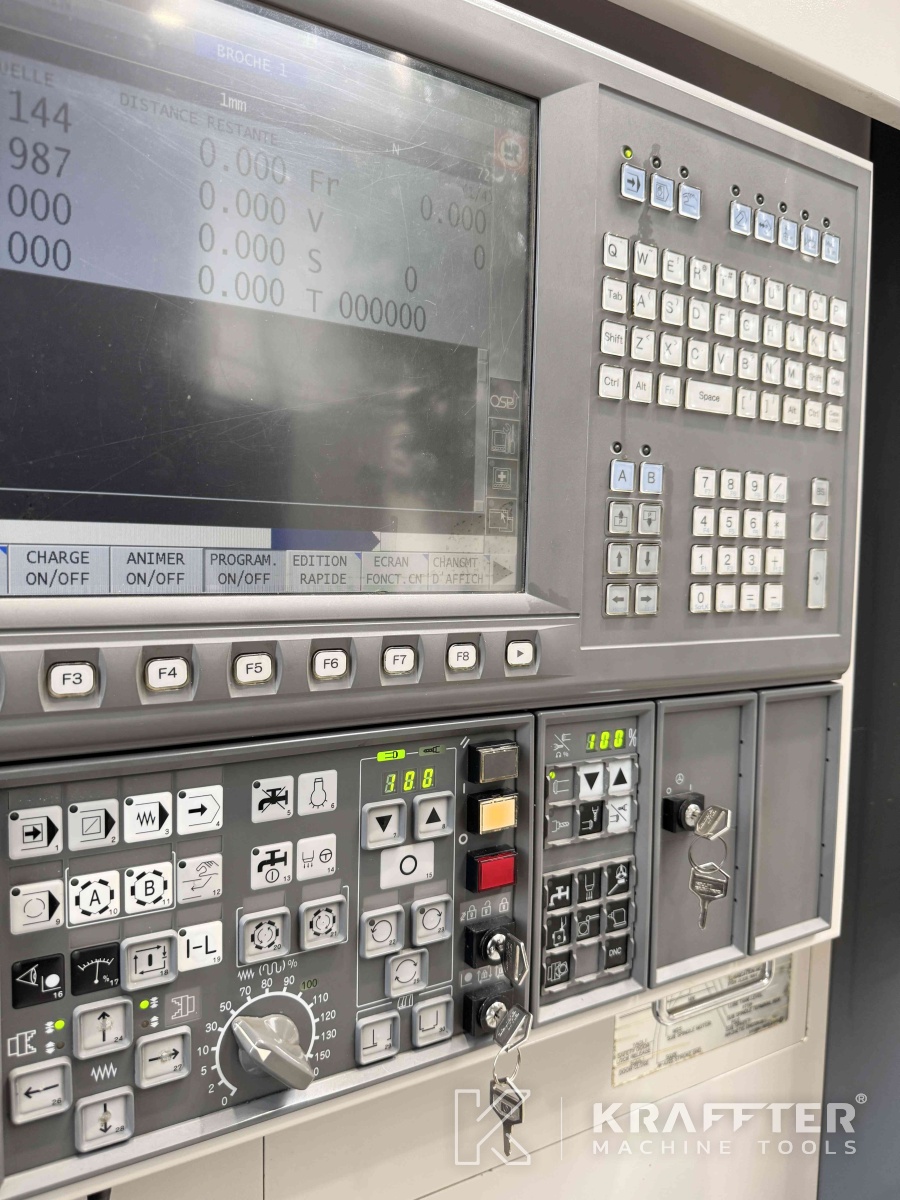

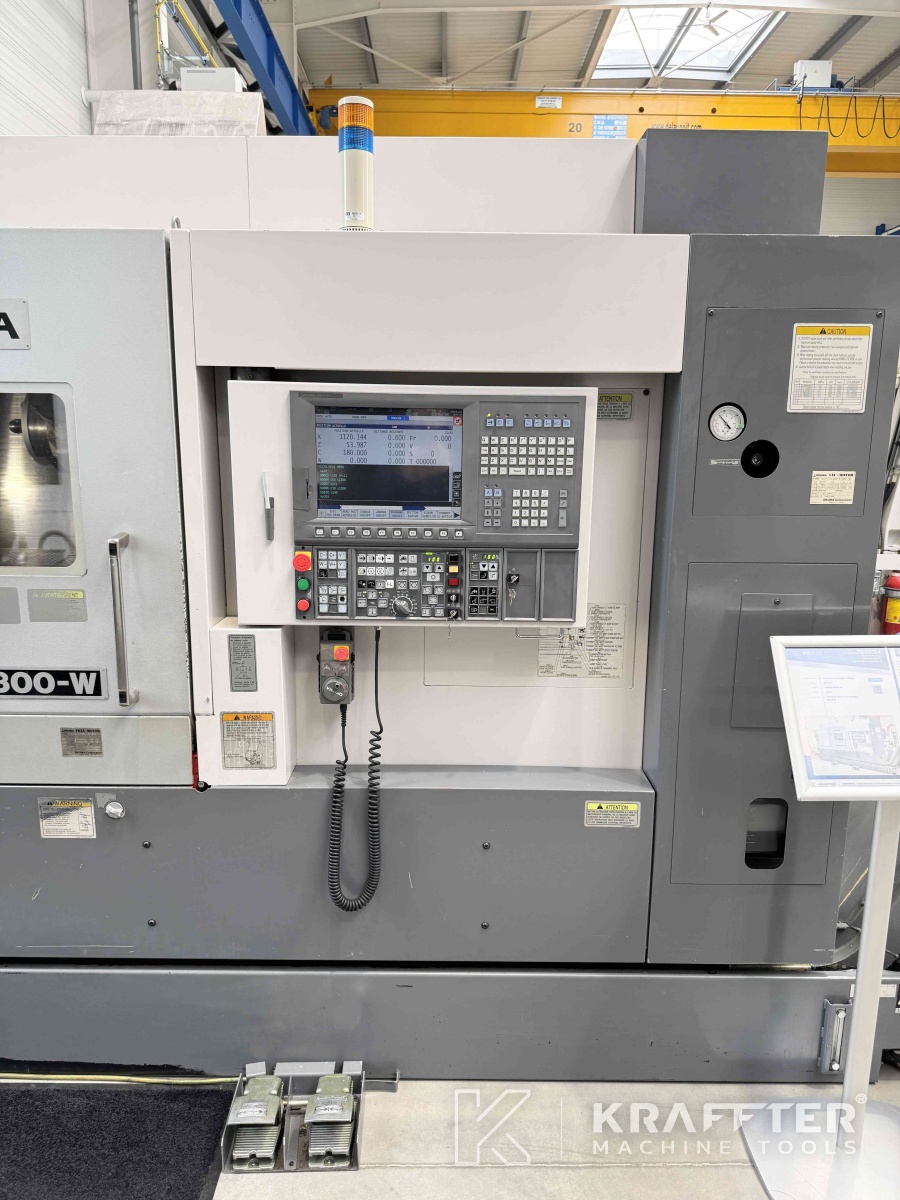

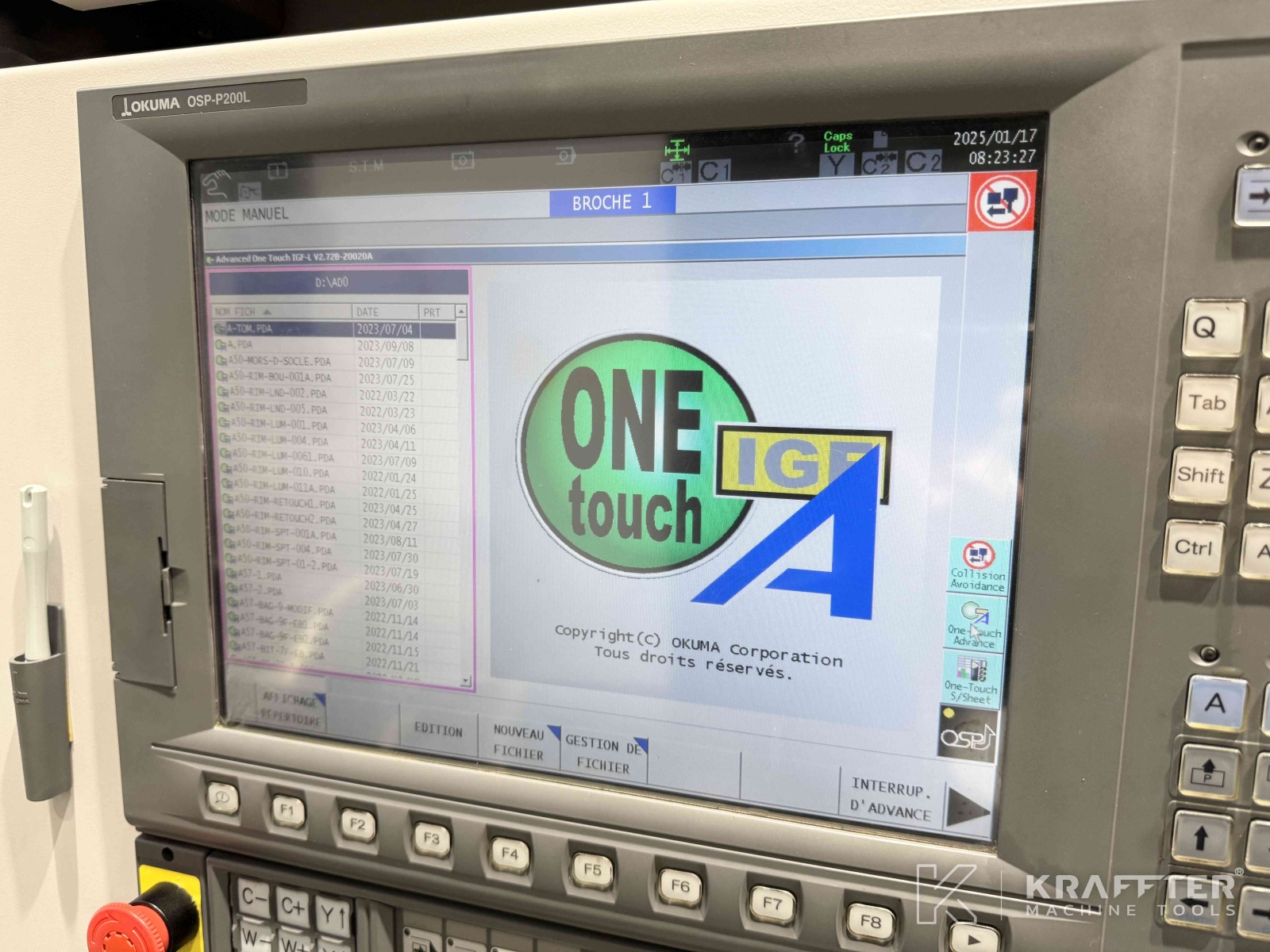

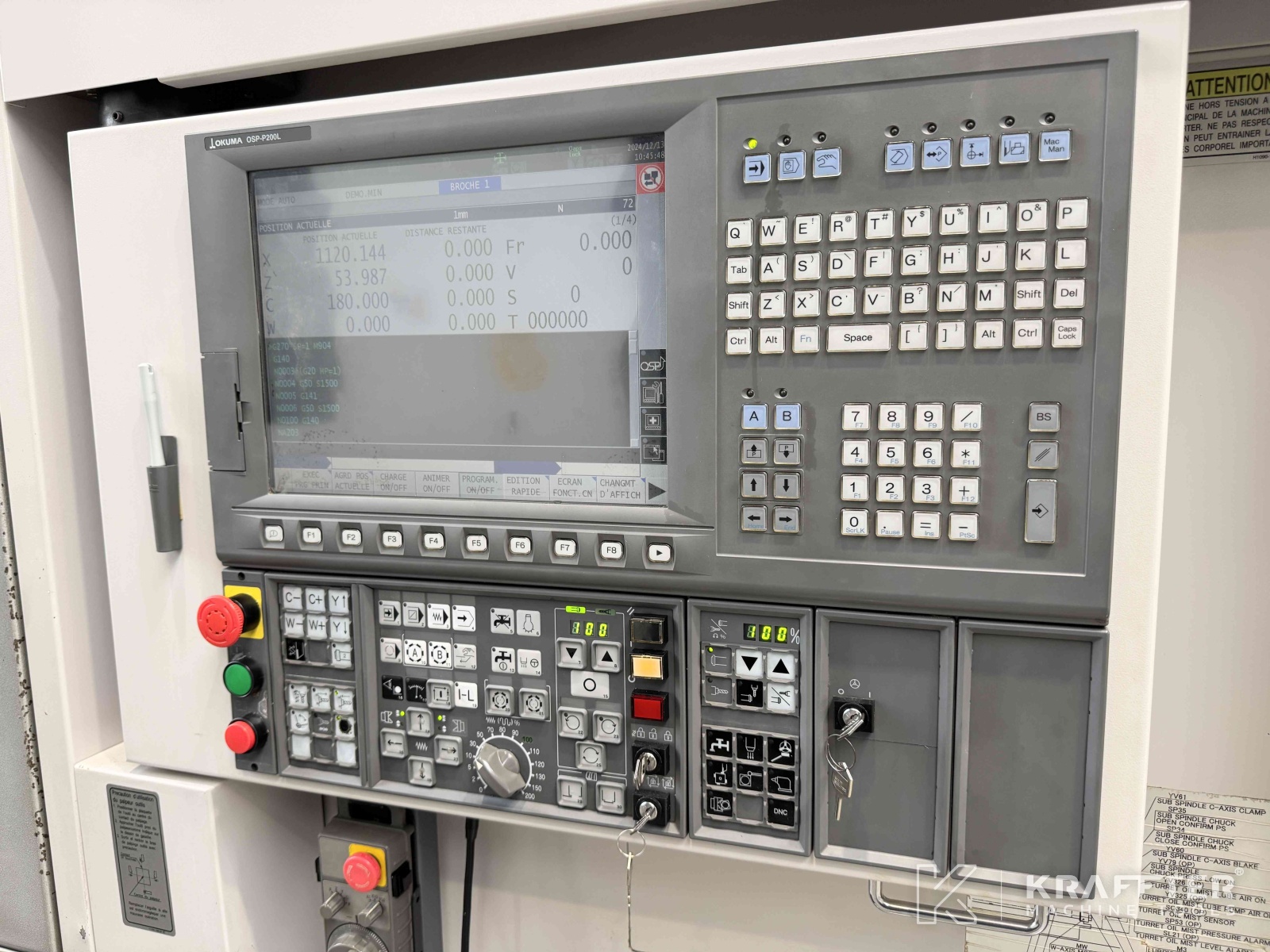

CNC control
OSP-P200L
Distance between centers
900 [mm]
Max. cutting diameter
630 [mm]
Height of centers over cariage
630 [mm]
Stroke X axis
580 [mm]
Stroke Y axis
-80 / +80 [mm]
Stroke Z axis
935 [mm]
Stroke B axis
-30 / +195 [°]
B axis indexing precision
0.001 [°]

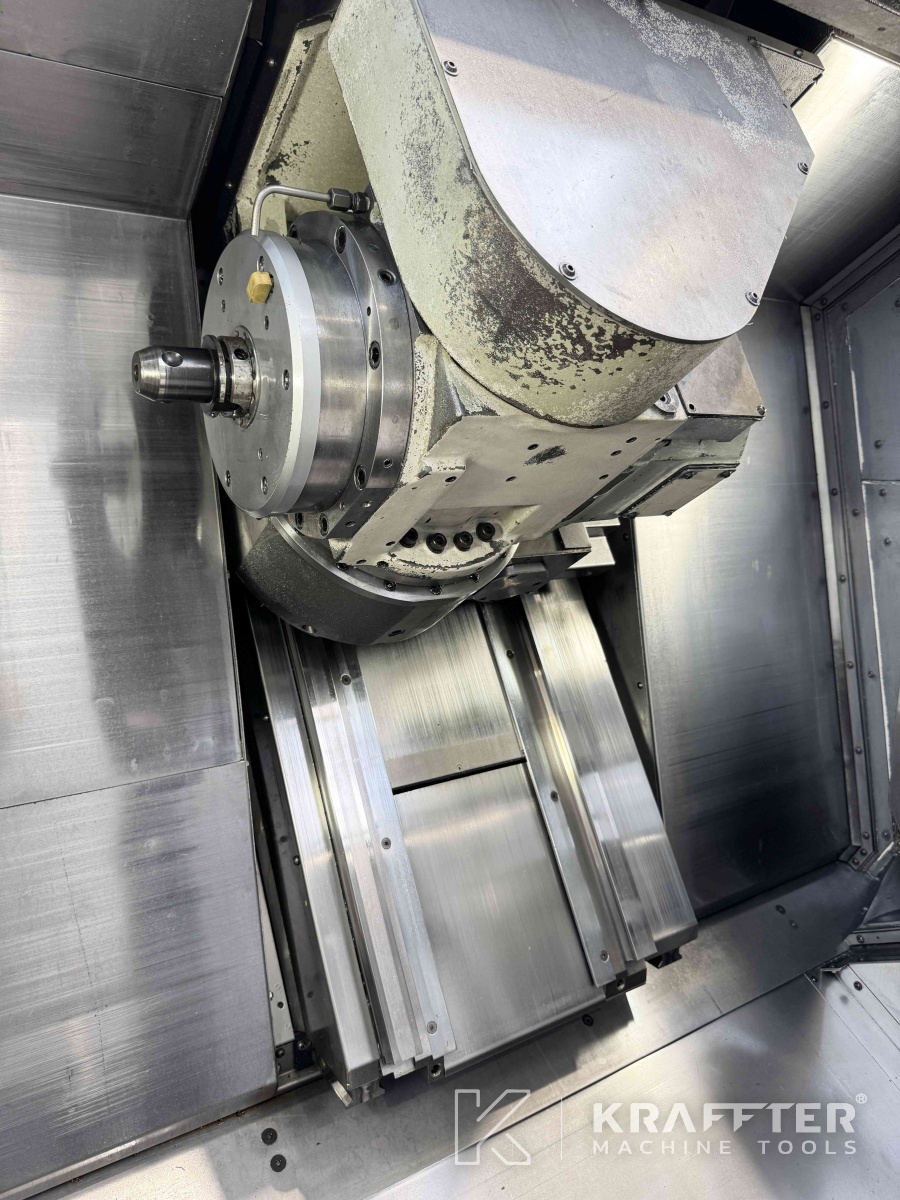

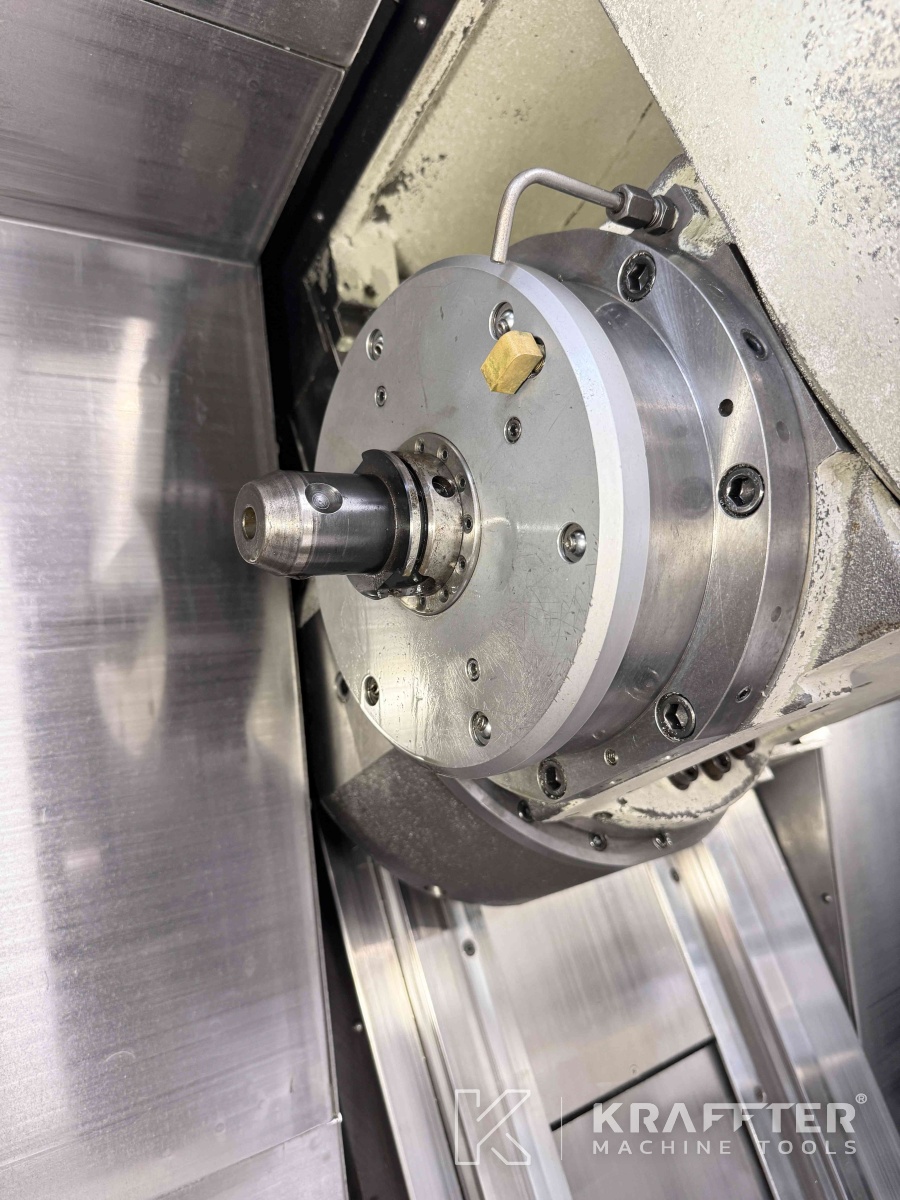

Milling head max. speed
6000 [rpm]
Milling head spindle attachment
HSK-A63
Max. milling spindle power
11 [kW]
Max. milling spindle torque
65.7 [Nm]

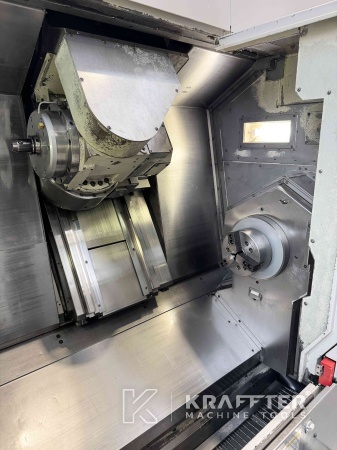

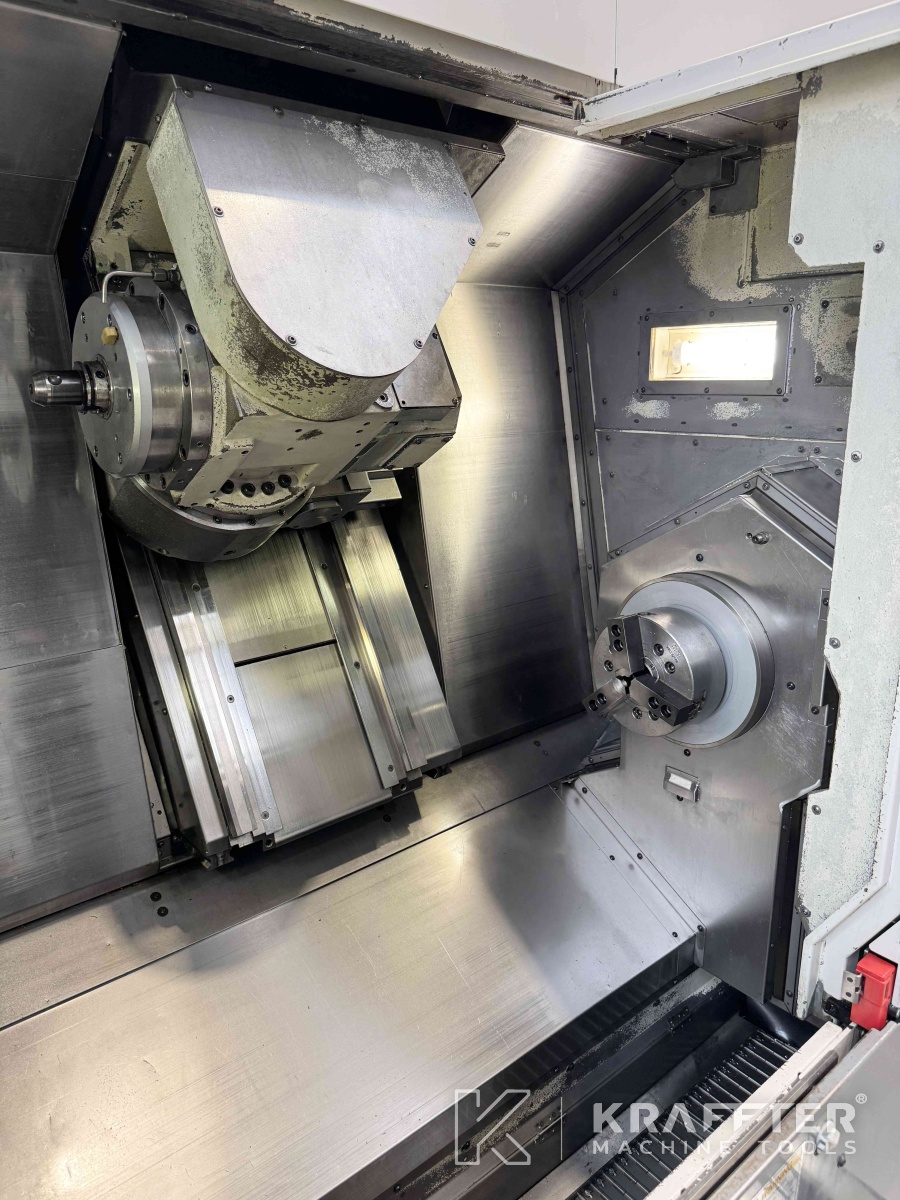

Tool magazine capacity
60
Max. tool lenght
300 [mm]
Max. tool diameter
130 [mm]
Max. weight of single tool
10 [Kg]
Rapid traverse rate X axis
40000 [mm/min]
Rapid traverse rate Z axis
40000 [mm/min]
Rapid traverse rate Y axis
26000 [mm/min]
Rapid traverse rate W axis
20000 [mm/min]
Spindle nose
JIS A2-6
Spindle throughbore
62 [mm]
Max. spindle speed
5000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
15 [kW]

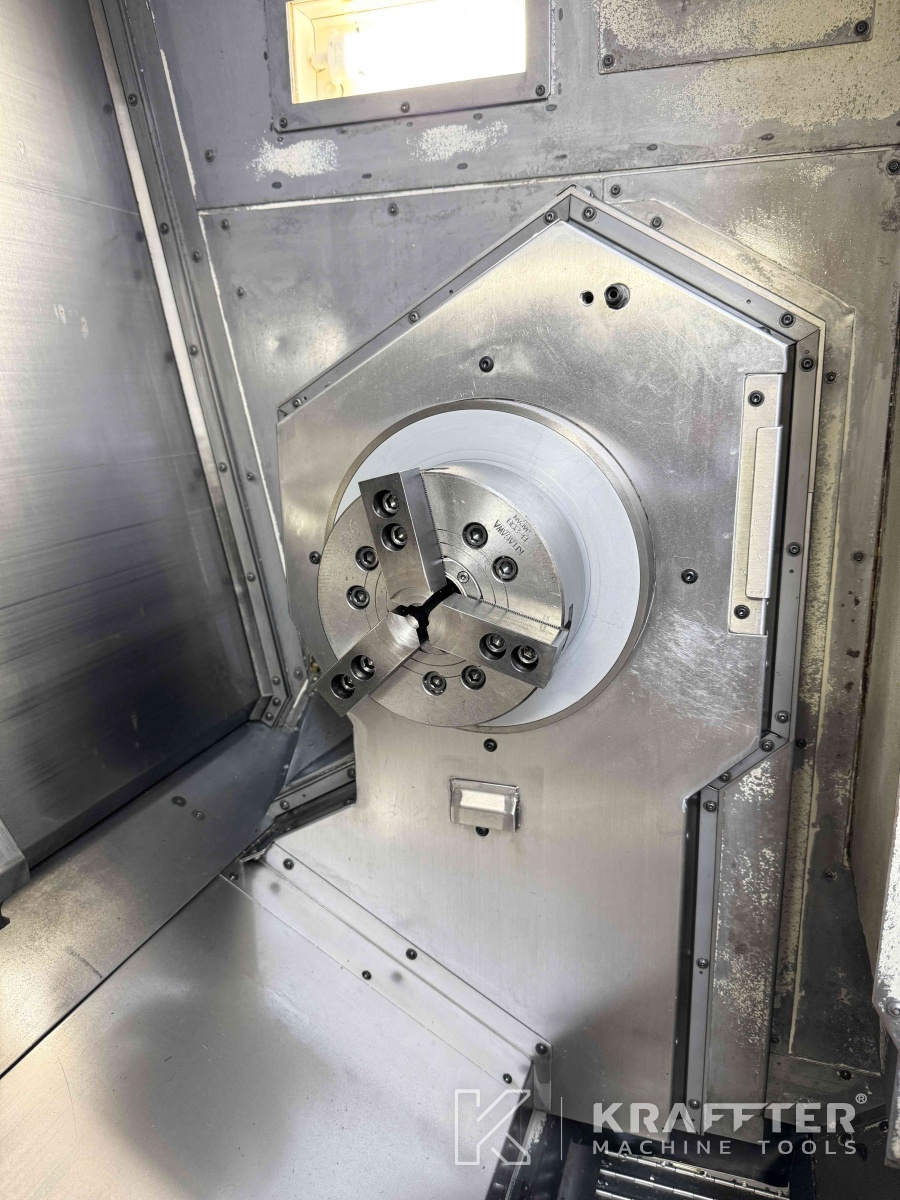

Counter spindle nose
JIS A2-6
Counter spindle throughbore
62 [mm]
Max. counter spindle speed
5000 [rpm]
Counter spindle power
15 [kW]
Rated current
56.7 [A]
Supply voltage
400 [V]
Number of USB ports
2
Number of hours under power
16905 [h]
Number of running hours
4769 [h]
Spindle running hours
3544 [h]
Machine dimensions
4340 x 2050 x 2600 [mm]
Weight
10300 [Kg]
Additional information
EQUIPMENT INCLUDED:
x1 One-Touch IGF software option (CD-ROM also for PC programming)

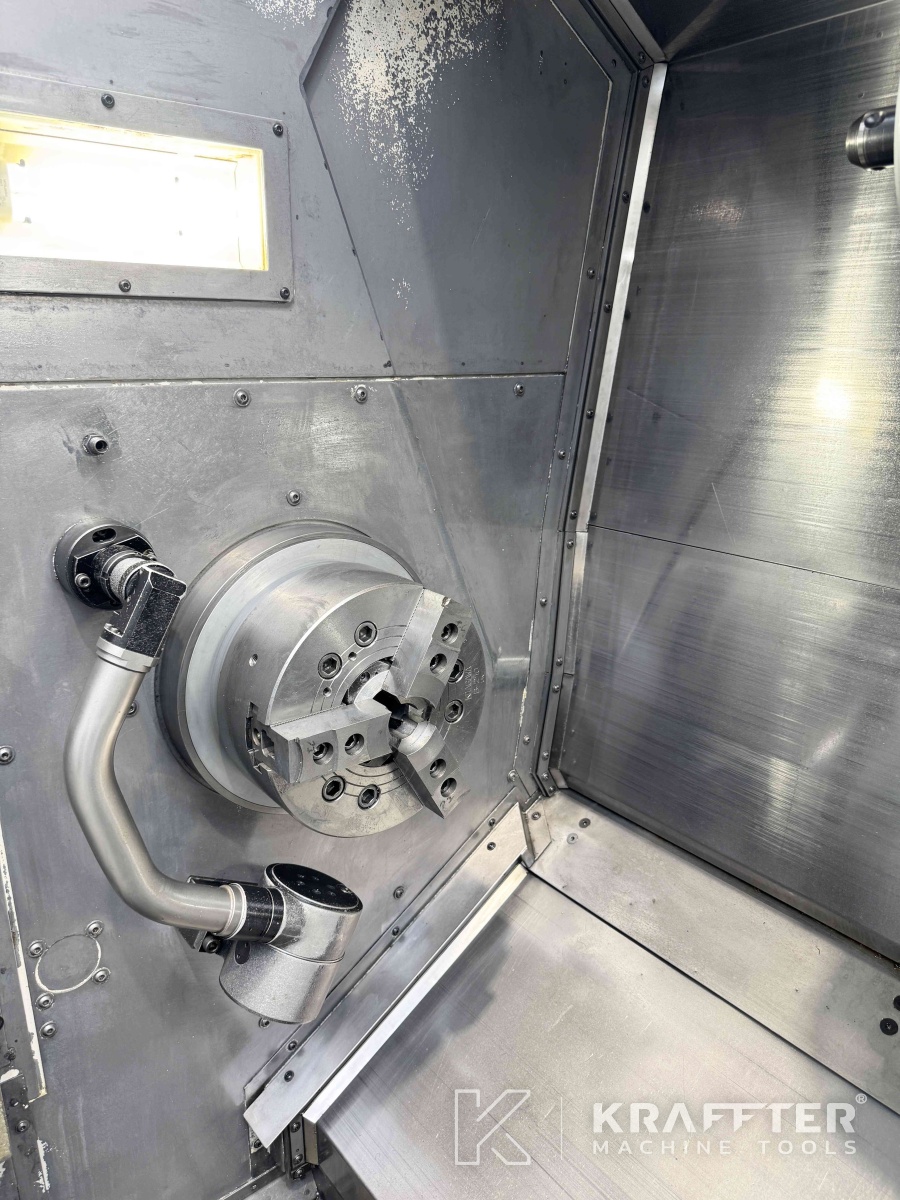

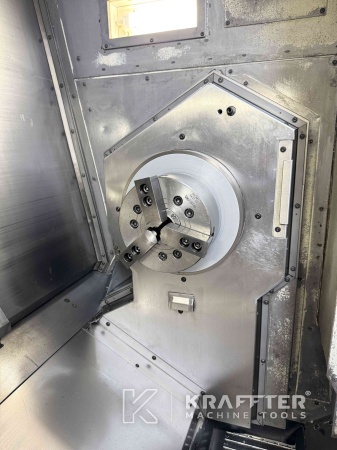

x1 KITAGAWA B-210 Ø255 [mm] 3-jaw chuck
x1 KITAGAWA B-208 3-jaw chuck Ø210 [mm]
x1 MARPOSS T18 tool probe
x1 remote electronic handwheel

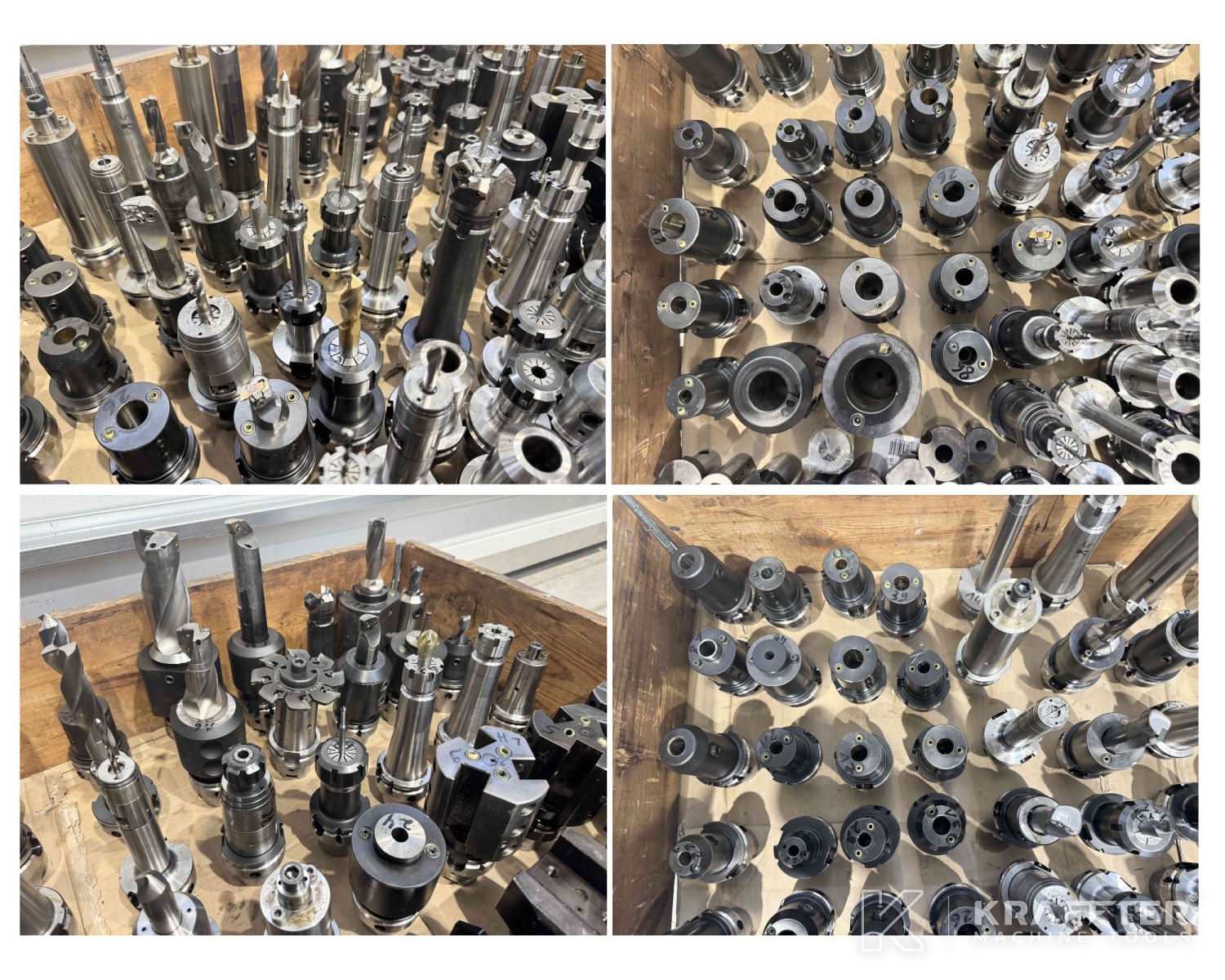

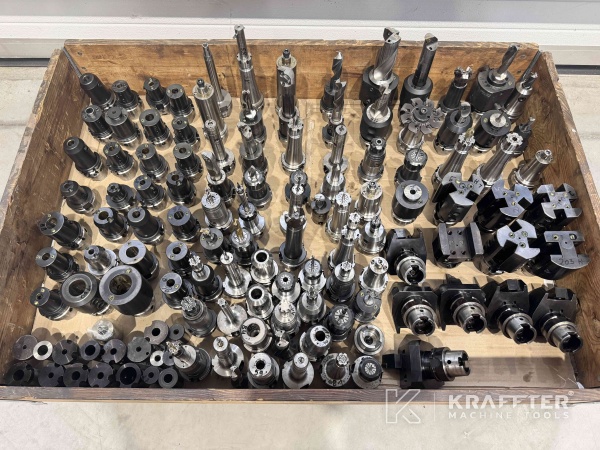

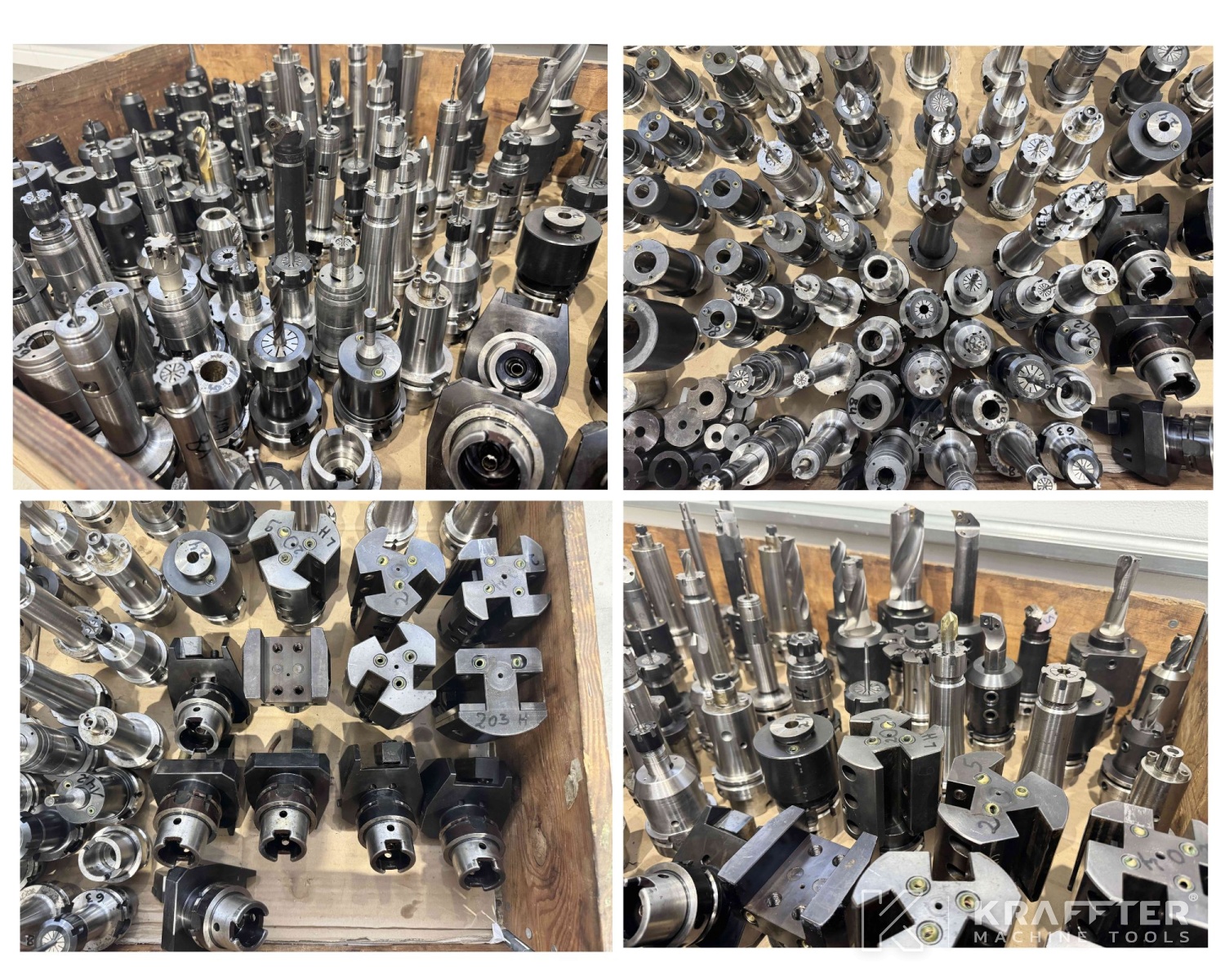

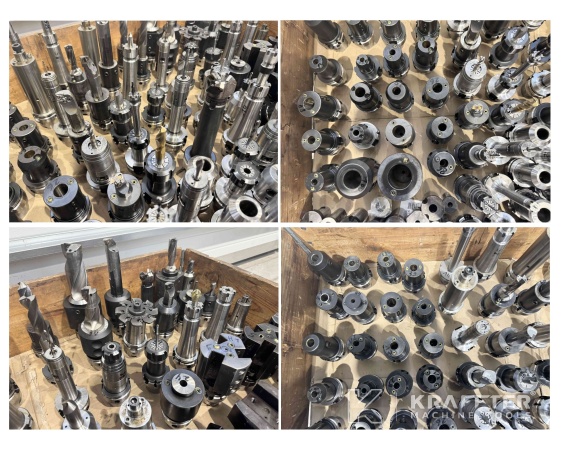

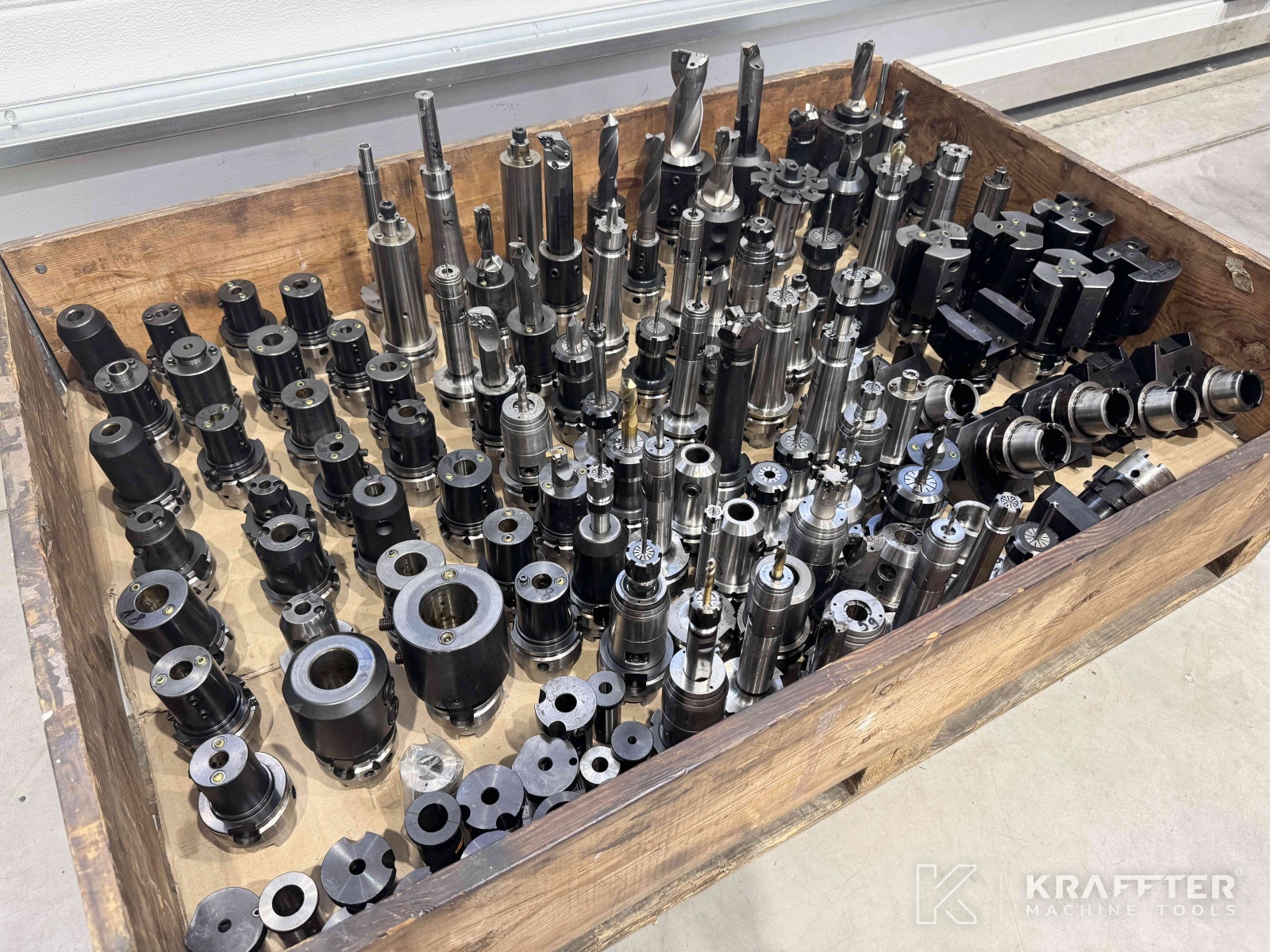

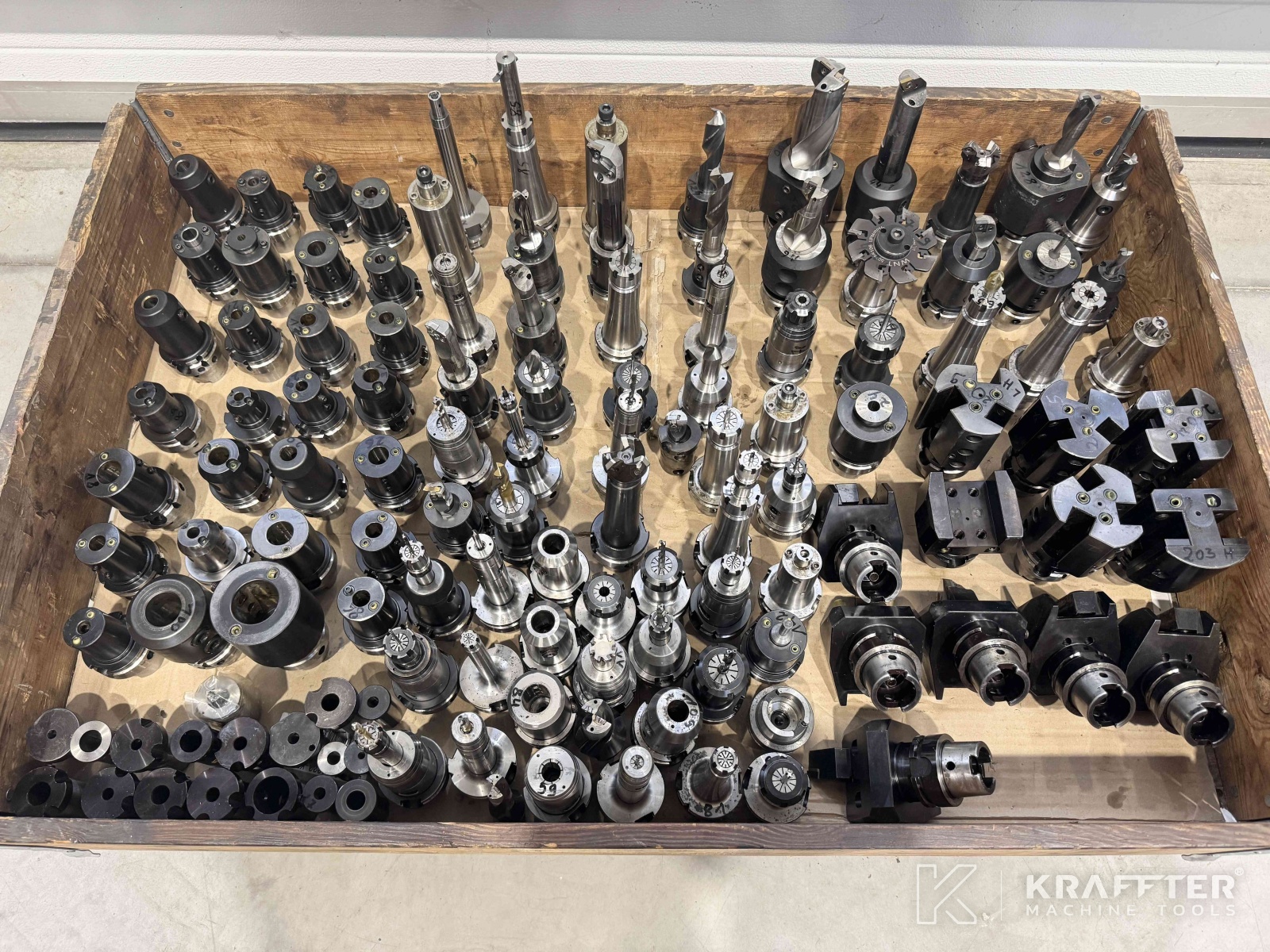

x93 HSK-A63 milling attachments
x12 HSK-A63 turning attachments
x1 2-colour status light

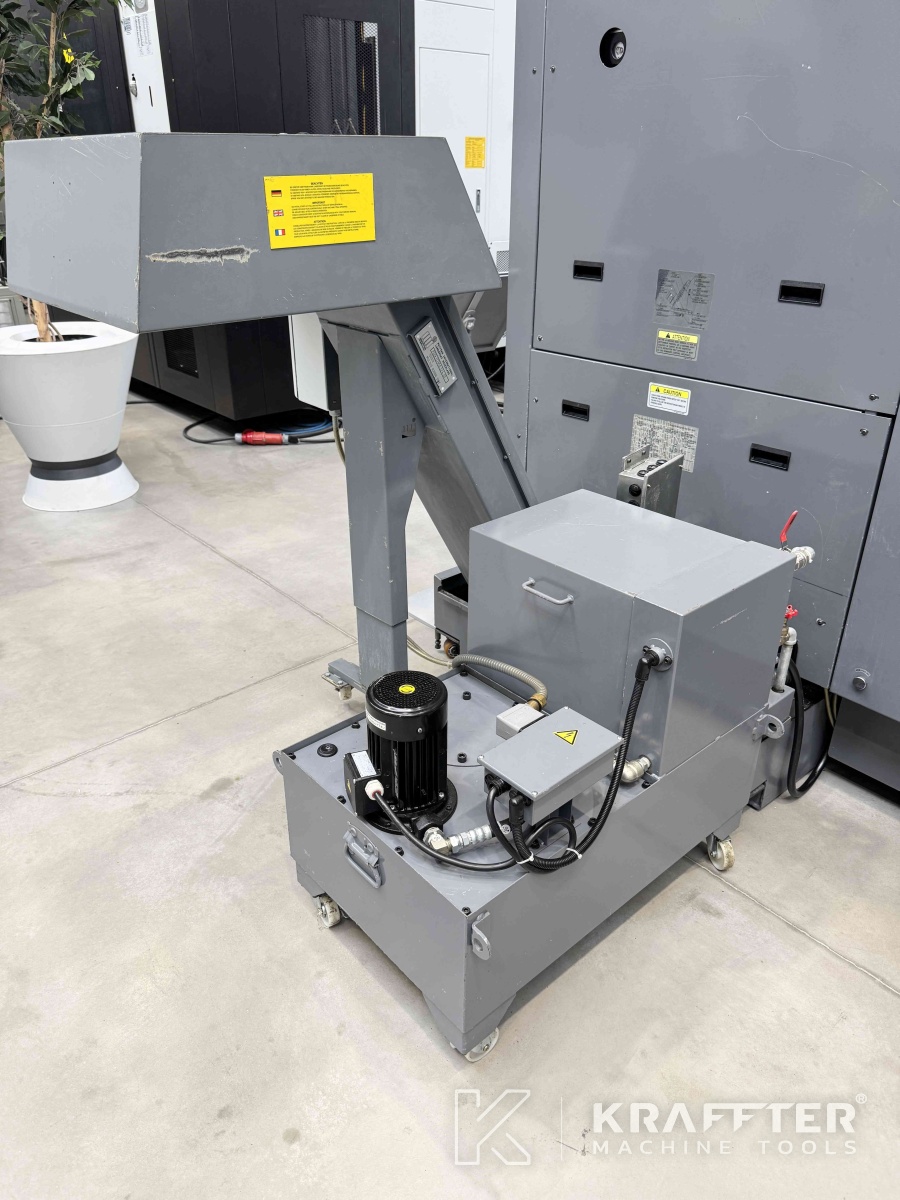

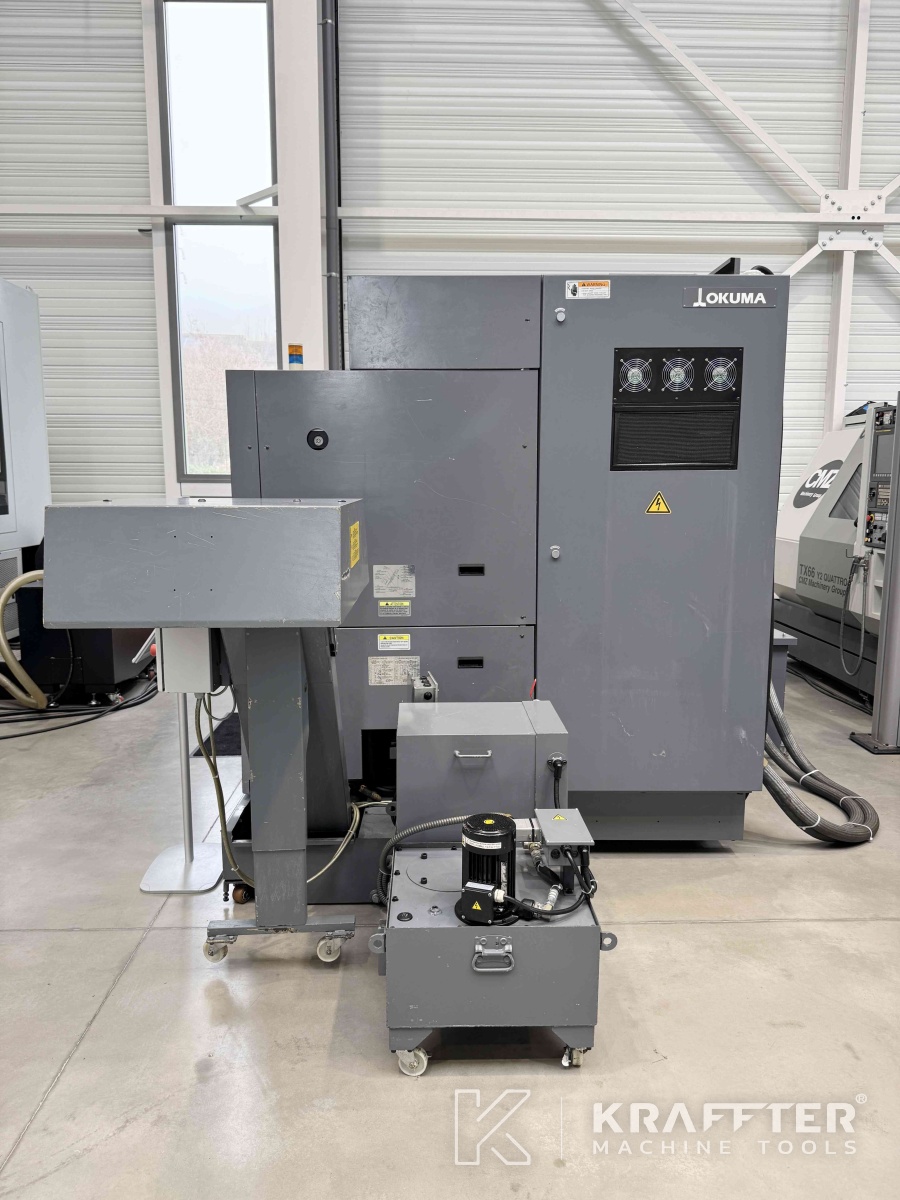

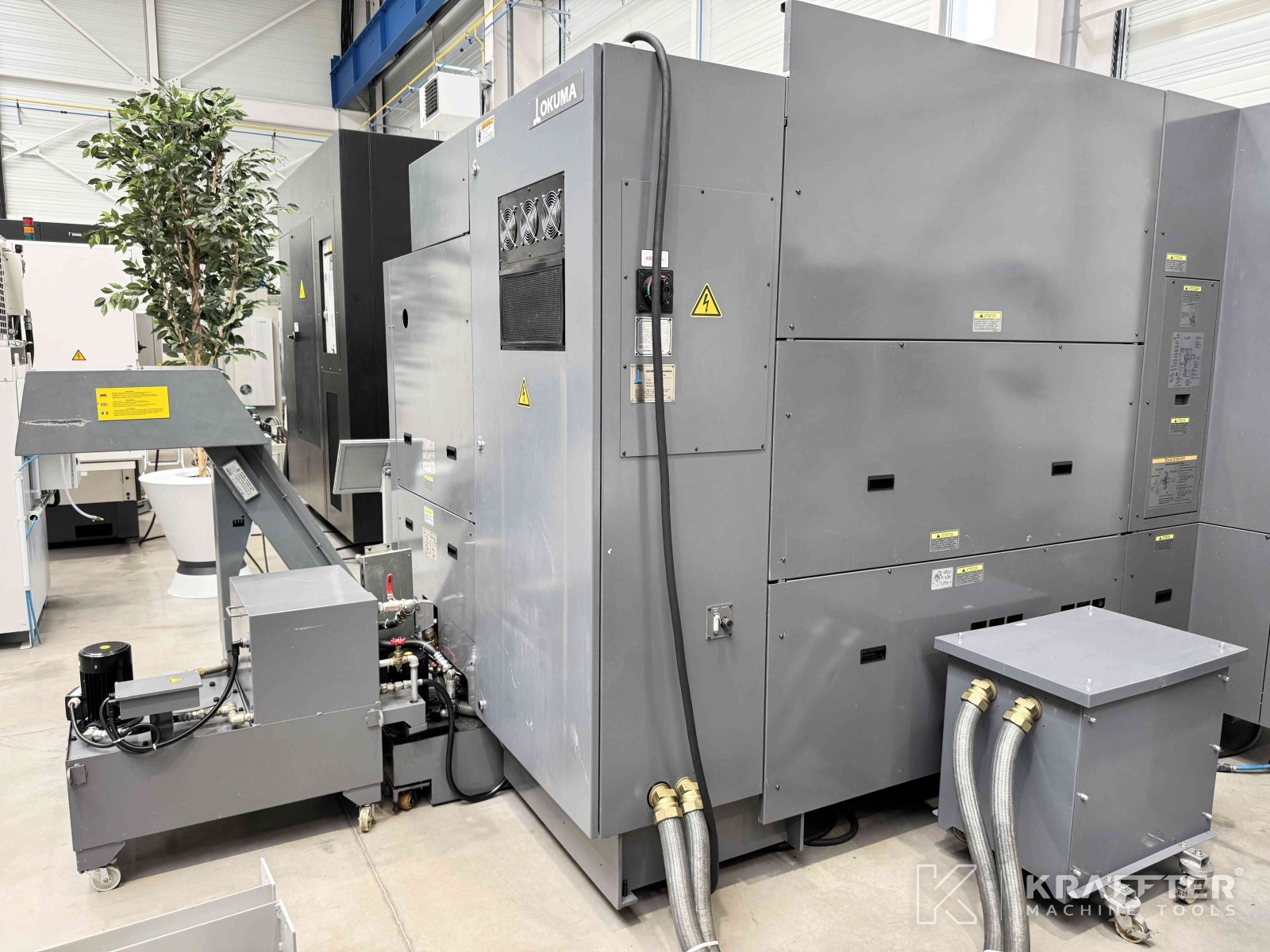

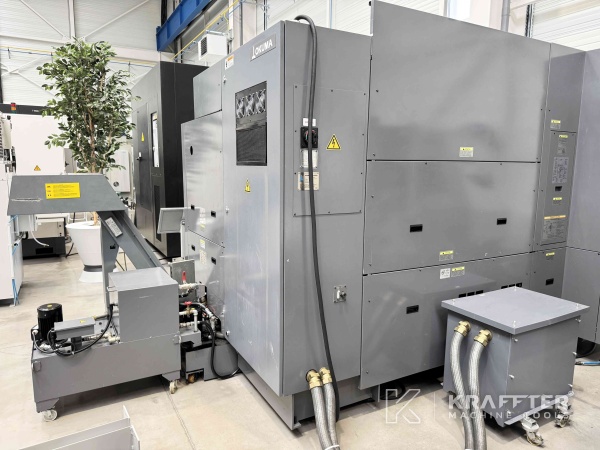

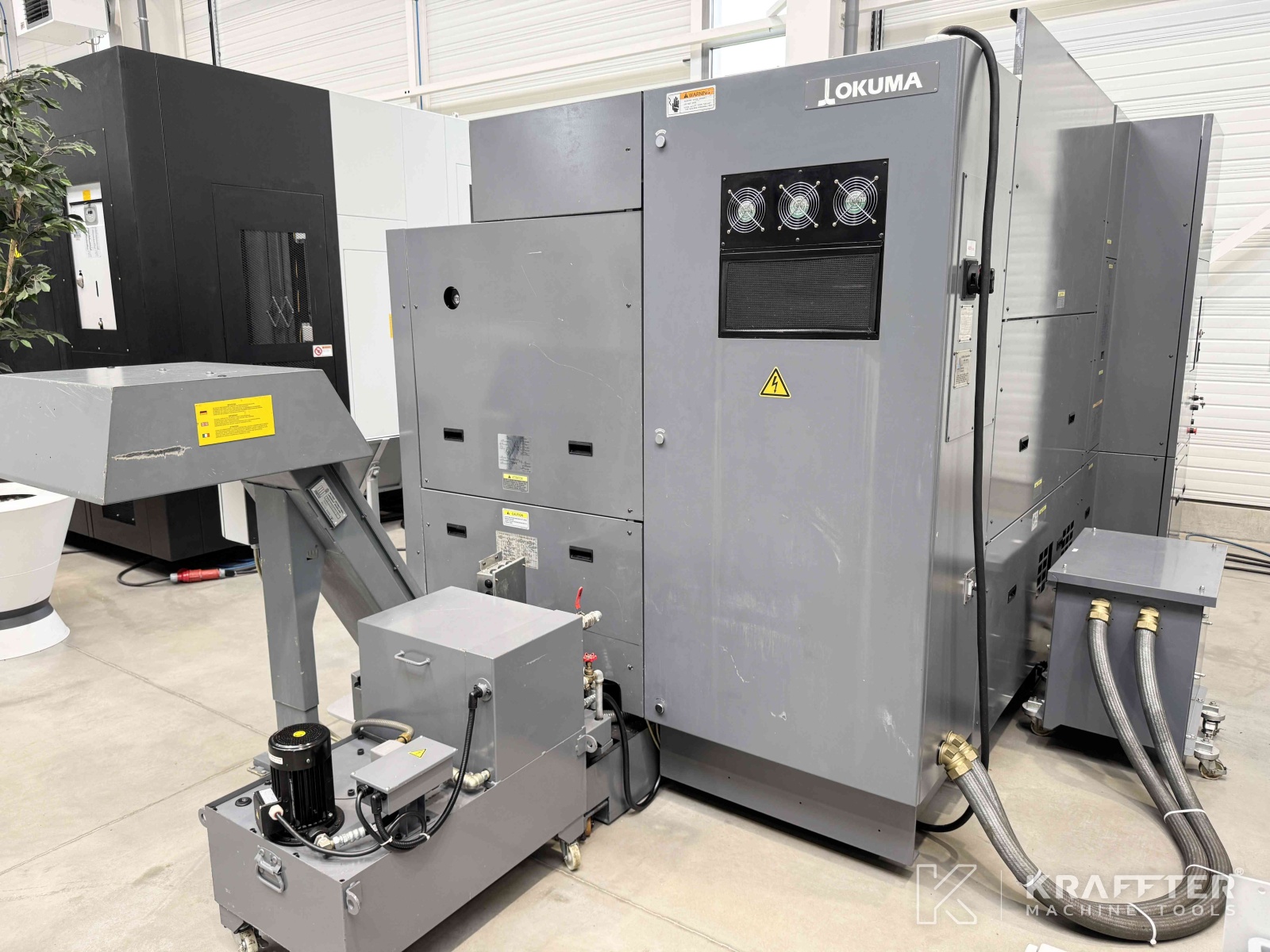

x1 chip conveyor
x1 coolant tank

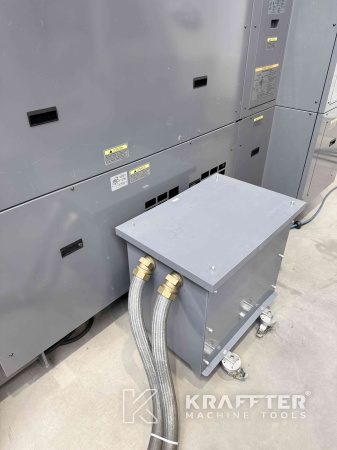

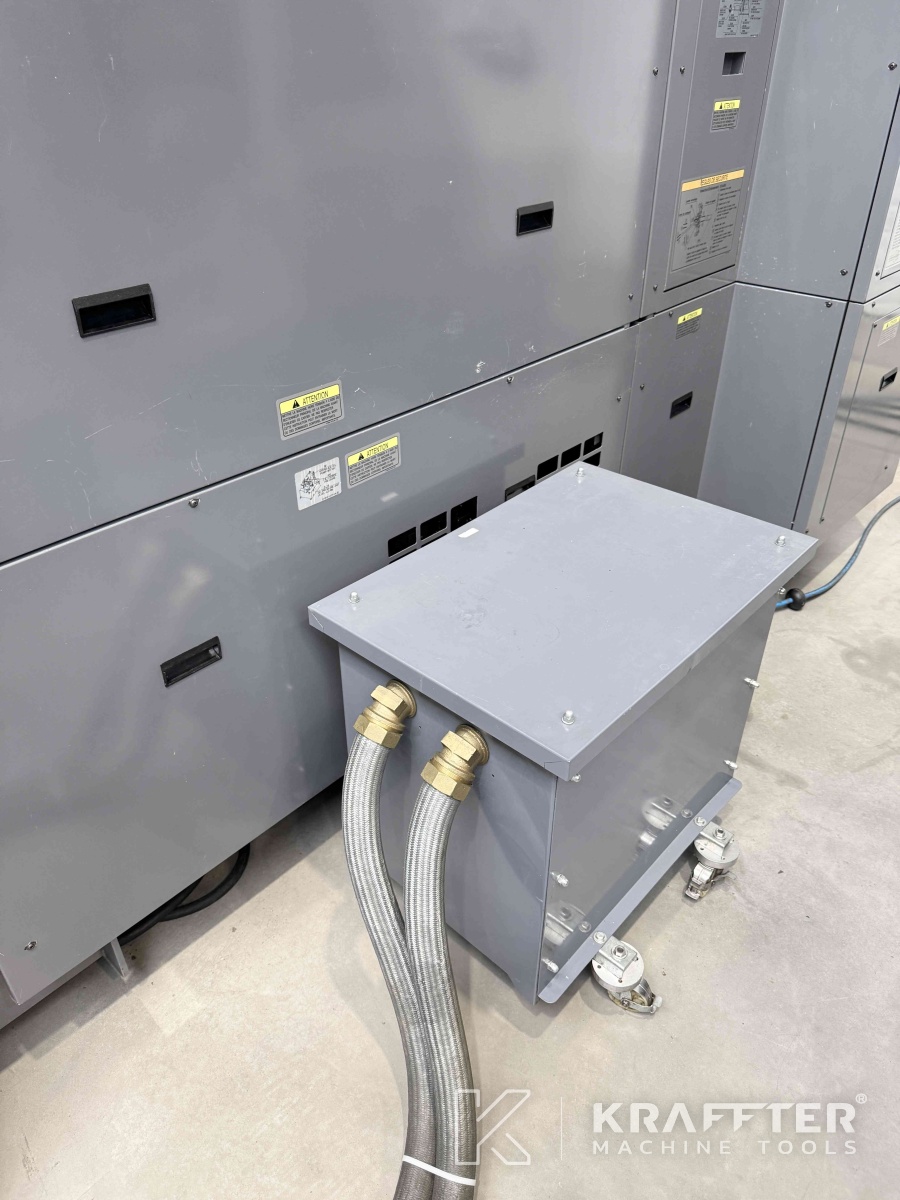

x1 transformer
x1 set of OKUMA manuals + CD's
