Sold

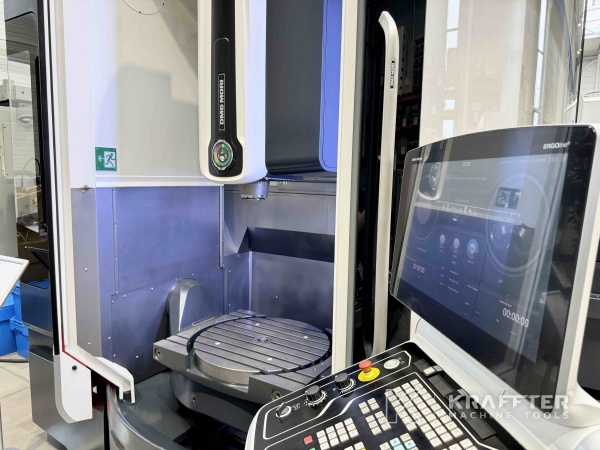

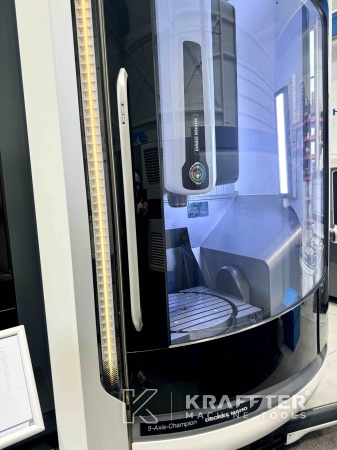

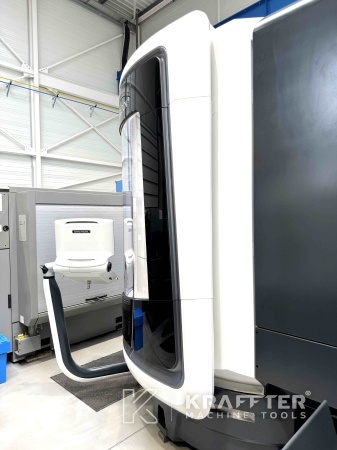

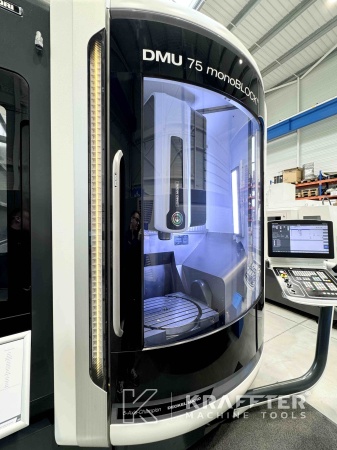

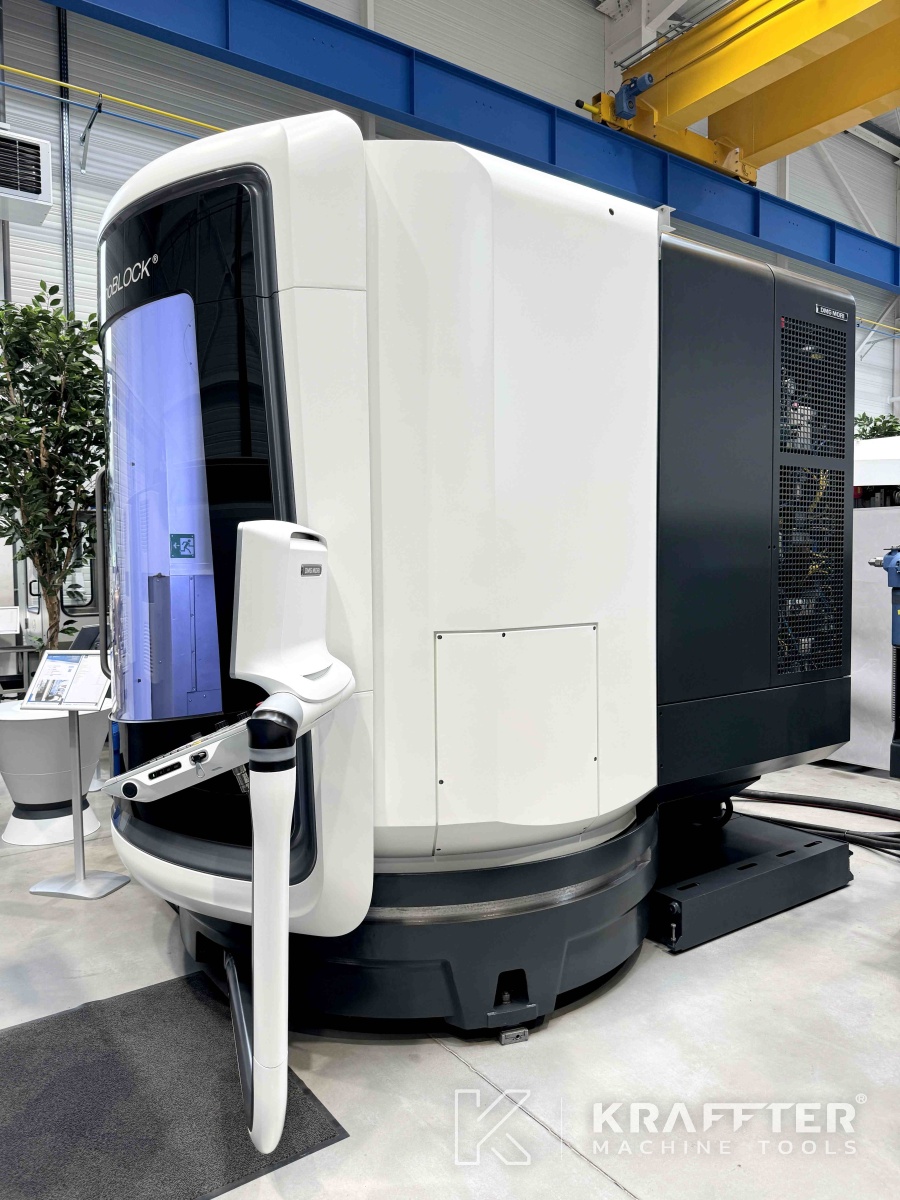

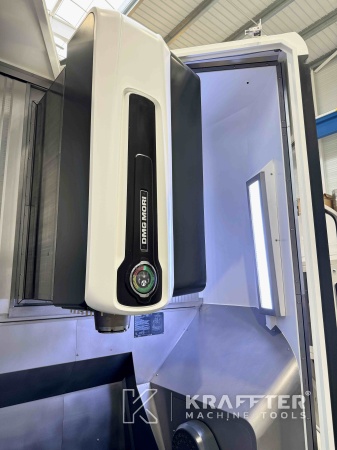

Type of machine : CNC machining centre
Brand : DMG MORI
N° de stock: 90094

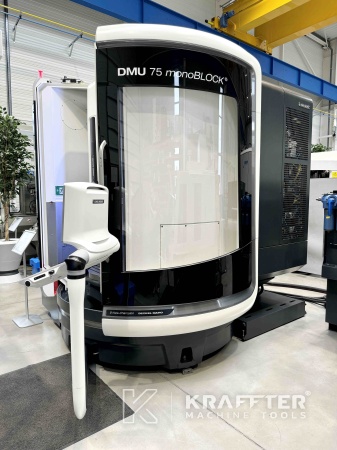

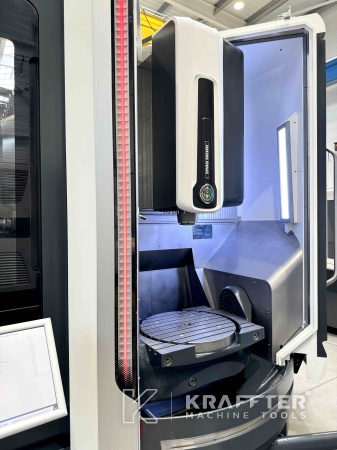

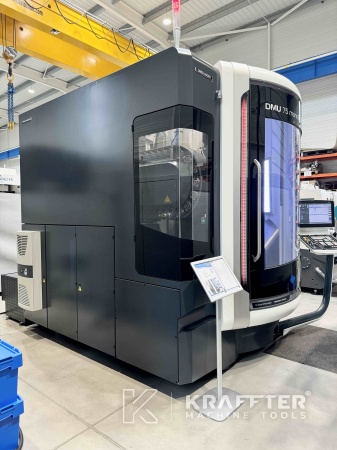

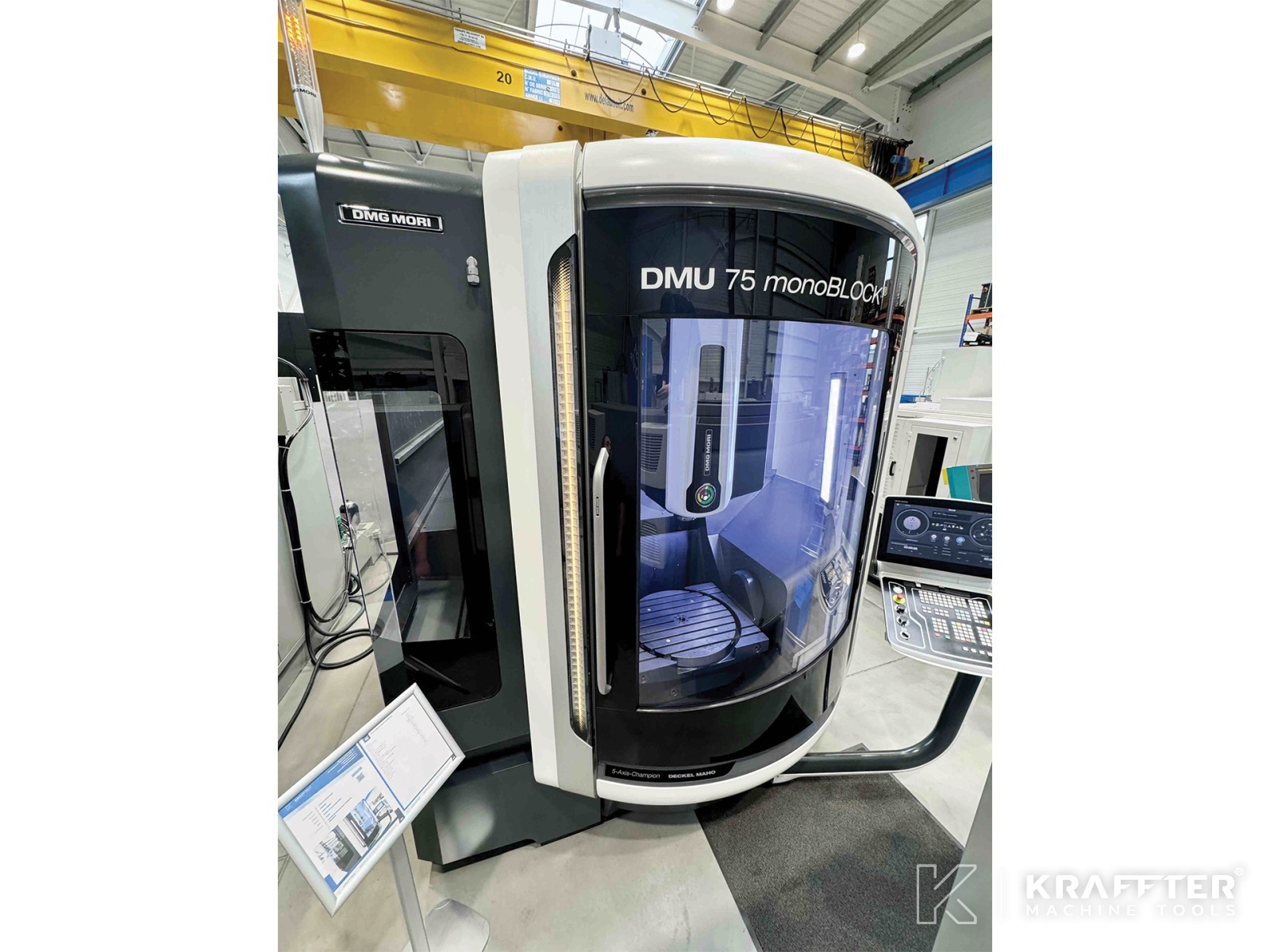

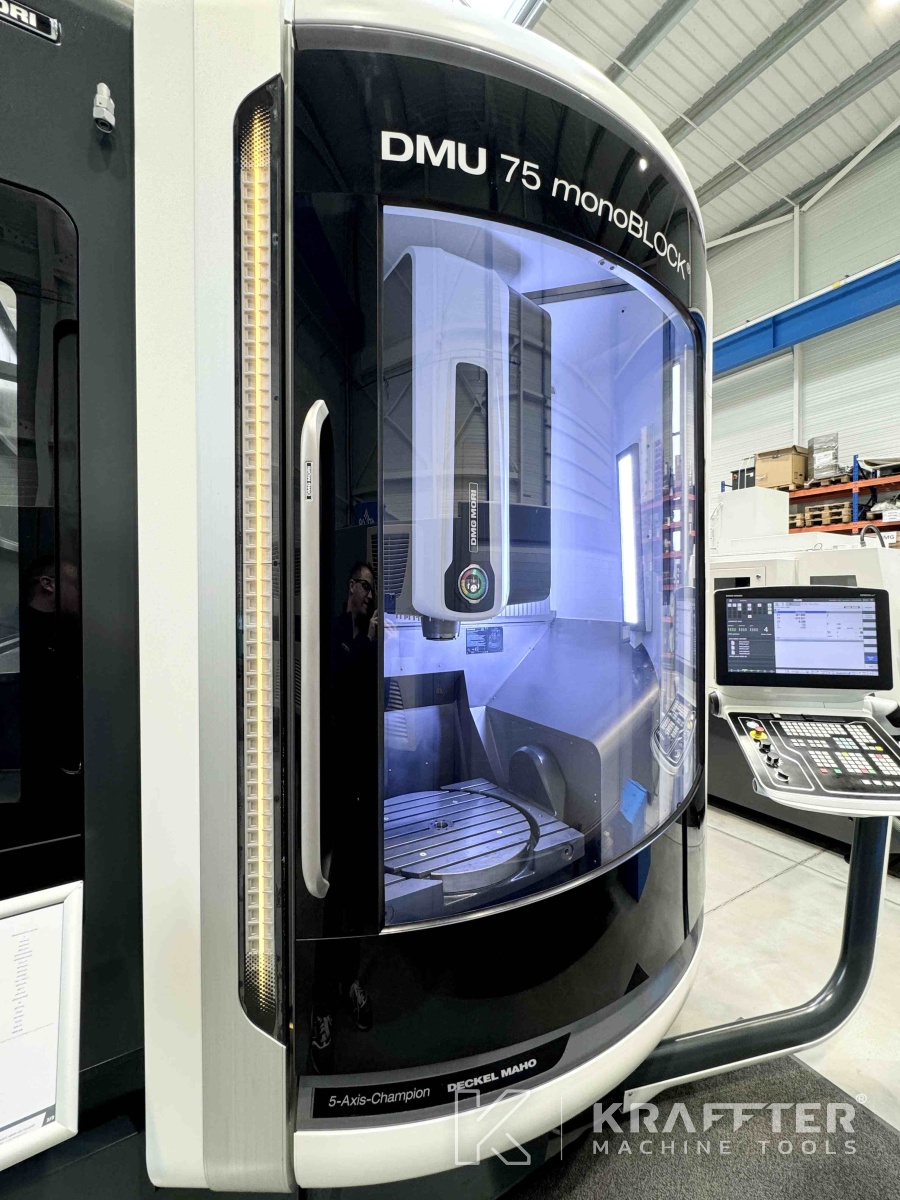

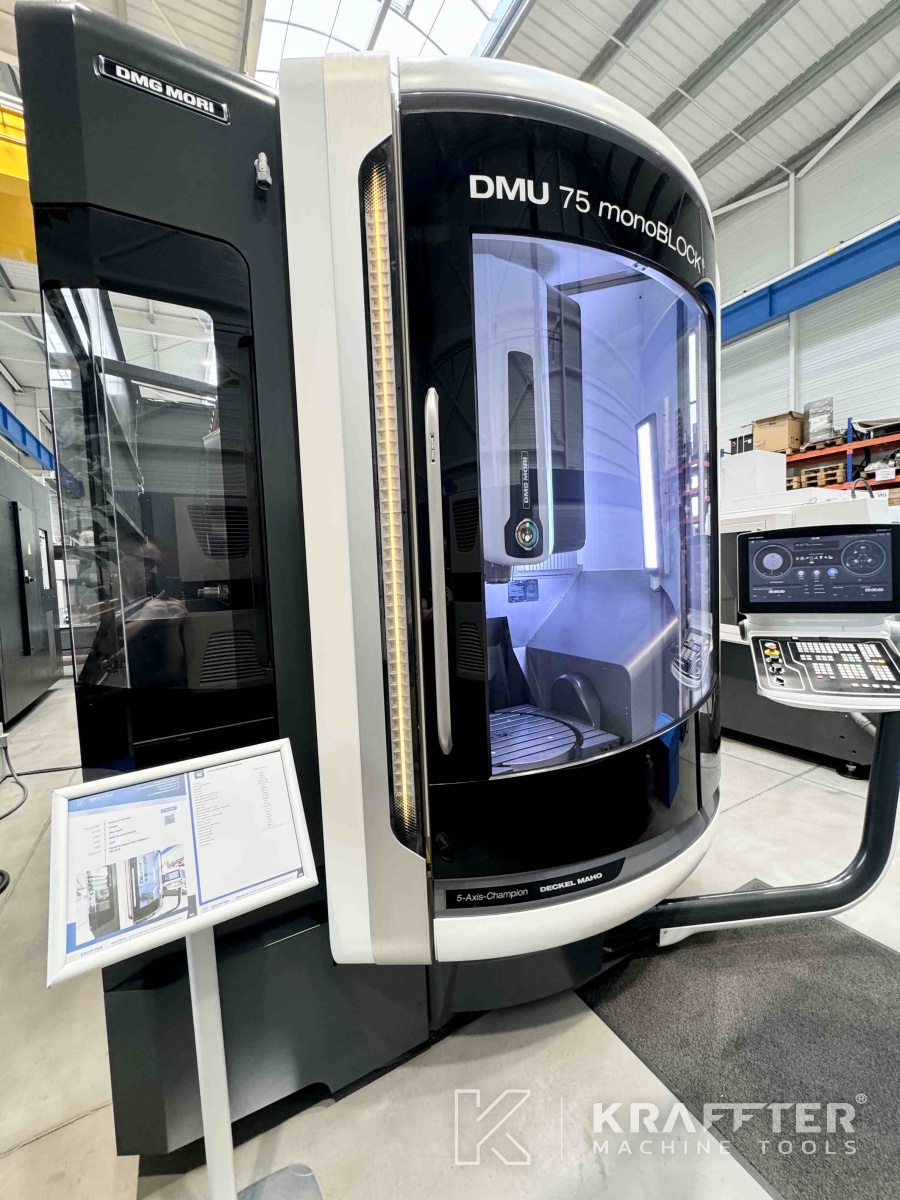

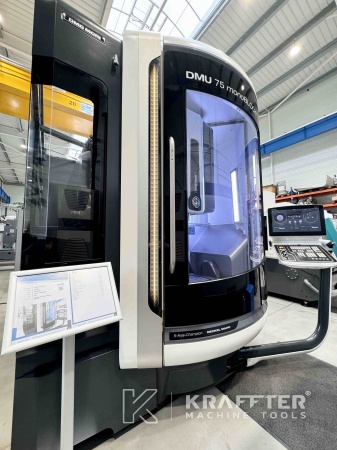

Model : DMU 75 monoBLOCK
Year : 2015
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

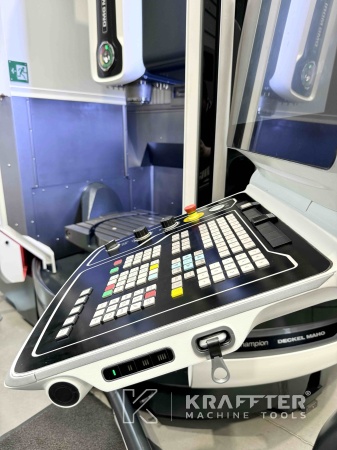

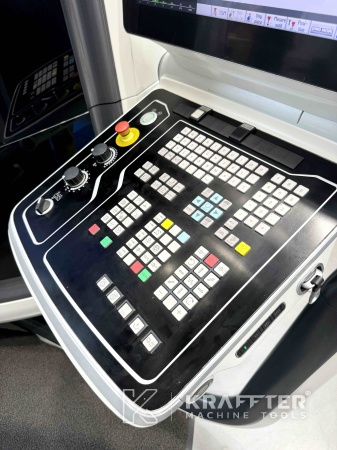

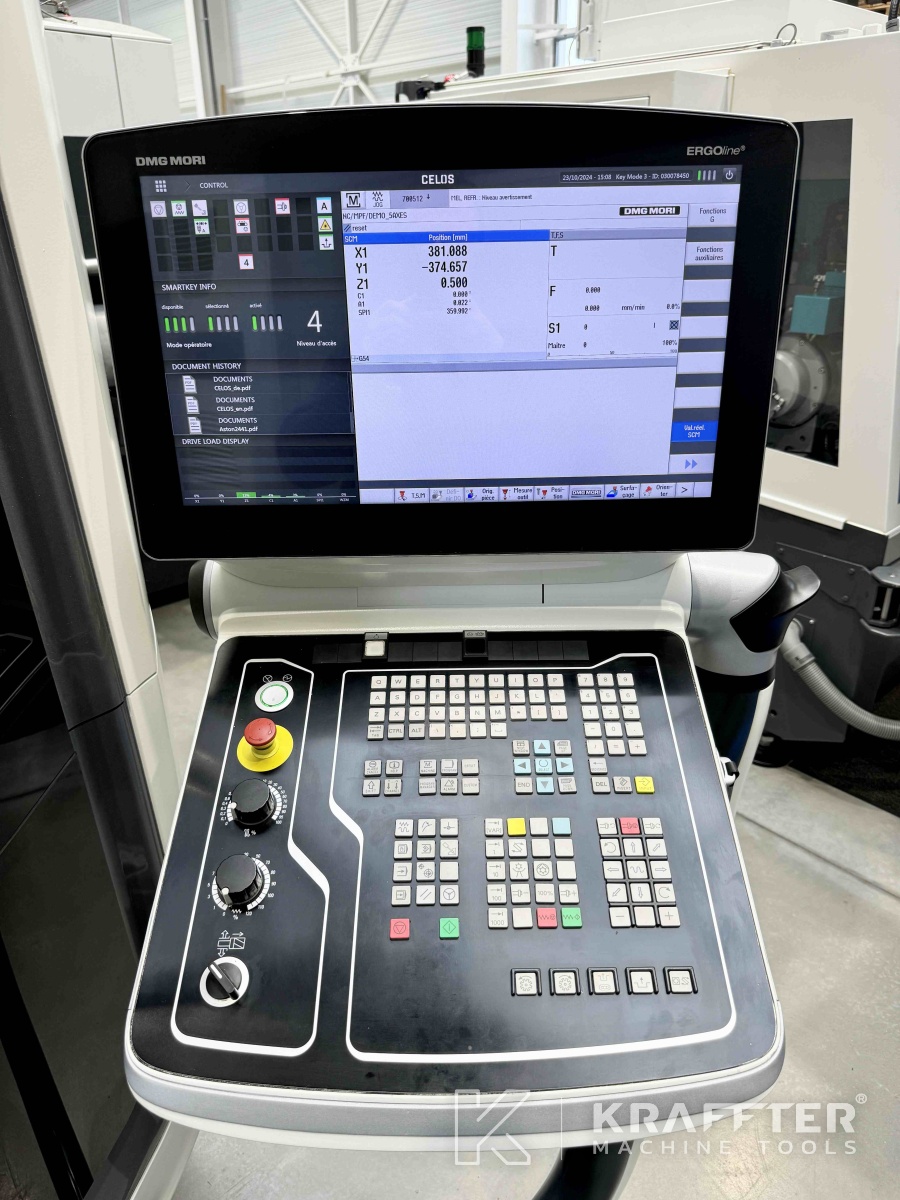

CNC control

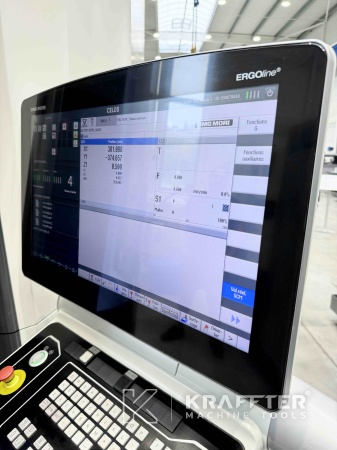

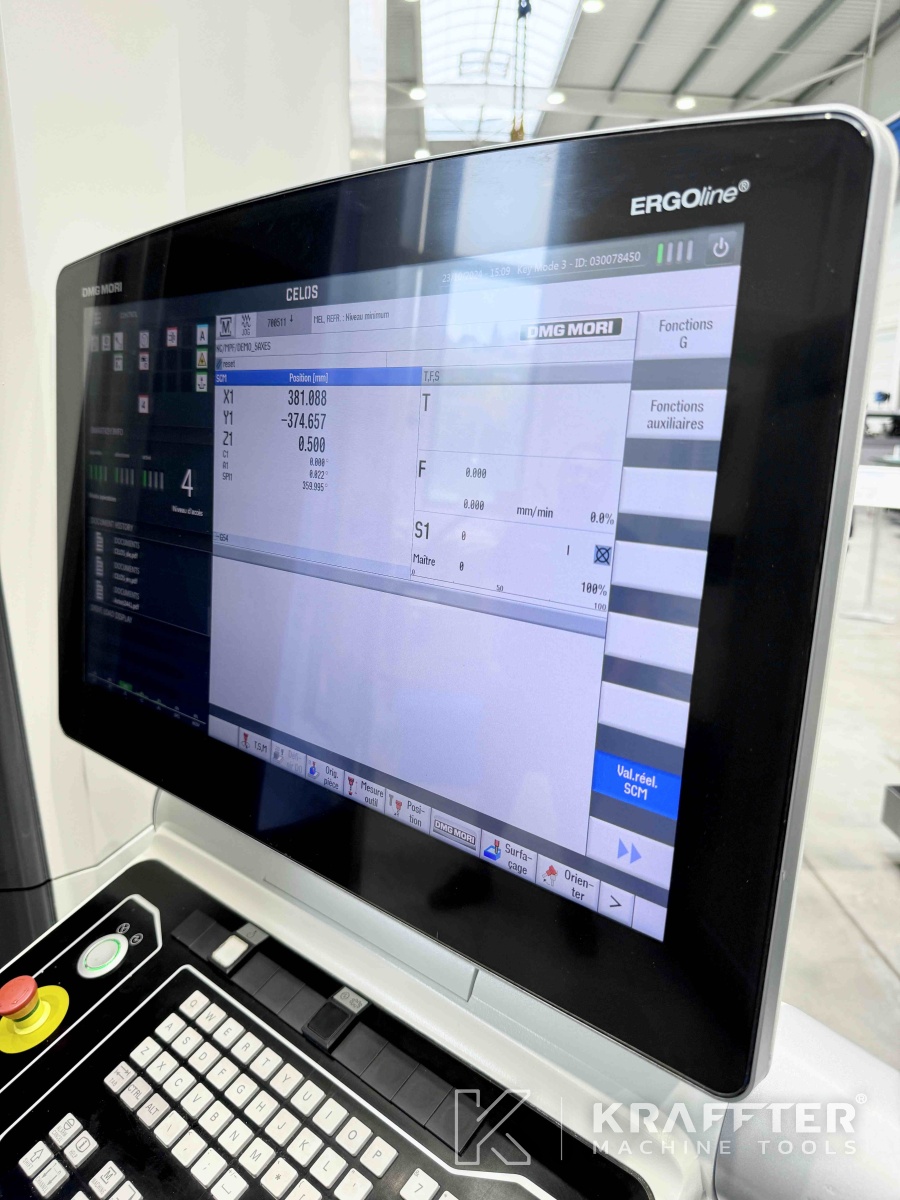

SIEMENS 840D SL (CELOS)
Number of simultaneous axes
5
Stroke X axis
750 [mm]
Stroke Y axis
650 [mm]
Stroke Z axis
650 [mm]
Feed rate on X, Y and Z axes
40000 [mm/min]
Traversing feeds X, Y and Z axes
40000 [mm/min]
Axes acceleration
8 [m/s²]

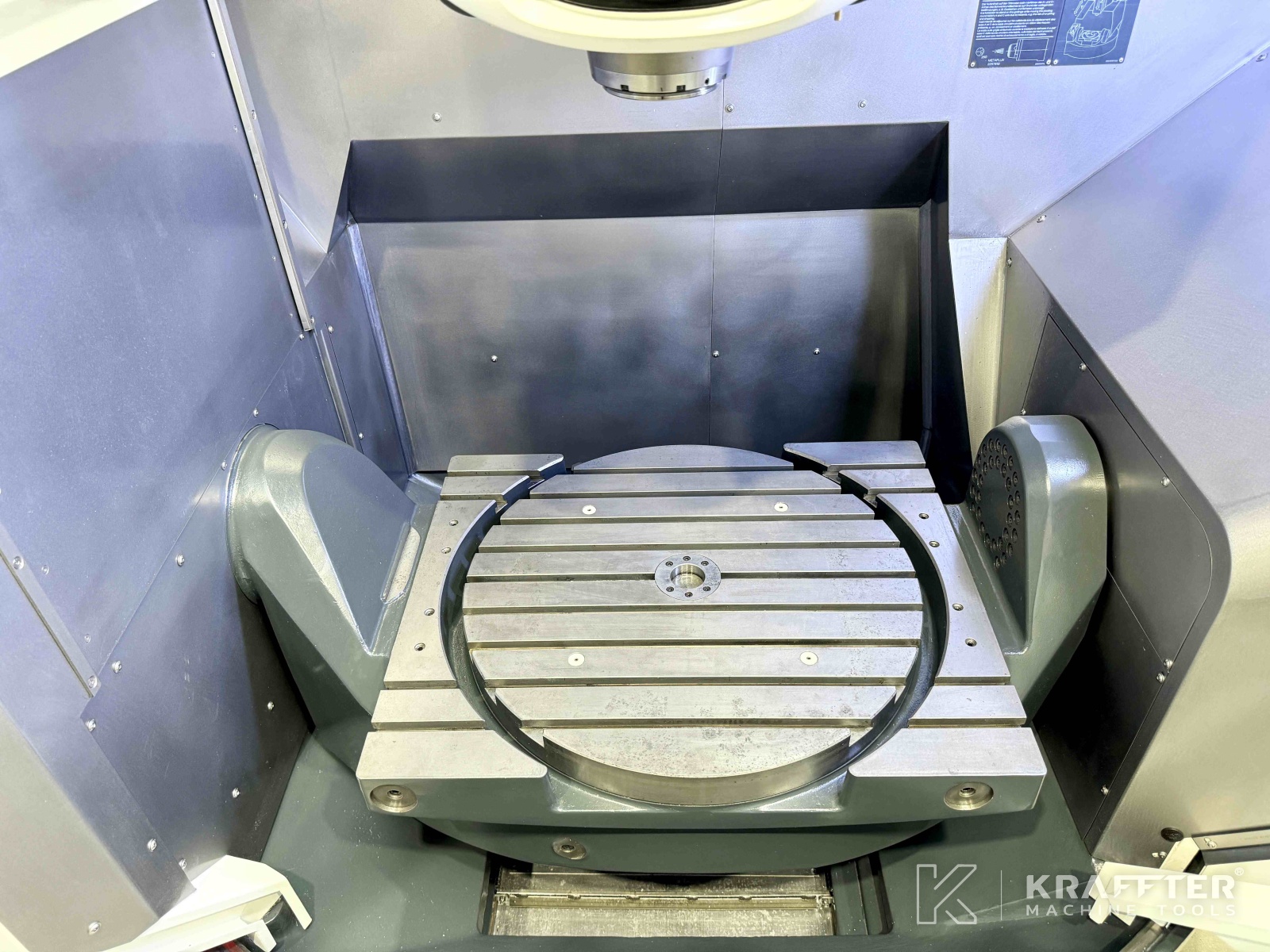

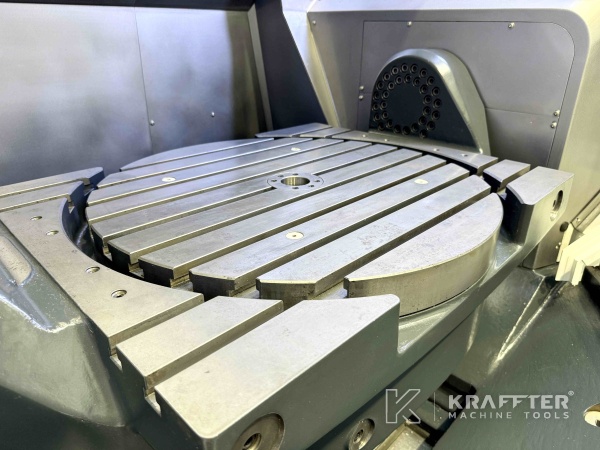

Table length
800 [mm]
Table width
650 [mm]
Max. load on table
600 [Kg]

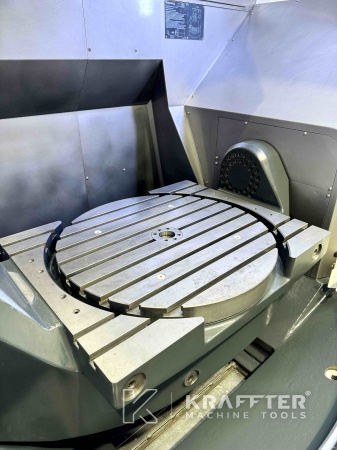

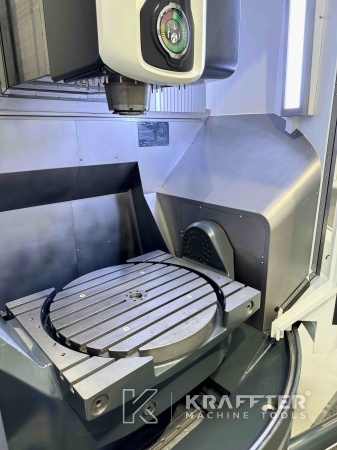

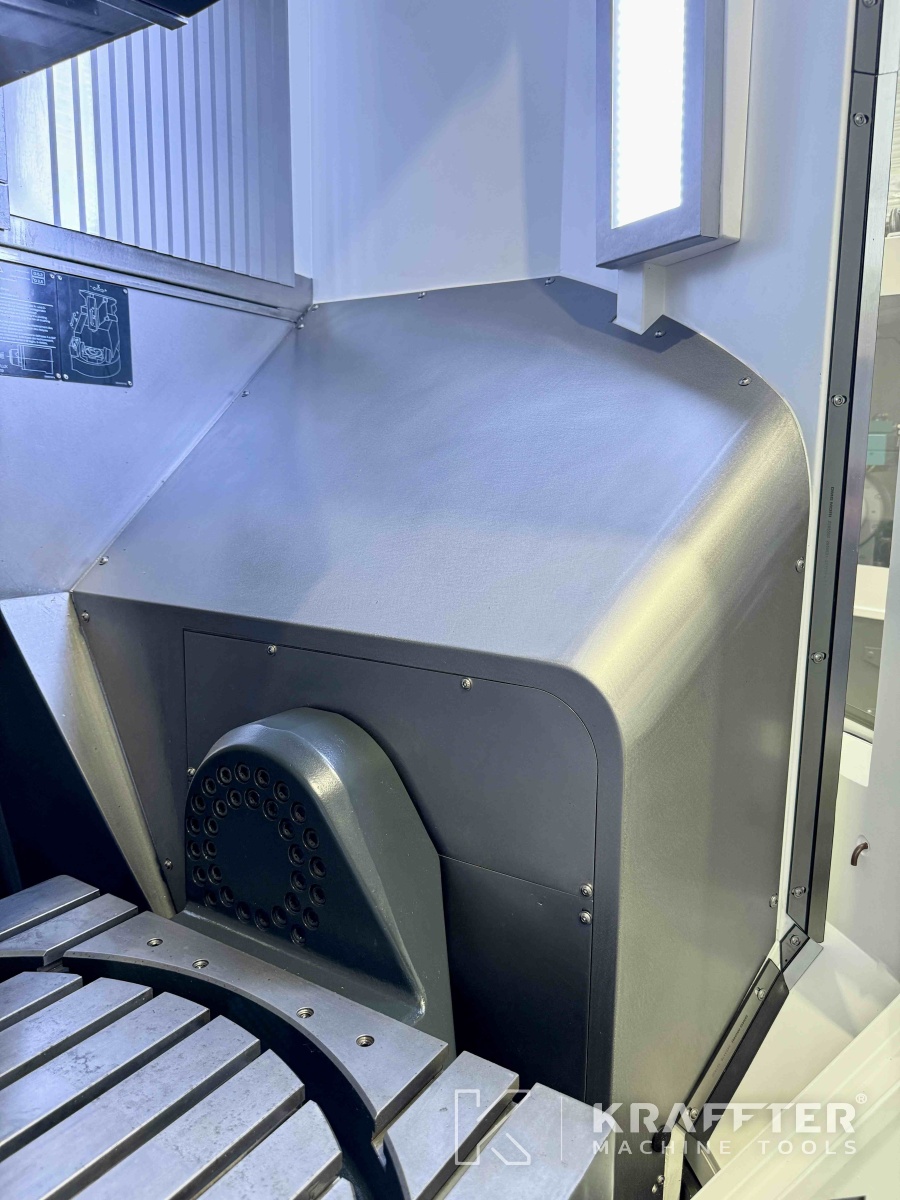

Stroke A axis : swiveling area of rotary table
-120 / +120 [°]
Table surface Ø
650 [mm]
Stroke C axis : table revolution
360 [°]

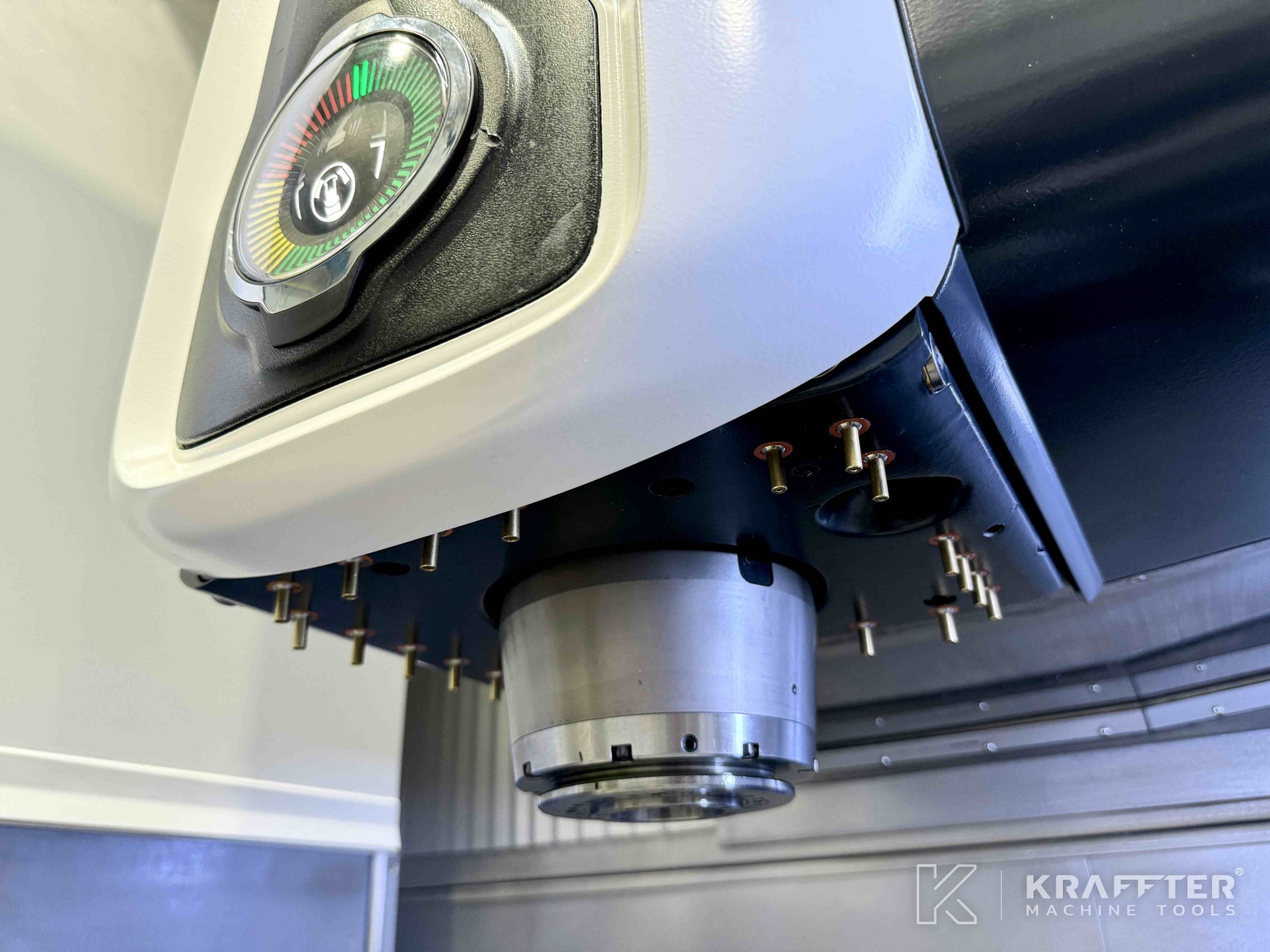

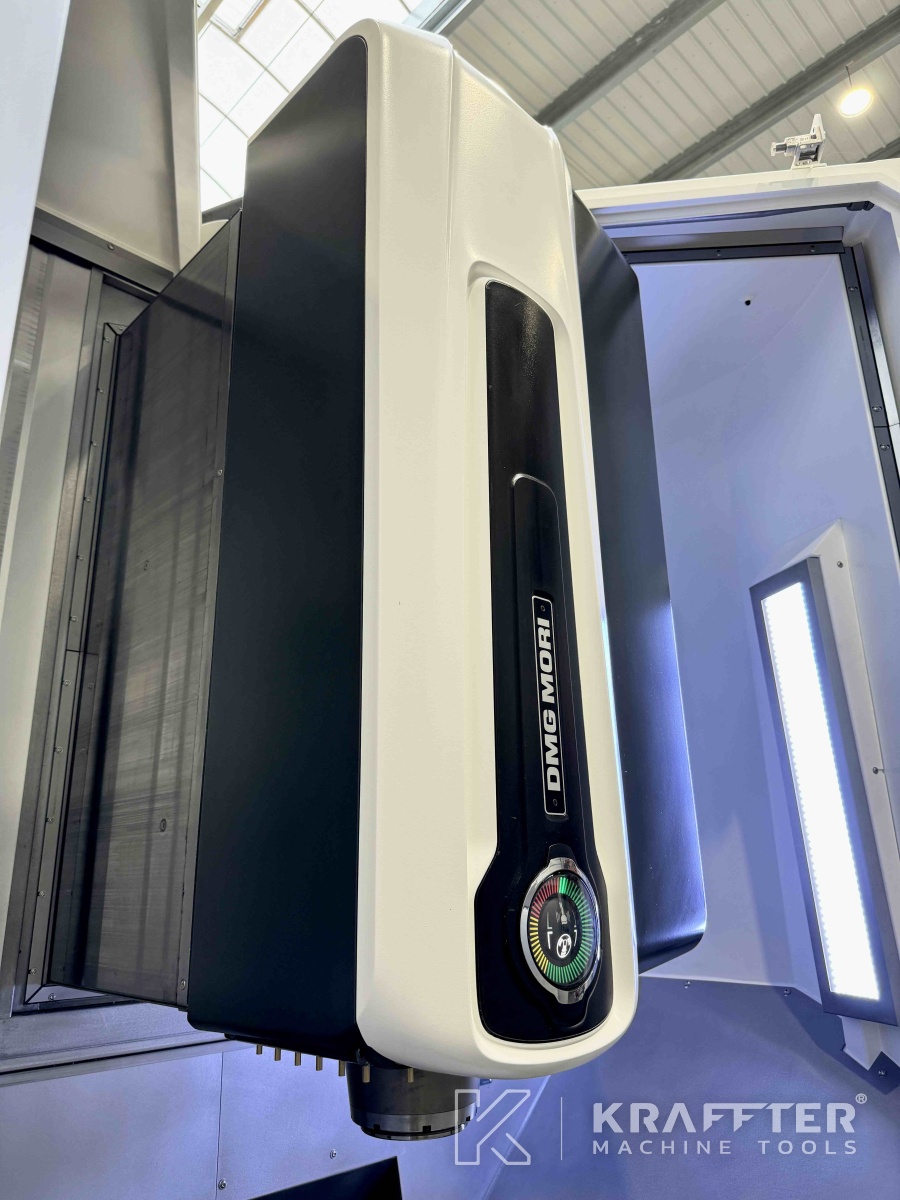

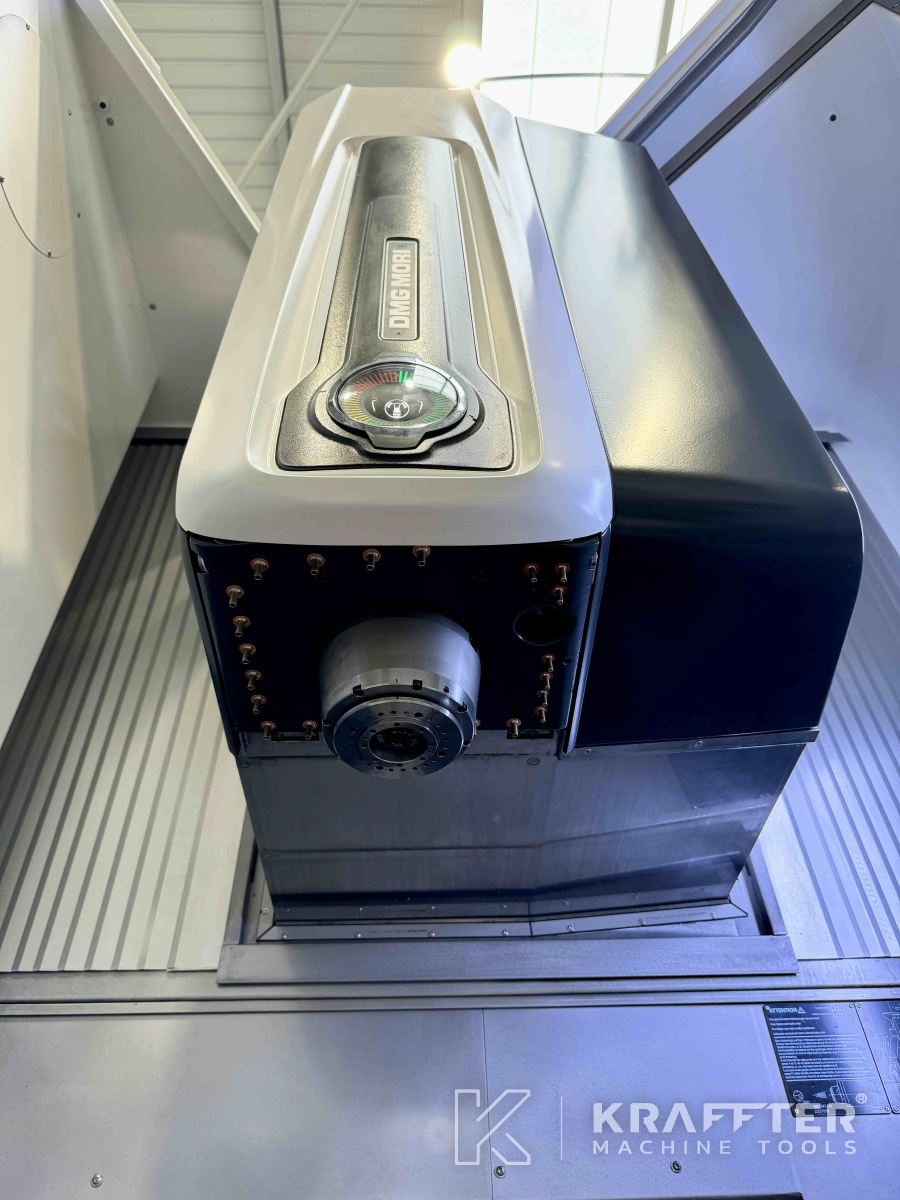

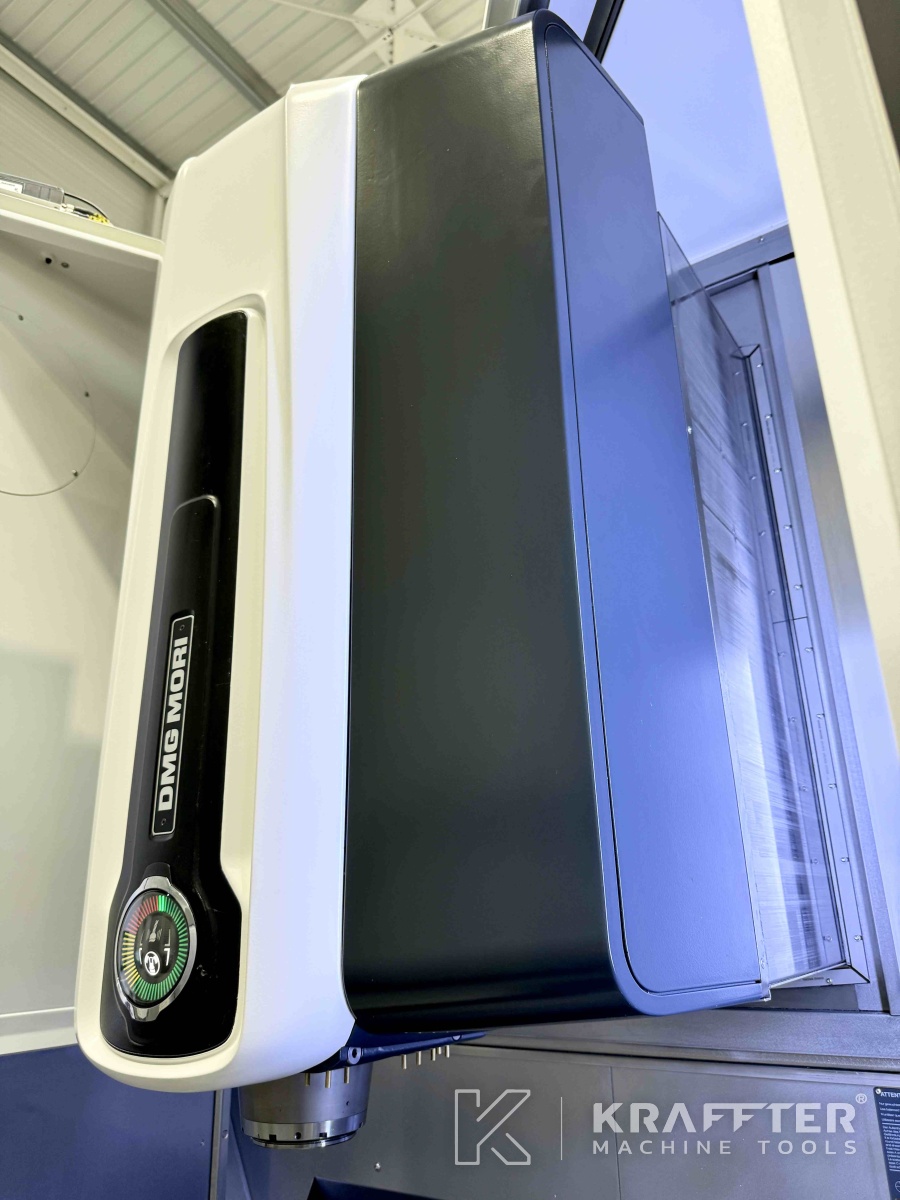

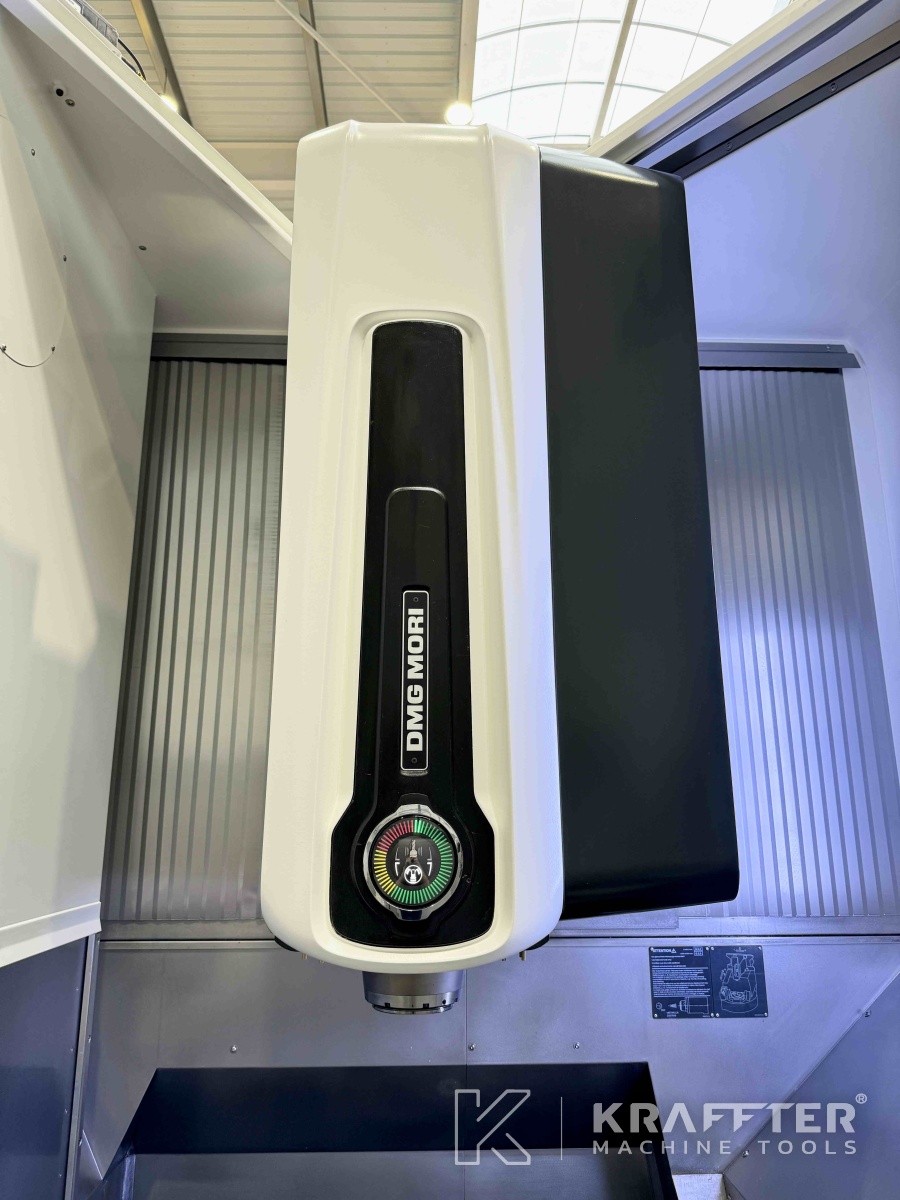

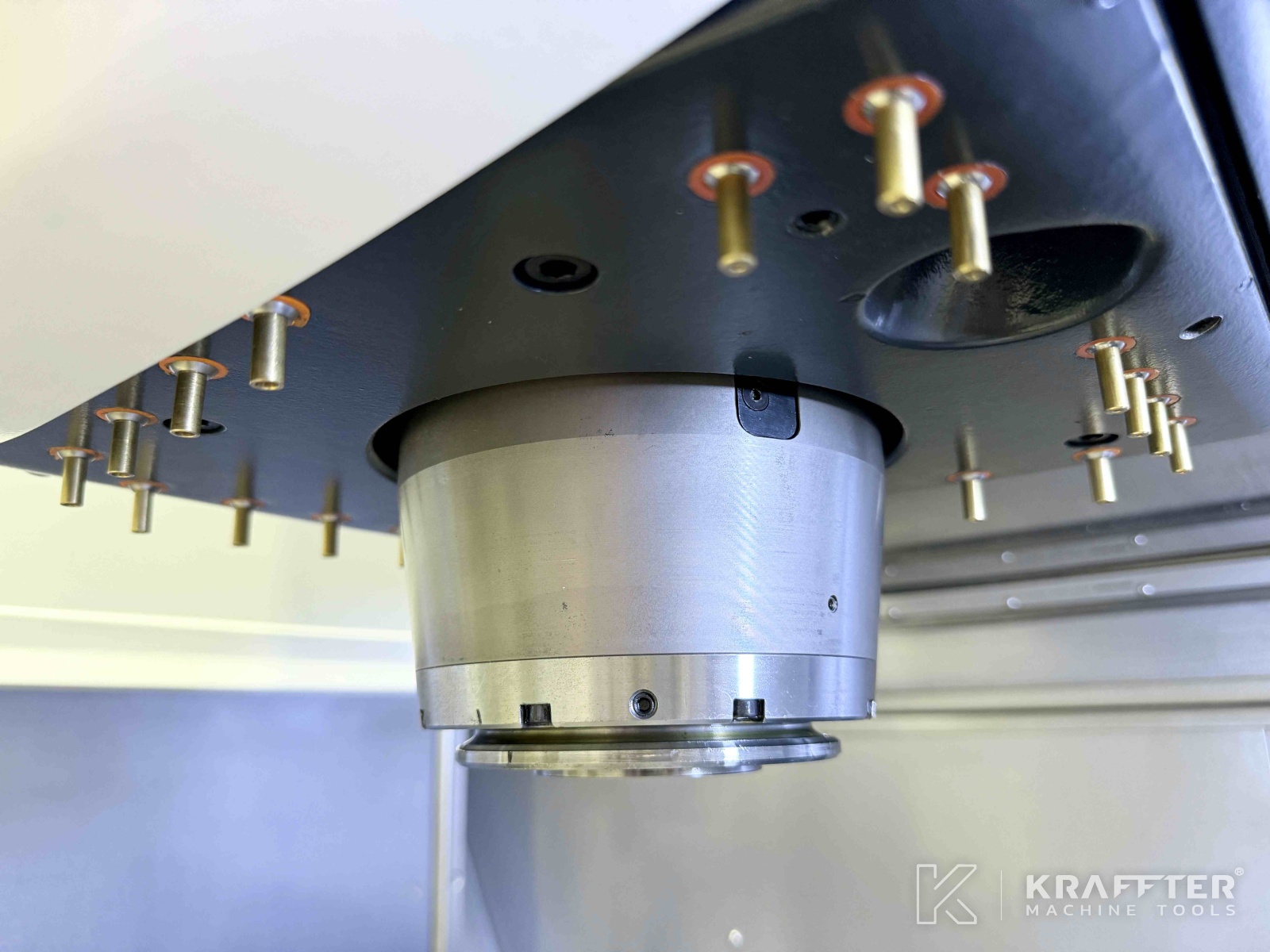

Spindle type
HSK-A 63
Max. spindle speed
18000 [rpm]

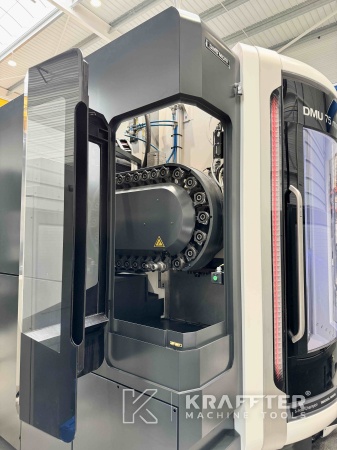

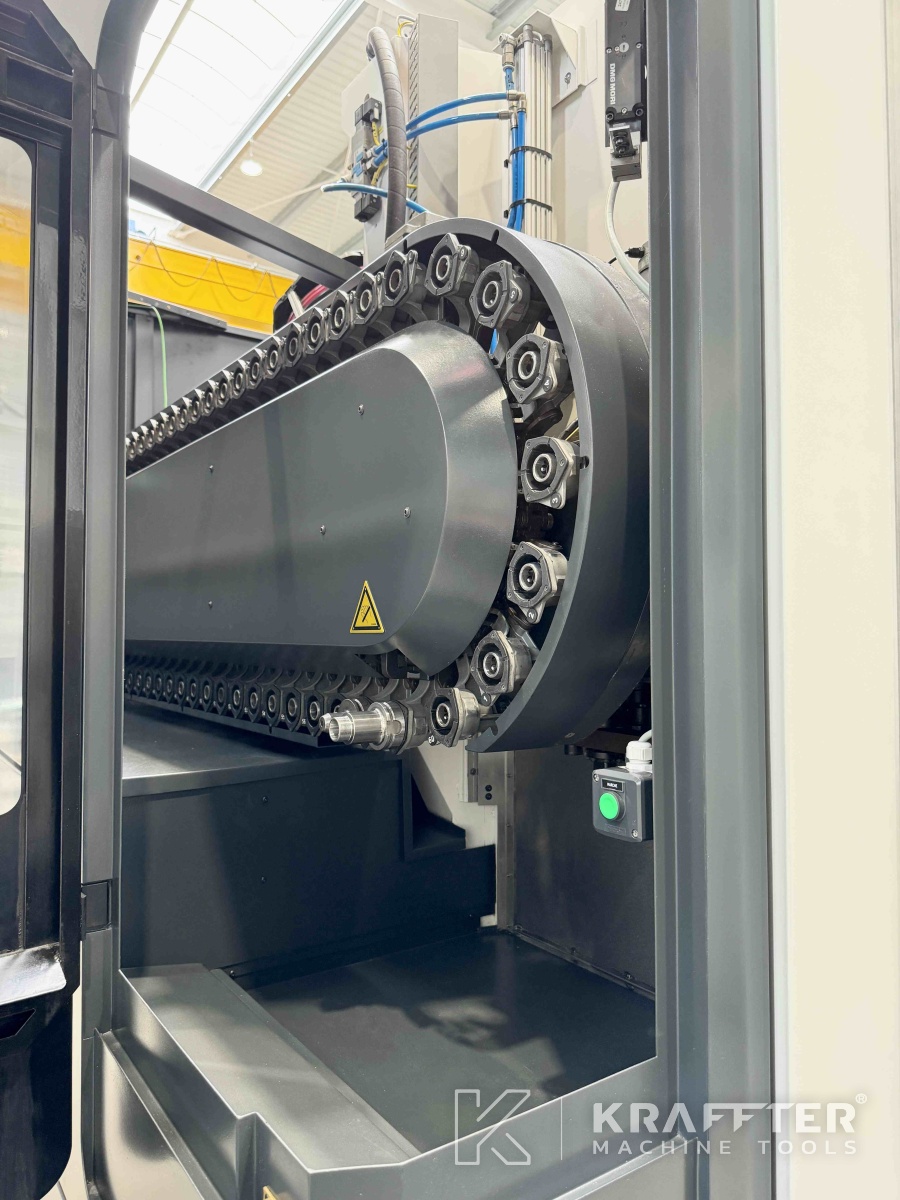

Tool changer magazin number of stations
60
Max. tool lenght
315 [mm]
Max. weight of single tool
8 [Kg]
Max. tool diameter
160 [mm]
Rated current
70 [A]
Supply voltage
400 [V]

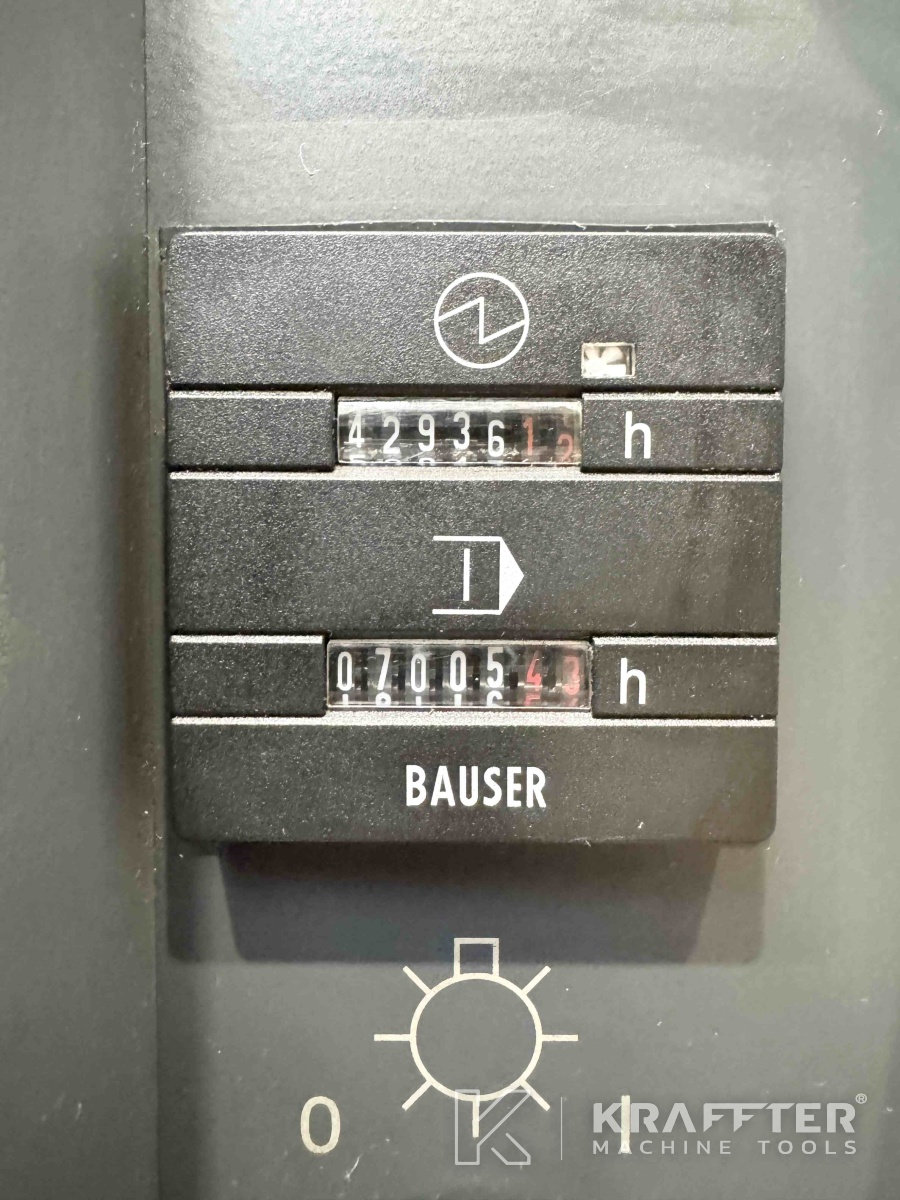

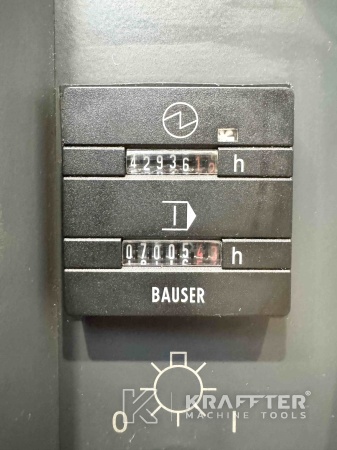

Number of running hours
7005 [h]
Machine weight
11600 [Kg]
Additional information
EQUIPMENT INCLUDED:
x1 high-pressure through-spindle coolant 40 bar

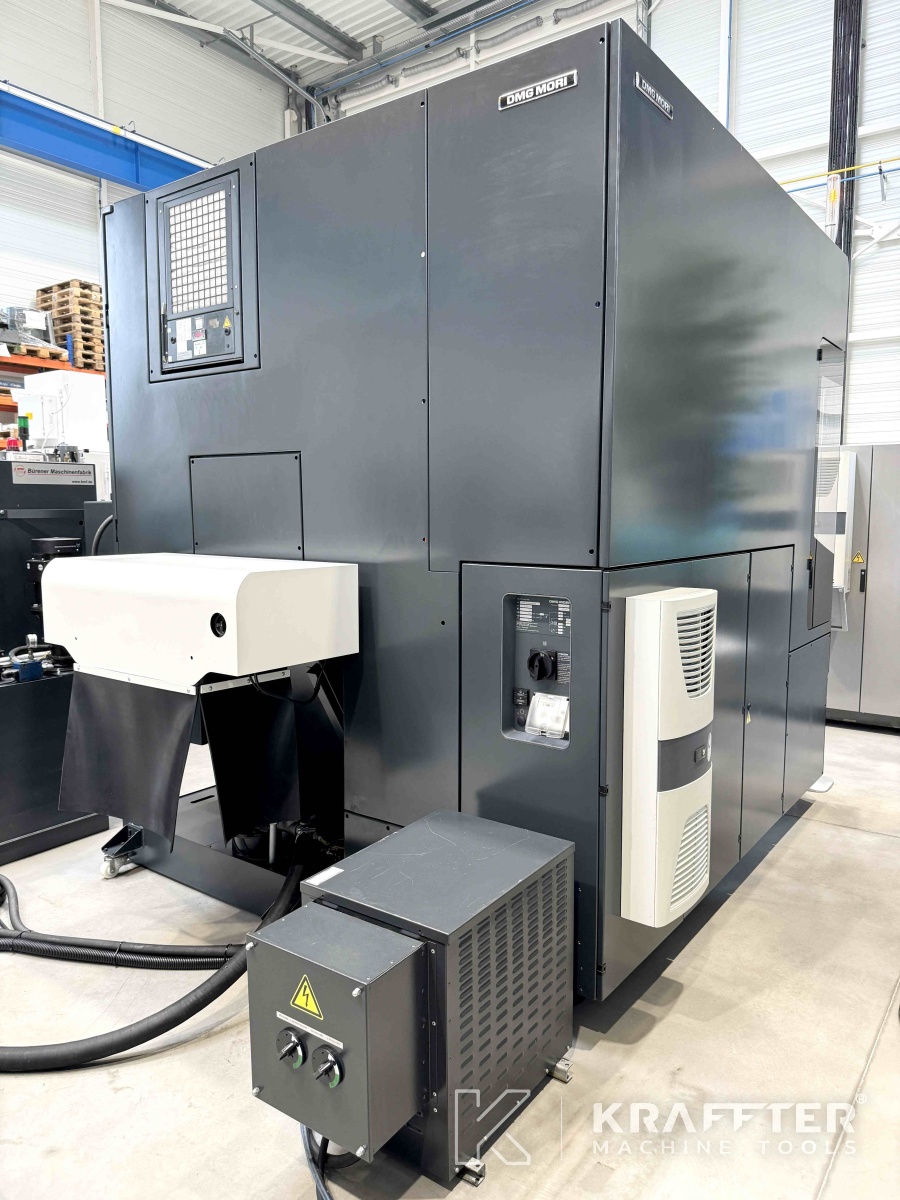

x1 chip conveyor

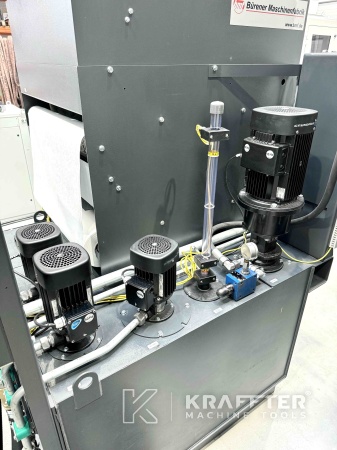

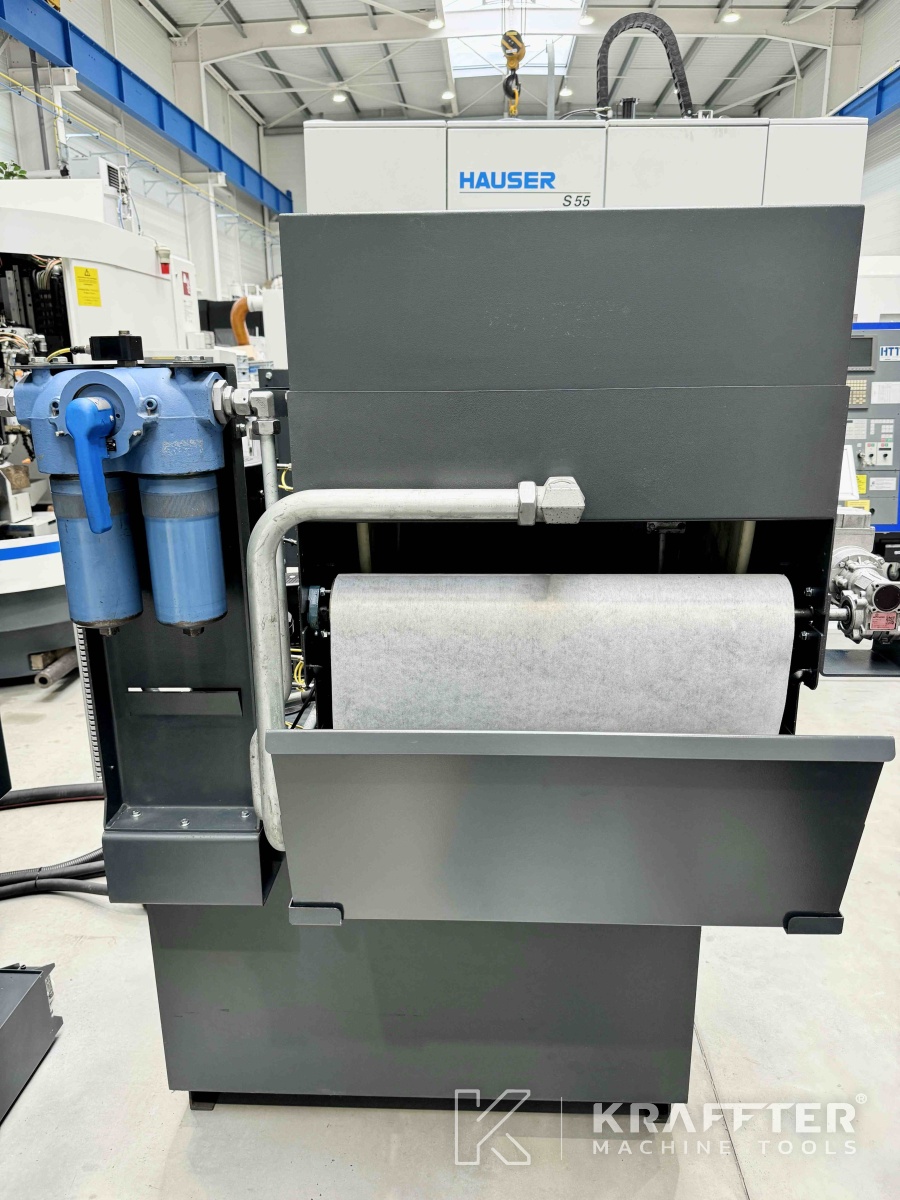

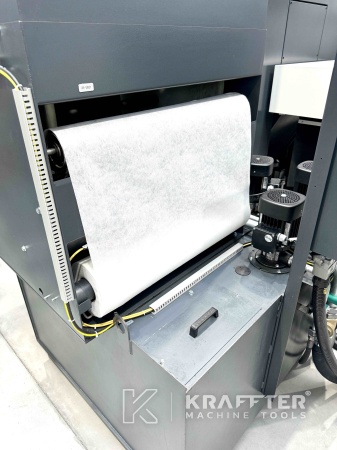

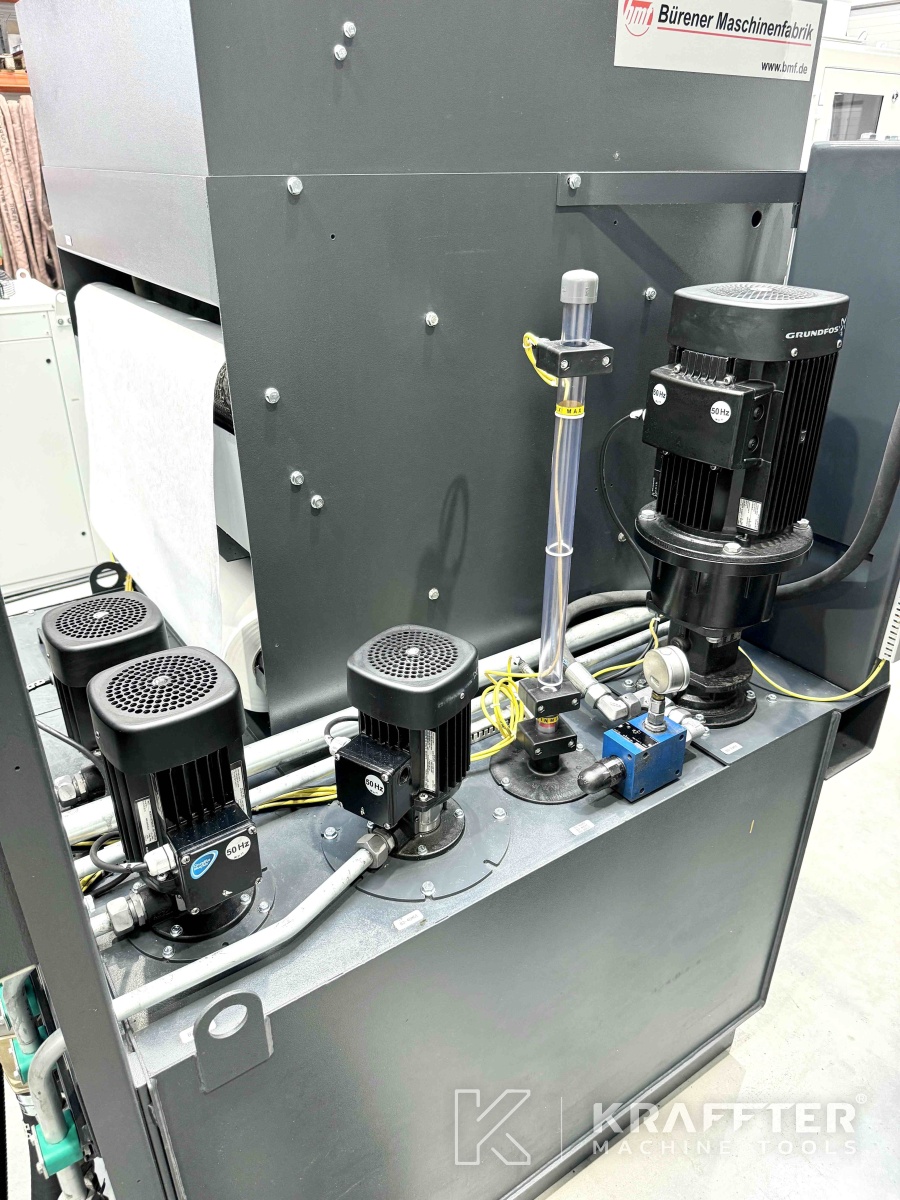

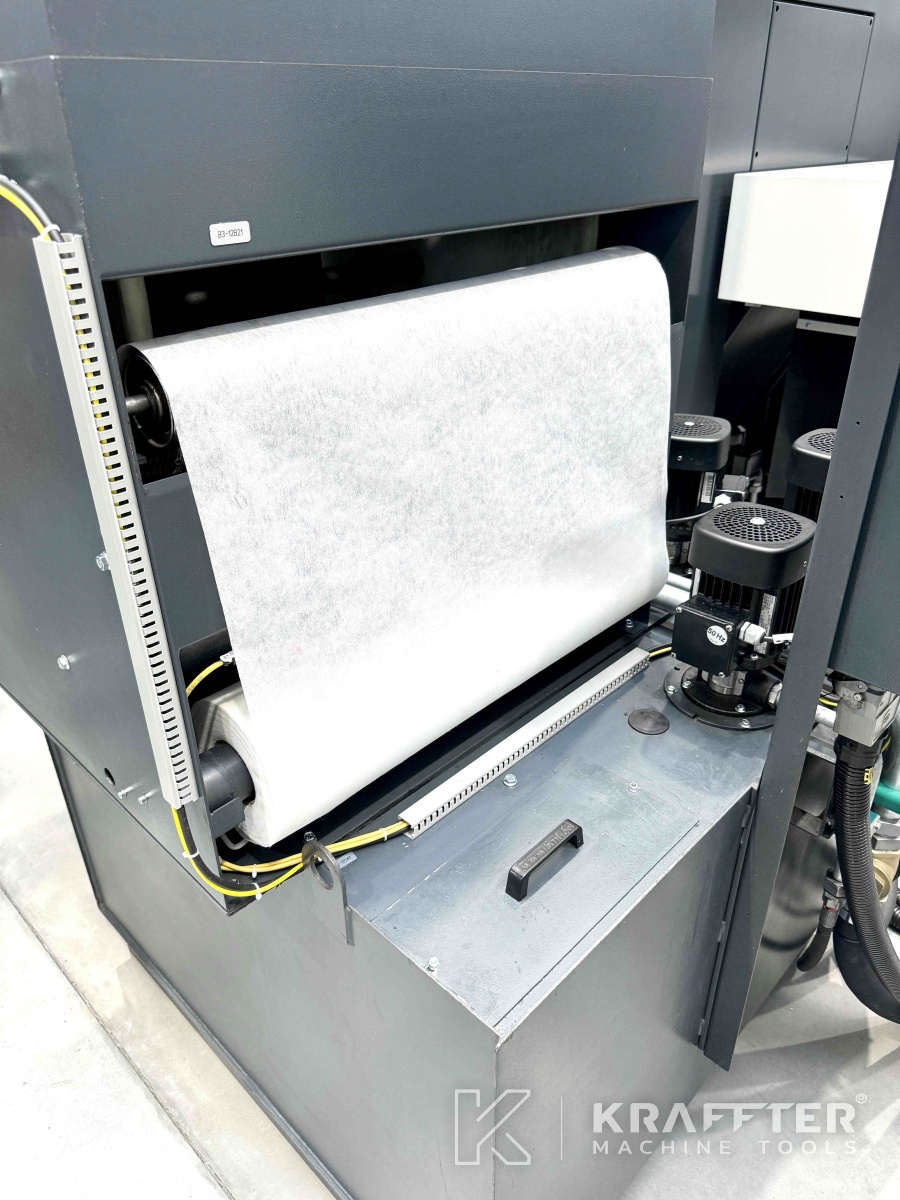

x1 coolant tank + paper filtration
x1 spindle cooler

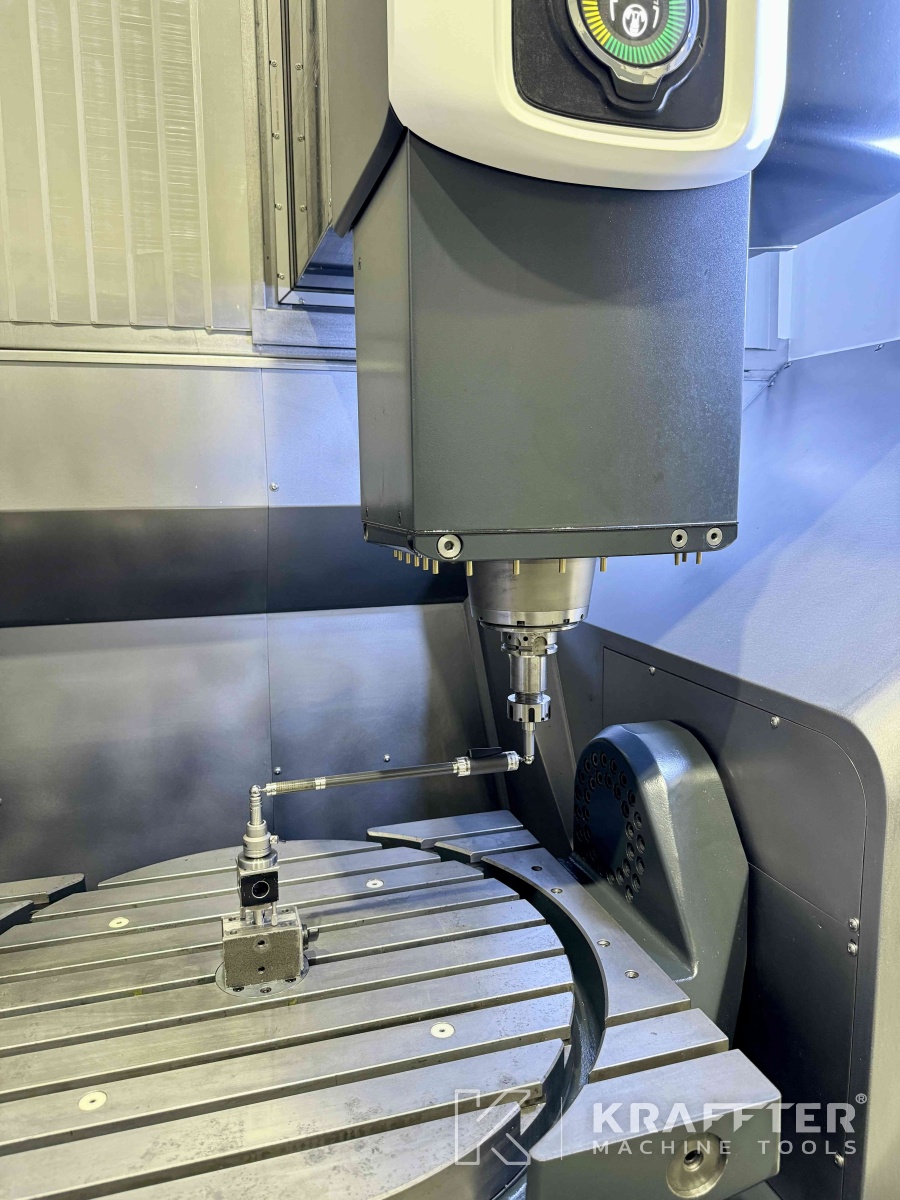

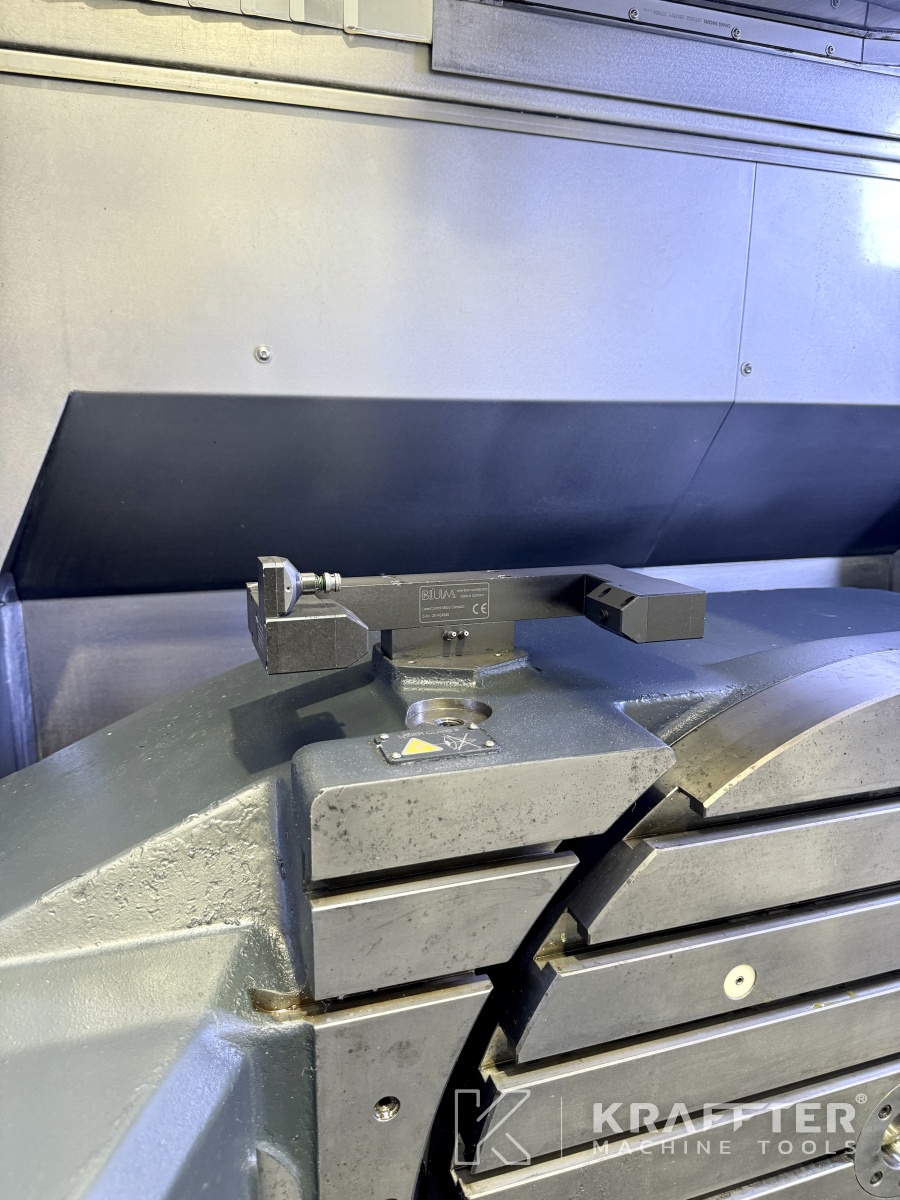

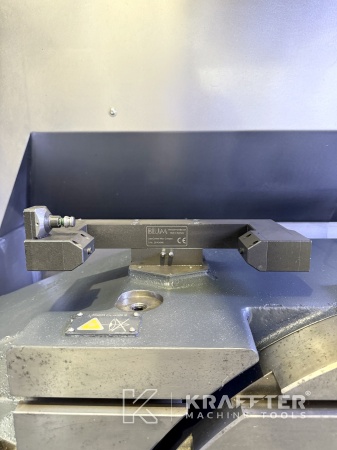

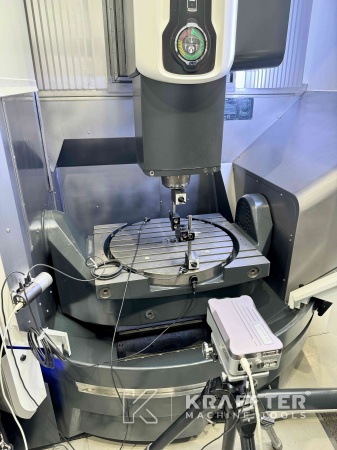

x1 BLUM laser system for tool setting and tool breakage detection
x1 set of measuring glass scales on all linear axes with air supply

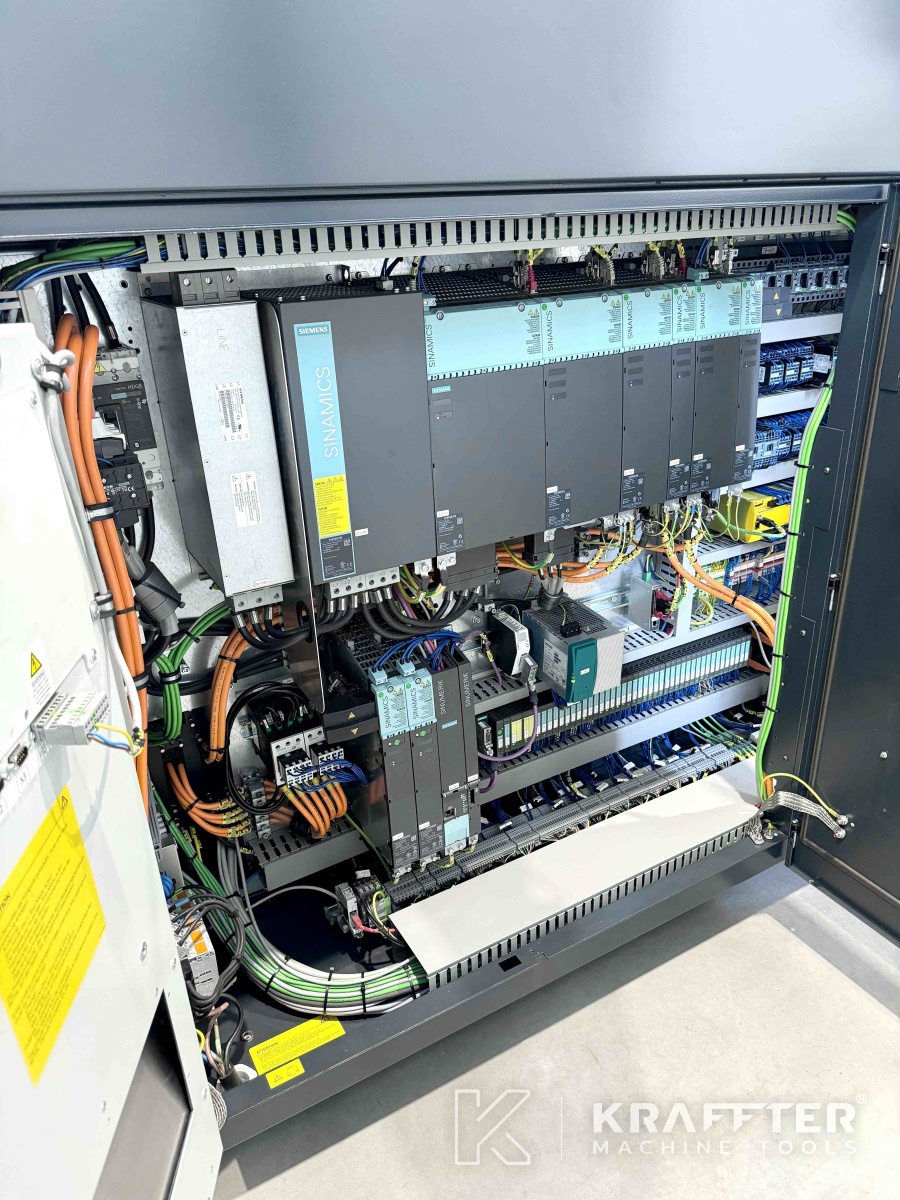

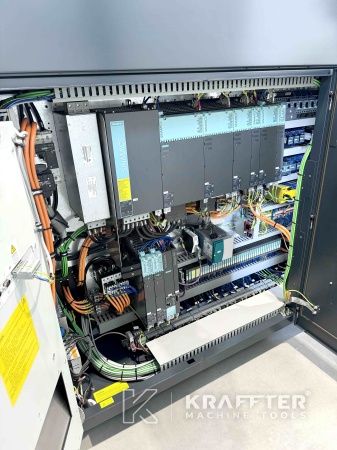

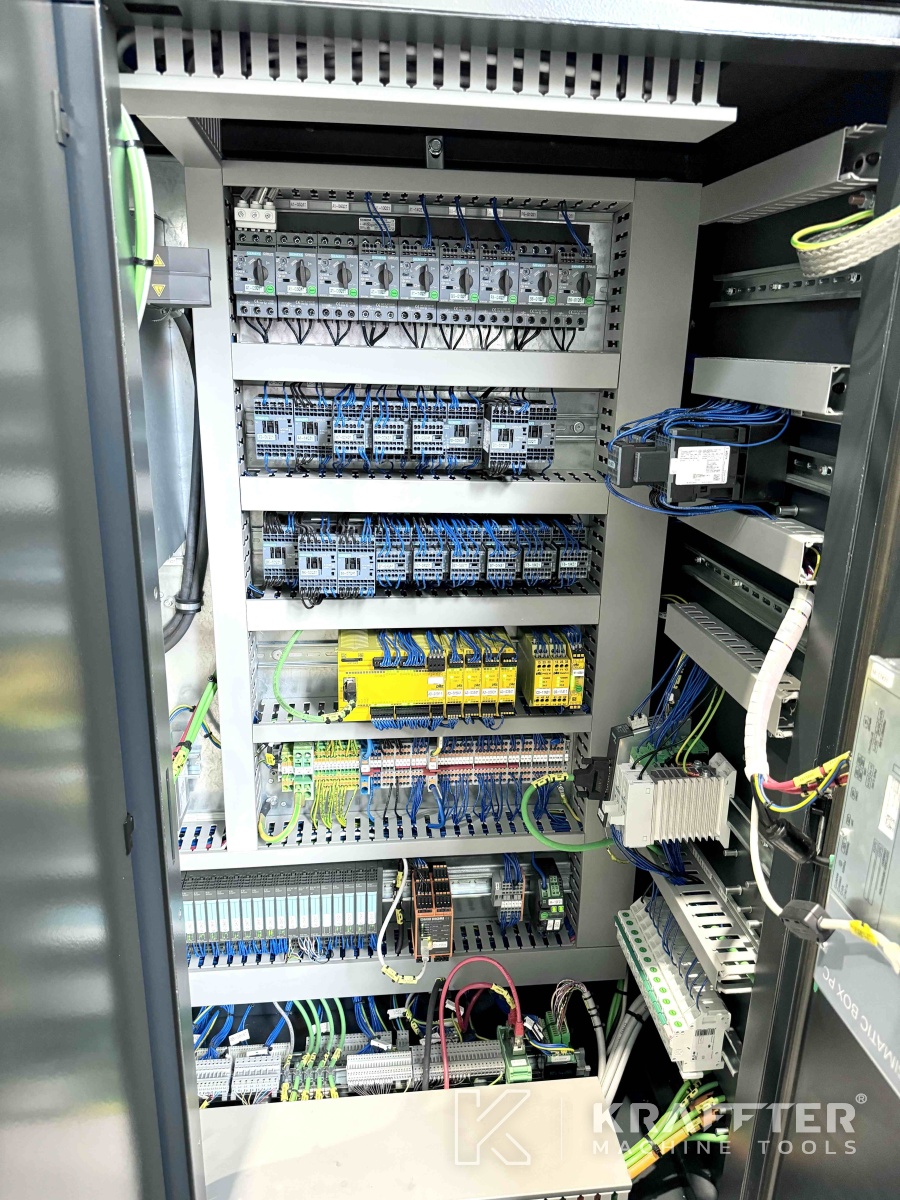

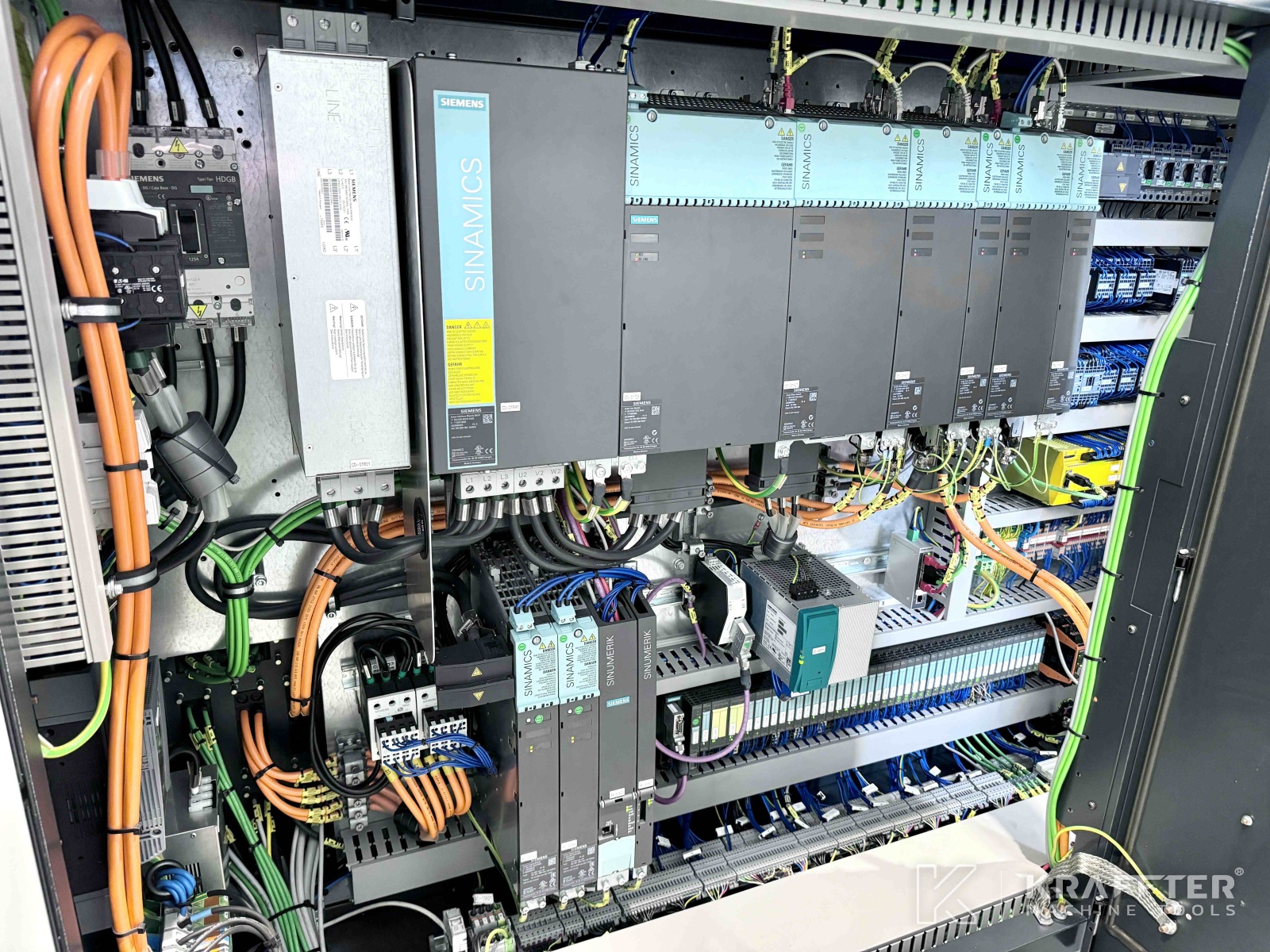

x1 electrical cabinet air conditioning

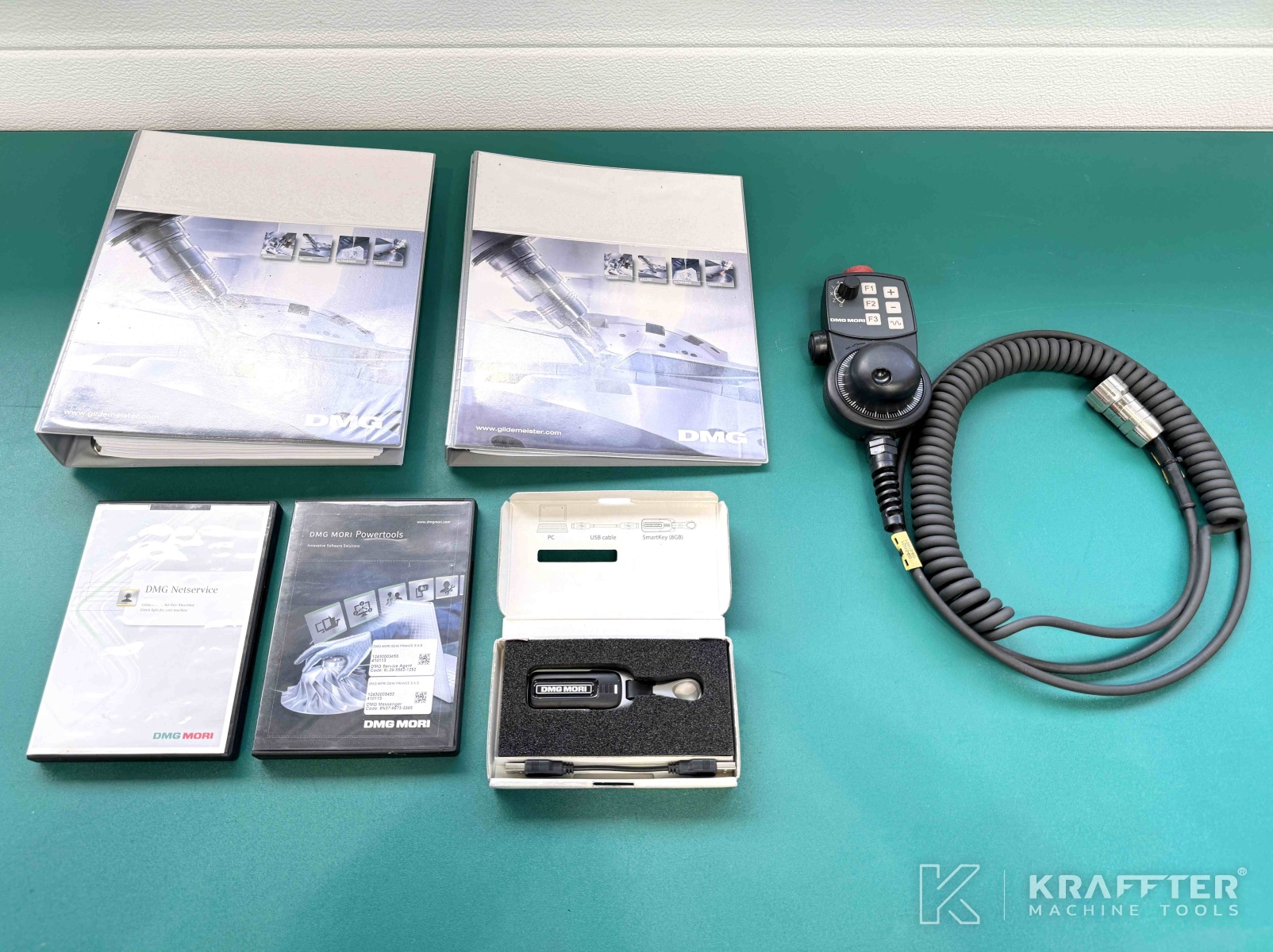

x1 electronic handwheel
