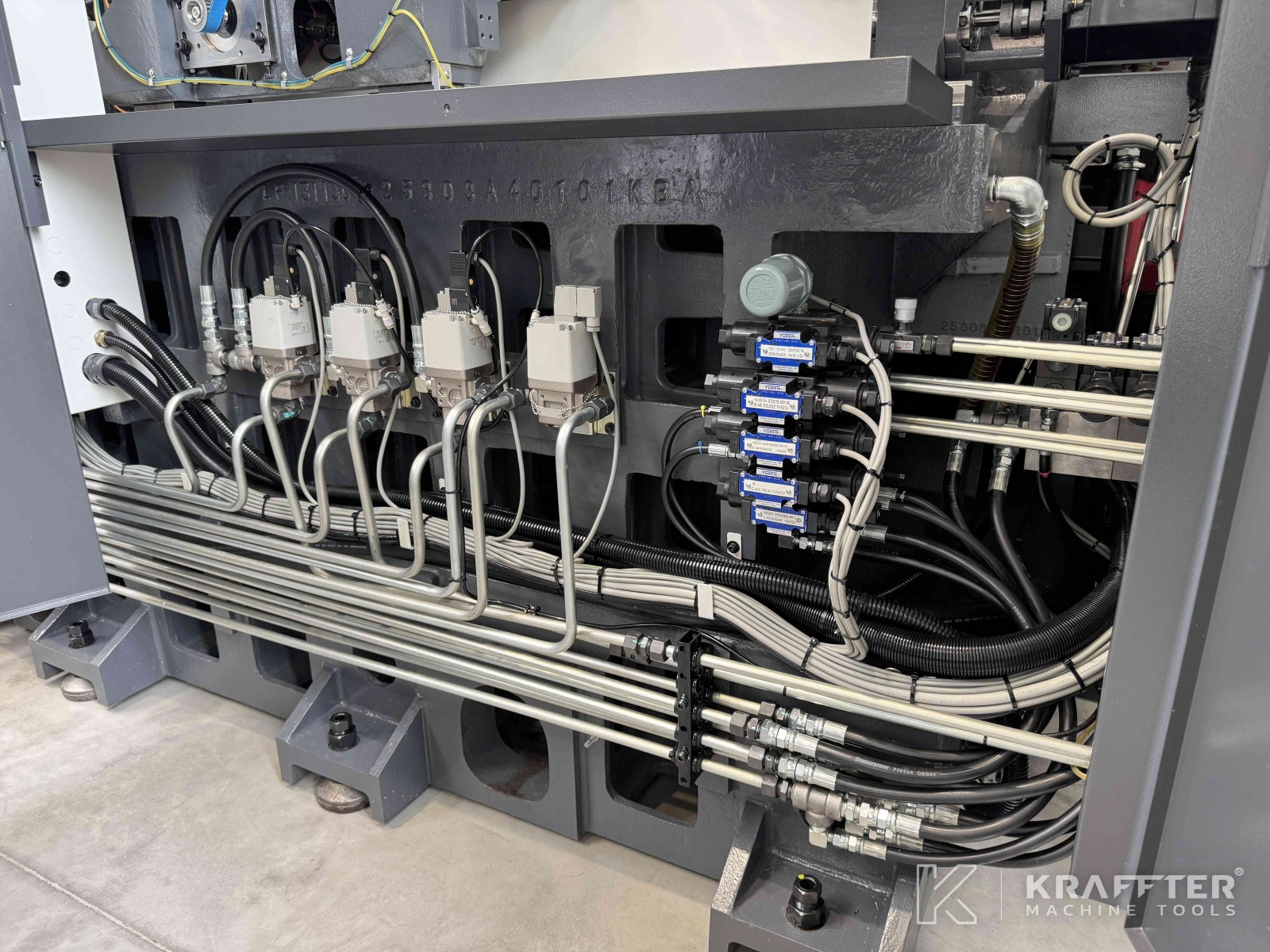

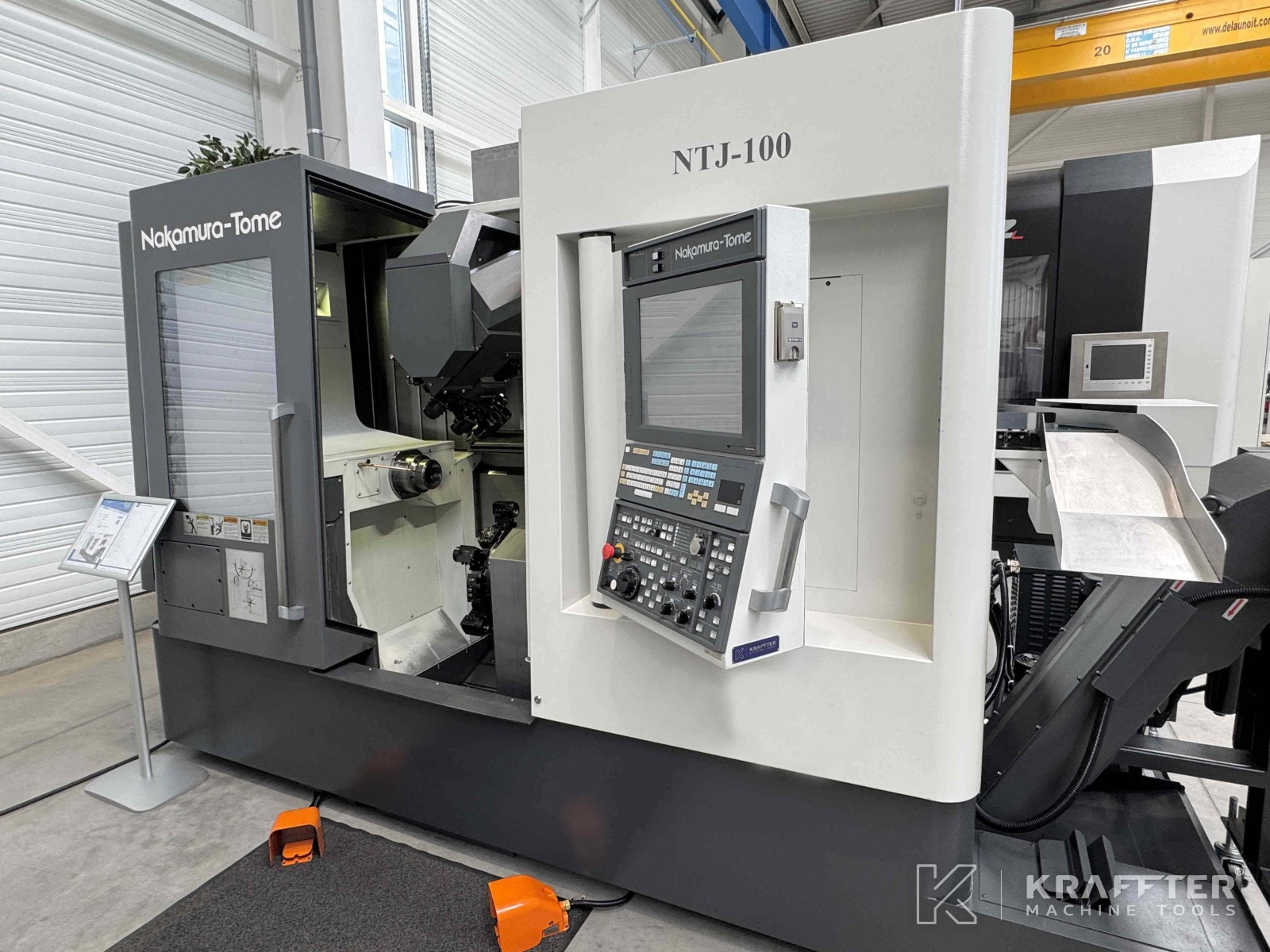

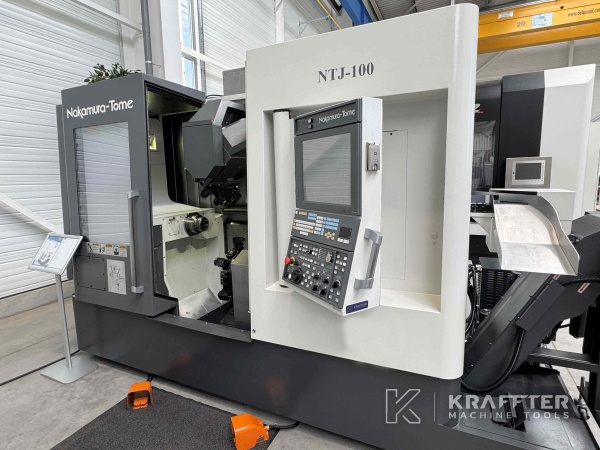

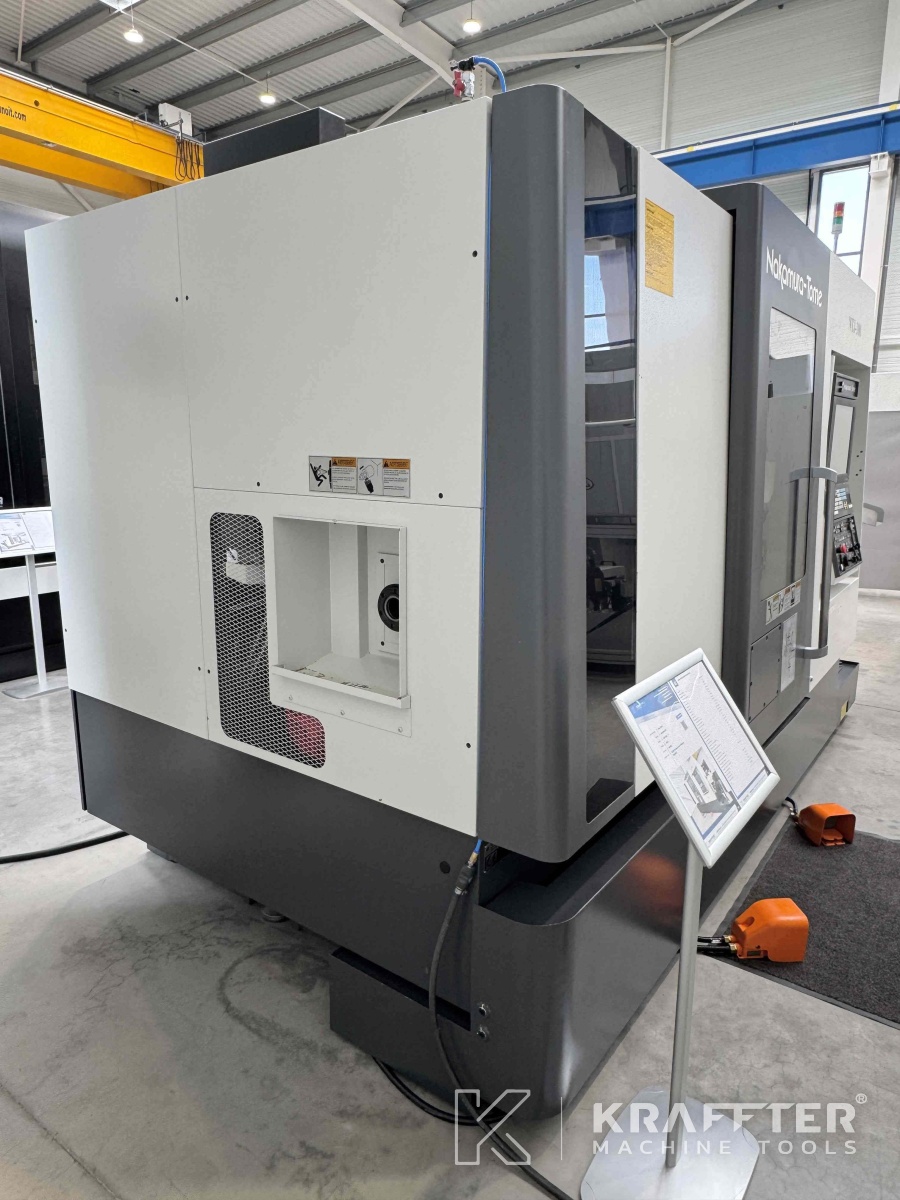

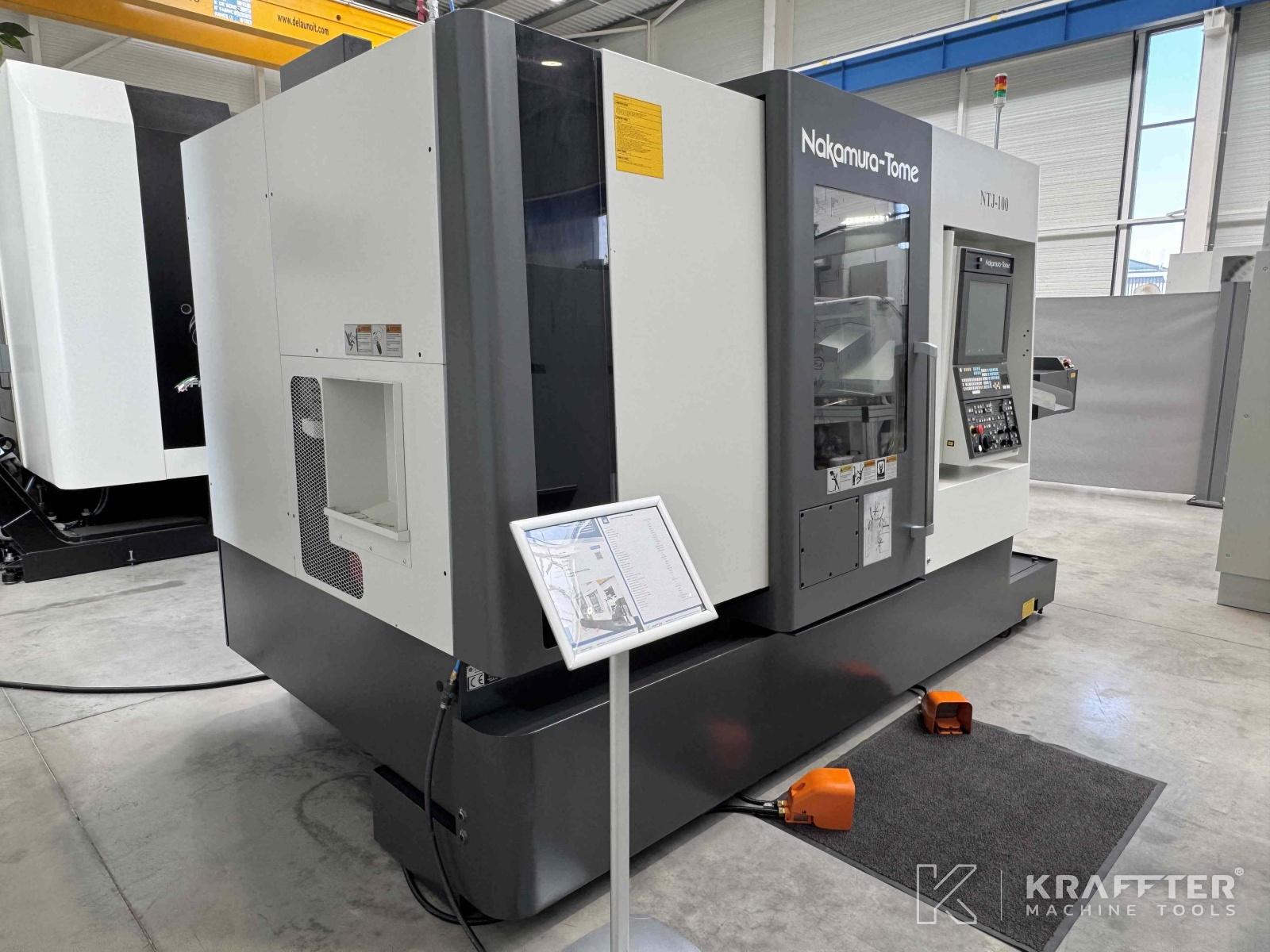

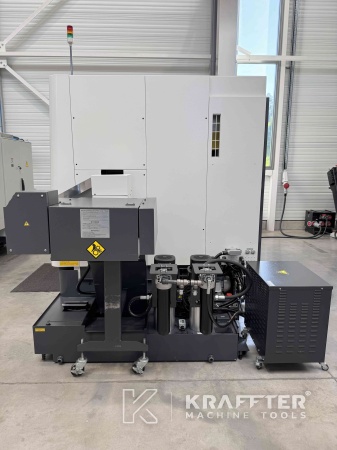

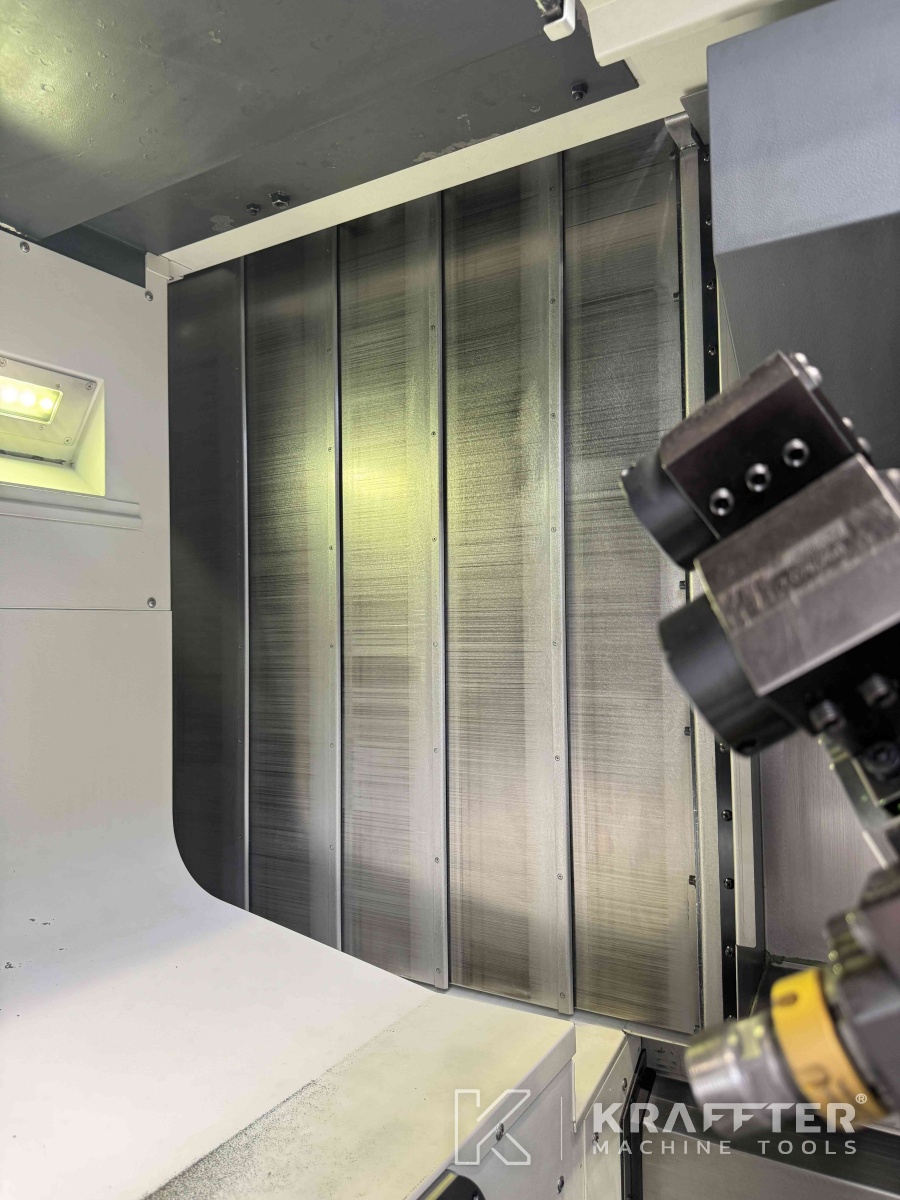

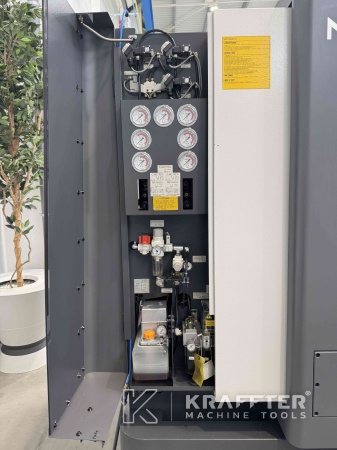

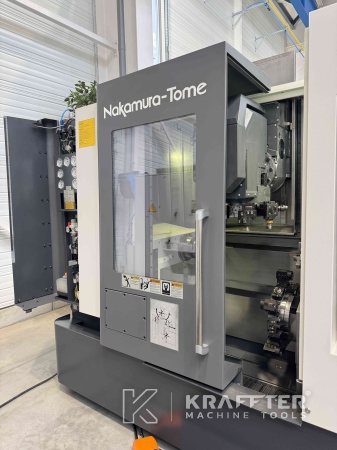

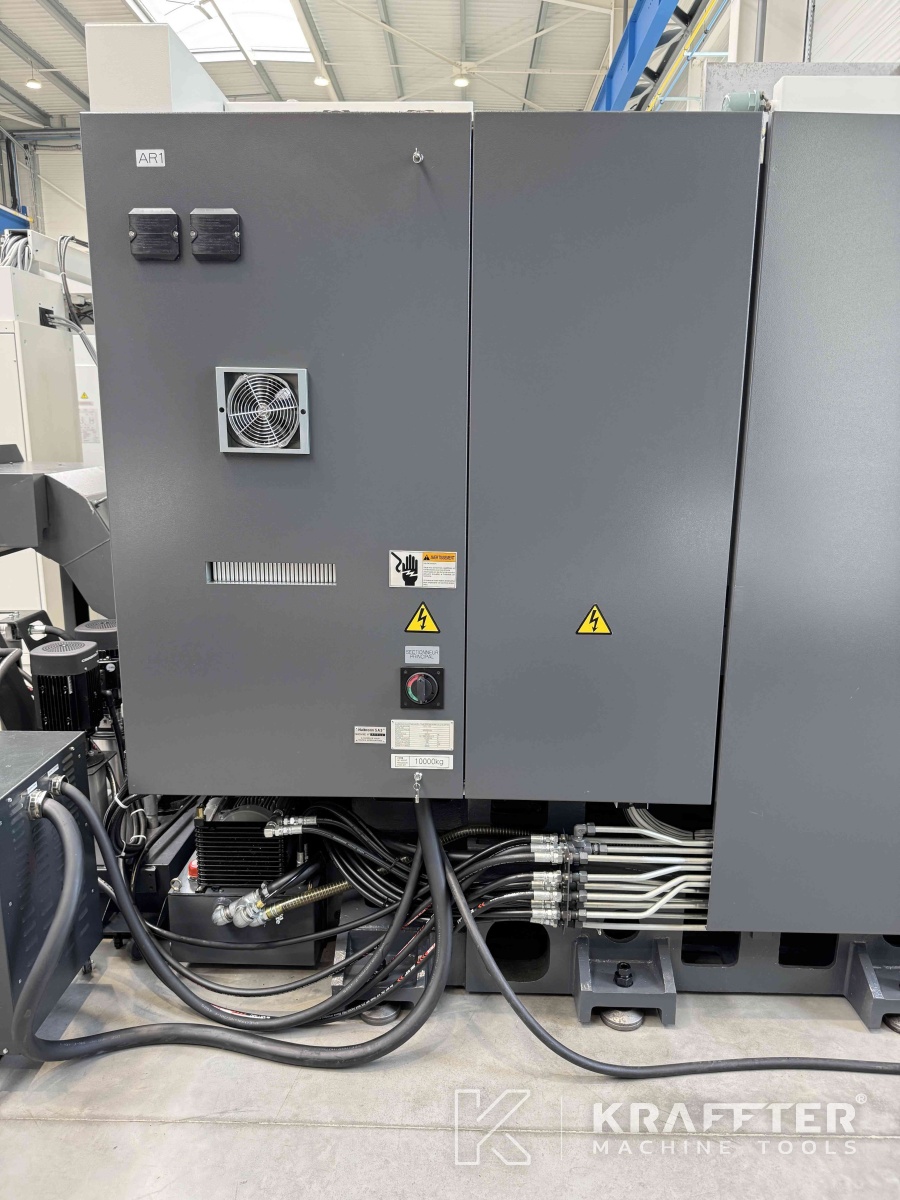

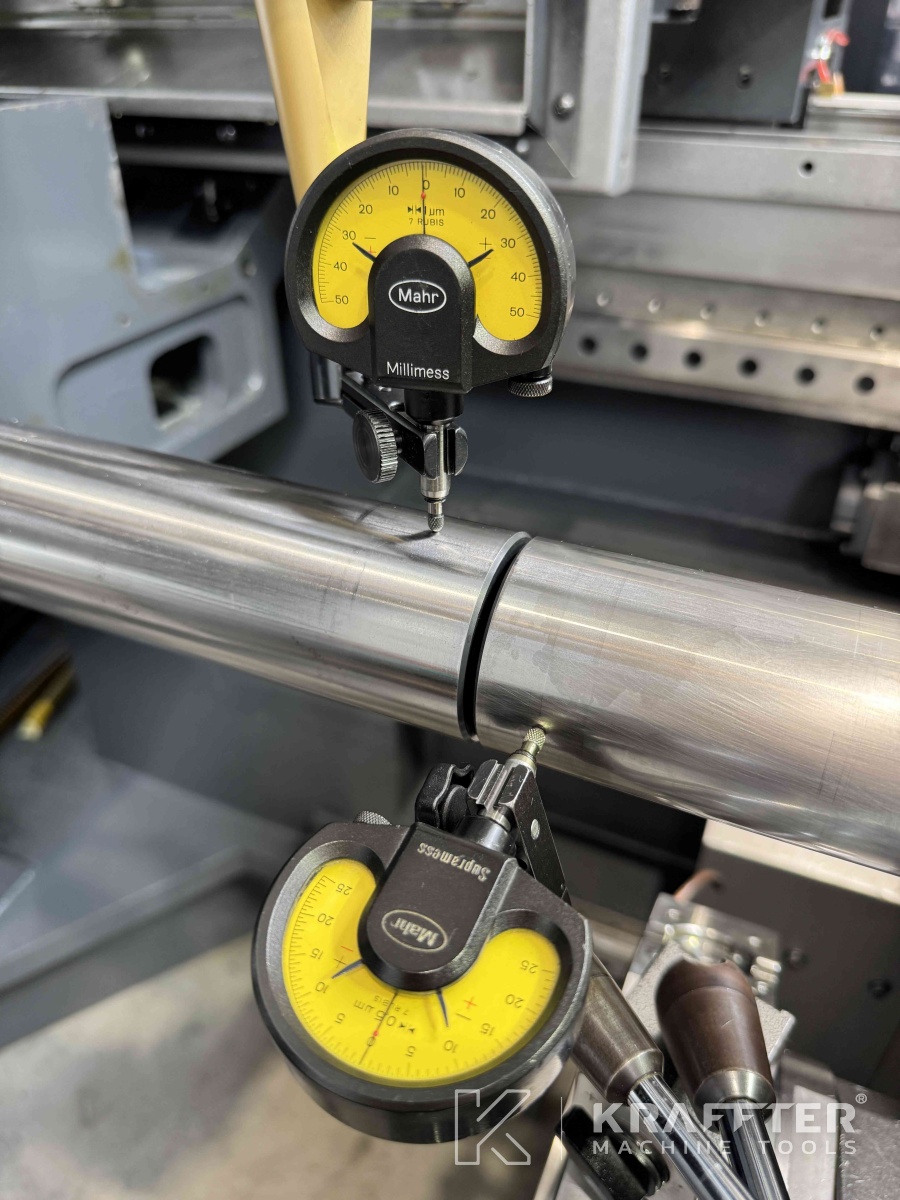

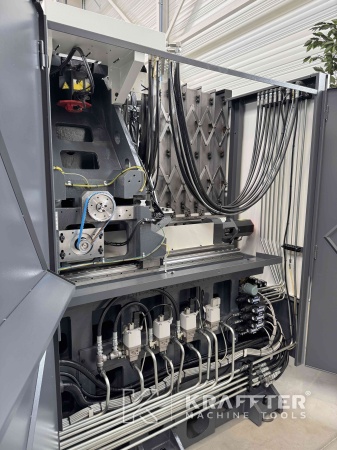

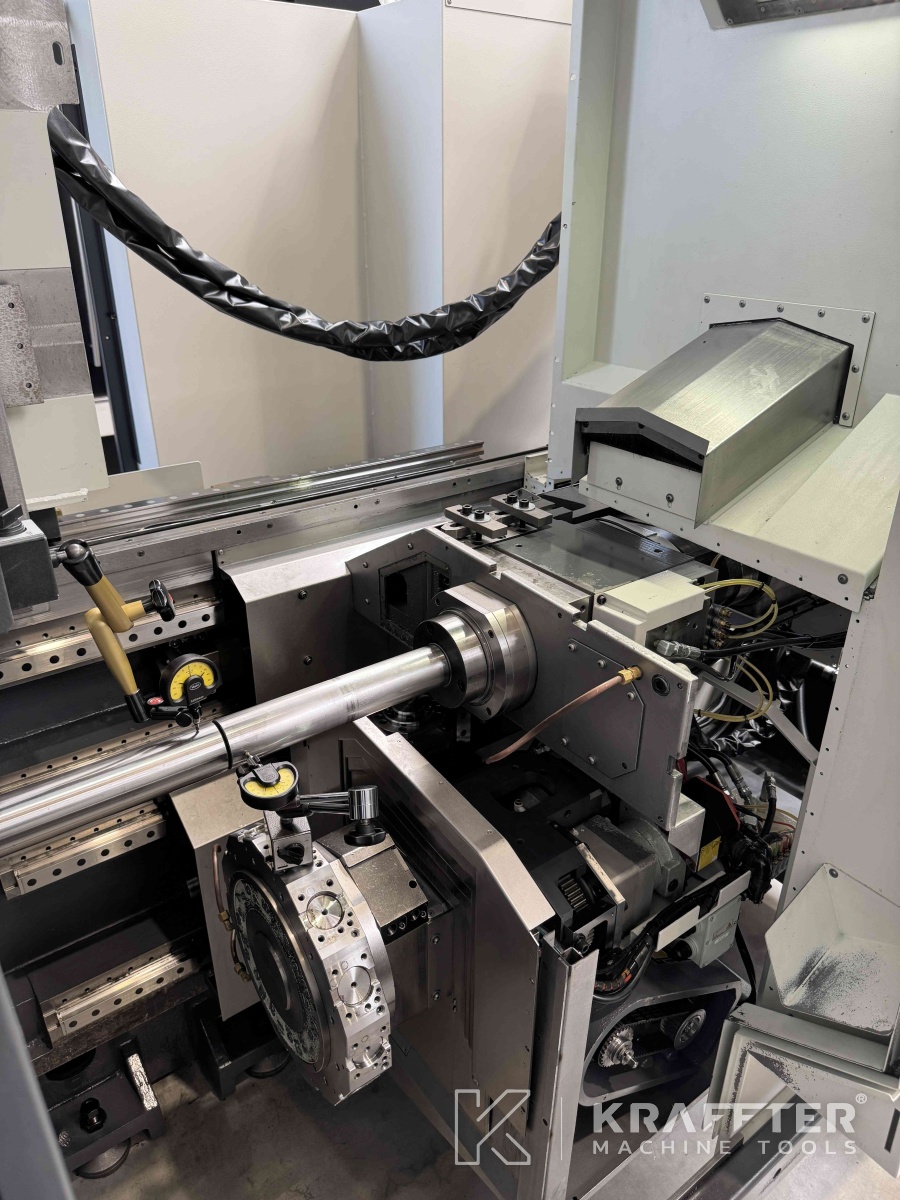

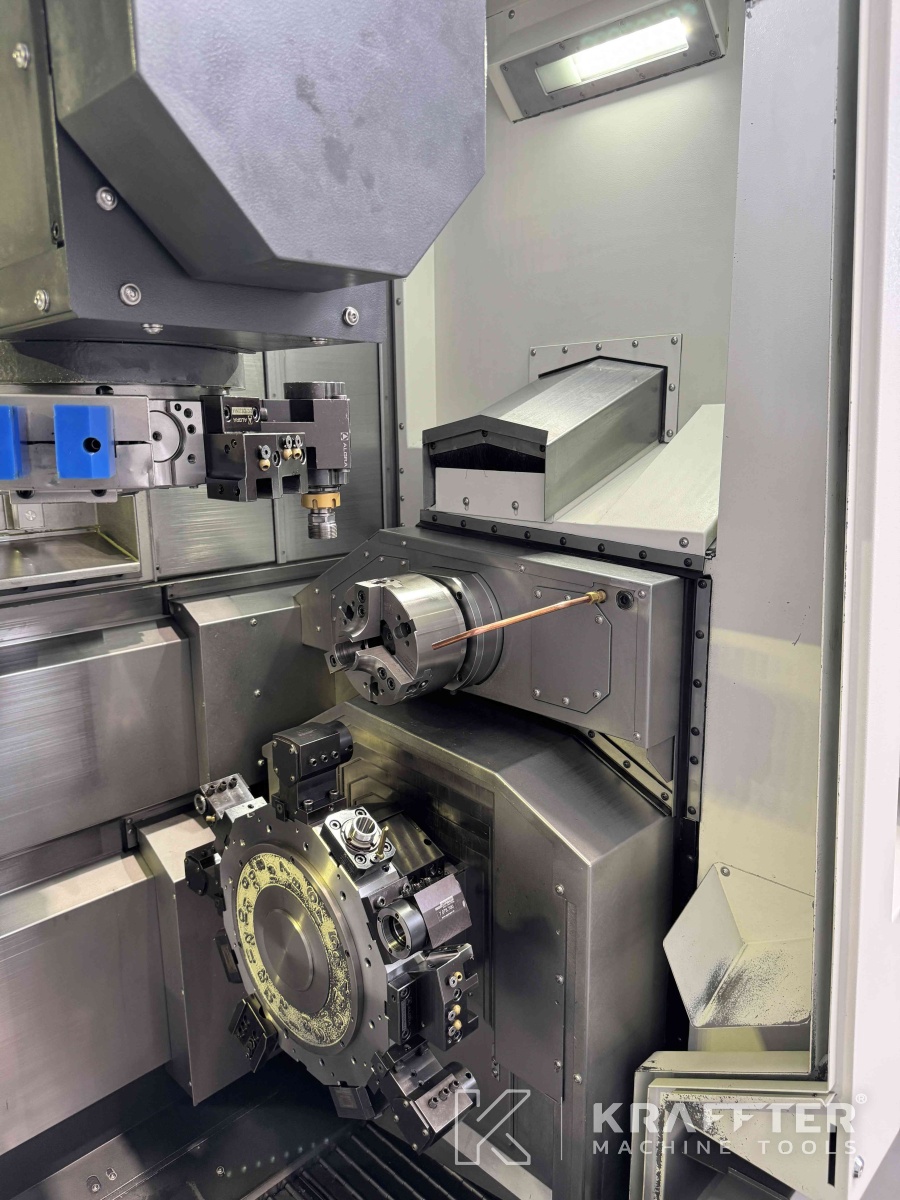

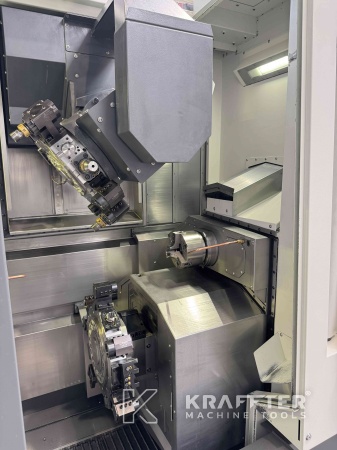

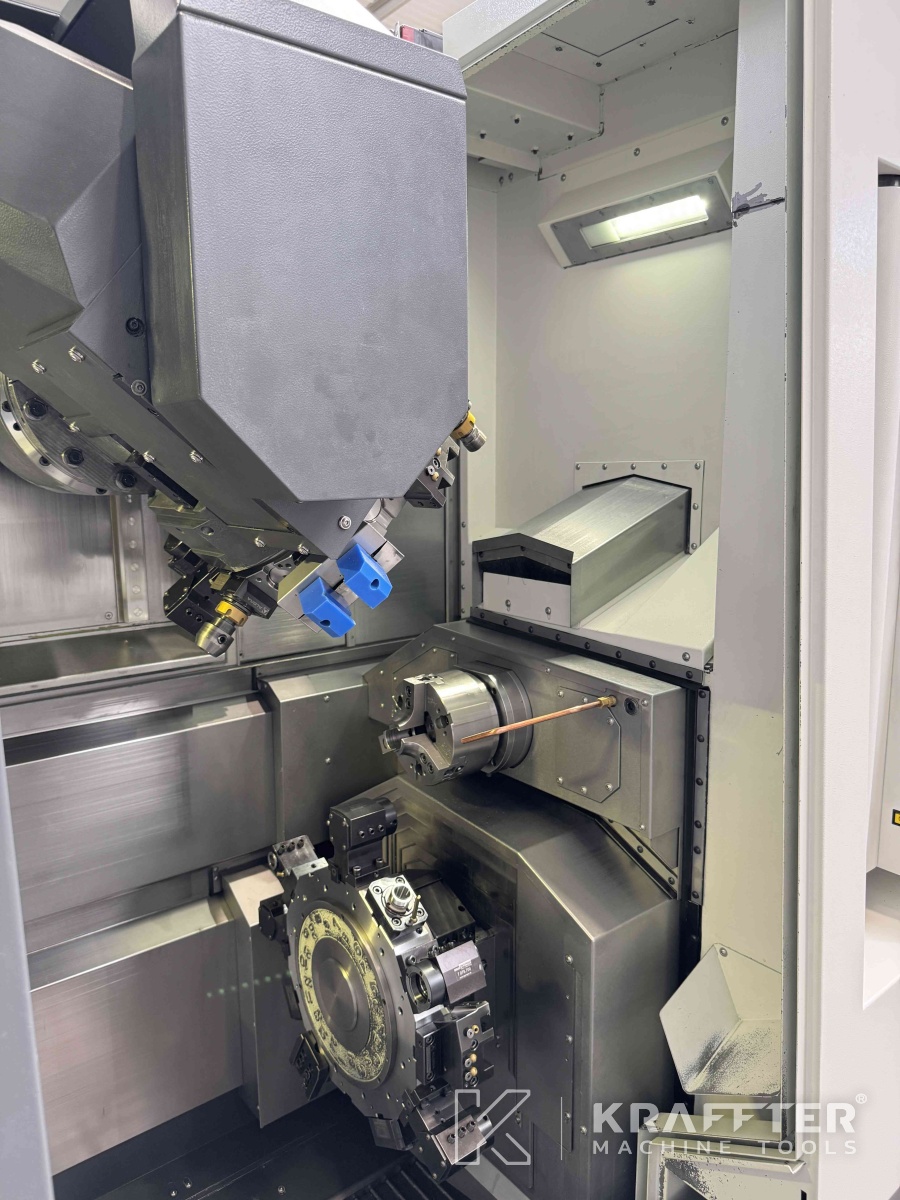

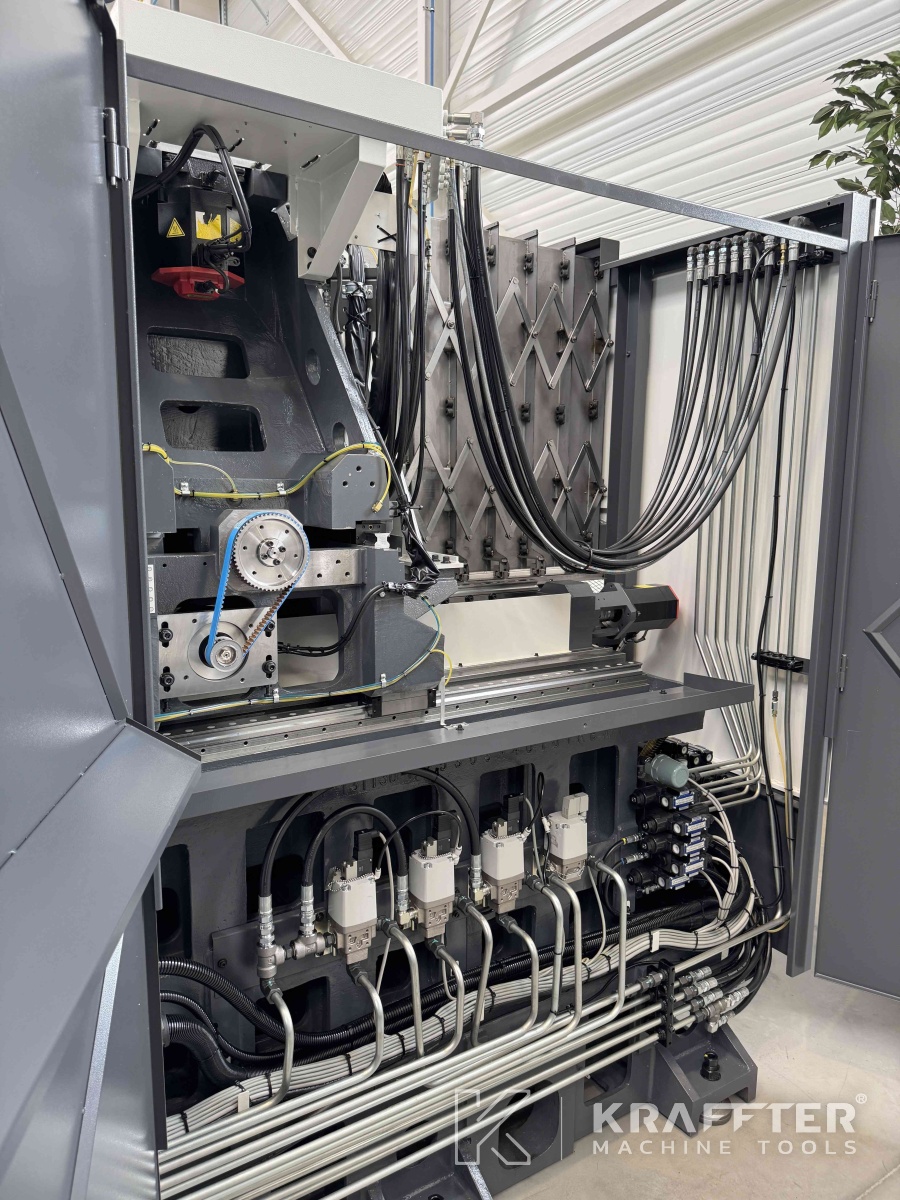

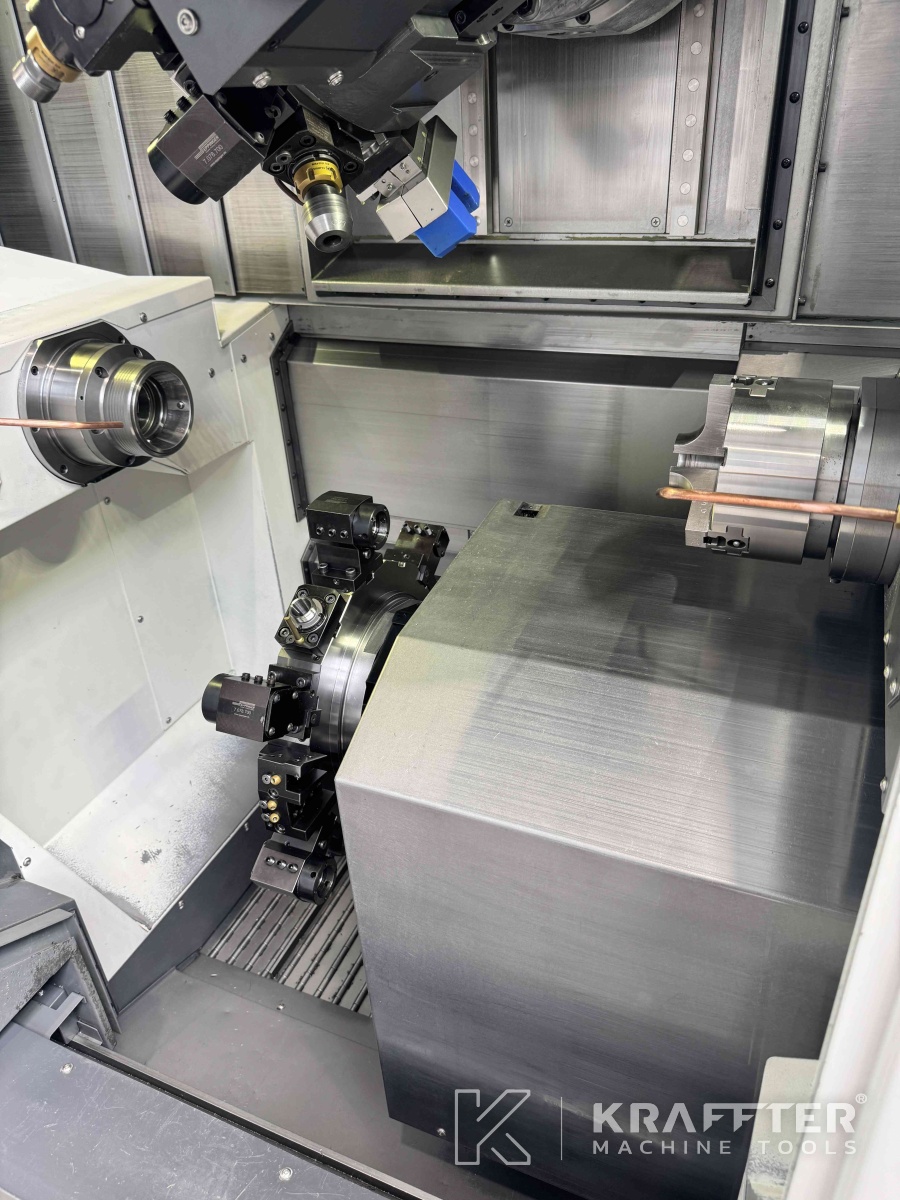

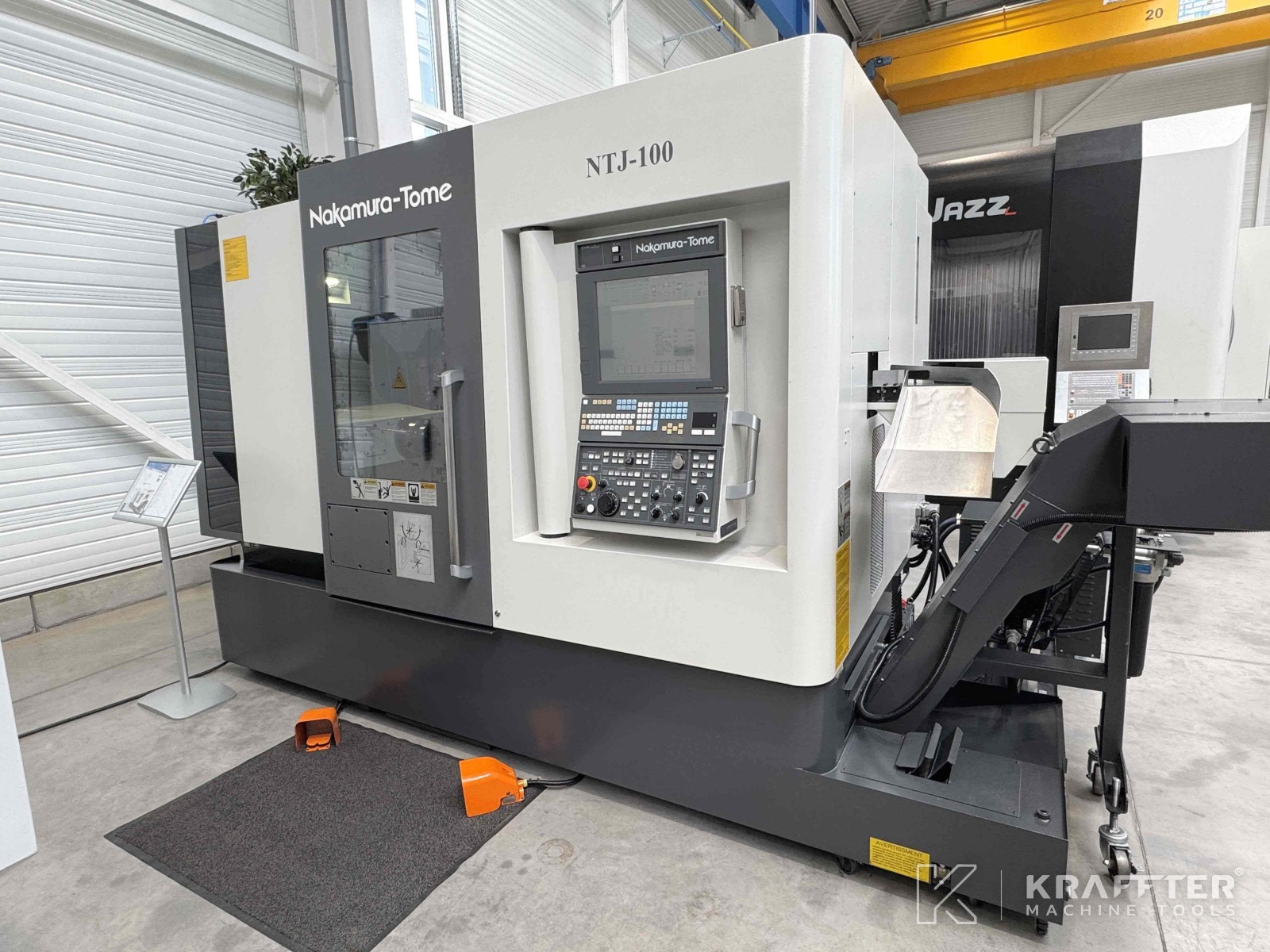

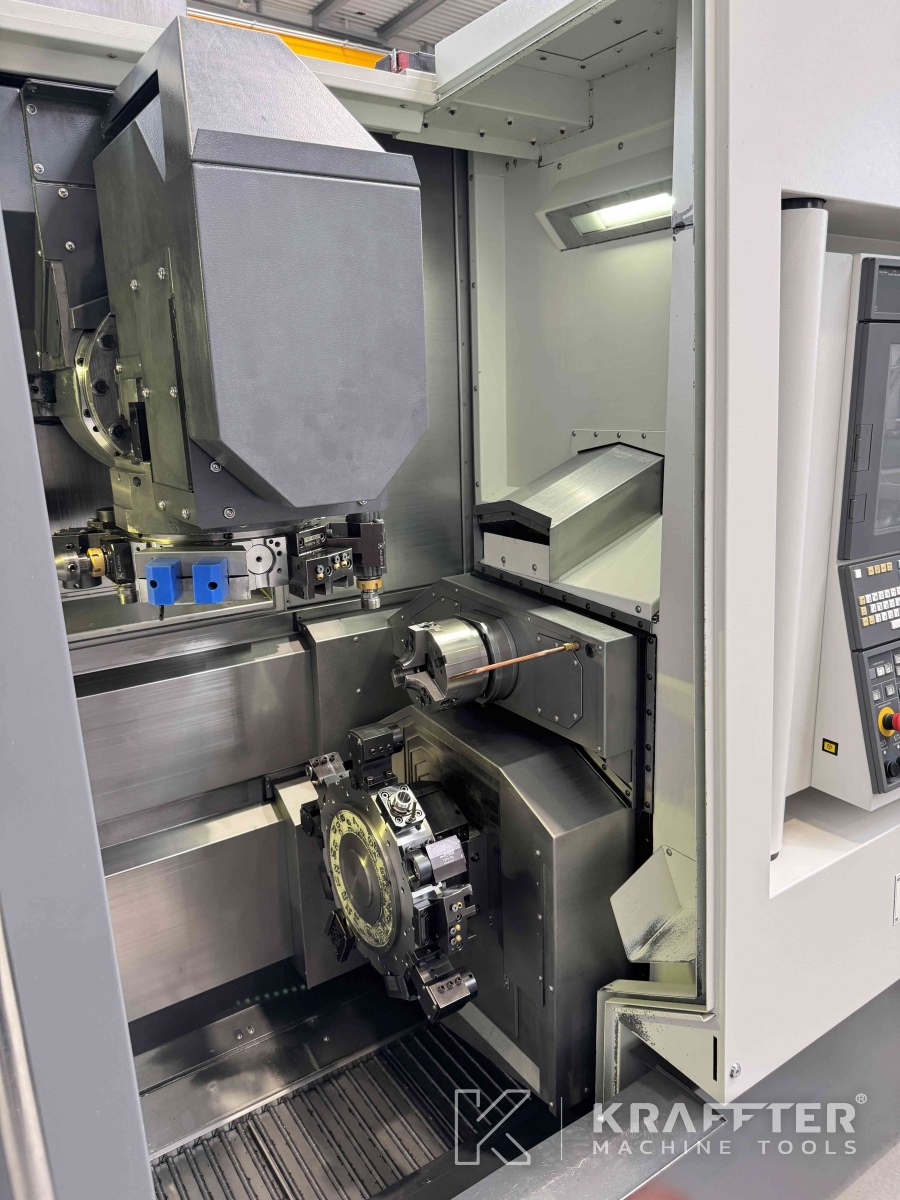

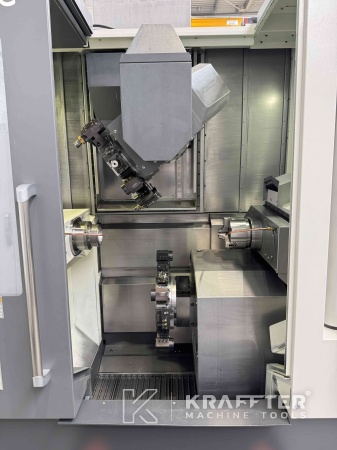

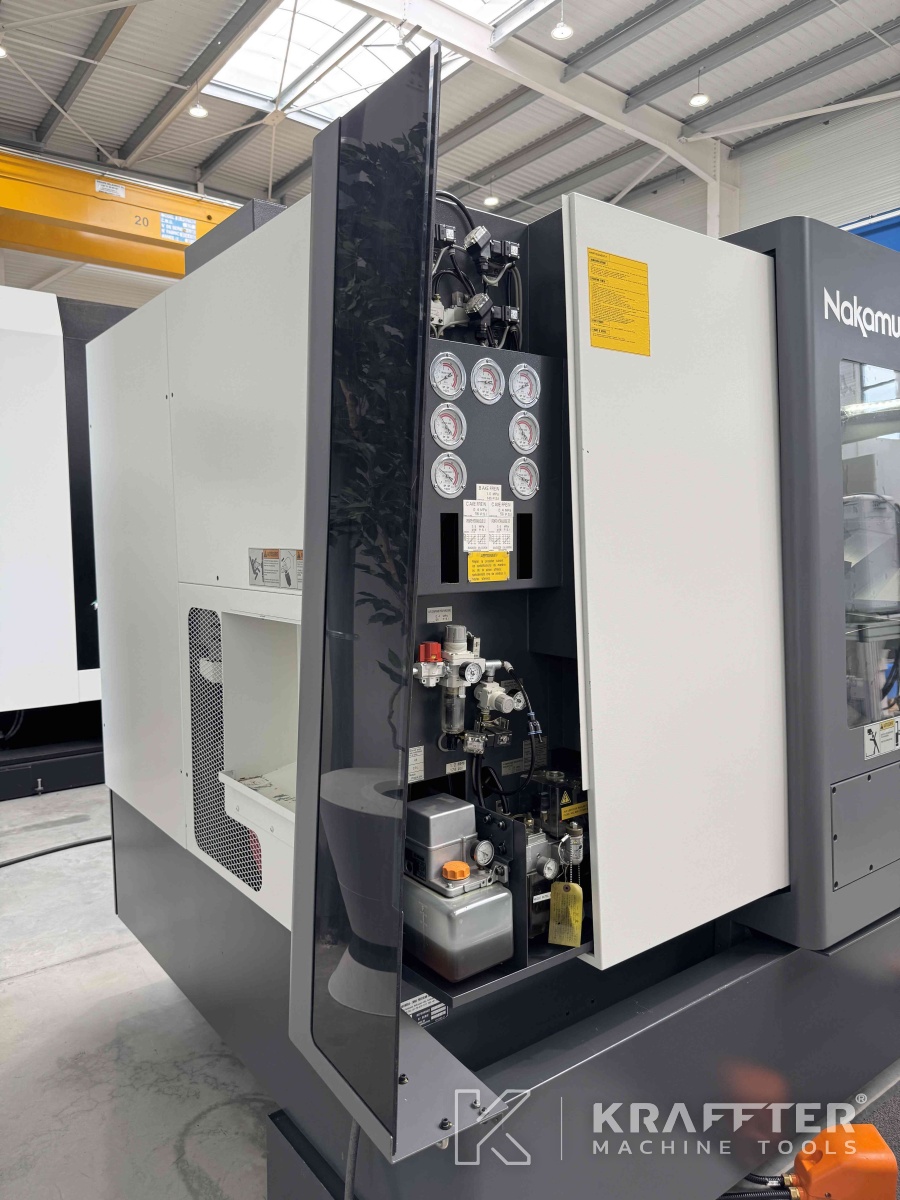

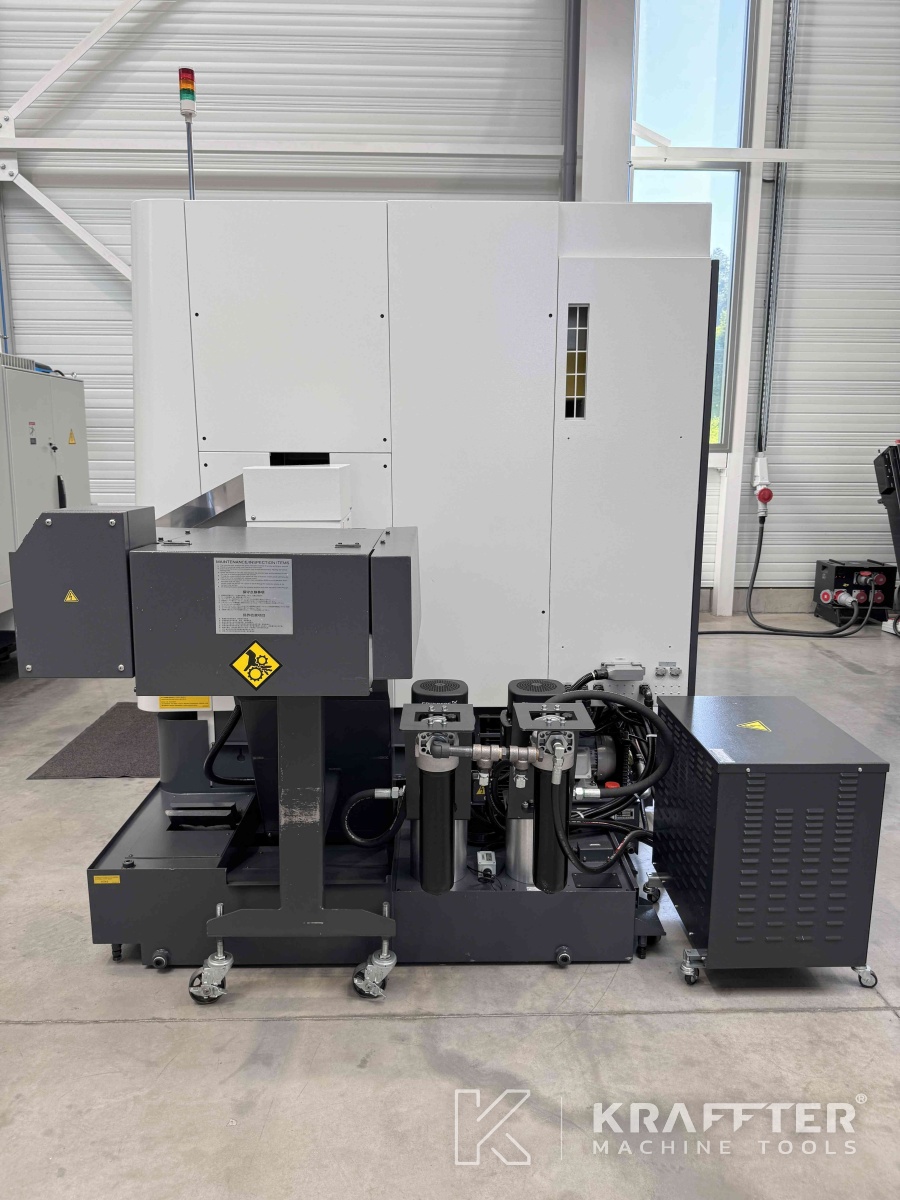

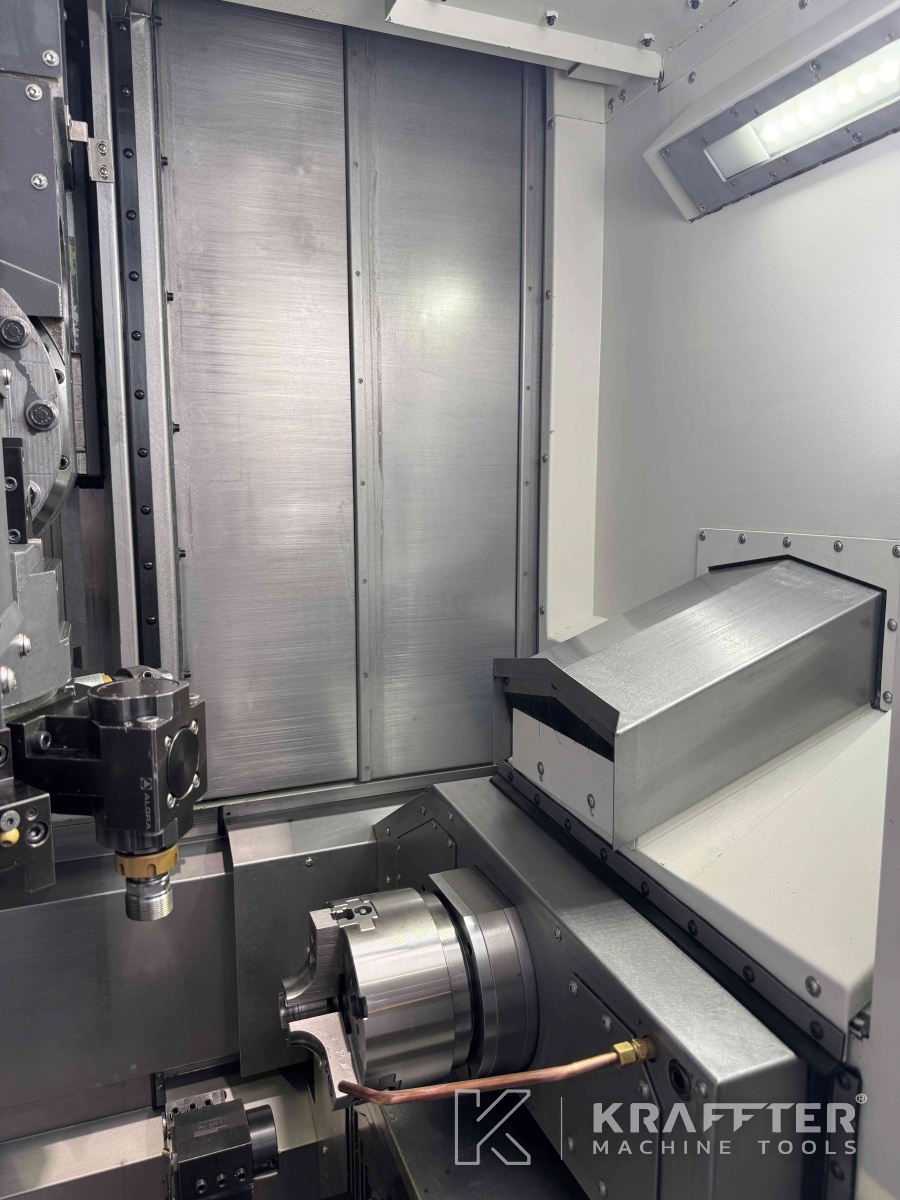

Type of machine : CNC lathe
Brand : NAKAMURA TOME
N° de stock: 90150
Model : NTJ 100
Year : 2014
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

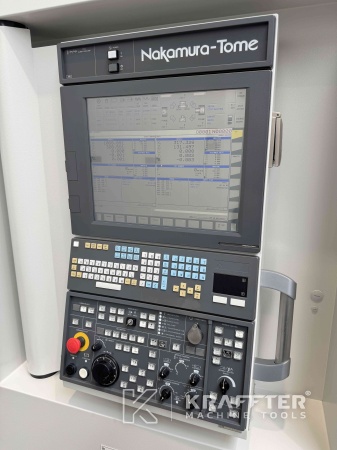

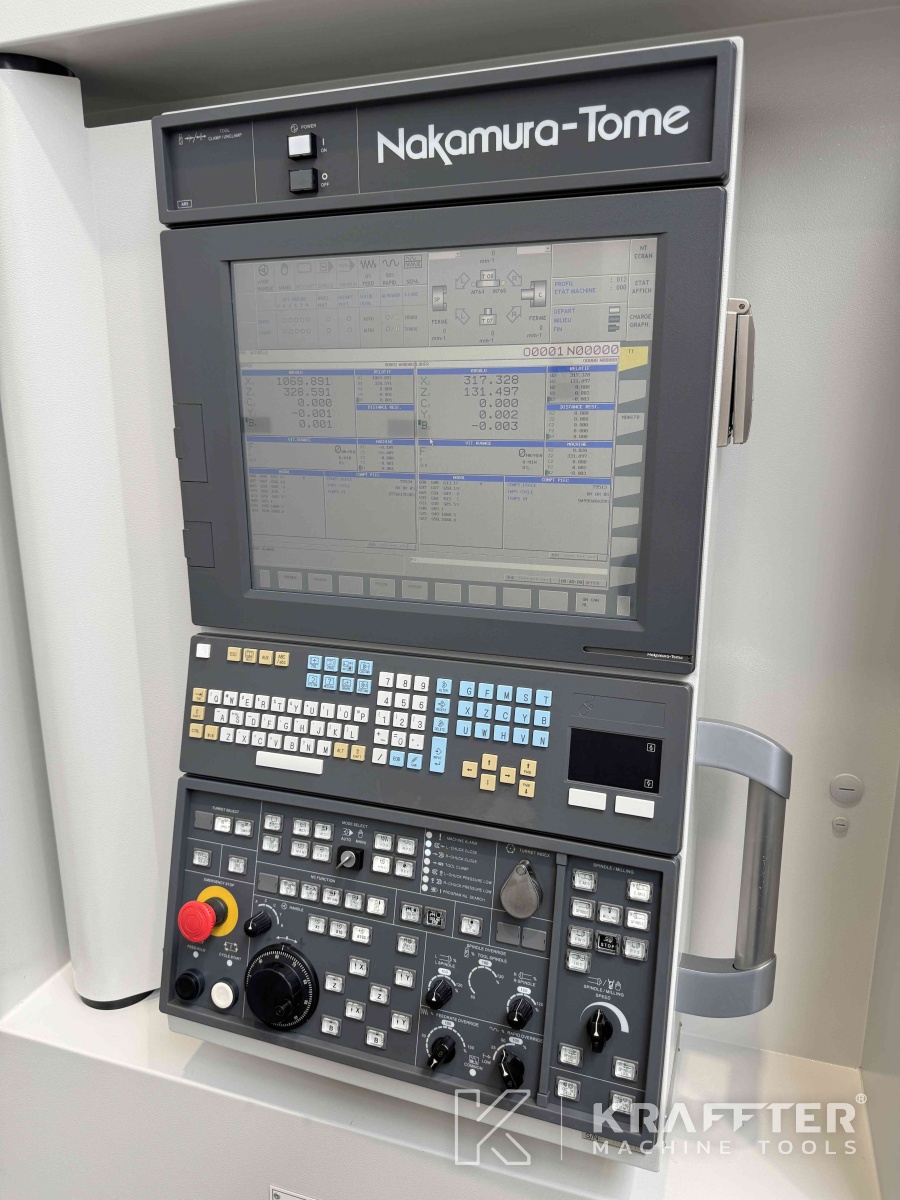

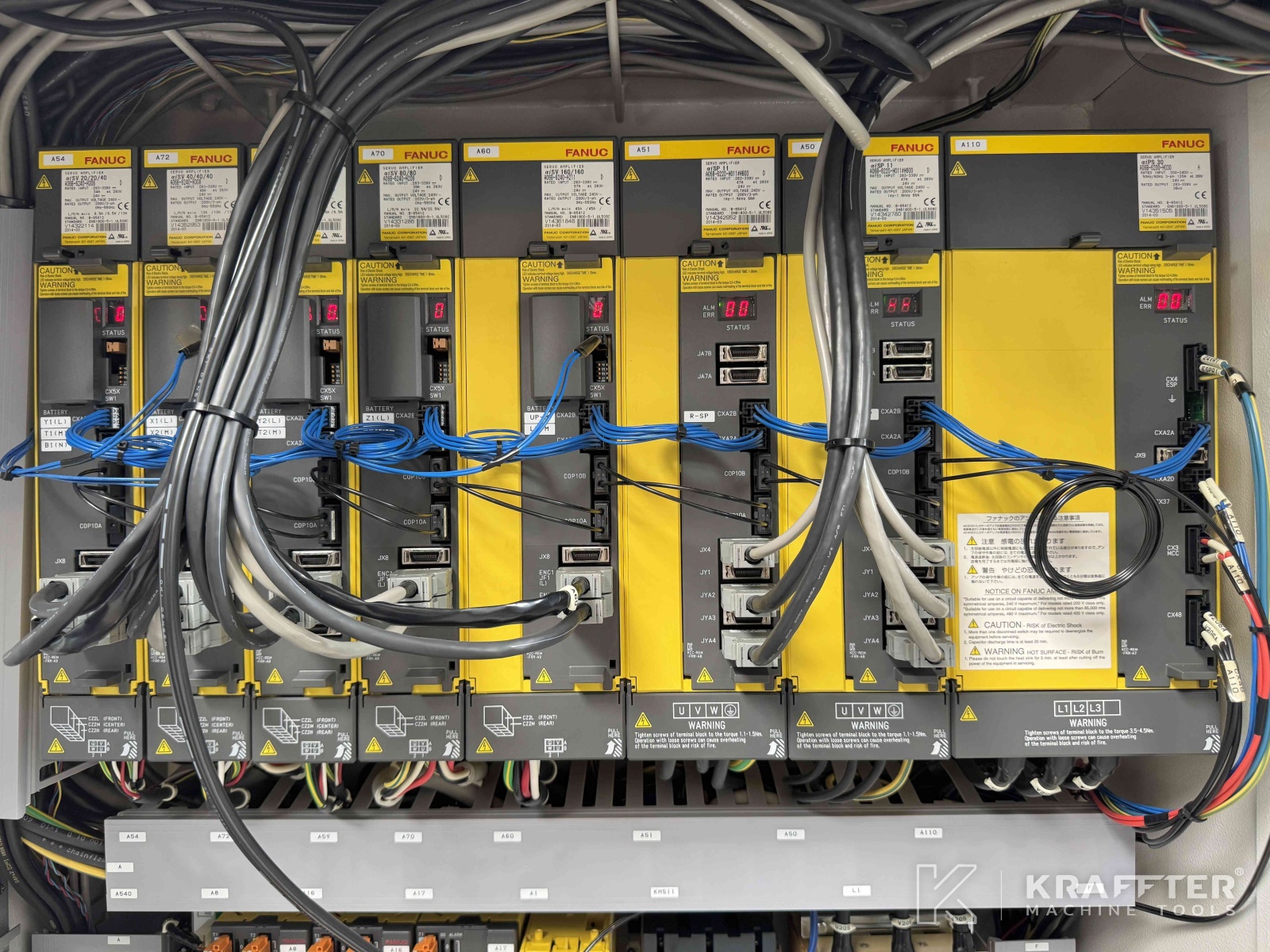

CNC control
FANUC 31i-B-NT-IPS
Colour touch screen
19 ["]

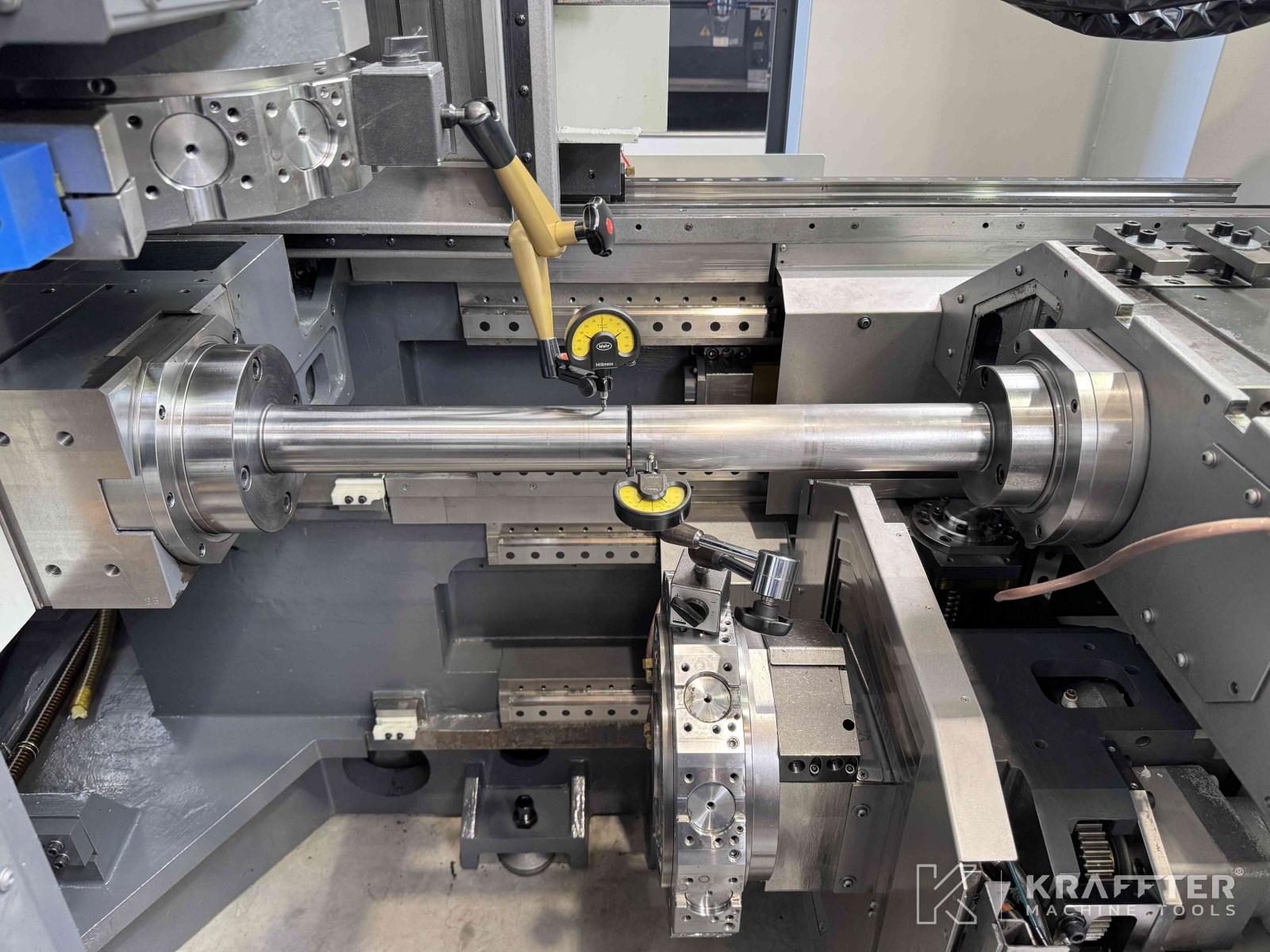

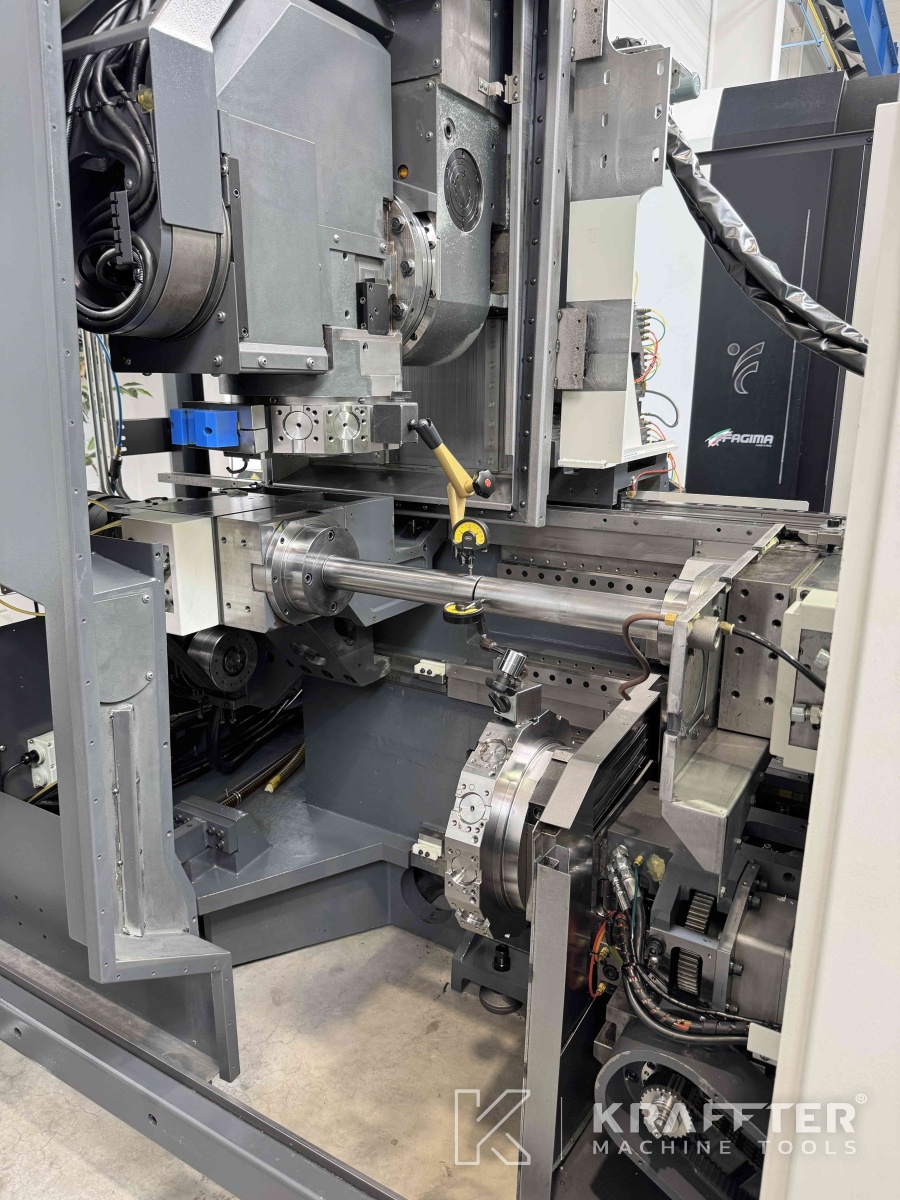

Distance between spindles
910 [mm]
Max. cutting diameter
175 [mm]
Max. turning lenght
678 [mm]
Stroke Z1 axis
1040 [mm]
Stroke X1 axis
330 [mm]
Stroke Y1 axis
+/- 40 [mm]
Stroke Z2 axis
678 [mm]
Stroke X2 axis
127.5 [mm]
Stroke Y2 axis
+/- 32.5 [mm]
B axis swivelling stroke
182 [°]
Rapid traverse rate X axis
20000 [mm/min]
Rapid traverse rate Z axis
40000 [mm/min]
Rapid traverse rate Y axis
6000 [mm/min]

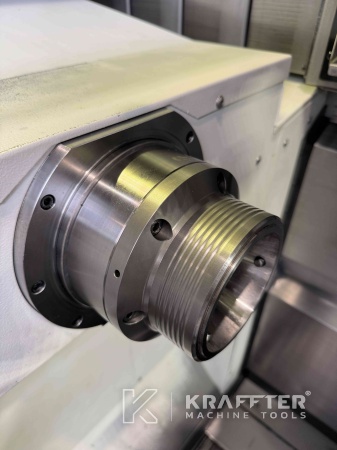

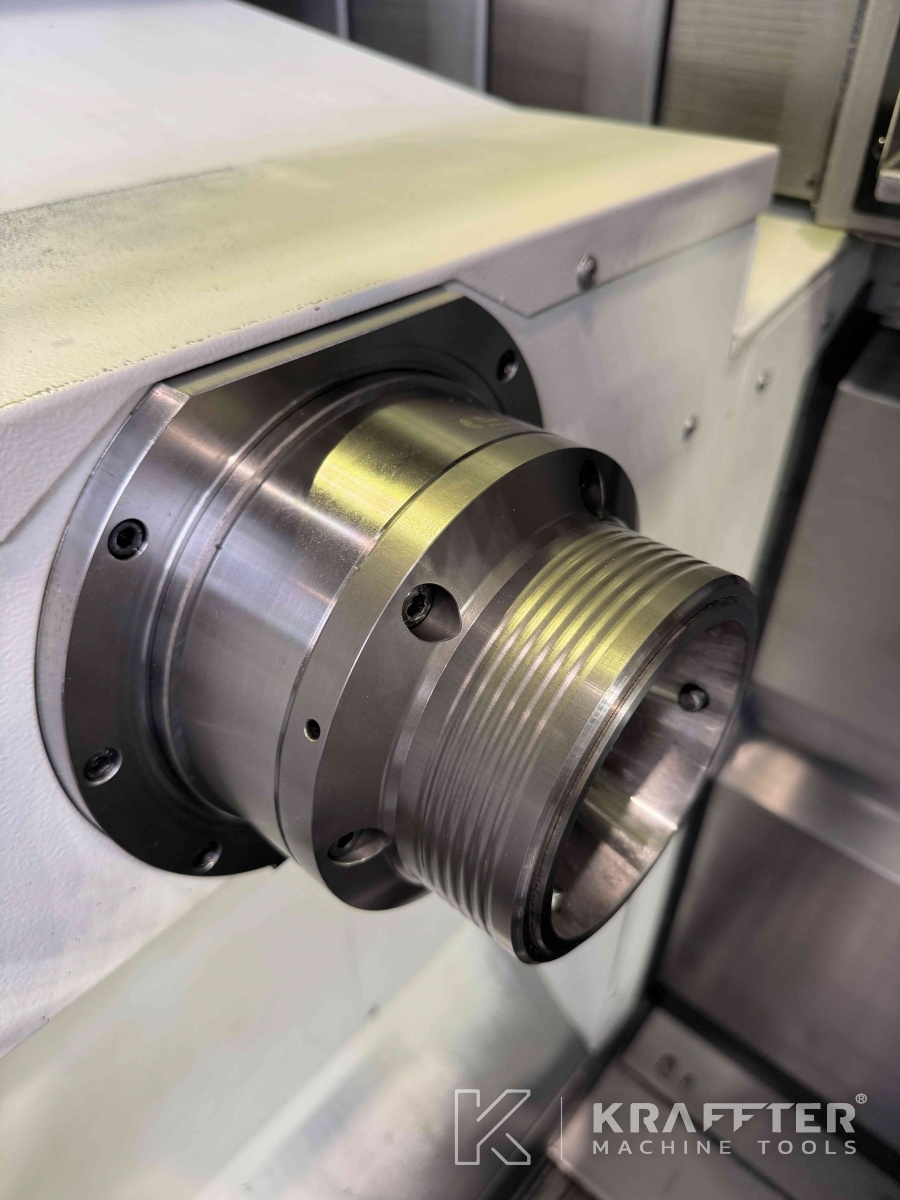

Spindle nose
A2-6"
Max. bar diameter
65 [mm]
Max. spindle speed
4500 [rpm]
Increment C-axis
0.001 [°]
Spindle power
11 [kW]

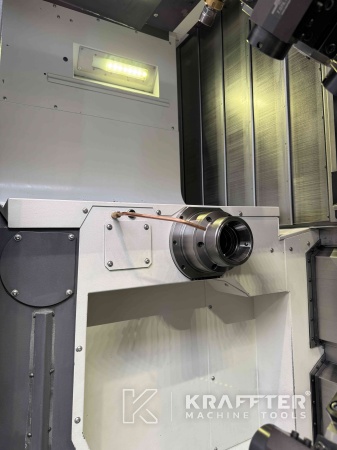

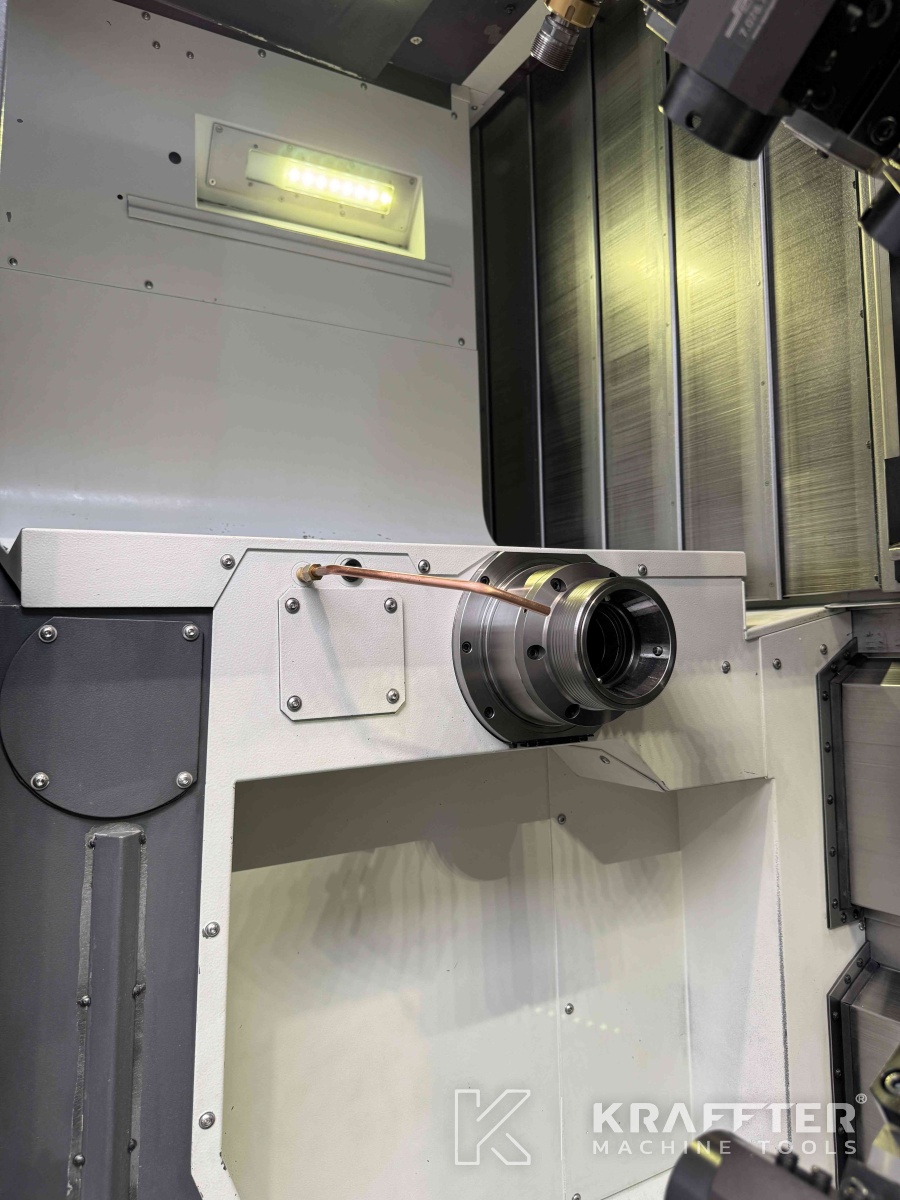

Counter spindle nose
A2-5"
Max. bar diameter counter spindle
42 [mm]
Max. counter spindle speed
5000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
7.5 [kW]

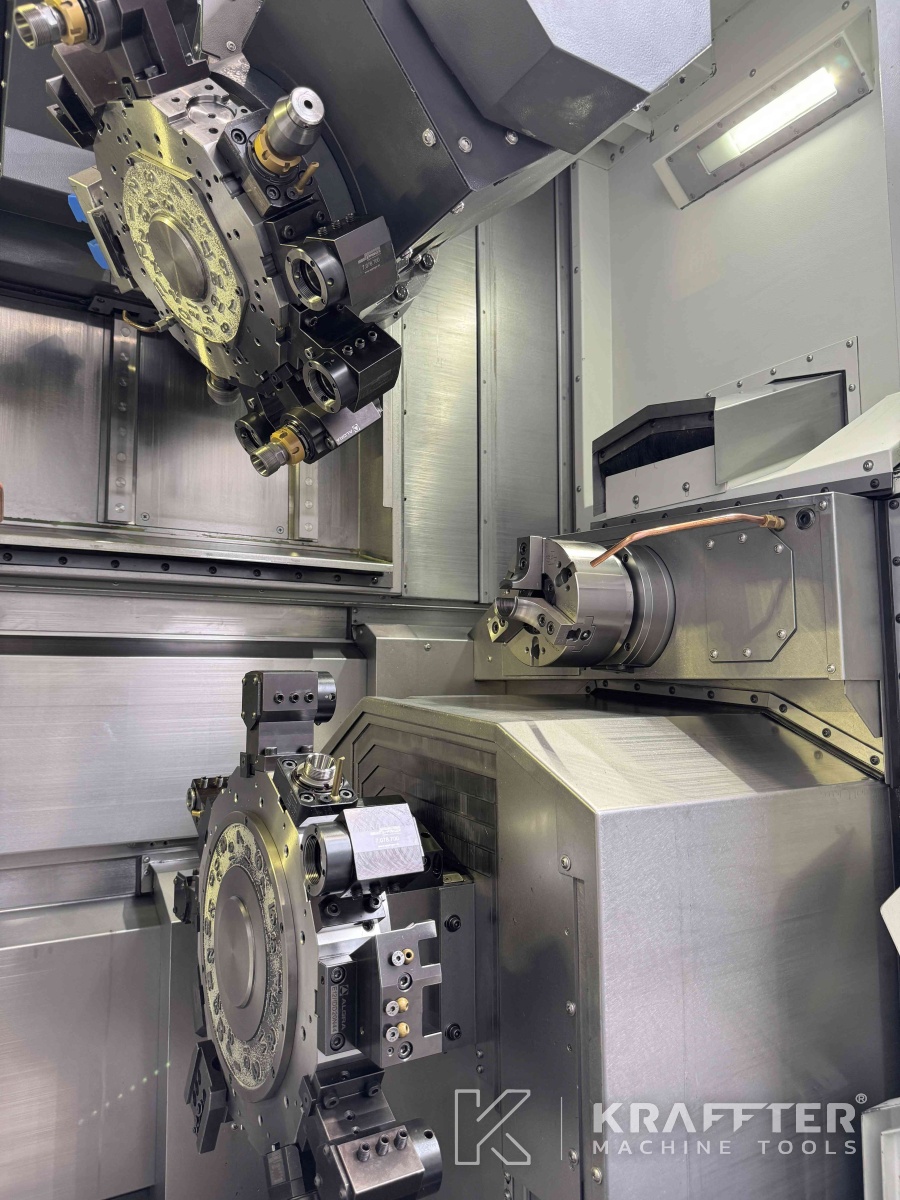

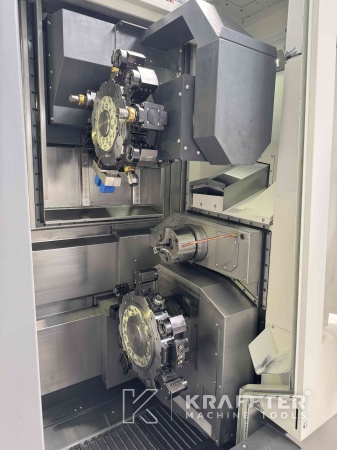

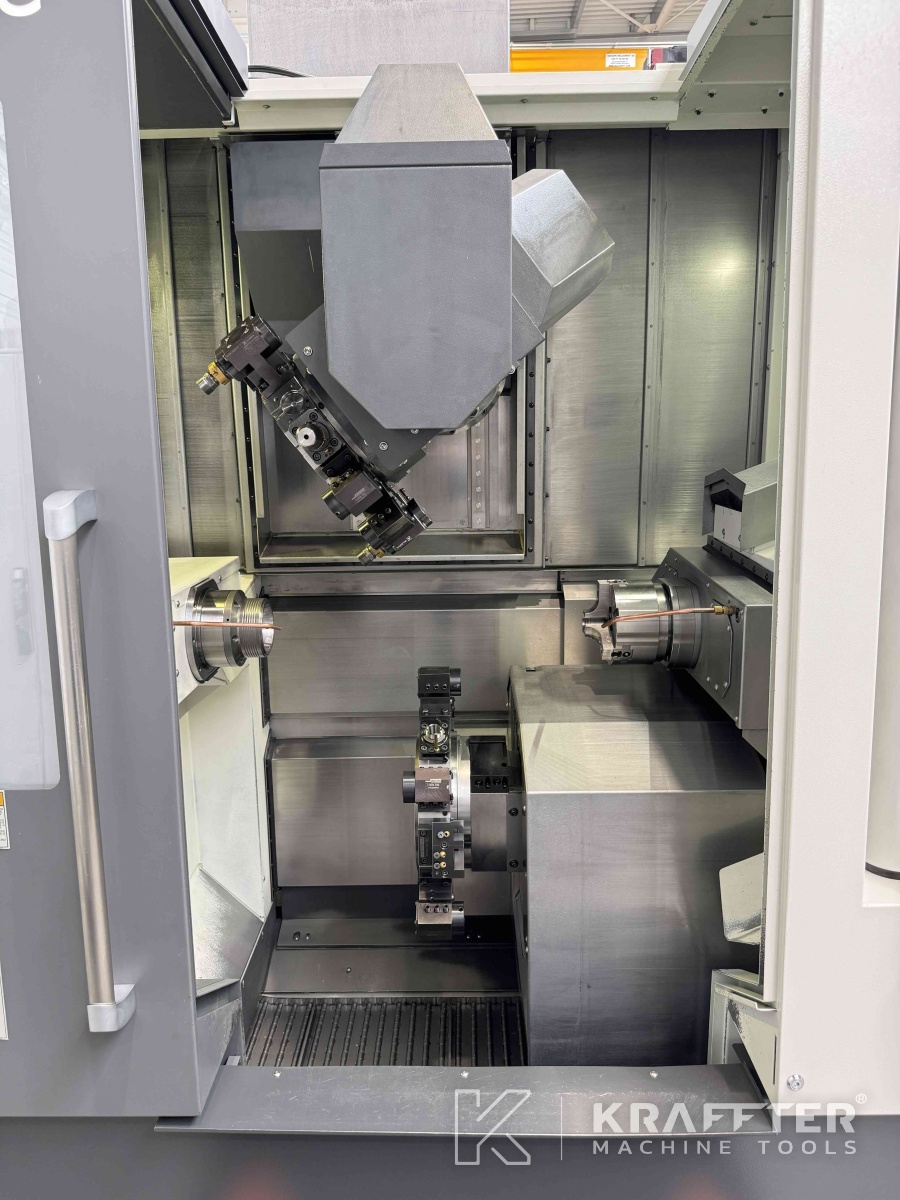

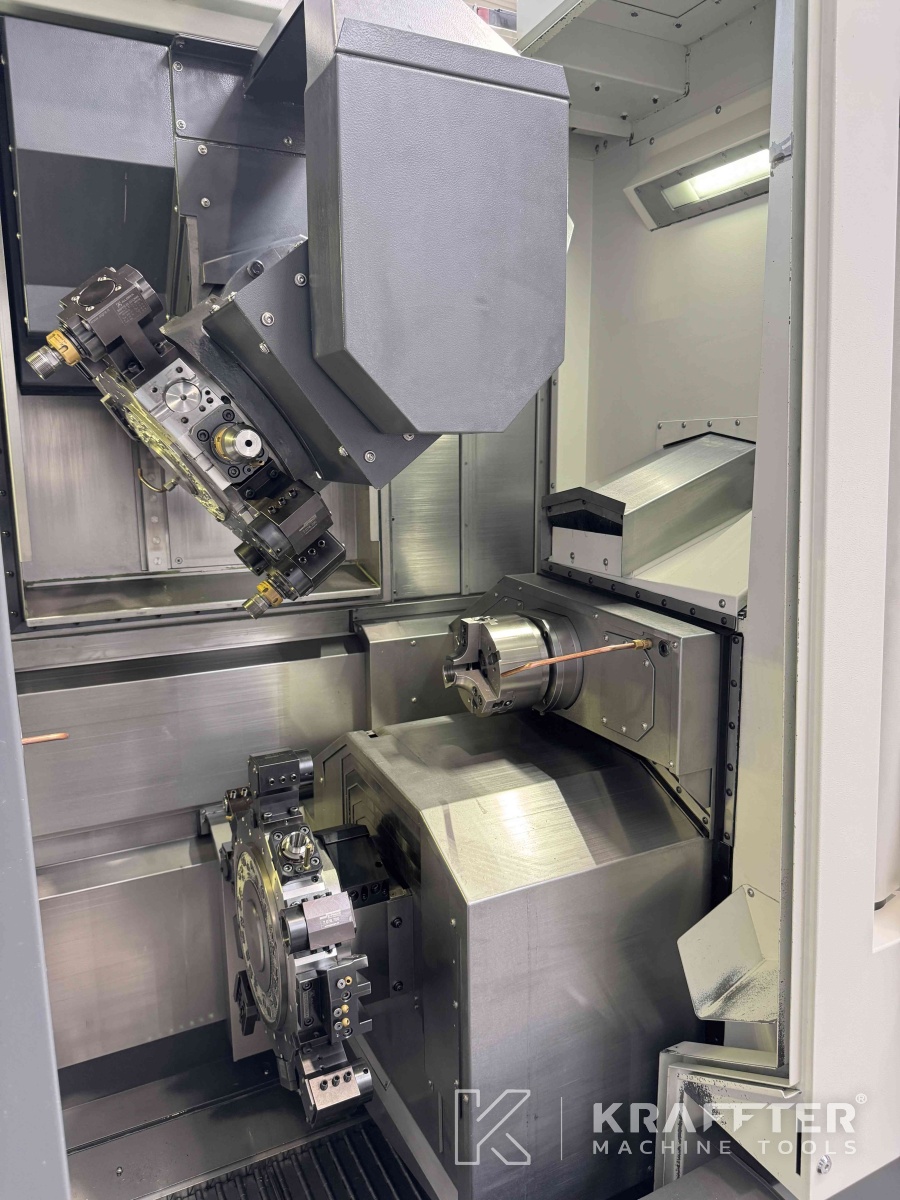

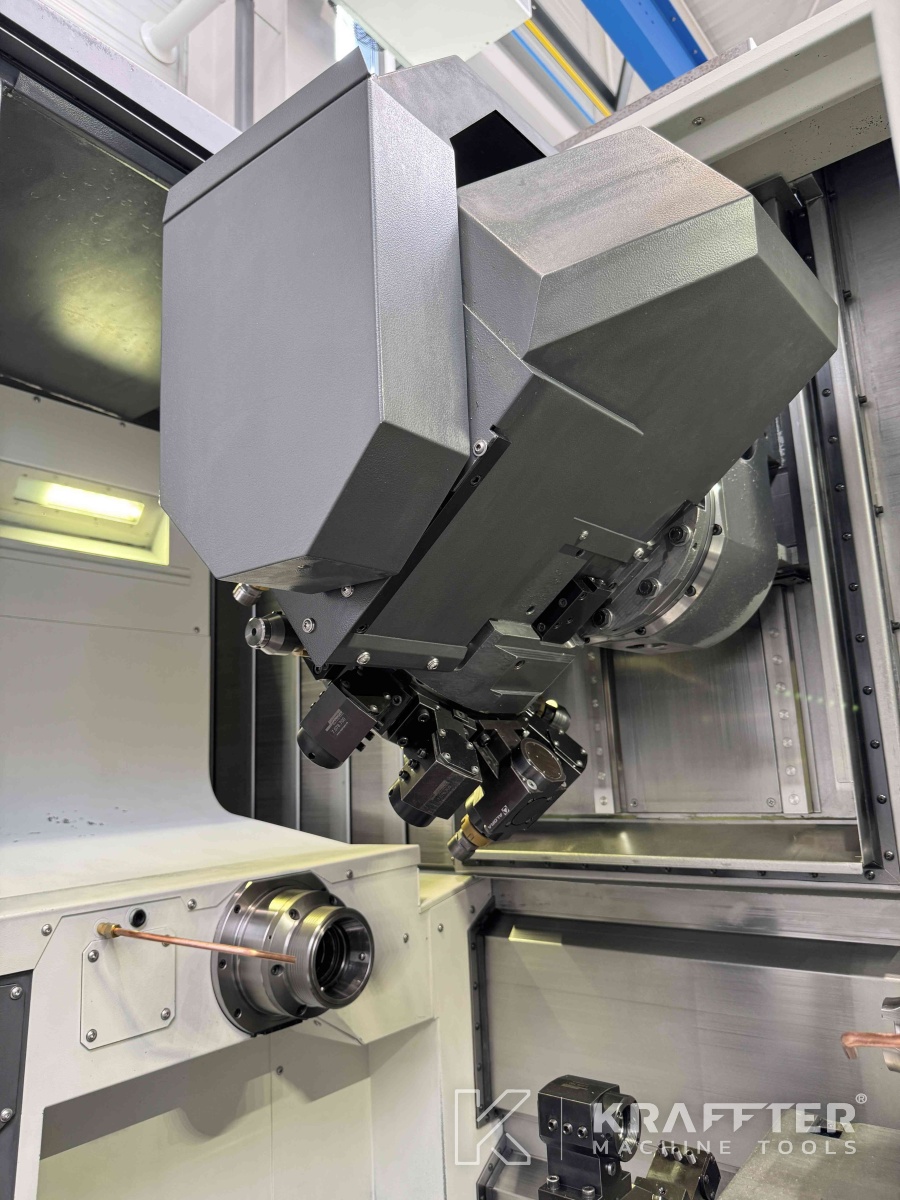

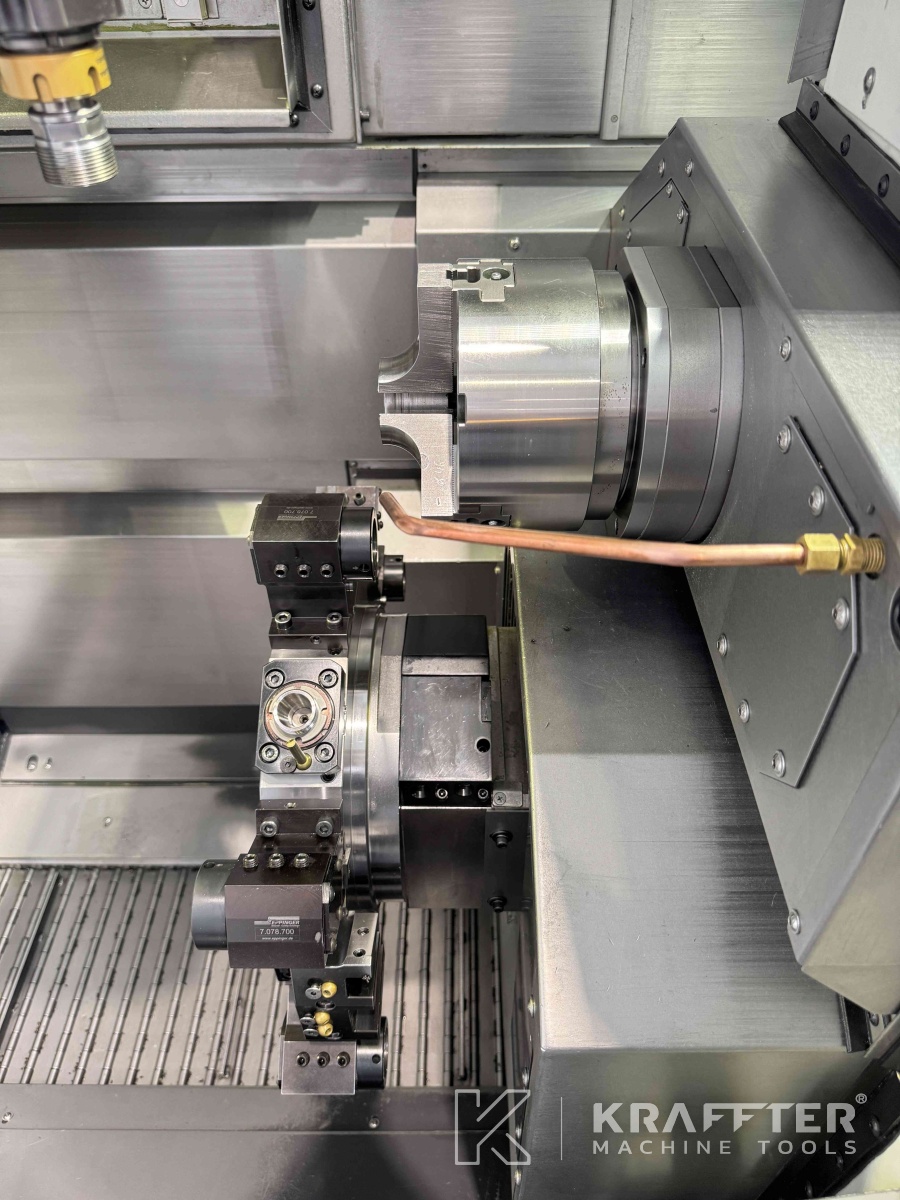

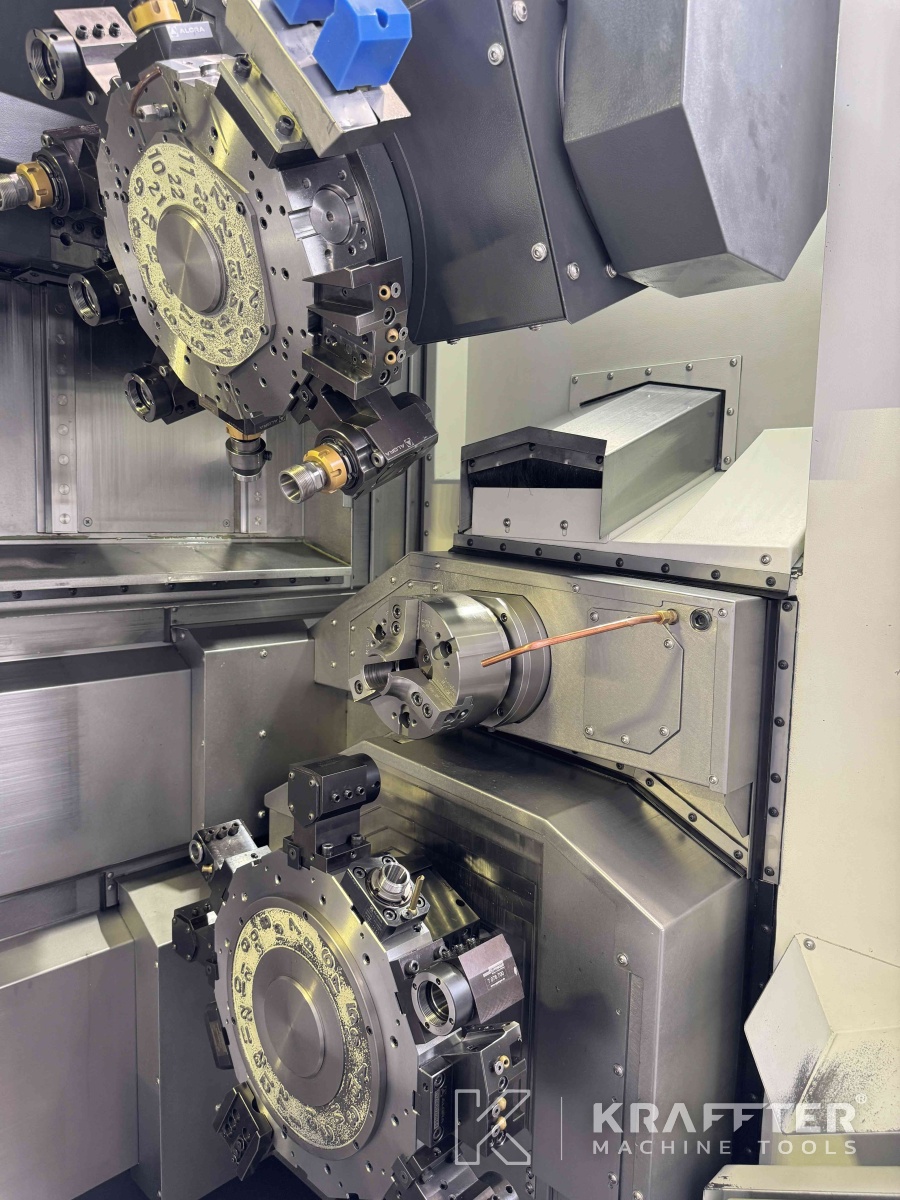

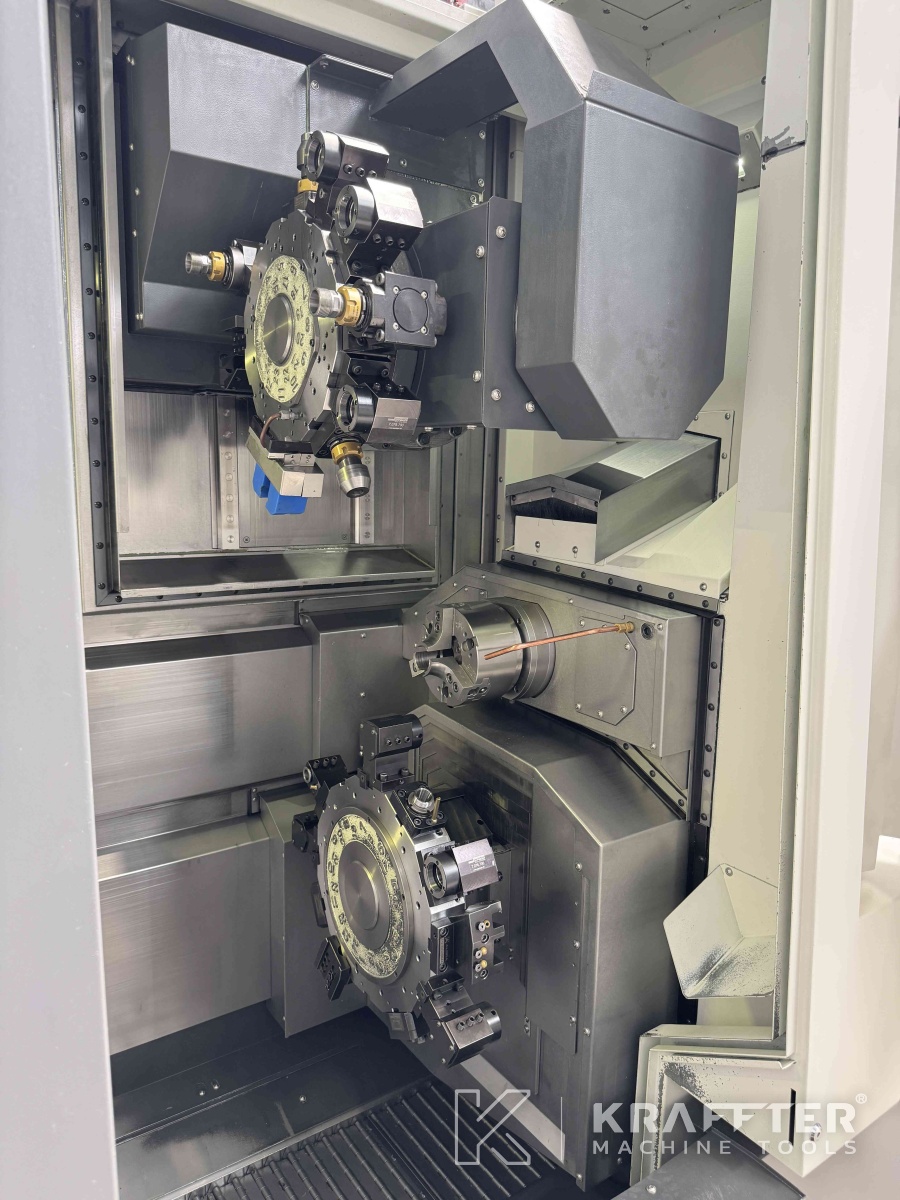

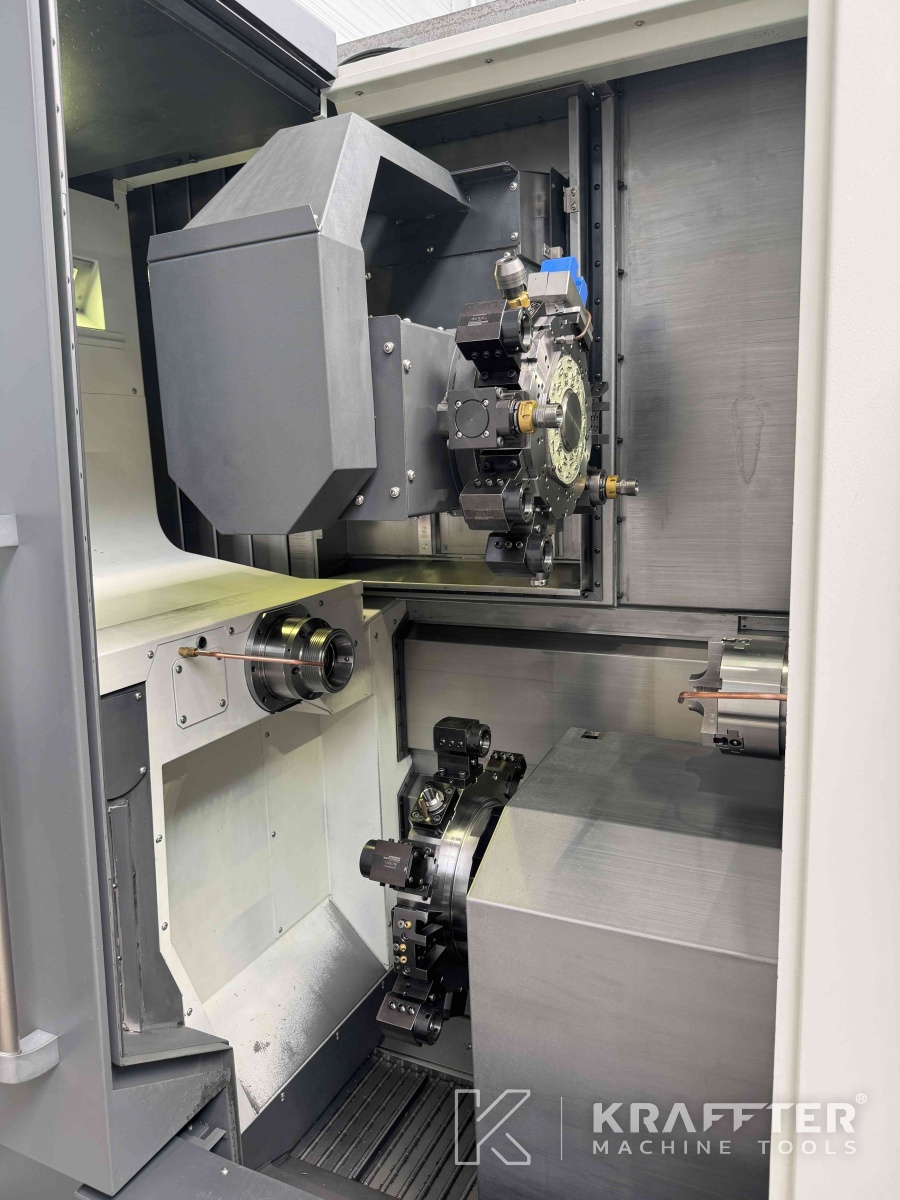

Number of tool stations - Turret 1
24
Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
6000 [rpm]
Number of tool stations - Turret 2
24
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 2
6000 [rpm]
Live tools power
7.1 [kW]

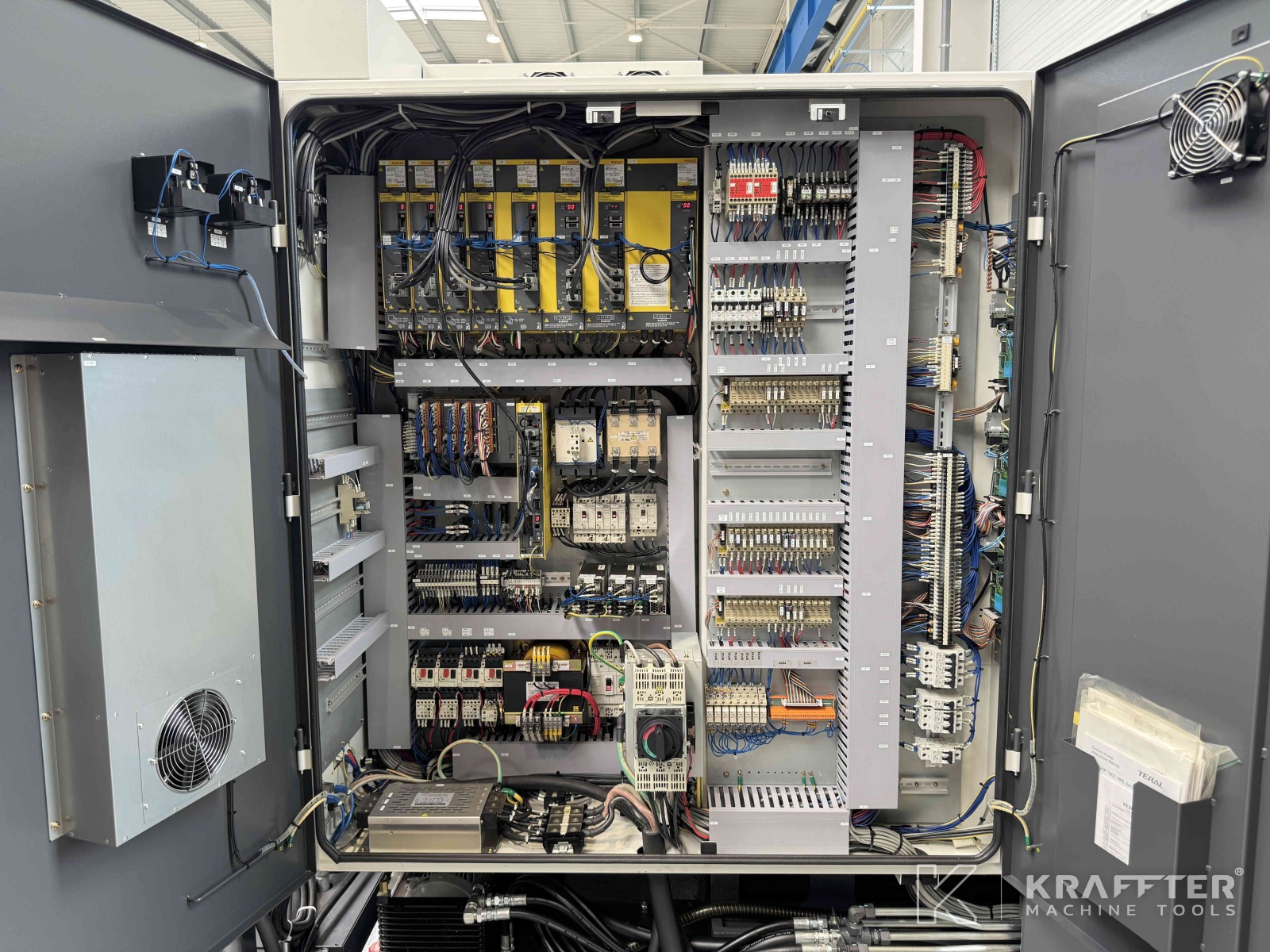

Total power required
77 [kVA]
Supply voltage
400 [V]
Machine dimensions
3799 x 2100 x 2565 [mm]
Weight
10000 [Kg]
Additional information

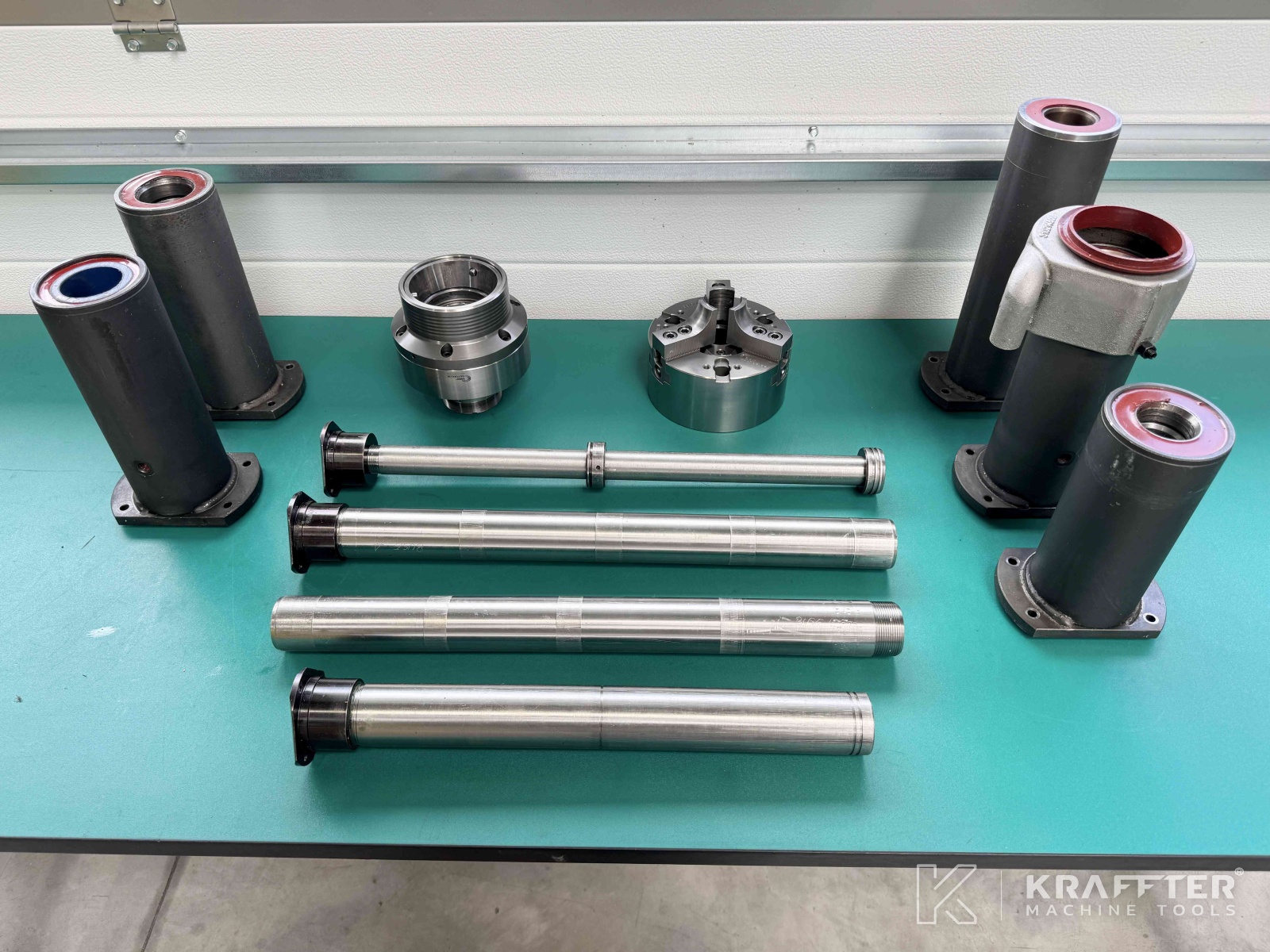

INCLUDED EQUIPMENT:
-
x1 software "Luck-Bei II / NT Manual Guide i"
-
x1 "NT Work Navigator"
-
x1 "NT-Nurse"
-
x1 chuck opening and closing control via pedals
-

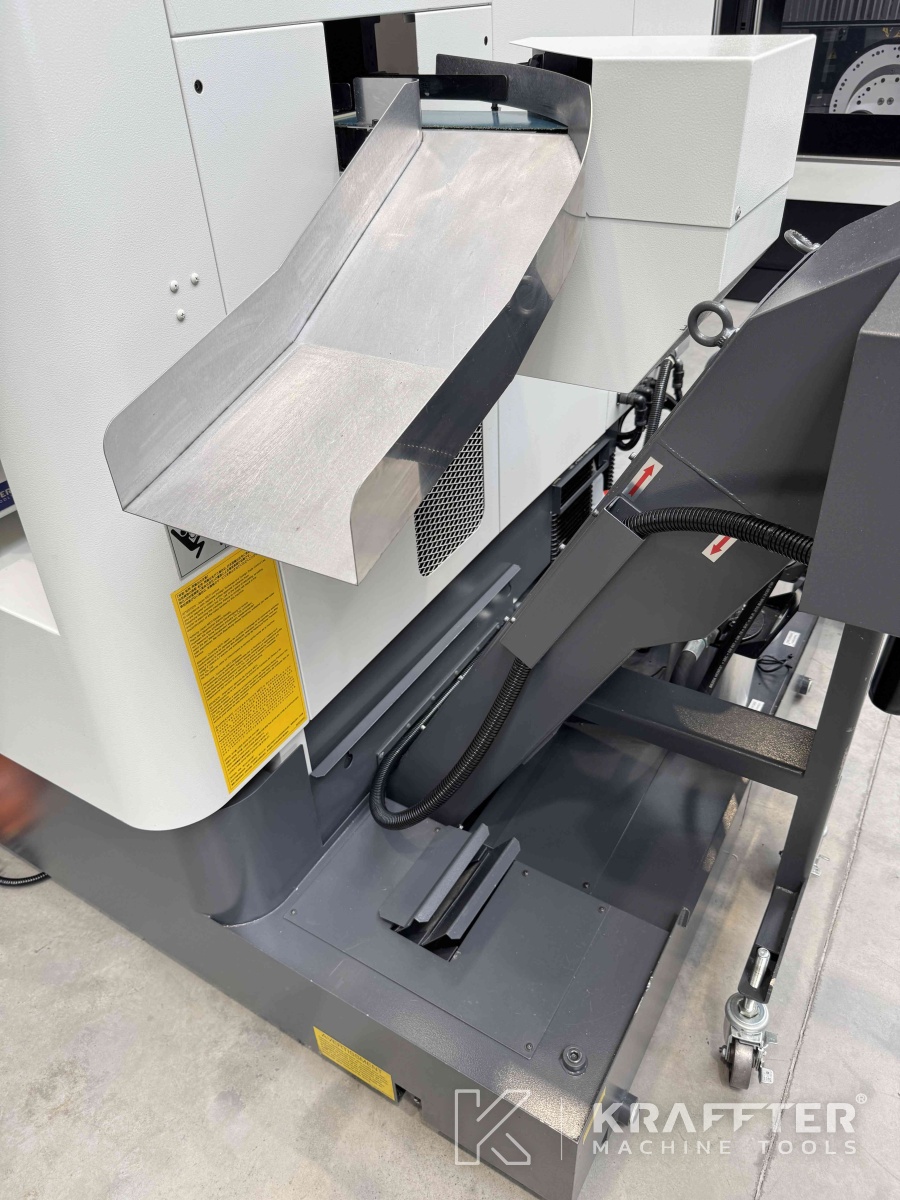

x1 workpiece catcher on the upper turret + conveyor belt
-

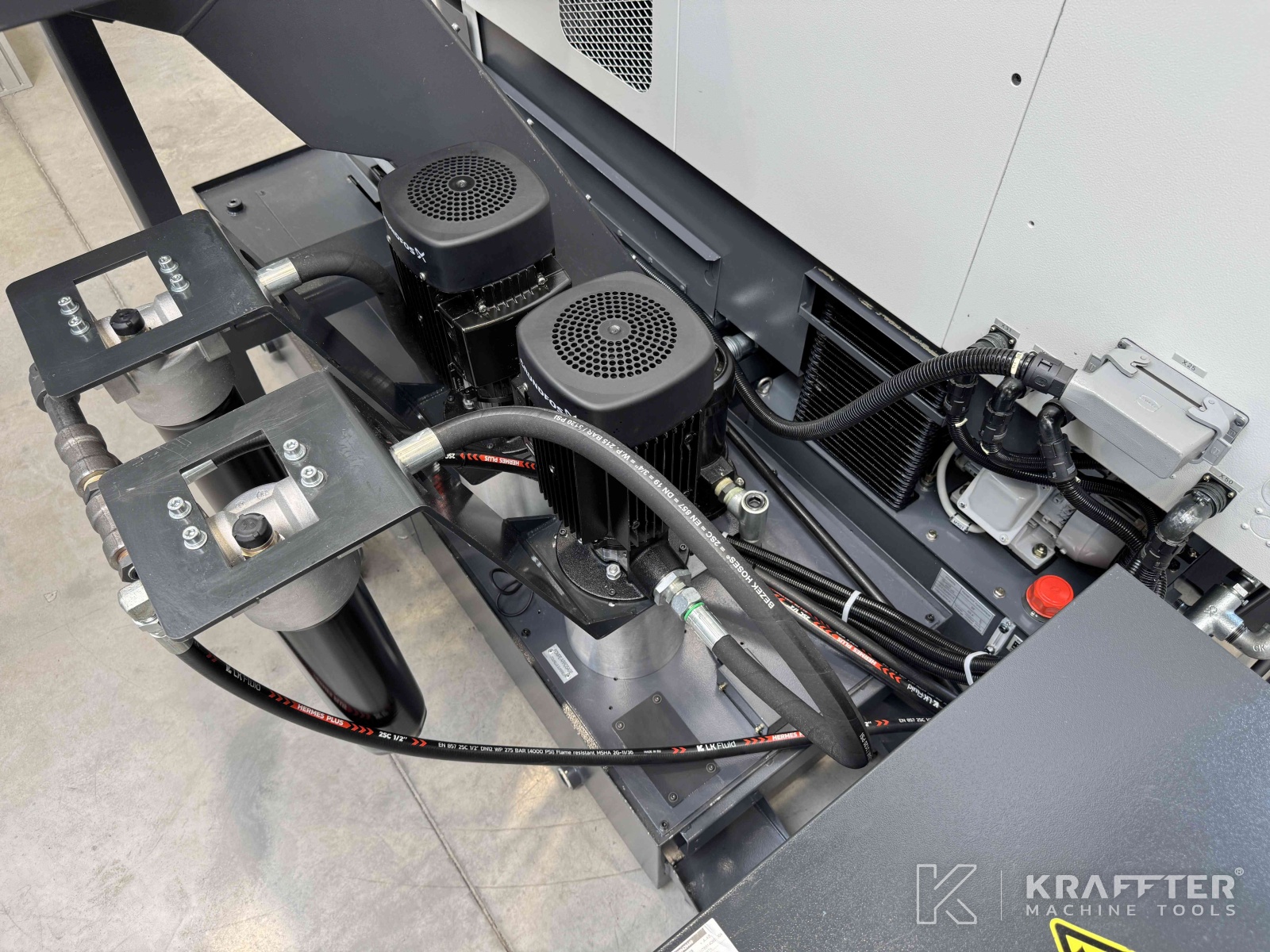

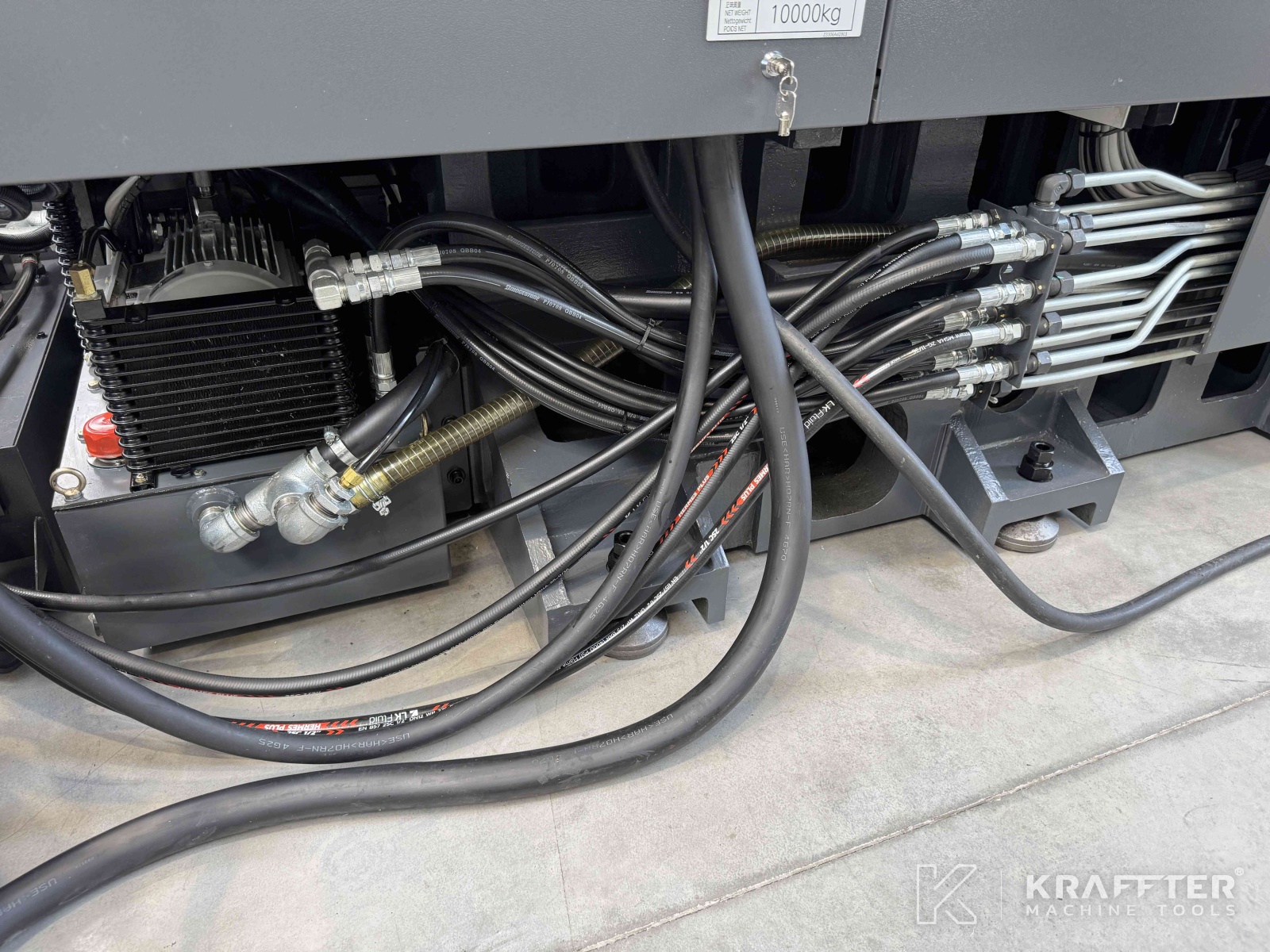

x2 high pressure pumps
-
x1 coolant through the counter-spindle
-
x1 fixed-type jaw blowing system (counter-spindle)
-

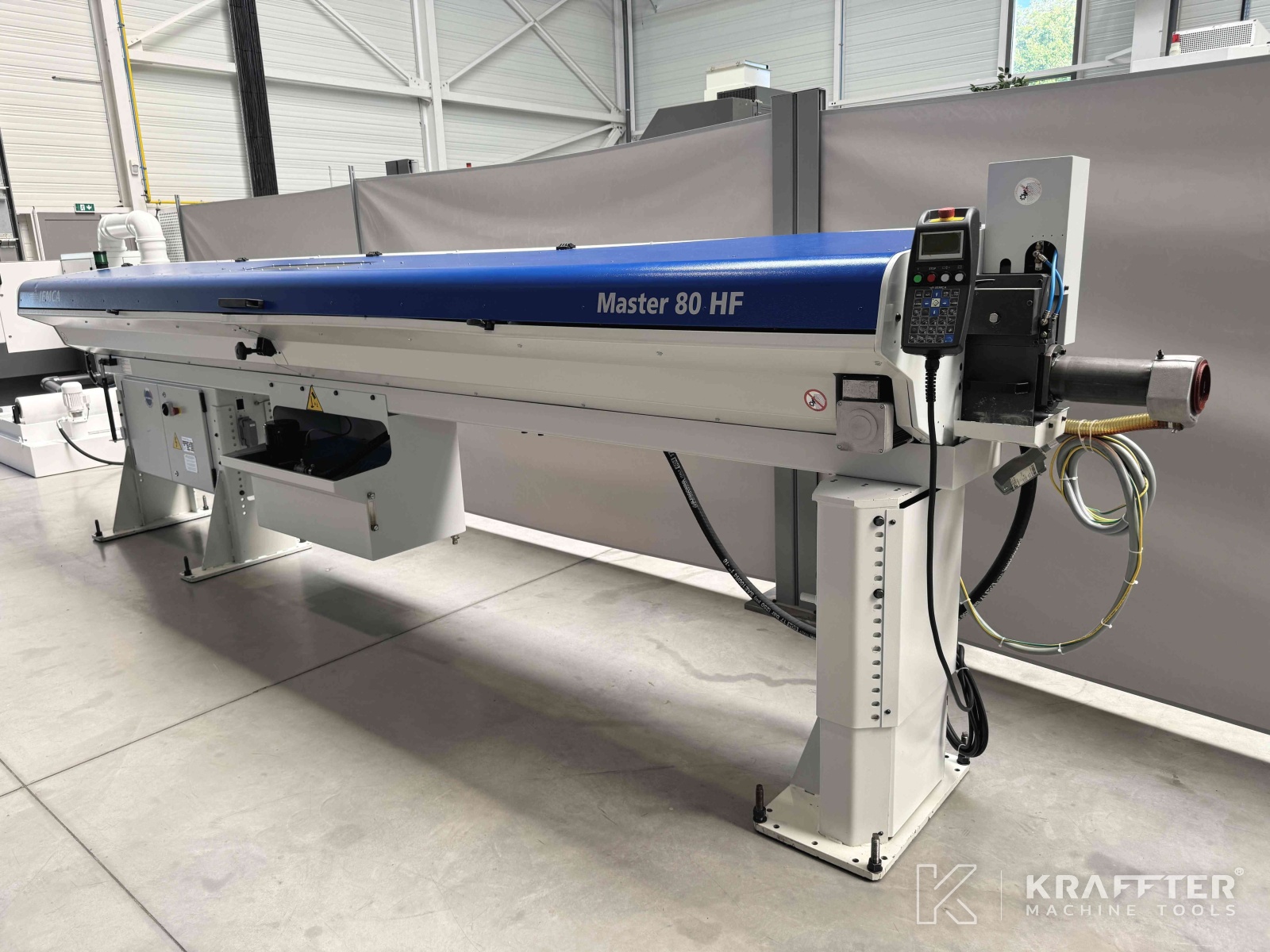

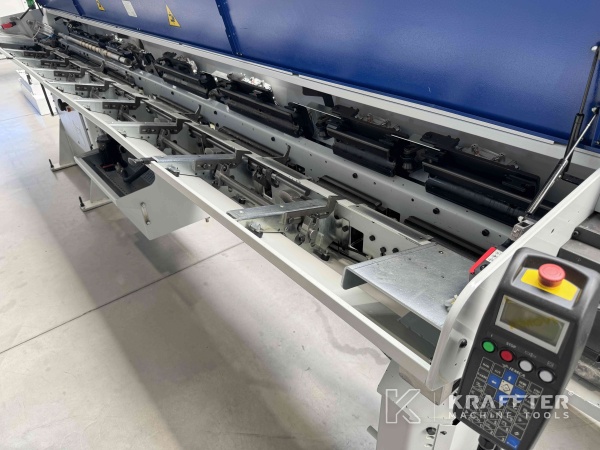

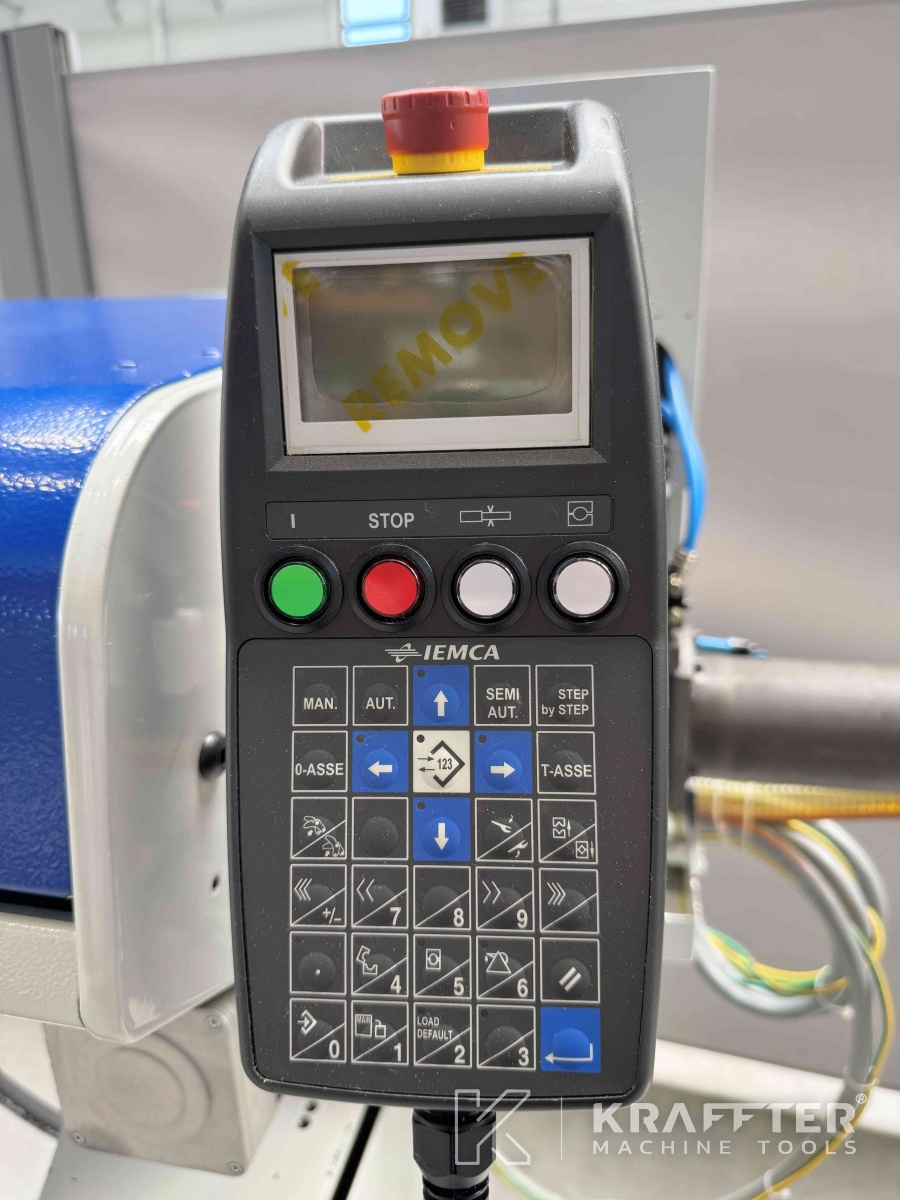

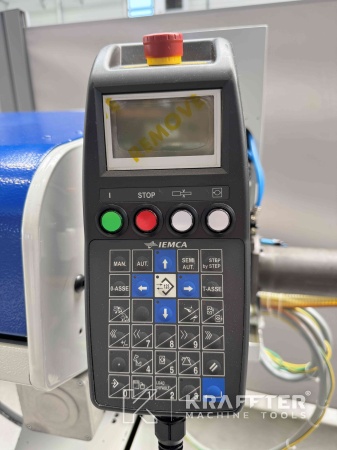

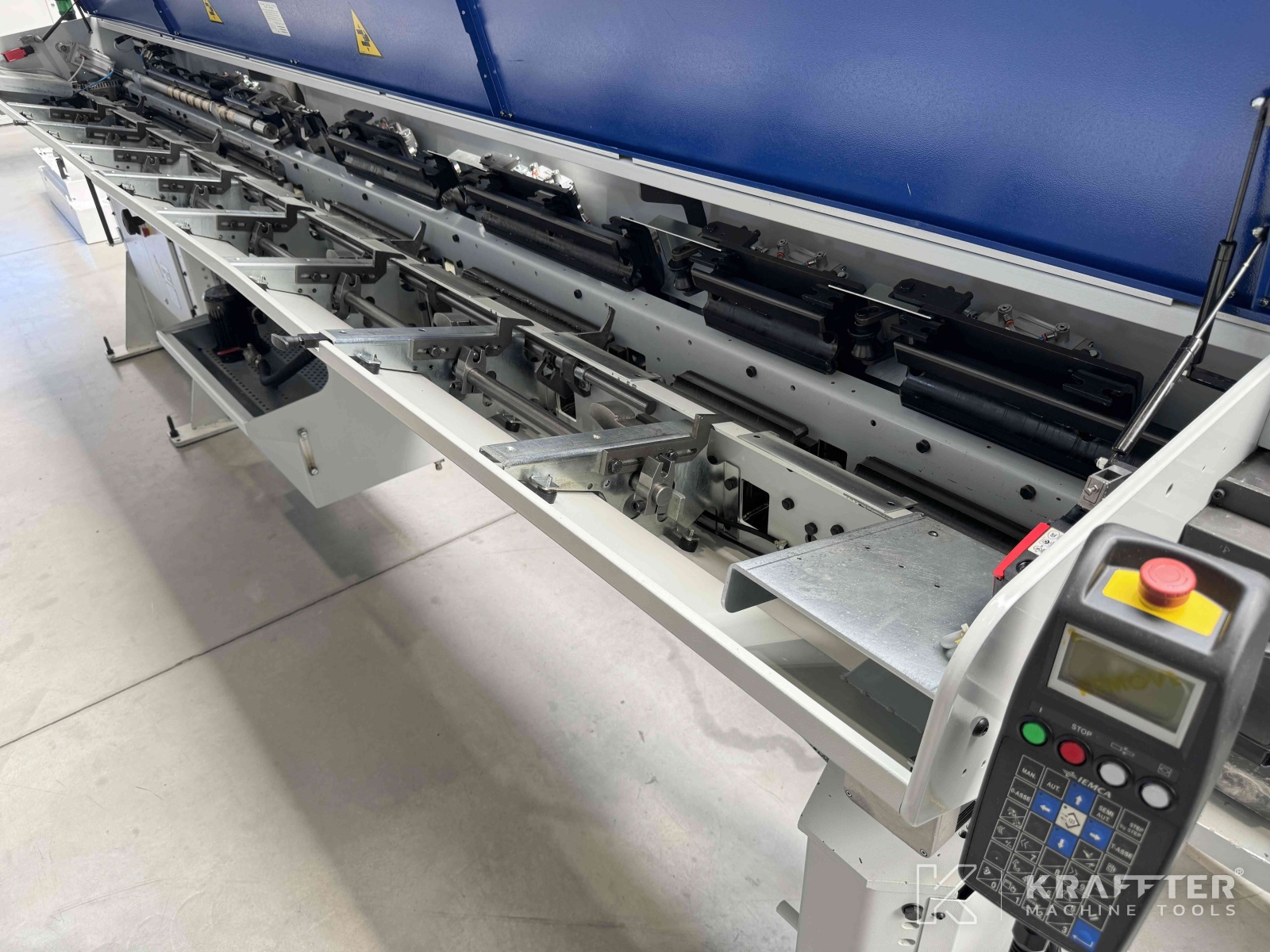

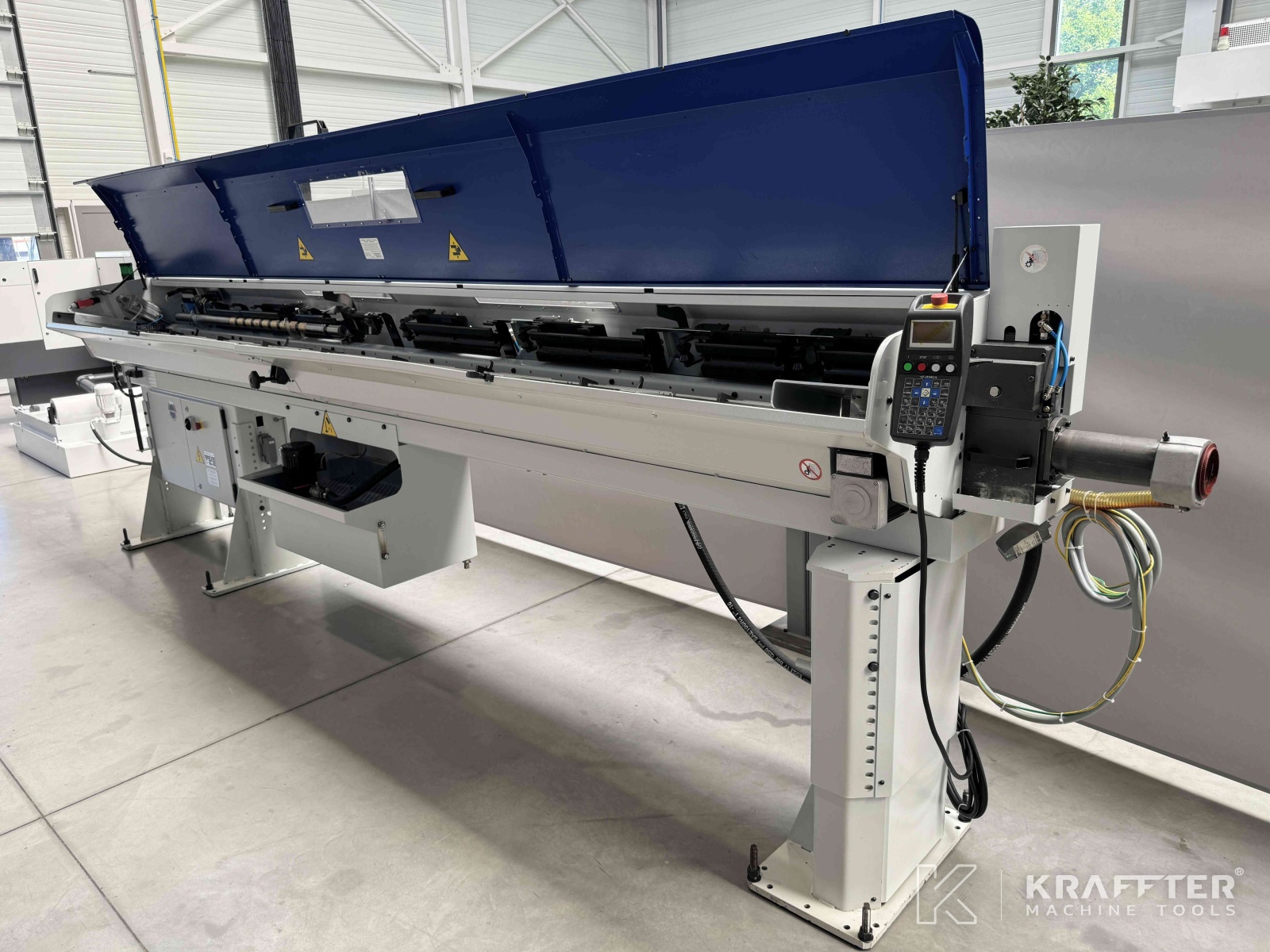

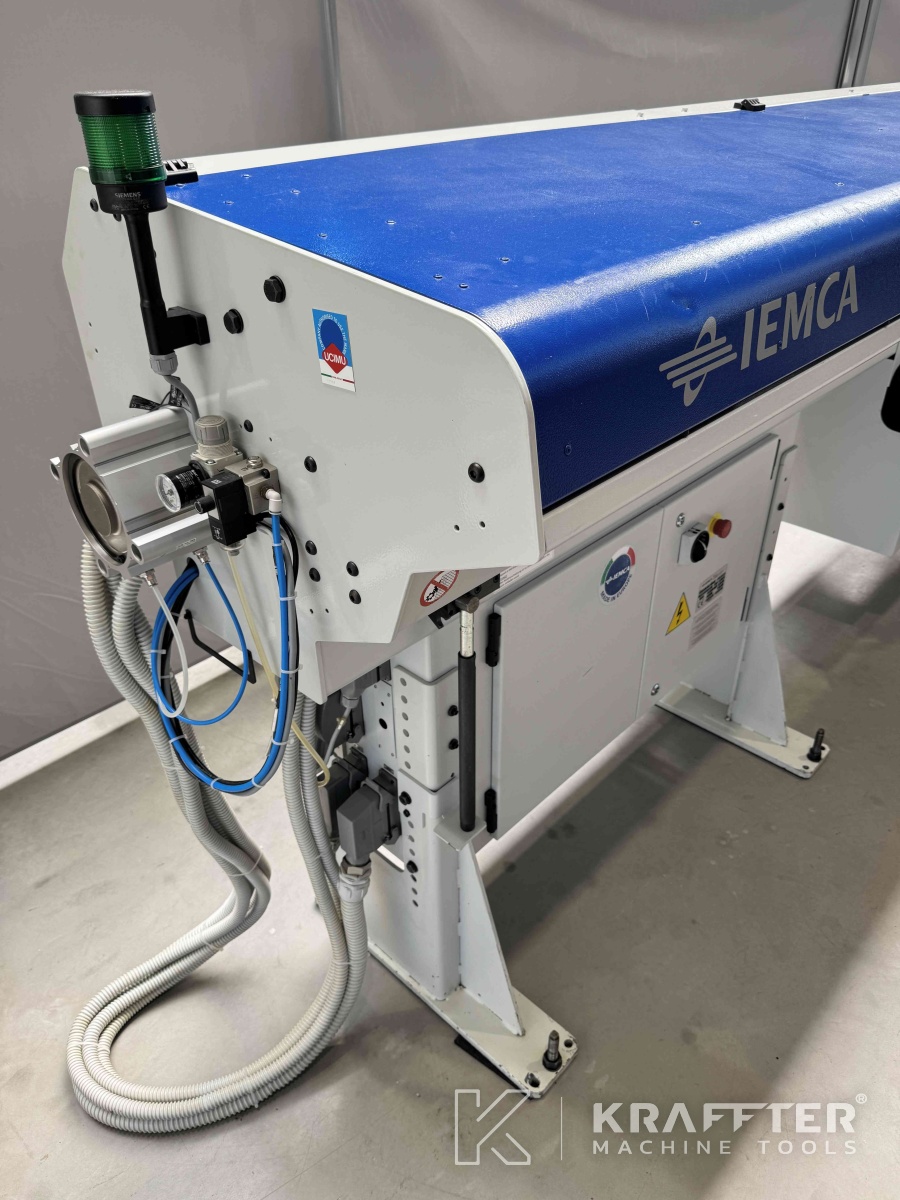

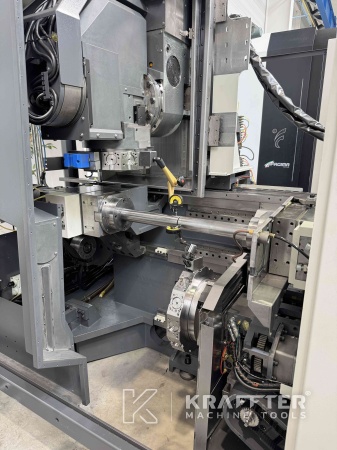

x1 IMECA bar feeder, type MASTER 80HF/43MP
-

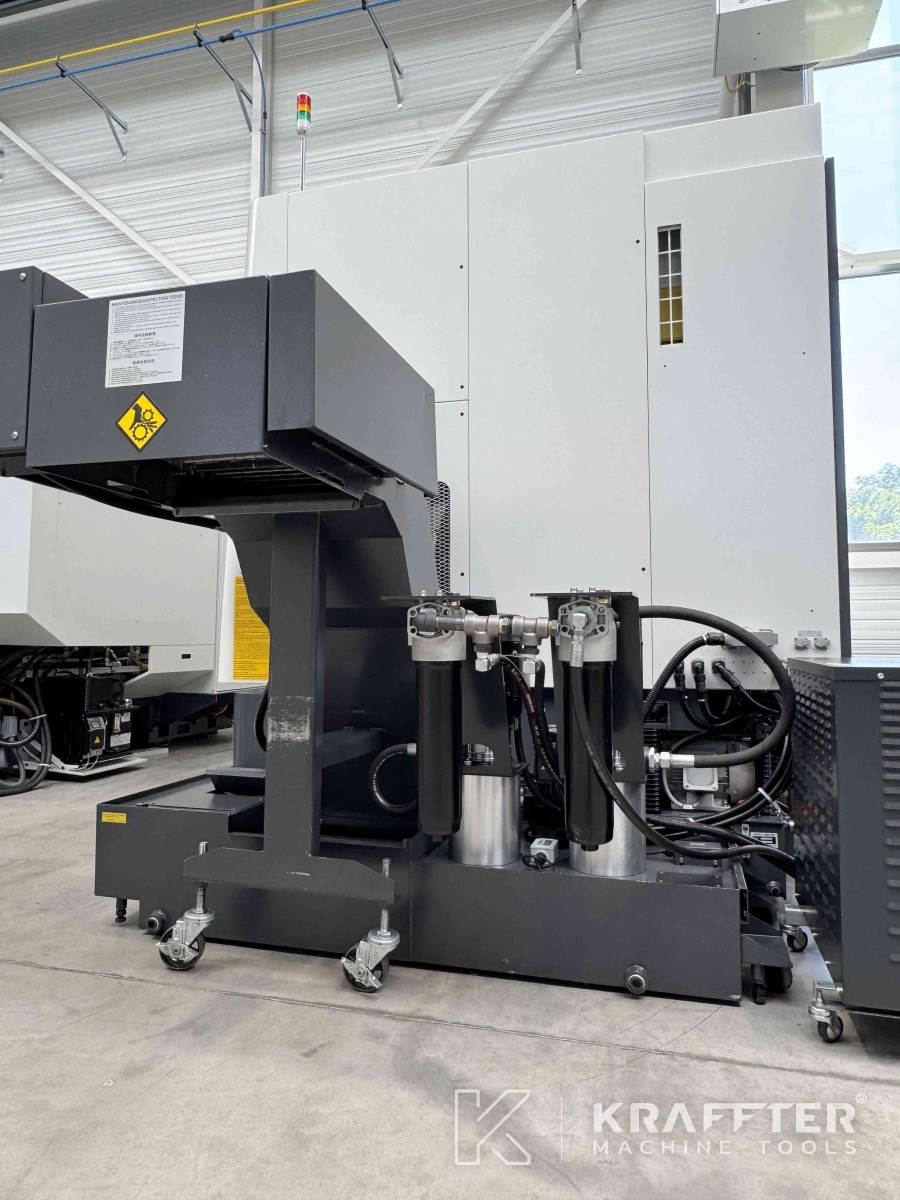

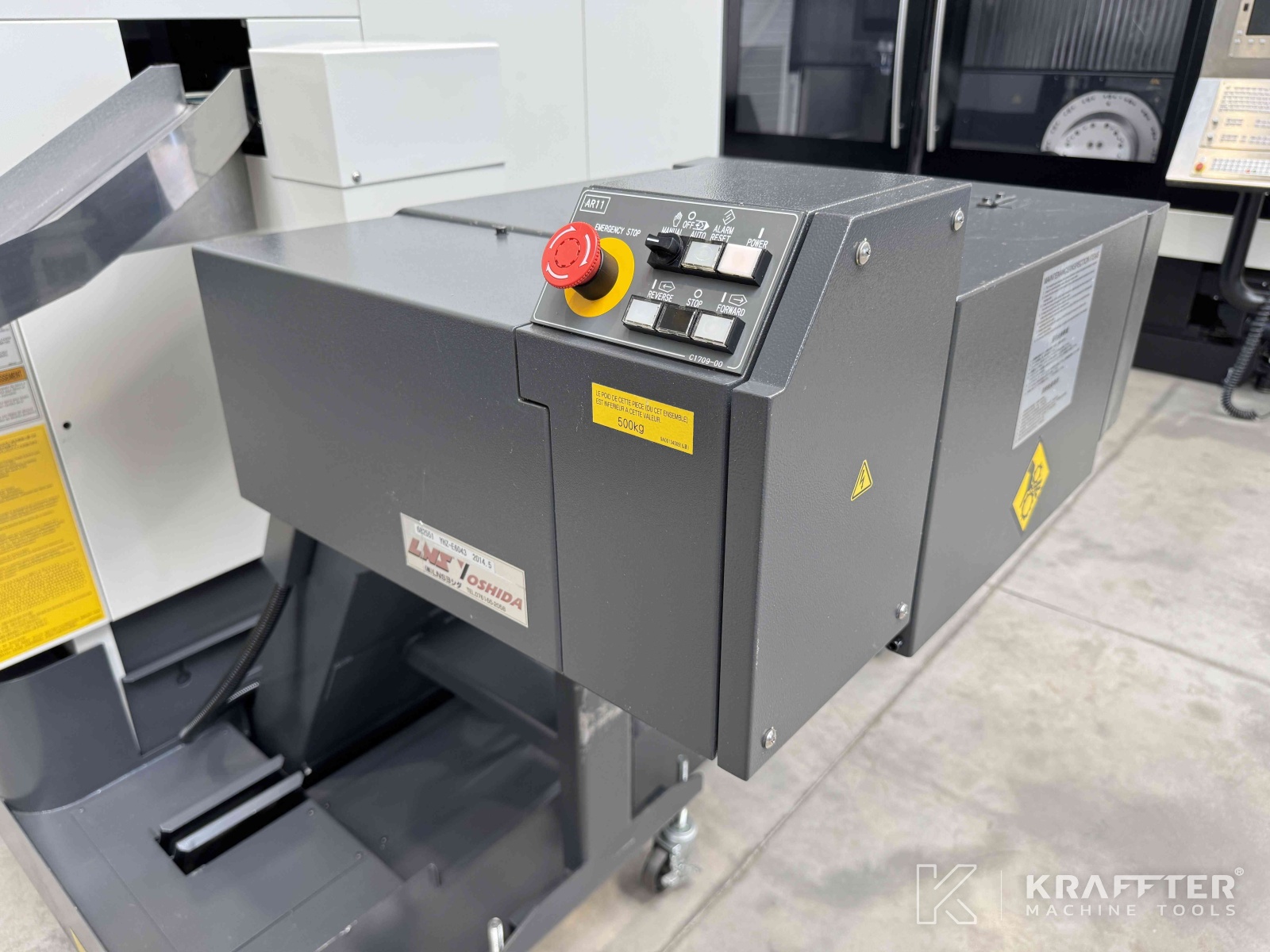

x1 chip conveyor
-

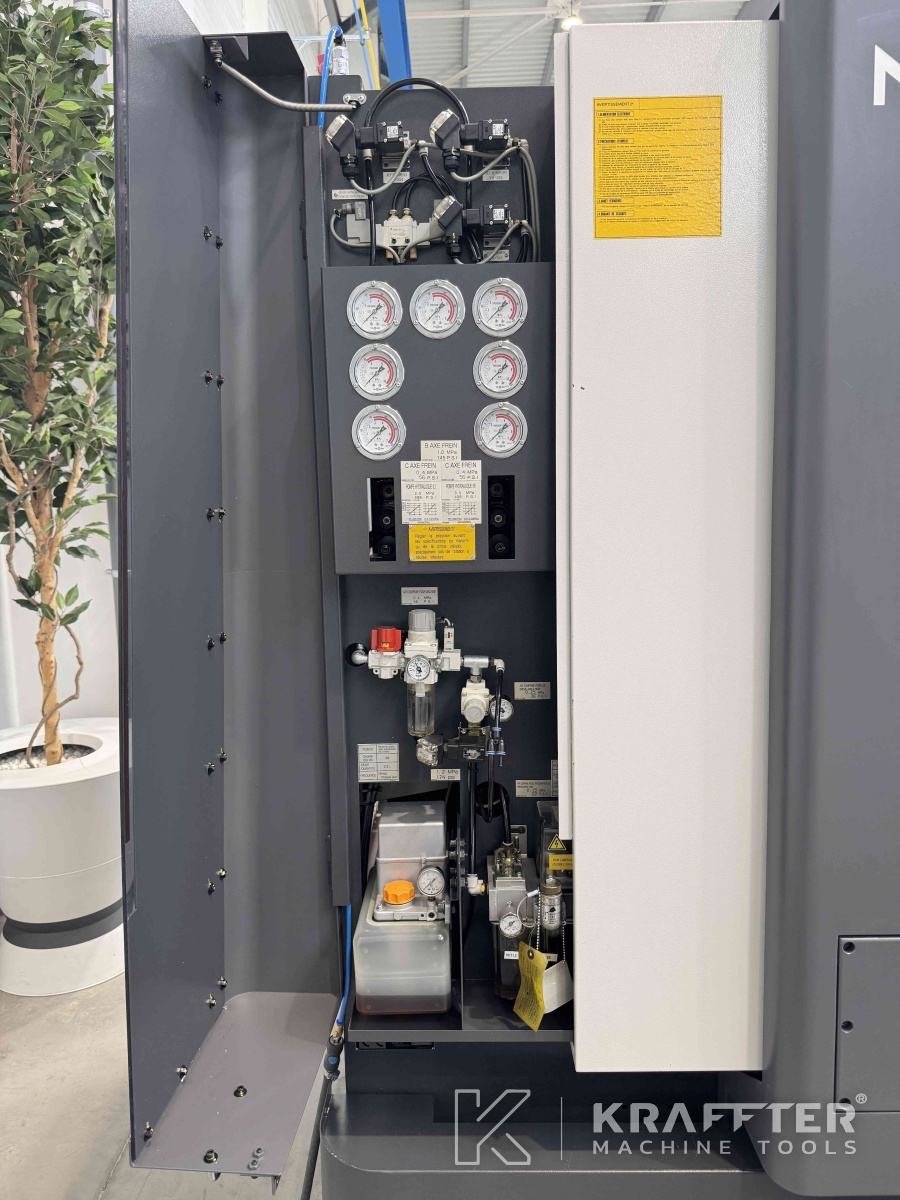

x1 automatic lubrication system
-

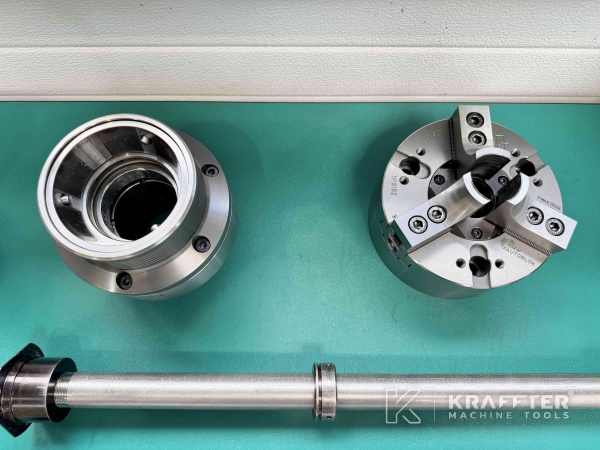

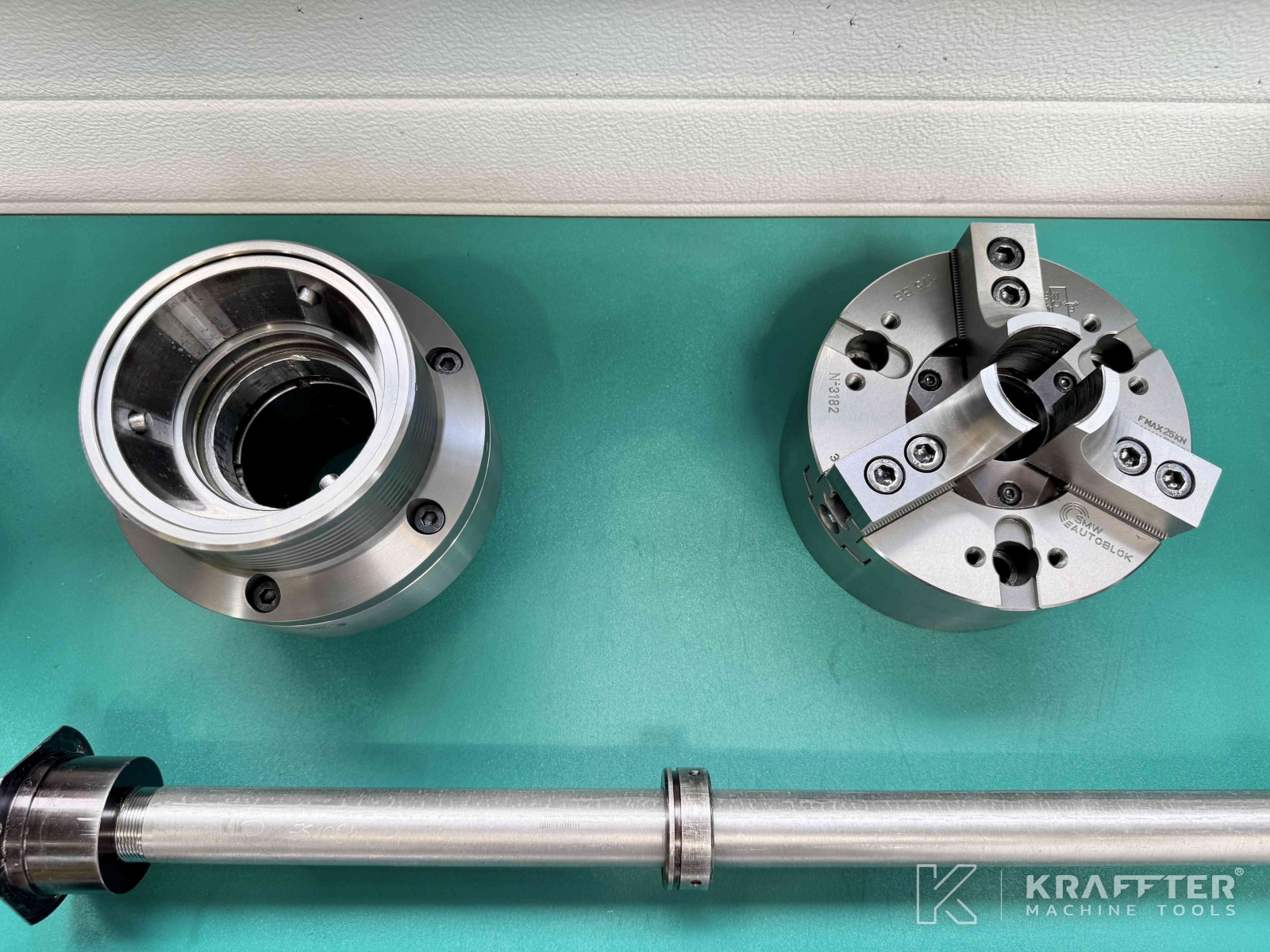

x1 SMW-AUTOBLOK collet chuck type KSZ-NZN-065-A06 (spindle)
-

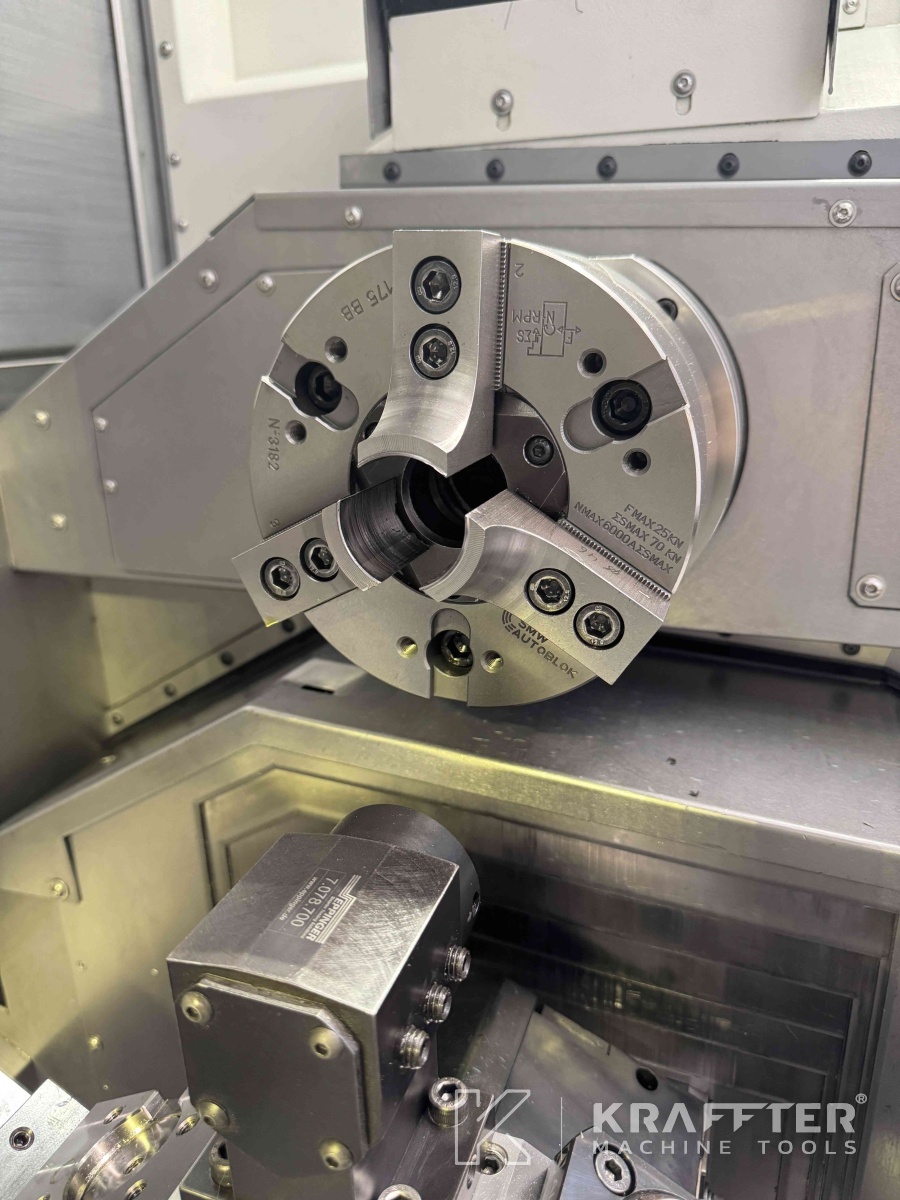

x1 SMW-AUTOBLOK Ø175 [mm] chuck 175 BB (counter-spindle)
-

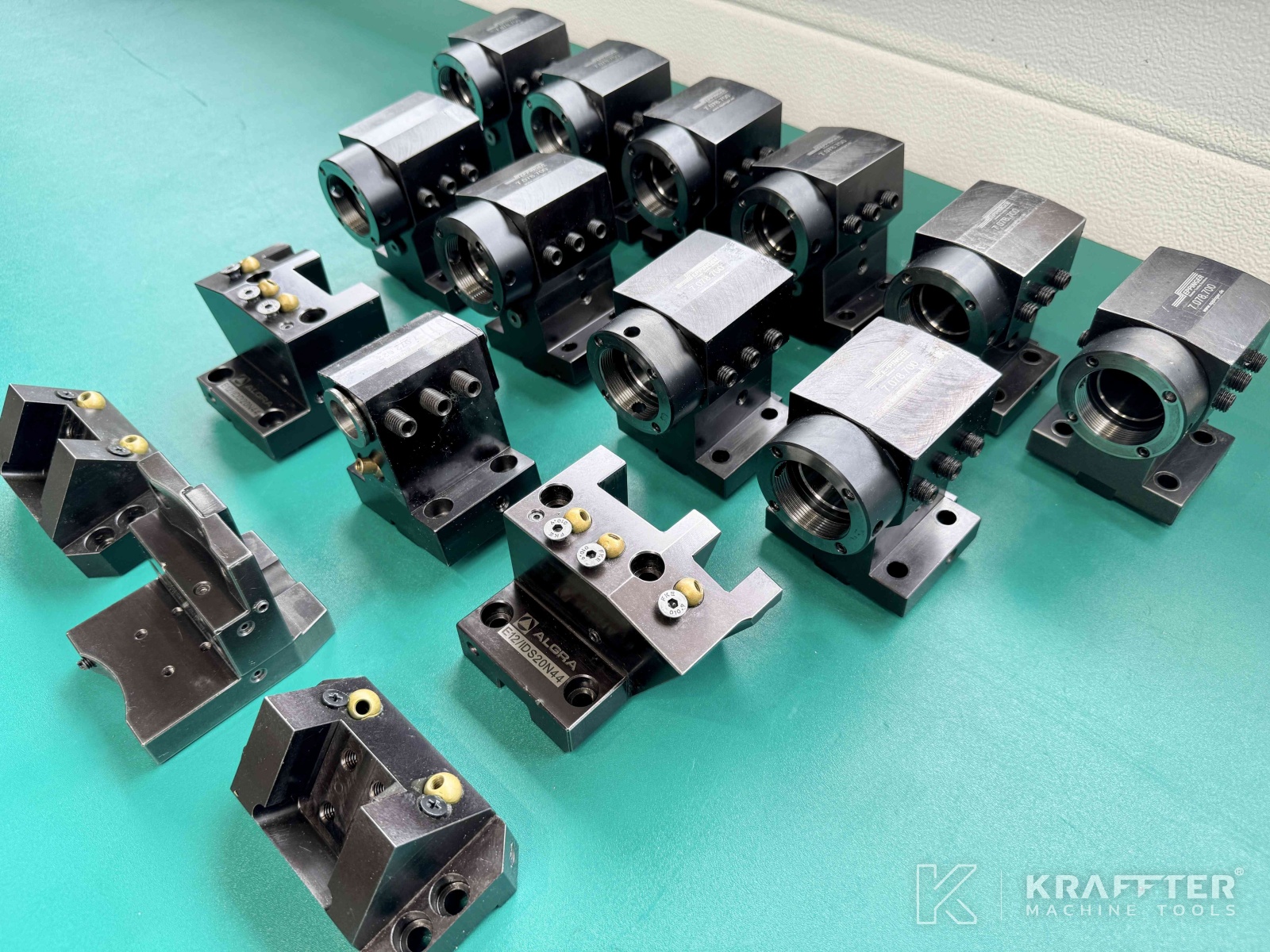

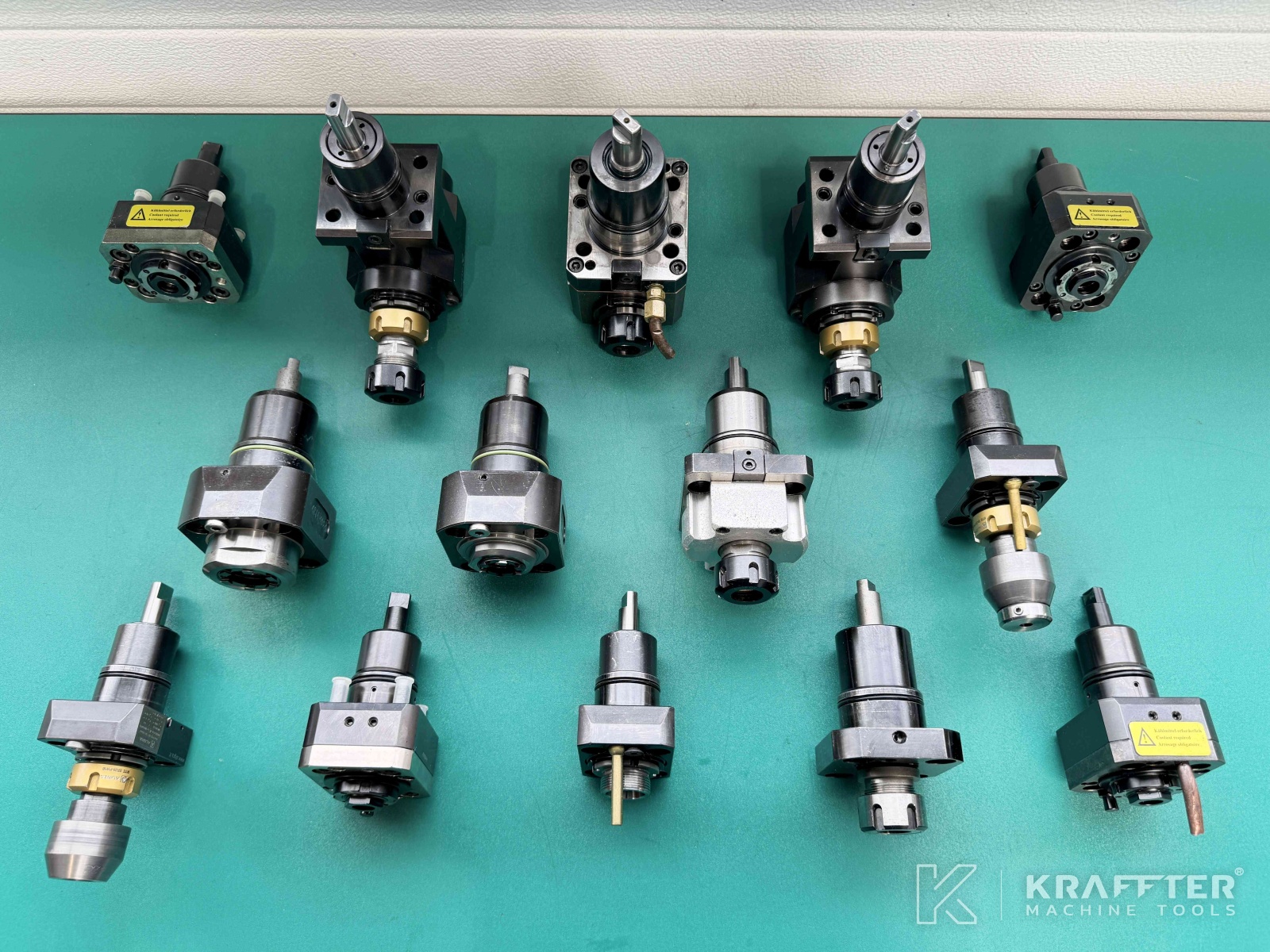

x11 ALGRA radial driven tool holders
-
x3 ALGRA axial driven tool holders
-
x10 EPPINGER axial static tool holders for PRECI-FLEX 32 adapters (7.078.70)
-
x1 EPPINGER axial static tool holder for Ø200 [mm] boring bar (7.072.622)
-
x5 ALGRA static tool holders
-

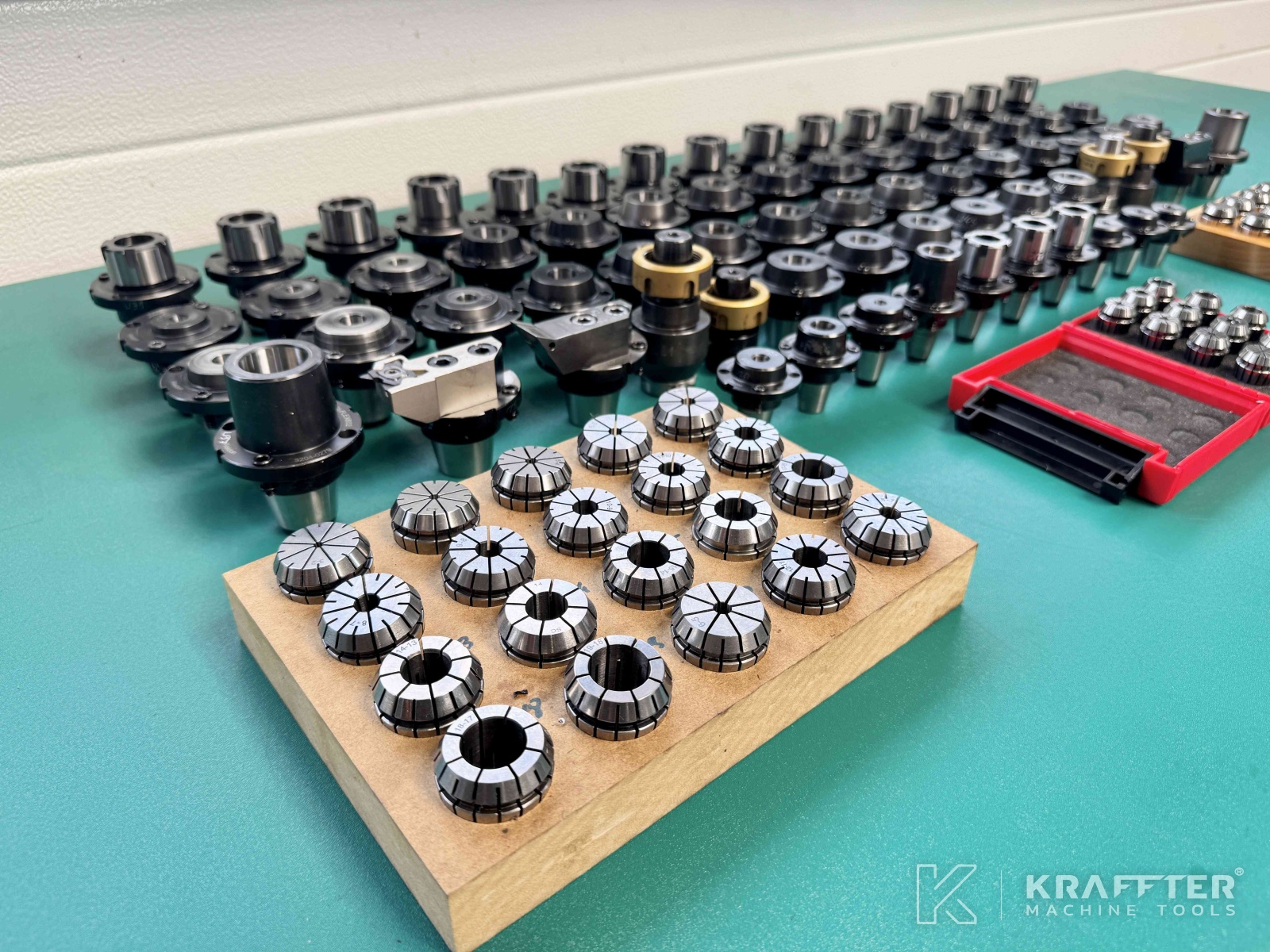

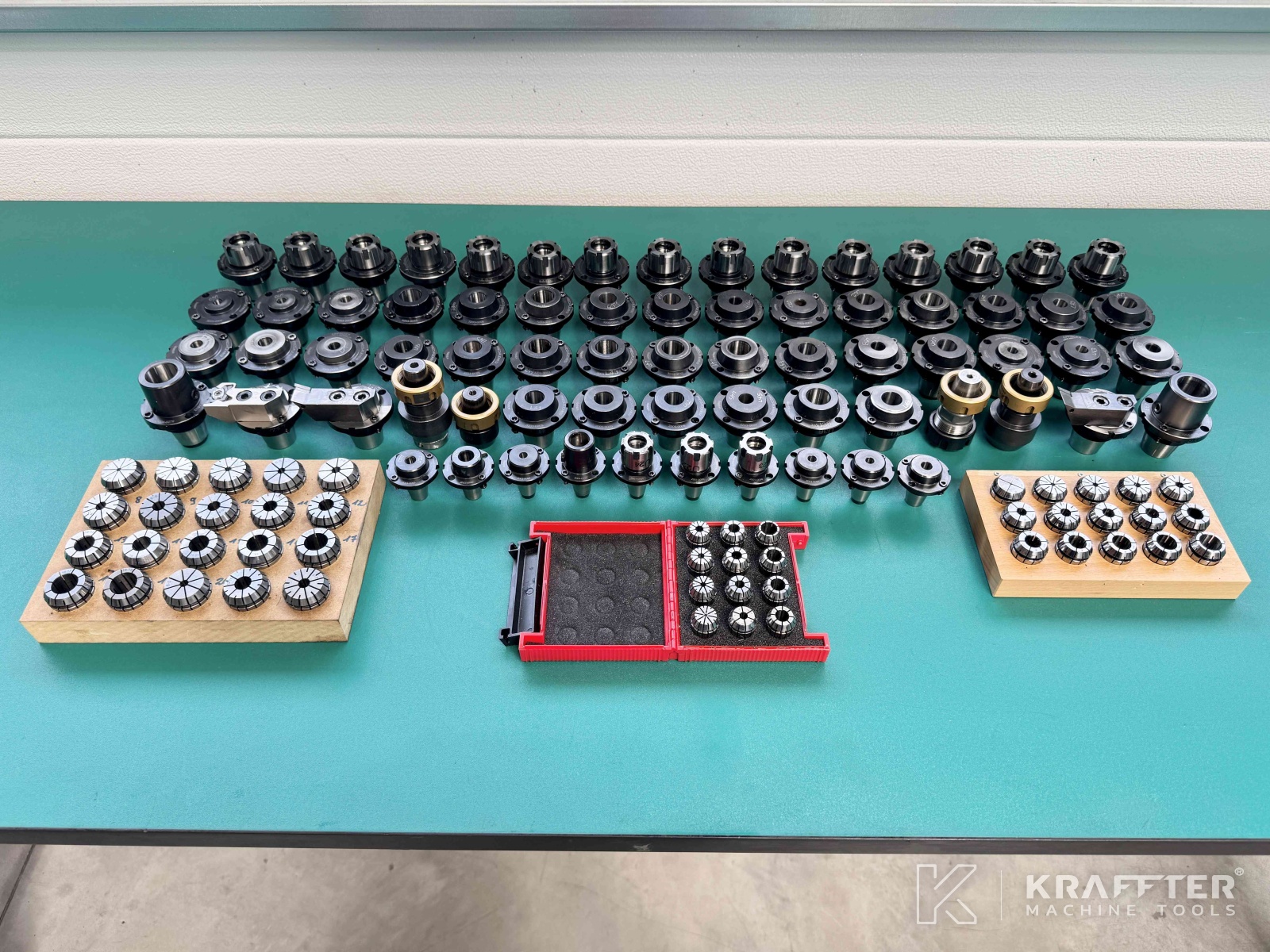

x56 EPPINGER adapters type PRECI-FLEX 32
-
x10 EPPINGER adapters type PRECI-FLEX 20
-
x20 ER32 collets (in case)
-
x15 ER25 collets (in case)
-
x12 ER20 collets (in case)
-
x4 IEMCA service/operator manuals (paper and CD-ROM)
-
x9 NAKAMURA NTJ100 service/operator manuals
-

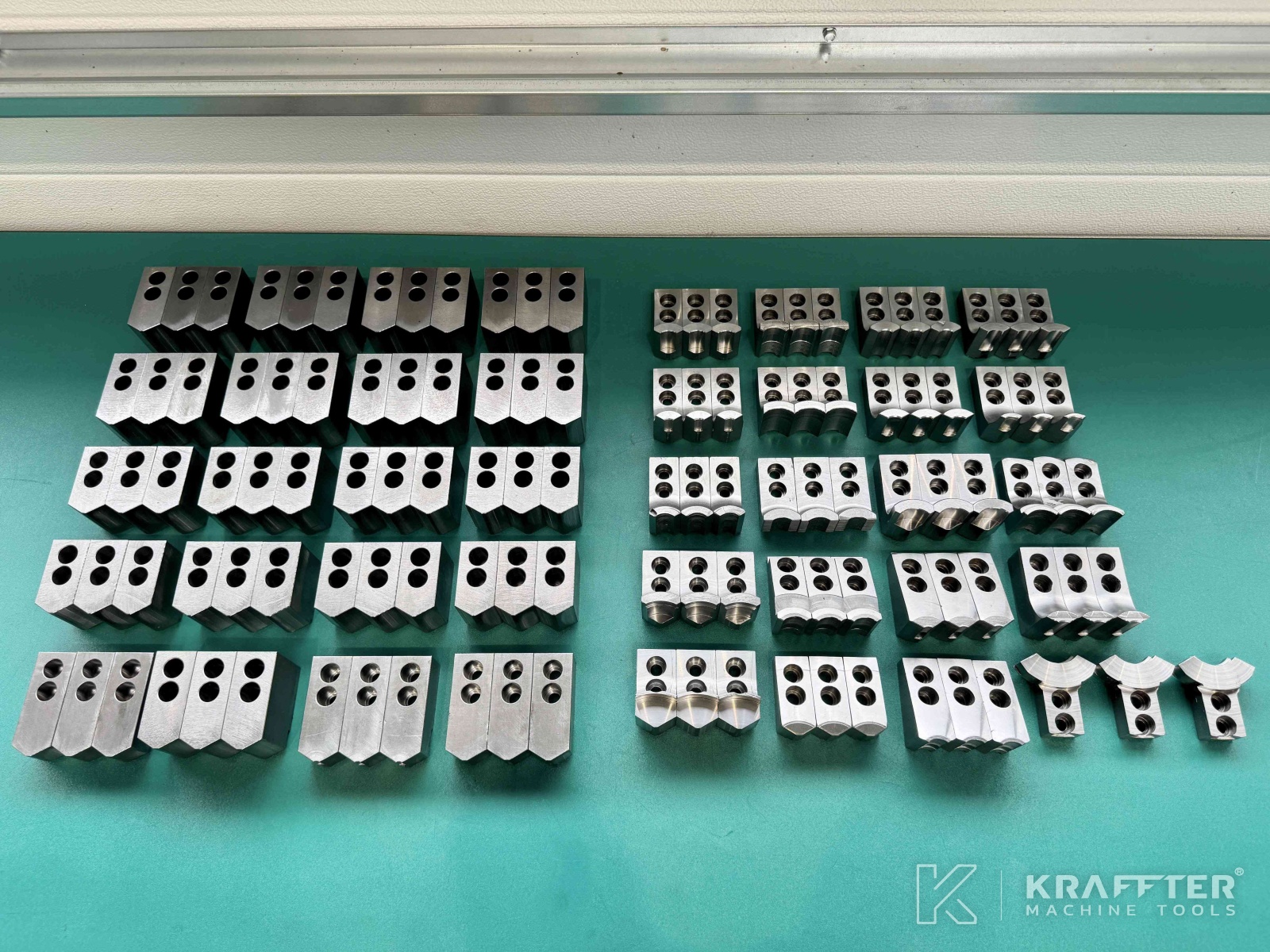

x40 sets of soft jaws
SOFTWARE OPTIONS LIST:
- 1MB memory, 2560 m tape / 2000 storable programs (NTJ100 F-001)
- 99 pairs of tool offsets (NTJ100 F-002)
- Programming in inches or millimeters (NTJ100 F-003)
- Data input via programming / G10 (NTJ100 F-004)
- Tool retraction during threading (NTJ100 F-005)
- Continuous threading (NTJ100 F-006)
- Linear acceleration/deceleration after cutting feed interpolation (NTJ100 F-007)
- High-speed machining function (NTJ100 F-008)
- Background programming (NTJ100 F-009)
- Program section editing extension (copy/paste) (NTJ100 F-010)
- Execution time and piece counter (NTJ100 F-011)
- Workpiece coordinate system (NTJ100 F-012)
- Direct programming of dimensions or chamfer and radius (NTJ100 F-013)
- Type B customer macros (NTJ100 F-014)
- Addition of common variables for customer macros (NTJ100 F-015)
- Type II repetitive cycles (NTJ100 F-016)
- Fixed cycles for drilling (NTJ100 F-017)
- Axis recomposition (NTJ100 F-018)
- Rigid tapping function for spindle (NTJ100 F-019)
- Software Luck-Bei II / NT Manual Guide i (NTJ100 F-020)
- Software NT Nurse 2 (NTJ100 F-021)
- Software NT Work Navigator (torque controller type) (NTJ100 F-022)
- Software NT Collision Guard (NTJ100 F-023)
- Overload detection (NTJ100 F-024)
- Rigid tapping function for live tools (NTJ100 F-025)
- Polar cycle interpolation (NTJ100 F-026)
- Circular step repositioning (NTJ100 F-027)
- Helical interpolation (NTJ100 F-028)
