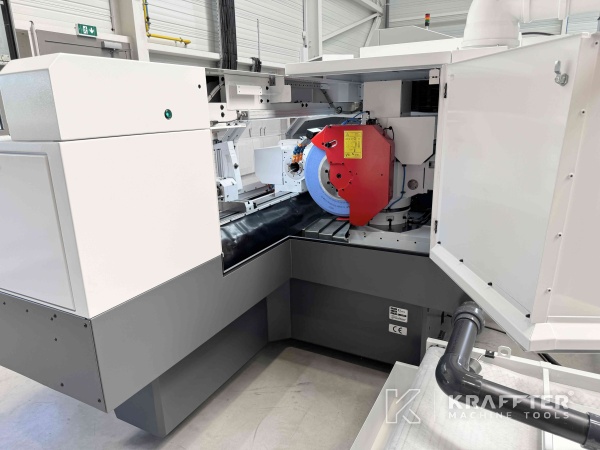

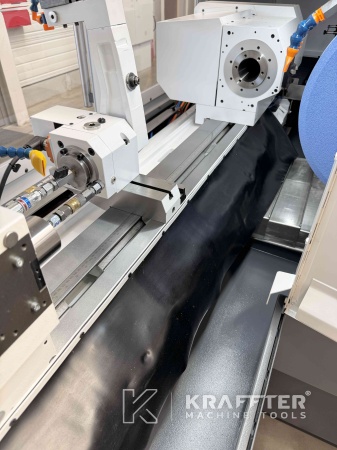

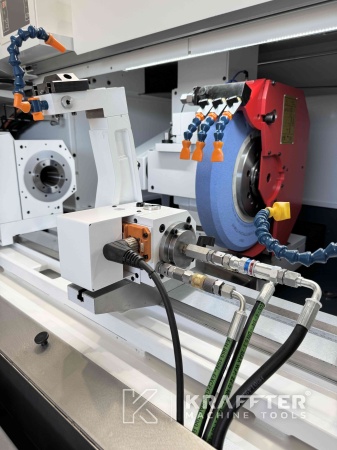

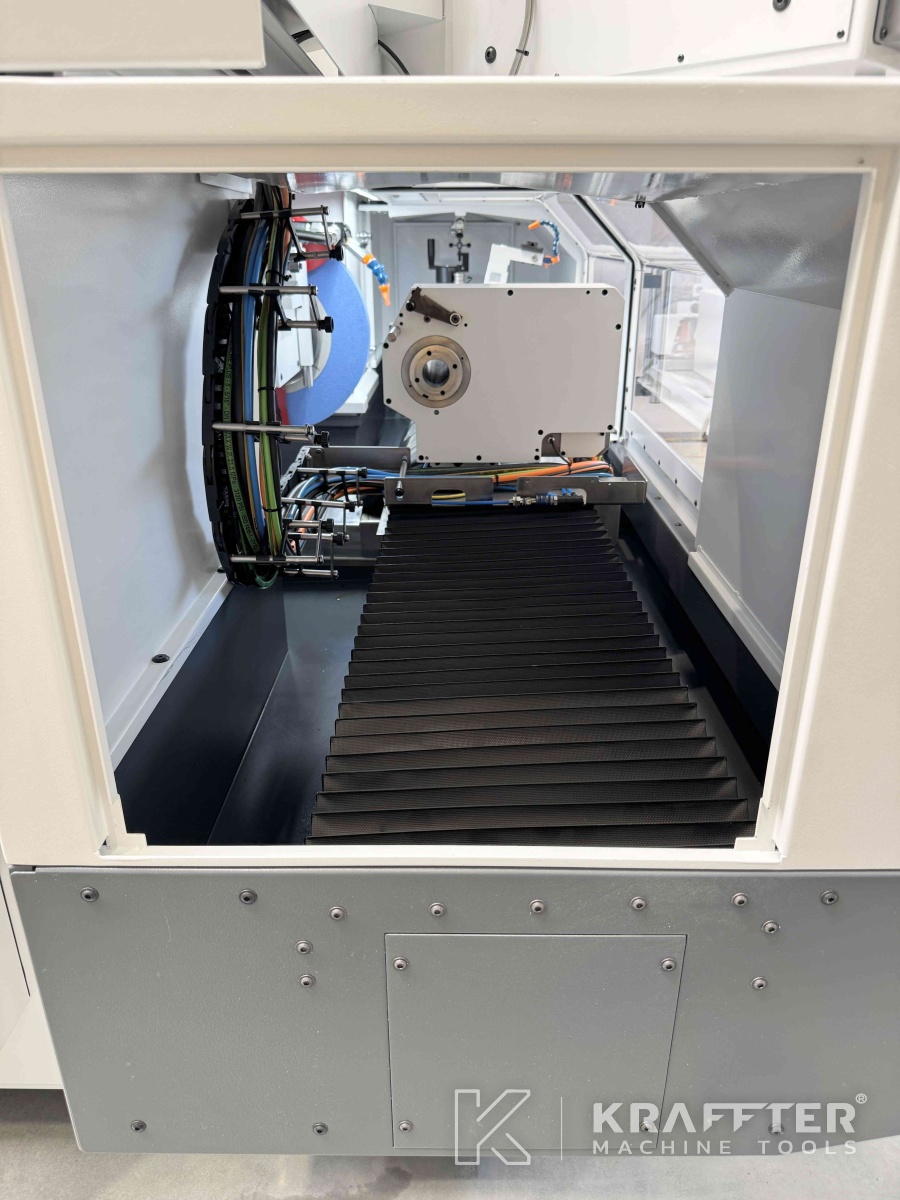

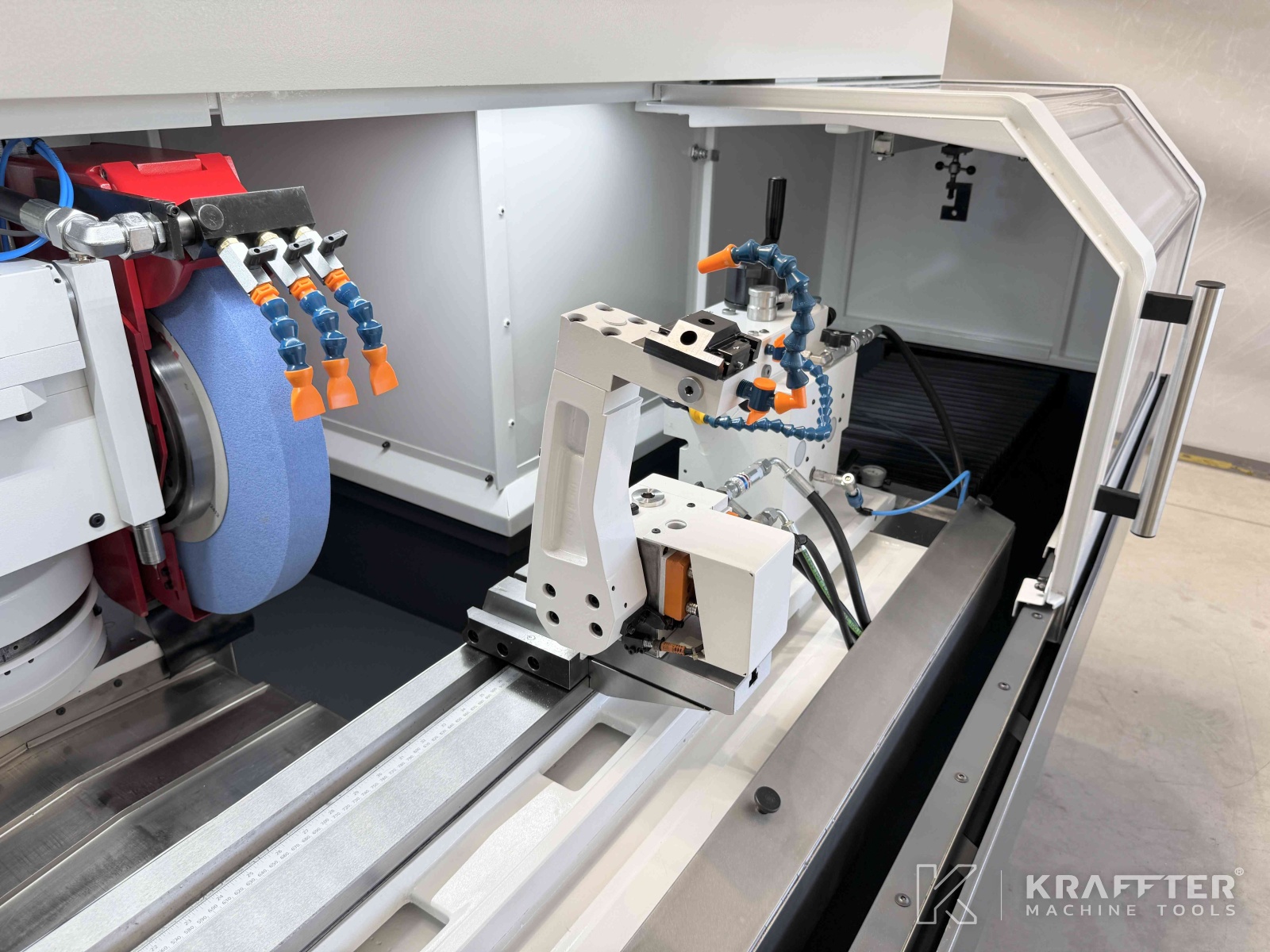

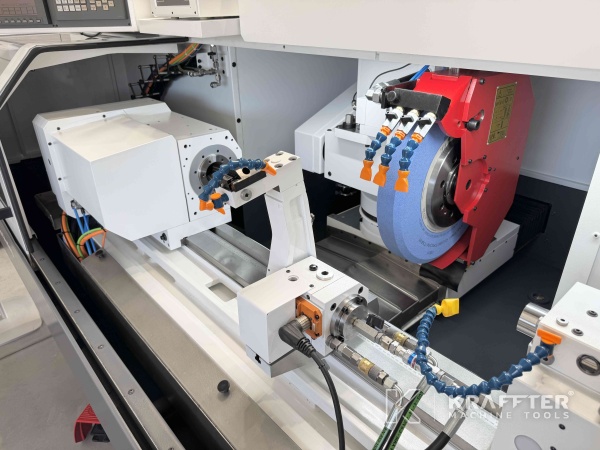

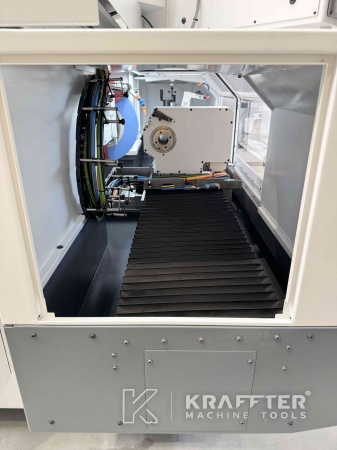

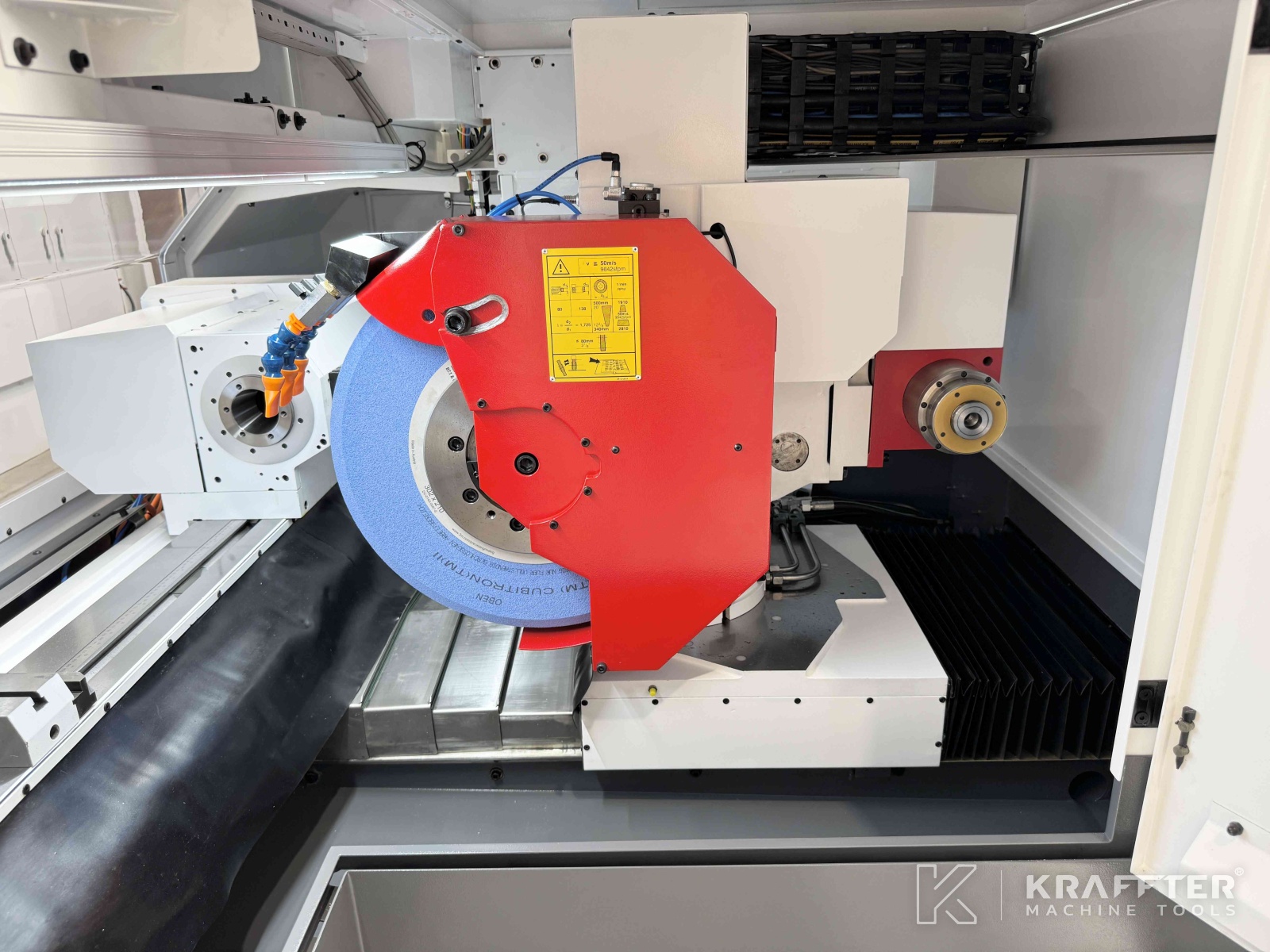

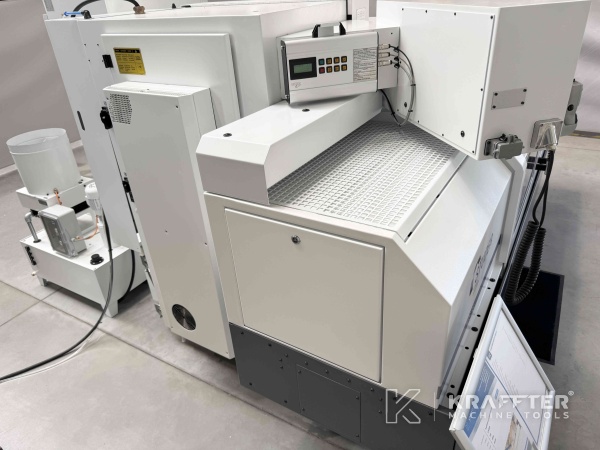

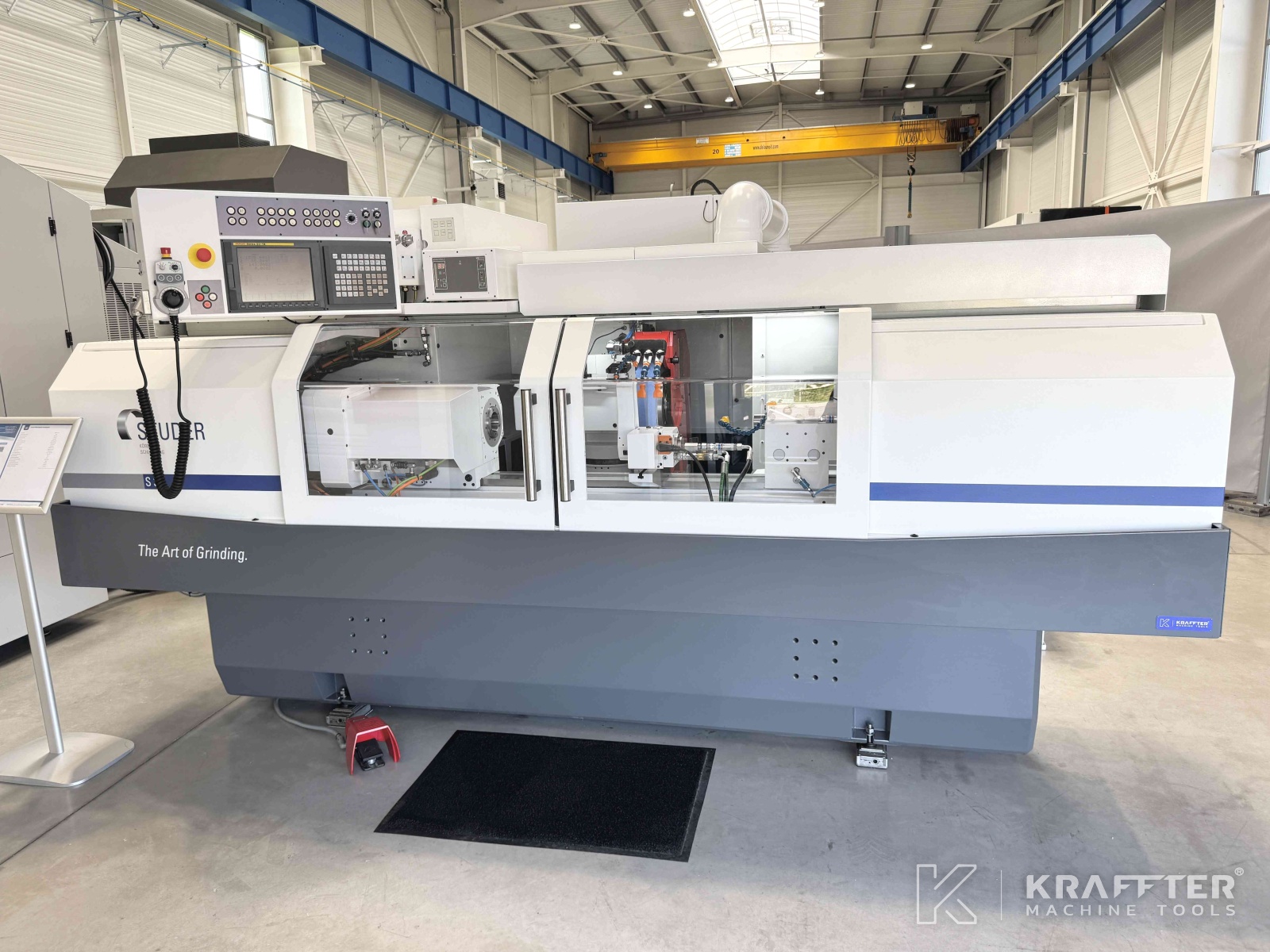

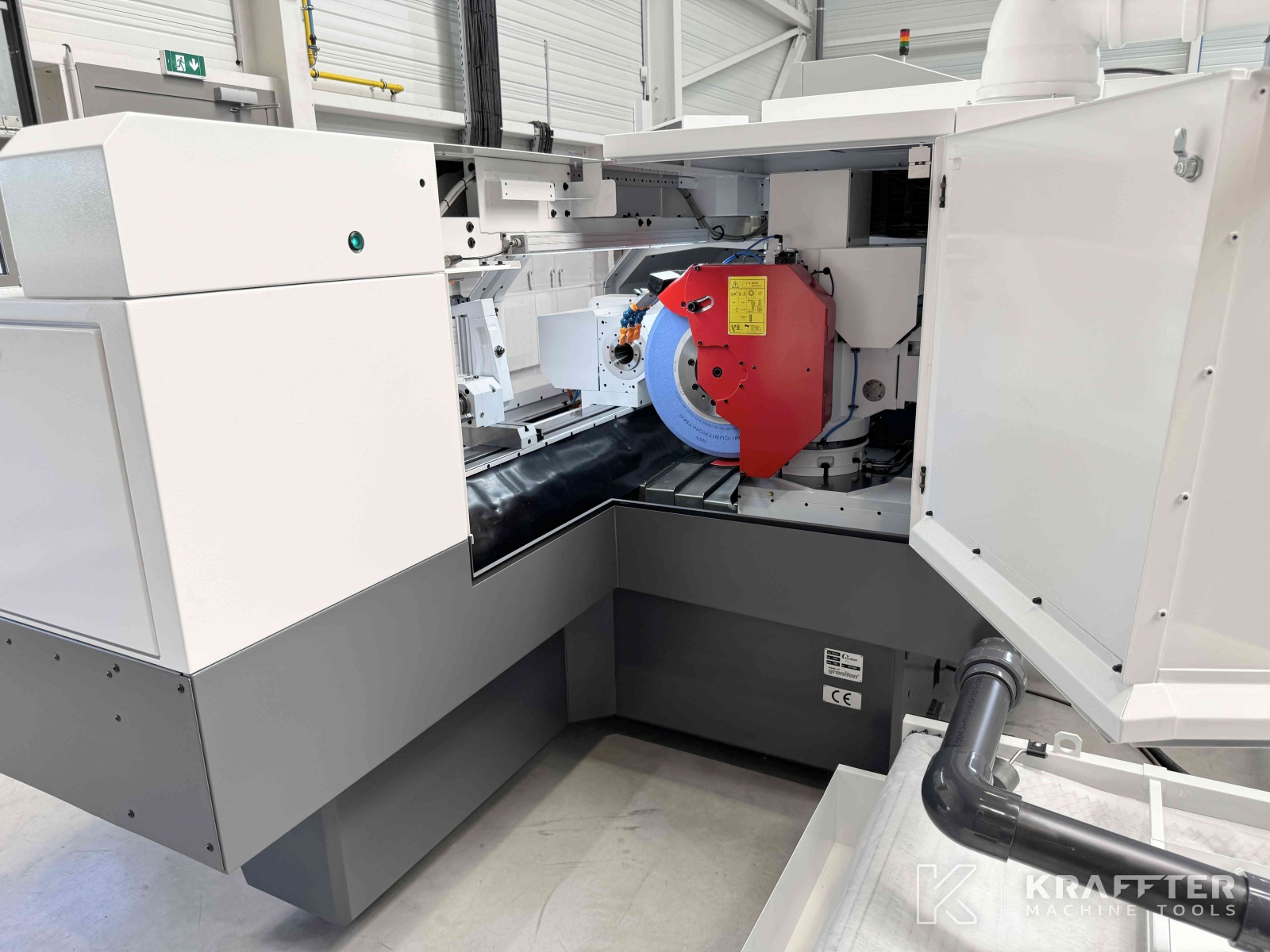

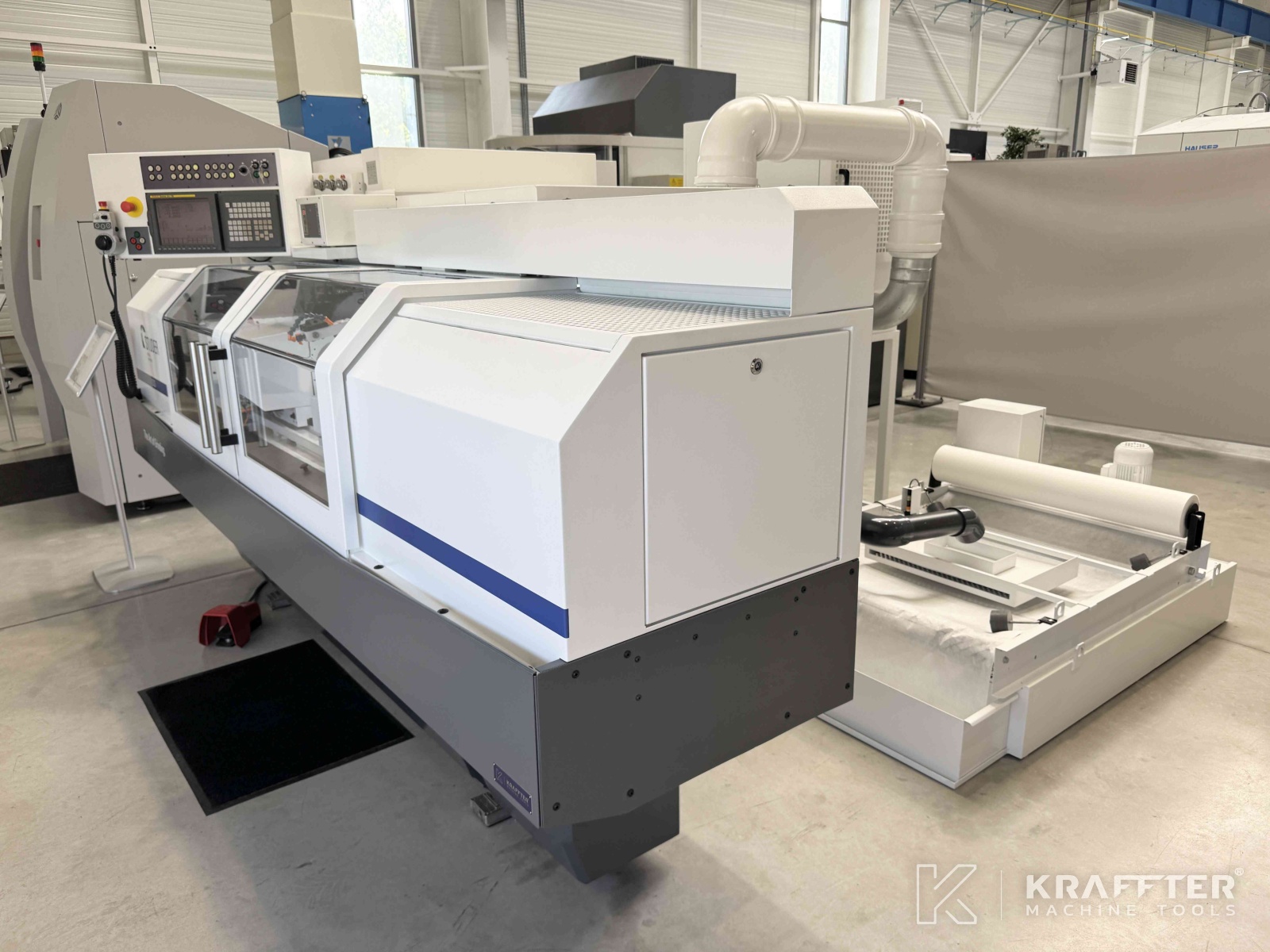

Type of machine : CNC cylindrical grinder
Brand : STUDER
N° de stock: 90137
Model : S33
Year : 2006
Year of rebuild : 2025
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

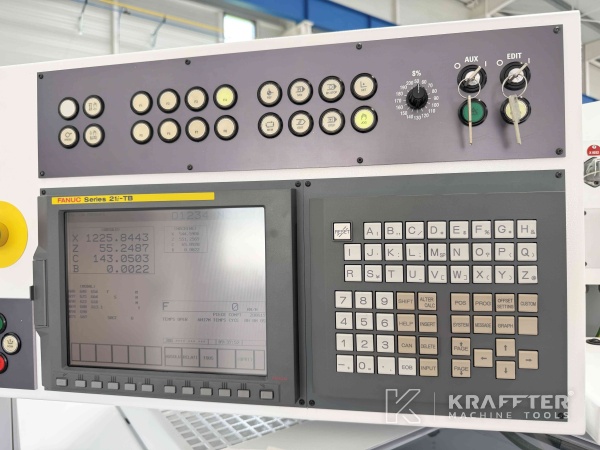

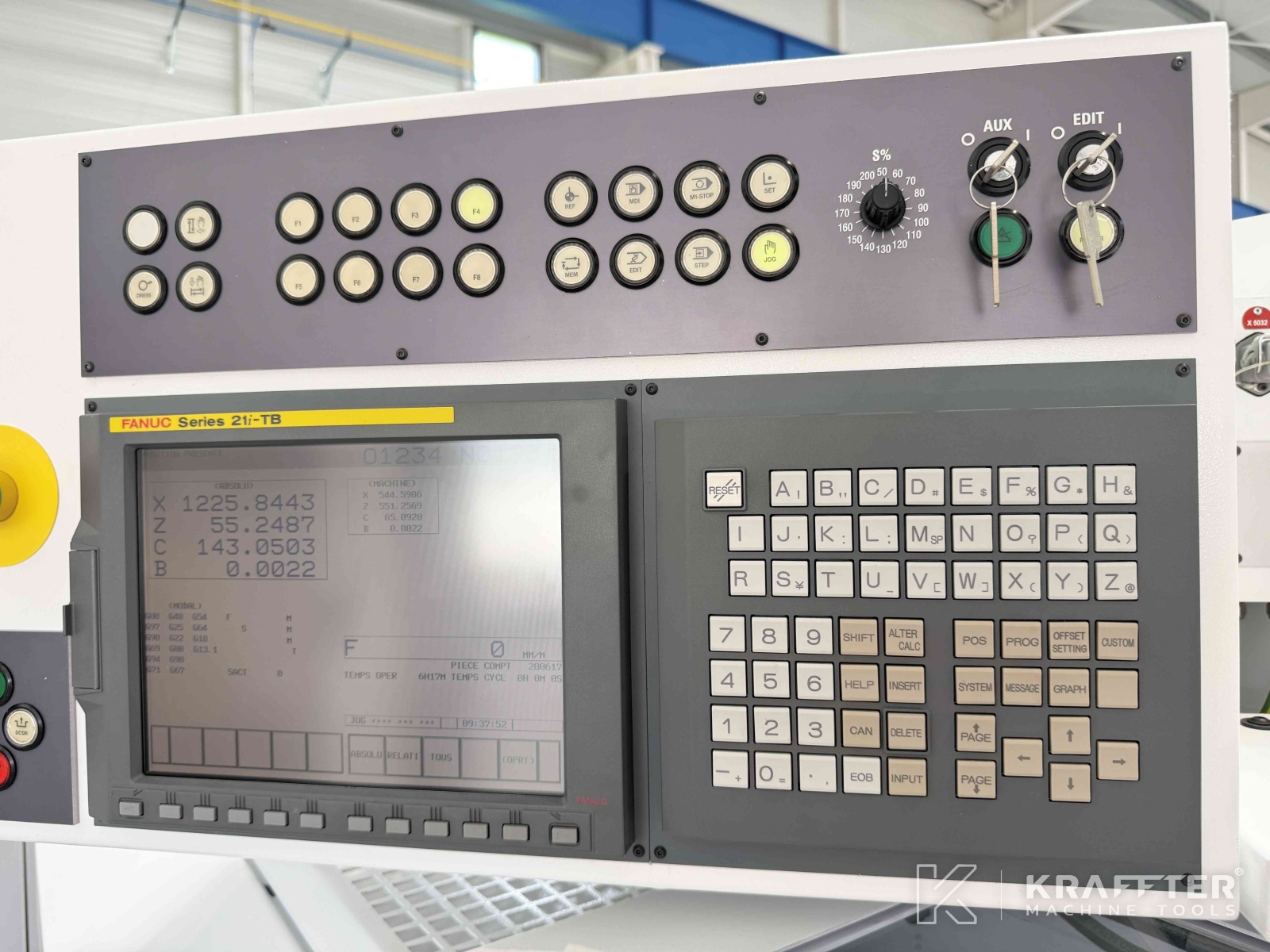

CNC control

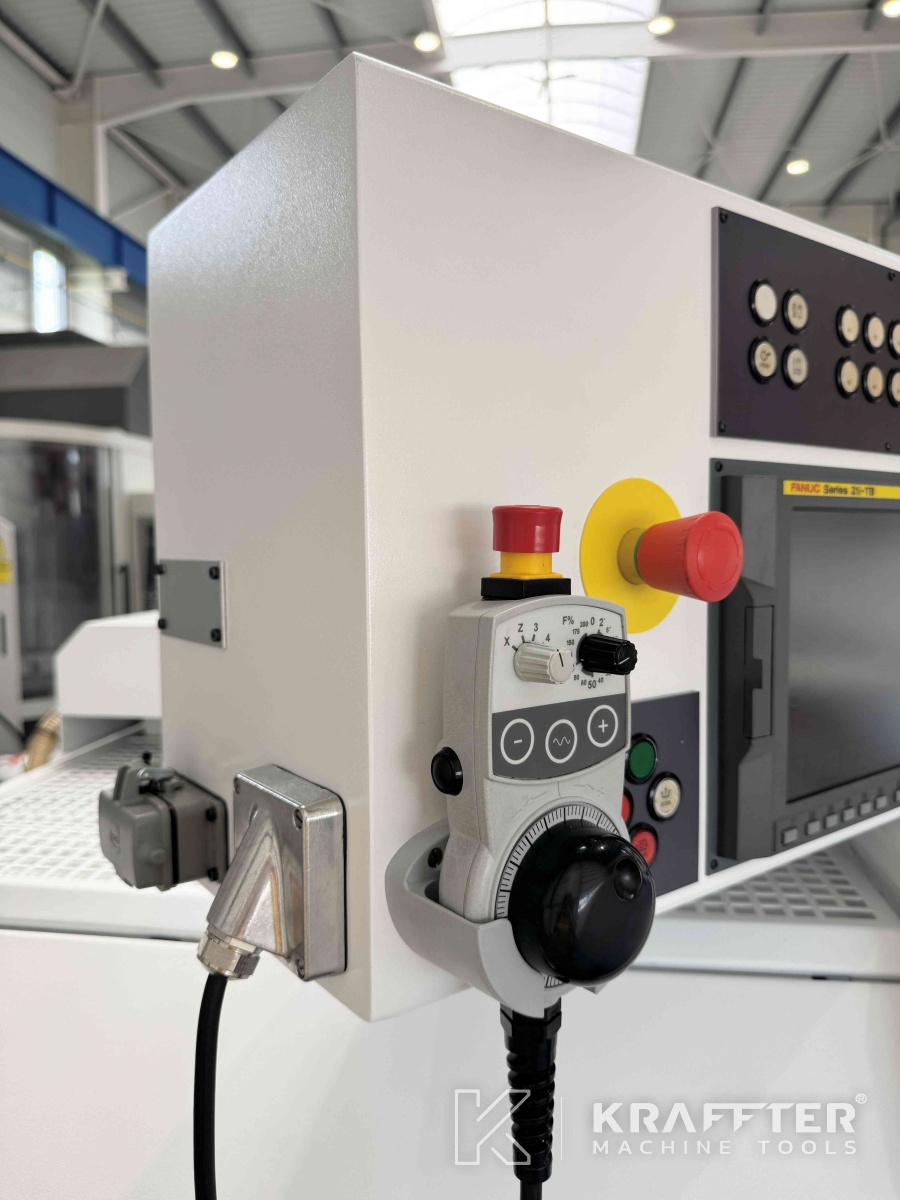

FANUC 21i-TB
Centre distance
1000 [mm]
Height of centers
175
Stroke X axis
285 [mm]
Min. Stroke speed X axis
0.001 [mm/min]
Max. Stroke speed X axis
5000 [mm/min]
Resolution X axis
0.0001 [mm]
Stroke Z axis
1150 [mm]
Min. Stroke speed Z axis
0.001 [mm/min]
Max. Stroke speed Z axis
10000 [mm/min]
Resolution Z axis
0.0001 [mm]

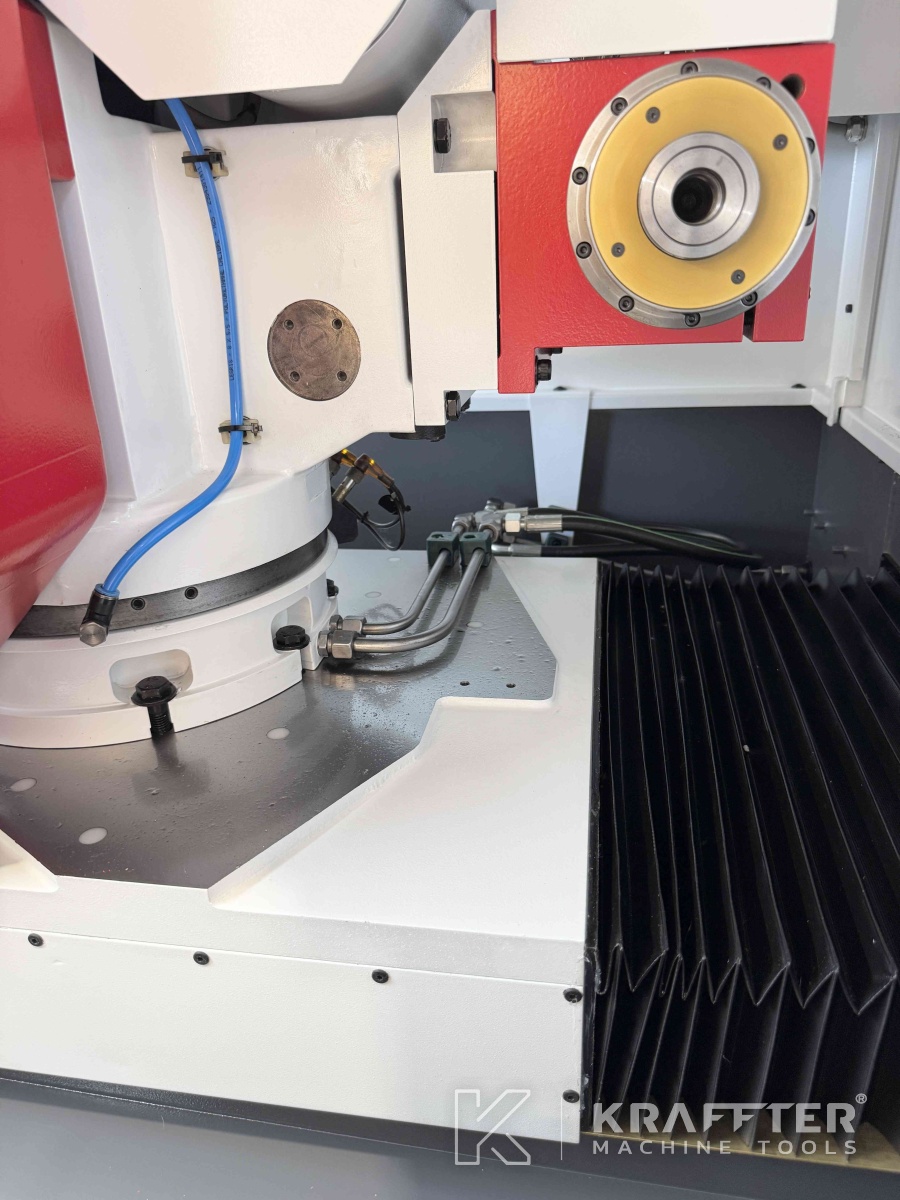

B axis swivelling stroke
-15 [°] / +195 [°] [°]
B axis indexing precision
Hirth 1 [°]
Automatic B axis
Yes

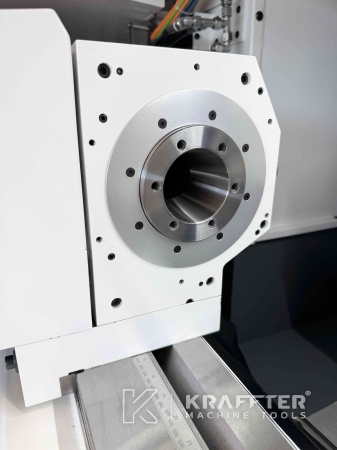

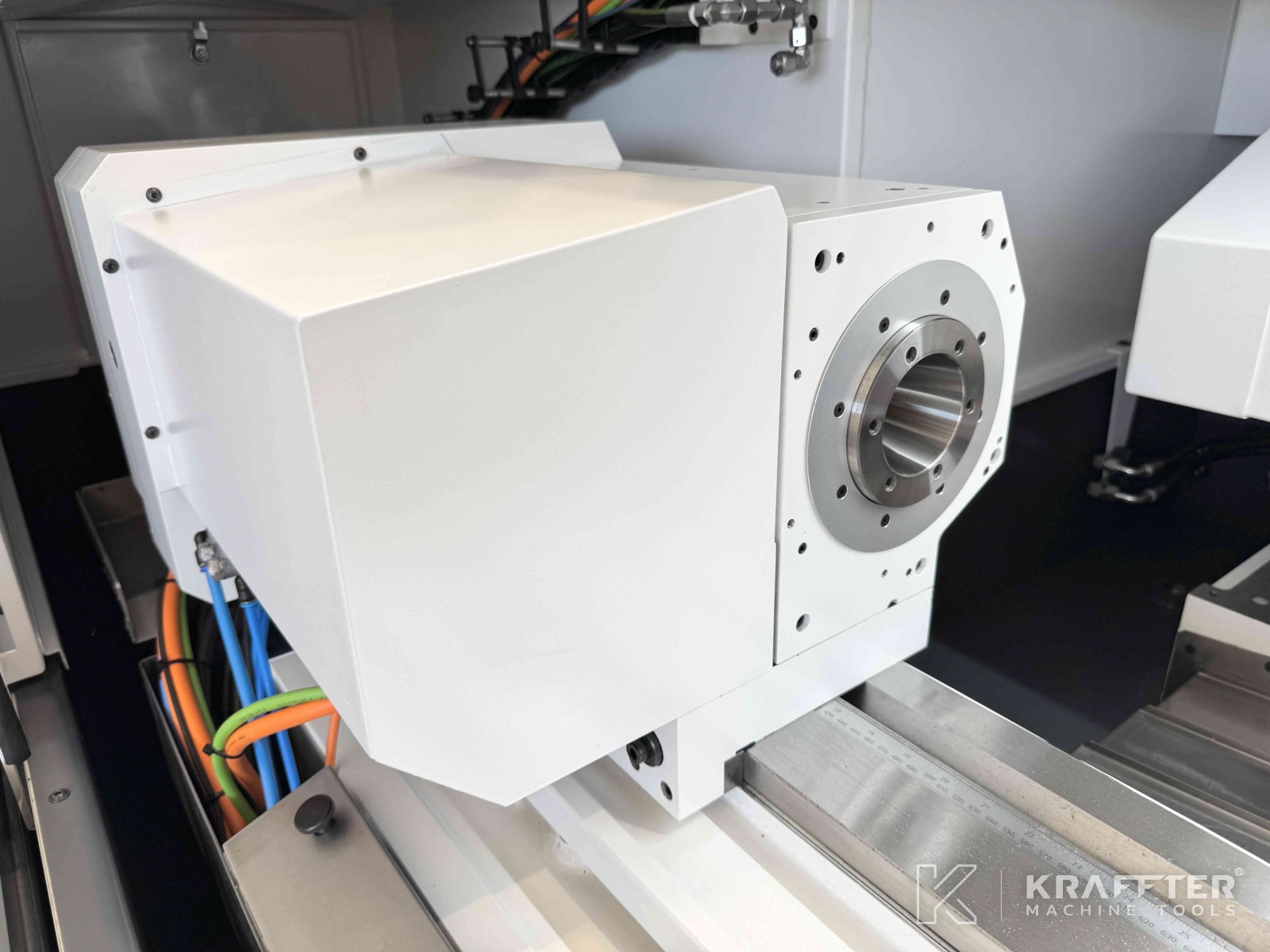

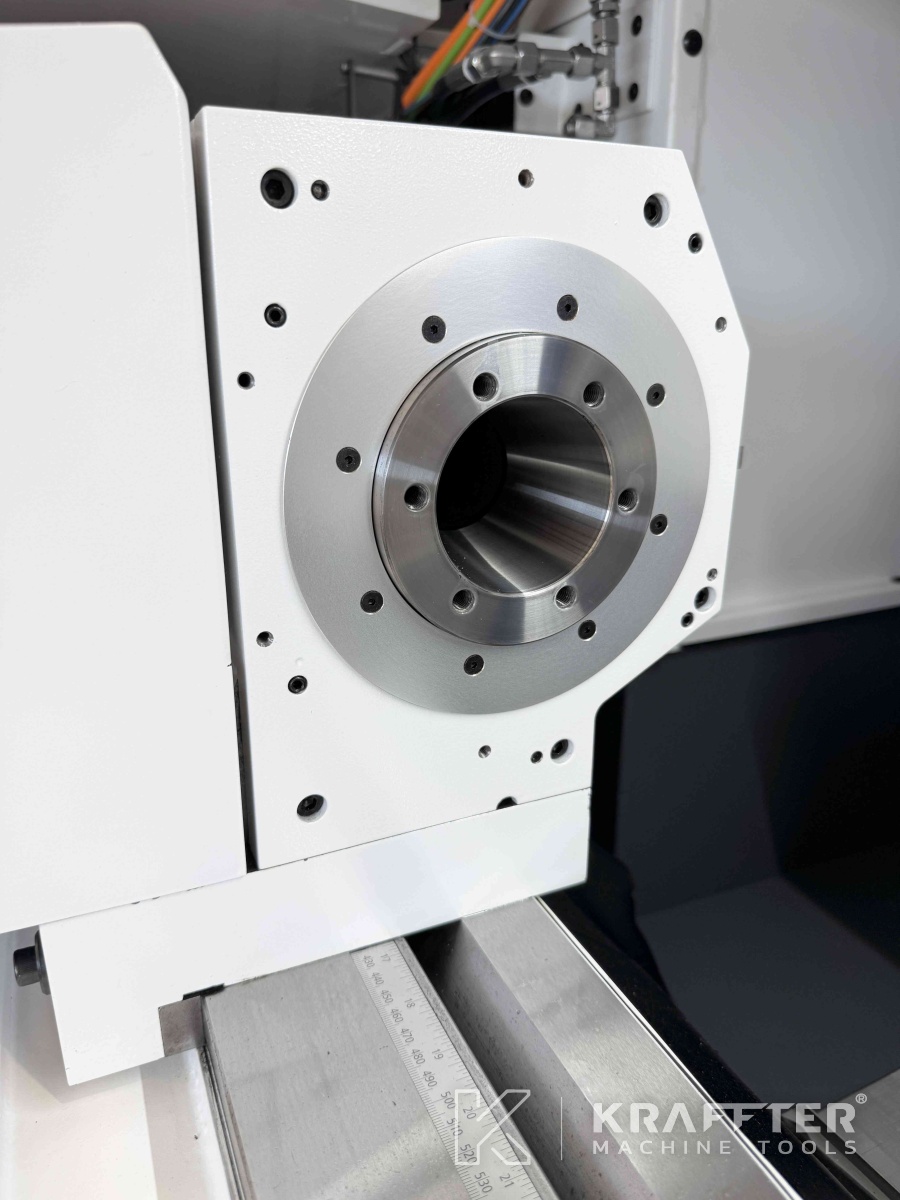

Workpiece spindle nose
ISO 50
Workpiece spindle max. speed
1500 [rpm]

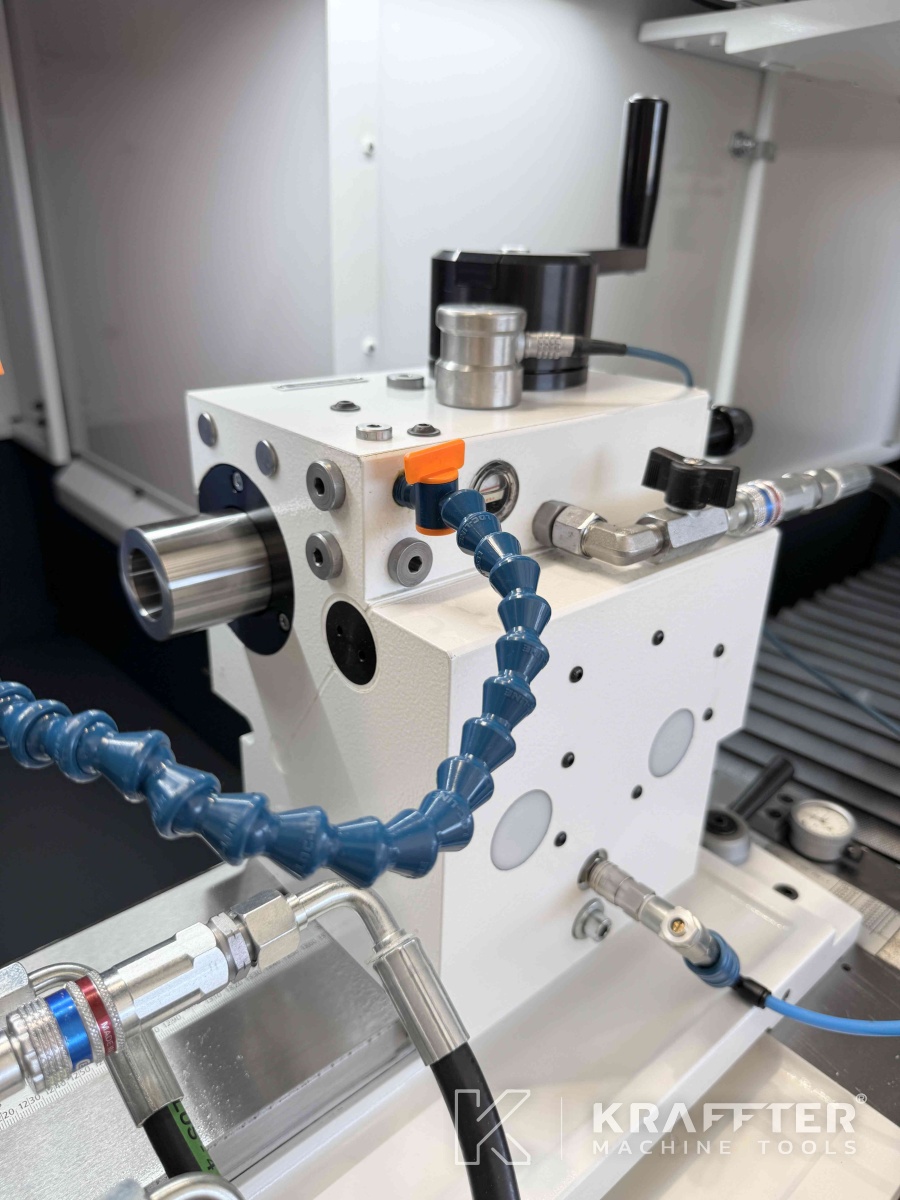

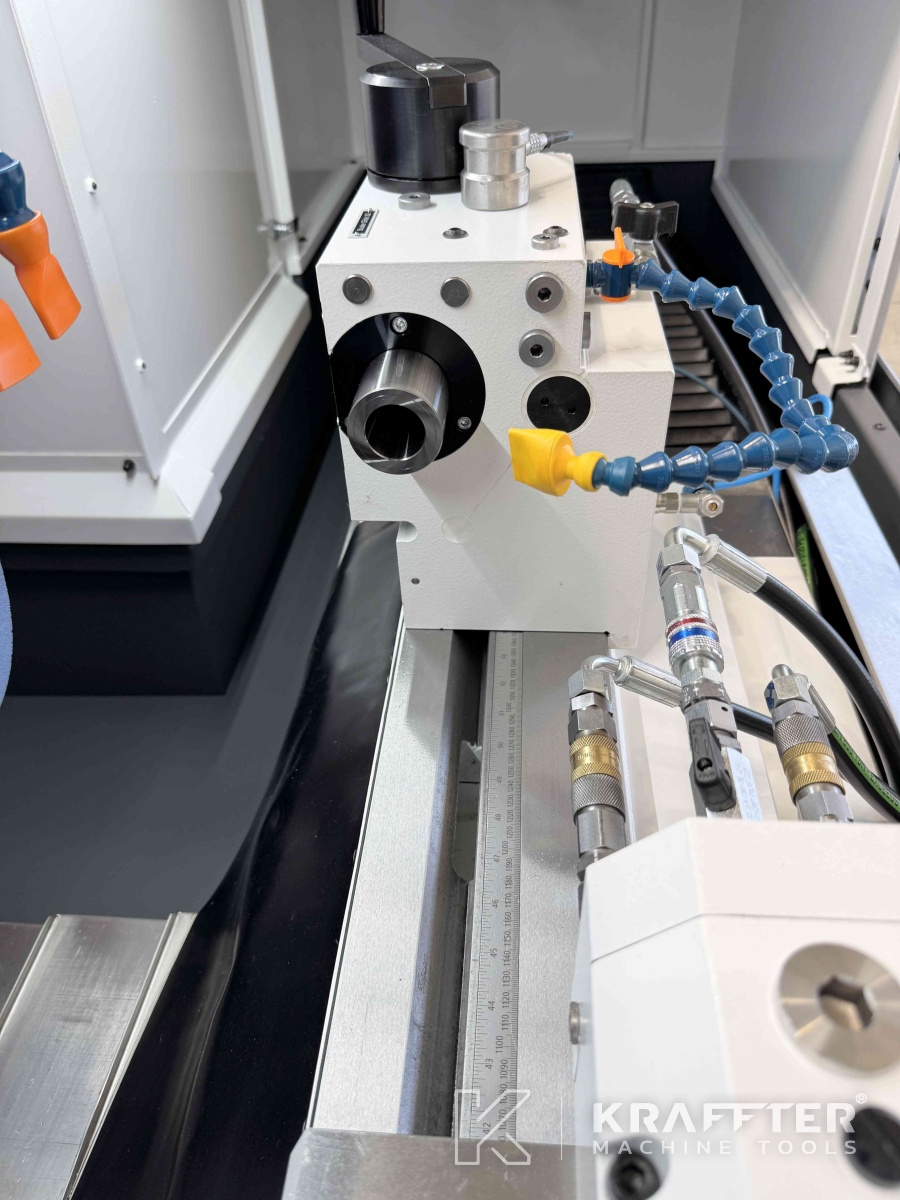

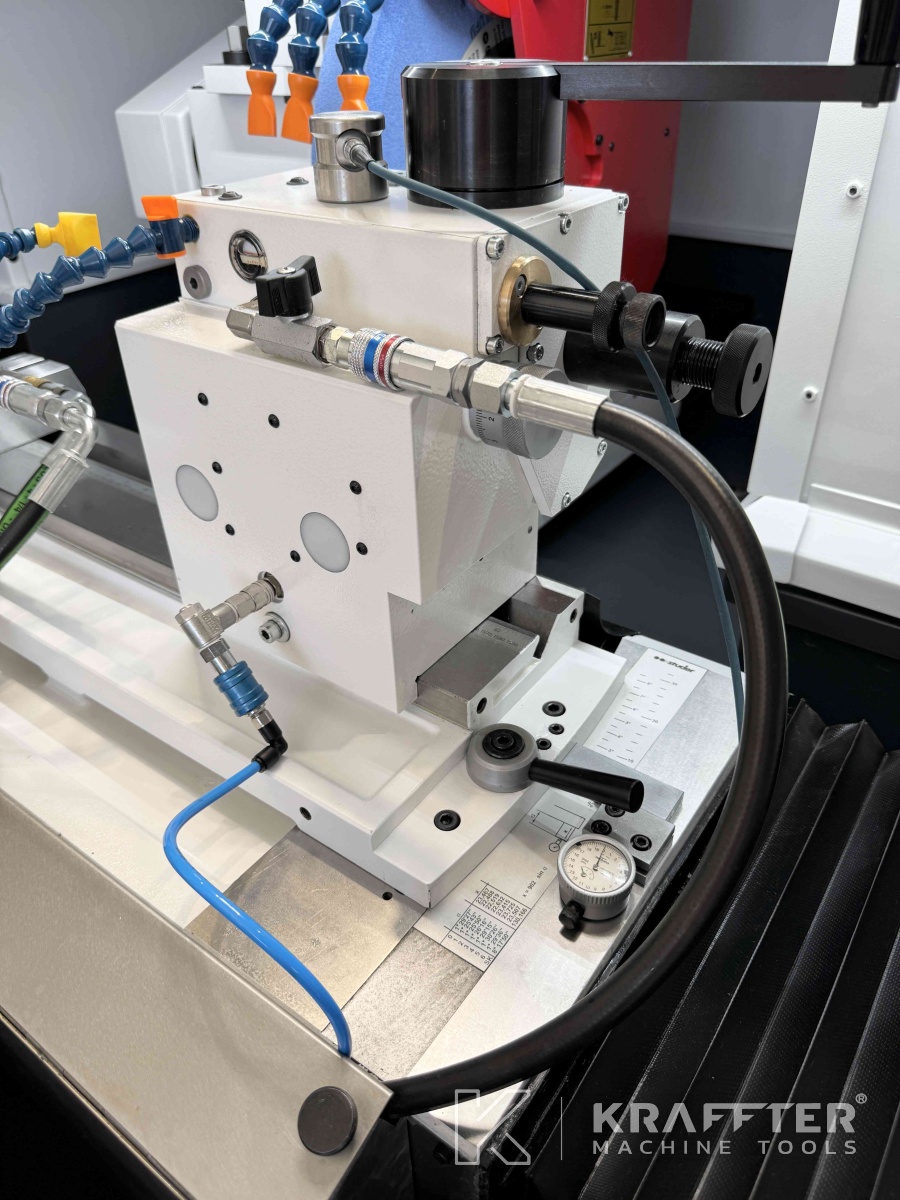

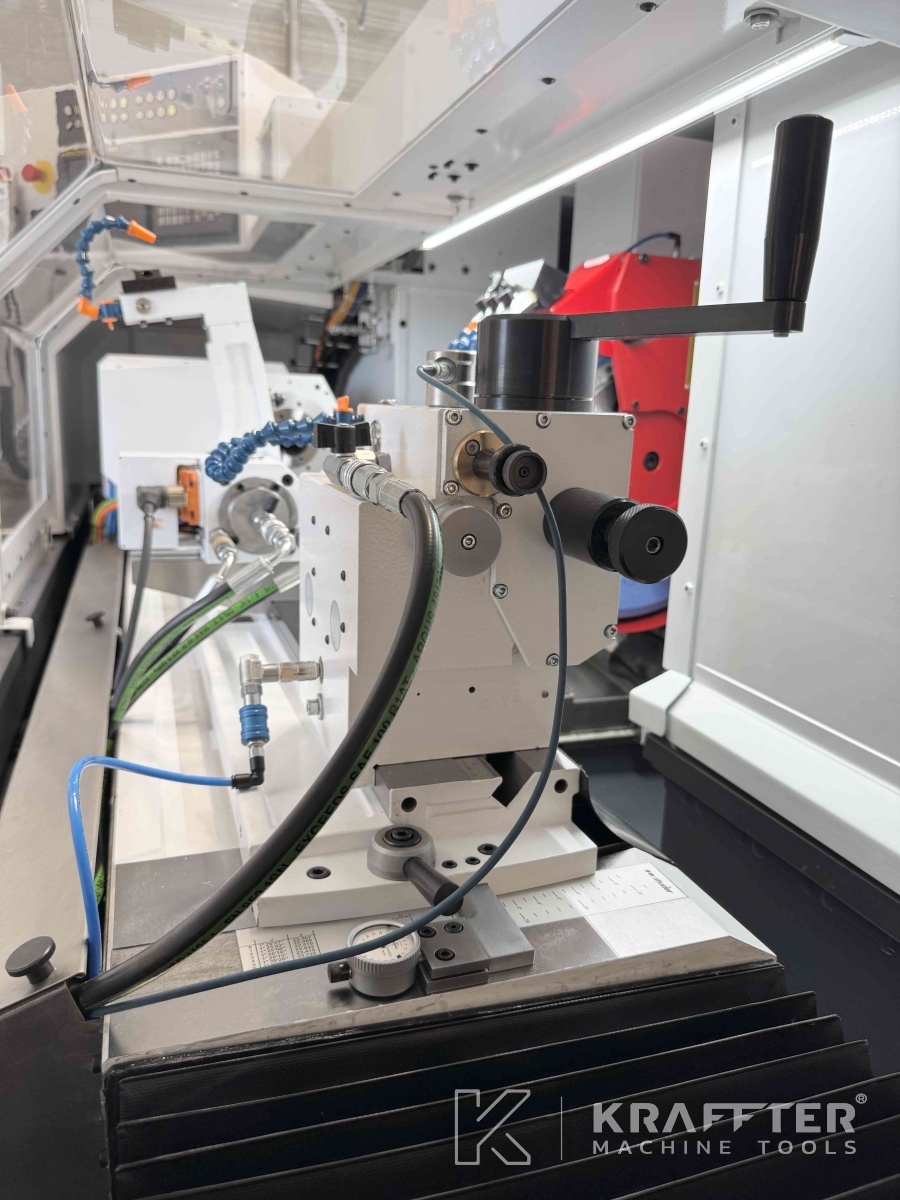

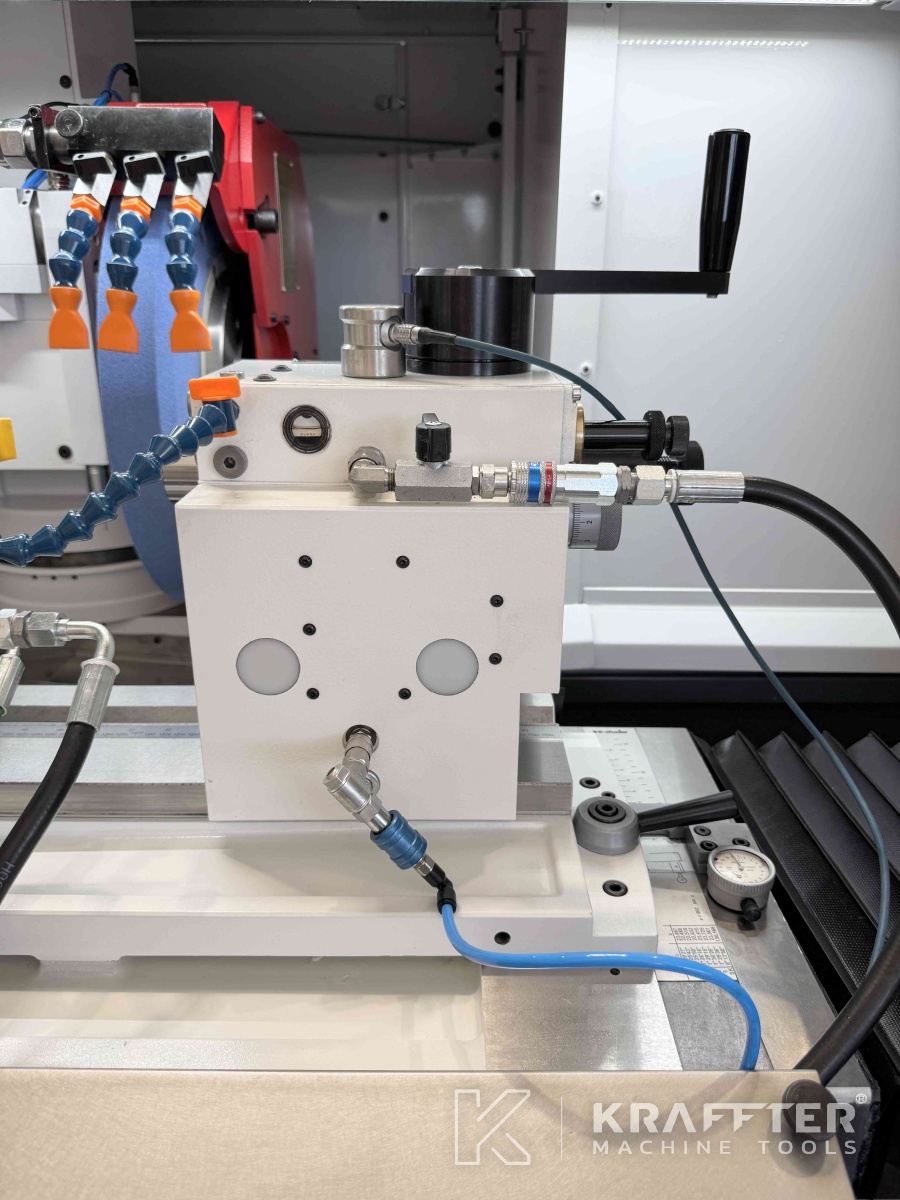

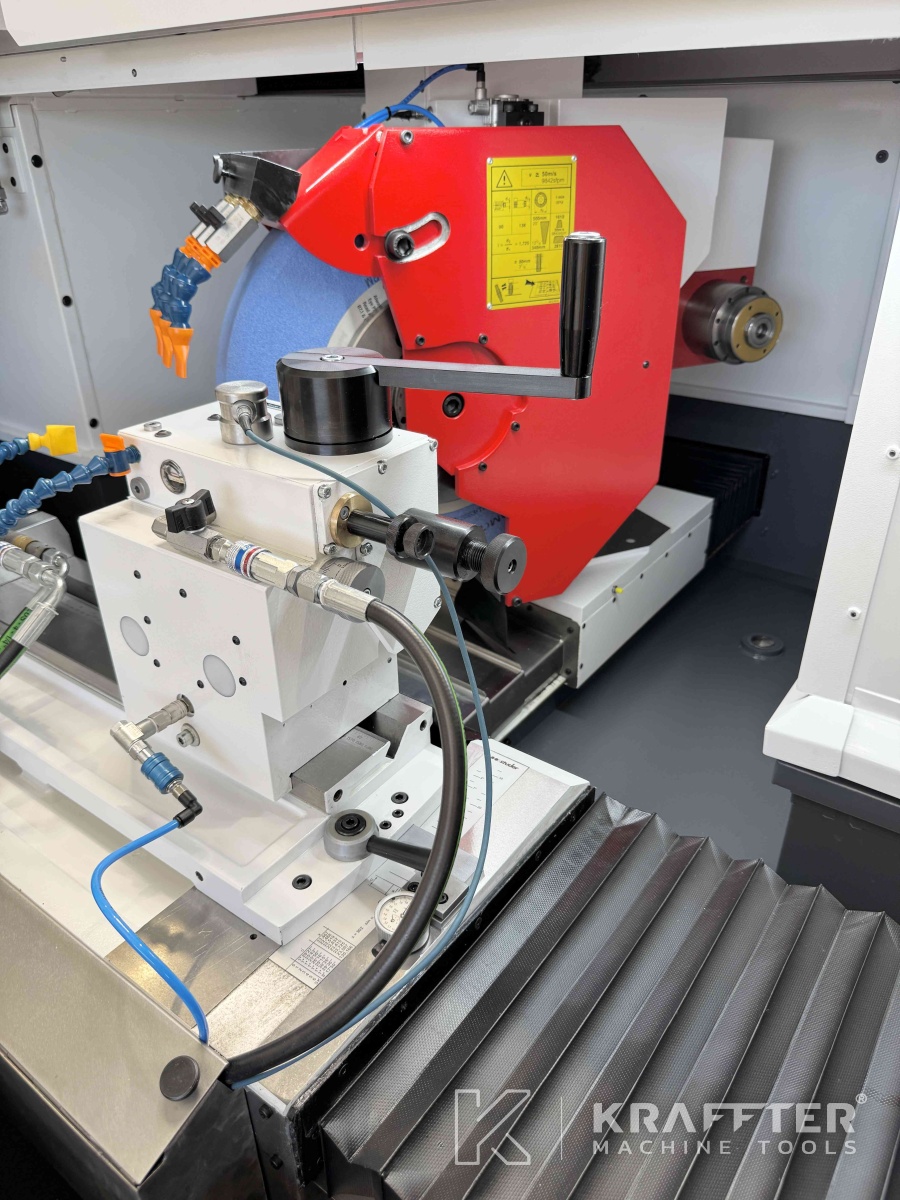

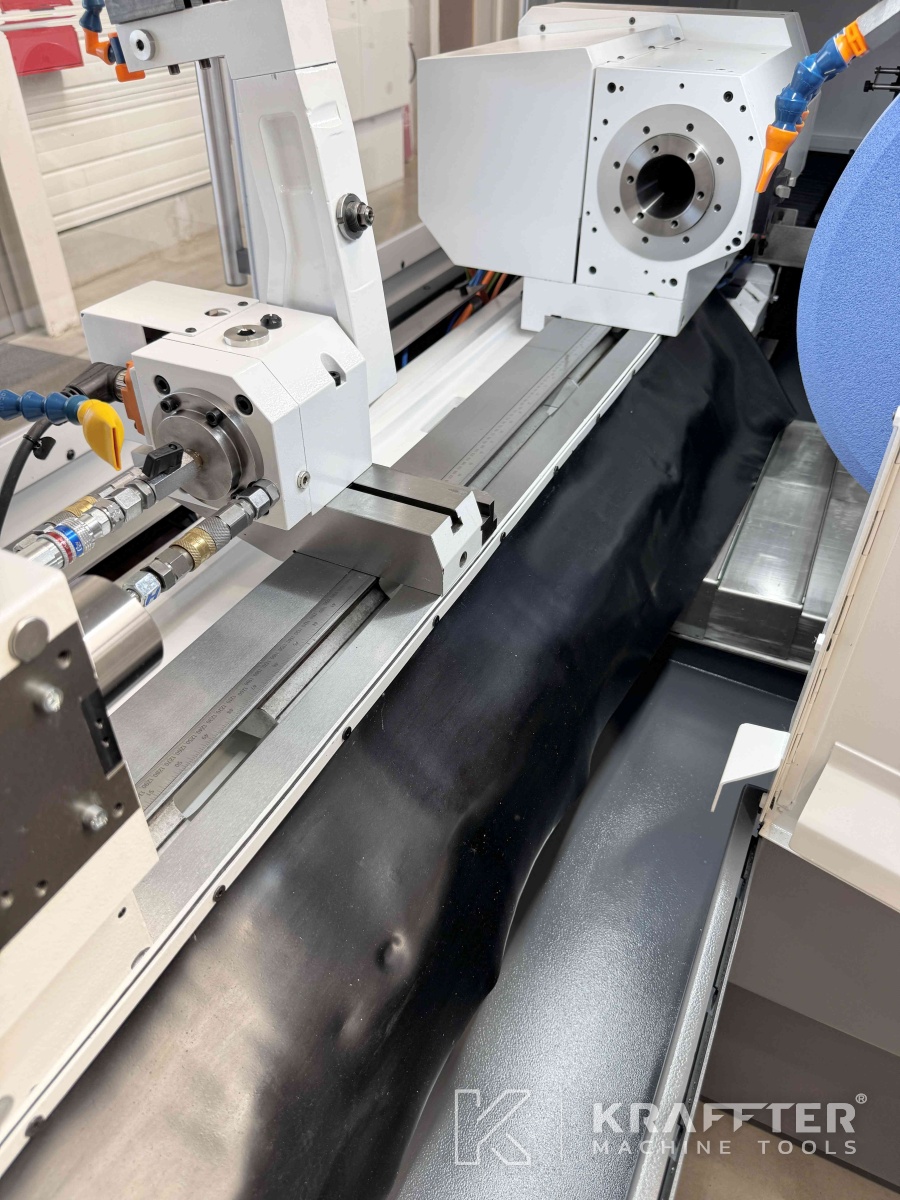

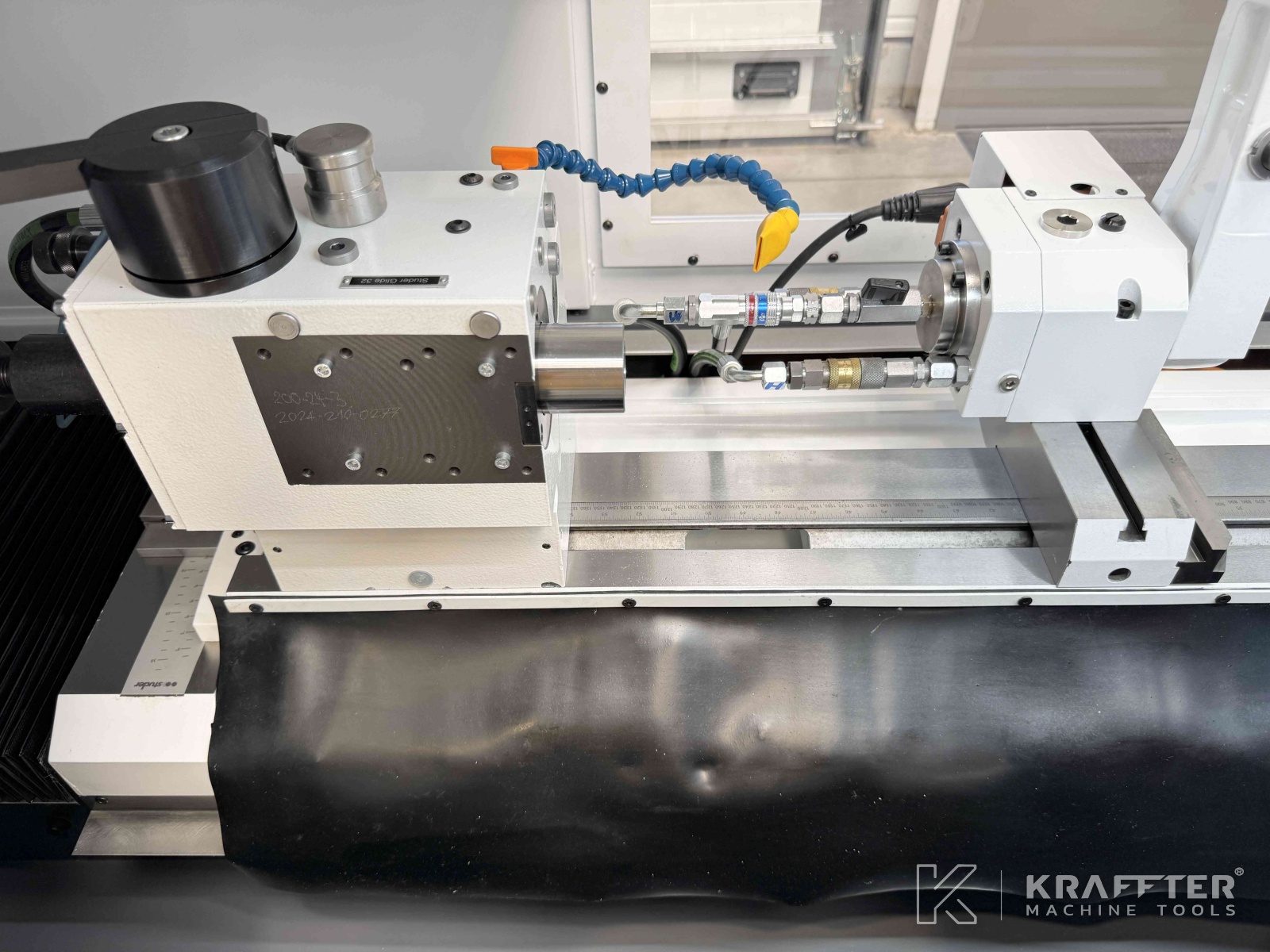

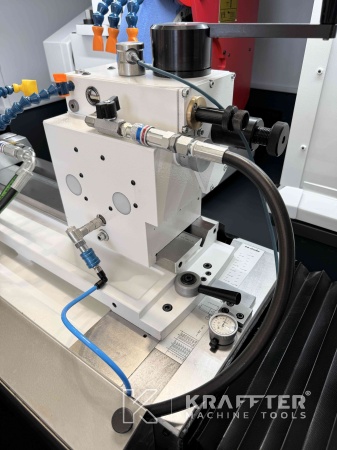

Type of attachment tailstock
MT3
Tailstock quill stroke
35 [mm]
Tailstock quill diameter
50 [mm]
Tailstock fine adjustment
+/- 40 [µm]
Additional information
EQUIPMENT INCLUDED:

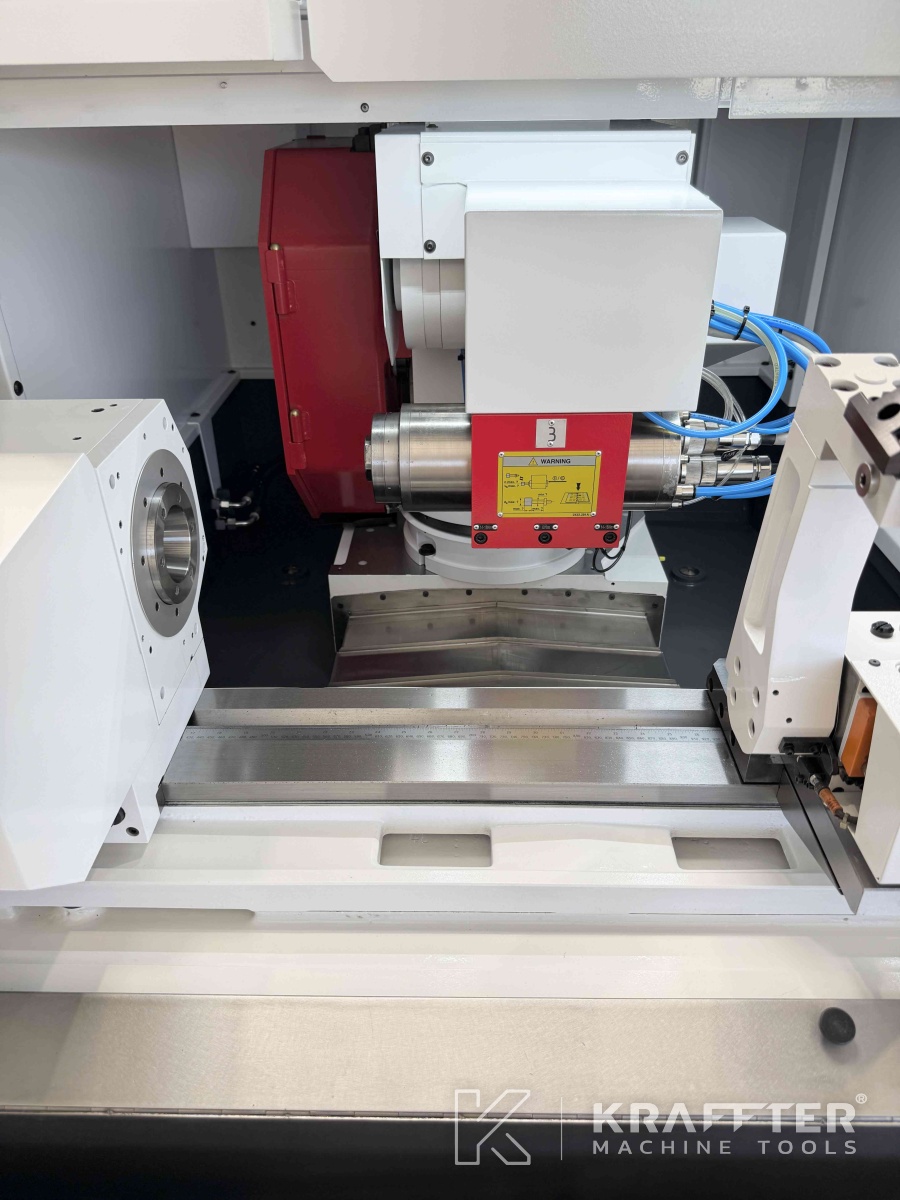

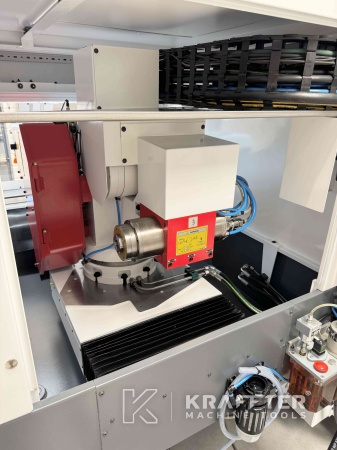

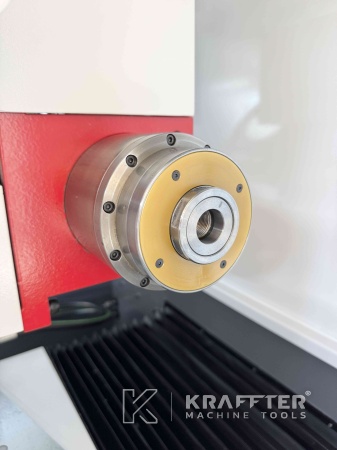

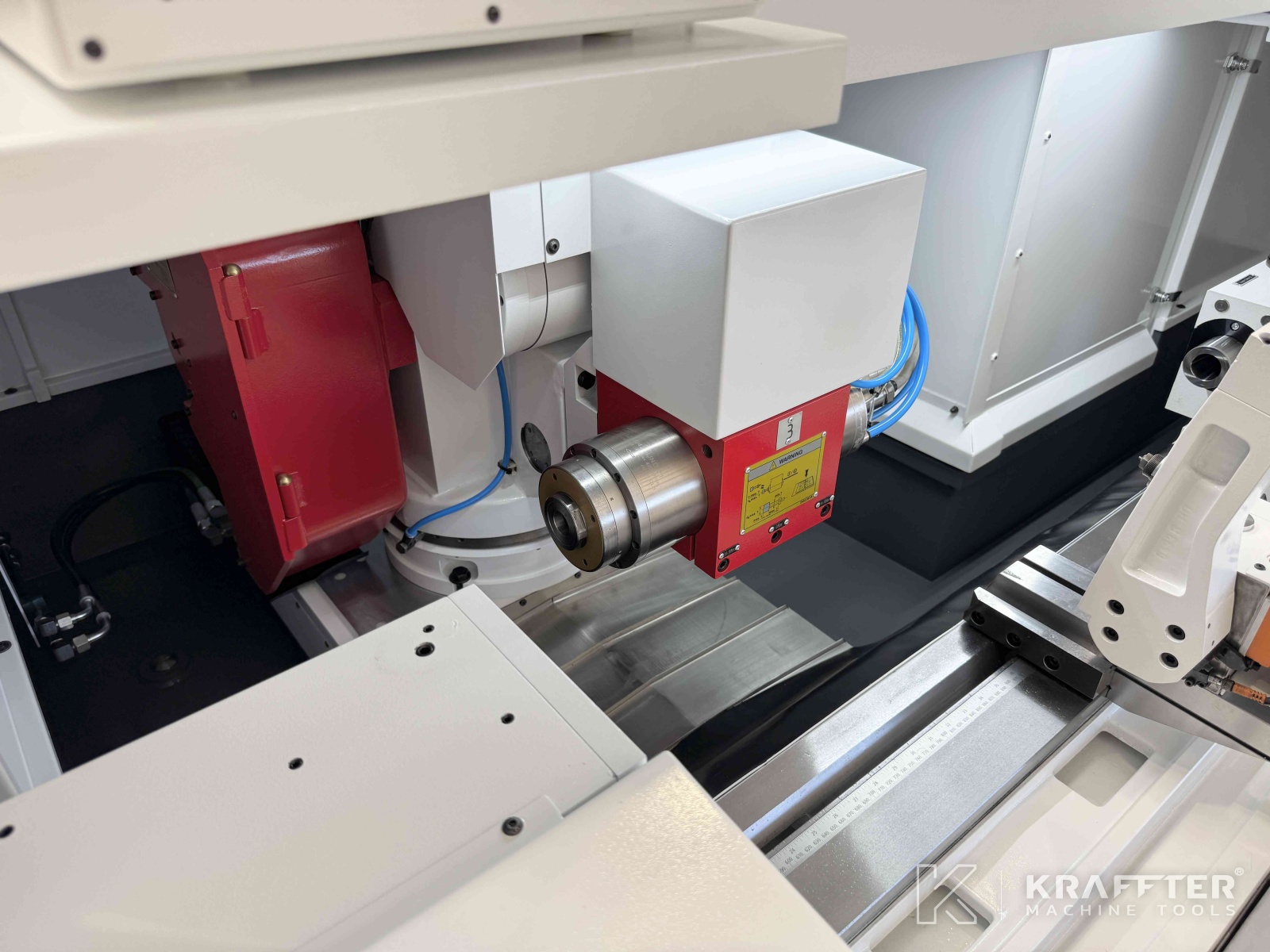

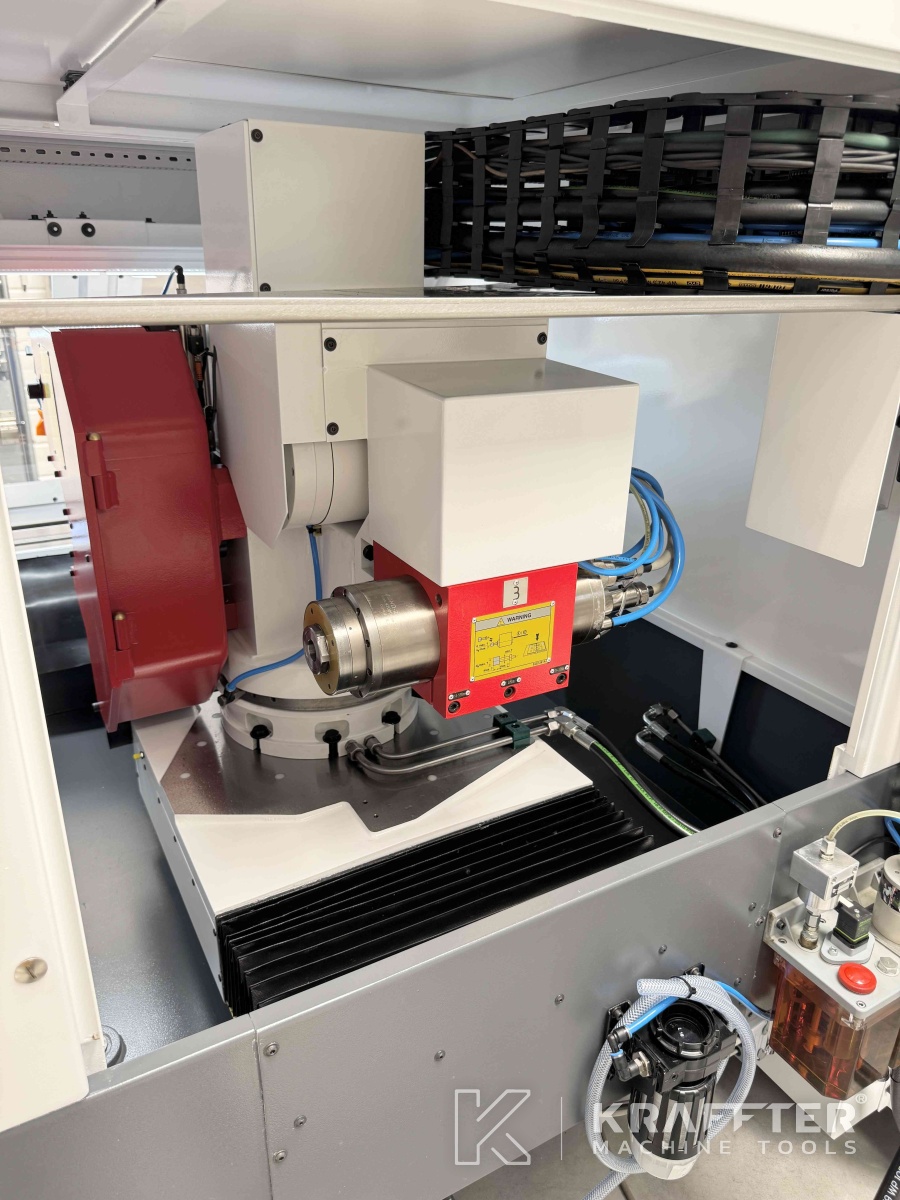

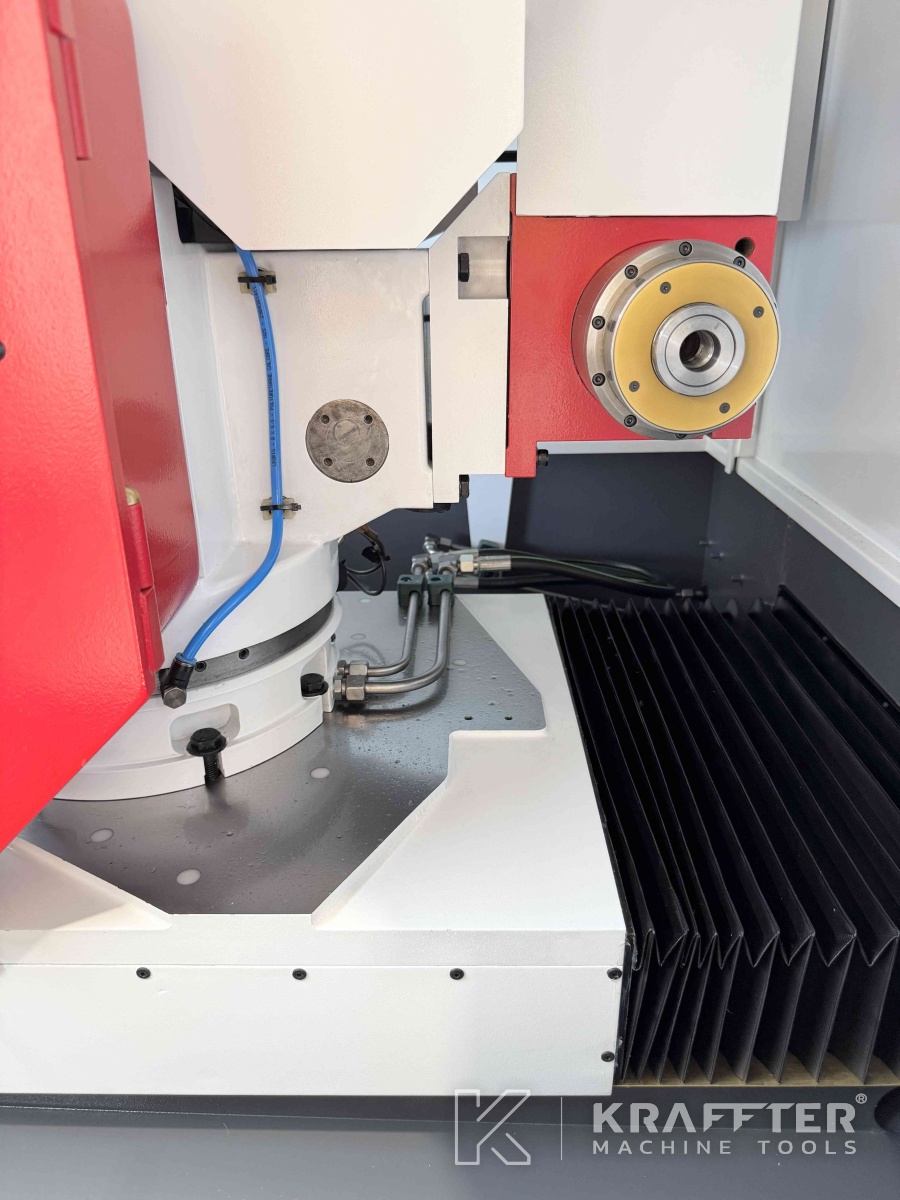

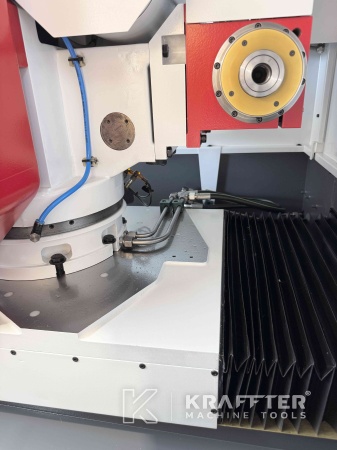

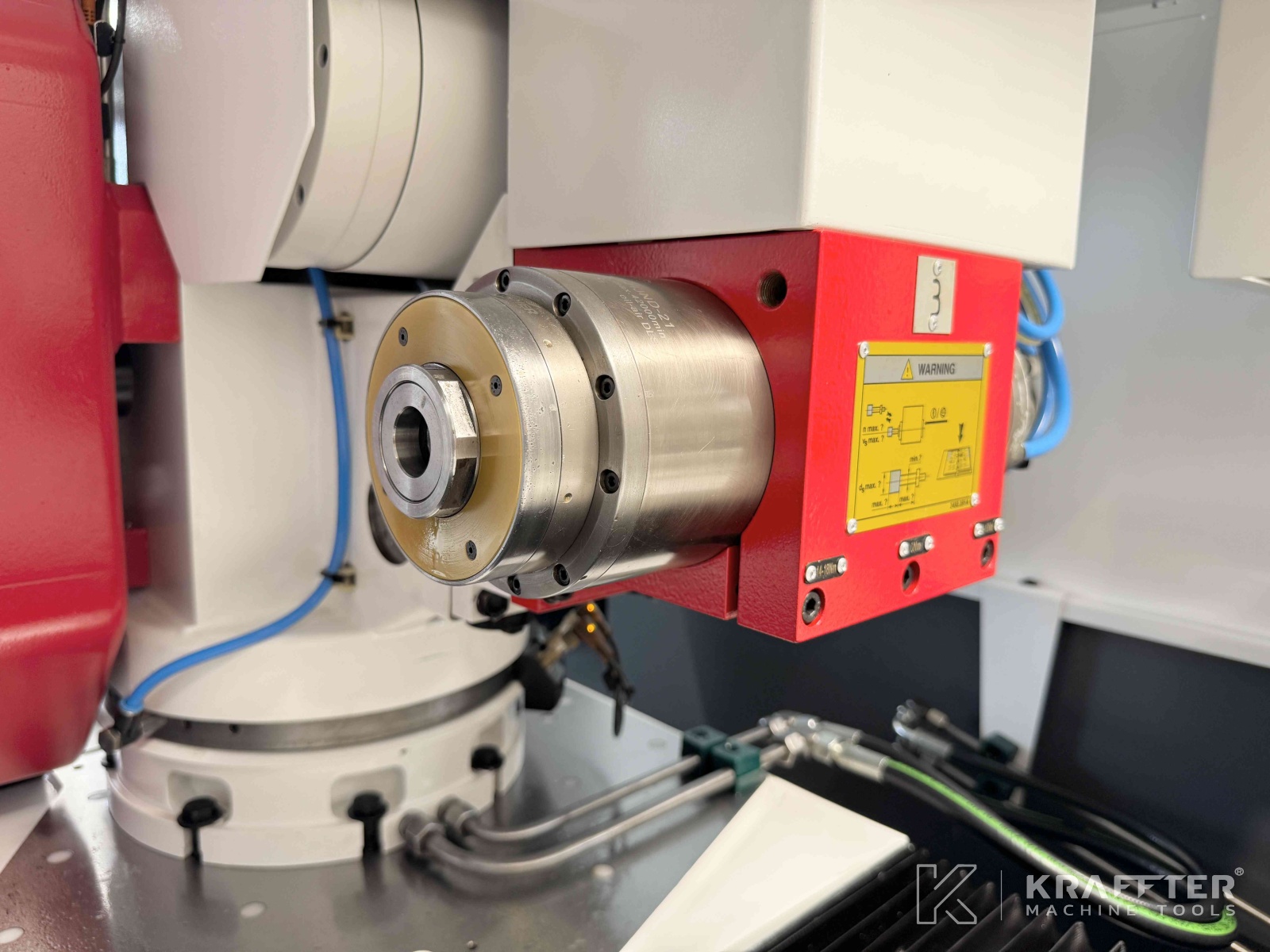

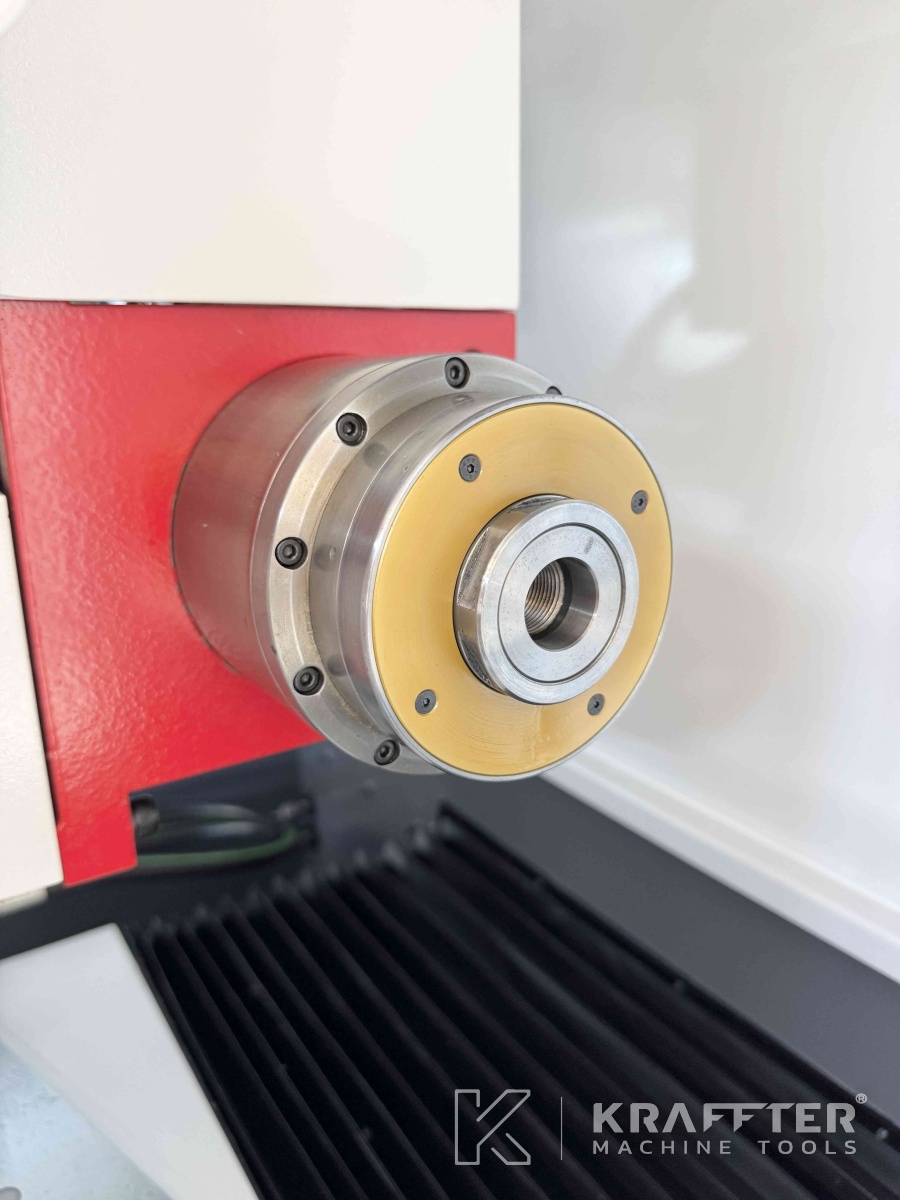

x1 internal grinding electrospindle FISCHER type MFM-1224/42 HJND-21 - speed: 42000 [rpm]

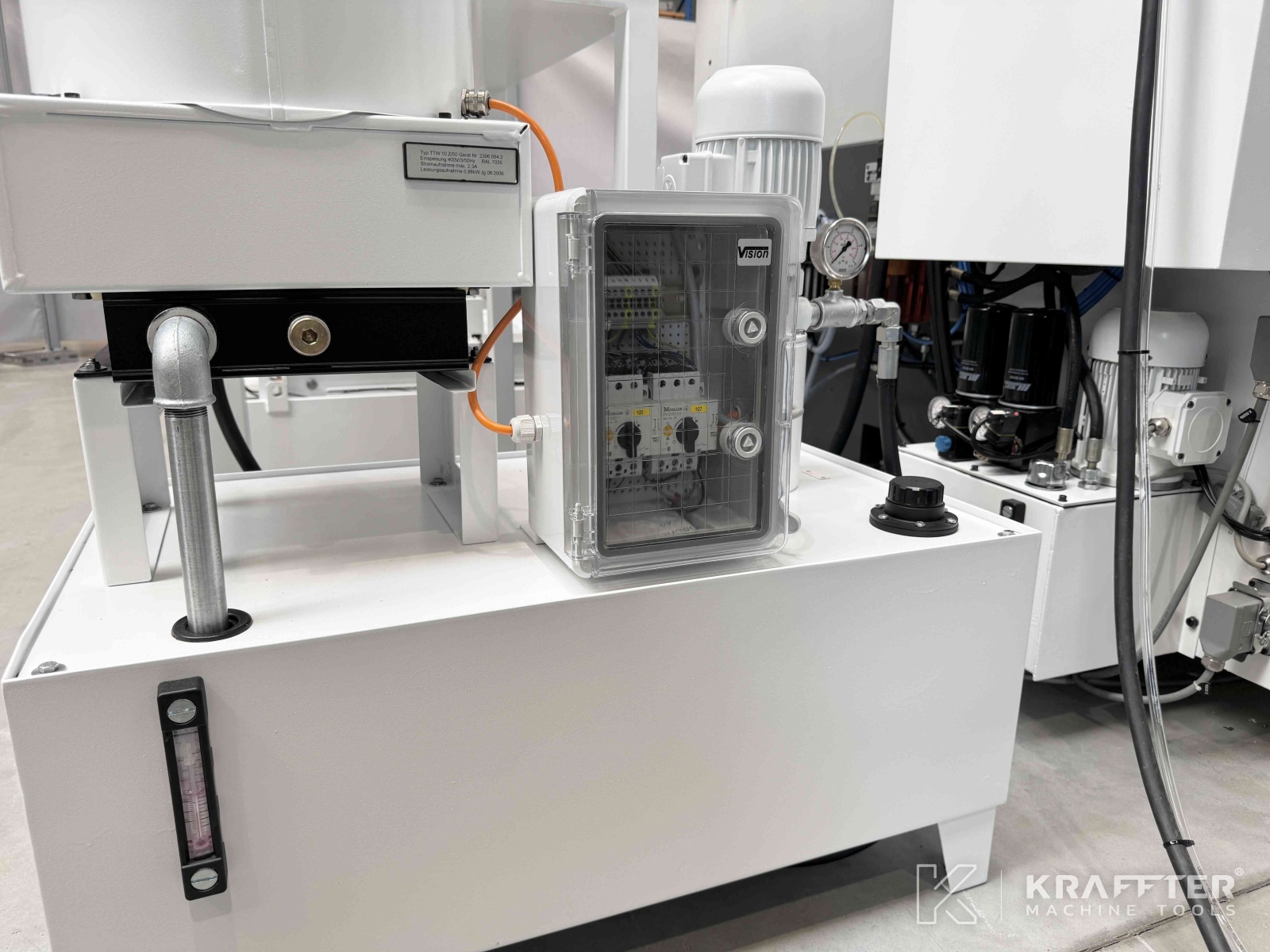

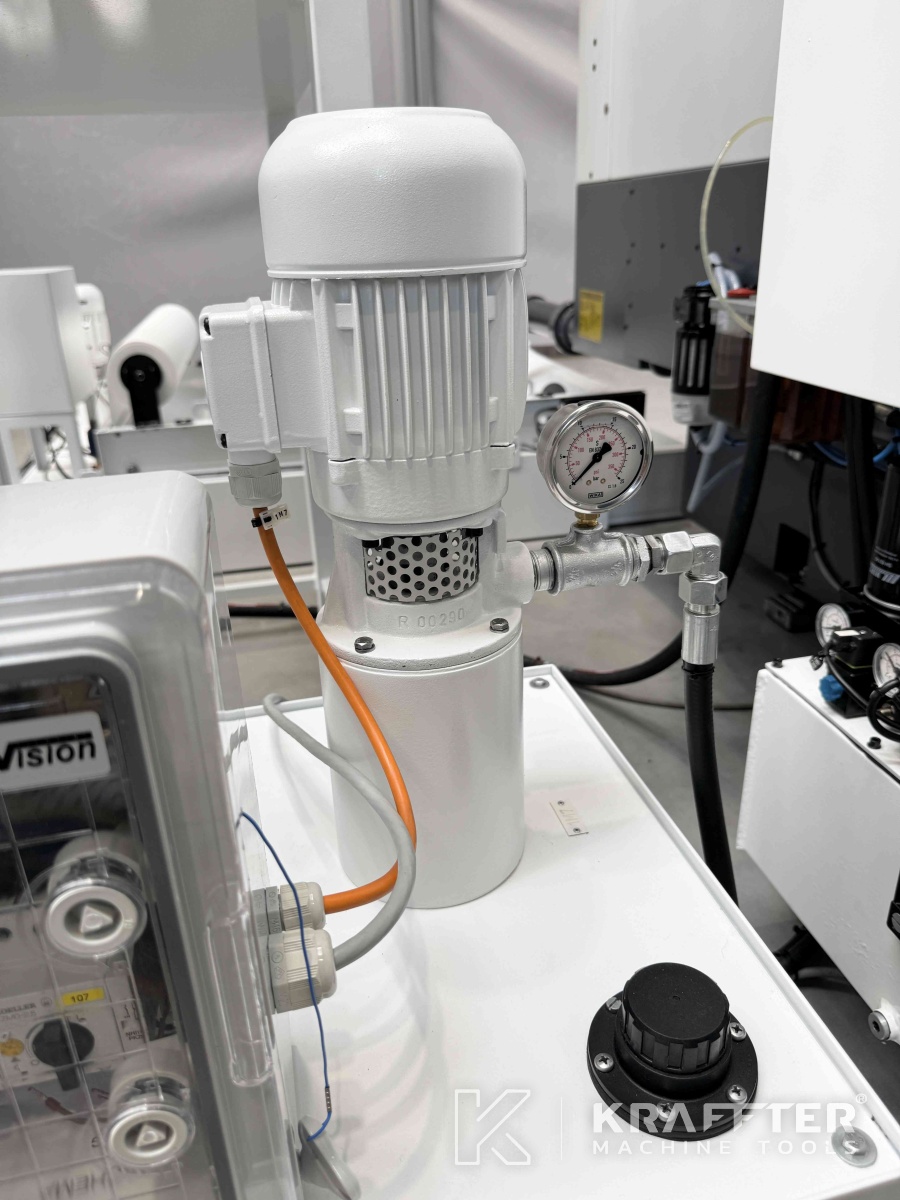

x1 cooling unit for internal grinding spindle
x1 automatic B axis - Hirth 1 [°]

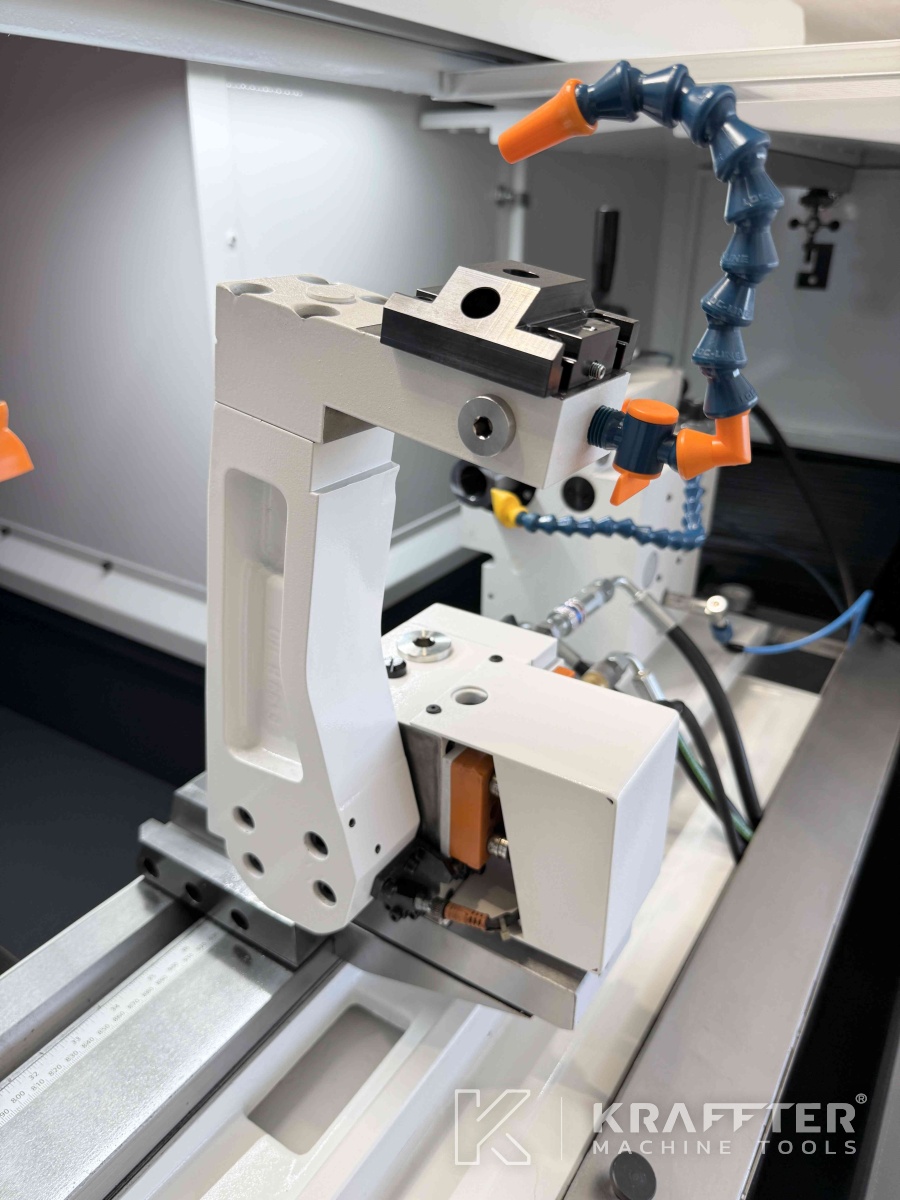

x1 MOVOMATIC C25 part probe

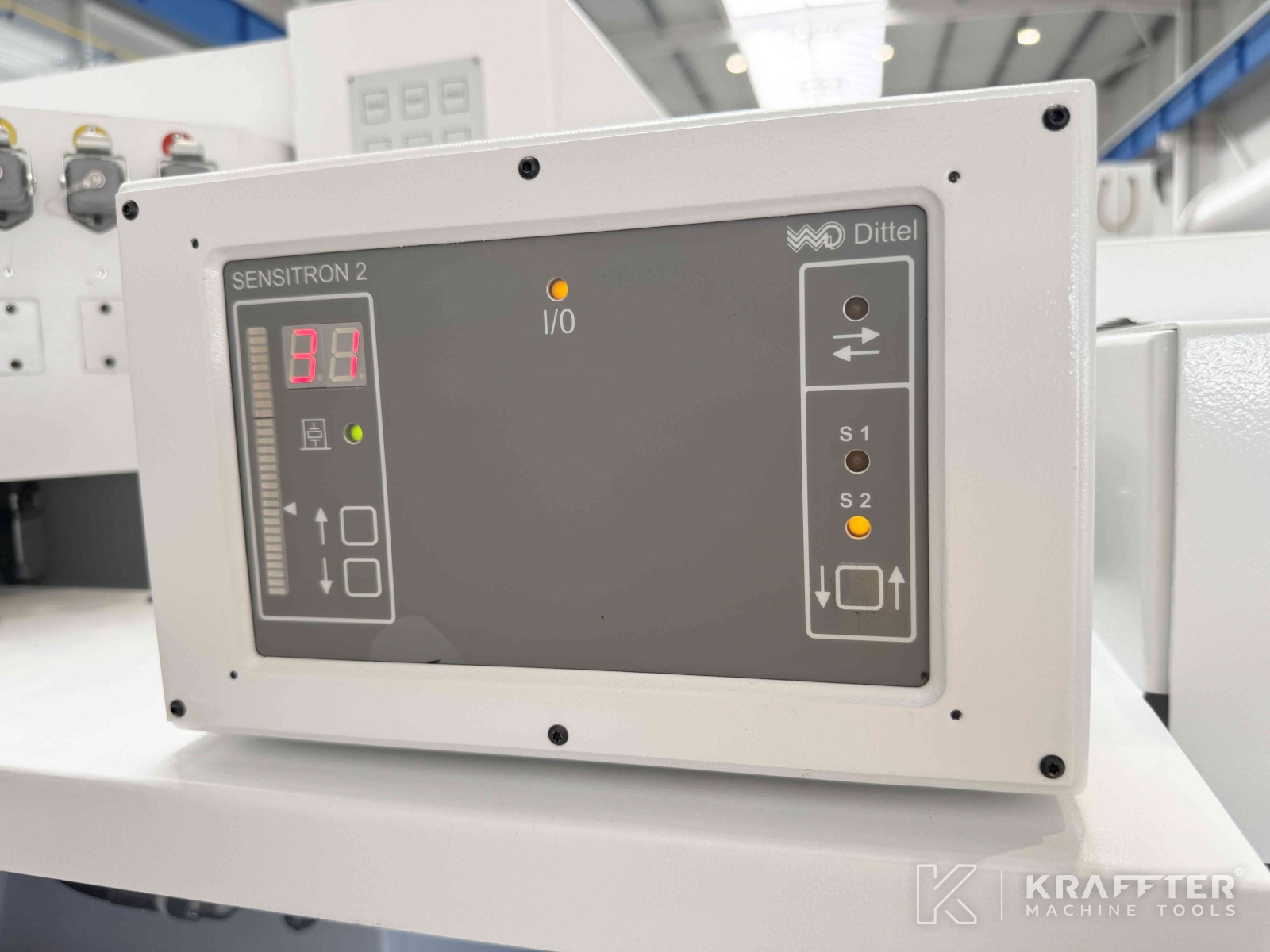

x1 DITTEL SENSITRON 2 acoustic monitoring system

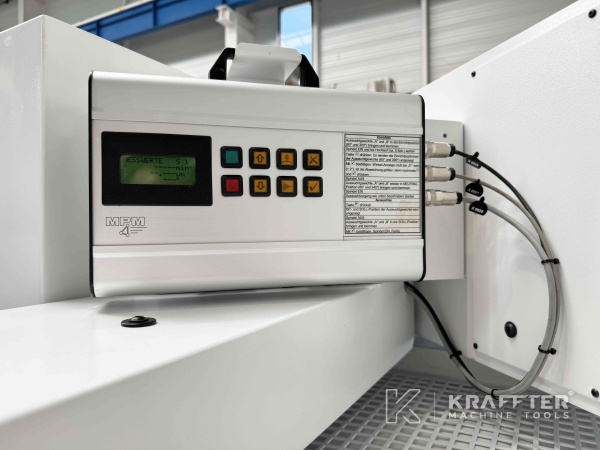

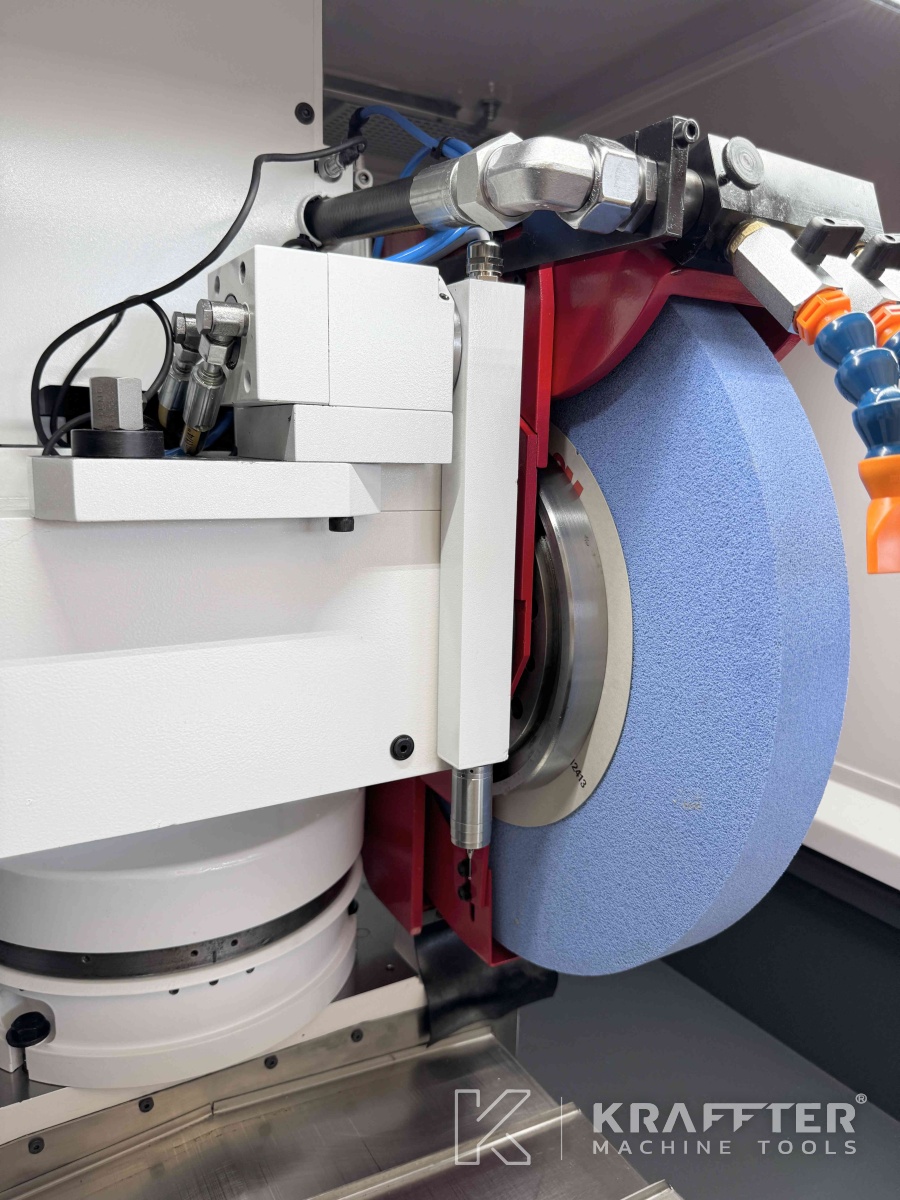

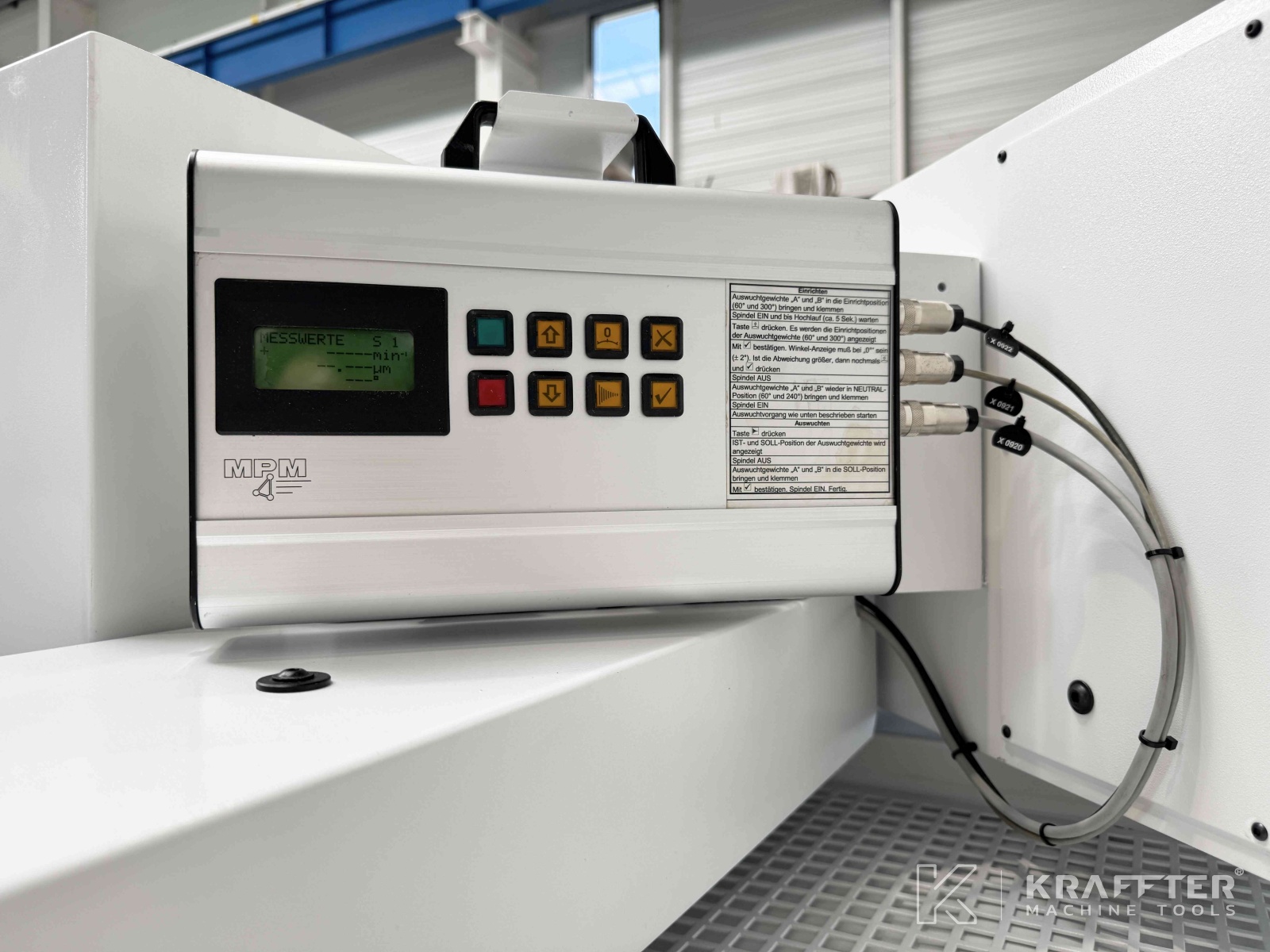

x1 MPM type 3.BMT100M.24 electronic wheel balancing device

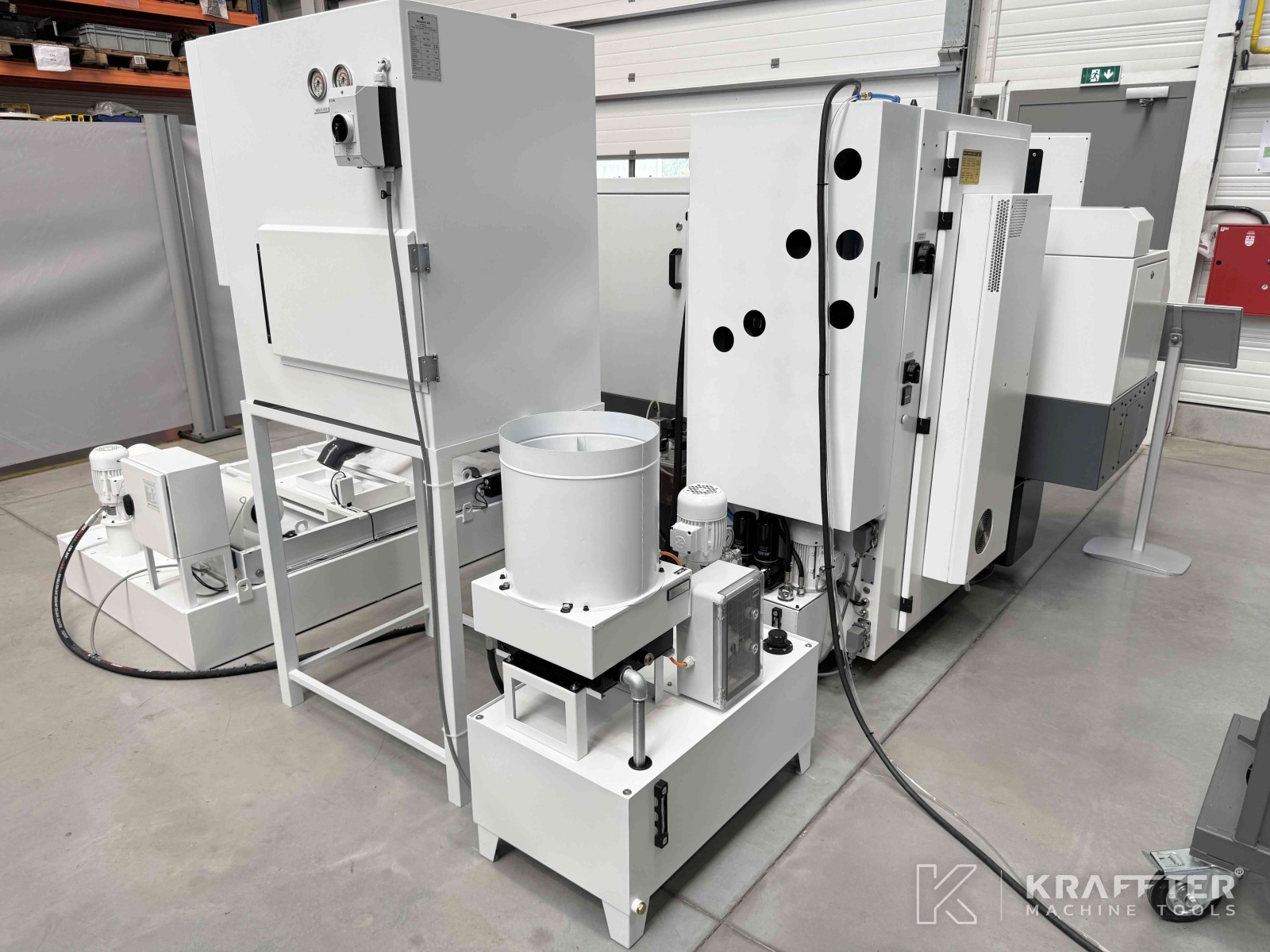

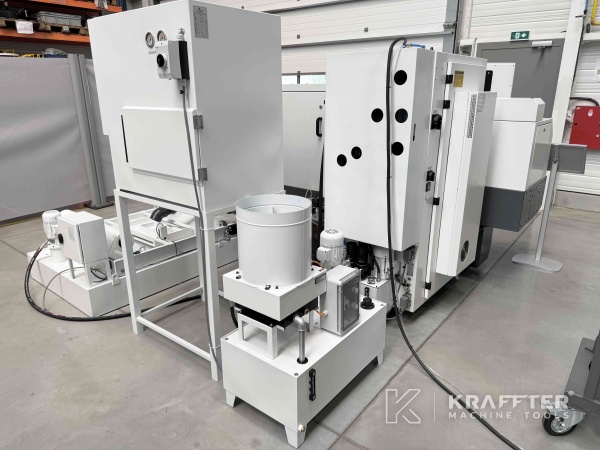

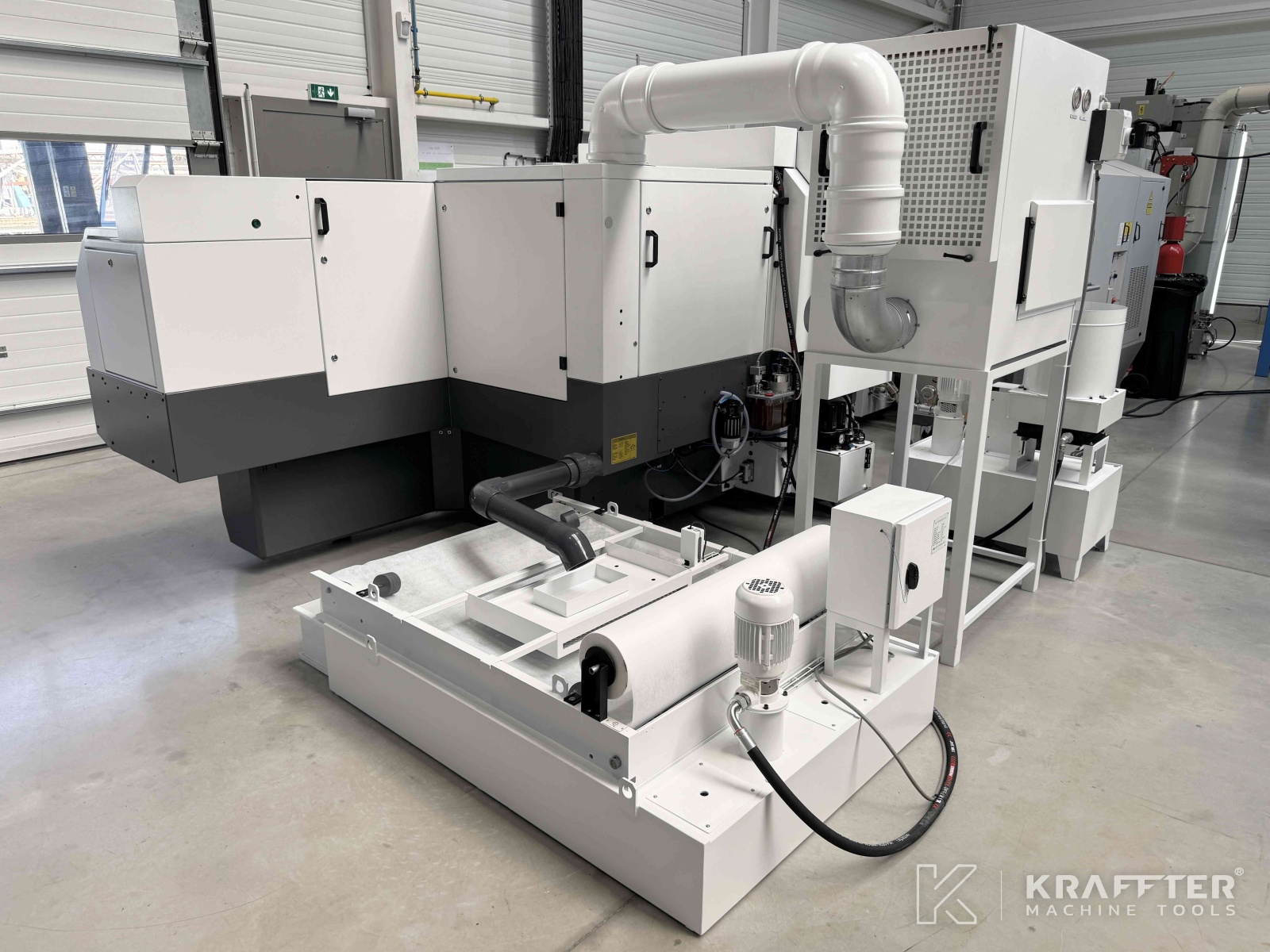

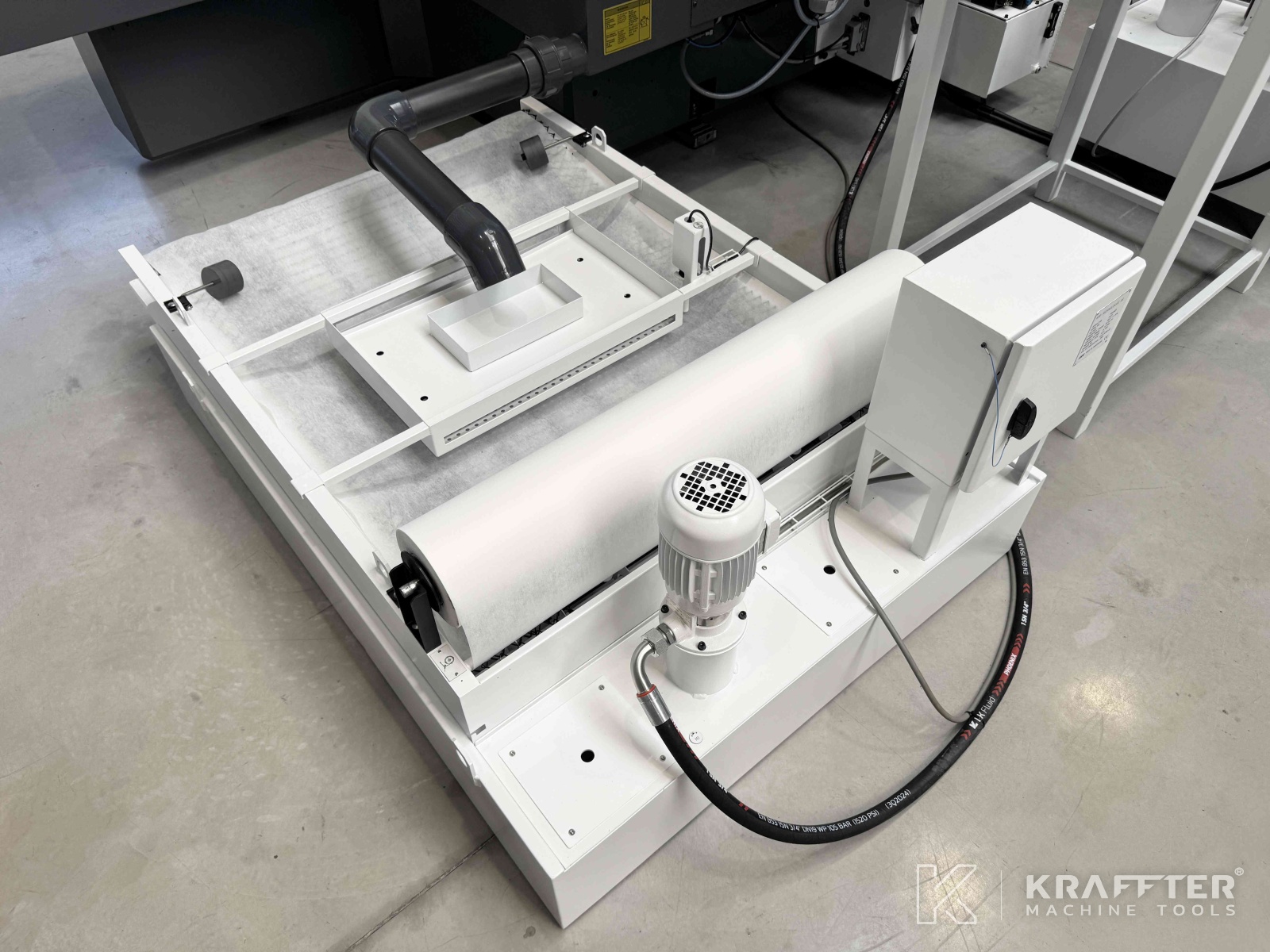

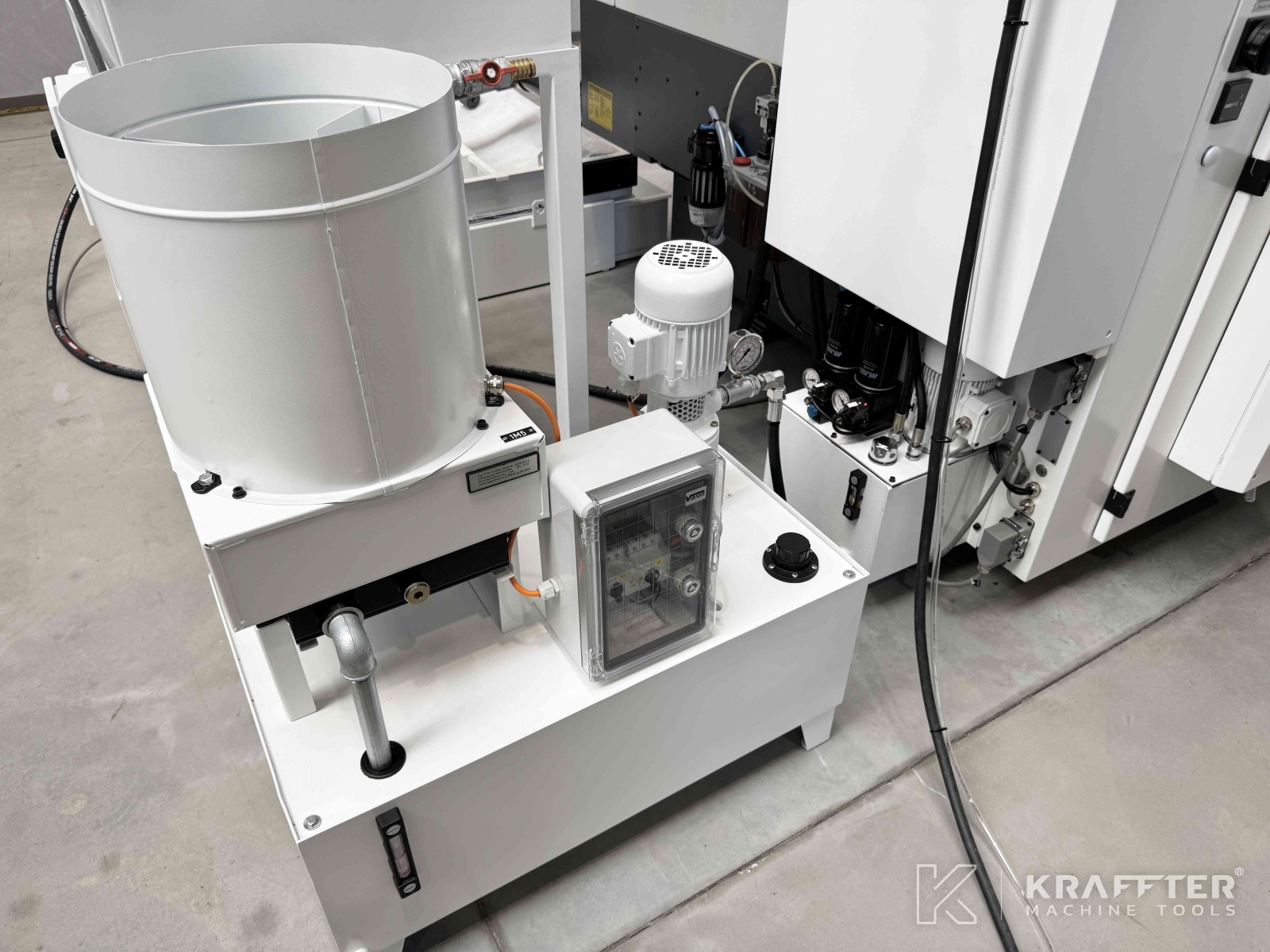

x1 ARO TECHNOLOGIES AG paper tape filtration device

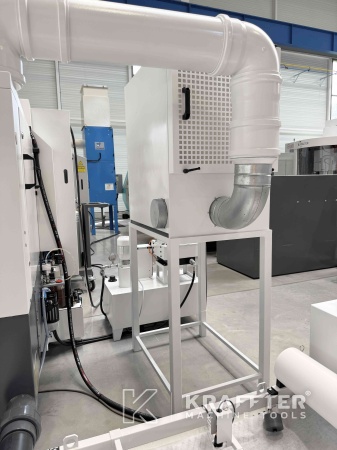

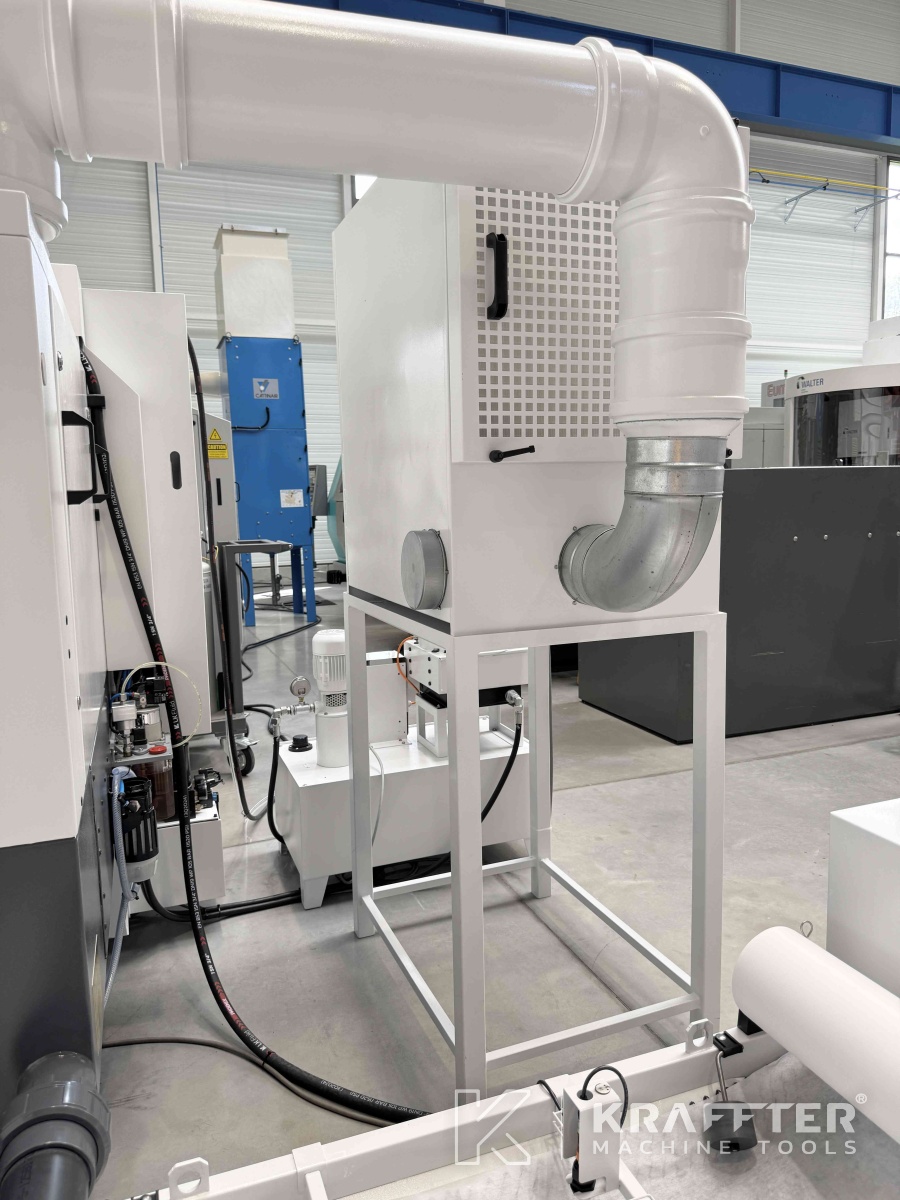

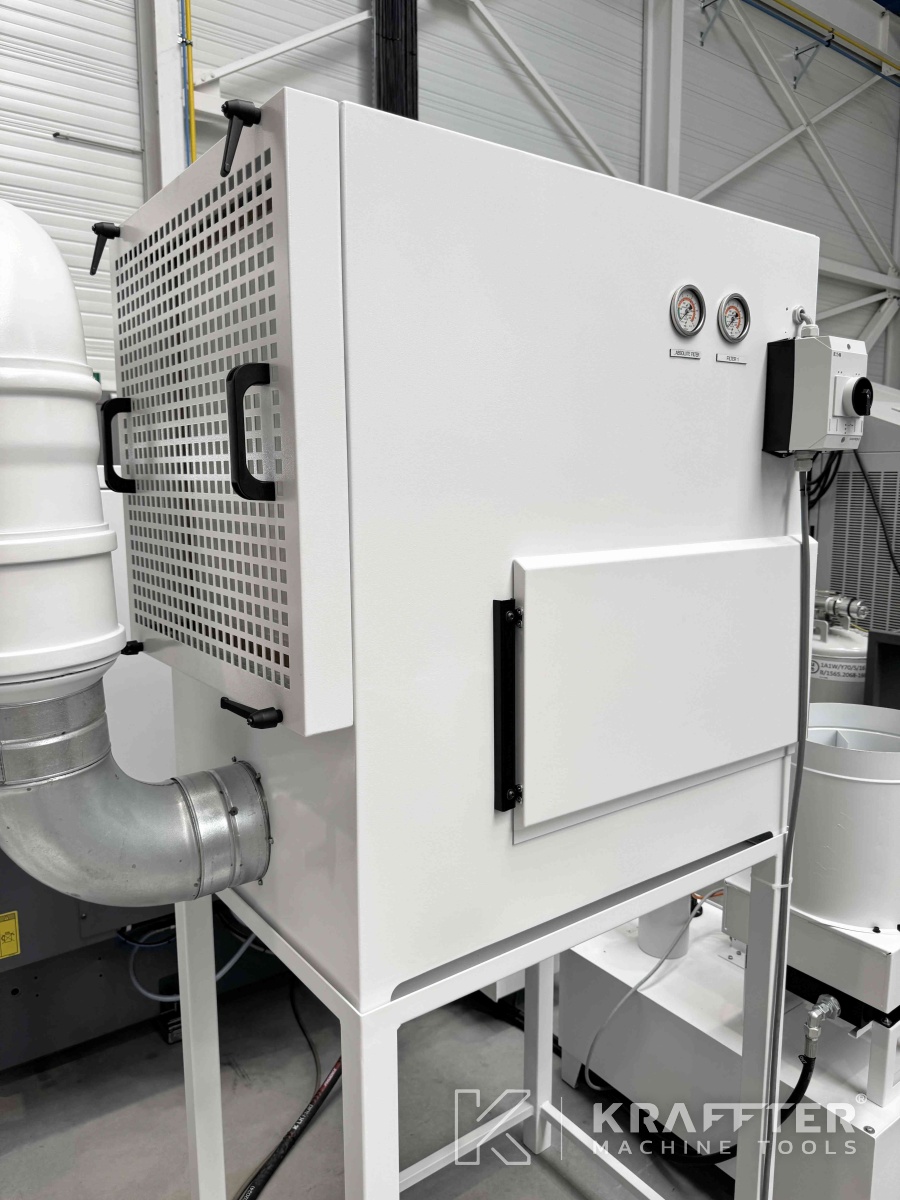

x1 ABSOLENT AB oil mist extraction unit type ODF 1000c

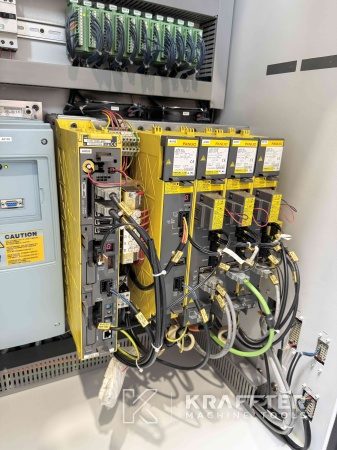

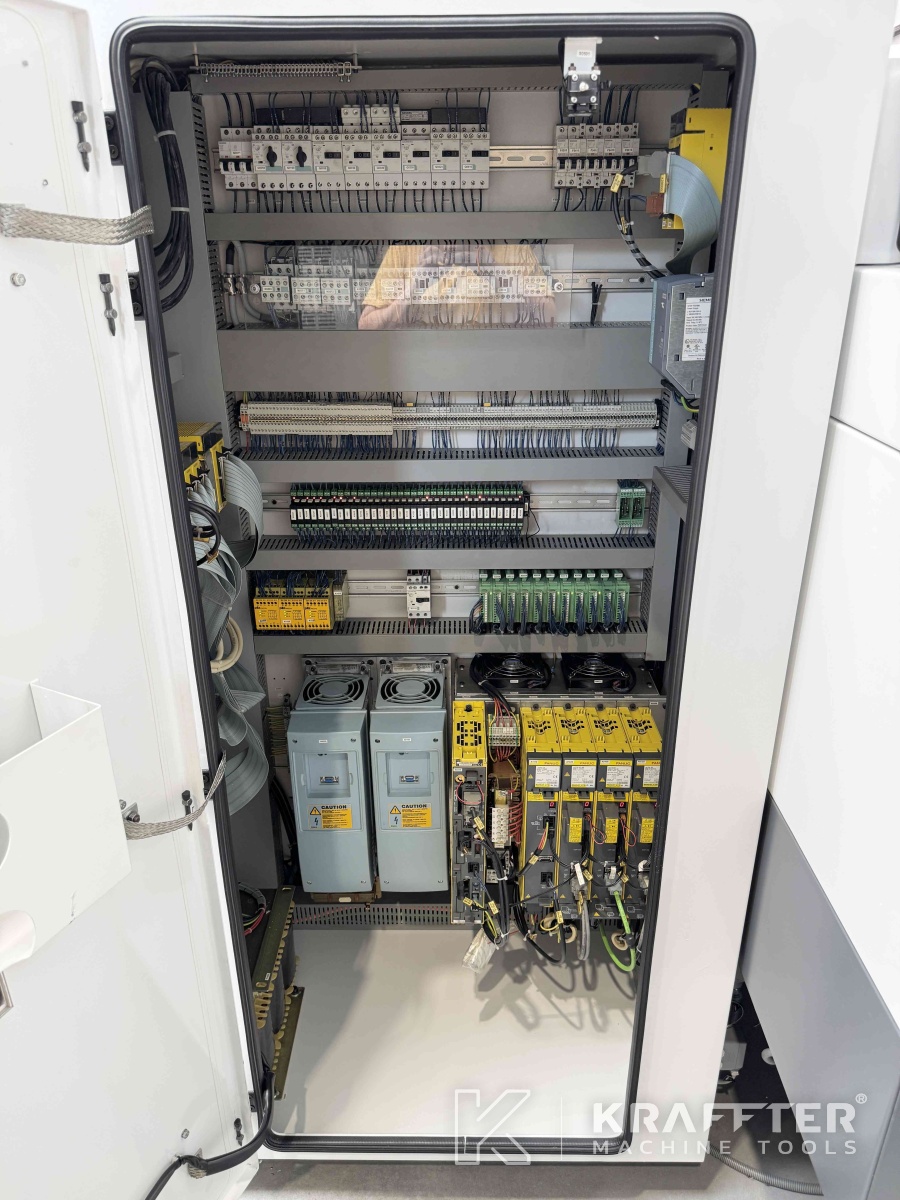

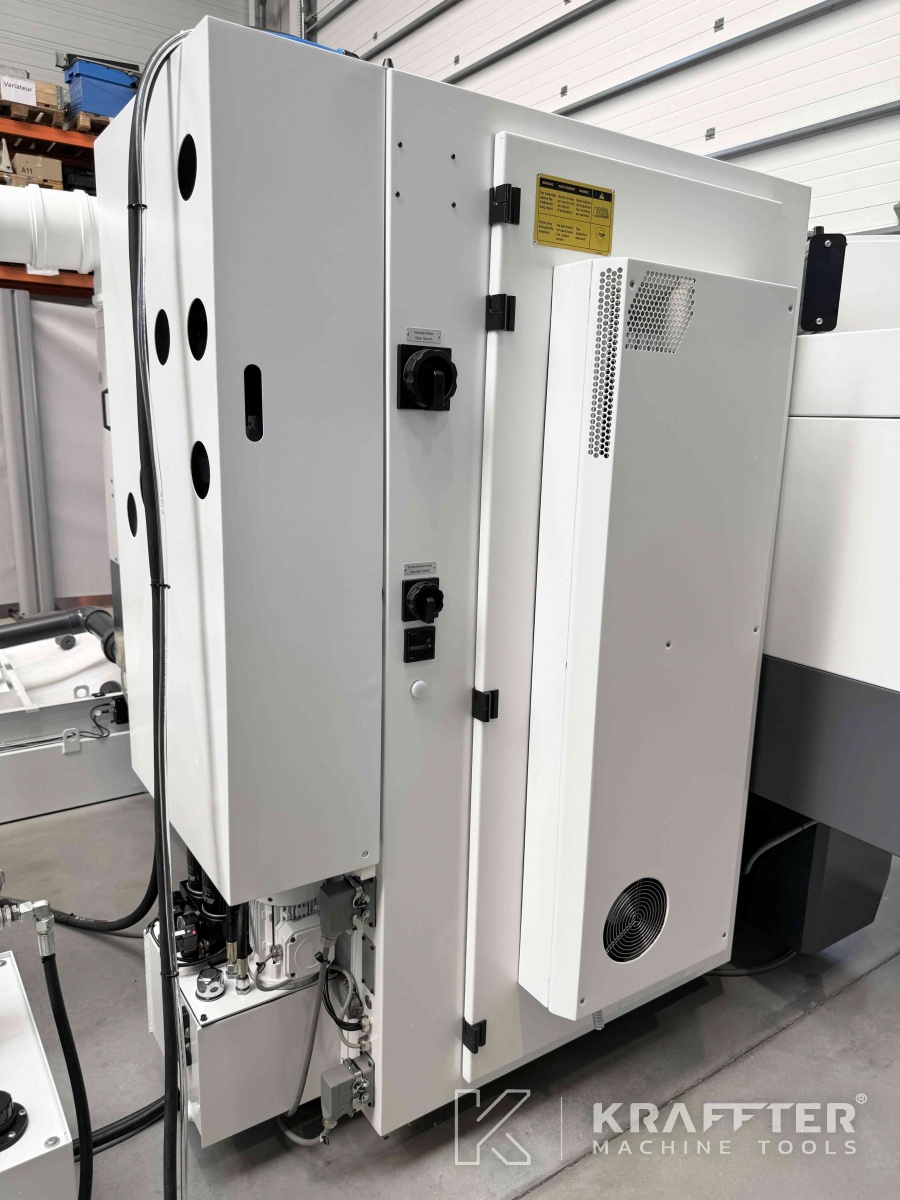

x1 electric cabinet air conditioner
x1 set of user manuals (English, French and German)
