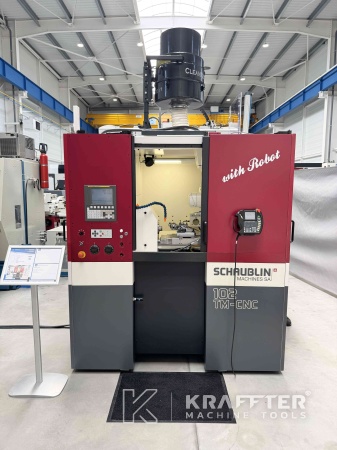

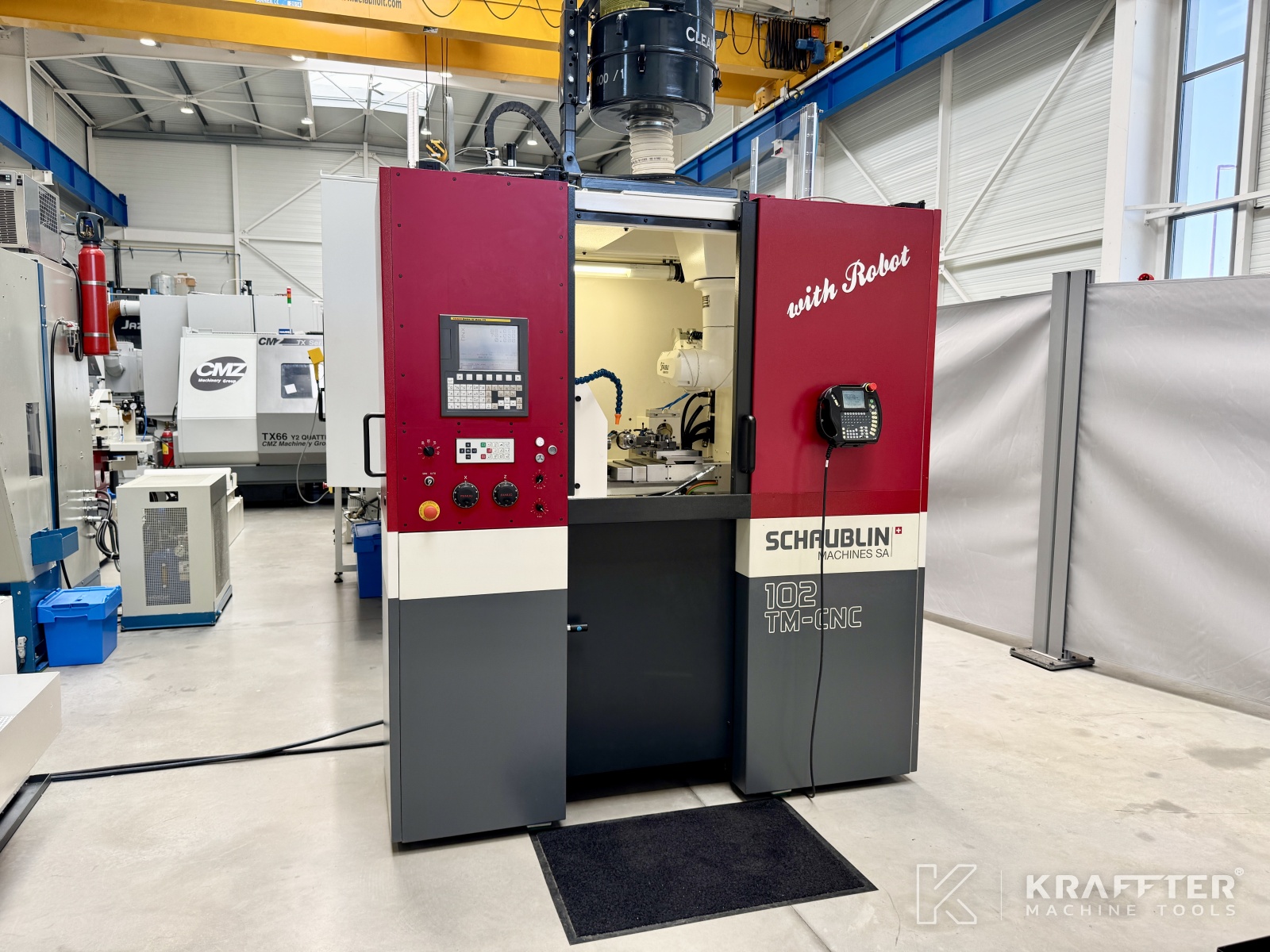

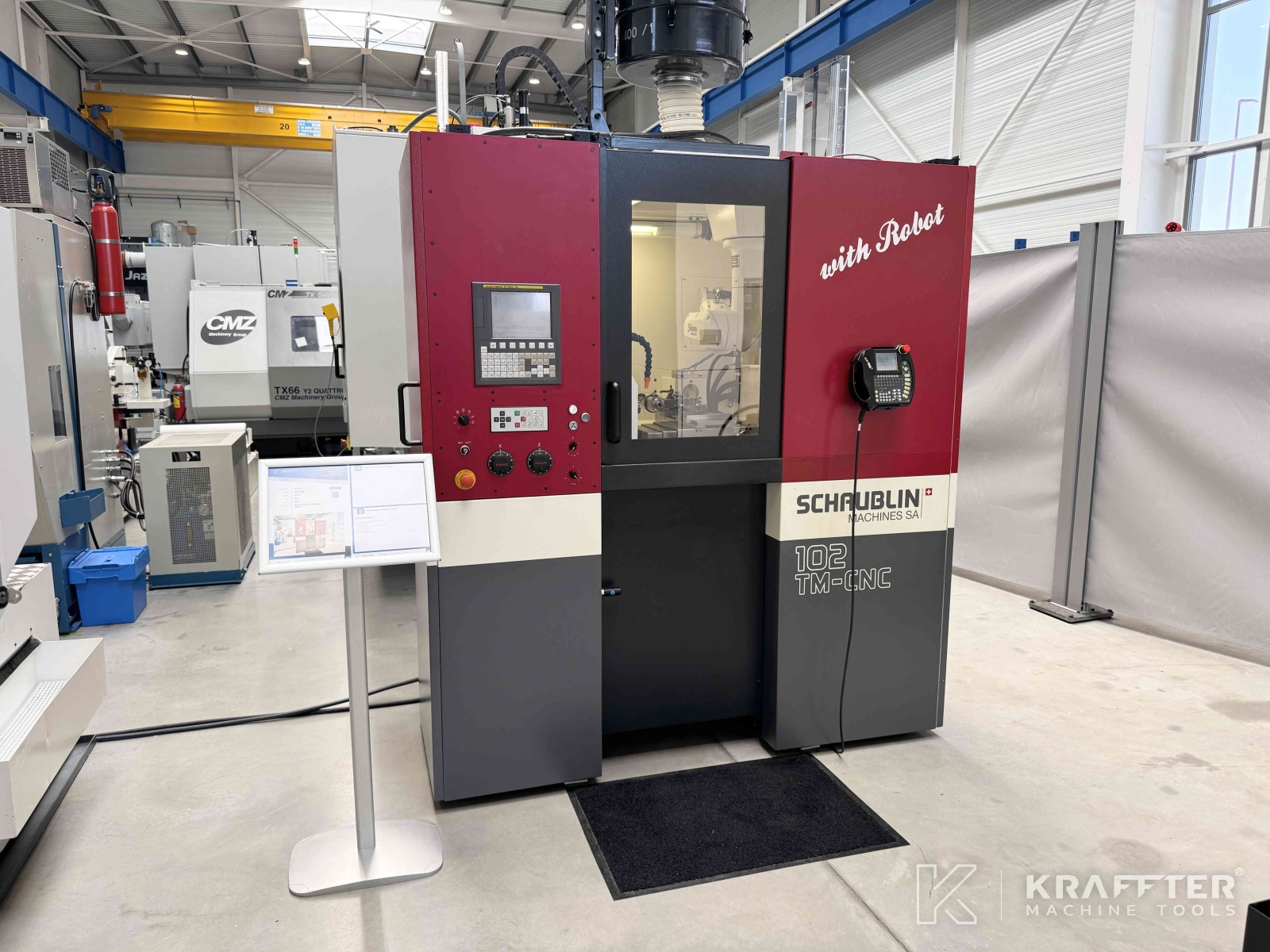

Type of machine : CNC lathe
Brand : SCHAUBLIN
N° de stock: 90151
Model : 102 TM
Year : 2012
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Height of centers
102
Max. cutting diameter
270 [mm]
Height of centers over cariage
200 [mm]
Max. swing over bed
75 [mm]
Stroke X axis
120 [mm]
Stroke Z axis
100 [mm]
Rapid traverse rate X axis
7000 [mm/min]
Rapid traverse rate Z axis
7000 [mm/min]
Working feed X axis
0 - 5000 [mm/min] [mm/min]
Working feed Z axis
0 - 5000 [mm/min] [mm/min]
X axis ball screw, Ø x pitch
12 x 3 [mm]
Z axis ball screw, Ø x pitch
12 x 3 [mm]
Resolution X axis
0.0005 [mm]
Resolution Z axis
0.001 [mm]
Spindle for collets
W25
Max. throughbore with collet
19 [mm]
Min. spindle speed
50 [rpm]
Max. spindle speed
8000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
2.2 [kW]
Spindle torque
7 [Nm]
Lubrication tank capacity
25 [l]
Coolant pump pressure
0.5 [bar]
Collant pump flow rate
10 [l/min]
Total power required
7 [kVA]
Rated current
10 [A]
Supply voltage
400 [V]
Number of running hours
925 [h]
Spindle running hours
645 [h]
Weight
860 [Kg]
Additional information

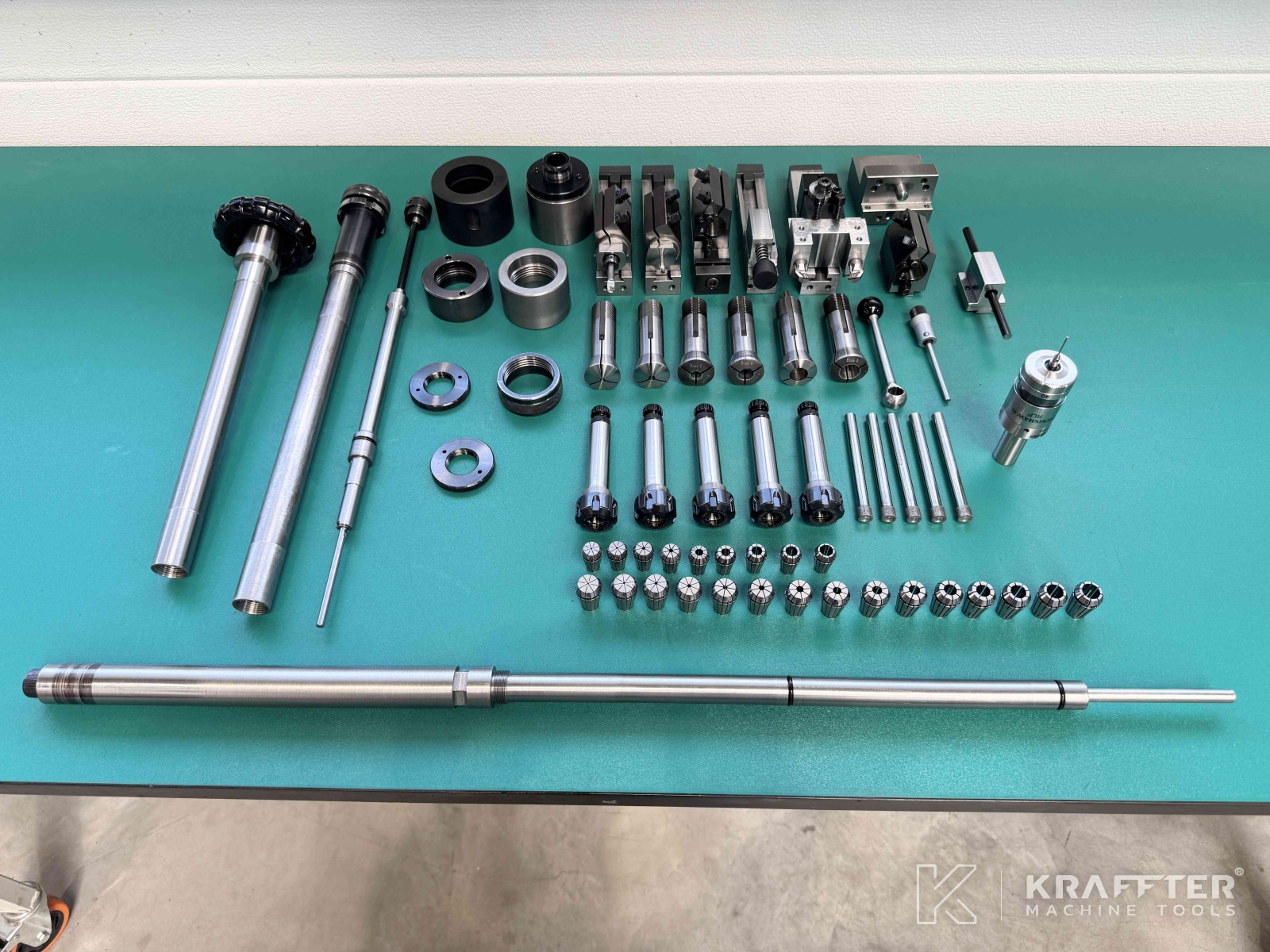

INCLUDED EQUIPMENT:
x1 complete coolant system – Ref SCHAUBLIN: 0202-80600-000

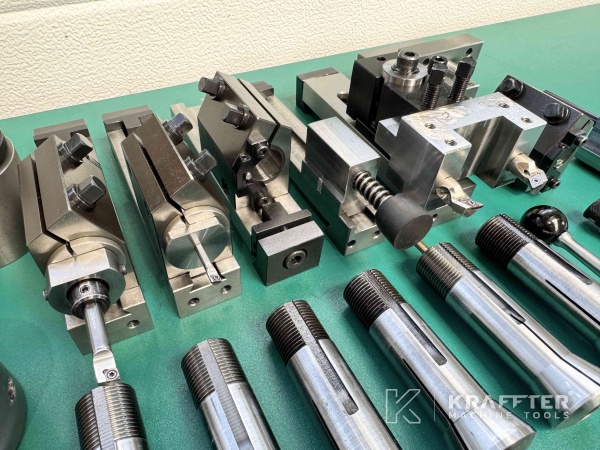

x1 pneumatical clamping attachment W25 TM – Ref SCHAUBLIN: 0202-21660-000
x1 manual drawbar W25

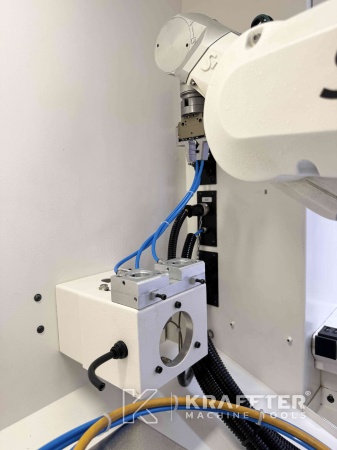

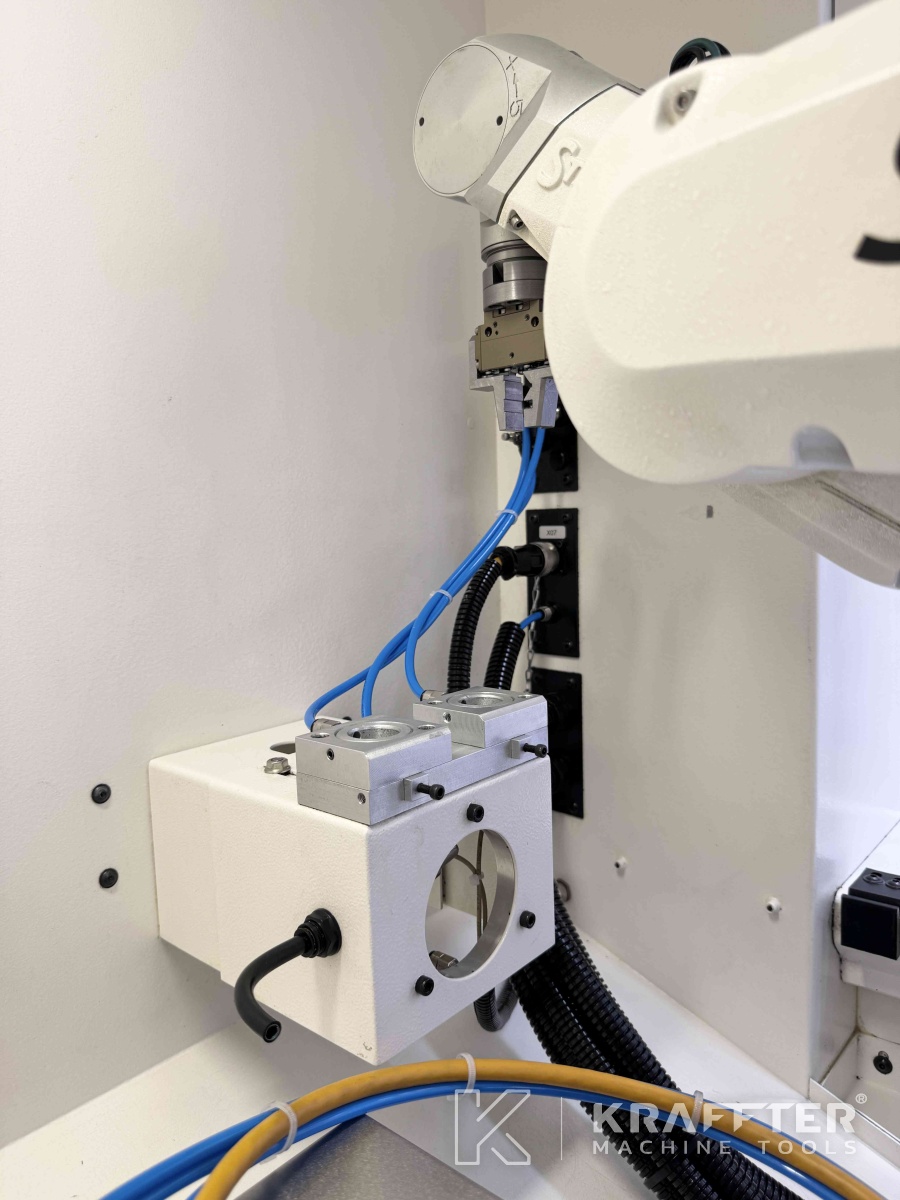

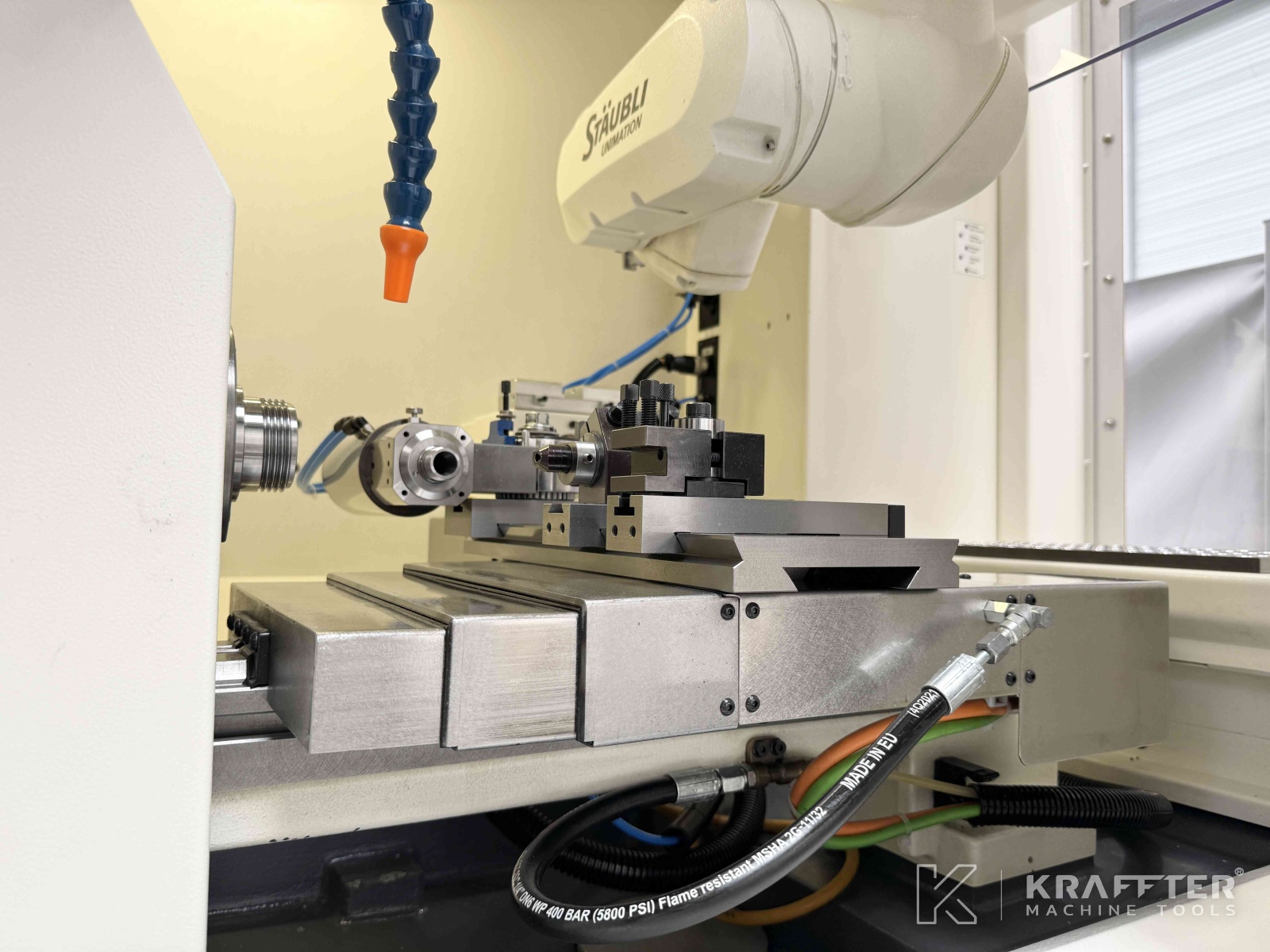

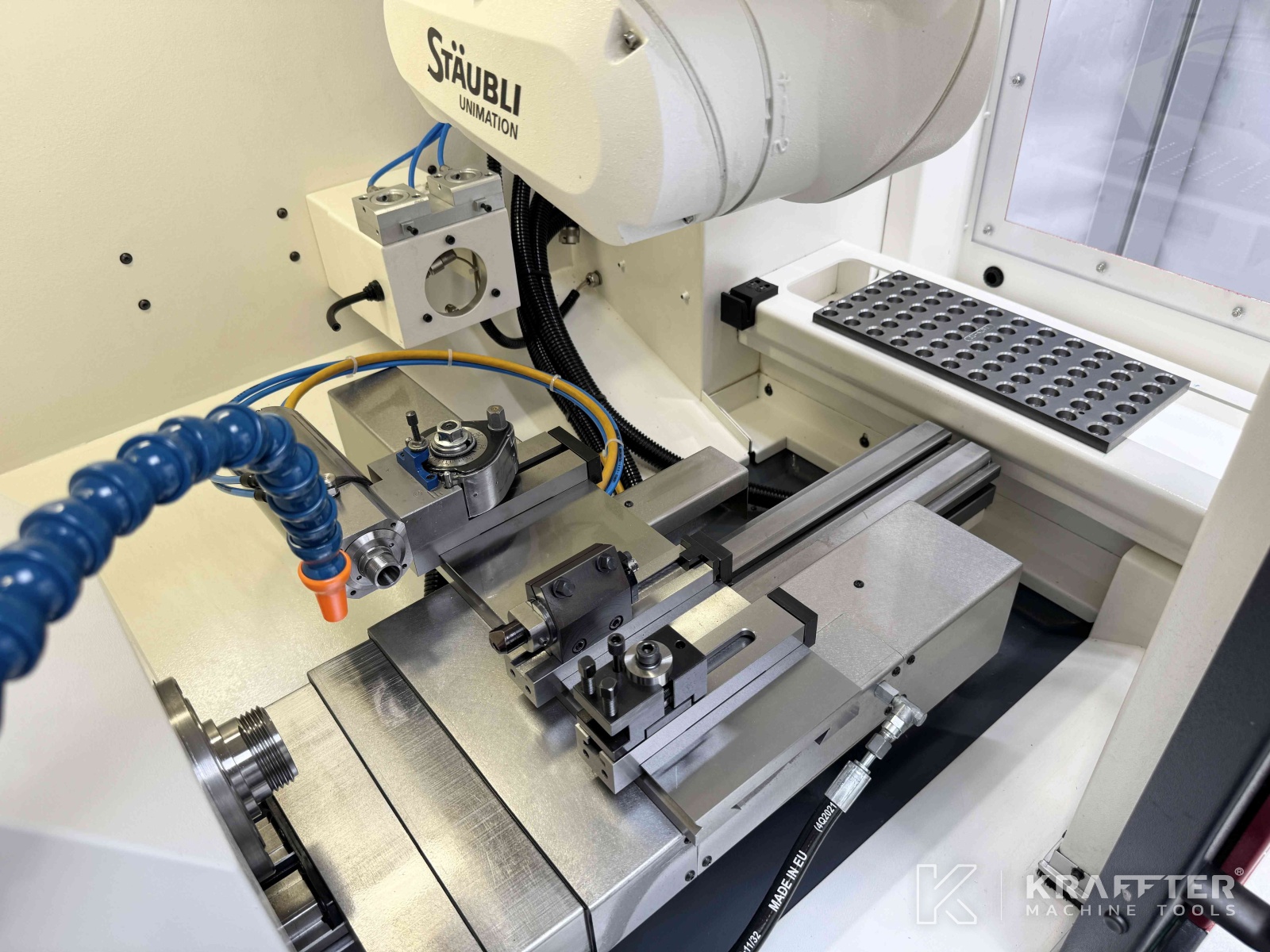

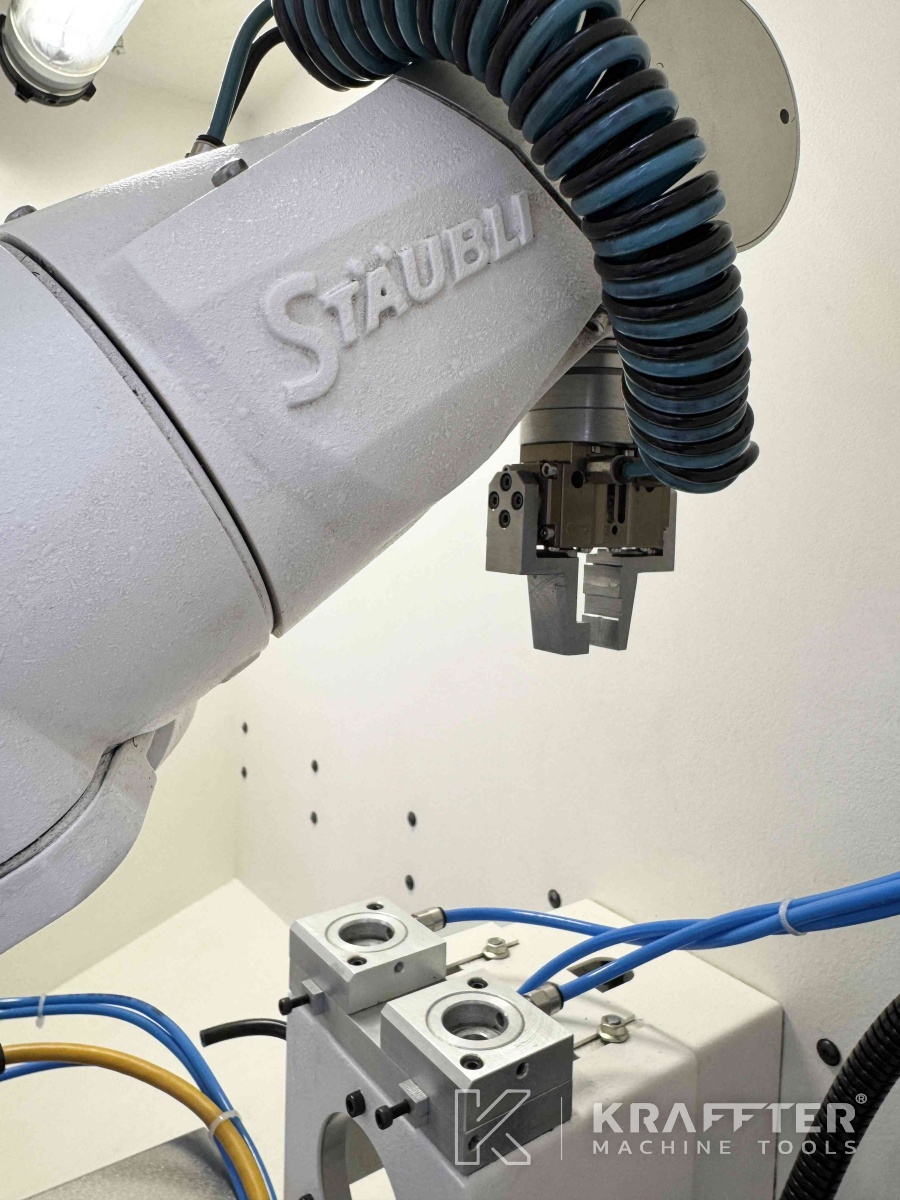

x1 STÄUBLI TX 40 articulated robot (6 degrees of rotation)

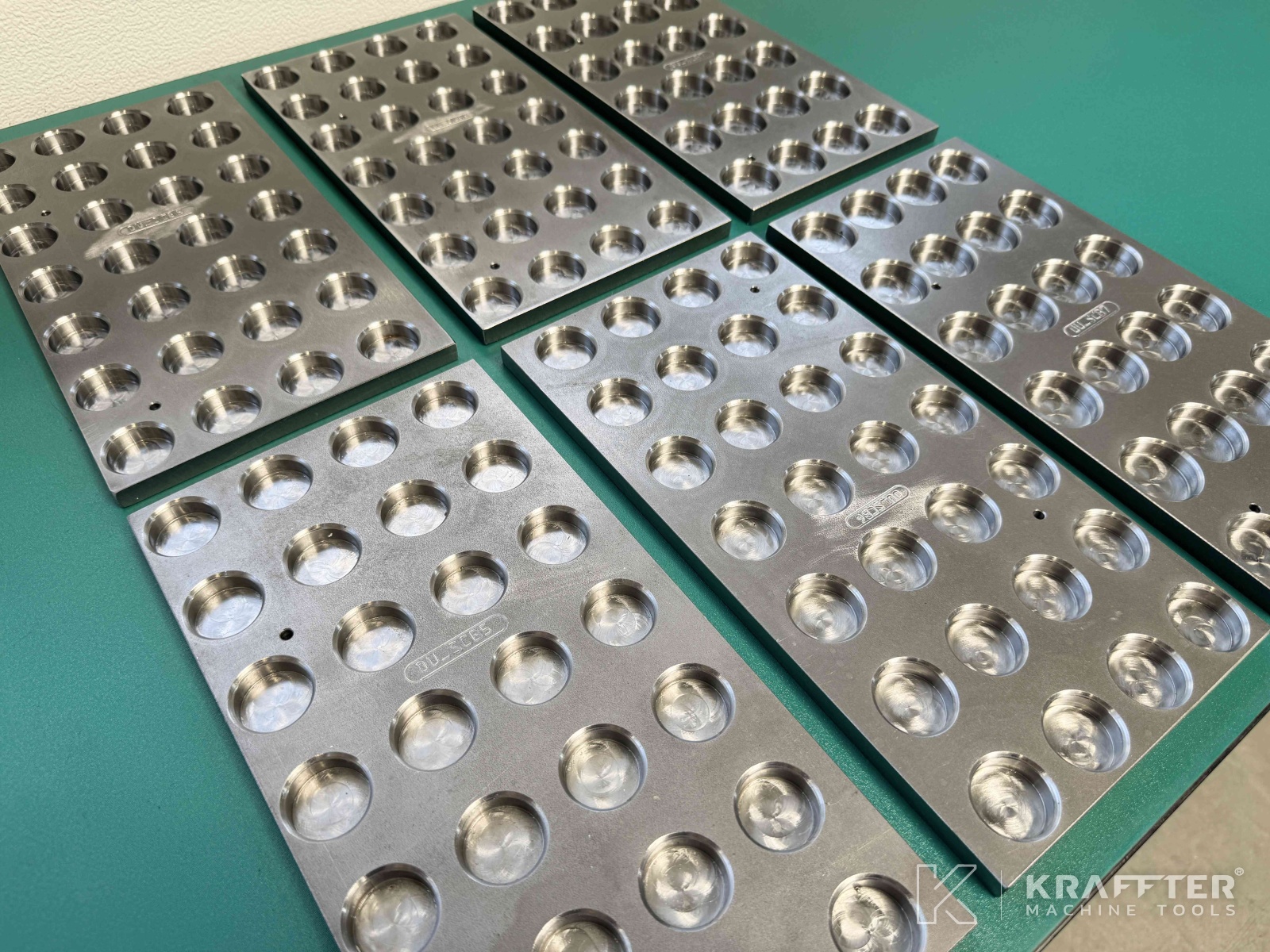

x8 pallets

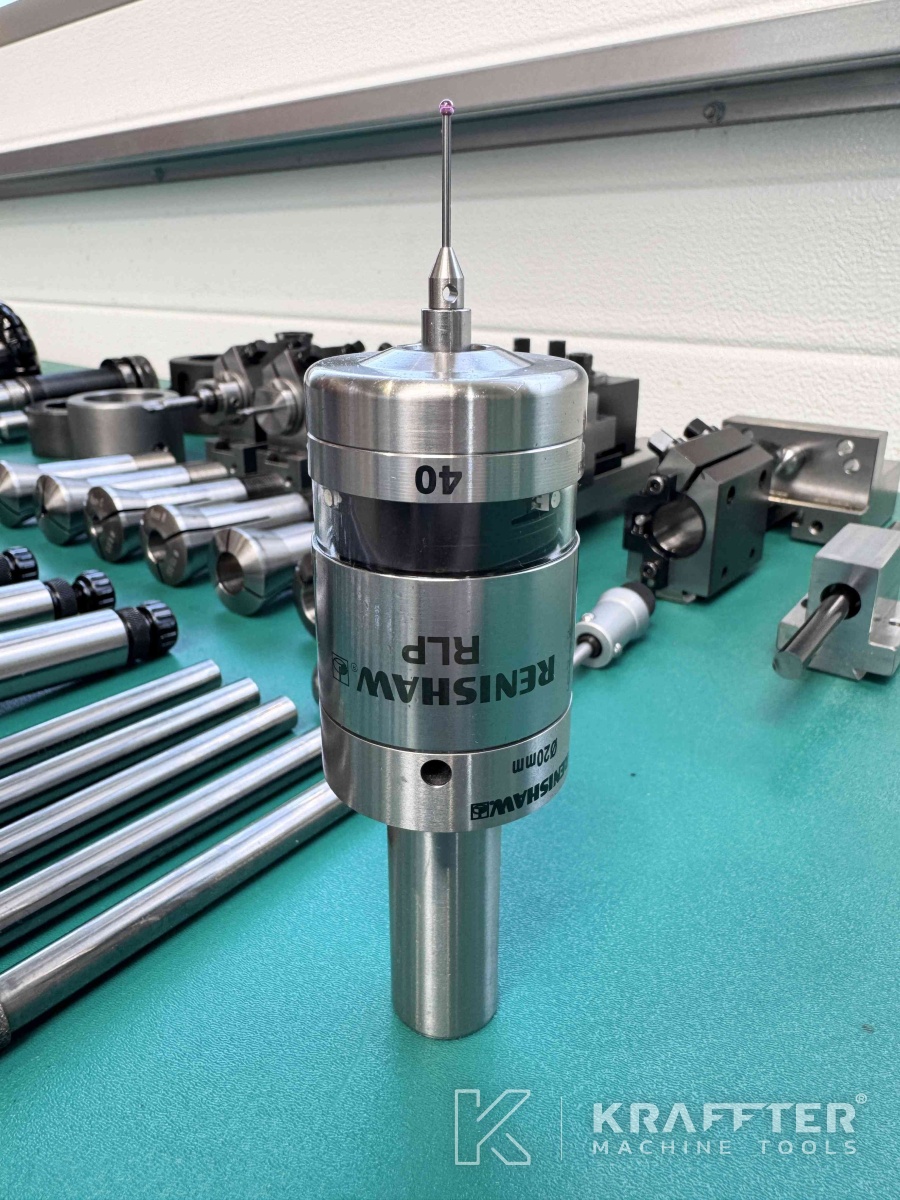

x1 RENISHAW RLP40 part probe
x1 tool zero setting microscope – Ref SCHAUBLIN: 0102-60010-000

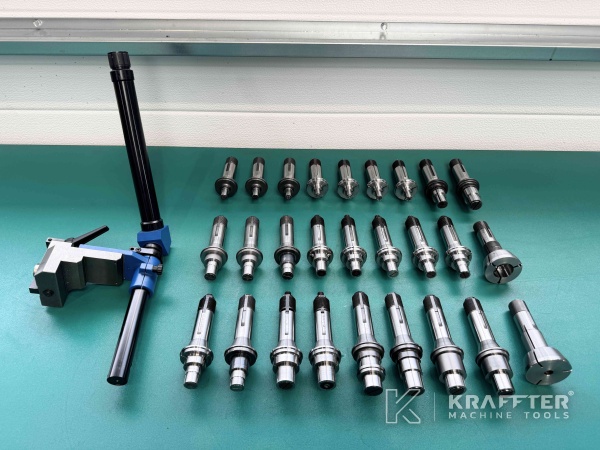

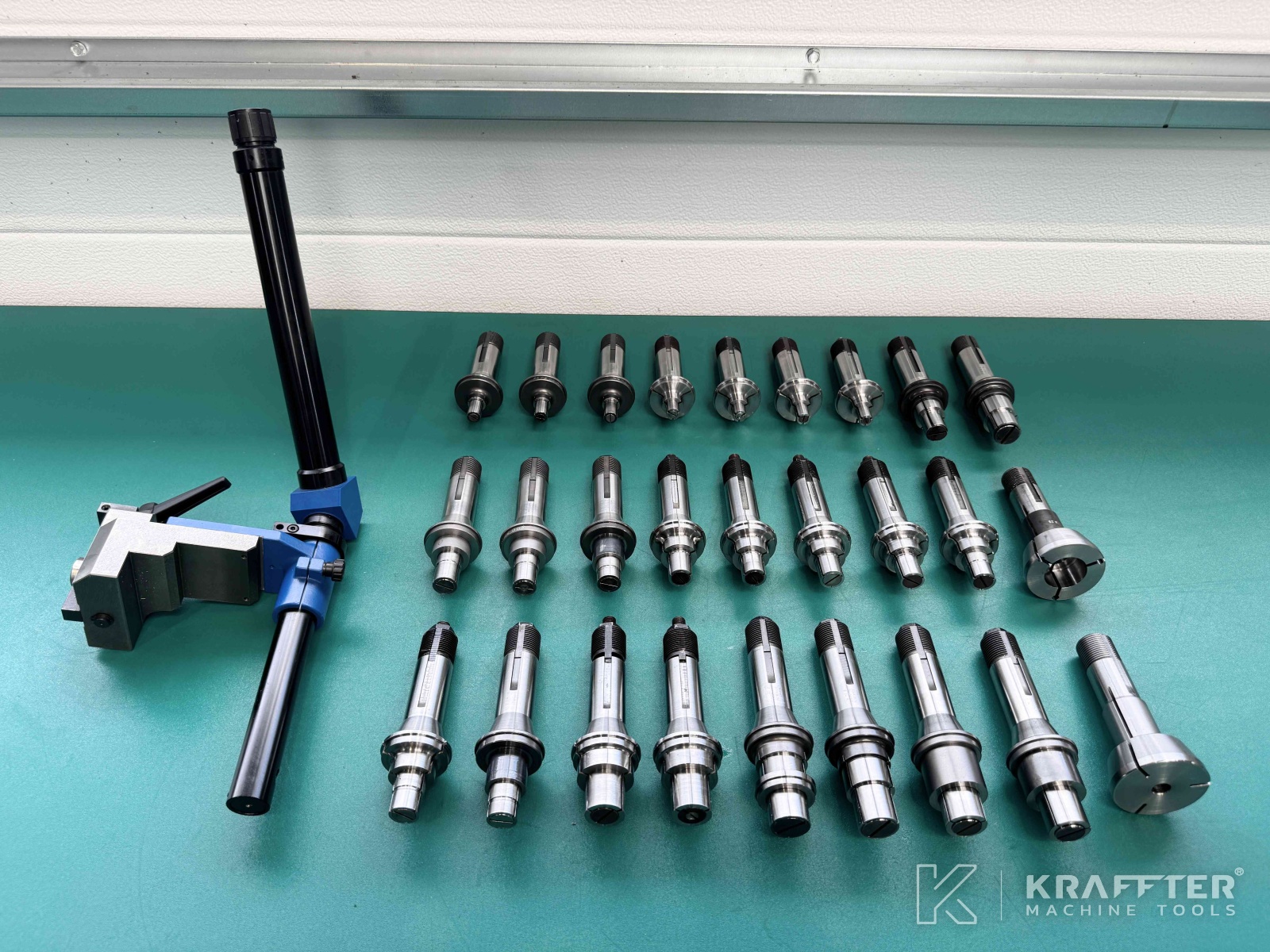

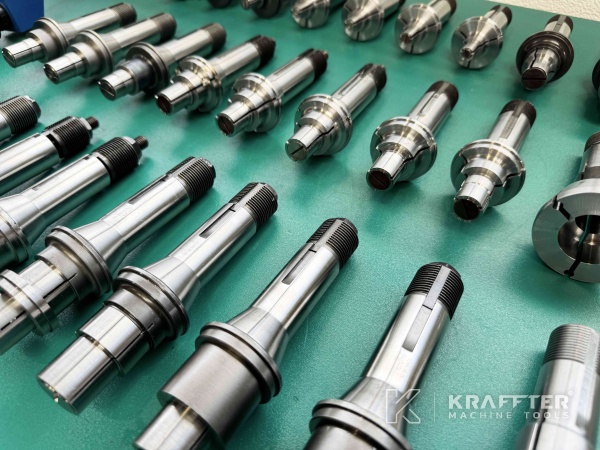

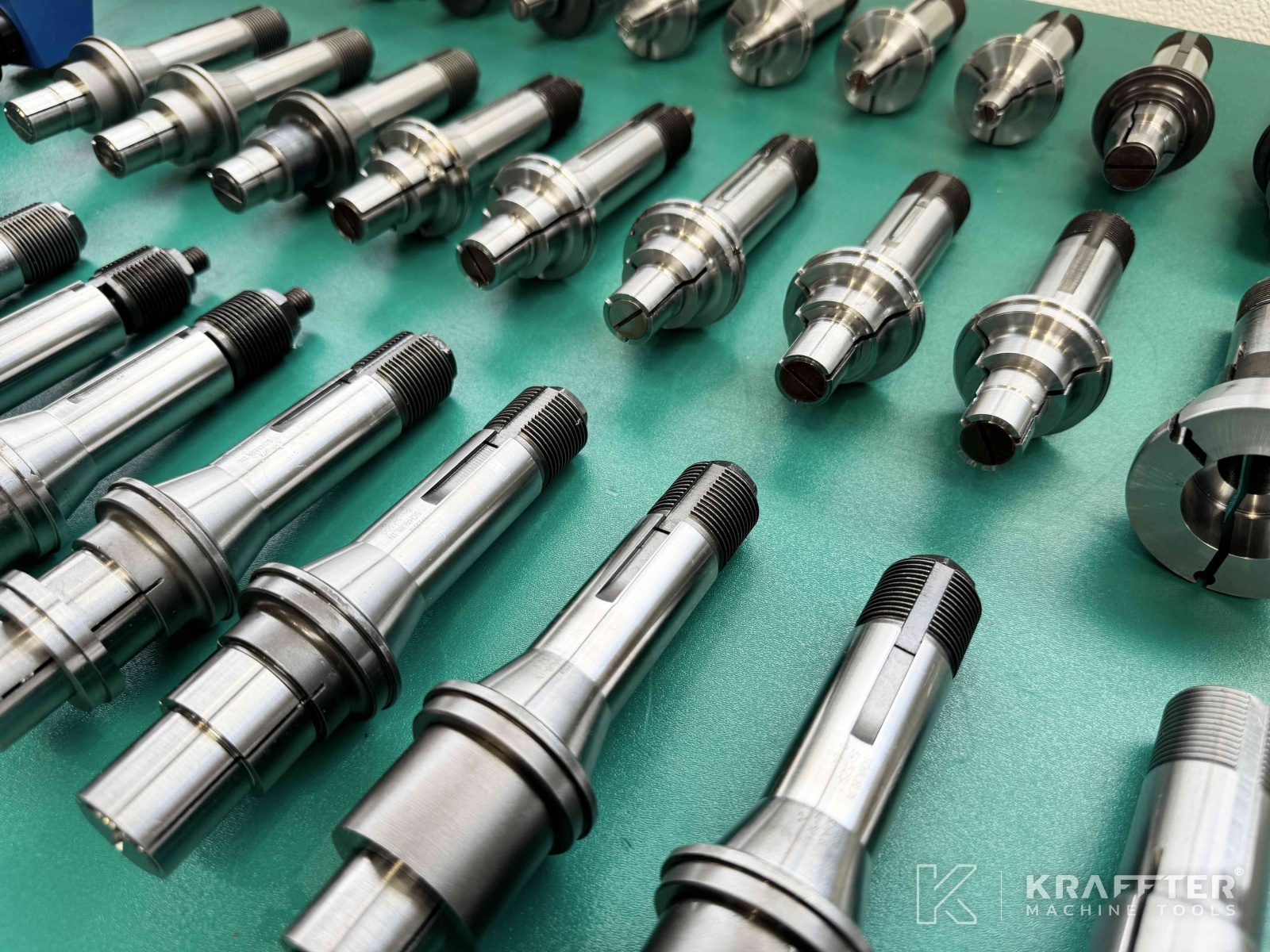

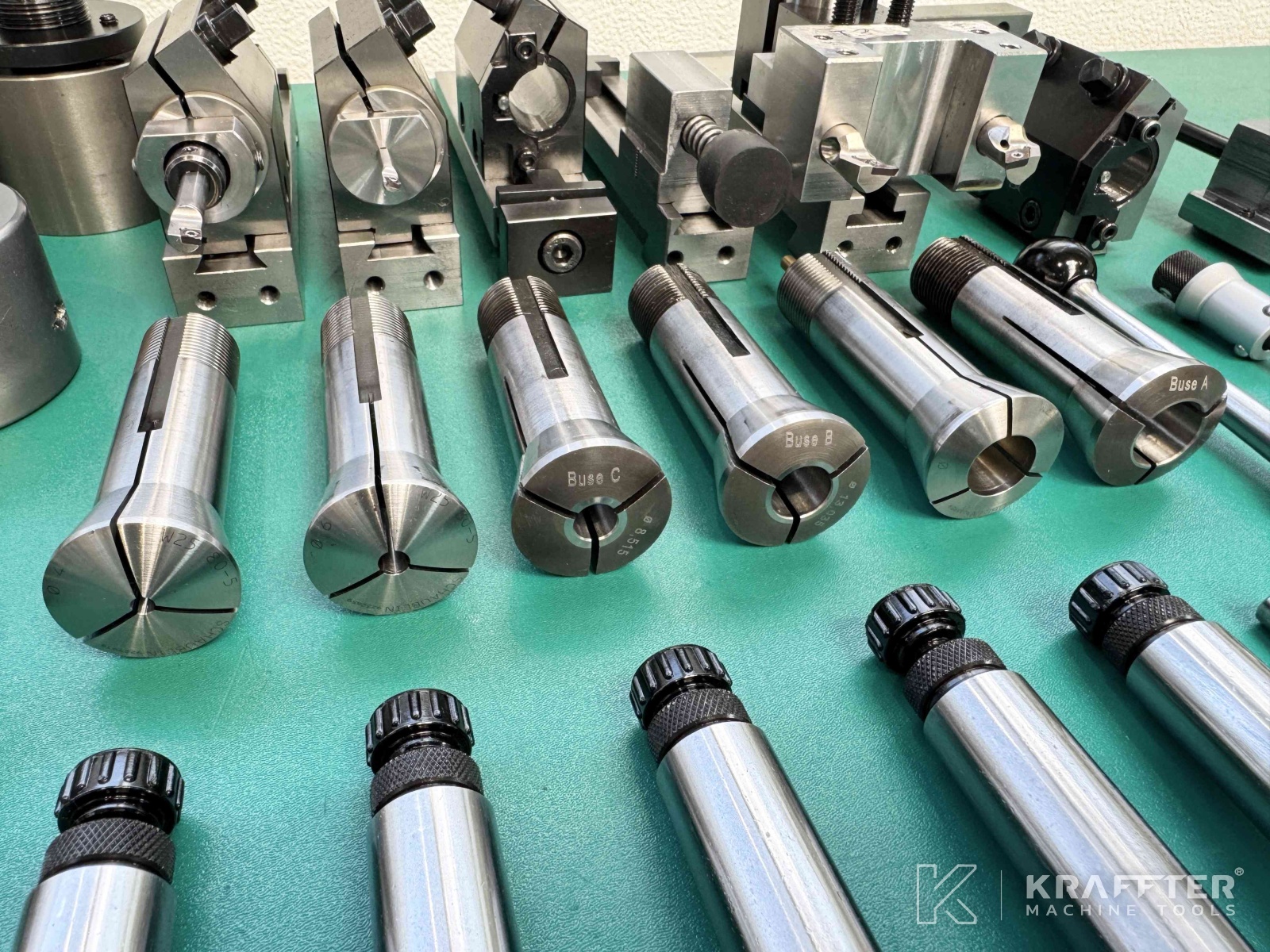

x25 single piece expanding arbors W25
x1 closer Ø68 [mm] for external step collet Gr.1 – Ref SCHAUBLIN: 0102-25221-000
x1 external step colet blank W25
x6 W25 collets
x1 adjustable depth stop for W25 collets – Ref SCHAUBLIN: 0102-30225-000
x1 adjustable stop and extractor W25

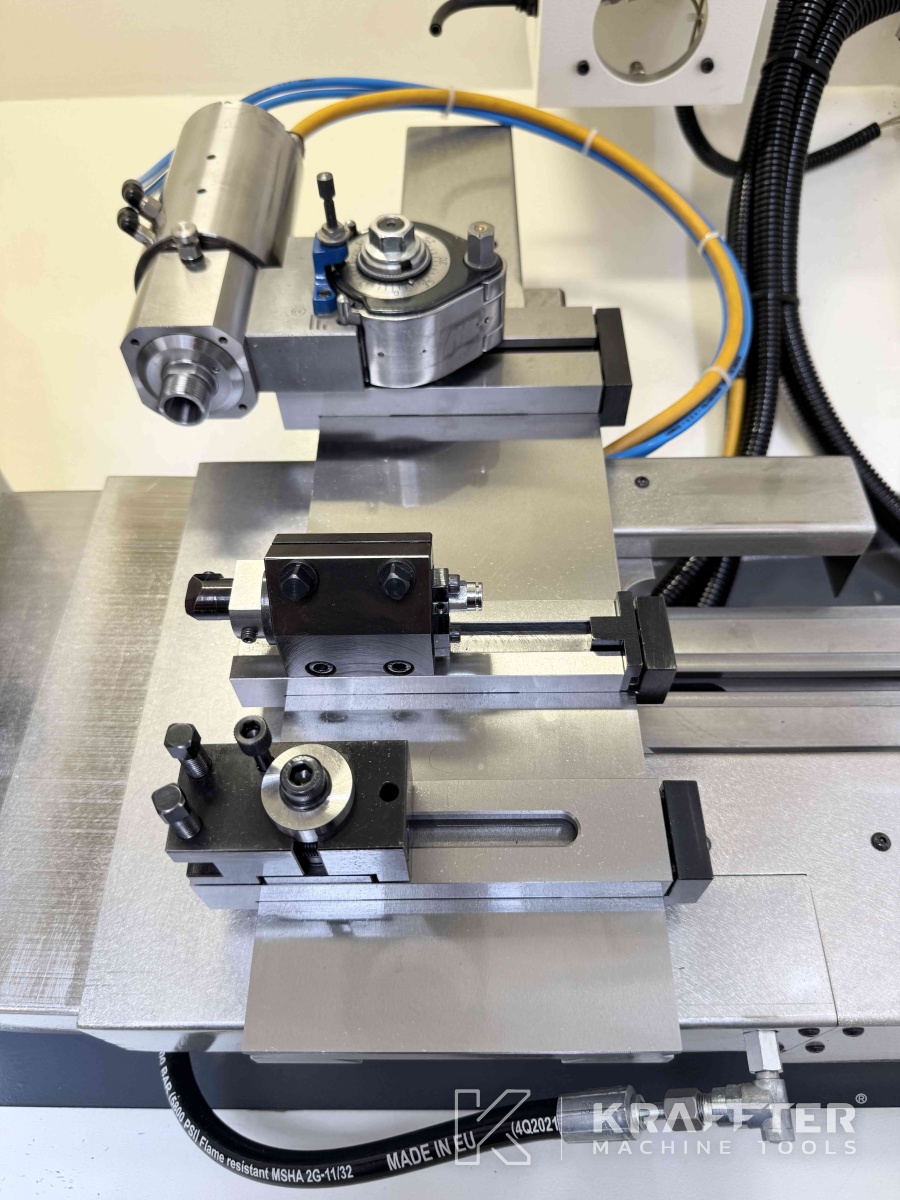

x1 quick-change toolholder turret MULTIFIX-A

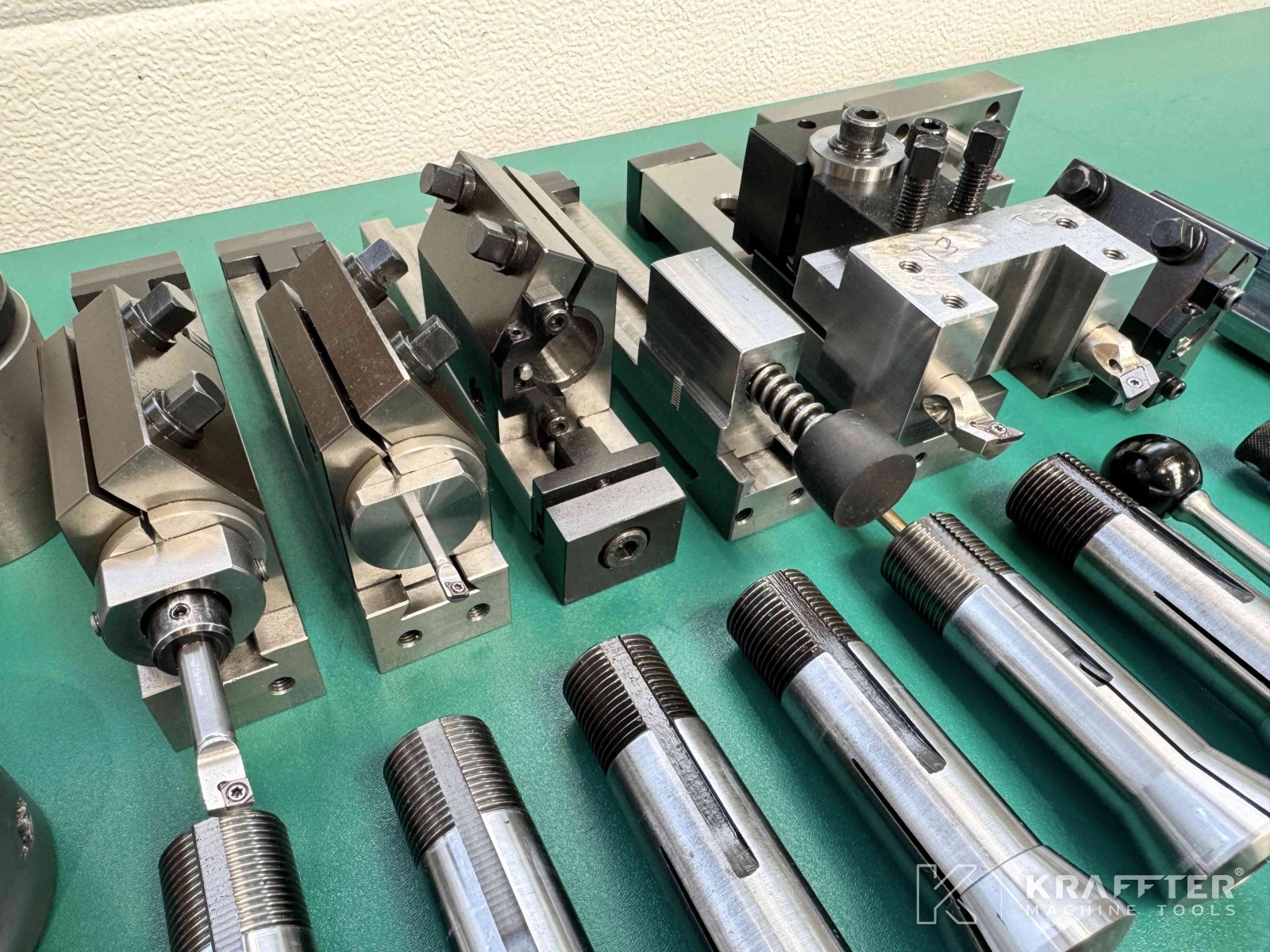

x1 saddle for radial or frontal toolholder, width 60 [mm] – Ref SCHAUBLIN: 0104-46130-000
x4 saddles for toolholder, 36 [mm] wideth with dovetail – Ref SCHAUBLIN: 0104-46190-000
x2 saddles for toolholder, 36 [mm] width, with T-slot – Ref SCHAUBLIN: 0104-46210-000
x1 front radial tool holder, 36 [mm] wide, for 12x12 [mm] tool section – Ref SCHAUBLIN: 0104-46260-000
x1 rear radial tool holder, 36 [mm] wide, for 12x12 [mm] tool section – Ref SCHAUBLIN: 0104-46265-000
x5 adjustable front toolholders, 36 mm wide, Ø20 [mm] bore – Ref SCHAUBLIN: 0104-46200-000

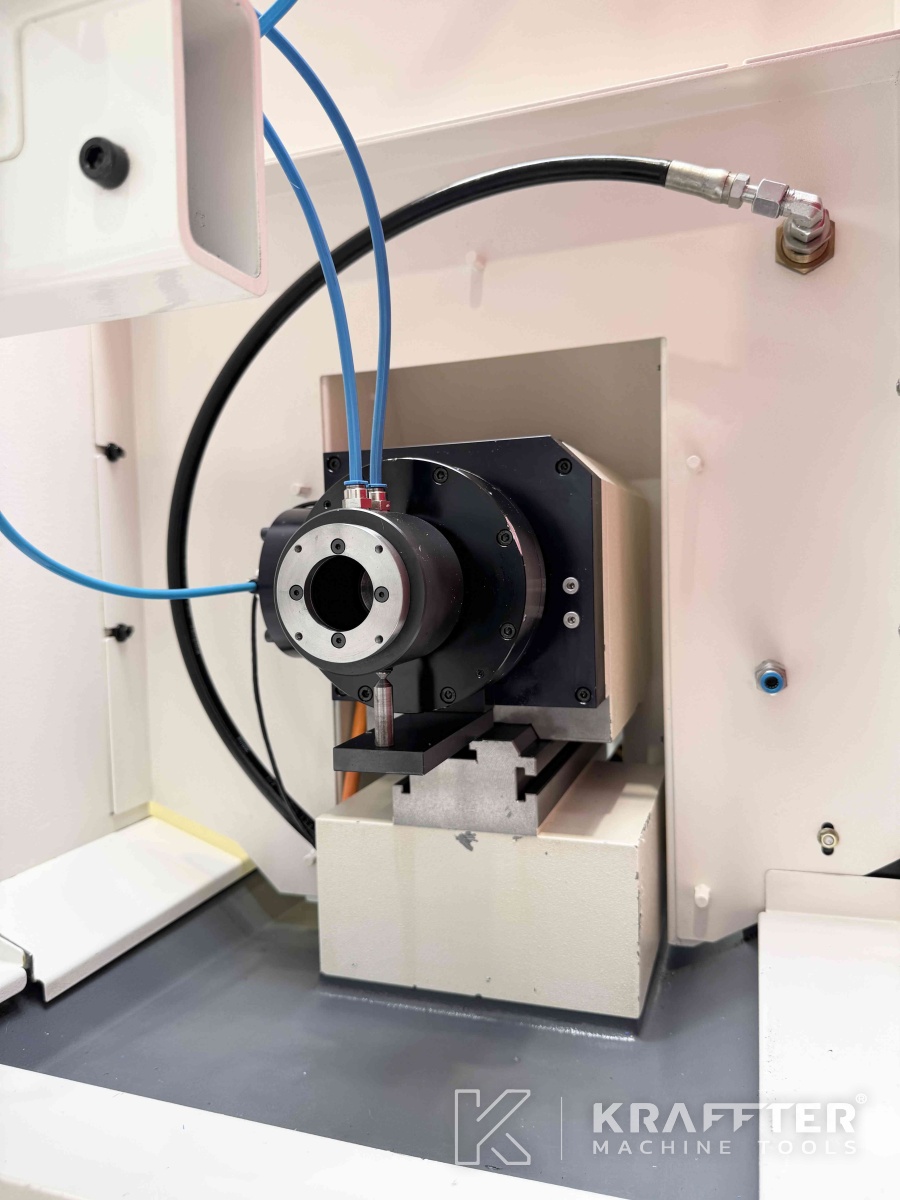

x1 B8 / ESX16 grinding attachment with integrated motor – speed 3000 to 24000 [rpm] – Ref SCHAUBLIN: 0202-87800-000
x1 MULTIFIX tool holder for grinding unit – Ref SCHAUBLIN: 0202-87630-000

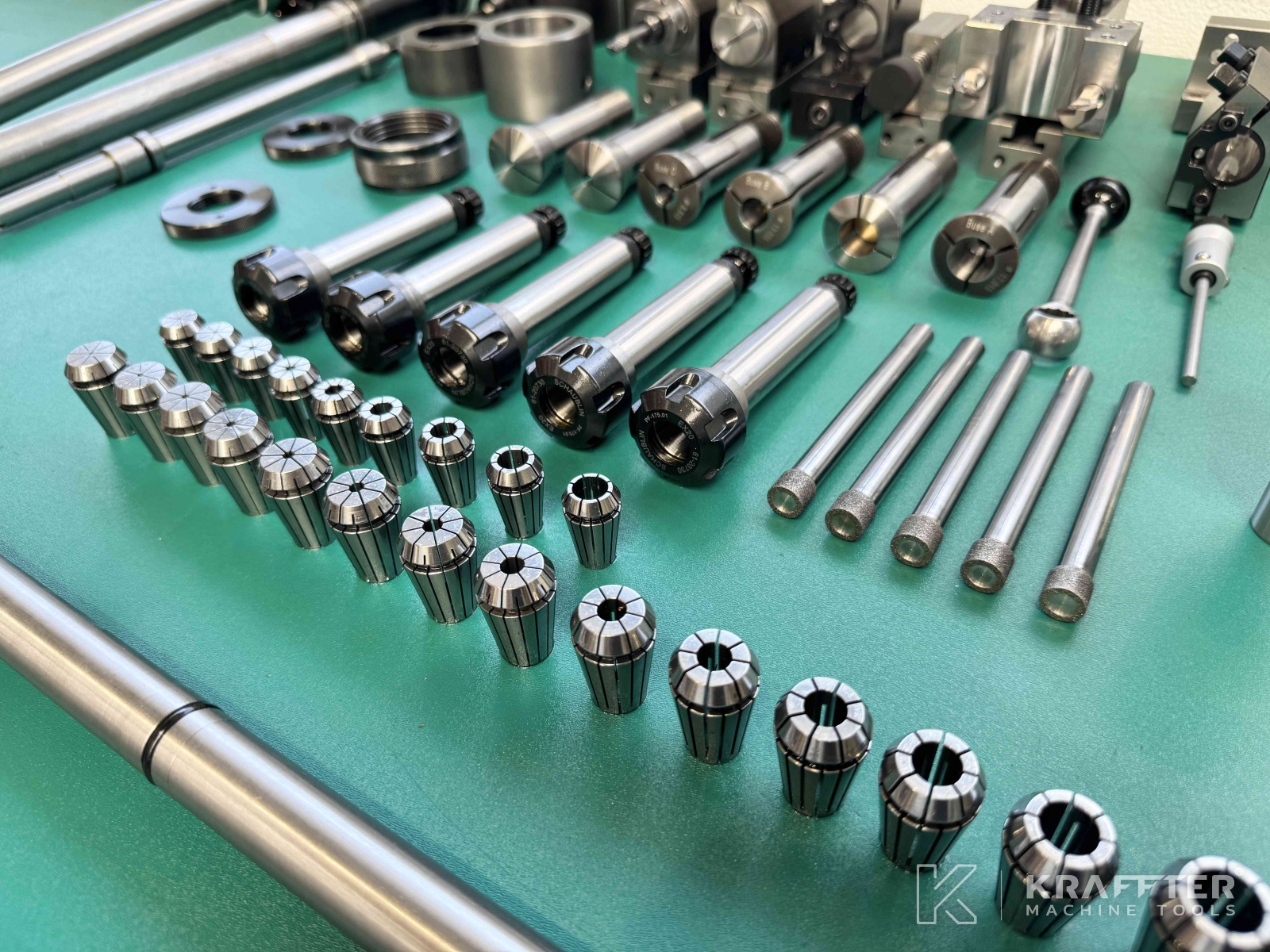

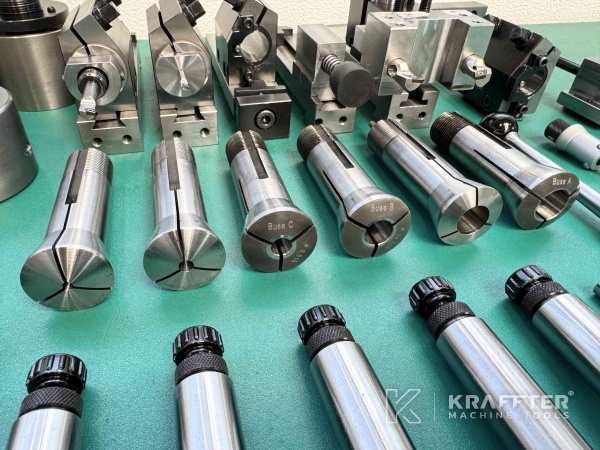

x5 CY20/ESX20 collet holders with EX nut – Ref SCHAUBLIN: 0102-46110-000
x15 ESX20 collets – Ref SCHAUBLIN: 75-20300D
x9 ESX16 collets – Ref SCHAUBLIN: 75-16300D

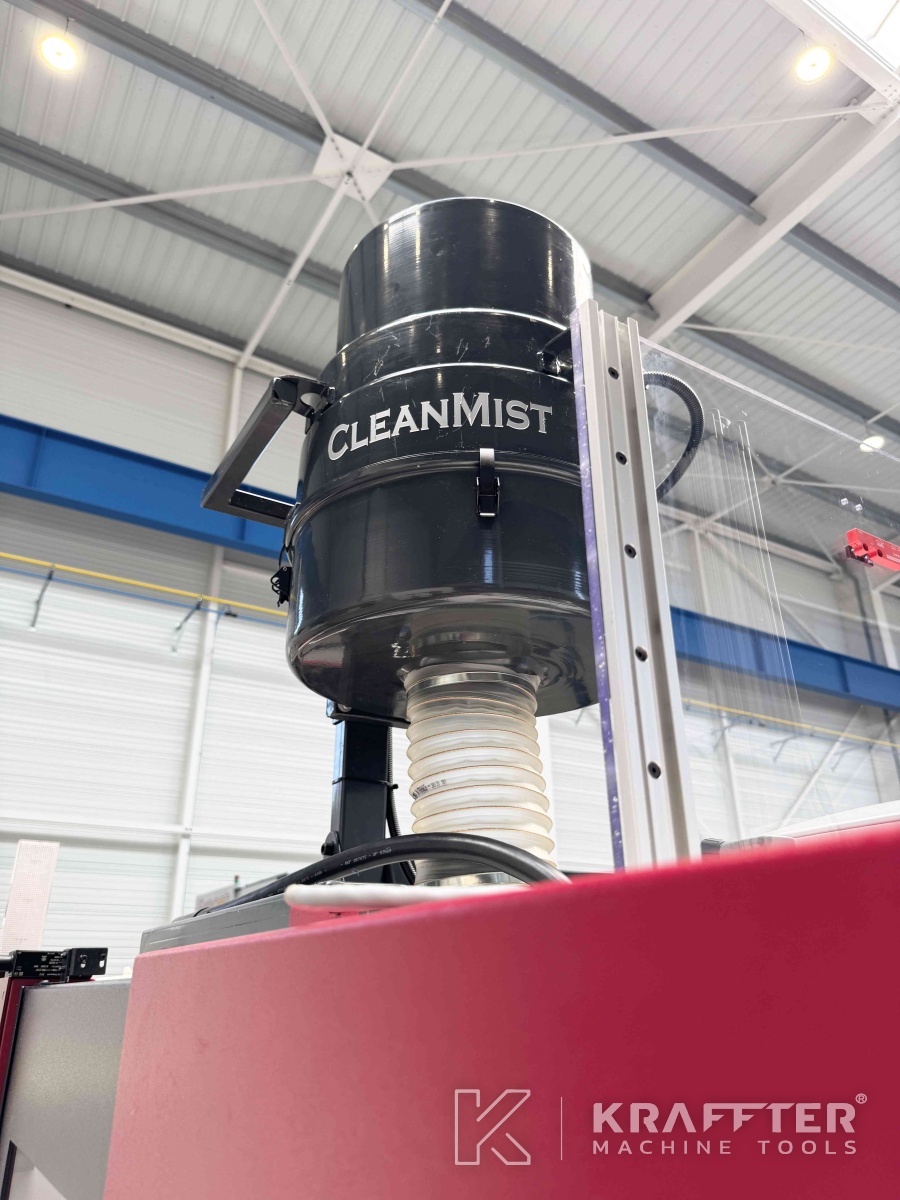

x1 CLEANMIST oil mist extractor
x1 parameter backup

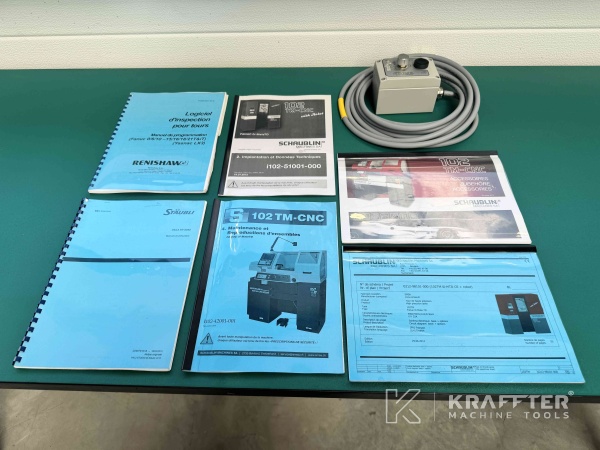

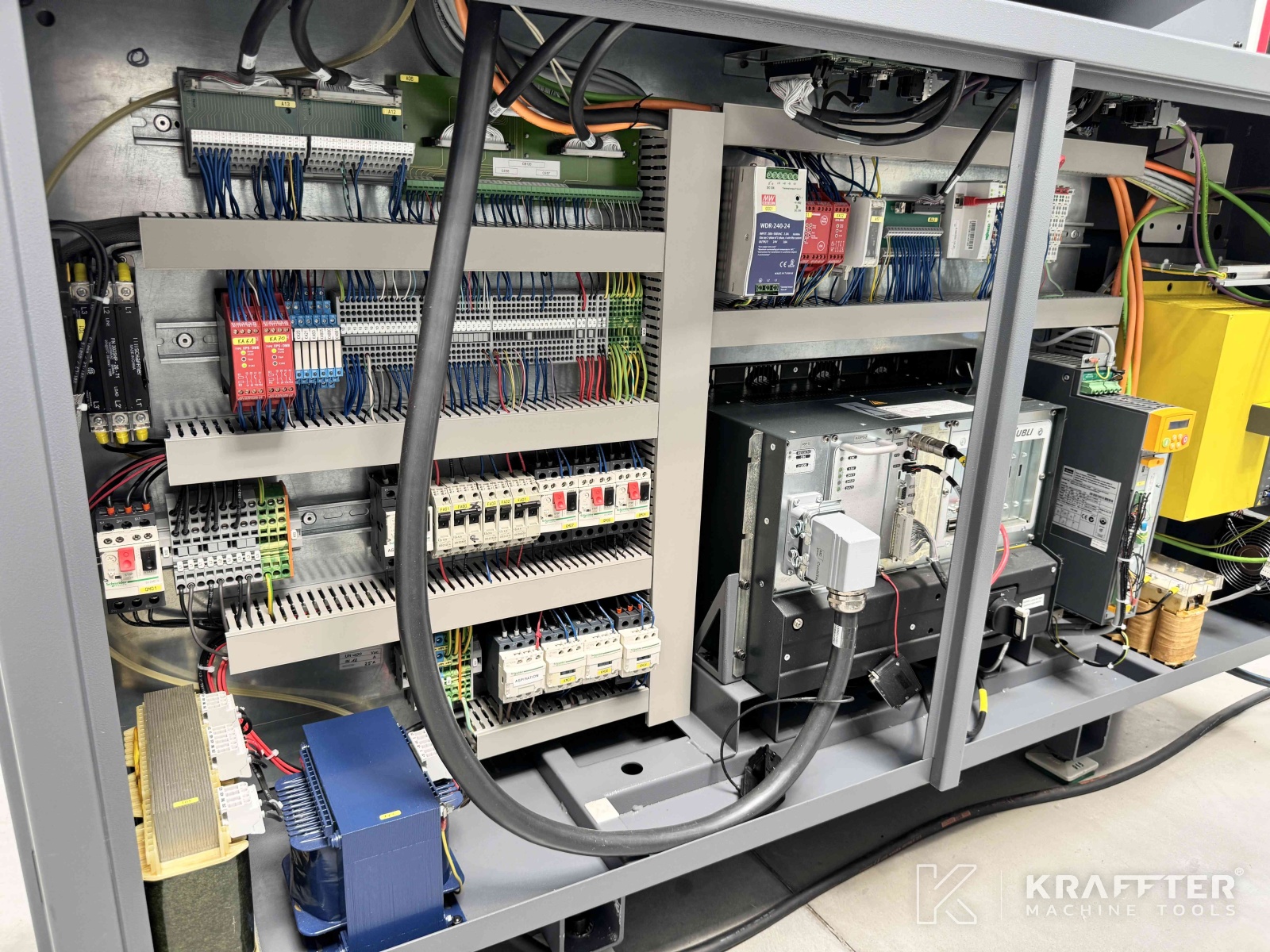

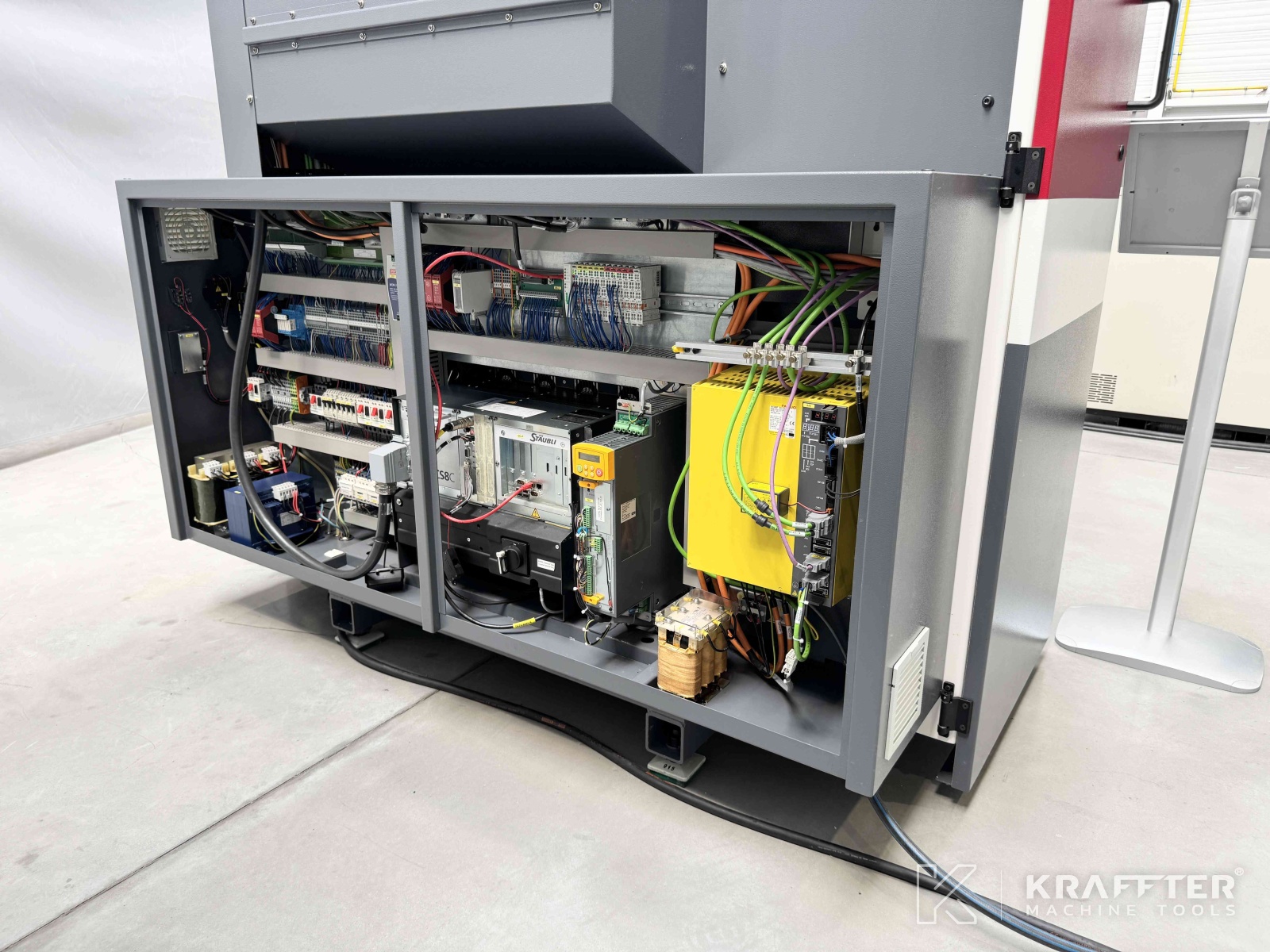

x1 “Electrical Schematics” manual
x1 “Accessories” catalog

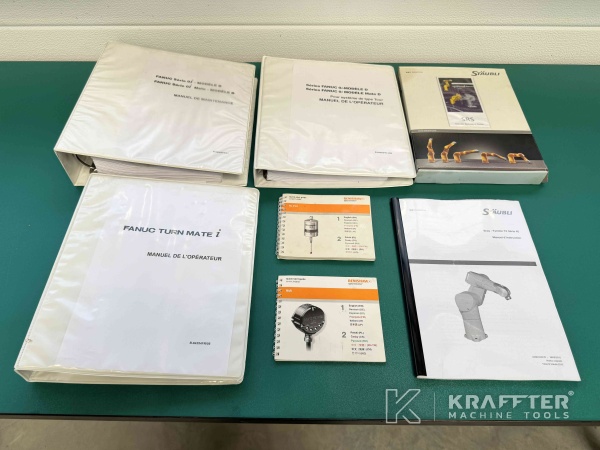

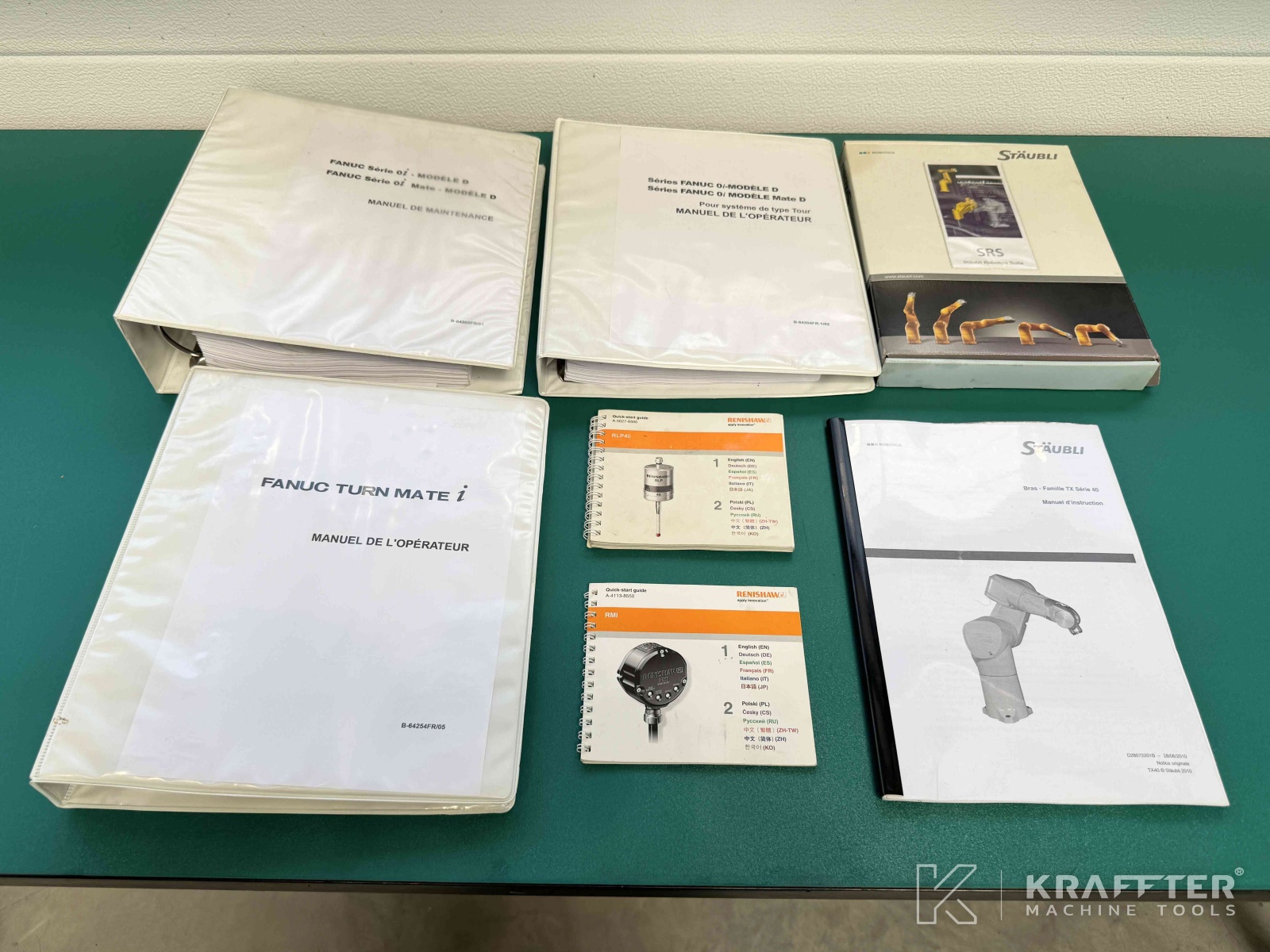

Various technical manuals (SCHAUBLIN, FANUC, STÄUBLI, etc.)
