Sold

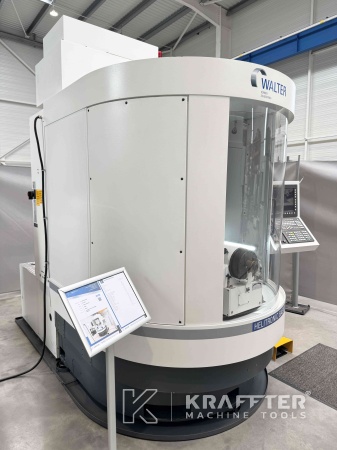

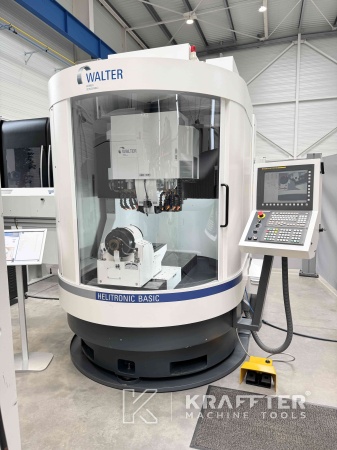

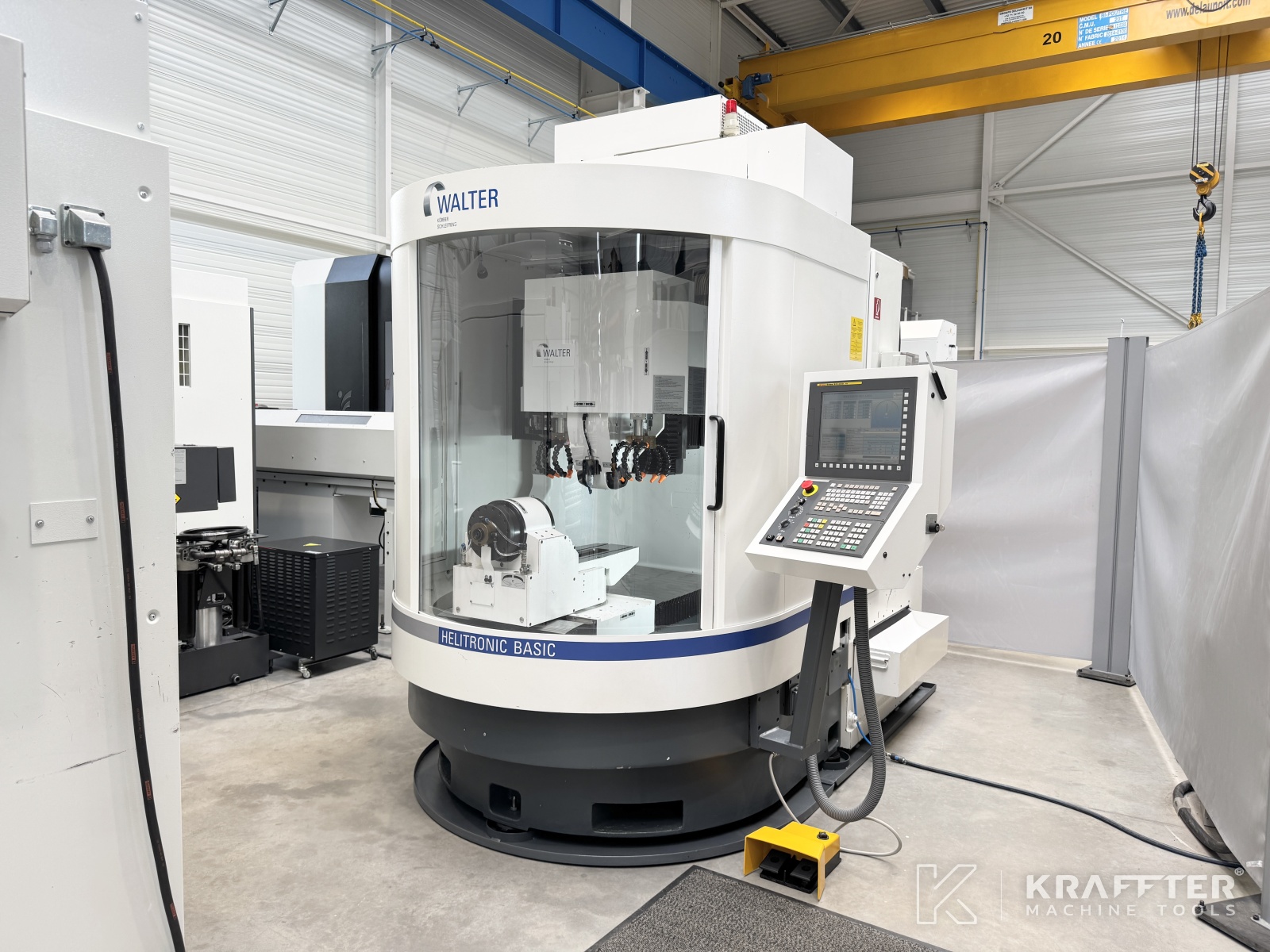

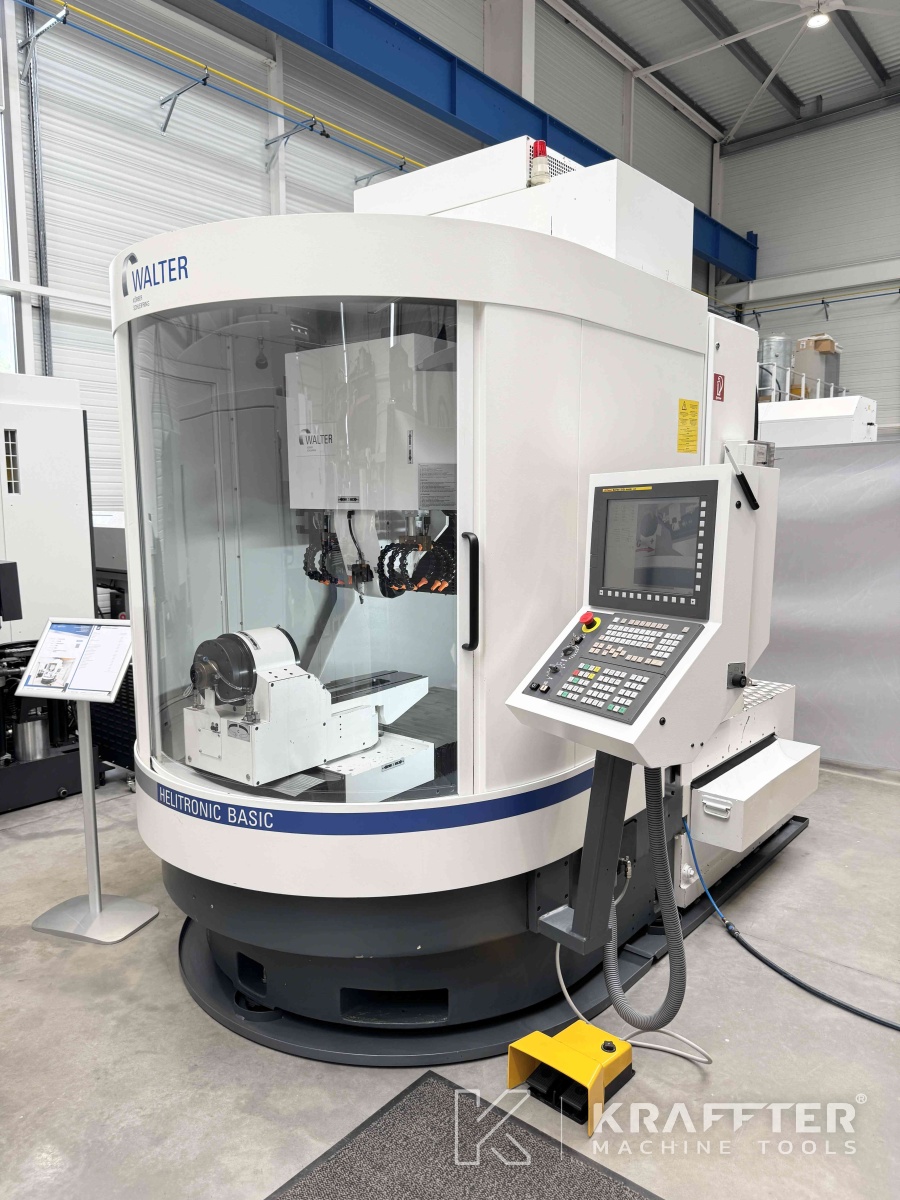

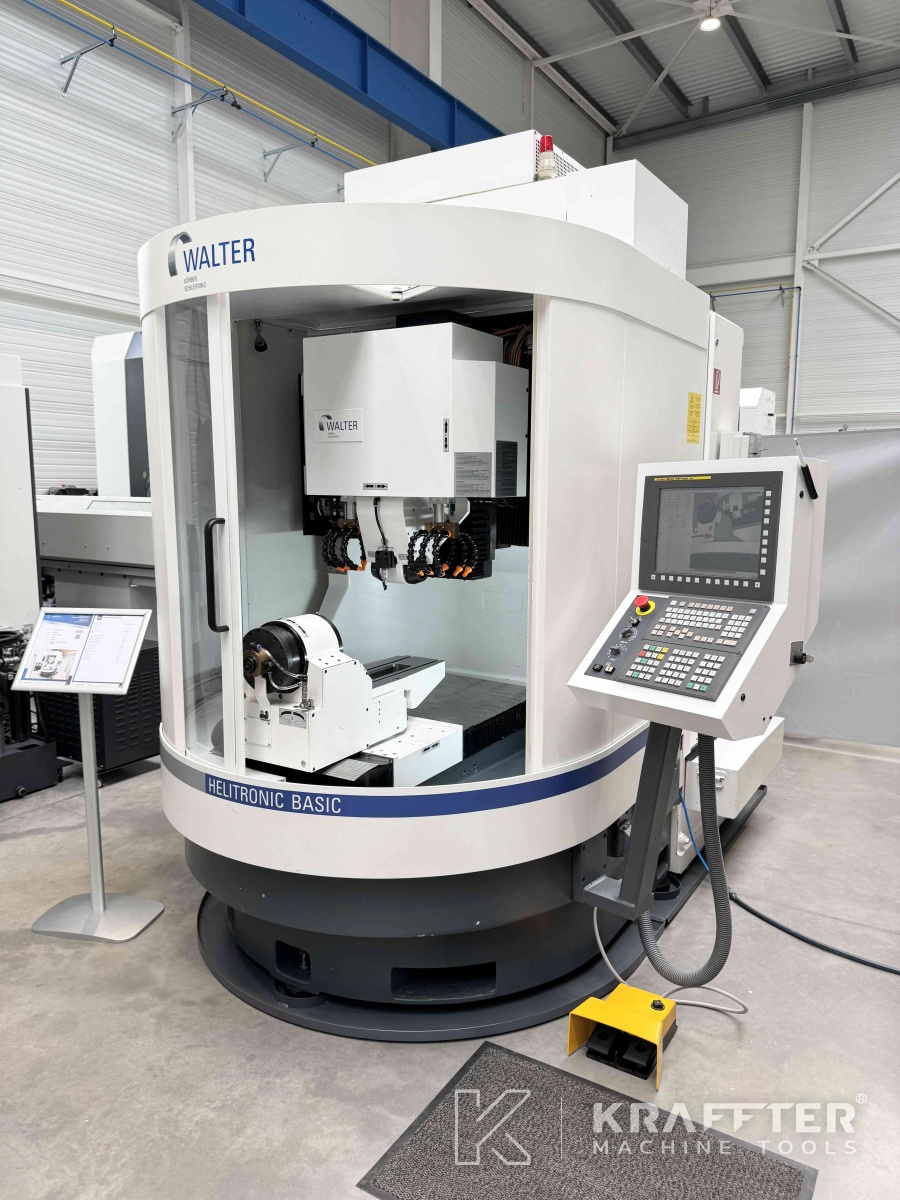

Type of machine : CNC tool grinding machine
Brand : WALTER
N° de stock: 90142
Model : Helitronic Basic
Year : 2008
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

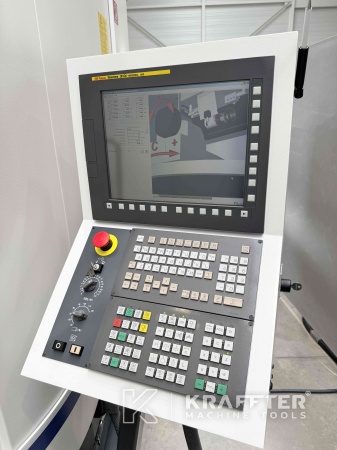

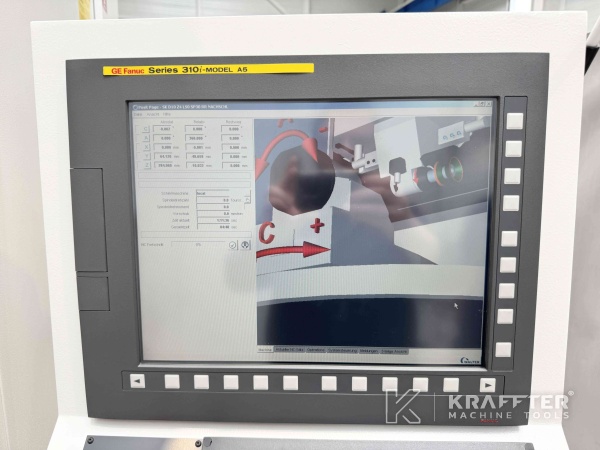

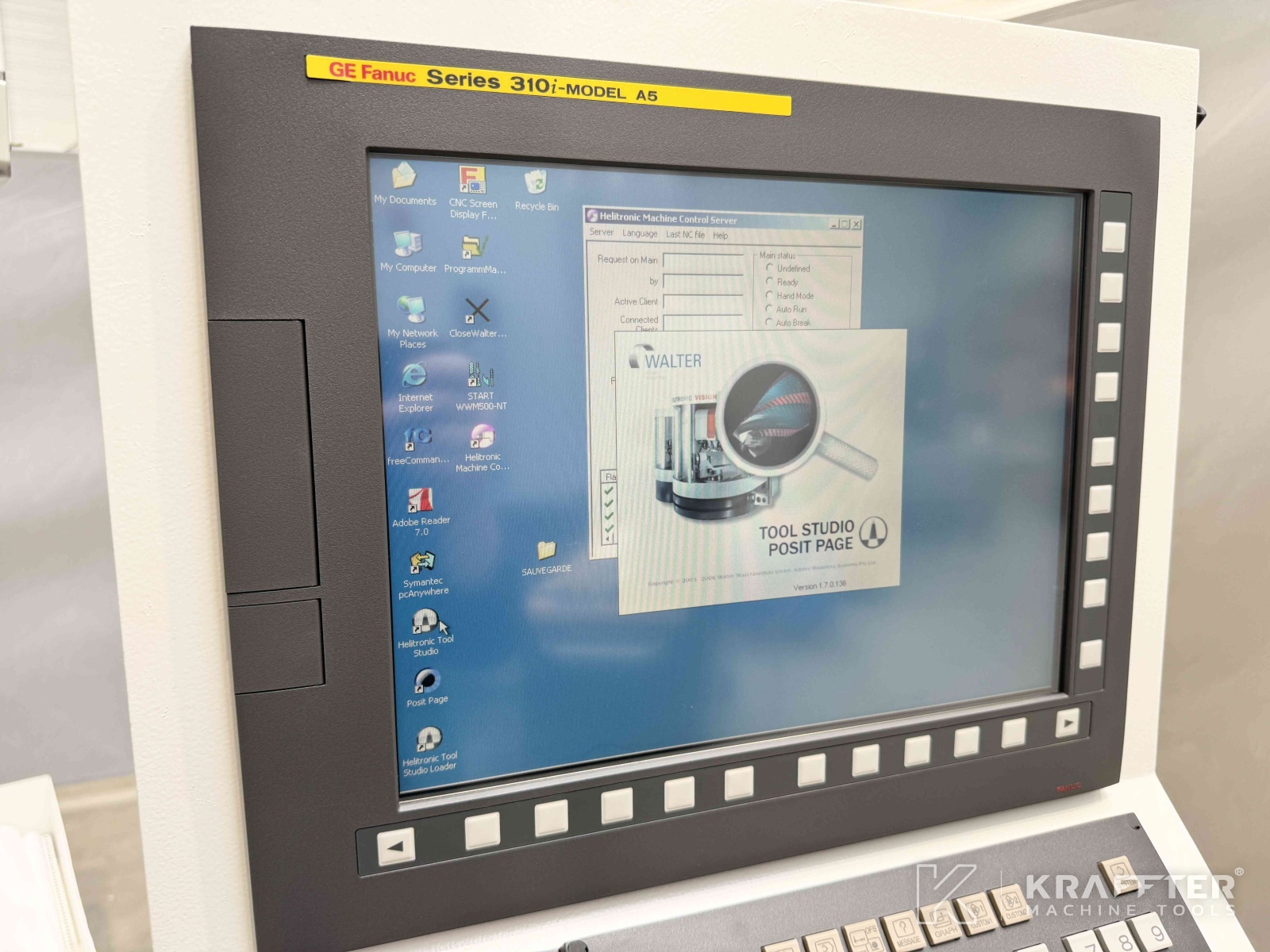

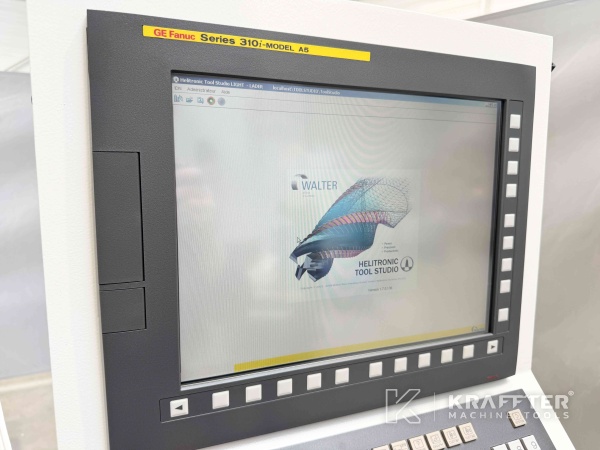

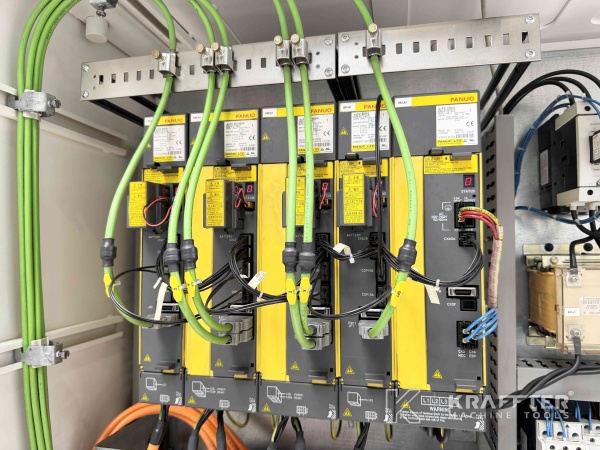

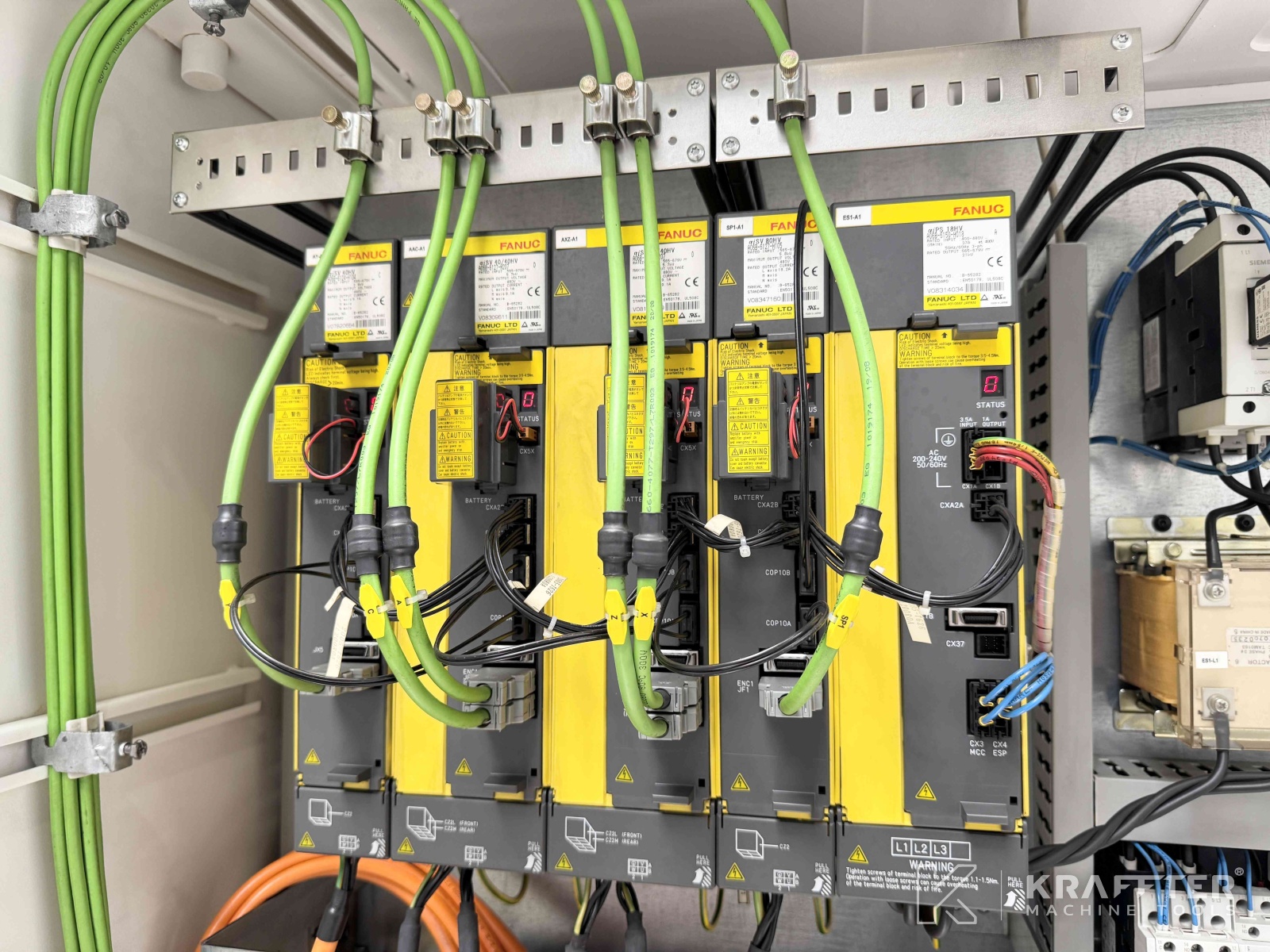

CNC control
FANUC 310i - MODEL A5
Software installed
Tool Studio Version 1.70.0.136
Number of axes
5
Stroke X axis
470 [mm]
Stroke Y axis
330 [mm]
Stroke Z axis
640 [mm]
Traversing feeds X, Y and Z axes
15000 [mm/min]
Stroke A axis
360 [°]
Stroke C axis
+/- 200 [°]
Max. workpiece lenght : complete processing
255 [mm]
Max. workpiece lenght : peripheral grinding
350 [mm]
Max. workpiece lenght : end face grinding
280 [mm]
Max. grinding diameter
320 [mm]
Max. grinding diameter with automated work table
290 [mm]

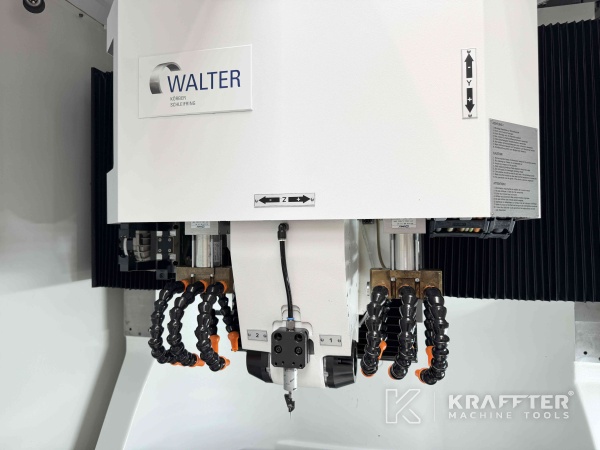

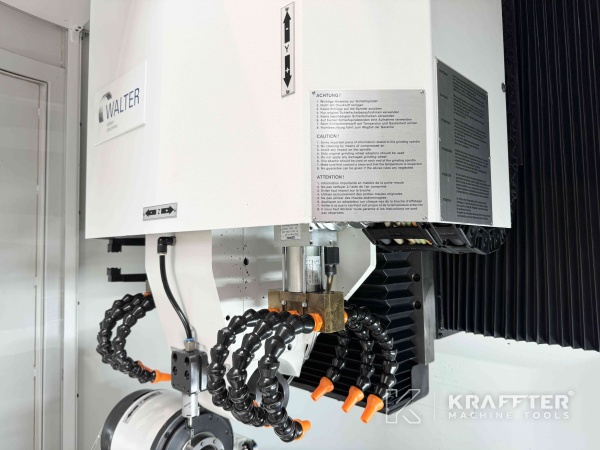

Grinding spindle attachment
NCT
Grinding spindle diameter
70 [mm]
Grinding wheel speed
10500 [rpm]
Grinding spindle motor power
7 [kW]
Max. diameter grinding wheel
150 [mm]

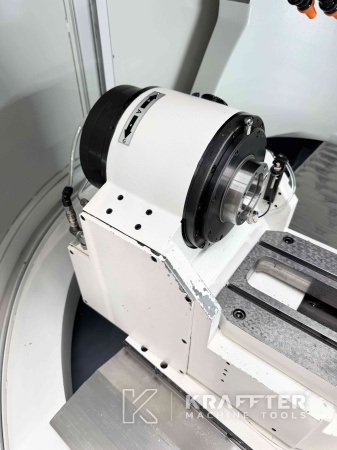

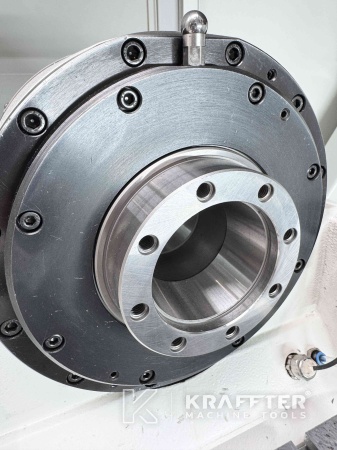

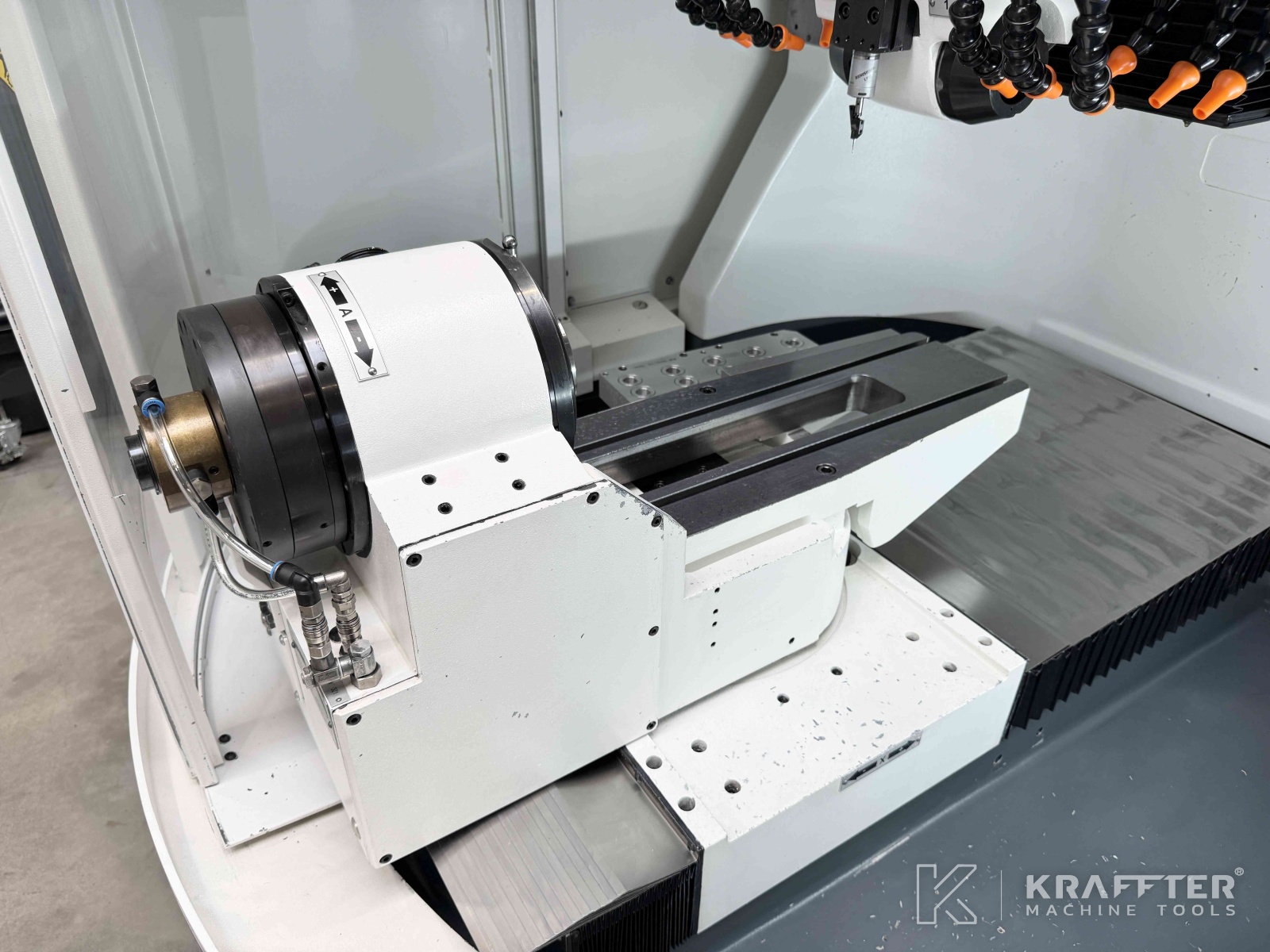

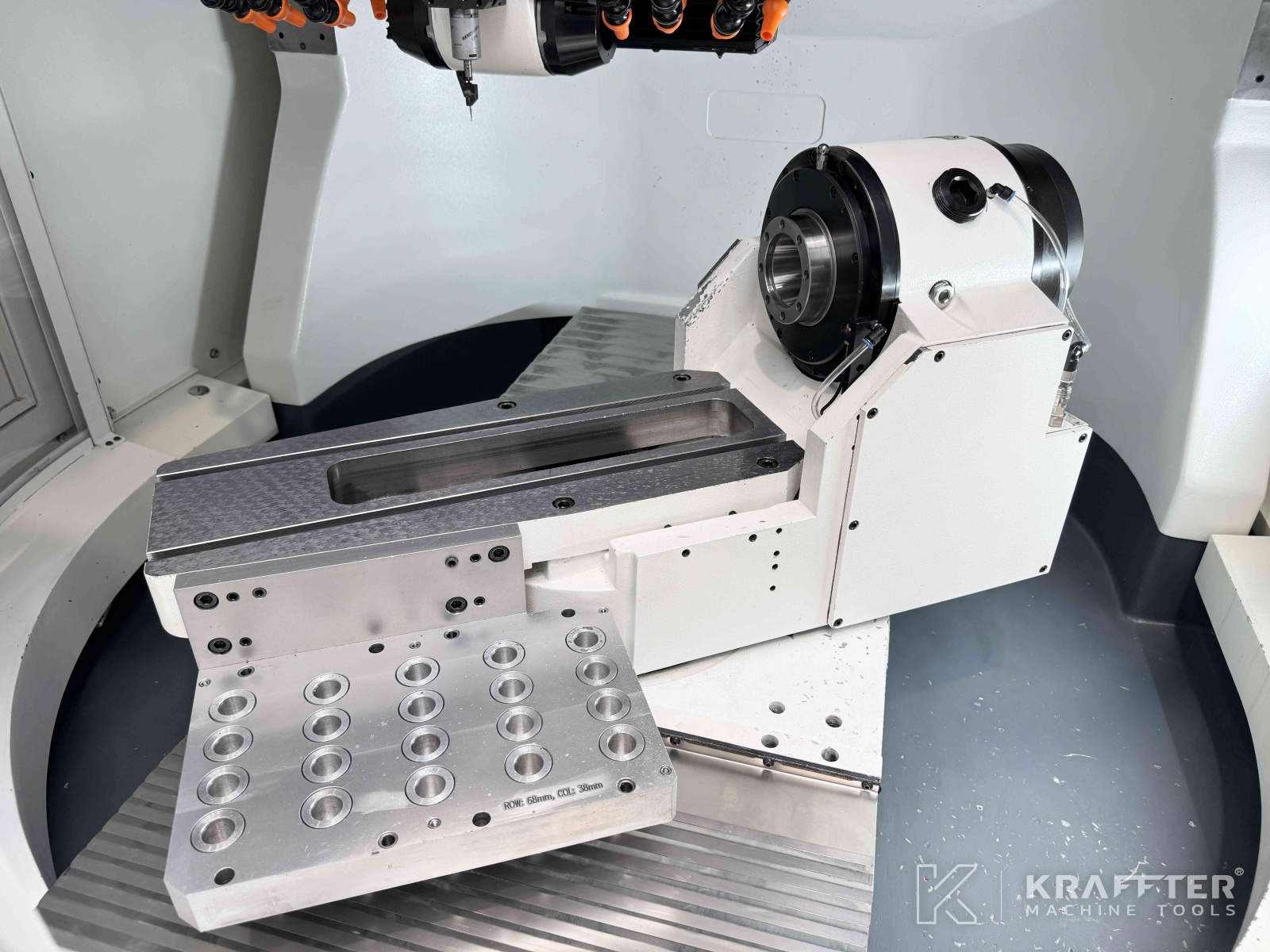

Workpiece spindle nose
ISO 50
Max. part weight in part holder headstock
20 [Kg]
Number of running hours
10755 [h]
Coolant pump pressure
7 [bar]
Collant pump flow rate
80 [l/min]
Lubrication tank capacity
350 [l]
Supply voltage
400 [V]
Weight
4500 [Kg]
Additional information
EQUIPMENT INCLUDED:
x1 Software TOOL STUDIO 1.7
x1 ECO LOADER automatic tool loader

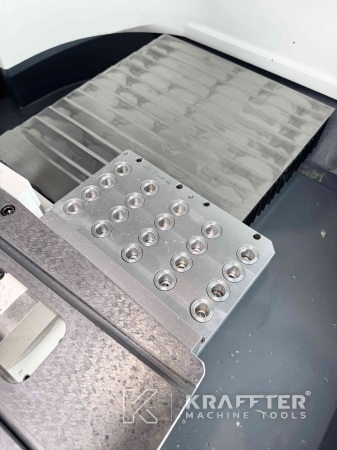

x1 tool palett (20 positions)
x1 automatic tool clamping unit

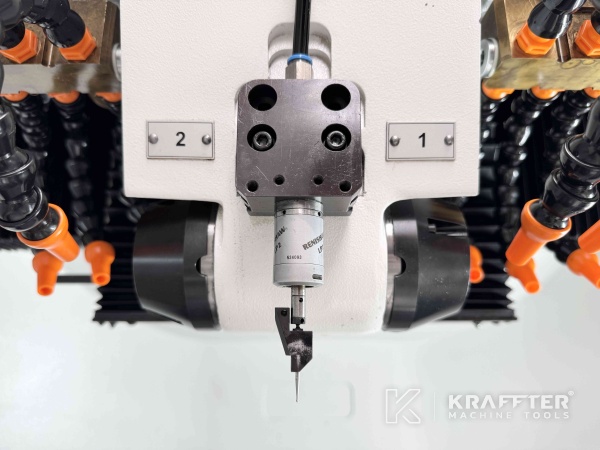

x1 RENISHAW tool probe
x1 calibration ball option : automatic calibration of X, Y and Z axes

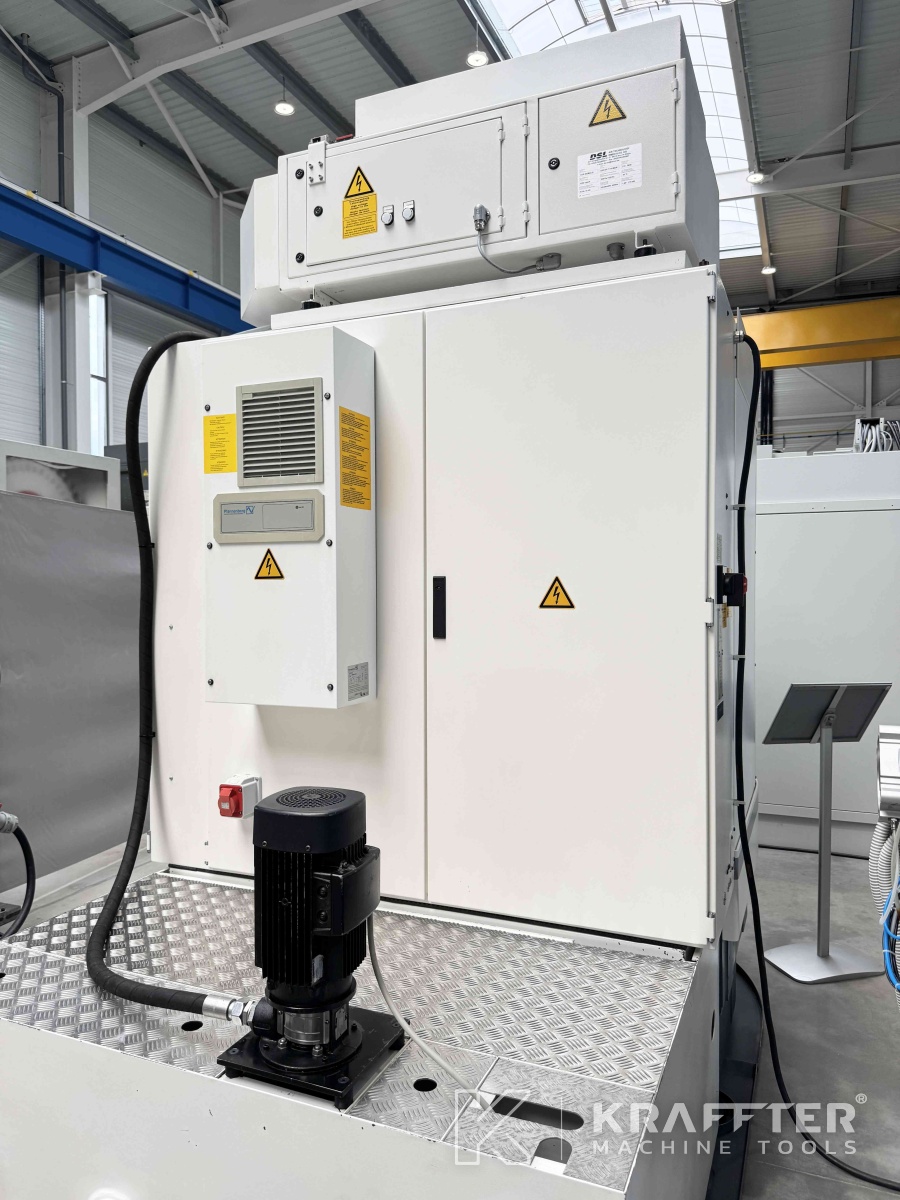

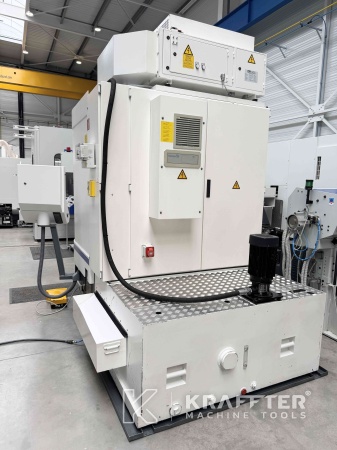

x1 DSL AIR TECHNOLOGY AES-SIGMA 20 type oil mist extractor
x1 lubrication tank

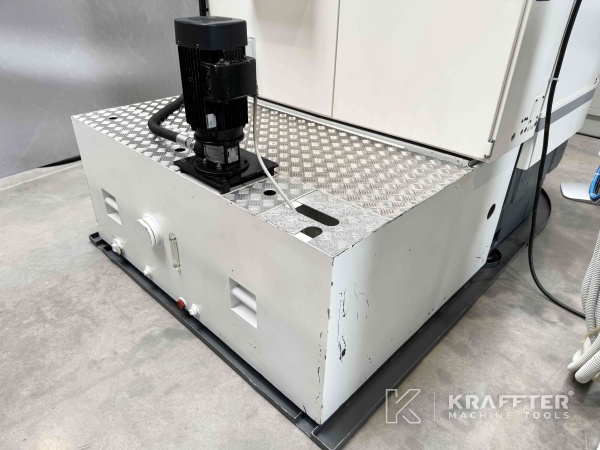

x1 paper band filtration unit
x1 GRUNDFOS coolant pump

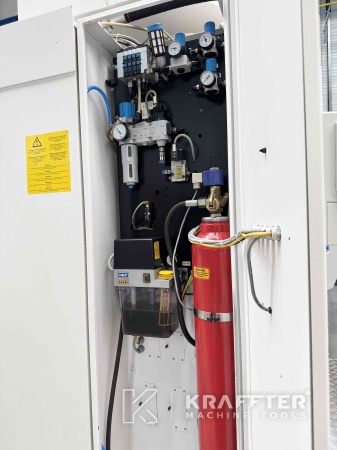

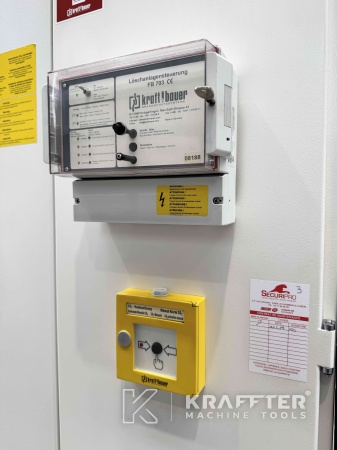

x1 fire-fighting system (to be inspected by the purchaser by a qualified body)

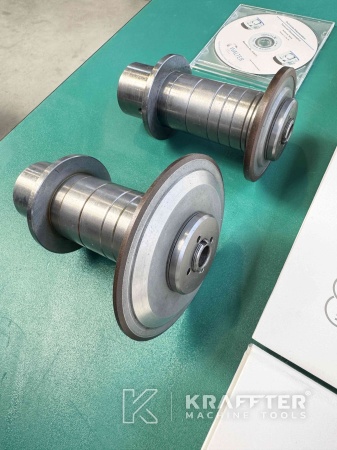

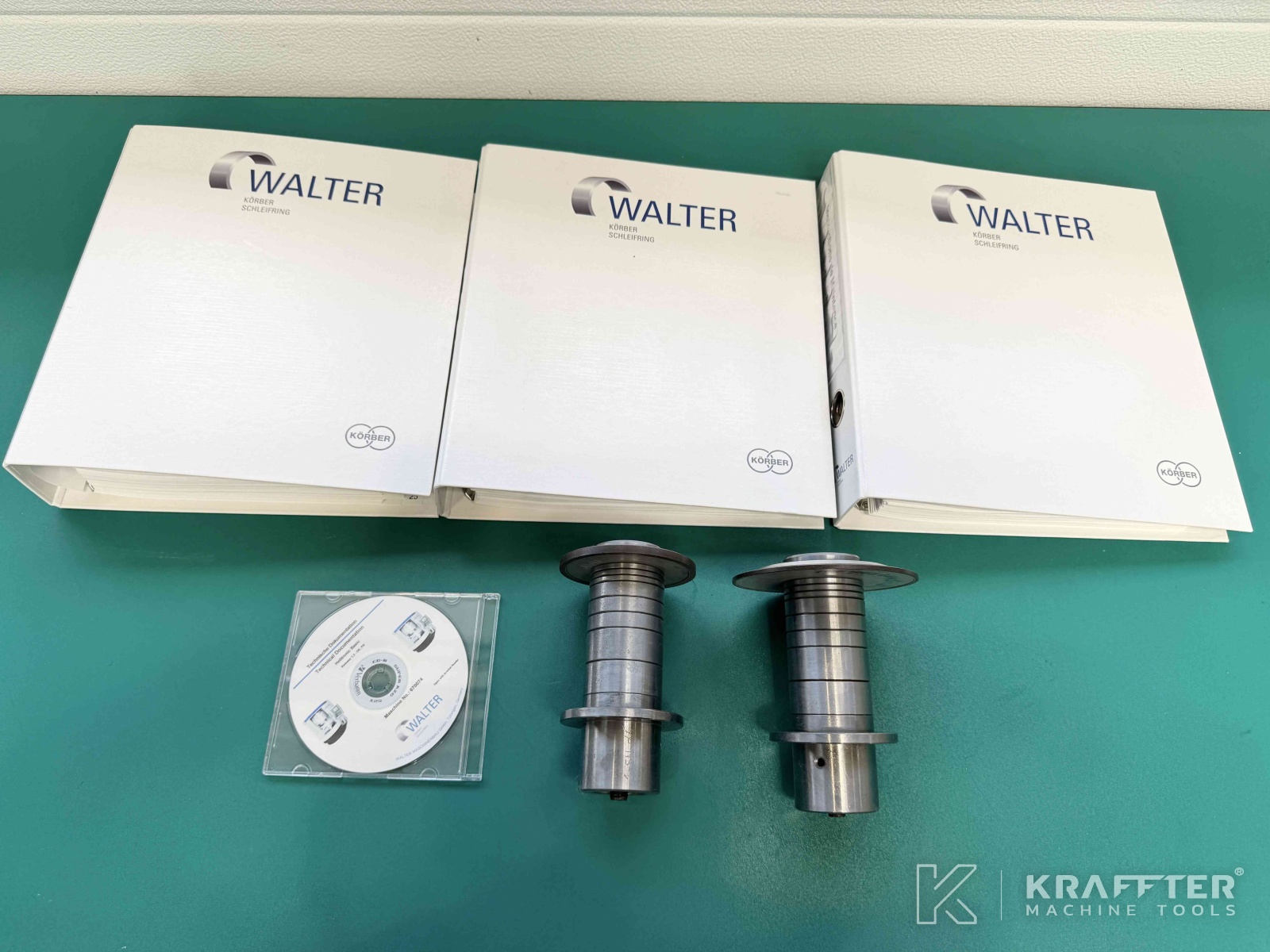

x2 wheel flanges + spacers
x1 machine parameter backup
x3 technical manuals (paper format)
x1 technical documentation (CD-ROM format)
