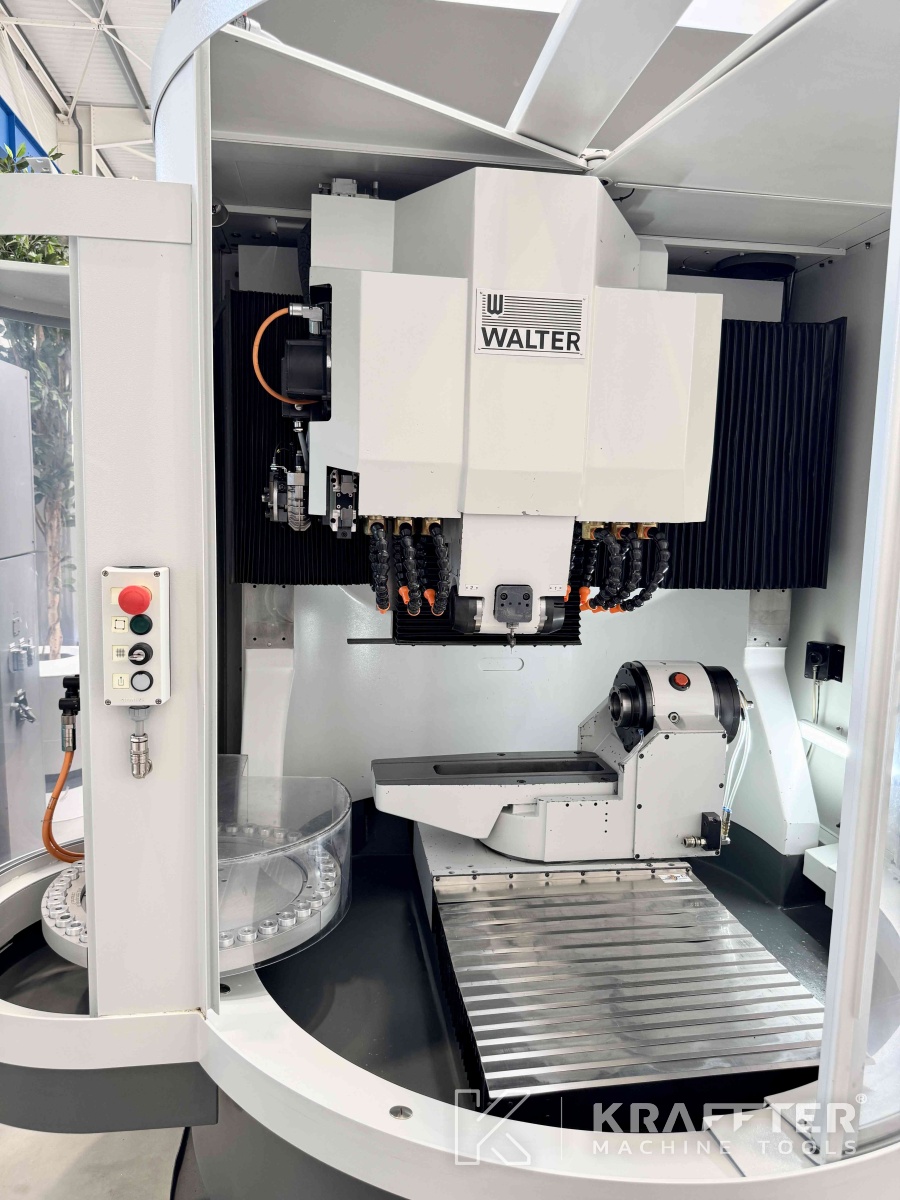

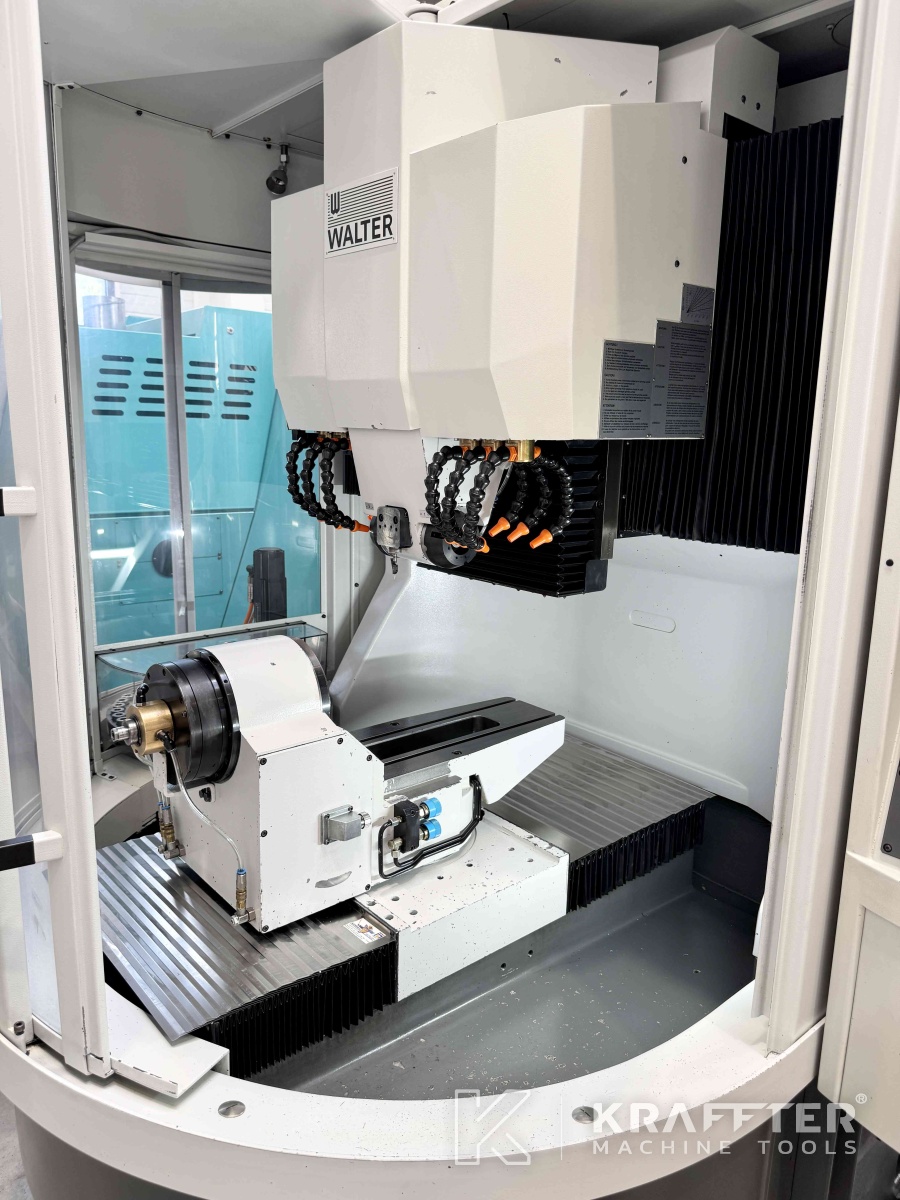

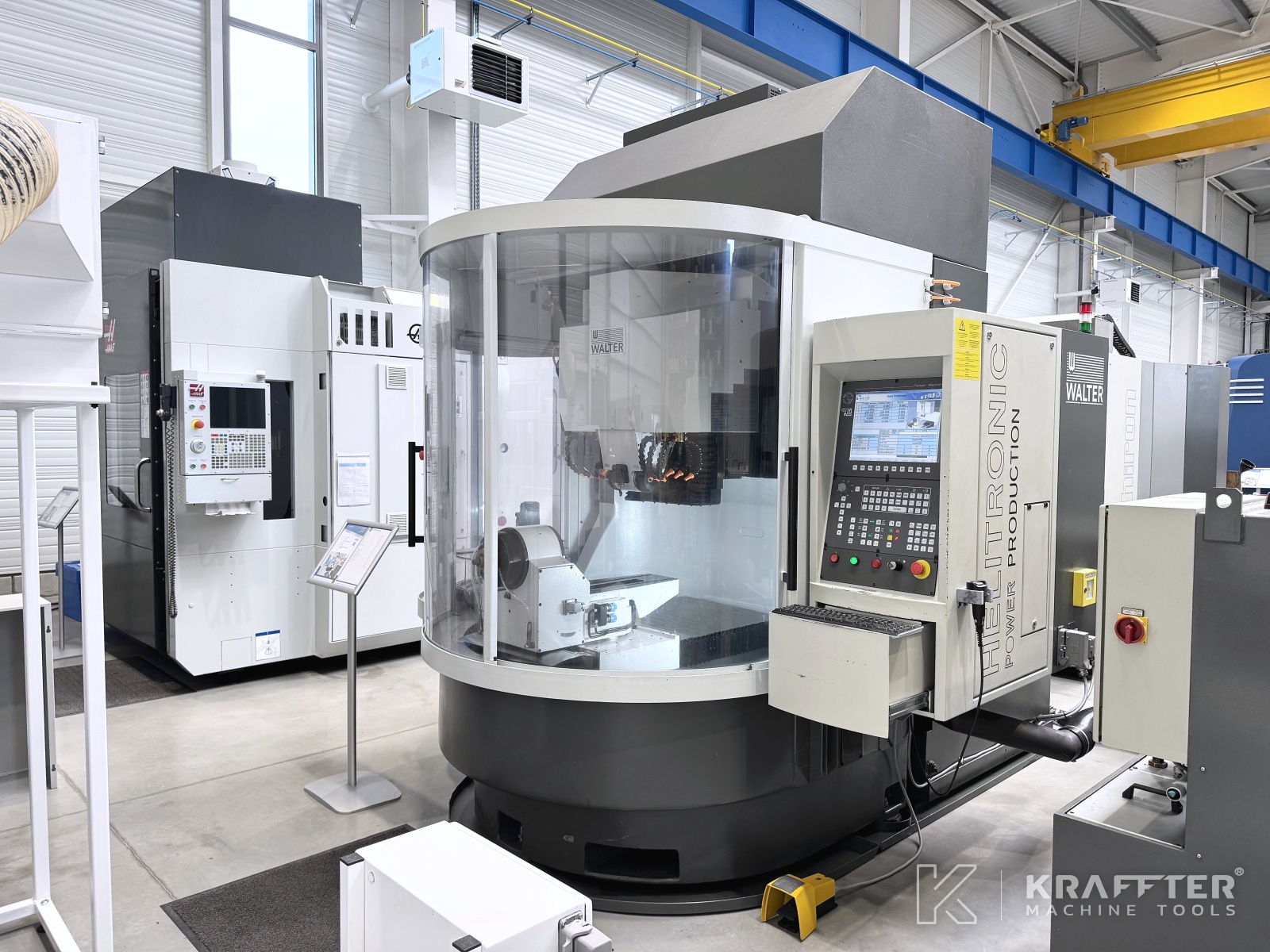

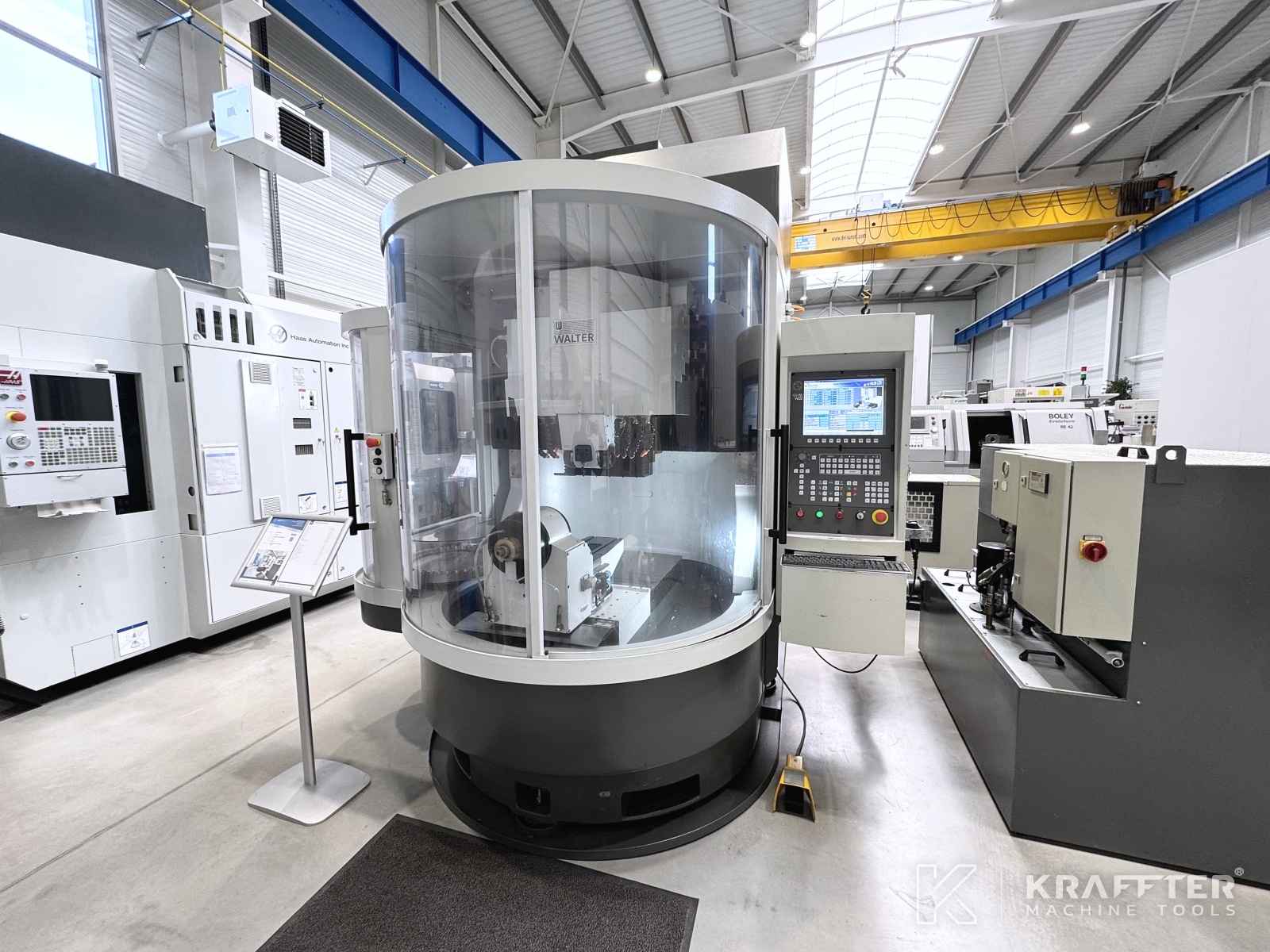

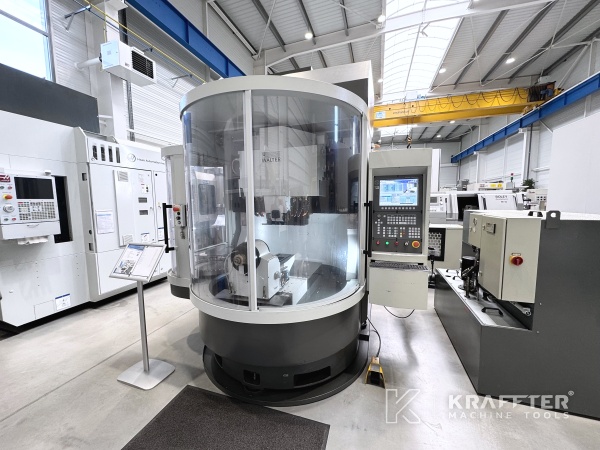

Type of machine : CNC tool grinding machine
Brand : WALTER
N° de stock: 90148
Model : Helitronic Power Production
Year : 2003
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

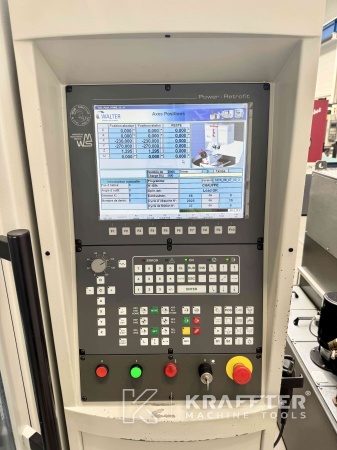

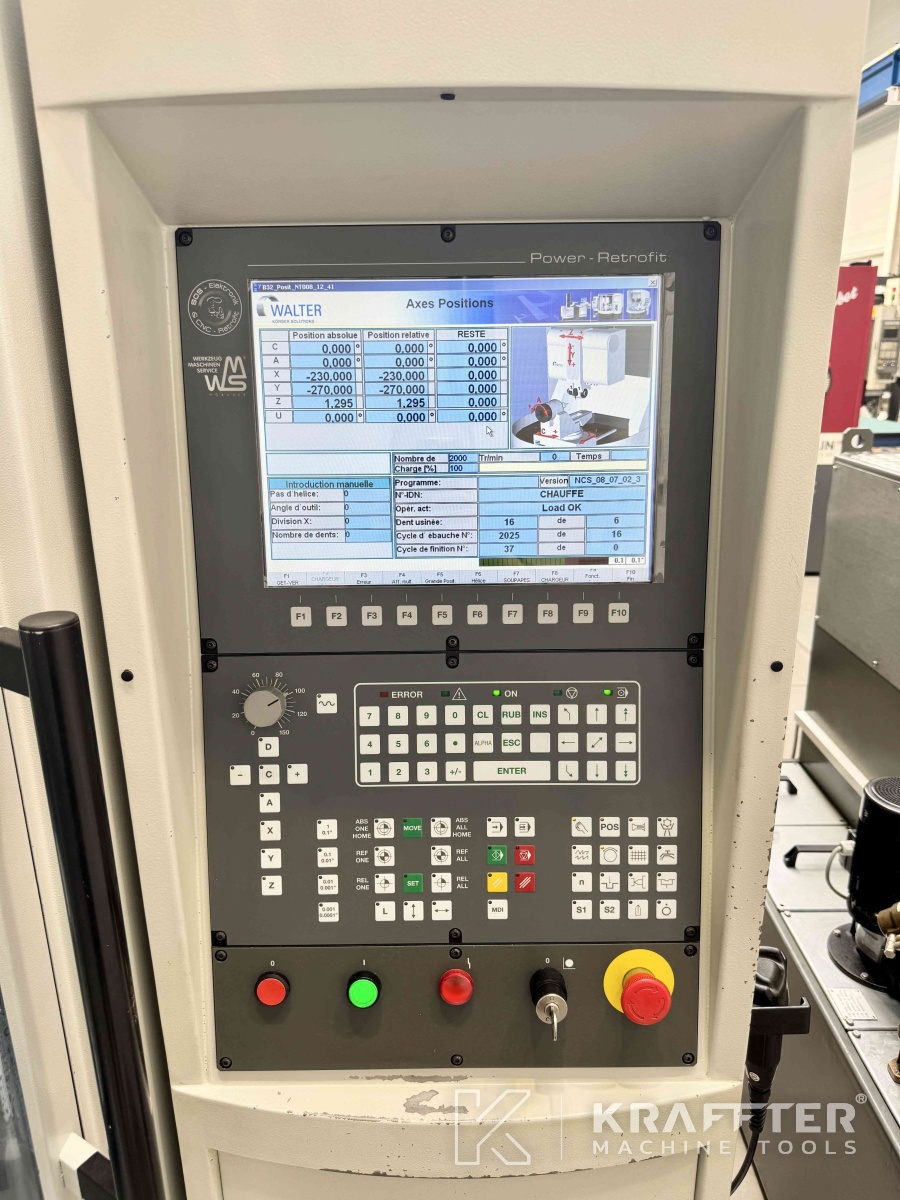

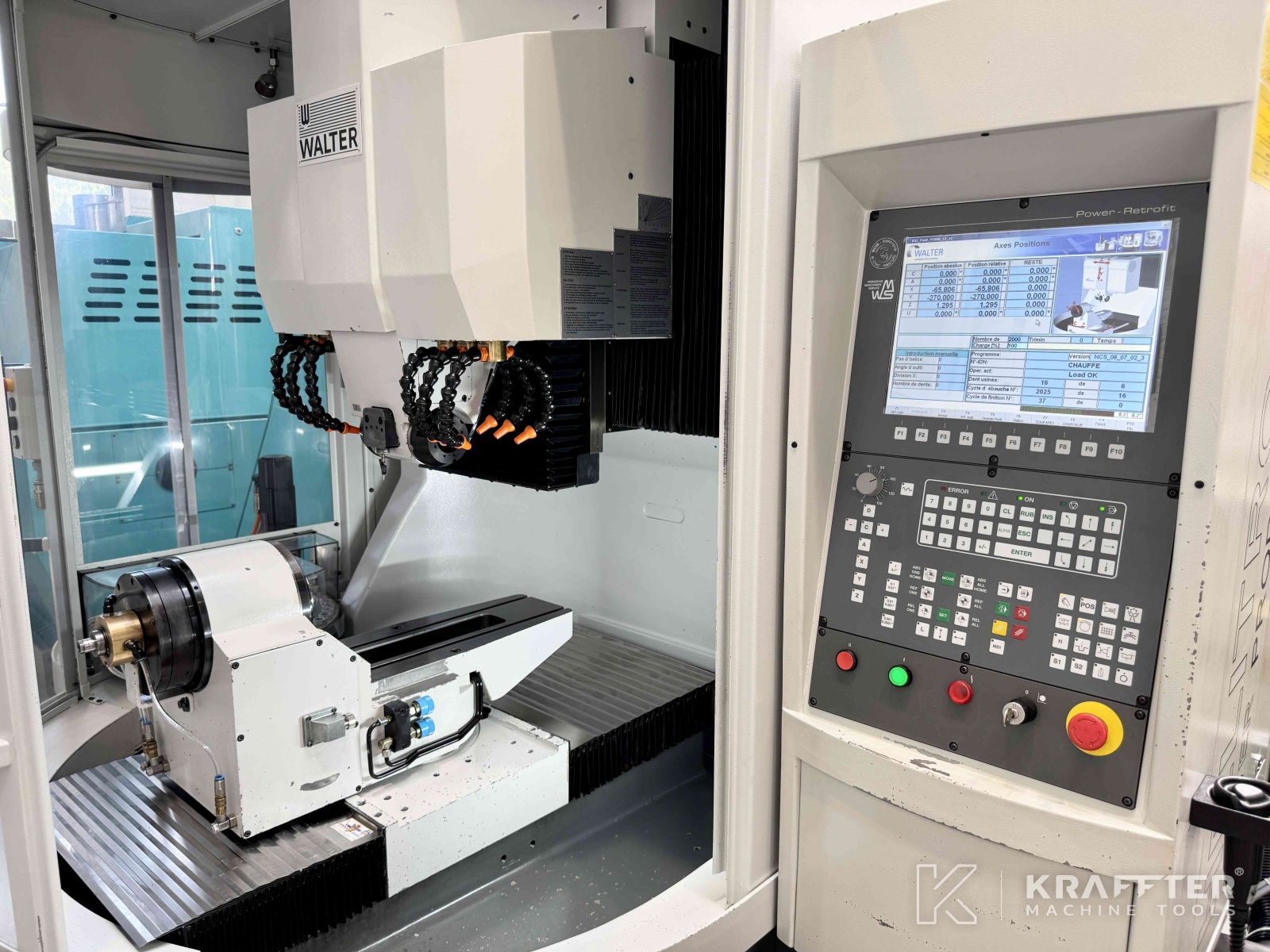

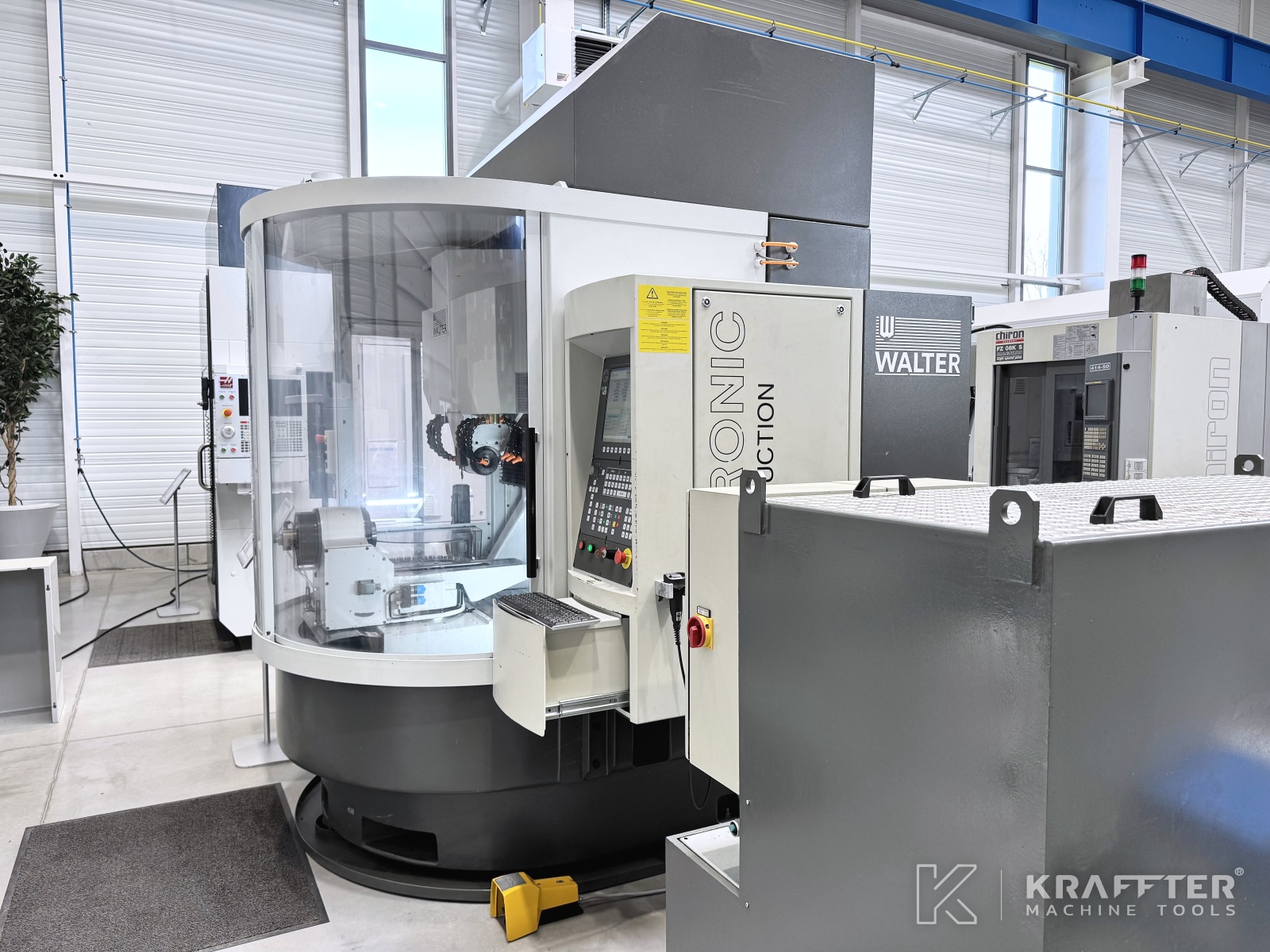

CNC control
HMC 500

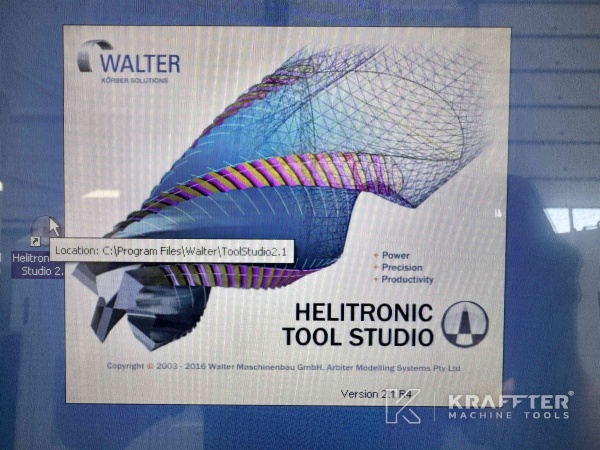

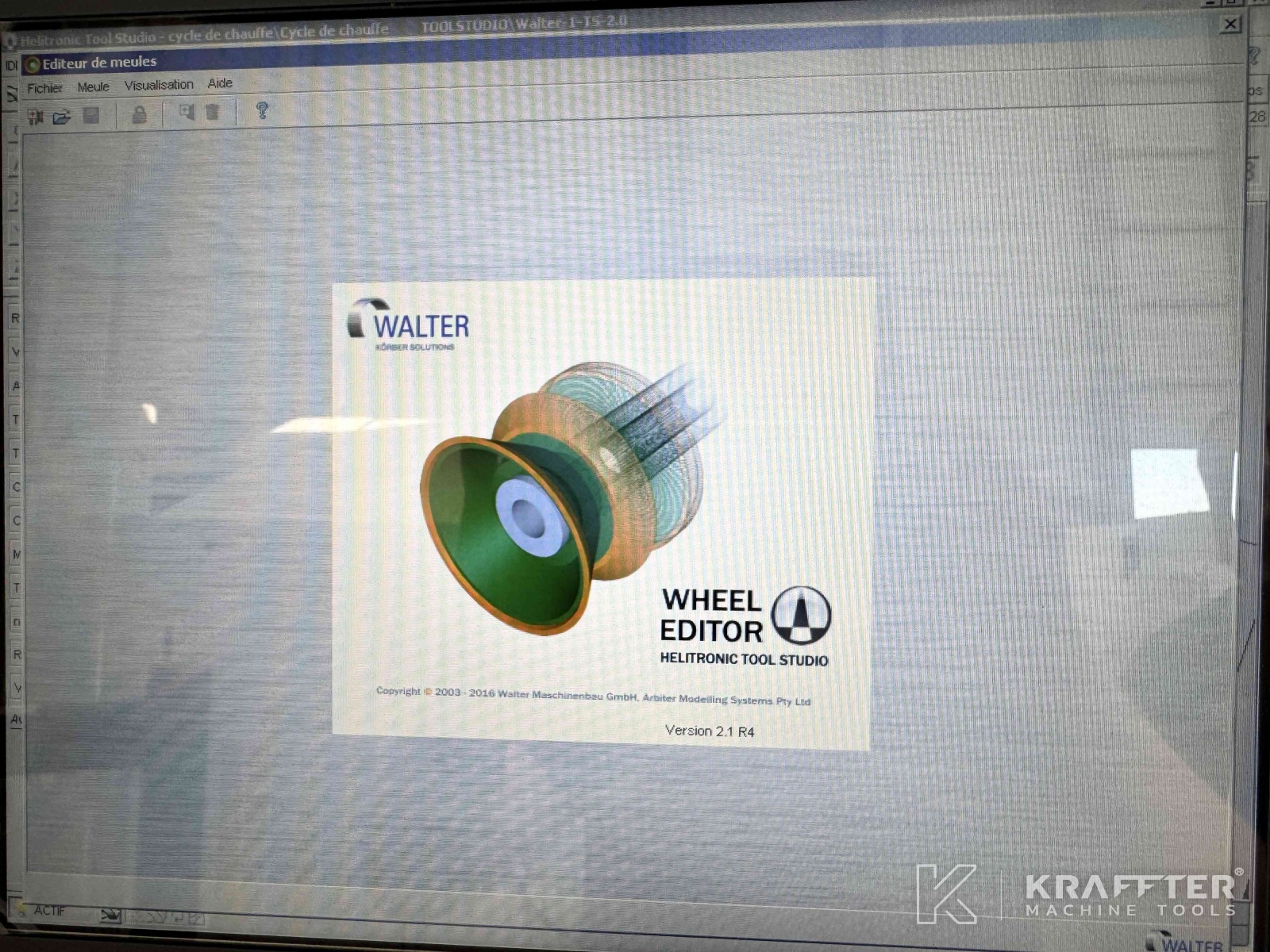

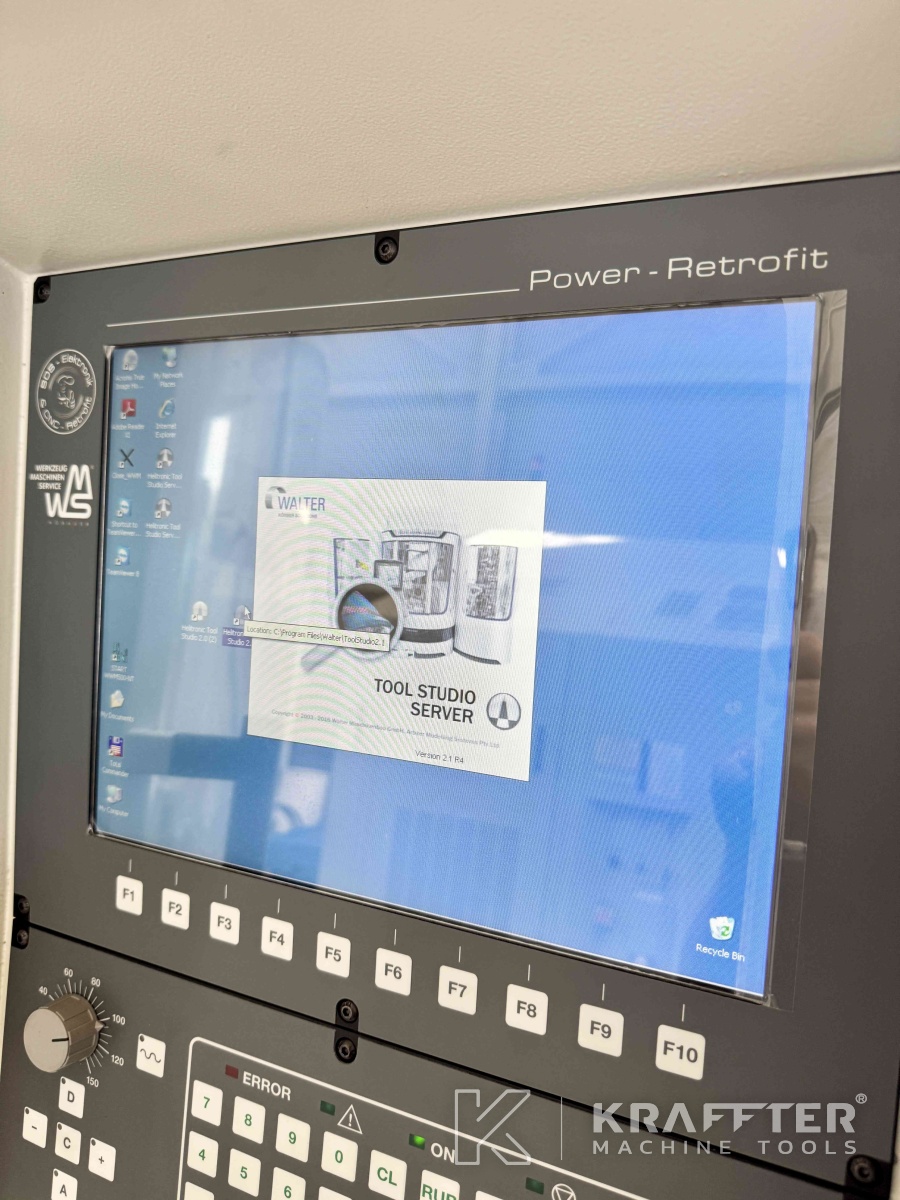

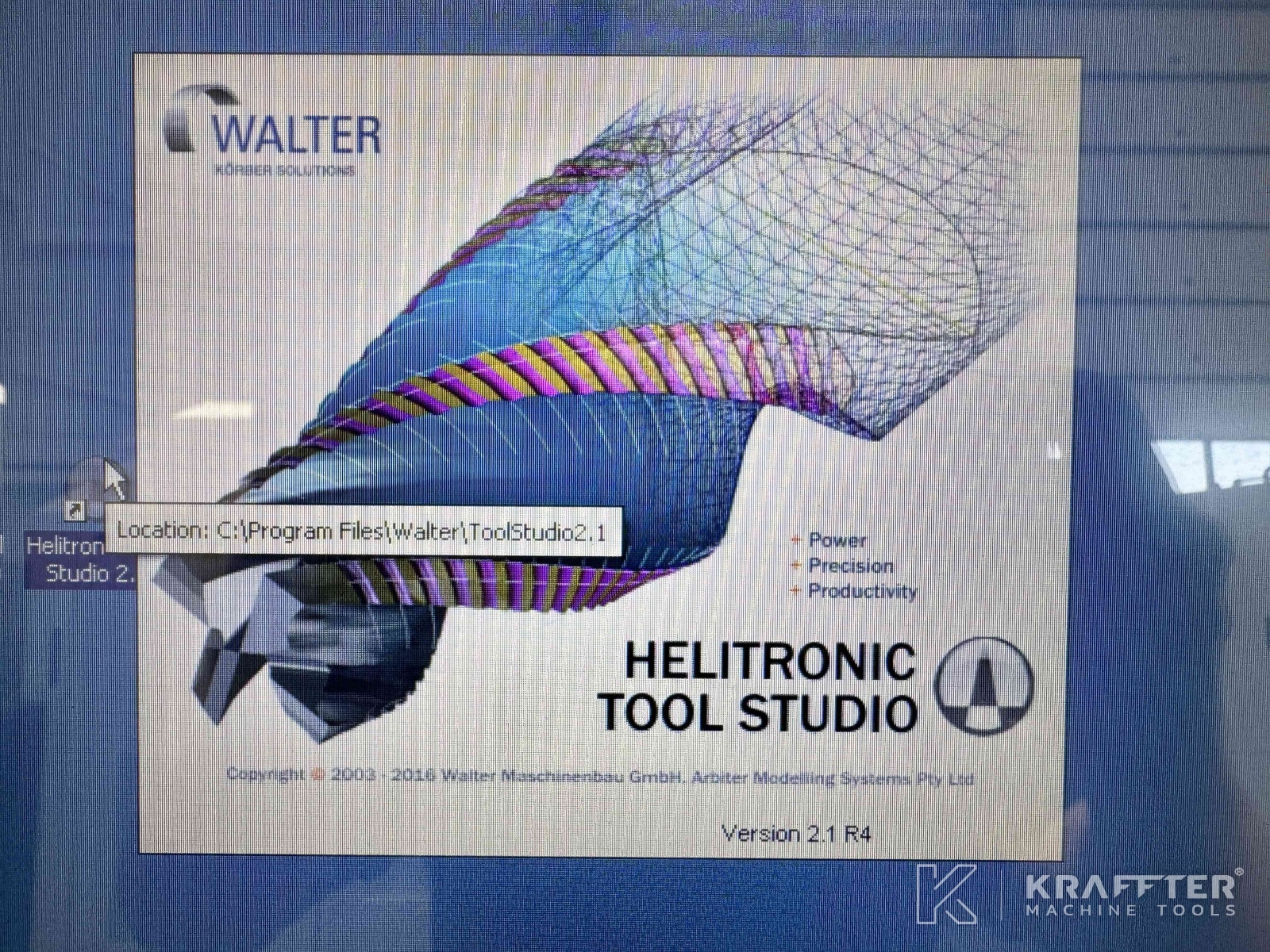

Software installed
Tool Studio 2.1 R4
Number of axes
5
Height of centers
190
Stroke X axis
490 [mm]
Resolution X axis
0.00001 [mm]
Stroke Y axis
320 [mm]
Resolution Y axis
0.00001 [mm]
Stroke Z axis
660 [mm]
Resolution Z axis
0.00001 [mm]
Traversing feeds X, Y and Z axes
15000 [mm/min]
Stroke A axis
360 [°]
Stroke C axis
+/- 200 [°]
Resolution C axis
0.0001 [°]
Max. workpiece lenght : end face grinding
320 [mm]
Max. grinding lenght
350 [mm]
Max. grinding diameter
320 [mm]

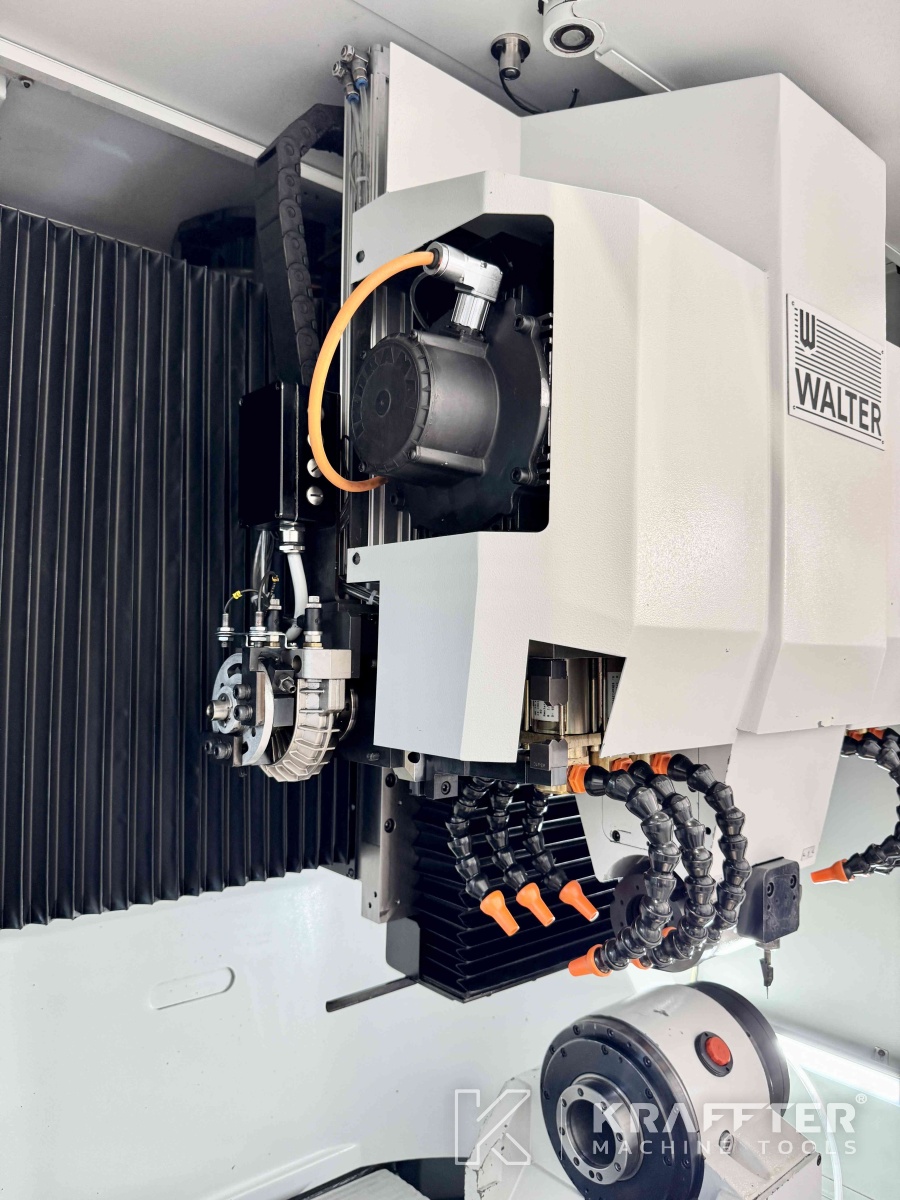

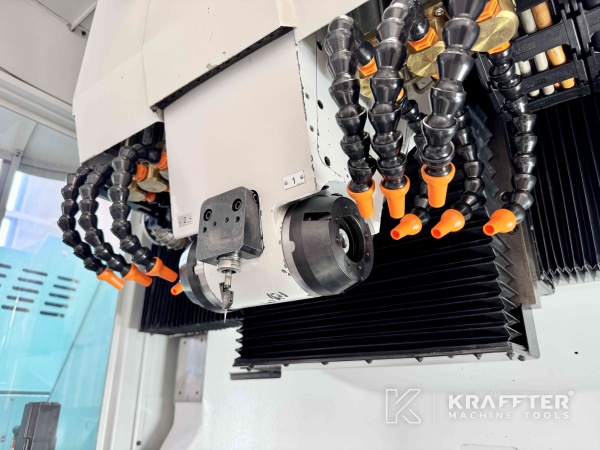

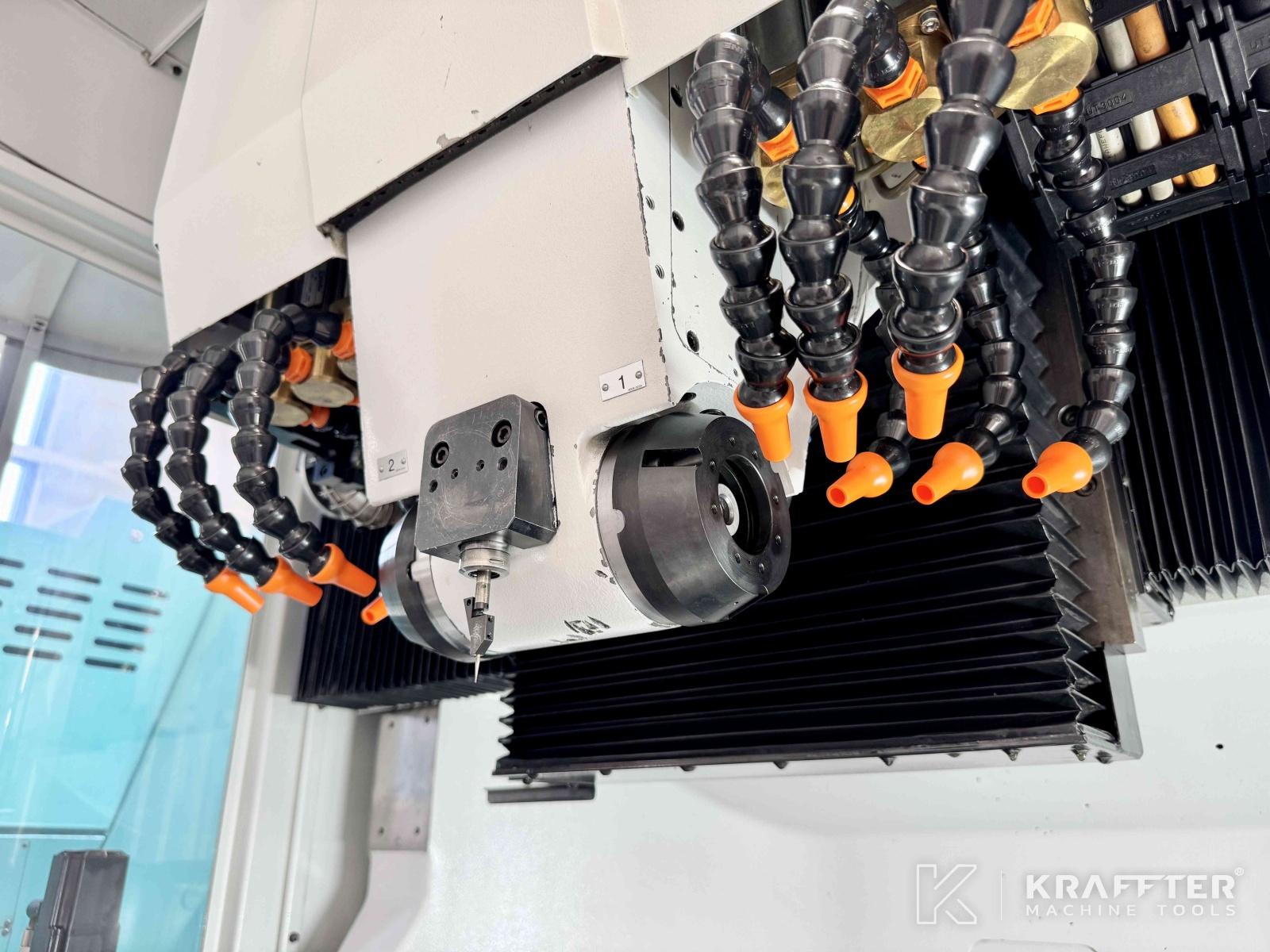

Grinding spindle attachment
NCT
Grinding spindle diameter
80 [mm]
Max. grinding wheel speed
7000 [rpm]
Grinding spindle motor power
24 [kW]
Max. diameter grinding wheel
200 [mm]

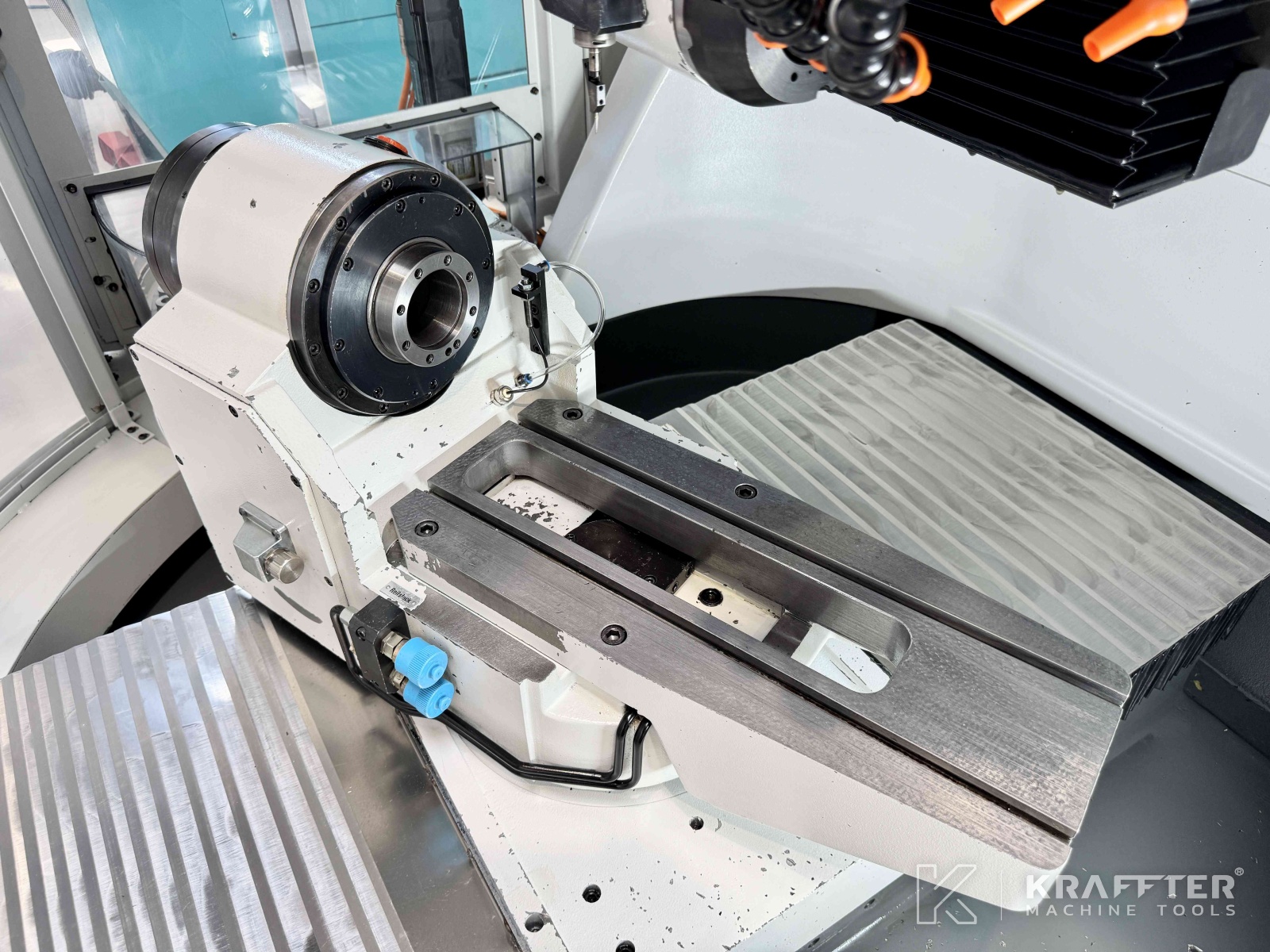

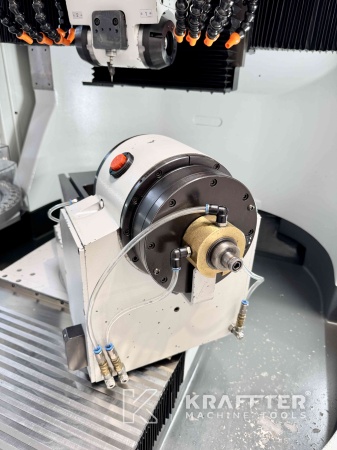

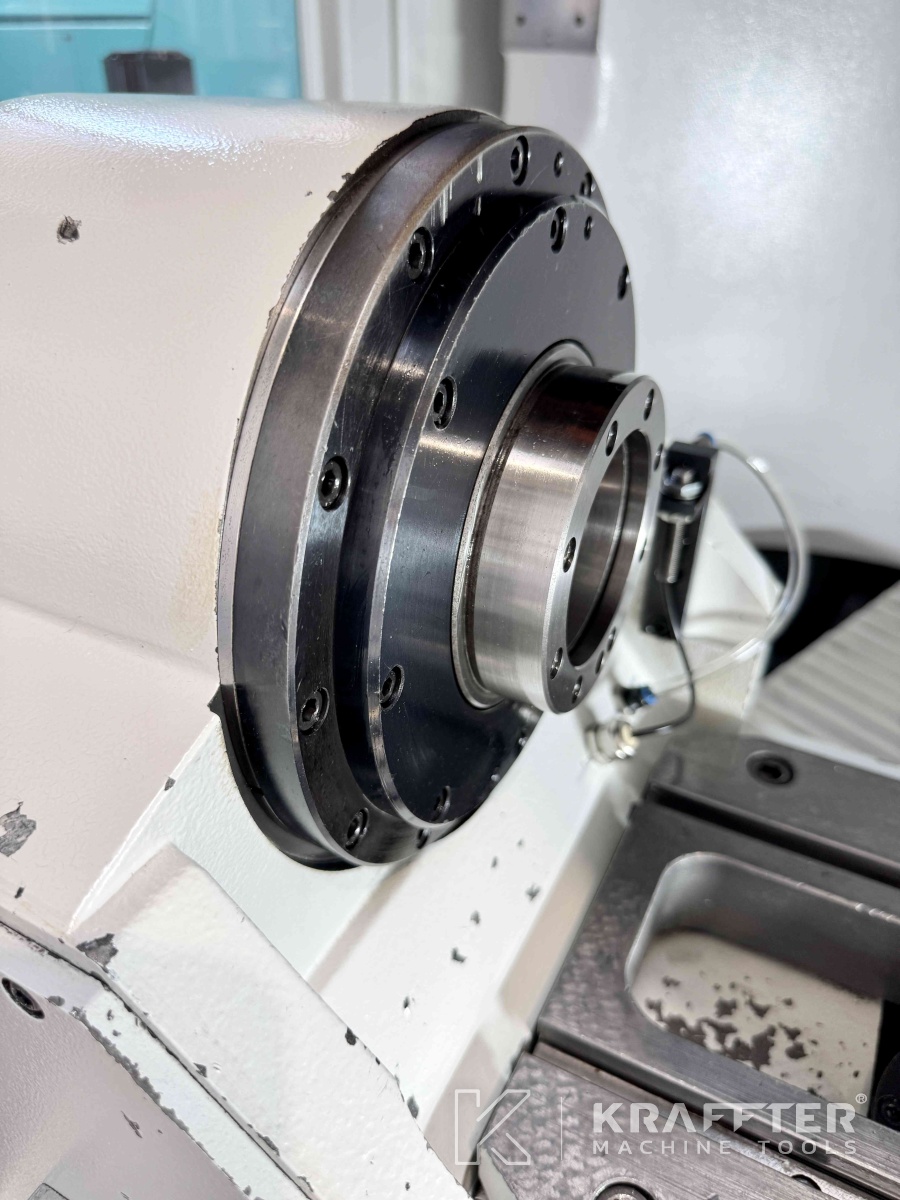

Internal workpiece spindle nose
ISO 50
Workpiece spindle max. speed
60 [rpm]

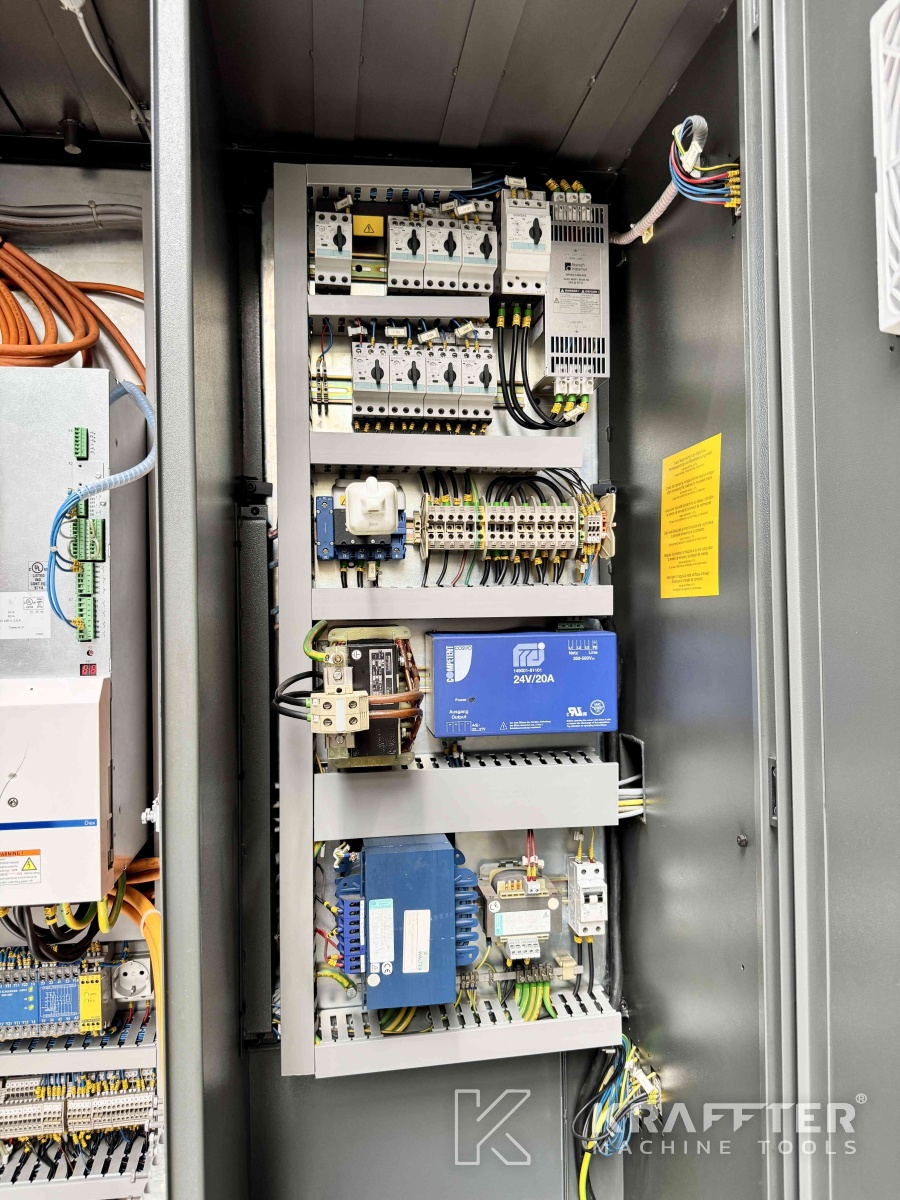

Total power required
35 [kVA]
Weight
4650 [Kg]
Additional information
EQUIPMENT INCLUDED:

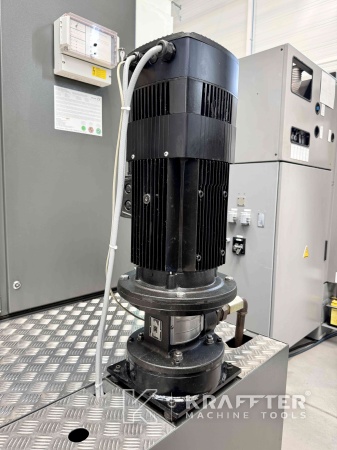

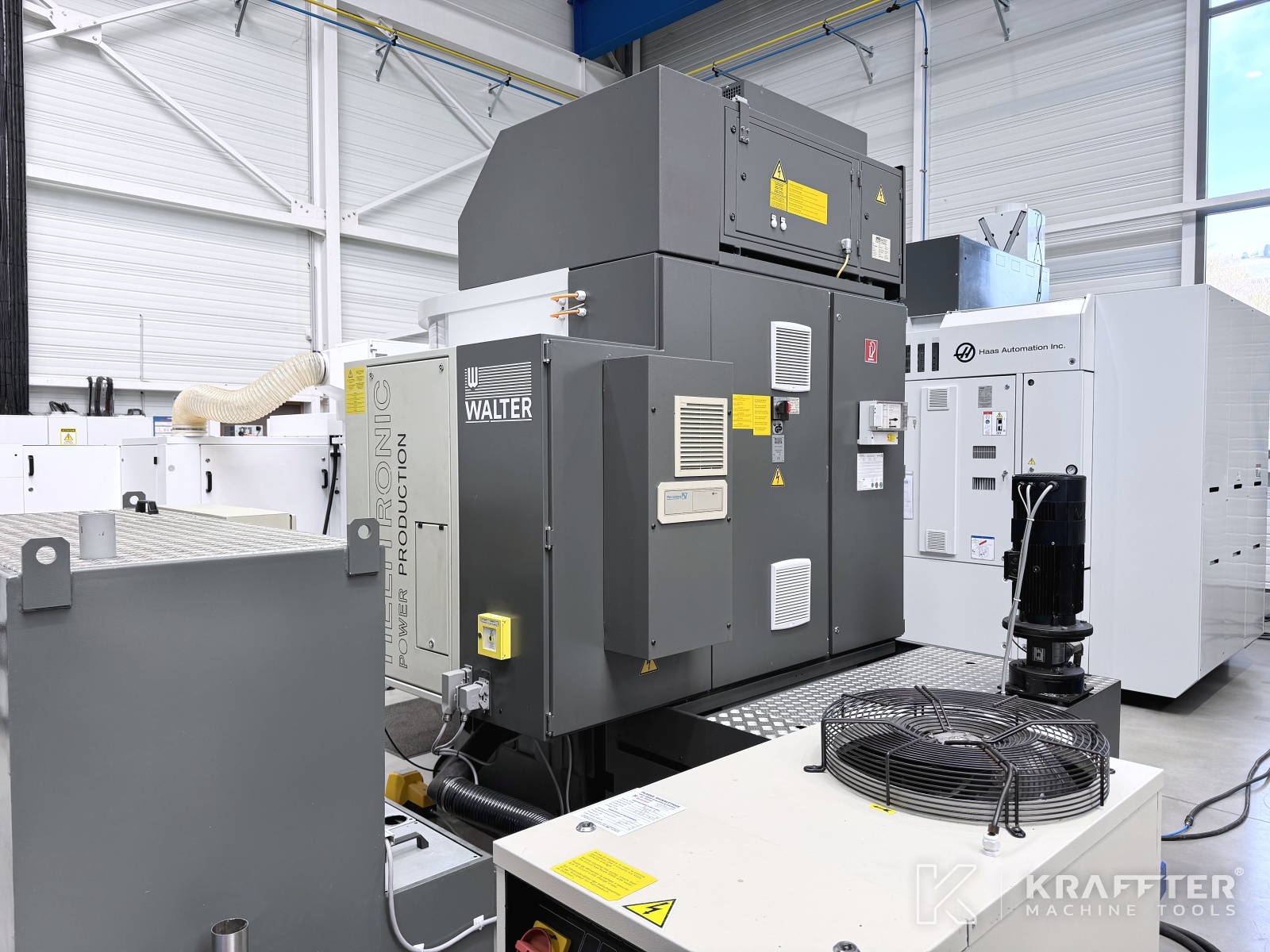

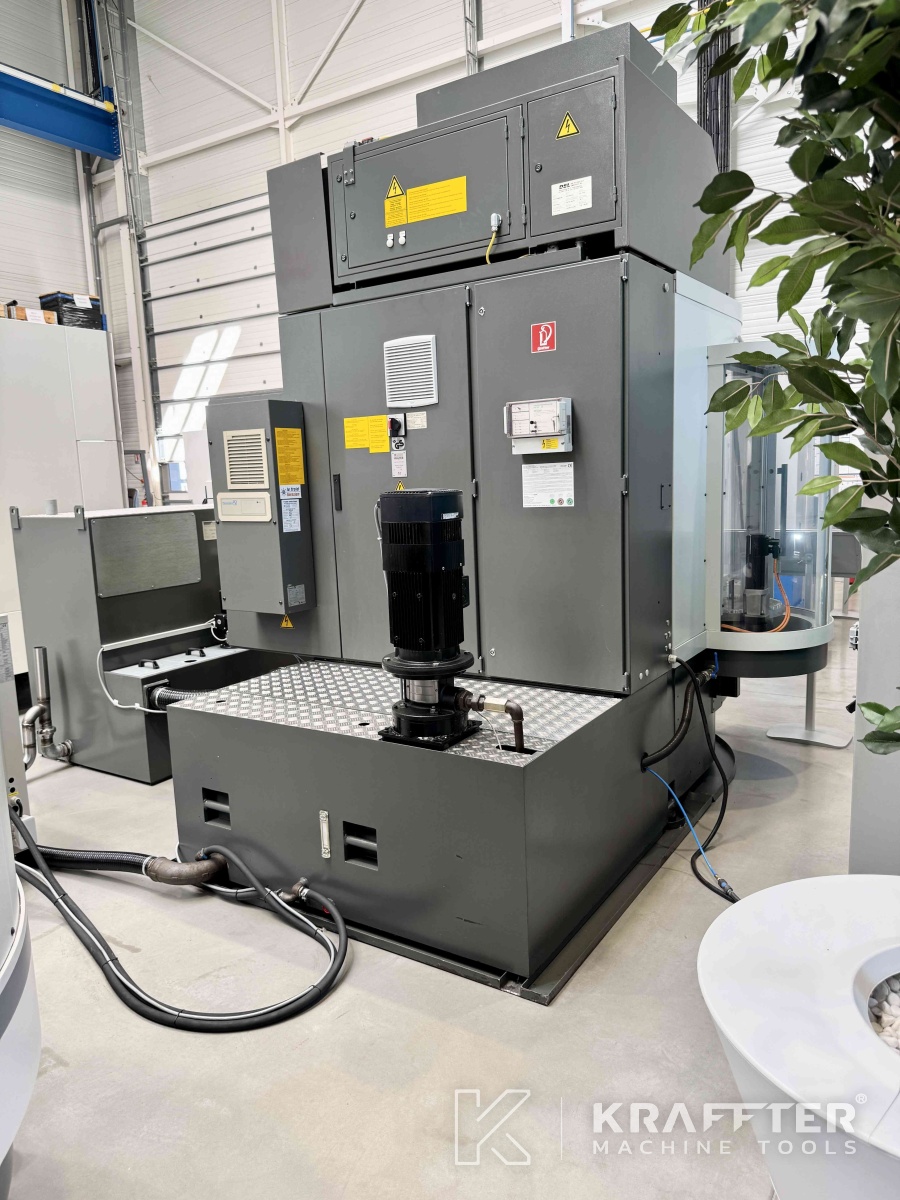

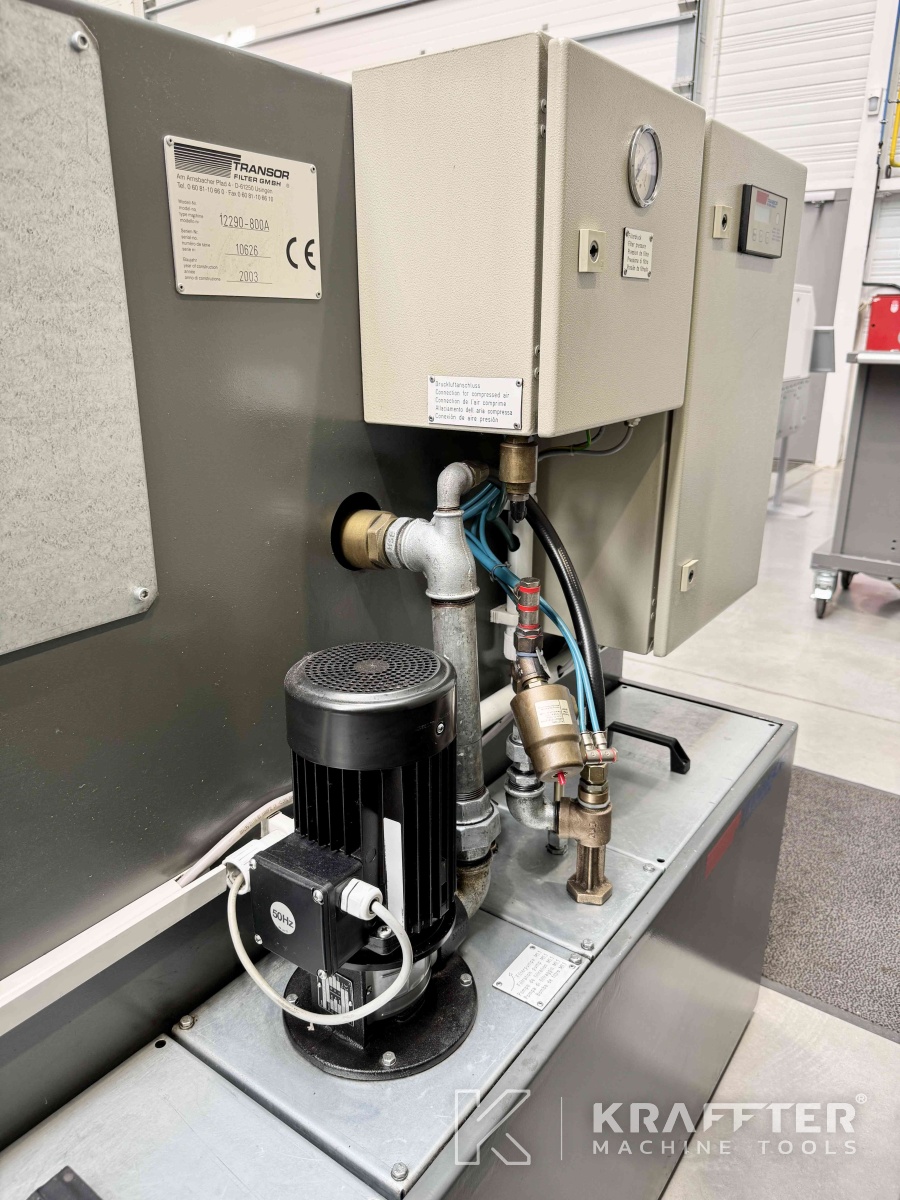

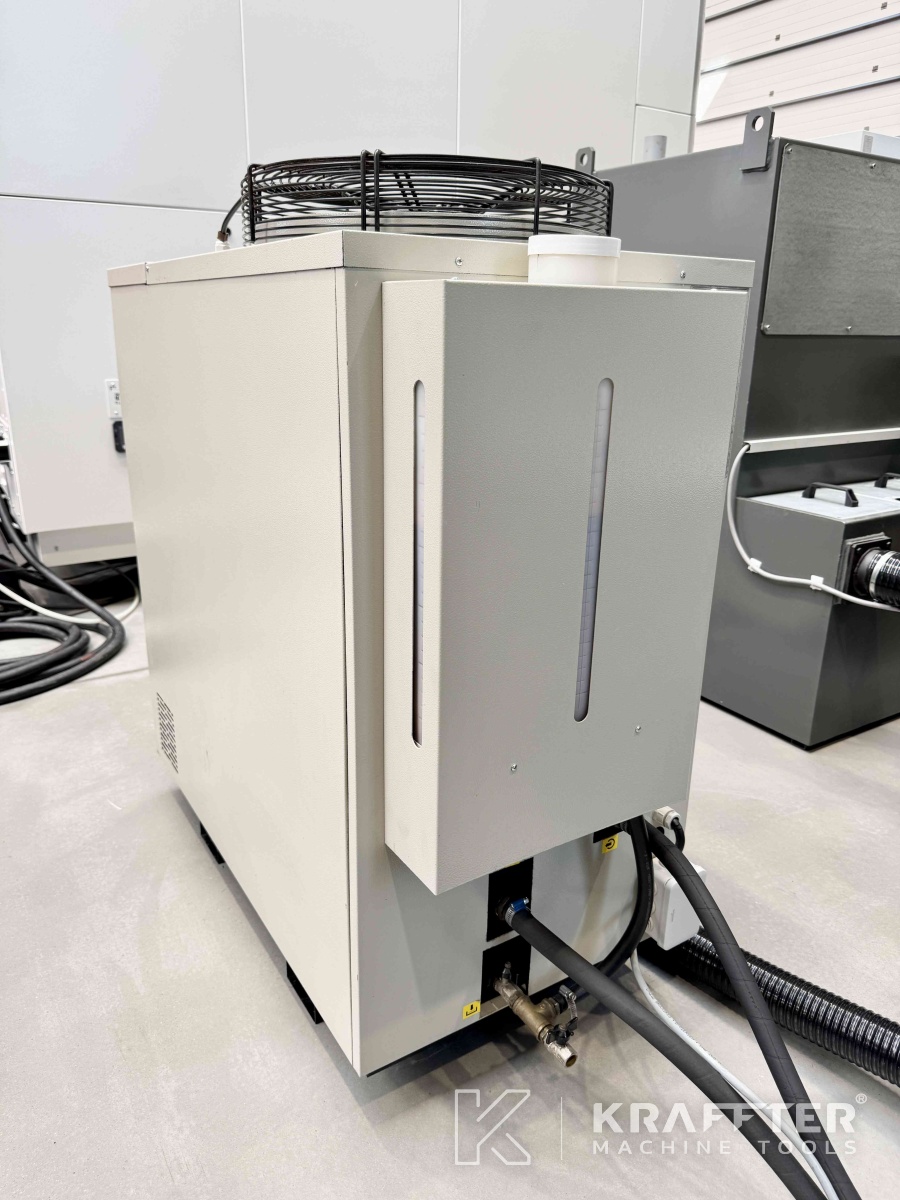

x1 TRANSOR 12290-800A filtration unit

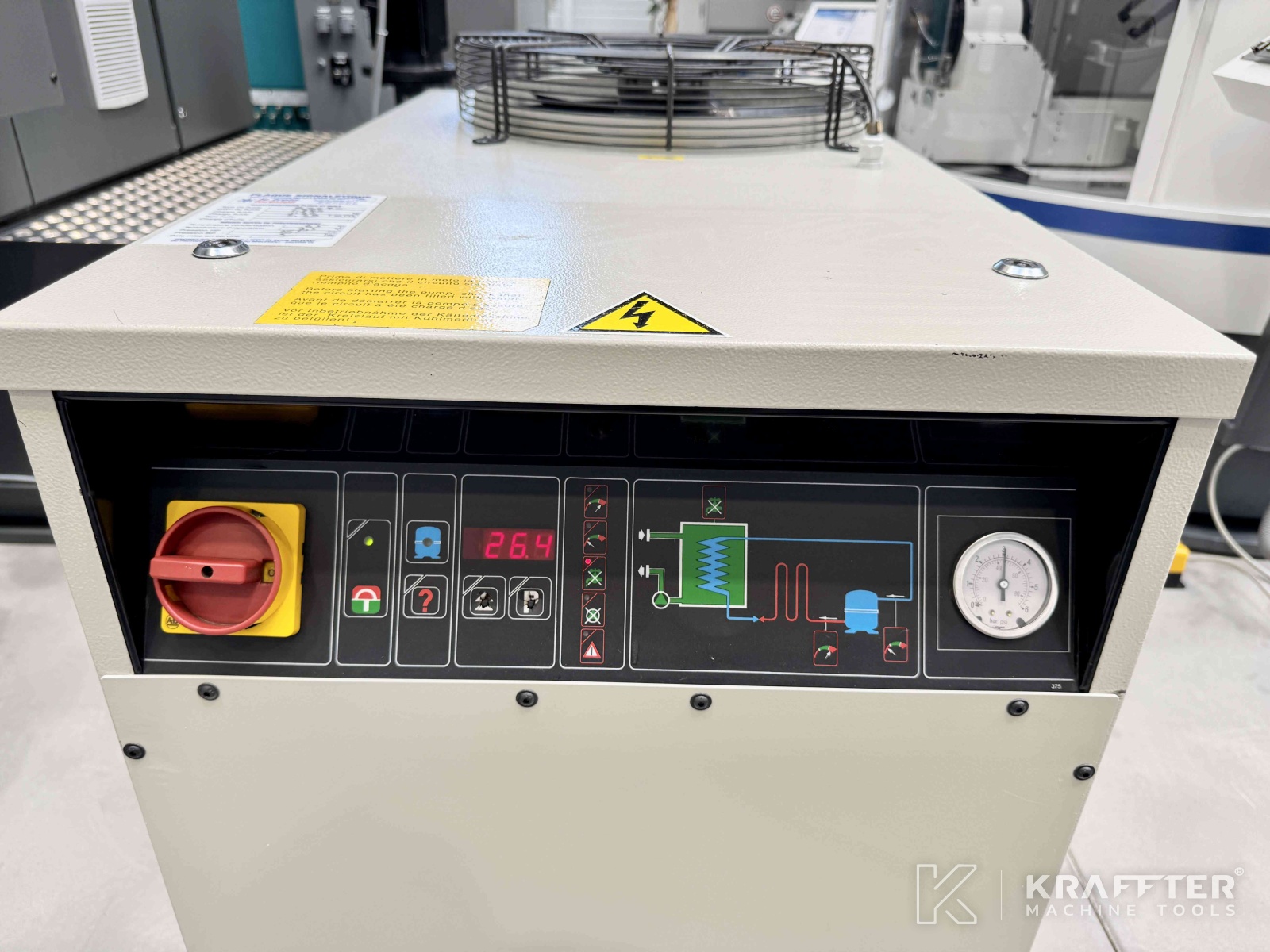

x1 MTA oil chiller model TAE 015

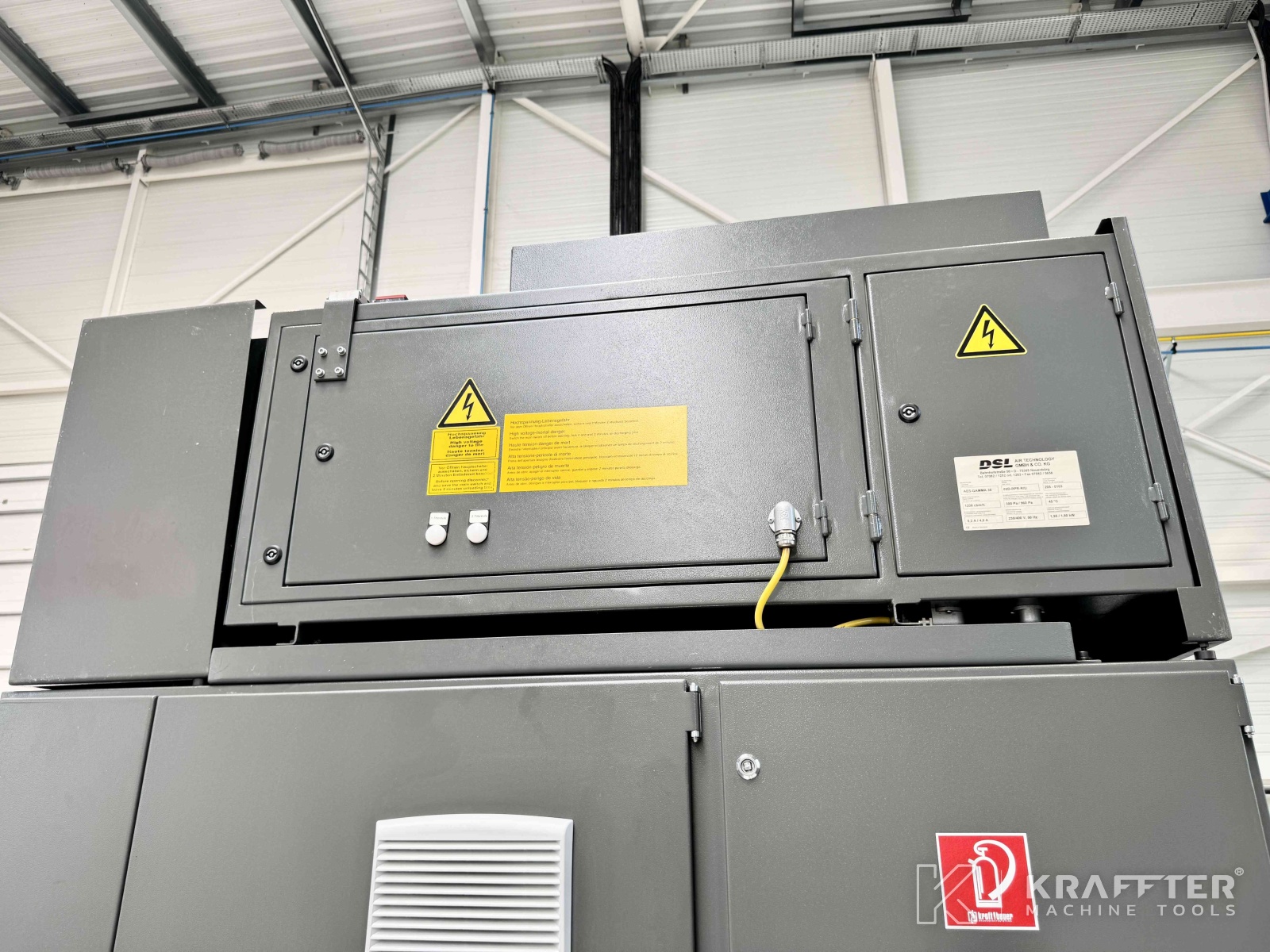

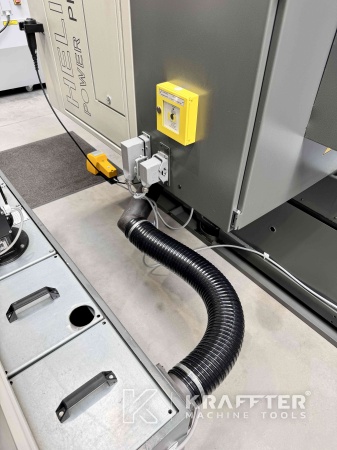

x1 DSL oil mist extractor model AES-GAMMA 30
x1 RENISHAW part probe

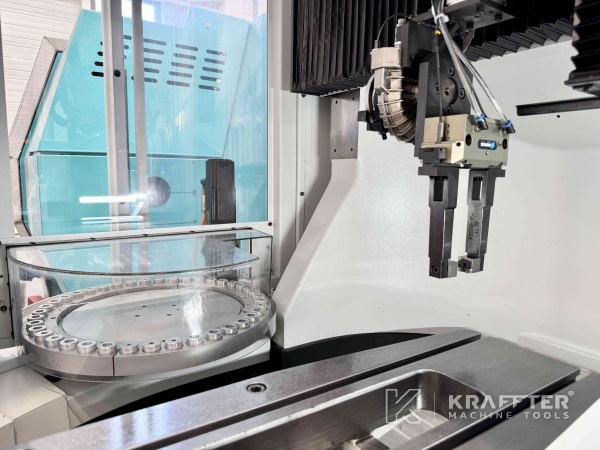

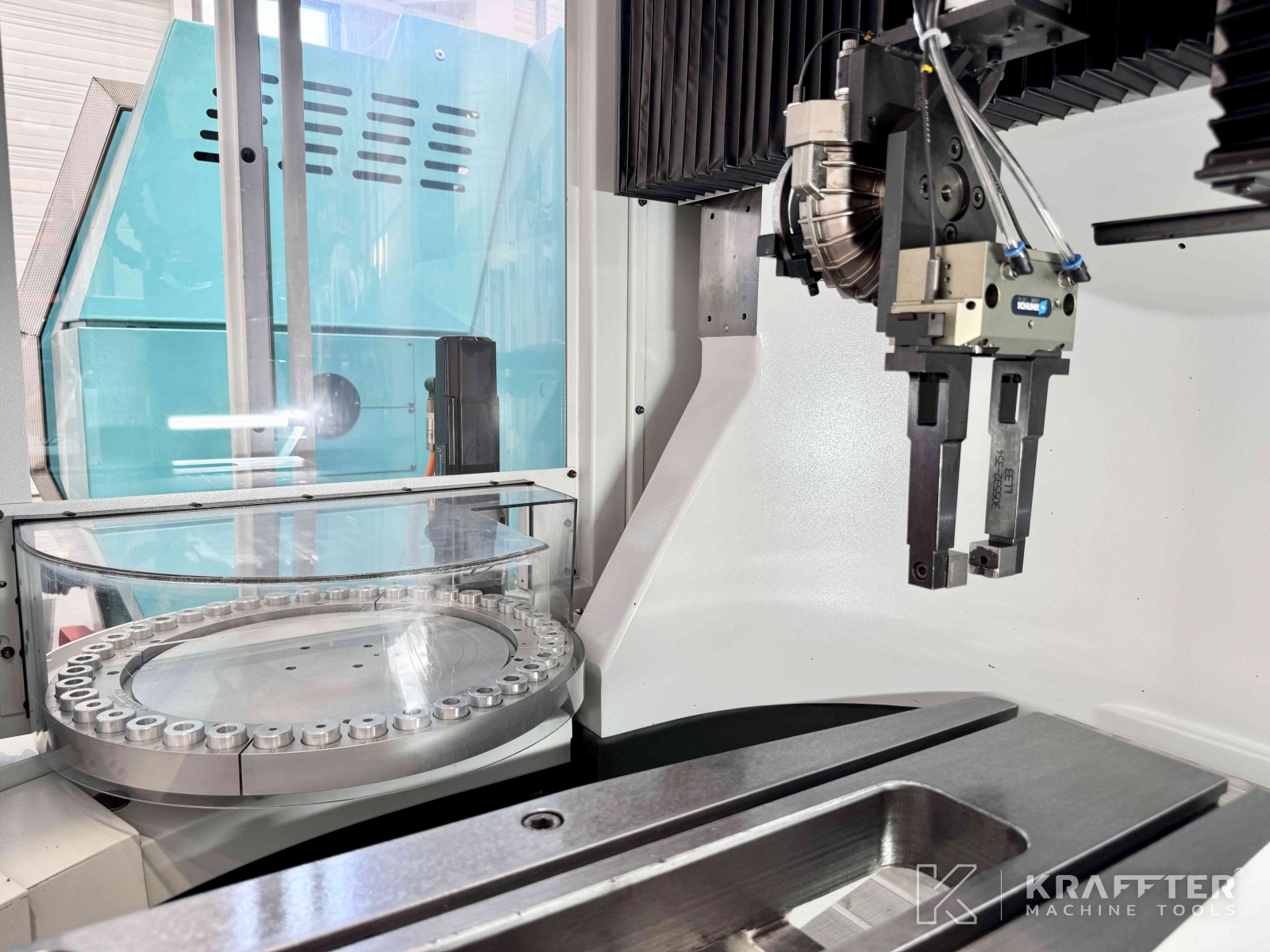

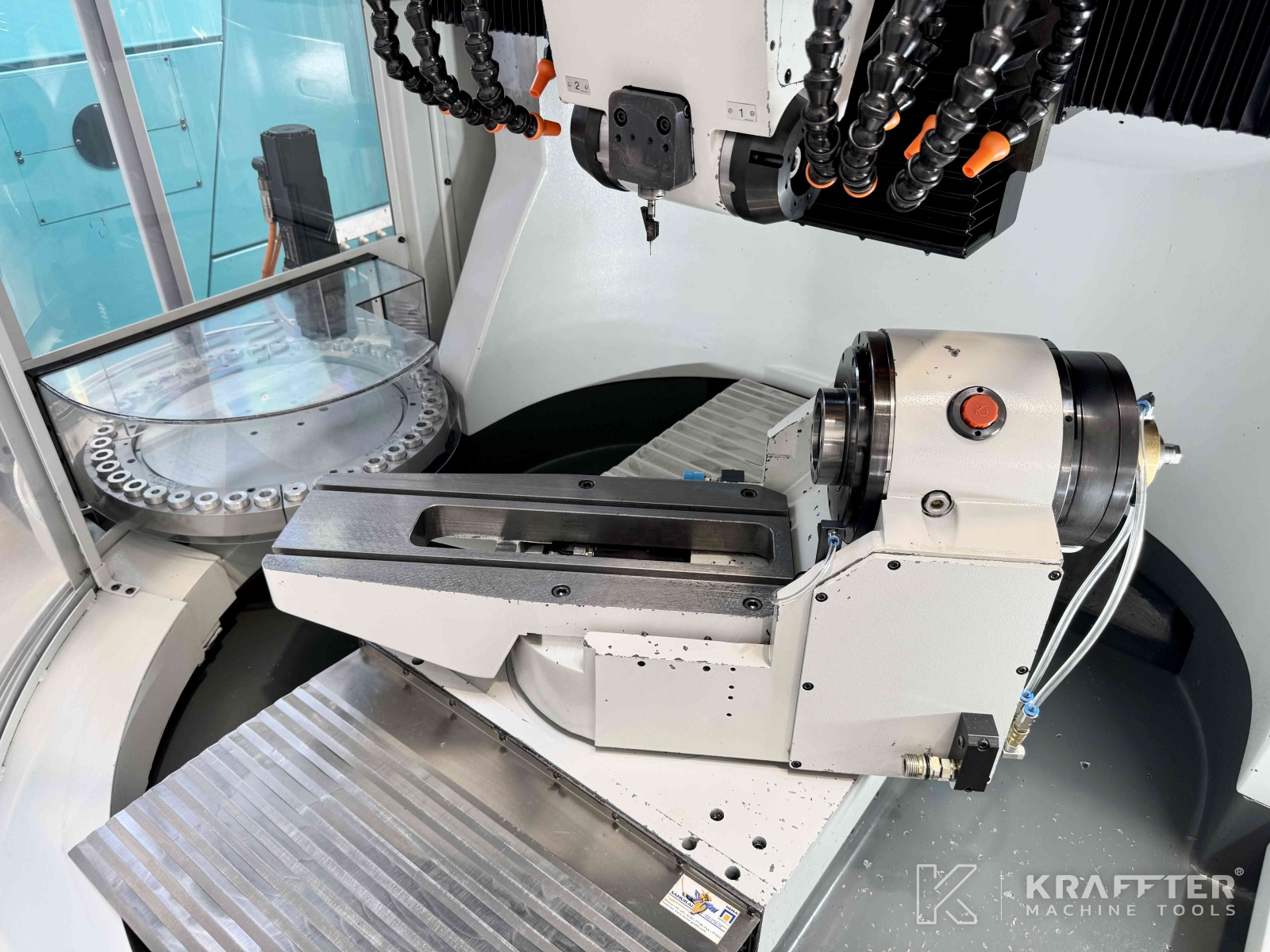

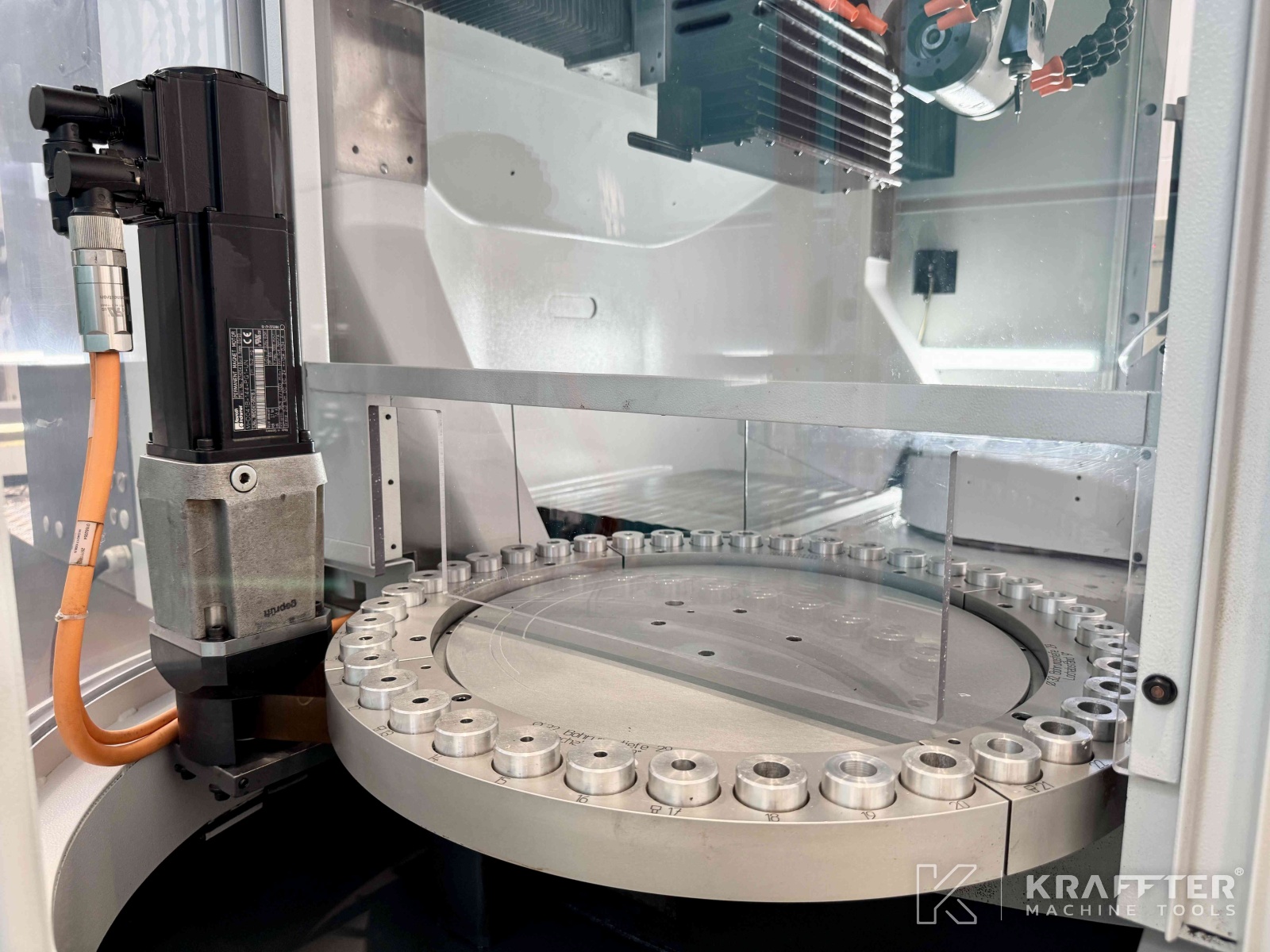

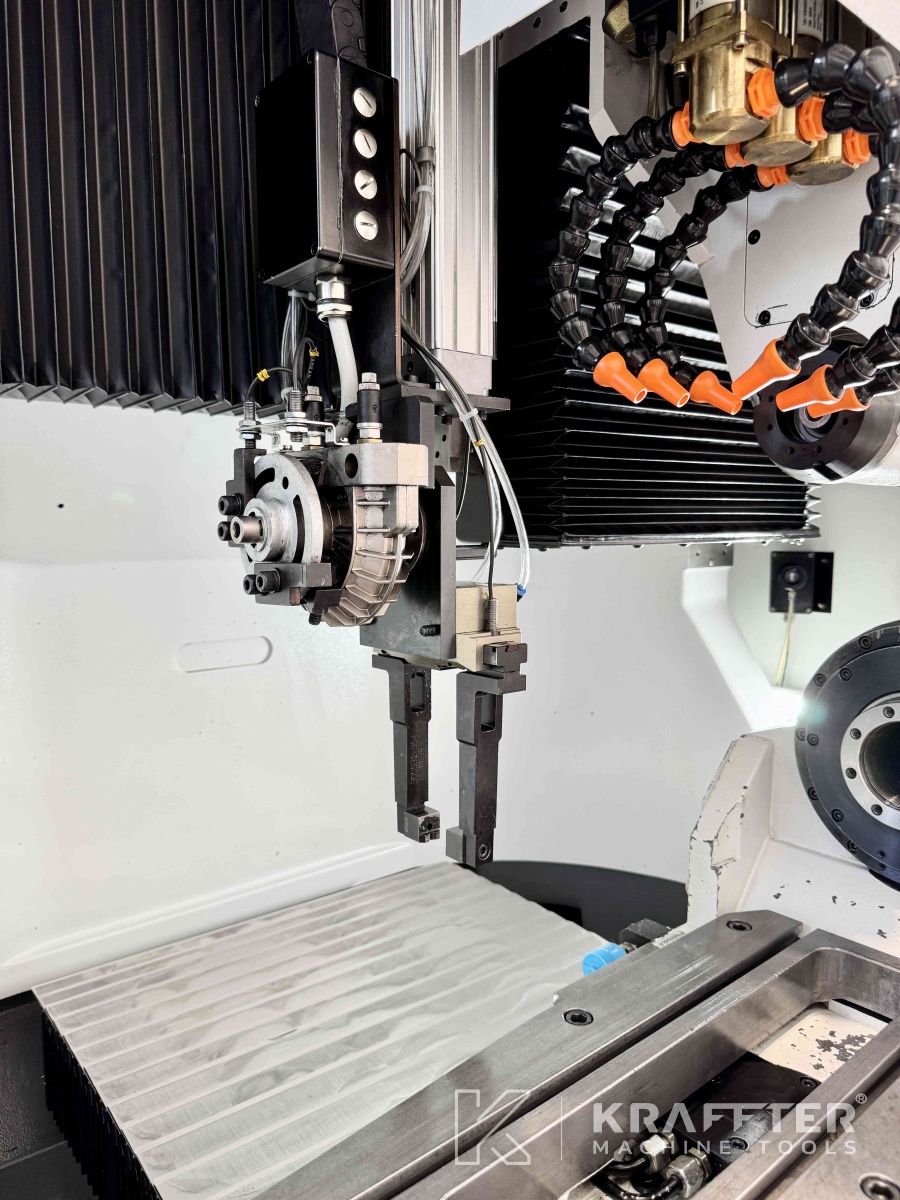

x1 disc-type tool loader 40 positions
x1 SCHUNK gripper

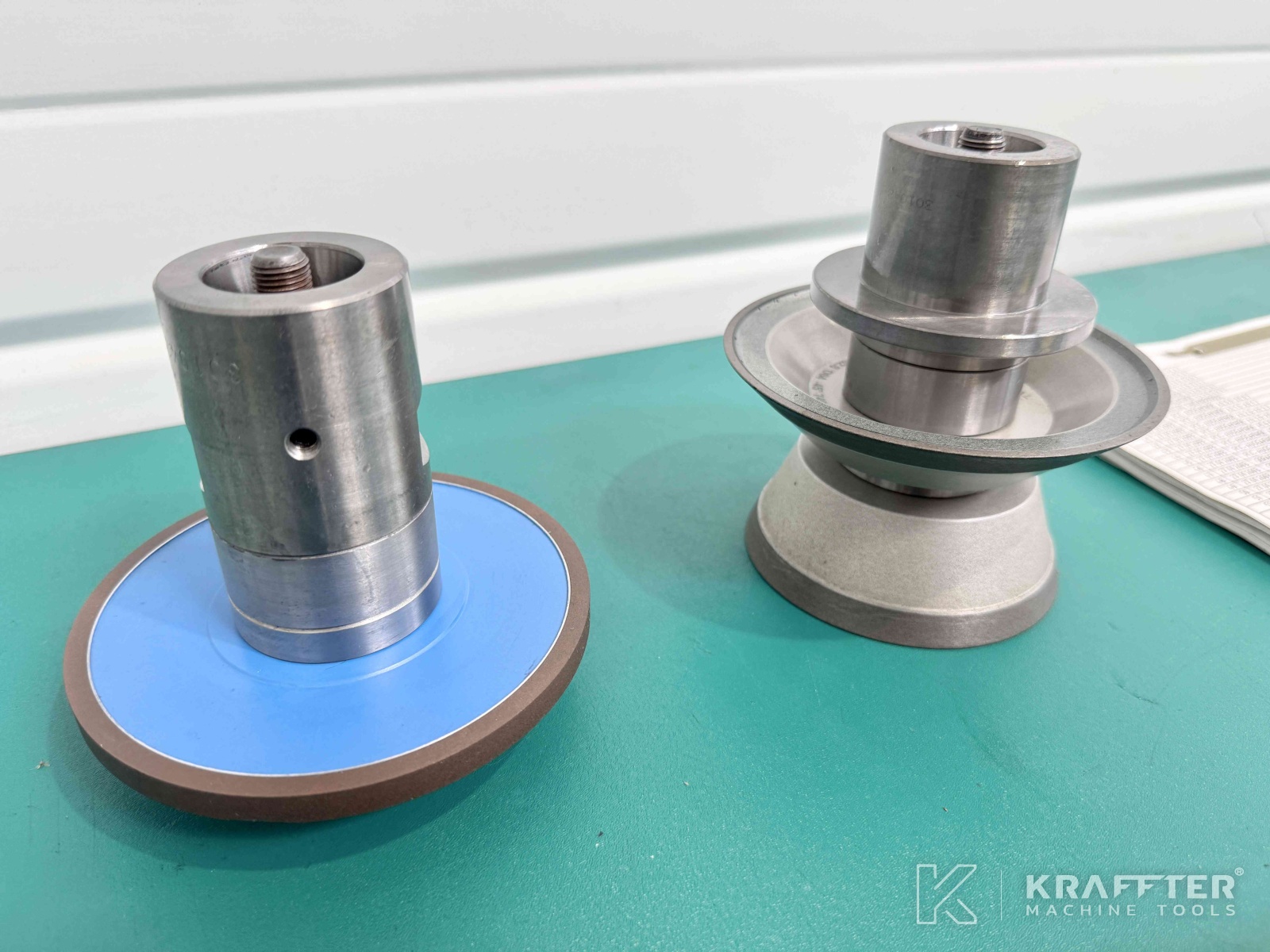

x2 grinding wheel arbor adapters

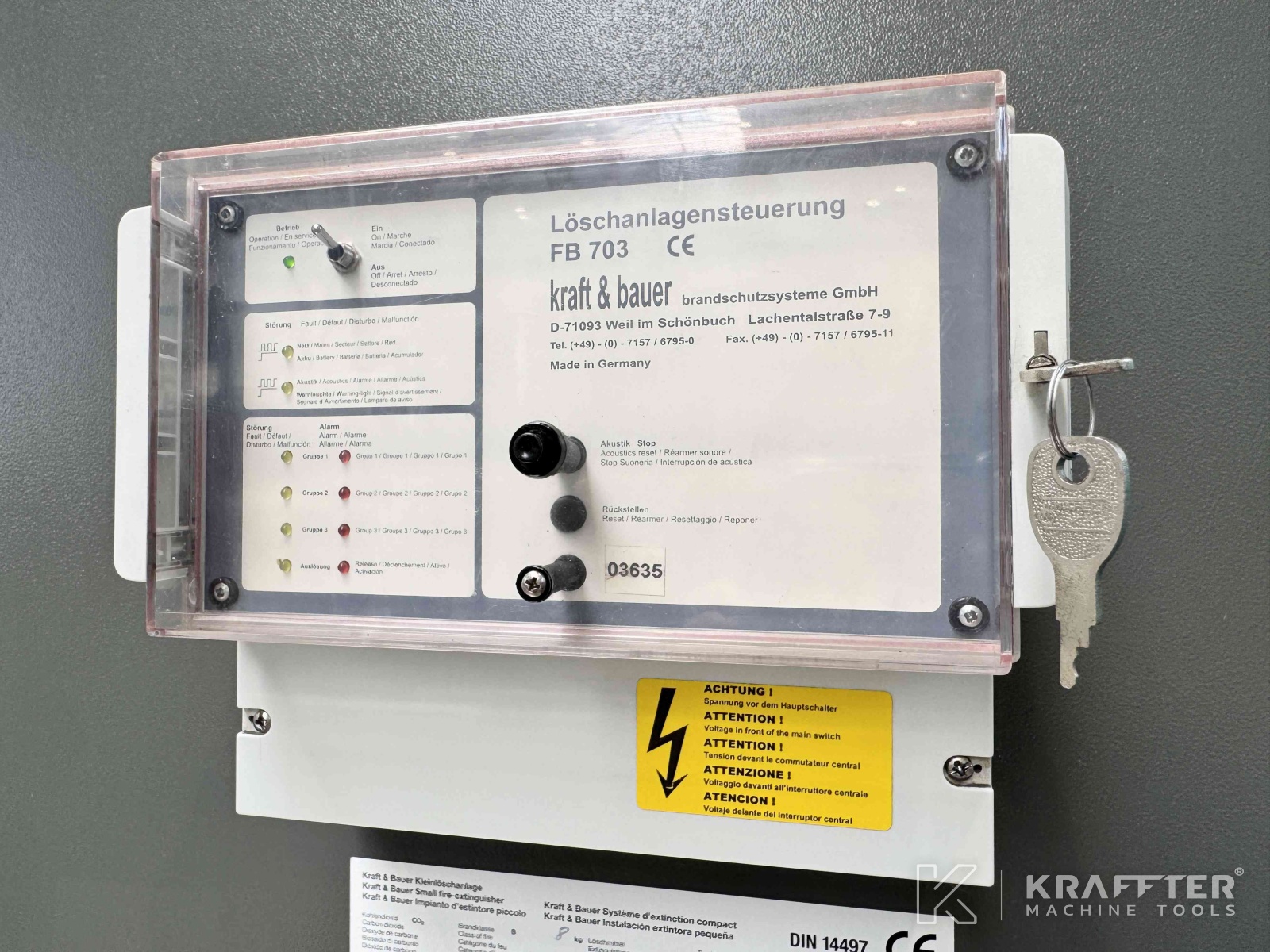

x1 fire protection system - to be inspected by the buyer through a certified organization

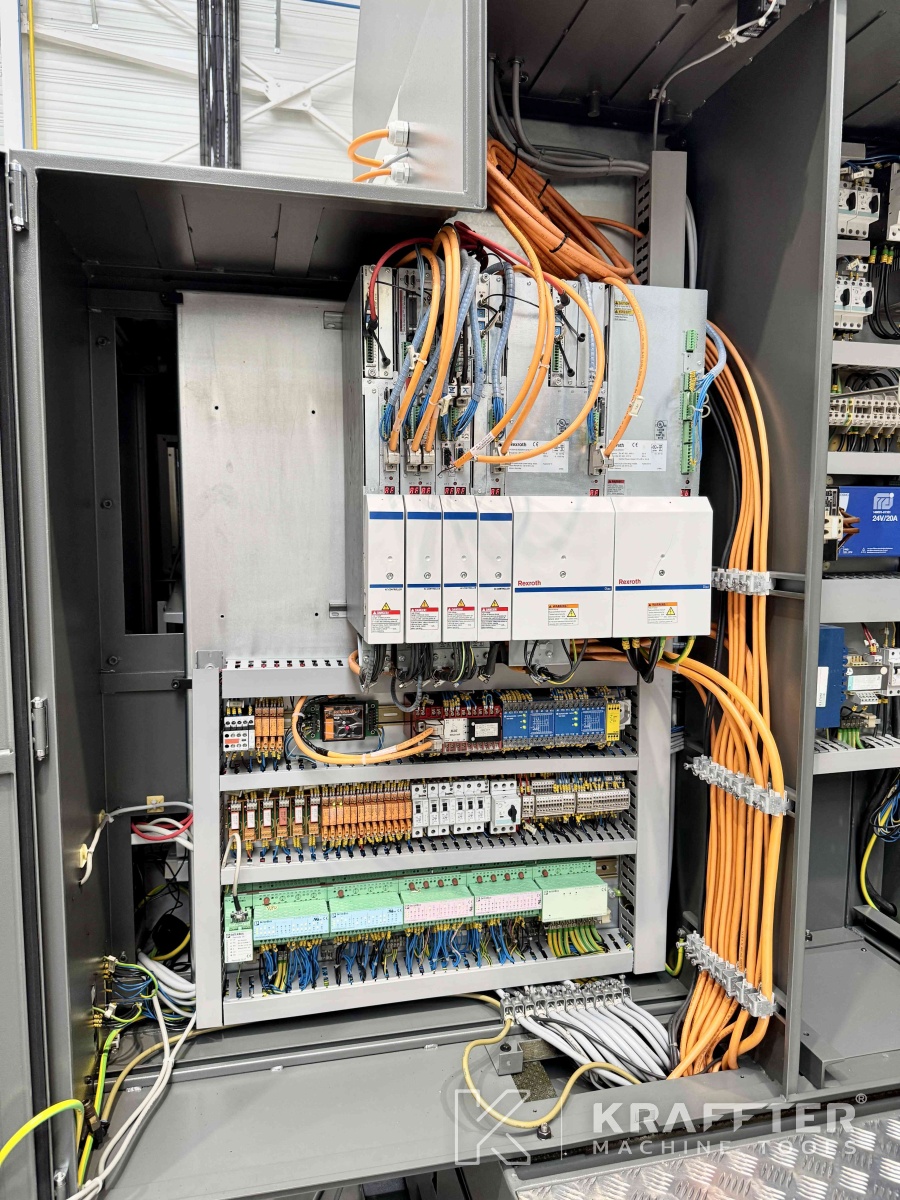

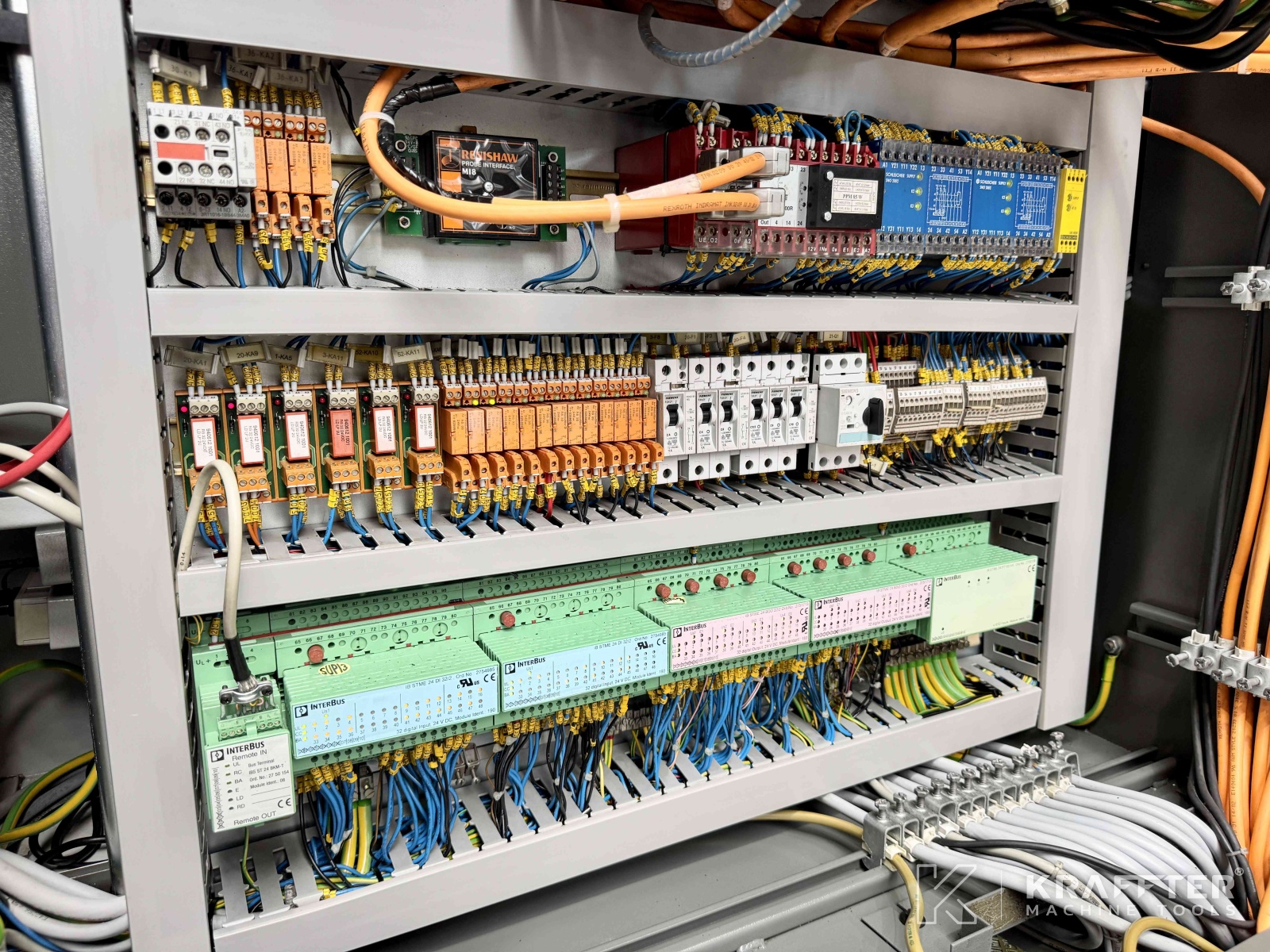

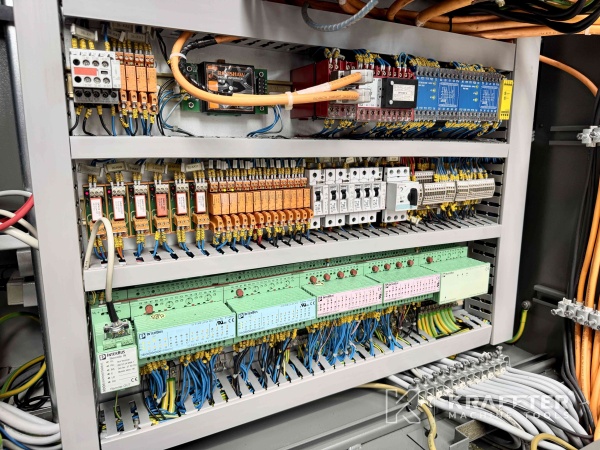

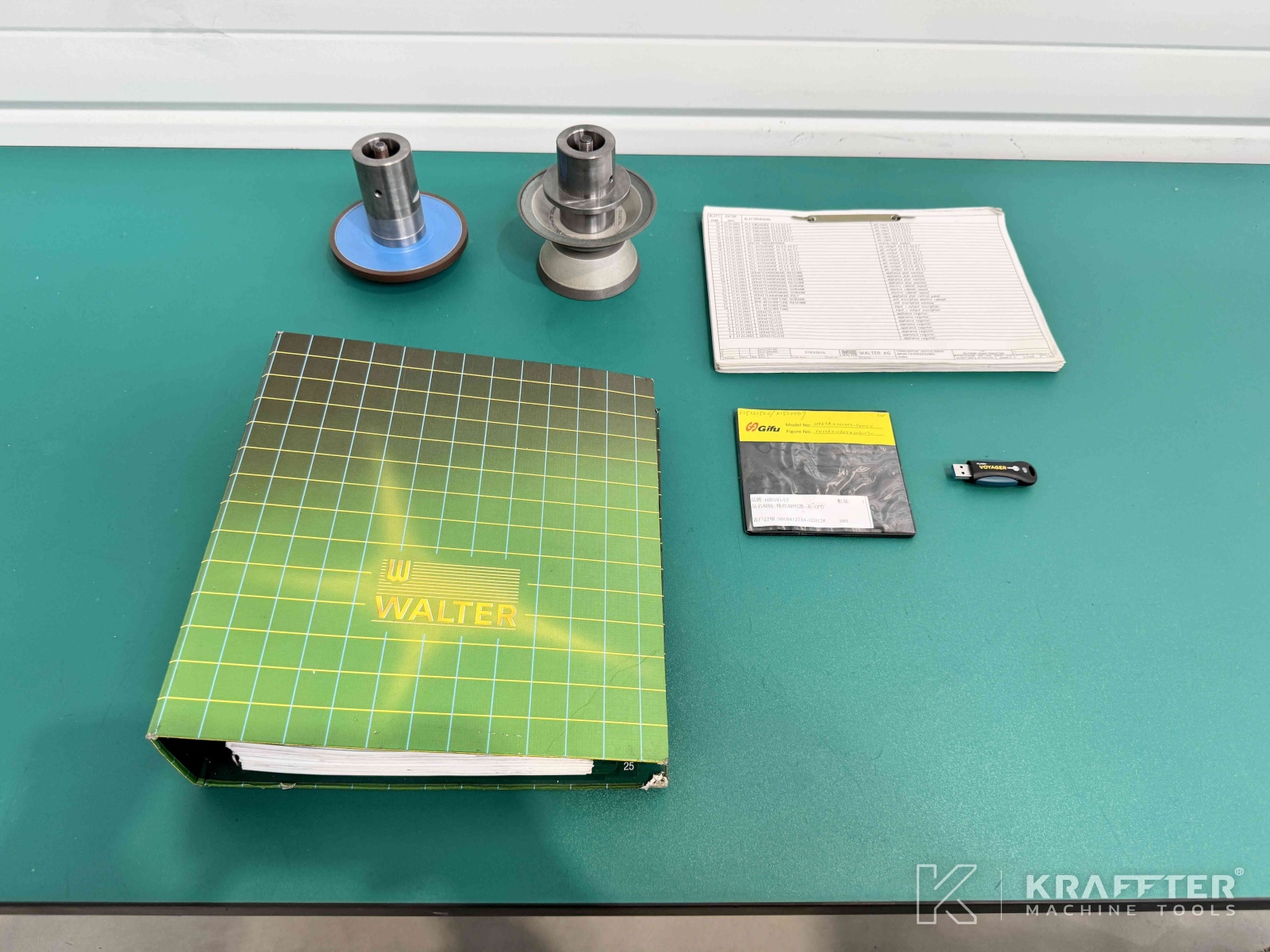

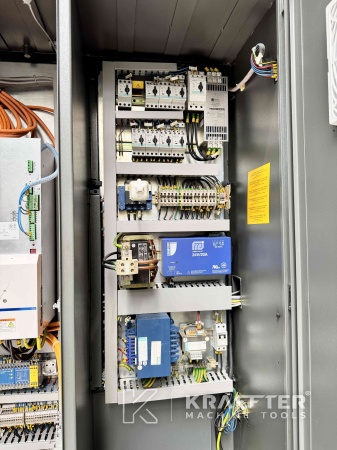

x1 electrical schematic manual
x1 Service Instructions manual
Licensed Walter window mode (wwm) packages:
- Package 001 (cylindrical mills)
- Package 002 (tapered mills)
- Package 003 (drills)
- Package 004 (step drills)
- Package 006 (woodwork tools)
- Package 013 (reamers)
- Package 015 (insert seats)
- Package 016 (warmup program)
- Package 027 (flexible program)
- Package 090 (loader package)
- Package 091 (acm)
- Package 098 (loader package)
- Package 099 (loader package)
- Package 100 (reference data m.)
- HELICONE (flute calc. conical.)
- HELIDRILL (flute calc. drills)
- HELIFLUTE (flute calc. cyl. mill.)
- MCS (machine control .)
- SCHEIBE (wheels menu)
- TS_ADVANCED (toolstudio (v1.0-v.)
- TS_STANDARD (toolstudio (v1.0-v.)
- TS_STEPTOOLS (toolstudio (v1.0-v.)
Licensed ToolStudio Options:
- Tool Studio 2.0 server/machinecontrol
- Tool Studio 2.0 standard license
- Tool Studio 2.0 advanced license
- Tool Studio 1.9 upgrade options
- Tool Studio 2.0 upgrade options
- Option steptools
- Option profile light (contour roughing ...)
- Option calibration w/ touch probe
- Option drills
