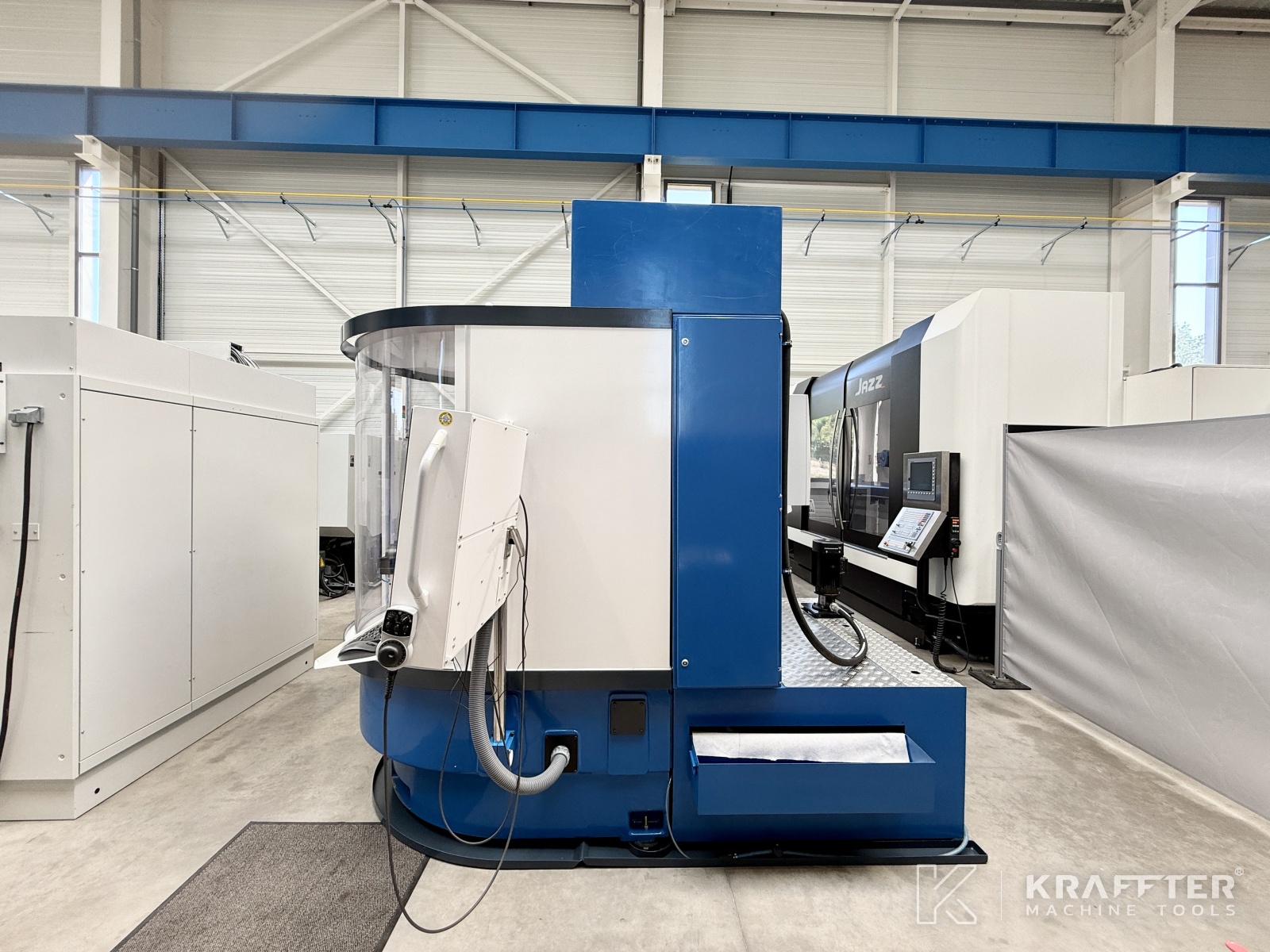

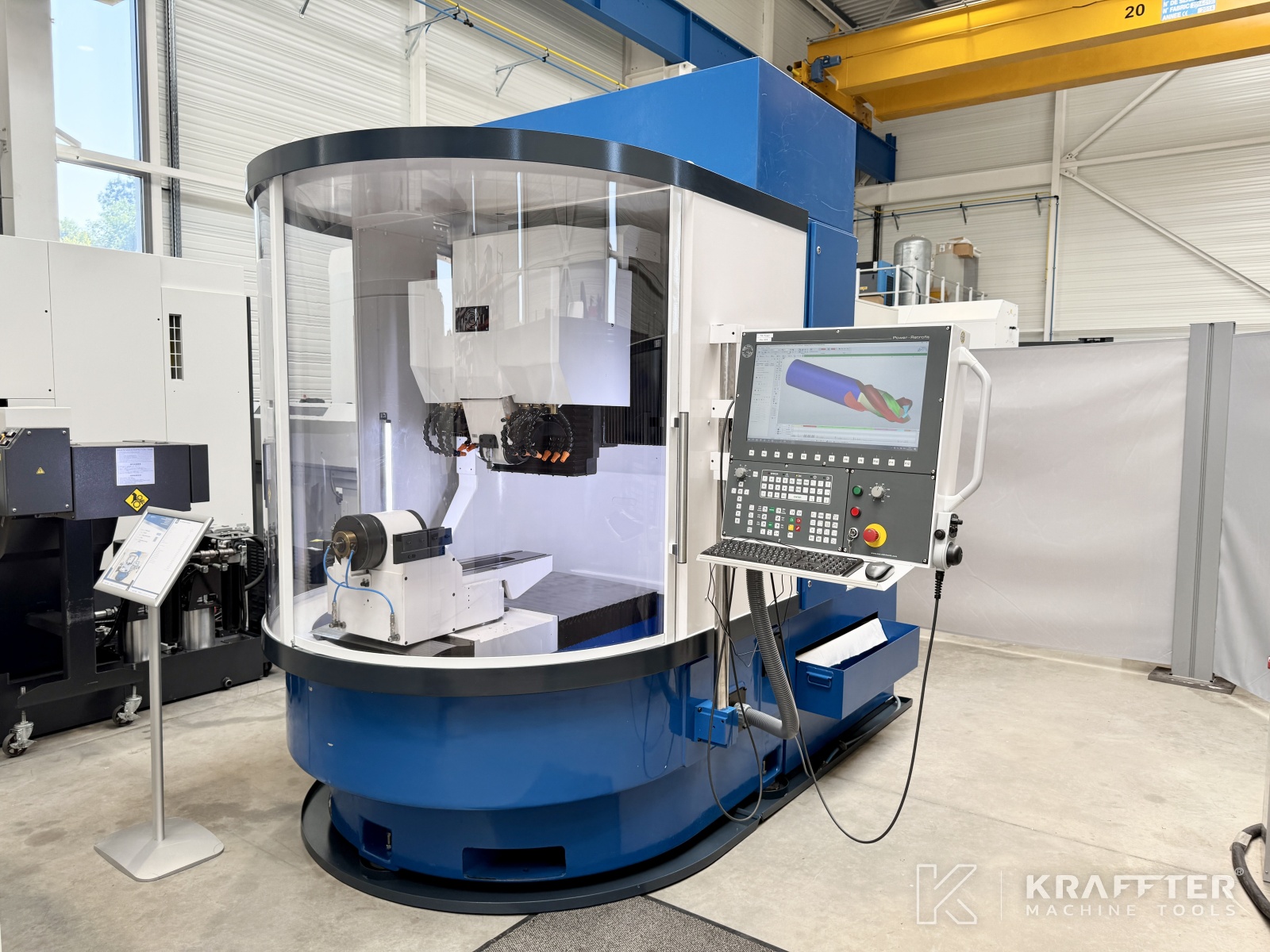

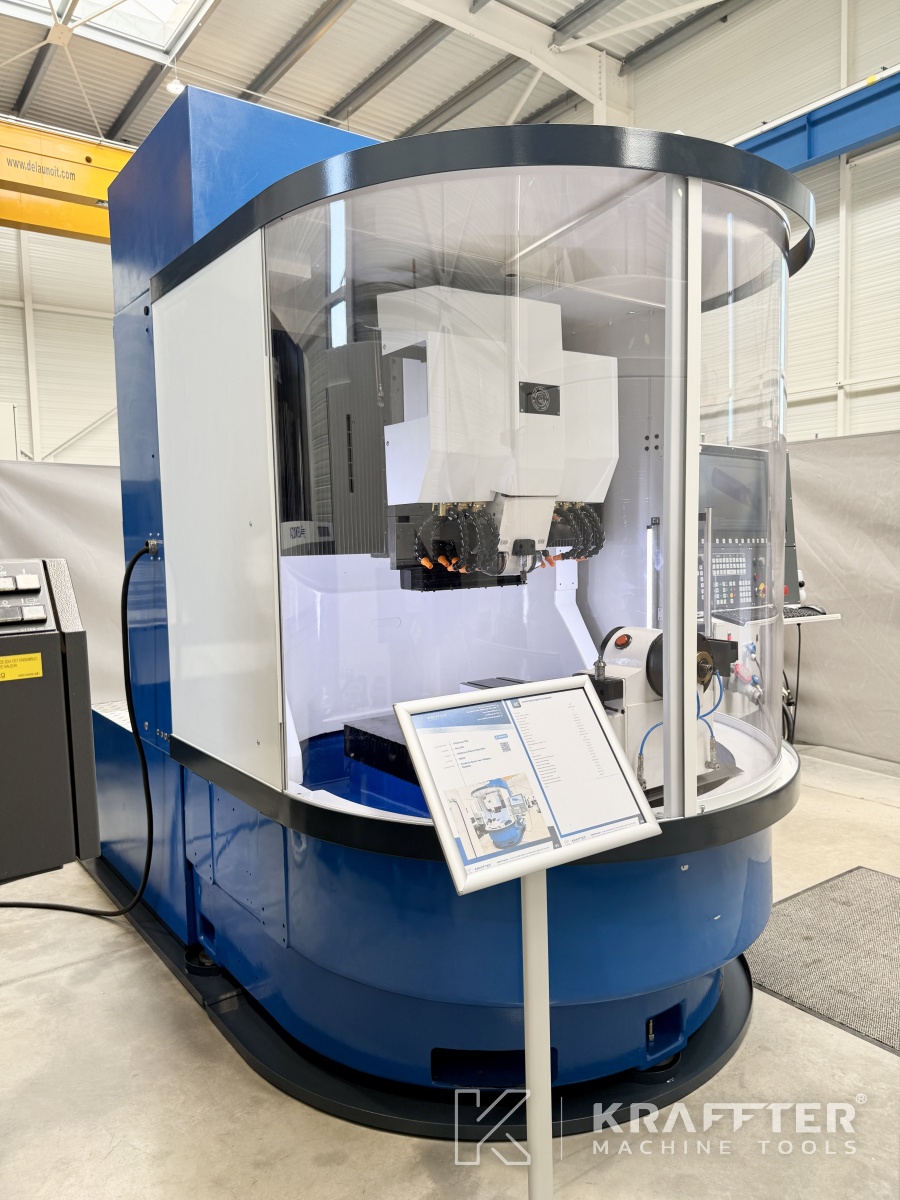

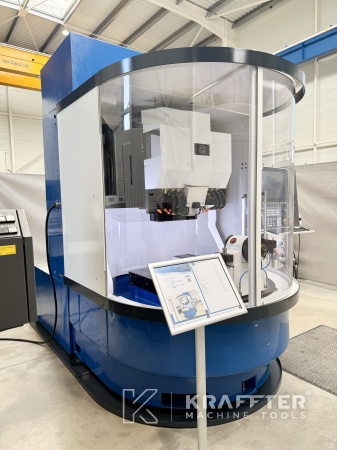

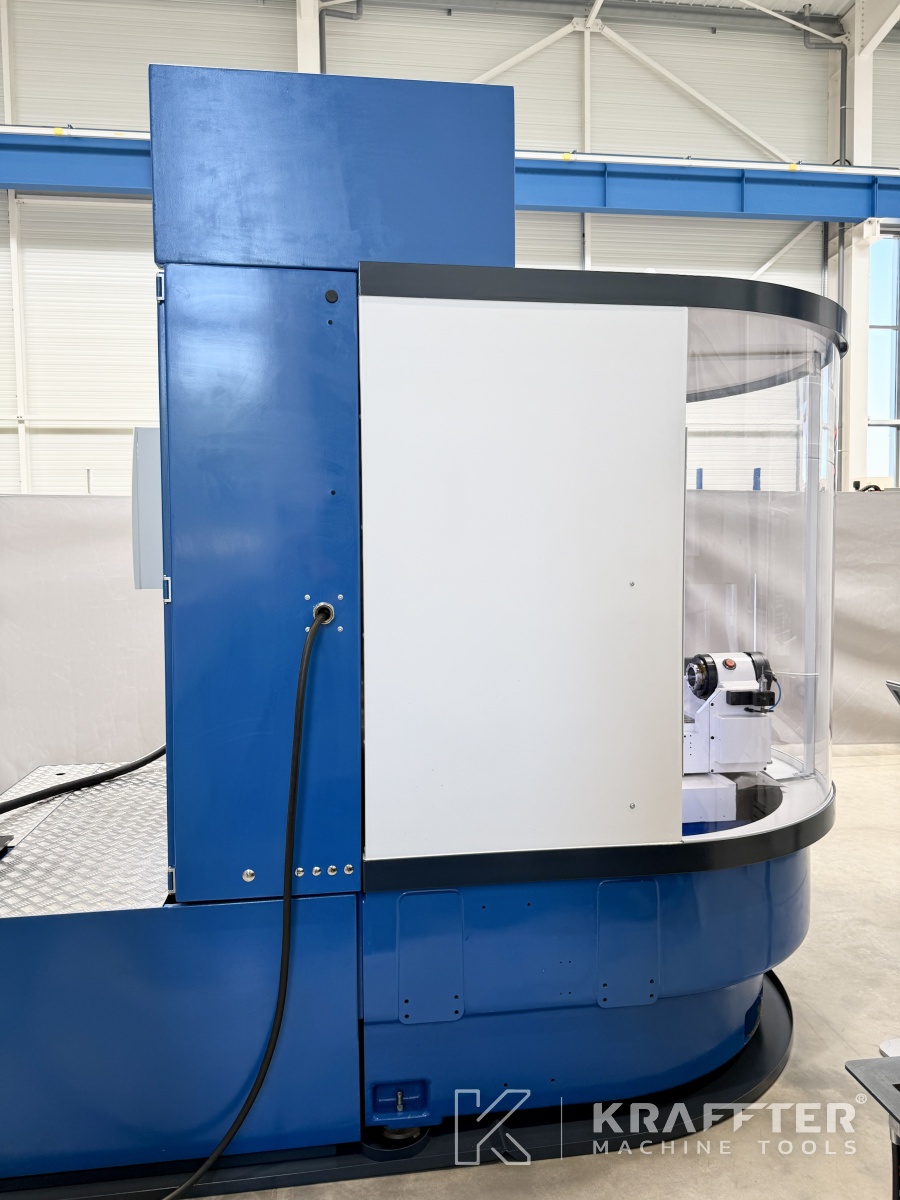

Type of machine : CNC tool grinding machine
Brand : WALTER
N° de stock: 90159
Model : Helitronic Power Regrinder
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
CNC control
NUM
Software installed
NUMROTO Plus
Colour touchscreen
Yes
Number of axes
5
Height of centers
190
Stroke X axis
490 [mm]
Resolution X axis
0.00001 [mm]
Stroke Y axis
320 [mm]
Resolution Y axis
0.00001 [mm]
Stroke Z axis
660 [mm]
Resolution Z axis
0.00001 [mm]
Traversing feeds X, Y and Z axes
15000 [mm/min]
Stroke A axis
360 [°]
Rapid traverse rate A axis
100 [mm/min]
Stroke C axis
+/- 200 [°]
Resolution C axis
0.0001 [°]
Max. workpiece lenght : end face grinding
320 [mm]
Max. grinding lenght
370 [mm]
Max. grinding diameter
320 [mm]
Grinding spindle diameter
70 [mm]
Max. grinding wheel speed
9500 [rpm]
Grinding spindle motor power
11.5 [kW]
Max. diameter grinding wheel
150 [mm]

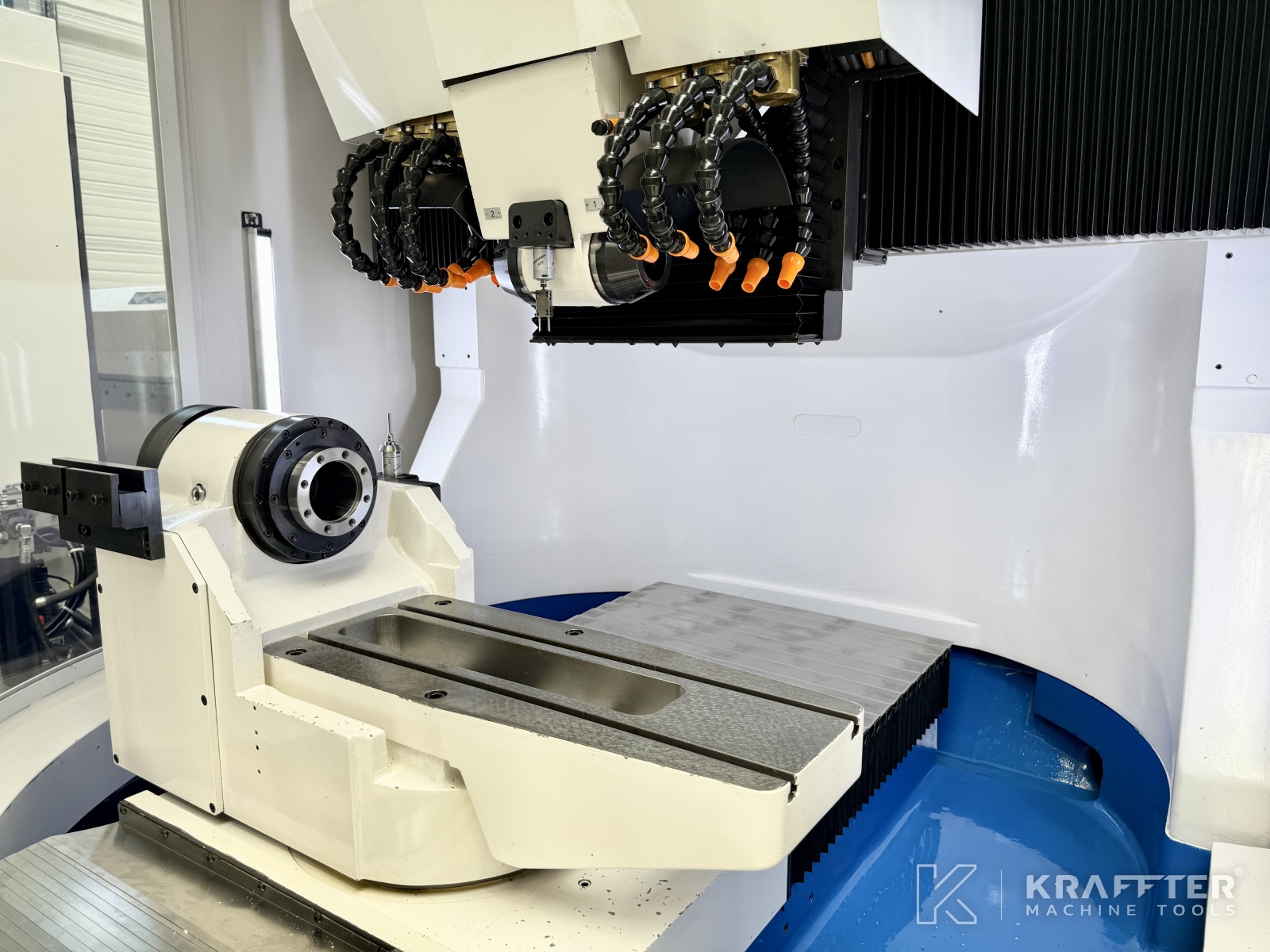

Internal workpiece spindle nose
ISO 50
Workpiece spindle max. speed
100 [rpm]
Working hours
3485 [h]
Weight
4450 [Kg]
Additional information
INCLUDED EQUIPMENT:

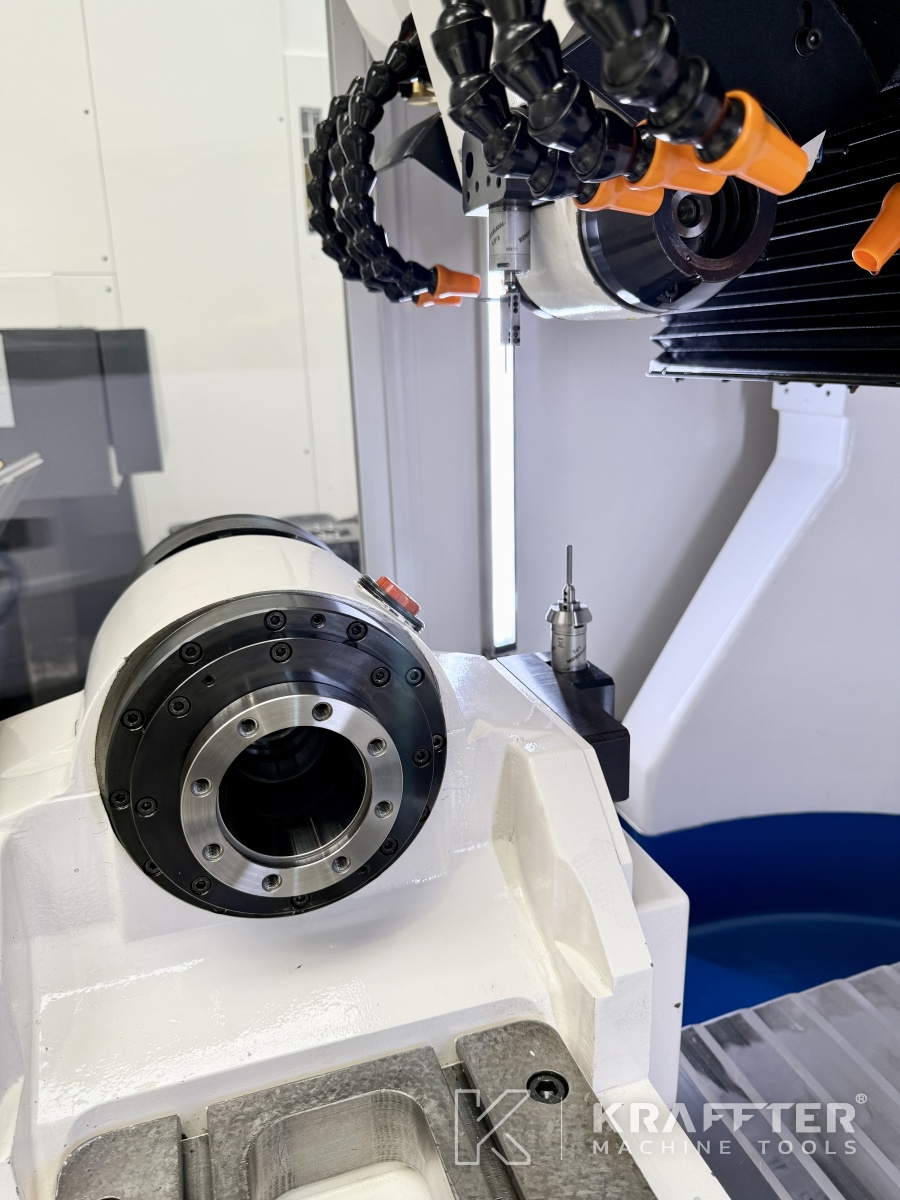

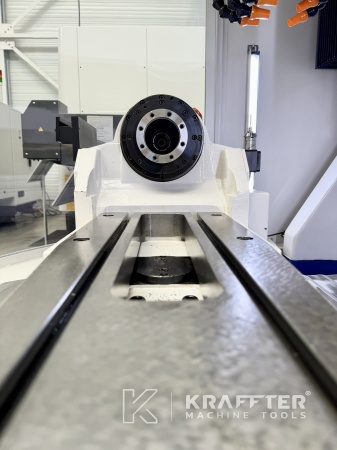

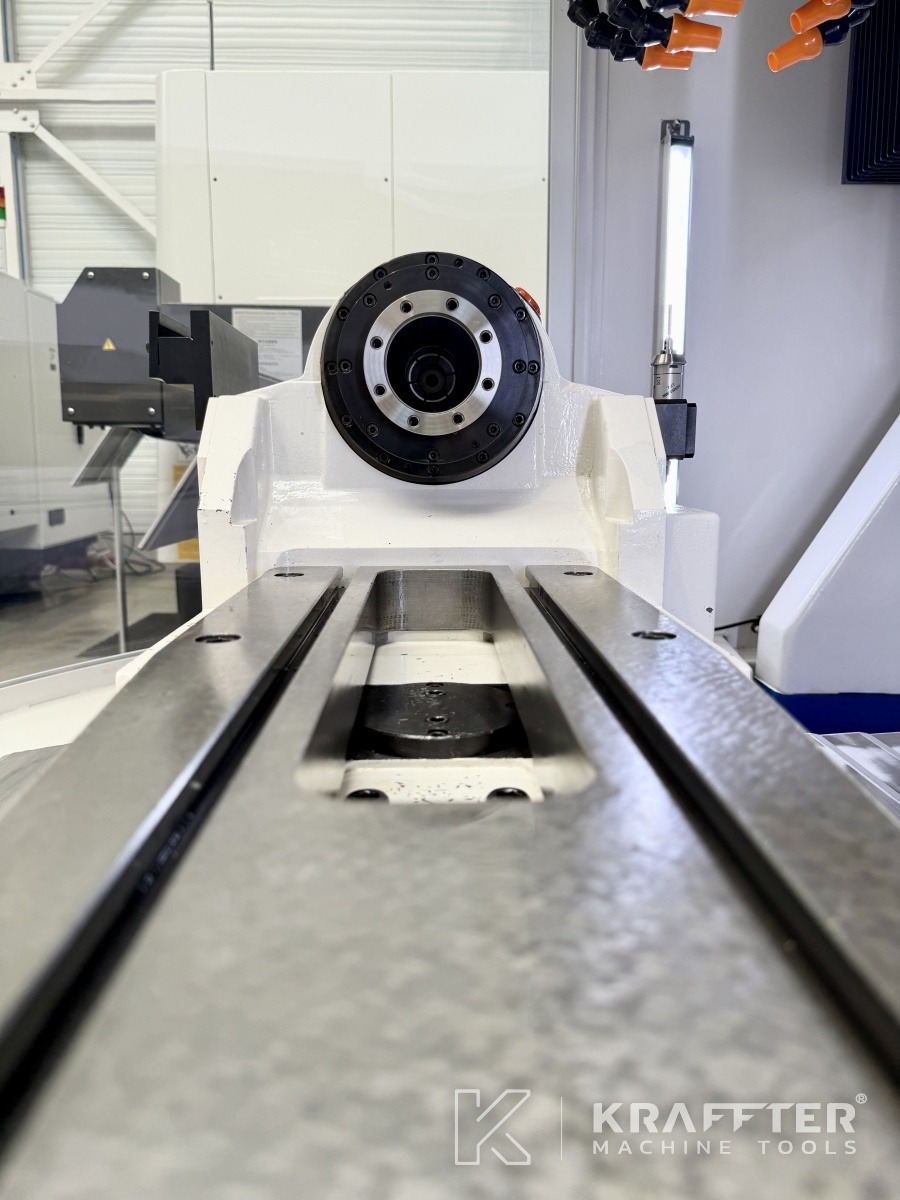

- x1 Automatic clamping ISO 50

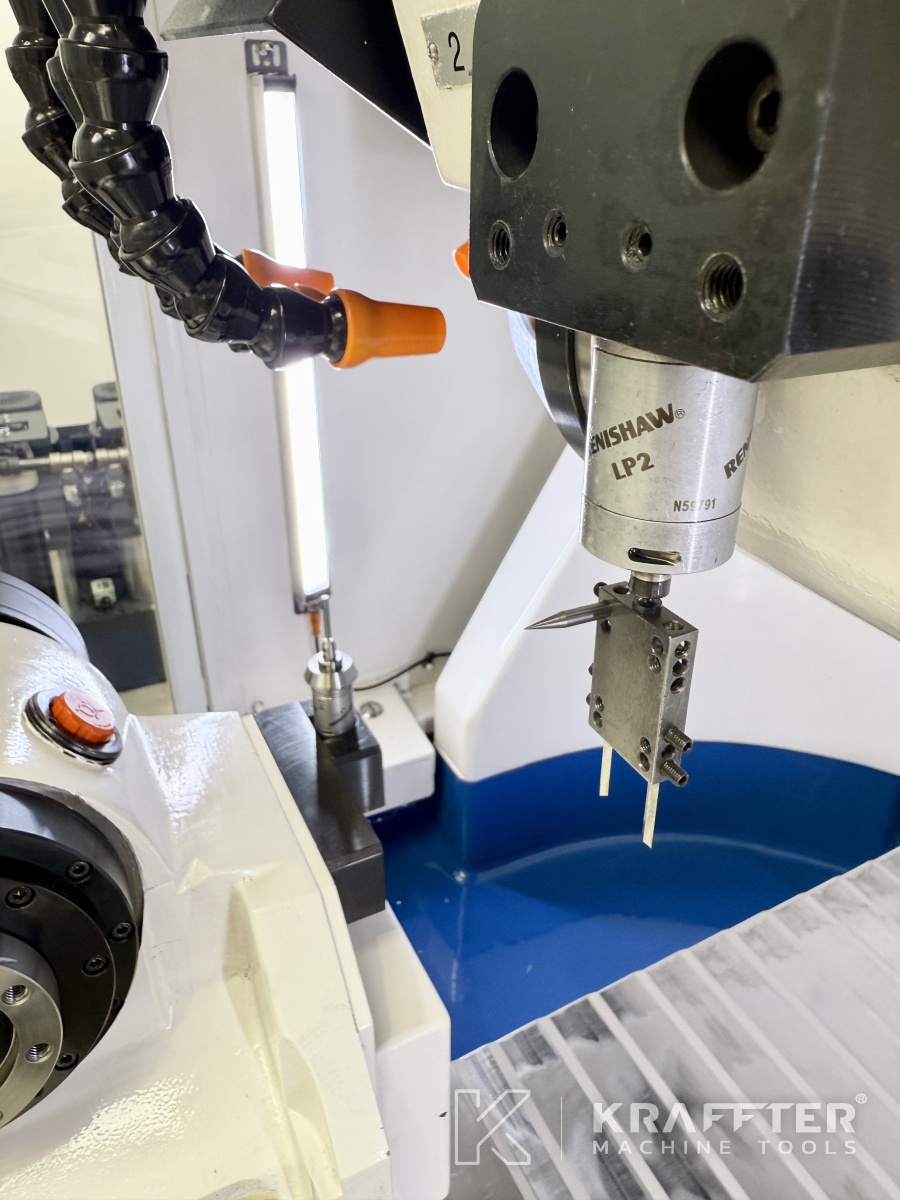

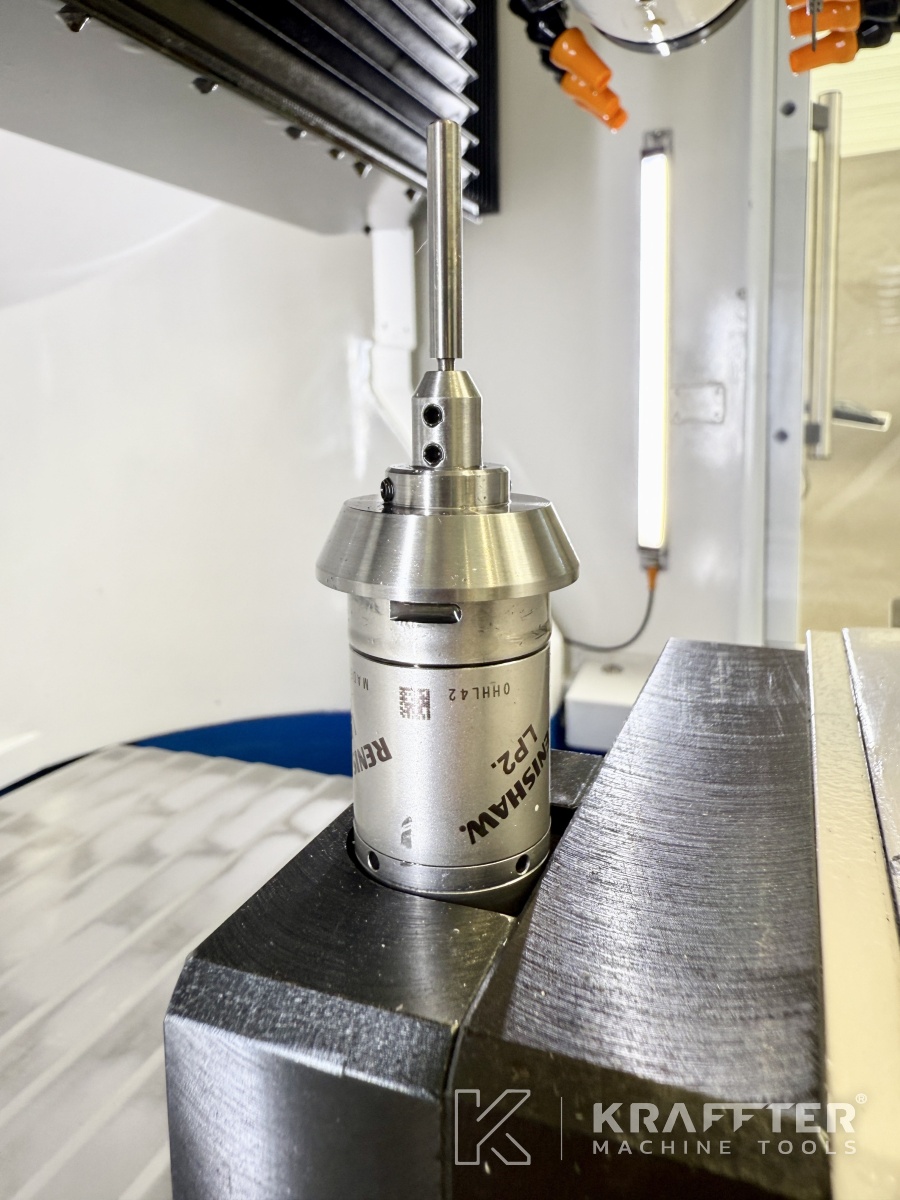

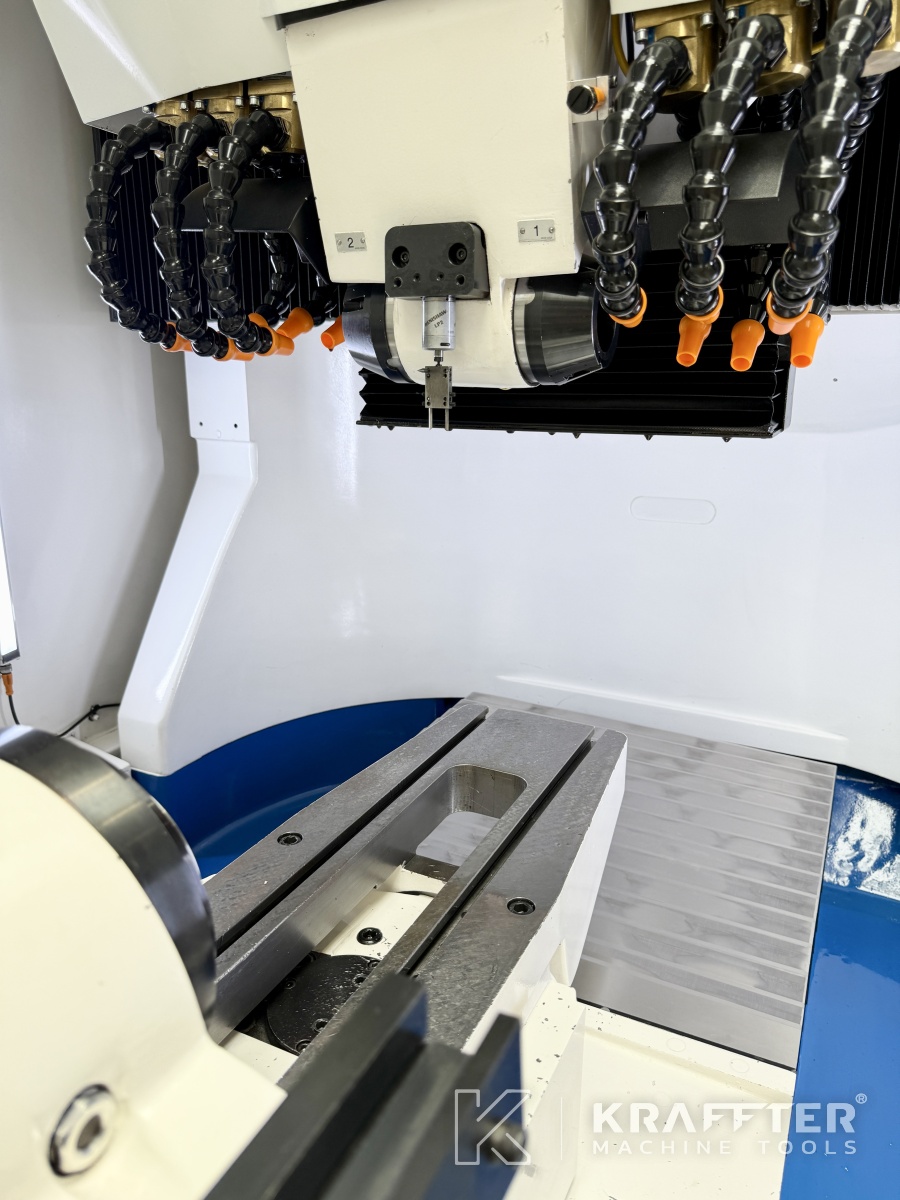

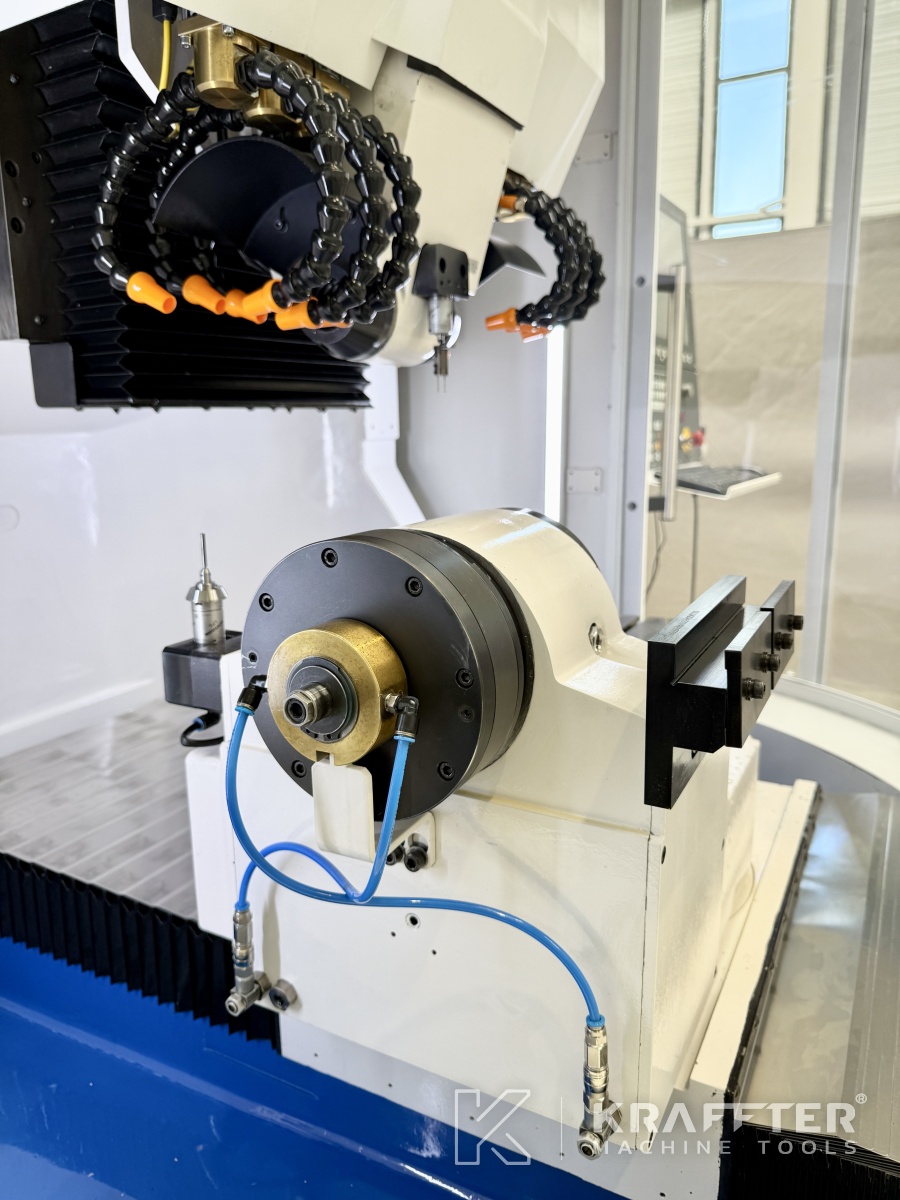

- x1 RENISHAW tool probe, type LP2DD
- x1 RENISHAW wheel probe, type LP2DD

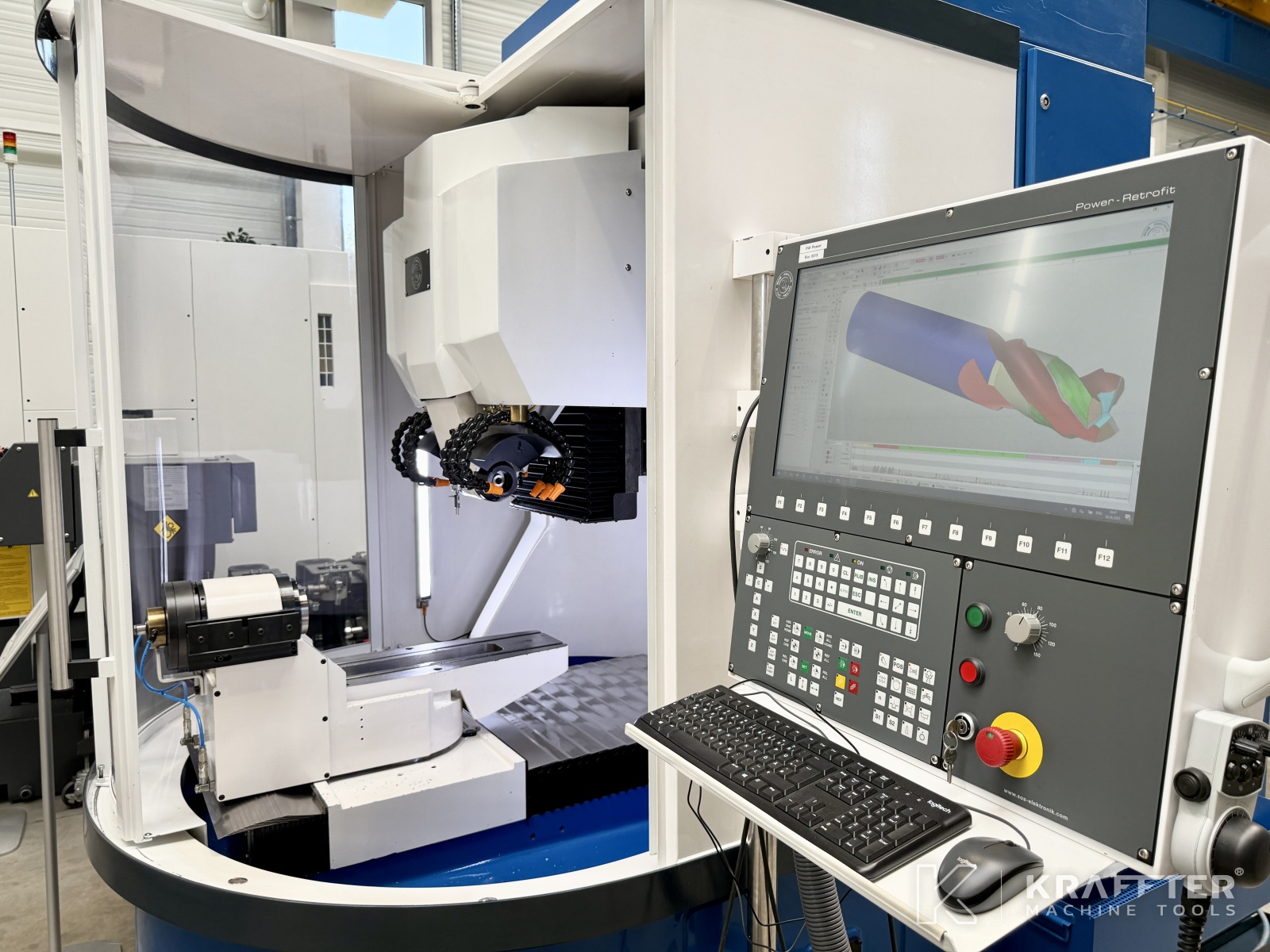

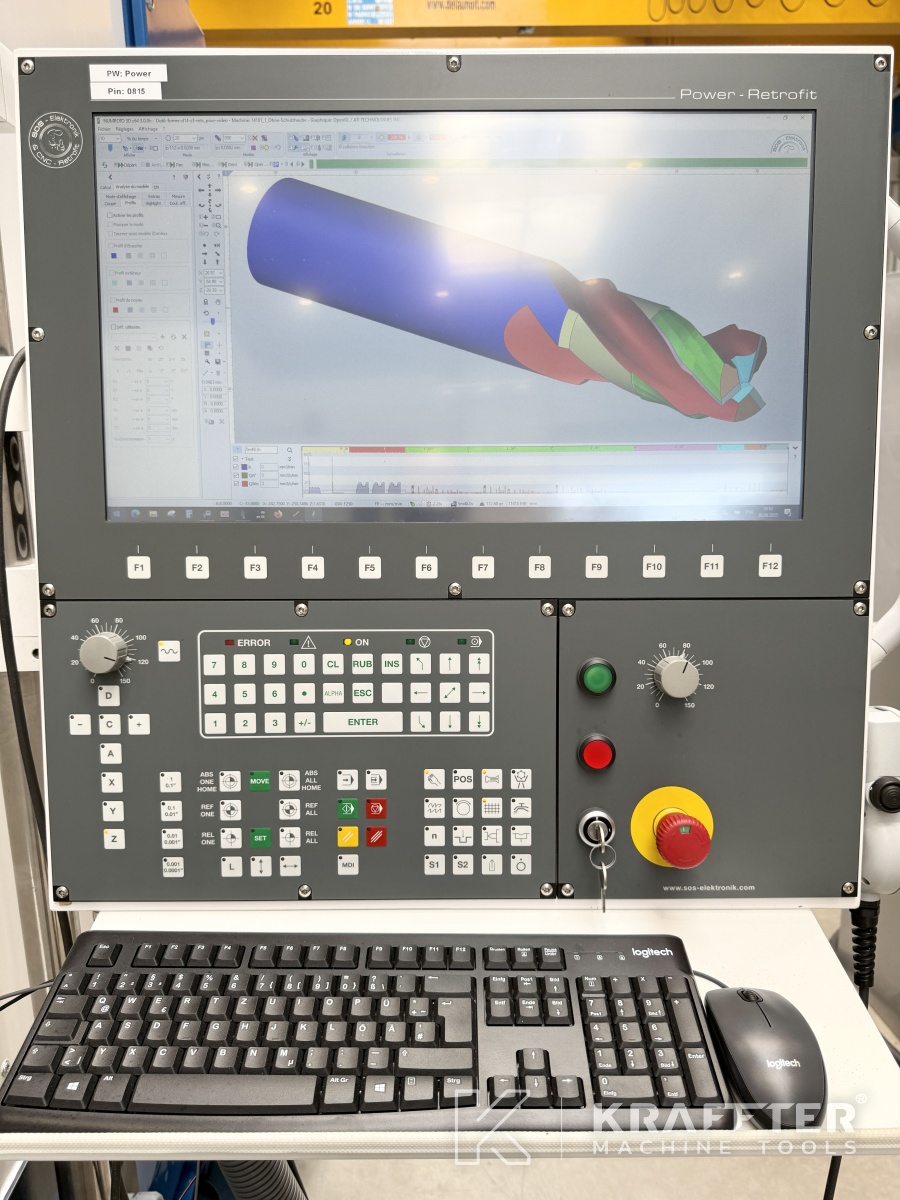

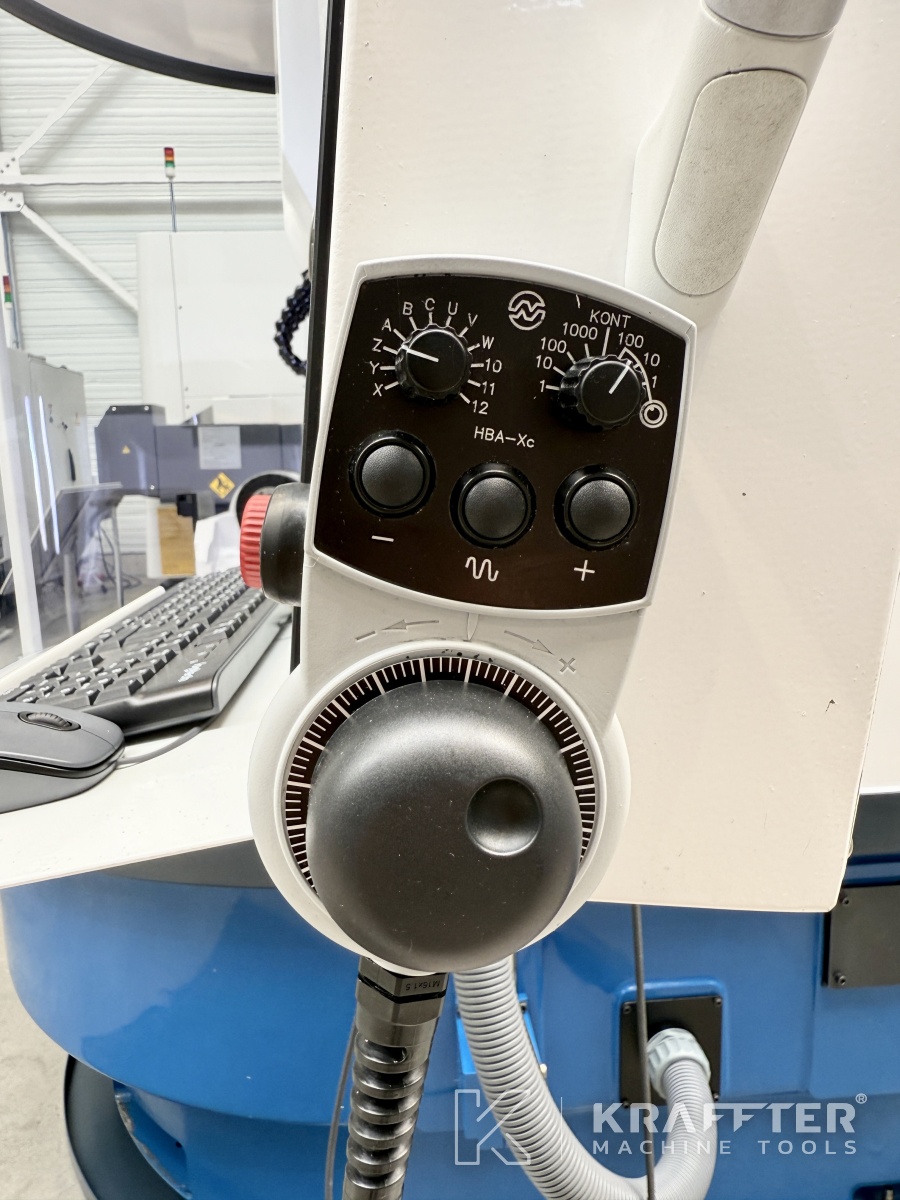

- x1 HMI computer - Intel core i5 – Windows 10
- x1 24" TFT touchscreen monitor

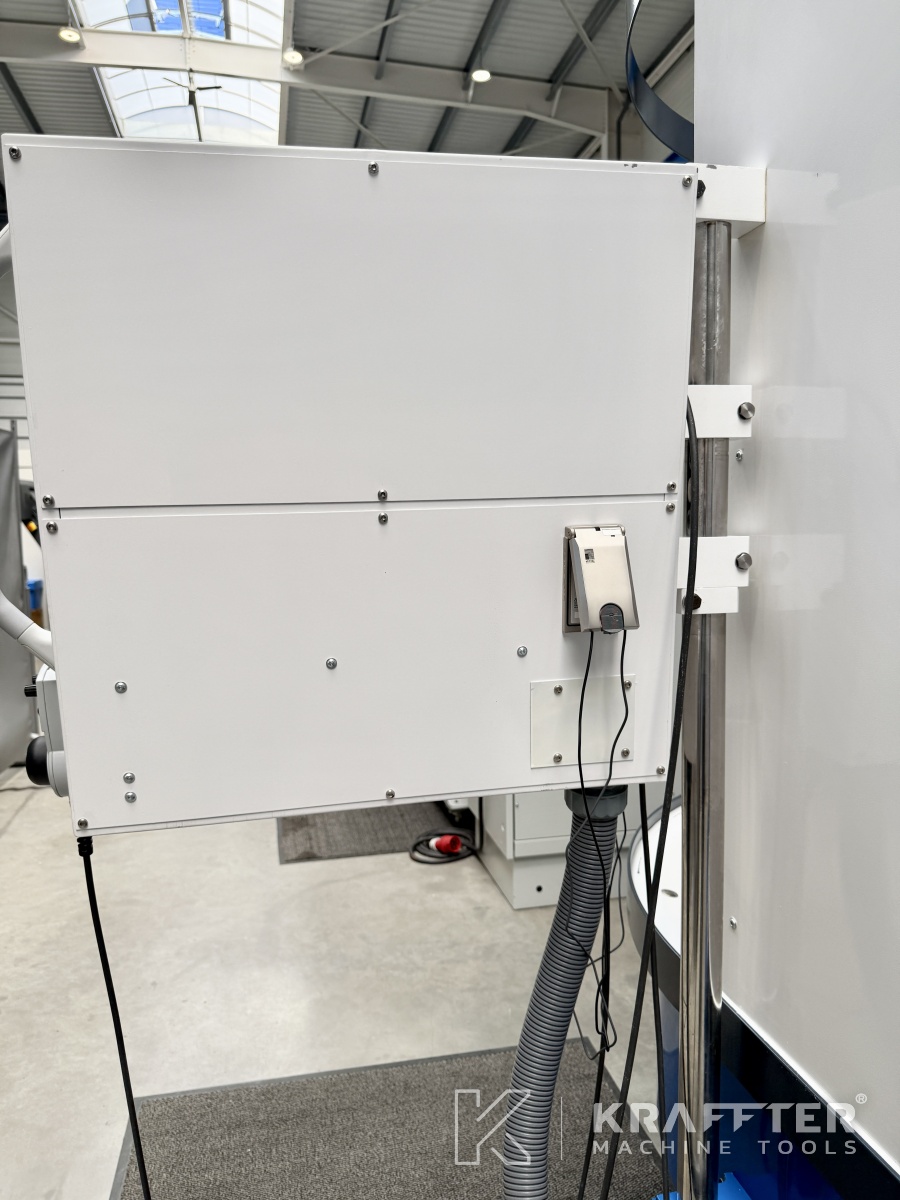

- x1 Remote electronic handwheel – NUM Flexium

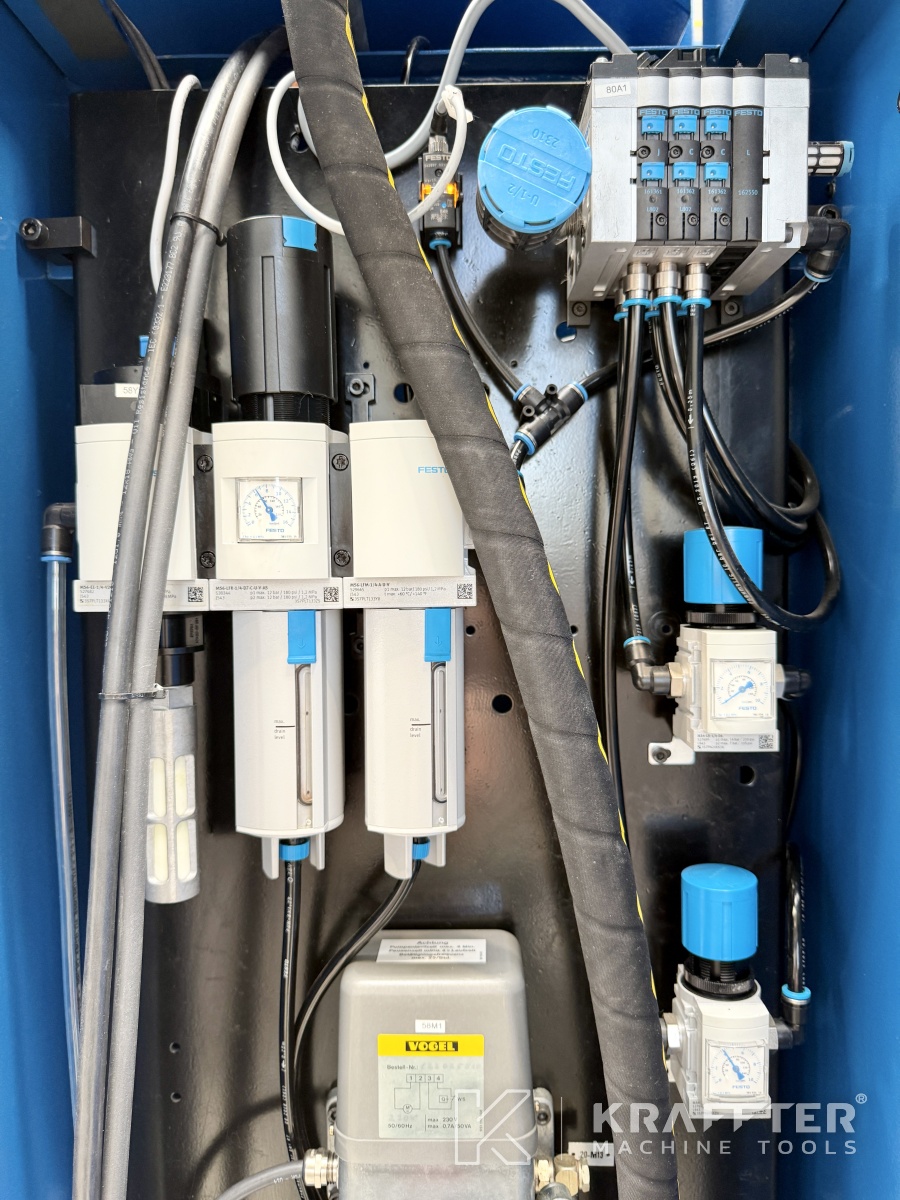

- x1 Centralized lubrication unit

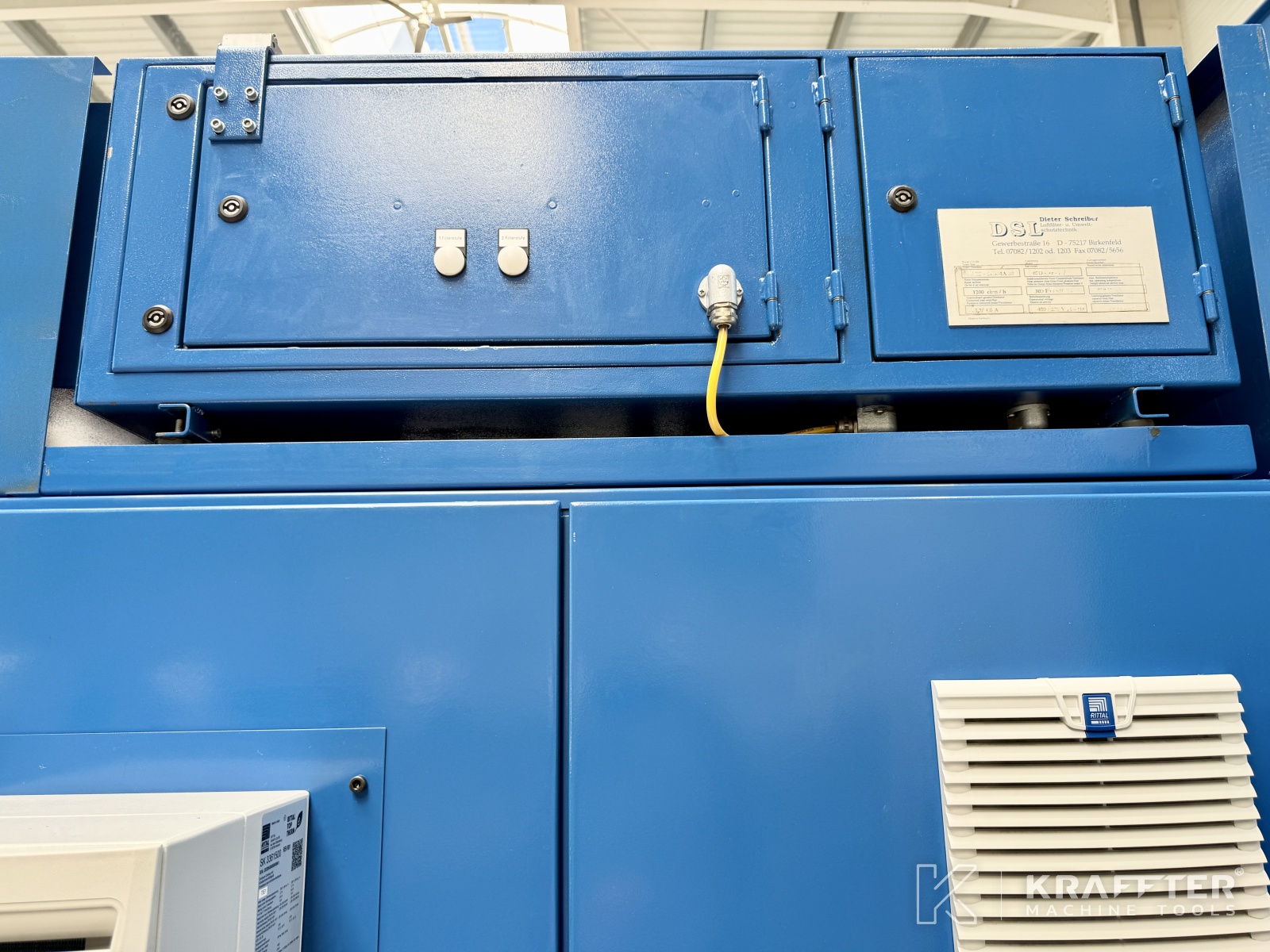

- x1 Mist extractor – DSL AIR TECHNOLOGY, type AES-SIGMA 20

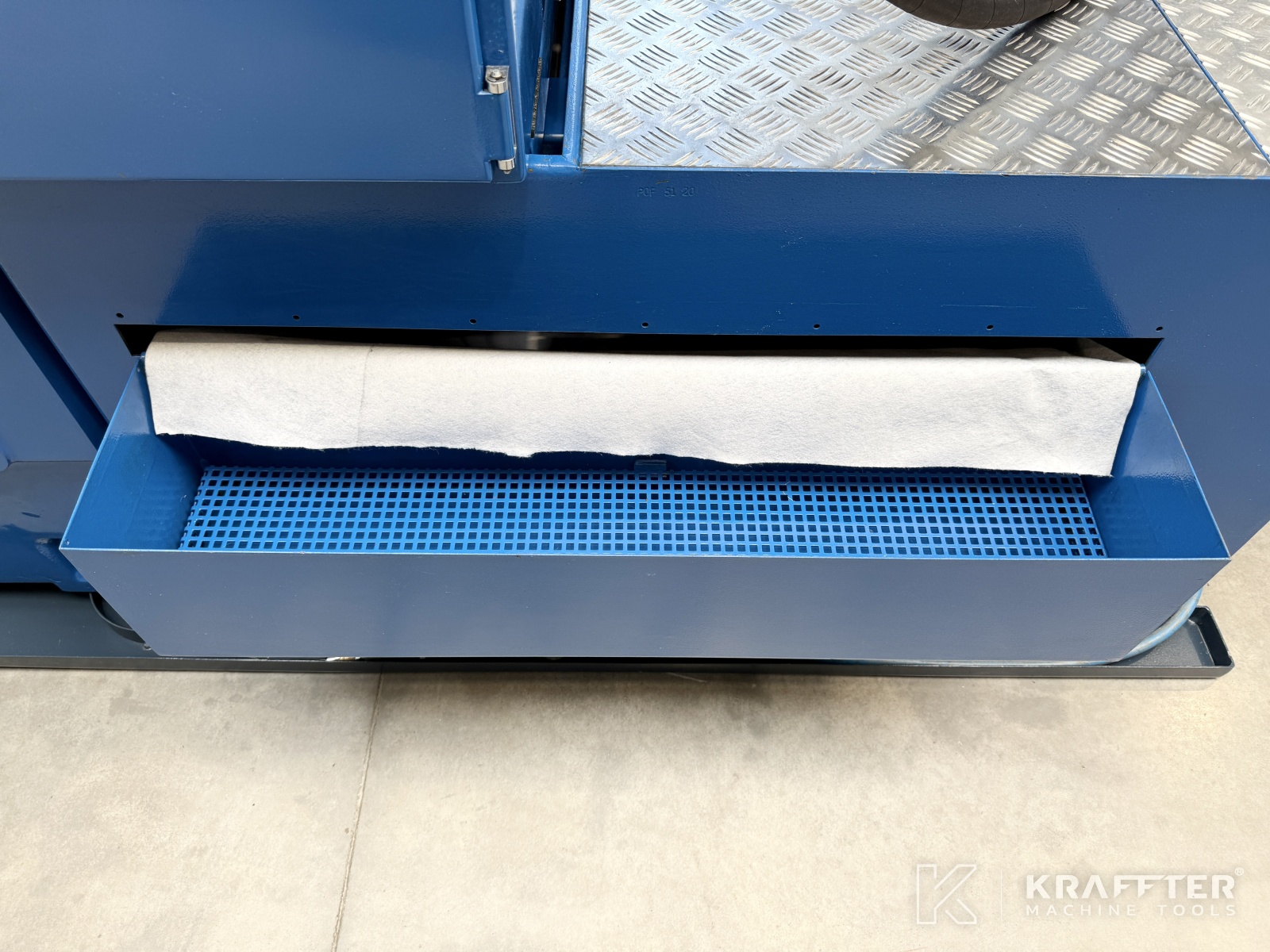

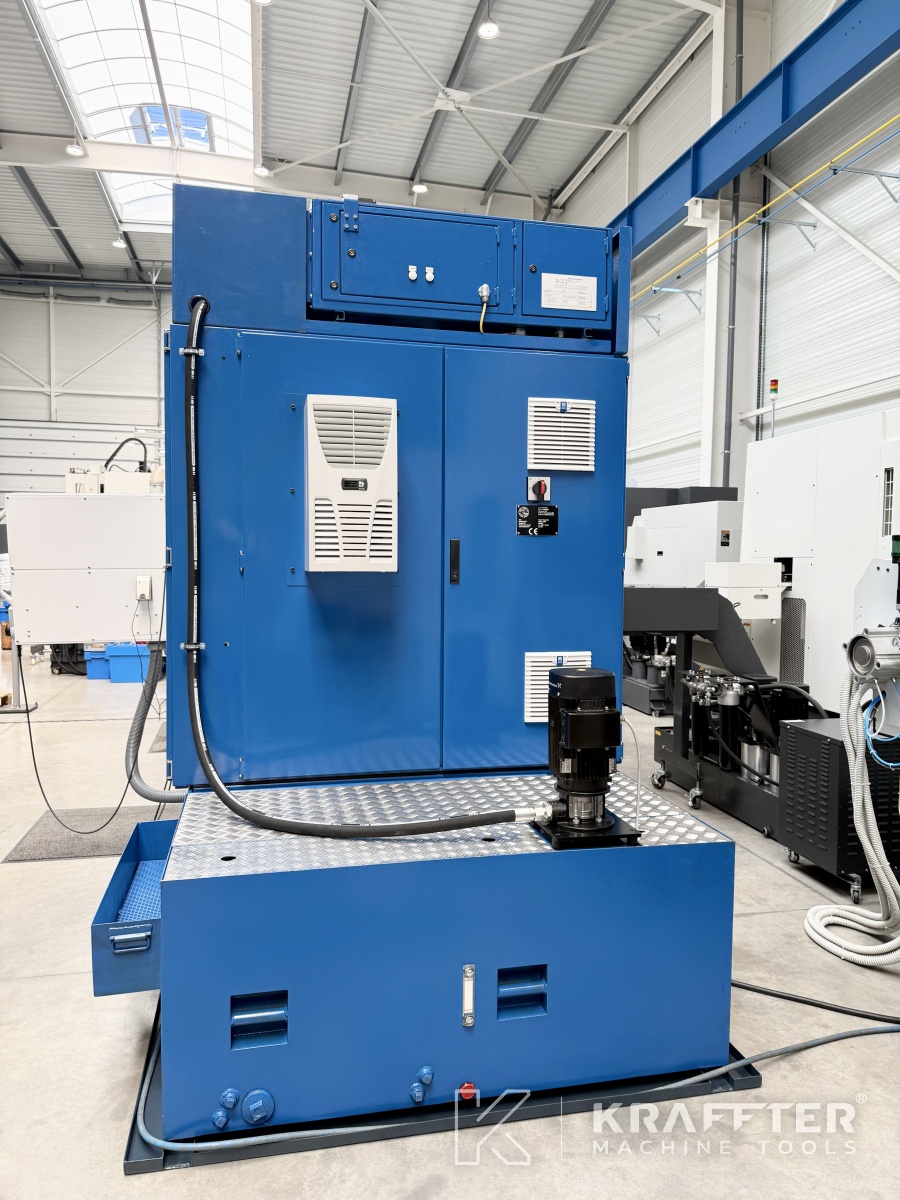

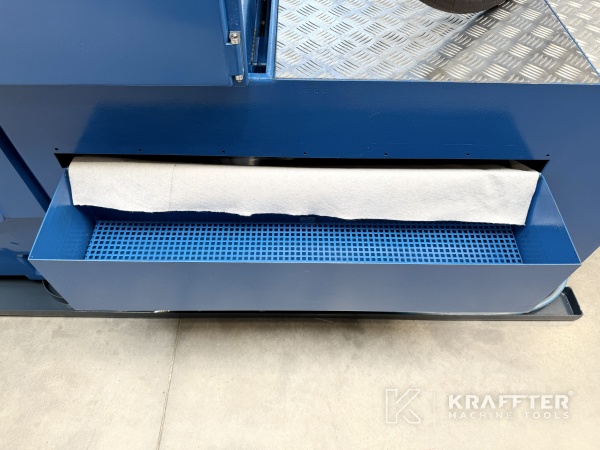

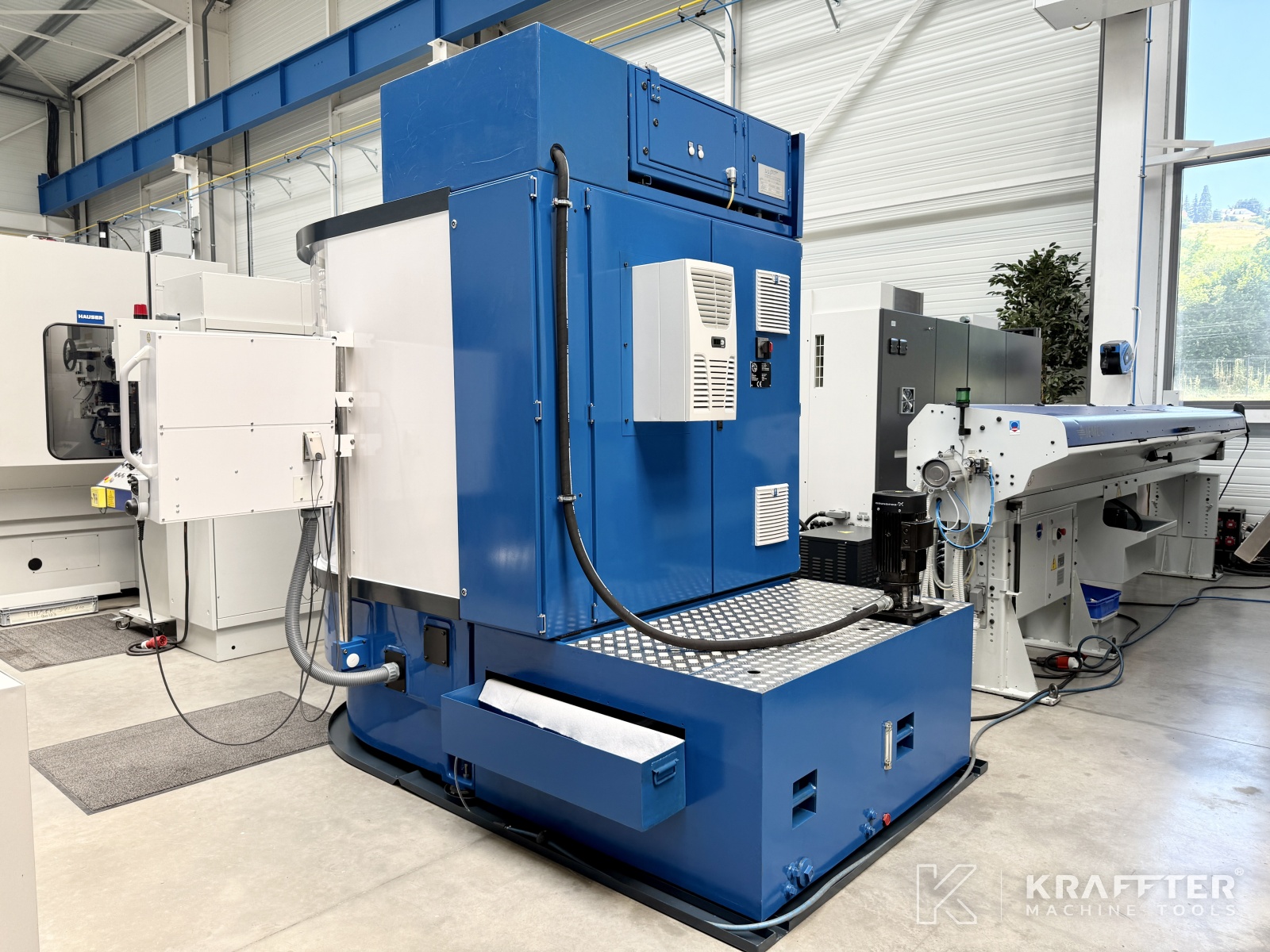

- x1 Coolant tank with paper filtration

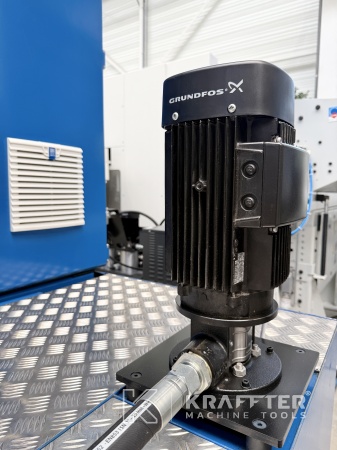

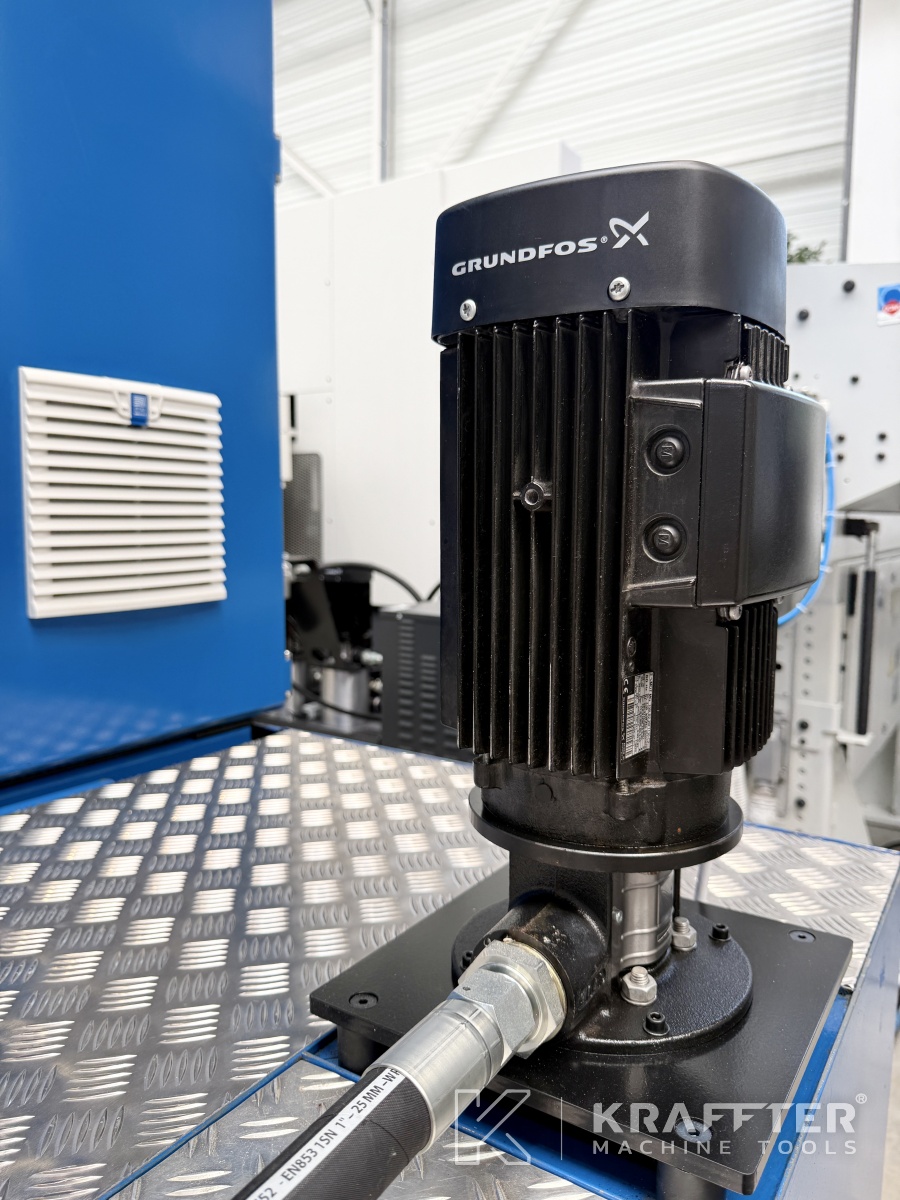

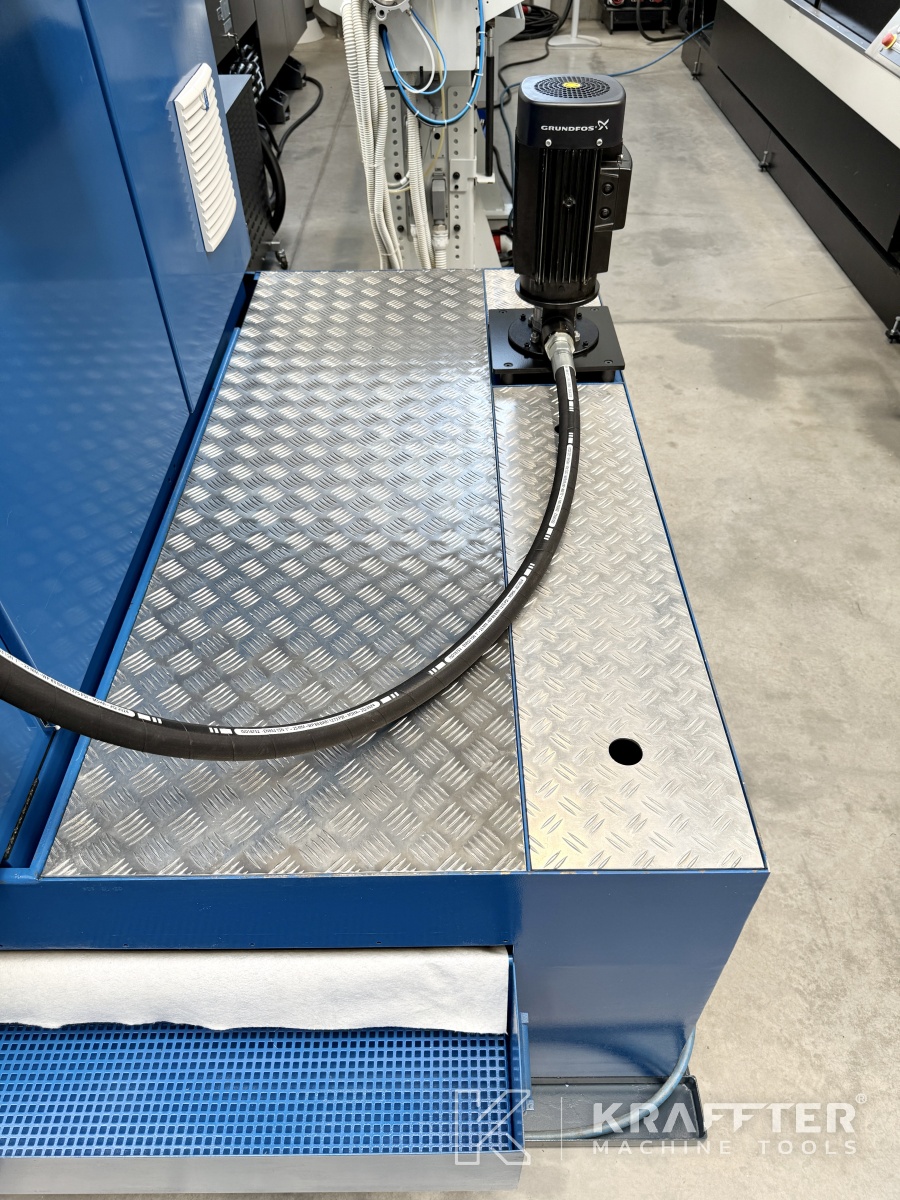

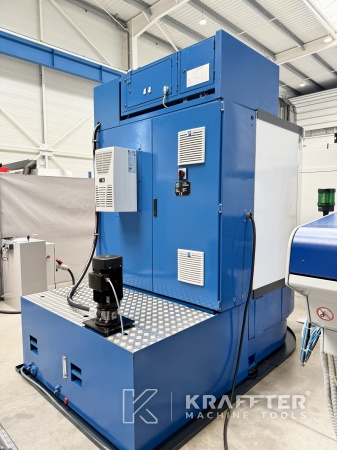

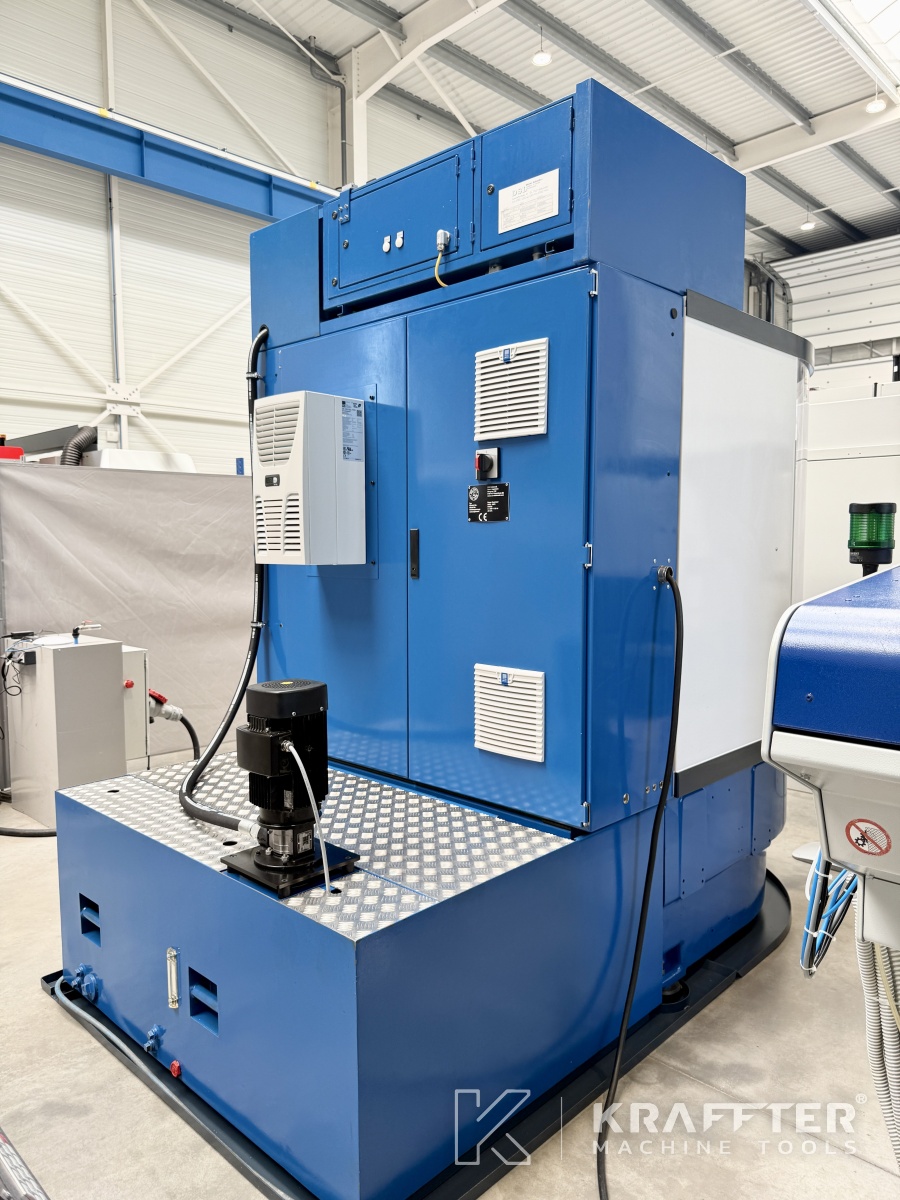

- x1 GRUNDFOS coolant pump (refurbished by GRUNDFOS in 2020 and unused since)

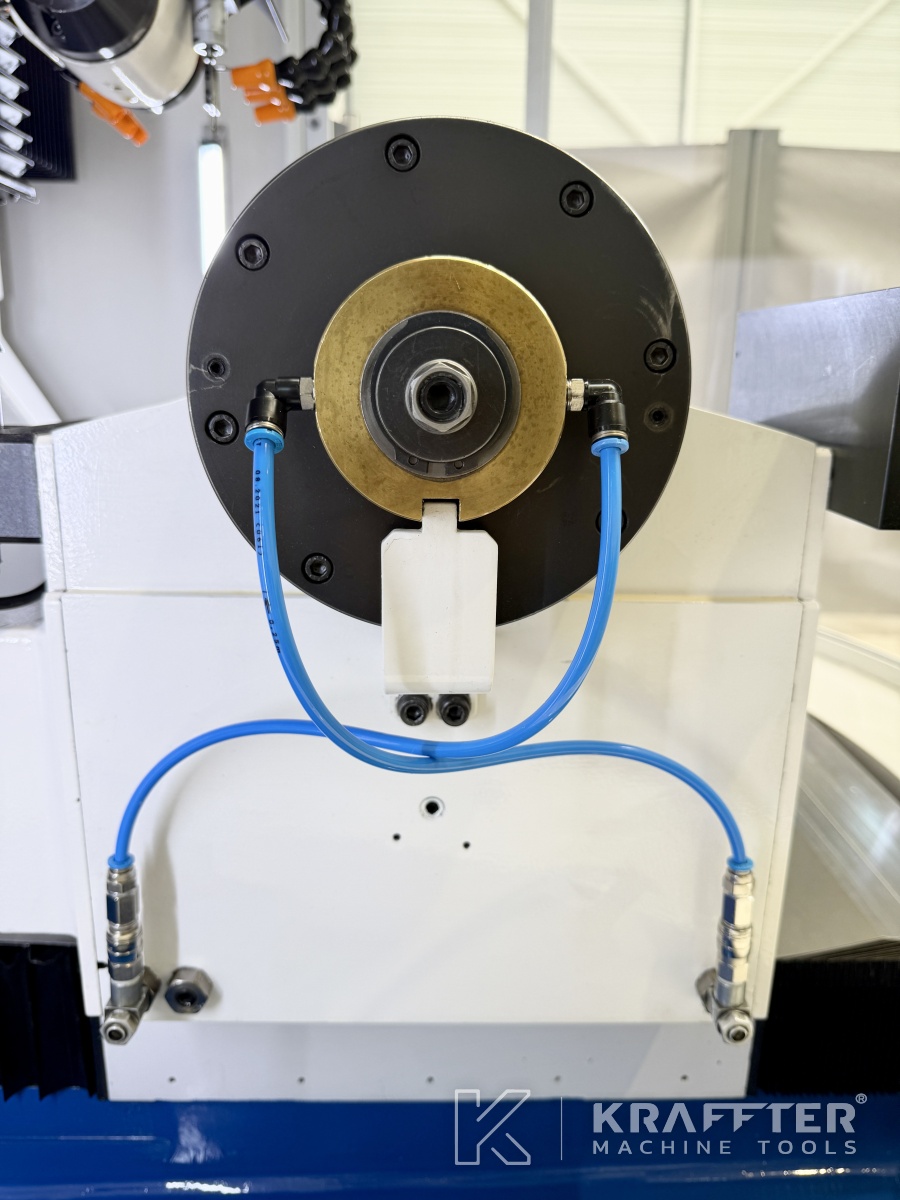

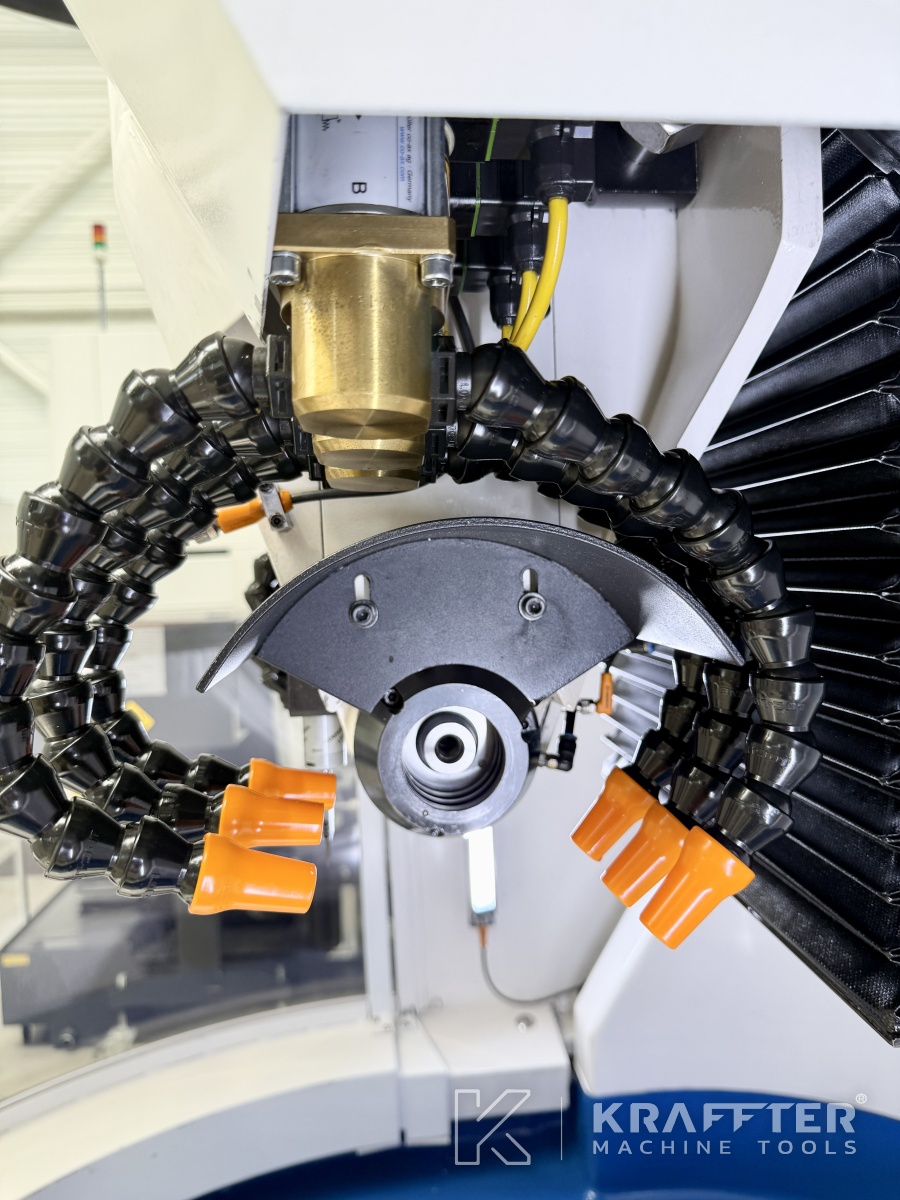

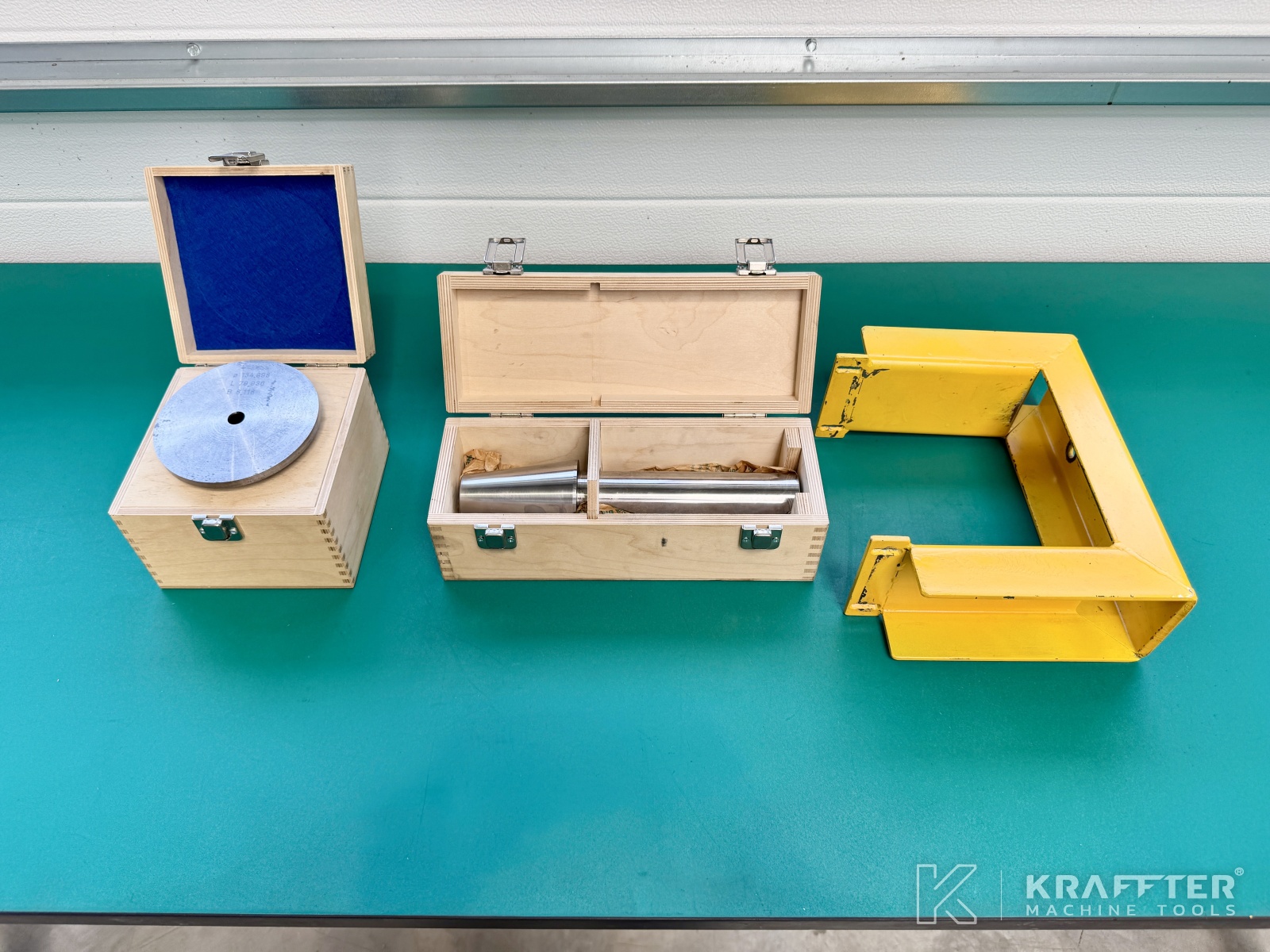

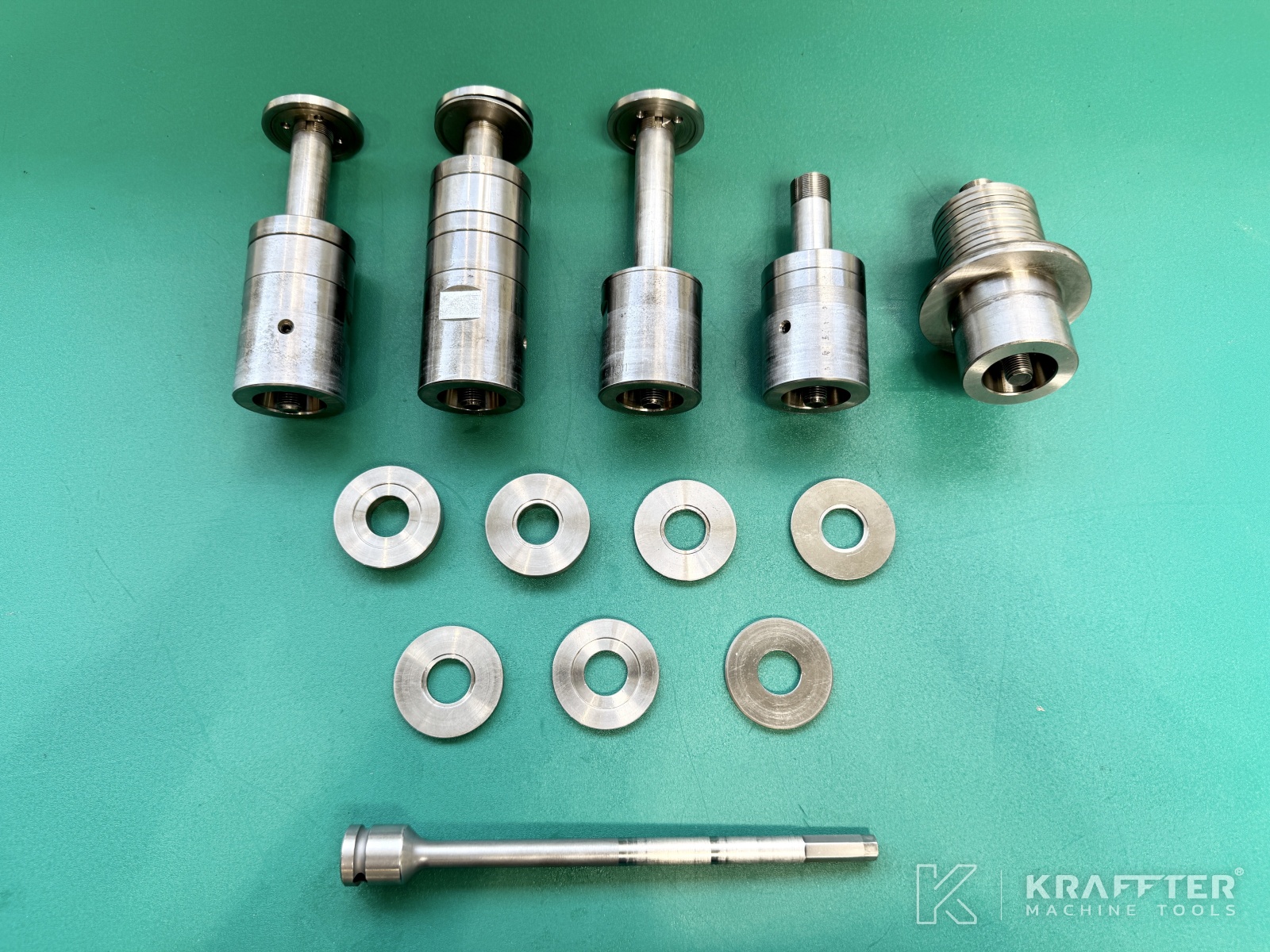

- x5 Wheel holders + spacers

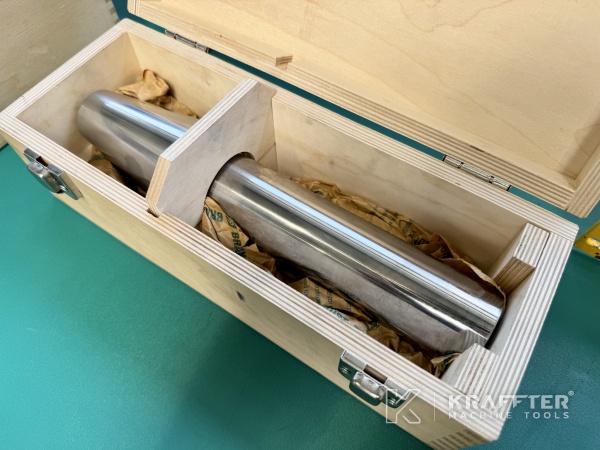

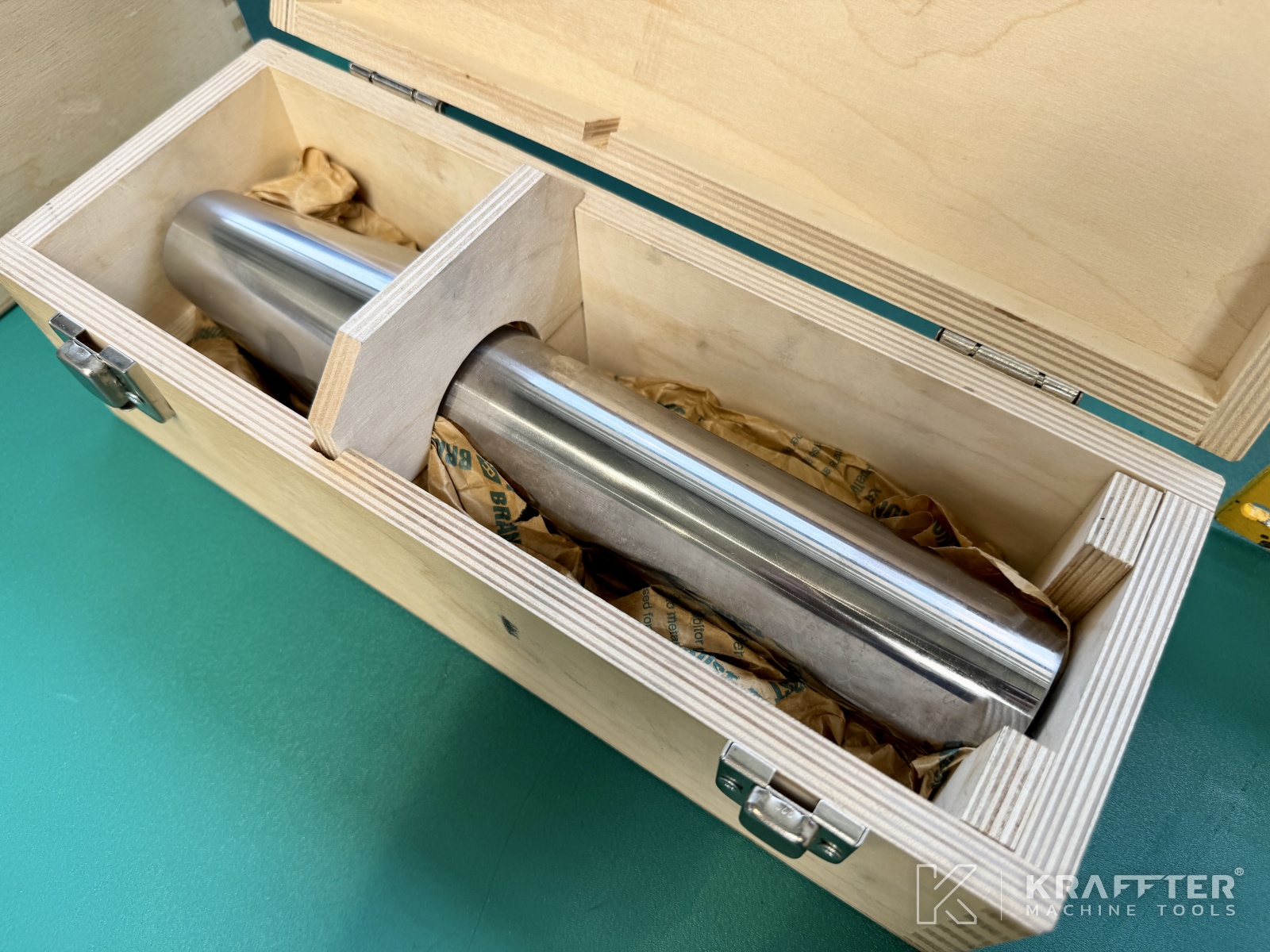

- x1 ISO 50 test mandrel

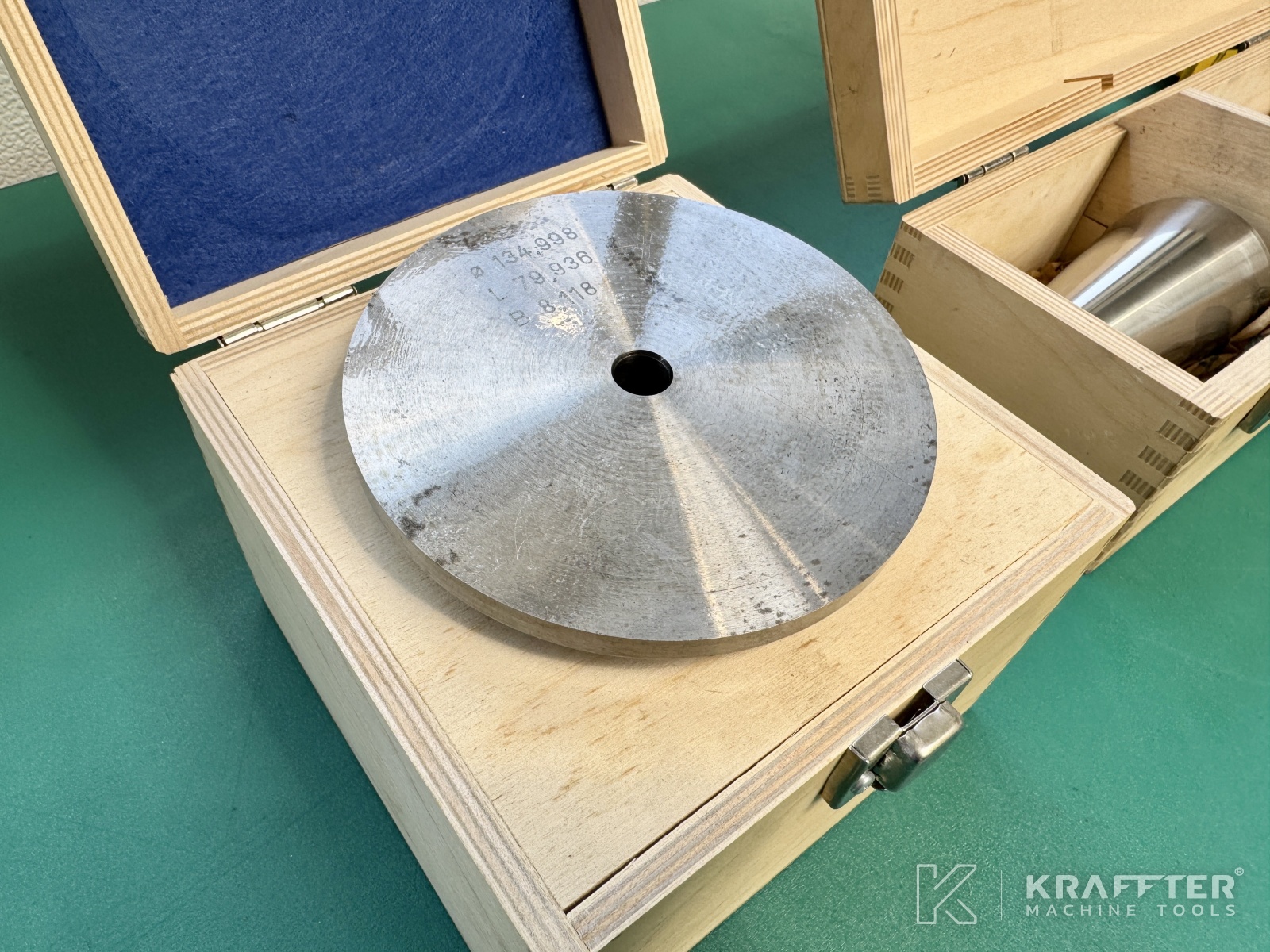

- x1 disk mandrel
- x1 transport bracket
Included NumRotoPlus software packages:
- CH-50052201 – Basic machine license with hard lock
- CH-50052350 – Standard mill bits
- CH-50052360 – Complex mill bits
- CH-50052145 – Extension rough profile / thread production
- CH-50052430 – Extension multi spirals
- CH-50052370 – Standard drill bits
- CH-50052380 – Complex drill bits and step drills
- CH-50052080 – Extension for form steps defined in DXF files
- CH-50052150 – Form cutters
- CH-50052480 – Special grinding functions
- CH-50052110 – Automated tool probing
- CH-50052190 – Automated wheel probing
- CH-50052870 – Automated wheel sticking
- CH-50052120 – NCI Windows operator screen
- CH-50052230 – NumRoto control
- CH-50052660 – 3D collision protection
- CH-50052670 – 3D tool simulation
- CH-50052720 – 3D special functions
MECHANICAL RETROFIT CARRIED OUT IN 2020:
-
Ball screws on X, Y, and Z axes
-
Linear guides on X, Y, and Z axes
-

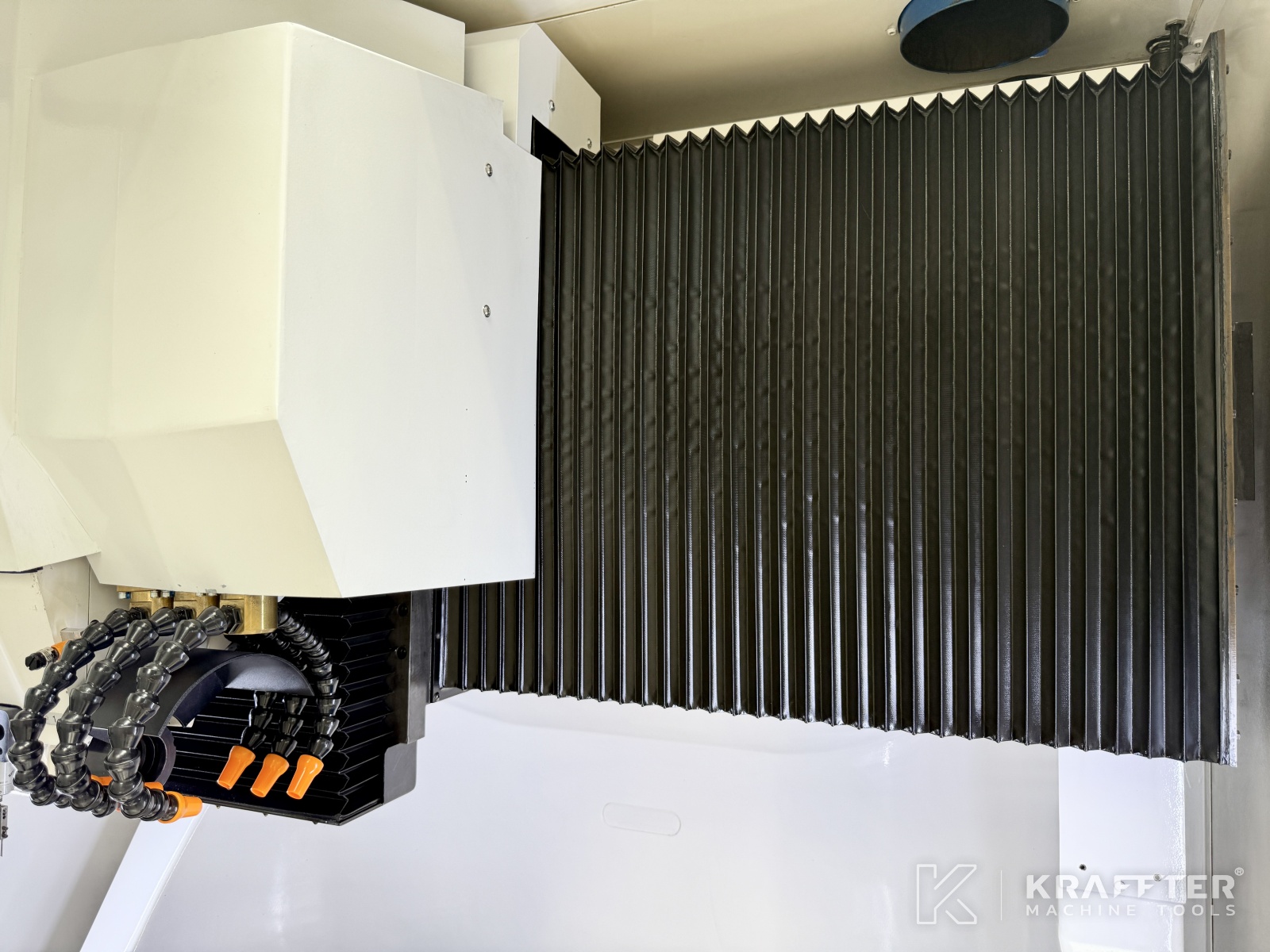

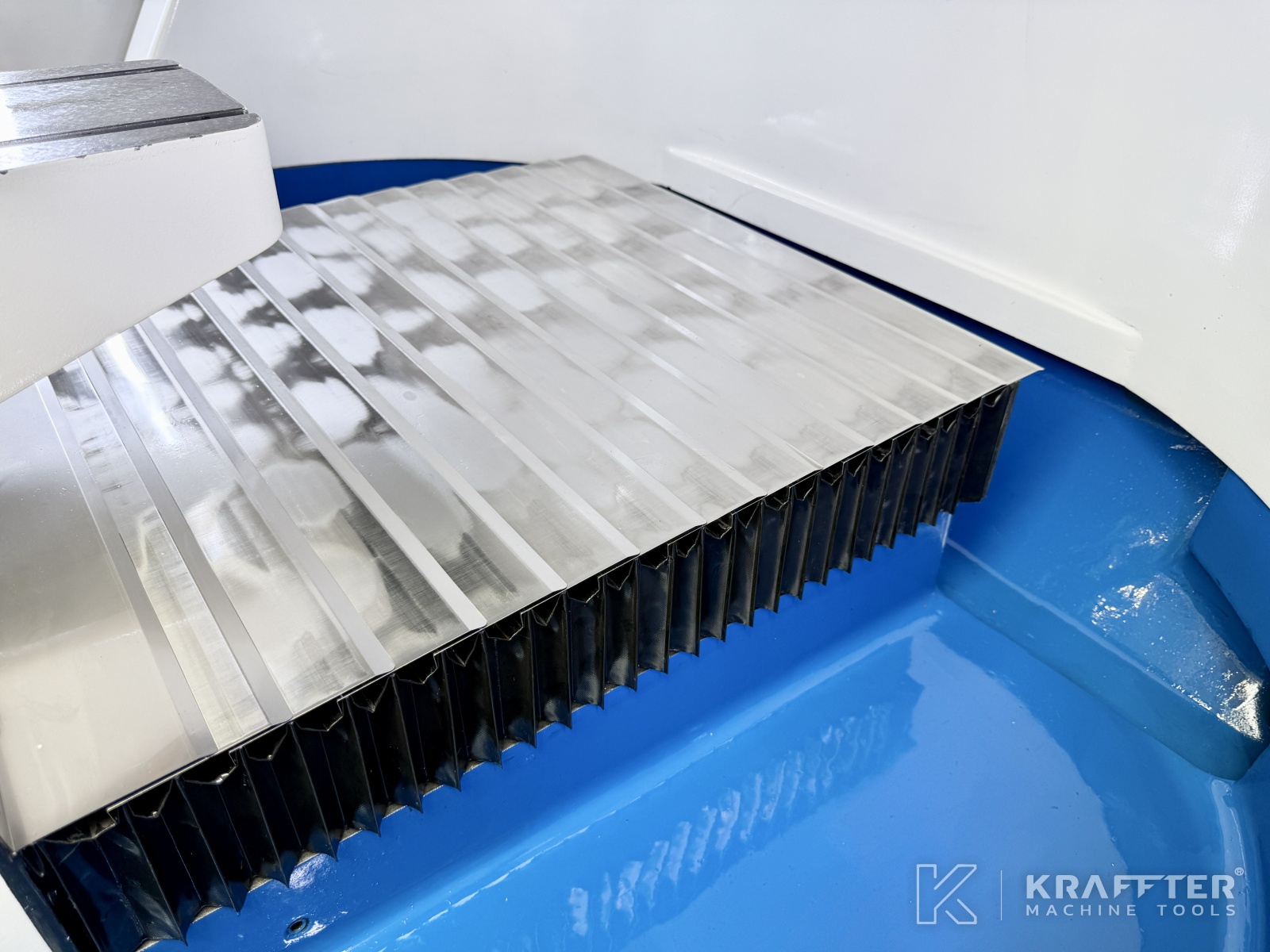

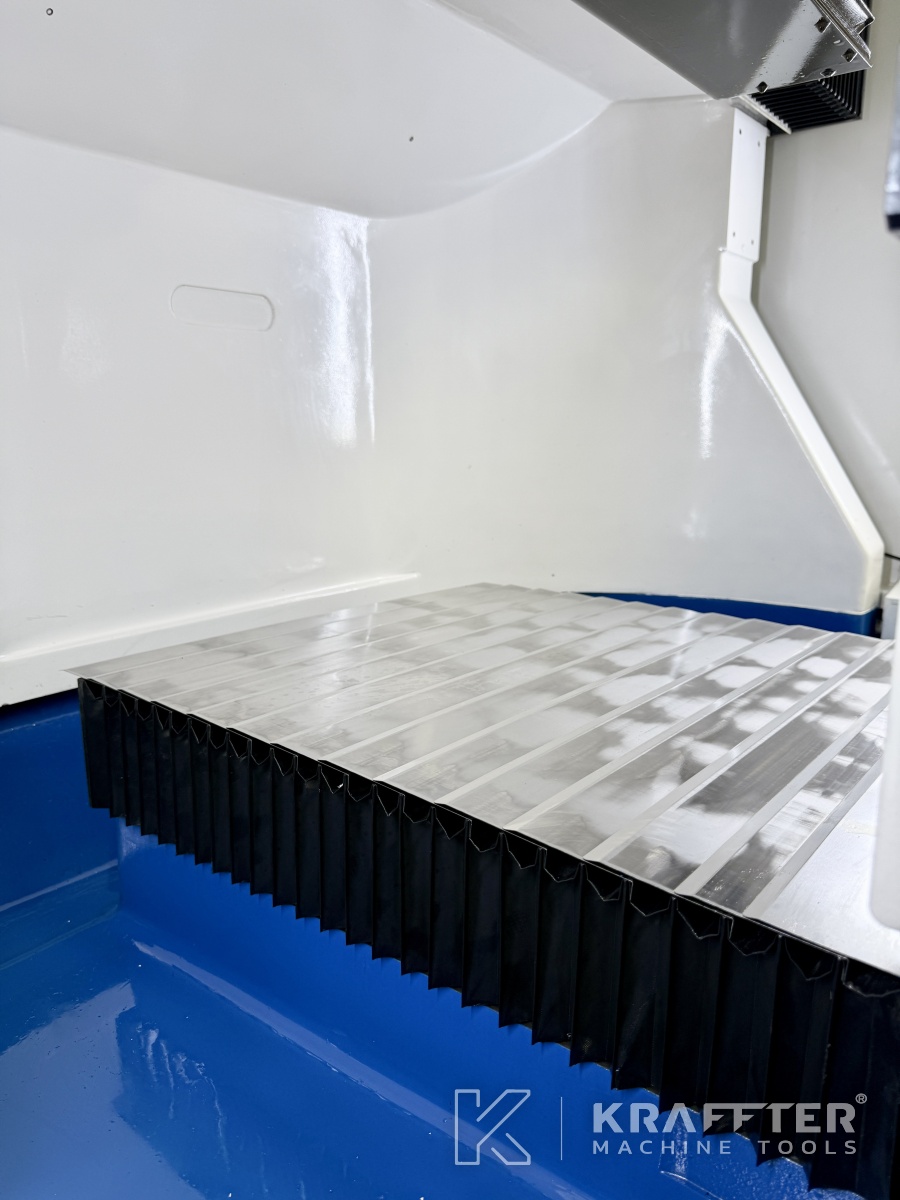

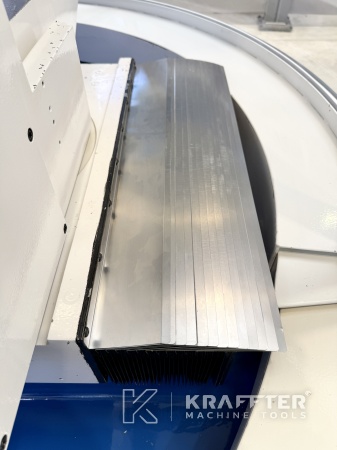

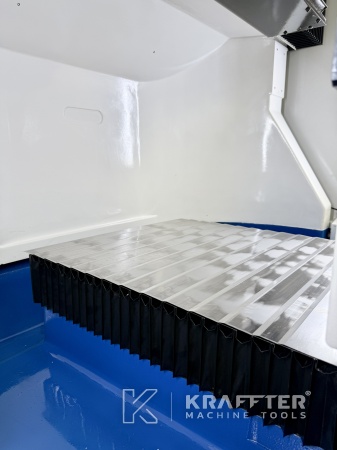

Protective bellows on X, Y, and Z axes
-
Worm gear and wheel assemblies on A and C axes
-
Belts on A and C axes
-

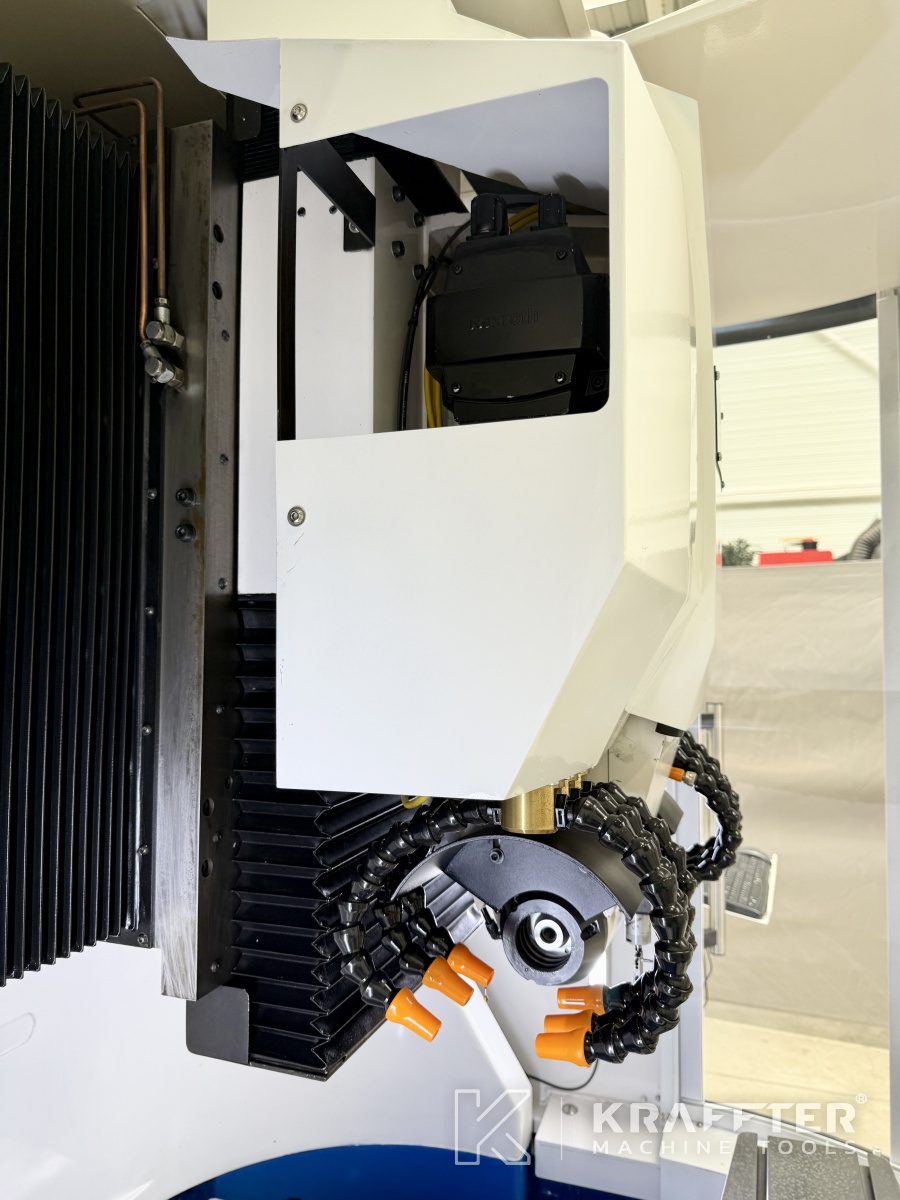

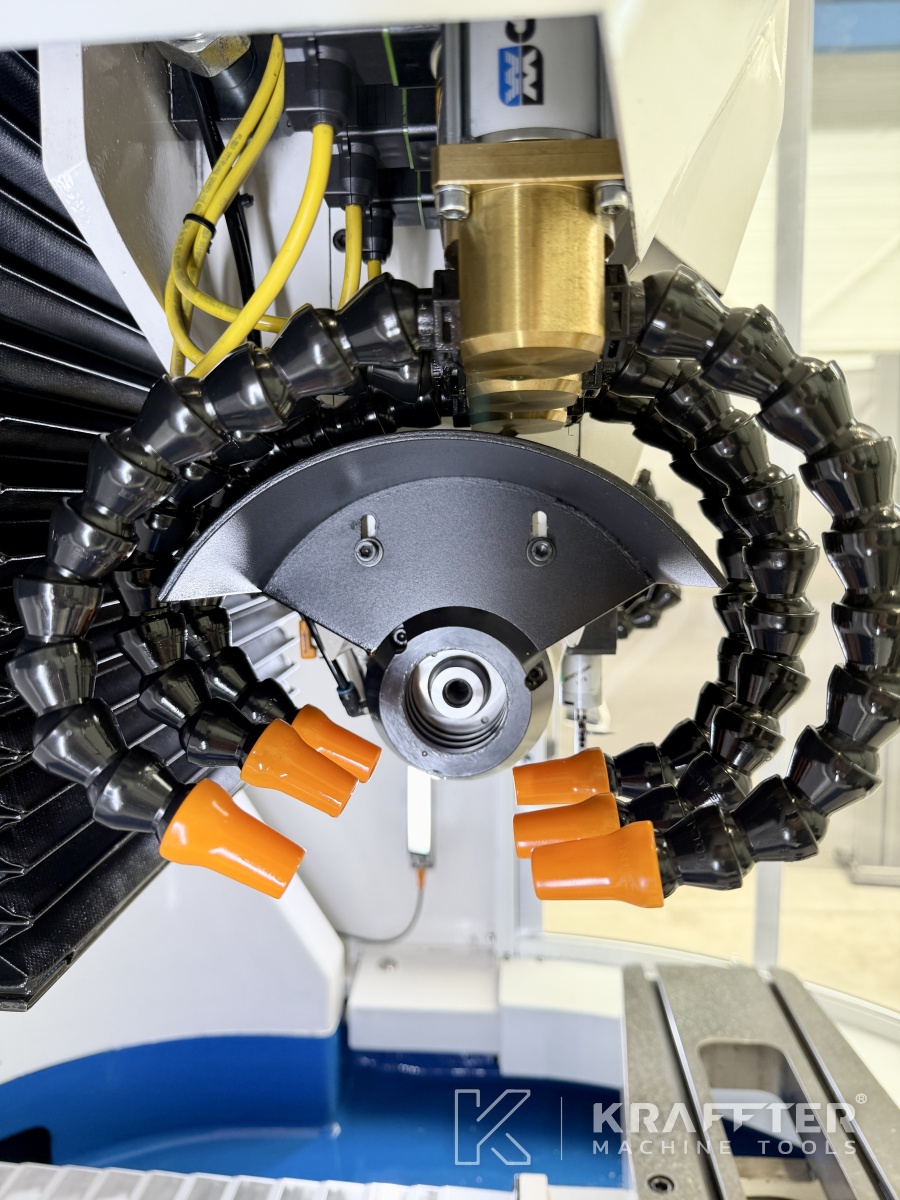

Grinding spindle
-
Grinding spindle belt
-
Workpiece spindle bearings

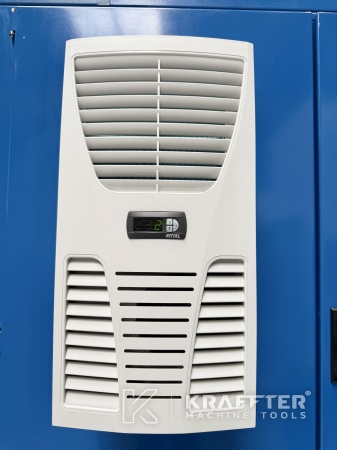

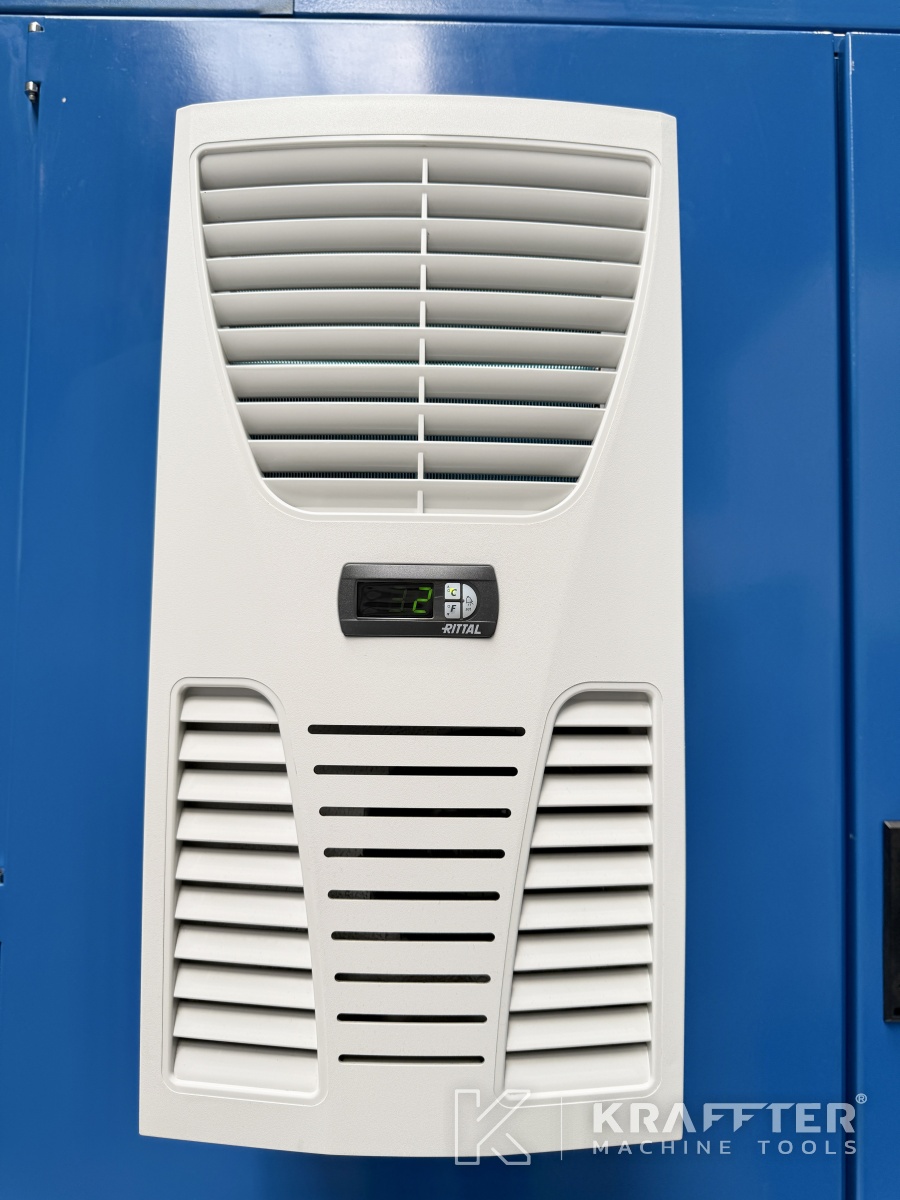

CNC RETROFIT CARRIED OUT IN 2020:
-

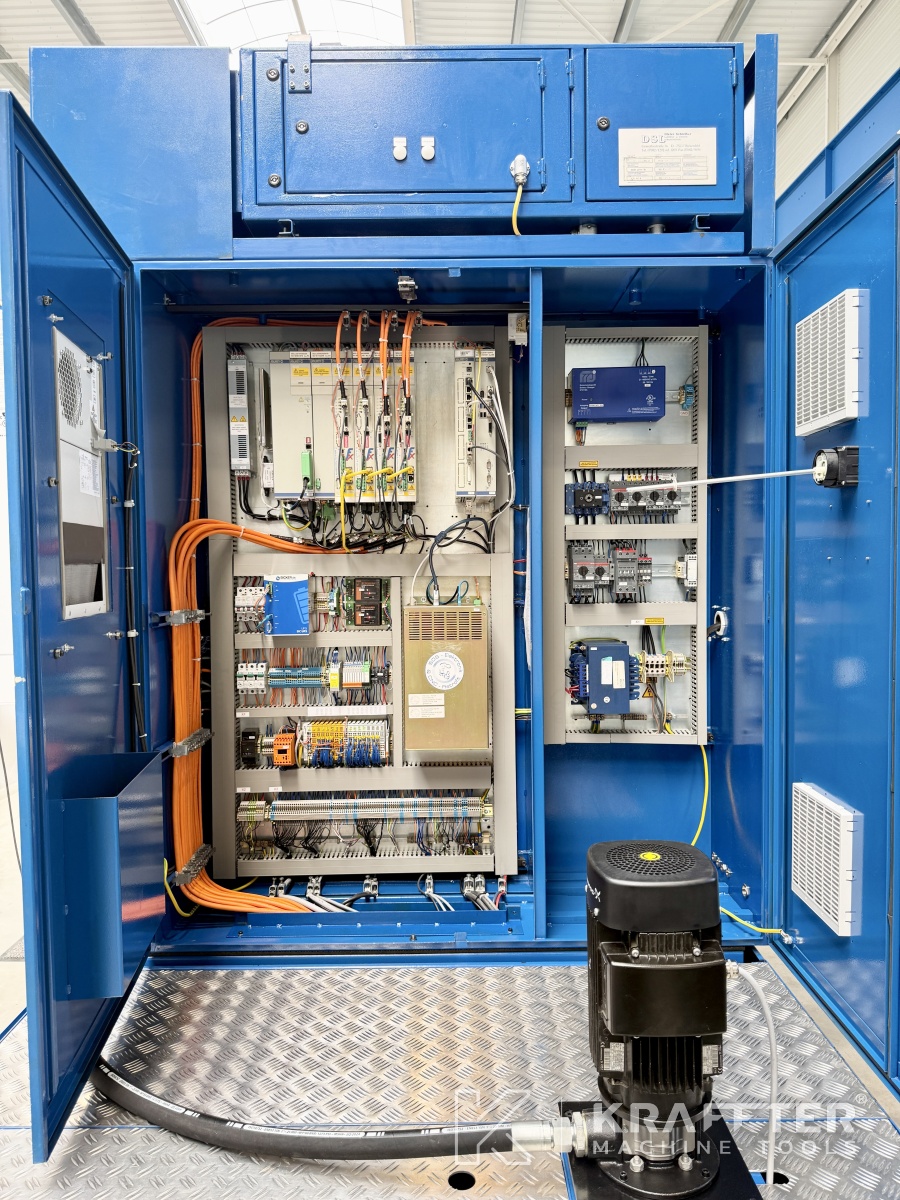

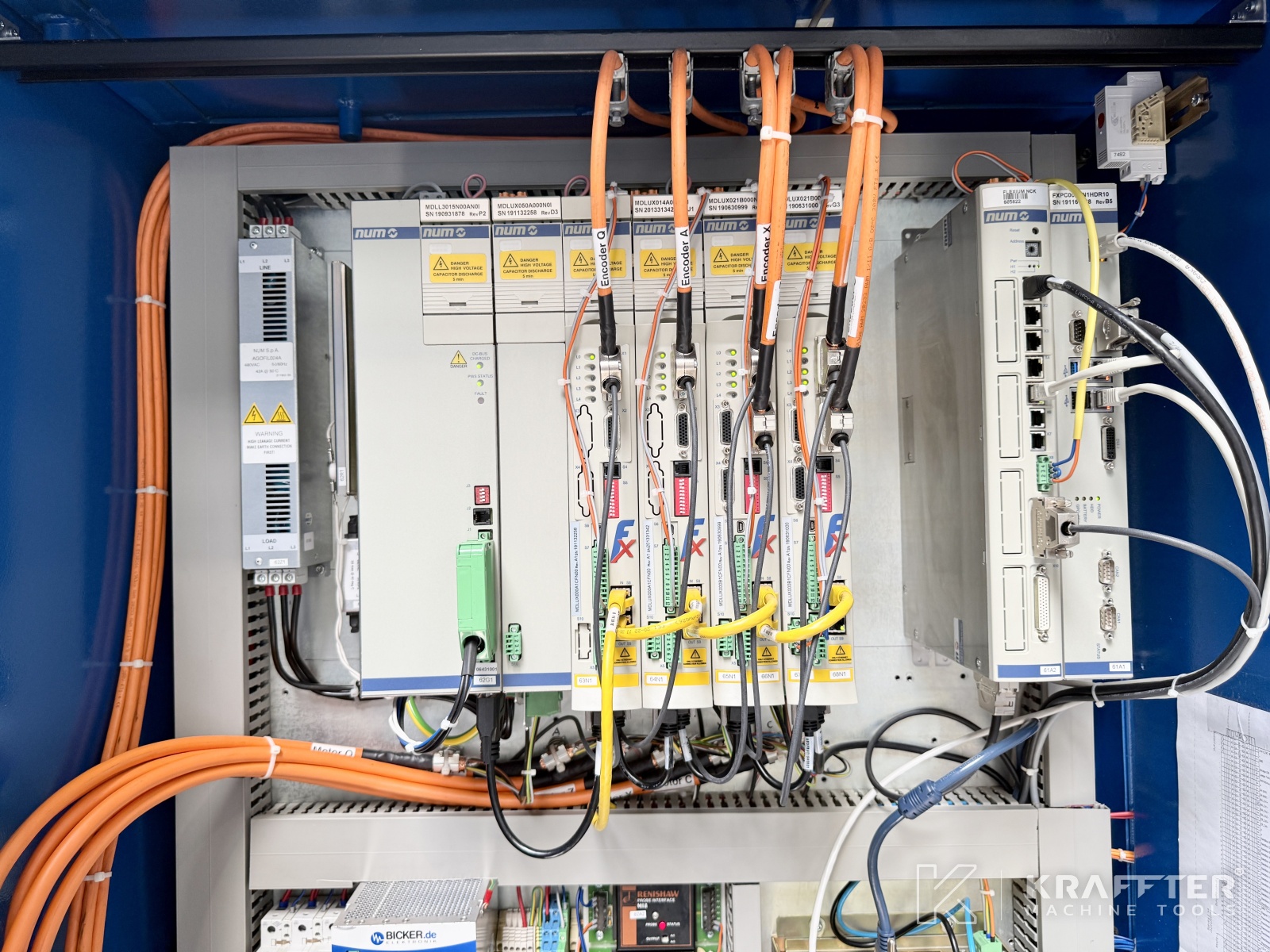

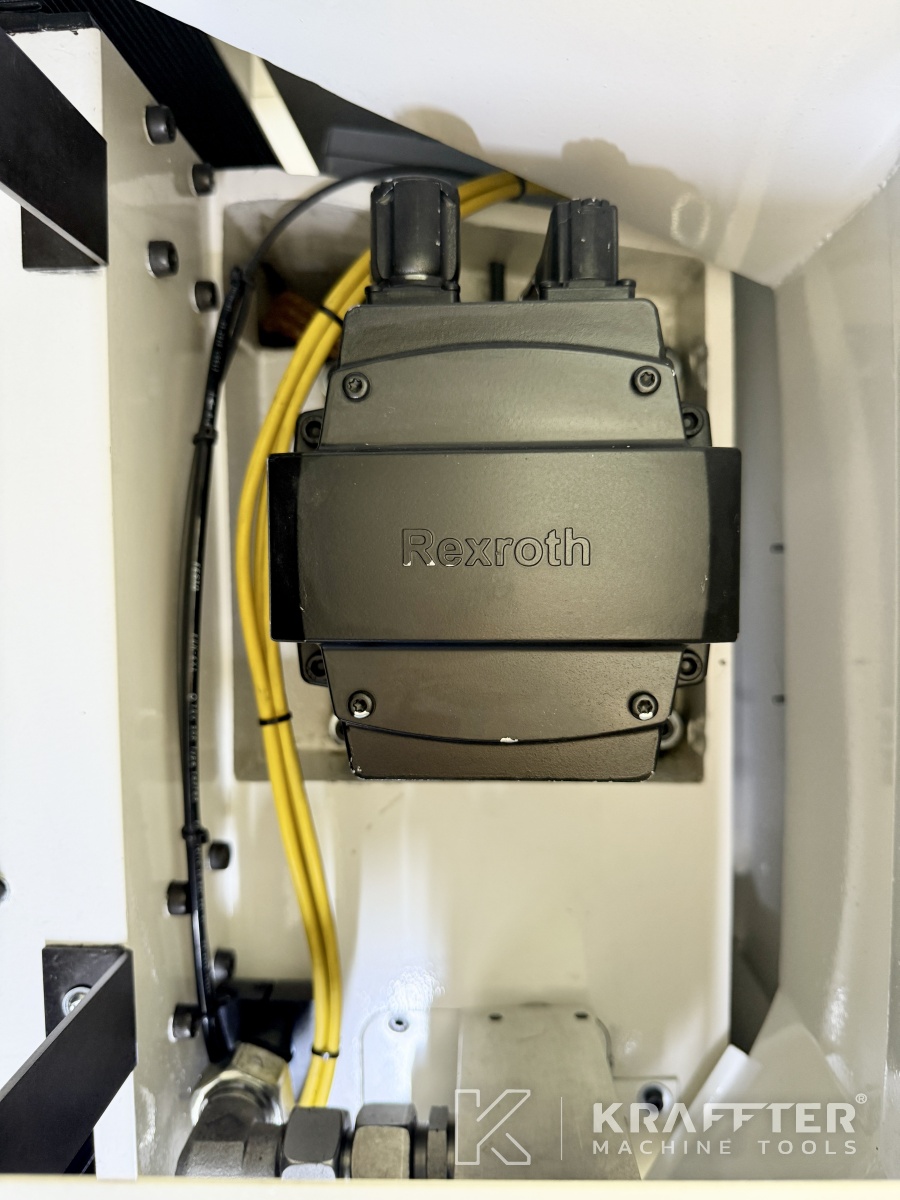

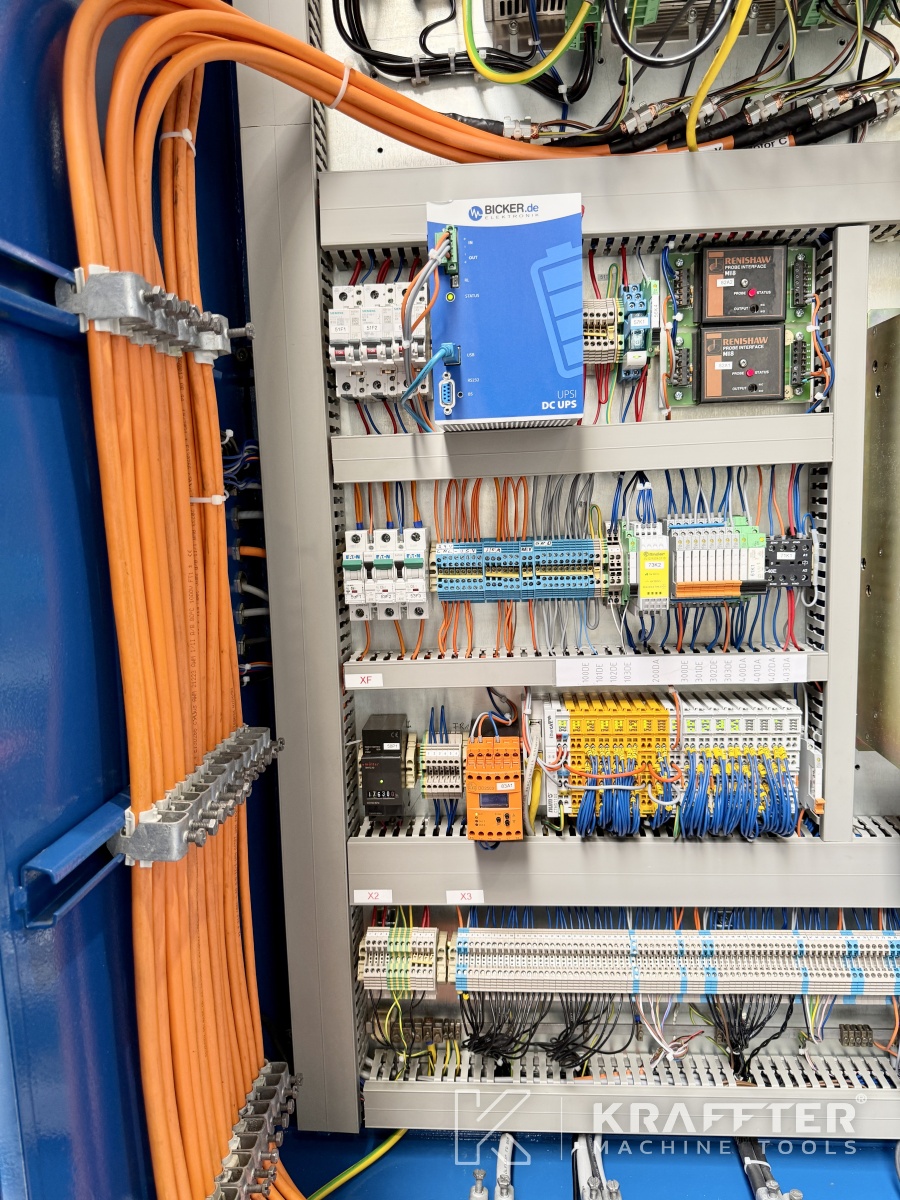

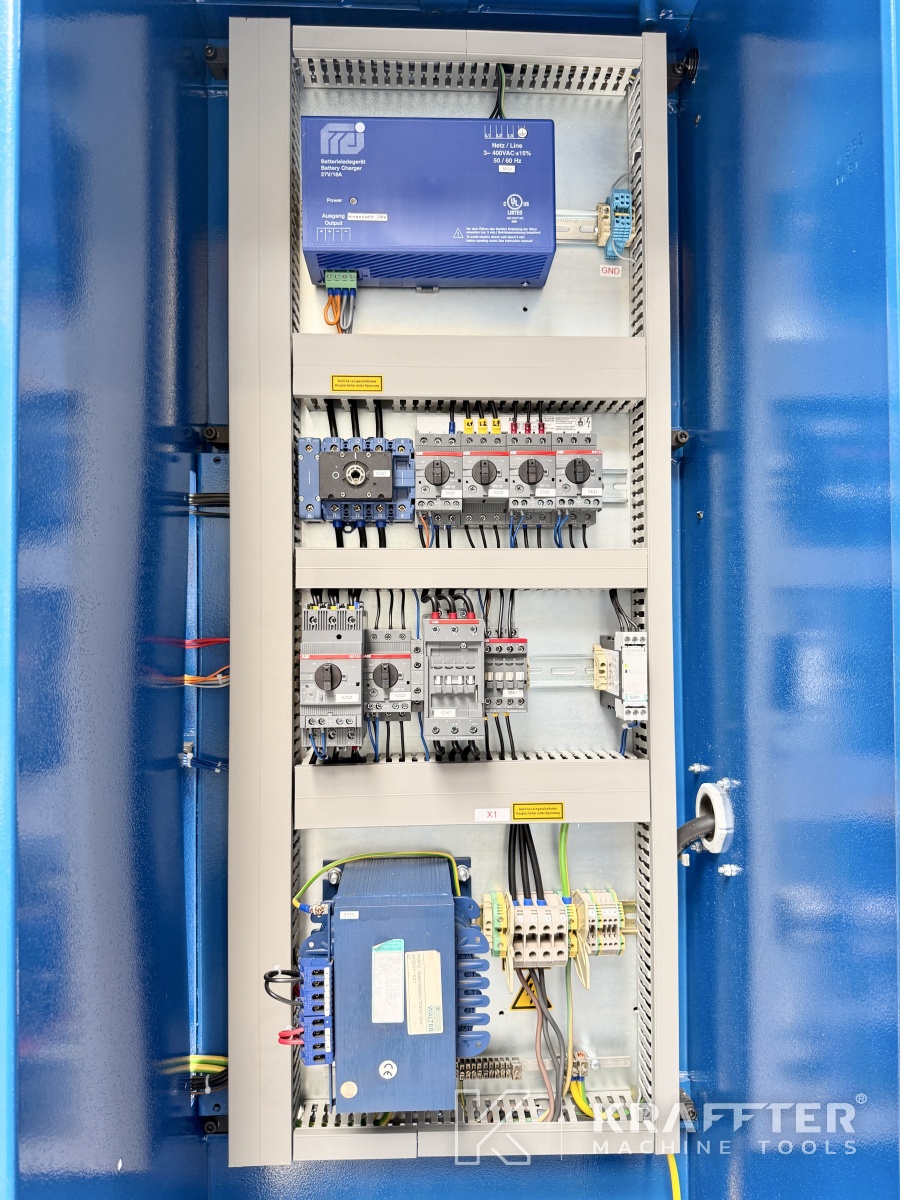

CNC system - control, drives, PLC : NUM Flexium
-
HMI computer: Intel Core i5 – Windows 10
-
Software: Numroto Plus
-

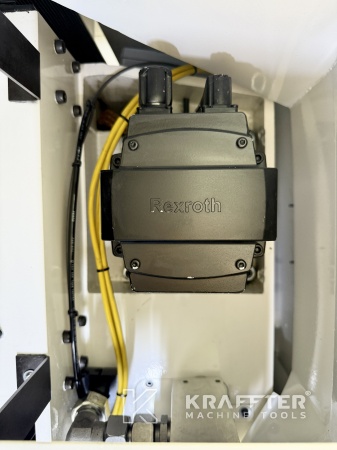

Servo motors: BOSCH
-
24" TFT touchscreen
-
Remote electronic handwheel: NUM Flexium
-
Tool probe: RENISHAW type LP2DD
-
Wheel probe: RENISHAW type LP2DD
