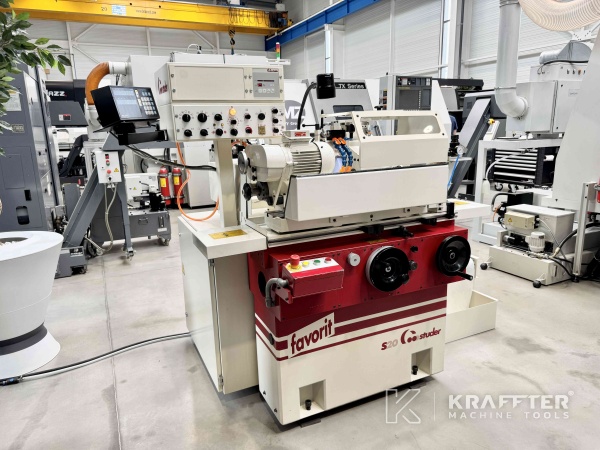

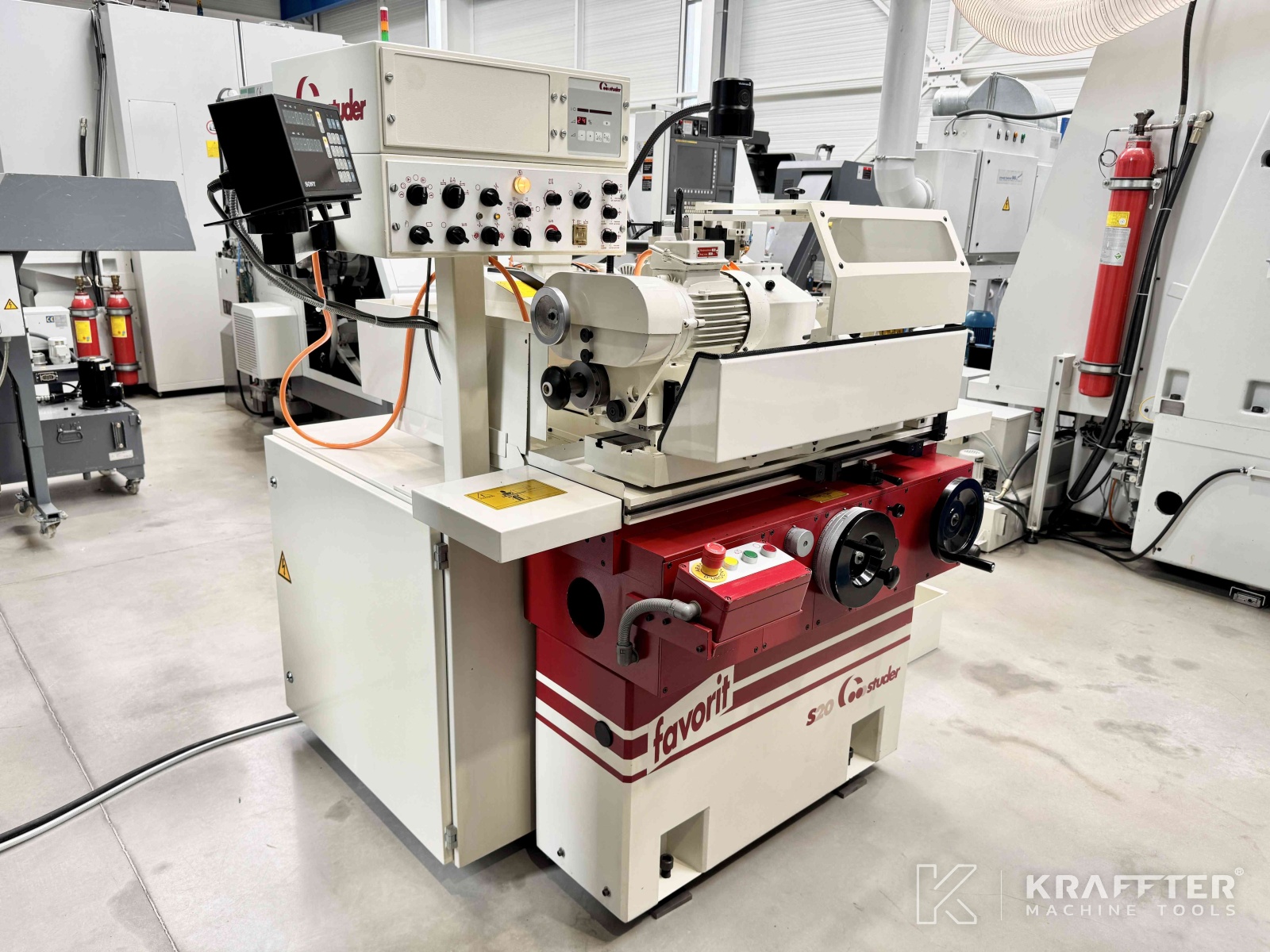

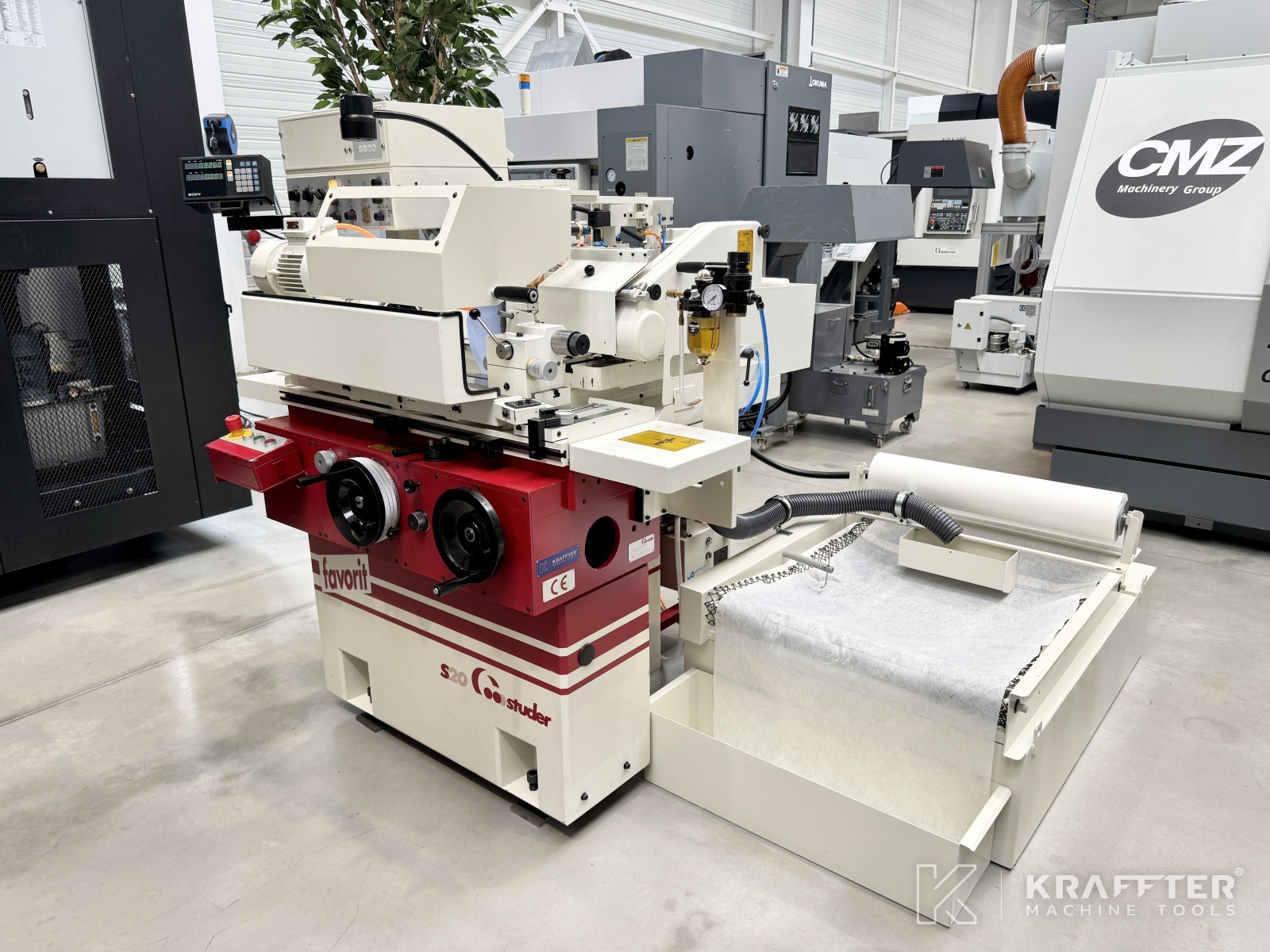

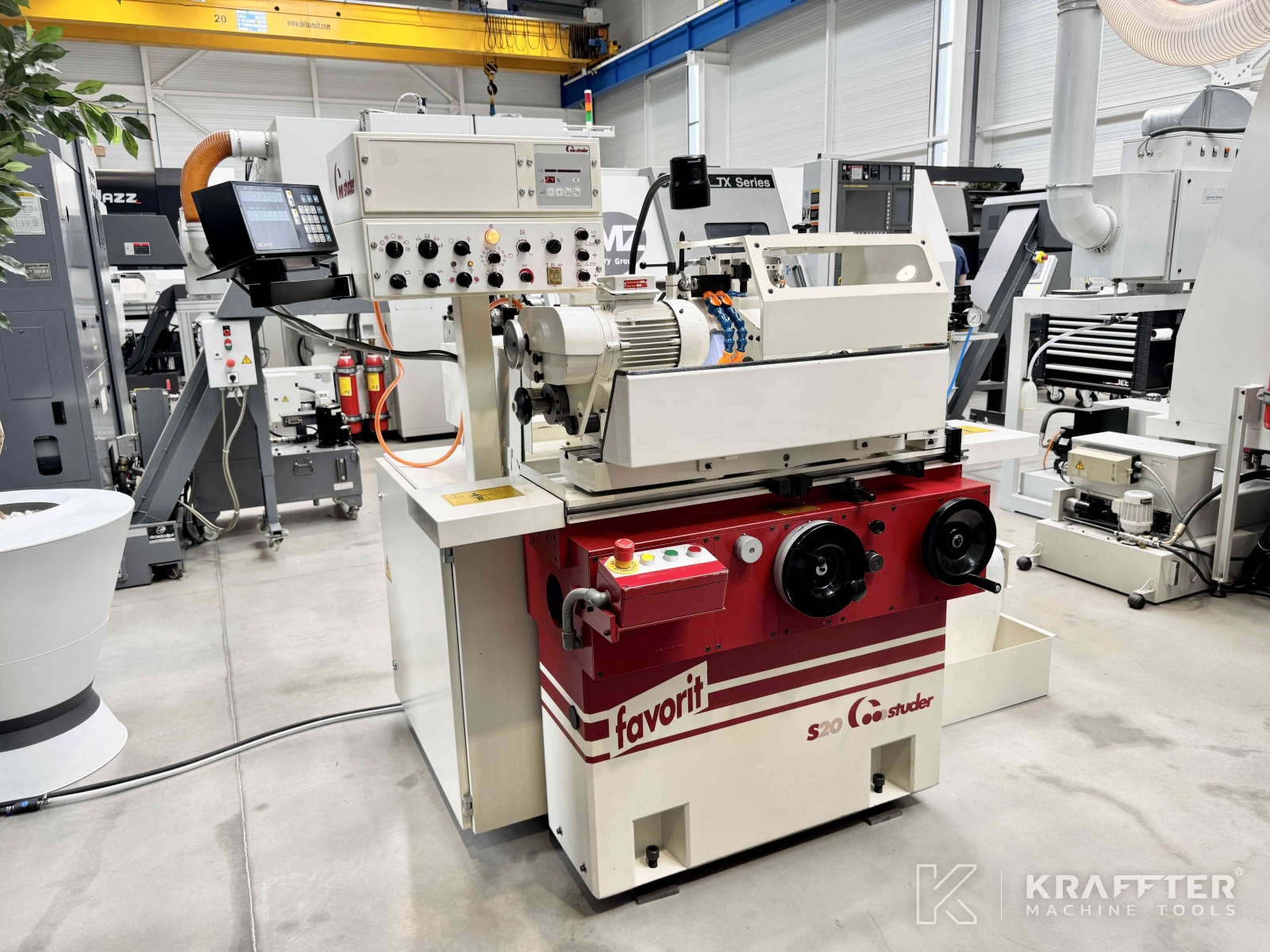

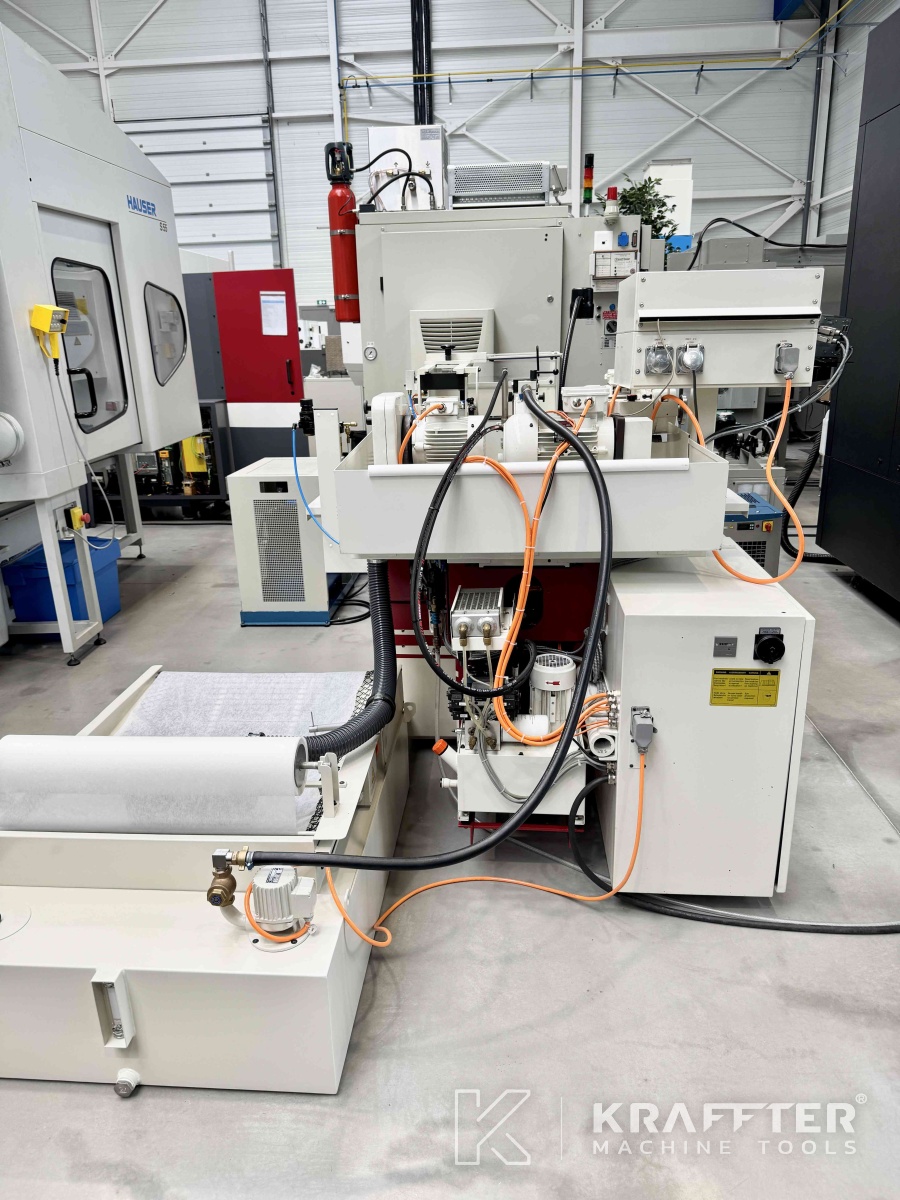

Type of machine : Cylindrical grinder
Brand : STUDER
N° de stock: 90156
Model : S20 Favorit
Year : 1997
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics
Centre distance
400 [mm]
Height of centers
100

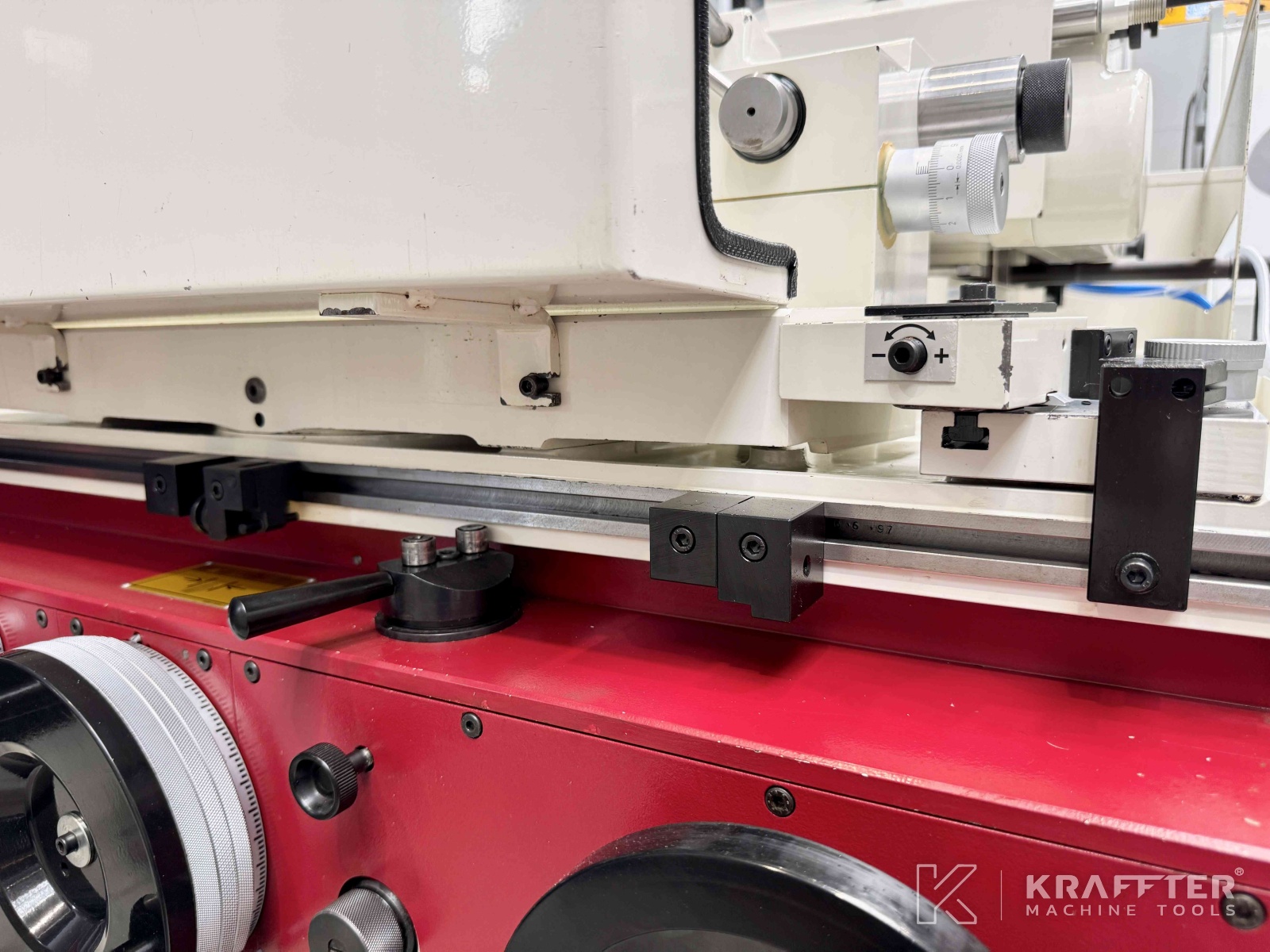

Stroke Z axis
420 [mm]
Working feed Z axis
3500 [mm/min]
Orientation of table
0 - 30 [°]

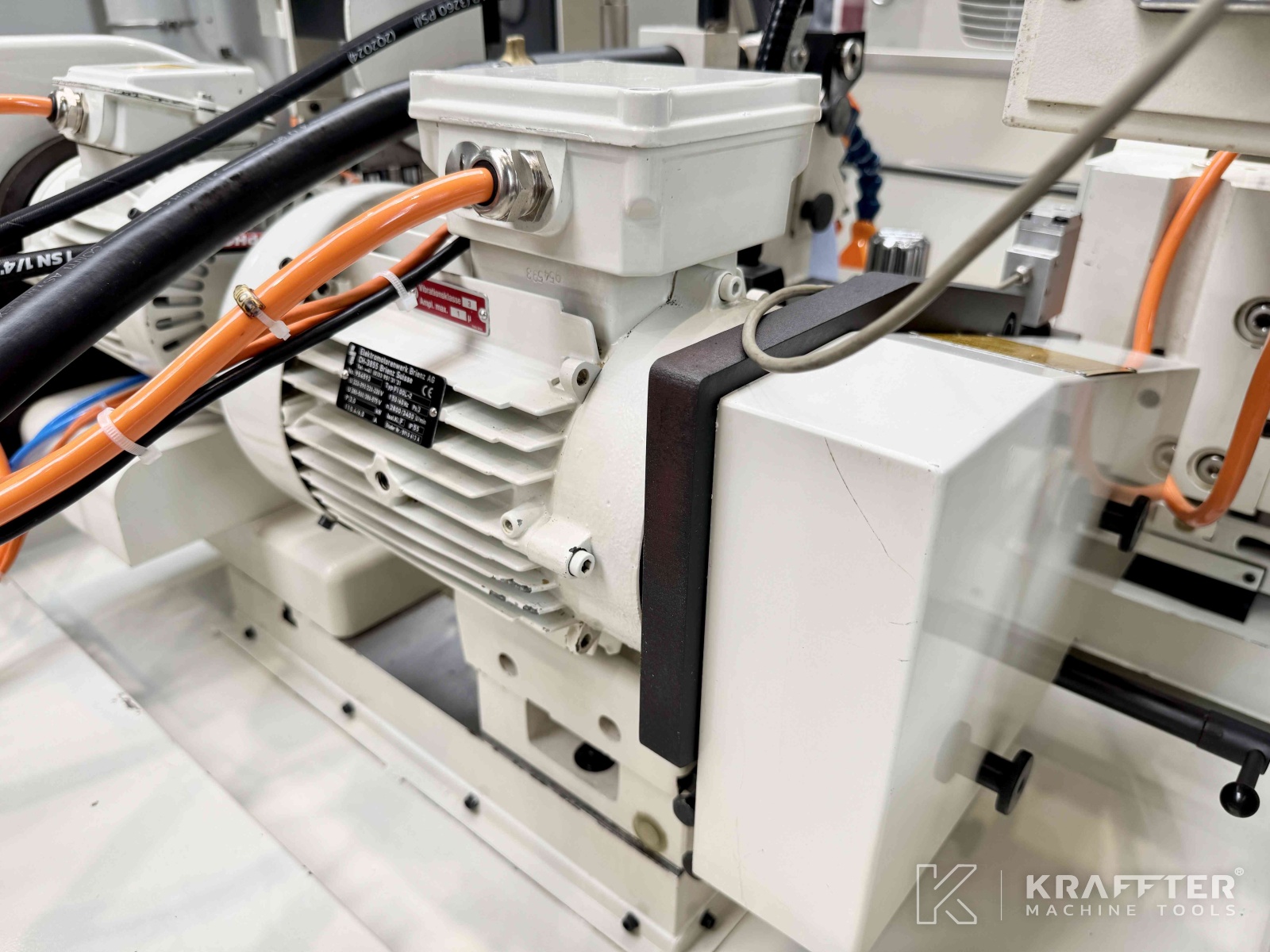

Grinding spindle motor power
3 [kW]

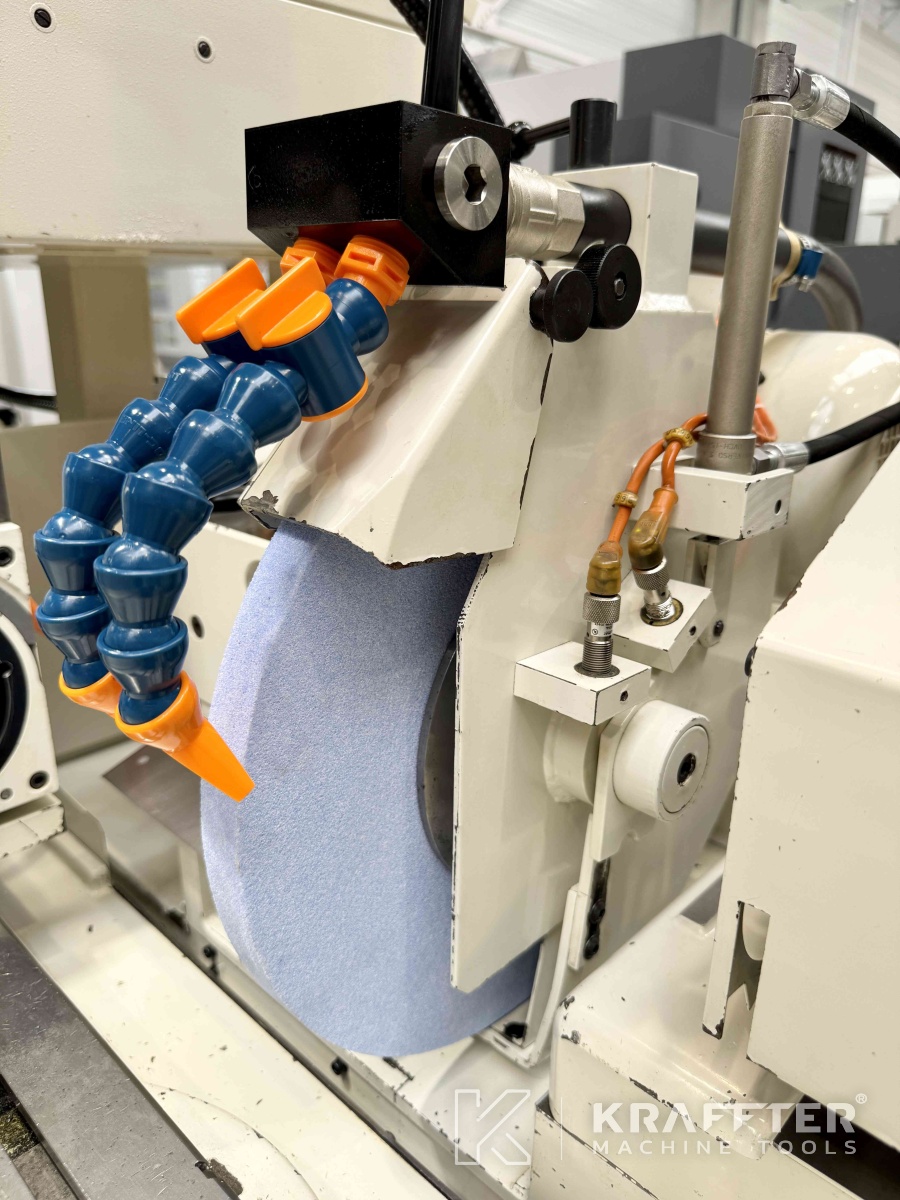

Max. diameter grinding wheel
350 [mm]
Max. grinding wheel width
30 [mm]
Grinding wheel bore
127 [mm]

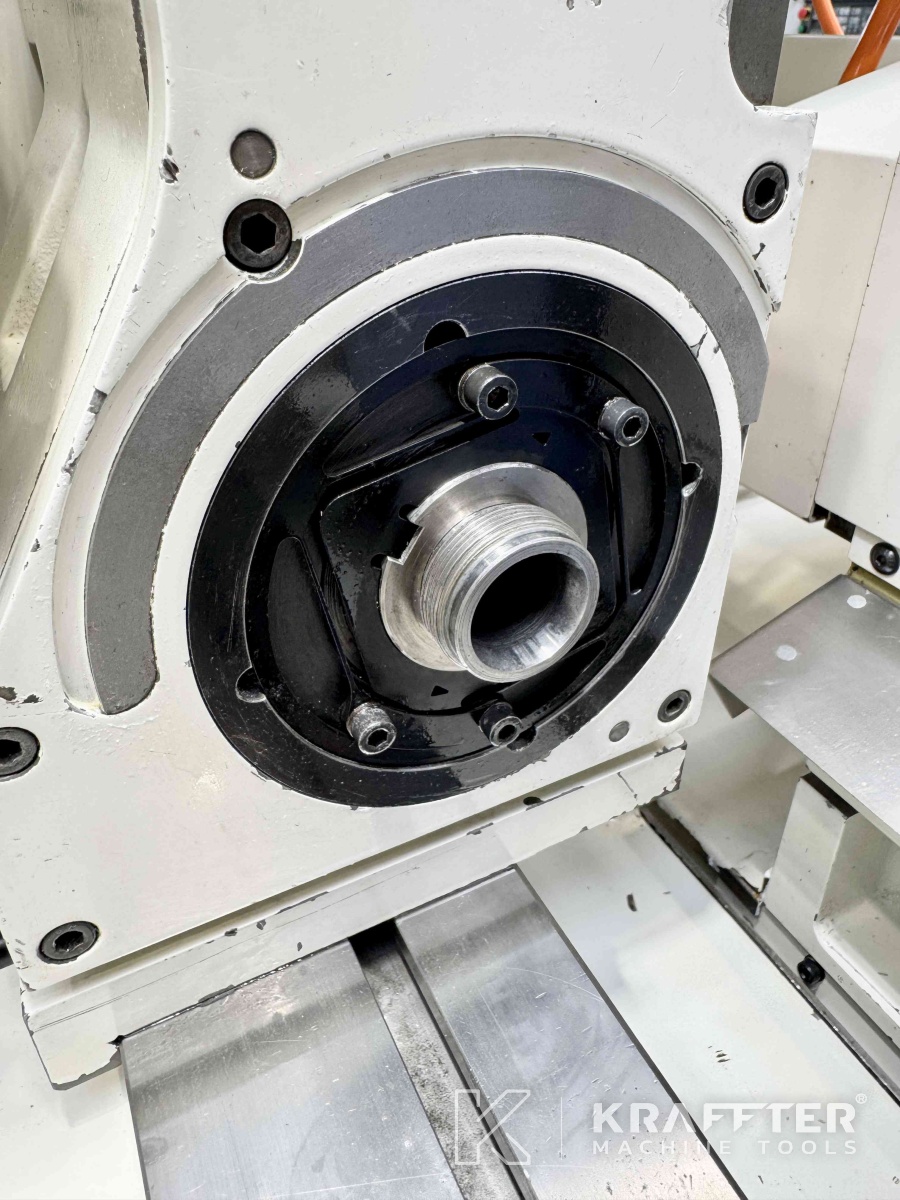

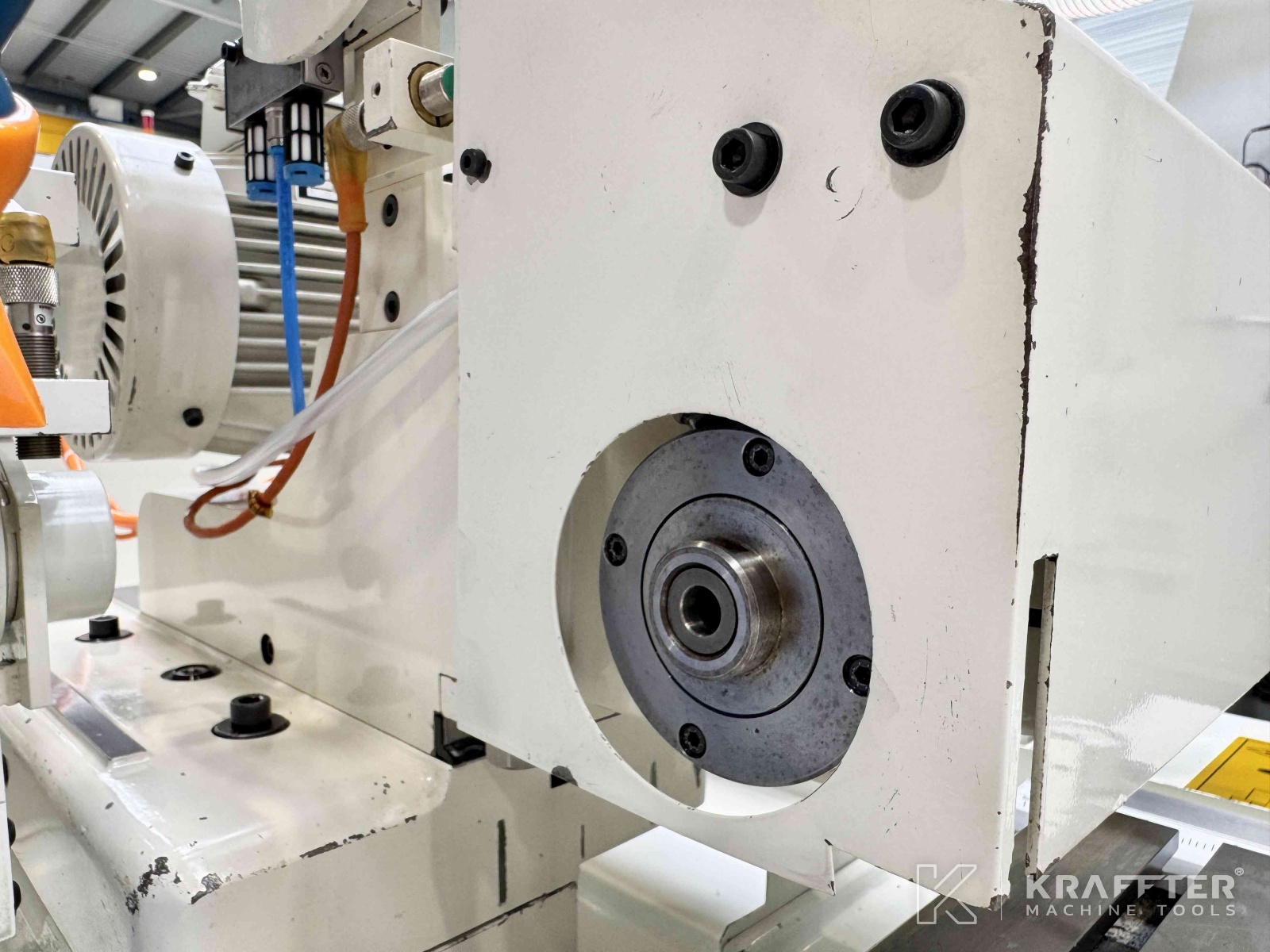

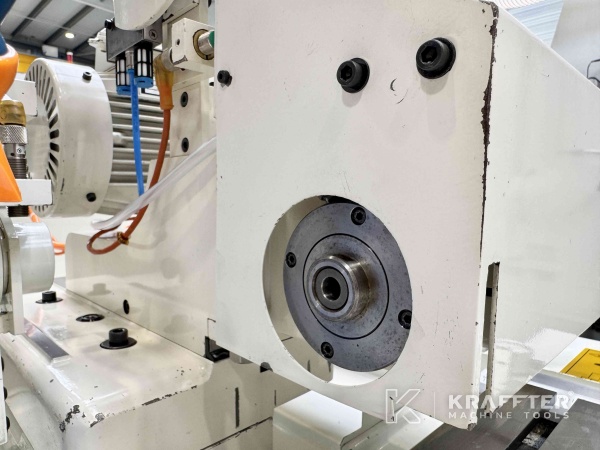

Workpiece spindle nose
W20
Workpiece spindle min. speed
30 [rpm]
Workpiece spindle max. speed
1200 [rpm]
Max. part weight in part holder headstock between centres
20 [Kg]
Workpiece swiveling range
0 [°] / +90 [°]
Workpiece spindle power
0.5 [kW]
Type of attachment tailstock
MT2
Tailstock quill stroke
20 [mm]
Supply voltage
400 [V]
Total power required
8 [kVA]
Machine dimensions
2350 x 1480 [mm]
Weight
1600 [Kg]
Additional information

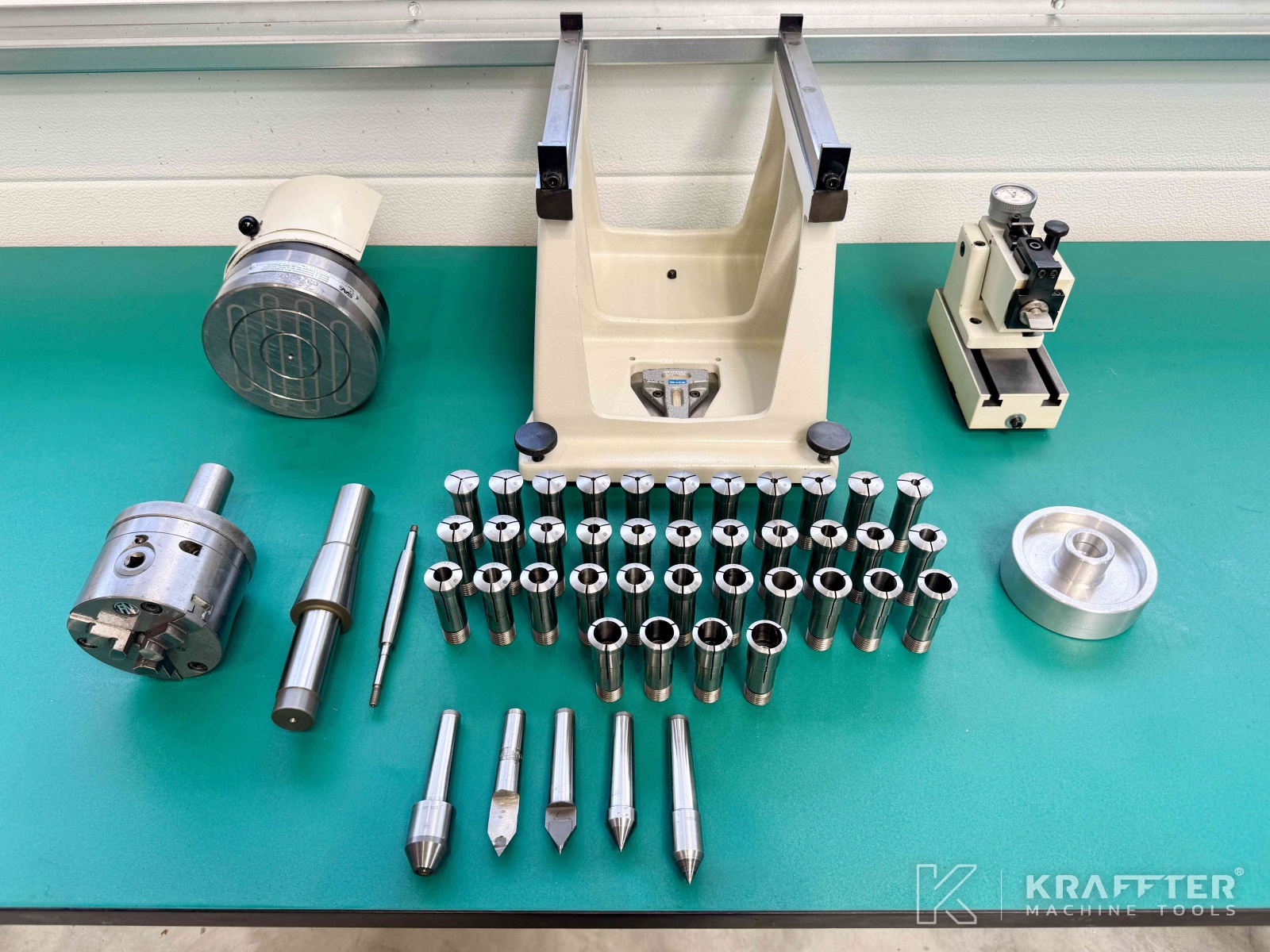

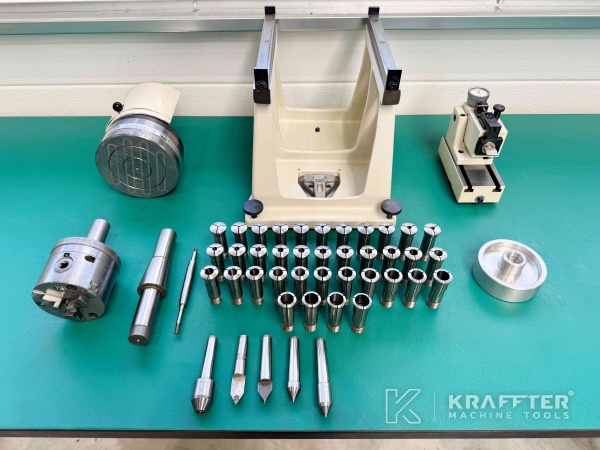

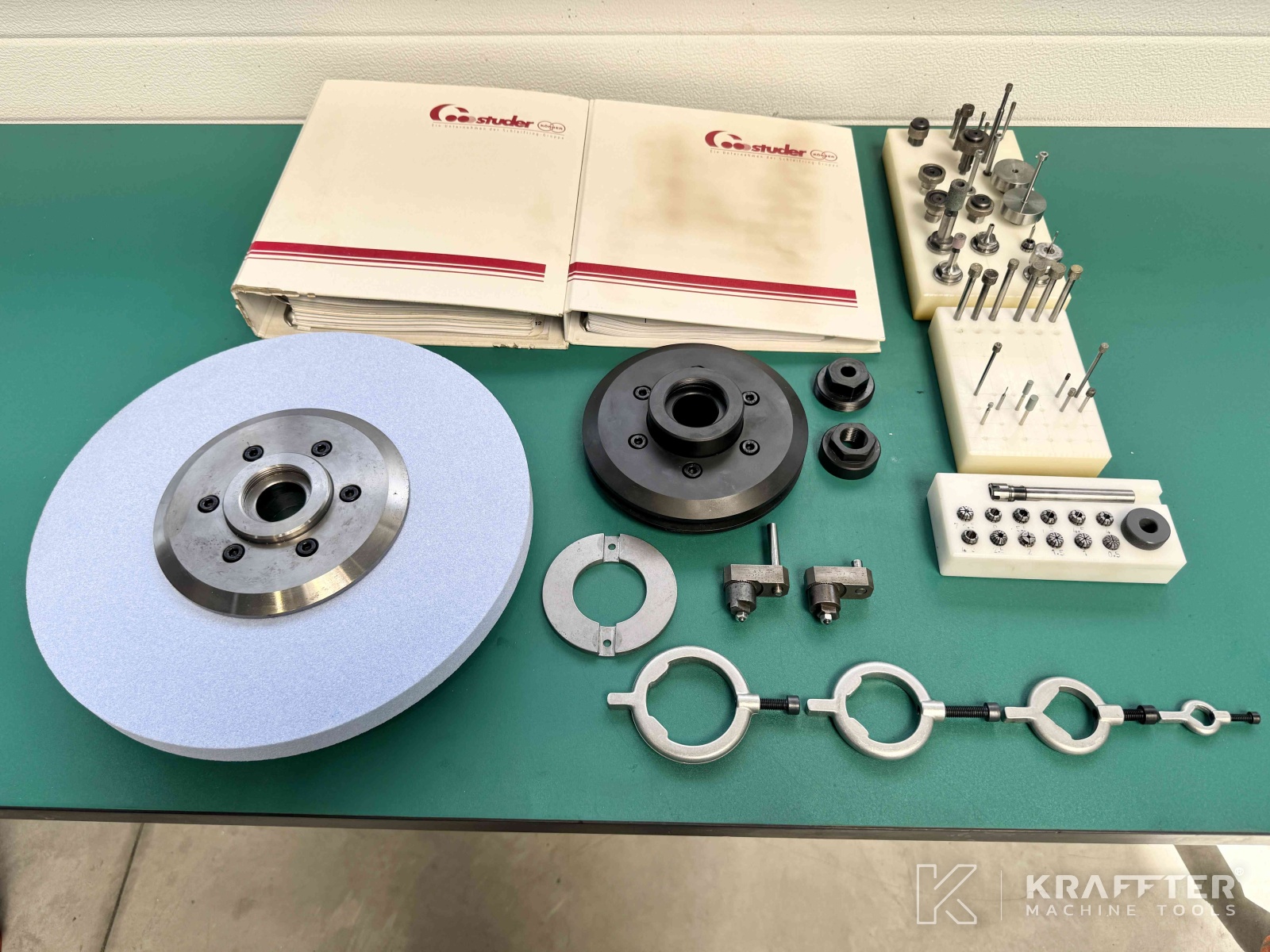

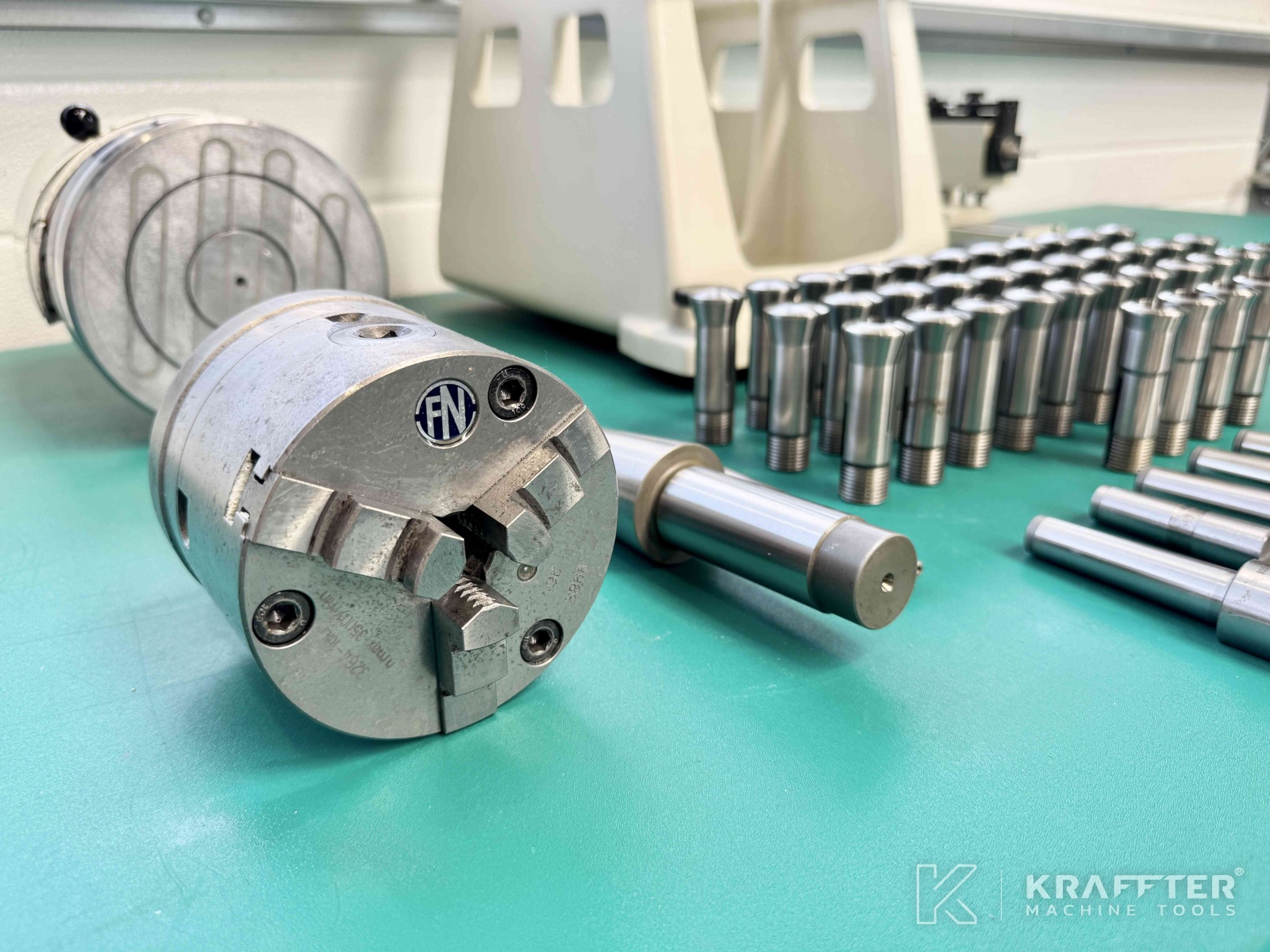

INCLUDED EQUIPMENT:
-

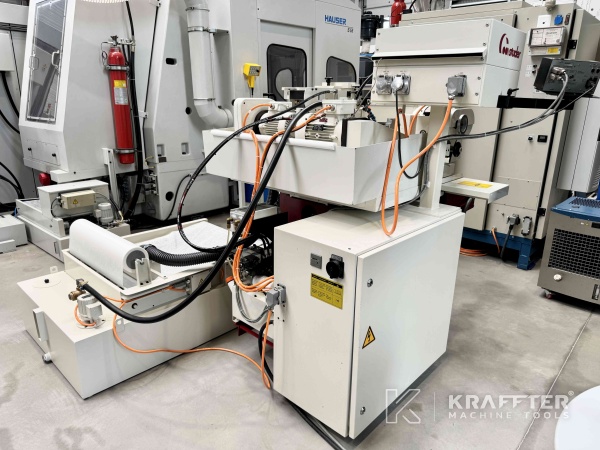

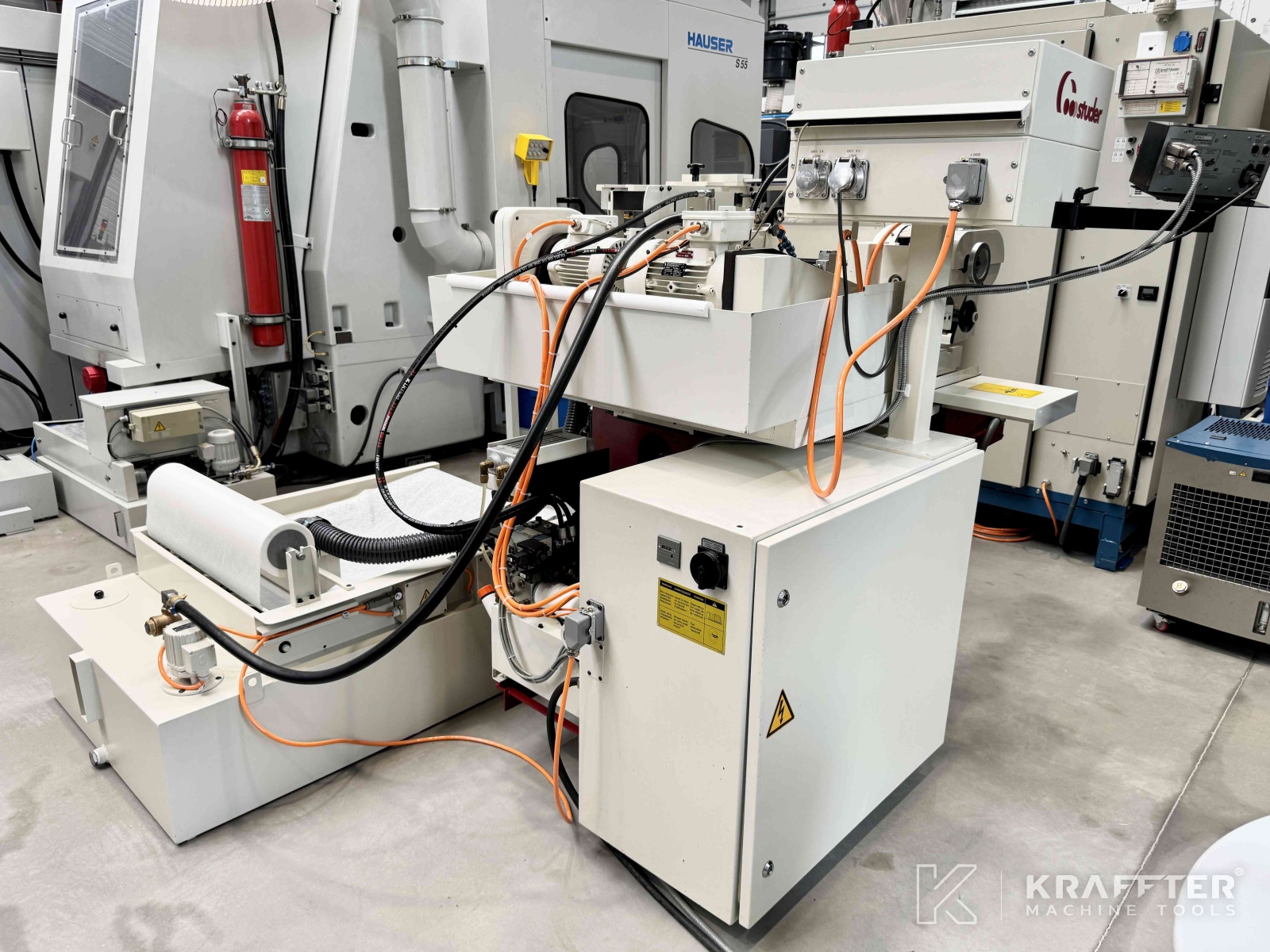

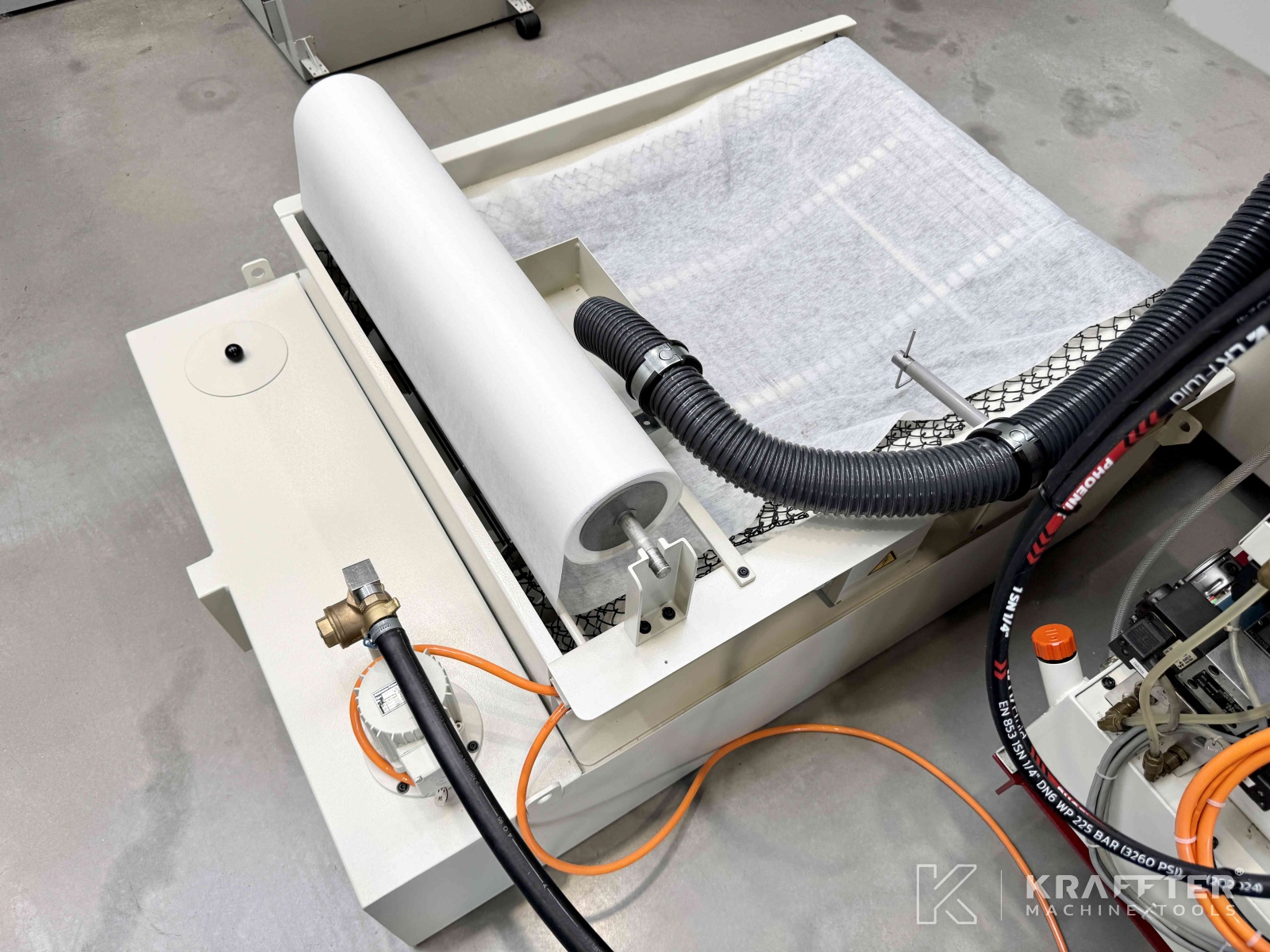

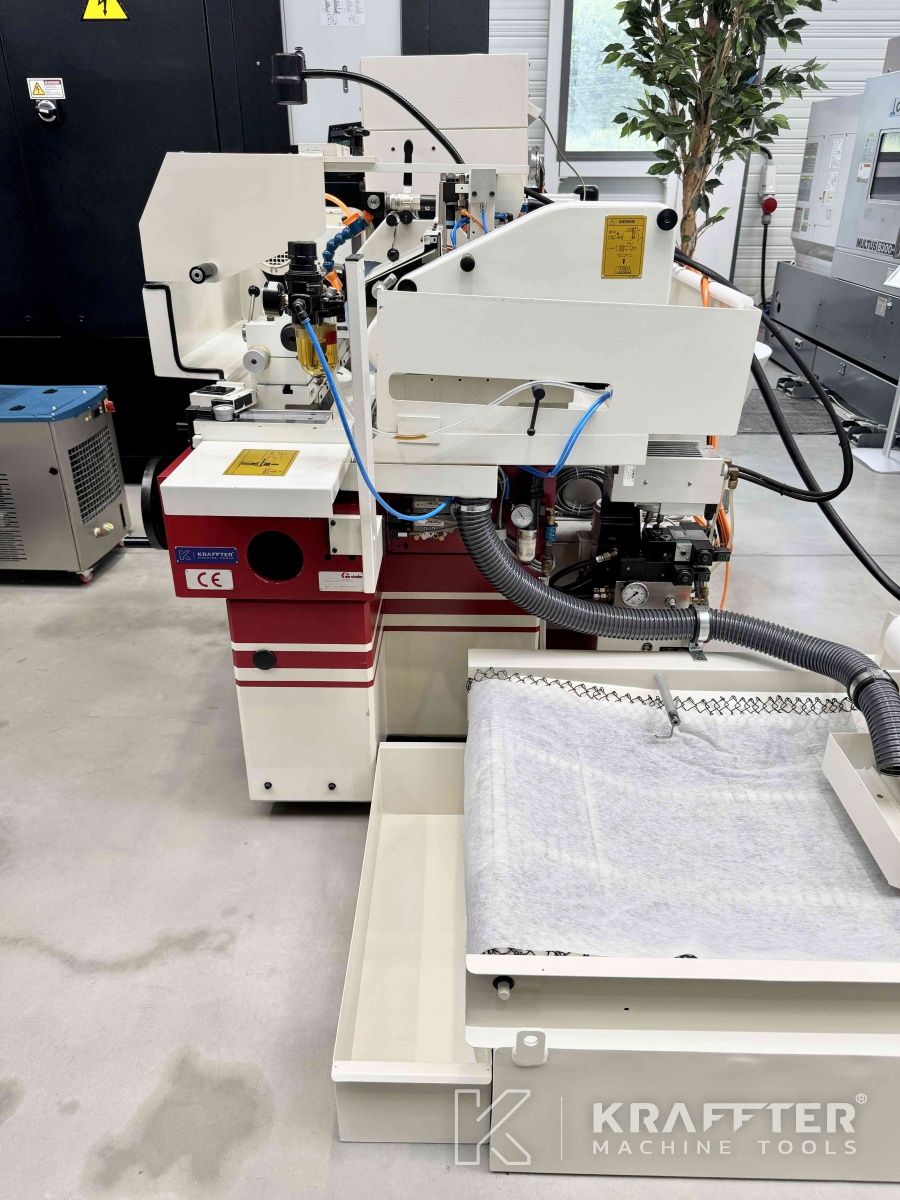

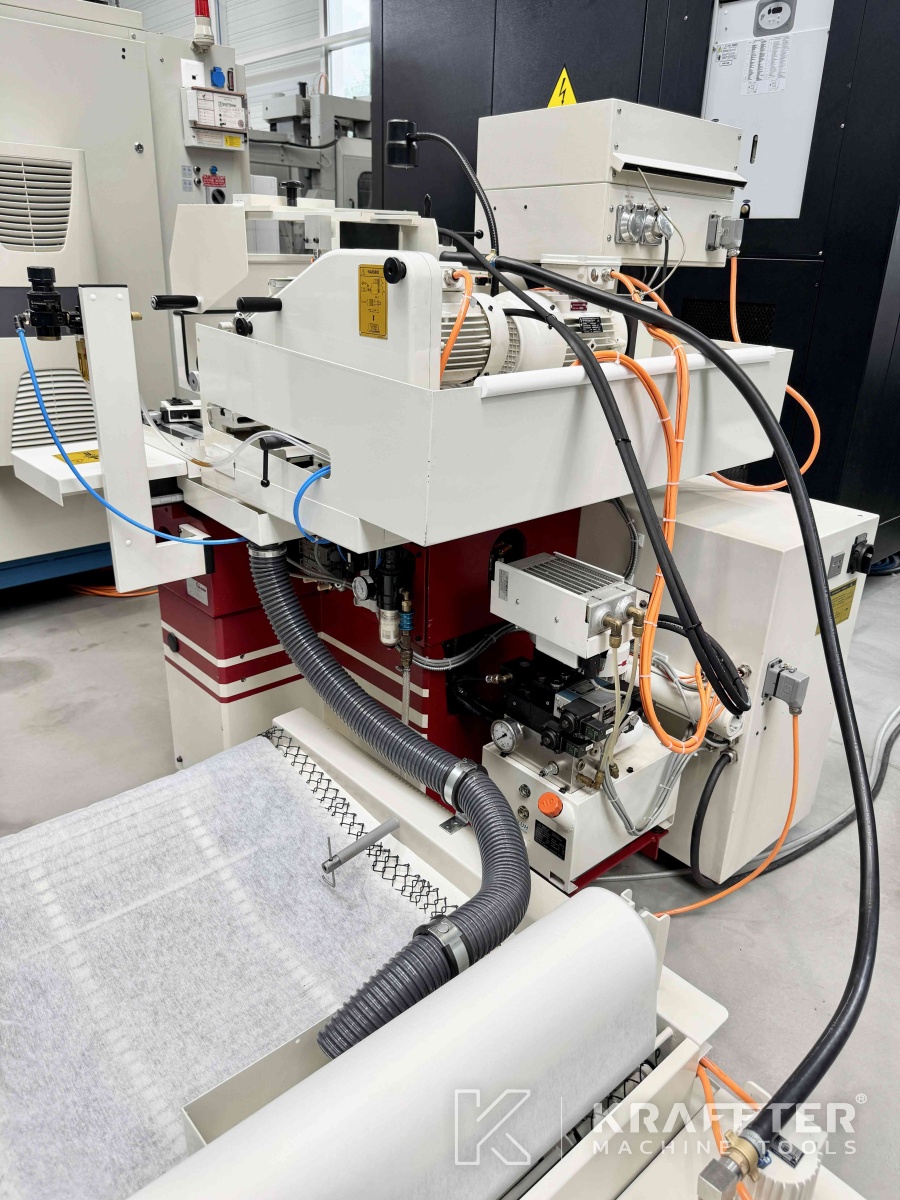

1 paper tape filtration device
-

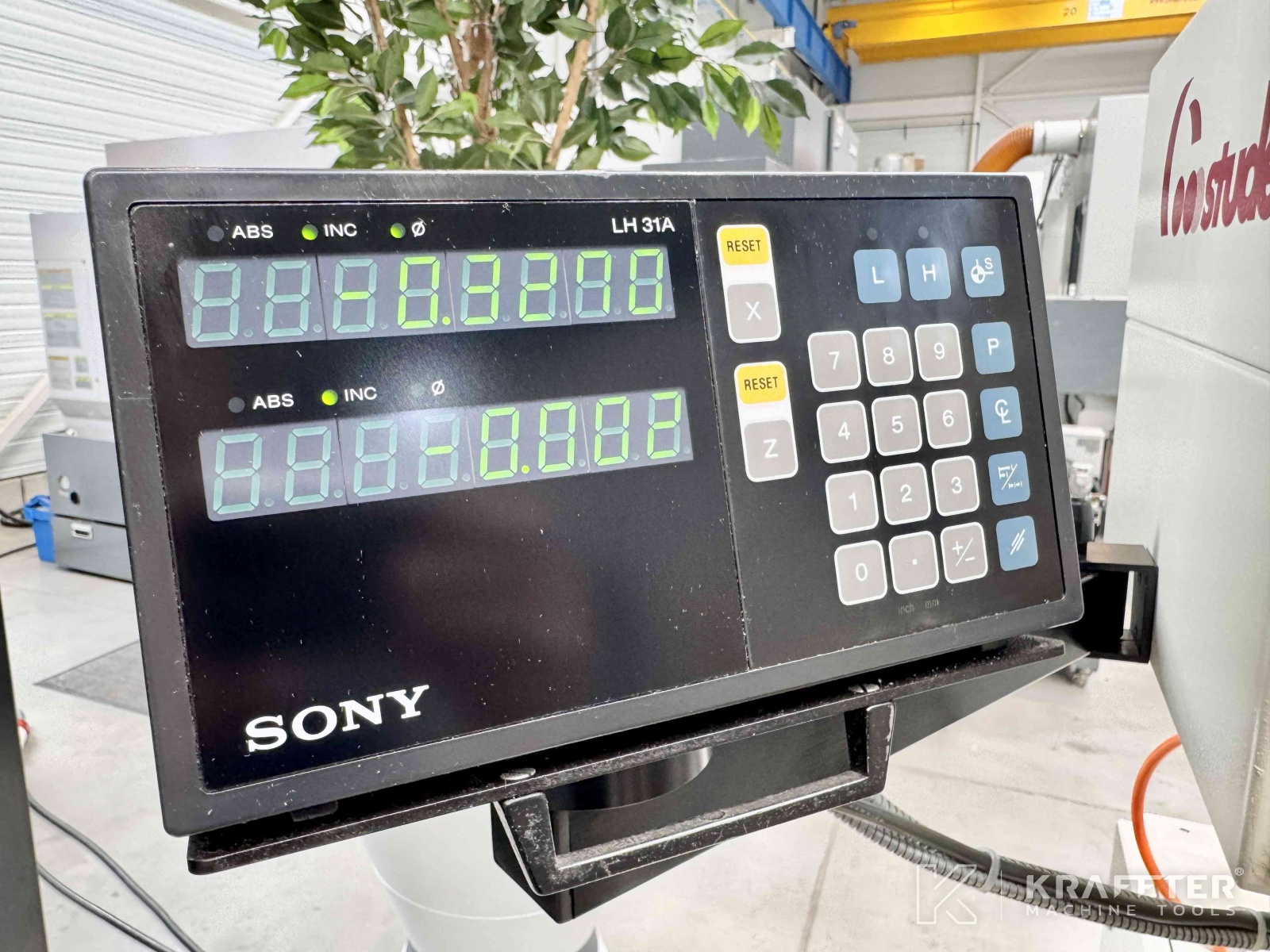

1 SONY LH 31A 2 axis digital read out
-

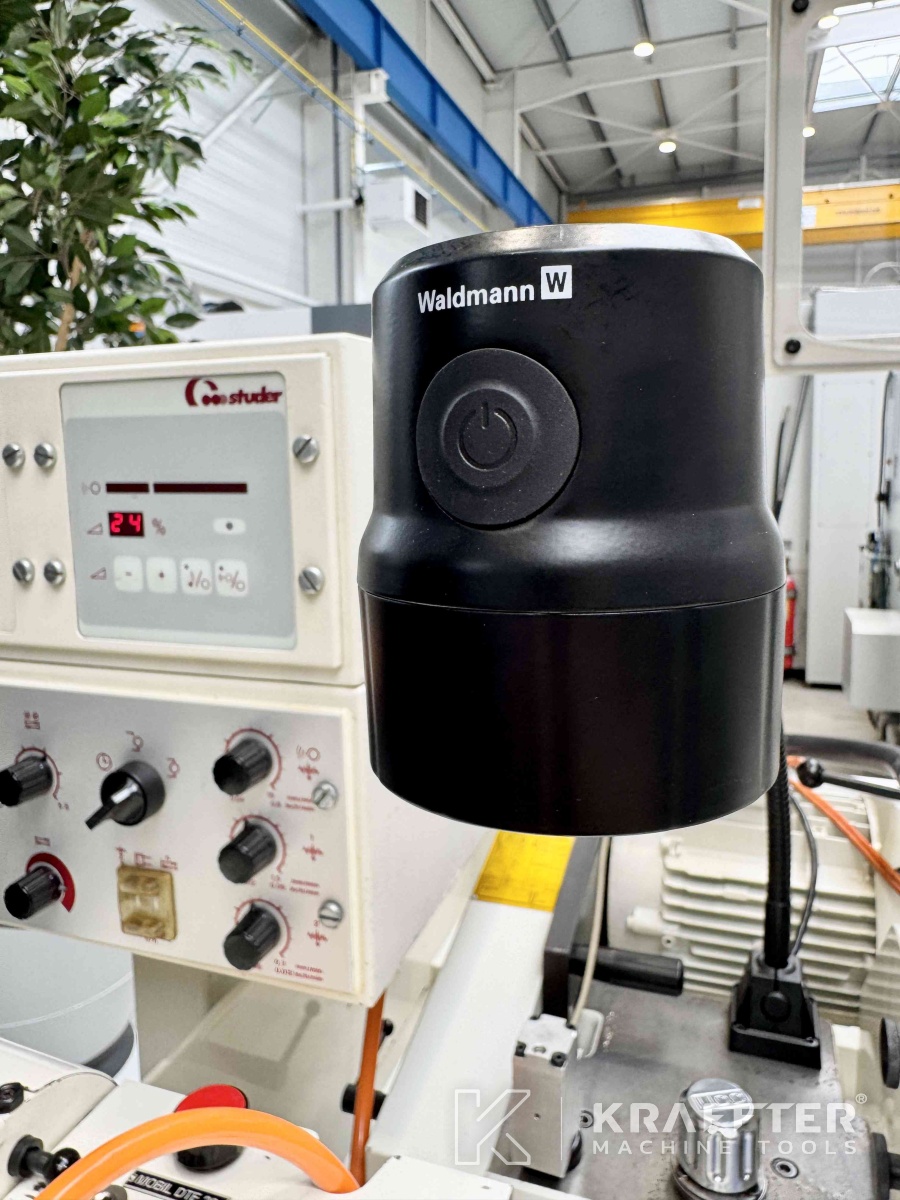

1 WALDMANN LED lamp
-
1 internal grinding spindle type: 82060B / Speeds: 11,900 up to 28,400 [rpm]
-
1 SENSITRON contact indicator
-
1 grinding wheel balancing device
-
1 grinding wheel balancing arbor
-
1 three-jaw chuck FN Ø100 [mm] MT3
-
1 magnetic chuck Ø160 [mm] MT3
-

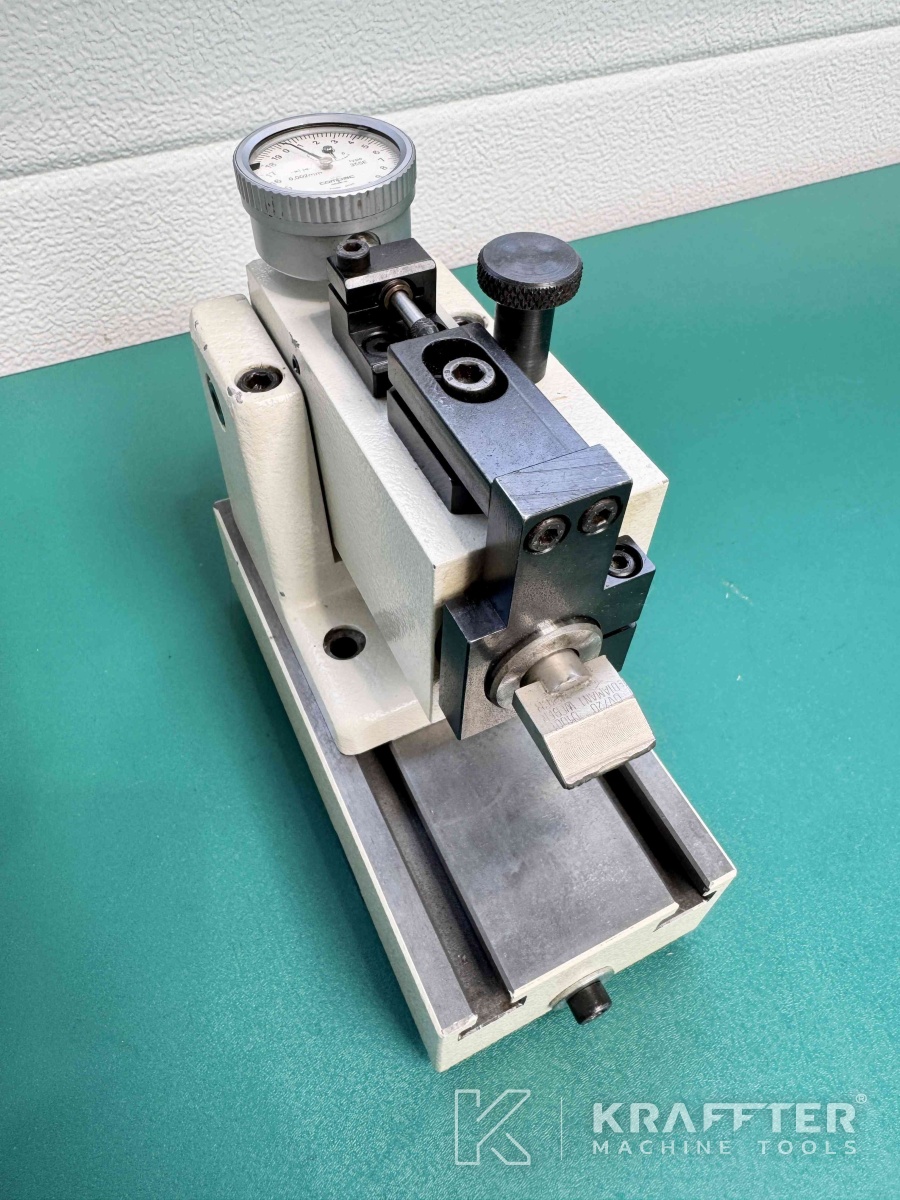

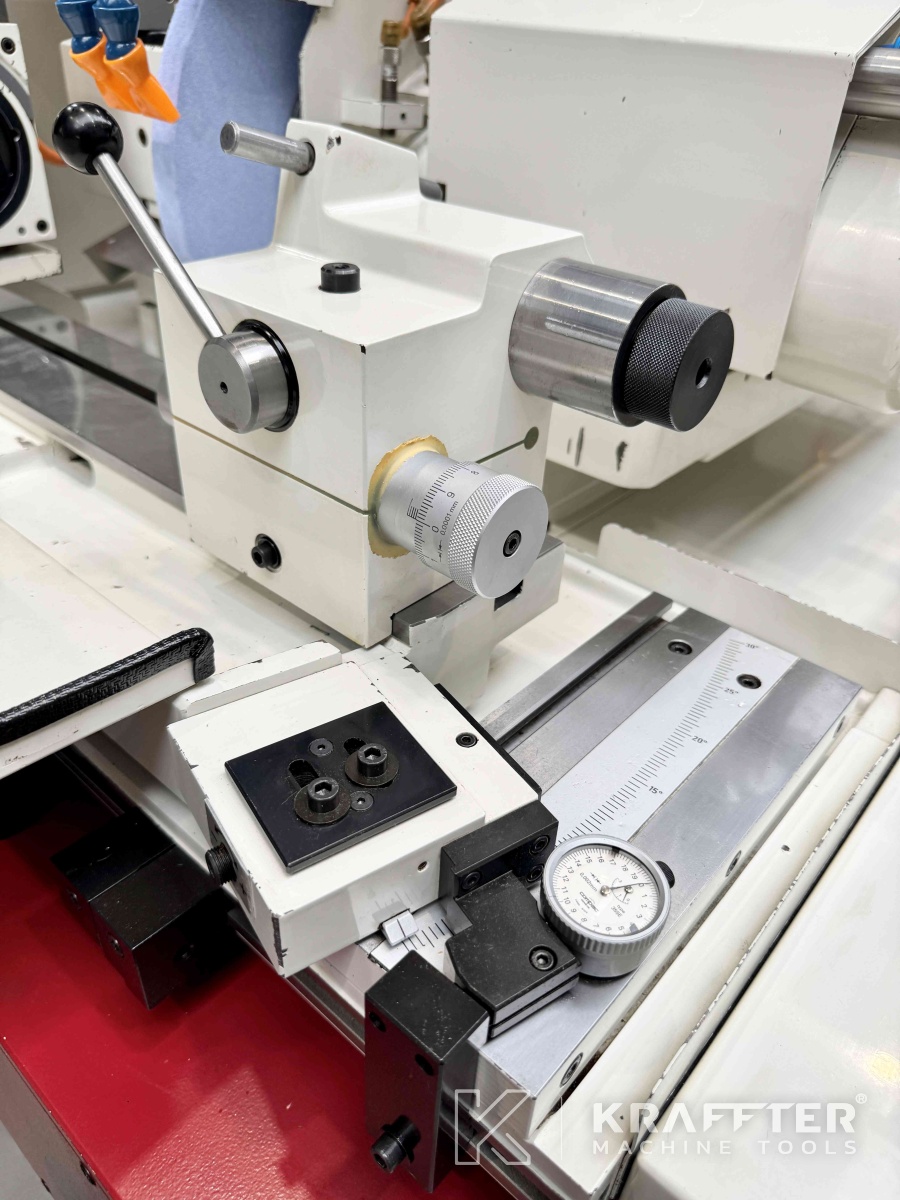

1 table-mounted wheel dresser
-
37 W20 collets
-
2 half-centres
-
2 full centres
-
1 blunt centre
-
1 pulley Ø105 [mm] for internal grinding spindle
-
2 external grinding wheel flanges
-

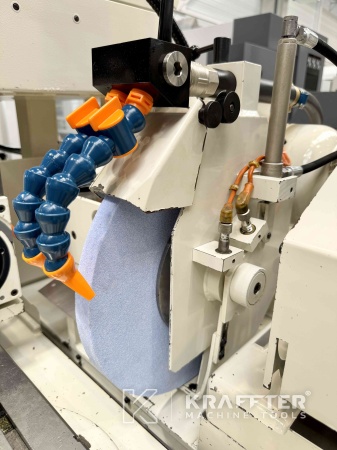

1 TYROLIT 494271 grinding wheel for external grinding operations
-

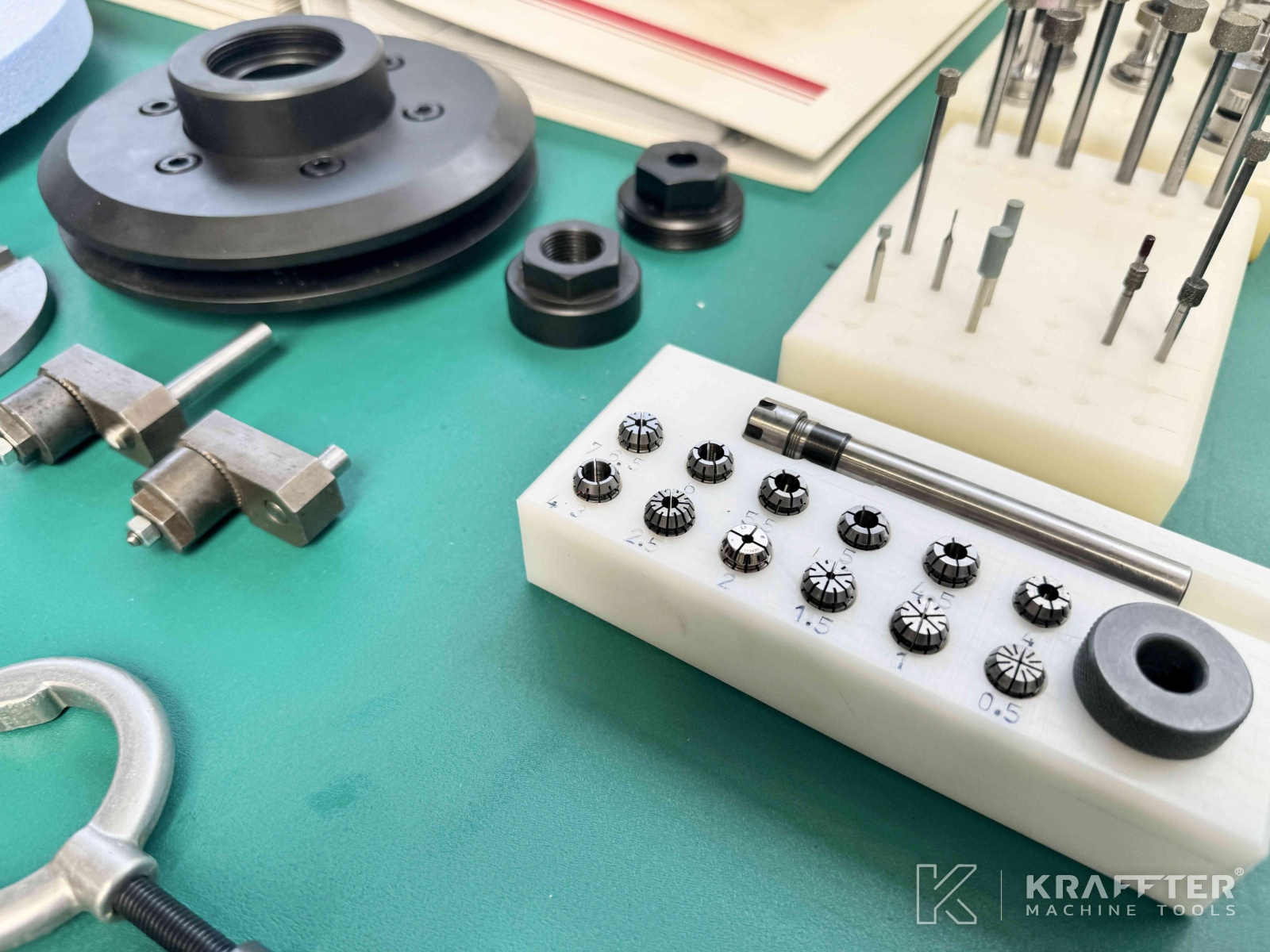

Various internal grinding wheels
-
4 driving carriers
-
Various miscellaneous
