Sold

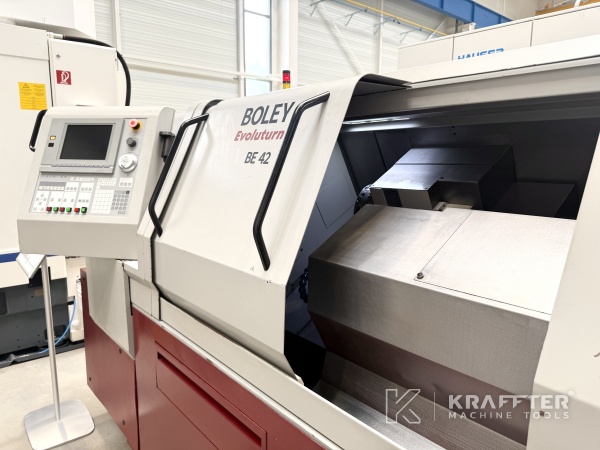

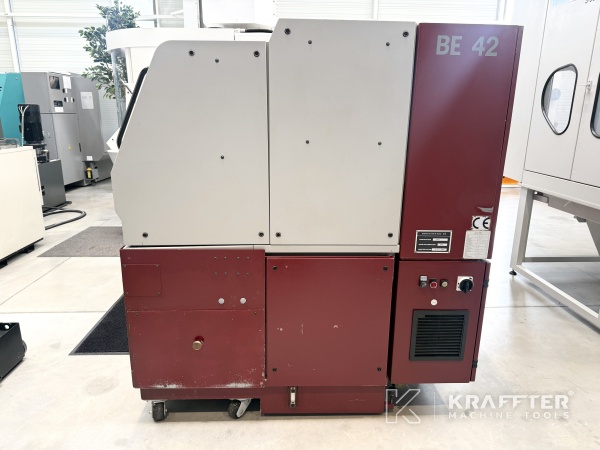

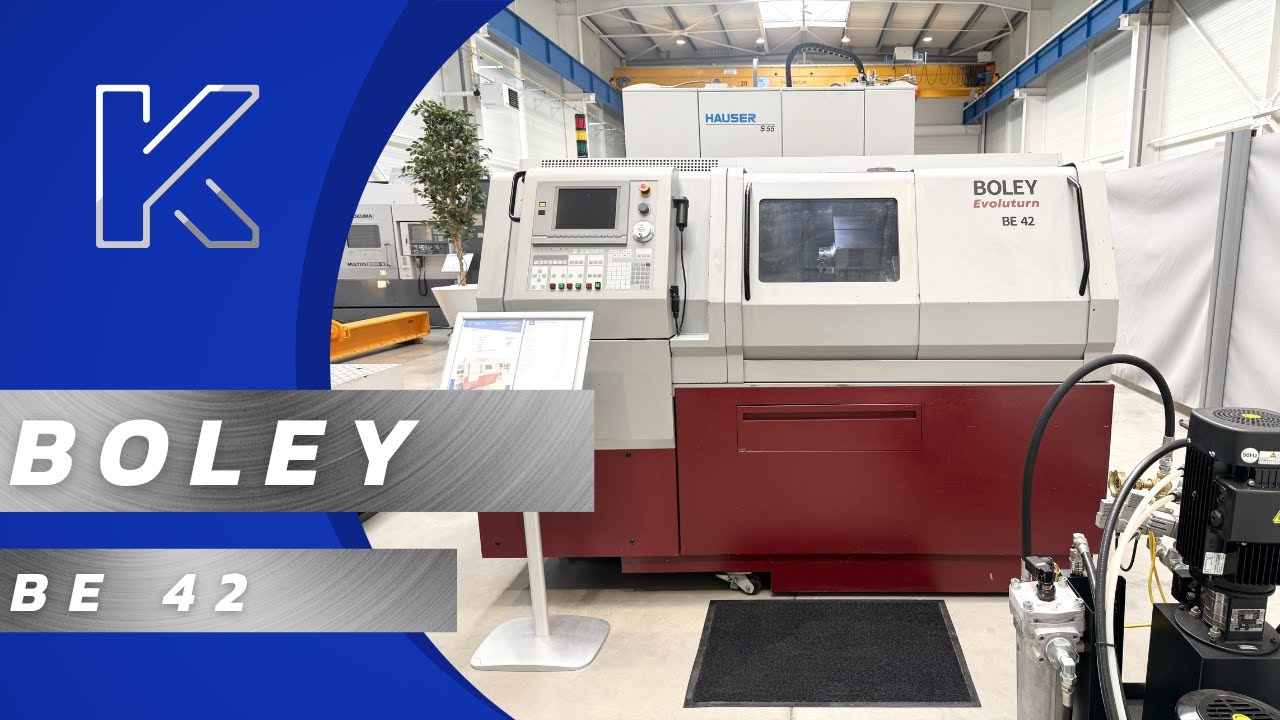

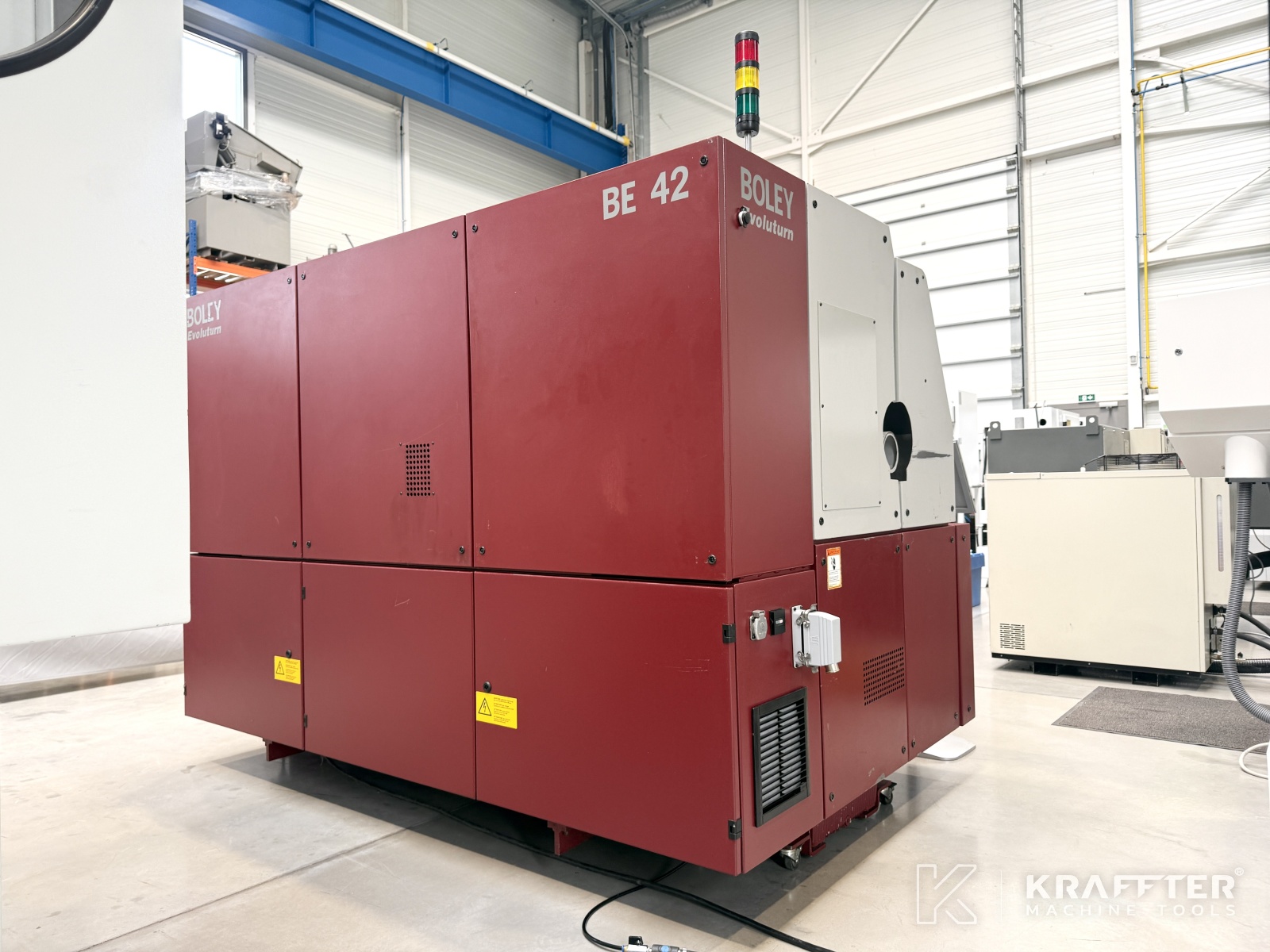

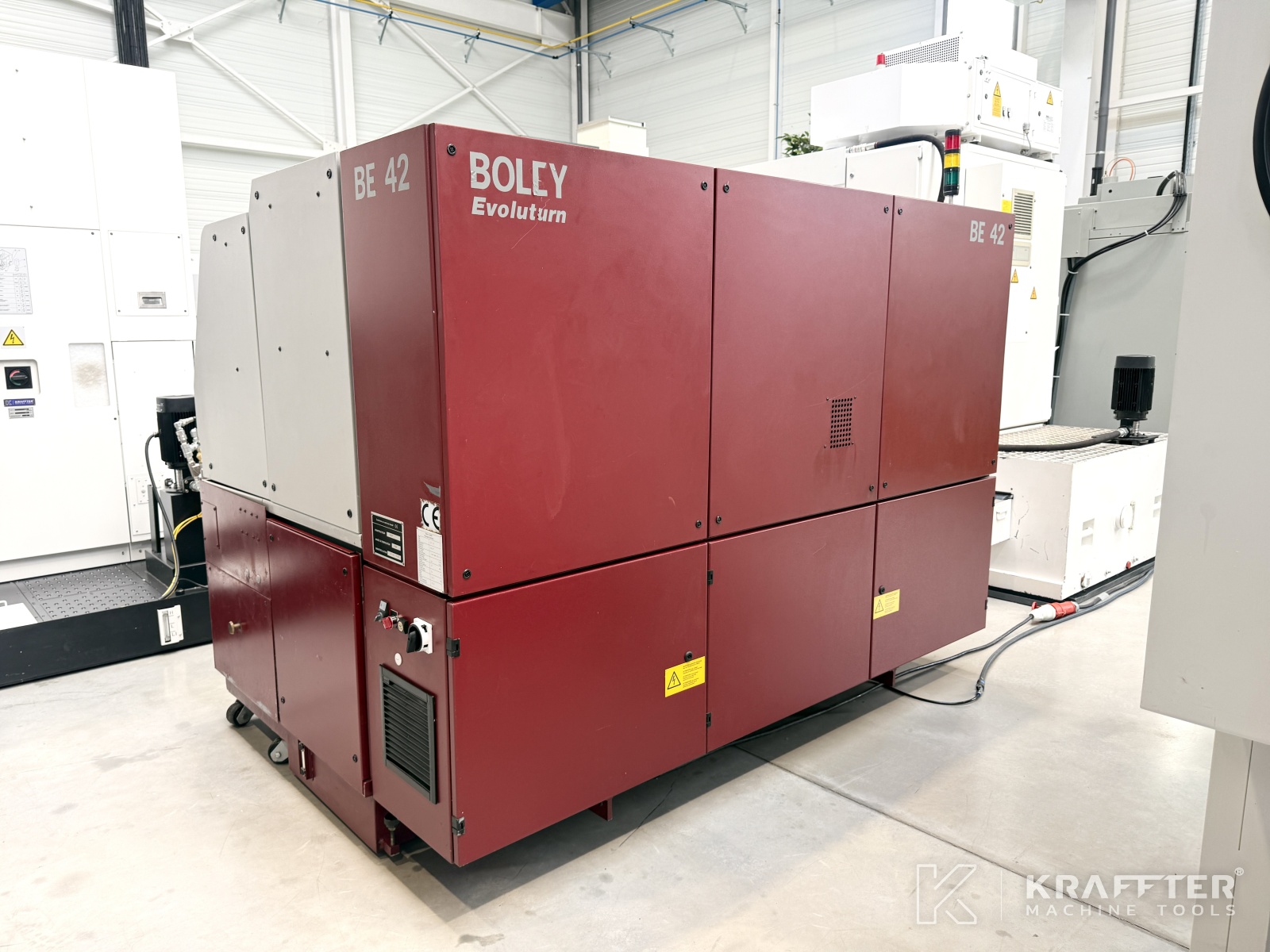

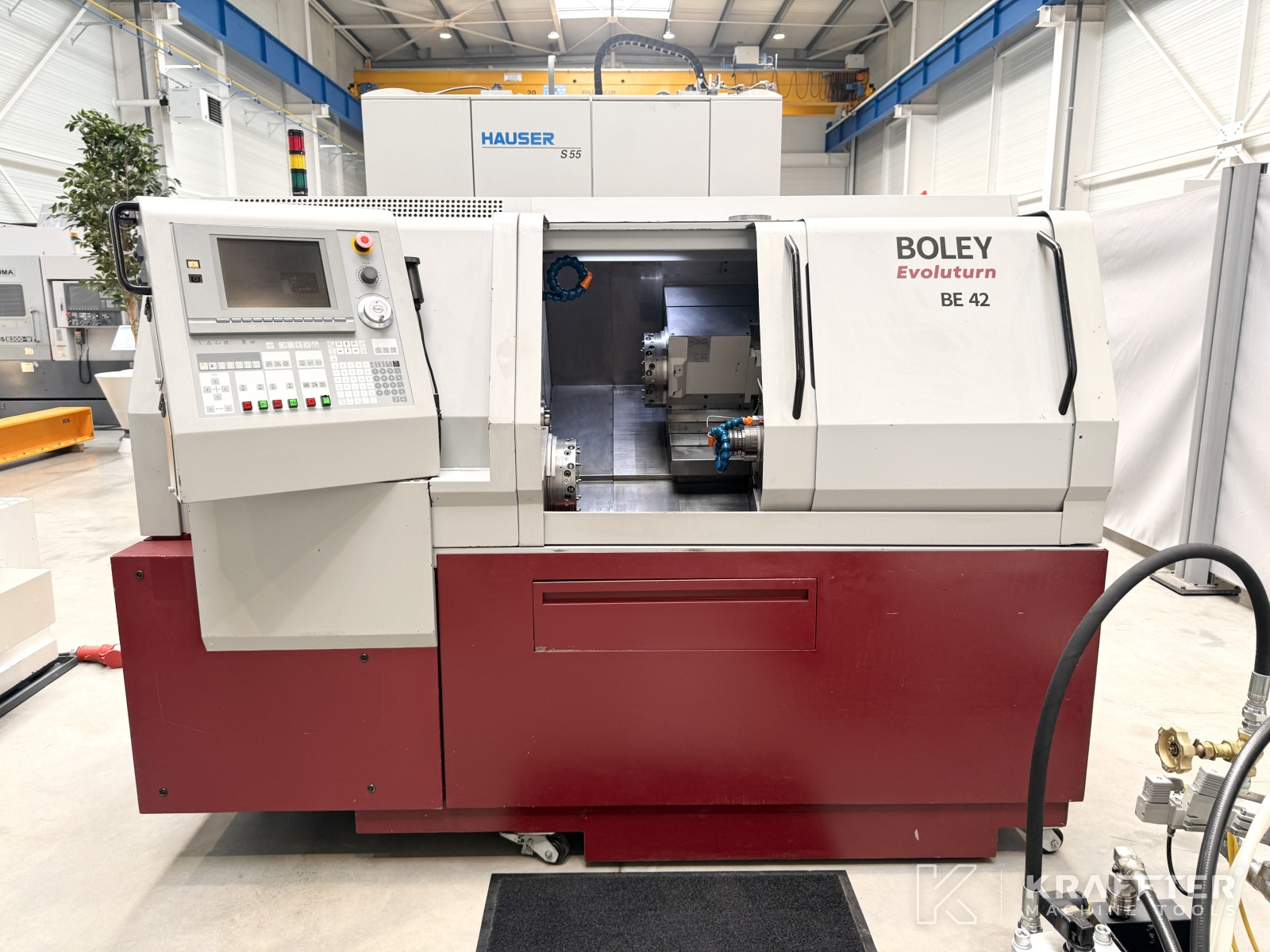

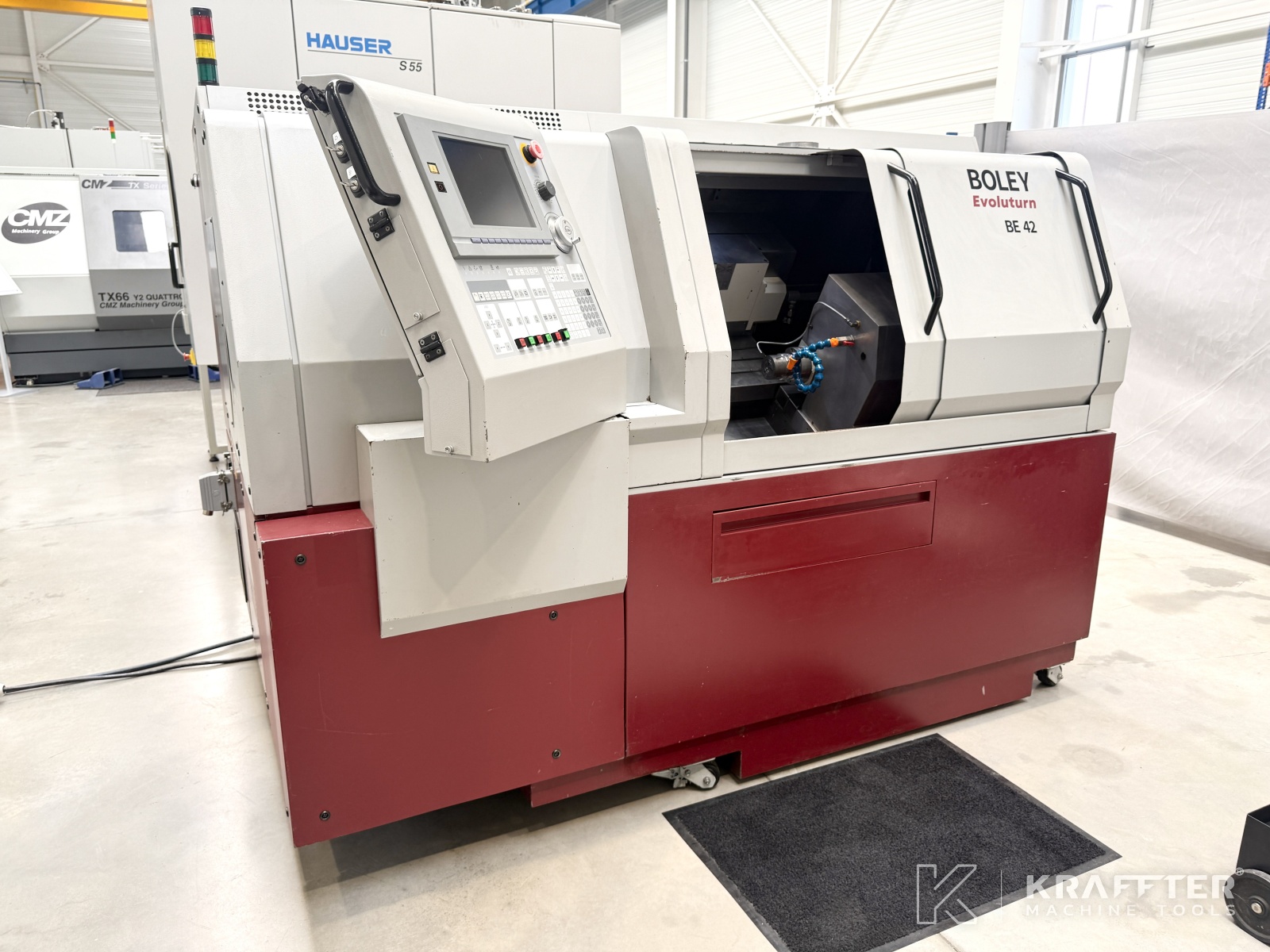

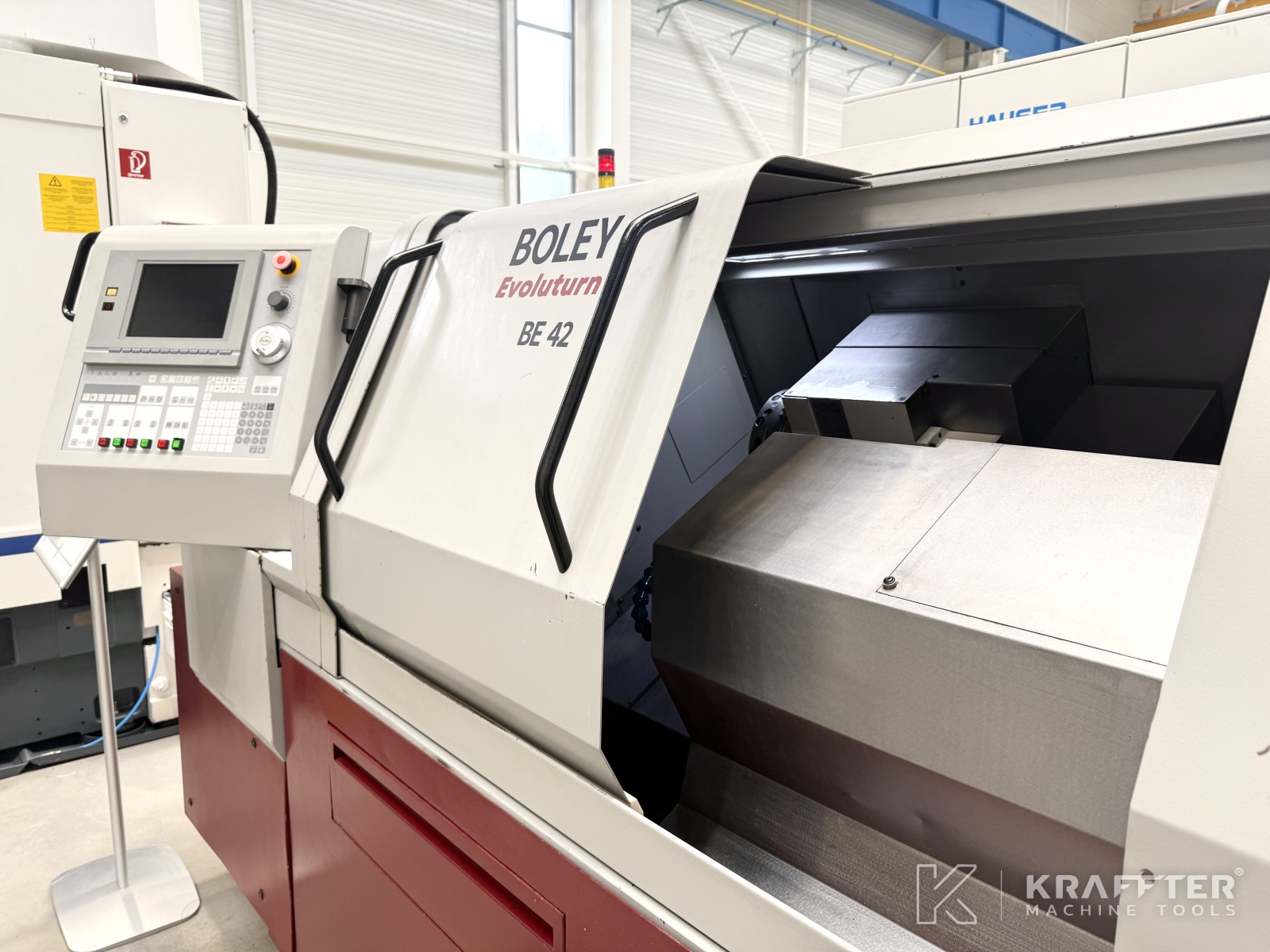

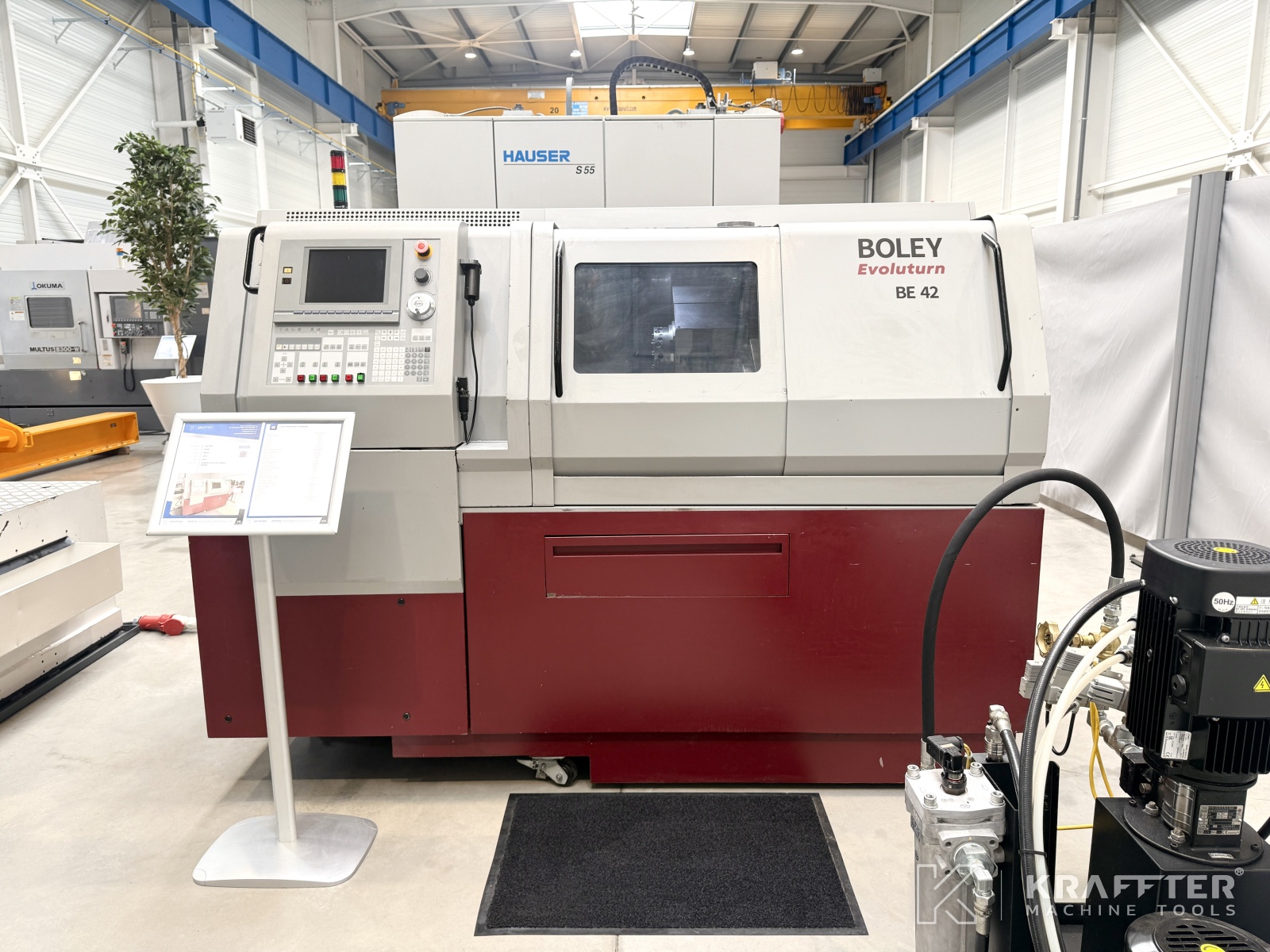

Type of machine : CNC lathe
Brand : BOLEY
N° de stock: 90062
Model : BE 42
Year : 2002
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

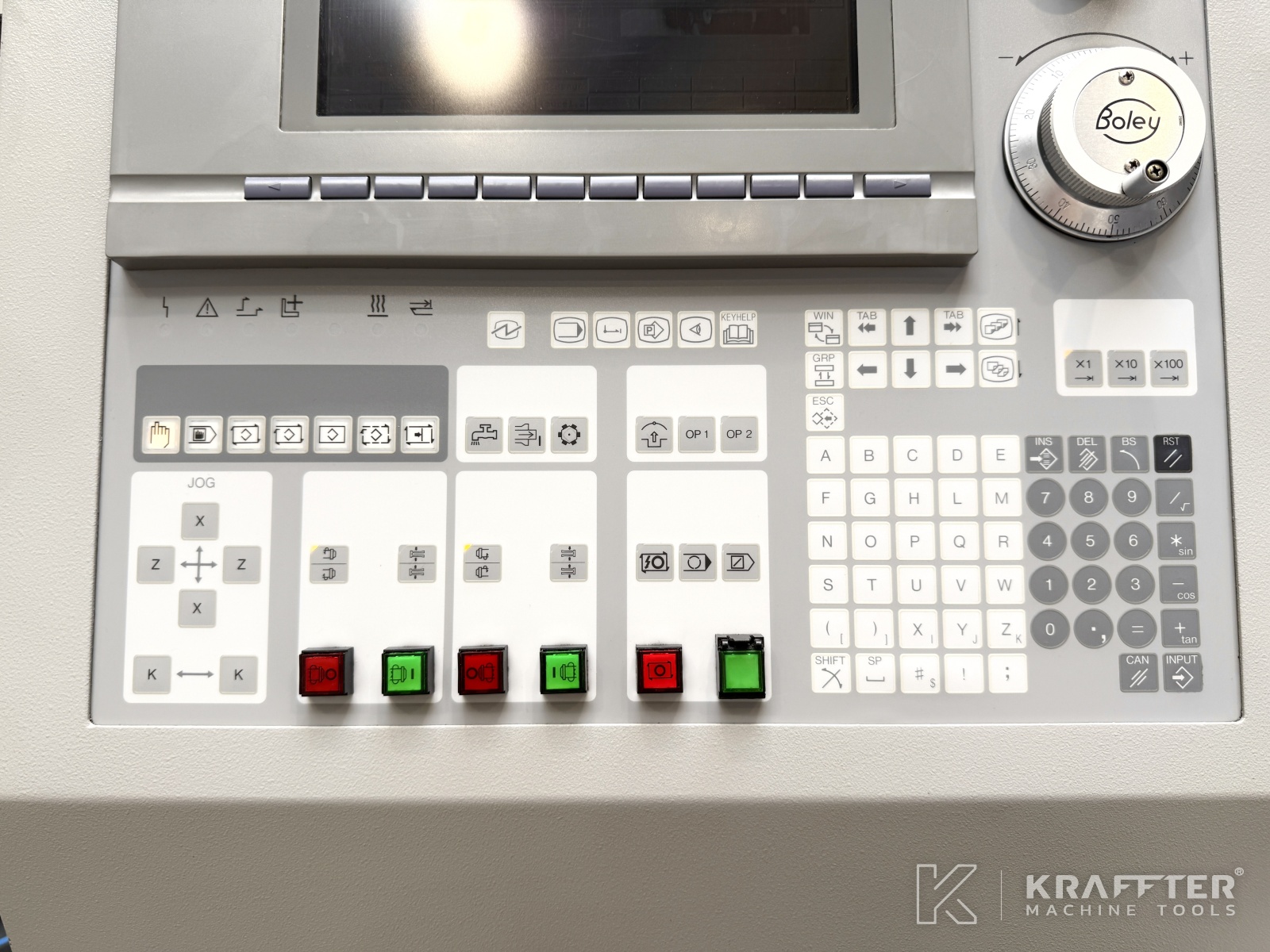

CNC control

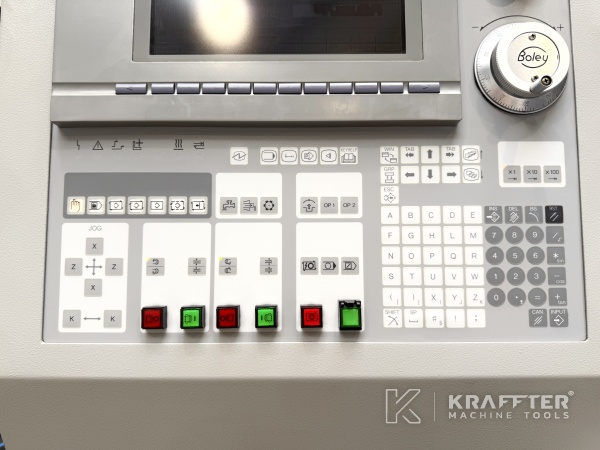

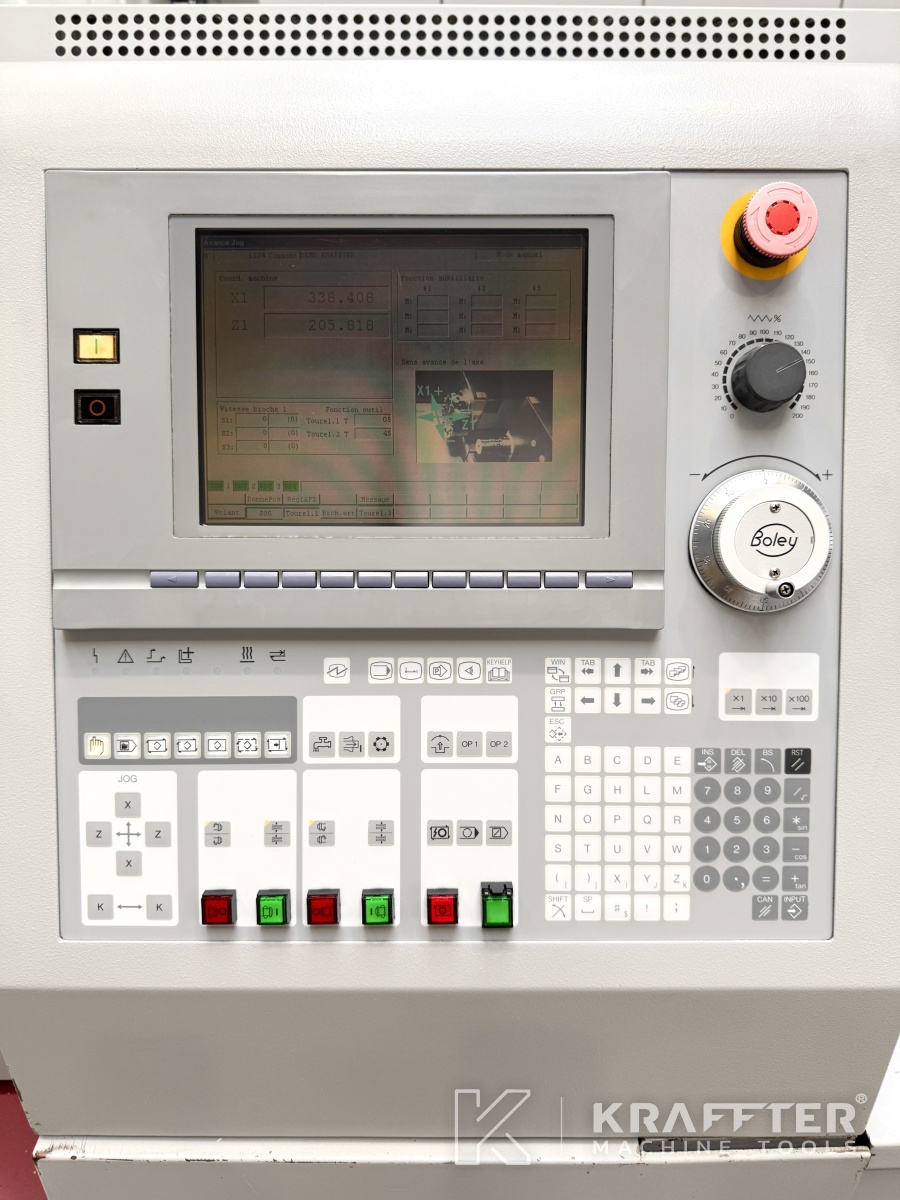

MITSUBISHI Meldas 635LCC
Max. turning diameter
140 [mm]
Stroke Z1 axis
200 [mm]
Stroke X1 axis
170 [mm]
Stroke Z2 axis
395 [mm]
Stroke X2 axis
110 [mm]
Stroke Z3 axis
170 [mm]
Stroke X3 axis
110 [mm]

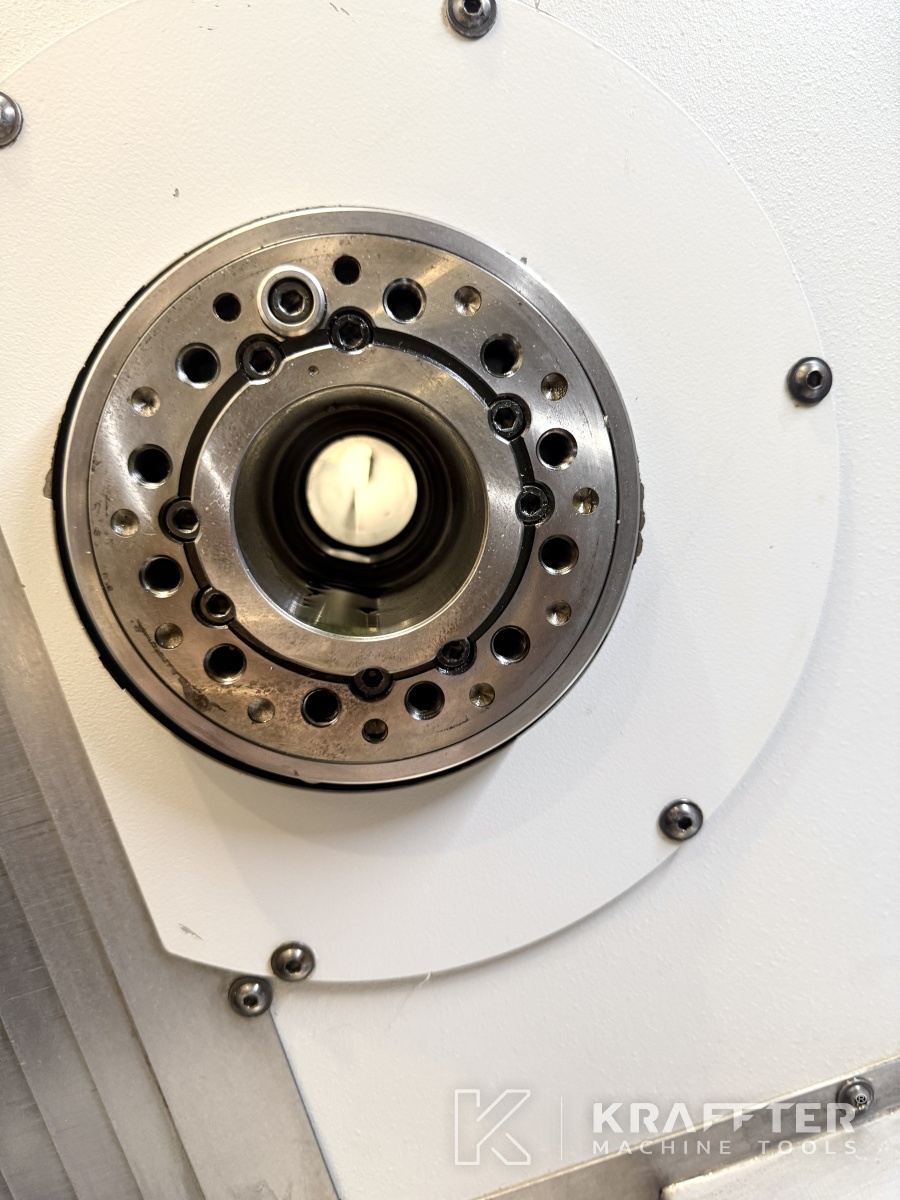

Spindle nose
Taille 48 DIN 6343
Spindle throughbore
42 [mm]
Min. spindle speed
80 [rpm]
Max. spindle speed
8000 [rpm]
Increment C-axis
0.001 [°]
Spindle power
7.5 [kW]

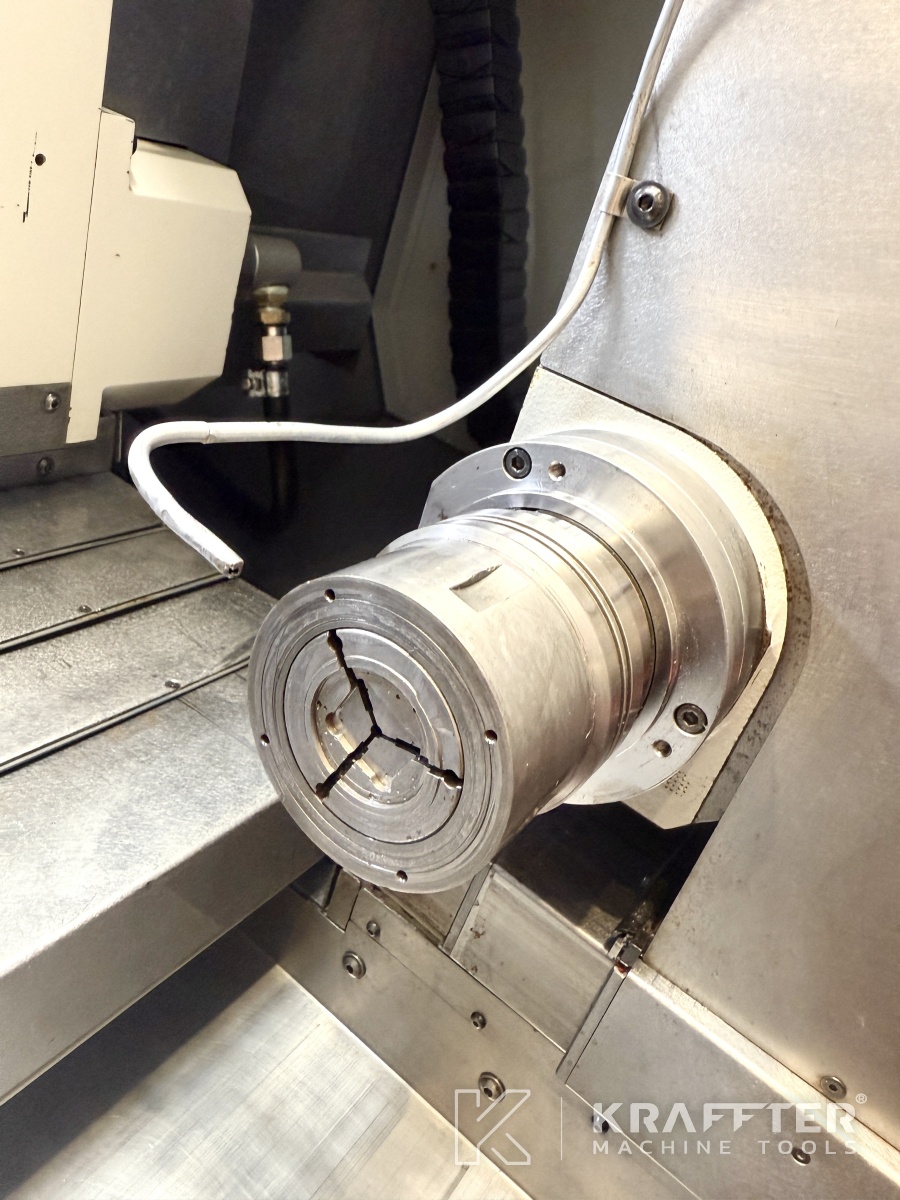

Counter spindle throughbore
42 [mm]
Min. counter spindle spindle speed
60 [rpm]
Max. counter spindle speed
6000 [rpm]
Counter spindle increment C-axis
0.001 [°]
Counter spindle power
2.2 [kW]

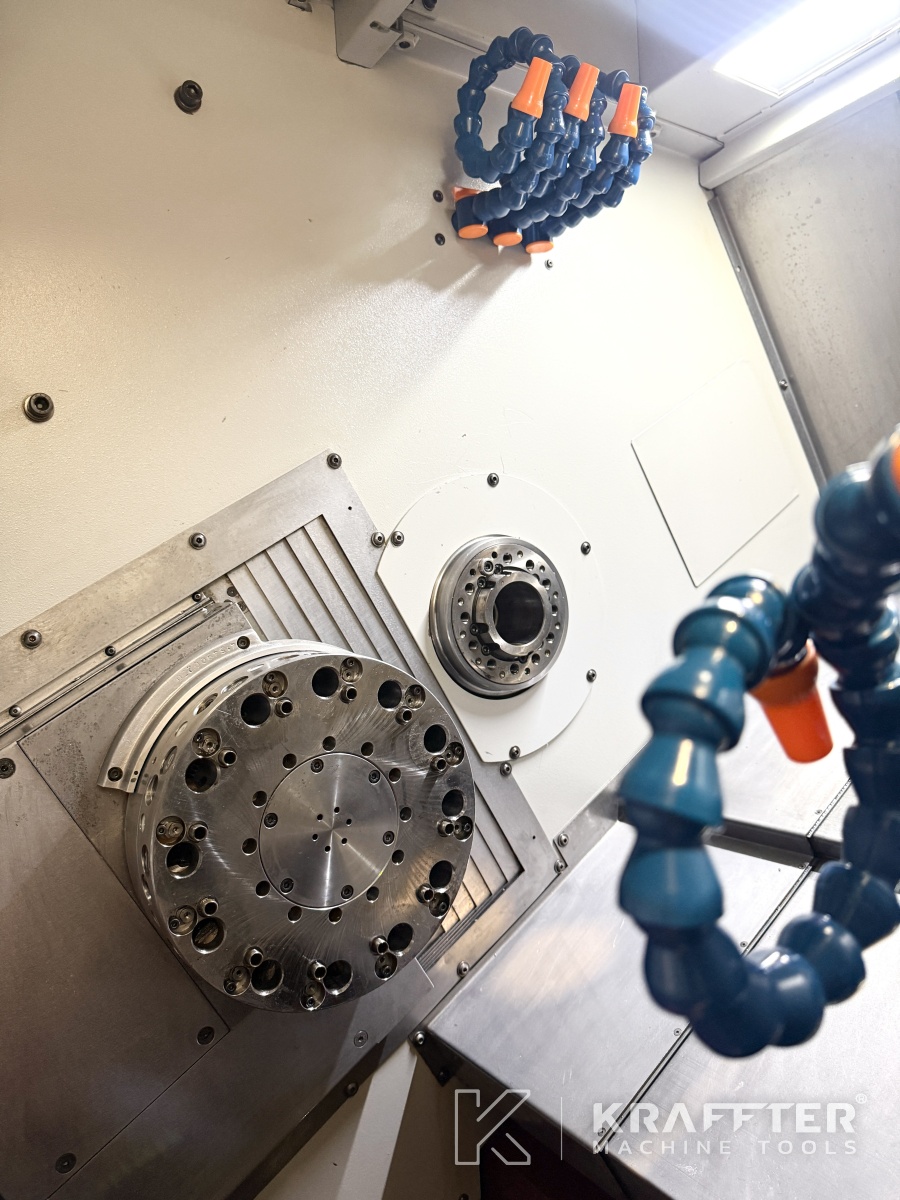

Type of tool holders
VDI 20

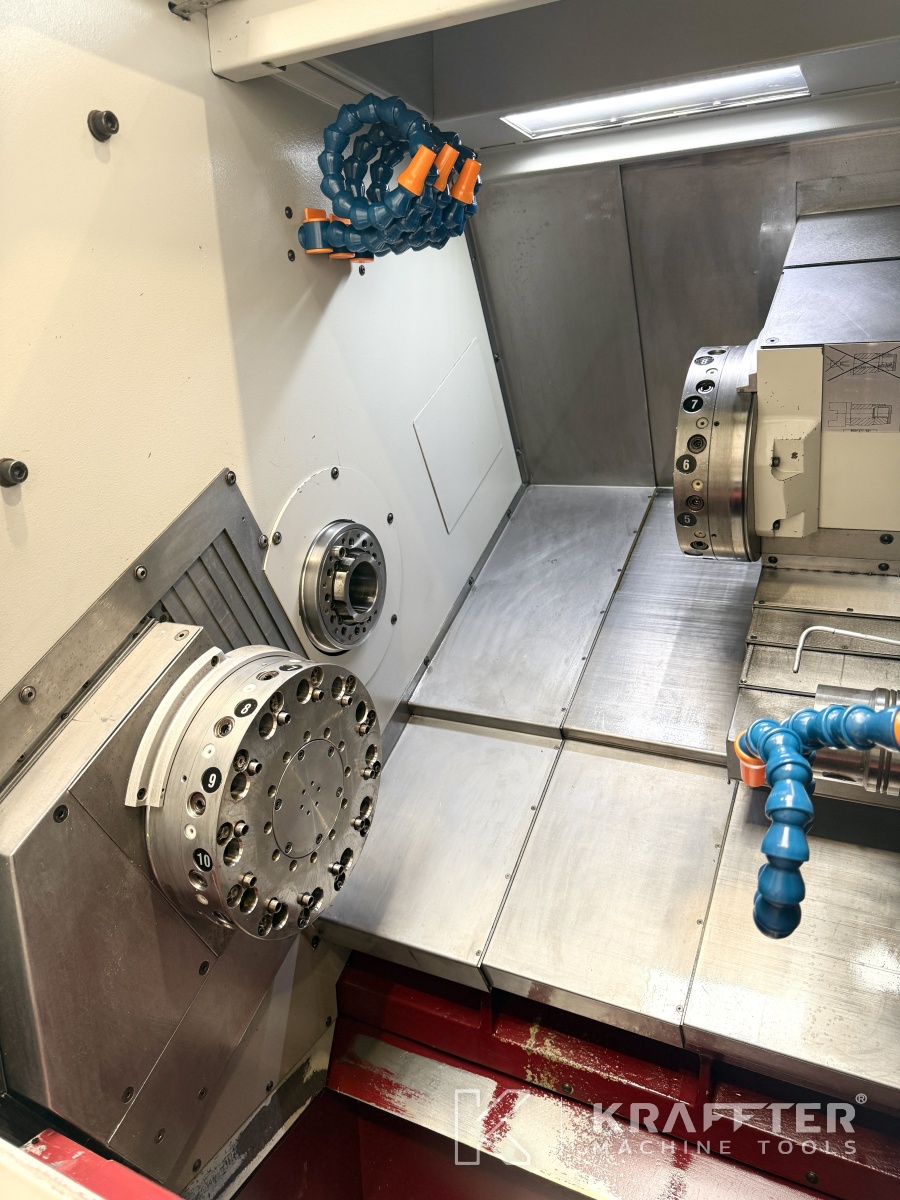

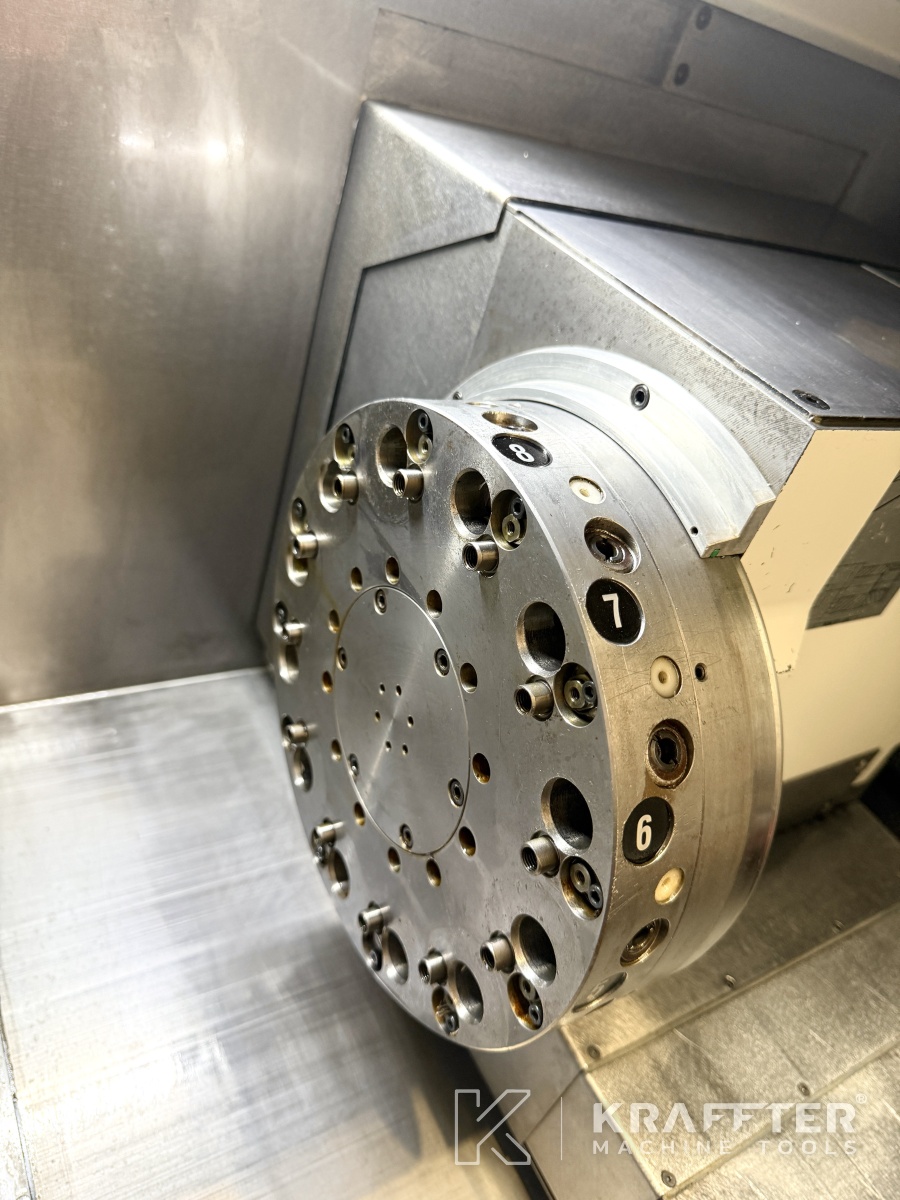

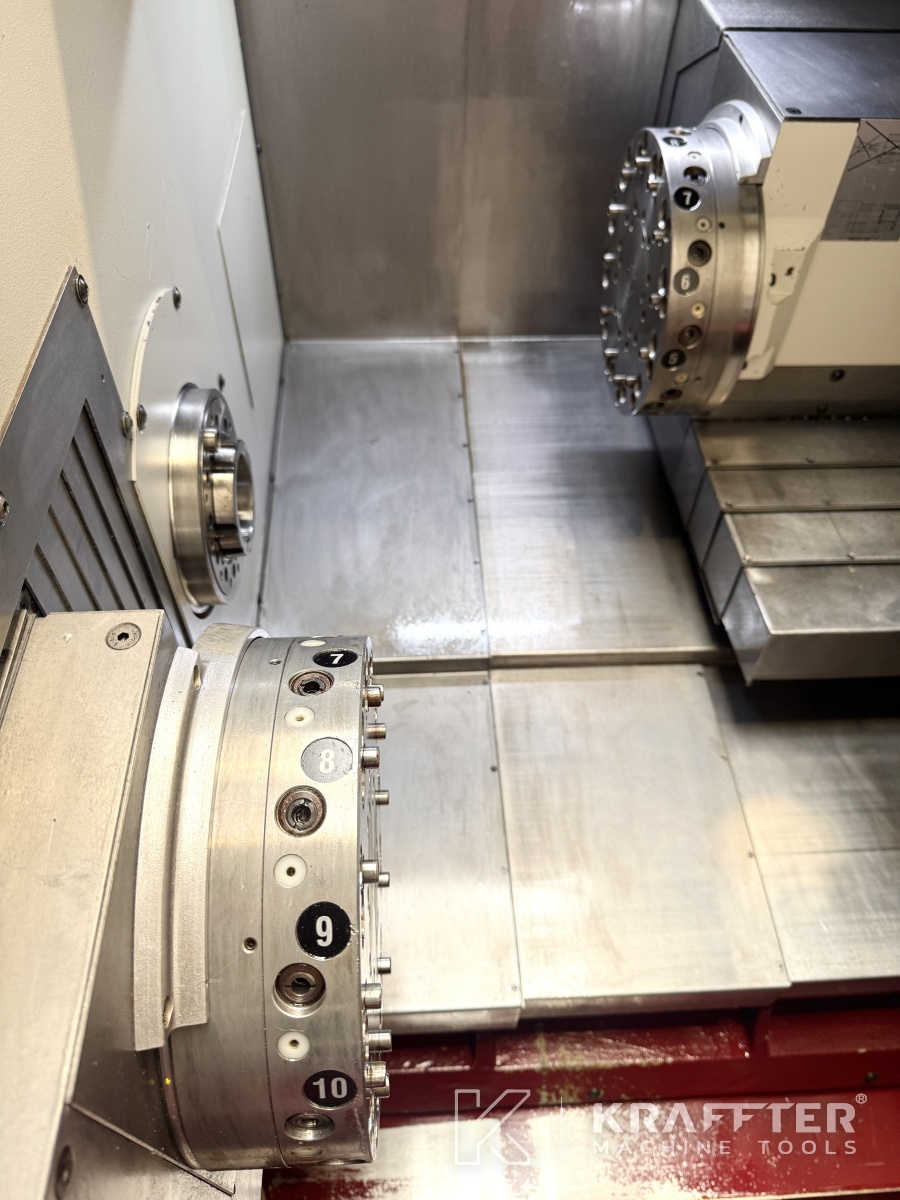

Number of tool stations - Turret 1
12
Number of tool stations driven - Turret 1
12
Max. speed driven tools - Turret 1
4500 [rpm]
Number of tool stations - Turret 2
12
Number of tool stations driven - Turret 2
12
Max. speed driven tools - Turret 2
4500 [rpm]
Lubrication tank capacity
210 [l]
Total power required
14 [kVA]
Rated current
20 [A]
Supply voltage
400 [V]
RS232 Interface
Yes
Dimensions
2350 x 1590 x 1730 [mm]
Weight
3300 [Kg]
Additional information
INCLUDED EQUIPMENT:
-

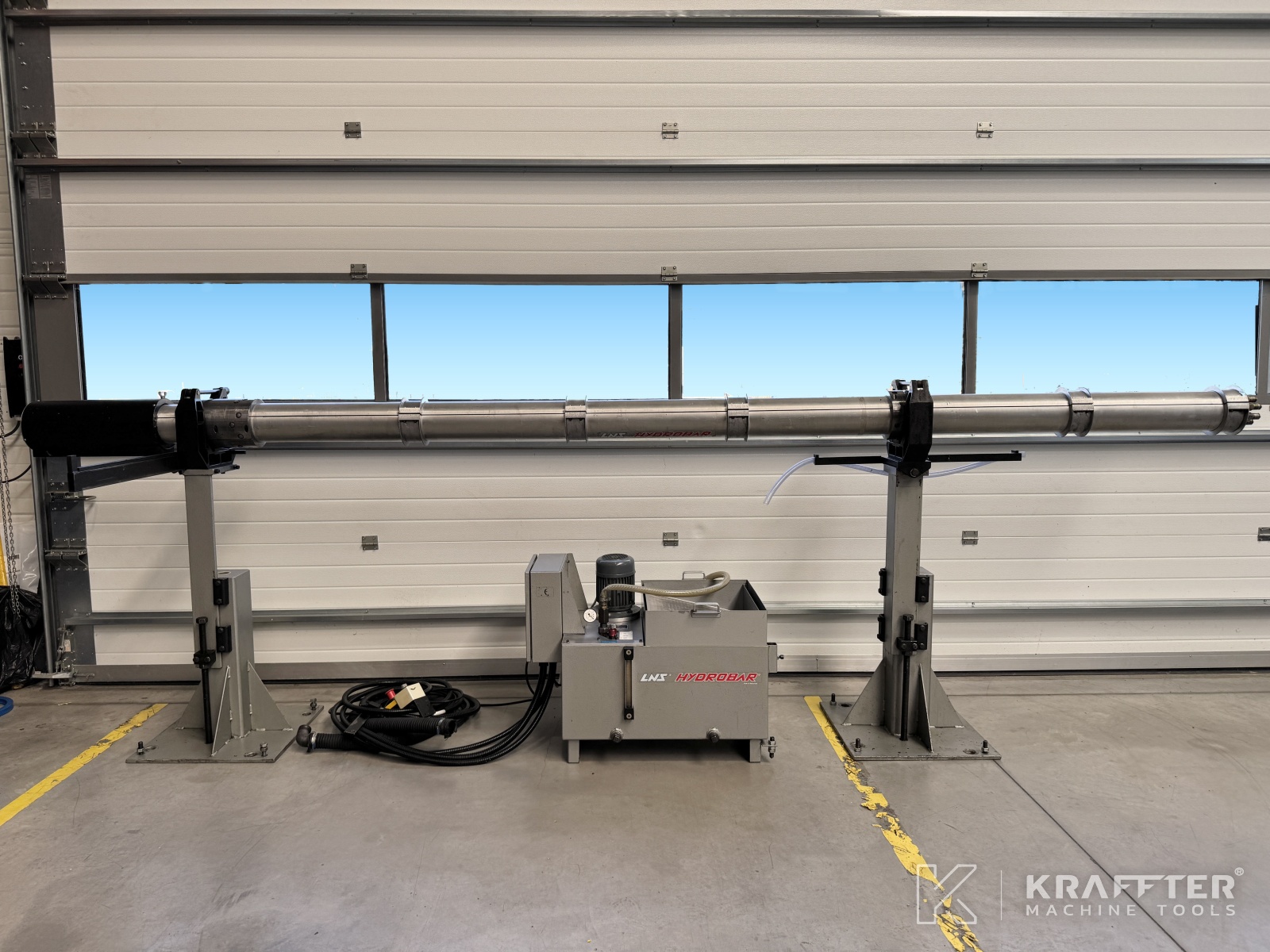

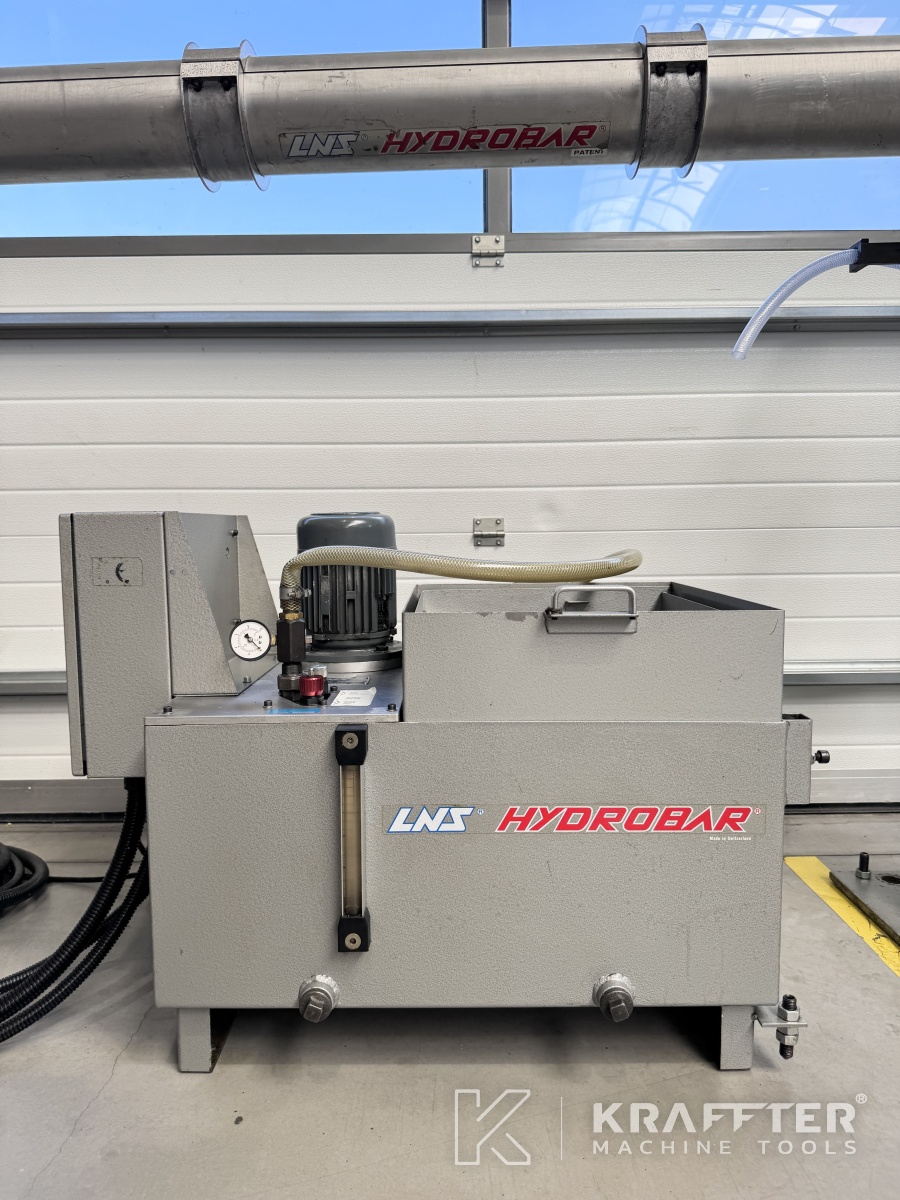

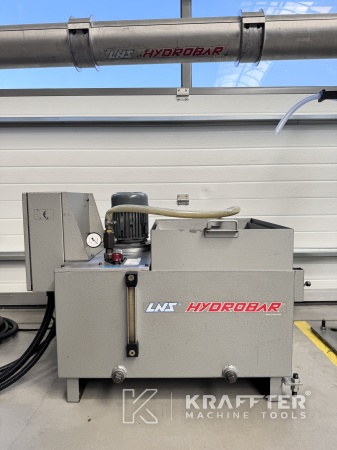

x1 LNS HYDROBAR bar feeder
-
x1 coolant tank
-

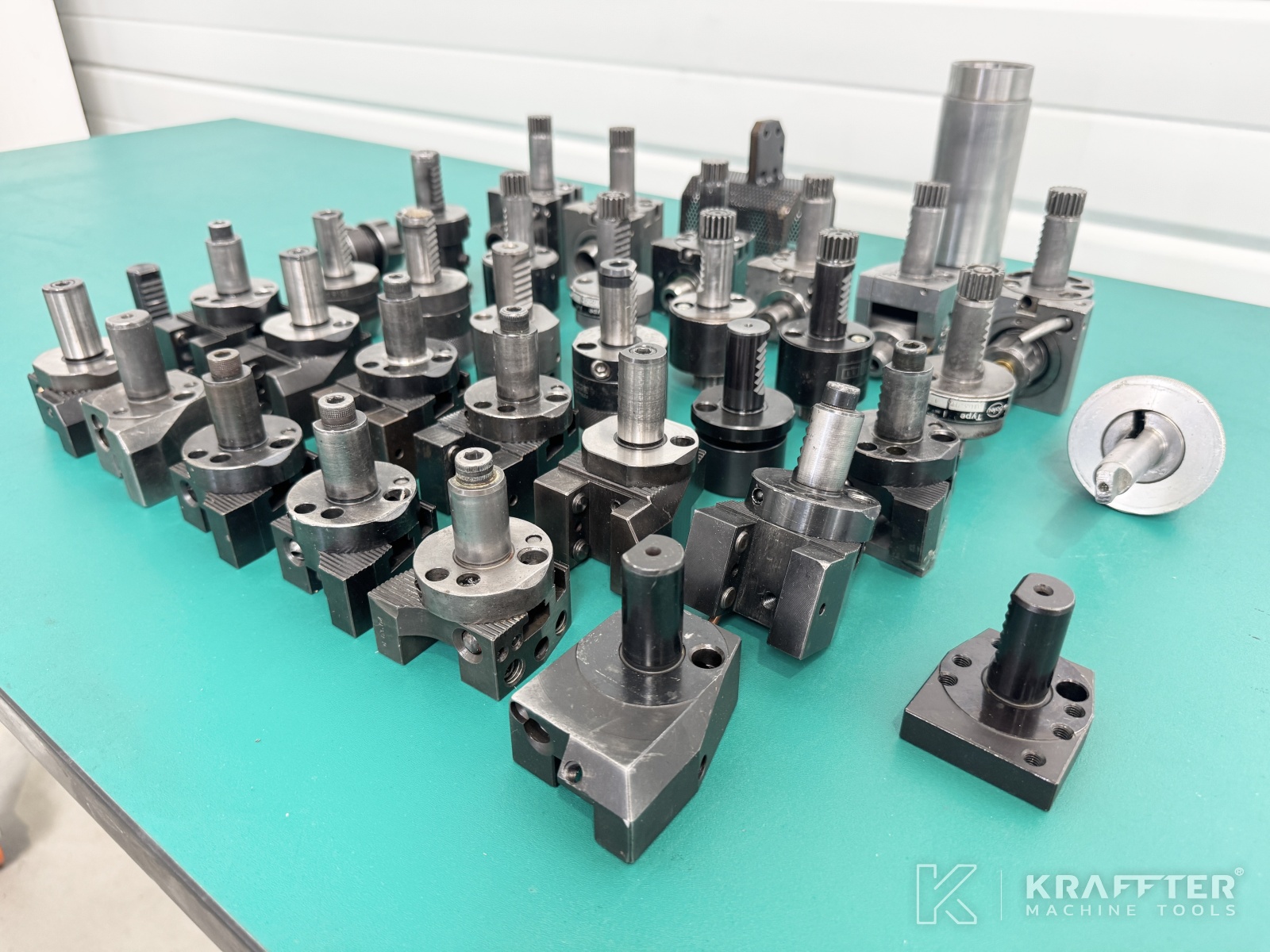

x6 radial live tool holders VDI 20
-
x5 axial live tool holders VDI 20
-
x21 static tool holders VDI 20
-
x1 parts catcher basket VDI 20
-
x17 VDI 20 blanking plugs
-

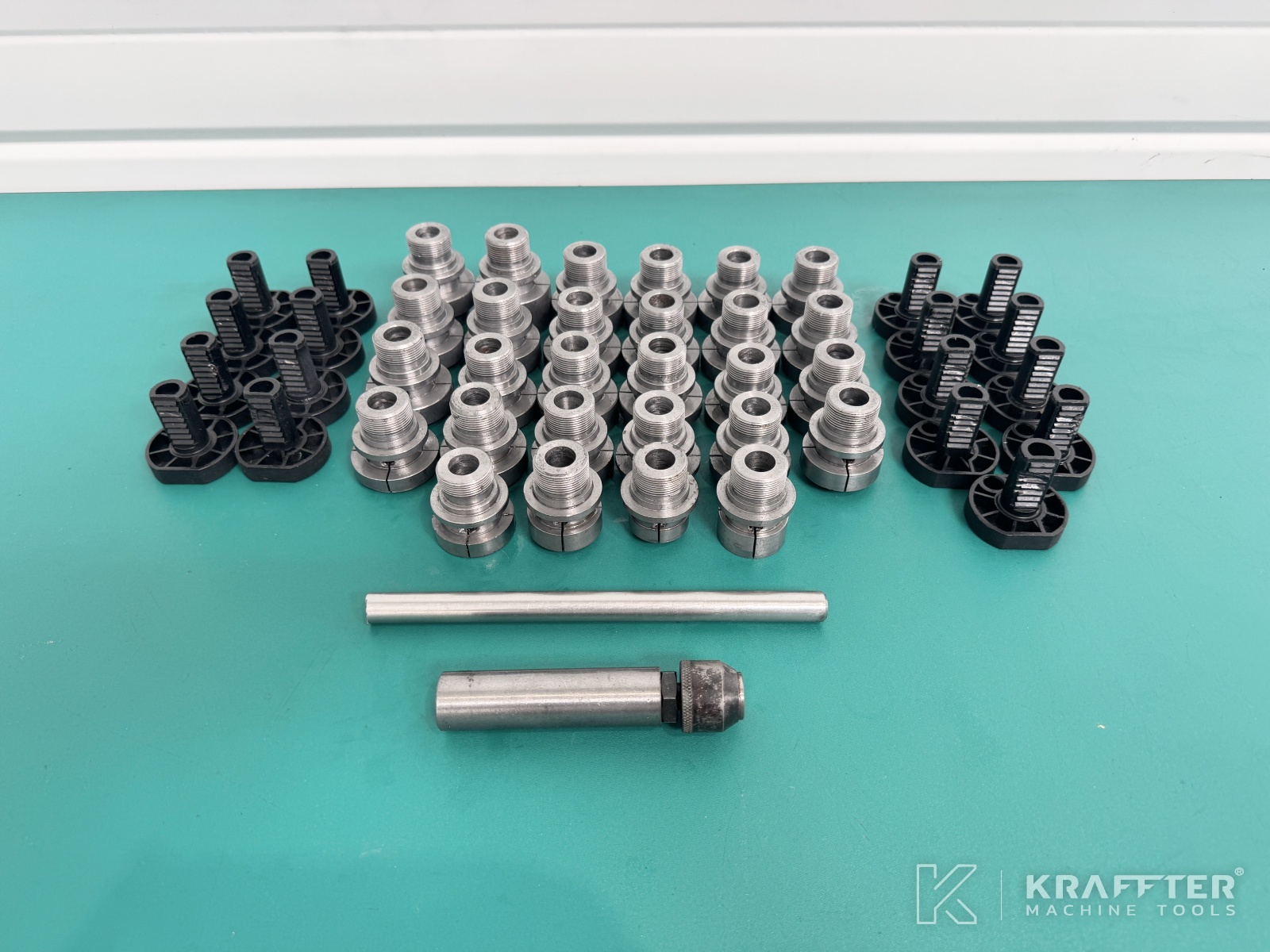

x28 collets
-
x4 collet chucks
-
x1 3-color status light
-

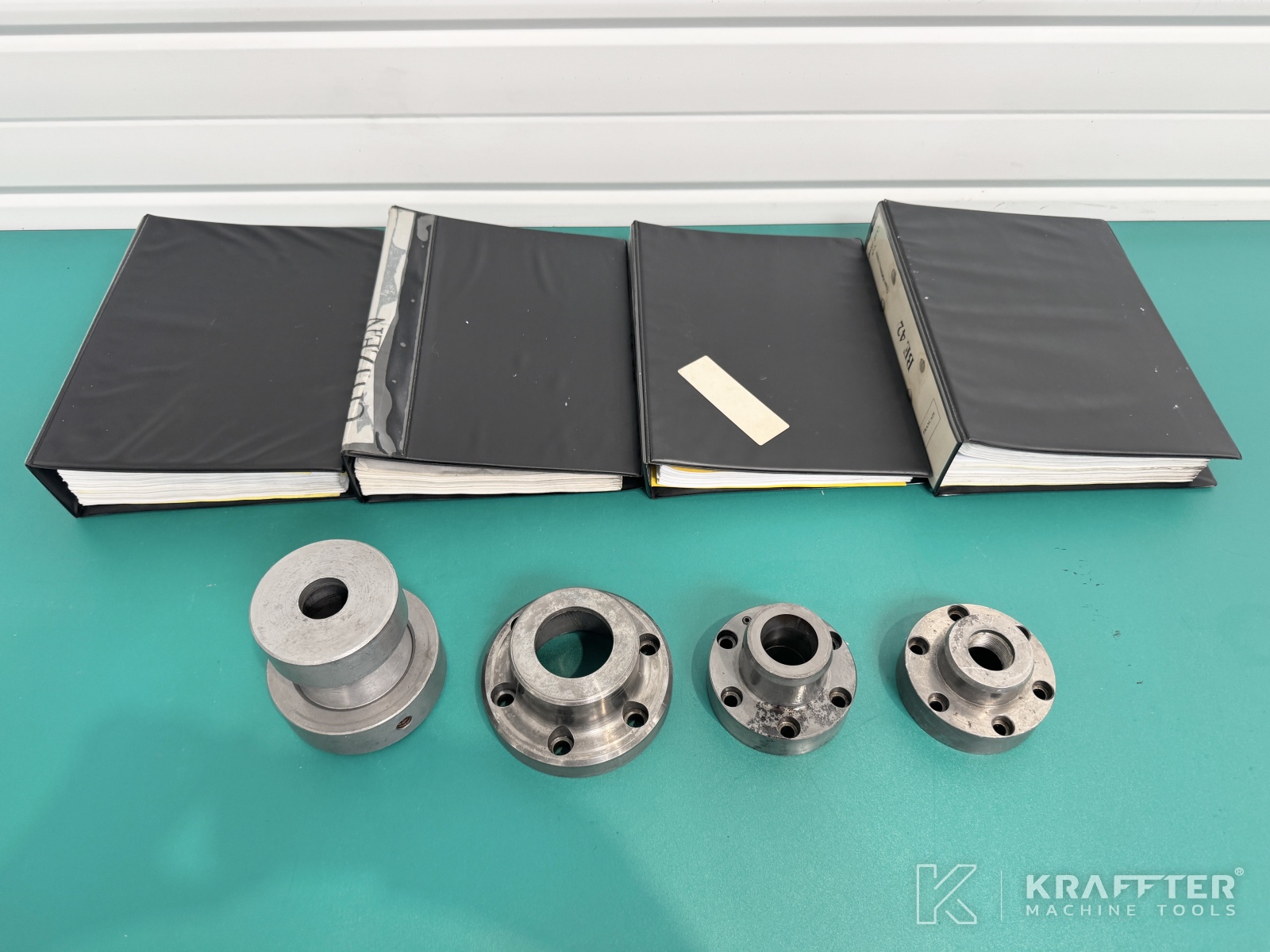

x1 "Electrical diagrams" manual
-
x1 "Operation & Maintenance" manual
-
x1 Operator’s manual
