Sold

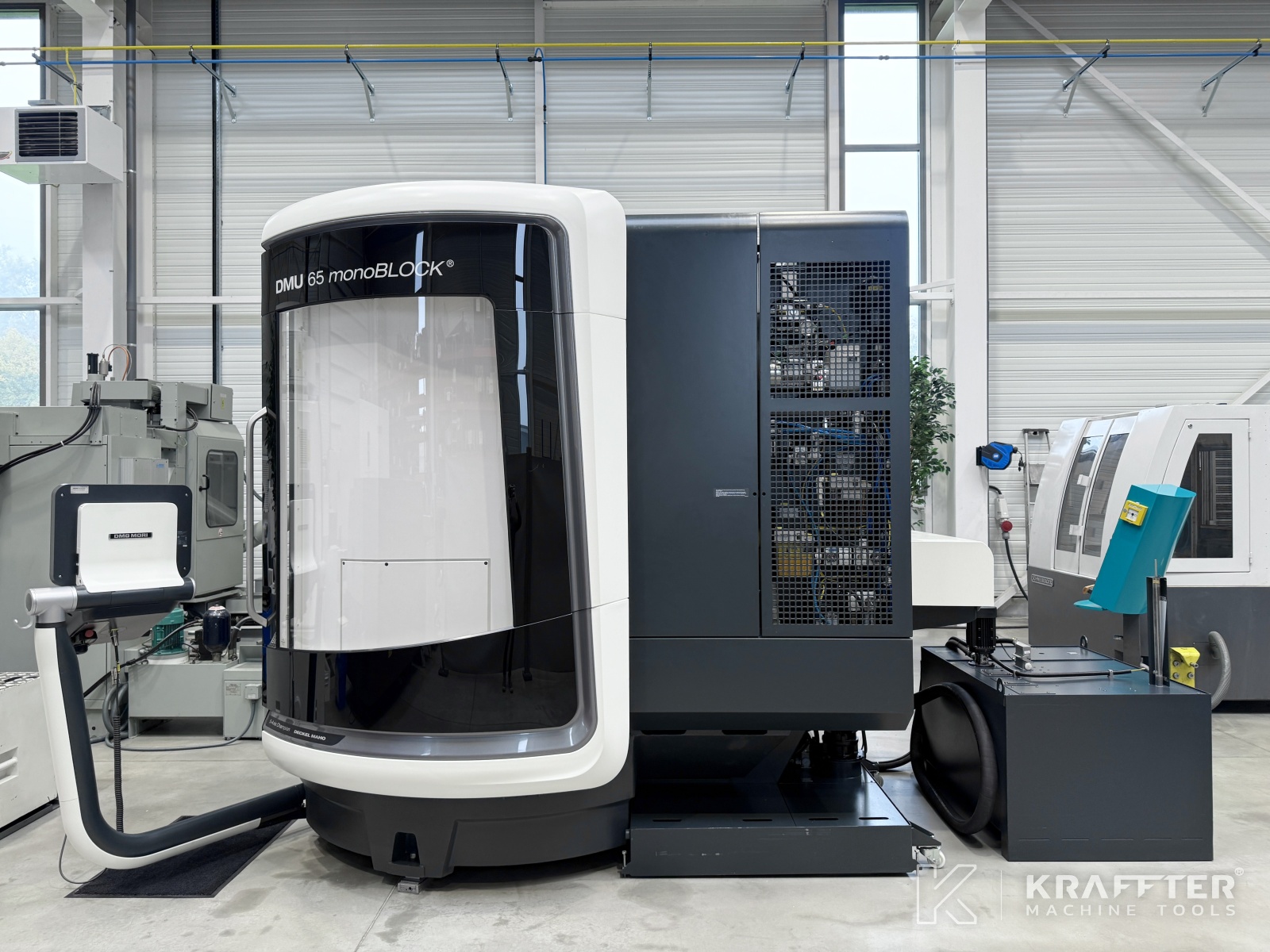

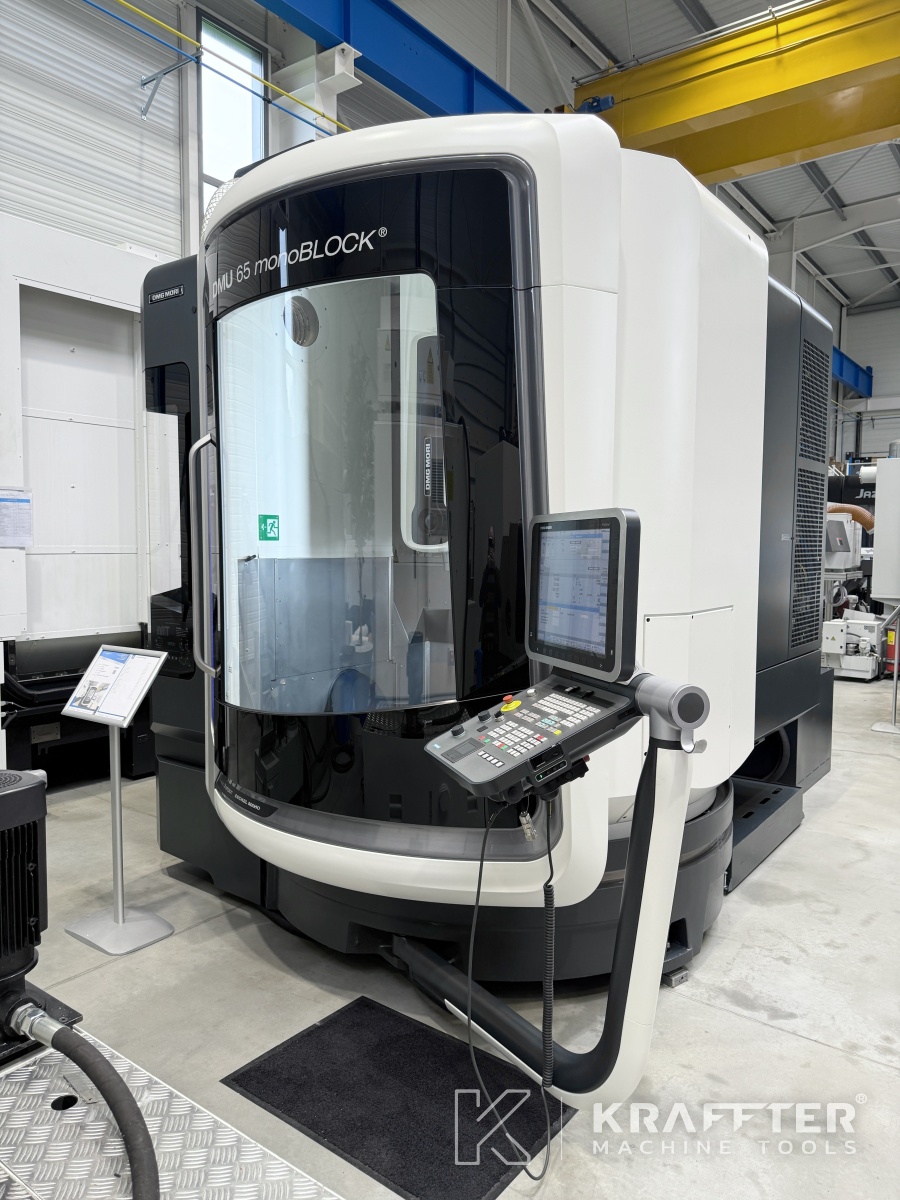

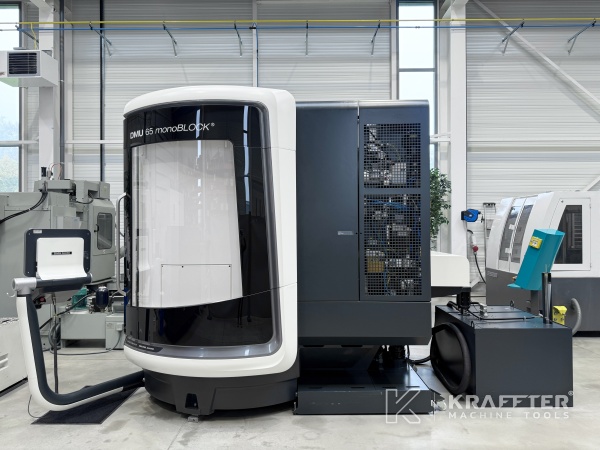

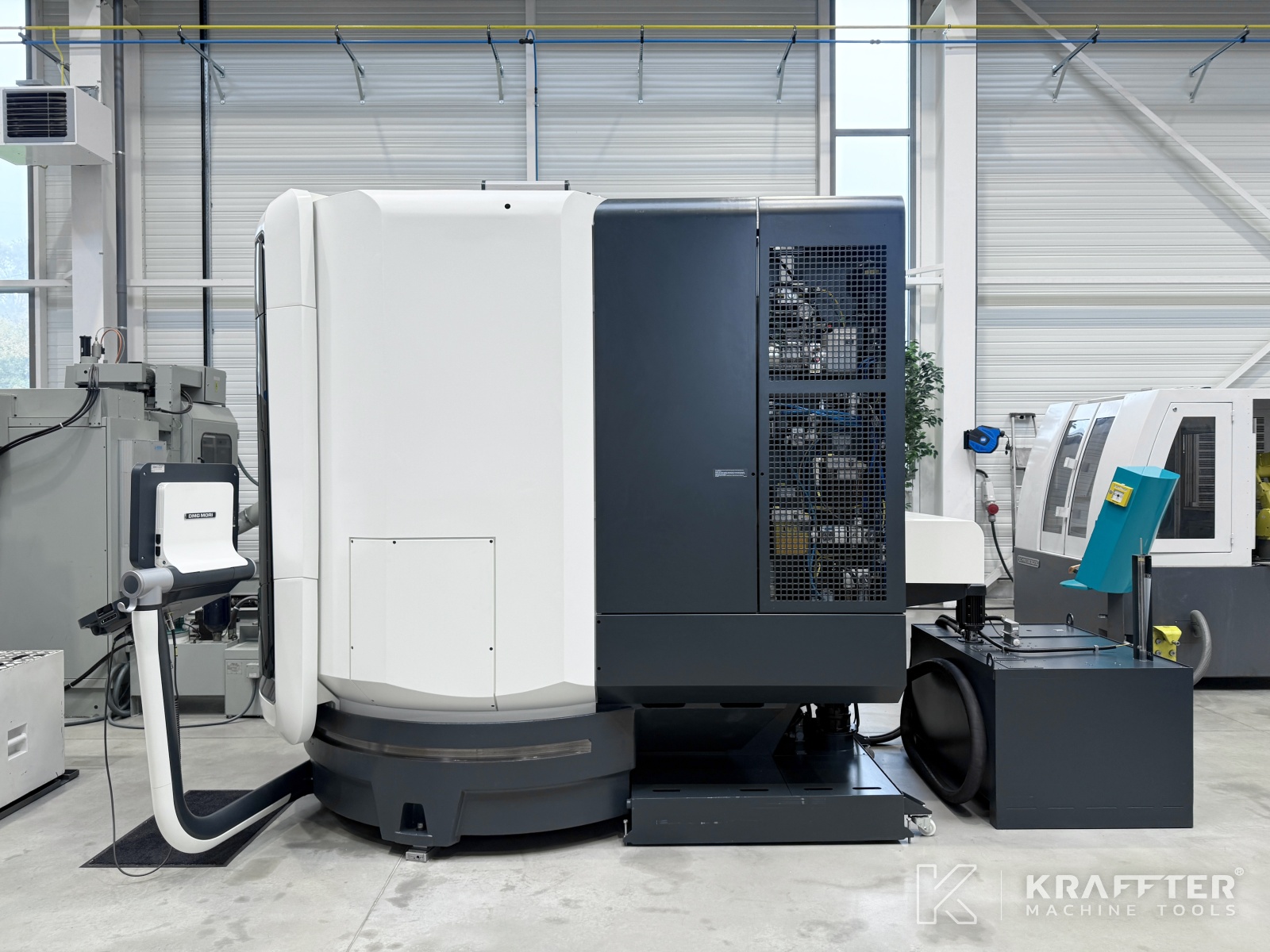

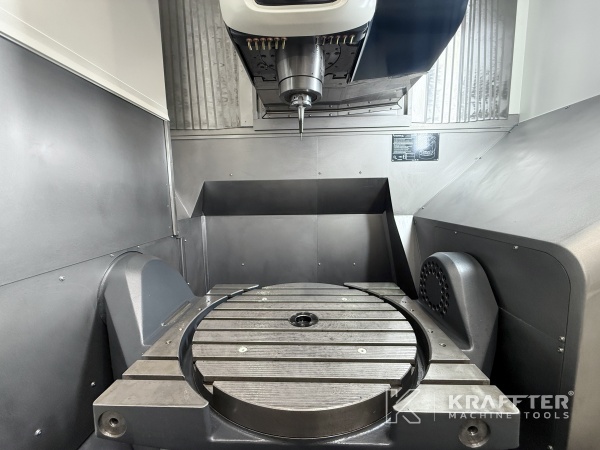

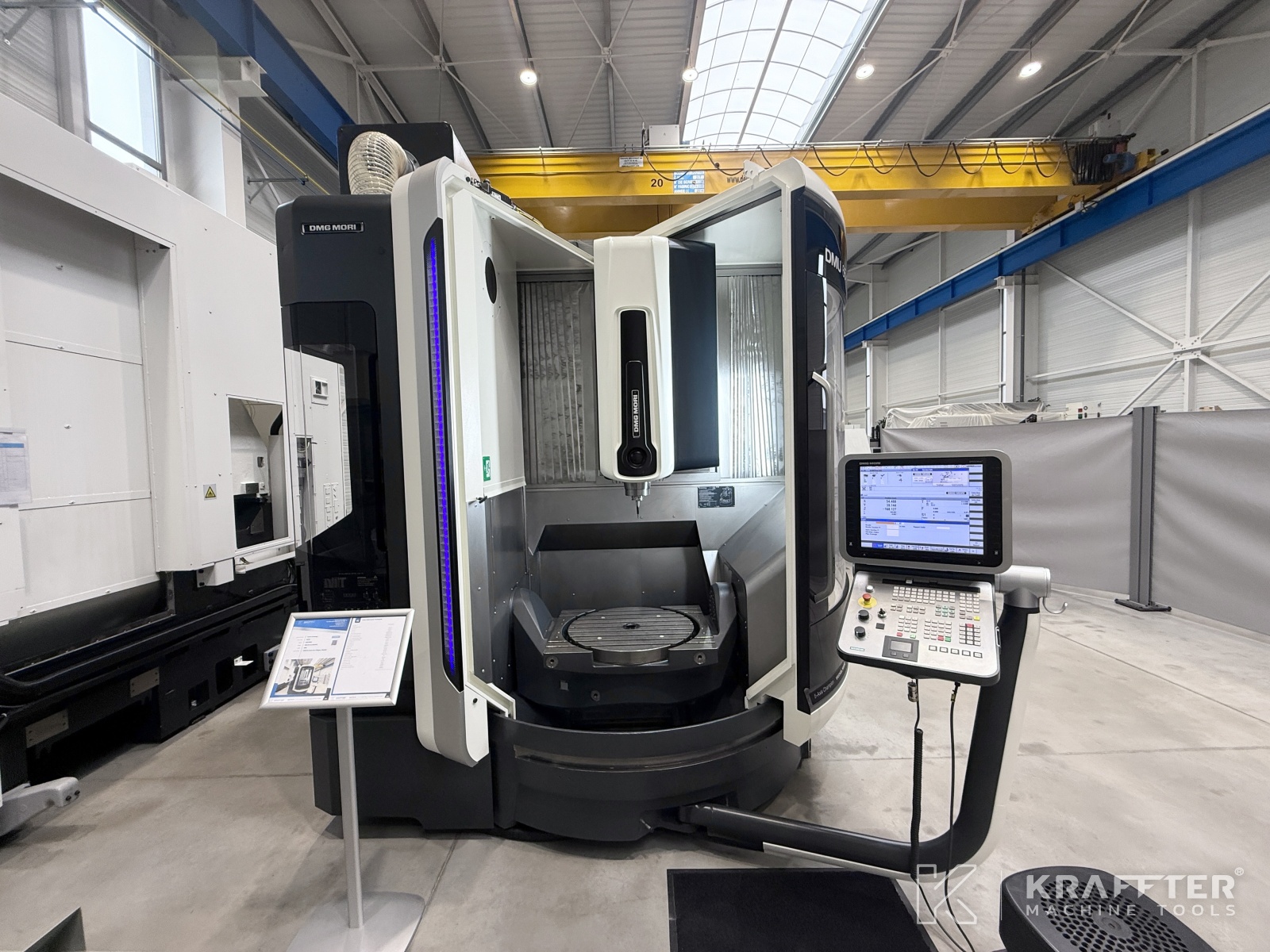

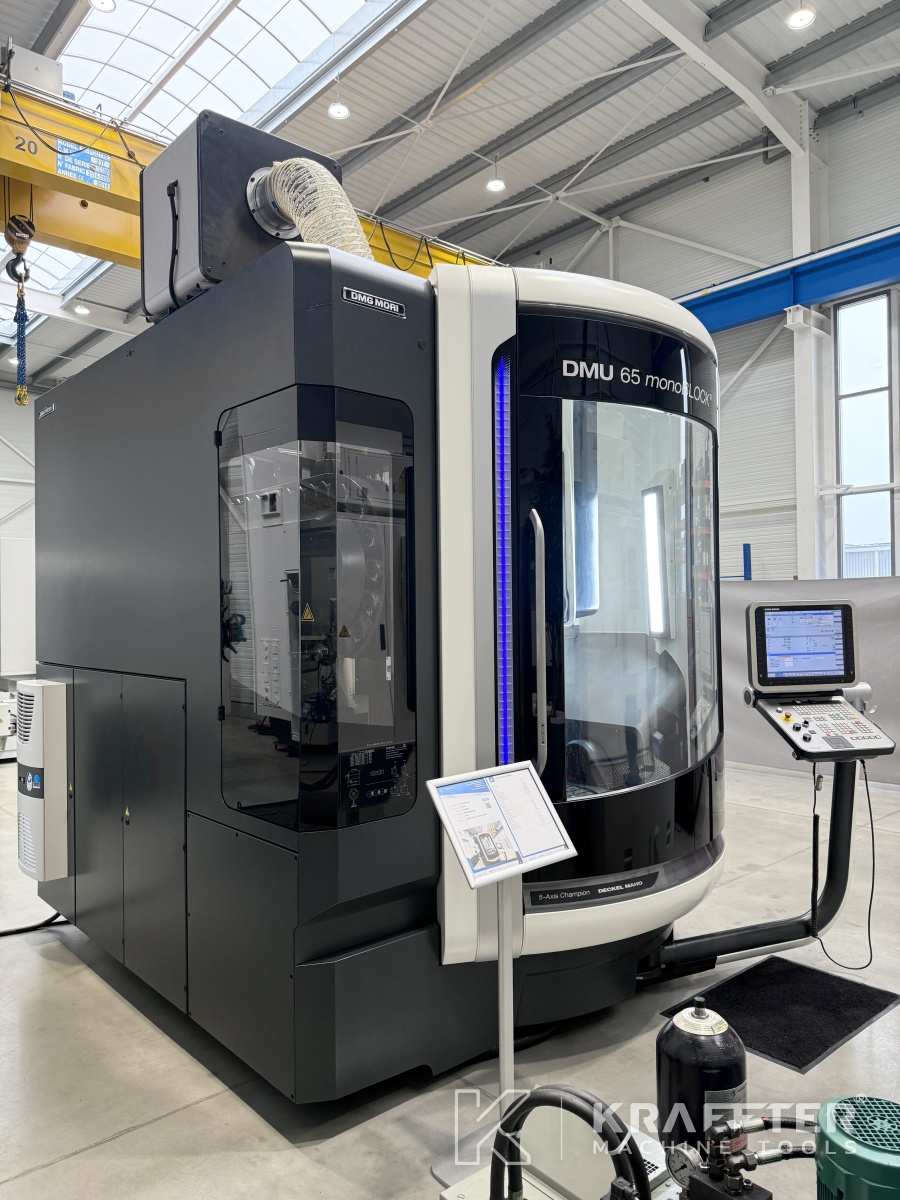

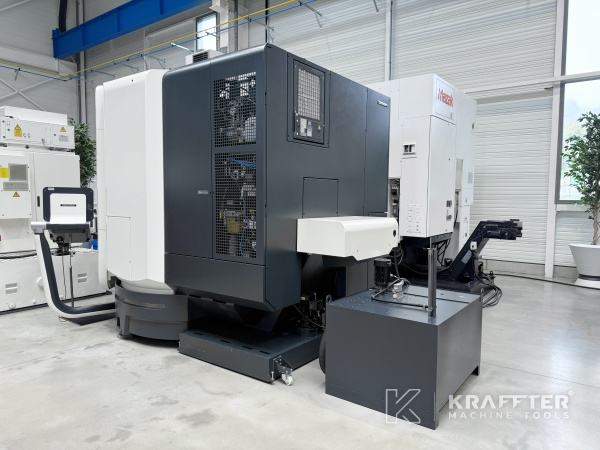

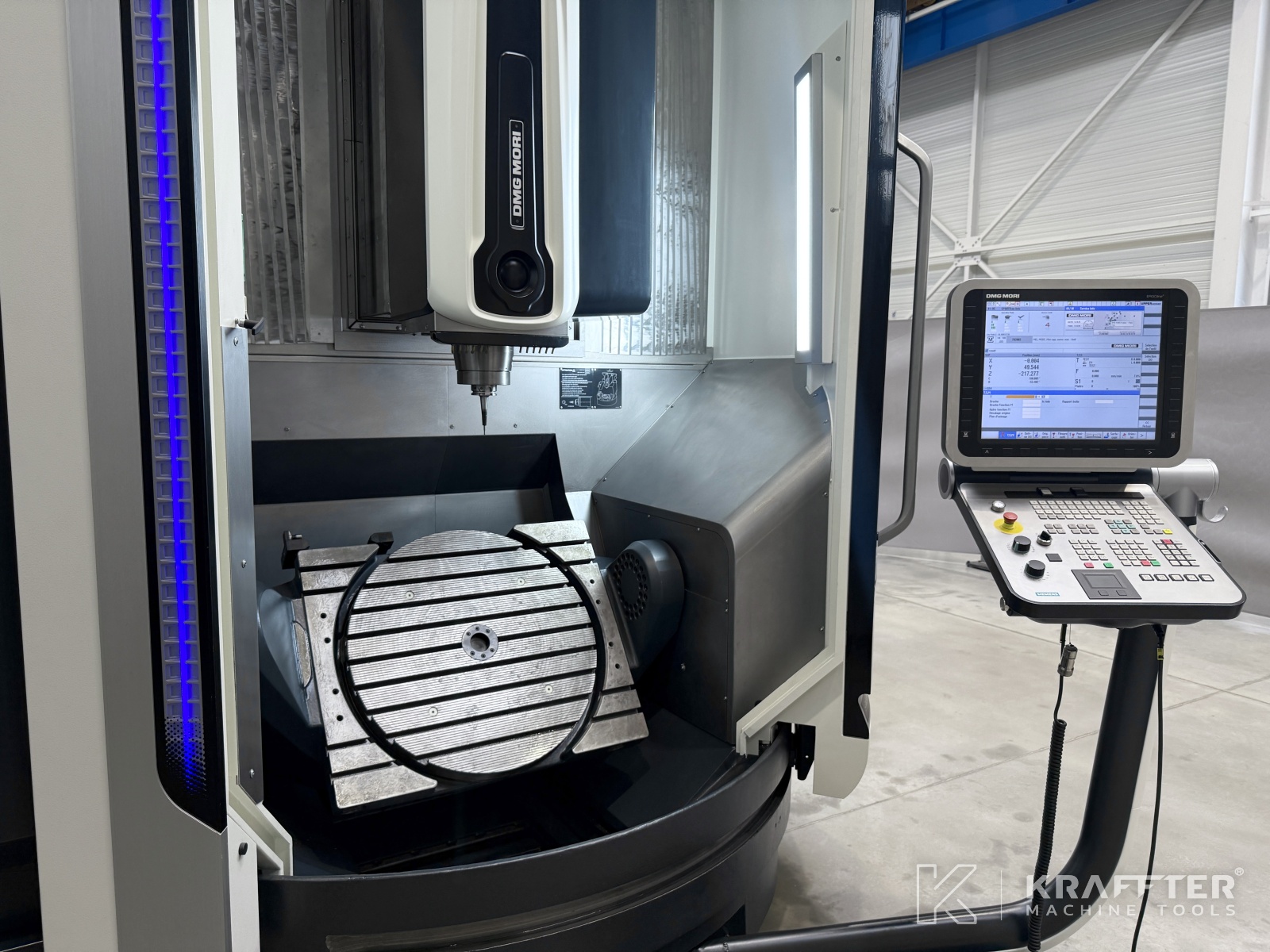

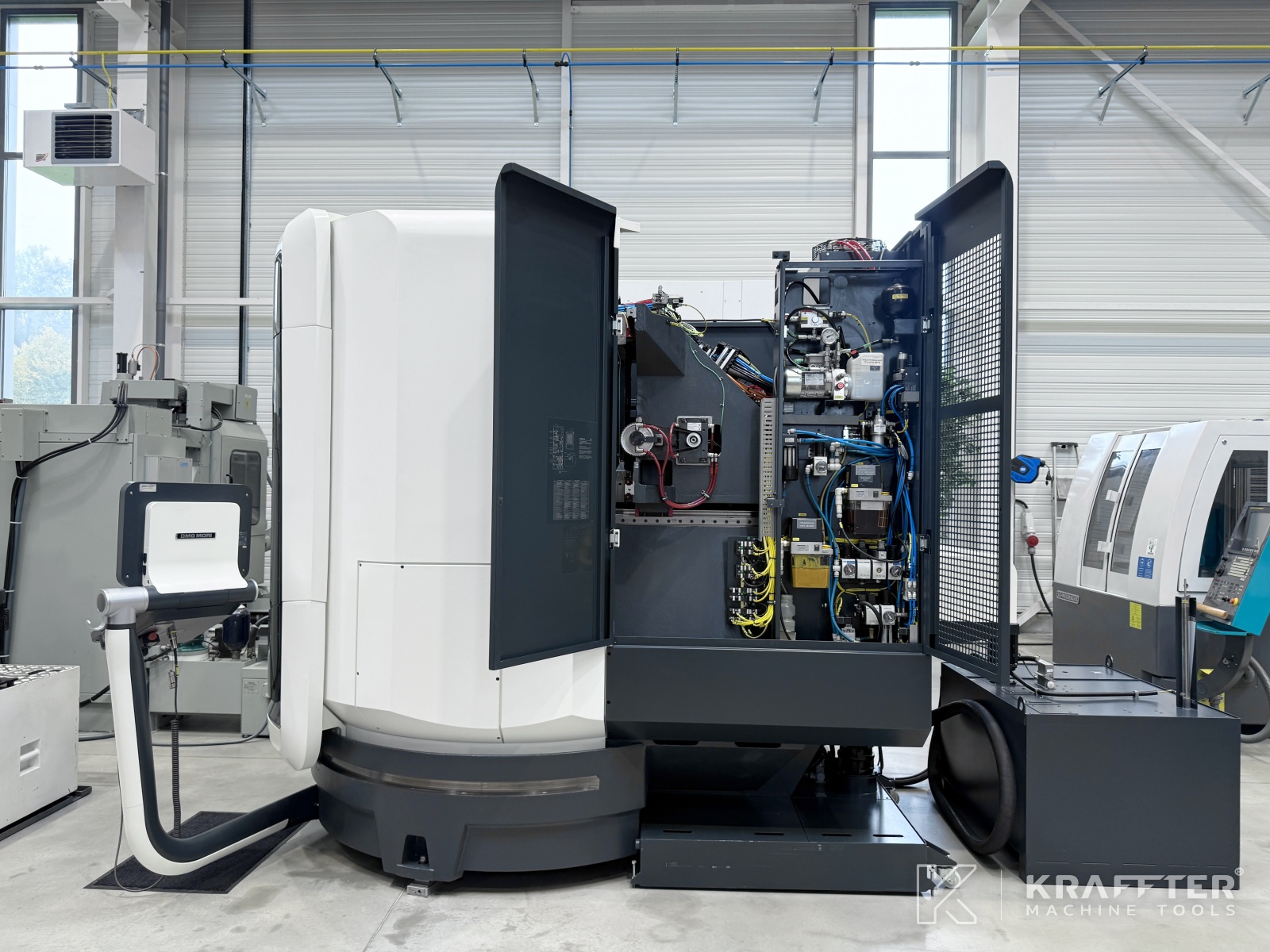

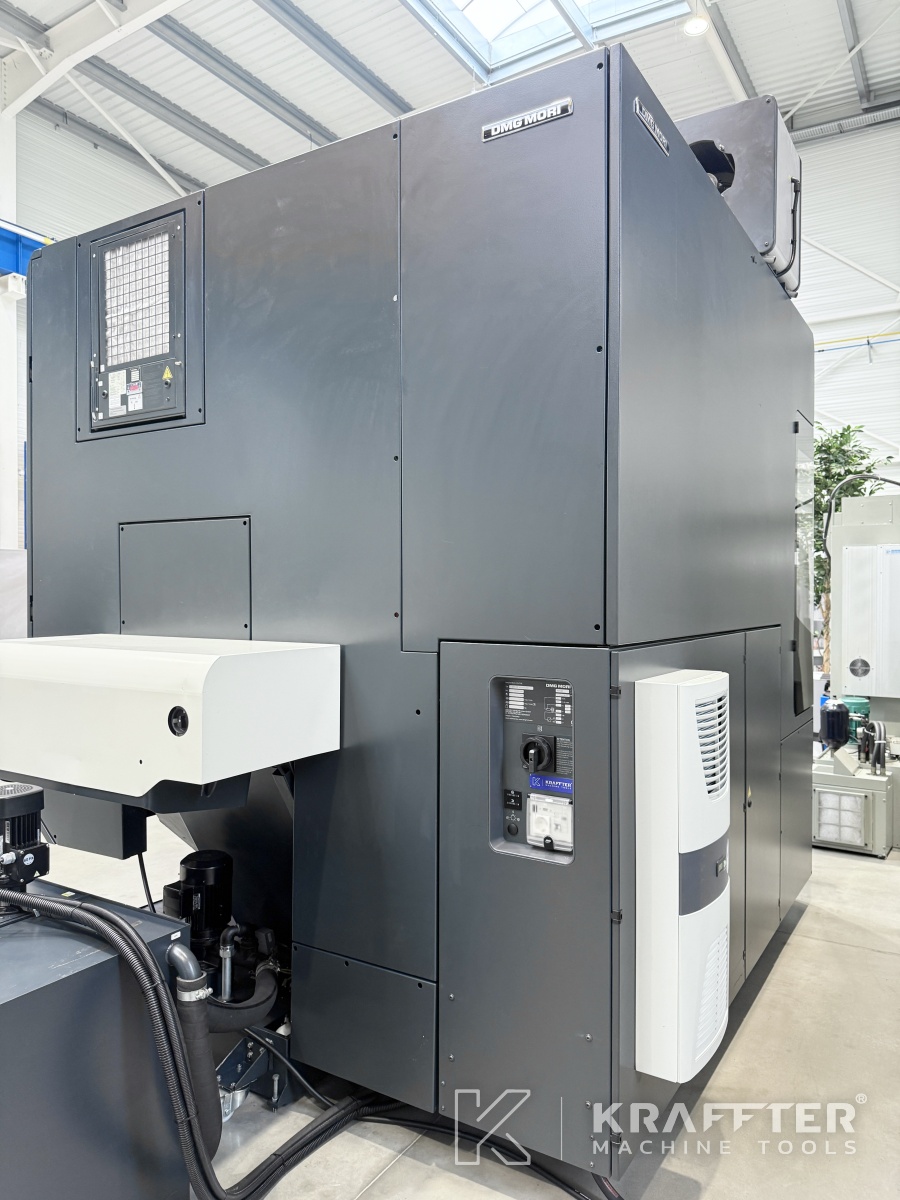

Type of machine : CNC machining centre
Brand : DMG MORI
N° de stock: 90170

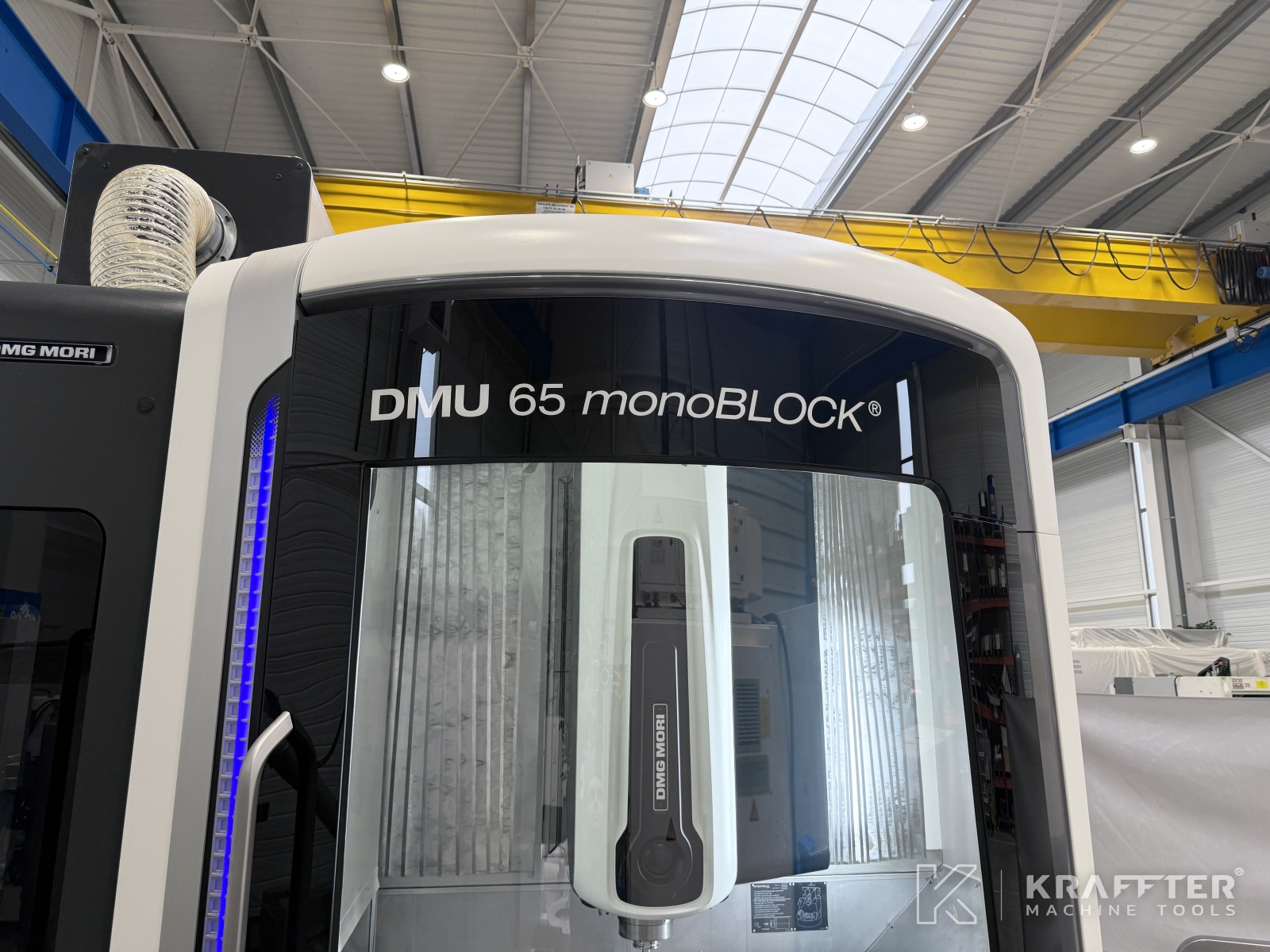

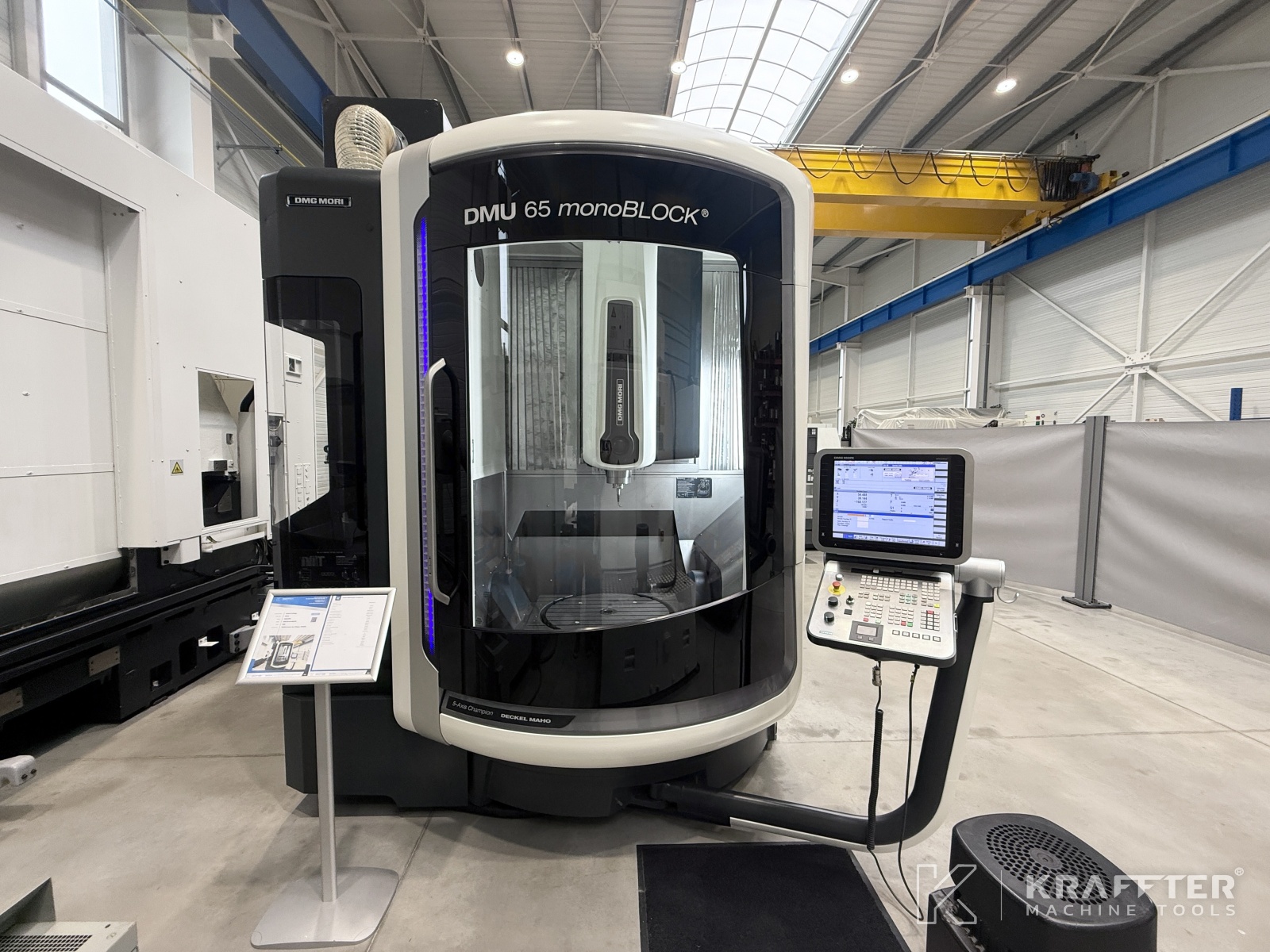

Model : DMU 65 monoBLOCK
Year : 2016
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

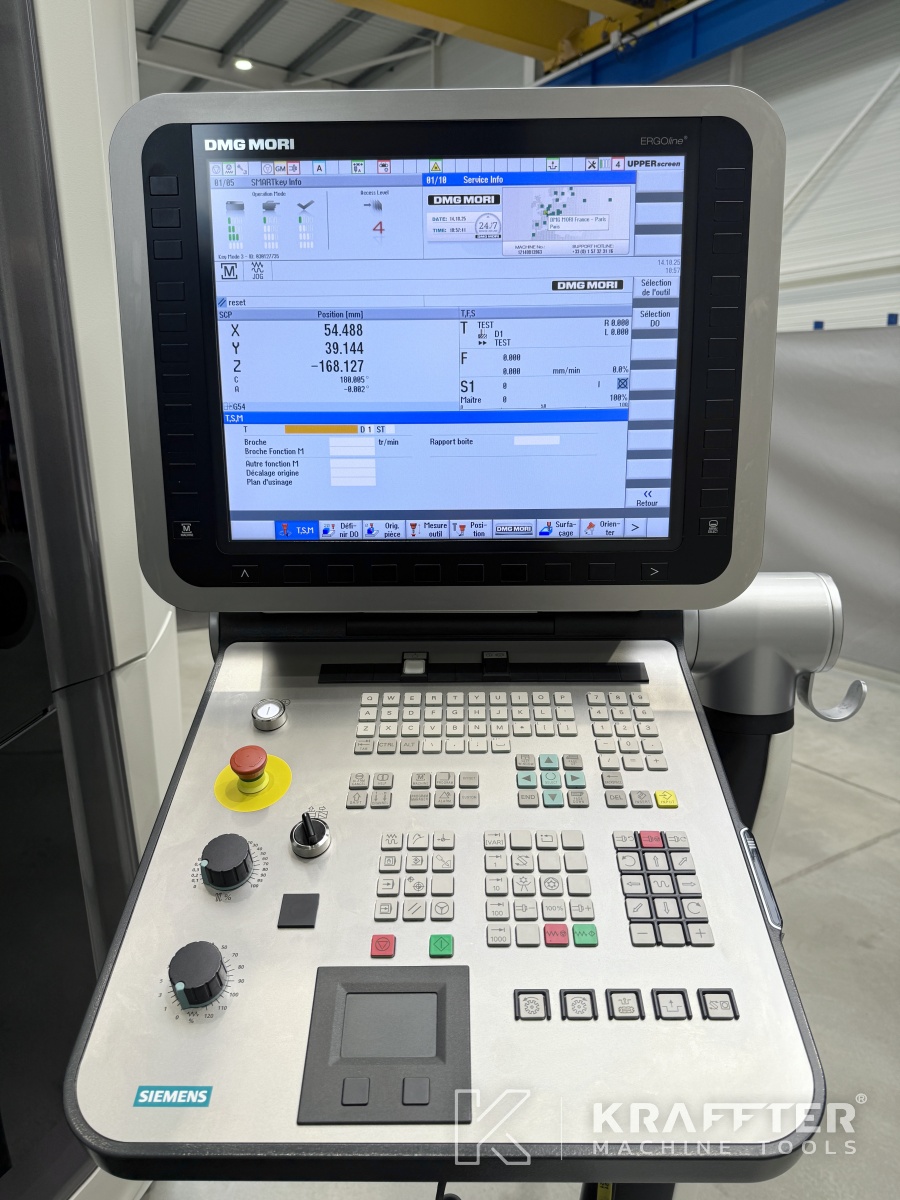

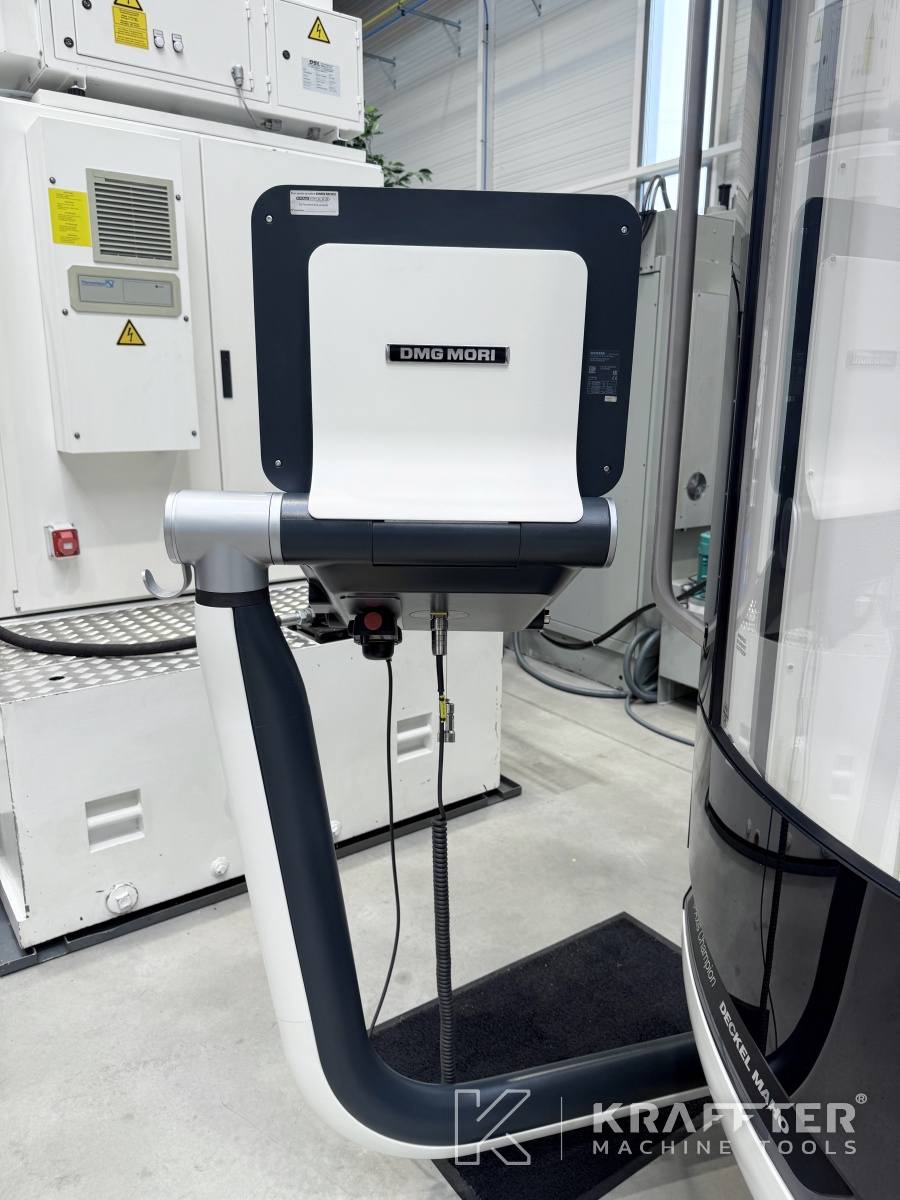

CNC control
SIEMENS 840D SL
Number of simultaneous axes
5
Stroke X axis
735 [mm]
Stroke Y axis
650 [mm]
Stroke Z axis
560 [mm]
Working feed X axis
40000 [mm/min]
Working feed Y axis
40000 [mm/min]
Working feed Z axis
40000 [mm/min]
Traversing feeds X, Y and Z axes
40000 [mm/min]
Axes acceleration
6 [m/s²]

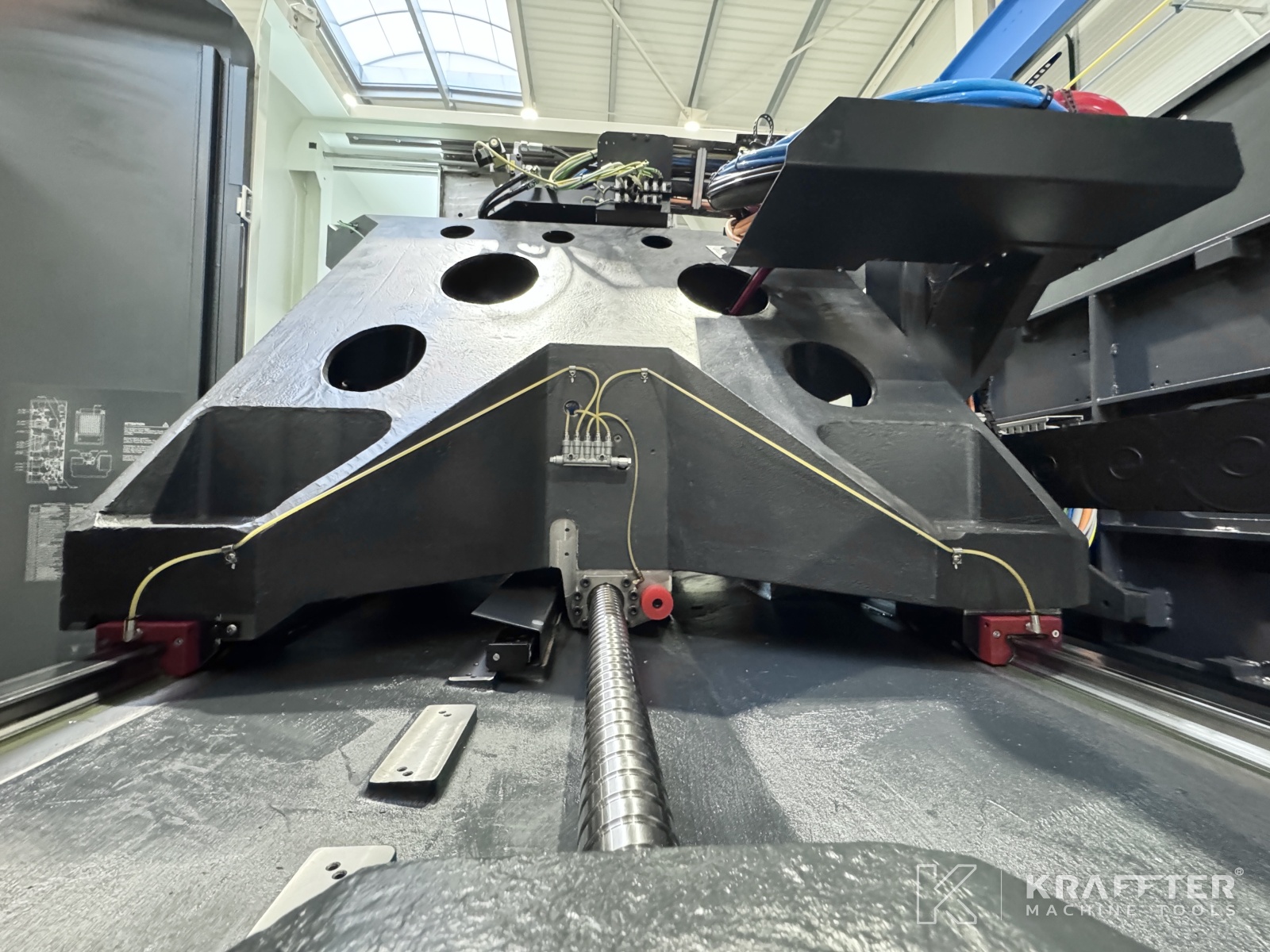

X axis ball screws Ø
40 [mm]
Y axis ball screws Ø
50 [mm]
Z axis ball screws Ø
40 [mm]

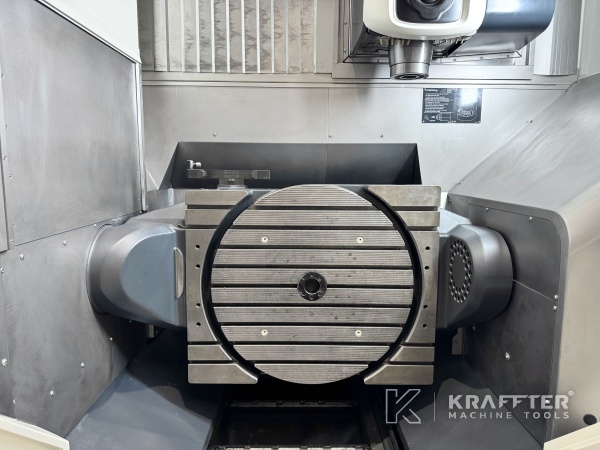

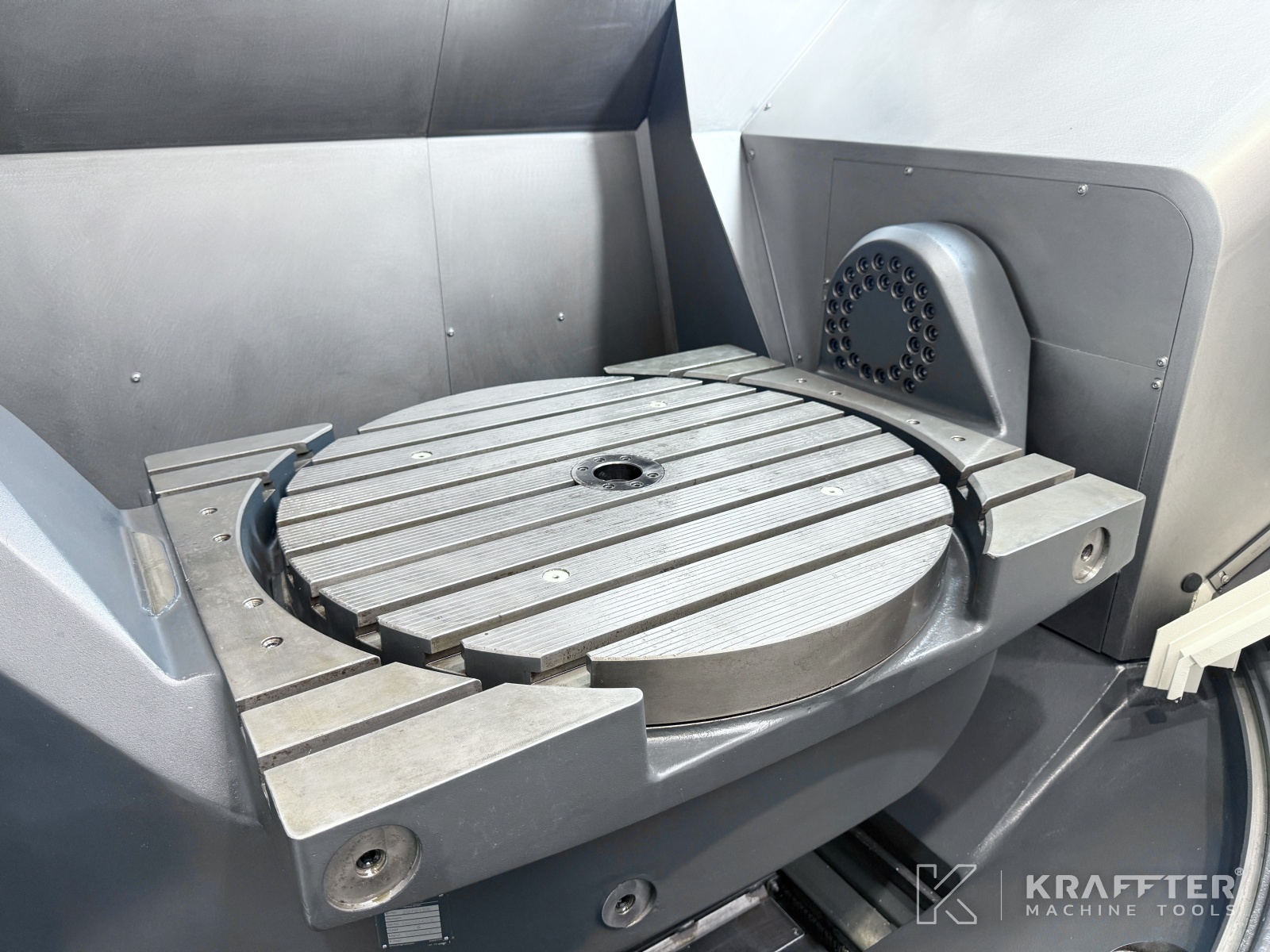

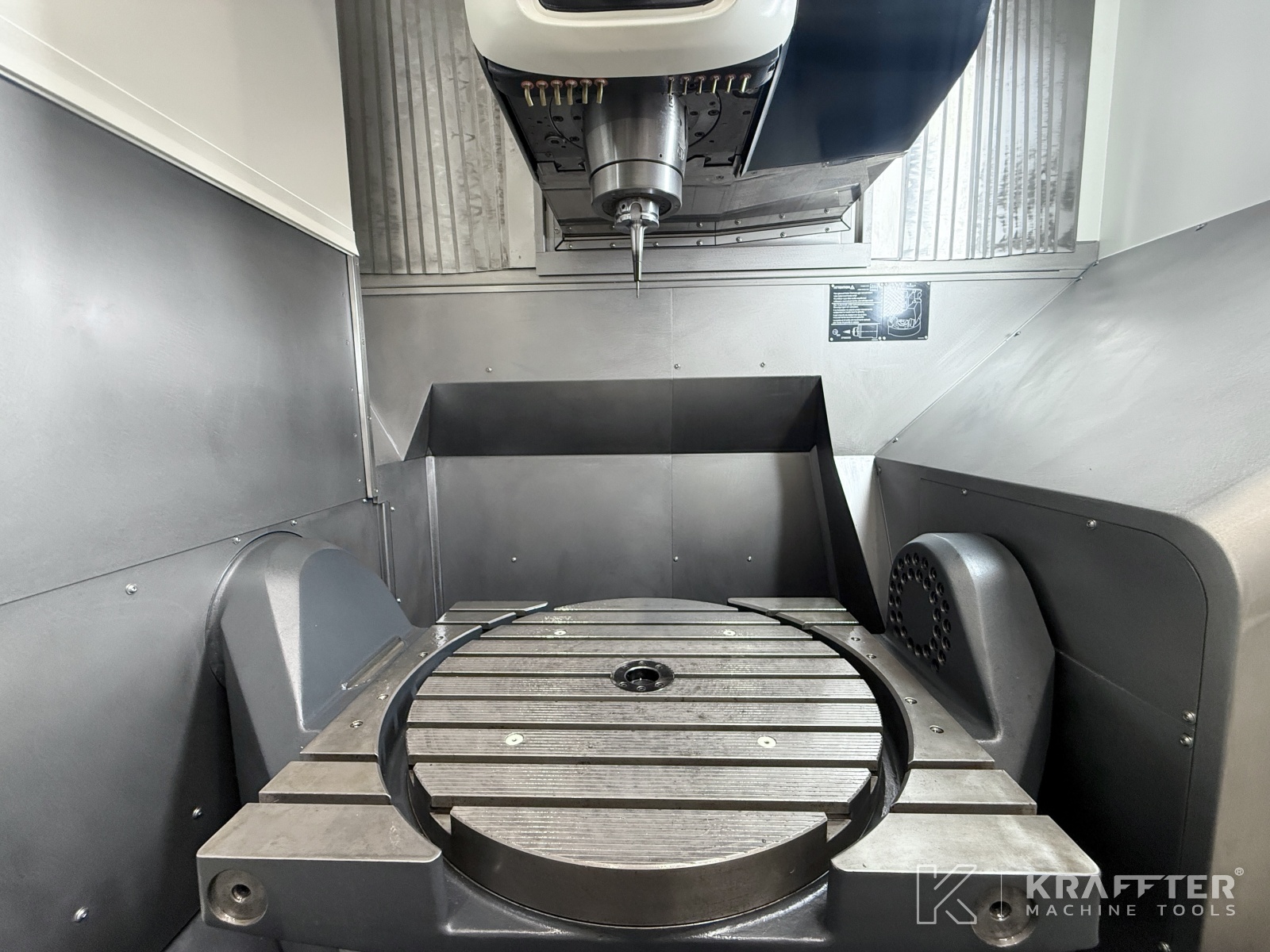

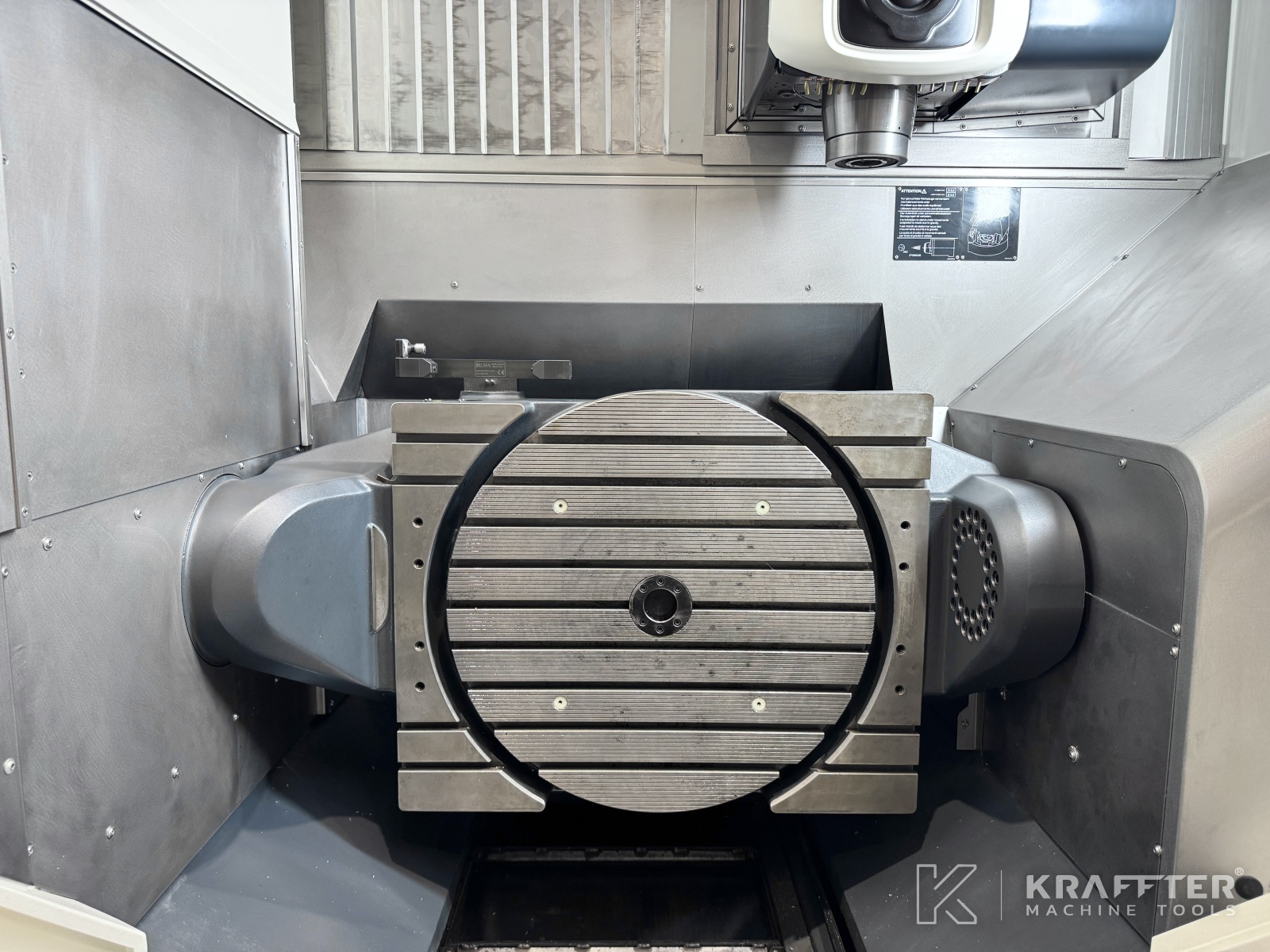

Table length
800 [mm]
Table width
650 [mm]
Max. load on table
600 [Kg]
Table surface Ø
650 [mm]

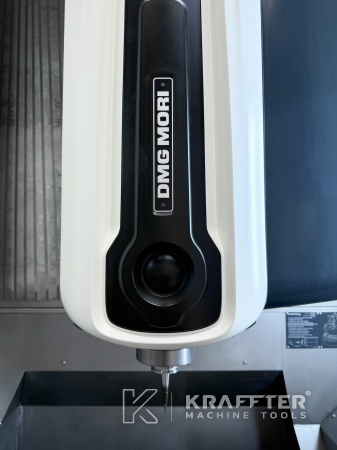

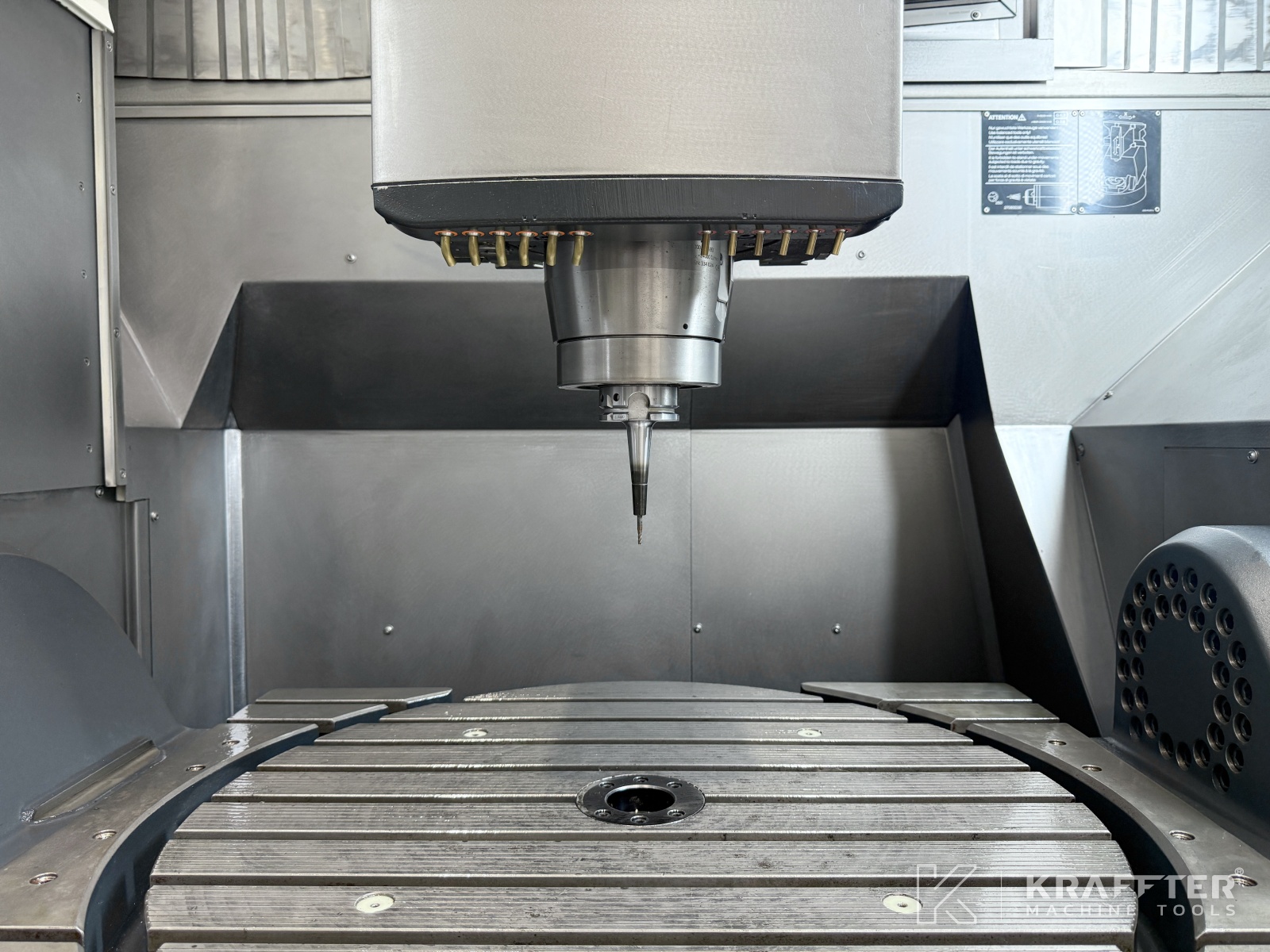

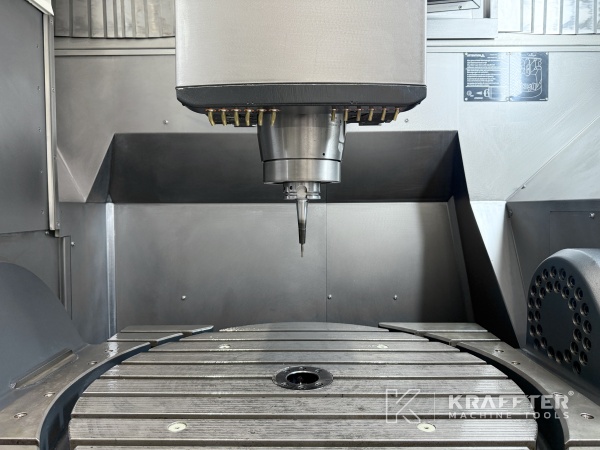

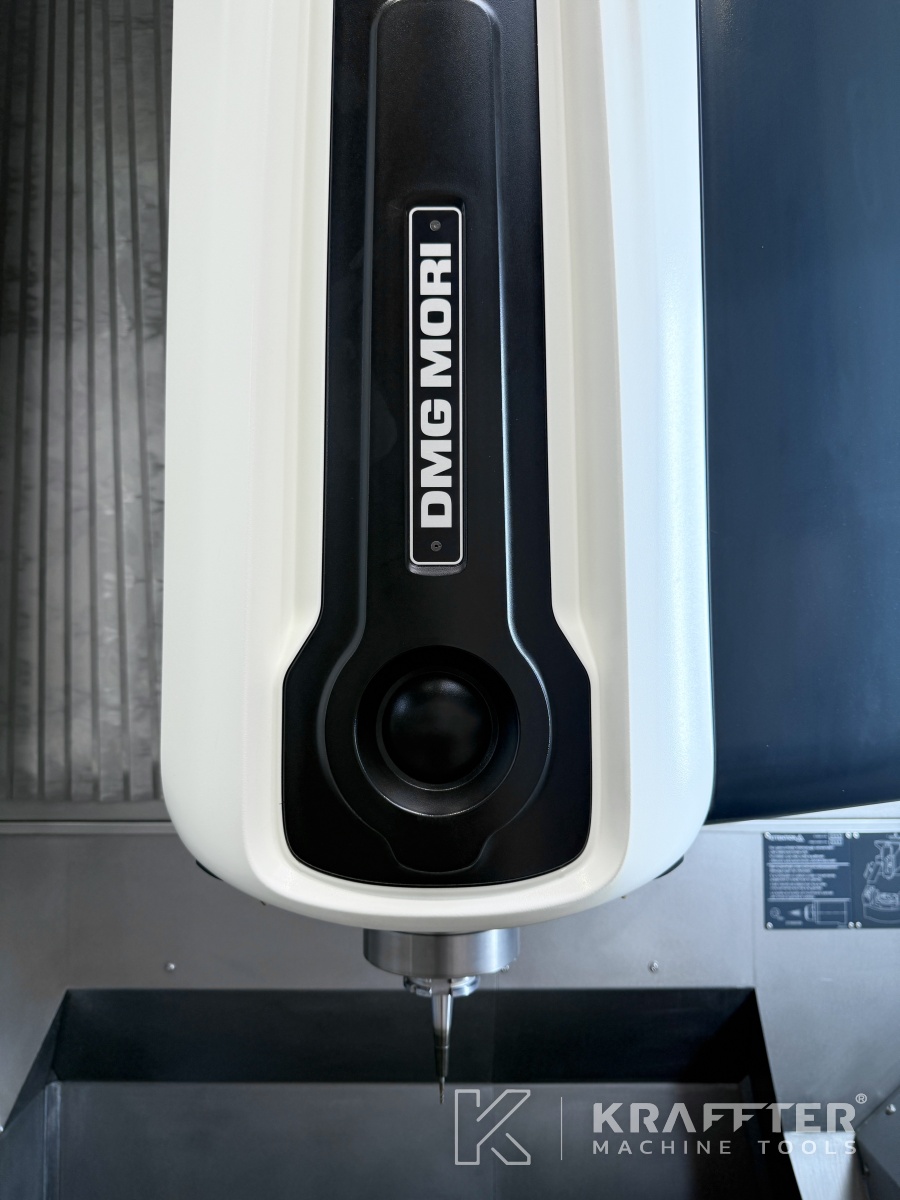

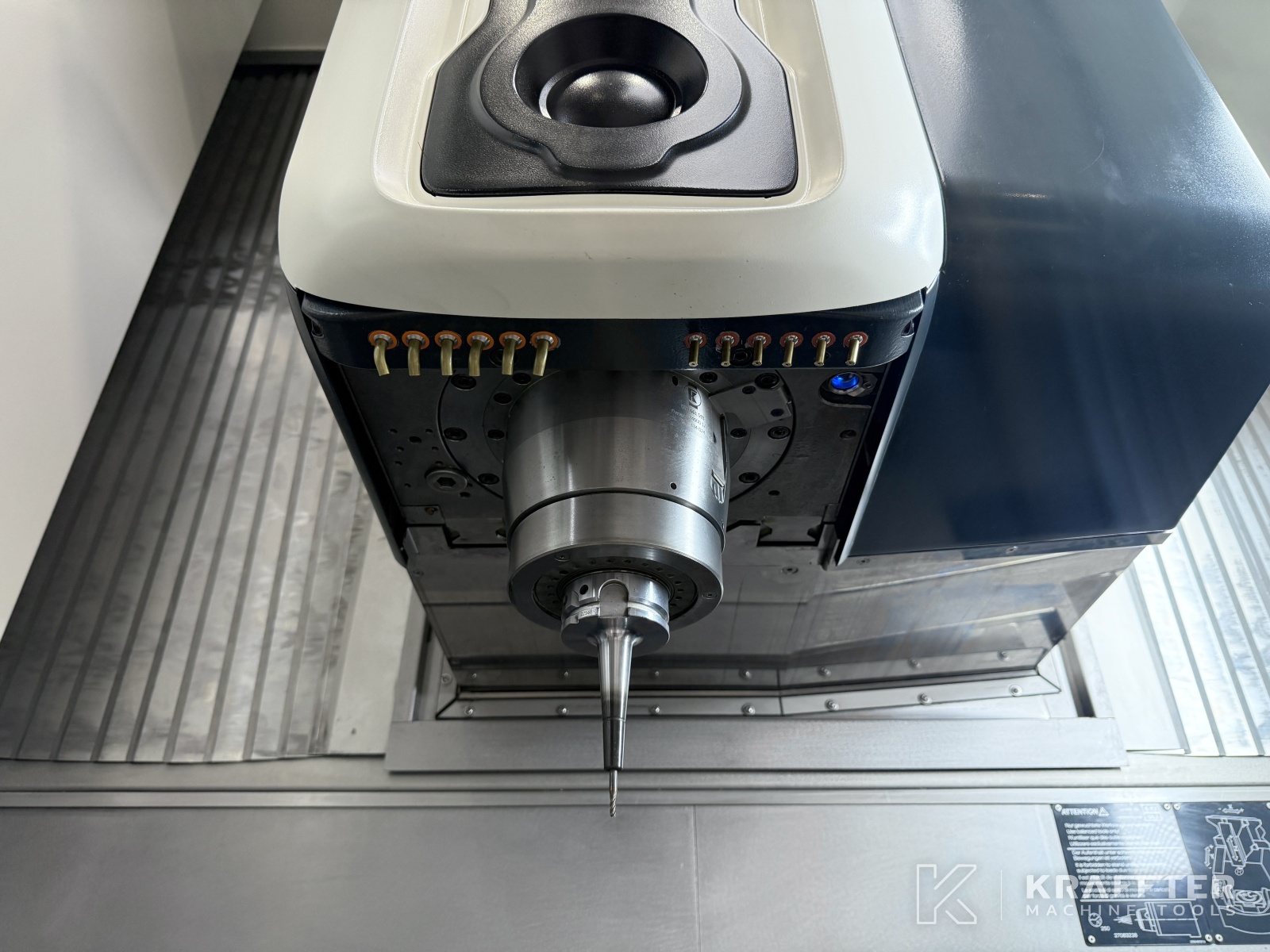

Spindle type
HSK-A63
Max. spindle speed
24000 [rpm]

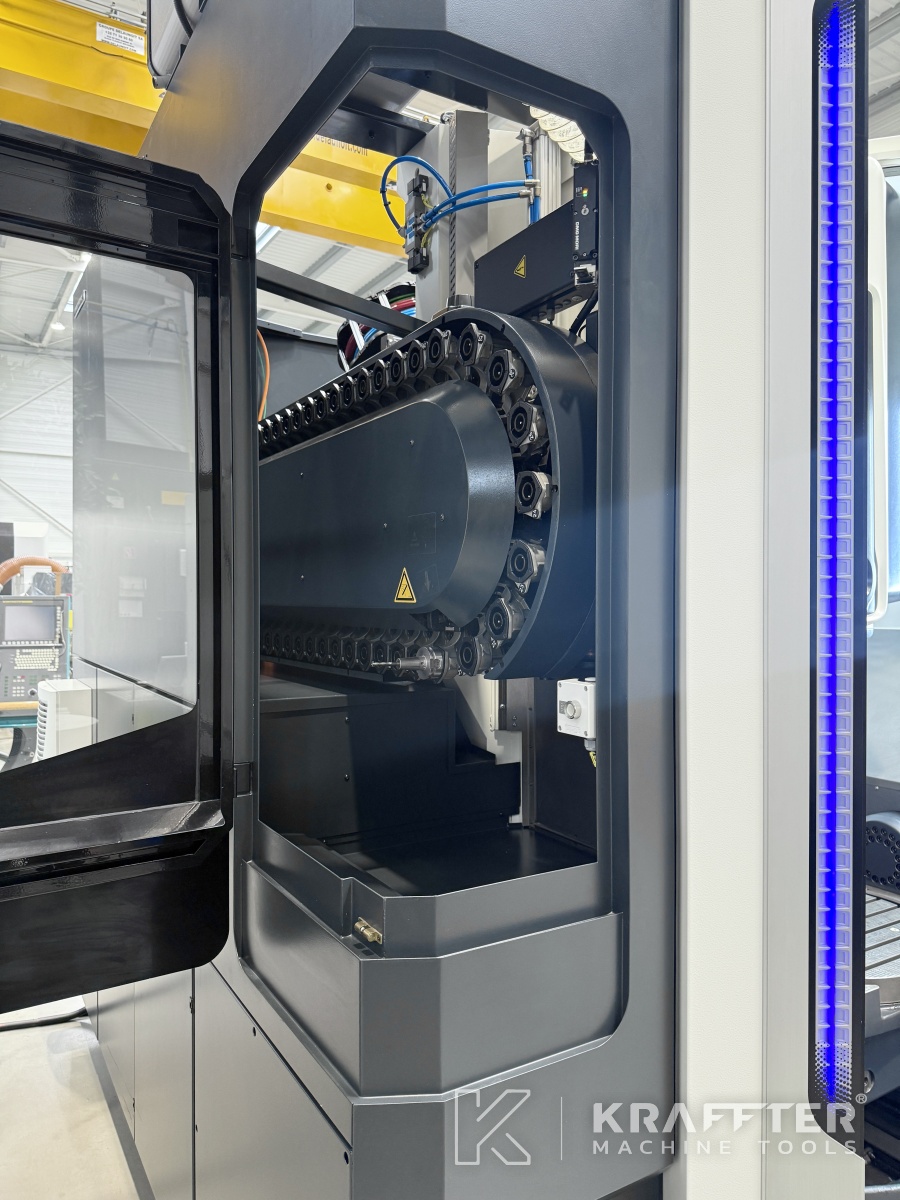

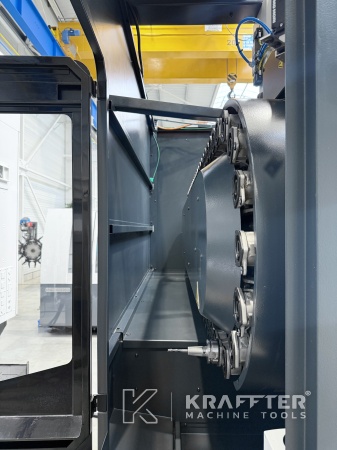

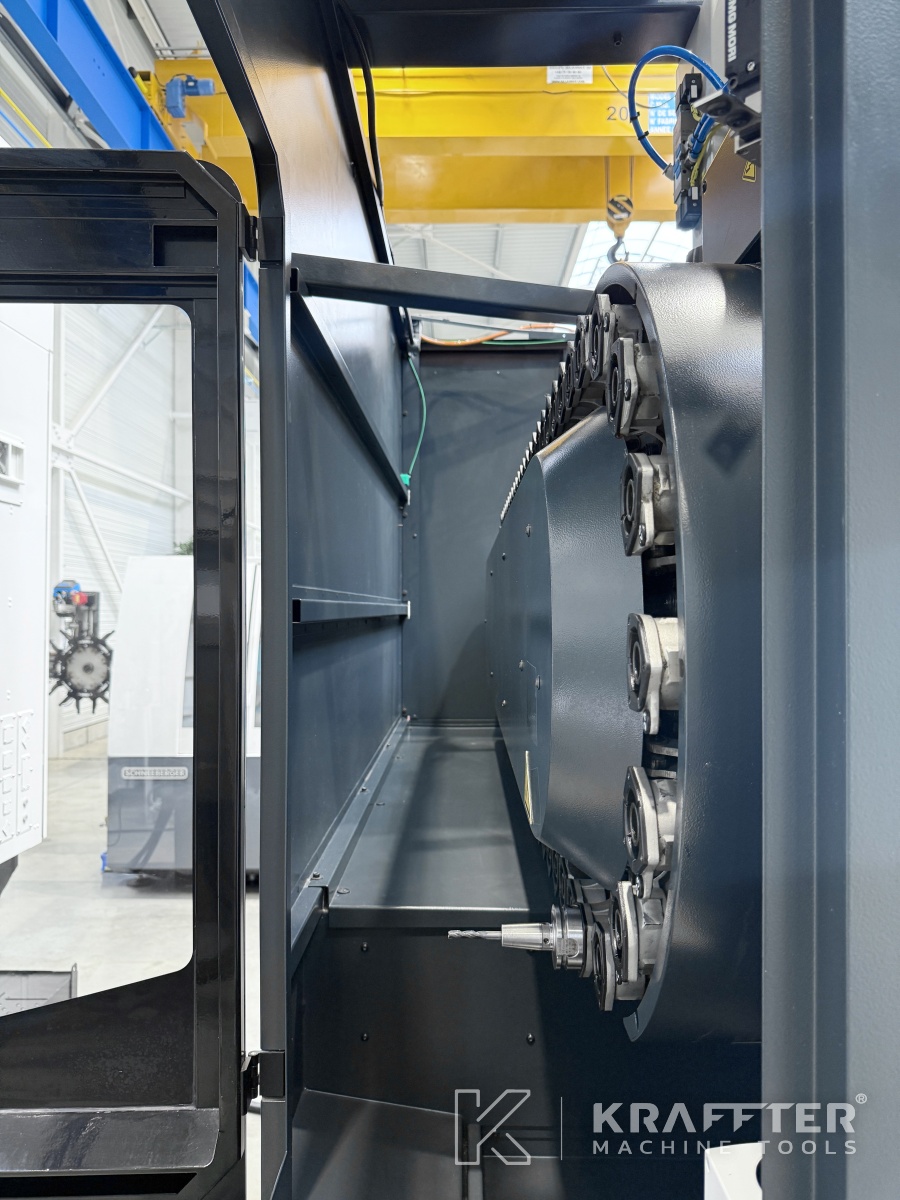

Tool changer magazin number of stations
60
Max. tool lenght
315 [mm]
Max. weight of single tool
8 [Kg]
Max. tool diameter
160 [mm]
Supply voltage
400 [V]
Number of hours under power
41379 [h]
Number of running hours
15065 [h]
Weight
11900 [Kg]
Additional information
INCLUDED EQUIPMENT:
-

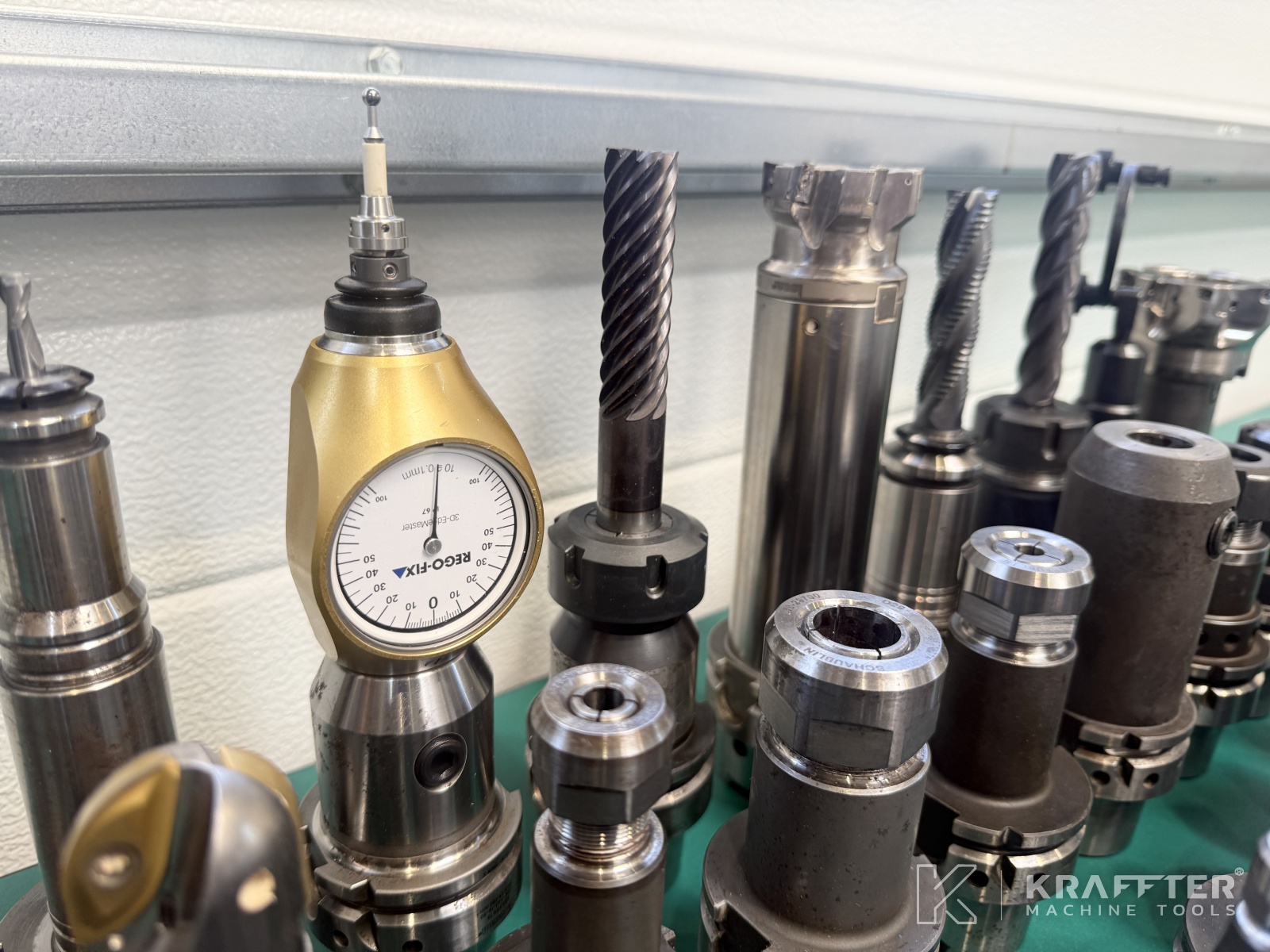

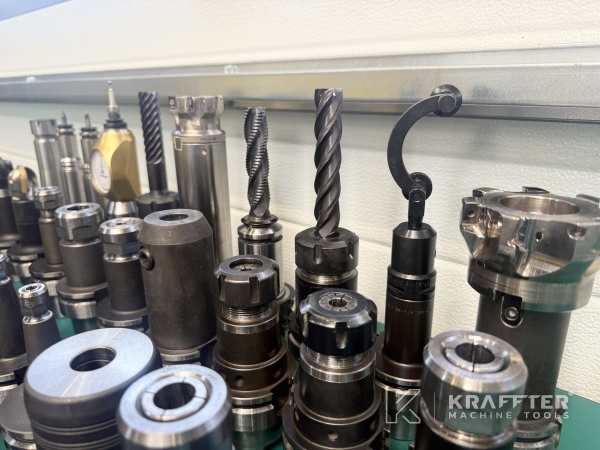

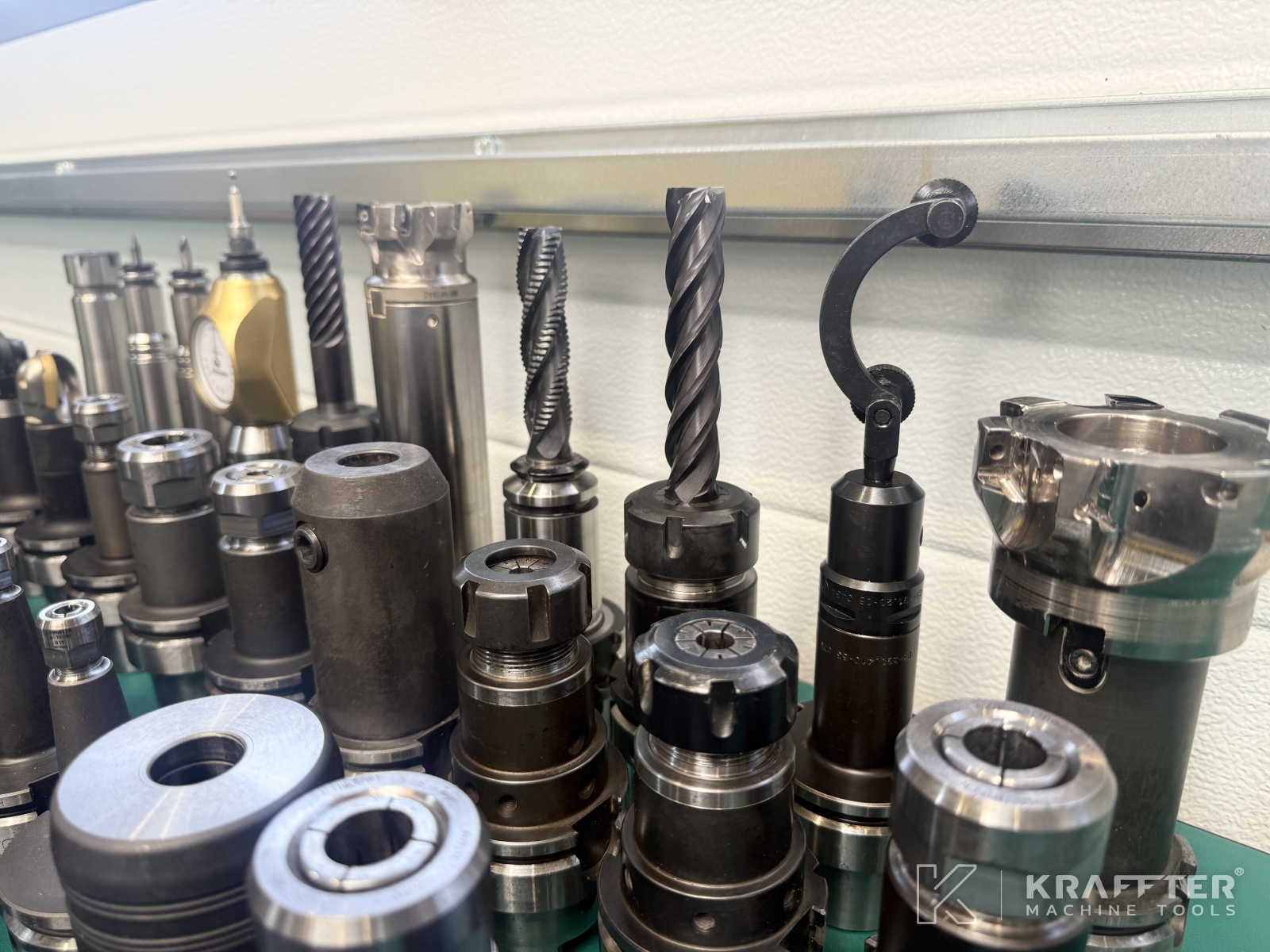

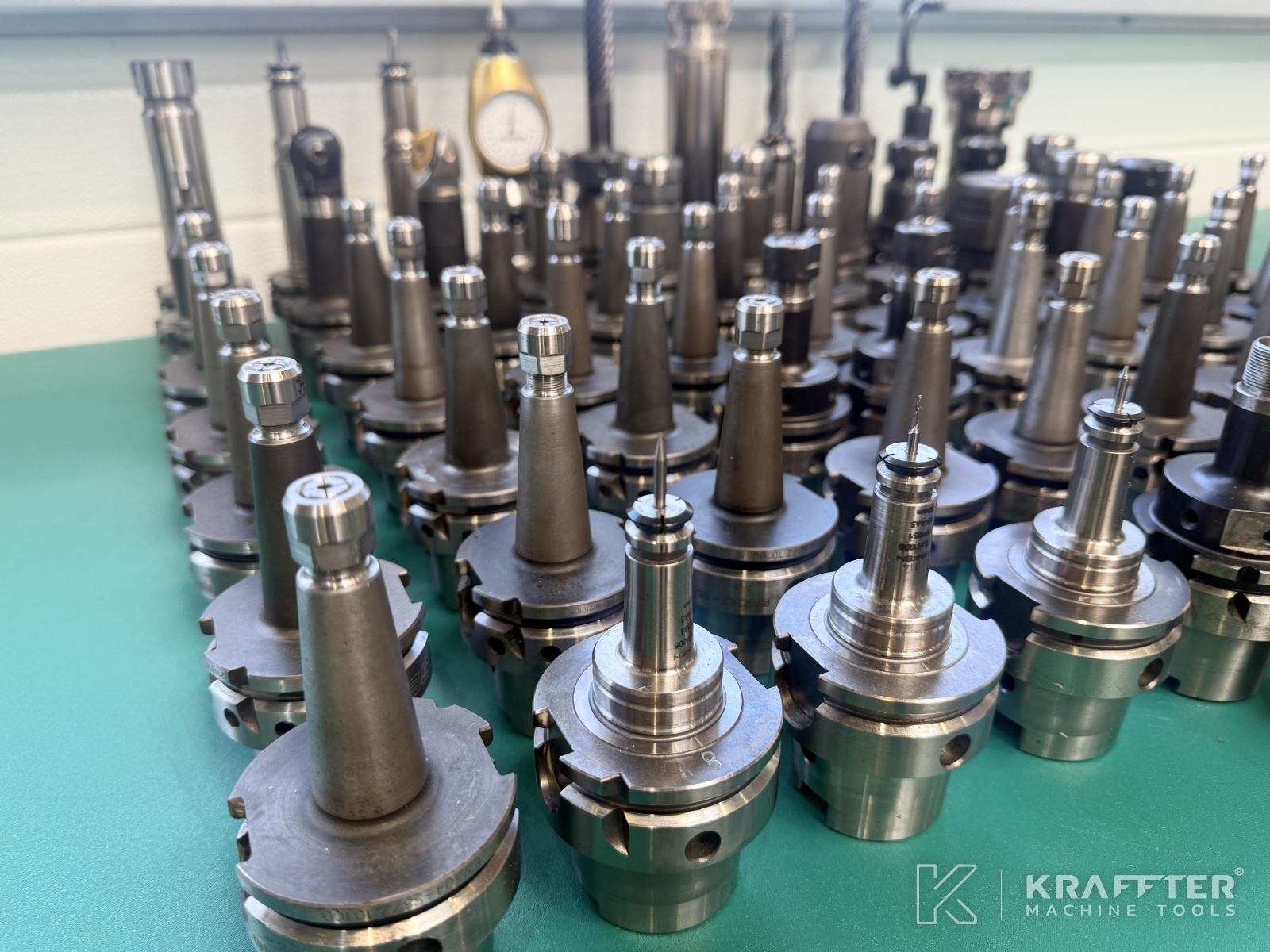

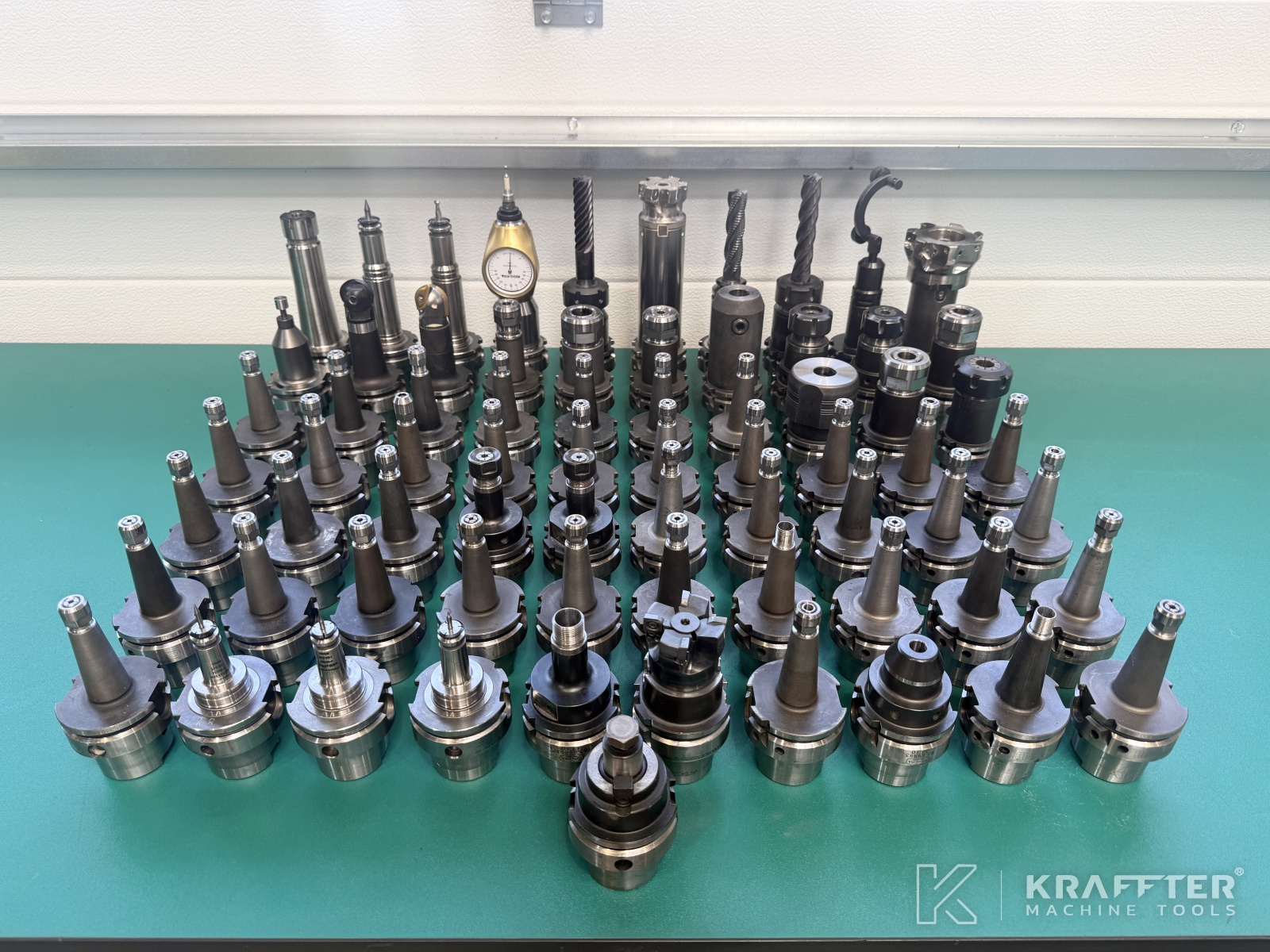

x71 HSK-A63 tool holders
-

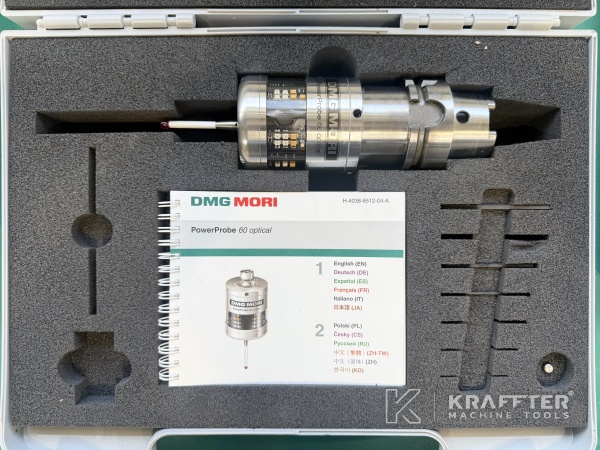

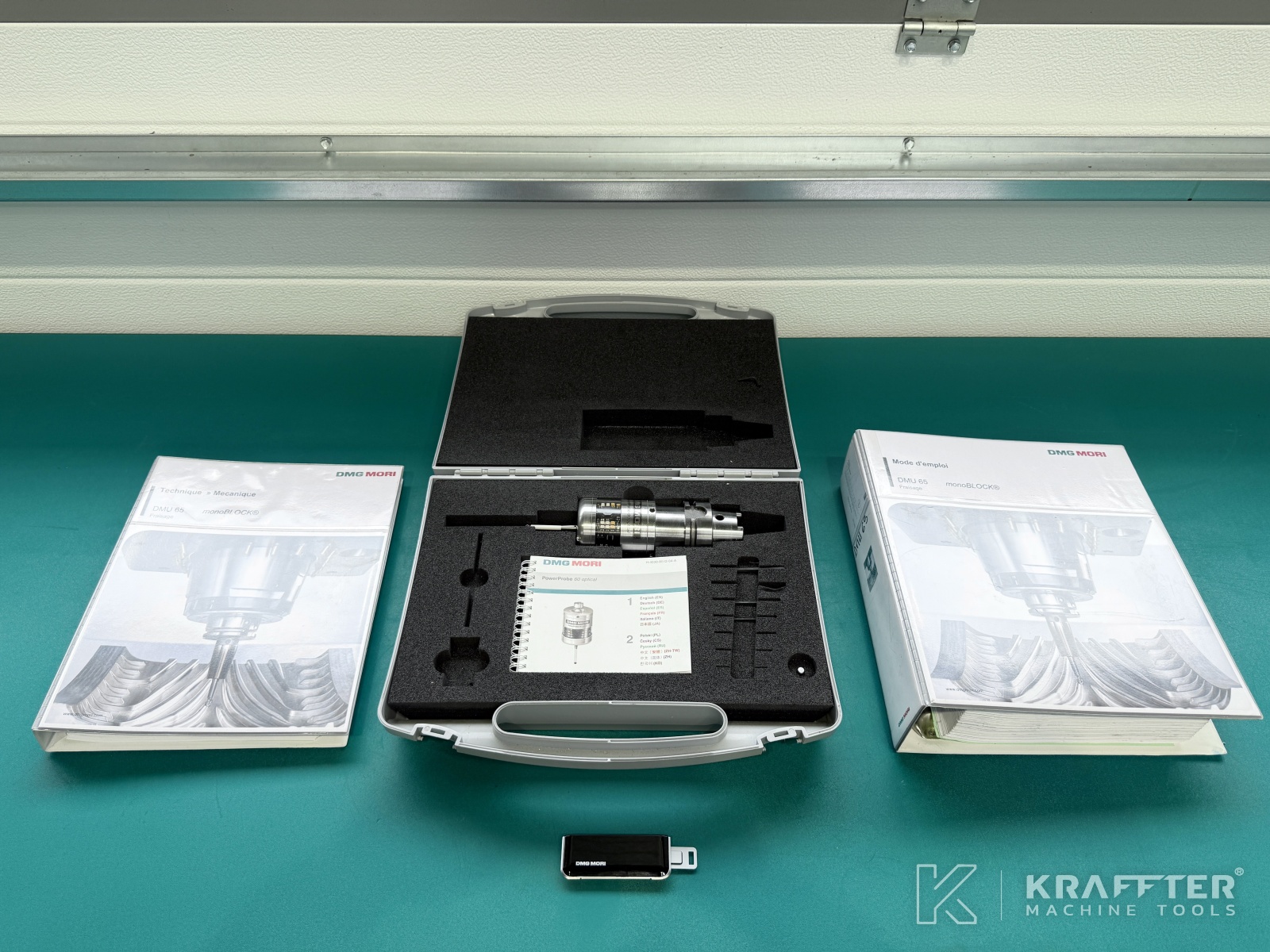

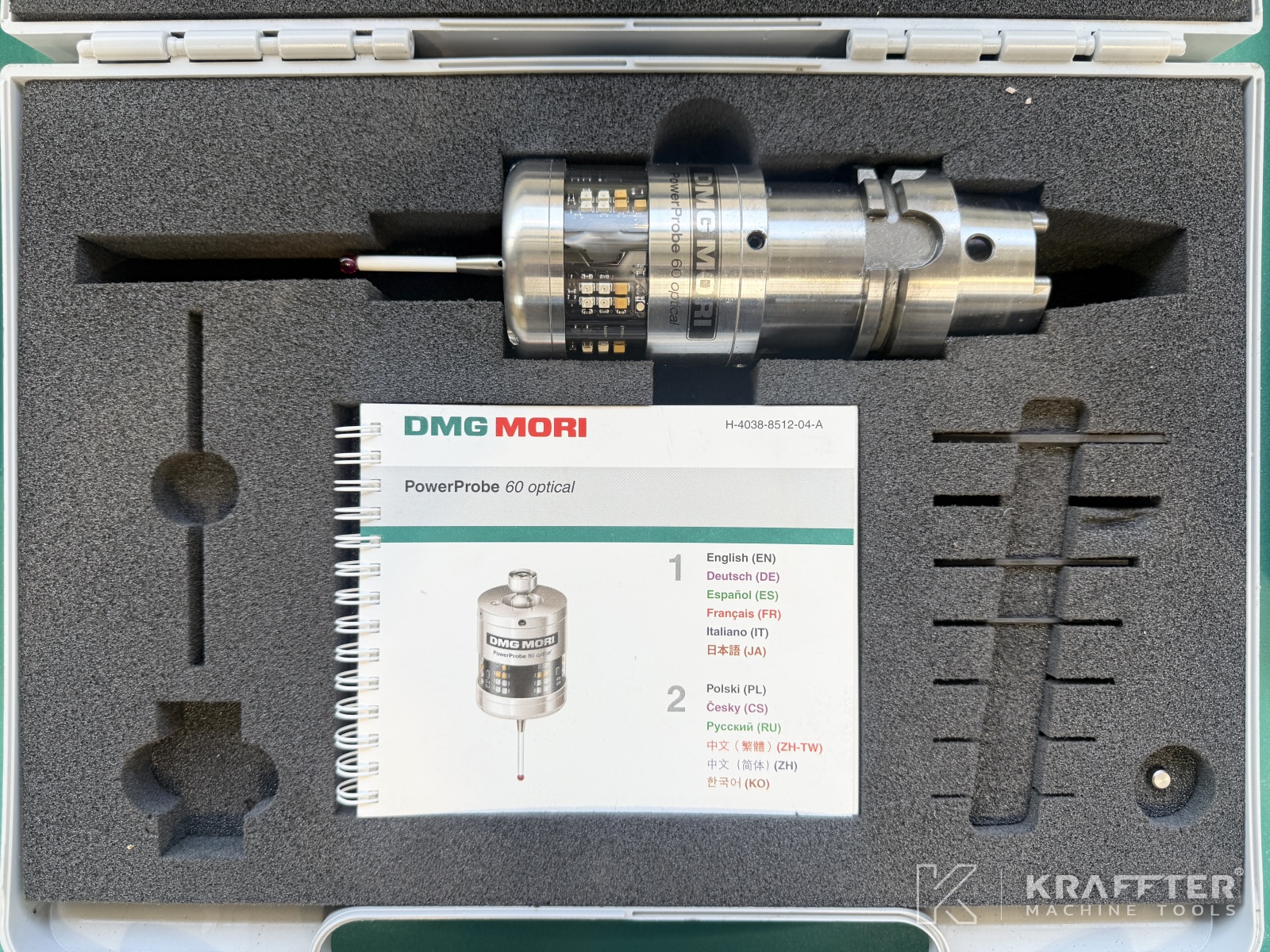

x1 DMG MORI PowerProbe 60 optical part probe
-

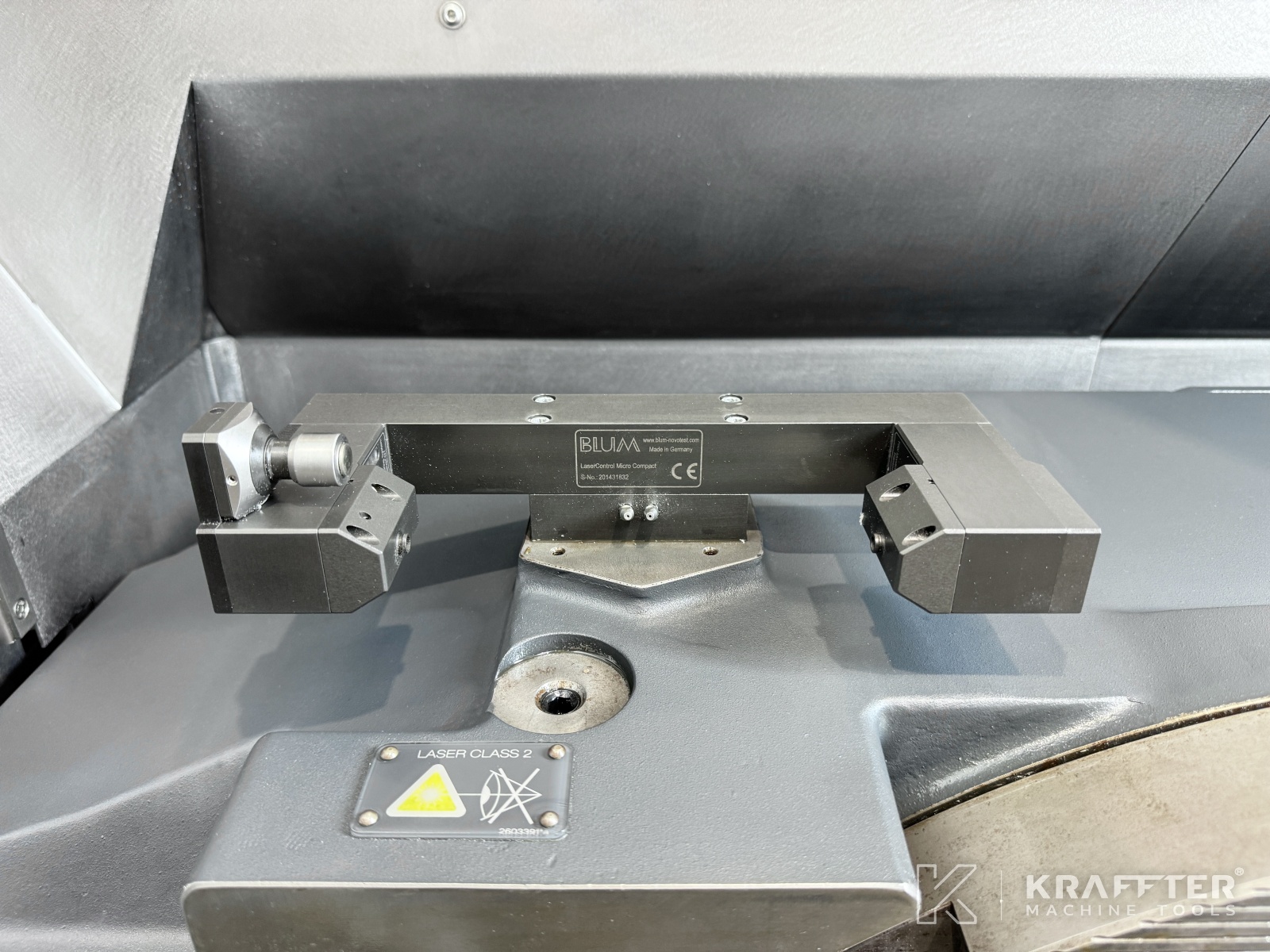

x1 BLUM laser system for tool setting and tool breakage detection
-
x1 set of measuring glass scales on all linear axes with air supply
-

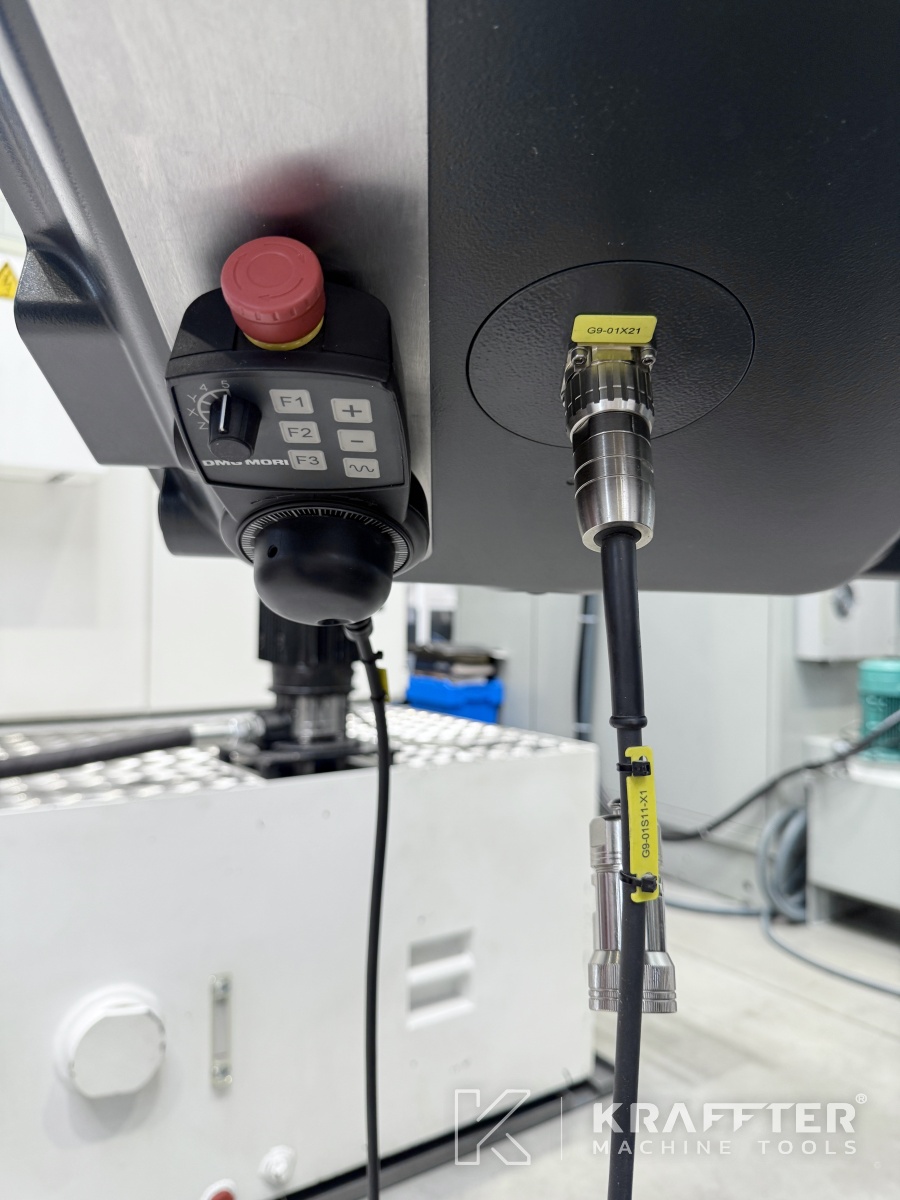

x1 remote electronic handwheel
-

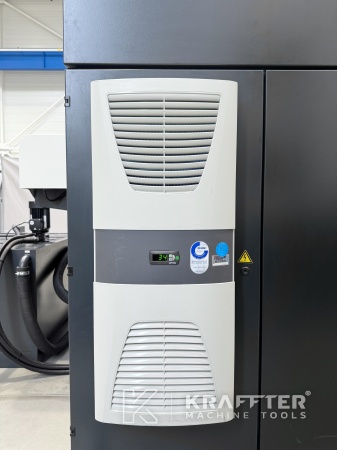

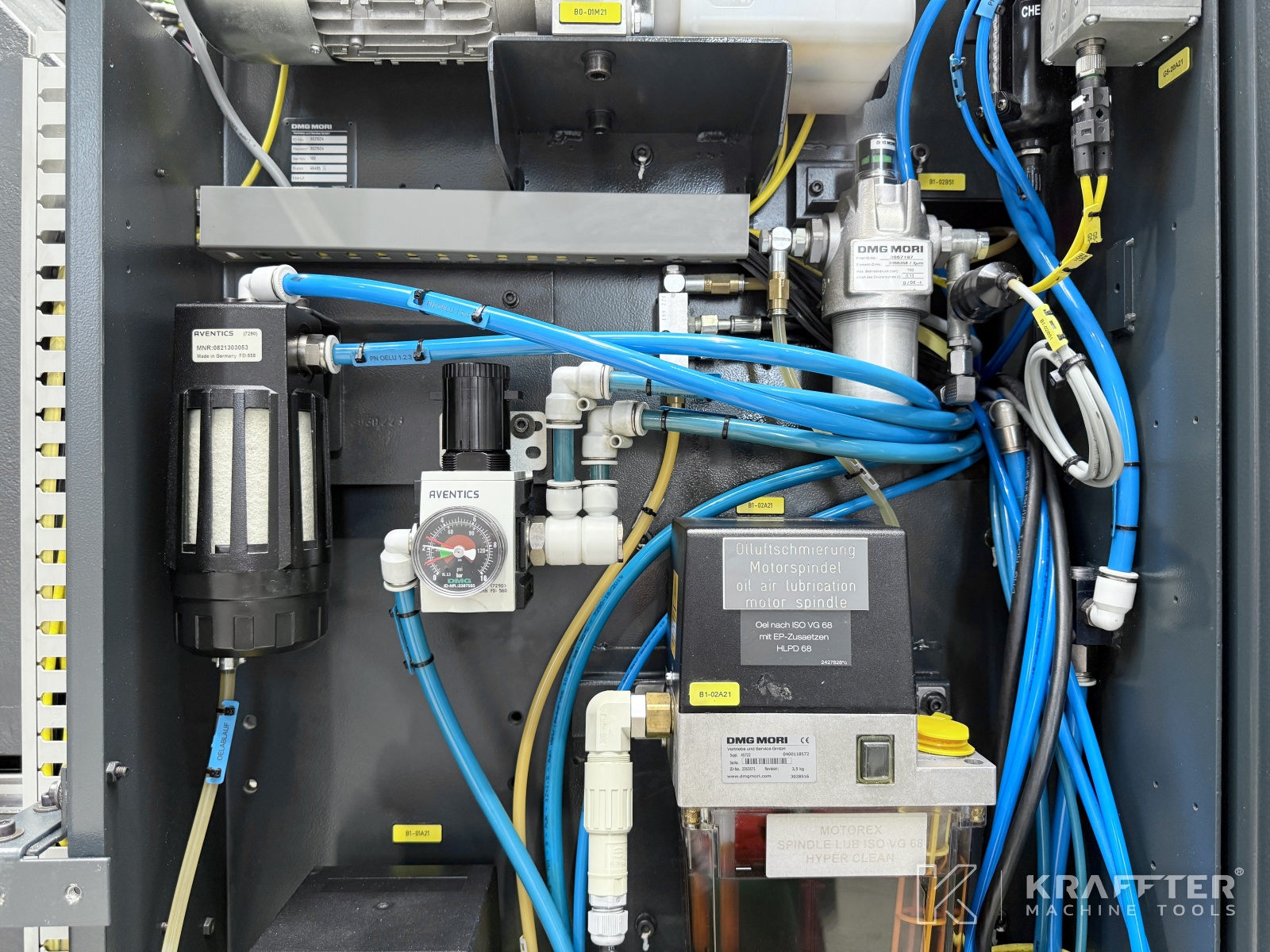

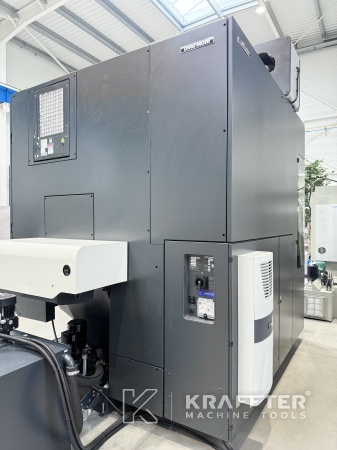

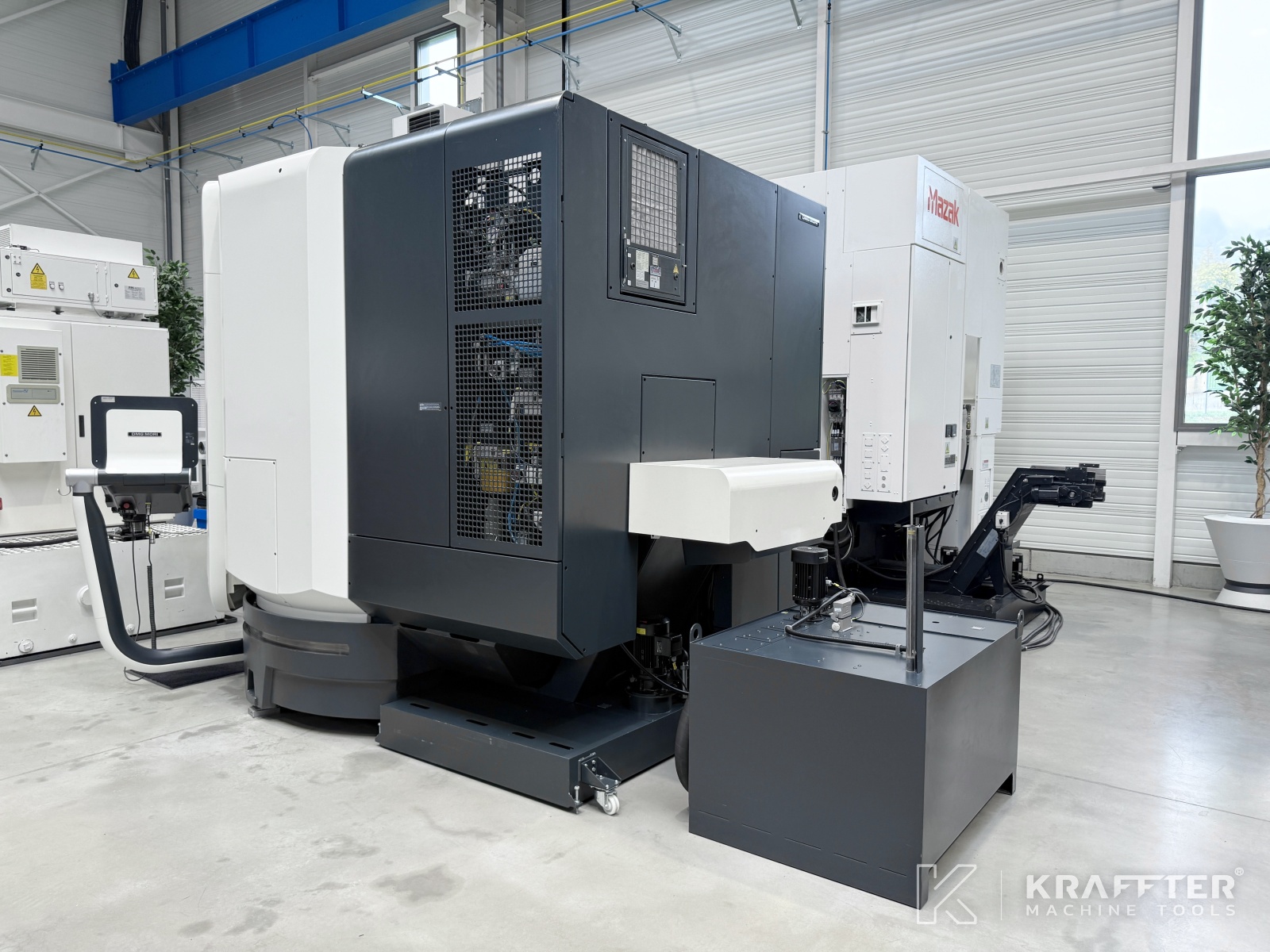

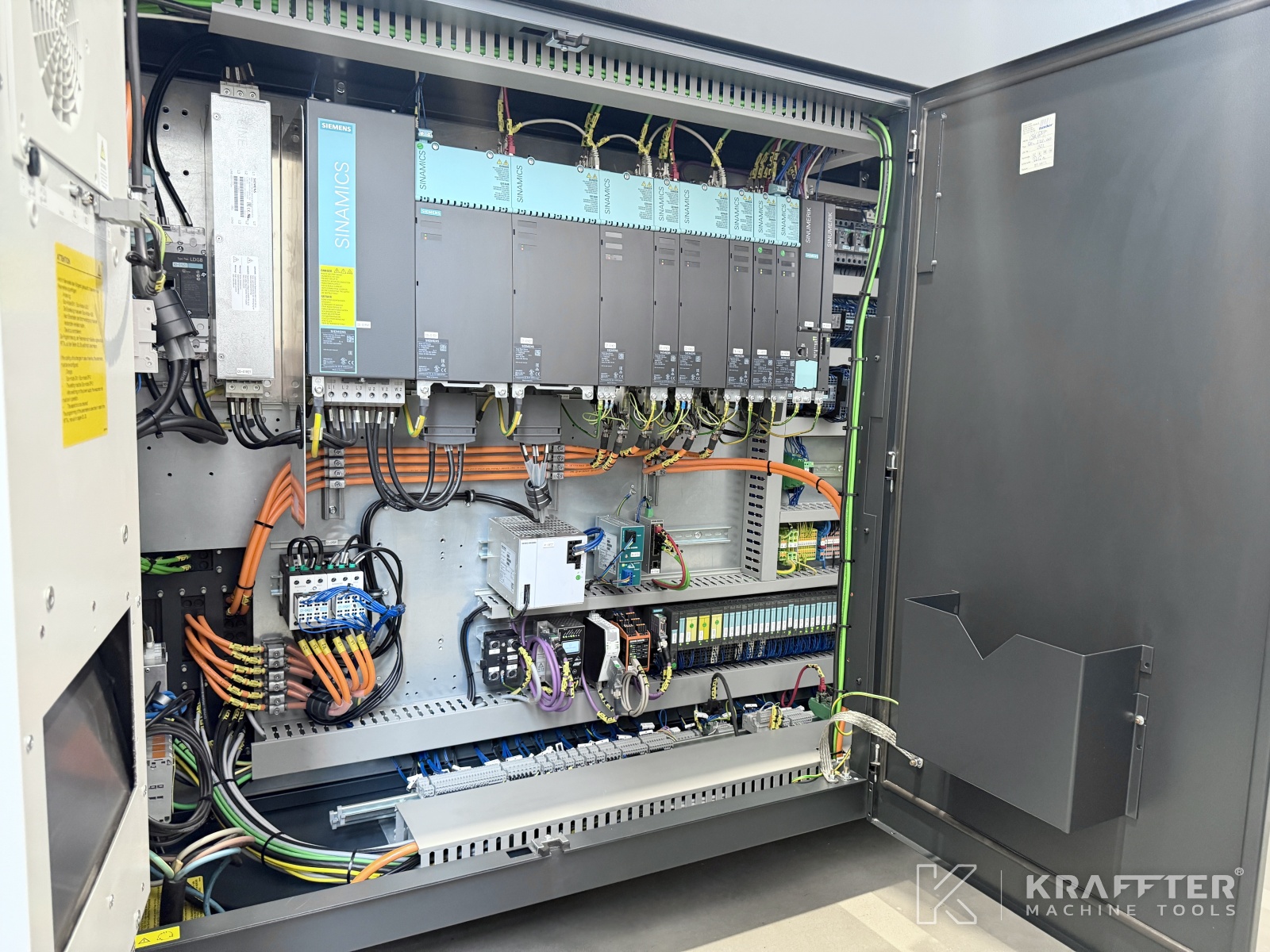

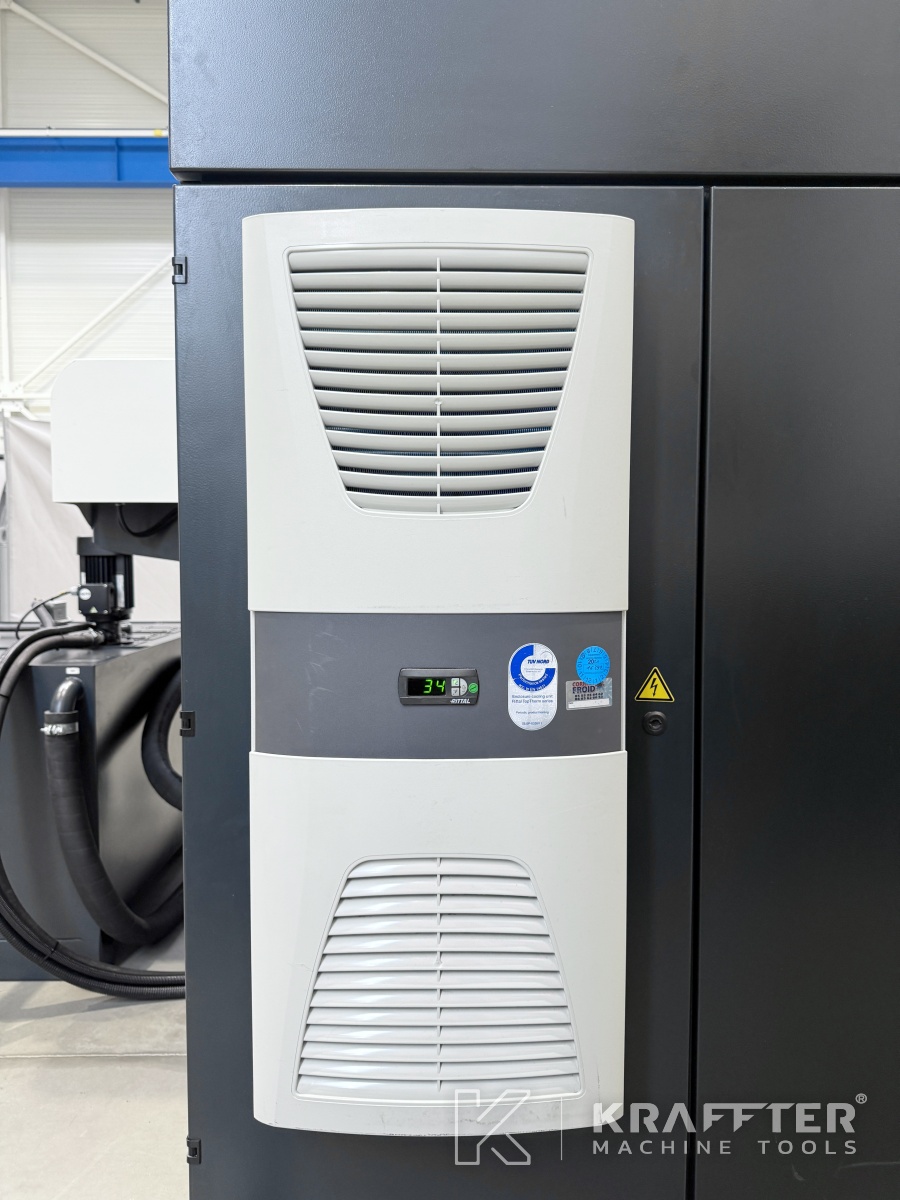

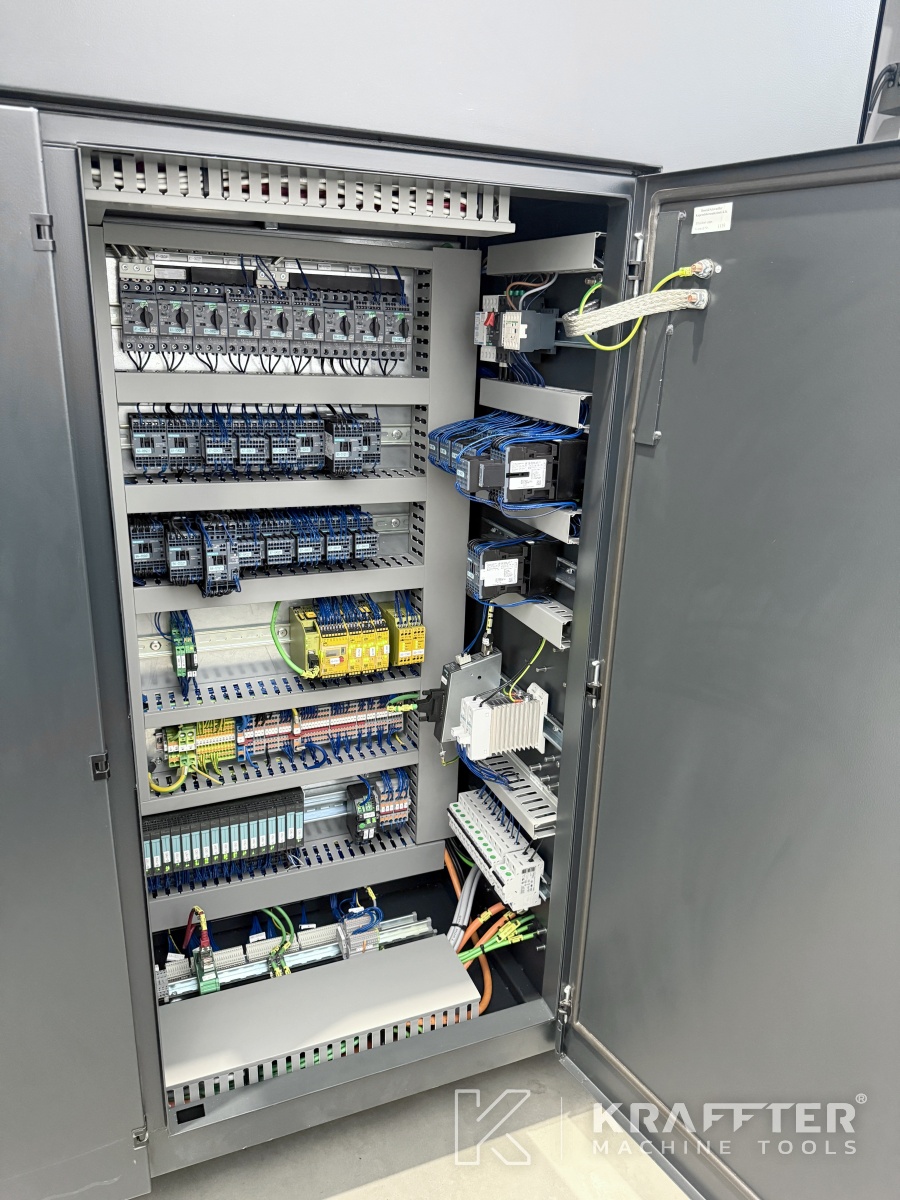

x1 electrical cabinet air conditioning unit
-
x1 MICRONFILTER KUBE 2500 mist extraction system
-

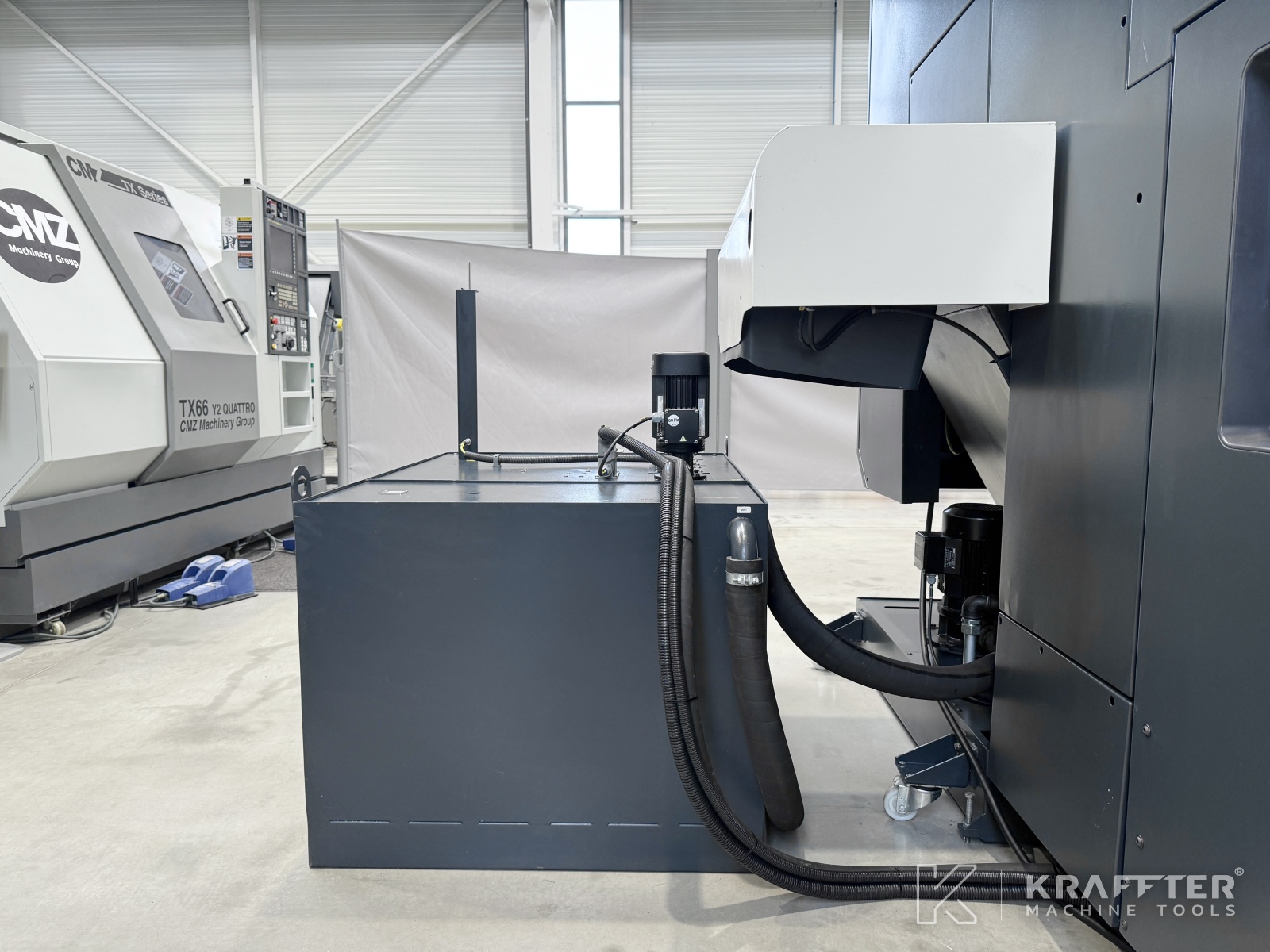

x1 chip conveyor
-
x1 spindle chiller
