Sold

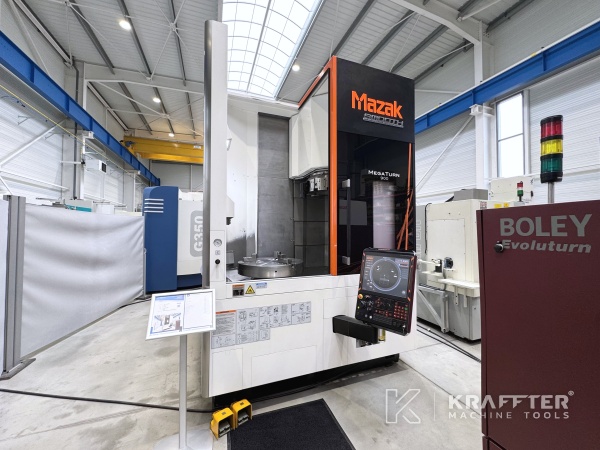

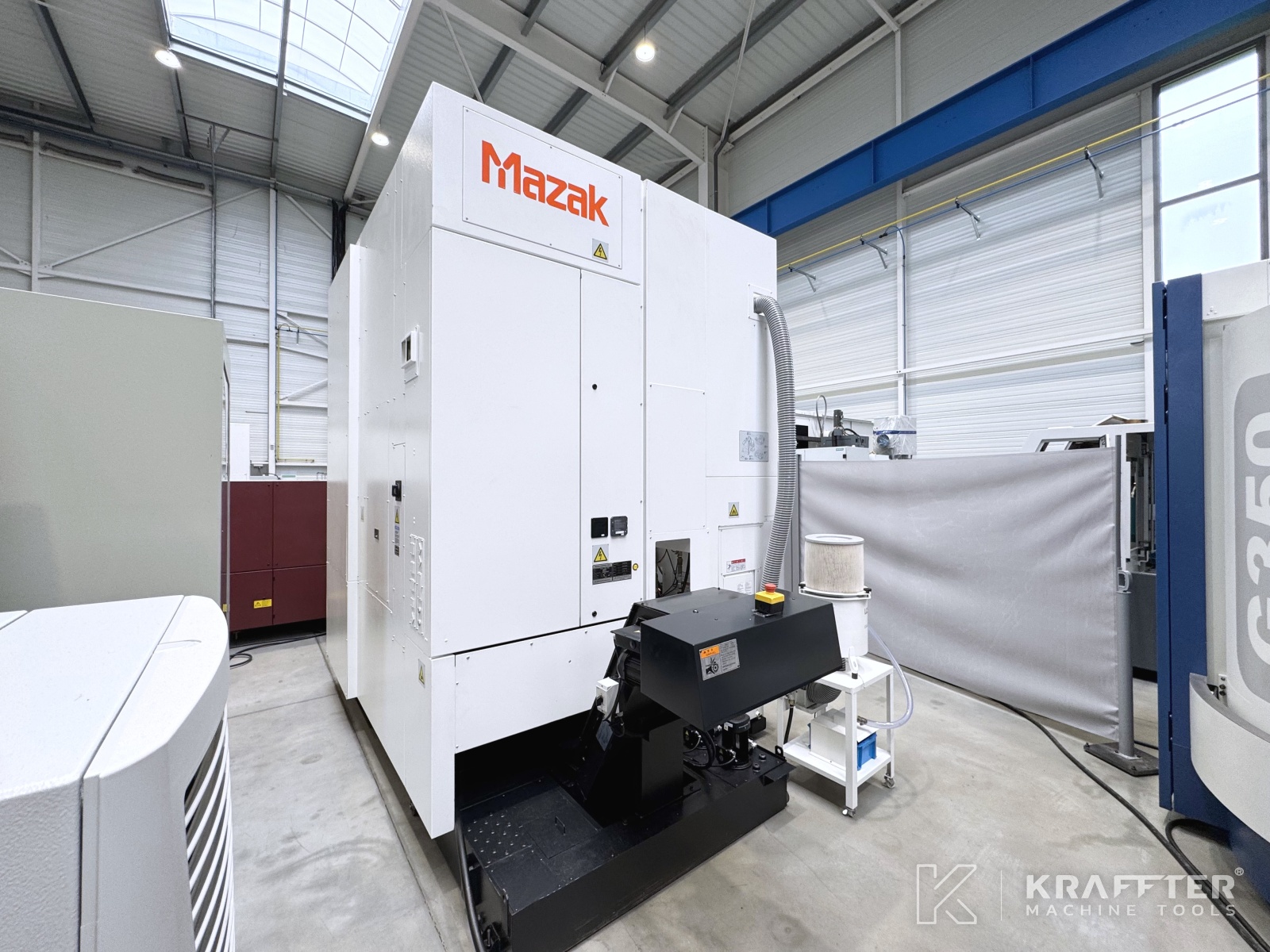

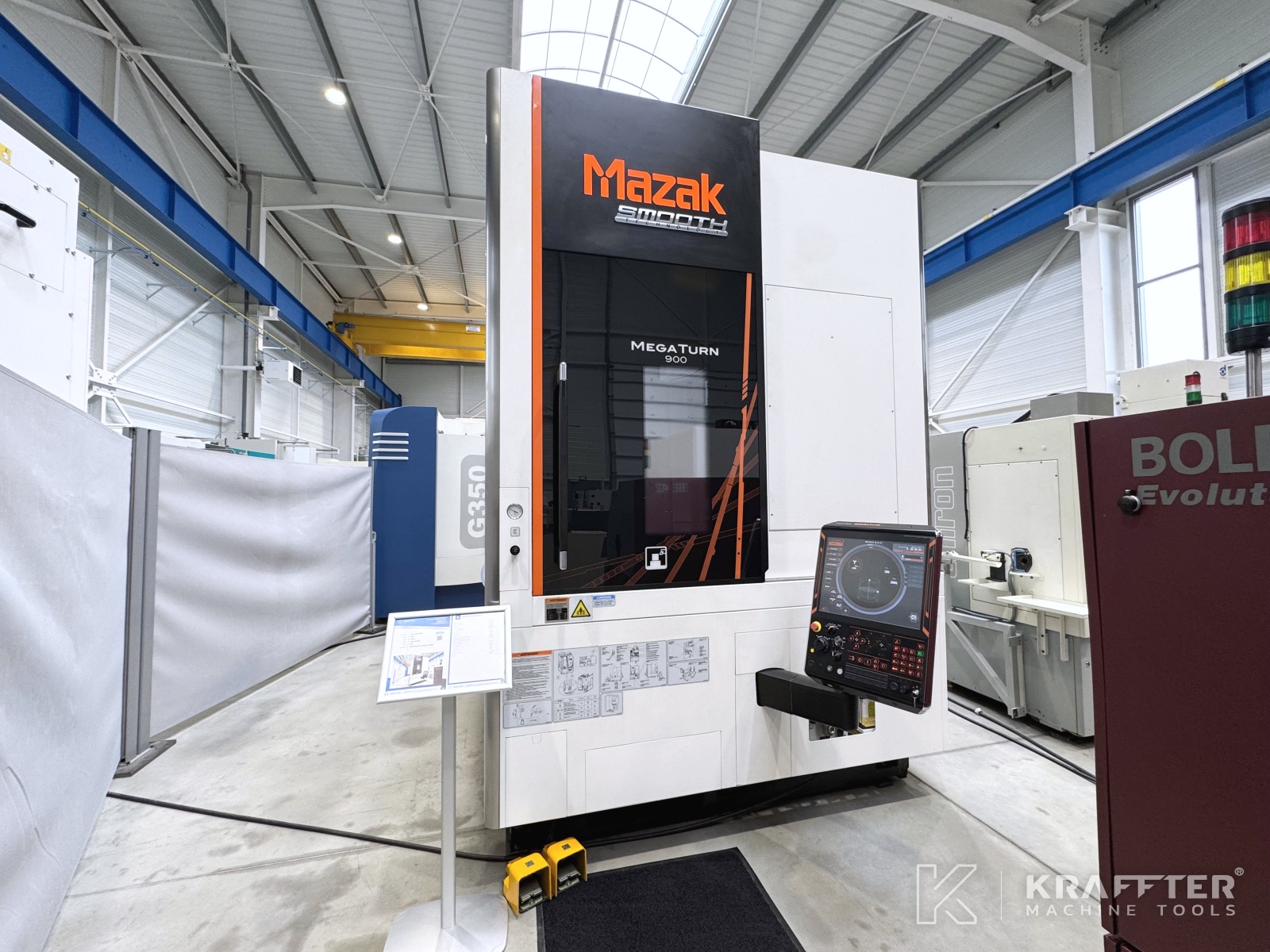

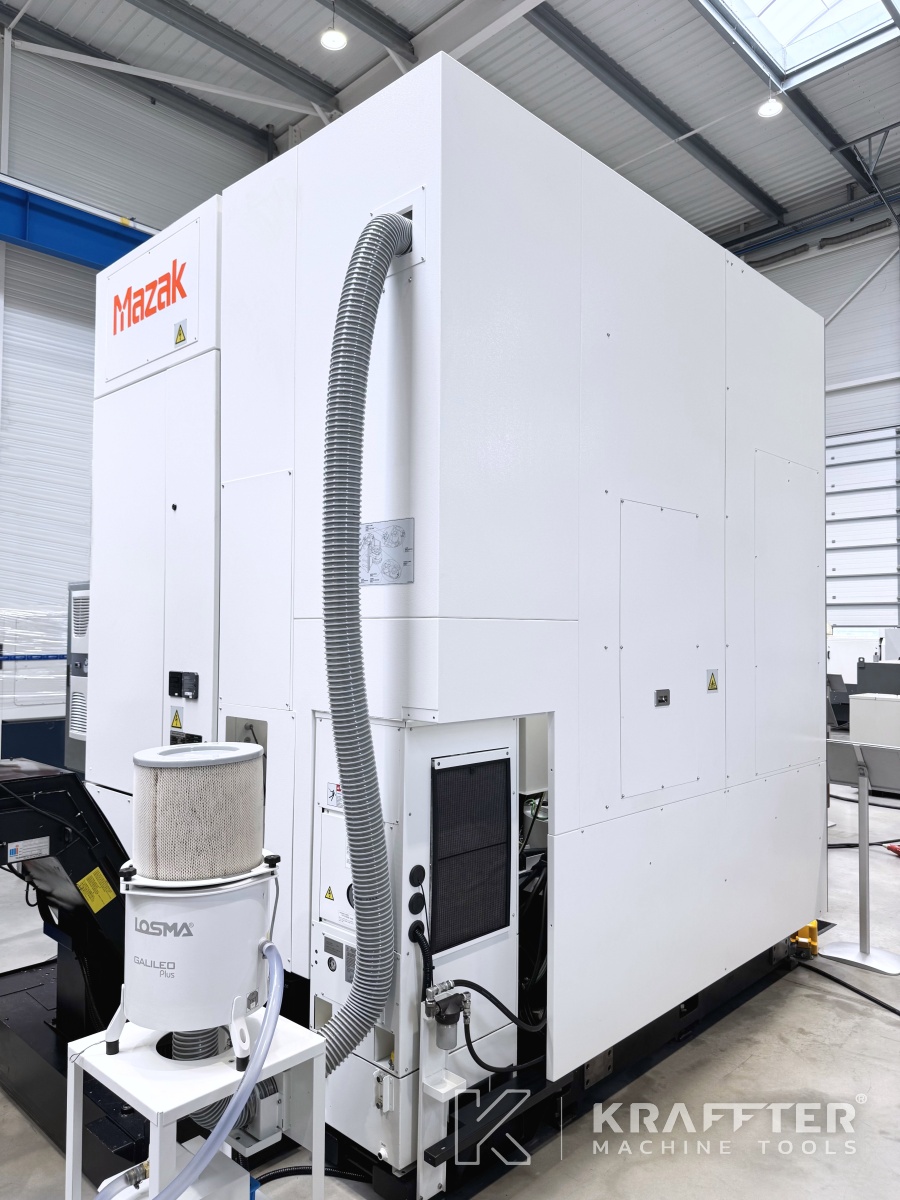

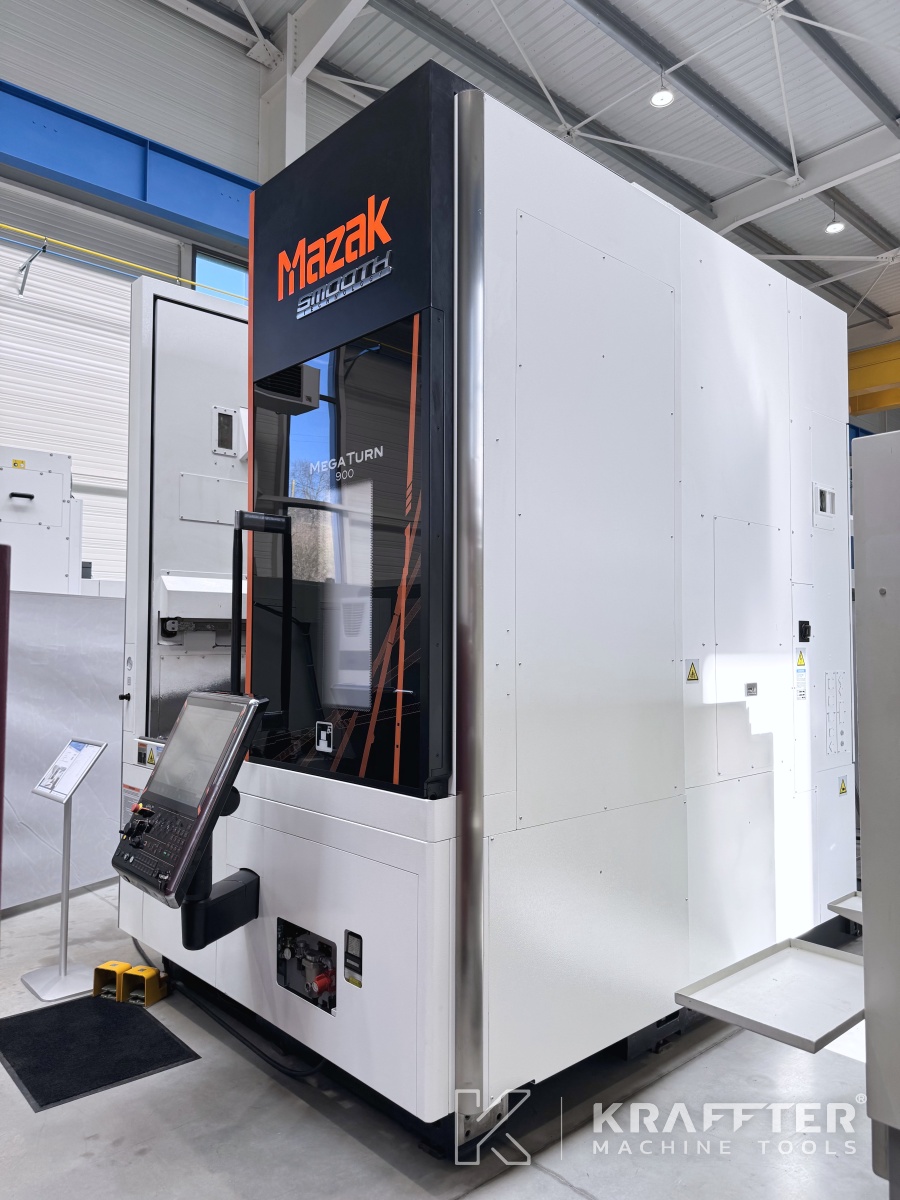

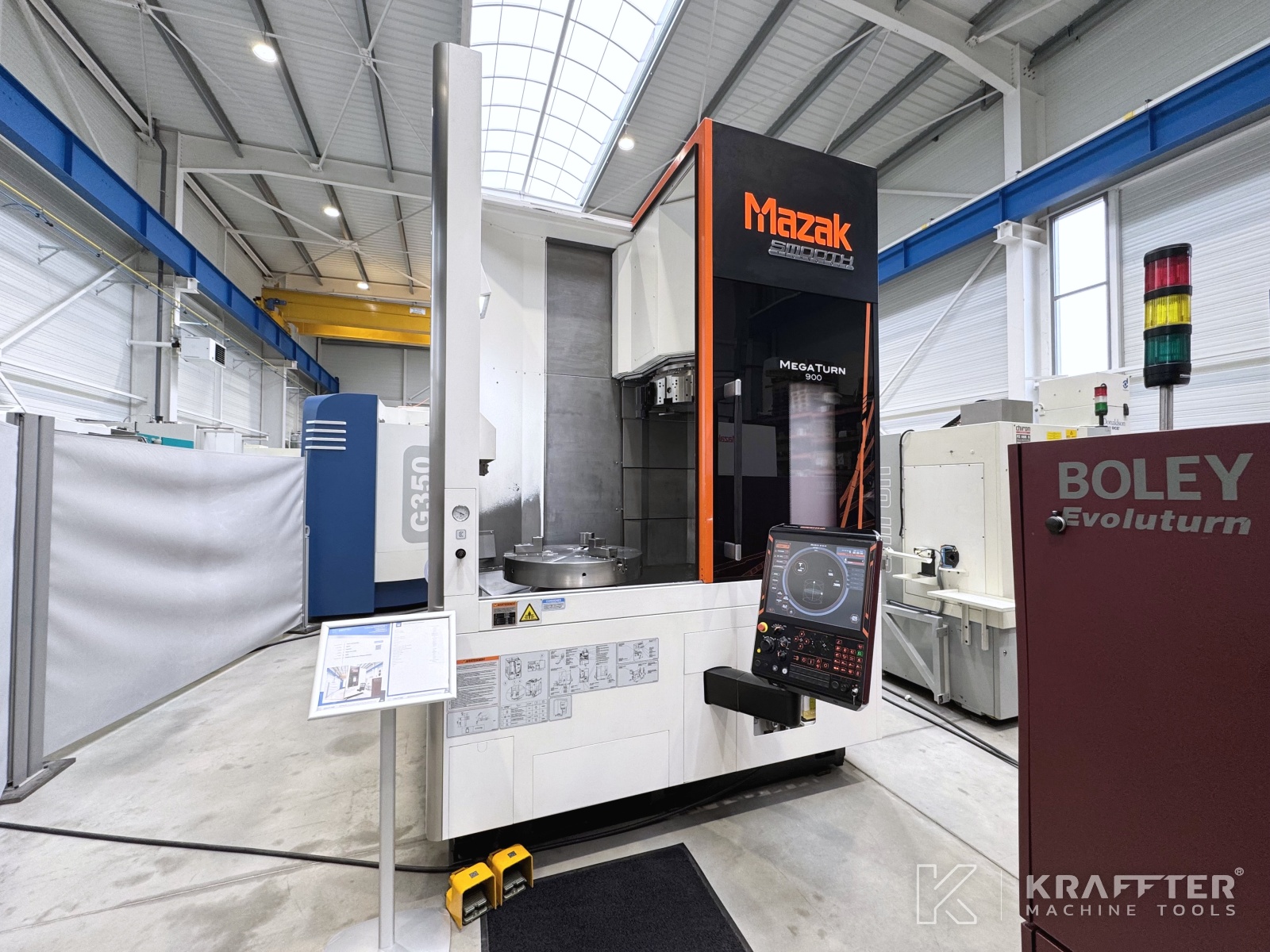

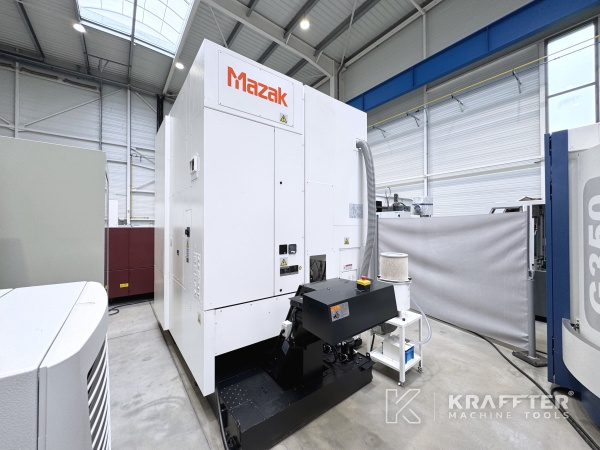

Type of machine : CNC vertical lathe
Brand : MAZAK
N° de stock: 90171

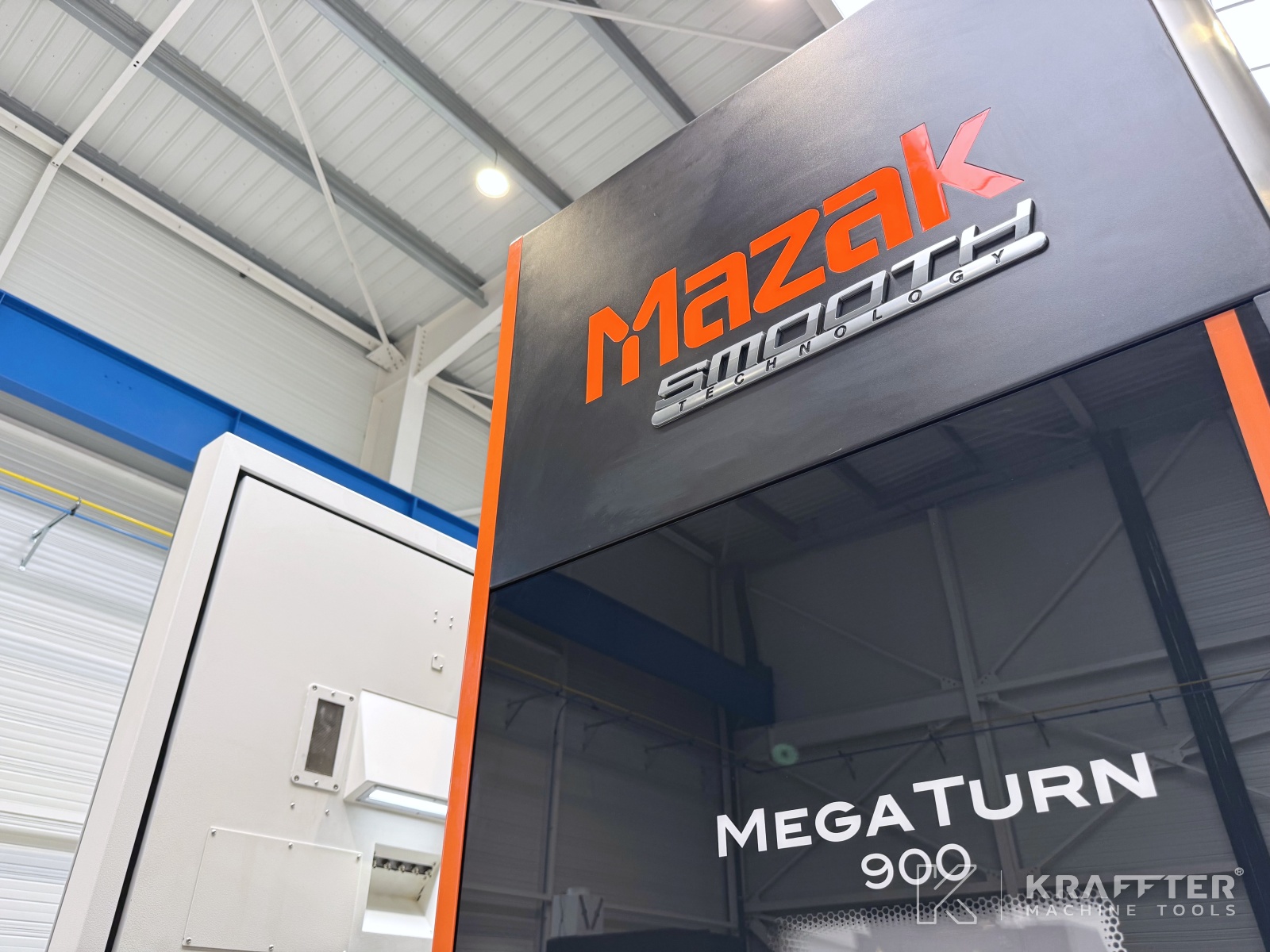

Model : Mega Turn 900
Year : 2018
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

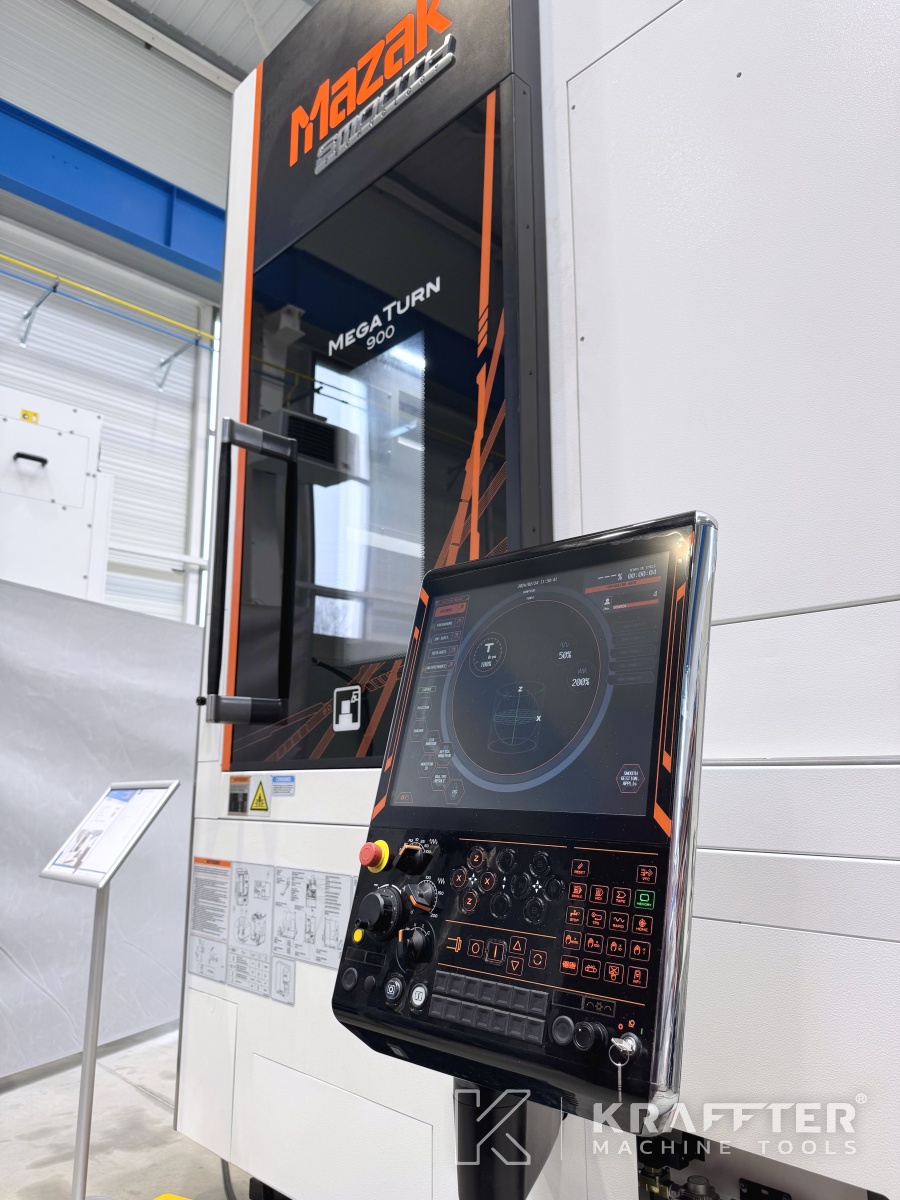

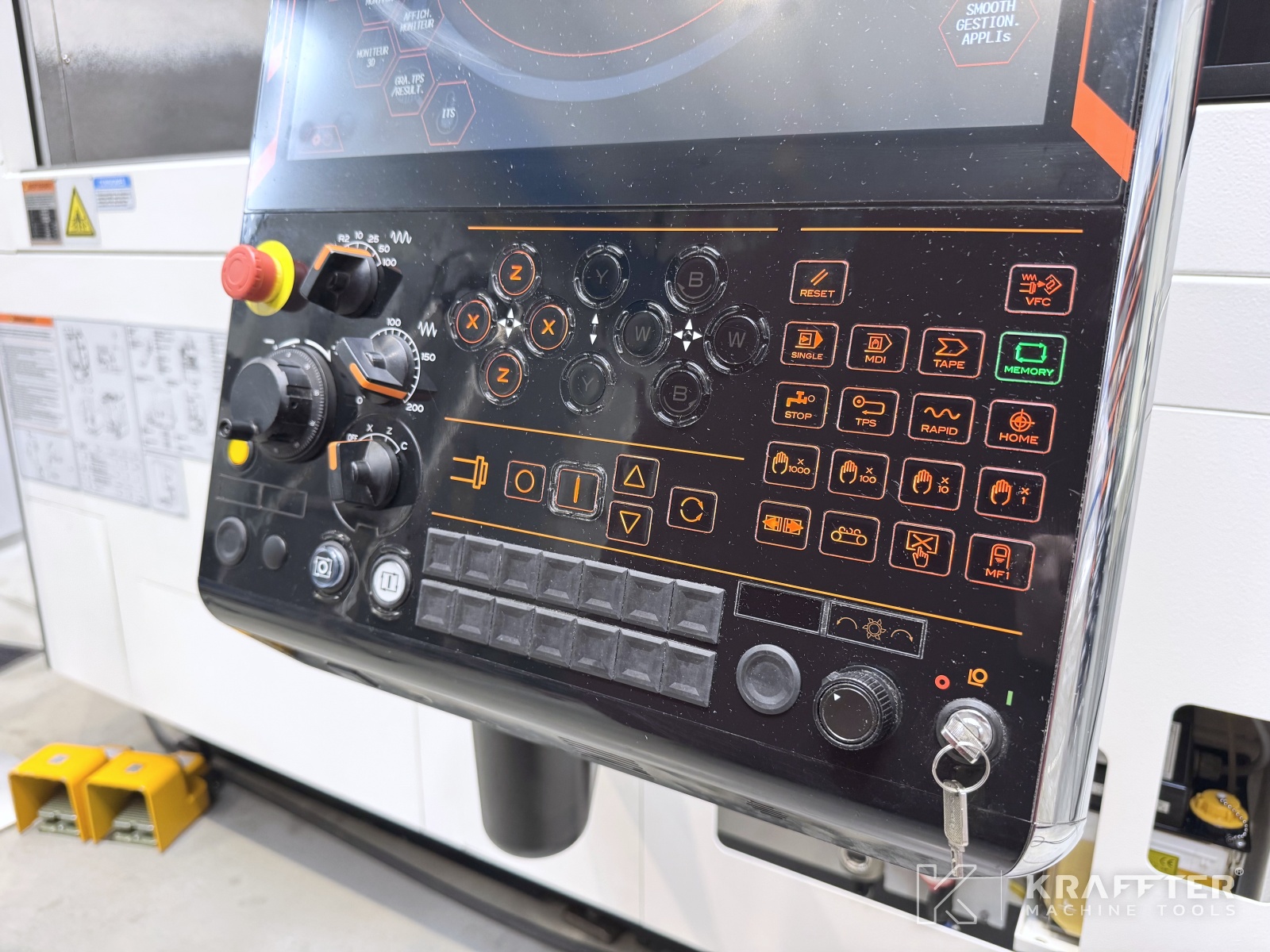

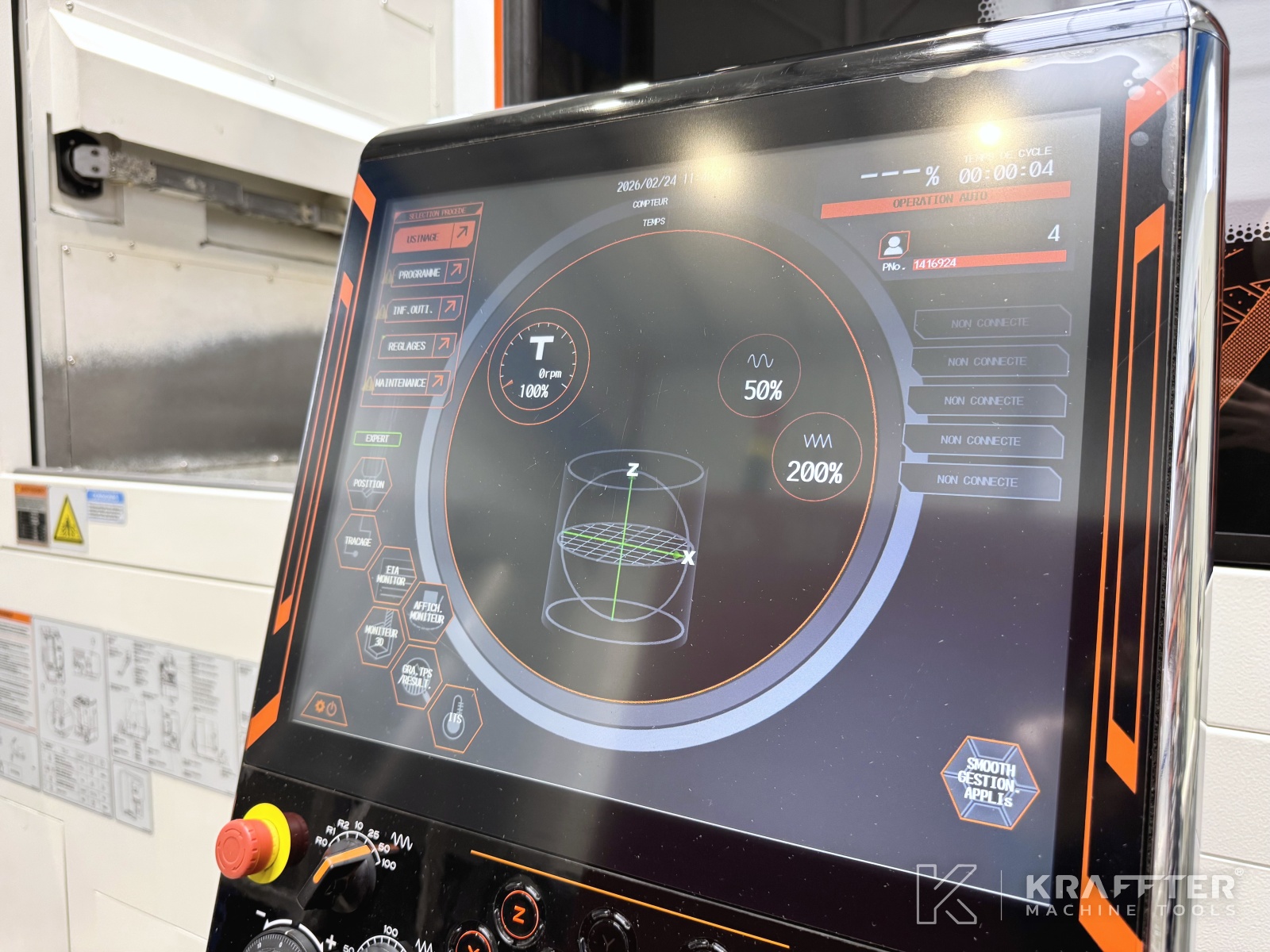

CNC control

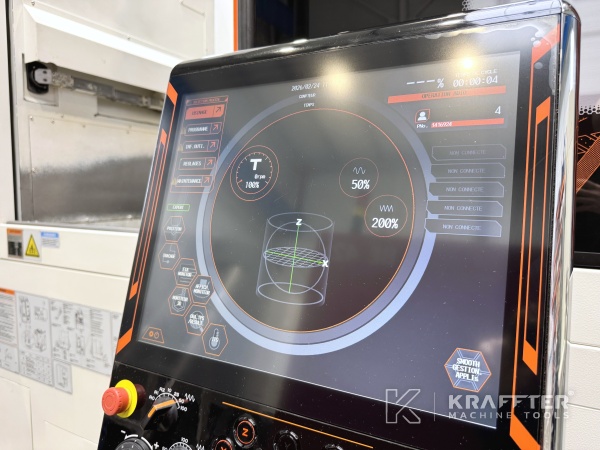

MAZATROL SmoothG
Max. turning diameter
920 [mm]
Max. cutting diameter
1000 [mm]
Stroke X axis
470 [mm]
Stroke Z axis
876 [mm]
Rapid traverse rate X axis
24000 [mm/min]
Rapid traverse rate Y axis
24000 [mm/min]

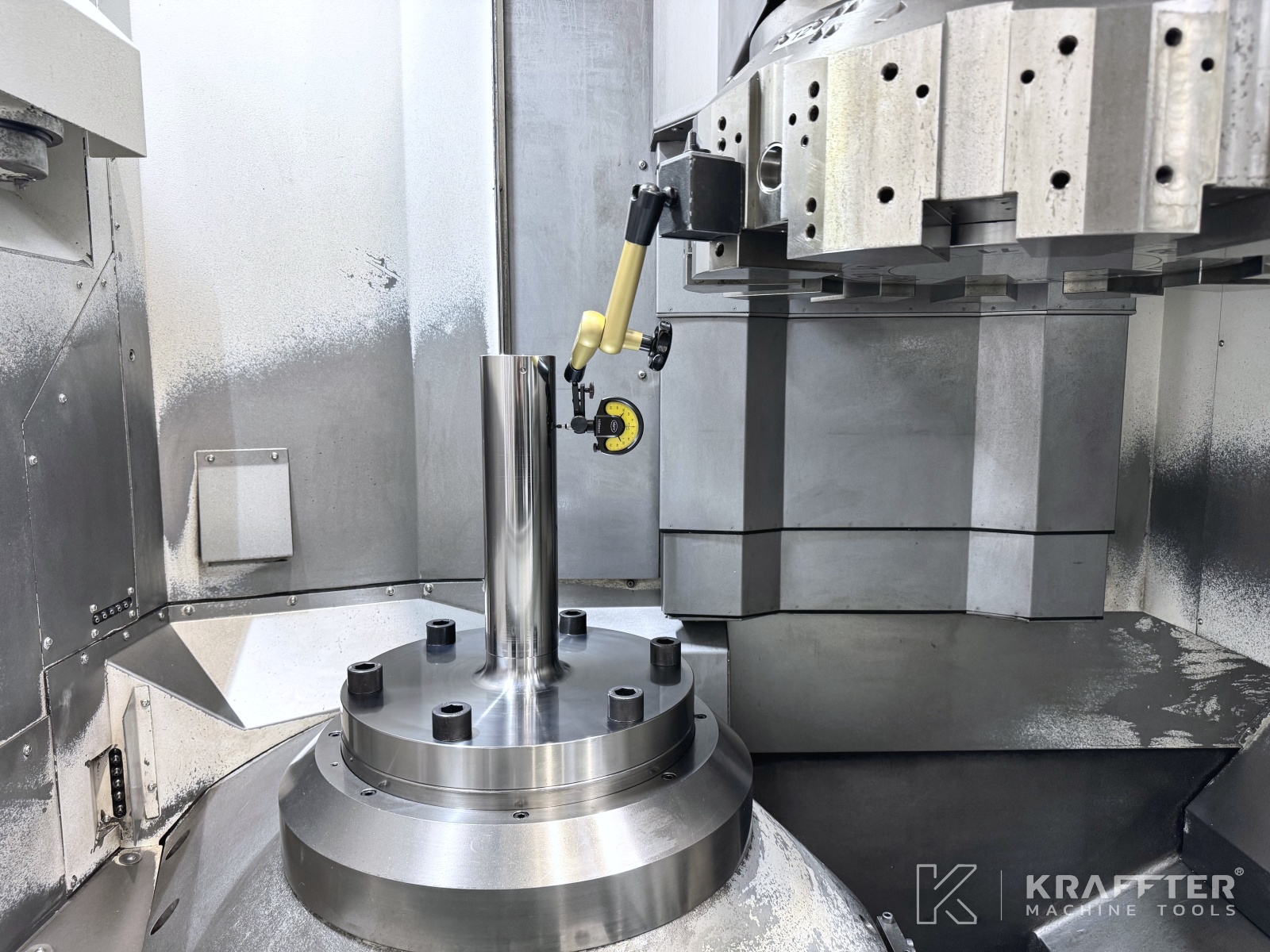

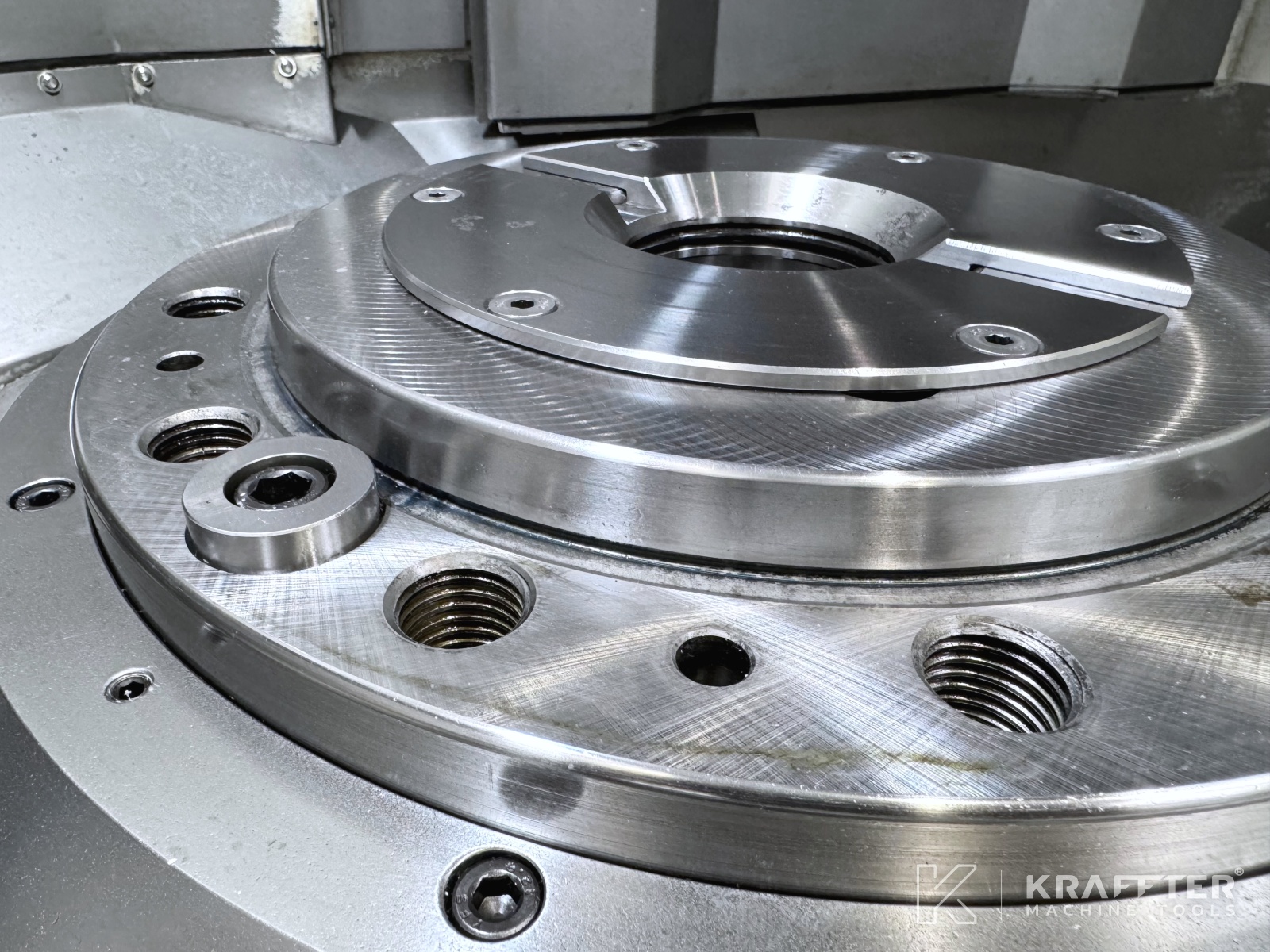

Spindle nose
A2-15
Max. spindle speed
1250 [rpm]
Spindle power
30 [kW]
Spindle torque
3655 [Nm]
Max. distance from spindle face to turret face
1030 [mm]
Max. workpiece weight
3000 [Kg]
Min. distance from spindle face to turret face
154 [mm]

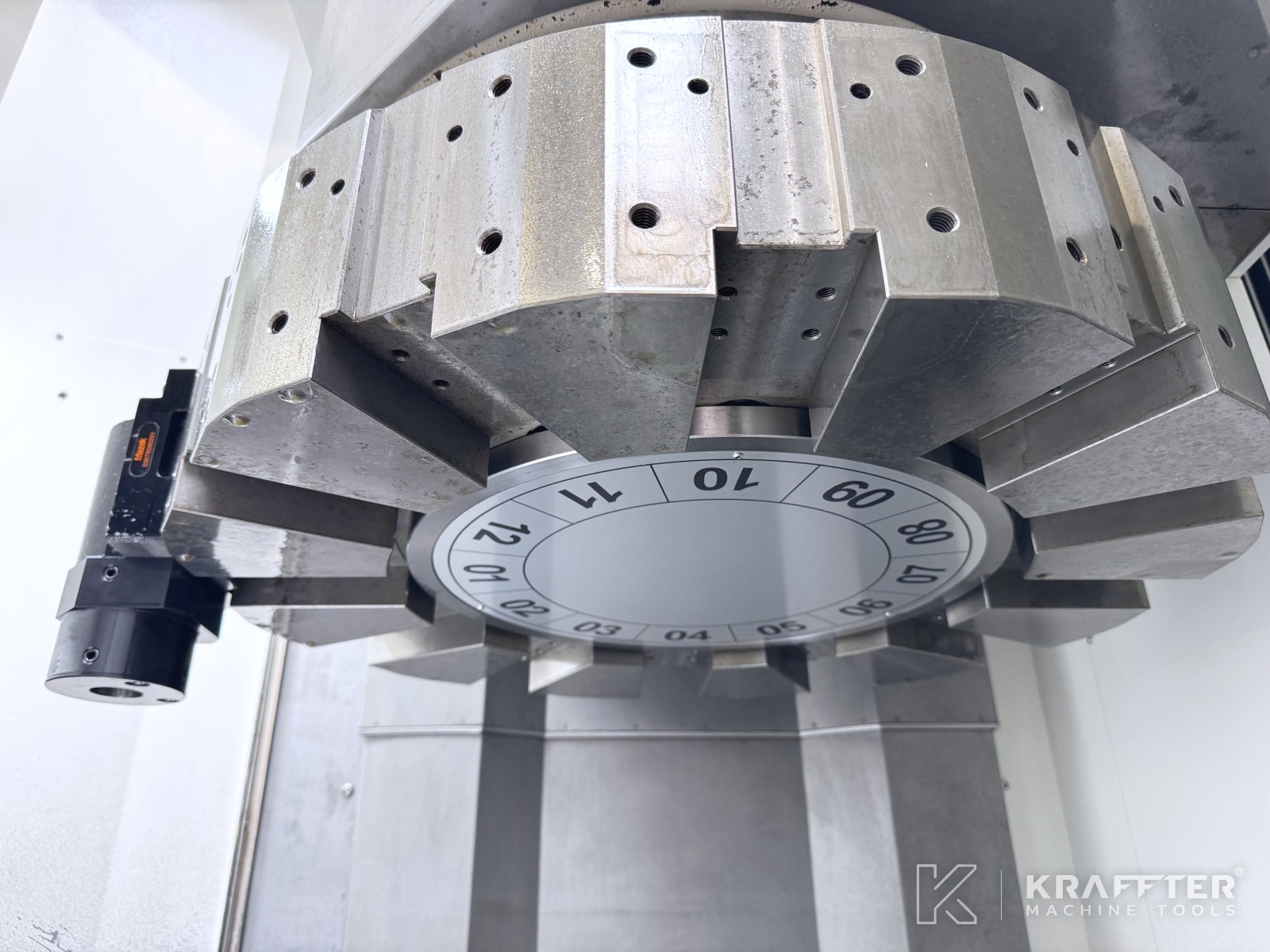

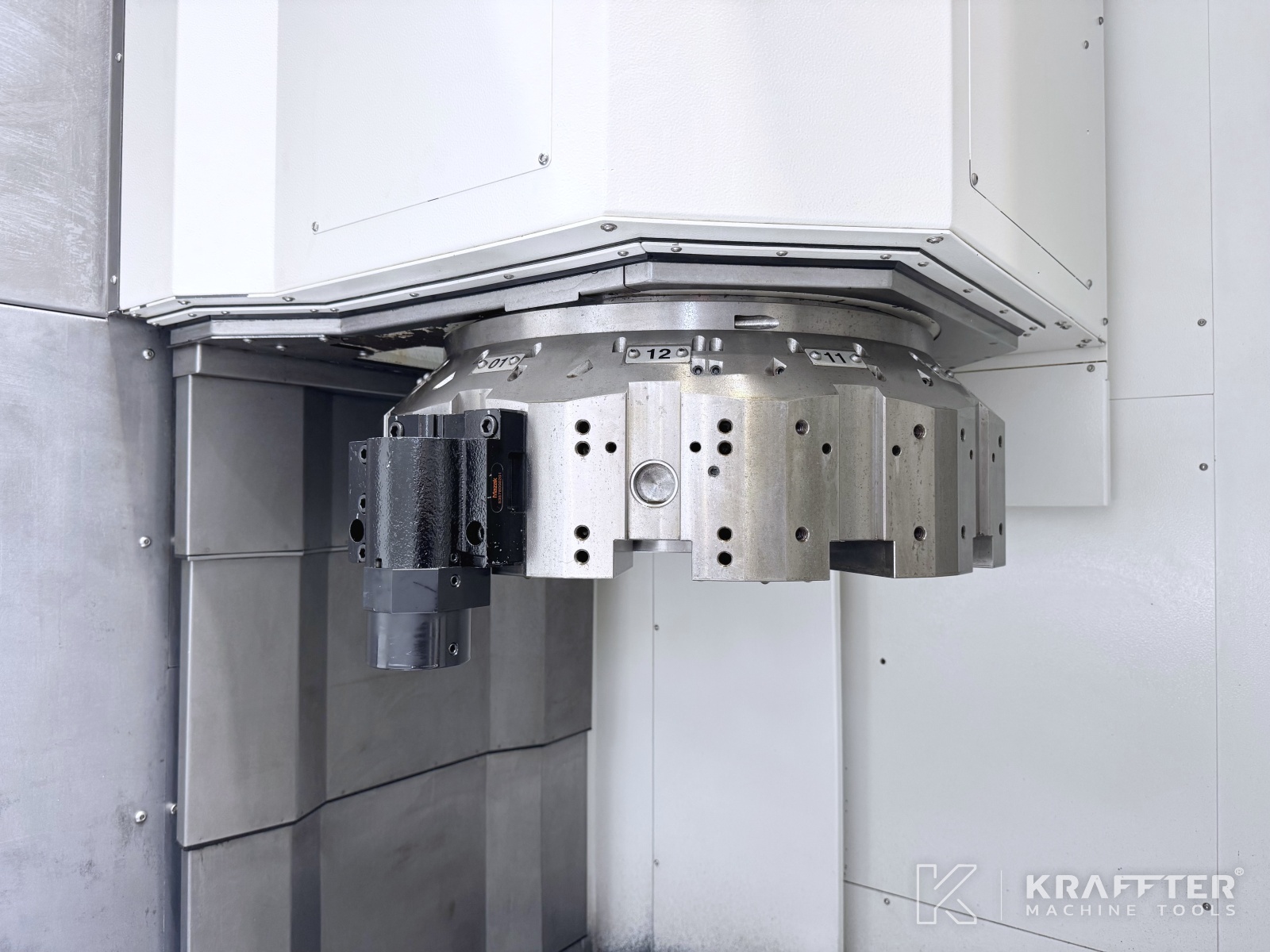

Number of tool stations
12
Turret indexing time
0.4 [s/pos]
Lubrication tank capacity
516 [l]
Total power required
58.9 [kVA]
Rated current
109 [A]
Supply voltage
400 [V]
Working hours
2472 [h]
Number of cutting hours
2297 [h]
Dimensions
2375 × 4558 × 3659 [mm]
Weight
13000 [Kg]
Additional information
INCLUDED EQUIPMENT:

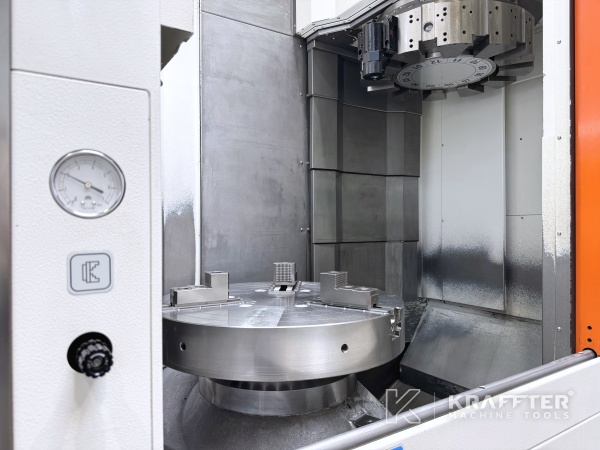

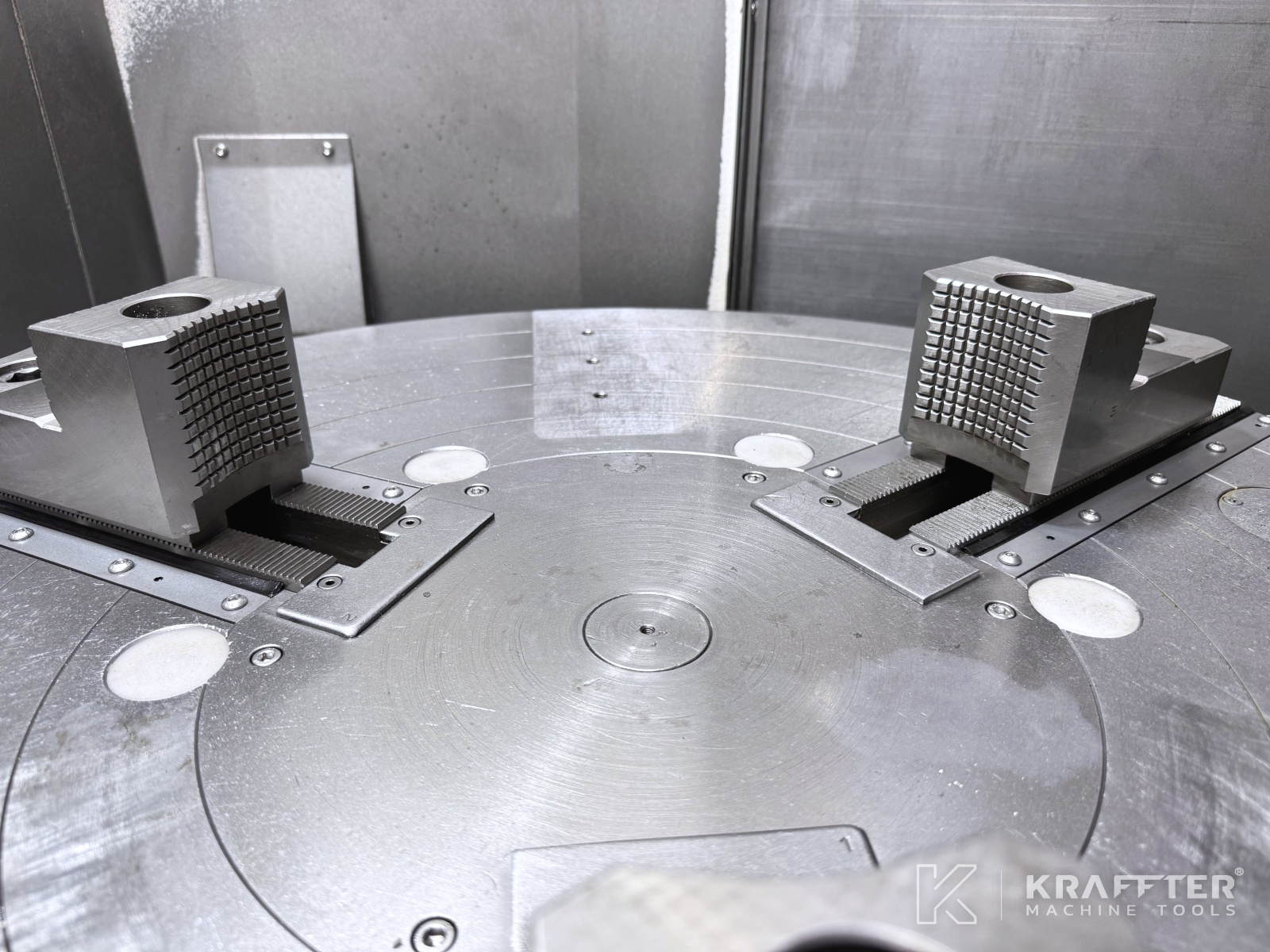

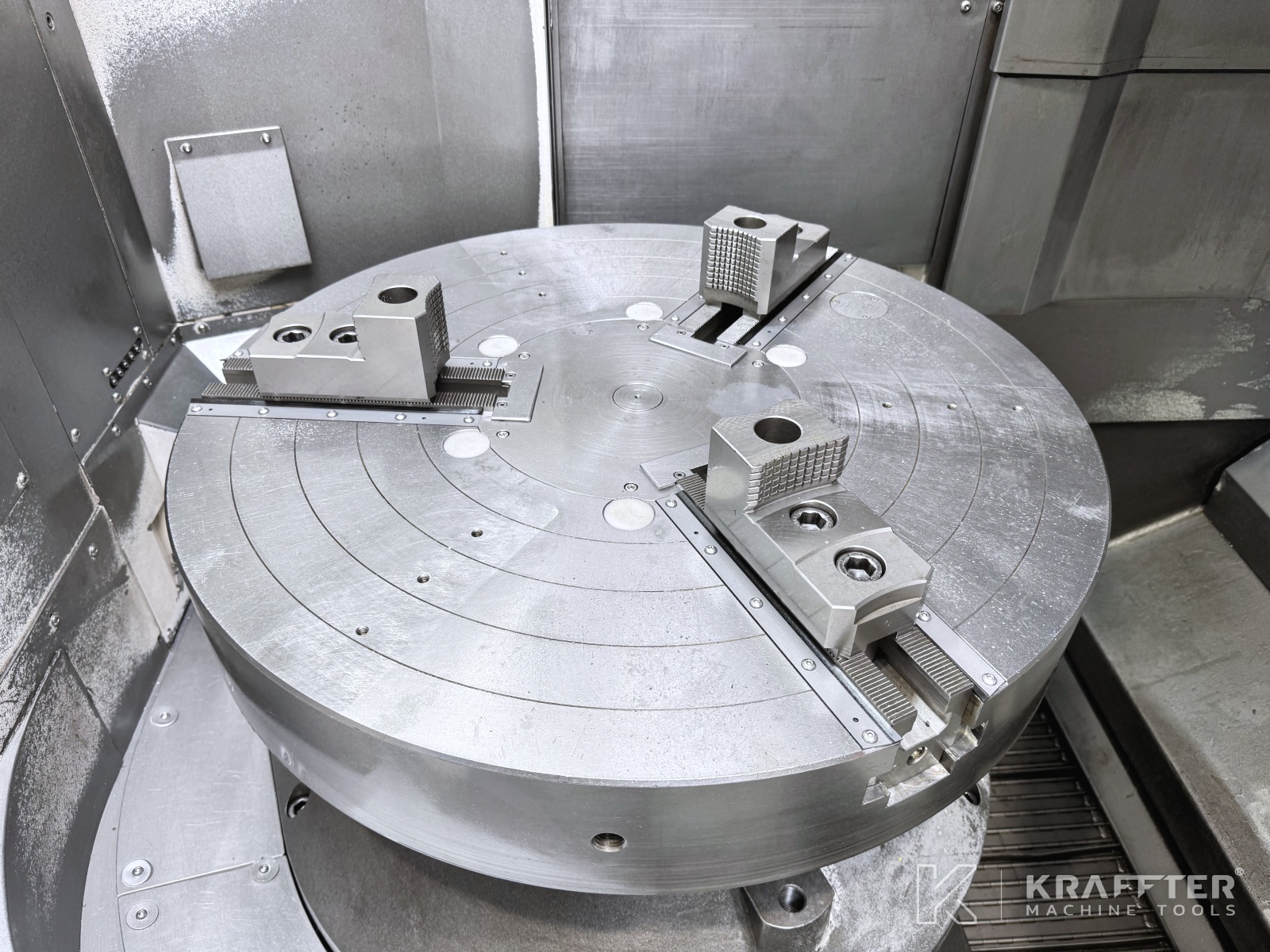

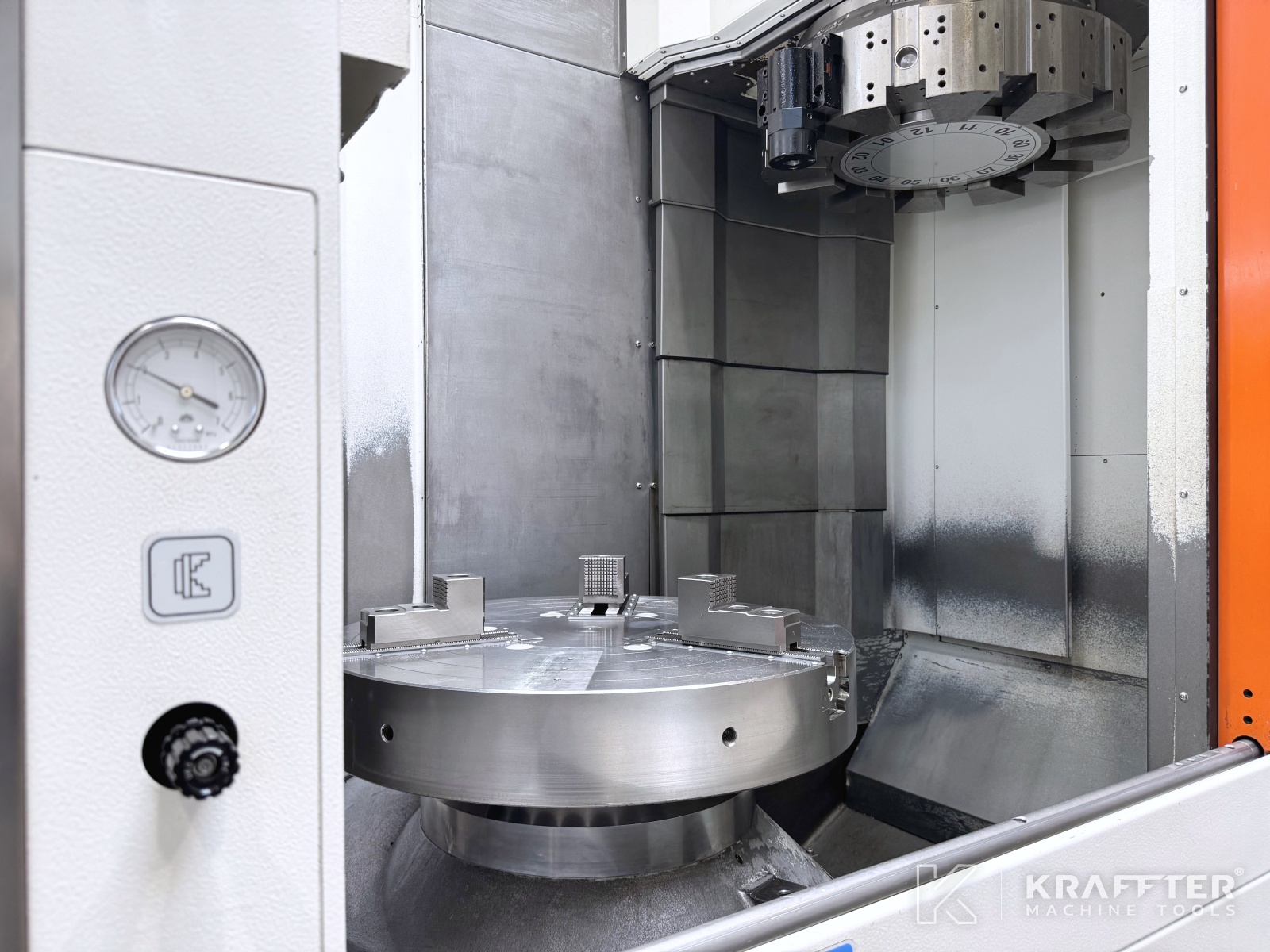

- x1 Ø800 mm chuck, KITAGAWA type NV-32C1515

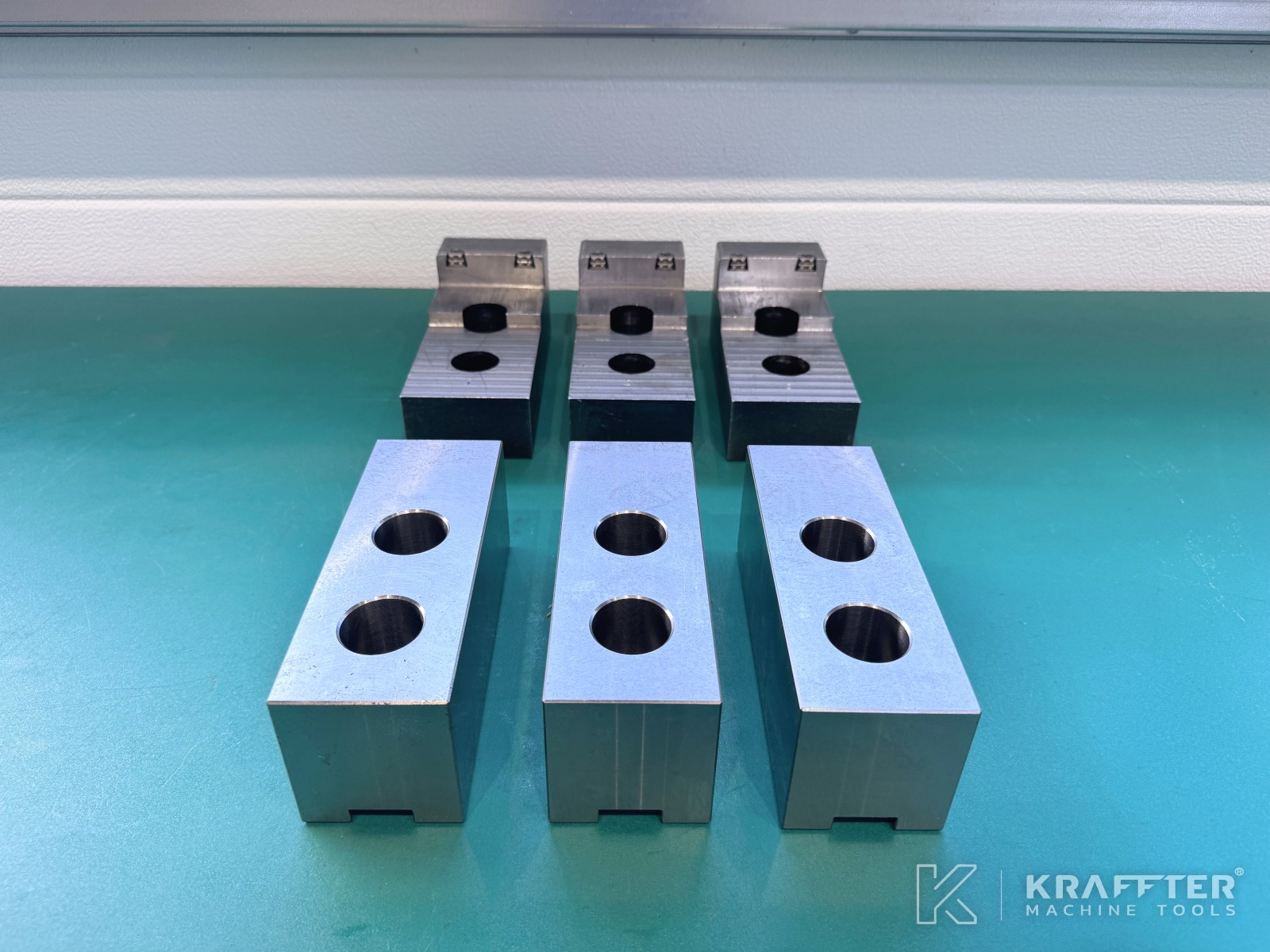

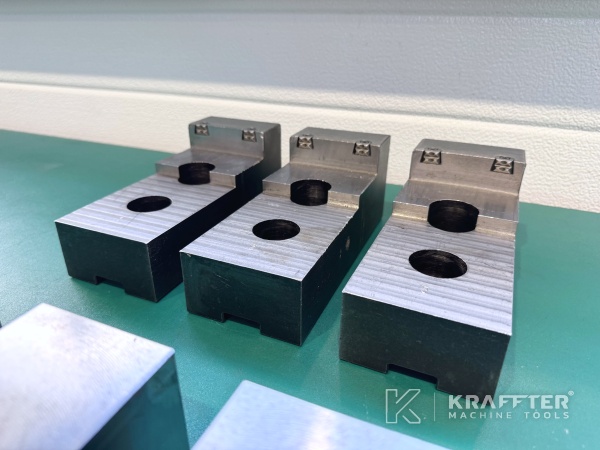

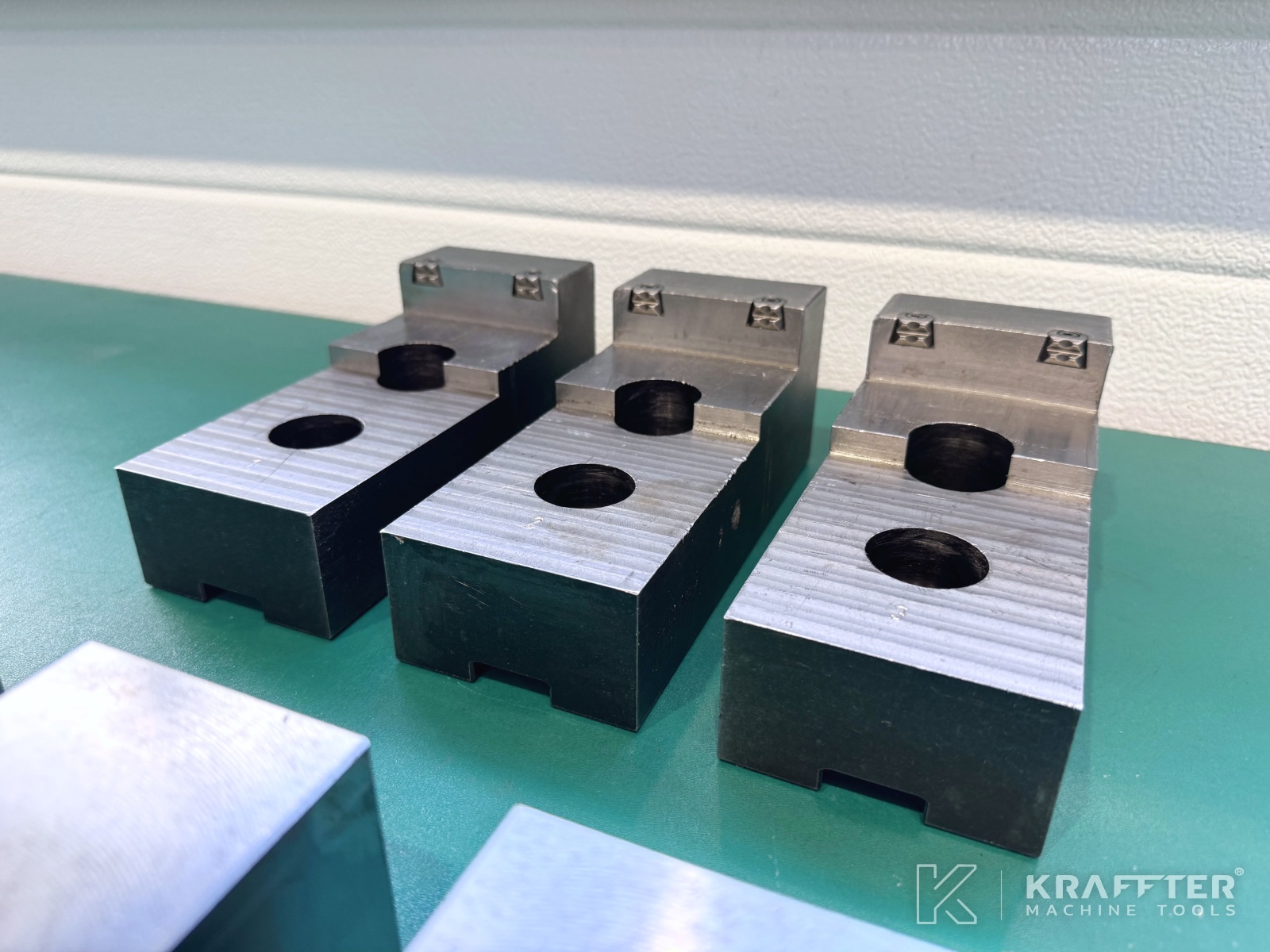

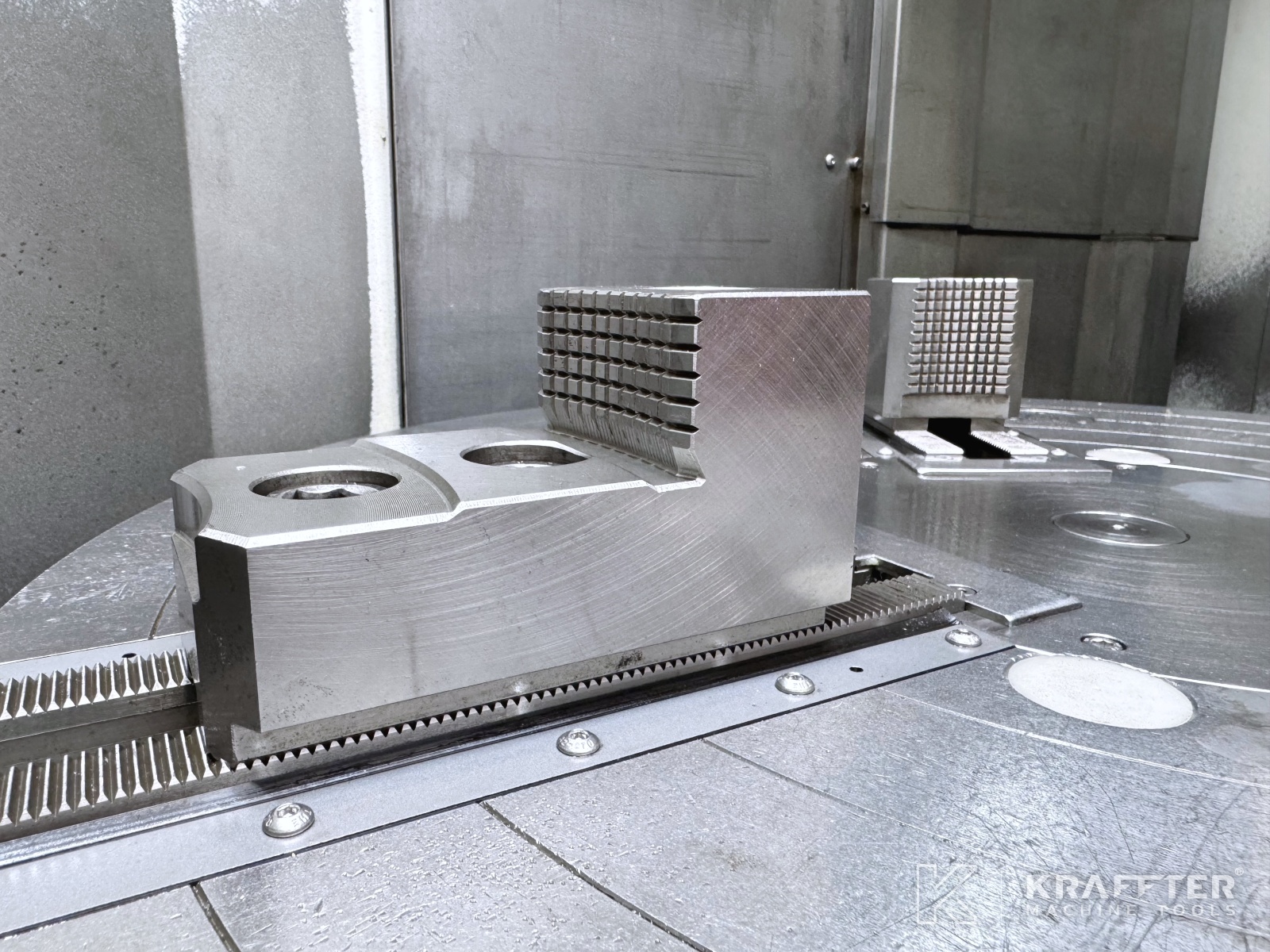

- x1 set of hard jaws
- x2 sets of soft jaws

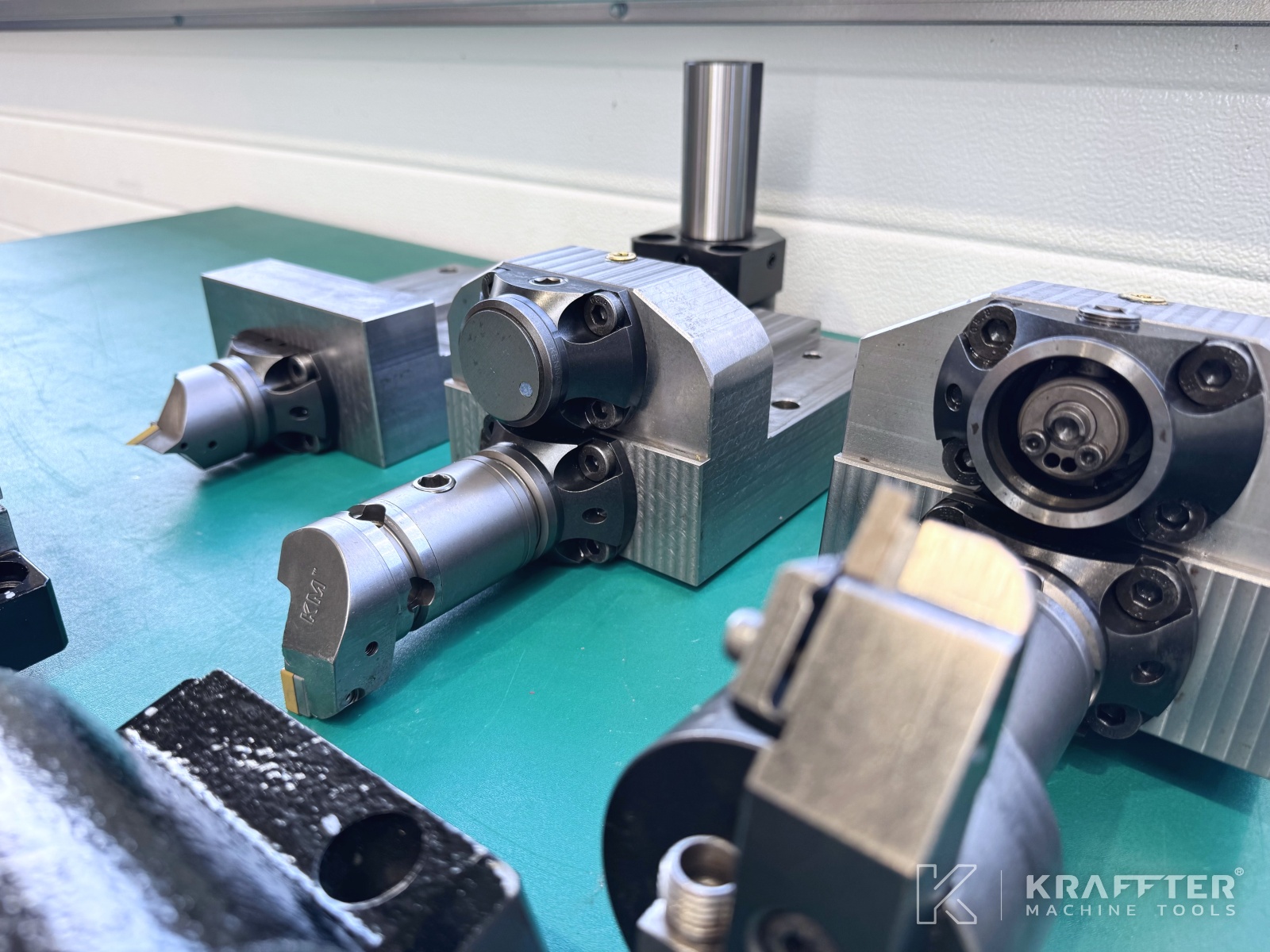

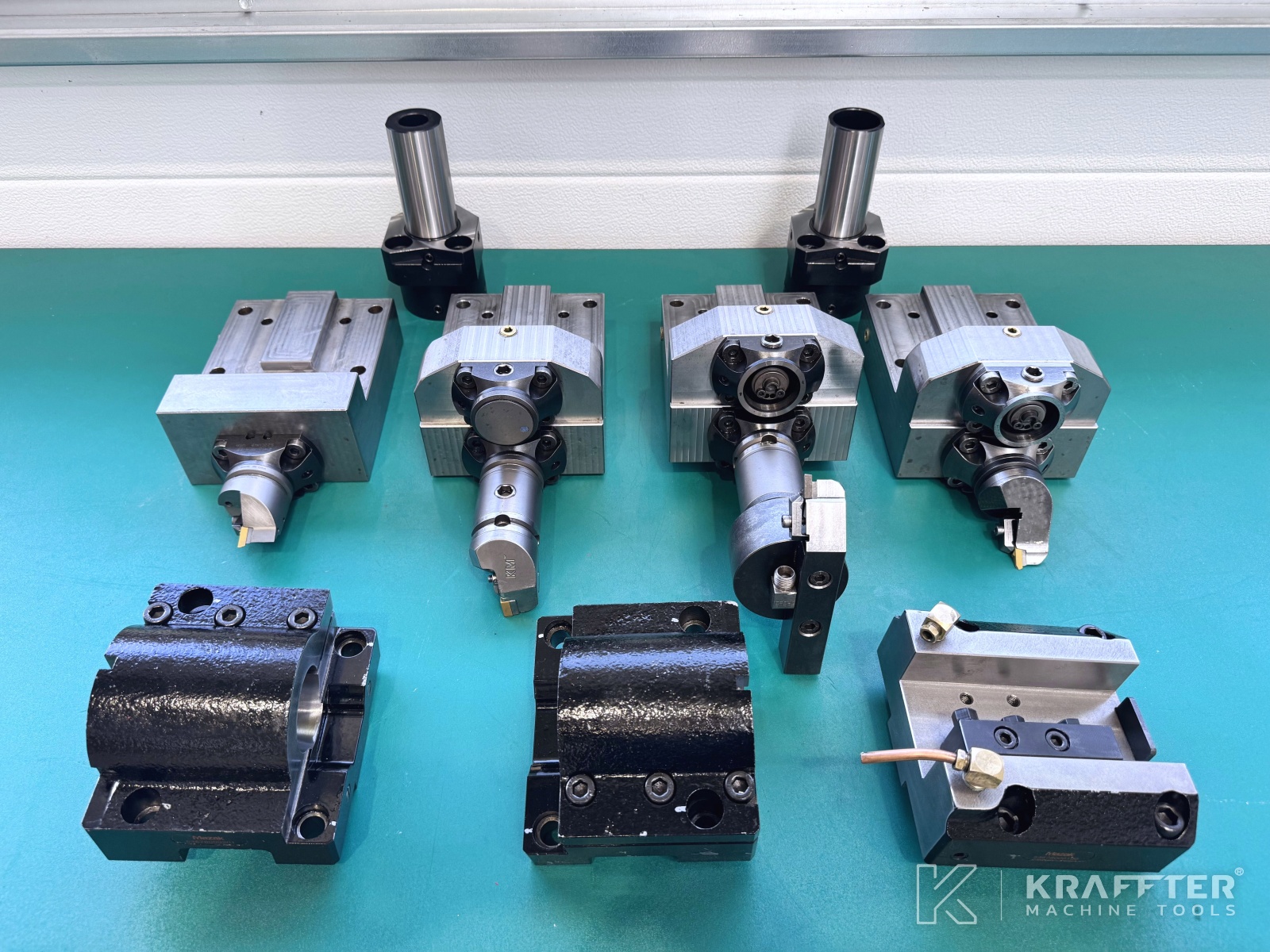

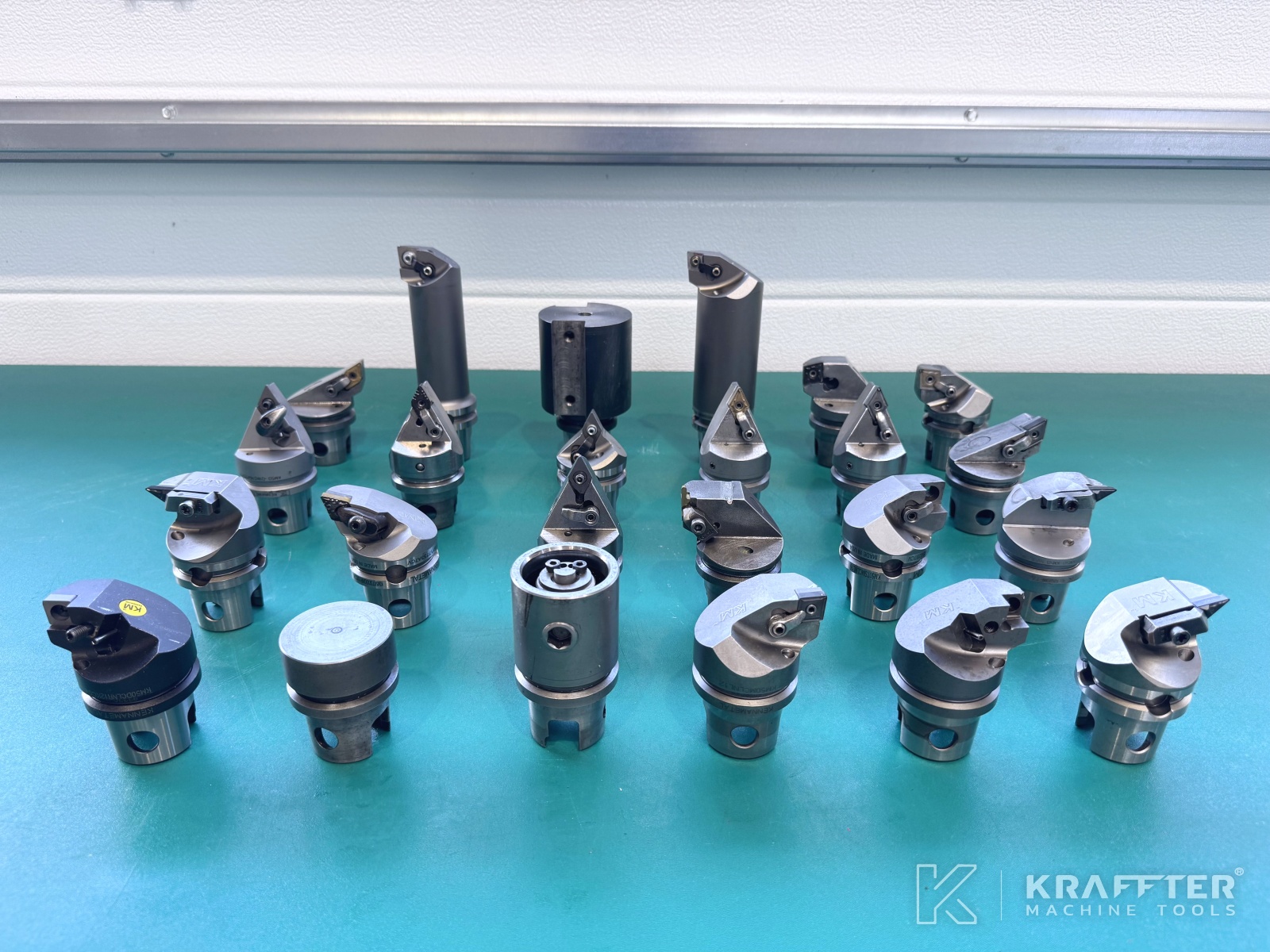

- x10 tool holders (chair type)

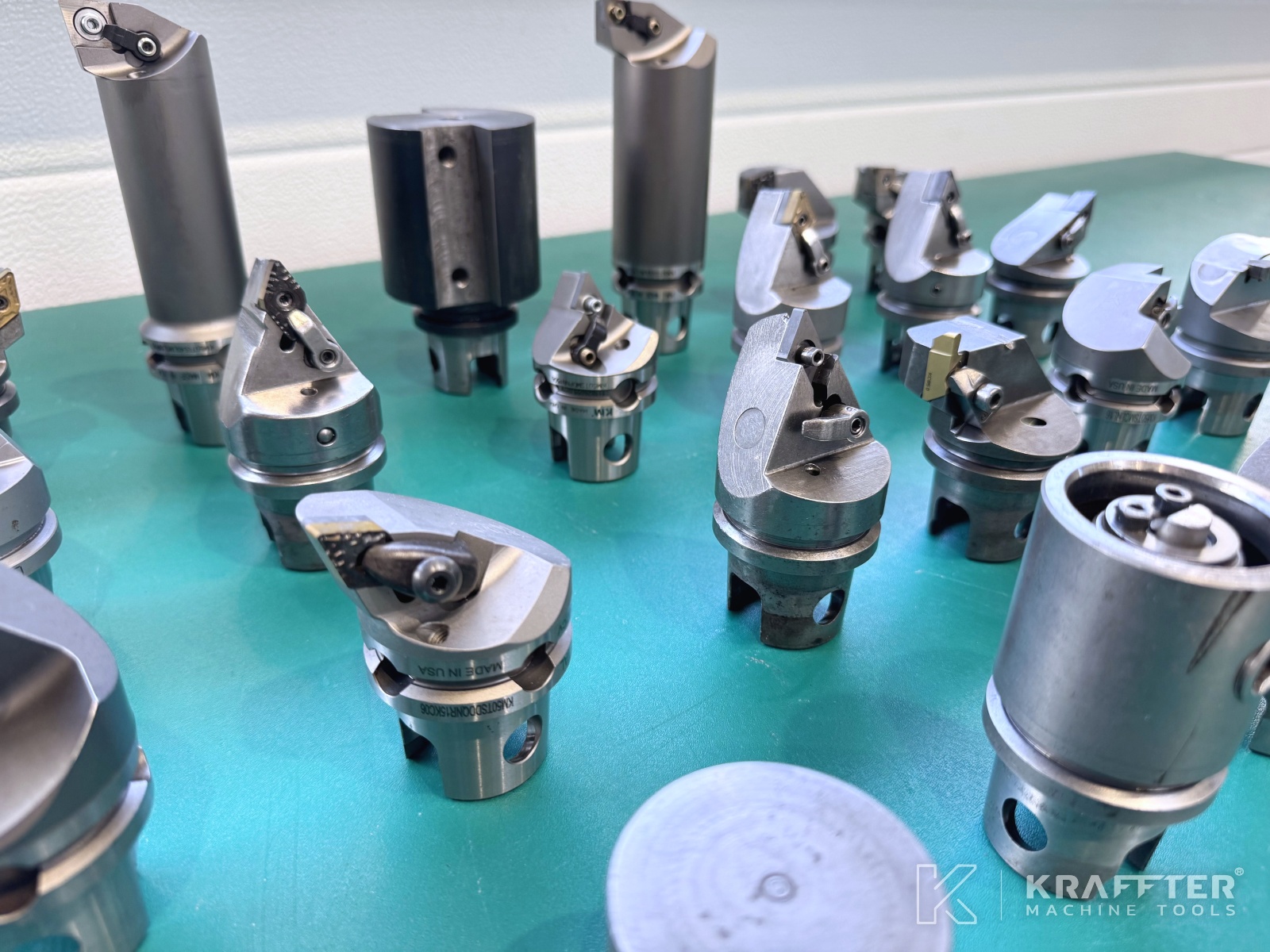

- x24 KENNAMETAL type KM50 tool holders

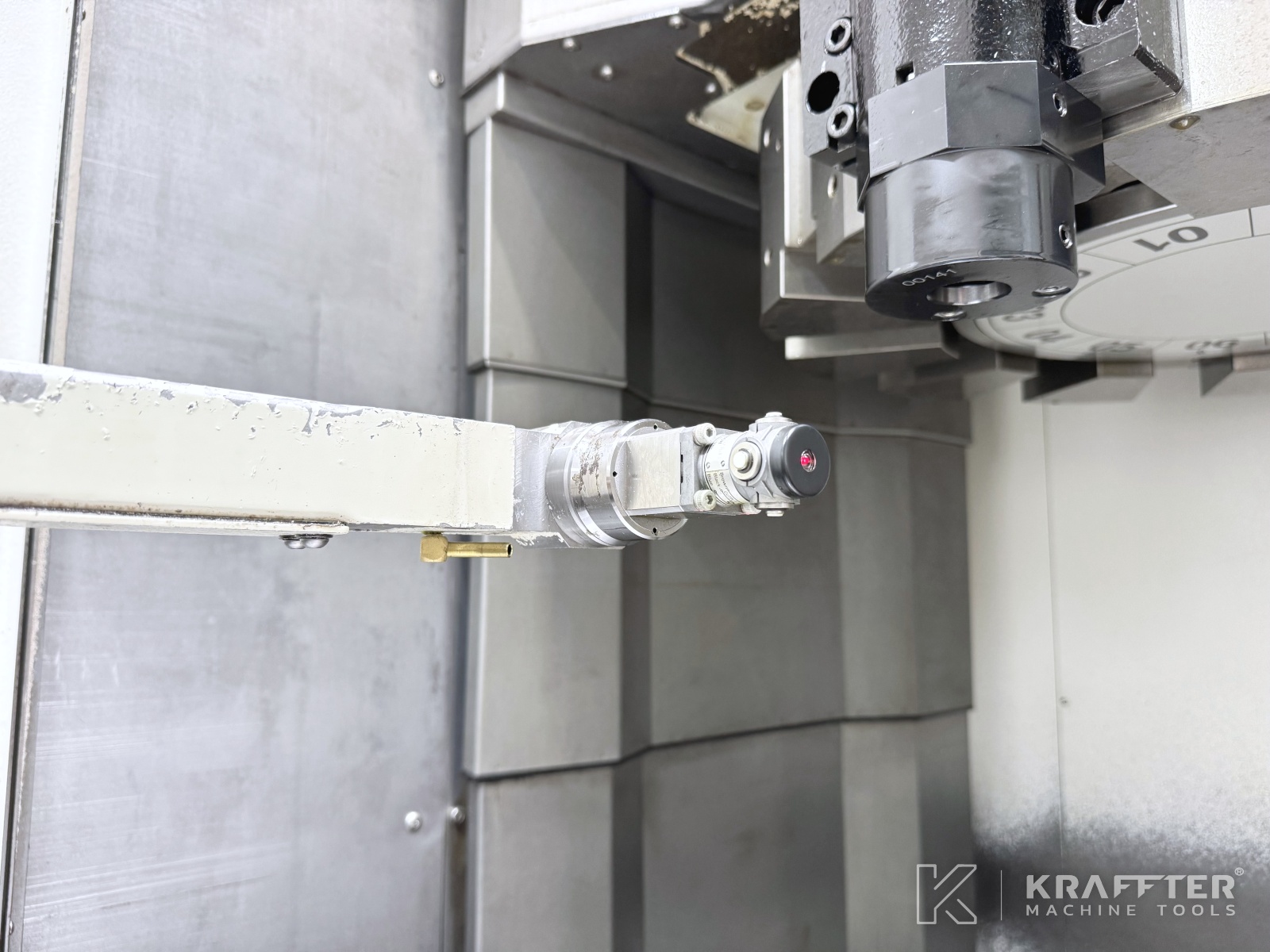

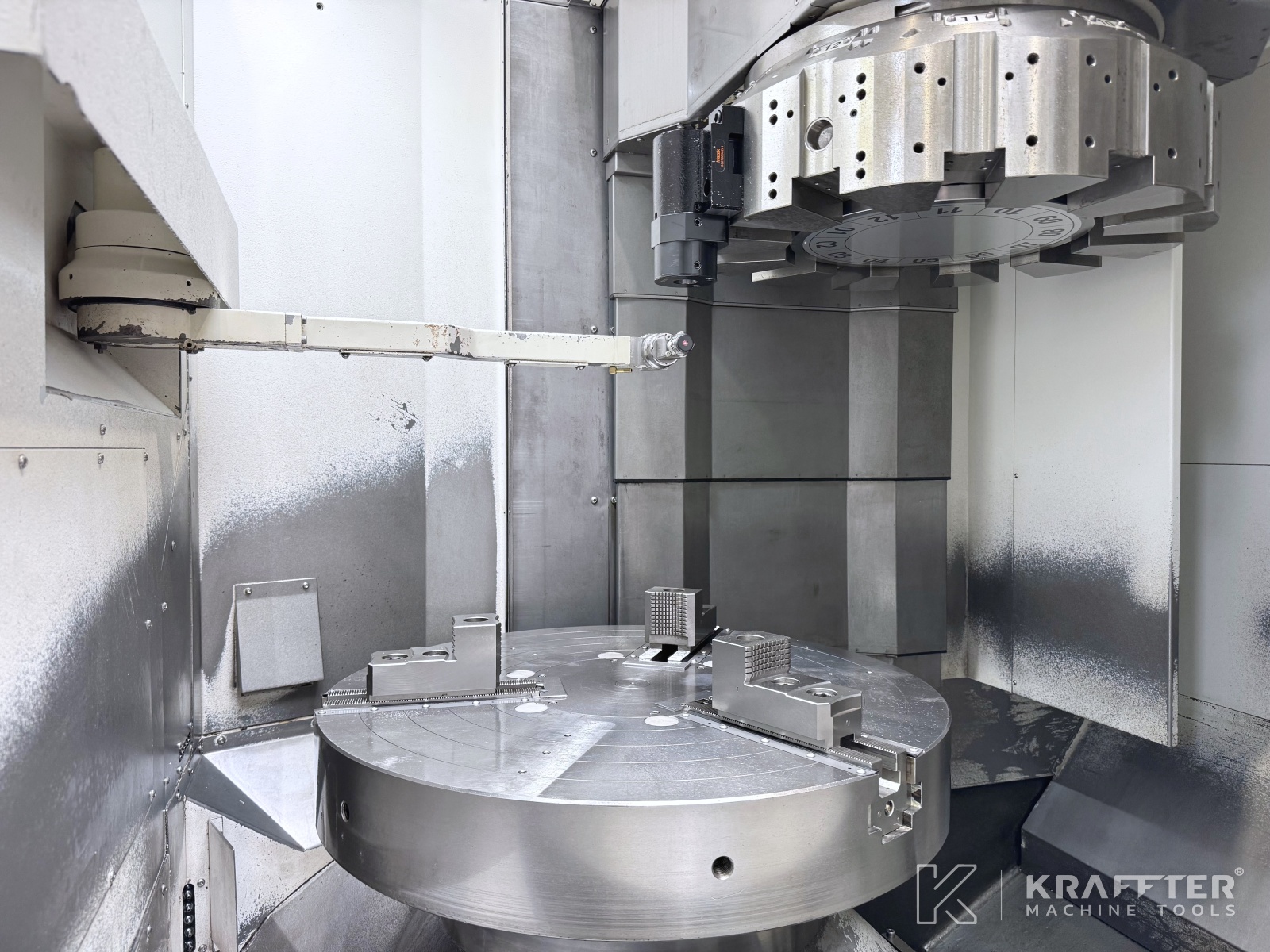

- x1 retractable tool probe arm

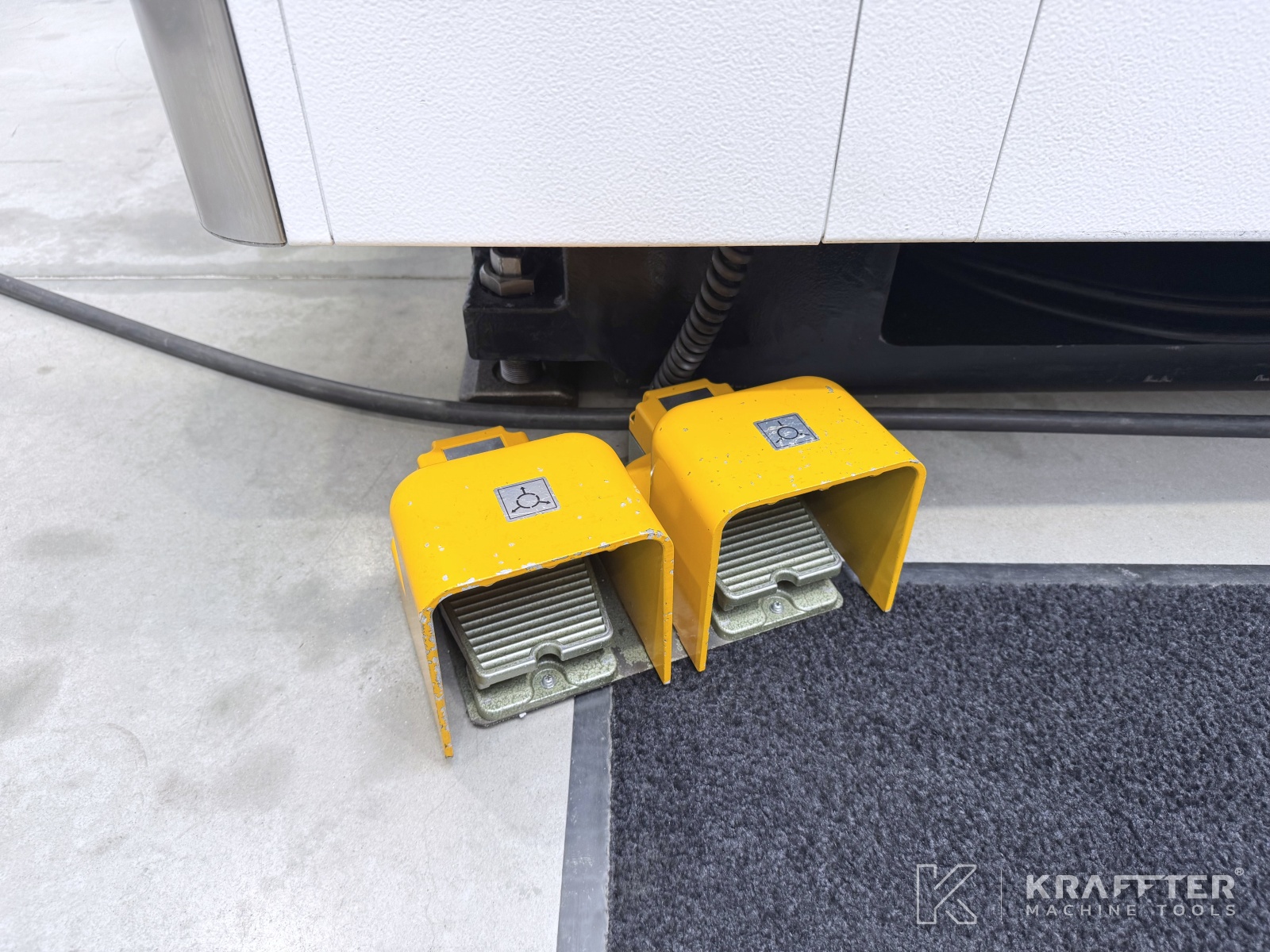

- x1 double pedal unit for chuck clamping

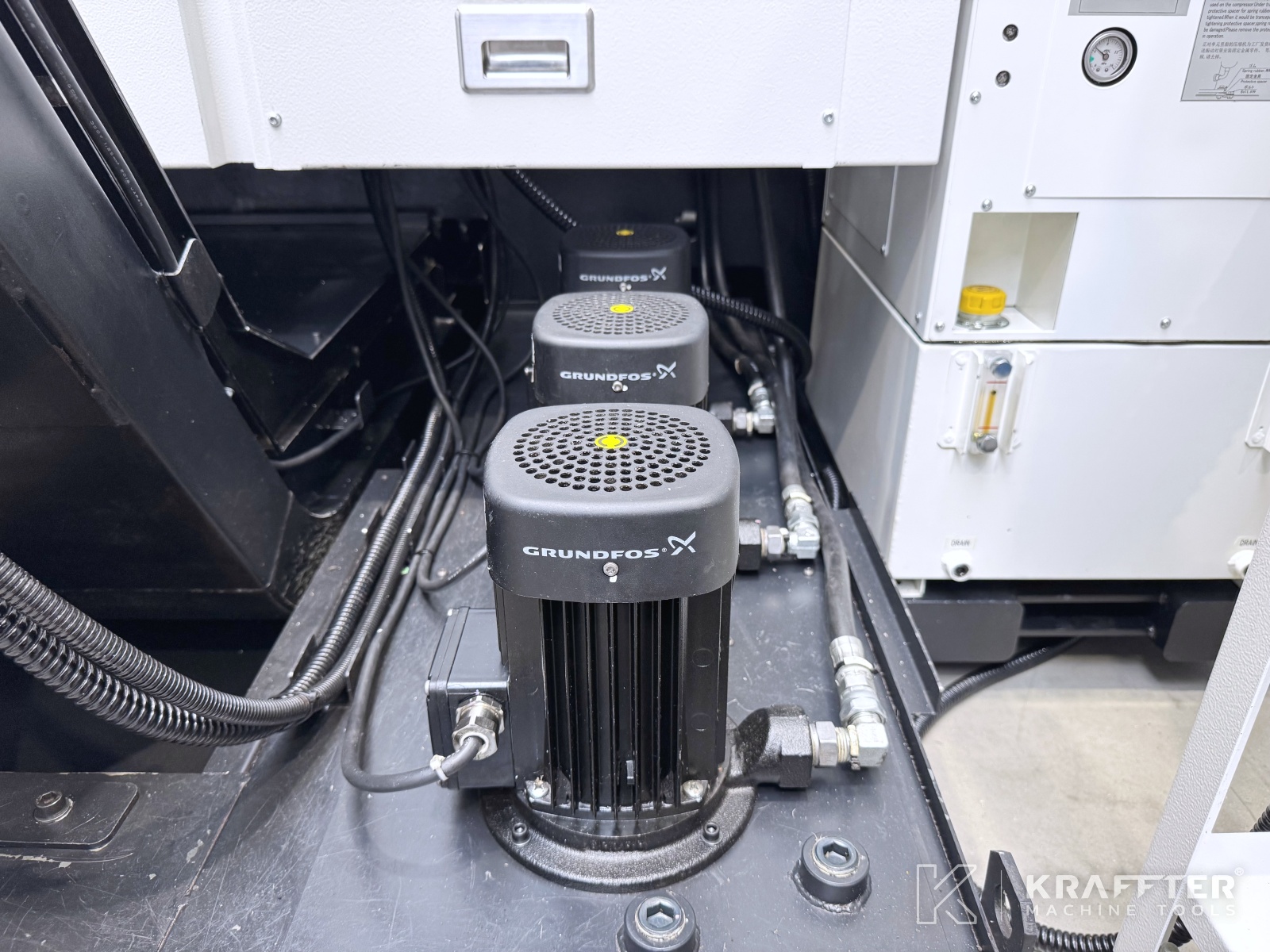

- x1 coolant tank

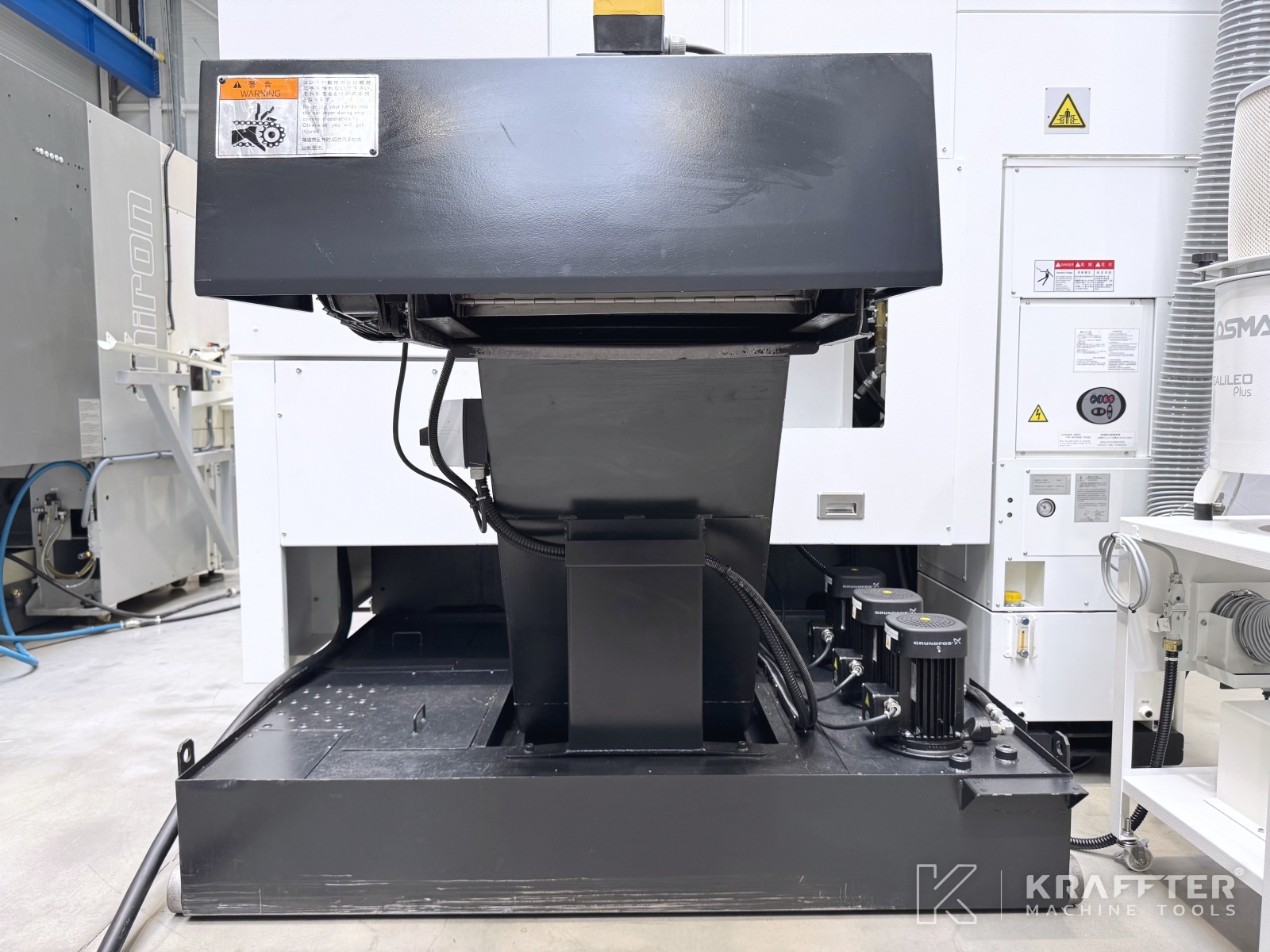

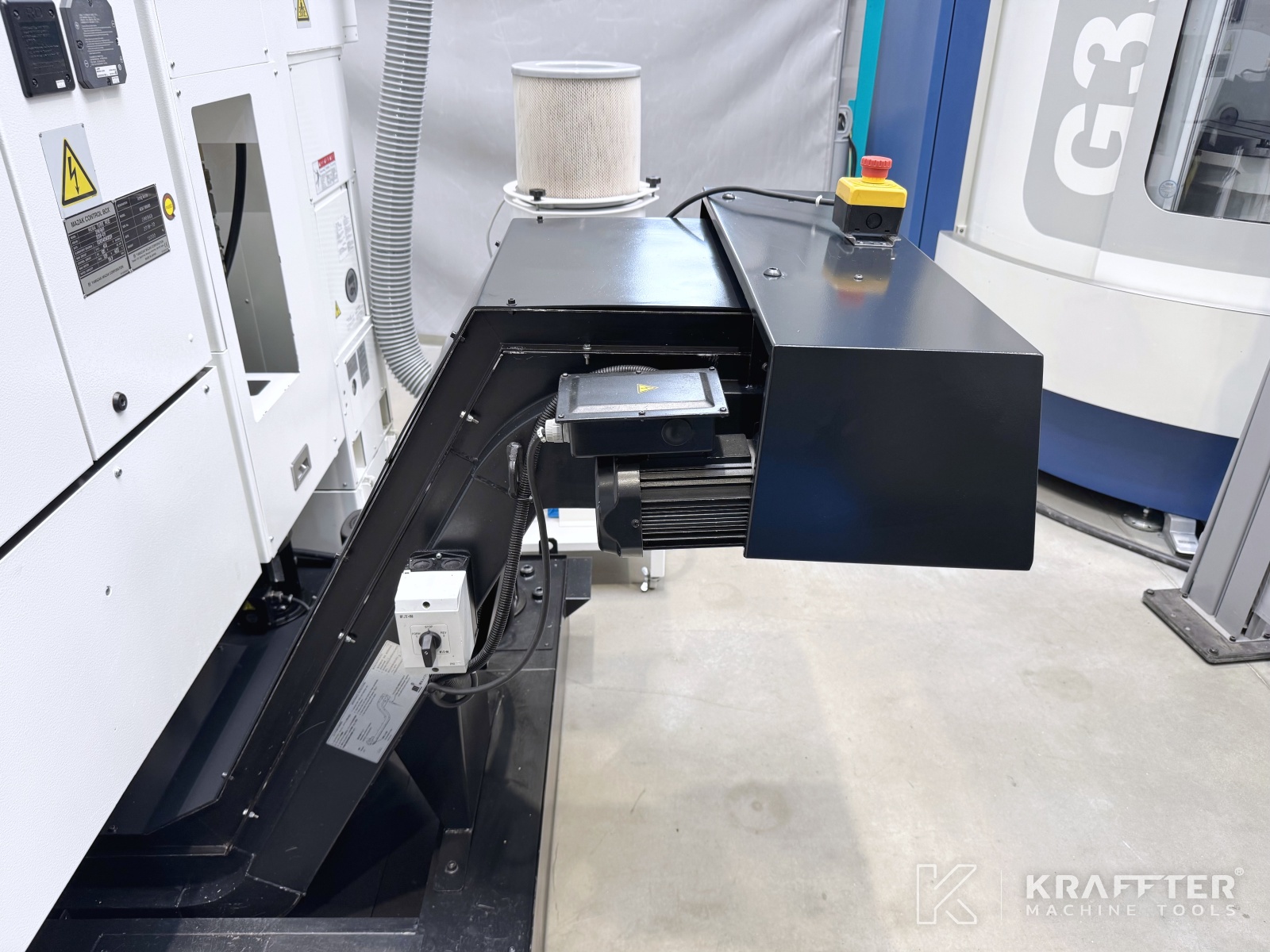

- x1 chip conveyor

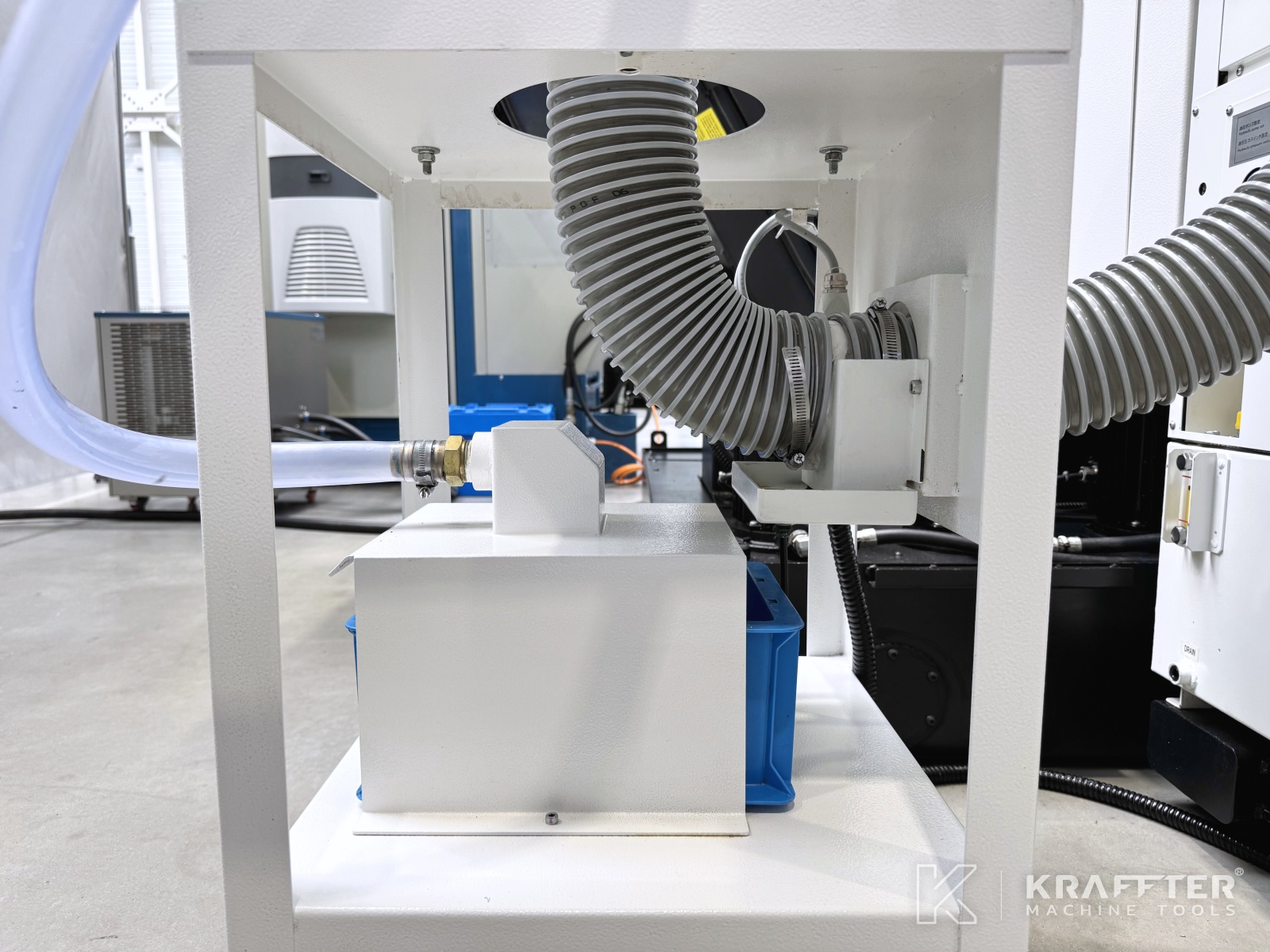

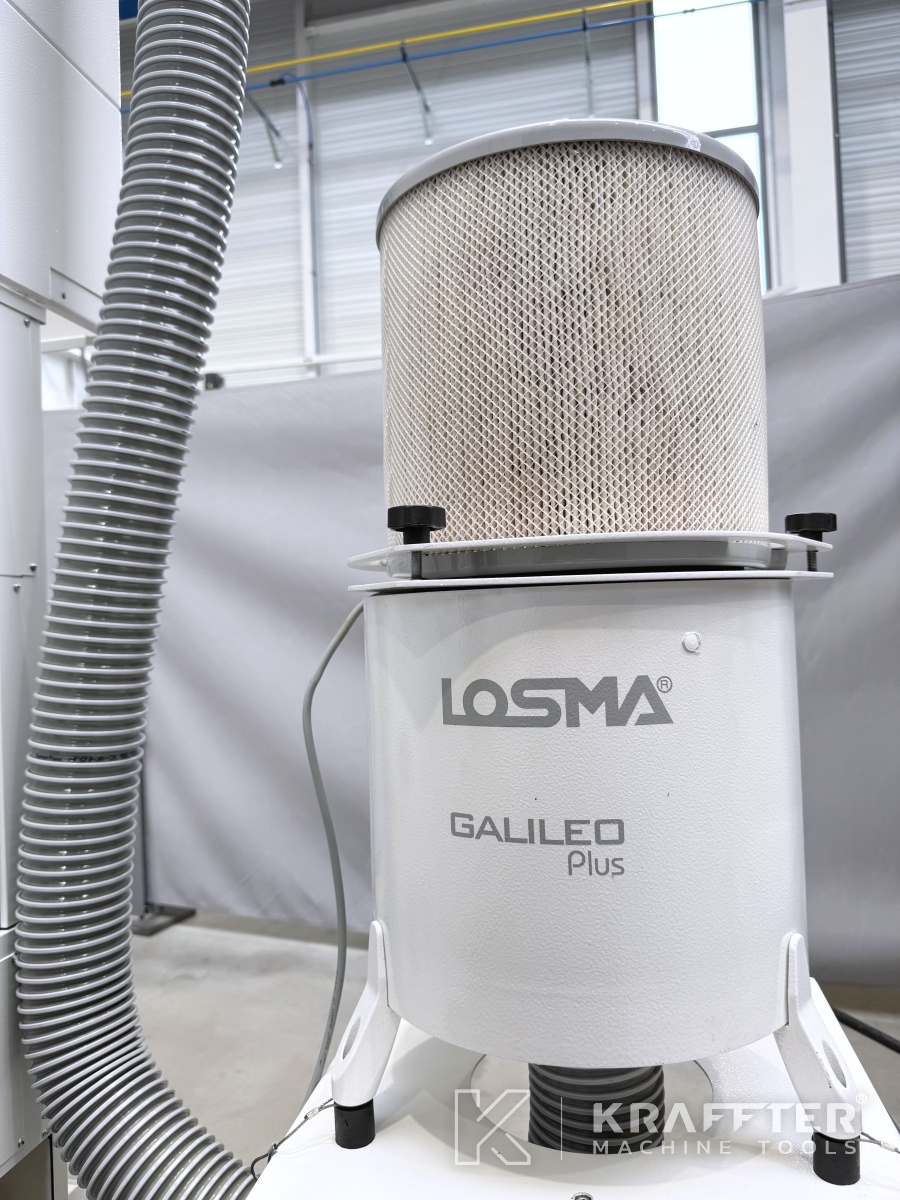

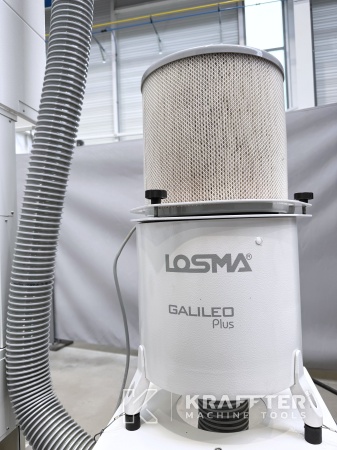

- x1 LOSMA type Galileo GP500 mist extractor

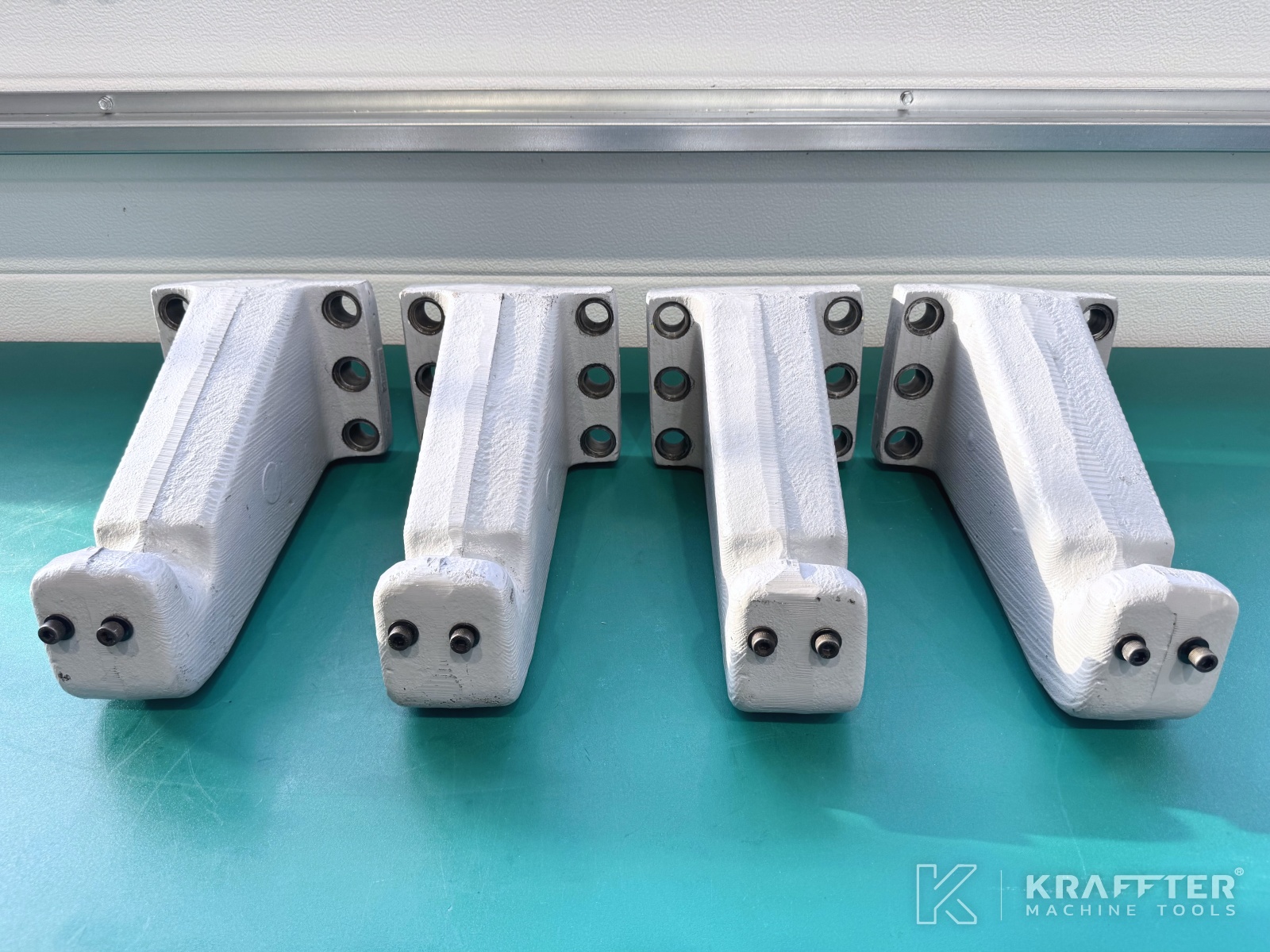

- x1 set of 4 lifting brackets

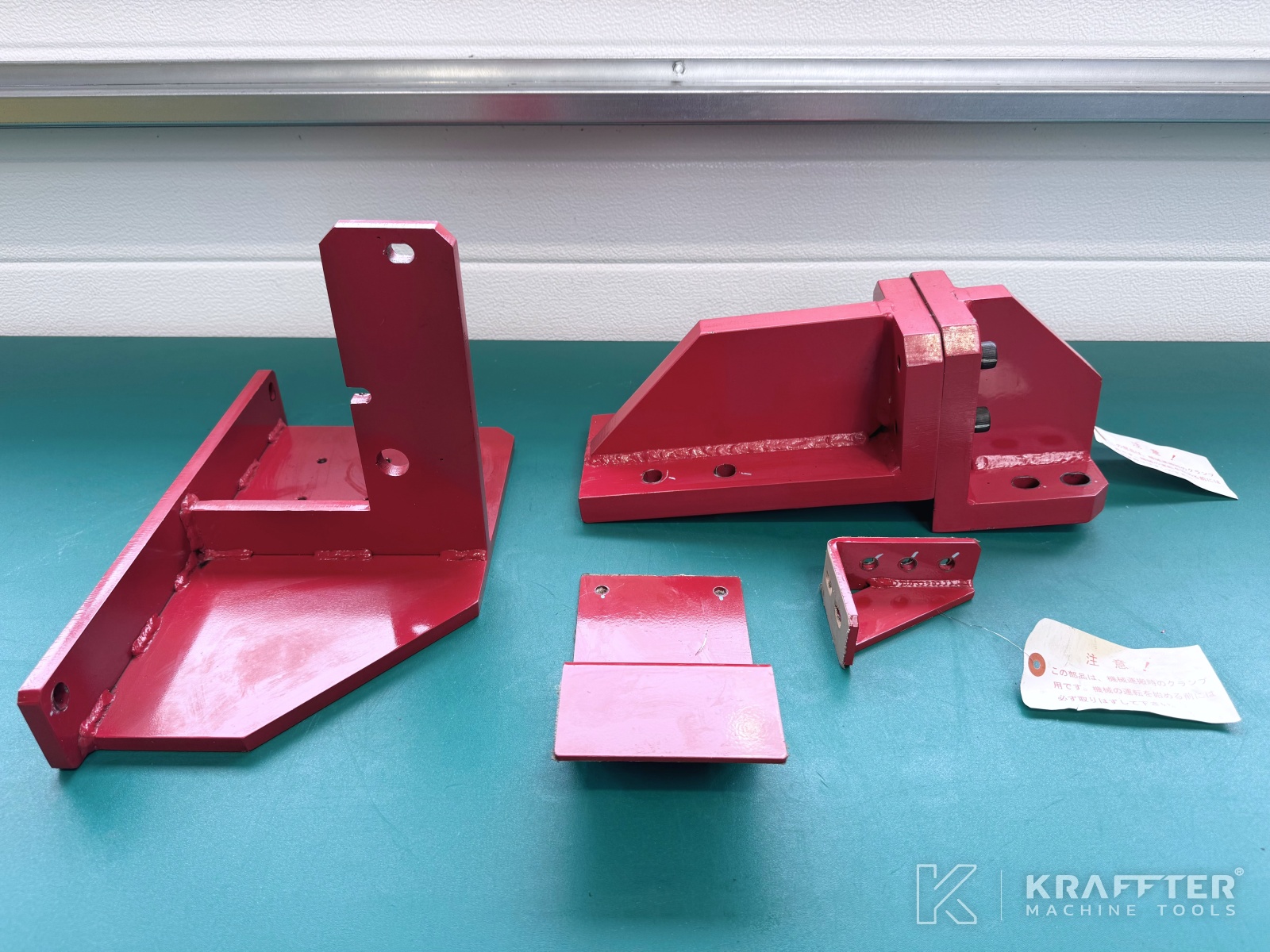

- x1 set of axis locking brackets (for machine transport)

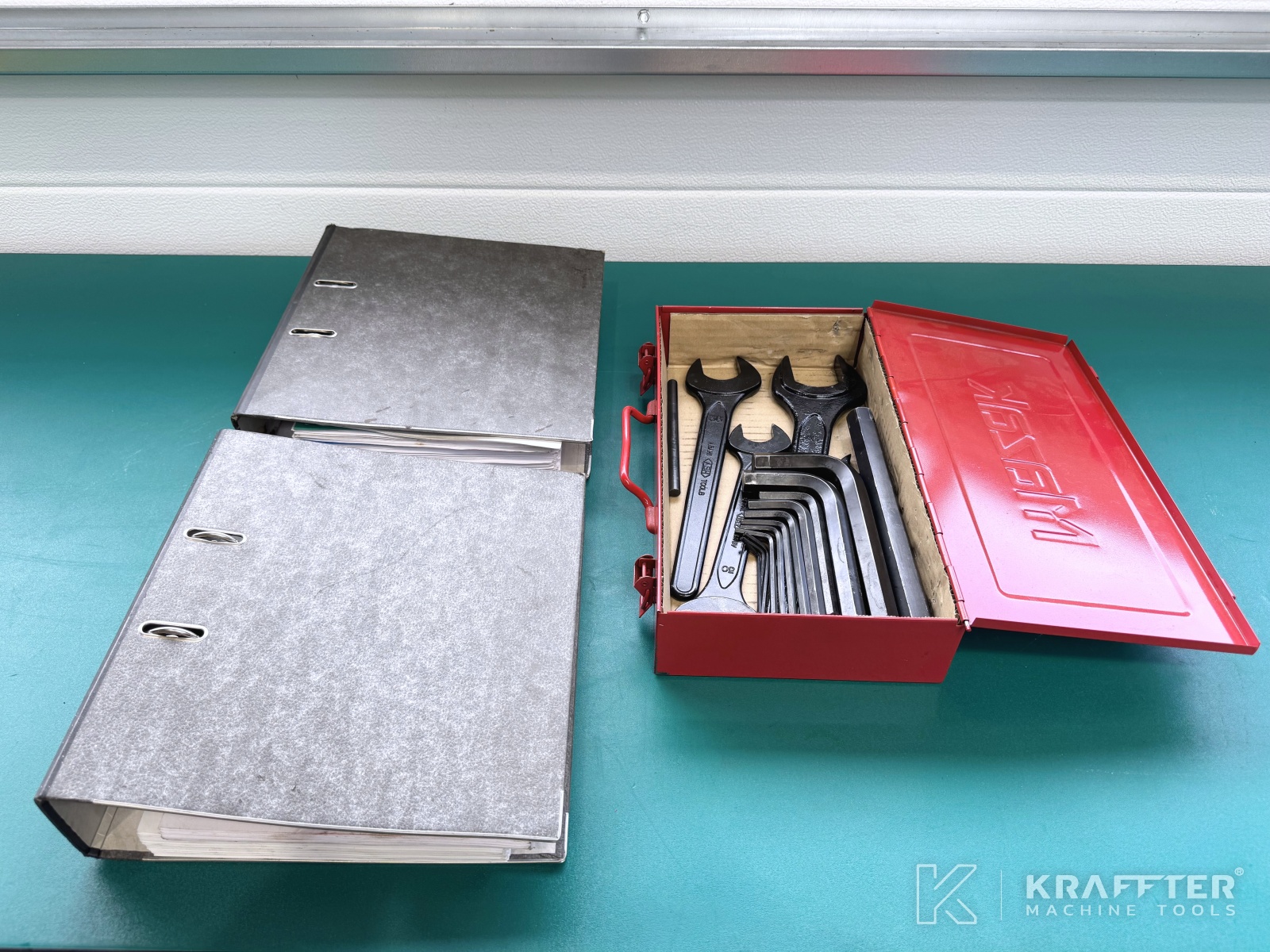

- x1 MAZAK toolbox containing various service wrenches
- Various programming manuals
