Sold

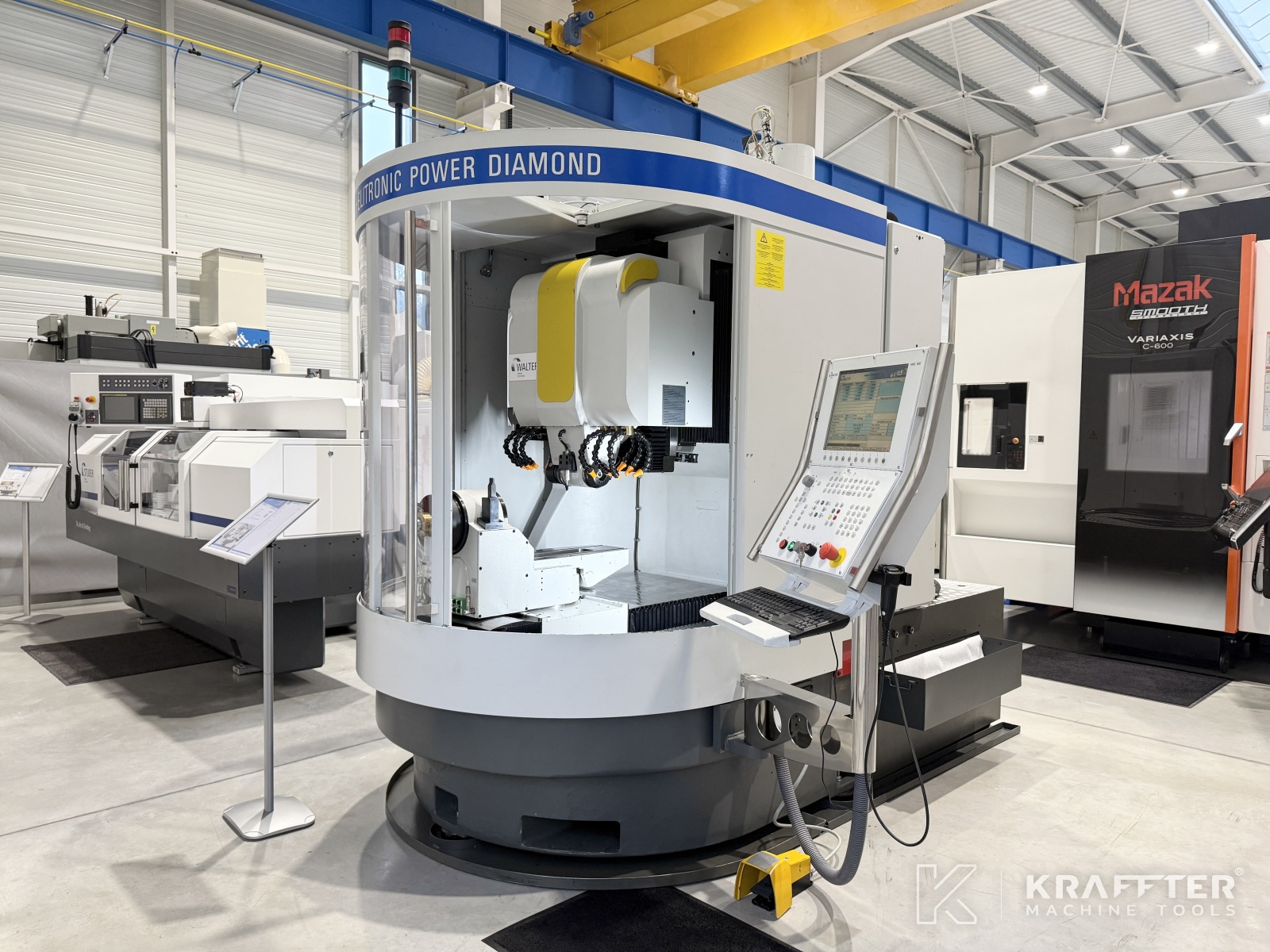

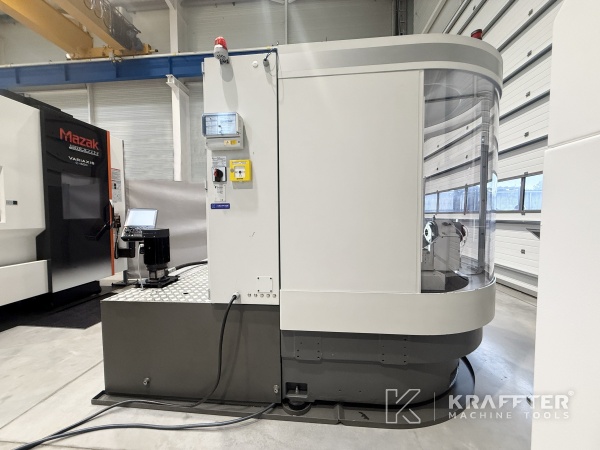

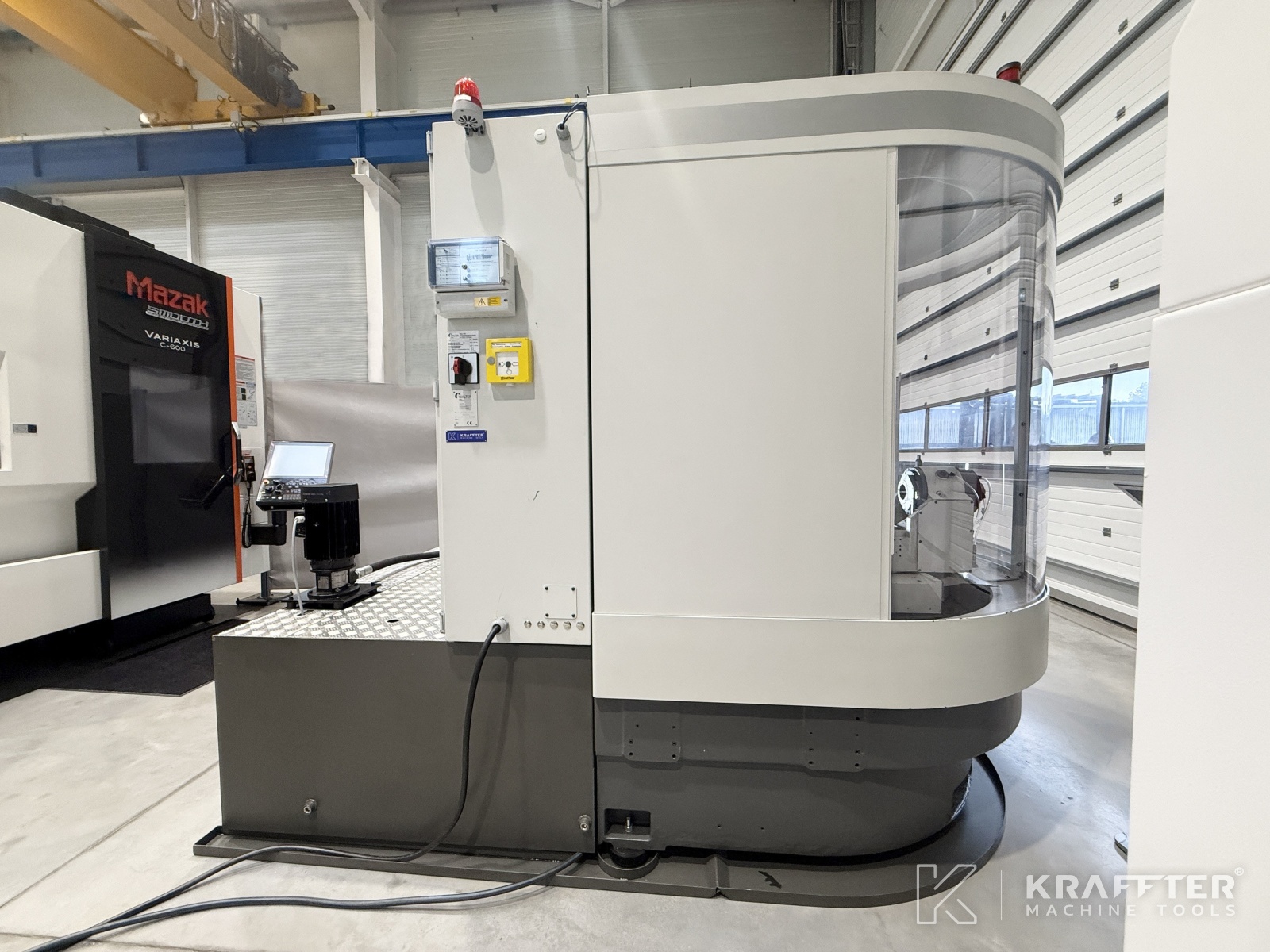

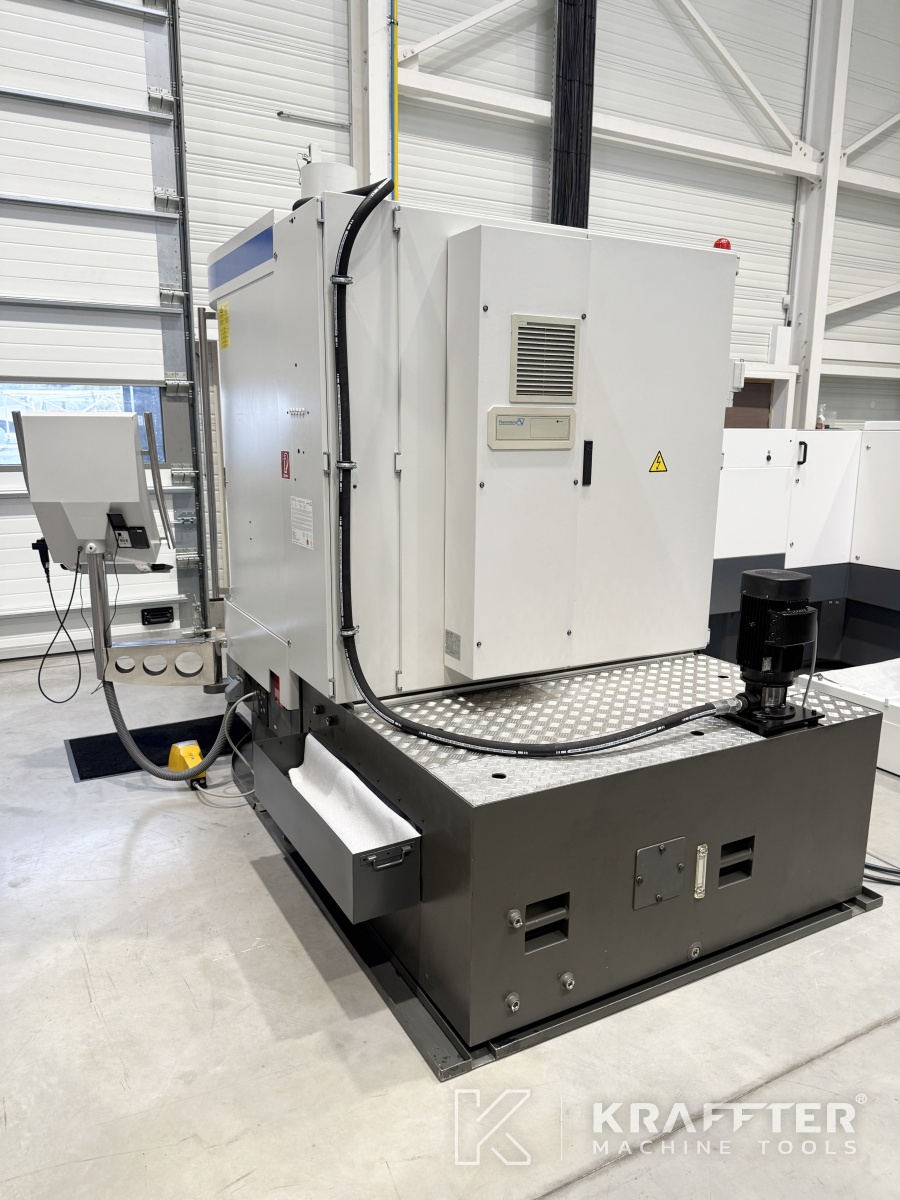

Type of machine : CNC tool grinding machine
Brand : WALTER
N° de stock: 90157

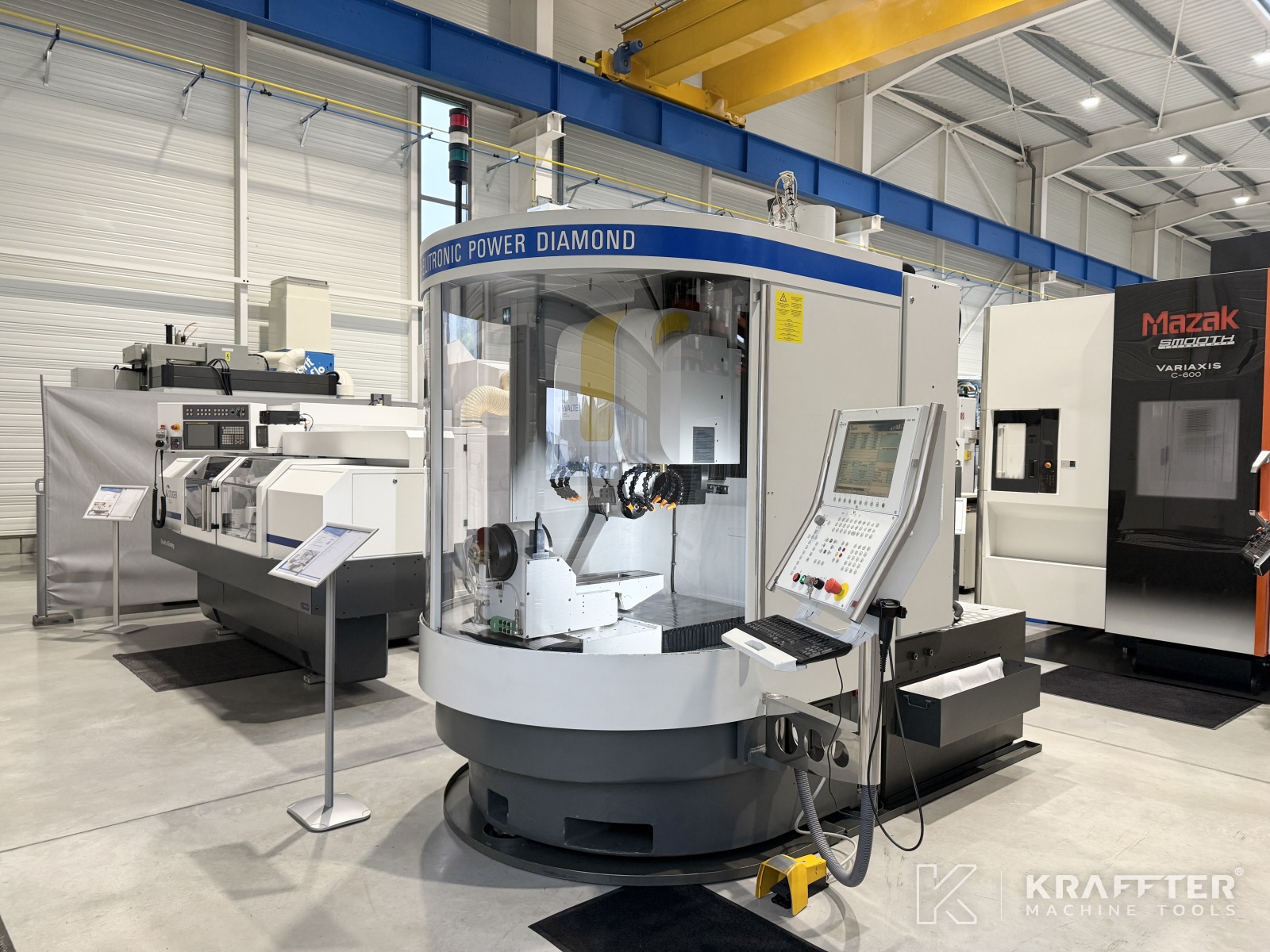

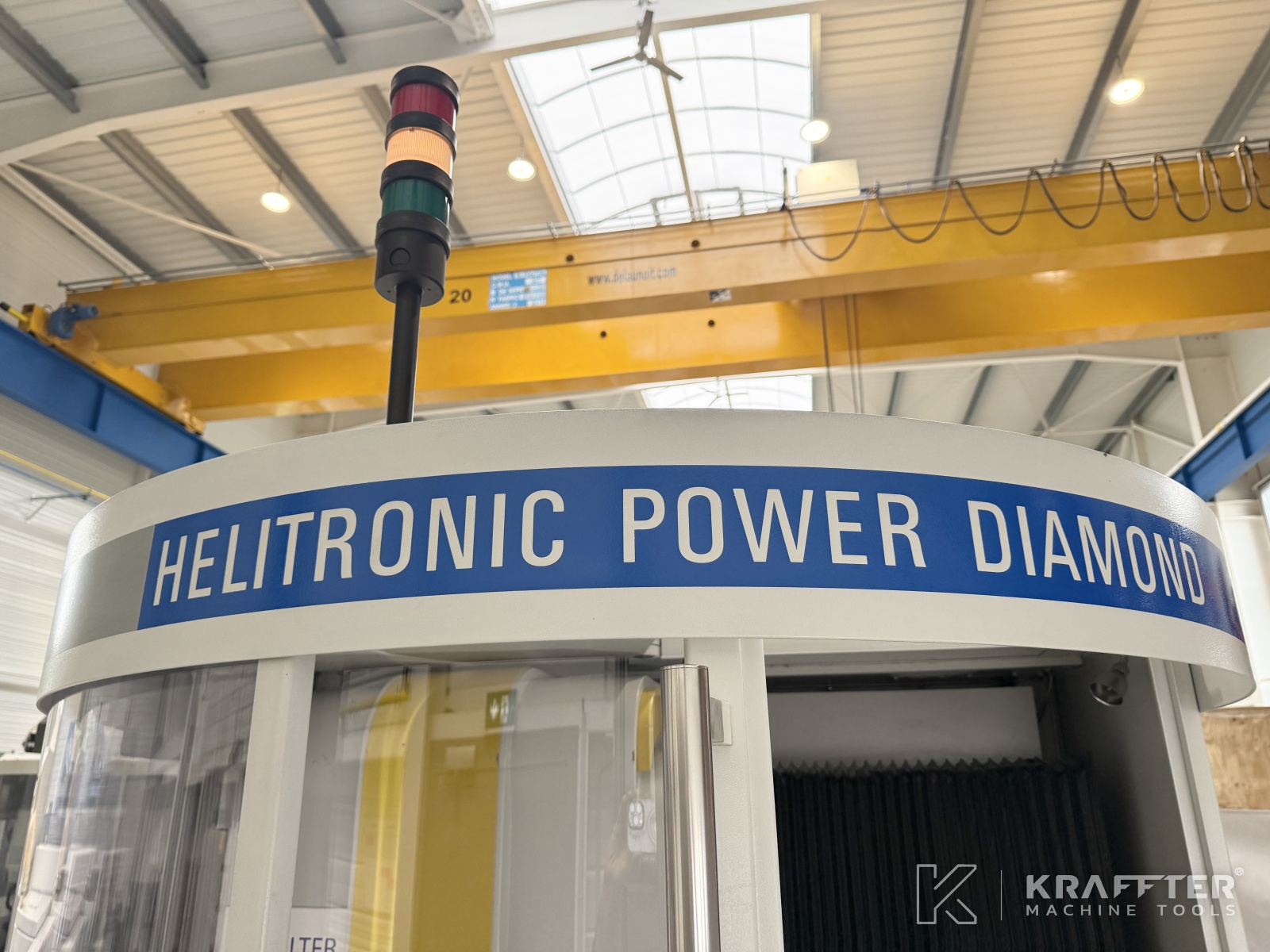

Model : Helitronic Power Diamond
Year : 2005
Location : 73240 St-Genix-les-Villages, FRANCE
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

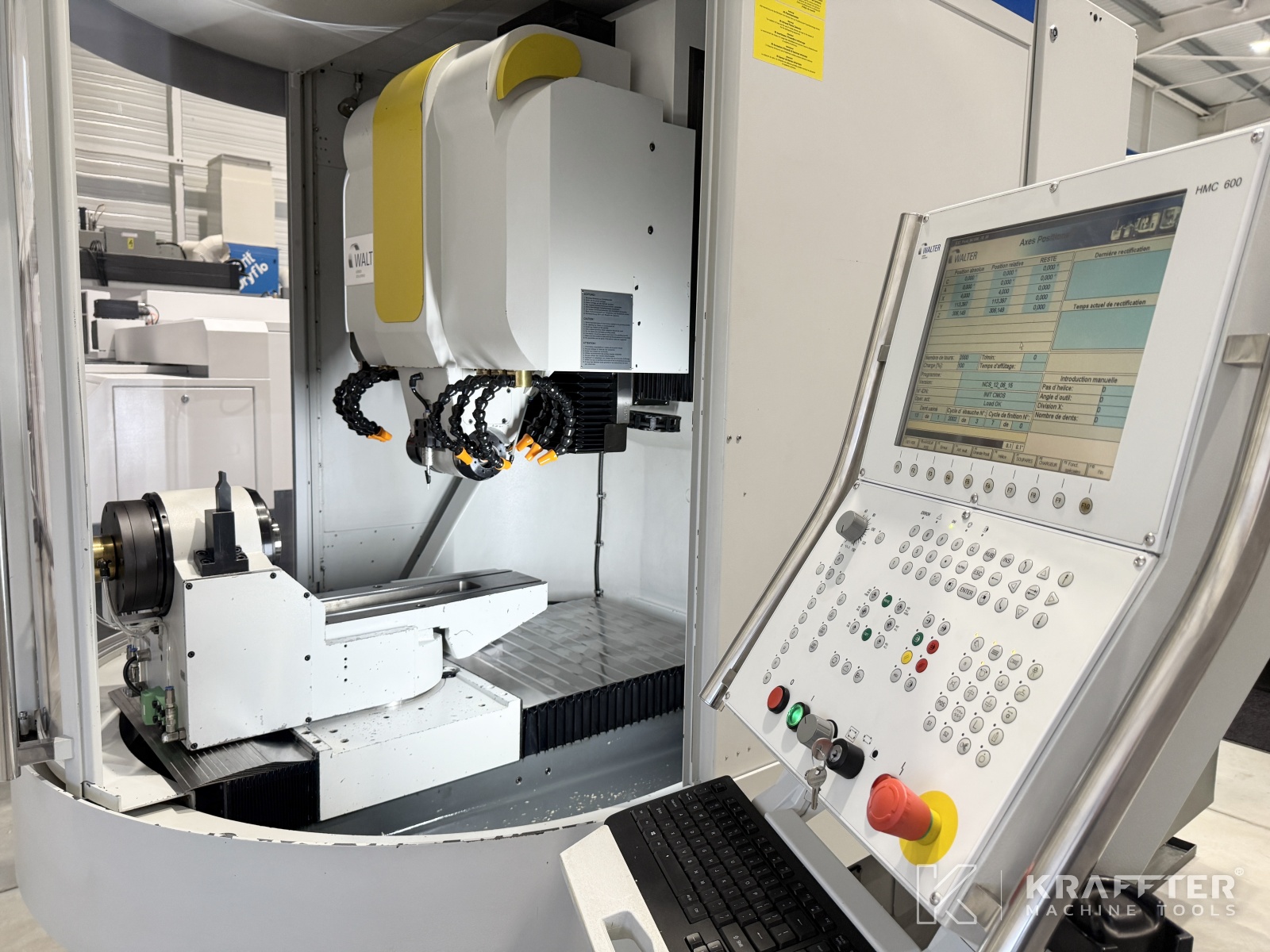

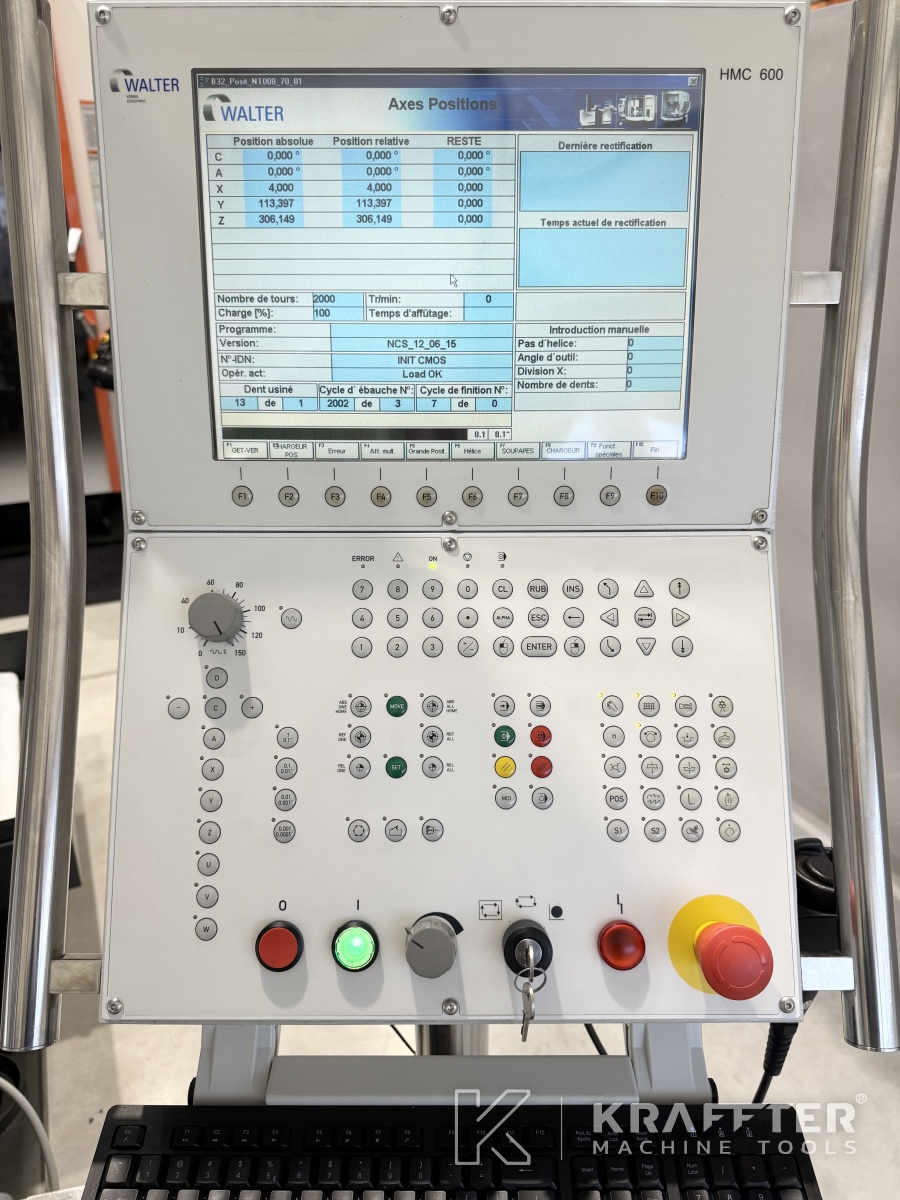

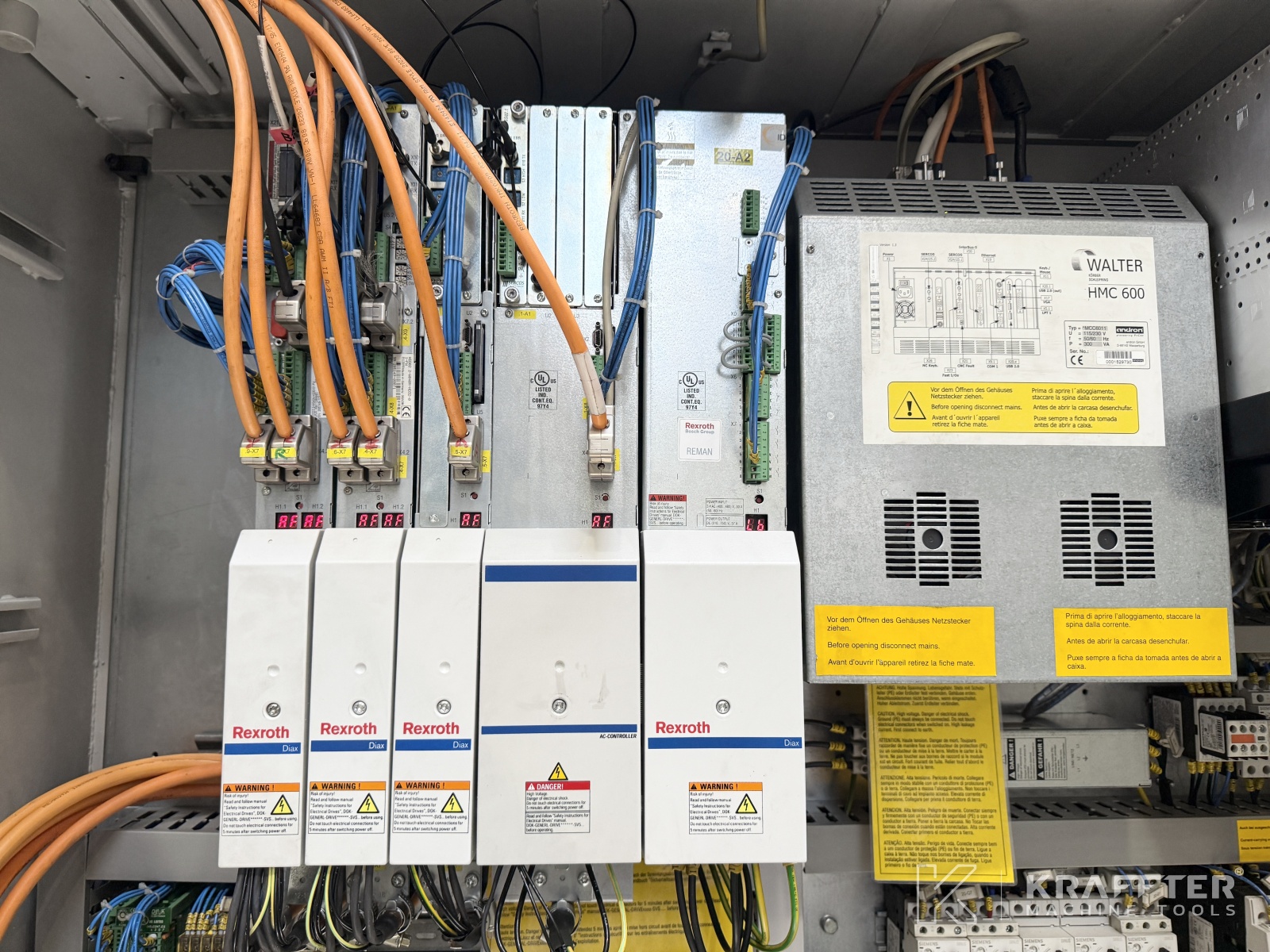

CNC control
HMC 600
Software installed
Walter Window Mode

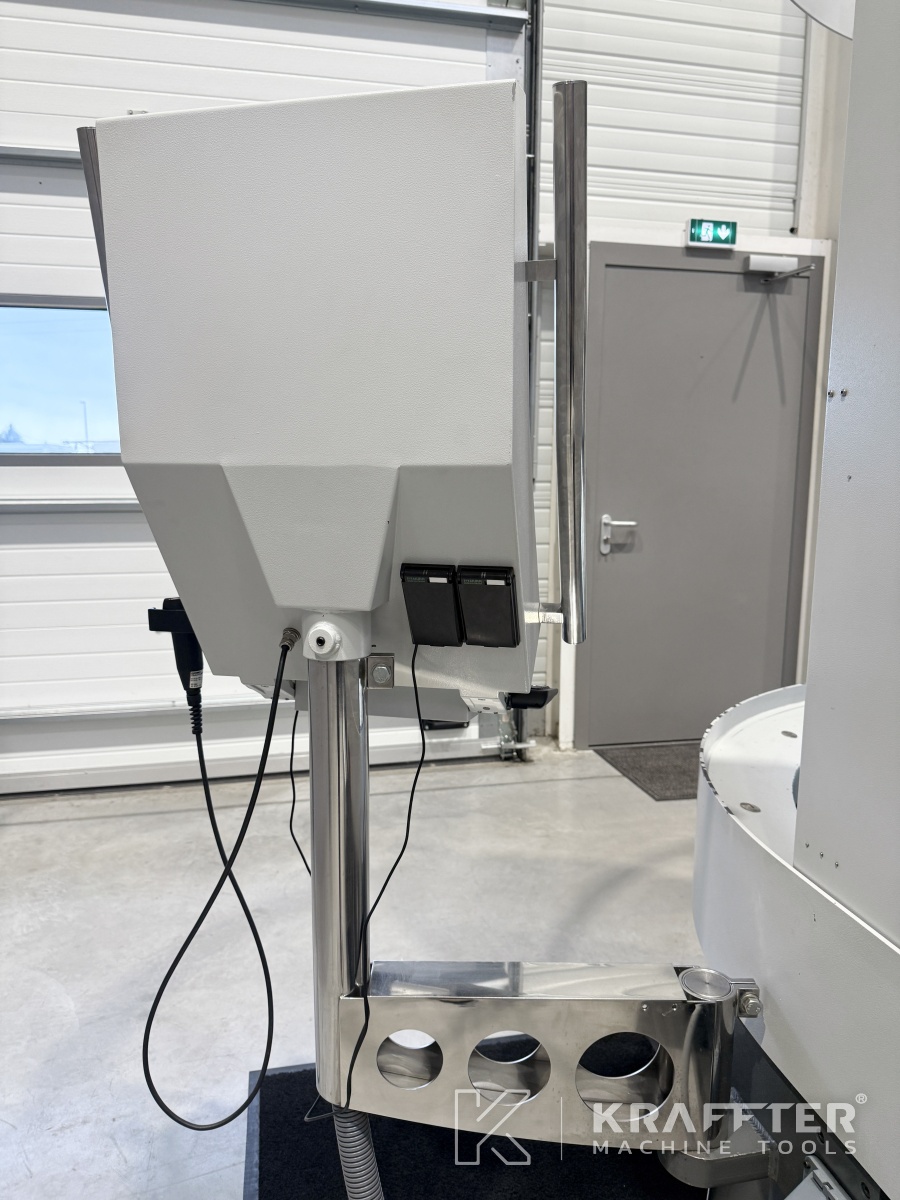

Colour touchscreen
Yes
Number of axes
5
Height of centers
145 / 190 [mm]
Stroke X axis (table movement)
460 [mm]
Max. Stroke speed X axis
15000 [mm/min]
Stroke Y axis (vertical movement)
320 [mm]
Max. Stroke speed Y axis
15000 [mm/min]
Z axis travel (transverse movement)
660 [mm]
Max. Stroke speed Z axis
15000 [mm/min]
Stroke A axis
360 [°]
Stroke C axis
+/- 200 [°]
Max. workpiece lenght : end face grinding
300 [mm]
Max. grinding lenght
350 [mm]
Min. grinding diameter
3 [mm]
Max. grinding diameter
320 [mm]
Max. grinding wheel speed
7000 [rpm]
Grinding spindle motor power
24 [kW]
Max. diameter grinding wheel
200 [mm]
Lubrication tank capacity
400 [l]

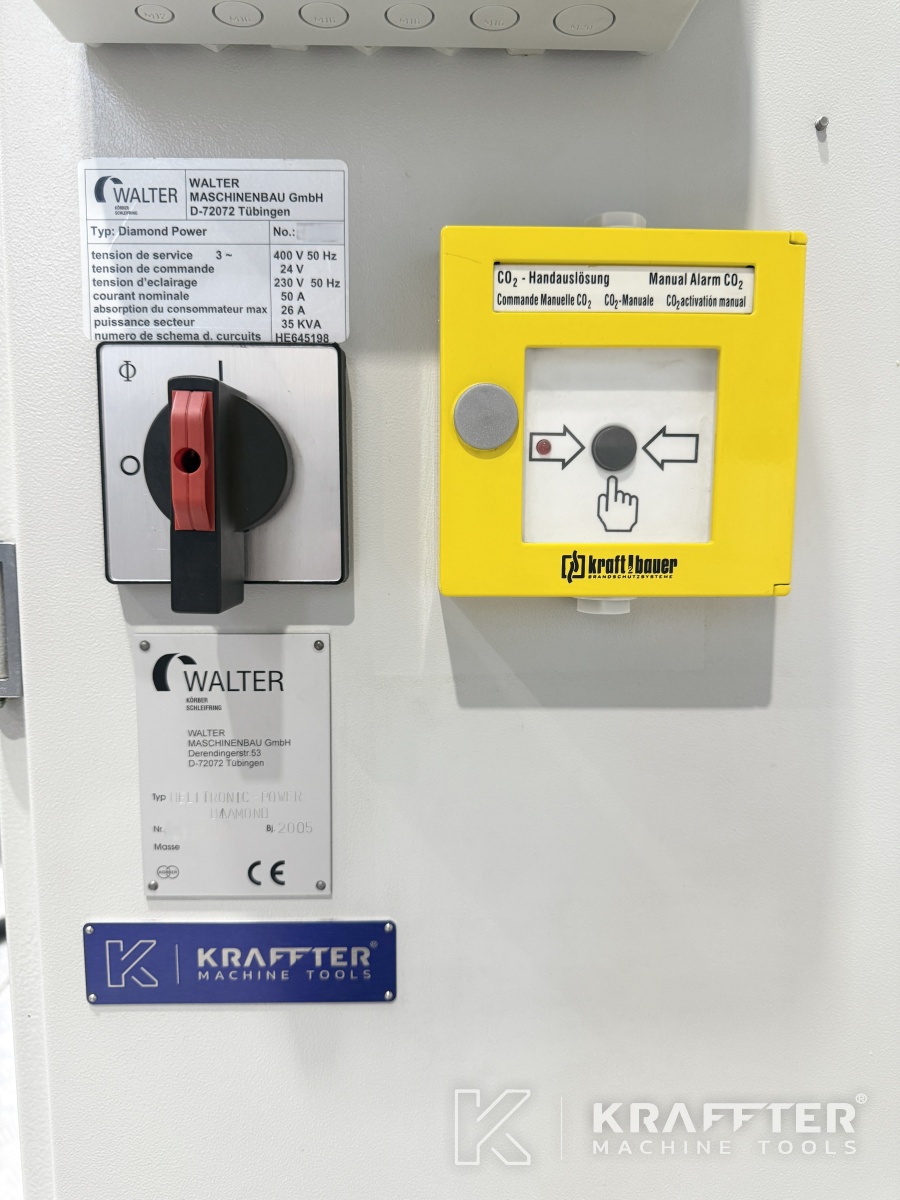

Supply voltage
400 [V]
Total power required
35 [kVA]
Dimensions
2180 x 2273 x 2935 [mm]
Weight
4650 [Kg]
Additional information
INCLUDED EQUIPMENT:
-
x1 WALTER WINDOW MODE software
-

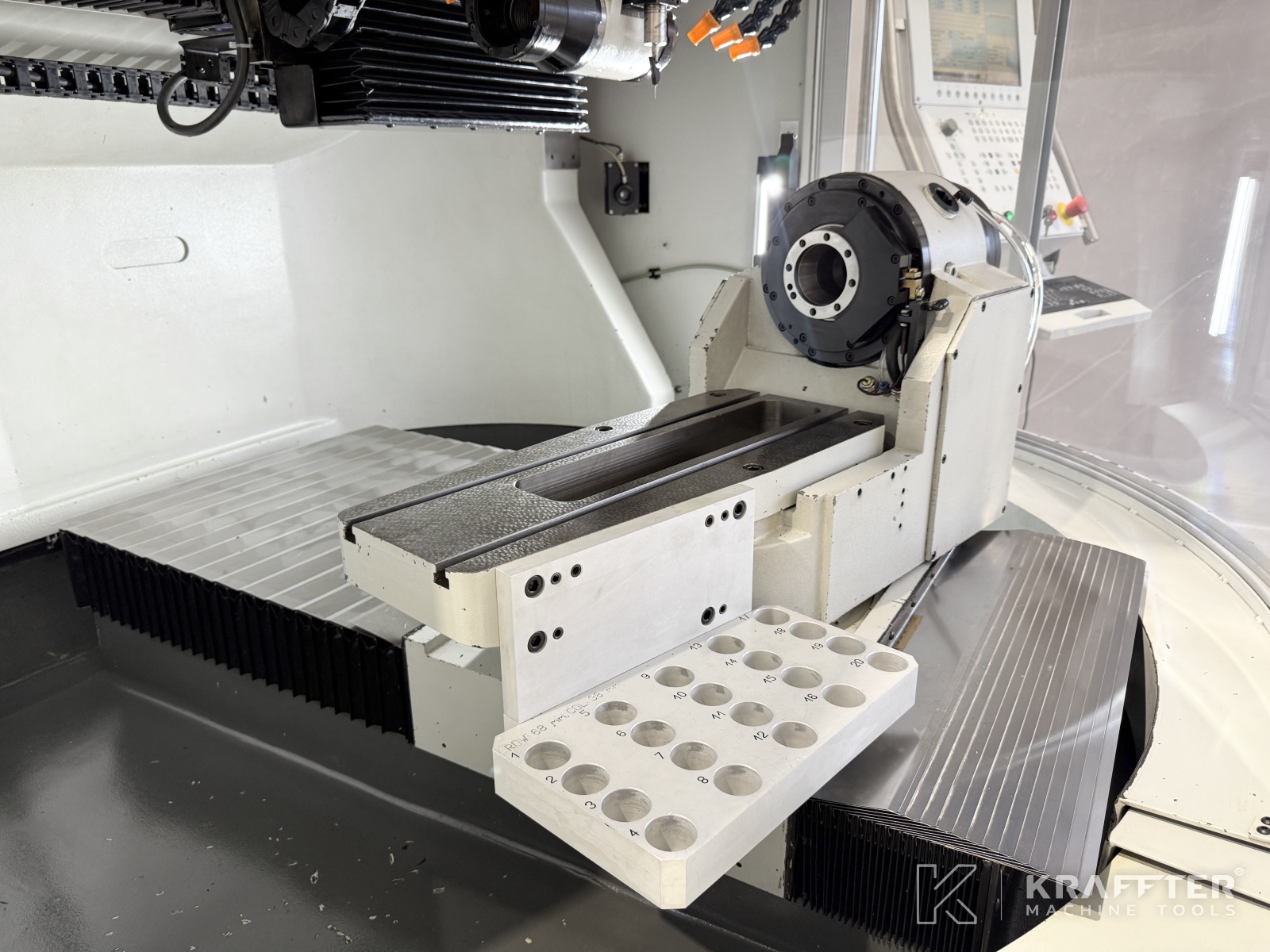

x1 ECO LOADER tool loading robot (SCHUNK type)
-

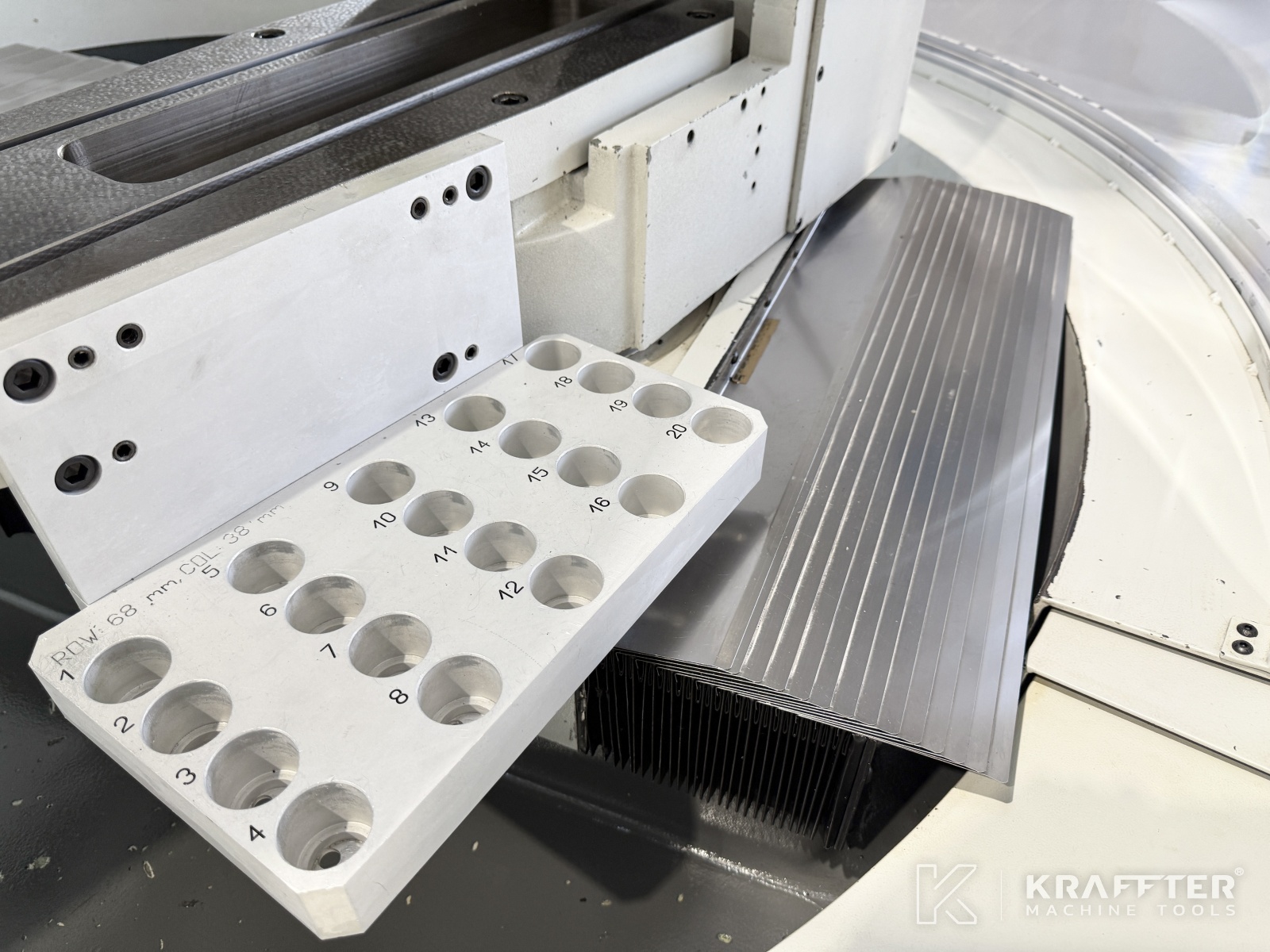

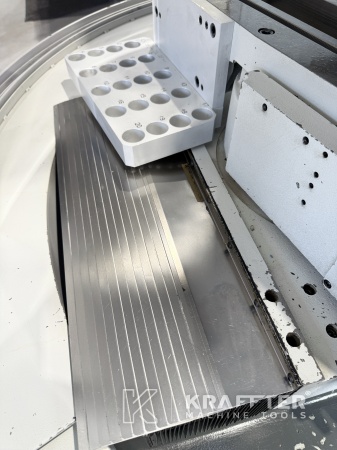

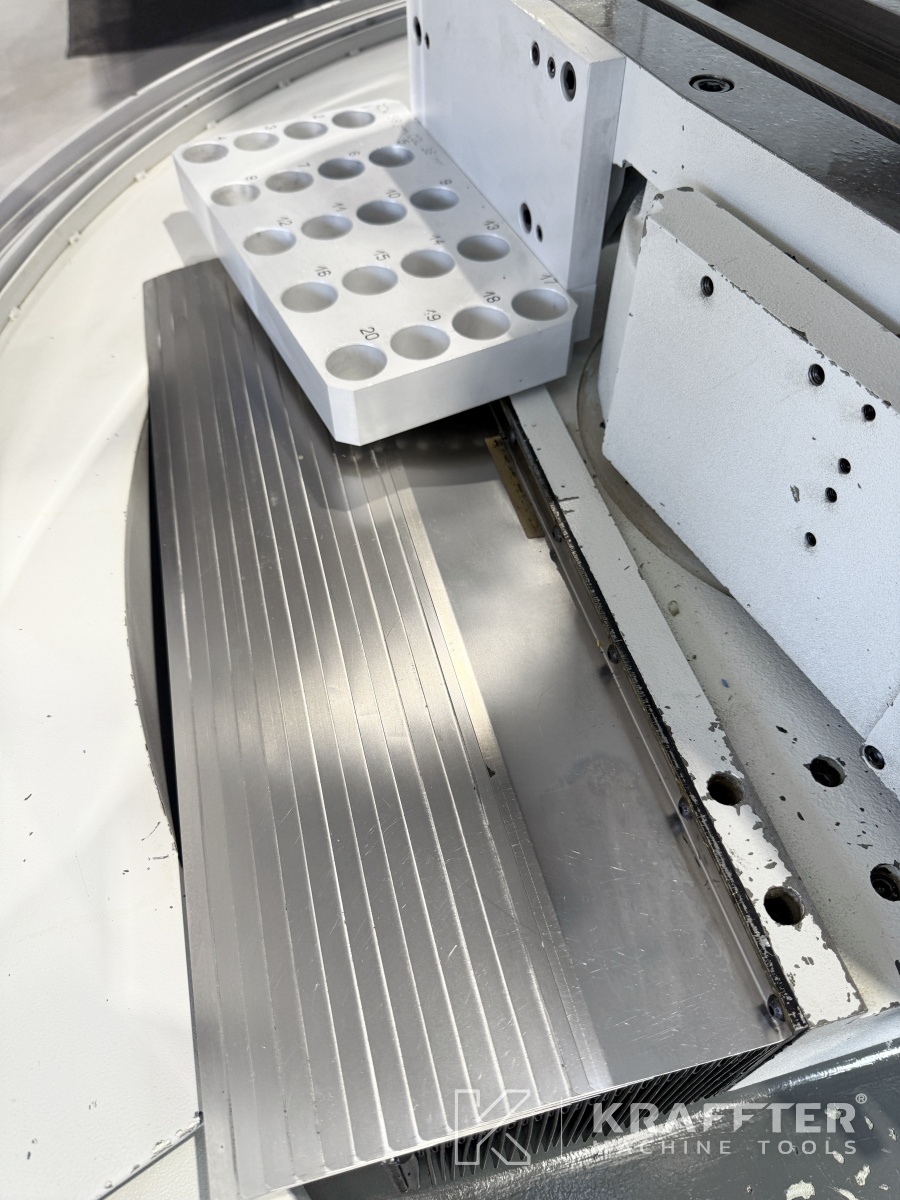

x1 20-station loading pallet
-

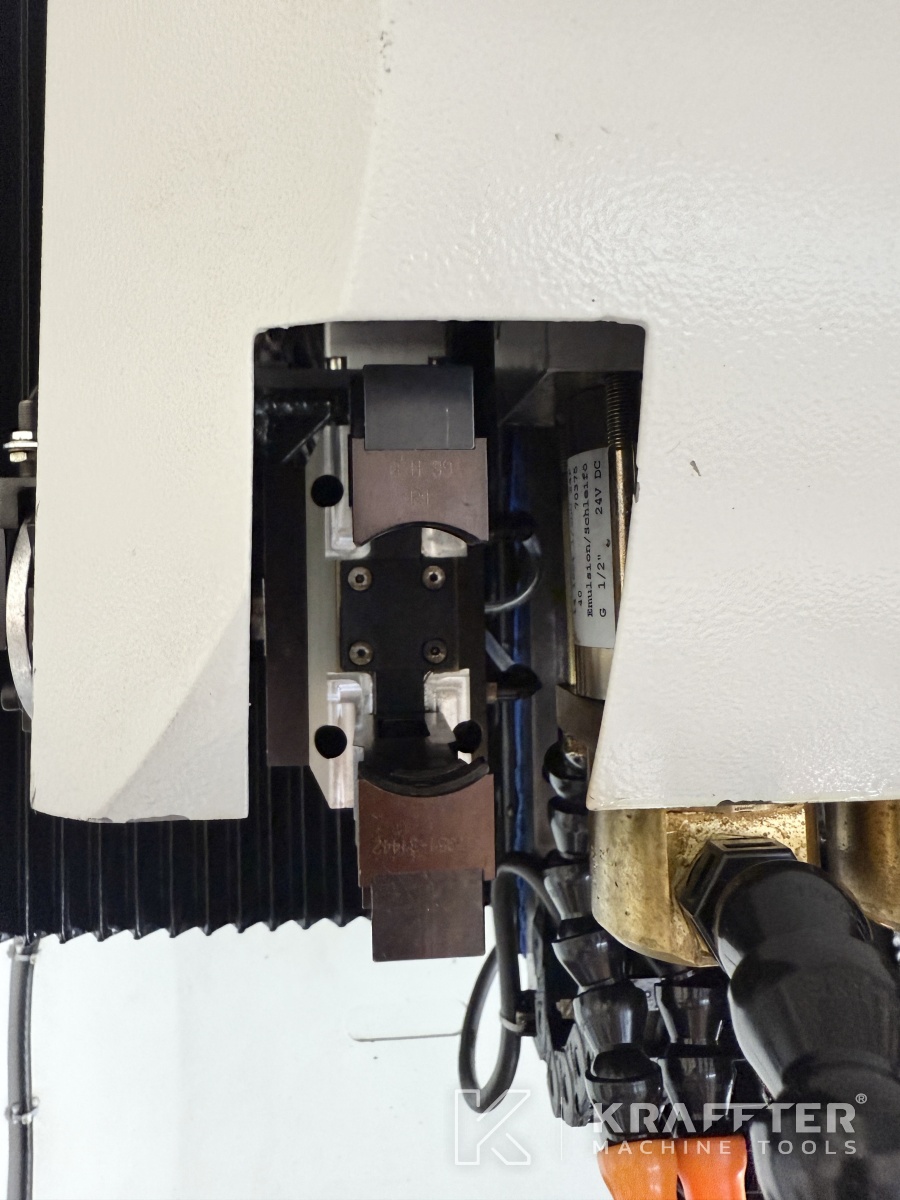

x1 automatic tool clamping system
-

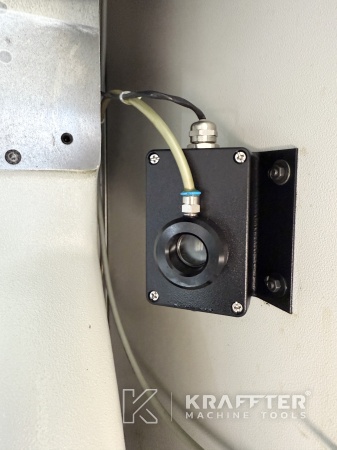

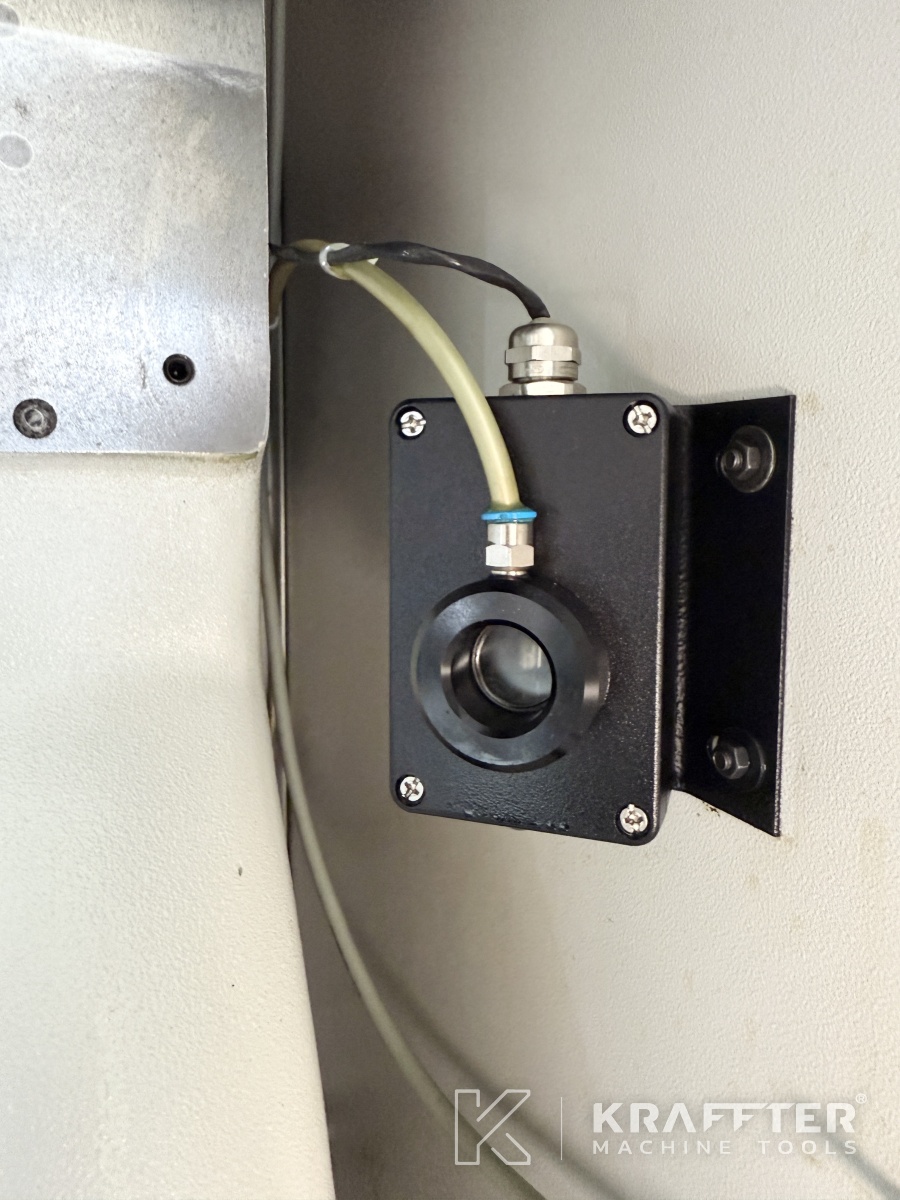

x1 RENISHAW LP2 tool probe
-

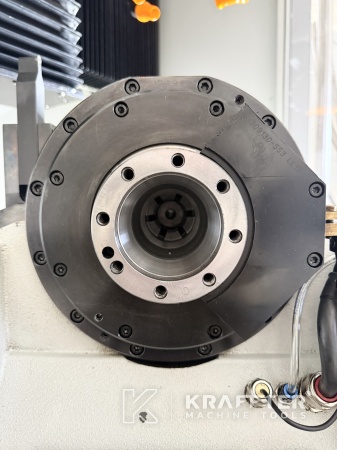

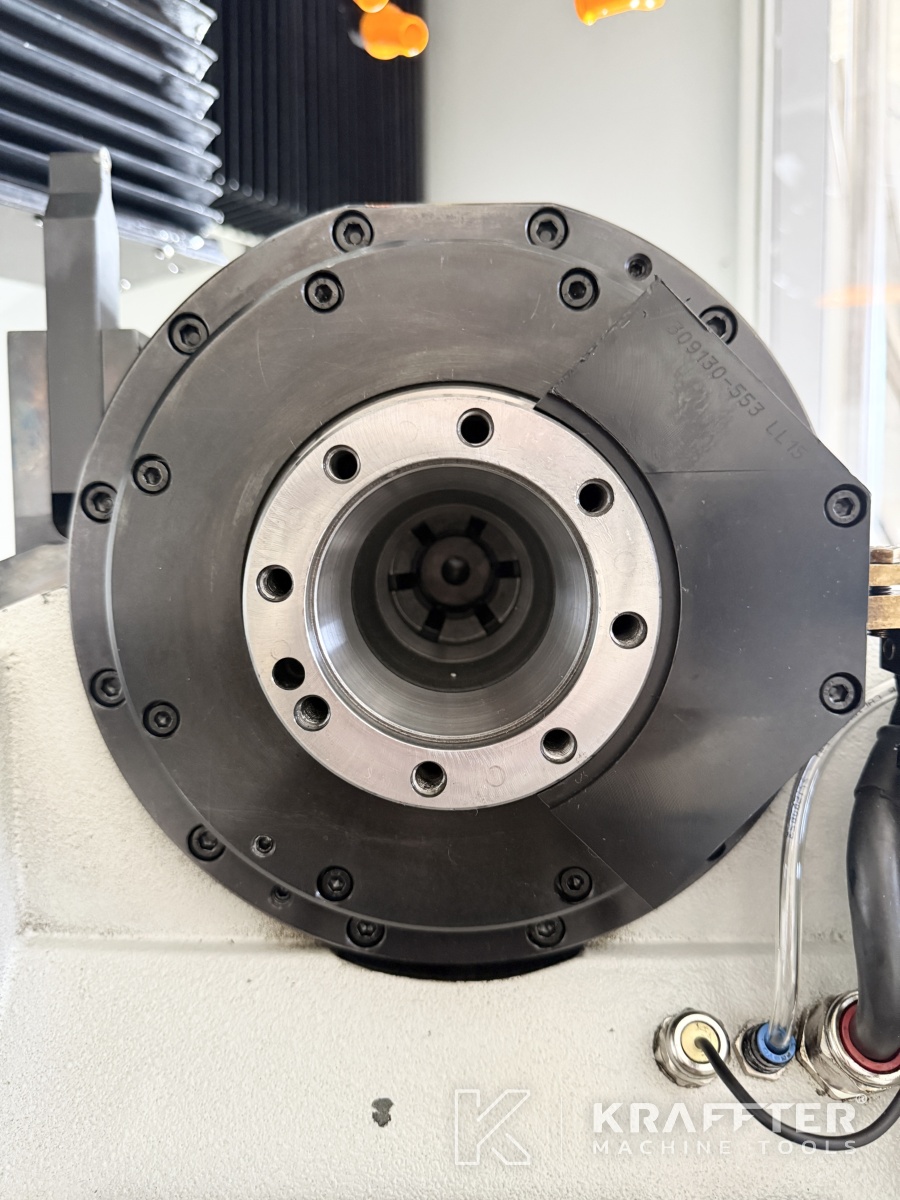

x1 SCHUNK collet chuck Ø32 [mm]
-

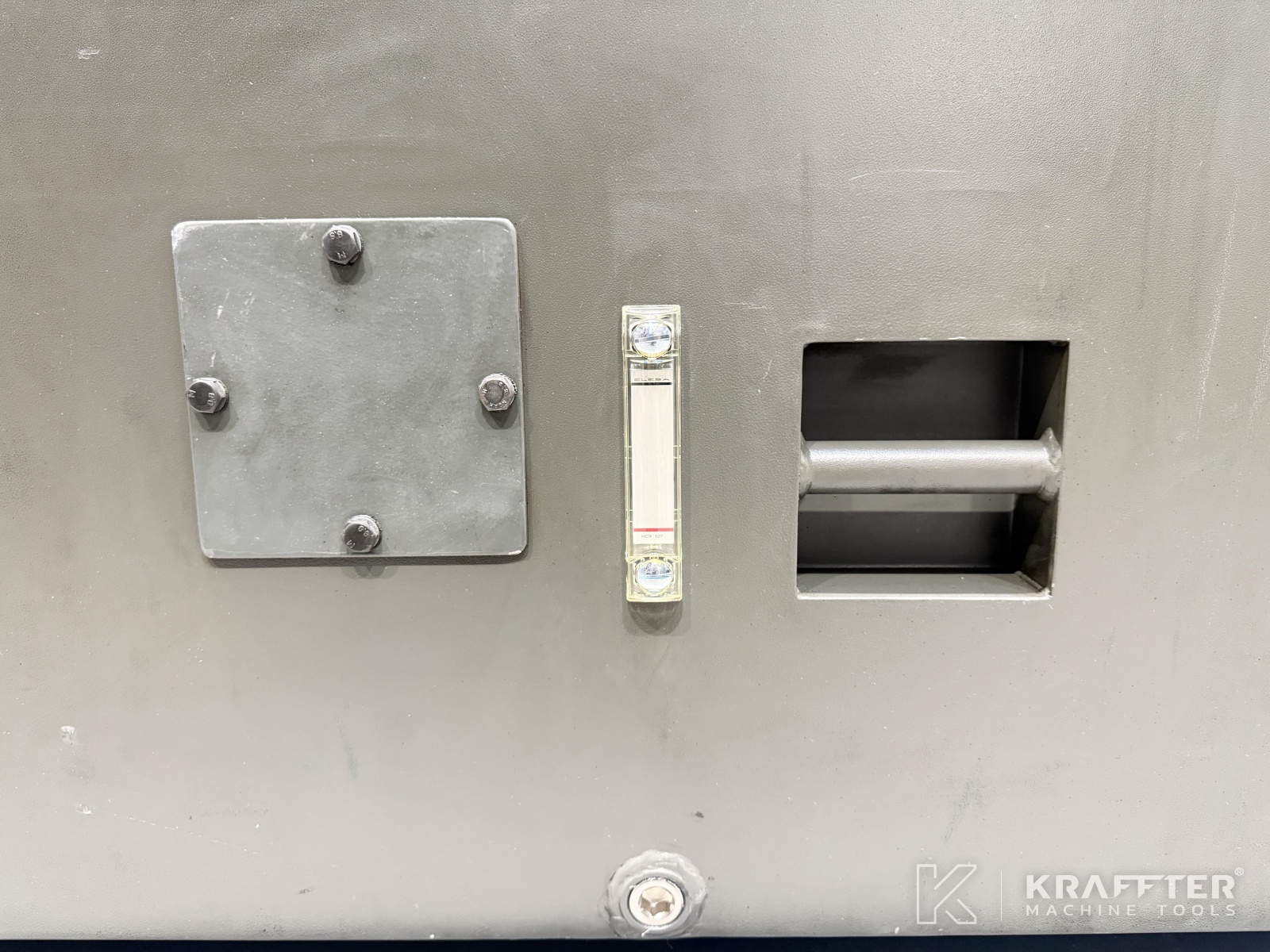

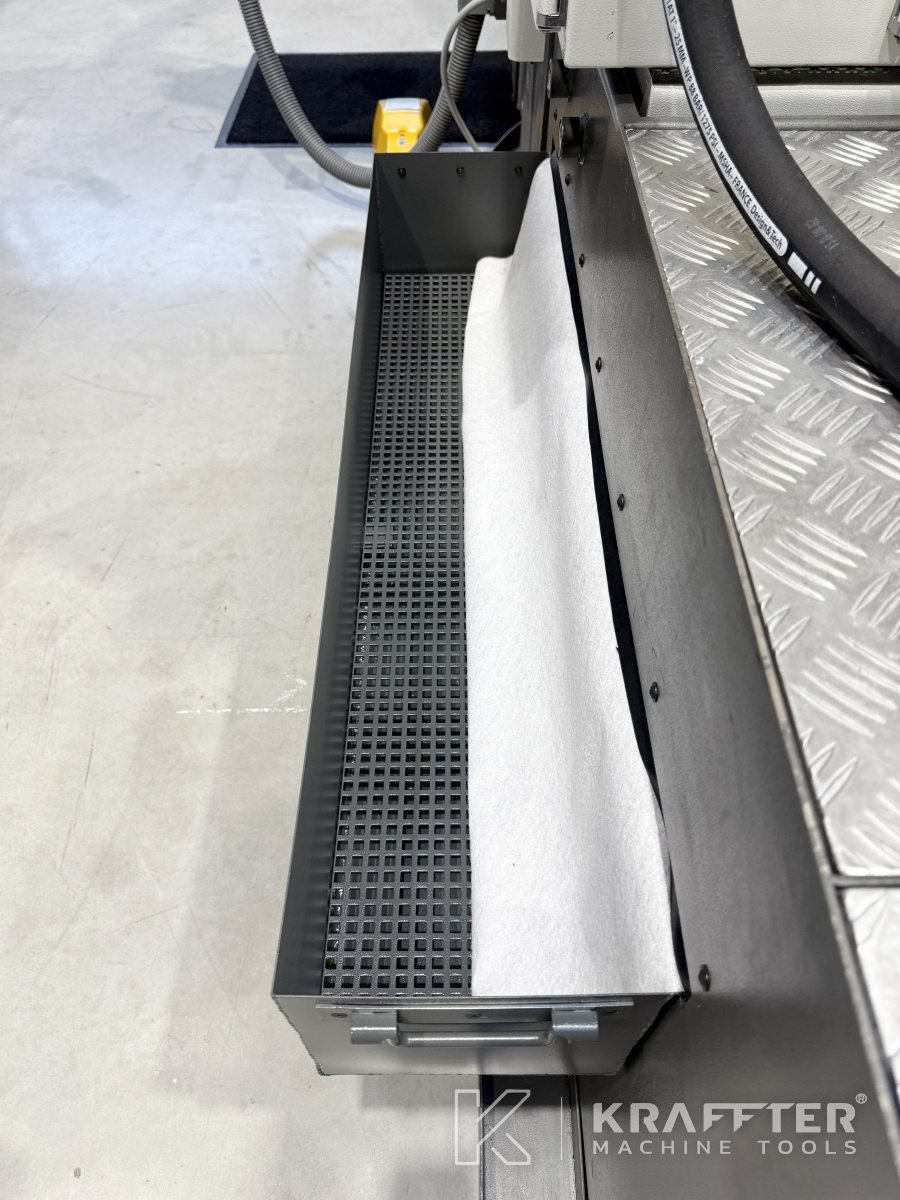

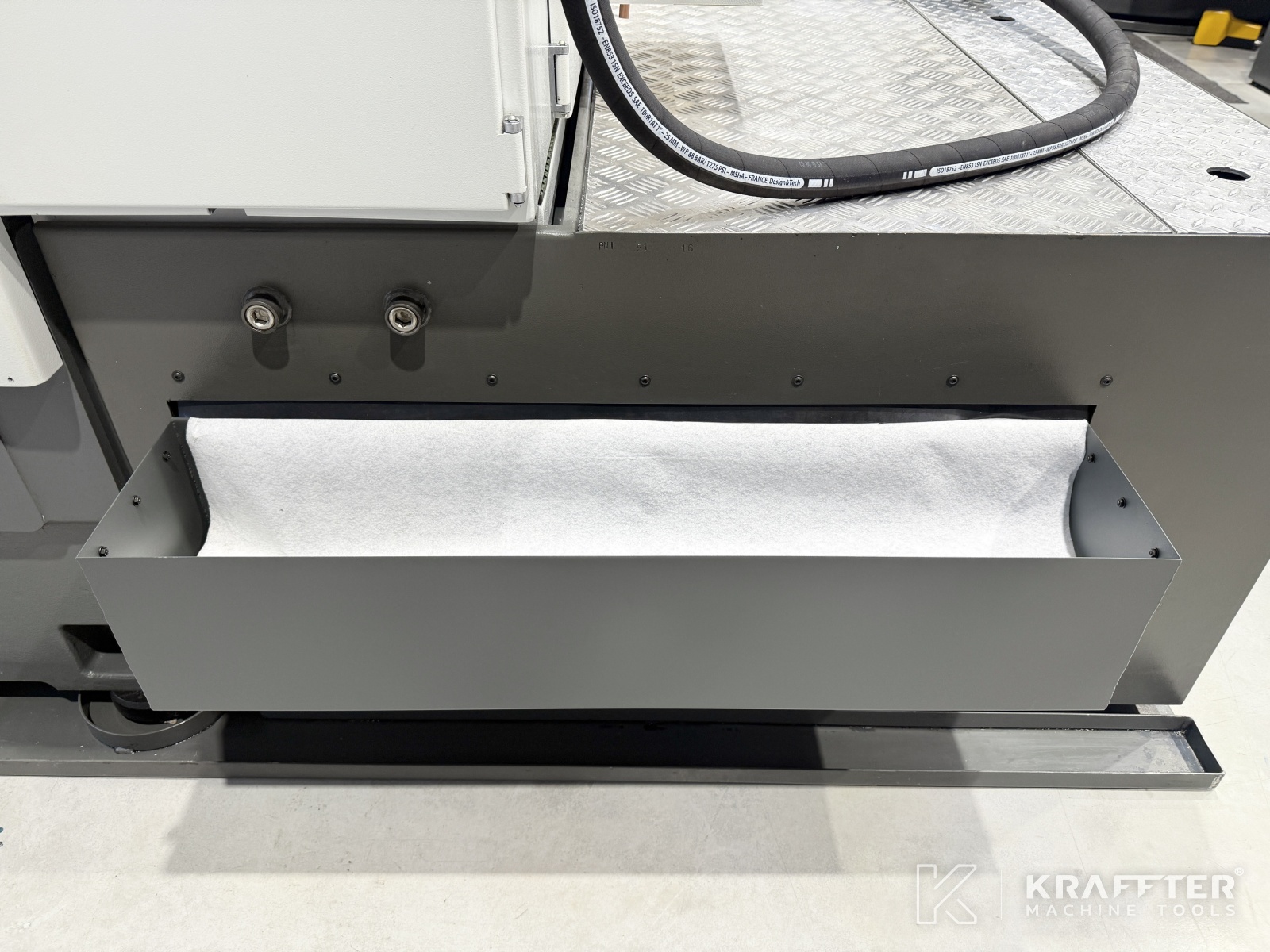

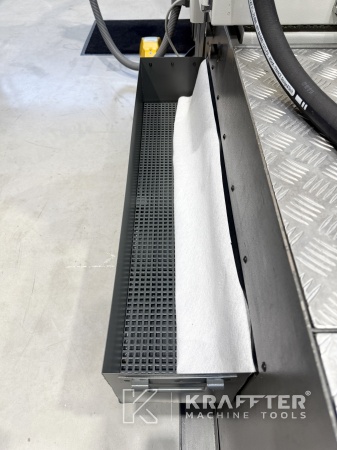

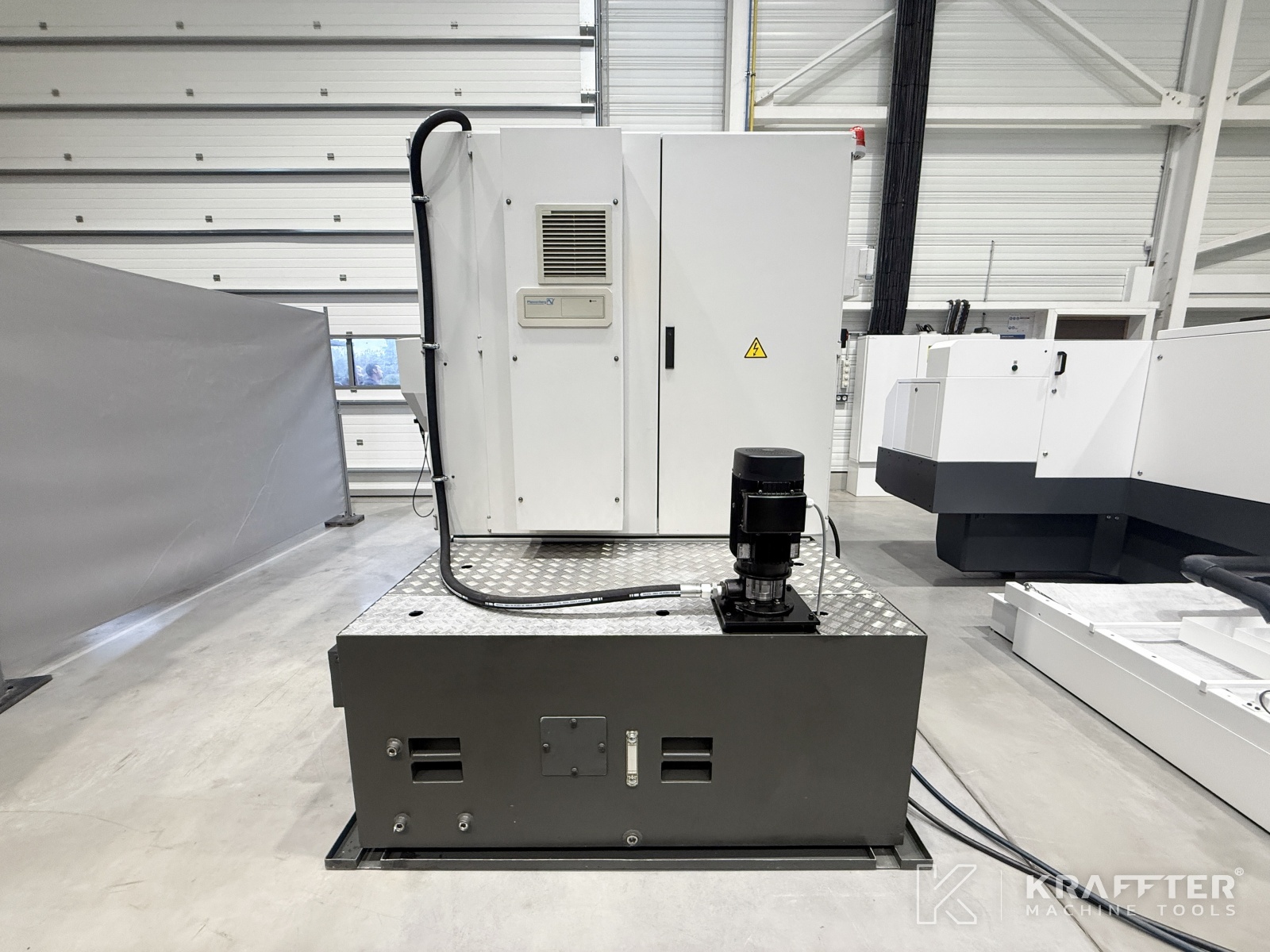

x1 lubrication tank + paper filtration
-

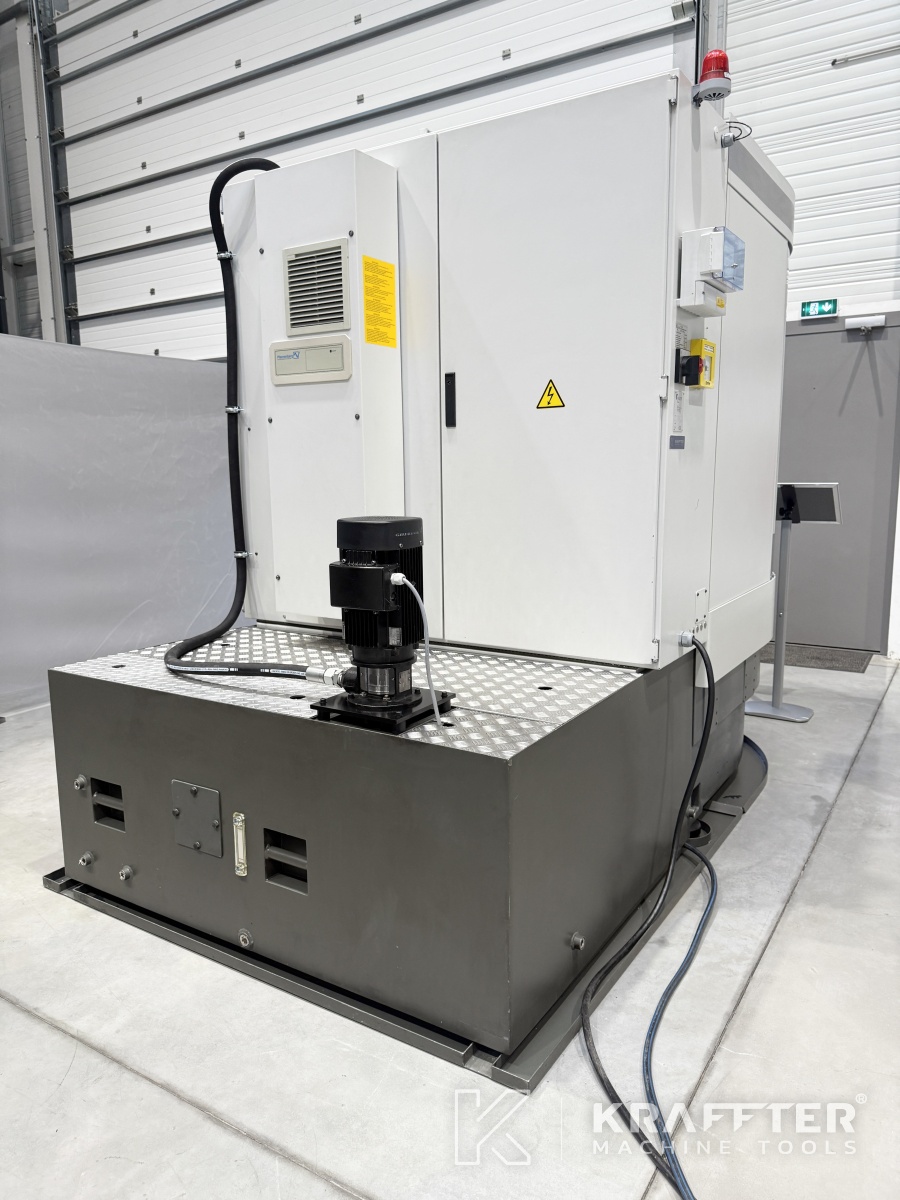

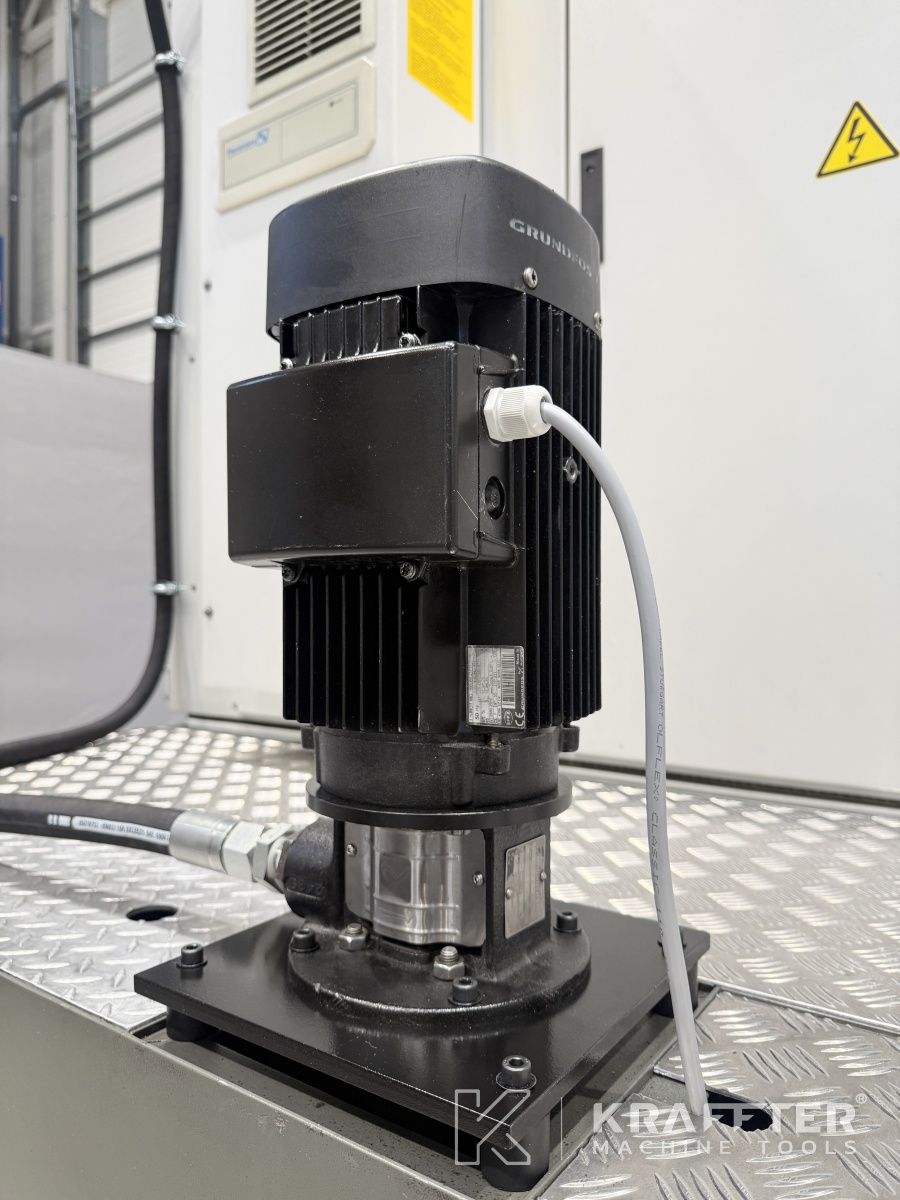

x1 GRUNDFOS coolant pump
-

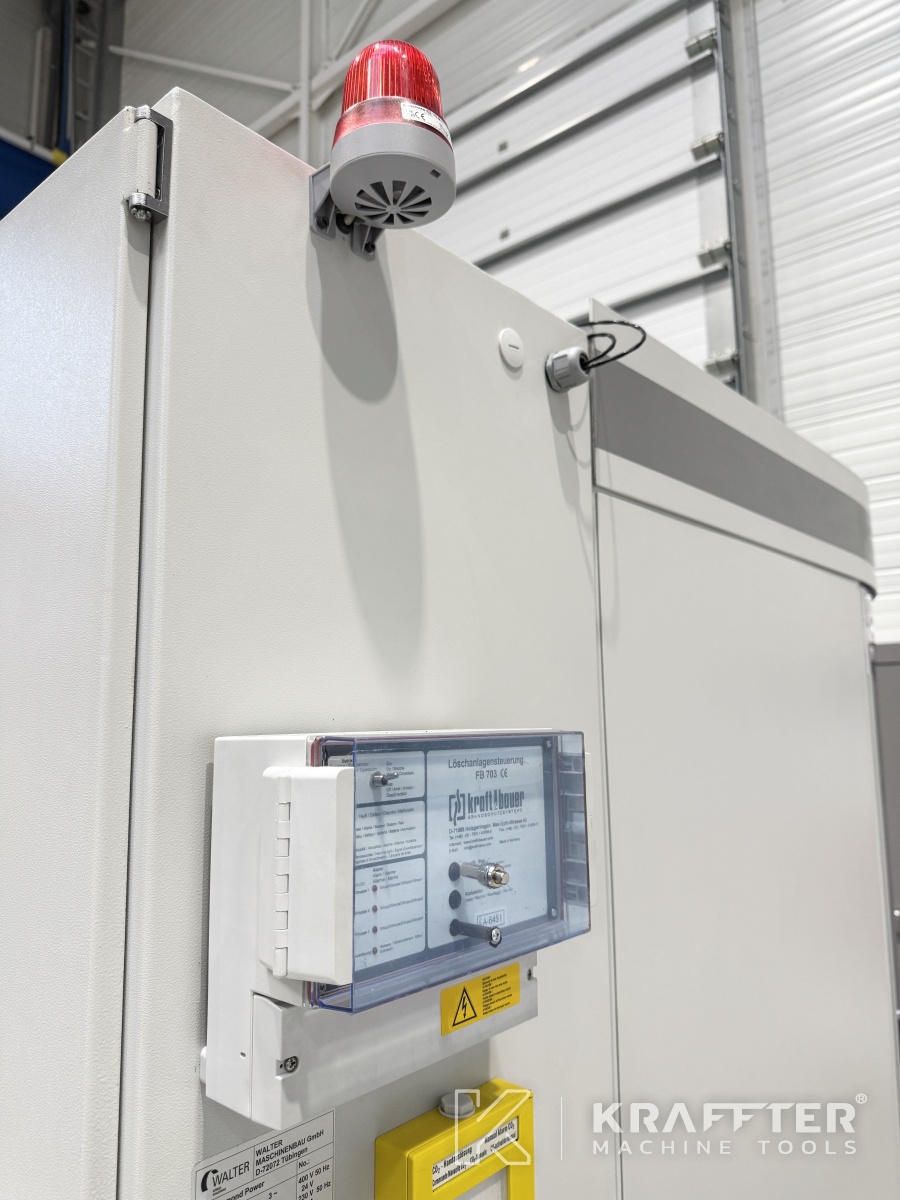

x1 fire protection device (to be inspected by the buyer through a qualified body)
-

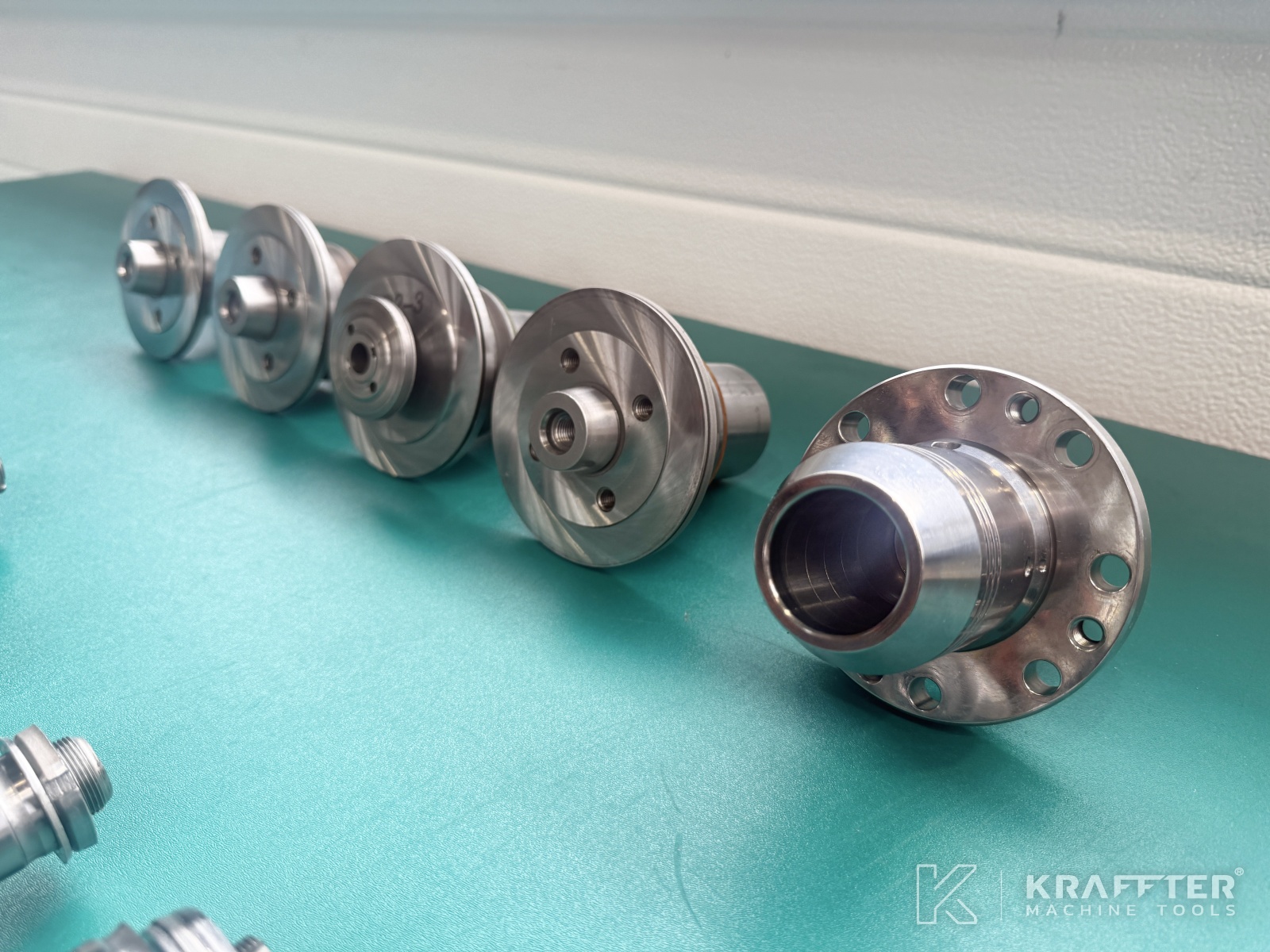

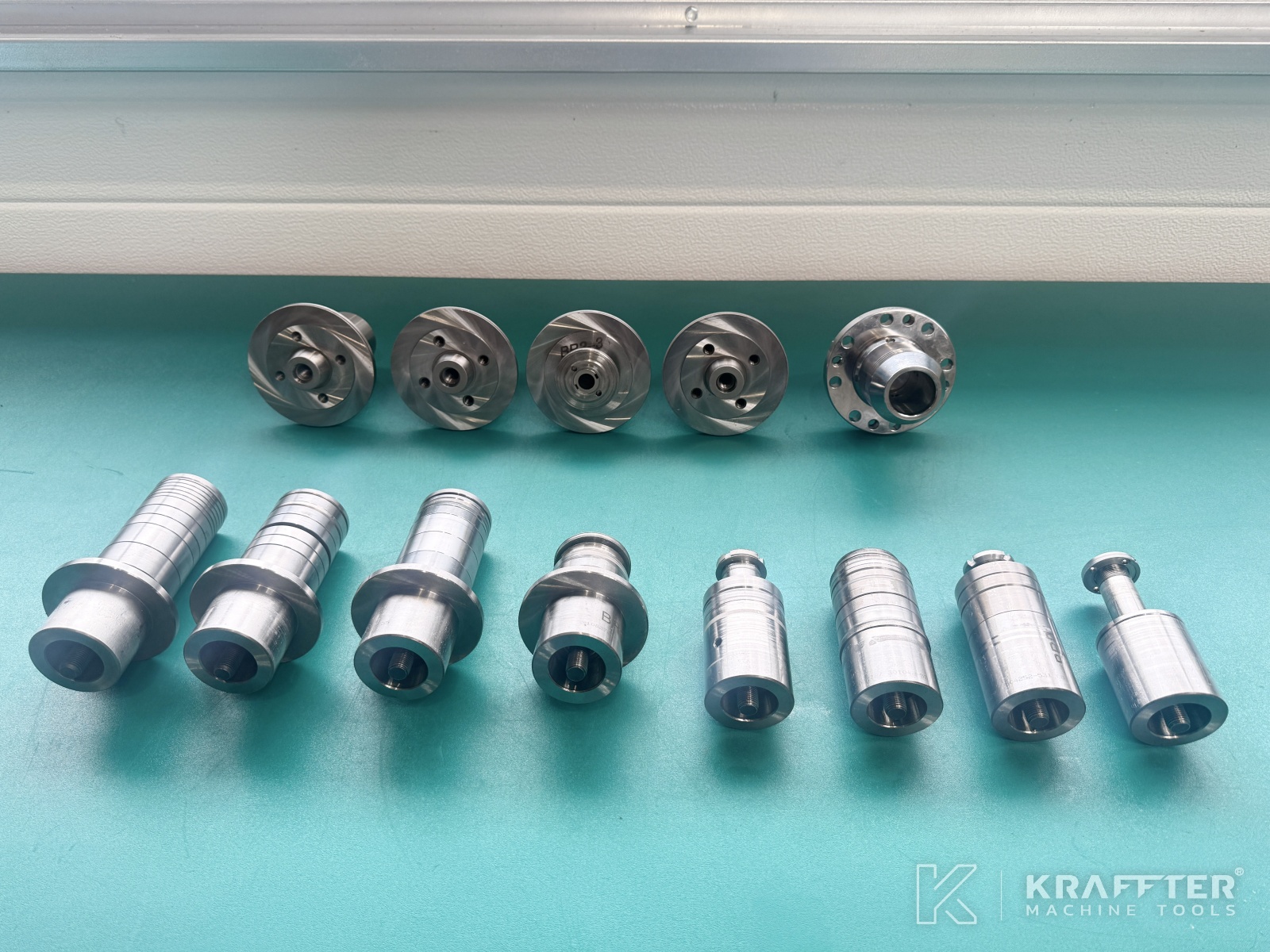

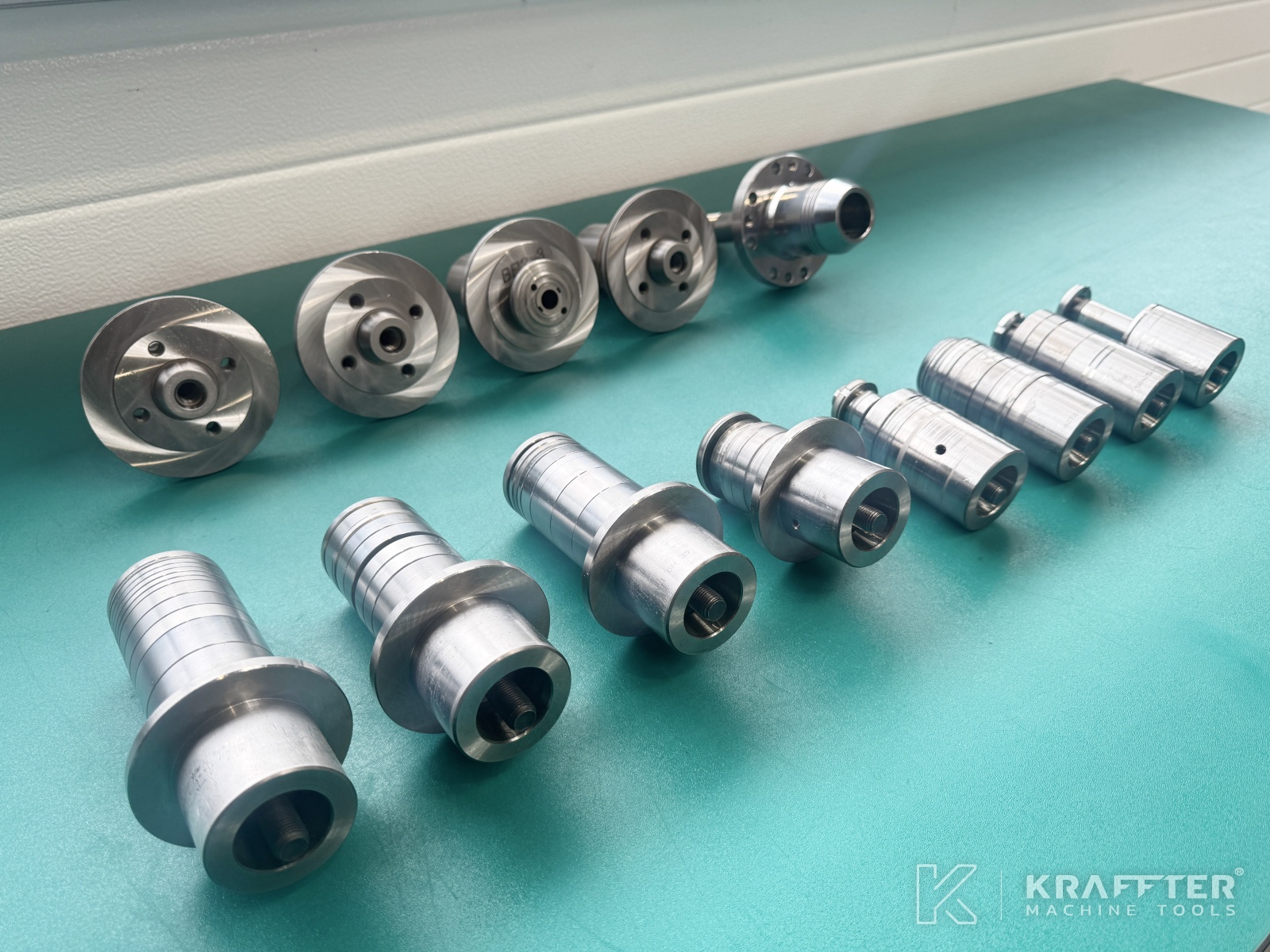

x8 wheel holder arbors + spacers
-
x4 wheel holder erosion adapters
-

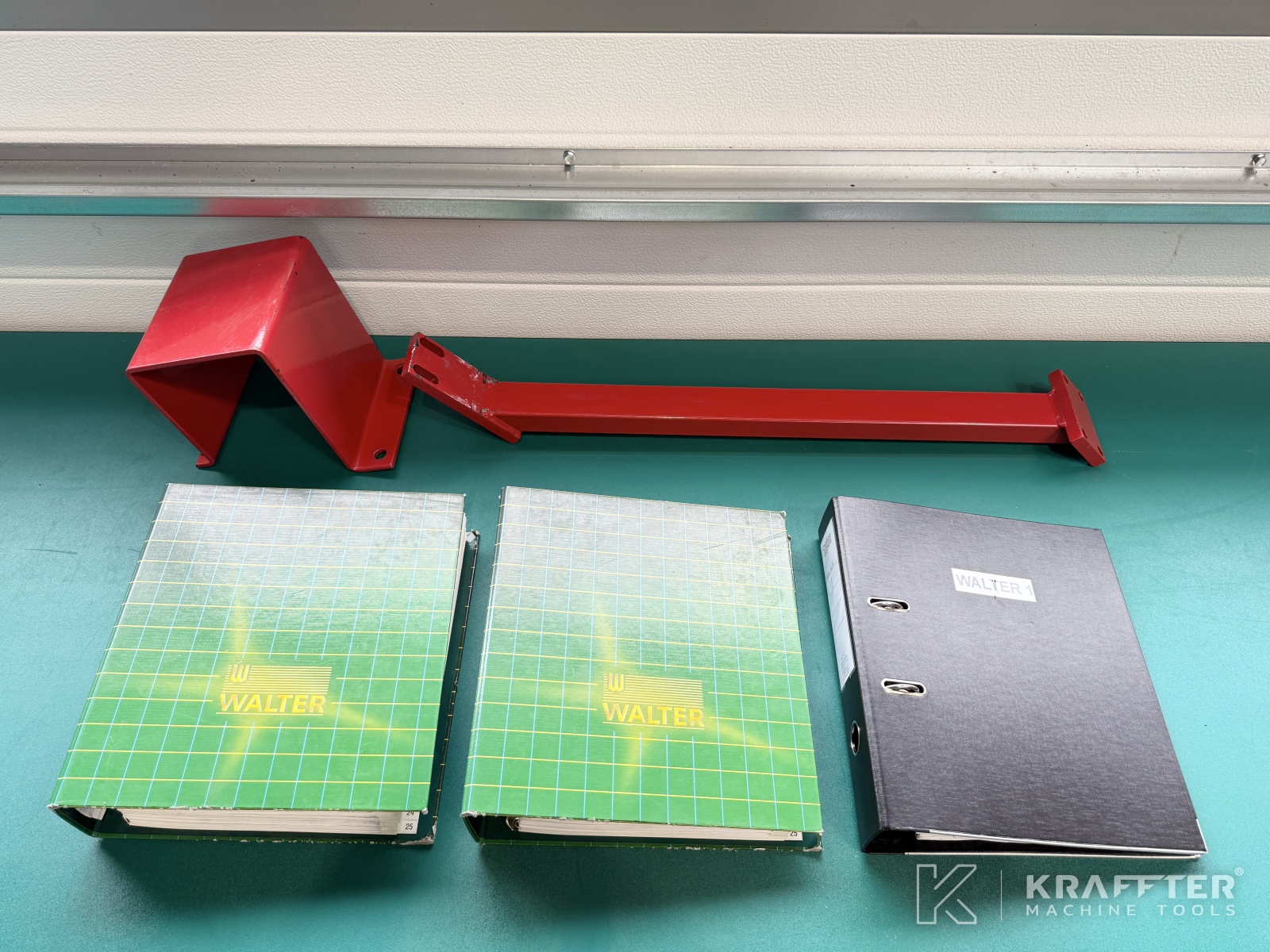

x2 technical manuals (paper)
