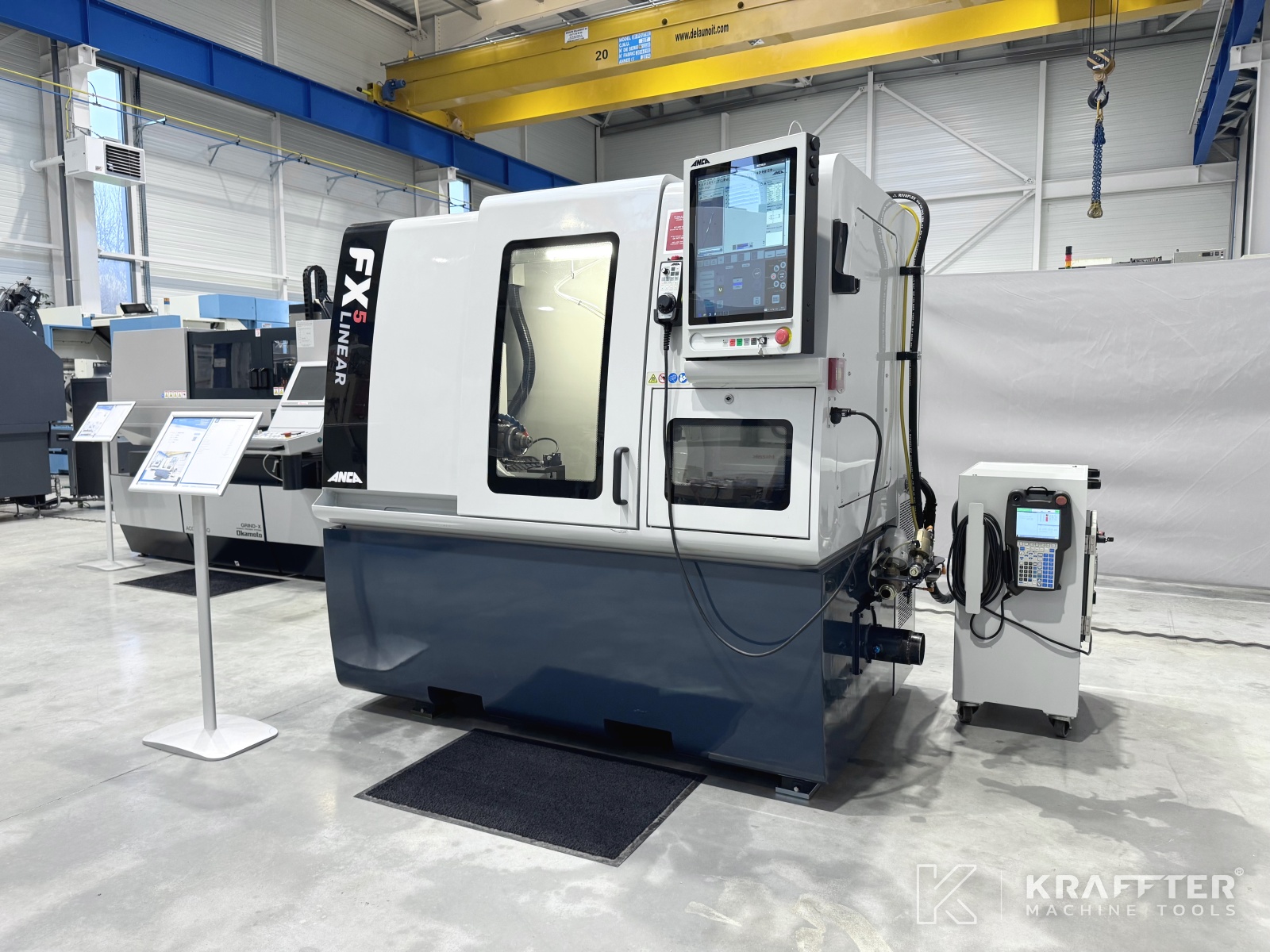

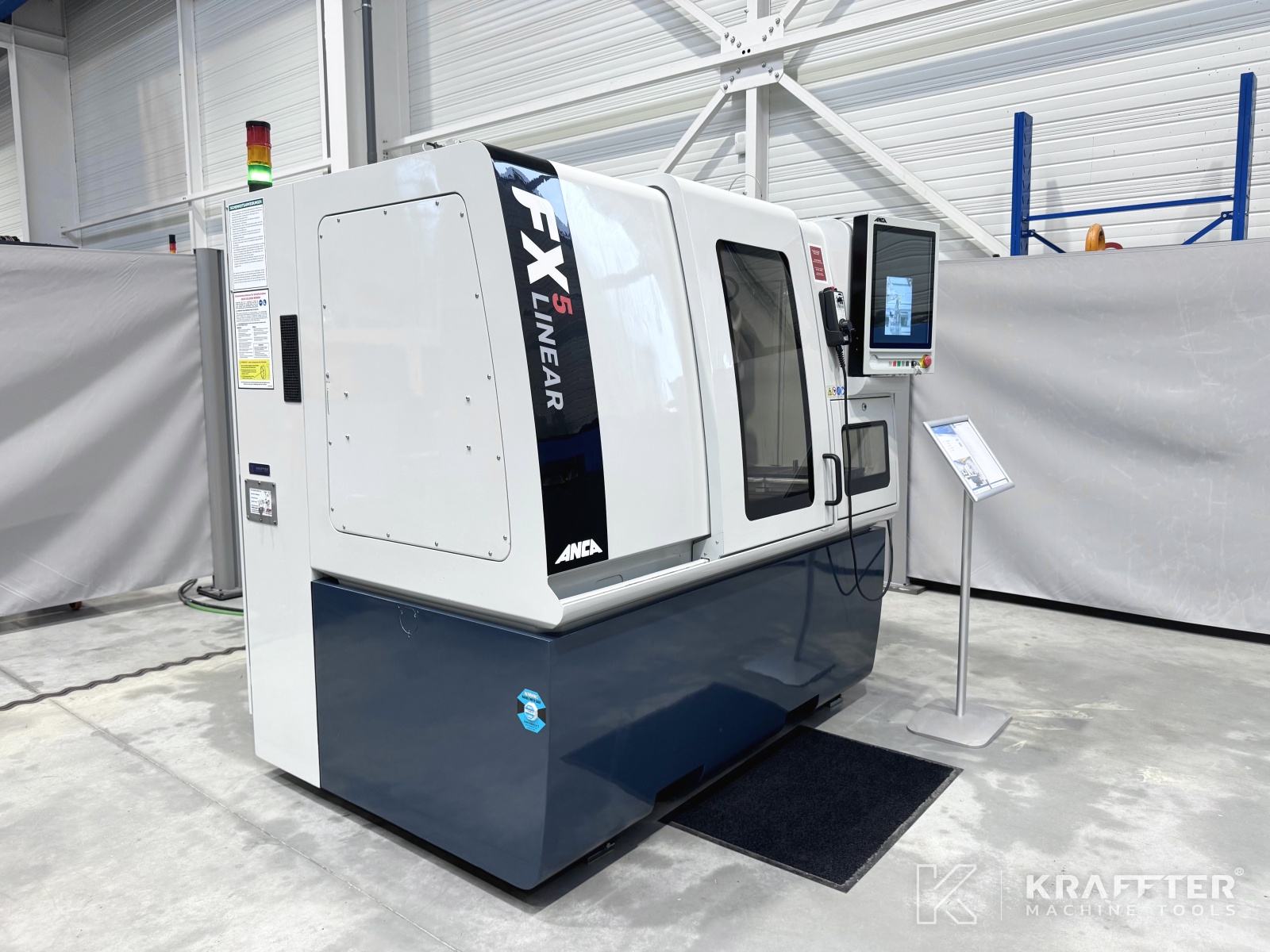

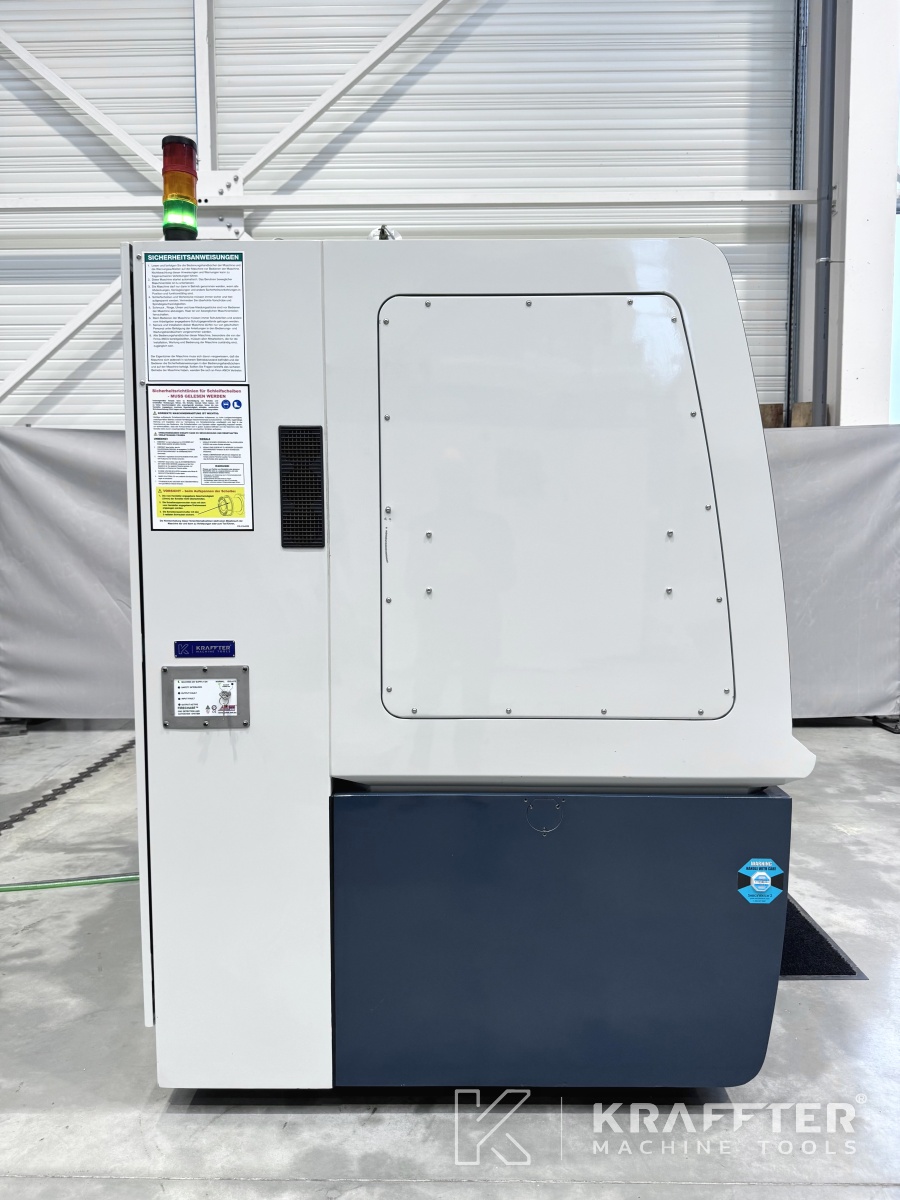

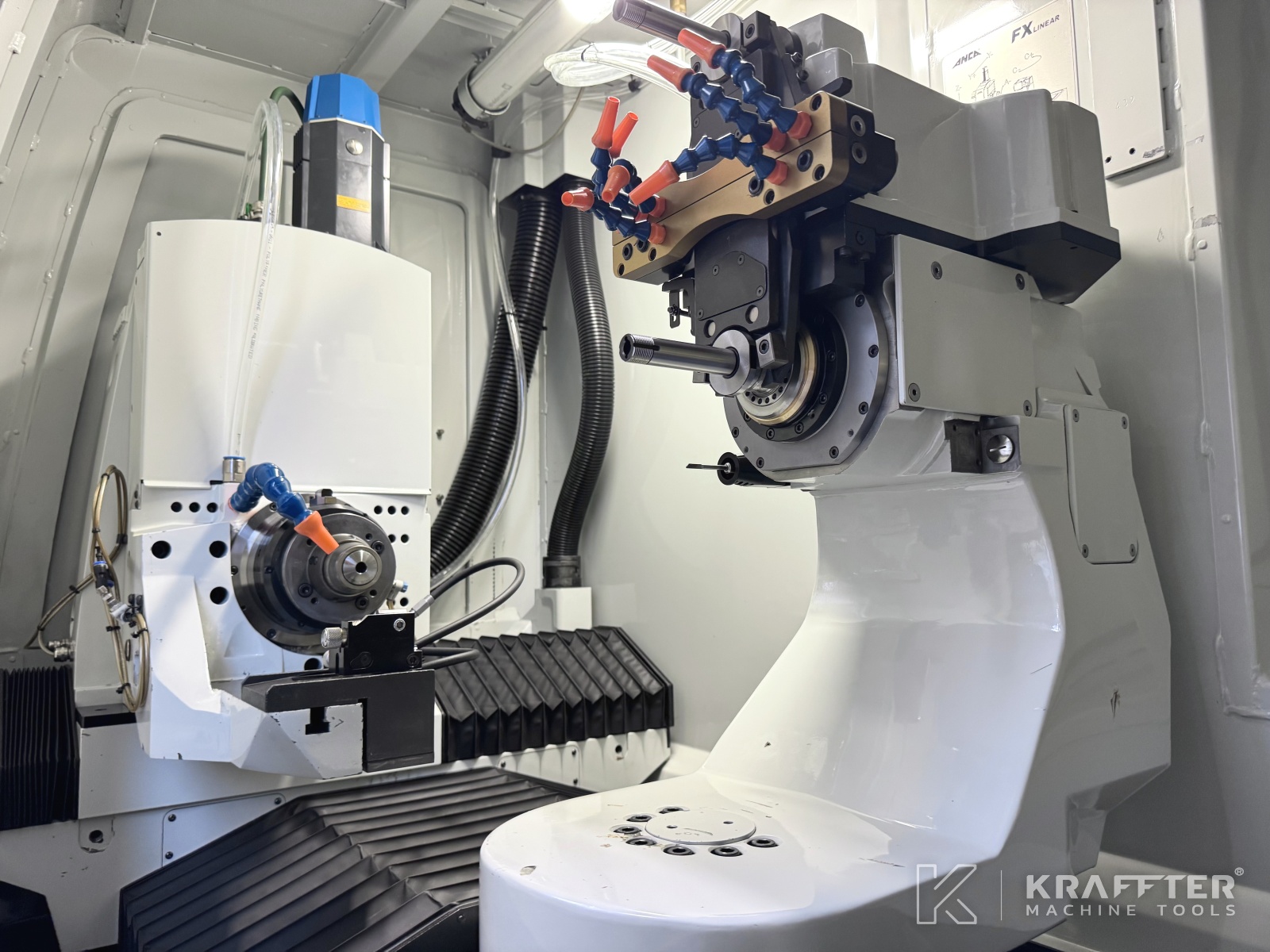

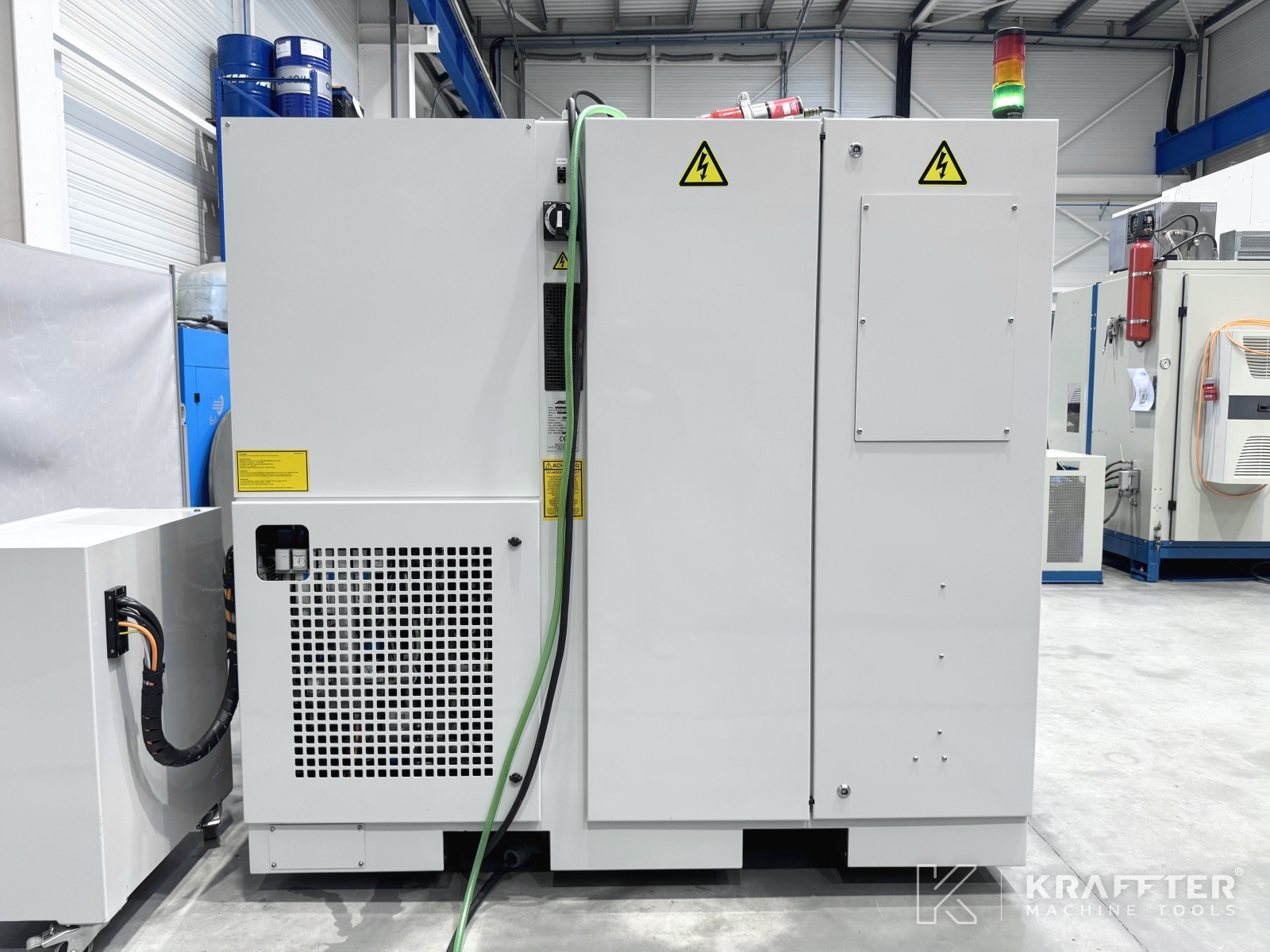

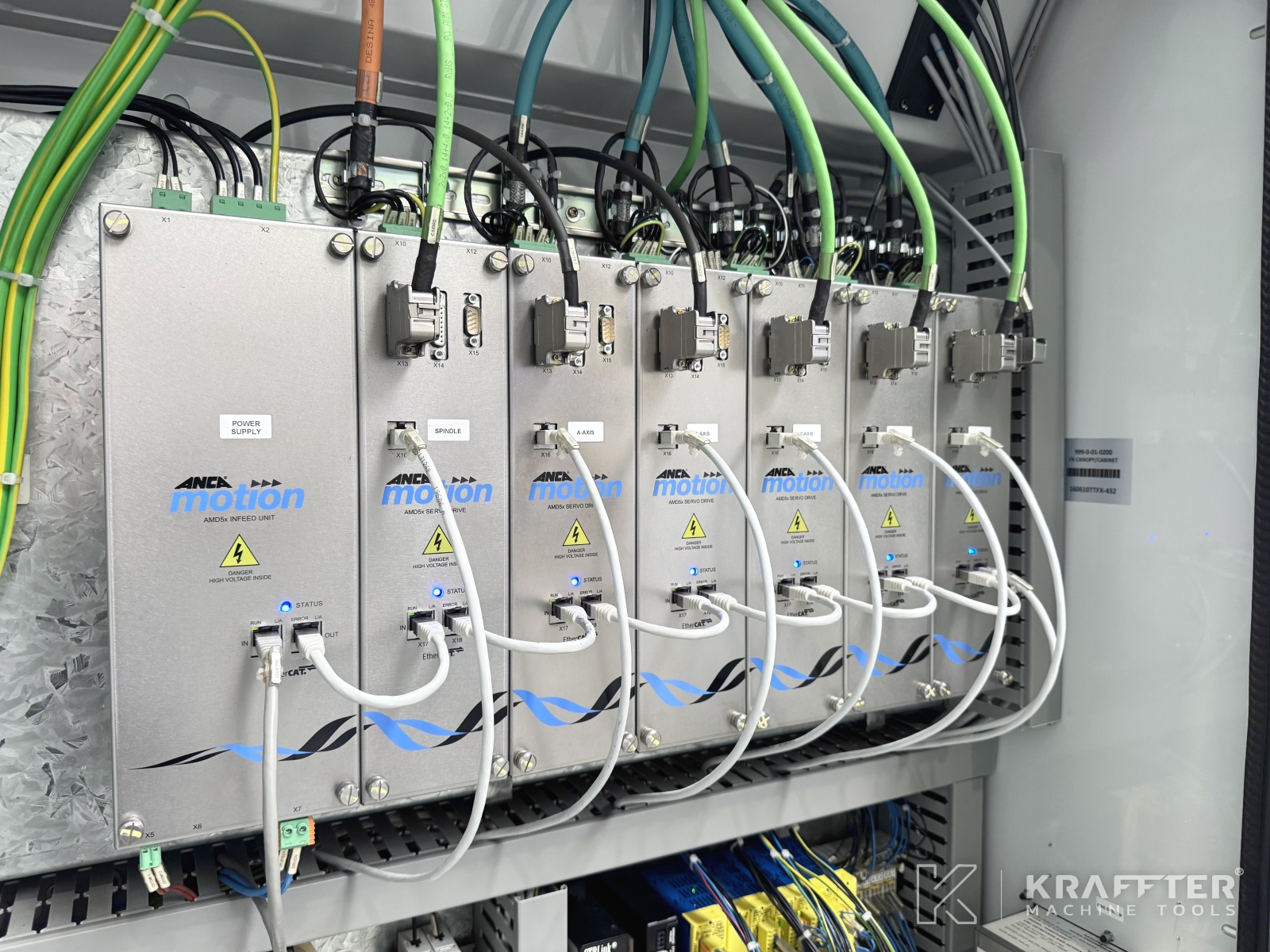

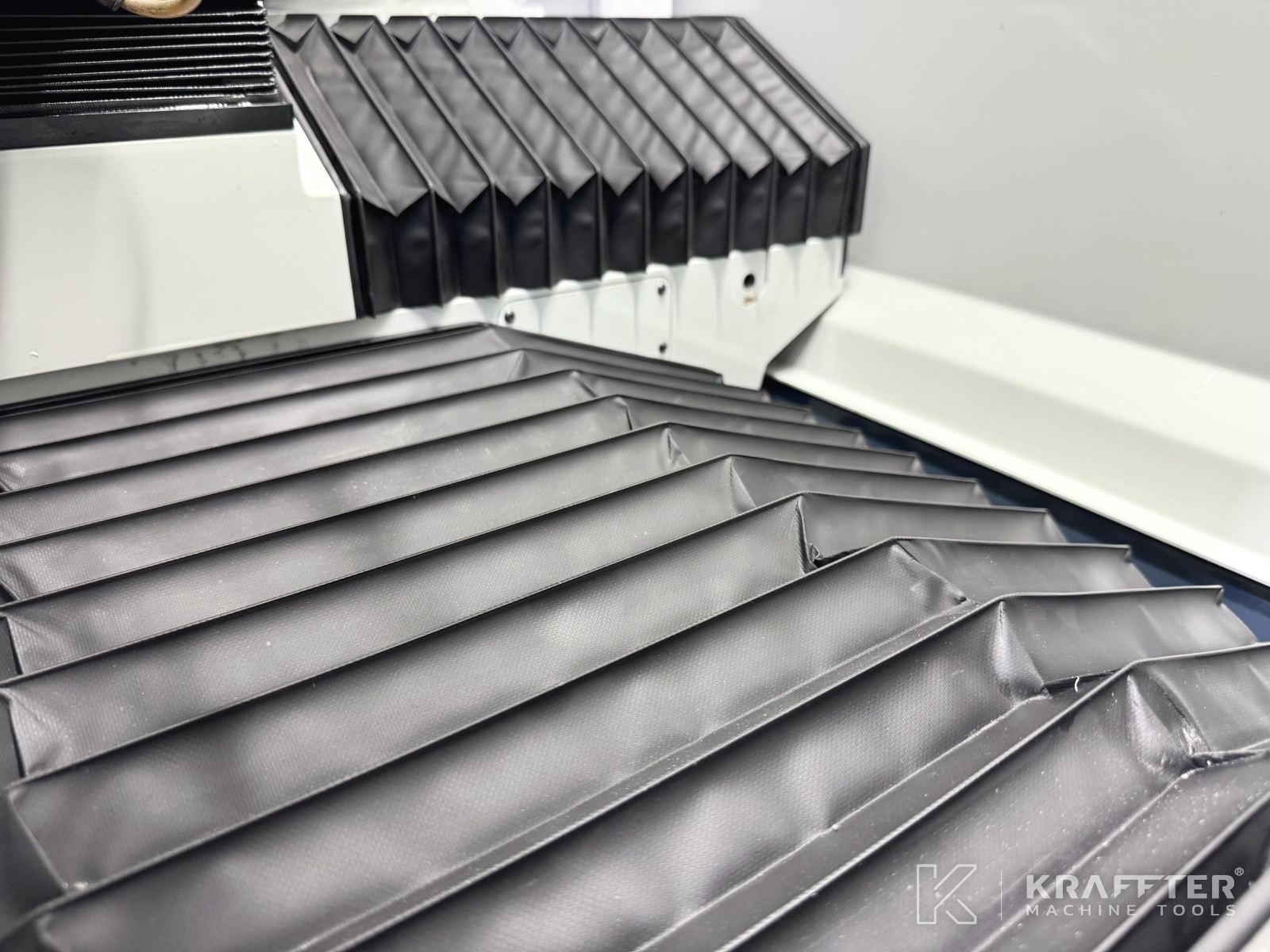

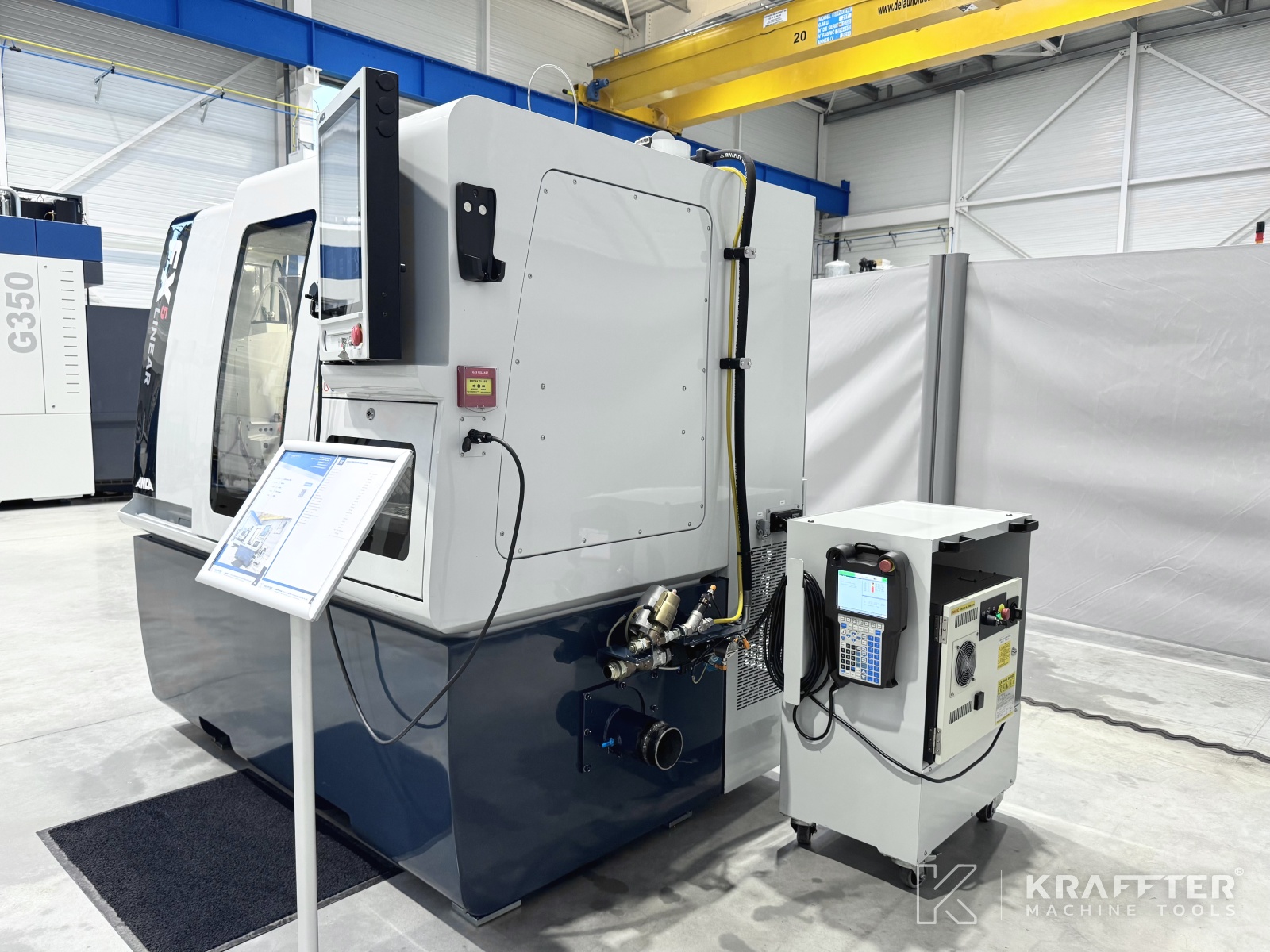

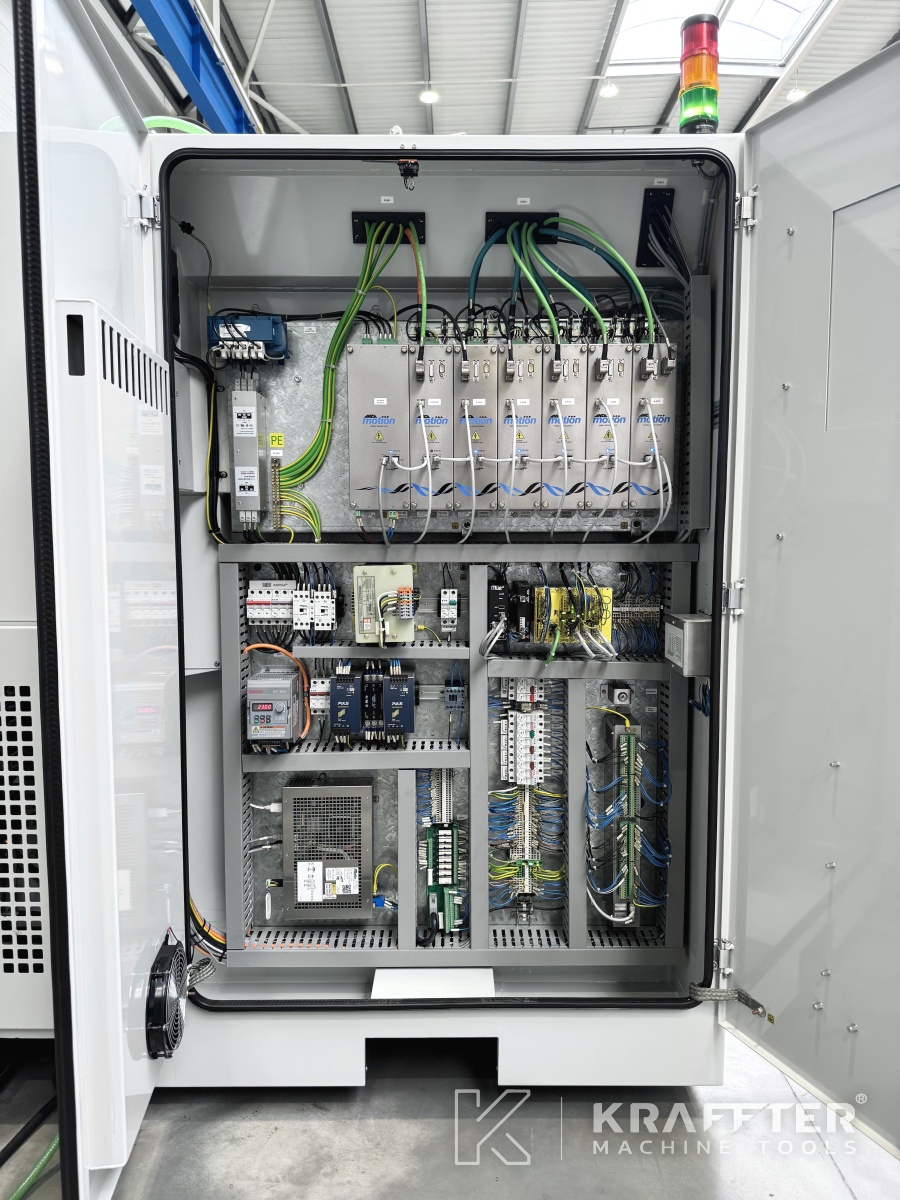

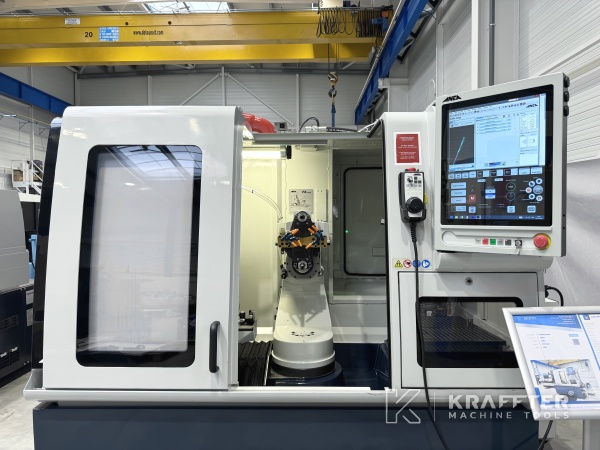

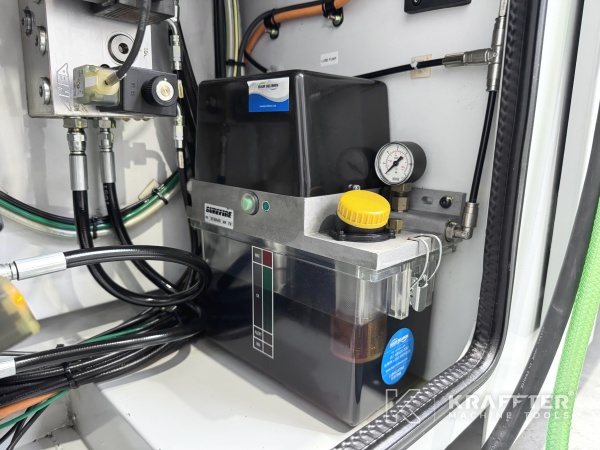

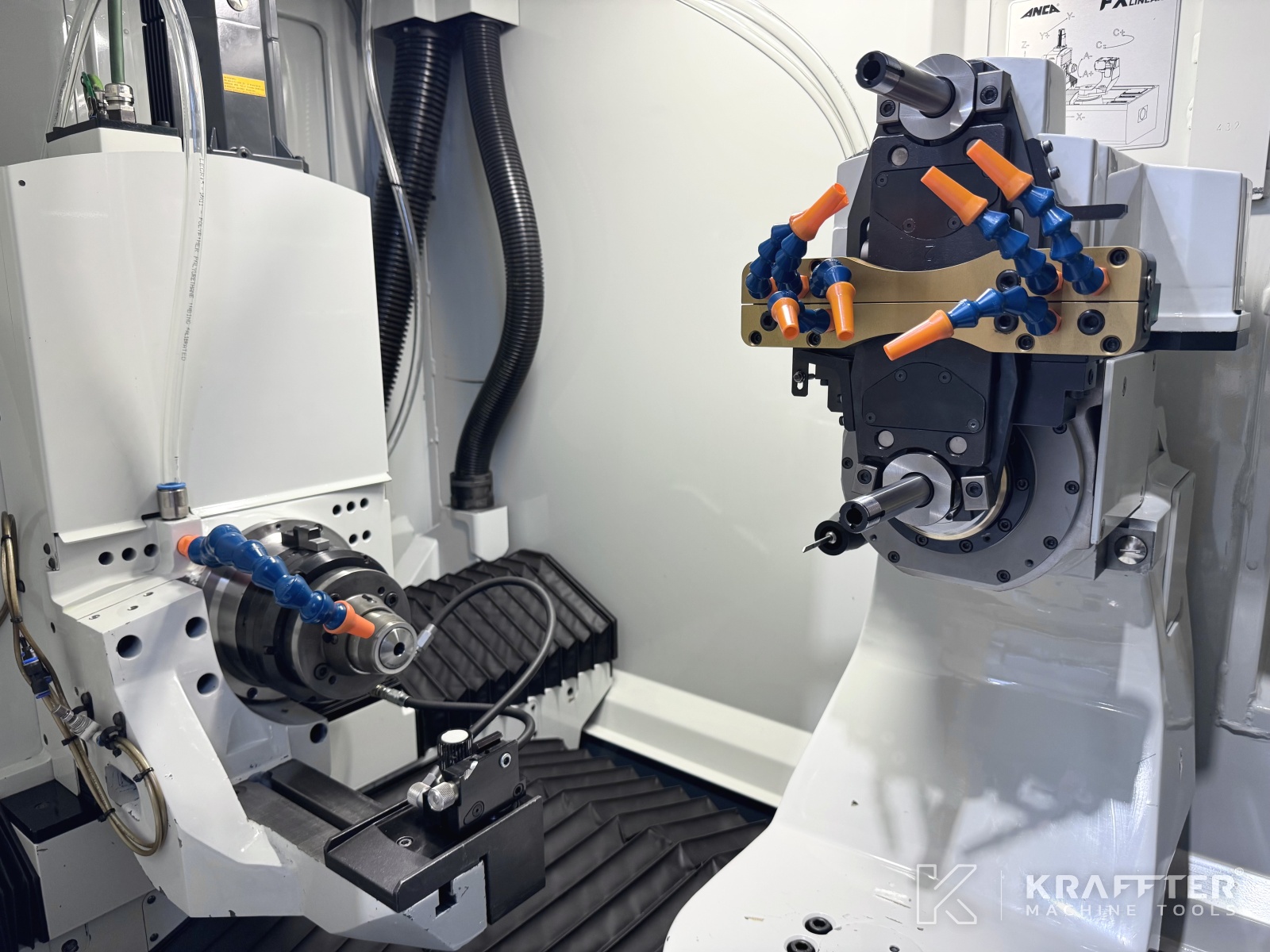

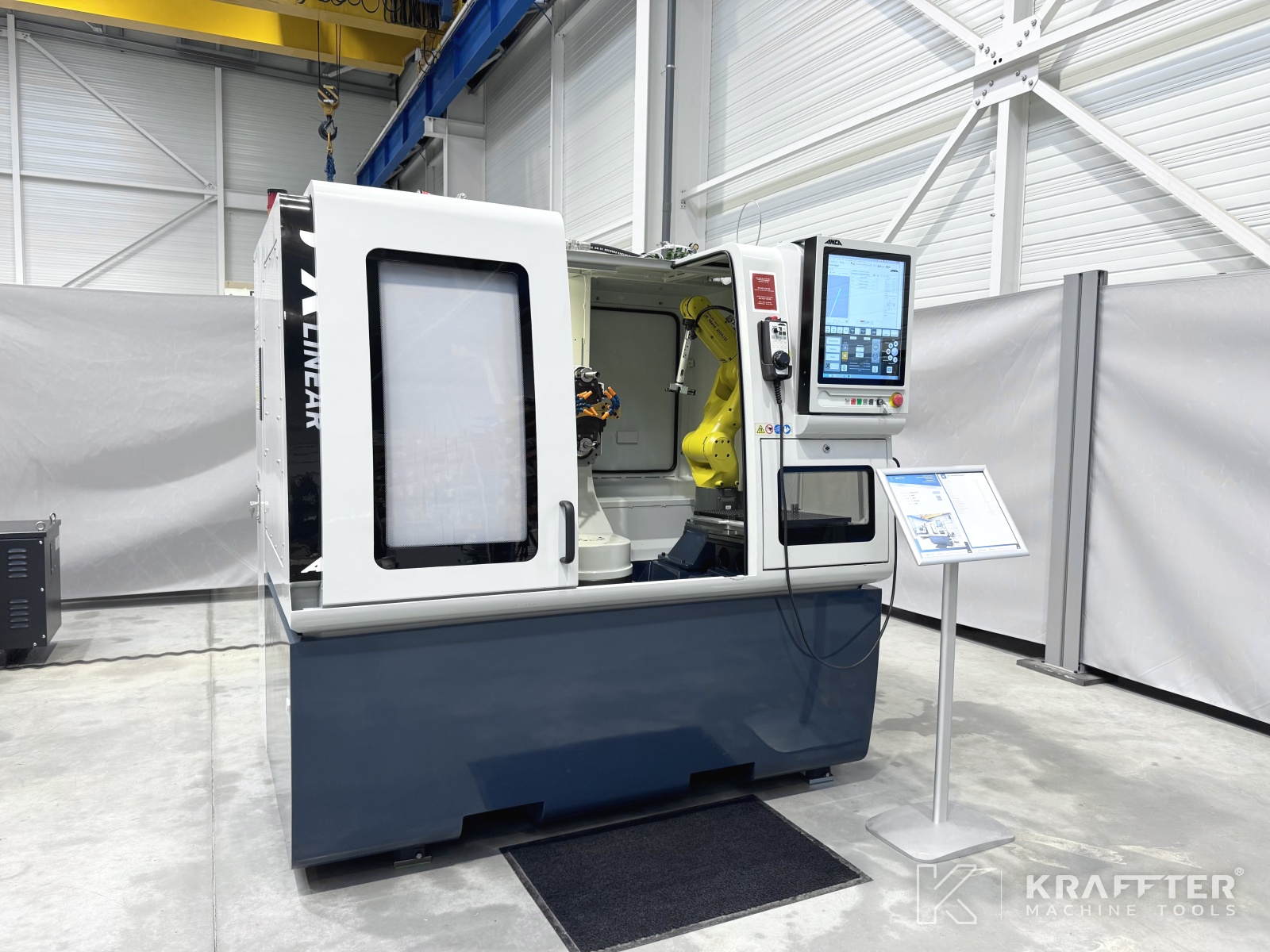

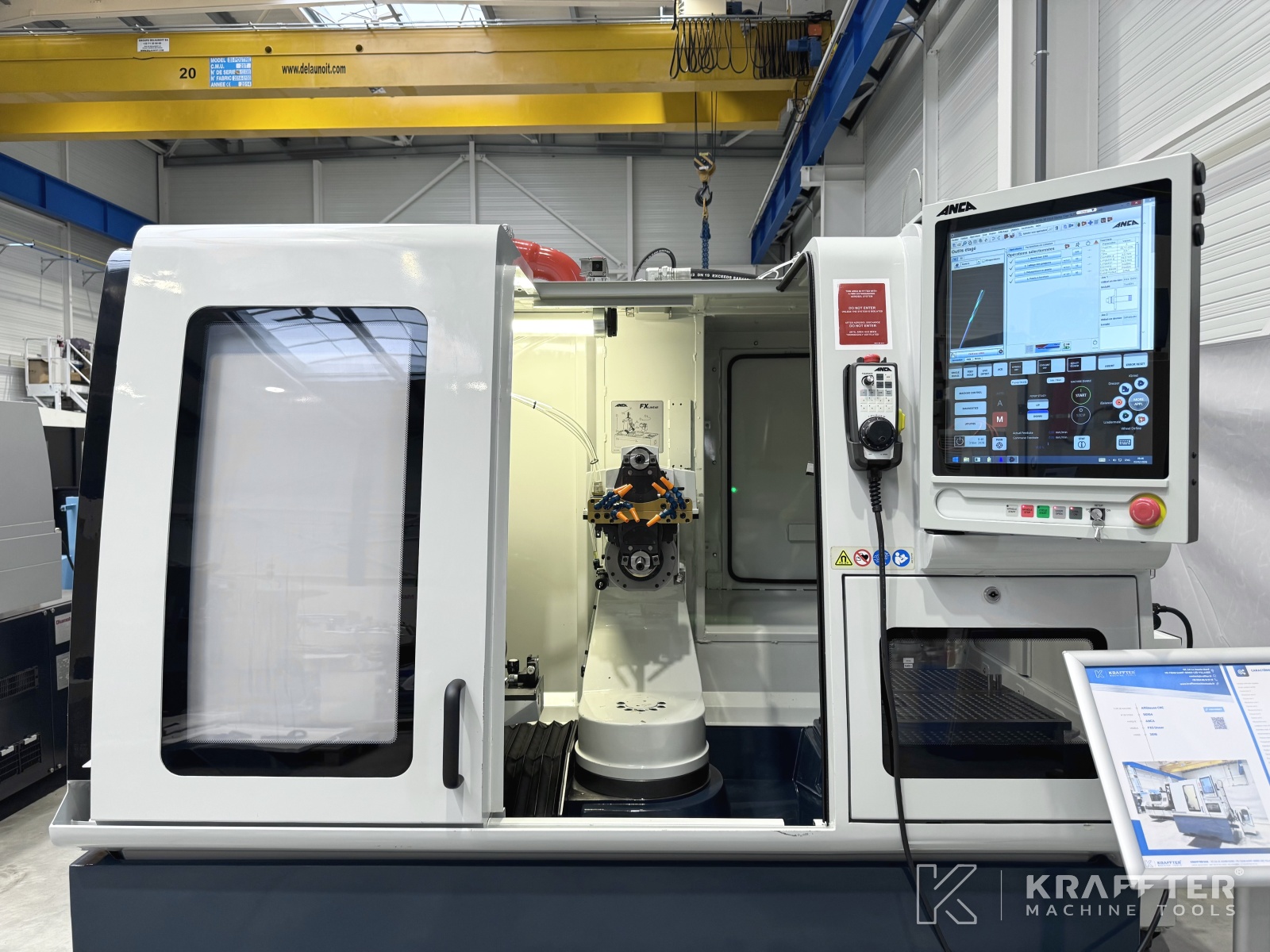

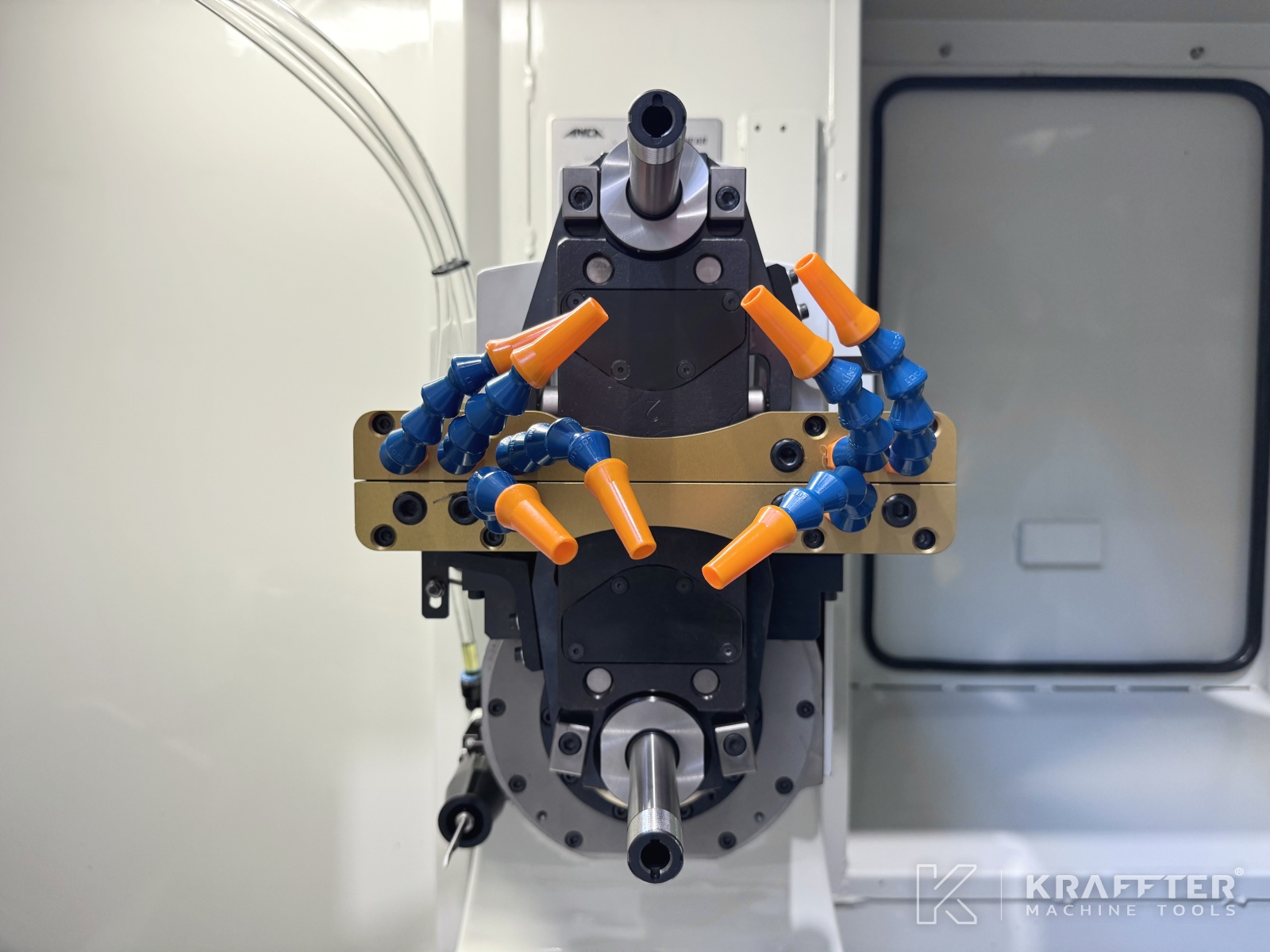

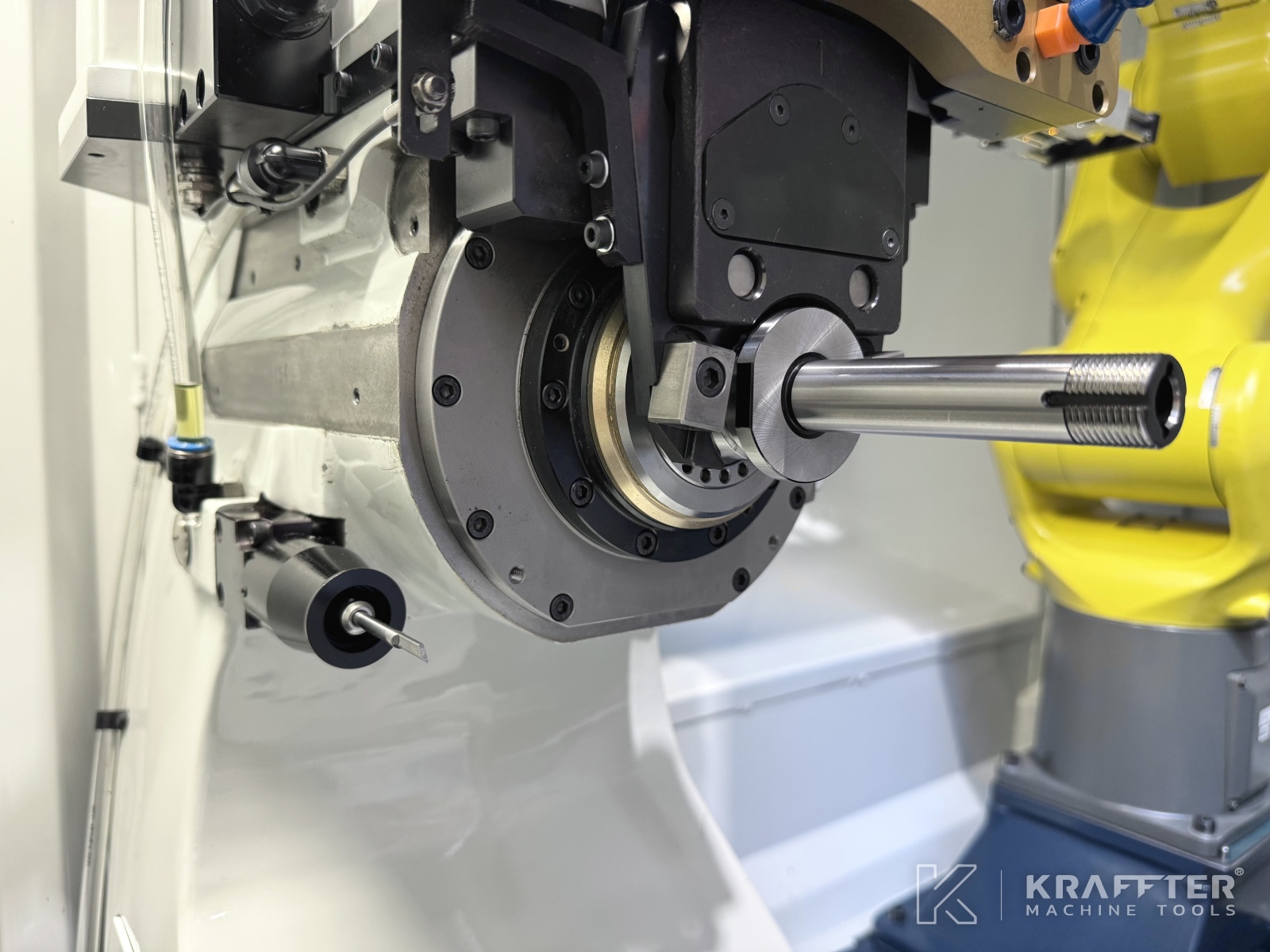

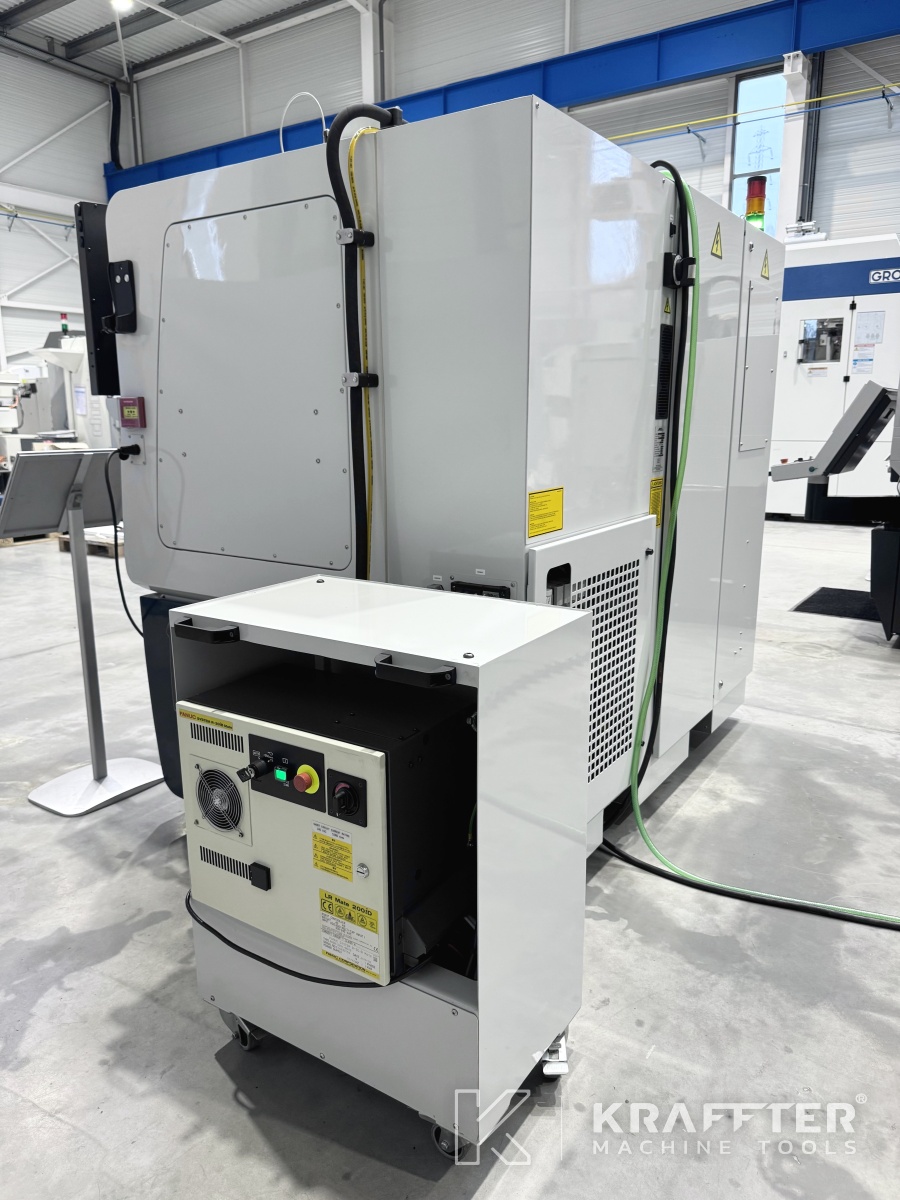

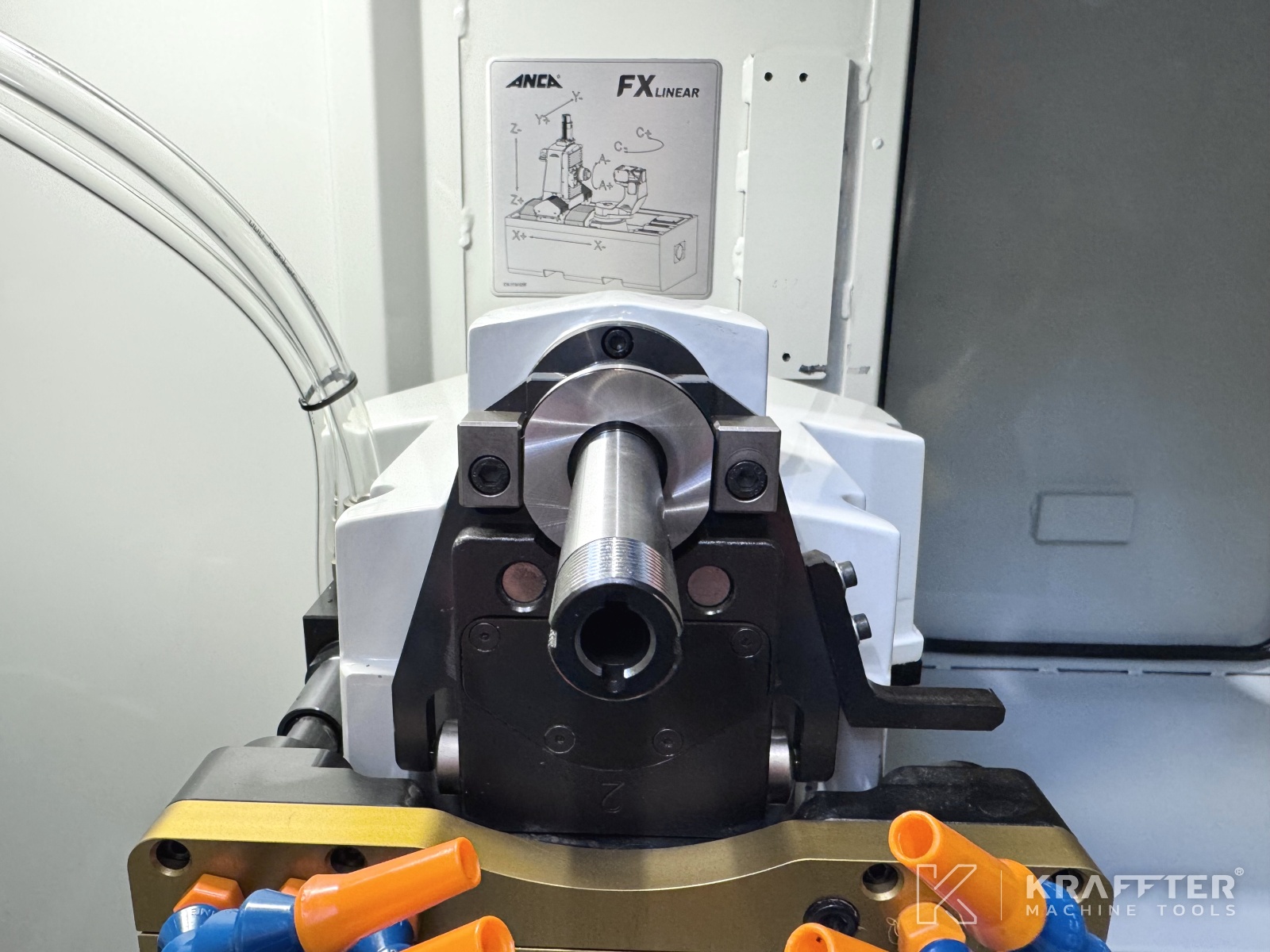

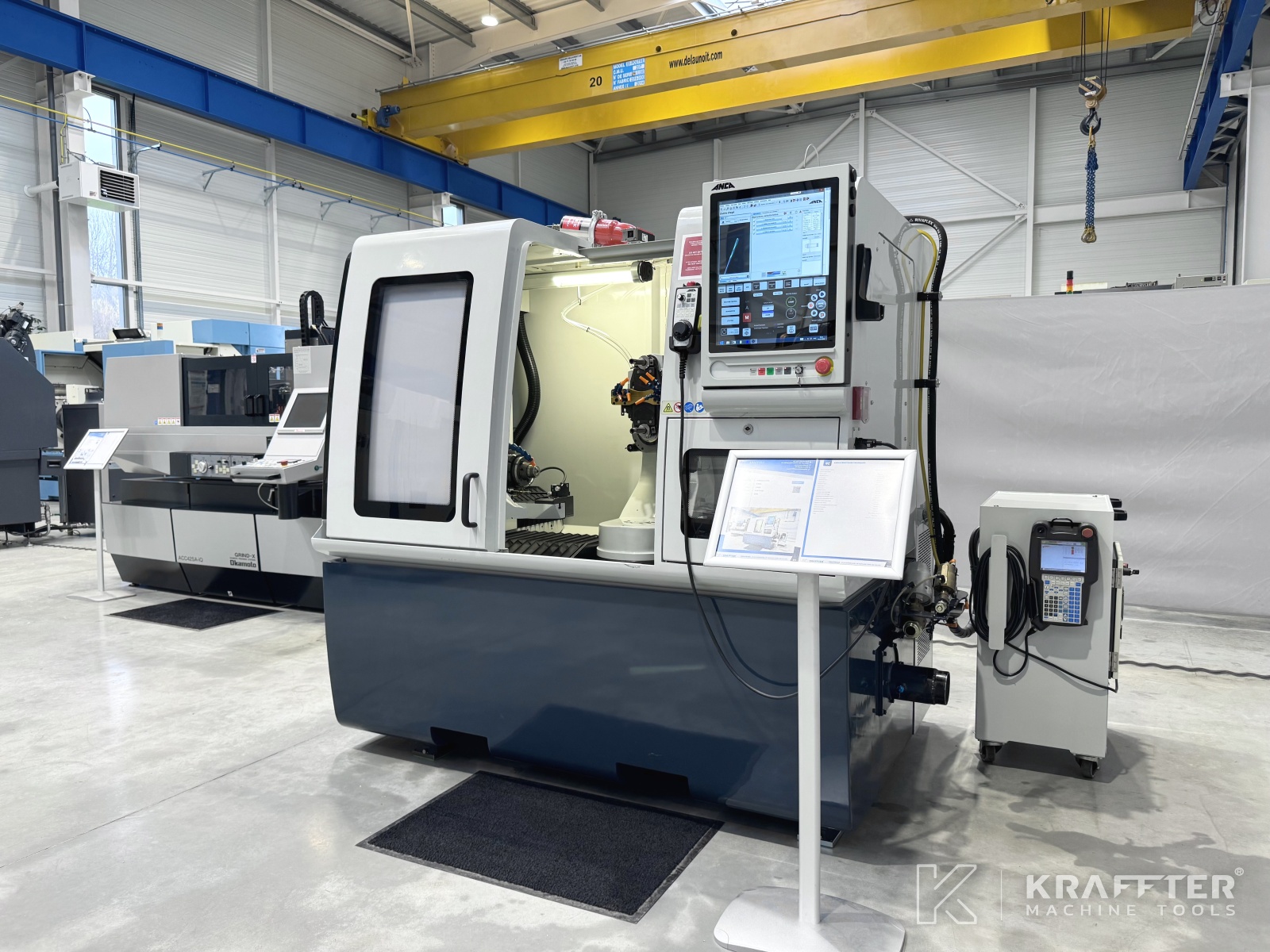

Type of machine : CNC tool grinding machine
Brand : ANCA
N° de stock: 90164
Model : FX5 linear
Year : 2016
MACHINE SOLD
Interested in a similar model?
Leave us your contact details:
Technical characteristics

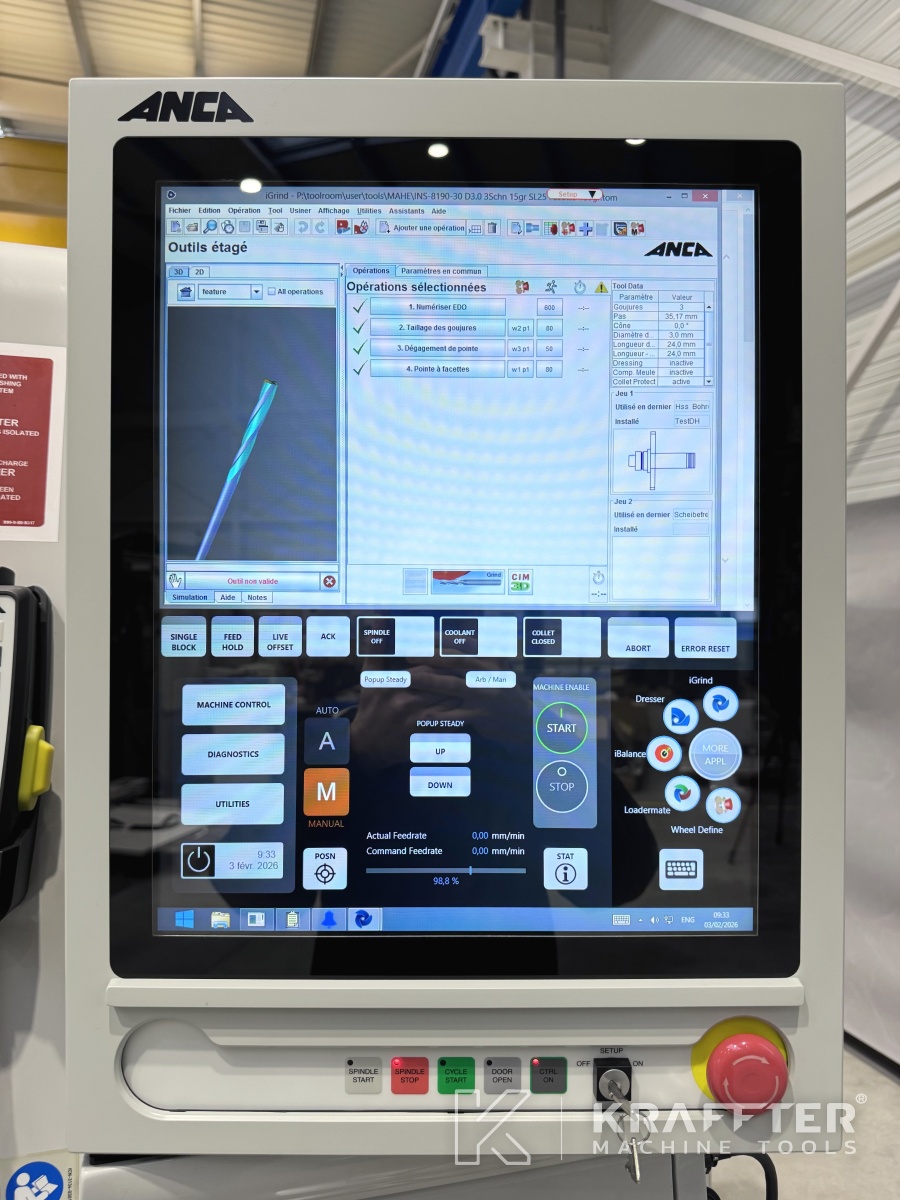

Software installed
RN33.1 Update 29.00
Colour touch screen
19 ["]
Stroke X axis
384 [mm]
Resolution X axis
0.0001 [mm]
Stroke Y axis
317 [mm]
Resolution Y axis
0.0001 [mm]
Stroke Z axis
217 [mm]
Resolution Z axis
0.0001 [mm]
Stroke A axis
360 [°]
Stroke C axis
230 [°]
Resolution C axis
0.0001 [°]
Max. grinding lenght
200 [mm]
Max. grinding diameter
200 [mm]

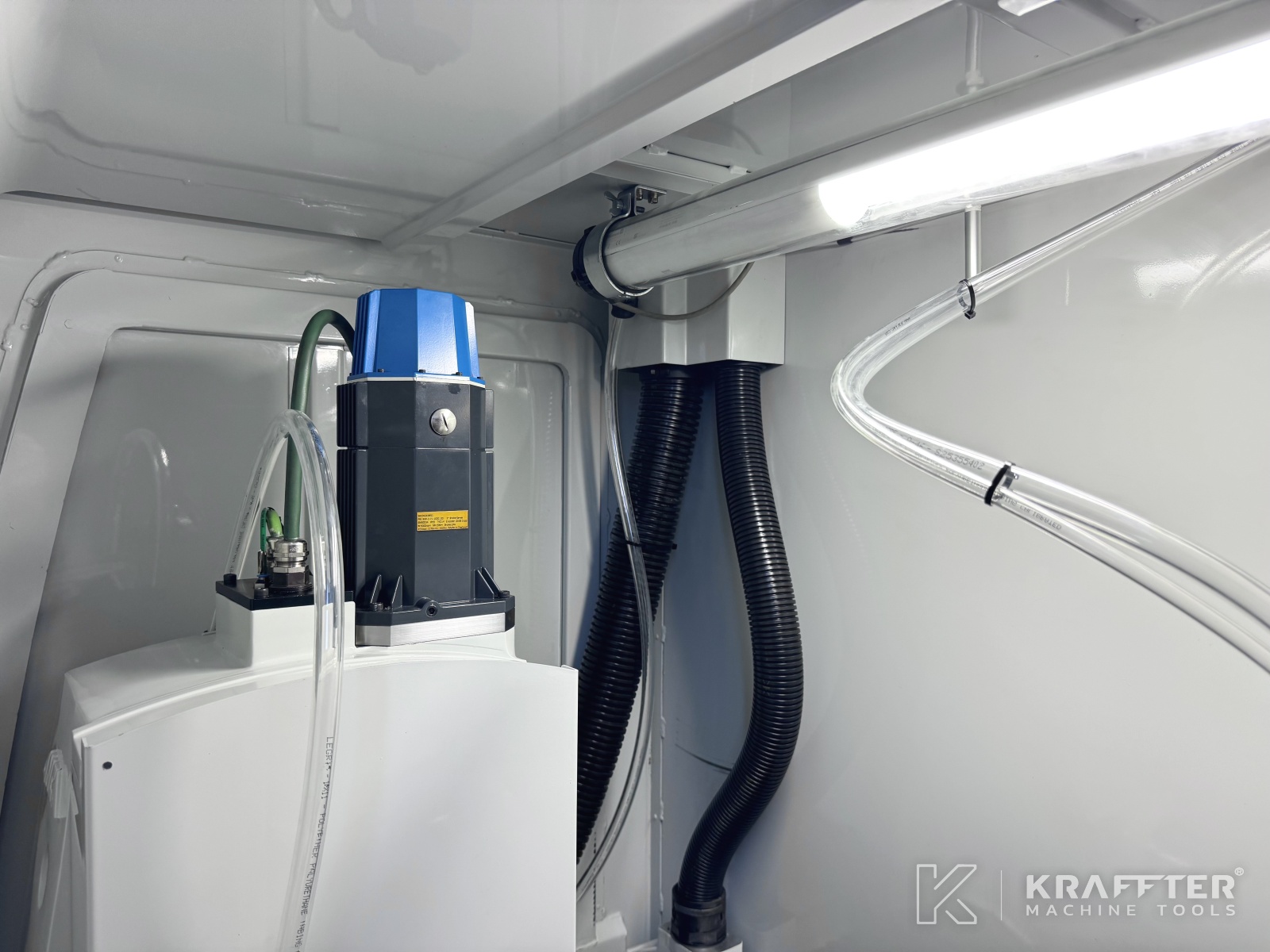

Grinding spindle attachment
HSK-40F
Max. grinding wheel speed
10000 [rpm]
Grinding spindle motor power
12 [kW]
Max. diameter grinding wheel
203 [mm]
Max. part weight in part holder headstock
20 [Kg]

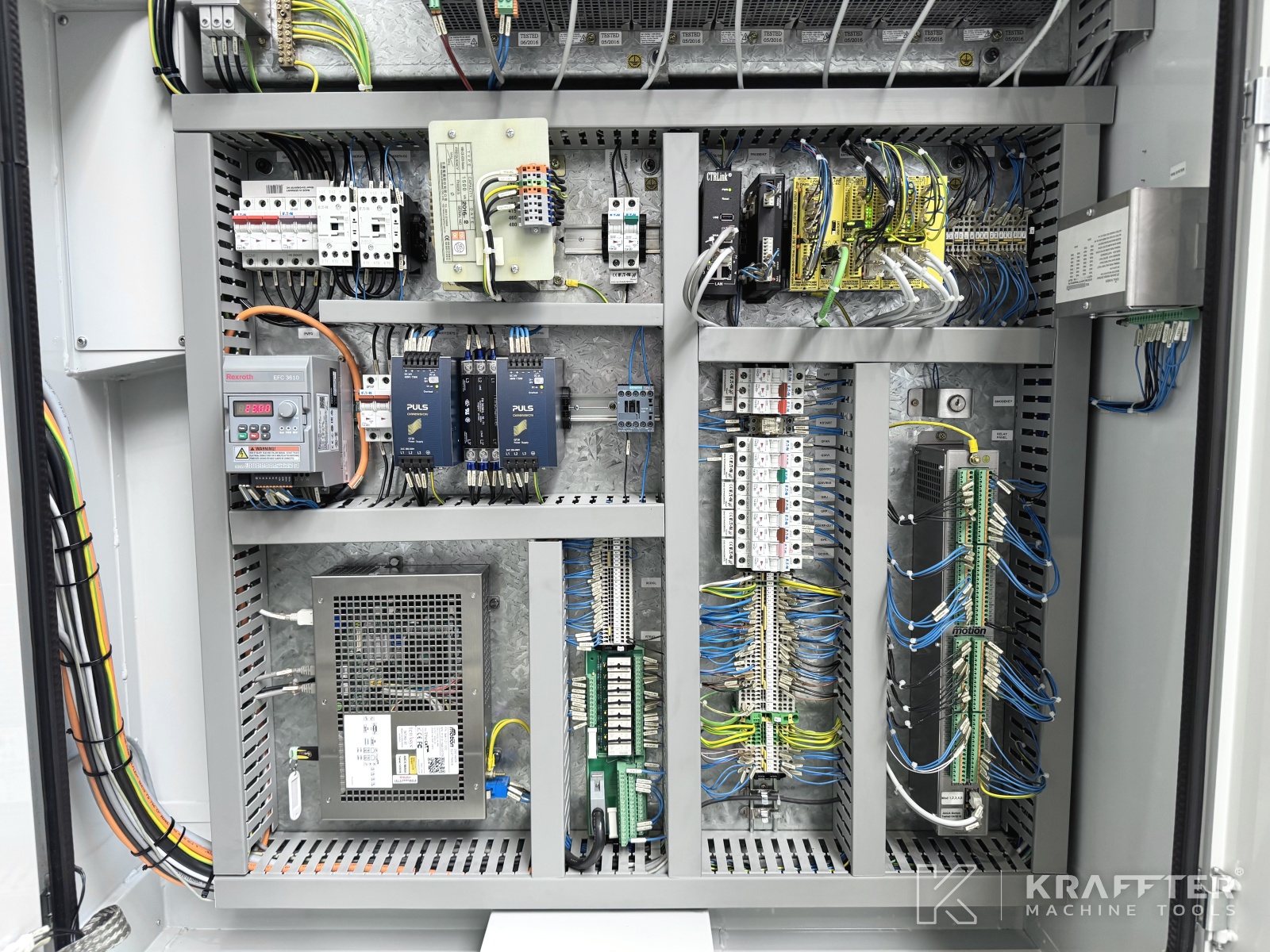

Supply voltage
400 [V]
Total power required
16 [kVA]

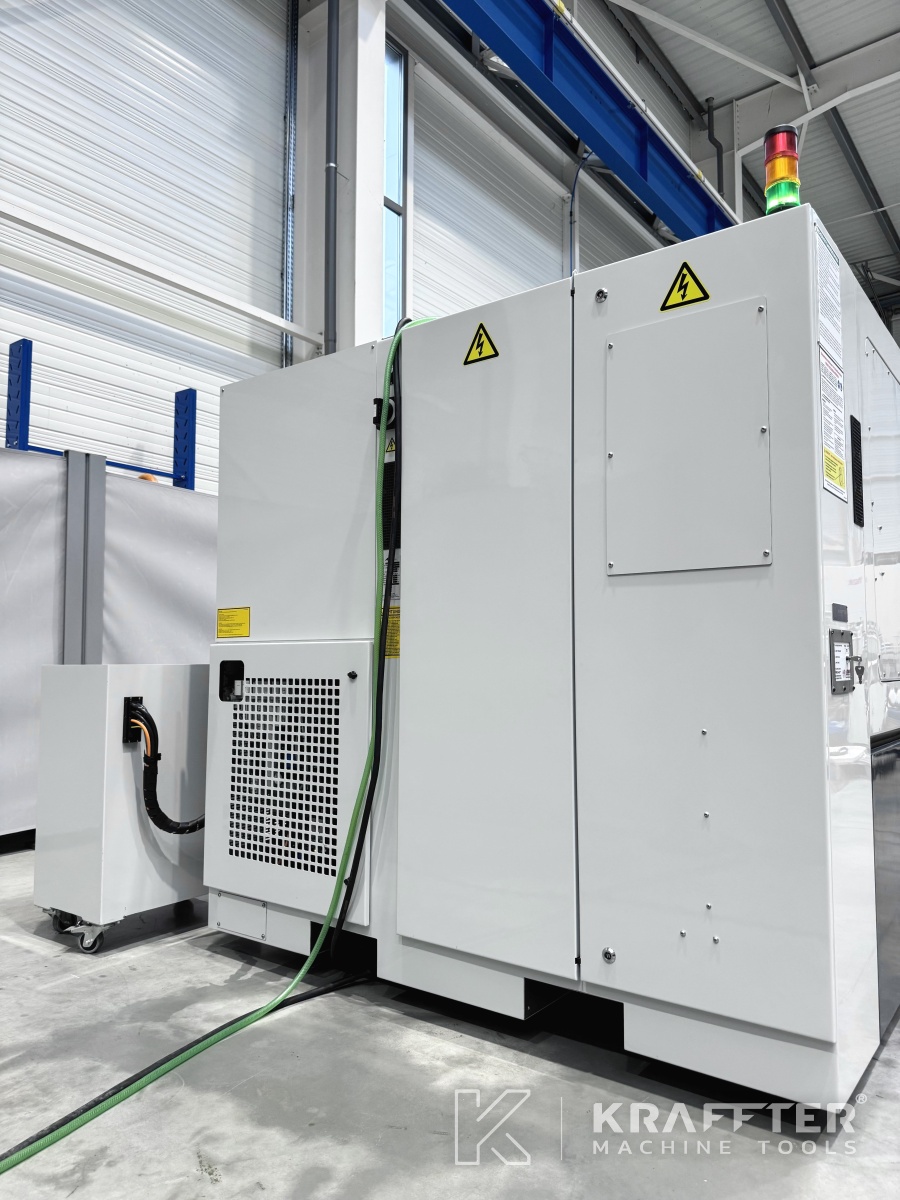

Machine dimensions
1930 x 1800 x 1810 [mm]
Weight
4500 [Kg]

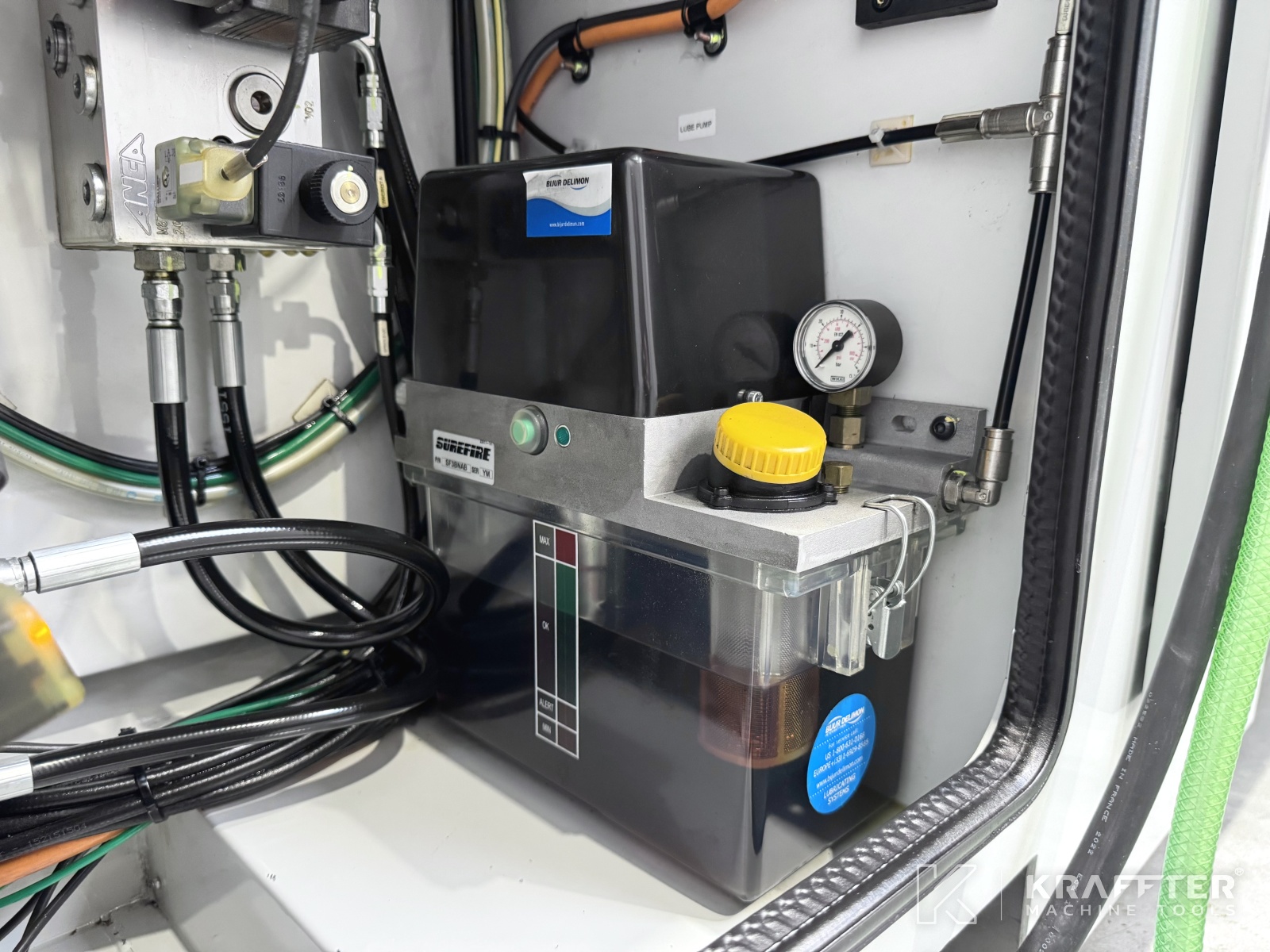

Additional information
EQUIPMENT INCLUDED:
-

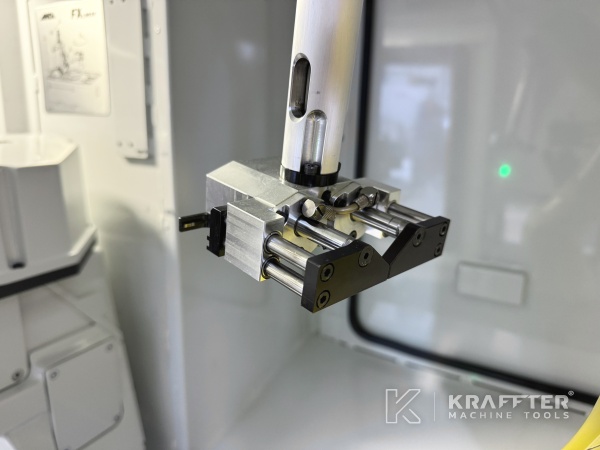

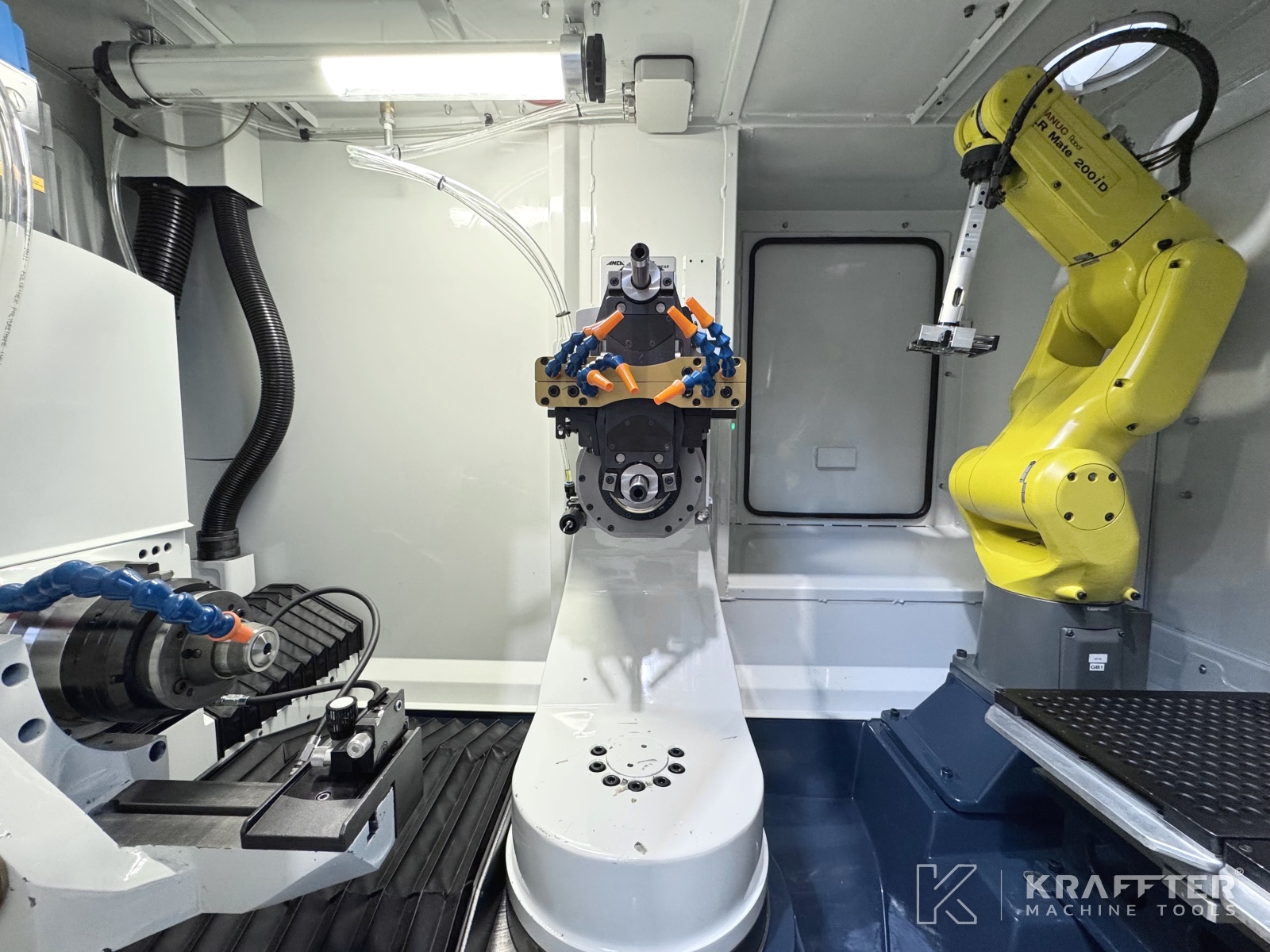

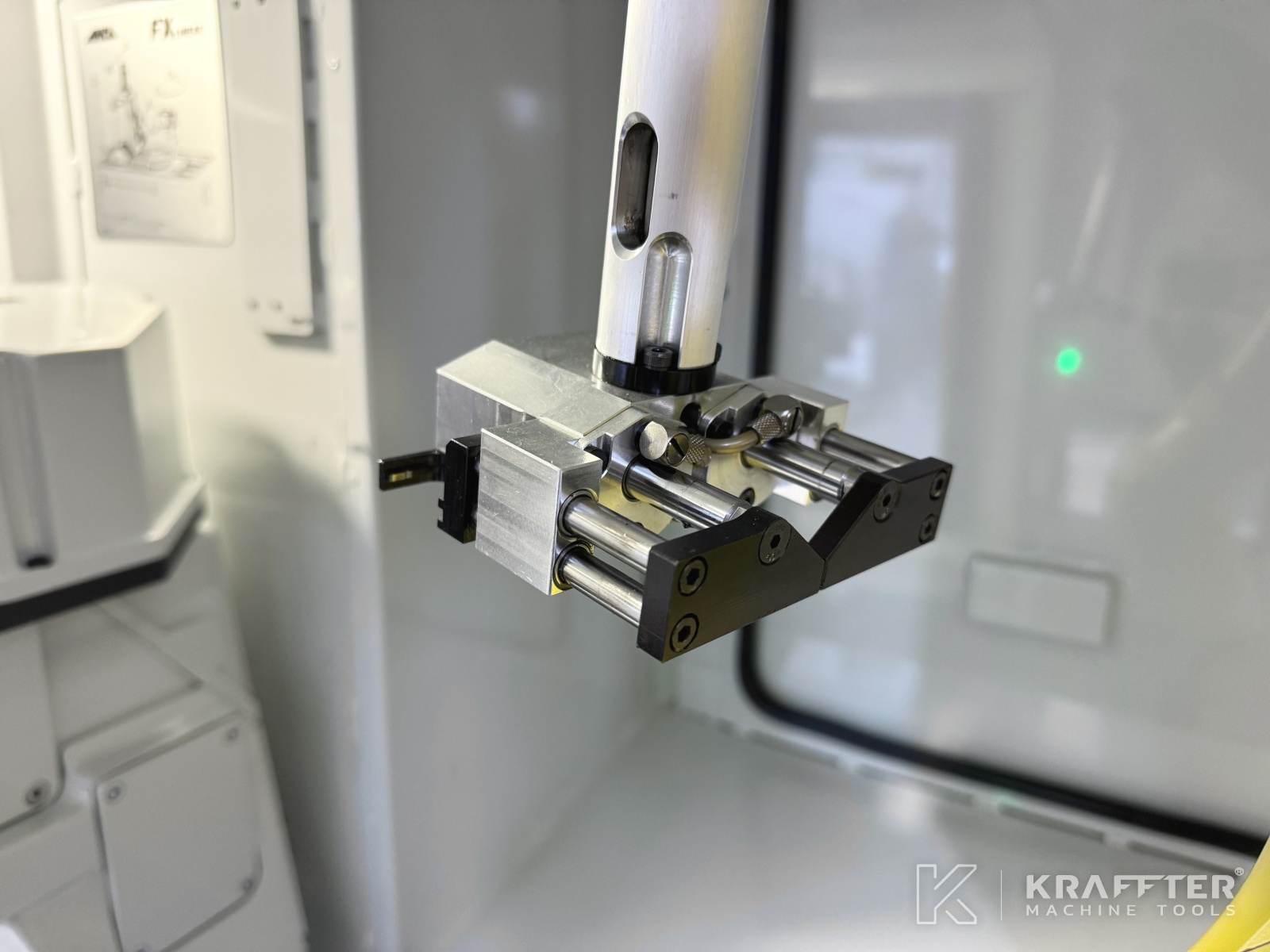

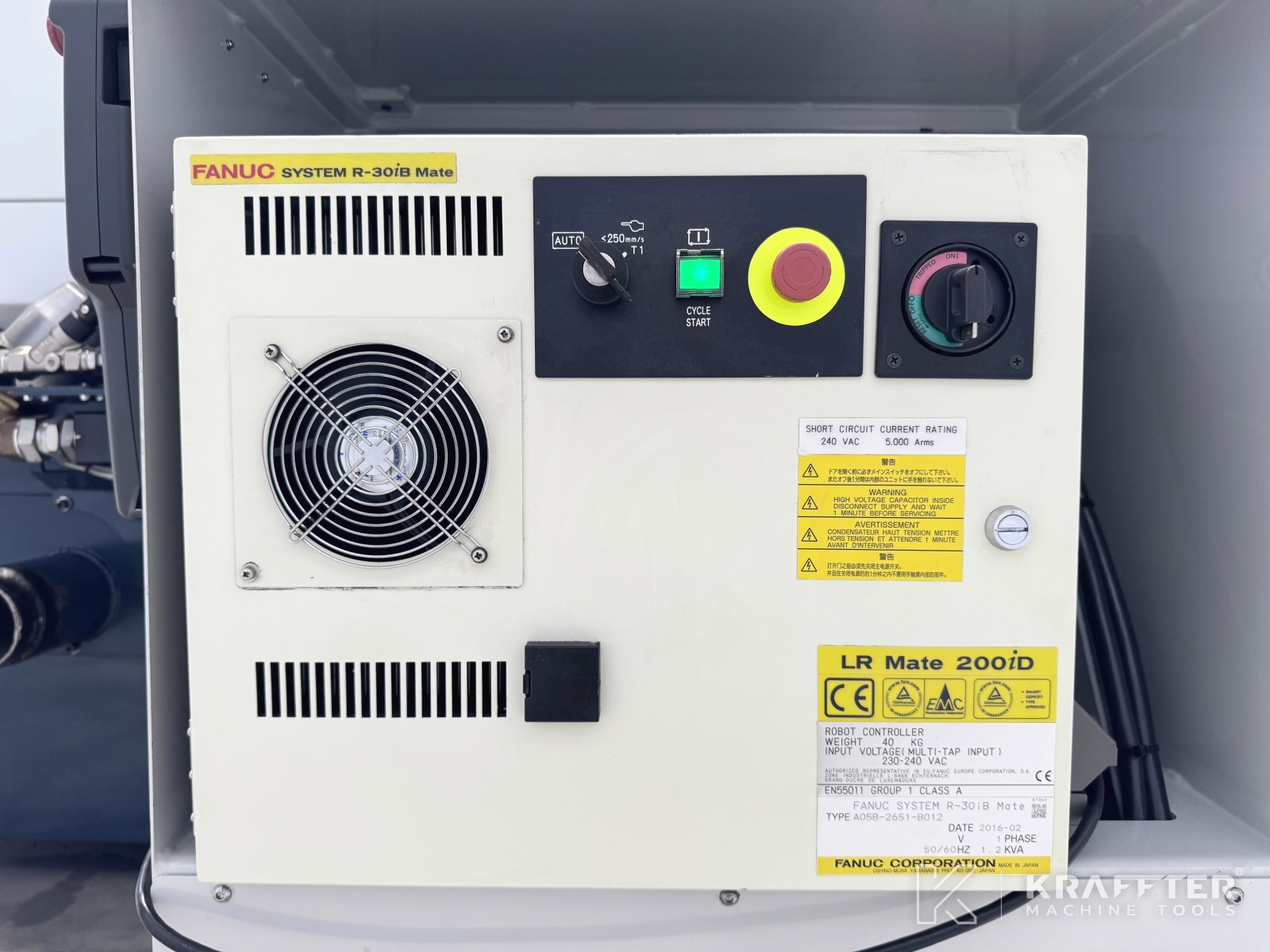

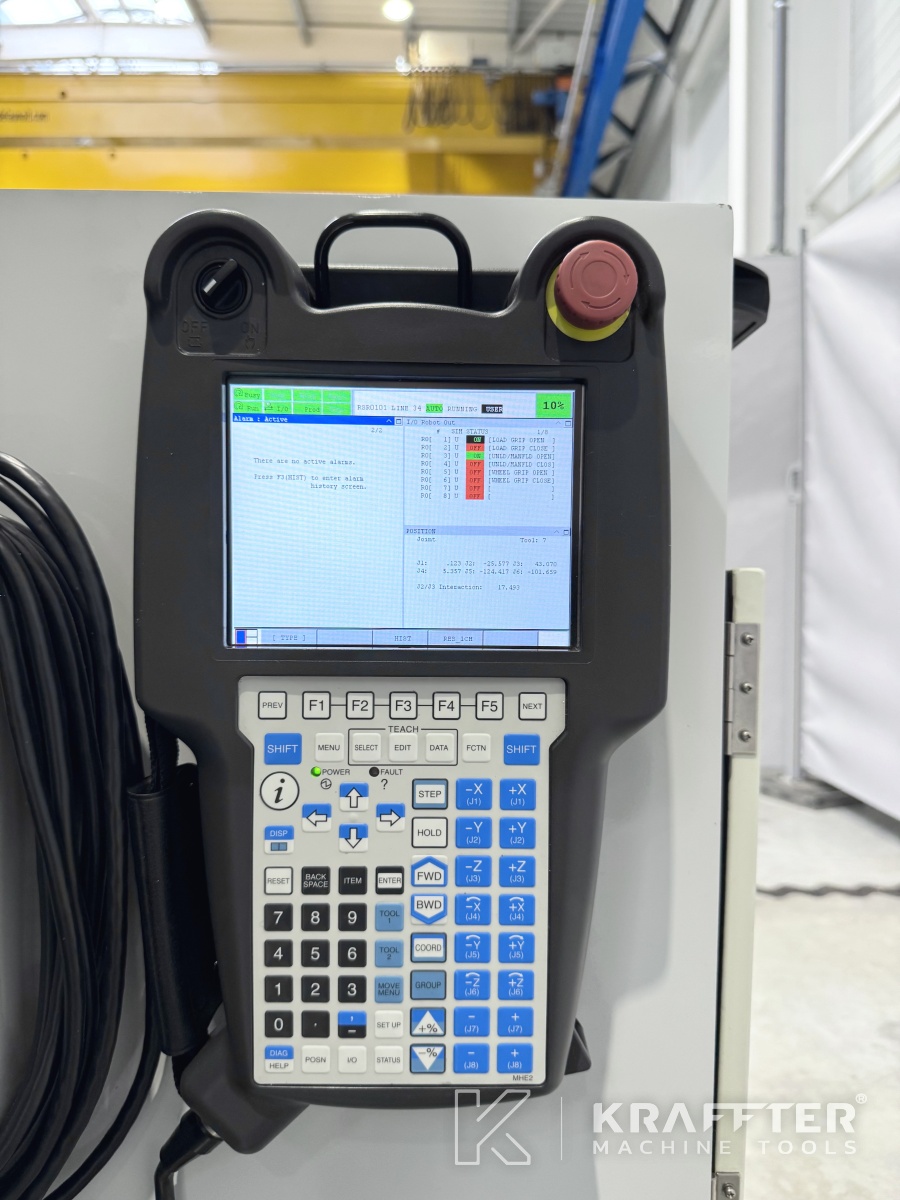

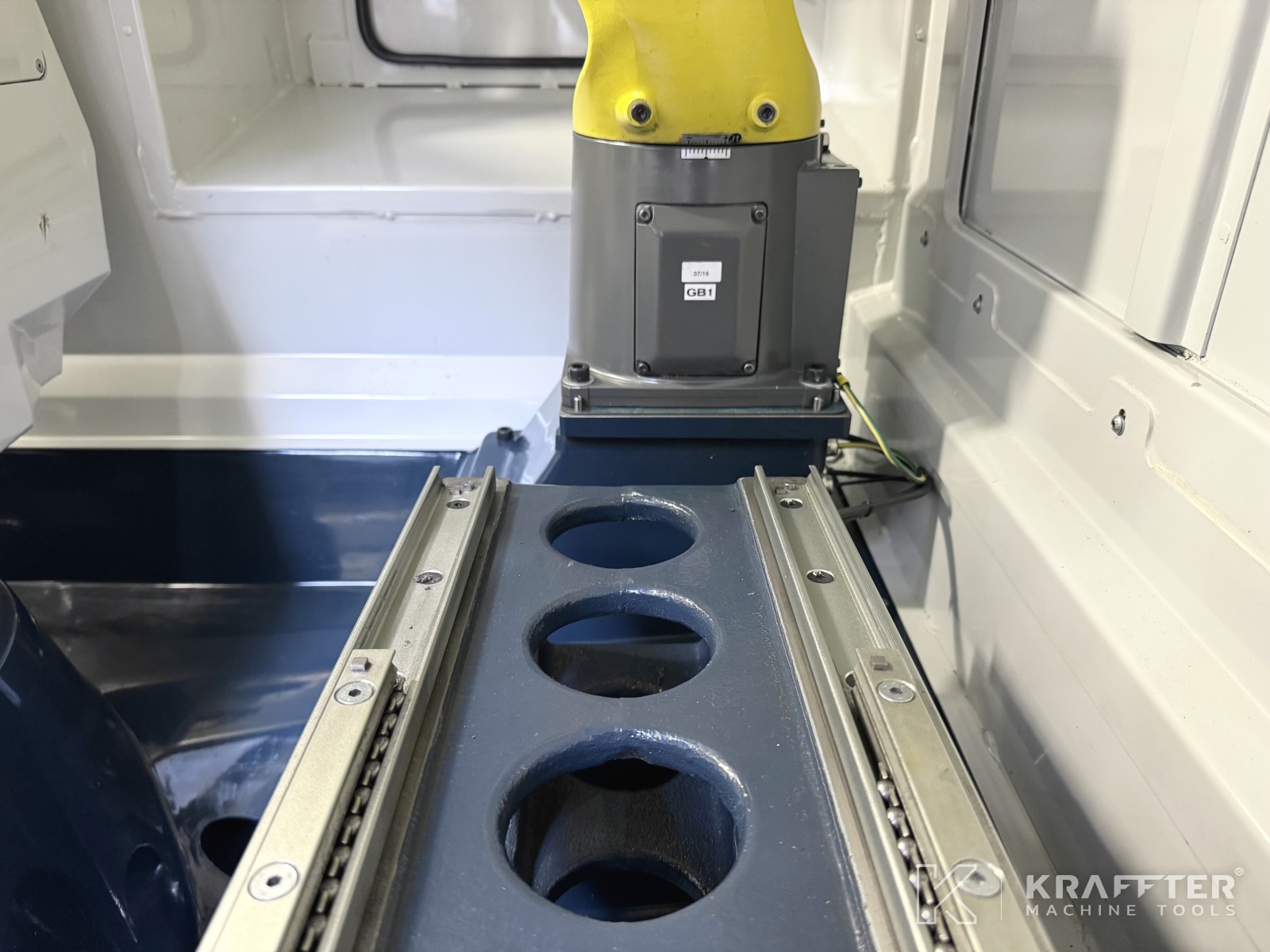

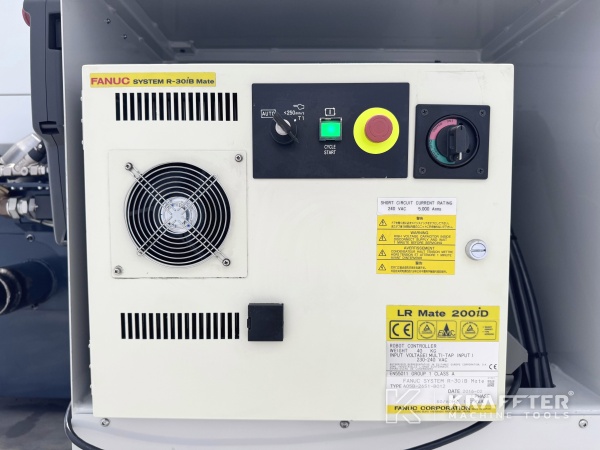

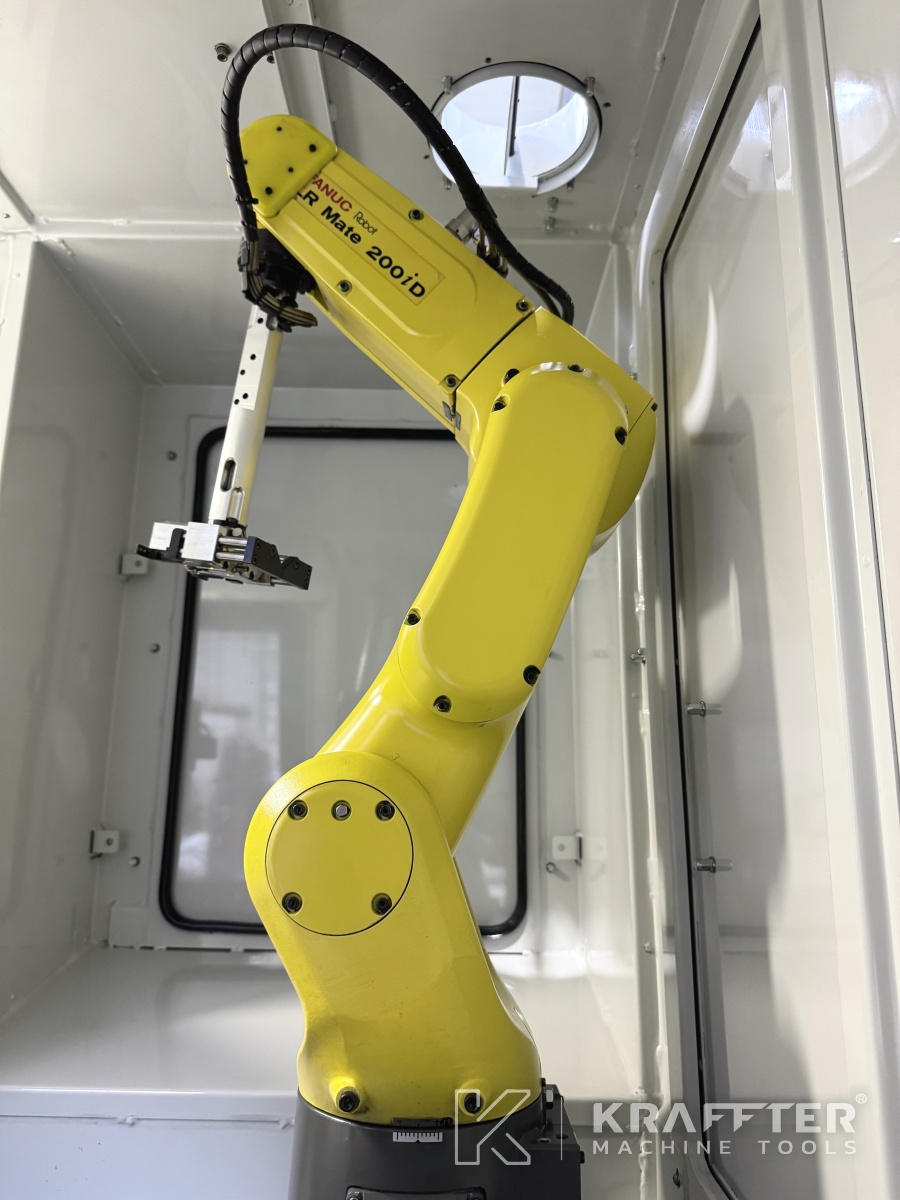

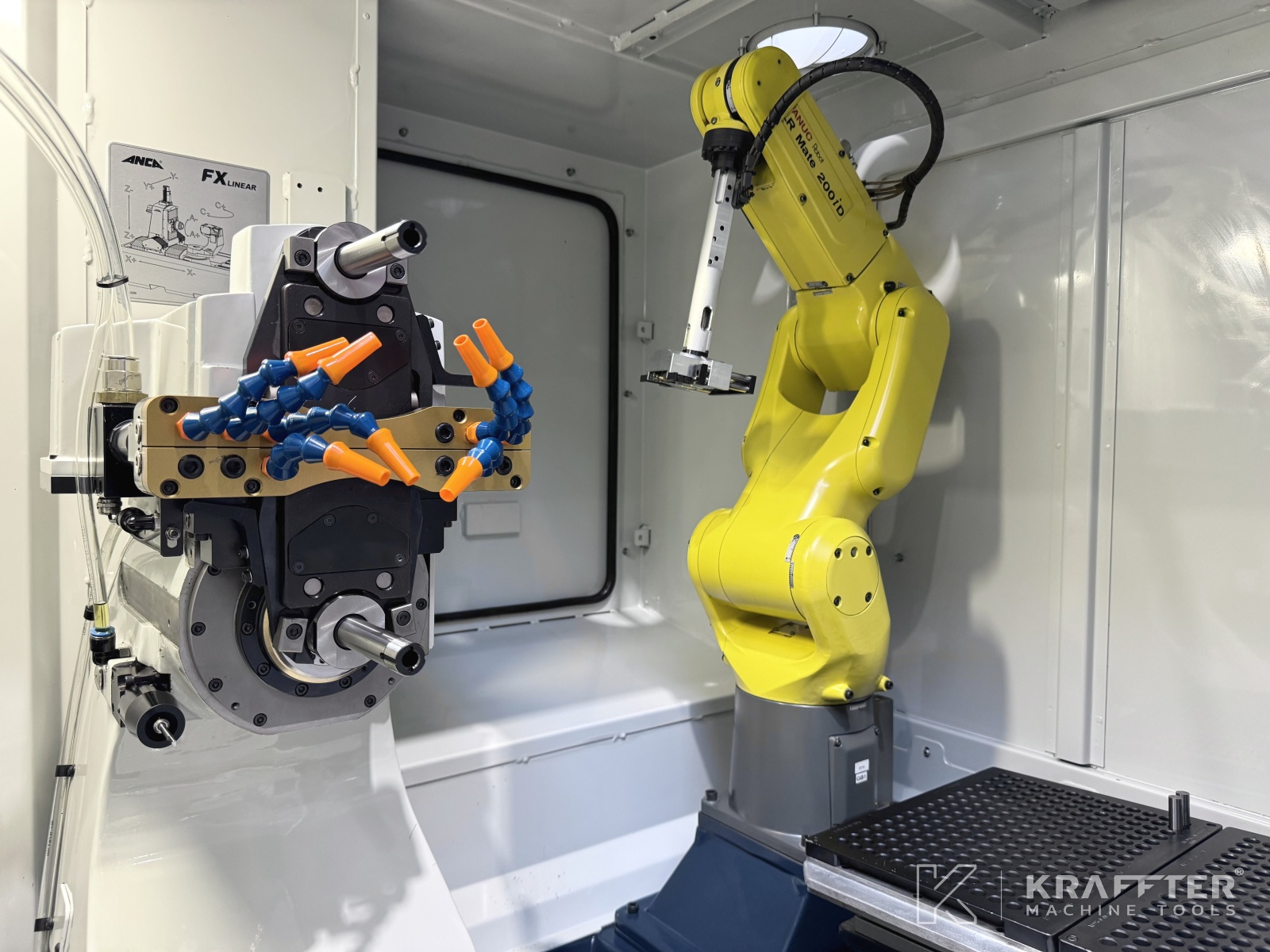

x1 FANUC 6-axis tool-loading robot, model LR Mate 200iD
-

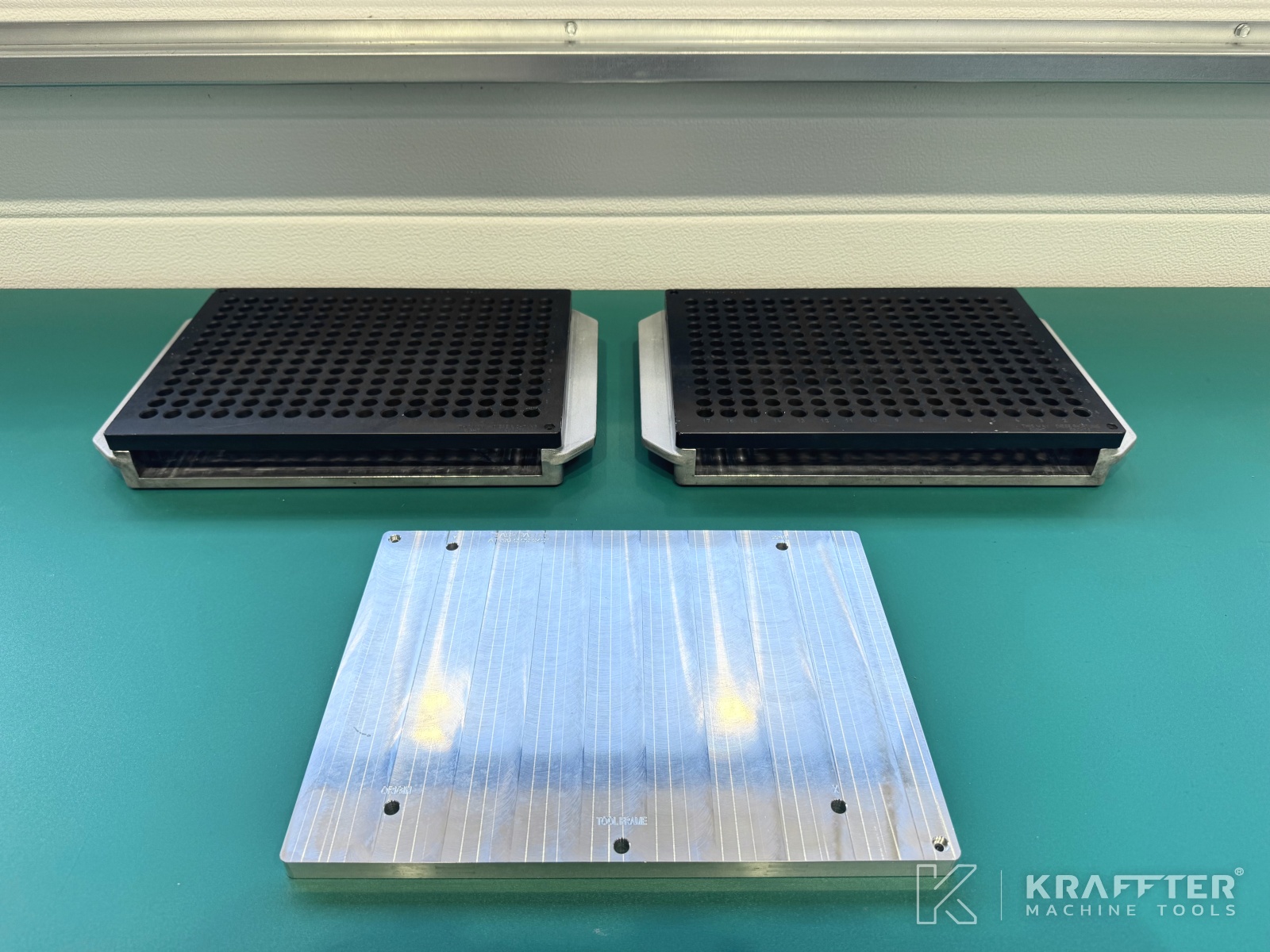

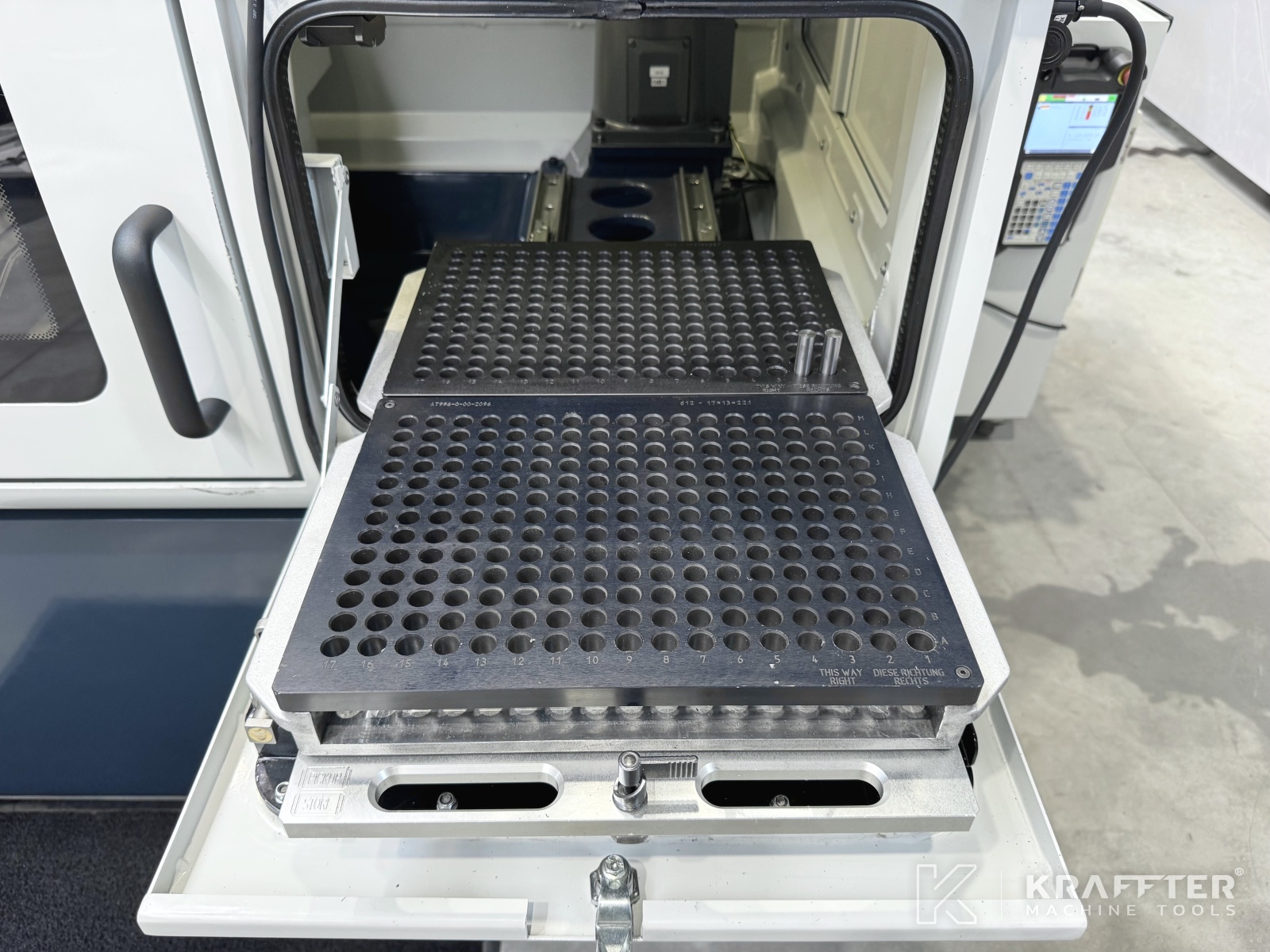

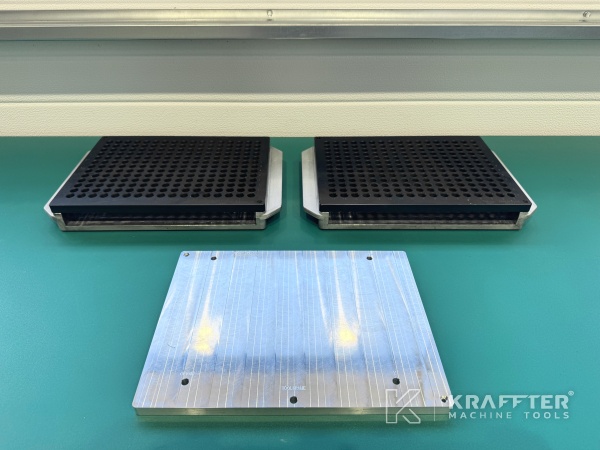

x2 pallets: 221 stations per pallet – Ø12.00 mm
-
x1 pallet ‘Teach pallet’ AT996-0-00-0401
-

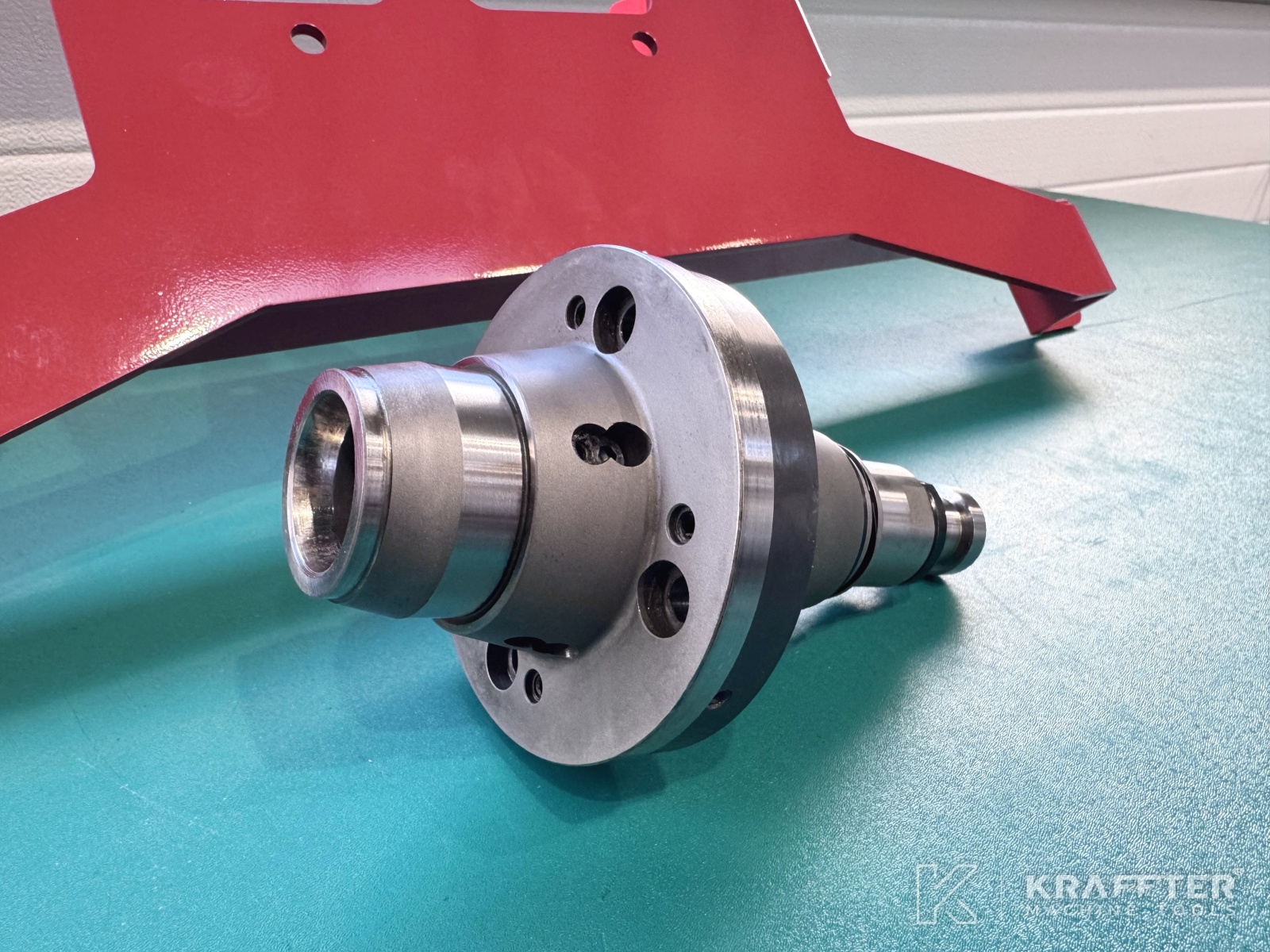

x1 ANCA W25 collet chuck
-
x1 set of linear glass scales on the X and Y axes
-

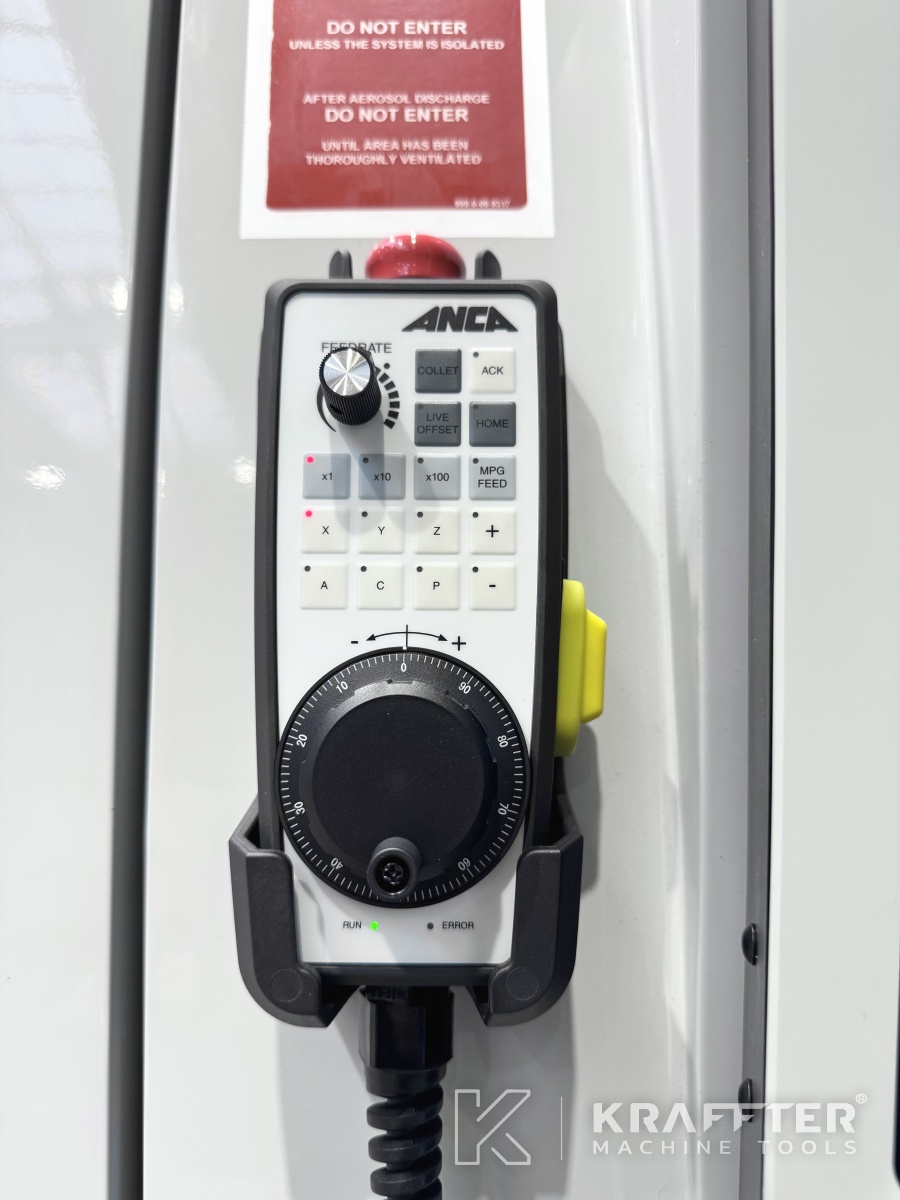

x1 RENISHAW part probe
-

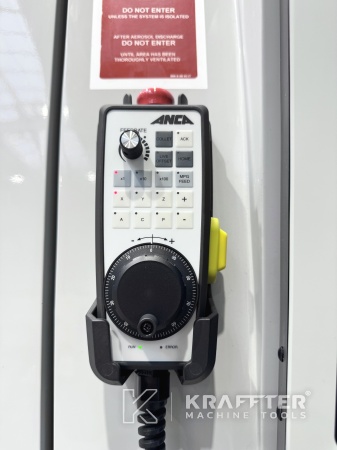

x1 remote electronic handwheel
-

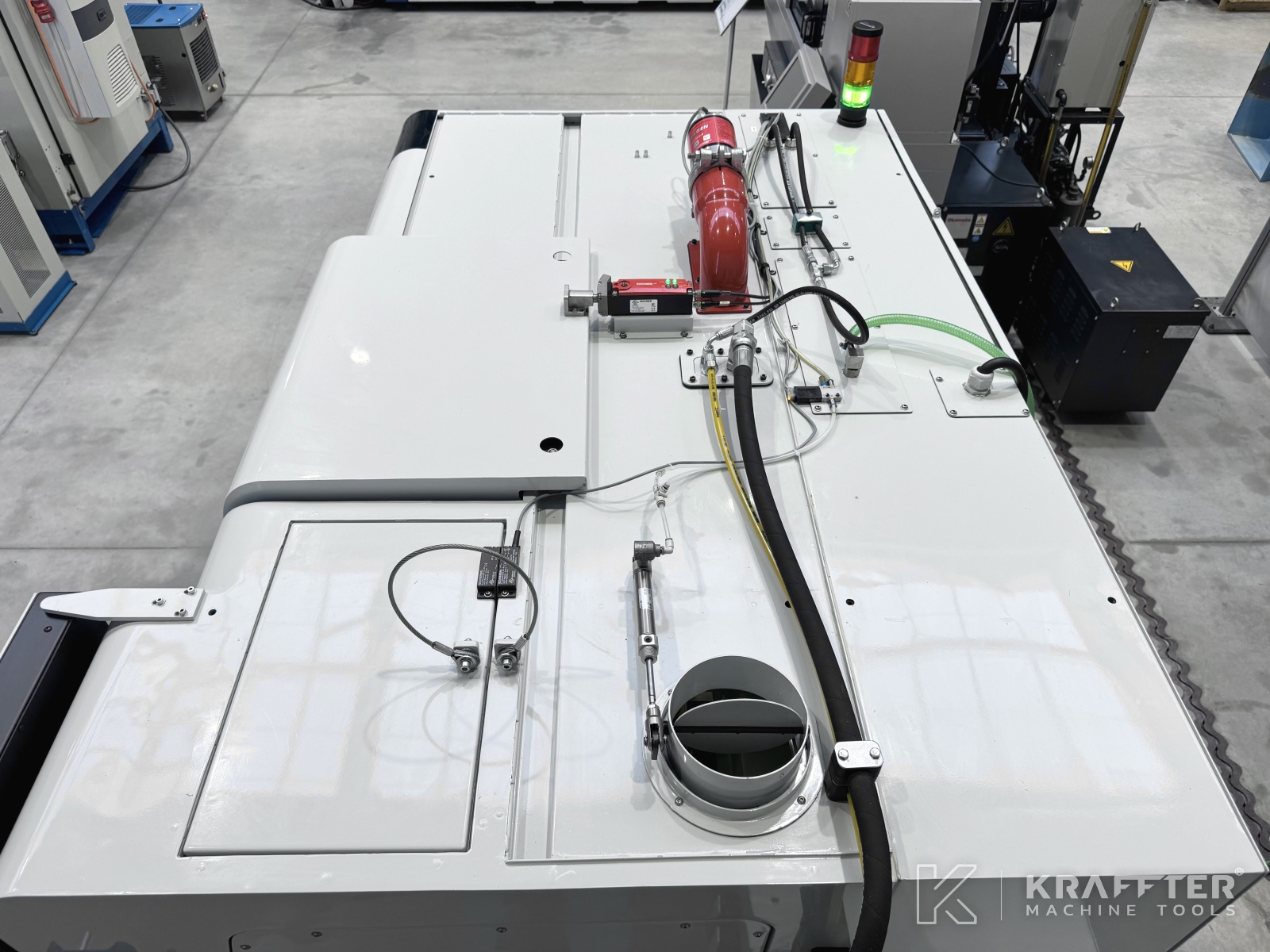

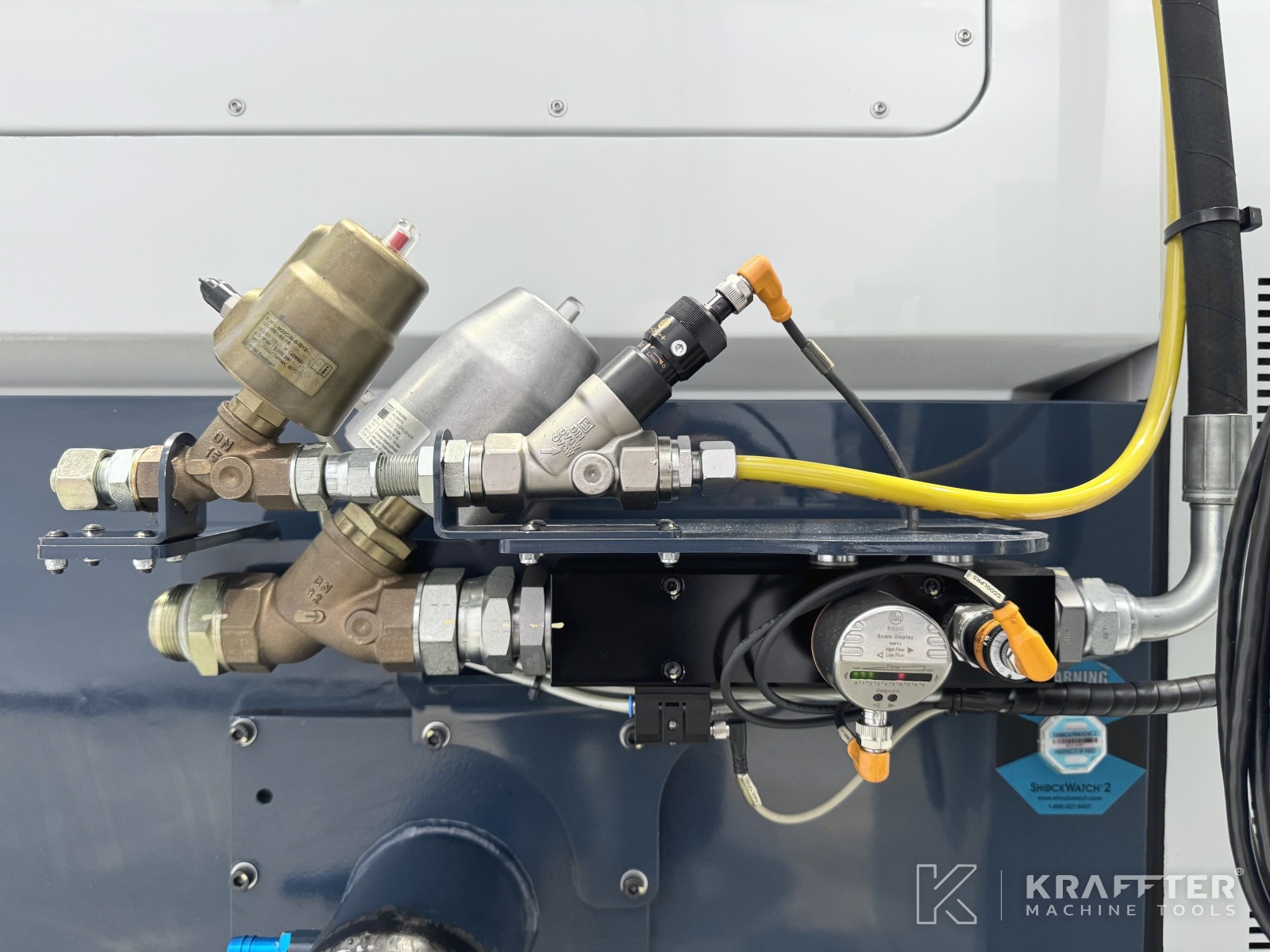

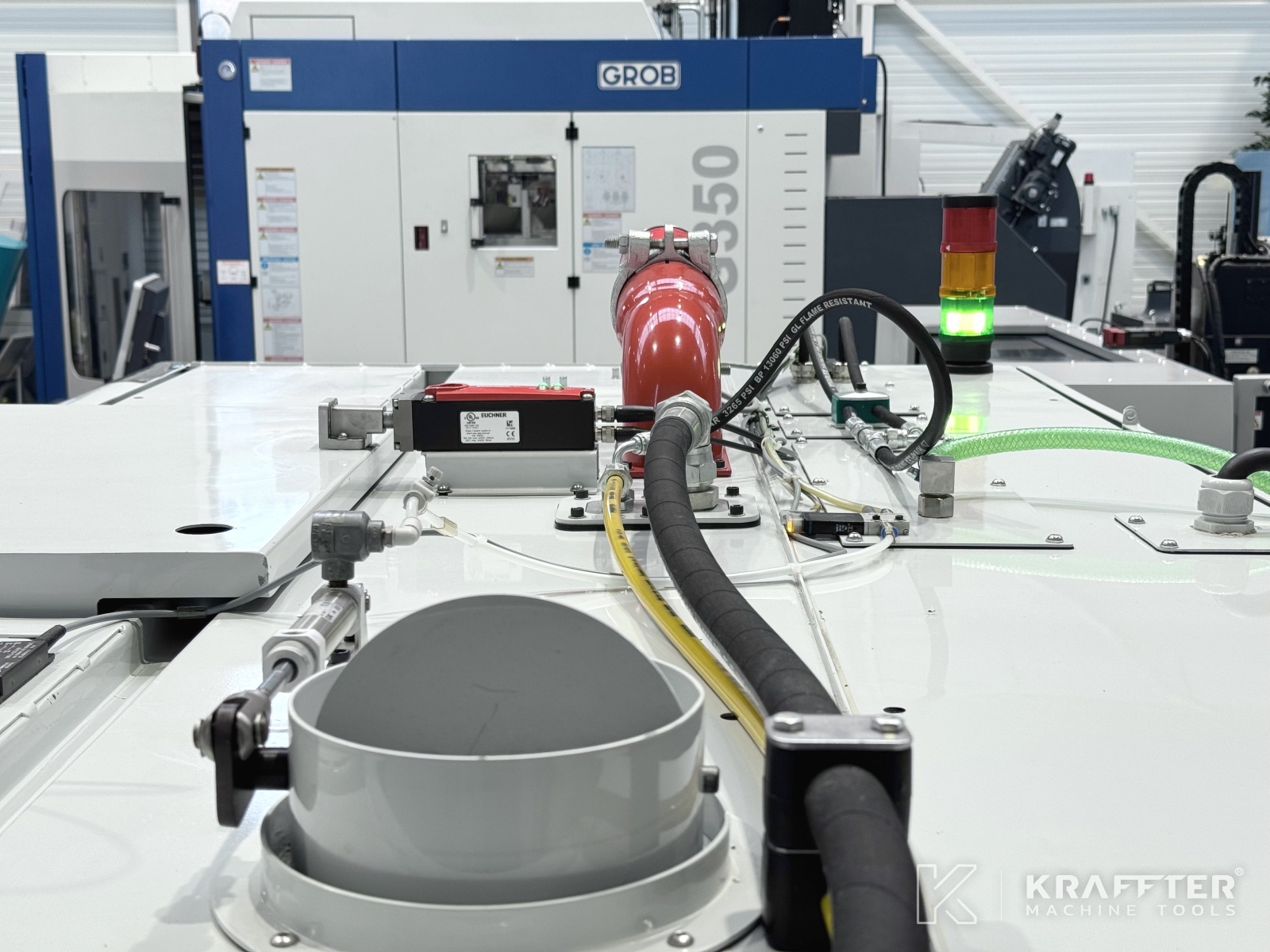

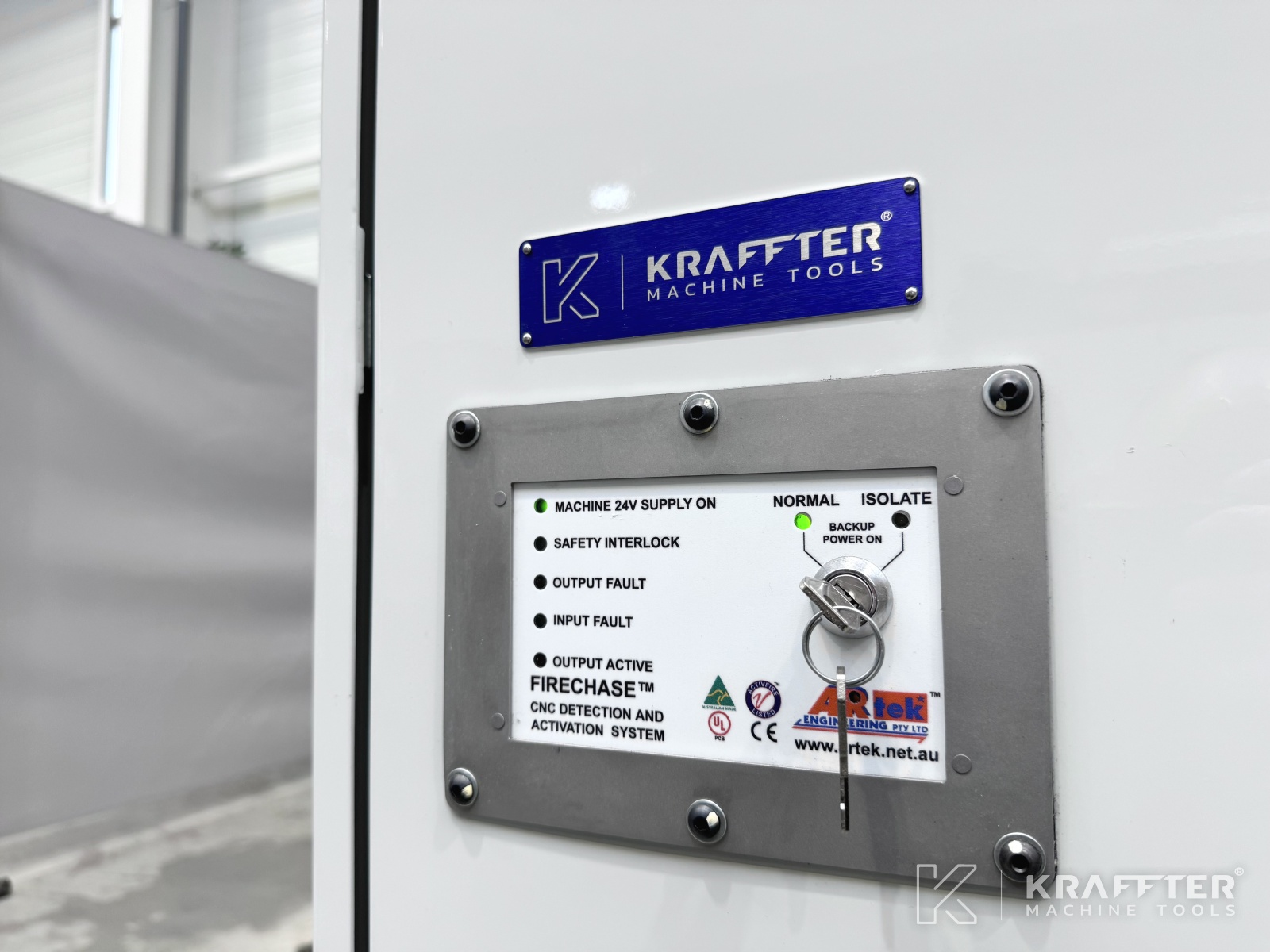

x1 fire protection system - to be inspected by the buyer through a certified organization
-
x1 3-color status light
-

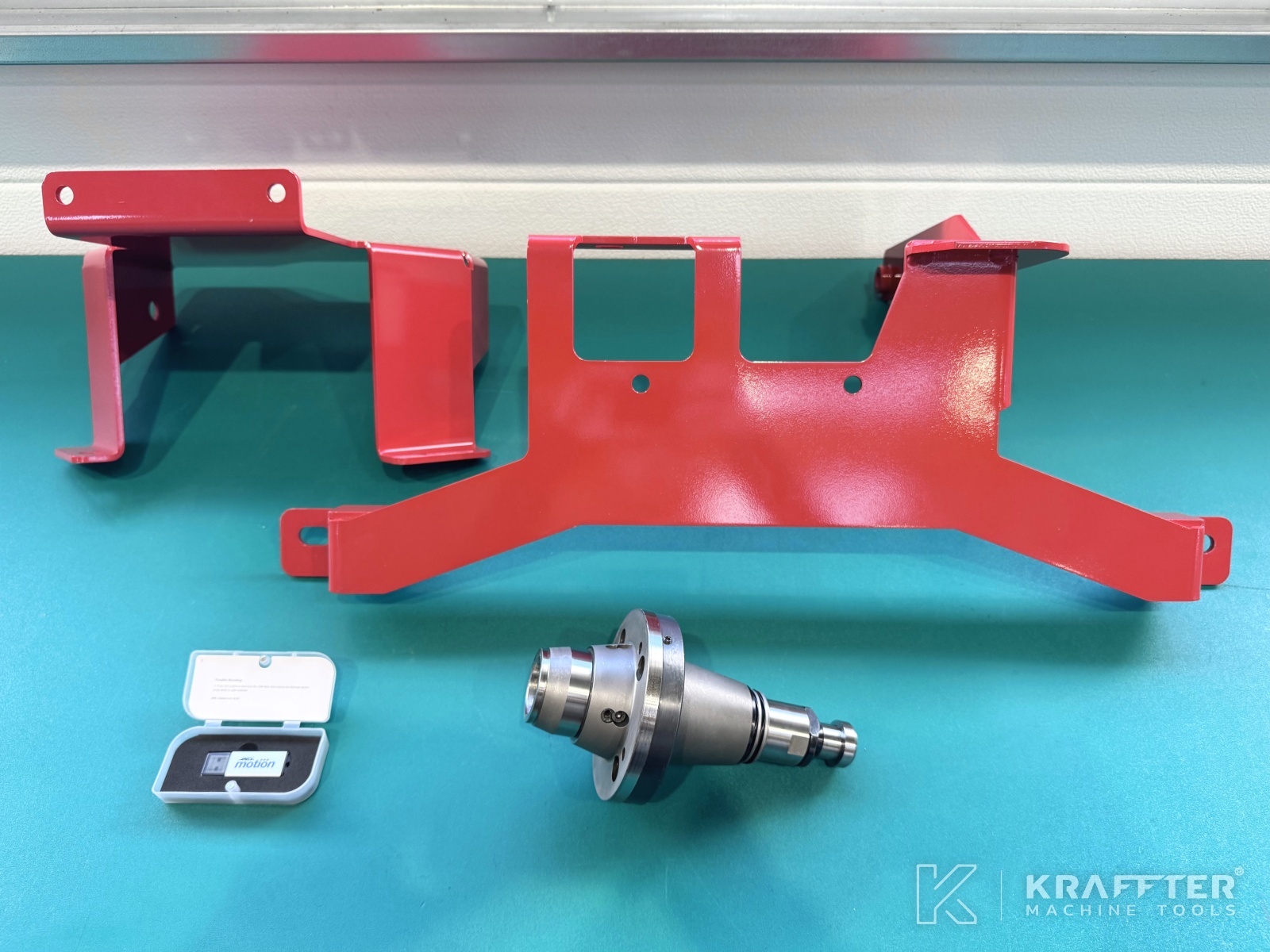

x1 set of transport brackets
